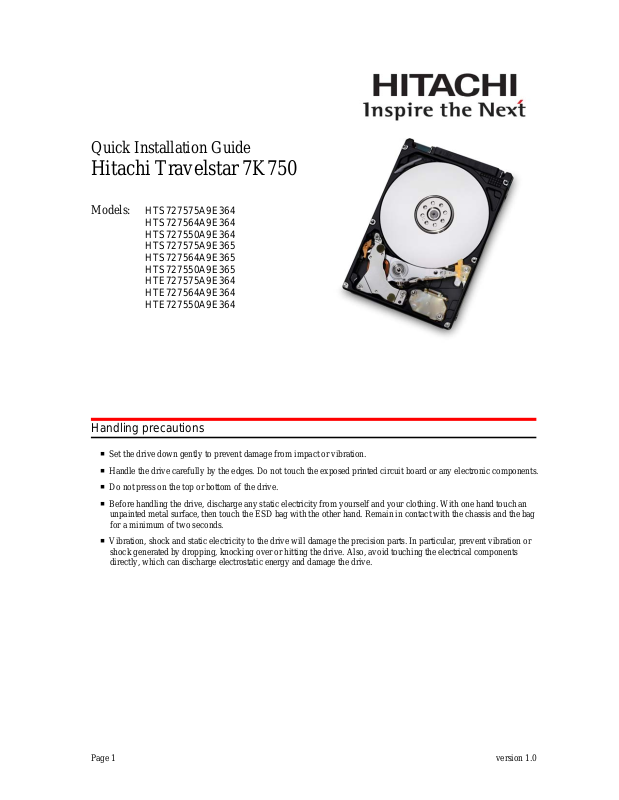

Hitachi HTS727575A9E364, HTS727564A9E364, HTS727550A9E364, HTS727575A9E365, HTS727564A9E365 Quick Installation Guide

Quick Installation Guide

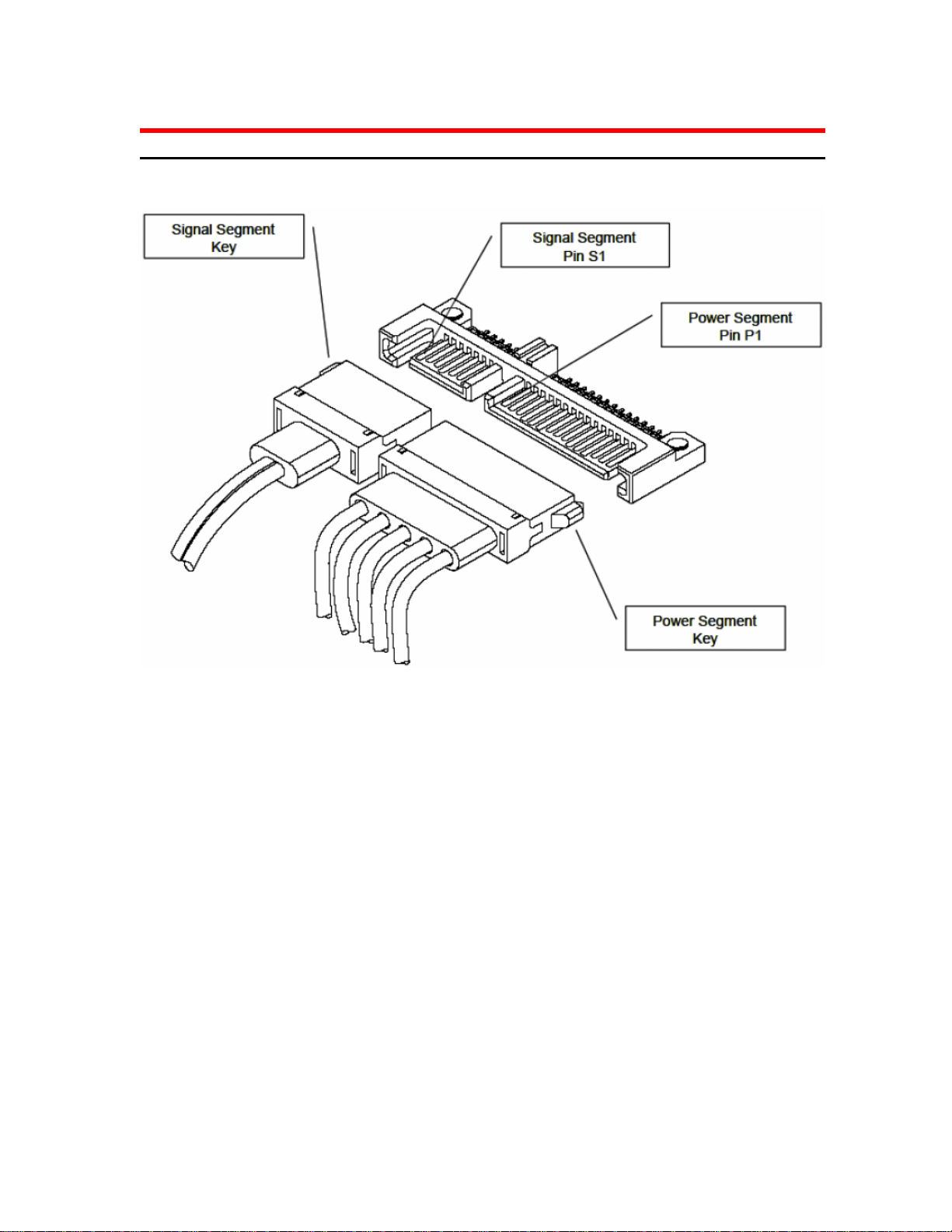

Hitachi Travelstar 7K750

Models: HTS727575A9E364

HTS727564A9E364

HTS727550A9E364

HTS727575A9E365

HTS727564A9E365

HTS727550A9E365

HTE727575A9E364

HTE727564A9E364

HTE727550A9E364

Handling precautions

Set the drive down gently to prevent damage from impact or vibration.

Handle the drive carefully by the edges. Do not touch the exposed printed circuit board or any electronic components.

Do not press on the top or bottom of the drive.

Before handling the drive, discharge any static electricity from yourself and your clothing. With one hand touch an unpainted metal surface, then touch the ESD bag with the other hand. Remain in contact with the chassis and the bag for a minimum of two seconds.

Vibration, shock and static electricity to the drive will damage the precision parts. In particular, prevent vibration or shock generated by dropping, knocking over or hitting the drive. Also, avoid touching the electrical components directly, which can discharge electrostatic energy and damage the drive.

Page 1

version 1.0

Hitachi Global Storage Technologies

Mounting Recommendations

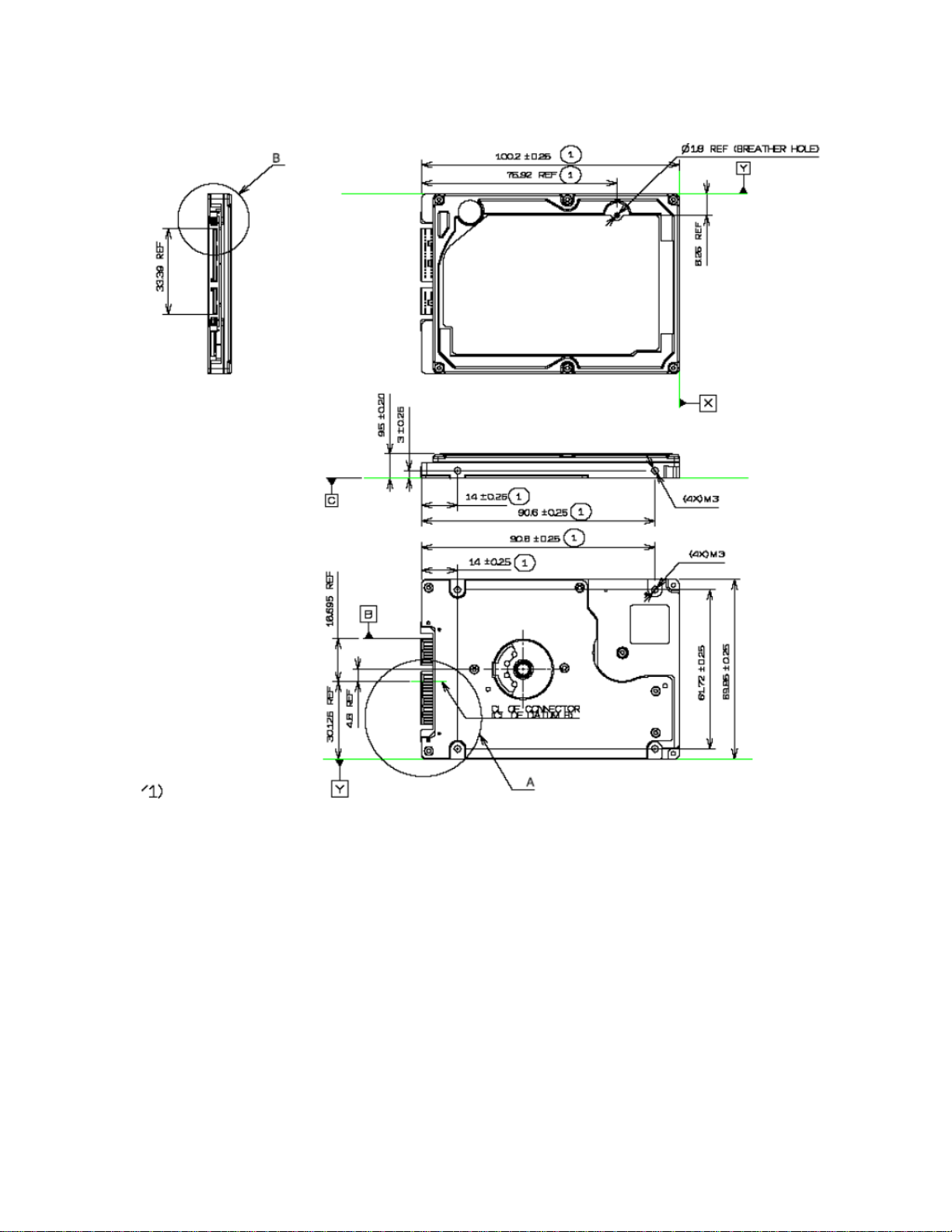

The mounting hole locations and size of the drive are shown below:

Page 2

version 1.0
