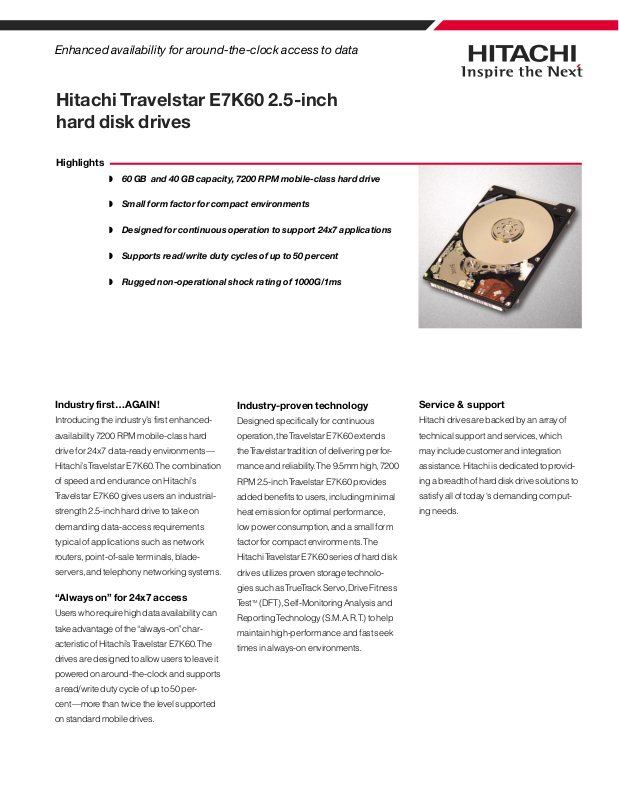

Hitachi HTE726060M9AT00, HTE726040M9AT00 Reference Guide

Enhanced availability for around-the-clock access to data

Hitachi Travelstar E7K60 2.5-inch
hard disk drives

Highlights

 60 GB and 40 GB capacity, 7200 RPM mobile-class hard drive

 Small form factor for compact environments

 Designed for continuous operation to support 24x7 applications

 Supports read/write duty cycles of up to 50 percent

 Rugged non-operational shock rating of 1000G/1ms

Industry first…AGAIN!

Introducing the industry’s first enhanced-

availability 7200 RPM mobile-class hard

drive for 24x7 data-ready environments—

Hitachi’s Travelstar E7K60. The combination

of speed and endurance on Hitachi’s

Travelstar E7K60 gives users an industrial-

strength 2.5-inch hard drive to take on

demanding data-access requirements

typical of applications such as network

routers, point-of-sale terminals, blade-

servers, and telephony networking systems.

“Always on” for 24x7 access

Users who require high data availability can

take advantage of the “always-on” char-

acteristic of Hitachi’s Travelstar E7K60. The

drives are designed to allow users to leave it

powered on around-the-clock and supports

a read/write duty cycle of up to 50 per-

cent—more than twice the level supported

on standard mobile drives.

Industry-proven technology

Designed specifically for continuous

operation, the Travelstar E7K60 extends

the Travelstar tradition of delivering perfor-

mance and reliability. The 9.5mm high, 7200

RPM 2.5-inch Travelstar E7K60 provides

added benefits to users, including minimal

heat emission for optimal performance,

low power consumption, and a small form

factor for compact environme nts. The

Hitachi Travelstar E7K60 series of hard disk

drives utilizes proven storage technolo-

gies such as TrueTrack Servo, Drive Fitness

TestTM (DFT), Self-Monitoring Analysis and

Reporting Technology (S.M.A.R.T.) to help

maintain high-performance and fast seek

times in always-on environments.

Service & support

Hitachi drives are backed by an array of

technical support and services, which

may include customer and integration

assistance. Hitachi is dedicated to provid-

ing a breadth of hard disk drive solutions to

satisfy all of today ‘s demanding comput-

ing needs.

Hitachi family of Travelstar E7K60 hard disk drives specifications

Product name Travelstar E7K60

Model number HTE726060M9AT00, HTE726040M9AT00

Configuration

Interface ATA-6
Capacity (GB)1 60 / 40
Sector size (bytes) 512
Recording zones 16
Data heads 4
Disks 2
Max. areal density (Gbits/sq.inch) 50

Performance

Data buffer (MB)2 8
Rotational speed (rpm) 7,200
Latency (average ms) 4.2
Max. media transfer rate (Mbits/sec) 518
Max. interface transfer rate (MB/sec) 100MB/sec Ultra DMA mode-5

16.6MB/sec PIO mode-4
Seek time (ms)
Average (typical) 10
Track to track (typical) 1.0
Full stroke (typical) 18

Reliability

Error rate (non-recoverable) < 1 per 1013 bits transferred
Load/unload cycle 300,000
Power on hours (POH) per month 732

Power

Requirement +5VDC(±5%)
Dissipation (typical)
Startup (max. peak) 5.5 W
Seek (average) 2.6 W
Read (average) 2.5 W
Write (average) 2.5 W
Idle (average) 2.0 W
Standby (average) 0.25 W
Sleep 0.1 W
Power consumption efficiency (watts/GB)3 0.033 / 0.055

Physical size

Height (mm) 9.5
Width (mm) 70
Depth (mm) 100
Weight (g) 115

Environmental characteristics

Operating

Ambient temperature 5° to 40° C
Relative humidity (non-condensing) 8% - 90%
Maximum wet bulb (non-condensing) 29.4° C
Shock (half sine wave) 200G/2ms
Vibration
Random (RMS) 0.67G (5 - 500Hz)
Sine wave 1.0G (5 - 500Hz)

Non-operating

Ambient temp -40° to 65° C
Relative humidity (non-condensing) 5% - 95%
Maximum wet bulb (non-condensing) 40° C
Shock (half sine wave) 1,000G/1ms
Vibration (sine wave) 5.0G (22 - 500Hz)

Acoustics (A-Weighted Sound Power (Bels))

Idle (typical) 2.7
Op (typical) 3.3
Idle (maximum) 3.0
Op (maximum) 3.5
