Projector

CP-WU8700/CP-WX8750/CP-X8800 CP-WU8600/CP-WX8650

User's Manual (detailed) Operating Guide

Thank you for purchasing this projector.

WARNING

►Before using this product, please read all manuals for this product. Be sure to read Safety Guide rst. After reading them, store them in a safe place for future reference.

About this manual

Various symbols are used in this manual. The meanings of these symbols are described below.

WARNING

CAUTION

NOTICE This entry notices of fear of causing trouble.

NOTE

• The information in this manual is subject to change without notice.

• The illustrations in this manual are for illustrative purposes. They may differ slightly from your projector.

• The manufacturer assumes no responsibility for any errors that may appear in this manual.

• The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Trademark acknowledgment

• Mac® is a registered trademark of Apple Inc.

• Windows in the U.S. and/or other countries.

• VESA and DDC are trademarks of the Video Electronics Standard Association.

•

HDMITM, the HDMI logo, and High-Denition Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC in the United States and other countries.

•

Trademark PJLink is a trademark applied for trademark rights in

Japan, the United States of America and other countries and areas.

• Blu-ray DiscTM and Blu-rayTM are trademarks of Blu-ray Disc Association.

• DICOM for its standards publications relating to digital communications of medical information.

• HDBaseT

•

DisplayPort is a trademark or registered trademark of Video Electronics Standards Association.

All other trademarks are the properties of their respective owners.

is the registered trademark of the National Electrical Manufacturers Association

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Please refer to the pages written following this symbol.



, DirectDraw® and Direct3D® are registered trademarks of Microsoft Corporation

and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

Contents



Introduction ...............3

Features ......................3

Checking the contents of package

Part names ....................4

Projector, Control panel and Indicators, Ports, Remote control

Setting up .................8

Arrangement ..................10

Connecting with your devices .....13

Fastening the cables ............23

Fastening the adapter cover ......24

Attaching the terminal cover ......25

Using the security bar and slot ....26

Connecting power supply ........27

Remote control ............28

Installing the batteries ...........28

Using the REMOTE ID function ...29 Changing the frequency of remote control signal About the remote control signal ...30

Status Monitor ............31

Displaying the condition of the projector

Displaying the log ..............33

Power on/off ..............35

Turning on the power ...........35

Turning off the power ...........35

Operating ................37

Adjusting the volume ...............37

Temporarily turning off the screen and audio

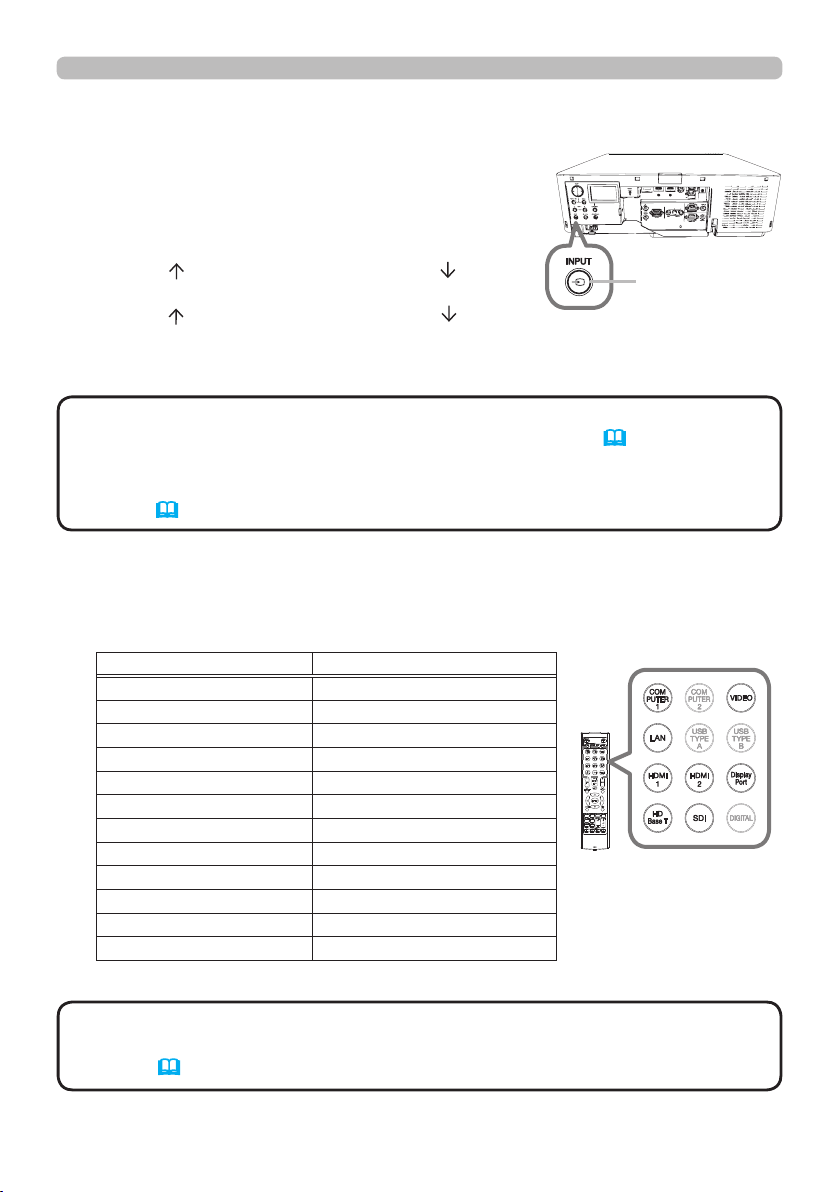

Selecting an input signal .........38

Selecting an aspect ratio .........39

Adjusting the projector's elevator Installation angle

................40

Adjusting the lens ..............41

Adjusting the zoom and focus, Adjusting the lens position, Lens memory

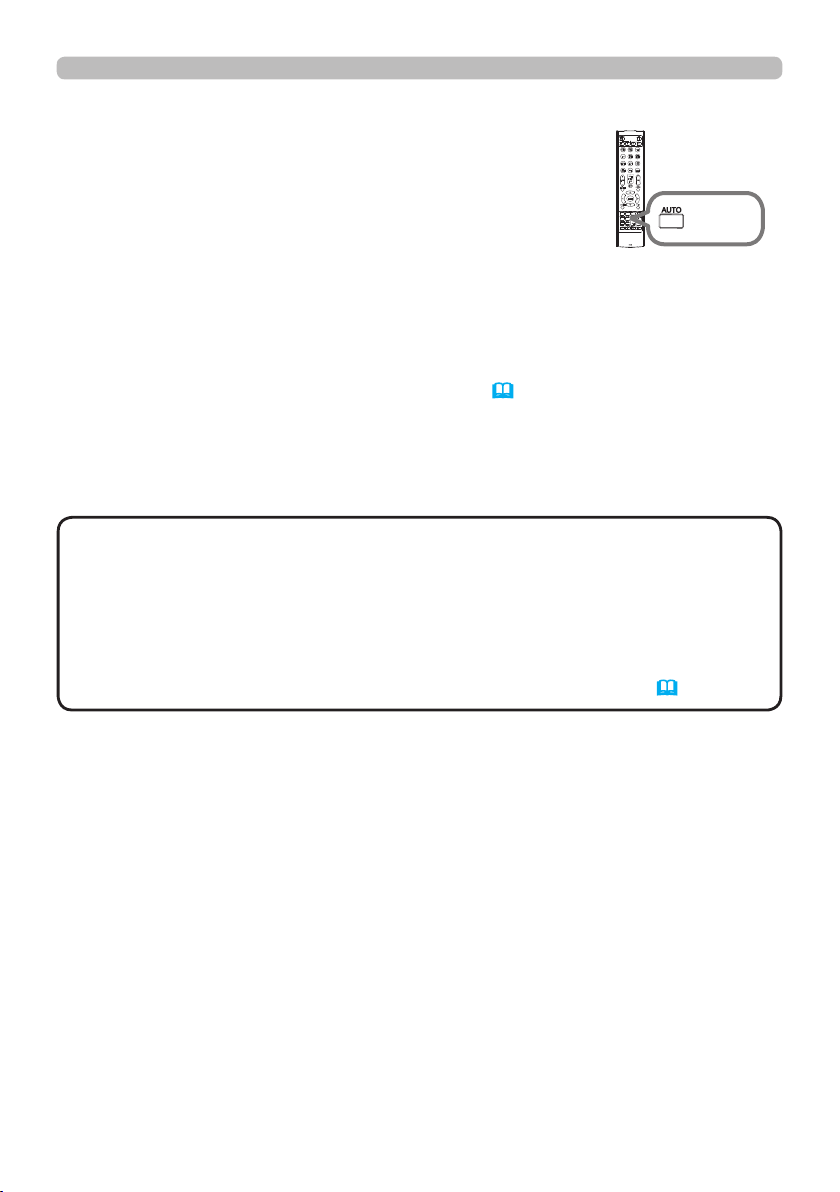

Using the automatic adjustment feature

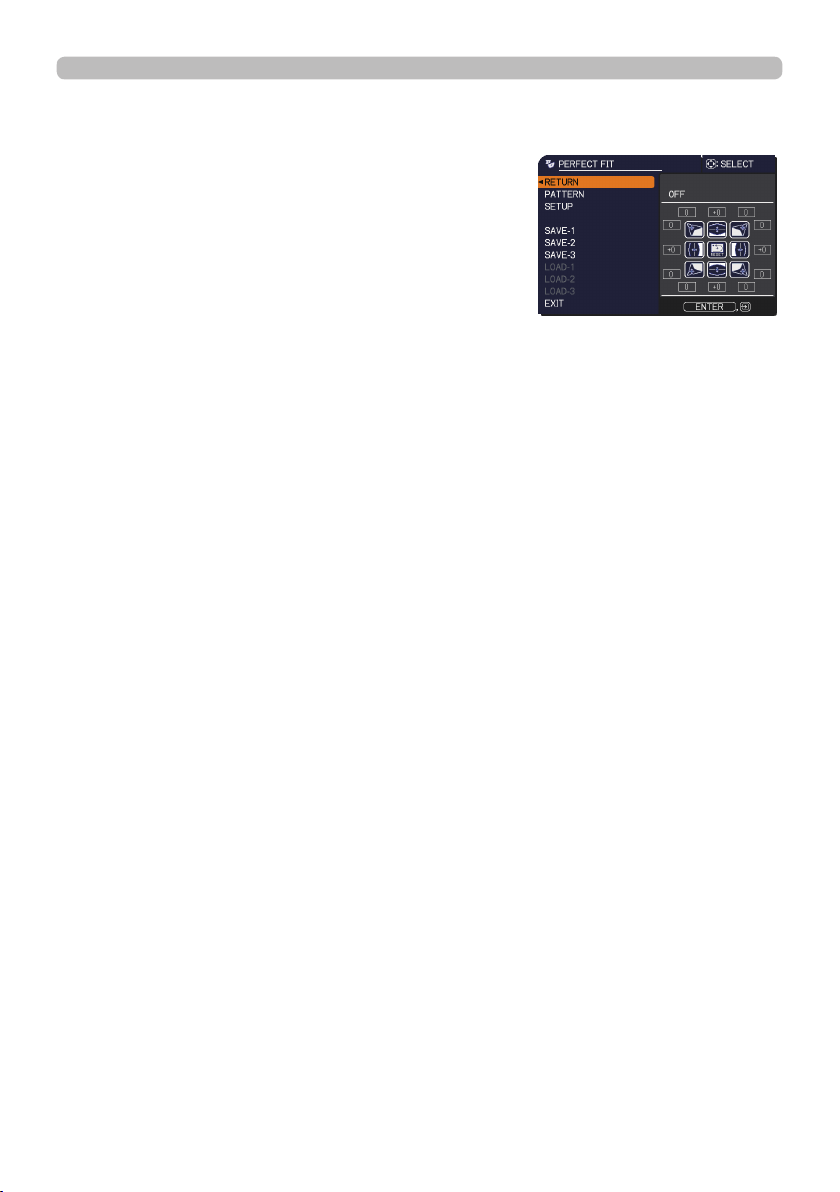

Correcting the distortion .........44

Using the EDGE BLENDING features

Using the magnify feature ........51

Temporarily freezing the screen ...52 Temporarily shading the screen ...52

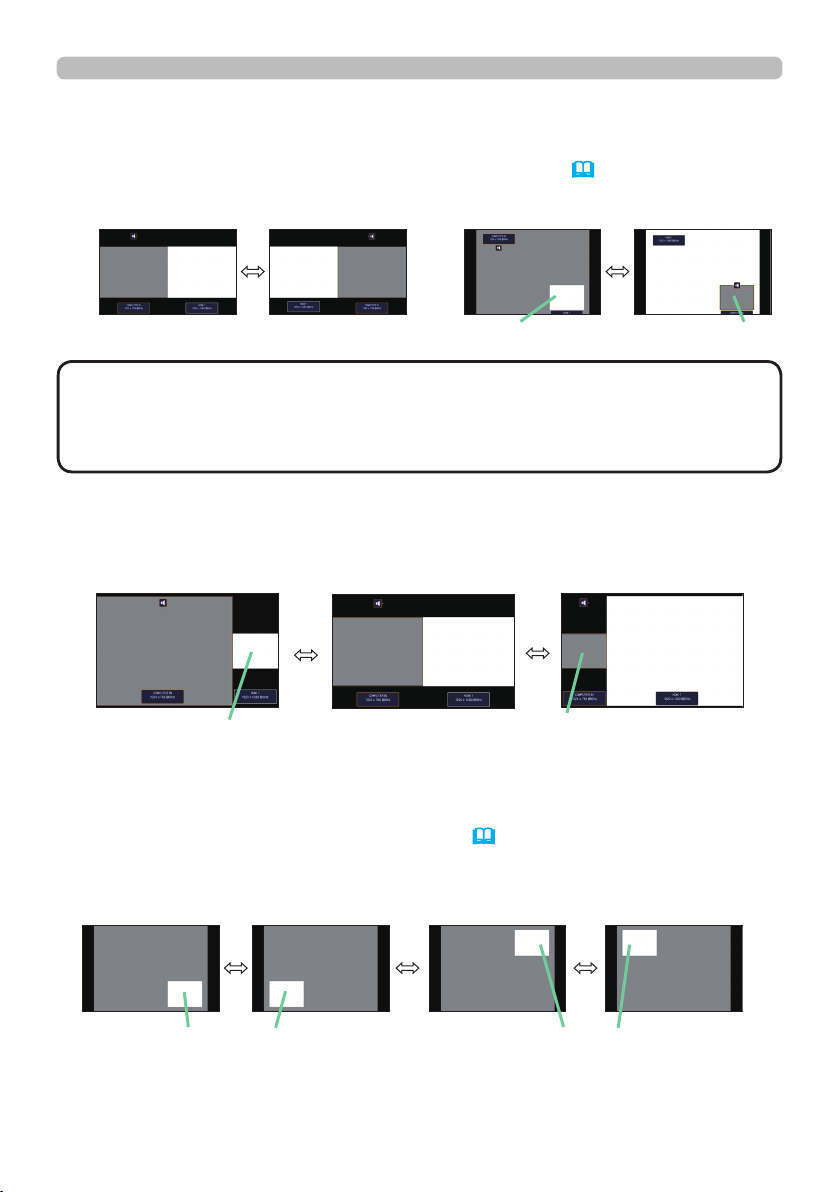

PbyP (Picture by Picture) / PinP (Picture in Picture) ...53

Using the menu function .........57

Indication in OSD, Containing items of each menu

....3

. . 29

. . 31

. . 37

....40

. . 43

. . 47



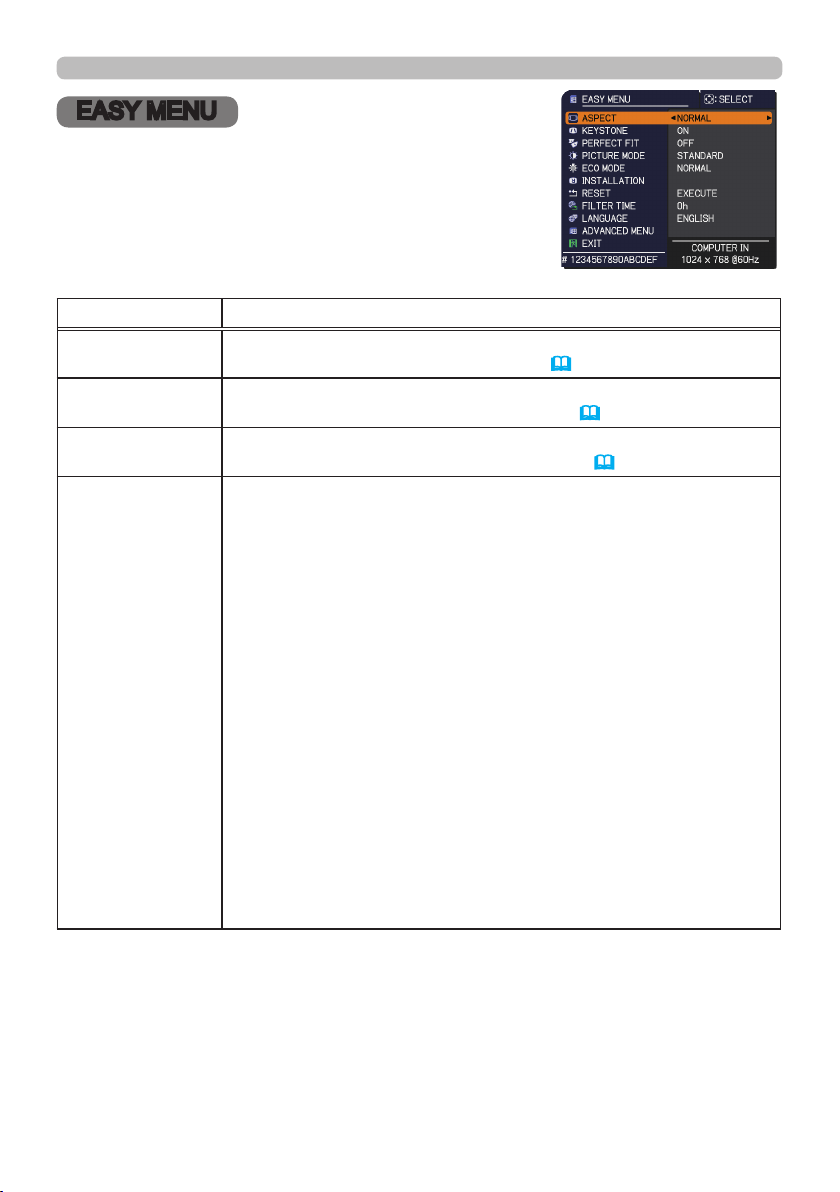

EASY MENU. . . . . . . . . . . . . . . 60

PICTURE menu ............62

IMAGE menu ..............66

INPUT menu ..............69

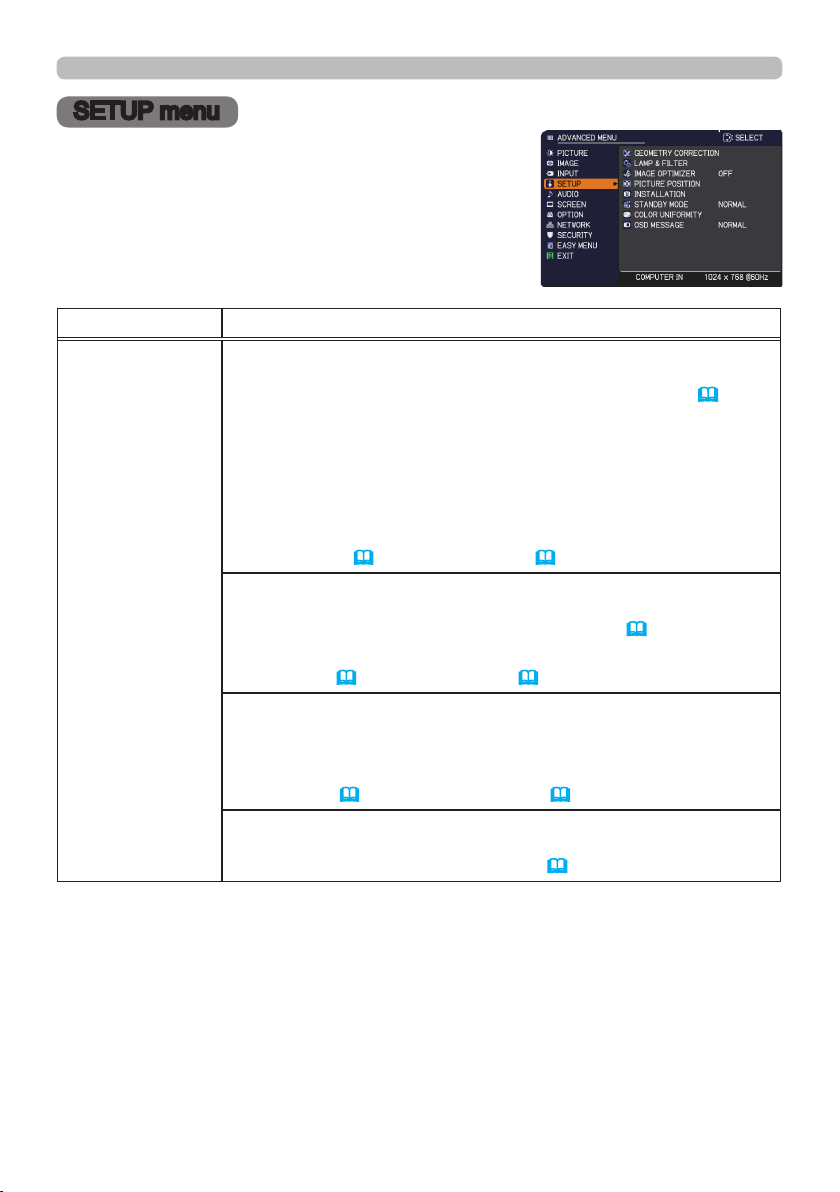

SETUP menu ..............74

AUDIO menu ..............80

SCREEN menu .............81

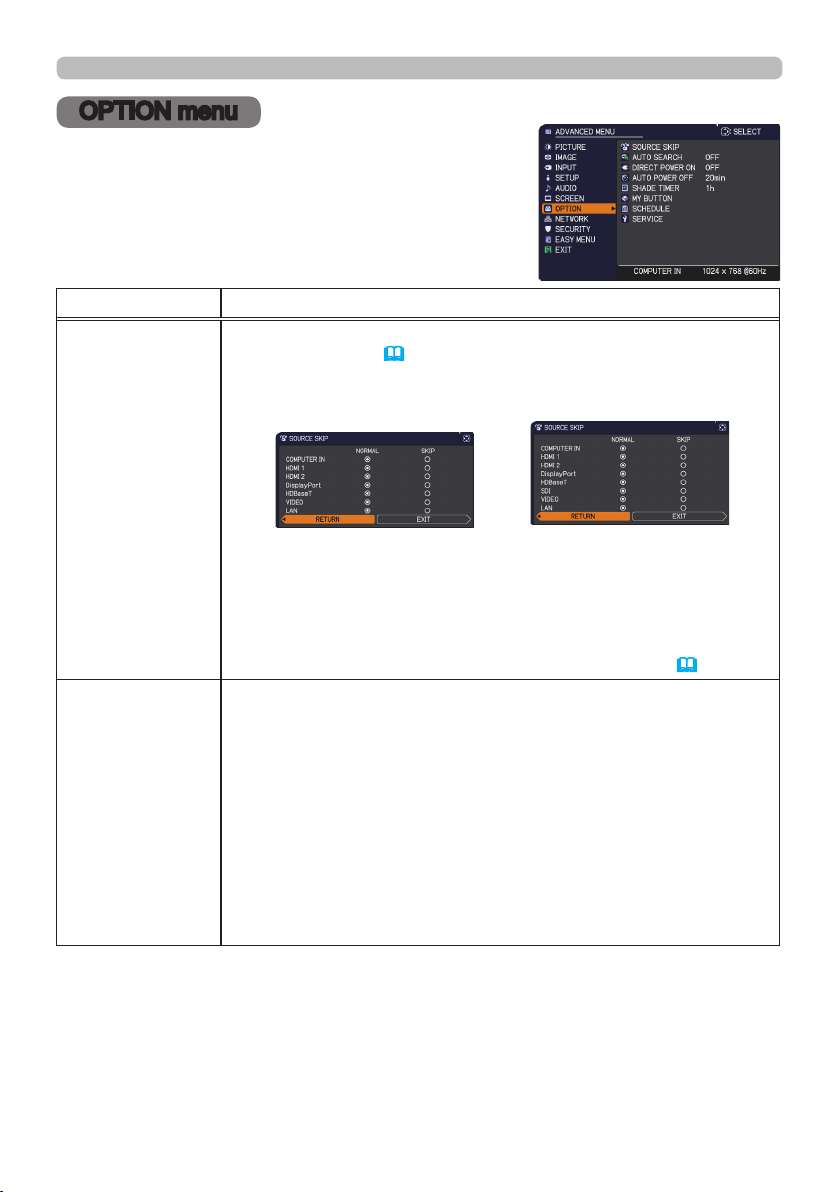

OPTION menu .............87

NETWORK menu ..........100

SECURITY menu ..........101

Maintenance .............108

Replacing the lamp ............108

Cleaning and replacing the air lter . 110 Replacing the internal clock battery

.112

Other care ................... 113

Troubleshooting ..........114

Warnings displayed on the Status Monitor

...114

Related messages .............. 114

Regarding the indicator lamps ... 117

Resetting all settings ...........121

Phenomena that may be easy to be mistaken for machine defects

. . 122

Specications ............129

Introduction

Features

The projector provides you with the broad use by the following features.

ü The HDMI

equipment which have digital interface to get clearer pictures on a screen.

ü The super bright lamp and high quality optical system can fulll the demands

of professional uses.

ü Some optional lens units and the wide range of the lens shift feature will give

much more chances to install the product wherever you want.

ü The wealth of I/O ports is believed to support any business scene. ü Has an HDCR and an ACCENTUALIZER features which are Hitachi's original

image stabilizer for a clearer image.

ü Has a DICOM

mode. This mode simulates the DICOM standard, which is a standard applicable to digital communications in medicine.

ü The built-in 16W speaker can deliver sufcient sound volume in a large space

like a classroom without external speakers.

ü COLOR MANAGEMENT can correct an image by dividing it into three-

dimensional space such as color phase, color saturation, and brightness.

ü Equipped with IMAGE OPTIMIZER which is Hitachi's original function to

maintain visibility by automatic image correction in accordance with lamp deterioration.

/Display Port/HDBaseTTM ports can support various image

(“Digital Imaging and Communication in Medicine”) simulation

Checking the contents of package

Please see the Contents of package section in the User’s Manual (concise) which is a book. Your projector should come with the items shown there. Require of your dealer immediately if any items are missing.

WARNING

to put in the mouth. If swallowed, consult a physician immediately for emergency treatment.

NOTE

• Keep the original packing materials for future reshipment. Be sure to use the original packing materials when moving the projector. Remove the lens unit and attach the lens hole cover when moving the projector.

►Keep small parts away from children and pets. Take care not

Introduction

Part names

Projector

(1) Lamp cover (

The lamp unit is inside. (2) Speakers (x2) (37, 80) (3) Filter cover (110)

The air  lter and intake vent

are inside. (4) Elevator feet (x2) (40) (5) Remote sensors (x2) (30, 95) (6) Lens hole cover (7) Indicators (5) (8) Intake vents (9) Control panel (5) (10) Status Monitor (31) (11) AC (AC inlet) (27) (12) Exhaust vents (13) Ports (6) (14) Security bar (26) (15) Security slot (26) (16) Safety bar (26) (17) Battery cover (112)

108)

(7)

(5)

(2)

(9)

(4)

(11)

(6)

(10)

(13)

(15)

(16)

(5)

(14)

(17)

(12)

(8)

(3)

(2)

(4)

(8)

(1)

(8)

WARNING

►Do not open or remove any portion of the product, unless the manuals direct it. ►Do not subject the projector to unstable conditions. ►Do not apply a shock or pressure to this product. Remove all the attachments including the power cord and cables, from the projector when carrying the projector. ►Do not look into the lens and the openings on the projector while the lamp is on since the projection ray may cause a trouble on your eyes. ►Keep any object away from concentrated projection light beam. Blocking the beam by something causes high temperature and could result in  re or smoke.

CAUTION

►Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot. ►Do not attach anything onto the lens except the lens cover of this projector because it could damage the lens, such as melting the lens.

(continued on next page)

Part names (continued)

SHADE

Control panel and Indicators

(1) STANDBY/ON button (

35) (2) INPUT button (38, 57) (3) MENU button (57) (4) LENS SHIFT button (41) (5) ZOOM button (41) (6) FOCUS - / + buttons (41) (7) SHADE button (52) (8) FUNCTION button (33, 42) (9) FILTER indicator (121) (10) SHADE indicator (52) (11) SECURITY indicator (107) (12) LAMP indicator (117 ~ 120) (13) TEMP indicator (117 ~ 120)

(3)

(4)

(6)

(2)

(14) POWER indicator (35, 117 ~ 120)

Introduction

(9) (10) (11) (12) (13) (14)

(5)

(8)

SHADE

(1)

(7)

(continued on next page)

Introduction

Part names (continued)

Ports (13~22) (1) COMPUTER IN port

(2) HDBaseT port (3) LAN port (4) WIRELESS port (5) HDMI 1 port (6) HDMI 2 port (7) DisplayPort port (8) VIDEO port

(9) SDI port (CP-WU8700 only) (10) AUDIO IN1 port (11) AUDIO IN2 (L, R) ports (12) AUDIO OUT port (13) MONITOR OUT port (14) REMOTE CONTROL IN port (15) REMOTE CONTROL OUT port (16) CONTROL port

CP-WU8600/CP-WX8650/CP-WX8750/CP-X8800

(7)

(2)

(14)

(15)

(5) (6)

(16)

(8)

(11)

CP-WU8700

(7)

(5) (6)

(9)

(4)

(3)

(1)

(10)

(12)

(13)

(4)

(3)

(2)

(14)

(15)

(11)

(16)

(8)

(13)

(1)

(10)

(12)

Part names (continued)

Remote control

(1) STANDBY button (35) (2) ON button ( (3) ID - 1 / 2 / 3 / 4 buttons ( (4) COMPUTER 1 button (

35)

29)

38)

(5) COMPUTER 2 button * (6) VIDEO button ( (7) LAN button (

38)

(8) USB TYPE A button * (9) USB TYPE B button * (10) HDMI 1 button ( (11) HDMI 2 button ( (12) DisplayPort button ( (13)

HDBaseT button

38)

(38)

(14) SDI button

(Supported only for CP-WU8700) (

38) (15) DIGITAL button * (16) FOCUS + / - buttons ( (17) ZOOM + / - buttons ( (18) LENS SHIFT button (

41)

(19) LENS MEMORY LOAD / SAVE buttons ( (20) LENS LOCK button ( (21) OSD MSG button (

94)

79)

(22) ▲/▼/◄/►cursor buttons (23) ENTER button ( (24) AV MUTE button ( (25) MENU button ( (26) GEOMETRY button ( (27) PICTURE button ( (28) LAMP button ( (29) RESET button ( (30) ASPECT button ( (31) AUTO button ( (32) MAGNIFY ON / OFF buttons ( (33) VOL + / - buttons ( (34) FREEZE button ( (35) PbyP button ( (36) MY BUTTON - 1 / 2 / 3 / 4 buttons ( (37) Battery cover ( (38) Wired remote control port (

33, 57)

37)

57)

74, 75)

63 ~ 65)

75, 76)

57)

39)

43)

51)

37)

52)

53)

89, 90)

28)

20)

(27) (31)

(35)

42)

(1) (3)

(4) (7)

(8) (10) (13) (14)

(16) (20)

(18) (23)

(24) (26)

(30) (34) (36)

Back of

the remote control

Introduction

(37)

(38)

(2)

(5) (6) (9) (11) (12) (15)

(17) (19) (21)

(22)

(25) (29)

(33)

(28)

(32)

NOTE

• Any button marked with “*” is not supported on this projector (116).

• Each time you press any button (except ID buttons), the ID button of current selected ID number will light (

29).

Setting up

Install the projector according to the environment and manner the projector will be used in.

For the case of installation in a special state such as ceiling mount, the speci ed mounting accessories and service may be required. Before installing the projector, consult your dealer about your installation.

Installing the lens unit

See the manual of the optional lens.

Secure a clearance of 50cm or greater between the exhaust vents and walls, and a clearance of 30cm or greater between the intake vents and walls. Assume that there is enough clearance in the front, back, and top of the projector in the  gure below.

50cm or greater

Exhaust vents

30cm or greater

Intake vents

(continued on next page)

Setting up

Setting up (continued)

Secure a clearance of 50cm or greater between the exhaust vents and walls. Assume that there is enough clearance in the front, sides, and top of the projector in the gure below.

50cm or greater

Exhaust vents

Secure a clearance of 50cm or greater when installing the projectors side by side. As for the required clearance not shown in the gure below, follow the installation mentioned above.

50cm or greater

Secure a clearance of 30cm or greater between the intake vents and walls when installing the projector in portrait mode. As for the required clearance not shown in the gure below, follow the installation mentioned above.

Intake vents

30cm or greater

Setting up

Arrangement

Refer to tables T-1 to T-3 at the back of User’s Manual (concise) as well as the following to determine the screen size and projection distance. The values shown in the table are calculated for a full size screen.

Projector top

Projector bottom

Ⓗ×Ⓥ : ⓐ :

Screen size

Projection distance (from the front of the projector unit)

(continued on next page)

Arrangement (continued)

Setting up

WARNING

►Install the projector where you can access the power

outlet easily. If an abnormality should occur, unplug the projector urgently.

Otherwise it could cause a re or electric shock. ►Do not subject the projector to unstable conditions. If the projector falls or topples over, it could result in injury or damage to the projector and the surrounding things. Using a damaged projector could result in a re and an electric shock.

• Do not place the projector in unstable places, such as an inclined surface, places subject to vibration, on top of a wobbly table or cart, or a surface that is smaller than the projector.

• Do not put the projector on its side, front or rear position.

• Do not attach nor place anything on the projector unless otherwise specied in the manual.

• Do not use any mounting accessories except the accessories specied by the manufacturer. Read and keep the manuals of the accessories used.

• For special installation such as ceiling mounting, be sure to consult your dealer

beforehand.

• It is possible to install the projector for any direction with specied mounting

accessories. Consult with your dealer about such a special installation.

• Remove all the attachments including the power cord and cables, from the

projector when carrying the projector.

►Do not install the pro

jector near thermally conductive or ammable

things. Such things when heated by the projector could result in a re and burns.

• Do not place the projector on a metal stand.

►Do not place the projector where any oils, such as cooking or machine oil, are used. Oil may harm the product, resulting in malfunction, or falling from the mounted position. ►Do not place the projector in a place where it may get wet. Getting the projector wet or inserting liquid into the projector could cause a re and an electric shock, and damage the projector.

• Do not place the projector near water, such as in a bathroom, kitchen, or poolside.

• Do not place the projector outdoors or by the window.

• Do not place anything containing liquid near the projector.

►Do not block the intake vents and exhaust vents of the projector. If the intake vents and exhaust vents of the projector are blocked, the accumulated inside heat may cause re.

(continued on next page)

Setting up

Arrangement (continued)

CAUTION

►Place the projector in a cool place with sufcient ventilation. The projector may shutdown automatically or may malfunction if its internal temperature is too high. Using a damaged projector could result in a re and an electric shock.

• Do not place the projector in direct sunlight or near hot objects such as heaters.

• Do not place the projector where the air from an air conditioner or similar unit will blow on it directly.

• Do not place the projector on carpet, cushions or bedding.

• Do not stop up, block nor cover the projector's vent holes. Do not place

anything around the projector that could be sucked in or stuck to the projector's intake vents.

• Do not place the projector at places that are exposed to magnetic elds, doing

so can cause the cooling fans inside the projector to malfunction. ►Avoid placing the projector in smoky, humid or dusty place. Placing the projector in such places could cause a re, an electric shock and malfunction of the projector.

• Do not place the projector near humidiers. Especially for an ultrasonic

humidier, chlorine and minerals contained in tap water are atomized and could

be deposited in the projector causing image degradation or other problems.

• Do not place the projector in a smoking area, kitchen, passageway or by the

window.

NOTICE

• Position the projector to prevent light from directly hitting the

projector's remote sensor.

• Do not place the product in a place where radio interference may be caused.

• Set the ALTITUDE of the SERVICE item in the OPTION menu correctly. It is

recommended to leave it at AUTO usually (

93). If the projector is used with a

wrong setting, it may cause damage to the projector itself or the parts inside.

• Keep heat-sensitive things away from the projector. Otherwise, they may be

damaged by the heat from the projector.

NOTE

high rotation of the fan for cooling temporarily.

• When the temperature inside the projector rises high, it may cause the

Setting up

Connecting with your devices

Before connecting the projector to a device, consult the manual of the device to conrm that the device is suitable for connecting with this projector and prepare the required accessories, such as a cable in accord with the signal of the device. Consult your dealer when the required accessory did not come with the product or the accessory is damaged. After making sure that the projector and the devices are turned off, perform the connection, according to the following instructions. Refer to the gures in subsequent pages. Before connecting the projector to a network system, be sure to read Network Guide too.

WARNING

cause a re or damage the projector and devices.

• Use only the accessories specied or recommended by the projector’s

manufacturer. It may be regulated under some standard.

• Neither disassemble nor modify the projector and the accessories.

• Do not use the damaged accessory. Be careful not to damage the accessories.

Route a cable so that it is neither stepped on nor pinched out.

CAUTION

with the core to the projector. That may be required by EMI regulations.

►Use only the appropriate accessories. Otherwise it could

►For a cable with a core at only one end, connect the end

NOTE

• Do not turn on or off the projector while connected to a device in operation, unless that is directed in the manual of the device. Otherwise it may cause malfunction in the device or projector.

• The function of some input ports can be selected according to your usage requirements. Check the reference page indicated beside each port in the following illustration.

• Be careful not to mistakenly connect a connector to a wrong port. Otherwise it may cause malfunction in the device or projector.

- When connecting a connector to a port, make sure that the shape of the

connector ts the port.

- Tighten the screws to connect a connector equipped with screws to a port.

- Use the cables with straight plugs, not L-shaped ones, as the input ports of

the projector are recessed.

About Plug-and-Play capability

• Plug-and-Play is a system composed of a computer, its operating system and peripheral equipment (i.e. display devices). This projector is VESA DDC 2B compatible. Plug-and-Play can be used by connecting this projector to a computer that is VESA DDC (display data channel) compatible.

- Take advantage of this feature by connecting a computer cable to the

COMPUTER IN port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.

- Please use the standard drivers in your computer as this projector is a Plug-

and-Play monitor.

(continued on next page)

Setting up

Connecting with your devices (continued)

CP-WU8600/CP-WX8650/CP-WX8750/CP-X8800

HDBaseT

DisplayPort

CP-WU8700

HDBaseT

DisplayPort

Computer

(continued on next page)

Connecting with your devices (continued)

Setting up

NOTE

• Before connecting the projector to a computer, consult the computer’s manual and check the compatibility of the signal level, the synchronization methods and the display resolution output to the projector.

- Some signal may need an adapter to input this projector.

- Some computers have multiple screen display modes that may include some

signals which are not supported by this projector.

- Although the projector can display signals with a resolution up to UXGA

(1600x1200) or up to W-UXGA (1920x1200), the signal will be converted to the projector’s panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and the projector panel are identical.

• If you connect this projector and a notebook computer, you need output the display to an external monitor, or output simultaneously to the internal display and an external monitor. Consult the computer's manual for the setting.

• Depending on the input signal, the automatic adjustment function of this projector may take some time and not function correctly.

- Note that a composite sync signal or sync-on-green signal may confuse the

automatic adjustment function of this projector (71).

- If the automatic adjustment function does not work correctly, you may not see

the dialog to set the display resolution. In such a case, use an external display device. You may be able to see the dialog and set an appropriate display resolution.

• Use DisplayPort cables comforming to the DisplayPort standard.

• Use of DisplayPort cables not conforming to the DisplayPort standard may

cause abnormal operations such as images with interruption or not displayed.

• When the projector is connected to the output of the computer with an early

type of chipset or graphics card that supports the DisplayPort, the projector and/or computer may not operate normally. In that case, turn off the projector and/or computer, then turn on again.

• When connecting the output of the DisplayPort to the input of the

projector, use of the computer with the newest chipset or graphics card is recommended.

• Commercially available DisplayPort cables may have lock system. When

Unplugging the cable, push the button on the connector of the cable.

• Some computers may take a long time to display the image.

• Power supply is available to the connected device with the input port of

DisplayPort. However, it is not available to the computer.

• When the signal from the device with a signal converting adapter is connected

to the input port of DisplayPort, the image may not be displayed.

• Use a commercially available converter when connecting the output port of

HDMI of the computer with the input port of DisplayPort of the projector.

(continued on next page)

Setting up

Connecting with your devices (continued)

CP-WU8600/CP-WX8650/CP-WX8750/CP-X8800

External

device

CP-WU8700

Computer

USB wireless adapter

(optional)

Access point

Computer

External

device

(continued on next page)

USB wireless adapter

(optional)

Access point

Setting up

Connecting with your devices (continued)

WARNING

►Heat may build up in the USB wireless adapter, to avoid possible burns disconnect the projector power cord for 10 minutes before touching the adapter. ►

When using the USB wireless adapter, use the supplied adapter cover or terminal

cover (24, 25).

CAUTION

► Before connecting the projector to a network system be sure to obtain the consent of the administrator of the network. ►

Do not connect the LAN port to any network that might have the excessive voltage.

►

The designated USB wireless adapter that is sold as an option is required to use the wireless network function of this projector. Before connecting the USB wireless adapter, turn off the power of the projector and disconnect the power cord. Do not use any extension cable or device when connecting the adapter to the projector. ►To connect both the LAN cable and USB wireless adapter to the projector, use a LAN cable that is at on the side where the plug’s wire is visible. Otherwise, both of them cannot be connected correctly, or the wire may break (malfunction).

(continued on next page)

Setting up

Connecting with your devices (continued)

CP-WU8600/CP-WX8650/CP-WX8750/CP-X8800

VCR/DVD/

Blu-ray Disc

player

CP-WU8700

VCR/DVD/

Blu-ray Disc

player

(continued on next page)

Setting up

Connecting with your devices (continued)

About HDBaseT™ connection

• HDBaseT is a technology to transmit image, sound, ethernet or serial control signal via LAN cable.

• Please go to the following URL regarding the device of other company that supports HDBaseT and has been conrmed compatible with this projector.

http://www.hitachi.co.jp/proj/

LAN or HDBaseT input port can be selected as ethernet signal input by switching in the menu.

• Use LAN cables of up to 100m long. Exceeding this length, the image and sounds will be deteriorated, and even experience malfunction on LAN transmission.

NOTE

• The HDMI ports of this model are compatible with HDCP (High-bandwidth Digital Content Protection) and therefore capable of displaying video signals from HDCP compatible DVD players or the like.

- The HDMI ports support the following signals:

For Video signals, refer to

User’s Manual (detailed) Technical

Audio signal : Format Linear PCM

Sampling frequency 48kHz / 44.1kHz / 32kHz

- This projector can be connected with another equipment that has HDMITM

connector, but with some equipment the projector may not work properly, something like no video.

- Qualied cable is required for HDBaseT connection.

- Be sure to use an HDMITM cable that has the HDMITM logo.

- Use a Category 2-certied HDMITM cable to input 1080p@50/60 signal to the

projector.

- When the projector is connected with a device having DVI connector, use a

DVI to HDMITM cable to connect with the HDMITM input.

• The HDMITM cables might come off easily due to the lack of a mechanical lock on the cables and connectors. It is recommended to fasten the HDMI cables by using the HDMI cable holder and the Cable tie to prevent them from coming off (23).

(continued on next page)

Setting up

Connecting with your devices (continued)

CP-WU8600/CP-WX8650/CP-WX8750/CP-X8800

(Wired)

Remote

control

CP-WU8700

Another projector

Monitor

Speakers

(with an ampli er)

Speakers

(with an ampli er)

(Wired)

Remote

control

(continued on next page)

Connecting with your devices (continued)

Setting up

NOTE

• To use a wired remote control, connect a wired remote control to the REMOTE CONTROL IN port. You can also connect another projector to the REMOTE CONTROL OUT port to control it from the wired remote control. You can utilize this projector as a remote control-relay with the REMOTE CONTROL IN and OUT ports. To connect the wired remote control or another projector to the REMOTE CONTROL IN or OUT ports, use audio cables with

3.5 mm diameter stereo mini plugs. This function is useful when a wireless remote signal may not reliably reach the projector.

(continued on next page)

Setting up

Connecting with your devices (continued)

CP-WU8700

Camera for commercial use

NOTE

SDI OUT

• The SDI port of this model supports the following SDI signals: SD-SDI signal: conforming to SMPTE ST 259-C standard

YCBCR 4:2:2 10-bit 480i, 576i

Single link HD-SDI signal: conforming to SMPTE ST 292 standard

YPBPR 4:2:2 10-bit 720p@50/60, 1080i@50/60, 1080sf@25/30

3G-SDI Level-A signal: conforming to SMPTE ST 424 standard

YPBPR 4:2:2 10-bit 1080p@50/60

- This projector can be connected with another equipment that has SDI

connector, but with some equipments the projector may not work properly.

- Use a cable of 5CFB or greater (5CFB, 7CFB, etc.), or Belden 1694A or

greater to transmit the image properly. And use a cable with a length of 100m or less.

- Setting by MENU is necessary depending on a connected device.

Setting up

Fastening the cables

Remove the screw located on the lower side of HDMI connector and use it to attach the HDMI cable holder.

screw

It is recommended to fasten the HDMI cables by using the HDMI cable holder and the Cable tie to prevent them from coming off. Use a Cable tie with the size of 2.0 x 4.0mm or smaller.

With cable tieNo cable tie

HDMI cable holder

WARNING CAUTION

►Do not fasten the cables other than HDMI. ►To fasten the cable, use a supplied Cable tie or plastic tie

cable tie

with the size of 2.0 x 4.0mm or smaller. A metallic tie may cause damage to the

cables and tie holder. ►Do not bind the cables too tightly. The cables or the hole might be damaged.

Setting up

Fastening the adapter cover

When using the USB wireless adapter, use the supplied adapter cover for theft prevention.

USB wireless adapter:

USB-WL-11N

Temperature range: 0 ~ 45°C(operating)

Loosen the screw on the bottom left of the WIRELESS port.

Insert the tab of the cover into the hole at the upper right of the WIRELESS

port in the direction of the arrow.

WIRELESS DC5V 0.5A

LAN

Tab

Align the screw holes on the projector and the cover. Then insert the screw

removed from the projector into the hole and tighten the screw.

WIRELESS DC5V 0.5A

LAN

WARNING

►Keep small parts away from children and pets. Take care not to put in the mouth. ►Heat may build up in the USB wireless adapter, to avoid possible burns disconnect the projector power cord for 10 minutes before touching the adapter.

Attaching the terminal cover

Terminal cover

Insert the two claws of the Terminal cover into the hole of

Hook

the case and conrm two Hooks are tting into the case.

Setting up

When detaching the Terminal cover, push the Hook in the direction of the arrow and pull it forward.

NOTE • Do not attach the Adapter cover when attaching the Terminal cover.

Setting up

Using the security bar and slot

A commercially available anti-theft chain or wire can be attached to the security bar on the projector. Refer to the  gure to choose an anti-theft chain or wire. Also this product has the security slot for the Kensington lock. For details, see the manual of the security tool.

chain or wire

security bar

11mm

Anti-theft

Security slot

19mm

15mm

WARNING

►Do not use the security bars and slot to prevent the projector from falling down, since it is not designed for it.

CAUTION

►Do not place anti-theft chain or wire near the exhaust vents. It may become too hot.

NOTE

• The security bar and slot is not comprehensive theft prevention

measures. It is intended to be used as supplemental theft prevention measure.

• The safety bar (4) can be used for the same purpose as the security bar.

Connecting power supply

Setting up

Put the connector of the power

cord into the AC (AC inlet) of the projector.

Push the Cord Stopper until it is caught by

the hook.

Firmly plug the power cord’s plug into the

outlet. In a couple of seconds after the power supply connection, the POWER indicator will light up in steady orange.

Please remember that when the DIRECT POWER ON function activated, the connection of the power supply make the projector turn on.

WARNING

unit is attached to it. ►Please use extra caution when connecting the power cord, as incorrect or faulty connections may result in re and/or electrical shock.

• Do not touch the power cord with a wet hand.

• Only use the power cord that came with the projector. If it is damaged, consult

your dealer to get a new one. Never modify the power cord.

• Only plug the power cord into an outlet whose voltage is matched to the power

cord. The power outlet should be close to the projector and easily accessible. Remove the power cord for complete separation.

• Do not distribute the power supply to multiple devices. Doing so may overload

the outlet and connectors, loosen the connection, or result in re, electric shock or other accidents.

• Connect the ground terminal for the AC inlet of this unit to the ground terminal

of the building using an appropriate power cord (bundled).

NOTICE

phase voltage of 220 to 240 V.

►Do not connect the projector to a power supply while no lens

• This product is also designed for IT power systems with a phase-to

Power cord

Cord Stopper

Power Cord

Hook

Remote control

Installing the batteries

Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

Holding the hook part of the battery

cover, remove it. Align and insert the two AA batteries

according to their plus and minus terminals as indicated in the remote control. (Use the appropriate AA carbon-zinc or alkaline batteries (non-rechargeable) in accordance with laws and regulations.)

Replace the battery cover in the direction of the arrow

and snap it back into place.

WARNING

directed. Improper use may result in battery explosion, cracking or leakage, which could result in re, injury and/or pollution of the surrounding environment.

• Be sure to use only the batteries specied. Do not use batteries of different types at

the same time. Do not mix a new battery with used one.

• Make sure the plus and minus terminals are correctly aligned when loading a battery.

• Keep a battery away from children and pets.

• Do not recharge, short circuit, solder or disassemble a battery.

• Do not place a battery in a re or water. Keep batteries in a dark, cool and dry place.

• If you observe battery leakage, wipe out the leakage and then replace a battery.

If the leakage adheres to your body or clothes, rinse well with water immediately.

• Obey the local laws on disposing the battery.

►Always handle the batteries with care and use them only as

Using the REMOTE ID function

Utilize this function to control specic projectors by the remote control assigned the same ID number when you use multiple projectors of the same type at the same time. Assign an ID number to each projector before using the REMOTE ID item in the SERVICE menu of the OPTION menu (95). Press the ID button with the same ID number as assigned to the projector you are going to control. The ID button selected will light for several seconds.

Remote control

ID buttons

NOTE

• Each time you press any button (except ID buttons), the ID button of

current selected ID number will light.

• To conrm the projector's current ID, press any ID button for 3 seconds. Its number will be shown on each screen regardless of set ID of projector.

Changing the frequency of remote control signal

The accessory remote control has the two choices on signal frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote control does not function properly, attempt to change the signal frequency. In order to set the Mode, please keep pressing the combination of two buttons listed below simultaneously for about 3 seconds.

(95)

(2)

of the projector to be

(1) Set to Mode 1:NORMAL

MENU and MY BUTTON-4 buttons

(2) Set to Mode 2:HIGH

AV MUTE and MY BUTTON-1 buttons

Please remember that the REMOTE

AV MUTE button

MY BUTTON-1

button

FREQ. in the SERVICE item of the OPTION menu controlled should be set to the same mode as the remote control.

(1)

MENU button

MY BUTTON-4

button

30°

Remote control

About the remote control signal

The remote control works with the projector’s remote sensor. This projector has two remote sensors on the front and back sides. The sensors can sense signals within the following range:

60 degrees (30 degrees to the left and right of the sensor) within about 3 meters.

30°

(approx.)

NOTE

• You can deactivate one of the sensors using the REMOTE RECEIV.

item in the SERVICE menu of the OPTION menu (95).

• The remote control signal re ected in the screen or the like may be available. If it is dif cult to send the signal to the sensor directly, attempt to make the signal re ect.

• The remote control uses infrared light to send signals to the projector (Class 1 LED), so be sure to use the remote control in an area free from obstacles that could block the remote control’s signal to the projector.

• The remote control may not work correctly if strong light (such as direct sun light) or light from an extremely close range (such as from an inverter  uorescent lamp) shines on the remote sensor of the projector. Adjust the position of projector avoiding those lights.

Status Monitor

The Status Monitor is the sub LCD in the rear panel.

Status Monitor

The Status Monitor displays the present condition of the projector including errors, setup information and error history.

Displaying the condition of the projector

If no buttons have been operated, the Status Monitor displays as below depending on the condition of the projector.

NOTE

mode if the STANDBY MODE item of SETUP menu is set to SAVING (

• When INSTALLATION in the SETUP menu is set to FRONT / CEILING or REAR / CEILING, the contents on the Status Monitor are displayed upside down (

 In a normal state

The Status Monitor displays the state of the projector in three lines.

• The Status Monitor displays nothing while the projector is in standby

1st line

: Displays the condition of the projector.

While the lamp is on, the selected port is displayed.

Displayed conditions are as below; STANDBY: The projector is in standby mode. WARM UP: The projector is warming up. SEARCHING: The projector is searching an input signal. COOL DOWN: The projector is cooling down.

78).

77).

S T A N D B Y

1 2 3 4 5 6 7 8 0 A B

example

9 2 3 ° C

2nd line

is on. Otherwise, displays the serial number of the projector.

Displayed conditions are as below; SYNC OUT: Detected input signal is out of specied range. NO SIGNAL: There is no input signal. CONNECTED: The projector has connected to the network or the computer

and some image is transferred to the projector while the LAN port is selected.

HOLD: The projector has connected to the network but no image is transferred

while the LAN port is selected.

NOT CONNECTED: The projector is not connected to the network or the

computer while the LAN port is selected.

: Displays supplied voltage and peripheral temperature in Celsius

: Displays the condition of the detected input signal while the lamp

3rd line

while the lamp is on.

(continued on next page)

Status Monitor

Displaying the condition of the projector (continued)

NOTE

nothing is displayed on the 2nd line of the monitor.

• Displayed temperature might differ from actual peripheral temperature because the displayed temperature is measured inside of the projector.

 In error state

The Status Monitor displays a warning of an error with larger letters. Resolve the errors referring to the table of the sections "Related messages" ( "Regarding the indicator lamps" (117 ~ 121) when the warning is displayed.

Warnings;

Errors;

• While the projector is searching an input signal in normal condition,

114 ~ 116) and

AIR (AIR FLOW): The internal temperature is rising.

Refer to the description of the message, "CHECK THE AIR FLOW" in the

115).

table (

COLD: There is a possibility that the interior portion has become over cooled.

Refer to the LAMP and TEMP indicators alternatively blinking in the table

120).

(

FILTR (FILTER): It is time to clean the air lter.

Refer to the LAMP and TEMP indicators simultaneous blinking in the table

120).

(

SHADE: Shade Error

Contact your dealer or service company.

SHIFT: Lens Shift Error

Contact your dealer or service company.

COVER: The lamp cover has not been properly xed.

Refer to the LAMP indicator blinking in the table (

FAN: The cooling fan is not operating.

Refer to the TEMP indicator blinking in the table (

LAMP: The lamp does not light.

Refer to the LAMP indicator lighting in the table (

TEMP: The projector's interior becomes over heated.

Refer to the TEMP indicator lighting in the table ( ACBLK: Refer to the LAMP indicator lighting in the table ( OTHER: Errors other than the above (

119).

118).

119).

O RC EV

example

118).

NOTE

displayed, the backlight blinks at the same time.

• When one of the warnings of FAN, LAMP, COVER, TEMP errors is

Status Monitor

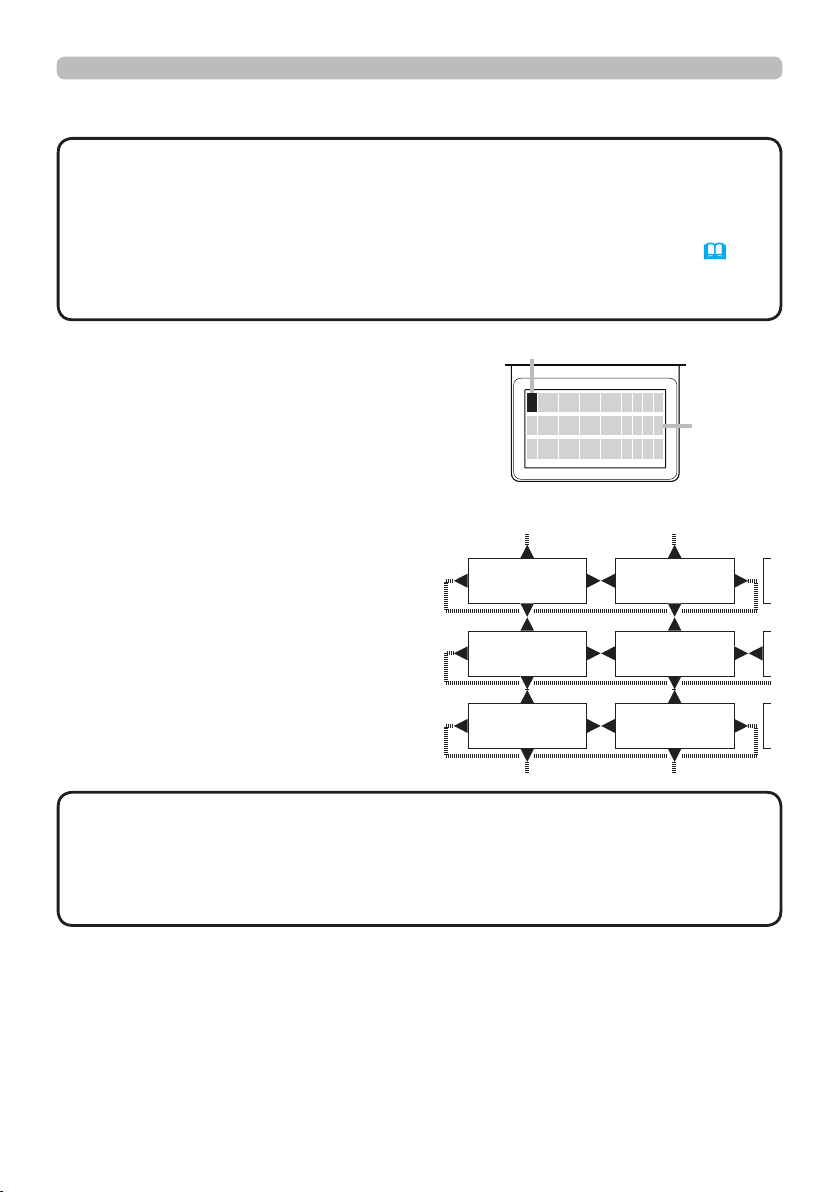

Displaying the log

The present setup information and the error history can be displayed on the Status Monitor with button operation.

NOTE

• While the projector is warming up, button presses are ignored.

• The Status Monitor displays nothing or no button presses for the monitor are available while the projector is in standby mode if the STANDBY MODE item of SETUP menu is set to SAVING (78).

• Both of the Status Monitor and the OSD menu cannot be operated at the same time.

When the projector is in a normal condition, or displays one of the warnings of AIR FLOW, COLD or FILTER errors, press the FUNCTION button on the control panel, press the ENTER button on the remote control for three seconds or press one of the MY BUTTON buttons if assigned as STATUS MONITOR. The backlight of the monitor turns on.

 To display the setup information including

usage time

FUNCTION

button

ENTER

button

Use the ◄/► buttons to switch display.

First display Usage time

Network

information

Usage time: The Status Monitor displays

the lamp time (usage time of the present lamp), the lter time (usage time of the air lter) and the projector usage time.

0 L A M P 2 2 5 0 h

F I L T E R 1 2 8 3 5 h

S Y S T E M 2 2 3 8 6 h

Usage time (example)

Lamp time Filter time Projector

usage time

Network information: The network information is displayed over three pages.

Use the ▲/▼ buttons to switch the page. Displayed information in each page is as below;

2nd page

: Subnet mask

(wireless and wired)

1st page

: IP address

(wireless and wired)

3rd page

: Default gateway

(wireless and wired)

(continued on next page)

I P A DD R E S S

1 9 2 1 6 8 0 0 1 9 6

N 1 9 2 1 6 8 0 0 1 0 7 5

Network information

(example)

Wireless Wired

Status Monitor

Displaying the log (continued)

NOTE

• The Status Monitor and its backlight returns to the rst state before the FUNCTION or ENTER button was pressed when any button except cursor buttons is pressed, or after about 30 seconds without button operation.

• The projector usage time is the total lamp time from the projector is manufactured. It is not reset by using LAMP TIME in the SETUP menu (75).

• If the ▲/▼ buttons are pressed while the usage time is displayed, the usage time switches to the past one when an error occurred.

 To display error history

Log number

Press the ▲ button to display previous error log. If a warning has been displayed, the rst previous error log is the present error currently occurring. The Status Monitor

1 P R E V I O U S

7 F I L T E R E R R O

A C 2 4 0 V 3 5 ° C

Error

displays the log number, occurred error, the supplied voltage and peripheral temperature

Error log (example)

at that time. Press the ► button to display the usage time when each error occurred.

Use the ▲/▼ buttons to switch the log. The display switches with the ◄/►

Error log1

Usage time (error log1)

buttons at each log. Up to 10 error logs including the present one can be displayed.

First display

Error log10

Usage time

(current)

Usage time

(error log10)

NOTE

• If no error or less than 10 errors have occurred, "NO DATA" is displayed in spite of occurred error in the error log.

Power on/off

Turning on the power

Make sure that the power cord is rmly

and correctly connected to the projector and the outlet.

Make sure that the POWER indicator is

lighted in steady orange (117). Then remove the lens cover.

Press STANDBY/ON button on the projector

or the ON button on the remote control. The projection lamp will light up and POWER indicator will begin blinking in green. When the power is completely on, the indicator will stop blinking and light in steady green (117).

To display the picture, select an input signal according to the section Selecting an input signal (

38).

POWER indicator

STANDBY button ON button

STANDBY/ON button

Turning off the power

Press the STANDBY/ON button on the projector or the STANDBY button on

the remote control. The message “Power off?” will appear on the screen for about 5 seconds.

Press the STANDBY/ON or STANDBY button again while the message

appears. The projector lamp will go off, and the POWER indicator will begin blinking in orange. Then the POWER indicator will stop blinking and light in steady orange when the lamp cooling is complete (117).

Attach the lens cover, after the POWER indicator turns to steady orange.

Do not turn the projector on for about 10 minutes or more after turning it off. Also, do not turn the projector off shortly after turning it on. Such operations might cause the lamp to malfunction or shorten the lifetime of some parts including the lamp.

(continued on next page)

Power on/off

WARNING

►A strong light is emitted when the projector’s power is on. Do not look into the lens of the projector or look inside of the projector through any of the projector’s openings since the projection ray may cause a trouble on your eyes. ►Keep any object away from concentrated projection light beam. Blocking the beam by something causes high temperature and could result in re or smoke. ►Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot.

NOTE

• Turn the power on/off in right order. Please power on the projector

prior to the connected devices.

•

This projector has the function that can make the projector automatically turn on/ off. Please refer to the DIRECT POWER ON items of the OPTION menu.

(88)

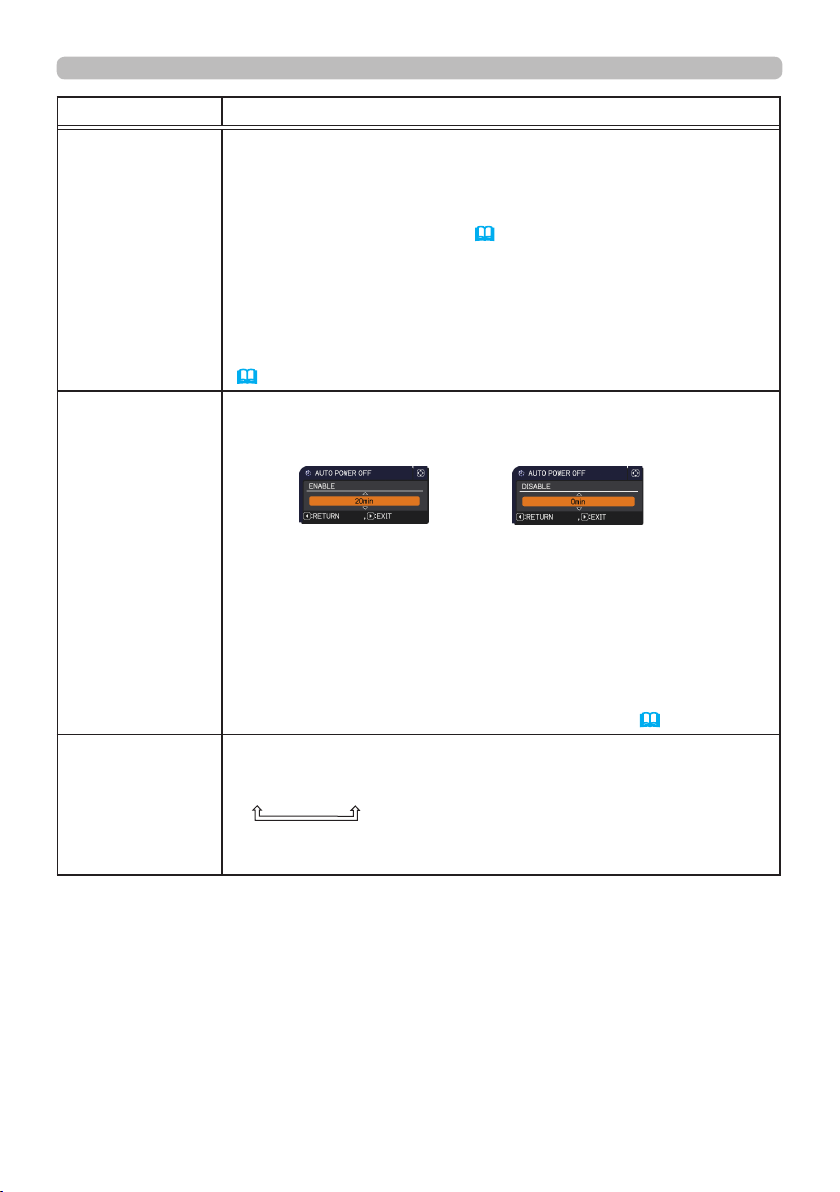

and AUTO POWER OFF

(88)

Operating

Adjusting the volume

Use the VOL + / - buttons to adjust the volume.

A dialog will appear on the screen to aid you in adjusting the volume. If you do not do anything, the dialog will automatically disappear after a few seconds.

Operating

VOL + / - buttons

NOTE

adjustment is disabled. Please see AUDIO SOURCE item of AUDIO menu (80).

• Even if the projector is in the standby mode, the volume is adjustable when both of the following conditions are true:

- An option other than is selected for AUDIO OUT STANDBY in the AUDIO SOURCE item of the AUDIO menu (80).

- NORMAL is selected in the STANDBY

When is selected for current picture input port, the volume

•

MODE item of the SETUP menu

(78).

Temporarily turning off the screen and audio

Press AV MUTE button on the remote control.

The BLANK screen will be displayed instead of the screen of input signals and the sound from the internal speakers will be muted. Please refer to the BLANK item in SCREEN menu about the BLANK screen (81). To exit from the AV MUTE mode and restore the screen and audio, press AV MUTE button again.

NOTE

some control buttons are pressed.

is on, use the AV MUTE function above or the lens shade function (52). Taking any other action may cause the damage on the projector.

• The projector automatically exits from the AV MUTE mode when

CAUTION

►If you wish to have a blank screen while the projector's lamp

AV MUTE

button

Operating

SHADE

Selecting an input signal

Press INPUT button on the projector.

Each time you press the button, the projector switches its input port from the current port as below.

LAN  COMPUTER IN  HDMI 1

VIDEO HDMI 2

SDI*  HDBaseT  DisplayPort

INPUT button

NOTE

• If you have set SKIP to some ports from SOURCE SKIP in the

OPTION menu, the input from the ports cannot be selected (87).

• While ON is selected for AUTO SEARCH item in OPTION menu, the projector will keep checking the ports in above order repeatedly till an input signal is detected (87).

Press COMPUTER 1, VIDEO, LAN, HDMI 1 / 2, DisplayPort, HDBaseT or

SDI button on the remote control. The port corresponding to each button is selected as below.

Button Ports COMPUTER 1 COMPUTER IN COMPUTER 2 -

VIDEO VIDEO

LAN LAN USB TYPE A USB TYPE B -

HDMI 1 HDMI 1 HDMI 2 HDMI 2

DisplayPort DisplayPort

HDBaseT HDBaseT

SDI SDI*

DIGITAL -

Buttons for input ports

NOTE

• While ON is selected for AUTO SEARCH item in OPTION menu, the projector will keep checking every port sequentially till an input signal is detected (87).

* CP-WU8700 only

Selecting an aspect ratio

Press ASPECT button on the remote control.

Each time you press the button, the projector switches the mode for aspect ratio in turn.

 For a computer signal

CP-X8800:

NORMAL  4:3  16:9  16:10

CP-WU8600, CP-WX8650, CP-WU8700, CP-WX8750: NORMAL  4:3  16:9  16:10  NATIVE

 For HDMI

CP-X8800:

NORMAL  4:3  16:9  16:10  14:9

CP-WU8600, CP-WX8650, CP-WU8700, CP-WX8750: NORMAL  4:3  16:9  16:10  14:9  NATIVE

 For a video signal

CP-X8800:

4:3  16:9  14:9

CP-WU8600, CP-WX8650, CP-WU8700, CP-WX8750: 4:3  16:9  16:10  14:9  NATIVE

, HDBaseTTM, and DisplayPort signals

Operating

ASPECT button

 For an SDI signal (CP-WU8700 only)

NORMAL  4:3  16:9

 For an input signal from the LAN port, or if there is no signal

CP-X8800: 4:3 (xed) CP-WU8600, CP-WX8650, CP-WU8700, CP-WX8750: 16:10 (xed)

NOTE

• NORMAL mode keeps the original aspect ratio setting.

• ASPECT button does not work when no proper signal is input.

Operating

max. 30mm

Adjusting the projector’s elevator

Lengthening or shortening the length of the elevator feet shifts the projection position and the projection angle.

Turn the elevator feet each to adjust their length.

5°

WARNING

►Do not lengthen the elevator feet exceeding 30 mm. The foot lengthened exceeding the limit may come off and drop the projector down, and result in an injury or damaging the projector.

CAUTION

►Do not place the projector with an inclination exceeding 5 degrees. The projector leaned exceeding the limit could cause malfunction and shorten the life of the projector.

Installation angle

Lamp side

Vertical and horizontal direction in portrait mode

10° 10°

The projector may be installed at horizontal angle of ±10°.

The projector may be installed at vertical angle of ±10°.

10° 10°

NOTE

• The lamp side of the projector must face upward for vertical installations.

•

If Other Error has occurred, please check the installation. Install the projector correctly and restart it.

• When using portrait mode, the service life of a lamp becomes

shorter.

Operating

Adjusting the lens

Adjusting the zoom and focus

The ZOOM or FOCUS dialog will appear when you press any of the buttons from ZOOM, ZOOM -, ZOOM +, FOCUS + and FOCUS -.

Use the ZOOM + / - buttons on the remote

control or ZOOM button and ◄/► cursor buttons

on the projector to adjust the screen size.

Use the FOCUS + / - buttons to focus the picture.

NOTE

other buttons while the lens is moving.

Adjusting the lens position

Press the LENS SHIFT button. The LENS SHIFT dialog will appear. Using the ▲/▼/◄/►buttons while the dialog is displayed shifts the lens. Generally, better image quality can be got when the lens is set to the center. Press the LENS SHIFT button again to exit the LENS SHIFT function.

CENTERING

Press the ENTER or INPUT button while the dialog is displayed to execute the CENTERING feature, which adjusts the lens to the center. A message dialog is displayed for conrmation. Pressing the ►button performs CENTERING. You can also perform CENTERING in the standby mode by pressing the FUNCTION and LENS SHIFT buttons on the control panel for 3 seconds at the same time.

• The projector may ignore operation by

FOCUS + / - buttons

ZOOM + / - buttons

LENS SHIFT button

LENS SHIFT

button

ZOOM button

FOCUS - / +

buttons

FUNCTION

button

CAUTION

►Do not put your ngers or any other things around the lens. The

moving lens could catch them in the space around the lens and result in an injury.

NOTE

hourglass icon will appear on the screen. CENTERING may take some time till the lens reaches the center.

• The projector may ignore operation by buttons while moving the lens. The CENTERING feature while the projector is in the standby mode is disabled if the

•

STANDBY MODE item of SETUP menu is set to SAVING. Perform CENTERING before the projector's power is turned off, or set the STANDBY MODE to NORMAL.

• The adjustable range of LENS SHIFT varies depending on the lens unit mounted

on the projector to maintain picture quality. Therefore LENS SHIFT adjustment may not reach the end of the indicator in the dialog, and that is not a failure.

• While the lens is moving to the center, the menu will disappear and an

Operating

Adjusting the lens (continued)

Lens memory

This projector is equipped with memory functions for the lens adjustments (LENS SHIFT and LENS TYPE). Up to 3 sets of adjustments can be stored. To utilize the lens memory feature, press the LOAD or FUNCTION button while the LENS SHIFT dialog is displayed. Then the LENS MEMORY dialog will appear. The current lens adjustments are displayed on the “CURRENT” line. The adjustments already stored in the lens memory are displayed on the lines of SAVE and LOAD-1 to 3.

SAVE:



To store the current lens adjustments, select one of the "SAVE" options numbered 1 to 3 (number of the lens memory) and press the ►or ENTER button.

Remember that the current data being stored of a memory will be lost by saving new data into the memory.

LOAD:



To recall stored adjustments, select one of the "LOAD" options numbered 1 to 3 (number of the lens memory) and press the ►or ENTER button.

Remember that the current adjusted condition will be lost by loading data. If you want to keep the current adjustment, please save it before performing a LOAD function.

CLEAR LENS MEMORY:



To clear the adjustment stored in a lens memory, select CLEAR LENS MEMORY and press the ►or ENTER button. The CLEAR LENS MEMORY dialog will be displayed. Select the number of the lens memory to be cleared using the ▲/▼ buttons and press the ►button. A message dialog is displayed for conrmation. Press the ►button again to clear the lens memory.

FUNCTION

button

LENS MEMORY button

NOTE

• You can perform the LOAD function using LENS MEMORY button.

• The projector may ignore operation by buttons while moving the lens.

Using the automatic adjustment feature

Press AUTO button on the remote control.

Pressing this button performs the following.

 For a computer signal

The vertical position, the horizontal position and the horizontal phase will be automatically adjusted. Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.

 For a video signal

The video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for

70).

the VIDEO FORMAT item in the INPUT menu ( horizontal position will be automatically set to the default.

 For a component video signal

The vertical position and horizontal position will be automatically set to the default. The horizontal phase will be automatically adjusted.

The vertical position and

Operating

AUTO button

NOTE

please note that it may not function correctly with some input.

• When this function is performed for a video signal, a certain extra such as a line

may appear outside a picture.

• When this function is performed for a computer signal, a black frame may be

displayed on the edge of the screen, depending on the computer model.

The items adjusted by this function may vary when the FINE or DISABLE is selected

•

for the AUTO ADJUST item of the SERVICE item in the OPTION menu (

• The automatic adjustment operation requires approx. 10 seconds. Also

93).

Operating

Correcting the distortion

To correct the distortion of projected screen, you can select one of three options, KEYSTONE, PERFECT FIT, and WARPING. First press the GEOMETRY button to display the GEOMETRY CORRECTION menu, and point at one of the items with the ▲/▼ buttons.

KEYSTONE: allows you to adjust the vertical and

horizontal keystone.

PERFECT FIT:

WARPING:

Use Keystone/PERFECT FIT/Warping for adjustment. When one of them is selected, other items are not available.

Then follow the procedure shown below for the item you selected.

allows you to adjust each of the screen corners and sides to correct the

distortion. allows you to project an image on several types of screen.

GEOMETRY

button

NOTE

of inactivity. Press the GEOMETRY button again, or point the cursor at EXIT in the dialog and press the ►or ENTER button to end the operation and close the menu or dialog.



When KEYSTONE is pointed at, pressing the ► or ENTER button displays the KEYSTONE dialog.

NOTE

this function may be excessive. This function should be used when the zoom adjustment is set to the full WIDE (wide-angle focus) whenever possible.

• When the horizontal lens shift is not set to the center, this function may not work well.

• Point at RETURN in the dialog with the ▲/▼ buttons and press ◄ or ENTER button to return to the GEOMETRY CORRECTION menu.

• The menu or dialog will automatically disappear after several seconds

KEYSTONE:

Select the vertical or horizontal keystone ( / ) with the ▲/▼ buttons.

Use the ◄/► buttons to adjust the keystone distortion.

• When the zoom adjustment is set to the TELE (telephoto focus),

Correcting the distortion (continued)

PERFECT FIT:



When PERFECT FIT is pointed at, pressing the ► or ENTER button displays the PERFECT FIT dialog.

This projector is equipped with a test pattern for PERFECT FIT. Select PATTERN with the buttons, then press the and off.

Select SETUP with the

press the ► or ENTER button. Select one of the corners or sides to be adjusted

with the ▲/▼/◄/► buttons and press the ENTER or INPUT button.

Adjust the selected part as below.

● For adjusting a corner, use the ▲/▼/◄/► buttons to adjust the position of the corner.

● For adjusting the upper or lower side, use the ▲/▼ buttons to adjust the distortion of the side.

● For adjusting the left or right side, use the ◄/► buttons to adjust the distortion of the side.

● To adjust another corner or side, press the ENTER or INPUT button and follow the procedure from step 2.

◄/►

buttons to switch on

▲/▼

buttons and

▲/▼

Operating

(continued on next page)

Operating

Correcting the distortion (continued)

This projector is equipped with a memory feature for PERFECT FIT

adjustment. Up to 3 sets of adjustments can be stored.

● SAVE:

To store the current PERFECT FIT adjustment, select one of the "SAVE" options numbered 1 to 3 (number of the memory) with the ▲/▼ buttons and press the ►, ENTER or INPUT button. Remember that the current data being stored of a memory will be lost by saving new data into the memory.

● LOAD:

To recall stored adjustments, select one of the "LOAD" options numbered 1 to 3 (number of the memory) with the ▲/▼ buttons and press the ►, ENTER or INPUT button. Remember that the current adjusted condition will be lost by loading data. if you want to keep the current adjustment, please save it before performing a LOAD function.

NOTE

• There may be some noise and the screen may icker for a moment when loading data. This is not malfunction.



Projection on several types of screen can be performed by WARPING function. This function is operated by using dedicated PC tool, "Warping Tool". PC and projector are required to be connected with LAN cable in order to use this function.

You can get the PC tool from the URL below. http://www.hitachi.co.jp/proj/ Refer to Application Manual for operations.

• The LOAD functions whose linked memory has no data are skipped.

WARPING:

Operating

Blend Re gion

Le ft Imag e

Right Image

Using the EDGE BLENDING features

1. Mode (MANUAL/CAMERA) OFF:

Disables the Blending function. MANUAL: Allows you to adjust Blending Region or Blending Level by using menu. CAMERA: Allows you to perform automatic adjustment by using CAMERA in

Projector Blending Tool.

•

IMAGE OPTIMIZER is not selectable when Blending is set to other than OFF.

•

ECO MODE is not selectable when Blending is set to other than OFF.

•

Keystone/Perfect Fit/Warping are not selectable when CAMERA is selected in Blending.

2. Blending Region

2.1 Specifying Blending Region Select one of the four sides with ▲/▼/ INPUT button. Blending Region can be speci ed for left and right sides with ◄/► buttons Specify Blending Region for each projector. Adjust them referring to the guide displayed during the adjustment of Blending Region.

* The minimum value of Blending Region is 200 dots.

and for top and bottom sides with ▲/▼

◄/► buttons

and press ENTER or

buttons

(continued on next page)

Guide line

Operating

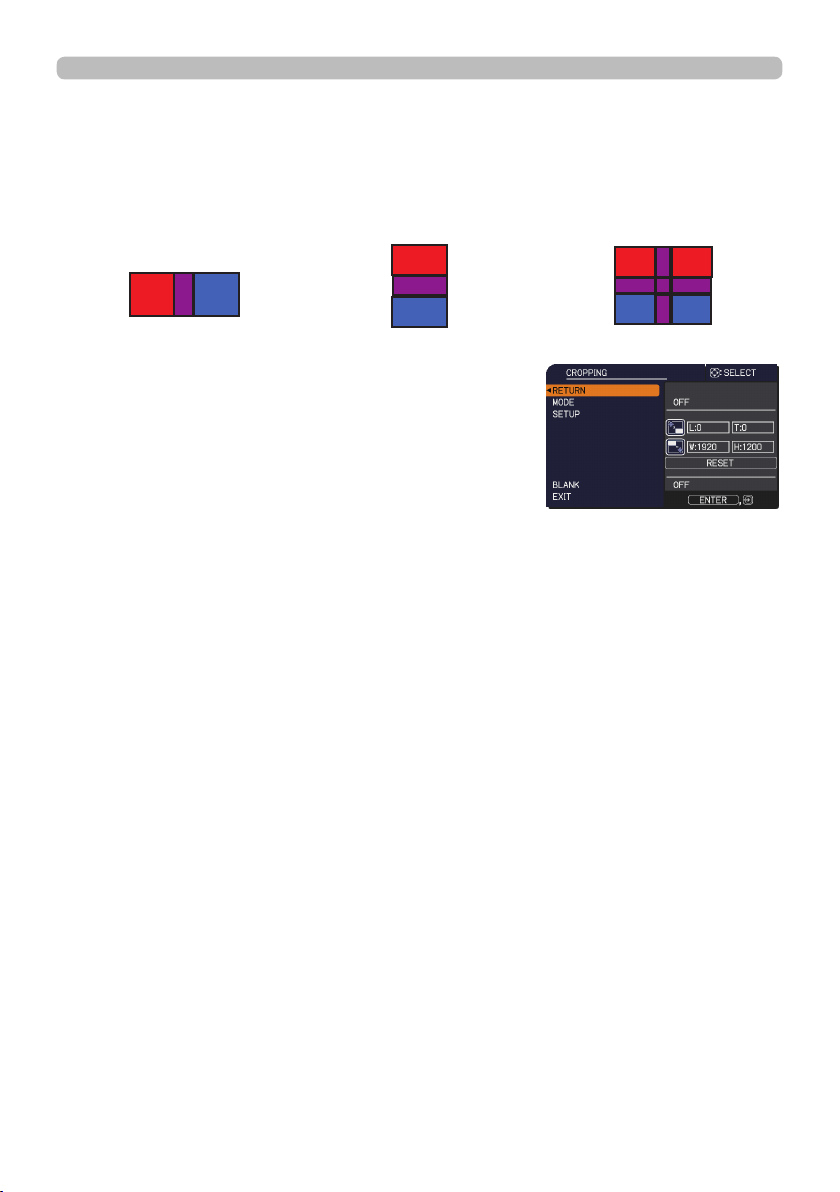

3. Cropping When inputting the same image to each projector, Cropping function enables two projectors to cut out a part of input image and display one image on a large screen. The following patterns are supported.

2 x 1

1 x 2

3.1 Displaying Cropping Menu Select CROPPING with ▲/▼ buttons and press ENTER or INPUT button to display Cropping Menu.

3.2 Setting Cropping Select MODE with ▲/▼ buttons and select ON with ◄/► buttons

. Input image is automatically cut out according to the settings of Blending Region.

(continued on next page)

►

2 x 2

Operating

3.3 Adjusting Cropping Area Adjust Cropping Area when cutting out a part of input image. Select SETUP with ▲/▼ buttons and press ►, ENTER or INPUT button. * MODE is set to [OFF] temporarily and the guide of Cropping Area

is displayed. Select [LT]/[WH] with ▲/▼ buttons and press ENTER or INPUT button. Move the guide display with ▲/▼/

◄/► buttons

to select the region of the screen to be cut out. Press ENTER or INPUT button and then press

◄ button

to select SETUP, and

MODE switches to ON automatically.

Input Image

Cropping

3.4 Adjust Cropping Area of the other projector. Set Cropping Area of the other projector with the same value as one projector. Input image is automatically cut out according to the settings of Blending Region. * When you want to keep input image from not being seen while setting up, set

BLANK to ON.

Input Image

Cropping

(continued on next page)

Operating

4. Selecting Blending Level Select BLENDING LEVEL with ▲/▼ buttons. [1-25] can be selected with

◄/► buttons

Adjust the brightness of Blending Region according to the settings.

5. DIMMING LEVEL Adjusts the brightness of the projectors which are using Blending. Using the ◄/► buttons to adjust the dimming level.

6. WHITE BALANCE Adjusts the white balance of the whole screen.

6.1. OFFSET OFFSET adjustments change the color intensity on the whole tones.

6.2. GAIN GAIN adjustments mainly affect color intensity on the brighter tones.

7. BLACK LEVEL Adjusts black color level of the projectors which are using Blending. Adjusts the adjustment value of R/G/B at the same time when W is selected. When each of R/G/B is selected, the adjustment value of R/G/B can be adjusted respectively.

NOTE

• The positional deviation of the screen may occur after installing the projector over time. In that case, perform the screen adjustment again to correct the positional deviation.

Using the magnify feature

Press the MAGNIFY ON button on the remote

control. The picture will be magnied, and the MAGNIFY dialog will appear on the screen. When the MAGNIFY ON button is pressed for the rst time after the projector is turned on, the picture will be zoomed by 1.5 times. On the dialog, triangle marks to show each direction will be displayed.

The display magnication of the projector switches in order

with every press of the MAGNIFY ON button.

 For computer signals, HDMI

DisplayPort signals, input signals from the LAN port

1.5 times  2 times  3 times  4 times  1 time

(RGB) signals, HDBaseTTM signals,

Operating

MAGNIFY ON / OFF

button

 For video signals, DisplayPort signals, HDBaseT signals, SDI signals,

or HDMI

1.5 times  2 times  1 time

While the triangles are displayed on the dialog, use the ▲/▼/◄/► cursor

buttons to shift the magnifying area.

Press the MAGNIFY OFF button on the remote control to exit magnication.

NOTE

with no operation. The dialog will appear again if the MAGNIFY ON button is pressed when the dialog has automatically disappeared.

• The magnication is automatically disabled when the displaying signal or its display condition is changed.

• While the magnication is active, the keystone distortion condition may vary. It will be restored when the magnication is disabled.

• Some horizontal stripes might be visible on the image while magnication is active.

• This function is not available in the following cases:

- A sync signal in the range not supported is input.

- There is no input signal.

signals

• The MAGNIFY dialog will automatically disappear in several seconds

Operating

SHADE

Temporarily freezing the screen

Press the FREEZE button on the remote control.

The “FREEZE” indication will appear on the screen (however, the indication will not appear when SILENT is selected for the OSD MESSAGE item in the SETUP (79), and the projector will go into the FREEZE mode, which the picture is frozen. To exit the FREEZE mode and restore the screen to normal, press the

FREEZE button again.

FREEZE

button

NOTE

control buttons are pressed.

• If the projector continues projecting a still image for a long time, the LCD panel might possibly be burned in. Do not leave the projector in the FREEZE mode for too long.

• Images might appear degraded when this function is operated, but it is not a malfunction.

• The projector automatically exits from the FREEZE mode when some

Temporarily shading the screen

Press the SHADE button on the control panel.

The mechanical lens shade closes and the screen turns to black. The SHADE indicator on the projector blinks in yellow while the shade is closed. To open the shade and restore the screen, press the SHADE button again.

CAUTION

is on, use the lens shade function above or the AV MUTE function (37). Taking any other action may cause the damage on the projector.

NOTE

SHADE TIMER passes

• When turning off the power by the normal procedure, the lens shade opens automatically. If AC power supply is disconnected while opening or closing the lens shade, the moving of the lens shade stops. However, the next time the projector is turned on, the lens shade opens again automatically.

•

►If you wish to have a blank screen while the projector's lamp

The projector will turn off automatically when the time set up by the

(88)

SHADE

button

Operating

PbyP (Picture by Picture) / PinP (Picture in Picture)

The PbyP / PinP is a function for displaying two different picture signals on a screen that is separated into main and sub areas for each signal.

main

area

PinP mode

sub area

PbyP

button

main

area

Normal mode PbyP mode

sub

area

Press the PbyP button on the remote control. This acctivates the PbyP mode. Then, press the PbyP button again. The projector goes into PinP mode. The screen displayed before the PbyP button was pressed will be displayed as the main area. Most of operations are effective for the main area only. Only outputs the audio input signal paired with the picture input signal for the main area. To quit the PinP mode, press the PbyP button again.

NOTE

• If the LAN port is selected when the PbyP button is pressed, input from other port is displayed on the main area.

• When in the PbyP / PinP mode, use the MENU button on the remote control or ▲/▼ buttons on the control panel to display the OSD menu.

•

There are certain functions that cannot be used when in the PbyP / PinP mode.

• A message will be displayed when buttons that cannot be used are pressed (116). However, note that there are certain unusable buttons for which messages are not displayed.

• The functions on the OSD menu that cannot be used are displayed in gray and cannot be selected.

(continued on next page)

Operating

PbyP (Picture by Picture) / PinP (Picture in Picture) (continued)

Setting information



The setting information will be appeared for several seconds when the PbyP / PinP function is started. Displays the input information for each area. A yellow frame around the main area and an audio mark indicating the audio output will also be displayed. The information can be redisplayed with the ◄/► buttons after it has been erased.

Audio mark

main area sub area

Input information

PbyP mode

Changing the main area



Frame

main area

Input information

PinP mode

Audio mark

Frame

sub area

The position of the main area can be toggled with the ◄/► buttons when the setting information is displayed on the screen. The yellow frame and the audio mark will move together with it.

main

area

sub

area

PbyP mode

sub

area

main

area

main area sub area

sub area

PinP mode

main area

(continued on next page)

Operating

PbyP (Picture by Picture) / PinP(Picture in Picture) (continued)

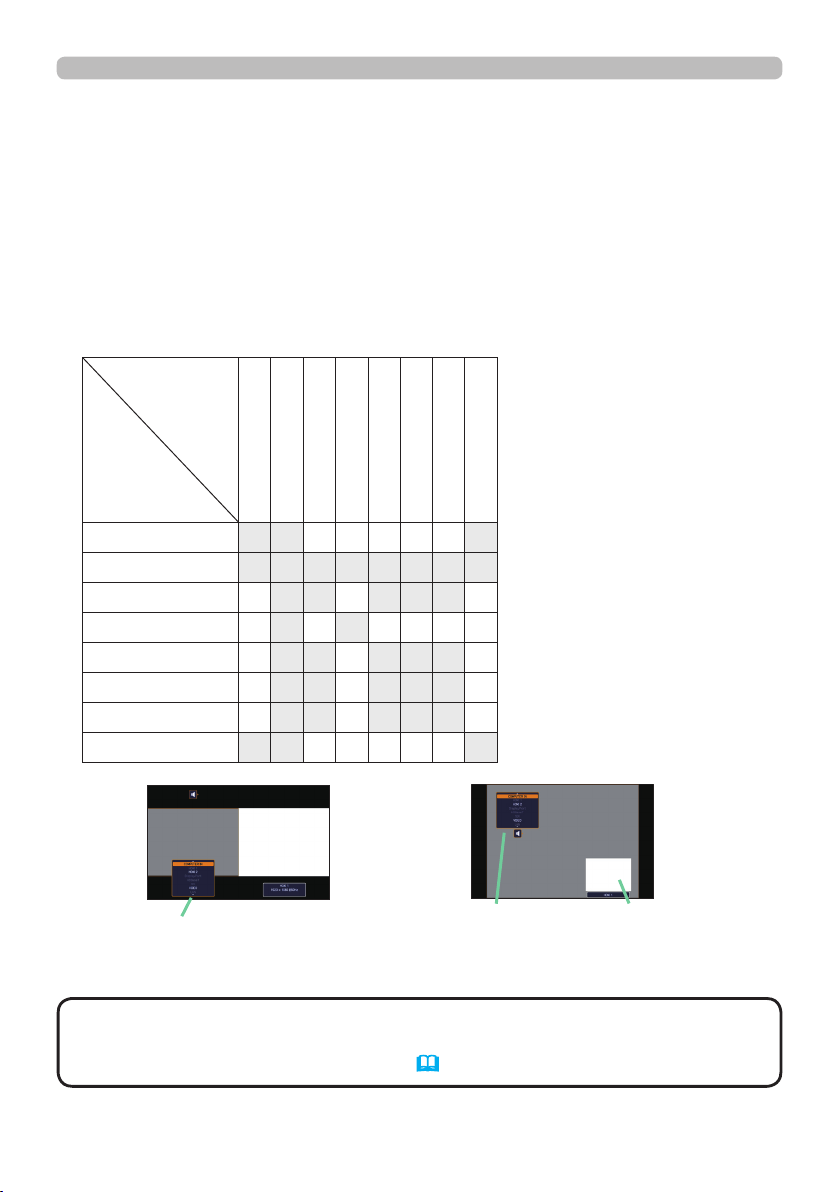

Changing the picture input signal



Press any button to select an input port on the remote control or press the INPUT button on the control panel. A dialog box to select the input signal for the main area will be displayed. Choose a signal using the ▲/▼ buttons. To change the signal in the sub area, switch temporarily across to the main area with the ◄/► buttons. Displaying the same signal on the both areas is not allowed. Refer to the table for details on available input signal combinations. Any combinations marked with "X" can not be selected.

Sub area

Main area

COMPUTER IN

LAN

HDMI 1

HDMI 2

DisplayPort

HDBaseT

SDI (CP-WU8700 only)

VIDEO

COMPUTER IN

HDMI 1

HDMI 2

DisplayPort

HDBaseT

SDI (CP-WU8700 only)

VIDEO

X X O O O O O X

LAN

X X X X X X X X O X X O X X X O O X O X O O O O O X X O X X X O O X X O X X X O O X X O X X X O X X O O O O O X

NOTE

main area sub area

Input signal

PbyP mode

• The combined input signals marked with an "O" can be selected and

main area

sub area

PinP mode

displayed in the PbyP / PinP mode even when the port is set to SKIP with the SOURCE SKIP on the OPTION menu (87).

(continued on next page)

Operating

PbyP (Picture by Picture) / PinP (Picture in Picture) (continued)

PbyP /PinP SWAP function



Press the MY BUTTON assigned the PbyP / PinP SWAP ( the both area is exchanged without any setting change.

89). The position of

main

area

NOTE

sub

area

PbyP mode PinP mode

sub

area

main

area

main area

sub area

main area

• For some signals, it may not be displayed correctly in the PbyP / PinP mode, even if it can be displayed properly in the normal mode.

• PbyP/PinP is unavailable when MANUAL is selected in GEOMETRY CORRECTION > EDGE BLENDING > MODE.

Changing the size of main area in PbyP mode



Using ▲/▼ buttons on the remote control changes the size of main area in PbyP mode.

main area

sub area

main area

sub area

main area

sub area

 Changing the position of sub area in PinP mode

1. Select PinP POSITION in INPUT MENU (

73).

2. Using ▲/▼ buttons on the remote control changes the position of sub area in PinP mode.

main area

sub area

main area

sub area

main area

sub area sub area

main area

Operating

SHADE

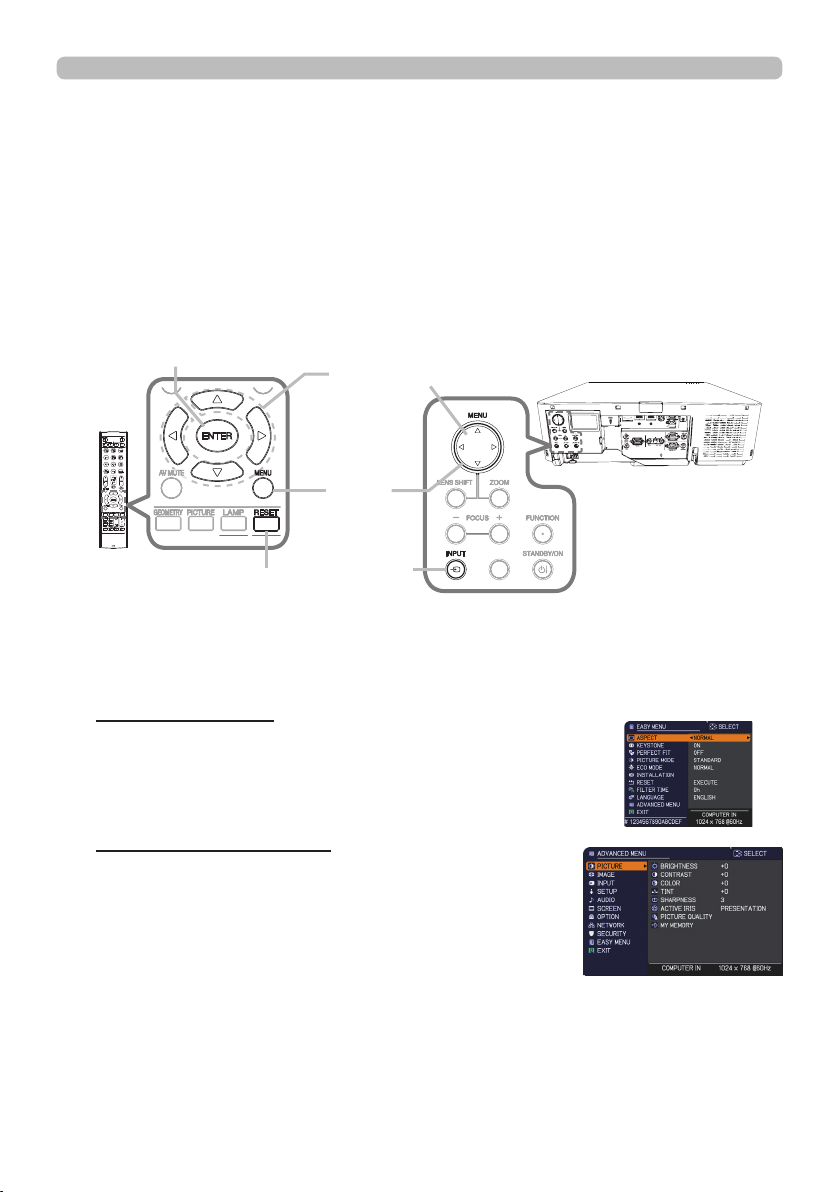

Using the menu function

This projector has the following menus: PICTURE, IMAGE,INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK, SECURITY and EASY MENU. EASY MENU consists of functions often used, and the other menus are classi ed into each purpose and brought together as the ADVANCED MENU. Each of these menus is operated using the same methods. While the projector is displaying any menu, the MENU button on the projector works as the cursor buttons. The basic operations of these menus are as follows.

ENTER button

RESET button

To start the MENU, press the MENU button. The MENU you last used (EASY

or ADVANCED) will appear. EASY MENU has priority to appear just after

Cursor buttons

MENU button

INPUT

button

SHADE

powered on.

In the EASY MENU

(1) Use the ▲/▼ cursor buttons to select an item to

operate. If you want to change it to the ADVANCED MENU, select the ADVANCED MENU.

(2) Use the ◄/► cursor buttons to operate the item.

In the ADVANCED MENU

(1) Use the ▲/▼ cursor buttons to select a menu.

If you want to change it to the EASY MENU, select the EASY MENU. The items in the menu appear on the right side.

(2) Press the ► cursor button or ENTER button to

move the cursor to the right side. Then use the ▲/▼ cursor buttons to select an item to operate and press the ► cursor button or ENTER button to progress. The operation menu or dialog of the selected item will appear.

(3) Use the buttons as instructed in the OSD to operate the item.

(continued on next page)

Operating

Using the menu function (continued)

To close the MENU, press the MENU button again or select EXIT and press

the ◄ cursor button or ENTER button. Even if you do not do anything, the dialog will automatically disappear after about 30 seconds.

NOTE

selected, or when a certain input signal is displayed.

• When you want to reset the operation, press RESET button on the remote control during the operation. Note that some items (ex. LANGUAGE, VOLUME) cannot be reset.

• In the ADVANCED MENU, when you want to return to the previous display, press the ◄ cursor button on the remote control.

• Some functions cannot be performed when a certain input port is

Indication in OSD (On Screen Display)

The meanings of the general words on the OSD are as follows.

Indication Meaning

EXIT

RETURN Selecting this word returns the menu to the previous menu.

CANCEL or NO

OK or YES

Selecting this word nishes the OSD menu. It's the same as pressing the MENU button.

Selecting this word cancels the operation in the present menu and returns to the previous menu.

Selecting this word executes the prepared function or shifts the menu to the next menu.

Using the menu function (continued)

Containing items of each menu

The items contained in the menus are as below;

Menu Items

ASPECT, KEYSTONE, PERFECT FIT, PICTURE MODE,

60)

EASY MENU (

PICTURE(

IMAGE (

INPUT (

SETUP (

AUDIO (

SCREEN(

OPTION (

NETWORK (

SECURITY (



66)



69)



74)



80) VOLUME, SPEAKER, AUDIO SOURCE



62)

81)

87)



ECO MODE, INSTALLATION, RESET, FILTER TIME, LANGUAGE, ADVANCED MENU, EXIT

BRIGHTNESS, CONTRAST, COLOR, TINT, SHARPNESS, ACTIVE IRIS, PICTURE QUALITY, MY MEMORY

ASPECT, OVER SCAN, V POSITION, H POSITION, H PHASE, H SIZE, AUTO ADJUST EXECUTE

PROGRESSIVE, VIDEO NR, COLOR SPACE, VIDEO FORMAT, DIGITAL FORMAT, DIGITAL RANGE, COMPUTER IN, FRAME LOCK, RESOLUTION, PbyP/PinP SETUP

GEOMETRY CORRECTION, LAMP & FILTER, IMAGE OPTIMIZER, PICTURE POSITION, INSTALLATION, STANDBY MODE, COLOR UNIFORMITY, OSD MESSAGE

LANGUAGE, MENU POSITION, BLANK, AUTO BLANK, START UP, MyScreen, MyScreen Lock, SOURCE NAME, TEMPLATE, C.C.

SOURCE SKIP, AUTO SEARCH, DIRECT POWER ON, AUTO POWER OFF, SHADE TIMER, MY BUTTON, SCHEDULE, SERVICE

PROJECTOR NAME, WIRELESS SETUP, WIRED SETUP,

100)

NETWORK INFORMATION, SNTP SETUP, MY IMAGE, EXTERNAL CONTROL, PRESENTATION, WIRED NETWORK

ENTER PASSWORD, SECURITY PASSWORD CHANGE, MyScreen PASSWORD, PIN LOCK, TRANSITION DETECTOR,

101) MY TEXT PASSWORD, MY TEXT DISPLAY, MY TEXT WRITING,

SECURITY INDICATOR, STACK LOCK

Operating

EASY MENU

From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table.

Item Description

ASPECT

KEYSTONE

PERFECT FIT

PICTURE MODE

Using the ◄/► buttons switches the mode for aspect ratio. See the ASPECT item in IMAGE menu (

Pressing the ► button displays the KEYSTONE dialog. See the KEYSTONE item in SETUP menu (

Pressing the ► button displays the PERFECT FIT dialog. See the

Using the ◄/► buttons switches the picture mode. The picture modes are combinations of GAMMA and COLOR TEMP settings. Choose a suitable mode according to the projected source.

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

• DICOM SIM. is the projector's DICOM Communication in Medicine") simulation mode. This mode simulates the DICOM standard, which is a standard applicable to digital communications in medicine, and can be useful for displaying medical images, such as X-rays photos. This projector is not a medical device and is not compliant to the DICOM standard, and neither the projector nor the DICOM SIM. mode should be used for medical diagnosis.

PERFECT FIT

STANDARD ó NATURAL ó CINEMA ó DYNAMIC 

USER-3 BOARD(BLACK)



USER-2 BOARD(GREEN)



USER-1 ó DICOM SIM. ó DAYTIME ó WHITEBOARD

item in SETUP menu (

66).



74).



74).





("Digital Imaging and

(continued on next page)

Item Description

ECO MODE

INSTALLATION

Using the ◄/► buttons turns off/on the Eco mode. See the ECO MODE item in SETUP menu (

Pressing the ► button displays the INSTALLATION dialog. See the INSTALLATION item in SETUP menu (

Performing this item resets all of the EASY MENU items except the

RESET

FILTER TIME and LANGUAGE. A dialog is displayed for conrmation. Selecting the OK using the ► button performs resetting.

The usage time of the air lter is shown in the menu. Performing this item resets the lter time which counts usage time

FILTER TIME

of the air lter. A dialog is displayed for conrmation. Selecting the OK using the ► button performs resetting. See the FILTER TIME item in SETUP menu (

LANGUAGE

Using the ◄/► buttons changes the display language. See the LANGUAGE item in SCREEN menu (

Press the ► or ENTER button to use the menu of PICTURE,

ADVANCED MENU

IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK or SECURITY.

EXIT Press the ◄ or ENTER button to nish the OSD menu.



75).



76).

EASY MENU

77).

81).

PICTURE menu

From the PICTURE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

◄/►

BRIGHTNESS

CONTRAST

COLOR

TINT

SHARPNESS

Using the

Dark ó Light

Using the

Weak ó Strong

Using the ◄/► buttons adjusts the strength of whole color.

Weak ó Strong

Using the ◄/► buttons adjusts the tint.

Reddish ó Greenish

Using the ◄/► buttons adjusts the sharpness.

Weak ó Strong

• There may be some noise and/or the screen may icker for a moment when an adjustment is made. This is not a malfunction.

buttons adjusts the brightness.

◄/►

buttons adjusts the contrast.

Using the ▲/▼ cursor buttons changes the active iris control mode.

ACTIVE IRIS

• The screen may icker when the PRESENTATION or THEATER modes are selected. If this occurs select OFF.

(continued on next page)

PRESENTATION ó THEATER ó OFF

PRESENTATION : The active iris displays the best presentation

image for both bright and dark scenes.

THEATER : The active iris displays the best theater image for

both bright and dark scenes.

OFF : The active iris is always open.

Item Description

Selecting this item displays the PICTURE QUALITY menu.

Select an item using the ▲/▼ buttons, and press the ► button or the ENTER

button on the remote control to execute the item.

PICTURE MODE

USER-1 ó DICOM SIM. ó DAYTIME ó WHITEBOARD After selecting USER-1 / USER-2 / USER-3, the following features

PICTURE QUALITY

are adjustable. Gamma, Color Temp

GAMMA

This feature is only available when USER-1 / USER-2 / USER-3 is selected.

Using the ▲/▼ buttons switches the gamma mode.

(continued on next page)

PICTURE menu

STANDARD ó NATURAL ó CINEMA ó DYNAMIC 



USER-3 BOARD(BLACK)



USER-2 BOARD(GREEN)



DEFAULT-1 ó CUSTOM-1 ó DEFAULT-2 ó CUSTOM-2 



CUSTOM-8 DEFAULT-3



DEFAULT-8 CUSTOM-3



CUSTOM-7 DEFAULT-4



DEFAULT-7 CUSTOM-4



CUSTOM-6 ó DEFAULT-6 ó CUSTOM-5 ó DEFAULT-5

PICTURE menu

Item Description

GAMMA (continued)

Selecting a mode whose name includes CUSTOM and then pressing the ► button or the ENTER button displays a dialog to aid you in adjusting the mode. This function is useful when you want to change the brightness of particular tones. Choose an item using the ◄/► buttons, and adjust the level using the ▲/▼ buttons.

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

COLOR TEMP

This feature is only available when USER-1 / USER-2 / USER-3 is selected.

Using the ▲/▼ buttons switches the color temperature mode.

PICTURE QUALITY

(continued)

HIGHBRIGHT-2 ó CUSTOM-5 ó HIGHBRIGHT-1 ó CUSTOM-4 Selecting a mode whose name includes CUSTOM and then pressing

the ► button or the ENTER button displays a dialog to aid you in adjusting the OFFSET and GAIN of the selected mode. OFFSET adjustments change the color intensity on the whole tones. GAIN adjustments mainly affect color intensity on the brighter tones. Choose an item using the ◄/► buttons, and adjust the level using the ▲/▼ buttons.

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

(continued on next page)

HIGH ó CUSTOM-1 ó MID-1 ó CUSTOM-2 



CUSTOM-7 MID-2



HIGHBRIGHT-3 CUSTOM-3



CUSTOM-6 LOW



Item Description

ACCENTUALIZER

ACCENTUALIZER is a function to improve the legibility. Using the ◄/► buttons adjusts the sharpness.

Weak ó Strong

• There may be some noise and/or the screen may icker for a moment when an adjustment is made. This is not a malfunction.

•

PICTURE QUALITY

(continued)

This function may not work properly when IMAGE OPTIMIZER is

enabled.

HDCR

A function to show a clear picture in a bright room. Using the◄/► buttons adjusts the contrast.

•

This function may not work properly when IMAGE OPTIMIZER is

enabled.

COLOR MANAGEMENT

A function to adjust color phase, color saturation, and brightness respectively for red, yellow, green, cyan, blue, and magenta.

This projector has 4 memories for adjustment data (for all the items of the PICTURE menu). Selecting a function using the ▲/▼ buttons and pressing the ► or ENTER button performs each function.

SAVE-1 ó SAVE-2 ó SAVE-3 ó SAVE-4 LOAD-4 ó LOAD-3 ó LOAD-2 ó LOAD-1

SAVE-1, SAVE-2, SAVE-3, SAVE-4 Performing a SAVE function saves the current adjustment data into the memory linked in the number included in the function’s name.

• Remember that the current data being stored of a memory will be lost by saving new data into the memory.

MY MEMORY

LOAD-1, LOAD-2, LOAD-3, LOAD-4 Performing a LOAD function loads the data from the memory linked in the number included in the function’s name, and adjusts the picture automatically depending on the data.

• The LOAD functions whose linked memory has no data are skipped.

• Remember that the current adjusted condition will be lost by loading data. If you want to keep the current adjustment, please save it before performing a LOAD function.

• There may be some noise and the screen may icker for a moment when loading data. This is not malfunction.

• You can perform the LOAD function using MY BUTTON. Please see MY BUTTON item in OPTION menu (



PICTURE menu

89).

IMAGE menu

From the IMAGE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table for selected port.

Item Description

Using the ▲/▼ buttons switches the mode for aspect ratio.

For a computer signal

CP-X8800:

NORMAL ó 4:3 ó 16:9 ó 16:10

CP-WU8600, CP-WX8650, CP-WU8700, CP-WX8750:

NORMAL ó 4:3 ó 16:9 ó 16:10 ó NATIVE

For HDMITM, HDBaseT™, and DisplayPort signals

CP-X8800:

NORMAL ó 4:3 ó 16:9 ó 16:10 ó 14:9

CP-WU8600, CP-WX8650, CP-WU8700, CP-WX8750:

NORMAL ó 4:3 ó 16:9 ó 16:10 ó 14:9 ó NATIVE

ASPECT

For a video signal

CP-X8800:

4:3 ó 16:9 ó 14:9

CP-WU8600, CP-WX8650, CP-WU8700, CP-WX8750:

4:3 ó 16:9 ó 16:10 ó 14:9 ó NATIVE

For an SDI signal (CP-WU8700 only) NORMAL ó 4:3 ó 16:9

For an input signal from the LAN port, or if there is no signal CP-X8800: 4:3 (xed)

CP-WU8600, CP-WX8650, CP-WU8700, CP-WX8750: 16:10 (xed)

• The NORMAL mode keeps the original aspect ratio of the signal.

(continued on next page)

Item Description

Using the ◄/► buttons adjusts the over-scan ratio.

Small (It magnies picture) ó Large (It reduces picture)

• This item can be selected for a video signal and an SDI signal. For HDMITM, HDBaseTTM, and DisplayPort signals, this item can

•

OVER SCAN

also be selected if either (1) or (2) applies. (1) DIGITAL FORMAT item in the INPUT menu for selected port is

set to VIDEO.

(2) DIGITAL

FORMAT item in the INPUT menu for selected port is set to AUTO, and the projector recognizes that it receives video signals.

Using the ◄/► buttons adjusts the vertical position.

Down ó Up

• Over-adjusting the vertical position may cause noise to appear on the screen. If this occurs, please reset the vertical position to the default setting. Pressing the RESET button when the V POSITION

V POSITION

is selected will reset the V POSITION to the default setting.

• When this function is performed on a video signal, the range of this adjustment depends on OVER SCAN ( possible to adjust when OVER SCAN is set to 10.

• This function is unavailable for a signal from the LAN, HDMI 1 / 2,

HDBaseT,

DisplayPort, or SDI port.

Using the ◄/► buttons adjusts the horizontal position.

Right ó Left

Over-adjusting the horizontal position may cause noise to appear on

• the screen. If this occurs, please reset the horizontal position to the default setting. Pressing the RESET button when the H POSITION is

H POSITION

selected will reset the H POSITION to the default setting.

• When this function is performed on a video signal, the range of this adjustment depends on OVER SCAN ( possible to adjust when OVER SCAN is set to 10.

• This function is unavailable for a signal from the LAN, HDMI 1 / 2,

HDBaseT,

DisplayPort, or SDI port.

IMAGE menu

above) setting. It is not



above) setting. It is not



(continued on next page)

IMAGE menu

Item Description

Using the

◄/►

buttons adjusts the horizontal phase to eliminate icker.

Right ó Left

H PHASE

• This item can be selected only for a computer signal or a component video signal. This function is unavailable for a signal from the LAN, HDMI

1 / 2, HDBaseT

Using the ◄/► buttons adjusts the horizontal size.

Small ó Large

• This item can be selected only for a computer signal. This function

H SIZE

is unavailable for a signal from the LAN, VIDEO, HDMI 1 / 2, HDBaseT,

• When this adjustment is excessive, the picture may not be

DisplayPort, or SDI port.

displayed correctly. In such a case, please reset the adjustment by pressing the RESET button on the remote control during this operation.

• Images might appear degraded when this function is operated, but it is not a malfunction.

Selecting this item performs the automatic adjustment feature.

For a computer signal

For a video signal

The video format best suited for the respective input signal will be selected automatically. This function is available only when

AUTO ADJUST

EXECUTE

the AUTO is selected for the VIDEO FORMAT item in the INPUT menu (

70). The vertical position and horizontal position will be



automatically set to the default.

• The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input.

• When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.

• When this function is performed for a computer signal, a black frame may be displayed on the edge of the screen, depending on the computer model.

• The items adjusted by this function may vary when the FINE or DISABLE is selected for the AUTO ADJUST item of the SERVICE item in the OPTION menu (



93).

, DisplayPort, or SDI port.

INPUT menu

From the INPUT menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

Using the ▲/▼ buttons switches the progress mode.

TV ó FILM ó OFF

•

This function works only for a video signal, component video signal

(of 480i@60 or 576i@50 or 1080i@50/60), an HDMI

PROGRESSIVE

VIDEO NR

COLOR SPACE

(of 480i@60 or 576i@50 or 1080i@50/60) and HDBaseT (of 480i@60 or 576i@50 or 1080i@50/60)

• When TV or FILM is selected, the screen image will be sharp. FILM adapts to the 2-3 Pull-Down conversion system. But these may cause a certain defect (for example, jagged line) of the picture for a quick moving object. In such a case, please select OFF, even though the screen image may lose sharpness.

Using the ▲/▼ buttons switches the noise reduction mode.

HIGH ó MID ó LOW

•

This function works only for a video signal, component video signal (of 480i@60 or 576i@50 or 1080i@50/60), an HDMI (of 480i@60 or 576i@50 or 1080i@50/60) and HDBaseT (of 480i@60 or 576i@50 or 1080i@50/60).

Using the ▲/▼ buttons switches the mode for color space.

AUTO ó RGB ó SMPTE240 ó REC709 ó REC601

• This item can be selected only for a computer signal (except for signals from the LAN and HDBaseT ports).

• The AUTO mode automatically selects the optimum mode.

• The AUTO operation may not work well at some signals. In such a case, it might be good to select a suitable mode except AUTO.

INPUT menu

signal

(continued on next page)

INPUT menu

Item Description

The video format for VIDEO port can be set. Using the ◄/► buttons

switches the mode for video format.

AUTO ó NTSC ó PAL ó SECAM

VIDEO FORMAT

N-PAL ó M-PAL ó NTSC4.43

• This item is performed only for a video signal from the VIDEO port.

• The AUTO mode automatically selects the optimum mode.

• The AUTO operation may not work well for some signals. If the picture becomes unstable (e.g. an irregular picture, lack of color), please select the mode according to the input signal.

The digital format of HDMITM input signals from the HDMI 1/2,

HDBaseT

, and DisplayPort ports can be set.

(1) Use the ▲/▼ buttons to

select the port to be set.

(2) Use the ◄/►buttons to

select the digital format.

DIGITAL FORMAT

AUTO ó VIDEO ó COMPUTER

AUTO: automatically sets the optimum mode. VIDEO: sets the suitable mode for DVD signals. COMPUTER: sets the suitable mode for computer signals.

• When the COMPUTER is selected, the function OVER SCAN (IMAGE menu) is unavailable.

The digital range of HDMITM input signals from the HDMI 1/2,

HDBaseT

, DisplayPort, and SDI ports can be set.

CP-WU8600/CP-WX8650

CP-WX8750/CP-X8800

CP-WU8700

DIGITAL RANGE

(1) Use the ▲/▼ buttons to select the port to be set. (2) Use the ◄/►buttons to select the digital range.

• If the contrast of the screen image is too strong or too weak, try nding a more suitable mode.

(continued on next page)

AUTO ó NORMAL ó ENHANCED

AUTO: automatically sets the optimum mode. NORMAL: sets the suitable mode for DVD signals. (16-235) ENHANCED: sets the suitable mode for computer signals. (0-255)

((1-254) for SDI)

Item Description

The computer input signal type for COMPUTER IN port can be set. Use the ◄/► buttons to select the

computer input signal type.

AUTO ó SYNC ON G OFF

COMPUTER IN

• Selecting the AUTO mode allows you to input a sync on G signal or component video signal from the port.

• In the AUTO mode, the picture may be distorted with certain input signals. In such a case, remove the signal connector so that no signal is received and select the SYNC ON G OFF, and then reconnect the signal.

Set the frame lock function on/off for each port.

CP-WU8600/CP-WX8650/

CP-WX8750/CP-X8800

INPUT menu

CP-WU8700

FRAME LOCK

(1) Use the ▲/▼ buttons to select the input ports. (2) Use the ◄/► buttons to turn the frame lock function on/off .

• This item can be performed only on a signal with a vertical frequency of 49 to 51Hz, 59 to 61 Hz.

• When ON is selected, moving pictures are displayed more smoothly.

(continued on next page)

ON ó OFF

INPUT menu

Item Description

The resolution for the COMPUTER IN input signal can be set on this projector.

(1) In the INPUT menu select the RESOLUTION using the ▲/▼

buttons and press the ► button. The RESOLUTION menu will be displayed.

(2) In the RESOLUTION menu select the

resolution you wish to display using the ▲/▼ buttons. Selecting AUTO SETUP will set a resolution appropriate to the input signal.

(3) Pressing the ► or ENTER button when

selecting a STANDARD resolution will automatically adjust the horizontal and vertical positions, clock phase and horizontal size.

The INPUT_INFORMATION dialog will be displayed.

RESOLUTION

(4) To set a custom resolution use the ▲/▼ buttons to select

the CUSTOM and the RESOLUTION_CUSTOM box will be displayed.

Set the (HORZ) and (VERT) resolutions using the ▲/▼/◄/► buttons. This function may not support all resolutions.

(5) Move the cursor to OK on screen and press the ► or ENTER

button. The message "ARE YOU SURE YOU WISH TO CHANGE RESOLUTION?" appears. To save the setting, press the ► button. The horizontal and vertical positions, clock phase and horizontal size will be automatically adjusted.

The INPUT_INFORMATION dialog will be displayed.

(6) To revert back to the previous resolution without saving changes,

move the cursor to CANCEL on screen and press the ◄ or ENTER button. The screen will then return to the RESOLUTION menu displaying the previous resolution.

• For some pictures, this function may not work well.

(continued on next page)

STANDARD

↓

CUSTOM

↓

Item Description

PinP POSITION

Using ▲/▼ buttons on the remote control changes the position of



PbyP / PinP

SETUP

sub area in PinP mode (

PbyP / PinP FRAME LOCK

Select the screen that enables FRAME LOCK function when using PbyP or PinP. LEFT / PRIMARY: Enables FRAME LOCK function for input on left screen of PbyP or on primary area of PinP.

RIGHT / SECONDARY: Enables FRAME LOCK function for input on right screen of PbyP or on secondary area of PinP.

INPUT menu

SETUP menu

From the SETUP menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

KEYSTONE

Selecting this item displays the KEYSTONE dialog. For details, see KEYSTONE in Correcting the distortion(

• When the zoom adjustment is set to the TELE (telephoto focus), this function may be excessive. This function should be used when the zoom adjustment is set to the full WIDE (wide-angle focus) whenever possible.

• When the horizontal lens shift is not set to the center, this function may not work well.

•

This function is unavailable when the screen is activated by

), and WARPING (



), and WARPING (



(

)

and PERFECT FIT



GEOMETRY

CORRECTION

PERFECT FIT (

PERFECT FIT

Selecting this item displays the PERFECT FIT dialog. For details, see PERFECT FIT in Correcting the distortion (

•

This function is unavailable when the screen is activated by KEYSTONE (

WARPING

Selecting this item displays the WARPING dialog. For details, see Application Manual of this feature.

• This function is unavailable when the screen is activated by KEYSTONE

EDGE BLENDING

Selecting this item displays the EDGE BLENDING dialog. For details, see EDGE BLENDING feature (



(

)



)

47 ~ 50



(continued on next page)

Item Description

PATTERN

Select PATTERN with ▲/▼ buttons. Displayed pattern [Off/1/2/3/4/5/6] can be switched with ◄/► buttons.

GEOMETRY

CORRECTION

(continued)

LAMP & FILTER

PATTERN 1: Frame PATTERN 2: Red Grid PATTERN 3: Green Grid PATTERN 4: Blue Grid PATTERN 5: Vertical 9 steps PATTERN 6: Horizontal 9 steps OFF: Displays the input signal.

Selecting this item displays the LAMP & FILTER menu. Select an item using the ▲/▼ buttons, and press the ► button or the ENTER button on the remote control to execute the item.

ECO MODE

Using the ▲/▼ buttons switches the Eco mode. NORMAL ó ECO

• When the item other than NORMAL is selected, acoustic noise and

screen brightness are reduced.

LAMP TIME

The lamp time is the usage time of the lamp, counted after the last resetting. It is shown in the LAMP & FILTER menu. Pressing the RESET button on the remote control or the ► button of the projector displays a dialog. To reset the lamp time, select the OK using the ► button.

CANCEL ð OK

• For the lamp replacement, see the section Replacing the lamp (



108

• The lamp time can be checked also with the Status Monitor (

• The IMAGE OPTIMIZER function does not work properly unless LAMP TIME is initialized when replacing a lamp.

SETUP menu



(continued on next page)

SETUP menu

Item Description

FILTER TIME

The lter time is the usage time of the air lter, counted after the last resetting. It is shown in the LAMP & FILTER menu. Pressing the RESET button on the remote control or the ► button of the projector displays a dialog. To reset the lter time, select the OK using the ► button.

CANCEL ð OK

• Please reset the lter time only when you have cleaned or replaced the air lter, for a suitable indication about the air lter.

• For the air lter cleaning, see the section Cleaning and replacing

LAMP & FILTER

(continued)


OPTIMIZER

the air lter (

• The lter time can be checked also with the Status Monitor (

FILTER MESSAGE

Use the ▲/▼ button to set the timer for notifying by the message when to replace the lter unit

1000h ó 2000h ó 5000h ó 10000h ó 15000h ó 20000h ó 25000h ó 30000h ó OFF After choosing an item except OFF, the message “REMINDER ***

HRS PASSED ....” will appear after the timer reaches the interval

time set by this feature. When the OFF is chosen, the message will not appear. Utilize this feature to keep the air lter clean, setting the suitable time according to your environment of this projector.

• Please take care of the lter unit periodically, even if there is no message. If the air lter becomes to be blocked by dust or other matter, the internal temperature will rise, which could cause malfunction, or reduce the lifetime of the projector.

• Please be careful with the operating environment of the projector and the condition of the lter unit.

When this function is enabled, automatic image correction is performed to maintain visibility in accordance with lamp deterioration.

•

This function may not work properly when HDCR/ACCENTUALIZER is set to other than 0.

• T

his function does not work properly unless LAMP TIME is initialized

when replacing a lamp.



110



(continued on next page)

Item Description

Using the ▲/▼/◄/► cursor buttons selects the desirable picture position. The PICTURE POSITION is not changed if any of the following cases apply.

There is no non-display area (black display or background display)


POSITION

INSTALLATION

・

or it is not displayed on the screen.

• One of the following messages is displayed on the screen: "NO INPUT IS DETECTED" "SYNC IS OUT OF RANGE" "INVALID SCAN FREQ."

• The BLANK or TEMPLATE function is selected. Pressing the ►button displays the dialog for changing the

INSTALLATION setting.

FRONT / DESKTOP  REAR / DESKTOP  REAR / CEILING

FRONT / CEILING

Use the ▲/▼ buttons to select the desired setting on the INSTALLATION dialog, and press the ENTER button of the remote control or the INPUT button of the projector to execute. If TRANSITION DETECTOR is ON and the INSTALLATION status is changed, the TRANSITION DETECTOR ON alarm ( be displayed when the projector is restarted.



SETUP menu

) will



104

(continued on next page)

SETUP menu

Item Description

Using ▲/▼ buttons switches the standby mode setting between NORMAL and SAVING.

NORMAL ó SAVING

When SAVING is selected, the power consumption in the standby mode is lowered with some functional restriction as below:

• When SAVING is selected, the RS-232C communication control except to turn the projector on and the network function are disabled while the projector is in the standby mode. If the COMMUNICATION TYPE in the COMMUNICATION menu is set to NETWORK BRIDGE, all of the RS-232C commands are disabled (

•

This function will be unavailable when NETWORK BRIDGE is selected for COMMUNICATION TYPE. ( > COMMUNICATION)

•

STANDBY MODE

This function will be available only when OFF is selected for STACK MODE. (

OPTION menu > SERVICE > COMMUNICATION



> STACK)

• When SAVING is selected, AUDIO OUT STANDBY setting of AUDIO SOURCE (

80) is invalid, and no signal is output from



AUDIO OUT port in the standby mode.

• When SAVING is selected, STANDBY setting of MONITOR OUT is invalid, and no signal is output from MONITOR OUT port in the standby mode.

• When SAVING is selected, the CENTERING feature while the projector is in the standby mode is disabled.

•

When SAVING is selected, the Status Monitor and its button operation are unavailable while the projector is in the standby mode.

•

When SAVING is selected, the HDMI Link and HDBaseT functions are disabled while the projector is in the standby mode.

Selects image level and region that are desired to be corrected, and

COLOR

UNIFORMITY

adjusts Color Balance. Divides the screen into 9 regions and adjusts gain of R/G/B of each

region.

96).



OPTION menu > SERVICE



(continued on next page)

Item Description

Using the ▲/▼ buttons turns on/off the message function.

NORMAL ó SILENT ó INHIBIT

SETUP menu

OSD MESSAGE

■SILENT

: The following message functions does not work.

“AUTO IN PROGRESS” while automatically adjusting “NO INPUT IS DETECTED” “SYNC IS OUT OF RANGE” “INVALID SCAN FREQ.” “NOT AVAILABLE” “Searching….” while searching for the input “Detecting….” while an input signal is detected The indication of the ZOOM displayed by changing

*While operating from the remote control only. The indication of the FOCUS displayed by changing The indication of the input signal displayed by changing The indication of the aspect ratio displayed by changing The indication of the PICTURE MODE displayed by changing The indication of the ACTIVE IRIS displayed by changing The indication of the MY MEMORY displayed by changing The indication of “FREEZE” and “II” while freezing the screen by pressing the FREEZE button. The indication of the TEMPLATE displayed by changing. The indication of the ECO MODE displayed by changing.

■INHIBIT

: All message functions does not work.

The only buttons will function are as below. STANDBY, ON Status Monitor can be operated.

• To change this function, follow the steps below.

1. Press the OSD MSG button on the remote control for 3 sec.

2. The HIDE OSD will be displayed. While this OSD is displayed, press the OSD MSG button again on the remote control.

3. Toggle and change the function. NORMAL ó SILENT ó INHIBIT

AUDIO menu

From the AUDIO menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or the ENTER button to execute the item. Then perform it according to the following table.

Item Description

VOLUME

SPEAKER

Using the ◄/► buttons adjusts the volume of the audio output.

Low ó High

Using the ▲/▼ buttons turns on/off the built-in speaker.

ON ó OFF

When OFF is selected, the built-in speaker does not work. While the image signal from the input port chosen in step (1) is

projected, the audio signal from the input port selected in step (2) is output to both the AUDIO OUT port and built-in speaker of this projector. However, the built-in speaker does not work when SPEAKER is set to OFF.

CP-WU8600/CP-WX8650

CP-WX8750/CP-X8800

CP-WU8700

AUDIO SOURCE

(1) Choose a picture input port using the ▲/▼ buttons.

Choose AUDIO OUT STANDBY to select the sound output in the standby mode.

Select an audio input port or the mute icon using the ◄/► buttons.

(2)

The icons indicate the following;

No.1: AUDIO IN1 port No.2: AUDIO IN2 port No.3: HDMI 1 port No.4: HDMI 2 port No.5: DisplayPort No.6: HDBaseT port No.7: LAN port

• Audio input from port Nos.3 to 7 can only be selected by each of the picture input ports and AUDIO OUT STANDBY.

• C.C. (Closed Caption) is automatically activated when and an input signal containing C.C. is received. This function is available only when the signal is NTSC for VIDEO or COMPUTER IN, and when AUTO is selected for DISPLAY in the C.C. menu under the SCREEN menu (

86).



: mutes the sound

is selected

SCREEN menu

From the SCREEN menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

Using the ▲/▼/◄/► buttons switches the OSD (On Screen Display) language.

LANGUAGE

MENU POSITION

BLANK

ENGLISH ó FRANÇAIS ó DEUTSCH ó ESPAÑOL

(shown in the LANGUAGE dialog) Press the ENTER or INPUT button to save the language setting. Using the ▲/▼/◄/► buttons adjusts the menu position.

To quit the operation, press the MENU button on the remote control or keep no operation for about 10 seconds.

Using the ▲/▼ buttons switches the mode for the blank screen. The blank screen is a screen for the temporarily blanking feature (

37). It is displayed by pressing the AV MUTE button on the



remote control.

MyScreen ó ORIGINAL ó BLUE ó WHITE ó BLACK

MyScreen : ORIGINAL : Screen preset as the standard screen. BLUE, WHITE, BLACK : Plain screens in each color.

• To avoid remaining as an afterimage, the MyScreen or ORIGINAL screen will change to the AUTO BLANK screen after several minutes.

Screen can be registered by the MyScreen item (

SCREEN menu



83).

(continued on next page)

SCREEN menu

Item Description

Using the ▲/▼ buttons switches the mode for the AUTO BLANK screen.

AUTO BLANK

• To avoid remaining as an afterimage, displayed image will change to the designated blank color screen by AUTO BLANK after several minutes at the following conditions.

- When MyScreen or ORIGINAL is displayed as BLANK screen.

- When start-up screen is displayed. Using the ▲/▼ buttons switches the mode for the start-up screen.

The start-up screen is a screen displayed when no signal or an unsuitable signal is detected.

START UP

MyScreen : ORIGINAL : Screen preset as the standard screen. OFF : Plain black screen.

• To avoid remaining as an afterimage, the START UP screen will change to the AUTO BLANK screen after several minutes.

• When the ON is selected to the MyScreen PASSWORD item in the SECURITY menu (

(continued on next page)

BLUE ó WHITE ó BLACK

MyScreen ó ORIGINAL ó OFF

Screen can be registered by the MyScreen item (

102), the START UP is fixed to MyScreen.



83).

Item Description

This item allows you to capture an image for use as a MyScreen image which can be used as the BLANK screen and START UP screen. Display the image you want to capture before executing the following procedure.

(1) Selecting this item displays a dialog

titled “MyScreen”. It will ask you if you start capturing an image from the current screen.

Please wait for the target image to be displayed, and press the ENTER or INPUT button when the image is displayed. The image will freeze and the frame for capturing will appear. To stop performing, press the RESET button on the remote control.

(2) Using the ▲/▼/◄/► buttons adjusts

the frame position. Please move the frame to the position of the image which you want to use. The

MyScreen

frame may not be able to be moved for some input signals. To start registration, press the ENTER or INPUT button on the remote control.

To restore the screen and return to the previous dialog, press the RESET button on the remote control. Registration may take several minutes. When the registration is completed, the registered screen and the following message is displayed for several seconds:

“MyScreen registration is nished.”

If the registration failed, the following message is displayed:

“A capturing error has occurred. Please try again.”

• This function cannot be selected when the ON is selected to the MyScreen Lock item (



84).

• This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu (

• This function is unavailable for a signal from the LAN, HDMI 1 / 2, HDBaseT or SDI port.

SCREEN menu

102).



(continued on next page)

SCREEN menu

Item Description

Using the ▲/▼ buttons turns on/off the MyScreen lock function.

ON ó OFF

MyScreen Lock

When the ON is selected, the item MyScreen is locked. Use this function for protecting the current MyScreen.

• This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu (

Each input port for this projector can have a name applied to it. (1) Use the ▲/▼ buttons on the SCREEN menu to select SOURCE

NAME and press the ► or ENTER button. The SOURCE NAME menu will be displayed.

(2) Use the ▲/▼ buttons on the SOURCE NAME menu to select

the port to be named and press the ► button. The SOURCE NAME dialog will be displayed. Right side of the menu is blank until a name is specied.

CP-WU8600/CP-WX8650

CP-WX8750/CP-X8800

(3) Select an icon you would like to assign to

the port in the SOURCE NAME dialog.

SOURCE NAME

The name assigned to the port will also be automatically switched according to your icon selection. Press the ENTER or INPUT button to determine your icon selection.

(4) Select a number you would like to assign

to the port along with the icon. You can select the number either from blank (no number assigned), 1, 2, 3, or 4. Then press the ENTER or INPUT button.

(5) If you would like to modify the name assigned to the port, select

CUSTOM NAME and press the ENTER or INPUT button.

CP-WU8600/CP-WX8650

CP-WX8750/CP-X8800

102).



CP-WU8700

(continued on next page)

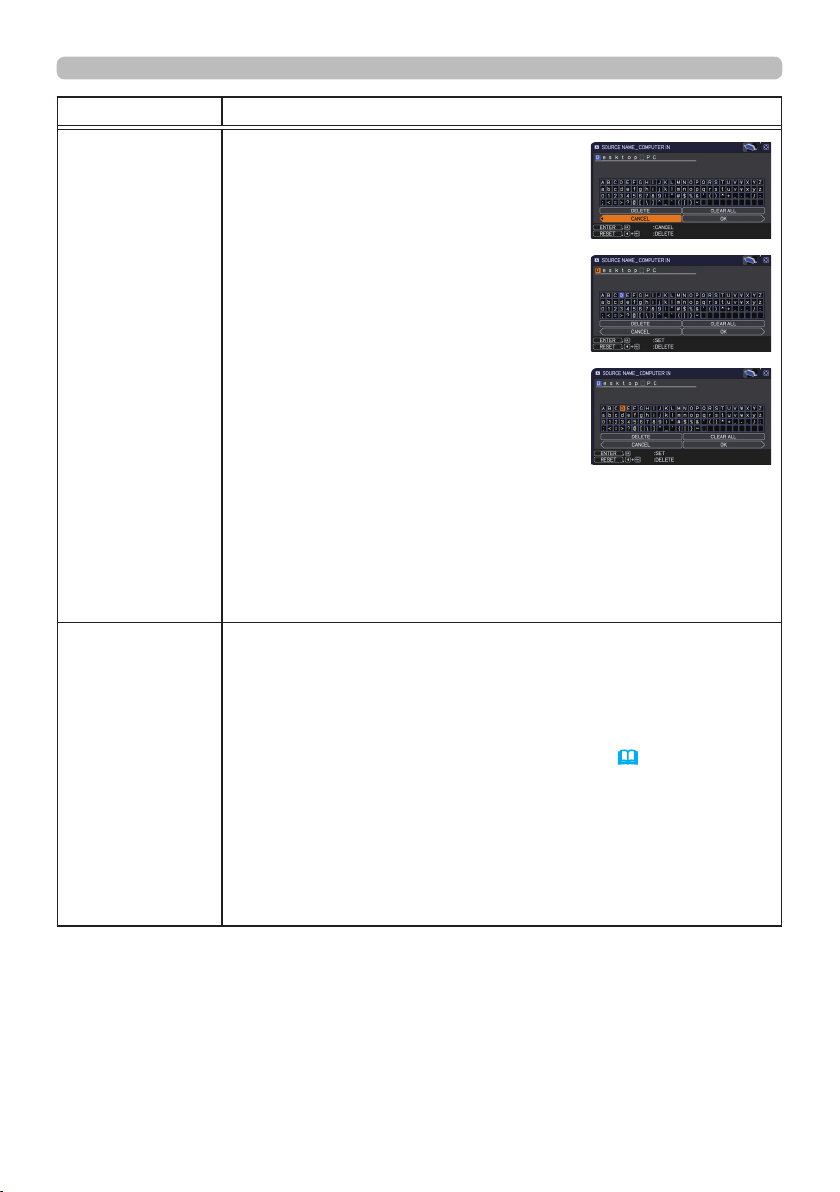

Item Description

(6) The current name will be displayed on

the rst line. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and INPUT button at the same time. Also if you move the cursor to DELETE or CLEAR ALL on screen and press the ENTER or INPUT button, 1 character or all characters will be erased. The name can be a maximum

SOURCE NAME

(continued)

of 16 characters.

(7) To change an already inserted character,

press the ▲ button to move the cursor to the rst line, and use the ◄/► buttons to move the cursor on the character to be

changed. After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (6) above.

(8) To nish entering text, move the cursor to the OK on screen and

press the ►, ENTER or INPUT button. To revert to the previous

name without saving changes, move the cursor to the CANCEL

on screen and press the ◄, ENTER or INPUT button.

Using the ▲/▼ cursor buttons switches the mode for the template screen. Press the ► cursor (or the ENTER) button to display the selected template, and press the ◄ cursor button to close the displayed screen. The last selected template is displayed when the MY BUTTON allocated to the TEMPLATE function is pressed (

TEMPLATE

TEST PATTERN ó DOT-LINE1 ó DOT-LINE2 ó DOT-LINE3



STACK ó MAP2 ó MAP1 ó CIRCLE2 ó CIRCLE1 ó DOT-LINE4

You can turn a map upside down and scroll it horizontally when MAP1 or MAP2 is selected. To invert or scroll the map, display the guidance by pressing the RESET button on the remote three seconds or more when MAP1 or MAP2 appears.

SCREEN menu

89).





(continued on next page)

SCREEN menu

Item Description

The C.C. is the function that displays a transcript or dialog of the audio portion of a video, les or other presentation or other relevant sounds. It is required to have NTSC format video or 480i@60 format component video source supporting C.C. feature to utilize this function. It may not work properly, depending on equipment or signal source. In this case, please turn off the Closed Caption.

DISPLAY

Select Closed Caption DISPLAY setting from following options using ▲/▼ buttons.

AUTO ó ON ó OFF

AUTO : Closed Caption automatically appears when the input signal

(C.C. compatible) from the port with the mute icon set at

AUDIO SOURCE is selected. ON : Closed Caption is on. OFF : Closed Caption is off.

• The caption is not displayed when the OSD menu is active.

• The Closed Caption is the function to display the dialogue,

C.C.

(Closed Caption)

narration, and / or sound effects of a television program or other video sources. The Closed Caption availability is depending upon broadcaster and/or content.

MODE

Select Closed Caption MODE setting from following options using ▲/▼ buttons.

CAPTIONS ó TEXT

CAPTIONS : Display Closed Caption. TEXT : Display Text data, which is for additional information such as

news reports or a TV program guide. The information covers the entire screen. Not all of the C.C. program has Text information.

CHANNEL

Select Closed Caption CHANNEL from following options using ▲/▼ buttons.

1 ó 2 ó 3 ó 4

1: Channel 1, primary channel / language 2: Channel 2

3: Channel 3 4: Channel 4

The channel data may vary, depending on the content. Some channel might be used for secondary language or empty.

OPTION menu

From the OPTION menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

SOURCE SKIP

AUTO SEARCH

* CP-WU8700 only

The ports can be set to be ignored in searching by the AUTO SEARCH function ( panel.

CP-WU8600/CP-WX8650

CP-WX8750/CP-X8800

(1) Choose a picture input port using the ▲/▼ buttons. (2) Using the ◄/►buttons turns on/off the SOURCE SKIP function.

NORMAL ó SKIP

The port that is set to SKIP will be ignored.

• It is not possible to set SKIP to all ports at the same time.

• This setting is not valid when in the PbyP /PinP mode ( Using the ▲/▼ buttons turns on/off the automatic signal search

function.

ON ó OFF

When the ON is selected, detecting no signal automatically cycles through input ports in the following order. The search is started from the current port. Then when an input is found, the projector will stop searching and display the image.

LAN

VIDEO HDMI 2

SDI* ï HDBaseT ï DisplayPort

 

below) or in selecting by buttons on the control



COMPUTER IN

ð HDMI 1

OPTION menu

CP-WU8700



53).

(continued on next page)

OPTION menu

Item Description

Using the ▲/▼ buttons turns on/off the DIRECT POWER ON function.

ON ó OFF

When set to the ON, the lamp in projector will be automatically turned

DIRECT POWER

on without the usual procedure ( supplied with the power after the power was cut while the lamp was on.

• This function does not work as long as the power has been supplied to the projector while the lamp is off.

• After turning the lamp on by the DIRECT POWER ON function, if neither input nor operation is detected for about 30 minutes, the projector is turned off, even though the AUTO POWER OFF function (

below) is disabled.



Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off.

Long (max. 99 minutes) ó Short (min. 0 minute = DISABLE)

35), only when the projector is



AUTO POWER

OFF

When the time is set to 0, the projector is not turned off automatically. When the time is set to 1 to 99, and when the passed time with no-signal or an unsuitable signal reaches at the set time, the projector lamp will be turned off. If one of the projector's buttons or the remote control buttons is pressed or one of the commands (except get commands) is transmitted to the CONTROL port during the corresponding time, projector will not be turned off. Please refer to the section Turning off the power (

Using the ▲/▼ buttons sets the time from closing the lens shade to automatically turning the projector off.

SHADE TIMER

• The shade will open automatically when turning the projector on again.

(continued on next page)

1h ó 3h ó 6h



35).

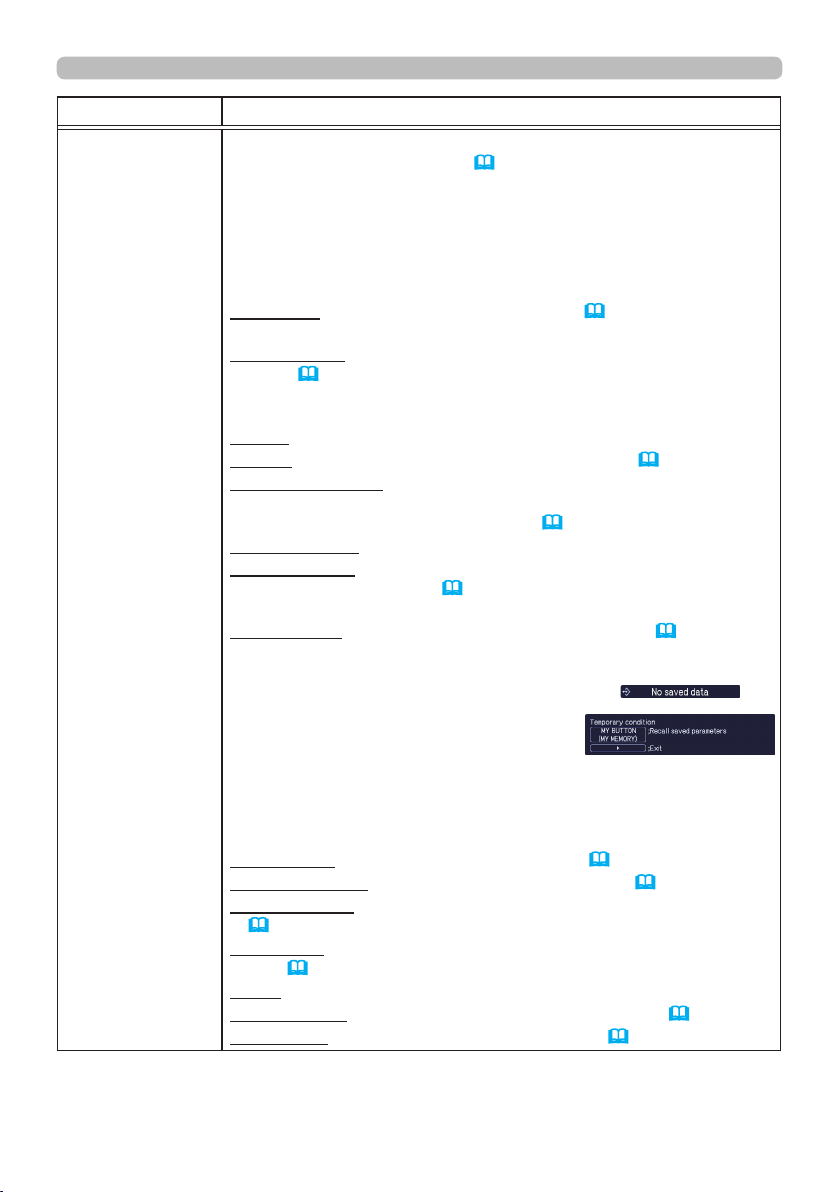

Item Description

This item is to assign one of the following functions to MY BUTTON (1 to 4) on the remote control (

(1) Use the ▲/▼ buttons on the MY BUTTON menu to select a

button from MY BUTTON - 1 to 4 and press the ► or ENTER button to display the MY BUTTON setup dialog.

(2) Then using the ▲/▼/◄/► buttons sets one of the following

functions to the chosen button. Press the ENTER or INPUT button to save the setting.

MY IMAGE: Displays the MY IMAGE menu.(

Function in the Network Guide)

MESSENGER: Turns the messenger text displayed on the screen

on/off (

6. Messenger Function in the Network Guide).



When there is no transferred text data to display, the message

”NO MESSENGER DATA" appears. BLANK: Switches the BLANK function to on or off. SHADE: Turns the lens shade closed and opened ( PbyP / PinP SWAP: Swaps the picture on the right with one on

the left in the PbyP mode. Swaps the primary picture and the

secondary picture in the PinP mode. ( PinP POSITION: Toggles the PinP position. INFORMATION: Displays SYSTEM_INFORMATION,

MY BUTTON

INPUT_INFORMATION (

99), WIRELESS INFORMATION,



WIRED INFORMATION or nothing. MY MEMORY: Loads one of adjustment data stored (

When more than one data are saved, the adjustment

changes every time the MY BUTTON is pressed.

When no data is saved in memory, the

dialog "No saved data" appears.

When the current adjustment is not

saved to memory, the dialog as shown in

the right appears.

If you want to keep the current adjustment, please press

the ► button to exit. Otherwise loading a data will overwrite the

current adjusted condition. ACTIVE IRIS: Changes the active iris mode ( PICTURE MODE: Changes the PICTURE MODE ( FILTER RESET: Displays the lter time reset conrmation dialogue

76).

(



TEMPLATE: Makes the template pattern selected to the TEMPLATE

item (

85) appear or disappear.



MUTE: Turns the audio mute on/off. RESOLUTION: Turns on/off the RESOLUTION dialog ( ECO MODE: Changes the ECO MODE dialog (



7).



5. My Image



53)



OPTION menu

52).



65).



62).

63).



75).

72).

(continued on next page)

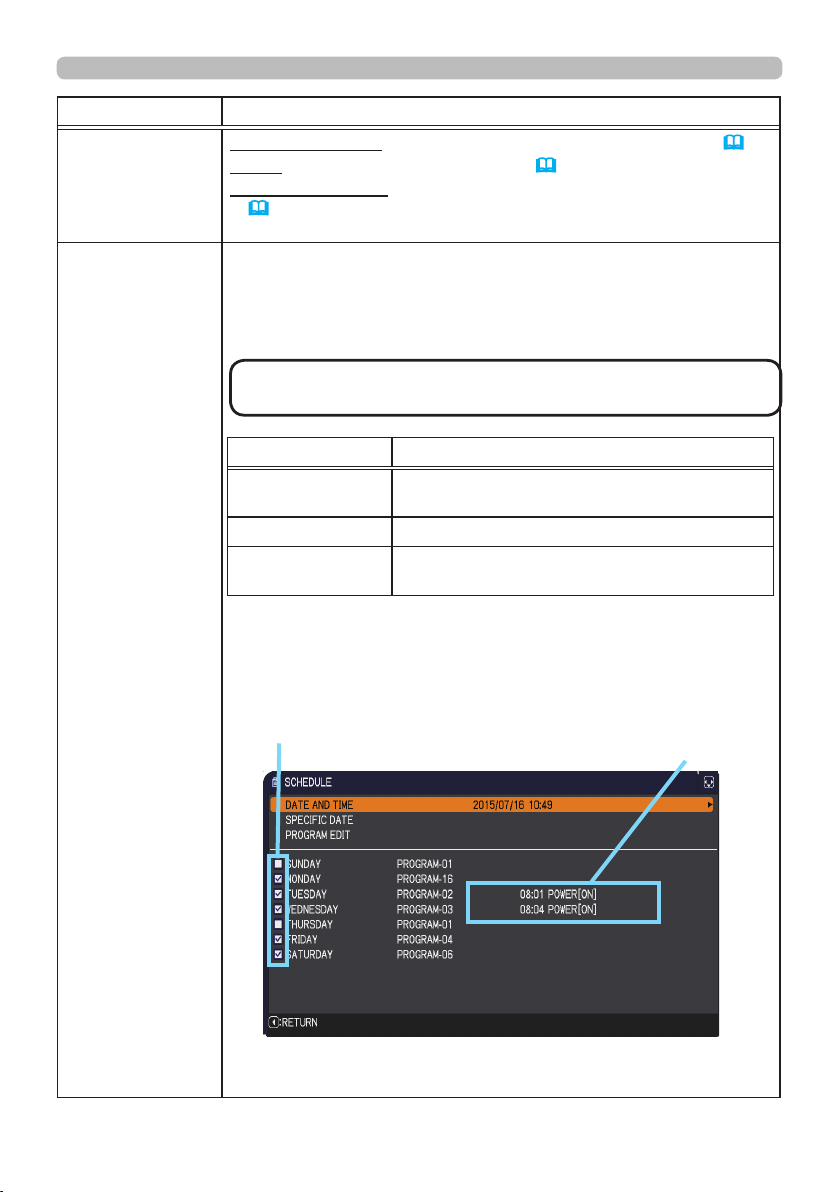

OPTION menu

Item Description

ACCENTUALIZER: Turns on/off the ACCENTUALIZER dialog

MY BUTTON

(continued)

HDCR: Turns on/off the HDCR dialog STATUS MONITOR: Turns on/off the back light of status monitor

31).

(

STANDBY MODE while the projector is in the standby mode.

This function is unavailable when SAVING is selected in



■ How to setup the item

1. Use the ▲/▼/◄/► cursor buttons to select or adjust.

2. Select OK to nish the settings.

NOTE

Please refer to the actual on-screen display(OSD) for

appropriate operation.

Item Description

DATE & TIME

SPECIFIC DATE

PROGRAM EDIT

Set the DATE(Year/Month/Date) and Time(24hour scale).

Set specic date from 1 to 10. The TIME and EVENT for Program 1 to 16

can be editted.

■ How to activate (DATE AND TIME / SPECIFIC DATE)

SCHEDULE

Place a check mark in the box.

Check mark

in the box

65).

(



65).

(



Date and rst setup info could be seen with the check mark.

1/2 page (Set the DATE(Year/Month/Date) and Time(24-hour scale).)

(continued on next page)

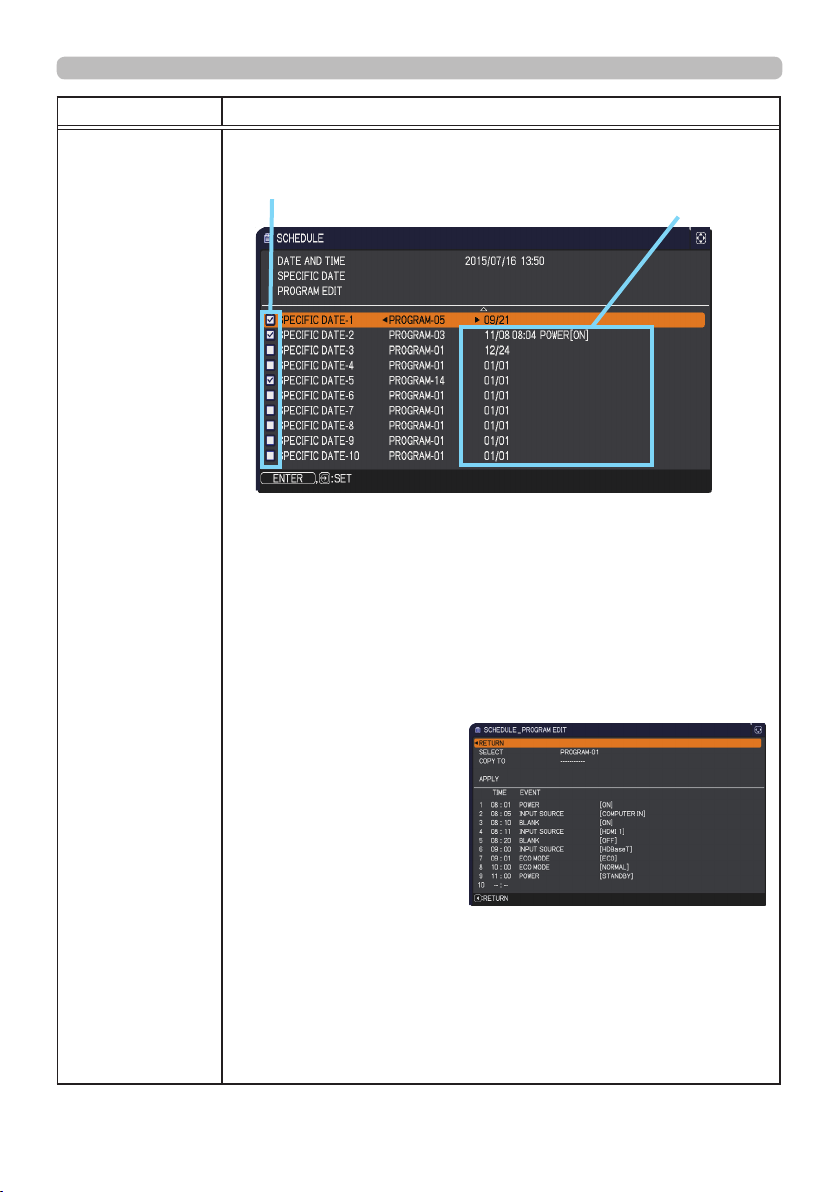

Item Description

Check mark in the box

2/2 page (Set specic date from 1 to 10.)

OPTION menu

Date and rst setup info could be seen with the check mark.

SCHEDULE (continued)

■ PROGRAM EDIT

The TIME and EVENT for Program 1 to 16 can be editted.

• RETURN

Select this to go back to the top menu of the SCHEDULE.

• SELECT

Select from PROGRAM-01 to 16 to edit. Each PROGRAM can be setup up to 20 settings.

• COPY TO

The selected program (with the settings of TIME and EVENT) can be copied to other program.

• APPLY

Select this to apply and save all adjustments and settings.

(continued on next page)

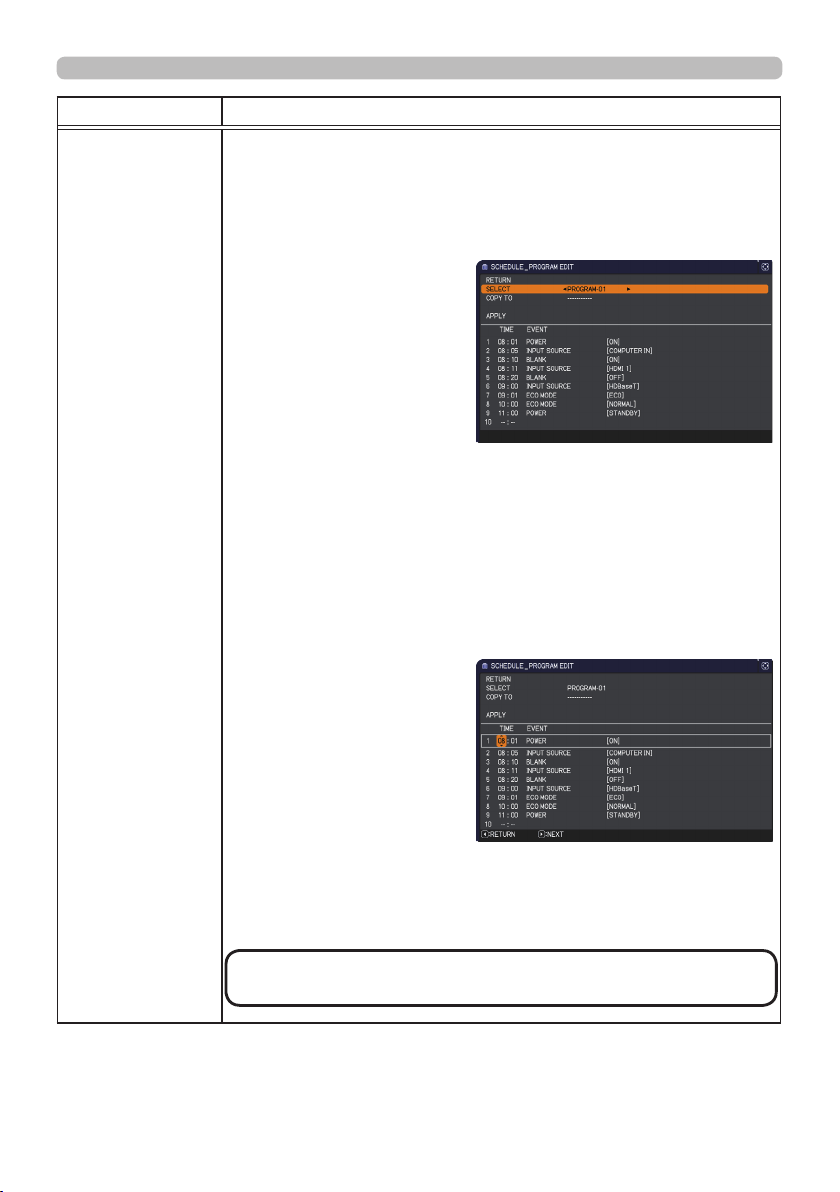

OPTION menu

Item Description

■ How to edit the selected PROGRAM

1. Select from 1 to 20 events.

Use the ▲/▼ cursor buttons to select. Press ► cursor button to set the TIME and EVENT.

2. Use the ◄/► cursor buttons to select.

3. Use the ▲/▼ cursor buttons to adjust.

EVENT can be selected as listed below.

◦ POWER − ON, STANDBY ◦ INPUT SOURCE − "input source"channel

SCHEDULE (continued)

◦ MY IMAGE − IMAGE-1 to 4, IMAGE OFF ◦ MESSENGER − TEXT-1 to 12, TEXT OFF ◦ ECO MODE − NORMAL, ECO ◦ BLANK − ON, OFF

4. Press ► cursor button to finish the settings.

5. Select APPLY to save the settings.

NOTE

appropriate operation.

(continued on next page)

Please refer to the actual on-screen display(OSD) for

Item Description

Selecting this item displays the SERVICE menu. Select an item using the ▲/▼ buttons, and press the ► button or the ENTER button on the remote control to execute the item.

ALTITUDE

Using the ▲/▼ buttons switches the rotation speed of the cooling fans. It is recommended to leave it at AUTO usually.

HIGH-2 ó HIGH-1 ó NORMAL ó AUTO

AUTO: The projector changes the rotation speed automatically to

suit the altitude and other environmental factors. Choose an option below when there is a trouble with the AUTO mode.

SERVICE

NORMAL: This mode can be used below 1600m (5250ft.). HIGH-1: This mode can be used between 1600 to 2300m (5250 to

7550ft.).

HIGH-2: This mode can be used above 2300m (7550ft.).

AUTO ADJUST

Using the ▲/▼ buttons to select one of the mode. When the DISABLE is selected, the automatic adjustment feature is disabled.

FINE ó FAST ó DISABLE

FINE: Finer tuning including H.SIZE adjustment. FAST: Faster tuning, setting H.SIZE to prearranged data for the

input signal.

• Depending on conditions, such as input image, signal cable to the projector, environment around the projector, etc., the automatic adjustment may not work correctly. In such a case, please choose DISABLE to disable the automatic adjustment, and make adjustment manually.

OPTION menu

(continued on next page)

OPTION menu

Item Description

LENS TYPE

(1) Select the lens type currently used using the ▲/▼ buttons and

(2) A message dialog is displayed for conrmation. Press the ► or

• This setting has an inuence on the keystone distortion etc.

• The lens type determined by the projector will be displayed on the

SERVICE

(continued)

right of "AUTO".

• If the projector cannot determine the lens type automatically when this item is set to AUTO, "UNKNOWN LENS" is displayed on the right of "AUTO".

• About the optional lens, ask your dealer.

LENS LOCK

Using the ▲/▼ buttons turns on/off the lens lock feature. When ON is selected, the buttons (ZOOM, ZOOM + / -, FOCUS + / -, LENS SHIFT, LENS MEMORY) are locked.

(continued on next page)

press the ► or ENTER button. If AUTO is selected, the projector determines the lens type automatically.

ENTER button to save the lens type.

ON ó OFF

Item Description

KEY LOCK

(1) Use the ▲/▼ buttons to choose the operations control.

CONTROL PANEL ó REMOTE CONTROL

(2) Use the ◄/► buttons to select ON or

OFF.

ON ó OFF

Selecting ON in Step 2 locks the buttons except STANDBY, ON and STANDBY/ON on the operations control selected in Step 1. Selecting OFF releases the locked buttons on the operations control selected in Step 1.

• Please use this function to prevent tampering or accidental operation.

• It's not possible to disable both options at the same time.

REMOTE RECEIV.

(1) Select a remote sensor using the ▲/▼ button.

FRONT ó REAR ó HDBaseT

(2) Switch it using the ◄/► button.

SERVICE

(continued)

ON ó OFF

• When one sensor is turned off, the other cannot be turned off too.

REMOTE FREQ.

(1) Use the ▲/▼ button to change the projector's remote sensor

frequency setting (



4, 29).

1:NORMAL ó 2:HIGH

(2) Use the ◄/► button to change the

projector's remote sensor on or off.

ON ó OFF

If the remote control does not function correctly, disable either of them.

• It's not possible to disable both options at the same time.

REMOTE ID

Use the ▲/▼ buttons on the REMOTE ID menu to select ID and press the ► button.

ALL ó 1 ó 2 ó 3 ó 4

OPTION menu

The projector is controlled by the remote control whose ID button is set the same number as this number. When the ALL is selected, the projector is controlled by a remote control irrespective of the ID setting.

(continued on next page)

OPTION menu

Item Description

Selecting this item displays COMMUNICATION menu. In this menu, you can congure the serial communication settings of the projector using the CONTROL port.

• Select an item using the cursor buttons ▲/▼. Then pressing the ► button opens the submenu for the setting item you selected. Or, pressing the ◄ button instead of the ► button makes the menu back to the previous one without changing the setup. Each submenu can be operated as described above.

• When COMMUNICATION TYPE ( set to OFF, the other items except STACK in COMMUNICATION menu are invalid.

• For the function of serial communication, refer to

SERVICE

(continued)

COMMUNICATION

the Network Guide.

COMMUNICATION TYPE

Select the communication type for transmission via the CONTROL port.

NETWORK BRIDGE (WIRELESS)

NETWORK BRIDGE (WIRED)

OFF

NETWORK BRIDGE: Select this type, if it is

required to control an external device as a network terminal, via this projector from the computer. Select WIRELESS or WIRED as your network connection mode. The CONTROL port does not accept RS-232C commands ( the Network Guide).

OFF: Select this mode to receive RS-232C

commands using the CONTROL port.

• OFF is selected as the default setting.

• When you select the NETWORK BRIDGE, check the item, TRANSMISSION METHOD (

below) is





7. Network Bridge Function in



97).

(continued on next page)

Item Description

SERIAL SETTINGS

Select the serial communication condition for the

CONTROL port.

BAUD RATE

4800bps ó 9600bps ó 19200bps ó 38400bps

PARITY

NONE ó ODD ó EVEN

•

The BAUD RATE is xed to 19200bps and PARITY

is xed NONE when the COMMUNICATION TYPE

SERVICE

(continued)

COMMUNICATION

(continued)

is set to OFF

TRANSMISSION METHOD

Select the transmission method for communication by

(

the NETWORK BRIDGE from the CONTROL port.

HALF-DUPLEX ó FULL-DUPLEX

HALF-DUPLEX: This method lets the projector

make two way communication, but only one direction, either transmitting or receiving data, is allowed at a time.

FULL-DUPLEX: This method lets the projector

make two way communication, transmitting and receiving data at the same time.

• HALF-DUPLEX is selected as the default setting.

• If you select HALF-DUPLEX, check the setting of the item RESPONSE LIMIT TIME (



96).

OPTION menu

98).



(continued on next page)

OPTION menu

Item Description

RESPONSE LIMIT TIME

Select the time period to wait for receiving response data from other device communicating by the NETWORK BRIDGE and the HALF-DUPLEX through the CONTROL port.

OFF ó 1s ó 2s ó 3s

OFF: Select this mode if it is not required to check

the responses from the device that the projector sends data to. In this mode, the projector can send out data from the computer continuously.

1s /2s /3s: Select the time period to keep the

projector waiting for response from the device

SERVICE

(continued)

COMMUNICATION

(continued)

that the projector sends data to. While waiting the response, the projector does not send out any data from the CONTROL port.

• This menu is available only when the NETWORK BRIDGE is selected for the COMMUNICATION TYPE and the HALF-DUPLEX is selected for the TRANSMISSION METHOD (

• OFF is selected as the default setting.

STACK

Selecting this item displays the STACK menu. For more information, please see Instant Stack Guide.

• When STACK MODE is set to MAIN or SUB, the other items in COMMUNICATION menu are invalid.



97).

(continued on next page)

Item Description

INFORMATION

Selecting this item displays a dialog titled “INPUT_INFORMATION”. It shows the information about the current input.

• The “FRAME LOCK” message on the dialog means the frame lock function is working.

• This item can't be selected for no signal and sync out.

SERVICE

(continued)

• When the MY TEXT DISPLAY is set to ON, the MY TEXT is displayed together with the input information in the INPUT_INFORMATION box (



FACTORY RESET

Selecting OK using the ► button performs this function. By this function, all the items in all of menus will collectively return to the initial setting. Note that the items LAMP TIME, FILTER TIME, LANGUAGE, AUTO BLANK, FILTER MESSAGE, STANDBY MODE, COMMUNICATION, NETWORK and SECURITY settings are not reset.

CANCEL ð OK

OPTION menu

106).

NETWORK menu

See the Network Guide for details of NETWORK operation. Remember that incorrect network settings on this projector may cause trouble on the network. Be sure to consult with your network administrator before connecting to an existing access point on your network.

100

Hitachi CP-WX8650W, CP-X8800B, CP-X8800W, CP-WX8750W, CP-WX8750B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
