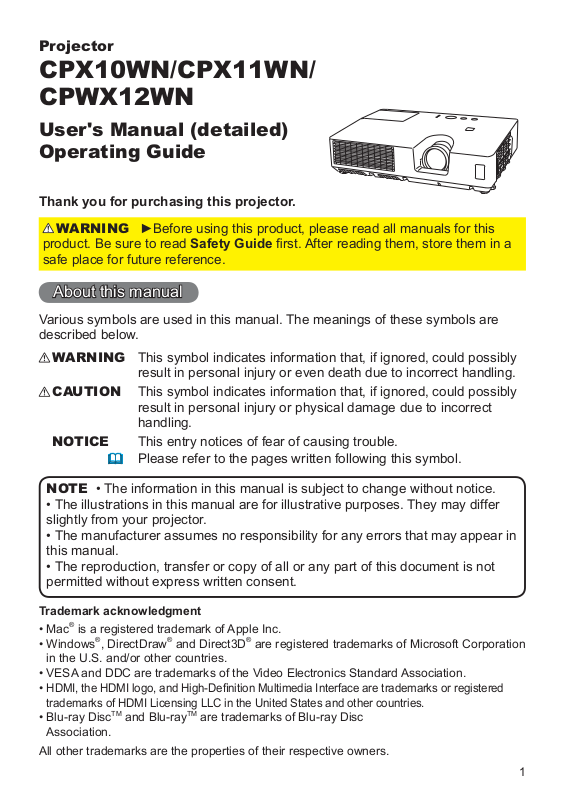

Hitachi CP-CPX11WN User Manual

Projector

CPX10WN/CPX11WN/
CPWX12WN

User's Manual (detailed)
Operating Guide

Thank you for purchasing this projector.

WARNING

product. Be sure to read Safety Guide rst. After reading them, store them in a
safe place for future reference.

►Before using this product, please read all manuals for this

About this manual

Various symbols are used in this manual. The meanings of these symbols are
described below.

WARNING

CAUTION

NOTICE This entry notices of fear of causing trouble.

NOTE

• The illustrations in this manual are for illustrative purposes. They may differ
slightly from your projector.

• The manufacturer assumes no responsibility for any errors that may appear in
this manual.

• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.

Trademark acknowledgment

• Mac® is a registered trademark of Apple Inc.

• Windows
in the U.S. and/or other countries.

• VESA and DDC are trademarks of the Video Electronics Standard Association.

•

HDMI, the HDMI logo, and High-Denition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC in the United States and other countries.

• Blu-ray DiscTM and Blu-rayTM are trademarks of Blu-ray Disc
Association.

All other trademarks are the properties of their respective owners.

• The information in this manual is subject to change without notice.

®

This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could possibly
result in personal injury or physical damage due to incorrect
handling.

Please refer to the pages written following this symbol.



, DirectDraw® and Direct3D® are registered trademarks of Microsoft Corporation

1

Read this Safety Guide first.

Projector

User's Manual - Safety Guide

Thank you for purchasing this projector.

WARNING •

correct usage through understanding. After reading, store them in a safe place for
future reference. Incorrect handling of this product could possibly result in personal injury
or physical damage. The manufacturer assumes no responsibility for any damage caused
by mishandling that is beyond normal usage defined in these manuals of this projector.

Before using, read these user's manuals of this projector to ensure

NOTE

• The manufacturer assumes no responsibility for any errors that may appear in
this manual.

• The reproduction, transmission or use of this document or contents is not
permitted without express written authority.

• The information in this manual is subject to change without notice.

About The Symbols

Various symbols are used in this manual, the user’s manual and on the product
itself to ensure correct usage, to prevent danger to the user and others, and to
prevent property damage. The meanings of these symbols are described below.
It is important that you read these descriptions thoroughly and fully understand
the contents.

This symbol indicates information that, if ignored, could

WARNING

CAUTION

Typical Symbols

This symbol indicates an additional warning (including cautions). An
illustration is provided to clarify the contents.

possibly result in personal injury or even death due to
incorrect handling.

This symbol indicates information that, if ignored, could
result possibly in personal injury or physical damage
due to incorrect handling.

This symbol indicates a prohibited action. The contents will be clearly
indicated in an illustration or nearby (the symbol to the left indicates that
disassembly is prohibited).

This symbol indicates a compulsory action. The contents will be clearly
indicated in an illustration or nearby (the symbol to the left indicates that
the power plug should be disconnected from the power outlet).

1

Safety Precautions

WARNING

Never use the projector if a problem should occur.

Abnormal operations such as smoke, strange odor, no image, no sound,
excessive sound, damaged casing or elements or cables, penetration of
liquids or foreign matter, etc. can cause a fire or electrical shock.
In such case, immediately turn off the power switch and then disconnect the
power plug from the power outlet. After making sure that the smoke or odor
has stopped, contact your dealer. Never attempt to make repairs yourself
because this could be dangerous.

• The power outlet should be close to the projector and easily accessible.

Use special caution for children and pets.

Incorrect handling could result in fire, electrical shock, injury, burn or vision
problem.
Use special caution in households where children and pets are present.

Do not insert liquids or foreign object.

Penetration of liquids or foreign objects could result in fire or electrical shock.
Use special caution in households where children are present.
If liquids or foreign object should enter the projector, immediately turn off the
power switch, disconnect the power plug from the power outlet and contact
your dealer.

• Do not place the projector near water (ex. a bathroom, a beach, etc.).

• Do not expose the projector to rain or moisture. Do not place the projector
outdoors.

• Do not place flower vases, pots, cups, cosmetics, liquids such as water, etc
on or around the projector.

• Do not place metals, combustibles, etc on or around the projector.

• To avoid penetration of foreign objects, do not put the projector into a case
or bag together with any thing except the accessories of the projector,
signal cables and connectors.

Never disassemble and modify.

The projector contains high voltage components. Modification and/or disassembly of
the projector or accessories could result in fire or electrical shock.

• Never open the cabinet.

• Ask your dealer to repair and clean insider.

Do not give the projector any shock or impact.

If the projector should be shocked and/or broken, it could result in an injury,
and continued use could result in fire or electrical shock.
If the projector is shocked, immediately turn off the power switch, disconnect
the power plug from the power outlet and contact your dealer.

Do not place the projector on an unstable surface.

If the projector should be dropped and/or broken, it could result in an injury,
and continued use could result in fire or electrical shock.

• Do not place the projector on an unstable, slant or vibrant surface such as

a wobbly or inclined stand.

• Use the caster brakes placing the projector on a stand with casters.

• Do not place the projector in the side up position, the lens up position or

the lens down position.

• In the case of a ceiling installation or the like, contact your dealer before

installation.

Disconnect the

plug from the
power outlet.

Do not

disassemble.

2

Safety Precautions (continued)

WARNING

Be cautious of High temperatures of the projector.

High temperatures are generated when the lamp is lit. It could result in fire or
burn. Use special caution in households where children are present.
Do not touch about the lens, air fans and ventilation openings during use or
immediately after use, to prevent a burn. Take care of ventilation.

• Keep a space of 30 cm or more between the sides and other objects such

as walls.

• Do not place the projector on a metallic table or anything weak in heat.

• Do not place anything about the lens, air fans and ventilation openings of

the projector.

• Never block the air fan and ventilation openings.

• Do not cover the projector with a tablecloth, etc.

• Do not place the projector on a carpet or bedding.

Never look through the lens or openings when the lamp is on.

The powerful light could adversely affect vision.
Use special caution in households where children are present.

Use only the correct power cord and the correct power outlet.

Incorrect power supply could result in fire or electrical shock.

• Use only the correct power outlet depending on the indication on the

projector and the safety standard.

• The enclosed power cord must be used depending on the power outlet to

be used.

Be cautious of the power cord connection.

Incorrect connection of the power cord could result in fire or electrical shock.

• Do not touch the power cord with a wet hand.

• Check that the connecting portion of the power cord is clean (with no dust),

before using. Use a soft and dry cloth to clean the power plug.

• Insert the power plug into a power outlet firmly. Avoid using a loose,

unsound outlet or contact failure.

Be sure to connect with ground wire.

Connect the ground terminal of AC inlet of this unit with the ground terminal
provided at the building using the correct power cord; otherwise, fire or
electric shock can result.

• Don’t take the core of power cord away.

Surely connect

the ground wire.

3

Safety Precautions (continued)

WARNING

Be careful in handling the light source lamp.

The projector uses a high-pressure mercury glass lamp made of glass.
The lamp can break with a loud bang, or burn out. When the bulb bursts,
it is possible for shards of glass to fly into the lamp housing, and for gas
containing mercury to escape from the projector’s vent holes.

Please carefully read the section “Lamp”.
Be careful in handling the power cord and external connection

cables.

If you keep using a damaged the power cord or cables, it can cause a fire
or electrical shock. Do not apply too much heat, pressure or tension to the
power cord and cables.
If the power cord or cables is damaged (exposed or broken core wires, etc.),
contact your dealer.

• Do not place the projector or heavy objects on the power cord and cables.

Also, do not place a spread, cover, etc, over them because this could result
in the inadvertent placing of heavy objects on the concealed power cord or
cables.

• Do not pull the power cord and cables. When connecting and

disconnecting the power cord or cables, do it with your hand holding the plug
or connector.

• Do not place the cord near the heater.

• Avoid bending the power cord sharply.

• Do not attempt to work on the power cord.

Be careful in handling the battery of the remote control.

Incorrect handling of the battery could result in fire or personal injury. The
battery may explode if not handled properly.

• Keep the battery away from children and pets. If swallowed consult a

physician immediately for emergency treatment.

• Do not allow the battery in a fire or water.

• Avoid fire or high-temperature environment.

• Do not hold the battery with the metallic tweezers.

• Keep the battery in a dark, cool and dry play.

• Do not short circuit the battery.

• Do not recharge, disassemble or solder the battery.

• Do not give the battery a physical impact.

• Use only the battery specified in the other manual of this projector.

• Make sure the plus and minus terminals are correctly aligned when loading

the battery.

• If you observe a leakage of the battery, wipe out the flower and then

replace the battery. If the flower adheres your body or clothes, rinse well with
water.

• Obey the local laws on disposing the battery.

4

Safety Precautions (continued)

CAUTION

Be careful in moving the projector.

Neglect could result in an injury or damage.

• Do not move the projector during use. Before moving, disconnect the

power cord and all external connections, and close the slide lens door or
attach the lens cap.

• Avoid any impact or shock to the projector.

• Do not drag the projector.

• For moving the projector, use the enclosed case or bag if provided.

Do not put anything on top of the projector.

Placing anything on the projector could result in loss of balance or falling,
and cause an injury or damage. Use special caution in households where
children are present.

Do not attach anything other than specified things to the projector.

Neglect could result in an injury or damage.

• Some projector has a screw thread in a lens part. Do not attach anything

other than specified options (such as conversion lens) to the screw thread.

Avoid a smoky, humid or dusty place.

Placing the projector in a smoke, a highly humid, dusty place, oily soot or
corrosive gas could result in fire or electrical shock.

• Do not place the projector near a smoky, humid or dusty place (ex.

a smoking space, a kitchen, a beach, etc.). Do not place the projector
outdoors.

• Do not use a humidifier near the projector.

Take care of the air filter to normal ventilate.

The air filter should be cleaned periodically. If the air filter becomes clogged
by dust or the like, internal temperature rises and could cause malfunction.
The projector may display the message such as “CHECK THE AIR FLOW”
or turn off the projector, to prevent the internal heat level rising.

• When the indicators or a message prompts you to clean the air filter, clean

the air filter as soon as possible.

• If the soiling will not come off the air filter, or it becomes damaged, replace

the air filter.

• Use the air filter of the specified type only. Please order the air filter

specified in the other manual of this projector to your dealer.

• When you replace the lamp, replace also the air filter. The air filter may be

attached when you buy a replacement lamp for this projector.

• Do not turn on the projector without air filter.

Avoid a high temperature environment.

The heat could have adverse influence on the cabinet of the projector and
other parts. Do not place the projector, the remote control and other parts in
direct sunlight or near a hot object such as heater, etc.

Avoid Magnetism.

Manufacture strongly recommends to avoid any magnetic contact that is not
shielded or protected on or near the projector itself. (ie.,. Magnetic Security
Devices, or other projector accessory that contains magnetic material that has not
been provided by the manufacture etc.) Magnetic objects may cause interruption
of the projector's internal mechanical performance which may interfere with cooling
fans speed or stopping, and may cause the projector to completely shut down

.

5

Safety Precautions (continued)

CAUTION

Remove the power cord for complete separation.

• For safety purposes, disconnect the power cord if the projector is not to be

used for prolonged periods of time.

• Before cleaning, turn off and unplug the projector. Neglect could result in

fire or electrical shock.

Ask your dealer to cleaning inside of the projector about every
year.

Accumulations of dust inside the projector cause result in fire or malfunction.
Cleaning inside is more effective if performed before every humid periods
such as rainy season.

• Do not clean inside yourself because it is dangerous.

NOTE

Do not give the remote control any physical impact.

A physical impact could cause damage or malfunction of the remote control.

• Take care not to drop the remote control.

• Do not place the projector or heavy objects on the remote control.

Take care of the lens.

• Close the slide lens door or attach the lens cap to prevent the lens surface being

scratched when the projector is not used.

• Do not touch the lens to prevent fog or dirt of the lens that cause deterioration of display

quality.

• Use commercially available lens tissue to clean the lens (used to clean cameras,

eyeglasses, etc.). Be careful not to scratch the lens with hard objects.

Take care of the cabinet and the remote control.

Incorrect care could have adverse influence such as discoloration, peeling paint, etc.

• Use a soft cloth to clean the cabinet and control panel of the projector and the remote

control. When excessively soiled dilute a neutral detergent in water, wet and wring out the
soft cloth and afterward wipe with a dry soft cloth. Do not use undiluted detergent directly.

• Do not use an aerosol sprays, solvents, volatile substances or abrasive cleaner.

• Before using chemical wipes, be sure to read and observe the instructions.

• Do not allow long-term close contact with rubber or vinyl.

About bright spots or dark spots.

Although bright spots or dark spots may appear on the screen, this is a unique characteristic of
liquid crystal displays, and such do not constitute or imply a machine defect.

Be careful of printing of the LCD panel.

If the projector continues projecting a still image, inactive images or 16:9 aspect images in
case of 4:3 panel, etc., for long time, the LCD panel might possibly be printed.

Disconnect the

plug from the
power outlet.

6

Safety Precautions (continued)

NOTE

About consumables.

Lamp, LCD panels, polarizors and other optical components, and air filter and cooling fans
have a different lifetime in each. These parts may need to be replaced after a long usage
time.

• This product isn’t designed for continuous use of long time. In the case of continuous use

for 6 hours or more, or use for 6 hours or more every day (even if it isn’t continuous), or
repetitious use, the lifetime may be shortened, and these parts may need to be replaced
even if one year has not passed since the beginning of using.

• Any inclining use beyond the adjustment range explained in these user’s manuals may
shorten the lifetimes of the consumables.

Before turning on the power, make the projector cool down adequately.

After turning the projector off, pushing the restart switch or interrupting of the power supply,
make the projector cool down adequately. Operation in a high temperature state of the
projector causes a damage of the electrode and un-lighting of the lamp.

Avoid strong rays.

Any strong ray (such as direct rays of the sun or room lighting) onto the remote control
sensors could invalidate the remote control.

Avoid radio interference.

Any interfering radiation could cause disordered image or noises.

• Avoid radio generator such as a mobile telephone, transceiver, etc. around the projector.

About displaying characteristic.

The display condition of the projector (such as color, contrast, etc.) depends on
characteristic of the screen, because the projector uses a liquid crystal display panel. The
display condition can differ from the display of CRT.

• Do not use a polarized screen. It can cause red image.

Turn the power on/off in right order.

To prevent any trouble, turn on/off the projector in right order mentioned below unless
specifying.

• Power on the projector before the computer or video tape recorder.

• Power off the projector after the computer or video tape recorder.

Take care not to fatigue your eyes.

Rest the eyes periodically.

Set the sound volume at a suitable level to avoid bothering other people.

• It is better to keep the volume level low and close the windows at night to protect the

neighborhood environment.

Connecting with notebook computer

When connecting with notebook computer, set to valid the RGB external image output
(setting CRT display or simultaneous display of LCD and CRT).
Please read instruction manual of the notebook for more information.

7

Lamp

WARNING

The projector uses a high-pressure mercury glass lamp. The lamp can break with a
loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time.

Note that each lamp has a different lifetime, and some may burst or burn out soon after
you start using them. In addition, when the bulb bursts, it is possible for shards of
glass to fly into the lamp housing, and for gas containing mercury to escape from the
projector’s vent holes.

About disposal of a lamp • This product contains a mercury lamp; do not put in trash.
Dispose of in accord with environmental laws.
For lamp recycling, go to www.lamprecycle.org. (in USA)
For product disposal, contact your local government agency or www.eiae.org (in the US)
or www.epsc.ca (in Canada).
For more information, call your dealer.

• If the lamp should break (it will make a loud bang when it does), unplug
the power cord from the outlet, and make sure to request a replacement
lamp from your local dealer. Note that shards of glass could damage the
projector’s internals, or cause injury during handling, so please do not try to
clean the projector or replace the lamp yourself.

Disconnect

the plug from

the power

outlet

• If the lamp should break (it will make a loud bang when it does), ventilate
the room well, and make sure not to breathe the gas that comes out of the
projector vents, or get it in your eyes or mouth.

• Before replacing the lamp, make sure the power switch is off and the
power cable is not plugged in, then wait at least 45 minutes for the lamp to
cool sufficiently. Handling the lamp while hot can cause burns, as well as
damaging the lamp.

HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE

• Do not open the lamp cover while the projector is suspended from above.
This is dangerous, since if the lamp’s bulb has broken, the shards will
fall out when the cover is opened. In addition, working in high places is
dangerous, so ask your local dealer to have the lamp replaced even if the
bulb is not broken.

• Do not use the projector with the lamp cover removed. At the lamp
replacing, make sure that the screws are screwed in firmly. Loose screws
could result in damage or injury.

• Use the lamp of the specified type only.

• If the lamp breaks soon after the first time it is used, it is possible that
there are electrical problems elsewhere besides the lamp. If this happens,
contact your local dealer or a service representative.

• Handle with care: jolting or scratching could cause the lamp bulb to burst
during use.

• Using the lamp for long periods of time, could cause it dark, not to light up
or to burst. When the pictures appear dark, or when the color tone is poor,
please replace the lamp as soon as possible. Do not use old (used) lamps;
this is a cause of breakage.

8

Regulatory Notices

FCC Statement Warning

This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.

WARNING: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

- Consult the dealer or an experienced radio/TV technician for help.

INSTRUCTIONS TO USERS: This equipment complies with the requirements of FCC

(Federal Communication Commission) equipment provided that the following conditions
are met. Some cables have to be used with the core set. Use the accessory cable or a
designated-type cable for the connection. For cables that have a core only at one end,
connect the core to the projector.

CAUTION: Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

For the Customers in CANADA
NOTICE: This Class B digital apparatus complies with Canadian ICES-003.

Warranty And After-Service

Unless seen any abnormal operations (mentioned with the first paragraph of
WARNING in this manual), when a problem occurs with the equipment, first refer to the
“Troubleshooting” section of the “Operating Guide”, and run through the suggested checks.
If this does not resolve the problem contact your dealer or service company. They will tell
you what warranty condition is applied.

9

Contents



Introduction ...............3

Features ......................3

Checking the contents of package

Part names ....................4

Setting up . ................7

Arrangement ...................7

Connecting with your devices
Connecting to a power supply

Fastening the adapter cover ......

Using the security bar and slot . . . . 16

Remote control ............17

Installing the batteries ...........17

About the remote control signal . . . 17
Using as a simple PC mouse & keyboard

Power on/off . .............19

Turning on the power . ..........19

Turning off the power . ..........20

Operating . ...............21

Adjusting the volume ............ 21

Temporarily muting the sound .....21

Selecting an input signal .........22

Searching an input signal . .......23

Selecting an aspect ratio ......... 23

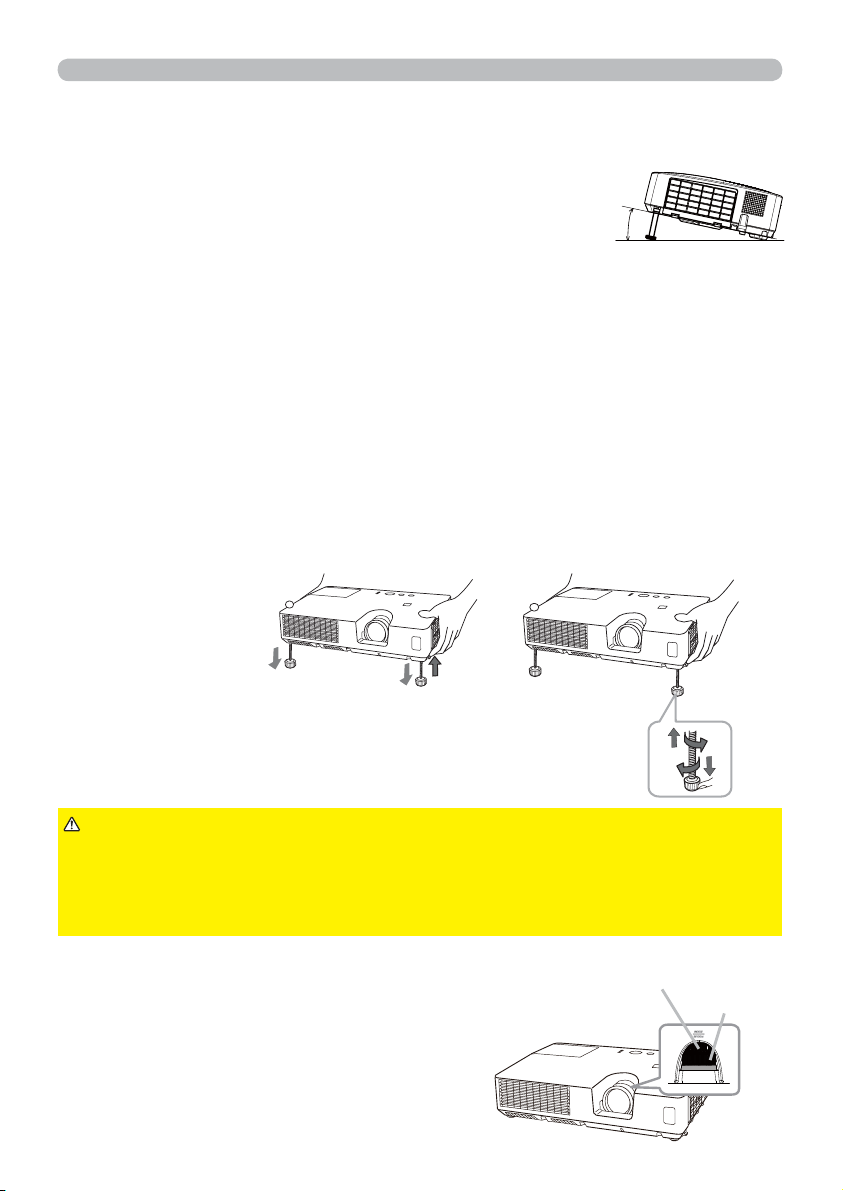

Adjusting the projector's elevator . . 24

Adjusting the zoom and focus .....24

Using the automatic adjustment feature

Adjusting the position . .......... 25

Correcting the keystone distortions

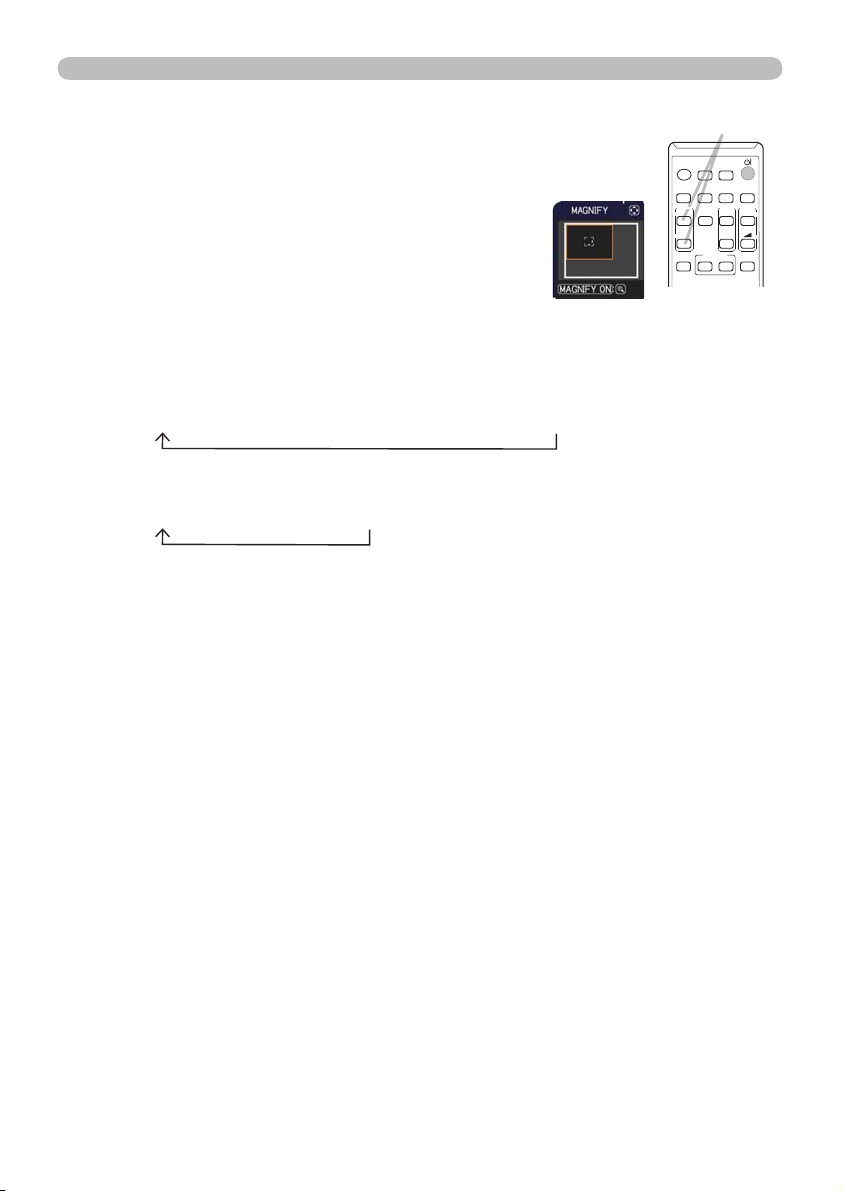

Using the magnify feature ........27

Temporarily freezing the screen . . . 28
Temporarily blanking the screen . . 28

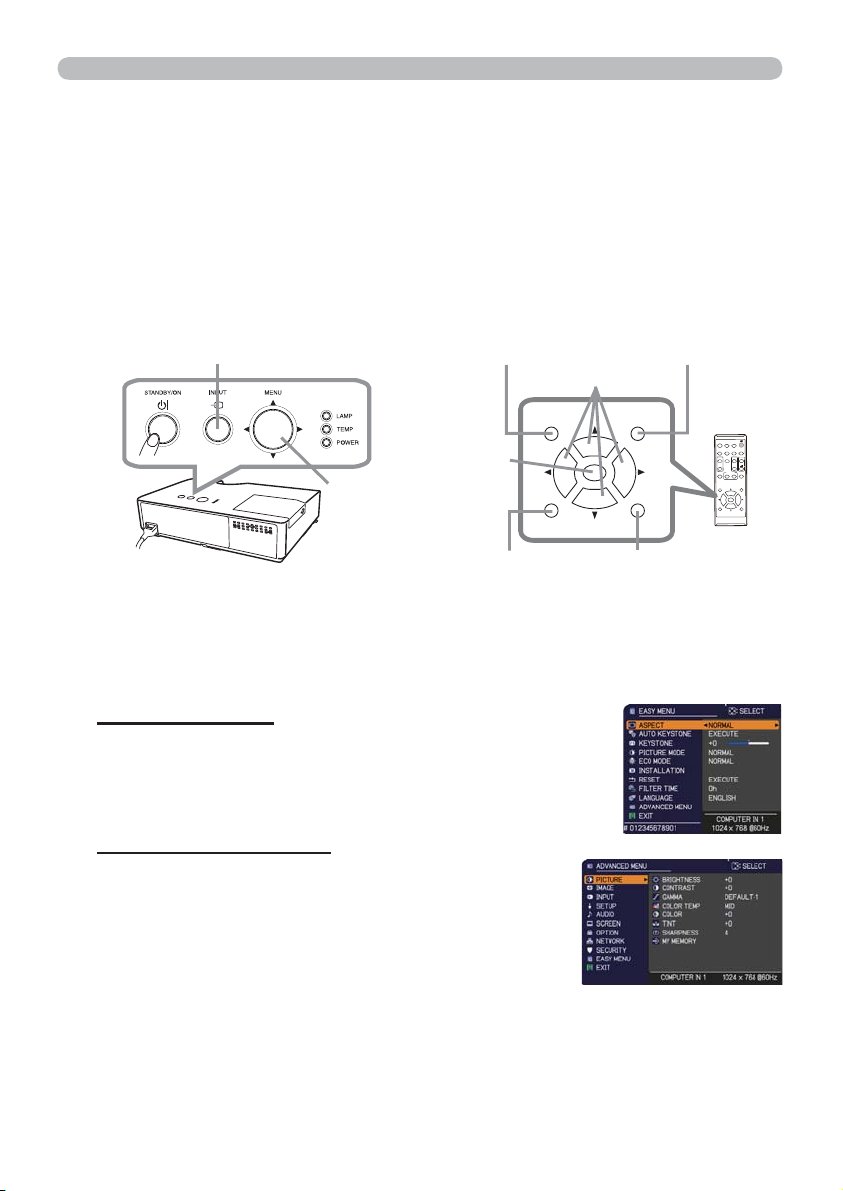

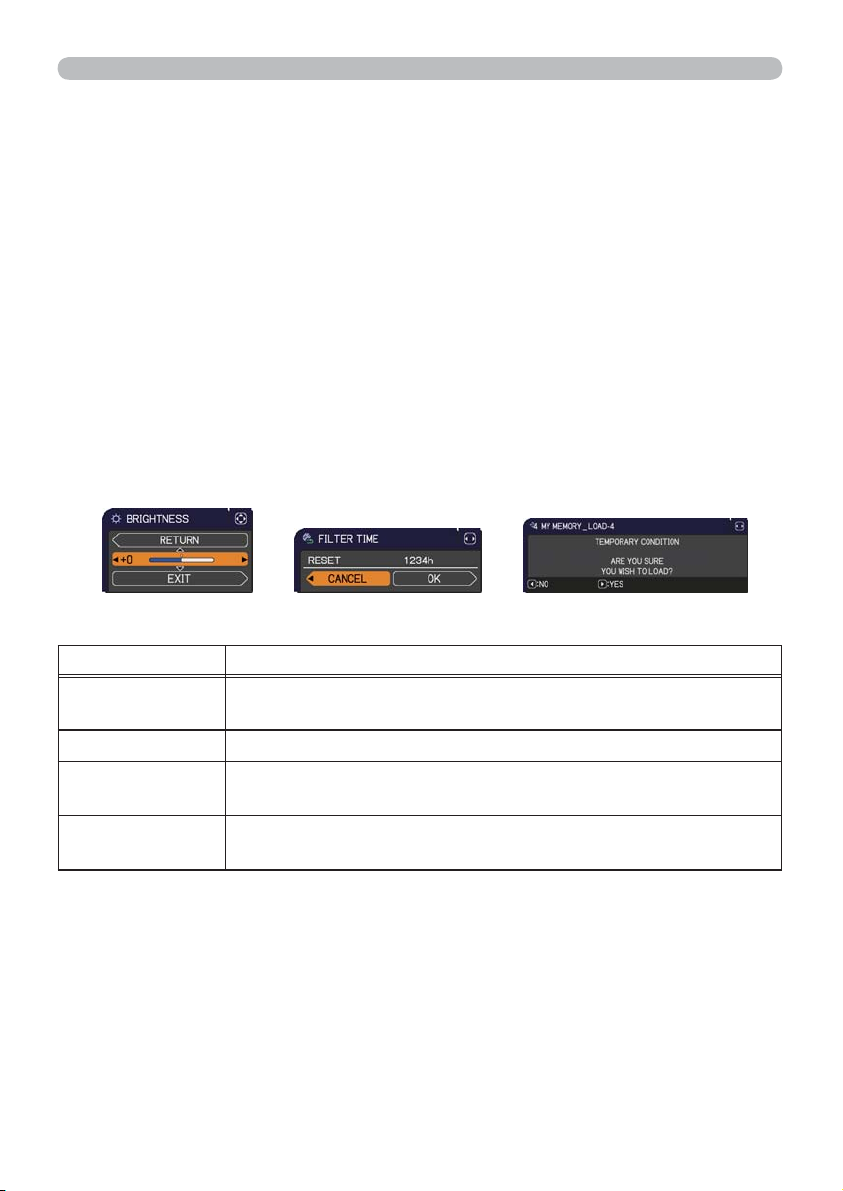

Using the menu function . .......29

EASY MENU...............31

A

SPECT

, A
PICTURE MODE,
R

ESET

A

DVANCED MENU,EXIT

UTO KEYSTONE

E

, F

ILTER TIME,LANGUAGE

, K

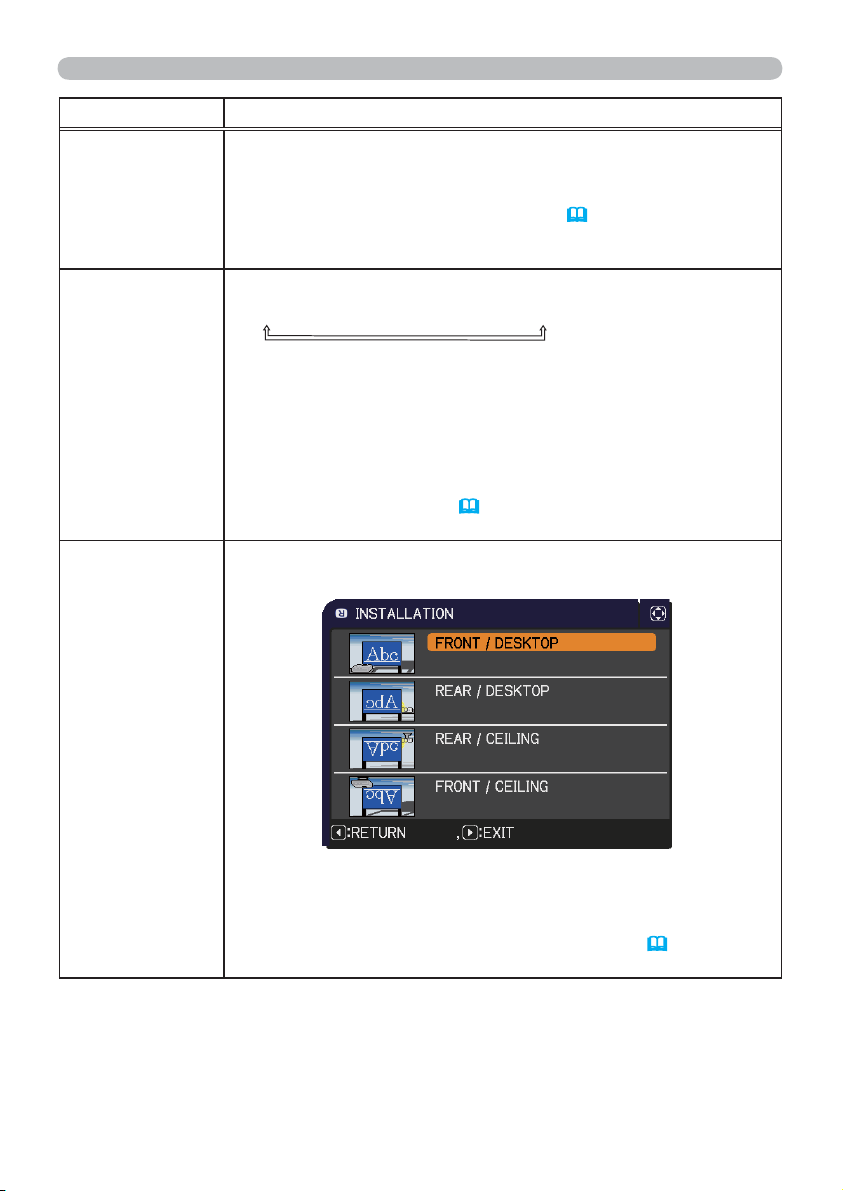

CO MODE,INSTALLATION

EYSTONE

,

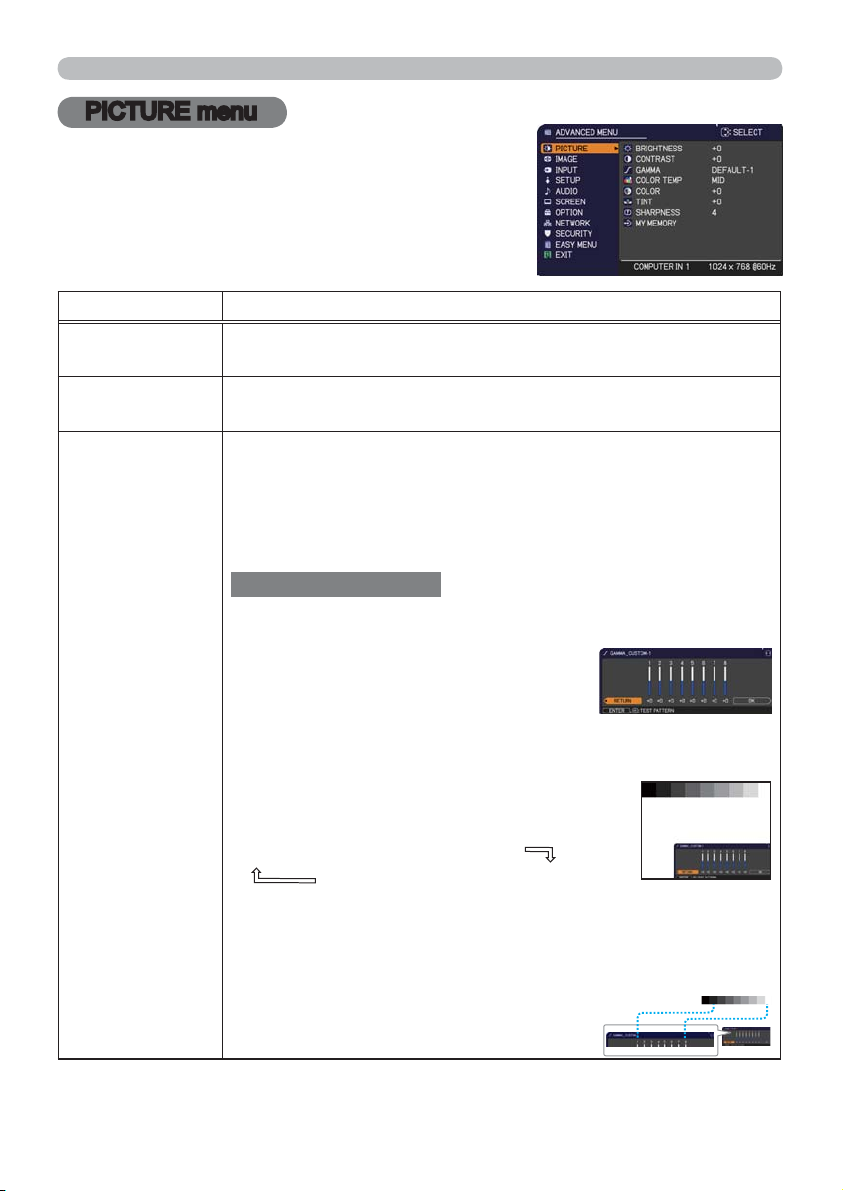

PICTURE menu . ...........33

B

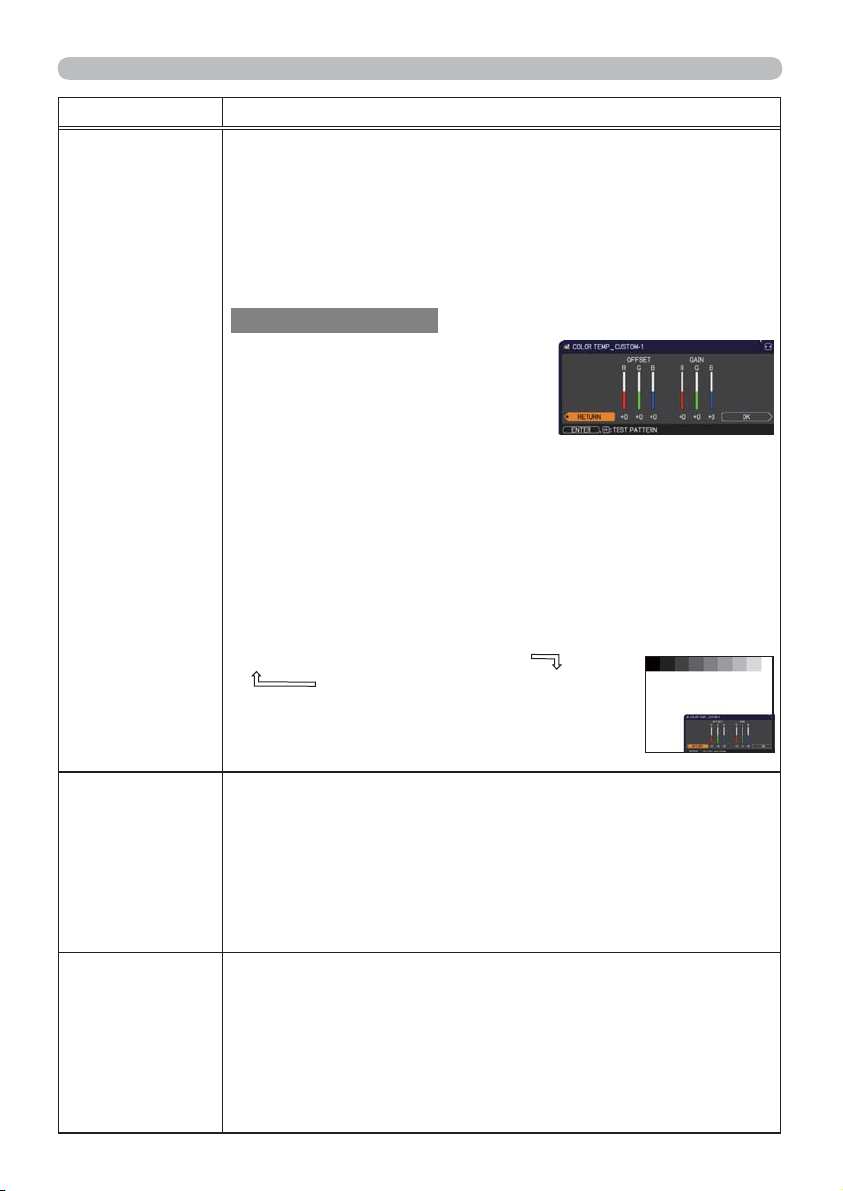

RIGHTNESS,CONTRAST,GAMMA,COLOR TEMP

C

OLOR

, T

INT,SHARPNESS,MY MEMORY

IMAGE menu . .............36

A

SPECT,OVER SCAN,VPOSITION,HPOSITION

H

PHASE,HSIZE

, A

UTO ADJUST EXECUTE

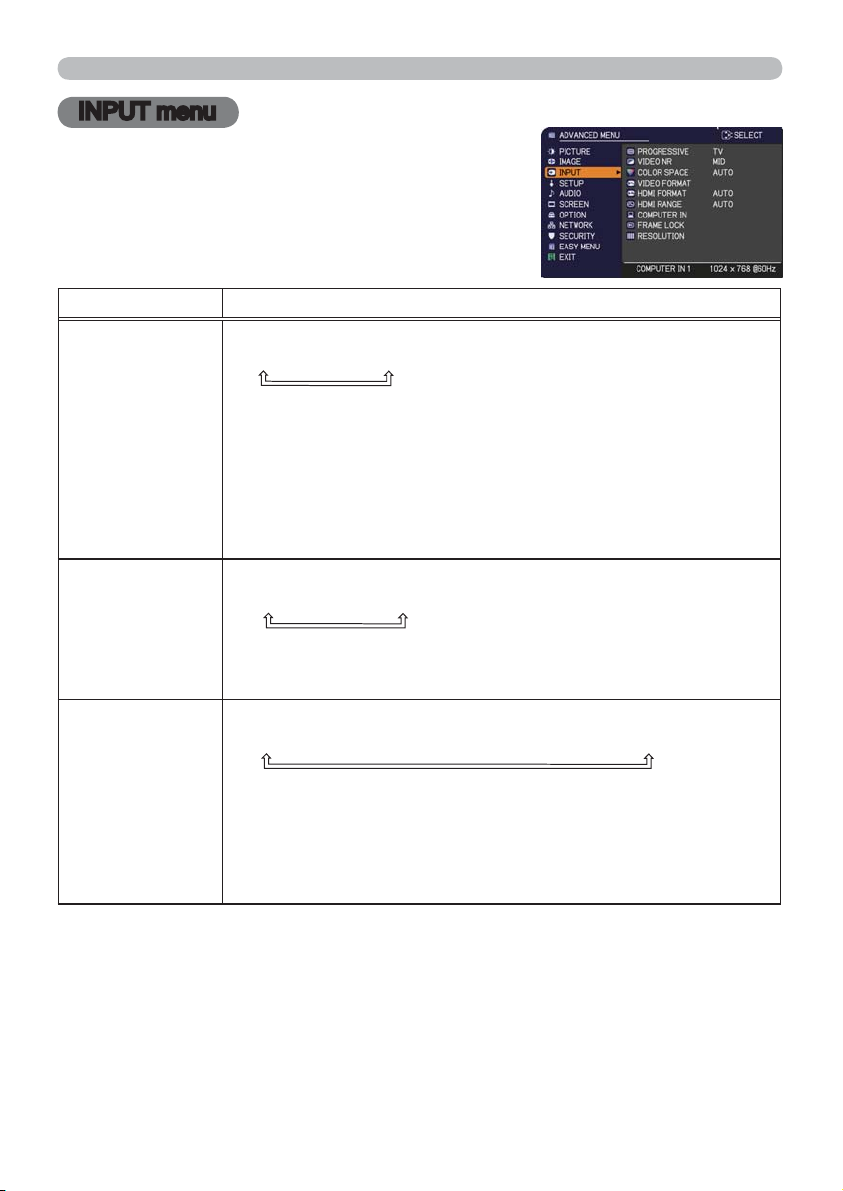

INPUT menu . .............39

P

ROGRESSIVE,VIDEO NR,COLOR SPACE

V

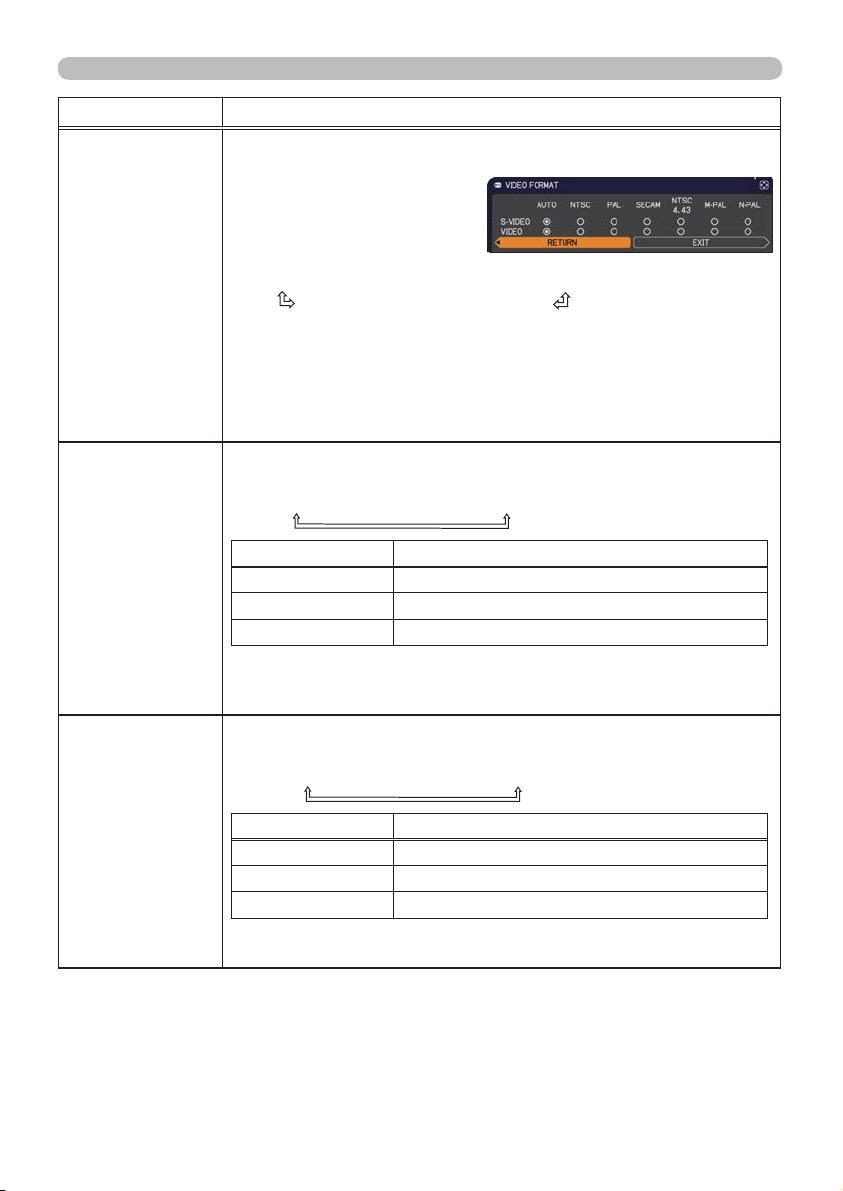

IDEO FORMAT,HDMI FORMAT,HDMI RANGE

C

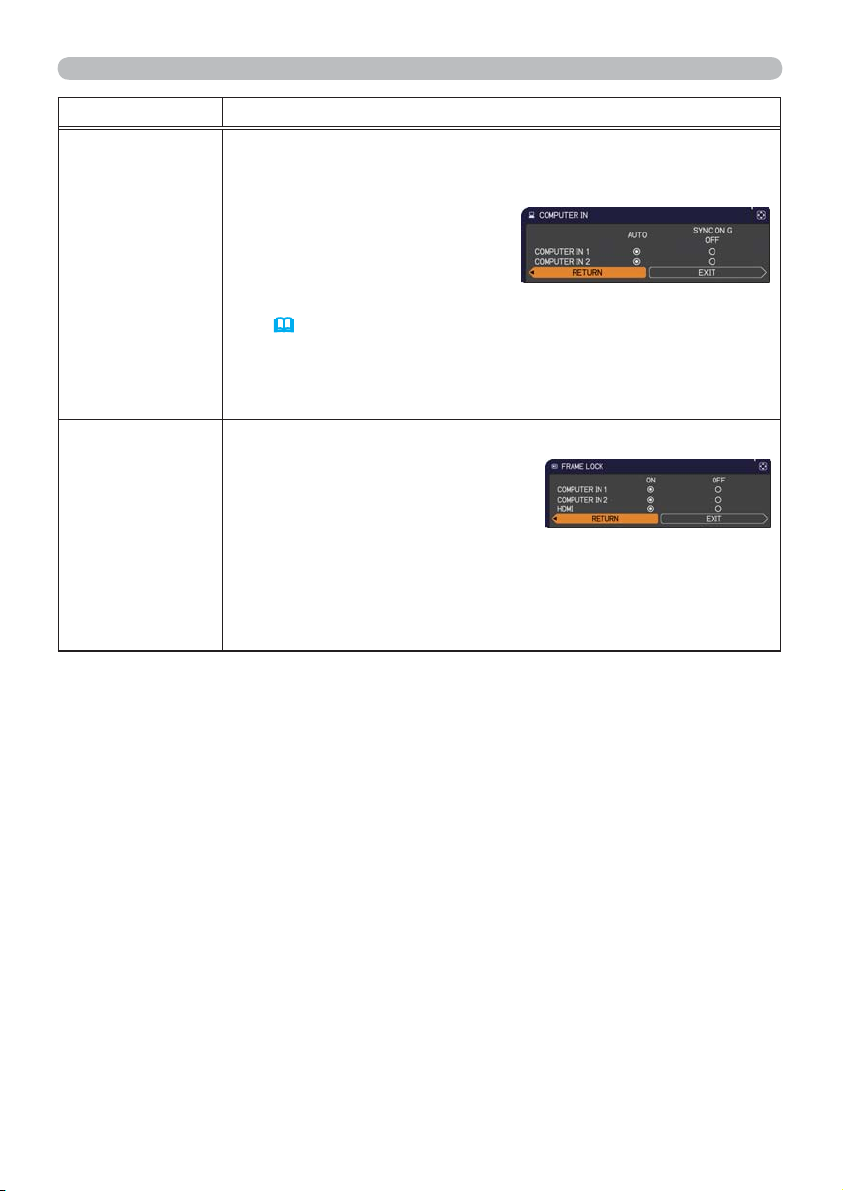

OMPUTER IN

, F

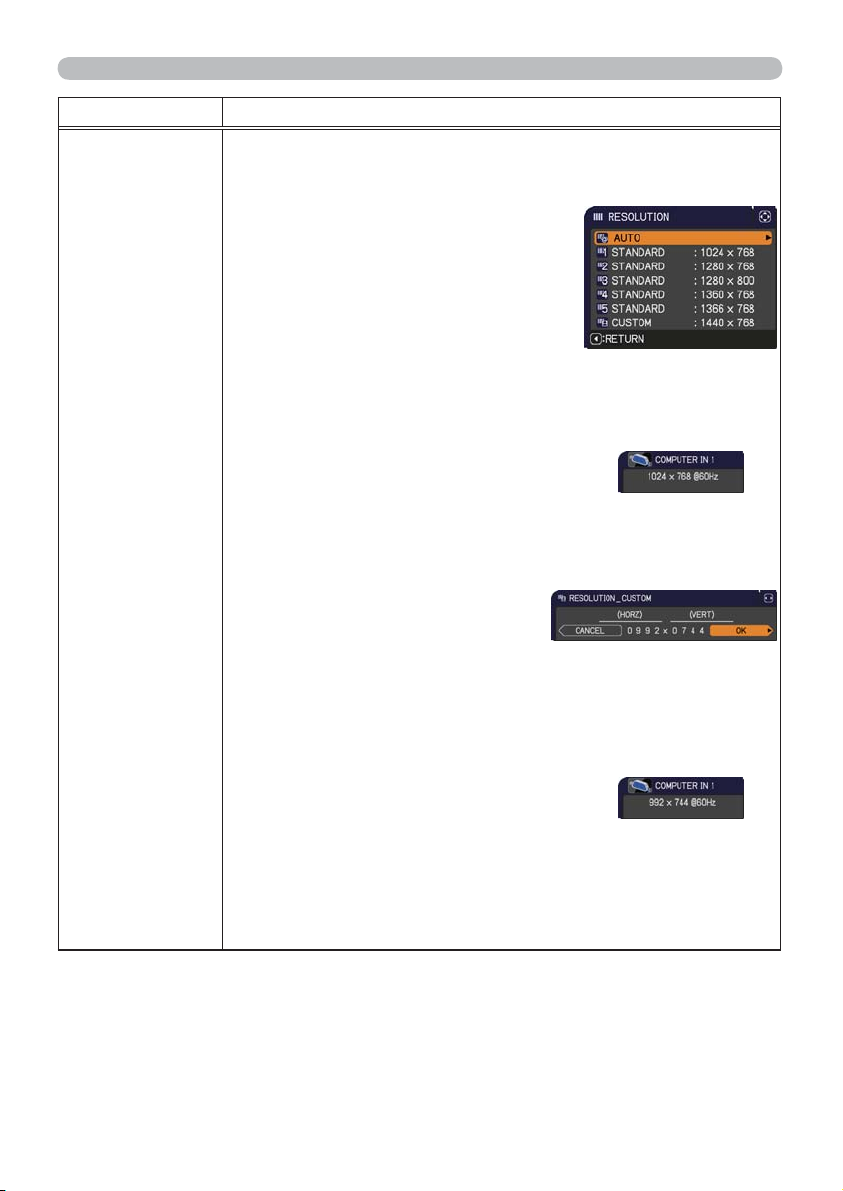

RAME LOCK,RESOLUTION

... 3

.....10

..... 15

16

..18

... 25

.. 26

,

,

,

,

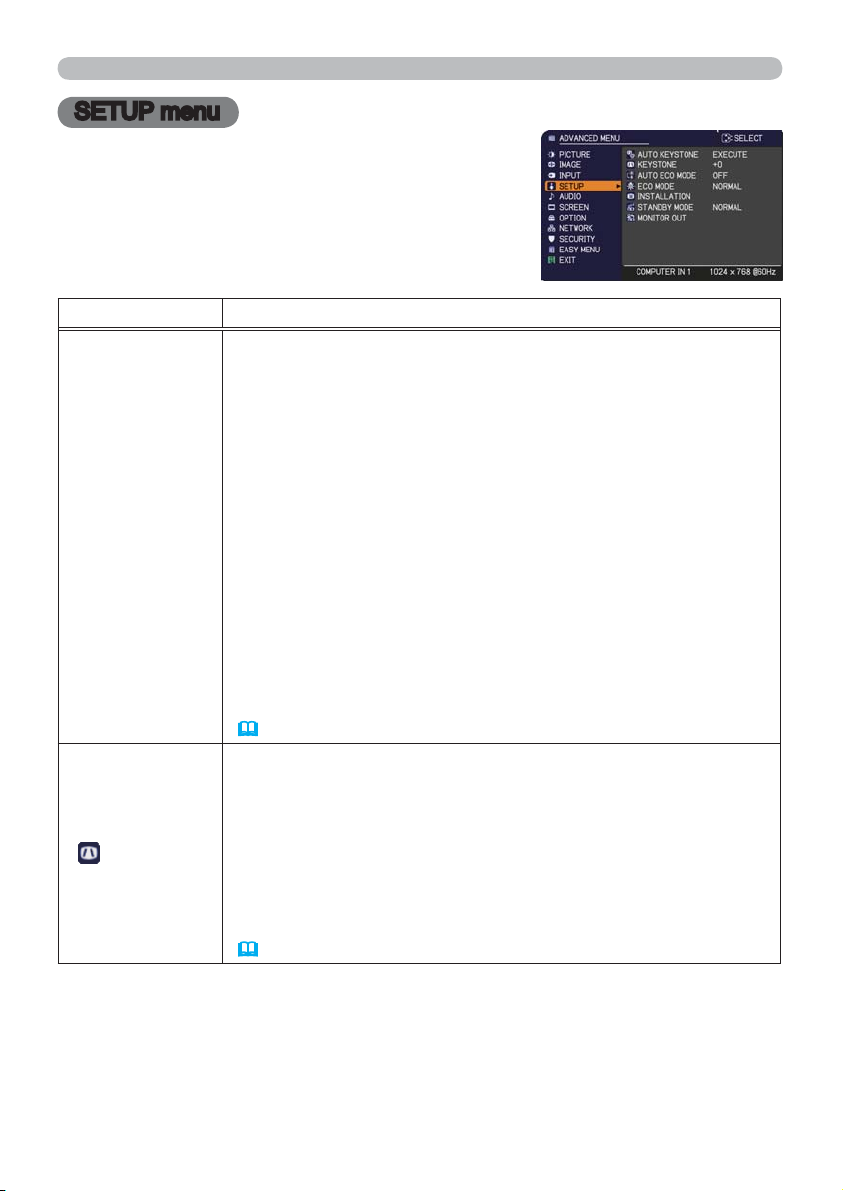

SETUP menu ..............43

A

UTO KEYSTONE

E

CO MODE

M

ONITOR OUT

,

K

EYSTONE

, A

,

I

NSTALLATION,STANDBY MODE

UTO ECO MODE

,

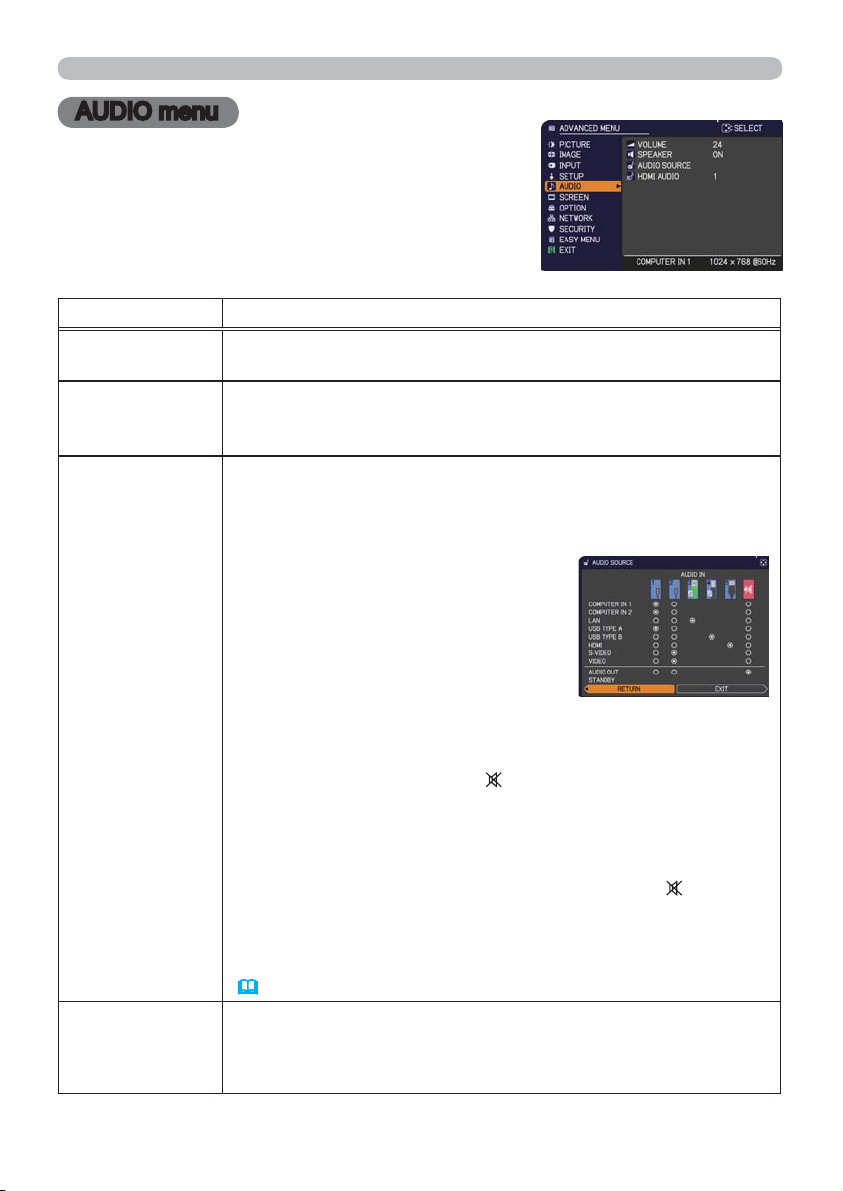

AUDIO menu . .............46

V

OLUME,SPEAKER

H

DMI AUDIO

, A

UDIO SOURCE

,

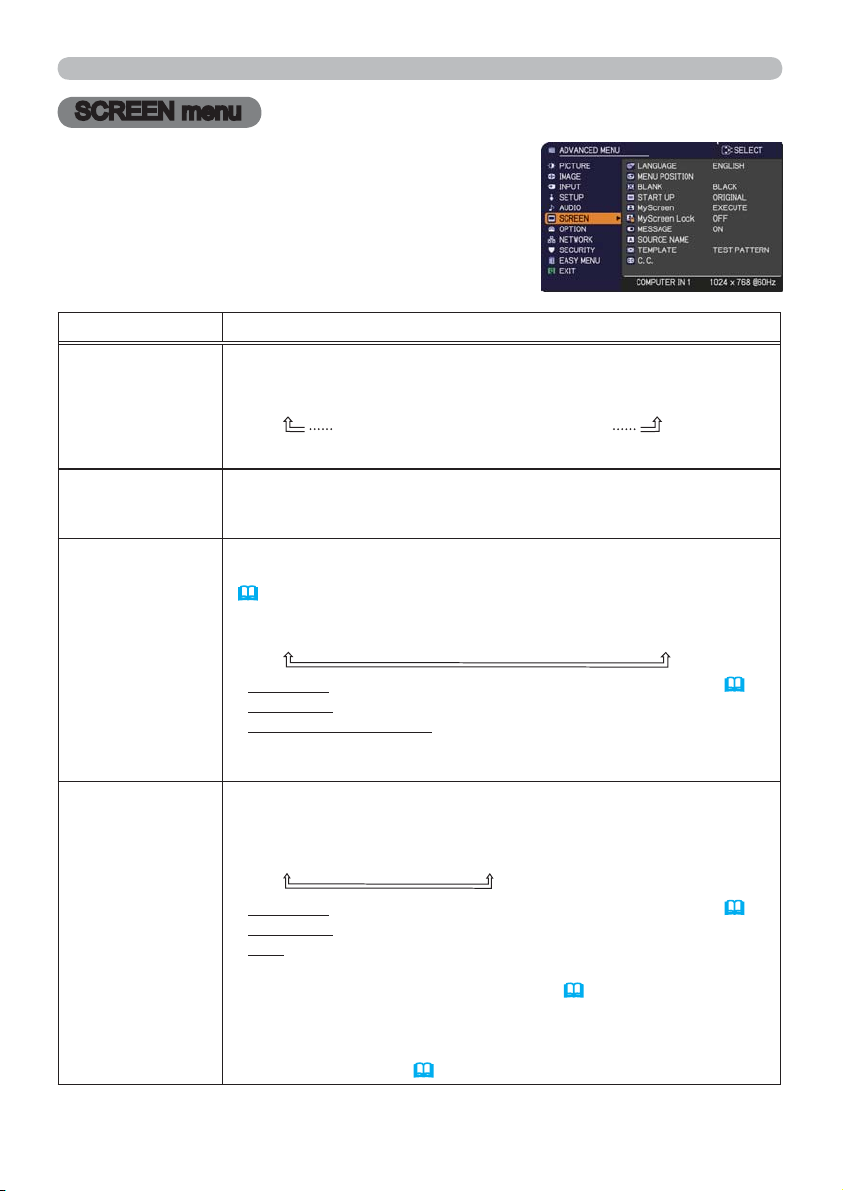

SCREEN menu.............47

L

ANGUAGE,MENU POSITION

S

TAR T UP

,

M

M

ESSAGE,SOURCE NAME,TEMPLATE

yScreen

, B

, M

yScreen Lock

LANK

,

,

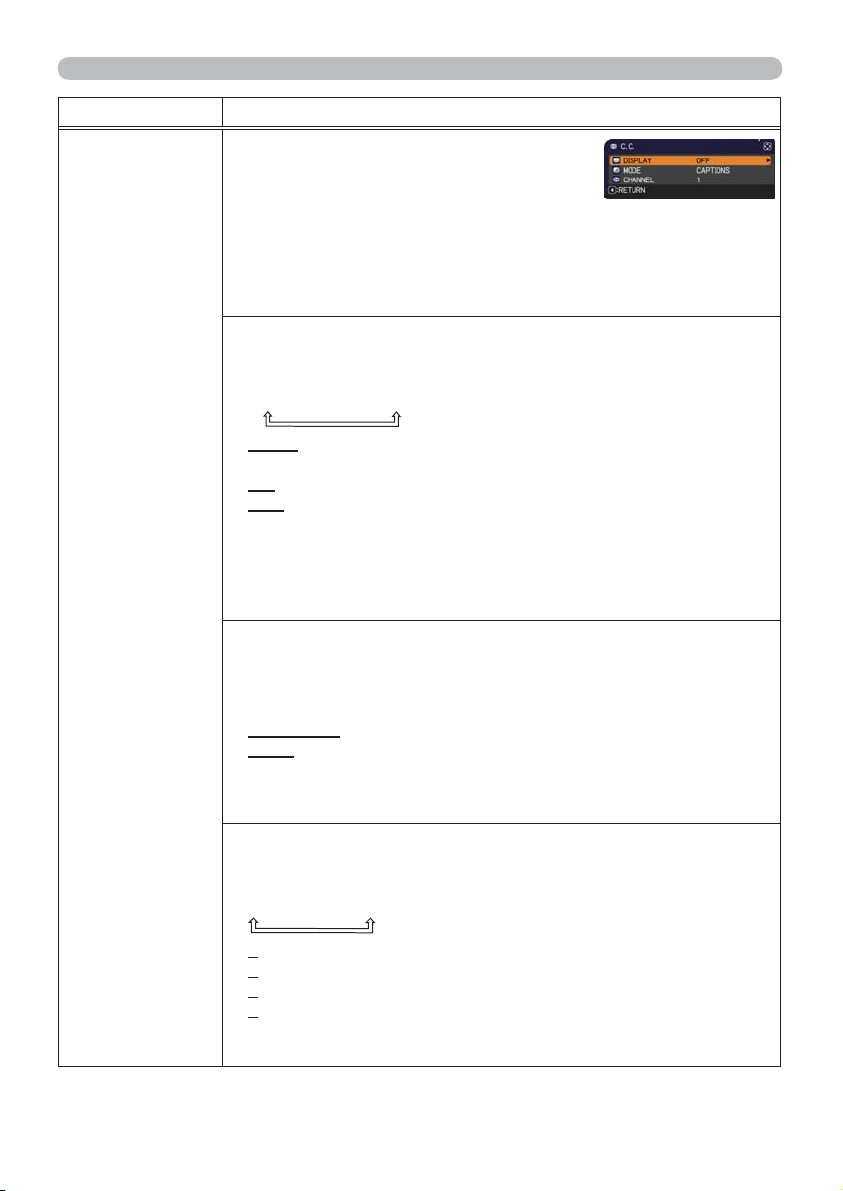

,C.C.

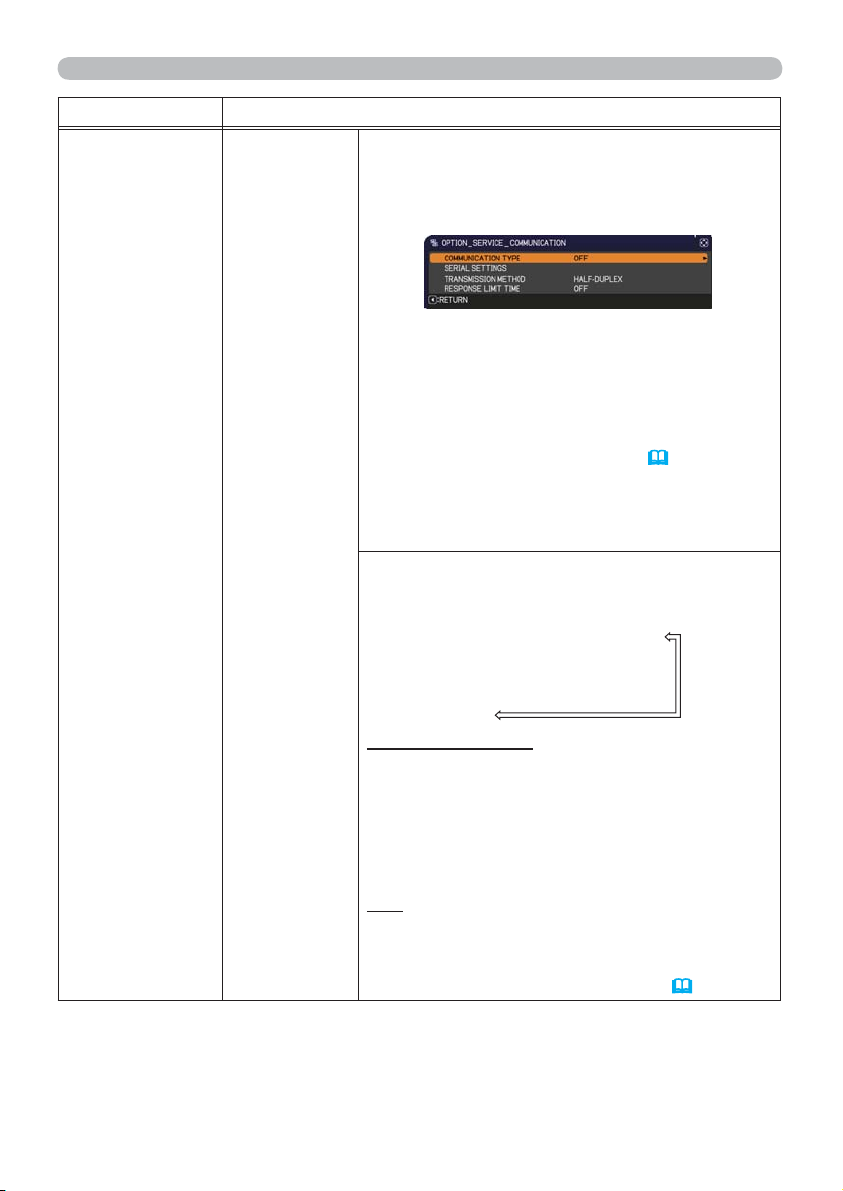

OPTION menu . ............53

A

UTO SEARCH

D

IRECT POWER ON

U

SB TYPE B,LAMP TIME

M

Y BUTTON,MY SOURCE,SERVICE

, A

UTO KEYSTONE

, A

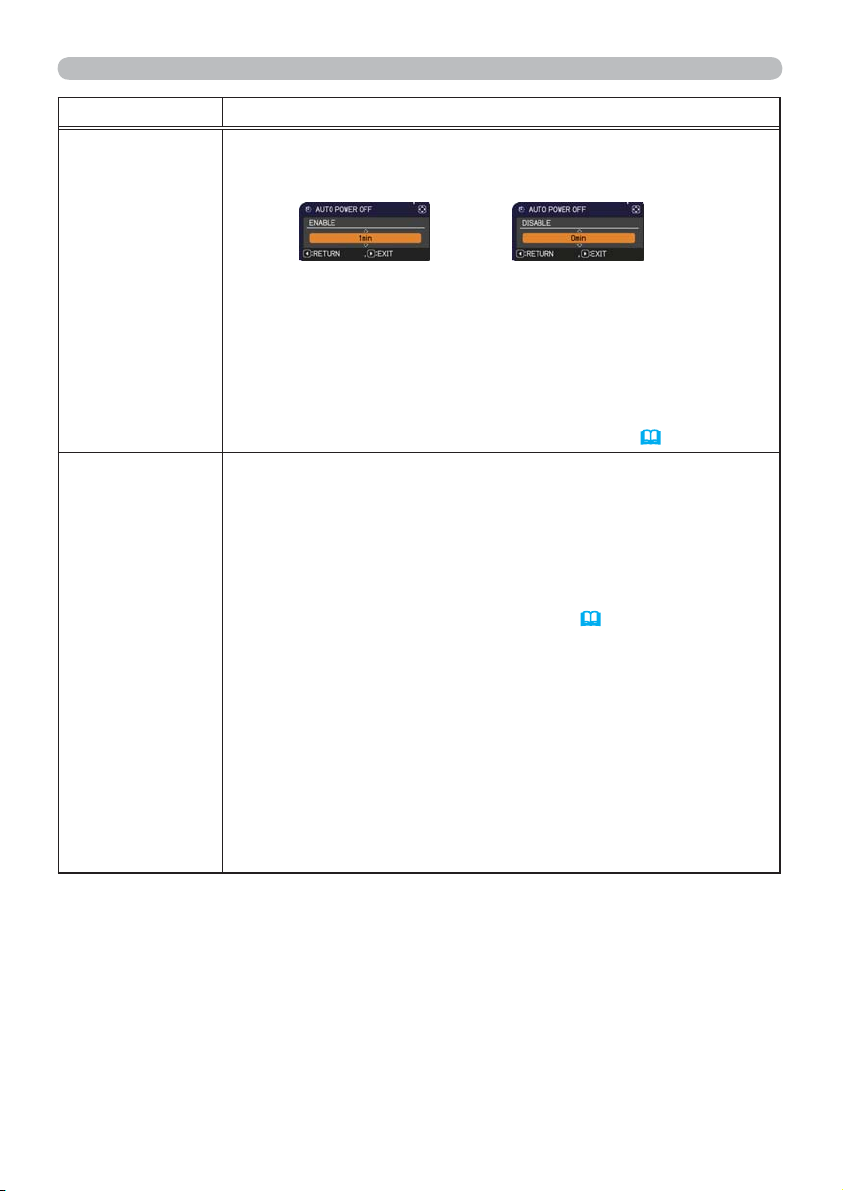

UTO POWER OFF

, F

ILTER TIME

,

,

,

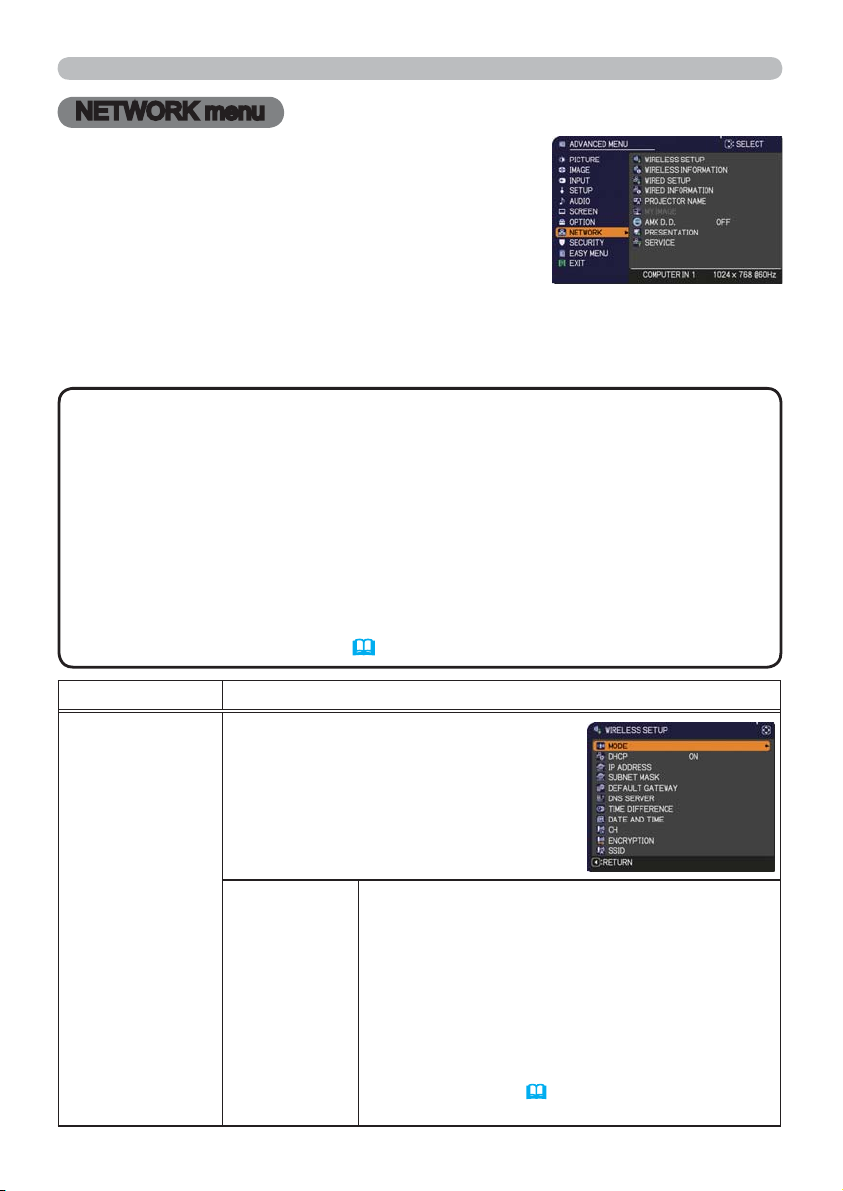

NETWORK menu ...........63

W

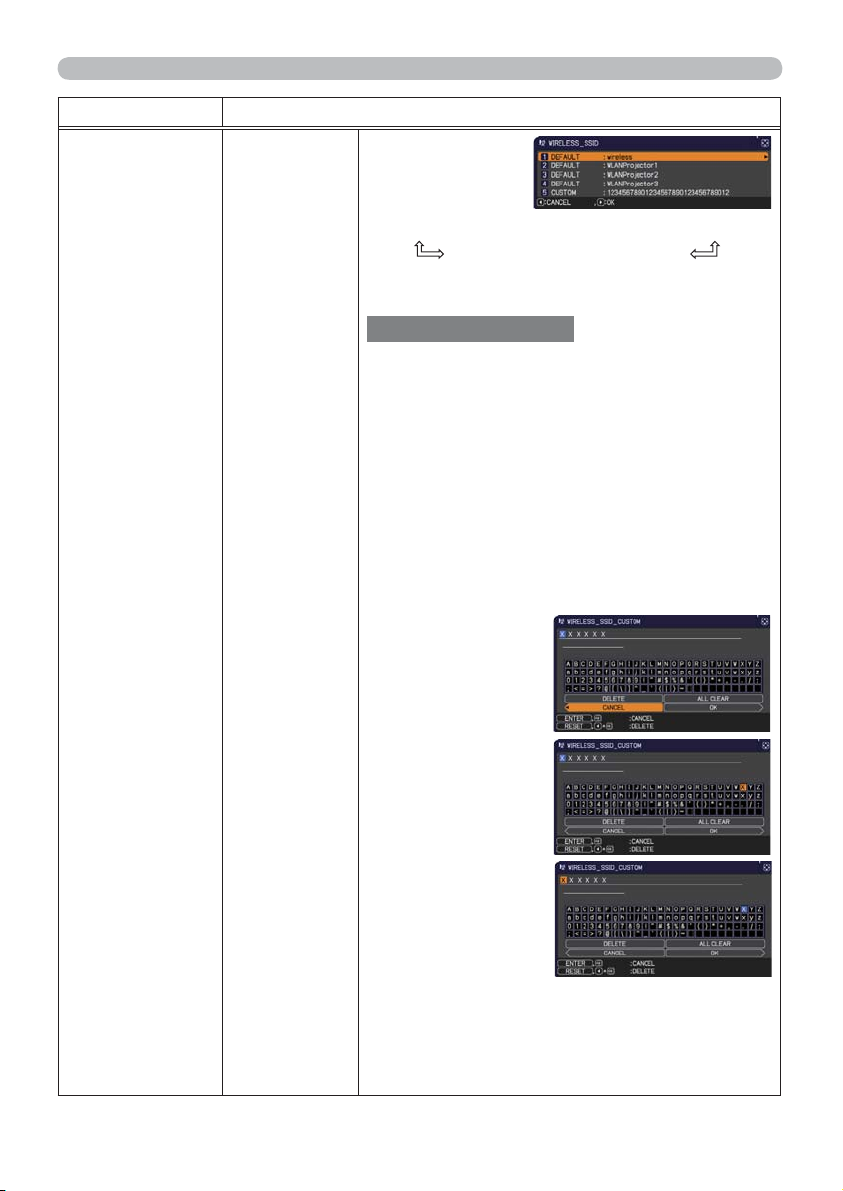

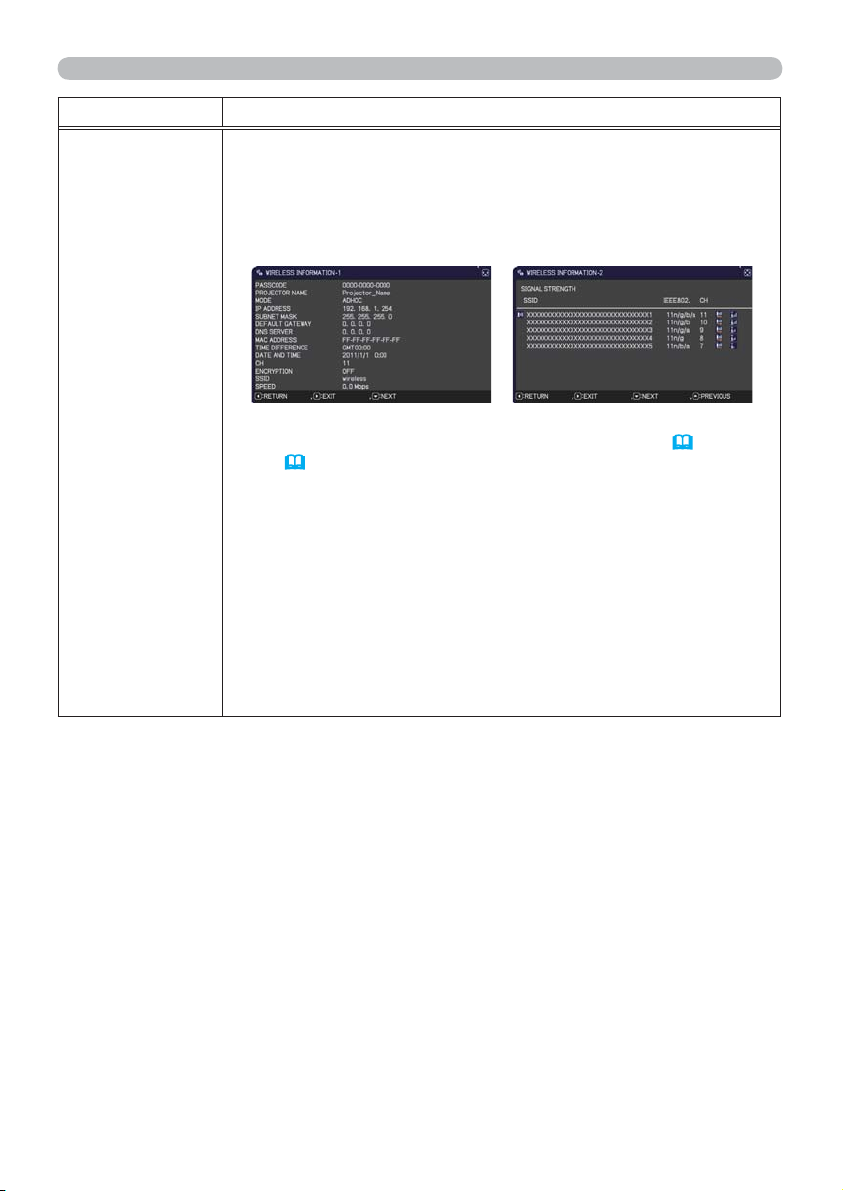

IRELESS SETUP,WIRELESS INFORMATION

W

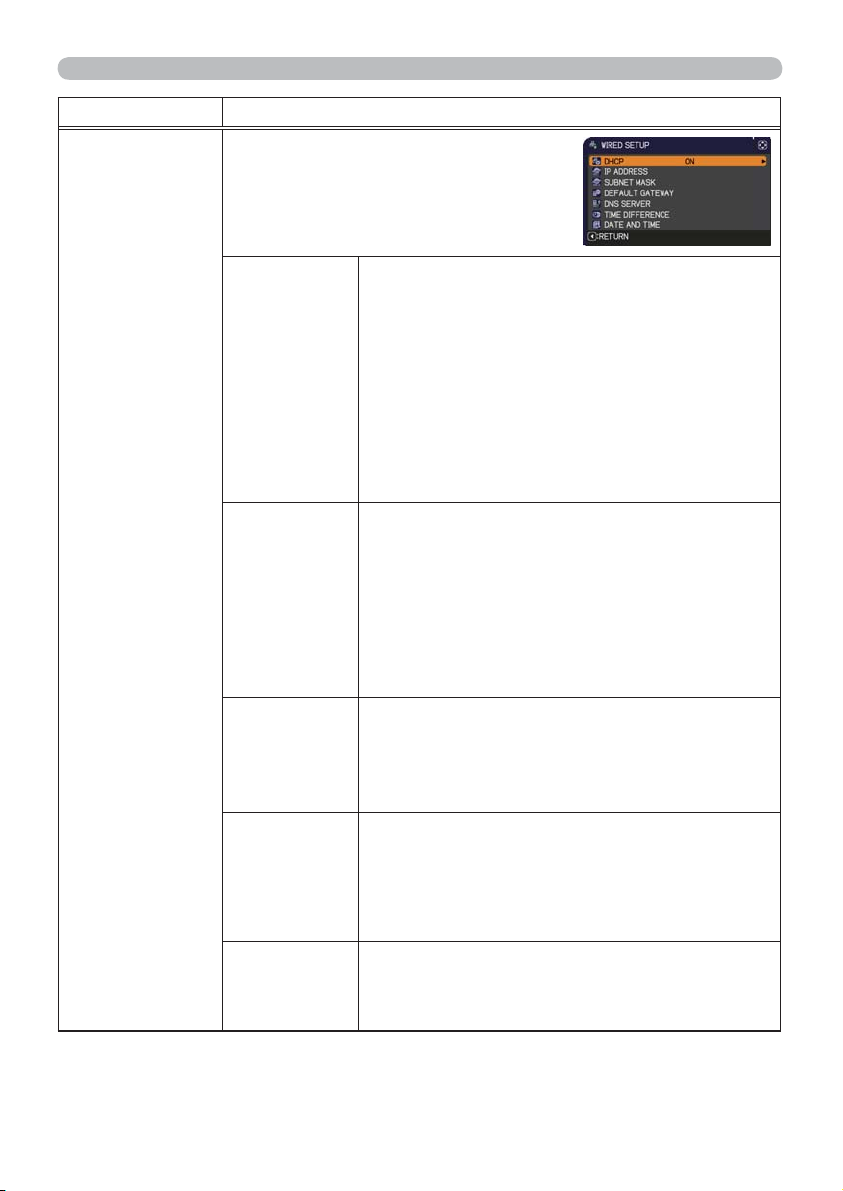

IRED SETUP,WIRED INFORMATION

P

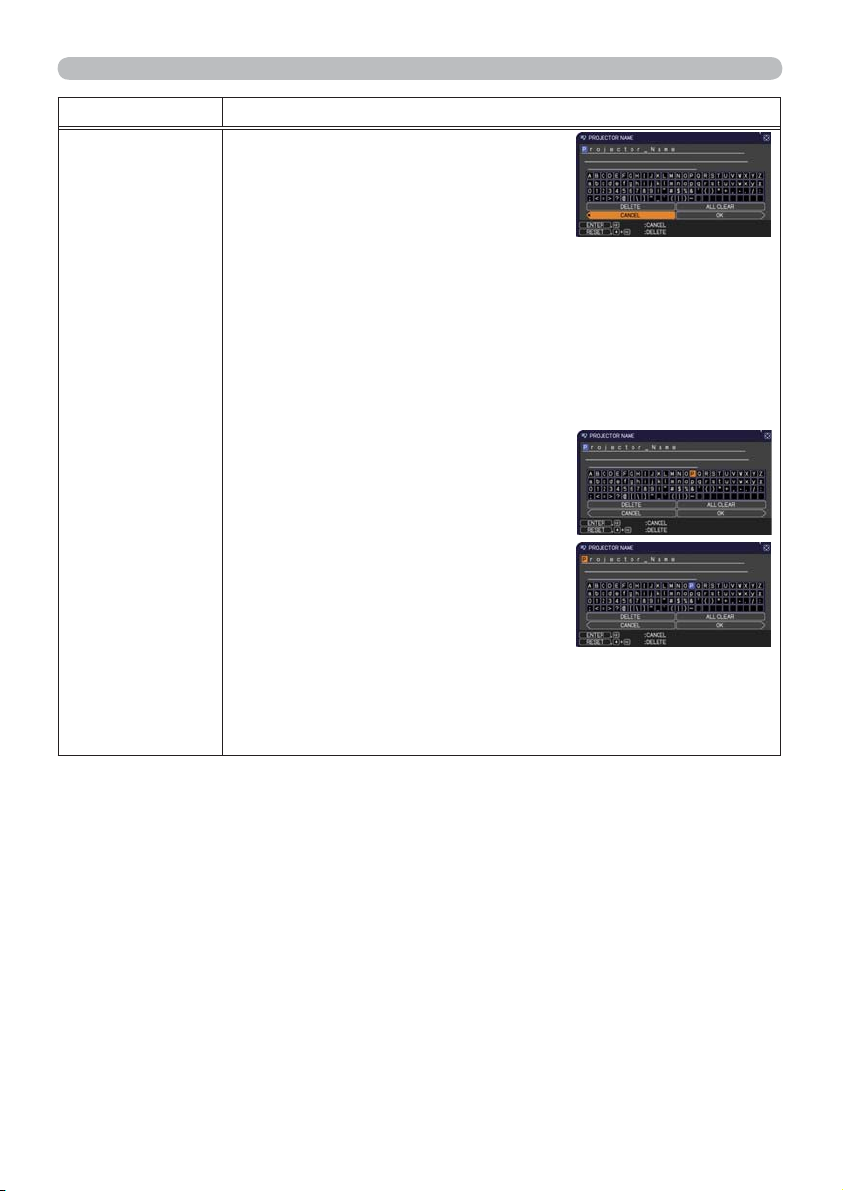

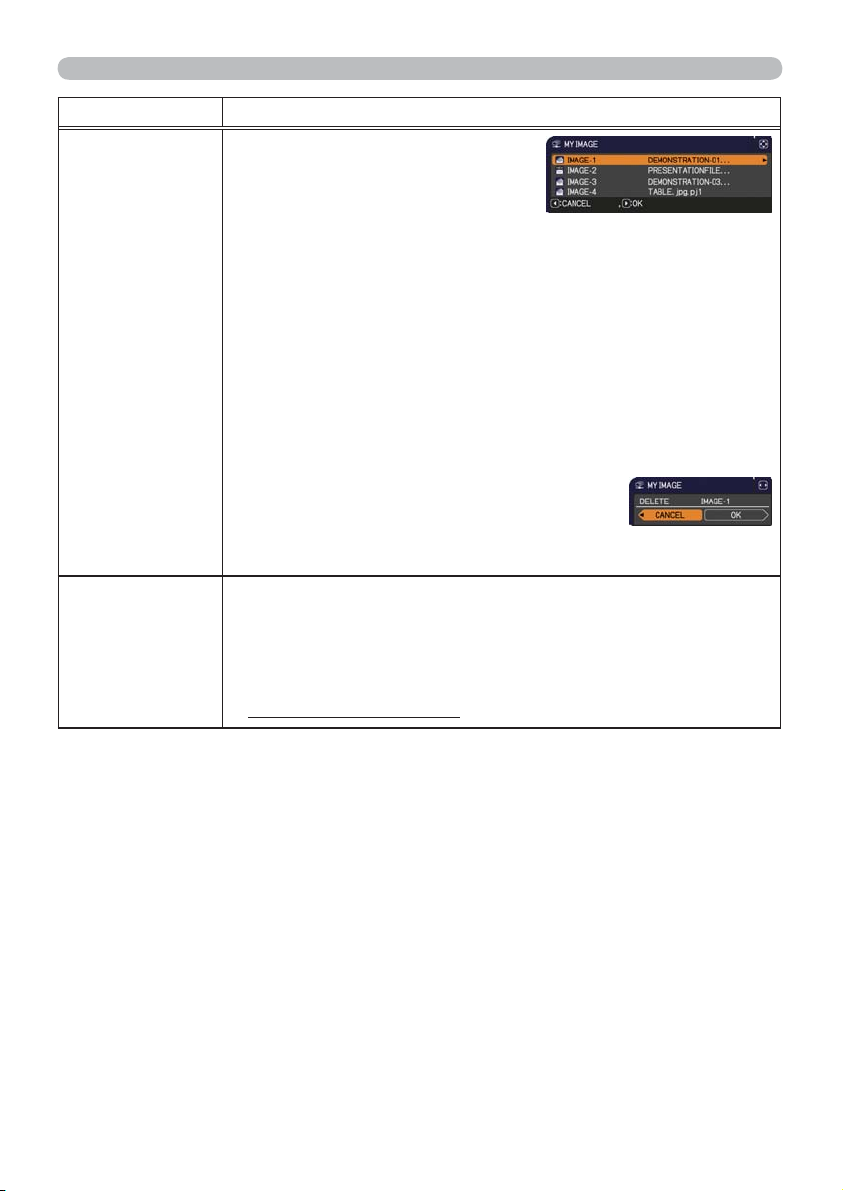

ROJECTOR NAME,MY IMAGE

P

RESENTATION,SERVICE

, A

,

MX D.D

.,

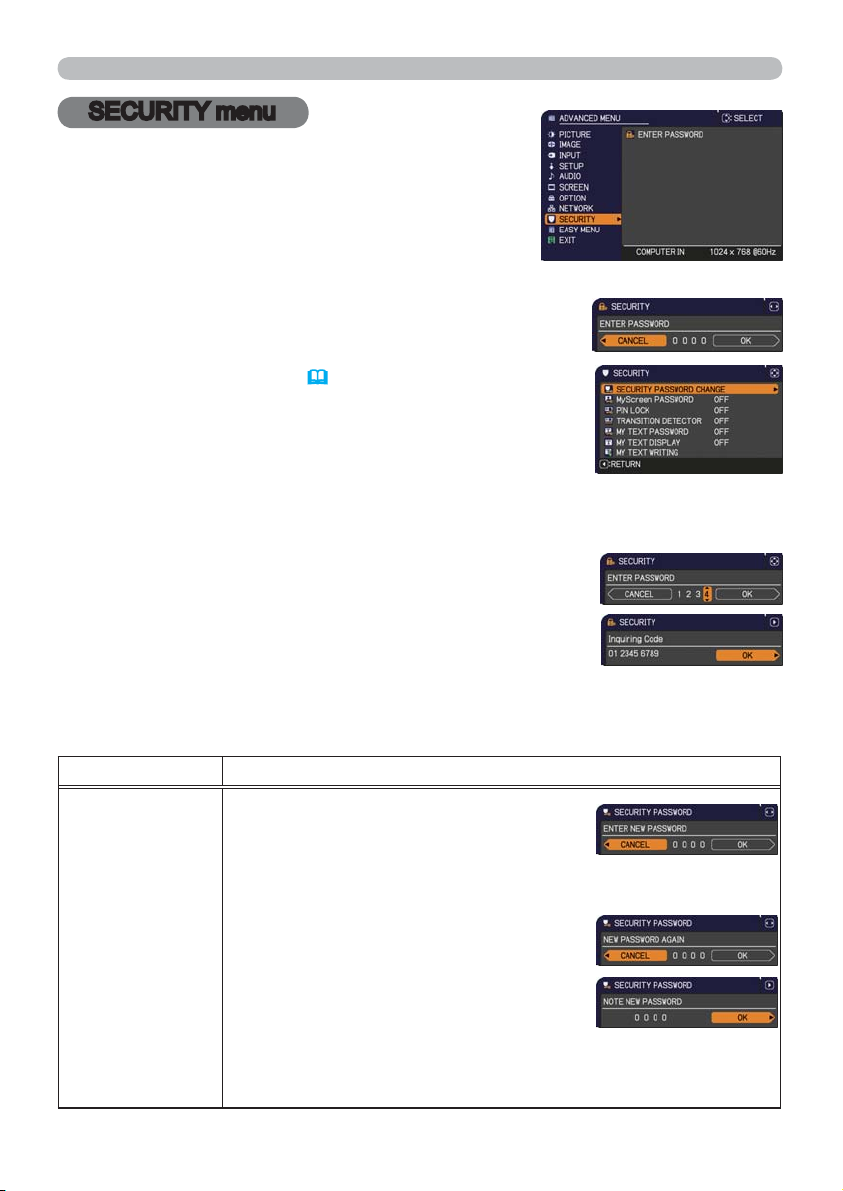

SECURITY menu ...........74

S

ECURITY PASSWORD CHANGE

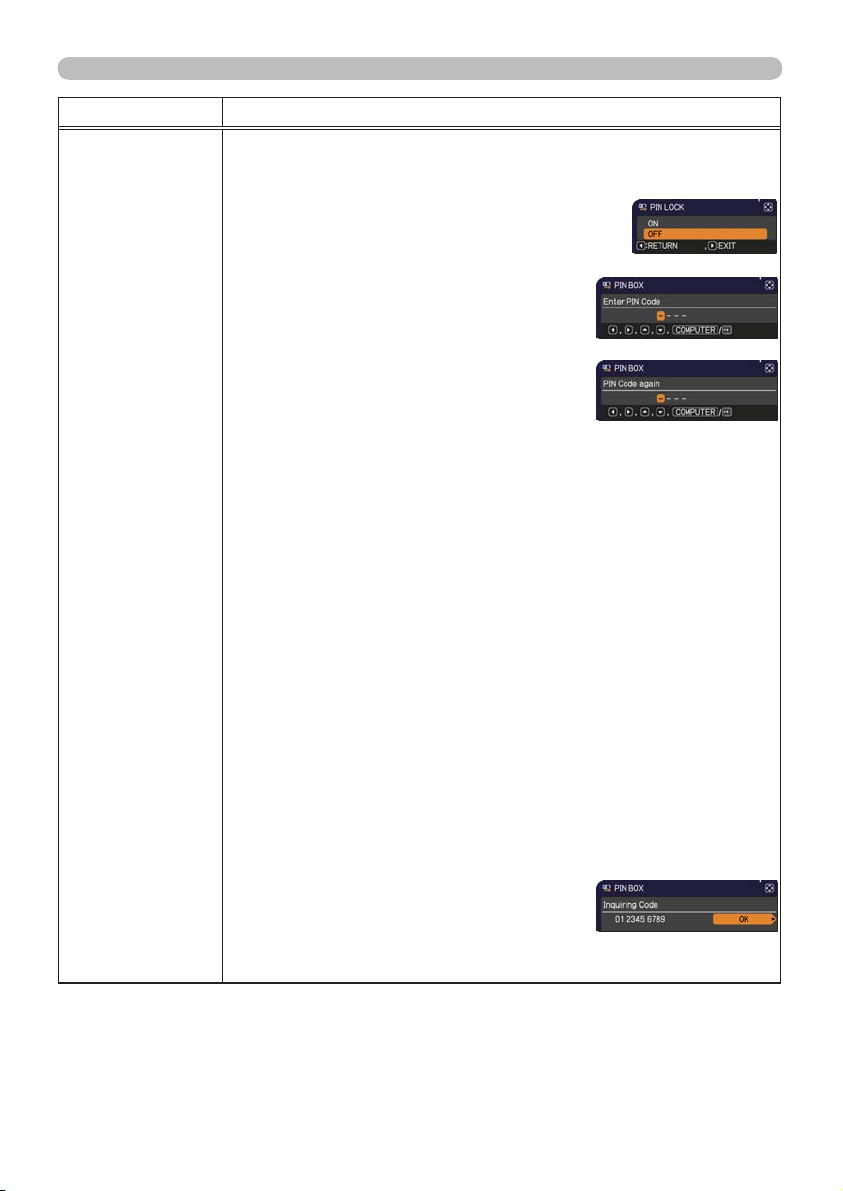

YSCREEN PASSWORD,PIN LOCK

M

T

RANSITION DETECTOR,MY TEXT PASSWORD

M

Y TEXT DISPLAY,MY TEXT WRITING

,

,

Presentation tools . ........80

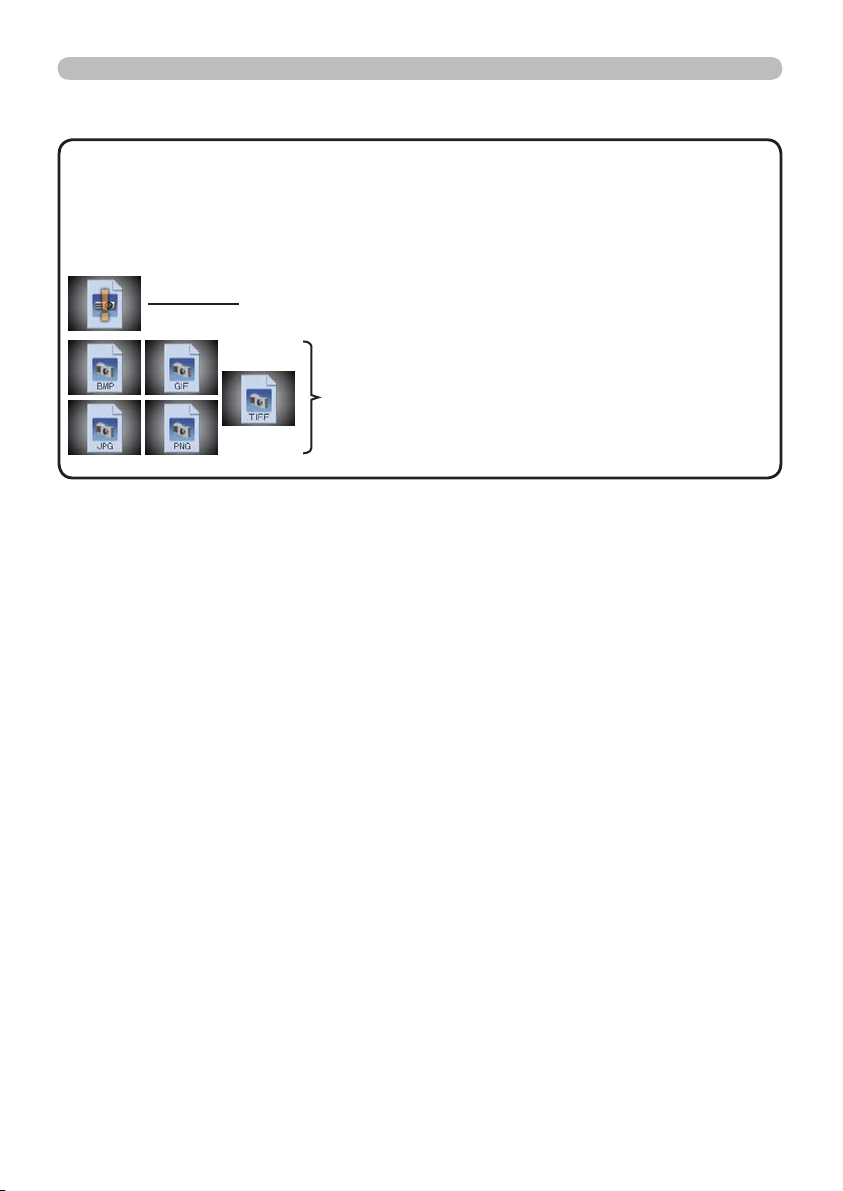

PC-LESS Presentation

.......80

Thumbnail Mode, Full Screen Mode,

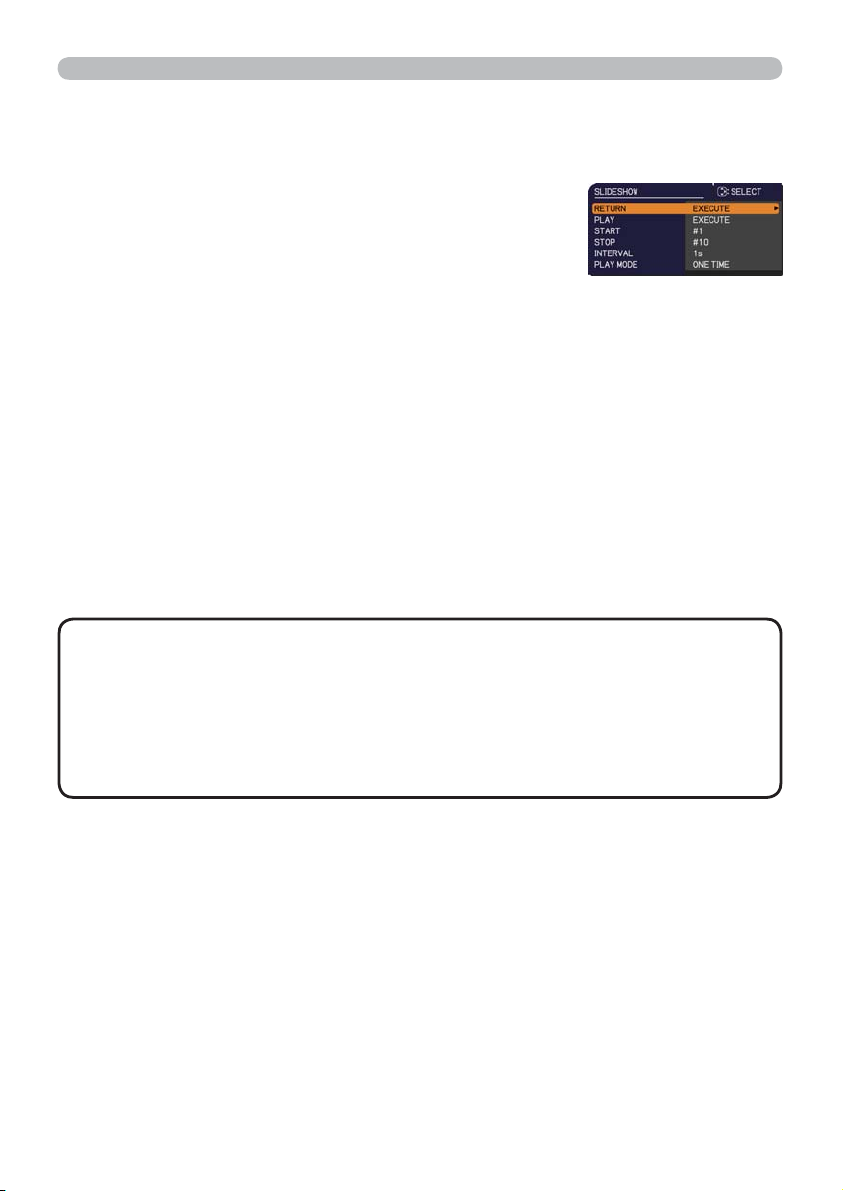

Slideshow Mode, Playlist

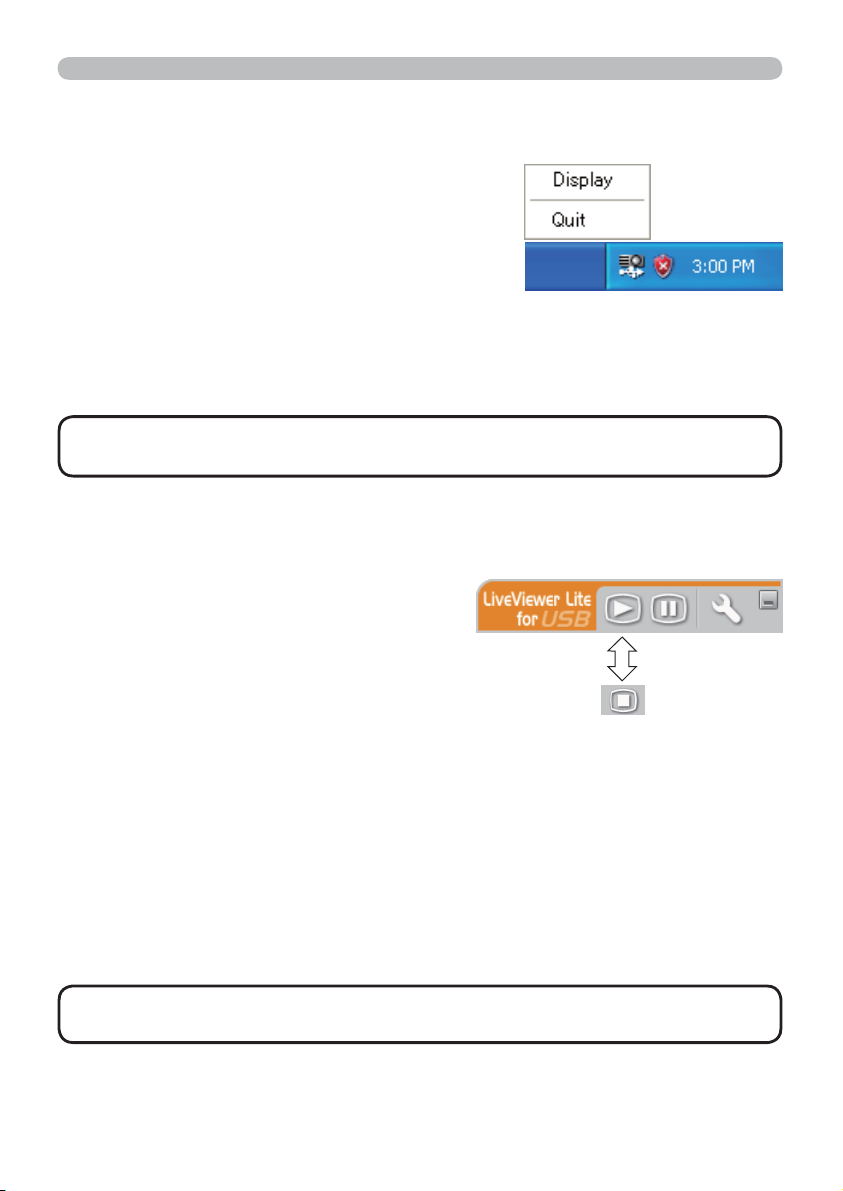

USB Display

..................

Starting USB Display,
Right-Click menu, Floating menu,
Options window

Maintenance ..............93

Replacing the lamp ............. 93

Cleaning and replacing the air lter . . 95

Other care ....................97

,

Troubleshooting . ..........98

Related messages . ............98

Regarding the indicator lamps . . . 100

,

Resetting all settings ...........102

Phenomena that may be easy

to be mistaken for machine defects

. 102

Specifications ............107



,

,

,

89

2

Introduction

Introduction

Features

The projector provides you with the broad use by the following features.
9 This projector has a variety of I/O ports that supposedly cover for any

business scene. The HDMI port can support various image equipment which
have digital interface to get clearer pictures on a screen.

9 If you insert a USB storage device, such as a USB memory, into the USB

TYPE A port and select the port as the input source, you can view images

stored in the device.

9 This projector can be controlled and monitored via LAN connection.

Furthermore, you can use the designated USB wireless adapter (optional) to
establish wireless LAN connection.

9 This compact, lightweight projector uses a front exhaust system that keeps the

user comfortable by directing hot air away from the user.

Checking the contents of package

Please see the Contents of package section in the User’s Manual (concise)
which is a book. Your projector should come with the items shown there. Require
of your dealer immediately if any items are missing.

WARNING

not to put in the mouth. If swallowed, consult a physician immediately for
emergency treatment.

NOTE

to use the original packing materials when moving the projector. Use special
caution for the lens.

• The projector may make a rattling sound when tilted, moved or shaken, since
a ap to control the air ow inside of the projector has moved. Be aware that
this is not a failure or malfunction.

• Keep the original packing materials, for future reshipment. Be sure

►Keep small parts away from children and pets. Take care

3

Introduction

Part names

(1) Lamp cover (93)

The lamp unit is inside.

(2) FOCUS ring (24)
(3) ZOOM ring (24)
(4) Control panel (
(5) Elevator buttons (x 2) (24)
(6) Elevator feet (x 2) (
(7) Remote sensor (17)
(8) Lens (97)
(9) Intake vents
(10) Filter cover (

The air lter and intake vent are
inside.

(11) Speaker (46)
(12) Exhaust vent
(13) AC IN (AC inlet) (15)
(14) Rear panel (
(15) Security bar (16)
(16) Security slot (

5)

24)

95)

5)

16)

(6)

HOT!

(13)

HOT!

(12)

(1)

(2) (3) (4)

(16)

(8)

(14)

(7)

(11)

(9)

(15)
(10)
(5)

(6)

(5)

(9)

WARNING

►Do not open or remove any portion of the product, unless the

manuals direct it.

►Do not subject the projector to unstable conditions.
►Do not apply a shock or pressure to this product.
►Do not look into the lens and the openings on the projector while the lamp is

on.

CAUTION

►Do not touch around the lamp cover and the exhaust
vents during use or just after use, since it is too hot.
►Do not attach anything onto the lens except the lens cover of this
projector because it could damage the lens, such as melting the lens.

(continued on next page)

4

Part names (continued)

T

Control panel

(1) STANDBY/ON button (19)
(2) INPUT button (
(3) MENU button (29)

It consists of four cursor buttons.

(4) ECO

button (56, 57)

(5) POWER indicator (
(6) TEMP indicator (100)
(7) LAMP indicator (100)

Rear panel

(1) LAN port
(2) USB TYPE A port
(3) HDMI port
(4) USB TYPE B port
(5) VIDEO port
(6) S-VIDEO port
(7) AUDIO IN1 port

22, 29)

(

11 ~ 14)



19, 100)

(4)

(1) (3)(2)

(8) AUDIO IN2 port
(9) COMPUTER IN1 port
(10) COMPUTER IN2 port
(11) AUDIO OUT port
(12) MONITOR OUT port
(13) CONTROL port

(5)

Introduction

(7)(6)

(2) (7)

(1)

LAN

AC IN

(continued on next page)

(3)

HDMI

USB
TYPE A
DC5V 0.5A

(11)

(4)

USB

TYPE B

(5)

(6)

(9)

(8)

COMPUTER IN1 COMPUTER IN2

S-VIDEO

VIDEO AUDIO IN2

CONTROLMONITOR OUTAUDIO OUT

(13)(12)

(10)

AUDIO IN1

5

Introduction

Part names (continued)

Remote control

(1) VIDEO button (
(2) COMPUTER button (

22)

22)

(3) SEARCH button (23)
(4) STANDBY/ON button (19)
(5) ASPECT button (

23)
(6) AUTO button (25)
(7) BLANK button (28)
(8) MAGNIFY - ON button (

27)
(9) MAGNIFY - OFF button (27)
(10) MY SOURCE/DOC.CAMERA button

22, 57)

(
(11) VOLUME - button (21)
(12) PAGE UP button (

18)
(13) PAGE DOWN button (18)
(14) VOLUME + button (

21)
(15) MUTE button (21)
(16) FREEZE button (

28)
(17) MY BUTTON - 1 button (56, 57)
(18) MY BUTTON - 2 button (

56, 57)
(19) KEYSTONE button (26)
(20) POSITION button (25, 29)
(21) MENU button (

29)
(22) ▲/▼/◄/► cursor buttons (29)
(23) ENTER button (

29)
(24) ESC button (29)
(25) RESET button (

29)
(26) Battery cover (17)

(2)
(1)
(6)
(5)
(16)
(8)
(9)
(19)
(17)
(20)

ASPECT

MAGNIFY

ON

OFF

KEYSTONE

POSITION

(22)

(24)

the remote control

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

AUTO

SEARCH

BLANK

FREEZE

PAGE

VOLUME

UP

㧗

DOWN

࡯

MY BUTTON

MUTE





MENU

ENTER

ESC

RESET

B a c k o f

(10)
(4)
(3)
(7)
(12)
(14)
(11)
(13)
(15)
(18)
(21)
(23)
(25)

(26)

6

Setting up

Setting up

Install the projector according to the environment and manner the projector will be
used in.

For the case of installation in a special state such as ceiling mount, the specied
mounting accessories (
service may be required. Before installing the projector, consult your dealer about
your installation.

6SHFL¿FDWLRQV in the User’s Manual (concise)) and

Arrangement

Refer to tables T-1 and T-2 at the back of User's Manual (concise) as well as the
following to determine the screen size and projection distance.
The values shown in the table are calculated for a full size screen.

a Screen size (diagonal)
b Projection distance (±10%, from the projector’s end)
c1 , c2 Screen height (±10%)

• If the projector is used at an altitude of about 1600 m (5250 feet) or higher,

set ALTITUDE of the SERVICE item in the OPTION menu to HIGH (
Otherwise, set it to NORMAL. If the projector is used with a wrong setting, it may
cause damage to the projector itself or the parts inside.

(continued on next page)

57).

7

Setting up

Arrangement (continued)

WARNING

►Install the projector where you can access the power

outlet easily. If an abnormality should occur, unplug the projector urgently.

Otherwise it could cause a re or electric shock.
►Do not subject the projector to unstable conditions. If the projector falls

or topples over, it could result in injury or damage to the projector and the
surrounding things. Using a damaged projector could result in a re and an
electric shock.

• Do not place the projector in unstable places, such as an inclined surface,
places subject to vibration, on top of a wobbly table or cart, or a surface that is
smaller than the projector.

• Do not put the projector on its side, front or rear position.

• Do not attach nor place anything on the projector unless otherwise specied in
the manual.

• Do not use any mounting accessories except the accessories specied by the
manufacturer. Read and keep the manuals of the accessories used.

• For special installation such as ceiling mounting, be sure to consult your dealer
beforehand.

►

'RQRWLQVWDOOWKHSURMHFWRUQHDUWKHUPDOO\FRQGXFWLYHRUÀDPPDEOH

things. Such things when heated by the projector could result in a re and burns.

• Do not place the projector on a metal stand.

►Do not place the projector where any oils, such as cooking or machine
oil, are used. Oil may harm the product, resulting in malfunction, or falling from

the mounted position.
►Do not place the projector in a place where it may get wet. Getting the
projector wet or inserting liquid into the projector could cause a re and an
electric shock, and damage the projector.

• Do not place the projector near water, such as in a bathroom, kitchen, or
poolside.

• Do not place the projector outdoors or by the window.

• Do not place anything containing liquid near the projector.

(continued on next page)

8

Arrangement (continued)

Setting up

CAUTION

►3ODFHWKHSURMHFWRULQDFRROSODFHZLWKVXI¿FLHQW

ventilation. The projector may shutdown automatically or may malfunction if its
internal temperature is too high.
Using a damaged projector could result in a re and an electric shock.

• Do not place the projector in direct sunlight or near hot objects such as heaters.

• Do not place the projector where the air from an air conditioner or similar unit
will blow on it directly.

• Keep a space of 30 cm or more between a side of the projector and other
objects such as walls.

• Do not place the projector on carpet, cushions or bedding.

• Do not stop up, block nor cover the projector's vent holes. Do not place
anything around the projector that could be sucked in or stuck to the projector's
intake vents.

• Do not place the projector at places that are exposed to magnetic elds, doing
so can cause the cooling fans inside the projector to malfunction.

►Avoid placing the projector in smoky, humid or dusty place. Placing the
projector in such places could cause a re, an electric shock and malfunction of
the projector.

• Do not place the projector near humidiers. Especially for an ultrasonic
humidier, chlorine and minerals contained in tap water are atomized and could
be deposited in the projector causing image degradation or other problems.

NOTICE

• Do not place the projector in a smoking area, kitchen, passageway
or by the window.

• Position the projector to prevent light from directly hitting the projector's remote
sensor.

• Do not place the product in a place where radio interference may be caused.

• Check and correct the setting for ALTITUDE of SERVICE in the OPTION menu
according to the usage environment (

57). If the projector is used with a wrong

setting, it may cause damage to the projector itself or the parts inside.

• Keep heat-sensitive things away from the projector. Otherwise, they may be
damaged by the heat from the projector.

9

Setting up

Connecting with your devices

Before connecting the projector to a device, consult the manual of the device to
conrm that the device is suitable for connecting with this projector and prepare
the required accessories, such as a cable in accord with the signal of the device.
Consult your dealer when the required accessory did not come with the product or
the accessory is damaged.
After making sure that the projector and the devices are turned off, perform
the connection, according to the following instructions. Refer to the gures in
subsequent pages.
Before connecting the projector to a network system, be sure to read Network
Guide too.

WARNING

►Use only the appropriate accessories. Otherwise it could

cause a re or damage the projector and devices.

• Use only the accessories specied or recommended by the projector’s
manufacturer. It may be regulated under some standard.

• Neither disassemble nor modify the projector and the accessories.

• Do not use the damaged accessory. Be careful not to damage the accessories.
Route a cable so that it is neither stepped on nor pinched out.

CAUTION

►For a cable with a core at only one end, connect the end

with the core to the projector. That may be required by EMI regulations.

NOTE

• Do not turn on or off the projector while connected to a device in
operation, unless that is directed in the manual of the device. Otherwise it may
cause malfunction in the device or projector.

• The function of some input ports can be selected according to your usage
requirements. Check the reference page indicated beside each port in the
following illustration.

• Be careful not to mistakenly connect a connector to a wrong port. Otherwise it
may cause malfunction in the device or projector.

- When connecting a connector to a port, make sure that the shape of the

connector ts the port.

- Tighten the screws to connect a connector equipped with screws to a port.

- Use the cables with straight plugs, not L-shaped ones, as the input ports of

the projector are recessed.

About Plug-and-Play capability

• Plug-and-Play is a system composed of a computer, its operating system

and peripheral equipment (i.e. display devices). This projector is VESA DDC
2B compatible. Plug-and-Play can be used by connecting this projector to a
computer that is VESA DDC (display data channel) compatible.

Take advantage of this feature by connecting a computer cable to the

-

COMPUTER IN1 port (DDC 2B compatible). Plug-and-Play may not work
properly if any other type of connection is attempted.
Please use the standard drivers in your computer as this projector is a Plug-

-

and-Play monitor.

(continued on next page)

10

Connecting with your devices (continued)

Computer

HDMI

USB

LAN

AC IN

USB
TYPE A
DC5V 0.5A

TYPE B

COMPUTER IN1 COMPUTER IN2

CONTROLMONITOR OUTAUDIO OUT

S-VIDEO

VIDEO AUDIO IN2

AUDIO IN1

Setting up

NOTE

• Before connecting the projector to a computer, consult the computer’s
manual and check the compatibility of the signal level, the synchronization
methods and the display resolution output to the projector.

- Some signal may need an adapter to input this projector.

- Some computers have multiple screen display modes that may include some

signals which are not supported by this projector.

- Although the projector can display signals with resolution up to UXGA

(1600x1200), the signal will be converted to the projector’s panel resolution
before being displayed. The best display performance will be achieved if the
resolutions of the input signal and the projector panel are identical.

• If you connect this projector and a notebook computer, you need output the
display to an external monitor, or output simultaneously to the internal display
and an external monitor. Consult the computer's manual for the setting.

• Depending on the input signal, the automatic adjustment function of this
projector may take some time and not function correctly.

- Note that a composite sync signal or sync-on-green signal may confuse the

automatic adjustment function of this projector (

41).

- If the automatic adjustment function does not work correctly, you may not see

the dialog to set the display resolution. In such a case, use an external display
device. You may be able to see the dialog and set an appropriate display
resolution.

(continued on next page)

11

Setting up

Connecting with your devices (continued)

Computer External device

Access

point

USB

wireless

adapter

(optional)

HDMI

USB

USB

USB

storage

device

LAN

AC IN

TYPE A
DC5V 0.5A

TYPE B

COMPUTER IN1 COMPUTER IN2

S-VIDEO

VIDEO AUDIO IN2

CONTROLMONITOR OUTAUDIO OUT

AUDIO IN1

CAUTION

► Before connecting the projector to a network system be sure
to obtain the consent of the administrator of the network.
►Do not connect the LAN port to any network that might have the excessive
voltage.
►The designated USB wireless adapter that is sold as an option is required to
use the wireless network function of this projector.
►Before removing the USB storage device from the port of the projector, be
sure to use the REMOVE USB function on the thumbnail screen to secure your

83).

data (
►Do not use any extension cable or device when connecting the adapter to the
projector. Before you insert or pull out the USB wireless adapter from the projec­tor, turn off the power of the projector and pull out the power cord’s plug from the
outlet. Do not touch the USB wireless adapter while the projector is receiving AC
power.
►To connect both the LAN cable and USB device to the projector, use a LAN
cable that is  at on the side where the plug’s wire is visible. Otherwise, both of
them cannot be connected correctly, or the wire may break (malfunction).

NOTE

• If an oversized USB storage device blocks the LAN port, use a USB

extension cable to connect the USB storage device.

(continued on next page)

12

Connecting with your devices (continued)

HDMI

USB

USB

TYPE B

TYPE A

LAN

AC IN

DC5V 0.5A

HDMI

AUDIO OUT

L R

S-VIDEO OUT

VIDEO OUT

L R

AUDIO OUT

COMPUTER IN1 COMPUTER IN2

S-VIDEO

VIDEO AUDIO IN2

CONTROLMONITOR OUTAUDIO OUT

Y CB/PB CR/PR

L R

COMPONENT VIDEO OUT

AUDIO OUT

Setting up

AUDIO IN1

TM

player

NOTE

VCR/DVD/Blu-ray Disc

• The HDMI port of this model is compatible with HDCP (High-band­width Digital Content Protection) and therefore capable of displaying a video
signal from HDCP compatible DVD players or the like.

- The HDMI supports the following signals.

Video signal : 480i@60, 480p@60, 576i@50, 576p@50, 720p@50/60,

1080i@50/60, 1080p@50/60

Audio signal : Format Linear PCM

Sampling frequency 48kHz / 44.1kHz / 32kHz

- This projector can be connected with another equipment that has HDMI

TM

connector, but with some equipment the projector may not work properly,
something like no video.

- Be sure to use an HDMI

- Use a Category 2-certi ed HDMI

TM

cable that has the HDMITM logo.

TM

cable to input 1080p@50/60 signal to the

projector.

- When the projector is connected with a device having DVI connector, use a
DVI to HDMI

TM

cable to connect with the HDMI input.

(continued on next page)

13

Setting up

Connecting with your devices (continued)

Speakers

(with an ampli er)

HDMI
USB
TYPE A
DC5V 0.5A

LAN

AC IN

USB

TYPE B

Monitor

RGB IN

COMPUTER IN1 COMPUTER IN2

S-VIDEO

VIDEO AUDIO IN2

CONTROLMONITOR OUTAUDIO OUT

AUDIO IN1

14

Connecting to a power supply

Put the connector of the power cord into the

1.

AC IN (AC inlet) of the projector.
Firmly plug the power cord’s plug into the

2.

outlet. In a couple of seconds after the
power supply connection, the POWER
indicator will light up in steady orange.

Please remember that when the DIRECT POWER
ON function activated (
power supply make the projector turn on.

53), the connection of the

Setting up

AC IN

Power cord

WARNING

incorrect or faulty connections may result in re and/or electrical shock.

• Do not touch the power cord with a wet hand.

• Only use the power cord that came with the projector. If it is damaged, consult
your dealer to get a new one. Never modify the power cord.

• Only plug the power cord into an outlet whose voltage is matched to the power
cord. The power outlet should be close to the projector and easily accessible.
Remove the power cord for complete separation.

• Do not distribute the power supply to multiple devices. Doing so may overload
the outlet and connectors, loosen the connection, or result in re, electric shock
or other accidents.

• Connect the ground terminal for the AC inlet of this unit to the ground terminal
of the building using an appropriate power cord (bundled).

NOTICE

phase voltage of 220 to 240 V.

►Please use extra caution when connecting the power cord, as

►This product is also designed for IT power systems with a phase-to-

15

Setting up

Fastening the adapter cover

Use the supplied adapter cover to
prevent the USB wireless adapter from
coming off easily.

Loosen the screw (marked with

1.

triangle) on the bottom right of the

USB TYPE A port.

1

Insert the tab of the cover into the

2.

hole at the upper left of the USB
TYPE A port in the direction of the
arrow.

Align the screw holes on the

3.

projector and the cover. Then

insert the screw removed from the
projector into the hole and tighten
the screw.

WARNING

to put in the mouth.

►Keep small parts away from children and pets. Take care not

Using the security bar and slot

A commercially available anti-theft chain or
wire can be attached to the security bar on
the projector. Refer to the  gure to choose
an anti-theft chain or wire.
Also this product has the security slot for
the Kensington lock.
For details, see the manual of the security
tool.

18 mm

12 mm

18 mm

Installation surface

10 mm

2

Ta b

12mm

chain or wire

Anti-theft

3

Security slot

18mm

18mm

security bar

WARNING

from falling down, since it is not designed for it.

CAUTION

It may become too hot.

NOTE

measures. It is intended to be used as supplemental theft prevention measure.

16

• The security bar and slot is not comprehensive theft prevention

►Do not use the security bar and slot to prevent the projector

►Do not place anti-theft chain or wire near the exhaust vents.

30º

Remote control

Remote control

Installing the batteries

Please insert the batteries into the remote control before using it. If the remote control
starts to malfunction, try to replace the batteries. If you will not use the remote control for
long period, remove the batteries from the remote control and store them in a safe place.

Holding the hook part of the battery

1.

cover, remove it.
Align and insert the two AA batteries

2.

(HITACHI MAXELL or HITACHI MAXELL
ENERGY, Part No.LR6 or R6P)

to their plus and minus terminals as indicated in the remote control.
Replace the battery cover in the direction of the arrow and snap it back into place.

3.

according

213

WARNING

directed. Improper use may result in battery explosion, cracking or leakage,
which could result in re, injury and/or pollution of the surrounding environment.

• Be sure to use only the batteries specied. Do not use batteries of different
types at the same time. Do not mix a new battery with used one.
Make sure the plus and minus terminals are correctly aligned when loading a battery.

•

• Keep a battery away from children and pets.

• Do not recharge, short circuit, solder or disassemble a battery.
Do not place a battery in a re or water. Keep batteries in a dark, cool and dry place.

•

•

If you observe battery leakage, wipe out the leakage and then replace a battery.
If the leakage adheres to your body or clothes, rinse well with water immediately.

• Obey the local laws on disposing the battery.

►Always handle the batteries with care and use them only as

About the remote control signal

The remote control works with the projector’s remote
sensor. This projector has a remote sensor on the front.
The sensor senses the signal within the following range
when the sensor is active:

60 degrees (30 degrees to the left and right of the sensor)
within 3 meters about.

•

NOTE

If it is difcult to send the signal to the sensor directly, attempt to make the signal reect.

• The remote control uses infrared light to send signals to the projector (Class 1
LED), so be sure to use the remote control in an area free from obstacles that
could block the remote control’s signal to the projector.

•

The remote control may not work correctly if strong light (such as direct sun
light) or light from an extremely close range (such as from an inverter uorescent
lamp) shines on the remote sensor of the projector. Adjust the position of
projector avoiding those lights.

The remote control signal reected in the screen or the like may be available.

3 m

30º

(approx.)

17

Remote control

USB
TYPE B

Using as a simple PC mouse & keyboard

The accessory remote control works as a simple mouse
and keyboard of the computer, when the projector’s USB
TYPE B port and the computer’s type A USB port are
connected and MOUSE is selected for the USB TYPE B
item in the OPTION menu (

(1) PAGE UP key: Press PAGE UP button.
(2) PAGE DOWN key: Press PAGE DOWN button.
(3) Mouse left button: Press ENTER button.
(4) Move pointer: Use the cursor buttons ▲, ▼, ◄ and ►.
(5) ESC key: Press ESC button.
(6) Mouse right button: Press RESET button.

NOTICE

►Improper use of the simple mouse & keyboard
function could damage your equipment. While using this
function, please connect this product only to a computer. Be
sure to check your computer’s manuals before connecting this
product to the computer.

54).

USB TYPE B port

(3)

(5)

ASPECT

ON

OFF

KEYSTONE

POSITION

VIDEO

MAGNIFY

MY SOURCE/

COMPUTER

DOC.CAMERA

AUTO

FREEZE

MY BUTTON

1

ENTER

ESC

(1)

SEARCH

BLANK

PAGE

VOLUME

UP

㧗

DOWN

࡯

(2)

MUTE

2

MENU

(4)

RESET

(6)

NOTE

When the simple mouse & keyboard function of this product does not work

correctly, please check the following.

• When a USB cable connects this projector with a computer having a built-in pointing
device (e.g. track ball) like a laptop computer, open BIOS setup menu, then select the
external mouse and disable the built-in pointing device, because the built-in pointing
device may have priority to this function.

Windows 95 OSR 2.1 or higher is required for this function. And also this function may not work

•
depending on the computer’s con gurations and mouse drivers. This function can work with the
computer which can operate general USB mouse or keyboard.

• You cannot do things like press two buttons at once (for instance, pressing two buttons
at the same time to move the mouse pointer diagonally).

This function is activated only when the projector is working properly. This function is not

•
available in any of the following cases:

- While the lamp is warming up. (The POWER indicator blinks in green.)

- When either USB TYPE A or USB TYPE B port is selected.

- While displaying BLANK

, TEMPLATE

(51)

or MY IMAGE

(71)

screen.

(47)

- When any menu is displayed on the screen.

While using the cursor buttons to operate the sound or screen functions such as adjusting the

-

sound volume, correcting the keystone, correcting the picture position and magnifying the screen.

18

Power on/off

Power on/off

Turning on the power

Make sure that the power cord is  rmly and

1.

correctly connected to the projector and the
outlet.

Make sure that the POWER indicator is

2.

steady orange (
lens cover.

Press STANDBY/ON button on the

3.

projector or the remote control.
The projection lamp will light up and POWER
indicator will begin blinking in green. When the
power is completely on, the indicator will stop blinking and light in steady
green (

100).

To display the picture, select an input signal according to the section Selecting an
input signal (

The INITIAL SETTING Menu will be displayed by factory default upon startup.
Once the INITIAL SETTING Menu is set, it will not appear until FACTORY RESET

62) is executed. If you wish to change the settings, refer to the LANGUAGE

(

47) and ALTITUDE (57) menu.

(

100). Then remove the

22).

STANDBY/ON button
POWER indicator

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

ASPECT

AUTO

SEARCH

BLANK

FREEZE

MAGNIFY

PAGE

VOLUME

UP

ON

DOWN

OFF

MY BUTTON

MUTE

KEYSTONE

2

1

MENU

POSITION

ENTER

ESC

RESET

㧗

࡯

(1) LANGUAGE: Use the ▲/▼/◄/►

buttons to select the desired language
and press the ENTER button of the
remote control or the INPUT button of
the projector to execute.

(2) ALTITUDE: Use the ▲/▼ buttons to

select NORMAL for altitude below
1600 m (5250 feet), otherwise select
HIGH and press the ENTER button of
the remote control or the INPUT button
of the projector to execute.

19

Power on/off

Turning off the power

Press the STANDBY/ON button on the projector or the remote control.

1.

The message “Power off?” will appear on the screen for about 5 seconds.
Press the STANDBY/ON button again while the message appears.

2.

The projector lamp will go off, and the POWER indicator will begin blinking in
orange. Then POWER indicator will stop blinking and light in steady orange
when the lamp cooling is complete (

Attach the lens cover, after the POWER indicator turns in steady orange.

3.

Do not turn the projector on for about 10 minutes or more after turning it off.
Also, do not turn the projector off shortly after turning it on. Such operations might
cause the lamp to malfunction or shorten the lifetime of some parts including the lamp.

100).

WARNING

Do not look into the lens of the projector or look inside of the projector through
any of the projector’s openings.
►Do not touch around the lamp cover and the exhaust vents during use or just
after use, since it is too hot.

NOTE

prior to the connected devices.

• This projector has the function that can make the projector automatically turn

on/off. Please refer to the DIRECT POWER ON (

OFF (

• Turn the power on/off in right order. Please power on the projector

54) items of the OPTION menu.

►A strong light is emitted when the projector’s power is on.

53) and AUTO POWER

Precaution for lens cover attachment and removal

When you attach or remove the lens cover, move it vertically up and down while
keeping the knob to the right as illustrated in the gure.

20

Operating

Operating

Adjusting the volume

Use the VOLUME +/VOLUME - buttons to adjust the volume.

1.

A dialog will appear on the screen to aid you in adjusting the
volume. If you do not do anything, the dialog will automatically
disappear after a few seconds.

● When

is selected for current picture input port, the volume

VOLUME +/- button

VIDEO

COMPUTER

ASPECT

AUTO

FREEZE

MAGNIFY

ON

OFF

MY BUTTON

KEYSTONE

1

adjustment is disabled. Please see AUDIO SOURCE item of AUDIO menu

46).

(

● Even if the projector is in the standby mode, the volume is adjustable when
both of the following conditions are true:

- An option other than
SOURCE item of the AUDIO menu
NORMAL is selected in the STANDBY MODE item of the SETUP menu

-

Temporarily muting the sound

Press MUTE button on the remote control.

1.

A dialog will appear on the screen indicating that you have muted
the sound.
To restore the sound, press the MUTE, VOLUME + or
VOLUME - button. Even if you do not do anything, the dialog

is selected for AUDIO OUT STANDBY in the AUDIO

(46).

(45).

MUTE button

VIDEO

COMPUTER

ASPECT

AUTO

FREEZE

MAGNIFY

ON

OFF

MY BUTTON

KEYSTONE

1

will automatically disappear after a few seconds.

● When is selected for current picture input port, the sound is always muted.
Please see AUDIO SOURCE item of AUDIO menu (46).

● C.C. (Closed Caption) is automatically activated when sound is muted and an
input signal containing C.C. is received. This function is available only when
the signal is NTSC for VIDEO or S-VIDEO, or 480i@60 for COMPUTER IN1
or COMPUTER IN2, and when AUTO is selected for DISPLAY in the C.C.
menu under the SCREEN menu (

52).

MY SOURCE/
DOC.CAMERA

SEARCH

PAGE

UP

DOWN

MY SOURCE/
DOC.CAMERA

SEARCH

PAGE

UP

DOWN

BLANK

VOLUME

㧗

࡯

MUTE

2

BLANK

VOLUME

㧗

࡯

MUTE

2

21

Operating

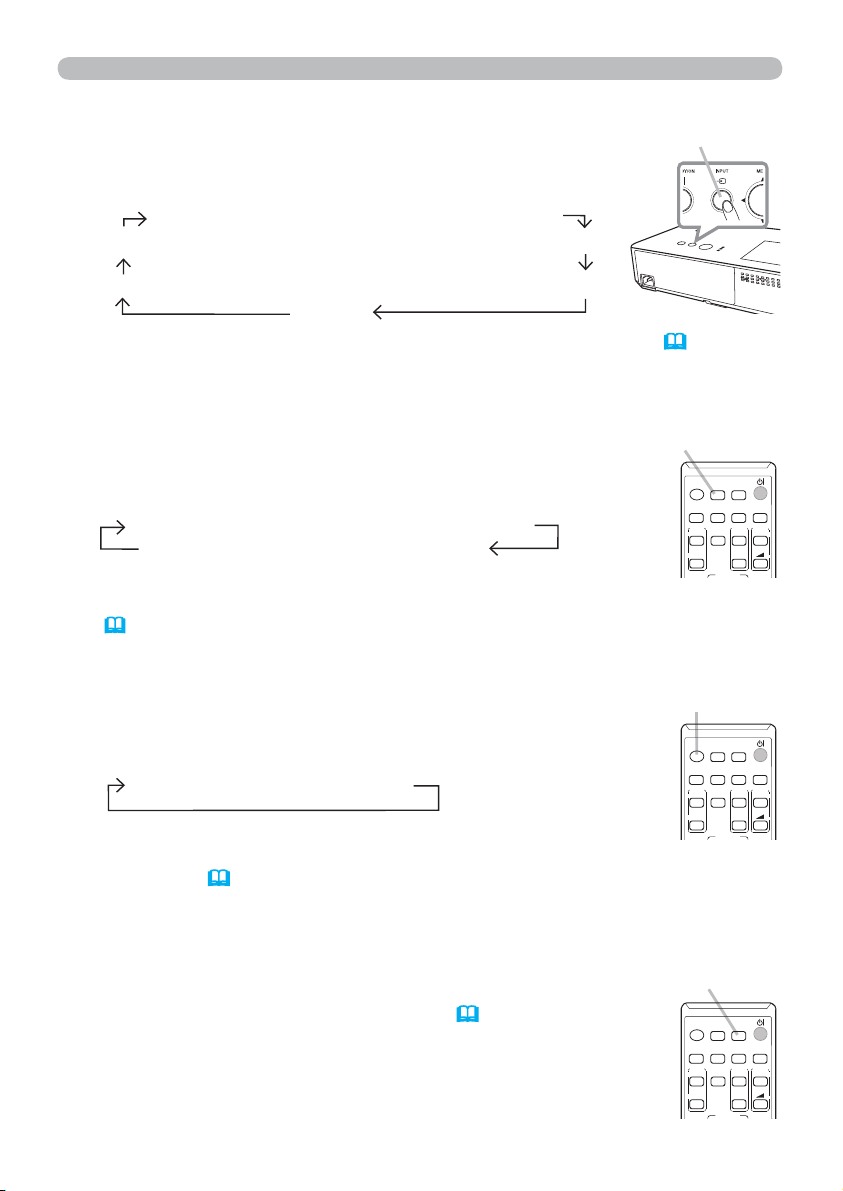

Selecting an input signal

Press INPUT button on the projector.

1.

Each time you press the button, the projector switches its
input port from the current port as below.

COMPUTER IN1 Æ COMPUTER IN2 Æ LAN

VIDEO USB TYPE A

S-VIDEO USB TYPE B

HDMI

● While ON is selected for AUTO SEARCH item in OPTION menu (53), the
projector will keep checking the ports in above order repeatedly till an input
signal is detected.

● It may take several seconds to project the images from the USB TYPE B port.

Press COMPUTER button on the remote control.

1.

Each time you press the button, the projector switches its
input port from the current port as below.

COMPUTER IN1 Æ COMPUTER IN2 Æ LAN
USB TYPE B

●

While ON is selected for AUTO SEARCH item in OPTION menu, the

Æ

USB TYPE A

projector will keep checking every port sequentially till an input signal is detected

53). If COMPUTER button is pressed when VIDEO, S-VIDEO or HDMI port is

(
selected, the projector will check COMPUTER IN1 port  rst.

●

It may take several seconds to project the images from the USB TYPE B port.

Press VIDEO button on the remote control.

1.

Each time you press the button, the projector switches its
input port from the current port as below.

HDMI Æ S-VIDEO Æ VIDEO

● While ON is selected for AUTO SEARCH item in OPTION menu,
the projector will keep checking every port sequentially till an input signal
is detected (

53). If VIDEO button is pressed when COMPUTER IN1,
COMPUTER IN2, LAN, USB TYPE A or USB TYPE B port is selected, the
projector will check HDMI port  rst.

INPUT button

COMPUTER button

VIDEO

COMPUTER

ASPECT

AUTO

FREEZE

MAGNIFY

ON

OFF

MY BUTTON

VIDEO button

VIDEO

COMPUTER

ASPECT

AUTO

FREEZE

MAGNIFY

ON

OFF

MY BUTTON

MY SOURCE/
DOC.CAMERA

SEARCH

PAGE

UP

DOWN

MY SOURCE/
DOC.CAMERA

SEARCH

PAGE

UP

DOWN

BLANK

BLANK

VOLUME

VOLUME

㧗

࡯

㧗

࡯

Press the MY SOURCE / DOC. CAMERA button on

1.

the remote control. The input signal will be changed
into the signal you set as MY SOURCE (

57).

● This function also can use for document camera. Select the
input port that connected the document camera.

22

MY SOURCE /
DOC. CAMERA button

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

ASPECT

AUTO

SEARCH

BLANK

FREEZE

MAGNIFY

PAGE

VOLUME

UP

ON

DOWN

OFF

MY BUTTON

㧗

࡯

Operating

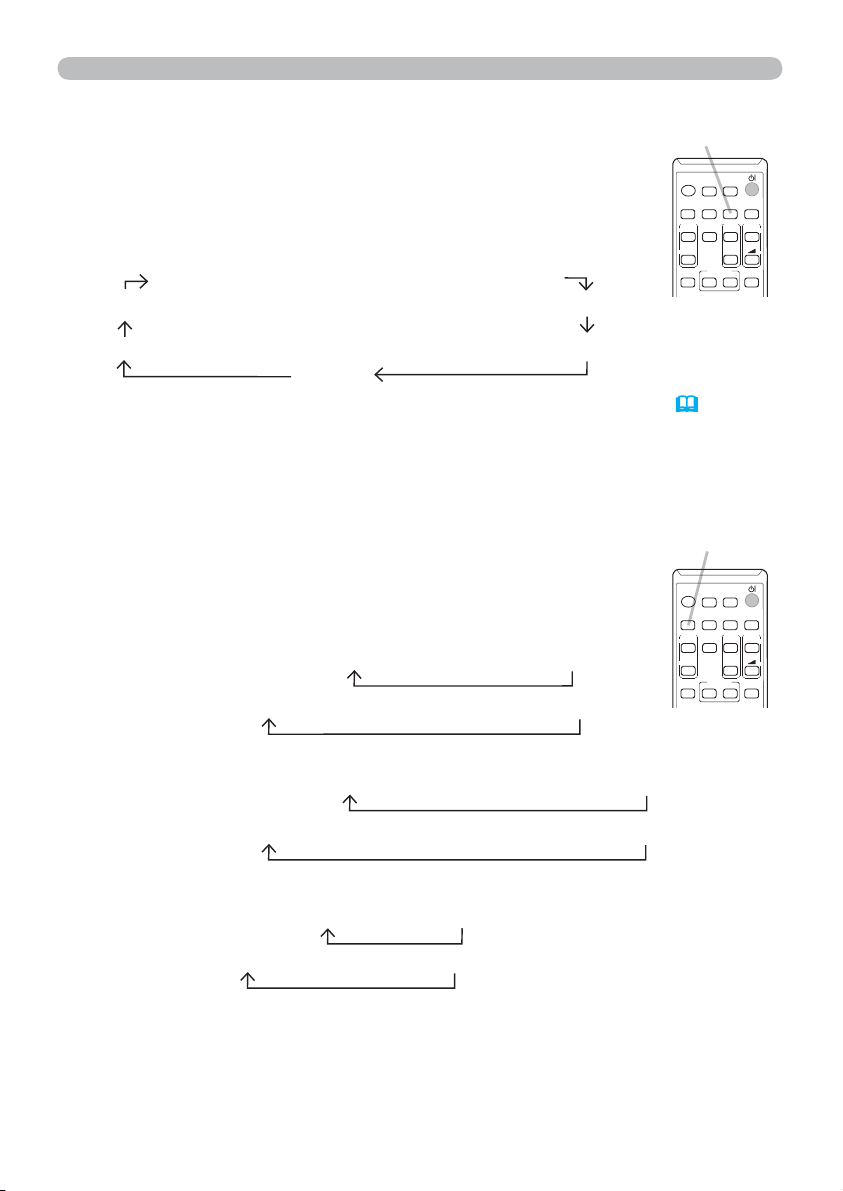

Searching an input signal

Press SEARCH button on the remote control.

1.

The projector will start to check its input ports as below in
order to  nd any input signals.
When an input is found, the projector will stop searching
and display the image. If no signal is found, the projector will
return to the state selected before the operation.

COMPUTER IN1 Æ COMPUTER IN2 Æ LAN

VIDEO USB TYPE A

S-VIDEO USB TYPE B

HDMI

● While ON is selected for AUTO SEARCH item in OPTION menu (53), the
projector will keep checking the ports in above order repeatedly till an input
signal is detected.
It may take several seconds to project the images from the USB TYPE B port.

●

SEARCH button

VIDEO

COMPUTER

ASPECT

AUTO

FREEZE

MAGNIFY

ON

OFF

MY BUTTON

KEYSTONE

1

Selecting an aspect ratio

Press ASPECT button on the remote control.

1.

Each time you press the button, the projector switches the
mode for aspect ratio in turn.

 For a computer signal

CPX10WN/CPX11WN: NORMAL Æ 4:3 Æ 16:9 Æ 16:10

CPWX12WN: NORMAL Æ 4:3 Æ 16:9 Æ 16:10 Æ

NATIVE

ASPECT button

VIDEO

COMPUTER

ASPECT

AUTO

FREEZE

MAGNIFY

ON

OFF

MY BUTTON

KEYSTONE

1

MY SOURCE/

DOC.CAMERA

SEARCH

PAGE

UP

DOWN

MY SOURCE/

DOC.CAMERA

SEARCH

PAGE

UP

DOWN

BLANK

VOLUME

㧗

࡯

MUTE

2

BLANK

VOLUME

㧗

࡯

MUTE

2

 For an HDMITM signal

CPX10WN/CPX11WN: NORMAL Æ 4:3 Æ 16:9 Æ 16:10 Æ 14:9

CPWX12WN: NORMAL Æ 4:3 Æ 16:9 Æ 16:10 Æ 14:9 Æ

NATIVE

 For a video signal, s-video signal or component video signal

CPX10WN/CPX11WN: 4:3 Æ 16:9 Æ 14:9

CPWX12WN: 4:3 Æ 16:9 Æ 14:9 Æ

NATIVE

 For an input signal from the LAN, USB TYPE A or USB TYPE B port, or

if there is no signal

CPX10WN/CPX11WN: 4:3 ( xed) CPWX12WN: 16:10 ( xed)

● ASPECT button does not work when no proper signal is inputted.

● NORMAL mode keeps the original aspect ratio setting.

23

Operating

12°

Adjusting the projector's elevator

When the place to put the projector is slightly uneven to the left or right, use the
elevator feet to place the projector horizontally.
Using the feet can also tilt the projector in order to project at
a suitable angle to the screen, elevating the front side of the
projector within
This projector has 2 elevator feet and 2 elevator knobs. An elevator foot is
adjustable while pulling up the elevator knob on the same side as it.

Holding the projector, pull the elevator knobs up to loose the elevator feet.

1.

Position the front side of the projector to the desired height.

2.

Release the elevator knobs in order to lock the elevator feet.

3.

After making sure that the elevator feet are locked, put the projector down

4.

gently.
If necessary, the elevator feet can be manually twisted to make more precise

5.

adjustments. Hold the projector when twisting the feet.

12 degrees.

51

To loose an elevator foot,
pull up the elevator knob
on the same side as it.

To nely adjust, twist the foot.

CAUTION

projector, since the projector may drop down.
►Do not tilt the projector other than elevating its front within 12 degrees using
the adjuster feet. A tilt of the projector exceeding the restriction could cause
malfunction or shortening the lifetime of consumables, or the projector itself.

►Do not handle the elevator buttons without holding the

Adjusting the zoom and focus

Use the ZOOM ring to adjust the screen size.

1.

Use the FOCUS ring to focus the picture.

2.

24

ZOOM ring

FOCUS ring

Operating

Using the automatic adjustment feature

Press AUTO button on the remote control.

1.

Pressing this button performs the following.

 For a computer signal

The vertical position, the horizontal position and the horizontal
phase will be automatically adjusted.
Make sure that the application window is set to its maximum size
prior to attempting to use this feature. A dark picture may still be
incorrectly adjusted. Use a bright picture when adjusting.

 For a video signal and s-video signal

The video format best suited for the respective input signal will be selected
automatically. This function is available only when the AUTO is selected for

40).

the VIDEO FORMAT item in the INPUT menu (

The vertical position and

horizontal position will be automatically set to the default.

 For a component video signal

The vertical position and horizontal position will be automatically set to the default.
The horizontal phase will be automatically adjusted.

● The automatic adjustment operation requires approx. 10 seconds. Also please
note that it may not function correctly with some input.

● When this function is performed for a video signal, a certain extra such as a line
may appear outside a picture.

● When this function is performed for a computer signal, a black frame may be
displayed on the edge of the screen, depending on the computer model.
The items adjusted by this function may vary when the FINE or DISABLE is selected

●
for the AUTO ADJUST item of the SERVICE item in the OPTION menu (

AUTO button

VIDEO

COMPUTER

ASPECT

FREEZE

MAGNIFY

ON

OFF

KEYSTONE

57).

AUTO

1

MY BUTTON

MY SOURCE/
DOC.CAMERA

SEARCH

PAGE

UP

DOWN

BLANK

VOLUME

㧗

࡯

MUTE

2

Adjusting the position

Press POSITION button on the remote control when no menu is

1.

indicated.
The “POSITION” indication will appear on the screen.

Use the ▲/▼/◄/► cursor buttons to adjust the picture position.

2.

When you want to reset the operation, press RESET button on
the remote control during the operation.
To complete this operation, press POSITION button again. Even if
you do not do anything, the dialog will automatically disappear
after a few seconds.

When this function is performed on a video signal or an s-video signal, some image

●
such as an extra-line may appear at outside of the picture.

● When this function is performed on a video signal or s-video signal, the range of
this adjustment depends on OVER SCAN in IMAGE menu (

36) setting. It is not

possible to adjust when OVER SCAN is set to 10.

● If POSITION button is pressed when a menu is indicated on screen, the displayed
picture does not move its position but the menu does.

● This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B
or HDMI port.

POSITION

ENTER

ESC

POSITION button

MENU

RESET

25

Operating

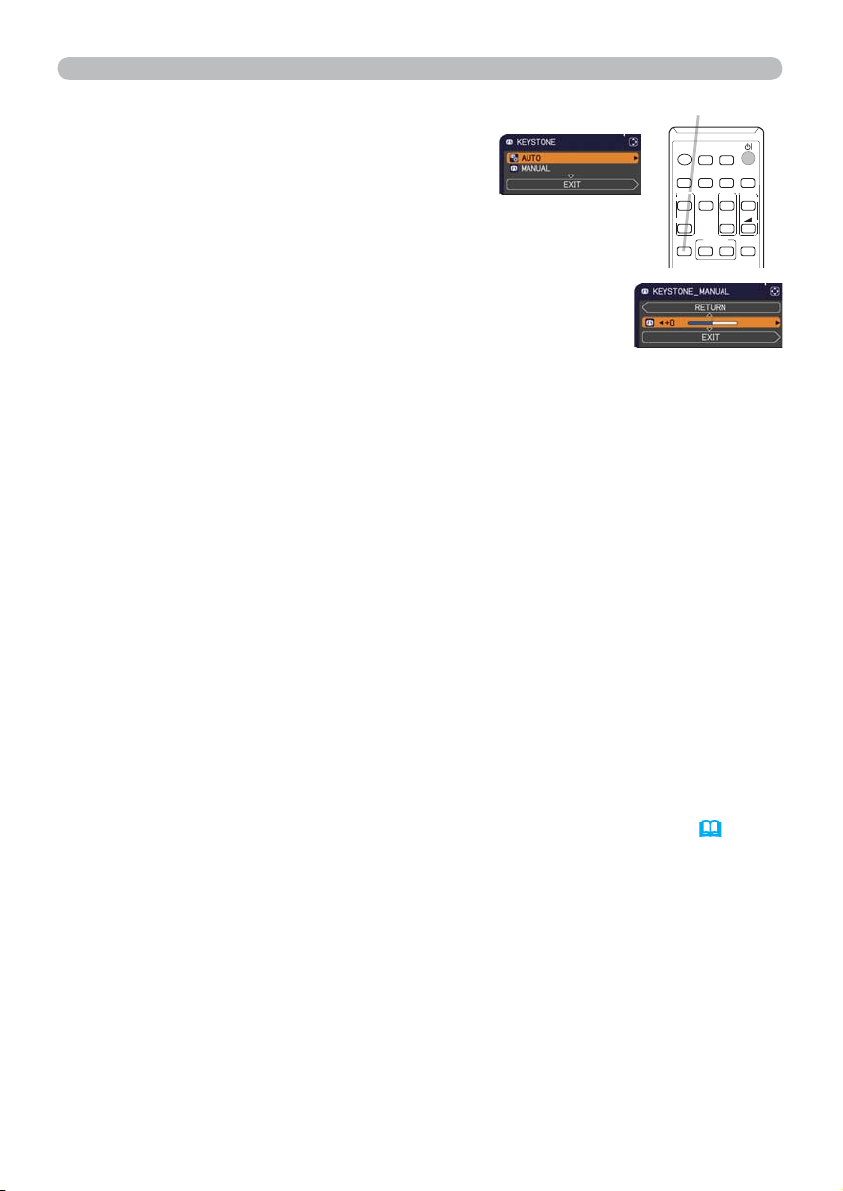

Correcting the keystone distortions

Press KEYSTONE button on the remote

1.

control. A dialog will appear on the screen
to aid you in correcting the distortion.

Use the ▲/▼ cursor buttons to select AUTO or MANUAL

2.

operation, and press the ► button to perform the following.

KEYSTONE button

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

ASPECT

AUTO

SEARCH

FREEZE

MAGNIFY

PAGE

ON

DOWN

OFF

MY BUTTON

KEYSTONE

1

(1) AUTO executes automatic vertical keystone correction.
(2) MANUAL displays a dialog for keystone correction.

Use the ◄/► buttons for adjustment.

To close the dialog and complete this operation, press
KEYSTONE button again. Even if you do not do anything, the
dialog will automatically disappear after a few seconds.

● The menu or dialog will automatically disappear after several seconds of
inactivity. Pressing the KEYSTONE button again  nishes the operation and
closes the menu or dialog.

● The adjustable range of this function will vary among inputs. For some input,
this function may not work well.

● When REAR / CEILING or FRONT / CEILING is selected for the
INSTALLATION item in the SETUP menu, the automatic vertical keystone
correction function may not work correctly if the projector screen is slanted or
tilted downwards.

● When the zoom adjustment is set to the TELE (telephoto focus), this function
may be excessive. This function should be used when the zoom adjustment
is set to the full WIDE (wide-angle focus) whenever possible.

● When the projector is placed on the level (about ±4°), the automatic keystone
distortion correction may not work.

● When the projector is inclined to near ±30 degree or over, this function may
not work well.

● This function will be unavailable when the Transition Detector is on (

77).

BLANK

VOLUME

UP

㧗

࡯

MUTE

2

26

Operating

Using the magnify feature

Press the MAGNIFY ON button on the remote control.

1.

The picture will be magni ed, and the MAGNIFY dialog
will appear on the screen. When the MAGNIFY
ON button is pressed for the  rst time after the
projector is turned on, the picture will be zoomed
by 1.5 times. On the dialog, triangle marks to show

MAGNIFY
ON/OFF button

VIDEO

ASPECT

MAGNIFY

ON

OFF

KEYSTONE

each direction will be displayed.
The display magni cation of the projector switches in order with every press

2.

of the MAGNIFY ON button.

 For computer signals, HDMI

TM

(RGB) signals, input signals from the

LAN, USB TYPE A or USB TYPE B port

1.5 times Æ 2 times Æ 3 times Æ 4 times Æ 1 time

 For video signals, s-video signals, component video signals or

TM

HDMI

(Component) signals

1.5 times Æ 2 times Æ 1 time

While the triangles are displayed on the dialog, use the ▲/▼/◄/► cursor

3.

buttons to shift the magnifying area.

Press the MAGNIFY OFF button on the remote control to exit magni cation.

4.

COMPUTER

AUTO

FREEZE

MY BUTTON

1

MY SOURCE/

DOC.CAMERA

SEARCH

PAGE

DOWN

BLANK

VOLUME

UP

㧗

࡯

MUTE

2

● The MAGNIFY dialog will automatically disappear in several seconds with no
operation. The dialog will appear again if the MAGNIFY ON button is pressed
when the dialog has automatically disappeared.

● The magni cation is automatically disabled when the displaying signal or its
display condition is changed.

● While the magni cation is active, the keystone distortion condition may vary.
It will be restored when the magni cation is disabled.

● Some horizontal stripes might be visible on the image while magni cation is
active.

● This function is not available in the following cases:

- A sync signal in the range not supported is input.

- There is no input signal.

27

Operating

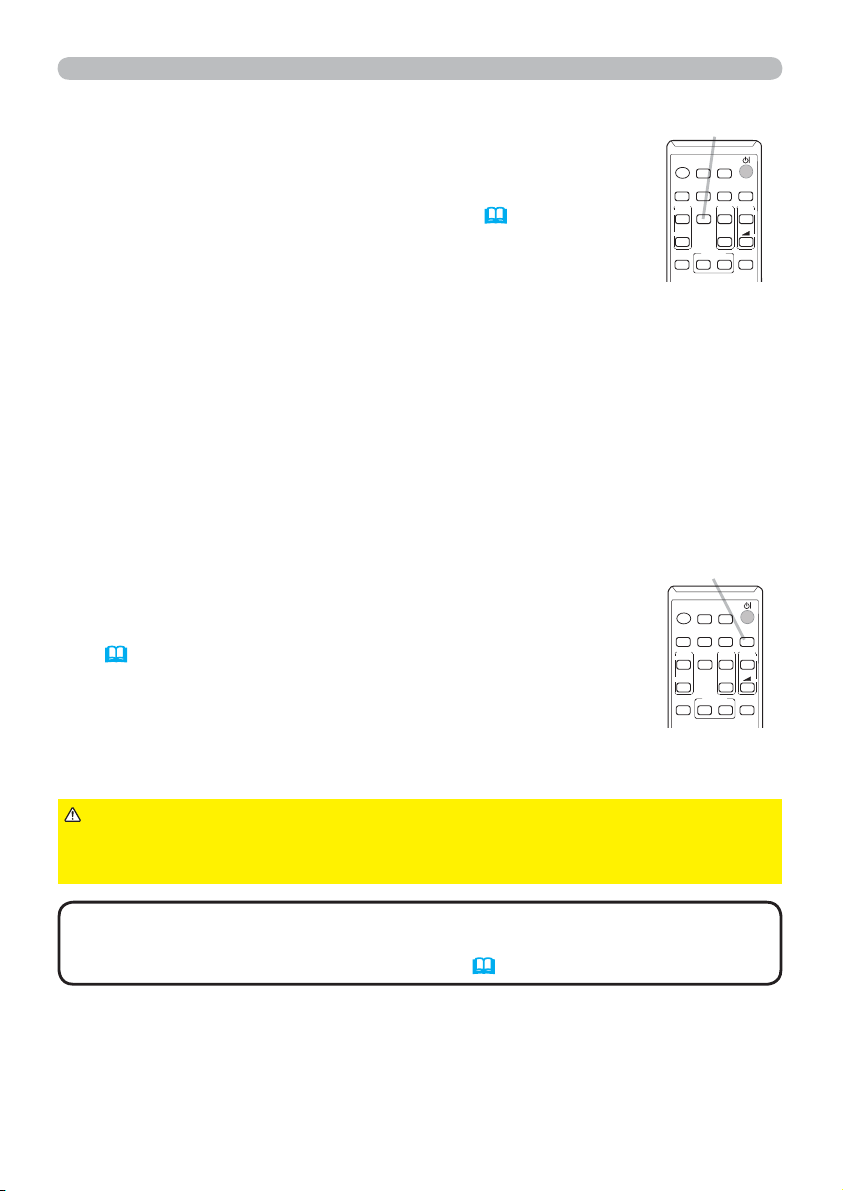

Temporarily freezing the screen

Press the FREEZE button on the remote control.

1.

The “FREEZE” indication will appear on the screen (however,
the indication will not appear when the OFF is selected for
the MESSAGE item in the SCREEN menu (
projector will go into the FREEZE mode, which the picture is
frozen.

49)), and the

FREEZE button

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

ASPECT

AUTO

SEARCH

FREEZE

MAGNIFY

PAGE

ON

DOWN

OFF

MY BUTTON

KEYSTONE



To exit the FREEZE mode and restore the screen to normal,
press the FREEZE button again.

● The projector automatically exits from the FREEZE mode when some control
buttons are pressed.

● If the projector continues projecting a still image for a long time, the LCD
panel might possibly be burned in. Do not leave the projector in the FREEZE
mode for too long.

● Images might appear degraded when this function is operated, but it is not a
malfunction.

Temporarily blanking the screen

Press BLANK button on the remote control.

1.

The BLANK screen will be displayed instead of the screen of
input signal. Please refer to BLANK item in SCREEN menu

47).

(
To exit from the BLANK screen and return to the input signal
screen, press BLANK button again.

BLANK button

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

ASPECT

AUTO

SEARCH

FREEZE

MAGNIFY

PAGE

ON

OFF

MY BUTTON

KEYSTONE



BLANK

VOLUME

UP

㧗

࡯

MUTE



BLANK

VOLUME

UP

㧗

DOWN

࡯

MUTE



● The projector automatically exits from the

BLANK

mode when

some control buttons are pressed.

CAUTION

►If you wish to have a blank screen while the projector's lamp
is on, use the BLANK function above.
Taking any other action may cause the damage on the projector.

•

NOTE

The sound is not connected with the BLANK screen function. If
necessary, set the volume or mute rst. To display the BLANK screen and mute
the sound at one time, use AV MUTE function

28

(57).

Operating

Using the menu function

This projector has the following menus:
PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK,
SECURITY and EASY MENU.
EASY MENU consists of functions often used, and the other menus are classi ed
into each purpose and brought together as the ADVANCED MENU.
Each of these menus is operated using the same methods. While the projector
is displaying any menu, the MENU button on the projector works as the cursor
buttons. The basic operations of these menus are as follows.

INPUT button

POSITION button

MENU button

Cursor buttons

MENU

ENTER

RESET

ENTER button

MENU button

POSITION

ESC

(Cursor buttons)

ESC button

To start the MENU, press the MENU button. The MENU you last used (EASY

1.

or ADVANCED) will appear. EASY MENU has priority to appear just after

RESET button

powered on.

In the EASY MENU

2.

(1) Use the ▲/▼ cursor buttons to select an item to

operate. If you want to change it to the ADVANCED
MENU, select the ADVANCED MENU.

(2) Use the ◄/► cursor buttons to operate the item.

In the ADVANCED MENU

(1) Use the ▲/▼ cursor buttons to select a menu.

If you want to change it to the EASY MENU,
select the EASY MENU.
The items in the menu appear on the right side.

(2) Press the ► cursor button or ENTER button to

move the cursor to the right side. Then use the
▲/▼ cursor buttons to select an item to operate and press the ► cursor
button or ENTER button to progress. The operation menu or dialog of the
selected item will appear.

(3) Use the buttons as instructed in the OSD to operate the item.

/

MY SOURCE

VIDEO

PUTER

COM

DOC.CAMERA

ASPECT

AUTO

NK

BLA

SEARCH

FREEZE

VOLUME

PAGE

MAGNIFY

UP

㧗

ON

DOWN

OFF

࡯

TTON

MY BU

MUTE

KEYSTONE

2

1

MENU

TION

POSI

R

ENTE

ESC

RESET

(continued on next page)

29

Operating

Using the menu function (continued)

To close the MENU, press the MENU button again or select EXIT and press

3.

the ◄ cursor button or ENTER button. Even if you do not do anything, the
dialog will automatically disappear after about 30 seconds.

●

If you want to move the menu position, use the cursor buttons after pressing
the POSITION button.

● Some functions cannot be performed when a certain input port is selected,
or when a certain input signal is displayed.

● When you want to reset the operation, press RESET button on the remote
control during the operation. Note that some items (ex. LANGUAGE,
VOLUME) cannot be reset.

● In the ADVANCED MENU, when you want to return to the previous display,
press the ◄ cursor button or ESC button on the remote control.

Indication in OSD (On Screen Display)

The meanings of the general words on the OSD are as follows.

Indication Meaning

EXIT

RETURN Selecting this word returns the menu to the previous menu.

CANCEL or NO

OK or YES

30

Selecting this word nishes the OSD menu. It's the same as
pressing the MENU button.

Selecting this word cancels the operation in the present
menu and returns to the previous menu.

Selecting this word executes the prepared function or shifts
the menu to the next menu.

EASY MENU

From the EASY MENU, items shown in the table
below can be performed.
Select an item using the ▲/▼ cursor buttons. Then
perform it according to the following table.

Item Description

ASPECT

AUTO KEYSTONE

KEYSTONE

PICTURE MODE

Using the ◄/► buttons switches the mode for aspect ratio.
See the ASPECT item in IMAGE menu (

Using the ► button executes the auto keystone function.
See the AUTO KEYSTONE item in SETUP menu (

Using the ◄/► buttons corrects the vertical keystone distortion.
See the

KEYSTONE item in SETUP menu (43).

Using the ◄/► buttons switches the picture mode.
The picture modes are combinations of GAMMA and COLOR TEMP
settings. Choose a suitable mode according to the projected source.

NORMAL Ù CINEMA Ù DYNAMIC Ù BOARD(BLACK)

DAYTIME Ù WHITEBOARD Ù BOARD(GREEN)

GAMMA COLOR TEMP

NORMAL 1 DEFAULT 2 MID

CINEMA 2 DEFAULT 3 LOW
DYNAMIC 3 DEFAULT 1 HIGH
BOARD(BLACK) 4 DEFAULT 4 Hi-BRIGHT-1
BOARD(GREEN) 4 DEFAULT 5 Hi-BRIGHT-2
WHITEBOARD 5 DEFAULT 2 MID
DAYTIME 6 DEFAULT 6 Hi-BRIGHT-3

• When the combination of GAMMA and COLOR TEMP differs
from pre-assigned modes above, the display on the menu for the
PICTURE MODE is “CUSTOM”. Please refer to the GAMMA and
COLOR TEMP (

33, 34) items in PICTURE menu.



• Lines or other noise might appear on the screen when this function
is operated, but it is not a malfunction.



36).

EASY MENU

43).



(continued on next page)

31

EASY MENU

Item Description

ECO MODE

INSTALLATION

Using the ◄/► buttons swithes the ECO MODE.
See the ECO MODE item in SETUP menu (

Pressing the ► button displays the INSTALLATION dialog.
See the

INSTALLATION

item in SETUP menu (44).

Performing this item resets all of the EASY MENU items except the

RESET

FILTER TIME and LANGUAGE.
A dialog is displayed for conrmation. Selecting the OK using the ►
button performs resetting.

The usage time of the air lter is shown in the menu.
Performing this item resets the lter time which counts usage time

FILTER TIME

of the air lter.
A dialog is displayed for conrmation. Selecting the OK using the ►
button performs resetting.
See the FILTER TIME item in OPTION menu (

LANGUAGE

Using the ◄/► buttons changes the display language.
See the LANGUAGE item in SCREEN menu (

Press the ► or ENTER button to use the menu of PICTURE,

ADVANCED MENU

IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK or
SECURITY.

EXIT Press the ◄ or ENTER button to nish the OSD menu.



44).





55).

47).

32

PICTURE menu

From the PICTURE menu, items shown in the table
below can be performed.
Select an item using the ▲/▼ cursor buttons, and
press the ► cursor button or ENTER button to
execute the item. Then perform it according to the
following table.

Item Description

◄/►

BRIGHTNESS

CONTRAST

Using the

Dark Ù Light

Using the

Weak Ù Strong

Using the ▲/▼ buttons switches the gamma mode.

1 DEFAULTÙ 1 CUSTOM Ù 2 DEFAULTÙ 2 CUSTOM Ù 3 DEFAULT

6 CUSTOM 3 CUSTOM

buttons adjusts the brightness.

◄/►

buttons adjusts the contrast.

ÙÙ

PICTURE menu

ÙÙ

Selecting a mode whose name includes CUSTOM and then
pressing the ► button or the ENTER button displays
a dialog to aid you in adjusting the mode.
This function is useful when you want to
change the brightness of particular tones.

Choose an item using the ◄/► buttons,

GAMMA

(continued on next page)

and adjust the level using the ▲/▼ buttons.
You can display a test pattern for checking the effect of your

adjustment by pressing the ENTER button.
Each time you press the ENTER button, the
pattern changes as below.

No pattern Ö Gray scale of 9 steps
Ramp Õ Gray scale of 15 steps

The eight equalizing bars correspond to eight tone levels of the test
pattern (Gray scale of 9 steps) except the darkest in the left end. If you
want to adjust the 2nd tone from left end on the test pattern, use the
equalizing adjustment bar “1”. The darkest tone at the left end of the
test pattern cannot be controlled with any of equalizing adjustment bar.

• Lines or other noise might appear on the
screen when this function is operated, but it
is not a malfunction.

6 DEFAULT

To adjust CUSTOM

Ù

5 CUSTOM Ù 5 DEFAULTÙ 4 CUSTOM Ù 4 DEFAULT

33

PICTURE menu

Item Description

COLOR TEMP

COLOR

TINT

34

(continued on next page)

Using the ▲/▼ buttons switches the color temperature mode.

1 HIGH Ù 1 CUSTOM Ù2 MID Ù 2 CUSTOM

ÙÙÙ

6 CUSTOM

6 Hi-BRIGHT-3

5 CUSTOM

Ù

5 Hi-BRIGHT-2Ù4 CUSTOMÙ4 Hi-BRIGHT-1

Ù

3 LOW

Ù

3 CUSTOM

Ù

To adjust CUSTOM

Selecting a mode whose name includes
CUSTOM and then pressing the ► button
or the ENTER button displays a dialog
to aid you in adjusting the OFFSET and
GAIN of the selected mode.

OFFSET adjustments change the color intensity on the whole tones
of the test pattern.

GAIN adjustments mainly affect color intensity on the brighter tones
of the test pattern.

Choose an item using the ◄/► buttons, and adjust the level using
the ▲/▼ buttons.

You can display a test pattern for checking the effect of your
adjustment by pressing the ENTER button.
Each time you press the ENTER button, the pattern changes as below.

No pattern Ö Gray scale of 9 steps

Ramp Õ Gray scale of 15 steps

• Lines or other noise might appear on the screen
when this function is operated, but it is not a
malfunction.

Using the ◄/► buttons adjusts the strength of whole color.

Weak Ù Strong

• This item can be selected only for a video, s-video and component
video signal.

•

For an HDMITM signal, this item can also be selected if either (1) or (2) applies.
(1) HDMI FORMAT item in the INPUT menu is set to VIDEO.
(2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the

projector recognizes that it receives video signals.

Using the ◄/► buttons adjusts the tint.

Reddish Ù Greenish

• This item can be selected only for a video, s-video and component
video signal.

•

For an HDMITM signal, this item can also be selected if either (1) or (2) applies.
(1) HDMI FORMAT item in the INPUT menu is set to VIDEO.
(2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the

projector recognizes that it receives video signals.

Item Description

Using the ◄/► buttons adjusts the sharpness.

SHARPNESS

Weak Ù Strong

• There may be some noise and/or the screen may icker for a
moment when an adjustment is made. This is not a malfunction.

This projector has 4 memories for adjustment data (for all the items
of the PICTURE menu).
Selecting a function using the ▲/▼ buttons and pressing the ► or
ENTER button performs each function.

SAVE-1 Ù SAVE-2 Ù SAVE-3 Ù SAVE-4
LOAD-4 ÙLOAD-3 Ù LOAD-2 Ù LOAD-1

SAVE-1, SAVE-2, SAVE-3, SAVE-4
Performing a SAVE function saves the current adjustment data into
the memory linked in the number included in the function’s name.

• Remember that the current data being stored of a memory will be
lost by saving new data into the memory.

MY MEMORY

LOAD-1, LOAD-2, LOAD-3, LOAD-4
Performing a LOAD function loads the data from the memory linked
in the number included in the function’s name, and adjusts the
picture automatically depending on the data.

• The LOAD functions whose linked memory has no data are
skipped.

• Remember that the current adjusted condition will be lost by
loading data. If you want to keep the current adjustment, please
save it before performing a LOAD function.

• There may be some noise and the screen may icker for a
moment when loading data. This is not malfunction.

• You can perform the LOAD function using MY BUTTON. Please
see MY BUTTON item in OPTION menu (



PICTURE menu

56, 57).

35

IMAGE menu

IMAGE menu

From the IMAGE menu, items shown in the table
below can be performed.
Select an item using the ▲/▼ cursor buttons, and
press the ► cursor button or ENTER button to
execute the item. Then perform it according to the
following table.

Item Description

Using the ▲/▼ buttons switches the mode for aspect ratio.

For a computer signal

CPX10WN/CPX11WN: NORMAL Ù 4:3 Ù 16:9 Ù 16:10



CPWX12WN: NORMAL Ù 4:3 Ù 16:9 Ù 16:10 Ù NATIVE



For an HDMITM signal

CPX10WN/CPX11WN: NORMAL Ù



ASPECT

OVER SCAN

(continued on next page)

CPWX12WN: NORMAL Ù 4:3 Ù 16:9 Ù 16:10 Ù 14:9 Ù NATIVE



For a video signal, s-video signal or component video signal

CPX10WN/CPX11WN: 4:3 Ù 16:9 Ù 14:9

CPWX12WN: 4:3 Ù 16:9 Ù 14:9 Ù NATIVE



For an input signal from the LAN, USB TYPE A or USB TYPE B
port, or if there is no signal

CPX10WN/CPX11WN: 4:3 (xed) CPWX12WN: 16:10 (xed)

• The NORMAL mode keeps the original aspect ratio of the signal.
Using the ◄/► buttons adjusts the over-scan ratio.

Small (It magnies picture) Ù Large (It reduces picture)

• This item can be selected only for a video, s-video and component
video signal.

• For an HDMI
(2) applies.
(1) HDMI FORMAT item in the INPUT menu is set to VIDEO.
(2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the

projector recognizes that it receives video signals.

TM

signal, this item can also be selected if either (1) or

4:3 Ù 16:9 Ù 16:10 Ù 14:9

36

Item Description

Using the ◄/► buttons adjusts the vertical position.

• Over-adjusting the vertical position may cause noise to appear on
the screen. If this occurs, please reset the vertical position to the

V POSITION

H POSITION

(continued on next page)

default setting. Pressing the RESET button when the V POSITION
is selected will reset the V POSITION to the default setting.

• When this function is performed on a video signal or an s-video
signal, the range of this adjustment depends on OVER SCAN (
setting. It is not possible to adjust when OVER SCAN is set to 10.

•

This function is unavailable for a signal from the LAN, USB TYPE A,

USB TYPE B or HDMI port.
Using the ◄/► buttons adjusts the horizontal position.

•
the screen. If this occurs, please reset the horizontal position to the
default setting. Pressing the RESET button when the H POSITION is
selected will reset the H POSITION to the default setting.

• When this function is performed on a video signal or an s-video
signal, the range of this adjustment depends on OVER SCAN (
setting. It is not possible to adjust when OVER SCAN is set to 10.

•
USB TYPE B or HDMI por

IMAGE menu

Down Ù Up

36)



Right Ù Left

Over-adjusting the horizontal position may cause noise to appear on

36)



This function is unavailable for a signal from the LAN, USB TYPE A,

t.

37

IMAGE menu

Item Description

H PHASE

H SIZE

AUTO ADJUST

EXECUTE

Using the

• This item can be selected only for a computer signal or a
component video signal. This function is unavailable for a signal
from the LAN, USB TYPE A, USB TYPE B or HDMI port.

Using the ◄/► buttons adjusts the horizontal size.

• This item can be selected only for a computer signal. This function
is unavailable for a signal from the LAN, USB TYPE A, USB TYPE
B or HDMI port.

• When this adjustment is excessive, the picture may not be
displayed correctly. In such a case, please reset the adjustment
by pressing the RESET button on the remote control during this
operation.

• Images might appear degraded when this function is operated, but
it is not a malfunction.

Selecting this item performs the automatic adjustment feature.

For a computer signal

The vertical position, the horizontal position and the horizontal
phase will be automatically adjusted.
Make sure that the application window is set to its maximum size
prior to attempting to use this feature. A dark picture may still be
incorrectly adjusted. Use a bright picture when adjusting.

For a video signal and s-video signal

The video format best suited for the respective input signal will
be selected automatically. This function is available only when
the AUTO is selected for the VIDEO FORMAT item in the INPUT
menu (

automatically set to the default.

For a component video signal

The vertical position and horizontal position will be automatically

◄/►

buttons adjusts the horizontal phase to eliminate icker.

Right Ù Left

Small Ù Large

40).



The vertical position and horizontal position will be

set to the default. The horizontal phase will be automatically
adjusted.

• The automatic adjustment operation requires approx. 10 seconds.
Also please note that it may not function correctly with some input.

• When this function is performed for a video signal, a certain extra
such as a line may appear outside a picture.

• When this function is performed for a computer signal, a black
frame may be displayed on the edge of the screen, depending on
the computer model.

• The items adjusted by this function may vary when the FINE or
DISABLE is selected for the AUTO ADJUST item of the SERVICE
item in the OPTION menu (



57).

38

INPUT menu

From the INPUT menu, items shown in the table
below can be performed.
Select an item using the ▲/▼ cursor buttons, and
press the ► cursor button or ENTER button to
execute the item. Then perform it according to the
following table.

Item Description

Using the ▲/▼ buttons switches the progress mode.

TV Ù FILM Ù OFF

•

This function works only for a video signal, s-video signal, component

PROGRESSIVE

VIDEO NR

COLOR SPACE

video signal (of 480i@60 or 576i@50 or 1080i@50/60) and an HDMI
signal (of 480i@60 or 576i@50 or 1080i@50/60)

• When TV or FILM is selected, the screen image will be sharp.
FILM adapts to the 2-3 Pull-Down conversion system. But these
may cause a certain defect (for example, jagged line) of the picture
for a quick moving object. In such a case, please select OFF, even
though the screen image may lose sharpness.

Using the ▲/▼ buttons switches the noise reduction mode.

HIGH Ù MID Ù LOW

• This function works only for a video signal, s-video signal,
component video signal (of 480i@60 or 576i@50 or 1080i@50/60)
and an HDMI

Using the ▲/▼ buttons switches the mode for color space.

AUTO Ù RGB Ù SMPTE240 Ù REC709 Ù REC601

• This item can be selected only for a computer signal (except for
signals from the LAN, USB TYPE A and USB TYPE B ports) or a
component video signal.

• The AUTO mode automatically selects the optimum mode.

• The AUTO operation may not work well at some signals. In such a
case, it might be good to select a suitable mode except AUTO.

TM

signal (of 480i@60 or 576i@50 or 1080i@50/60).

.

INPUT menu

TM

(continued on next page)

39

INPUT menu

Item Description

The video format for S-VIDEO port and VIDEO port can be set.
(1) Use the ▲/▼ buttons to

select the input port.

(2) Using the ◄/► buttons

switches the mode for video
format.

VIDEO FORMAT

AUTO Ù NTSC Ù PAL Ù SECAM
N-PAL Ù M-PAL Ù NTSC4.43

• This item is performed only for a video signal from the VIDEO port
or the S-VIDEO port.

• The AUTO mode automatically selects the optimum mode.

• The AUTO operation may not work well for some signals. If the
picture becomes unstable (e.g. an irregular picture, lack of color),
please select the mode according to the input signal.

Using the ▲/▼ cursor buttons switches the video format for an
input from the HDMI port.

AUTO Ù VIDEO Ù COMPUTER

Feature

HDMI FORMAT

AUTO automatically sets the optimum mode.
VIDEO sets the suitable mode for DVD signals.
COMPUTER sets the suitable mode for computer signals.

• When the COMPUTER is selected, the functions COLOR
(PICTURE menu), TINT (PICTURE menu) and OVER SCAN
(IMAGE menu) are unavailable.

Using the ▲/▼ cursor buttons changes the digital range for input
from the HDMI port.

AUTO Ù NORMAL Ù ENHANCED

HDMI RANGE

AUTO automatically sets the optimum mode.
NORMAL s
ENHANCED

• If the contrast of the screen image is too strong or too weak, try
nding a more suitable mode.

(continued on next page)

40

Feature

ets the suitable mode for DVD signals. (16-

235)

sets the suitable mode for computer signals. (0-255)

Item Description

The computer input signal type for COMPUTER IN1 and IN2 ports
can be set.

(1)

Use the ▲/▼ buttons to select the COMPUTER IN port to be set.

(2) Use the ◄/► buttons to select

the computer input signal type.

COMPUTER IN

AUTO Ù SYNC ON G OFF

• Selecting the AUTO mode allows
you to input a sync on G signal or component video signal from the
port (



11, 13).

• In the AUTO mode, the picture may be distorted with certain
input signals. In such a case, remove the signal connector so that
no signal is received and select the SYNC ON G OFF, and then
reconnect the signal.

Set the frame lock function on/off for each port.
(1) Use the ▲/▼ buttons to select

the input ports.

(2) Use the ◄/► buttons to turn the

FRAME LOCK

frame lock function on/off .

ON Ù OFF

• This item can be performed only on a signal with a vertical
frequency of 49 to 51Hz, 59 to 61 Hz.

• When ON is selected, moving pictures are displayed more
smoothly.

INPUT menu

(continued on next page)

41

INPUT menu

Item Description

The resolution for the COMPUTER IN1 and COMPUTER IN2 input
signals can be set on this projector.

(1) In the INPUT menu select the RESOLUTION using the ▲/▼

buttons and press the ► button.
The RESOLUTION menu will be
displayed.

(2) In the RESOLUTION menu select the

resolution you wish to display using
the ▲/▼ buttons.
Selecting AUTO will set a resolution
appropriate to the input signal.

(3) Pressing the ► or ENTER button when

selecting a STANDARD resolution will
automatically adjust the horizontal and
vertical positions, clock phase and

horizontal size.
The INPUT_INFORMATION dialog will be
displayed.

(4) To set a custom resolution use the ▲/▼ buttons to select

RESOLUTION

the CUSTOM and the RESOLUTION_CUSTOM box will be

displayed.
Set the horizontal (HORZ) and
vertical (VERT) resolutions using
the ▲/▼/◄/► buttons.
This function may not support all
resolutions.

(5) Move the cursor to OK on screen and press the ► or ENTER

button. The message "ARE YOU SURE YOU WISH TO

CHANGE RESOLUTION?" appears. To save the setting, press

the ► button.

The horizontal and vertical positions, clock phase and horizontal

size will be automatically adjusted.
The INPUT_INFORMATION dialog
will be displayed.

(6) To revert back to the previous resolution without saving changes,

move the cursor to CANCEL on screen and press the ◄ or

ENTER button.

The screen will then return to the RESOLUTION menu

displaying the previous resolution.

• For some pictures, this function may not work well.

STANDARD

↓

CUSTOM

↓

42

SETUP menu

From the SETUP menu, items shown in the table
below can be performed.
Select an item using the ▲/▼ cursor buttons, and
press the ► cursor button or ENTER button to
execute the item. Then perform it according to the
following table.

Item Description

Selecting this item performs the Automatic keystone distortion
correction. Projector automatically corrects vertical keystone
distortion due to the (forward/backward) setup angle by itself.
This function will be executed only once when selected in the menu.
When the slant of the projector is changed, execute this function again.

• The adjustable range of this function will vary among inputs. For
some input, this function may not work well.

• When REAR / CEILING or FRONT / CEILING is selected for the
INSTALLATION item in the SETUP menu, this function may not

AUTO KEYSTONE

KEYSTONE

work correctly if the projector screen is slanted or tilted downwards.

• When the zoom adjustment is set to the TELE (telephoto focus),
this function may be excessive. This function should be used when
the zoom adjustment is set to the full WIDE (wide-angle focus)
whenever possible.

• When the projector is placed on the level (about ±4°), this function
may not work.

• When the projector is inclined to near ±30 degree or over, this
function may not work well.

• This function will be unavailable when the Transition Detector is on
(

77) .



Using the ◄/► buttons corrects the vertical keystone distortion.

Shrink the bottom of the image Ù Shrink the top of the image

• The adjustable range of this function will vary among inputs. For
some input, this function may not work well.

• When the zoom adjustment is set to the TELE (telephoto focus),
this function may be excessive. This function should be used when
the zoom adjustment is set to the full WIDE (wide-angle focus)
whenever possible.

• This function will be unavailable when the Transition Detector is on
(

77).

SETUP menu

(continued on next page)

43

SETUP menu

Item Description

Using the ▲/▼ buttons turns on/off the AUTO ECO MODE.

ON Ù OFF

AUTO ECO MODE

• When ON is selected, the projector will always be set to Eco mode
at start-up regardless of the ECO MODE (
message “AUTO ECO MODE” will be displayed for a while when
the projector starts with this function activated.

Using the ◄/► buttons swithes the ECO MODE.

ECO Ù INTELLIGENT ECO Ù NORMAL

• When the ECO is selected, acoustic noise and screen brightness
are reduced.

ECO MODE

• When INTELLIGENT ECO is selected, the brightness of the
lamp changes according to the level of the input signal. The lamp
becomes brighter when the input signal level is high and darker
when the level is low. If dark images are projected continuously, the
brightness of the lamp may increase to maintain its performance.

• When AUTO ECO MODE (
always be set to Eco mode at start-up regardless this setting.

Pressing the ►button displays the dialog for changing the
INSTALLATION setting.

below) setting. An OSD



above) is set to ON, the projector will



INSTALLATION

Use the ▲/▼ buttons to select the desired setting on the
INSTALLATION dialog, and press the ENTER button of the remote
control or the INPUT button of the projector to execute.
If Transition Detector is ON and the INSTALLATION status is
changed, the TRANSITION DETECTOR ON alarm (
displayed when the projector is restarted.

(continued on next page)

44

77) will be



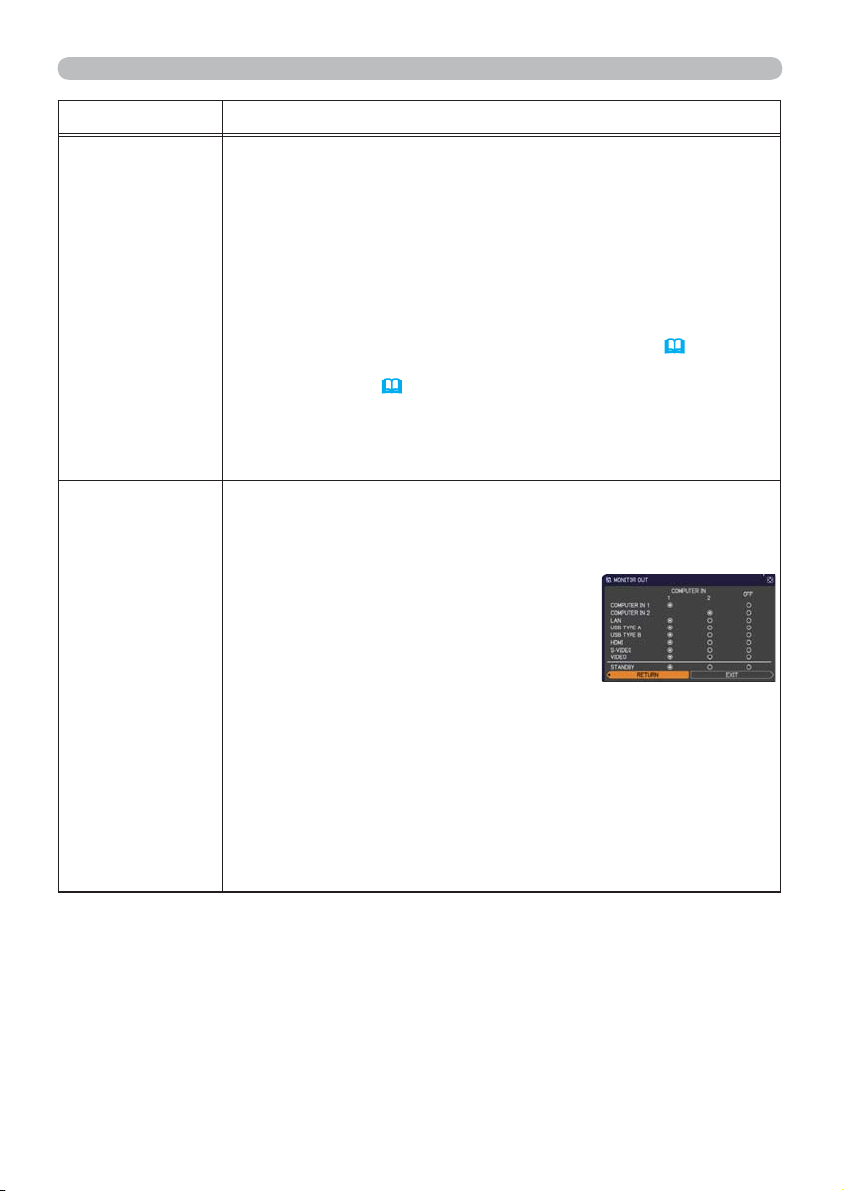

Item Description

Using ▲/▼ buttons switches the standby mode setting between
NORMAL and SAVING.

NORMAL Ù SAVING

When SAVING is selected, the power consumption in the standby
mode is lowered with some functional restriction as below:

• When SAVING is selected, the RS-232C communication control
except to turn the projector on and the network function are disabled

STANDBY MODE

while the projector is in the standby mode. If the COMMUNICATION
TYPE in the COMMUNICATION menu is set to NETWORK
BRIDGE, all of the RS-232C commands are disabled (

• When SAVING is selected, AUDIO OUT STANDBY setting of
AUDIO SOURCE (

46) is invalid, and no signal is output from



AUDIO OUT port in the standby mode.

• When SAVING is selected, STANDBY setting of MONITOR OUT
is invalid, and no signal is output from MONITOR OUT port in the
standby mode.

While the image signal from the input port chosen in step (1) is
projected, the image signal from the input port selected in step (2) is
output to MONITOR OUT port.

(1) Choose a picture input port using ▲/▼ buttons.

Choose STANDBY to select the picture

output in the standby mode.

(2) Select one of the COMPUTER IN ports

using ◄/► buttons.

Select OFF to disable the MONITOR OUT

MONITOR OUT

port for the input port or standby mode

chosen in the step (1).

• You cannot select COMPUTER IN2 for COMPUTER IN1, and vice
versa.

• If you have changed the setting of STANDBY, it applies only to
the current standby mode, NORMAL or SAVING, selected under
STANDBY MODE, without changing the setting of the other mode.
The factory settings are as follows:

- COMPUTER IN1 for the NORMAL mode of STANDBY MODE

- OFF for the SAVING mode of STANDBY MODE

SETUP menu

59).



45

AUDIO menu

AUDIO menu

From the AUDIO menu, items shown in the table
below can be performed. Select an item using the
▲/▼ cursor buttons, and press the ► cursor button
or the ENTER button to execute the item. Then
perform it according to the following table.

Item Description

VOLUME

SPEAKER

AUDIO SOURCE

HDMI AUDIO

Using the ◄/► buttons adjusts the volume.

Low Ù High

Using the ▲/▼ buttons turns on/off the built-in speaker.

ON Ù OFF

When OFF is selected, the built-in speaker does not work.
While the image signal from the input port chosen in step (1) is

projected, the audio signal from the input port selected in step
(2) is output to both the AUDIO OUT port and built-in speaker of
this projector. However, the built-in speaker does not work when
SPEAKER is set to OFF.

(1) Choose a picture input port using the

▲/▼ buttons.

Choose AUDIO OUT STANDBY to
select the sound output in the standby
mode.

(2) Select an audio input port or the mute

icon using the ◄/► buttons.

The icons indicate the following;

No.1: AUDIO IN1 port No.2: AUDIO IN2 port
No.3: LAN port No.4: USB TYPE B port
No.5: HDMI port

: mutes the sound

• Audio input from port nos3 to 5 can only be selected by each of
the picture input ports.

• Even if the projector is in the standby mode, cooling fans may
work and make noises when the built-in speaker is in operation.

• C.C. (Closed Caption) is automatically activated when
and an input signal containing C.C. is received. This function is
available only when the signal is NTSC for VIDEO or S-VIDEO, or
480i@60 for COMPUTER IN1 or COMPUTER IN2, and when AUTO
is selected for DISPLAY in the C.C. menu under the SCREEN menu
(

52).



Using the ▲/▼ buttons switches the mode for the HDMI
Check each of the two modes provided and select the suitable one

for your HDMI

TM

audio device.

1 Ù 2

is selected

TM

audio.

46

SCREEN menu

From the SCREEN menu, items shown in the table
below can be performed.
Select an item using the ▲/▼ cursor buttons, and
press the ► cursor button or ENTER button to
execute the item. Then perform it according to the
following table.

Item Description

Using the ▲/▼/◄/► buttons switches the OSD (On Screen
Display) language.

LANGUAGE

MENU POSITION

BLANK

START UP

ENGLISH Ù FRANÇAIS Ù DEUTSCH Ù ESPAÑOL

(shown in the LANGUAGE dialog)

Press the ENTER or INPUT button to save the language setting.
Using the ▲/▼/◄/► buttons adjusts the menu position.

To quit the operation, press the MENU button on the remote control
or keep no operation for about 10 seconds.

Using the ▲/▼ buttons switches the mode for the blank screen.
The blank screen is a screen for the temporarily blanking feature
(

28). It is displayed by pressing the BLANK button on the remote



control.

MyScreen Ù ORIGINAL Ù BLUE Ù WHITE Ù BLACK

MyScreen :
ORIGINAL : Screen preset as the standard screen.
BLUE, WHITE, BLACK : Plain screens in each color.

• To avoid remaining as an afterimage, the MyScreen or ORIGINAL
screen will change to the plain black screen after several minutes.

Using the ▲/▼ buttons switches the mode for the start-up screen.
The start-up screen is a screen displayed when no signal or an
unsuitable signal is detected.

MyScreen Ù ORIGINAL Ù OFF

MyScreen :
ORIGINAL : Screen preset as the standard screen.
OFF : Plain black screen.

• To avoid remaining as an afterimage, the MyScreen or ORIGINAL
screen will change to the BLANK screen (
minutes. If also the BLANK screen is the MyScreen or ORIGINAL,
the plain black screen is instead used.

• When the ON is selected to the MyScreen PASSWORD item in
the SECURITY menu (

Screen can be registered by the MyScreen item (

Screen can be registered by the MyScreen item (

75), the START UP is fixed to MyScreen.



SCREEN menu

above) after several







48).

48).

(continued on next page)

47

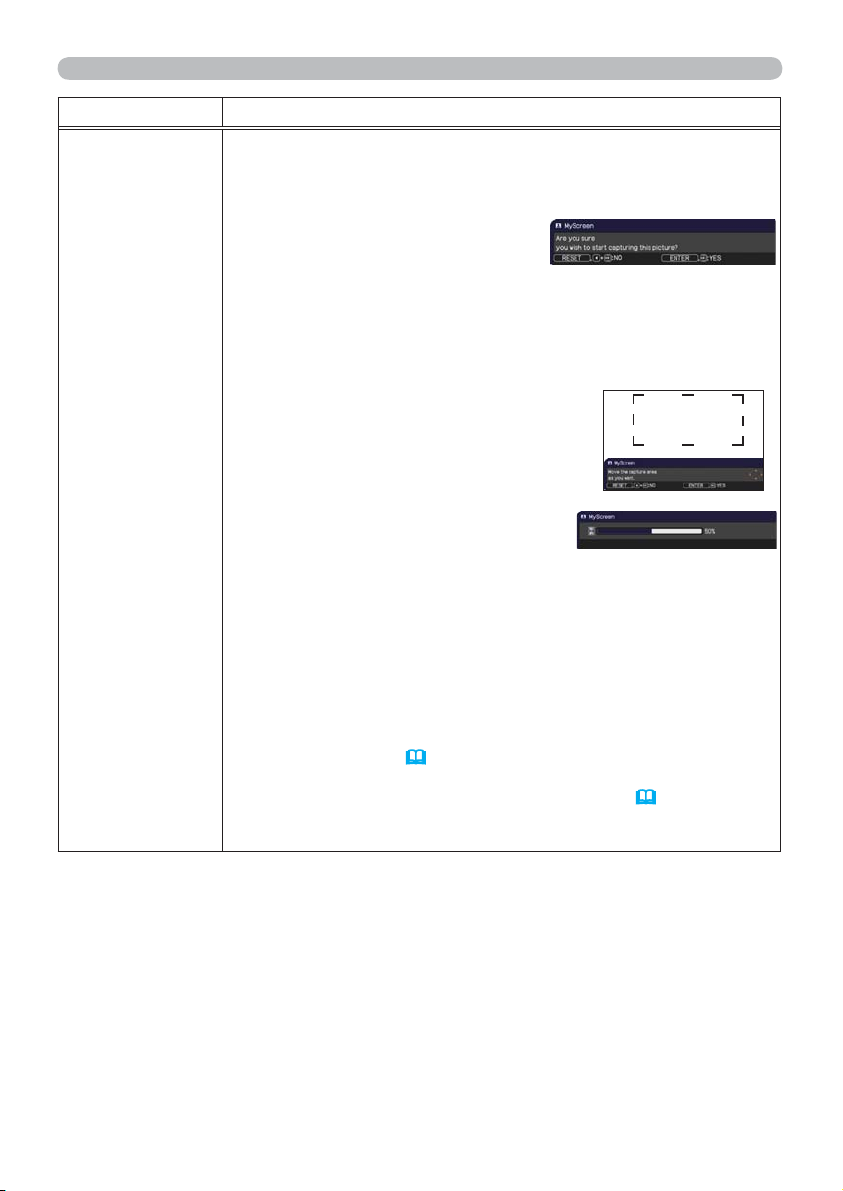

SCREEN menu

Item Description

This item allows you to capture an image for use as a MyScreen
image which can be used as the BLANK screen and START UP
screen. Display the image you want to capture before executing the
following procedure.

1. Selecting this item displays a dialog
titled “MyScreen”. It will ask you if
you start capturing an image from
the current screen.

Please wait for the target image to be displayed, and press the
ENTER or INPUT button when the image is displayed. The image
will freeze and the frame for capturing will appear.
To stop performing, press the RESET button on the remote
control.

2. Using the ▲/▼/◄/► buttons adjusts the
frame position.
Please move the frame to the position
of the image which you want to use. The

MyScreen

frame may not be able to be moved for
some input signals.
To start registration, press the ENTER
or INPUT button on the remote control.

To restore the screen and return to the previous dialog, press the
RESET button on the remote control.
Registration may take several minutes.
When the registration is completed, the registered screen and the
following message is displayed for several seconds:

³0\6FUHHQUHJLVWUDWLRQLV¿QLVKHG´

If the registration failed, the following message is displayed:

³$FDSWXULQJHUURUKDVRFFXUUHG3OHDVHWU\DJDLQ´

• This function cannot be selected when the ON is selected to the

MyScreen Lock item (



49).

• This function cannot be selected when the ON is selected to the

MyScreen PASSWORD item in SECURITY menu (

This function is unavailable for a signal from the LAN, USB TYPE A,

•

USB TYPE B or HDMI port.



75).

(continued on next page)

48

Item Description

Using the ▲/▼ buttons turns on/off the MyScreen lock function.

ON Ù OFF

MyScreen Lock

When the ON is selected, the item MyScreen is locked. Use this
function for protecting the current MyScreen.

• This function cannot be selected when the ON is selected to the

MyScreen PASSWORD item in SECURITY menu (
Using the ▲/▼ buttons turns on/off the message function.

ON Ù OFF

When the ON is selected, the following message function works.

“AUTO IN PROGRESS” while automatically adjusting
“NO INPUT IS DETECTED”
“SYNC IS OUT OF RANGE”
“INVALID SCAN FREQ.”
“Searching….” while searching for the input
“Detecting….” while an input signal is detected

MESSAGE

“AUTO ECO MODE” while starting up with AUTO ECO MODE
The indication of the input signal displayed by changing
The indication of the aspect ratio displayed by changing
The indication of the PICTURE MODE displayed by changing
The indication of the MY MEMORY displayed by changing
The indication of “FREEZE” and “II” while freezing the screen by
pressing the FREEZE button.
The indication of the TEMPLATE displayed by changing.
The indication of the ECO MODE displayed by changing.

• When the OFF is selected, please remember if the picture is

frozen. Do not mistake freezing for a malfunction (

SCREEN menu

75).



28).



(continued on next page)

49

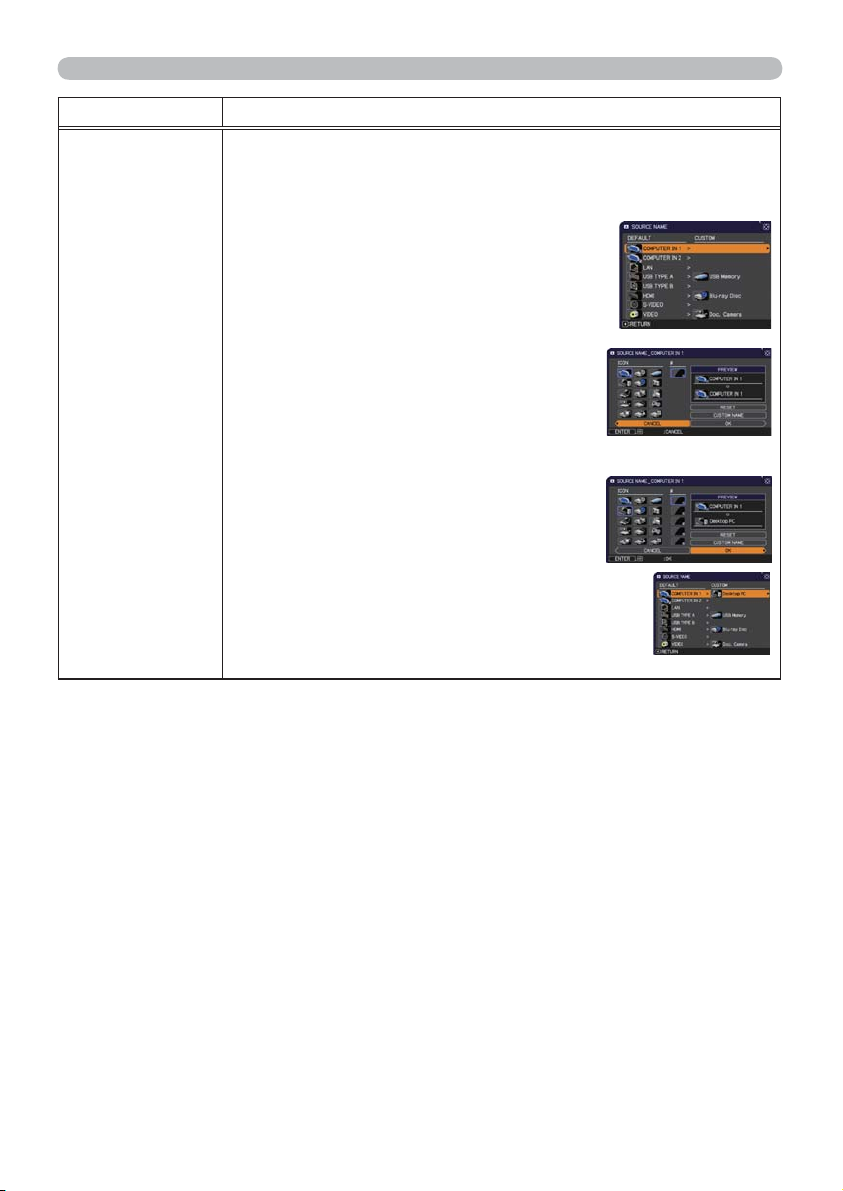

SCREEN menu

Item Description

Each input port for this projector can have a name applied to it.
(1) Use the ▲/▼ buttons on the SCREEN menu to select SOURCE

NAME and press the ► or ENTER button.
The SOURCE NAME menu will be displayed.

(2) Use the ▲/▼ buttons on the SOURCE

NAME menu to select the port to be
named and press the ► button. The
SOURCE NAME dialog will be displayed.
Right side of the menu is blank until a
name is specied.

(3) Select an icon you would like to assign to

the port in the SOURCE NAME dialog.

SOURCE NAME

The name assigned to the port will also
be automatically switched according to
your icon selection. Press the ENTER or
INPUT button to determine your icon selection.

(4) Select a number you would like to assign

to the port along with the icon. You can
select the number either from blank
(no number assigned), 1, 2, 3, or 4.
Then press the ENTER or INPUT button.

(5) If you would like to modify the name assigned

to the port, select CUSTOM NAME and
press the ENTER or INPUT button.

(continued on next page)

(continued on next page)

50

Item Description

(6) The current name will be displayed on

the rst line. Use the ▲/▼/◄/► buttons
and the ENTER or INPUT button to
select and enter characters. To erase 1
character at one time, press the RESET
button or press the ◄ and INPUT button
at the same time. Also if you move the
cursor to DELETE or ALL CLEAR on
screen and press the ENTER or INPUT
button, 1 character or all characters will
be erased. The name can be a maximum

SOURCE NAME

(continued)

of 16 characters.

(7) To change an already inserted character,

press the ▲ button to move the cursor to
the rst line, and use the ◄/► buttons to
move the cursor on the character to be

changed.
After pressing the ENTER or INPUT button, the character is
selected. Then, follow the same procedure as described at the
item (6) above.

(8) To nish entering text, move the cursor to the OK on screen and

press the ►, ENTER or INPUT button. To revert to the previous

name without saving changes, move the cursor to the CANCEL

on screen and press the ◄, ENTER or INPUT button.

Using the ▲/▼ cursor buttons switches the mode for the template
screen.
Press the ► cursor (or the ENTER) button to display the selected
template, and press the ◄ cursor button to close the displayed
screen.
The last selected template is displayed when the MY BUTTON
allocated to the TEMPLATE function is pressed (

TEMPLATE

TEST PATTERN Ù DOT-LINE1 Ù DOT-LINE2 Ù DOT-LINE3

Ú

MAP2 Ù MAP1 Ù CIRCLE2 Ù CIRCLE1 Ù DOT-LINE4



You can turn a map upside down and scroll it horizontally when
MAP1 or MAP2 is selected. To invert or scroll the map, display
the guidance by pressing the RESET button on the remote three
seconds or more when MAP1 or MAP2 appears.

SCREEN menu

57).



Ú

(continued on next page)

51

SCREEN menu

Item Description

The C.C. is the function that displays a
transcript or dialog of the audio portion of
a video, les or other presentation or other
relevant sounds. It is required to have NTSC
format video or 480i@60 format component
video source supporting C.C. feature to
utilize this function.
It may not work properly, depending on equipment or signal source.
In this case, please turn off the Closed Caption.

DISPLAY

Select Closed Caption DISPLAY setting from following options using
▲/▼ buttons.

AUTO Ù ON Ù OFF

AUTO : Closed Caption automatically displays when the volume

is muted.
ON : Closed Caption is on.
OFF : Closed Caption is off.

• The caption is not displayed when the OSD menu is active.

• The Closed Caption is the function to display the dialogue,
narration, and / or sound effects of a television program or other

C.C.

(Closed Caption)

video sources. The Closed Caption availability is depending upon
broadcaster and/or content.

MODE

Select Closed Caption MODE setting from following options using
▲/▼ buttons.

CAPTIONS Ù TEXT
CAPTIONS : Display Closed Caption.

TEXT : Display Text data, which is for additional information such

as news reports or a TV program guide. The information
covers the entire screen. Not all of the C.C. program has
Text information.

CHANNEL

Select Closed Caption CHANNEL from following options using ▲/▼
buttons.

1 Ù 2 Ù 3 Ù 4

52

1: Channel 1, primary channel / language
2: Channel 2

3: Channel 3
4: Channel 4

The channel data may vary, depending on the content. Some
channel might be used for secondary language or empty.

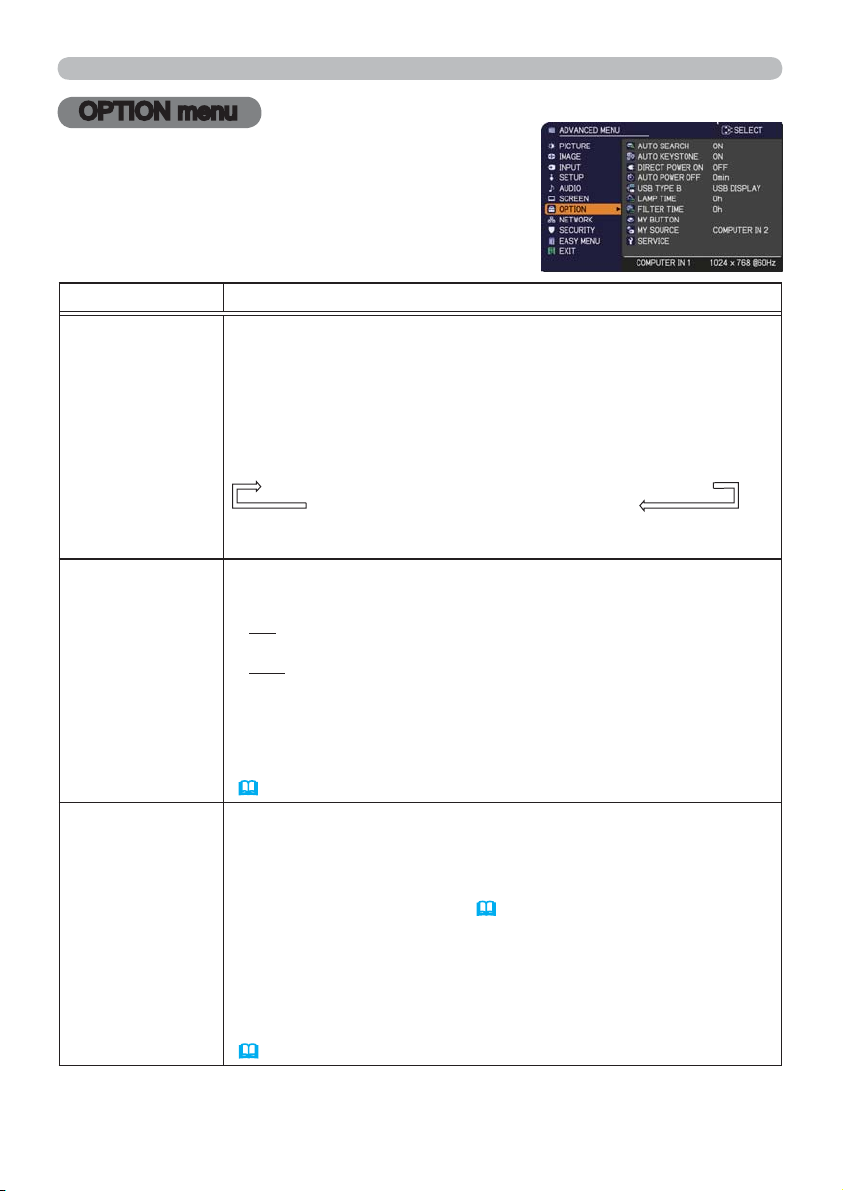

OPTION menu

From the OPTION menu, items shown in the table
below can be performed.
Select an item using the ▲/▼ cursor buttons, and
press the ► cursor button or ENTER button to execute
the item, except for the items LAMP TIME and FILTER
TIME. Then perform it according to the following table.

Item Description

Using the ▲/▼ buttons turns on/off the automatic signal search
function.

ON Ù OFF

When the ON is selected, detecting no signal automatically cycles

AUTO SEARCH

AUTO

KEYSTONE

DIRECT POWER

ON

through input ports in the following order. The search is started from
the current port. Then when an input is found, the projector will stop
searching and display the image.

COMPUTER IN1 Ö COMPUTER IN2 Ö LAN Ö USB TYPE A

VIDEO Õ S-VIDEO Õ HDMIÕ USB TYPE B

• It may take several seconds to project the images from the
USB TYPE B port.

Using the ▲/▼ buttons turns on/off the automatic keystone function.

ON Ù OFF
ON : Automatic keystone distortion correction will be executed

whenever changing the slant of the projector.

OFF : This function is disabled. Please execute the AUTO

KEYSTONE (EXECUTE) in the SETUP menu for automatic
keystone distortion correction.

• When the projector is suspended from the ceiling this feature will
not function properly so select the OFF.

• This function will be unavailable when the Transition Detector is on
(77)

.

Using the ▲/▼ buttons turns on/off the DIRECT POWER ON
function.

ON Ù OFF

When set to the ON, the lamp in projector will be automatically turned
on without the usual procedure (
supplied with the power after the power was cut while the lamp was on.

• This function does not work as long as the power has been
supplied to the projector while the lamp is off.

•

After turning the lamp on by the DIRECT
if neither input nor operation is detected for about 30 minutes, the
projector is turned off, even though the AUTO
(

54) is disabled.



19), only when the projector is



POWER

POWER

OPTION menu

ON function,

OFF function

(continued on next page)

53

OPTION menu

Item Description

Using the ▲/▼ buttons adjusts the time to count down to
automatically turn the projector off.

Long (max. 99 minutes) Ù Short (min. 0 minute = DISABLE)

AUTO POWER

OFF

USB TYPE B

When the time is set to 0, the projector is not turned off automatically.
When the time is set to 1 to 99, and when the passed time with
no-signal or an unsuitable signal reaches at the set time, the
projector lamp will be turned off.
If one of the projector's buttons or the remote control buttons
is pressed or one of the commands (except get commands) is
transmitted to the CONTROL port during the corresponding time,
projector will not be turned off.
Please refer to the section Turning off the power

(20).

Using the ▲/▼ buttons selects the function of USB TYPE B port.
To use this function, you need to connect the USB TYPE B port of
the projector and the type A USB port of a computer.

MOUSE Ù USB DISPLAY

MOUSE : The accessory remote control works as the simple mouse

and keyboard of the computer.

USB DISPLAY : The port works as an input port that receives image

signals from the computer (



89).

• It may take several seconds to project the images from the USB
TYPE B port.

• In the following cases, a message to notify you that USB TYPE B
port is not available for picture input appears together with the USB
TYPE B dialog:

- This setting is switched to MOUSE while a picture input from the

USB TYPE B port is projected.

- The USB TYPE B port is selected as the picture input source while

this setting is set to MOUSE. Select USB DISPLAY in the dialog to
project the picture input to the USB TYPE B port. In this case, you
cannot use the simple mouse and keyboard function. Otherwise
select other port for picture input.

(continued on next page)

54

Item Description

The lamp time is the usage time of the lamp, counted after the last
resetting. It is shown in the OPTION menu.
Pressing the RESET button on the remote control or the ► button
of the projector displays a dialog.

LAMP TIME

To reset the lamp time, select the OK using the ► button.

• Please reset the lamp time only when you have replaced the lamp,
for a suitable indication about the lamp.

•
The lter time is the usage time of the air lter, counted after the last

resetting. It is shown in the OPTION menu.
Pressing the RESET button on the remote control or the ► button
of the projector displays a dialog.

FILTER TIME

To reset the lter time, select the OK using the ► button.

•
the air lter, for a suitable indication about the air lter.

• For the air lter cleaning, see the section Cleaning and replacing
WKHDLU¿OWHU (

(continued on next page)

OPTION menu

Ö

CANCEL

OK

For the lamp replacement, see the section Replacing the lamp (93).

CANCEL

Ö

OK

Please reset the lter time only when you have cleaned or replaced

95).



55

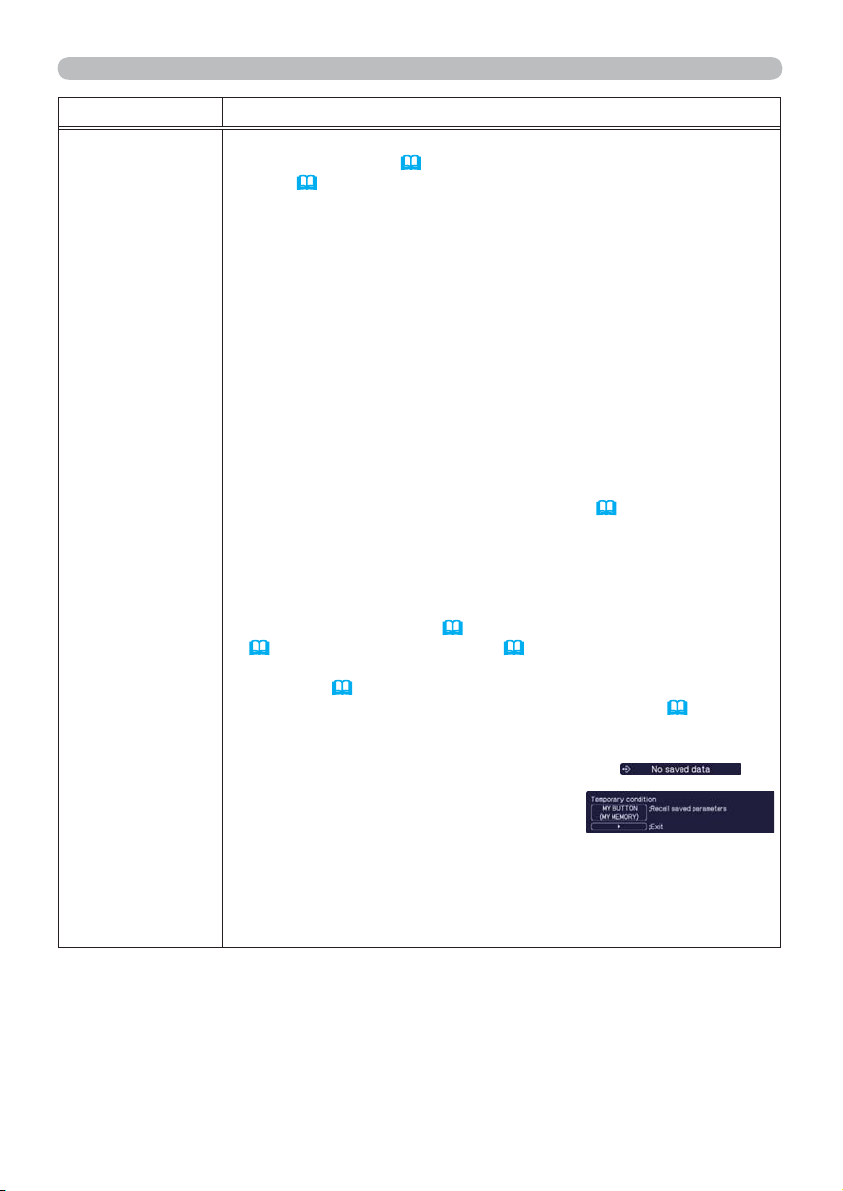

OPTION menu

Item Description

This item assigns one of the following functions to the ECO button
on the control panel (
control (



6).

5) and MY BUTTON 1/2 on the remote



(1) Choose a button to assign a function from ECO, MY BUTTON-1

and MY BUTTON-2. Use the ▲/▼ buttons to select the desired
function on the menu and press the ► button.

(2)

Then using the ▲/▼/◄/► buttons sets one of the following
functions to the chosen button. Press the ENTER or INPUT
button to save the setting.

• COMPUTER IN1: Selects the input from COMPUTER IN1 port.

• COMPUTER IN2: Selects the input from COMPUTER IN2 port.

• LAN: Selects input from LAN port.

• USB TYPE A: Selects input from USB TYPE A port.

• USB TYPE B: Selects input from USB TYPE B port.

• HDMI: Selects input from HDMI port.

• S-VIDEO: Selects the input from S-VIDEO port.

• VIDEO: Selects the input from VIDEO port.

•

SLIDESHOW: Selects the input from USB TYPE A, and starts a Slideshow.

• MY IMAGE: Displays the MY IMAGE menu (

MY BUTTON

• MESSENGER:

(Messenger Function in the Network Guide).

Turns the messenger text displayed on the screen on/off

When there is no transferred text data to display, the message
”NO MESSENGER DATA" appears.

• INFORMATION: Displays SYSTEM_INFORMATION,

INPUT_INFORMATION (
(

67), WIRED INFORMATION (



• AUTO KEYSTONE : Performs automatic keystone distortion

correction (



43).

• MY MEMORY: Loads one of adjustment data stored (

When more than one data are saved, the adjustment
changes every time the MY BUTTON is pressed.
When no data is saved in memory, the
dialog "No saved data" appears.
When the current adjustment is not
saved to memory, the dialog as shown in
the right appears.
If you want to keep the current adjustment, please press
the ► button to exit. Otherwise loading a data will overwrite the
current adjusted condition.

(continued on next page)

71).



62), WIRELESS INFORMATION



69) or nothing.





35).

(continued on next page)

56

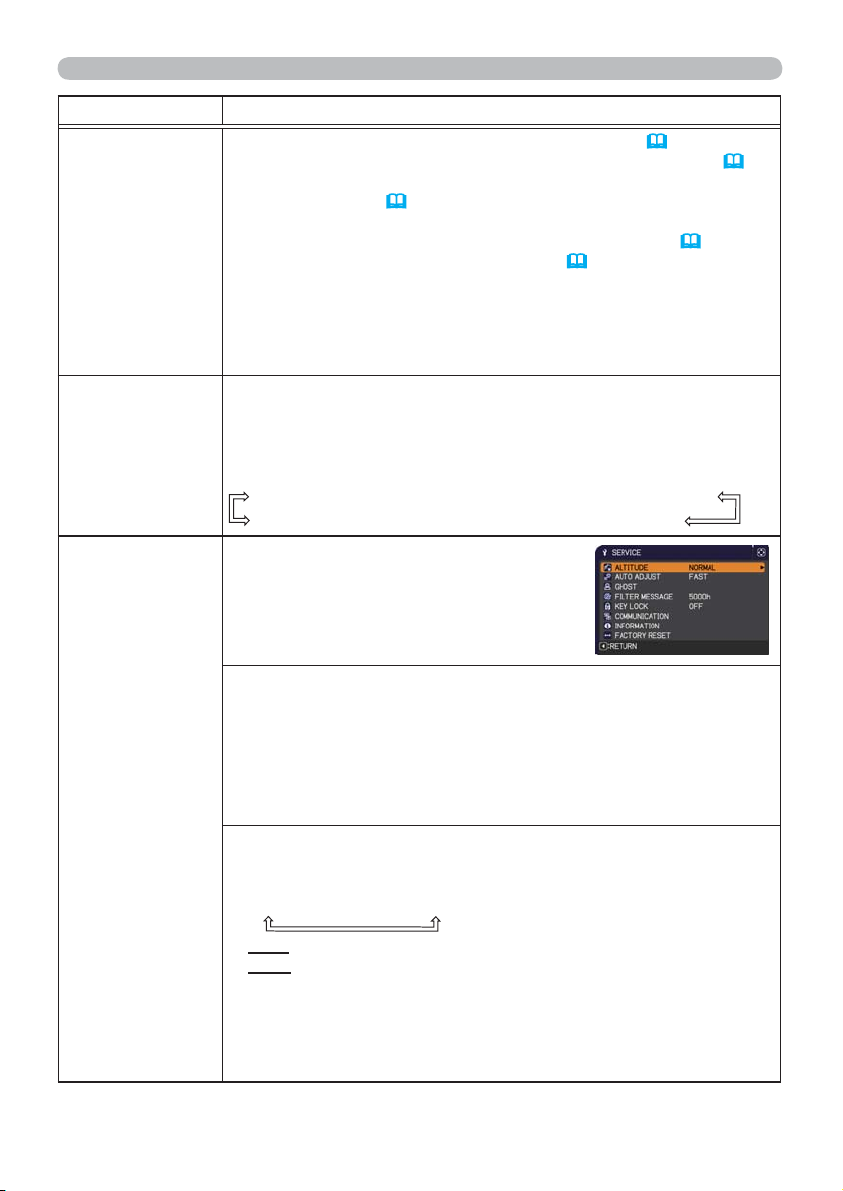

Item Description

• PICTURE MODE: Changes the PICTURE MODE (

•

FILTER RESET: Displays the lter time reset conrmation dialogue

• TEMPLATE: Makes the template pattern selected to the

TEMPLATE item (

51) appear or disappear.



• AV MUTE: Turns the picture and audio on/off.

MY BUTTON

(continued)

• RESOLUTION: Turns on/off the RESOLUTION dialog (

• ECO MODE: Changes the ECO MODE (

• BLANK: Turns on/off the blank function. (ECO button only)

• FREEZE: Turns on/off the freeze function. (ECO button only)

• VOLUME: Turns on/off the volume dialog. (ECO button only)

• AUTO:

(

Performs the automatic adjustment function.

ECO button only

)

Using ▲/▼ buttons selects the picture input port to be selected with
pressing the MY SOURCE/DOC.CAMERA button on the remote
control.

MY SOURCE

You can use this function not only for document cameras but also
computers and other equipment.

VIDEO Ù COMPUTER IN1 Ù COMPUTER IN2 Ù LAN
S-VIDEO Ù HDMI Ù USB TYPE B

Selecting this item displays the SERVICE
menu.
Select an item using the ▲/▼ buttons,
and press the ► button or the ENTER
button on the remote control to execute
the item.

ALTITUDE

Using the ▲/▼ buttons switches the rotation speed of the cooling fans.
The HIGH is the mode for use at highlands etc. If the projector is used

at an altitude of about 1600 m (5250 feet) or higher, select HIGH.
Otherwise, select NORMAL.

Note that the projector is noisier when the

HIGH is selected.

SERVICE

HIGH Ù NORMAL

AUTO ADJUST

Using the ▲/▼ buttons to select one of the mode. When the
DISABLE is selected, the automatic adjustment feature is disabled.

FINE Ù FAST Ù DISABLE

FINE: Finer tuning including H.SIZE adjustment.
FAST: Faster tuning, setting H.SIZE to prearranged data for the

input signal.

Depending on conditions, such as input image, signal cable to the

•
projector, environment around the projector, etc., the automatic adjustment
may not work correctly. In such a case, please choose DISABLE to
disable the automatic adjustment, and make adjustment manually.

44).



USB TYPE A

Ù



OPTION menu

31).





(

42).



55).

(continued on next page)

57

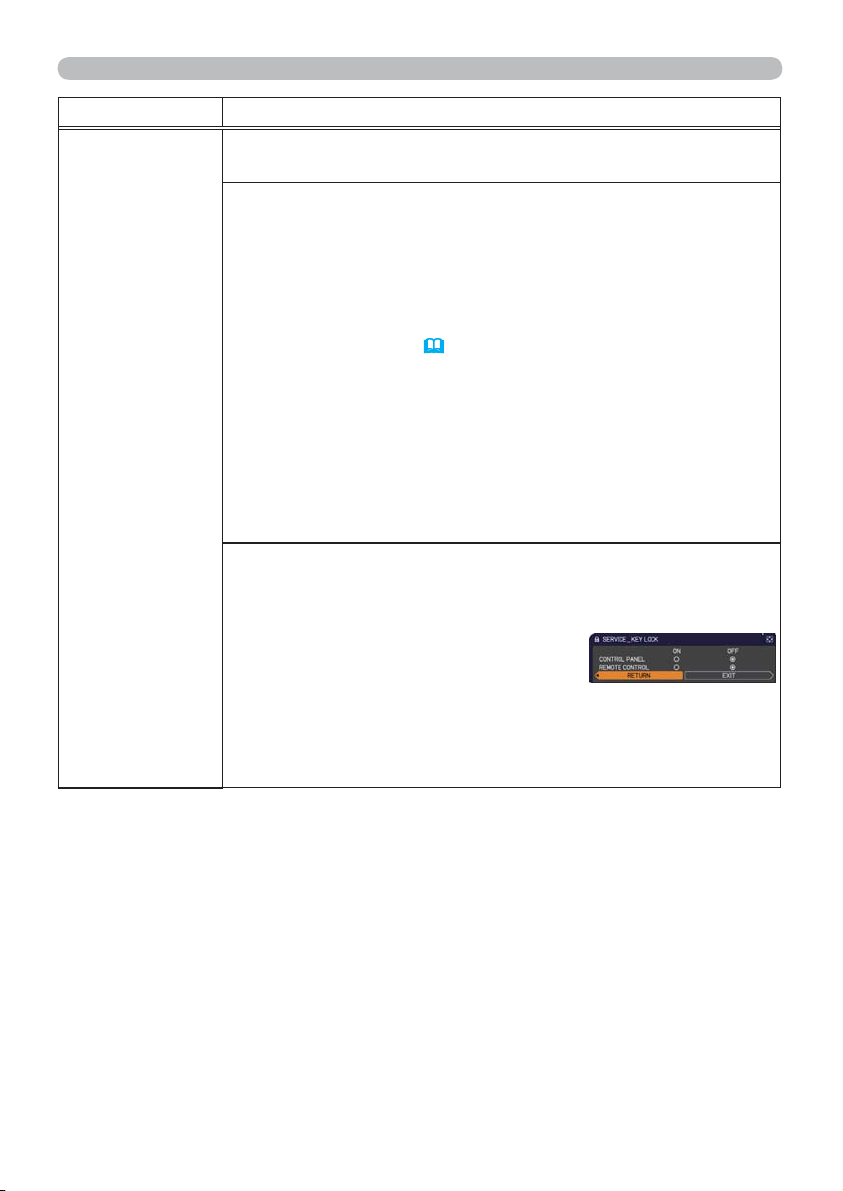

OPTION menu

Item Description

GHOST

Adjust the settings using the ▲/▼ buttons to eliminate ghosting.

FILTER MESSAGE

Use the ▲/▼ button to set the timer for notifying by the message
when to replace the lter unit

100h Ù 200h Ù 500h Ù 1000h Ù 2000h
Ù 3000h Ù 4000h Ù 5000h Ù OFF

After choosing an item except OFF, the message “REMINDER ***

HRS PASSED ....” will appear after the timer reaches the interval

time set by this feature (



When the OFF is chosen, the message will not appear. Utilize this
feature to keep the air lter clean, setting the suitable time according
to your environment of this projector.

• Please take care of the lter unit periodically, even if there is

SERVICE

(continued)

no message. If the air lter becomes to be blocked by dust or
other matter, the internal temperature will rise, which could cause
malfunction, or reduce the lifetime of the projector.

• Please be careful with the operating environment of the projector
and the condition of the lter unit.

KEY LOCK

(1)

Use the ▲/▼ buttons to choose the operations control.

CONTROL PANEL Ù REMOTE CONTROL
Use the ◄/► buttons to select ON or OFF.

(2)

ON Ù OFF

Selecting ON in Step 2 locks the buttons except STANDBY/ON on
the operations control selected in Step 1. Selecting OFF releases
the locked buttons on the operations control selected in Step 1.

• Please use this function to prevent tampering or accidental
operation.

99).

(continued on next page)

58

Item Description

Selecting this item displays COMMUNICATION
menu.
In this menu, you can congure the serial
communication settings of the projector using the
CONTROL port.

• Select an item using the cursor buttons ▲/▼.
Then pressing the ► button opens the submenu
for the setting item you selected. Or, pressing
the ◄ button instead of the ► button makes the
menu back to the previous one without changing
the setup. Each submenu can be operated as
described above.

• When COMMUNICATION TYPE
set to OFF, the other items in COMMUNICATION
menu are invalid.

• For the function of serial communication, refer to
the Network Guide.

SERVICE

(continued)

COMMUNICATION

COMMUNICATION TYPE

Select the communication type for transmission via
the CONTROL port.

NETWORK BRIDGE (WIRELESS)
Ú
NETWORK BRIDGE (WIRED)
Ú
OFF

NETWORK BRIDGE: Select this type, if it is

required to control an external device as a
network terminal, via this projector from the
computer. Select WIRELESS or WIRED as your
network connection mode.
The CONTROL port doesn't accept RS-232C
commands (Network Bridge Function in the
Network Guide)

OFF: Select this mode to receive RS-232C

commands using the CONTROL port.

• OFF is selected as the default setting.

• When you select the NETWORK BRIDGE, check
the item, TRANSMISSION METHOD

OPTION menu

below)

(



(



60)

is

.

(continued on next page)

59

OPTION menu

Item Description

SERIAL SETTINGS

Select the serial communication condition for the

CONTROL port.

BAUD RATE

4800bps Ù 9600bps Ù 19200bps Ù 38400bps

PARITY

NONE Ù ODD Ù EVEN

• The BAUD RATE is xed to 19200bps
and PARITY is xed NONE when the
COMMUNICATION TYPE is set to OFF (

SERVICE

(continued)

COMMUNICATION

(continued)

TRANSMISSION METHOD

Select the transmission method for communication
by the NETWORK BRIDGE from the CONTROL
port.

HALF-DUPLEX Ù FULL-DUPLEX

HALF-DUPLEX: This method lets the projector

make two way communication, but only one
direction, either transmitting or receiving data, is
allowed at a time.

FULL-DUPLEX: This method lets the projector

make two way communication, transmitting and
receiving data at the same time.

• HALF-DUPLEX is selected as the default setting.

• If you select HALF-DUPLEX, check the setting of
the item RESPONSE LIMIT TIME

(



61)

.



59)

.

(continued on next page)

60

Item Description

SERVICE

COMMUNICATION

(continued)

(continued on next page)

(continued)

OPTION menu

RESPONSE LIMIT TIME

Select the time period to wait for receiving
response data from other device communicating by
the NETWORK BRIDGE and the HALF-DUPLEX
through the CONTROL port.

OFF Ù 1s Ù 2s Ù 3s

OFF: Select this mode if it is not required to check

the responses from the device that the projector
sends data to. In this mode, the projector can
send out data from the computer continuously.

1s /2s /3s: Select the time period to keep the

projector waiting for response from the device
that the projector sends data to. While waiting the
response, the projector does not send out any
data from the CONTROL port.

• This menu is available only when the NETWORK
BRIDGE is selected for the COMMUNICATION
TYPE and the HALF-DUPLEX is selected for the
TRANSMISSION METHOD (



59, 60).

• OFF is selected as the default setting.

61

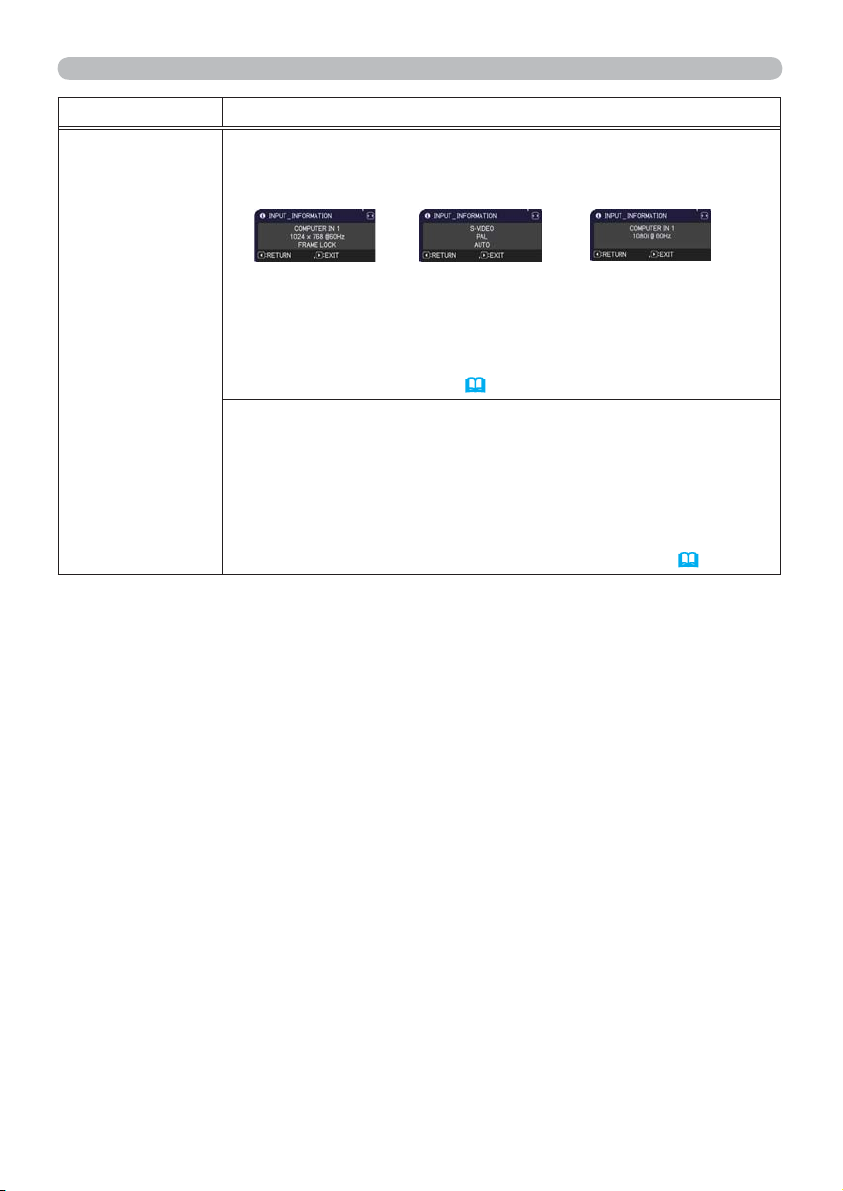

OPTION menu

Item Description

INFORMATION

Selecting this item displays a dialog titled “INPUT_INFORMATION”.
It shows the information about the current input.

• The “FRAME LOCK” message on the dialog means the frame lock
function is working.

• This item can't be selected for no signal and sync out.

SERVICE

(continued)

• When the MY TEXT DISPLAY is set to ON, the MY TEXT is
displayed together with the input information in the
INPUT_INFORMATION box (

FACTORY RESET

Selecting OK using the ► button performs this function. By this
function, all the items in all of menus will collectively return to the
initial setting. Note that the items LAMP TIME, FILTER TIME,
LANGUAGE, FILTER MESSAGE, NETWORK and SECURITY
settings are not reset.

CANCEL Ö OK

Be sure to set ALTITUDE after resetting all the settings (



79).



57).

62

NETWORK menu

NETWORK menu

Remember that incorrect network settings on this
projector may cause trouble on the network. Be sure
to consult with your network administrator before
connecting to an existing access point on your network.
Select “NETWORK” from the main menu to access the
following functions.
Select an item using the ▲/▼ cursor buttons on the
projector or remote control, and press the ► cursor button on the projector or
remote control, or ENTER button on the remote control to execute the item. Then
perform it according to the following table. See the Network Guide for details of
NETWORK operation.

NOTE

• To use the wireless network function of this projector, the designated
USB wireless adapter that is sold as an option is required. Do not use

any extension cable or device when connecting the adapter to the projector.

The projector does not allow both wireless and wired LAN to be connected to

•
the same network.

• Do not set the same network address for both wireless and wired LAN.

• If you are not utilizing SNTP (Date/Time Settings in the Network Guide),
then you must set the DATE AND TIME during the initial installation.

• The network communication control is disabled while the projector is in
standby mode if the STANDBY MODE item of SETUP menu is set to SAVING.
Please connect the network communication to the projector after setting the

45

).

STANDBY MODE to NORMAL (

Item Description

Selecting this item displays the WIRELESS
SETUP menu for the wireless LAN.
Use the ▲/▼ buttons to select an item,
and the ► or ENTER button on the remote
control to perform the item.

WIRELESS

SETUP

MODE



Use the ▲/▼ buttons to select the mode of the
network communication system. Select according
to the settings of your computer.

AD HOC Ù INFRASTRUCTURE

To save the setting, press the ► button.

• When ADHOC is selected, IEEE802.11 n cannot
be used.

• If ADHOC is set to MODE while one of WPA­PSK or WPA2-PSK is selected in ENCRYPTION,
the ENCRYPTION (
automatically.

65) setting switches to OFF



(continued on next page)

63

NETWORK menu

Item Description

Use the ▲/▼ buttons to turn DHCP on/off.

ON Ù OFF

Select OFF when the network does not have DHCP

DHCP

(Dynamic Host

&RQ¿JXUDWLRQ

Protocol)

enabled. To save the setting, press the ► button.

• When the “DHCP” setting changes to “ON”, it
takes a little time to obtain IP address from DHCP
server.

• Auto IP function will be assigned an IP address if
the projector could not obtain an IP address from
server even if DHCP is “ON”

Use the ▲/▼/◄/► buttons to enter the IP
ADDRESS.
This function can only be used when DHCP is set
to OFF.

IP ADDRESS

• The IP ADDRESS is the number that identies
this projector on the network. You cannot have two
devices with the same IP ADDRESS on the same
network.

• The IP ADDRESS “0.0.0.0” is prohibited.
Use the ▲/▼/◄/► buttons to enter the same

WIRELESS

SETUP

(continued)

SUBNET

MASK

SUBNET MASK used by your computer.
This function can only be used when DHCP is set
to OFF.

• The SUBNET MASK “0.0.0.0” is prohibited.
Use the ▲/▼/◄/► buttons to enter the DEFAULT

GATEWAY (a node on a computer network that

DEFAULT

GATEWAY

serves as an access point to another network)
address.
This function can only be used when DHCP is set
to OFF.

Use the ▲/▼/◄/► buttons to input the DNS

DNS SERVER

server address.
The DNS server is a system to control domain
names and IP addresses on the Network.

Use the ▲/▼ buttons to enter the TIME
DIFFERENCE.
Set the same TIME DIFFERENCE as the one
set on your computer. If unsure, consult your IT

TIME

DIFFERENCE

manager.
Use the ► button to return to the menu after
setting the TIME DIFFERENCE.

• When this item is set, the same item in the
WIRED SETUP menu is overwritten with the same
setting (



69).

(continued on next page)

64

Item Description

Use the ▲/▼/◄/► buttons to enter the Year (last
two digits), Month, Date, Hour and Minute.

• When this item is set, the same item in the
WIRED SETUP menu is overwritten with the same

DATE AND

TIME

setting (

• The projector will override this setting and retrieve
DATE AND TIME information from the Time server
when SNTP is enabled. (Date/Time Settings in



69).

the Network Guide)

• This setting will be reset if the projector is turned
off while STANDBY MODE in the SETUP menu
is set to SAVING (
turned off.

Use the ▲/▼ buttons to select the channel of the
wireless LAN to be used while MODE (
to ADHOC. Select according to the settings of your
computer.
The channels 1 to 11 are available. To save the
setting, press the ► button.

WIRELESS

SETUP

(continued)

CH

• The available channels would be various
depending on a country. In addition, wireless
network card might be required due to the
standard.

• This item can only be selected when MODE
is set to ADHOC. When MODE is set to
INFRASTRUCTURE, the channel is automatically
selected.

Use the ▲/▼ buttons to select the encryption
method to be used.

WPA2-PSK(AES) Ù WPA2-PSK(TKIP)
Ú Ú
OFF WPA-PSK(AES)
Ú Ú

ENCRYPTION

WEP 64bitÙWEP 128bitÙWPA-PSK(TKIP)

To save the setting, press the ► button.

• When MODE (
WPA-PSK and WPA2-PSK cannot be selected.

• If IEEE802.11 n is used while MODE is set to
INFRASTRUCTURE, TKIP and WEP are disabled.

• If OFF or AES is not selected, communication will
switch automatically to IEEE802.11 b/g.

NETWORK menu

45), or when the AC power is



63) is set to ADHOC, either



63) is set



(continued on next page)

65

NETWORK menu

Item Description

Use the ▲/▼
buttons to select the
SSID to display the
SSID menu.

#1 DEFAULT Ù #2 DEFAULT Ù #3 DEFAULT

Select one of the DEFAULT (#1~#4) and press ►
or ENTER button.

To adjust CUSTOM

Press the ► or ENTER button when the # 5
CUSTOM is selected. The SSID #5 CUSTOM
menu will be appeared.

The current SSID will be displayed on the

(1)

rst line. If not yet written, the line will be blank. Use
the ▲/▼/◄/► buttons and the ENTER or INPUT
button to select and enter characters. To erase 1
character at one time, press the RESET button or
press the ◄ and INPUT button at the same time.
Also if you move the cursor to DELETE or ALL
CLEAR on screen and press the ENTER or INPUT

WIRELESS

SETUP

(continued)

SSID

button, 1 character or all characters will be erased.
The SSID can be input up to 32 characters.

(2)

To change an
already inserted
character, press
the ▲/▼ button to
move the cursor
to one of the rst
2 lines, and use
the ◄/► buttons
to move the cursor
on the character to
be changed. After
pressing the ENTER
or INPUT button,
the character is
selected. Then,
follow the same
procedure as
described at the
item (1) above.

(3)

To nish entering text, move the cursor to the OK on
screen and press the ►, ENTER or INPUT button.
To revert to the previous name without saving
changes, move the cursor to the CANCEL on screen
and press the ◄, ENTER or INPUT button.

#5 CUSTOM Ù #4 DEFAULT

(continued on next page)

66

Item Description

"Selecting this item displays the WIRELESS_INFORMATION dialog
for viewing the wireless LAN settings." Use the ▲/▼ buttons to
switch the page.
The rst page shows the wireless LAN settings. The second and
subsequent pages display the signal information of wireless LAN
connection devices.

NETWORK menu

WIRELESS

INFORMATION

• For details of PASSCODE, refer to the manual for “LiveViewer”.

• Nothing (blank) is shown in the PROJECTOR NAME
SSID
characters of the PROJECTOR NAME.

• IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY indicate
“0.0.0.0” in the following condition.
(1) The USB wireless adapter is not inserted into the projector.
(2) DHCP is ON and the projector does not get address from DHCP
server.

• Nothing (blank) is shown in the CH and SPEED elds if the USB
wireless adapter is not inserted.

• The actual performance and setting will be shown in the CH eld,
instead of the setting value in the WIRELESS SETUP menu.

• An icon is displayed to the left of the SSID of the device connected
to the projector.

(continued on next page)

(

66)



field until you setup those items. Only the first 16

(

70)



and

67

NETWORK menu

Item Description

Selecting this item displays the WIRED
SETUP menu for the wired LAN.
Use the ▲/▼ buttons to select an item,
and the ► or ENTER button on the remote
control to perform the item.

Use the ▲/▼ buttons to turn DHCP on/off.

ON Ù OFF

Select OFF when the network does not have

DHCP

(Dynamic Host

&RQ¿JXUDWLRQ

Protocol)

DHCP enabled. To save the setting, press the ►
button.

• When the “DHCP” setting changes to “ON”, it
takes a little time to obtain IP address from DHCP
server.

• Auto IP function will be assigned an IP address if
the projector could not obtain an IP address from
server even if DHCP is “ON”.

Use the ▲/▼/◄/► buttons to enter the IP
ADDRESS.
This function can only be used when DHCP is set

WIRED SETUP

IP ADDRESS

to OFF.

• The IP ADDRESS is the number that identies
this projector on the network. You cannot have two
devices with the same IP ADDRESS on the same
network.

• The IP ADDRESS “0.0.0.0” is prohibited.
Use the ▲/▼/◄/► buttons to enter the same

SUBNET

MASK

SUBNET MASK used by your computer.
This function can only be used when DHCP is set
to OFF.

• The SUBNET MASK “0.0.0.0” is prohibited.
Use the ▲/▼/◄/► buttons to enter the DEFAULT

GATEWAY (a node on a computer network that

DEFAULT

GATEWAY

serves as an access point to another network)
address.
This function can only be used when DHCP is set
to OFF.

Use the ▲/▼/◄/► buttons to input the DNS

DNS SERVER

server address.
The DNS server is a system to control domain
names and IP addresses on the Network.

(continued on next page)

68

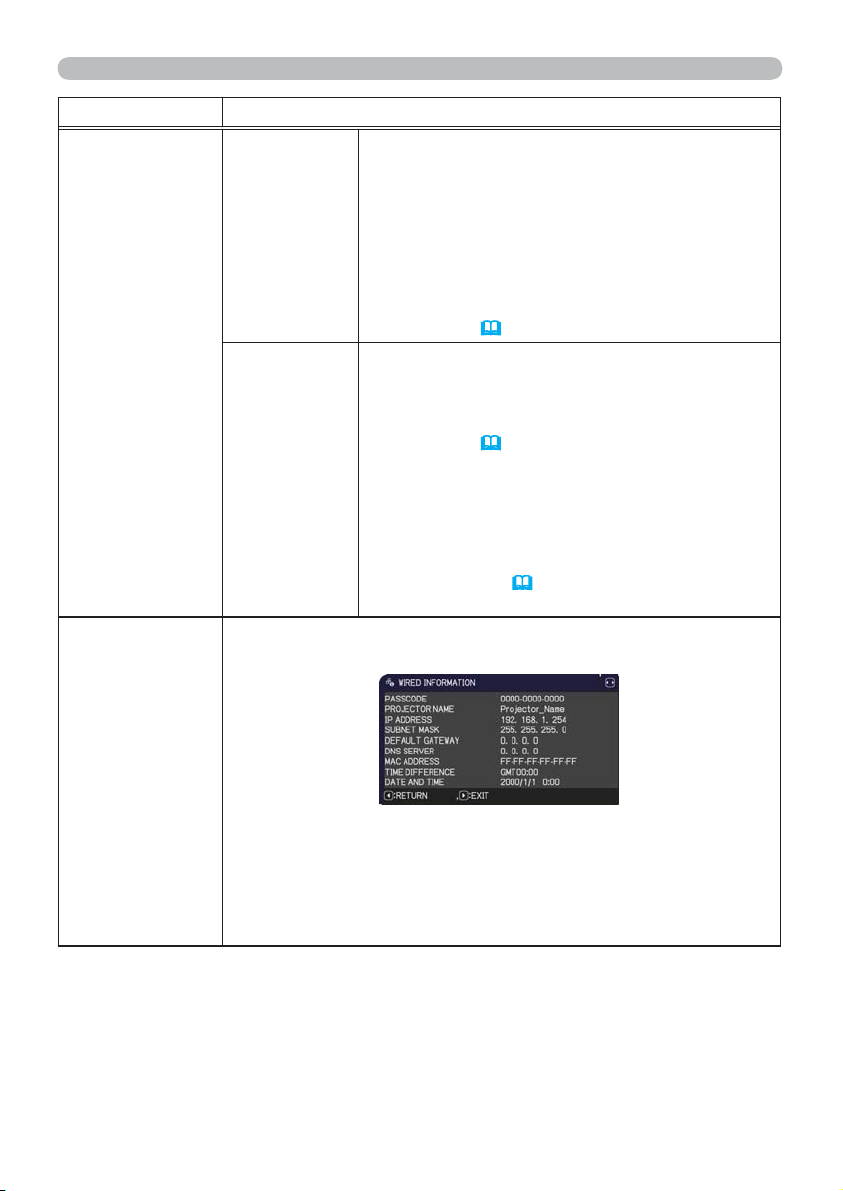

Item Description

Use the ▲/▼ buttons to enter the TIME
DIFFERENCE.
Set the same TIME DIFFERENCE as the one
set on your computer. If unsure, consult your IT

TIME

DIFFERENCE

manager.
Use the ► button to return to the menu after
setting the TIME DIFFERENCE.

• When this item is set, the same item in the
WIRELESS SETUP menu is overwritten with the
same setting (

WIRED SETUP

(continued)

Use the ▲/▼/◄/► buttons to enter the Year (last
two digits), Month, Date, Hour and Minute.

• When this item is set, the same item in the
WIRELESS SETUP menu is overwritten with the
same setting (

DATE AND

TIME

• The projector will override this setting and retrieve
DATE AND TIME information from the Time server
when SNTP is enabled. (Date/Time Settings in
the Network Guide)

• This setting will be reset if the projector is turned
off while STANDBY MODE in the SETUP menu
is set to SAVING (
turned off.

Selecting this item displays the WIRED INFORMATION dialog for
viewing the wired LAN settings.

NETWORK menu

64).



65).



45), or when the AC power is



WIRED

INFORMATION

• For details of PASSCODE, refer to the manual for “LiveViewer”.

• Only the first 16 characters of the PROJECTOR NAME are dis­played.

• IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY indicate
“0.0.0.0” when DHCP is ON and the projector has not gotten address
from DHCP server.

(continued on next page)

69

NETWORK menu

Item Description

(1) Use the ▲/▼ buttons on the

NETWORK menu to select the
PROJECTOR NAME and press
the ► button. The PROJECTOR
NAME dialog will be displayed.

(2) The current PROJECTOR NAME will be displayed on the rst 3

lines. Particular projector name is pre-assigned by default.

Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to
select and enter characters.
To erase 1 character at one time, press the RESET button or
press the ◄ and INPUT button at the same time. Also if you
move the cursor to DELETE or ALL CLEAR on screen and
push the ENTER or INPUT button, 1 character or all characters
will be erased.The PROJECTOR NAME can be input up to 64

PROJECTOR

NAME

characters.

(3) To change an already inserted

character, press the ▲/▼ button
to move the cursor to one of the
rst 3 lines, and use the ◄/►
buttons to move the cursor on the
character to be changed. After
pressing the ENTER or INPUT
button, the character is selected.
Then, follow the same procedure
as described at the item (2) above.

(4) To nish entering text, move the cursor to the OK on screen and

press the ►, ENTER or INPUT button. To revert to the previous
PROJECTOR NAME without saving changes, move the cursor
to the CANCEL on screen and press the ◄, ENTER or INPUT
button.

(continued on next page)

70

Item Description

Selecting this item displays the MY
IMAGE menu.
Use the application to transfer the im­age data. It can be downloaded from
the Hitachi web site.
Use the ▲/▼ buttons to select an item which is a still image by the
MY IMAGE (My Image Function in the Network Guide) and the ►
or ENTER button to display the image.

• The item without image stored cannot be selected.

• The image names are each displayed in 16 characters or less.

MY IMAGE

To switch the image displayed

Use the ▲/▼ buttons.

To return to the menu

Press the ◄ button on the remote control.

7RHUDVHWKHLPDJHGLVSOD\HGDQGLWVVRXUFH¿OHLQWKHSURMHFWRU

(1) Press the RESET button on the remote

control while displaying an image to display
the MY IMAGE DELETE menu.

(2) Press the ► button to perform to erase.

To stop erasing, press the ◄ button.

Use the ▲/▼ buttons to turn the AMX Device Discovery on/off.

AMX D.D.

(AMX Device

Discovery)

ON Ù OFF

When ON is selected, the projector can be detected by controllers
of AMX connected to the same network. For the details of AMX
Device Discovery, visit the AMX web site.

URL: http://www.amx.com/

(as of June 2011)

NETWORK menu

(continued on next page)

71

NETWORK menu

Item Description

Selecting this item displays the PRESENTATION menu.
Use ▲/▼ buttons to select one of the following items, then press ►
or ENTER button to use the function.

• To use Network Presentation, an exclusive application, "LiveViewer"
is required. It can be installed from the bundled application CD.
You can also download the latest version and relevant information
from the Hitachi website (http://www.hitachi-america.us/digitalmedia
or http://www.hitachidigitalmedia.com).For details of Network
Presentation and instructions to install the "LiveViewer", refer to the
manual for "LiveViewer".

If you set a computer to the Presenter mode while
its image is projected, the projector is occupied by
the computer and access from any other computer is
blocked.

QUIT

PRESENTER

MODE

Use this function to quit the Presenter mode and
allow other computers to access the projector.
Select this item to display a dialog.
Press ► button to choose OK in the dialog.
The Presenter mode is cancelled and a message is
displayed indicating the result.

PRESENTATION

• To make Presenter mode setting, use “LiveViewer”.
For details,

If you set one or more computers to the Multi PC
mode on “LiveViewer” and send their images to the
projector, you can select the display mode on the
projector from two options below.

- Single PC mode: displays the image of the selected
computer on full screen.

- Multi PC mode: displays the images sent from up to
four computers on screen that is divided into quarter
sections.

MULTI PC

MODE

Select this item to display a dialog.
Use the dialog to change the display mode as
explained below.

• To change from Multi PC mode to Single PC mode,

select one of computers in the dialog using the
▲/▼/◄/► buttons and press the ENTER or INPUT
button.
Press the ► button to choose OK, and then press
ENTER or INPUT again. The image for the selected
computer is displayed on full screen.

(continued on next page)

refer to the manual for "LiveViewer".

(continued on next page)

72

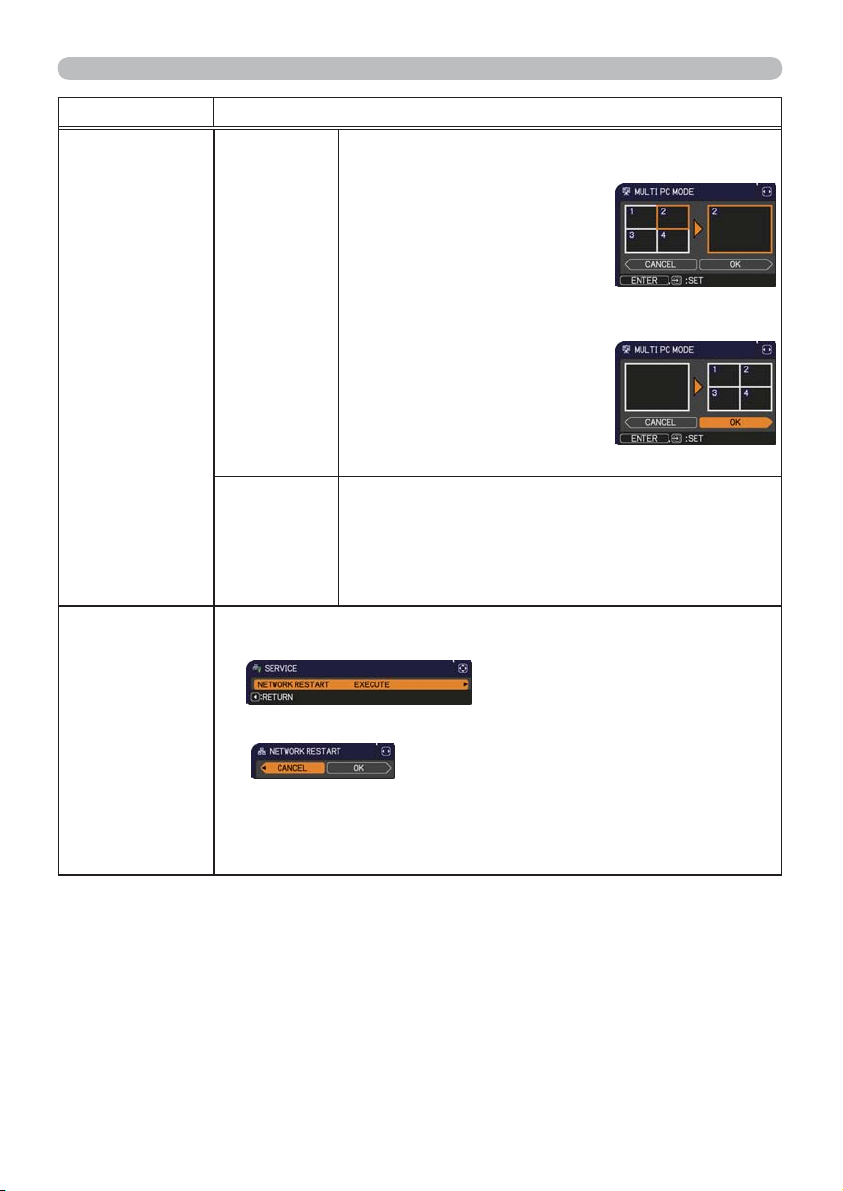

Item Description

• To change from Single PC mode to Multi PC mode,

press ► button to choose OK in the dialog and press
the ENTER or INPUT button.
The display mode is changed.

For details on how to switch the

•

display mode to Multi PC mode
on your computer, refer to the

MULTI PC

MODE

(continued)

PRESENTATION

(continued)

manual for

• The Presenter mode setting of the selected

computer becomes valid when the display mode is
changed to Single PC mode.
Also, the Presenter mode setting
becomes invalid when the
display mode is changed to Multi
PC mode, regardless the setting
on the computers.
For details,

Selecting this item displays the user name. This
function helps you identify from which computer the

DISPLAY

USER NAME

current image is sent.

• You can set user names for each computer on

“LiveViwer”. For details,
“LiveViwer”.

Executing this item restarts and initializes the network functions.
Choose the NETWORK RESTART EXECUTE using the button ►.

SECURITY menu

“LiveViwer”

.

refer to the manual for “LiveViewer”.

refer to the manual for

SERVICE

Then use the button ► to execute.

Network will be once cut off when choose restart.
If DHCP is selected on, IP address may be changed.
After selecting NETWORK RESTART EXECUTE, NETWORK menu
may not be controlled approx. 30 seconds.

73

SECURITY menu

SECURITY menu

This projector is equipped with security functions.
From the SECURITY menu, items shown in the table
below can be performed.
To use SECURITY menu: User registration is required
before using the security functions.

Enter to the SECURITY menu

1. Press the ► button. The ENTER PASSWORD box will be displayed.

2. Use the ▲/▼/◄/► buttons to enter the registered password.
The factory default password is as follows.
CPX10WN, CPX11WN: 3692

This password can be changed
the right side of the ENTER PASSWORD box and press
the ► button to display the SECURITY menu.

• It is strongly recommended the factory default password to be
changed as soon as possible.

• If an incorrect password is input, the ENTER PASSWORD box
will be displayed again. If incorrect password is input 3 times, the
projector will turn off. Afterwards the projector will turn off every time
an incorrect password is input.

3. Items shown in the table below can be performed.

If you have forgotten your password

(1) While the ENTER PASSWORD box is displayed, press and hold the

(2) The 10 digit Inquiring Code will be displayed. Contact your dealer

• If there is no key input for about 55 seconds while the Inquiring Code is displayed, the menu will
close. If necessary, repeat the process from (1).

(continued on next page)

74

CPWX12WN: 2092

(below)

RESET button on the remote control for about 3 seconds or press
and hold the INPUT button for 3 seconds while pressing the ►
button on the projector.

with the 10 digit Inquiring Code. Your password will be sent after your user registration information
is conrmed.

. Move the cursor to

Item Description

(1) Use the ▲/▼ buttons on the SECURITY menu

to select SECURITY PASSWORD CHANGE
and press the ► button to display the ENTER

NEW PASSWORD box.
(2) Use the ▲/▼/◄/► buttons to enter the new password.
(3) Move the cursor to the right side of the

SECURITY

PASSWORD

CHANGE

ENTER NEW PASSWORD box and press the

► button to display the NEW PASSWORD

AGAIN box, enter the same password again.

Move the cursor to the right side of the NEW

(4)

PASSWORD AGAIN box and press the ►

button and the NOTE NEW PASSWORD box

will be displayed for about 30 seconds, please

make note of the password during this time.

Pressing the ENTER button on the remote control or ► button on the

projector will close the NOTE NEW PASSWORD box.

• Please do not forget your password.

Item Description

The MyScreen PASSWORD function can be used to prohibit access to the
MyScreen function and prevent the currently registered MyScreen image
from being overwritten.

1 Turning on the MyScreen PASSWORD

1-1 Use the ▲/▼ buttons on the SECURITY menu to

1-2 Use the ▲/▼ buttons on the MyScreen

1-3 Use the ▲/▼/◄/► buttons to enter the

1-4 Move the cursor to the right side of the

MyScreen

PASSWORD

(continued on next page)

When a password is set for MyScreen:

•

•

•

unavailable).
Turning the MyScreen PASSWORD off will allow normal operation of these
functions.

•

2 Turning off the MyScreen PASSWORD

2-1 Follow the procedure in 1-1 to display the MyScreen PASSWORD on/off

2-2

If an incorrect PASSWORD is input, the menu will
close. If necessary, repeat the process from 2-1.

3 If you have forgotten your password

3-1 Follow the procedure in 1-1 to display the MyScreen PASSWORD on/off

3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

3-3 Contact your dealer with the 10 digit Inquiring Code. Your password will

SECURITY menu

select MyScreen PASSWORD and press the ►
button to display the MyScreen PASSWORD on/
off menu.

PASSWORD on/off menu to select ON.
The ENTER NEW PASSWORD box (small)
will be displayed.

password. Move the cursor to the right side
of the ENTER NEW PASSWORD box (small)
and press the ► button to display the NEW
PASSWORD AGAIN box, enter the same
PASSWORD again.

NEW PASSWORD AGAIN box and press
the ► button to display the NOTE NEW
PASSWORD box for about 30 seconds,
please make note of the password during

this time.
Pressing the ENTER button on the remote control or ► button on the
projector will return to MyScreen PASSWORD on/off menu.

The MyScreen registration function (and menu) will be unavailable.
The MyScreen Lock menu will be unavailable.
The START UP setting will be locked on MyScreen (and the menu will be

Please do not forget your MyScreen PASSWORD.

menu.

Select OFF to display the ENTER

PASSWORD box (large). Enter the registered

password and the screen will return to the

MyScreen PASSWORD on/off menu.

menu.

Inquiring Code will be displayed inside the box.

be sent after your user registration information is conrmed.

ENTER NEW PASSWORD

box (small)

ENTER PASSWORD box

(large)

75

SECURITY menu

Item Description

PIN LOCK is a function which prevents the projector from being used unless
a registered Code is input.

1 Turning on the PIN LOCK

1-1 Use the ▲/▼ buttons on the SECURITY menu to

1-2 Use the ▲/▼ buttons on the PIN LOCK on/

1-3 Input a 4 part PIN code using the ▲/▼/◄/►,

Afterwards, anytime the projector is restarted after AC power is turned off
the Enter PIN Code box will be displayed. Enter the registered PIN code.
The projector can be used after entering the registered PIN code. If an
incorrect PIN code is input, the Enter PIN code box will be displayed again.

PIN LOCK

If an incorrect PIN code is input 3 times, the projector will turn off. Afterwards
the projector will turn off every time an incorrect PIN code is input. The
projector will also turn off if there is no key input for about 5 minutes while
the Enter PIN code box is displayed.
This function will activate only when the projector is started after AC power
is turned off.

•

2 Turning off the PIN LOCK

2-1 Follow the procedure in 1-1 to display the PIN LOCK on/off menu.
2-2 Use the ▲/▼ buttons to select OFF and the Enter PIN Code box will be

If an incorrect PIN code is input 3 times, the projector will turn off.

3 If you have forgotten your PIN code

3-1 While the Enter PIN code box is displayed, press and hold the RESET

3-2 Contact your dealer with the 10 digit Inquiring Code. Your PIN code will

(continued on next page)

select PIN LOCK and press the ► button or the

ENTER button to display the PIN LOCK on/off

menu.

off menu to select ON and the Enter PIN

Code box will be displayed.

COMPUTER or INPUT button.

The PIN Code again box will appear. Reenter

the same PIN code. This will complete the PIN

code registration.

If there is no key input for about 55 seconds

•

while the Enter PIN Code box or the PIN Code again box is displayed,
the menu will close. If necessary, repeat the process from 1-1.

Please do not forget your PIN code.

displayed.

Enter the registered PIN code to turn the PIN LOCK function off.

button for three seconds or press and hold the INPUT button for 3

seconds while pressing the ► button on the projector.

The 10 digit Inquiring Code will be displayed.

If there is no key input for about 5 minutes

•

while the Inquiring Code is displayed, the
projector will turn off.

be sent after your user registration information is conrmed.

76

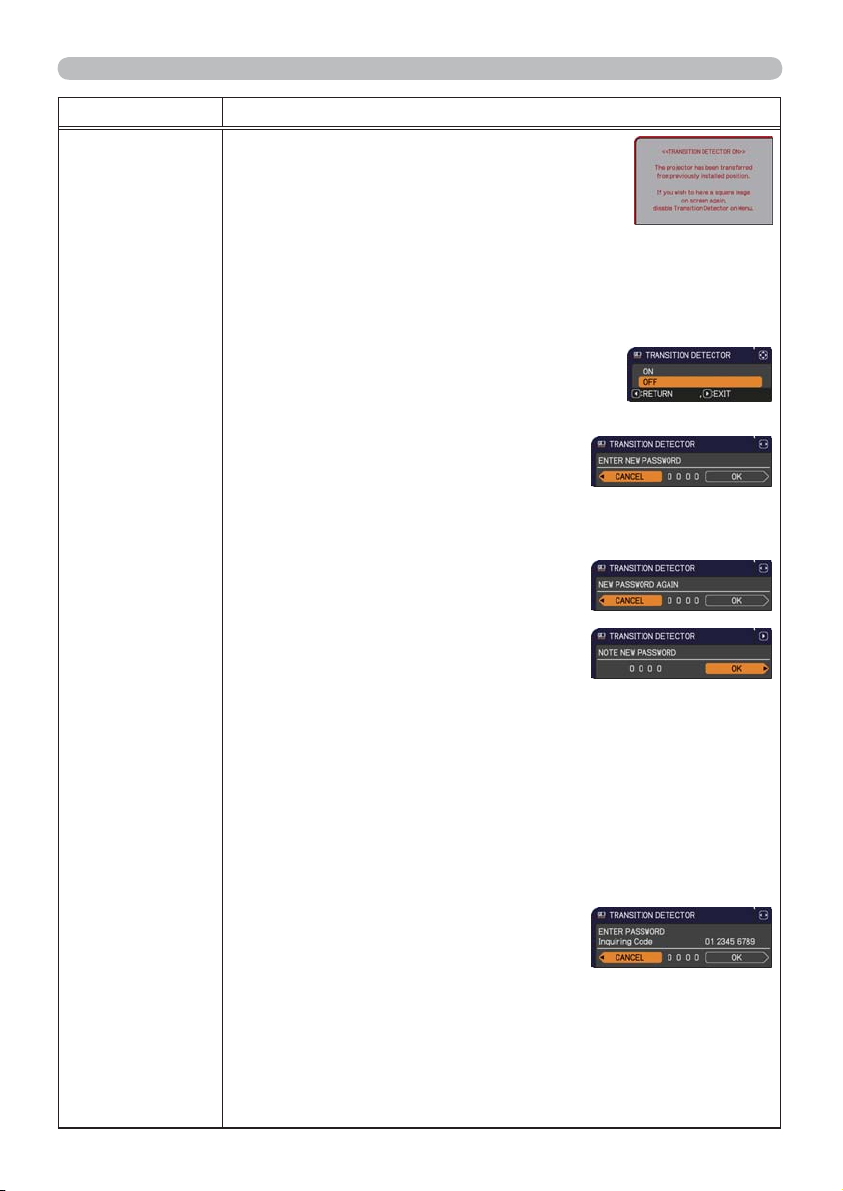

Item Description

If this function is set to ON and the vertical angle of
the projector or the INSTALLATION setting is different
from the previous recorded setting, the TRANSITION
DETECTOR ON alarm will be displayed and the input
signal will not be displayed.

• To display the signal again, set this function OFF.

• After about 5 minutes of displaying the TRANSITION DETECTOR ON
alarm, the lamp will turn off.

• Keystone adjustment feature has been prohibited as long as the Transition
Detector function is on.

1 Turning on the TRANSITION DETECTOR

1-1 Use the ▲/▼ buttons on the SECURITY menu

1-2

1-3 Use the ▲/▼/◄/► buttons to enter a

TRANSITION

DETECTOR

1-4 Move the cursor to the right side of the

• Please do not forget your TRANSITION DETECTOR password.

• This function will activate only when the projector is started after turning off
the AC power.

• This feature may not function properly if the projector is not in a stable
position when ON is selected.

2 Turning off the TRANSITION DETECTOR

2-1
2-2

If an incorrect password is input, the menu will
close. If necessary, repeat the process from 2-1.

3 If you have forgotten your password

3-1
3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

3-3 Contact your dealer with the 10 digit Inquiring Code. Your password will

(continued on next page)

SECURITY menu

to select TRANSITION DETECTOR and press

the ► or the ENTER button to display the

TRANSITION DETECTOR on/off menu.

Use the ▲/▼ buttons on the TRANSITION

DETECTOR on/off menu to select ON.

Selecting ON will save the setting of the

current angle and the INSTALLATION setting.

The ENTER NEW PASSWORD box (small)

will be displayed.

password. Move the cursor to the right side

of the ENTER NEW PASSWORD box (small)

and press the ► button to display the NEW

PASSWORD AGAIN box, enter the same

password again.

NEW PASSWORD AGAIN box and press

the ► button to display the NOTE NEW

PASSWORD box for about 30 seconds,

please make note of the password during this time.
Pressing the ENTER button on the remote control or the ► button on the
projector will return to the TRANSITION DETECTOR on/off menu.

Follow the procedure in 1-1 to display the TRANSITION DETECTOR on/off menu.

Select OFF to display the ENTER

PASSWORD box (large). Enter the registered

password and the screen will return to the

TRANSITION DETECTOR on/off menu.

Follow the procedure in 1-1 to display the TRANSITION DETECTOR on/off menu.

Inquiring Code will be displayed inside the box.

be sent after your user registration information is conrmed.

ENTER NEW PASSWORD

box (small)

ENTER PASSWORD box

(large)

77

SECURITY menu

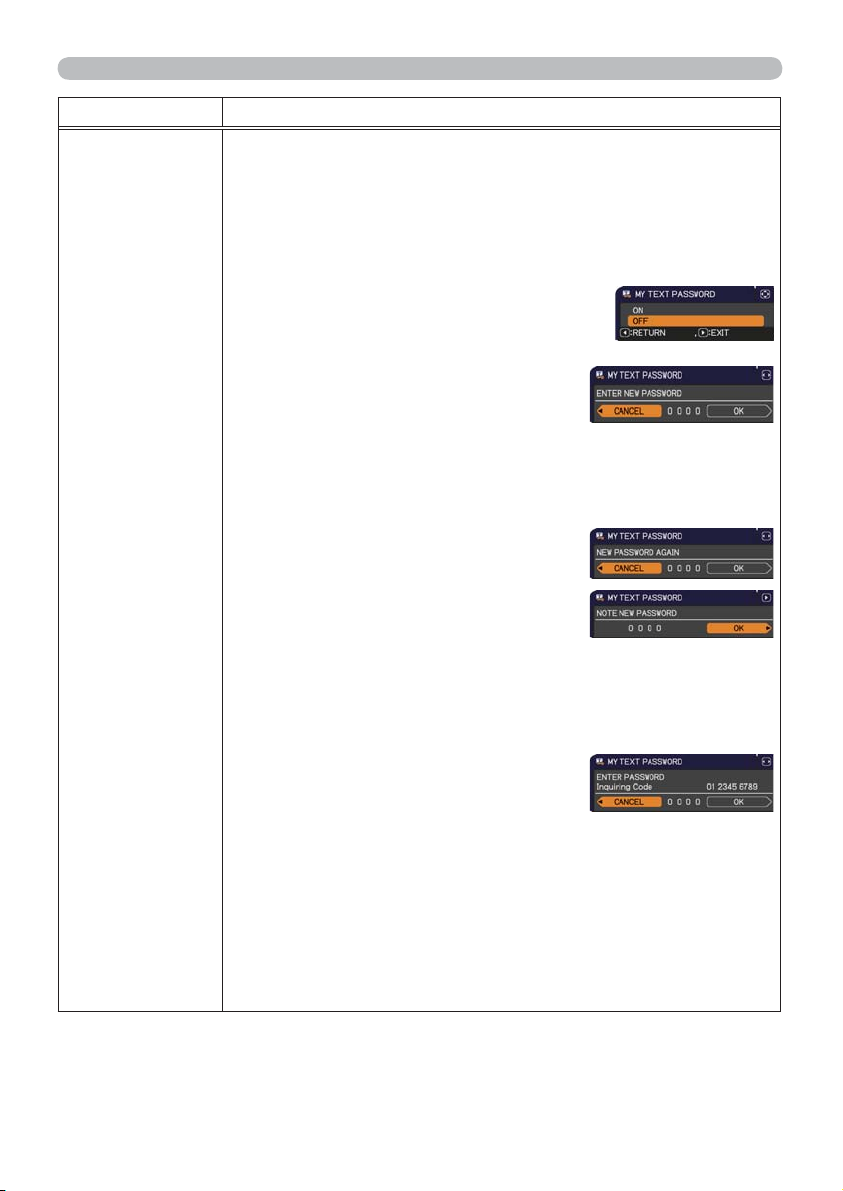

Item Description

The MY TEXT PASSWORD function can prevent the MY TEXT from being
overwritten. When the password is set for the MY TEXT;

• The MY TEXT DISPLAY menu will be unavailable, which can prohibit
changing the DISPLAY setting.

• The MY TEXT WRITING menu will be unavailable, which can prevent the
MY TEXT from being overwritten.

1 Turning on the MY TEXT PASSWORD

1-1 Use the ▲/▼ buttons on the SECURITY menu to

1-2 Use the ▲/▼ buttons on the MY TEXT

1-3 Use the ▲/▼/◄/► buttons to enter the

1-4 Move the cursor to the right side of the

MY TEXT

PASSWORD

Pressing the ENTER button on the remote control or ► button on the
projector will return to the MY TEXT PASSWORD on/off menu.

2 Turning off the MY TEXT PASSWORD

2-1 Follow the procedure in 1-1 to display the MY TEXT PASSWORD on/off

2-2 Select OFF to display the ENTER

If an incorrect password is input, the menu will close.
If necessary, repeat the process from 2-1

3 If you have forgotten your password

3-1 Follow the procedure in 1-1 to display the MY TEXT PASSWORD on/off

3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

3-3 Contact your dealer with the 10 digit inquiring code. Your password will

(continued on next page)

select the MY TEXT PASSWORD and press the

► button to display the MY TEXT PASSWORD

on/off menu.

PASSWORD on/off menu to select ON. The

ENTER NEW PASSWORD box (small) will

be displayed.

password. Move the cursor to the right side

of the ENTER NEW PASSWORD box (small)

and press the ► button to display the NEW

PASSWORD AGAIN box, and then enter the

same password again.

NEW PASSWORD AGAIN box and press

► button to display the NOTE NEW

PASSWORD box for about 30 seconds, then

please make note of the password during

this time.

menu.

PASSWORD box (large). Enter the

registered password and the screen will

return to the MY TEXT PASSWORD on/off

menu.

menu.

inquiring code will be displayed inside the box.

be sent after your user registration information is conrmed.

ENTER NEW PASSWORD

box (small)

ENTER PASSWORD box

(large)

78

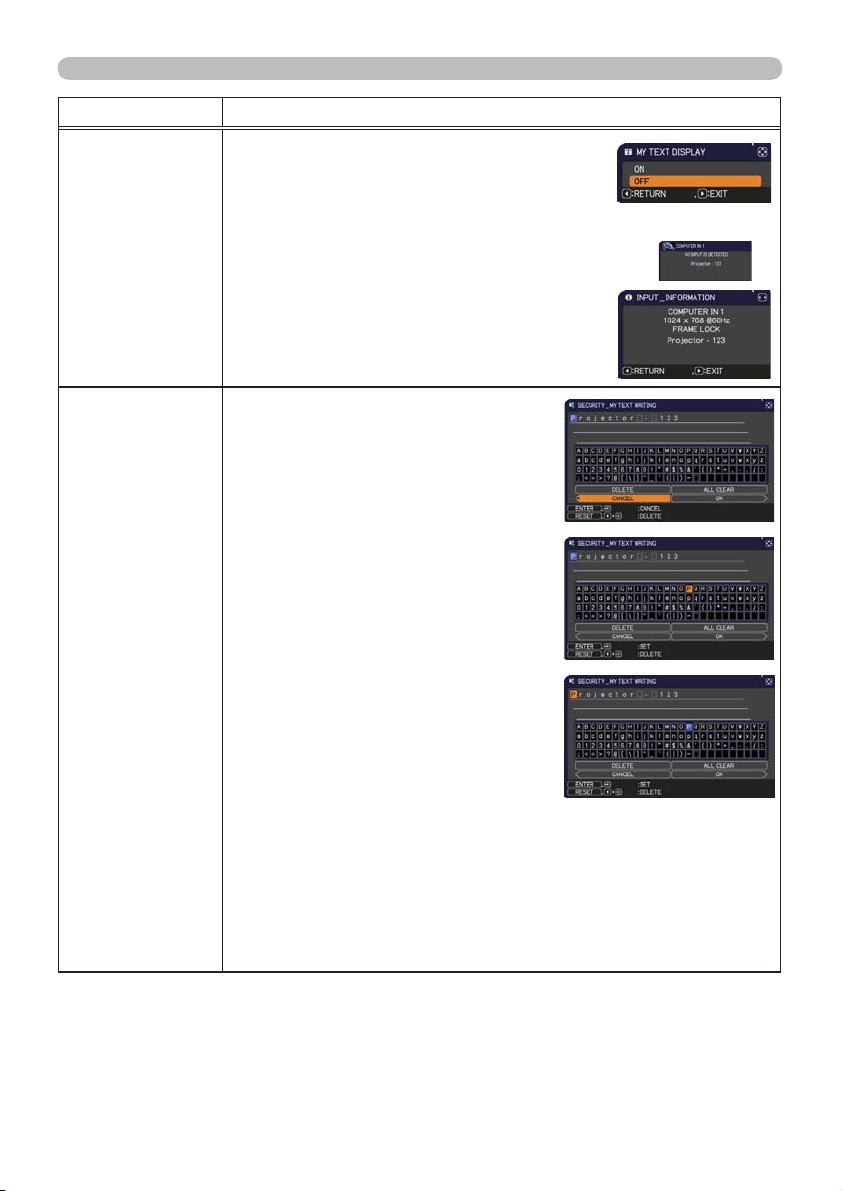

Item Description

(1) Use the ▲/▼ buttons on the SECURITY menu to

select the MY TEXT DISPLAY and press the ► or
ENTER button to display the MY TEXT DISPLAY
on/off menu.

(2) Use the ▲/▼ buttons on the MY TEXT DISPLAY on/off menu to select

MY TEXT

DISPLAY

MY TEXT
WRITING

on or off.

ON Ù OFF

When it is set ON, the MY TEXT will be displayed
on the START UP screen and the INPUT_
INFORMATION when the INFORMATION on the
SERVICE menu is chosen.

• This function is available only when the MY TEXT
PASSWORD function is set to the OFF.

(1) Use the ▲/▼ buttons on the

SECURITY menu to select the MY
TEXT WRITING and press the ►
button. The MY TEXT WRITING dialog
will be displayed.

(2) The current MY TEXT will be displayed

on the rst 3 lines. If not yet written, the
lines will be blank.
Use the ▲/▼/◄/► buttons and the
ENTER or INPUT button to select and
enter characters. To erase 1 character
at one time, press the RESET button or
press the ◄ and INPUT button at the
same time. Also if you move the cursor
to DELETE or ALL CLEAR on screen
and press the ENTER or INPUT button,
1 character or all characters will be
erased. The MY TEXT can be input up
to 24 characters on each line.
To change an already inserted character,

(3)

press the ▲/▼ button to move the
cursor to one of the rst 3 lines, and use
the ◄/► buttons to move the cursor on
the character to be changed.
After pressing the ENTER or INPUT button, the character is selected.
Then, follow the same procedure as described at the item (2) above.

(4) To nish entering text, move the cursor to the OK on screen and press

the ►, ENTER or INPUT button. To revert to the previous MY TEXT
without saving changes, move the cursor to the CANCEL on screen and
press the ◄, ENTER or INPUT button.

The MY TEXT WRITING function is available only when the MY TEXT

•

PASSWORD function is set to OFF.

SECURITY menu

79

Presentation tools

Presentation tools

The projector has the following two convenient tools that enable on-screen
presentations easily and quickly:

- PC-LESS Presentation (

- USB Display (

89)

below)

PC-LESS Presentation

The PC-LESS Presentation reads image and audio data from the storage media
inserted into the USB TYPE A port and displays the image in the following modes.
The PC-LESS Presentation can be started by selecting the USB TYPE A port as
the input source.
This feature allows you to make your presentations without using your computer.

- Thumbnail Mode (81)

- Full Screen Mode (

- Slideshow Mode (

[Supported storage media]

• USB memory (USB memory type, USB hard disk and USB card reader type)

85)

86)

NOTE

work (if the adapter is acknowledged as multiple devices connected).

• USB hubs may not work.

• USB devices with security software may not work.

• Be careful when inserting or removing a USB device. (

[Supported format]

• FAT12, FAT16 and FAT32

80

• USB readers (adapters) that have more than one USB slot may not

12, 83)

• NTFS is not supported.NOTE

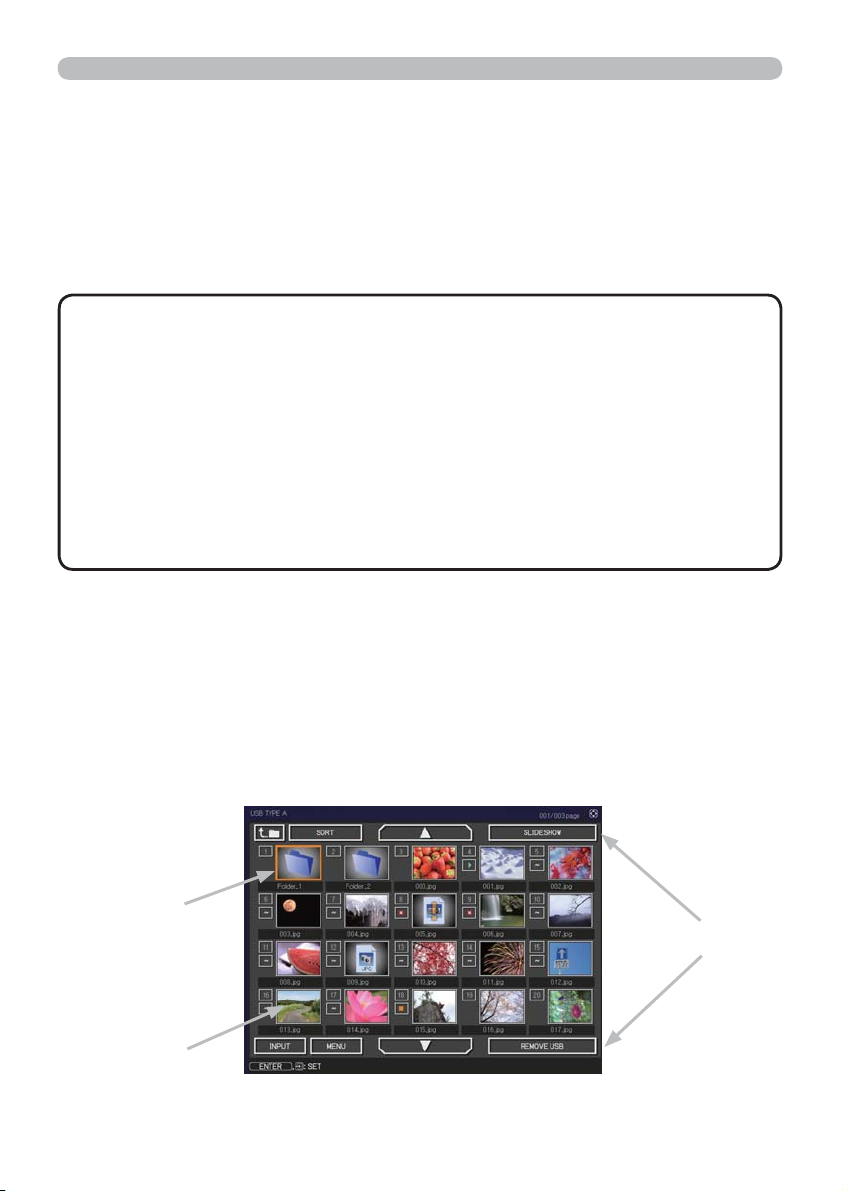

PC-LESS Presentation (continued)

>6XSSRUWHG¿OHIRUPDWDQGLWVH[WHQVLRQ@

• JPEG (.jpeg, .jpg) * Progressive is not supported.

• Bitmap (.bmp) *

16bit mode and compressed bitmap is not supported.

• PNG (.png) * Interlace PNG is not supported.

• GIF (.gif)

Presentation tools

NOTE

• Files with a resolution larger than the following are not supported.

CPX10WN, CPX11WN: 1024 x 768
CPWX12WN: 1280 x 800

(* Some computers may not support 1280 x 800.)

• Files with a resolution smaller than 36x36 are not supported.

• Files with a resolution smaller than 100x100 may not be displayed.

• Some supported les may not be displayed.

• Only a frame appears when the content of image data cannot be displayed in
the Thumbnail mode.

• Even with the le format and audio format combinations described above,
playback of some les may fail.

Thumbnail Mode

The Thumbnail mode displays the images stored in a USB storage device on the
Thumbnail screen. Maximum 20 images are displayed in a screen.
If you wish, you can jump into the Full Screen mode or Slideshow mode, after you
select some images in the Thumbnail mode.
The Thumbnail mode will be started as the primary function of the PC-LESS
Presentation after selecting the USB TYPE A port as the input source.

Selected image

Thumbnail images

Thumbnail menu

81

Presentation tools

PC-LESS Presentation (continued)

Operating by buttons or keys

You can control the images on the Thumbnail screen with the remote control,
control panel or Web Remote Control. The following functions can be supported
while the Thumbnail is displayed.

Button operation

The remote
control

▲/▼/◄/►▲/▼/◄/► [▲]/[▼]/[◄]/[►] Moves cursor.

PAGE UP
PAGE DOWN

ENTER INPUT [ENTER]

Control panel

-

Web Remote
Control

[PAGE UP]
[PAGE DOWN]

Switches pages.

• Displays the selected image
on the Full Screen mode when a
cursor is on a thumbnail image.

• Displays the SETUP menu
(

below) for the selected image



when a cursor is on a thumbnail
image number.

Functions

The SETUP menu for the selected image

82

Item Functions

SETUP

RETURN

START

STOP

SKIP

ROTATE

Use the ◄/► cursor buttons to switch each setting or use the ►
cursor button to execute the functions as follows.

Press the ► cursor button or ENTER to return to the Thumbnail
screen.

Switch to ON to set the selected image as the rst image in the
Slideshow. This setting information will be saved in the “playlist.
txt” le (

Switch to ON to set the selected image as the last image in the
Slideshow. This setting information will be saved in the “playlist.
txt” le (

Switch to ON to skip the selected image in the Slideshow. This
setting information will be saved in the “playlist.txt” le (

Press the ► cursor or ENTER button to rotate the selected still
image 90 degrees clockwise. This setting information will be
saved in the “playlist.txt” le (





88).

88).



88).



88).

Presentation tools

PC-LESS Presentation (continued)

Operating by the menu on the Thumbnail screen

You can also control the images by using the menu on the Thumbnail screen.

Item Functions

Moves to an upper folder.

SORT Allows you to sort les and folders as following.

RETURN

NAME UP Sorts in ascending order by le name.
NAME DOWN Sorts in descending order by le name.
DATE UP Sorts in ascending order by le date.

DATE DOWN Sorts in descending order.by le date.

▲/▼ Go to previous / next page.
SLIDESHOW Congures and starts the Slideshow (

RETURN

PLAY Press the ► cursor button or ENTER to start the Slideshow.

START Sets the beginning number of the Slideshow.

STOP Sets the end number of the Slideshow.

INTERVAL

PLAY MODE Selects the Slideshow mode.
INPUT Switches the input port.
MENU Displays the menu.

REMOVE USB

Press the ► cursor button or ENTER to return to the Thumbnail
screen.

86).



Press the ► cursor button or ENTER to return to the Thumbnail
screen.

Sets the interval time
Slideshow.

Be sure to use this function before removing USB storage device
from the projector. After that, the projector will not recognize a
USB storage device until you insert it again into the USB TYPE A
input port.

of displaying still images during the

83

Presentation tools

PC-LESS Presentation (continued)

•

NOTE

These operations are not accessible while the projector OSD is displayed.

• The Thumbnail mode is able to display up to 20 les in one page.

• It is not possible to change the input port by using the INPUT button when the
Thumbnail screen, Slideshow, or Full Screen is displayed.

• Some error icons will be displayed in the Thumbnail.

This le seems to be broken or not supported format.

A le that cannot be displayed on the
thumbnail screen is indicated by a le
format icon.

84

Presentation tools

PC-LESS Presentation (continued)

Full Screen Mode

The Full Screen mode shows a full display image. To display in Full Screen mode,
select an image in the Thumbnail screen. Then press the ENTER button on the
remote control, the INPUT button on the control panel or click [ENTER] on the
Web Remote Control.

Full screen display

Operations for still images

The following operations are enabled in the Full Screen mode while a still image
is displayed.

Button operation

The remote
control

▼
►

or

PAGE DOWN

▲
◄

or

PAGE UP
ENTER INPUT [ENTER] Displays Thumbnail.

Control panel

▼
or

►

▲

or

◄

Web Remote
Control

[▼]
[►]
or
[PAGE DOWN]

[▲]
[◄]
or
[PAGE UP]

Shows the next le.

Shows the previous le.

Functions

85

Presentation tools

PC-LESS Presentation (continued)

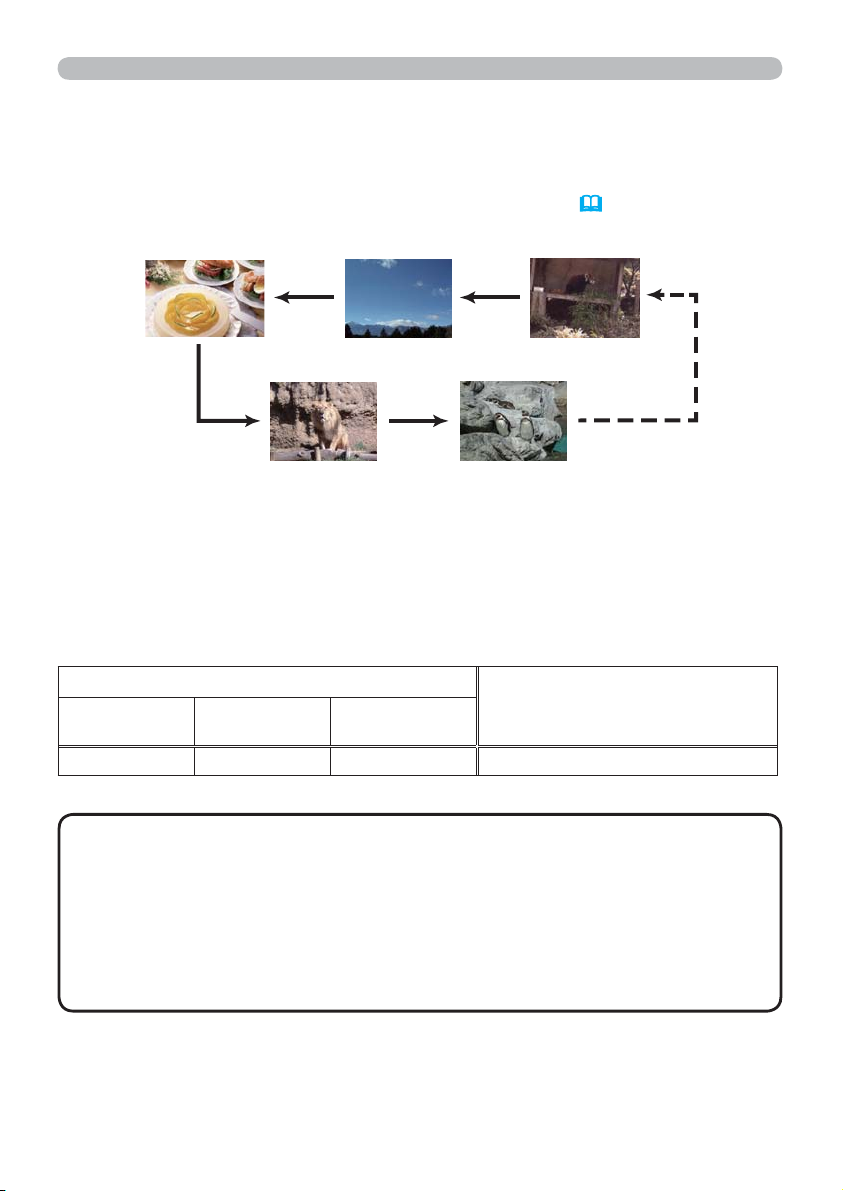

Slideshow Mode

The Slideshow mode displays images in full screen and switches the images at
intervals set in INTERVAL on the Thumbnail screen menu (

You can start this function from the Slideshow menu. To display the Slideshow
menu, select the SLIDESHOW button in the Thumbnail mode and press the

ENTER button on the remote control, INPUT button on the control panel, or click
[ENTER] on the Web Remote Control.

While the Slideshow is displayed, the following button operations are enabled
when still images are displayed, and the same button operations in the Full
Screen mode are enabled when movies are displayed.

83).

Button operation

The remote
control

ENTER INPUT [ENTER] Displays thumbnail.

NOTE

• These operations are not accessible while the projector OSD is

Control panel

Web Remote
Control

Functions

displayed.

• It is not possible to change the input port by using the INPUT button when the
Thumbnail screen, Slideshow, or Full Screen is displayed.

When the Slideshow mode is set to ONE TIME and the last le is a still image,

•
the last slide of the presentation will remain displayed until the ENTER button
on the remote control or Web Remote Control, or the INPUT button on the
control panel is pressed.

86

PC-LESS Presentation (continued)

You can play the Slideshow at your desired conguration.
Congure the Slideshow items in the Thumbnail.

1) RETURN :

Returns to the thumbnail mode.

2) PLAY : Play the Slideshow.

3) START :

Set the beginning number of the
Slideshow.

4) STOP : Set the end number of the Slideshow.

5) INTERVAL : Sets the interval time for displaying still
images during the Slideshow.
It is not recommend to set the interval
time very short something like several
seconds, because it may take more than
several seconds to read and display an
image le if it is stored in very deep layer
directory or if so many les are stored in
the same directory.

6) PLAY MODE : Select the Slideshow mode.
ONE TIME : Play the Slideshow one
time.
ENDLESS : Play the Slideshow endless.

Presentation tools

NOTE

• The settings of the Slideshow are saved to the ³SOD\OLVWW[W´ le
that is stored in the storage media. If the le is not existed, it is generated
automatically.

• The settings for the START, STOP, INTERVAL, and PLAY MODE are saved to
the Playlist.

• If the storage media is under the write protection or the ³SOD\OLVWW[W´ is the
read only type le, it is impossible to change the settings of the Slideshow.

87

Presentation tools

PC-LESS Presentation (continued)

Playlist

The Playlist is a DOS format text le, which decides the order of displayed still
image les in the Thumbnail or Slideshow.
The playlist le name is “playlist.txt” and it can be edited on a computer.
It is created in the folder that contains the selected image les when the PC-LESS
Presentation is started or the Slideshow is congured.

[Example of “playlist.txt”¿OHV@
START setting : STOP setting : INTERVAL setting : PLAY MODE setting :
img001.jpg: : : :
img002.jpg:600: : :
img003.jpg:700:rot1: :
img004.jpg: : :SKIP:
img005.jpg:1000:rot2:SKIP:

The “playlist.txt” le contains the following information.
Each piece of information requires to be separated by “:”, and “:” at the end of each line.
1st line: START, STOP, INTERVAL and PLAY MODE settings (87).
2nd line and after: le name, interval time, rotation setting and skip setting.

interval time:
rotation setting

skip setting: “SKIP” means that the image will not be displayed in the

It can be set from 0 to 999900 (ms) with an increment of 100 (ms).

: “rot1” means a rotation at 90 degrees clockwise; “rot2” and

“rot3” increase another 90 degrees in order.

Slideshow.

•

NOTE

The maximum length in a line on the "playlist.txt" le is 255 characters

including linefeed. If any line exceeds the limit, the "playlist.txt" le becomes invalid.

•

Up to 999 les can be registered to the Playlist. However, if some folders exist in
the same directory the limit number is decreased by the number of folders.
Any les over the limit will not be shown in the Slideshow.

•

If the storage device is protected or does not have sufcient space, the “playlist.txt”
le cannot be created.

• For the Slideshow settings, refer to the section Slideshow Mode (86).

88

Presentation tools

USB Display

The projector can display images transferred from a computer via an USB cable (11).

Hardware and software requirement for computer

• OS: One of the following. (32 bit version only)
Windows ® XP Home Edition /Professional Edition

Windows Vista
Windows
Enterprise

• CPU: Pentium 4 (2.8 GHz or higher)

• Graphic card: 16 bit, XGA or higher

• Memory: 512 MB or higher

• Hard disk space: 30 MB or higher

• USB Port

• USB cable : 1 piece

Starting USB Display

Select the USB DISPLAY for the USB TYPE B item in the OPTION menu.
When you connect your computer to the USB TYPE B port on the projector
using a USB cable, the projector will be recognized as a CD-ROM drive on your
computer. Then, the software in the projector, “LiveViewerLiteUSB.exe”, will run
automatically and the application, “LiveViewer Lite for USB”, will be ready on your
computer for the USB Display. The application, “LiveViewer Lite for USB”, will
close automatically when the USB cable is unplugged. However, it may remain
displayed at times.

®

Home Basic /Home Premium /Business /Ultimate /Enterprise

®

7 Starter /Home Basic /Home Premium /Professional / Ultimate /

NOTE

• If the software does not start automatically (this is typically because
CD-ROM autorun is disabled on your OS), follow the instructions below.
(1) Click on the [Start] button on the toolbar and select the “Run”
(2) Enter F:\LiveViewerLiteUSB.exe and then press the [OK]

If your CD-ROM drive is not drive F on your computer, you will
need to replace F with the correct drive letter assigned to your
CD-ROM drive.

• CD-ROM autorun is disabled while the screen saver is running.

• The image transmission from the computer is suspended while the password­protected screen saver is running. To resume the transmission, exit the screen
saver.

•

If "Waiting for connection." remains displayed while the USB cable is connected,

remove the USB cable and reconnect after a while.

• Check our web site for the latest version of the software and its manual.
(User's Manual (concise))

Follow the instructions that can be obtained at the site for updating.

(continued on next page)

89

Presentation tools

USB Display (continued)

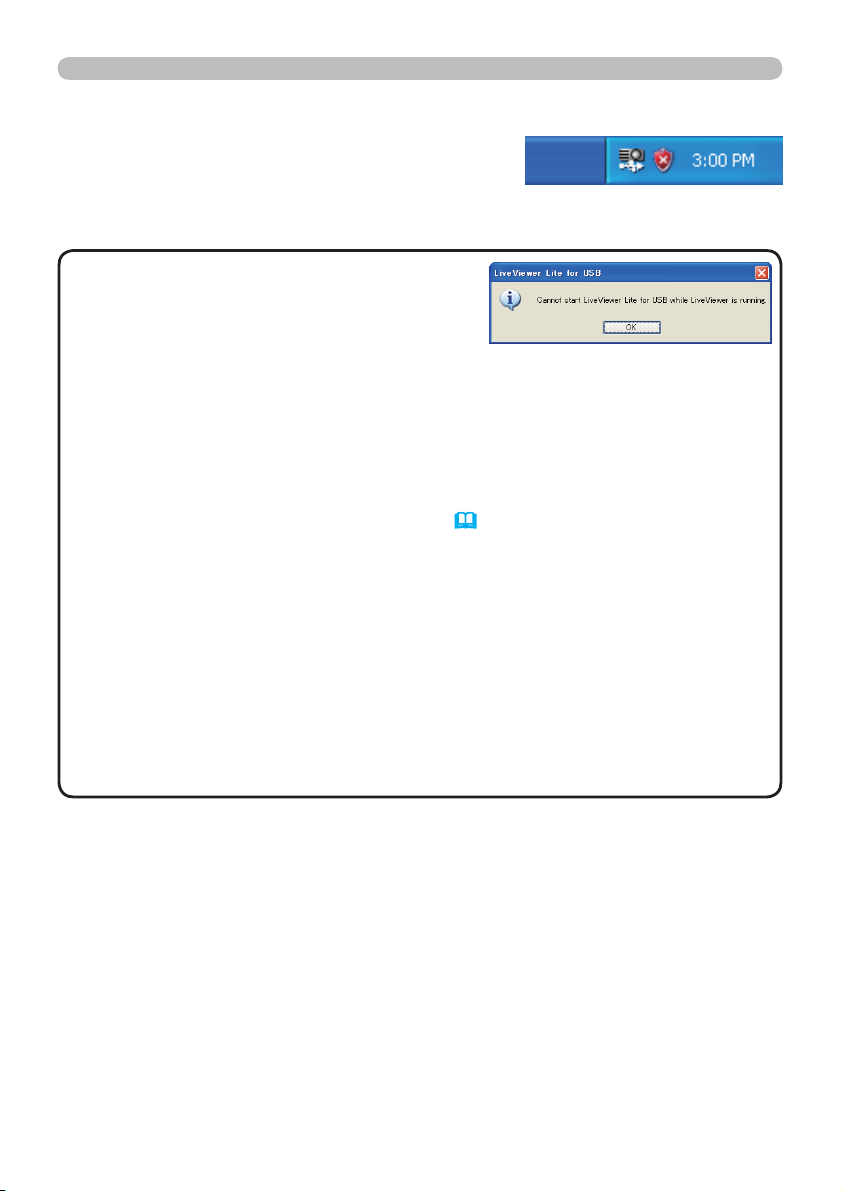

This application will appear in the Windows
notication area once it starts. You can quit the
application from your computer by selecting “Quit” on
the menu.

NOTE

• The “LiveViewer” (refer to the
Network Guide) and this application cannot
be used at the same time. If you connect your
computer to the projector by using a USB cable
while the “LiveViewer” is running, the following message will be displayed.

• Depending on the software installed on your computer, images on your
computer cannot be transferred using “LiveViewer Lite for USB”.

• If any application software having the rewall function is installed into your
computer, make the rwall function invalid with following the user's manual.

• Some security software may block image transmission. Please change the
security software setting to allow the use of "LiveViewer Lite for USB".

• When the audio input from USB TYPE B (46) is selected, if the sound level

is still low even after raising the volume level in the projector to the maximum,
check whether your computer outputs audio and raise the volume level
accordingly.

• If the computer in use is equipped with HDMI port, the audio setting will be
changed and sound interruption or noise may occur when the HDMI cable is
connected or disconnected during USB Display. Restart USB Display for this
case.

• Image distortion or sound interruption may occur when

“LiveViewer” is
connected to LAN (wireless or wired) during USB Display. The above decline in
performance is noticeable especially when multiple computers are connected to
“LiveViewer”.

90

Presentation tools

USB Display (continued)

Right-Click menu

The menu shown in the right will be displayed
when you right-click the application icon in the
Windows notication area.

Display : The Floating menu is displayed, and the icon disappears from the

Windows notication area.

Quit : The application is closed, and the icon disappears from the Windows

notication area.

NOTE

• If you wish to restart the application, you need to unplug the USB

cable and plug it again.

Floating menu

If you select “Display” on the Right-Click
menu, the Floating menu shown in the right
will appear on your computer screen.

. Start capture button

The transmission to the projector is started
and the images will be displayed.

3 Stop button

The image transmission is stopped.

$ Hold button

The image on the projector’s screen is temporally frozen. The last image before
the button is clicked is remained on the screen. You can revise the image data
on your computer without showing it on the projector's screen.

/ Option button

The Options window is displayed.

1 Minimize button

The Floating menu is c

losed, and the icon reappears in the Windows notication

area.

NOTE

• If you click the Start capture button and/or Stop button repeatedly,

images may not be displayed on the screen.

.3$ /1

91
