SAFETY POINTS YOU SHOULD KNOW ABOUT YOUR HITACHI TELEVISION

Our reputation has been built on the quality, performance, and ease of service of HITACHI televisions.

Safety is also foremost in our minds in the design of these units. To help you operate these products properly, this section illustrates safety tips which will be of benefit to you. Please read it carefully and apply the knowledge you obtain from it to the proper operation of your HITACHI television.

Please fill out your warranty card and mail it to HITACHI. This will enable HITACHI to notify you promptly in the improbable event that a safety problem should be discovered in your product model.

Follow all warnings and instructions marked on this television.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of

uninsulated “dangerous voltage” within the product’s enclosure that may be of a sufficient magnitude to constitute a risk of electric shock to a person.

The exclamation point within an equilateral

triangle, is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the literature accompanying the appliance.

READ BEFORE OPERATING EQUIPMENT

Follow all warnings and instructions marked on this

television.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding

prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use the attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod,

bracket, or table specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Televisions are designed to comply with the recommended safety standards for tilt and stability. Do not apply excessive pulling force to the front, or top, of the cabinet which could cause the product to overturn resulting in product damage and/or personal injury.

16. Follow instructions for wall, shelf or ceiling mounting as recommended by the manufacturer.

17. An outdoor antenna should not be located in the vicinity of overhead power lines or other electrical circuits.

18. If an outside antenna is connected to the receiver be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding for the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antennadischarge unit, connection to grounding electrodes and requirements for the grounding electrode.

Note to the CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-44 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Important Safety Instructions

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Power source

This television is designed to operate on 120 volts 60 Hz, ac current. Insert the power cord into a 120 volt

60 Hz outlet.The power cord is used as the disconnect

To prevent electric shock, do not use the television’s (polarized) plug with an extension cord, receptacle, or other outlet unless the blades and ground terminal can be fully inserted to prevent blade exposure.

Never connect the television to 50 Hz, direct current, or anything other than the specified voltage.

Caution

Never remove the back cover of the television as this can expose you to very high voltages and other hazards. If the

television does not operate properly, unplug the television and call your authorized dealer or service center.

Caution

Adjust only those controls that are covered in the instructions, as improper changes or modifications not expressly approved by HITACHI could void the user’s warranty.

Warning

• To reduce the risk of fire or electric shock, do not

expose this apparatus to rain or moisture.

• The television should not be exposed to dripping or

splashing and objects filled with liquids, such as vases, should not be placed on the television.

Warning

• Do not place any objects on the top of the television

which may fall or cause a child to climb to retrieve the objects.

• Projection TV’s are heavy and can mark or damage

floor surfaces (especially wood flooring) if moved improperly. Do not slide or force TV into position. Always roll TV allowing casters at bottom of unit to help steer and position the TV.

Public viewing of copyrighted material

Public viewing of programs broadcast by TV stations and cable companies, as well as programs from other sources, may require prior authorization from the broadcaster or owner of the video program material.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited consumer uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Note

This digital television is capable of receiving analog

basic, digital basic cable television programming by direct connection to a cable system providing such programming. Certain advanced and interactive

digital cable services such as video-on-demand, a cable operator’s enhanced program guide and data-enhanced television services may require the use of a set-top box. For more information call your local cable company.

Note

• There are no user serviceable parts inside the television.

• Model and serial numbers are indicated on back side of the television.

Prevention of screen burn

This Wide Screen TV is designed to display wide screen pictures. Images should be viewed mostly in wide screen format or zoomed to fit the screen with moving pictures. Use of side panels, top and bottom panels of standard picture formats should only be 15% of your total viewing time to prevent uneven aging of the phosphors. Phosphors in the lighted area of the picture will age more rapidly than the gray areas. Continuous on-screen displays such as video games, stock market quotations, computer generated graphics, and other fixed (non-moving) patterns can cause permanent damage to television receivers. Such “SCREEN BURNS” constitute misuse and are NOT COVERED by your HITACHI Factory Warranty.

Lead Notice

This product contains lead. Dispose of this product in accordance with applicable environmental laws. For product recycling and disposal information, contact your local government agency or the Electronic Industries Alliance at www.eiae.org (in the US) or the Electronic Product Stewardship Canada at

www.epsc.ca (in Canada). FOR MORE INFORMATION, CALL 1-800-HITACHI.

Important Safety Instructions

device and shall remain readily operable.

received, including interference that may cause undesired operation.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hitachi America, Ltd. Home Electronics Division may void the user’s authority to operate the equipment.

Note

This television receiver will display television closed captioning, ( or ), in accordance with paragraph

15.119 and 15.122 of the FCC rules.

FCC Information

This device complies with part15 of the FFC Rules. Operation is subject to the following two conditions (1) This decide may not cause harmful interference, and (2) This decide must accept any interference

Accessories

Check to make sure you have the following accessories before disposing of the packing material.

 Remote Control Unit CLU-436

1S (Part No. HL02291).

 Two “AA” size, 1.5V batteries (For Remote Control Unit).  “Z” Allen Key (Part No. 61010122). Provided only when Allen Screws are used.

REMOTE CONTROL BATTERY INSTALLATION AND REPLACEMENT

1. Open the battery compartment cover of the remote control by pulling back the TAB and lifting up to remove the cover.

2. Insert two new “AA” size batteries into the remote control.

When replacing old batteries, push them back towards the springs and lift out.

3. Match the batteries to the (+) and (-) marks in the battery compartment.

4. Insert the (-) side , into the battery compartment, the slide the battery inwards and insert the second battery. Do not force the battery into the battery compartment.

5. Replace the battery compartment cover.

 “Z” Allen Key

(65" Models Only)

 Remote Control

 Two “AA” size,

1.5V batteries

First time use

CAUTION: Do not insert batteries with ‘+’ and ‘-’ polarities reversed as this may cause the batteries to swell or rupture resulting in leakage.

Bottom View (Remote Control)

Pull up tab to remove back cover.

How to set up your new HITACHI Projection Television

ANTENNA

Unless your TV is connected to a cable TV system or to a centralized antenna system, a good outdoor TV antenna is recommended for best performance. However, if you are located in an exceptionally good signal area that is free from interference and multiple image ghosts, an indoor antenna may be sufficient.

LOCATION

Select an area where sunlight or bright indoor illumination will not fall directly on the picture screen. Also, be sure that the location selected allows a free flow of air to and from the perforated back cover of the set. To avoid cabinet warping, cabinet color changes, and increased chance of set failure, do not place the TV where temperatures can become excessively hot, for example, in direct sunlight or near a heating appliance, etc.

VIEWING

The major benefit of the HITACHI Projection Television is its large viewing screen. To see this large screen at its best, test various locations in the room to find the optimum spot for viewing.

The best picture is seen by sitting directly in front of the TV and about 10 to 18 feet from the screen. Picture brightness decreases as the viewer moves to the left and right of the receiver.

During daylight hours, reflections from outside light may appear on the screen. If so, drapes or screens can be used to reduce the reflection or the TV can be located in a different section of the room.

If the TV’s audio output will be connected to a Hi-Fi system’s external speakers, the best audio performance will be obtained by placing the speakers equidistant from each side of the receiver cabinet and as close as possible to the height of the picture screen center. For best stereo separation, place the external speakers at least four feet from the side of the TV, place the surround speakers to the side or behind the viewing area. Differences in room sizes and acoustical environments will require some experimentation with speaker placement for best performance.

CAUTION: Magnetic fields, such as those of external speakers, may cause the picture to distort if they are placed too close to the television. Move the magnetic field source away from the television until there is no picture distortion.

First time use

4" Minimum

BEST

20'

VERTICAL VIEWING

10'

BEST HORIZONTAL

10'

VIEWING ANGLE

15'

ANGLE

15'

20'

Most video/audio connections between components can be made with shielded video and audio cables that have phono connectors. For best performance, video cables should use 75-Ohm coaxial shielded wire. Cables can be purchased from most stores that sell audio/video products. Below are illustrations and names of common connectors. Before purchasing any cables, be sure of the output and input connector types required by the various components and the length of each cable.

300-Ohm Twin Lead Cable

This outdoor antenna cable must be connected to an antenna adapter (300-Ohm to 75-Ohm).

Phono Cable

Used on all standard video and audio cables which connect to inputs and outputs located on the television’s rear jack panel and front control panel.

“F” Type 75-Ohm Coaxial Antenna Cable

For connecting RF signals (antenna or cable TV) to the antenna jack on the television.

S-Video (Super Video) Cable

This connector is used on camcorders, VCRs and laserdisc players with an S-Video feature in place of the standard video cable to produce a high quality picture.

Optical Cable

This cable is used to connect to an audio amplifier with an Optical Audio In jack. Use this cable for the best sound quality.

HDMI Cable

This cable is used to connect your external devices such as Set-Top-Boxes or DVD players equipped with an HDMI output connection to the TV’s HDMI input.

ANTENNA CONNECTIONS TO REAR JACK PANEL

(75-Ohm) antenna/CATV (Cable TV)

When using a 75-Ohm coaxial cable system, connect

Antenna or CATV coaxial cable to the AIR/CABLE (75-Ohm) terminal .

VHF (300-Ohm) antenna/UHF antenna

When using a 300-Ohm twin lead from an outdoor antenna, connect the VHF or UHF antenna leads to screws of the VHF or UHF adapter. Plug the adapter into the AIR/CABLE terminal on the TV.

When both VHF and UHF antennas are connected

Attach an optional antenna cable mixer to the TV AIR/CABLE terminal, and connect the cables to the antenna mixer. Consult your dealer or service store

for the antenna mixer.

Hook-up Cables and Connectors

First time use

Quick Reference Remote Control Buttons and Functions

First time use

POWER BUTTON

(TV, CBL, VCR, DVD, SAT)

Turns the selected device on

and off.

INPUTS BUTTON (TV)

Accesses the INPUTS menu

system.

ASPECT BUTTON (TV)

Changes the aspect ratio while

watching TV.

MENU BUTTON

(CBL, DVD, SAT, TV)

Accesses the OSD menu

system.

CURSOR/SELECT BUTTONS

(TV, DVD, CBL, SAT)

The CURSOR buttons are used

to navigate the cursor through

the OSD and INPUTS menu

systems, and the SELECT

button is used to

Select/Activate the highlighted

menu item.

VOLUME BUTTONS (TV)

Adjusts the audio level of your

TV.

MUTE BUTTON (TV)

Reduces the audio level to 50%

if pressed once, and to

complete mute if pressed twice.

Press it a third time to restore

audio level.

NUMERIC BUTTONS

(TV, DVD, CBL, SAT, VCR)

Used to manually enter the TV

channel, and used for numeric

entry when navigating through

the OSD menu system.

(-) BUTTON (TV, SAT)

The (-) button is used when the remote is in Set-Top-Box (STB)

mode or when the TV uses a

digital input.

RECORD BUTTON (VCR)

Press twice (2 times) to record

programs.

SOURCE ACCESS BUTTONS (TV, DVD, VCR, CBL, SAT)

Changes the mode of the Universal Remote Control to control the device selected.

DAY/NIGHT BUTTON (TV)

Select picture mode settings between DAY and NIGHT mode.

PIP BUTTON (TV)

Press to show and change the Picture-in-Picture mode.

EXIT BUTTON (TV, CBL, SAT)

Exits out of the OSD or INPUTS menu systems if their menu is displayed.

FAVORITE CHANNEL (FAV CH) button (TV)

Press to enter/access Favorite Channel (FAV) mode.

GUIDE BUTTON (SAT/STB, CBL)

Accesses the program guide of other devices.

INFO BUTTON (TV, CBL, SAT)

Displays various information on the screen.

CHANNEL BUTTONS (TV, CBL, SAT, VCR)

Changes the channel.

LAST CHANNEL (LC) BUTTON (TV, CBL, SAT)

Switches between the current and last channel viewed.

DVD/VCR CONTROL BUTTONS (DVD, VCR)

Controls the precode functions of your VCR and DVD.

PAUSE BUTTON (TV, VCR, DVD)

Press to show and change the Freeze mode of the TV or pause other devices.

In addition to controlling all of the functions on your HITACHI Projection TV, the new remote control is designed to operate different types of devices, such as, DVD Players, CBL (Cable Boxes), set-top-boxes, satellite receivers, and VCRs. The remote control must be programmed to control the chosen device. Please see page 18-31 for a complete description of all features and programming of the Remote Control.

LEGEND TV – Television VCR – Video Cassette Recorder/Player CBL – Cable Box DVD – Digital Video Disc Player STB – Set-Top-Box SAT – Satellite Receiver

NOTE: STB precode is included in the

SAT mode.

Front Panel Controls

First time use

 MENU/SELECT button

This button allows you to enter the MENU, making it possible to set TV features to your preference without using the remote. This button also serves as the SELECT button when in MENU mode.

 INPUT/EXIT button

Press this button to display the input menu, CABLE, AIR, INPUT: 1, 2, 3, 4 and 5. This button also serves as the EXIT button when in MENU mode.

 CHANNEL selector

Press these buttons until the desired channel appears in the top right corner of the TV screen. These buttons also serve as the cursor down (

)

and up (

) buttons when in MENU mode.

 VOLUME level

Press these buttons for your desired sound level. The volume level will be displayed on the TV screen. These buttons also serve as the cursor left (

) and right () buttons when in MENU mode.

When the TV power is turned OFF at a volume level 31 or greater, the volume level will default to 30 when the TV is turned ON. However, if it is set to a level 30 or less, the volume level will be at the level it was set when the TV is turned ON.

 POWER button/ POWER LED

Press this button to turn the TV on or off. This LED

light is on during normal operation. At initial TV turn

on, the TV cannot receive any button or Remote Control signals for approximately five seconds

while the internal programming is loading. This is a normal default operation of this television and is an energy saving feature.

 MAGIC FOCUS button

Use this button to automatically adjust your picture

quality to optimum performance (see page 53).

 FRONT INPUT JACKS (INPUT 5)

Use these audio/video jacks for a quick hook-up from a camcorder or VCR to instantly view your favorite show or new recording. Press the INPUT button and select INPUT 5. If you have mono sound, insert the audio cable into the left audio jack.

 IR RECEIVER Sensor

Point the remote control at this area when selecting channels, adjusting volume, etc.

LED

POWER













쐋



Front Panel Jacks and Connections

First time use

The front panel jacks are provided as a convenience to allow you to easily connect a camcorder or VCR as shown in the following examples:

NOTE: 1. Completely insert connection cord plugs when connecting to front panel jacks. If you do not, the

played back picture may be abnormal.

2. If you have a S-VHS VCR, use the S-INPUT cable in place of the standard video cable.

3. If you have a mono VCR, insert the audio cable into the left audio jack of your TV.

Rear Panel Connections

First time use

쐃AIR /CABLE Input

A 75-Ohm RF Antenna or CATV(Cable

TV) input.

NOTE: You may ask your local cable company

whether DTV services are available.

쐇 Audio/Video INPUTS 1, 2, 3 and 4

By using the INPUTS button, CURSOR buttons and SELECT button of the remote control you can select each video source. Use the audio and video inputs to connect external devices, such as VCRs, camcorders, laserdisc players, DVD players etc. (If you have mono sound, insert the audio cable into the left audio jack.)

NOTE: You may use VIDEO or S-VIDEO inputs to

connect to INPUT 1 and 2, but only one of these inputs may be used at a time.

쐋

Audio Out

These jacks provide fixed or variable audio signals which are used for recording.

쐏 S-Video INPUTS 1 and 2

INPUTS 1 and 2 provide S-Video (Super Video) jacks for connecting equipment with S-Video output capability.

쐄 Component: Y-P

BPR

INPUTS

INPUTS 3 and 4 provide Y-P

BPR

jacks for connecting equipment with this capability, such as a DVD player or Set Top Box. You may use composite video signal for both inputs.

NOTE: 1. Do not connect composite VIDEO and

S-VIDEO to INPUT 1, 2 or 5 at the same

time. S-VIDEO has priority over VIDEO input.

2. Your component outputs may be labeled Y, B-Y, and R-Y. In this case, connect the components B-Y output to the TV’s P

input and the components R-Y output to the TV’s P

input.

3. Your component outputs may be labeled Y-C

BCR

. In this case, connect the component

B output to the TV’s PB input and the

component C

output to the TV’s PRinput.

4. It may be necessary to adjust TINT to obtain optimum picture quality when using the Y-P

BPR

inputs (see page 34).

5. To ensure no copyright infringement, the MONITOR OUT output will be abnormal, when using the Y-P

BPR

jacks.

6. INPUT 3 and INPUT 4 (Y/VIDEO) can be used for composite video and component video input.

쐂 HDMI1 (High Definition Multimedia

Interface) (INPUT 1)

ABOUT HDMI – HDMI is the next-generation all digital interface for consumer electronics. HDMI enables the secure distribution of high-definition video and multi-channel audio in a single cable. Because digital television (DTV) signals remain in digital format, HDMI assures that pristine high-definition images retain the highest video quality from the source all the way to your television screen.

Use the HDMI input for your external devices such as Set-Top-Boxes or DVD players equipped with an HDMI output connection.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

NOTE: 1. The HDMI input is not intended for use

with personal computers.

2. Only DTV formats such as 1080i, 720p, 480i and 480p are available for HDMI input.

쐏

AIR / CABLE

쐃

Upgrade Card

쐄

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

MISE EN GARDE

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

S - VIDEO

VIDEO

AUDIO TO Hi-Fi

AUDIO

MONO

TV AS CENTER

INPUT 1 INPUT 2 INPUT 3 INPUT 4

HIGH-DEFINITION MULTIMEDIA INTERFACE

VIDEO

BPB

PRP

MONO

MONOMONO

OPTICAL OUT

Digital Audio

쐂

쐆

NOTE 1: Optical Audio Out "Only" available using

Digital Tuner on Digital Channels.

CH1

No other input's Audio is output via Optical Audio Out. This includes HDMI audio. It is not output.

BACK TO COVER

쐊

쐋

쐇

쐎

Rear Panel Connections

CAUTION

RISK OF ELECTRIC SHOCK

MISE EN GARDE

RISQUE DE CHOC ELECTRIQUE

쐏

AIR / CABLE

쐃

Upgrade Card

DO NOT OPEN

NE PAS OUVRIR

S - VIDEO

VIDEO

AUDIO TO Hi-Fi

AUDIO

MONO

INPUT 1 INPUT 2 INPUT 3 INPUT 4

쐄

HIGH-DEFINITION MULTIMEDIA INTERFACE

VIDEO

BPB

PRP

MONO

MONOMONO

TV AS CENTER

OPTICAL OUT

Digital Audio

First time use

쐂

쐆

쐊

 Optical Out (Digital Audio)

This jack provides Digital Audio Output for

your audio device that is Dolby

Digital

compatible, such as an audio amplifier.

Manufactured under license from Dolby Laboratories. “DOLBY” and the DOUBLE-D symbol are trademarks of Dolby Laboratories.

NOTE : This OUTPUT is for DIGITAL channels only.

 Upgrade Card

This card slot is for future software upgrades. Hitachi will notify you if a software upgrade is required for your TV. In order to receive written notification, please complete and return your warranty card.

 TV AS CENTER (INPUTS 1-4)

These jacks are for stereo amplifiers with center signal output capability. This feature allows the TV speakers to be used as a center speaker. The TV must be set as a center channel by selecting TV AS CENTER on the Internal Speakers Settings of the Audio Menu (see page 38).

쐋

쐇

쐎

CH1

NOTE 1: Optical Audio Out "Only" available using

Digital Tuner on Digital Channels.



No other input's Audio is output via Optical Audio Out. This includes HDMI audio. It is not output.

BACK TO COVER

First time use

Rear Panel Connections

TIPS ON REAR PANEL CONNECTIONS

BPR

• S-VIDEO, Y- P connections are provided for high performance laserdisc players, VCRs etc. that have this feature. Use these connections in place of the standard video connection if your device has this feature.

• If your device has only one audio output (mono sound), connect it to the left audio

jack on the television.

• Refer to the operating guide of

your other electronic equipment for additional information on connecting your hook-up cables.

• An AUDIO system can be used

by connecting the AUDIO TO HI-FI

output of the TV. This can be use when you like to control the volume output by changing the volume of the TV.

See Note 1 about Optical Audio Output jack.

• You may use VIDEO or S-VIDEO inputs to connect to INPUT 1, INPUT 2 or INPUT 5,

but only one of these may be used at a time.

• Connect only one component (VCR, DVD player, camcorder, etc.) to each input jack.

and HDMI

Outside Antenna or Cable

AIR / CABLE

CH1

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

MISE EN GARDE

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

S - VIDEO

VIDEO

AUDIO TO Hi-Fi

Upgrade Card

AUX/PHONO INPUT

L R

AUDIO AMP

OUTPUT

VL R

S-VIDEO

Laserdisc player, VCR,

AUDIO

S-VIDEO

NOTE 2: HDMI Audio is Not output

via Optical Audio Output jack.

HIGH-DEFINITION MULTIMEDIA INTERFACE

HDMI INPUT

VIDEO

MONO

TV AS CENTER

INPUT 1 INPUT 2 INPUT 3 INPUT 4

OUTPUT

VL R

VCR #1 DVD Player

MONO

MONOMONO

OPTICAL OUT

Digital Audio

OUTPUT

External

Digital Component with HDMI

output

capability

HDMI OUT

OPTICAL IN

To an amplifier / receiver with

i l i

optical input capability.

NOTE 1: Optical Audio Out only

available using Digital Tuner on

RLPB/CBPR/C

Digital Channels. No other input's Audio is output via Optical Out.

• COMPONENT: Y-P

(INPUT 3 and INPUT 4)

BPR

connections are provided for high performance components, such as DVD players and set-topboxes. Use these connections in place of the standard video connection if your device has this

feature. INPUT 3 and INPUT 4 accepts both composite and component video signals.

• Your component outputs may be labeled Y, B-Y, and R-Y. In this case, connect the components

B-Y output to the TV’s P

input and the

components R-Y output to the TV’s P

• Your component outputs may be labeled Y-C In this case, connect the components C the TV’s P the TV’s P

input and the components CRoutput to input.

• You may use composite and component video signals for INPUT 3 and INPUT 4.

• It may be necessary to adjust TINT to obtain optimum picture quality when using the Y-P inputs (see page 34).

BACK TO COVER

input.

B output to

BPR

BCR

• When using an HDMI input from a Set-Top-Box, it is recommended that a 1080i or 720p input signal is used.

NOTE 2: HDMI Audio is Not output via Optical Audio Output jack.

NOTE: 1. Connect only one component to each

input jack.

2. Follow connections that pertain to your personal entertainment system.

3. INPUT 3 and INPUT 4 can accomodate

Composite and Component video signals.

4. Cables are not included with the purchase of this TV, except when noted as “provided”.

MACROVISION NOTES:

1. Video signals fed through a VCR may be affected by copyright protection systems and the picture will be distorted on the television.

2. Connecting the television directly to the Audio /Video output of a Set-Top-Box will assure a more normal picture.

CH1

Connecting External Audio Sources

Match the numbers below to the diagram for speaker placement.

 The television’s internal speakers will act as

center speaker (select AUDIO - INTERNAL SPEAKERS - TV AS CENTER).

 These FRONT left and right speakers are

connected to the FRONT output of a separate audio amplifier.

 These REAR left and right speakers are

connected to the Rear output of a separate audio amplifier.

 This subwoofer is connected to the LFE/SUB

Out output of a separate audio amplifier.





RCA Cable

Optical Cable

CENTER

OUT

Stereo System Amplifier

or DVD Player

OPTICAL

First time use

쐋쐋

NOTE: 1. The Optical Out (Digital Audio) provides a

fixed digital audio output to your external component such as an A/V receiver with optical input capability. The audio level can only be controlled through the volume control of the external audio amplifier.

2. See page 39 for AUDIO-Digital Output.

NOTE 1: Optical Audio Out "Only" available using

Digital Tuner on Digital Channels. No other input's Audio is output via Optical Audio Out.

This includes HDMI audio. It is not output.

BACK TO COVER



CH1

BEFORE OPERATING EXTERNAL VIDEO SOURCE

Connect an external source to the INPUT terminal, then press the INPUTS button to show the INPUTS menu. Use the CURSOR PAD to select the CABLE, AIR or INPUT of your choice. Then press the SELECT button to confirm your choice (see page 21).

NOTE: When the TV is set to VIDEO and a video

signal is not received from the VIDEO INPUT JACK on the back panel of the TV (i.e., VCR/laserdisc player, etc. is not connected or the video device is OFF), the set will appear to be OFF.

CONNECTING A COMPOSITE VIDEO AND A MONAURAL AUDIO SOURCE TO INPUT1 – INPUT5

1. Connect the cable from the VIDEO OUT of the VCR or the laserdisc player to the INPUT (VIDEO) jack, as shown on the TV to the right.

2. Connect the cable from the AUDIO OUT of the VCR or the laserdisc player to the INPUT (MONO)/L(AUDIO) jack.

3. Press the INPUTS button, then select INPUT 4 from the INPUTS menu to view the program from the VCR or the laserdisc player. The VIDEO OSD label disappears automatically after approximately four seconds.

4. Select CABLE/AIR from the INPUTS menu to return to the last channel tuned.

NOTE: 1) INPUT 3 can be used in the same manner

as INPUT 4.

The exact arrangement you use to connect the VCR, camcorder, laserdisc player, DVD player, or HDTV Set Top Box to your TV set is dependent on the model and features of each component. Check the owner’s manual of each component for the location of video and audio inputs and outputs.

The following connection diagrams are offered as suggestions. However, you may need to modify them to accommodate your particular assortment of components and features. For best performance, video and audio cables should be made from coaxial shielded wire.

Connecting External Video Sources

First time use

2) AIR signal will change to CABLE signal when the Antenna Source is select as Cable(1) or Cable(2) in the Channel Manager menu. See page (42)

INPUTS

Input 4 Input 5

Cable / Air Input 1 Input 2

Move SEL Select

Audio Video

OUTPUT

VCR

Connecting External Video Sources

First time use

CONNECTING A COMPOSITE VIDEO AND A STEREO AUDIO SOURCE TO INPUT1 – INPUT5

1. Connect the cable from the VIDEO OUT of the VCR or the laserdisc player to the INPUT (VIDEO) jack, as shown on the TV to the right.

2. Connect the cable from the AUDIO OUT R of the VCR or the laserdisc player to the INPUT (AUDIO/R) jack.

3. Connect the cable from the AUDIO OUT L of the VCR or the laserdisc player to the INPUT (AUDIO/L) jack.

4. Press the INPUTS button, then select INPUT 2 from the INPUTS menu to view the program from the VCR or laserdisc player. The VIDEO OSD label disappears automatically after approximately four seconds.

5. Select CABLE/AIR from the INPUTS menu to return to the last channel tuned.

NOTE:

1. Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is played back will be abnormal if the connection is loose.

When INPUT 3 or 4 are used, it is necessary to connect the video output from the device to the

Y-VIDEO INPUT jack of the TV.

CONNECTING AN S-VIDEO SOURCE TO INPUT 1, 2 AND 5

1. Connect the cable from the S-VIDEO OUT of the VCR or the laserdisc player to the INPUT (S-VIDEO) jack, as shown on the TV to the right.

2. Connect the cable from the AUDIO OUT R of the VCR or the laserdisc player to the INPUT (AUDIO/R) jack.

3. Connect the cable from the AUDIO OUT L of the VCR or the laserdisc player to the INPUT (AUDIO/L) jack.

5. Select CABLE/AIR from the INPUTS menu to return to the last channel tuned.

NOTE: 1. Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and

sound that is played back will be abnormal if the connection is loose.

OUTPUT

VCR

VLR

VCR

OUTPUT

S-VIDEO

CONNECTING A COMPONENT SOURCE WITH HDMI OR DVI CAPABILITY TO INPUT 1

1. Connect the HDMI or DVI to HDMI connection cable from the output of the HDTV set top box or DVD player to the HDMI input as shown on the TV to the right. When using a component with DVI output, you also have to connect the AUDIO OUT (R/L) of the component to the AUDIO IN (R/L) of INPUT 1.

2. Press the INPUTS button, then select INPUT 1 from the INPUTS menu to view the program from the HDTV set top box or DVD player. The VIDEO OSD label disappears automatically after approximately four seconds.

3. Select CABLE/AIR from the INPUTS menu to return to the last channel tuned.

NOTE: 1. Completely insert the connection cord

plugs when connecting to rear panel jacks. The picture and sound that is played back will be abnormal if the connection is loose.

2. The HDMI input on INPUT 1 contains the copy protection system called Highbandwidth Digital Content Protection (HDCP). HDCP is a cryptographic system that encrypts video signals when using HDMI connections to prevent illegal copying of video contents.

3. HDMI is not a “NETWORK” technology. It establishes a one-way point-to-point connection for delivery of uncompressed video to a display.

4. The connected digital output device controls the HDMI interface so proper set-up of device user settings determines final video appearance.

Connecting External Video Sources

First time use

DVD Player or HDTV STB

VLR

OUTPUT

DIGITAL OUTPUT

DVI – HDMI

DVI to HDMI Cable

HDMI – HDMI

HDMI OUT

DVD Player or HDTV STB

CONNECTING A COMPONENT AND AN AUDIO SOURCE TO INPUT 3 OR 4: Y-PBPR.

1. Connect the cable from the Y OUT of the Laserdisc/DVD player or HDTV set top box to the INPUT (Y) jack, as shown on the TV to the right.

2. Connect the cable from the C

B/PB OUT or B-Y OUT

of the Laserdisc/DVD player or HDTV set top box to the INPUT (P

B) jack.

3. Connect the cable from the C

R/PR OUT or R-Y OUT

of the laserdisc/DVD player or HDTV set top box to the INPUT (P

R) jack.

4. Connect the cable from the AUDIO OUT R of the Laserdisc/DVD player or HDTV set top box to the INPUT (AUDIO/R) jack.

5. Connect the cable from the AUDIO OUT L of the Laserdisc/DVD player or HDTV set top box to the INPUT (AUDIO/L) jack.

6. Press the the INPUTS button, then select INPUT 3 from the INPUTS menu to view the program from the Laserdisc/DVD player or HDTV set top box. The VIDEO OSD label disappears automatically after approximately four seconds.

7. Select CABLE/AIR from the INPUTS menu to return to the last channel tuned.

NOTE: 1. Completely insert the connection cord

plugs when connecting to rear panel jacks. The picture and sound that is played back will be abnormal if the connection is loose.

2. See page 12 for tips on REAR PANEL CONNECTIONS.

Connecting External Video Sources

First time use

PR PB YLR

OUTPUT

DVD Player

In addition to controlling all the functions on your HITACHI Projection TV, the new remote control is designed to operate different types of VCRs, CATV (Cable TV) converters, set-top-boxes, satellite receivers (SAT) and DVD players with one touch. Basic operation keys are grouped together in one area.

To operate your TV, point the remote control at the screen of the TV and press the TV button. The remote will now control your television.

To operate your VCR, point the remote at the remote sensor of the VCR and press the VCR button. The

remote will now control your VCR (see page 31 for

instructions on how to program the remote to control your VCR).

To operate your cable box, point the remote at the remote sensor of the cable box and press the CABLE (CBL) button. The remote will now control your cable

box (see page 28 for instructions on how to program

the remote to control your cable box).

To operate your set-top-box or satellite receiver, point the remote at the remote sensor of the set-top-box or satellite receiver and press the SAT button. The remote will now control your set-top-box or satellite receiver. If you have a satellite receiver, use this button to program

your satellite receiver (see page 29 for instructions on

how to program the remote to control your SAT).

To operate your DVD player, point the remote at the remote sensor of the DVD player and press the DVD button. The remote will now control your DVD player

(see page 30 for instruction on how to program the

remote to control your DVD player).

The Remote Control

 POWER button

Press this button to turn the TV set on or off when the remote is in TV mode. (See page 20 for instructions on how to set the remote control to TV mode.)

 MODE buttons

These buttons allow the remote to control your TV, VCR, DVD, Cable box/Satellite box depending on which button is pressed.

 PAUSE button

Press the PAUSE button to freeze the picture. Press the EXIT button to return the picture to motion. Press the PAUSE button repeatedly to cycle through the three different freeze modes (see page 24).

 DAY/NIGHT button

Press this button to toggle between Day and Night picture mode settings. Select DAY for day time viewing with more brightness and contrast to compete with room light. Select NIGHT for night time viewing with less brightness and contrast for a more detailed picture (see page 34 for settings

changes).

How to Use the Remote to Control Your TV

The Remote Control





  





 













Freeze







쐋

Freeze

EXIT

 ASPECT button

Press this button to quickly change the picture format ASPECT ratio. Depending on the input signal format received, the picture format ratio allows you to adjust the images through the following options.

• Antenna-Analog CH

• S-Video/Video Input (Auto Aspect: Off)

• HDMI-480i/480p Input (Auto Aspect: Off)

• Component-480i/480p

Input (Auto Aspect: Off)

• Antenna-Digital CH (4:3)

• S-Video/Video 4:3 Letter Input (Auto Aspect: On)

• HDMI-480i/480p 4:3/ Letter Input (Auto Aspect: On)

• Component-480i/480p 4:3 Letter Input (Auto Aspect: On)

• S-Video/Video 16:9 Input (Auto Aspect: On)

• HDMI-480i/480p 16:9 Input (Auto Aspect: On)

• Component-480i/480p 16:9 Input (Auto Aspect: On)

• Antenna-Digital CH (16:9)

• HDMI-720p/1080i (16:9)Input

• Component-720p/1080i (16:9)Input

NOTE:

1. All five video inputs have independent Aspect Style settings.

2. Vertical position adjustments are directly available when you choose 4:3

EXPANDED/ZOOM1/ZOOM2 or 16:9 ZOOM aspect style (see also page 40).

4:3 STANDARD

Use this aspect mode to display conventional (4:3) images. Side panels (gray areas) are placed to the left and right of the image to preserve the original aspect ratio of the source. Note: Use this mode for only 15% of your total viewing time to prevent uneven aging of the phosphors. Phosphors in the lighted area of the picture will age more rapidly than the gray areas.

4:3 EXPANDED

Use this aspect mode to display conventional (4:3) sources by linearly increasing image expansion from the center towards the edges of the display area in order to fill it.

4:3 ZOOM1/ZOOM2

Use these aspect modes to zoom in on conventional (4:3) sources.

16:9 STANDARD

Use this aspect mode to display 16:9 sources like HDTV and DVD’s preserving the original 16:9 aspect ratio.

16:9 ZOOM

Use this aspect to Zoom-in once while in 16:9 aspect.

How to Use the Remote to Control Your TV

The Remote Control

 INPUTS button

When the remote control is in TV mode, press this button to access the INPUTS menu. Use the CURSOR and SELECT buttons to scroll and select the inputs that are being used. Pressing the INPUTS button repeatedly will also cycle through the Inputs menu items. Then press the SELECT button to select.

INPUT 1 Select to choose Input 1.

INPUT 2 Select to choose Input 2.

INPUT 3 Select to choose Input 3.

INPUT 4 Select to choose Input 4.

INPUT 5 Select to choose Input 5.

CABLE

AIR/ Select to choose Air or Cable signal.

 PICTURE-IN-PICTURE button

See separate section on pages 23-27 for a

description.

 MENU button

The MENU button will start the On-Screen Display.

 GUIDE button

[Cable Box (CBL), Satellite Receiver (SAT)/ Set-Top-Box (STB) mode only]

The use of this button is only applicable when the remote control is in (CBL) and (SAT/STB) mode. Press this button to access the Channel Guide of the (CBL), and (SAT/STB).

 EXIT button

This button will exit all On-Screen Displays.

 CURSOR buttons/SELECT button

All the On-Screen Display features can be set or adjusted by using the CURSOR buttons and the SELECT button, except for numeric entries. Press the CURSOR buttons toward desired direction and press the SELECT button to select.

 INFO button

Press this button when you want to check the channel being received, the picture source, if the channel has stereo (ST) or second audio program (SA), the time, CHANNEL ID and if the TIMER is set.

INFO button display for Analog Channels

INFO button display for Digital Channels

INFO button display when an S-VIDEO Input is connected to INPUT 1

INFO button display for when a COMPONENT VIDEO: Y-P

BPR Input is connected to INPUT 3

NOTE: 1. Press the INFO button again or the EXIT

button to return to normal viewing.

2. The ASPECT INFORMATION will show the aspect condition of a channel before it is blocked.

INFO

YPBPR : 3

12:00PM

1080i Format

Day AUTO HD 1080i 16:9 Standard

VIEW

--:--AM

INFO

S - IN : 1

12:00PM

TV-PG DLSV

Day AUTO HD 1080i 16:9 Standard

VIEW

--:--AM

INFO

Air 8

12:00PM

FOX

ST STEREO

TV-PG DLSV

Day AUTO HD 1080i 16:9 Standard

VIEW

--:--AM

How to Use the Remote to Control Your TV

The Remote Control

NO TE: When the INFO button is pressed twice in

a 4:3 Digital Channel the ASPECT mode

will change ,but It will return to normal view when the INFO OSD disappears.

and many occasions and fields. Mainly it is

INPUTS

Input 3 Input 4 Input 5 Air /

Cable

Input 1

Move SEL Select

INFO

Air 118 - 111

MULTI

TV-PG DLSV

1080i Format

Day AUTO HD 1080i 16:9 Standard

--:--AM

VIEW

INFO

CBS Nigthly News

World wide news from the nations sponsored by CBS provided the latest news and information in days

and nights. Main casters are Robert Burt and Lisa.

12:00PM

CBS

DTVCC

Scroll INFO Re turn

 VOLUME (VOL), MUTE button

Press the VOLUME button (

 or ) until you

obtain the desired sound level.

To reduce the sound to one half of normal volume (SOFT MUTE) to answer the telephone, etc., press the MUTE button. Press the MUTE button again to turn the sound off completely (MUTE). To restore the sound, press the MUTE button one more time, or VOL UP (

).

Closed Captioning will display automatically when MUTE/SOFT MUTE is on and Closed Caption is set to AUTO (see page 59

When the TV power is turned off at a volume level 31 or greater, the volume level will default to 30 when the TV is turned on. However, if it is set to a level 30 or less, the volume level will be at the level it was set when the TV is turned on.

 CHANNEL SELECTOR/FAVORITE CHANNEL

(FAV CH) buttons

The CHANNEL SELECTOR buttons are used to select channels, lock access code, etc. Use the CHANNEL SELECTOR buttons to enter one, two, or three numbers to select channels. Enter 0 first for channels 1 to 9, or simply press the single digit channel you wish to tune then wait a few seconds for the TV to tune. Channel selection may also be performed by CHANNEL (CH) UP (

) or

CHANNEL (CH) DOWN (

).

Press the FAV CH button to switch to Favorite (FAV) channel mode. You will know you are in Favorite Channel mode when (FAV) is displayed

and the displayed channel indication is GREEN. Press it again to return to your regular tuned channels. You

can add any channel to your Favorite channel list by pressing and holding down the FAV CH button

until the displayed channel indication turns from WHITE to highlighted GREEN. You can also delete a channel from your favorite channel list by pressing and holding down the FAV CH button until the displayed channel indication turns highlighted GREEN to WHITE.

 (-) DASH button

The (-) DASH button can only be used when the remote control is in Satellite (SAT) mode.

 LAST CHANNEL (LC) button

Press this button to toggle between the current and last channel viewed.

 RECORD button

Press twice (two times) to record programs when the remote is in VCR mode.

How to Use the Remote to Control Your TV

The Remote Control

MUTE

Volume 8

Cable 6

FAV CH

FAV Cable 6

Soft Mute 8

MUTE

Mute 8

FAV CH

Cable 6

Your HITACHI Projection TV incorporates one Tuner

technology designed for improved viewing enjoyment.

This Tuner feature allows you to view antenna input on the main picture and a Video Input on sub-picture simultaneously. When an ANALOG channel or INPUT is viewed as the main picture, an ANALOG channel or INPUT can not be viewed as a sub picture.

To select between main picture and PIP sub-picture use the CURSOR buttons on the remote. The green highlighted channel display will move with every press of the CURSOR buttons (

 or ).

The Picture-in-Picture feature is convenient when you want to watch more than one program at the same time. You can watch a TV program while viewing other programs from any of the video inputs.

Use the connection diagram to the right to view VCR program as a sub-picture while viewing another program as main picture (CABLE or AIR). You may also view the VCR program as a main picture while viewing another

program as a sub-picture (CABLE or AIR).

 PIP button

Press the PIP button and a sub-picture will appear in one of the four

different modes (POP, PIP or SPLIT ), depending on the INPUT

signal. To change the PIP mode, use the PIP button to cycle through the four different modes.

POP Mode Picture-in-Picture

POP MODE PIP displays the sub-picture outside of the main picture. Use the CURSOR buttons (

 or ) to move the sub-picture. This

feature is not available with a 480p,720p and 1080i signal. Please refer to the Picture-in-Picture Modes Table (see page 26 & 27).

NOTE: 1. Press the CURSOR buttons (

 or ) to enable the

sub-picture sound.

. Two INPUTS cannot be viewed simultaneously in

PIP MODE. Only one INPUT (1-5) and one antenna (CABLE OR AIR).

MAIN PICTURE

SUB


Picture-in-Picture (PIP)

The Remote Control

PIP

MAIN PICTURE

SUB


Audio Video

OUTPUT

VCR





PIP Mode Picture-in-Picture

This feature is only available with a 1080i signal. To prevent a pattern burn, occasionally move the sub-picture using the CURSOR

buttons.

SPLIT Mode Picture-in-Picture

Split Mode PIP displays the main picture and subpicture evenly on the screen.

 PAUSE button

If you wish to freeze the sub-picture, press the PAUSE button. This is convenient when trying to write down the address for a mail order company, recording statistics for a sporting event, etc. To return the picture to motion, press the EXIT button. Press the PAUSE button repeatedly to toggle between FREEZE modes (Main Freeze, SPLIT and STROBE).

MAIN PICTURE

SUB PICTURE

MAIN PICTURE

SUB PICTURE

Picture-in-Picture (PIP)

The Remote Control

PIP

MAIN PICTURE

SUB PICTURE

Freeze

MAIN PICTURE

SUB PICTURE

EXIT

Note : PIP Specifications in the following pages 26 & 27.

Freeze

MAIN FREEZE

Press the PAUSE button to freeze one frame of the picture you are currently viewing and the frozen frame will show in the Main Picture. Press the EXIT button to return to normal viewing. This feature is useful for freezing a picture frame with addresses.

SPLIT FREEZE

Press the PAUSE button to freeze the picture you are currently viewing (only the right sub-picture will freeze). Press the EXIT button to return to normal

viewing. Please refer to page 27 for detailed spec.

STROBE FREEZE

Press the PAUSE button to freeze three frames of the picture you are currently viewing (only the 3 sub-pictures will freeze). Press the EXIT button to return to normal viewing. This feature is useful for viewing a moving picture that has many details, for example, a close play in a sporting event or a golf

swing. Please refer to page 27 for detailed spec.

NOTE: 1. The default FREEZE mode is the MAIN

freeze followed by the SPLIT freeze and then the STROBE freeze. The last Freeze mode you selected before you pressed the EXIT button will be the one that comes up after pressing the PAUSE button again.

2. Each freeze frame is delayed about 0.1 (1/10) second.

MAIN PICTURE

SUB PICTURE

Picture-in-Picture (PIP)

The Remote Control

3. When the input is HDMI signal , the FREEZE

mode is the MAIN picture FREEZE.

EXIT

MAIN PICTURE

SUB PICTURE

EXIT

Note : PIP Specifications in the following pages 26 & 27.

Picture-in-Picture (PIP)

The Remote Control

PIP Specifications

PIPInput󰼿Mode󰼿 󰼿

Air󰼿 Cable󰼿 Input1󰼿 Input2󰼿 Input3󰼿 Input4󰼿 Input5󰼿Sub Picture

󰼿

Digital󰼿CH󰼿

Analog󰼿CH󰼿

Yes󰼿Yes󰼿 -󰼿 -󰼿 Yes󰼿Yes󰼿Yes󰼿Yes󰼿

Yes󰼿Yes󰼿 -󰼿 Yes󰼿 -󰼿 Yes󰼿Yes󰼿Yes󰼿

Yes󰼿Yes󰼿 -󰼿 Yes󰼿Yes󰼿 -󰼿 Yes󰼿Yes󰼿

Yes󰼿Yes󰼿 -󰼿 Yes󰼿Yes󰼿Yes󰼿 -󰼿 Yes󰼿

Yes󰼿Yes󰼿 -󰼿 Yes󰼿Yes󰼿Yes󰼿Yes󰼿 -󰼿

Main Picture

Air󰼿 Digital󰼿CH󰼿

Cable󰼿 Digital󰼿CH󰼿

Input1󰼿 HDMI󰼿 󰼿

Input2󰼿S/Video󰼿

Input3󰼿Ypbpr󰼿

Input4󰼿Ypbpr󰼿

Input5󰼿S/Video󰼿

Analog󰼿CH󰼿

S/Video󰼿

Video󰼿

(a)󰼿There󰼿is󰼿no󰼿combination󰼿between󰼿same󰼿input.󰼿

(b)󰼿There󰼿is󰼿no󰼿combination󰼿between󰼿TV󰼿and󰼿TV󰼿,󰼿because󰼿of󰼿one󰼿tuner󰼿system.󰼿And󰼿the󰼿digital󰼿CH󰼿format󰼿is󰼿only󰼿480i.󰼿

(c)󰼿HDMI󰼿input󰼿is󰼿only󰼿for󰼿Main󰼿picture.󰼿󰼿󰼿

(d)󰼿User󰼿can󰼿only󰼿select󰼿available󰼿combination󰼿by󰼿Input󰼿Menu.󰼿󰼿

󰼿POP󰼿Mode󰼿

Mode󰼿

540p󰼿

󰼿

PIP󰼿Mode

Mode󰼿

1080i󰼿 1080i󰼿

Yes1:󰼿Auto󰼿Aspect󰼿ON

Sub Pic.

Main Pic.

Digital󰼿CH󰼿

(480i)󰼿

Analog󰼿CH󰼿4x3󰼿

1080i󰼿16x9󰼿

720p󰼿16x9󰼿

480p󰼿16x9/4x3󰼿󰼿－󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿

480i󰼿16x9/4x3󰼿󰼿Yes󰼿Yes󰼿Yes󰼿Yes󰼿 －󰼿 －󰼿 Yes󰼿Yes󰼿Yes󰼿Yes󰼿

S/Video󰼿󰼿16x9/4x3󰼿Yes󰼿Yes󰼿Yes󰼿Yes󰼿 －󰼿 －󰼿 Yes󰼿Yes󰼿Yes󰼿Yes󰼿

Sub picture 16x9󰼿

：

Sub Pic.

Main Pic.

Aspect󰼿 󰼿 󰼿

16x9/4x3󰼿 －󰼿 －󰼿 －󰼿 Yes󰼿 －󰼿 －󰼿 Yes󰼿Yes󰼿Yes󰼿Yes󰼿

󰼿

Aspect󰼿 󰼿 󰼿

󰼿

16x9󰼿 Yes󰼿 －󰼿 －󰼿 Yes󰼿 －󰼿 －󰼿 Yes1󰼿 －󰼿 Yes1󰼿 －󰼿

PIP󰼿Mode

Mode󰼿

1080i󰼿 1080i󰼿

Yes2:󰼿Auto󰼿Aspect󰼿OFF

Sub picture 4x3

：

Sub Pic.

Main Pic.

󰼿

Aspect󰼿 󰼿 󰼿

16x9󰼿 －󰼿 Yes󰼿 Yes󰼿 －󰼿 －󰼿 －󰼿 Yes2󰼿 Yes󰼿 Yes2󰼿 Yes󰼿

Digital󰼿CH󰼿

Analog󰼿CH

-󰼿 -󰼿 -󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿

Digital󰼿CH󰼿

480i󰼿

16x9󰼿4x3󰼿4x3󰼿16x9󰼿16x9󰼿16x9󰼿

－󰼿 －󰼿 －󰼿 Yes󰼿 －󰼿 －󰼿 Yes󰼿Yes󰼿Yes󰼿Yes󰼿

－󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿

Digital󰼿CH󰼿

480i󰼿

16x9󰼿 4x3󰼿 4x3󰼿 16x9󰼿 16x9󰼿 16x9󰼿

Digital󰼿CH󰼿

480i󰼿

16x9󰼿 4x3󰼿 4x3󰼿 16x9󰼿 16x9󰼿 16x9󰼿

HDMI󰼿 S/Video󰼿 S/Video󰼿 Ypbpr󰼿

Analog󰼿

1080i󰼿720p󰼿480p󰼿480i󰼿󰼿S/Video󰼿Scan󰼿

CH󰼿

4x3󰼿

1080i󰼿 720p󰼿 480p󰼿 480i󰼿 󰼿 S/Video󰼿Scan󰼿

CH󰼿

4x3󰼿

1080i󰼿 720p󰼿 480p󰼿 480i󰼿 󰼿 S/Video󰼿Scan󰼿

CH󰼿

4x3󰼿

Video󰼿

16x9󰼿4x3󰼿16x9󰼿4x3󰼿

16x9󰼿 4x3󰼿 16x9󰼿 4x3󰼿

Ypbpr󰼿

Video󰼿

S/Video󰼿

Picture-in-Picture (PIP)

The Remote Control

PIP Specifications (cont.)

SPLIT󰼿Mode󰼿

Mode󰼿

Main󰼿

Digital󰼿CH󰼿

540p󰼿

STROBE󰼿Mode󰼿

Mode󰼿

540p󰼿

(480i)󰼿

Analog󰼿CH󰼿 4x3󰼿

1080i󰼿 16x9󰼿󰼿Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿

720p󰼿 16x9󰼿󰼿Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿

480p󰼿󰼿16x9/4x3󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿

480i󰼿󰼿16x9/4x3󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿

S/Video󰼿󰼿16x9/4x3󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿

Main󰼿

Digital󰼿CH󰼿

(480i)󰼿

Analog󰼿CH󰼿󰼿4x3󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿

1080i󰼿

720p󰼿

480p󰼿󰼿16x9/4x3󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿

480i󰼿󰼿16x9/4x3󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿

S/Video󰼿󰼿16x9/4x3󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿

Sub󰼿

Aspect󰼿 󰼿 󰼿

16x9󰼿

4x3󰼿

󰼿

Sub󰼿

Aspect󰼿 󰼿 󰼿

16x9󰼿

4x3󰼿

󰼿

16x9󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿

Digital󰼿CH󰼿

480i󰼿

16x9󰼿 4x3󰼿 4x3󰼿 16x9󰼿 16x9󰼿 16x9󰼿

－󰼿－󰼿

－󰼿 －󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿

Digital󰼿CH󰼿

480i󰼿

16x9󰼿 4x3󰼿 4x3󰼿 16x9󰼿 16x9󰼿 16x9󰼿

Yes󰼿 Yes󰼿

Analog󰼿

1080i󰼿 720p󰼿 480p󰼿 480i󰼿 󰼿 S/Video󰼿Scan󰼿

CH󰼿

－󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿 Yes󰼿

－󰼿

1080i󰼿 720p󰼿 480p󰼿 480i󰼿 󰼿 S/Video󰼿Scan󰼿

CH󰼿

－󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿 －󰼿

Yes󰼿

16x9󰼿 4x3󰼿󰼿16x9󰼿 4x3󰼿

4x3󰼿

16x9󰼿 4x3󰼿 16x9󰼿 4x3󰼿

4x3󰼿

OPERATING THE PRECODED FUNCTION FOR YOUR DIGITAL/ANALOG CABLE BOX.

This remote is designed to operate different types of cable boxes. You must first program the remote to

match the remote system of your DIGITAL or ANALOG Cable Box (refer below for pre-codes).

1. Turn ON your cable box.

2. Aim the remote control at the front of your cable box.

3. To switch to Cable (CBL) pre-coded mode, press and release the CABLE (CBL) button.

4. Hold down the CBL button on the remote and enter the two digit preset code that matches your cable box, as shown below. Release the CBL button.

5. Aim the remote at the cable box and press the POWER button. The remote will turn off your cable box when the correct two digit preset code is entered. When this occurs, the remote control is programmed for your cable box. If the cable box does not turn off, try a different two digit preset code.

6. The remote will now control your Cable box.

NOTE: 1. If your cable box cannot be operated after

performing the above procedures, your cable box code has not been precoded into the remote.

2. In the unlikely event that your cable box cannot be operated after performing the above procedures, please consult your cable box operating guide.

3. The remote control will remember the codes you have programmed until the batteries are removed from the remote control. After replacing the batteries repeat the entire programming procedure as stated above.

 CABLE (CBL) button

This button allows the remote to control your cable box by setting it to CABLE mode.

 PRECODED CABLE BOX buttons

These buttons transmit the chosen precoded cable codes.

 EXCLUSIVE TV buttons

These buttons are for operating the TV.

MY CABLE BOX CODE IS: _______________________

NOTE: Refer to instruction manual of the Cable Box

for operation of the buttons exclusively for the Cable Box.

The Remote Control for Cable Box Functions

The Remote Control

CABLE BRAND DIGITAL TYPE CODES

ADELPHIA......................................................18

CABLEVISION .............................................................. 19

COMCAST..................................................................20

COX............................................................................ 21

MOTOROLA................................................................17,22,24

PIONEER..............................................................15

SCIENTIFIC ATLANTA ..................................................................16

TIMEWARNER...................................................................23

CABLE BRAND ANALOG TYPE CODES

HAMLIN......................................................11,12

JERROLD .................................................... 00, 01, 02

OAK..................................................................13,14

PANASONIC................................................................ 10

PIONEER................................................................08,09

SCIENTIFIC ATLANTA......................................03,04,05

ZENITH...................................................................06,07



쐋





쐋



쐋

OPERATING THE PRECODED FUNCTION FOR YOUR SET-TOP-BOX/SATELLITE RECEIVER.

This remote is designed to operate different types of set-top-box/satellite systems. You must first program the remote to match the remote system of your settop-box/satellite systems (refer below for pre-codes).

1. Turn ON your set-top-box/satellite systems.

2. Aim the remote control at the front of your set-topbox/satellite systems.

3. To switch to set-top-box/satellite (STB) pre-coded mode, press and release the SAT button.

4. Hold down the SAT button on the remote and enter the two digit preset code that matches your settop-box/satellite receiver, as shown below. Release the SAT button.

5. Aim the remote at the set-top-box/satellite receiver and press the POWER button. The remote will turn off your set-top-box/satellite receiver when the correct two digit preset code is entered. When this occurs, the remote control is programmed for your set-top-box/satellite receiver. If the set-topbox/satellite receiver does not turn off, try a different two digit preset code.

6. The remote will now control your set-topbox/satellite receiver.

NOTE: 1. If your set-top-box/satellite receiver

cannot be operated after performing the above procedures, your set-topbox/satellite receiver code has not been precoded into the remote.

2. In the unlikely event that your set-topbox/satellite receiver cannot be operated after performing the above procedures, please consult your set-top-box/satellite receiver operating guide.

 SAT (Set-Top-Box/Satellite) button

This button allows the remote to control your settop-box/satellite receiver by setting it to SET-TOPBOX/SATELLITE mode.

 PRE-CODED SET-TOP-BOX/SATELLITE

RECEIVER buttons

These buttons transmit the chosen pre-coded settop-box/satellite codes.

 EXCLUSIVE TV buttons

These buttons are for operating the TV.

SATELLITE BRAND CODES

ECOSTAR .....................................................................03

HITACHI....................................................................... 00

HUGHES ......................................................................04

RCA ..............................................................................01

SONY ...........................................................................02

SET TOP BOX BRAND CODES

PANASONIC.................................................................05

RCA ............................................................................. 06

SAMSUNG ...................................................................07

ZENITH.........................................................................08

MY SATELLITE RECEIVER/ SET TOP BOX CODE IS: _________________________

NOTE: Refer to instruction manual of the set-top-

box/satellite receiver for operation of the buttons exclusively for the set-topbox/satellite receiver.

The Remote Control for Set-Top Box/Satelite Receiver Functions

The Remote Control





쐋



쐋



쐋

OPERATING THE PRECODED FUNCTION FOR YOUR DVD PLAYER.

This remote is designed to operate different types of DVD players. You must first program the remote to match the remote system of your DVD player (refer below for pre-codes).

1. Turn ON your DVD player.

2. Aim the remote control at the front of your DVD player.

3. To switch to DVD pre-coded mode, press and release the DVD button.

4. Hold down the DVD button on the remote and enter the two digit preset code that matches your DVD player, as shown below. Release the DVD button.

5. Aim the remote at the DVD player and press the POWER button. The remote will turn off your DVD player when the correct two digit preset code is entered. When this occurs, the remote control is programmed for your DVD player. If the DVD player does not turn off, try a different two digit preset code.

6. The remote will now control your DVD player.

7. You will need to set the display type of your DVD player to 16:9 WIDESCREEN.

NOTE: 1. If your DVD player cannot be operated

after performing the above procedures, your DVD player’s code has not been precoded into the remote.

2. In the unlikely event that your DVD player cannot be operated after performing the above procedures, please consult your DVD player operating guide.

 DVD button

This button allows the remote to control your DVD player by setting it to DVD mode.

 PRECODED DVD Buttons

These buttons transmit the chosen precoded DVD codes.

 EXCLUSIVE TV Buttons

These buttons are for operating the TV.

DVD BRAND CODES

APEX ............................................................................09

GO VIDEO ................................................................... 08

HITACHI........................................................................00

KENWOOD...................................................................10

PANASONIC.................................................................02

PIONEER ..................................................................... 03

RCA ............................................................................. 04

SAMSUNG ...................................................................06

SANYO .........................................................................07

SONY ...........................................................................01

TOSHIBA ......................................................................05

MY DVD PLAYER CODE IS: ______________________

NOTE: Refer to instruction manual of the DVD player

for operation of the buttons exclusively for the DVD player.

The Remote Control for DVD Functions

The Remote Control





쐋



쐋



쐋



OPERATING THE PRECODED FUNCTION FOR YOUR VCR.

This remote is designed to operate different types of VCRs. You must first program the remote to match the remote system of your VCR (refer below for pre-codes).

1. Turn ON your VCR.

2. Aim the remote control at the front of your VCR.

3. To switch to VCR pre-coded mode, press and release the VCR button.

4. Hold down the VCR button on the remote and enter the two digit preset code that matches your VCR, as shown below. Release the VCR button.

5. Aim the remote at the VCR and press the POWER button. The remote will turn off your VCR when the correct two digit preset code is entered. When this occurs, the remote control is programmed for your VCR. If the VCR does not turn off, try a different two digit preset code.

6. The remote will now control your VCR.

NOTE: 1. If your VCR cannot be operated after

performing the above procedures, your VCR’s code has not been precoded into the remote.

2. In the unlikely event that your VCR cannot be operated after performing the above procedures, please consult your VCR operating guide.

4. Press the Record button twice to record.

 VCR button

This button allows the remote to control your VCR player by setting it to VCR mode.

 PRECODED VCR Buttons

These buttons transmit the chosen precoded VCR codes.

 EXCLUSIVE TV Buttons

These buttons are for operating the TV.

VCR BRAND CODES

HITACHI ...................................00, 01, 02, 03, 04, 05, 06

JVC................................................................................13

MITSUBISHI............................................................... 16,17

PANASONIC...........................................................10, 11

SAMSUNG .............................................................14,15

ZENITH .............................................................19

SHARP ............................................................................18

SONY ...............................................................07, 08, 09

MY VCR PLAYER CODE IS: ______________________

NOTE: Refer to instruction manual of the VCR for

operation of the buttons exclusively for the VCR.

The Remote Control for VCR Functions

The Remote Control

AIWA......................................................20

FUNAI..............................................................21

TOSHIBA......................................................12





쐋



쐋



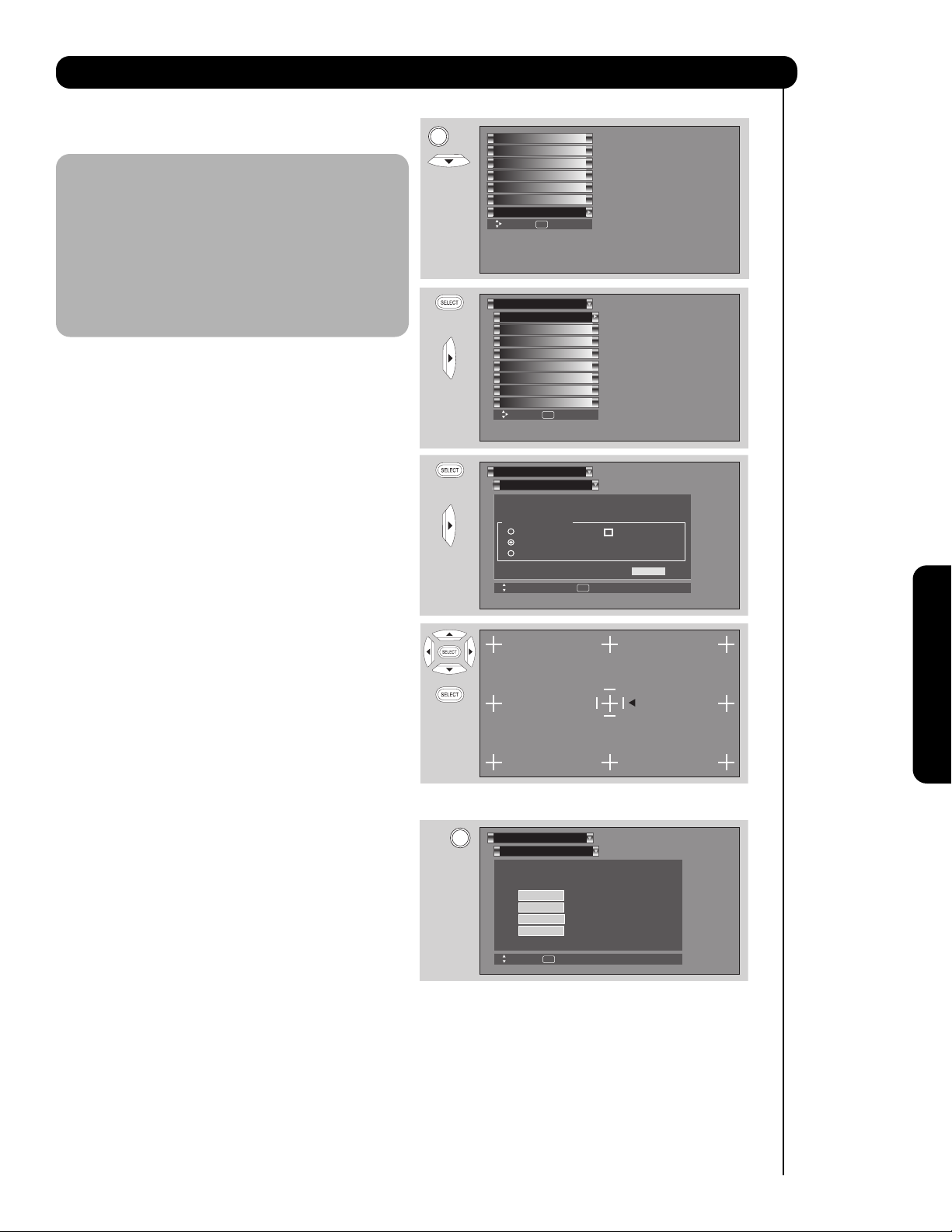

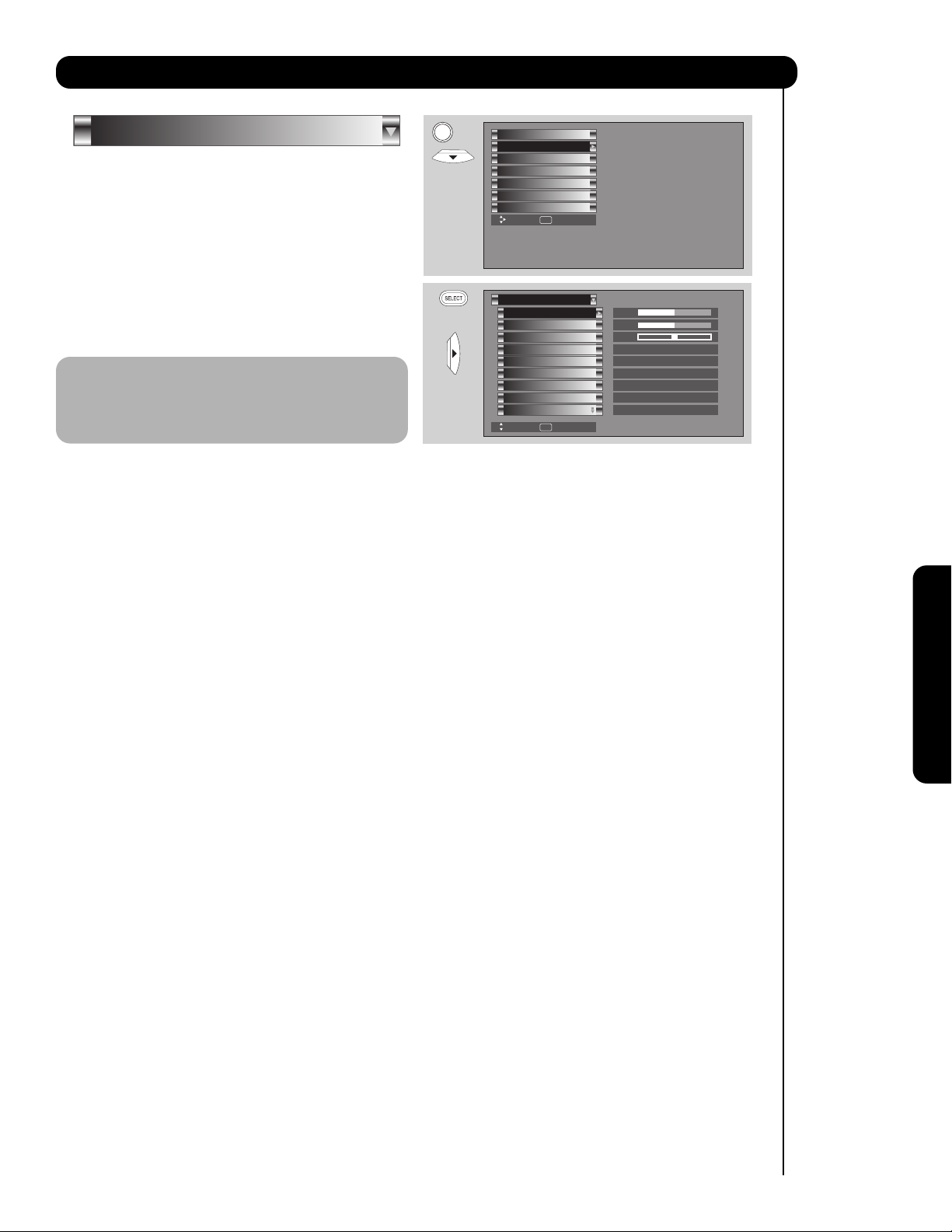

1. Press MENU on the remote control to display the different features on your HITACHI Projection TV.

2. Press the CURSOR buttons to navigate and highlight a different feature of the On-Screen Display menu. Press the SELECT button to select.

3. Press EXIT on the remote control to quickly exit from a menu.

On-Screen Display

This part of the screen shows which selections are available.

This part of the screen shows which Remote Control buttons to use.

Video

Audio

Aspect

Channel Manager

Locks

Timers

Setup

Move SEL Select

Picture Mode Select between the two picture

modes; Day and Night. Contrast Adjust contrast. Brightness Adjust brightness. Color Adjust color. Tint Adjust tint. Sharpness Adjust sharpness. Color Temperature Set this to High for less intense

color with more blue, set to

Medium for natural color, set to

Standard for standard colors.

Black Enhancement Enhance picture brightness in

light scenes. Edge Enhancement Automatically enhances the

edges between light and dark

areas.

Noise Reduction Reduces conspicuous noise in

the picture.

Mode Choose the picture format

aspect ratio.

Black Side Panel Set the gray side bars on/off

when watching 4:3 signals in

standard mode.

Virtual HD Select between 1080i and 540p

Scan mode.

Reset Video Settings Choose the Reset Video

settings.

Treble Adjust the treble. Bass Adjust the bass. Balance Adjust the balance.

Surround Select Surround settings (Off,

Wide,Normal)

Audio Source Select between three Audio

Sources. Internal Speakers Select internal or external

speakers. Auto Noise Cancel Eliminates the noise between

stations. Perfect Volume Adjust volume in fixed setting. Loudness Adjust Loudness. Language Select Language options if

available.

DRC Select Dynamic Range

Compression to ON or OFF.

Signal Meter Access Signal Meter. Auto Channel Scan Set Auto Channel Scan. Channel List Set Channel List.

Change Access Code Change Lock access code. Engage Lock Choose to lock channel or

front panel.

Movie Ratings Block various types of movies

and video types based on motion picture ratings.

TV Ratings Block various types of movies

and television programming based on a parental guide ratings.

Canadian Ratings (ENG)

Block various types of movies and television programming based on the Canadian ratings system.

Canadian Ratings (FRN)

Block various types of movies and television programming based on the Canadian French ratings system

Set the Clock Set Clock Settings. Set Sleep Timer Set Sleep Timer intervals

(30 min. intervals, 00:30-3:00).

Set Day/Night Timer Set Day/Night picture mode

settings.

Set Event Timer Set viewing reservation for TV

programs.

Magic Focus Tune Up Automatic and manual

alignment of the red, green and blue colors to make white.

Menu Preference Choose English, French, or

Spanish text.

Set The Inputs

Label Video Inputs, VCR, DVD, etc.

Set Closed Captions Feature to display dialogue/text.

Set Audio Out Set Audio Out source.

Upgrades Select to upgrade TV software.

On-Screen Display

NOTE: 1. The Language and the Dynamic Range Compression feature of the Audio OSD are

only available for Digital channels.

2. The Signal Meter feature of the Channel Manager OSD is only available for Digital signals.

Auto Color Adjusts the color to maintain

constant color levels

Auto Movie Mode Turn ON/OFF the 3:2 Pulldown

detection feature.

Auto Aspect Auto adjust the Aspect Ratio Vertical Position Adjust the position of the picture

Alternate Ratings Ratings system for DTV Signal

to block various types of programs

Video

Audio

Channel Manager

Locks

Timers

Setup

Aspect

Select VIDEO to adjust picture settings and improve picture quality. You can independently customize each of the Video Inputs to your preference to increase viewing performance and pleasure depending upon the video program being viewed. If RESET is selected, only the selected input will reset to initial conditions.

Picture Mode

Use this function to choose from automatic picture settings to optimize your TV’s performance.

1. Use the CURSOR buttons

 or  to highlight and

select PICTURE MODE settings.

2. Press EXIT to quit menu or select PICTURE MODE to return to previous menu.

Function Day Night

Contrast 100% 70% Brightness 50% 55% Color 50% 50% Tint 50% 50% Sharpness 50% 40% Color Temperature High Standard Black Enhancement Middle Low Edge Enhancement High Low Noise Reduction Off Off

1. Use the CURSOR buttons  or  to highlight the function to be adjusted.

2. Press the CURSOR buttons

 or  to adjust the function. Press the SELECT button to select the function

settings.

3. Press MENU to return to main menu or select PICTURE MODE to return to previous menu.

4. Press EXIT to quit menu.

Contrast

Use this function to change the contrast between black and white levels in the picture.

Brightness

Use this function to adjust overall picture brightness.

Color

Use this function to adjust the level of color in the picture.

Tint

Use this function to adjust flesh tones so they appear natural.

Sharpness

Use this function to adjust the amount of fine detail in the picture. Sharpness function will be disabled when Noise Reduction is set to High.

Video

On-Screen Display

Video

Audio

Aspect

Channel Manager

Locks

Timers

Setup

Move SEL Select

Vide o

Pictu re Mode Day

Contrast

Brightness

Color

Tint

Sharpness

Color Temperature

Black Enhancement

Edge Enhancement

Reset Video Settings

Move

SEL Return

Picture Mode Day

Next/Prev Select

Air / Cable

100%

50%

High

Middle

High

SEL Return

Vide o

Pictu re Mode Day Night

Contrast

Brightness

Color

Tint

Sharpness

Color Temperature

Black Enhancement

Edge Enhancement

Reset Video Settings

Move

SEL Return

100%

50%

High

Middle

High

On-Screen Display

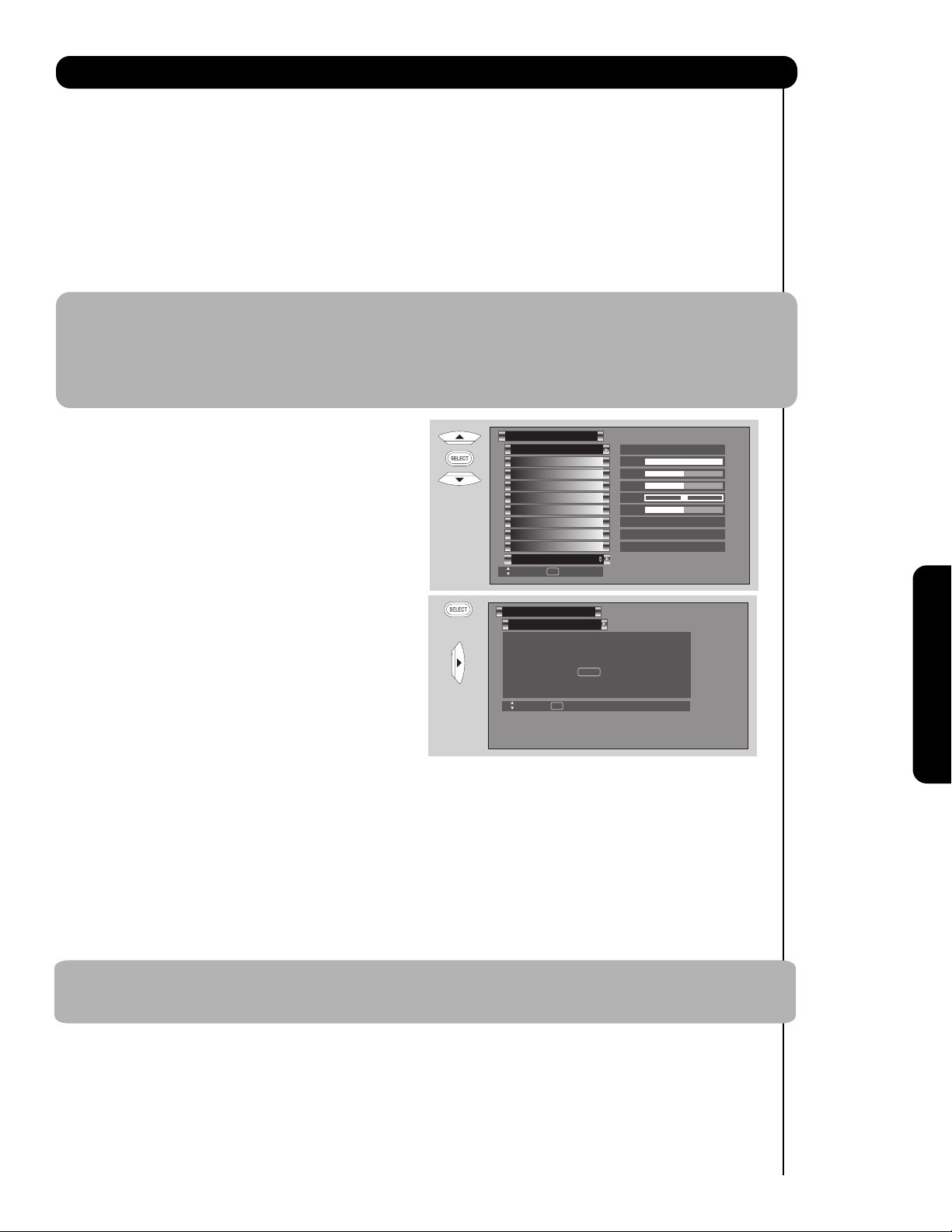

Reset Video Settings

This function allows you to Reset the

Video Menu

Settings of the p

resent input and return it to the Day

VIDEO mode.

1. Use the CURSOR buttons

 or  to highlight the

function to be adjusted.

2. P

ress the SELECT button to select RESET VIDEO

SETTINGS.

3. Use the CURSOR button

 to access other video

settings.

You can customize each of the

Video Inputs to your

reference to increase viewing performance and

pleasu

re, depending upon the video program being viewed. If RESET is selected, only the selected Input will

reset to the initial conditions as explained above.

If RESET is selected in Input 1, only Input 1 will

return to factory conditions.

Video

Color Temperature

Set this to High for cooler color with more blue, set to Medium for more natural color, set to Standard for accurate color.

Black Enhancement

Use this function to enhance Picture brightness in light scenes using the settings off, low, middle and high.

Edge Enhancement

Use this function to automatically enhance the edges between light and dark areas using the settings Off, Low, Middle and High.

NOTE: 1. If CONTRAST is selected, you are adjusting CONTRAST. The additional menu items BRIGHTNESS,

COLOR, TINT, and SHARPNESS can be selected and adjusted in the same manner.

2. It may be necessary to adjust TINT to obtain optimum picture quality when using the COMPONENT

VIDEO Y-P

BPR input jacks.

3. CABLE and AIR share a Video setting. Also, each of the video inputs have their own independent settings.

The AUTO COLOR function automatically monitors and adjusts the color to maintain natural flesh tones

while preserving fidelity of background colors.

NOTE: When using Component, HDMI input, Auto Color will not be available (grayed out).

Auto Color

Vide o

Pictu re Mode Day

Contrast

Brightness

Color

Tint

Sharpness

Color Temperatu re

Black Enhancement

Edge Enhancement

Reset Video Settings

Move

SEL Retu rn

100%

50%

High

Middle

High

ideo

Reset Video Settings

Select “Reset” to return the video menu settings on this Input to the original factory settings. Reset

SEL Return

Move

Video

On-Screen Display

Noise Reduction

The NOISE REDUCTION function automatically reduces conspicuous noise in the picture without degrading picture quality. Set NOISE REDUCTION to OFF if the TV experiences picture blocking. When Noise Reduction is set to High, Sharpness function is disabled (grayed out).

The Auto Movie Mode function turns ON or OFF the 3:2 PULLDOWN DETECTION SPECIAL FEATURE. Theatrical movies are shot on film at 24 frames or still pictures per second, instead of 30 frames or 60 fields like video. When film is transferred to video for television viewing, the disparity between the two frame rates must be reconciled. This involves a process known as 3:2 pulldown.

When Auto Movie Mode is turned ON from the VIDEO menu, your Hitachi Projection Television will activate the circuitry for this special feature to improve video performance when watching film based sources.

NOTES: 1. When using Progressive Scan Component or HDMI input (Ex. 480p, 720p, 1080i), Auto Movie Mode

will not be available (grayed out).

2. All Video settings are independent of each other based on it’s input (Air/Cable, Input 1~5).

Auto Movie Mode

Vide o

Auto color Noise Reduction Auto Movie Mode

Move

SEL

Return

Off Off

Off

Select AUDIO to adjust the TV to your preference and to improve the sound quality.

NOTE: If TREBLE is selected you are adjusting

TREBLE. The additional menu items BASS and BALANCE can be selected and adjusted in the same manner.

Treble

This function contr ols the high frequency audio to all speakers.

Bass

This function controls the low frequency audio to all speakers.

Balance

This function will control the left to right balance of the Projection TV internal speakers.

Surround

Surround sound is the concept of expanding the spatial imaging of audio from one dimension ( Mono/Left-Right) to two or three dimensions. This is often done to create a more realistic audio environment.

1.- Use cursor to highlight surround option.

Audio

On-Screen Display

1. Use the CURSOR buttons

 or  to highlight the

function to be adjusted.

2. Press the CURSOR buttons

 or  to adjust the

function.

3. P

ress EXIT to quit the menu or select AUDIO to

return to the main menu.

 or 

 or 

Audio

Video

Audio

Aspect

Channel Manager

Locks

Timers

Setup

Move SEL Select

Audio

Treble

Bass

Balance

Surround

Audio Source Internal Speakers Auto Noise Cancel Perfect Volume Loudness

Move

SEL Return

50%

L R

O

Stereo On Off Off On

2.- Use cursor to select Off,Normal or Wide.

Off : turns off the surround sound effect. Normal Surround : Provides the surround effect by locating two or more speakers to the rear of the listener. Wide Surround : Reproduce much better quality 5 channel sound signals from ordinary stereo contents comparing with

normal surround technology. Wide surround enable users to enjoy sound playback in wide surround virtual area like

5 channel contents with ordinary stereo contents.

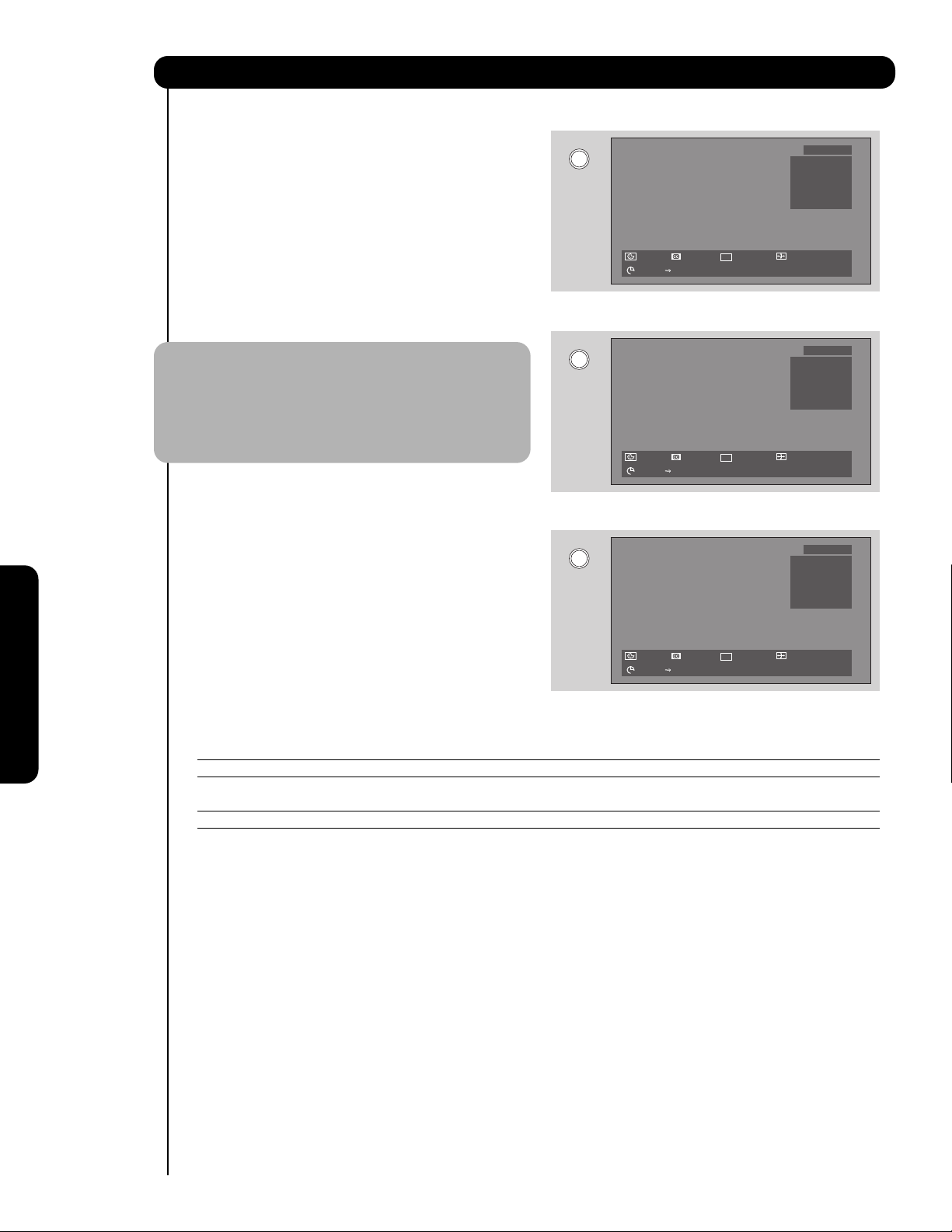

Audio Source

Multi-Channel Television Sound will allow you to select STEREO (a stereo broadcast), MONO (monaural sound) used when receiving a weak stereo broadcast or

SECOND AUDIO PROG (SAP) which may be a

secondary language, weather report, etc.

The sources received will be displayed at the top left edge of the TV. See example to the right for each source received.

1. Press the INFO button to display the source received.

Internal Speakers

This function is useful when setting up the external speakers.

ON Select this feature if using the internal speakers only. TV as Center Select this feature when setting up external speakers from a separate stereo system. The

TV’s speakers will work as the center speaker.

OFF Select this feature if you prefer to use only speakers from a separate stereo system.

Auto Noise Cancel

This function eliminates the noise between stations. If a channel is tuned and is noisy, this function will automatically eliminate the audio for that channel.

Perfect Volume

This function will automatically adjust volume so each channel and input has the same average volume level.

Loudness

This function turns loudness ON or OFF. It will improve the quality of both low and high frequency sounds when listening at low volume levels.

Audio

On-Screen Display

STEREO

MONO

NOTE: 1. When a monaural (MONO) audio

broadcast source is received, no in dication will be displayed.

2. When a ST/SA indication is displayed,

the audio being received will be both STEREO and SECOND AUDIO.

ST/SA

INFO

Air 8

ST STEREO

Day AUTO HD 1080i 16:9 Standard

--:--AM

VIEW

Air 8

MONO

Day AUTO HD 1080i 16:9 Standard

--:--AM

VIEW

Air 8

ST/SA STEREO

12:00PM

FOX

TV-PG DLSV

12:00PM

FOX

TV-PG DLSV

12:00PM

FOX

TV-PG DLSV

Day AUTO HD 1080i 16:9 Standard

--:--AM

VIEW

Audio

Use the functions below if your TV is connected to an amplifier/receiver with OPTICAL DIGITAL INPUT with Dolby Digital decoder capabilities.



1. Use the CURSOR buttons

or to highlight the

function to be adjusted.

2. Press the CURSOR buttons

or to adjust the



function.

3. Press EXIT to quit the menu or select AUDIO to return to the main menu.

Audio

Treble

Bass

Balance

Surround

Audio Source Internal Speakers Auto Noise Cancel Perfect Volume Loudness

SEL

Move

Audio

Language DRC

SEL

Move

Return

50%

L R

O

Stereo On Off Off On

1 [Unknown] On

Language

Some programs transmit more than one DTV language option. Most will have English as a default language. The language function will allow you to select up to 4 language options (if available).

DRC

Dynamic Range Compression - Use this function to compress the range of sound volume. By compressing the range of sound volume, it is possible not only to suppress the output of loud sound at night but also to raise the volume of low sound. This is only effective when the TV is connected via the optical out (digital audio) to an amplifier/receiver with a Dolby® Digital decoder. The default setting is ON. Use the CURSOR buttons



or to

select the chosen options.

On-Screen Display

NOTE: These functions are only available when viewing digital channels. (Digital Tuner)

NOTE 1: Optical Audio Out "Only" available using

Digital Tuner on Digital Channels. No other input's Audio is output via Optical Audio Out.

This includes HDMI audio. It is not output.

CH1

BACK TO COVER

Aspect

On-Screen Display

Use this function to select the Picture Format Aspect Ratio.

1. Use the CURSOR buttons

 or  to highlight the

ASPECT MODE.

2. Press the SELECT button

to select ON or OFF.

Auto Aspect

Automatically adjust the Aspect Ratio depending on the input signal to fill the screen.

NOTE: 1. The Auto Aspect function is recommended on an input signal with VIDEO ID.

2. The Auto Aspect function is best used on COMPOSITE VIDEO, S-VIDEO, 480i and 480p COMPONENT/HDMI signals.

. Press the CURSOR buttons

 or  to select VERTICAL POSITION.

Vertical Position

This function allows you to select when aspect style is either 4:3 EXPANDED/ZOOM1/ZOOM2 or 16:9 ZOOM. Vertical position can be changed with these modes. For example, it will be useful for

centering the picture area at both the top and bottom of the picture with 480i/480P signal. Adjustable range is -10 (video center is toward bottom of screen) to +10 (video center is toward top of screen).

NOTE: Vertical Position will not be available in 4:3 STANDARD and 16:9 STANDARD MODES.

4. Press MENU to return to main menu or select ASPECT to return to previous menu.

. Press EXIT to quit menu.

Aspect

Video

Audio

Aspect

Channel Manager

Locks

Timers

Setup

Move SEL Select

Aspect

M o d e

16 : 9 S t a n da rd

4: 3 S t a n d ar d 4:3 E x p a n d ed 4: 3 Z o o m 1 4: 3 Z o o m2

Auto Aspect

V e r t i c al Posi t i o n +1 0

Move SEL Select

16 : 9 Z o o m

Select CHANNEL MANAGER to set your Antenna options, run Auto Channel Scan, Check Signal Meter and Set Channel List.

1. Use the CURSOR buttons

 or  to highlight the

function to be adjusted.

2. Press the SELECT button or CURSOR button

 to

select.

Signal Meter

Select SIGNAL METER when using an indoor or outdoor antenna. This feature will show the signal strength and peak values of the Antenna signal to help you adjust your antenna to optimize signal reception.

1. Use the CURSOR buttons

 or  to highlight

SIGNAL METER.

2. Press the SELECT button to select.

NOTE: The Signal Meter will not be available (grayed

out) when watching analog channels.

On-Screen Display

Channel Manager

Video

Audio

Aspect

Channel Manager

Locks

Timers

Setup

Move SEL Select

Channel Manager

Signal Meter

Auto Channel Scan

Channel List

Move

SEL Return

Channel Manager

Signal Meter

Auto Channel Scan

Channel List

Move

SEL Return

Channel Manager

Signal Meter

Channel 15-1 Strength 91 Peak 91 Close

Move SEL Return

On-Screen Display

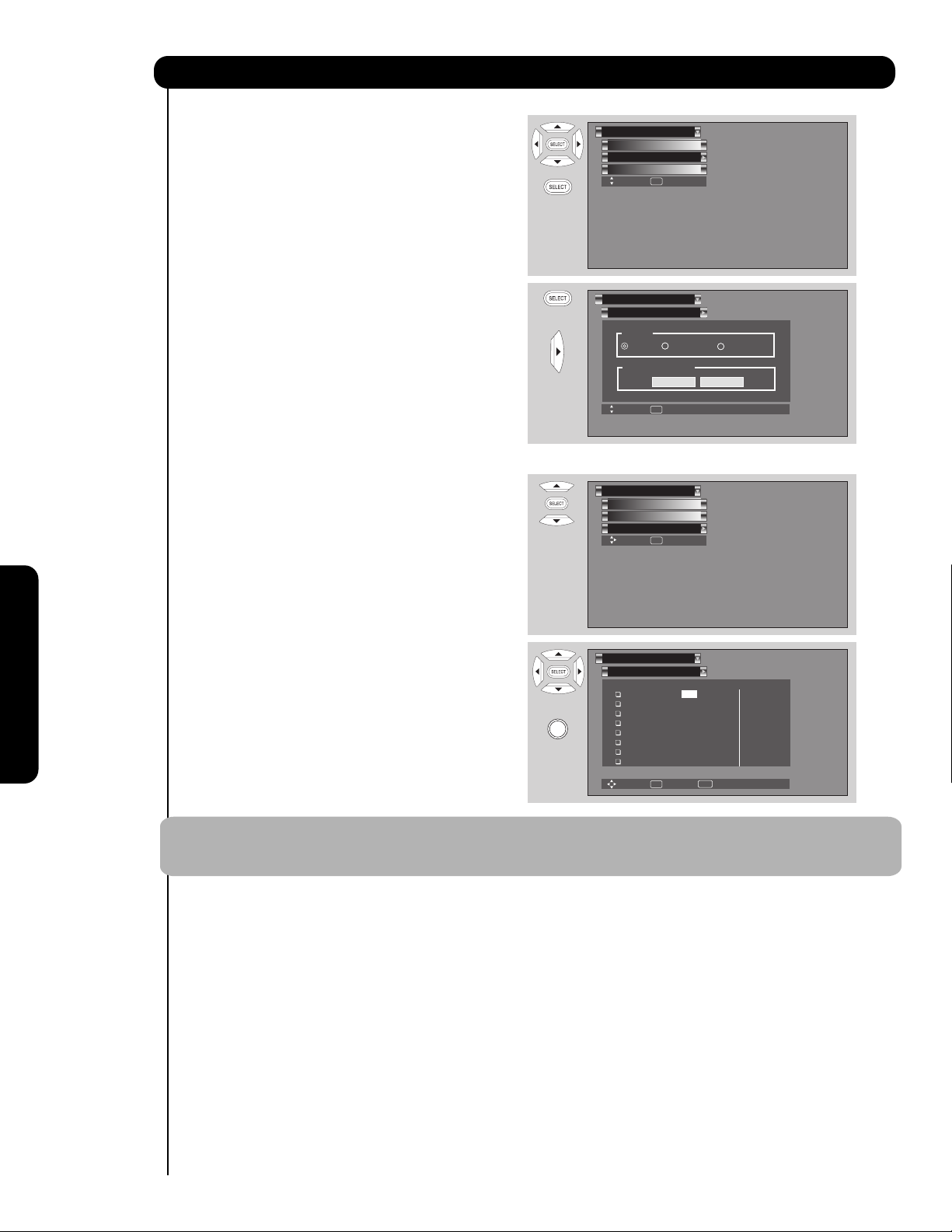

Auto Channel Scan

This feature will automatically store active TV channels in Auto Channel Scan memory.

1. Use the CURSOR buttons

to highlight

AIR, CABLE (1) or CABLE(2) source.

2. Press the CURSOR buttons

 or  to highlight the

START or RESET option.

3. Press the SELECT button to select.

NOTE: 1. When changing cable sources from CABLE (1) to CABLE (2), the AUTO CHANNEL SCAN needs to

be repeated for the Channel List to be updated.

Channel Manager

Channel List

This function allows you to review which channels are labeled (CH ID), which have been added to CHANNEL MEMORY (SCAN), which are protected by LOCK and which are your FAVORITE (FAV) CHANNELS.

1. Use the CURSOR buttons navigate the Channel List.

2. Press the SELECT button to select ON or OFF on the SCAN and LOCK Columns.

3. To select the LOCK column, input the access code. (Default access code: 0000)

4. Press the FAV button to set or remove the FAVORITES settings.

5. Press the EXIT button to return to normal viewing.

 or 

Channel Manager

Signal Meter

Auto Channel Scan

Channel List

SEL Return

Move

Channel Manager

Auto Channel Scan

S ource

Auto Cha nnel Sc an

Mo ve SEL R eturn

Channel Manager

Signal Meter

Auto Channel Scan

Channel List

Move

SEL Return

C able (1) A ir

Ca ble(2)

S tart R ese t

INFO

Channel Manager

Channel List

FAV CH# Scan Lock ID

6 On O ------ 7 On O ------ 8 On O ------ 9 On O ------ 10 On O -------

12 On O ------ 13 On O -------

Move SEL On/O INFO Detail

11 On O -------

This function will block out the picture and sound of the selected channel or video input.

The code to enter the Locks featur e is a four digit access code number. The factory preset code is 0000. Use the NUMBER buttons to enter the access code.

1. Use the CURSOR buttons to highlight

function.

2. Press the SELECT button to select.

Change Access Code

1. To change the ACCESS CODE NUMBER, select CHANGE ACCESS CODE to change the factory pr eset code (0000) to your preference.

If you forget your ACCESS CODE NUMBER, use the factory code 7777 to erase your key number. This will reset the access code number back to the factory pr eset (0000).

2. Enter a new four digit number.

3. Press EXIT to quit the menu or select CHANGE ACCESS CODE to return to the previous menu.

Engage Lock

When ENGAGE LOCK is selected, SET CHANNEL LOCK and SET FRONT PANEL LOCK can be set individually.

When SET CHANNEL LOCK is turned on, the picture and sound for the chosen channel will be blocked out.

When SET FRONT PANEL LOCK is turned on, all buttons on the Front Panel will be deactivated, except the POWER button.

When MOVIE RATINGS is selected, you can block various types of movies and video tapes based on motion picture ratings. Picture-in-Picture will also be blocked automatically (see page 44).

When TV RATINGS is selected, various types of television programming based on a parental guide ratings will be blocked. Picture-in-Picture will also be blocked automatically (see page 45).

Use CANADIAN RATINGS to block various types of movies and television programs based on the two rating systems used in Canada that you feel may be inappropriate due to its content (see pages 46-47).

Locks

On-Screen Display

 or 

Locks

Video

Audio

Aspect

Channel Manager

Locks

Timers

Setup

Move SEL Select

Please Enter Access Code

Access Code: - - - -

[#Keys] Enter Code

Locks

Change Access Code

Engage Lock

Movie Ratings

TV Ratings

Canadian Ratings(Eng)

Canadian Ratings(Frn)

Alternate Ratings U.S.

Move SEL Select

Use ALTERNATE RATINGS (U.S.) to block various types of movies and television pograms based on ratings systems used in U.S. that you feel may be inappropriate due to its content (see page 48).

NOTE: The ALTERNATE RATINGS (US) option is available for Digital Channels only.

Locks

On-Screen Display

Movie Ratings

Use Movie Ratings to prevent viewing of any movie that you feel may be inappropriate due to its content.

1. Use the CURSOR buttons

 or  to select the

MOVIE RATING category that you want to block.

2. Press SELECT to block the MOVIE RATING that you have selected. Once rating is selected, for example PG-13, all movies rated PG-13 and higher (R, NC-17, and X) will be blocked.

3. Press EXIT to quit the menu or select MOVIE RATING to return to the previous menu.

Motion Picture Ratings Table

NOT RATED Contains no rating. Not Rated (NR) and Not Applicable (NA) programs. Movie has not

been rated or ratings do not apply. G General audiences. All ages admitted. PG Parental guidance suggested. Some material may not be suitable for children. PG-13 Parents strongly cautioned. Some material may be inappropriate for children under 13. R Restricted. Under 17 requires accompanying parent or adult guardian. NC-17 No one 17 and under admitted. X Adults only

NOTE: 1. A movie rating is dependent upon the movie that is viewed. If the movie does not carry a rating, the

TV will not block it.

2. Blocking NOT RATED programs may block emergency programming, sports, news, public service announcements, religious programs and weather.

Locks

Change Access Code

Engage Lock

Movie Ratings

TV Ratings

Canadian Ratings(Eng)

Canadian Ratings(Frn)

Alternate Ratings U.S.

Move SEL Select

Locks

Movie Ratings

sutatS

detaR toN G PG PG-13 R NC-17 X

Move SEL Return

Locks

On-Screen Display

TV Ratings

Use TV RATINGS to prevent the viewing of any TV program that you feel may be inappropriate due to its content.

1. Use the CURSOR buttons

 or  to select the TV

RATING category that you want to block.

2. Press SELECT to block the TV RATING that you have selected.

3. Press EXIT to quit the menu or select TV RATING to return to the previous menu.

TV Parental Guide Ratings Table

TV-Y All children. The themes and elements in this program are specifically designed for a very

young audience, including children from ages 2-6.

TV-Y7 Directed to older children. Themes and elements in this program may include mild

physical or comedic violence, or may frighten children under the age of 7.

TV-G General audience. It contains little or no violence, no strong language, and little or no

sexual dialogue or situations.

TV-PG Parental guidance suggested. The program may contain infrequent coarse language,

limited violence, some suggestive sexual dialogue and situations.

TV-14 Parents strongly cautioned. This program may contain sophisticated themes, intense

sexual situation, more intense violence and intensely suggestive dialogue.

TV-MA Mature audiences only. This program may contain mature themes, indecent language,

graphic violence, and explicit sexual content. FV Fantasy Violence V Violence S Sexual Situation L Adult Language D Sexually Suggestive Dialogue

NOTE: 1. If you Block TV-14D, you will still permit TV-MA programs; If you block TV-14V, you will

automatically block TV-MAV programs, but you will still permit TV-MALS programs. This means that the TV will block violence in TV-14 and higher (TV-MA), but not language and sex.

2. TV program ratings are dependent on the broadcaster. If the program is not rated, the TV will not block it.

Locks

Change Access Code

Engage Lock

Movie Ratings

TV Ratings

Canadian Ratings(Eng)

Canadian Ratings(Frn)

Alternate Ratings U.S.

Move SEL Select

Locks

TV Ratings

Sub Rating Status D L S V FV TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA

Move SEL Return

Locks

On-Screen Display

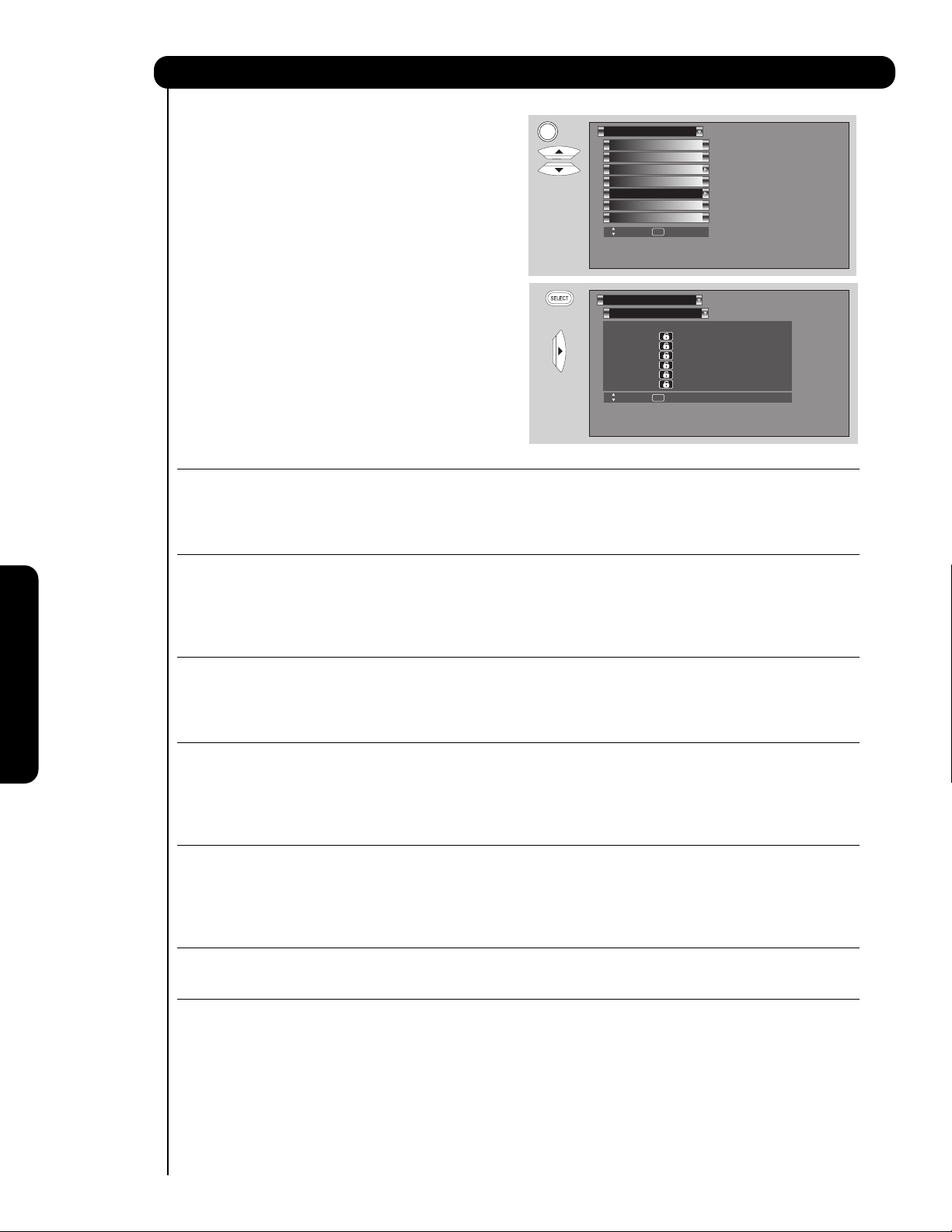

Canadian Ratings (Eng)

Use CANADIAN RATINGS (ENG) to block any type of movie and television program in Canada that you feel might be inappropriate in its content.

1. Use the CURSOR buttons

 or  to select the

CANADIAN RATINGS (ENG) category that you want to block.

2. Press SELECT to block the CANADIAN RATINGS (ENG) that you have selected. Once rating is selected, for example C8+, all movies and television programs rated C8+ and higher (G, PG, 14+ and 18+) will be blocked automatically.

3. Press EXIT to quit the menu or select CANADIAN RATINGS (ENG) to return to the previous menu.

Canadian Ratings English Table

C Programming intended for children under age 8 - Violence Guidelines; Careful attention is

paid to themes, which could threaten children’s sense of security and well-being. There will be no realistic scenes of violence. Depictions of aggressive behaviour will be infrequent and limited to portrayals that are clearly imaginary, comedic or unrealistic in nature. Other Content Guidelines: There will be no offensive language, nudity or sexual content.

C8+ Programming generally considered acceptable for children 8 years and over to watch on

their own - Violence Guidelines: Violence will not be portrayed as the preferred, acceptable, or only way to resolve conflict; or encourage children to imitate dangerous acts which they may see on television. Any realistic depictions of violence will be infrequent, discreet, of low intensity and will show the consequences of the acts. Other Content Guidelines: There will be no profanity, nudity or sexual content.

G General Audience - Violence Guidelines: Will contain very little violence, either physical or

verbal or emotional. Will be sensitive to themes which could frighten a younger child, will not depict realistic scenes of violence which minimize or gloss over the effects of violent acts. Other Content Guidelines: There may be some inoffensive slang, no profanity and no nudity.

PG Parental Guidance - Programming intended for a general audience but which may not be

suitable for younger children. Parents may consider some content inappropriate for unsupervised viewing by children ages 8-13. Violence Guidelines: Depictions of conflict and/or aggression will be limited and moderate; may include physical, fantasy, or supernatural violence. Other Content Guidelines: May contain infrequent mild profanity, or mildly suggestive language. Could also contain brief scenes of nudity.

14+ Programming contains themes or content which may not be suitable for viewers under the

age of 14 - Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens. Violence Guidelines: May contain intense scenes of violence. Could deal with mature themes and societal issues in a realistic fashion. Other Content Guidelines: May contain scenes of nudity and/or sexual activity. There could be frequent use of profanity.

18+ Adult - Violence Guidelines: May contain violence integral to the development of the plot,

character or theme, intended for adult audiences. Other Content Guidelines: May contain graphic language and explicit portrayals of nudity and/or sex.

Locks

Change Access Code

Engage Lock

Movie Ratings

TV Ratings

Canadian Ratings(Eng)

Canadian Ratings(Frn)

Alternate Ratings U.S.

Move SEL Select

Locks

Canadian Ratings(Eng)

Status C C8+ G PG 14+ 18+

Move SEL Return

Locks

On-Screen Display

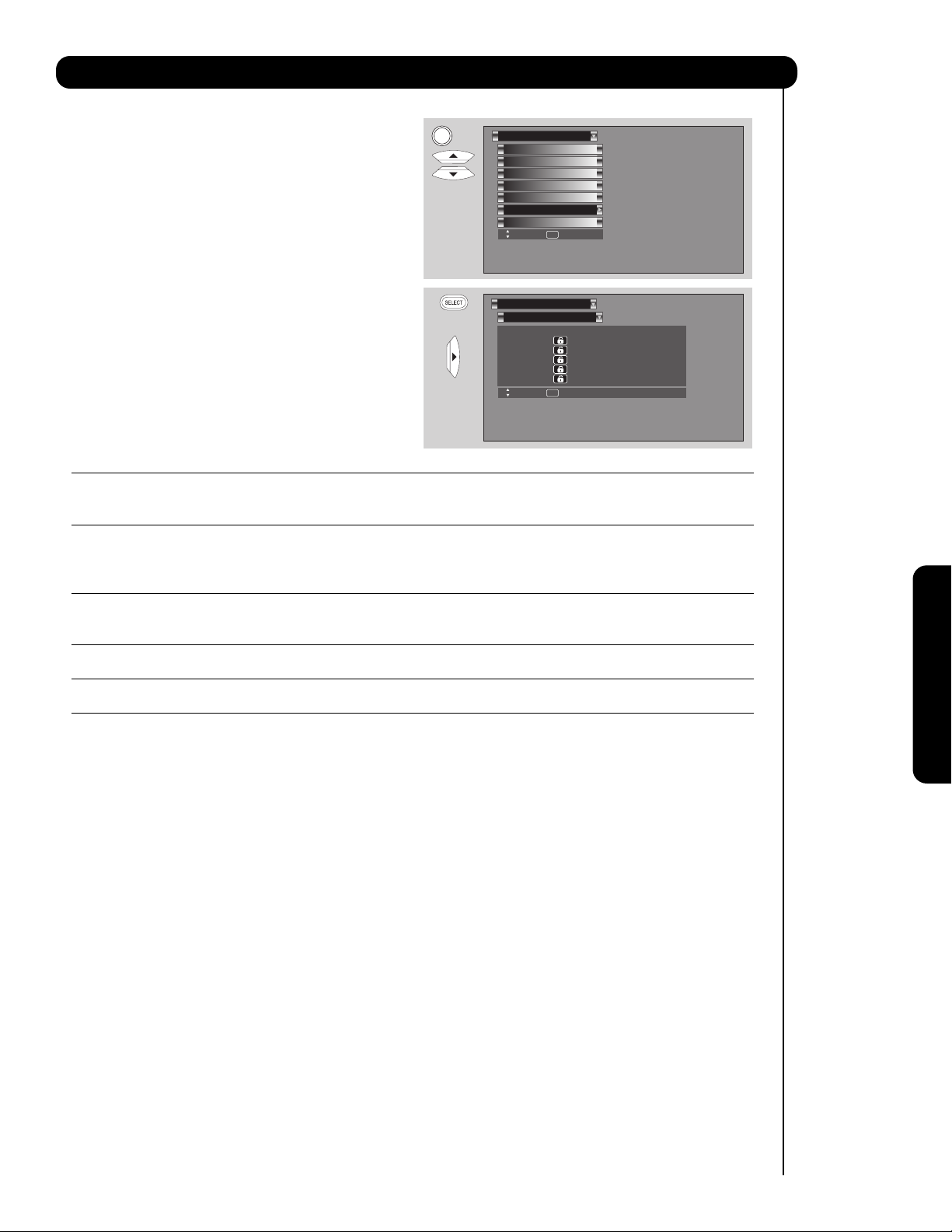

Canadian Ratings (Frn)

Use CANADIAN RATINGS (FRN) to block Canadian French programs according to various program ratings that you feel might be inappropriate in its content.

1. Use the CURSOR buttons

 or  to select the

CANADIAN RATINGS (FRN) category that you want to block.

2. Press SELECT to block the CANADIAN RATINGS (FRN) that you have selected. Once rating is selected, for example 8 ANS+, all movies and television programs rated 8 ANS+ and higher will be blocked automatically.

3. Press EXIT to quit the menu or select CANADIAN RATINGS (FRN) to return to the previous menu.

Canadian Ratings French Chart

G General - Programming intended for audiences of all ages. Contains no violence, or the

violence content is minimal or is depicted appropriately with humor or caricature or in an unrealistic manner.

8 ans + 8 + General - Not recommended for young children - Programming intended for a broad

audience but contains light or occasional violence that could disturb young children. Viewing with an adult is therefore recommended for young children (under the age of 8) who cannot differentiate between real and imaginary portrayals.

13 ans + Programming may not be suitable for children under the age of 13 - Contains either a few

violent scenes or one or more sufficiently violent scenes to affect them. Viewing with an adult is therefore strongly recommended for children under 13.

16 ans + Programming is not suitable for children under the age of 16 - Contains frequent scenes of

violence or intense violence.

18 ans + Programming restricted to adults - Contains constant violence or scenes of extreme

violence.

Locks

Change Access Code

Engage Lock

Movie Ratings

TV Ratings

Canadian Ratings(Eng)

Canadian Ratings(Frn)

Alternate Ratings U.S.

Move SEL Select

Locks

Canadian Ratings(Frn)

Status G 8 ans + 13 ans + 16 ans + 18 ans +

Move SEL Return

Locks

G General audiences. All ages admitted. PG Parental guidance suggested. Some material may not be suitable for children. PG-13 Parents strongly cautioned. Some material may be inappropriate for children under 13. R Restricted. Under 17 requires accompanying parent or adult guardian. NC-17 No one 17 and under admitted. X Adults only

Y Adults only

TV-Y

TV-Y7

12345678

ABCDEFJH

TV-Y

TV-Y7

12345678

ABCDEFJH

On-Screen Display



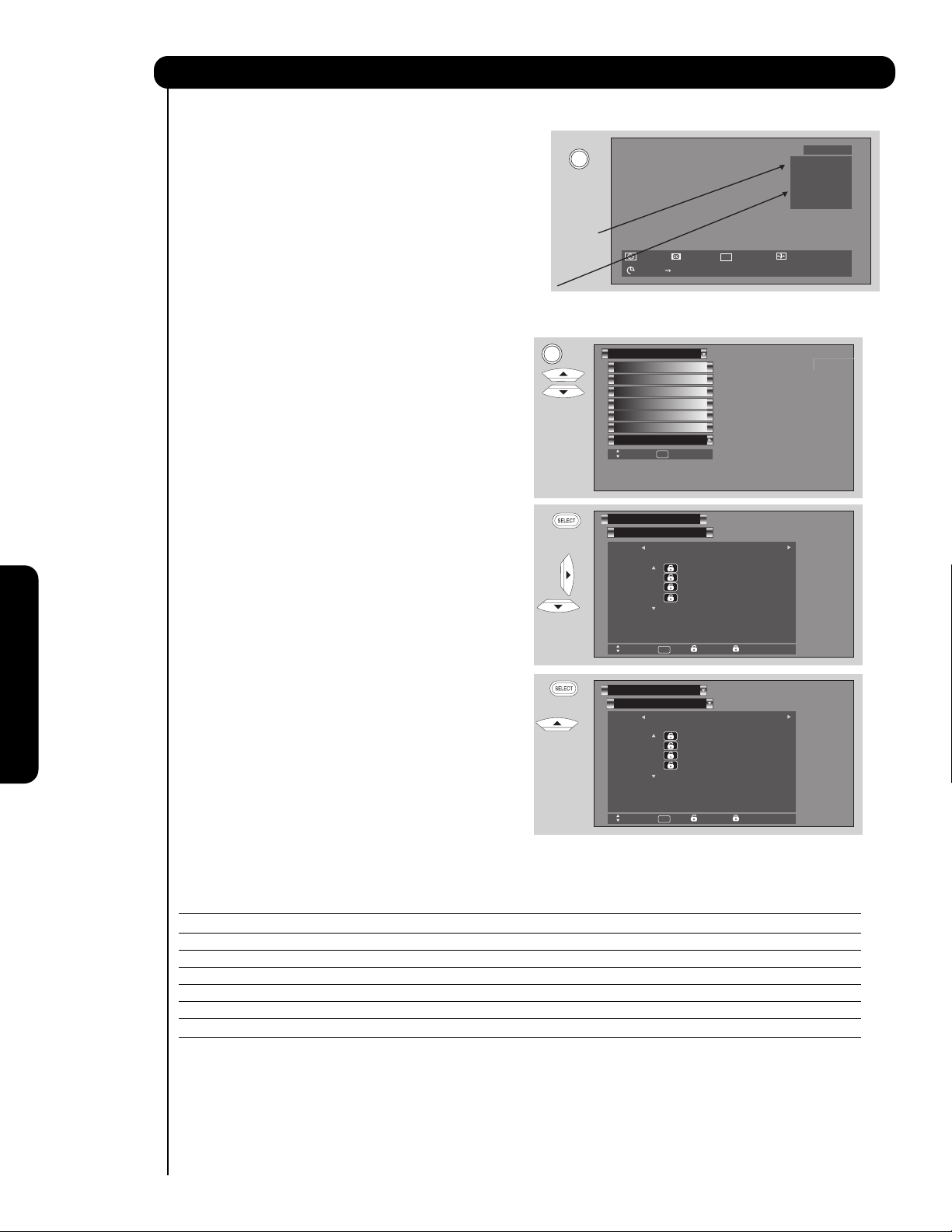

Alternate Ratings U.S.

Use Alternate Ratings to prevent viewing of any movie or program that you feel may be inappropriate due to its content.

This feature will be available only for ATSC Digital signal. In case only NTSC analog signal is received this feature will

be unavailable (grayed out). In order to set the Alternate Ratings the ATSC Digital channel

received must include Alternate Ratings data .To see if the channel has Alternate Ratings , press the INFO key on the R/C. See fig. (1) for reference.

Once the TV has received Alternate Ratings data , the Alternate Ratings US in the lock menu will become available.

Use the CURSOR buttons or to select the

ALTERNATE RATIN G category that you want to block.

INFO

Broadcast Received

Alternate Ratings

Day AUTO HD 1080i 16:9 Standard

--:--AM

VIEW

Fig. (1)

Locks

Change Access Code

Engage Lock

Movie Ratings

TV Ratings

Canadian Ratings(Eng)

Canadian Ratings(Frn)

Alternate Ratings U.S.

Move SEL Select

Locks

Alternate Ratings U.S. Status CATEGORY NAME (1 / 10)

:[ ]

12:00PM

Air 8 - 1

ST STEREO

FOX

DTVCC

ALT. US

Press SELECT to block the ALTERNATE RATING

Move SEL View Block

that you have selected. Once rating is selected, for

example PG-13, all movies rated PG-13 and higher (R, NC-17 and X) will be blocked.

Press EXIT to quit the menu or select ALTERNATE

Locks

Alternate Ratings U.S. Status CATEGORY NAME (1 / 10)

RATINGS to return to the previous menu.

:[ ]

Directed to older children. Themes and elements in this program may include mild physical or comedic violence, or may frighten children under the age of 7.

Move SEL View Block

Alternate Ratings (Example Only) :

On-Screen Display

This page is left blank intentionally

Timers

On-Screen Display

Select TIMERS to set your Clock, Sleep Timer, Event Timer and Day/Night Timer Recordings.

1. Use the CURSOR buttons

 or  to highlight the

function to be adjusted.

2. Press the SELECT button or CURSOR button

 to

select.

Set The Clock

The Clock must be set before you can use the

SET EVENT TIMER or DAY/NIGHT TIMER feature.

1. Use the CURSOR buttons

, ,  or  to

highlight the chosen TIME ZONE settings.

2. Press the SELECT button to select. If you observe daylight savings, use CURSOR buttons to highlight

DAYLIGHT SAVING CORRECTION and press the SELECT button to select.

3. Use the CURSOR buttons

, ,  or  to

highlight the CURRENT TIME (hour and minute), AM or PM, MONTH, DAY, and YEAR.

4. Use the CURSOR buttons

 and  to adjust

settings.

5. Press the SELECT button to set the TIME AND DATE.

6. Press EXIT to quit the menu or select SET THE CLOCK to return to the previous menu.

NOTE: 1. When AUTOMATICALLY ADJUST CLOCK FOR DAYLIGHT SAVING CHANGES is checked

■

✔, the TV

will automatically calculate the clock adjustment for Daylight Saving.

2. The TV counts electrical pulses for regulating the TIMERS. When the power cord is unplugged then

plugged in quickly, the clock is stopped momentarily and the TIME indication will become slow.

Timers

Video

Audio

Aspect

Channel Manager

Locks

Timers

Setup

Move SEL Select

Timers

Set The Clock

Set Sleep Timer

Set Day/Night Timer

Set Event Timer

Move SEL Set

Timers

Set The Clock

Set Sleep Timer

Set Day/Night Timer

Set Event Timer

Move SEL Set

Timers

Set The Clock

Time Zone :

PST MST CST EST AKST HST ATL Daylight Saving Corrections

Time : -- : -- AM Jan. 01 2006

Move SEL Return

Timers

On-Screen Display

Set Sleep Timer

Select this feature to set your SLEEP TIMER from 30 minutes to 3 hours (30 minute increments).

1. Press the CURSOR buttons

 or  repeatedly to

set your Timer from 0:00, 0:30, 1:00, 1:30, 2:00, 2:30 and 3:00.

Set Day/Night Timer

Select this feature to activate and set your TV’s DAY/NIGHT PICTURE MODE automatically.

1. Use the CURSOR buttons

 or  to highlight SET

DAY/NIGHT TIMER settings.

2. Press the SELECT button or CURSOR button



to select.

3. Use the CURSOR buttons

, ,  or  to select

DAY MODE ON and to set it’s TIMER.

4. Use the CURSOR buttons

, ,  or  to select

DAY MODE OFF and to set it’s TIMER.

5. Press EXIT to quit the menu or select SET DAY/NIGHT TIMER to return to the previous menu.

NOTE: When the clock is changed in the SET THE

CLOCK function, this feature is disabled.

Set Day/Night Timer

Set Sleep Timer

Set Event Timer

Set The Clock

Timers

Move SEL Set

0:00

Timers

Set The Clock

Set Sleep Timer

Set Day/Night Timer

Set Event Timer

Move SEL Set

Timers

Set Day/Night Timer ❑ Activate

Day Mode On : 06:00 AM Day Mode Off : 06:00 PM

Move SEL Return

Timers

On-Screen Display

Set Event Timer

This function will automatically operate the Projection TV viewing reservation of a program. If the clock is not set, you can not use this function and the screen below will appear. The message on the screen will disappear after 3 seconds, then the screen automatically goes to the clock setup mode (see page 45).

1. Use the CURSOR buttons

 or  to highlight

EVENT 1, EVENT 2, EVENT 3, EVENT 4 and then press the SELECT button to select.

2. Use the CURSOR buttons

,  or  to highlight

and select START TIME HOUR/MINUTE.

3. Use the CURSOR buttons

,  or  to highlight

and select START TIME AM/PM.

4. Use the CURSOR buttons

,  or  to highlight

and select FINISH TIME HOUR/MINUTE.

5. Use the CURSOR buttons

,  or  to highlight

and select FINISH TIME AM/PM.

6. Use the CURSOR button

 to highlight the

MONTH.

7. Use the CURSOR button

 to select a MONTH or

CURSOR button

 to select DAILY, WEEKLY -

SUNDAY TO MONDAY. Use the CURSOR button

 to return to MONTH.

8. Use the CURSOR buttons

,  or  to highlight

and select the DAY of the MONTH.

9. Use the CURSOR buttons

,  or  to highlight

and select the YEAR.

10. Use the CURSOR buttons

,  or  to highlight

and select CABLE or AIR.

11. Use the CURSOR buttons

,  or  to set the channel the TV will tune into.

12. Use the SELECT button to enable EVENT SETTINGS. A ✔ in the box means it is enabled.

NOTE: 1. When the INFO button is pressed, the Event Timer Icon will only display the current date ON/OFF

timer.

2. The OFF TIMER will only activate if the TV was turned on by the ON TIMER and no channel selection was made after this time. If you change the channel after the ON TIMER has been activated, the OFF TIMER will deactivate.

3. If no remote control button is pressed after viewing reservation is activated, the TV will automatically turn off after three hours. Therefore, do not SET EVENT TIMER for more than three hours if you do not plan to control your television with the remote control.

CAUTION: Do not use your TV as a deterrent when away from home by using the ON and OFF TIMERS. For safety, the TV should be turned off when you are away from home.

Set Event Timer

Timers

Set Day/Night Timer

Set Sleep Timer

Set Event Timer

Set The Clock

Timers

Move SEL Set

Move SEL Return

Please Set Clock First

4:11 PM ❑ Event1 : -- : -- AM



-- : -- AM Jan. 1 2006

Air ------- ❑ Event2 : -- : -- AM



-- : -- AM Jan. 1 2006

Air ------- ❑ Event3 : -- : -- AM



-- : -- AM Jan. 1 2006

Air ------- ❑ Event4 : -- : -- AM



-- : -- AM Jan. 1 2006

Air -------

Set Event Timer

Timers

Move SEL Return

4:11 PM

❑ Event1 : -- : -- AM



-- : -- AM Jan. 1 2006

Air ------- ❑ Event2 : -- : -- AM



-- : -- AM Jan. 1 2006

Air ------- ❑ Event3 : -- : -- AM



-- : -- AM Jan. 1 2006

Air ------- ❑ Event4 : -- : -- AM



-- : -- AM Jan. 1 2006

Air -------

4. When the CLOCK is changed in the SET THE CLOCK function, events are disabled and the check mark is removed

Setup

On-Screen Display

Select SETUP when setting your TV up for the first time.

1. Use the CURSOR buttons

 or  to highlight the

function to be adjusted.

2. Press the SELECT button or CURSOR button



to select.

Magic Focus Tune Up

Auto Digital Convergence Adjustment

Please turn ON your television for at least 20 minutes before using this feature.

The MAGIC FOCUS button on control panel will not work when adjustment mode is set to MANUAL (see

page 55

or 56).

Your HITACHI Projection TV has three color projection tubes: one for red, one for green, one for blue. When mixed together in the proper proportion, the output of these three color tubes can produce any color. To produce these colors, however, the beams must be precisely aligned over each other so that the colors can be mixed. The process of aligning these picture beams is called “convergence”.

Over a period of time, the picture tubes can drift out of alignment due to normal bumps and vibrations or moving the TV. If you move your TV, or if, after a time, you notice color rings or halos around objects in the picture, you may want to converge (align) the colors.

Properly converged, the lines appear white, which is actually a combination of the outputs of the three color tubes. The output of the green tube is stationary. The outputs of the red and blue tubes can be adjusted. When properly aligned, the outputs of all three tubes should be directly over each other to produce the white lines.

To simplify convergence, HITACHI incorporates a function called MAGIC FOCUS located on the front control panel, which allows the TV to self-adjust. Press this MAGIC FOCUS button and the convergence self adjustment will start and this process will take approximately 20 seconds. If this button is pressed during this process, no change in picture quality will occur. After this 20 second self-adjust period, picture quality will be optimum (do not move the TV during self-adjust).

You may also select MAGIC FOCUS TUNE UP from the Setup Menu.

Setup

Video

Audio

Aspect

Channel Manager

Locks

Timers

Setup

Move SEL Select

MAGIC

FOCUS

Setup

Magic Focus Tune Up

Menu Preference

Set The Inputs

Set Virtual HD Set Black Side Panel Set Closed Captions Set Audio Out

Upgardes

Move SEL Set

M A G I C F O C U S

>>>>> <<<<<

Setup

On-Screen Display

NOTE: 1. Only a momentary press of the MAGIC

FOCUS button is necessary to start AUTO DIGITAL CONVERGENCE. At any time

during this convergence correction process, you may press the MAGIC FOCUS button to exit the MAGIC FOCUS mode. However, the convergence correction process needs to be completed to SAVE the new corrected convergence data.

2. When Auto

■

✔ AT TURN OFF is selected,

the TV will adjust itself after 90 days.

M A G I C F O C U S

>>>>> <<<<<

Video

Audio

Aspect

Channel Manager

Locks

Timers

Setup

Move SEL Select

Setup

Magic Focus Tune Up

Menu Preference

Set The Inputs

Set Virtual HD Set Black Side Panel Set Closed Captions Set Audio Out

Upgardes

Move SEL Set

Setup

Magic Focus Tune Up

Aligns the Red, Green and Blue colors to correct for Magnetic Influences.

Adjustment Mode

Auto ffonruttA 9 Point Manual after 90 days. 117 Point Manual

If you want to adjust now start

Move SEL Return

Setup

On-Screen Display

Manual Convergence Adjustment Mode (9 Point Manual Adjustment)

NOTE: 1. Please turn ON your television for at least

20 minutes before using this feature.

2. AUTO ADJUSTMENT MODE is recommended. If convergence is still not acceptable, use the MANUAL

ADJUSTMENT MODE.

3. If AUTO ADJUSTMENT MODE is selected or the MAGIC FOCUS button is pressed, all manual adjust mode settings will be erased.

Using the Remote Control, select SETUP, MAGIC FOCUS TUNE UP, MANUAL ADJUSTMENT MODE, 9 POINT MANUAL, START to access convergence 9

point pattern. The adjustment point is indicated by the Adjustment Point Cursor.

To Move Adjustment Point

To move the Adjustment Point Cursor using the CURSOR buttons, the Adjustment Point Cursor must be WHITE. Another way to move the Adjustment Point Cursor is to press the following buttons: [2] up, [4] left, [5] down, [6] right. If you use the number buttons while the adjustment point is WHITE, it will change to RED.

To Change the Color of Adjustment Point

Press the SELECT button repeatedly (WHITE-REDBLUE-WHITE...). GREEN color is fixed and cannot be

adjusted.

To Adjust the Convergence

Move the Adjustment Point Cursor to the point to be adjusted. Use the CURSOR buttons to match the RED and BLUE colors to GREEN (reference color). Properly aligned, all three colors should appear white.

If convergence is acceptable after MANUAL CONVERGENCE adjustment, press EXIT button to access menu mode.

1. Use the CURSOR buttons to highlight your chosen option.

2. Press the SELECT button to select.

3. Select CANCEL to cancel adjusted data and return to main picture.

4. Select DONE to save your adjustments and return to main picture.

5. Select BACK to return to the manual convergence adjustment mode.

6. Select RESET to recall the factory pre-set convergence data.

Magic Focus Tune Up

Setup

Mo ve SEL R eturn

Manual Adjust Please select button

Done Back

Reset

Cancel

EXIT

Adjustment Point Cursor

Video

Audio

Aspect

Channel Manager

Locks

Timers

Setup

Move SEL Select

Setup

Magic Focus Tune Up

Menu Preference

Set The Inputs

Set Virtual HD Set Black Side Panel Set Closed Captions Set Audio Out

Upgrades

Move SEL Set

Setup

Magic Focus Tune Up

Aligns the Red, Green and Blue colors to correct for Magnetic Influences.

Adjustment Mode

Auto At turn o ff 9 Point Manual after 90 days. 117 Point Manual

If you want to adjust now start

Move

SEL

Return

Setup

On-Screen Display

Manual Convergence Adjustment Mode (117 Point Manual Adjustment)

NOTE: 1. Please turn ON your television for at least

20 minutes before using this feature.

2. AUTO ADJUSTMENT MODE is recommended. If convergence is still not acceptable, use the MANUAL

ADJUSTMENT MODE.

3. If AUTO ADJUSTMENT MODE is selected or the MAGIC FOCUS button is pressed, all manual adjust mode settings will be erased.

Using the Remote Control, select SETUP, MAGIC FOCUS TUNE UP, MANUAL ADJUSTMENT MODE, 117 POINT MANUAL, START to access convergence

117 point pattern. The adjustment point is indicated by the Adjustment Point Cursor.

To Move Adjustment Point

To Change the Color of Adjustment Point

Press the SELECT button repeatedly (WHITE-REDBLUE-WHITE...). GREEN color is fixed and cannot be

adjusted.

To Adjust the Convergence

If convergence is acceptable after MANUAL CONVERGENCE adjustment, press EXIT button to access menu mode.

1. Use the CURSOR buttons to highlight your chosen option.

2. Press the SELECT button to select.

3. Select CANCEL to cancel adjusted data and return to main picture.

4. Select DONE to save your adjustments and return to main picture.

5. Select BACK to return to the manual convergence adjustment mode.

6. Select RESET to recall the factory pre-set convergence data.

Adjustment Point Cursor

Video

Audio

Aspect

Channel Manager

Locks

Timers

Setup

Move SEL Select

Setup

Magic Focus Tune Up

Menu Preference

Set The Inputs

Set Virtual HD Set Black Side Panel Set Closed Captions Set Audio Out

Upgrades

Move SEL Set

Setup

Magic Focus Tune Up

Aligns the Red, Green and Blue colors to correct for Magnetic Influences.

Adjustment Mode

Auto At turn off 9 Point Manual after 90 days. 117 Point Manual

If you want to adjust now start

Move

SEL Return

EXIT

Setup

Magic Focus Tune Up

Manual Adjust

Pleas e select button

Cancel Done Back Reset

Move SEL Return

Setup

On-Screen Display

Menu Preference

This feature will allow you to select any one of three different languages for all on-screen displays.

Set the Language

This function allows you to choose from three menu languages.

1. Use the CURSOR buttons

 or  to highlight the

language of your choice.

2. Press EXIT to quit menu or select MENU PREFERENCE to return to previous menu.

Set the Menu Background

This function allows you to choose from two menu backgrounds.

1. Use the CURSOR buttons

 or  to highlight

SET THE MENU BACKGROUND (SHADED OR SOLID).

2. Press EXIT to quit menu or CURSOR button

 to

return to previous menu.

3. Select SOLID for a black background (no picture can be seen behind menu screen), or select SHADED for a light background.

Set The Inputs

Use this feature to give a name to any of the five video inputs. A named input is shown in the INPUTS menu.

1. Press the CURSOR buttons

, ,  or  to

highlight the name of the video inputs.

2. Select from one of the following choices to set an input name:

AVR,CAM,CBL,CBL2, DVD, DVD2, DVD3,LD VCR,VCR2,VCR3,PVR,PVR2,SAT,STB,STB2.

Menu Preference

Setup

Menu Preference

Setup

Menu Preference

Setup

Menu Preference

Setup

Magic Focus Tune Up

Menu Preference

Set The Inputs

Set Virtual HD Set Black Side Panel Set Closed Captions Set Audio Out

Upgrades

Move SEL Set

Set The Language

Set The Menu Background

Mo ve SEL R eturn

Set The Language

Set The Menu Background

Mo ve SEL R eturn

English

Shaded Solid

English

Shaded Solid

Français

Español

Setup

Magic Focus Tune Up

Menu Preference

Set The Inputs

Set Virtual HD Set Black Side Panel Set Closed Captions Set Audio Out

Upgrades

Move SEL Set

Setup

Set The Inputs

Input1 Input2 Input3 Input4 Input5

Move SEL Return

Rename List AVR DVD PVR STB2 CAM DVD2 PVR2 VCR CBL DVD3 SAT VCR2 CBL2 LD STB VCR3

Reset Auto Link

Auto Remote Off

Setup

On-Screen Display

INPUT 3 Auto Link

Use this function to automatically turn the TV on and tune to INPUT 3 when it detects a video signal to INPUT 3.

1. Use the CURSOR buttons

 or  to highlight the

AUTO LINK setting of your choice.

2. When AUTO is selected, the TV will turn on and

tune to INPUT 3 automatically, when the INPUT 3 input device is turned on. This is convenient when you want to watch a movie with your VCR, laserdisc player or DVD player.

3. When REMOTE is selected, the TV will turn on and switch to INPUT 3 automatically when the INPUT 3 input

device is turned on and the VCR, laserdisc, or DVD play button on your remote control is pressed. This is convenient when you want to record a movie with your VCR and watch it later.

4. Select OFF to disable this function.

5. Press EXIT to quit menu or select AUTO LINK to return to previous menu.

NOTE: 1. Once the TV has been turned on using the AUTO LINK feature, it must be reset before AUTO LINK

is used again. To do this, turn your VCR, laserdisc or DVD player OFF. This feature is now reset and will turn on your TV as described above.

2. When using REMOTE mode, any remote control button will substitute for your video input device play button. However, intended operation is for use with your VCR, laserdisc, or DVD play button.

3. If no remote control button is pressed after the TV is turned on by AUTO LINK, the TV will automatically turn off after three hours.

Set Virtual HD

NOTE: To maximize operating life of the TV’s picture tubes when watching 4:3 signal, Black Side Panel is

cancelled at Power OFF. It is recommended to watch 4:3 signal with gray side bar.

Setup

Set The Inputs

Input1 Input2 Input3 Input4 Input5

Move

Rename List

AVR DVD PVR STB2 CAM DVD2 PVR2 VCR CBL DVD3 SAT VCR2 CBL2 LD STB VCR3

Reset

Auto Link

Auto Remote Off

SEL Retur n

Use this feature to select between 1080i and 540p

scan mode.

Set Virtual HD

Next/Prev. SEL Return Select

1080i

When content from film is sent to your home it requires processing that can cause picture noise or distortion.

Virtual HD technology reduces this noise to a minimum, recreating the smooth curves and high fidelity image of the original film source.

NOTE: VIRTUAL HD is not available (grayed out) in Digital Channels, 1080i input, HDMI and components.

Set Black Side Panel

The BLACK SIDE PANEL function turns the gray side

bars on/off when watching 4:3 signals in Standard mode. The top/bottom gray bar will appear in SPLIT MODE PIP and SPLIT FREEZE. The TV set will always return to "Set Black Side Panel -OFF" setting every time the TV is powered "OFF".

Set Black Side Panel

Next/Prev. SEL Return On/o

Off

Setup

On-Screen Display

Set Closed Captions

Closed Captions are the dialogue, narration, and/or sound effects of a television program or home video which are displayed on the TV screen. Your local TV program guide denotes these programs as or .

1. Use the CURSOR buttons

, ,  or  to

highlight and select the function to change.

2. Press EXIT to quit menu or CURSOR button

 to

return to previous menu.

Caption Display:

ON/OFF will turn the display on or off. AUTO will turn the display on when

Mute/Soft Mute is on.

Analog Caption:

Sets CAPTIONS for analog programs. This function will help choose available mode and channel.

Caption Mode:

CAPTIONS is for the program you are viewing. TEXT is for additional information such as news reports or a TV program guide. This information covers the entire screen and viewing the TV program is not possible. Text may not be available with every program.

Channel:

1 is used for the primary language (usually English). 2 is sometimes used for a second language (may vary by region). 3 is sometimes used for a third language (may vary by region). 4 is sometimes used for a fourth language (may vary by region).

Digital Captions

Set captions for digital programs. This function

will help choose and set available language,

font, size and style of digital captions.

1. Use the CURSOR buttons

, ,  or  to

highlight and select DIGITAL CAPTIONS feature.

2. Press EXIT to quit menu or CURSOR button

 to

return to previous menu.

NOTE: 1. Some types of digital closed captions will not work with this TV.

2. Caption Display will not work when viewing a 480p, 720p or 1080i input via the

COMPONENT: Y-P

BPR inputs.

3. There are 2 types of Closed Captions in a Digital channel Analog & Digital captions

4. Digital Captions Font Style are sometimes different from the Font Style of Analog Captions.

5. Closed Caption and Digital Captions availability and content depends on the broadcaster. Closed Caption is available when Closed Caption icon is displayed on screen.

6. Digital Captions Options will not be available (grayed out) when using analog channels.

[ HITACHI ]

7. When ANALOG captions in a Digital channel are displayed and the ASPECT mode is changed; it will not change position of the captions in the picture.

8. When DIGITAL captions in a Digital channel are displayed and the ASPECT mode is changed; it will change position of the picture and the captions ; so it may require to change the ASPECT mode in

order to display the captions correctly.

Setup

Magic Focus Tune Up

Menu Preference

Set The Inputs

Set Virtual HD Set Black Side Panel Set Closed Captions Set Audio Out

Upgrades

Move SEL Set

Setup

Set Closed Captions

C a p t i o n D i s p l a y

Off On Auto

A n a l o g C a p t i o n s Mode : Captions Text Channel : 1 2 3 4

D i g i t a l C a p t i o n s

SEL

ReturnMove

Set

Setup

Set Closed Captions

D i g i t a l C a p t i o n s

Service 1 2 3

Language [ French ]

Font Default 1 2 3 4

5 6 7 8

Size Standard Small Large

Standard Standard High Visibility

SEL

ReturnMove

Setup

On-Screen Display

Set Audio Out

This feature will select the source of the Audio

Output.

Fixed:

Select AUDIO OUT FIXED to have the Audio at fixed volume.

Variable :

Select AUDIO OUT VARIABLE to have Audio

1. Use CURSOR buttons

 or  to highlight the

2. Use the SELECT button to select the function.

3. Press EXIT to quit menu or CURSOR button



Upgrades

It shows software information and easy upgrade procedure. This function allows the TV software to be upgraded by using a flash card (MMC CARD). If a future software upgrade is required for your TV, HITACHI will notify and provide you with a flash card. In order to receive written notification and the flash card, please complete and return the warranty card.

1. Insert MMC CARD

2. Press the CURSOR buttons

 or  to highlight

UPGRADE NOW.

3. Press the SELECT button to select and start upgrading.

4. Unplug the power cord when the upgrade is complete.

1. Any power interruption during the upgrade

process will cancel the upgrade. When this happens, repeat the upgrade procedure.

2. The name of MMC Vxxx.xxxx upgrade will only appears when a MMC or SD

card is inserted on the back of the TV ; then it will show the MMC Vxxx.xxxx

file number.

NOTE:

Setup

Magic Focus Tune Up

Menu Preference

Set The Inputs

Set Virtual HD Set Black Side Panel Set Closed Captions Set Audio Out

Upgrades

Move SEL Set

settings that can be controlled.

function to change.

to return to previous menu.

Setup

Set Audio Out

Audio Out

Var iable

Fix ed

Move

SEL Return

Setup

Magic Focus Tune Up

Menu Preference

Set The Inputs

Set Virtual HD Set Black Side Panel Set Closed Captions Set Audio Out

Upgrades

Move SEL Set

Setup

Upgrades

Software Version # : Main Vxxxx.xxxx

MMC Vxxxx.xxxx

MMC Software Upgrade

Upgrade Now

Please Insert MMC card before upgrading.

Move SEL Return

57” Disassembly/Assembly Instructions

Useful Information

IMPORTANT POINTS:

(a) Do not attempt to perform this work by yourself.

(b) Request an installation specialist to install this unit.

handling. Be advised that improper consumer installation/handling is not covered by manufacturer’s warranty.

(d) This Projection Television weighs 205 pounds and has many sensitive components.

CAUTION: DISCONNECT UNIT FROM POWER SOURCE BEFORE DISASSEMBLY/ASSEMBLY

STEP 2

Remove 4 screws (, , , ) that hold the screen frame to the cabinet on the Right side, see (a) and (b). Repeat to remove 4 screws on the Left side.

STEP 3

Please remove the screw () below screen

frame that hold the back cover to the cabinet as the arrow shows, see (a).

Please remove the screw ( ) below screen

frame that hold the back cover to the cabinet as the arrow shows, see (b).

  



(a) (b)





(a) left side

(b) right side



DISASSEMBLY PROCEDURE

NOTE: Read all instructions and understand how to properly and safely disassemble and assemble unit

STEP 1

Before disassembling this projection TV set, you must first remove the two screws that hold the speaker grille on each side of the TV(a)(b). Then by pulling outwards remove the speaker grille (c)(d). Remove the front decoration panels by unscrewing

the 2 screws from each panel (left & right), see (e), then remove from the original position, see (f)(g).

(e)

(a)

(c)

(f)

(b)

(d)

(g)

(a)

(b)

57” Disassembly/Assembly Instructions

Useful Information

STEP 4

STEP 5

Remove the joint connector bolts from each side of the back cover using the allen wrench that is provided inside of the instruction bag, see (a)

and (b). In case that the screw is different type

STEP 6

Remove from the back side of the TV set only the top 4 screws of the lower rear cover, see (b), as shown by the arrows on the rear cabinet label, see (a). Do not remove the rear cover board. Remove the (4) four side screws that hold the back cover to the cabinet, see (c) as shown on the label (a). Total of 8 screws will be removed.

STEP 7

CAUTION: When the TV is separated, the top portion weights 45 lbs. This task should be done by two persons when separating this TV. This assembly contains fragile parts, such as glass and the viewing screen. Avoid any type of impact that could cause breakage of these components. Remove top portion by grabbing the bottom corner of frame and the back cover, see (a)(b). Lift upwards, see (c)(d), gently place the top portion on the the floor, see (e).

(a) (b)

(a)

(a) (b)

(c)

(d)

(e)

(a)

(b)

(c)

(d)

use the proper screwdriver to remove the screws.

Locate the SENSOR PWB attaced to the cabinet (a). Losen the sensor wires from the plastic holders in order to remove the 3 wires that comes from the screen, see (b). Disconnect the3 connector wires as it shows on picture (c) & (d).

57” Disassembly/Assembly Instructions

Useful Information

ASSEMBLY PROCEDURE

STEP 10

Re-install the top (4) four screws into the lower rear cover, see (a). Re-install the (4) four side screws that hold the back cover to the cabinet, see (b).

STEP 12

Re-install 4 screws (, , , ) that hold the screen frame to the cabinet on the Right side, see (a) and (b). Repeat to re-install 4 screws on the Left side.

STEP 14

STEP 8

To re-assemble the set, lift the top portion and align onto the bottom cabinet. Gently lower the top portion until it sits flush on the bottom.

STEP 9

Re-install the joint

connector bolts (2 pcs.)

that were removed in step 5 of the disassembly.

(a) (b)

(a)

(b)

  



(a) (b)





STEP 13

Please re-install screw () below screen frame that hold the back cover to the cabinet as the arrows shows.

Please re-install screw ( ) below screen

frame that hold the back cover to the cabinet as the arrows shows.



STEP 11

Re-connect the sensor wires connector to the sensor

sensor board, see (a). Hold the wires with the

plastic holders ; so the wires do not become losse(b).

NOTE : On step 5 and 8 it might be a different type of screw , so the Allen Key to remove the screws

will not be included in the accessories.

Re-install both of the front decoration panels see (a) and reinstall the speaker grille by aligning it with the bottom cabinet (b), finally put the two screws of the speaker grille as seen on (c).

This completes the Disassembly and Assembly instructions.

(a)

(a) left side

(b)

(b) right side

(c)

(b)

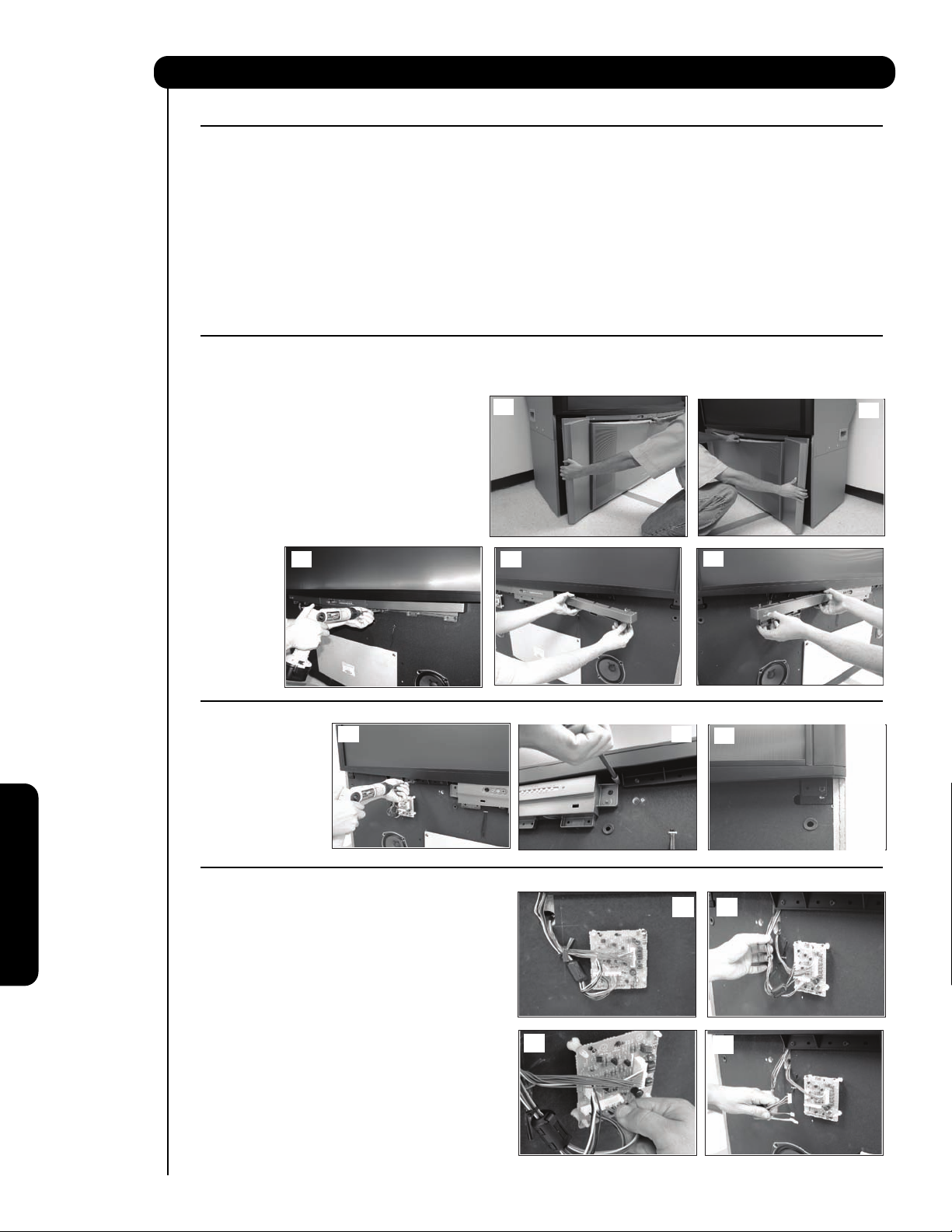

65 ” Disassembly/Assembly Instructions

IMPORTANT POINTS:

(a) Do not attempt to perform this work by yourself.

(b) Request an installation specialist to install this unit.

handling. Be advised that improper consumer installation/handling is not covered by manufacturer’s warranty.

(d) This Projection Television weighs 309 pounds and has many sensitive components.

CAUTION: DISCONNECT UNIT FROM POWER SOURCE BEFORE DISASSEMBLY/ASSEMBLY

DISASSEMBLY PROCEDURE

NOTE: Read all instructions and understand how to properly and safely disassemble and assemble unit

STEP 1

Before disassembling this projection TV set, you must first remove the speaker grille by grabbing the sides and pulling left and right side see (a)(b).

STEP 3

(a)

(b)

(a)

(b) (c)

(c)

(d)

(e)

Remove the front decoration panels by unscrewing the 2 screws from each panel (left & right), see (c), then remove from the original position, see (d)(e).

STEP 2

Remove the 8 screws that hold the screen frame to the cabinet on the front side. DO NOT remove the right and left edge screen frame screws (c).

(a)

(c)

(d)

(b)

65 ” Disassembly/Assembly Instructions

Useful Information

STEP 4

Remove the joint connector bolts from each side of the TV set using the allen wrench that is provided inside of the instruction bag, see (a) and (b).

STEP 5

Remove from the back side of the TV set only the top 4 screws of the lower rear cover, see (b), as shown by the arrows on the rear cabinet label, see (a). Do not remove the rear cover board.

STEP 6

CAUTION: When the TV is separated, the top portion weighs 112 lbs. This task should be done by two persons to carry top portion when separating this TV.

This assembly contains fragile parts, such as glass and the viewing screen. Avoid any type of impact that could cause breakage of these components. Remove top portion by grabbing the bottom corner of frame and the side of the TV, see (a)(b). Lift upwards, see (c)(d), gently place the top portion on the the floor, see (e).

(a) (b)

(a)

(c)

(b)

(d)

(e)

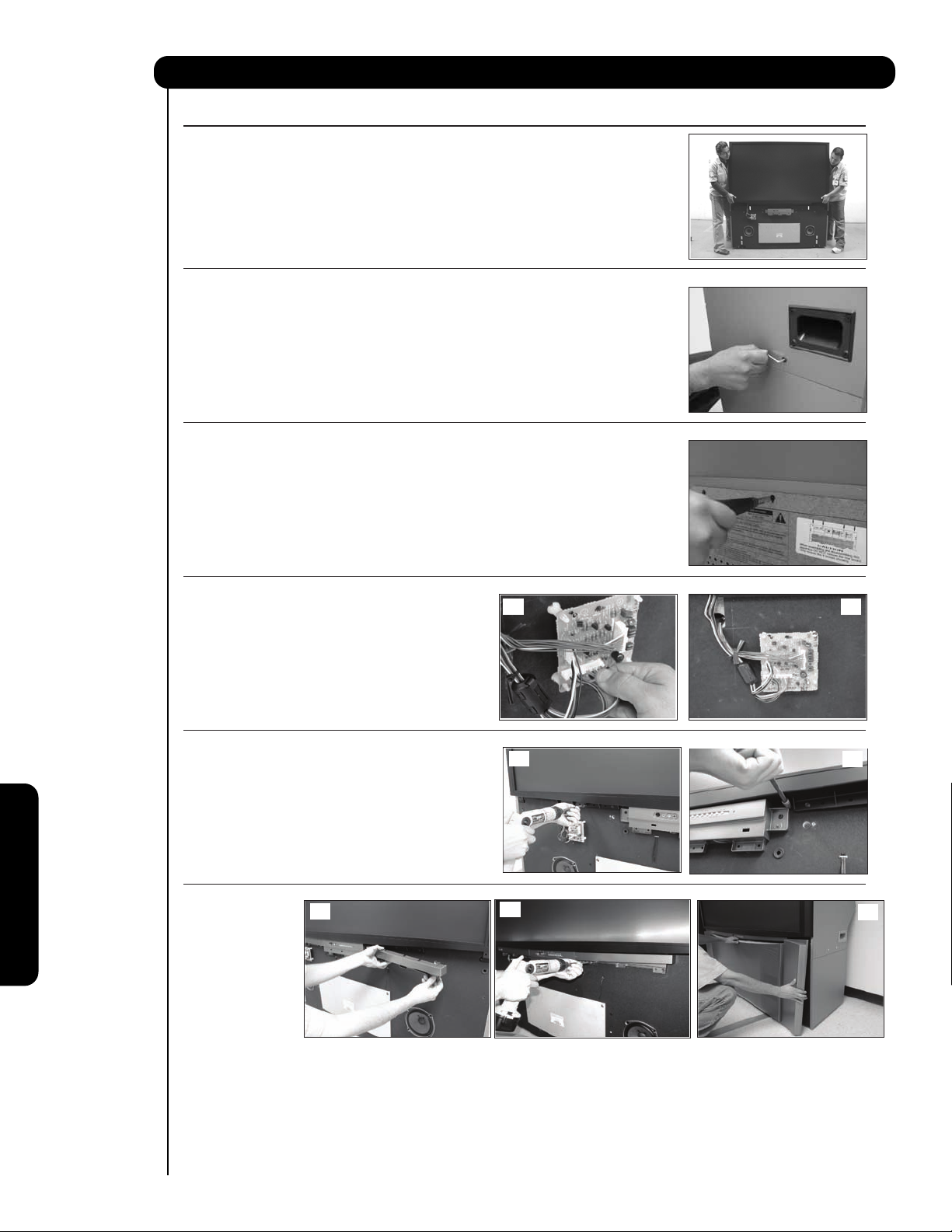

65 ” Disassembly/Assembly Instructions

Useful Information

ASSEMBLY PROCEDURE

STEP 7

To re-assemble the set, lift the top portion and align onto the bottom cabinet. Gently lower the top portion until it sits flush on the bottom.

STEP 8

Re-install the joint connector bolts (4 pcs.) that were removed in step 4 of the disassembly.

STEP 9

Re-install the top (4) four screws into the lower rear cover.

STEP 10

Re-connect the sensor connector to the sensor board, see (a). Re-install the sensor box, see (b).

cabinet on the front side of the TV.

STEP 12

Re-install both of the front decoration panels, see (a) and (b) Re-install the speaker grille, aligning it with the bottom cabinet, see (c).

This completes the Disassembly and Assembly instructions.

(a)

(b)

STEP 11

Re-install the 8 screws that hold the frame to the

(a)

(b)

(c)

(b)

(a)

65 ” Disassembly/Assembly Instructions

Useful Information

TROUBLESHOOTING

HITACHI Projection Television incorporates advanced power surge protection technology designed to protect against component or circuit damage due to external or internal voltage power surges.

IF YOUR TELEVISION SHOULD APPEAR TO HAVE A LOSS OF POWER, PLEASE FOLLOW THIS PROCEDURE:

1. Press the POWER

SWITCH (ON/OFF SWITCH) once.

2. If there is still no power,

wait 30 seconds and press the POWER SWITCH again.

3. If there is still no power,

unplug the power cord from the wall. Wait 30 seconds and plug the power cord back in. Press the POWER SWITCH again.

This protective technology should provide for years of lasting entertainment from your HITACHI Projection Television.

Dust the screen and cabinet with a soft cloth.

Clean the screen with a soft cloth moistened in warm water and dry with a soft cloth. A mild soap may be used if the screen is extremely dirty.

Place your Television away from extreme heat, humidity, and extremely dusty places.

Remove the plug from the wall outlet if your Television will not be used for a long period of time, for instances, when you go on vacation.

DO NOT

Do not clean your screen or cabinet with strong cleaners, polishes or a chemically treated cloth.

Do not place rubber or vinyl products or cellophane tape on your Television.

Do not touch the screen too often.

Do not subject the remote control to shocks such as dropping it on the floor, etc. Physical damage to the precision parts may result.

Avoid placing the remote control or the Simple Remote Control in a high humidity place or getting it wet. Do not leave it on or near a heater. Excessive heat or moisture may cause the unit to cease operation.

When the batteries run down, remote control operation will become erratic or possibly stop altogether. Replace the old batteries with two new “AA” size batteries as soon as possible to preserve the remote control precodes that were set for the devices. Pressing a remote control button with a “DEAD” battery might erase all precodes in memory. Do not use an old battery with a new battery.

Exposure of the viewing screen to prolonged direct sunlight or heat may cause the screen to permanently warp, resulting in a distorted picture..

Equipment Care and Troubleshooting

Useful Information

IGNITION NOISE:

Black spots or horizontal streaks may appear, picture may flutter or drift. Usually caused by interference from automobile ignition systems, neon lamps, electrical drills, and other electrical appliances.

GHOSTS:

Ghosts are caused by the television signal following two paths. One is the direct path and the other is reflected from tall buildings, hills or some other objects. Changing the direction or position of the antenna may improve reception. Ghosting may also be caused by defects in the antenna system such as unshielded leads or connecting several sets to the same antenna without using multiple antenna couplers.

SNOW:

If your receiver is located in the fringe area of a television station where the signal is weak, your picture may be marred by the appearance of small dots. When the signal is extremely weak, it may be necessary to install a special antenna to improve the picture.

RADIO FREQUENCY INTERFERENCE:

The interference produces moving ripples or diagonal streaks, and in some cases, causes loss of contrast in the picture.

BLOCK NOISE (DIGITAL INPUT):

Fuzzy blocks may appear in some area or the whole area of the screen. This is usually caused by interference from automobile ignition systems, neon lamps, electrical drills, ghosting of the image and weak signals.

BLACK SCREEN:

When using an antenna, weak signals will display a black screen. It may be necessary to upgrade your antenna.

NOTE: The TV set can generate sound distortion in external devices such as a radio. Please separate radio

equipment from the TV set to a considerable distance.

Reception Problems

Useful Information

FEATURES:

• Superfine Picture Quality; 1280 Line Horizontal Resolution

• Remote (Controls many PVR/VCR brands, cable boxes, satellite boxes, and other audio equipment).

• New Easy-to-Use (3-Language) On-Screen Menu

• Full Set of Input Jacks, including S-Video

• COMPONENT VIDEO: Y-P

B/PR

• Velocity Modulation

• Six Aspect Modes

• Closed Caption Decoder

• 1-Tuner Picture in Picture

• Magic Focus (Auto Digital Convergence and 9point/117-point Manual Adjustment)

• 1 Antenna Input (Either for Analog/Digital)

• Video Input Sensor

• HDMI (High Definition Multimedia Interface) (High Bandwidth Digital Content Protection V1.1 compatible).

• Digital Audio Output (Dolby

Digital)

• 3 Dimensional Y/C Comb Filter

• Compatible with 1080i, 720p, 480p and 480i input signals.

• Technology.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

• Technology

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

OUTPUTS:

• Audio (Fixed) ..............................470mVrms, 1k Ohm

• S-Video

Luminance (Y) .............................1.0Vp-p, 75 Ohm

Chrominance (C) .....................0.286Vp-p, 75 Ohm

• Optical Out (Digital Audio) ..........1 optical connector

DIMENSIONS:

51F59/A/J 57F59/A/J

Height (in.) 50-3/8 54-9/16

(mm) 1,279.0 1,385.6

Width (in.) 48-3/4 54

(mm) 1,239.0 1,372.0

Depth (in.) 21-7/8 23-5/16

(mm) 557 592.5

Weight (lbs.) 187.4 205

(kg.) 85 93

NOTE: Due to improvements, specifications in this

operating guide are subject to change without notice.

Lip Sync. Notice

The on-screen motion of an actor's lips or other moving object may not be in sync with the associated audio heard from the TV's speakers. This is caused by timing differences in the broadcast signal or DVD content and is not caused by a defect in the television.

65F59/A/J

59-15/16

1,521.0

61 1,549.0 25-3/8 644

309

140

Features and Specifications

INPUTS:

• Power Input........................................AC 120V, 60Hz

• Stand-by Power .................................................0.4W

• Power Consumption - Refer to rear panel at the back of the T.V.

• Antenna input impedance.............................75 Ohm

• Channel coverage

VHF-Band .....................................................2 – 13

UHF-Band...................................................14 – 69

CATV Band .................................................1 – 135

• Television System

NTSC Standard ATSC Starndard (8VSB)

• Video ..............................................1.0Vp-p, 75 Ohm

• S-Video

Luminance (Y) .............................1.0Vp-p, 75 Ohm

Chrominance (C) .....................0.286Vp-p, 75 Ohm

• Component Video

Luminance (Y) .............................1.0Vp-p, 75 Ohm

Chrominance (P

• Audio input Impedance...............................47k Ohm

• Average input level ...................................470mVrms

• HDMI .....................................................HDMI 19 PIN

B /PR ) ..................0.7Vp-p, 75 Ohm

Useful Information

HITACHI AMERICA, LTD. HOME ELECTRONICS DIVISION

HITACHI has made every effort to assure you hours of trouble free operation from your unit. However, should you require service, a network of HITACHI Authorized Service Facilities has been established in all 50 states and Puerto Rico. Each facility will provide you with convenient and expedient assistance. Our service hotline operator will direct you to the HITACHI Authorized Service Facility nearest you. Just present proof of purchase and/or delivery receipts to the Hitachi Authorized Service Facility, and service will be rendered in accordance with the terms of the limited warranty as stated on your warranty card or operating guide.

Should you have any questions regarding warranty, service, operation, or technical assistance, please contact:

Hitachi America, LTD. Home Electronics Division 900 Hitachi Way Chula Vista, CA 91914-3556

HITACHI CANADA, LTD. DIGITAL MEDIA DIVISION

Should you have any questions regarding warranty, service, operation, or technical assistance, please contact:

In Canada: 1-800-HITACHI (1-800-448-2244)

Monday – Friday (EST).........................9:00am – 7:00pm

Saturday (EST) .....................................9:00am – 5:00pm

Look for your French Manual on the outside of the box. If the manual is missing, call 1-800-HITACHI (1-800-448-2244) for a copy.

Pour de plus amples renseignements sur le service durant la période couverte par la garantie, sur le fonctionnement ou pour de l’assistance technique communiquez avec:

Au Canada: 1-800-HITACHI (1-800-448-2244)

Lundi - Vendredi L’EST ........................9:00am – 7:00pm

Samedi L’EST.......................................9:00am – 5:00pm

La version français de votre manual se trouve a l’exterieur de la boîte. Si le manuel est manquant, coposez le 1-800-HITACHI (1-800-448-2244) pour obenir votre copie.

HITACHI CANADA, LTD. 2495 Meadowpine Blvd. Mississauga, Ontario L5N 6C3

Service Hotline

To locate an authorized HITACHI

service facility in the continental

U.S.A. and Canada,

DIAL TOLL FREE

7 days a week, 24 hours a day

1-800-HITACHI

(1-800-448-2244)

Hitachi

Useful Information

END USER LICENSE AGREEMENT FOR HITACHI DTV SOFTWARE

IMPORTANT – READ CAREFULLY: This End User License Agreement for HITACHI DTV Software (this “Agreement”) is a legal agreement between you (“you” or “your”), in your capacity as the owner of a HITACHI brand digital television (the “DTV”), and HITACHI America, Ltd., Home Electronics Division ("HITACHI"). By using the DTV or the operating system software installed on the DTV (the "System Software") or any Upgrade (as defined below, and together with the System Software, the “Software”), you agree to be bound by the terms and conditions of this Agreement. IF YOU DO NOT AGREE TO BE BOUND BY THIS LICENSE AGREEMENT, DO NOT USE THE DTV OR THE SOFTWARE.

1. LICENSE GRANT. HITACHI grants to you, for the life of the DTV, a non-exclusive, non-transferable, revocable license to install and use one copy of the Software on the DTV, subject to the following limitations and restrictions: a. You may not share, duplicate, republish or redistribute the

Software;

b. You may not resell, rent, lease, sublicense, gift, loan, assign or

otherwise transfer the Software or any of your rights under this Agreement;

c. You may not modify, adapt, translate, reverse engineer,

decompile, disassemble or make derivative works from the Software or use the Software in combination with any nonHitachi software; and

d. You may not use the Software for any commercial purpose.

2. VIOLATIONS; INDEMNITY. You understand and agree that your use of the Software in any manner except as permitted under this Agreement could constitute a serious crime and could subject you to damages and an award to HITACHI of attorneys’ fees in connection with your violation of this Agreement. You further understand that you may be held legally responsible for any copyright infringement or other violation of intellectual property rights caused or facilitated by your failure to abide by the terms of this Agreement. You agree to defend, indemnify and hold HITACHI and its parent and affiliate companies harmless from and against any and all liability resulting from any breach by you of this Agreement.

3. INTELLECTUAL PROPERTY. The Software is protected by federal copyright laws, international copyright treaties and other intellectual property laws and treaties. The Software is licensed, not sold, to you. All right, title and interest in and to the Software and any intellectual property associated therewith, including any accompanying printed materials, shall belong to HITACHI and its licensors and suppliers. Except as expressly provided herein, neither HITACHI nor any of its licensors or suppliers grants to you under this Agreement any express or implied right in or to any patents, copyrights, trademarks, trade secrets or other intellectual property. All right, title and interest in and to the intellectual property rights associated with any content that is accessible through use of the Software shall belong to the applicable content owners and may be protected by copyright or other intellectual property laws and treaties. This Agreement grants you no rights to use such content. Any rights of HITACHI not expressly granted to you hereunder are reserved expressly by Hitachi.

4. SOFTWARE UPGRADES. In the future, HITACHI may release or make available one or more upgrades to the System Software (each, an “Upgrade”). You understand and agree that if you decide to install or use any Upgrade, your installation and use of such Upgrade and/or any other software or intellectual property HITACHI may provide in connection therewith shall be governed by the terms and conditions of this Agreement, except to the extent that HITACHI provides different or supplementary license terms or conditions that accompany such Upgrade or other software or intellectual property. In the event HITACHI provides you with a “flash card” or other media to effect or facilitate an Upgrade, you understand and acknowledge that your failure to return such flash card or other media to HITACHI as HITACHI may require could result in HITACHI placing your name and your DTV’s serial number on a “No Further Upgrades” list, which will prohibit you from receiving any subsequent Upgrades HITACHI may later release or make available. IF YOU DO NOT AGREE WITH ALL THE TERMS AND CONDITIONS OF THIS AGREEMENT OR ALL THE TERMS AND CONDITIONS OF ANY DIFFERENT OR SUPPLEMENTARY LICENSE THAT MAY ACCOMPANY SUCH UPGRADE, (A) DO NOT USE ANY HITACHI-PROVIDED FLASH CARD OR OTHER MEDIA, (B) DO NOT PERFORM INSTALL ANY HITACHI-PROVIDED UPGRADE SOFTWARE ON YOUR DTV, AND (C) PROMPTLY RETURN SUCH FLASH CARD OR OTHER MEDIA TO HITACHI.

5. EXPORT RESTRICTIONS. HITACHI is licensing the Software for use within North America only. You agree that you will not export or re-export the Software. You specifically agree not to export or reexport the Software: (i) to any country to which the U.S. has embargoed or restricted the export of goods or services, which currently include, but are not necessarily limited to Cuba, Iran, Libya, North Korea, Sudan and Syria, or to any national of any such country, wherever located, who intends to transmit or transport the Software back to such country; (ii) to any person or entity who you know or have reason to know will utilize the Software in the design, development, or production of nuclear, chemical, or biological weapons; or (iii) to any person or entity who has been prohibited from participating in U.S. export transactions by any federal agency of the U.S. government. You warrant and represent that neither the U.S. Bureau of Industry and Security nor any other U.S federal Agency has suspended, revoked, or denied your export privileges.

6. NO WARRANTIES. The software is provided to you in "as is” condition and HITACHI makes no warranties of any kind whatsoever regarding the software and, to the maximum extent permitted by law, hereby expressly disclaims all warranties of any kind whatsoever, express or implied, with respect to the software. All implied warranties, including without limitation, the implied warranties of non-infringement, merchantability and fitness for a particular purpose are hereby expressly disclaimed by hitachi to the maximum extent permitted by law.

7. LIMITATION OF LIABILITY. To the maximum extent permitted by applicable law, HITACHI, its licensors, suppliers, parent companies, affiliates, subsidiaries, employees and agents shall not under any circumstances be liable to you or any third parties for any damages of any nature arising in any way from this agreement, your use of the software or otherwise, whether indirect, special, incidental, consequential or otherwise, including, without limitation, any claims for lost profits, lost good will, lost data, business interruption, procurement of substitute goods or services, or expenditures made or committed for in reliance on the continuation of this agreement, even if advised in advance of the possiblity of such damages.

8. NO FAILURE OF ESSENTIAL PURPOSE. You agree that neither HITACHI’S breach of this agreement nor its failure to repair a

defect, error or bug in the software shall constitute a failure of the essential purpose of this agreement.

9. CRYPTOGRAPHIC SOFTWARE. The software contains software developed by the openssl project, including cryptographic software written by eric young (the "cryptographic software"). The cryptographic software is provided by the openssl project in "as is'' condition and any express or implied warranties, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose are hereby expressly disclaimed to the maximum extent permitted by law. In no event shall the openssl project, its contributors, HITACHI or any of its parent or affiliate companies be liable for any direct, indirect, incidental, special, exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services; loss of use, data, or profits; or business interruption) however caused and on any theory of liability, whether in contract, strict liability, or tort (including negligence or otherwise) arising in any way out of the use of the software or the cryptographic software, even if advised in advance of the possibility of such damages.

10. TERMINATION. HITACHI may terminate this Agreement immediately at any time by providing notice to you.

11. GOVERNING LAW; SEVERABILITY. This Agreement will be governed by the laws of the State of New York, and you consent to the exclusive jurisdiction and venue in the federal courts sitting in the Southern District of New York, unless no federal subject matter jurisdiction exists, in which case you consent to the exclusive jurisdiction and venue in the Borough of Manhattan, New York, USA.

End User Licence Agreement for HITACHI DTV Software

Index

Accessories.............................4

Antennas (Connecting)............5

Aspect Ratio..........................20

Audio

Languages .........................39

Dolby Digital.......................39

DRC (Dynamic Range

Compression)..................39

Audio Settings.......................37

Audio Source.........................38

Auto Noise Cancel ................38

Balance .................................37

Bass ......................................37

Black Enhancement ..............35

Brightness .............................34

Channel Manager..................41

Auto Channel Scan............42

Channel List.......................42

Signal Meter.......................41

Clock

Time ...................................50

Time Zone..........................50

Date....................................50

Closed Captions

Analog Captions ................59

Digital Captions..................59

Color Temperature.................35

Color......................................34

Contrast.................................34

Convergence (see Magic Focus)

Date.......................................50

Daylight Saving Correction ...50 Disassembly/Assembly

Instructions (57”) ..........61-63

Disassembly/Assembly

Instructions (65”) ..........64-66

Event Timer ...........................52

Guide Button.....................7, 21

HDMI .........................10, 12, 16

Input button.......................7, 21

Language

Menu Language.................57

Audio Language.................39

Locks

Change Access Code........43

Channel Lock.....................43

Front Panel Lock................43

Movie Ratings ....................44

TV Ratings..........................45

TV Ratings

(Canadian - English) .......46

TV Ratings

(Canadian - French)........47

Loudness...............................38

Magic Focus

Auto Convergence .............53

Manual Convergence ...55-56

Menu Preference

Language ...........................57

Background........................57

Monitor Out...........................60

Pause

(Freeze) Button ........7, 19, 24

Perfect Volume......................38

Picture Mode.........................34

Picture-in-Picture (PIP) ....23-25

Picture-outside-Picture (POP)..

Remote Control

Functions......................18-31

Programming Codes ....28-31

Installing Batteries ...............4

Sharpness .............................34

Speakers ...............................13

Timers ..............................50-52

Time.......................................50

Tint ........................................34

Treble.....................................37

Upgrades...............................60

Video Settings..................34

-36

Volume ..............................7, 22

Notes

QR66561

Hitachi 65F59 Operating Instruction

Specifications and Main Features

Frequently Asked Questions

User Manual
