Hitachi 43FDX15B, 43FDX20B, 53SDX20B, 53SDX20BB Operating Instruction

PROJECTION COLOR TV

53FDX20B 43FDX20B 53SDX20B 43FDX15B 53SDX20BB

OPERATING GUIDE

IMPORTANT SAFETY INSTRUCTIONS 2-3

FIRST TIME USE 4-18

REMOTE CONTROL

ULTRATEC BIT-MAP ON-SCREEN DISPLAY

USEFUL INFORMATION INDEX 61-66

30-60

19-29

CUSTOMIZE

SETUP

VIDEO

AUDIO

THEATER

SEL

As an ENERGY STAR®Partner, Hitachi, Ltd. has determined that this product meets the E

NERGY STAR

guidelines for energy efficiency.

IMPORTANT SAFETY INSTRUCTIONS

SAFETY POINTS YOU SHOULD KNOW ABOUT YOUR HITACHI TELEVISION

Our reputation has been built on the quality, performance, and ease of service of HITACHI televisions.

Safety is also foremost in our minds in the design of these units. To help you operate these products properly, this section illustrates safety tips which will be of benefit to you. Please read it carefully and apply the knowledge you obtain from it to the proper operation of your HITACHI television.

Please fill out your warranty card and mail it to HITACHI. This will enable HITACHI to notify you promptly in the improbable event that a safety problem should be discovered in your product model.

Follow all warnings and instructions marked on this color television.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of a sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS TELEVISION TO RAIN OR MOISTURE.

NOTE: • There are no user serviceable parts inside the color television.

• Model and serial numbers are indicated on back side of the television.

• This television is not intended for use in a computer room.

POWER SOURCE

THIS

TELEVISION

IS DESIGNED TO OPERATE ON 120 VOLTS 60Hz, AC CURRENT. INSERT THE

POWER CORD INTO A 120 VOLT 60Hz OUTLET.

TO PREVENT ELECTRIC SHOCK, DO NOT USE THE COLOR TELEVISION’S (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE, OR OTHER OUTLET UNLESS THE BLADES AND GROUND TERMINAL CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

NEVER CONNECT THE

COLOR TELEVISION

TO 50HZ, DIRECT CURRENT, OR ANYTHING OTHER THAN

THE SPECIFIED VOLTAGE.

CAUTION: Never remove the back cover of the television as this can expose you to very high voltages and other

hazards. If the television does not operate properly, unplug the television and call your authorized dealer or service center.

NOTE: This television receiver will display television closed captioning, ( or ), in accordance with

paragraph 15.119 of the FCC rules.

CAUTION:

Adjust only those controls that are covered in the instructions, as improper changes or modifications not expressly approved by HITACHI could void the user’s authority to operate the television.

MODIFICATIONS:

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hitachi America, Ltd. Home Electronics Division may void the user’s authority to operate the equipment.

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

Follow all warnings and instructions marked on this television.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use the attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Televisions are designed to comply with the recommended safety standards for tilt and stability. Do not apply excessive pulling force to the front, or top, of the cabinet which could cause the product to overturn resulting in product damage and/or personal injury.

16. Follow instructions for wall, shelf or ceiling mounting as recommended by the manufacturer.

17. An outdoor antenna should not be located in the vicinity of overhead power lines or other electrical circuits.

18. If an outside antenna is connected to the receiver be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding for the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

Note to the CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUNDING CONDUCTORS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250 PART H)

NEC NATIONAL ELECTRICAL CODE

ELECTRIC SERVICE EQUIPMENT

GROUND CLAMP

Do not place any objects on the top of the television which may fall or cause a child to climb to retrieve the objects.

Disposal of this product may require specific instructions pertaining to your resident state. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

PREVENTION OF PATTERN BURN

Continuous on-screen displays such as video games, stock market quotations, computer generated graphics, and other fixed (nonmoving) patterns can cause permanent damage to television receivers. Such “PATTERN BURNS” constitute misuse and are NO

COVERED by your HITACHI Factory Warranty. When using the Picture-in-Picture function, the sub-picture should not be left

permanently in one corner of the screen or a “PATTERN BURN” may develop over a long period of time.

PUBLIC VIEWING OF COPYRIGHTED MATERIAL

Public viewing of programs broadcast by TV stations and cable companies, as well as programs from other sources, may require prior authorization from the broadcaster or owner of the video program material.

ACCESSORIES

1. Remote Control Unit CLU-4322UG (Part No. HL01832).

2. Two “AA” size, 1.5V batteries (For Remote Control Unit).

REMOTE CONTROL BATTERY INSTALLATION AND REPLACEMENT

1. Open the battery cover of the remote control by pushing the notched part of the cover with your fingers and pulling the cover off.

2. Insert two new “AA” size batteries for the remote control. When replacing old batteries, push them towards the springs and lift them out.

3. Match the batteries to the (+) and (-) marks in the battery compartment.

4. Replace the cover.

BOTTOM VIEW

Lift up on tab to remove back cover.

Check to make sure you have the following accessories before disposing of the packing material.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace with the same or equivalent type.

CAUTION: Television stand model SP-43H is designed for use with a 43 inch or smaller television set. Use of a smaller

stand, a non Hitachi recommended stand or a generic stand may result in instability, causing possible injury.

123

456

789

ANT STATUS

VOL CH

POWER

TV CBL/SAT DVD/VCR

PIP

SWAP PIP MODE

FREEZE

HELP

PIP CH

MUTE

EXIT

LAST CH

REC

ASPECT

MODE

SELECT

PART NAME PART NO. ILLUSTRATION

CLU-4322UG

REMOTE CONTROL

HL01832

1. 2.

43” TELEVISION

STAND SP-43H

(Not included,

order separately)

OPTIONAL

H530047

CUSTOM HITACHI TELEVISION STAND Excellent for VCR and video-tape storage. Special features include smoked glass doors and an adjustable shelf. Available in shark grey.

CLU-4322UG

VID1

VID2

VID3 VID4

VID5

HOW TO SET UP YOUR NEW HITACHI PROJECTION TV

CAUTION: Magnetic fields, such as those of external speakers, may cause the picture to distort if they are placed too close

to the television. Move the magnetic field source away from the television until there is no picture distortion.

4' MINIMUM

10'

15'

BEST HORIZONTAL

VIEWING ANGLE

20'

ANTENNA

Unless your TV is connected to a cable TV system or to a centralized antenna system, a good outdoor color TV antenna is recommended for best performance. However, if you are located in an exceptionally good signal area that is free from interference and multiple image ghosts, an indoor antenna may be sufficient.

LOCATION

Select an area where sunlight or bright indoor illumination will not fall directly on the picture screen. Also, be sure that the location selected allows a free flow of air to and from the perforated back cover of the set. To avoid cabinet warping, cabinet color changes, and increased chance of set failure, do not place the TV where temperatures can become excessively hot, for example, in direct sunlight or near a heating appliance, etc.

VIEWING

The major benefit of the HITACHI Projection Television is its large viewing screen. To see this large screen at its best, test various locations in the room to find the optimum spot for viewing.

The best picture is seen by sitting directly in front of the TV and about 10 to 18 feet from the screen. Picture brightness decreases as the viewer moves to the left and right of the receiver.

During daylight hours, reflections from outside light may appear on the screen. If so, drapes or screens can be used to reduce the reflection or the TV can be located in a different section of the room.

If the TV’s audio output will be connected to a Hi-Fi system’s external speakers, the best audio performance will be obtained by placing the speakers equidistant from each side of the receiver cabinet and as close as possible to the height of the picture screen center. For best stereo separation, place the external speakers at least four feet from the side of the TV, place the surround speakers to the side or behind the viewing area. Differences in room sizes and acoustical environments will require some experimentation with speaker placement for best performance.

10'

15'

BEST

VERTICAL VIEWING

ANGLE

20'

HOOK-UP CABLES AND CONNECTORS

Most video/audio connections between components can be made with shielded video and audio cables that have phono connectors. For best performance, video cables should use 75-Ohm coaxial shielded wire. Cables can be purchased from most stores that sell audio/video products. Below are illustrations and names of common connectors. Before purchasing any cables, be sure of the output and input connector types required by the various components and the length of each cable.

300-Ohm Twin Lead Connector

This outdoor antenna cable must be connected to an antenna adapter (300-Ohm to 75-Ohm).

Phono Connector

Used on all standard video and audio cables which connect to inputs and outputs located on the television’s rear jack panel and front control panel.

''F'' Type 75-Ohm Coaxial Antenna Connector

For connecting RF signals (antenna or cable TV) to the antenna jack on the television.

S-VIDEO (Super Video) Connector

This connector is used on camcorders, VCRs, and laserdisc players with an S-VIDEO feature in place of the standard video cable to produce a high quality picture.

ANTENNA CONNECTIONS TO REAR JACK PANEL

VHF (75-Ohm) antenna/CATV (Cable TV)

When using a 75-Ohm coaxial cable system, connect the outdoor antenna or CATV coaxial cable to the ANT A (75-Ohm) terminal. If you have a second antenna or cable TV system, connect the coaxial cable to the ANT B terminal.

VHF (300-Ohm) antenna/UHF antenna

When using a 300-Ohm twin lead from an outdoor antenna, connect the VHF or UHF antenna leads to screws of the VHF or UHF adapter. Plug the adapter into the antenna terminal on the TV.

When both VHF and UHF antennas are connected

Attach an optional antenna cable mixer to the TV antenna terminal, and connect the cables to the antenna mixer. Consult your dealer or service store for the antenna mixer.

To outdoor antenna or CATV cable

To second antenna or cable system

Antenna mixer

ANT A/ANT B

To UHF Antenna

To outdoor antenna or CATV system

To outdoor VHF or UHF antenna

FRONT PANEL CONTROLS

NOTES: 1. Your HITACHI Projection TV will appear to be turned OFF if there is no video input when VIDEO: 1, 2, 3, 4 or 5 is

selected. Check the Power Light to make sure the TV is turned off when not in use.

2. To see an auto-demonstration of the on-screen displays with HELP text displayed, press and hold the POWER button on the TV set for approximately five seconds. Press the POWER button on the TV again to end the autodemonstration.

FRONT VIEW

 MENU/SELECT button

This button allows you to enter the MENU, making it possible to set TV features to your preference without using the remote. This button also serves as the SELECT button when in MENU mode.

 INPUT/EXIT button

Press this button to select the current antenna source, VIDEO: 1, 2, 3, 4, 5 or alternate antenna source. Your selection is shown in the top right corner of the screen. This button also serves as the EXIT button when in MENU mode.

 CHANNEL selector

Press these buttons until the desired channel appears in the top right corner of the TV screen. These buttons also serve as the cursor down () and up () buttons when in MENU mode.

 VOLUME level

Press these buttons for your desired sound level. The volume level will be displayed on the TV screen. These buttons also serve as the cursor left () and right () buttons when in MENU mode.

 POWER button

Press this button to turn the TV on or off.

MAGIC FOCUS

POWER

INPUT

EXIT

SELECT

  

  

Push open door and pull forward and down

PUSH

POWER

INPUT





EXIT

VOL+VOL-

CH-

CH+

VOL+VOL-

CH-

CH+

SELECT

NOTES: Your remote control does not have an INPUT button. To change to video inputs, press VID1~VID5 buttons depending

on your choice (see page 21).

쏐

(

)

FRONT PANEL CONTROLS

 POWER light

You will see a red light when the TV is turned on.

 PERFECT PICTURE sensor

The Perfect Picture sensor will make automatic picture adjustments depending on the amount of light in the room to give the best picture. (see page 57)

 REMOTE CONTROL sensor

Point your remote at this area when selecting channels, adjusting volume, etc.

 MAGIC FOCUS

Use this button to adjust your picture quality to optimum performance. (see page 39)

 FRONT INPUT JACKS (for VIDEO: 3)

Use these audio/video jacks for a quick hook-up from a camcorder or VCR to instantly view your favorite show or new recording. Press the INPUT button until VIDEO: 3 appears in the top right corner of the TV screen. If you have mono sound, insert the audio cable into the left audio jack.

FRONT PANEL JACKS AND CONNECTIONS

The front panel jacks are provided as a convenience to allow you to easily connect a camcorder or VCR as shown in the following examples:

NOTE: 1. Completely insert connection cord plugs when connecting to front panel jacks. If you do not, the played back picture

may be abnormal.

2. If you have a S-VHS VCR, use the S-INPUT cable in place of the standard video cable.

3. If you have a mono VCR, insert the audio cable into the left audio jack of your TV.

MAGIC FOCUS

OUTPUT

V L R

S-VHS

Back of VCR

S-INPUT

(Optional, see note)

INPUT 3

AUDIO

S-VIDEO

VIDEO L/MONO R

INPUT

OUTPUT

REAR PANEL JACKS

 Antenna Input/Output

The remote control allows you to switch between two separate 75-Ohm RF antenna inputs, ANT A and ANT B. ANT A input can be displayed as a main picture or sub-picture. ANT B can only be displayed as a main picture. (ANT B cannot be displayed as a sub-picture.) The antenna output labeled “TO CONVERTER” allows the ANT A connection to pass directly to a different source such as a cable box, only when ANT B is displayed as a main picture.

 Audio/Video Inputs 1, 2, 4 and 5

The VID1~VID5 buttons will select each video source each time it is pressed. Use the audio and video inputs to connect external devices, such as VCRs, camcorders, laserdisc players, DVD players etc. (If you have mono sound, insert the audio cable into the left audio jack.)

 MONITOR OUT

These jacks provide fixed audio and video signals which are used for recording. Use the S-VIDEO Output for high quality video output.

 AUDIO TO HI-FI Output

These jacks provide variable audio output to a separate stereo amplifier. With this connection, the audio to the stereo can be controlled by the television’s main volume.

 S-VIDEO Inputs 1 and 2

Inputs 1 and 2 provide S-VIDEO (Super Video) jacks for connecting equipment with S-VIDEO output capability.











AUDIO TO HI-FI



ANT A

TO CONVERTER

ANT B

MONITOR

OUT

INPUT 1

AUDIO

(MONO)

AUDIO

S-VIDEOS-VIDEO

VIDEO

AUDIO

(MONO)

S-VIDEO

VIDEO

Y/VIDEO

AUDIO

Y/VIDEO

AUDIO

INPUT 2 INPUT 4 INPUT 5

(MONO) (MONO)

NOTE: You may use VIDEO or S-VIDEO inputs to connect to INPUT 1 and 2, but only one of these inputs may be used at a

time.

NOTE: S-VIDEO Output may be used for recording, only when the input is of S-VIDEO type.

REAR PANEL JACKS

 Component: Y-P

BPR

Inputs

Inputs 4 and 5 provide Y-P

BPR

jacks for connecting equipment with this capability, such as a DVD player or Set Top Box. You may

use standard video signal for INPUT:4 and 5.

NOTES: 1.

Your component outputs may be labeled Y, B-Y, and R-Y. In this case, connect the components B-Y output to the TV’s PBinput and the components R-Y output to the TV’s PRinput.

2. Your component outputs may be labeled Y-CBCR. In this case, connect the component CBoutput to the TV’s PBinput and the component CRoutput to the TV’s PRinput.

3. It may be necessary to adjust TINT to obtain optimum picture quality when using the Y-PBPR inputs. (See pages 55 and 56.)

4. To ensure no copyright infringement, the MONITOR OUT output will be abnormal, when using the Y-PBPRjacks.

5. When using Y-PBPR input, only 480i signal can be viewed as a sub-picture.

6. Input 4 and 5 (Y/VIDEO) can be used for standard video input.

AUDIO TO HI-FI

MONITOR

OUT

INPUT 1

AUDIO

(MONO)

AUDIO

S-VIDEOS-VIDEO

VIDEO

AUDIO

(MONO)

S-VIDEO

VIDEO

Y/VIDEO

AUDIO

Y/VIDEO

AUDIO

INPUT 2 INPUT 4 INPUT 5

(MONO) (MONO)

ANT A

TO CONVERTER

ANT B

DVD Player

Stereo System Amplifier

Laserdisc player, VCR, camcorder, etc.

VCR #2

Cable TV Box

Optional, see tips on page 13

VCR #1

Outside antenna or cable TV coaxial cable

2-Way signal splitter

Optional, see tips on page 13

OUTPUT

Y P

L R

HDTV Set-Top Box

V L R

OUTPUT

S-VIDEO

ANT IN

OUTPUT

S-VIDEO

VL R

OUTPUT

B/CBPR/CR

L R

INPUT

Optional, see tips on page 13

V L R

INPUT

S-VIDEO

INPUT

OUTPUT

REAR PANEL CONNECTIONS

NOTE: 1.

Connect only 1 component to each input jack.

2. Follow connections that pertain to your personal entertainment system.

TYPICAL FULL-FEATURE SETUP

TIPS ON REAR PANEL CONNECTIONS

S-VIDEO connections are provided for high performance laserdisc players, VCRs etc. that have this feature. Use these connections in place of the standard video connection if your device has this feature.

If your device has only one audio output (mono sound), connect it to the left audio jack on the television.

Refer to the operating guide of your other electronic equipment for additional information on connecting your hook-up cables.

A single VCR can be used for VCR #1 and VCR #2, but note that a VCR cannot record its own video or line output (INPUT: 1 in the example on page 12). Refer to your VCR operating guide for more information on line input-output connections.

You may use VIDEO or S-VIDEO inputs to connect to Input 1 or Input 2, but only one of these may be used at a time.

Connect only 1 component (VCR, DVD player, camcorder, etc.) to each input jack.

COMPONENT: Y-PBPR (Input 4 &5) connections are provided for high performance components, such as DVD players and set-topboxes. Use these connections in place of the standard video connection if your device has this feature.

Yo ur component outputs may be labeled Y, B-Y, and R-Y. In this case, connect the components B-Y output to the TV’s PBinput and the components R-Y output to the TV’s PRinput.

Yo ur component outputs may be labeled Y-CBCR. In this case, connect the components CBoutput to the TV’s PBinput and the components CRoutput to the TV’s PRinput.

You may use standard video signal for INPUT:4 and 5.

It may be necessary to adjust TINT to obtain optimum picture quality when using the Y-PBPRinputs. (See pages 55 and 56.)

To ensure no copyright infringement, the MONITOR OUT output will be abnormal, when using the

Y- PBP

jacks.

CONNECTING EXTERNAL AUDIO SOURCES

AUDIO TO HI-FI

MONITOR

OUT

INPUT 1

AUDIO

(MONO)

AUDIO

S-VIDEOS-VIDEO

VIDEO

AUDIO

(MONO)

S-VIDEO

VIDEO

Y/VIDEO

AUDIO

Y/VIDEO

AUDIO

INPUT 2 INPUT 4 INPUT 5

(MONO) (MONO)

ANT A

TO CONVERTER

ANT B

INPUT

Stereo System Amplifier

To Audio Input Terminal

of External Amplifier

CONNECTING EXTERNAL AUDIO AMPLIFIER

To control the audio level of an external audio amplifier with the remote control, connect the system as shown below.

NOTE: To prevent damage to the speaker and distorted sound, set the volume control of the audio amplifier lower and adjust

the sound using the remote control of the TV set.

REAR PANEL OF TELEVISION

CONNECTING EXTERNAL VIDEO SOURCES

The exact arrangement you use to connect the VCR, camcorder, laserdisc player, DVD player, or HDTV Set Top Box to your TV set is dependent on the model and features of each component. Check the owner’s manual of each component for the location of video and audio inputs and outputs.

The following connection diagrams are offered as suggestions. However, you may need to modify them to accommodate your particular assortment of components and features. For best performance, video and audio cables should be made from coaxial shielded wire.

Before Operating External Video Source

The input mode is changed every time the VID1~VID5 button is pressed as shown below. Connect an external source to the INPUT terminal, then press the VID1~VID5 button as necessary to view the input source. (See page 16)

(ANTENNA)

(INPUT)

VID1

ANT

Ant A

Video:1

VID1

CONNECTING A MONAURAL AUDIO SOURCE TO INPUT1~INPUT5

1. Connect the cable from the VIDEO OUT of the VCR or the laserdisc player to the INPUT (VIDEO) jack, as shown on the TV set below.

2. Connect the cable from the AUDIO OUT of the VCR or the laserdisc player to the INPUT (MONO)/L(AUDIO) jack.

3. Press the VID1~VID5 button to view the program from the VCR or the laserdisc player. The VIDEO mode disappears automatically after approximately eight seconds.

4. Press the ANT button to return to the previous channel.

NOTE: When the TV is set to VIDEO and a video signal is not received from the VIDEO INPUT JACK on the back panel of the

TV (i.e., VCR/laserdisc player, etc. is not connected or the video device is OFF), the set will appear to be OFF.

AUDIO TO HI-FI

MONITOR

OUT

INPUT 1

AUDIO

(MONO)

AUDIO

S-VIDEOS-VIDEO

VIDEO

AUDIO

(MONO)

S-VIDEO

VIDEO

Y/VIDEO

AUDIO

Y/VIDEO

AUDIO

INPUT 2 INPUT 4 INPUT 5

(MONO) (MONO)

ANT A

TO CONVERTER

ANT B

Hitachi Model or

Similar Model

VIDEO OUTAUDIO OUT

VCR

Back of VCR

INPUT MODE SELECTION ORDER

CONNECTING EXTERNAL VIDEO SOURCES

CONNECTING A STEREO SOURCE TO INPUT1~INPUT5

1. Connect the cable from the VIDEO OUT of the VCR or the laserdisc player to the INPUT (VIDEO) jack, as shown on the TV set below.

2. Connect the cable from the AUDIO OUT R of the VCR or the laserdisc player to the INPUT (AUDIO/R) jack.

3. Connect the cable from the AUDIO OUT L of the VCR or the laserdisc player to the INPUT (AUDIO/L) jack.

4. Press the VID1~VID5 button to view the program from the VCR or laserdisc player. The VIDEO icon disappears automatically after approximately eight seconds.

5. Press the ANT button to return to the previous channel.

AUDIO TO HI-FI

MONITOR

OUT

INPUT 1

AUDIO

(MONO)

AUDIO

S-VIDEOS-VIDEO

VIDEO

AUDIO

(MONO)

S-VIDEO

VIDEO

Y/VIDEO

AUDIO

Y/VIDEO

AUDIO

INPUT 2 INPUT 4 INPUT 5

(MONO) (MONO)

ANT A

TO CONVERTER

ANT B

Hitachi Model or

Similar Model

Back of VCR

V L R

VCR

OUTPUT

NOTES: 1. Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is

played back will be abnormal if the connection is loose.

2. A single VCR can be used for VCR #1 and VCR #2, but note that a VCR cannot record its own video or line output. (INPUT: 1 in example on page 12) Refer to your VCR operating guide for more information on line inputoutput connections.

CONNECTING EXTERNAL VIDEO SOURCES

CONNECTING AN S-VIDEO SOURCE TO INPUT 1, 2 AND 3

1. Connect the cable from the S-VIDEO OUT of the VCR or the laserdisc player to the INPUT (S-VIDEO) jack, as shown on the TV set below.

2. Connect the cable from the AUDIO OUT R of the VCR or the laserdisc player to the INPUT (AUDIO/R) jack.

3. Connect the cable from the AUDIO OUT L of the VCR or the laserdisc player to the INPUT (AUDIO/L) jack.

4. Press the VID1~VID3 button to view the program from the VCR or laserdisc player. The VIDEO icon disappears automatically after approximately eight seconds.

5. Press the ANT button to return to the previous channel.

AUDIO TO HI-FI

MONITOR

OUT

INPUT 1

AUDIO

(MONO)

AUDIO

S-VIDEOS-VIDEO

VIDEO

AUDIO

(MONO)

S-VIDEO

VIDEO

Y/VIDEO

AUDIO

Y/VIDEO

AUDIO

INPUT 2 INPUT 4 INPUT 5

(MONO) (MONO)

ANT A

TO CONVERTER

ANT B

Hitachi Model or

Similar Model

Rear Panel of Television

VCR or Laserdisc Player

V L R

OUTPUT

S-VIDEO

See tips on Page 13

NOTES: 1. Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is

played back will be abnormal if the connection is loose.

Back of VCR

CONNECTING EXTERNAL VIDEO SOURCES

CONNECTING A COMPONENT SOURCE TO VIDEO 4 OR 5: Y-PBPR.

1. Connect the cable from the Y OUT of the Laserdisc/DVD player or HDTV set top box to the INPUT (Y) jack, as shown on the TV set below.

2. Connect the cable from the CB/PBOUT or B-Y OUT of the Laserdisc/DVD player or HDTV set top box to the INPUT (PB)jack.

3. Connect the cable from the CR/PROUT or R-Y OUT of the Laserdisc/DVD player or HDTV set top box to the INPUT (PR) jack.

4. Connect the cable from the AUDIO OUT R of the Laserdisc/DVD player or HDTV set top box to the INPUT (AUDIO/R) jack.

5. Connect the cable from the AUDIO OUT L of the Laserdisc/DVD player or HDTV set top box to the INPUT (AUDIO/L) jack.

6. Press the VID4~VID5 button, to view the program from the Laserdisc/DVD player or HDTV set top box. The VIDEO icon

disappears automatically after approximately eight seconds.

7. Press the ANT button to return to the previous channel.

AUDIO TO HI-FI

MONITOR

OUT

INPUT 1

AUDIO

(MONO)

AUDIO

S-VIDEOS-VIDEO

VIDEO

AUDIO

(MONO)

S-VIDEO

VIDEO

Y/VIDEO

AUDIO

Y/VIDEO

AUDIO

INPUT 2 INPUT 4 INPUT 5

(MONO) (MONO)

ANT A

TO CONVERTER

ANT B

Rear Panel of Television

OUTPUT

R/CR PB/CB

L R

AUDIO

VIDEO

DVD Player

Hitachi Model or

Similar Model

Back of DVD Player

OUTPUT

LR Y P

HDTV Set-Top Box

NOTE: 1. You may use standard video signal for INPUT:4 and 5.

2. Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is played back will be abnormal if the connection is loose.

3. See page 13 for tips on REAR PANEL CONNECTIONS.

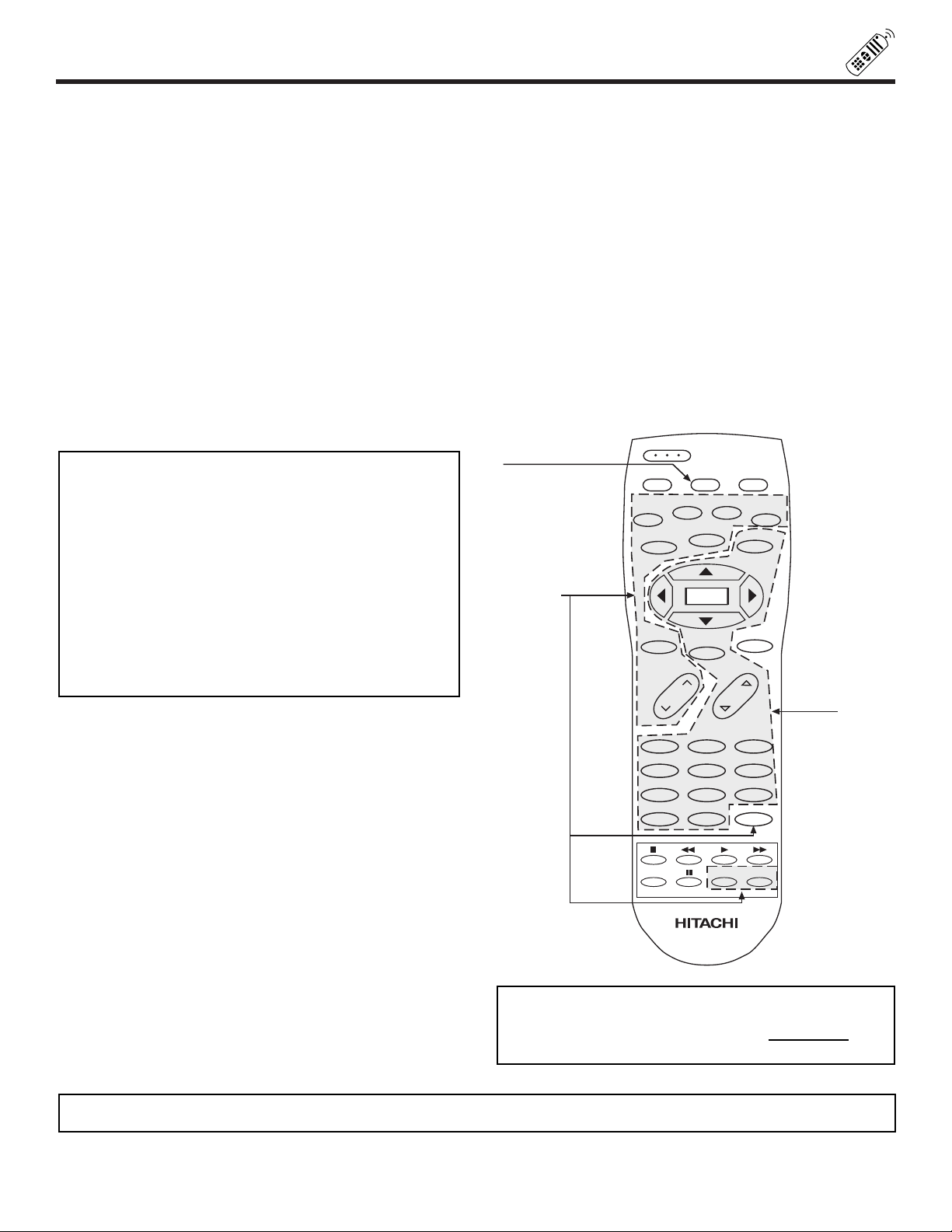

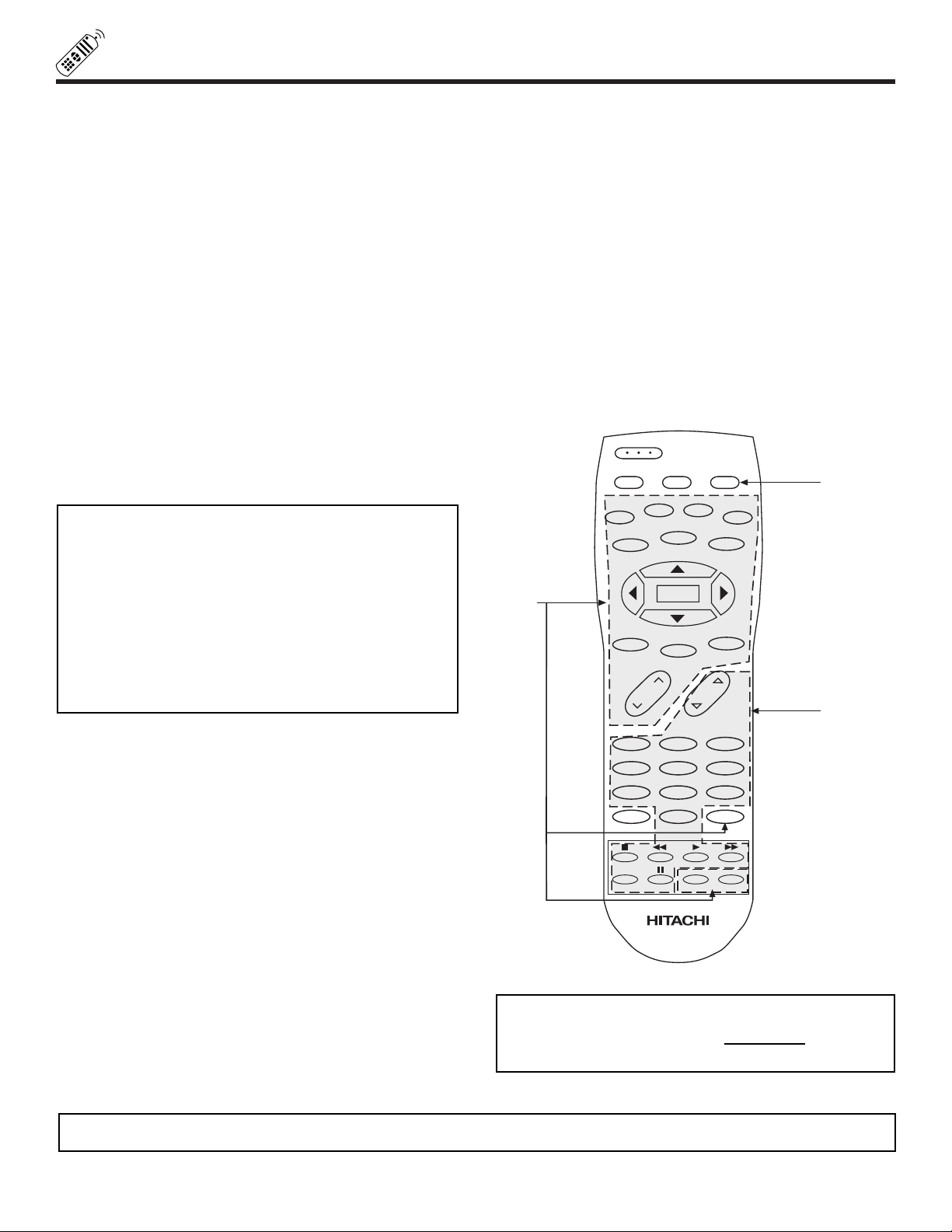

THE REMOTE CONTROL

In addition to controlling all the functions on your HITACHI Projection TV, the new remote control is designed to operate different types of VCRs, CBL (Cable TV) converters, satellite receiver, DVD players, and other audio/video equipment with one touch.Basic operation keys are grouped together in one area.

To operate your TV, point the remote control at the remote sensor of the TV and press the TV button. The remote will now control your television.

To operate your cable/satellite box, point the remote at the remote sensor of the cable/satellie box and press the CABLE/SATELLLITE (CBL/SAT) button. The remote will now control your cable/satellite box. (See page 27 for instructions on how to program the remote to control your cable box.)

To operate your DVD/VCR player, point the remote at the remote sensor of the DVD/VCR player and press the DVD/VCR button. The remote will now control your DVD/VCR player. (See pages 26 and 28 for instruction on how to program the remote to control your DVD/VCR player.)

These buttons allow the remote to control your TV, VCR, DVD or cable/satellite box depending on which mode is chosen, as explained above.

ASPECT BUTTON

When the remote is in the TV or VCR mode, this is the TV/VCR button.

TV OR VCR/DVD BUTTONS

When in TV mode, these buttons, except the REC button, will select from five video input sources. When in VCR/DVD mode, these buttons transmit the chosen precoded VCR/DVD codes.

123

456

789

ANT

STATUS

VOL CH

POWER

TV CBL/SAT DVD/VCR

PIP

SWAP PIP MODE

FREEZE

HELP

MUTE

EXIT

LAST CH

REC

ASPECT

MODE

SELECT

PIP CH

CLU-4322UG

VID1

VID2

VID3 VID4

VID5

HOW TO USE THE REMOTE TO CONTROL YOUR TV

 POWER button

Press this button to turn the TV set on or off when the remote is in TV mode.

 PICTURE-IN-PICTURE buttons

See separate section on pages 23, 24 and 25 for description.

 HELP button

Press this button when a menu is displayed to view HELP text, which gives a description of the displayed menu. The HELP text will be displayed every time a MENU is displayed, until this button is pressed again.

 SELECT, MENU, CURSOR buttons

Use these buttons to set or adjust all of the On-Screen display features.

 VOLUME, MUTE button

Press the VOLUME up () or down () button until you obtain the desired sound level.

To reduce the sound to one half of normal volume (SOFT MUTE) to answer the telephone, etc., press the MUTE button. Press the MUTE button again to turn the sound off completely (MUTE). To restore the sound, press the MUTE button one more time, or press the VOLUME Up () button.

Closed Captioning will display when MUTE/SOFT MUTE is on and Closed Caption is set to AUTO (See page 54).

VOLUME, MUTE buttons

123

456

789

STATUS

VOL CH

POWER

TV CBL/SAT DVD/VCR

PIP

SWAP

FREEZE

HELP

MUTE

EXIT

LAST CH

REC

ASPECT

MODE

SELECT

PIP CH

SELECT, MENU, CURSOR buttons

PICTURE-IN-PICTURE

HELP button

CHANNEL SELECTOR buttons

ANT button

PIP CH button

 TV POWER button















EXIT button



LAST CHANNEL (LAST CH) button



STATUS button



MODE button



ANT

PIP MODE

CLU-4322UG

VID1

VID2

VID3 VID4

VID5

 VID1~VID5 buttons

ASPECT button



MENU button



▲

Volume 8

▲

Mute 8

▲

Soft Mute 8

MUTE MUTE

HOW TO USE THE REMOTE TO CONTROL YOUR TV

 CHANNEL SELECTOR buttons

Use these buttons to select the CHANNEL you wish to watch.

 ANTENNA button

The ANT button will select between Antenna A and Antenna B each time the button is pressed.

 VID1 ~ VID5 buttons

When the remote control is in TV mode, press these buttons to directly select the video input sources between the five video inputs.

 ASPECT button

Press this button to quickly change the PICTURE FORMATS aspect ratio. (See page 40 for more information)

 MODE button

Press this button repeatedly to direct access THEATER MODE between Sport, News, Movie, and Music.

 STATUS button

Press this button when no menu is displayed when you want to check the channel being received, the picture source, if the channel has stereo (ST) or second audio program (SAP), the time and CHANNEL ID.

 EXIT button

When in MENU mode, this button will exit all On-Screen Displays.

Ant B 28

Ant A 10

When an S-VIDEO Input is connected to VIDEO: 1.

When a COMPONENT VIDEO: Y-PBPRInput is connected to VIDEO: 4.

S - IN: 1

Y - PBPR:4

Ant A 10

ABCD

10:00Pm

PIP Ant A 12

Stereo ST/SA

Audio

Broadcast

Audio Selected

Main Picture Source

CHANNEL ID

Time

Sub-Picture Source

PIP

ANT

Video:1

VID1

Video:4

VID4

VID2

VID4

Video:2

VID2

Video:3

VID3

ANT

Stereo

ST/SA

Ant A 28

TAKA

Video:5

VID5

VID1

VID5

+ 47 hidden pages
