Hitachi 3080, 3090, 4000, 3200, 3100 Network Administration Manual

...

Download

Hitachi NAS Platform

Network Administration Guide

Release 12.5

MK-92HNAS008-08

December 2015

No part of this publication ma

y be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or stored in a database or retrieval system for any purpose without the express written permission of Hitachi, Ltd.

Hitachi, Ltd., reserves the right to make changes to this document at any time without notice and assumes no responsibility for its use. This document contains the most current information available at the time of publication. When new or revised information becomes available, this entire document will be updated and distributed to all registered users.

Some of the features described in this document might not be currently available. Refer to the most recent product announcement for information about feature and product availability, or contact Hitachi Data Systems Corporation at

Notice: Hitachi, Ltd.

, products and services can be ordered only under the terms and

https://portal.hds.com.

conditions of the applicable Hitachi Data Systems Corporation agreements. The use of Hitachi, Ltd., products is governed by the terms of your agreements with Hitachi Data Systems Corporation.

Hitachi NAS Platform Network Administration Guide

Hitachi Data Systems products and services can be ordered only under the terms and conditions of Hitachi Data S

ystems’ applicable agreements. The use of Hitachi Data Systems products is governed by the terms of your agreements with Hitachi Data Systems.

By using this software, you agree that you are responsible for:

a) Acquiring the relevant consents as may be required under local privacy laws or otherwise from employees and other individuals to access relevant data; and

b) Verifying that data continues to be held, retrieved, deleted, or otherwise processed in accordance with relevant laws.

Hitachi is a registered trademark of Hitachi, Ltd., in the United States and other countries. Hitachi Data Systems is a registered trademark and service mark of Hitachi, Ltd., in the United States and other countries.

Archivas, Dynamic Provisioning, Essential NAS Platform, HiCommand, Hi-Track, ShadowImage, Tagmaserve, Tagmasoft, Tagmasolve, Tagmastore, TrueCopy, Universal Star Network, and Universal Storage Platform are registered trademarks of Hitachi Data Systems Corporation.

AIX, AS/400, DB2, Domino, DS8000, Enterprise Storage Server, ESCON, FICON, FlashCopy, IBM, Lotus, OS/390, RS6000, S/390, System z9, System z10, Tivoli, VM/ ESA, z/OS, z9, zSeries, z/VM, z/VSE are registered trademarks and DS6000, MVS, and z10 are trademarks of International Business Machines Corporation.

All other trademarks, service marks, and company names in this document or website are properties of their respective owners.

Microsoft product screen shots are reprinted with permission from Microsoft Corporation.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/). Some parts of ADC use open source code from Network Appliance, Inc. and Traakan, Inc.

Part of the software embedded in this product is gSOAP software. Portions created by gSOAP are copyright 2001-2009 Robert A. Van Engelen, Genivia Inc. All rights reserved. The software in this product was in part provided by Genivia Inc. and any express or implied warranties, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose are disclaimed. In no event shall the author be liable for any direct, indirect, incidental, special, exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services; loss of use, data, or profits; or business interruption) however caused and on any theory of liability, whether in contract, strict liability, or tort (including negligence or otherwise) arising in any way out of the use of this software, even if advised of the possibility of such damage.

The product described in this guide may be protected by one or more U.S. patents, foreign patents, or pending applications.

Hitachi NAS Platform Network Administration Guide

Notice of Export Controls

Export of technical data contained in this document ma

y require an export license from the United States government and/or the government of Japan. Contact the Hitachi Data Systems Legal Department for any export compliance questions.

Hitachi NAS Platform Network Administration Guide

eface .............................................................................................. 10

Related Documentation.......................................................................................... 10

Accessing product documentation........................................................................... 12

Getting help...........................................................................................................12

Comments.............................................................................................................12

1 Network interfaces...............................................................................14

File serving interfaces.............................................................................................15

Link aggregation...............................................................................................15

Using LACP................................................................................................. 16

Typical LACP configurations..........................................................................16

VLAN interfaces................................................................................................ 19

Non-file serving interfaces...................................................................................... 19

Using Network and Port Address Translation....................................................... 20

Aggregate Linux interfaces................................................................................ 21

Typical non-file serving interface configurations.................................................. 23

Jumbo frames support............................................................................................24

2 Routing overview ................................................................................26

Default gateways................................................................................................... 27

Static routes.......................................................................................................... 27

Dynamic routes......................................................................................................27

Managing routes.................................................................................................... 28

Understanding routing by EVS.................................................................................29

3 Name and directory services.................................................................30

Name services....................................................................................................... 31

DNS and DDNS.................................................................................................31

Registering a CIFS name................................................................................... 31

WINS...............................................................................................................32

Hitachi NAS Platform Network Administration Guide

Directory services...................................................................................................32

NIS (f

LDAP advantages..............................................................................................32

or NFS and FTP) ..................................................................................... 32

4 Using IPv6 ........................................................................................ 34

IPv6 overview........................................................................................................35

IPv6 and the NAS server.........................................................................................35

IPv6 and non-file serving interfaces................................................................... 36

5 Configuring link aggregation.................................................................38

Viewing link aggregations....................................................................................... 39

Adding link aggregations.........................................................................................40

Editing link aggregations.........................................................................................41

Deleting link aggregations.......................................................................................41

Configuring LACP................................................................................................... 42

Configuring Aggregate Linux interfaces....................................................................43

6 Configuring VLAN interfaces................................................................. 44

Adding VLAN interfaces.......................................................................................... 45

Deleting VLAN interfaces.........................................................................................46

Advanced VLAN interface configuration....................................................................46

7 Configuring IP addresses......................................................................48

Viewing IP addresses..............................................................................................49

Adding IP addresses...............................................................................................49

Deleting IP addresses.............................................................................................50

Advanced IP configuration...................................................................................... 50

8 Configuring routes............................................................................... 54

Viewing IP routes...................................................................................................55

Adding IP routes.................................................................................................... 55

Deleting IP routes.................................................................................................. 56

9 Configuring name and directory services............................................... 58

Specifying name services........................................................................................59

Prioritizing name services....................................................................................... 61

Configuring NIS servers..........................................................................................62

Modifying NIS servers....................................................................................... 63

Adding NIS servers........................................................................................... 64

Deleting NIS servers......................................................................................... 64

Configuring LDAP servers........................................................................................65

Modifying LDAP configuration............................................................................ 66

Adding LDAP servers.........................................................................................67

Deleting LDAP servers.......................................................................................67

Hitachi NAS Platform Network Administration Guide

10 Managing networks and devices ...........................................................68

Configuring non-fi

Configuring devices on the system monitor.............................................................. 69

le serving interfaces..................................................................... 69

11 Troubleshooting...................................................................................74

Network health information.....................................................................................75

Detecting issues.....................................................................................................77

Collecting network packets......................................................................................78

A VLAN conversion..................................................................................80

Example VLAN conversion.......................................................................................82

B Network ports......................................................................................84

Hitachi NAS Platform Network Administration Guide

In PDF format, this guide provides information about the server's network usage, and explains how to configure network interfaces, IP addressing, name and directory services.

Preface

10 Preface

Hitachi NAS Platform Network Administration Guide

groups, and other storage device related configuration and management features and functions.

• Snapshot Administration Guide (MK

-92HNAS011)—In PDF format, this guide provides information about configuring the server to take and manage snapshots.

• Replication and Disaster Recovery Administration Guide (MK-92HNAS009) —In PDF format, this guide provides information about replicating data using file-based replication and object-based replication, provides information on setting up replication policies and schedules, and using replication features for disaster recovery purposes.

• Antivirus Administration Guide (MK-92HNAS004)—In PDF format, this guide describes the supported antivirus engines, provides information about how to enable them, and how to configure the system to use them.

• Backup Administration Guide (MK-92HNAS007)—In PDF format, this guide provides information about configuring the server to work with NDMP, and making and managing NDMP backups.

• Command Line Reference Opens in a browser, and describes the commands used to administer the system.

Note: F

or a complete list of Hitachi NAS open source software copyrights and

licenses, see the System Access Guide.

Command Line References

The Command Line Reference provides information on the commands used to manage your system, and includes relevant information on the operation of your hardware and software. Depending on the model of your server or cluster node, you should refer to the Command Line Reference that is appropriate for your system:

• Command Line Reference for models 3080 and 3090

• Command Line Reference for models 4060, 4080, and 4100

• Hitachi High-performance NAS Platform Command Line Reference

Hardware References

• Hitachi NAS Platform 3080 and 3090 G1 Hardware Reference (MK-92HNAS016)—Provides an overview of the first-generation server hardware, describes how to resolve any problems, and replace potentially faulty parts.

• Hitachi NAS Platform 3080 and 3090 G2 Hardware Reference (MK-92HNAS017)—Provides an overview of the second-generation server hardware, describes how to resolve any problems, and replace potentially faulty parts.

• Hitachi NAS Platform Series 4000 Hardware Reference (MK-92HNAS030) (MK-92HNAS030)—Provides an overview of the Hitachi NAS Platform Series 4000 server hardware, describes how to resolve any problems, and how to replace potentially faulty components.

Preface 11

Hitachi NAS Platform Network Administration Guide

• Hitachi NAS Platform System Manager Unit (SMU) Hardware Reference (MK

-92HNAS065) —This document describes the usage and replacement

instructions for the SMU 300/400.

• Hitachi High-performance NAS Platform (MK-99BA012—Provides an overview of the NAS Platform 3100/NAS Platform 3200 server hardware, and describes how to resolve any problems, and replace potentially faulty parts.

Accessing product documentation

Product documentation is available on Hitachi Support Connect:

support.hds.com/en_us/documents.html. Check this site for the most current

documentation, including important updates that ma the release of the product.

Getting help

Hitachi Support Connect

and solutions sold by Hitachi. To contact technical support, log on to Hitachi Support Connect for contact information:

contact-us.html.

Hitachi Community

partners, independent software vendors, employees, and prospects. It is the destination to get answers, discover insights, and make connections. Join the conversation today! Go to your profile.

Comments

Please send us your comments on this document to Include the document title and number example, -07), and refer to specific sections and paragraphs whenever possible. All comments become the property of Hitachi.

https://

y have been made after

is the destination for technical support of products

https://support.hds.com/en_us/

is a global online community for HDS customers,

community.hds.com, register

doc.comments@hds.com.

, including the revision level (for

, and complete

Thank you!

12 Preface

Hitachi NAS Platform Network Administration Guide

Preface 13

Hitachi NAS Platform Network Administration Guide

Network interfaces

This section contains information on aggregation and jumbo frames support.

File serving interfaces

□

Non-file serving interfaces

□

Jumbo frames support

□

HNAS network interfaces, link

14 Network interfaces

Hitachi NAS Platform Network Administration Guide

File serving interfaces

S servers provide the following file serving physical interfaces:

Models 4040 and earlier

• ge1 - ge6 - 1 GbE interfaces (RJ45)

• tg1 - tg2 - 10 GbE interfaces (XFP)

Models 4060 / 4080 / 4100

• tg1 - tg4 - 10 GbE interfaces (SFP+)

File serving physical interfaces enable network clients to access an EVS on the storage server. These interfaces are commonly added together in a link aggregation in order to increase redundancy and throughput of data.

Link aggregation

In a link aggregation, one or more file serving interfaces are grouped to form a single logical interface. This functionality can increase bandwidth capability and create resilient and redundant links. Aggregating multiple network links does not increase performance of a single client TCP connection but it does enable more individual connections to be served faster, by using more available links and also by reducing contention within a link. An aggregation also provides load balancing where the processing and communications activity is distributed across several links in a trunk. Therefore, aggregations provide higher link availability and increased Link Aggregation Group (LAG) capacity.

Note: All interfaces in an aggregation must be of the same t (either all 1 Gbps interfaces or all 10 Gbps interfaces).

An aggregation is assigned a unique MAC address which is different on each cluster node. Each aggregation can ha to configure an aggregation without any IP addresses, but this prevents communication through that interface. For example, in a cluster, an aggregation associated with an EVS appears on all nodes but is only active on the node that the EVS is running on because the EVS holds the IP address. If the EVS fails over onto another node, the IP address moves with the EVS, activating the aggregation on the new node.

The server supports static aggregations. It also supports the Link Aggregation Control Protocol (LACP) for dynamic aggregations.

Network interfaces 15

Hitachi NAS Platform Network Administration Guide

ve multiple IP addresses. It is possible

ype/speed

Using LACP

To view the status of an aggregation, navigate to the Link Aggregation page as shown below:

The serv uses to manage an individual link's transmission state (within a Link Aggregation Group). The server controls the LACP relationship between multiple switches. The server determines which network interfaces are in use and can bring up alternative network interfaces during a failure. For example, if the server does not receive any LACP messages from the primary switch (the waiting time is determined by the configured LACP timeout), the server can use the network interfaces connected to the secondary switch instead.

LACP aggregates are not automatically created or populated. The administrator must first create an aggregate interface, then enable LACP on that interface.

Note: The serv

LACP timeouts

The serv timers. A short timeout is three seconds (three x one second). A long timeout is 90s (three x 30 seconds). Therefore, the link times out after three missed messages. Long timeouts are recommended in order to upgrade upstream network devices without causing path failover on the server. The default setting is a short timeout.

er supports the Link Aggregation Control Protocol (LACP) which it

er always sends LACPDUs set to ACTIVE.

er supports both short (one second) and long (30 second) LACP

Typical LACP configurations

Here are three typical configurations when using LACP with NAS servers:

• Split-LAG with Layer-2 redundancy

• Split-LAG with Layer-2 redundancy and increased bandwidth

16 Network interfaces

Hitachi NAS Platform Network Administration Guide

• Split-LAG with a single logical switch

Note: The serv

ers are always in LACP Active mode while the switches can be

configured in active or passive LACP mode.

Split-LAG with Layer-2 redundancy

When LACP is enabled, it is possible to have a scenario where a pair of clustered NAS servers are connected to a pair of switches configured with one link aggregation (over two file-serving interfaces) as shown in the example below:

This scenario provides basic Layer-2 redundancy on the NAS servers.

Note: Static aggregation is not supported in a split

-LAG scenario.

Split-LAG with Layer-2 redundancy and increased bandwidth

This scenario includes a link aggregation o

ver four file-serving interfaces for increased bandwidth and increased standby links as shown in the example below:

Network interfaces 17

Hitachi NAS Platform Network Administration Guide

Single logical switch with Layer-2 redundancy and increased bandwidth

This scenario includes a pair or switches connected in such a w

ay as to appear as one logical switch. The NAS servers are configured with a link aggregation over four file-serving interfaces as shown in the example below:

18 Network interfaces

Hitachi NAS Platform Network Administration Guide

VLAN interfaces

A ph

ysical network can be partitioned into multiple, isolated distinct

broadcast domains called virtual LANs or VLANs.

An HNAS server can provide access to a VLAN using a VLAN interface on an aggregate interface. Administrators can create a VLAN interface for each tagged VLAN for each aggregate interface over which the HNAS needs to communicate. For example, VLAN 1 on ag1 is different from VLAN 1 on ag2.

Note: If an address is assigned to a VLAN interface, the serv untagged packets for that address. Therefore, do NOT create a VLAN interface for the native or otherwise untagged VLAN, as it can result in a loss of connectivity.

Non-file serving interfaces

A NA

S server provides two 10/100/1000 Ethernet non-file serving interfaces

as follows:

• eth1

Network interfaces 19

Hitachi NAS Platform Network Administration Guide

er discards

• eth0

These interfaces use standard RJ45 connectors.

The serv We recommend a 1Gbps speed for the switch uplink port for the non-file serving interface with full duplex, bi-directional flow control enabled.

eth1

This interface is mandatory and enables users to communicate with the SMU, any auxiliary devices and the non-file serving interfaces of other HNAS servers. During initial setup of the HNAS server, this interface is configured with an IP address. This interface can also be configured with a separate cluster node IP address if the server is intended to be part of a cluster.

eth0

This interface is optional and enables the user to configure file services on the server as well as create and configure Enterprise Virtual Servers (EVSs). For example, when using SyncDR, the Admin EVS needs to be on eth0.

During initial setup of the HNAS server, this interface is configured with an IP address. Connecting to the HNAS server using this IP address enables direct access to the server management interface and provides the user with a command line interface. See the CLI Reference manual for available commands.

er uses auto-negotiation for speed/duplex/flow control by default.

It is necessary for eth0 to be connected (and therefore in use by the Admin EVS) for the following features:

• V2I

• VASA Provider

• Data Migrator to Cloud (DM2C)

• Using an internal SMU

Note: R password are both 'supervisor') which is exposed when using the eth0 interface.

emember to secure the HNAS password (the default username and

Using Network and Port Address Translation

In order to minimiz can be located on a private management network and use Network Address Translation (NAT) and Port Address Translation (PAT) to communicate between the two networks. For example, an HTTP request for a device in a private management network is made to a public network on the server's eth0 interface, on a NAT port. The server then translates this request to the IP address and actual HTTP port of the device on the private management network.

e data traffic on a public file-serving network, the server

20 Network interfaces

Hitachi NAS Platform Network Administration Guide

Note: The IP address range of a private management network can only include IP addresses which share the first three octets of the serv network IP address. For example, for an server IP address of 192.0.2.1, devices on the private management network must have addresses in the range of 192.0.2.2 - 192.0.2.254.

As the server supports mixed systems, It is also possible for some or all auxiliary devices to be located on a public file-serving network. This enables some devices to be located on a private management network, and others on a public file-serving network.

Aggregate Linux interfaces

The NAS server provides the ability to access the file serving interfaces (agX) from Linux, using a virtual Linux network interface (eth-agX), which is bound to a specific agX interface as shown below:

er's eth1

Network interfaces 21

Hitachi NAS Platform Network Administration Guide

Using an Aggregate Linux interface (instead of eth0 or eth1) provides a potentially faster route for data and management traffic. It also enables the non-file serving interfaces (eth0 and eth1) and the file serving aggregations to be physically separate while providing Linux access to both sets of interfaces.

Example

For the scenario below:

22 Network interfaces

Hitachi NAS Platform Network Administration Guide

The Administrator can create eth-ag1

aggregate-linux-interface-create --interface ag1

, any functionality that is available on eth0 and eth1, is also available on

Now the file serving interfaces. This can include using SSH with the Admin EVS IP address.

For information on how to manage the eth-agX interfaces, see the following CLI commands:

• aggregate-linux-interfaces

• aggregate-linux-interface-show

• aggregate-linux-interface-create

• aggregate-linux-interface-delete

over ag1 as shown below:

Typical non-file serving interface configurations

There are three typical configurations for NAS non-file serving interfaces:

• Single NAS server (embedded SMU)

• Single NAS server (external SMU)

• Clustered NAS servers (external SMU)

Single NAS server (internal SMU)

In this configuration, the NAS uses an internal SMU where eth1 is connected to the private management network and eth0 is connected to the public management network.

Single NAS server (external SMU)

In this configur maintaining external configuration backups and also when preparing the NAS to join a cluster. In this case, eth1 on the NAS and eth1 on the SMU are connected to the same private management network and eth0 on the NAS is optionally connected to the public management network.

ation, the NAS uses an external SMU. This is necessary when

Network interfaces 23

Hitachi NAS Platform Network Administration Guide

Clustered NAS servers (external SMU)

In this configur this case, eth1 on each NAS and eth1 on the SMU are connected to the same private management network and eth0 on each NAS is optionally connected to the public management network.

ation, the NAS is part of a cluster with an external SMU. In

Jumbo frames support

All file serving interfaces of a serv enable transmission of Ethernet frames with a payload larger than 1500 bytes and these frames co-exist with standard frames on an Ethernet network.

er support jumbo frames. Jumbo frames

All file serving interfaces receive jumbo frames unconditionally, without any configuration changes. It is possible to configure a file serving interface to transmit jumbo frames by specifying an MTU size of between 1,501 and 9,600 bytes.

To use jumbo frame transmission, configure the following settings:

• IP MTU for off-subnet transmits - bytes

• TCP MTU

• Other Protocol MTU

Caution: Networking equipment lacking the jumbo frames extension can drop jumbo frames and record an oversize packet error. Before configuring jumbo frame transmission, verify that all network equipment along the route (and at each end point) supports jumbo frames. If you enable jumbo frames and either network equipment or clients on the subnet do not support jumbo frames, it is possible to experience a loss of communication with the server/ cluster.

Successful IP data transmission using jumbo frames depends on the destination IP address or sub-network. The maximum MTU siz

e for a

24 Network interfaces

Hitachi NAS Platform Network Administration Guide

destination IP address or sub-network is configured as an attribute in the IP routing table.

The IP MTU in use is the lowest of:

•

The interface IP MTU setting

• Any IP MTU specified by the selected route

• Any IP MTU specified by the MTU command

The recommended MTU size is 8972 bytes (in order to compensate for the IP and ICMP headers).

Network interfaces 25

Hitachi NAS Platform Network Administration Guide

Routing overview

This section contains the HNAS server can route IP traffic in three ways: through Default Gateways, Static Routes, and Dynamic Routes.

Default gateways

□

Static routes

□

Dynamic routes

□

Managing routes

□

Understanding routing by EVS

□

HNAS IP routing concepts. Depending on configuration,

26 Routing overview

Hitachi NAS Platform Network Administration Guide

Default gateways

The serv connected to multiple IP networks, add a default gateway for each network to which the server is connected. This configuration allows the server to direct traffic through the appropriate default gateway by matching source IP addresses specified in outgoing packets with the gateway on the same subnet.

With multiple default gateways, the server routes IP traffic logically, reducing the need to specify static routes for every network that connects with a particular server.

Static routes

Static routing provides a fixed path for data in a network. When a server on a network is connected to additional networks through a router, communication between that server and the remote networks can be enabled by specifying a static route to each network.

Static routes are set up in a routing table. Each entry in the table consists of a destination network address, a gateway address, and a subnet mask. Entries for static routes in the server’s routing table are persistent, meaning that, if a server is restarted, the route table preserves the static routing entries.

er supports multiple default gateways for routing IP traffic. When

The NAS server supports gateway, network and host static routes. The Default option sets up a gateway and does not require a destination. Select the Network option to set up a route to address all of the computers on a specific network. Select the Host option to address a specific computer on a different network. The maximum possible number of static routes is 127 (default gateways also count against this total).

In most cases, for IPv6, it is not necessary to statically configure gateways as they are automatically discovered through the received router advertisements.

Dynamic routes

The NAS server supports ICMP redirects and RIP versions 1 and 2, which enable it to dynamically add routes to its route table.

ICMP redirects

Routing overview 27

Hitachi NAS Platform Network Administration Guide

This is a mechanism for routers to convey routing information back to the serv

er. When one router detects that another router offers a better route to a destination, it sends the server a redirect that temporarily overrides the server’s routing table. Being router-based, dynamic redirects do not require any configuration, but they can be viewed in the routing table.

The server stores dynamic host routes in its routing table for up to 10 minutes. When a dynamic host route expires, it is removed from the routing table. When subsequent packets are sent to the selected destination, the choice of gateway is determined by the remaining routes in the routing table until the server receives another ICMP redirect. The server creates a dynamic host route for each redirect received. The host route cache can store up to 65,000 dynamic routes at a time.

ICMP router discovery

The NAS server supports ICMP router discovery, which enables it to discover the addresses of routers. ICMP routers periodically multicast their addresses; when the server receives these multicasts, it incorporates the routers into its routing table.

ICMP router discovery is controlled using the CLI command irdp. For more information, see the Command Line Reference. A router learned using IRDP is propagated to the routing table as a default gateway.

The NAS server discovers IPv6 default gateways through ICMPv6 router advertisements.

RIP (v1 and v2)

This is an industry standard, enabling servers to automatically discover routes and then update routes in the route table based on updates provided by other network devices. RIP (v1 and v2) is controlled using the CLI command rip. For more information, refer to the Command Line Reference.

Managing routes

The HNAS server selects the most specific route available for outgoing IP packets. The host route is the most specific, as it targets a specific computer on the network. The network route is the next most specific, as it targets a specific network. A gateway is the least specific route, which provides a third routing option for the server. Therefore, if a server finds a host route for an outgoing IP packet, it selects that route over a network route or gateway. Similarly, when a host route is not available, the server selects a corresponding network route or, in the absence of host and network routes, the server sends the packet to a default gateway.

28 Routing overview

Hitachi NAS Platform Network Administration Guide

Understanding routing by EVS

outing by EVS restricts the choice of source addresses available to the routing engine to those associated with the source EVS. Routing by EVS is always enabled in multi-tenancy mode. Routing by EVS can also be enabled when not in multi-tenancy mode.

Some subsystems already use the current EVS to influence routing decisions. With routing by EVS enabled, many subsystems, such as DNS, which normally would not use the EVS to influence routing decisions, now would use routing by EVS. If routing by EVS is to be enabled in non-multi-tenant mode, it is necessary to use the routing-by-evs-enable command. See the CLI reference for routing-by-evs commands:

• routing-by-evs-enable

• routing-by-evs-disable

• routing-by-evs-show

Routing overview 29

Hitachi NAS Platform Network Administration Guide

Name and directory services

This section contains information on the local name and directory services that the the location, administration, and management of network resources.

□

HNAS server can support. These services help the server to support

Name services

Directory services

30 Name and directory services

Hitachi NAS Platform Network Administration Guide

Name services

The

HNAS server supports the following name resolution methods:

• Domain Name System (DNS)

• NIS and LDAP (see Directory services)

• Windows Internet Naming Service (WINS)

These methods associate computer identifiers (for example, IP addresses) with computer (host) names. This allows you to specify computer names rather than IP addresses in dialog boxes.

The HNAS server supports Dynamic Domain Name System (DDNS) for updating a name server.

DNS and DDNS

On TCP/IP networks, the Domain Name System (DNS) is used to resolve host names into IP addresses.

With DNS, records must be created manually for every host name and IP address. Starting with Windows 2000, Microsoft enabled support for Dynamic DNS, a DNS database which allows authenticated hosts to automatically add a record of their host name and IP address, eliminating the need for manual creation of records.

Registering a CIFS name

When an EVS goes online, the server registers one entry with the configured DNS servers (in both the forward and reverse lookup zones) for each configured ADS CIFS name and IP address associated with the EVS. Thus, the EVS records one entry in DDNS for every configured IP address. If a server has more than one configured ADS CIFS name, an entry for each IP address for each configured CIFS name is registered.

Each hostname registered with the DNS server has a Time To Live (TTL) property of 20 minutes, which is the amount of time other DNS servers and applications are allowed to cache it. The record's TTL dwindles with passing time and when the TTL finally reaches zero, the record is removed from the cache. After the 20-minute expiration point, the client must execute a fresh name lookup for more information.

The hostname is refreshed every 24 hours. This refresh commences after the first successful registration. For example, if the server registers its name at bootup, then every 24 hours after the bootup it refreshes its DNS entry. If the server cannot register or refresh its name, it goes into recovery mode

Name and directory services 31

Hitachi NAS Platform Network Administration Guide

with an attempt to register every 5 minutes. Once it successfully registers, it will resume the 24 hours-per

WINS

WINS resolves NetBIOS names to IP addresses, and is used by the server to communicate with CIFS clients on the network. NetBIOS (and by extension, WINS) is not supported when multi-tenancy is enabled.

Note: WINS is deprecated in Windows 2008.

Directory services

HNAS server supports the following directory service methods:

The

• Network Information Service (NIS)

• Lightweight Directory Access Protocol (LDAP)

These services associate identifiers with users, groups, devices, volumes, folders, and other network resources. This functionality enables Administrators to specify policies for access on a broad basis, rather than explicitly on a per-resource basis, and to have this information accessible throughout the network.

-refresh cycle.

NIS (for NFS and FTP)

NIS databases provide simple management and administration of Unix-based networks. These databases can provide details about users and groups, also individual client machines (including IP address and host name, to facilitate authentication for users logging in to clients on the network).

The server supports integration with NIS directory services which can provide the following:

• NFS user and group account information retrieval

• Name services for resolving host names to IP addresses

• HNAS FTP user authentication

LDAP advantages

Many organizations are replacing their existing NIS infrastructure with the more reliable, scalable and secure LDAP system. In addition to providing the same services as NIS (user and group information retrieval, name service resolution, and FTP user authentication), LDAP also provides the following advantages:

• Improved accuracy, due to LDAP’s more frequent data synchronization of

current and replicated data.

32 Name and directory services

Hitachi NAS Platform Network Administration Guide

• Communications encryption using Secure Sockets Layer (SSL) and

ransport Layer Security (TLS).

• Authentication of connections to the LDAP database, instead of anonymous

access to NIS databases.

The server supports LDAP version 2 and 3 (the default is version 3), including two of the most common LDAP service implementations:

• Oracle Directory Server

• OpenLDAP

Name and directory services 33

Hitachi NAS Platform Network Administration Guide

Using IPv6

This section contains an o the NAS server.

IPv6 overview

□

IPv6 and the NAS server

□

verview of IPv6 and information on using IPv6 with

34 Using IPv6

Hitachi NAS Platform Network Administration Guide

IPv6 overview

The current Internet protocol address standard, IPv4, uses a 32-bit address and has an insufficient number of a next generation Internet protocol address standard, IPv6, uses a 128-bit address. This provides a much larger pool of addresses. The NAS server supports both IPv4 and IPv6 at the same time (dual-stack).

Address formats

An IPv4 address consists of dotted quads, for example 127.0.0.1.

For an IPv6 address, each 16 bits of the 128 bit address is represented as a hexadecimal number separated by a colon (:) as shown below:

2001:db8:0:0:1:0:0:1

epeated fields of zeroes can be replaced by :: as shown below:

2001:db8::1:0:0:1 or 2001:db8:0:0:1::1

There can only be one :: in the text representation of an address.

vailable addresses for global usage. The

IPv6 addresses ha of the address which is represented in CIDR format as shown below:

2001:db8::/64

This represents an address r 2001:db8:0:0:ffff:ffff:ffff:ffff.

Address resolution

IPv6 uses NDP (Neighbor Discovery Protocol) instead of ARP for address resolution and IRDP for router discovery.

ve a 64-bit netmask which consists of the 64 leftmost bits

IPv6 and the NAS server

On the NAS server, wherever an IP address is specified, it is possible to add IPv4 or IPv6 addresses. If the NAS server is configured with IPv6 addresses, clients can connect to it using IPv6. However, to connect to it from both IPv4 and IPv6 clients, it is necessary to configure both IPv4 and IPv6 addresses.

Note: The NA

S server does not support SLAAC on file-serving interfaces.

ange of 2001:db8:0:0:0:0:0:0 to

Using the SMU with IPv6

It is possible to use the SMU to configure IPv6 addresses for file-serving and non-file serving interfaces, routes and name services.

Using IPv6 35

Hitachi NAS Platform Network Administration Guide

For example, the Administrator can set an IPv6 address for ag1 on the fileserving interfaces. The format is <address>/<prefix length> as shown below:

This is also the page where an IPv6 address is configured for the Admin Services Node. This is necessary in order to launch an embedded SMU over IPv6. It is not possible to configure an IPv6 address on a cluster node.

Using CLI commands with IPv6

Each CLI command that accepts IPv4 addresses also accepts IPv6 addresses, for example, the evs command as shown below:

> evs create -i 2001:db8::/64 -p ag2 -n 1

Some commands, for example ping, ha below:

> ping6 -c10 2001:db8:220a:480:baac:6fff:fe80:5962 32 bytes from 2001:db8:220a:480:baac:6fff:fe80:5962 icmp_seq=0 time=6 ms 32 bytes from 2001:db8:220a:480:baac:6fff:fe80:5962 icmp_seq=1 time <1 ms 32 bytes from 2001:db8:220a:480:baac:6fff:fe80:5962 icmp_seq=2 time <1 ms

IPv6 and non-file serving interfaces

On the NA Node - eth0 or eth1. However, on the SMU, IPv6 addresses are only configurable on eth0 and not on eth1. This is because on an external SMU, only eth0 is considered to be a public interface. The eth0 interface must always retain an IPv4 address. The IPv6 configuration is in addition to the IPv4 configuration.

The Administrator can configure a static IPv6 IP address for an external SMU as shown in the example below or use the SLAAC option where the address is generated from router advertisements.

S server, an IPv6 address can be configured on the Admin Services

ve an IPv6 variant ping6, as shown

36 Using IPv6

Hitachi NAS Platform Network Administration Guide

The Administrator can use this address to launch the external SMU GUI and it also enables the external SMU to manage a serv

er with an IPv6 Admin

Services Node address.

Using IPv6 37

Hitachi NAS Platform Network Administration Guide

Configuring link aggregation

This section contains information on viewing current link aggregation details, adding and remo interfaces.

Viewing link aggregations

□

Adding link aggregations

□

Editing link aggregations

□

Deleting link aggregations

□

Configuring LACP

□

ving link aggregations and configuring Aggregate Linux

Configuring Aggregate Linux interfaces

□

38 Configuring link aggregation

Hitachi NAS Platform Network Administration Guide

Viewing link aggregations

o view the status of an aggregation, navigate to the Network

Configuration > Link Aggregation page:

The following table describes the fields on this page:

Field / Item Description

Name This field contains the name of the aggregation (agX, where X is the aggregation

number).

Note: The 4040 and earlier models support up to 8 aggregations and

the 4060, 4800, and 4100 models support up to 4 aggregations.

Use LACP

Ports

Details

Add

Delete To remove an aggregation, select it and click delete.

Status

This field contains the type of aggregation that is configured:

• Static: Configures the unconditional link aggregation between the network switch and the NA static link aggregation configured. This is the default option.

• LACP: Enables the LACP protocol to automatically configure the link aggregation settings between the NAS server and the network switch. For this setting, use a network switch that supports the LACP protocol. The switch can be configured for either active or passive LACP mode. If the LACP timeout period is not long enough, adjust it using the CLI. By default, the NAS server uses short LACP timeouts.

This field lists the available ge (gigabit Ethernet) and tg (10 GbE) interfaces in use for the aggregation.

This field displays the configuration of the selected interface. It is then possible to edit the values for the aggregation.

Click add to open the Add Link Aggregation page. The add button is disabled when either all aggregate group names are used up or there are no more GbE interfaces available to aggregate.

The detailed status for each interface associated with the aggregation on each server or cluster node.

S server. The connected switch must also have a matching

Configuring link aggregation 39

Hitachi NAS Platform Network Administration Guide

Status LED values:

•

Green: OK

• Amber: Degraded

• Red: Unavailable

Adding link aggregations

To add a link aggregation

Procedure

1. Na

vigate to Network Configuration > Link Aggregation, then click

add to display the Add Link Aggregation page.

2. Specify the configuration of the aggregation as required.

3. Verify the settings, then click OK to apply the settings, or cancel to

decline.

Field / Item Description

Name This field lists the available aggregation names. Select a name from the

list.

Available ports This field lists the available ge (gigabit Ethernet) and tg (10 GbE)

interfaces to add to the aggregation. To add an interface to the aggregation, select the check box next to the name of the interface.

Use LACP This field specifies whether the aggregation uses LACP. An aggregation

that does not use LACP is called a static aggregation, and an aggregation that does use LACP is called a dynamic aggregation.

Port level load

balancing

This field displays the port load balancing scheme in use for all interfaces in the aggregation.

The options are:

• Normal - the server distributes all traffic for a given conversation through one of the physical interfaces in the appropriate aggregation. The server’s hash and routing functions determine which packets use which physical interfaces. For example, all traffic for a particular TCP connection is always distributed through the same physical interface (unless the link drops). However, the server is not guaranteed to respond to the same client on the same interface.

• Round robin - the server selects outgoing interfaces in sequential order, on a packet-by-packet basis. This aggregation load balancing function ensures that all the interfaces are more or less equally used. The disadvantage of round robin is that the clients must be able to cope with out of order TCP traffic at high speed. The LACP specification (802.3ad) requires that an implementation must follow the appropriate rules to minimize out of order traffic and duplicated packets. Round robin load balancing directly contravenes this requirement. However, it can be useful when, for example, running security scan request traffic, by increasing throughput.

40 Configuring link aggregation

Hitachi NAS Platform Network Administration Guide

Select the radio button next to the required load balancing scheme.

Editing link aggregations

Use the Edit Link Aggregation Details page to:

•

Remove interfaces from the aggregation

• Add interfaces to the aggregation

• Select an aggregation type: static or LACP

• Change the type of load balancing in use for the aggregation

To edit an aggregation configuration

Procedure

1. Navigate to Network Configuration > Link Aggregation to display the Link Aggregation page, which lists all currently configured aggregations.

2. Click details to display an aggregation’s Link Aggregation Details page.

3. The Assigned Ports field lists the interfaces currently assigned to this

aggregation. To remove an interface from the aggregation, deselect the check box next to the name of the interface.

4. The Available Ports field lists the available ge (gigabit Ethernet) and tg (10 GbE) interfaces that can be added to the aggregation. To add an interface to the aggregation, select the check box next to the name of the interface.

5. The Use LACP field specifies whether the aggregation uses LACP. Select Yes in order to use LACP. An aggregation that does not use LACP is

called a static aggregation, and an aggregation that does use LACP is called a dynamic aggregation.

6. Select a Port load balancing scheme in the Port level load balancing field. The options are Normal and Round robin.

7. Click OK to save the changes, or click cancel to return to the Link Aggregation page without saving the changes.

Deleting link aggregations

Caution: Before deleting an aggregation, remo interfaces associated with the aggregation.

To delete an aggregation

Configuring link aggregation 41

Hitachi NAS Platform Network Administration Guide

ve all IP addresses, ge and tg

Procedure

1. Na

2. Select the check box next to the aggregation name to delete.

3. Click delete to remove the aggregation. When deleting an aggregation,

vigate to Network Configuration > Link Aggregation to display

the Link Aggregation page.

there is no confirmation required. The aggregation is deleted immediately.

Configuring LACP

To enable LACP for an aggregation using the CLI instead of the SMU, use the aggedit command as shown in the example below:

aggedit lacp ag1

where ag1 is the required aggregation interface.

File serving interfaces which are connected to a LACP enabled switch must be manually added to an LACP aggregation as shown in the example below:

aggedit add ag1 tg1,tg2

where ag1 is the aggregation and tg1 and tg2 are the file serving interfaces.

To view the status of LACP for an aggregation, use the lacp command.

Configuring LACP timeouts

To set a short LACP timeout, use the lacp-set-timeout-short command as shown in the example below:

lacp-set-timeout-short ag1

where ag1 is the required aggregation interface.

To set a long LACP timeout, use the lacp-set-timeout-long command as shown in the example below:

lacp-set-timeout-long ag2

where ag2 is the required aggregation interface.

Additional commands

• agg - this command lists any existing aggregations

• lacp-set-timeout-default - this command selects the default LACP

timeout (short timeout)

• lacp-show - this command displays the LACP configuration

42 Configuring link aggregation

Hitachi NAS Platform Network Administration Guide

Configuring Aggregate Linux interfaces

o view any existing Aggregate Linux interfaces, on the command console,

enter the following command:

aggregate-linux-interface-show

The interfaces appear as shown in the example below:

$ aggregate-linux-interface-show eth-ag1 $

Creating a new interface

All new Aggregate Linux interfaces must be associated with an existing file serving link aggregation.

o create a new interface, enter the following command:

aggregate-linux-interface-create --interface <interface>

For example:

$ aggregate-linux-interface-create --interface ag1

In this example, the uses ag1 to send and receive management traffic.

Deleting an existing interface

To remove an existing interface, enter the following command:

aggregate-linux-interface-delete <eth-ag-interface>

For example:

$ aggregate-linux-interface-delete eth-ag1

In this example, the ag1 is not removed.

HNAS server creates an interface named eth-ag1 which

HNAS server deletes an interface named eth-ag1 but

Configuring link aggregation 43

Hitachi NAS Platform Network Administration Guide

Configuring VLAN interfaces

This section contains information on configuring, adding and deleting VLAN interfaces.

Adding VLAN interfaces

□

Deleting VLAN interfaces

□

Advanced VLAN interface configuration

□

44 Configuring VLAN interfaces

Hitachi NAS Platform Network Administration Guide

Adding VLAN interfaces

VLAN interfaces are explicitly created and deleted b

y the Administrator. To create a VLAN interface, supply the base aggregation interface name and the VLAN tag. Then associate IP addresses with those VLAN interfaces using the evs or evsipaddr commands.

VLAN interfaces that have been dynamically created by the deprecated vlan command only appear in the ifconfig display. For further information on converting a dynamic VLAN interface into a static VLAN interface, see the VLAN conversion Appendix.

Procedure

1. To create a VLAN interface, use the vlan-interface-create command

and supply the base aggregation interface name and the VLAN tag as shown in the examples below:

$ vlan-interface-create --interface ag1 433 Created ag1-vlan0433

$ vlan-interface-create --interface ag1 499 Created ag1-vlan0499

or further details on vlan-interface-create, see the CLI Reference.

2. Use the vlan-interface-show command to display the existing VLAN

interface names.

$ vlan-interface-show ag1-vlan0433 ag1-vlan0499

or further details on vlan-interface-show, see the CLI Reference.

3. Associate IP addresses with the VLAN interfaces using the evs create

command. Use the evs list command to show a list of the VLAN interfaces with IP addresses.

$ evs create -l EVS1 -i 10.0.0.10/8 -p ag1-vlan0433 $ evs create -l EVS2 -i 172.16.0.10/16 -p ag1-vlan0499

$ evs list 5 Service EVS1 Yes Online 10.0.0.10 ag1-vlan0433 6 Service EVS2 Yes Online 172.16.0.10 ag1-vlan0499

For further details on evs create and evs list, see the CLI Reference.

4. You can also use evsipaddr to associate IP addresses with VLAN

interfaces

$ evsipaddr -e 1 -a -i 192.168.1.1 -m 255.255.255.0 -p ag1-vlan0433

Configuring VLAN interfaces 45

Hitachi NAS Platform Network Administration Guide

Deleting VLAN interfaces

o delete VLAN interfaces, use the vlan-interface-delete command and

supply the base aggregation interface name and the VLAN tag as follows:

vlan-interface-delete -i ag1 433

emoval of a VLAN interface is subject to the restriction that no addresses be assigned to it anywhere in the cluster. For further details on vlan- interface-delete, see the CLI Reference.

Advanced VLAN interface configuration

A global configuration setting applies to all interfaces, including VLAN interfaces, except those for which a specific configuration exists. However, settings for a parent aggregation interface do not apply to the associated VLAN interfaces - for example, a configuration for ag2 does not affect traffic over ag2-vlan0017.

To apply an MTU setting to a specific VLAN interface, it is necessary to create a specific configuration for the full interface name of the VLAN. For example, to change the MTU for VLAN 17 on ag2, create a specific configuration for ag2-vlan0017 and set the required values.

Before creating a specific VLAN interface configuration, use the ifconfig command to view all the names of all available VLAN interfaces. VLAN interfaces created using the deprecated VLAN command appear in this list as well as VLAN interfaces created using the VLAN-interface-create command.

To create a configuration for a VLAN interface

Enter the following command:

ipadv -x create -p <vlan interface name>

For example:

ipadv -x create -p ag12-vlan0017

To set the MTU size for a VLAN interface

For TCP packets:

ipadv --tcpmtu <tcpmtu> -p <VLAN interface name>

For example:

46 Configuring VLAN interfaces

Hitachi NAS Platform Network Administration Guide

ipadv --tcpmtu 9000 -p ag2-vlan0017

Alternatively:

ipadv -m 9000 -p ag2-vlan0017

For non-TCP packets (UDP/ICMP):

ipadv --othermtu <othermtu> -p <VLAN interface name>

For example:

ipadv --othermtu 9000 -p ag2-vlan0017

Alternatively:

ipadv -n 9000 -p ag2-vlan0017

For off-subnet values:

ipadv --offsubnetmtu <offsubnetmtu> -p <VLAN interface name>

For example:

ipadv --offsubnetmtu 9000 -p ag2-vlan0017

Alternatively:

ipadv -o 9000 -p ag2-vlan0017

Configuring VLAN interfaces 47

Hitachi NAS Platform Network Administration Guide

Configuring IP addresses

This section contains information on viewing, adding and deleting IP addresses for the

Viewing IP addresses

□

Adding IP addresses

□

Deleting IP addresses

□

Advanced IP configuration

□

HNAS server.

48 Configuring IP addresses

Hitachi NAS Platform Network Administration Guide

Viewing IP addresses

o view the existing IP addresses, navigate to Network Configuration > IP

Addresses.

The following table describes the fields on this page:

Field / Item Description

IP Addresses This field contains the IP address for the Admin and File services or for server/

cluster node management.

Label This field contains the name of the EVS (virtual server) which is assigned to

the IP address.

Type

Port This field contains the interface in use by the IP address:

Details

Adding IP addresses

To add an IP address

This field contains the type of services or configuration of the server:

• Admin cluster. Administration Services IP address can be on the public data network or on the private management network.

• File serving - an IP address associated with the File Services for the cluster. File Services IP addresses must be on the public data network.

• Node - the IP address associated with the physical cluster node. As File and Administrative services can migrate between nodes, the Cluster Node IP address communicates with the node instead of a service.

• agX identifies one of the file serving aggregation interfaces

• eth-agX identifies one of the Aggregate Linux interfaces

• agX-vlanXXXX identifies one of the VLAN interfaces

• eth0 or eth1 identifies a 10/100/1000 interface for a Hitachi NAS Platform

• mgmnt1 identifies the 10/100 management interface for a Hitachi High performance NAS Platform

Click this button to view the Modify IP Address page. This page enables the Administrator to change the interface IPv4 and/or IPv6 settings.

- an IP address associated with the Administrative Services for the

Configuring IP addresses 49

Hitachi NAS Platform Network Administration Guide

Procedure

1. Na

2. Select a Virtual Server (EVS) to assign to the IP address.

3. Select an aggregation or management interface:

4. Enter the IP address and Subnet Mask for the selected interface.

5. V

vigate to Home > Network Configuration > IP Addresses > add.

The Add IP Address page appears.

• agX identifies one of the file serving aggregation interfaces

• eth-agX identifies one of the Aggregate Linux interfaces

• agX-vlanXXXX identifies one of the VLAN interfaces

• eth0 or eth1 identifies a 10/100/1000 interface for a Hitachi NAS Platform

• mgmnt1 identifies the 10/100 management interface for a Hitachi High performance NAS Platform

Note: When assigning an IP address to a file-serving EVS Administrator must specify a link aggregation or VLAN interface.

erify the settings, then click OK to apply the settings or cancel to

decline.

, the

Deleting IP addresses

Caution: IP address deletion alert! Before following the instructions in this procedure, ensure that the IP address is not in use. Activ terminated on removal and clients can become unresponsive.

Procedure

1. Na

2. Select the EVS to which the IP is assigned, then click disable.

3. Navigate to Network Configuration > IP Addresses.

4. Select the IP Address to delete, then click delete.

5. Navigate to Server Settings > EVS Management.

6. Select the EVS again and click enable to re-activate the EVS.

vigate to Server Settings > EVS Management.

Advanced IP configuration

To configure additional settings for IP addresses, navigate to Network Configuration > Advanced IP Configuration.

e connections are

50 Configuring IP addresses

Hitachi NAS Platform Network Administration Guide

Global settings

The Global Settings area contains the fields and entries that mak

e up the global configuration, which then become the default settings for all interfaces.

The following table describes the fields on this page:

Global

settings

IP Reassembly Timer (seconds)

Ignore ICMP Echo Requests

IP MTU for OffSubnet Transmits (bytes)

TCP Keep Alive Yes (filled)

TCP Keep Alive timeout (seconds)

TCP MTU

(bytes)

Other Protocol MTU (bytes)

Default Description

No (empty)

1500

7200

1500

This field sets the time before which the server discards an incomplete IP datagr

When selected, this option instructs the system not to respond to Internet Control Message Protocol (ICMP) echo requests.

This field specifies the maximum IP packet size in use when transmitting to a different subnet. The valid range is 68 to 9600 bytes. For IPv6 traffic, the effective MTU is 1280 bytes when this option is configured to be less than 1280.

When selected, this option instructs the system to send a keep alive packet when it has received no data or acknowledgment packets for a connection within the specified timeout period.

This field specifies the number of seconds to keep alive a connection.

This field specifies the size of the maximum transmission unit (MTU) in use for TCP packets when transmitting to a locally configured subnet. The valid range is 68 to 9600 bytes. For IPv6 traffic, the effective MTU is 1280 bytes when this option is configured to be less than 1280.

This field specifies the size of the MTU for protocols other than TCP when transmitting to a locally configured subnet. The valid range is 68 to 9600 bytes . For IPv6 traffic, the effective MTU is 1280 bytes when this option is configured to be less than 1280.

am.

Configuring IP addresses 51

Hitachi NAS Platform Network Administration Guide

ARP Cache Timeout (seconds)

Ignore ICMP R

edirect

Port

Current

Settings

No (empty) This field specifies whether to ignore ICMP redirects.

ag1 - agX

eth-ag1 - ethagX

eth0, eth1

mgmnt1

This field controls the time before which the server removes an unused ARP entry from the caching table.

This field lists the name of each currently configured aggregation or interface in the server/cluster.

This field indicates whether the aggregation or interface uses the default (global) settings, or customized settings. If the aggregation/interface uses customized settings, the details button appears. Click on the details button to edit the customized configuration.

To customize the global settings, specify the values to use for the global configur

ation settings by changing the values of the fields in the Global Settings area. All aggregations (interfaces) use the global settings by default. Click apply to save the changes.

To restore the global settings to the factory default values, click reset.

Interface settings

To customize settings for an individual interface, select the interface (in the Ports field) and click customize. The Advanced IP Per-Port Configuration page appears.

The following table describes the fields on this page:

Per-port settings Default settings

Ignore ICMP Echo Requests No (empty)

IP MTU for Off-Subnet Transmits (bytes) 1500

TCP MTU 1500

Other Protocol MTU 1500

Enter the new values in the fields, and click OK. The new settings o

verride

the global settings.

To restore the settings of an interface to the global configuration, select an interface in the Ports field, and then click restore. The settings for the interface are erased and revert to the default (global settings).

52 Configuring IP addresses

Hitachi NAS Platform Network Administration Guide

CLI commands

Use the ipadv

command in order to view or change these settings. It is also possible to configure an MTU value on a per-route basis using the mtu command.

Configuring IP addresses 53

Hitachi NAS Platform Network Administration Guide

Configuring routes

This section contains information on configuring default gatew routes, and dynamic IP routes.

Viewing IP routes

□

Adding IP routes

□

Deleting IP routes

□

ays, static IP

54 Configuring routes

Hitachi NAS Platform Network Administration Guide

Viewing IP routes

o view the existing IP routes, navigate to Network Configuration > IP

Routes.

The following table describes the fields on this page:

Field / Item Description

Cluster Node

outing

Destination For a Network route, this field displays the IP address and Address Prefix Length of

Gateway This field displays the gateway IP address of the route.

Type This field displays the type of route which can be Host, Network, or Gateway.

Creation Type A route is either static or dynamic. Static indicates a manually created route and

MTU This is the Maximum Transmission Unit which is the largest size Ethernet frame that

Note: Fields which are not required for a route t

When this option is disabled (default behavior), the configured routes are

propagated to all nodes in a cluster. If this option is enabled, it is possible to

configure different routes for each node in a cluster.

Caution: If an EVS fails o

route, network traffic can no longer reach the required destination.

the destination. F

dynamic indicates a route created by a switch.

the HNAS server can send for the route.

or a Host route, this field displays an IP address only.

ver to a node which is missing a required

ype are grayed out and

cannot be configured.

Adding IP routes

Hitachi NAS Platform Network Administration Guide

Configuring routes 55

To add an IP route, navigate to Network Configuration > IP Routes and click the add

button.

The following table describes the fields on this page:

Field / Item Description

Route Type This field requires the type of route which can be Host, Network, or Default

ay). Select the Host option to set an address for a specific computer on a

(Gatew

different network than its usual router address. Select the Network option to set up

a route to address all of the computers on a specific network.

Destination For a Network route, this field requires the IP address and Address Prefix Length of

the destination. F

Gateway This field requires the gateway IP address of the route.

MTU This field requires the Maximum Transmission Unit which is the largest size Ethernet

frame that the HNAS server can send for this route. This is an optional field.

or a Host route, this field requires an IP address only.

Note: Fields which are not required for a route t cannot be configured.

Deleting IP routes

To delete an IP route

Procedure

1. Na

2. Select the check box next to the route to delete and then click delete.

3. Click OK to confirm the deletion of the IP route.

vigate to Network Configuration > IP Routes.

Note: Dynamic routes cannot be deleted individually

dynamic routes, flush the cache by clicking flush routes. This operation only applies to the cluster node on which the command is executed.

To flush other dynamic routes, use the following CLI commands:

•

irdp flush

• ndp-flush

• rip flush

ype are grayed out and

. To delete all

See the CLI Reference for further information.

56 Configuring routes

Hitachi NAS Platform Network Administration Guide

Configuring routes 57

Hitachi NAS Platform Network Administration Guide

Configuring name and directory

services

This section contains information on specif and configuring NIS and LDAP servers.

Specifying name services

□

Prioritizing name services

□

Configuring NIS servers

□

Configuring LDAP servers

□

ying and prioritizing name services

58 Configuring name and directory services

Hitachi NAS Platform Network Administration Guide

Specifying name services

To specify name services

Configuring name and directory services 59

Hitachi NAS Platform Network Administration Guide

Procedure

1. Na

vigate to Home > Network Configuration > Name Services to

display the Name Services page.

The following table describes the fields on this page.

Field/Item Description

EVS Security Context Displays the currently selected EVS security context. Changes to

the name services using this page apply only to the currently

selected EVS securit

• If an EVS uses the Global Configuration, any change made to the global configuration settings affects the EVS.

• If an EVS uses an individual security context, changes made to the global configuration settings do not affect the EVS. To change the name services settings of an EVS using an individual security context, you must select the EVS' individual security context to make changes, even if those settings are the same as the settings used by the global security context. Click change to select a different EVS security context or to select the global configuration.

DNS Servers Specifies the IP addresses of up to three DNS servers. If more than

one DNS server is entered, the search will be performed using the

DNS servers in the order listed.

DNS Domain Name Specifies the DNS domain name to use.

Domain Search Order Enter a Domain suffix (for example, example.com) to use as a

search keyword.

When searching for a computer name, the DNS server searches using suffix order. For example, if the server contains the entries uk.example.com and us.example.com, a request for the IP address of a host named author generates a query for

y context.

60 Configuring name and directory services

Hitachi NAS Platform Network Administration Guide

Field/Item Description

author.uk.example.com and then for author.us.example.com.

er, the system does not search the parent Domain

Howev example.com.

Note: The suffix, combined with a computer

name, makes up a fully qualified domain name. To append a suffix to the displayed list, click Add.

To delete a suffix, select it from the displayed list, and then click X.

When using multiple domain suffixes, select the search

order for the suffixes by using the up and down arrows to change their order within the list box.

WINS Servers To setup a primary WINS server, enter the IP address in the Primary

WINS serv If there is a secondary WINS server, enter the address in the

Secondary WINS server field.

apply Save your changes.

er field.

2. Enter the requested information.

3. Click apply to sa

ve your changes.

Note: The new name service appears on the Name Services Order

page.

’s host

Prioritizing name services

To change the priority of the name services

Procedure

1. Na

2. Use the change button to change the security context, if required.

3. Select and deselect name services to create a list of preferred name

vigate to Network Configuration > Name Services order.

Changes to the name services on this page apply only to the currently selected EVS security context. If an EVS uses the Global Configuration, any changes made to the global configuration settings affects the EVS. If an EVS uses an individual security context, changes made to the global configuration settings do not affect the EVS. To change the name services settings of an EVS using an individual security context, you must select the EVS' individual security context, even if those settings are the same as the settings used by the global security context.

services. Use the left/right arrow keys to select name services from the

Configuring name and directory services 61

Hitachi NAS Platform Network Administration Guide

Available Name Services box and move them to the Selected Name Services bo name service back into the Available Name Services box.

4. Adjust the order of usage for selected name services. Use the up/down arrow keys to change the order of usage for selected name services in the Selected Name Services box.

5. Click apply to save the changes.

x. To deselect a name service, use the arrows to move the

Configuring NIS servers

Before using NIS, it is necessary to enable NIS for the HNAS server.

To enable NIS, navigate to Network Configuration > NIS/LDAP Configuration and click Enable NIS.

The current NIS configuration settings appear as shown in the following example:

This page contains the following options:

• Modify - this option enables the Administr

configuration settings

• Add - this option enables the Administrator to add a new NIS server

ator to change the NIS

62 Configuring name and directory services

Hitachi NAS Platform Network Administration Guide

• Delete

- this option enables the Administrator to remove an existing NIS

server

• Switch to using LDAP - this option enables LDAP mode and displays the

LDAP configuration settings

• Disable NIS and LDAP - this option disables NIS and LDAP

CLI commands

The following commands are available:

• nis-ldap-mode - this command selects whether the server uses LDAP or

NIS servers to satisfy NIS queries

• nis-state - this command enables and disables the NIS client

• nis-show - this command displays the current NIS client settings

• nis-set - this command displays and sets the NIS client parameters

• nis-server - this command displays and sets the servers which are

available for the NIS client to contact

Modifying NIS servers

To change the current NIS configuration settings

Procedure

1. Navigate to Network Configuration > NIS/LDAP Configuration.

2. Click modify.

3. Modify the settings as described in the table below.

Field / Item Description

EVS Security

Context

Domain Enter the name of the NIS domain for which the system is a client.

This field displays the currently selected EVS security context. Changes to the name services on this page apply only to the currently selected EVS securit context.

If an EVS uses the Global Configuration, any change made to the global configuration settings affects the EVS. If an EVS uses an individual security context, changes made to the global configuration settings do not affect the EVS.

To change the name services settings of an EVS using an individual security context, you must select the EVS' individual security context, even if those settings are the same as the settings used by the global security context.

Click change to select a different EVS security context or to select the global configuration.

Rebind This field requires the frequency of the server's attempts to connect to its

configured NIS servers. The default value is 15 minutes.

Configuring name and directory services 63

Hitachi NAS Platform Network Administration Guide

Timeout This field requires the amount of time (in milliseconds) to wait for a response

Broadcast For

Servers

4. Click apply.

Adding NIS servers

To add a NIS server

Procedure

from an NIS serv is 300 milliseconds.

If selected, this field enables the server to discover the available NIS servers on the network. The servers must be in the same NIS domain and present on the server’s network.

er when checking the Domain for servers. The default value

1. Na

vigate to Network Configuration > NIS/LDAP Configuration.

2. Click add.

3. Modify the settings as described in the table below.

Field / Item Description

Server IP address Enter the IP address of the new NIS server which can satisfy NIS

queries.

Priority Enter the priority level for the selected NIS server (lowest value is

highest priorit system attempts to bind to the server with the highest priority level whenever it performs a rebind check.

The options are:

•

low (3)

• medium (2)

• high (1)

y). If the NIS domain contains multiple servers, the

Note: Serv

If the Administrator assigns a priority after clicking the details button, the NIS server type becomes “User Defined”. “User Defined” NIS servers are prioritized before servers discovered through broadcast.

ers discovered by broadcast do not have a priority.

4. Click OK.

Deleting NIS servers

To delete a NIS server

Procedure

1. Na

2. Select a server to delete.

3. Click delete.

64 Configuring name and directory services

vigate to Network Configuration > NIS/LDAP Configuration.

Hitachi NAS Platform Network Administration Guide

Configuring LDAP servers

Before using LDAP

To use LDAP, navigate to Network Configuration > NIS/LDAP Configuration and click Enable LDAP.

The current LDAP configuration settings appear as shown in the following example:

, it is necessary to enable LDAP for the HNAS server.

This page contains the following options:

• Modify - this option enables the Administr

configuration settings

• Add - this option enables the Administrator to add a new LDAP server

• Delete - this option enables the Administrator to remove an existing LDAP

server

• Switch to using NIS - this option enables NIS only mode and displays

the NIS configuration settings

• Disable NIS and LDAP - this option disables NIS and LDAP

CLI commands

Configuring name and directory services 65

Hitachi NAS Platform Network Administration Guide

ator to change the LDAP

The following commands are available:

• nis-ldap-mode - this command selects whether the serv

servers only or LDAP in order to satisfy NIS queries

• nis-state - this command enables and disables the NIS client (the NIS

client also must be enabled in order to use LDAP)

• ldap-server - this command displays and configures the servers which

are available for the LDAP client to contact

• ldap-stats - this command displays statistics describing the response

latency of LDAP servers for different NIS (RFC 2307) request types

• ldap-security - this command displays and sets the LDAP parameters

• lap-schema - this command displays and sets the LDAP client settings for

schema selection

Modifying LDAP configuration

To change the current LDAP configuration settings

Procedure

1. Navigate to Network Configuration > NIS/LDAP Configuration.

2. Click modify.

3. Modify the settings as described in the table below:

er uses NIS

Field / Item Description

Domain Enter the name of the LDAP domain for which the system is a client.

Username This field contains the username of the Administrator for the LDAP servers.

The name can be up to 256 char

However, if it includes spaces, the name must be enclosed in double quotes.

For example: cn=”Directory Manager”,dc=example,dc=com

Password This field contains the password that corresponds to the username.

TLS Enabled Select this option in order to enable Transport Layer Security which provides

secure communication with the LDAP server.

Schema This field contains the name of the schema to use.

The options are:

• RFC-2307

• MS Services for Unix

• MS Identity Management for Unix

acters in length.

4. Click apply.

Note: This option supports both registered and anon

logins.

ymous user

66 Configuring name and directory services

Hitachi NAS Platform Network Administration Guide

Adding LDAP servers

To add an LDAP server

Procedure

1. Na

vigate to Network Configuration > NIS/LDAP Configuration.

2. Click add.

3. Modify the settings as described in the table below.

Field / Item Description

Server IP address or

Host name

Port This field specifies the standard port number to use for communication

TLS Port This field specifies the secure port to use for communication with the

4. Click OK.

Note: An Administr

about hosts configured into netgroups using the nis-is-host-innetgroup and nisnetgroups-for-host commands.

Deleting LDAP servers

Enter the IP address or Host name of the new LDAP server

with the LDAP serv

LDAP server. The default value is 636.

er. The default value is 389.

ator can query the LDAP server for information

To delete an LDAP server

Procedure

1. Na

vigate to Network Configuration > NIS/LDAP Configuration.

2. Select a server to delete.

3. Click delete.

Configuring name and directory services 67

Hitachi NAS Platform Network Administration Guide

Managing networks and devices

This section contains information on configuring non-file system interfaces and managing system devices using the SMU

Configuring non-file serving interfaces

□

Configuring devices on the system monitor

□

68 Managing networks and devices

Hitachi NAS Platform Network Administration Guide

Configuring non-file serving interfaces

On an external SMU only

Procedure

1. Navigate to Home > SMU Administration > Management Network to display the Management Network page.

2. Enter the requested information. The Management Network page enables the Administrator to configure the IP address of the eth1 interface. The default address for the eth1 interface is 192.0.2.1. The eth1 address must end with . 1, in order to simplify the management relationship of the SMU with secondary devices. The NAT Port range is provided for information only.

3. Once defined, record the IP address settings separately for future reference, and click apply.

, to configure the IP address of the eth1 interface:

Configuring devices on the system monitor

The system monitor allows you to easily display and monitor the devices that make up your storage system.

Managing networks and devices 69

Hitachi NAS Platform Network Administration Guide

Procedure

1. Na page.

viage to Home > System Monitor to display the System Monitor

2. Optionally

, rearrange the sequence of components in the System Monitor. To change the position of any component, fill its checkbox to select, then use the arrows in the Action section.

3. Optionally, display status or details for any component in the System Monitor.

The rows in the following table list the basic components that make up a HNAS system. This table indicates what happens when you click on a component’s name in the component list:

Component/Description Clicking the component

Storage Server

This component pro interfaces for connecting to the Public Data Network and the Private Management Network, as well as Fibre Channel interfaces used to connect to storage subsystems.

vides Ethernet

Loads the Server

Status page.

Clicking the details

button

70 Managing networks and devices

Hitachi NAS Platform Network Administration Guide

Component/Description Clicking the component

Clicking the details

button

Main Enclosure

Contains dual power supplies, and dual RAID driv model, the main enclosure may contain disk drives.

Expansion Enclosure

Expansion enclosures contain disk drives and power supplies, but do not contain any RAID controllers.

SMU

The System Management Unit

System Power Unit

This component is also known as an uninterruptible power supply (UPS).

NDMP Backup Devices

The server automatically detects and adds backup devices to the system monitor. Since the storage server could be connected into a FC network shared with other servers, it does not automatically make use of backup devices found on its FC links. Backup devices are automatically discovered and added to the Status Monitor.

e controllers. Depending on the

Loads the Enclosure

Status page.

Loads the Enclosure

Status page.

Loads the SMU System

Status page.

Loads the UPS Status

page.

Loads the NDMP

Devices page.

Loads the System

Drives page.

Loads the System Drives page.

Loads the UPS

Configuration page.

Loads the NDMP Details page for the device if the device can be contacted, or loads the NDMP Device List page if the device cannot be contacted.

FC Switches

FC switches (and cables) connect FC devices, generally storage arrays, to the server(s).

Note: Upon adding an FC

switch through the FC S page, it is automatically added to the System Monitor.

Other Components

Any component can be added to the system monitor. If the device supports a web-based management interface, the management interface can be launched directly from the server management interface.

witches

Loads either the

embedded management

utilit

y for the switch, or

the FC Switch Details

page for the switch,

depending on the

protocol specified when

the switch was added.

For more information,

see the Server and

Cluster Administration

Guide).

Loads the embedded

management utility for

the device.

Loads the FC Switch

Details page.

Loads either the Add

Public Net Device or

the Add Private Net

Device page. Settings

for the component can

Managing networks and devices 71

Hitachi NAS Platform Network Administration Guide

Component/Description Clicking the component

Clicking the details

button

be changed from this

page.

4. Optionally

, add, remove, or display details about a device.

The following Actions are available and apply to selected components:

• Click remove to delete a component.

• Click details to display details regarding a particular component.

• Click add Public Net Device to add a device residing on the public

(data) network.

• Click add Private Net Device to add a device residing on the public

(data) network.

Note: Devices on the priv

ate management network are “hidden” from the data network through Network Address Translation (NAT).

Once a device has been added to the System Monitor, clicking its name in the S

ystem Monitor:

• Opens its embedded management utility in the Web browser, using either HTTP, HTTPS, or Telnet.

• The SMU periodically checks for device activity and connectivity with the server; if a device fails to respond to network “pings”, the System Monitor changes its color to red and the SMU issues an alert (devices can also be configured to send SNMP traps to the SMU).

• Events from the device will be added to the event log if the SMU has a MIB for the device.

72 Managing networks and devices

Hitachi NAS Platform Network Administration Guide

Managing networks and devices 73

Hitachi NAS Platform Network Administration Guide

Troubleshooting

This section contains information on checking the network status of the server and also how to detect any potential issues.

Network health information

□

Detecting issues

□

Collecting network packets

□

HNAS

74 Troubleshooting

Hitachi NAS Platform Network Administration Guide

Network health information

The

HNAS server provides information on the current network health status

through the SMU.

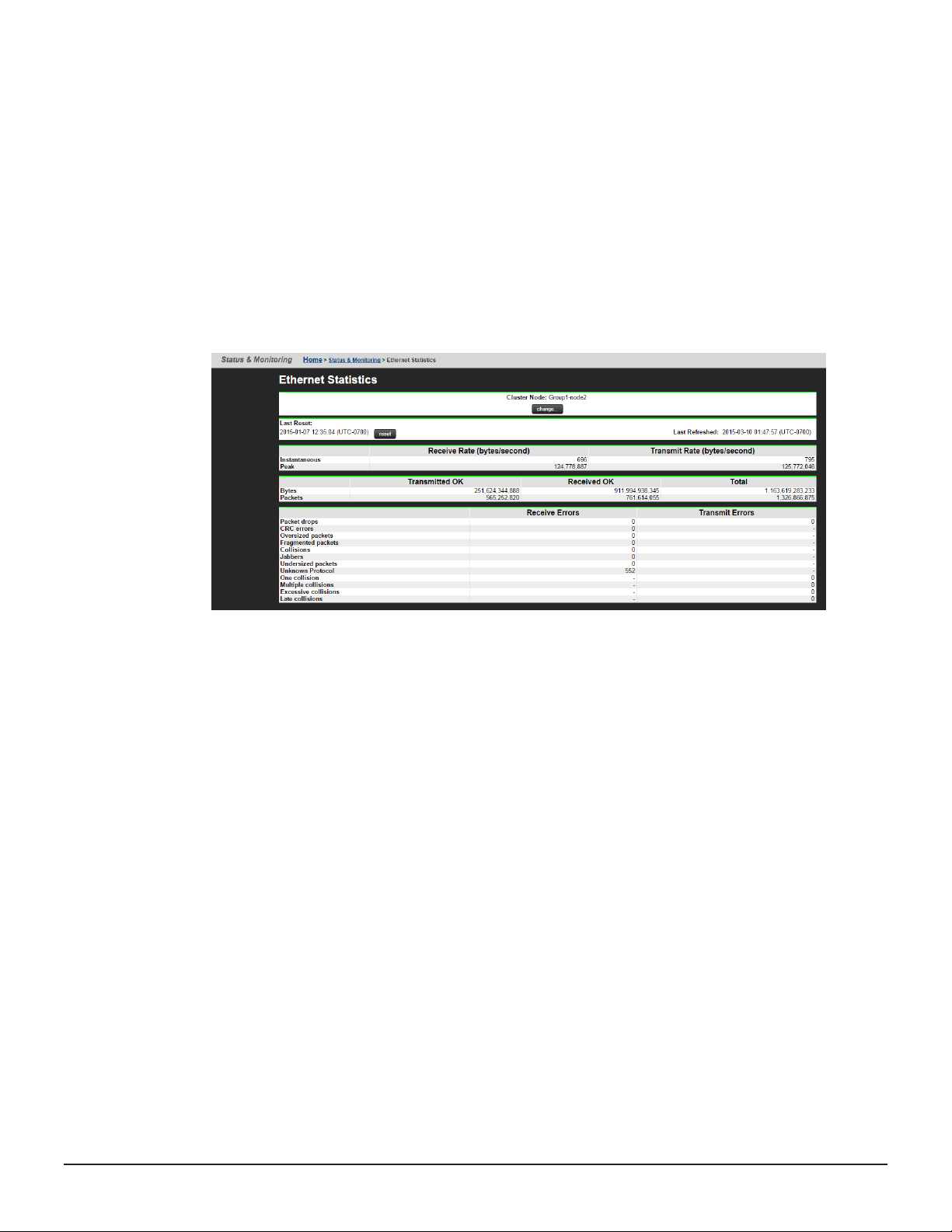

Ethernet Statistics

To access this page, navigate to Network Configuration -> Ethernet Statistics.

This page displays information on transmit and receive rates as well as throughput, error and collision information as shown below:

There are two additional Ethernet statistics pages:

• Ethernet Statistics (per port) - Aggregation ports - this page contains network information on a per aggregation basis, for example, ag1, ag2...

• Ethernet Statistics (per port) - Physical ports - this page contains network information on a per ph

Navigate to the Network Configuration -> Ethernet Statistics (per port) page in order to view the Aggregation ports page. On this page, there is a link to the Ethernet statistics (per port) - Physical ports page.

TCP/IP Statistics

To access this page, navigate to Network Configuration -> TCP/IP Statistics.

This page displays information on connections, segments, UDP, ICMP and TCP as shown below:

ysical port basis, for example, tg1, tg2...

Troubleshooting 75

Hitachi NAS Platform Network Administration Guide

There are two additional TCP/IP statistics pages:

• TCP/IP Statistics (per port) - Aggregation ports - this page contains network information on a per aggregation basis, for example, ag1, ag2...

• TCP/IP Statistics (per port) - Physical ports - this page contains network information on a per ph

ysical port basis, for example, tg1, tg2...

Navigate to the Network Configuration -> TCP/IP Statistics (per port) page in order to view the Aggregation ports page. On this page, there is a link to the TCP/IP statistics (per port) - Physical ports page.

Additional commands

The HNAS server also provides the following CLI commands which display information on the current network health status:

• agg - this command lists any existing aggregations

• ethernetstats - this command displays statistics for each Ethernet interface

• tcpstats - this command displays statistics for TCP protocol packets

• udpstats - this command displays statistics for UDP protocol packets

• ip-stats-other - this command displays statistics for all other IP protocol packets

• icmpstats - this command displays statistics for ICMP protocol packets

• icmpv6stats - this command displays statistics for ICMP v6 protocol packets

• arp - this command displays the IP to MAC address mappings

• ndp-dump - this command displays the IPv6 to MAC address mappings and also displays any on-link prefixes and discovered routers

76 Troubleshooting

Hitachi NAS Platform Network Administration Guide

Detecting issues

The HNA categorizes and prioritizes problems and then presents the information to the user through the console.

To activate the diagnosis system, use the trouble command.

This command contains 'groups' which refer to parts of the server and its storage, for example, there is a Network group and a Storage group. Trouble also contains 'reporters'. These are individual programs which investigate issues within the groups.

For example, the Network group contains the following reporters:

CLUSTER-2:$ trouble --list-reporters network Group Reporter Pri Brd Subject of warnings

----- -------- --- --- -------------------

network aggregation 170 MMB Aggregation status network network-statistics 180 MMB Network interface statistics network nim-vlsi 190 MMB NIM VLSIsettings network network-interfaces 200 MMBNetwork interfaces link status network remote-nfs 270 MMB RemoteNFS network nisclient 280 MMB Nisclient status network wins 290 MMB UnreachableWINS servers network ip-eng-adv 300 MMB ipeng/ipadv status network mac-cluster 340 MMB MAC_10status network mac-network 340 MMB MAC_1status network external-migration-protocol-errors 350 MMB External migration protocol errors network packet-capture 380 MMB Checks that packet-capture is not running network remote-http 400 MMB Remote HTTP

S server contains an automatic diagnosis system which identifies,

There are two t

• Fault reporters - these detect issues which can cause degradation of service.

• Performance reporters - these detect performance values which are out-ofrange (unexpectedly high or low).

This command operates over all cluster nodes unless configured otherwise.

Example of common command usage

The following command reports all issues with the HNAS network group.

trouble network

The report appears as shown in the example below:

ypes of reporters:

Troubleshooting 77

Hitachi NAS Platform Network Administration Guide

Collecting network packets

It is possible to perform a complete capture of network pack server using the packet-capture command. This is useful when the server is experiencing protocol errors.

Once started, this command collects all header and content packets from the NAS server and stores them in a file in NAS memory. This file is named tmp and it can grow to a maximum size of 32MB or 15000 frames (whichever is reached first).

To retrieve this file, use the nail command to email it to a user. Alternatively, use the ssget command to send it to the SMU for later collection. The ssget command works from an ssc connection and, therefore, is usable locally or on a server connected to an external SMU.

To analyze the file contents, the following filter applications are supported:

• tcpdump

• tshark

• wireshark

The packet-capture command also supports aggregations as shown in the example below:

ets on a NAS

78 Troubleshooting

Hitachi NAS Platform Network Administration Guide

packet-capture --start ag1

Caution: Serv

er performance is severely degraded during packet capture. It is recommended to use port mirroring on the upstream switch instead of using the packet capture command on the NAS server.

Troubleshooting 79

Hitachi NAS Platform Network Administration Guide

VLAN conversion

Previously VLAN ID and a subnet (using a network address and a subnet mask). It is no longer possible to create subnet VLANS. This topic describes how to convert subnet-VLANs to use VLAN interfaces. Seek guidance from your support provider before attempting the conversion procedure.

The subnet VLANs are maintained by the vlan command. This command enables the NAS server to display and remove existing subnet VLANs. However, a script is also available in order to convert legacy subnet-based VLANs into the new static VLANs. The following procedure describes how to run the script and convert the VLANs.

The procedure has three stages:

• Accessing the NAS Linux console

• Retrieving and running the script

• Converting a subnet VLAN

Accessing the NAS Linux console

The script does not run under the NAS CLI but is available on the NAS platform (from version 12.2), through the Linux console.

To access the NAS Linux console:

1. SSH to the SMU IP address

2. Enter q to drop to the operating system prompt of the SMU

3. Enter ssh manager@<cluster node ip>

4. Enter the password, the default is nasadmin

5. Enter exit

6. Enter su

7. Enter the password, the default is nasadmin

, VLANs were configured by defining an association between a

Retrieving and running the script

80 VLAN conversion

Hitachi NAS Platform Network Administration Guide

On the NAS Linux console, the script is located at: /opt/mercuryutils/bin/vlan-convert-config.rb.

o obtain the script (from a NAS server named xyz) and copy it onto a local

T Linux client, enter the following command:

# scp manager@xyz:/opt/mercury-utils/bin/vlan-convert-config.rb . manager@xyz's password: vlan-convert-config.rb 00% 23KB 22.9KB/s 00:00 #

Either on the NA

S Linux console or a local Linux client, run the script with the

following parameters:

vlan-convert-config.rb [--user <user>] [--password <password>] <HNAS-server>

Where:

•

user <user> is the username required to access the server

• password <password> is the password required to access the server

• <hnas-server> is the hostname or address of the NAS server

Note: If the user option is supplied without a corresponding password, the script prompts for the password without displaying the entered text.

On the NAS Linux console only

When ex

ecuting the script on the NAS Linux console, the name localhost can be used to identify the NAS server. In this case it is normally not necessary to supply the username and password.

For example:

/opt/mercury-utils/bin/vlan-convert-config.rb localhost > /tmp/ vlan-conv-commands

Converting a subnet VLAN

The script outputs the commands to run in order to perform the conversion. Review these changes before applying them to the system by running the following command:

cat /tmp/vlan-conv-commands

Apply the gener

ated commands to the NAS by running the following

command:

source /tmp/vlan-conv-commands

eep a copy of the script output for reference in case a downgrade to a version of firmware below 12.0 is required, as this information is necessary in order to convert back.

Example VLAN conversion

□

VLAN conversion 81

Hitachi NAS Platform Network Administration Guide

Example VLAN conversion

This example demonstr

ates how to convert subnet-VLANs to use VLAN interfaces. A sample command and the vlan-conv commands generated by the script are shown below.

Enter a command as shown in the example below:

manager@hnas(bash):/opt/mercury-utils/bin$ ./vlan-convert-config.rb localhost > /tmp/vlan-conv-commands manager@hnas(bash):/opt/mercury-utils/bin$ cat /tmp/vlan-conv-commands

#!/bin/sh # These are the commands suggested to upgrade the VLAN configuration. # Running this script will disrupt communications with the HNAS. # Created for HNAS localhost at 2014-10-14T07:51:46-07:00 [Version

12.2.3750.00].

# Please review this generated script before using it. # ==================================================== ssc localhost <<SSC-EOS

# Disable any EVS that only contain addresses on a tagged VLAN before updating the configuration. echo Disabling any EVS with tagged VLAN prior to re-configuration ... # Disable EVS 1:HNAS-G3 evs disable -e 1 --confirm

# Remove all addresses in VLANs from still enabled EVS before updating the configuration. # This applies to EVS with non-VLAN address assignments in order to minimise disruption to non-VLAN services. echo Removing VLAN IP addresses from EVS prior to re-configuration ... # Remove the address 172.31.61.61/24 on ag1 from EVS 2:evs2 evsipaddr -e 2 --remove --confirm --ip 172.31.61.61

# Remove existing (legacy) VLAN configuration. vlan remove-all

# Create new VLAN interfaces. # Processing address 172.31.62.62/24 for ag1-vlan0200. vlan-interface-create --interface ag1 200 # Processing address 172.31.61.61/24 for ag1-vlan0100. vlan-interface-create --interface ag1 100 echo Preparing to reconfigure IP addresses on VLANs ... sleep 5

# Reconfigure IP addresses on VLANs. # Move address to VLAN interface. evsipaddr -e 1 --update --confirm --ip 172.31.62.62/24 --port ag1vlan0200 # Restore previously removed address to VLAN interface. evsipaddr -e 2 --add --ip 172.31.61.61/24 --port ag1-vlan0100

# Enable any EVS that were previously disabled. echo Enabling the EVS that were previously disabled ... evs enable -e 1 SSC-EOS

82 VLAN conversion

Hitachi NAS Platform Network Administration Guide

After reviewing the vlan-conv

commands, execute the generated file on the

NAS server.

manager@hnas(bash):/tmp$ source ./vlan-convert-commands

HDS NAS OS Console MAC ID : 34-4E-9E-37-3B-F2

hnas:$ hnas:$ # Disable any EVS that only contain addresses on a tagged VLAN before updating the configuration. hnas:$ echo Disabling any EVS with tagged VLAN prior to reconfiguration ... Disabling any EVS with tagged VLAN prior to re-configuration ... hnas:$ # Disable EVS 1:HNAS-G3 hnas:$ evs disable -e 1 --confirm hnas:$ hnas:$ # Remove all addresses in VLANs from still enabled EVS before updating the configuration. hnas:$ # This applies to EVS with non-VLAN address assignments in order to minimise disruption to non-VLAN services. hnas:$ echo Removing VLAN IP addresses from EVS prior to reconfiguration ... Removing VLAN IP addresses from EVS prior to re-configuration ... hnas:$ # Remove the address 172.31.61.61/24 on ag1 from EVS 2:evs2 hnas:$ evsipaddr -e 2 --remove --confirm --ip 172.31.61.61 Warning: Removing IP address 172.31.61.61 while EVS is ONLINE hnas:$ hnas:$ # Remove existing (legacy) VLAN configuration. hnas:$ vlan remove-all hnas:$ hnas:$ # Create new VLAN interfaces. hnas:$ # Processing address 172.31.62.62/24 for ag1-vlan0200. hnas:$ vlan-interface-create --interface ag1 200 Created ag1-vlan0200 hnas:$ # Processing address 172.31.61.61/24 for ag1-vlan0100. hnas:$ vlan-interface-create --interface ag1 100 Created ag1-vlan0100 hnas:$ echo Preparing to reconfigure IP addresses on VLANs ... Preparing to reconfigure IP addresses on VLANs ... hnas:$ sleep 5 hnas:$ hnas:$ # Reconfigure IP addresses on VLANs. hnas:$ # Move address to VLAN interface. hnas:$ evsipaddr -e 1 --update --confirm --ip 172.31.62.62/24 -port ag1-vlan0200 hnas:$ # Restore previously removed address to VLAN interface. hnas:$ evsipaddr -e 2 --add --ip 172.31.61.61/24 --port ag1vlan0100 hnas:$ hnas:$ # Enable any EVS that were previously disabled. hnas:$ echo Enabling the EVS that were previously disabled ... Enabling the EVS that were previously disabled ... hnas:$ evs enable -e 1 hnas:$ manager@hnas(bash):/tmp$

VLAN conversion 83

Hitachi NAS Platform Network Administration Guide

Network ports

This section contains information about the default ports in use for services on a NA

NAS (listening ports)

Port Protocol IP address type

22 SSH TCP Admin Service node and Cluster node

25 SMTP relay TCP Admin Service node and Cluster node

80 HTTP (SMU GUI) TCP Admin Service node and Cluster node

111 Port mapper TCP/UDP EVS

S server and on an external SMU.

137 NetBIOS name lookup service,

including WINS

139 SMB (CIFS) over NetBIOS TCP EVS

161 SNMP agent UDP Admin Service node, Cluster node and

202 VSS TCP Admin Service node and optionally EVS

206 SSC TCP Admin Service node, Cluster node and

443 HTTPS (SMU GUI) TCP Admin Service node and Cluster node

445 SMB over TCP TCP EVS

762 rquota TCP/UDP EVS

1344 ICAP AV TCP EVS

2049 NFS TCP/UDP EVS

3205 iSNS TCP EVS

3260 iSCSI TCP EVS

4045 lockd TCP/UDP EVS

4048 mountd TCP/UDP EVS

UDP EVS

EVS

optionally EVS

84 Network ports

Hitachi NAS Platform Network Administration Guide

4050 statd TCP/UDP EVS

8080 SOAP API (HTTP) TCP Admin Service node and Cluster node

8443 SOAP API (HTTPS) TCP Admin Service node and Cluster node

10000 NDMP TCP EVS

34741 VAAI TCP/UDP EVS

59515 Quorum device communication UDP Cluster node

59535-5

9536

59550 Object replication TCP EVS

Configur

able

Configur

able

Configur

able

Cluster communication UDP Cluster node

NDMP data port TCP EVS

Loopback mountd TCP/UDP Only available on the non-file serving

Loopback NFS TCP/UDP Only available on the non-file serving

NAS as a client

The NA

Port Protocol

25 SMTP TCP

53 DNS TCP/UDP

88 Kerberos TCP/UDP

S server uses these destination ports on a peer server.

interfaces

123 NTP UDP

139 SMB (CIFS) over NetBIOS TCP

162 SNMP traps UDP

389 LDAP TCP/UDP

445 SMB over TCP TCP

464 Kerberos Password Change

(kpasswd)

636 LDAP over TLS TCP/UDP

1344 ICAP AV TCP

2049 NFS TCP/UDP

4048 mountd TCP/UDP

59550 Object replication TCP

TCP/UDP

Network ports 85

Hitachi NAS Platform Network Administration Guide

Configurable NDMP data port TCP

External SMU (listening ports)

Port Protocol

22 SSH TCP

25 SMTP relay TCP

80 HTTP GUI TCP

123 NTP UDP

162 SNMP trap receiver UDP

443 HTTPS GUI TCP

59515-59536 Quorum device UDP

External SMU as a client

The external SMU uses these destination ports on a peer serv

Port Protocol

25 SMTP relay TCP

123 NTP UDP

8443 SOAP requests to HNAS TCP

2001 HCS device manager updates TCP

er.

86 Network ports

Hitachi NAS Platform Network Administration Guide

Network ports 87

Hitachi NAS Platform Network Administration Guide

Hitachi Data Systems

Corporate Headquarters

2845 Lafa Santa Clara, California 95050-2639 U.S.A.

www.hds.com

Regional Contact Information

Americas

+1 408 970 1000

info@hds.com

Europe, Middle East, and Africa

+44 (0) 1753 618000

info.emea@hds.com

Asia Pacific

+852 3189 7900

hds.marketing.apac@hds.com

yette Street

MK-92HNAS008-08

Hitachi 3080, 3090, 4000, 3200, 3100 Network Administration Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Related Documentation

Preface

Accessing product documentation

Getting help

Comments

Network interfaces

File serving interfaces

Link aggregation

VLAN interfaces

Non-file serving interfaces

Using Network and Port Address Translation

Aggregate Linux interfaces

Typical non-file serving interface configurations

Jumbo frames support

Routing overview

Default gateways

Static routes

Dynamic routes

Managing routes

Understanding routing by EVS

Name and directory services

Name services

DNS and DDNS

Registering a CIFS name

WINS

Directory services

NIS (for NFS and FTP)

LDAP advantages

Using IPv6

IPv6 overview

IPv6 and the NAS server

IPv6 and non-file serving interfaces

Configuring link aggregation

Viewing link aggregations

Adding link aggregations

Editing link aggregations

Deleting link aggregations

Configuring LACP

Configuring Aggregate Linux interfaces

Configuring VLAN interfaces

Adding VLAN interfaces

Deleting VLAN interfaces

Advanced VLAN interface configuration

Configuring IP addresses

Viewing IP addresses

Adding IP addresses

Deleting IP addresses

Advanced IP configuration

Configuring routes

Viewing IP routes

Adding IP routes

Deleting IP routes

58 Configuring name and directory services

Specifying name services

Prioritizing name services

Configuring NIS servers

Modifying NIS servers

Adding NIS servers

Deleting NIS servers

Configuring LDAP servers

Modifying LDAP configuration

Adding LDAP servers

Deleting LDAP servers

Managing networks and devices

Configuring non-file serving interfaces

Configuring devices on the system monitor

Troubleshooting

Network health information

Detecting issues

Collecting network packets

VLAN conversion

Example VLAN conversion

Network ports
