Hitachi 31CX4B, 31UX5B User Manual

IMPORTANT
HITACH
SOLID STATE COLOR TELEVISION
31CX4B 31UX5B
OPERATING GUIDE TABLE OF CONTENTS
IMPORTANT..............................................................................................................................................3
SAFETY TIPS.............................................................................................................................................5
PICTURE CAUTIONS.............................................................................................................................10
ACCESSORIES........................................................................................................................................11
REMOTE CONTROL BATTERY INSTALLATION AND REPLACEMENT.....................................12
HOW TO SET UP YOUR NEW HITACHI COLOR TV........................................................................13
HOOK-UP CABLES AND CONNECTORS...........................................................................................15
FRONT PANEL CONTROLS..................................................................................................................17
FRONT PANEL JACKS AND CONNECTIONS....................................................................................18
REAR PANEL JACKS.............................................................................................................................19
TIPS ON REAR PANEL CONNECTIONS.........................................................................................20
REAR PANEL CONNECTIONS.............................................................................................................21
EXTERNAL CONNECTIONS.................................................................................................................22
CONNECTING EXTERNAL VIDEO SOURCES ..................................................................................23
CONNECTING EXTERNAL VIDEO SOURCES ..................................................................................25
AUDIO SYSTEM SET-UP.......................................................................................................................27
THE GENIUS REMOTE CONTROL (CLU-851GR)..............................................................................28
MULTI-PAGE WINDOWS......................................................................................................................29
THE GENIUS REMOTE CONTROL (CLU-692GR)..............................................................................30
HOW TO USE THE GENIUS REMOTE TO CONTROL YOU TV .....................................................32

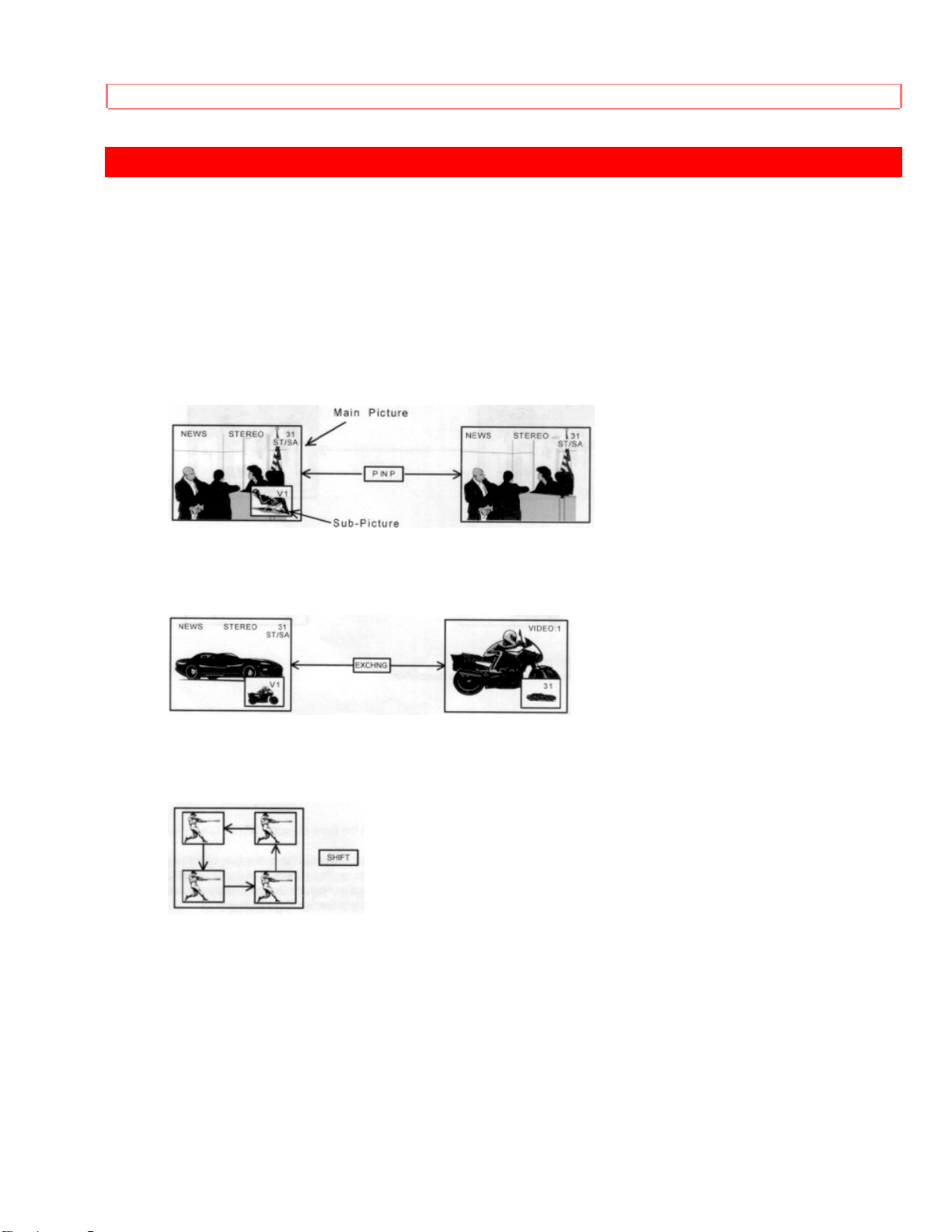

PICTURE -IN -PICTURE (P-IN-P)..........................................................................................................35
USING THE GENIUS REMOTE TO CONTROL VCR FUNCTIONS..................................................37
USING THE GENIUS REMOTE TO CONTROL CABLE BOX FUNCTIONS....................................38
VCR AND CABLE BOX CODES ...........................................................................................................40
TABLE 1. VCR Precoded remote controls for Hitachi GR III Remote CLU-851GR..........................40
TABLE 2. Cable Box Precoded remote controls for Hitachi GR111 Remote CLU-851GR................41
TABLE 3. VCR Precoded remote controls for Hitachi GJ111 Remote CLU-692GR .........................41
TABLE 4. Cable Box Precoded remote controls for Hitachi GJ111 Remote CLU-692GR................. 42
USING THE GENIUS REMOTE TO LEARN ADDITIONAL FUNCTIONS FOR CLU-851GR........43
EASY GRAPHIC GUIDE ........................................................................................................................46
SET UP......................................................................................................................................................48
1
IMPORTANT
FAVORITE CHANNELS.........................................................................................................................51
RESET.......................................................................................................................................................52
PROGRAM...............................................................................................................................................53
CLOCK .....................................................................................................................................................56
VIDEO ......................................................................................................................................................58
AUDIO......................................................................................................................................................60
CARE OF YOUR HITACHI COLOR TV AND YOUR REMOTE CONTROL....................................63
RECEPTION PROBLEMS.......................................................................................................................64
CHECK HERE BEFORE CALLING FOR SERVICE.............................................................................65
SPECIFICATIONS...................................................................................................................................66
NOTES......................................................................................................................................................68
2
IMPORTANT
IMPORTANT
Your new HITACHI COLOR TV incorporates a host of features designed to give you excellent performance if you follow the instructions in this manual. We recommend that you read the following instructions and "IMPORTANT SAFEGUARDS" notice before turning on your TV set for the first time. Follow all warnings and instructions marked on this television receiver.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS TELEVISION SYSTEM TO RAIN OR MOISTURE.
NOTE: l There are no user serviceable parts inside the receiver.
l Model number and serial number are indicated on the back side of the set.
3
IMPORTANT
POWER SOURCE:
This color TV is designed to operate on 120 volts 60 Hz, AC household current. Insert power cord into a 120 volt 60 Hz outlet. TO PREVENT ELECTRIC SHOCK, DO NOT USE THE TELEVISION'S PLUG WITH AN EXTENSION CORD, RECEPTACLE, OR OTHER OUTLET UNLESS THE BLADES AND GROUND TERMINAL CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. NEVER CONNECT THE TV TO 50 Hz, DIRECT CURRENT, OR ANYTHING OTHER THAN THE SPECIFIED VOLTAGE.
NOTE: This television receiver will display television closed captioning ( or ), in accordance with paragraph 15, 119 of the FCC rules.
4
SAFETY TIPS
SAFETY TIPS
IMPORTANT SAFEGUARDS
SAFETY POINTS YOU SHOULD KNOW ABOUT YOUR HITACHI TELEVISION RECEIVER
CAUTION:
l Read all of these instructions. l Save these instructions for later use. l Follow all warnings and instructions marked on the television receiver.
Our reputation has been built on the quality, performance, and ease of service of HITACHI television receivers. Safety is also foremost in our minds in the design of these units. To help you operate these products properly, this folder illustrates safety tips which will be of benefit to you. Please read it carefully and apply the knowledge you obtain from it to the proper operation of your HITACHI television receiver. Please fill out your warranty card at once and mail it to HITACHI. This will enable HITACHI to notify you promptly in the improbable event that a safety problem should be discovered in your model of product.
FOR YOUR PERSONAL SAFETY
1 This television set is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
2 When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to qualified service personnel.
3 Do not overload wall outlets and extension cords as this can result in fire or electric shock.
4 Do not allow anything to rest on or roll over the power cord, and do not place the TV where the power cord is subject to traffic or abuse. This may result in a shock or fire hazard.
5
SAFETY TIPS
5 Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
6 Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
7 If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet and refer servicing to qualified service personnel.
8 If liquid has been spilled into this television set, unplug it from the wall outlet and refer service to qualified service personnel.
9 Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
10 Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
11-1 Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturer.
11-2 An appliance and cart combination should be moved with care. Quick stops, excessive force,
6
SAFETY TIPS
and uneven surfaces may cause the appliance and cart combination to overturn.
PROTECTION AND LOCATION OF YOUR SET
12 Do not use this television set near water, for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.
l Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall outlet and refer servicing personnel.
13 Choose a place where light (artificial or sunlight) does not shine directly on the screen.
14 Avoid dusty places, since accumulated dust inside the chassis may cause failure of the set when high humidity persists.
15 The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, and to protect from overheating. These openings must not be blocked or covered.
l Never cover the slots or openings with cloth or other material.
l Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
l Never place the set near or over a radiator or heat register.
l Never place the set in a "built-in" enclosure, unless proper ventilation provided.
PROTECTION AND LOCATION OF YOUR SET
16-1 If an outside antenna is connected to the television set, be sure the antenna system is protected against voltage surges and built up static charges, Section 810 of the National Electrical Code,
7
SAFETY TIPS
NFPA No. 70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrode, and requirements for the grounding electrode. Click to see antenna grounding diagram.
16-2 Note to CATV system installer: (Only for the television set with CATV reception) This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
17 An outside antenna system should not be located in the vicinity of overhead power lines or other electrical lights or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
18 For added protection for this television set during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning and power-line surges.
OPERATION OF YOUR SET
19 This television set should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply at your home, consult your television dealer or local power company. For television sets designed to operate from battery power, refer to the operating instructions.
20 If the television set does not operate normally by following the operating instructions, unplug this set television set from the wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the television set to normal operation.
8
SAFETY TIPS
21 When going on a holiday: If your television set is to remain unused for a period of time, turn the television set "off" and unplug it from the wall outlet.
IF THIS SET DOES NOT OPERATE PROPERLY
22 If you are unable to restore normal operation by following the detailed procedure in your operating instructions, do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
23 Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for service, unplug the set and have it checked by a professional service technician.
24 It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your dealer or service technician.
FOR SERVICING AND MODIFICATION
25 Do not use attachments not recommended by the television set manufacturer as they may cause hazards.
26 When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
27 Upon completion of any service or repairs to the television set, ask the service technician to perform routine safety checks to determine that the television is in safe operating condition.
9
PICTURE CAUTIONS
PICTURE CAUTIONS
WARNING
Continuous on-screen displays such as video games, stock market quotations, computer generated graphics, and other fixed (non-moving) patterns can cause permanent damage to color television receivers. Such "PATTERN BURNS" constitute misuse and are NOT COVERED by
your Hitachi Factory
Warranty.
When using the Picture-in-Picture function, the sub-picture should not be left
permanently in one corner of the screen or a "pattern burn" may develop over a long period of time.
This Color television receiver was intended mainly for the private viewing of programs broadcast by TV stations and cable companies and programs from other video sources. Public viewing may require prior authorization from the broadcaster or owner of the video program.
10
ACCESSORIES
ACCESSORIES
Check to make sure you have the following accessories before disposing of the packing material.
For information regarding how to obtain these accessories, please call TOLL FREE 1-800-448­2244 for your nearest HITACHI Authorized Parts Distributor in the continental United States. For Alaska and Hawaii, please contact your nearest HITACHI Regional office.
Chart of Remotes and Television Stand
CAUTION: The television stand model SP313G, SP314G and SP315B are
designed for use only with HITACHI TV models 31CX4B and 31UX5B. Use with other television equipment may result in instability, causing possible injury.
11
REMOTE CONTROL BATTERY INSTALLATION AND REPLACEMENT
REMOTE CONTROL BATTERY INSTALLATION AND REPLACEMENT
1. Open the battery cover of the remote transmitter by pushing the notched part of the cover with your fingers.
2. Insert new "AA" size (SUM-3) batteries or equivalent for the Genius Remote. When replacing old batteries, push them towards the springs and lift them out.
3. Match the (+) and (-) marks in the battery compartment.
4. Replace the cover.
CAUTIONS
1. If your television set is to remain unused for a long period of time, for instance, when you go on a vacation, unplug the television set from the wall outlet.
2. Do not subject the Remote Transmitter to shocks such as dropping it on the floor, etc. Precision parts may be damaged.
3. Do not allow the Remote Transmitter to become wet and avoid placing it in areas of high humidity. Don't leave it on or near a heater. Excess heat or moisture may cause the unit to cease operation.
4. If the batteries become exhausted, Remote Control operation may become erratic or stop altogether. Replace the old batteries with fresh "AA" (SUM-3) types.
NOTES
1. When the power button is set to OFF, the OFF TIMER is released.
2. The channel No. indication, volume indication and OFF TIMER indication are not displayed simultaneously.
3. To operate your TV, point the Remote Transmitter at the remote sensor of the TV.
12
HOW TO SET UP YOUR NEW HITACHI COLOR TV
HOW TO SET UP YOUR NEW HITACHI COLOR TV
ANTENNA
Unless your TV is connected to a cable TV system or to a centralized antenna system, a good outdoor color TV antenna is recommended for the best performance. However, if you are located in an exceptionally good signal area that is free from interference and multiple image ghosts, an indoor antenna may be sufficient.
LOCATION
Select an area where sunlight or bright indoor illumination will not fall directly on the picture screen. Also, be sure that the location selected allows a free flow of air to and from the cover of the set. To avoid cabinet warping, cabinet color changes, and increased chance of set failure, do not place the TV where temperatures can become excessively hot. For example, in direct sunlight or near a heating appliance, etc.
VIEWING
The major benefit of the HITACHI Color Television is its viewing screen. To see this screen at its best, test various locations in the room to find the best spot for viewing. The drawings give several suggestions. The best picture is seen by sitting directly in front of the TV and about 3 to 6 feet from the screen.
During daylight hours, reflections from outside light may appear on the screen. If so, drapes or screens can be used to reduce the reflection or the TV can be located in a different section of the room.
If the TV's audio output will be connected to a Hi-Fi system's external speakers, the best audio performance will be obtained by placing the speakers equidistant from each side of the receiver cabinet and as close as possible to the height of the picture screen center. For best stereo separation, place the external speakers at least 4 feet from the side of the TV. Place the surround speakers to the side or behind the viewing area. Differences in room sizes and acoustical environments will require some experimentation with speaker placement for best performance.
CAUTION: The magnetic field of external speakers may cause the TV picture to
13
HOW TO SET UP YOUR NEW HITACHI COLOR TV
distort if the speakers are placed too close to the television. Move the speakers away from the TV until there is no picture distortion.
14
HOOK-UP CABLES AND CONNECTORS
HOOK-UP CABLES AND CONNECTORS
Most video/audio connections between components can be made with shielded video and audio cables that have phono connectors. For best performance, video cables should use 75-Ohm coaxial shielded wire. Cables can be purchased from most stores that sell audio/video products. Below are illustrations and names of common connectors. Before purchasing any cables, be sure of the output and input connector types required by the various components. Also make sure the cables are the correct length.
300-Ohm Twin Lead Connector
This outdoor antenna cable must be connected to an antenna adaptor (300-Ohm to 75-Ohm).
Phono Connector
Used on all standard video and audio cables which connect to inputs and outputs located on the Television's front and rear jack panels.
"F" Type 75-Ohm Coaxial Antenna Connector
For connecting RF signals (antenna or cable TV) to the antenna jack on the television.
S-Video (Super Video) Connector
This connector is used on camcorders, VCR's, and laser disc players with an S-Video feature in place of the standard video cable to produce a high-quality picture.
15
HOOK-UP CABLES AND CONNECTORS
ANTENNA CONNECTIONS
These sets are equipped with one VHF/UHF antenna terminal. The VHF/UHF terminal can be used for normal TV, cable TV (CATV), a TV game, etc.
1. VHF (75-Ohm) antenna/CATV
When using a 75-Ohm coaxial cable system, disconnect the VHF adapter from the 75 ohm receptacle and connect the outdoor antenna or CATV cable to a VHF 75 ohm receptacle
2. VHF (300-Ohm) antenna/UHF antenna
When using a 300-Ohm twin lead from an outdoor antenna, disconnect the (VHF or UHF) indoor antenna leads from screws of the (VHF or UHF) adapter, and connect outdoor (VHF or UHF) antenna leads to these screws of a (VHF or UHF) adapter.
3. When both VHF and UHF antennas are connected
Attach an optional ANT. MIXER to the TV antenna terminal, and connect the cables to the ANT. MIXER.
Notes:
1. If an outdoor antenna/CATV is to be used, disconnect the indoor antenna. Do not leave both the indoor and outdoor antennas/CATV connected at the same time, since ghosting and poor reception may result.
2. Consult your dealer or service store for the ANT. MIXER and (VHF or UHF) adaptor.
3. The special converter (decoder) will be supplied by the cable company.
16
FRONT PANEL CONTROLS
FRONT PANEL CONTROLS
Front View Illustration
NOTE: The "Program Icon", "Clock Icon" and Channel Memory Menu in "Set Up" are not displayed using the Front Menu Key. This feature uses the numbered buttons which are not in the front panel and the CH UP/DOWN button is disabled at Menu Function. For complete Menu Icon, use the remote control supplied.
Q
Q AVX (Audio/Video) selector
QQ
Press this button to select the current antenna source, or VIDEO: 1, 2 or 3. Your selection is shown in the top right corner of the screen.
R
R VOLUME Level
RR
Press these buttons for your desired sound level. The volume level will be displayed on the TV screen.
S
S CHANNEL Selector
SS
Press these buttons until the desired channel appears in the top right corner of the TV screen.
T
T POWER Button
TT
Press this button to turn the TV on or off.
NOTE: Your HITACHI TV will appear to be turned "OFF" If there is no video input when VIDEO: 1, 2 or 3 is selected. Press AVX until it returns to the same Video, if not Power is "OFF".
U
U REMOTE CONTROL Sensor
UU
Point your Genius Remote at this area when selecting channels, adjusting volume, etc.
V
V FRONT INPUT JACKS (for VIDEO: 3)
VV
Use these audio/video jacks for a "quick" hook-up from a camcorder or VCR to instantly view your favorite show or new recording. (Press the AVX button until VIDEO: 3 appears in the top right corner of the TV screen.)
17
FRONT PANEL JACKS AND CONNECTIONS
FRONT PANEL JACKS AND CONNECTIONS
The front panel jacks are provided as a convenience to allow you to easily connect a camcorder or VCR as shown in the following examples:
Front Panel Jacks Examples
NOTE: Completely insert the connections cord plugs when connecting to front panel jacks. If you do not, the picture that is played back may be abnormal.
18
REAR PANEL JACKS
REAR PANEL JACKS
Q
Q Antenna Inputs
QQ
The VHF/UHF terminal can be used for normal TV, cable TV (CATV), a TV game, etc.
R
R Audio/Video Inputs 1, 2
RR
The "AVX" (Auxiliary Video) button will step through each video source and the current antenna input each time it is pressed. Use the audio and video inputs to connect external devices, such as VCR's, camcorders, laser disc players, video games, etc.
S
S Audio to Hi-Fi
SS
These jacks provide variable audio output to a separate stereo system amplifier. With this connection, the audio to the stereo can be controlled by the television's remote control. Use these jacks for the SURROUND Left and Right channels. (See page 16 and 19)
T
T S-Video
TT
Input 1 provides S-Video (Super Video) jacks for connecting equipment with S-Video output capability.
19
REAR PANEL JACKS
TIPS ON REAR PANEL CONNECTIONS
The S-Video connection is provided for high performance of laser discs, VCR's. etc., that have this feature. Use this connection in place of the standard video connection if your device has this feature.
If your device has only one audio output (mono sound), connect it to the left audio jack on the TV.
Refer to the operating guide of your other electronic equipment for additional information on connecting your hook-up cables.
A single VCR can be used for VCR #1 and VCR #2, but note that a VCR cannot record its own video or line output (INPUT: 1 in the example on p. 15). Refer to your VCR operating guide for more information on "line" input-output connections.
Click here to see Rear Panel Diagram
20
REAR PANEL CONNECTIONS
REAR PANEL CONNECTIONS
Click here to see Rear Panel Connection Diagram
Typical full feature set-up. Follow connections that pertain to your personal entertainment system.
21
Loading...
+ 49 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
