Hitachi 28LD5000TA User Manual

ENGLISH

USER'S MANUAL

Thank you very much for purchasing the HITACHI LCD Monitor. Before using your monitor, please carefully read the "SAFETY INSTRUCTIONS" and this "USER'S MANUAL" so you will know how to operate the monitor properly. Keep this manual in a safe place. You will find it useful in the future.

Notes on lnstallation Work:

This product is marketed assuming that it is installed by qualifed personnel with enough skill and competence. Always have an installation specialist or your dealer install and set up the product. HITACHI cannot assume liabilities for damage caused by mistake in installation or mounting, misuse, modification or a natural disaster.

Note for Dealers:

After installation, be sure to deliver this manual to the customer and explain to the customer how to handle the product.

28LD5000TA 28" LCD TV

Important

Please read this User's Manual thoroughly, especially the Safety Instructions on Page 4 to 7. Mis-use may cause damage to your LCD monitor, which could shorten its lifespan, or cause injury to yourself. Should you encounter any difficulty in the set-up or operation of your monitor, firstly refer to the Troubleshooting guide at the rear of this manual. In the unlikely event of a problem occurring with your LCD monitor, switch off at the mains sockets, pull out the plugs, and contact your dealer immediately.

CAUTION

Under no circumstances remove the rear cover of your LCD monitor. Never guess or take any chances with electrical equipment of any kind - it is better to be safe than sorry!

Software Notice

It is prohibited for the end user of this product to copy, reverse engineer or reverse compile the software included therein, save to the extent permitted by law.

LCD Monitor

After the LCD monitor has been on for any length of time, you will notice that the screen becomes warm. Please note that this is normal. Sometimes the screen might have some tiny bright or dark spots. Please note that this is normal.

CAUTION

To prevent scratches or damages to the LCD screen, do not knock or rub the surface with sharp or hard objects. Clean the screen with a soft cloth moistened with warm water and dry with a soft cloth. A mild soap may be used if the screen is extremely dirty. Do not use harsh or abrasive cleaners!

CAUTION

Use a soft cloth to clean the cabinet and control panel of the monitor. When excessively soiled dilute a neutral detergent in water, wet and wring out the soft cloth and afterward wipe with a dry soft cloth. Never use acid/alkaline detergent, alcoholic detergent, abrasive cleaner, powder soap, OA cleaner, car wax, glass cleaner, etc. especially because they would cause discoloration, scratches or cracks.

High-definition LCD display panel

The 28-inch TFT LCD panel with a resolution of 1280(H) X 768(V) pixels, creates a high-definition, proper screen (aspect ratio:15:9) and low-profile flat display. Free from electromagnetic interferences from geomagnetic sources and ambient power lines, the panel produces high-quality display images free from colour misconvergence and display distortion.

High Performance Digital Processor

A wide range of personal computer signals can be handled, from 640 x 400, 640 x 480 VGA to 1600 x 1200 UXGA.

Easy-to-use remote control and on screen display system

The remote control included eases the work of setting display controls. Further, the on-screen display system, displays the status of signal reception and display control settings in an easy-to-view fashion.

Power saving system

The International ENERGY STAR® power saver feature saves power consumption automatically when input signals are not available. When connected to a VESA DPMS-compliant PC, the monitor cuts its power consumption while it is idle.

TruBass

TruBass, SRS and (O) symbol are trademarks of SRS Labs,Inc. TruBass technology is incorporated under license from SRS Labs, Inc.

About the Video Unit

The following functions can be obtained by the video unit. (1) A composite/S terminal and two component terminals have been

added. A composite video output terminal is also provided as a monitoring output.

(2) A wide range of devices other than personal computers can also

be connected.

(3) A component input is possible to switch to RGB signals from the

Menu screen.

(4) A SCART terminal is also provided for the signal of the European

standard. It operates as composite/S/RGB input terminal, or video output terminal.

FEATURES

ENGLISH

CONTENTS

FEATURES....................................................2

SAFETY INSTRUCTIONS..............................4

COMPONENT NAMES ..................................8

Main Unit..............................................................................8

Remote control ....................................................................9

Loading Batteries ..............................................................9

Handling the Remote Control ............................................9

INSTALLATION INSTRUCTIONS ................11

Installation..........................................................................11

Anti-tumble measures........................................................11

Connecting to a PC ..........................................................12

Speaker Cable connection ..............................................13

Power Cord Connection ....................................................13

OPERATING INSTRUCTIONS ....................14

Turning Power On and Off ................................................14

Input Switching..................................................................15

Volume Adjustment............................................................15

Audio Mute ........................................................................15

Size Switching ..................................................................16

Input Signal Screen Display ..............................................16

Using the Menu Screen ....................................................17

PICTURE MENU ................................................................18

AUDIO MENU....................................................................19

TIMER MENU ....................................................................19

FUNCTION MENU ............................................................20

SETUP MENU ....................................................................21

LANGUAGE MENU............................................................22

OTHER FEATURES ....................................22

Notes about This Manual

• The information in this manual is subject to change without notice.

• While meticulous care has been taken in the preparation of this manual, you are requested to notify your dealer or us should you have any comments, views or questions about our product.

• Fully understand the prerequisites to using the product, such as hardware and software specifications and constraints, in using the product. We are not held liable for damages caused by improper handling of the product.

• Reproduction of this manual in whole or in part without our prior written permission is prohibited.

• The product names mentioned in this manual may be trademarks or registered trademarks of their respective owners.

Automatic Store ................................................................22

Signal Check ....................................................................23

Power Save Mode..............................................................23

NOTES ........................................................24

TROUBLESHOOTING..................................25

Symptoms That Seemingly Appear to be Failures ............25

Actions to Correct Abnormal Displays ..............................27

Video Unit Function ..........................................................28

Tuner Unit Function ..........................................................38

PRODUCT SPECIFICATIONS ......................49

Signal Input........................................................................50

Recommended Signal List ................................................51

SAFETY INSTRUCTIONS

This LCD monitor has been designed and manufactured to meet international safety standards, but like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. Before using this product, please read and understand the Safety Instructions thoroughly to ensure correct usage, and follow all the instructions.

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could result possibly in personal injury or physical damage due to incorrect handling.

CAUTION

Typical Symbols

WARNING

Various symbols are used in this manual, the user’s manual and on the product itself to ensure correct usage, to prevent danger to the user and others, and to prevent property damage. The meanings of these symbols are described below. It is important that you read these descriptions thoroughly and fully understand the contents.

About the Symbols

This symbol indicates an additional warning (including cautions). An illustration is provided to clarify the contents.

This symbol indicates a prohibited action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left indicates that disassembly is prohibited).

This symbol indicates a compulsory action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left indicates that the power plug should be disconnected from the power outlet).

Never use the monitor if a problem should occur.

Abnormal operations such as smoke, strange odor, no image, no sound, excessive sound, damaged casing, elements, cables, penetration of liquids or foreign matter, etc. can cause a fire or electrical shock. In such case, immediately turn off the power switch and then disconnect the power plug from the power outlet. After making sure that the smoke or odor has stopped, contact your dealer. Never attempt to make repairs yourself because this could be dangerous.

Do not insert liquids or foreign objects.

Penetration of liquids or foreign objects could result in fire or electrical shock. Use special caution in households where children are present. If liquids or foreign objects should enter the projector, immediately turn off the power switch, disconnect the power plug from the power outlet and contact your dealer.

• Do not place the monitor in a bathroom.

• Do not expose the monitor to rain or moisture.

• Do not place flower vases, pots, cups, cosmetics, liquids such as water, etc on or around the monitor.

• Do not place metals, combustibles, etc on or around the monitor.

Never disassemble or modify the monitor.

The monitor contains high voltage components. Modification could result in fire or electrical shock.

• Never remove any fixed cover.

Do not give the monitor any shock or impact.

If the monitor should be shocked and/or broken, it could result in an injury, and continued use could result in fire or electrical shock. If the glass panel is broken or damaged, immediately turn off the power switch, disconnect the power plug from the power outlet and contact your dealer.

Do not place the monitor on an unstable surface.

If the monitor should be dropped and/or broken, it could result in an injury, and continued use could result in fire or electrical shock.

• Do not place the monitor on an unstable, slant or vibrant surface such as a wobbly or inclined stand.

Do not obstruct the ventilation of the monitor.

If the ventilation is obstructed during the operation of the monitor or just after switching off the power, it could result in damage and shorten the lifespan of your monitor due to overheating. Make sure there is ample ventilation.

• Keep a space of 100mm (10cm) or more between the sides, rear and top of the monitor and other objects such as walls.

• Do not place anything around ventilation openings of the monitor.

• Never block ventilation openings.

• Do not put the LCD screen side up.

• Do not cover the monitor with a tablecloth, etc.

• Do not place the monitor on a carpet or bedding, or near a curtain.

Use only the correct power outlet.

Incorrect power supply could result in fire or electrical shock. Use only the correct power outlet depending on the indication on the monitor and the safety standard.

• The enclosed power cord must be used depending on the power outlet to be used.

WARNING

Disconnect the

plug from the power outlet.

Do not

disassemble.

ENGLISH

• FOR THE CUSTOMERS IN THE U.K.

THIS PRODUCT IS SUPPLIED WITH A TWO PIN MAINS PLUG FOR USE IN MAINLAND EUROPE. FOR THE U.K. PLEASE REFER TO THE NOTES ON THIS PAGE.

IMPORTANT FOR UNITED KINGDOM

WORDING FOR CLASS I EQUIPMENT INSTRUCTION BOOKS AND LABELS

The mains lead on this equipment is supplied with a molded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA or BSI approved BS 1362 fuse must be used of the same rating. If the fuse cover is detachable never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug. Fuse covers are available from your dealer. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer. Should it be necessary to change the mains plugs, this must be carried out by a competent person, preferably a qualified electrician. If there is no alternative to cutting off the mains plug, ensure that you dispose of it immediately, having first removed the fuse, to avoid a possible shock hazard by inadvertent connection to the mains supply.

WARNING: THIS EQUIPMENT MUST BE EARTHED IMPORTANT

The wires in the mains lead are coloured in accordance with the following code :

Green and Yellow = Earth, Blue = Neutral, Brown = Live.

As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN and YELLOW must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured GREEN or GREEN and YELLOW. The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

Brown to Live Fuse

Cord Clamp

Green & Yellow to Earth

Blue to Neutral

Be cautious of the power cord connection.

Incorrect connection of the power cord could result in fire or electrical shock.

• Do not touch the power cord with a wet hand.

•

Check that the connecting portion of the power cord is clean (with no dust), before using. Use a soft and dry cloth to clean the power plug.

• Insert the power plug into a power outlet firmly. Avoid using a loose, unsound outlet or contact failure.

• Do not cut off the fitted power plug, the removal of which could lead to impaired performance. If you wish to extend the lead, obtain an appropriate extension lead or consult your dealer.

• Should you require replacing the fuse in the molded plug with a new fuse, then please replace with new one of the same value, type and approval as the original. Ensure the fuse cover is returned to its original position.

Be sure to keep safety ground connection.

Connect the ground terminal of AC inlet of this monitor with the ground terminal provided at the power outlet using the enclosed power cord. If the provided plug does not fit your outlet, consult an electrician for replacement of the obsolete outlet.

Be careful in handling the power cord and external connection cables.

If you keep using a damaged the power cord or cables, it can cause a fire or electrical shock. Do not apply too much heat, pressure or tension to the power cord and cables. If the power cord or cables are damaged (exposed or broken core wires, etc.), contact your dealer.

• Do not place the monitor or heavy objects on the power cord and cables. Also, do not place a spread, cover, etc, over them because this could result in the inadvertent placing of heavy objects on the concealed power cord or cables.

• Do not pull the power cord and cables. When connecting and disconnecting the power cord or cables, do it with your hand holding the plug or connector.

• Do not place the cord near the heater.

• Do not touch the power plug just after disconnecting it from the power outlet to prevent electric shock.

• Do not touch the power plug when lightening is close to you.

• Avoid coiling the power cord and bending it sharply.

• Protect the power cord from being walked on, pinched particularly at plugs, conveniences receptacles, and the point where they exit from the apparatus.

• Do not modify the power cord.

Be careful in handling the battery of the remote control.

Incorrect handling of the battery could result in fire or personal injury. The battery may explode if not handled properly.

• Keep the battery away from children and pets. If swallowed consult a physician immediately for emergency treatment.

• Do not allow the battery to be exposed to fire or water.

• Avoid fire or high-temperature environment.

• Do not hold the battery with metallic tweezers.

• Keep the battery in a dark, cool and dry place.

• Do not short circuit the battery.

• Do not recharge, disassemble or solder the battery.

• Do not physically impact the battery.

• Use only the battery specified in the manual of this monitor.

• Make sure the plus and minus terminals are correctly aligned when loading the battery.

• If you observe a leakage of the battery, wipe out the liquid and then replace the battery. If the liquid adheres your body or clothes, rinse well with water.

• Obey the local laws on disposing the battery.

WARNING

Surely connect

the ground wire.

PRECAUTIONS

• Installation environment

Do not obstruct a ventilation hole. Do not put the monitor on carpet or blanket, or near a curtain which has a possibility of obstructing a ventilation hole of the monitor.

Do not put the monitor in the following places.

• Hot places such as near heater, place exposed to the direct rays of the sun.

• A place where the temperature is widely changing.

• Places with soot, dust or high humidity.

• Poor air ventilation place.

• Place near fire.

• A wet place such as bathroom, or shower room.

• Place where you can trip over it.

• Always vibrating or strongly vibrating places.

• Distorted or unstable places.

• How to view the monitor

If you use the monitor in too dark a room, your eyes may become tired. Please use it in a reasonably bright room. Avoid direct rays of the sun to the screen in order to prevent eye fatigue. Your eyes will get fatigued after viewing the monitor for long period of time. Relax your eyes by viewing away from the monitor from time to time. Please watch the monitor in downward direction.

• How to clean the LCD panel of the monitor

Before cleaning the monitor, turn off the monitor and disconnect the power plug from the power outlet. To prevent scratching or damaging the LCD screen face, do not knock or rub the surface with sharp or hard objects. Clean the screen with a soft cloth moistened with warm water and dry with a soft cloth. If it is not enough, then use a cloth with mild detergent. Do not use harsh or abrasive cleaners.

• How to clean the cabinet of the monitor

CAUTION

Be careful in moving the monitor.

Neglect could result in an injury or damage.

• Do not move the monitor during use. Before moving, disconnect the power plug and all external connections.

• You are advised to move the monitor with two persons.

• Avoid any impact or shock to the monitor; particularly take care of glass screen.

Do not put anything on top of the monitor.

Placing anything on the monitor could result in loss of balance or falling, and cause an injury or damage. Use special caution in households where children are present.

Avoid a humid or dusty place.

Placing the monitor in a smoke, a highly humid, dusty place, oily soot or corrosive gas could result in fire or electrical shock.

• Do not place near the kitchen, a humidifier or other place where there is oil, smoke or humidity.

Avoid a high temperature environment.

The heat could have adverse influence on the monitor and other parts, and could result in transformation, melting or fire.

• Do not place the monitor, the remote control and other parts in direct sunlight or near a hot object such as heater, etc.

• Do not put the monitor in a place where the temperature is widely changing.

Remove the power cord for complete separation.

• For safety purposes, disconnect the power cord if the monitor is not to be used for prolonged periods of time.

• Before cleaning, turn off and unplug the monitor. Neglect could result in fire or electrical shock.

SAFETY INSTRUCTIONS(continued)

Disconnect the

plug from the

power outlet.

ENGLISH

• Prevention of an obstacle to Radio receivers

This monitor has been designed pursuant to the international EMI standards. This is to prevent a problem to Radio receivers.

- Keep the monitor away from Radio.

- Adjust Radio antennas in order for the monitor not to receive interference.

- The antenna cable of Radio should be kept away from the monitor.

- Use a coaxial cable for antenna. You can check if this monitor influences Radio receivers by turning off all other equipment other than the monitor. If you find a problem receiving Radio when using the monitor, check the instructions mentioned above.

• Precautions for the cable connection

- Do ensure that all connections, (including the power plug, extension leads and interconnections between the pieces of equipment), are properly made and in accordance with the manufacturers instructions. Switch off and withdraw the power plug before making or changing connections.

- Confirm the connector is fixed tightly when the signal cable is connected. Also confirm the screws on the connector are tightened.

- Plug the power cord of the monitor into a different socket from that for other equipment, such as Radio etc..

- Use a plug with ground terminal and make sure that it connects to the ground.

• Precaution during transportation

Please pay attention when you transport this monitor because it is heavy. Furthermore, use the original carton box and its packaging materials when the monitor is transported. Failure to transport the monitor in any carton except the original carton may result in damage to the monitor. Save the original carton box and all packing material.

Do not physically impact the remote control.

A physical impact could cause damage or malfunction of the remote control.

• Take care not to drop the remote control.

• Do not place heavy objects on the remote control.

Avoid strong rays.

Any strong rays (such as direct sun rays or room lighting) onto the remote control sensors could invalidate the remote control.

Avoid radio interference.

Any interfering radiation could cause distorted images or noises.

• Avoid radio generator such as a mobile telephone, transceiver, etc. around the monitor.

Set the sound volume at a suitable level.

It is better to keep the volume level low and close the windows at night to protect the neighborhood environment.

• Precautions for the installation

- Do not use makeshift stands and NEVER fix legs with wood screws - to ensure complete safety, always fit the manufacturers approved stand or legs with the fixings provided according to the instructions.

- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

- This product is designed to comply with the recommended safety standards for tilt and stability. Do not apply excessive pulling force to the front, or top, of the cabinet that could cause the product to overturn resulting in product damage and/or personal injury.

- Follow instructions for wall, shelf or ceiling mounting as recommended by the manufacturer.

- Only use the attachments/accessories specified by the manufacturer.

- Consult your dealer if you are in any doubt about installation, operation or safety of your equipment.

• Other precautions

- Do not leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a stand-by mode. Switch off using the switch on the equipment and show your family how to do this. Make special arrangements for infirm or handicapped people.

- Disposal of this product may require specific instructions pertaining to your resident region.

- Never guess or take any chances with electrical equipment of any kind - it is better to be safe than sorry!

Caution when moving the main unit

• As this product is heavy, whenever it is moved, two people are required to transport it safely.

• Whenever the unit is moved it should be gripped on the top of the panel and the unit should then be held at the base on both sides for stability as shown.

COMPONENT NAMES

Front

Cabinet (front frame)

Panel

Remote-control receiver

PROGRAM DOWN button ( SELECT button)

INPUT SELECT button (OK button)

PROGRAM UP button ( SELECT button)

• These buttons are located on

the top.

SUB-POWER button

Control panel

VOLUME UP/DOWN buttons ( ADJUSTbuttons)

Main power switch

• The main power switch is located at the back, on the lower surface.

(28")

Indicating lamp

External device connection terminals

Rear

RGB input terminals

speaker terminals

Main Unit

speaker terminals

MENU button

• ( ) indicates the function while the MENU is displayed on the screen.

29 40

ENGLISH

COMPONENT NAMES

Remote control

POWER ON / OFF button

PICTURE MODE button

SURROUND button

Loading Batteries

1. Open the battery cover.

• Slide back and remove the battery cover in the direction of the arrow.

2. Load batteries.

• Load two Size AA batteries included observing the correct polarities.

3. Close the battery cover.

• Replace the battery cover in the direction of the arrow and snap it back into place.

Use the remote control within about 5 m from front of the unit’s remote-control sensor and within 30 degrees on both sides.

• Do not use new and old batteries together. The batteries could explode or leak, resulting in fires, physical injury, or stains.

• When loading batteries, observe their correct polarities as marked on the product. If loaded in the wrong direction, the batteries could explode or leak, resulting in fires, physical injury, or stains.

ATTENTION

• Do not drop or impact the remote control.

• Do not splash the remote control with water or put it on a wet

object to avoid possible failures.

• Before leaving the remote control out of use for an extended period of time, remove the batteries from it.

• If the remote control begins to lack responsiveness, replace the batteries.

• Strong light such as direct sunlight impinging on the photoreceptor of the remote control can cause operational failure. Position this unit to avoid direct contact with such light.

Handling the Remote Control

AUDIO MODE button

RECALL button

INPUT SELECT button

CH I / II button MULTI PICTURE (PinP) button Buttons for MULTI PICTURE mode RETURN button

MENU button

PROGRAM UP / DOWN buttons

SELECT / ADJUST buttons ( ) VOLUME UP / DOWN buttons

OK button

DVD CONTROL buttons

MUTE button FREEZE button ZOOM button

PROGRAM SELECT buttons

PROGRAM UP / DOWN buttons

RGB / VIDEO buttons

TIME button

D / N

I / II

A / B

P+

P-

DVD

123

456

AV1

AV2 AV3 AV4

RGB1 RGB2

2-4-12

FREEZE

ZOOM

CAUTION

With in 30 degrees

About 3m

About 5m

D / N

I / II

2-4-12

A / B

P+

P-

DVD

FREEZE

ZOOM

123

456

AV1

AV2 AV3 AV4

RGB1 RGB2

With in 30 degrees

About 3m

COMPONENT NAMES (continued)

Remote control (continued)

Dynamic

Natural

MovieM

usic

Favourite

Speec

D / N

EEZE

ZOOM

RGB1RGB

AV2

AV3

AV4

-4-

I / II

P+

P-

DVD

123

456

PICTURE MODE

You may recall the pic

ture mode by

pressing this b

utton

. Each time presse

picture mode is changed in following

sequence

INPUT SELECT

Press this button to change inp

mode.

RECALL

You can see the input mode status on

the screen by pressing the button

DVD CONTROL

You can use these buttons to operate

the selecte

d brand of DVD player

PROGRAM SELECT

Press these b

uttons to select a TV

program directly

TIME

Pressing this b

utton can indicate the

time by On-Screen display whe

receiving a TV program on the scree

including TELETEXT service with th

time information

AUDIO MODE

You may recall the sound mode by pressing this button. Each time pressed, sound mode is changed in following sequence.

MATRIX SURROUND

Press this button to set Matri

urround On or Off.

MULTI PICTURE

Press this button to change th

screen to multi-pic

tures. Press it

again to re

turn to normal picture.

CH I/II

This b

utton is for A2 / N

ICA

models only

MULTI MODE

In multi-pic

ture mode, pressing thi

utton will change the multi-pic

tur

mode.

MUTE

Press this button to

turn off the se

sound. When press ag

ain or the _

volume up button will restore the soun

FREEZE

Press this button to change th

picture to freeze mode. Press it again

to re

turn to normal picture.

ZOOM

Press this button can change Picture size

ENGLISH

Anti-tumble measures

Securing to a wall or pillar

Using a commercially available cord, chain and clamp, secure the set to a firm wall or pillar.

Securing desktop

1) Using wood screws (two), fasten the set to the clamping screw holes on the rear of the stand as shown.

2) Using commercially available wood screws, secure the set firmly in position.

INSTALLATION INSTRUCTIONS

Installation

• Installation of the wall mount unit and ceiling mount unit can be dangerous, so do not attempt this work yourself. Ask your dealer to provide the name of a qualified installer.

• In order to prevent an internal temperature increase, maintain a space of 10cm (4 inches : For a desktop setup) or more between the sides and other objects such as walls, etc., so that the ventilation holes are not blocked.(✻)

Have this unit mounted in a stable place. Take measures to prevent it from tumbling down to avoid possible physical injury.

Use one of the special mount units to install this product. A mount of insufficient strength or inadequate design can cause overturning or dropping and result in fire, electrical shock or injury. Please note that our company assumes absolutely no responsibility for personal injuries or property damage caused by use of other mount units or improper installation.

WARNING

CAUTION

10cm (4 inches) or more*

CAUTION

Hook

Chain

clamp

Clamp

Cord

chain

cord or chain

Wall or Pillar

Wood screw

Two places

Read SAFETY INSTRUCTIONS ( to ) carefully to ensure maximum safety before proceeding to these steps:

• Choose an appropriate site and install the product on a level table where the stand is secure.

• Install the monitor to have ready access to a power socket available.

• Make sure that the power switch of this device is turned off.

(1) Make sure that the display signal of the personal computer to be used is compatible with the specifications of this

device.

• See "Product Specifications" concerning the specifications of this device.

(2) Make sure that the power switch of the personal computer is turned off. (3) Connect the signal input terminal (RGB 1 or RGB 2) on the rear panel of this device to the display signal output

terminal of the personal computer.

• Use a cable that fits the input terminal of this device and the output terminal of the personal computer.

• Depending on the type of personal computer being connected, the use of an optional conversion adapter or the adapter provided with

the personal computer may be necessary in some cases. For details, refer to the instruction manual of the personal computer or ask the personal computer manufacturer or your local retail dealer.

Connecting to a PC

Monitor rear panel

Speaker (R)

Speaker (L)

Power cord

Power cable connector

(D-sub)(DVI)

To signal output terminal

To audio output terminal

3.5mm Stereo mini jack

51 52

ENGLISH

①

Connect the power cord to this device.

➁

Connect the power cord plug to the power outlet.

(The type of plug is different from this drawing for some countries.)

Connect the power cord, after completing all other connections.

①

➁

INSTALLATION INSTRUCTIONS (continued)

Power Cord Connection

• Use only the power cord provided.

• Do not use a power supply voltage other than that indicated (AC100-240V, 50/60Hz) as this may cause fire or electric shock.

Speaker Cable Connection

CAUTION

OPERATING INSTRUCTIONS

Turning Power On and Off

• To turn the monitor power ON, press the main power

switch on the monitor main unit to ON, and then press the SUB POWER button or the ON/OFF or ON button on the remote control.

• To turn the monitor power OFF, press the SUB POWER

button or the ON/OFF or OFF button on the remote control, and then press the main power switch on the monitor main unit to OFF.

• During normal use, the main power switch is set in the ON position, and the monitor can then be turned ON/OFF using the SUB POWER button or the ON/OFF button on the remote control.

Indicating lamp

Indicating

lamp

Power status Operating

Off Off

When the main power switch is set to OFF.

Lights red

Off

(standby)

When the main power switch is ON, and the OFF button on the remote control or the SUB POWER button on the top of the front of the frame is OFF.

Lights green On

When the main power switch is ON, and the ON button on the remote control or the SUB POWER button on the top of the front of the frame is ON.

Lights orange

Off

(Power Save)

When the main power switch is ON, and the ON button on the remote control or the SUB POWER button on the top of the front of the frame is ON. However, the state in POWER SAVE mode

When the indicating lamp lights in orange or the message “No Sync. Signal”, “Power Save” or “Invalid Scan Freq.” appears on the screen, there is something unusual about the status of reception. See “Power Save Mode” or “Symptoms That Seemingly Appear to be Failures.”

POWER ON/OFF button

SUB-POWER button

Main power switch

Indicating lamp

ATTENTION

• Avoid repeatedly turning the monitor on and off at short time intervals. Failures might result from such operation.

• Turn off the main power switch before leaving the monitor out of use for an extended period of time.

• If a power failure occurs while the main unit is running, it would be powered on upon recovery from the failure. Turn off the unit main power switch before leaving the main unit.

(28")

D / N

DVD

123

456

AV1

AV2 AV3 AV4

I / II

A / B

P+

P-

RGB1 RGB2

2-4- 12

FREEZE

ZOOM

ENGLISH

OPERATING INSTRUCTIONS (continued)

Audio Mute

The audio volume can be temporarily mute by pressing the MUTE button of the remote control.

• When a button is pressed, the volume adjustment

status guide (magenta) will be displayed.

• The volume setting can be lowered by pressing the VOL- button while the audio is mute.

• The muting can be cancelled by pressing the VOL+ button or MUTE button while the audio is mute.

When the MUTE button of the remote control is pressed again, the audio will be restored and the volume display (green) will appear.

MUTE button

Input Switching

Volume Adjustment

VOLUME UP/DOWN buttons

INPUT SELECT button

RGB buttons

Adjustment status guide display

(The display colour will change to magenta.)

VOLUME UP/DOWN buttons

Volume setting value

D / N

I / II

DVD

123

456

AV1

2-4- 12

A / B

P+

P-

FREEZE

ZOOM

AV2 AV3 AV4

RGB1 RGB2

Volume 15

Size Switching

Each time the ZOOM button of the remote control is pressed, the screen display area will change in sequence and the status will be displayed at the bottom of the screen.

ZOOM button

A / B

FREEZE

ZOO M

2-4- 12

I / II

P+

P-

DVD

Input Signal Screen Display

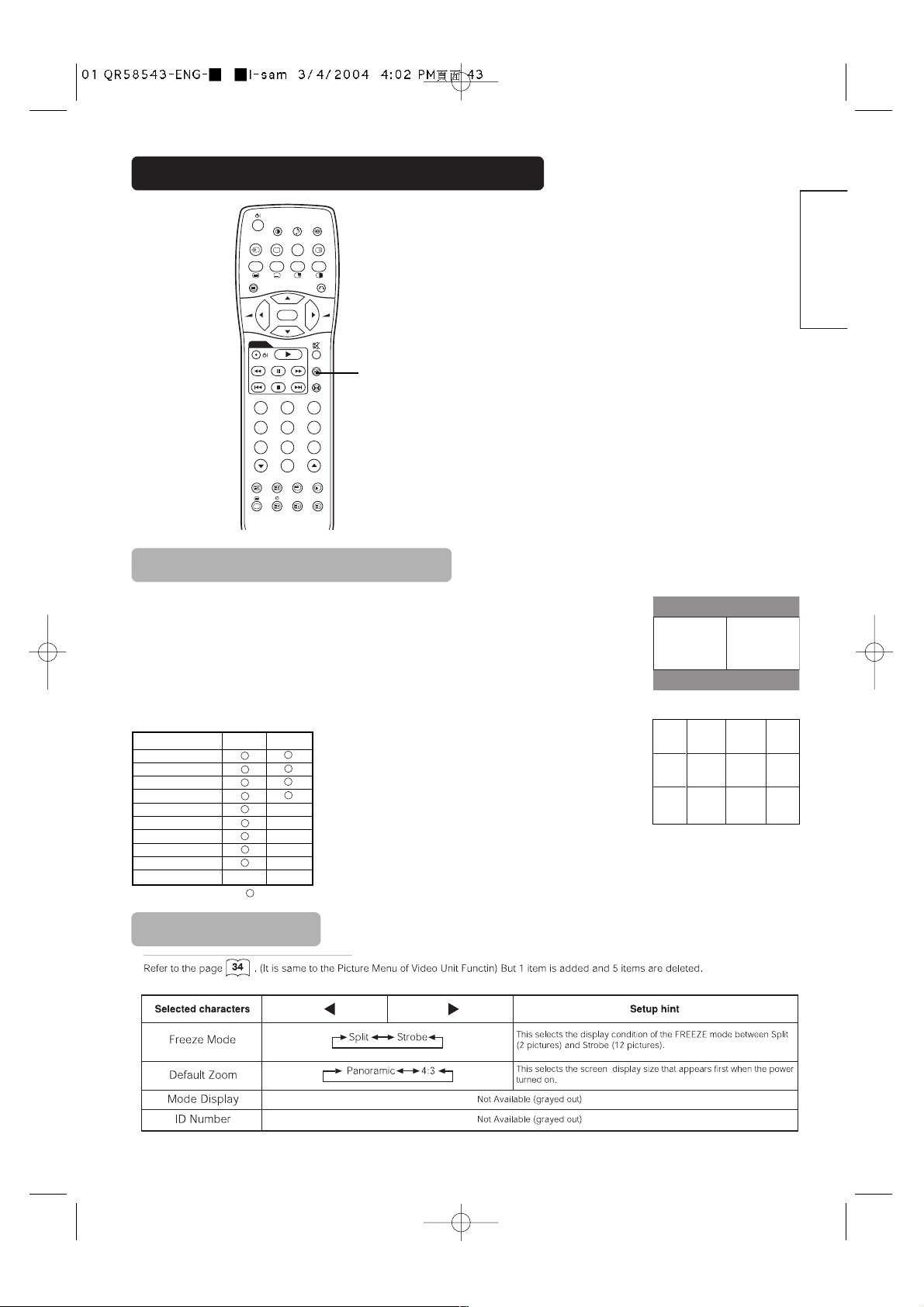

The input signal status can be displayed on the screen by pressing the RECALL button of the remote control.

• The display will go out in approximately 6 seconds.

RECALL button

Display area selection diagram (RGB input)

Processes such as compression (thinning) and expansion are performed for the above signal display. Because of this, there is a possibility that flicker may become noticeable on Zoom (1 ~ 3) depending on the display contents. If this occurs, turning the Vertical Filter On can reduce the flicker.

Input mode Signal mode Input horizontal frequency Input vertical frequency

Off-timer On-timer

RGB

Normal Full Zoom1

Real Zoom3 Zoom2

-- -- Min.

OFF

-- -- : -- --

RGB2 RGB

H : 48.4kHz

V : 60.1 Hz

+ 37 hidden pages
