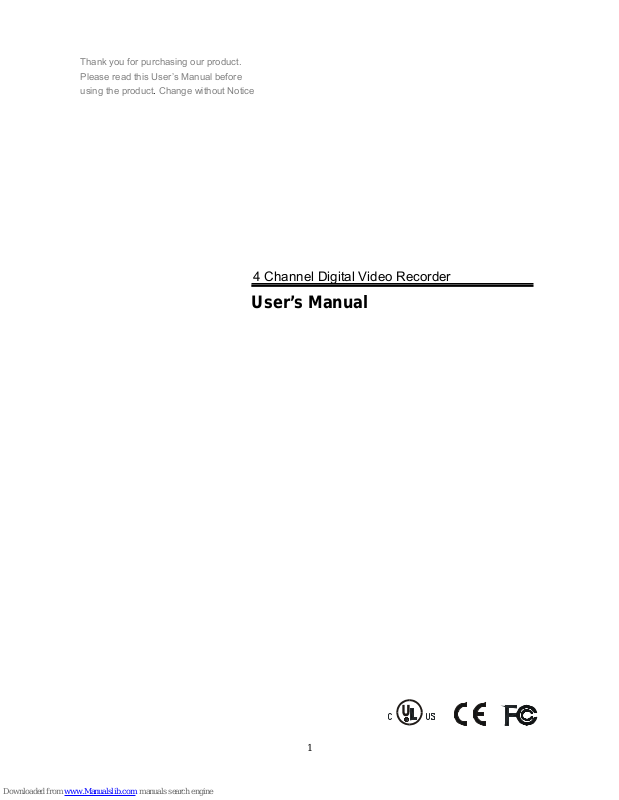

1
Thank you for purchasing our product.
Please read this User’s Manual before
using the product. Change without Notice
4 Channel Digital Video Recorder
User’s Manual
2
CAUTION
RISK OF ELECTRICAL
SHOCK. DO NOT OPEN !
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REM OVE COVER (OR BACK), NO USER
SERVI CEAB LE PARTS R EFER SERVICING TO
QUALIFIE D SERVI CE PERSONNEL.
This label may appear on the bottom of the unit due to space limitations.
Safety Precautions
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of insulated
dangerous Voltage within the product’s enclosure that may be
sufficient magnitude to constitute risk of electrical shock to persons.
The exclamation point within an equilateral triangle is intended to aler
t
the user to the presence of important operation and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE UNITS NOT SPECIFICALLY DESIGNED FOR
A
ttention: installation should be performed by qualified service
Personnel only in accordance with the National Electrical Code o
r
applicable local codes.
Power Disconnect. Units with or without ON-OFF switches have
power supplied to the unit whenever the power cord is inserted into
the power source; however, the unit is operational only when the
ON-OFF switch is the ON position. The power cord is the main powe
r
disconnect for all unites.
“CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer‘s instruction.”
During the warranty period (one year), we will repair or replace the
DVR free of charge.
Be sure to have the model number, serial number and vendor stick on
hard disk for service representative.
Warranty
and Service
3
Before installing stand alone DVR, be sure to thoroughly review and follow the instructions in this Users
Manual. Pay particular attention to the parts that are marked NOTICE.
Also, when connecting with external application, first turn the power OFF and follow manual
instruction for appropriate installation.
1. This document is intended for both the administrator and users of stand alone DVR Model.
2. This manual contains information for configuring, managing and using stand alone DVR Model.
3. To prevent fire or electrical shock, do not expose the product to heat or moisture
4. Be sure to read this manual before using stand alone DVR Model.
5. For questions and technical assistance of this product, contact your local dealer.
►Strong recommendation on installation of the DVR unit
1. Check electricity at the place you want to install the DVR unit is stable and meets our electricity
requirements.
Unstable electricity will cause malfunction of the unit or give critical damage to the unit.
2. Several chips on the main board of the DVR unit and hard disk drive inside the unit generate heat,
and it must be properly discharged.
Do not put any objects just beside exhaust port(fan) on the left side of the unit and do not close up an
opening (fresh air in-take) on the right side of the unit..
3. Put the DVR unit at well-ventilated place and do not put heat-generating objects on the unit.
When it is installed inside 19 inch mounting rack together with other devices, please check built-in
ventilation fan of the rack is properly running.
About this document
Before reading this document
4
Safety Precautions………………………………………………………………………………………………… 2
About this document………………………………………………………………………………………………. 3
Before reading this document……………………………………………………………………………………. 3
Unite Description of Front Panel………………………………………………………………………………… 5
Unit Description of Rear Panel……………………………………………………………………………………6
Installation………………………………………………………………………………………………………….. 7
Procedure……………………………………………………………………………………………………. 7
Picture…………………………………………………………………………………………………………9
Playback……………………………………………………………………………………………………… 12
Function Setup…………………………………………………………………………………………………….. 14
Login…………………………………………………………………………………………………………. 14
Basic Operation…………………………………………………………………………………………….. 15
HDD Information……………………………………………………………………………………… 16
Date-Time Setup……………………………………………………………………………………… 17
Display Setup…………………………………………………………………………………………. 18
Camera Setup………………………………………………………………………………………… 19
Buzzer Setup…………………………………………………………………………………………...24
System Setup…………………………………………………………………………………………. 25
Advanced Setup……………………………………………………………………………………… 26
CF Card Data Read on PC………………………………………………………………………………………. 35
Hard Disk Data Read…………………………………………………………………………………………….. 49
Record Time Table: 80 GB HD………………………………………………………………………………….. 51
VGA Description (Optional) ……………………………………………………………………………………… 52
Additional…………………………………………………………………………………………………………… 53
Content
5
1. : 4 quad screen mode button / Mode function key / 4 or 9 split display on playback mode
2. CHANNEL 1 : Channel 1 full screen button
3. CHANNEL 2 : Channel 2 full screen button
4. CHANNEL 3 : Channel 3 full screen button
5. CHANNEL 4 : Channel 4 full screen button
6. FREEZE : Picture freeze mode button
7. ZOOM : Picture zoom x2 mode button
8. AUTO / W.MARK : Auto sequence mode / Water Mark function button.
9. PIP / BACKUP : Picture in picture mode button / Image backup button
10. UP / STOP : Direction button UP / Playback stop button /
11. REW : Reverse playback choose button / Still playback /
12. DOWN / PAUSE : Direction button down / Playback pause /
13. FF : Forward playback choose button / Still playback /
14. ENTER / AUDIO : Sub-menu enter button / Audio on or off button
15. MENU BUTTON : Press this button to display the menu setup
16. ESC/LOCK : Press this button to Key Lock function / Sub-MENU exit button
17. T-SRH : Press this button to playback time search
18. PLAY BUTTON : Press this button to playback
19. DIRECTION BUTTON : Playback speed choose. (Increase) or values change.
20. REC BUTTON : Press this button to start recording image
21. DIRECTION BUTTON : Playback speed choose.(reduce) or values change.
22. CF Card Slot : Compact Flash Card insert
Unit Description of Front Panel
6
Unit Description of Rear Panel
Power code in 12V/5A, power switcher (ON / OFF)
Camera 1 ~ 4 in and
looping out
Audio channel input x 1 and output x 1
75 Ohm ON/OFF (high/low adjust)
Monitor out
S-Video (Y/C) monitor
RS-485 control keyboard connector
RS-232 connector (ISP. Firmware upgrade port)
Alarm connector
VG A
VGA output. PC monitor connector.
(Optional)
LAN (Not available)
7
1) Sensor Connection
Connect the Sensor to the SENSOR INPUT/
OUTPUT on the Rear Panel of the system
13,12,11,10,9,8,7,6,5,4,3,2,1
25,24,23,22,21,20,19,18,17,16,15,14
◆ Relay output : COM+NC, COM+NO
◆Alarm input : Short-circuit between Alarm0, Alarm1, Alarm2 or Alarm3 and GND is recognized as
alarm by default.Alarm0~3 will be corresponding to Camera1~4.
NOTICE: Sensor input is RECOGNIZED as LOW when alarm signal is on a level with GND, and it is
recognized as HIGH when alarm signal is FLOATING or 5V. Following is internal circuit.
Thus, there is a danger of damage, when the sensor input goes to a Negative level or voltage higher than 5V.
Installation
Procedure
Internal Circuit
D1
5
V
1.ALARM0
2.ALARM1
3.ALARM2
4.ALARM3
23.ALARM NC
24.ALARM NO
25.ALARM COM
5. ~ 19. GND
8
2) HDD connection
Notice:
-Maximum 2 internal hard drives installed.
-Hard Disk Master and Slave jumper pin must be set correctly, otherwise it makes DVR react faulty.
Hard Disk testing table:
Brand Model Capacity Notice
Seagate Barracuda 80 GB
IBM DeskStar 80 GB
WD2000 Caviar 200 GB
Hitachi DeskStar 80 GB
Maxtor MaxLineII 300 GB
Full screen or quad screen display
Press quad button to display 4 quad screen.
Press numeric 1 / 2 / 3 / 4 buttons to display a desired camera image in full screen.
1. Make sure the HDD is MASTER.
2. Make sure the cable connector is
correct.
3. Please check the HDD panel fo
r
Master set up.
1. Make sure the HDD is MASTER and
SLAVE.
2. Make sure the cable connector is
correct.
3. Please check the HDD panel for
Master and Slave set up.
HDD
MASTER
MAIN BOARD
I/O BOARD
Set the drive j umpers as specified by hard d isk drive manufacturer.
1
2
3
1
3
2
tie
HDD1
HDD2
MASTER
SLAVE
MAIN BOARD
I/O BOARD
Set the drive jumpers as specified by hard disk drive manufacturer.
2
1
3
1
How to connect single HDD 2 How to connect 2 HDD
9
1.) FREEZE Mode
1. In live and the quad mode press (FREEZE) button to freeze image.
Press
again to cancel freeze mode.
2. On the full screen display, press (FREEZE) button to
freeze full screen image.
2.) Zoom Mode(Display Enlargement.)
Go to full screen mode with numeric buttons at live or playback
mode, then press ZOOM button to display screen Enlargement.
Use
button to move position.
3.) Auto Mode
Press (AUTO) button to start screen auto sequencing, and press it again to cancel auto mode.
4.) W.MARK. Water Mark mode.
Water Mark protection function on or off. To prevent hacker using special software to modify the image data.
System SetupÆWatermark Check mode On. Press W.Mark button to on or off. (Playback mode only)
5.) PIP (PICTURE IN PICTURE)
1.) Press (PIP) button. Press
(AUTO) button to start sub-screen auto sequencing.
2) With button, select the main channel screen, press button to select desired camera channel in
small screen.
Main picture
Sub picture
10
6.) BACKUP / PIP. Image backup mode.(Image back up must be done on playback mode only.)
Locate the playback point of which you want. Press BACKUP, the BACKUP CAUTION window pop-up. Press
ENTER to begin data back up. Capacity of CF card is not limit, but the maximum capacity display is 9999MB.
On playback mode, presses BACKUP: Lower-Right corner of the screen:
0000M / 0256 (Presently back up progress / Total capacity of CF card)
Important:
If the CF card contains old data, please format CF card to FAT or FAT 32 on computer before insert to DVR
CF card slot. Otherwise, DVR would not detect correct CF card format. Any brand of CF card is acceptable.
Additional:
During playback, CF card is full or user press BACKUP button screen display a “PAUSE” caption, User takes
out the CF to computer USB slot then save data to hard disk. After, re- insert CF card to DVR slot, user press
BACKUP again. Press ENTER to continue backup or backup button to cancel.
CF card testing table:
Brand Model Capacity Notice
Cannon FC-8M 8 MB
PQI 32/128 MB
Nikon 16 MB
KingMax 16 MB
Apacer 1 GB X66 (not ok), x 40 (ok)
Sandisk F1 x24 512 MB
Transcend F1 x45 256 MB
** BACKUP CAUTION **
ALL DATA IN THE CF CARD
WILL BE CLEARED.
PRESS [ENTER] TO BACKUP.
PRESS [BACKUP] TO CANCLE.
0000M / 0256M
PAUSE
** BACKUP CAUTION **
A
LL DATA IN THE CF CARD
WILL BE CLEARED.
PRESS [ENTER] TO BACKUP.
PRESS [BACKUP] TO CANCEL.
11
7.) Key Lock function
>On the Live mode, press (lock), Only, numeric, freeze, auto, pip, and zoom buttons could work.
Press lock key again to enter the login-in window. Enter admin or user password to unlock. Key lock function
only accept password correct log in even re-boot DVR power.
8.) AUDIO function ))))
Notice
Audio playback only on normal( x 1 ) playback.
Audio playback: Press AUDIO / ENTER,
))))displays on the Upper-left of screen. At that time, audio
will playback. Press it again to turn it off.
)))) xxxxxxxxx
12
1. Playback Mode
1) Press button to begin playback. (System playback the images backward)
2. T-SRH button
1) T-SRH: Playback by time search.
Press T-SRH button to active playback function.
1) TIME LIST (Playback image by Time-Search): Recorded images list (by hours)
Y / M / D / H (Beginning of recording time) Y / M / D / H (End of recording time)
Every playback data list displays by an hour.
No page display limit. 10 items display on each page.
Playback
PLAY
MAIN PLAY PAGE
1.MASTER TIME LIST
2.SLAVE TIME LIST
3.MASTER EVENT LIST
4.SLAVE EVENT LIST
5.GOTO DATE: 2004/12/31
6.GOTO TIME: 12:12
7.GOTO PLAY
Press direction button
UP/DOWN to choose
items.
TIME LIST
Y / M / D / H Y / M / D / H
Press direction button UP/DOWN to choose items.
Press values change button to change to previous / next page.
13
2) EVENT LIST (Alarm List): Event source- Video loss / Alarm trigger / Motion / Record
10 items display on each page / Total 5000 items display for 500 pages. When event list is out of compass,
the total items are less then 5000.
Y / M / D / M : Year / Month / Day Hour / Minute
>Event happens time.
_ _ _ _: Event Channel Display.
>1 CH, 2 CH, 3 CH, 4 CH.
Motion: Event type.
>Includes Motion / Alarm / V-Loss / Record
>Special time search playback:
Go TO DATE：２００２∕１２∕１２
-Choose year / month / day
>Press direction button Left / Right to choose items, press values change button to change value.
GOTO TIME：１２：１２
-Choose hour and minute
>Press direction button Left / Right to choose items, press values change button to change value.
GOTO PLAY
-Press ENTER button to start playback.
Notice: Playback speed change by . Speed is x 1, x 2, x 4, x 8, x 16.
Press direction button UP/DOWN to choose items.
Press values change button to change page. Press ENTER to start
playback.
EVENT LIST
NO Y / M / D / H _ _ _ _ Motion
14
1) Press
MENU
button to enter into menu. You could do the system function setup in MENU.
2) Password enter window pop-up:
3) Press numeric (1 ~ 4 )button or remote controller ( 1 ~ 4 )to choose password.
4) Remote controller function buttons are same as DVR panel function buttons.
LOGIN
Default password (Account-Admin) : 44444
Default password (Account-User) : 11111
Function Setup
CHECK PASSWORD MENU
PASSWORD (*****)
15
Press MENU button to enter MAIN SETUP PAGE.
1) Use direction button up/down
button to select setup item.
2) Press
button to enter into sub-menu function setup.
3) Press sub-menu item with direction button up/down
or left/right
button.
And change the value with values change button or turn inner-shuttle.
4) Press ESC to go back to main / sub menu or exit menu.
Notice:
1. ADMIN level can setup all DVR menu functions.
2. USER level cannot setup ADVANCED page of DVR main menu function.
Basic Operation
MAIN SETUP PAGE
1. HDD INFORMATION
2. DATE-TIME SETUP
3. DISPLAY SETUP
4. CAMERA SETUP
5. BUZZER
SETUP
6. SYSTEM SETUP
7. ADVANCED SETUP
MENU, ESC: EXIT, ENTER: RUN
16
1. HDD INFORMAT ION
- 2 hard disk information display.
Information display: POSITION SIZE USED BRAND
Function Setup Notice
POSITON Master / Slave
SIZE Hard Disk capacity. xxGB. Maximum display is 999MB
USED 00 ~ 100 %. Hard disk overwrites always on 100 %.
BRAND DVR auto detect hard disk brand
LAST TIME The last record time display
POSITION SIZE USED BRAND
MASTER
LAST TIME
SLAVE
LAST TIME
MENU, ESC: EXIT, :PAGE
MAIN SETUP PAGE
1. HDD INFORMAT ION
2. DATE-TIME SETUP
3. DISPLAY SETUP
4. CAMERA SETUP
5. BUZZER
SETUP
6. SYSTEM SETUP
7. ADVANCED SETUP
MENU, ESC: EXIT, ENTER: RUN
17
2. DATE-TIME SETUP
Function Setup Notice
DATE
２０００∕１２∕１２. Y / M / D
Use direction button up/down choose position,
values change button to change date and time
values
TIME H / M / S
DISPLAY AT Line Date and Time position on screen xx line(s).
00 ~ 23.
DAY LIGHT SAVING ON / OFF Day light saving function on or off
The Day light Savings function that enable two special updates when it sets to “ON”.
On the first Sunday in April, the time increments from 1:59:59 AM to 3:00:00 AM.
On the last Sunday in October when the time first reaches 1:59:59 AM, it changes to 1:00:00 AM.
Press direction button up/down/left/right to choose items or move date-time position.
DATE-TIME SETUP PAGE
1. DATE 2000 / 00 / 00
2. TIME
3. D ISPL AY AT xx LINE (S)
4. DAYLIGHT SAVING
MENU, ESC:EXIT, :MODIFY
MAIN SETUP PAGE
1. HDD INFORMATION
2. DATE-TIME SETUP
3. DISPLAY SETUP
4. CAMERA SETUP
5. BUZZER
SETUP
6. SYSTEM SETUP
7. ADVANCED SETUP
MENU, ESC: EXIT, ENTER: RUN
Press values change button to change values.
18
3. DISPLAY SETUP
- Display Setup
Function Setup Notice
DATE-TIME ON / OFF Date and Time caption display mode on or off setup
CAMERA TITLE ON / OFF Camera Title caption display mode on or off setup
PB DATE-TIME ON / OFF Play back date and time caption display mode on or off setup
PB CAMERA TITLE ON / OFF Play back camera title caption display mode on or off setup
DVR STATUS ON / OFF DVR system, record, playback, audio caption display mode on or off setup
BORDER SET ON / OFF Border color WHITE / DARK / BLACK / GRAY
Press direction button up/down to choose the desired item.
Press values change button to change values.
DISPLAY SETUP PAGE
1. DATE-TIME ON
2. CAMERA TITLE ON
3. PB DATE-TIME
ON
4. PB CAMERA TITLE ON
5. DVR STATUS ON
6. BORDER SET WHITE
MENU, ESC:EXIT, :MODIFY
MAIN SETUP PAGE
1. HDD INFORMATION
2. DATE-TIME SETUP
3. DISPLAY SETUP
4. CAMERA SETUP
5. BUZZER
SETUP
6. SYSTEM SETUP
7. ADVANCED SETUP
MENU, ESC: EXIT, ENTER: RUN
19
4. CAMERA SETUP
(1.) COLOR SETUP
- CAMERA-COLOR SETUP : Adjust Camera Image
- CH NUMBER : Select camera
Function Setup notice
BRIGHTNESS -31~ +32 Adjust screen brightness
CONTRAST -31~ +32 Adjust color contrast
SATURATION -31~ +32 Adjust color saturation
HUE -31~ +32 Adjust color hue
GAIN -31~ +32 Adjust image signal level
>>DEFAULT RESET<< : Press ENTER button to reset DVR values.
>Right adjustment of each element in COLOR setup will increase picture quarterly displayed. We recommend
you to adjust each element of COLOR SETUP for cameras and monitor to be connected to the DVR unit.
CAMERA SETUP PAGE
1. COLOR SETUP
2. TITLE SETUP
3. SCREEN POSITION SETUP
4. V-LOSS DISPLAY SETUP
5. VIDEO MASK SETUP
MENU, ESC: EXIT, ENTER: RUN
CAMERA SETUP
1. COLOR SETUP
2. TITLE SETUP
3. SCREEN POSITION SETUP
4. V-LOSS DISPLAY SETUP
5. VIDEO MASK SETUP
CAMERA-COLOR SETUP PAGE
** CH CAMERA 01
1. BRIGHTNESS 00
2. CONTRAST 00
3. SATURATION 00
4. HUE 00
5. GAIN 00
>>DEFAULT RESET<<
MENU,ESC:EXIT, :MODIFY
Press direction button up/down to choose items.
Press values change button to change values.
MAIN SETUP PAGE
1. HDD INFORMATION
2. DATE-TIME SETUP
3. DISPLAY SETUP
4. CAMERA SETUP
5. BUZZER
SETUP
6. SYSTEM SETUP
7. ADVANCED SETUP
MENU, ESC: EXIT, ENTER: RUN
20
(2.) TITLE SETUP: Input TITLE of each camera. 18 characters can be input.
Characters choose:
Numeric: 0 / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9
Capital letter: A / B / C / D / E / F / G / H / I / J / K / L / M / N / O / P / Q / R / S / T / U / V / W / X / Y / Z
Press direction button up/down/left/right to choose items and position.
Press values change button to change values.
CAMERA SETUP
1. COLOR SETUP
2. TITLE SETUP
3. SCREEN POSITION SETUP
4. V-LOSS DISPLAY SETUP
5. VIDEO MASK SETUP
CAMERA-TITLE SETUP PAGE
CH1 (CAM01 )
CH2 (CAM02 )
CH3 (CAM03 )
CH4 (CAM04 )
MENU, ESC: EXIT: : MODIFY
21
(3.) SCREEN POSITION SETUP
1.
2. Press ENTER button for default.
3. Press ESC button to quit.
**** SCREEN POSITION****
UP
ENTER for Default
ESC to QUIT
DOWN
LEFT
RIGHT
Press direction buttons up/down/left/right to move screen position.
CAMERA SETUP
1. COLOR SETUP
2. TITLE SETUP
3. SCREEN POSITION SETUP
4. V-LOSS DISPLAY SETUP
5. VIDEO MASK SETUP
22
(4.) V-LOSS DISPLAY SETUP
- VLOSS FUNCTION: ON / OFF
Function Setup Notice
CH 1 ON / OFF V-Loss display if no camera in.
CH 2 ON / OFF
CH 3 ON / OFF
CH 4 ON / OFF
VLOSS SETUP PAGE
**VLOSS FUNCTION:
CH1 VLOSS DISPLAY
CH2 VLOSS DISPLAY
CH3 VLOSS DISPLAY
CH4 VLOSS DISPLAY
MENU, ESC: EXIT: : MODIFY
CAMERA SETUP
1. COLOR SETUP
2. TITLE SETUP
3. SCREEN POSITION SETUP
4. V-LOSS DISPLAY SETUP
5. VIDEO MASK SETUP
Press direction buttons up/down/left/right to choose items.
Press values change button to change values.
23
(5.) VIDEO MASK SETUP
- Video mask setup
Function Setup Notice
CH 1 ON / OFF MASK means this channel would not display on the live screen, but it still recording
CH 2 ON / OFF
CH 3 ON / OFF
CH 4 ON / OFF
CAMERA SETUP
1. COLOR SETUP
2. TITLE SETUP
3. SCREEN POSITION SETUP
4. V-LOSS DISPLAY SETUP
5. VIDEO MASK SETUP
VIDEO MASK SETUP PAGE
CH1 VIDEO MASK
CH2 VIDEO MASK
CH3 VIDEO MASK
CH4 VIDEO MASK
MENU, ESC: EXIT: : MODIFY
Press direction buttons up/down/left/right to choose items.
Press values change button to change values.
24
5. BUZZER
SETUP
- SYSTEM BUZZER: Buzzer function
Function Setup Notice
BUTTON BUZZER ON / OFF
ALARM BUZZER ON / OFF
MOTION BUZZER ON / OFF
VLOSS BUZZER ON / OFF
BUZZER SETUP PAGE
**SYSTEM BUZZER
ON
BUTTON BUZZER ON
ALARM BUZZER
ON
MOTION BUZZER
ON
VLOSS BUZZER
ON
MENU, ESC: EXIT: : MODIFY
Press direction buttons up/down to BUZZER SETUP items.
Press values change button to change values.
MAIN SETUP PAGE
1. HDD INFORMATION
2. DATE-TIME SETUP
3. DISPLAY SETUP
4. CAMERA SETUP
5. BUZZER SETUP
6. SYSTEM SETUP
7. ADVANCED SETUP
MENU, ESC: EXIT, ENTER: RUN
25
6. SYSTEM SETUP
SYSTEM SETUP
Function Setup Notice
DWELL INTERVAL 0 ~ 999 SEC
LANGUAGE ENGLISH / CHINESE / JAPANESE
VIDEO INPUT: AUTO / NTSC / PAL NTSC / PAL system detection
WATERMARK
CHECK
ON / OFF
485 ID 01 ~ 16
RS-485
PROTOCOL
KEYB / LILIN / PELCO-P / PELCO-D / NICECAM
RS-485 BAUD
RATE
1200 / 2400 / 4800 / 9600
RS-485 ID and protocol is the command for system control keyboard. If user has no keyboard to
control then does not have to care.
SYSTEM SETUP
1. DWELL INTERVAL
2. LANGUAGE
3. VIDEO INPUT
4. WATERMARK CHECK
5. RS-485 ID
6. RS-485 PROTOCOL
7. RS-485 BAUD RATE
MENU, ESC: EXIT: : MODIFY
MAIN SETUP PAGE
1. HDD INFORMATION
2. DATE-TIME SETUP
3. DISPLAY SETUP
4. CAMERA SETUP
5. BUZZER
SETUP
6. SYSTEM SETUP
7. ADVANCED SETUP
MENU, ESC: EXIT, ENTER: RUN
Press direction buttons up/down to choose items.
Press values change button to change values.
26
8. ADV ANCED SETUP
1. Alarm function: ON / OFF
2.Alarm duration: 0 ~ 999
- ALARM RELAY SETUP PAGE
Function Setup Notice
Alarm 01 ON / OFF
Alarm 02 ON / OFF
Alarm 03 ON / OFF
Alarm 04 ON / OFF
- ALARM POLARITY SETUP PAGE
Alarm 01 NO / NC / OFF
Alarm 02 NO / NC / OFF
Alarm 03 NO / NC / OFF
Alarm 04 NO / NC / OFF
Press direction buttons up/down to choose items.
Press values change button to change values.
ALARM SETUP PAGE
1. ALARM FUNCTION ON / OFF
2. ALARM DURATION
3. ALARM RELAY SETUP<
4. ALARM POLARITY SETUP<
MENU, ESC: EXIT: : MODIFY
MAIN SETUP PAGE
1. HDD INFORMATION
2. DATE-TIME SETUP
3. DISPLAY SETUP
4. CAMERA SETUP
5. BUZZER
SETUP
6. SYSTEM SETUP
7. ADV ANCED SETUP
MENU, ESC: EXIT, ENTER: RUN
ADVANCED SETUP PAGE
1. ALARM SETUP
2. MOTION SETUP
3. RECORD SETUP
4. PASSWORD SETUP
5. HDD FORMAT
6. FACTORY DEFAULT
ADVANCED SETUP PAGE
1. ALARM SETUP
2. MOTION SETUP
3. RECORD SETUP
4. PASSWORD SETUP
5. HDD FORMAT
6. FACTORY DEFAULT
27
2. MOTION SETUP
MOTION SETUP
Function setup Notice
MOTION
FUNCTION
ON / OFF For all channel
MOTION
DURATION
001 ~ 999
CHANNEL
NUMBER
01 / 02 / 03 / 04
SENSITIVITY 1 ~ 32 Adjusts motion Detection Sensitivity low Æ high
VELOCITY
1 ~ 10
Adjusts motion object slow /fast speed detection
slow speedÆfast speed
MOTION ACTIVE ON / OFF The function only for channel motion detect active, not for motion
record per each
MOTION RELAY ON / OFF
MOTION SETUP PAGE
**MOTION FUNCTION ON
**MOTION DURATION
**CHANNEL NUMBER
1. SENSITIVITY
2. VELOCITY
3. MOTION ACTIVE
4. MOTION RELAY
5. MOTION AREA SETUP
MENU, ESC: EXIT: : MODIFY
Press direction buttons up/down to choose items.
Press values change button to change values.
ADVANCED SETUP PAGE
1. ALARM SETUP
2. MOTION SETUP
3. RECORD SETUP
4. PASSWORD SETUP
5. HDD FORMAT
6. FACTORY DEFAULT
28
> MOTION AREA SETUP <
All area detect with factory default. Press quad button to change mode and then increase or reduce.
For example:
Icon:
Press to increase all area, press to reduce all area.
Icon:
Press Up / Down / Left / Right direction key to move, press to increase lattices; press to reduce lattices.
Icon: +
Press Up / Down / Left / Right direction key to move and increase area.
Icon: X
Press Up / Down / Left / Right direction key to move and reduce area.
Clear lattices
Press value change button to reduce.
Add lattices Press value change button to reduce.
29
3. RECORD SETUP
RECORD SETUP
1) HDD FULL: When hard disk is full, DVR next step is kept overwrite record or stop record?
-OVERWRITE / STOP REC
2) RECORD SPEED: Record FPS setup
-1/30(1/30), 1/15(1/15), 1/10(1/10), 1/5 (1/5), 1/3 (1/3), 1/2 (1/2), 1(1), 2(2), 3(3.13), 5(5), 10 (8.33),
15(12.5), 30(25), 60(50), 120(100).
3) RECORD MODE: Record mode setup.
-ALWAYS / SCHEDULE / EVENT / EVENT ON SCHEDULE / EVENT + SCHEDULE
4) RECORD AUDIO: Audio record setup
-ON / OFF. No audio record after 1 fps.
5) QUALITY: Record image quality setup
- SUPER / HIGH / FINE / NORMAL / LOW
6) SCHEDULE SETUP
RECORD SETUP
1. HDD FULL
2. RECORD SPEED
3. RECORD MODE
4. RECORD AUDIO
5. QUALITY
6. SCHEDULE SETUP
MENU, ESC: EXIT: : MODIFY
Press direction buttons up/down to choose items.
Press values change button to change values.
ADVANCED SETUP PAGE
1. ALARM SETUP
2. MOTION SETUP
3. RECORD SETUP
4. PASSWORD SETUP
5. HDD FORMAT
6. FACTORY DEFAULT
30
Additional:
2. RECORD SPEED. 1/30(1/30), 1/15(1/15), 1/10(1/10), 1/5 (1/5), 1/3 (1/3), 1/2 (1/2), 1(1), 2(2), 3(3.13), 5(5),
10 (8.33), 15(12.5), 30(25), 60(50), 120(100).
-120 for the real time recording. When playback, it displays 30 frames per each channel on FULL screen, 15
frames per each channel on 4-split screen.
3. RECORD MODE. ALWAYS / SCHEDULE / EVENT / EVENT ON SCHEDULE / EVENT + SCHEDULE.
-Always: 24 hours recording. Manual record or stop.
-Schedule: Date and time schedule recording mode.
-Event: Alarm / Motion / V-Loss event mode recording.
-Event on schedule: Event record only on schedule time.
-Event + Schedule: Except event on schedule recording, it would still do record if event happens not on
schedule time.
4. RECORD AUDIO: ON / OFF.
-Choose on, DVR would do audio recording.
31
>SCHEDULE SETUP<
SCHEDULE SETUP
CURSOR STEP 30MIN / 6MIN
SUN
MON
TUE
WED
THU
FRI
SAT
RECORD SETUP
1. HDD FULL
2. RECORD SCHEDULE
3. RECORD MOTION
4. RECORD ALARM
5. RECORD POWER ON
6. RESOLUTION
>SCHEDULE SETUP<
>RECORD SPEED SETUP<
Press direction buttons up/down to
SCHEDULE items.
Press values change button to change values.
Press direction buttons up/down/left/right to see
date and time difference.
Press values change left/right button to change 30MIN or 6 MIN
++ / - - : Increase / Reduce. Every day record with factory default.
On , use up/down button to choose date, press mode button to change on
+ + or - -. After, use direction left / right button to start increase or reduce time area.
Factory default is everyday all schedules time on
recording.
Mode function button
+ + increase
- - reduce
32
30MIN
SUN
00:00 01:00 02:00 03:00 04:00 05:00 06:00 07:00 08:00 09:00 10:00 11:00 12:00 13:00 14:00 15:00 16:00 17:00 18:00 19:00 20:00 21:00 22:00 23:00
00:30 01:30 02:30 03:30 04:30 05:30 06:30 07:30 08:30 09:30 10:30 11:30 12:30 13:30 14:30 15:30 16:30 17:30 18:30 19:30 20:30 21:30 22:30 23:30
MON
00:00 01:00 02:00 03:00 04:00 05:00 06:00 07:00 08:00 09:00 10:00 11:00 12:00 13:00 14:00 15:00 16:00 17:00 18:00 19:00 20:00 21:00 22:00 23:00
00:30 01:30 02:30 03:30 04:30 05:30 06:30 07:30 08:30 09:30 10:30 11:30 12:30 13:30 14:30 15:30 16:30 17:30 18:30 19:30 20:30 21:30 22:30 23:30
TUE
00:00 01:00 02:00 03:00 04:00 05:00 06:00 07:00 08:00 09:00 10:00 11:00 12:00 13:00 14:00 15:00 16:00 17:00 18:00 19:00 20:00 21:00 22:00 23:00
00:30 01:30 02:30 03:30 04:30 05:30 06:30 07:30 08:30 09:30 10:30 11:30 12:30 13:30 14:30 15:30 16:30 17:30 18:30 19:30 20:30 21:30 22:30 23:30
WED
00:00 01:00 02:00 03:00 04:00 05:00 06:00 07:00 08:00 09:00 10:00 11:00 12:00 13:00 14:00 15:00 16:00 17:00 18:00 19:00 20:00 21:00 22:00 23:00
00:30 01:30 02:30 03:30 04:30 05:30 06:30 07:30 08:30 09:30 10:30 11:30 12:30 13:30 14:30 15:30 16:30 17:30 18:30 19:30 20:30 21:30 22:30 23:30
THU
00:00 01:00 02:00 03:00 04:00 05:00 06:00 07:00 08:00 09:00 10:00 11:00 12:00 13:00 14:00 15:00 16:00 17:00 18:00 19:00 20:00 21:00 22:00 23:00
00:30 01:30 02:30 03:30 04:30 05:30 06:30 07:30 08:30 09:30 10:30 11:30 12:30 13:30 14:30 15:30 16:30 17:30 18:30 19:30 20:30 21:30 22:30 23:30
FRI
00:00 01:00 02:00 03:00 04:00 05:00 06:00 07:00 08:00 09:00 10:00 11:00 12:00 13:00 14:00 15:00 16:00 17:00 18:00 19:00 20:00 21:00 22:00 23:00
00:30 01:30 02:30 03:30 04:30 05:30 06:30 07:30 08:30 09:30 10:30 11:30 12:30 13:30 14:30 15:30 16:30 17:30 18:30 19:30 20:30 21:30 22:30 23:30
SAT
00:00 01:00 02:00 03:00 04:00 05:00 06:00 07:00 08:00 09:00 10:00 11:00 12:00 13:00 14:00 15:00 16:00 17:00 18:00 19:00 20:00 21:00 22:00 23:00
00:30 01:30 02:30 03:30 04:30 05:30 06:30 07:30 08:30 09:30 10:30 11:30 12:30 13:30 14:30 15:30 16:30 17:30 18:30 19:30 20:30 21:30 22:30 23:30
For example: TUE ~ SAT, all day schedule time recording, but SUN 07:00 ~ 22:00 and MON 01:30 ~ 11:30
do schedule recording. User can press ENTER to see the schedule time area difference.
SCHEDULE SETUP
CURSOR STEP
33
5. PASSWORD SETUP
1) LEVEL (Log In level ID type setup)
>NONE / ADMIN / USER
-ADMIN:
-USER
-NONE, user does not need to insert password before enter in MENU.
2) ADMIN password
>44444 (Factory Default)
3) USER password
>11111 (Factory Default)
Choose ADMIN: Only admin password can login advance menu.
Choose User: Both user and admin password can login menu but can not go advance menu.
PASSWORD SETUP PAGE
1. LEVEL:( )
2. ADMIN:( )
3. USER :( )
Press values change button to change values.
Press direction buttons up/down/left/right to
Choose items position.
Press direction buttons up/down/left/right to choose items position.
Press numeric (1 ~ 4 )button or remote controller ( 1 ~ 4 )to choose password.
Notice:
Password always 5 character input, cannot < 5 characters
ADVANCED SETUP PAGE
1. ALARM SETUP
2. MOTION SETUP
3. RECORD SETUP
4. EVENT
5. PASSWORD SETUP
6. HDD FORMAT
7. FACTORY DEFAULT
34
6. HDD FORMAT
Æ HDD FORMAT CAUTION!! :
7. FACTORY DEFAULT
** HDD FORMAT CAUTION!!**
ALL DATA IN HDD WILL BE
DESTROYED!!
PRESS [ENTER] TO FORMAT.
PRESS [ESC] TO CANCEL.
Press direction buttons up/down to
HDD FORMAT items position.
Press ENTER to format all HDD.
Caution: User can format HDD only when
all HDD stop record or playback.
Press ENTER button to format hard disk.
Press ESC button to cancel hard disk format
ADVANCED SETUP PAGE
1. ALARM SETUP
2. MOTION SETUP
3. RECORD SETUP
4. EVENT
5. PASSWORD SETUP
6. HDD FORMAT
7. FACTORY DEFAULT
Press direction buttons up/down to
FACTORY DEFAULT items position.
Press ENTER to restore.
** CAUTION!!**
ALL SETUP VALUE WILL BE CLEAR,
AND RESTORE FACTORY DEFAULT!!
PRESS [ENTER] TO RESTORE.
PRESS [ESC] TO CANCEL.
Press ENTER button to restore.
Press ESC button to cancel.
ADVANCED SETUP PAGE
1. ALARM SETUP
2. MOTION SETUP
3. RECORD SETUP
4. EVENT
5. PASSWORD SETUP
6. HDD FORMAT
7. FACTORY DEFAULT
35
1. CD folder, save setup.exe to PC hard disk or double click it.
2. Acrobat Adobe PDF installed in PC is necessary. PDF 10 is not support currently.
CF Card Data Read on PC
2. Install Shield Wizard processing.
36
3. Click Next.
4. Choose folder.
37
5. After choose folder, click OK.
6. Click install to start.
38
7. Installing
8. Click Finish
39
StartÆProgramÆ Video ViewerÆVideo Viewer
Click Local Search.
Left key of mouse click Local Search.
40
Choose folder
Choose new removable hard diskÆ BACKUP.DVR file. ÆOPEN.
Click folder.
41
Start to playback
Icon:
Left key of mouse click play
Folder Play Stop First End
Forward / Reverse
Still playback
42
Picture capture save. (.JPG file saves.) Only camera full channel save, no quad pictures save.
For example: Channel 1 .jpg save. Mouse click 1 channel once, then click mouse right button.
Choose save asÆchoose the folder you want to save.
Type any file name you want, and then click save.
43
Or choose save all. Save all cameras full channel picture.
Choose folder and type file name.
44
Click mouse left button, blue bar display. Click mouse right button to choose 1 ~ 4 cameras to change
position.
Icon function:
Setting:
Video Format: NTSC or PAL.
Choose Codec: AVI encode format.
Show Watermark: Water mark function on or off.
45
Video Format: Chose NTSC or PAL.
Choose Codec: File format.
Confirm
Cancel
Information
Half and Full screen choose
and Record frame rate 1 ~ 30
46
Show Watermark: Water mark function or off.
To check file has been modify or not.
AVI file save:
Choose folder and
type file name
AVI button: AVI file save.
47
Click save:
Click OK, and then AVI red light on:
Choose 1 ~ 4,
and then click OK.
Click play button to start
record, Click AVI button to stop.
AVI red light on, start to record.
48
JPG file save:
Choose folder and type file name
Choose camera 1 ~ 4 or save all.
Help
49
1. Take HDD out from DVR to personal computer. Make sure hard disk in PC is Master or Slave, switch hard
disk jumper to Master or Slave.
2. Computer power on, do not need to BIOS setup, just login Windows system.
3. StartÆProgramÆ Video ViewerÆ Video Viewer
4. Click HDD Scan.
Hard Disk Data Read
Left key of mouse click HDD Scan.
Click here, hard disk list on. Click the
correct DVR hard disk, data will not
loose if choose wrong HDD.
50
Hard Disk list on:
Click correct hard disk model, after function on, user can start to data read. Function access is same as prior
pages.
Click here, hard disk list on. Click the correct
DVR hard disk, data will not loose if choose
wrong HDD.
51
Record Quality: Low. KB Range: Lowest: 13, Highest: 20. Average: 17.
REC FPS 120 60 30 15 10
REC Hour 21.7 21.7 43.5 87.1 130.7
REC FPS 5 3 2 1 1/2
REC Hour 261.4 435.7 653.5 1307.1 2614.3
REC FPS 1/3 1/5 1/10 1/15 1/30
REC Hour 4357.2 6535.9 13071.8 21786.4 43572.8
Record Quality: Normal. KB Range: Lowest: 14, Highest: 25. Average: 20.
REC FPS 120 60 30 15 10
REC Hour 18.5 18.5 37 74 111.1
REC FPS 5 3 2 1 1/2
REC Hour 222.2 370.3 555.5 1111.1 2222.2
REC FPS 1/3 1/5 1/10 1/15 1/30
REC Hour 3703.7 5555.5 11111.1 18518.5 37037
Record Quality: Fine. KB Range: Lowest: 15, Highest: 28. Average: 22.
REC FPS 120 60 30 15 10
REC Hour 16.8 16.8 33.6 67.3 101
REC FPS 5 3 2 1 1/2
REC Hour 202 336.7 505 1010.1 2020.2
REC FPS 1/3 1/5 1/10 1/15 1/30
REC Hour 3367 5050.5 10101 16835 33670
Record Quality: High. KB Range: Lowest: 17, Highest: 30. Average: 24.
REC FPS 120 60 30 15 10
REC Hour 15.4 15.4 30.8 61.7 92.5
REC FPS 5 3 2 1 1/2
REC Hour 185.1 308.6 462.9 925.9 1851.8
REC FPS 1/3 1/5 1/10 1/15 1/30
REC Hour 3086.4 4629.6 9259.2 15432 30864.1
Record Quality: Super. KB Range: Lowest: 19, Highest: 45. Average: 32.
REC FPS 120 60 30 15 10
REC Hour 11.5 11.5 23.1 46.2 69.4
REC FPS 5 3 2 1 1/2
REC Hour 138.8 231.4 347.2 694.4 1388.8
REC FPS 1/3 1/5 1/10 1/15 1/30
REC Hour 2314.8 3472.2 6944.4 11574 23148.1
Record Time Table: 80GB HD
52
Accessories:
1. 20 PIN Male to Female D-SUB pin cable X 1
2. VGA PCB bracket X1
3. Screws X4
(only fit on product serials Z7-00-VGA0-00)
1. VGA board introduction.
3. Resolution and NTSC/PAL switcher table
Pin 4 Resolution Pin 1 Pin 2 Pin 3
PAL -----ON 640X480 60HZ ON ON ON
NTSC ---OFF 800X600 60HZ ON ON OFF
1024X768 60HZ ON OFF ON
640X480 75HZ ON OFF OFF
800X600 75HZ OFF ON ON
1024X768 75HZ OFF ON OFF
Resolution and NTSC/PAL switcher description
Step. 1 DVR Power off
Step. 2 Pin 4 switcher to NTSC or PAL
Step. 3 DVR Power on
Step. 4 Pin 1 ~3 switcher resolution. can not be power off DVR.
VGA Description (Optional)
VGA connector
Socket
Resolution and NTSC/PAL switcher
53
Hard Disk x 2 can be installed on DVR base. Both are 2-iron slices immobile type.
2 Iron slices are in the accessories box, please tell supplier if slices are not exist
2-iron slices immobile type:
Slices immobile type: 4 screws hole on each slice. 2 for DVR base fixed. Another 2 for hard disk fixed.
Hard disk install.: Locking hard disk screws, then locking DVR base screws to fixed on.
Additional
Loading...
