Thank you for purchasing our product.
Please read this User’s Manual before
using the product. Change without Notice
Long Distance Viewing
Smart Shift IR Camera
2
CONTENT TABLE
CONTENT TABLE…………………………………………..…………………….2
FCC STATEMENT…………………………………………..…………………….3
SAFETY PRECAUTIONS………………………………………............……….4
FUNCTION…………………………………………………………………..........5
Power and Video Output Jack………………………………………………... ..6
Dip functions………………………………………………………………………7
SPECIFICATIONS …….…………………………………………………………8
DIMENSION………………………………………………………………………11
3
FCC STATEMENT
WARNING
This device complies with Part 15 FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received including interference
that may cause undesired operation."
* Federal Communications Commission (FCC) Statement
WARNING
This Equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the ser is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
* You are cautioned that changes or modifications not expressly approved by
the party responsible for compliance could void your authority to operate the
equipment.
4
SAFETY PRECAUTIONS
Please read before using
1. Please read the service manual in details before using.
2. Don't try to disassemble the chassis or the part easily , in case that touch
the power by mistake , is shocked by electricity the danger or caused inside
parts to be damaged.
3. This product is a IP- 67 waterproof camera.
4. Do not attempt to service this unit yourself unless you are authorized to do
so. Opening cover may exposure you to dangerous voltage or other
hazards. Refer all servicing to qualified personnel only.
5. When being regular, please lock the parts firmly first to prevent the machine
damage.
6. Please connect correctly in accordance with the regulation, prevent the
machine from using or striking improperly.
7. Please don't use any organic solution or the corrosively sanitizer to insert
and wipe away the chassis outside. While inserting and wiping away please
turn off the power and use the clean cloth is stained with letting a small
amount of branch water, insert and wipe away appearance.
8. Please don't use the camera under the following abominable environments.
Temperature is lower than -10 degrees Centigrade, or is higher than +50
degrees Centigrade.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of insulated dangerous Voltage within the
product’s enclosure that may be sufficient magnitude to
constitute risk of electrical shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operation and maintenance (servicing) instructions in the
literature accompanying the appliance.
5
FUNCTION
The camera includes auto white balance mode (AWB) auto capture and color
temperature.
The range is 2400°K~9600°K。
SENSOR：Auto Cell Device Sensor, the IR LED would on when night comes to
make up lightness. IR LED would not on in the day, to reduce power
consumption. Illumination is 3.1 LUX (LED on) / 3.7LUX (LED off)。
LENS：Super sensitivity sensor lens.
IR LED：Super power LED IR light
6

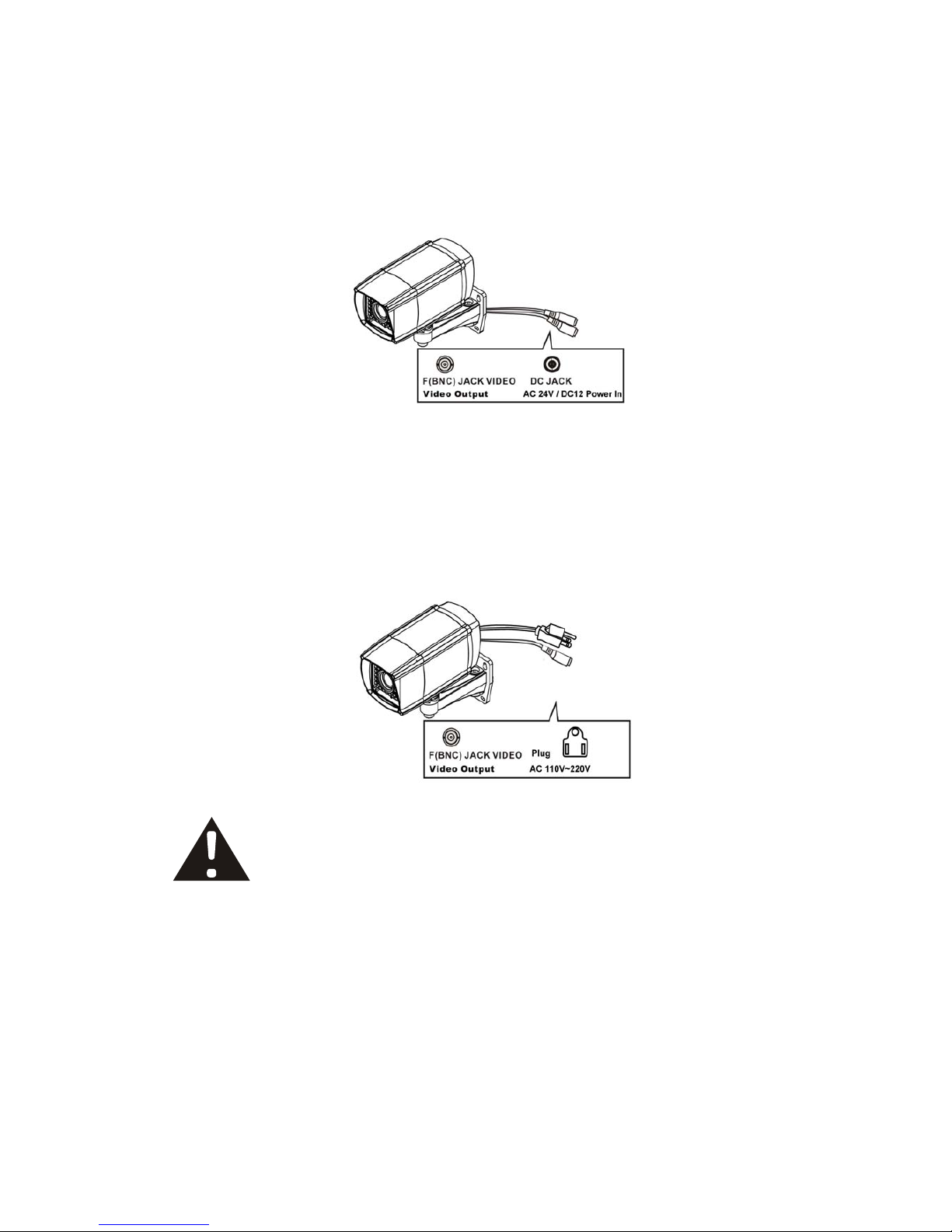

Power and video output JACK：
DC JACK is for the power in, it is necessary to use a constant
voltage adapter , F(BNC) JACK is for video output.
Power and video output JACK：
The plug is for the power in, it is necessary to use AC110V~220V, F(BNC)
JACK is for video output.
1. Please use suitable adapter DC12V ± 10 %, 1.5A. Otherwise, this product
will be damaged
2. Please use AC24V ± 10%. Otherwise, this product will be damaged
3. Please use AC110V~240V ± 10%. Otherwise, this product will be damaged
7
DIP functions:
Unscrew the back of the device, the DIP switches can be seen under the cover.
The DIP switches are adjustable and waterproof. The details of the functions
are shown below.
1. Make the camera on the bracket stable.
2. Then connect the 75Ωcoaxial cable to device video in.
3. Put the power cable on.
4. Users may adjust the camera poison and angle in different environment.
Dip switcher define
Notice：The camera lens is already on right focus, user please adjust it if in
need.
8
Specifications
Type TypeA-1 TypeA-2
Pick up device 1/3" interline transfer CCD
Total Pixels NTSC:811(H) x 508(V) / PAL:795(H) x 596(V)
Effective Pixels NTSC:768(H) x 494(V) / PAL:752(H) x 582(V)
Resolution 600 TV lines 530TV lines 600 TV lines 530 TV lines
Synchronizing
System
2:1 Internal
Scanning
System
NTSC: 525 Lines / 60 Fields ; PAL: 625 Lines / 50 Fields
S/N Ratio More than 48 dB (AGC OFF)
Electronic
Shutter
Auto 1/60 (1/50) ~1/100,000 sec.
Min. Illumination 0.2 lux color / F2.0(0 lux IR on)
Video Output 1.0 Vp-p / 75 ohm composite
IR Distance
40M (34pcs IR LED : 26pcs
Piranha /
8pcs Laser)
80M (42pcs IR LED : 36pcs
Piranha /
6pcs Reflection)
IR Trigger 3.1lux / 3.7lux IR On / Off
Lens Type
Standard : Varifocal Lens:9
~ 22mm / F1.6
Optional : Varifocal Lens:3.5
~ 12 mm / F1.4
Standard :Varifocal Lens: 6 ~
50 mm / F1.6
Optional : Varifocal Lens: 9 ~
22 mm / F1.6
Power Source
Standard : DC12V±10％ /
1A / AC 24V
Optional : DC12V±10％ /
1A
Standard : DC12V ±10% /
1.5 A / AC 24V
Optional : DC12V ±10% / 1.5
A ; AC 110V~240V
Power
Consumption
DC12V : 9W / AC24V:8.5W
DC12V : 6.5W
DC12V : 12W / AC24V :
11.5W
9
DC12V : 6.5W
AC110V : 10W ; AC240V :
10.5W
Current
DC12V : 730mA / AC24V :
600mA
DC12V : 540mA
DC12V : 1A / AC24V:800mA
DC12V : 540mA
AC110V : 215mA ; AC240V :
130mA
Operating
Temperature
-10℃ ~ 50℃ (14℉ ~ 122℉ )
Storage
Temperature
-20℃ ~ 70℃ (-4℉ ~ 158℉ )
Dimension
88.5(W) x 190(H) x
190(D)mm
100(W) x 203(H) x
222(D)mm
Weight N.W./G.W.: 1.5kg / 1.9kg N.W./G.W.: 1.74kg / 2.15kg
Weatherproof IP67
TypeB
Model TypeB-1 TypeB-2
Pick up device 1/3" interline transfer CCD
Total Pixels NTSC:811(H) x 508(V) / PAL:795(H) x 596(V)
Effective Pixels NTSC:768(H) x 494(V) / PAL:752(H) x 582(V)
Resolution 600 TV lines 530TV lines 600 TV lines
530 TV
lines
Synchronizing
System
2:1 Internal
Scanning
System
NTSC: 525 Lines / 60 Fields ; PAL: 625 Lines / 50 Fields
S/N Ratio More than 48 dB (AGC OFF)
Electronic
Shutter
Auto 1/60 (1/50) ~1/100,000 sec.
10
Min. Illumination 0.2 lux color / F2.0 (0 lux IR on)
Video Output 1.0 Vp-p / 75 ohm composite
IR Distance
40M (34pcs IR LED : 26pcs
Piranha / 8pcs Laser)
80M (42pcs IR LED :
36pcs Piranha / 6pcs
Reflection)
IR Trigger 3.1lux / 3.7lux IR On / Off
Lens Type
Standard:
Varifocal Lens: 9 ~ 22mm /
F1.6
Optional:Varifocal Lens:3.5 ~
12 mm / F1.4
Standard:
Varifocal Lens: 6 ~ 50
mm / F1.6
Optional: Varifocal Lens:
9 ~ 22 mm / F1.6
Power Source
DC12V±10％ / 1A DC12V±10％ / 1.5A
Power
Consumption
6.5W 9W
Current 540mA 720mA
Operating
Temperature
-10℃ ~ 50 ℃ (14℉ ~ 122℉ )
Storage
Temperature
-20℃ ~ 70 ℃ (-4℉ ~ 158℉ )
Dimension 88.5(W) x 191(H) x 154(D)mm
100(W) x 203(H) x
167(D)mm
Weight N.W./G.W.: 1.15kg / 1.59kg N.W./G.W.: 1.4kg / 1.85kg
Weatherproof IP67
Optional
accessory
Power Box for DC12V/AC24V switch or AC110~AC240
switch
11
DIMENSION
TypeA-1
TypeA-2
190
12
TypeB-1
TypeB-2
13
TypeB with Power Box
TypeB-1 with power box TypeB-2 with power box
Power Box Pin defines:
power +
power —
alarm + (N/A)
alarm — (N/A)
audio + (N/A)
audio — (N/A)
video +
video —
