Thank you for purchasing our product. Please read this user’s manual before using the product. Change without notice.

16/ 32

CH Hybrid DVR

User Manual

CAUTION

 Please read this user manual carefully to ensure that you can use the device correctly

and safely

 We do not warrant all the content is correct. The contents of this manual are subject to

change without notice

 This device should be operated only from the type of power source indicated on the

marking label. The voltage of the power must be verified before using. If not in use for a long time, pull out the plug from the socket

 Do not install this device near any heat sources such as radiators, heat registers, stoves

or other device that produce heat

 Do not install this device near water. Clean only with a dry cloth

 Do not block any ventilation openings. And ensure well ventilation around the machine

 Do not power off the DVR at normal recording condition! The correct operation to shut

off DVR is to stop recording firstly, and then select “shut-down” button at the right of the menu bar to exit, and finally to cut off the power.

 This machine is indoor using equipment. Do not expose the machine in rain or moist

environment. In case any solid or liquid get into the machine’s case, please cut off the power supply immediately, and ask for qualified technicians to check the machine before restart

 Refer all servicing to qualified service personnel. No any parts repaired by yourself

without technical aid or approval.

Main Features

• Real-time surveillance

• High resolution VGA output, HDMI output

• 2 way audio

• 3G Mobile surveillance(iPhone/ iPad/ Android)

Compression with latest H.264 video compression, better video quality and lower compression rate. Storage: 8 SATA HDD（FAT32 file system）

• Data back with USB thumb drive or USB external DVD burner. Each backup file size is

128MB.

• Adjustable record resolution, frame rate and quality

• WD1(960H)/AHD 720P+1080P/TVI720P+1080P/IP 720P+1080P

(support 8 IP camera input) record – 16CH Only

• Multi-record mode: manual, schedule, sensor and motion record.

• HDD recycle record.

• Single or Multi channel playback

• Record file lock protection

• With 16 channel Audio input / 1 channel audio output

With 16 channel alarm inputs / 4 channel alarm output

• Motion detection

• Pre and Post event record

• Channel related trigger record

• PTZ control

Multi PTZ protocol support Programmable 128 Preset points and 8 cruises Related trigger preset point control

• Authority account setup (1 admin and 63 users account)

• USB mouse control

To use USB mouse to control on friendly GUI

• Playback search mode: by time or event

• Event log and search

• Support network function

Multi connection type: STATIC (Fixed IP), DHCP, PPPOE Support DDNS、NAT (P2P)

Support event trigger to send E-mail Remote connection limitation Auto bandwidth adjustment by network status

• Support network remote control

Remote record Remote playback Remote PTZ control Remote configuration Remote IE surveillance Remote CMS control Remote EMAP control Remote camera color adjustment Remote snapshot Supports COC ( control over coaxial) function

1. Front Panel Instructions

• Notice: The pictures are only for reference; please make the object as the standard.

1.1 Front Panel

Label Function

LED indicator

Power Power indicator, when connection

HDD When HDD is writing and reading

Net When access to network

Backup When backup files and data

Play When playing video

REC When recording

Button

Audio/+ 1. Control voice 2. Increase the value in setup

PTZ/- 1. Enter PTZ mode in live

2. Decrease the value in setup

MENU Enter menu in live

INFO Check system information data

Backup Enter backup mode in live

Search Enter search mode

Record manually

Play/Pause

Stop/Esc

Rewind

Fast forward

1-9 Input number 1-9 or choose camera

0/10+

Icon Description

16 ch 32ch 16 ch 32ch

1 Split display 4 Split display

4 Split display 9 Split display

9 Split display 16 Split display

25 Split display 36 Split display

Direction

Change direction to select items

Multi-screen Change screen display mode like1/4/9/16/25 channel

Enter Confirm selection

USB

USB port To connect external USB devices like USB flash, USB

HDD, USB VCD/DVD

1.2 Rear Panel Instructions

Rear Panel for 16 CH

Rear Panel for 32 CH

Name

Descriptions

AC110/230 Power Input.

USB

To connect external USB devices like USB mouse or USB storage device.

LAN Network Port.

HDMI HDMI Port. Connect to high-definition display device.

VGA VGA Port. Connect to monitor.

E-SATA External HDD for backup

VIDEO IN 16 CH Video Inputs.(support AHD/TVI/Analogue)

AUDIO OUT Audio output, connect to the sound box.

AUDIO IN 16 CH Audio Input.

RS485 Connect to keyboard or speed dome; A is TX +; B is TX-.

ALARM IN 16 channel alarm inputs

ALARM OUT 4 channel alarm output

MIC IN 2 Way Audio Micphone

1.3 Remote control

◆ This remote control use AAA battery, the definition as following:

Remote Controller

Button Function

Power Button

Switch off—to stop DVR. Use it before turning off the power

Record Button To record manually

-/-- /0-9 Digital Button Input number or choose camera

Fn1 Button Unavailable temporarily

Multi Button To choose multi screen display mode

Next Button To switch the live image

SEQ To enter into auto dwell mode

Audio To enable audio output in live mode

Switch To switch the output between BNC and VGA

Direction button

To move cursor in setup or pan/title PTZ

Enter Button To confirm the choice or setup

Menu Button To enter into menu

Exit Button To exit the current interface

Focus/IRIS/Zoom/PTZ To control PTZ camera. Move camera /zoom /IRIS /Focus

Preset Button To enter into preset setting in PTZ mode

Cruise Button To enter into cruise setting in PTZ mode

Track Button To enter into track setting in PTZ mode

Wiper Button To enable wiper function in PTZ mode

Light Button To enable light function in PTZ mode

Clear Button To return to the previous interface

Fn2 Button Unavailable temporarily

Info Button Get information about DVR like firmware version, HDD information

Control playback. Play/Pause/Stop/Previous Section/Next

Section/Rewind/Fast Forward

Snap Button To take snapshots manually

Search Button To enter into search mode

Cut Button To set the start/end time for backup in playback mode

Backup Button To enter into backup mode

Zoom Button To zoom in the images

PIP Button To enter into picture in picture setting mode

◆ Switch Remote Control ID

Take remote control and point to DVR then continuously press “8”,”8”,”ID(0-65535)”,”Enter”.

＊The ID must be the same on DVR. ＊For example: If ID=1 , please take remote control and point to DVR then press 8,8,1,Enter. (Press 8,8,1,Enter will enable the IR function, if you want to avoid other remote controller affect the DVR, you can disable the IR function by press 8,8,2,Enter)

1.4 Mouse Control

◆Connection: Please connect the USB mouse to USB port on the front or back panel.

◆Mouse functions：

1）Under LIVE mode：

On every channel，you could double click the left button to switch FULL SCREEN and

double click again to switch back to original split mode.

On every channel，you could single click right button to popup MENU page.

2）Under MENU page：

Single click left button on any functional icon could enter the function page and Single click

right button to exit function page or jump back to previous page.

If you want to key in letter or digit, please move mouse to textbox then single click left

button on textbox. The virtual keyboard will pop up as following,

3）Under Backup mode：

Single click left button to select item, single click right button to jump back to previous page.

4）Under PTZ mode：

Single click left button to operate PTZ function, single click right button to jump back to previous page.

2 Basic Function Instruction

2.1 Power On/Off

Before you power on the unit, please make sure all the connection is good.

2.1.1 Power on

Step1: connect with the source power; switch on the power button near the power port in the rear panel Step2: the device will start to boot, and the power indicator will become blue Step3: before start, a WIZARD dialogue box will pop-out (refer to below picture) and show some information about time zone and time setup, IP information, record quick setup and HDD information page.

After the device powers on, if there is no menu or only has live image display, user can long press ESC button to switch.

• Notice: this serial device can only display menu on VGA monitor or BNC monitor at one time, if there is live image display without menu display, please check up whether other device has menu display firstly, or long press ESC key to wait for login dialog box to appear.

2.1.2 Power off

User can power off the device by using remote controller, keyboard and mouse.

By remote controller:

Step1: press Power button, the shut down window will appear, click OK, the unit will power off after a while. Step2: disconnect the power

By keyboard and mouse:

Step1: enter into Menu, then select “System Shut Down” icon, the Shut down window will appear Step2: click OK, the unit will power off after a while. Step3: disconnect the power

2.2 Login

User can login and logout the DVR system. User cannot do any other operations except changing the multi-screen display once logout.

Fig. 2-1 Login

• Notice: the default user name and password is “admin” and 123456”

• The concrete operation steps for change password, add or delete user please refer to Fig 2-1 User

management configuration for more details.

2.3 Live preview

Fig. 2-2 live preview interface

The explanation of symbol in the live preview interface:

symbol meaning symbol

meaning

Green Manual record Red Alarm in trigger record

Yellow Motion detection record Blue Schedule record

2.3.1 Live playback

Click Play button to playback the recorded video. Refer to Figure2-3. User can do concrete operation by click the buttons on screen.

Fig. 2-3 live playback

Item

Function Description

1 Playback process bar Last/next segment of record and time process 2 Playback basic function Play/ Pause / Stop / frame forward / fast forward / fast rewind 3 Display mode

4ch:1/ 4, 8ch、16ch:1/ 4/ 6/ 9/ 1+5/ 1+7,

4 Zoom Screen digital zoom x2 5 Color Setup picture color

6 Cut

Enable to select a specific part of the video and back it up on usb

drive 7 Camera name Enable or disable camera name display 8 Volume Volume mute on/off 9 Reduce Hide playback tool bar

10 Exit playback mode 11 Move the playback bar in the screen

3 Main menu setup guide

Click right mouse or press ESC button on the front panel, the control bar will display on the screen, refer to Fig 3-1:

1 Single Full channel 2 Multi 4ch:1/5, 8ch:1/4/9/12,

16ch:1/4/9/16/25 3 E-Zoom Live/playback digital zoomx2 4 Audio Audio channel setup and volume 5 PTZ Into PTZ control mode 6 Record Manual record 7 Playback Playback the nearest file 8 Main Menu Into main OSD 9 Dwell Channel sequence

Fig. 3-1 main menu toolbar

Click Menu button, the interface will pop-up as Fig. 3-2; press MENU button on the front panel or operate with remote controller also can display the main menu.

Main OSD

Fig. 3-2 system setup

Full channel switch, camera 1 ~ 5, camera 1 ~ 12, or camera 1~24

3.1 Basic configuration

Basic configuration includes three sub menus: system、date& time and DST.

3.1.1 System

Step1: enter into system configurationbasic configurationsystem; refer to Fig 3-3:

Fig 3-3 basic configuration-basic

Step2: in this interface user can setup the device name, device ID, video format, max network users, VGA resolution and language. The definitions for every parameters display as below: Device name: the name of the device. It may display on the client end or CMS that help user to recognize the device remotely.

Video format: two modes: PAL and NTSC. User can select the video format according to that of camera. Password check: enable this option, user needs to input user name and password can do corresponding

operations with the relevant right in system configuration.

Show time: display time in live. Max network uses: set the max user amount of network connection

Video Output: the resolution of live display interface, range from: VGA800*600 、 VGA1024*768、

VGA1280*1024, and HDMI

Language: setup the menu language. Logout after [Minutes]: defines time to logout the user from the OSD Startup wizard: tick off this item, there will display an opening wizard with time zone and time setup

information

No Image when Logout: if this option is tick, when user logout, live picture will be hidden Note: after changed the language and video output, the device needs to login again.

3.1.2 Time & date

Step1: enter into system configurationbasic configurationtime & date; refer to Fig 3-4:

Fig. 3-4 basic configuration-time & date

Step2: set the date format, time format, time zone in this interface; click off “sync time with NTP server” to refresh NTP server date; user

also can adjust system date manually

Step3: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface.

3.1.3 DST

Step1: enter into system configurationbasic configurationDST; refer to Fig. 3-5:

Fig. 3-5 basic configuration-DST

Step2: in this interface, enable daylight saving time, time offset, mode, start & end month/week/date, etc. Step3: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface.

3.2 Live configuration

Live configuration includes four submenus: live, host monitor, SPOT and mask.

3.2.1 Live

In this interface, user can setup camera name, adjust colors: brightness, hue, saturation and contrast. enter into system configurationlive configurationlive; refer to Fig 3-6:

Fig. 3-6 live configurationlive

3.2.2 Main monitor

Step1: enter into system configurationlive configurationmain monitor; refer to Fig 3-8:

Fig. 3-8 live configuration-main monitor

Step2: select split mode: 1×1、2×2、2×3、3×3、4×4 and channel

Step3: dwell time: the time interval for a certain dwell picture display switching to next dwell picture display

Step4: selected the split mode, then setup current picture group. Click button to setup the previous

channel groups of dwell picture, click button to set the latter channel groups of dwell picture. Step5: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface.

3.2.3 Mask

User can setup private mask area on the live image picture, max threes areas

Fig. 3-9 live configuration-mask

Setup mask area: click Setting button, enter into live image to press left mouse and drag mouse to set mask area, refer to below picture. Click Apply button to save the setting. Delete mask area: select a certain mask area, click left mouse to delete that mask area, click Apply button to save the setting.

Setup mask area

Notice: The mask area will not be recorded on DVR. Please use this function carefully.

Live image mask area

3.3 Record configuration

Record configuration includes five sub menus: enable, record bit rate, time, recycle record and stamp.

3.3.1 Enable

Step1: enter into system configurationrecord configurationenable; refer to Fig 3-10:

Fig. 3-10 record configuration-enable

Step2: tick off record, audio and record time Step3: user can setup all channels with same parameters, tick off “all”, then to do relevant setup. Step4: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface.

Definitions and descriptions of Record:

Parameter Meaning

Record Record switch of every channels Audio Enable live record audio

3.3.2 Record stream

Step1: enter into system configurationrecord configurationrecord bit rate When DVR receives the signals from camera, it will distinguish the signals (1080P/720P/WD1(960H)) and set the resolution automatically.

Note: if the rate value set is over high the maximum resources of the device, the value will be

adjusted automatically.

You can setup record frame rate and quality for each channel and change record resolution. Adjustable parameter as following,

Resolution

Frame Rate

Quality

Encode

Max bit

rate

TVI

720P 1~25fps(PAL)/1~30fps(NTSC)

The higher the value is, the clearer the recorded image is. Six options: lowest, lower, low, medium, higher and highest.

VBR and

CBR.

You shall adjust it subject to the actual network condition. 1536, 1792, 2048, 4096, 5120, 6144, 7168, 8192, 9216, 10240, 12288 kbps

1080P

1-15（NTSC）/1-12(PAL)

AHD

720P 1~25fps(PAL)/1~30fps(NTSC)

1080P

1-15（NTSC）/1-12(PAL)

WD1

(960H)

960H 1~25fps(PAL)/1~30fps(NTSC)

720P

1~25fps(PAL)/1~30fps(NTSC)

1080P

Step2: Set up rate, resolution, quality, encode and max bitrate Step3.: Select “All” to set the same settings for all channels. Click “Apply” button to save the setting.

3.3.3 Time

Step1: enter into system configurationrecord configuration time; refer to Fig 3-11:

Fig. 3-11 record configuration-time Pre-alarm record time: the record time before event happen i.e. record time before motion detection or sensor alarm is triggered.

Post-alarm record: set the post recording time after the alarm is finished, five options: 10s、15s、20s、30s

and 60s. Expire time: the hold time of saved records. If the set date is overdue, the record files will be deleted automatically. Step2: user can setup all channels with same parameters, tick off “all”, then to do relevant setup. Step3: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface.

3.3.4 Stamp

Stamp：User can overlap the channel name and time stamp on video.

Step1: enter into system configuration record configuration stamp; refer to Fig 3-12:

Fig. 3-12 record configuration-stamp Step2: tick off camera name, time stamp; click Set button, user can use cursor to drag the camera name and time stamp in random positions, refer to below Figures:

Before drag after drag

Step3: user can setup all channels with same parameters, tick off “all”, then to do relevant setup. Step4: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface.

3.3.5 Recycle record

Step1: enter into system configurationrecord configurationrecycle record;

Step2: tick off recycle record, the recycle record function will enable, it will cover the earlier recorded files and keep recoding when HDD is full; if disenable this function, it will stop recording when HDD is full. Step3: click “default” button to reset default setting; click “apply” button to save the setting; click “exit” button to exit current interface.

3.3.6 Snap

Step1: enter into system configurationrecord configurationsnap;

Step2: choose the resolution、quality、snap time interval(s) and snap number of snap shot. Step3: click “default” button to reset default setting; click “apply” button to save the setting; click “exit” button

to exit current interface.

3.4 Schedule configuration

Schedule configuration includes three sub menus: schedule, motion and alarm.

3.4.1 Schedule

The volume means the seven days of a week from Monday to Sunday, the row means 24 hours of a day. Click the grid to do relevant setup. Blue means checked area, gray means unchecked area. Step1: enter into system configurationschedule configurationschedule; refer to Fig 3-13:

Fig. 3-13 schedule configuration-schedule

Step2: select channel, double-click and a dialog box will pop-up as Fig 3-14, user can edit week schedule:

Fig. 3-14 schedule-week schedule

Click “add” button to add a certain day schedule; click “delete” button to delete the selected schedule; Copy: user can copy the specify schedule to other dates. Click “OK” button to save the setting, click “Exit” button to exit current interface. User can apply the schedule setting of certain channel to other or all channels, just only select channel

and click “Copy” button. Step3: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface.

3.4.2 Motion

Step1: enter into system configurationschedule configurationmotion; refer to Fig 3-15:

Fig. 3-15 schedule configuration-motion

Step2: the setup steps of motion are familiar with schedule; user can refer to 4.4.1 Schedule for details.

Note: the default schedule of motion detection is full-selected, that is, the color of schedule setting interface is blue.

3.4.3 Sensor

Step1: enter into system configurationschedule configurationalarm; refer to Fig 3-16: Step2: the setup steps of alarm are familiar with schedule; user can refer to 4.4.1 Schedule for details.

Note: the default schedule of sensor is full-selected, that is, the color of schedule setting interface is blue.

Fig. 3-16 schedule configuration-sensor

3.5 Alarm configuration

Alarm configuration includes five sub menus: motion, video loss, other alarm and alarm out.

3.5.1 Motion

Motion includes two sub menus: motion and schedule. ① Motion Step1: enter into system configurationalarm configurationmotion; refer to Fig 3-18:

Fig 3-18 alarm configuration-motion Step2: enable motion alarm, set alarm hold time which means time interval between two adjacent detective motions. If there is other motion detected during the interval period which is considered continuous movement; otherwise, it will be considered that those two adjacent detective motions are two different motion events. Click Trigger button, a dialog box will pop-up:

Fig 3-19 Trigger (motion alarm) Step3: the setup steps of motion trigger. (1)Enable the buzzer if user need this function. (2)Choose the channel which when event happened to show full screen, (3)Choose enable transfer e-mail function or not. (Before enable this function, user need to set-up E-mail transit data. please reference 3.6.3) (4)Choose the snap shot channel. After complete the configuration, click ok to finish.

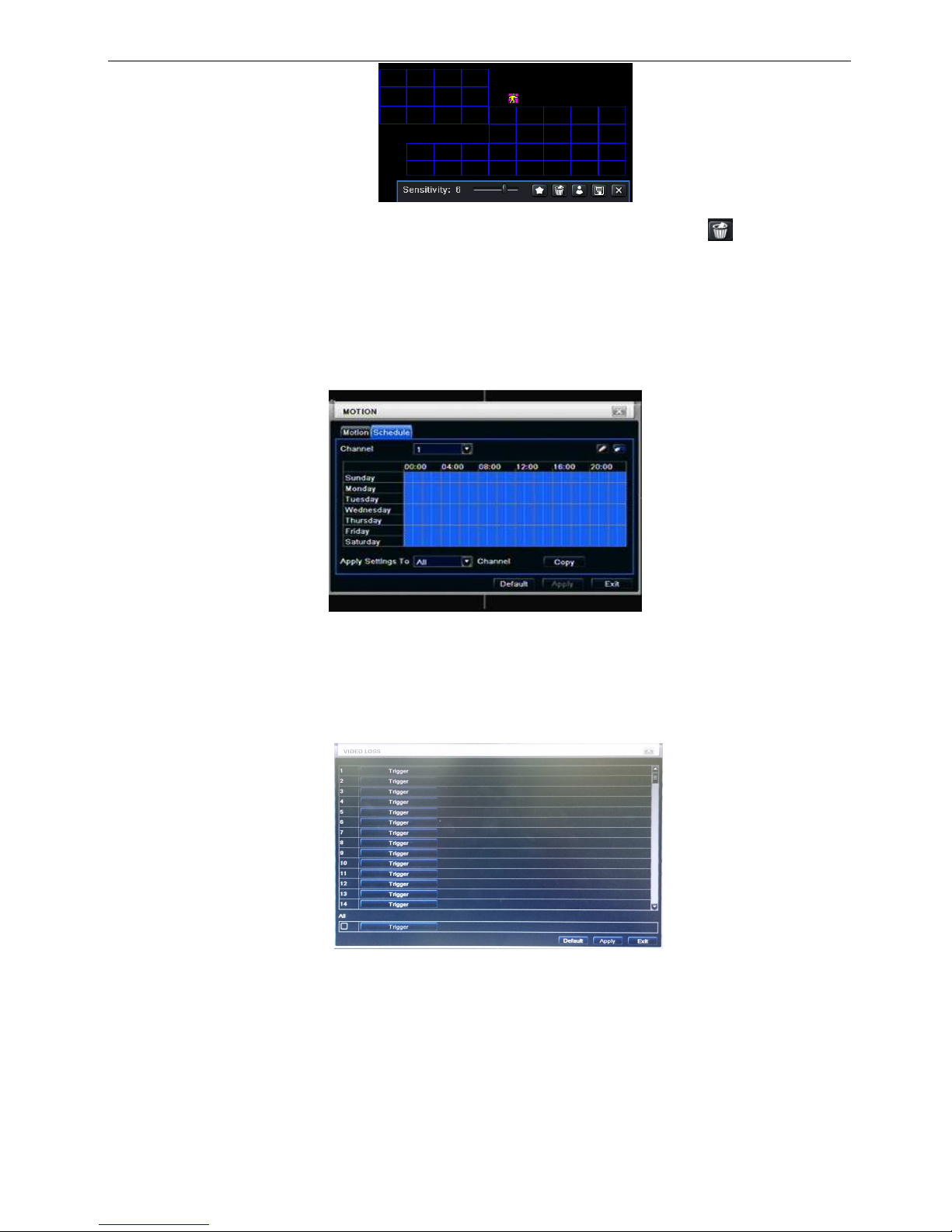

Step4: click Area button, a dialog box will pop-up as Fig 3-20:

Fig 3-20 motion-area Step5: in the Area interface, user can drag slide bar to set the sensitivity value(1-8), the default value is 4. The higher the value is the higher sensitivity you get. Due to the sensitivity is influenced by color and time

(day or night), user can adjust its value according to the practical conditions; click icon, set the whole

area as detection area; click

icon, the set detection area will be cleared; click icon, user can test

whether the sensitivity value and motion area are suitable accordingly（refer to following picture）; Click

icon, to save the setting; click icon, exit current interface.

Note: when user drag mouse to set motion detection area, they have to click icon to clear all set detection area firstly, and then make the operation.

Step6: user can setup all channels with same parameters, tick off “all”, then to do relevant setup.

Step7: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface.

① Schedule Step1: enter into system configurationalarm configurationschedule; refer to Fig 3-21:

Fig 3-21 alarm configuration-schedule

Step2: the setup steps of alarm schedule are familiar with schedule; user can refer to 4.4.1 Schedule for details.

3.5.2 Video loss

Step1: enter into system configurationalarm configurationvideo loss; refer to Fig 3-22:

Fig 3-22 alarm configuration-video loss

Step2: Setup steps of video loss trigger. (1)Enable the buzzer if user need this function. (2)Choose the channel which when event happened to show full screen, (3)Choose enable transfer e-mail function or not. (Before enable this function, user need to set-up E-mail transit data. please reference 3.6.3) (4)Choose the snap shot channel.

After complete the configuration, click ok to finish.

Fig 3-23 Trigger (video loss)

3.5.3 Other alarm

Fig 3-24 other alarm Step1: enter into system configurationother alarm; refer to Fig 3-24: Step2: select a hard disk in the pull down list box, when the disk capacity is lower than that value, there will appear some text information on the lower right of the live image. Step3: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface.

3.5.4 Alarm out

Alarm out includes one sub menus: buzzer

Buzzer Step1: enter into system configurationbuzzer; (if here sets is off, all event without buzzer) Step2: tick off Buzzer, set buzzer alarm hold time

3.6 Network configuration

Network configuration includes six submenus: Network, Sub Stream, Email, Server, NAT and Other Settings. Network settings must be configured if DVR is used for monitoring over network.

3.6.1 Network

Step1: enter into system configurationnetwork configurationnetwork; refer to Fig 3-25:

Fig 3-25 network configuration-network

Step2: HTTP port: the default value is 80. If the value changed, user needs to add the port number when typing IP address in IE address blank .i.e. set HTTP port to 82, IP address: http://192.168.0.25, user needs to input that address: http://192.168.0.25:82 into IE browser. Server port: communication port

There are 3 different types to connect internet, please select an appropriate type to fit your network environment.

1. STATIC (FIXED) IP: Input IP address, subnet mask, gateway and DNS server manually.

2. DHCP : Check the "Obtain IP address automatically", the device will acquire IP address, subnet mask, gateway and DNS service.

3. PPPOE : input the user name and password from ISP provider.

No matter which type you use, please click “Test” before you click “Apply” to make the setting work.

Definitions and descriptions of network configuration:

Parameter Meaning

HTTP port The port number of accessing IE browser. The default

port is 80

Server port The port number of data. The default port is 6036

Static IP

IP address The IP address of the server

Subnet mask The subnet mask of the server

Gateway The gateway of the server

DNS server The address of DNS server

PPPOE

User name User name of broad band dial-up

Password Password of broad band dial-up

DDNS server

DDNS server Website provided by dynamic domain name supplier. The

optional: www.meibu.com，www.dyndns.com

User name User name for log in the website of domain name

supplier

Password Password for log in the website of domain name supplier

3.6.2 Network stream

Step1: enter into system configurationnetwork configurationsub stream; refer to Fig 3-26:

Fig 3-26 network configuration-sub stream

Step2: select fps, resolution, quality, encode and max bit rate Step3: user can setup all channels with same parameters, tick off “all”, then to do relevant setup. Step4: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface.

Definitions and descriptions of network stream:

Parameter

Meaning

Signal TVI/AHD / 960H IP

FPS

1-30（NTSC）/1-25(PAL) 1-30（NTSC）/1-25(PAL)

Resolution

CIF

CIF、D1

Quality

The quality of the clients’ image. The higher the value is, the clearer the record image. Six options: lowest, lower, low, medium, higher and highest.

Encode

VBR and CBR.

Max bitrate

Range from: 32~768 kbps Range from: 32~768 kbps

3.6.3 Email

Step1: enter into system configurationnetwork configurationemail; refer to Fig 3-27:

Fig 3-27 network configuration-email

SMTP Server/Port: the name and port number of SMTP server. If your SMTP server supports the secure connection (SSL), like Gmail, please set the “Port” to 465 and check “SSL Check” Send address/password: sender’s email address/password Receive address: receiver’s email address. Here user can add at least three mail addresses.

Click TEST button to test the valid of the mailbox.

Attaching image amount: user can attach at most three images at one time. Snap Time Interval(s): User can select snap time interval. “Strongly recommend to use Google mail (gmail)”

For Example: SMTP Server: smtp.gmail.com Port: 465 SSL Check: V Send Address: alan@gmail.com Receive Address1: test@yahoo.com

3.6.4 Server

This function is mainly used for connecting NVMS. The setting steps are as follows: Step1: In the server interface, select “Enable” as shown in the Fig 3-28. Step2: Check the IP address and port of the transfer media server in the NVMS. The default server port for auto report is 2009.

Fig 3-28 network configuration-Server

Step3: Enable the auto report in the NVMS when adding a new device. Then input the remaining information of the device in the NVMS and self-define a device ID. Step4: Input the above-mentioned server IP, server port and device ID in the server interface. Then click “Apply” button to save the setting. Now, the CMS system will automatically connect this device.

3.6.5 NAT (P2P Internet penetrate function)

This function is used for connecting the device to mobile phone (Superlive Pro program), or browse from website. (support IE、Chrome and Firefox browser)

Step1: Go to MenuSetup NetworkNAT interface. Refer to Fig 3-29. Step2: Enable NAT.

※ (The NAT Server default is www.autonat.com and Port number is 8989, no need to modify.)

Step3: Click “Apply” to save the settings.

※ When you enable the function, there will pop-up the following information, remind you modify the account and password, avoid security risk.

※ How to use this function, please reference the Appendix A part setting step.

3.6.6 Other settings

Step1: Enable DDNS server: user needs to input user name， password and host domain name of the

registered website, click TEST to test the effectively of relevant information.

Fig 3-30 network configuration-other settings

STEP2: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface.

Note: The domain name server that selected by user is a banding domain name of DVR. User should logon the website which provided by the server supplier to register a user name and password firstly, and then apply a domain name on line for the server. After the successful apply, user can access the server from the IE client by inputting that domain name.

*Please reference Appendix B to setup DDNS function.

3.7 User management configuration

Step1: enter into system configurationuser management configuration; refer to Fig 3-31:

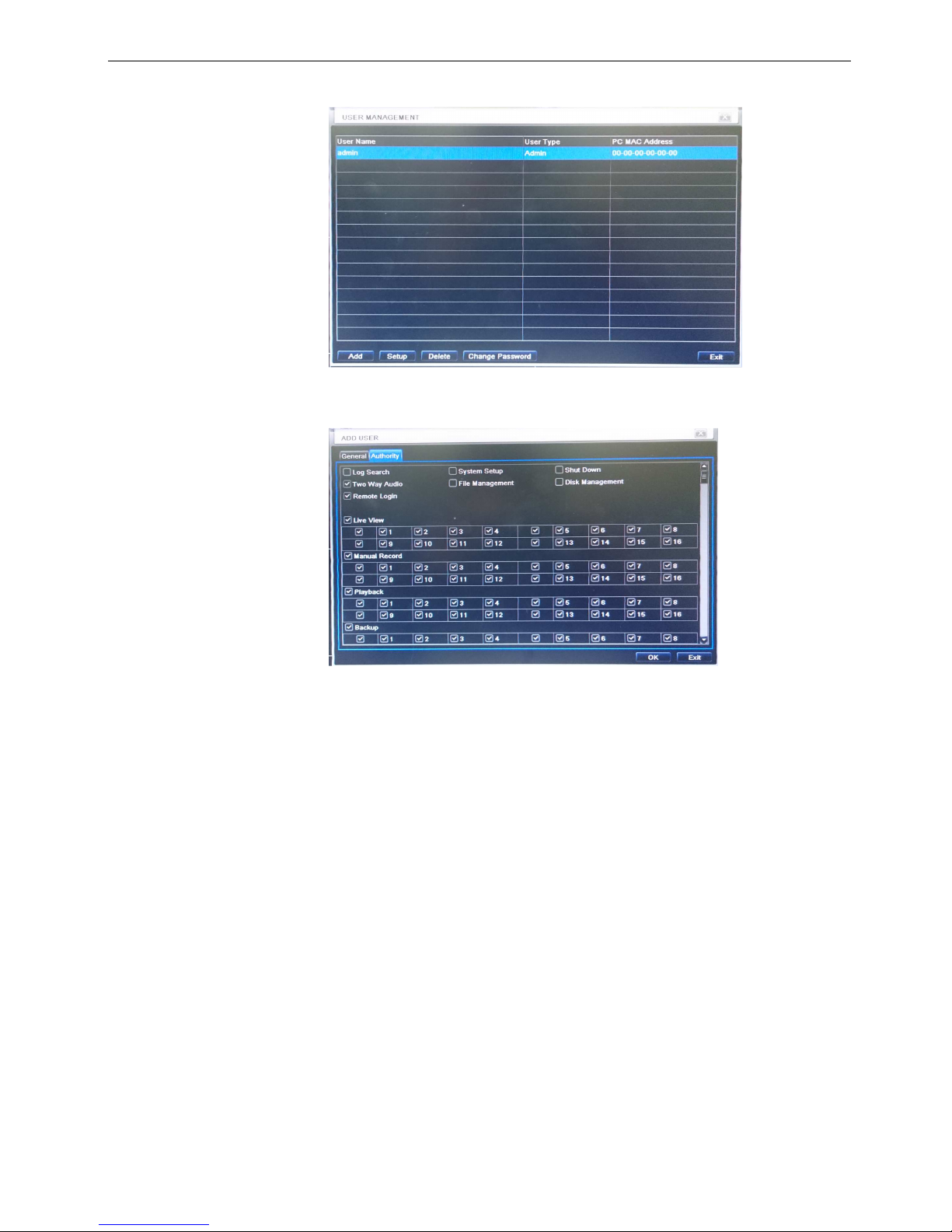

Fig 3-31 user management configuration

Step2: click Add button, a dialog box will pop-up as Fig 3-32:

Fig 3-32 add-general

① General: Input user name, password; select user type: normal and advance, input the MAC address of

the PC; click OK button, this user will be added into the user list box; click Exit button to exit the current

interface.

Note: when the default value of binding PC MAC address is 0, the user is not bind with the specify computer; the, the user can log in DVR on the binding computer after set the specific binding MAC address.

② Authority:

a) Admin: Admin have full control of DVR. DVR could have only one admin account. b) Advance: Besides ”firmware upgrade”, ”reset factory default”, ”shut down” and ”change other

user’s password”, advance account could control DVR like an admin account.

c) Normal: Normal account can only do “live view”, “playback”, “search”, “backup”, “log off”, “view

DVR information”, and “change his own password”.

3.8 P.T.Z configuration

P.T.Z configuration includes two submenus: serial port and advance

① Serial port

Step1: enter into system configurationP.T.Z configurationserial port; refer to Fig 3-33:

Fig 3-33 P.T.Z configuration-serial port Step2: tick off Enable, setup the value of address, baud rate and protocol according to the settings of the speed dome. Step3: user can setup all channels with same parameters, tick off “all”, then to do relevant setup. Step4: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface.

Definitions and descriptions of network stream:

① Advance Step1: enter into system configuration P.T.Z configurationadvance; refer to Fig 3-34:

Fig 3-34 P.T.Z configuration-advance

Step2: in the Advance interface, click preset “Setting” button, a dialog box will pop-up as Fig 3-35:

Fig 3-35 advance-preset setting

Parameter Meaning

Address The address of the PTZ device

Baud rate

Baud rate of the PTZ device. Range form: 110、300、600、1200、2400、4800、

9600、19200、34800、57600、115200、230400、460800、921600.

Protocol

Communication protocol of the PTZ device. Range from: NULL、PELCOP、

PELCOD 、LILIN、MINKING、NEON、STAR、VIDO、DSCP、VISCA、SAMSUNG、

RM110、HY、COC

a. in the preset set interface, click Setting button, a dialog will pop-up as Fig 3-36:

Fig 3-36 preset set-setting

b. user can control the dome rotates up, up left, down, right down, left , left down, right and up right and stop rotating; adjust the rotate speed and the value of zoom, focus and iris of the dome; c. select the serial number of the preset point, set the preset name. Click Save button to save the settings,

click icon to hide the tool bar, right-key can remerge it; click icon to exit the current interface. d. in the preset interface, click OK button to save the setting; click Exit button to exit current interface. Step3: in the Advance interface, click cruise “Setting” button, a dialog box will pop-up as Fig 3-37:

Fig 3-37 cruise set

a. click Add button to add cruise line in the list box (max 8 cruise line can be added); select a cruise line, click Setup button, a dialog box will pop-up as Fig 3-38:

Fig 3-38 cruise set-modify cruise line

b. click Add icon to set the speed and time of preset point; select a preset point, click Delete icon

to delete that preset point; click Modify icon to modify the setting of a preset point. User can

click those icons to adjust the position of preset point. Click Preview button to preview the cruise line, click OK button to save the setting, click Exit button to exit current interface. c. select a preset point in the cruise line list box, click Delete button to delete that cruise line; click Clear all button to clear all cruise line from the list box; click OK button to save the setting; click Exit button to exit current interface. Step4: in the Advance interface, click track “Set” button, a dialog box will pop-up as Fig 3-39:

Fig 3-39 track set

a. user can control the dome rotates up, up left, down, right down, left, left down, right and up right and stop rotating; adjust the rotate speed and the value of zoom, focus and iris of the dome; click Start Record button to record the move track of PTZ, click this button again can stop record; click Start track button to play recorded track, click this button again can stop play.;

b. click icon to hide the tool bar, right-key can remerge it; click icon to exit the current interface. Step5: in the Advance interface, click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface.

COC (control over coaxial) function：

a. Under serial port setting page，and choose COC (control over coaxial) function。

b. Open the channel which you want to config, click the right button of the mouse then choose PTZ.

c. Click the Iris next to ” + “，then user can open the OSD menu of camera.

Icon Description

open the OSD menu of camera / Enter

Direction button, in order to choose the item that you want to config.

Adjustment parameter options

4 Record search & playback and backup

Search configuration includes three submenus: time search, event search and file manager.

4.1 Time search

Step1: enter into Search configurationtime search; refer to Fig 4-1:

Fig 4-1 Search configuration-time search Step2: select channel, screen display mode, the highlight date in the calendar means have record data Step3: select a date, press Search button, click the time grid to set the play start time or input play record time manually. The selected time match the blue grid.

Note: the vertical column means hours, horizontal column means channels.

Step4: click Play button to playback record; click the relevant buttons on the screen to do operation:

Playback buttons

Note: when the monitor resolution is VGA800*600, the time search interface will appear a hide button, click this button, the whole interface can be expanded.

4.2 Event search

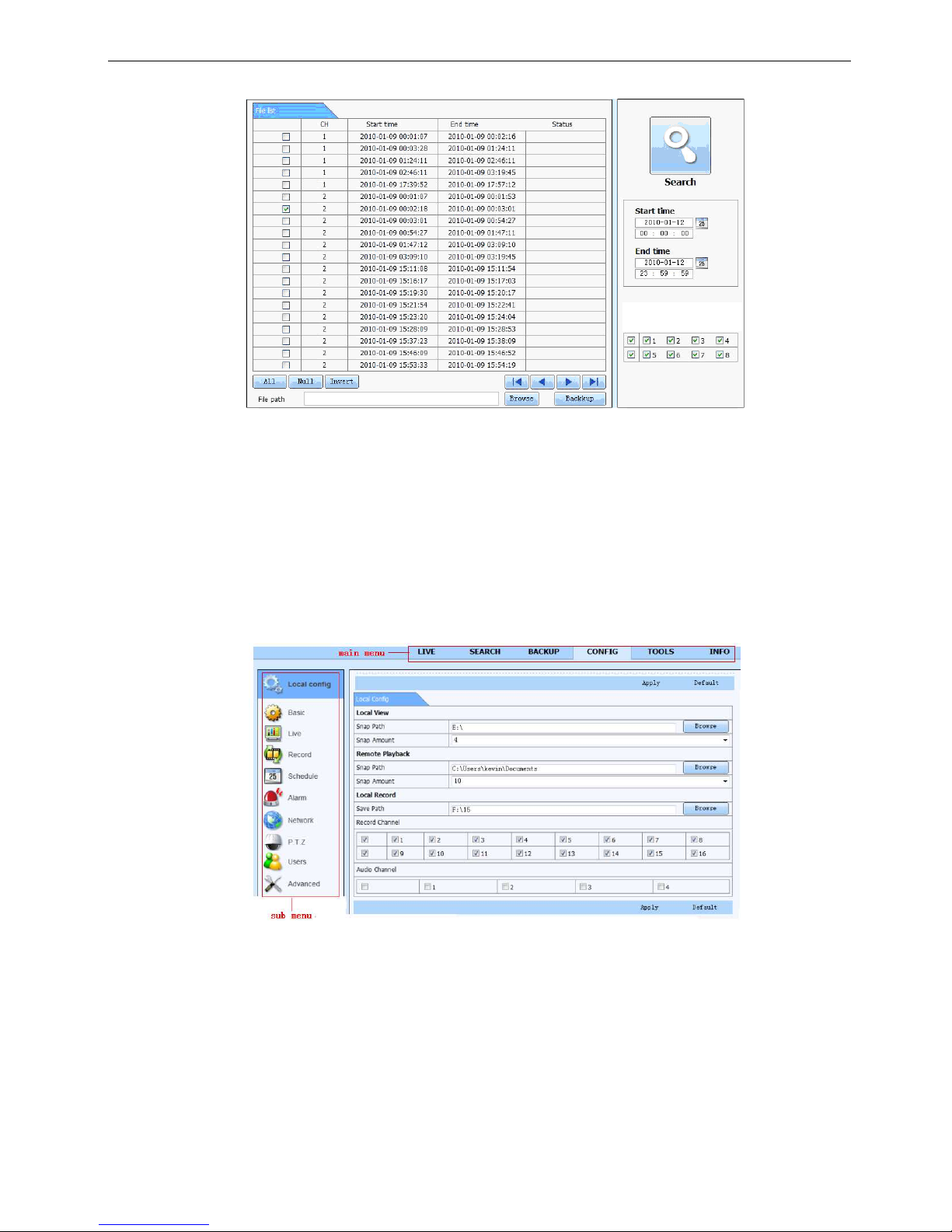

Step1: enter into Search configurationevent search; refer to Fig 4-2:

Fig 4-2 Search configuration-event search

Step2: click Search button, the searched event information will displayed in the event list box, user can select date, channel, tick off Motion, Sensor or All accordingly. Step3: double check a certain record file to playback.

Note: when the monitor resolution is VGA800*600, the event search interface will appear a hide button, click this button, the whole interface can be expanded.

4.3 File manager

Step1: enter into Search configurationfile manager; refer to Fig 4-3:

Fig 4-3 Search configuration-file manager

Step2: click Search button, the searched files will be displayed in the file list box, user can select date, channels accordingly. ① Lock: checked a file, click Lock button to lock this file, after that, that file will not be deleted or covered. ① Unlock: checked a locked file, click Lock button to unlock this file Step3: tick off “All” button; user can lock/unlock or delete all files in the file manager column. Step4: double click an unlocked item to playback.

Note: when the monitor resolution is VGA800*600, the file manager interface will appear a hide button, click this button, the whole interface can be expanded.

4.4 Image

Step1: enter into Search configurationimage; refer to Fig 4-4:

Fig 4-4 Search configuration-image

Step2: click Search button, the searched files will be displayed in the file list box, user can select date, channels accordingly. ① Lock: checked a file, click Lock button to lock this file, after that, that file will not be deleted or covered. ① Unlock: checked a locked file, click Lock button to unlock this file ① Delete: checked an unlocked file, click Delete button to delete this file. Step3: Insert a USB drive to save (or save all) image data.

4.5 Backup

This unit supports backup by external SATA DVD Writer and USB Flash, through the USB port on the front panel. User also can make backup by IE browser via internet. Refer to 7.3.2 Remote backup. Step1: enter into backup configuration; refer to Fig 4-4:

Fig 4-4 backup configuration

Step2: set the start & end time, select channels, click Search button, the searched data will be displayed in the data backup list box Step3: checked a data file or tick off “All” to select all data files , click Backup button, a dialog box will pop-up as Fig 4-5:

Fig 4-5 backup information

Step4: in the backup information interface, user can check the relevant information of backup files, storage type, save file type, etc. click Apply button to starting backup.

Note: when the monitor resolution is VGA800*600, the file manager interface will appear a hide button, click this button, the whole interface can be expanded.

5 Manage DVR

5.1 Check system information

Check system information includes five submenus: system, event, log, network and online user.

5.1.1 System information

In this interface, user can check the hardware version, MCU version, kernel version, device ID, etc. refer to Fig 5-1:

Fig 5-1 system information

5.1.2 Event information

In this interface, user can check record events according to set date; refer to Fig 5-2:

Fig 5-2 event information

5.1.3 Log information

In this interface, user can check relevant log information according to set date; refer to Fig 5-3:

Fig 5-3 log information

5.1.4 Log information

In this interface, user can check relevant log information according to set date; refer to Fig 5-4:

Fig 5-4 log information

5.1.5 Network information

In this interface, user can check relevant parameters of network; refer to Fig 5-5:

Fig 5-5 network information

5.1.6 Online information

In this interface, user can check the details of the current connection of online users; refer to Fig 5-6:

Fig 5-6 online information

5.1.6 Record

In this interface, user can check the current recording mode; refer to Fig 5-7:

Fig 5-7 Record information

5.1.7 QRCODE

In this interface, user can quick link to the DVR ;refer to Fig 5-8:

Fig 5-8 QRCODE

Note: Reference to the NAT setting description.

5.1.8 Disk manager

Step1: enter into disk manager interface; refer to Fig 5-9:

Fig 5-9 disk manager

Note: please format the hard disk before record. If not being formatted, it will show the status of the disk-free space, and total space show OM at the bottom of screen.

Step2: click Refresh button to refresh the disk information of the list box; set the property of the disk then click Apply button to save the setting Step3: checked a hard disk, click Format button to star format.

Note: all recorded files in the hard disk will be lost after formatted.

5.1.9 Upgrade

At present, it only supports USB update. Get the firmware from your vendor when there is a new firmware version, and make sure it is corresponding with the DVR. User can check the USB information in Disk manager.

5.1.10 IP Camera

This chapter mainly introduces how to connect multiple IP cameras through DVR. Once you finish adding IP cameras, you can see the live images through the monitor of DVR. To add IP cameras: Step 1: Please Enter into MenuIP Camera tab. Refer to Fig 6-8. Click “Search” button to search the devices in the same network.

Fig 5-10 Device Management

Fig 5-11 Search Devices

Step 2: Enter into the search tab. Click “Refresh” to refresh the searched devices and then check the device you want to add or check “All” to add all devices. Step 3: Click “OK” button to save these devices. Step 4: Click “Setup” button to enable this device. Check the “enable” checkbox, select channel and input the username and password of this device. Then click “OK” to save settings. Of course, you can add devices manually. The steps are as follows: Click “Add” button in the device management tab. This will bring up a window similar to Fig 6-10. You need to check “Enable” box, select channel, manufacturer and product model and input server port, username and password of this device. All of these information you can check in the relevant user manual.

※

Support ONVIF™ 2.4 IP camera.

Fig 5-12 Add Device

Note: If IP cameras and DVR are in the same network, their IP address must be in the same network segment. For example: If the IP address of DVR is 192.168.006.067, the IP address of IP camera must be 192.168.006.XXX. If the NVR is connected through PPPOE, the IP camera can be connect through PPPOE. If the LAN IP address is used in the IP camera, you shall forward the IP address and port of the device in the router, otherwise, the DVR cannot connect this IP camera.

5.1.11 Log off

Click Log off icon, a log off dialogue box will popup, click OK button, the device will log off. If user wants to log in again, click icon to enter into user name and password to relogin.

5.1.12 Shut down Note: DVR going to power off

6 Remote Surveillance

6.1 Accessing DVR

If making remote view, the DVR must connect with LAN or internet. Then enable network server in the unit. Please refer to 4.6 Network Configuration. This unit supports IE browser, without any client software installed. It supports Win 7, XP and Vista.

6.1.1 On LAN

Step1: Input IP address, Subnet, Gateway. If using DHCP, please enable DHCP in both the DVR and router. Enter Menu—Information—Network, and user can check the network configuration of DVR. Step2: Enter Video to set network video parameters like resolution, frame rate etc. Step3: Open IE browser on a computer on the same LAN. Input the IP address of the DVR in IE address blank and enter. Step4: IE will download ActiveX automatically. Then a window pops up and asks for user name and password. Step5: Input name and password correctly, and enter. It will show the picture as below.

Fig 6-1 View with IE browser

Notice: If HTTP port is not 80, other number instead, need add the port number after IP address. For

example, set HTTP port as 82, need input IP address like http://192.168.0.25:82.

User name and password here are the same with that used on the DVR. The default is admin and 123456.

6.1.2 On WAN

There are two ways that the DVR is connected to internet.

1. Connect the DVR to internet through a router or virtual server. Step1: Input IP address, Subnet, Gateway. If using DHCP, please enable DHCP in both the DVR and router. Step2: Enter Video to set network video parameters like resolution, frame rate etc. Step3: Forward IP address and port number in Virtual Server setup of the router or virtual server. Close firewall.

Notice: Forwarding block may be different in different routers and server, please check your router

manual.

If users want to utilize dynamic domain name, need apply for a domain name in a DDNS server supported by the DVR or router. Then add to the DVR or router. Now this unit only supports

www.meibu.com, www.dyndns.com, www,no-ip.com and www.dvrdydns.com

About the router, please check in the router manual. Step5: Open IE browser, input IP address, or dynamic domain name and enter. If HTTP port is not 80, add the port number after IP address or domain name. Step6: IE will download ActiveX automatically. Then a window pops up and asks for user name and password. Step7: Input name and password correctly, and enter to view.

Notice: If you cannot download and install ActiveX, please refer to “FAQ” Q7.

2. Connect the DVR to internet directly. Step1: Input IP address, Subnet, Gateway gotten from your ISP. If using ADSL, please input user name and password, and click OK. The DVR will connect the server and show “connection succeeds”. Step2: The following steps are the same as STEP4-7 of the connection way above.

6.2 The remote live preview interface as below:

Fig 6-2 Remote live preview interface

Symbol and function Definitions:

①

Channel indicator

① Screen display

mode

① Volume

① Snapping


①

Start manual record ① Start IE record

① Bidirectional

talk

① Playback ① PTZ control

① Master/sub

stream status

Note: click button to record manual and the record file will be saved in user’s PC.

Screen display mode: Click the icon beside the screen display mode, channel select dialog will appear as below:

Fig 6-3 Channel select dialog

Take 8-channel DVR for example: user can tick off channels form 1-ch to 16-ch at random to display the live pictures, 8 channels can be selected at most. Then click OK button to confirm the setting.

Snap pictures

Click “Snap” icon, the system will automatically capture pictures and save those pictures in the computer. User should set up the save path for those picture in the Remote Preview interfaceConfigurationLocal configuration.

PTZ control

Please connect speed dome to the device via RS485 firstly, make sure the protocol of the speed dome is supported by the device and set the relative parameters manually. User can control the dome up, down, right, left or stop rotating on Control Center, adjust rotation speed, Iris and zoom, focus on the dome, and set the presets, etc. Buttons definition:

Buttons Description

means the dome rotate up. means the dome rotate up left.

means the dome rotate up right means the dome rotate down. means the dome rotate left down. means the dome rotate right down.

means the dome rotate left.

means the dome rotate right. means the dome stop rotating.

Drag the scroll bar to adjust rotating speed of the dome.

'Iris' button. Click button near 'Iris' button to increase light of

the dome. Click button near 'Iris' button to decrease light of the dome.

'Zoom' button. Click button near 'Zoom' button to zoom in the

locale picture of this camera. Click button near 'Zoom' button to zoom out the locale picture of this camera.

'Focus' button. Click button near 'Focus' button to have long

focus. Click button near 'Focus' button to have short focus. Go to the Preset

Select and do auto cruise Track

Auto scan

Click the right mouse on the live interface, a pull-down menu will appear as below

Fig 6-4 right key sub menu

Stream: this DVR supports master stream and sub stream. Master stream has higher frame rate, max 25FPS （PAL）/30 FPS（NTSC）for every channel, but it needs higher network bandwidth simultaneously; second

stream has low frame rate, max 6FPS （PAL）/7FPS（NTSC） for every channel, it requires low network

bandwidth. Therefore, users can select the stream according to their bandwidth.

All to master/sub stream: set all channel to master stream or sub stream. Enable audio: enable or disenable audio Full screen: the live preview picture will display with full screen, the tool bar will be hided; double click left

mouse or click right mouse to return

Zoom in: Single channel large screen electronic amplification Left click the channel which needs to amplify; Click the right mouse, select Zoom in button and then click the left mouse to amplify the image. Press left mouse to drug the cursor, user can view the image. Double-click the left mouse to exit. Click the right mouse to return to the main interface.

6.3 Remote playback & backup

6.3.1 Remote playback

Click button to enter into record playback interface, refer to Fig 6-5: Select the record date and channels; double-click the file name in the record file list box, user can play that file and preview the picture.

Fig 6-5 Play record file interface

This DVR supports remote time search, event search and file management.

By Time Search: Step1: Enter into Searchtime search; refer to Fig 6-6:

Fig 6-6 time search interface

Step2: click “Search” button. The record data will be displayed in the data information list box; the highlight date in the area① means have record data, click those data; select the record channels in area①

Step3: User can set the data playing time and display mode in the area① as required Step4: Select certain item from the data information list box, click “play” button to playback

Step5: Click the relevant buttons in the interface; user can do some operations such as: FF, pause, change

channel mode, research, etc. refer to Fig 6-7:

Fig 6-7 Time search playback

By Event Search: Step1: Enter into Searchevent search; refer to Fig 6-8:

Fig 6-8 event search interface

Step2: click the highlight date and select record channels and then tick off the event type: motion and sensor, click “search” button

Step3: the events will be display in the event list box, double-click certain item to playback

File Management Step1: Enter into Searchfile management; refer to Fig 6-9:

Fig 6-9 file management interface

Lock: select certain file item in the file list box, click “Lock” button to lock this file that ca not be deleted or overlaid Unlock: select a locked file, click “unlock” button to unlock this file Delete: select an unlock file, click “delete” button to delete this file from file list

6.3.2 Remote backup

Click Backup button to enter into backup interface, refers to Fig 6-10:

Fig 6-10 remote backup interface

Step1: select channels, set the start and end time, then click “search’ button, the file information will be displayed in the file list box Step2: select backup files, click “browse” button to set the save path, and then click “backup” button to start backup. The backup files will be saved on user’s PC.

6.4 Remote System configuration

User can remote setup the parameters of the device. Functions of remote configurations include: basic configuration, live configuration, record configuration, schedule configuration, alarm configuration, network configuration, PTZ configuration and user configuration. User should firstly select an item in the menu list on the left, and then setup the relative parameters. When one user setup parameters of a certain item, others cannot setup this one. Click Config to enter into the below interface refer to Fig 6-11:

Fig 6-11 remote menu setup

The sub menu lists and the options in every item are similar with those on the DVR. Please refer to Chapter 3 Main Menu Setup Guide for more details. Click “Apply” button to save above settings; click “default” button will recover the original settings.

6.5 Remote Management

Remote Information Search

The system will automatically record the working condition and operation process during the period of work. User can view information, such as username, IP address and so on. Enter into INFO→Log, user can set the start time to view the log record as follows:

Fig 6-12 Remote information search

7 Mobile Surveillance

This DVR supports mobile surveillance on Iphone and android OS device, this section describes the installation of the program via the Smartphone

Installation procedure on Iphone device

To connect to DVR with your Iphone, user need to go ITunes Store and search for the program called SUPERLIVEPRO

Install the program as usual, in some cases it will ask you your iTunes username and password. Then launch the application on your Iphone

This the login screen, net type you can choose between 3G+WIFI or WIFI depending on your internet subscription package

To add a NVR click on the bottom arrow next to Server blank

Key in the device title, address, username and password, then click on SAVE to save in the device manage list

Click login You will see the live picture of DVR

States light description

Motion record, sensor record, manual record

Sensor alarm

Video Loss

Schedule record

Motion Alarm

Others

Upper tool description

Bottom tool description

Installation procedure on Android OS Smartphone

On your Smartphone click on the Google play store icon

Then press on search icon on right Type SUPERLIVEPRO with your virtual

keyboard and press enter

The search result will show the available applications

Click on SUPERLIVEPRO, a brief

description of the program will be shown, click on INSTALL

Click on ACCEPT & DOWNLOAD The program is being downloaded on your

smartphone, please wait

The installation is finished, click Open to launch the program,

After installation finished, click this icon to

open and launch into the program.

Key your DVR IP, the username and password, if you want the program to keep in memory select REMEMBER SERVER, then click on LOGIN

You are connected to the DVR, you can see

all the functions of the program

Main interface description

Item

Description

Playback Video file playback Image Server photo browse Log Software log Server list View and edit server list Live View camera online Settings Software configure Information

Server and software information Help Help Information about software and FAQ Logoff Log off from current server

Live picture interface

Icon

Description

Central management system

To select favorite channels

One screen

Four screen

Six screen

Eight screen

PTZ control

Capture

Record

Talk

Channel audio

Hide SuperLivePro

FAQ

Q1. Why the DVR cannot start after connected to the power?

a. The adapter has been damaged. Please change an adapter b. The power of the adapter is not enough. Please remove the HDD to check c. Hardware problem

Q2. There is not menu output or only has live image display

a. Check up whether other devices can display menu or long press ESC key to wait for login dialog box to appear.

Q2. The indicator of the DVR lights, but no output. Why?

a. The power of the adapter is not enough. Please remove the HDD or change an adapter to try. b. The video format of the DVR is different from that of the monitor. c. Connection problem. Please check the cable and the ports of monitor and DVR.

Q3. Why are no images displayed on parts or all of the channels of the DVR?

a. Connection problem. Please check the cable and the ports of camera and DVR. b. Camera problem. Please check the cameras. c. The video format of the DVR is different from that of the cameras. Please change DVR system format.

Q4. Cannot find HDD

a. The power of the adapter is not enough. Please change an adapter to try. b. Connection problem. Please check the power and data cables. c. The HDD is damaged. Change a new one.

Q5. Cannot record

a. Don't format HDD. Please format it manually first. b. Don't enable record function or incorrect setup. Please refer to Chapter 5 Record search & playback and backup. c. HDD is full and not enables recycle function. Please refer to 4.3 Record configuration. Chang a new HDD or enable recycle. d. The HDD is damaged. Change a new one.

Q6. Cannot use mouse.

a. wait 1-2 minutes after mouse connected. b. Not detected. Plug/unplug several times. c. The mouse is incompatible. Please change a mouse.

Q7. Cannot download ActiveX control.

a. IE browser blocks activeX. Please do setup following below.

① Open IE browser. Click Tools-----Internet Options….

① select Security------Custom Level….Refer to Fig 7-1

③ Enable all the sub options under “ActiveX controls and plug-ins” refer to Fig 7-2 ④ Then click ok to finish setup.

b. Other plug-ins or anti-virus blocks ActiveX. Please uninstall or close them.

Fig7-1 Fig7-2

Q8: How to deal with when DVR starts, it displays “please wait…”all the time

First possible reason: hard-disk cable and data cable are not well connected. Solution: Please check the connection of hard-disk cable and data cable and make sure they are well connected; If still not working, please unplug them and then try re-plugging again; Second possible reason: It is forced to stop because hard disk has disabled track which causes the system checking hard disk cannot skip Solution: Change another new hard disk or reformat the broken one

Q9: How to input password and digital numbers

The method to input password and digital numbers is to click the box behind password or items needing to input by numbers, and then the small keyboard will appear. Please select number or letter to input (the initial password is 123456), or you can use the digital keys in the front panel, or the digital keys on the remote controller.

Q10: How to upgrade when added new functions or revised software

After getting the upgraded software from manufacturer, please copy it into U disk, and then select “upgrade” in the menu. If upgrading the kernel procedure, please refer to the following method: firstly insert U disk into DVR, and then input “adwsws” in the password of system login and the system will upgrade kernel procedure automatically. After finished, please restart DVR to achieve.

Notice: Do not power off in the system upgrading process! Otherwise, it may cause that DVR cannot start.

Q11: Why is the hard disk used in a DVR identified a new hard disk if directly used to another same type

DVR? And why must we format it again?

When DVR only uses one hard disk, the hard disk removed from one to another same type DVR can work normally without format. However, when a DVR adds to a new hard disk, it will identify the hard disk as a new one and inquire whether to format no matter whether this hard disk used or not in another same type DVR before. In this condition, it can be used normally after formatted according to the guide; if two or more hard disks used in different DVRs, when used in another DVR with the same type, they will be identified to be two or more new hard disks, and all of them need to format. In general, please do not try using more disks removed from different DVRs into another one in case the data lose.

Q12: What are the minimum configurations of PC for clients connecting?

PC Module Parameters

CPU Intel Celeron 2.4G Motherboard

Intel 845 HDD 80G RAM 512M VGA NVIDIA GeForce MX440/FX5200/ATIRADEON 7500/X300 OS Windows 2000(SP4 above) /Windows XP(SP2 above) /VISTA/SEVEN DirectX 9.0

Q13: What are the PC configurations for 8-ch real time product with fully open channel mainstream?

PC Module

Parameters

CPU Intel Core(TM)2 Duo CPU E4600 Motherboard

G31/P31 chip HDD 80G RAM 1GB VGA GMA3100/NVIDIA GeForce 8400/ATI RADEON HD3450 OS Windows 2000(SP4 above) /Windows XP(SP2 above) VISTA/ SEVEN DirectX 9.0

APPENDIX A_NAT setup description

a) Here is describe how to connect the device to mobile phone:

i. Take Android mobile system as example

When NAT function is already enabled, and all the network setting is done. Click the

( Superlive pro) icon on your mobile phone and go to information (Menu→Information→QRCODE) enable the ORCODE function.

When Superlive pro program is enabled, at the bottom of image you will see the QR code function icon.

Click the icon, and it will pop-up the scanner image. Target it to the Screen QRCODE image.

3. After finished the scanning procedure, it will automatically bring out the device MAC number and user

account, user just need to key-in the password.

※ In order to avoid the security risk, user (himself or herself) need to key-in the password yourself.

b) Enable NAT function, the operation step of using browser to do remote control

Step1. Enter into Menu→Information→Network→Confirm the MAC number of the DVR.

Step2. Open the browser (Support browser type include: IE、Chrome、Firefox), here is taking IE for operation description. Insert the http://www.autonat.com, and it will lead you visit the login website. Under Serial No field,

you have to key-in the MAC number of DVR ( follow the step1 to confirm how to find the MAC number), and then follow the step to login.

Step3. As you key-in the correct account and password, after press login you can browse the IE CMS to operation.

APPENDIX B_ DDNS setup procedure

(Take www.geekciti.com and autoddns as examples)

(1) www.geekciti.com set up description:

1. Visit www.geekciti.com and register new account by filling each line then press submit, you need to have

a valid email which will be use as username

2. Create a domain name as your convenience and choose the extension among the list available, then click

on REQUEST DOMAIN

3. If the domain exists already you will have to choose another domain name, if not you will see the below

screen

4. Fill all setting on DVR then click “Test” to verify. Then click “Apply” to Finish DVR network setting. (Menu->

Network -> Other Settings)

DDNS: enabled DDNS Type: mintdns Server www.geekciti.com User Name: dvrtest110@gmail.com (your account on www.geekciti.com website, as step 1) Password: xxxxxx (your account password on www.geekciti.com website, as step 1) Host Domain: smartdvr.myfreeip.me (you create on www.geekciti.com website, as step 2) Update Interval [M]: 3 (a time period to sync with www.geekciti.com service) (3 means 3 hours)

Press TEST button, if it’s ok you will see DDNS updates successfully message

5. You could also visit GEEKCITI website to check if the setting works.

You can test with a computer with internet explorer browser by key in the new domain name

You will see the DVR main page, after key in the username and password as well the display language, you should be able see camera live display

(2) autoddns set up description: In other setting item:

Step1. Choose DDNS Type : www.autoddns.com

Step2. move the mouse to here

Step3. It will pop up a virtual keyboard and you have to set up your account here

Step4. For example: Type test12345.autoddns.com and then press register button to test if the account is can for

use. Here will appear DDNS update successfully .

After finished the autoddns set up, you can type the name that you have just apply, for example: to type

http://test12345.autoddns.com you will see the DVR main page, after key in the username and password as well

the display language, you should be able see camera live display

APPENDIX C_Compatible Devices

1. Compatible USB drive after test.

Brand

Capacity

A-DATA 512MB, 1G, 2GB Transcend 4GB Kingston 2GB Toshiba 2GB SanDisk 4GB

2. Compatible external USB CD/DVD writers after test.

Brand Model

LG GH24NS90

3. Compatible HDD

Brand Model number Capacity

Western Digital

1600AAJS FW:00L7A0 160GB

2500AVVS FW:73M8B0 250GB

3200AVVS 320GB

5000AVJS FW:63YJA0 500GB

5000AVVS FW:63M8B0 500GB

5000AAKS FW:00V1A0 500GB

5000BUDT (2.5") FW:63G8FY0 500GB

5000AUDX FW:63WNHY0 500GB

10EURS FW:630AB1 1TB

10EVDS FW:63U8B0 1TB

WD10PURX FW:64D85Y0 1TB

15EARS FW:00Z5B1 1.5TB

15EURS FW:63S48Y0 1.5TB

20EVDS FW:63T3B0 2TB

20EARS FW:00S8B1 2TB

2001FASS FW:00U0B0 2TB

WD20PURX FW:64P6ZY0 2TB

WD30PURX FW:64P6ZY0 3TB

WD40PURX FW:64GVNY0

4TB

WD40EURX FW:64WRWY0

4TB

WD60PURX FW:64LZMY0 6TB

HITACHI

HDS721616PLA380 160GB

HCT721025SLA380 500GB

HCP725050GLA380 500GB

HDP725050GLA360 1TB

SEAGATE

ST500DM002 (SATA3) FW:KC44 500GB

ST3100528AS FW:CC38 1TB

ST31000524AS (SATA3) FW:JC4B 1TB

ST2000DL003 (SATA3) FW:CC32, CC3C 2TB

ST3000VX002 FW:CV12 3TB

ST3000VX000 FW:SV35 3TB

ST6000VX0001 FW:VN02 6TB

TOSHIBA

HCS5C1050DLE630 FW:620DT01ABA050V 500GB

DT01ABA100 1TB

DT01ACA100 1TB

APPENDIX D_SPCIFICATION

Model

16ch Hybrid DVR

32ch Hybrid DVR

Compression format H.264 Main Profile

Video output VGA × 1, HDM I× 1

Video Input BNC × 16 BNC × 32

HDMI/VGA Resolution 1920 × 1080/1280 ×1024/ 1024 × 768 / 800 × 600

Record Resolution 720P (1280 × 720) / 960H (960× 480)

TVI 720P 400FPS (PAL) , 480FPS (NTSC) 800FPS (PAL) , 960FPS (NTSC) TVI 1080P 200FPS(PAL), 240FPS(NTSC) 400FPS(PAL), 480FPS(NTSC) AHD 720P 400FPS (PAL) , 480FPS (NTSC) 800FPS (PAL) , 960FPS (NTSC)

AHD 1080P 200FPS(PAL), 240FPS(NTSC) 400FPS(PAL), 480FPS(NTSC)

960H 400FPS (PAL) , 480FPS (NTSC) 800FPS (PAL) , 960FPS (NTSC)

IP 720P

400FPS(PAL), 480FPS(NTSC) N/A

IP 1080P

Audio Input RCA × 16

Audio output RCA × 1

ALARM IN Alarm in × 16

ALARM OUT

Alarm out × 4

Record Mode Manual / Timer / Motion detection

Network Interface RJ45

PTZ control YES

Communication interface

RS485, USB2.0 × 2 (one for backup, another for USB mouse)

Disk info SATA × 8

Remote controller YES

Power Supply AC 110 / 230V

Temperature 0℃-50℃

Humidity 10%-90%

Hi Sharp ATR620H, ATR320H User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
