USER MANUAL

Before using the TV, please read this manual

thoroughly and retain it for future reference.

ES-M170861

ENGLISH

FRANÇAIS

ESPAÑOL

USER MANUAL

Before using the TV, please read this manual

thoroughly and retain it for future reference.

ENGLISH

ENGLISH FRANÇAIS ESPAÑOL

All material in this User Manual is the property of Hisense Company Ltd. and its subsidiaries, and is protected under US and International copyright and/or other intellectual property laws. Reproduction or transmission of the materials, in whole or in part, in any manner, electronic, print, or otherwise, without the prior written consent of Hisense Company Ltd., is a violation of Hisense Company Ltd. rights under the aforementioned laws.

No part of this publication may be stored, reproduced, transmitted or distributed, in whole or in part, in any manner, electronic or otherwise, whether or not for a charge or other or no consideration, without the prior written permission of Hisense Company Ltd. Requests for permission to store, reproduce, transmit or distribute materials may be made in writing to the following address:

USA: Hisense USA Corporation PO Box 3289 Suwanee, GA 30024

CANADA: Hisense Canada Co., Ltd 2283 Argentia Road, Unit 16 Mississauga, ON, Canada L5N 5Z2

MEXICO: Hisense Mexico S. de R.L. de C.V. Blvd. Miguel de Cervantes Saavedra No 301 Torre Norte Piso 2, Col. Ampliación Granada Miguel Hidalgo, Ciudad de México, C.P. 11520 “Sharp™”, “Aquos™”, “Quattron™” and any and all other Sharp product names, logo’s, slogans or marks are registered trademarks owned exclusively by Sharp Corporation.

“Hisense™”, and any and all other Hisense product names, logo’s, slogans or marks are registered trademarks and intellectual property rights of Hisense Company Ltd. and its subsidiaries.

This product is sold to you under one or more license agreements between Sharp Corporation and Hisense International (Hong Kong) America Investment Co. Ltd. All other trademarks are the property of their respective holders.

ENGLISH FRANÇAIS ESPAÑOL

Disclaimer Page

**Notwithstanding anything to the contrary, including in any or all descriptions, representations, statements or other communications related to this Sharp, Aquos or Quattron device (hereinafter “Device”) made in any form whatsoever and at any time, some or all of the pre-installed, or subsequently installed Application Services may not be available or capable of functioning as intended by the provider of the Application Services in any or all usage areas for reasons outside of the control of the licensors or manufacturer of this device, including but not limited to, Internet access, local service limitations, etc. Any purchase or use of the Device, including any Application Services, is purely at the user’s risk. Application Services are provided on an as-available basis without warranties of any kind, either expressed or implied, that the Application Service will be uninterrupted or error-free, including but not limited to vagaries of weather, disruption of Service, acts of God, warranties of title, local or regional limitations, no infringement, NOR IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. No advice or information given by the licensors or manufacturers providers, affiliates, or contractors or their respective employees shall create such a warranty. All licensors and the manufacturer of this device, jointly and separately, specifically disclaim any and all responsibility for any or all Application Services from functioning at any time, and by purchasing the Device, you accept such disclaimer without any claim on the licensors and manufacturer. You are solely responsible for providing an active and working connection to the Internet, along with any and all hardware and/or software necessary to use the Device as intended.

Disclaimer: Images throughout this document are for illustrative purposes only and may differ from the actual product.

ENGLISH FRANÇAIS ESPAÑOL

Content

Connecting Devices to your TV ..............................................................................3

Connecting an antenna, cable set-top box or satellite receiver ........................................... 3

Connecting an AV device with a composite video cable ...................................................... 3

Connecting an AV device with a component video cable .................................................... 4

Connecting an AV device with an HDMI cable ..................................................................... 4

Connecting headphones ...................................................................................................... 5

Connecting speakers (or other audio receivers) ................................................................. 5

Connecting a digital sound bar to use ARC (Audio Return Channel) ..................................6

Connecting Your TV to a Wired or Wireless Network .............................................7

Connecting to a Wireless Network ....................................................................................... 7

Connecting to a Wired (Ethernet) Network .......................................................................... 7

Using Your TV Remote Control .................................................................................9

Shortcuts Instructions .............................................................................................11

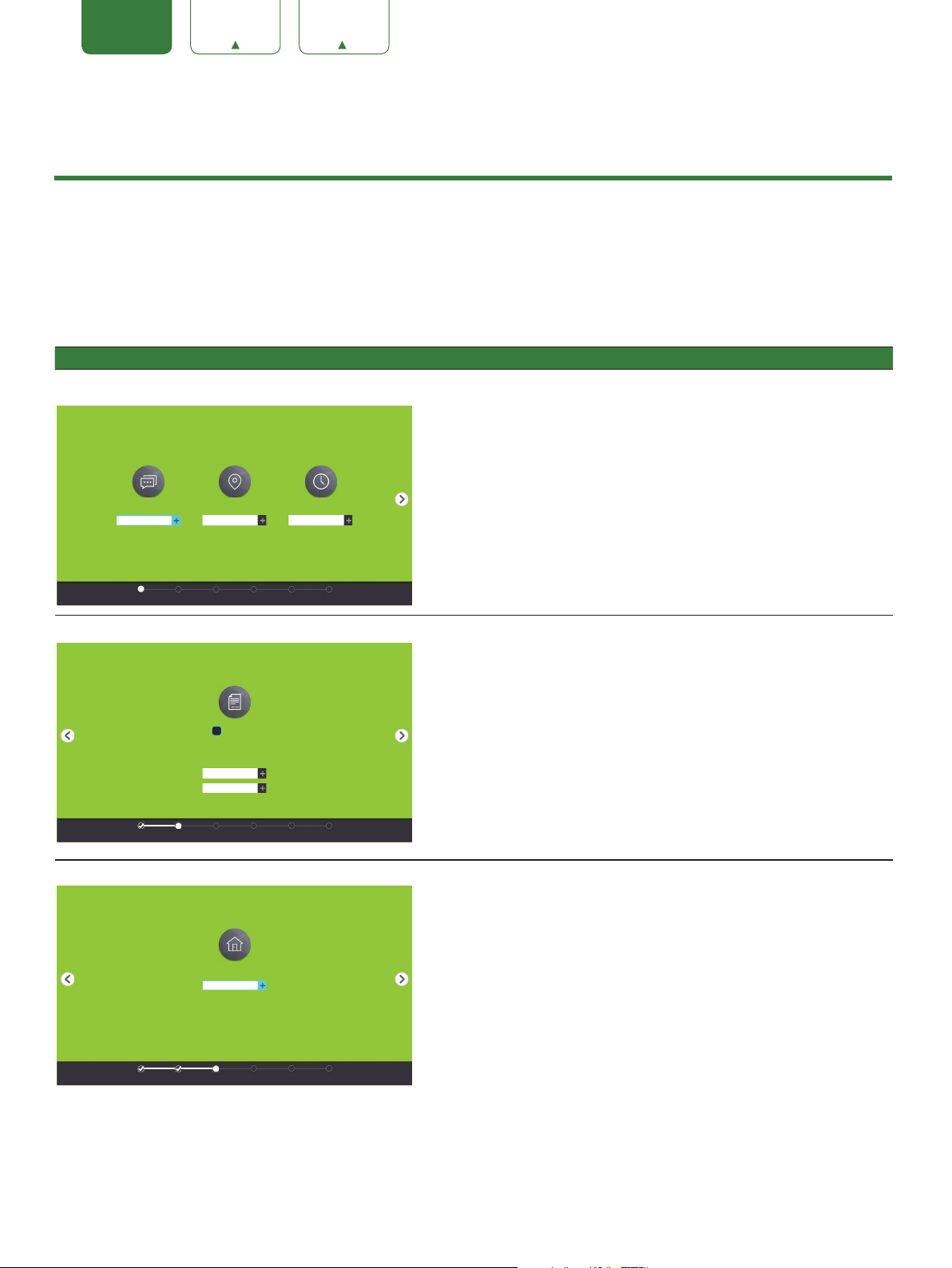

Completing the First-Time Setup Menu ..................................................................13

Basic and Advanced TV Settings

Accessing the Quick Setup Menu ...................................................................................... 15

Picture Menu ...................................................................................................................... 15

Sound Menu ......................................................................................................................16

Channel Menu ...................................................................................................................16

Network Menu ................................................................................................................... 16

System Menu ..................................................................................................................... 17

...........................................................................15

About TV Menu ................................................................................................................. 18

Parental Controls .............................................................................................................. 19

Getting familiar with the Home screen ...................................................................21

Apps ...........................................................................................................................22

Media .........................................................................................................................23

ENGLISH FRANÇAIS ESPAÑOL

Using Anyview Cast to mirror content from your device to the TV screen ........24

Software updates for your TV ................................................................................24

Quick Problem-Solving Tips ....................................................................................25

ENGLISH FRANÇAIS ESPAÑOL

Connecting Devices to your TV

You have several options for connecting your TV to different devices. The method in which you connect will be based upon the type of cables you have and the available outputs on your device.

Connecting an antenna, cable set-top box or satellite receiver

To connect an antenna,cable set-top box or satellite receiver:

1. Connect one end of a coaxial cable (not included) to the [RF OUT] jack on the antenna, cable or satellite box. If you are using an antenna with twin-lead cable, you may need a 300-75 Ohm adapter (not provided) to connect it to the back of your TV. Likewise, if you are using several antennas, you may need a combiner (not provided).

2. Connect the other end of the cable to the [ANT/CABLE] jack on the side of TV.

3. Using your remote, press the [INPUT] button and select TV as the input source.

ANT/CABLE

(not included)

EXTERNAL DEVICETV JACK

Cable Set top box

ANT OUT

RF Out

Figure 1. Antenna, cable set-top box or satellite receiver to the TV

Connecting an AV device with a composite video cable (yellow/red/white)

To connect an AV device with a composite video cable (not provided):

1. Use the audio and video cables to connect the composite video/audio jacks (of the external AV device) to the [AV IN] jacks of the TV. (Video = yellow, Audio Left = white, and Audio Right = red).

2. Plug the connected devices into the AV connectors on the TV before switching it on.

3. Using your remote, press the [INPUT] button and select AV as the input source.

EXTERNAL DEVICES

TV JACK

VCR

DVD Player/Recorder

Set-top box

Satellite Receiver

Satellite antenna cable

AV IN

L R

VIDEO AUDIO

Red(R)Red(R)

Audio Cable

(not included)

COMPONENT IN

(not included)

White(L)White(L)

Yellow(Video)Yellow or Green(Video)

Video

AV OUT

Video

Camera

Y P

Figure 2. AV device with a composite video cable

ENGLISH FRANÇAIS ESPAÑOL

Connecting an AV device with a component video cable (red/blue/green)

To connect an AV device with a component cable (which is red/blue/green):

1. Use a component video cable (not provided) to connect the component output jacks of the external device to the YP for the TV. Use an audio cable to connect the component audio jacks of the external device to the TV AUDIO (L/R) jacks.

2. Plug the connected devices into the YP

3. Using your remote, press the [INPUT] button and select COMPONENT as the input source.

and L/R ports on the TV before switching it on.

BPR

jacks

TV JACK

L R

AV IN

VIDEO AUDIO

Y P

Red(R) Red(R)

Audio Cable

White(L) White(L)

Red(PR/CR)

COMPONENT IN

Blue(P

B/CB

Green(Y)

(not included)

Red(P

R/CR

Component Cable

) Blue(PB/CB)

(not included)

Green(Y)

)

Component

EXTERNAL DEVICES

DVD Player/Recorder

Video

Camera

Set-top box

Satellite Receiver

VCR

Satellite antenna cable

Figure 3. AV device with a component video cable

NOTE

One AV device can be connected to the TV using a component video or composite video cable.

Connecting an AV device with an HDMI cable

This type of connection supports digital connections between HDMI-enabled AV devices such as a Personal Video Recorder (PVR), DVD, Blu-Ray, AV receiver and digital devices. In addition, some devices (such as a PVR or DVD player) require an HDMI signal to be set to Output in the settings of the device.

Please refer to the User Manual that came with your device for step-by-step instructions.

To connect an AV device with an HDMI cable:

1. Use an HDMI cable to connect the [HDMI] output port of the AV device to the [HDMI] jack of the TV.

2. Plug the connected devices into the power socket.

3. Using your remote, press the [INPUT] button and select the corresponding HDMI input.

EXTERNAL DEVICES

TV JACK

HDMI

HDMI Cable

HDMI

Figure 4. AV device with an HDMI cable

DVD

Set-top Box

NOTES

• Because the HDMI connector provides video and audio signals, it is not necessary to connect an audio cable.

• The HDMI cable will not supplied with the product.

• We strongly recommend to use HDMI Cable with 2 cores as shown in the figure.

ENGLISH FRANÇAIS ESPAÑOL

Connecting headphones

You can connect headphones to the [AUDIO OUT] port on your TV. While the headphone is connected, the sound from the built-in speakers will be disabled.

TV JACK

AUDIO

OUT

Figure 5. Headphones to the TV

EXTERNAL DEVICES

Audio Cable

(not included)

Connecting speakers (or other audio receivers)

To connect speakers (or other audio receivers) with an audio cable:

1. Use an audio cable (not provided) to connect the [DIGITAL AUDIO IN] jack of the audio receiver device to the [DIGITAL AUDIO OUT] jack of the TV. Another option is to use an RCA Y-cable (1/8”-stereo mini to L/R phono) to connect an analog sound system to the [AUDIO OUT] jack of the TV.

2. Plug the connected devices into the main power socket before switching on the TV.

TV JACKS

DIGITAL

AUDIO OUT

AUDIO

OUT

Audio Cable

(not included)

Audio Cable

(not included)

Red(R)

White(L)

EXTERNAL DEVICES

Digital Sound Bar

Audio Amplier

Bass Speaker

Powerless

Speaker

Figure 6. Audio receiver with audio cable

NOTE

If you prefer to use Audio Return Channel, then follow the steps on the next page under 'Connecting a digital sound bar to use Audio Return Channel'.

NOTES

• When a digital audio system is connected to the [DIGITAL AUDIO OUT] jack, decrease the TV and system volume.

• 5.1 CH (channel) audio is available when the TV is connected to an external device that supports a 5.1 channel surround sound

• You can receive 5.1 channel audio in one of two ways. The first way is to connect the [DIGITAL AUDIO OUT] jack from the

device to the Amplifier. The second way is to connect the [DIGITAL AUDIO OUT] jack on the back of the TV to the [Optical] port on the Amplifier. After you’ve completed one of the two methods then be sure to go into the Advanced Audio Settings of the TV and select RAW to receive the 5.1 channel audio. You will need to also go into the sound or audio settings of your device to ensure it is set to 5.1 Channel output. It may read ‘Bitstream’, ‘RAW’ or ‘Digital’.
