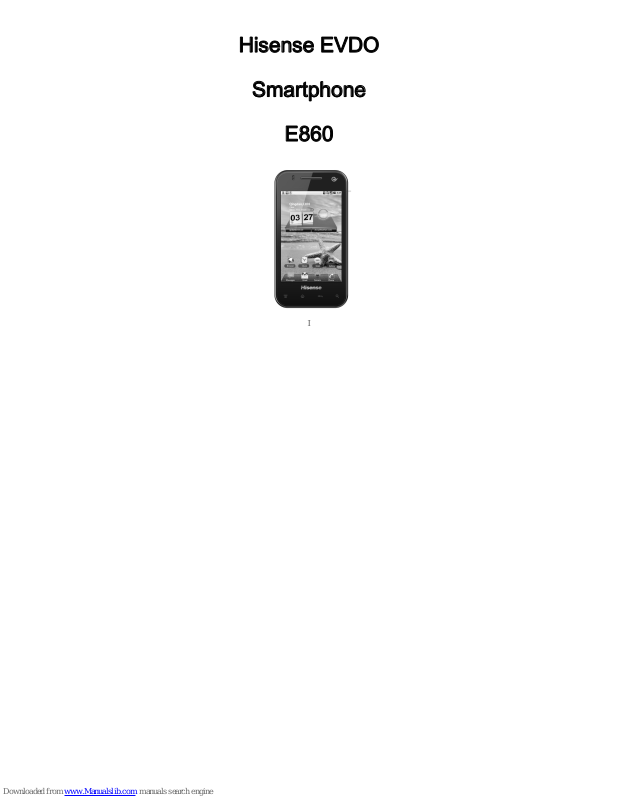

Hisense E860 User Manual

I

Hisense EVDO

Smartphone

E860

II

Content

Getting ready for use .......................... 1

Part name and function......................1

Inserting the UIM card.......................2

Inserting SD card..............................3

Installing the battery.........................3

Removing the battery........................4

Charging the battery.........................4

Battery performance..........................5

Turning your phone on and off............7

Desktop manager..............................7

Making a call....................................8

Main Function ................................. 10

Browser.........................................10

Calculator......................................10

Calendar........................................10

III

Camcorder.....................................11

Camera..........................................11

Clock............................................11

Email............................................. 12

FM Radio.......................................13

Gallery...........................................13

Gmail............................................13

Latitude.........................................13

Messaging......................................13

Music.............................................14

People...........................................15

Phone............................................15

Search...........................................16

Settings.........................................16

Sound Recorder..............................19

Voice Dialer....................................20

Videos...........................................20

Safety information ............................ 21

1

Getting ready for use

Part name and function

Name Function

1 Power key

When powered on
press to darken or
lighten the screen
or hold to pop up
option menu.
When powered off
hold to turn on the
phone.

2

2

Menu key

Press to present a
main menu.

3

Home key

Press to return to
home screen.

4 Return key

Return to previous
menu.

5

Fast search
key

Enter Google
search
interface.

6 Camera Take pictures.

7

Volume keys

Press to
accommodate the
volume and start
up silence mode
when there is an
incoming call.

8

Headset jack Insert headset.

9

Charge/USB
Port

Connect USB line.

Inserting the UIM card

Your phone must work with a card
provided by your service provider. Your
card contains all your subscription
information.
Insert UIM card with the metal contacts
facing down and the cut corner aligned
with that of the slot;

3

Notes:

1. If no card is installed, or there are
errors in the insertion, or your card
is damaged, the string of “No
service” will display on the screen
after your phone is powered on.

2. If your card is PIN-locked your
phone will display “unlock PIN”.
You must enter PIN before the
phone can start working. Please
contact your network service
provider if you need.

3. When inserting card, please keep
it away from possible damage
caused by static, scratch and bend,
and put it where is not available for
children.

Inserting SD card

Insert SD card with the metal contacts
facing down and the cut corner aligned
with that of the slot;

Installing the battery

You must install and charge the battery
to use your phone. Insert the ridge at
the top of the battery into the base of
the phone, make sure to touch the

4

metal contact on the phone, then push
the battery down and snap it into place.
Note:
Your phone is designed to be used only
with original batteries and chargers.
Use of other batteries or chargers may
cause damage to your phone and the
warranty will be void.

Removing the battery

Make sure your phone is powered off to
avoid the important information getting
lost.
Hold battery bottom and remove the
battery from the phone.

Charging the battery

New batteries are shipped partially
charged. Before you can use your
phone, you need to charge the battery.
Some batteries will have best
performance after several full charge/
discharge cycles.

1. Connect data cable and charger,
plug one end into your phone’s
data port.

2. Plug the other end of the charger
into the appropriate electrical

5

outlet (100~240V AC).

3. When your phone indicates that
the battery is fully charged,
remove the charger.

Notes:

1. Before charge, make sure the
battery is installed in the phone.

2. The battery can discharge
gradually even when your phone
is powered off. If the battery is
drained for a long time, the
information stored in the phone
could possibly be lost. So even
you don’t need to use your phone
for a long period, you should
charge the battery some times to
keep it away from drained.

3. You need longer charging period
with the lower voltage.

4. You need long er time as operation
as charging.

5. The nomal charge temperature is
during 0

℃-40℃.

Battery performance

1200mAh (standard

battery)

Standby time* 100hours

6

Talk time* 200 minutes
 Many conditions can affect

battery’s standby time, such as
local network conditions, phone’s
settings, frequent operations,
using data services, etc.

 The battery performance is also

affected by charge state and
temperature.

7

Basic operations

Turning your phone on and
off

Turn on the phone: Press and hold

Power key for more than 3 seconds to
turn on your phone.

Turn off the phone: Press and hold

Power key to pop up option menu,
select “power off”. If it is powered off
you can not receive, make a call or do
other operations.

Desktop manager

Lock the screen

The screen lock prevents unwanted
actions on the touch screen when you
are not using your phone. When the
phone is left idle for a set period, the
screen locks automatically if you

enabled screen lock in settings



Security.

Unlock the screen

You can unlock the screen according to
your settings.
The default way is pulling to right after
your screen is enabled with pressing
power key.

8

Delete icon：

Press and hold a selected icon on
desktop, you will find‘X
Remove’appearing. At this time drag
the icon to ‘X Remove’, then release.

Status bar

A status bar at the top of the screen
displays phone status information and
notifications.

Change wallpaper

Press on the desktop space, then pop
up the following menu: Gallery/Live
wallpapers/ wallpapers.

Notification panel

You can open notifications such as
unread messages or missed calls
directly from the notification panel.

How to open the panel:
Hold the status bars with your finger,
and drag it downwards.

Making a call

Click to enter dialer interface on idle
screen or main menu screen, input

phone number and click to make a
call, click the End button. If you make a

mistake, you can click

to delete the

9

number or hold it to delete all numbers
before the cursor.

10

Main Function

Browser

Connect the web page with the mobile
network.
You can input different website to view
different web page.
Press menu key you can do:
 Add a new bookmark or manage

bookmarks.

 Refresh
 Exit the current window.

Do more things such as: forward, add
bookmark and so on.

Calculator

Perform basic calculations such as
addition, subtraction, multiplication and
division.

Calendar

Click calendar to enter calendar menu.
Click the top left corner to select the
mode to view calendar.

Create agenda

1. Press menu key and click “New
event” button.

2. Before you can add an event, you
must add at least one calendar
account to your device and make

11

a calendar visible.

3. Input name/Location/Time and so
on.

4. Click “Done” button.

The new agenda will appear on the
calendar menu when you entering
again.

Camcorder

Click or to take a video or
photo.

Drag to focuses.
Click

to take a video.

Camera

You can take photos conveniently by
using camera.

Click

to take photos.

Clock

Click to view the time.
Click “set alarm” to add alarm.
You can see two default alarm clock
when enter.
Enter one of them, turn on the alarm:

1. Turn on the alarm.

2. Set the time.

3. Set the repeat times.

4. Set the ringtone.

12

5. Choose vibrate mode or not.

6. Edit label.

7. Click OK at the bottom of the
screen.

Notes ：

1. Press menu key to add more
alarm when enter alarm clock.

2. The alarm clock will still work even
the phone is powered off.

3. Don’t set the phone in silence
mode to guarantee the alarming
effect.

4. Please change the battery in a
minute or else the information
stored in the phone will be lost.

Email

You can configure Email for most
accounts in just a few steps according
the tip on the screen.
The functions of the Email:

1. Receive email and view the text
and attachments via your phone.

2. Reply and forward a received
email.

3. Create a new email.

Apart from this, you also can set the
inbox checking frequency.

13

FM Radio

You should insert headset before using
FM Radio.
Search radio settings and play it:

1. Click menu key, select “Scan”
scan all stations.

2. Select some stations and play it.

Gallery

View pictures and videos stored in
phone or memory card.
Click “Albums” to view the picture with
different tag.

Gmail

View your Gmail account and send or
receive email.

Latitude

Download the map:
You can find place/navigation/find
family& friends/view my place.

Messaging

Send and receive message.

Create message

Click “ ” to creat message.
Input receiver’s phone number and edit
contents.
 For phone number:

1. You can click the keyboard to input

14

number directly.

2. You can select number from
messages, contacts or call logs.

3. You can select several numbers to
send.

Notes:

If the message editing is interrupted by
incoming calls, alarm clock, powering
off, the entered texts will be saved
temporarily.
 Click “Type message” to edit the

message.

 Press Menu key, pop up the

submenu.

Music

Click to enter music player.

1. Artists: view different artists’ songs.

2. Albums: view different albums list.

3. Songs: view all songs list.

4. Playlists: view current playlist and

saved playlist.
Press menu key when playing a song,
you can do ：

 View the library details.
 Party shuffle.
 Add the song to playlist.
 Set the song as ringtone.
 Delete the song.

15

People

Search for a contact

1. Click fast search key or click ;

2. Enter the first few letters of the
contact name, all contacts beginning
with these letters appear.

Add a contact

Click , you can add a new contact to
the phone or card.

Manage contact

Click the item to view the detail
information about the contact.
Hold the menu key to view the submenu:
Edit/ share/ delete/ copy to phone/ send
contact/all calls to voicemail.

Phone

Click enter dial plade, Input the
number, then call out.

Input phone number, click

to make

a call, click

to delete the number
you do not need or hold it to delete all
numbers before the cursor.

Click

enter call log, view the

16

detailed information.
Click to view the contact.

Search

You can input the contact with soft key
or voice.

Click to search the network
resource.

Settings

Wireless & networks

 Set call feature settings and select

TTY mode or DTMF Tones from
the combobox.

 Click to turn on WIFI or

Bluetooth.Set the WIFI or
Bluetooth.

 Turn on Data usage.
 Click to turn on Airplane mode.
 Set the tethering & portable

hotspot.

 Set wifi direct settings and mobile

networks.

Device

1. Sound
 Set volume for ringtone/ media

or alarm.

 Set silence mode or not.
 Set your default incoming call

17

ringtone.

 Set your default phone ringtone

or notification ringtone.

 Turn on/off Dial pad touch tones/

Touch soun d and so on.

2. Display
 Adjust the brightness of the

screen.

 Choose the wallpaper from

gallery/live wallpapers/
wallpapers.

 Turn on Auto-rotate screen.
 Adjust the delay before the

screen automatically turns off.

 Select the font size.

3.

Storage

View SD card and Internal storage.

4.

Battery

View the battery usage data.

5. Apps
View the download/on SD card/ rinning.

Personal

1. Accounts &sync
Turn on or off the the function, manage
accounts.

2.

Location services

Turn on or off google’s location
service/GPS satallites/Location

18

&Google search.

3. Security
 Lock screen with a pattern,

number, or password.

 Edit owner information displayed

on the lock screen.

 Encrypt your accounts, settings,

downloaded apps and their data,
media, and other files.

 Set up SIM/RUIM card lock and

edit passwords.

 Select device administrators.
 Credential storage.

4.

Language &input

 Select language and edit personal

dictionary.

 Select android keyboard or googl e

voice typing.

 Set the voice search and

text-to-speech output.

 Set the pointer speed.

5.

Backup&reset

 Turn on or off “Back up my data” or

“Automatic restore”.

 Erase all data in phone.

System

1. Date and time
Set the date, time, time zone and
formats.

19

 The current date and time will

display on the idle screen if you
choose automatic.

 If you do not choose automatic,

please set the date, time zone.

 Set the format of time and date.

2.

Accessibility

 View services installed.
 Turn on large text/ Power button

ends call and so on.

3. Developer options



Turn on or off USB debugging/
Stay awake/allow mock lacations.

 View development device ID.
 Set HDCP checking behacior.
 Set your full backup password.

About phone:

View phone system updates/ status
/software version and other phone

information

.

Sound Recorder

You can record for a long time, please
make sure your phone has enough
storage.

Record:

1. Keep the phone near the sound

source.

2. Click “

” to record , click “ ” to

20

stop.

3. Finish the record; you can select

“Save” or “Discard”.

Voice Dialer

Keep the voice near the mike, say the
number as the examples.

Videos

View and play the video on the SD card.

21

Safety information

For safety, only an approved adapter
can be used. It does not bear
responsibility for any faults that may
arise due to non-conformation to this
guide. For example:
Do not, in any way, cause a short-circuit.
It may start a fire or the phone may
explode causing injury.
Do not create a sudden impact on the
battery by throwing it.
Do not dispose off batteries by putting
them in a fire. They may explode or
catch fire due to the electrolyte within.
Caution
Do not use the phone with a wrong
battery.
Avoid using the phone in high
temperature or humidity. Avoid spilling
any liquid on this phone. If the phone
gets wet, Switch off phone and turn off
AC power supply.
Keep the phone dry. Submersion,
humidity, and liquids containing
minerals may corrode internal el ectronic
circuits.
Do not store or use the phone in dusty
or dirty areas as this can damage the
moving parts.

22

Do not store the phone in hot/ cold
areas.
Do not attempt to open it. Non-expert
handling of the phone could damage it.
Consult your authorized dealer for
assistance.
Do not drop, knock or shake the phone.
Rough handling may break the internal
circuit boards.
Do not use harsh chemicals, cleaning
solvents or strong detergents to clean
the phone. Wipe it with a soft cloth that
has been slightly dampened in a mild
soap and water solution.
Do not paint the phone. Paint can clog
the phone’s moving parts and prevent
proper function.
During lightning, do not touch the power
plug or the phone line. It may result in
an electric shock or death.
Do not install the phone under direct
sunlight or on an uneven surface.
Before using the plug, check the
available power voltage. Inaccurate
power voltage may cause fire and
damage.

23

Accessories List

 Battery
 AC Charger
 USB cable
 Earphone
 User Manual
 Warranty card

24

RF Exposure Information

and Statement

The SAR limit of USA (FCC) is 1.6 W/kg
averaged over one gram of tissue.
Device types E860 (FCC ID:
SARHISENSEE860) has also been
tested against this SAR limit. The
highest SAR value reported under this
standard during product certification for
use at the ear is 0.428W/kg and when
properly worn on the body is 0.538
W/kg. This device was tested for typical
body-worn operations with the back of
the handset kept 1.5cm from the body.
To maintain compliance with FCC RF
exposure requirements, use
accessories that maintain a 1.0cm
separation distance between the user's
body and the back of the handset. The
use of belt clips, holsters and similar
accessories should not contain metallic
components in its assembly. The use of
accessories that do not satisfy these
requirements may not comply with FCC
RF exposure requirements, and should
be avoided.

25

This device complies with part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference,
and (2) this device must accept any
interference received, including
interference that may cause undesired
operation.

NOTE: The manufacturer is not
responsible for any radio or TV
interference caused by unauthorized
modifications to this equipment. Such
modifications could void the user’s
authority to operate the equipment.

NOTE: This equipment has been tested
and found to comply with the limits for a
Class B digital device, pursuant to part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no

26

guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:

- Reorient or relocate the receiving
antenna.

- Increase the separation between the
equipment and receiver.

-Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.

-Consult the dealer or an experienced
radio/TV technician for help
