Hisense C2005US User Manual

COLOR TELEVISION

OWNER'S MANUAL

C2005US

Part No: IES050157

WELCOME TO THE BRIGHT AND VIVID WORLD OF COLOR TV

Dear customer,

Thank you for purchasing this color TV . We wish you many years of viewing pleasure. The goal of this manual is to guide you through setting up and operating your TV as quickly as possible.

Please read all the safety and operating instructions carefully before you begin.

SAFETY CLASS

This is an IEC safety class II (reinforced insulation) product and does not need grounding for safety.

CONTENTS

Important safety instructions................................ .......... .......... .......... .......... .......... .....1

Brief Operating Instructions................................. .......... .......... .......... .......... .......... .....3

Learning about your new TV ................................ .......... .......... .......... .......... .......... .....5

Selecting a location for the TV............................... .......... .......... .......... .......... .......... .....5

Connecting your TV......................................... .......... .......... .......... .......... .......... .....5

Connecting the audiovisual equipments ................ .......... .......... .......... .......... .......... .....6

Connecting the antenna ................................ .......... .......... .......... .......... .......... .....6

Connecting a cable converter box ...................... .......... .......... .......... .......... .......... .....7

Preparing the remote control for use ........................ .......... .......... .......... .......... .......... .....8

Using the TV features ....................................... .......... .......... .......... .......... .......... .....9

Understanding the TV features......................... .......... .......... .......... .................... .....9

Watching a TV program ................................ .......... .......... .......... .......... .......... .....9

Using the OPTION menu ............................... .......... .......... .......... .......... .......... .....9

Using the PRESET menu .............................. .......... .......... .......... .......... .......... .....10

Changing channels..................................... .......... .......... .......... .......... .......... .....10

Adjusting the picture ................................... .......... .................... .................... .....11

Adjusting the sound .................................... .......... .......... .................... ...............11

Using the CLOCK menu ............................... .......... .................... .................... .....12

Using the closed caption feature....................... .......... .......... .......... .......... .......... .....13

Using the V-CHIP feature .............................. .......... .......... .................... .......... .....13

Setting the sleep timer ................................. .................... .................... .......... .....14

Displaying the current channel number on screen ...... .......... .......... .......... .......... .......... .....15

Switching between two channels ....................... .......... .......... .......... .......... .......... .....15

Selecting the signal source ............................. .......... .......... .......... .......... .......... .....15

Appendix ................................................... .......... .......... .......... .......... .......... .....15

Cleaning and care ...................................... .......... .......... .......... .......... .......... .....15

Trouble shooting ....................................... .......... .......... .......... .......... ...............16

Specifications .......................................... .......... .......... .......... .......... .......... .....17

CAUTION

CAUTION: TO REDUCE THE RISK OF ELEC-

TRIC SHOCK, DO NOT REMOVE COVER(OR BACK).NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the

product s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the TV.

CAUTION: Changes or modifications not expressly approved by the party responsible for

compliance

with the FCC Rules could void the users authority to operate this equipment.

WARNING: TO PREVENT OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Important safety instructions

1. READ THESE INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

2. KEEP THESE INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3. HEED ALL WARNINGS

All warnings on the product and in the operating instructions should be adhered to.

4. FOLLOW ALL INSTRUCTIONS

All operating and use instructions should be followed.

5. DO NOT USE THIS APPARATUS NEAR WATER

Do not use the product near water. For example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

6. CLEAN ONLY WITH DRY CLOTH

Unplug the TV from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

7. DO NOT BLOCK ANY VENTILATION OPENINGS

Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the TV and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat resource. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacture's instructions have been adhere to.

8. DO NOT INSTALL NEAR ANY HEAT SOURCES This product should be situated away from heat sources such as radiators, stoves, or other products (including amplifiers) that produce heat.

9. DO NOT DEFEAT THE SAFETY PURPOSE OF THE POLARIZED OR GROUNDING-TYPE PLUG

A polarized plug has two blades with one wider than the other. A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. PROTECT THE POWER CORD FROM BEING WALKED ON OR PINCHED PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS.

11. ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED BY THE MANUFACTURE.

-1-

Important safety instructions

12. USE ONLY WITH CART, STAND, TRIPOD, BRACKET, OR TABLE SPECIFIED BY THE MANUFACTURER, OR SOLD WITH THE APPARATUS. WHEN A CART IS USED, USE CAUTION WHEN MOVING THE CART/APPARATUS COMBINATION TO AVOID INJURY FROM TIP-OVER. Do not place this TV on an unstable cart, stand, tripod, bracket ,or table. The TV may

fall, causing serious injury to someone, and serious damage to the appliance. An TV and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

13. UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME.

For added Protection for this TV receiver during a lightning storm, or when it is left unattended and unused for long period of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning and power line surges.

14. REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL. SERVICING IS REQUIRED WHEN THE APPARATUS HAS BEEN DAMAGED IN ANY WAY, SUCH AS POWER-SUPPLY CORD OR PLUG IS DAMAGED, LIQUID HAS BEEN SPILLED OR OBJECTS HAVE FALLEN INTO THE APPARATUS, THE APPARATUS HAS BEEN EXPOSED TO RAIN OR MOISTURE, DOES NOT OPERATE NORMALLY, OR HAS BEEN DROPPED.

15.

POWER SOURCE

This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company . For TVs intended to operate from battery power, or other sources, refer to the operating instructions.

16. POWER CORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

17. OUTDOOR ANTENNA GROUNDING

If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded

FIGURE A

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE

to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA NO.70,provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit , size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.(Fig.A)

18. LIGHTNING For added protection for this TV receiver during

S2898A

a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning and power line surges.

19. POWER LINES An outside antenna system should not be located in the vicinity of overhead power lines, or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside atenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

20. OVERLOADING

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

21. OBJECT AND LIQUID ENTRY

Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill liquid of any kind into the TV.

22. SERVICING

Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

23. REPLACEMENT PARTS When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

24. SAFETY CHECK Upon completion of any service or repairs to this TV, ask the service technician to perform routine safety checks to determine that the TV is in proper operating condition.

ELECTRIC SERVICE EQUIPMENT

S3126A

GROUND CLAMP

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT

GROUNDING WIRES

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM

-2-

Brief Operating Instructions

1. Connection

Connect the antenna lead or CATV cable or external equipments ( such as Antenna, Cable TV, VCD, DVD, VTR, Set top box, etc .) to the corresponding terminals or interface on the TV rear ( please refer to the owner's manual of the equipment to be connected as well ) and confirm that the signal source is available and works normally.

Component Video Input

S-VIDEO

VIDEO

AUDIO

S-VIDEO

MONO

S-VIDEO Input

VIDEO

AUDIO MONO

ANT75

Video Input

Antenna

Audio Input

2. The remote control

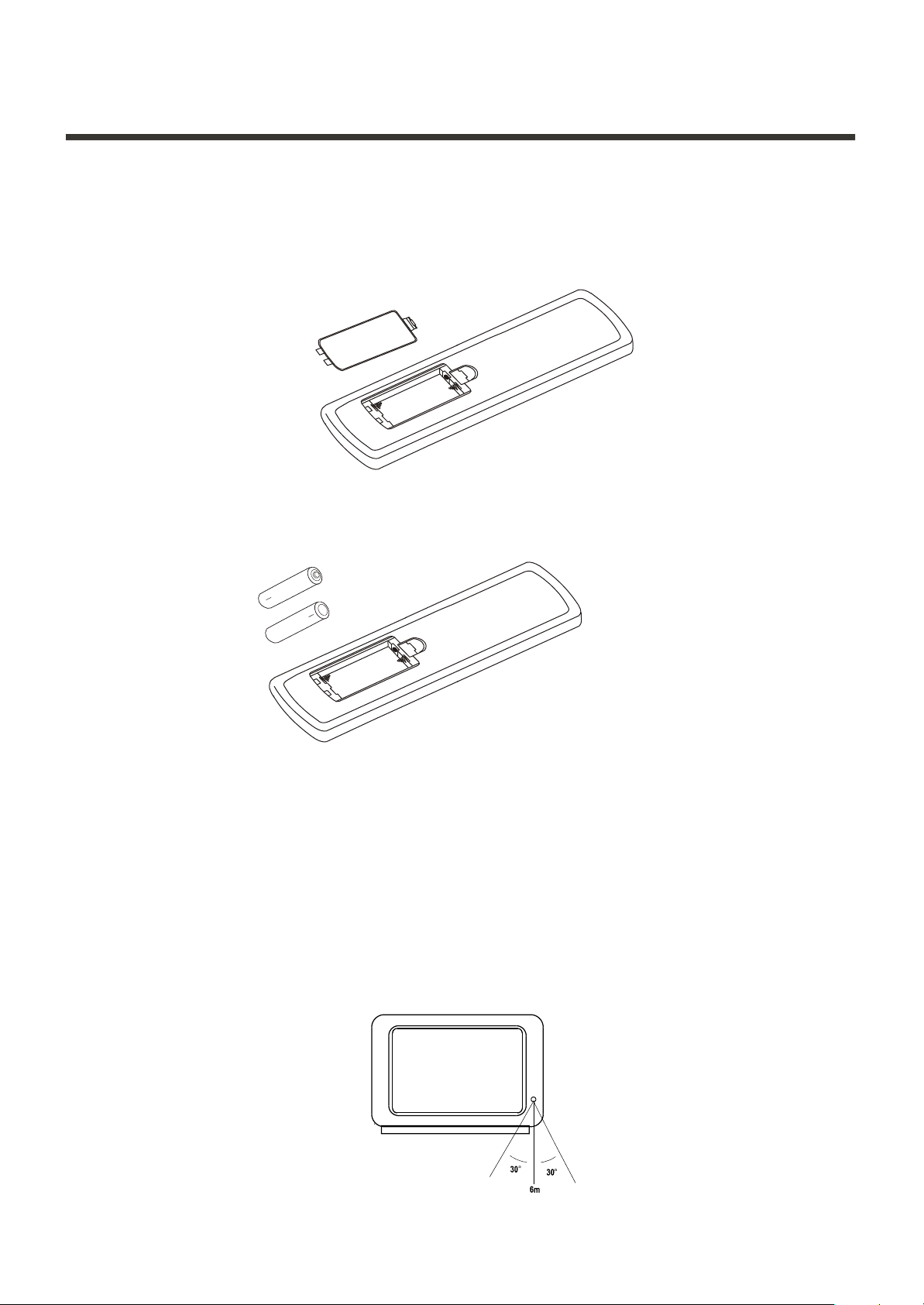

Open the battery cover of the remote control and install two AAA size batteries and then close the battery cover .

ZOOM: Zoom in / out

Mute the sound

V-CHIP: Enter the parental control menu

V-CHIP

ZOOM

CCD

Power on / off

CCD: C.CAPTION on/off

P.MODE: Select the picture mode

SLEEP: Display the sleep timer and

start the function

1--

P.MODE TV/AV

VOL- VOL+

SLEEP DISPLAY

CH+

CH-

RECALL

ES-10702CES-10702C

-3-

CHANNEL NUMBER : Direct Channel selection

Recall: Return to previous channel

TV/AV: TV/AV selection

CH+/CH-: Channel selection Cursor up/down

VOL+/VOL-:Control the volume level

Select or adjust from a particular menu

MENU: Call up the main menu

Display: Display the current

channel number

3. Switching on/off

1 ) Connect the TV to power outlet, the power indicator will display red. Press the power switch or the button on the remote control to turn on the TV. 2 ) Press the power switch or the button on the remote control to turn off the TV.

4. Signal source selection

Press the TV/AV button to select TV or AV mode.

5. Air/Cable selection

You can select the signal receiving method according to the following steps: 1 ) Press the MENU button repeatedly until the PRESET menu appears as shown on the right. 2 ) Press the CH+ or CH- button to select the item ANTENNA. 3 ) Press the VOL- or VOL+ button to change the item between AIR and CATV.

PRESET

POSITION SKIP ANTENNA AUTO-SEARCH

Select

Adjust

17 OFF AIR

6. Channel search

1 ) Press the MENU button repeatedly until the PRESET menu appears as shown on the right. 2 ) Press the CH+ or CH- button to select the item AUTO-SEARCH. 3 ) Press the VOL- or VOL+ to start to auto-search programs.

7. Picture adjustment

1 ) Press the MENU button, and the PICTURE menu appears as shown on the right. 2 ) Press the CH+ or CH- to select the item you want to adjust. 3 ) Press the VOL- or VOL+ to adjust the item.

8. Sound adjustment

1 ) Press the VOL+ or VOL- button to adjust the volume.

9. Timer setting

1 ) Press the MENU button repeatedly until the CLOCK menu appears as shown on the right. 2 ) Press the CH+ or CH- to select the item you want to set. 3 ) Press VOL- to set hour and press VOL+ to set minute.

PRESET

POSITION SKIP ANTENNA AUTO-SEARCH

Select


BRIGHT

CONTRAST COLOR SHARP TINT CORING BLACK STRETCH

Select

CLOCK

TIME ON-TIME OFF-TIME ALARM BESPOKE-TIME POSITION

Select

17 OFF AIR

Adjust

75 80 50 50 00 OFF ON

Adjust

Note1: All keys mentioned above are on the remote control unless indicated otherwise.

Note2: For more detailed information, please refer to the manual. owner's

-4-
