Page 1
5.1CH Soundbar with Wireless Subwoofer
Model: AX5100G
340W
Max Audio Power
USER MANUAL
Before using the soundbar, please read this manual thoroughly and retain
it for future reference.
Page 2
Contents
1. Important Safety Instructions ......................................................................................................... 3
1.1 Safety .........................................................................................................................................................................................................3
1.2 Warning ....................................................................................................................................................................................................4
1.3 Supported Input Audio Formats .....................................................................................................................................................6
2. What’s in the Box .............................................................................................................................. 7
3. Identifying the Parts ........................................................................................................................ 8
3.1 Main Unit ................................................................................................................................................................................................8
3.2 Wireless Subwoofer ..............................................................................................................................................................................8
3.3 Wireless Rear Surround Speakers ....................................................................................................................................................9
3.4 Remote Control .....................................................................................................................................................................................9
4. Preparations ....................................................................................................................................10
4.1 Prepare the Remote Control ...........................................................................................................................................................10
4.2 Replace the Remote Control Battery ...........................................................................................................................................10
4.3 Placement and Mounting ................................................................................................................................................................10
4.4 Mounting the Soundbar on the Wall...........................................................................................................................................11
4.5 Mounting the Rear Surround Speakers on the Wall...............................................................................................................11
5. Connections .................................................................................................................................... 12
5.1 Dolby Atmos® ...................................................................................................................................................................................... 12
5.2 DTS: X .....................................................................................................................................................................................................12
5.3 Use the HDMI eARC Socket ........................................................................................................................................................... 12
5.4 Use the OPTICAL Socket ................................................................................................................................................................. 12
5.5 Connect to AUX Socket ....... ............................................................................................................................................................ 13
5.6 Use the COAXIAL Socket ................................................................................................................................................................. 13
5.7 Connect Power .................................................................................................................................................................................. 13
5.8 Pair up with the Subwoofer and Rear Surround Speakers ................................................................................................ 14
6. Basic Operation .............................................................................................................................. 14
6.1 Standby/On ......................................................................................................................................................................................... 14
6.2 Auto-Standby / Auto-Wake Feature ..........................................................................................................................................14
6.3 Select Modes .......................................................................................................................................................................................15
6.4 Adjust the Bass/Treble Level .......................................................................................................................................................... 15
6.5 Turn the Surround Sound ON/OFF .............................................................................................................................................. 15
6.6 Adjust the Soundbar’s Volume .................................................................................................................................................... 15
6.7 Adjust the Surround’s Volume
Adjust the Brightness
6.8 ...................................................................................................................................................................... 15
6.9 Select Equalizer (EQ) Effect ............................................................................................................................................................ 15
6.10 Set the Audio Delay (AV SYNC) ..................................................................................................................................................... 15
..................................................................................................................................................... 15
7. DTS: X Operation ............................................................................................................................ 16
7.1 DRC / Dialog Control / Neural:X / Virtual:X Features ........................................................................................................... 16
8. OPTICAL / COAXIAL / HDMI eARC / AUX Operation .................................................................... 16
9. Bluetooth Operation ...................................................................................................................... 17
9.1 Pair Bluetooth-enabled Devices ................................................................................................................................................... 17
9.2 Listen to Music from Bluetooth Device ...................................................................................................................................... 17
10. USB Operation ................................................................................................................................18
11. Setup Menu ..................................................................................................................................... 19
12. Troubleshooting ............................................................................................................................ 19
13. Specifications ................................................................................................................................. 21
2
Page 3
1. Important Safety Instructions
CAUTIO N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AV IS
RISQUE DE CHOC
ÉLECTRIQUE NE PAS OUVRIR
Th e ligh tnin g as h with arrowhe ad
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated “dangerous voltage” within
the product’s enclosure that may be of
su cient magnitude as to constitute a
risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert the
user to the presence of important operating
and maintenance (servicing) instructions in
the literature accompanying the appliance.
Safety1.1
1 Read these instructions – All the safety and
operating instructions should be read before
this unit is operated.
2 Keep these instruc tions – The safety and
operating instructions should be retained for
future reference.
3 Heed all warnings – All warn ings on the
appliance and in the operating instructions
should be adhered to.
4 Follow all instructions – All operating and
usage instructions should be followed.
5 Do not use this unit near water – The
appliance should not be used near water or
moisture – for example, in a wet basement or
near a swimming pool or similar location.
6 Clean only with a dry cloth.
7 Do not block any ventilation openi ngs.
Install in accordance with the manufacturer’s
instructions.
8 Do not install near any heat sources such as
radiators, heaters, stoves, or other apparatus
9 The unit is supplied with a standard mains lead
and moulded plug which for safety reason must
10 Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
11
the manufacturer.
12
used, use caution when moving the cart/
unit combination to avoid injury from
tip-over.
13 Unplug the unit during lightning storms
or when unused for long periods of time.
14 Re fer all ser vicing to
Servicing is required when the unit has
been damaged in any way, such as power
supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the
unit, the unit has been exposed to rain
or moisture, does not operate normally, or has
been dropped.
15
insulated electrical appliance. It has been
designed in such a way that it does not require
a safety connection to electrical earth.
16
on the unit.
17 Minimum distance around the unit for
18 The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.
19 No n aked
candles, should be placed on the unit.
20 Batteries should be recycled or disposed of as
per state and local guidelines.
21 The unit can be used in moderate or tropical
climates.
Use only with the cart, stand, tripod,
bracket or table speci
manufa ctur er, or sold with t he
unit. When a cart or rack is
This equipment is a Class II or double
sourc es, such as l ighte d
ed by the
personn el.
into your wall socket, consult an electrician for
replacement of the obsolete mains socket.
3
Page 4
Caution:
- Use of controls or adjustments or performance
of procedures other than those described
herein, may result in hazardous radiation
exposure or other unsafe operation.
- To reduce the risk of fire or electric shock, do
not expose this unit to rain or moisture. T he
unit must no t be expos ed to dripping or
splashing and objects filled with liquids, such
as vases, must not be placed on unit.
- The mains plug/appliance coupler is used as
the disconnect device, the disconnect device
must remain readily operable.
- Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type.
1.2 Warning
• The battery (batteries or battery pack) shall not
be exposed to excessive hea
direct heat sources.
• B efo re op era tin g this u nit, c hec k the
voltage of this unit to see if it is identical to
the voltage of your local power supply.
• Do not place this unit close to strong magnetic
• Do not place this uni t on the or
receiver.
• I f any solid obje ct or li quid falls into the
system, unplug the system and have it checked
further.
• Do not attempt to clean the unit with chemical
clean, dry or slightly damp cloth.
• When removing the power plug from the wall
outlet, always pull directly on the plug, never
yank on the cord.
• Changes or ations to this unit not
expressly approved by the party responsible
for compliance will void the user’s authority to
operate the equipment.
• • The rating label is pasted on the bottom or
back of the equipment.
This equipment should be installed and operated
with minimum distance 20cm between the
radiator&your body.
Battery usage CAUTION
To prevent battery leakage which may result in
bodily injury, property damage, or damage to
the apparatus:
- Install all bat teries co rrectly, + and - as
marked on the apparatus.
- Do not mix old and new batteries.
- Do not mix alkaline, standard (Ca rbonZinc) or rechargeable (Ni-Cd, Ni- MH, etc.)
batteries.
- Remove batteries when the unit is not used
for a long time.
Correct Disposal of this product. This
marking indicates that this produc t
should not be disp osed with other
household wastes throughout the EU.
To prevent possible harm to the environment or
human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collection
systems or contact the retailer where the product
was purchased. They can take this product for
environmental safe recycling.
We hereby declares that this product is in compliance
with the essential requirements and other relevant
provisions of Directive 2014/53/EU.
The Bluetooth® w ord mark and logos are regi stere d
trademarks owned by Bluetooth SIG,Inc. and any use of such
marks by Hisense is under license. Other trademarks and
trade names are those of their respective owners.
The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc.
Dolby, Dolby Atmos, and the double-D symbol are registered
trademarks of Dolby Laboratories Licensing Corporation.
Manufactured under li cense f rom D olby
Dolby Laboratories. All rights reserved.
2012-2021
4
Page 5
Roku, the Roku logo, Roku TV, Roku TV Ready, and the Roku TV Ready logo are trademarks and/or registered
trademarks of Roku, Inc. Roku TV Ready is only authorized by Roku for agreed-upon countries. This product
is Roku TV Ready-supported in the United States, United Kingdom, Mexico and Canada. Countries are subject
to change. For the most current list of countries in which this product is Roku TV Ready-supported, please
email rokutvready@roku.com.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies
headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies).
DTS, DTS:X, Virtual:X, and the DTS:X logo are registered trademarks or trademarks of DTS, Inc. in the United
States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.
5
Page 6
1.3 Supported Input Audio Formats
Format
LPCM 2ch
LPCM 5.1ch
LPCM 7.1ch
Dolby Atmos - Dolby TrueHD
Dolby Atmos - Dolby Digital Plus
Dolby TrueHD
Dolby Digital Plus
Dolby Digital
DTS
DTS-ES Discrete 6.1
DTS-ES Matrix 6.1
DTS 96/24
DTS-HD High Resolution Audio
DTS-HD Master Audio
DTS-HD LBR
DTS:X
Function
OPTICAL COAXIAL
● ● ● ●
-- -- -- ●
-- -- -- ●
-- -- -- ●
-- -- ● ●
-- -- -- ●
-- -- ● ●
● ● ● ●
● ● ● ●
● ● ● ●
● ● ● ●
● ● ● ●
-- -- -- ●
-- -- -- ●
-- -- -- ●
-- -- -- ●
HDMI
ARC
HDMI
eARC
: Supported format.
●
: Unsupported format.
--
6
Page 7

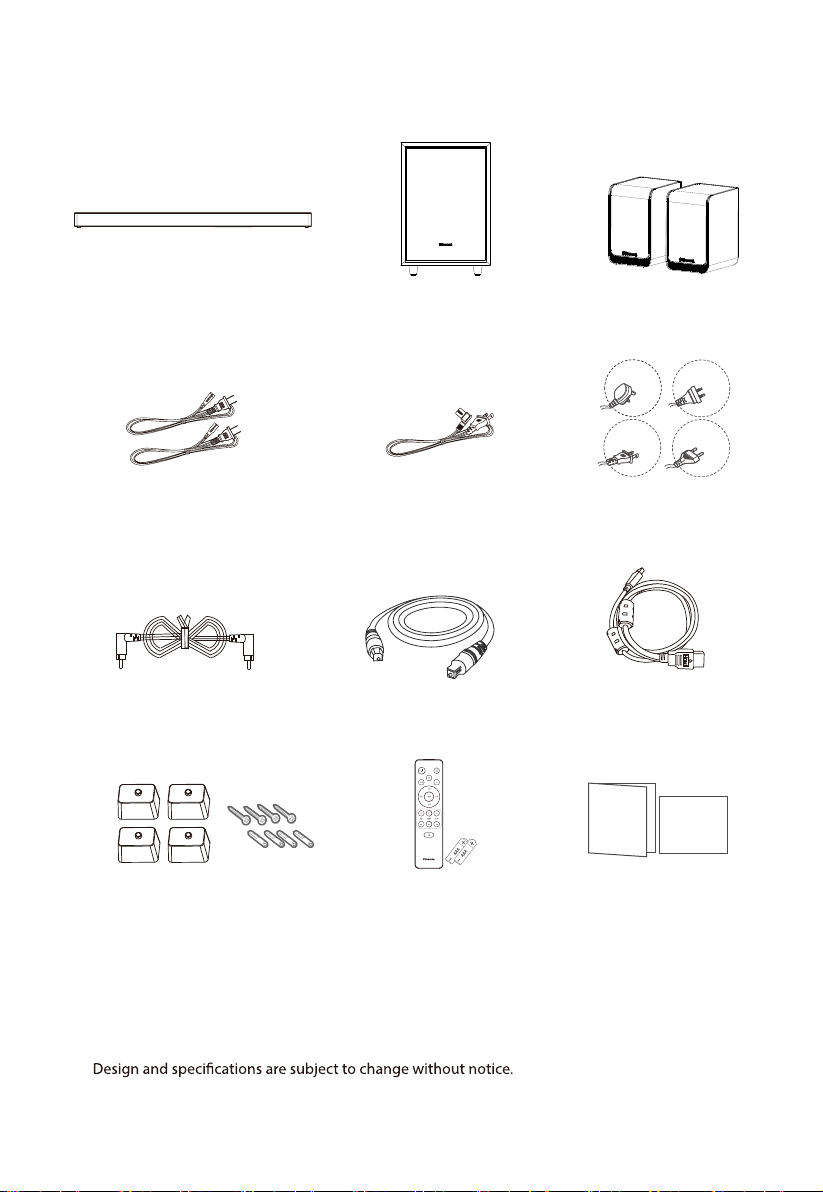

2. What’s in the Box
Main Unit
AC Power Cord x 2
For Main Unit / Wireless Subwoofer
RCA Cable
Wireless Subwoofer Rear Surround Speakers
AC Power Cord x1
For Rear Surround Speakers (SR)
Optical Cable
For UK
For US
* Plug type varies by region
HDMI Cable
For AUS
For EU
Brackets (x4) /Bracket Screw (x4)
/ Wall Anchors (x4)
Remote Control /
AAA Batteries x 2
User Manual /
Quick Start Guide
* Power cord quantity and plug type vary by regions.
• Images, illustrations and drawings shown on this User Manual are for reference only.
Actual product may vary in appearance.
•
7
Page 8
3. Identifying the Parts
3.1 Main Unit
9 11
1 2
435 6
7
USB
HDMI eARC
AUX
OPTICAL
COAXIAL
5V 500mA
8 10 12 13
1
Display Window
Show the current status.
2
Remote Control Sensor
Receive signal from the remote control.
3
Red Standby Indicator
• Constant on In Standby mode
• Slow blink In Auto-Wake On mode
4
(ON/OFF) Button
Switch the unit between ON and STANDBY mode.
5
(SOURCE) Button
Select the play mode.
6
+/-(VOL+/VOL-) Button
Increase/decrease the volume level.
7
Wall Mount
Install the wall mounting screws into the
wall mount of the unit.
3.2 Wireless Subwoofer
1
Indicator
• Fast blink The subwoofer in pairing mode
• Constant on Connected / Paired successfully
• Slow blink Connection / Pairing failed
AC IN
8
HDMI eARC Socket
The port f or connecting a TV. The port
supports the eARC/ARC HDMI feature, which
allows the soundbar to play audio that
originates on the connected TV.
9
USB Socket
Insert the USB device to play music.
10
OPTICAL Socket
Connect to the OPTICAL OUT socket
on an external device.
11
AUX
Socket
Connect to an external audio device.
12
COAXIAL Socket
Connect to the COAXIAL OUT socket
on an external device.
13
AC IN Socket
Connect to the power supply.
1 2 3
AC IN
8
Page 9
2
PAIR Button
2 seconds Pairing mode
5 seconds Clear the pairing record
3
AC IN Socket
Connect to power supply.
3.3 Wireless Rear Surround Speakers
1
PAIR Button
2 seconds Pairing mode
5 seconds
2
Indicator
• Fast blink Rear speakers in pairing mode
• Constant on Connected / Paired successfully
• Slow blink Connection / Pairing failed
3
RCA Socket
Connect the left and right rear surround speakers.
4
AC IN Socket
Connect to power supply.
5
Wall Mount
Install the wall screws and brackets
into the back of the rear surround speakers.
Clear the pairing record
5
3
1
2
4
3.4 Remote Control
1
Switch the unit between ON and STANDBY
2
(SOURCE)
3
SURR Adjust the surround ON/OFF.
4
(BT) Select the Bluetooth mode. Press and hold the
5
EQ
6
/ Skip to previous/next track in BT / USB mode.
7
VOL+/VOL- Increase/decrease the volume level.
8
Play/pause/resume playback in BT / USB mode.
9
BASS+/- Adjust bass level.
10
TREBLE+/- Adjust treble level.
11
DIMMER+/- Adjust display brightness.
12
(MUTE)
mode.
Select the play mode.
(BT) button to activate the pairing function
in Bluetooth mode or disconnect the existing
paired Bluetooth device.
Select MUSIC/MOVIE/NEWS/SPORT/NIGHT/GAME/AI
Press and hold the
button for 3s to enter
Mute or resume the sound.
1
3
7
9
12
2
4
5
6
8
11
10
9
Page 10
4. Preparations
4.1 Prepare the Remote Control
The provided Remote Control allows the unit to
be operated from a distance.
•
Even if the Remote Control is operated within
the effective range 19.7 feet (6m), remote
control operation may be disrupted if there
are any obstacles between the unit and the
remote control.
•
If the Remote Control is operated near other
products which generate infrared rays, or if
other remote control devices using infrared
rays are used near the unit, it may operate
incorrectly. Conversely, the other products
may operate incorrectly.
4.2 Replace the Remote Control Battery
1 Press and slide the back
cover to open the battery
compartment of the
remote control.
2 Insert two AAA size
batteries . Make sure the
(+) and (–) ends of the
batteries match
the (+) and (–) ends
indicated in the battery
compartment.
3 Close the battery
compartment cover.
Precautions Concerning Batteries
• Be sure to insert the batteries with correct
positive “⊕” and negative “ ” polarities.
• Use batteries of the same type. Never use
• Do not use any batteries other than those
• Do not mix new batteries with old ones.
• Never recharge a battery unless it is
4.3 Placement and Mounting
Placement
A If your TV is placed on a table, you can place
the unit on the table directly in front of the
TV stand, centered with the TV screen.
B If your TV is attached to a wall, you can mount the
unit on the wall directly below the TV screen.
Note: The unit should be placed to avoid covering the
signal receiver of the TV or the remote of TV can not work.
A B
Note
• The rear speakers are designed exclusively for use
with the soundbar and cannot be used with other
devices.
• Install the rear speakers vertically.
• Either rechargeable or non-rechargeable
batteries can be used. Refer to the
precautions on their labels.
•
the battery cover and the battery.
• Do not drop the remote control.
• Do not allow anything to impact the remote
control.
• Do not spill water or any liquid on the remote
control.
• Do not place the remote control on a wet
object.
• Do not place the remote control under direct
sunlight or near sources of excessive heat.
• Remove the battery from the remote control
when not in use for a long period of time, as
corrosion or battery leakage may occur and
result in physical injury, and/or property
10
Page 11
4.4 Mounting the Soundbar on the Wall
N
ote:
personal injury and property damage (if you intend to install this product yourself, you must check
for installations such as electrical wiring and plumbing that may be buried inside the wall). It is the
installer’s responsibility to verify that the wall will safely support the total load of the unit and wall
brackets.
- Additional tools (not included) are required for the installation.
- Do not overtighten screws.
- Keep this instruction manual for future reference.
-
WARNING
• To prevent injury, this unit must be securely attached to the floor/wall in accordance with the
installation instructions.
• Suggested wall mounting height: ≤ 1.5 meters.
770 mm / 30.3”
1
2
3
AC IN
4.5 Mounting the Rear Surround Speakers on the Wall
1
2
5V 500mA
COAXIAL
OPTICAL
AUX
HDMI eARC
USB
3
11
Page 12
5. Connections
5.1 Dolby Atmos®
Dolby Atmos® gives you immersive listening
experience by delivering sound in three
dimensional space, and all the richness, clarity,
and power of Dolby sound. For more information,
please visit dolby.com/technologies/dolby-atmos
HDMI eARC
USB
5V 500mA
OPTICAL AUX COAXIAL
5.2 DTS: X
DTS: X, the border sound is no longer constrained
by fixed-position speaker placement or specific
channel signals.
For using Dolby Atmos® / DTS: X
Dolby Atmos® / DTS: X is available in HDMI eARC
/ARC mode. For the details of the connection,
please refer to “ HDMI Connection HDMI eARC”.
/ARC
1. To use Dolby Atmos® / DTS: X mode, Your
TV has to support Dolby Atmos® / DT S: X
or HDMI audio passthrough.
2. Make sure that “Bitstream“, ”RAW“ or ”No
Encoding“ is selected for bitstream in the
audio out put of the connected external
device (e.g. Blu-ray DVD player, TV etc.).
3. While
entering Dolby Atmos / DTS: X / Dolby
Digital / PCM format, the soundbar will show
DOLBY ATMOS / DTS: X / DOLBY AUDIO /
PCM AUDIO.
5.3 Use the HDMI eARC Socket
Using HDMI to con nect the so undbar, AV
equipment and TV:
eARC / ARC (Audio Return Channel)
The eARC / ARC (Audio Return Channel) function
all ow s you to send audio from your AR Ccompliant TV to your soundbar through a single
HDMI connection. To enjoy the ARC function,
please ensure your TV is both HDMI-CEC and ARC
compliant and set up accordingly. When correctly
set up, you can use your TV remote control to
adjust the volume output (VOL +/- and MUTE) of
the soundbar.
HDMI eARC
- Connect the HDMI cable from unit's HDMI
eARC socket to the HDMI socket on your ARC
compliant TV. Then press the remote control
to select HDMI eARC.
Tips:
• Your TV must support the HDMI-CEC and ARC
function. HDMI-CEC and ARC must be set to
On.
• The setting method of HDMI-CEC and ARC
may differ depending on the TV. For details
about ARC function, please refer to the
owner’s manual.
• ARC only works with devices that are HDMI
ARC capable as well as with an HDMI 1.4
cable (and higher).
5.4 Use the OPTICAL Socket
- Connect an OPTICAL cable to the TV’s
OPTICAL OUT socket and the OPTIC AL
socket on the unit.
USB
HDMI eARC
5V 500mA
OPTICAL
OPTICAL AUX COAXIAL
OPTICAL
12
Page 13
5.5 Connect to AUX Socket
A Use a RCA to 3.5mm audio cable to connect
the TV’s audio output sockets to the AUX
socket on the unit.
B Use a 3.5mm to 3.5mm audio cable to connect
the TV’s or external audio device AUX socket
to the AUX socket on the unit.
BA
AUX
5.6 Use the COAXIAL Socket
• You also can use the COAXIAL cable to connect
the TV's COAXIAL OUT socket and COAXIAL socket
on the unit.
5.7 Connect Power
•
Risk of product damage!
Ensure that the power supply voltage
corresponds to the voltage printed on the back
or the underside of the unit.
• Before connecting the AC power cord, ensure
you have completed all other connections.
• Soundbar
Connect the mains cable to the AC IN socket of
the main unit and then into a mains socket.
• Subwoofer
Connect the mains cable to the AC IN socket of
the subwoofer and then into a mains socket.
• Rear Surround Speakers
Connect the mains cable to the AC IN socket of
the rear surround speakers (SR) and then into a
mains socket.
USB
HDMI eARC
5V 500mA
OPTICAL AUX COAXIAL
COAXIAL
COAXIAL
Tips: The unit may not be able to decode all digital
audio formats from the input source. In this case,
the unit will mute. This is NOT a defect. Ensure
that the audio setting of the input source (e.g. TV,
game console, DVD player, etc.) is set to PCM or
Dolby Digital (Refer to the user manual of the
input source device for its audio setting details)
with HDMI / OPTICAL / COAXIAL input.
For UK For AUS
For EU
For US
* Power cord quantity and plug vary by regions.
13
Page 14
5.8 Pair up with the Subwoofer and Rear
Surround Speakers
Automatic pairing
The subwoofer, rear surround speakers and
soundbar will automatically pair when they are
plugged into the mains sockets and turned on.
No cable is needed for connecting the three units.
• Determine the status based on the indicator
of the wireless subwoofer and wireless rear
surround speakers.
LED State Status
Fast blink
Constant on
Slow blink
NOTE:
- Do not press the PAIR button on the rear of
the subwoofer or the PAIR button on the rear
surround speakers(SR), except for manual pairing.
- If the automatic pairing fails, pair the subwoofer
and the rear surround speakers with the main
unit manually.
Subwoofer and the rear surround
speakers in pairing mode
Connected / Pairing successfully
Connection / Pairing failed
Manual pairing
1. Ensure that all cables are well connected
and the main unit is in Standby mode.
2. Press the
the remote control to switch the main unit on.
3. Press the button on the main unit or on the
remote control for 3 seconds to enter Pairing mode.
The display will scroll "SW Pairing".
4. Press and hold the PAIR button on the rear
of the subwoofer or the PAIR button on the
rear surround speaker(SR) for 2 seconds.
The subwoofer and the rear surround speakers
will enter the pairing mode and the indicators
on the subwoofer and the rear surround
speakers will blink quickly.
5. After the wireless connection succeeded, the
Pair indicators will light up and the display on
main unit will scroll "SW_IN".
6. If the Pair indicator blink slowly, the
wireless connection has failed. Unplug
the cable of the subwoofer and then the
cable of the rear surround speakers,
reconnect the main cables after 3 minutes.
Repeat step 1 ~ 4.
NOTE:
• If the wireless connection fails again, check
if there is conflict or strong interference
button on the main unit or on
14
(for example, interference from an electronic
device) around your location. Remove these
conflicts or strong interferences and repeat
the above procedures.
• The subwoofer and the rear surround speakers
should be within 6m (18 feet) of the soundbar
in an open area.
• If the main unit is in On mode, and not
connected with the subwoofer and the rear
surround speakers, the indicators on the
subwoofer and the rear surround speaker(SR)
will flash slowly. Follow step 1~4 above to
pair the subwoofer and the rear surround
speakers to the main unit.
6. Basic Operation
6.1 Standby/On
socket, the main unit will be in STANDBY mode.
• Press the
remote control to switch the unit ON.
• Press the
back to STANDBY mode.
• Disconnect the mains plug from the mains
socket if you want to switch the unit OFF
completely.
6.2 Auto-Standby / Auto-Wake Feature
• [Auto-Standby ] Your soundbar has been
programmed to enter STANDBY mode
automatically when no audio is detected for
15 minutes. For example, this would happen
when pausing playback, or should the
soundbar be left on accidentally.
• [Auto-Wake] If a TV or an external device is
connected (HDMI eARC/OPTICAL/COAXIAL
mode), the unit will switch on automatically
when the TV or the external device is switched
on.
To disable this feature, please follow the steps
below:
1. During ON mode, pointing the remote at the
soundbar, press and hold the
seconds to open the menu.
- The unit’s display will scroll “MENU
2. Press the
the display shows: Auto Wake [ON / OFF].
or
Press the
the display shows: Auto Standby [ON / OFF].
button on the unit or on the
button again to switch the unit
button for 3
”.
button 6 times in succession：
button 7 times in succession,
Page 15
3. Select the content with VOL +/- button on the
remote control, and then press
to confirm
your selection and exit the settings.
• Repeating these steps will toggle the feature
"ON" and "OFF".
6.3 Select Modes
• Press the
the unit or on the remote control to select
the OPTICAL, COAXIAL, HDMI eARC,
BT(Bluetooth), USB and AUX mode.
• Press the
select the BT (Bluetooth) mode.
• The selected mode will show on the display.
Display Mode
(SOURCE) button repeatedly on
button on the remote control to
HDMI eARC
HDMI ARC
OPTICAL
COAXIAL
Bluetooth
Connected
Not Connected
USB
No USB connected
AUX
6.4 Adjust the Bass/Treble Level
• Press the BASS +/- buttons on the remote
control to adjust bass level (bass +5 / bass -5).
• Press the TREBLE +/- buttons on the remote
control to adjust treble level (treble +5 /
treble -5).
6.5 Turn the Surround Sound ON/OFF
• Press the SURR button on the remote control
to turn on the surround sound. Press this
6.6 Adjust the Soundbar’s Volume
• Press the + / - buttons on the unit or the VOL+
/ VOL- buttons on the remote control to adjust
the volume.
• • If you wish to turn the sound off, press the
(MUTE) button on the remote control.
Press the (MUTE) button again or press
the VOL+ / VOL- buttons to resume normal
listening.
In BT/USB mode, if the main unit is mute,
press button 2 times can resume normal
listening.
6.7 Adjust the Surround’s Volume
1 When the surround speaker is connected,
press and hold the SURR button for 3
seconds,
the display shows “ SUR-0”
2 Then press VOL+ / VOL- buttons to increase
or decrease the surround speaker volume
(SUR +5~SUR -5).
• After about 3 seconds, the unit will exit from
surround volume setting. The display will show
the current selected mode. You may now press
the VOL+ / - buttons to adjust volume.
6.8 Adjust the Brightness
- Press the DIMMER +/- button on the remote
control to select brightness level.
6.9
• While playing, press the EQ button on the
remote control to select desired preset
equalizers: MUSIC, MOVIE, NEWS, SPORT,
NIGHT, GAME, AI EQ.
6.10 Set the Audio Delay (AV SYNC)
• Video image processing, sometimes longer
than the time required to process the audio
signal. This is called “delayed.” Audio Delay
feature is designed to remedy this delay.
• Set the audio delay, provided only for the
current playback mode. (As pro vided in
the HDMI ARC audio delay mode, the delay
mode is valid only for the HDMI ARC).
- By default, the audio delay is set to 00.
1. During ON mode, press and hold the
button for 3 seconds to open the menu, then
the
press
button 9 times in succession.
The unit’s display will scroll “ LT 00”.
2. Press the VOL+/- buttons to initiate a 10 ms
frequency hopping to adjust the delay time.
Set 200 ms maximum delay.
3. Press the
button or wait 10 seconds to exit.
Tips:
• Adjustment range: [00~200ms]
• The audio delay setting is only valid for
digital audio (eg, HDMI eARC, COAXIAL,
OPTICAL).
15
Page 16
7. DTS: X Operation
7.1 DRC / Dialog Control / Neural:X
/ Virtual:X Features
DTS:X® technologies provide users with virtual
multi-channel virtual surround effects, creating
an immersive audio volume.
- During ON mode, pointing the remote at the
soundbar, press and hold the
seconds to open the menu.
- The unit’s display will scroll “MENU”.
DRC Level Setting:
• Press the
button 10 times in succession,
the display shows: DRC 0/1/2
Adjust the Dialog Control Level:
• Press the
button 11 times in succession,
the display shows: DCL 0/1/2/3/4/5/6
Neural:X Setting:
•• Press the
button 12 times in succession
the display shows: Neural X ON / OFF.
Virtual:X Setting
Press the button 13 times in succession,
the display shows: VIRTUAL X ON/OFF.
Note:
Above operations are mainly for DTS compliance
requirement and only Virtual:X Setting is open for
consumer.
button for 3
：
Tips:
• The unit may not be able to decode all digital
audio formats from the input source. In this
case, the unit will mute. This is NOT a defect.
Ensure that the audio setting of the input
source (e.g. T V, game console, DVD player,
etc.) is set to PCM or Dolby Digital (Refer to
the user manual of the input source device
for its audio setting details) with HDMI eARC
/ OPTICAL / COAXIAL input.
•
unit will display the following as follows:
Input Format
Dolby Digital
Dolby Digital
Dolby Digital Plus
- Atmos
Dolby Digital Plus
Dolby Digital Plus
Dolby TrueHD - Atmos
Dolby TrueHD
Dolby TrueHD
Dolby MAT - Atmos
Dolby MAT
Dolby MAT
PCM
Surround
On/Off
On
Off
-
On
Off
On
Off
-
On
Off
On
Display
DOLBY SURROUND
DOLBY AUDIO
DOLBY ATMOS
DOLBY SURROUND
DOLBY AUDIO
DOLBY ATMOS
DOLBY SURROUND
DOLBY AUDIO
DOLBY ATMOS
MPCM
MPCM
DOLBY SURROUND
8. OPTICAL / COAXIAL / HDMI
eARC / AUX Operation
1 Ensure that the unit is connected to the TV or
audio device.
2 Press the
or on the remote control to select the OPTICAL,
COAXIAL, HDMI eARC, BT, USB,AUX mode.
3 Operate your audio device dir ect ly for
playback features.
4 Pre ss the VOL +/– button to adjust the
volume to your desired level.
16
button repea tedly on the unit
DTS DTS
DTS Discrete Surround DTS
DTS-ES 6.1 Matrix DTS
DTS-ES 6.1 Discrete DTS
DTS 96/24 DTS
DTS 96/24 ES Matrix DTS
DTS Express DTS
DTS-ES 8-Channel Discrete DTS
DTS-HD High Resolution DTS-HD
DTS-HD Master Audio DTS-HD
DTS:X DTS:X
DTS:X Master Audio DTS:X
Page 17
9. Bluetooth Operation
9.1 Pair Bluetooth-enabled Devices
The first time you connect your bluetooth device to
this unit, you need to pair your device to this unit.
Note:
- The operational range between this unit
and a Bluetooth device is approximately 26
feet (8m) (without any object between the
Bluetooth device and the unit).
- Before you connect a Bluetooth device to this
unit, ensure you know the device’s capabilities.
- Compatibility with all Bluetooth devices is
not guaranteed.
- Any obstacle between this unit and a Bluetooth
device can reduce the operational range.
- If the signal strength is weak, the unit may
disconnect, but it will re-enter pairing mode
automatically.
1 D uring ON mode , press the
repeatedly on the unit or the
the remote control to select Bluetooth mode.
“NO BT” will show on the display if the unit is
not paired to any Bluetooth device.
2 Activate your Bluetooth device and select the
search mode. “Hisense AX5100G” will appear
on your Bluetooth device list.
- If you cannot find the unit, press and hold
the
button in BT mode for 2 seconds make it
searchable. The display will show “BT Pairing”
and you will hear the prompt sound from
the unit.
3 S elect “Hisense AX5100G” i n the pairing
list. After successful pairing, you will hear
the prompt sound from the unit, and the
display panel shows “BT_IN”.
4 Play music from the connected Bluetooth
device.
To disconnect the Bluetooth function, you can :
- Switch to another mode on the unit.
- Disable the BT function from your
Bluetooth device. The Bluetooth device
will be disconnected from the unit after
the voice prompt.
- Press and hold the
button 2 seconds.
button
button on
Tips:
• Enter "0000" for the password if necessary.
• If no other Bluetooth device pairs with this
unit within two minutes, the unit will
recover its previous connection.
• The unit will also be disconnected when
your device is moved beyond the operational
range.
• If you want to reconnect your device to this
unit, place it within the operational range.
• If the device is moved beyond the operational
range, when it is brought back, please check
if the device is still connected to the unit.
• If the connection is lost, follow the instructions
above to pair your device to the unit again.
9.2 Listen to Music from Bluetooth Device
- If the connected Bluetooth device supports
you can listen to the music stored on the
device through the unit.
- If the device also supports Audio Video
the unit’s remote control to play music
stored on the device.
1. Pair your device with the unit.
2. Play music via your device (if it supports
A2DP).
3. Use supplied remote control to control play (if
it supports AVRCP).
Start, pause or resume play.
Skip to the previous or next track.
/
17
Page 18
10. USB Operation
1 Insert the USB device.
HDMI eARC
2 Press the
on the remote control to select USB mode.
3 During playback:
Supported USB formats:
USB
OPTICAL AUX COAXIAL
5V 500mA
button repeatedly on the unit or
Start, pause or resume play.
Skip to the previous or next track.
/
Extension Codec Sampling Rate
MPEG - 1 Layer1/2/3 32kHz~48kHz 32kbps~320kbps
*.mp3
*.wma
MPEG - 2 Layer1/2/3
MPEG - 2.5 Layer3
WMA7/8/9/STD
AAC
*.aac
AAC-LC
HE-AAC
*.ogg Vorbis codec
Tips:
• The unit can support USB devices with up to
• This product may not be compatible with
• If you use a USB extension cable, USB hub,
• Do not remove the USB storage device while
• Embedded USB full speed host for USB
• For the files in FLAC format, the max blocksize
16kHz~24kHz
8kHz~12kHz
8kHz~48kHz
8kHz~96kHz
8kHz~48kHz
32 GB of memory.
certain types of USB storage devices.
or USB Multifunctional card reader, the USB
storage device may not be recognized.
applications should not exceed 6.5 Mbps.
8107/8109 can support 4608 as the maximum.
Bit Rate
8kbps~160kbps
≤ 320kbps
≤ 1728kbps
≤ 500kbps
*.flac
*.wav
*.AIFF
-
PCM、LPCM、IMA_ADPCM、
MPEG、ALAW、MULAW、
PCM、ALAW、MULAW
8kHz~192kHz
8kHz~192kHz
8kHz~192kHz
≤ 9Mbps
≤ 9Mbps
≤ 9Mbps
• Only USB Format Type FAT 32 is supported for USB storage device connection.
• for *.ogg audio files, below are unsupported formats:
1). block size 0 < 64 block size 0 > 2048; 2). block size 1 < 64 , block size 1 > 4096; 3). codebook
counter > 64; 4). codebook entry > 640; 5). floor counter > 4; 6). floor type 0; 7). residua
counter > 4; 8). dimension != 2; 9). mapping counter > 2; 10). mode couter > 2.
•
For the file in FLAC format, the max blocksize 8107/8109 can support 4608 as the maximum.
18
Page 19
11. Setup Menu
buttons.
.
1. During ON mode, press and hold the
button for 3 seconds to open the menu.
2. Select the content with
/
3. Change the initial values for each of the
settings with VOL +/- buttons.
4. Press the
button
and exit the settings.
• If no button is pressed within 10 seconds, the
system will automatically exit the menu.
Display
(press
1
2
3
4
5
6
7
8
9
10
11
12
13
14
/
Description
(press VOL + / - )
)
MUSIC, MOVIE, NEWS, SPORT,
(
NIGHT, GAME, AI EQ)
Switch Surround Sound
[ON / OFF]
Adjust the Bass Level
Adjust the Treble Level
Adjust the Brightness
(
Switch Auto Wake
[ON / OFF]
Switch Auto Standby
[ON / OFF]
Switch Beep
[ON / OFF]
Set the Audio Delay
(AV SYNC)
Adjust DTS DRC Level: DRC 0/1/2
Adjust DTS Dialog Control
Level: DCL 0/1/2/3/4/5/6
Switch: DTS Neural
[ON / OFF]
Switch: DTS Virtual:X
[ON / OFF]
Switch: BassBoost
[
ON / OFF]
12. Troubleshooting
To keep the warranty valid, never try to repair the
system yourself. If you encounter problems when
using this unit, check the following points before
requesting service.
No power
• Ensure that the AC cord of the unit is
properly connected .
• Ensure that there is power at the AC outlet.
• Press standby button to turn the unit on.
Remote control does not work
• B efo re yo u press any pla yback c ont rol
• Reduce the distance between the remote
control and the unit.
• Insert the batter y with its polarities (+/-)
aligned as indicated.
• Replace the battery.
• Aim the remote control directly at the sensor
on the front of the unit.
No sound
• sserP .detum ton si tinu eht taht erus ekaM
or VOL+/– but ton to resume normal
listening.
• Press
• Unplug both the soundbar and the subwoofer
• Ensure the audio setting of the input source
• The subwoofer is out of range, please move
• The soundbar may have lost connection with
• The unit may not be able to decode all digital
button on the unit or on the remote
control to switch the soundbar to standby
mode. Then press the
button again to
switch the soundbar on.
from the mains socket, then plug them again.
Switch on the soundbar.
(e.g. TV, game console, DVD player, etc.)
is set to PCM or Dolby Digital mode while
using digital (e.g. HDMI, OPTICAL, COAXIAL)
connection.
the subwoofer closer to the soundbar. Make
sure the subwoofer is within 5 m of the
soundbar (the closer the better).
the subwoofer. Re-pair the units by following
the steps on the section “Pairing the Wireless
Subwoofer with the Soundbar”.
audio formats from the input source. In this
case, the unit will mute. This is NOT a defect.
The device is not muted.
19
Page 20
unit on my Bluetooth device for Bluetooth
pairing
• Ensure the Bluetooth function is activated on
your Bluetooth device.
• Ensure you have paired the unit with your
Bluetooth device.
of the ERPII standard requirement for
saving power
• W hen the unit's ex ternal input si gnal
level is too low, the unit will be turned off
automatically in 15 minutes. Please increase
the volume level of your external device.
• For more networked equipment information,
see https: //hisense.fr/cat-produit/barres-de-son/
The subwoofer is idle or the indicator of
subwoofer does not light up.
• Please unplug power cord from the mains
sockect, and plug it in again after 4 minutes
to reset the subwoofer.
20
Page 21
13.
Model Name
AX5100G
Soundbar
Power Supply AC 100-240V~ 50/60Hz
Power Consumption
Standby Power
USB port for playback
USB Compatibility
Dimension (WxHxD)
Net weight 2.62 kg
Frequency Response 120Hz~20KHz
Operating Temperature 0°C - 45°C
Bluetooth frequency range
Bluetooth Max. transmitting power
Modulation Type GFSK, π/4 DQPSK, 8DPSK
(EIRP)
20 W
< 0.50 W
5V 500mA
Hi-Speed USB (2.0) / FAT32 / FAT16
32G (max) , WAV/WMA/MP3/FLAC/ALAC
920 x 60 x 90 mm / 36.2" x 2.4" x 3.5"
V5.3
2400 MHz ~ 2483.5 MHz
≤10 dBm
Subwoofer
Power Supply AC 100-240V~ 50/60Hz
Power Consumption 15 W
Standby Power < 0.50 W
Dimension (WxHxD)
Net weight 5.24 kg
Frequency Response 40Hz~120Hz
214 x 294 x 304 mm / 8.4" x 11.6" x 12"
Surround
Power Supply AC 100-240V~ 50/60Hz
Power Consumption 10 W
Standby Power
Dimension (WxHxD)
Net weight
Frequency Response 120Hz~20KHz
< 0.50 W
91 x 144 x 109 mm / 3.6" x 5.7" x 4.3"
1.33 kg
Amplifier (Max Audio Power)
Total 340 W
Main Unit 160W
Subwoofer
Surround
120 W
60W
Remote Control
Distance/Angle 19.7 feet (6m) / 30°
Battery type AAA (1.5V X 2)
21
Page 22
WARNING: This product can expose you to
chemicals including lead, which is known to
the State of California to cause cancer. For more
information, go to www.P65Warnings.ca.gov.
EN
FCC INFORMATION (for US customers)
NOTE:
• This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
• However, there is no guarantee that interference will not
occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit
- Consult the dealer or an experienced radio / TV
technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
• Shielded cables must be used with this unit to ensure
compliance with the Class B FCC limits.
IC Notice: CAN ICES-3(B)/NMB-3(B)
This device contains licence-exempt transmitter(s)/receiver(s)
that comply with Innovation, Science and Economic
Development Canada’s licence-exempt RSS(s). Operation is
subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including
interference that may cause undesired operation of
the device.
Warning:
- This equipment should be installed and operated with
minimum distance 20cm between the radiator & your
body.
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.”
Réglement de la FCC (pour les clients américains)
REMARQUE :
• Ce dispositif a été testé et déclaré conforme aux limites
d’un dispositif numérique de classe B, conformément à
la partie 15 des règles de la FCC.
Ces limites ont pour but d'assurer une protection
raisonnable contre le brouillage nuisible dans une
installation résidentielle. Cet équipement produit,
utilise et peut émettre de l'énergie en radio fréquence
et, s'il n'est pas installé et utilisé conformément aux
directives, il peut causer un brouillage nuisible dans les
communications radio.
• Cependant, il n’est pas garanti que des interférences
ne se produiront pas dans une installation particulière.
Si cet appareil provoque des interférences nuisibles
à la réception radio ou de télévision, ce qui peut être
déterminé en mettant l’appareil hors tension, l’utilisateur
est encouragé à essayer de corriger l’interférence par
une ou plusieurs des mesures suivantes :
- Réorienter ou déplacer l’antenne de réception.
- Augmenter la distance entre l’appareil et le récepteur.
celui sur lequel le récepteur est branché.
- Consulter le revendeur ou un technicien radio/TV
expérimenté.
Cet appareil est conforme à la partie 15 des règles de la
FCC. Son fonctionnement est soumis aux deux conditions
suivantes :
(1) ce dispositif ne peut pas causer d’interférences nuisibles et
(2) cet appareil doit accepte r toute inter férence reçue, y
compris les interférences qui peuvent causer un mauvais
fonctionnement.
• Des câbles blindés doivent être utilisés avec cet apparei
l pour assurer la conformité avec les limites de la classe B
de la FCC.fonctionnement de I'appareil.
Avis d’Industrie Canada: CAN ICES-3(B)/NMB-3(B)
L’émetteur/récepteur exempt de licence contenu dans le
présent appareil est conforme aux CNR d’Innovation, Sciences et
Développement économique Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
Avertissement :
- Pour rester en conformité avec les consignes d’exposition aux
RF, placez le produit à au moins 20 cm des personnes proches.
- L
expressément approuvées par la partie responsable de la
conformité pourraient annuler l’autorisation de l’utilisateur à
utiliser l’équipement.
FR
22
Page 23
AX5100G
06036
Page 24
项目名称
日期
包装工程师
设计版本
A0
版本：A/4
料号
22年海信H*S510声霸音箱项目
2022/07/12
姚亚明
变更提出人
1、P14 6.2.2删除上一曲按键
2、P15 6.6增加button 2 times
客户
3、P12 5.2 DTS内容更新
12.005.0004.06036
产品型号
HS510
部件名称
说明书
平面工程师
刘梅红
变更原因
是否有可参考
刀模
无
有：12.005.0004.05982
尺寸(mm)
展开尺寸：290x210，成型尺寸：145x210
材质
80g书写纸
24/p
页码P数
单色印刷
颜色
表面处理
颜色
工艺
条码要求
装订方式
光油 防刮花哑膜哑膜光胶UV油水性光油 水性哑油哑油
无
无 烫金烫银击凸
有条码（清晰易扫描）
无条码
风琴折 线装 其它胶装骑马钉包心折
击凹 压网
其它局部UV
环保要求
RoHS2.0、Reach
包装指令94/62/EC
大豆油墨印刷
无氯漂白工艺
粘合剂为非石油基
油墨中禁止使用
矿物油（法国）
TPCH（美国）
说明书类说明：
1、公差（mm）：0<a≦50（+0.3/-0.2），
50<a≦150（+1/-0.5），>150
（+1.5/-1。有特殊要求的，按标示公
差执行。
2、要求图文清晰可辨，内容完整，折叠正确，
无重影，墨屎、杂点、脏点、异物、粉点、
套印不准。
3、尺寸按展开尺寸及成型外尺寸测量计算。
Loading...
