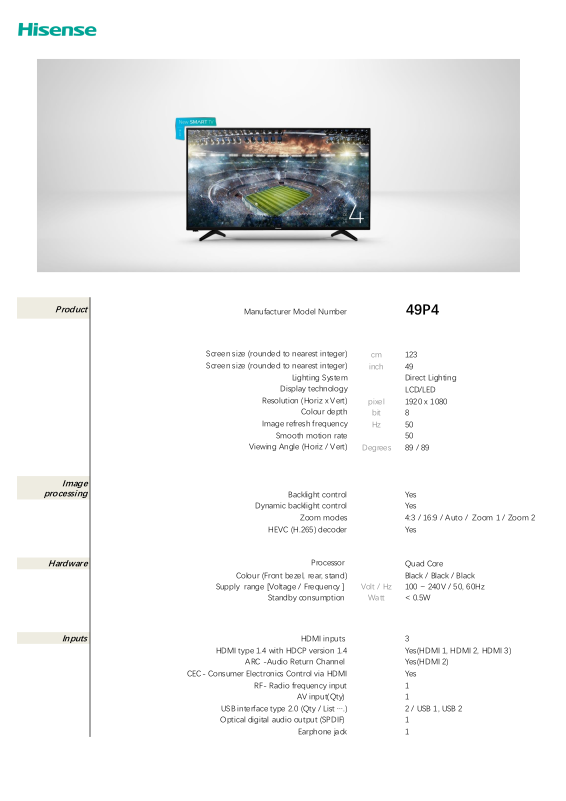

Page 1
Product
Manufacturer Model Number 49P4
Screen size (rounded to nearest integer)
cm 123
Screen size (rounded to nearest integer)
inch 49
Lighting System
Direct Lighting
Display technology
LCD/LED
Resolution (Horiz x Vert)
pixel 1920 x 1080
Colour depth
bit 8
Image refresh frequency
Hz 50
Smooth motion rate
50
Viewing Angle (Horiz / Vert)
Degrees 89 / 89
processing
Backlight control Yes
Dynamic backlight control Yes
Zoom modes 4:3 / 16:9 / Auto / Zoom 1 / Zoom 2
HEVC (H.265) decoder Yes
Hardware
Processor
Quad Core
Colour (Front bezel, rear, stand) Black / Black / Black
Supply range [Voltage / Frequency ] Volt / Hz 100 ~ 240V / 50, 60Hz
Standby consumption Watt < 0.5W
Inputs
HDMI inputs 3
HDMI type 1.4 with HDCP version 1.4 Yes(HDMI 1, HDMI 2, HDMI 3)
ARC -Audio Return Channel Yes(HDMI 2)
CEC- Consumer Electronics Control via HDMI Yes
RF- Radio frequency input 1
AV input(Qty) 1
USB interface type 2.0 (Qty / List ….) 2 / USB 1, USB 2
Optical digital audio output (SPDIF) 1
Earphone jack 1
Page 2
Smart TV
Ethernet port (RJ45 connector) 1
Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ad, ..} b, g, n
Wi-Fi bands GHz 2.4
DLNA compliance Yes
Bluetooth No
Anyview (Screen mirroring) Yes
Freeview Plus Yes
Web browser Yes
RemoteNow Smartphone App Supported No
Digital TV
Television system (DVB-T / DVB-T2) Yes / Yes
Video decoder (MPEG2 / MPEG 4) Yes / Yes
AC3 Surround sound decoder Yes
AS 4599.1 compliance Yes
AS 4933.1 compliance Yes
LCN- Logical channel number and DTV Service name support Yes
Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX Yes / Yes / Yes
Subtitles Yes
RF Signal strength indicator Yes
RF Signal quality indicator Yes
EPG- Electronic programming guide, 7 days for all services Yes
Audio description (vision impairment aid) Yes
Parental rating lock Yes
On/off timer Yes
Power off if no signal Yes
Sleep timer Yes
Program lock Yes
Favourite channels list Yes
USB media
player
Personal Video Recorder Yes
Time Shift Yes
DTV Recording (EPG scheduling / start from Standby ) Yes / Yes
MPEG4 (H.264) / H.265 decoder Yes / Yes
DMP- Digital media player content (Music / Video / Photos / Text) Yes / Yes / Yes / No
Digital media player Auto-play Yes
Supported File Formats FAT / FAT32 / NTFS
Sound
Audio power output per channel Watt 8
Number of speakers (Tweeter / Midrange / Woofer) 0 / 2 / 0
Automatic volume level (AVL) Yes
Audio equalizer Yes
Dolby Digital Yes
Lip-sync adjustment Yes
Page 3
Hotel lock
Protected Hotel lock submenu (Password / fixed code) No / Yes
Clone function for programs, sound and image settings. Yes
Sub-menu lock, including tuning lock Yes
Keyboard lock Yes
Maximum volume lock Yes
Power on volume Yes
Power on, apply default sound/image settings Yes
Power on source selection Yes
Power on RF channel selection Yes
Power on mode (On / Standby / Last) Yes / Yes / Yes
Inputs access (Enable / Disable) Yes
Installation
Stand area (Width / Depth) mm 890 / 240
Wall mount dimensions (Horiz / Vert) mm 200 / 200
Wall mount, screw thread mm M6, 20
Power cord length cm 188
Accessories
included
Remote controller (Technology / Part number ) IR / EN2B27
Battery (size / quantity) AAA / 2
Quick setup guide Yes
Warranty Yes
Dimensions
Dimensions with stand (W x H x D) mm 1106 x 694 x 240
Dimensions without stand (W x H x D) mm 1106 x 646 x 87
Carton box dimensions (W x H x D) mm 1214X785X156
Net weight (with stand / without stand) kg 12.6 / 12.3
Gross weight kg 16.1
