Hisense 32A4G, 40A4G QUICK SETUP GUIDE

32A4G 40A4G 43A4G
QUICK SETUP GUIDE
Before using the TV, please read this guide thoroughly and retain it for future reference. For more detailed instructions,
please see the User Manual or the E-manual.
ES-A210119-1
English
A
Important Safety Precautions
This symbol alerts user about the presence of a dangerous voltage not isolated inside the product which can be sufficiently powerful to constitute a risk of electrocution.
This symbol alerts user about the presence of important operating instructions and maintenance in the document enclosed in the package.
In no case the user is allowed to operate
ATTENTION
RISK OF SHOCK
ELECTRIC
Do not open the back cover.
inside the TV set. Only a qualified
technician is entitled to operate.
Class II product: This symbol indicates that it does not require a safety connection of protective earthing (ground).
AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
Disposal of Used Electrical & Electronic Equipment
Packaging and electrical goods should be recycled appropriately, and not treated as household waste. Please dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipment waste. By ensuring the correct disposal of this product, you will help prevent potentially hazardous to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. Please do not therefore dispose of your old electrical and electronic equipment with your household waste. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
B
Important Safety Precautions
Warning
Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
Using stands recommended by the manufacturer of the television set.
Only using furniture that can safely support the television set.
Ensuring the television set is not overhanging the edge of the supporting furniture.
Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
Educating children about the dangers of climbing on furniture to reach the television set or its controls.
If your existing television set is being retained and relocated, the same considerations as above should be applied.
C
Important Safety Precautions
Safeguards
Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television.
1. A note about safety and operating instructions Read and follow all safety and operating instructions, and retain them safely for future reference.
2. Heed Warnings Adhere to all warnings on the appliance and in the operating instructions.
3. Cleaning Unplug the TV from the wall outlet before cleaning. Do not use liquid, abrasive, or aerosol cleaners. Cleaners can permanently damage the cabinet and screen. Use a lightly dampened cloth for cleaning.
4. Wall Mount Bracket Wall mount bracket is only available for some models. If wall mount bracket is not supplied with this product, you can buy it at the local market. Please refer to the installing the wall mount bracket page of Quick Setup Guide for dimensions.
5. Water and Moisture Avoid dripping or splashing of liquids onto the product. Objects filled with liquids, such as vases, should not be placed on the product.
6. Setting Do not place this TV on an unstable cart, stand or table. Placing the TV on an unstable base can cause the TV to fall, resulting in serious personal injuries as well as damage to the TV. Use only a cart, stand, bracket or table recommended by the manufacturer or salesperson.
7. Ventilation Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the TV and to protect it from overheating. Do not cover the ventilation openings in the cabinet and never place the set in a confined space such as built-in cabinet unless proper ventilation is provided. Leave a minimum 10cm gap all around the unit, the rear of the TV should be 6cm away from the wall.
8. Power Source This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appliance dealer or local power company.
D
Important Safety Precautions
9. Power-Cord Protection Power- supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plug, wall outlets, and the point where they exit from the TV. MAIN plug is used as the disconnect device, the disconnect device shall remain readily operable.
10. Lightning For added protection for this TV during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning or power­line surge.
11. Power Lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. Where installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
12. Overloading Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
13. Object and Liquid Entry Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short-out parts that could result in fire or electric shock. Never spill liquid of any kind on or into the TV.
14. Outdoor Antenna Grounding If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.
15. Servicing Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
16. Damage Requiring Service Unplug the TV from the wall outlet and refer servicing to qualified service personnel under the following conditions: (a) When the power - supply cord or plug is damaged. (b) If liquid has been spilled, or objects have fallen into the TV. (c) If the TV has been exposed to rain or water.
E
Important Safety Precautions
(d) If the TV does not operate normally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive
work by a qualified technician to restore the TV to its normal operation. (e) If the TV has been dropped or the cabinet has been damaged. (f) When the TV exhibits a distinct change in performance - this indicates a need for
service.
17. Replacement Parts When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
18. Safety Check Upon completion of any service or repair to the TV, ask the service technician to perform safety checks to determine that the TV is in safe operating condition.
19. Heat The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
20. Fire The product should be situated away from naked flame sources such as lighted candle.
21. Off-gassing The TV smells of plastic is normal and will dissipate over time.
Do not mix and use new batteries with old batteries, or batteries with different types. Do not expose batteries to heat such as direct sunlight or fire. Make sure the batteries' positive and negative ends are facing the correct direction.
The device should not be exposed to dripping and spraying and it cannot be placed under objects filled with liquids.
To fully disconnect the TV, remove power plug from wall socket. Be sure to have the wall socket and power plug readily accessible.
F
Contents
Figures and illustrations in this manual are provided for reference only and may differ from actual product appearance.
Parts of the software function changes with the system upgrade.
Contents
Accessories List..............................................................................................................1
Installing the Stand or Wall Mount Bracket .....................................................................2
TV Front..........................................................................................................................4
TV Rear ..........................................................................................................................5
Making Connections .......................................................................................................6
Remote Control ............................................................................................................10
Turning the TV on for the First Time .............................................................................12
Specifications ...............................................................................................................13
Other Information..........................................................................................................15
Accessories List
The following accessories are included with TV:
Quick Setup Guide × 1 Base Stand × 2 Screw × 4
Remote Control × 1 AAA Battery × 2
NOTE
The accessories may be different from the list above due to different models, countries/ regions, please refer to the actual accessory bag.
1
Installing the Stand or Wall Mount Bracket
CAUTION
Be sure to disconnect the A/C power cord before installing a stand or wall mount brackets.
The display on your TV is fragile. Make sure the TV screen is not scratched or damaged by hard objects or from pressure.
After the installation is complete, make sure the TV is steady on a table or firmly attached to a wall mount, before removing all protective film, if any.
Installing the Stand
Follow the illustrations and textual instructions below to complete the installation steps:
1. Carefully place your TV face-down on a soft, flat surface to prevent damage to the TV or scratching to the screen.
2. Remove the Base Stand from the accessory bag and then insert the stands into the bottom slots of the TV.
3. Secure the Base Stand to the TV with the screws in accessory tightly.
Base Stand
Base Stand
Screws: (ST4×14F) × 4 (32") (ST4×20F) × 4 (40"/43")
2
Installing the Stand or Wall Mount Bracket
Installing the wall mount bracket
Before mounting the TV, remove the TV stand if you have already attached it, and make sure the wall mount bracket supports the weight of your TV.
CAUTION
When mounting the TV on a wall, follow instructions provided with the wall mount bracket. If it is not correctly mounted, the TV may fall and cause property damage or personal injury.
Place spacers between the TV and bracket.
Make sure the tilt angle between the TV screen and the vertical surface is no more than 15 degrees.
Standard dimensions are shown below.
Wall mount hole pattern (mm)
100 × 200 (32"/40") 200 × 200 (43")
≤15°
TV screen
Vertical surface
Wall mount screw size M6
9.5 -11.5 mm
Wall Mount Bracket
Wall Mount Screw
Rear cover of the TV
Wall Mount Spacer
NOTE
The diameter and length of the screws differ depending on the wall mount bracket model.
Wall mount bracket is optional. Your TV may not have wall mount bracket. Please refer to the actual accessories.
3

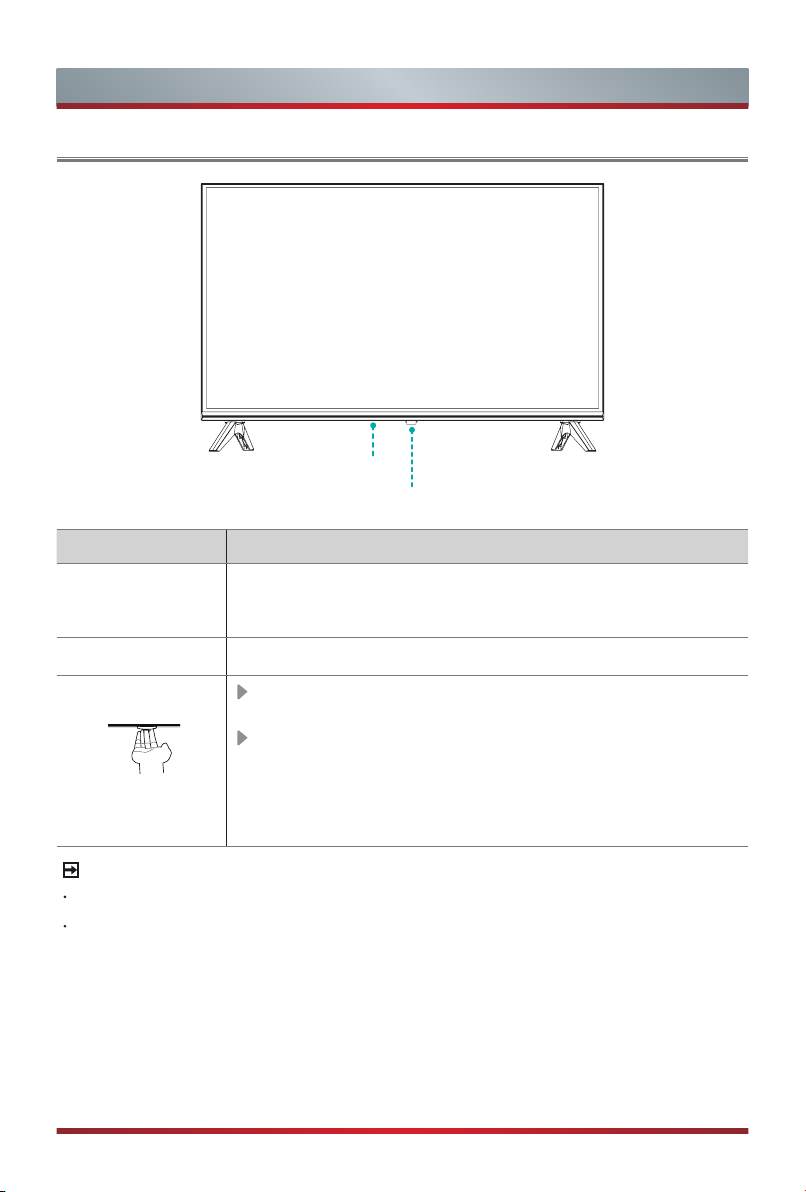

TV Front
Standby / Source
Remote sensor / Power indicator
Item Description
Receive remote signals from the remote control.
Remote sensor
Power indicator
Standby/Source
Do not put anything near the sensor, as its function may be affected.
The light is red in standby mode.
When the TV is in standby mode, press the single button to
turn on your TV.
When the TV is on:
Press the single button: Display the menu. / Move focus.
Press and hold the single button: Confirm the selection.
If there’s no operation for 3 seconds, the menu will hide
automatically.
TV Front
NOTES
The Picture is Only for Reference.
Powering on the TV requires several seconds to load programs. Do not rapidly turn the TV off as it may cause the TV work abnormally.
4
TV Rear
TV Rear
DIGITAL
AUDIO OUT
Power cord
NOTES
The picture is only for reference.
Check the jacks for position and type before making any connections. Loose connections can result in image or color problems. Make sure that all connections are tight and secure.
Not all A/V devices have the ability to connect to a TV, please refer to the user’s manual of your A/V device for compatibility and connections procedure.
Before connecting external equipment, remove the mains plug from the wall socket. Otherwise, it may cause electric shock.
40"/43"
32"
USB 1
DC 5V 0.5A(MAX)
USB 2
DC 5V 0.5A(MAX)
HDMI 1(ARC)
HDMI 2
AV IN
VIDEO L R
HEADPHONE
ANT
LAN
5
Making Connections
LAN (
Wired setup
)
Connect your TV to your network by connecting the LAN port on the back of your TV to an external modem or router using a LAN (Ethernet/Cat 5) cable. See the illustration below.
·
We recommend to use a modem or router that supports Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS, so you don’t have to enter them manually. Most home networks already have DHCP.
TV JACK
Wireless setup
IP Sharer (Router)
(with DHCP server)
External Modem
(ADSL / VDSL / Cable TV)
Modem CableLAN CableLAN Cable
Connect your TV to your network wirelessly, you need a wireless router or modem. See the illustration below.
·
The built-in Wireless LAN Adapter supports the IEEE 802.11a/b/g/n/ac communication protocols. We recommend using IEEE 802.11n router. Low transfer rates for b/g may have the influence on the quality of streamed videos and other media.
Wireless router with DHCP
Wireless LAN Adapter
built-in TV set
LAN Cable
NOTES
You must use the built-in Wireless LAN Adapter to use a wireless network because the set doesn’t support external USB network adapters.
If the wireless router supports DHCP, your TV can connect more easily to the wireless network.
If you apply a security system other than the systems listed below, it will not work with the TV.
Security system:WPA,WEP,WPA2.
In order to guarantee smooth network, the distance between router and TV should be less than 10 meters.
6
Making Connections
ANT
Connect an outdoor VHF/UHF antenna or cable.
TV JACK
ANT
(not included)
or
Antenna Cable (75Ω)
Outdoor
Antenna
Cable
ANT OUT
VHF/UHF Antenna
HDMI / AV
Connect a HDMI / AV cable from an external AV equipment. No sound connection is needed for HDMI to HDMI connection. If the signal resolution does not match the specification table, you need to change the setting of device according to the table. Please consult your device user manual for instruction.
·
To select the HDMI / AV Press the [
INPUT
] button, when the list of input Source appears, press the [
/ / < / >
buttons to select the source [HDMI] / [AV], then press the [OK] button to connect.
Video Effect:
TV JACK
Video Effect:
BETTER (HDMI)
HDMI cable (not included)
GOOD (AV)
]
TV JACK
R
L
VIDEO
AV IN
Red(R)
(not included)
White(L)
(not included)
Yellow(Video)
(not included)
7
Video Camera/
Set-top Box/
Satellite Receiver
Making Connections

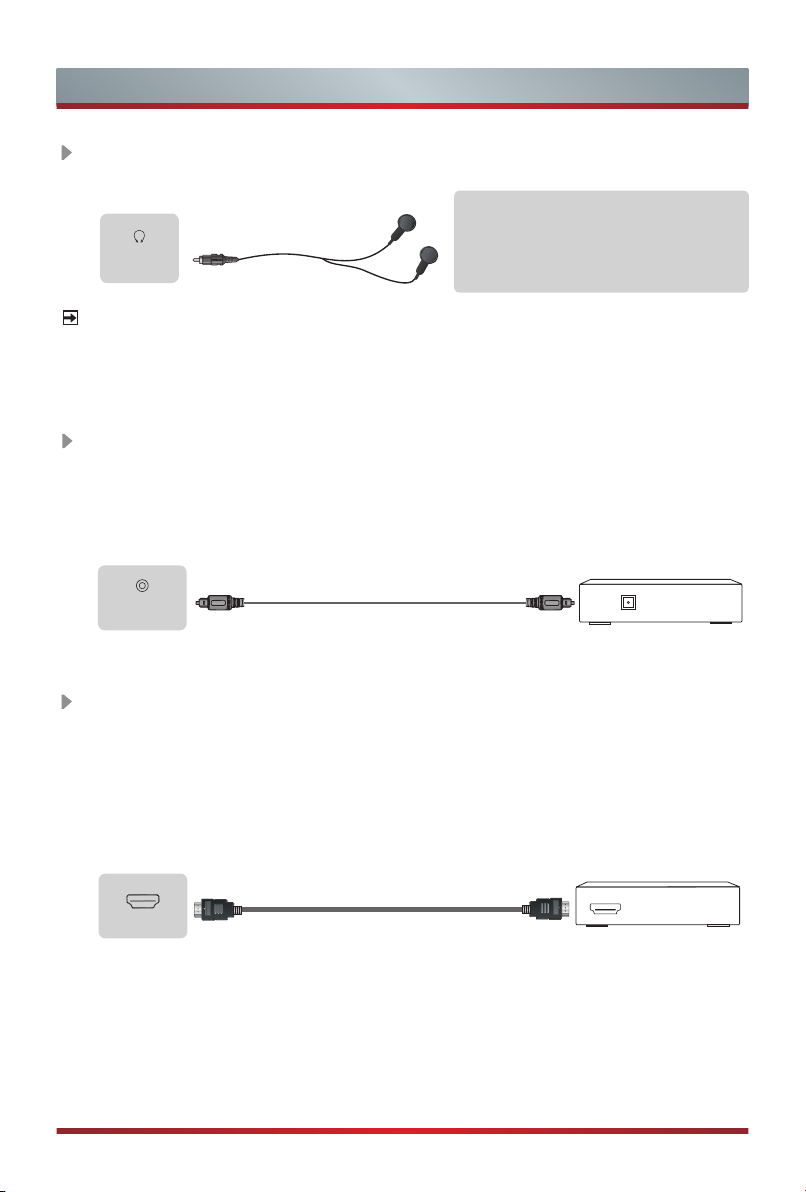

HEADPHONE
TV JACK
Connect Headphone for audio out of the TV.
ATTENTION
Excessive sound pressure from
HEADPHONE
Headphone (not included)
earphones and headphones can cause hearing loss.
NOTE
Please make sure that the headphone you plug in is without microphone function, or it may not be supported.
DIGITAL AUDIO OUT
Connect to an external digital audio system.
Before connecting a digital audio system to the DIGITAL AUDIO OUT jack, you should decrease the volume of both the TV and the system to avoid that the volume suddenly becomes bigger.
TV JACK
DIGITAL
AUDIO OUT
ARC
DIGITAL AUDIO cable (not included)
Connect an HDMI cable from an external digital audio system.
Audio Amplier/Speaker
ARC enables the TV to directly output the digital sound through an HDMI cable. Please note that it works only when the TV is connected to the audio receiver that supports the ARC (Audio Return Channel) function. When this port is used as the ARC function, it can't be used as signal input at the same time.
TV JACK
HDMI
ARC
HDMI cable (not included)
Audio Amplier/Speaker
HDMI
8
Making Connections
USB
Connect the USB1.1 and USB2.0 devices such as hard drives, USB sticks and digital cameras for browsing photos, listening music and watching movies.
TV JACK
USB
DC 5V 0.5A(MAX)
NOTES
When connecting a hard disk or a USB hub, always connect the mains adapter of the connected device to the power supply. If a USB 1.1 or USB 2.0 device requires more than 500mA or 5V, the USB device may not be supported. Max supported
current for USB 3.0 device is 1A (only for some models). Exceeding the max supported current may result in damage or data loss.
Certain digital cameras may not be compatible with the TV.
9
Remote Control
1
POWER: Switch the TV on or into standby
1
3
4
6
7
9
11
13
17
18
21
2
5
8
10
12
14
15
16
19
20
mode
2
INPUT: Select input sources
3
Number button: Direct channel selection or numbers input
4
GUIDE: Display the Electronic Program Guide (DTV mode)
5
INFO: Display the present program information
6
Special function buttons
7
Display the Quick setup menu
8
Media content control function buttons
9
/ / < / >
: Allows you to navigate the
on-screen menus and adjust the system settings to your preference
10
OK: Confirm the selection in the on-screen menus
11
BACK: Return to previous menu
12
EXIT: Exit the menu
13
VOL + /-: Adjust the volume
14
HOME: Enter the Home screen
15
CH / : Switch channel
16
MUTE: Mute or restore the TV sound
17
SUBTITLE: Activate or deactivate the subtitle mode
18
TV: Enter the Live TV screen
19
TEXT: Turn on/off the teletext function
20
Quick access to the apps(FREE, ART, MUSIC, etc.)
21
Quick access buttons to apps
NOTE:
country. Check information according to the actual remote control in the accessory bag.
The picture is only for reference. The included remote control will vary depending on model,
10
Remote Control

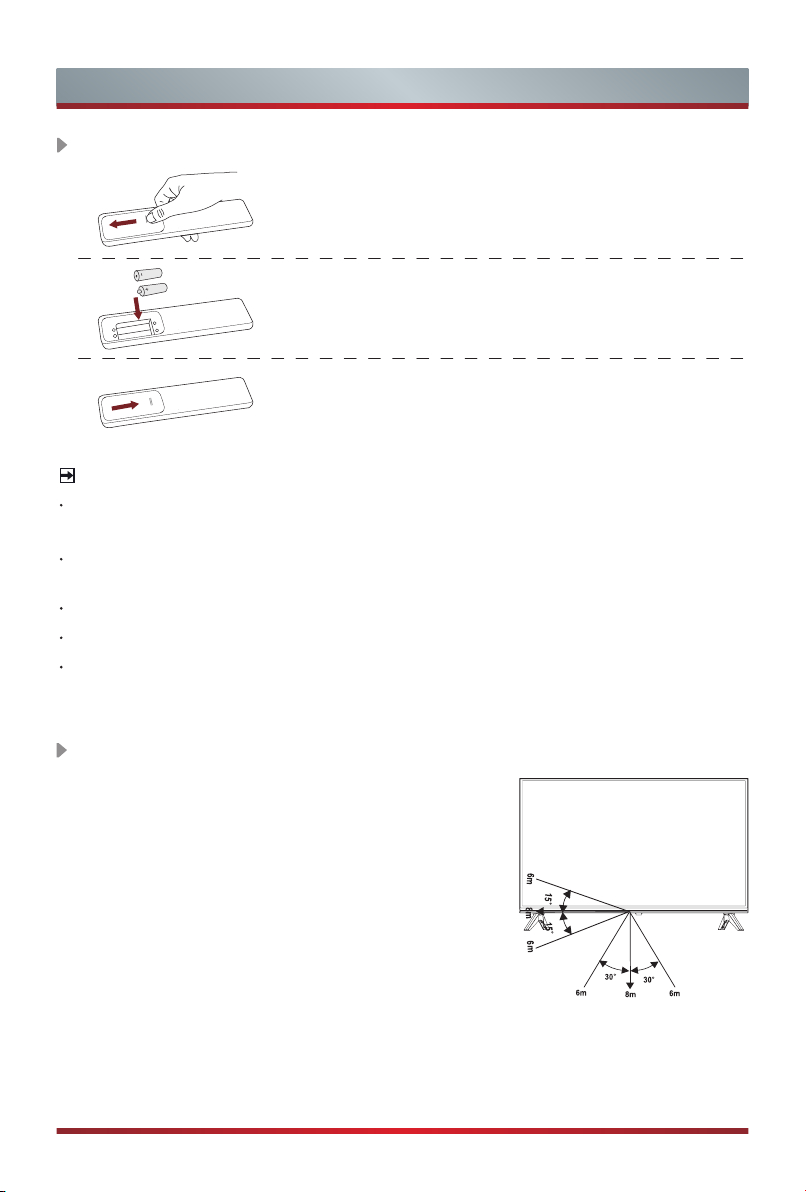

Installing Batteries in the Remote Control
1. Slide the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends of the batteries with the (+) and ( - ) ends indicated in the battery compartment.
3. Close the battery compartment with the cover.
NOTES
Product image is only for reference, actual product may vary in appearance.
Handling the Batteries
Incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
Only use the battery type indicated in this manual.
Do not mix old and new batteries or different types of batteries .
Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local regulations.
Remote Control Operation Range
1. The remote control can work at a distance of up to 8 meters in front of the TV set.
2. The remote control angle: taking the remote sensor as an apex, 6 meters away, its controlled
horizontal angle is within ±30°, while the vertical angle is within ±15°.
3. The operating distance may vary depending on the brightness of the room.
Disposal of this unit
Product should not be damaged, dismantled or thrown in municipal waste. It should be packed and handed over to authorised re-cycler.
11
Turning the TV on for the First Time
Turning the TV on for the First Time
1. Connect the mains cable to the mains socket after you have completed all the connections.
2. The first time you turn the TV on, it will go straight into the Installation Guide.
3. Press the [ Press the [OK] button to confirm.
/ / < / >
] buttons to navigate the menu and change the settings.
Language
TV Mode
Connect to the Internet
Country
Timezone
Terms & Conditions, Privacy Policy
Sign in your VIDAA account
Entertainment such as films and TV dramas, you can enjoy at anytime. Do you want to experience Netflix now?
Select your desired language to be displayed on the menu.
Select Home Mode or Store Mode.
If your TV does not automatically detect an Ethernet connection, then use a wireless network, select your network from the list that displays, also you can add a hidden network. When you’re done, move to the next screen.
Select the Country where you will operate the TV.
Select the local time zone according to your region. (Only available in certain countries)
Your use of this device is subject to the End User License Agreement, lack of your acceptance of the End User License Agreement will turn off all smart features of this device. You can choose to turn on/off each type of smart features separately displayed below at any time, a click to the box of each type of smart feature means you give your consent to the corresponding privacy notice/terms and conditions. If you agree to all listed smart features you can also agree by clicking to "Accept All". Please read the details of them carefully before you choose.
A VIDAA account gives you all the best features of your smart TV and always keeps it up to date. You can choose to log in to VIDAA account or skip.
Welcome to Live TV. There is no channel information. Please scan channels.
12
Specifications
Features, appearance and specifications are subject to change without notice.
Item
Dimension
(W × H × D)
Weight
Active Screen Size (Diagonal)
Screen resolution
Audio power
Power consumption
Power supply
Receiving systems
Wireless LAN Module specifications
Environmental conditions
Without Stand
With Stand
Without Stand
With Stand
Analog
Digital
Model
Frequency Range
Output Power (Max.)
32" 40"
717 × 428 × 86 mm 893 × 513 × 86 mm
717 × 477 × 185 mm 893 × 559 × 182 mm
3.6 kg 5.4 kg
3.7 kg 5.5 kg
80 cm 100 cm
1366 × 768 1920 × 1080
6W + 6W 7W + 7W
Please refer to the rating label.
Please refer to the rating label.
PAL-D/K, B/G, I, SECAM-D/K, B/G
DVB-T/T2, DVB-C
WF-M603-USB1
2.4~2.4835GHz
2.4~2.4835GHz 17dBm
Temperature: 5°C - 45°C
Humidity: 20% - 80% RH Atmospheric pressure: 86 kPa - 106 kPa
HDMI Input
RGB / 60 Hz (640×480, 800×600, 1024×768) YUV / 60 Hz (480 I, 480 P, 720 P, 1080 I, 1080 P) YUV / 50Hz (576 I, 576P, 720 P, 1080 I, 1080 P)
13
Specifications
Item
Dimension
(W × H × D)
Weight
Active Screen Size (Diagonal)
Screen resolution
Audio power
Power consumption
Power supply
Receiving systems
Wireless LAN Module specifications
Environmental conditions
Without Stand
With Stand
Without Stand
With Stand
Analog
Digital
Model
Frequency Range
Output Power (Max.)
43"
955 × 558 × 87 mm
955 × 606 × 186 mm
6.4 kg
6.5 kg
108 cm
1920 × 1080
7W + 7W
Please refer to the rating label.
Please refer to the rating label.
PAL-D/K, B/G, I, SECAM-D/K, B/G
DVB-T/T2, DVB-C
WF-M603-USB1
2.4~2.4835GHz
2.4~2.4835GHz 17dBm
Temperature: 5°C - 45°C
Humidity: 20% - 80% RH Atmospheric pressure: 86 kPa - 106 kPa
HDMI Input
RGB / 60 Hz (640×480, 800×600, 1024×768) YUV / 60 Hz (480 I, 480 P, 720 P, 1080 I, 1080 P) YUV / 50Hz (576 I, 576P, 720 P, 1080 I, 1080 P)
14
Other Information
What is Freeview Plus?
Freeview Plus is a new television service delivered via broadband providing a state of the art Electronic Program Guide (EPG) and seamless access to catch-up TV across the free-to-air networks with the simple press of a button.
How does it work?
First ensure the TV is connected to internet and an antenna system. Then when you’re
watching TV, you’ll briey see a prompt at the top left of the screen. Press the ‘Green’
button on your remote to launch Freeview Plus. More information about Freeview Plus can be found on http://www.freeview.com.au/
NOTE
Freeview Plus service only available in Australia territories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 1992–2020 Dolby Laboratories. All rights reserved.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./ Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, DTS-HD Master Audio, DTS-HD, Virtual:X, and the DTS-HD logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2020 DTS, Inc. ALL RIGHTS RESERVED.
15
Loading...
