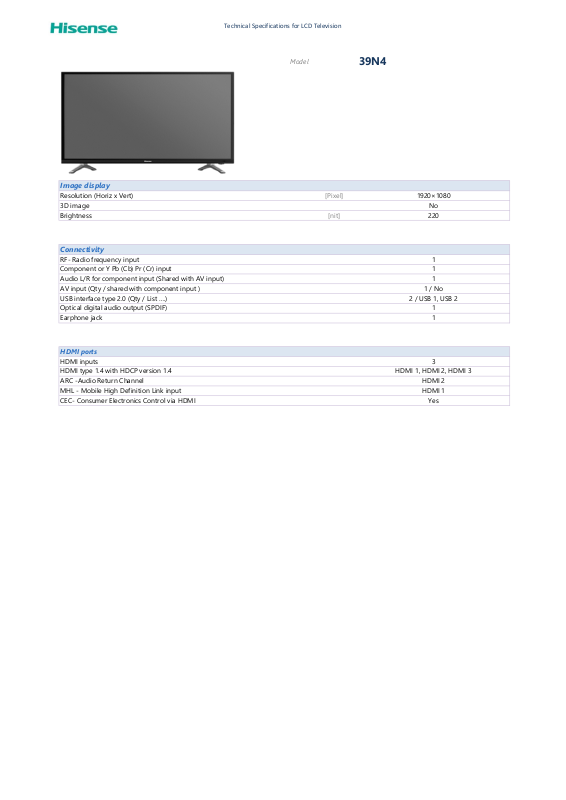

Technical Specifications for LCD Television
Resolution (Horiz x Vert)
[Pixel] 1920×1080
RF- Radio frequency input 1
Component or Y Pb (Cb) Pr (Cr) input 1
Audio L/R for component input (Shared with AV input)
1
AV input (Qty / shared with component input ) 1 / No
USB interface type 2.0 (Qty / List ….) 2 / USB 1, USB 2
Optical digital audio output (SPDIF) 1
HDMI type 1.4 with HDCP version 1.4 HDMI 1, HDMI 2, HDMI 3
ARC -Audio Return Channel HDMI 2
MHL - Mobile High Definition Link input HDMI 1
CEC- Consumer Electronics Control via HDMI Yes
Model
Technical Specifications for LCD Television
Ethernet port (RJ45 connector) 1
Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ad, ..} b, g, n
DLNA compliance ( Anyview Stream ) Yes
Digital TV Reception
Television system (DVB-T / DVB-T2) Yes / Yes
Video decoder (MPEG2 / MPEG 4 ) Yes / Yes
AC3 Surround sound decoder Yes
LCN- Logical channel number and DTV Service name support Yes
Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX Yes / Yes / Yes
RF Signal strength indicator Yes
RF Signal quality indicator Yes
EPG- Electronic programming guide, 7 days for all services Yes
Colour-Sound systems in VHF band PAL B
Colour-Sound systems in UHF band PAL B
Stereo sound decoder {A2, Nicam, ….} A2 / NICAM
Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX Yes / Yes / Yes
Dynamic backlight control Yes
Zoom function settings ( 4:3 / 16:9 / Auto / Zoom 1 / Zoom 2) Yes / Yes / Yes / Yes / Yes
1:1 Pixel mapping (Note: HDMI inputs for RGB colour space only) Yes
Analogue TV Reception
Image control
