Hirschmann RSPL 20, RSPL30 User Manual

Installation RSPL 20/30

Release 04 02/2013

Technical support

https://hirschmann-support.belden.eu.com

User Manual

Installation
Industrial Ethernet Rail Switch Power Lite

RSPL 20/30

The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.

© 2013 Hirschmann Automation and Control GmbH

Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use. For devices with embedded software, the end-user license agreement on the
enclosed CD/DVD applies.

The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.

Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.

You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).

Printed in Germany
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]

Installation RSPL 20/30 040 016-001-04-0213 - 19.02.2013

Installation RSPL 20/30

Release 04 02/2013

3

Contents

Safety instructions 5

About this manual 12

Key 12

1 Device description 13

1.1 General device description 13

1.2 Device name and product code 14

1.3 Combination options 17

1.4 Device views 18

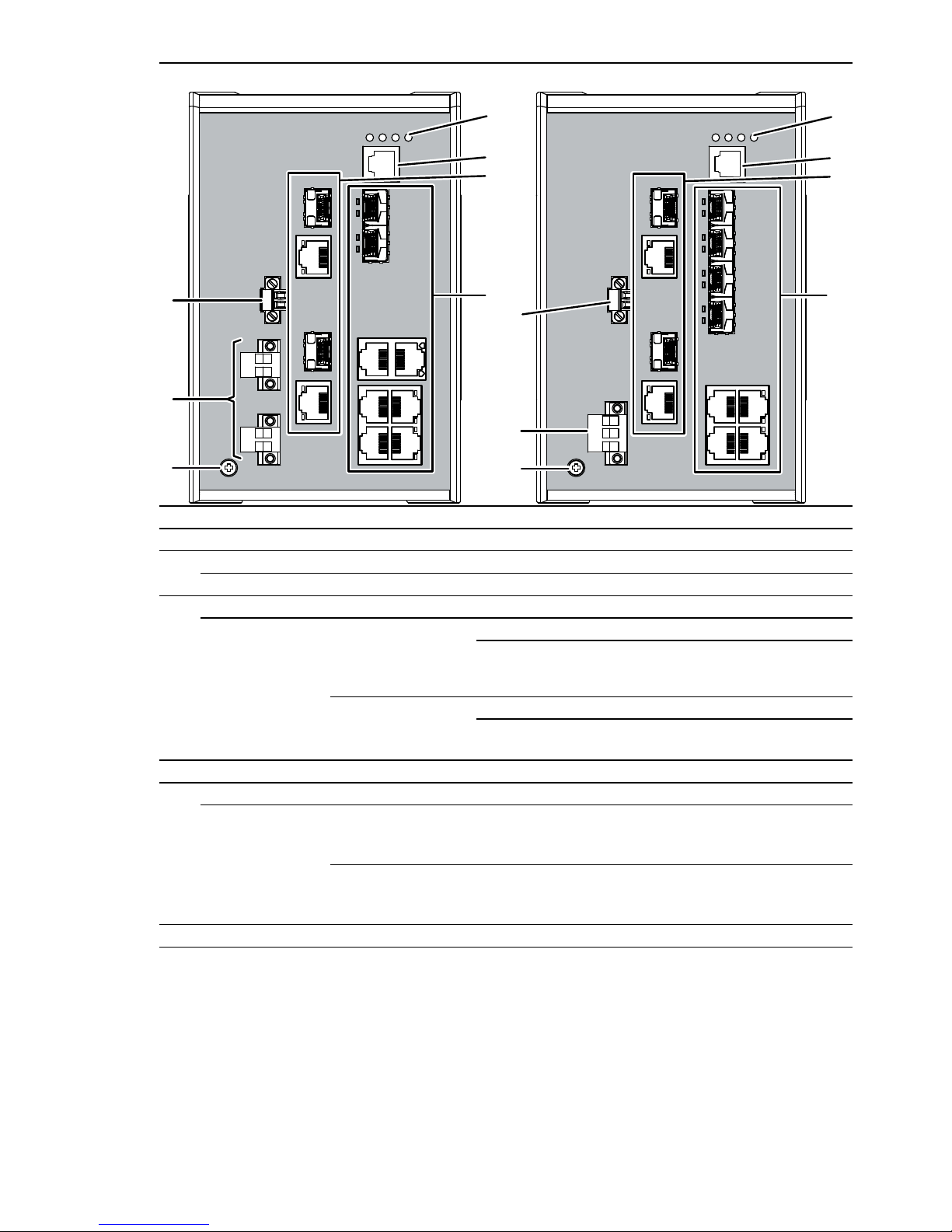

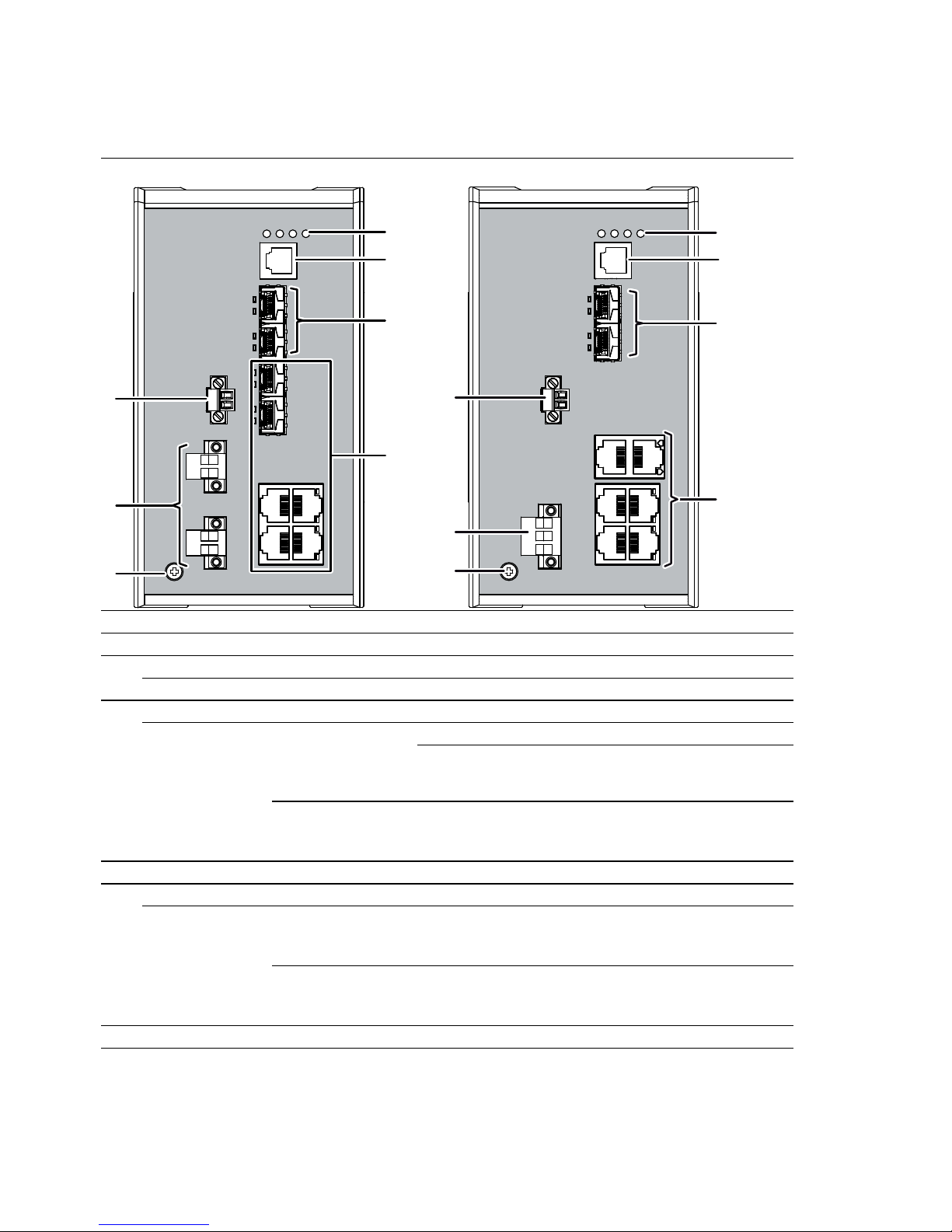

1.4.1 Front view 18

1.4.2 Rear view 20

1.5 Power supply 20

1.5.1 Operating voltage type M9 20

1.5.2 Operating voltage type CC 20

1.6 Ethernet ports 21

1.6.1 Gigabit combo port (optional) 21

1.6.2 10/100 Mbit/s twisted pair connection 22

1.6.3 100 Mbit/s F/O connection 22

1.7 Display elements 23

1.7.1 Device state 23

1.7.2 Port state 24

1.8 Management interfaces 24

1.8.1 V.24 interface (external management) 24

1.8.2 SD card interface 25

1.9 Signal contact 26

2 Device installation 27

2.1 Unpacking and checking 27

2.2 Installing the SD card (optional) 27

2.3 Installing the device and grounding 28

2.3.1 Mounting on the DIN rail 28

2.3.2 Grounding 29

2.4 Installing the SFP transceivers (optional) 29

2.5 Connecting the terminal blocks 30

4

Installation RSPL 20/30

Release 04 02/2013

2.6 Mounting the terminal blocks and switching on the supply
voltage 33

2.7 Connecting the data lines 33

2.7.1 Gigabit combo port (optional) 33

2.7.2 100 Mbit/s F/O connection 34

2.7.3 10/100 Mbit/s twisted pair connection 34

2.8 Insert data in label area 34

3 Basic set-up 35

4 Monitoring the ambient air temperature 36

5 Maintenance and service 37

6Disassembly 38

6.1 Disassembling the device 38

6.2 Removing the SFP transceivers 39

7 Technical data 40

A Further Support 52

Installation RSPL 20/30

Release 04 02/2013

5

Safety instructions

 Certified usage

Only use the device for application cases that are described in the
Hirschmann product information, including this manual. Only operate the
device according to the technical specifications.

 Supply voltage

Note: The supply voltage is only connected with the chassis via protective
elements.

 Only for device variants with operating voltage type M9:

For the supply voltage to be connected, make sure the following
requirements are met:

 The power supply conforms to overvoltage category I or II.
 The voltage supply has an easily accessible disconnecting device

(e.g. a switch or a plug). This disconnecting device is clearly
identified so that in the case of an emergency, it is clear which
disconnecting device belongs to which line.

 The lines to be connected are voltage-free.
 Supply with DC voltage:

A fuse suitable for DC voltage is located in the plus conductor of the
power supply. A fuse is also located in the minus conductor, if this
is not grounded.
Regarding the properties of this fuse: See “General technical data”

on page 40.

 Supply with AC voltage:

A fuse is located in the outer conductor of the power supply. A fuse
is also located in the neutral conductor, if this is not grounded.
Regarding the properties of this fuse: See “General technical data”

on page 40.

 AC voltage Supply: the wire diameter for the input supply line is at

least 0.75 mm² (North America: AWG18).

 DC voltage Supply: the wire diameter for the input supply line is at

least 1 mm² (North America: AWG16).

WARNING

ELECTRIC SHOCK

Ground the device before connecting the power supply.
Only connect a supply voltage as described in the data plate of your device.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

6

Installation RSPL 20/30

Release 04 02/2013

 The cross-section of the protective conductor cable is the same

size as or bigger than the cross-section of the voltage supply
cables.

 The connection cables used are permitted for the specified

temperature range.

 Relevant for North America:

The power supply lines are made up of copper wire (75 °C).

 Only for device variants with operating voltage type CC:

For every supply voltage to be connected, make sure the following
requirements are met:

 The power supply corresponds to Class 2.
 The power supply conforms to overvoltage category I or II.
 The voltage supply has an easily accessible disconnecting device

(e.g. a switch or a plug). This disconnecting device is clearly
identified so that in the case of an emergency, it is clear which
disconnecting device belongs to which line.

 The lines to be connected are voltage-free.
 A fuse suitable for DC voltage is located in the plus conductor of the

power supply. A fuse is also located in the minus conductor, if this
is not grounded.
Regarding the properties of this fuse: See “General technical data”

on page 40.

 The wire diameter for the input supply line is at least 1 mm² (North

America: AWG16).

 The connection cables used are permitted for the specified

temperature range.

 Relevant for North America:

The power supply lines are made up of copper wire (75 °C).

WARNING

ELECTRIC SHOCK

Only start connecting the supply voltage if all the above mentioned
requirements are fulfilled.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Installation RSPL 20/30

Release 04 02/2013

7

 Make sure that the electrical installation meets local or nationally

applicable safety regulations.

 Use undamaged parts.
 The device does not contain any service components. Internal fuses

are only triggered if there is a fault in the device. If the device is not
functioning correctly, or if it is damaged, switch off the voltage supply
and return the device to the plant for inspection.

 Connect the protective conductor with the ground screw before you

set up the other connections. When removing the connections, you
remove the protective conductor last.

 For supply voltages with protective conductor connections: first

connect the protective conductor before connecting the lines for the
supply voltages.

 Only switch on the supply voltage for the device when the following

prerequisites are fulfilled:

 The housing is closed
 The terminal blocks are wired correctly
 The terminal blocks for the voltage supply are connected

 Shielded ground

The shielded ground wire of the twisted pairs lines is connected to the
front panel as a conductor.
 Beware of possible short circuits when connecting a cable section with

conductive shield braiding.

8

Installation RSPL 20/30

Release 04 02/2013

 Housing

Only technicians authorized by the manufacturer are permitted to open
the housing.

WARNING

ELECTRIC SHOCK

Never insert sharp objects (small screwdrivers, wires, etc.) into the inside of
the device.
Never insert sharp objects (small screwdrivers, wires, etc.) into the
connection terminals for the supply voltage or the signal contact, and do not
touch the terminals!

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

WARNING

FIRE HAZARD

Install the device in a fire protected enclosure according to EN 60950-1.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

WARNING

Only for device variants with operating voltage type M9:

ELECTRIC SHOCK

Only install this device in a switch cabinet or in an operating site with limited
access, to which only maintenance staff have access.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Installation RSPL 20/30

Release 04 02/2013

9

The device is grounded by the separate ground screw on the front panel.
 Make sure that the electrical installation meets local or nationally

applicable safety regulations.

 Keep the ventilation slits free to ensure good air circulation.
 Make sure there is at least 10 cm of space in front of the ventilation

slits of the housing.

 Install the device in the vertical position.

 Environment

Operate the device at the specified surrounding air temperature
(temperature of the surrounding air at a distance of up to 1.97 in (5 cm)
from the device) and relative air humidity specified in the technical data.
 When you are selecting the installation location, make sure you

observe the climatic threshold values specified in the technical data.

 Use the device in an environment within the pollution degree specified

in the technical data.

 Qualification requirements for personnel

Qualified personnel as understood in this manual and the warning signs,
are persons who are familiar with the setup, assembly, startup, and
operation of this product and are appropriately qualified for their job. This
includes, for example, those persons who have been:

 trained or directed or authorized to switch on and off, to ground and to

label power circuits and devices or systems in accordance with current
safety engineering standards;

 trained or directed in the care and use of appropriate safety equipment

in accordance with the current standards of safety engineering;

 trained in providing first aid.

 General safety instructions

This device is operated by electricity. You must follow precisely the
prescribed safety requirements for the voltage connections in this
document.
See “Supply voltage” on page 5.

10

Installation RSPL 20/30

Release 04 02/2013

Non-observance of these safety instructions can cause material damage
and/or injuries.
 Only appropriately qualified personnel should work on this device or in

its vicinity. The personnel must be thoroughly familiar with all the
warnings and maintenance procedures outlined in this operating
manual.

 The proper and safe operation of this device depends on proper

handling during transportation, proper storage and assembly, and
conscientious operation and maintenance procedures.

 Never start operation with damaged components.
 Only use the devices in accordance with this manual. In particular,

observe all warnings and safety-related information.

 Any work that may be required on the electrical installation may only

be carried out by personnel trained for this purpose.

Note: LED or LASER components in compliance with IEC 60825-1
(2007):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT

 National and international safety regulations

 Make sure that the electrical installation meets local or nationally

applicable safety regulations.

 CE marking

The labeled devices comply with the regulations contained in the following
European directive(s):

In accordance with the above-named EU directive(s), the EU conformity
declaration will be at the disposal of the relevant authorities at the
following address:

Device variant Directive

All variants 2004/108/EG (EMV)

Directive of the European Parliament and the council for
standardizing the regulations of member states with regard to
electromagnetic compatibility.

2011/65/EU (RoHS)
Directive of the European Parliament and of the Council on the
restriction of the use of certain hazardous substances in
electrical and electronic equipment.

Only for device variants with
operating voltage type M9:

2006/95/EC
Directive of the European Parliament and the council for
standardizing the regulations of member states with regard to
electrical equipment to be used within specific voltage ranges.

Installation RSPL 20/30

Release 04 02/2013

11

Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]

The product can be used in the industrial sector.

 Interference immunity: EN 61000-6-2
 Emitted interference: EN 55022
 Reliability: EN 60950-1

You will find more information on norms and standards here:

“Technical data” on page 40

Warning! This is a class A device. This device can cause interference in
living areas, and in this case the operator may be required to take
appropriate measures.

Note: The assembly guidelines provided in these instructions must be
strictly adhered to in order to observe the EMC threshold values.

 FCC note

This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference; (2) this device must accept any interference received,
including interference that may cause undesired operation.
Appropriate testing has established that this device fulfills the
requirements of a class A digital device in line with part 15 of the FCC
regulations.
These requirements are designed to provide sufficient protection against
interference when the device is being used in a business environment.
The device creates and uses high frequencies and can also radiate high
frequencies, and if it is not installed and used in accordance with this
operating manual, it can cause radio transmission interference. The use
of this device in a living area can also cause interference, and in this case
the user is obliged to cover the costs of removing the interference.

 Recycling note

After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.

12

Installation RSPL 20/30

Release 04 02/2013

About this manual

The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.
The following manuals are available as PDF files on the CD/DVD supplied:

 Installation user manual
 Basic Configuration user manual
 Redundancy Configuration user manual
 Reference manual for the graphical user interface
 Command Line Interface user manual

The Industrial HiVision Network Management Software provides you with
additional options for smooth configuration and monitoring:

 Simultaneous configuration of multiple devices
 Graphical user interface with network layout
 Auto-topology discovery
 Event log
 Event handling
 Client/server structure
 Browser interface
 ActiveX control for SCADA integration
 SNMP/OPC gateway.

Key

The symbols used in this manual have the following meanings:

 Listing

 Work step



Subheading

Installation RSPL 20/30

Release 04 02/2013

13

1 Device description

1.1 General device description

You can choose from between a wide range of variants. You have the option
to set up your device individually based on different criteria:

 Number of ports
 Transmission speed
 Types of connectors
 Temperature range
 Voltage range
 Certifications

The RSPL 20/30 devices are designed for the special requirements of
industrial automation. They meet the relevant industry standards, provide
very high operational reliability, even under extreme conditions, and also
provide long-term reliability and flexibility.

The devices allow you to set up switched industrial Ethernet networks that
conform to the IEEE 802.3 standard.

The devices work without a fan.

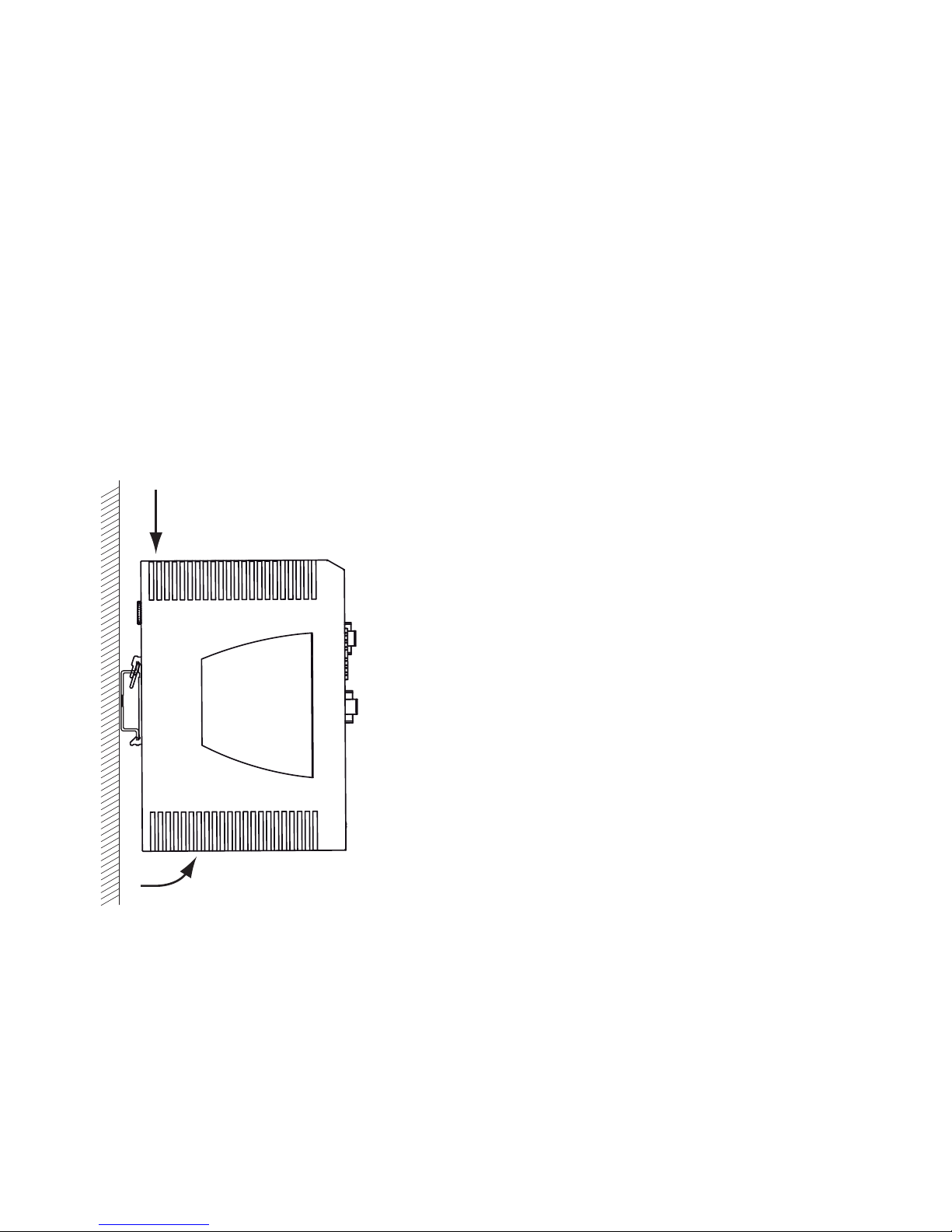

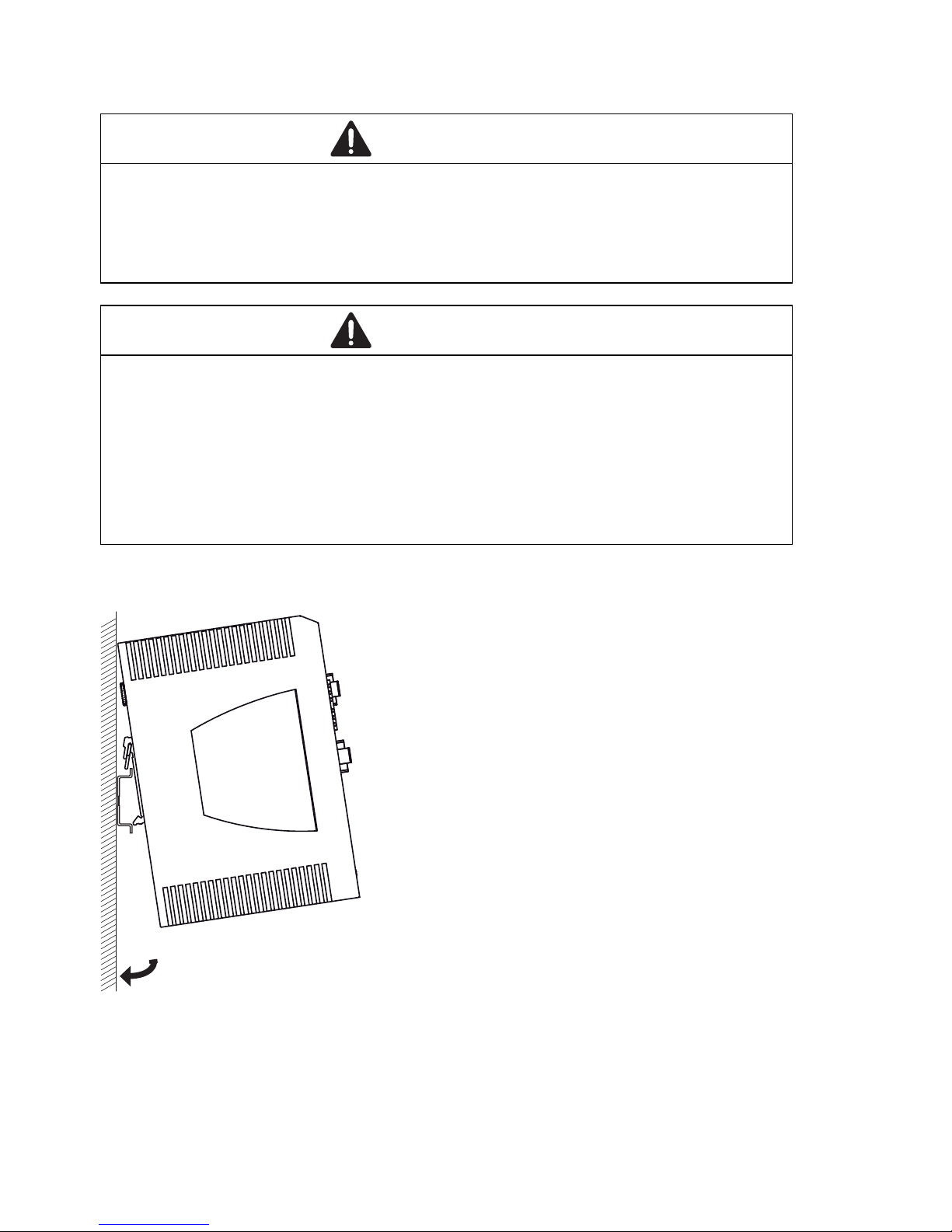

The devices are mounted very quickly by snapping them onto the DIN rail.

You have the option to choose various media to connect terminal devices
and other infrastructure components:

 twisted pair cable
 multimode F/O
 singlemode F/O

The redundancy concept allows the network to be reconfigured quickly.

There are convenient options for managing the device. Administer your
devices via:

 a Web browser
 SSH
 Telnet
 HiDiscovery (Software for putting the device into operation)
 management software (such as Industrial HiVision)
 a V.24 interface (locally on the device)

The devices provide you with a large range of functions, which the manuals
for the operating software inform you about. You will find these manuals as
PDF files on the enclosed CD/DVD, or you can download them from the
Internet on the Hirschmann product pages (www.hirschmann.com).

14

Installation RSPL 20/30

Release 04 02/2013

The Hirschmann network components help you ensure continuous
communication across all levels of the company.

1.2 Device name and product code

The device name corresponds to the product code. The product code is
made up of characteristics with defined positions. The characteristic values
stand for specific product properties.

Item Characteristic Character

istic value

Description

1 ... 4 Product RSPL Rail Switch Power Lite
5 ... 6 Data rate 20 Switch fast Ethernet

30 Switch with gigabit ports
7 (hyphen) –
8 ... 9 Number:

10

a

/100 Mbit/s ports

08 8 × (10/)100 Mbit/s ports

10 ... 11 Number:

10b/100/1000 Mbit/s
ports

00 0 × (10/)100/1000 Mbit/s ports

02 2 × (10/)100/1000 Mbit/s ports

12 ... 14 Configuration of the

uplink ports

2Z6 2 × SFP slot for 100 Mbit/s F/O connection

2O7 2 × (10/)100/1000 Mbit/s combo ports
15 ... 16 Configuration of the

other ports

TT 6 × RJ-45 socket for 10/100 Mbit/s twisted-

pair connection

YT 2 × SFP slot for 100 Mbit/s F/O connection

All others: RJ-45 socket for 10/100 Mbit/s twisted-

pair connection

ZT 4 × RJ-45 socket for 10/100 Mbit/s twisted-

pair connection

4 × SFP slot for 100 Mbit/s F/O connection
17 (hyphen) –
18 Temperature range S Standard +32 °F ... +140 °F (0 °C ...

+60 °C)

T Extended −40 °F ... +158 °F (−40 °C

... +70 °C)

E Extended with

conformal coating

−40 °F ... +158 °F (−40 °C
... +70 °C)

19 ... 20 Operating voltage CC 2 voltage inputs for redundant voltage supply

Rated voltage range DC

24 V ... 48 V Class 2

M9 1 voltage input

Rated voltage range AC

110 V ... 230 V, 50 Hz ... 60 Hz

Rated voltage range DC

110 V ... 250 V

Table 1: Device name and product code

Installation RSPL 20/30

Release 04 02/2013

15

21 ... 22 Certificates and

declarations

c

Z9 CE, FCC, EN 61131-2, EN 60950-1
Y9 “Z9” + cUL 508, (UL 60950-1)
X9 “Z9” + cUL 508, (UL 60950-1), ISA 12.12 Class 1

Div. 2

V9 “Z9” + IEC 61850-3, IEEE 1613

Substation applications

VY “V9” + cUL 508, (UL 60950-1)

Substation applications

VT “V9” + cUL 508, (UL 60950-1), EN 50121-4

Sub-station and railway applications (trackside)

T9 “Z9” + EN 50121-4

Railway applications (trackside)

TY “T9” + cUL 508, (UL 60950-1)

Railway applications (trackside)

23 ... 24 Customization HS Hirschmann Standard

a. Only for twisted pair connections
b. Only for twisted pair connections
c. Certificates and declarations in brackets are being prepared.

Item Characteristic Character

istic value

Description

Table 1: Device name and product code

16

Installation RSPL 20/30

Release 04 02/2013

Figure 1: Example of a device name:

RSPL20-08002Z6TT-SCCZ9HS

,WHP



563/









=

77

6

=

&&























3URGXFW

'HVFULSWLRQ

'DWDUDWH)DVW(WKHUQHW

²

1XPEHURI0ELWVSRUWV

&RQILJXUDWLRQRIWKHXSOLQNSRUWV

[6)3VORWVIRU0ELWV)2

&RQILJXUDWLRQRIWKHRWKHUSRUWV

[5-VRFNHWVIRU0ELWV73

&XVWRPHUVSHFLILFYHUVLRQ

+LUVFKPDQQ6WDQGDUG

7HPSHUDWXUHUDQJH

6WDQGDUG&&

2SHUDWLQJYROWDJH

YROWDJHLQSXWV9'&9'&&ODVV

&HUWLILFDWHVDQGGHFODUDWLRQV

&()&&(1(1

+6



5DLO6ZLWFK3RZHU/LWH

1XPEHURI0ELWVSRUWV

²



Installation RSPL 20/30

Release

04

02/2013

17

1.3 Combination options

Item 1 ... 4 5 ... 6 7 8 ... 9 10 ... 11 12 ... 14 15 ... 16 17 18 19 ... 20 21 ... 22 23 ... 24

Characte
ristic

Product Data

rate

Number:
10

a

/100

Mbit/s ports

a. Only for twisted pair connections

Number:
10b/100/1000
Mbit/s ports

b. Only for twisted pair connections

Configuration
of the uplink
ports

Configura
tion of the
other
ports

Temperature
range

Operating
voltage

Certificates and
declarations

Customization

Charact
eristic
value

RSPL 20 – 08 00 2Z6 TT; YT – S; T; E CC; M9 Z9; Y9; X9; V9;

VY; VT; T9; TY

HS

30 – 08 02 2O7 YT; ZT – S; T; E CC; M9 Z9; Y9; X9; V9;

VY; VT; T9; TY

HS

Table 2: Combination options of the RSPL 20/30 device variants

18

Installation RSPL 20/30

Release 04 02/2013

1.4 Device views

1.4.1 Front view

1 LED display elements for device status
2 V.24 interface
3 Uplink ports

2 × SFP slot for 100 Mbit/s F/O connection

4 Other ports

alternatively,
depending on
device variant

Port configuration
of the type:
YT

2 × SFP slot for 100 Mbit/s F/O connection
4 × RJ-45 socket for 10/100 Mbit/s twisted-pair

connection

Port configuration
of the type:
TT

6 × RJ-45 socket for 10/100 Mbit/s twisted-pair

connection

5 Grounding screw
6 Connection for the supply voltage

alternatively,
depending on
device variant

Operating voltage
of the type:
CC

 2 voltage inputs for redundant voltage supply
 2-pin terminal block

Operating voltage
of the type:
M9

 1 voltage input
 3-pin terminal block

7 Connection for the signal contact

Table 3: Front view:

left: Device variants RSPL20.........2Z6YT..CC....

right: Device variants RSPL20.........2Z6TT..M9....

1

2

3

4

7

5

6

1

4

7

6

3

5

2

Installation RSPL 20/30

Release 04 02/2013

19

1 LED display elements for device status
2 V.24 interface
3 Uplink ports

2 × (10/)100/1000 Mbit/s combo ports

4 Other ports

alternatively,
depending on
device variant

Port configuration
of the type:
YT

2 × SFP slot for 100 Mbit/s F/O connection
6 × RJ-45 socket for 10/100 Mbit/s twisted-pair

connection

Port configuration
of the type:
ZT

4 × SFP slot for 100 Mbit/s F/O connection
4 × RJ-45 socket for 10/100 Mbit/s twisted-pair

connection
5 Grounding screw
6 Connection for the supply voltage

alternatively,
depending on
device variant

Operating voltage
of the type:
CC

 2 voltage inputs for redundant voltage supply
 2-pin terminal block

Operating voltage
of the type:
M9

 1 voltage input
 3-pin terminal block

7 Connection for the signal contact

Table 4: Front view:

left: Device variants RSPL30.........2O7YT..CC....

right: Device variants RSPL30.........2O7ZT..M9....

4

6

5

7

2
3

1

4

5

7

6

2
3

1

20

Installation RSPL 20/30

Release 04 02/2013

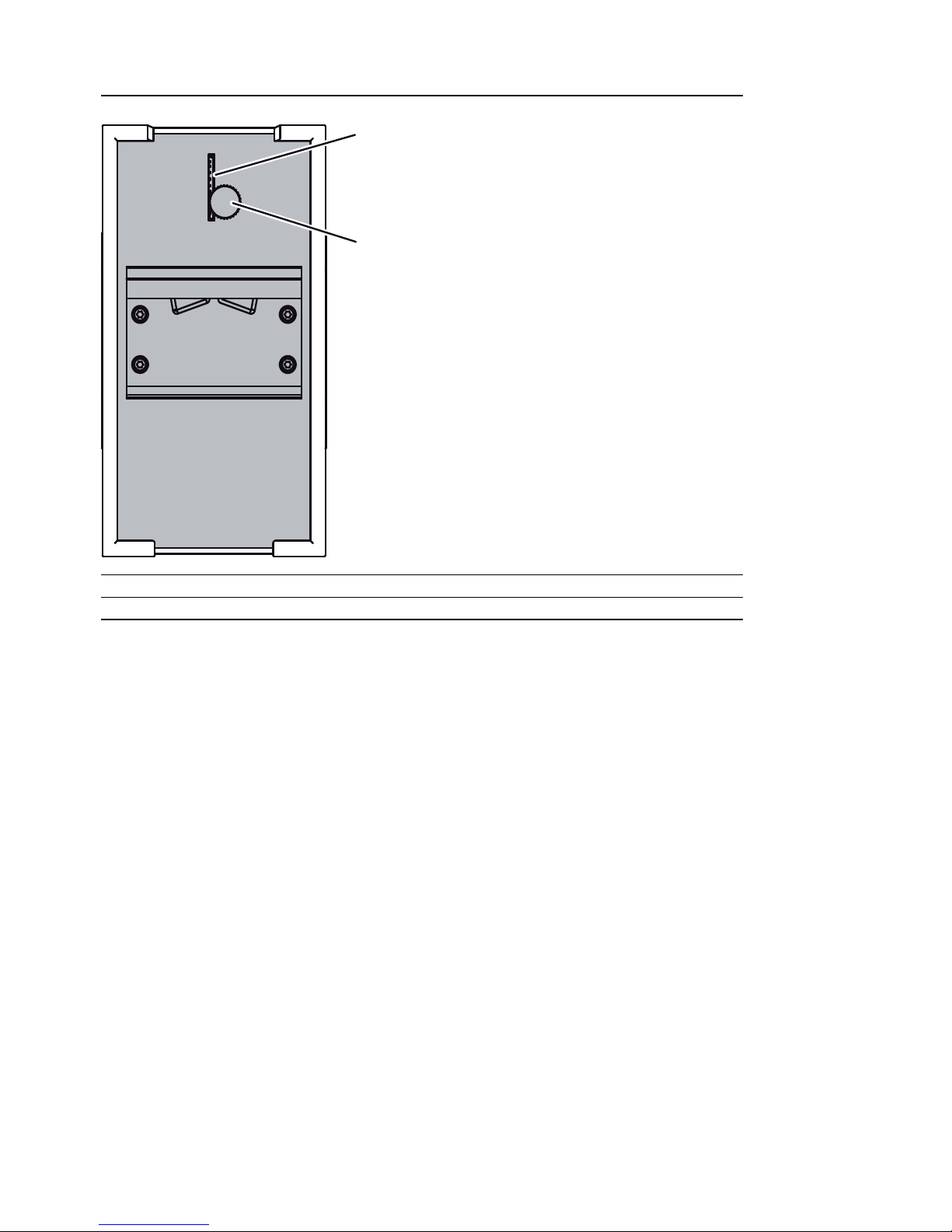

1.4.2 Rear view

1.5 Power supply

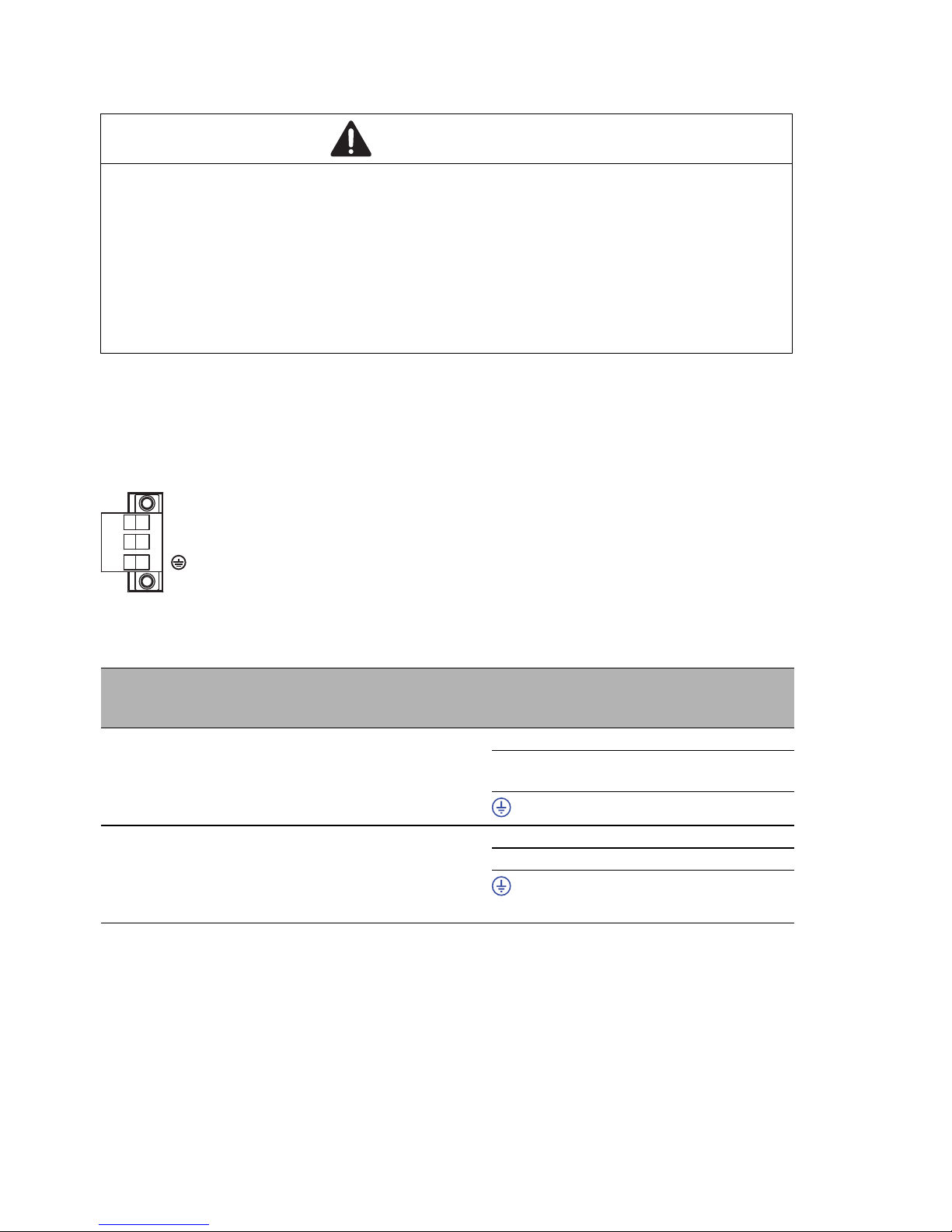

1.5.1 Operating voltage type M9

A 3-pin terminal block is available to supply the device.

You will find more information on page 30.

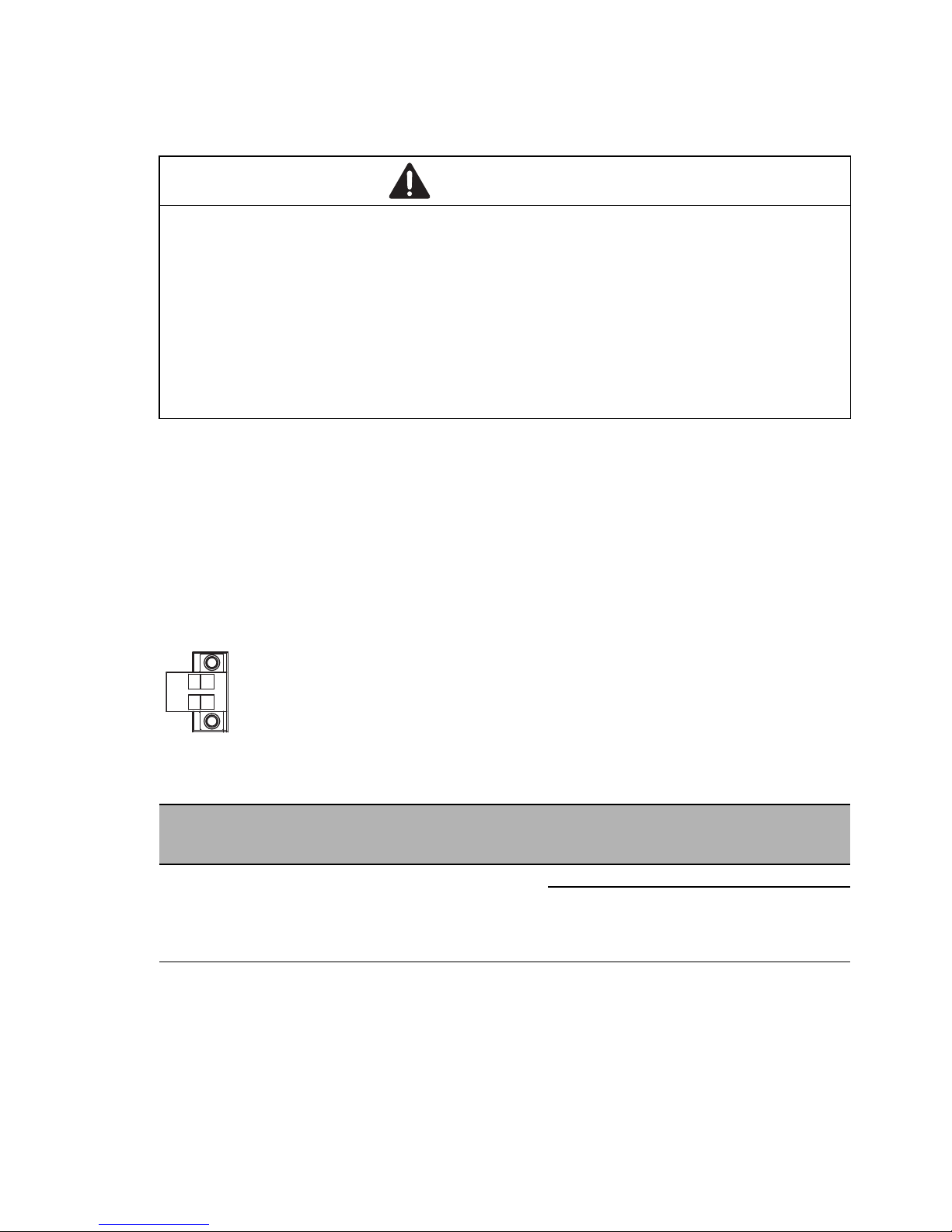

1.5.2 Operating voltage type CC

For the redundant supply of the device, two 2-pin terminal blocks are
available.

You will find more information on page 31.

1 Slot for the SD card
2 Knurled screw

1

2

Installation RSPL 20/30

Release 04 02/2013

21

1.6 Ethernet ports

You can connect terminal devices and other segments on the ports of the
device via twisted pair cables or F/O cables.

1.6.1 Gigabit combo port (optional)

You have the option to alternatively connect F/O (via SFP transceivers) or
twisted pairs to a combo port.
When you are using an SFP transceiver, you get an optical interface. You
thus deactivate the corresponding TP interface.

 10/100/1000 Mbit/s twisted pair connection

These connections are RJ45 sockets.

10/100/1000 Mbit/s TP ports enable the connection of terminal devices or
independent network segments according to the IEEE 802.3 10BASE­T/100BASE-TX/1000BASE-T standard.

These ports support:

 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 1000 Mbit/s full duplex
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode

Delivery state: autonegotiation activated
The socket housing is electrically connected to the front panel.
The pin assignment corresponds to MDI-X.

 100/1000 Mbit/s F/O connection

These ports are SFP slots.

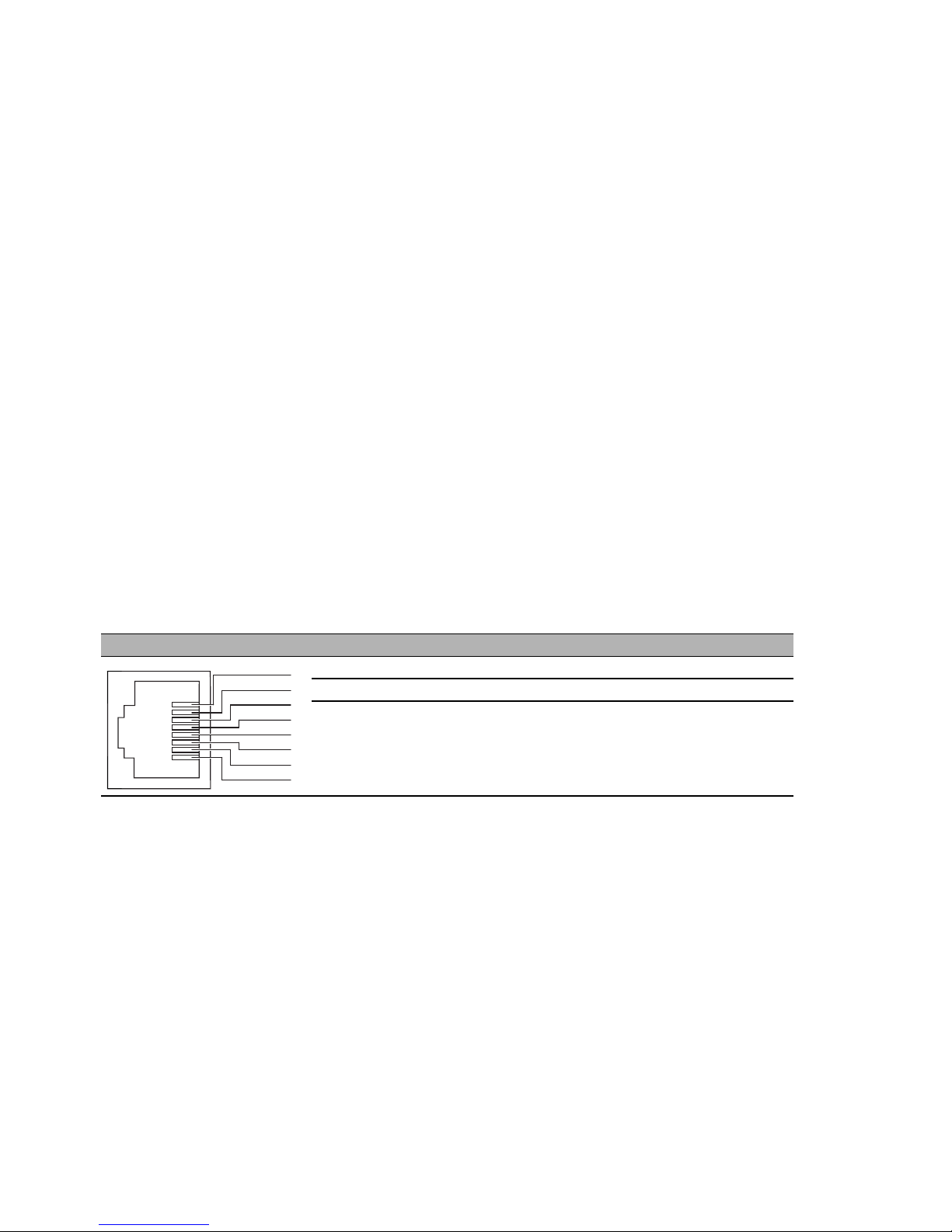

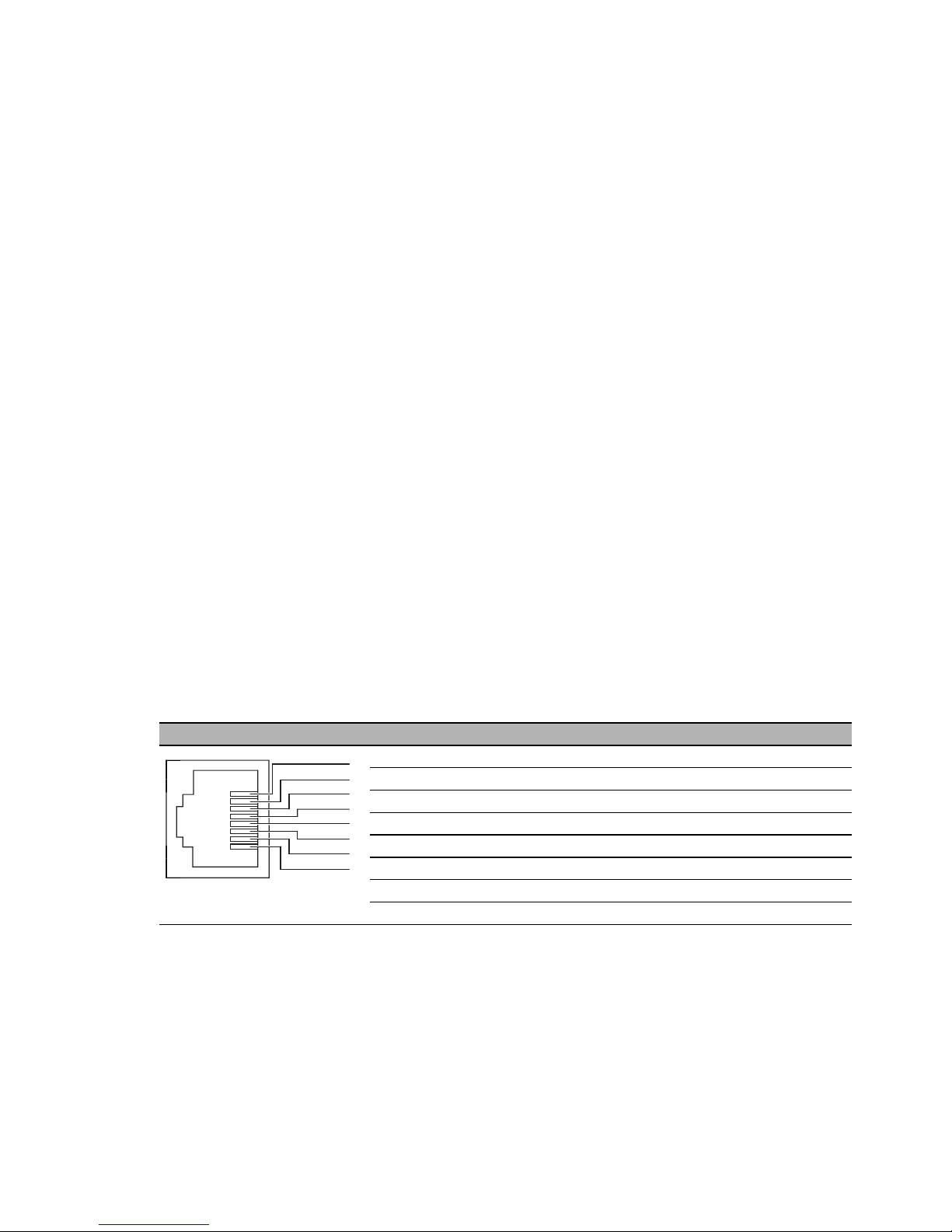

Figure Pin Function

1BI_DB+
2BI_DB−
3BI_DA+
4BI_DD+
5BI_DD−
6BI_DA−
7BI_DC+
8BI_DC−

Table 5: Pin assignment of a 10/100/1000 Mbit/s TP interface in MDI-X mode,

RJ45 socket

1
2
3
4
5
6
7
8

22

Installation RSPL 20/30

Release 04 02/2013

100/1000 Mbit/s F/O ports enable the connection of terminal devices or
independent network segments according to the IEEE 802.3 100BASE­FX/1000BASE-SX/1000BASE-LX standard.
These ports support:

 1000 Mbit/s full duplex
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode

State on delivery:

 100 Mbit/s full duplex when using a Fast Ethernet SFP transceiver
 1000 Mbit/s full duplex when using a Gigabit Ethernet SFP transceiver

1.6.2 10/100 Mbit/s twisted pair connection

These connections are RJ45 sockets.
10/100 Mbit/s TP ports enable the connection of terminal devices or
independent network segments according to the IEEE 802.3 10BASE­T/100BASE-TX standard.
These ports support:

 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode

Delivery state: autonegotiation activated
The socket housing is electrically connected to the front panel.

1.6.3 100 Mbit/s F/O connection

These ports are SFP slots.
100 MBit/s F/O ports enable the connection of terminal devices or
independent network segments in compliance with the IEEE 802.3
100BASE-FX standard.
These ports support:

 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode

Default setting: Full duplex

Figure Pin Operation

1+2 One line pair: receiver path
3+6 One line pair: sender path
4,5,7,8 —

Table 6: Pin assignment of a TP/TX interface in MDI-X mode, RJ45 socket

1
2
3
4
5
6
7
8

Installation RSPL 20/30

Release 04 02/2013

23

1.7 Display elements

After the operating voltage is set up, the software starts and initializes itself.
Afterwards, the device performs a self-test. During this process, various
LEDs light up.

1.7.1 Device state

These LEDs provide information about conditions which affect the operation
of the whole device.

LED Display Color Activity Meaning

Power Power supply — None The supply voltage is too low.

Yellow Lights up Device variants with redundant voltage

supply:
The supply voltages 1 or 2 are on.

flashes 4 times
a period

Software update is running. Maintain the
voltage supply.

Green Lights up Device variants with redundant voltage

supply:
The supply voltages 1 and 2 are on.

Device variants with simple voltage
supply:
The supply voltage is on.

Status Device Status — None Device is starting and/or is not ready for

operation.

Green Lights up Device is ready for operation.

Characteristics can be configured.

Red Lights up Device is ready for operation.

The Device detects and displays the
system monitoring results when at least
one unussual event occurs.

Flashes 1 time
a period

The boot parameters used when the
device has been started differ from the
boot parameters saved.
Start the device again.

flashes 4 times
a period

Device has detected a multiple IP
address.

RM Redundancy

Manager

— None No redundancy configured
Green Lights up Redundancy exists

Flashes 1 time
a period

Device is reporting an incorrect
configuration of the RM function.

Yellow Lights up No redundancy exists

ACA Storage medium

ACA31

— None The storage medium ACA is not inserted.
Green Lights up The storage medium ACA is inserted.

Flashes 3
times a period

The device allows read and write access.

Yellow Lights up The storage medium ACA is out of order.

Status

RM

ACA

Power

24

Installation RSPL 20/30

Release 04 02/2013

1.7.2 Port state

These LEDs display port-related information. During the boot phase, they
indicate the status of the boot process.
The LEDs are directly located on the ports.

1.8 Management interfaces

1.8.1 V.24 interface (external management)

Note: The location on the device is described on page 18 “Front view”.

A serial interface is provided on the RJ11 socket (V.24 interface) for the local
connection of an external management station (VT100 terminal or PC with
corresponding terminal emulation). This enables a connection to the
Command Line Interface (CLI) and the system monitor to be made.

The socket housing is electrically connected to the front panel of the device.
The V.24 interface is electrically insulated from the supply voltage.

Display Color Activity Meaning

Link status — None The device detects an invalid or missing

connection.

Green Lights up The device detects a valid connection.

Flashes 1 time a period The port is switched to stand-by.
Flashes 3 times a period The port is disabled.

Yellow Lights up Device detects a non-supported SFP

transceiver or a non- supported data rate.
Flashing The device is sending and/or receiving data.
Flashes 1 time a period The device detects at least one

unauthorized MAC address (Port Security

Violation).

VT 100 terminal settings

Speed 9,600 Baud
Data 8 bit
Stopbit 1 bit
Handshake off
Parity none

Installation RSPL 20/30

Release 04 02/2013

25

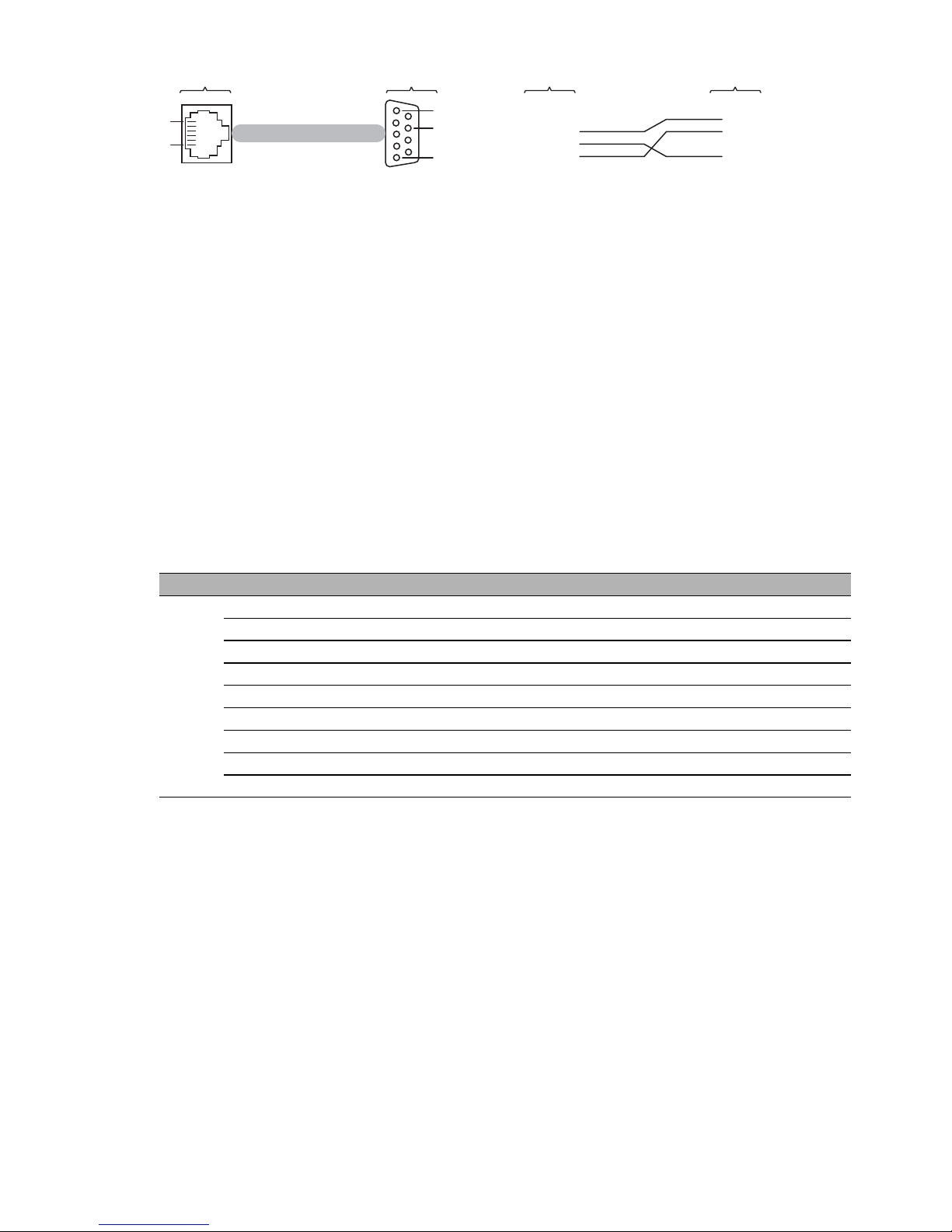

Figure 2: Pin assignment of the V.24 interface and the DB9 connector

Note: You will find the order number for the terminal cable, which is supplied
separately, in the Technical Data chapter (see page 49).

1.8.2 SD card interface

Note: The location on the device is described on page 20 “Rear view”.
On the front of the device there is an LED display that informs you about the
status of the interface.

The SD card interface allows you to connect the AutoConfiguration Adapter
ACA31 storage medium. This is used for saving/loading the configuration
data and diagnostic information, and for loading the software.
See “Accessories” on page 49.

Mode Pin No. Description Type

a

a. S - voltage supply

I - input
O - output, uses push-pull driver
PP - I/O, uses push-pull driver

Description

SD 1 CD/DAT3 I/O/PP Card detection / data line (bit 3)

2 CMD PP Command / reply
3 VSS1 S Supply voltage (ground)
4 VDD S Supply voltage
5 CLK I Clock input
6 VSS2 S Supply voltage (ground)
7 DAT0 I/O/PP Data line (bit 0)
8 DAT1 I/O/PP Data line (bit 1)
9 DAT2 I/O/PP Data line (bit 2)

Table 7: Pin connection of SD card

1

1

8

5

6

2
3

5

1
2
3
4
5
6

CTS
n.c.
TX
GND
RX
RTS

RJ11

DB9

RJ11

DB9

26

Installation RSPL 20/30

Release 04 02/2013

1.9 Signal contact

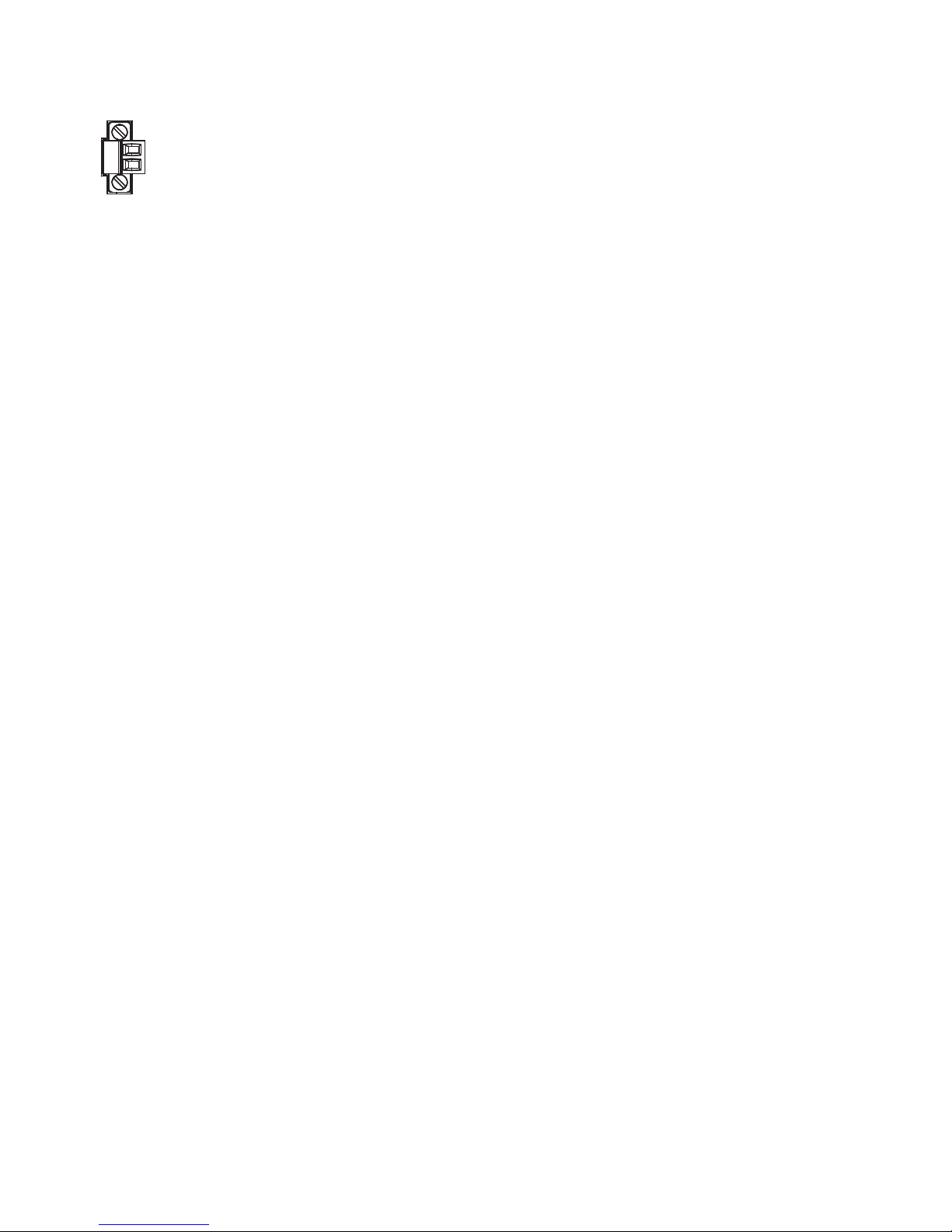

Figure 3: Signal contact: 2-pin terminal block with screw locking

The signal contact is a potential-free relay contact.
The device allows you to perform remote diagnosis via the signal contact. In
the process, the device signals events such as a line interruption. When an
event occurs, the device opens the relay contact and interrupts the closed
circuit. The management setting specifies which events switch a contact.
You can also use the management to switch the signal contact manually and
thus control external devices.

Installation RSPL 20/30

Release 04 02/2013

27

2 Device installation

The devices have been developed for practical application in a harsh
industrial environment.
On delivery, the device is ready for operation.

The following steps should be performed to install and configure a switch:

 Unpacking and checking
 Installing the SD card (optional)
 Installing the device and grounding
 Installing the SFP transceivers (optional)
 Connecting the terminal blocks
 Mounting the terminal blocks and switching on the supply voltage
 Connecting the data lines
 Insert data in label area

2.1 Unpacking and checking

 Check whether the contents of the package are complete (see page 49

“Scope of delivery”).

 Check the individual parts for transport damage.

2.2 Installing the SD card (optional)

Note: The location on the device is described on page 20 “Rear view”.
Only use the AutoConfiguration Adapter ACA31 storage medium.
See “Accessories” on page 49.

 Deactivate the write protection on the SD card.
 Push the SD card into the slot with the serration facing downwards.
 Tighten the knurled screw to ensure that the SD card does not fall out.

28

Installation RSPL 20/30

Release 04 02/2013

2.3 Installing the device and grounding

2.3.1 Mounting on the DIN rail

Figure 4: Mounting on the DIN rail

Note: Make sure there is at least 10 cm of space above and below the
device.

WARNING

FIRE HAZARD

Install the device in a fire protected enclosure according to EN 60950-1.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

WARNING

Only for device variants with operating voltage type M9:

ELECTRIC SHOCK

Only install this device in a switch cabinet or in an operating site with limited
access, to which only maintenance staff have access.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Installation RSPL 20/30

Release 04 02/2013

29

Note: The shield ground wire of the twisted pair lines is connected to the front
panel as a conductor.

 Mount the device on a 35 mm DIN rail in accordance with DIN EN 60175.
 Attach the upper snap-in guide of the device into the DIN rail and press

the device down against the DIN rail until it snaps into place.

2.3.2 Grounding

The housing is grounded via the separate ground screw on the bottom left of
the front panel.
The device variants with operating voltage type M9 have a protective
grounding.
The device variants with operating voltage type CC have a function
grounding.

 Connect the grounding to the ground screw of the device.

Note: For safety reasons, make sure you only connect the ground wire
before you set up the other connections.

2.4 Installing the SFP transceivers (optional)

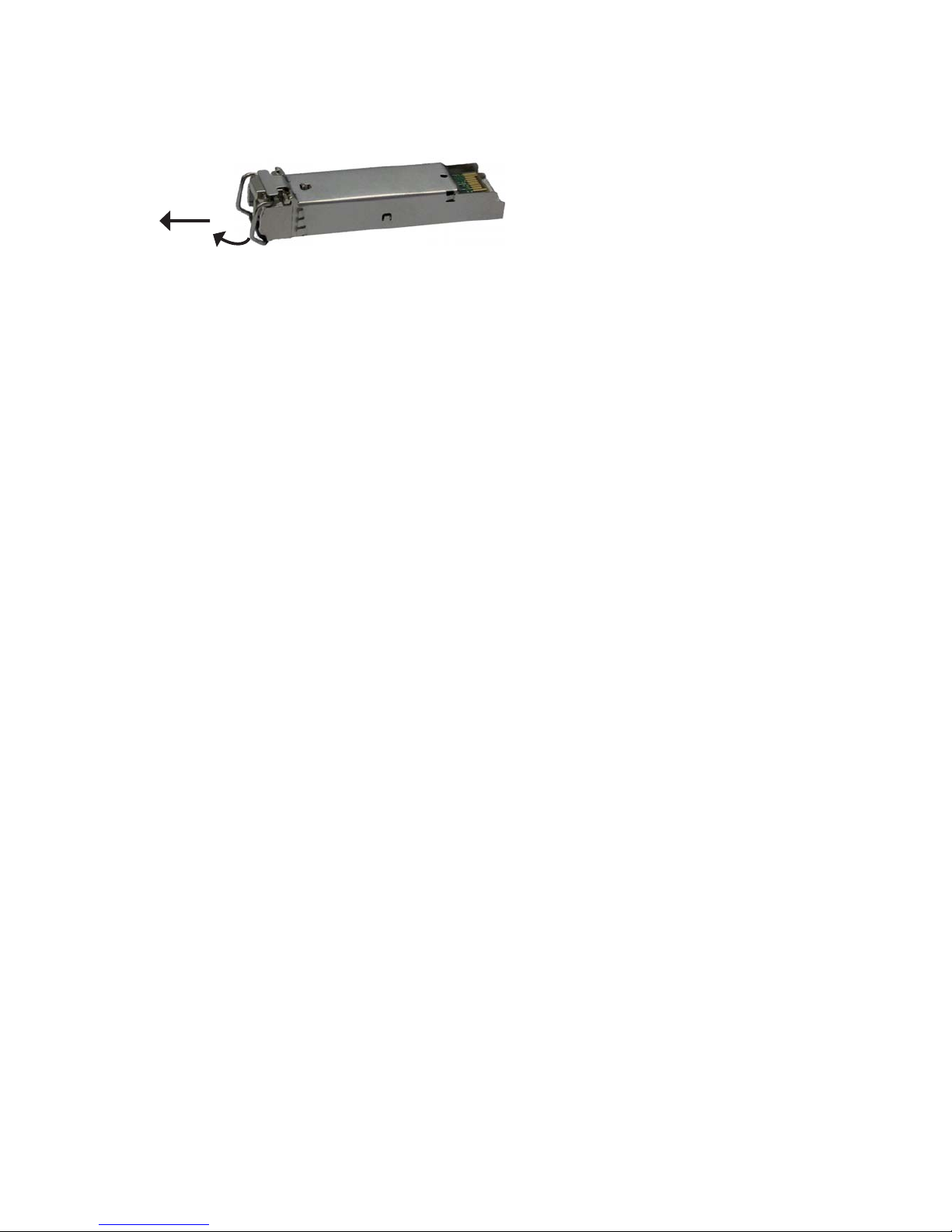

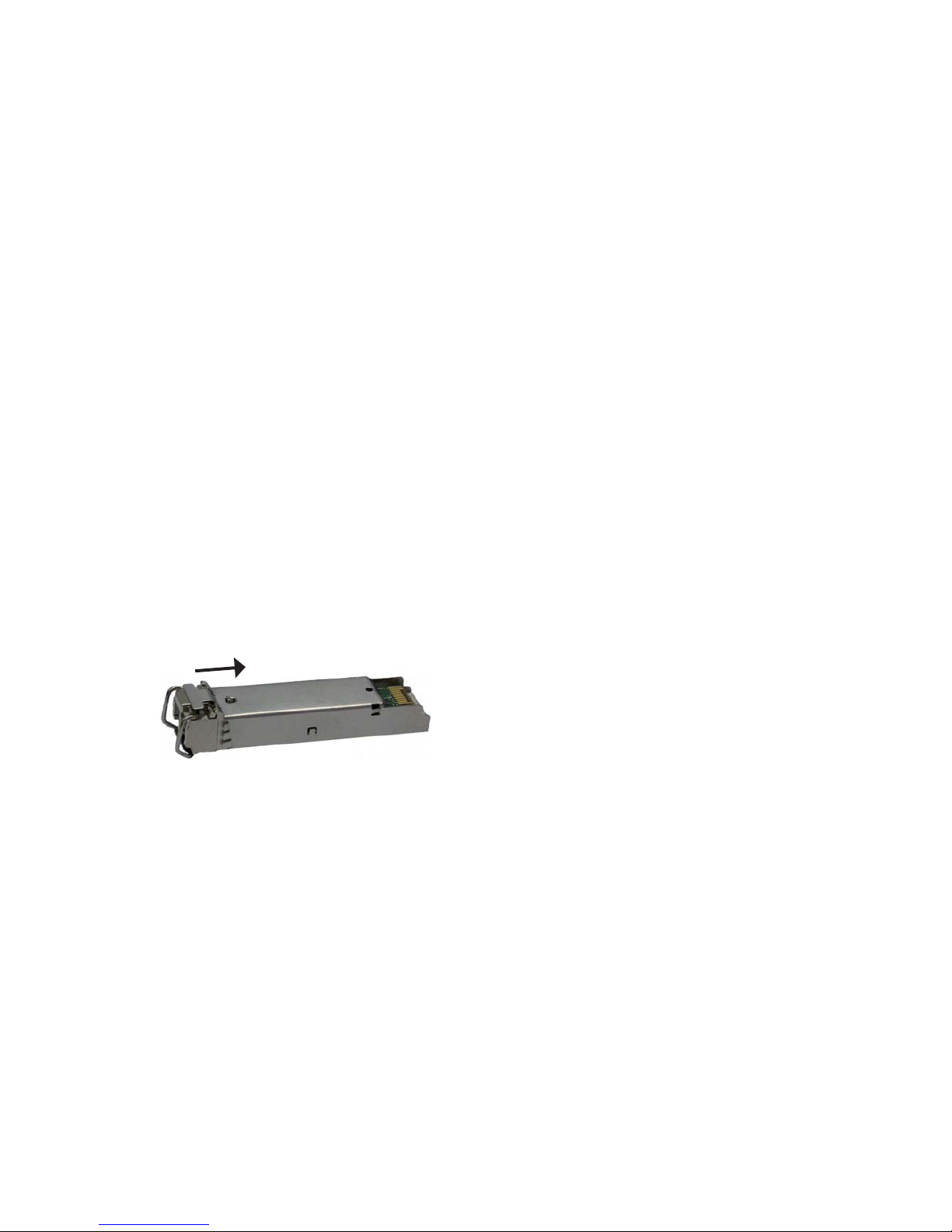

Figure 5: Fast Ethernet / Gigabit Ethernet Fiberoptic SFP Transceiver

 Before attaching an SFP transceiver, first remove the protective cap over

the socket.

 Push the SFP transceiver with the lock closed into the socket until you

hear it latch in.

Note: Only use Hirschmann SFP transceivers (see page 49 “Accessories”).

30

Installation RSPL 20/30

Release 04 02/2013

2.5 Connecting the terminal blocks

Note: The supply voltage is only connected with the chassis via protective
elements.

 Operating voltage type M9

Figure 6: Operating voltage type M9: 3-pin terminal block with screw locking

WARNING

ELECTRIC SHOCK

Only connect a supply voltage as described in the data plate of your device.
Never insert sharp objects (small screwdrivers, wires, etc.) into the
connection terminals for the supply voltage or the signal contact, and do not
touch the terminals!

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Type of the voltages
that can be
connected

Size of the supply voltage Connections

DC voltage Rated voltage range DC

110 V ... 250 V
Voltage range DC incl.
maximum tolerances
88 V ... 320 V

+/L Plus terminal of the supply voltage

−/N Minus terminal of the supply
voltage

Protective conductor

AC voltage Rated voltage range AC

110 V ... 230 V, 50 Hz ... 60 Hz
Voltage range AC incl.
maximum tolerances
88 V ... 265 V, 47 Hz ... 63 Hz

+/L Outer conductor

−/N Neutral conductor
Protective conductor

Table 8: Operating voltage type M9: Type and size of the supply voltage,

connections

N

L

Installation RSPL 20/30

Release 04 02/2013

31

To connect supply voltage, perform the following steps:
 Ensure the required conditions for connecting the supply voltage are

observed (see page 5 “Supply voltage”).

 Remove the power connector from the device.
 Connect the protective conductor to the protective conductor terminal.
 Connect the lines for the supply voltage to the terminals +/L and −/N.

 Operating voltage type CC

You have the option to supply the supply voltage redundantly, with no
load distribution.
Both inputs are separate from one another.

Figure 7: Operating voltage type CC: 2-pin terminal block with screw locking

WARNING

ELECTRIC SHOCK

Only start connecting the supply voltage if all the above mentioned
requirements are fulfilled.

See “Supply voltage” on page 5.

Only install this device in a switch cabinet or in an operating site with limited
access, to which only maintenance staff have access.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Type of the voltages
that can be
connected

Size of the supply voltage Connections

DC voltage Rated voltage range DC

24 V ... 48 V Class 2
Voltage range DC incl.
maximum tolerances
18 V ... 60 V Class 2

+ Plus terminal of the supply voltage

− Minus terminal of the supply
voltage

Table 9: Operating voltage type CC: Type and size of the supply voltage,

connections

−

+

32

Installation RSPL 20/30

Release 04 02/2013

For every supply voltage to be connected, perform the following steps:
 Ensure the required conditions for connecting the supply voltage are

observed (see page 5 “Supply voltage”).

 Remove the power connector from the device.
 Connect the lines for the supply voltage to the + and − terminals.

Note: With non-redundant supply of the mains voltage, the device reports
a power failure. You can prevent this message by applying the supply
voltage via both inputs, or by changing the configuration in the
Management.

 Signal contact

For the signal contact to be connected, make sure the following
requirements are met:

 The lines to be connected are voltage-free.
 The connected voltage is limited by a current limitation device or a

fuse.
Observe the electrical threshold values for signal contact (see on

page 40 “General technical data”).

 Connect the signal contact lines to the terminal block.

WARNING

ELECTRIC SHOCK

Only start connecting the supply voltage if all the above mentioned
requirements are fulfilled.

See “Supply voltage” on page 5.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Installation RSPL 20/30

Release 04 02/2013

33

2.6 Mounting the terminal blocks and switching
on the supply voltage

Note: Relevant for North America:
The torque for tightening the supply voltage terminal block on the device is

0.51 Nm (4.5 lb in).

The torque for tightening the signal contact/terminal block on the device is
3lbin (0.34Nm).

 Use screws to secure the connecters to the device.
 Switch on the supply voltage.

2.7 Connecting the data lines

Note: In general, you should adhere to the following recommendations for
data cable connections in environments with high electrical interference
levels:

 Keep the length of the data cables as short as possible. Use optical

cables for the data transmission between the buildings.

 When using copper cables, make sure there is a sufficient gap between

the power supply cables and the data cables if they are laid over a long
distance. Ideally, install the cables in separate cable channels.

 Use shielded cables.

Note: Make sure that you only connect optical ports of the same type with
each other, e.g. single-mode ports with single-mode ports.

2.7.1 Gigabit combo port (optional)

You have the option to alternatively connect F/O (via SFP transceivers) or
twisted pairs to a combo port.
When you are using an SFP transceiver, you get an optical interface. You
thus deactivate the corresponding TP interface.

WARNING

ELECTRIC SHOCK

Ground the device before connecting the power supply.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

34

Installation RSPL 20/30

Release 04 02/2013

 10/100/1000 Mbit/s twisted pair connection

You will find more information on page 21.

 Install the data lines according to your requirements.

 100/1000 Mbit/s F/O connection

You will find more information on page 21.

 Install the data lines according to your requirements.

2.7.2 100 Mbit/s F/O connection

You will find more information on page 22.

 Install the data lines according to your requirements.

2.7.3 10/100 Mbit/s twisted pair connection

You will find more information on page 22.

 Install the data lines according to your requirements.

2.8 Insert data in label area

The information field for the IP address on the front of the device helps you
to structure your network installation clearly.

Installation RSPL 20/30

Release 04 02/2013

35

3 Basic set-up

The IP parameters must be entered when the device is installed for the first
time. The device provides the following options for configuring IP addresses:

 Entry via V.24 connection
 Entry using the HiDiscovery protocol via the application HiDiscovery or

Industrial HiVision

 Configuration via BOOTP
 Configuration via DHCP (Option 82)
 AutoConfiguration Adapter

Further information on the basic settings of the device can be found in the
user manual on the CD/DVD.

 Default settings

 IP address: The device looks for the IP address using DHCP
 Management password:

user, password: public (read only)
admin, password: private (read/write)

 V.24 data rate: 9,600 Baud
 Ethernet ports: link status is not evaluated (signal contact)
 Optical ports: Full duplex

TP ports: Autonegotiation

 RSTP (Rapid Spanning Tree) activated

36

Installation RSPL 20/30

Release 04 02/2013

4 Monitoring the ambient air temperature

Only operate the device up to the specified maximum ambient air
temperature.

See “General technical data” on page 40.

The ambient air temperature is the temperature of the air at a distance of 5
cm from the device. It depends on the installation conditions of the device,
e.g. the distance from other devices or other objects, and the output of
neighboring devices.

The temperature displayed in the CLI and the GUI is the internal temperature
of the device. It is higher than the ambient air temperature. The maximum
internal temperature of the device named in the technical data is a guideline
that indicates to you that the maximum ambient air temperature has possibly
been exceeded.

Installation RSPL 20/30

Release 04 02/2013

37

5 Maintenance and service

 When designing this device, Hirschmann was largely able to forego using

parts that are subject to waer and tear. The parts subject to wear are
designed to last longer than the lifetime of the product when it is operated
properly. Operate this device according to the specifications (see

“Technical data”).

 Relays are subject to natural wear. This wear depends on the frequency

of the switching operations. Check the resistance of the closed relay
contacts and the switching function depending on the frequency of the
switching operations.

 Hirschmann is continually working to improve and develop our software.

You should regularly check whether there is a new version of the software
that provides you with additional benefits. You will find software
information and downloads on the product pages of the Hirschmann
website.



Depending on the degree of pollution in the operating environment, check
at regular intervals that the ventilation slots in the device are not
obstructed.

Note: You will find information about the complaints and returns procedures
in the Internet under

http://www.beldensolutions.com/en/Service/Repairs/index.phtml .

38

Installation RSPL 20/30

Release 04 02/2013

6 Disassembly

6.1 Disassembling the device

 Disconnect the data lines.
 Switch off the supply voltage.
 Disconnect the terminal blocks.
 Disconnect the grounding.

Note: For safety reasons, make sure you disconnect the grounding from
all connections last.

 To remove the device from the DIN rail, press the device downwards and

pull it out from under the DIN rail.

Figure 8: Removal from the DIN rail

Installation RSPL 20/30

Release 04 02/2013

39

6.2 Removing the SFP transceivers

 Pull the SFP transceiver out of the socket by means of the opened lock.

Figure 9: Deinstalling an SFP transceiver

1

2

40

Installation RSPL 20/30

Release 04 02/2013

7 Technical data

 General technical data

Dimensions
W × H × D

RSPL 20/30 See “Dimension drawings” on page 42.

Weight RSPL-20-... approx. 1.0 kg

RSPL-30-... approx. 1.2 kg

Power supply
Power supply
type CC

Nominal voltage DC 24 V ... 48 V Class 2
Voltage range DC incl.

maximum tolerances

18 V ... 60 V Class 2

Connection type 2-pin terminal block
Power failure bypass > 10 ms at 20.4 V DC
Overload current protection at

input

Non-replaceable fuse

Back-up fuse for each voltage
input

Nominal rating:
Characteristic:

1A
slow blow

Peak inrush current < 4 A

Power supply
Power supply
type M9

Nominal voltage AC 110 V ... 230 V, 50 Hz ... 60 Hz
Voltage range AC incl.

maximum tolerances

88 V ... 265 V, 47 Hz ... 63 Hz

Nominal voltage DC 110 V ... 250 V
Voltage range DC incl.

maximum tolerances

88 V ... 320 V

Connection type 3-pin terminal block
Power failure bypass > 10 ms at 98 V AC
Overload current protection at

input

Non-replaceable fuse

Back-up fuse Nominal rating:

Characteristic:

1 A ... 20 A
slow blow

Peak inrush current < 3.5 A

Climatic
conditions
during operation

Ambient temperature Devices with operating temperature type S

(standard):
+32 °F ... +140 °F (0 °C ... +60 °C)

a

Devices with operating temperature type E
and type T (extended):

−40 °C ... +70 °C

b

−40 °C ... +85 °C for 16 hours (tested in
accordance with IEC 60068-2-2)

c

Maximum inner temperature of
device (guideline)

Devices with operating temperature type S
(standard):
83 °C

Devices with operating temperature type E
and type T (extended):
93 °C

Humidity 5 % ... 95 %

(non-condensing)

Air pressure minimum 700 hPa (+3000 m)

maximum 1060 hPa (−400 m)

Installation RSPL 20/30

Release 04 02/2013

41

Climatic
conditions
during storage

Ambient temperature −40 °F ... +185 °F (−40 °C ... +85 °C)
Humidity 5 % ... 95 %

(non-condensing)

Air pressure minimum 700 hPa (+3000 m)

maximum 1060 hPa (−400 m)

Signal contact Switching current max. 1 A, SELV

Switching voltage max. 60 V DC or max. 30 V AC, SELV
Pollution degree 2
Protection

classes

Laser protection Class 1 in compliance with IEC 60825-1

Degree of protection IP 20

a. Hirschmann recommends to use SFP transceivers with the “EEC” extension.
b. Only use SFP transceivers with the “EEC” extension, otherwise the standard temperature

range applies.

c. Only use SFP transceivers with the “EEC” extension, otherwise the standard temperature

range applies.

42

Installation RSPL 20/30

Release 04 02/2013

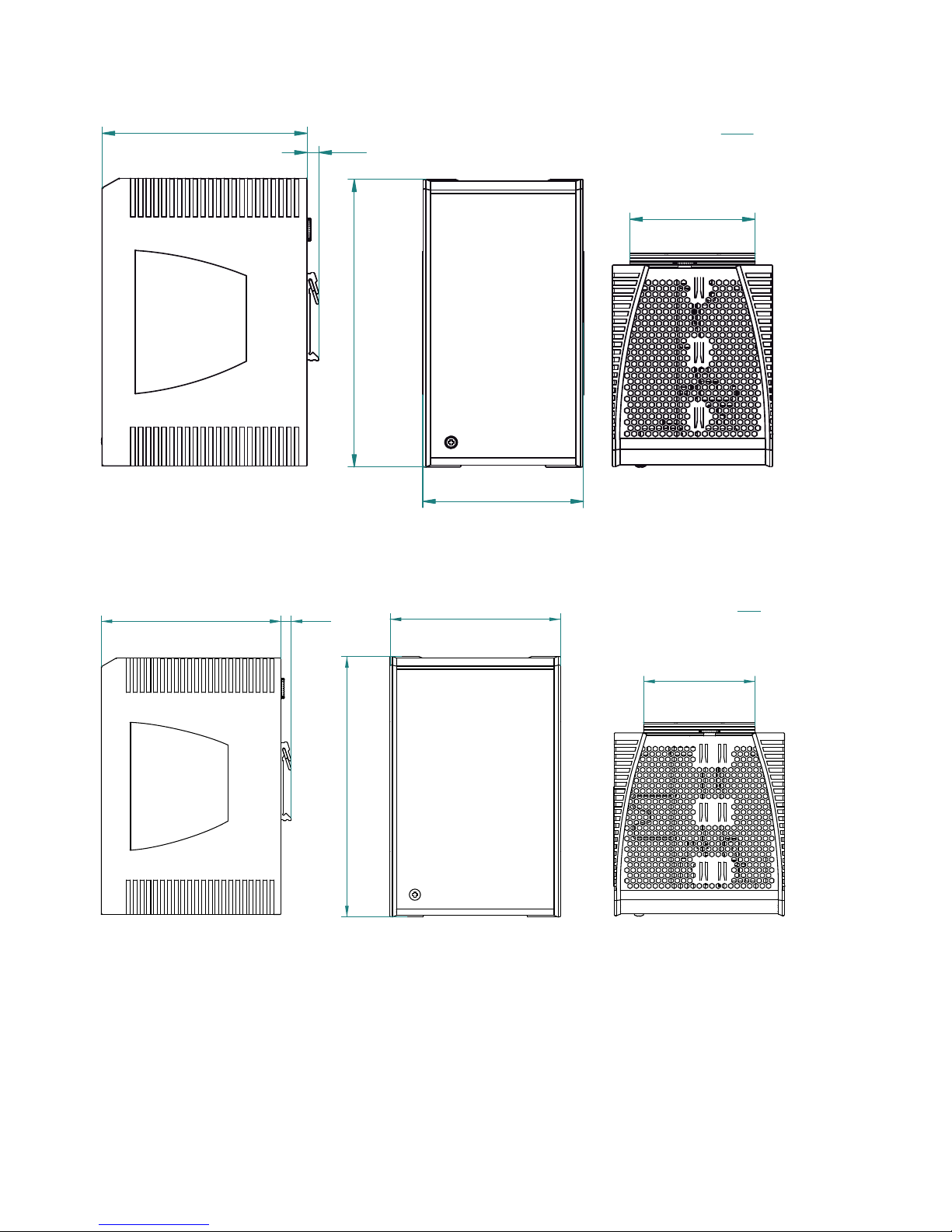

 Dimension drawings

Figure 10: Dimensions of device variants RSPL20-...

Figure 11: Dimensions of device variants RSPL30-...

mm
inch

70

2.76

4.52

114,7

6,55

0.26

89,9

3.54

163,6

6.44

107

4.26

163,6

6.44

114,7

4.52 0.26

6,55

70

2.76

mm
inch

Installation RSPL 20/30

Release

04

02/2013

43

 EMC and immunity

Stability Standard

applications

a

a. EN 61131-2, CE, FCC – applies to all devices

Railway
applications
(trackside)

b

b. EN 50121-4 – applies to devices with the certification codes VT, T9, TY

Sub-station
applications

c

c. EN 61850-3, IEEE 1613 – applies to devices with the certification codes V9, VY, VT

IEC 60068-2-6, test Fc Vibration — — 2 Hz ... 9 Hz with

3 mm amplitude

5 Hz ... 8.4 Hz with

3.5 mm amplitude

5 Hz ... 8.4 Hz with

3.5 mm amplitude

5 Hz ... 8.4 Hz with

3.5 mm amplitude

8.4 Hz ... 150 Hz
with 1 g

8.4 Hz ... 150 Hz
with 1 g

9 Hz ... 200 Hz
with 1 g

— — 200 Hz ... 500 Hz

with 1.5 g

IEC 60068-2-27, Test Ea Shock 15 g at 11 ms 15 g at 11 ms 15 g at 11 ms

44

Installation RSPL 20/30

Release

04

02/2013

EMC emitted interference Standard

applications

a

Railway
applications
(trackside)

b

Sub-station
applications

c

Emitted interference

EN 55022 Class A Class A Class A
GL Guidelines — — —
FCC 47 CFR Part 15 Class A Class A Class A
EN 61000-6-4 Fulfilled Fulfilled Fulfilled

Conducted interference

EN 55022 AC and DC supply connections Class A Class A Class A
GL Guidelines AC and DC supply connections — — —
FCC 47 CFR Part 15 AC and DC supply connections Class A Class A Class A
EN 61000-6-4 AC and DC supply connections Fulfilled Fulfilled Fulfilled
EN 55022 Telecommunication connections Class A Class A Class A
EN 61000-6-4 Telecommunication connections Fulfilled Fulfilled Fulfilled

a. EN 61131-2, CE, FCC – applies to all devices
b. EN 50121-4 – applies to devices with the certification codes VT, T9, TY
c. EN 61850-3, IEEE 1613 – applies to devices with the certification codes V9, VY, VT

Installation RSPL 20/30

Release

04

02/2013

45

EMC interference
immunity

Standard
applications

a

Railway
applications
(trackside)

b

Sub-station
applications

c

Electrostatic discharge

EN 61000-4-2
IEEE C37.90.3

Contact discharge ± 4 kV ± 6 kV ± 8 kV

EN 61000-4-2
IEEE C37.90.3

Air discharge ± 8 kV ± 8 kV ± 15 kV

Electromagnetic field

EN 61000-4-3 80 MHz ... 3000 MHz 10 V/m 20 V/m 10 V/m
IEEE 1613 80 MHz ... 1000 MHz — — 35 V/m

Fast transients (burst)

EN 61000-4-4
IEEE C37.90.1

AC/DC supply connection ± 2 kV ± 2 kV ± 4 kV

EN 61000-4-4
IEEE C37.90.1

Data line ±4kV ±4kV ±4kV

Voltage surges - DC supply connection

EN 61000-4-5 line/ground ± 2 kV ± 2 kV ± 2 kV
IEEE 1613 line/ground — — ± 5 kV
EN 61000-4-5 line/line ± 1 kV ± 1 kV ± 1 kV

Voltage surges - AC supply connection

EN 61000-4-5 line/ground ± 2 kV ± 2 kV ± 4 kV
IEEE 1613 line/ground — — ± 5 kV
EN 61000-4-5 line/line ± 1 kV ± 1 kV ± 2 kV

Voltage surges - data line

EN 61000-4-5 line/ground ± 1 kV ± 2 kV ± 4 kV

Line-conducted interference voltages

EN 61000-4-6 150 kHz ... 80 MHz 10 V 10 V 10 V

46

Installation RSPL 20/30

Release

04

02/2013

Damped vibration - AC/DC supply connection

EN 61000-4-12
IEEE C37.90.1

line/ground — — 2.5 kV

EN 61000-4-12
IEEE C37.90.1

line/line — — 1 kV

Damped vibration - data line

EN 61000-4-12
IEEE C37.90.1

line/ground — — 2.5 kV

EN 61000-4-12 line/line — — 1 kV

Impulse-shaped magnetic fields

EN 61000-4-9 — 300 A/m 300 A/m

a. EN 61131-2, CE, FCC – applies to all devices
b. EN 50121-4 – applies to devices with the certification codes VT, T9, TY
c. EN 61850-3, IEEE 1613 – applies to devices with the certification codes V9, VY, VT

EMC interference
immunity

Standard
applications

a

Railway
applications
(trackside)

b

Sub-station
applications

c

Installation RSPL 20/30

Release 04 02/2013

47

 Network range

Note: The line lengths specified for the transceivers apply for the
respective fiber data (fiber attenuation and BLP/dispersion).

Product
code
M-SFP-...

Wave
length

Fiber System

attenuatio
n

Example
for F/O line
length

a

a. including 3 dB system reserve when compliance with the fiber data is observed

Fiber
attenuatio
n

BLPb/
dispersion

b. The bandwidth length product cannot be used to calculate the expansion.

-SX/LC... MM 850 nm 50/125 µm 0-7.5 dB 0-550 m 3.0 dB/km 400 MHz·km

-SX/LC... MM 850 nm 62.5/125 µm 0-7.5 dB 0-275 m 3.2 dB/km 200 MHz·km

-MX/LC MM 1310 nm 50/125 µm 0-8 dB 2 km

c

c. Distances of up to 3 km reachable, 1000 MHz*km (1300 nm)

1.0 dB/km 500 MHz·km

-MX/LC MM 1310 nm 62.5/125 µm 0-8 dB 1 km 1.0 dB/km 500 MHz·km

-LX/LC... MM 1310 nm

d

d. With F/O adapter compliant with IEEE 802.3-2002 clause 38 (single-mode fiber offset-launch

mode conditioning patch cord)

50/125 µm 0-10.5 dB 0-550 m 1.0 dB/km 800 MHz·km

-LX/LC... MM 1310 nm

d

62.5/125 µm 0-10.5 dB 0-550 m 1.0 dB/km 500 MHz·km

-LX/LC... SM 1310 nm 9/125 µm 0-10.5 dB 0-20 km

e

e. including 2.5 dB system reserve when compliance with the fiber data is observed

0.4 dB/km 3.5 ps/(nm·km)

-LX+/LC... SM 1310 nm 9/125 µm 5-20 dB 14-42 km 0.4 dB/km 3.5 ps/(nm·km)

-LH/LC... LH 1550 nm 9/125 µm 5-22 dB 23-80 km 0.25 dB/km 19 ps/(nm·km)

-LH+/LC LH 1550 nm 9/125 µm 15-30 dB 71-108 km 0.25 dB/km 19 ps/(nm·km)

-LH+/LC LH 1550 nm 9/125 µm 15-30 dB 71-128 km 0.21 dB/km

(typically)

19 ps/(nm·km)

Table 10: Fiber port 1000BASE-FX (SFP fiber optic Gigabit Ethernet Transceiver)

Product
code
M-SFP­BIDI...

Wave
length
TX

Wave
length
RX

Fiber System

attenuat
ion

Example
for F/O
line
length

a

a. including 3 dB system reserve when compliance with the fiber data is observed

Fiber
attenuati
on

Dispersion

Type A
LX/LC
EEC

SM 1310 nm 1550 nm 9/125 µm 0-11 dB 0-20 km 0.4 dB/km 3.5 ps/(nm·km)

Type B
LX/LC
EEC

SM 1550 nm 1310 nm 9/125 µm 0-11 dB 0-20 km 0.25

dB/km

19 ps/(nm·km)

Type A
LH/LC
EEC

LH 1490 nm 1590 nm 9/125 µm 5-24 dB 23-80 km 0.25

dB/km

19 ps/(nm·km)

Type B
LH/LC
EEC

LH 1590 nm 1490 nm 9/125 µm 5-24 dB 23-80 km 0.25

dB/km

19 ps/(nm·km)

Table 11: F/O port (bidirectional Gigabit Ethernet SFP Transceiver)

48

Installation RSPL 20/30

Release 04 02/2013

MM = Multimode, SM = Singlemode, LH = Singlemode Longhaul

Product
code
M-FAST­SFP-...

Wave
length

Fiber System

attenuatio
n

Example
for F/O line
length

a

a. including 3 dB system reserve when compliance with the fiber data is observed

Fiber
attenuation

BLP/
dispersion

-MM/LC... MM 1310 nm 50/125 µm 0-8 dB 0-5 km 1.0 dB/km 800 MHz*km

-MM/LC... MM 1310 nm 62.5/125 µm 0-11 dB 0-4 km 1.0 dB/km 500 MHz*km

-SM/LC... SM 1310 nm 9/125 µm 0-13 dB 0-25 km 0.4 dB/km 3.5 ps/(nm*km)

-SM+/LC... SM 1310 nm 9/125 µm 10-29 dB 25-65 km 0.4 dB/km 3.5 ps/(nm*km)

-LH/LC... SM 1550 nm 9/125 µm 10-29 dB 47-104 km 0.25 dB/km 19 ps/(nm*km)

-LH/LC... SM 1550 nm 9/125 µm 10-29 dB 55-140 km 0.18 dB/km

b

b. with ultra-low-loss optical fiber

18 ps/(nm*km)

Table 12: Fiber port 100BASE-FX (SFP fiber optic Fast Ethernet Transceiver)

TP port

Length of a twisted pair segment max. 100 m/328 ft (for cat5e cable)

Table 13: TP port 10BASE-T / 100BASE-TX / 1000BASE-T

Installation RSPL 20/30

Release 04 02/2013

49

 Power consumption/power output, order numbers

The order numbers correspond to the product codes of the devices.

See “Device name and product code” on page 14.

 Scope of delivery

 Accessories

Note: Please note that products recommended as accessories may have
characteristics that do not fully match those of the corresponding product.
This may limit their possible usage in the overall system.

Device name Maximum

power
consumption

Power output

RSPL20-08002Z6TT........ 8 W 27 BTU (IT)/h

RSPL20-08002Z6YT........ 10 W 34 BTU (IT)/h

RSPL30-08022O7YT........ 14 W 47 BTU (IT)/h

RSPL30-08022O7ZT........ 16 W 55 BTU (IT)/h

Number Article

1× Device
1 × 2-pin terminal block for signal contact
1 × 3-pin terminal block for supply voltage

(Only for device variants with operating voltage type M9)

2 × 2-pin terminal block for supply voltage

(for device variants with operating voltage type CC only)
1 × Installation user manual
1 × CD/DVD with manual

Name Order number

Terminal cable 943 301-001
AutoConfiguration Adapter ACA 31 942 074-001
For device variants with operating voltage type M9:

3-pin terminal block (50 pieces) for supply voltage

943 845-008

For device variants with operating voltage type CC:
2-pin terminal block (50 pieces) for supply voltage

943 845-009

2-pin terminal block (50 pieces) for signal contact 943 845-010
Power Cord 942 000-001
Network management software Industrial HiVision 943 156-xxx

Gigabit Ethernet SFP transceiver Order number

M-SFP-SX/LC 943 014-001
M-SFP-SX/LC EEC 943 896-001
M-SFP-MX/LC 942 035-001
M-SFP-LX/LC 943 015-001
M-SFP-LX/LC EEC 943 897-001
M-SFP-LX+/LC 942 023-001
M-SFP-LX+/ LC EEC 942 024-001

50

Installation RSPL 20/30

Release 04 02/2013

 Underlying norms and standards

The device generally fulfills the norms and standards named in their
current versions.

M-SFP-LH/LC 943 042-001
M-SFP-LH/LC EEC 943 898-001
M-SFP-LH+/LC 943 049-001

Bidirectional Gigabit Ethernet SFP transceiver Order number

M-SFP-BIDI Type A LX/LC EEC 943 974-001
M-SFP-BIDI Type B LX/LC EEC 943 974-002
M-SFP-BIDI Type A LH/LC EEC 943 975-001
M-SFP-BIDI Type B LH/LC EEC 943 975-002
M-SFP-BIDI Bundle LX/LC EEC (type A + B) 943 974-101
M-SFP-BIDI Bundle LH/LC EEC (type A + B) 943 975-101

Fast-Ethernet SFP transceiver Order number

M-FAST SFP-MM/LC 943 865-001
M-FAST SFP-MM/LC EEC 943 945-001
M-FAST SFP-SM/LC 943 866-001
M-FAST SFP-SM/LC EEC 943 946-001
M-FAST SFP-SM+/LC 943 867-001
M-FAST SFP-SM+/LC EEC 943 947-001
M-FAST SFP-LH/LC 943 868-001
M-FAST SFP-LH/LC EEC 943 948-001

Name

EN 61000-6-2 Generic norm – immunity in industrial environments
EN 55022 IT equipment – radio interference characteristics
EN 61131-2 Programmable logic controllers
EN 60950-1 Safety for the installation of IT equipment
cUL 60950-1 Safety for Information Technology Equipment
FCC 47 CFR Part 15 Code of Federal Regulations
cUL 508 Safety for Industrial Control Equipment
IEC/EN 61850-3 Communications networks and systems in substations
EN 50121-4 Railway applications - EMC - emitted interference and

interference immunity for signal and telecommunication systems

ISA 12.12.01, CSA C22.2
no. 213

Electrical Equipment for Use in Class I and Class II, Div.2 and
Class III Hazardous (Classified) Locations

IEEE 1613 Standard Environment and Testing Requirements for

Communication Networking Devices in Electric Power

Substations
IEEE 802.1 AB Station and Media Access Control Connectivity Discovery
IEEE 802.1 D Media access control (MAC) bridges (includes IEEE 802.1p

Priority and Dynamic Multicast Filtering, GARP, GMRP)
IEEE 802.1 Q Virtual Bridged Local Area Networks (VLAN Tagging, GVRP)
IEEE 802.3 Ethernet

Table 14: List of norms and standards

Gigabit Ethernet SFP transceiver Order number

Installation RSPL 20/30

Release 04 02/2013

51

The device has a certification based on a specific standard only if the
certification indicator appears on the housing.

52

Installation RSPL 20/30

Release 04 02/2013

A Further Support

 Technical Questions

For technical questions, please contact any Hirschmann dealer in your
area or Hirschmann directly.

You will find the addresses of our partners on the Internet at

http://www.hirschmann.com

Contact our support at

https://hirschmann-support.belden.eu.com

You can contact us

in the EMEA region at

 Tel.: [phone]
 E-mail: [email protected]

in the America region at

 Tel.: [phone]
 E-mail: [email protected]

in the Asia-Pacific region at

 Tel.: [phone]
 E-mail: [email protected]

 Hirschmann Competence Center

The Hirschmann Competence Center is ahead of its competitors:

 Consulting incorporates comprehensive technical advice, from system

evaluation through network planning to project planning.

 Training offers you an introduction to the basics, product briefing and

user training with certification.
The current technology and product training courses can be found at

http://www.hicomcenter.com

 Support ranges from the first installation through the standby service

to maintenance concepts.

With the Hirschmann Competence Center, you have decided against
making any compromises. Our client-customized package leaves you
free to choose the service components you want to use.
Internet:

http://www.hicomcenter.com

Installation RSPL 20/30

Release 04 02/2013

53
