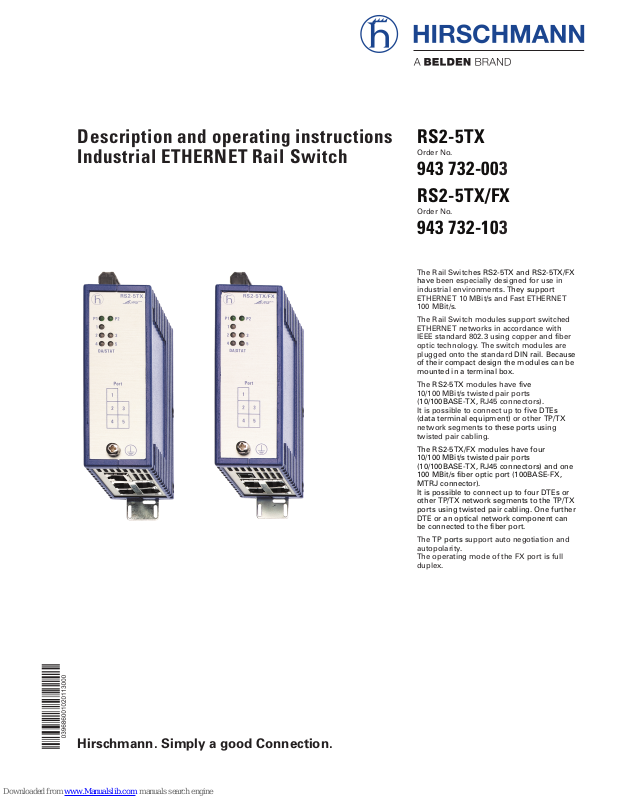

Hirschmann RS2-5TX/FX, RS2-5TX Description And Operating Instructions

Description and operating instructions
Industrial ETHERNET Rail Switch

The Rail Switches RS2-5TX and RS2-5TX/FX

have been especially designed for use in

industrial environments.

They support

ETHERNET 10 MBit/s and Fast ETHERNET
100 MBit/s.

The Rail Switch modules support switched
ETHERNET networks in accordance with
IEEE standard 802.3 using copper and fiber
optic technology. The switch modules are
plugged onto the standard

DIN rail. Because
of their compact design the modules can be
mounted in a terminal box.

The RS2-5TX modules have five
10/100 MBit/s twisted pair ports
(

10/100BASE-TX, RJ45 connectors).

It is possible to connect up to five DTEs

(data terminal equipment)

or other TP/TX
network segments to these ports using
twisted pair cabling.

The RS2-5TX/FX modules have four
10/100 MBit/s twisted pair ports
(10/100BASE-TX, RJ45 connectors) and one
100 MBit/s fiber optic port (100BASE-FX,
MTRJ connector).
It is possible to connect up to four DTEs or
other TP/TX network segments to the TP/TX
ports using twisted pair cabling. One further
DTE or an optical network component can
be connected to the fiber port.

The TP ports support auto negotiation and
autopolarity.
The operating mode of the FX port is full
duplex.

RS2-5TX

Order No.

943 732-003
RS2-5TX/FX

Order No.

943 732-103

Hirschmann. Simply a good Connection.

2

The performance features described here
are binding only if they have been expressly
guaranteed in the contract. We have
checked that the contents of the technical
publication agree with the hardware and
software described. However, it is not possi­ble to rule out deviations completely, so we
are unable to guarantee complete agree­ment. However, the details in the technical
publication are checked regularly. Any cor­rections which prove necessary are contai­ned in subsequent editions. We are grateful
for suggestions for improvement.

We reserve the right to make technical
modifications.

Permission is not given for the circulation
or reproduction of this document, its use or
the passing on of its contents unless gran­ted expressly. Contravention renders the
perpetrator liable for compensation for
damages. All rights reserved, in particular
in the case of patent grant or registration of
a utility or design.

Copyright © Hirschmann
Automation and Control GmbH 2012
All Rights Reserved

Note

We would point out that the content of
these operating instructions is not part of,
nor is it intended to amend an earlier or exi­sting agreement, permit or legal relation­ship. All obligations on Hirschmann arise
from the respective purchasing agreement
which also contains the full warranty condi­tions which have sole applicability. These
contractual warranty conditions are neither
extended nor restricted by comments in
these operating instructions.

We would furthermore point out that for
reasons of simplicity, these operating
instructions cannot describe every
conceivable problem associated with the
use of this equipment. Should you require
further information or should particular
problems occur which are not treated in
sufficient detail in the operating instruc­tions, you can request the necessary infor­mation from your local Hirschmann sales
partner or directly from the Hirschmann
office (address: refer to chapter entitled
„Notes on CE identification“).

Safety Instructions

This manual contains instructions which
must be observed to ensure your own per­sonal safety and to avoid
damage to devices and machinery. The
instructions are highlighted with a warning
triangle and are shown as
follows according to the degree of endan­germent:

z

Danger!

means that death, serious injury or
considerable damage to property
will result if the appropriate safety
measures are not taken.

z

Warning!

means that death, serious injury or
considerable damage to property
can result if the appropriate safety
measures are not taken.

z

Caution!

means that light injury or damage to
property can result if the appropria­te safety measures are not taken.

Note: is an important piece of information
about the product, how to use the product,
or the relevant section of the documentati­on to which particular attention is to be
drawn.

Certified usage

Please observe the following:

z

Warning

The device may only be employed
for the purposes described in the
catalog and technical description,
and only in conjunction with external
devices and components recommen­ded or approved by Hirschmann.
The product can only be operated
correctly and safely if it is transpor­ted, stored, installed and assembled
properly and correctly. Furthermore,
it must be operated and serviced
carefully.

Safety Guidelines
Power Supply

䡺 Switch the basic devices on only when
the case is closed.

z

Warning!

The devices may only be connected
to the supply voltage shown on the
type plate.

The devices are designed for opera­tion with a safety extra-low volta­ge.Thus, they may only be connec­ted to the supply voltage connec­tions and to the signal contact with
SELV circuits with the voltage
restrictions in accordance with
IEC/EN 60950-1.

䡺 For the case where the module is opera­ted with external power supply: Use only a
safety extra-low voltage in accordance with
IEC/EN 60950-1 to power the system.

䡺 First of all you connect the protecting
line, before you establish the further
connections. When you remove connec­tions, you disconnect the protecting line
last.

䡺 Relevant for North America:
The subject unit is to be suppplied by a
Class 2 power source complying with the
requirements of the National Electrical
Code, table 11(b). If power is redundant
supplied (two individual power sources) the
power sources together should comply with
the requirements of the National Electrical
Code, table 11 (b).

䡺 Relevant for North America:
Power, input and output (I/O) wiring must
be in accordance with Class I, Division 2
wiring methods [Article 501-4(b) of the
National Electrical Code, NFPA 70] and in
accordance with the authority having juris­diction.

Peripheral equipment must be suitable for
the location it is used in.

Use 60/75°C or 75°C copper(CU)wire only.

Safety Guidelines
Shielding Ground

Note: The shielding ground of the connec-

table twisted pairs lines is connected to the
front panel as a conductor.

䡺 Beware of possible short circuits when
connecting a cable section with conductive
shielding braiding.

Safety Guidelines Housing

z

Warning!

Only technicians authorized by Hir­schmann are permitted to open the
housing.

Note: The device is grounded via the sepa­rated ground screw. It is located on the left
under the front panel.

䡺 Make sure that the electrical installation
meets local or nationally applicable safety
regulations.

z

Warning!

The ventilation slits must not be
covered so as to ensure free air cir­culation.

The distance to the ventilation slots
of the housing has to be a minimum
of 10 cm.

Never insert pointed objects (thin
screwdrivers, wires, etc.) into the
inside of the subrack! This especial­ly applies to the area behind the
socket connectors. Failure to obser­ve this point may result in injuries
caused by electric shocks.

Note: If installed the device must be opera­ted exclusively in switch cabinets with fire
protection characteristics according to
IEC/EN 60950-1.

Note: The housing has to be mounted in
upright position.

Safety Guidelines Environment

z

Warning!

The device may only be operated in
the listed ambient temperature
range at the listed relative air humi­dity (non-condensing).

䡺 The installation location is to be selec­ted so as to ensure compliance with the cli­matic limits listed in the Technical Data.

䡺 To be used in an up to Pollution Degree
2 environment only (IEC 60664-1).

3

CONTROL DRAWING for Industrial ETHERNET
Rail Switch 2 and Rail Transceiver 2 Family

According to ANSI / ISA 12.12.01-2012

Rev.: 0 Date: 2012-07-13 Document No.: 000163806DNR Page 1 of 1

NON HAZARDOUS LOCATION

P

ower Supply: (Redundant: P1, P2)

24 V DC

Relay Contacts:
Associate d Apparatus :
Equipment with nonincendive

fi eld wiring

1

HAZARDOUS LOCATION Class
I, Division 2 Groups A, B, C, D

The Use in Hazardous Locations is only allowed for Rail Switch 2 and Rail Transceiver 2 Family model No‘s which are individually labelled

“FOR USE IN CLASS I, DIVISION 2 HAZARDOUS LOCATIONS”

Notes:

The nonincendive fi eld wiring circuit concept allows interconnection of nonincendive fi eld wiring apparatus and associated nonincendive
fi eld wiring apparatus using any of the wiring methods permitted for unclassifi ed locations when certain parametric conditions are met

Capacity: Ca ≥ Ci + C

Cable

Inductivity: La ≥ Li + L

Cable

The maximum cable length has to be determined as follows:
(a) max. Cable Length < (La - Li) / L

Cable

and (b) max. Cable Length < (Ca - Ci) / C

Cable

The lower value of (a) and (b) is to apply.
CableL: inductance per unit length of used cable.
CableC: capacitance per unit length of used cable.
Other C-parameters and L-parameters are according to ANSI / ISA 12.12.01-2012 section 7.
Where cable capacitance and inductance values per foot are not known, the following values shall be used:

C

Cable

60 pF/foot, L

Cable

0.2 µH/foot

Nonincendive fi eld wiring circuits must be wired in accordance with the National Electric Code (NEC), NFPA 70, article 501.

1

Nonincendive Field Wiring Parameters:

The Relay Contacts are dependent upon the

following Entity Parameters:

V

max

I

max

C

i

L

i

30 V 90 mA 2.5 nF 1 µH

WARNING – EXPLOSION HAZARD – SUBSTITUTION OF ANY COMPONENTS MAY IMPAIR SUITABILITY FOR HAZAR­DOUS LOCATIONS OR EXPLOSIVE ATMOSPHERES.

WARNING – EXPLOSION HAZARD – DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF OR
THE AREA IS KNOWN TO BE NON-HAZARDOUS.

DO NOT OPEN WHEN ENERGIZED.

Relay Contacts:
Associated A pparatus:

Equipment with nonincendive

fi eld wiring

1

Power Supply: (Redundant: P1, P2)

24 V DC

Det ail: RS2-xxx

Detail: RT2-xxx

The equipment must be installed in a tool-locked enclosure.

4

– EN 61131-2 – Programmable

Controllers.

– CFR-47 Part 15 – Code of Federal Regulati-

ons.

– UL 508 – Underwriters Laboratories Inc.

Safety for Industrial Control Equipment.

– ISA 12.12.01 – Nonincendive Electrical

Equipment for Use in Class I and II, Divisi­on 2 and Class III, Divisions 1 and 2 Hazar­dous (Classified) Locations.

– UL 60950 – Safety for Information

Technology Equipment.
Certified devices are marked with a
certification identifier.

7

Notes on CE
identification

The devices comply with the regula­tions of the following European
directives:

2004/108/EC (EMV)
Directive of the European Parlia­ment and of the Council on the
approximation of the laws of the
Member States relating to electro­magnetic compatibility.

2011/65/EU (RoHS)
Directive of the European Parlia­ment and of the Council on the
restriction of the use of certain
hazardous substances in electrical
and electronic equipment.

The EU declaration of conformity is
kept available for the responsible
authorities in accordance with the
above-mentioned EU directives at:

Hirschmann
Automation and Control GmbH
Stuttgarter Straße 45-51
D-72654 Neckartenzlingen
Telephone: [phone]

Staff qualification
requirements

Note: Qualified personnel, as understood

in this manual and in the warning signs, are
persons who are familiar with the setup,
assembly, startup, and operation of this
product and are appropriately qualified for
their job. This includes, for example, those
persons who have been:

– trained or directed or authorized to

switch on and off, to ground and to label
power circuits and devices or systems in
accordance with current safety enginee­ring standards

– trained or directed in the care and use of

appropriate safety equipment in accor­dance with the current standards of safety
engineering

– trained in providing first aid.

General Safety Instructions

䡺 This device is electrically operated.
Adhere strictly to the safety requirements
relating to voltages applied to the device as
described in the operating instructions!

z

Warning!

Failure to observe the information
given in the warnings could result in
serious injury and/or major damage.

Only personnel that have received
appropriate training should operate
this device or work in its immediate
vicinity. The personnel must be fully
familiar with all of the warnings and
maintenance measures in these
operating instructions.

Correct transport, storage, and
assembly as well as careful operati­on and maintenance are essential in
ensuring safe and reliable operation
of this device.

Use only undamaged parts!

䡺 These products are only to be used in
the manner indicated in this version of the
”Description and Operating Instructions”.

䡺 Particular attention is to be paid to all
warnings and items of information relating
to safety.

z

Warning!

Any work that may have to be per­formed on the electrical installation
should be performed by fully quali­fied technicians only.

z

Warning!

LED- or LASER components accor­ding to IEC 60825-1:
CLASS 1 LASER PRODUCT.
LIGHT EMITTING DIODE - CLASS 1
LED PRODUCT.

Based specifications and
standards:

The devices fulfill the following specificati­ons and standards:
– EN 61000-6-2 Generic standards – Immu-

nity for industrial environments.

– EN 55022 – Information technology equip-

ment – Radio disturbance characteristics.

– EN 60950 – Safety of Information Techno-

logy Equipment (ITE).

The product can be used in the indu­strial sphere.
– Interference immunity:

EN 61000-6-2

– Radio interference level:

EN 55022 Class A

z

Warning!

This is a Class A device. This equip­ment may cause radio interference if
used in a residential area; in this
case it is the operators responsibili­ty to take appropriate measures.

The precondition for compliance
with EMC limit values is strict adhe­rence to the construction guidelines
specified in this description and
operating instructions.

FCC Note:

This equipment has been tested and found
to comply with the limits for a Class A digi­tal device, persuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful inter­ference when the equipment is operated in
a commercial environment. This equipment
generates, uses, and can radiate radio fre­quency energy and, if not installed and
used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Operation of this
equipment in a residential area is likely to
cause harmful interference in which case
the user will be required to correct the inter­ference at his own expense.

,

Recycling Note:

After its use, this product has to be
processed as electronic scrap and
disposed of according to the prevai­ling waste disposal regulations of
your community / district/ country /
state.

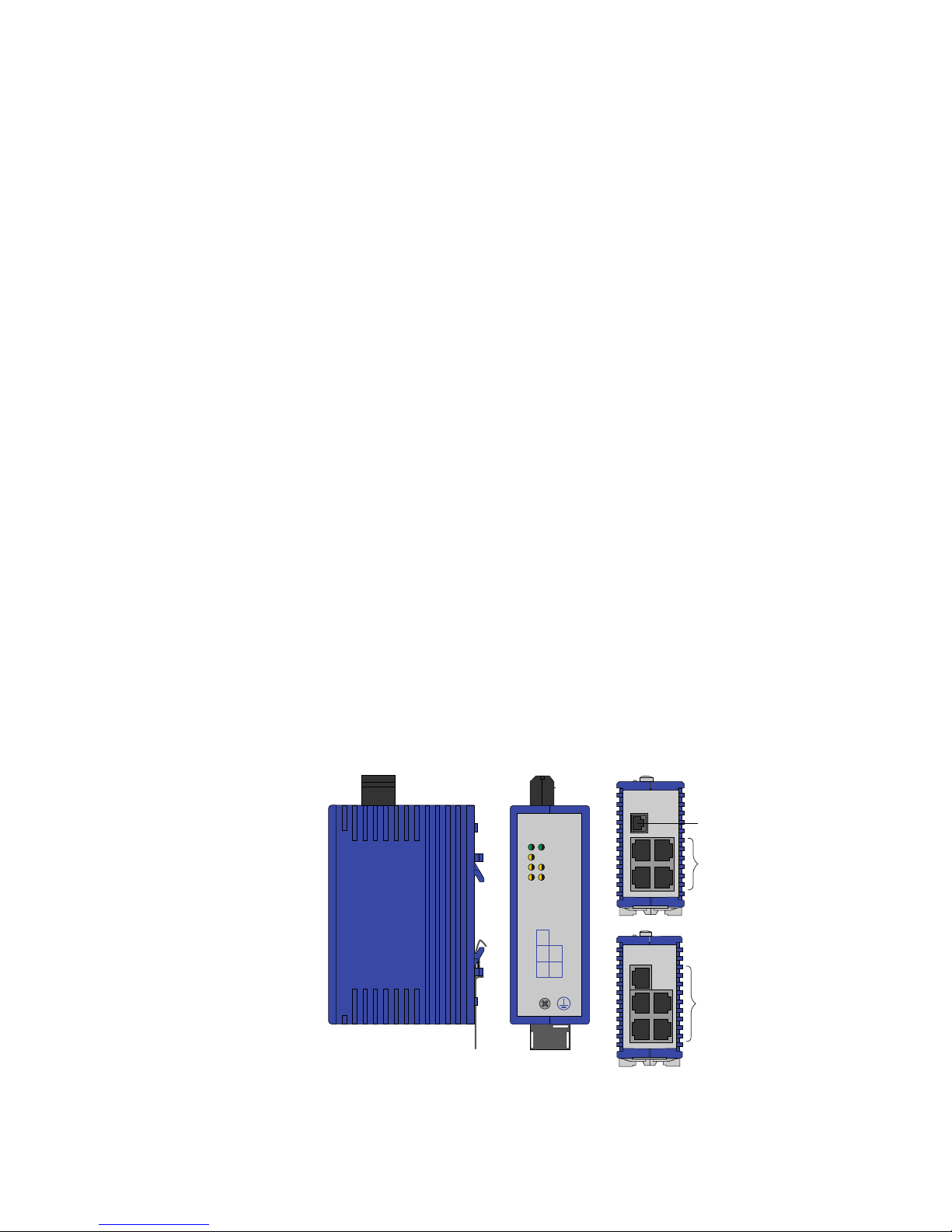

Fig. 1: Overview display elements and interfaces of the RS2-5TX(/FX)



4 ports 10/100BASE-T(X)
(ports 2 to 5), RJ45 connectors
autonegotiaton + autopolarity


RS2-5TX/FX


1 port 100BASE-FX
(port 1), MTRJ connector

1

23

4

5

5 Ports nach 10/100BASE-T(X)
(Ports 1 bis 5), RJ45-Anschlüsse
Autonegotiaton + Autopolarity



RS2-5TX

23

4

5

1

P2P1

DA/STAT

213

5

Port

243

1

5

x

RS2-5TX

i

4

5

1. Functional description

The 10/100BASE-T(X) ports of an RS2­5TX(/FX) represent a terminal connection
for the connected LAN segment. You can
connect single devices or complete network
segments.

1.1 FRAME SWITCHING FUNCTIONS
Store and Forward

All data received by the RS2-5TX(/FX) from
the system bus or at the ports is stored and
checked for validity. Invalid and defective
frames (> 1,518 bytes or > 1,522 bytes VLAN
frames or CRC error) as well as fragments
(< 64 bytes) are discarded. The RS2­5TX(/FX) forwards the valid frames.

Multi address capability

An RS2-5TX(/FX) learns all source addres­ses per port. Only packets with
– unknown addresses
– addresses learnt at this port
– a multi/broadcast address
in the destination address field are sent to
this port.
An RS2-5TX(/FX) learns up to 1,000 addres­ses. This becomes necessary if more than
one terminal device is connected to one or
more ports. In this way several independent
subnetworks can be connected to an RS2­5TX(/FX).

Learnt addresses

An RS2-5TX(/FX) monitors the age of the
learned addresses. The RS2-5TX(/FX) dele­tes address entries from the address table
which exceed a certain age (300 seconds).
Note: Restarting deletes the learned
address entries.

Tagging (IEEE 802.1Q)
The IEEE 802.1 Q standard designates the
VLAN tag to be included in a MAC data
frame for the VLAN and prioritizing func­tions. The VLAN tag consists of 4 bytes (2
bytes tag protocol identifier TPID, 2 bytes
tag control information TCI). It is inserted
between the source address field and the
type field. Data packets with a VLAN tag are
transmitted unchanged by the RS2­5TX(/FX).

1.2 SPECIFIC FUNCTIONS OF THE
TP/TX INTERFACE
Link control

The RS2-5TX(/FX) monitors the connected
TP/TX line segments for short-circuits or
interrupts using regular Idle signals in
accordance with IEEE standard 802.3
10/100BASE-T/TX. The RS2-5TX(/FX) does
not transmit any data to a TP/TX segment
from which it does not receive an Idle sig­nal.

Note: A non-occupied interface is assessed
as a line interrupt. The TP/TX line to termi­nal equipment which is switched off is like­wise assessed as a line interrupt as the de­energised bus coupler cannot transmit Idle
signals.

Auto polarity exchange

If the receive line pair is incorrectly connec­ted (RD+ and RD- switched) polarity is auto­matically reversed.

Autocrossing

The RS2-5TX(/FX) detects the transmit and
receive pairs (MDI, MDI-X). The RS2­5TX(/FX) automatically configures its port
for the correct transmit and receive pins.

Consequently it does not matter whether
you connect devices using a cross-over or
straight cable.

1.3 SPECIFIC FUNCTIONS OF THE
F/O INTERFACE
Link control (RS2-5TX/FX)

The RS2-5TX/FX monitors the connected
F/O line for interrupts using idle signals
during frame pauses in accordance with
IEEE standard 802.3 100BASE-FX. The
RS2-5TX/FX transmits no data to an F/O line
from which it is receiving no idle signal.
Low Light Detection: If the optical input
power decreases below the low light thres­hold the transmit and receive path will be
disabled for data and the idle signal will be
transmitted.

1.4 FURTHER FUNCTIONS
AND FEATURES
Reset

The RS2-5TX(/FX) will be reset by the follo­wing action:
– input voltages fall below a threshold

After a reset the following action is carried
out:
– initialization

1.5 DISPLAY ELEMENTS
Equipment status

These LEDs provide information about sta­tuses which affect the function of the entire
RS2-5TX(/FX).
P1 – Power 1 (green LED)
– lit: – supply voltage 1 present
– not lit: – supply voltage 1 less than 9.6 V

P2 – Power 2 (green LED)
– lit: – supply voltage 2 present
– not lit: – supply voltage 2 less than 9.6 V

Port Status

These LEDs display port-related informati­on.

DA/STAT 1 to 5 – Data, Link status

(green LED)
– not lit: – no valid link
– flashes: – data activity
– lit: – valid link

1.6 INTERFACES
10/100 MBit/s connection (TP port)

Five (RS2-5TX/FX: four) 10/100 Mbit ports
(8-pin R45 sockets) allow DTEs or indepen­dent network segments complying with the
standards IEEE 802.3 100BASE-TX /
10BASE-T to be connected. These ports
support autonegotiation and the autopolari­ty function.

The socket casings are electrically connec­ted to the front panel of the RS2-5TX(/FX).

– Pin configuration of the RJ45 socket:

– 1 line pair: pin 3 and pin 6
– 1 line pair: pin 1 and pin 2
– remaining pins: not used.

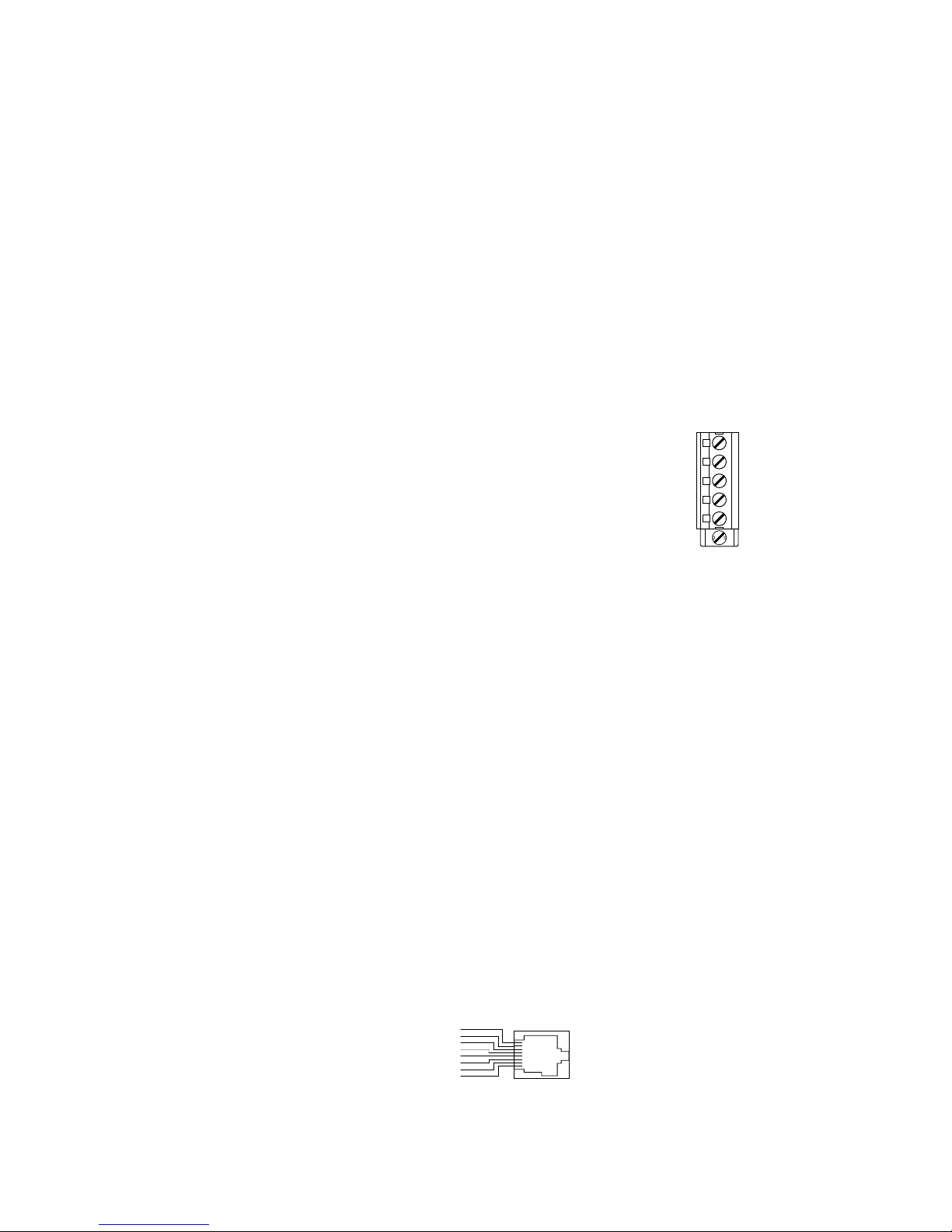

Fig. 2: Pin configuration of an TP/TX
interface

n.c. Pin 8
n.c. Pin 7
TD- Pin 6
n.c. Pin 5
n.c. Pin 4

Pin 3TD+
Pin 2RD­Pin 1RD+

100 Mbit/s connection (FX port)

The 100 MBit/s port of the RS2-5TX/FX
supports the IEEE 802.3 100BASE-FX FDX
standard (full duplex). It uses an MTRJ
connector. The 100 MBit/s port allows one
further DTE or an optical network
component to be connected.

5pin terminal block

The supply voltage and the indicator
contact are connected via a 5pin terminal
block with screw locking. If the terminal
block is fitted the wrong way round, the
device will still work correctly.

z

Warning!

The RS2-5TX(/FX) equipment is
designed for operation with a safety
extra-low voltage. Thus, they may
only be connected to the supply
voltage connections with SELV cir­cuits with the voltage restrictions in
accordance with IEC/EN 60950-1.

– Voltage supply: Redundant voltage sup-

plies are supported. Both inputs are
decoupled. There is no load distribution.
With redundant supply, the power pack
supplies the RS2-5TX(/FX) only with the
higher output voltage. The supply voltage
is electrically isolated from the housing.

Fig. 3: Pin configuration of 5 pin terminal
block

Ground connection

The RS2-5TX(/FX) is grounded via a separa­te screw connection.

2. Configuration

2.1 CONNECTING DTE AND OTHER
NETWORK SEGMENTS

It is possible to connect up to five DTEs or
other network segments to the 10/100
Mbit/s ports of the RS2-5TX using twisted
pair cabling
It is possible to connect up to four DTEs or
other TP/TX network segments to the
10/100 Mbit/s ports of the RS2-TX/FX using
twisted pair cabling. One optical network
component can be connected at 100 Mbit/s
to the optical port using fiber optic cable

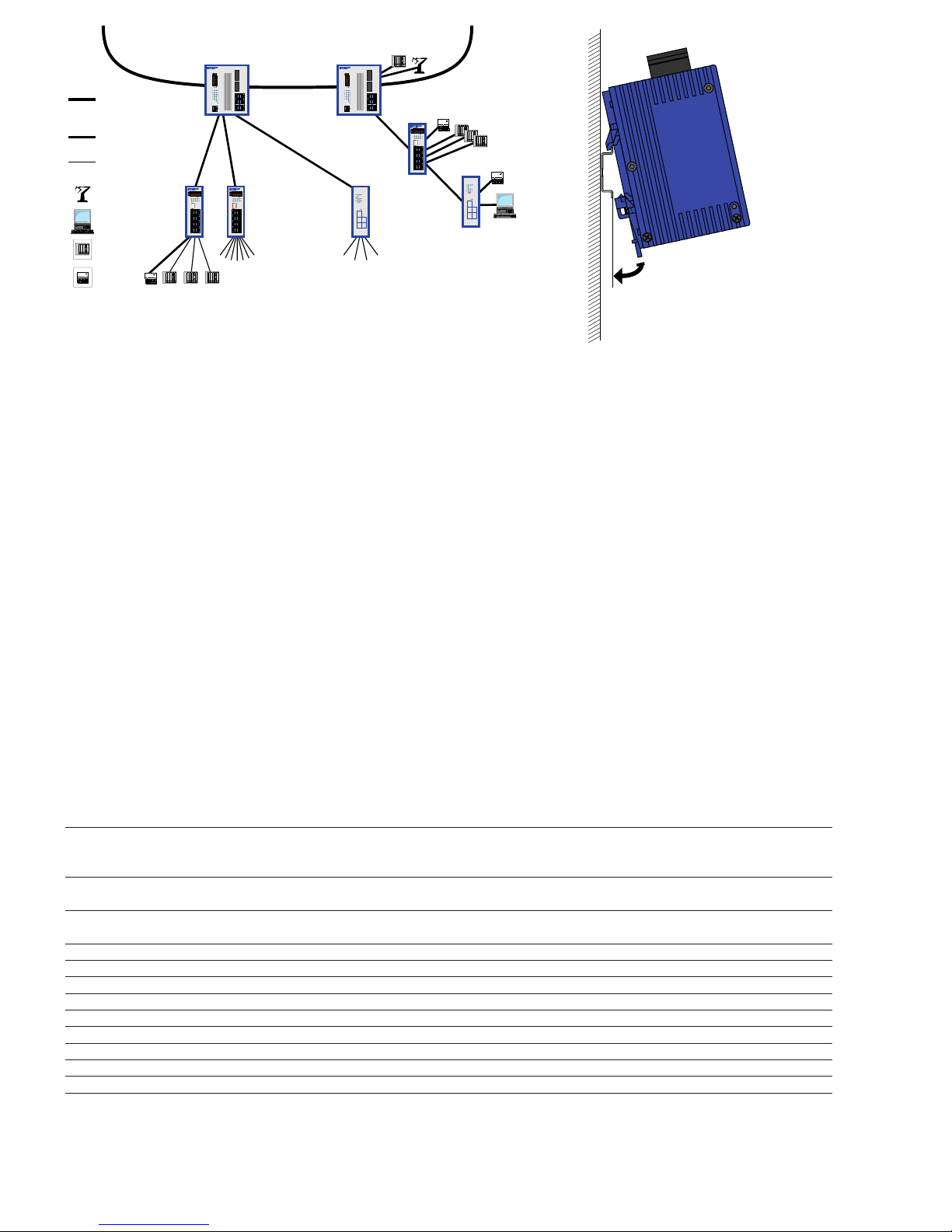

(ref. Fig. 4).

+2 4 V

0 V

0 V

0 V

+2 4 V *

L1+

L2+

M

M

M

6

Notes:

– The front panel of the RS2-5TX(/FX) is

grounded via a separate ground connec-

tion.

– Do not open the housing.

– The shielding ground of the twisted pair

cables is electrically connected to the front

panel.

3.3 STARTUP PROCEDURE

䡺 You start up the RS2-5TX(/FX) by
connecting the supply voltage via the 5-pin
terminal block.

3.4 DISMANTLING

䡺 To take the RS2-5TX(/FX) off the ISO/DIN
rail, insert a screwdriver horizontally under
the housing into the locking slide, pull it
(without tipping the screwdriver) down­wards and lift the RS2-5TX(/FX) upwards.

3. Assembly, startup procedure
and dismantling

3.1 UNPACKING, CHECKING

䡺 Check whether the package was deliver­ed complete (see scope of delivery).
䡺 Check the individual parts for transport
damage.

z

Warning!

Use only undamaged parts!

3.2 ASSEMBLY

The equipment is delivered in a ready-to­operate condition. The following procedure
is appropriate for assembly:

䡺 Pull the terminal block off the RS2­5TX(/FX) and wire up the supply voltage.
䡺 Fit the RS2-5TX(/FX) on a 35 mm stan­dard DIN rail to DIN EN 50 022.
䡺 Attach the upper snap-on slide bar of
the RS2-5TX(/FX) to the standard DIN rail
and press it down until it locks into position.
䡺 Fit the signal lines.

4. Further support

In the event of technical queries, please talk
to the Hirschmann contract partner respon­sible for looking after your account or direc­tly to the Hirschmann office. You can find
the addresses of our contract partners on
the Internet
http://www.hirschmann.com

You can contact us

in the EMEA region at
Tel.: [phone]
E-mail: [e-mail]

in the America region at
Tel.: [phone]
E-mail: [e-mail]

in the Asia-Pacific region at
Tel.: + 65 6854 9860
E-mail: [e-mail]

www.hicomcenter.com gives you an up-to­date overview of training courses about
technology and products.

Fig. 4: Configuration with RS2-5TX (RS2-5TX/FX): Connection of up to 5 (4) data termi-

nal equipments or further segments via TP/TX as well as connection via fiber
optic cable with one optical port on the RS2-5TX/FX

R

oboter

B

ediener-

s

tation

SPS

I/O - Block

100 Mbit/s
HIPER-Ring

100 Mbit/s

10 Mbit/s

RS2-FX/FX

RS2-FX/FX

RS2-5TX

RS2-
5TX/FX

RS2-TX

x

RS2-5TX

i

X

x

R

S2-5TX

i

X

1
2 3
4 5

1
2 3
4 5

Fig. 6: Assembling the RS2-5TX(/FX)

5. Technical data

General data

Operating voltage NEC Class 2 power source 24 VDC -25% +33%) safety extra-low voltage (SELV)

(redundant inputs decoupled), 5 A maximum

Buffer time min. 10 ms at 24 VDC

Potential difference between input Potential difference to input voltage, +24 VDC: 32 VDC
voltage and housing Potential difference to input voltage, ground: -32 VDC

Power consumption at 24VDC, maximum 2.6 W; 8.9 Btu (IT)/h RS2-5TX

4.0 W; 13.6 Btu (IT)/h RS2-5TX/FX

Overload current protection at input non-changeable fuse
Dimensions W x H x D 40 mm x 145 mm x 80 mm 1.6 in x 5.7 in x 3.15 in
Weight 520 g 1.15 lb
Ambient temperature Surrounding air 0 ºC to + 60 ºC 32 ºF to 140 ºF
Storage temperature Surrounding air - 20 ºC to + 80 ºC -4 ºF to 176 ºF
Humidity up to 95% (non condensing)
Atmospheric pressure suitable for use in up to 2000 m (795 hPa, higher altitudes on demand)
Laser protection Class 1 conforming to EN 60825-1
Protection type IP 20

7

Radiated emission CFR-47 Part 15 Class A,

Warning!
This is a Class A device. This equipment may cause radio interference if used in a
residential area. In this case the operator may be required to take appropriate measures.

Interference proof

Discharge of static electricity

Contact discharge EN 61000-4-2 Test level 3

Air discharge EN 61000-4-2 Test level 3
Electromagnetic fields EN 61000-4-3 Test level 3
Fast transients EN 61000-4-4 Test level 3
Surge voltage symmetrical EN 61000-4-5 Test level 2
Surge voltage asymmetrical EN 61000-4-5 Test level 3
Cable-based RF faults EN 61000-4-6 Test level 3

Stability

Vibration IEC 60068-2-6 Test FC, testing level in line with IEC 61131-2
Shock IEC 60068-2-27 Test Ea, testing level in line with IEC 61131-2

Network size

TP/TX port 10BASE-T/100BASE-TX

Length of a twisted pair segment 100 m (328 ft) maximum

F/O port 100BASE-FX

According to IEEE 802.3 100BASE-FX
System attenuation

50/125 µm fiber (multimode, MM) 0 to 8 dB RS2-5TX/FX
62,5/125 µm fiber (multimode, MM) 0 to 11 dB RS2-5TX/FX

F/O line length (example)

50/125 µm fiber (multimode, MM) 5 km approx. (data of fiber: 1.0 dB/km, 800 MHz*km)
62,5/125 µm fiber (multimode, MM) 4 km approx. (data of fiber: 1.0 dB/km, 500 MHz*km)

Interfaces

RS2-5TX 5 TP/TX ports RJ45 sockets, 10/100 MBit/s
RS2-5TX/FX 4 TP/TX ports RJ45 sockets, 10/100 MBit/s

+ 1 FX port MTRJ connection, multimode, 100 MBit/s

Displays

Equipment status 1 x green LED P1 – power 1, supply voltage 1 present

1 x green LED P2 – power 2, supply voltage 2 present

Port status 5 x green LED DAT/STAT 1 to 5 – data, link status

Scope of delivery

Rail Switch RS2-5TX or RS2-5TX/FX incl. terminal block for supply voltage, description and operating instructions
Order number

Rail Switch RS2-5TX 943 732-003
Rail Switch RS2-5TX/FX 943 732-103

Accessories

Manual “Basics Industrial ETHERNET

and TCP/IP” 280 720-834

Rail Power Supply RPS 30 943 662-003
Rail Power Supply RPS 80 EEC 943 662-080
Rail Power Supply RPS 120 EEC 943 662-120

Hirschmann Automation and Control GmbH
Stuttgarter Straße 45-51
D-72654 Neckartenzlingen
Germany
Tel.: [phone]
E-mail: [e-mail]
Internet: http://www.hirschmann.com

Printed in Germany
Subject to alterations
