Hirschmann OS20, OS30 User Manual

Installation OS20/OS30

Release 03 06/2015

Technical Support

https://hirschmann-support.belden.eu.com

User Manual

Installation
IP67 Switch

OS20 / OS30

1

2

3

4

5

6

7

8

9

10

1

2

3

4

5

6

7

8

9

10

The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.

© 2015 Hirschmann Automation and Control GmbH

Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use. For devices with embedded software, the end-user license agreement on the
enclosed CD/DVD applies.

The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.

Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.

You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).

Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]

OS20/OS30 039 727-001-03-0615

1.7.15

Installation OS20/OS30

Release 03 06/2015

3

Contents

Safety instructions 5

About this Manual 9

Legend 9

1 Description 10

1.1 General device description 10

1.2 Device name and product code 11

1.3 Device views 13

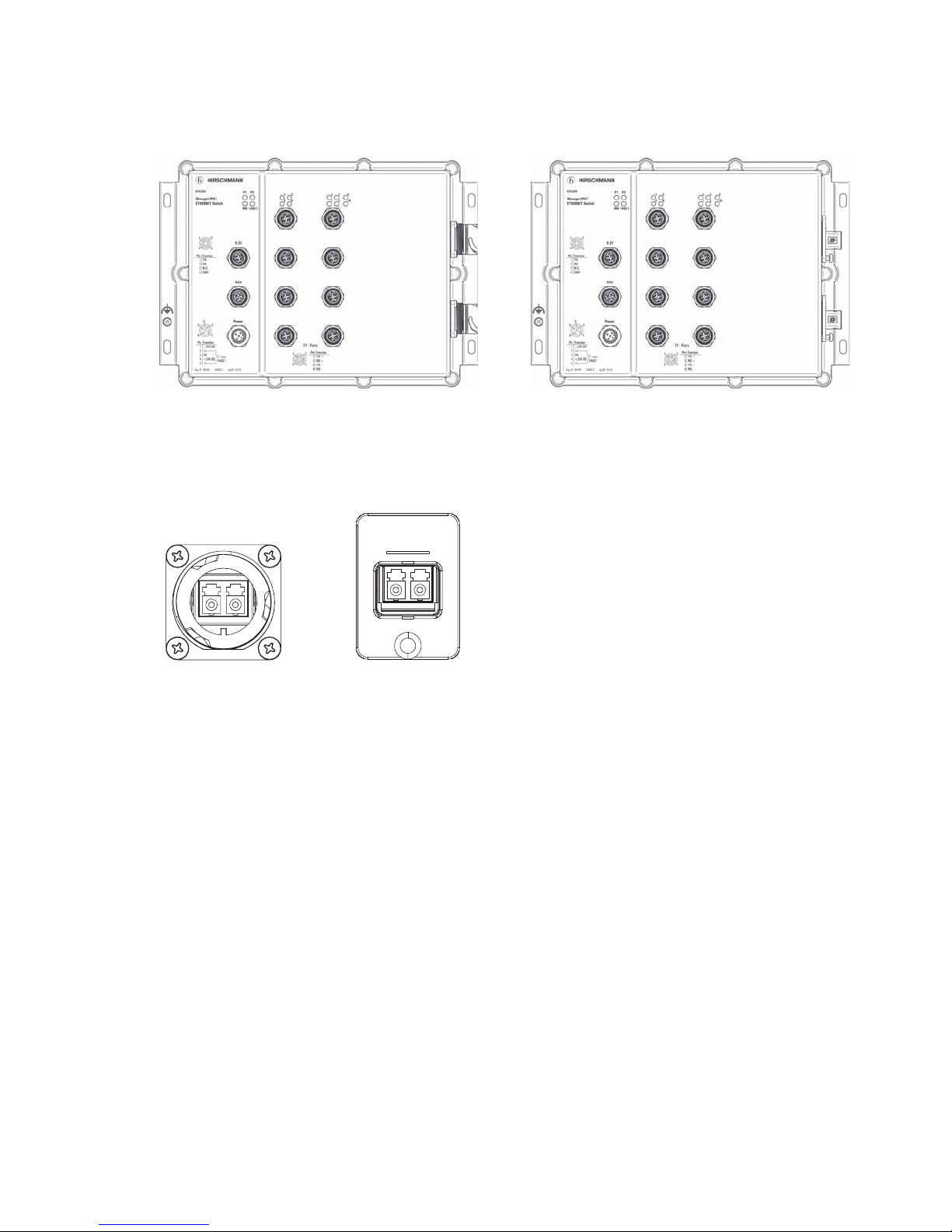

1.3.1 Front view 13

1.3.2 Interfaces 13

1.4 Power supply 14

1.5 Ethernet ports 15

1.5.1 10/100 Mbit/s twisted pair port 15

1.5.2 100 Mbit/s F/O port 15

1.5.3 1000 Mbit/s F/O port 16

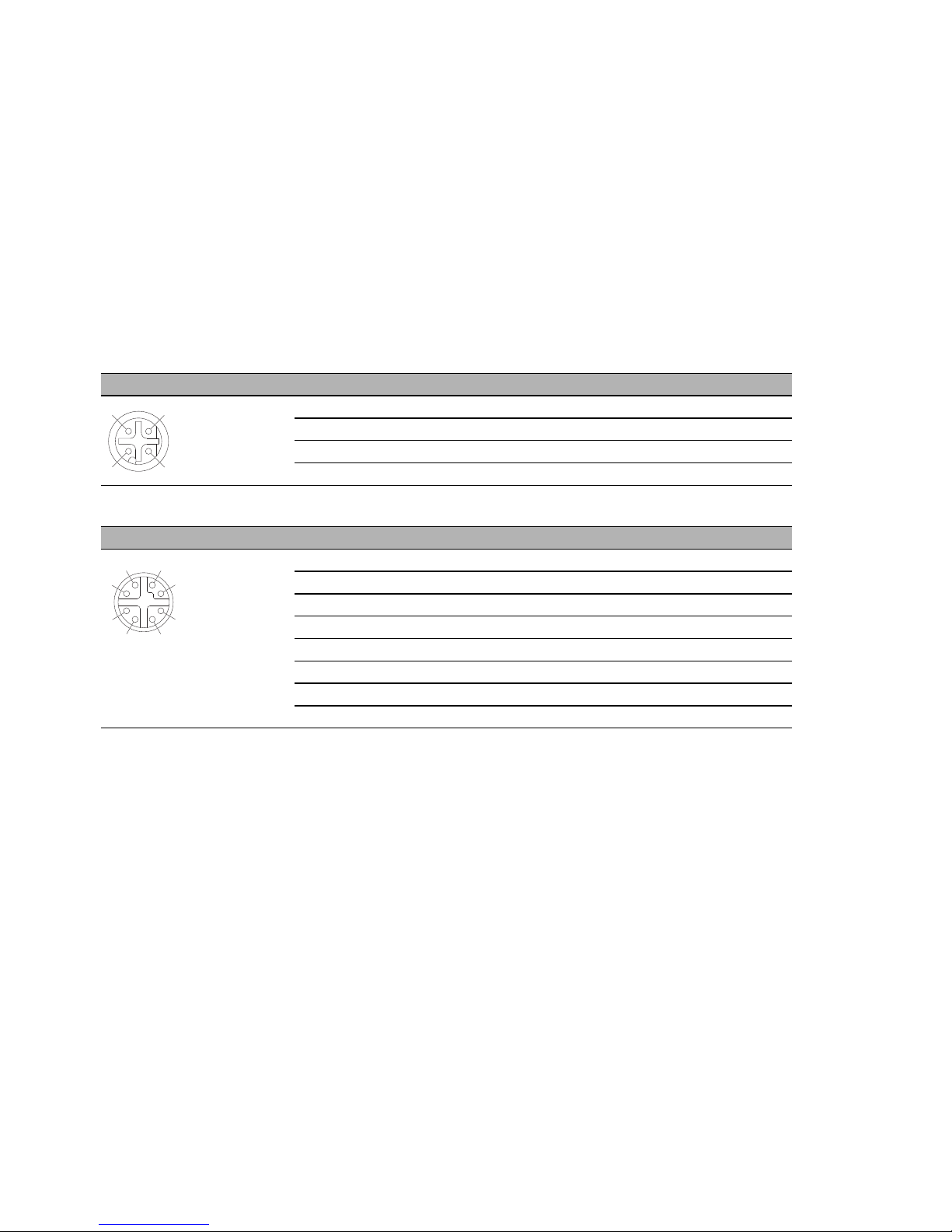

1.5.4 Pin assignments 16

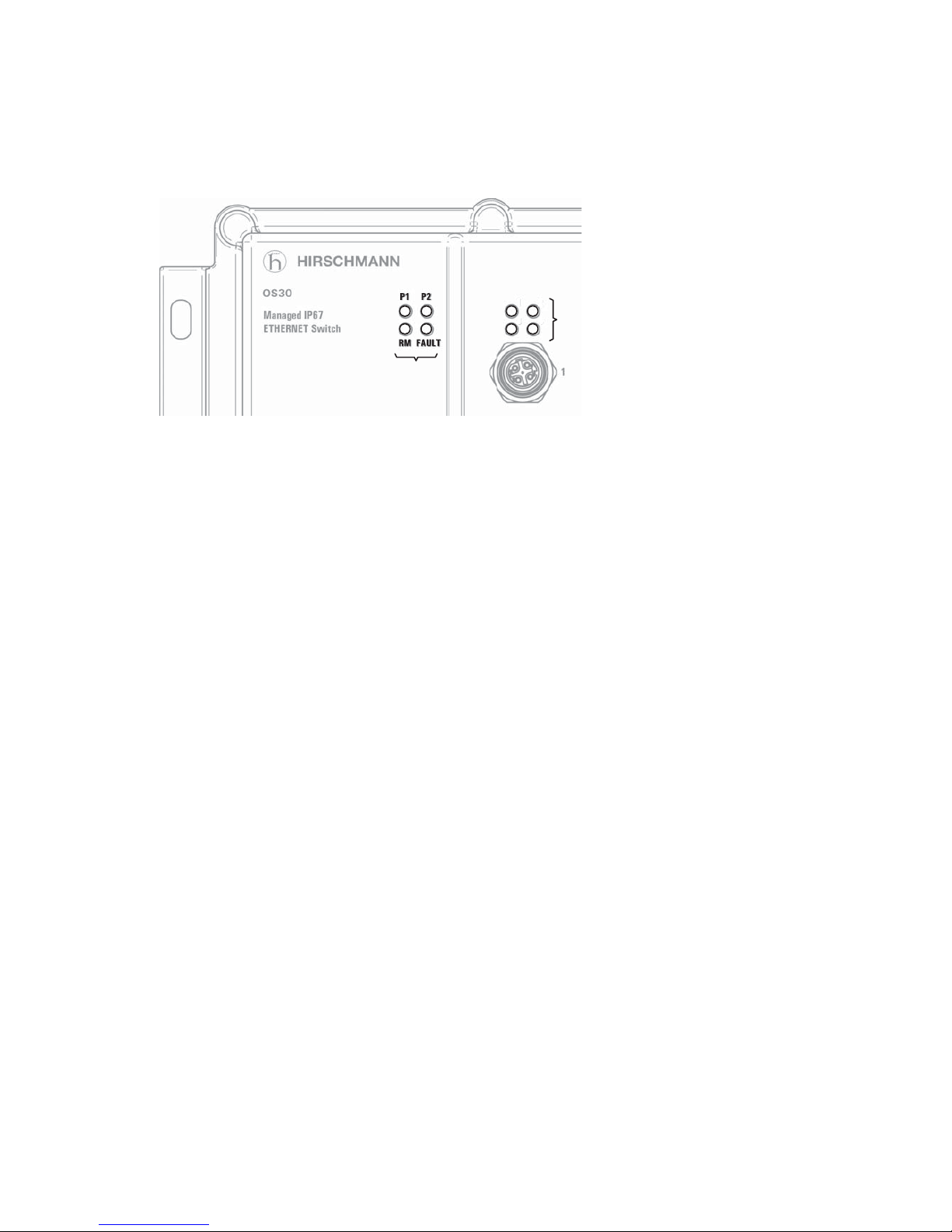

1.6 Display elements 17

1.6.1 Device state 18

1.6.2 Port state 18

1.7 Management interfaces 19

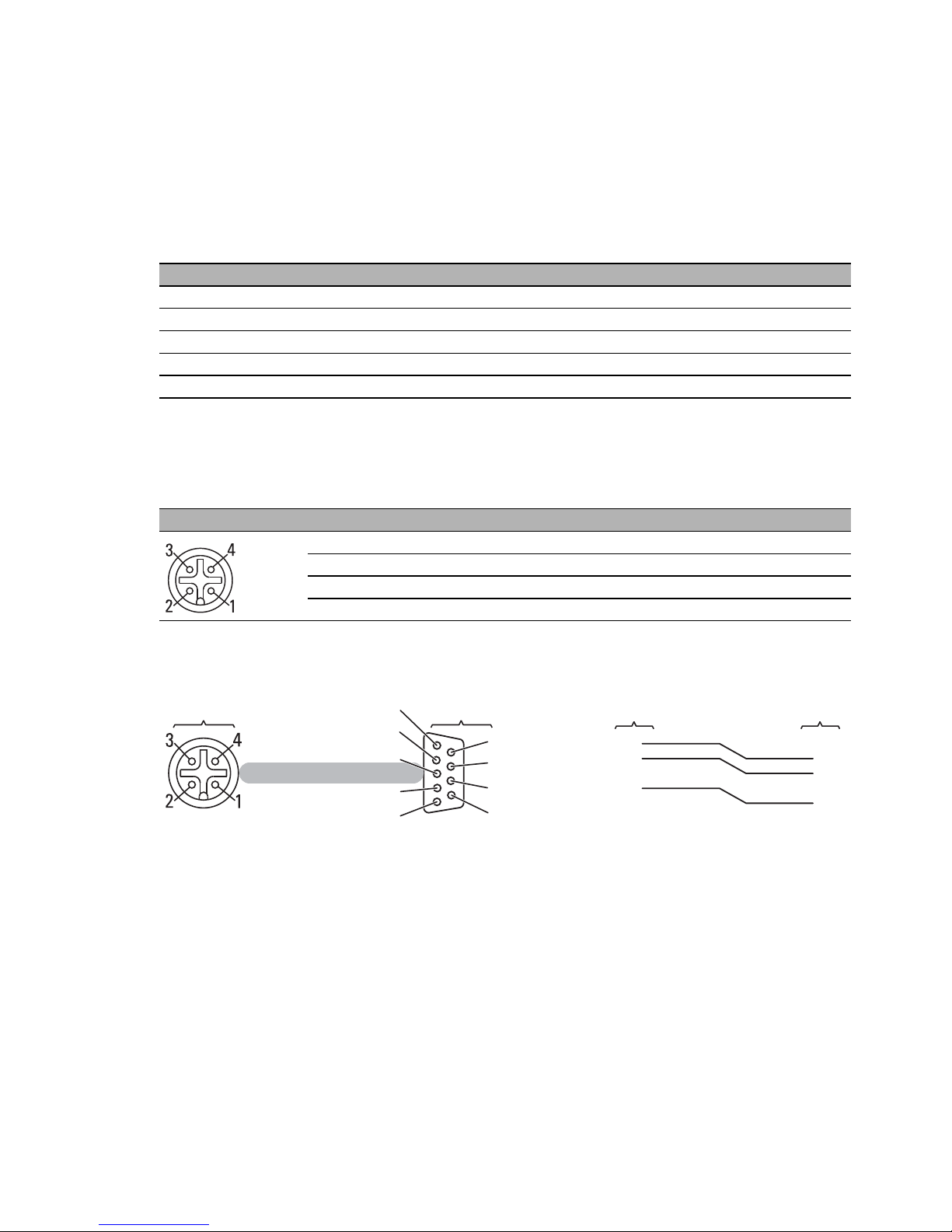

1.7.1 V.24 interface (external management) 19

1.7.2 ACA interface (ACA21-M12) 20

1.8 “FAULT” signal contact 21

2 Installation 22

2.1 Checking the package contents 22

2.2 Installing and grounding the device 23

2.2.1 Mounting on a flat surface 23

2.2.2 Grounding the device 23

2.3 Wiring the connectors for supply voltage and signal contact 24

2.4 Operating the device 25

2.5 Connecting data cables 25

2.5.1 Twisted Pair ports 25

2.5.2 Optical fiber ports 25

3 Making basic settings 26

4

Installation OS20/OS30

Release 03 06/2015

4 Monitoring the ambient air temperature 27

5 Maintenance and service 28

6Disassembly 29

6.1 Removing the device 29

7 Technical data 30

A Further Support 37

Installation OS20/OS30

Release 03 06/2015

5

Safety instructions

 General safety instructions

You operate this device with electricity. Improper usage of the device
entails the risk of physical injury or significant property damage. The
proper and safe operation of this device depends on proper handling
during transportation, proper storage and installation, and careful
operation and maintenance procedures.
 Before connecting any cable, read this document, and the safety

instructions and warnings.

 Operate the device with undamaged components exclusively.
 The device is free of any service components. In case of a damaged

or malfunctioning the device, turn off the supply voltage and return the
device to Hirschmann for inspection.

 Certified usage

 Use the product only for the application cases described in the

Hirschmann product information, including this manual.

 Operate the product only according to the technical specifications.

See “Technical data” on page 30.

 Connect to the product only components suitable for the requirements

of the specific application case.

 Device casing

Only technicians authorized by the manufacturer are permitted to open
the casing.
 Never insert pointed objects (narrow screwdrivers, wires, etc.) into the

device or into the connection terminals for electric conductors. Do not
touch the connection terminals.

 At ambient temperatures > 140 °F (60 °C):

The surfaces of the device housing may become hot. Avoid touching
the device while it is operating.

WARNING

UNCONTROLLED MACHINE ACTIONS

To avoid uncontrolled machine actions caused by data loss, configure all
the data transmission devices individually.
Before you start any machine which is controlled via data transmission, be
sure to complete the configuration of all data transmission devices.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

6

Installation OS20/OS30

Release 03 06/2015

 Qualification requirements for personnel

 Only allow qualified personnel to work on the device.

Qualified personnel have the following characteristics:

 Qualified personnel are properly trained. Training as well as practical

knowledge and experience make up their qualifications. This is the
prerequisite for grounding and labeling circuits, devices, and systems
in accordance with current standards in safety technology.

 Qualified personnel are aware of the dangers that exist in their work.
 Qualified personnel are familiar with appropriate measures against

these hazards in order to reduce the risk for themselves and others.

 Qualified personnel receive training on a regular basis.

 National and international safety regulations

 Verify that the electrical installation meets local or nationally applicable

safety regulations.

 Grounding the device

The device is grounded via the separate ground screw.

See figure 3 on page 14.

 Use a wire diameter for the ground conductor that is no smaller than

the diameter of the supply voltage connection, however of at least

0.5 mm² (AWG20).

 Ground the device before connecting any other cables.
 Disconnect the grounding only after disconnecting all other cables.

 Shielding ground

The overall shield of a connected shielded twisted-pair cable is connected
to the metal housing as a conductor.
 Beware of possible short circuits when connecting a cable section with

conductive shielding braiding.

 Supply voltage

The devices are designed for operation with safety extra-low voltage.
Connect only SELV circuits with voltage restrictions in line with IEC/EN
60950-1 to the supply voltage connections and signal contacts.
The supply voltage is electrically isolated from the housing.

 Use a power supply cable which is suitable for the voltage, the current

and the physical load.
Hirschmann recommends a wire diameter of 0.5 mm² to 0.75 mm²
(AWG20 to AWG18).

Installation OS20/OS30

Release 03 06/2015

7

Relevant for North America:
The device may only be connected to a Class 2 supply voltage that fulfills
the requirements of the National Electrical Code, Table 11(b). If the
voltage is being supplied redundantly (two different voltage sources), the
combined supply voltages must fulfill the requirements of the National
Electrical Code, Table 11(b).

Relevant for North America: For use in Class 2 circuits.
Only use copper wire/conductors of class 1, 75 °C (167 °F).

Relevant for installations under UL conditions:
Supply voltage: 19.2 V DC to 28.8 V DC

 CE marking

The labeled devices comply with the regulations contained in the following
European directive(s):

2011/65/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.

2004/108/EC (EMC)
Directive of the European Parliament and the council for standardizing the
regulations of member states with regard to electromagnetic
compatibility.

In accordance with the above-named EU directive(s), the EU conformity
declaration will be at the disposal of the relevant authorities at the
following address:

Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]

The device can be used in the industrial sector.

 Interference immunity: EN 61000-6-2
 Emitted interference: EN 55022

You find more information on technical standards here:

“Technical data” on page 30

The assembly guidelines provided in these instructions must be strictly
adhered to in order to observe the EMC threshold values.

8

Installation OS20/OS30

Release 03 06/2015

Warning! This is a class A device. This device can cause interference in
living areas, and in this case the operator may be required to take
appropriate measures.

 LED or laser components

LED or LASER components according to IEC 60825-1 (2014):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT

 FCC note:

This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference; (2) this device must accept any interference received,
including interference that may cause undesired operation.
Appropriate testing has established that this device fulfills the
requirements of a class A digital device in line with part 15 of the FCC
regulations.
These requirements are designed to provide sufficient protection against
interference when the device is being used in a business environment.
The device creates and uses high frequencies and can also radiate these
frequencies. If it is not installed and used in accordance with this
operating manual, it can cause radio transmission interference. The use
of this device in a residential area can also cause interference, and in this
case the user is obliged to cover the costs of removing the interference.

 Recycling note

After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.

Installation OS20/OS30

Release 03 06/2015

9

About this Manual

The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.
The following manuals are available as PDF files on the CD/DVD supplied:

 Installation user manual
 Basic Configuration user manual
 Redundancy Configuration user manual
 User Manual Industry Protocols
 Reference manual for the graphical user interface
 Command Line Interface reference manual

The Industrial HiVision network management software provides you with
additional options for smooth configuration and monitoring:

 ActiveX control for SCADA integration
 Auto-topology discovery
 Browser interface
 Client/server structure
 Event handling
 Event log
 Simultaneous configuration of multiple devices
 Graphical user interface with network layout
 SNMP/OPC gateway

Legend

The symbols used in this manual have the following meanings:

 Listing

 Work step



Subheading

10

Installation OS20/OS30

Release 03 06/2015

1 Description

1.1 General device description

You can choose from between a wide range of variants. You have the option
to set up your device individually based on different criteria:

 Number of ports
 Transmission speed
 Types of connectors
 Temperature range
 Supply voltage range
 Certifications

The OS20-... device variants are IP67 Switches without gigabit Ethernet
ports and with ten 10/100 Mbit/s Ethernet ports.

The OS30-... device variants are IP67 Switches with two gigabit Ethernet
ports (1000 Mbit/s) and eight 10/100 Mbit/s Ethernet ports.

The OS20/OS30 devices are designed for the special requirements of
industrial automation. They meet the relevant industry standards, provide
very high operational reliability, even under extreme conditions, and also
long-term reliability and flexibility.

The devices allow you to set up switched and routed industrial Ethernet
networks that conform to the IEEE 802.3 standard.

The devices work without a fan.

You have the option of choosing various media to connect to the terminal
devices and other network components:

 twisted pair cable
 multimode F/O
 singlemode F/O

The redundancy concept allows the network to be reconfigured quickly.

There are convenient options for managing the device. Administer your
devices via:

 a Web browser
 SSH
 Telnet
 HiDiscovery (Software for putting the device into operation)
 network management software (e.g. Industrial HiVision)
 a V.24 interface (locally on the device)

Installation OS20/OS30

Release 03 06/2015

11

The devices provide you with a large range of functions, which the manuals
for the operating software inform you about. You will find these manuals as
PDF files on the enclosed CD/DVD, or you can download them from the
Internet on the Hirschmann product pages (www.hirschmann.com).
The Hirschmann network components help you ensure continuous
communication across all levels of the company.

1.2 Device name and product code

The device name corresponds to the product code. The product code is
made up of characteristics with defined positions. The characteristic values
stand for specific product properties.
You have numerous options of combining the device characteristics. You can
determine the possible combinations using the configurator which is
available in the Belden E-Catalog (www.e-catalog.beldensolutions.com) on
the web page of the device.

Note: For the two uplink ports (product positions 12 to 13 and 14 to 15),
choose the same variant (either variant 1 or variant 4).

12

Installation OS20/OS30

Release 03 06/2015

Position Characteristic Characteri

stic value

Description

1 to 4 Product OS20 IP67 Switch without gigabit ports

OS30 IP67 Switch with gigabit ports
5 - (hyphen) ­6 to 7 Number of special

ports

00 0 ×

8 to 9 Number of 100 Mbit/s

ports:

08 8 ×

10 10 ×
10 to 11 Number of

1000 Mbit/s ports

00 0 ×

02 2 ×
12 to 13 1. Uplink port

(medium/connector)

1M M-FAST SFP-MM / LC / EEC / variant 1

1S M-FAST SFP-SM / LC / EEC / variant 1

1P M-FAST SFP-SM+ / LC / EEC / variant 1

1L M-FAST SFP-LH / LC / EEC / variant 1

1A M-SFP-SX / LC / EEC / variant 1

1B M-SFP-LX / LC / EEC / variant 1

1C M-SFP-LH / LC / EEC / variant 1

1D M-SFP-LH+ / LC / EEC / variant 1

4M M-FAST SFP-MM / LC / EEC / variant 4

4S M-FAST SFP-SM / LC / EEC / variant 4

4P M-FAST SFP-SM+ / LC / EEC / variant 4

4L M-FAST SFP-LH / LC / EEC / variant 4

4A M-SFP-SX / LC / EEC / variant 4

4B M-SFP-LX / LC / EEC / variant 4

4C M-SFP-LH / LC / EEC / variant 4

4D M-SFP-LH+ / LC / EEC / variant 4
14 to 15 2. Uplink port

(medium/connector)

See positions 12 to 13

16 Temperature range T −40 °F ... +158 °F (−40 °C ... +70 °C )
17 Voltage range incl.

max. tolerances

R 16.8 VDC ... 45.0 VDC

18 Approvals E CE, C-Trick, E1, EN 50155, EN 50121-4

(railway, trackside), FCC

19 Software variant P Professional

Table 1: Combination options for the device variants of OS20/OS30

Installation OS20/OS30

Release 03 06/2015

13

1.3 Device views

1.3.1 Front view

Figure 1: OS20/OS30 with uplink ports, variant 1 (left) and variant 4 (right)

1.3.2 Interfaces

Figure 2: F/O ports on the OS20/OS30

1 - Variant 1
4 - Variant 4

1

2

3

4

5

6

7

8

9

10

1

2

3

4

5

6

7

8

9

10

14

14

Installation OS20/OS30

Release 03 06/2015

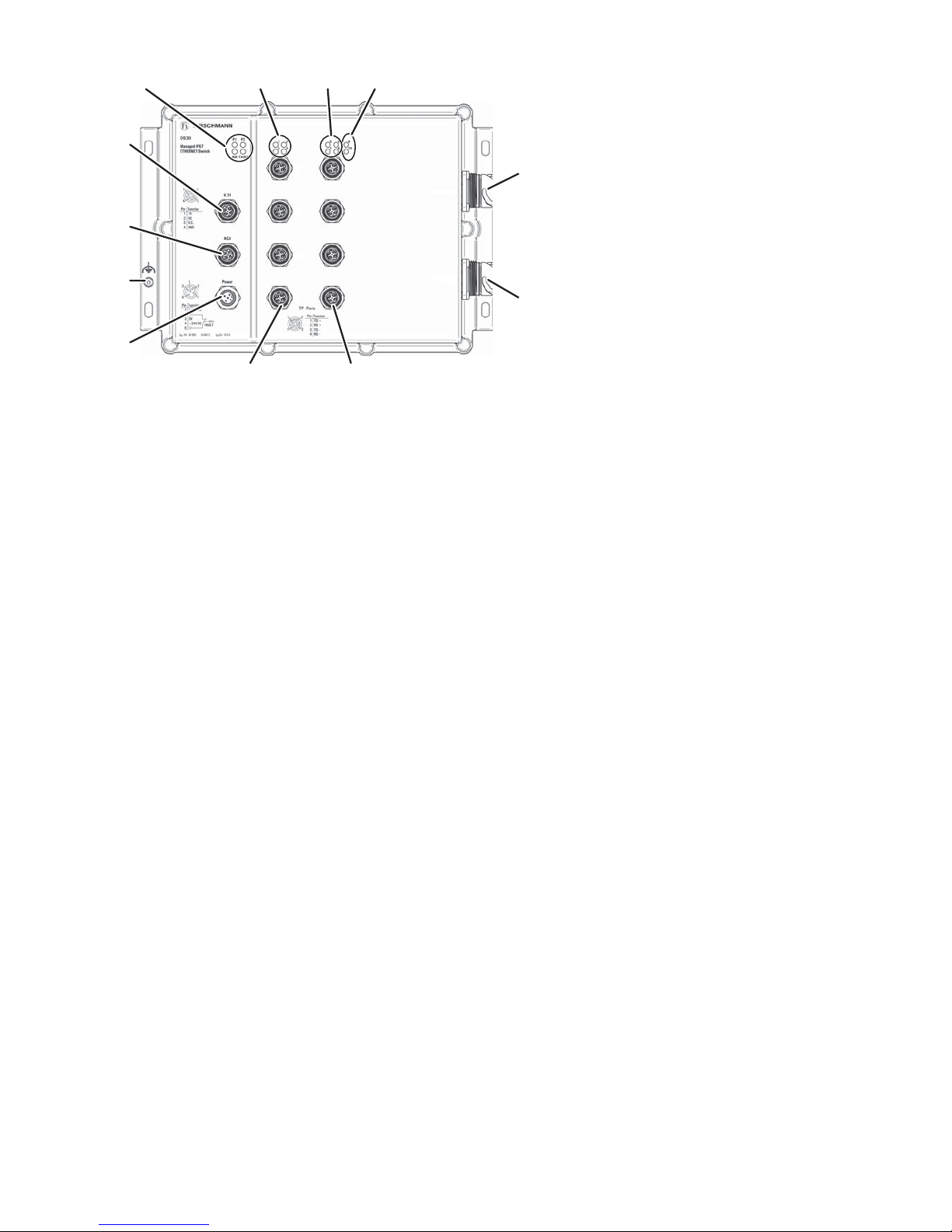

Figure 3: Interfaces of the OS20/OS30

1 - LED display elements for the device status
2 - LED display elements for the port status of the ports 3 to 6)
3 - LED display elements for the port status of the ports 7 to 10)
4 - LED display elements for the port status of the ports 1 to 2)
5 - Port 1: F/O port (SFP) for 100 Mbit/s (OS20) / 1000 Mbit/s (OS30)
6 - Port 2: F/O port (SFP) for 100 Mbit/s (OS20) / 1000 Mbit/s (OS30)
7 - Ports 7 to 10: Twisted Pair port (M12) for 10/100 Mbit/s
8 - Ports 3 to 6: Twisted Pair port (M12) for 10/100 Mbit/s
9 - Connection for supply voltage and signal contact
10 - Grounding nut
11 - USB interface for ACA21-M12
12 - V.24 interface for external management

1.4 Power supply

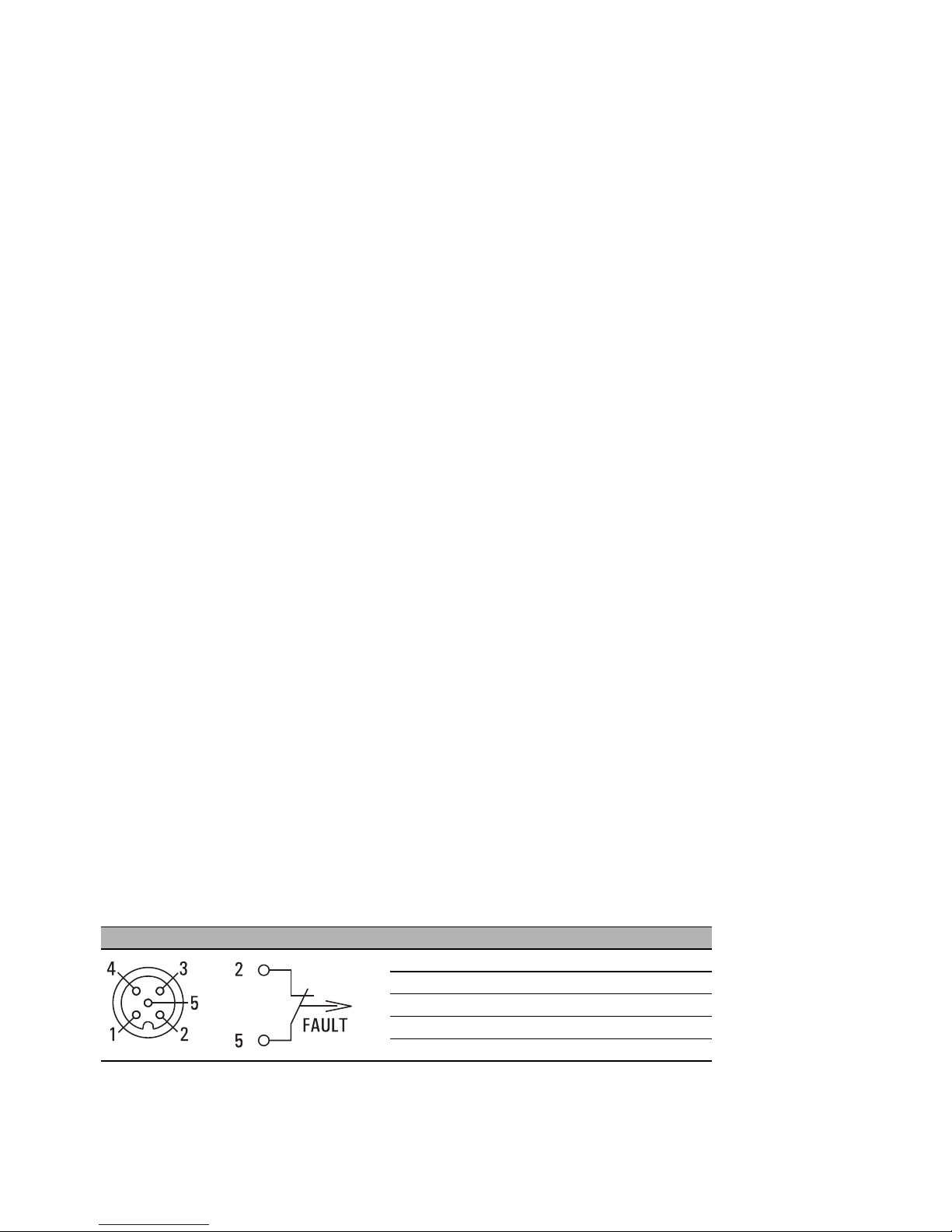

A 5-pin M12 socket is available for the power supply to the device.

For further information see “Wiring the connectors for supply voltage and

signal contact” on page 24.

1

2

3

4

5

6

7

8

9

10

12

5

7

8

11

9

6

10

1

3

2

4

Installation OS20/OS30

Release 03 06/2015

15

1.5 Ethernet ports

You can connect end devices and other segments to the device ports using
twisted pair cables or optical fibers (F/O).
The OS20 devices have eight 10BASE-T/100BASE-TX ports (M12 sockets)
and two 100 Mbit/s FX ports for connecting network segments or terminal
devices (product code items 8+9, see table 1).
The OS30 devices have eight 10BASE-T/100BASE-TX ports (M12 sockets)
and two 1000 Mbit/s FX ports for connecting network segments or terminal
devices (product code items 8+9, see table 1).

The medium and connection types for the 1st and 2nd uplink ports are freely
selectable (product code items 12+13 and 14+15, see table 1).

You find information on pin assigments for making patch cables here:

“Pin assignments” on page 16

1.5.1 10/100 Mbit/s twisted pair port

This port is designed as an 4-pin M12 socket.
The 10/100 Mbit/s twisted pair port offers you the ability to connect network
components according to the IEEE 802.3 10BASE-T/100BASE-TX standard.
This port supports:

 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode

Delivery state: Autonegotiation activated
The socket housing is electrically connected with the device housing.

1.5.2 100 Mbit/s F/O port

Only OS20 device variants have 100 Mbit/s F/O ports.
This port is an SFP slot.
The 100 Mbit/s F/O port offers you the ability to connect network components
according to the IEEE 802.3 100BASE-FX standard.
This port supports:

 Full or half duplex mode

Default setting: Full duplex

16

Installation OS20/OS30

Release 03 06/2015

1.5.3 1000 Mbit/s F/O port

Only OS30 device variants have 1000 Mbit/s F/O ports.
This port is an SFP slot.
The 1000 Mbit/s F/O port offers you the ability to connect network
components according to the IEEE 802.3 100BASE-SX/1000BASE-LX
standard.
This port supports:

 Autonegotiation
 Full duplex mode

Delivery state: Autonegotiation activated

1.5.4 Pin assignments

M12 4-pin (D coded) Pin Data PoE

1 TX+ Positive V

PSE

2 RX+ Negative V

PSE

3TX− Positive V

PSE

4RX− Negative V

PSE

M12 8-pin (X-coded) Pin 10/100 Mbit/s 1000 Mbit/s PoE

1 RX+ BI_DB+ Negative V

PSE

2RX− BI_DB− Negative V

PSE

3 TX+ BI_DA+ Positive V

PSE

4TX− BI_DA− Positive V

PSE

5 — BI_DC+ —
6— BI_DC− —
7— BI_DD− —
8 — BI_DD+ —

1

23

4

18

2

36

7

45

Installation OS20/OS30

Release 03 06/2015

17

1.6 Display elements

After the supply voltage is set up, the software starts and initializes itself.
Afterwards, the device performs a self-test. During this process, various
LEDs light up. The process takes around 50 seconds.

Figure 4: Display elements

1 - Port status LEDs (here: for ports 3 to 6)
2 - Device status LEDs

2

1

3

4

56

18

Installation OS20/OS30

Release 03 06/2015

1.6.1 Device state

These LEDs provide information about conditions which affect the operation
of the whole device.

If the manual adjustment is active on the “FAULT” signal contact, then the
detected error display is independent of the setting of the signal contact.

1.6.2 Port state

These LEDs display port-related information. During the boot phase, they
indicate the status of the boot process.

P1 - Power 1 (green LED)

Glowing green Supply voltage 1 is present
Not glowing Supply voltage 1 is too low

P2 - Power 2 (green LED)

Glowing green Supply voltage 2 is present
Not glowing Supply voltage 2 is too low

FAULT - detected error, signal contact (red LED)

a

a. If the manual adjustment is active on the “FAULT” signal contact, then the detected error

display is independent of the setting of the signal contact.

Glowing red The signal contact is open, i.e. it is reporting a detected error.
Not glowing The signal contact is closed, i.e. it is not reporting

a detected error.

RM - Ring Manager (green/yellow LED)

Glowing green RM function active, redundant port disabled
Glowing yellow RM function active, redundant port enabled
Not glowing RM function not active
Flashing green Incorrect configuration of the HIPER-Ring (e. g. the ring is not

connected to the ring port).

LS - data, link status (one green/yellow LED per port)

Not glowing No valid connection.
Glowing green Valid connection.
Flashing green (1 time a period) Port is switched to stand-by.
Flashing green (3 times a

period)

Port is switched off.

Flashing yellow Data reception.

Installation OS20/OS30

Release 03 06/2015

19

1.7 Management interfaces

1.7.1 V.24 interface (external management)

At the V.24 connection, a serial interface is provided for the local connection
of an external management station (VT100 terminal or PC with
corresponding terminal emulation). This enables you to set up a connection
to the Command Line Interface (CLI) and to the system monitor.

The socket housing is electrically connected to the housing of the device.
The V.24 interface is not electrically isolated from the supply voltage.

Figure 5: Terminal cable for connecting an external Management Station

The terminal cable is available as an accessory.

See “Accessories” on page 35.

You will find a description of the V.24 interface in the “User Manual Basic
Configuration” document on the CD/DVD supplied.

VT 100 terminal settings

Speed 9600 Baud
Data 8 bit
Stopbit 1 bit
Handshake off
Parity none

Figure Pin Function

1 TX. Transmit Data
2 RX Receive Data
3 N.C. Not used
4 GND Ground

Table 2: Pin assignment of the V.24 interface (M12 socket)

5

M12 M12

DB9 DB9

2
3

5

1
2
3
4

1

2

3

4

6

7

8

9

20

Installation OS20/OS30

Release 03 06/2015

1.7.2 ACA interface (ACA21-M12)

This interface offers you the ability to connect the storage medium
AutoConfiguration AdapterACA21-M12. This storage medium is used for
saving/loading the configuration and diagnostic functions, and for loading the
software.

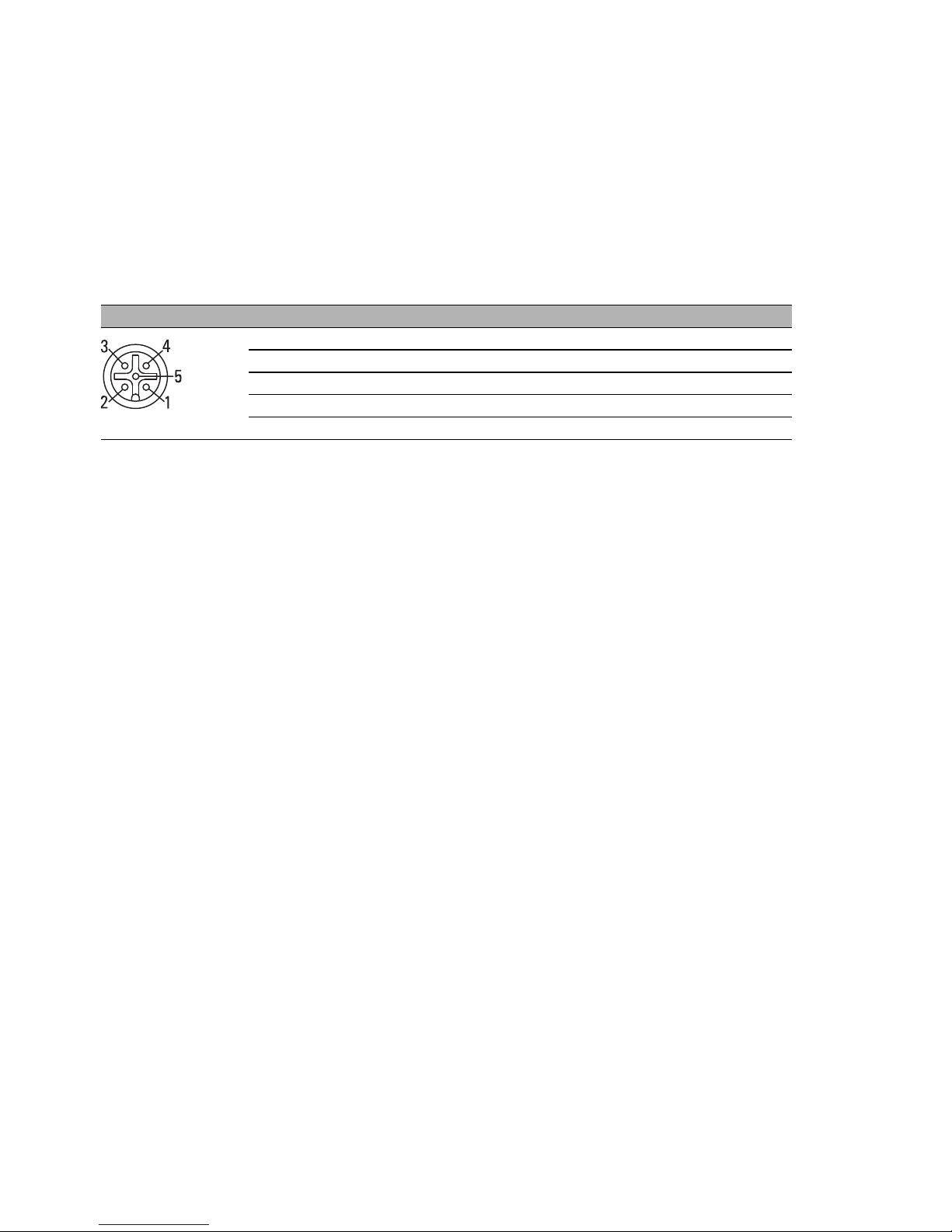

This interface is a 5-pin, A-coded M12 socket with shielding.

Note: The AutoConfiguration adapter ACA11-M12 available for certain
Hirschmann devices is incompatible with OS20/OS30 devices.

Pin Function

1U

in

5 V
2 N.C. Not used
3 D- Data ­4 GND Ground (0 V)
5 D+ Data +

Table 3: Pin assignment of the USB interface, 5-pin, A-coded M12 socket

Installation OS20/OS30

Release 03 06/2015

21

1.8 “FAULT” signal contact

The signal contact (“FAULT“, pin assignment see table 4) is used to monitor
the device function, and thus supports remote diagnostics. You can specify
the type of function monitoring in the Management.
You can also use the Management to set the signal contact manually and
thus control external devices.

The potential-free signal contact (relay contact, closed circuit) reports
through a break in contact:

 The failure of at least one supply voltage.
 The device is not operational.
 The failure of the connection on at least one port.

The report of the link status can be masked by the Management for each
port. In the delivery state, is deactivated.

 Failure of the ring redundancy reserve.
 Errors detected during the self-diagnostic test.
 Incorrect configuration of the HIPER-Ring or ring coupling.

The following condition is also reported in RM mode:

 Ring redundancy reserve is available. On delivery, there is no ring

redundancy monitoring.

You can also use the Management to set the signal contact manually and
thus control external devices.

22

Installation OS20/OS30

Release 03 06/2015

2 Installation

The devices have been developed for practical application in a harsh
industrial environment.
On delivery, the device is ready for operation.

Perform the following steps to install and configure the device:

 Checking the package contents
 Installing and grounding the device
 Wiring the connectors for supply voltage and signal contact
 Operating the device
 Connecting data cables

Note: Dust, moisture and fire protection is only achieved under the following
conditions:

 All the unused connections and ports are closed the appropriate

protection caps or protection screws.

 All the connectors and cables connected also fulfill protection class

IP65/67.

2.1 Checking the package contents

 Check whether the package includes all items named in the section

“Scope of delivery” on page 34.

 Check the individual parts for transport damage.

Installation OS20/OS30

Release 03 06/2015

23

2.2 Installing and grounding the device

2.2.1 Mounting on a flat surface

To protect the exposed uninstalled contacts of the components from dirt,
connect the individual system components in a dry and clean working area.

Install the device in a location where the climatic threshold values specified
in the technical data are adhered to.
Make sure the environment does not heat the device. It can be mounted on
temperature-isolating material.
Protection class IP67 is only achieved when the device is screwed on.
Protection class IP67 is only achieved when all the components
connected fulfill protection type IP67.

 Only connect plugs and other components that fulfill protection class IP67

and that are certified for a temperate range from −40 °F to +158 °F
(−40 °C to +70 °C).

 Relevant for North America:

Only connect plugs and other components that fulfill protection class IP67
and that are certified for a temperate range from −40 °F to +140 °F
(−40 °C to +60 °C).

Proceed as follows:

 Prepare the drill holes at the installation point.
 Mount the device on a level surface with four M5 screws.
 Seal all unused connections and ports with the appropriate protection

caps or protection screws.

See “Accessories” on page 35.

2.2.2 Grounding the device

Grounding the device is by means of a separate ground connection on the
device.

See “Device views” on page 13.

The overall shield of a connected shielded twisted-pair cable is connected to
the metal housing as a conductor.
 Connect the grounding conductor to the grounding screw at the device

housing.

 Use toothed washers to ensure good electrical conductivity at the

connection.

24

Installation OS20/OS30

Release 03 06/2015

2.3 Wiring the connectors for supply voltage
and signal contact

The supply voltage and the signal contact are connected by means of a 5-pin
M12 connector.

See “Scope of delivery” on page 34.

Relevant for installations under UL conditions:
Use an UL approved power supply plug which is suitable for the voltage
range, the current and the ambient temperature range of this device, for
example the Lumberg RKC series. A pin assignment drawing of the power
supply connector is provided in table 4.

The supply voltage can be connected redundantly. Both inputs are
uncoupled. There is no distributed load. With redundant supply, the power
supply unit with the higher output voltage supplies the device on its own. The
supply voltage is electrically isolated from the housing.

Note: With non-redundant supply of the mains voltage, the device reports a
power failure. You can prevent this message by applying the supply voltage
via both inputs, or by changing the configuration in the Management.

 Use a power supply cable which is suitable for the voltage, the current and

the physical load.
Hirschmann recommends a wire diameter of 0.5 mm² to 0.75 mm²
(AWG20 to AWG18).

 Use a back-up fuse suitable for the supply network.

See “General technical data” on page 30.

 Make sure that the disconnecting device is easily accessible for

disconnecting the device from the mains voltage.

Note: Connectors are not electrical isolating devices. Therefore, first plug the
connector into the power supply plug and then switch on the power supply.

 Mount the connector for the supply voltage and the signal contact on the

front of the device.

Figure Pin Function

1 + 24 V DC (1)
2Fault
30 V DC
4 + 24 V DC (2)
5Fault

Table 4: Pin assignment of the 5-pin M12 socket for connecting the 24V supply

voltage and the signal contact

Installation OS20/OS30

Release 03 06/2015

25

2.4 Operating the device

When you connect the supply voltage, you start up the device.

2.5 Connecting data cables

You have the ability to connect end devices or other segments to the ports of
the device via twisted-pair cables.

2.5.1 Twisted Pair ports

Note the following general recommendations for data cable connections in
environments with high electrical interference levels:

 Keep the length of the data cables as short as possible.
 Use optical data cables for the data transmission between the buildings.
 When using copper cables, provide a sufficient separation between the

power supply cables and the data cables. Ideally, install the cables in
separate cable channels.

 Verify that power supply cables and data cables do not run parallel over

longer distances, and that ideally they are installed in separate cable
channels. If reducing the inductive coupling is necessary, verify that the
power supply cables and data cables cross at a 90° angle.

 Use shielded cables (SF/UTP cables as per ISO/IEC 11801:2002).

 Connect the data cables according to your requirements.
 Connect the cable shield to the connector housing.
 Seal all unused ports with protection screws.

See “Accessories” on page 35.

2.5.2 Optical fiber ports

Verify that you connect LH ports only with LH ports, SX ports only with SX
ports, and LX ports only with LX ports.

 Connect the data cables according to your requirements.
 Seal all unused ports with the protection caps attached to the device.

26

Installation OS20/OS30

Release 03 06/2015

3 Making basic settings

The IP parameters must be entered when the device is installed for the first
time. The device provides 6 options for configuring IP addresses:

 Entry via V.24 connection
 Entry using the HiDiscovery protocol via the application HiDiscovery or

Industrial HiVision

 Configuration via BOOTP
 Configuration via DHCP
 Configuration via DHCP Option 82
 Auto Configuration Adapter

Further information on the basic settings of the device can be found in the
user manual on the CD/DVD.

 Default settings

 IP address: The device looks for the IP address using DHCP
 Password for management:

Login: user; password: public (read only)
Login: admin; password: private (read and write)

 Parameters that can be set via the management are set to pre-defined

values in accordance with the MIB

 V.24 data rate: 9,600 Baud
 Ring redundancy: deactivated
 Ethernet ports: link status is not evaluated (signal contact)
 Optical 100 Mbit/s ports: 100 Mbit/s, full duplex

All other ports: autonegotiation

 Ring manager disabled
 RSTP (Rapid Spanning Tree) activated

Installation OS20/OS30

Release 03 06/2015

27

4 Monitoring the ambient air temperature

Operate the device below the specified maximum ambient air temperature
exclusively.

See “General technical data” on page 30.

The ambient air temperature is the temperature of the air at a distance of 2 in
(5 cm) from the device. It depends on the installation conditions of the device,
e.g. the distance from other devices or other objects, and the output of
neighboring devices.

The temperature displayed in the CLI and the GUI is the internal temperature
of the device. It is higher than the ambient air temperature. The maximum
internal temperature of the device named in the technical data is a guideline
that indicates to you that the maximum ambient air temperature has possibly
been exceeded.

28

Installation OS20/OS30

Release 03 06/2015

5 Maintenance and service

 When designing this device, Hirschmann largely avoided using high-wear

parts. The parts subject to wear and tear are dimensioned to last longer
than the lifetime of the product when it is operated normally. Operate this
device according to the specifications.

 Relays are subject to natural wear. This wear depends on the frequency

of the switching operations. Check the resistance of the closed relay
contacts and the switching function depending on the frequency of the
switching operations.

 Hirschmann is continually working on improving and developing their

software. Check regularly whether there is an updated version of the
software that provides you with additional benefits. You find information
and software downloads on the Hirschmann product pages on the
Internet (www.hirschmann.com).

Note: You will find information about the complaints and returns procedures
on the Internet under

http://www.beldensolutions.com/en/Service/Repairs/index.phtml .

Installation OS20/OS30

Release 03 06/2015

29

6Disassembly

6.1 Removing the device

Proceed as follows:

 Disconnect the data cables.
 Disable the supply voltage.
 Disconnect the power supply cables and signal lines.
 Disconnect the grounding.
 Unmount the device.

30

Installation OS20/OS30

Release 03 06/2015

7 Technical data

 General technical data

Dimensions
W × H × D

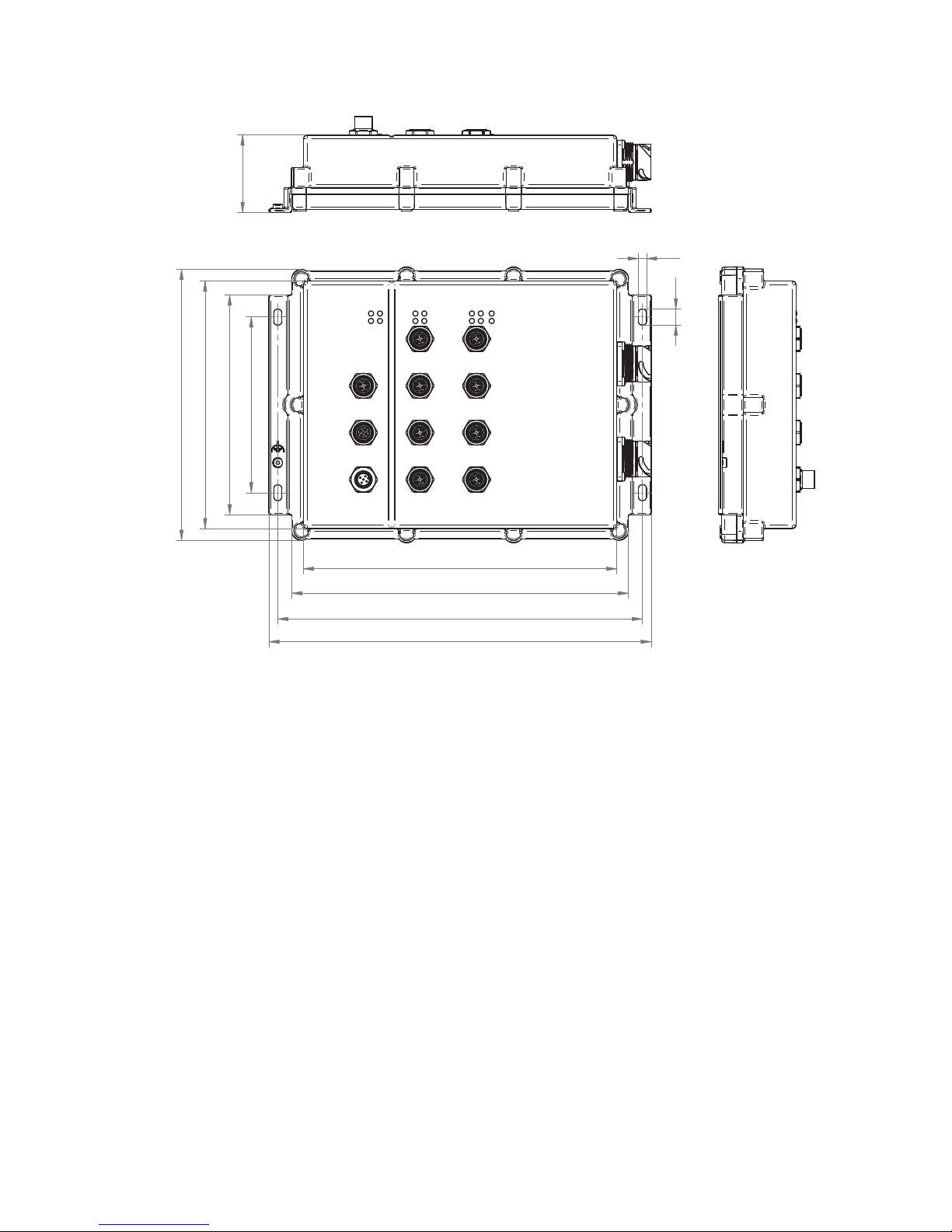

OS20/OS30 See “Dimension drawings” on page 31.

Weight OS20/OS30 approx. 4.19 lb (1.9 kg)
Power supply Rated voltage 24 V DC ... 36 V DC

Supply voltage range 16.8 V DC ... 45.0 V DC

Relevant for North America:

NEC Class 2 power source max. 5A
Connection type M12 connector, 5-pin
Power loss buffer > 10 ms at 20.4 V DC
Overload current protection at

input

Non-replaceable fuse

Back-up fuse Nominal rating:

Characteristic:

3.5 A ... 20 A
slow blow

Peak inrush current 4 A

Insulation voltage between supply voltage
connections and housing

500 V AC

Signal contact
“FAULT”

Switching current max. 1 A, SELV
Switching voltage max. 60 V DC or max. 30 V AC, SELV

Climatic conditions
during operation

Minimum clearance around
the device

Top and bottom device side: 3.94 in (10 cm)

Left and right device side: 0.79 in (2 cm)
Ambient air temperature

a

a. Temperature of the ambient air at a distance of 2 inches (5 cm) from the device

−40 °F ... +158 °F (−40 °C ... +70 °C)
Humidity 5 % ... 95 % (non-condensing)
Air pressure minimum 795 hPa (+9842 ft; +2000 m)

maximum 1060 hPa (−1312 ft; −400 m)

Climatic conditions
during storage

Ambient air temperature

a

−40 °F ... +158 °F (−40 °C ... +70 °C)
Humidity 0% to 100%
Air pressure Up to 2000 m (795 hPa), higher altitudes on

request

Protection classes Laser protection Class 1 in compliance with IEC 60825-1

Degree of protection IP67

Installation OS20/OS30

Release 03 06/2015

31

 Dimension drawings

Figure 6: Dimensions of OS20/OS30

214

230

249

261

5.6

169

185

150

120

52,8

11

32

Installation OS20/OS30

Release 03 06/2015

 EMC and immunity

EMC compliance – IEC/EN 61000-6-2:2005 EMI TYPE tests, test acc. to:

IEC/EN 61000-4-2 Electrostatic discharge

Contact discharge
Air discharge

6 kV
8 kV

IEC/EN 61000-4-3 Electromagnetic field

80 MHz ... 2700 MHz 20 V/m

IEC/EN 61000-4-4 Fast transients (burst)

Power line
Data line

2kV
4kV

IEC/EN 61000-4-5 Voltage surges

Power line, line / line
Power line, line / ground
Data line

1 kV
2kV
1 kV

IEC/EN 61000-4-6 Conducted disturbances

150 kHz ... 80 MHz 10 V

EN 61000-4-9 Pulse magnetic fields 100 A/m

EMC interference emission

EN 55022 Class A Yes
FCC 47 CFR Part 15 Class A Yes
German Lloyd Classification + Construction Guidelines VI-7-3 Part 1

Ed.2001

Yes

Stability

Vibration IEC 60068-2-6 Test FC test level according to IEC 61131-2 Yes

Germanischer Lloyd Guidelines for the Performance of Type
Tests Part 1

Yes

IEC 870-2-2 table 3 normal installation according to EN
61850-3

Yes

EN 61373, Category 1, Class A (broadband noise),
installation in acc. with EN 50155

Yes

Shock IEC 60068-2-27 Test Ea test level according to IEC 61131-2 Yes

IEC 870-2-2 table 3 normal installation according to EN
61850-3

Yes

EN 61373, Category 1, Class A (broadband noise),
installation in acc. with EN 50155

Yes

Installation OS20/OS30

Release 03 06/2015

33

 Network range

MM = Multimode, SM = Singlemode, LH = Singlemode Longhaul

MM = Multimode, SM = Singlemode, LH = Singlemode Longhaul

10/100/1000 Mbit/s twisted pair port

Length of a twisted pair segment max. 100 m (for cat5e cable)

Product
code
M-FAST­SFP-...

Wave
length

Fiber System

attenuatio
n

Example
for F/O line
length

a

a. including 3 dB system reserve when compliance with the fiber data is observed

Fiber
attenuatio
n

BLP/
dispersion

-MM/LC... MM 1310 nm 50/125 µm 0-7 dB 0-4 km 1.0 dB/km 800 MHz×km

-MM/LC... MM 1310 nm 62.5/125 µm 0-10 dB 0-4 km 1.0 dB/km 500 MHz×km

-SM/LC... SM 1310 nm 9/125 µm 0-12 dB 0-22.5 km 0.4 dB/km 3.5 ps/(nm×km)

-SM+/LC... SM 1310 nm 9/125 µm 10-28 dB 25-62.5 km 0.4 dB/km 3.5 ps/(nm×km)

-LH/LC... SM 1550 nm 9/125 µm 10-28 dB 47-100 km 0.25 dB/km 19 ps/(nm×km)

Table 5: Fiber port 100BASE-FX (SFP fiber optic Fast Ethernet Transceiver)

Product
code
M-SFP-...

Wave
length

Fiber System

attenuatio
n

Example
for F/O line
length

a

a. including 3 dB system reserve when compliance with the fiber data is observed

Fiber
attenuatio
n

BLPb/
dispersion

b. Using the bandwidth length product is inappropriate for expansion calculations.

-SX/LC... MM 850 nm 50/125 µm 0-6.5 dB 0-550 m 3.0 dB/km 400 MHz×km

-SX/LC... MM 850 nm 62.5/125 µm 0-6.5 dB 0-275 m 3.2 dB/km 200 MHz×km

-LX/LC... SM 1310 nm 9/125 µm 0-9.5 dB 0-17.5 km 0.4 dB/km 3.5 ps/(nm×km)

-LH/LC... LH 1550 nm 9/125 µm 5-21 dB 23-76 km 0.25 dB/km 19 ps/(nm×km)

-LH+/LC LH 1550 nm 9/125 µm 15-29 dB 71-104 km 0.25 dB/km 19 ps/(nm×km)

Table 6: Fiber port 1000BASE-FX (SFP fiber optic Gigabit Ethernet Transceiver)

34

Installation OS20/OS30

Release 03 06/2015

 Power consumption/power output

 Scope of delivery

You can obtain special connectors with protection class IP67 and an
extended temperature range on request.

 Order numbers/product description

The order numbers correspond to the product codes of the devices.

Name Maximum power consumption Power output

OS20-000010-... 9.0 W 30.7 Btu (IT)/h
OS30-000208-... 9.0 W 30.7 Btu (IT)/h

Device Scope of delivery

OS20/OS30 Device

Connector ELWIKA 5012 PG7 for supply voltage and signal contact
Installation user manual and CD/DVD

Installation OS20/OS30

Release 03 06/2015

35

 Accessories

Note: Some products recommended as accessories do not support the
entire temperature range specified for the device. They can thus restrict
the possible range of usage for the overall system. You can obtain special
sockets with protection class IP67 and an extended temperature range on
request. Unsealed accessory parts such as RJ45 adapters or terminal
cables are not suitable for use within an IP67 area.

Name Order number

AutoConfiguration Adapter ACA 21-M12 (EEC) 943 913-003
Terminal cable 943 902-001
Connector ELWIKA 5012 PG7

(5-pin M12 socket for supply voltage and signal contact)

933 175-100

Field-attachable 5-pin M12 socket, “A”-coded with 2 cable outputs RKC5/Duo
M12 connector, 4-pin, D-coded 934 445-001
Connection cable with M12 connector, “D”-coded 934 497-00x
Transition M12 D-coded to RJ45 934 498-001
Network management software Industrial HiVision 943 156-xxx
HiVision Network Management software 943 471-100
OPC Server software HiOPC 943 055-001
Protection screw for M12 socket, metal, IP67 (25 pieces) 942 057-001

36

Installation OS20/OS30

Release 03 06/2015

 Underlying technical standards

The device has an approval based on a specific standard only if the
approval indicator appears on the device casing.
If your device has a shipping approval according to Germanischer Lloyd,
you find the approval mark printed on the device label. You will find out
whether your device has other shipping approvals on the Hirschmann
website under www.hirschmann.com in the product information.
The device generally fulfills the technical standards named in their current
versions.

Name

UL 60950-1 Safety for Information Technology Equipment
EN 50155 Railway applications - Electronic equipment used on rolling

stock

EN 55022 Information technology equipment – Radio disturbance

characteristics – Limits and methods of measurement

EN 61000-6-2 Electromagnetic compatibility (EMC) – Part 6-2: Generic

standards – Immunity for industrial environments

EN 61131-2 Programmable controllers – Part 2: Equipment requirements

and tests
FCC 47 CFR Part 15 Code of Federal Regulations
Germanischer Lloyd Rules for Classification and Construction VI-7-2 – GL
IEEE 802.1 D Switching, GARP, GMRP, Spanning Tree
IEEE 802.1 D Media access control (MAC) bridges (includes IEEE 802.1p

Priority and Dynamic Multicast Filtering, GARP, GMRP)
IEEE 802.1Q Virtual LANs (VLANs, MRP, Spanning Tree)
IEEE 802.1 Q Virtual Bridged Local Area Networks (VLAN Tagging, GVRP)
IEEE 802.1w Rapid Reconfiguration
IEEE 802.3 Ethernet
72/245/EWG, 2009/19/EG E type certification for use in vehicles

Installation OS20/OS30

Release 03 06/2015

37

A Further Support

 Technical Questions

For technical questions, please contact any Hirschmann dealer in your
area or Hirschmann directly.

You will find the addresses of our partners on the Internet at

http://www.hirschmann.com

Contact our support at

https://hirschmann-support.belden.eu.com

You can contact us

in the EMEA region at

 Tel.: [phone]
 E-mail: [email protected]

in the America region at

 Tel.: [phone]
 E-mail: [email protected]

in the Asia-Pacific region at

 Tel.: [phone]
 E-mail: [email protected]

 Hirschmann Competence Center

The Hirschmann Competence Center is ahead of its competitors:

 Consulting incorporates comprehensive technical advice, from system

evaluation through network planning to project planning.

 Training offers you an introduction to the basics, product briefing and

user training with certification.
The current technology and product training courses can be found at

http://www.hicomcenter.com

 Support ranges from the first installation through the standby service

to maintenance concepts.

With the Hirschmann Competence Center, you have decided against
making any compromises. Our client-customized package leaves you
free to choose the service components you want to use.
Internet:

http://www.hicomcenter.com
