Page 1
Installation MS20/MS30
Release 11 07/2013
Technische Unterstützung
https://hirschmann-support.belden.eu.com
User Manual
Installation
Industrial ETHERNET Switch MICE
MS20/MS30
MICE MS20 MICE MS30
Page 2
The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.
© 2013 Hirschmann Automation and Control GmbH
Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use. For devices with embedded software, the end-user license agreement on the
enclosed CD/DVD applies.
The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.
Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.
You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).
Printed in Germany
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Deutschland
Tel.: +49 1805 141538
Installation MS20/MS30 039 530-001-11-0713 – 25.7.13
Page 3
Installation MS20/MS30
Release 11 07/2013
3
Contents
Safety instructions 5
About this Manual 14
Legend 14
1 Description 15
1.1 General device description 15
1.2 Device name and product code 16
1.3 Description of the device variants 17
1.3.1 Number of ports and connections 18

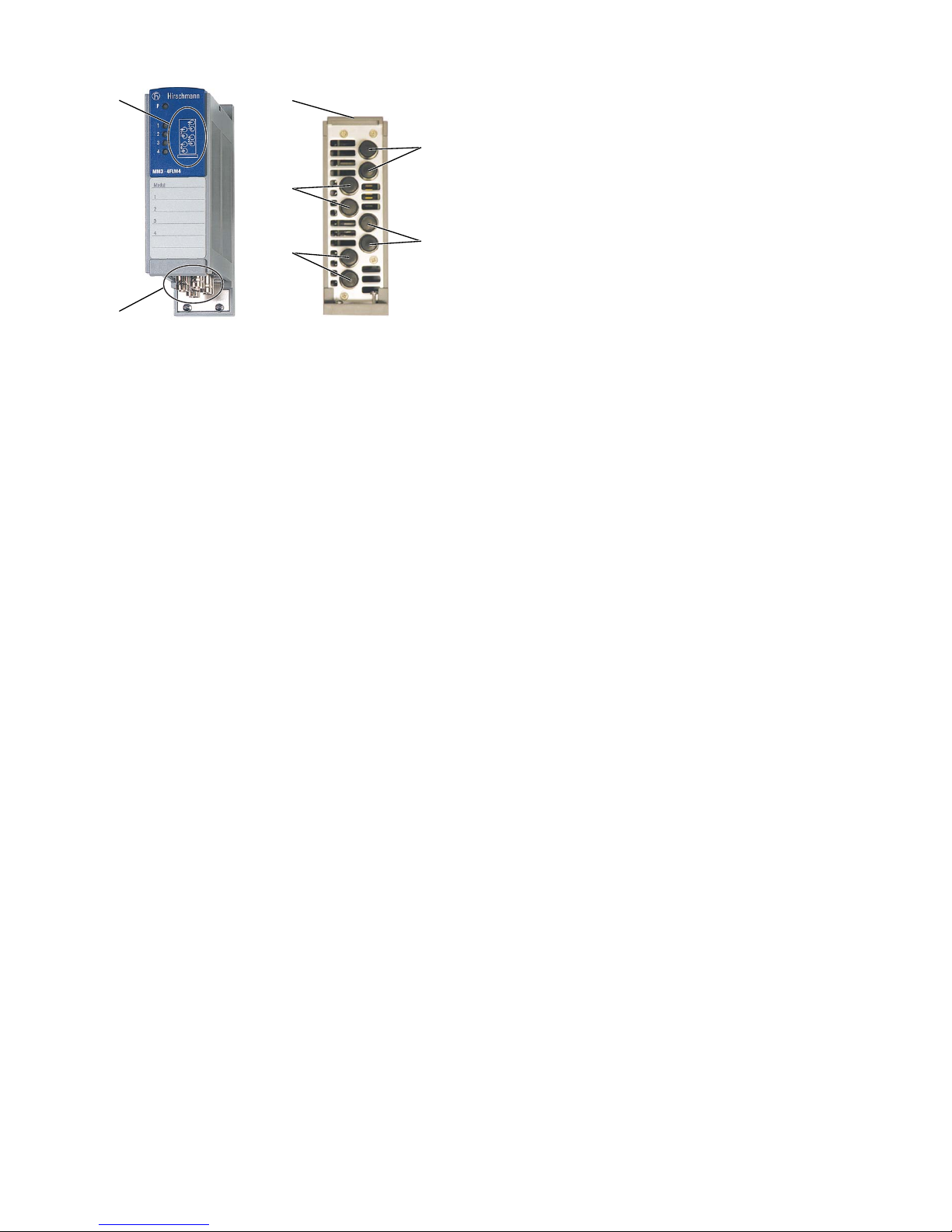

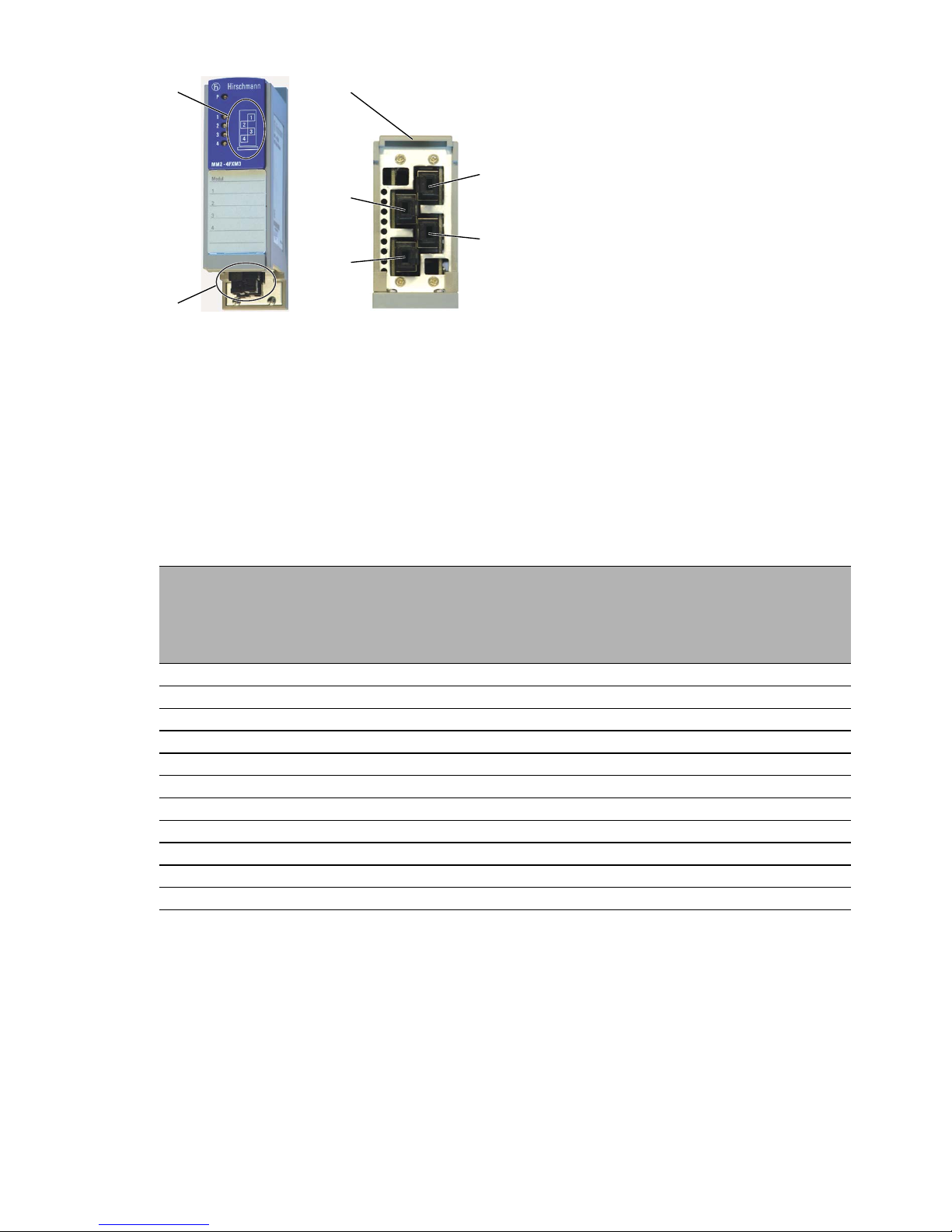

1.3.2 Media modules 21
1.3.3 Digital I/O Module MM24 25
1.3.4 MB20 extender module 26
1.3.5 SFP Transceiver 26
1.4 Display elements 26
1.4.1 Device status 28
1.4.2 Display status 29
1.4.3 Port status 29
2 Assembly and start-up 31
2.1 Unpacking and checking 31
2.2 Installing the media modules 32
2.3 Filling out and attaching labels 32
2.4 Installing the SFP transceivers (optional) 33
2.5 Adjusting the DIP switch settings on the basic module (4-pin
DIP switch) 34
2.6 Adjusting the DIP switch settings on the MS20/MS30-...E...
basic module (3-pin DIP switch) 35
2.7 Adjusting the DIP switch settings on the
MM20-A8A89999SAHH media module 37
2.8 Connecting the MM22-T1T1T1T1 PoE media module 37
2.9 Terminal block for supply voltage and signal contact 39
2.9.1 Supply voltage 39
2.9.2 Signal contacts 39
Page 4
Installation MS20/MS30
Release 11 07/2013
4
2.10 Connecting the terminal blocks, start-up procedure 40
2.10.1 Terminal blocks on MS20/MS30-...A... and
MS20/MS30-...C... 40
2.10.2 Terminal block on MS20/MS30-...E... 41
2.10.3 Startup procedure 41
2.11 Installing the device on the DIN rail, grounding 42
2.11.1 Mounting on the DIN rail 42
2.11.2 Grounding 42
2.12 Connecting the data lines 43
2.12.1 10/100 Mbit/s twisted pair port 43
2.12.2 10/100 Mbit/s PoE/PSE port 43
2.12.3 10/100/1000 Mbit/s twisted pair port 44
2.12.4 100 Mbit/s F/O port 45
2.12.5 1000 Mbit/s F/O port 45
2.12.6 AUI port 45
2.13 Assembly of the MB20 extender module 47
2.14 Defining the meaning of the display LEDs 47
3 Basic set-up 48
4 Maintenance and service 50
5 Deinstallation 51
6 Technical data 52
A Further Support 75
Page 5
Installation MS20/MS30
Release 11 07/2013
5
Safety instructions
Certified usage
Only use the device for application cases that are described in the
Hirschmann product information, including this manual. Only operate the
device according to the technical specifications.
Supply voltage
For safety reasons the devices have been designed to operate at low
voltages. Thus, they may only be connected to the supply voltage
connections and to the signal contact with SELV circuits with the voltage
restrictions in accordance with IEC/EN 60950-1.
The supply voltage is electrically isolated from the housing.
Use undamaged parts.
Relevant for North America:
The device may only be connected to a Class 2 supply voltage that
fulfills the requirements of the National Electrical Code, Table 11(b). If
the voltage is being supplied redundantly (two different voltage
sources), the combined supply voltages must fulfill the requirements of
the National Electrical Code, Table 11(b).
Relevant for North America: For use in Class 2 circuits.
Only use copper wire/conductors of class 1, 75 °C (167 °F).
Relevant for North America for modules certified for Hazardous
Locations:
This equipment is suitable for use in Class 1, Division 2, Groups A, B,
C and D or Non-Hazardous (unclassified) locations only.
Make sure that peripheral devices are suitable for the application
environment. The wiring for the voltage supply and for the inputs and
outputs (I/O) must adhere to the wiring regulations for Class 1,
Division 2 [article 501(b) of the National Electrical Code (USA),
NFPA 70] and to the applicable statutory regulations.
Note: Observe the control drawing (document number
000160011DNR) on the following pages.
Relevant for Europe
for devices installed in explosive gas atmospheres according to ATEX
directive 94/9 EC:
Make sure that the device has the following label:
II 3G (... followed by additional specifications).
Note: Observe the control drawing (document number
000160011DNR) on the following pages.
Page 6
6
Installation MS20/MS30
Release 11 07/2013

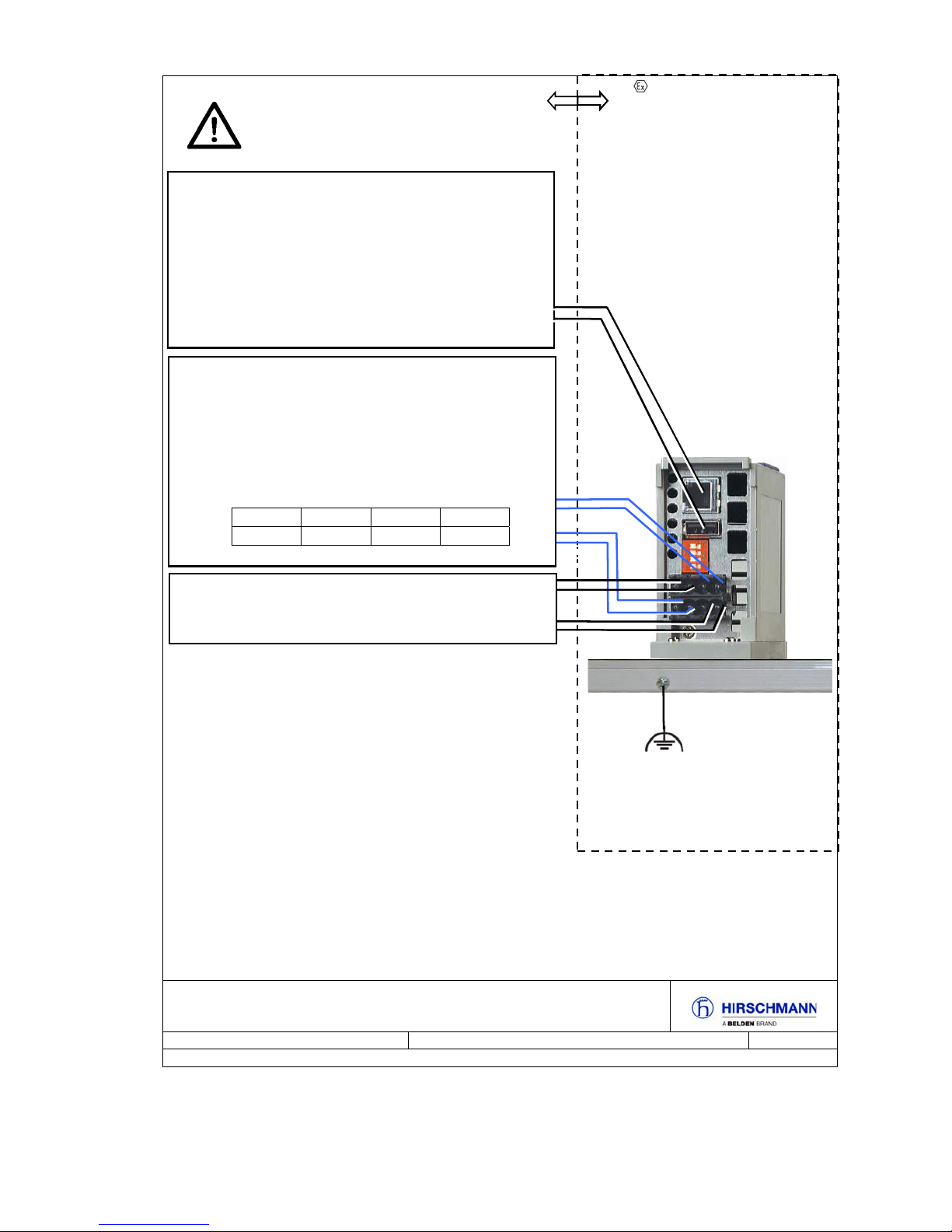

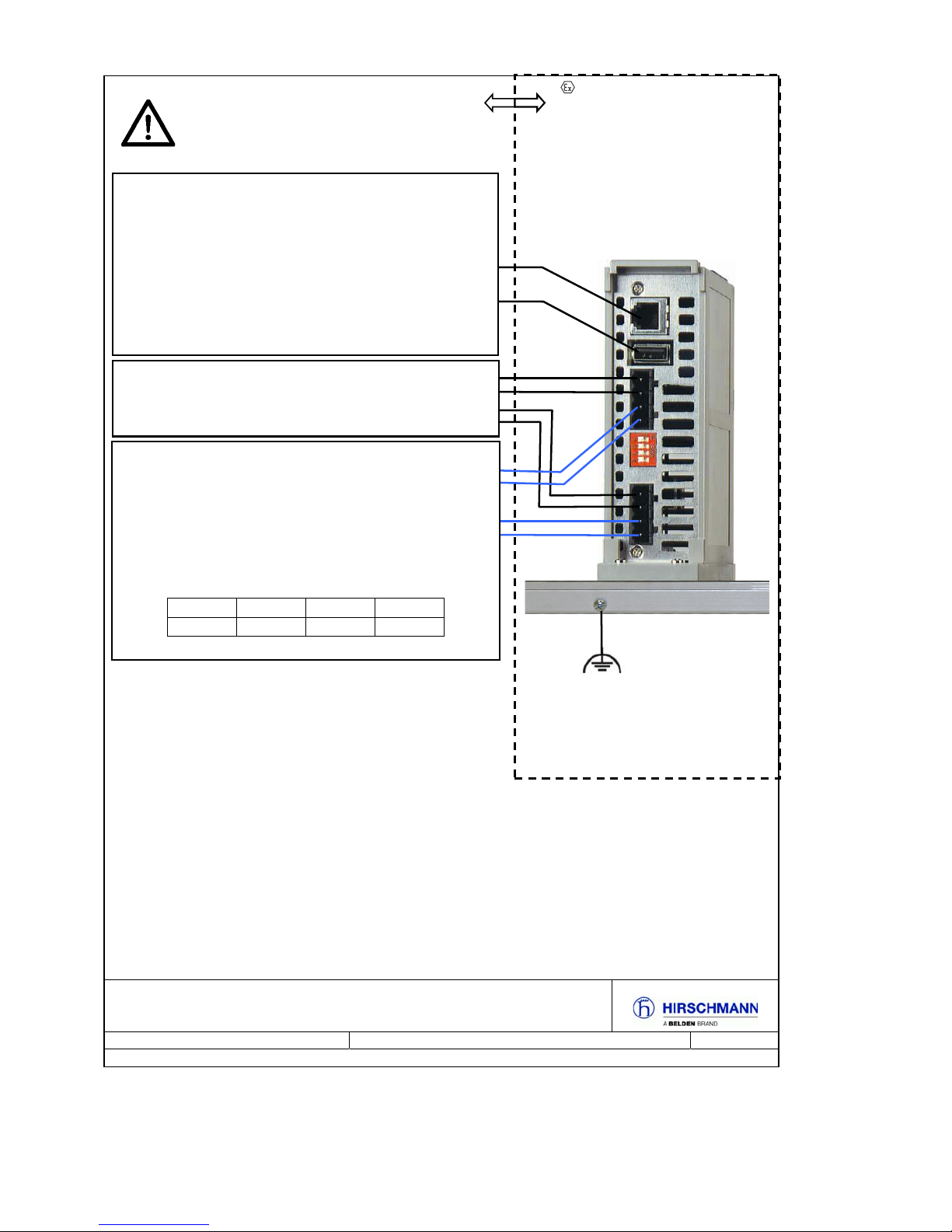

CONTROL DRAWING IRU,QGXVWULDO(7+(51(75DLO6ZLWFK06DQG06GHYLFHV
943-435-999 according to the directive 94/9/EC
or Class I Division 2 Hazardous Locations
Version: 2 Document No.: 000160011DNR Page 1/4
P1
P2
2UGLQDU\/RFDWLRQ
1RQ+D]DUGRXV$UHD
QRQH[SORVLYHDWPRVSKHUH
WARNING! The USB connection and the V.24
Interface connection are for temporary
connection only, for maintenance use. Do not
use, connect or disconnect unless the area is
known to be non-hazardous. Connection or
disconnection in an explosive atmosphere could
result in an explosion!
Relay
Rela
y
The earth conductor must be at
least the same wire size (mm²
or AWG) as the supply
conductors.
Power Supply range “C” (P1, P2 Redundant)
18 – 60 VDC;
4.0 – 1.2 A; max. 72 W
Relay contacts:
Equipment with nonincendive field wiring
parameters.
Polarity is not relevant.
THE RELAY TERMINALS ARE DEPENDENT
UPON THE FOLLOWING ENTITY
PARAMETERS:
1) 2
)
Temperature Code: T4
Ambient Temperature rating:
Ta: 0 °C to +60 °C for “S” types
Ta: -40 °C to +70 °C for “T” or “E” types
²UHIHUWRWKHW\SHGHVLJQDWLRQRQWKHGHYLFH
3RVLWLRQRIQRPHQFODWXUH´7HPSHUDWXUHUDQJHµ
MS20/30 switch basic module
with voltage range type “C”
=RQH([SORVLYH$WPRVSKHUH
RU&ODVV,'LYLVLRQ
*URXSV$%&'
+D]DUGRXV/RFDWLRQ
U
i
I
i
C
i
L
i
30 V 90 mA 2 nF 1 µH
Page 7
Installation MS20/MS30
Release 11 07/2013
7
CONTROL DRAWING IRU,QGXVWULDO(7+(51(75DLO6ZLWFK06DQG06GHYLFHV
943-435-999 according to the directive 94/9/EC
or Class I Division 2 Hazardous Locations
Version: 2 Document No.: 000160011DNR Page 2/4
WARNING! The USB connection and the V.24
Interface connection are for temporary
connection only, for maintenance use. Do not
use, connect or disconnect unless the area is
known to be non-hazardous. Connection or
disconnection in an explosive atmosphere could
result in an explosion!
Relay
Relay
P1
P2
Power Supply range “A” (P1, P2 Redundant)
18 – 32 VDC;
4.0 – 2.25 A; max. 72 W
Temperature Code: T4
Ambient Temperature rating:
Ta: 0°C to +60°C for “S” types
Ta: -40°C to +70°C for “T” or “E” types
²UHIHUWRWKHW\SHGHVLJQDWLRQRQWKHGHYLFH
3RVLWLRQRIQRPHQFODWXUH´7HPSHUDWXUHUDQJHµ
=RQH([SORVLYH
$WPRVSKHUH
RU&ODVV,'LYLVLRQ
*URXSV$%&'
+D]DUGRXV/RFDWLRQ
2UGLQDU\/RFDWLRQ
1RQ+D]DUGRXV$UHD
QRQH[SORVLYHDWPRVSKHUH
The earth conductor must be at
least the same wire size (mm²
or AWG) as the supply
conductors.
MS20/30 switch basic module
with voltage range type “A”
Relay contacts:
Equipment with nonincendive field wiring
parameters.
Polarity is not relevant.
THE RELAY TERMINALS ARE DEPENDENT
UPON THE FOLLOWING ENTITY
PARAMETERS:
1) 2
)
U
i
I
i
C
i
L
i
30 V 90 mA 2 nF 1 µH
Page 8
8
Installation MS20/MS30
Release 11 07/2013
For Use in explosive atmospheres under the European directive 94/9/EC:
Applied Standards: EN60079-0, 2009
EN60079-15, 2010
EN60079-11, 2012
7KH8VHLQ+D]DUGRXV/RFDWLRQVZLWKH[SORVLYHDWPRVSKHUHVLVRQO\DOORZHGIRU06RU06PRGHO
1RVZKLFKDUHLQGLYLGXDOO\ODEHOOHG
´,,*µDQG´([Q$LF,,&7*FµDQG´'(.5$$7(;;µIRU06[[GHYLFHV
´,,*µDQG´([Q$,,&7*FµDQG´'(.5$$7(;;µIRU0%GHYLFHV
6SHFLDOFRQGLWLRQVIRUVDIHXVH
7KHPRGXOHVVKDOOEHLQVWDOOHGLQDVXLWDEOHHQFORVXUHLQDFFRUGDQFHZLWK(1WDNLQJLQWR
DFFRXQWWKHHQYLURQPHQWDOFRQGLWLRQVXQGHUZKLFKWKHHTXLSPHQWZLOOEHXVHG
3URYLVLRQVVKDOOEHPDGHWRSUHYHQWWKHUDWHGYROWDJHIURPEHLQJH[FHHGHGE\WUDQVLHQW
GLVWXUEDQFHVRIPRUHWKDQ9
:KHQWKHWHPSHUDWXUHXQGHUUDWHGFRQGLWLRQVH[FHHGV&DWWKHFDEOHRUFRQGXLWHQWU\SRLQWRU
&DWWKHEUDQFKLQJSRLQWRIWKHFRQGXFWRUVWKHWHPSHUDWXUHVSHFLILFDWLRQRIWKHVHOHFWHGFDEOH
VKDOOEHLQFRPSOLDQFHZLWKWKHDFWXDOPHDVXUHGWHPSHUDWXUHYDOXHV
Note
1
):
The nonincendive field wiring circuit concept allows interconnection of nonincendive field
wiring apparatus and associated nonincendive field wiring apparatus using any of the wiring
methods permitted for unclassified locations when certain parametric conditions are met.
Capacity: C
0
Ci + C
Cable
; Inductivity: L0 Li + L
Cable
The maximum cable length has to be determined as follows:
(a) max. Cable Length < (L
0 -Li
) / Cable L
(“Cable
L
” denotes the inductance per unit length of used cable) and
(b) max. Cable Length < (C
0 -Ci
) / Cable
C
(“Cable C” denotes the capacitance per unit length of used cable).
The lower value of (a) and (b) is to apply.
Manufactured in 72654 Neckartenzlingen / Germany by Hirschmann Automation and Control GmbH.
DOM: ww/yyyy (Date of manufactur: w - week, y - year. Refer to the device label).
CONTROL DRAWING IRU,QGXVWULDO(7+(51(75DLO6ZLWFK06DQG06GHYLFHV
943-435-999 according to the directive 94/9/EC
or Class I Division 2 Hazardous Locations
Rev.: 2 Document No.: 000160011DNR Page 3/4
Page 9
Installation MS20/MS30
Release 11 07/2013
9
For Use in Hazardous Locations Class I Division 2 Groups A, B, C, D:
Applied standard: ANSI/ISA 12.12.01-2011.
2QO\DOORZHGIRU06RU06PRGHO1RVZKLFKDUHLQGLYLGXDOO\ODEHOOHG
´)2586(,1+$=$5'286/2&$7,216µ
1RQLQFHQGLYHILHOGZLULQJFLUFXLWVPXVWEHZLUHGLQDFFRUGDQFHZLWKWKH
1DWLRQDO(OHFWULFDO&RGH1(&1)3$DUWLFOH
WARNING – EXPLOSION HAZARD – SUBSTITUTION OF ANY COMPONENTS MAY
IMPAIR SUITABILITY FOR HAZARDOUS LOCATIONS OR EXPLOSIVE
ATMOSPHERES.
WARNING – EXPLOSION HAZARD – DO NOT DISCONNECT EQUIPMENT UNLESS
POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NONHAZARDOUS.
Use 60/75 or 75 °C copper (CU) wire only.
Only for connection to a Class 2 power supply.
Note
2
):
The nonincendive field wiring circuit concept allows interconnection of nonincendive field
wiring apparatus and associated nonincendive field wiring apparatus using any of the
wiring methods permitted for unclassified locations when certain parametric conditions are
met.
Capacity: C
a
Ci + C
Cable
; Inductivity: La Li + L
Cable
The maximum cable length has to be determined as follows:
(a) max. Cable Length < (L
a -Li
) / Cable L
(“Cable
L
” denotes the inductance per unit length of used cable) and
(b) max. Cable Length < (C
a -Ci
) / Cable
C
(“Cable C” denotes the capacitance per unit length of used cable).
The lower value of (a) and (b) is to apply.
Manufactured in 72654 Neckartenzlingen / Germany by Hirschmann Automation and Control
GmbH.
DOM: ww/yyyy (Date of manufactur: w - week, y - year. Refer to the device label).
CONTROL DRAWING IRU,QGXVWULDO(7+(51(75DLO6ZLWFK06DQG06GHYLFHV
943-435-999 according to the directive 94/9/EC
or Class I Division 2 Hazardous Locations
Rev.: 2 Document No.: 000160011DNR Page 4/4
Page 10
10
Installation MS20/MS30
Release 11 07/2013
Shielded ground
The shielded ground wire of the twisted pairs lines is connected to the
front panel as a conductor.
Beware of possible short circuits when connecting a cable section with
conductive shield braiding.
Housing
Only technicians authorized by the manufacturer are permitted to open
the housing.
The lower panel of the device is grounded by means of the DIN rail and
optionally by means of the separate ground screw.
The switch basic module is an inseparable unit. The switch basic
module may be damaged by detachment of the display and
connection part.
Verify that the electrical installation meets locally or nationally
applicable safety regulations.
Keep the ventilation slits free to ensure good air circulation.
Make sure there is at least 10 cm of space in front of the ventilation
slits of the housing.
The device has to be mounted in an upright position (see figure 18).
If you are operating the device in a living area or office environment,
only operate it in switch cabinets with fire protection characteristics in
accordance with EN 60950-1.
WARNING
ELECTRIC SHOCK
Never insert sharp objects (small screwdrivers, wires, etc.) into the inside of
the device.
Never insert sharp objects (small screwdrivers, wires, etc.) into the
connection terminals for the supply voltage or the signal contact, and do not
touch the terminals!
Failure to follow these instructions can result in death, serious injury,
or equipment damage.
CAUTION
OVERHEATING OF THE DEVICE
When installing the device, ensure that the ventilation slots are not covered.
Make sure there is at least 10 cm (3.94 in) of space.
Failure to follow these instructions can result in injury or equipment
damage.
Page 11
Installation MS20/MS30
Release 11 07/2013
11
Environment
Only operate the device at the specified ambient temperature
(temperature of the ambient air at a distance of up to 5 cm from the
device) and at the specified relative humidity.
See “General technical data” on page 52.
When you are selecting the installation location, make sure you
observe the climatic threshold values specified in the technical data.
Only to be used in an environment with the pollution degree specified
in the technical data.
Qualification requirements for personnel
Qualified personnel as understood in this manual and the warning signs,
are persons who are familiar with the setup, assembly, startup, and
operation of this product and are appropriately qualified for their job. This
includes, for example, those persons who have been:
trained or directed or authorized to switch on and off, to ground and to
label power circuits and devices or systems in accordance with current
safety engineering standards;
trained or directed in the care and use of appropriate safety equipment
in accordance with the current standards of safety engineering;
trained in providing first aid.
Page 12
12
Installation MS20/MS30
Release 11 07/2013
General safety instructions
This device is operated by electricity. You must follow precisely the
prescribed safety requirements for the voltage connections in this
document.
See “Supply voltage” on page 5.
Non-observance of these safety instructions can cause material damage
and/or injuries.
Only appropriately qualified personnel should work on this device or in
its vicinity. The personnel must be thoroughly familiar with all the
warnings and maintenance procedures outlined in this operating
manual.
The proper and safe operation of this device depends on proper
handling during transportation, proper storage and assembly, and
conscientious operation and maintenance procedures.
Never start operation with damaged components.
Only use the devices in accordance with this manual. In particular,
observe all warnings and safety-related information.
Any work that may be required on the electrical installation may only
be carried out by personnel trained for this purpose.
Note: LED or LASER components in compliance with IEC 60825-1
(2007):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT
Note: You will find additional warning information and security
instructions for the MICE media modules in the “Description and
Operating Instructions” supplied with every module.
National and international safety regulations
Make sure that the electrical installation meets local or nationally
applicable safety regulations.
CE marking
The labeled devices comply with the regulations contained in the following
European directive(s):
2011/65/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.
2004/108/EC (EMC)
Directive of the European Parliament and the council for standardizing the
regulations of member states with regard to electromagnetic
compatibility.
Page 13
Installation MS20/MS30
Release 11 07/2013
13
In accordance with the above-named EU directive(s), the EU conformity
declaration will be at the disposal of the relevant authorities at the
following address:
The product can be used in living areas (living area, place of business,
small business) and in industrial areas.
Interference immunity: EN 61000-6-2
Emitted interference: EN 55022
Warning! This is a class A device. This device can cause interference in
living areas, and in this case the operator may be required to take
appropriate measures.
Note: The assembly guidelines provided in these instructions must be
strictly adhered to in order to observe the EMC threshold values.
FCC note
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference; (2) this device must accept any interference received,
including interference that may cause undesired operation.
Appropriate testing has established that this device fulfills the
requirements of a class A digital device in line with part 15 of the FCC
regulations.
These requirements are designed to provide sufficient protection against
interference when the device is being used in a business environment.
The device creates and uses high frequencies and can also radiate high
frequencies, and if it is not installed and used in accordance with this
operating manual, it can cause radio transmission interference. The use
of this device in a living area can also cause interference, and in this case
the user is obliged to cover the costs of removing the interference.
Recycling note
After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.
About this Manual
The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.
Page 14
14
Installation MS20/MS30
Release 11 07/2013
The following manuals are available as PDF files on the CD/DVD supplied:
Installation user manual
Basic Configuration user manual
Redundancy Configuration user manual
Reference manual for the graphical user interface
Command Line Interface user manual
The Industrial HiVision Network Management Software provides you with
additional options for smooth configuration and monitoring:
Simultaneous configuration of multiple devices
Graphical user interface with network layout
Auto-topology discovery
Event log
Event handling
Client/server structure
Browser interface
ActiveX control for SCADA integration
SNMP/OPC gateway.
Legend
The symbols used in this manual have the following meanings:
Listing
Work step
Subheading
Page 15
Installation MS20/MS30
Release 11 07/2013
15
1 Description
1.1 General device description

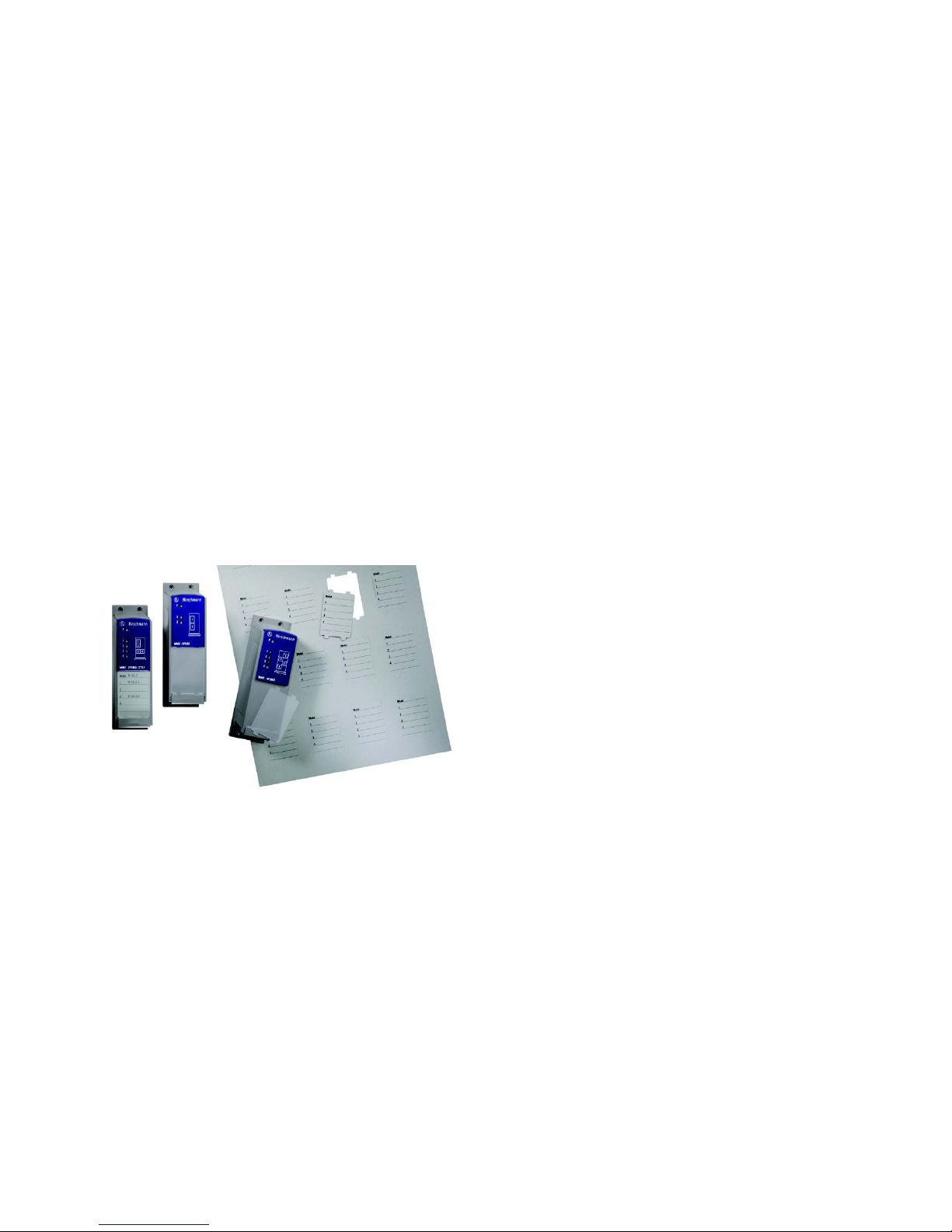

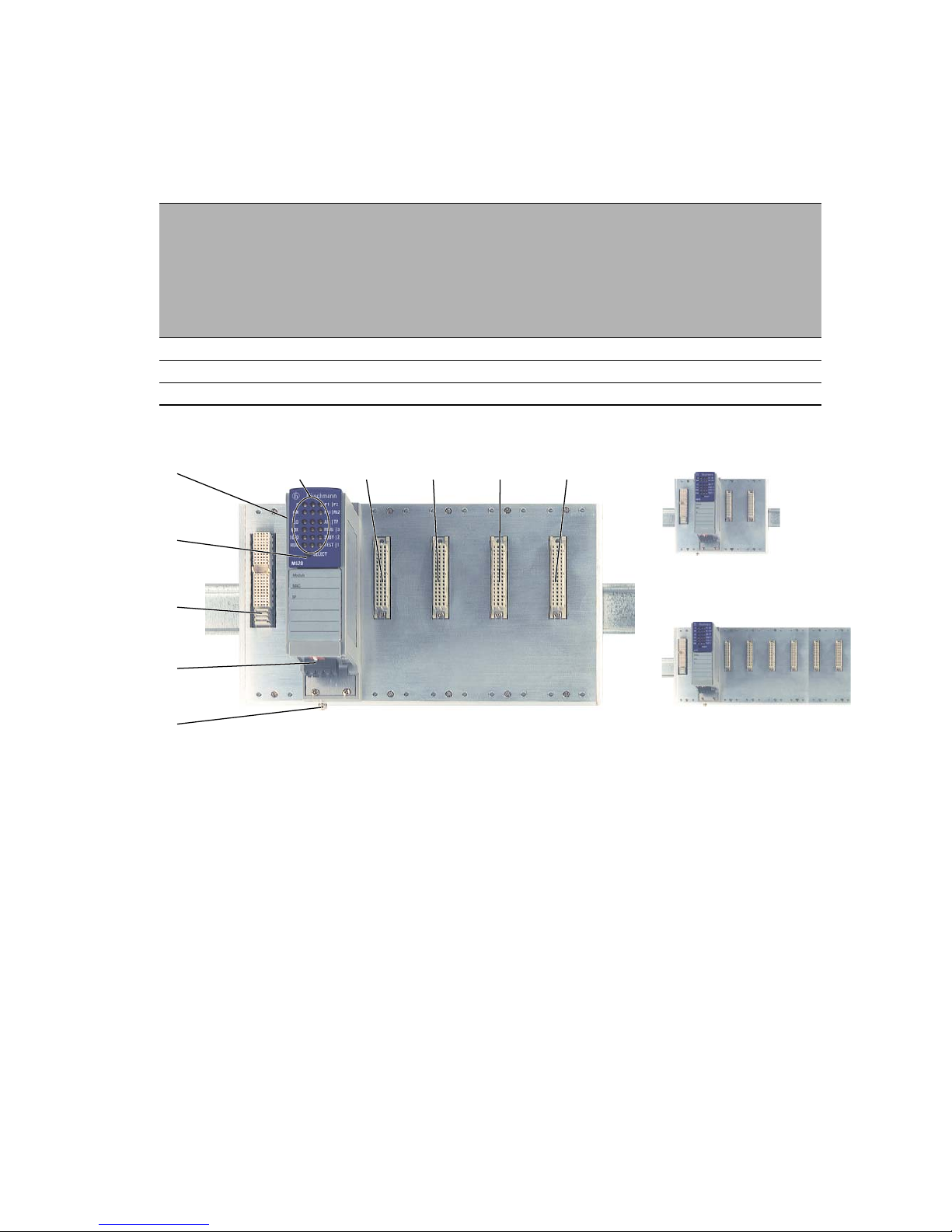

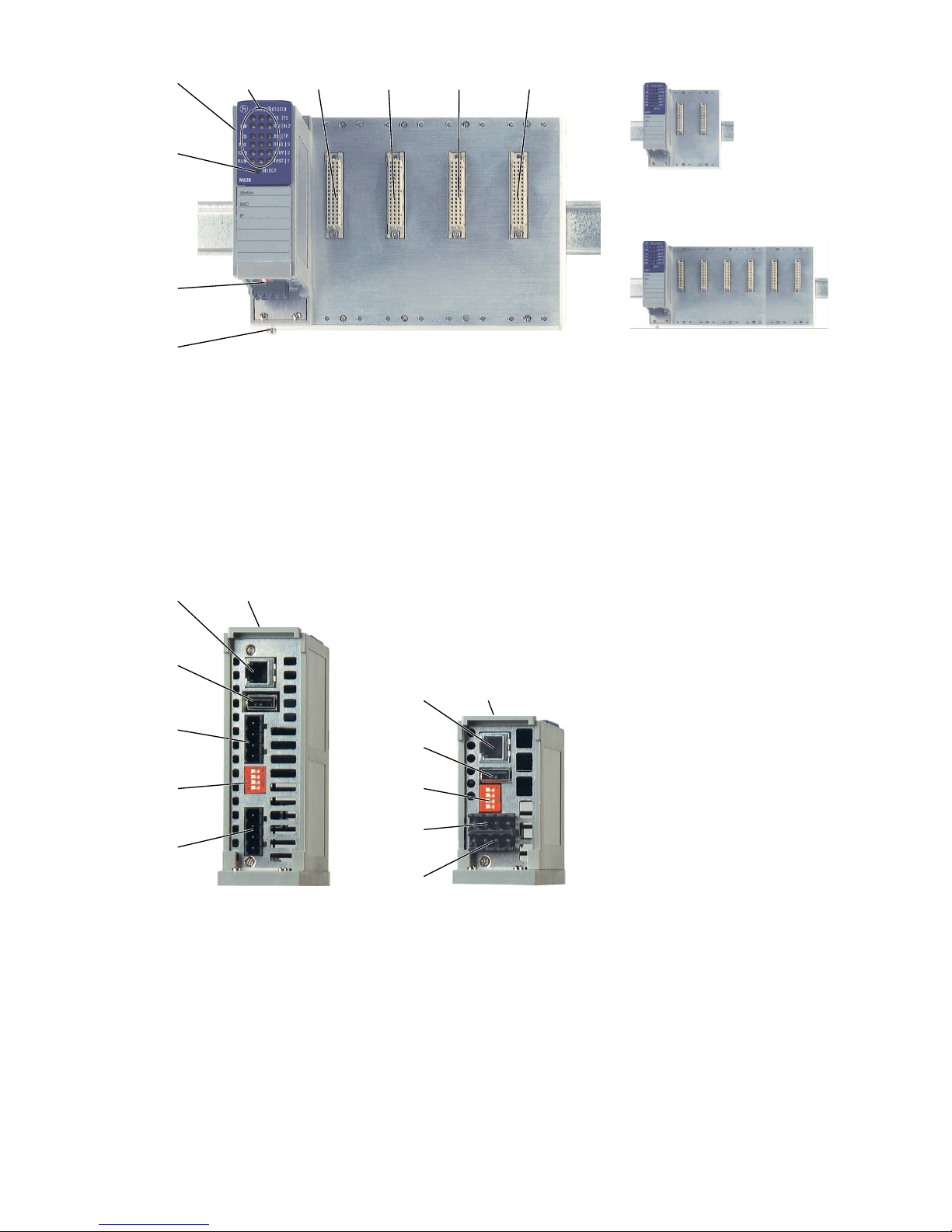

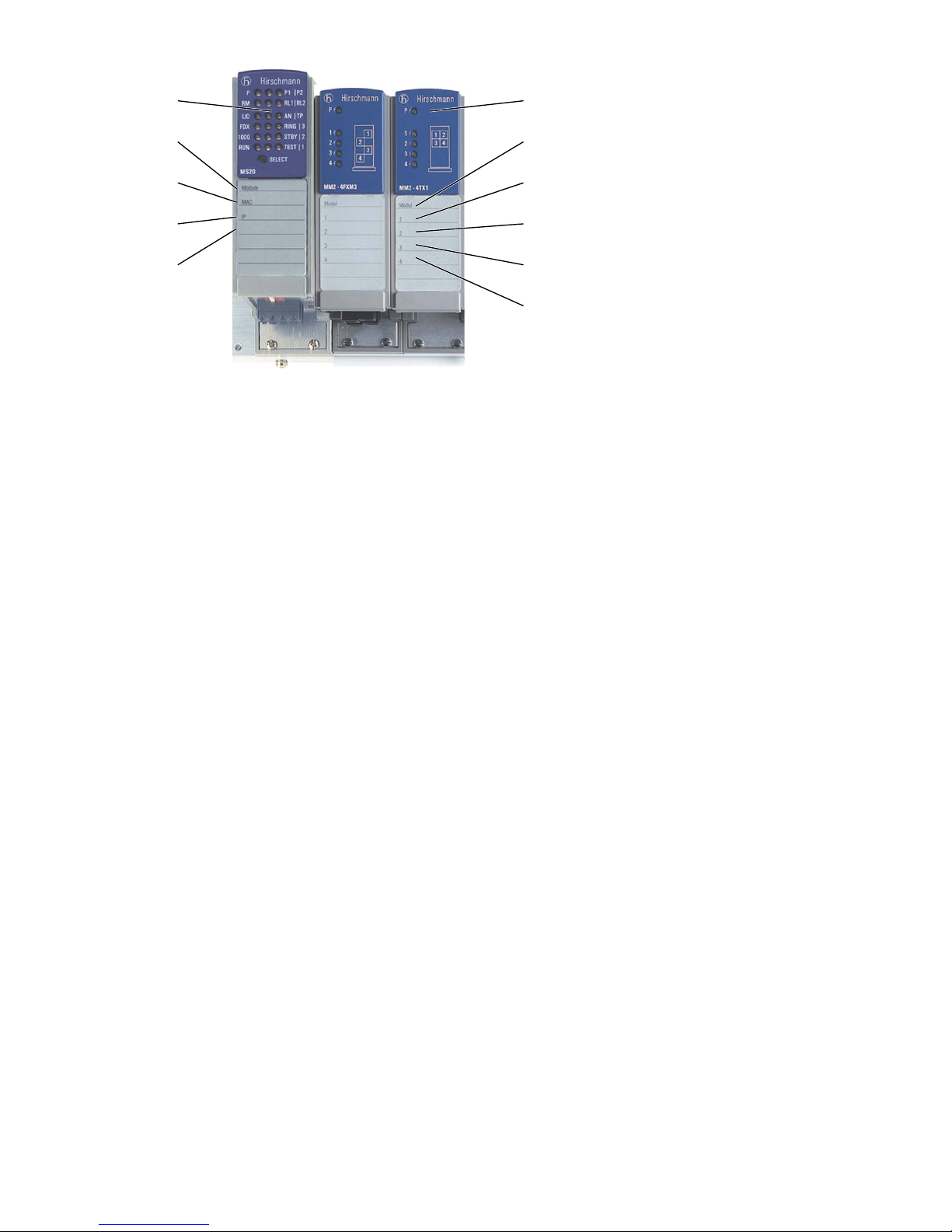

Figure 1: MICE basic module equipped with media modules
1 - basic module
2 - media module
3 - slot for media module
You can choose from between a wide range of variants. You have the option
to set up your device individually based on different criteria:
Number of ports
Transmission speed
Temperature range
Voltage range
Certifications
Software variant
The MS20/MS30 devices are designed for the special requirements of
industrial automation. They meet the relevant industry standards, provide
very high operational reliability, even under extreme conditions, and also
provide long-term reliability and flexibility.
The devices allow you to set up switched industrial Ethernet networks that
conform to the IEEE 802.3 standard.
The devices work without a fan.
The following installation options are available:

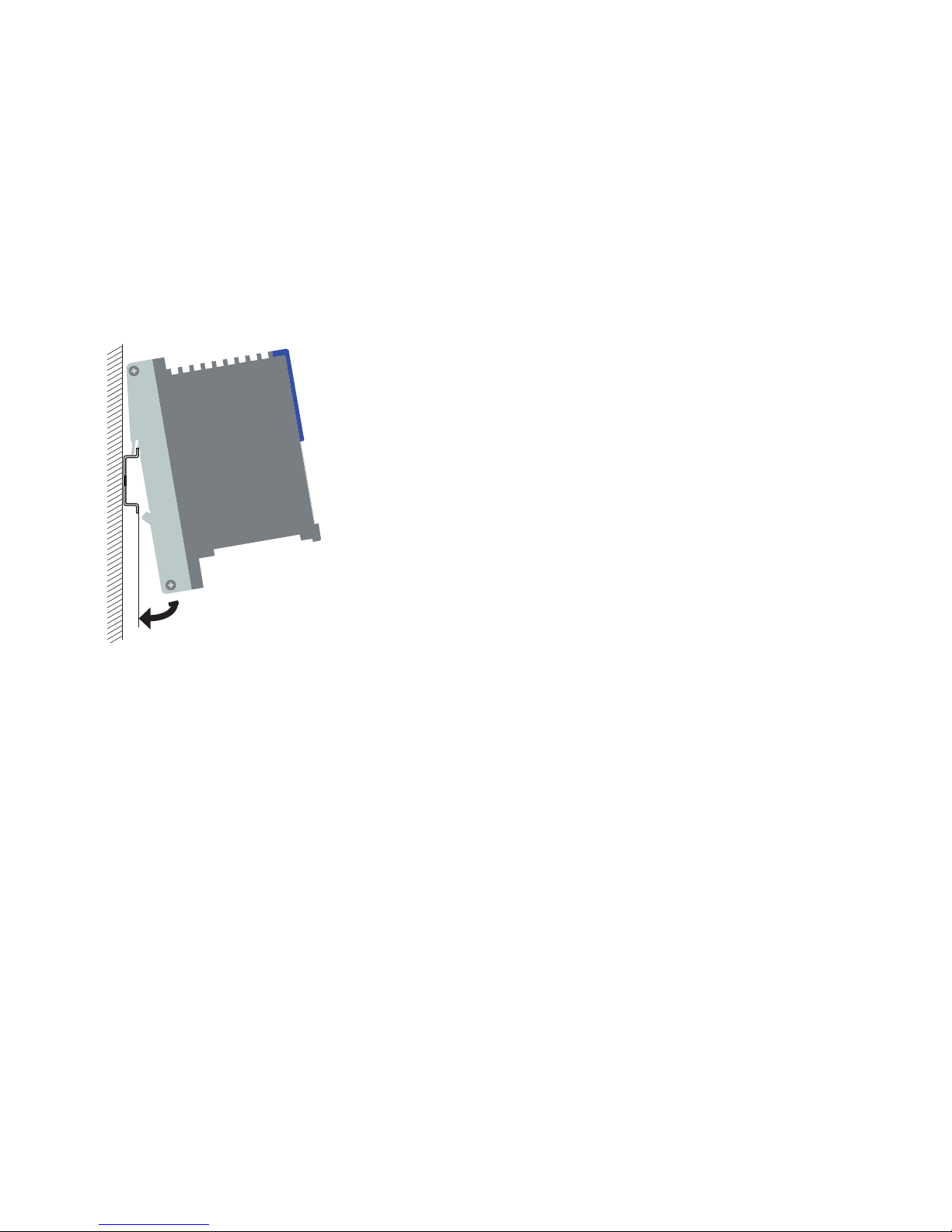

simply snapping them onto a DIN rail
The redundancy concept allows the network to be reconfigured quickly.
There are convenient options for managing the device. Administer your
devices via:
a Web browser
Telnet
12 34 1 2 3 4 5
MS20
MS30
1 1
2 2 2 2 2 2 2 23
Page 16
16
Installation MS20/MS30
Release 11 07/2013
management software (such as Industrial HiVision)

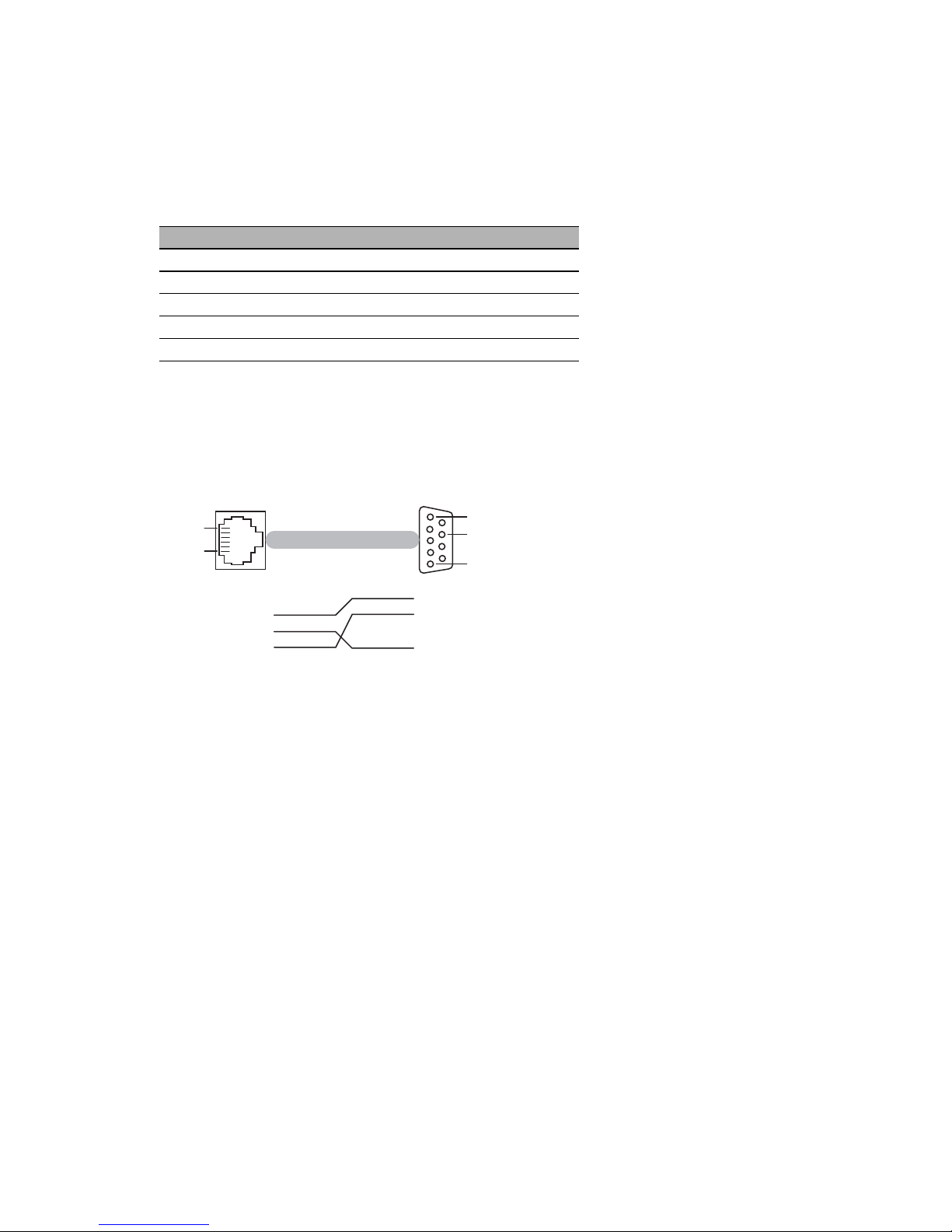

a V.24 interface (locally on the device)
The devices provide you with a large range of functions, which the manuals
for the operating software inform you about. You will find these manuals as
PDF files on the enclosed CD/DVD, or you can download them from the
Internet on the Hirschmann product pages (www.hirschmann.com).
The addition, to the MS20/MS30 MICE range, of the RS20/RS30 Open Rail
range of switches, the MACH range of backbone switches, the BAT wireless
transmission system, the EAGLE security system, and products for the LION
control room, provides continuous communication across all levels of the
company.
1.2 Device name and product code
The device name corresponds to the product code. The product code is
made up of characteristics with defined positions. The characteristic values
stand for specific product properties.
Position Attribute Ident. Feature
1 to 4 Product MS20 Modular Switch without gigabit ports
MS30 Modular Switch with gigabit ports
5 - (hyphen) 6 to 7 Number of 10/100 Mbit
ports
08 8 × 10/100 Mbit Ethernet
16 16 × 10/100 Mbit Ethernet
24 24 × 10/100 Mbit Ethernet
8 to 9 Number of 1000 Mbit
ports
00 0 × 1000 Mbit Ethernet
02 2 × 1000 Mbit Ethernet
10 Temperature range S Standard 0 °C ... +60 °C
T Extended −40 °C ... +70 °C
E Extended −40 °C ... +70 °C, Conformal Coating
11 Voltage range A 18 VDC ... 32 VDC
C 18 VDC ... 60 VDC
E 18 VDC ... 60 VDC / 6-pin
Table 1: Combination options of the MS20/MS30 device versions
Page 17
Installation MS20/MS30
Release 11 07/2013
17
1.3 Description of the device variants
The industrial ETHERNET series MICE (Modular Industrial Communication
Equipment) consists of a basic switch module and the media modules. These
devices can be managed. A basic module contains all the functions of this
industrial Switch, with the exception of the interfaces to the LAN that is
connected. Pluggable media modules provide these interfaces. They differ
with regard to the number of interfaces and the media type for connecting
segments. An expansion module enables you to add 2 slots for media
modules to the basic module.
12 Specifications A CE, UL 508, ISA 12.12.01 Class I Division 2
B CE, UL 508, ISA 12.12.01 Class I Division 2, GL,
ATEX 100a Zone 2
E CE, UL 508, GL, EN 50121-4
H CE, UL 508, ISA 12.12.01 Class I Division 2, GL,
IEC 61850-3, IEEE 1613,EN 50121-4
S CE, UL 508, GL, IEC 61850-3, IEEE 1613,
EN 50121-4
Y CE, UL 508
ZCE
13 Software variant E Enhanced
P Professional
Product code Product features
Modular switch with gigabit ports
8 × 100 Mbit Ethernet ports
2 × 1000 Mbit Ethernet ports
Temperature range standard (0 °C to 60 °C)
Voltage range 18 VDC to 32 VDC
Specifications CE, UL 508, ISA 12.12.01 Class I
Division 2
Software version enhanced
Table 2: Example for product code: MS30-0802SAAE
Position Attribute Ident. Feature
Table 1: Combination options of the MS20/MS30 device versions
MS30- 08 02 S A A E
MS30- =
08 =
02 =
S =
A =
A =
E =
Page 18
18
Installation MS20/MS30
Release 11 07/2013
For the sake of simplicity, the basic switch module with various plugged in
media modules will be referred to as MICE in this document.
The MS20-... device variants are modular switches with up to 8, 16 or
24 * 10/100 Mbit/s Ethernet ports. You can choose the media for the ports
via the media modules.
The MS30-... device variants are modular switches with up to 8, 16 or
24 * 10/100 Mbit/s Ethernet ports and up to 2 additional Gigabit ports
(1000 Mbit/s Ethernet). You can choose the media for the ports via the
media modules.
The basic module of the MS20/MS30 contains all the function units, such as:
switch function, management function, redundancy function, display control,
voltage connection, management connection, adjustable controls, slots for
media modules.
1.3.1 Number of ports and connections
Device versions with 10/100 Mbit/s ports
MS20-0800..., MS20-1600..., MS20-2400...
Depending on the variant, the MS20 basic modules provide you with the
following number of slots for media modules and the following maximum
number of connectable network segments:
Family Designed for
MS20 Larger numbers of ports, number of 100 Mbit ports desired, temperature range,
voltage range, certificates and software variant can be selected.
MS30 Larger numbers of ports and larger bandwidth requirement,
number of 100/1000 Mbit ports desired, temperature range, voltage range,
certificates and software variant can be selected.
Basic module Number of slots for
10/100 Mbit/s media
modules
Max. possible number of connectible
10/100 Mbit/s network segments when
connecting 4-port media modules
MS20-0800... 2 8
MS20-1600... 4 16
a
a. Can be expanded to 24 ports with the MB20 extender module
MS20-2400... 6 24
Page 19
Installation MS20/MS30
Release 11 07/2013
19

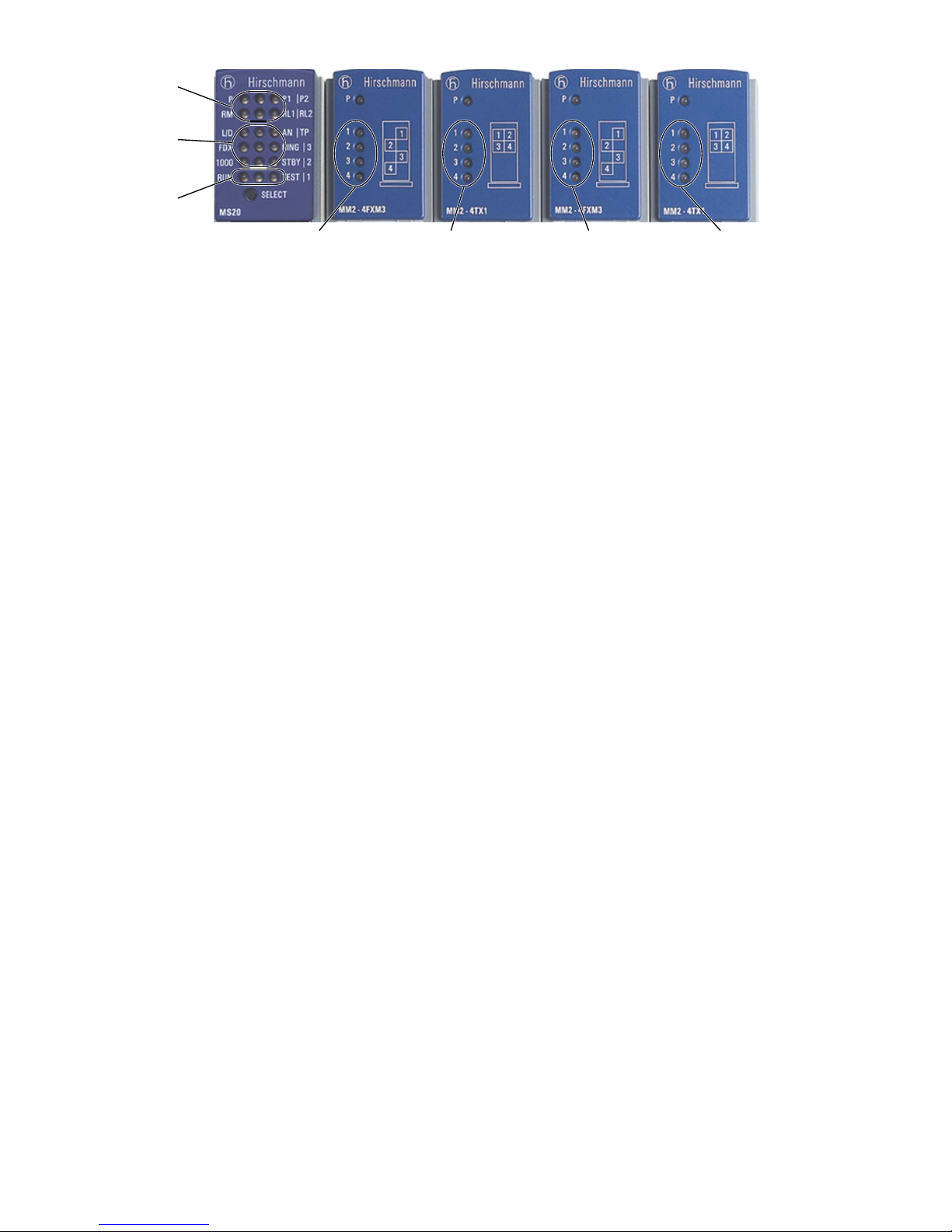

Figure 2: Overview interfaces, display elements and controls of the MS20 -...
1 - Grounding screw
2 - Terminal block, V.24 port, USB port, DIP switch
3 - Key for display status
4 - Switch basic module MS20-...
5 - LEDs for device status, display status
6 - 4 slots for media modules MM2-... or MM3-... with 2-4 ports each

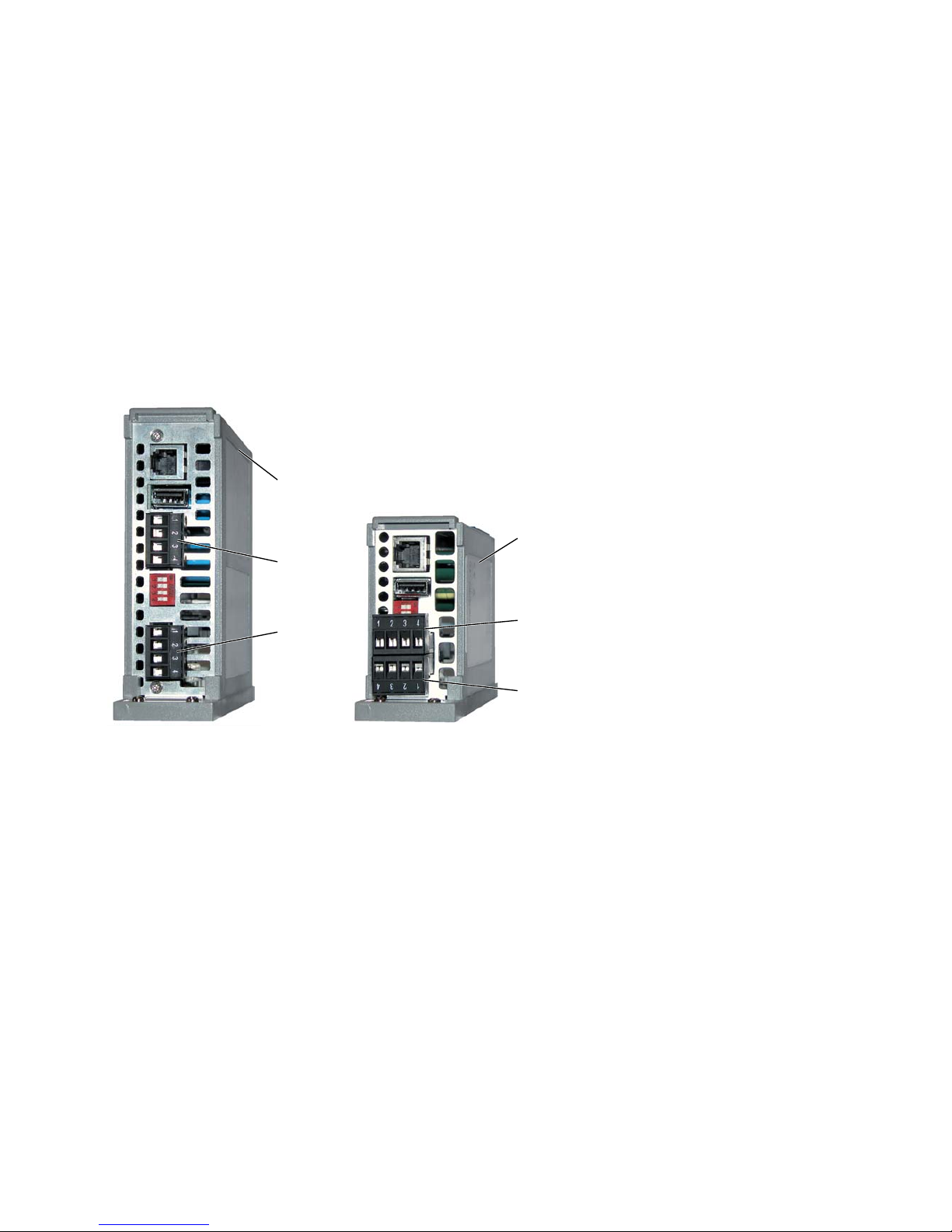

Figure 3: Interfaces of the MS20-... and MS30-... on the bottom of the device
1 - Terminal block (power 2)
2 - DIP switch
3 - Terminal block (power 1)
4 - USB port
5 - V.24 port
6 - MICE MS20/30 switch basic module with 18 to 60 VDC voltage range
7 - Terminal block (power 2)
MS20-1600...
MS20-2400...
MS20-0800...
4
6 6 6 6
3
2
1
5
4
6
3
2
1
5
10
12
9
8
7
11
Page 20
20
Installation MS20/MS30
Release 11 07/2013
8 - Terminal block (power 1)
9 - DIP switch
10 - USB port
11 - V.24 port
12 - MICE MS20/30 switch basic module with 18 to 32 VDC voltage range

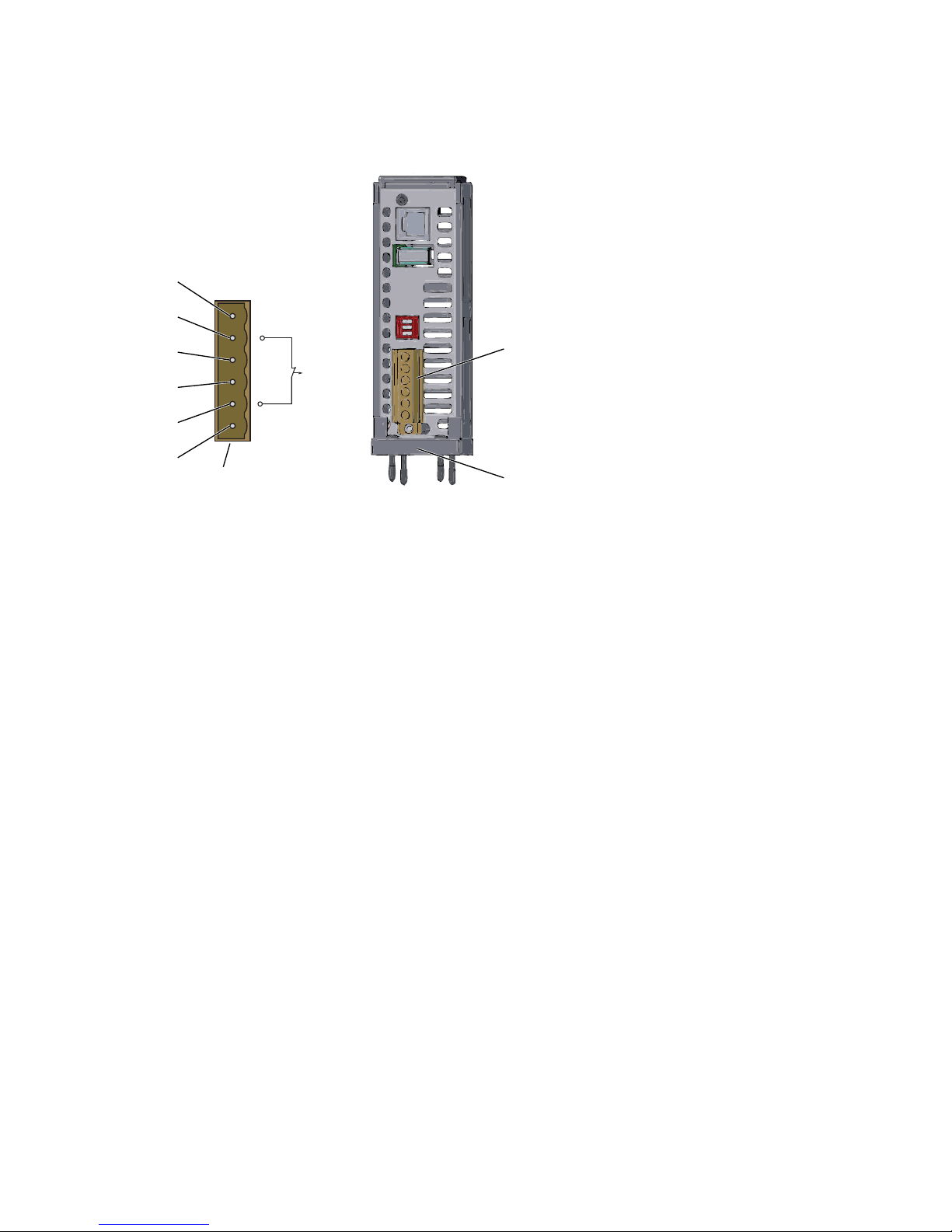

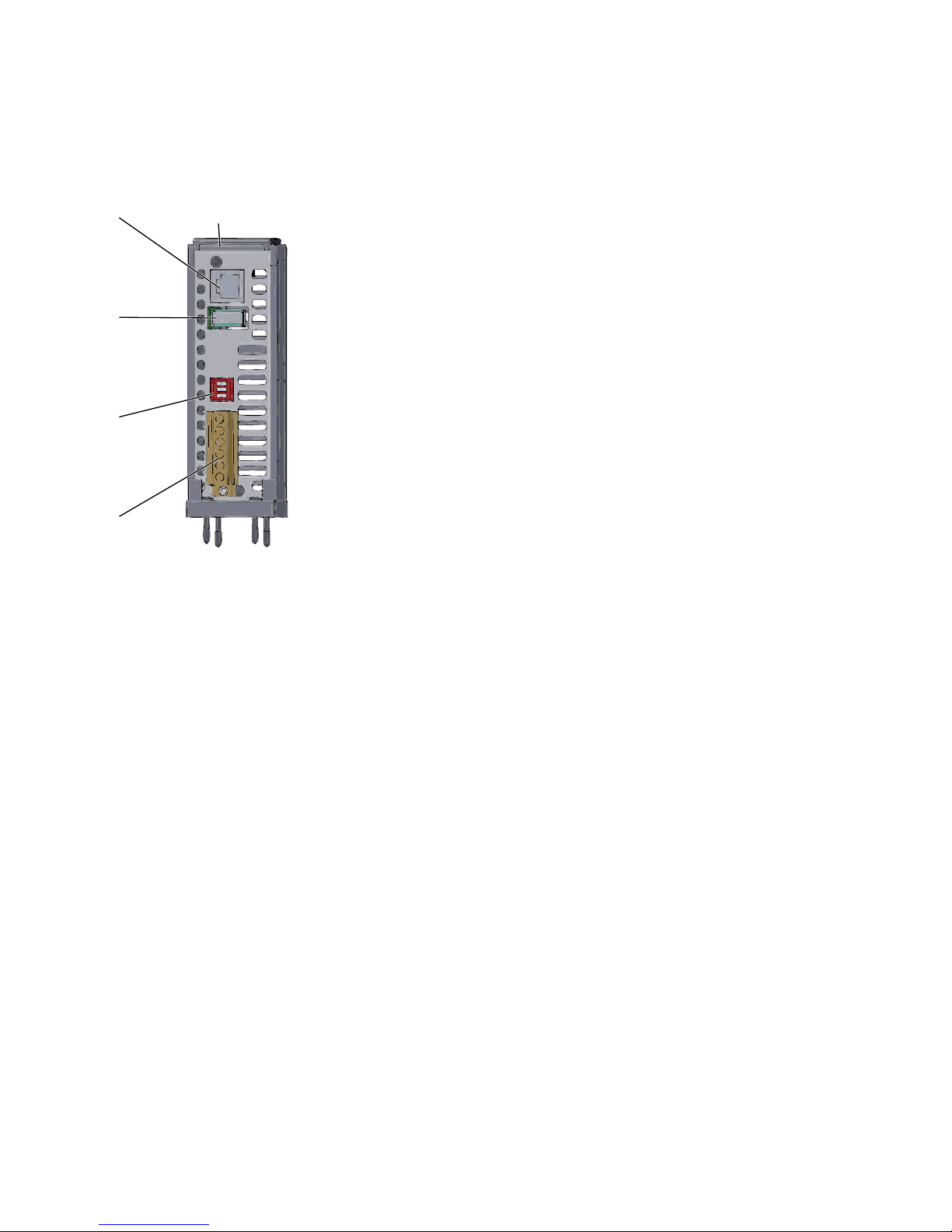

Figure 4: Connections of the MS20-.../MS30-...E on the bottom of the device
1 - Terminal block 6-pin for power and signal contact
2 - DIP switch
3 - USB port
4 - V.24 port
5 - MICE MS20/30-...E... switch basic module with 18 to 60 VDC
voltage range / 6-pin
4
3
2
1
5
Page 21
Installation MS20/MS30
Release 11 07/2013
21
Device variants with 1000 Mbit/s and 10/100 Mbit/s ports
MS30-0802..., MS30-1602..., MS30-2402...
Depending on the variant, the MS30 basic modules provide you with the
following number of slots for media modules and the following maximum
number of connectable network segments:
Figure 5: Overview of interfaces, display and operating elements on the MS30
1 - Grounding screw
2 - Terminal block, V.24 port, USB port, DIP switch
3 - Slot for SFP module MM4-TX/SFP
4 - Key for display status
5 - Switch basic module MS30-...
6 - LEDs device status, display status
7 - 4 slots for media modules MM2-... or MM3-... with 2 to 4 ports each
The figure 3 shows the connections on the bottom side of the MS30.
1.3.2 Media modules
The MICE media modules form the interface of the device to the LAN. They
can be attached in the
Basic module MS20-...
Basic module MS30-...
Basic module Number of
slots for
10/100
Mbit/S
media
modules
Number of
slots for
1000
Mbit/S
media
modules
Max. possible
number of
connectable 10/100
Mbit/S network
segments when
connecting 4-port
media modules
Max. possible number
of connectable 1000
Mbit/s network
segments
MS30-0802... 2 1 8 2
MS30-1602... 4 1 16
a
a. Can be expanded to 24 ports with the MB2-T expansion module
2
MS30-2402... 6 1 24 2
MS30-2400...
MS30-0800...
MS30-1600...
5
7 7 7 7
4
2
1
6
3
Page 22
22
Installation MS20/MS30
Release 11 07/2013
They differ with regard to the number of interfaces and the media type. The
different interfaces of the media modules provide you with the following
interface-specific functions:
Specific functions of TP/TX interface
Link Control
Auto Polarity Exchange
Autonegotiation
Autocrossing (device may be connected with a crossed-over or an un-
crossed cable)
Specific functions of F/O interface
Link Down monitoring
Transceiver-specific (AUI-specific) functions
Collision recognition
Collision test (SQE)
Protection from permanent network connection (Jabber Control)
DTE Power Monitor
MM2 media modules
MM2 media modules
Module type
TP ports
10/100
Mbit/s
F/O port
multi-mode
10 Mbit/s
F/O port
multi-mode
100 Mbit/s
F/O port
singlemode 1300
nm, 100
Mbit/s
F/O port
singlemode 1550
nm, 100
Mbit/s
MM2 - 4TX1 (- EEC)4, RJ45––––
MM2 - 2FLM4 – 2, ST – – –
MM2 - 4FXM3 – – 4, MTRJ – –
MM2 - 2FXM3 / 2TX1 2, RJ45 – 2, MTRJ – –
MM2 - 2FXM2 – – 2, DSC – –
MM2 - 2FXS2 – – – 2, DSC –
Table 3: Media connections per MM2 media modules (number and type)
Page 23
Installation MS20/MS30
Release 11 07/2013
23
Figure 6: Port assignment
1 - Port 1
2 - Port 2
3 - Port 3
4 - Port 4
5 - Illustration of the port numbers
6 - Bottom side of the device
MM3 media modules
MM3 media modules
Module type
TP ports
10/100
Mbit/s
F/O port
multi-mode
10 Mbit/s
F/O port
multi-mode
100 Mbit/s
F/O port
singlemode 1300
nm, 100
Mbit/s
F/O port
singlemode 1550
nm, 100
Mbit/s
MM3-4TX5 4, M12 – – – –
MM3-4FLM4 – 4, ST – – –
MM3-1FXM2/3TX1 3, RJ45 – 1, DSC – –
MM3-2FXM2/2TX1(-EEC) 2, RJ45 – 2, DSC – –
MM3-2FXM4/2TX1 2, RJ45 – 2, ST – –
MM3-4FXM2 – – 4, DSC – –
MM3-4FXM4 – – 4, ST – –
MM3-1FXS2/3TX1(-EEC) 3, RJ45 – – 1, DSC –
MM3-2FXS2/2TX1 2, RJ45 – – 2, DSC –
MM3-4FXS2 – – – 4, DSC –
MM3-1FXL2/3TX1 3, RJ45 – – – 1, DSC
Table 4: Media connections per MM3 media modules (number and type)
2
5
6
4
1
3
6
Page 24
24
Installation MS20/MS30
Release 11 07/2013
Figure 7: Port assignment
1 - Port 1
2 - Port 2
3 - Port 3
4 - Port 4
5 - Illustration of the port numbers
6 - Bottom side of the device
MM22-T1T1T1T1 PoE media module
The MM22-T1T1T1T1 PoE media module (deeper module design)
supports Power over ETHERNET (PoE) according to IEEE 802.3af. It
allows the connection and remote supply of IP telephones (Voice over IP),
webcams, sensors, printer servers and WLAN access points via 10BASET/100BASE-TX, for example. With PoE, these terminal devices are
powered by the twisted-pair cable.
The MM22-T1T1T1T1 media module has four 10BASE-T/100BASE-TX
ports (RJ45 connections) for connecting network segments or PoE
terminal devices (PD, Powered Device) up to class 0 (or respectively
class 3).
The current is supplied on the free line pair (spare pairs); the individual
ports are not electrically insulated from each other.
The following conditions are met in accordance with IEEE 802.3af:
Endpoint PSE
Alternative B.
MM4 media modules
The 4-port MM4-4TX/SFP media module has 4 TP interfaces and 4
sockets for SFP transceivers from Hirschmann.
The 2-port MM4-2TX/SFP media module has 2 TP interfaces and 2
sockets for SFP transceivers from Hirschmann.
2
5
6
4
1
3
6
Page 25
Installation MS20/MS30
Release 11 07/2013
25
The Gigabit slot of the MS30 (slot on the left side next to the switch basic
module) supports two Gigabit ports.
When you are using an SFP transceiver, you get an optical interface. You
thus deactivate the corresponding TP interface.
Note: Only use Hirschmann SFP transceivers.
See “Media modules: power, temperature, order numbers” on page 63.

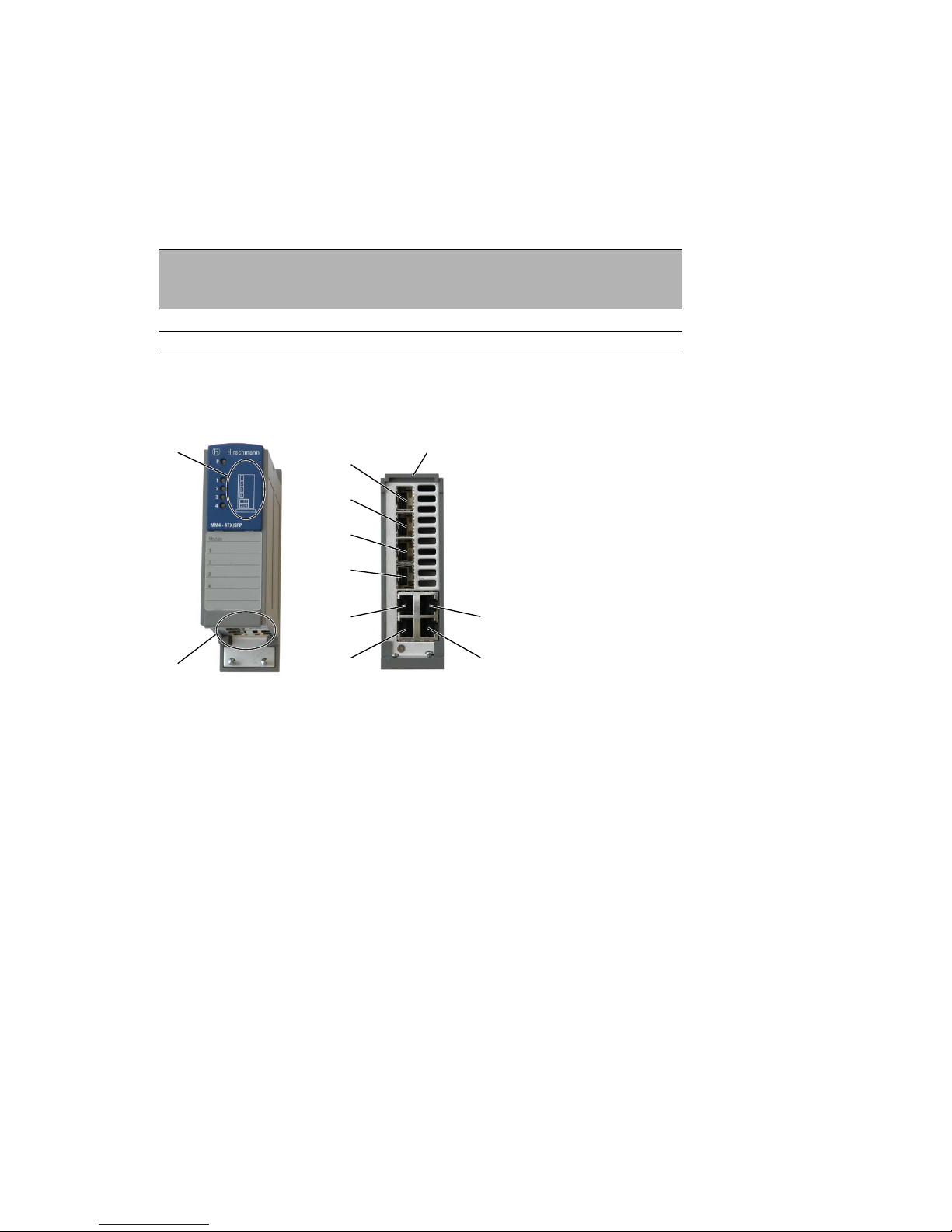

Figure 8: Port assignment
1 - Port 1 (twisted pair)
2 - Port 2 (twisted pair)
3 - Port 3 (twisted pair)
4 - Port 4 (twisted pair)
1* - Port 1* (SFP slot, can be used as alternative to port 1)
2* - Port 2* (SFP slot, can be used as alternative to port 2)
3* - Port 3* (SFP slot, can be used as alternative to port 3)
4* - Port 4* (SFP slot, can be used as alternative to port 4)
5 - Representation of port numbers
6 - Bottom of device
1.3.3 Digital I/O Module MM24
The Digital I/O Module MM24 allows the control of different actuators of the
system via 4 digital inputs and outputs.
For further information, see the user manual MICE digital I/O module MM24.
MM4 media modules
Module type
TP ports
10/100/1000
SFP ports
as alternatives to TP
ports
MM4 - 2TX/SFP 2, RJ45 2
MM4 - 4TX/SFP 4, RJ45 4
Table 5: Media connections per MM4 media module (number and type)
1*
5
6
3*
2*
4*
6
1
2
3
4
Page 26
26
Installation MS20/MS30
Release 11 07/2013
1.3.4 MB20 extender module
The MB20 extender module allows you to add 2 slots for media modules to
the MS20-1600/MS30-1602 basic modules.
Figure 9: MB20 extender module

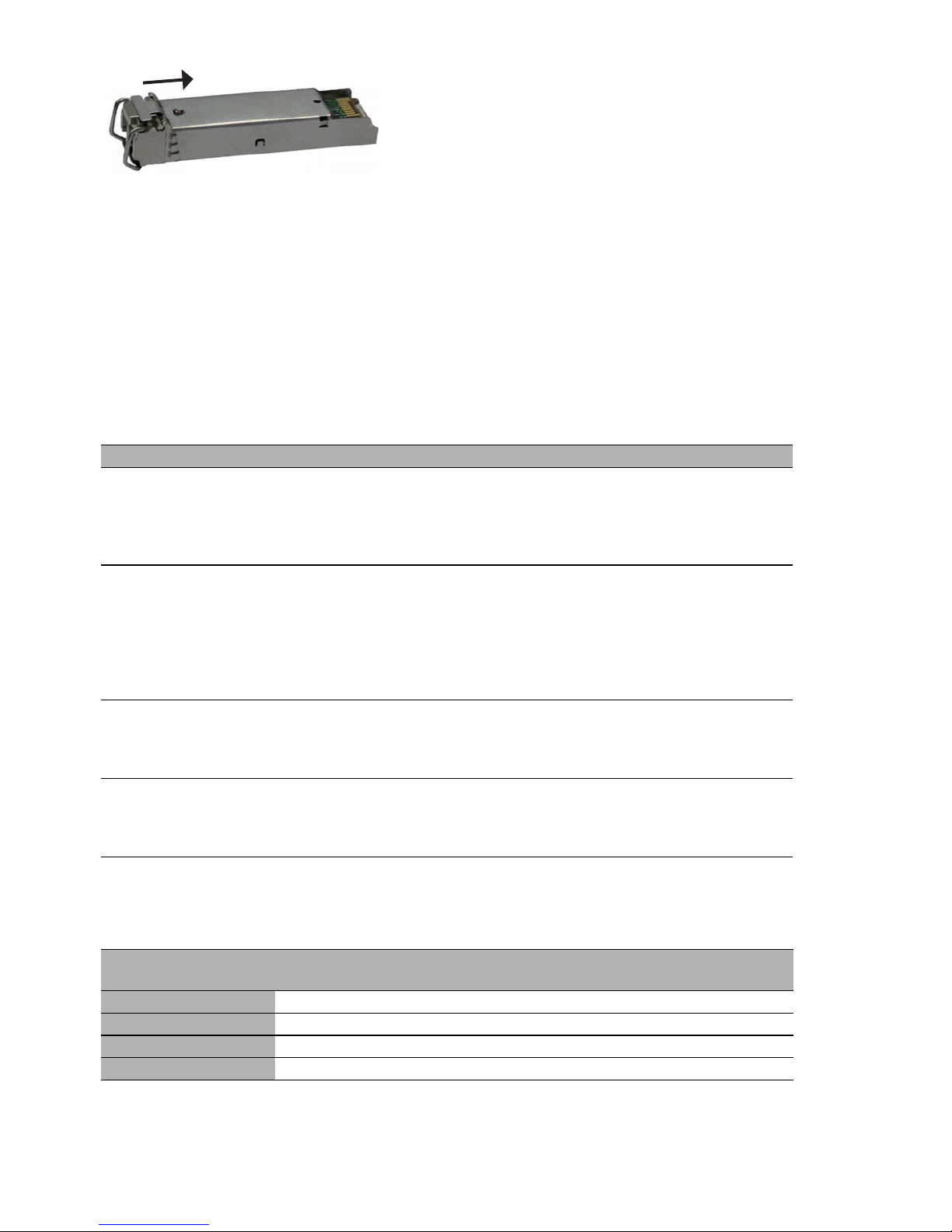

1.3.5 SFP Transceiver
With the insertion of the SFP transceivers into the SFP slots, F/O ports are
available to you.
SFP transceivers allow you to use optical interfaces on your device (Fast
Ethernet and Gigabit Ethernet SFP transceivers).
See “Accessories” on page 66.
SFP stands for Small Form-factor Pluggable and is also referred to as miniGBIC (GigaBit Interface Converter).
The Fast Ethernet media module MM20-Z6Z6Z6Z6 has 4 SFP slots (100
Mbit/s).
The Gigabit Ethernet media modules MM4-4TX/SFP and MM4-2TX/SFP
have 4 or 2 TP interfaces and 4 or 2 slots (1000 Mbit/s).
By inserting the SFP transceivers, you deactivate the corresponding TP
interface.
1.4 Display elements
After establishing the operating voltage, the software starts and initializes
itself. Afterwards, the device performs a self-test. During this process,
various LEDs light up. The process lasts around 60 seconds.
Page 27
Installation MS20/MS30
Release 11 07/2013
27

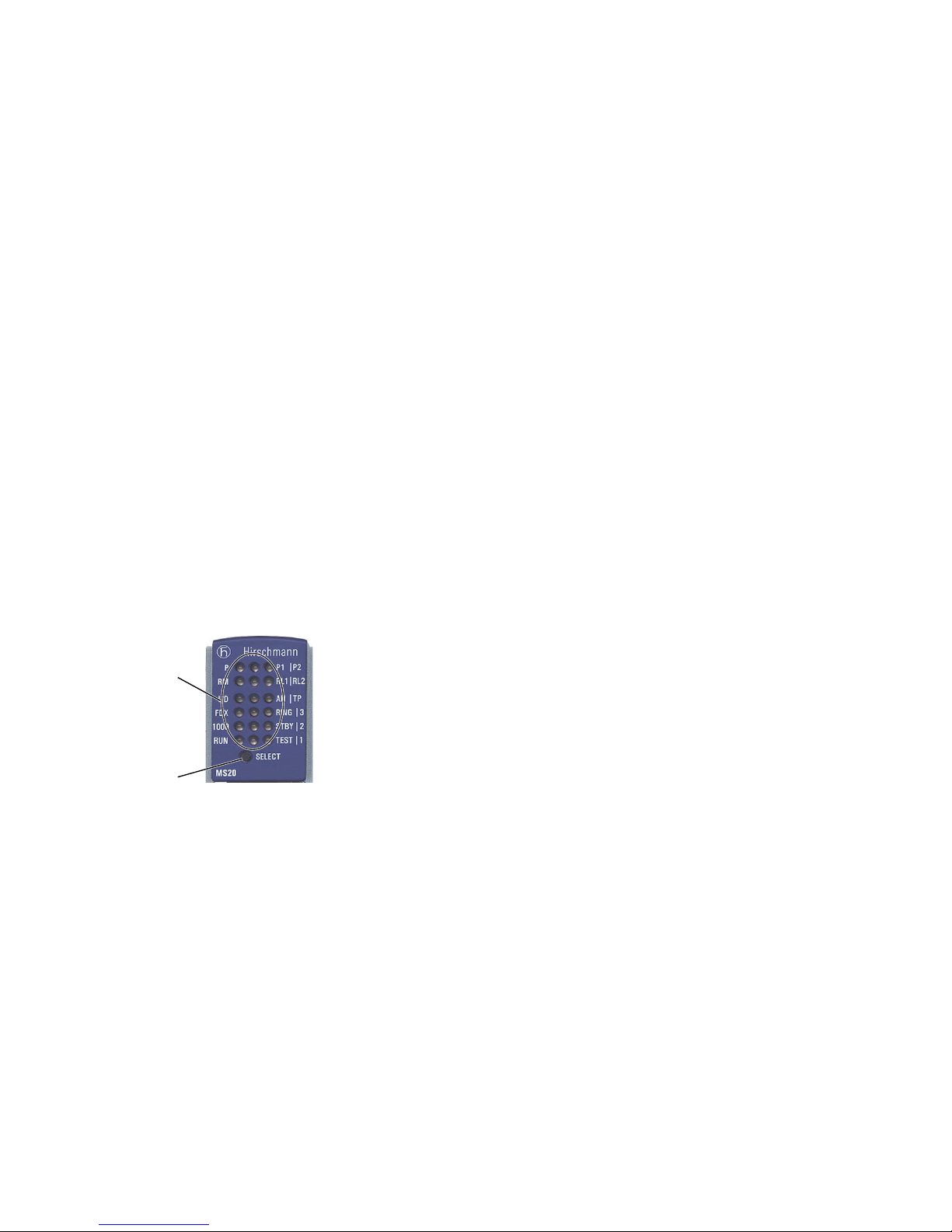

Figure 10: Display elements on MS20/MS30
1 - Device status
2 - Display status
3 - Port status
1
1
2
3 33 3
Page 28
28
Installation MS20/MS30
Release 11 07/2013
1.4.1 Device status
These LEDs provide information about conditions which affect the operation
of the whole device.
If the manual adjustment is active on the signal contact, then the error display
is independent of the setting of the signal contact.
P – Power (green LED)
Glowing green Internal supply voltage present.
Not glowing Internal supply voltage is too low.
P1 – Power 1 (green LED)
Glowing green Supply voltage 1 is present.
Not glowing Supply voltage 1 is less than 18 V.
P2 – Power 2 (green LED)
Glowing green Supply voltage 2 is present.
Not glowing Supply voltage 2 is less than 18 V.
RM – Redundancy Manager (green/yellow LED)
Glowing green RM function activeredundant port disabled.
Glowing yellow RM function active, redundant port enabled.
Not glowing RM function not enabled.
Flashing green Incorrect configuration of the HIPER-Ring (e.g. the ring is not
connected to the ring port).
RUN – BOOT/RUN (green LED)
Glowing green System is ready for operation.
Flashing green System is booting.
Not glowing System is in reset mode.
RL1 – Relay 1, signal contact (red/yellow LED)
Glowing red Signal contact 1 is open, i.e. it is reporting an error.
Glowing yellow Signal contact 1 is open, the "Manual Setting" is active.
Not glowing Signal contact 1 is closed, i.e. it is not reporting an error.
RL2 – Relay 2, signal contact (red/yellow LED)
Glowing red Signal contact 2 is open, i.e. it is reporting an error.
Glowing yellow Signal contact 2 is open, the "Manual Setting" is active.
Not glowing Signal contact 2 is closed, i.e. it is not reporting an error.
RUN, 1 – display saving processes of the AutoConfiguration Adapter (ACA)
Flashing alternately Error during saving process.
LED's flash synchronously
2× a second
Loading configuration from the ACA.
LED's flash synchronously
1× a second
Saving the configuration in the ACA.
Page 29
Installation MS20/MS30
Release 11 07/2013
29
1.4.2 Display status
Every media module has one LED per port. The meaning of this port status
LED depends on the setting on the basic module. You define the display
meaning with the "SELECT" button on the basic module.
Press the button for approx. 2 seconds to switch the meaning of the
display. If the button is not pressed for approx. 20 seconds, the the display
status changes back to "L/D".
1.4.3 Port status
These LED's display port-related information. You set the content of the
information with the button on the basic module (see on page 29 “Display
status”).
L/D – data, link status (green LED)
Glowing green The port LEDs of the media modules display the connection
status.
FDX – full duplex (green LED)
Glowing green The port LEDs of the media modules display the half-duplex or
full duplex connection status.
1000 – 10/100/1000 Mbit/s (green LED)
Glowing green The port LEDs of the media modules display the set
transmission speed.
AN – autonegotiation (green LED)
Glowing green The port LEDs of the media modules display the port
configuration type.
RING – ring port (green LED)
Glowing green The port LEDs of the media modules display HIPER-Ring
assignment.
STBY – stand-by (green LED)
Glowing green The port LEDs of the media modules display the assignment to
a redundant coupling of network segments.
TEST – LED test (green LED)
Glowing green The status, display status and port status LED test is active.
The P1/P2 LEDs glow green.
The "RM" LED status flashes green/yellow.
The RELAY1/RELAY2 status LEDs flash yellow/red.
The display status LEDs flash green.
The port status LEDs of the media modules flash green/yellow.
TP – twisted pair / fiber optic (green LED)
Glowing green The port LEDs of the media modules display the media type.
All display status LEDs (green LEDs)
Flashing in sequence Initialization phase after restart.
2 – PoE status (green/yellow LED)
Glowing green The port LEDs of the media modules display the Power over
ETHERNET status.
Not glowing - No PoE port or PoE disabled.
- PoE status "fault".
3 (green LED)
Service LED
Page 30
30
Installation MS20/MS30
Release 11 07/2013
1 to 4 – data, link status (green/yellow LED)
Not glowing For MM20-A8A89999SAHH (AUI): No valid connection. No
DTE voltage at the port.
Glowing green For MM20-A8A89999SAHH (AUI): Valid connection. DTE
voltage present at the port.
Flashing green (1× a period) Port is switched to stand-by (Port 1).
Flashing green (3× a period) Port is switched off.
Flashing yellow Data reception.
1 to 4 – FDX (green/yellow LED)
Not glowing Half-duplex is active.
Glowing green Full-duplex is active.
1 to 4 – 1000 (green/yellow LED)
Not glowing 10 Mbit/s is active.
Glowing green 100 Mbit/s is active.
Glowing yellow 1000 Mbit/s is active.
1 to 4 – AUTONEG (green/yellow LED)
Glowing green Autonegotiation is active.
1 to 4 – RING PORT (green/yellow LED)
Glowing green This port is assigned to the HIPER-Ring.
1 to 4 – STAND-BY (green/yellow LED)
Glowing green Connection port for the data line.
Glowing yellow Connection port for the control line.
Flashing green/yellow No stand-by partner available.
TP/FO – twisted pair / fiber optic (green/yellow LED)
Glowing green The port LEDs of the media modules display the twisted pair
ports.
Glowing yellow The port LEDs of the media modules display the F/O ports.
PoE status (green/yellow LED)
Not glowing No PoE port or PoE disabled; PoE status "fault".
Glowing yellow PoE port searching for terminal device (PD); PoE status
"searching".
Glowing green PoE port supplying terminal device (PD); PoE status
"Delivering Power".
1 to 4 – LED TEST (green/yellow LED)
Not glowing LED defective.
Flashing green/yellow LED test is active.
Page 31
Installation MS20/MS30
Release 11 07/2013
31
2 Assembly and start-up
The devices have been developed for practical application in a harsh
industrial environment.
Hirschmann supplies the device ready for operation.
The following steps should be performed to install and configure a device:
Unpacking and checking
Installing the media modules
Filling out and attaching labels
Installing the SFP transceivers (optional)
Adjusting the DIP switch settings on the basic module (4-pin DIP switch)
Adjusting the DIP switch settings on the MS20/MS30-...E... basic module
(3-pin DIP switch)
Adjusting the DIP switch settings on the MM20-A8A89999SAHH media
module
Connecting the MM22-T1T1T1T1 PoE media module
Terminal block for supply voltage and signal contact
Connecting the terminal blocks, start-up procedure
Installing the device on the DIN rail, grounding
Connecting the data lines
Assembly of the MB20 extender module
Defining the meaning of the display LEDs
2.1 Unpacking and checking
Check whether the package includes all items named in section “Scope
of delivery” on page 66.
Check the individual parts for transport damage.
Page 32
32
Installation MS20/MS30
Release 11 07/2013
2.2 Installing the media modules
On delivery, the device is ready for operation.
You can install and remove media modules during running operation.
To attach a media module, first remove the protective cap on the plug.
Plug the media module onto the plug.
Fasten the 4 screws at the corners of the media module.
Fit the media modules in sequence from left to right.
Check whether the switch default settings match your requirements.
2.3 Filling out and attaching labels
The labels included in the scope of delivery help you to organize your
network installation clearly.
The large label areas enable you to designate the modules and uniquely
assign the devices to be connected. You can print them, write on them and
exchange them at any time.
Figure 11: Attaching the labels
Page 33
Installation MS20/MS30
Release 11 07/2013
33
Figure 12: Labels for basic modules and media modules
1 - MICE basic module
2 - Lable for the name of the module
3 - Lable for MAC address of the device
4 - Lable for IP address of the device
5 - Lable for other entries on your demand
6 - MICE media module
7 - Lable for the name of the media module
8 - Lable for the port assignment of the media module (port 1)
9 - Lable for the port assignment of the media module (port 1)
10 - Lable for the port assignment of the media module (port 1)
11 - Lable for the port assignment of the media module (port 1)
Attach the labels included in the delivery to the basic module and the
media modules as required.
2.4 Installing the SFP transceivers (optional)
To attach an SFP transceiver, first remove the protective cap over the
socket.
Push the SFP transceiver with the lock closed into the socket until it
latches audibly in place.
Note: Only use Hirschmann SFP transceivers.
5
1
2
3
4
10
6
7
8
9
11
Page 34
34
Installation MS20/MS30
Release 11 07/2013

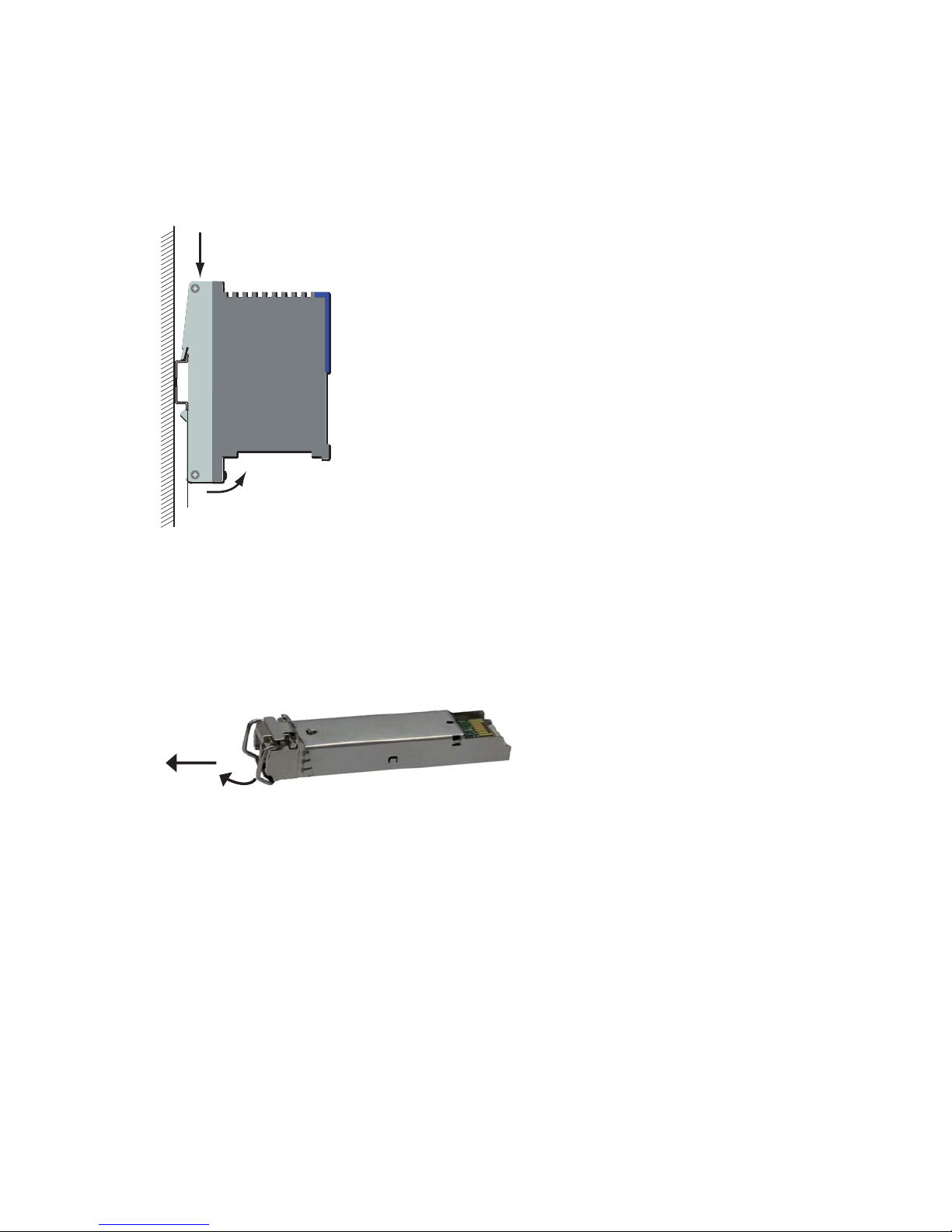

Figure 13: Installing an SFP transceiver
2.5 Adjusting the DIP switch settings on the
basic module (4-pin DIP switch)

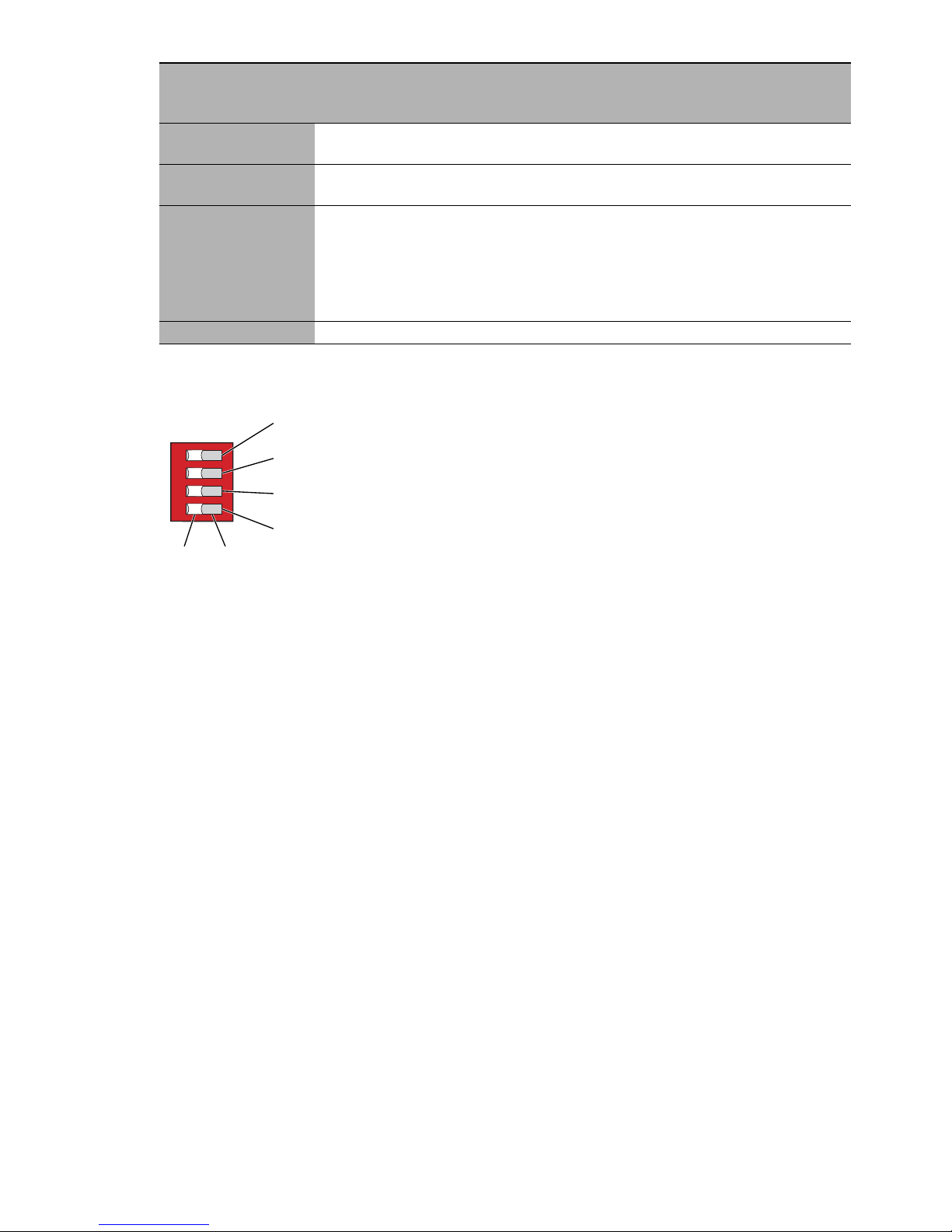

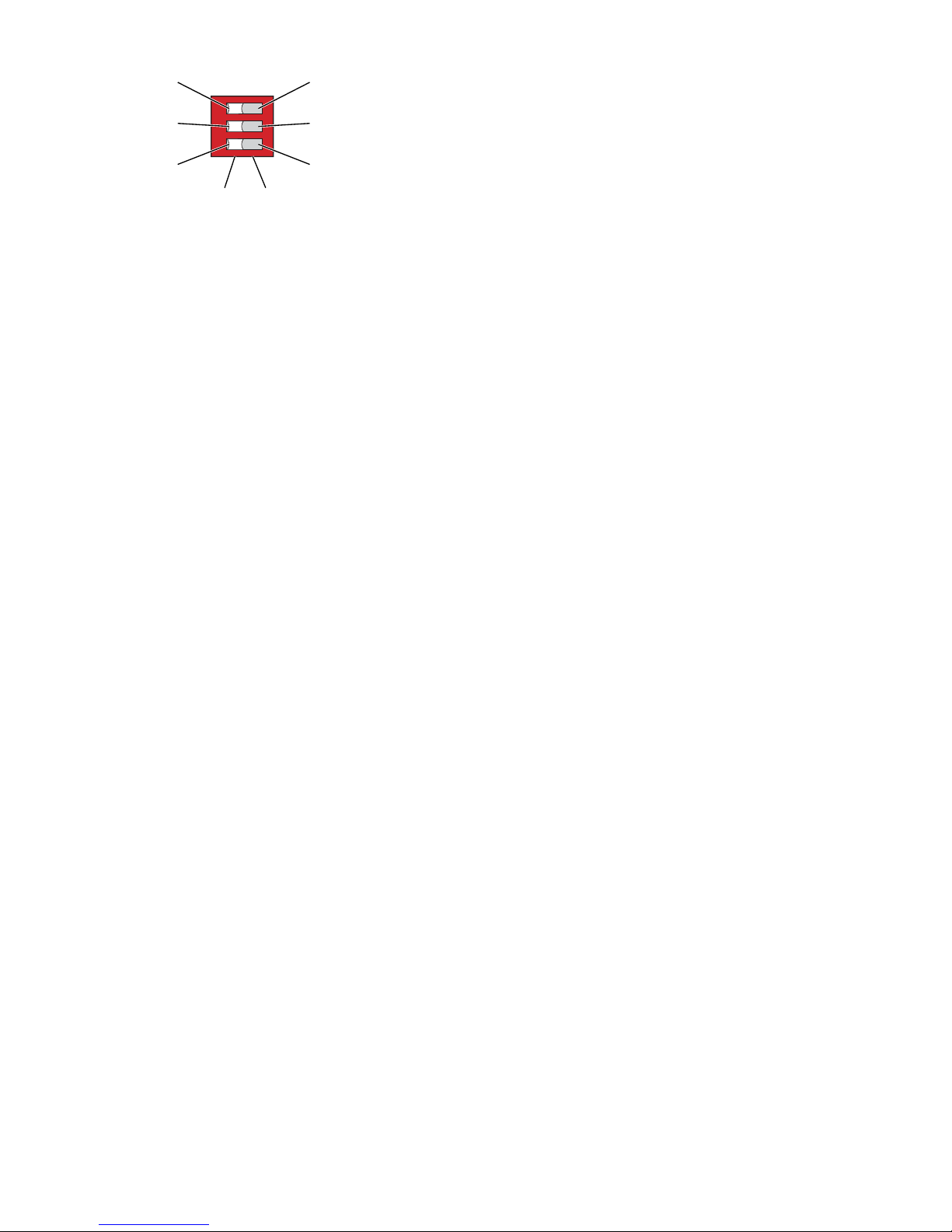

The 4-pin DIP switch on the bottom panel of the basic module gives you the
following options:
DIP switch Function State on delivery
RM (redundancy
manager)
a
a. You can use the "RM" and "Stand-by" switches on the 4-pin DIP switch to switch the
following functions on and off (see table 7)
When the HIPER-Ring function is
switched on, you can switch the RM
(Redundancy Manager) function on and
off (see "User Manual - Redundancy
Configuration").
OFF position (RM function
deactivated)
Ring port
b
b. The "Ringport" switch on the 4-pin DIP switch enables you to select the ring ports for the
HIPER-Ring (see table 6)
Selecting the ports for the HIPER-Ring
MS30: In the ON position, ports 1 and 2 in
module 2 form the connection for the
HIPER-Ring.
MS20: In the ON position, port 1 from
modules 1 and 2 form the connection for
the HIPER-Ring.
OFF position (ports 1 and 2 in
module 1 form the connection
for the HIPER-Ring).
Stand-by
a
With the redundant coupling of rings, you
assign the redundancy function to the
MICE in the redundant line (see "User
Manual - Redundancy Configuration").
OFF position (normal function)
SW Configuration /
DIP Configuration
OFF: Give the software configuration
precedence over of the DIP switch
position. In this case, the other switch
positions are meaningless.
OFF position (SW configuration
has precedence)
Switch "Ring port"
position
MICE device Ring ports for the HIPER-Ring
OFF MS20 Module 1/ port 1 and module 1/ port 2
ON MS20 Module 1/ port 1 and module 2 / port 1
OFF MS30 Module 1/ port 1 and module 1 / port 2
ON MS30 Module 2 / port 1 and module 2 / port 2
Table 6: Selecting ring ports for the HIPER-Ring
Page 35
Installation MS20/MS30
Release 11 07/2013
35
Figure 14: 4-pin DIP switch on the MICE basic module MS20-.../MS30-...
1 - Switch 1, Function: Redundancy Manager (RM)
2 - Switch 2, Function: Ring port
3 - Switch 3, Function: Stand-by
4 - Switch 4, Function: Configuration
5 - Switch position OFF
6 - Switch position ON
Before starting operation of the device, check whether the default settings
of the DIP switch correspond to your requirements.
2.6 Adjusting the DIP switch settings on the
MS20/MS30-...E... basic module (3-pin DIP
switch)
The 3-pin DIP switch on the bottom panel of the basic module gives you the
following options:
RM
switch
position
Stand-by
switch
position
Ring
redund
ancy
Coupling
switch
Ring
manager
Coupling
manager
Ring
port
Control
port
Coupling port
OFF OFF on on off off see
above
ON OFF on on on off see
above
OFF ON on on off on see
above
Module 1/
port 3
(MS20)
module 2/
port 3
(MS30)
Module 1/
port 4
(MS20)
module 2/
port 4
(MS30)
ON ON off off off off
Table 7: Switching redundancy mode and stand-by on/off
OFF ON
5 6
4
1
2
3
Page 36
36
Installation MS20/MS30
Release 11 07/2013
DIP switch Function State on delivery
RM (redundancy
manager) a,
b
a. You can use the "RM" and "Stand-by" switches on the 3-pin DIP switch to switch the
following functions on and off (see table 7)
b. All three DIP switches ON: Software configuration
When the HIPER-Ring function is
switched on, you can switch the RM
(Redundancy Manager) function on and
off (see "User Manual - Redundancy
Configuration").
OFF position (RM function
deactivated)
Ring port
b,c
c. The "Ringport" switch on the 3-pin DIP switch enables you to select the ring ports for the
HIPER-Ring (see table 6)
Selecting the ports for the HIPER-Ring
MS30: In the ON position, ports 1 and 2 in
module 2 form the connection for the
HIPER-Ring.
MS20: In the ON position, port 1 from
modules 1 and 2 form the connection for
the HIPER-Ring.
OFF position (ports 1 and 2 in
module 1 form the connection
for the HIPER-Ring).
Stand-by
a,b
With the redundant coupling of rings, you
assign the redundancy function to the
MICE in the redundant line (see "User
Manual - Redundancy Configuration").
OFF position (normal function)
Switch "Ring port" MICE device Ring ports for the HIPER-Ring
OFF MS20 Module 1/ port 1 and module 1/ port 2
ON MS20 Module 1/ port 1 and module 2 / port 1
OFF MS30 Module 1/ port 1 and module 1 / port 2
Table 8: Selecting ring ports for the HIPER-Ring
RM
switch
position
Stand-by
switch
position
Ring
redund
ancy
Coupling
switch
Ring
manager
Coupling
manager
Ring
port
Control
port
Coupling port
OFF OFF on on off off see
above
ON OFF on on on off see
above
OFF ON on on off on see
above
Module 1/
port 3
(MS20)
module 2/
port 3
(MS30)
Module 1/
port 4
(MS20)
module 2/
port 4
(MS30)
Table 9: Switching redundancy mode and stand-by on/off
Page 37
Installation MS20/MS30
Release 11 07/2013
37
Figure 15: 3-pin DIP switch on the MICE basic module MS20/MS30-...E...
1 - Switch 1, position ON, Function: Redundancy Manager (RM)
2 - Switch 2, position ON, Function: Mod. 1 Port 1 & Mod. 2 Port 1
3 - Switch 3, position ON, Function: Stand-by
4 - Switch 1, position OFF, Function: 5 - Switch 2, position OFF, Function: Ring Port: Mod. 1 Port 1 & 2
6 - Switch 3, position OFF, Function: 7 - Switch position OFF
8 - Switch position ON
Before starting operation of the device, check whether the default settings
of the DIP switch correspond to your requirements.
2.7 Adjusting the DIP switch settings on the
MM20-A8A89999SAHH media module
With the 3-pin DIP switch in the bottom panel of the MM20-A8A89999SAHH
media module, you enter settings for the SQE test function and for monitoring
the DTE voltage.
Note: Before starting operation, check whether the device in question
operates the transceiver with or without an SQE test.
Before starting operation of the device, check whether the default settings
of the DIP switch correspond to your requirements.
2.8 Connecting the MM22-T1T1T1T1 PoE media
module
The MM22-T1T1T1T1 PoE media module with PoE voltage (48 V DC safety
extra-low voltage) is supplied with power via an external power supply unit.
The PoE voltage is fed into the 3-pin terminal block of the PoE media module.
The twisted-pair cables at ports 1 to 4 are supplied with PoE voltage via the
spare pairs (pins 4 & 5 and 7 & 8 of the RJ45 sockets).
OFF ON
7 8
4
5
6
1
2
3
Page 38
38
Installation MS20/MS30
Release 11 07/2013
Note: Only use the Hirschmann RPS60/48V EEC power supply unit to
supply the PoE voltage.
Make sure that the external power supply unit you use to provide the PoE
voltage fulfills the following basic prerequisites:
Insulation requirements according to IEEE 802.3af (insulation
resistance 48 V output to “rest of the world” 2250 V DC for 1 min.).
Output power < 100 W.
Current limitation < 2 A.
The power supply unit and the PoE media module form a limited power
source according to IEC60950-1.
The external PoE power supply unit must be able to provide the power
for the connected PDs.
Power supply unit RPS60/48V EEC fulfills these requirements.
Note: The RPS60/48V EEC power supply unit does not fulfill the
requirements according to Germanischer Lloyd, criterion EMC1, relating to
conducted emissions on the 230 V AC side. If this requirement must be
fulfilled, connect a corresponding power supply unit that fulfills both this
requirement and the basic requirements.
Connect the PoE voltage to the 3-pin terminal block included in the scope
of delivery, as shown in the following diagram.
Make sure the following requirements are met:
Supply line length < 3 m.
Supply line cross section is suitable for 1.5 A.
Mount the terminal block for the PoE supply voltage on the bottom of the
PoE module using the snap lock. Make sure it latches securely in place.
Note: Use 4-pair twisted pair cables to connect the terminal devices. Only
connect terminal devices that conform to IEEE 802.3af.
Figure Pin Assignment
1+ 48 V
2—
30 V
Table 10: Pin assignment of the 3-pin terminal block
1
2
3
Page 39
Installation MS20/MS30
Release 11 07/2013
39
2.9 Terminal block for supply voltage and signal
contact
The supply voltage and the signal contacts are connected via a 4-pin terminal
block and a redundant 4-pin terminal block with a snap lock.
2.9.1 Supply voltage
Redundant power supplies can be used. Both inputs are uncoupled. There is
no distributed load. With redundant supply, the power supply unit supplies
the device only with the higher output voltage. The supply voltage is
electrically isolated from the housing.
Note: With non-redundant supply of the mains voltage, the device reports a
power failure. You can prevent this message by applying the supply voltage
via both inputs, or by changing the configuration in the Management.
2.9.2 Signal contacts
The signal contact is a potential-free relay contact.
The device allows you to perform remote diagnosis via the signal contact. In
the process, the device signals events such as a line interruption. When an
event occurs, the device opens the relay contact and interrupts the closed
circuit. The management setting specifies which events switch a contact.
You can also use the management to switch the signal contact manually and
thus control external devices.
A break in contact is used to report the following conditions via the potentialfree signal contact (relay contact, closed circuit):
The detected inoperability of at least one of the two voltage supplies
(voltage supply 1 or 2 is below the threshold value).
A continuous detected error in the device (internal supply voltage).
The detected error of the link status of at least one port. The report of the
link status can be masked by the Management for each port. In the default
state, link status monitoring is deactivated.
The temperature of the device is outside the range specified in the
threshold values.
The removal of the ACA.
The following condition is also reported in RM mode:
Ring redundancy guaranteed. By default, there is no ring redundancy
monitoring
Page 40
40
Installation MS20/MS30
Release 11 07/2013
2.10 Connecting the terminal blocks, start-up
procedure
Pull the terminal block off the device and connect the voltage supply lines
and the signal lines.
2.10.1 Terminal blocks on MS20/MS30-...A... and
MS20/MS30-...C...
Products with voltage range A or C (product code position 15—see table 1)
have two 4-pin terminal blocks.
Note: The maximum accaptable wire size for the terminal blocks is 2.5 mm
2
(0.004 in
2
) or AWG 12.
Figure 16: Pin assignment of the 4-pin terminal blocks
1 - MS20/30 switch basic module with 18 V DC ... 60 VDC voltage range
2 - Power/signal contact 1:
Pin 1 =+24 V (P1), Pin 2 =0 V, Pin 3, 4 =Relay 1
3 - Power/signal contact 2:
Pin 1 =+24 V (P2), Pin 2 =0 V, Pin 3, 4 =Relay 2
4 - MS20/30 switch basic module with 18 to 32 VDC voltage range
5 - Power/signal contact 1:
Pin 1 =+24 V (P1), Pin 2 =0 V, Pin 3, 4 =Relay 1
6 - Power/signal contact 2:
Pin 1 =+24 V (P2), Pin 2 =0 V, Pin 3, 4 =Relay 2
1
2
3
4
5
6
Page 41
Installation MS20/MS30
Release 11 07/2013
41
2.10.2 Terminal block on MS20/MS30-...E...
Products with voltage range E (product code position 15 (see table 1)) have
one 6-pin terminal block.
Figure 17: Pin assignment of the 6-pin terminal block
1 - Pin 1 = +24V (P1)
2 - Pin 2 = Relay
3 - Pin 3 = 0 V
4 - Pin 4 = 0 V
5 - Pin 5 = Relay
6 - Pin 6 = +24V (P2)
7 - Terminal block for power and signal contact
8 - MICE MS20/30-...E... switch basic module with 18 V DC ... 60 V DC
voltage range /6-pin
2.10.3 Startup procedure
Mount the terminal blocks for the voltage supply and signal contact on the
bottom of the device using the snap locks. Make sure that the snap lock
snaps into place.
By connecting the voltage supply via the terminal blocks, you start the
operation of the device.
+24 V (P1)
0 V
0 V
+24 V (P2)
Relay
8
7
5
6
1
2
3
4
7
Page 42
42
Installation MS20/MS30
Release 11 07/2013
2.11 Installing the device on the DIN rail,
grounding
2.11.1 Mounting on the DIN rail
Mount the device on a 35 mm DIN rail in accordance with DIN EN 60175.
Attach the upper snap-in guide of the device into the DIN rail and press
the device down against the DIN rail until it snaps into place.
Note: The shielding ground of the industrial connectable twisted pair lines is
connected to the lower panel as a conductor.
Figure 18: Assembly
2.11.2 Grounding
The lower panel of the device housing is grounded by means of the DIN rail
and optionally by means of the separate ground screw (see figure 2).
Page 43
Installation MS20/MS30
Release 11 07/2013
43
2.12 Connecting the data lines
2.12.1 10/100 Mbit/s twisted pair port
This port is an RJ45 socket.
The 10/100 Mbit/s twisted pair port offers you the ability to connect network
components according to the IEEE 802.3 10BASE-T/100BASE-TX standard.
This port supports:
Autonegotiation
Autopolarity
Autocrossing (if autonegotiation is activated)
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Default setting: Autonegotiation activated except for the HIPER-Ring ports:
100 Mbit/s, full duplex.
The port housing is electrically connected to the bottom panel.
2.12.2 10/100 Mbit/s PoE/PSE port
The 10/100 Mbit/s PoE/PSE port offers you the ability to connect network
components according to the standard IEEE 802.3 10BASE-T/100BASE-TX
and IEEE 802.3af.
This port supports:
Autonegotiation
Autopolarity
Autocrossing (if autonegotiation is activated)

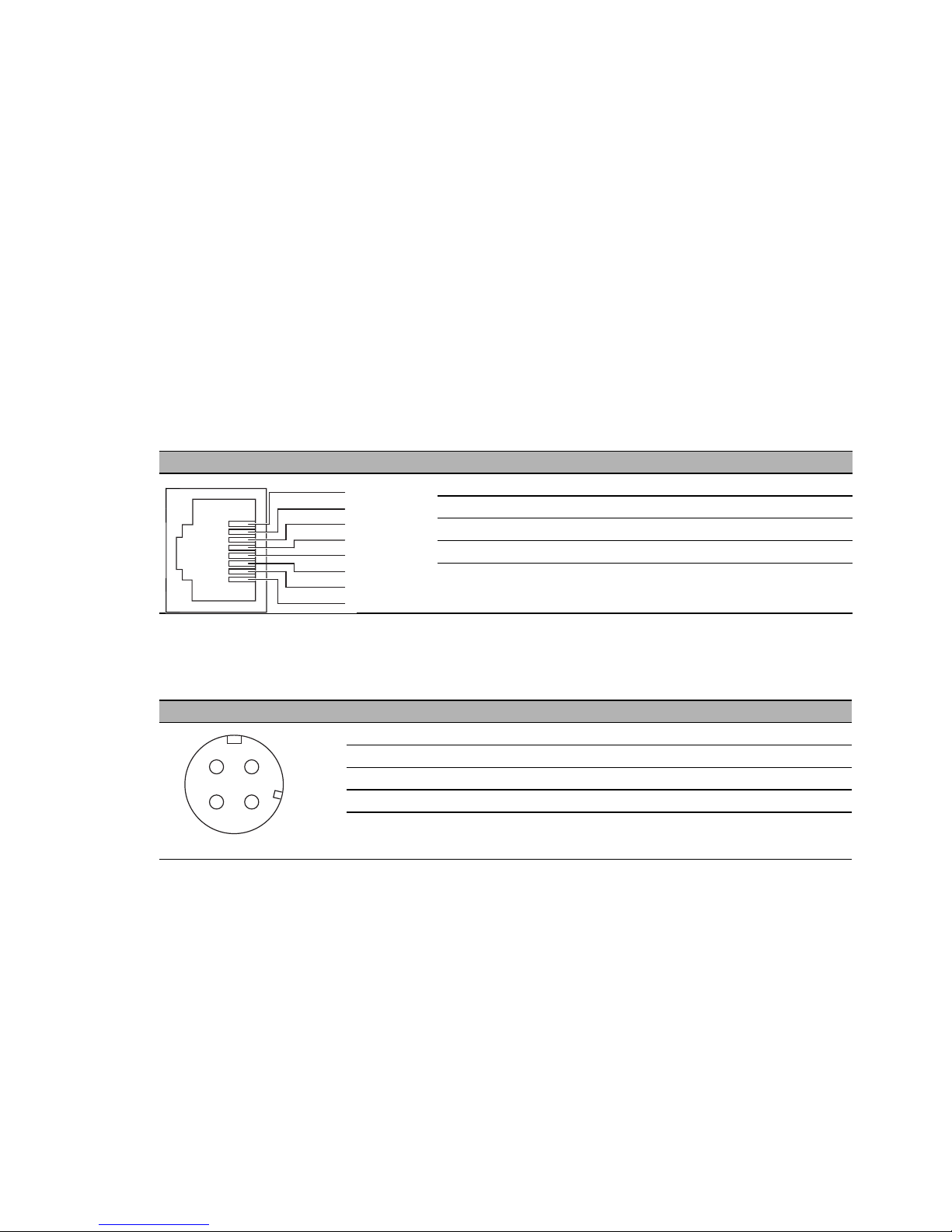

Pin Function
1 RD+ Receive path
2RD− Receive path
3 TD+ Transmission path
6TD− Transmission path
4,5,7,8 —
Table 11: Pin assignment of the 10/100 Mbit/s twisted pair port, RJ45 socket, MDI-X
mode
Pin Function
1 TD+ Transmission path
2 RD+ Receive path
3TD− Transmission path
4RD− Receive path
Table 12: Pin assignment of the 10/100 Mbit/s twisted pair port, M12 socket
1
2
3
4
5
6
7
8
RD-
12
43
RD+TD+
TD-
Page 44
44
Installation MS20/MS30
Release 11 07/2013
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Default setting: Autonegotiation activated except for the ring ports:
100 Mbit/s, full duplex.
The socket housing is electrically connected with the front panel.
The PoE voltage is supplied via the free wire pairs (spare-pair powering).
2.12.3 10/100/1000 Mbit/s twisted pair port
The 10/100/1000 Mbit/s twisted pair port offers you the ability to connect
network components according to the IEEE 802.3 10BASE-T/100BASETX/1000BASE-T standard.
This port supports:
Autonegotiation
Autopolarity
Autocrossing (if autonegotiation is activated)
1000 Mbit/s full duplex
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
State on delivery: autonegotiation.
The socket housing is electrically connected with the front panel.
Pin Function PoE/PSE voltage
1 RD+ Receive path —
2RD− Receive path —
3 TD+ Transmission path —
4 — — Plus terminal
5 — — Plus terminal
6 TD- Transmission path —
7 — — Minus terminal
8 — — Minus terminal
Table 13: Pin assignment of the 10/100 Mbit/s PoE/PSE port, RJ45 socket, MDI-X
mode, spare-pair powering
Pin Function
1BI_DB+
2BI_DB−
3BI_DA+
4 BI_DD+
5BI_DD−
6BI_DA−
7 BI_DC+
8BI_DC−
Table 14: Pin assignment of the 10/100/1000 Mbit/s twisted pair port, RJ45 socket,
MDI-X mode
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Page 45
Installation MS20/MS30
Release 11 07/2013
45
2.12.4 100 Mbit/s F/O port
This port is an MTRJ, ST, or DSC socket.
The 100 Mbit/s F/O port offers you the ability to connect network components
according to the IEEE 802.3 100BASE-FX standard.
This port supports:
Full or half duplex mode
Default setting: Full duplex
Note: Make sure that the LH ports are connected exclusively with LH ports,
SM ports exclusively with SM ports, and MM ports exclusively with MM ports.
2.12.5 1000 Mbit/s F/O port
This port is an LC socket.
The 1000 Mbit/s F/O port offers you the ability to connect network
components according to the IEEE 802.3 100BASE-SX/1000BASE-LX
standard.
This port supports:
Autonegotiation
Full duplex mode
Delivery state: autonegotiation activated
Note: Make sure that you connect LH ports exclusively with LH ports, SX
ports exclusively with SX ports, and LX ports exclusively with LX ports.
1000 Mbit/s F/O ports (LC sockets) enable the connection of terminal devices
or independent network segments in compliance with the IEEE 802.3-2000
(ISO/IEC 8802-3:2000) 1000BASE-SX or 1000BASE-LX standards.
Connect the ports of the media modules plugged into the basic module as
required in order to set up your industrial Ethernet or expand your existing
network.
Install the data lines according to your requirements.
2.12.6 AUI port
The housing of the Sub-D plug is electrically isolated from the lower panel of
the device.
The AUI (Attachment Unit Interface) port offers you the opportunity to
connect a device via an AUI cable according to IEEE 802.3.
This port supports:
SQE test
DTE Power Monitor
Default setting: SQE test function and DTEPower monitor function is not
active.
Page 46
46
Installation MS20/MS30
Release 11 07/2013

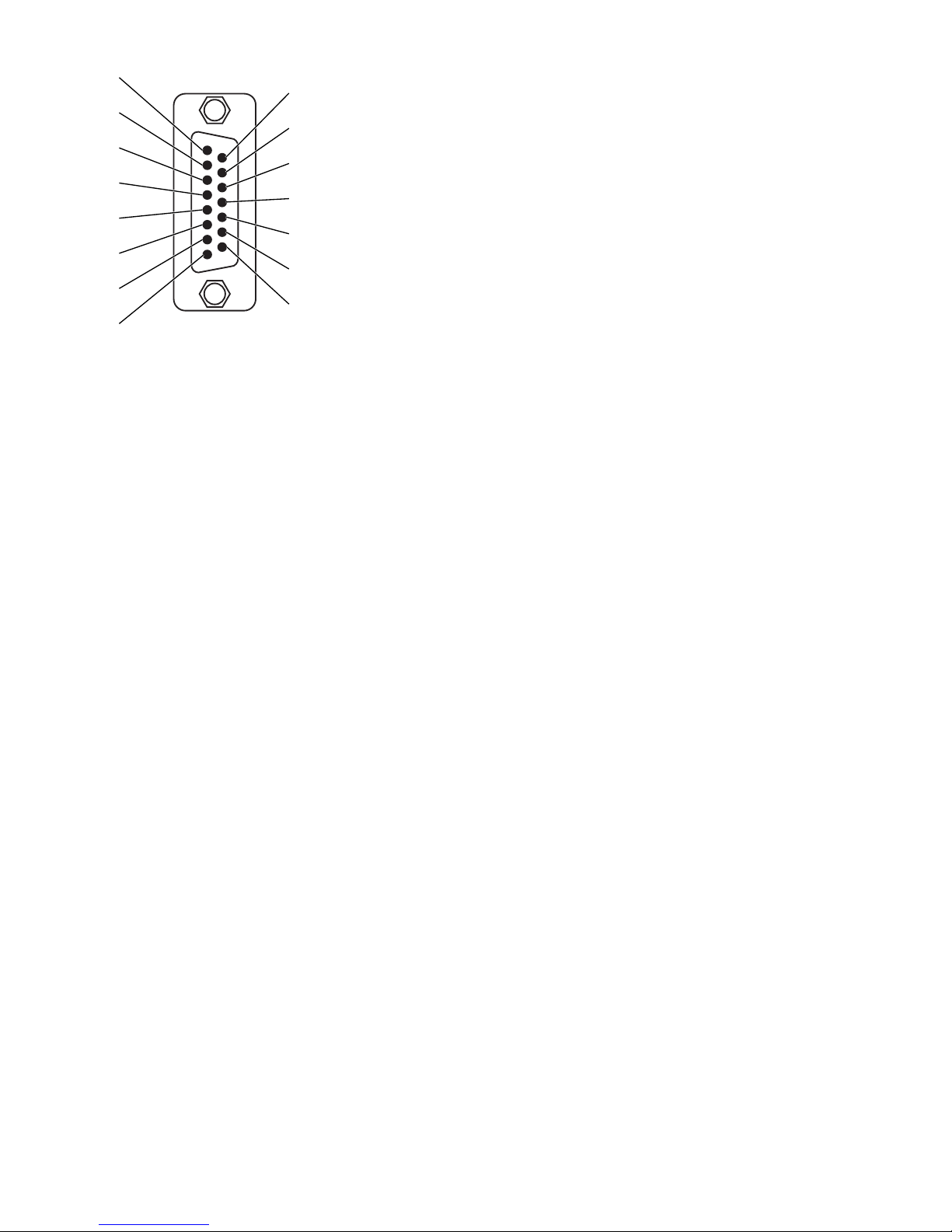

Figure 19: Pin assignment of an AUI interface
1 - Pin 1: Shielding CI
2 - Pin 2: Output CI-A
3 - Pin 3: Input DO-A
4 - Pin 4: Shielding DI
5 - Pin 5: Output DI-A
6 - Pin 6: GND
7 - Pin 7: Not contacted
8 - Pin 8: Shielding CO
9 - Pin 9: Output CI-B
10 - Pin 10: Input DO-B
11 - Pi n 11: S hielding D O
12 - Pin 12: Output DI-B
13 - Pin 13: Voltage 12 V
14 - Pin 14: Shielding 12 V
15 - Pin 15: Not contacted
Connect the ports of the media modules plugged into the basic module as
required in order to set up your industrial Ethernet or expand your existing
network.
Install the data lines according to your requirements.
3
2
7
6
5
4
8
1
11
10
15
14
13
12
9
Page 47
Installation MS20/MS30
Release 11 07/2013
47
2.13 Assembly of the MB20 extender module
The MB20 extender module allows you to expand the MS20-1600 and
MS30-1602 basic module with two sockets for media modules. You can
install the MB20 extender module in running operation.
On the right side of the basic module, loosen the screws at the top and
bottom (1-3 revolutions).
Take off the side panel.
If you have not already done so, mount the basic module on the DIN rail.
Push the MB20 extender module on the DIN rail to the basic module until
the modules are plugged together.
Tighten the screws on the top and bottom of the basic module again.
2.14 Defining the meaning of the display LEDs
You use the "SELECT" button on the basic module to define the meaning of
the LEDs of the media modules. You press the button to switch to the next
display meaning. The display status LEDs of the basic module show the
current meaning of the port LEDs of the media modules.
See “Display elements” on page 26.
Figure 20: "SELECT" button on the MICE basic modules
1 - Display LEDs
2 - “SELECT” key
1
2
Page 48
48
Installation MS20/MS30
Release 11 07/2013
3 Basic set-up
The IP parameters must be entered when the device is installed for the first
time. The device provides 6 options for configuring IP addresses:
Entry via V.24 connection
Entry using the HiDiscovery protocol via the application HiDiscovery or
Industrial HiVision
Configuration via BOOTP
Configuration via DHCP
Configuration via DHCP Option 82
Auto Configuration Adapter
Further information on the basic settings of the device can be found in the
“Basic Configuration” user manual on the CD/DVD.
Default settings
IP address: The device looks for the IP address using DHCP
Management password:
user, password: public (read only)
admin, password: private (read and write)
V.24 data rate: 9,600 Baud
Ring redundancy: off
Ethernet ports: link status is not evaluated (signal contact)
Optical 100 Mbit/s ports: 100 Mbit/s full duplex
All other ports: autonegotiation
Redundancy manager switched off
(DIP switch RM and Stand-by: ON)
Stand-by coupling switched off
(DIP switch RM and Stand-by: ON)
Port 3 = control port, port 4 = coupling port for redundant ring coupling
Rapid Spanning Tree: on
USB interface
The USB socket has an interface for the local connection of an
AutoConfiguration AdapterACA 21-USB. It is used for saving/loading the
configuration and for updating the software.
Contact number Signal name
1VCC
2 - Data
3 + Data
4 Ground
Page 49
Installation MS20/MS30
Release 11 07/2013
49
V.24 interface (external management)
A serial interface is provided on the RJ11 socket (V.24 interface) for the
local connection of an external management station (VT100 terminal or
PC with appropriate terminal emulation) or an AutoConfiguration Adapter
ACA 11. This enables a connection to the Command Line Interface (CLI)
and the system monitor to be made.
The socket housing is electrically connected to the front panel of the
device. The V24 interface is not electrically isolated from the supply
voltage.
Figure 21: Pin assignment of the V24 interface
Note: You will find the order number for the terminal cable, which is
ordered separately, in the Technical Data chapter (see on page 52
“Technical data”).
Monitoring the ambient air temperature
Only operate the device up to the specified maximum ambient air
temperature.
See “General technical data” on page 52.
The ambient air temperature is the temperature of the air at a distance of
5 cm from the device. It depends on the installation conditions of the
device, e.g. the distance from other devices or other objects, and the
output of neighboring devices.
The temperature displayed in the CLI and the GUI is the inner
temperature of the device. It is up to 20 °C higher than the ambient
temperature. This depends on the configuration of your device.
VT 100 terminal settings
Speed 9,600 Baud
Data 8 bit
Stopbit 1 bit
Handshake off
Parity none
Pin 1
Pin 1
Pin 8
Pin 5
Pin 6
RJ11 DB9
2
3
5
1
2
3
4
5
6
CTS
n.c.
TX
GND
RX
RTS
Page 50
50
Installation MS20/MS30
Release 11 07/2013
4 Maintenance and service
When designing this device, Hirschmann was largely able to forego using
parts that are subject to wear and tear. The parts subject to wear are
designed to last longer than the lifetime of the product when it is operated
properly. Operate this device according to the specifications (see
“Technical data”).
Relays are subject to natural wear. This wear depends on the frequency
of the switching operations. Check the resistance of the closed relay
contacts and the switching function depending on the frequency of the
switching operations.
Hirschmann is continually working to improve and develop our software.
You should regularly check whether there is a new version of the software
that provides you with additional benefits. You will find software
information and downloads on the product pages of the Hirschmann
website.
Note: You will find information about the complaints and returns procedures
in the Internet under
http://www.beldensolutions.com/en/Service/Repairs/index.phtml .
Page 51
Installation MS20/MS30
Release 11 07/2013
51
5 Deinstallation
5.0.1 Disassembling the device
To remove the device from the hat rail, press the device downwards and
pull it out from under the hat rail.
Figure 22: Disassembly
5.0.2 Removing the SFP transceivers
Pull the SFP transceiver out of the socket by means of the opened lock.
Close the socket with the protective cap.
Figure 23: Deinstalling an SFP transceiver
1
2
Page 52
52
Installation MS20/MS30
Release 11 07/2013
6 Technical data
General technical data
Dimensions
W× H× D
MS20-0800...
MS30-0802...
MS20-1600...
MS30-1602...
MS20-2400...
MS30-2402...
125 mm × 133 mm × 100 mm (140 mma)
163 mm × 133 mm × 100 mm (140 mm
a
)
202 mm × 133 mm × 100 mm (140 mm
a
)
240 mm × 133 mm × 100 mm (140 mm
a
)
278 mm × 133 mm × 100 mm (140 mm
a
)
316 mm × 133 mm × 100 mm (140 mm
a
)
Weight MS20-0800...
MS30-0802...
MS20-1600...
MS30-1602...
MS20-2400...
MS30-2402...
610 g (700 g
a
)
740 g (830 g
a
)
880 g (970 g
a
)
1010 g (1100 g
a
)
1030 g (1120 g
a
)
1160 g (1250 g
a
)
a. At 48 V DC voltage supply (voltage range C (18 V DC ... 60 V DC). See table 1 on page 16.
Power supply Operating voltage 18 to 32 V DC (voltage range A) or
18 to 60 V DC (voltage range C)
Safety extra-low voltage (SELV/PELV) redundant
inputs disconnected. Relevant for North America:
Nec Class 2 power source max. 5A.
Overload current
protection at input
Non-replaceable fuse
Insulation voltage
between operating
voltage
connections and
housing
Devices with input
voltage range:
18 V DC to 32 V DC
18 V DC to 60 V DC
800 V DC protective elements limit the insulation
voltage to:
45 V DC (1 mA).
90 V DC (1 mA).
Peak inrush
current
<14A
for 1 ms
Signal contact Switching current max. 1 A, SELV
Switching voltage max. 60 V DC or max. 30 V AC, SELV
Environment Storage temperature
(ambient air
temperature)
Humidity Atmospheric
pressure
Standard: -40 °C to +70 °C Extended: -40 °C to
+85 °C
10% to 95% (non condensing)
Up to 2000 m (795 hPa), higher altitudes on
request
Operating
temperature
Product code S
T
E
Standard: 0 °C to +60 °C
Extended: -40 °C to +70 °C
Extended: -40 °C to +70 °C
with Conformal Coating
Pollution degree 2
Protection classes Laser protection
Level of protection
Class 1 according to EN 60825-1 (2001)
IP20
Page 53
Installation MS20/MS30
Release 11 07/2013
53
Dimension drawings

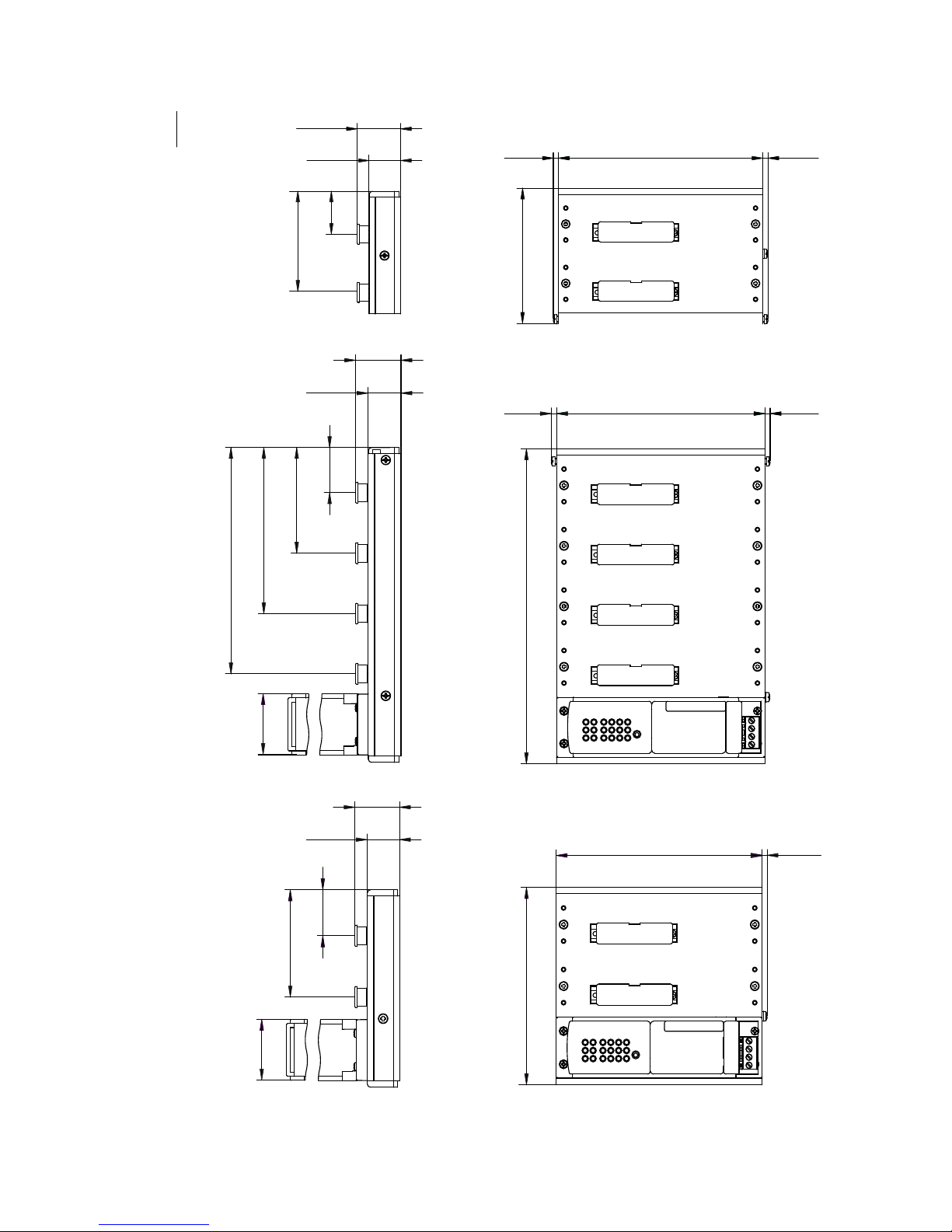

Figure 24: Dimensions of base module MS20 variants and extender module
124
4.88
133
5.24
29
68
2.68
2.68
0.16
38
1.5
MS20-0800 MS20-1600 MB20
4
201
29
68
106
4.17
145
5.71
77
3.03
29
21
0.83
29
38
68
1.14
1.5
2.68
1.14
1.14
7.91
mm
inch
1.14
21
0.83
29
1.14
21
0.83
29
1.14
133
5.24
133
5.24
0.16
4
0.16
4
0.16
4
0.16
4
Page 54
54
Installation MS20/MS30
Release 11 07/2013

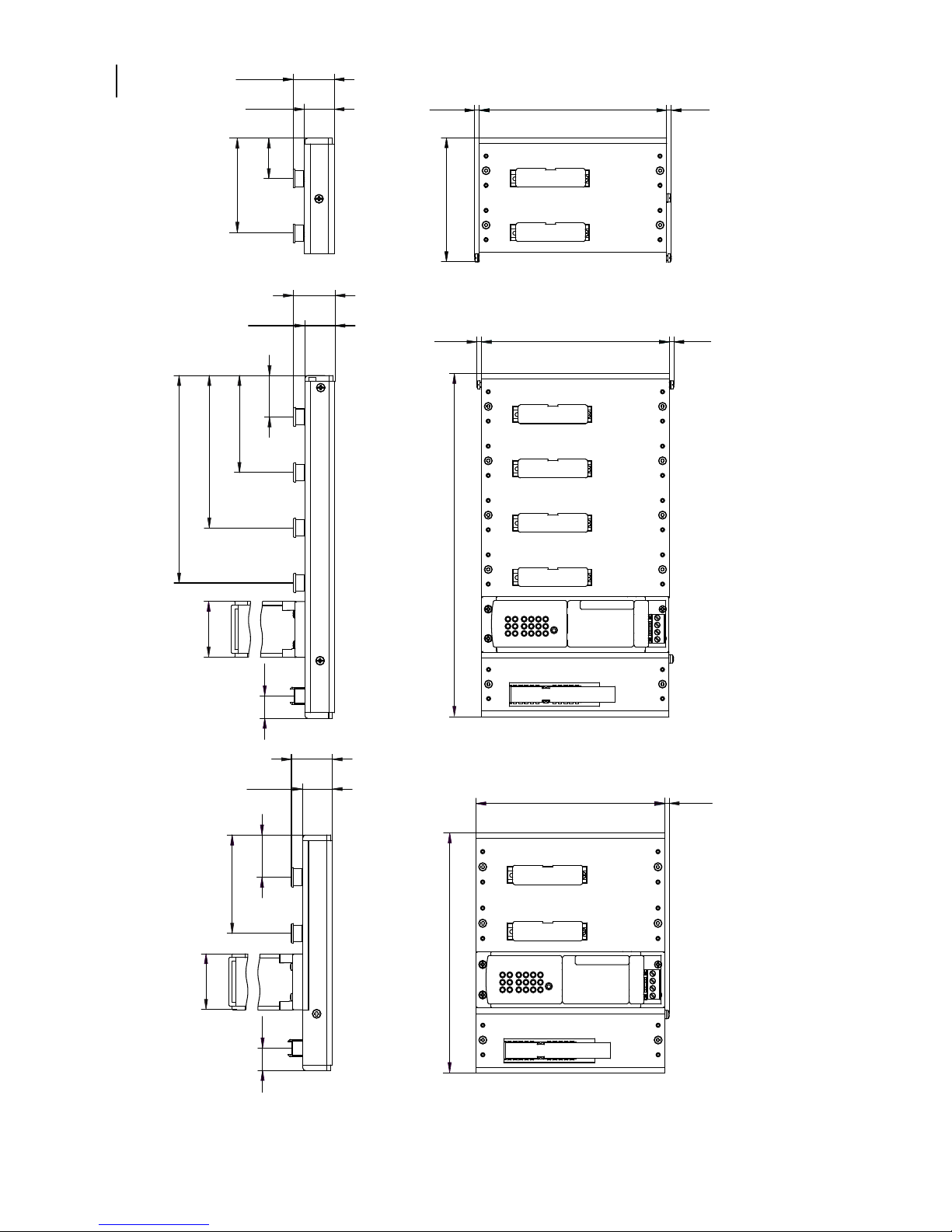

Figure 25: Dimensions of base module MS30 variants and extender module
163
133
29
68
4
38
MS30-0802
MS30-1602 MB20
133
4
4
240
21
29
29
68
106
145
133
4
4
77
21
29
29
21
29
38
68
16
16
mm
inch
1.5
0.63
2.68
1.14
0.83
1.14
0.63
1.5
5.71
4.17
2.68
1.14
2.68
1.14
0.83
0.83
1.14
1.14
6.42
5.24
5.24
5.24
9.45
0.16
0.16
0.16
3.03
0.16
0.16
Page 55
Installation MS20/MS30
Release 11 07/2013
55

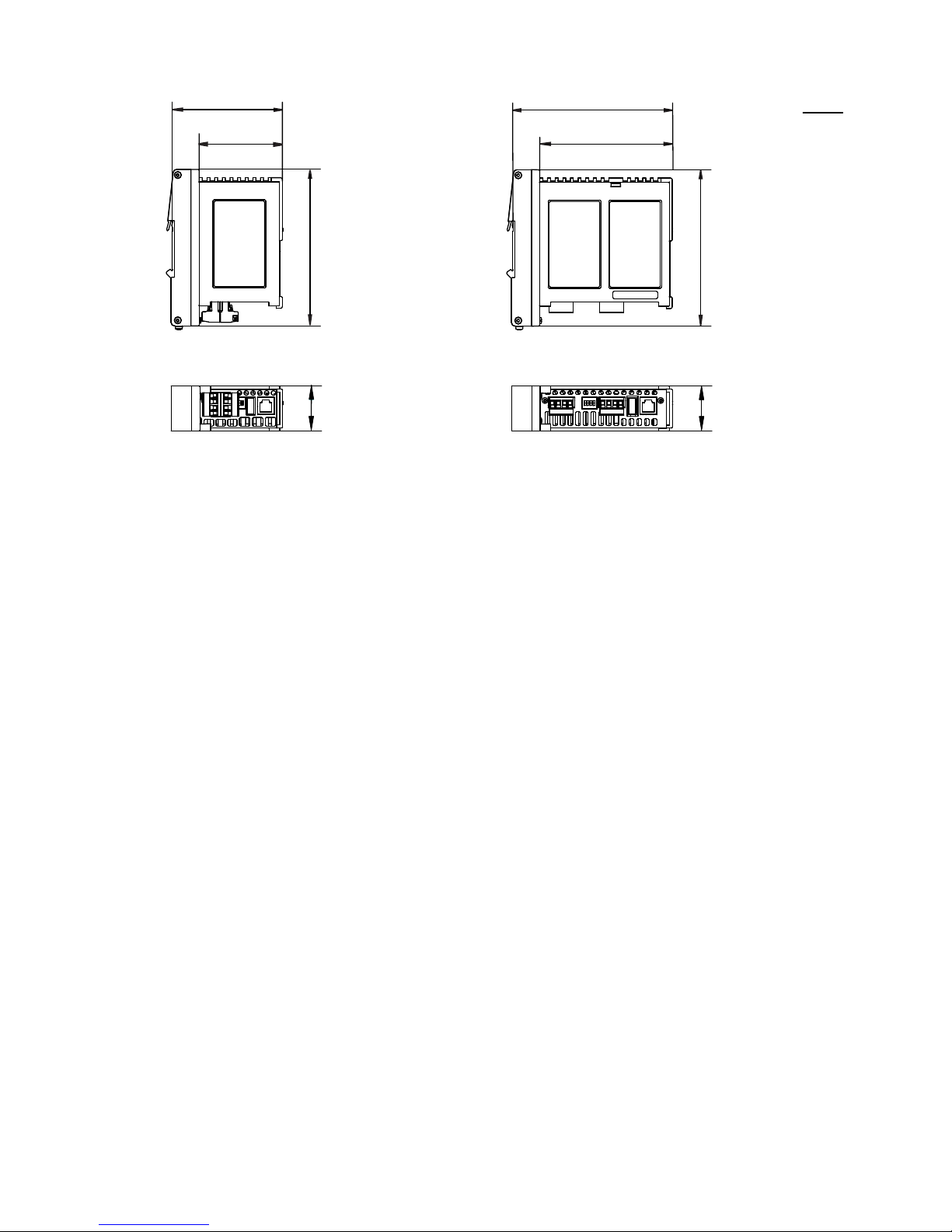

Figure 26: Dimensions of media modules
115
4.53
MM... 48 V
94
73
mm
inch
MM... 24 V
136
5.35
133
3.7
2.87
5.24
38
1.5
133
5.24
38
1.5
Page 56
56
Installation MS20/MS30
Release
11
07/2013
EMC and immunity
EMC emitted interference Standard
applications
a
a. EN 61131-2, CE, FCC – applies to all devices
Marine
applications
b
b. Merchant Navy (GL, ABS, BV, DNV, KR, LR, RINA) – applies to devices with the certification codes B, E, H, S
Railway
applications
(trackside)
c
c. EN 50121-4 – applies to devices with the certification codes E, H, S
Sub-station
applications
d
d. EN 61850-3, IEEE 1613 – applies to devices with the certification codes H, S
Emitted interference
EN 55022 Class A Class A Class A Class A
GL Guidelines — EMC 1 — —
FCC 47 CFR Part 15 Class A Class A Class A Class A
EN 61000-6-4 Fulfilled Fulfilled Fulfilled Fulfilled
Conducted interference
EN 55022 DC supply connection Class A Class A Class A Class A
GL Guidelines DC supply connection — EMC 1 — —
FCC 47 CFR Part 15 DC supply connection Class A Class A Class A Class A
EN 61000-6-4 DC supply connection Fulfilled Fulfilled Fulfilled Fulfilled
EN 55022 Telecommunication connections Class A Class A Class A Class A
EN 61000-6-4 Telecommunication connections Fulfilled Fulfilled Fulfilled Fulfilled
Page 57
Installation MS20/MS30
Release
11
07/2013
57
EMC interference
immunity
Standard
applications
a
Marine
applications
b
Railway
applications
(trackside)
c
Sub-station
applications
d
Electrostatic discharge
EN 61000-4-2
IEEE C37.90.3
Contact discharge ± 4 kV ± 6 kV ± 6 kV ± 8 kV
EN 61000-4-2
IEEE C37.90.3
Air discharge ±8kV ±8kV ±8kV ±15kV
Electromagnetic field
EN 61000-4-3 80 MHz ... 3000 MHz 10 V/m 10 V/m 20 V/m 10 V/m
IEEE 1613 80 MHz ... 1000 MHz — — — 35 V/m
Fast transients (burst)
EN 61000-4-4
IEEE C37.90.1
DC supply connection ± 2 kV ± 2 kV ± 2 kV ± 4 kV
EN 61000-4-4
IEEE C37.90.1
Data line ±4kV ±4kV ±4kV ±4kV
Voltage surges - DC supply connection
EN 61000-4-5 line/ground ± 2 kV ± 2 kV ± 2 kV ± 2 kV
IEEE 1613 line/ground — — — ± 5 kV
EN 61000-4-5 line/line ± 1 kV ± 1 kV ± 1 kV ± 1 kV
Voltage surges - data line
EN 61000-4-5 line/ground ± 1 kV ± 1 kV ± 2 kV ± 4 kV
Line-conducted interference voltages
EN 61000-4-6 150 kHz ... 80 MHz 10 V 10 V 10 V 10 V
Page 58
58
Installation MS20/MS30
Release
11
07/2013
Damped vibration - DC supply connection
EN 61000-4-12
IEEE C37.90.1
line/ground — — — 2.5 kV
EN 61000-4-12
IEEE C37.90.1
line/line — — — 1 kV
Damped vibration - data line
EN 61000-4-12
IEEE C37.90.1
line/ground — — — 2.5 kV
EN 61000-4-12 line/line — — — ± 1 kV
Impulse-shaped magnetic fields
EN 61000-4-9 — — 300 A/m —
a. EN 61131-2, CE, FCC – applies to all devices
b. Merchant Navy (GL, ABS, BV, DNV, KR, LR, RINA) – applies to devices with the certification codes B, E, H, S
c. EN 50121-4 – applies to devices with the certification codes E, H, S
d. EN 61850-3, IEEE 1613 – applies to devices with the certification codes H, S
EMC interference
immunity
Standard
applications
a
Marine
applications
b
Railway
applications
(trackside)
c
Sub-station
applications
d
Page 59
Installation MS20/MS30
Release
11
07/2013
59
Stability Standard
applications
a
a. EN 61131-2, CE, FCC – applies to all devices
Marine
applications
b
b. Merchant Navy (GL, ABS, BV, DNV, KR, LR, RINA) – applies to devices with the certification codes B, E, H, S
Railway
applications
(trackside)
c
c. EN 50121-4 – applies to devices with the certification codes E, H, S
Sub-station
applications
d
d. EN 61850-3, IEEE 1613 – applies to devices with the certification codes H, S
IEC 60068-2-6, test Fc Vibration — 2 Hz ... 13.2 Hz
with
1 mm amplitude
— 2 Hz ... 9 Hz with
3 mm amplitude
5 Hz ... 8.4 Hz with
3.5 mm amplitude
— 5 Hz ... 8.4 Hz with
3.5 mm amplitude
5 Hz ... 8.4 Hz with
3.5 mm amplitude
— — — 1 Hz ... 200 Hz
with 1 g
8.4 Hz ... 150 Hz
with 1 g
8.4 Hz ... 150 Hz
with 1 g
8.4 Hz ... 150 Hz
with 1 g
—
— — — 200 Hz ... 500 Hz
with 1.5 g
IEC 60068-2-27, Test Ea Shock 15 g at 11 ms 15 g at 11 ms 15 g at 11 ms 15 g at 11 ms
Page 60
60
Installation MS20/MS30
Release 11 07/2013
Network range
Note: The line lengths specified for the transceivers apply for the
respective fiber data (fiber attenuation and BLP/dispersion).
AU port
Length of an AUI cable max. 50 m
Table 15: AUI port
TP port
Length of a twisted pair segment max. 100 m/328 ft (for cat5e cable)
Table 16: TP port 10BASE-T / 100BASE-TX / 1000BASE-T
Product
code
Wave
length
Fiber System
attenuati
on
Example
for F/O
line
length
a
a. including 3 dB system reserve when compliance with the fiber data is observed
Fiber
attenuation
BLP/
dispersion
-F4 MM 820 nm 50/125 µm 0-9.5 dB 0-2.1 km 3.0 dB/km 400 MHz*km
-F4 MM 820 nm 62.5/125 µm 0-12.5 dB 0-3.0 km 3.2 dB/km 200 MHz*km
Table 17: F/O port 10BASE-FL
Prod
uct
code
Wave
length
Fiber System
attenuati
on
Example
for F/O
line length
a
a. including 3 dB system reserve when compliance with the fiber data is observed
Fiber
attenuation
BLP/
dispersion
-M2,
-M4
MM 1300 nm 50/125 µm 0-8 dB 0-5 km 1.0 dB/km 800 MHz*km
-M2,
-M4
MM 1300 nm 62.5/125 µm 0-11 dB 0-4 km 1.0 dB/km 500 MHz*km
-S2 SM 1300 nm 9/125 µm 0-16 dB 0-30 km 0.4 dB/km 3.5 ps/(nm*km)
-L2 LH 1550 nm 9/125 µm 7-29 dB 24-86 km 0.3 dB/km 19 ps/(nm*km)
-P4 MM POF 650 nm 980/1000 µm 0-15.5 dB 0-65 m 200 dB/km 10 MHz*km
-P4 MM HCS 650nm 200/230 µm 0-7 dB 0-140 m 10 dB/km 17 MHz*km
-P9 MM POF 650 nm 980/1000 µm 0-14.0 dB 0-55 m 200 dB/km 10 MHz*km
-G2 LH+ 1550 nm 9/125 µm 14-47 dB 67-176 km 0.25 dB/km 19 ps/(nm*km)
Table 18: F/O port 100BASE-FX
Page 61
Installation MS20/MS30
Release 11 07/2013
61
Product
code
M-FASTSFP-...
Wave
length
Fiber System
attenuatio
n
Example
for F/O line
length
a
a. including 3 dB system reserve when compliance with the fiber data is observed
Fiber
attenuation
BLP/
dispersion
-MM/LC... MM 1310 nm 50/125 µm 0-8 dB 0-5 km 1.0 dB/km 800 MHz×km
-MM/LC... MM 1310 nm 62.5/125 µm 0-11 dB 0-4 km 1.0 dB/km 500 MHz×km
-SM/LC... SM 1310 nm 9/125 µm 0-13 dB 0-25 km 0.4 dB/km 3.5
ps/(nm×km)
-SM+/LC... SM 1310 nm 9/125 µm 10-29 dB 25-65 km 0.4 dB/km 3.5
ps/(nm×km)
-LH/LC... SM 1550 nm 9/125 µm 10-29 dB 47-104 km 0.25 dB/km 19 ps/(nm×km)
-LH/LC... SM 1550 nm 9/125 µm 10-29 dB 55-140 km 0.18 dB/km
b
b. with ultra-low-loss optical fiber
18 ps/(nm×km)
Table 19: Fiber port 100BASE-FX (SFP fiber optic Fast Ethernet Transceiver)
Product
code
M-SFP-...
Wave
length
Fiber System
attenuatio
n
Example
for F/O line
length
a
a. including 3 dB system reserve when compliance with the fiber data is observed
Fiber
attenuatio
n
BLPb/
dispersion
b. The bandwidth length product cannot be used to calculate the expansion.
-SX/LC... MM 850 nm 50/125 µm 0-7.5 dB 0-550 m 3.0 dB/km 400 MHz×km
-SX/LC... MM 850 nm 62.5/125 µm 0-7.5 dB 0-275 m 3.2 dB/km 200 MHz×km
-MX/LC MM 1310 nm 50/125 µm 0-8 dB 2 km
c
c. Distances of up to 3 km reachable, 1000 MHz*km (1300 nm)
1.0 dB/km 500 MHz×km
-MX/LC MM 1310 nm 62.5/125 µm 0-8 dB 1 km 1.0 dB/km 500 MHz×km
-LX/LC... MM 1310 nm
d
d. With F/O adapter compliant with IEEE 802.3-2002 clause 38 (single-mode fiber offset-launch
mode conditioning patch cord)
50/125 µm 0-10.5 dB 0-550 m 1.0 dB/km 800 MHz×km
-LX/LC... MM 1310 nm
d
62.5/125 µm 0-10.5 dB 0-550 m 1.0 dB/km 500 MHz×km
-LX/LC... SM 1310 nm 9/125 µm 0-10.5 dB 0-20 km
e
e. including 2.5 dB system reserve when compliance with the fiber data is observed
0.4 dB/km 3.5
ps/(nm×km)
-LX+/LC... SM 1310 nm 9/125 µm 5-20 dB 14-42 km 0.4 dB/km 3.5
ps/(nm×km)
-LH/LC... LH 1550 nm 9/125 µm 5-22 dB 23-80 km 0.25 dB/km 19 ps/(nm×km)
-LH+/LC LH 1550 nm 9/125 µm 15-30 dB 71-108 km 0.25 dB/km 19 ps/(nm×km)
-LH+/LC LH 1550 nm 9/125 µm 15-30 dB 71-128 km 0.21 dB/km
(typically)
19 ps/(nm×km)
Table 20: Fiber port 1000BASE-FX (SFP fiber optic Gigabit Ethernet Transceiver)
Page 62
62
Installation MS20/MS30
Release 11 07/2013
MM = Multimode, SM = Singlemode, LH = Singlemode Longhaul
Basic modules: Power consumption/Power output,
Operating voltage
Note: For the extended temperature range, use suitable modules and
transceivers. You will identify these components by the “EEC” name
extension or the open variant product code “E” (postion 15).
Product
code
M-SFPBIDI...
Wave
length
TX
Wave
length
RX
Fiber System
attenuat
ion
Example
for F/O
line
length
a
a. including 3 dB system reserve when compliance with the fiber data is observed
Fiber
attenuati
on
Dispersion
Type A
LX/LC
EEC
SM 1310 nm 1550 nm 9/125 µm 0-11 dB 0-20 km 0.4 dB/km 3.5
ps/(nm×km)
Type B
LX/LC
EEC
SM 1550 nm 1310 nm 9/125 µm 0-11 dB 0-20 km 0.25
dB/km
19 ps/(nm×km)
Type A
LH/LC
EEC
LH 1490 nm 1590 nm 9/125 µm 5-24 dB 23-80 km 0.25
dB/km
19 ps/(nm×km)
Type B
LH/LC
EEC
LH 1590 nm 1490 nm 9/125 µm 5-24 dB 23-80 km 0.25
dB/km
19 ps/(nm×km)
Table 21: F/O port (bidirectional Gigabit Ethernet SFP Transceiver)
Basic module Power consumption Power output Operating voltage
MS20-0800...A... 5.0 W 17.1 Btu (IT)/h 18-32 V DC
MS20-0800...C...
MS20-0800...E...
7.4 W 25.4 Btu (IT)/h 18-60 V DC
MS30-0802...A... 5.6 W 19.2 Btu (IT)/h 18-32 V DC
MS30-0802...C...
MS20-0800...E...
8.6 W 29.6 Btu (IT)/h 18-60 V DC
MS20-1600...A... 12.0 W 40.0 Btu (IT)/h 18-32 V DC
MS20-1600...C...
MS20-0800...E...
15.6 W 52.2 Btu (IT)/h 18-60 V DC
MS30-1602...A... 12.6 W 41.1 Btu (IT)/h 18-32 V DC
MS30-1602...C...
MS20-0800...E...
16.8 W 56.7 Btu (IT)/h 18-60 V DC
MS20-2400...A... 12.0 W 40.0 Btu (IT)/h 18-32 V DC
MS20-2400...C...
MS20-0800...E...
16.8 W 56.7 Btu (IT)/h 18-60 V DC
MS30-2402...A... 12.6 W 42.1 Btu (IT)/h 18-32 V DC
MS30-2402...C...
MS20-0800...E...
18.0 W 60.9 Btu (IT)/h 18-60 V DC
Page 63
Installation MS20/MS30
Release 11 07/2013
63
Module Power
consumpti
on
Power output Operating
temperature
(ambient air
temperature)
Order
number
MM2 media modules:
MM2-4TX1 0,8 W 2,8 Btu (IT)/h 0 °C ... +60 °C 943 722-101
MM2-4TX1-EEC 0,8 W 2,8 Btu (IT)/h −40 °C ... +70 °C 943 722-151
MM2-4FXM3 6,8 W 23,2 Btu (IT)/h 0 °C ... +60 °C 943 721-101
MM2-2FXM3/2TX1 3,8 W 13,0 Btu (IT)/h 0 °C ... +60 °C 943 720-101
MM2-2FXM2 3,8 W 13,0 Btu (IT)/h 0 °C ... +60 °C 943 718-101
MM2-2FXS2 3,8 W 13,0 Btu (IT)/h 0 °C ... +60 °C 943 719-101
MM3 media modules:
MM3-2AUI 3,4 W 11,6 Btu (IT)/h 0 °C … +60 °C 943 840-101
MM3-4FLM4 5,0 W 17,1 Btu (IT)/h 0 °C ... +60 °C 943 760-101
MM3-2FLM4 / 2TX1-RT 5,0 W 17,1 Btu (IT)/h 0 °C ... +60 °C 943 117-004
MM3-4TX5 0,8 W 2,8 Btu (IT)/h 0 °C ... +60 °C 943 841-101
MM3-4TX1-RT 0,8 W 2,8 Btu (IT)/h 0 °C ... +60 °C 943 117-001
MM3-1FXM2/3TX1 2,3 W 7,9 Btu (IT)/h 0 °C ... +60 °C 943 839-101
MM3-2FXM2/2TX1 3,8 W 13,0 Btu (IT)/h 0 °C ... +60 °C 943 761-101
MM3-2FXM2/2TX1-EEC 3,8 W 13,0 Btu (IT)/h −40 °C ... +70 °C 943 761-151
MM3-2FXM2 / 2TX1-RT 3,8 W 13,0 Btu (IT)/h 0 °C ... +60 °C 943 117-002
MM3-2FXM4/2TX1 3,8 W 13,0 Btu (IT)/h 0 °C ... +60 °C 943 837-101
MM3-4FXM2 6,8 W 23,2 Btu (IT)/h 0 °C ... +60 °C 943 764-101
MM3-4FXM4 6,8 W 23,2 Btu (IT)/h 0 °C ... +60 °C 943 835-101
MM3-1FXS2/3TX1 2,3 W 7,9 Btu (IT)/h 0 °C ... +60 °C 943 838-101
MM3-1FXS2 / 3TX1 EEC 2,3 W 7,9 Btu (IT)/h −40 °C ... +70 °C 943 838-151
MM3-2FXS2/2TX1 3,8 W 13,0 Btu (IT)/h 0 °C ... +60 °C 943 762-101
MM3-2FXS2/2TX1 EEC 3,8 W 13,0 Btu (IT)/h −40 °C ... +70 °C 943 762-151
MM3-4FXS2 6,8 W 23,2 Btu (IT)/h 0 °C ... +60 °C 943 836-101
MM3-1FXL2/3TX1 3,4 W 11,6 Btu (IT)/h 0 °C ... +60 °C 943 763-101
MM4 media modules:
MM4-4TX/SFP 9,0 W 30,8 Btu (IT)/h 0 °C ... +60 °C 943 010-001
MM4-2TX/SFP 5,8 W 19,8 Btu (IT)/h 0 °C ... +60 °C 943 622-001
Open variant media modules:
MM20-... 4 TX-/0 FX-Ports 0,8 W 2,8 Btu (IT)/h See table 23. See table 23.
MM20-... 3 TX-/1 FX-Ports 2,3 W 7,9 Btu (IT)/h - “ - - “ MM20-... 2 TX-/2 FX-Ports 3,8 W 13,0 Btu (IT)/h - “ - - “ MM20-... 0 TX-/2 FX-Ports 3,8 W 13,0 Btu (IT)/h - “ - - “ MM20-... 1 TX-/3 FX-Ports 5,3 W 18,1 Btu (IT)/h - “ - - “ MM20-... 0 TX-/4 FX-Ports 6,8 W 23,2 Btu (IT)/h - “ - - “ MM20-A8A89999... 3,4 W 11,6 Btu (IT)/h - “ - - “ MM20-F4F4F4F4... 5,0 W 17,1 Btu (IT)/h - “ - - “ MM20-Z6Z6Z6Z6... 8,0 W 27,3 Btu (IT)/h - “ - - “ MM20-P9P9P9P9SAHH 8,0 W 27,3 Btu (IT)/h 0 °C ... +60 °C - “ MM20-P9P9T1T1SAHH 5,2 W 17,8 Btu (IT)/h 0 °C ... +60 °C - “ -
Table 22: Media modules: power, temperature, order numbers
Page 64
64
Installation MS20/MS30
Release 11 07/2013
Open variant product code
As an alternative to the order number (see in table 22, last column) you
can use the product code. This gives you a wider range of variants when
selecting the media module that is specially tailored to your requirements.
The product code of your media module is made from combining the
desired product characteristics in accordance with the following table.
The short designation is in "Ident." column.
Example: Product code MM30-O7O7O7O7SA = media module
1000 Mbit/s with four Gigabit Ethernet combo ports (four SFP ports or
alternatively TP ports RJ45). This example corresponds to the
MM4-4TX/SFP module with the order number 943 010-001.
MM22-T1T1T1T1...
- internal operating voltage
- external PoE voltage
- no PD
- 4 x Class0-PD
0.8 W
1.3 W
2 W + PDs
2.8 Btu (IT)/h
4.3 Btu (IT)/h
6.9 Btu (IT)/h
- “ - - “ -
MM23-T1T1T1T1...SAHH 4,5 W 15,4 Btu (IT)/h 0 °C ... +60 °C - “ MM23-M2M2T1T1...SAHH 6,0 W 20,5 Btu (IT)/h 0 °C ... +60 °C - “ MM23-S2S2T1T1...SAHH 5,5 W 18,8 Btu (IT)/h 0 °C ... +60 °C - “ MM23-F4F4T1T1...SAHH 5,5 W 18,8 Btu (IT)/h 0 °C ... +60 °C - “ MM24-IOIOIOIO... 7,5 W 25,6 Btu (IT)/h 0°C ... +60 °C - “ MM30-O7O7O7O7... 9,0 W 30,8 Btu (IT)/h See table 23. - “ MM30-O7O79999... 5,8 W 19,8 Btu (IT)/h - “ - - “ MM33-O7O79999...SAHH 7,5 W 25,6 Btu (IT)/h 0 °C ... +60 °C - “ -
Extender module:
MB20 0 W 0 Btu (IT)/h 0 °C to +60 °C 943 733-102
Item Characteristic feature Ident. Property
1 to 4 Product MM20 Media module 10/100 Mbit/s (standard)
MM22 Media module 10/100 Mbit/s (Power over
Ethernet)
MM23 Media module 10/100 Mbit/s (PTP version 2)
MM30 Media module 1000 Mbit/s (standard)
MM33 Media module 1000 Mbit/s (PTP version 2)
5 - (hyphen) -
Table 23: Combination possibilities of the MM20/MM30 media module variants
Module Power
consumpti
on
Power output Operating
temperature
(ambient air
temperature)
Order
number
Table 22: Media modules: power, temperature, order numbers
Page 65
Installation MS20/MS30
Release 11 07/2013
65
6 to 7 1st port
(medium/connector)
T1 Twisted pair (TX) / RJ45
T5 Twisted pair (TX) / M12
M2 Multi-mode FX DSC (100 Mbit/s)
M3 Multi-mode FX MTRJ (100 Mbit/s)
M4 Multi-mode FX ST (100 Mbit/s)
S2 Single-mode FX DSC (100 Mbit/s)
S4 Single-mode FX ST (100 Mbit/s)
L2 Single-mode Long Haul FX DSC (100 Mbit/s)
G2 Single-mode Long Haul FX DSC 200km (only
100 Mbit/s)
F4 Multi-mode FL ST (10 Mbit/s)
P9 POF FX SCRJ (100 Mbit/s)
O7 Combo port Gigabit Ethernet (SFP 1000 Mbit/s)
A8 AUI Sub-D
Z6 Fiber optic / SFPslot (100 Mbit/s)
IO 4 digital inputs, 4 digital outputs
8 to 9 2nd port
(medium/connector)
... See items 6 to 7
10 to 11 3rd port
(medium/connector)
... See items 6 to 7
99 Empty
12 to 13 4th port
(medium/connector)
... See items 6 to 7
99 Empty
14 Temperature range S Standard: operation 0 °C ... +60 °C;
storage −40 °C to +70 °C
T Extended: operation −40 °C ... +70 °C;
storage −40 °C to +85 °C
E Extended: operation −40 °C ... +70 °C;
storage −40 °C to +85 °C,
with Conformal Coating
15 Certifications A CE, UL 508, ISA 12.12.01 Class I Division 2
B CE, UL 508, ISA 12.12.01 Class I Division 2, GL,
ATEX 100a Zone 2
E CE, UL 508, GL, EN 50121-4
H CE, UL 508, ISA 12.12.01 Class I Division 2, GL,
IEC 61850-3, IEEE 1613,EN 50121-4
S CE, UL 508, GL, IEC 61850-3, IEEE 1613,
EN 50121-4
Y CE, UL 508
ZCE
Item Characteristic feature Ident. Property
Table 23: Combination possibilities of the MM20/MM30 media module variants
Page 66
66
Installation MS20/MS30
Release 11 07/2013
Interfaces
Scope of delivery
Accessories
Note: Please note that products recommended as accessories may have
characteristics that do not fully match those of the corresponding product.
This may limit their possible usage in the overall system.
MICE MS20-..., MS30-... V.24 port: external management,
AutoConfiguration Adapter ACA 11
2 terminal blocks 4-pin:
1 x indicator contact each, 1 A maximum, 24 V
1 x voltage supply each
USB: ACA 21-USB
MICE MS20-...E..., MS30-...E... V.24 port: external management,
AutoConfiguration Adapter ACA 11
1 terminal block 6-pin:
1 x indicator contact each, 1 A maximum, 24 V
1 x voltage supply each
USB: ACA 21-USB
MM2 media modules see table “MM2 media modules” on page 22
MM3 media modules see table “MM3 media modules” on page 23
MM4 media modules see table “MM2 media modules” on page 22
Number Article
1 × Device
2 × 4-pin terminal block for supply voltage
(MS20-.../MS30-...)
1 × 6-pin terminal block for supply voltage
(MS20-...E.../MS30-...E..)
1 × ML-MS2/MM labels
1 × Installation user manual
1 × CD/DVD with manual
Designation Order number
Fast Ethernet SFP transceiver
M-FAST SFP-MM/LC 943 865-001
M-FAST SFP-MM/LC EEC 943 945-001
M-FAST SFP-SM/LC 943 866-001
M-FAST SFP-SM/LC EEC 943 946-001
M-FAST SFP-SM+/LC 943 867-001
M-FAST SFP-SM+/LC EEC 943 947-001
M-FAST SFP-LH/LC 943 868-001
M-FAST SFP-LH/LC EEC 943 948-001
Gigabit Ethernet SFP transceiver
M-SFP-TX/RJ45 943 977-001
M-SFP-SX/LC 943 014-001
Page 67
Installation MS20/MS30
Release 11 07/2013
67
Underlying norms and standards
M-SFP-SX/LC EEC 943 896-001
M-SFP-MX/LC 942 035-001
M-SFP-LX/LC 943 015-001
M-SFP-LX/LC EEC 943 897-001
M-SFP-LX+/LC 942 023-001
M-SFP-LX+/ LC EEC 942 024-001
M-SFP-LH/LC 943 042-001
M-SFP-LH/LC EEC 943 898-001
M-SFP-LH+/LC 943 049-001
Bidirectional Gigabit Ethernet SFP transceiver
M-SFP-BIDI Type A LX/LC EEC 943 974-001
M-SFP-BIDI Type B LX/LC EEC 943 974-002
M-SFP-BIDI Type A LH/LC EEC 943 975-001
M-SFP-BIDI Type B LH/LC EEC 943 975-002
M-SFP-BIDI Bundle LX/LC EEC (Type A + B) 943 974-101
M-SFP-BIDI Bundle LH/LC EEC (Type A + B) 943 975-101
Other accessories Order number
AutoConfiguration Adapter ACA11-EEC 943 751-002
AutoConfiguration Adapter ACA 21-USB EEC 943 271-002
Terminal cable 943 301-001
4-pin terminal block (50 pcs.) 943 845-004
6-pin terminal block (50 pcs.) 943 845-006
Rail Power Supply RPS 30 943 662-003
Rail Power Supply RPS 80 EEC 943 662-080
Rail Power Supply RPS 120 EEC 943 662-120
Rail Power Supply for Power over Ethernet RPS60/48V EEC 943 952-001
ML-MS2/MM labels 943 767-001
ML-MS3 labels 943 768-001
Network management software Industrial HiVision 943 156-xxx
OPC server software HiOPC 943 055-001
Name
EN 50121-4 Railway applications – EMC – Emission and immunity of the
signalling and telecommunications apparatus (Rail Trackside)
EN 50155 Declaration (Railway) a
b
EN 55022 Information technology equipment – Radio disturbance
characteristics – Limits and methods of measurement
EN 60079-15 Explosive atmospheres – Part 15: Equipment protection by type of
protection „n“
EN 60950-1 Information technology equipment – Safety – Part 1: General
requirements
EN 61000-6-2 Electromagnetic compatibility (EMC) – Part 6-2: Generic
standards – Immunity for industrial environments
Table 24: List of norms and standards
Designation Order number
Page 68
68
Installation MS20/MS30
Release 11 07/2013
The device generally fulfills the norms and standards named in their
current versions.
EN 61000-6-2 Electromagnetic compatibility (EMC) – Part 6-2: Generic
standards – Immunity for industrial environments
EN 61131-2 Programmable controllers – Part 2: Equipment requirements and
tests
FCC 47 CFR Part 15 Code of Federal Regulations
German Lloyd Classification and Construction Guidelines VI-7-3 Part 1 Ed.2003
IEC/EN 61850-3 Communication networks and systems in substations – Part 3:
General requirements
IEEE 802.1 D Switching, GARP, GMRP, Spanning Tree
Media access control (MAC) bridges (includes IEEE 802.1p
Priority and Dynamic Multicast Filtering, GARP, GMRP)
IEEE 802.1 Q Tagging
Virtual Bridged Local Area Networks (VLAN Tagging, GVRP)
IEEE 802.1 w Rapid Reconfiguration
IEEE 802.3 Ethernet
ISA 12.12.01, CSA C22.2
No. 213
Nonincendive Electrical Equipment for Use in Class I and II,
Division 2 and Class III, Divisions 1 and 2 Hazardous (Classified)
Locations
Korean Register of Shipping Rules for the Classification of Steel Ships – KR
UL 508 Safety for Industrial Control Equipment
a. Devices with C specification (see product code position 16 in table 1)
(MS20-0800ECCP, MS20-1600ECCP)
b. Restriction: Electrical isolation on voltage input: see table entry
„Isolating voltage between operating voltage connec-tors and housing“ in chapter
“Technical data” on page 52
RFC 768 UDP RFC 1769 SNTP
RFC 783 TFTP RFC 1907 MIB2
RFC 791 IP RFC 1945 HTTP/1.0
RFC 792 ICMP RFC 2131 DHCP
RFC 793 TCP RFC 2132 DHCP Options
RFC 826 ARP RFC 2236 IGMPv2
RFC 951 BOOTP RFC 2239 MAU-MIB
RFC 1112 IGMPv1 RFC 3411 SNMP Framework
RFC 1157 SNMPv3 RFC 3412 SNMP MDP
RFC 1155 SMIv1 RFC 3413 SNMP Applications
RFC 1213 MIB2 RFC 3414 SNMP USM
RFC 1493 Dot1d RFC 3415 SNMP VACM
RFC 1542 BOOTP Extensions RFC 2613 SMON
RFC 1757 RMON RFC 2674 Dot1p/Q
Table 25: List of RFCs
Name
Table 24: List of norms and standards
Page 69
Installation MS20/MS30
Release 11 07/2013
69
The device has a certification based on a specific standard only if the
certification indicator appears on the housing.
If your device has a ship certification according to Germanischer Lloyd,
the certification mark can be found printed on the device label. You can
find out whether your device has other ship certifications on the
Hirschmann website at www.hirschmann.com in the product information.
Page 70
70
Installation MS20/MS30
Release 11 07/2013
Page 71
Installation MS20/MS30
Release 11 07/2013
71
Page 72
72
Installation MS20/MS30
Release 11 07/2013
Page 73
Installation MS20/MS30
Release 11 07/2013
73
Page 74
74
Installation MS20/MS30
Release 11 07/2013
Page 75
Installation MS20/MS30
Release 11 07/2013
75
A Further Support
Technical Questions
For technical questions, please contact any Hirschmann dealer in your
area or Hirschmann directly.
You will find the addresses of our partners on the Internet at
http://www.hirschmann.com
Contact our support at
https://hirschmann-support.belden.eu.com
You can contact us
in the EMEA region at
Tel.: +49 (0)1805 14-1538
E-mail: hac.support@belden.com
in the America region at
Tel.: +1 (717) 217-2270
E-mail: inet-support.us@belden.com
in the Asia-Pacific region at
Tel.: +65 6854 9860
E-mail: inet-ap@belden.com
Hirschmann Competence Center
The Hirschmann Competence Center is ahead of its competitors:
Consulting incorporates comprehensive technical advice, from system
evaluation through network planning to project planning.
Training offers you an introduction to the basics, product briefing and
user training with certification.
The current technology and product training courses can be found at
http://www.hicomcenter.com
Support ranges from the first installation through the standby service
to maintenance concepts.
With the Hirschmann Competence Center, you have decided against
making any compromises. Our client-customized package leaves you
free to choose the service components you want to use.
Internet:
http://www.hicomcenter.com
Page 76
Loading...
