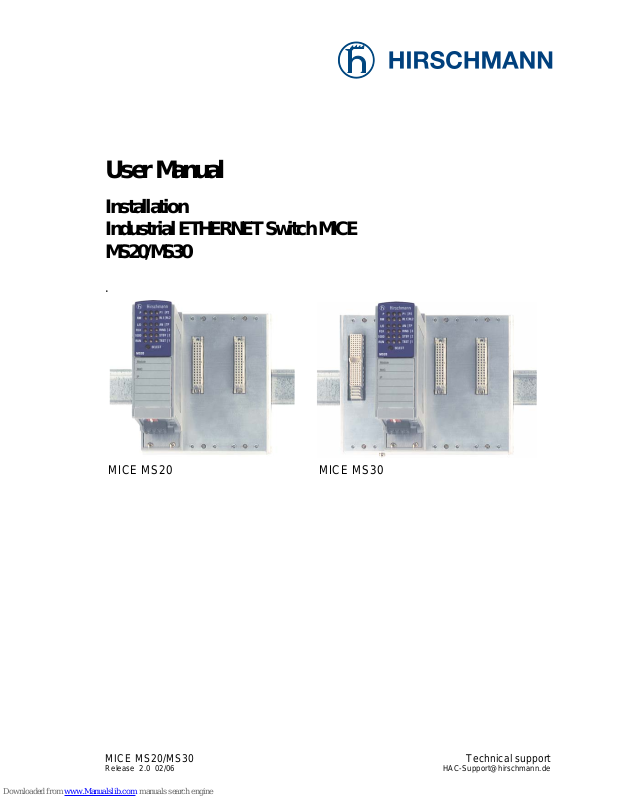

Hirschmann MICE MS20, MICE MS30 User Manual

MICE MS20/MS30

Release 2.0 02/06

Technical support

[e-mail]

User Manual

Installation
Industrial ETHERNET Switch MICE
MS20/MS30

.

MICE MS20 MICE MS30

The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.

© 2006 Hirschmann Automation and Control GmbH
Manuals and software are protected by copyright. All rights reserved. The copying , reproduction,

translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use.

The performance features described here are binding only if they have been expressly
guaranteed in the contract. This publication has been created by Hirschmann Automation and
Control GmbH according to the best of our knowledge. Hirschmann reserves the right to change
the contents of this manual without prior notice. Hirschmann can give no guarantee in respect
of the correctness or accuracy of the details in this publication.

Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In additio n, we refer to the cond itions of u se
specified in the license contract.

Printed in Germany (9.2.06)

Hirschmann Automation and Control GmbH
Stuttgarter Straße 45-51
72654 Neckartenzlingen
Tel. [phone] 530-001-02-0206

MS20/MS30

Release 2.0 02/06

3

Content

Safety instructions 4
About this manual 9
Legend 9

1 Device description 10

1.1 Description of the device variants 11

1.1.1 MS20-... /MS30-... combination options 13

1.1.2 Number of ports and media 14

1.1.3 Media modules 16

1.1.4 MB - 2T expansion module 20

1.1.5 SFP module 20

2 Assembly and startup procedure 21

2.1 Device installation 21

2.1.1 Unpacking and checking 21

2.1.2 Assembling the media modules 21

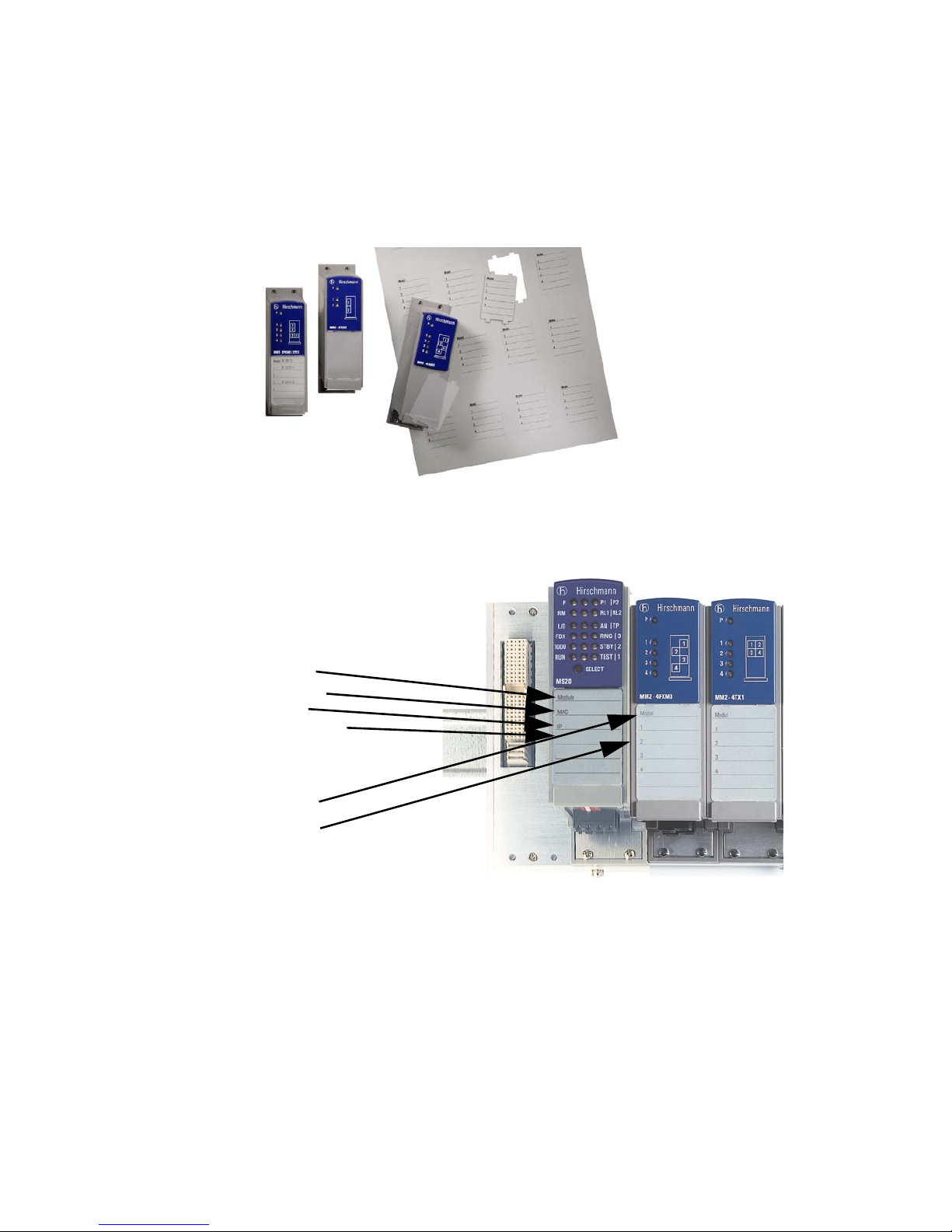

2.1.3 Filling out and attaching the labels 22

2.1.4 Assembling the SFP modules 23

2.1.5 Adjusting the DIP switch settings on the basic module 23

2.1.6 Adjusting the DIP switch settings on the
MICE MM3-2AUI media module (if existent) 24

2.1.7 Terminal block for supply voltage and signal contact 25

2.1.8 Connecting the terminal blocks, startup procedure 26

2.1.9 Assembling the device on the ISO/DIN rail, grounding 26

2.1.10Connecting the data lines 27

2.1.11Assembling the MB - 2T expansion module 29

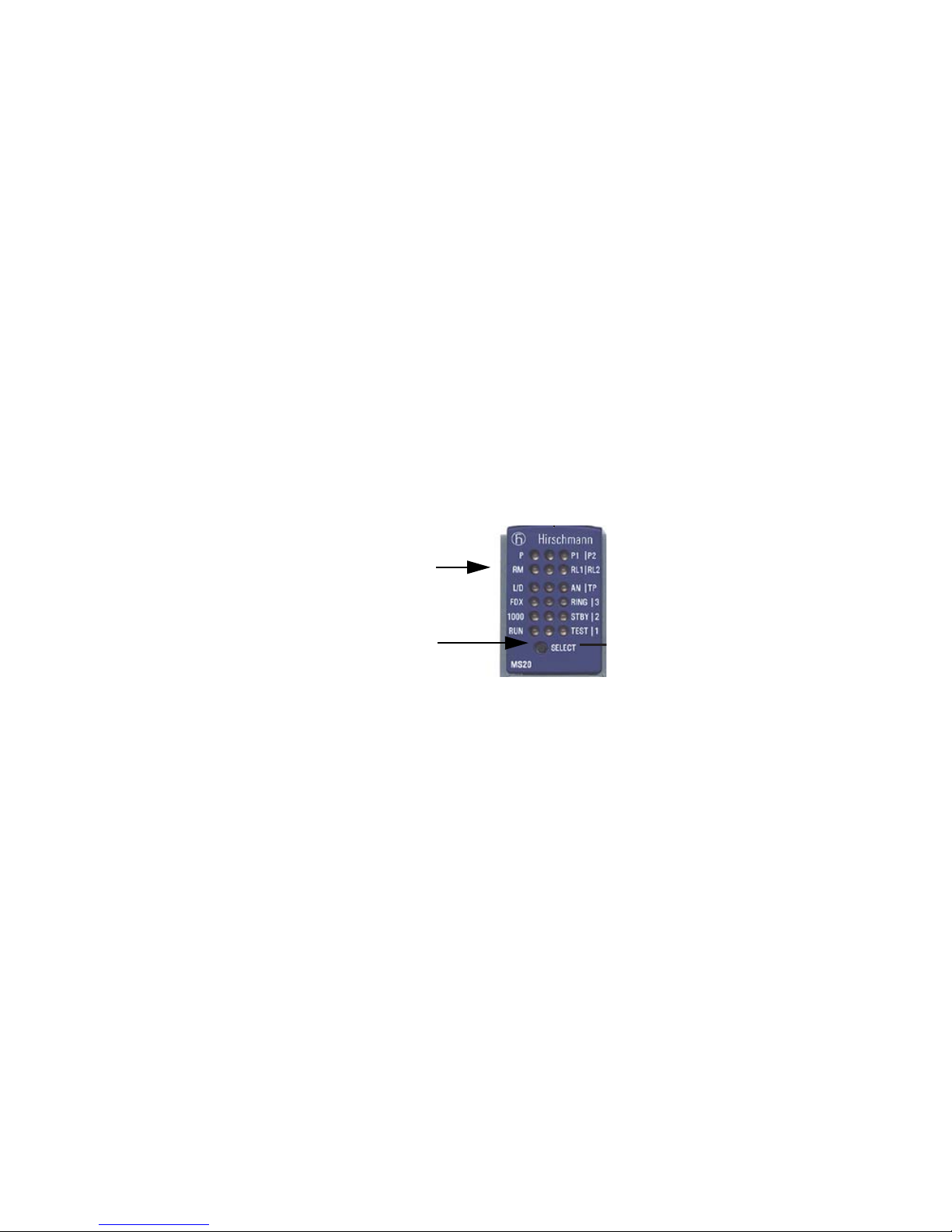

2.1.12Define the meaning of the display LEDs 29

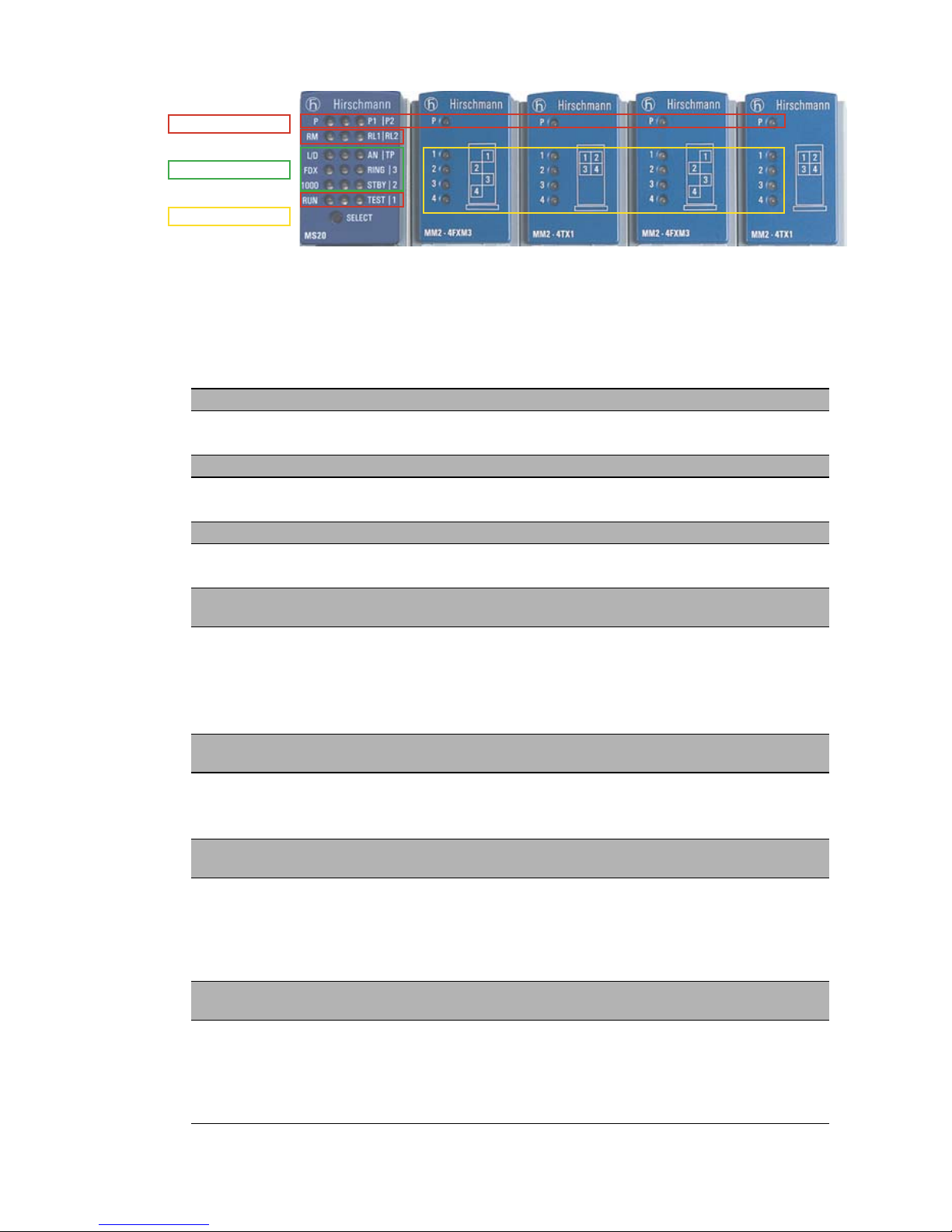

2.2 Displays 30

2.3 Carrying out basic settings 34

2.4 Disassembling 36

3 Technical data 37

Further support 43

4

MS20/MS30

Release 2.0 02/06

Safety instructions

This manual contains instructions which must be observed to ensure your
own personal safety and to avoid damage to devices and machinery.

U Certified usage

Please observe the following: The device may only be employed for the
purposes described in the catalog and technical description, and only in
conjunction with external devices and components recommended or
approved by Hirschmann. The product can only be operated correctly
and safely if it is transported, stored, installed and assembled properly
and correctly. Furthermore, it must be operated and serviced carefully.

U Supply voltage

The devices are designed for operation with a safety extra-low
voltage.Thus, they may only be connected to the supply voltage connec­tions and to the signal contact with PELV circuits or alternatively SELV
circuits with the voltage restrictions in accordance with IEC/EN 60950.
The supply voltage is electrically isolated from the housing.

V Use only undamaged parts!
V Relevant for North America:

The subject unit is to be suppplied by a Class 2 power source comp­lying with the requirements of the National Electrical Code, table 11(b).
If power is redundant supplied (two individual power sources) the po­wer sources together should comply with the requirements of the Na­tional Electrical Code, table 11 (b).

V Relevant for North America:

Use 60/75°C or 75°C copper(CU)wire only.

V Relevant for North America

for devices certified for hazardous locations:
Power, input and output (I/O) wiring must be in accordance with Class
I, Division 2 wiring methods [Article 501-4(b) of the National Electrical
Code, NFPA 70] and in accordance with the authority having
jurisdiction.

U Shielding ground

The shielding ground of the connectable twisted pairs lines is connected
to the front panel as a conductor.
V Beware of possible short circuits when connecting a cable section

with conductive shielding braiding.

MS20/MS30

Release 2.0 02/06

5

U Housing

Only technicians authorized by Hirschmann are permitted to open the
housing.
The lower covering panel of the MICE housing is grounded by the DIN
rail and, as an option, by the separate ground screw.
The switch basic module forms an inseparable unity. By removing the
display and connecting parts, you risk the damage of the switch basic
module.
V Make sure that the electrical installation meets local or nationally ap-

plicable safety regulations.

V The ventilation slits must not be covered to ensure free air circulation.
V The distance to the ventilation slots of the housing has to be a mini-

mum of 10 cm.

V Never insert pointed objects (thin screwdrivers, wires, etc.) into the in-

side of the subrack! Failure to observe this point may result in injuries
caused by electric shocks.

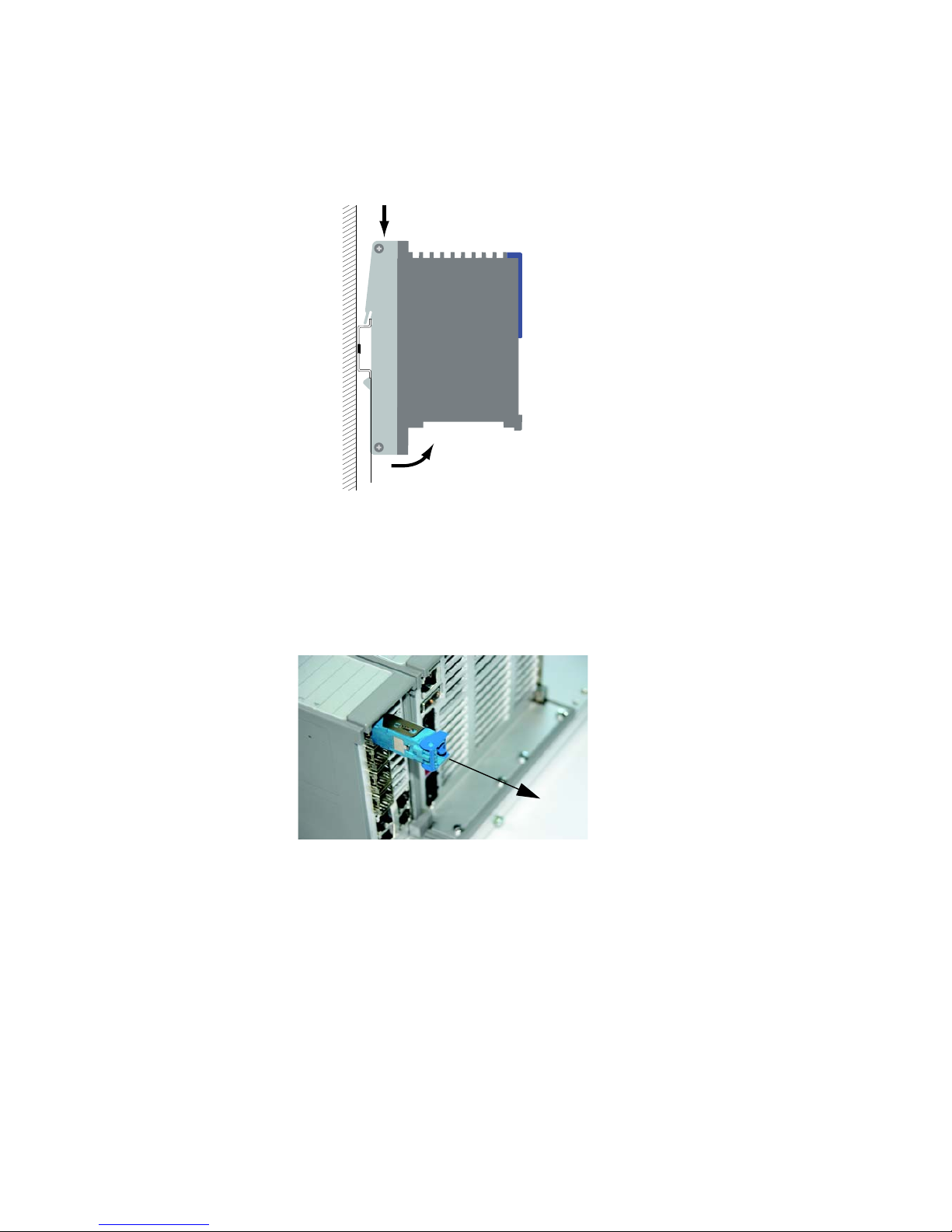

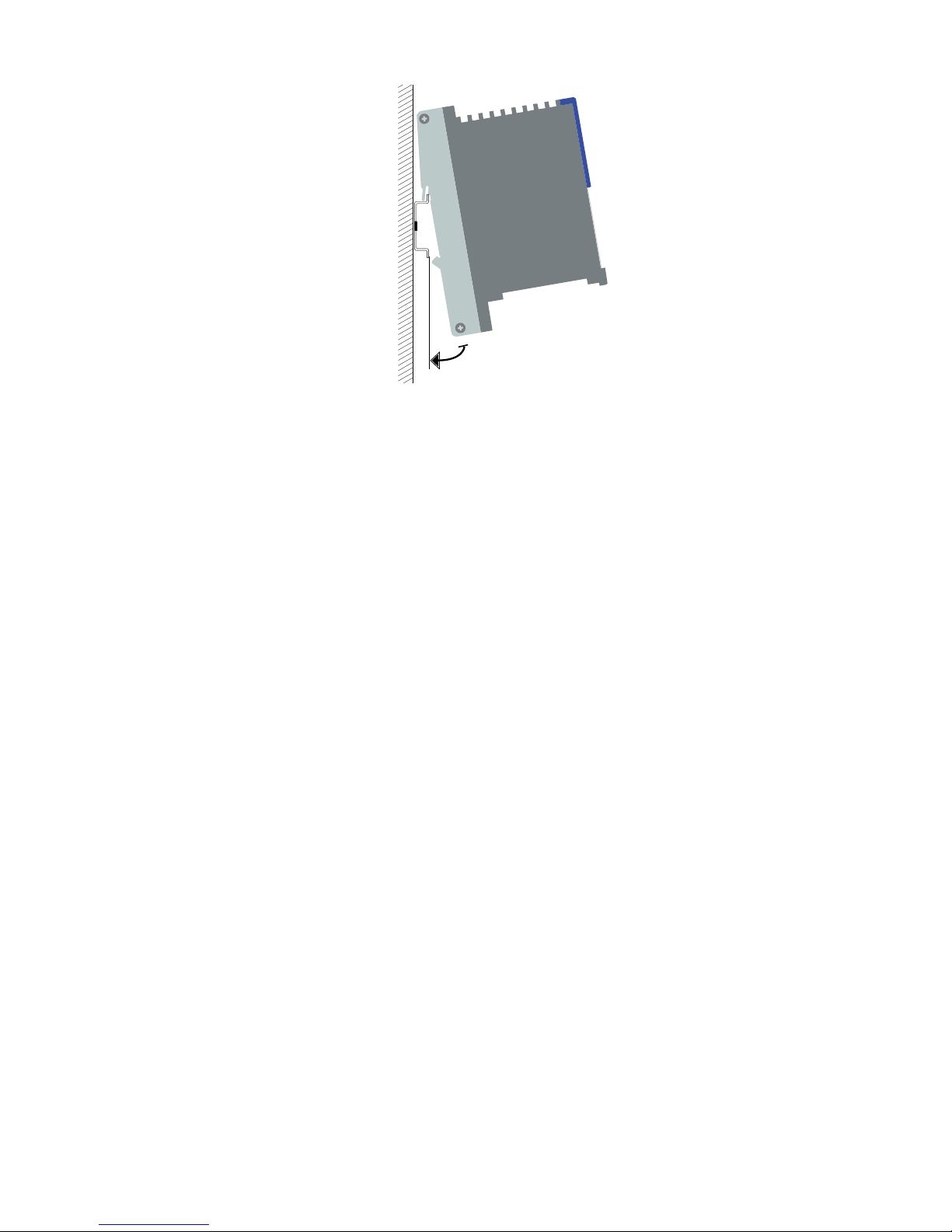

V The device has to be mounted in an upright position (see Fig. 13).
V If installed in a living area or office environment, the device must be

operated exclusively in switch cabinets with fire protection characteri­stics according to EN 60950.

U Environment

The device may only be operated in the listed maximum surrounding air
temperature range at the listed relative air humidity range (non-conden­sing).
V The installation location is to be selected so as to ensure compliance

with the climatic limits listed in the Technical Data.

V To be used in a Pollution Degree listed in the Technical Data.

U Qualification requirements for personnel

Qualified personnel as understood in this manual and the warning signs,
are persons who are familiar with the setup, assembly, startup, and ope­ration of this product and are appropriately qualified for their job. This
includes, for example, those persons who have been:

D trained or directed or authorized to switch on and off, to ground and to

label power circuits and devices or systems in accordance with current
safety engineering standards;

D trained or directed in the care and use of appropriate safety equipment

in accordance with the current standards of safety engineering;

D trained in providing first aid.

6

MS20/MS30

Release 2.0 02/06

U General Safety Instructions

This device is electrically operated. Adhere strictly to the safety require­ments relating to voltages applied to the device as described in the ope­rating instructions!

Failure to observe the information given in the warnings could result in
serious injury and/or major damage.
V Only personnel that have received appropriate training should operate

this device or work in its immediate vicinity. The personnel must be ful­ly familiar with all of the warnings and maintenance measures in these
operating instructions.

V Correct transport, storage, and assembly as well as careful operation

and maintenance are essential in ensuring safe and reliable operation
of this device.

V Only use undamaged parts!
V These products are only to be used in the manner indicated in this ver-

sion of the manual.

V Any work that may have to be performed on the electrical installation

should be performed by fully qualified technicians only.

Warning!

LED- or LASER components according to IEC 60825-1 (2001):
CLASS 1 LASER PRODUCT.
LIGHT EMITTING DIODE - CLASS 1 LED PRODUCT.

Warning (MM2 - 2FXP4, MM3 - 4FXP4)

LED LIGHT
DO NOT STARE INTO THE BEAM OR VIEW DIRECTLY
WITH OPTICAL INSTRUMENTS (e.g. lens, microscope).

Failure to observe this warning within a distance of 100 mm
can endanger your eyes. Light is emitted from the optical connections or
from the ends of the optical fibers that are connected to them. Light Emit­ting Diode CLASS 2M, Wave length 650 nm, Power <2 mW, according to
IEC/CEI 60825-1:2003-10.

U National and international safety regulations

V Make sure that the electrical installation meets local or nationally ap-

plicable safety regulations.

MS20/MS30

Release 2.0 02/06

7

U ESD guidelines (MM2 - 2FXP4, MM3 - 4FXP4)

The media modules MM2-2FXP4 and MM3-4FXP4 contain components
highly sensitive to electrostatic fields. These components can be easily
destroyed or have their lives shortened by an electrical field or by a
discharge caused by touching the contacts. You can find more informa­tion about devices vulnerable to electrostatic fields in DIN EN 61340-5-1
(2001-08) and DIN EN 61340-5-2 (2002-01).

U Note on the CE marking

The devices comply with the regulations contained in the following
European directives:

89/336/EEC
Directive of the council for standardizing the regulations of member
states on electromagnetic compatibility (changed by RL 91/263/EEC, 92/
31/EEC and 93/68/EEC).
In accordance with the above-named EU directives, the EU conformity
declaration will be at the disposal of the relevant authorities at the follo­wing address:

Hirschmann Automation and Control GmbH
Stuttgarter Straße 45-51
D-72654 Neckartenzlingen
Germany
Phone ++49 7127 14 1480

The product can be used in living areas (living area, place of business,
small business) and in industrial areas.

D Interference immunity: EN 61000-6-2:2001
D Emitted interference: EN 55022:1998 + A1 2000 + A2 2003 Class A

Warning!

This is a class A device. This device can cause interference in living
areas, and in this case the operator may be required to take appropriate
measures.
The assembly guidelines provided in these instructions must be strictly
adhered to in order to observe the EMC value limits.

8

MS20/MS30

Release 2.0 02/06

U FCC note:

Appropriate testing has established that this device fulfills the require­ments of a class A digital device in line with part 15 of the FCC
regulations.
These requirements are designed to provide sufficient protection against
interference where the device is being used in a business environment.
The device creates and uses high frequencies and can radiate same,
and if it is not installed and used in accordance with this operating
manual, it can cause radio transmission interference. The use of this
device in a living area can also cause interference, and in this case the
user is obliged to cover the costs of removing the interference.

U Recycling note:

After usage, this product must be disposed of properly as electronic
waste in accordance with the current disposal regulations of your county
/ state / country.

MS20/MS30

Release 2.0 02/06

9

About this manual

The following manuals are included as PDF files on the enclosed CD ROM:

D User manual “Installation”
D User manual “Basic configuration”
D User manual “Redundancy configuration”
D Reference manual “Web-based Interface” and
D Reference manual “Command Line Interface”

If you use Network Management Software HiVision you have further
opportunities to:

D have an event logbook.
D configure the “System Location” and “System Name”.
D configure the network address range and SNMP parameters.
D save the configuration on the Switch.
D simultaneous configuration of several Switches.
D configure the relevant ports to be displayed red if there is no link state.

Legend

The commendations used in this manual have the following meanings:

D

Listing

V

Work step

U

Subheading

10

MS20/MS30

Release 2.0 02/06

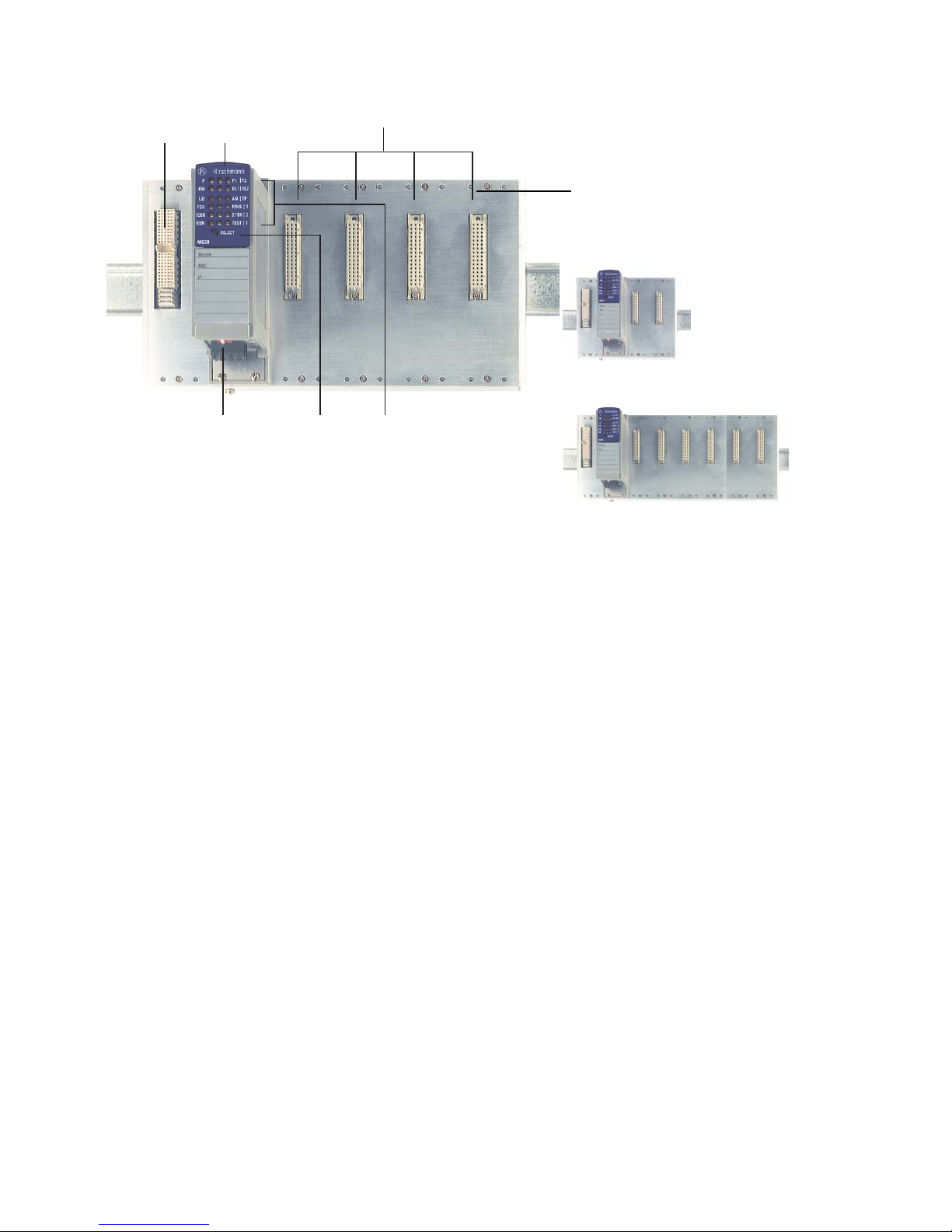

1 Device description

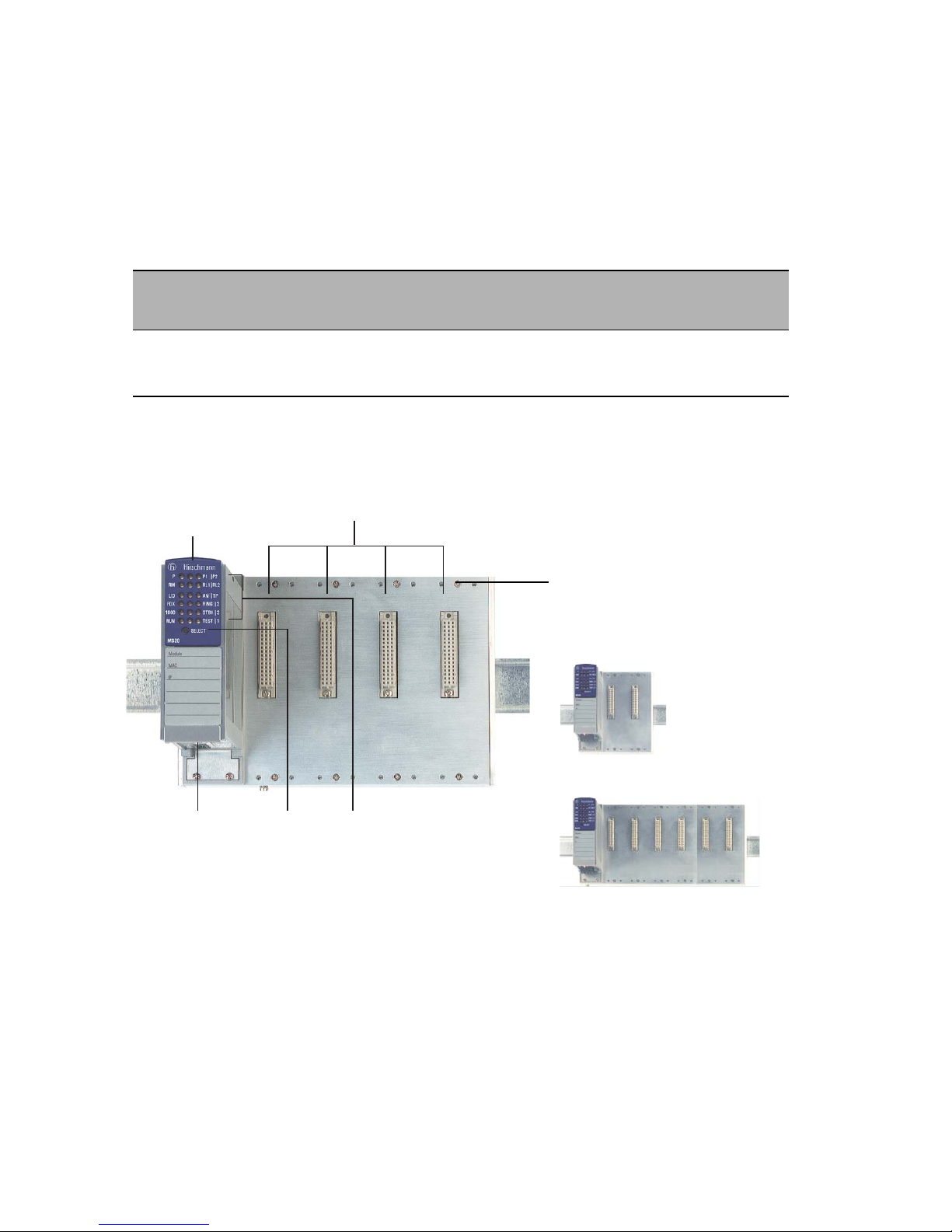

The MS20/MS30 devices consist of a switch with media modules that can be
plugged into it. They allow you to construct switched industrial ETHERNET
networks that conform to the IEEE 802. and 802.3u standards using copper
wires or optical fibers in a bus or ring topology. You can connect terminal de­vices and other infrastructure components via twisted pair cables, multi­mode LWL and single-mode LWL. The twisted pair ports support autocross­ing, autonegotiation and autopolarity.

The MS20/MS30 devices provide you with a range of switch variants. You
can set up your switch to meet your individual requirements with regard to the
transmission media type, the number of 10/100 Mbit ports you want (8, 16 or

24), the number of 1000 Mbit ports (up to 2), the temperature range, voltage
range, certificates and software variant.

The MS20/MS30 devices are modular network components. They are de­signed for the special requirements of industrial automation. They meet the
relevant industry standards, provide very high operational reliability, even un­der extreme conditions, and also long-term reliability and flexibility. The de­vices operate without fans and have a redundant voltage supply. The
switches are very quickly mounted by snapping them onto a hat rail, which
also automatically contacts the function ground.

The HIPER-Ring redundancy concept enables you to quickly carry out a re­configuration, and also a simple configuration with only one additional con­nection. The diagnosis display and the display of the operating parameters
and the large label areas provide a quick overview.
It can be easily managed via a Web browser, via Telnet, with a management
software product (such as F) or locally on the switch (V.24 interface).

Basic module

Media module or
slot for media module, No.

1234 1 2345

MS20 MS30

MS20/MS30

Release 2.0 02/06

11

Depending on the software you choose, the MS20/MS30 devices provide
you with a large range of functions:

D Redundancy functions

(Rapid Spanning Tree, Redundant Ring Structure, HIPER-Ring,
Redundant Coupling, Link Aggregation, Redundant Power Supply)

D Protection from unauthorized access
D Synchronized system time in the network
D Network load control
D Function diagnosis
D Diagnostics (hardware self-testing)
D Reset
D Priority
D VLAN
D Topology recognition
D Web-based interface
D Command Line Interface - CLI
D SNMP
D 802.1x port authentication
D Real Time Clock (Professional software variant)

The addition, to the MS20/MS30 MICE range, of the RS20/RS30 Open Rail
range of switches, the MACH range of backbone switches, the BAT wireless
transmission system, the EAGLE security system, and products for the LION
control room, provides continuous communication across all levels of the
company.

1.1 Description of the device variants

The industrial ETHERNET series MICE (Modular Industrial Communication
Equipment) consists of a basic switch module and the media modules. These
devices can be managed. A basic module contains all the functions of this
industrial Gerät, with the exception of the interfaces to the LAN that is
connected. Pluggable media modules provide these interfaces. They differ
with regard to the number of interfaces and the media type for connecting
segments. An expansion module enables you to add 2 slots for media
modules to the basic module.

For the sake of simplicity, the basic switch module with various plugged in
media modules will be referred to as MICE in this document.

D The MS20-... device variants are modular switches with up to 8, 16 or 24 *

10/100 Mbit Ethernet ports. You can choose the media for the ports via
the media modules.

12

MS20/MS30

Release 2.0 02/06

D The MS30-... device variants are modular switches with up to 8, 16 or 24 *

10/100 Mbit Ethernet ports and up to 2 additional Gigabit ports (1000 Mbit
Ethernet). You can choose the media for the ports via the media modules.

The devices also provide you with the following options for selecting the
variant you desire:

D Temperature range:

D Standard (0 °C to +60 °C)
D Extended (-40 °C to +70 °C) without conformal coating
D Extended (-40 °C to +70 °C) with conformal coating

D Voltage range:

D 18 to 32 VDC (flatter basic module design)
D 18 to 60 VDC (deeper basic module design)

D Certifications:

D CE, UL
D CE, UL, German Lloyd (GL), IEC 61850 Declaration (Sub Station),

IEEE 1613 (Sub Station), EN 50121-4 Railway (along track)

D CE, UL, German Lloyd (GL), IEC 61850 Declaration (Sub Station),

IEEE 1613 (Sub Station), EN 50121-4 Railway (along track), EN
50155 Declaration (Railway) and ATEX 100a (Hazardous Location)

D Software version: Enhanced or Professional

The devices comply with the specifications of the standards:
ISO/IEC 8802-3u 100BASE-TX/-1000BASE-T,
ISO/IEC 8802-3 100BASE-FX and
ISO/IEC 8802-3 1000BASE-SX/LX.

The basic module of the MICE contains all the function units, such as: switch
function, management function, redundancy function, display control,
voltage connection, management connection, adjustable controls, slots for
media modules.

Family Designed for
MS20 Larger numbers of ports,

number of 100 Mbit ports desired, temperature range, voltage range, certifi­cates and software variant can be selected

MS30 Larger numbers of ports and larger bandwidth requirement,

number of 100/1000 Mbit ports desired, temperature range, voltage range,
certificates and software variant can be selected

MS20/MS30

Release 2.0 02/06

13

1.1.1 MS20-... /MS30-... combination options

The product designation of your MS20/MS30 device is made from combining
the desired product characteristics in accordance with the following table.
The short designation is in column 3.

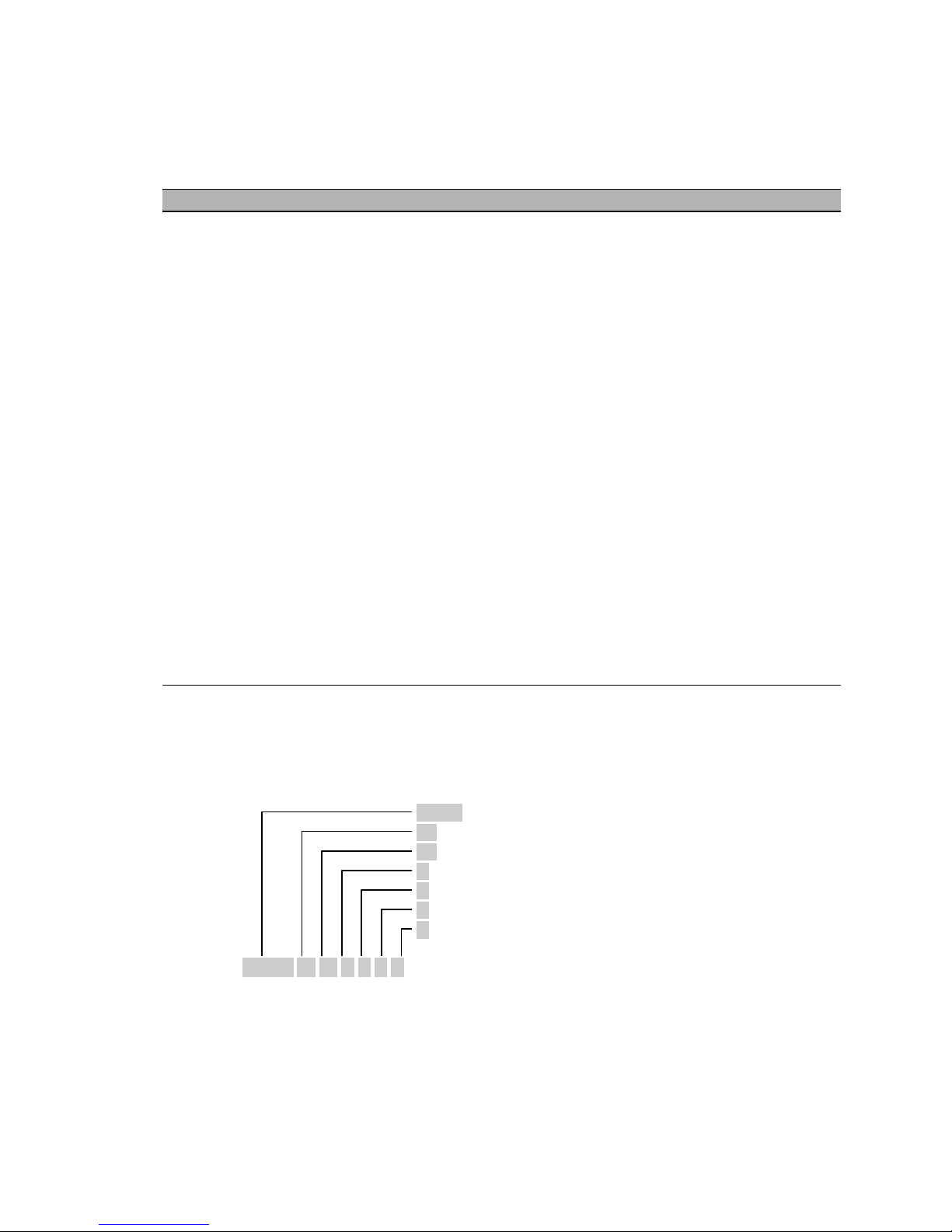

U Example: MS30-0802SAAE

Position Attribute Ident. Feature
1 to 4 Produkt MS20 Modular Switch without gigabit ports

MS30 Modular Switch with gigabit ports
5 - (hyphen) ­6 to 7 Number of 10/100 Mbit ports 08 8 * 10/100 Mbit Ethernet

16 16 * 10/100 Mbit Ethernet

24 24 * 10/100 Mbit Ethernet
8 and 9 Number of 1000 Mbit ports 00 0 * 1000 Mbit Ethernet

02 2 * 1000 Mbit Ethernet
14 Temperature range S Standard 0 °C to +60 °C

T Extended -40 °C to +70 °C

E Extended -40 °C to +70 °C, conformal

coating

15 Voltage range A 18 VDC to 32 VDC

C 18 VDC to 60 VDC
16 Specifications A CE, UL

H CE, UL, GL, railway (along track),

sub station

B CE, UL, GL, railway (along track), sub

station, hazardous location (ATEX),
railway (train)

17 Software version E Enhanced

P Professional

Table 1: Combination options of the MS20/MS30 device versions

MS30- 08 02 S A A E

MS30-: Modular switch with gigabit ports
08: 8 x 100 Mbit Ethernet ports
02: 2 x 1000 Mbit Ethernet ports
S: Temperature range standard (0°C to 60°C)
A: Voltage range 18 VDC to 32 VDC
A: Specifications CE and UL
E: Software version enhanced

14

MS20/MS30

Release 2.0 02/06

1.1.2 Number of ports and media

U Device versions with 10/100 Mbit ports

MS20-0800..., MS20-1600..., MS20-2400...

Depending on the variant, the MS20 basic modules provide you with the
following number of slots for media modules and the following maximum
number of connectable network segments:

1)

Expandable to 24 ports with MB2-T expansion module

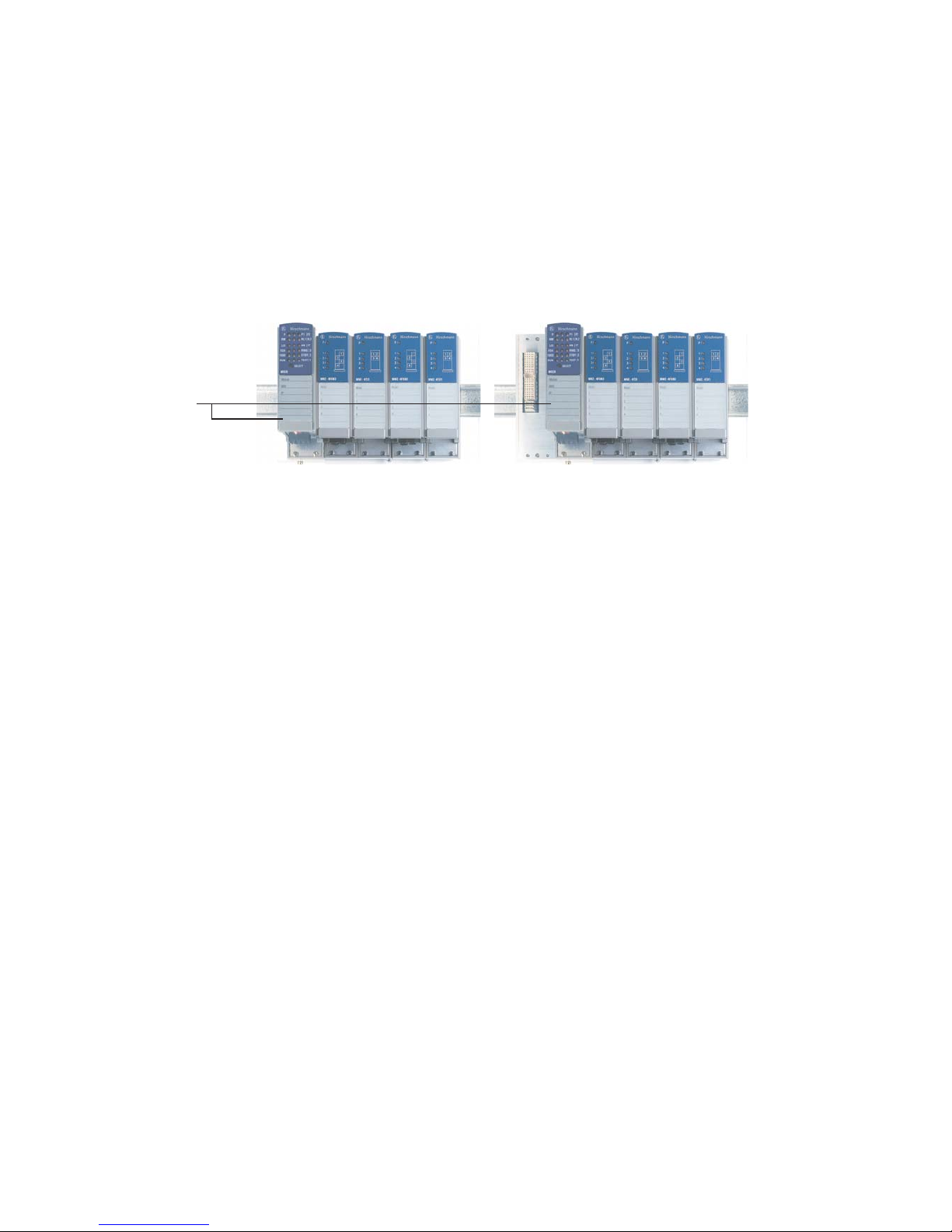

Fig. 1: Overview interfaces, display elements and controls of the MS20 -...

Basic module Number of slots for

10/100 Mbit media
modules

Maximum number of connectable 10/100 Mbit
network segments when connecting 4 port media

modules
MS20-0800... 2 8
MS20-1600... 4 16

1)

MS20-2400... 6 24

Switch
basic module
MS20-…

4 slots for media modules
MM2-… or MM3-… with 2-4 ports each

Key for
display
status

LEDs
device status,
display status

Terminal block,
V.24 port,
USB port,
DIP switch

MS20-1600...

MS20-0800...

MS20-2400...

Grounding screw

MS20/MS30

Release 2.0 02/06

15

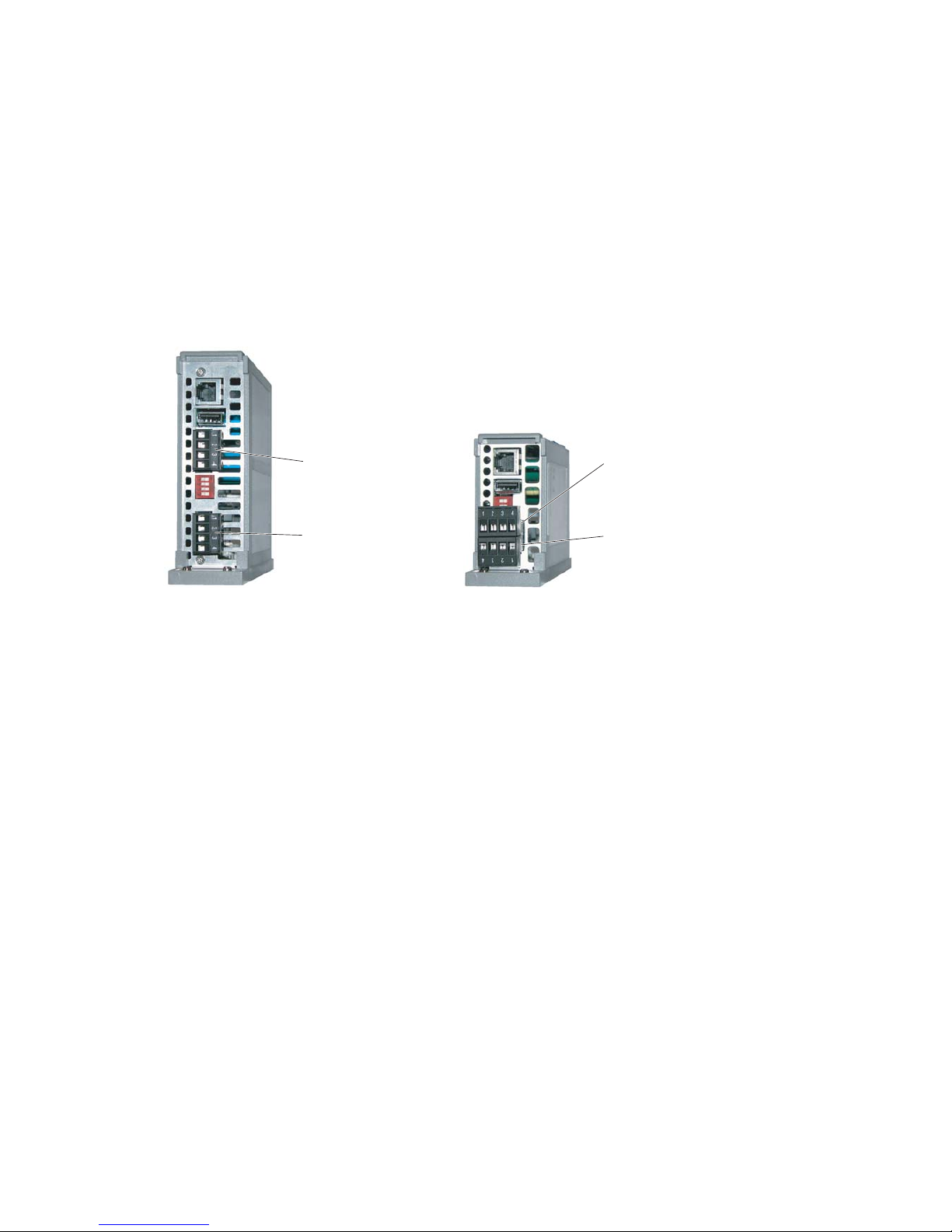

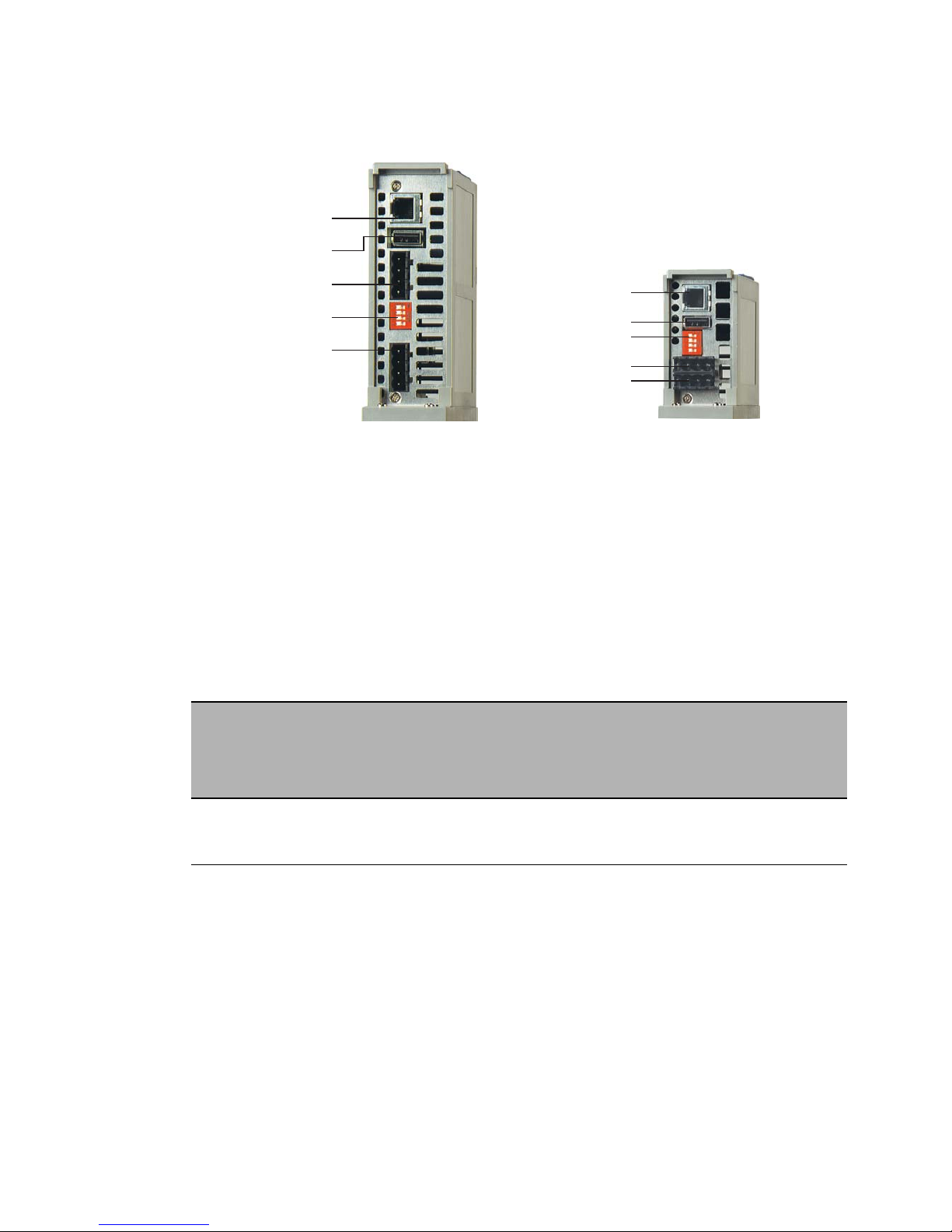

Fig. 2: Interfaces of the MS20-... and MS30-... on the bottom of the device

U Device versions with 1000 Mbit and 10/100 Mbit ports

MS30-0802..., MS30-1602..., MS30-2402...

Depending on the model, the MS30 basic modules offer you the
following number of slots for media modules and the following maximum
amount of connectable network segments:

1)

Expandable to 24 ports with MB2-T expansion module

Basic module Number of

slots for
10/100 Mbit
media
modules

Number of
slots for
1000 Mbit
media
modules

Maximum number of
connectable 10/100
Mbit network segments
when connecting 4 port
media modules

Maximum amount of
connectable 1000 Mbit
network segments

MS30-0802... 2 1 8 2
MS30-1602... 4 1 16

1)

2

MS30-2402... 6 1 24 2

MICE MS20/30
switch basic module
with 18 to 60 VDC
voltage range

V.24 port

USB port

terminal block

(power 1)

DIP switch

terminal block

(power 2)

V.24 port

USB port

DIP switch

terminal block (power 1)
terminal block (power 2)

MICE MS20/30
switch basic module
with 18 to 32 VDC
voltage range

16

MS20/MS30

Release 2.0 02/06

Fig. 3: Overview interfaces, display elements and controls of the MS30

The figure “Interfaces of the MS20-... and MS30-... on the bottom of the de-

vice” on page 15 illustrates the interfaces on the bottom of the MS30 device.

1.1.3 Media modules

The MICE media modules form the interface of the device to the LAN.
They can be attached in the

D Basic module MS20-...
D Basic module MS30-...

They differ with regard to the number of interfaces and media type. The
various interfaces of the MICE media modules offer you the following inter­face-specific functions:

D Specific functions of the TP/TX interface

D Link Control
D Auto Polarity Exchange
D Autonegotiation
D Autocrossing (it does not matter whether you connect devices using a

cross-over or straight cable)

D Specific functions of the F/O interface

D Link control

D Transceiver- (AUI-) specific functions

Slot for
SFP module
MM4-TX/SFP

Switch
basic module
MS30-…

4 slots for media modules
MM2-… or MM3-… with 2-4 ports each

Key for
display
status

LEDs
device status,
display status

Terminal block,
V.24 port,
USB port,
DIP switch

MS30-1600...

MS30-0800...

MS30-2400...

Grounding screw

MS20/MS30

Release 2.0 02/06

17

D Collision detection
D Collision Test (SQE)
D Jabber-Control
D DTEPower monitor

U MICE 2000 media modules

Fig. 4: Port assignment

MICE 2000
media modules

Module type

AUI port

TP ports
10/100

F/O port
multi­mode
10 MBit/
s

F/O port
multi­mode
POF
100
MBit/s

F/O port
multi­mode
100
MBit/s

F/O port
single­mode
1300
nm,
100
MBit/s

F/O port
single­mode
1550
nm,
100

MBit/s
MM2 - 4TX1 (- EEC)–4, RJ45–––––
MM2 - 2FLM4 – – 2, ST – – – –
MM2 - 2FXP4 – – – 2, ST – – –
MM2 - 4FXM3 ––––4, MTRJ––
MM2 - 2FXM3 / 2TX1 – 2, RJ45 – – 2, MTRJ – –
MM2 - 2FXM2 ––––2, DSC––
MM2 - 2FXS2 –––––2, DSC–

Table 2: Media connectors each MICE 2000 media module (number and kind)

Port 1
Port 3

Port 2
Port 4

18

MS20/MS30

Release 2.0 02/06

U MICE 3000 media modules

Fig. 5: Port assignment

MICE 3000
media modules

Module type

AUI port

TP ports
10/100

F/O port
multi­mode
10
MBit/s

F/O port
multi­mode
POF
100
MBit/s

F/O port
multi­mode
100
MBit/s

F/O port
single­mode
1300
nm,
100
MBit/s

F/O port
single­mode
1550
nm,
100

MBit/s
MM3-2AUI 2,Sub-D––––––
MM3-4TX5 –4, M12–––––
MM3-4TX1-RT – 4, RJ45 – – – – –
MM3-2FLM4/2TX1-RT – 2, RJ45 2, ST – – – –
MM3-4FLM4 – – 4, ST – – – –
MM3-4FXP4 – – – 4, ST – – –
MM3-1FXM2/3TX1 – 3, RJ45 – – 1, DSC – –
MM3-2FXM2/2TX1(-EEC) – 2, RJ45 – – 2, DSC – –
MM3-2FXM2/2TX1-RT – 2, RJ45 – – 2, DSC – –
MM3-2FXM4/2TX1 – 2, RJ45 – – 2, ST – –
MM3-4FXM2 ––––4, DSC––
MM3-4FXM4 ––––4, ST––
MM3-1FXS2/3TX1(-EEC) – 3, RJ45 – – – 1, DSC –
MM3-2FXS2/2TX1 – 2, RJ45 – – – 2, DSC –
MM3-2FXS2/2TX1-RT – 2, RJ45 – – – 2, DSC –
MM3-4FXS2 –––––4, DSC–
MM3-1FXL2/3TX1 – 3, RJ45 – – – – 1, DSC

Table 3: Media connectors each MICE 3000 media module (number and kind)

Port 1

Port 3

Port 2

Port 4

MS20/MS30

Release 2.0 02/06

19

U MICE 4000 media modules

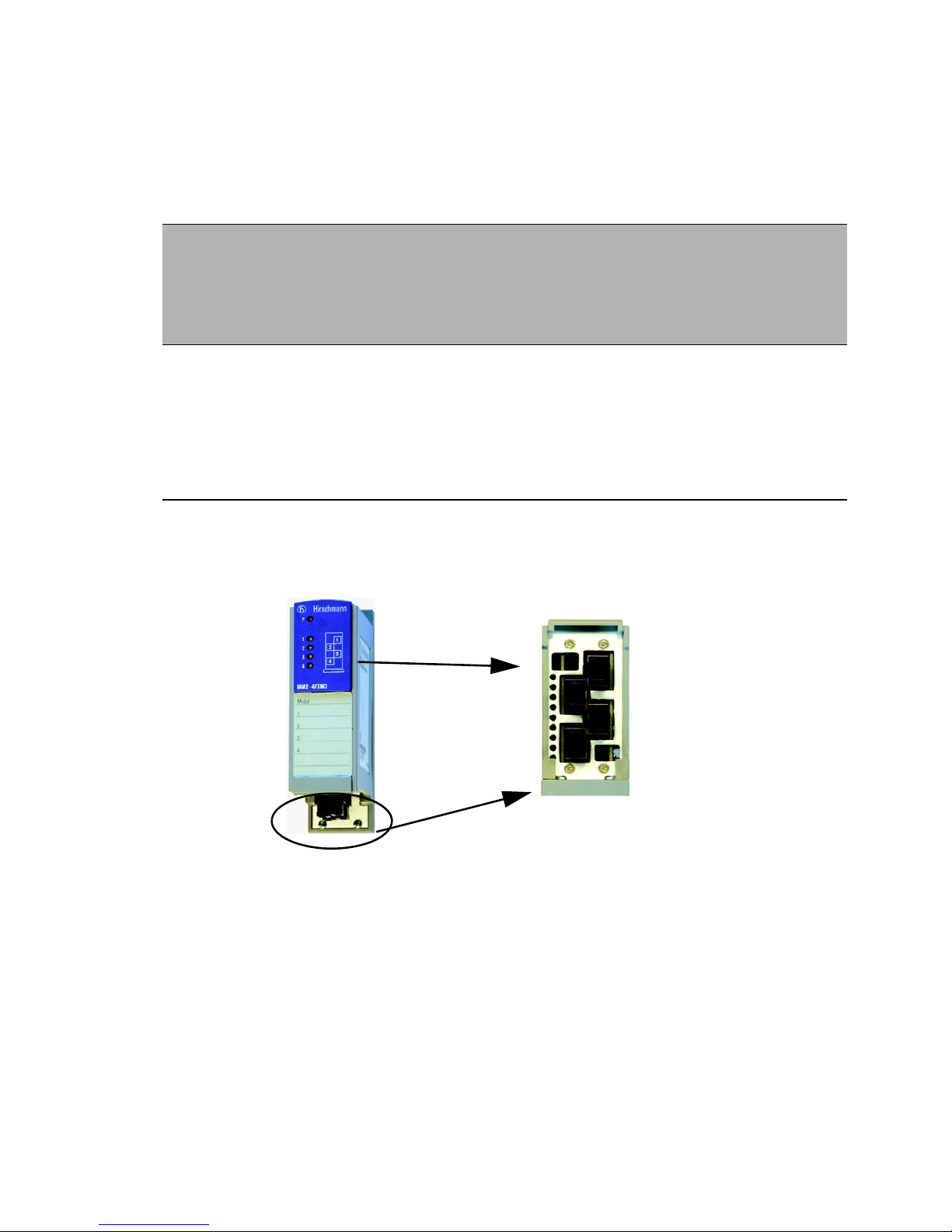

The 2-port media module MM4 - 2TX/SFP has two TP interfaces and two
sockets for Hirschmann SFP modules.

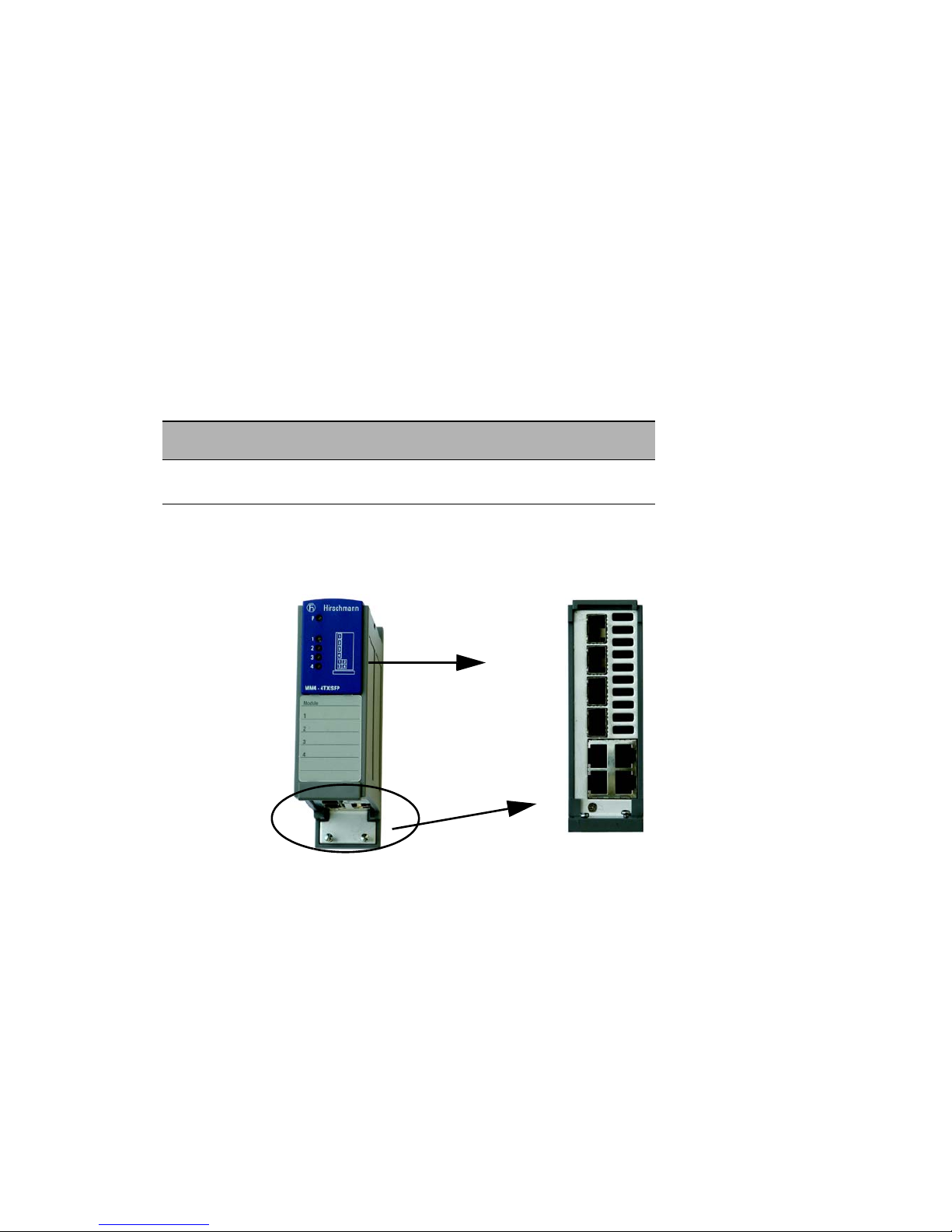

The 4-port media module MM4 - 4TX/SFP can also be used in the MS20/
MS30. It has four TP interfaces and four sockets for Hirschmann SFP mo­dules. The MS30 gigabit slot (slot on the left side of the switch basic mo­dule) provides two ports.

Every slot allows you to replace a TP interface by a F/O interface using a
SFP module. Inserting the SFP module deactivates the corresponding TP
interface.

Note: Only use SFP modules from Hirschmann.

Fig. 6: Port assignment

MICE 4000 media modules
Module type

TP ports
10/100/1000

SFP ports

alternativ to TP ports
MM4 - 2TX/SFP 2, RJ45 2
MM4 - 4TX/SFP 4, RJ45 4

Table 4: Media connectors each MICE 4000 media module (number and kind)

Port 2*
Port 4*

Port 1
Port 2
Port 3
Port 4

Port 1*
Port 3*

Port 1 to 4: SPF ports, alternativ to
port 1* to 4* (TP ports)

20

MS20/MS30

Release 2.0 02/06

1.1.4 MB - 2T expansion module

The MB-2T expansion module allows you to add 2 slots to the MICE
MS20-1600 / MS30-1602 basic modules for installing media modules.

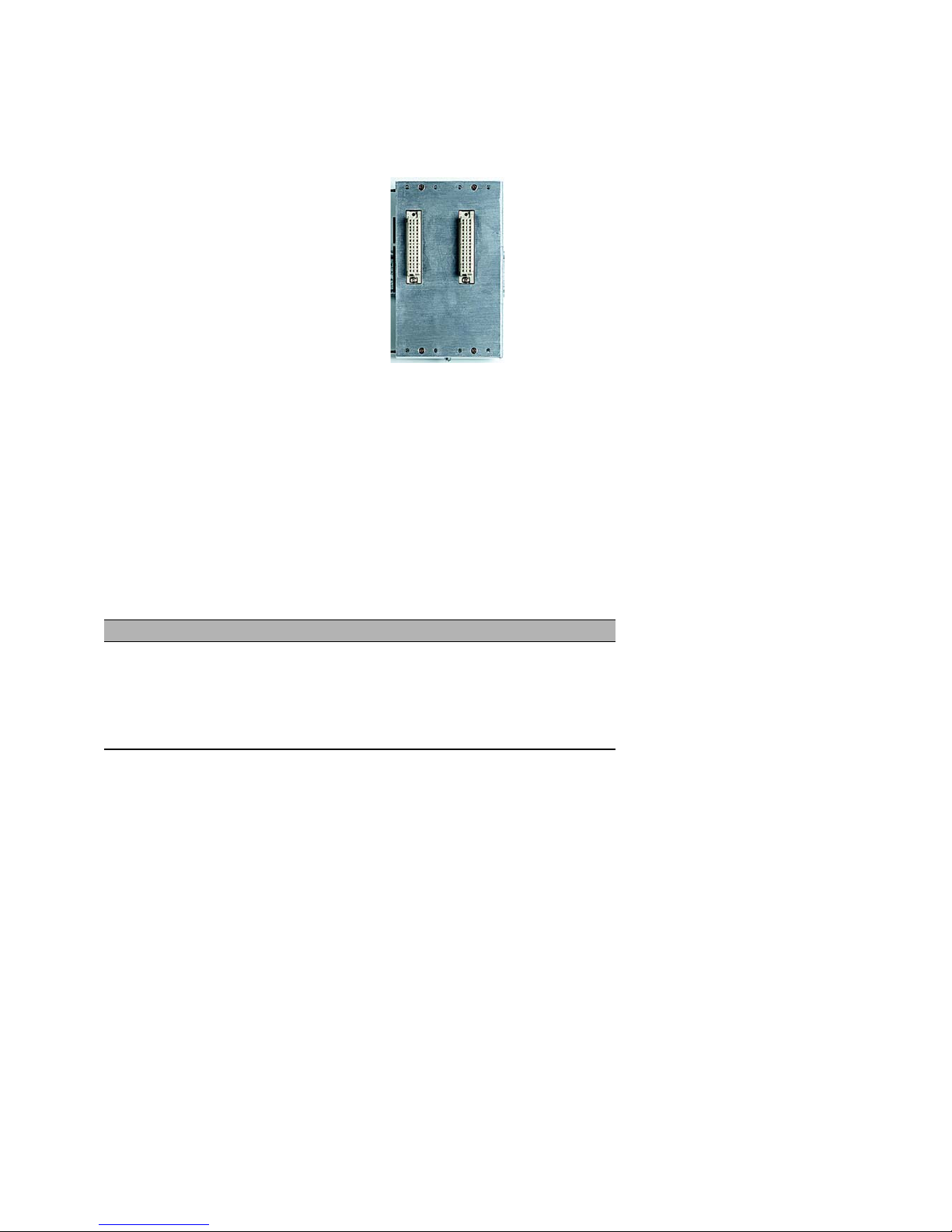

Fig. 7: MB - 2T expansion module

1.1.5 SFP module

SFP modules are optical transceivers. SFP stands for Small Form-factor
Pluggable and is often named mini-GBIC (GigaBit Interface Converter).

They are plugged onto the special ports of the MICE 4000 media modules
MM4-2TX/SFP (or MM4-4TX/SFP) to provide a F/O port. Inserting the SFP
module deactivates the corresponding TP interface.

Module type Transmission Expansion Connector
M-SFP-SX/LC 850 nm multimode 0,55 km LC
M-SFP-LX/LC 1330 nm multimode

1330 nm singlemode

0,55 km
20 km

LC

LC
M-SFP-LH/LC Long haul 8-72 km LC
M-SFP-LH+/LC Long haul + 60-120 km LC

Table 5: SFP modules

MS20/MS30

Release 2.0 02/06

21

2 Assembly and startup procedure

The Industrial ETHERNET Modular Industrial Communication Equipment
(MICE) Family has been developed for practical application in a harsh indus­trial environment. Accordingly, the installation process has been kept simple.
On delivery, the device is ready for operation.

The following procedure is appropriate for assembly:

D Unpacking and checking
D Assembling the media modules
D Filling out and attaching the labels
D Assembling the SFP modules
D Adjusting the DIP switch settings on the basic module
D Adjusting the DIP switch settings on the MICE MM3-2AUI media module

(if existent)

D Connecting the terminal block for supply voltage and signal contact,

connecting the supply voltage

D Assembling the terminal block, startup procedure
D Assembling the device on the ISO/DIN rail, grounding
D Connecting the data lines
D Assembling the expansion module

2.1 Device installation

2.1.1 Unpacking and checking

V Check whether the package was delivered complete,

see “Scope of delivery” on page 41.

V Check the individual parts for transport damage.

2.1.2 Assembling the media modules

On delivery, the device is ready for operation. Media modules can be assem­bled and disassembled during running operation.

V To fasten a media module, first remove the protective cap over the plug.
V Plug the media module onto the plug.
V Tighten the 4 screws on the corners of the media module.
V Fit the media modules one after the other from the left to the right.
V Check whether the switch pre-setting suits your requirements.

22

MS20/MS30

Release 2.0 02/06

2.1.3 Filling out and attaching the labels

The labels included in the delivery help you to structure your network
installation clearly.

The large label areas enable you to designate the modules and uniquely as­sign the devices to be connected. You can print them, write on them and ex­change them at any time.

Fig. 8: Attaching the labels

Fig. 9: Labels for basic module and media modules

V Attach the labels included in the delivery to the basic module and the

media modules as required.

Lable on the basic module:

- Name of the module

- MAC address of the device

- IP address of the device

- Other entries on your demand

Lables on the media modules:

- Name of the module

- Port assignment of the
module each port

MS20/MS30

Release 2.0 02/06

23

2.1.4 Assembling the SFP modules

V To fasten a SFP module, first remove the protective cap over the socket.
V Insert the SFP module with the closed lock into the socket until you hear

it snap in.

Note: Only use SFP modules from Hirschmann.

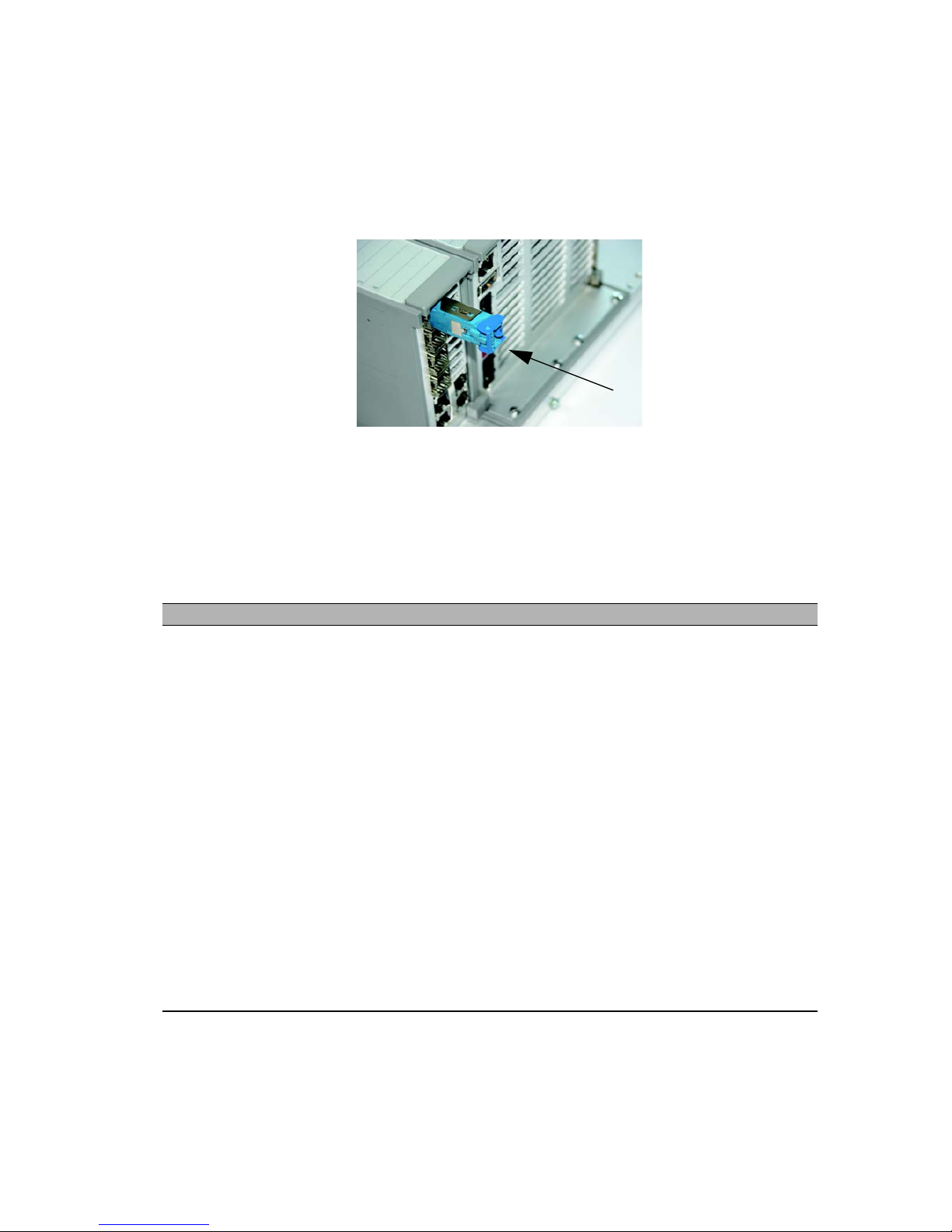

Fig. 10: Installation SFP module

2.1.5 Adjusting the DIP switch settings on the basic module

The 4-pin DIP switch in the bottom panel of the basic module provides you
with the following options:

DIP switch Function State of delivery
RM (Redundancy

Manager) 2)

When the HIPER-Ring function is
switched on, you can switch the RM
(Redundancy Manager) function on and
off (see “User Manual - Redundancy Con­figuration”).

position OFF (RM function
not active)

Ring port

1)

Selecting the ports for the HIPER-Ring.

MS30: In the ON position, ports 1 and 2 in
module 2 are for connecting the HIPER­Ring.
MS20: In the ON position, port 1 from
modules 1 and 2 are for connecting the
HIPER-Ring.

position OFF (ports 1 and 2
of module 1 are for con­necting the HIPER-Ring)

Stand-by

2)

With the redundant coupling of rings, you

assign the redundancy function to the
MICE in the redundant line (see “User
Manual - Redundancy Configuration”).

position OFF (normal
function)

Software Configu­ration / DIP Confi­guration

Give the software configuration priority
ahead of the DIP switch position. In this
case, the other switch positions are
meaningless.

position OFF (software
configuration has priority)

24

MS20/MS30

Release 2.0 02/06

1)

You use the “Ringport” switch on the 4-pin DIP switch to select the ring ports for the

HIPER-Ring:

2)

You use the “RM” and “Stand-by” switches on the 4-pin DIP switch to switch the following

functions on and off:

Fig. 11: 4-pin DIP switch on the MICE MS20-.../MS30-... basic module

V Check whether the switch default settings match your requirements

before starting the device.

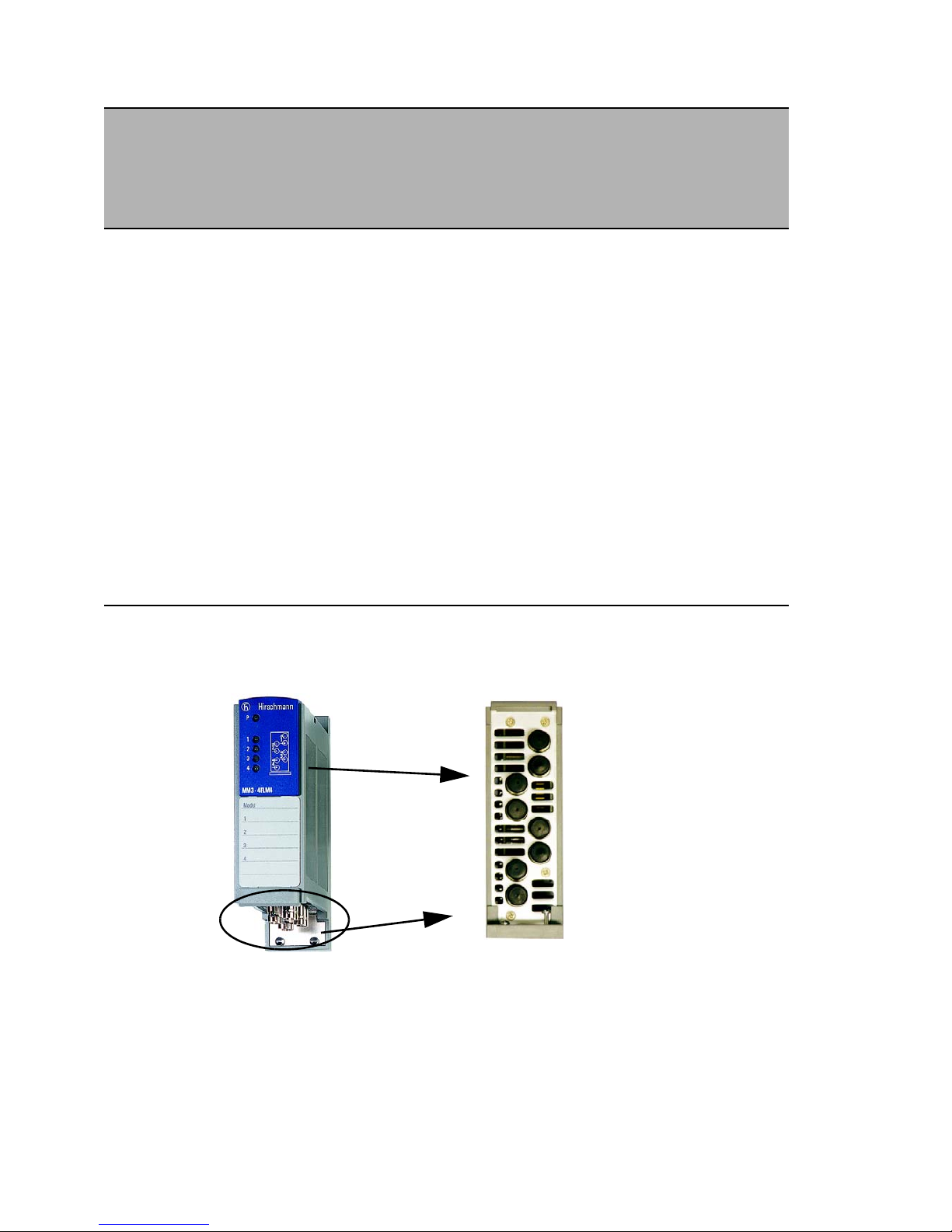

2.1.6 Adjusting the DIP switch settings on the

MICE MM3-2AUI media module (if existent)

With the 3-pin DIP switch in the lower panel of the MM3 -2AUI media module,
you enter settings for the SQE test function and for monitoring the DTE
voltage.

Note: Before starting operation, check whether the device in question
operates the transceiver with or without an SQE test.

V Before starting operation of the device, check whether the default settings

of the DIP switch correspond to your requirements.

MICE
device

DIP switch
“Ring-Port”

Ring ports for HIPER-Ring

MS20 OFF module 1/ port 1 and module 1/ port 2
MS20 ON module 1/ port 1 and module 2/ port 1
MS30 OFF module 1/ port 1 and module 1/ port 2
MS30 ON module 2/ port 1 and module 2/ port 2

Switch
“RM”

Switch
“Stand
by”

Ring
redun­dancy

Ring
coupling

Redun­dancy
Manager

Ring
port

Control port Coupling port

OFF OFF an off off see

above

ON OFF on off on see

above

OFF ON on on off see

above

module 1/
port 3 (MS20)

module 1/
port 4 (MS20)

module 2/
port 3 (MS30)

module 2/
port 4 (MS30)

ON ON off off off

OFF ON

2 Ring port
3 Stand-by

1 Redundancy Manager (RM)

4 Configuration

MS20/MS30

Release 2.0 02/06

25

2.1.7 Terminal block for supply voltage and signal contact

The supply voltage and the signal contacts are connected via a 4-pin terminal
block with snap locking.

U Supply voltage

The supply voltage can be connected redundantly. Both inputs are
uncoupled. With redundant supply, the transformer supplies the device
alone with the higher output voltage. The supply voltage is electrically
isolated from the housing.

Note: With non-redundant supply of the mains voltage, the device reports
a power failure. You can prevent this message by applying the supply
voltage over the two inputs or by changing the configuration via manage­ment.

U Signal contacts

D The signal contacts monitor proper functioning of the device, thus en-

abling remote diagnostics. You can specify the type of function moni­toring in the Management.

D You can also use the Management to set the signal contact manually

and thus control external devices.

A break in contact is reported via the potential-free signal contact (relay
contact, closed circuit):

D The failure of at least one of the two supply voltages (supply voltage

1 or 2 < 18 V).

D A continuous malfunction in the device (internal 3.3 VDC voltage).
D The defective link status of at least one port. With the device, the indi-

cation of link status can be masked by the management for each port.
Link status is not monitored in the delivery condition.

D The loss of Redundancy guarantee.
D Error during self-test.

The following conditions are reported in stand-by mode

D Control cable disrupted
D Control cable shorted
D Partner device is in stand-by mode

The following conditions are reported in normal mode:

D Control cable shorted
D Partner device is in normal mode

26

MS20/MS30

Release 2.0 02/06

The following condition is reported in RM mode additionally:

D Ring redundancy guaranteed. Ring redundancy is not monitored in the

delivery condition.

2.1.8 Connecting the terminal blocks, startup procedure

V Pull the terminal blocks off the device and connect the power supply

and signal lines.

Fig. 12: Pin assignment of the 4-pin signal contact

V Mount the terminal block for the supply voltage and the signal contact on

the front of the device. Make sure that the snap lock snaps into place.

By connecting the supply voltage at the terminal block, you start the
operation of the device.

2.1.9 Assembling the device on the ISO/DIN rail, grounding

V You mount the device on a 35 mm hat rail according to DIN EN 60175.
V Attach the upper snap-in guide of the device into the hat rail and press it

down against the DIN rail until it snaps into place.

Note: The shielding ground of the connectable twisted pair lines is connected
to the lower panel as a conductor.

MICE MS20/30
switch basic module
with 18 to 60 VDC
voltage range

Power/signal contact 1:
1 = +24 V (P1)
2 = 0 V
3,4 = Relay 1

Power/signal contact 2:
1 = +24 V (P2)
2 = 0 V
3,4 = Relay 2

MICE MS20/30
switch basic module
with 18 to 32 VDC
voltage range

Power/signal contact 1:
1 = +24 V (P1)
2 = 0 V
3,4 = Relay 1

Power/signal contact 2:
1 = +24 V (P2)
2 = 0 V
3,4 = Relay 2

MS20/MS30

Release 2.0 02/06

27

Fig. 13: Assembly

U Grounding

The grounding of the lower panel of the housing of the device is effected
with the hat rail and, optionally, with the separate ground screw (see Fig.

“Overview interfaces, display elements and controls of the MS20 -...” on
page 14).

2.1.10 Connecting the data lines

U 10/100 Mbit/s twisted pair connection

10/100 Mbit/s ports (RJ45 or M12 sockets) enable the connection of ter­minal devices or independent network segments in compliance with the
IEEE 802.3 100BASE-TX / 10BASE-T standards. These ports support:

D autonegotiation
D autopolarity
D autocrossing (when autonegotiation is switched on)
D 100 Mbit/s half duplex mode, 100 Mbit/s full duplex mode
D 10 Mbit/s half duplex mode, 10 Mbit/s full duplex mode

State on delivery: autonegotiation is activated with exception of the
HIPER-Ring ports: 100 Mbit/s full duplex.
The socket housings are electrically connected to the lower covering.

28

MS20/MS30

Release 2.0 02/06

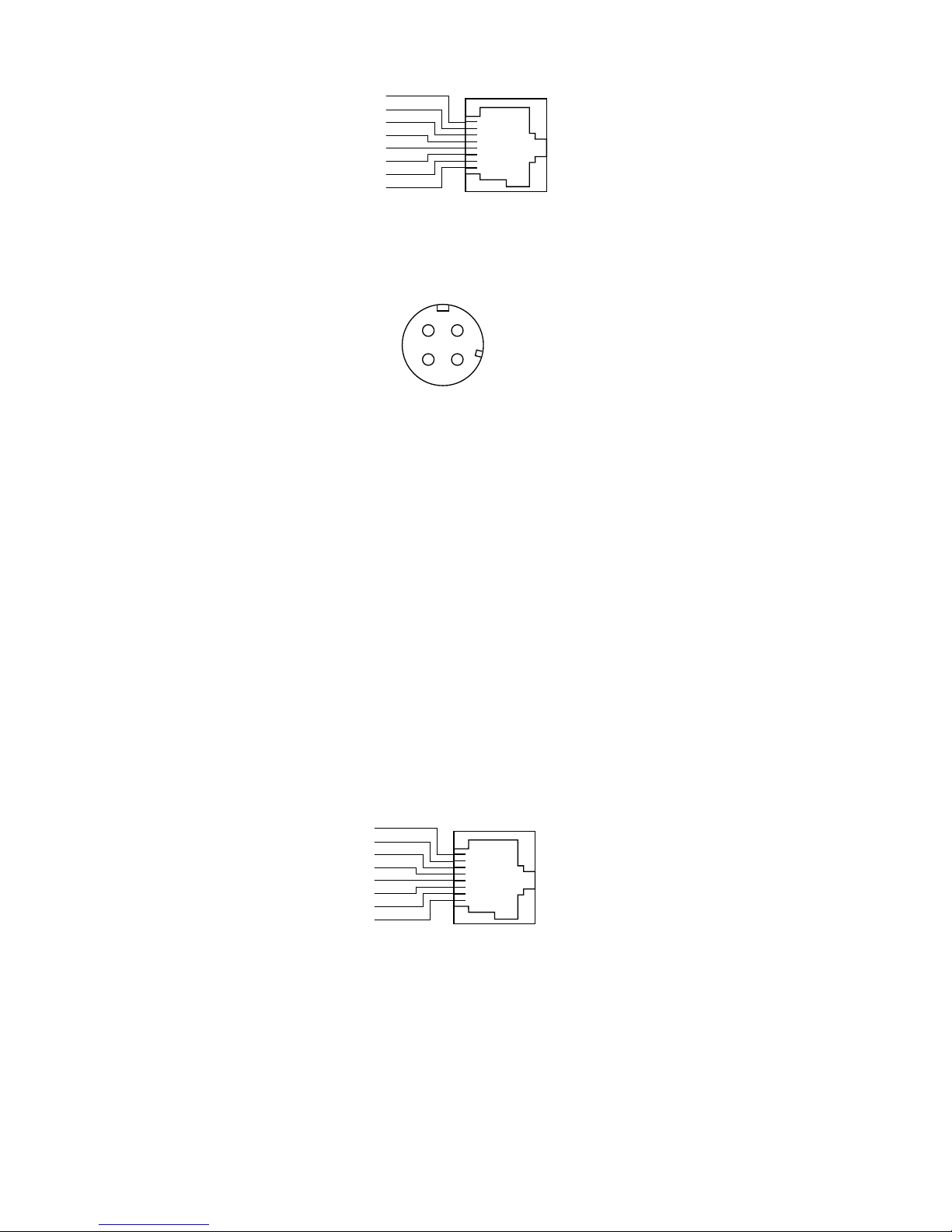

Fig. 14: Pin assignment of a TP/TX interface in MDI-X mode, RJ45 socket

Fig. 15: Pin assignment of a TP/TX interface, M12 socket

U 10/100/1000 Mbit/s twisted pair connection

1000 Mbit/s twisted pair connection 1000 MBit/s twisted pair port s (RJ45
sockets) enable the connection of terminal devices or independent net­work segments in compliance with the IEEE 802-3, 2000 Edition
1000BASE-T standard. These ports support:

D autonegotiation
D autopolarity
D autocrossing (when autonegotiation is switched on)
D 1000 Mbit/s full duplex
D 100 Mbit/s half duplex, 100 Mbit/s full duplex,
D 10 Mbit/s half duplex, 10 Mbit/s full duplex.

State on delivery: autonegotiation.
The socket housing is electrically connected to the front panel.
The pin assignment corresponds to MDI-X.

Fig. 16: Pin assignment of a 1000 MBit/s twisted pair interface

n.c. Pin 8
n.c. Pin 7
TD- Pin 6
n.c. Pin 5
n.c. Pin 4

Pin 3TD+
Pin 2RD­Pin 1RD+

RD-

12

43

RD+TD+

TD-

Pin 8
Pin 7
Pin 6
Pin 5
Pin 4
Pin 3
Pin 2
Pin 1

BI_DC­BI_DC+
BI_DA­BI_DD­BI_DD+
BI_DA+
BI_DB­BI_DB+

MS20/MS30

Release 2.0 02/06

29

U 100 Mbit/s F/O connection

100 MBit/s F/O ports (MTRJ-, ST- or DSC) enable the connection of ter­minal devices or independent network segments in compliance with the
IEEE 802.3 100BASE-FX standard. These ports support:

D full and half duplex mode

State on delivery: full duplex.
Note: Make sure, that you conncet LH ports only to LH ports, SM ports

only to SM ports and MM ports only to MM ports.

U 1 Gbit/s F/O connection

1 Gbit/s F/O ports (LC sockets) enable the connection of terminal
devices or independent network segments in compliance with the IEEE

802.3-2000 (ISO/IEC 8802-3:2000) 1000BASE-SX or 1000BASE-LX
standard. These ports support:

D autonegotiation,
D full duplex mode

State on delivery: autonegotiation.
Note: Make sure, that you conncet LH ports only to LH ports, SX ports

only to SX ports and LX ports only to LX ports.

U AUI connection

AUI ports (Attachment Unit Interface) enable you to connect a terminal
device via an AUI cable in accordance with IEEE 802.3-2002.
These ports support:

D SQE test
D DTEPower monitor

State on delivery: both functions not enabled.
The housing of the Sub-D plug is electrically isolated from the lower
panel of the device.

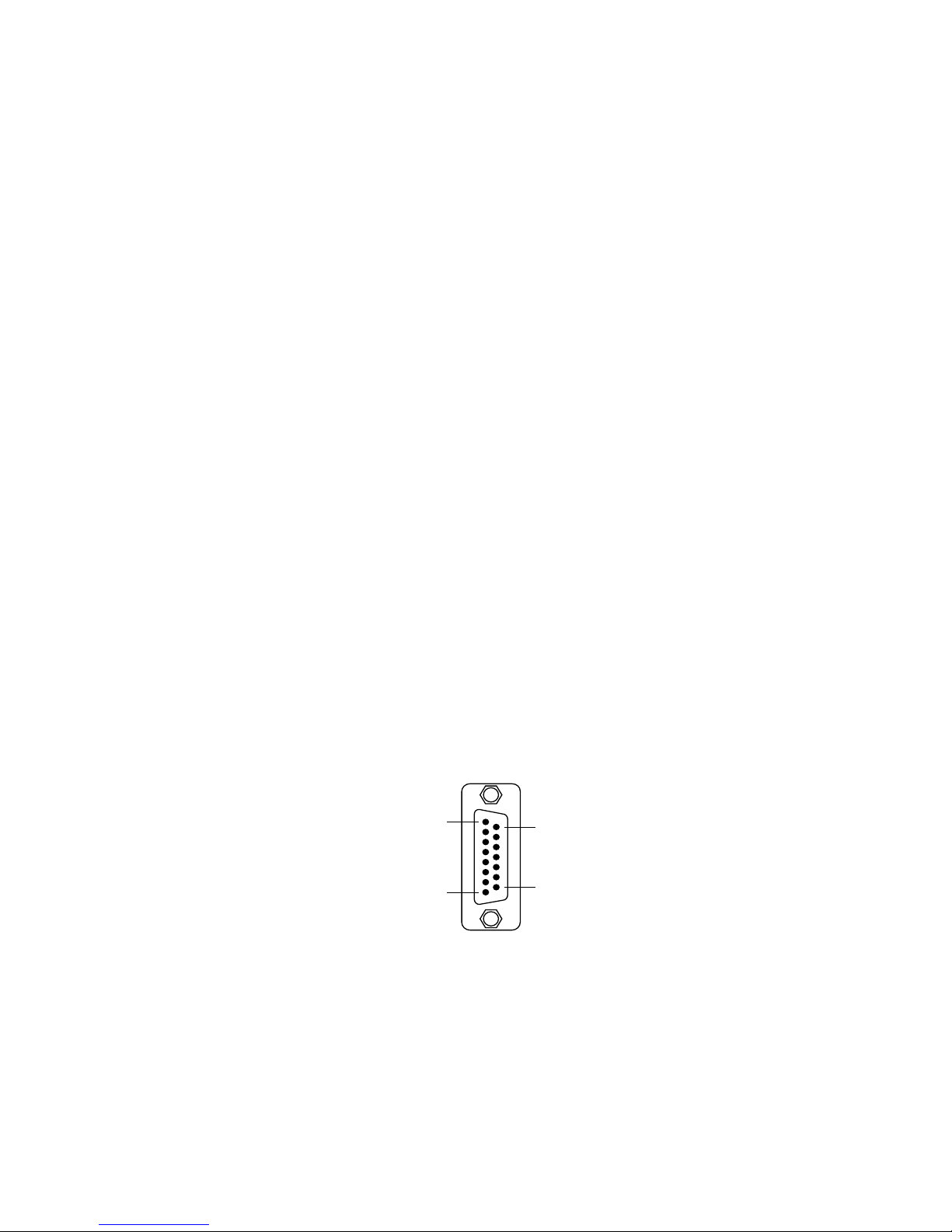

Fig. 17: Pin assignment of the AUI interface

Connect the ports of the media modules plugged into the basic module
as required in order to set up your industrial ETHERNET or expand your
existing network.

V Connect the data lines according to your requirements.

Pin 8
Pin 7
Pin 6
Pin 5
Pin 4
Pin 3
Pin 2
Pin 1

Pin 15
Pin 14
Pin 13
Pin 12
Pin 11
Pin 10
Pin 9

n.c.
Schirmung 12

V

shielding 12 V
output DI-B
shielding DO
input DO-B
output CI-B

shielding CO

n.c.

GND

output DI-A

shielding DI

input DO-A

output CI-A

shielding CI

30

MS20/MS30

Release 2.0 02/06

2.1.11 Assembling the MB - 2T expansion module

The expansion module MB-2T allows you to add 2 slots to the MS20-1600
and MS30-1602 basic modules for installing media modules. The MB-2T
expansion module can be installed while in running operation.

V On the right side of the basic module, loosen the screw at the top and at

the bottom (1-3 revolutions).

V Remove the side cover.
V If you have not yet done so, mount the basic module onto the DIN rail.
V Slide the MB2T expansion module on the DIN rail toward the basic

module until the modules plug into each other.

V On the basic module, tighten the screws at the top and at the bottom.

2.1.12 Define the meaning of the display LEDs

You use the “SELECT” button on the basic module to define the meaning of
the LEDs of the media modules. You press the button to switch to the next
display meaning. The display status LEDs of the basic module show the cur­rent meaning of the port LEDs of the media modules.

Fig. 18: “SELECT” key on the MICE basic modules

2.2 Displays

After applying the operating voltage, the software starts and initializes itself.
The device then performs a selftest. Various LEDs light up in the process.
The process lasts approximately 60 seconds.

Display LEDs

“SELECT” key

MS20/MS30

Release 2.0 02/06

31

U Device status

These LED's provide information about conditions which affect the ope­ration of the whole device.

P- Power (green LED) Meaning
lit green internal supply voltage on
not lit internal supply voltage too low
P1 - Power 1 (green LED) Meaning
lit green supply voltage 1 on
not lit supply voltage 1 under 18 V
P2 - Power 2 (green LED) Meaning
lit green supply voltage 2 on
not lit supply voltage 2 under 18 V
RM - Redundancy Manager

(green/yellow LED)

Meaning

lit green RM function active, redundant port not active
lit yellow RM function active, redundant Port active
not not RM function not active
flashes green Incorrect configuration of the HIPER-Ring (e.g., the

Ring is not connected to the ring port).

RUN - BOOT/RUN
(green LED)

Meaning

lit green System is ready for operation
flashes green System booting
not lit System in reset state
RL1 - Relay 1, signal contact

(red/yellow LED)

Meaning

lit red The signal contact 1 is open, i.e. it indicates an error
lit yellow The signal contact 1 is open, the “manual setting” is

active

not lit The signal contact 1 is closed, i.e. it does not indicate

an error

RL2 - Relay 2, signal contact
(red/yellow LED)

Meaning

lit red The signal contact 1 is open, i.e. it indicates an error
lit yellow The signal contact 1 is open, the “manual setting” is

active

not lit The signal contact 1 is closed, i.e. it does not indicate

an error

Device status

Display status

Port status

32

MS20/MS30

Release 2.0 02/06

If the manual adjustment is active on the signal contact, then the error
display is independent of the setting of the signal contact.

U Display status

Each media module has one LED per port. The meaning of these port
status LEDs depends on the setting on the basic module. The display
meaning can be set with the “SELECT” button on the basic module.
V Press the button approximately two seconds to continue switching the

meaning of the display. If the button is not pressed for approximately
20 seconds, the display status changes to “L/D.”

RUN, 1 - Display saving
operations of the
AutoConfiguration Adapter
ACA

Meaning

blinking alternatively: Error during memory operation.
blinking synchronously twice

per second:

Loading the ACA configuration.

blinking synchronously once
per second:

Saving the configuration in the ACA .

L/D - Data, Link status
(green LED)

Meaning

lit green The port LEDs of the media modules display the

connection status.
FDX - Full duplex (green LED) Meaning
lit green The port LEDs of the media modules display the

connection type, full or half duplex.
1000 - 10/100/1000 Mbit/s

(green LED)

Meaning
lit green The port LEDs of the media modules indicate the

transmission rate.
AN - Autonegotiation

(green LED)

Meaning
lit green The port LEDs of the media modules indicate the port

configuration type
RING - Ring port (green LED) Meaning
lit green The port LEDs of the media modules indicate the

HIPER-Ring assignment.
STBY - Stand by (green LED) Meaning
lit green The port LEDs of the media modules indicate the assi-

gnment to a redundant coupling of network segments.
TEST - LED test (green LED) Meaning
lit green The test of the LEDs status, display status and port

status is active.

The LEDs P1/P2 light green.

The status LED “RM” blinks green/yellow.

The status LEDs “RELAY1/RELAY2” blinks yellow/red.

The display status LEDs blink green.

The port status LEDs of the media modules blink green/

yellow.

MS20/MS30

Release 2.0 02/06

33

U Portstatus

These LEDs display port-related information. Set the contents of the
information with the button on the basic module. (see “Display status” on

page 32).

TP - Twisted pair / fiber optic
(green LED)

Meaning

lit green The port LEDs of the media modules display the media

type.

All display status-LEDs
(green LEDs)

Meaning

Running licht Initialization phase after restart.
2, 3 (green LEDs) Meaning

Service LEDs

1 to 4 - Data, link status (green/
yellow LED)

Meaning

not lit no valid connection

no DTE voltage at the port (for MM3-2AUI).

lit green valid connection

DTE voltage at the port (for MM3-2AUI)

flashes green (1 time per
second)

port is switched to stand-by (port 1).

flashes green (3 times per
second)

port is disabled

flashes yellow data reception at the specific port
1 to 4 - FDX (green/yellow

LED)

Meaning

not lit Half duplex is active
lit green Full duplex is active
1 to 4 – 1000

(green/yellow LED)

Meaning

not lit 10 Mbit/s is active.
lit green 100 Mbit/s is active.
lit yellow 1000 Mbit/s is active.
1 to 4 – AUTONEG

(green/yellow LED)

Meaning

lit green Autonegotiation is active.
1 to 4 – RING PORT

(green/yellow LED)

Meaning

lit green This port belongs to the HIPER-Ring
1 to 4 – STAND-BY

(green/yellow LED)

Meaning

lit green Connection port for the data line
lit yellow Connection port for the control line
flashes green/yellow no Stand-by partner existing
TP/FO – Twisted pair / fiber

optic (green/yellow LED)

Meaning

lit green The port LEDs of the media modules display twisted

pair ports

lit yellow The port LEDs of the media modules display F/O ports

34

MS20/MS30

Release 2.0 02/06

2.3 Carrying out basic settings

IP addresses must be entered when the device is installed for the first time.
The device provides 6 options for configuring the IP addresses:

D Entry via the V.24 connection.
D Entry by HiDiscovery protocol
D Configuration via BOOTP
D Configuration via DHCP
D Configuration via DHCP Option 82
D The AutoConfiguration Adapter

You will find a detailed description of the configuration in the “Basic
Configuration User Manual” on the CD-ROM.

U State of delivery

D IP address: The device looks for the IP address using DHCP
D Password for management:

user, password: public (read only)
admin, password: private (read and write)

D V.24 data rate: 9.600 baud
D Ring redundancy: on

Ring ports on 100 Mbit full duplex or 1000 Mbit autonegotiation

D Ethernet ports: Link status is not evaluated (signal contact)
D Optical 100 Mbit ports: 100 Mbit full duplex

All other ports: autonegotiation

D Redundancy manager switched off
D Stand-by coupling off

U USB interface

The USB socket offers an interface for the local connection of an Auto­Configuration Adapter ACA 21-USB. It is a device for saving/loading the
configuration and for loading the software.

1 to 4 – LED TEST
(green/yellow LED)

Meaning
not lit LED defective.

flashes green/yellow LED test is active.

Pin number Signal name
1VCC
2- Data
3+ Data
4 Ground

MS20/MS30

Release 2.0 02/06

35

U V.24 interface (external management)

A serial interface is provided on the RJ11 socket (V.24 interface) for the
local connection of an external management station (VT100 terminal or
PC with appropriate terminal emulation) or an AutoConfiguration Adapter
ACA 11. This makes it possible to establish a connection to the Com­mand Line Interface CLI and to the system monitor.

The socket housing is electrically connected to the front cover of the
device.
The V.24 interface is electrically connected to the supply voltage.

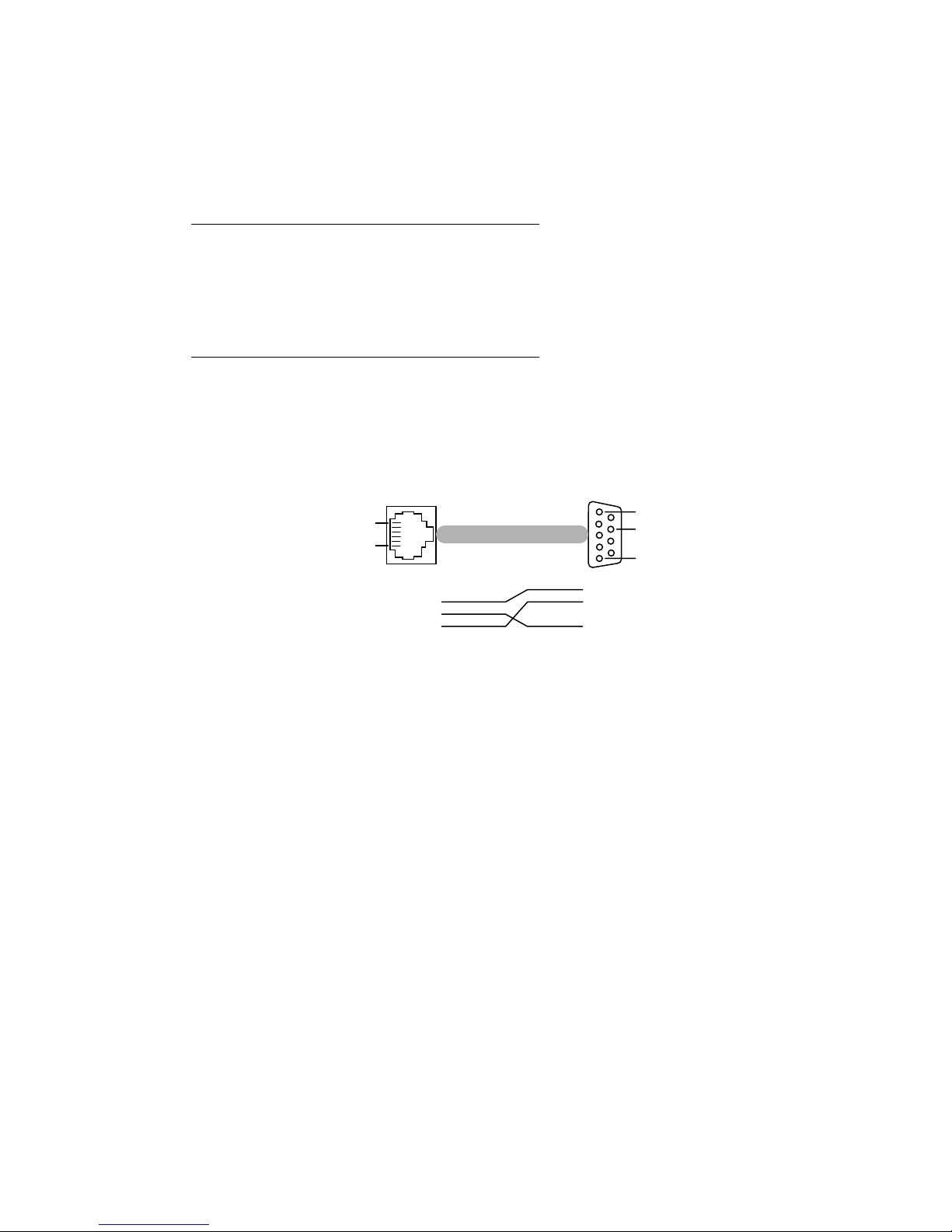

Fig. 19: Pin assignment of the V24 interface

Note: In chapter “Technical data” on page 37 ff you find the order number
for the terminal access cable which is to be ordered separately.

VT 100 terminal settings
Speed 9.600 baud
Data 8 bit
Stopbit 1 bit
Handshake off
Parity none

Pin 1

Pin 1

Pin 8

Pin 5

Pin 6

RJ11 DB9

2
3

5

1
2
3
4
5
6

CTS
n.c.
TX
GND
RX
RTS

36

MS20/MS30

Release 2.0 02/06

2.4 Disassembling

U Disassembling the device

V In order to remove the device from the DIN rail, press it downward and

pull it out from under the DIN rail.

Fig. 20: Disassembling the device

U Disassembling the SFP modules

V Pull the SFP module on the opened lock out off the socket.
V Close the socket with the protective cap.

Fig. 21: Disassembling the SFP module

MS20/MS30

Release 2.0 02/06

37

3 Technical data

U General data

1)

At 48 VDC power supply (voltage range C (18...60 VDC),

see table “Combination options of the MS20/MS30 device versions” on page 13)

U EMV and stability

Dimensions
W x H x D

MS20-0800...
MS30-0802...
MS20-1600...
MS30-1602...
MS20-2400...
MS30-2402...

125 mm x 133 mm x 100 mm (140 mm

1)

)

163 mm x 133 mm x 100 mm (140 mm

1)

)

202 mm x 133 mm x 100 mm (140 mm

1)

)

240 mm x 133 mm x 100 mm (140 mm

1)

)

278 mm x 133 mm x 100 mm (140 mm

1)

)

316 mm x 133 mm x 100 mm (140 mm

1)

)

Weight MS20-0800...

MS30-0802...
MS20-1600...
MS30-1602...
MS20-2400...
MS30-2402...

610 g (700 g

1)

)

740 g (830 g

1)

)

880 g (970 g

1)

)

1010 g (1100 g

1)

)

1030 g (1120 g

1)

)

1160 g (1250 g

1)

)

Voltage supply Operating voltage 18 to 32 V DC (voltage range A) or

18 to 60 V DC (voltage range C)
safety extra-low voltage (SELV/PELV), redundant
inputs decoupled. Relevant for North America:
Nec Class 2 power source 5 A maximum.

Overload current
protection at input

non-changeable fuse

Isolation voltage
between operating
voltage and hou­sing

800 V

Surrounding Storage temperature

(surrounding air)
Humidity
Atmospheric pressure

Standard: -40 °C to +70 °C
Extended: -40 °C to +85 °C
10% to 95% (non condensing)
up to 2.000 m (795 hPa), higher altitudes on
demand

Operating tempe­rature

Standard
Extended

0 °C to +60 °C

-40 °C to +70 °C
Pollution degree 2
Protection types Laser protection

Protection types

Class 1 conforming to EN 60825-1 (2001)
IP 20

EMV interference
proof

A

1)

B

1)

EN 61000-4-2 Discharge of static electricity

Contact discharge: test level 3
Air discharge: test level 3

4 kV
8 KV

8 kV
15 kV

EN 61000-4-3 Electromagnetic fields

Test level 3 (80 - 2000 MHz) 10 V/m 20 V/m

38

MS20/MS30

Release 2.0 02/06

1)

Product code A: Certification = CE, UL
Product code B: Certification = CE, UL, GL, Railway, Sub Station, see
“Combination options of the MS20/MS30 device versions” on page 13

U Network size

EN 61000-4-4 Fast transients (burst), test level 3, x

- Power line

- Data line

2 kV
1 kV

4 kV
4 kV

EN 61000-4-5 Surge voltage

- Power line, line/line: test level 2

- Power line, line/earth: test level 3

- Data line: test level 3

0,5 kV
1 kV
1 kV

1 kV
2 kV
2 kV

EN 61000-4-6 Cable-based RF faults, test level 3

10 kHz - 150 kHz
150 kHz - 80 MHz

3 V
10 V

3 V
10 V

EN 61000-4-9 Impulse-shaped magnetic fields; test level 4 - 300

A/m
EMV emitted immunity
EN 55022 Class A Yes Yes
FCC 47 CFR Part 15 Class A Yes Yes
Germanischer Lloyd Rules for Classification and Construction VI - 7 - 3

Part 1, Ed. 2001

-Yes

Stability
Vibration IEC 60068-2-6 Test FC, testing level in line with IEC

61131-2

Yes Yes

Germanischer Lloyd Guidelines for the Performance
of Type Tests Part 1

-Yes

IEC 870-2-2 Table 3 Normal Installation in line with
EN61850-3

-Yes

Shock IEC 60068-2-27 Test Ea, testing level in line with IEC

61131-2

Yes Yes

IEC 870-2-2 Table 3 Normal Installation in line with
EN61850-3

-Yes

AUI port
Length of a AUI cable 50 m maximum

Table 6: AUI port

Length of a twisted pair segment
100 m approx. cat5e cable with 1000BASE-TX

Table 7: TP port 10BASE-T / 100BASE-TX / 1000BASE-T

EMV interference
proof

A

1)

B

1)

MS20/MS30

Release 2.0 02/06

39

MM = multimode
SM = singlemode
LH = singlemode longhaul

1)

with F/O adapter in line with IEEE 802.3-2002 clause 38 (single-mode fiber offset-launch mode

conditioning patch cord)

U Power consumption/power output , temperature range

and order numbers

Order numbers of the MICE basic modules see table “Combination

options of the MS20/MS30 device versions” on page 13.

Product
code

Wave
length

Fiber System

attenuation

Expansion Fiber data

-M2, -M4 MM 1300 nm 50/125 µm 0-8 dB 0-5 km 1.0 dB/km, 800 MHz*km

-M2, -M4 MM 1300 nm 62,5/125 µm 0-11 dB 0-4 km 1.0 dB/km, 500 MHz*km

-S2 SM 1300 nm 9/125 µm 0-16 dB 0-30 km 0.4 dB/km; 3,5 ps/(nm*km)

-L2 LH 1550 nm 9/125 µm 7-29 dB 24-86 km 0.3 dB/km; 19 ps/(nm*km)

Table 8: F/O port 100BASE-FX

Product
code

Wave
length

Fiber System

attenuation

Expansion Fiber data

-SX/LC MM 850 nm 50/125 µm 0-7,5 dB 0-550 m 1.0 dB/km, 800 MHz*km

-LX/LC SM 1310 nm

1)

50/125 µm 0-11 dB 0-550 m 1.0 dB/km, 800 MHz*km

-SX/LC MM 850 nm 62,5/125 µm 0-7,5 dB 0-275 m 1.0 dB/km, 500 MHz*km

-LX/LC SM 1310 nm

1)

62,5/125 µm 0-11 dB 0-550 m 1.0 dB/km, 500 MHz*km

-LX/LC SM 1310 nm

1)

9/125 µm 0-11 dB 0-20 km 0.4 dB/km; 3,5 ps/(nm*km)

-LH/LC LH 1550 nm 9/125 µm 6-22 dB 8-72 km 0.25 dB/km; 19 ps/(nm*km)

-LH+/LC LH 1550 nm 9/125 µm 15-32 dB 60-120 km 0.25 dB/km; 19 ps/(nm*km)

Table 9: F/O port 1000BASE-FX

Basic module

Operating
temperature,
surrounding air

Basic module

Power
con­sumption

Power output Operating

voltage

MS20-0800S... 0 °C to +60 °C MS20-0800...A... 5.0 W 17.1 Btu (IT)/h 18...32 VDC
MS20-0800E... -40 °C to +70 °C MS20-0800...C... 7.4 W 25.4 Btu (IT)/h 18...60 VDC
MS30-0802S... 0 °C to +60 °C MS30-0802...A... 5.6 W 19.2 Btu (IT)/h 18...32 VDC
MS30-0802E... -40 °C to +70 °C MS30-0802...C... 8.6 W 29.6 Btu (IT)/h 18...60 VDC
MS20-1600S... 0 °C to +60 °C MS20-1600...A... 12.0 W 40.0 Btu (IT)/h 18...32 VDC
MS20-1600E... -40 °C to +70 °C MS20-1600...C... 15.6 W 52.5 Btu (IT)/h 18...60 VDC
MS30-1602S... 0 °C to +60 °C MS30-1602...A... 12.6 W 41.1 Btu (IT)/h 18...32 VDC
MS30-1602E... -40 °C to +70 °C MS30-1602...C... 16.8 W 56.7 Btu (IT)/h 18...60 VDC
MS20-2400S... 0 °C to +60 °C MS20-2400...A... 12.0 W 40.0 Btu (IT)/h 18...32 VDC
MS20-2400E... -40 °C to +70 °C MS20-2400...C... 16.8 W 56.7 Btu (IT)/h 18...60 VDC
MS30-2402S... 0 °C to +60 °C MS30-2402...A... 12.6 W 42.1 Btu (IT)/h 18...32 VDC
MS30-2402E... -40 °C to +70 °C MS30-2402...C... 18.0 W 60.9 Btu (IT)/h 18...60 VDC

40

MS20/MS30

Release 2.0 02/06

U Interfaces

Media module

Power
consumpt.

Power output Operating temp.,

surrounding air

Order

number
MICE 2000 media modules :
MM2 - 2FLM4 2.6 W 8.9 Btu (IT)/h 0 °C to +55 °C 943 734-001
MM2 - 4TX1 0.8 W 2.8 Btu (IT)/h 0 °C to +60 °C 943 722-001
MM2 - 4TX1 - EEC 0.8 W 2.8 Btu (IT)/h -25 °C to +60 °C 943 722-051
MM2 - 2FXP4 3.4 W 11.6 Btu (IT)/h 0 °C to +55 °C 943 842-001
MM2 - 4FXM3 7.0 W 23.9 Btu (IT)/h 0 °C to +50 °C 943 721-001
MM2 - 2FXM3 / 2TX1 3.4 W 11.6 Btu (IT)/h 0 °C to +55 °C 943 720-001
MM2 - 2FXM2 3.4 W 11.6 Btu (IT)/h 0 °C to +55 °C 943 718-001
MM2 - 2FXS2 3.4 W 11.6 Btu (IT)/h 0 °C to +55 °C 943 719-001
MICE 3000 media modules:
MM3 - 2AUI 3.4 W 11.6 Btu (IT)/h 0 °C to +55 °C 943 840-001
MM3 - 4FLM4 5.0 W 17.1 Btu (IT)/h 0 °C to +55 °C 943 760-001
MM3 - 2FLM4 / 2TX1 - RT 5.0 W 17.1 Btu (IT)/h 0 °C to +55 °C 943 117-004
MM3 - 4TX5 0.8 W 2.8 Btu (IT)/h 0 °C to +60 °C 943 841-001
MM3 - 4TX1 - RT 0.8 W 2.8 Btu (IT)/h 0 °C to +55 °C 943 117-001
MM3 - 4FXP4 7.0 W 23.9 Btu (IT)/h 0 °C to +55 °C 943 843-001
MM3 - 1FXM2 / 3TX1 2.2 W 7.5 Btu (IT)/h 0 °C to +55 °C 943 839-001
MM3 - 1FXM2 / 3TX1 - EEC 2.2 W 7.5 Btu (IT)/h -25 °C to +60 °C 943 839-051
MM3 - 2FXM2 / 2TX1 3.4 W 11.6 Btu (IT)/h 0 °C to +55 °C 943 761-001
MM3 - 2FXM2 / 2TX1 - EEC 3.4 W 11.6 Btu (IT)/h -25 °C to +60 °C 943 761-051
MM3 - 2FXM2 / 2TX1 - RT 3.4 W 11.6 Btu (IT)/h 0 °C to +55 °C 943 117-002
MM3 - 2FXM4 / 2TX1 3.4 W 11.6 Btu (IT)/h 0 °C to +55 °C 943 837-001
MM3 - 4FXM2 7.0 W 23.9 Btu (IT)/h 0 °C to +55 °C 943 764-001
MM3 - 4FXM4 7.0 W 23.9 Btu (IT)/h 0 °C to +55 °C 943 835-001
MM3 - 1FXS2 / 3TX1 2.2 W 7.5 Btu (IT)/h 0 °C to +55 °C 943 838-001
MM3 - 2FXS2 / 2TX1 3.4 W 11.6 Btu (IT)/h 0 °C to +55 °C 943 762-001
MM3 - 2FXS2 / 2TX1 - RT 3.4 W 11.6 Btu (IT)/h 0 °C to +55 °C 943 117-003
MM3 - 4FXS2 7.0 W 23.9 Btu (IT)/h 0 °C to +55 °C 943 836-001
MM3 - 1FXL2 / 3TX1 3.4 W 11.6 Btu (IT)/h 0 °C to +55 °C 943 763-001
MICE 4000 media modules:
MM4 - 4TX / SFP 9.0 W 30.8 Btu (IT)/h 0 °C to +60 °C 943 010-001
MM4 - 2TX / SFP 5.8 W 19.8 Btu (IT)/h 0 °C to +60 °C 943 622-001
Expansion/SFP modules:
M - SFP - SX / LC 0 W 0 Btu (IT)/h 0 °C to +60 °C 943 014-001
M - SFP - LX / LC 0 W 0 Btu (IT)/h 0 °C to +60 °C 943 015-001
M - SFP - LH / LC 0 W 0 Btu (IT)/h 0 °C to +60 °C 943 042-001
M - SFP - LH+ / LC 0 W 0 Btu (IT)/h 0 °C to +60 °C 943 049-001
MB - 2T 0 W 0 Btu (IT)/h 0 °C to +60 °C 943 733-002

MICE MS20-..., MS30-... V.24 Port: external management, AutoConfiguration Adapter

ACA 11
2 terminal blocks: 1 x indicator contact each, 1 A maximum, 24 V
1 x voltage supply each
USB: ACA 21-USB

MICE 2000 media modules see page 17

MS20/MS30

Release 2.0 02/06

41

U Scope of delivery

U Accessories

U Based specifications and standards

MICE 3000 media modules see page 18
MICE 4000 media modules see page 19

Device Scope of delivery
MICE

MS20-.../MS30-...

MS20-.../MS30-... device
2 terminal blocks for supply voltage and indicator contact
CD-ROM with manual
ML-MS2/MM lables
description and operating instructions

Name Order number
Manual Basics Industrial ETHERNET and TCP/IP 280 720-834
AutoConfiguration Adapter ACA 21-USB 943 271-001
Terminal cable 943 301-001
4-pin terminal block (50 units) 943 845-004
Rail Power Supply RPS 30 943 662-003
Rail Power Supply RPS 60 943 662-001
Rail Power Supply RPS 120 943 662-011
ML-MS2/MM lables 943 767-001
ML-MS3 lables 943 768-001
Network management software HiVision 943 471-100
OPC-Server software HiOPC 943 055-001

EN 61000-6-2:2001 Generic standards – Immunity for industrial environments
EN 55022:1998 + A1 2000

+ A2-2003

Information technology equipment – Radio disturbance

characteristics
EN 60950:2001 Safety of Information Technology Equipment (ITE)
EN 61131-2:2000 Programmable Controllers
EN 50121-4:2000 Railway applications - EMC - emitted interference and interfe-

rence immunity for signal and telecommunication systems
FCC 47 CFR Part 15:2003 Code of Federal Regulations
Germanischer Lloyd Rules for Classification and Construction VI - 7 - 3 Part 1,

Ed. 2001
cUL 508:1998 Safety for Industrial Control Equipment
cUL 1604 Electrical Equipment for Use in Class I and Class II, Div.2 and

Class III Hazardous (Classified) Locations
EN 50155 Declaration (Railway)
EN 61850-3 Communications networks and systems in stations
IEEE 1613 Standard Environment and Testing Requirements for Communi-

cation Networking Devices in Electric Power Substations

Table 10: List of based specifications and standards
Certified devices are marked with a certification identifier.

42

MS20/MS30

Release 2.0 02/06

U Certifications

The following table shows the status of the certifications of the
MICE product family.

RFC 768 UDP RFC 1769 SNTP
RFC 783 TFTP RFC 1907 MIB2
RFC 791 IP RFC 1945 HTTP/1.0
RFC 792 ICMP RFC 2131 DHCP
RFC 793 TCP RFC 2132 DHCP-Options
RFC 826 ARP RFC 2236 IGMPv2
RFC 951 BOOTP RFC 2239 MAU-MIB
RFC 1112 IGMPv1 RFC 3411 SNMP Framework
RFC 1157 SNMPv1 RFC 3412 SNMP MPD
RFC 1155 SMIv1 RFC 3413 SNMP Applications
RFC 1213 MIB2 RFC 3414 SNMP USM
RFC 1493 Dot1d RFC 3415 SNMP VACM
RFC 1542 BOOTP-Extensions RFC 2613 SMON
RFC 1757 RMON RFC 2674 Dot1p/Q

Table 11: List of RFCs

IEEE 802.1 D Switching, GARP, GMRP, Spanning Tree
IEEE 802.1 D-1998 Media access control (MAC) bridges (includes IEEE 802.1p Prio-

rity and Dynamic Multicast Filtering, GARP, GMRP)
IEEE 802.1 Q Tagging
IEEE 802.1 Q-1998 Virtual Bridged Local Area Networks (VLAN Tagging, GVRP)
IEEE 802.1 w.2001 Rapid Reconfiguration
IEEE 802.3-2002 Ethernet

Table 12: List of IEEE standards

Standard MS20/MS30
cUL 508 / CSA C22.2 No.142 pending
cUL 1604 / CSA C22.2 No.213 pending
Germanischer Lloyd pending

Table 13: Certifications, actual state see www.hirschmann.com
* without MM3 - 2AUI

Further support

U Technical questions and training courses

In the event of technical queries, please talk to the Hirschmann contract
partner responsible for looking after your account or directly to the
Hirschmann office. You can find the addresses of our contract partners
on the Internet:
http://www.hirschmann.com

Our support line is also at your disposal:

D Tel. [phone]
D Fax [phone]

Answers to Frequently Asked Questions can be found on the
Hirschmann internet site www.hirschmann.com/faq

U Hirschmann Competence Center

In the longterm, product excellence alone is not an absolute guarantee of
a successful project implementation. Comprehensive service makes a
difference worldwide. In the current scenario of global competition, the
Hirschmann Competence Center stands head and shoulders above the
competition with its comprehensive spectrum of innovative services:

D Consulting incorporates comprehensive technical advice, from system

evaluation through network planning to project planning.

D Training offers you an introduction to the technological fundamentals,

product briefing and user training with certification.

D Support ranges from commissioning through the standby service to

maintenance concepts.

With the Competence Center, you firmly rule out any compromise: the
client-specific package leaves you free to choose the service compon­ents that you will use.
Internet: http://www.hicomcenter.com

!'#!  $
