Hirschmann MAR1042, MAR1142, MAR1040, MAR1140 User Manual

Installation MACH 1040

Release 04 10/2015

Technical Support

https://hirschmann-support.belden.eu.com

User Manual

Installation
Industrial Ethernet Ruggedized Switch

MACH 1040 Family Full Gigabit

Aufkleber MAC-Adresse

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

V.24USB

P

FAULT

Sb R1

R2

RM

MAR1040

Aufkleber MAC-Adresse

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

V.24USB

P

FAULT

Sb R1

R2

RM

MAR1040

Aufkleber MAC-Adresse

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

V.24USB

P

FAULT

Sb R1

R2

RM

MAR1142

P

Aufkleber MAC-Adresse

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

V.24USB

P

FAULT

Sb R1

R2

RM

MAR1140

MAR1040

MAR1042

MAR1140

MAR1142

P

MAR1140, MAR1142

P

FAULT

RM Stand by

R1 R2

123456789

10

11

1213141516

ETHERNET Service Port

P1

P2

R1

Relay

R2

Relay

P1

P2

R1

Relay

R2

Relay

The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.

© 2015 Hirschmann Automation and Control GmbH

Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use. For devices with embedded software, the end-user license agreement on the
enclosed CD/DVD applies.

The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.

Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.

You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).

Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]

MACH 1040 039 724-002-04-1015

Installation MACH 1040

Release 04 10/2015

3

Contents

Safety instructions 5

About this Manual 13

Legend 13

1 Description 14

1.1 General device description 14

1.2 Combination options 15

1.3 Description of the device variants 16

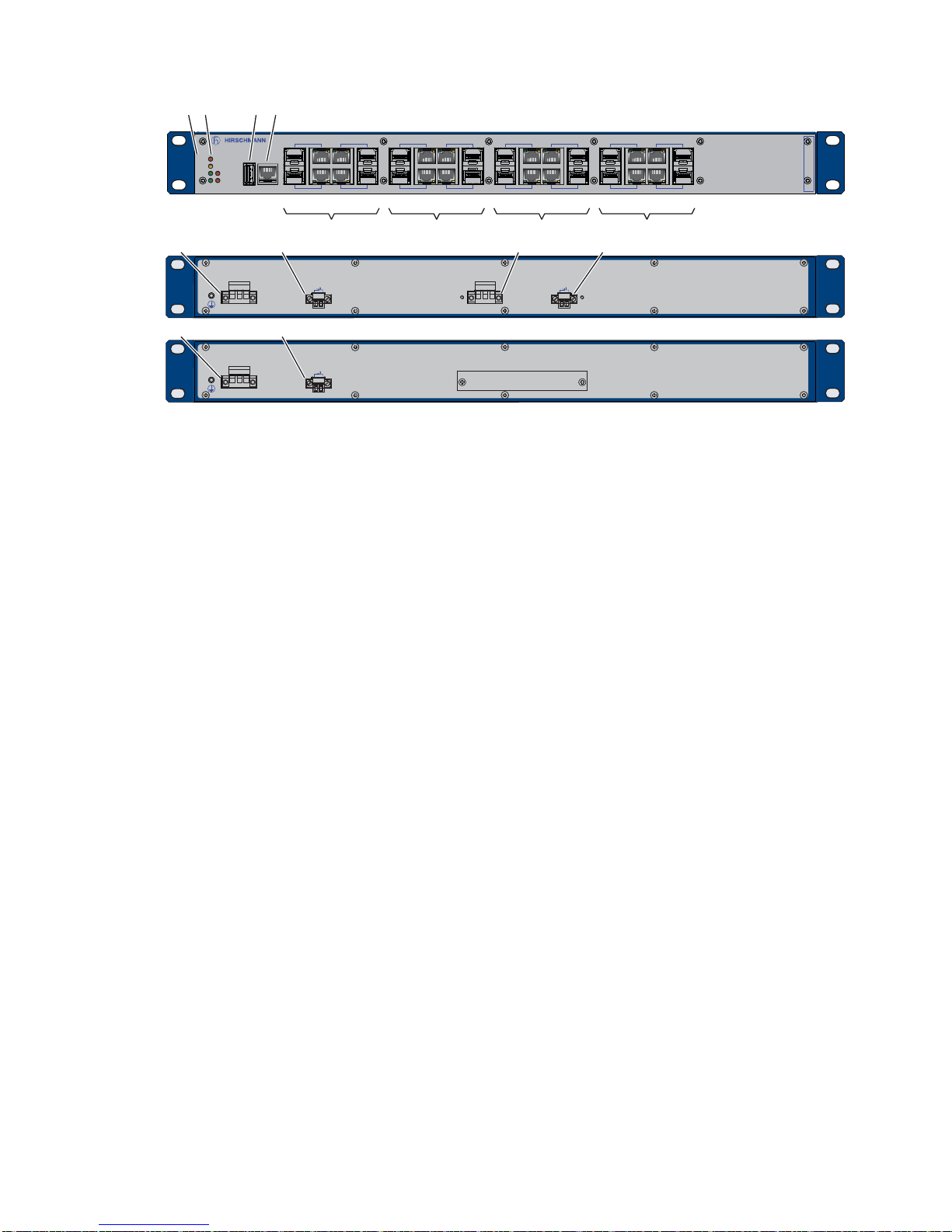

1.3.1 MAR1040-... with 16 Gigabit ports 17

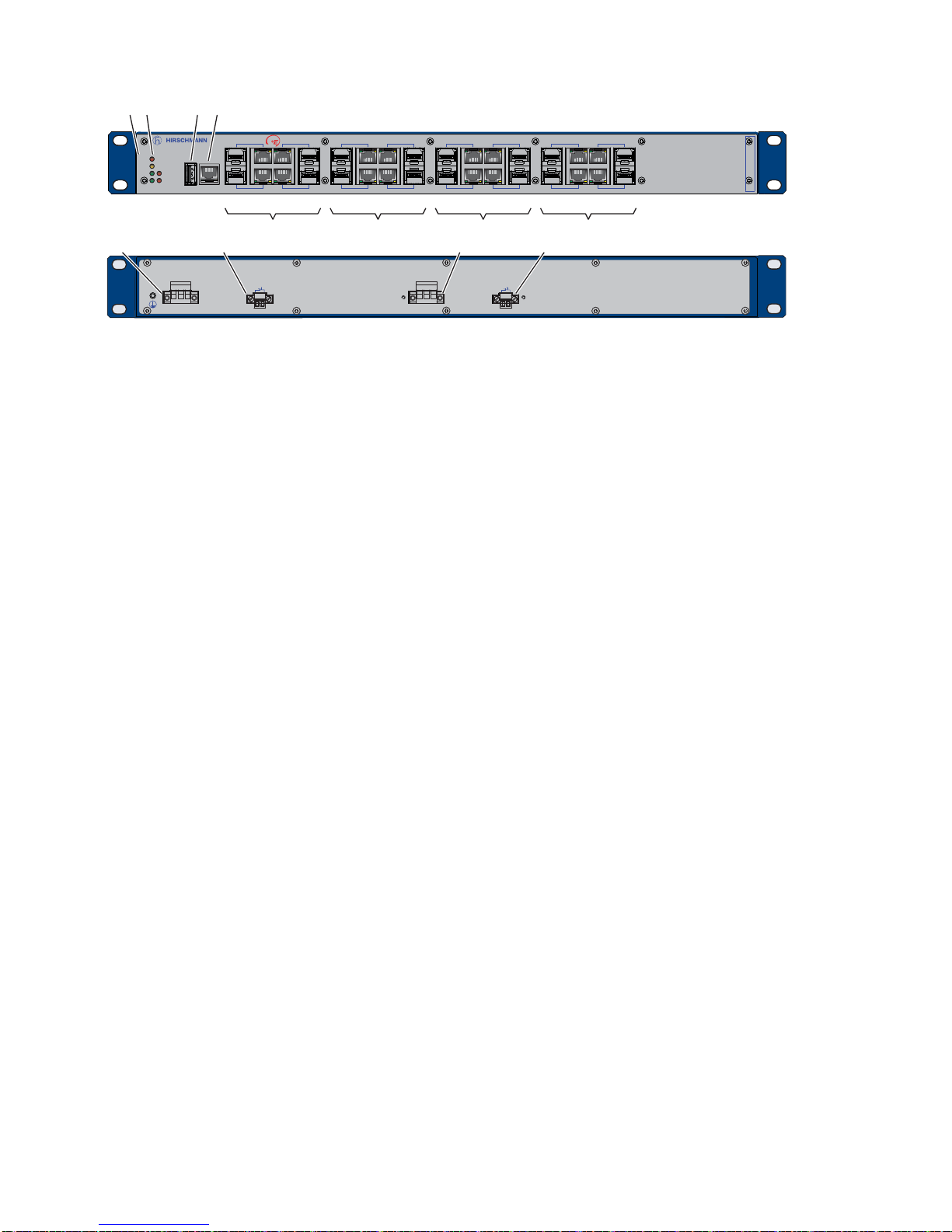

1.3.2 MAR1042-... with 16 Gigabit ports and PoE 18

1.3.3 MAR1040-... with 16 Gigabit ports, ports on back 19

1.3.4 MAR1142-... with 16 Gigabit ports, ports on back and
PoE 20

1.3.5 Support of PoE 21

1.4 Gigabit combo port 22

1.4.1 10/100/1000 Mbit/s twisted pair port 22

1.4.2 100/1000 Mbit/s F/O port 23

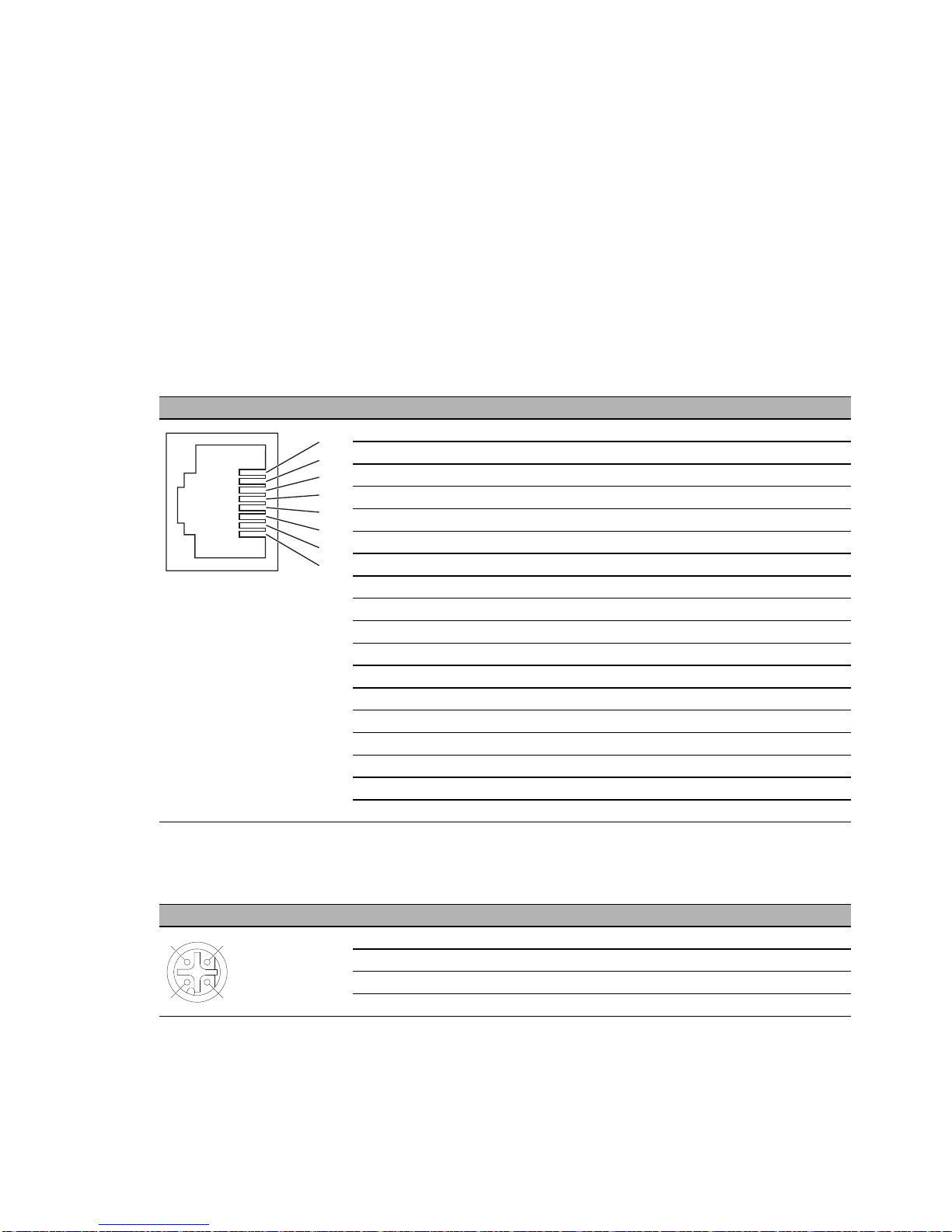

1.4.3 Pin assignments 23

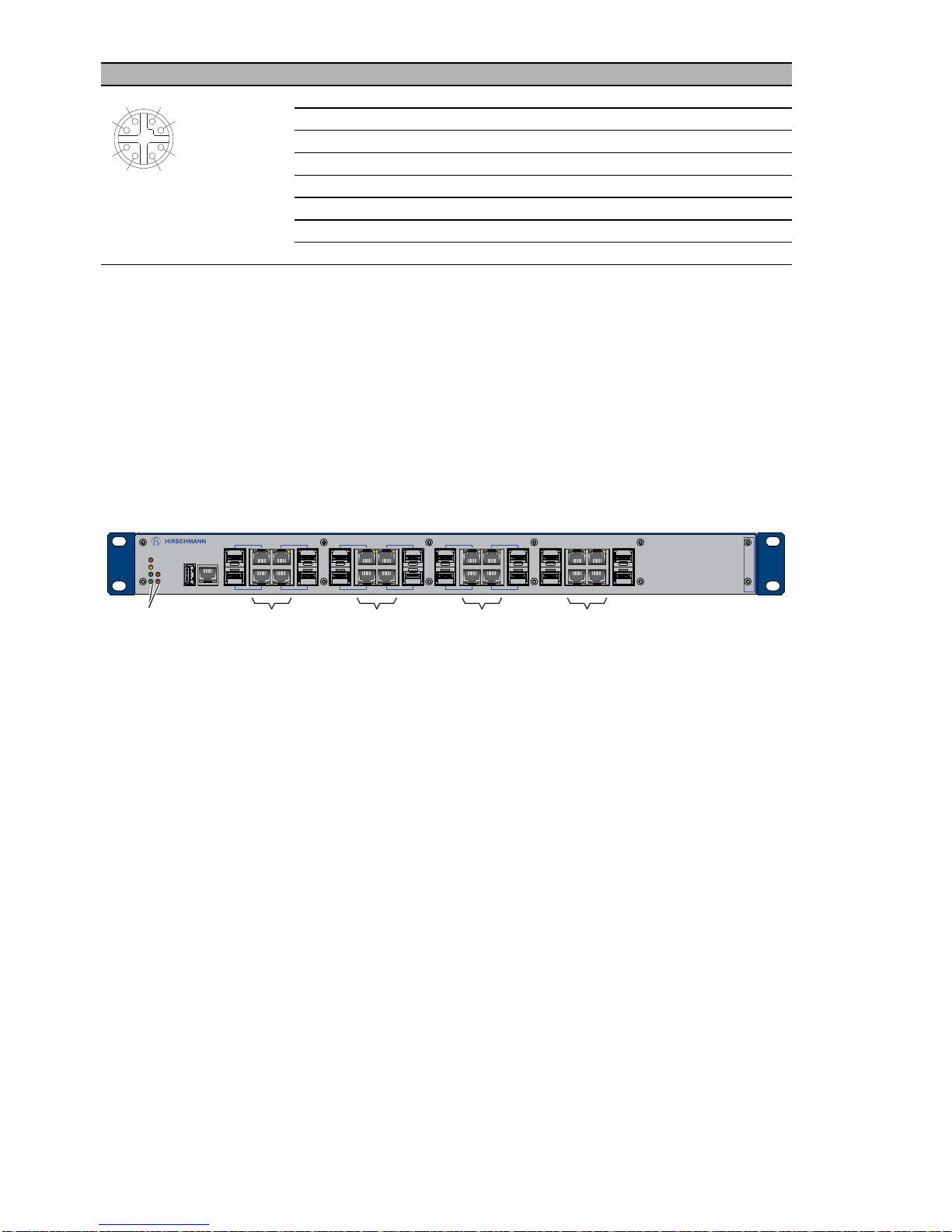

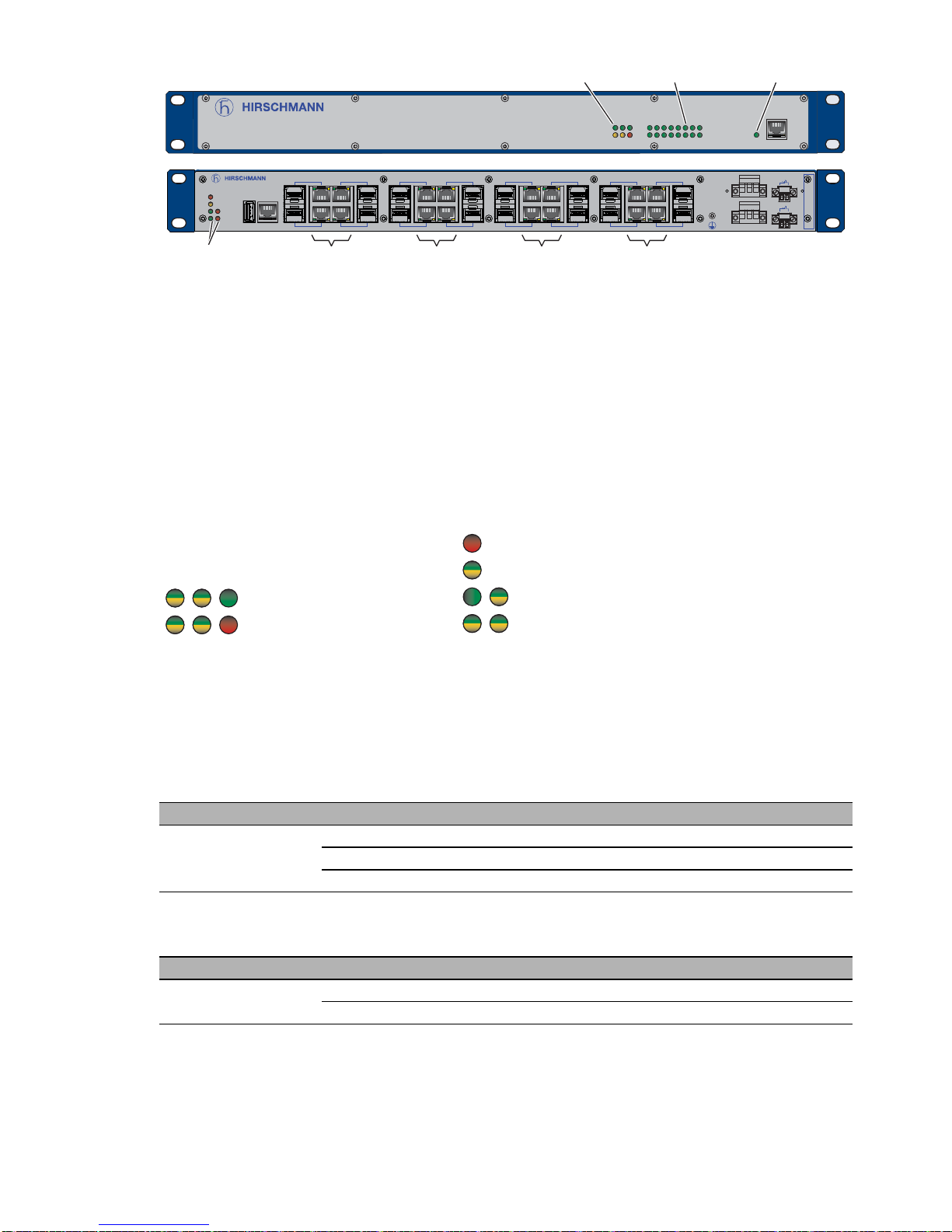

1.5 Display elements 24

1.5.1 Device state 25

1.5.2 Port state 27

1.6 Management interfaces 28

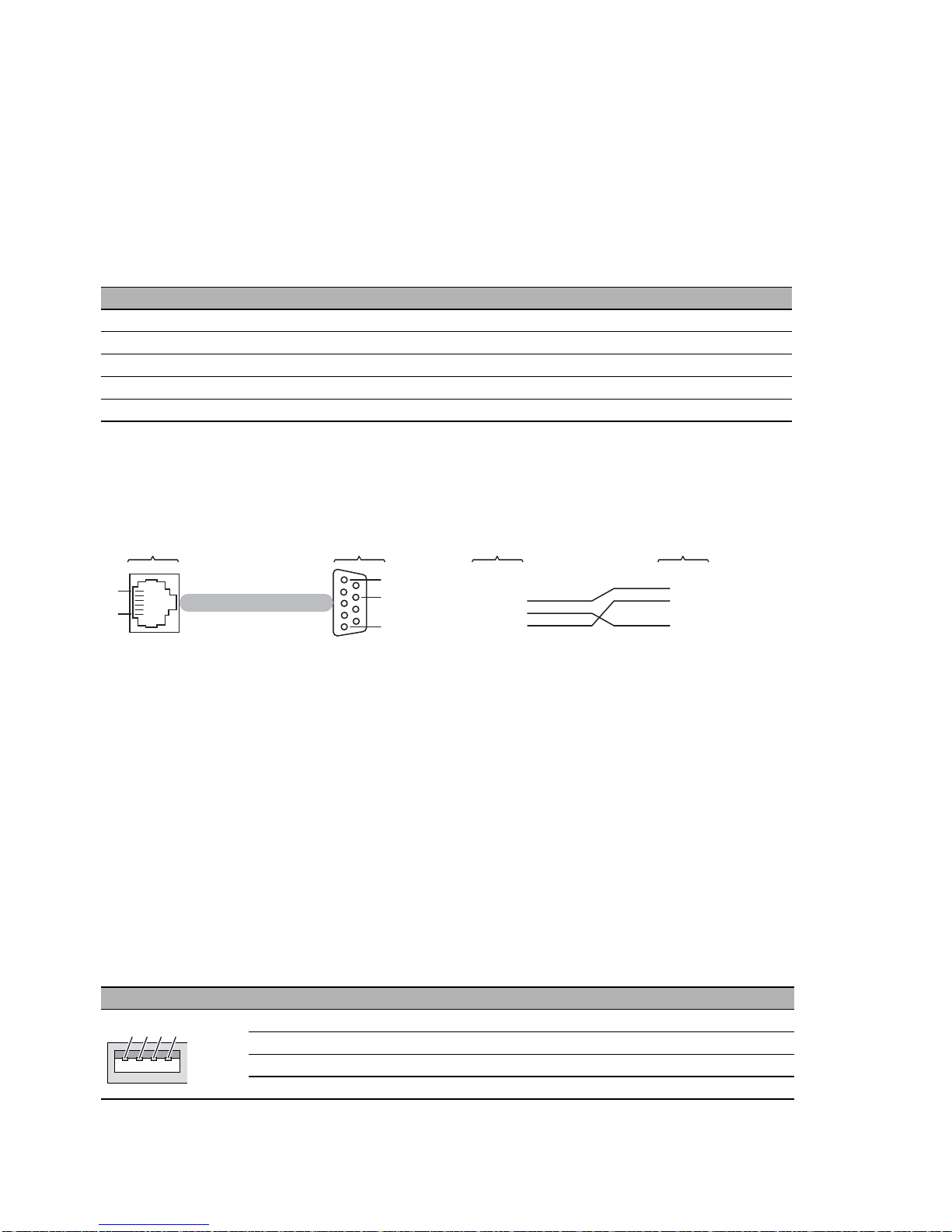

1.6.1 V.24 interface (external management) 28

1.6.2 USB interface 28

1.7 Signal contact 30

2 Installation 31

2.1 Checking the package contents 31

2.2 Installing an SFP transceiver (optional) 31

2.3 Connecting the power unit connections
for supply voltage and signal contact 32

2.3.1 Connecting the supply voltage 33

2.3.2 Connecting the signal contact 35

2.4 Installing and grounding the device 35

2.4.1 Mounting in a switch cabinet 35

2.4.2 Vertical mounting on the wall 37

2.4.3 Grounding the device 37

4

Installation MACH 1040

Release 04 10/2015

2.5 Operating the device 38

2.6 Connecting data cables 38

2.6.1 Twisted Pair ports 38

2.6.2 Optical fiber ports 38

3 Making basic settings 39

4 Monitoring the ambient air temperature 40

5 Maintenance and service 41

6Disassembly 42

6.1 Removing the device 42

6.2 Removing an SFP transceiver (optional) 42

7 Technical data 43

A Further Support 54

Installation MACH 1040

Release 04 10/2015

5

Safety instructions

 General safety instructions

You operate this device with electricity. Improper usage of the device
entails the risk of physical injury or significant property damage. The
proper and safe operation of this device depends on proper handling
during transportation, proper storage and installation, and careful
operation and maintenance procedures.
 Before connecting any cable, read this document, and the safety

instructions and warnings.

 Operate the device with undamaged components exclusively.
 The device is free of any service components. In case of a damaged

or malfunctioning the device, turn off the supply voltage and return the
device to Hirschmann for inspection.

 Intended usage

 Use the product only for the application cases described in the

Hirschmann product information, including this manual.

 Operate the product only according to the technical specifications.

See “Technical data” on page 43.

 Connect to the product only components suitable for the requirements

of the specific application case.

 Installation site requirements

 Install this device solely in a switch cabinet or in an operating site with

restricted access, to which maintenance staff have exclusive access.

 Mount the device horizontally in a cabinet or vertically on a flat surface.

Operating the device as a table unit is inadmissible.

See “General technical data” on page 43.

 Install the device in a fire protected shell if you are mounting it

vertically.

WARNING

UNCONTROLLED MACHINE ACTIONS

To avoid uncontrolled machine actions caused by data loss, configure all
the data transmission devices individually.
Before you start any machine which is controlled via data transmission, be
sure to complete the configuration of all data transmission devices.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

6

Installation MACH 1040

Release 04 10/2015

 If you are operating the device in a 19" switch cabinet: install

sliding/mounting rails for supporting the weight of the device.

 When you are selecting the installation location, make sure you

observe the climatic threshold values specified in the technical data.

 Use the device in an environment with a maximum pollution degree

that complies with the specifications in the technical data.

 Device casing

Only technicians authorized by the manufacturer are permitted to open
the casing.
 Make sure there is at least 3.94 inches (10 cm) of space in front of the

ventilation slits of the housing.

See “General technical data” on page 43.

 Never insert pointed objects (narrow screwdrivers, wires, etc.) into the

device or into the connection terminals for electric conductors. Do not
touch the connection terminals.

 Do not touch the housing during operation or shortly after switching off

the device. Hot surfaces can cause injury.

 Operating the device in the maximum surrounding air temperature and

stacking devices: When installing the device, make sure there is at
least one free rack space (approx. 5 cm) above the device, because
heat is discharged via the housing of the device.

 Qualification requirements for personnel

 Only allow qualified personnel to work on the device.

Qualified personnel have the following characteristics:

 Qualified personnel are properly trained. Training as well as practical

knowledge and experience make up their qualifications. This is the
prerequisite for grounding and labeling circuits, devices, and systems
in accordance with current standards in safety technology.

 Qualified personnel are aware of the dangers that exist in their work.
 Qualified personnel are familiar with appropriate measures against

these hazards in order to reduce the risk for themselves and others.

 Qualified personnel receive training on a regular basis.

 National and international safety regulations

 Verify that the electrical installation meets local or nationally applicable

safety regulations.

Installation MACH 1040

Release 04 10/2015

7

 Grounding the device

The device is grounded via the separate grounding screw on the back of
the device.
 Use a wire diameter for the ground conductor that is no smaller than

the diameter of the supply voltage connection, however of at least 1.0
mm² (AWG16).

 Ground the device before connecting any other cables.
 Disconnect the grounding only after disconnecting all other cables.

 Shielded ground

The shielded ground wire of the twisted pairs cables is connected to the
front panel as a conductor.
Beware of possible short circuits when connecting a cable section with
conductive shield braiding.

 Supply voltage

The supply voltage is electrically isolated from the housing.
Connect only a supply voltage that corresponds to the type plate of your
device.

 Every time you connect the electrical conductors, make sure that the

following requirements are met:

 The power supply conforms to overvoltage category I or II.
 The power supply has an easily accessible disconnecting device

(e.g., a switch or a plug). This disconnecting device is clearly
identified. So in the case of an emergency, it is clear which
disconnecting device belongs to which power supply cable.

 The electrical wires are voltage-free.
 The ground screw on the back of the device is connected to the

protective conductor.

 There is a fuse in the outer conductor (AC) or the positive

conductor (DC) of the voltage supply.
Regarding the properties of this fuse: See “General technical data”

on page 43.

 Supply with DC voltage: the fuse is suitable for a DC voltage.
 If the neutral conductor (AC) or the negative conductor (DC) is not

grounded: there is a fuse in each of the two wires.

 The wire diameter of the power supply cable is at least 1 mm²

(North America: AWG16) on the supply voltage input.

 The cross-section of the protective conductor is the same size as

or bigger than the cross-section of the power supply cables.

8

Installation MACH 1040

Release 04 10/2015

 The cables used are permitted for the temperature range of the

application case.

 Relevant for North America:

The power supply lines are made up of copper wire.

 Start connecting the electrical wires only if all the above safety

requirements are fulfilled.

 Verify that the electrical installation meets locally or nationally

applicable safety regulations.

 Use undamaged parts.
 Internal fuses are triggered only in the case of a detected error in the

device. In case of damage or malfunction of the device, turn off the
supply voltage and return the device to the plant for inspection.

 Only switch on the device when the housing is closed.
 First connect the ground screw on the back of the device with the

protective conductor before you set up the other connections. When
removing the connections, you remove the protective conductor last.

 For supply voltage connections with protective conductor connection:

First connect the protective conductor before connecting the wires for
the supply voltage.
If your device comprises a 2nd supply voltage connection of this type:
First connect the protective conductor before connecting the wires for
the supply voltages.

Installation MACH 1040

Release 04 10/2015

9

 Use in Hazardous Locations

Relevant for use in Hazardous Locations (Class 1, Division 2)::

This equipment is suitable for use in Class 1, Division 2, Groups A, B, C
and D or Non-Hazardous (unclassified) locations only.

When used in Class 1 Division 2 Hazardous Locations, the following
applies:

CLASS I; DIV. 2
GROUPS A; B; C; D
TEMPERATURE CODE T4
AMBIENT -30 °C ... +70 °C
List of Standards: ISA 12.12.01:2007, CSA C22.2 No. 213­M1987

This equipment must be installed in a tool-locked enclosure when the
USB port will be used.

Warning: Do not remove or replace while circuit is live unless

the area is known to be free of ignitable concentrations or
flammable substances.

Avertissement - Risque d'explosion - Ne pas débrancher tant que le

circuit est sous tension à moins que l'emplacement soit connu pour ne
contenir aucune concentration de gaz inflammable.

Avertissement - Risque d'explosion - La substitution de tout composant

peut rendre ce matériel incompatible pour une utilisation en classe I,
division 2.

10

Installation MACH 1040

Release 04 10/2015

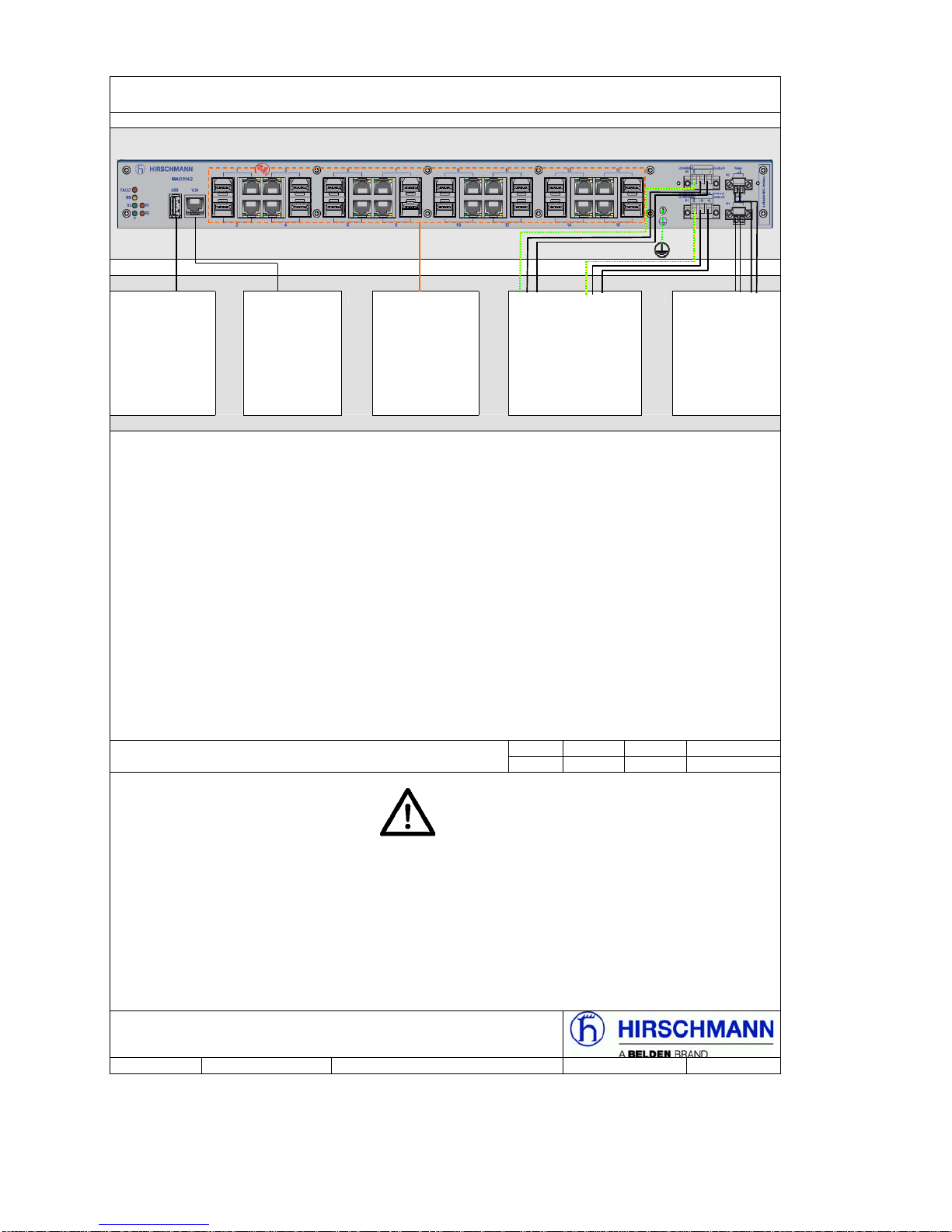

For use in Hazardous Locations according ISA12.12.01-2007 Class I Div. 2 Groups A, B, C, D

Control Drawing MACH1040-Family

Hazardous Location

ACA21-USB
Auto
Configuration
Adapter
For maintenance
only – See
Installation
Instructions

V.24 Interface

(External
management)

Data

communication
Ethernet Ports

Power Supply 1

L: 24VDC to 48VDC
M: 100VAC to
240VAC 50/60Hz

Power Supply 2

9: Not present
L: 24VDC to 48VDC
M: 100VAC to
240VAC 50/60Hz

Signal Contacts

(On: O.K.
Open: fault)
Associated
Apparatus:
Equipment with
nonincendive
field wiring
parameters

Ordinary Location - Non-Hazardous Area

The Use in Hazardous Locations is only allowed for MACH1040-Family model No´s which are individually labelled “FOR
USE IN CLASS I, DIVISION 2 HAZARDOUS LOCATIONS”

Notes:

The nonincendive field wiring circuit concept allows interconnection of nonincendive field wiring apparatus and associated
nonincendive field wiring apparatus using any of the wiring methods permitted for unclassified locations when certain
parametric conditions are met.

Capacity: C

a

 Ci + C

Cable

Inductivity: L

a

 Li + L

Cable

The maximum cable length has to be determined as follows:
(a) max. Cable Length < (L

a -Li

) / Cable

L

and (b) max. Cable Length < (Ca -Ci) / Cable C
The lower value of (a) and (b) is to apply.
Cable

L

: inductance per unit length of used cable.

Cable

C

: capacitance per unit length of used cable.
Other C-parameters and L-parameters are according to ANSI / ISA 12.12.01 2007 section 7.
Where cable capacitance and inductance values are unavailable, use the following default values: 60pF/foot (200pF/m),

0.2uH/foot (0,7uH/m)

Nonincendive field wiring circuits must be wired in accordance with the National Electrical Code (NEC), NFPA 70 , article

501.

Vmax Imax Ci Li

The Relay Terminals are dependent upon the following Entity
Parameters:

30V 90mA 50pF 2µH

The MACH1040-Family is an open type which must be installed within an enclosure appropriate for
environmental protection.

WARNING - Explosion Hazard – Do not disconnect Equipment while the circuit is live or unless the area
is known to be free of ignitable concentrations.

WARNING – Explosion Hazard – Substitution of any component may impair suitability for Class I,
Division 2.

Do not open when energized.

CONTROL DRAWING for Full Gigabit Ethernet Switch
MACH1040 Family

according to ANSI / ISA-12.12.01 – 2007
Rev.: 2 Date: 2011-03-18 Document No.: 000154226DNR Page 1 of 1

Installation MACH 1040

Release 04 10/2015

11

 CE marking

The labeled devices comply with the regulations contained in the following
European directive(s):

2011/65/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.

2004/108/EC (EMC)
Directive of the European Parliament and the council for standardizing the
regulations of member states with regard to electromagnetic
compatibility.

2006/95/EC
Directive of the European Parliament and the council for standardizing the
regulations of member states with regard to electrical equipment to be
used within specific voltage ranges.

In accordance with the above-named EU directive(s), the EU conformity
declaration will be at the disposal of the relevant authorities at the
following address:

Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Tel.: [phone]

The product can be used in the industrial sector.

 Interference immunity: EN 61000-6-2
 Emitted interference: EN 55022
 Reliability: EN 60950-1

The assembly guidelines provided in these instructions must be strictly
adhered to in order to observe the EMC threshold values.

Warning! This is a class A device. This device can cause interference in

living areas, and in this case the operator may be required to take
appropriate measures.

 LED or laser components

LED or LASER components according to IEC 60825-1 (2014):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT

12

Installation MACH 1040

Release 04 10/2015

 FCC note:

This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference; (2) this device must accept any interference received,
including interference that may cause undesired operation.
Appropriate testing has established that this device fulfills the
requirements of a class A digital device in line with part 15 of the FCC
regulations.
These requirements are designed to provide sufficient protection against
interference when the device is being used in a business environment.
The device creates and uses high frequencies and can also radiate these
frequencies. If it is not installed and used in accordance with this
operating manual, it can cause radio transmission interference. The use
of this device in a residential area can also cause interference, and in this
case the user is obliged to cover the costs of removing the interference.

 Recycling note

After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.

Installation MACH 1040

Release 04 10/2015

13

About this Manual

The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.

The following manuals are available as PDF files on the CD/DVD supplied:

 Installation user manual
 Basic Configuration user manual
 Redundancy Configuration user manual
 Router Configuration user manual
 Reference manual for the graphical user interface
 Command Line Interface reference manual

The Industrial HiVision network management software provides you with
additional options for smooth configuration and monitoring:

 ActiveX control for SCADA integration
 Auto-topology discovery
 Browser interface
 Client/server structure
 Event handling
 Event log
 Simultaneous configuration of multiple devices
 Graphical user interface with network layout
 SNMP/OPC gateway

Legend

The symbols used in this manual have the following meanings:

 Listing

 Work step



Subheading

14

Installation MACH 1040

Release 04 10/2015

1 Description

1.1 General device description

You can choose from between a wide range of variants. You have the option
to set up your device individually based on different criteria:

 Media type
 Temperature range
 Supply voltage range
 Software variant

The MACH 1040 devices are designed for the special requirements of
industrial automation. They meet the relevant industry standards, provide
very high operational reliability, even under extreme conditions, and also
long-term reliability and flexibility.

The devices allow you to set up switched industrial Ethernet networks that
conform to the IEEE 802.3 standard using copper wires or optical fibers.

The devices work without a fan.
If required, the devices are PoE-capable.
For devices without PoE, the voltage supply can be redundant if required.
The following installation options are available:

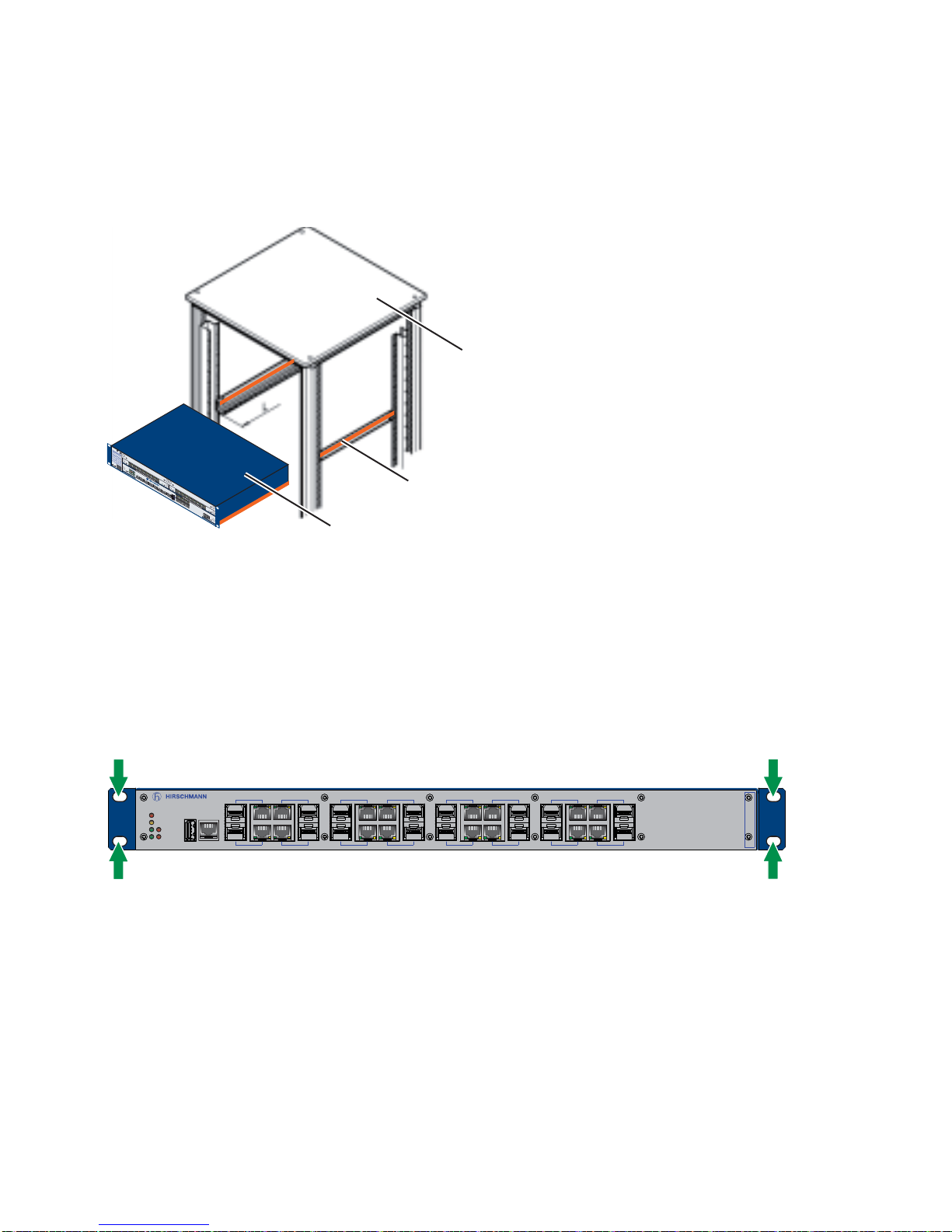

 19" switch cabinet
 Flat surface mounting

You have the option of choosing various media to connect to the terminal
devices and other network components:

 twisted pair cable
 multimode F/O
 singlemode F/O

The ring redundancy concept allows the network to be reconfigured quickly
after a failure.

Product configuration data can be provided by:

 diagnosis displays
 displaying the operating parameters

There are convenient options for managing the device. Administer your
devices via:

 a Web browser
 Telnet
 HiDiscovery (Software for putting the device into operation)

Installation MACH 1040

Release 04 10/2015

15

 network management software (e.g. Industrial HiVision)
 a V.24 interface (locally on the device)

The devices provide you with a large range of functions, which the manuals
for the operating software inform you about. You will find these manuals as
PDF files on the enclosed CD/DVD, or you can download them from the
Internet on the Hirschmann product pages (www.hirschmann.com).
The Hirschmann network components help you ensure continuous
communication across all levels of the company.

1.2 Combination options

The product designation of your device is made from combining the desired
product characteristics in accordance with the following table. The
corresponding short designation is in column 3.
You have numerous options of combining the device characteristics. You can
determine the possible combinations using the configurator which is
available in the Belden E-Catalog (www.e-catalog.beldensolutions.com) on
the web page of the device.

Position Characteristic Ident. Property

1 to 7 Product MAR1040 MACH Ruggedized Gigabit Ethernet Switch

MAR1042 MACH Ruggedized Gigabit Ethernet Switch

with PoE

MAR1140 MACH Ruggedized Gigabit Ethernet Switch,

ports in the back

MAR1142 MACH Ruggedized Gigabit Ethernet Switch,

ports in the back and with PoE
8 - (hyphen) ­9 to 10 10/100/1000 Mbit/s ports

1 to 4

4C 4 × combo port (SFP slot: 100/1000 Mbit/s,

alternatively twisted pair RJ45 socket:

10/100/1000 Mbit/s)
11 to 12 10/100/1000 Mbit/s ports

5 to 8

4C See 9 to 10

13 to 14 10/100/1000 Mbit/s ports

9 to 10

4C See 9 to 10

15 to 16 10/100/1000 Mbit/s ports

13 to 16

4C See 9 to 10

17 to 18 Ports 17 to 20 99 Not present
19 to 20 Ports 21 to 24 99 Not present
21 Temperature range S Standard 0 °C to +60 °C

T Extended −40 °F to +158 °F (−40 °C to

+70 °C )

E Extended −40 °F to +158 °F (−40 °C to

+70 °C ), Conformal Coating

Table 1: Combination options for the MACH 1040 device variants

16

Installation MACH 1040

Release 04 10/2015

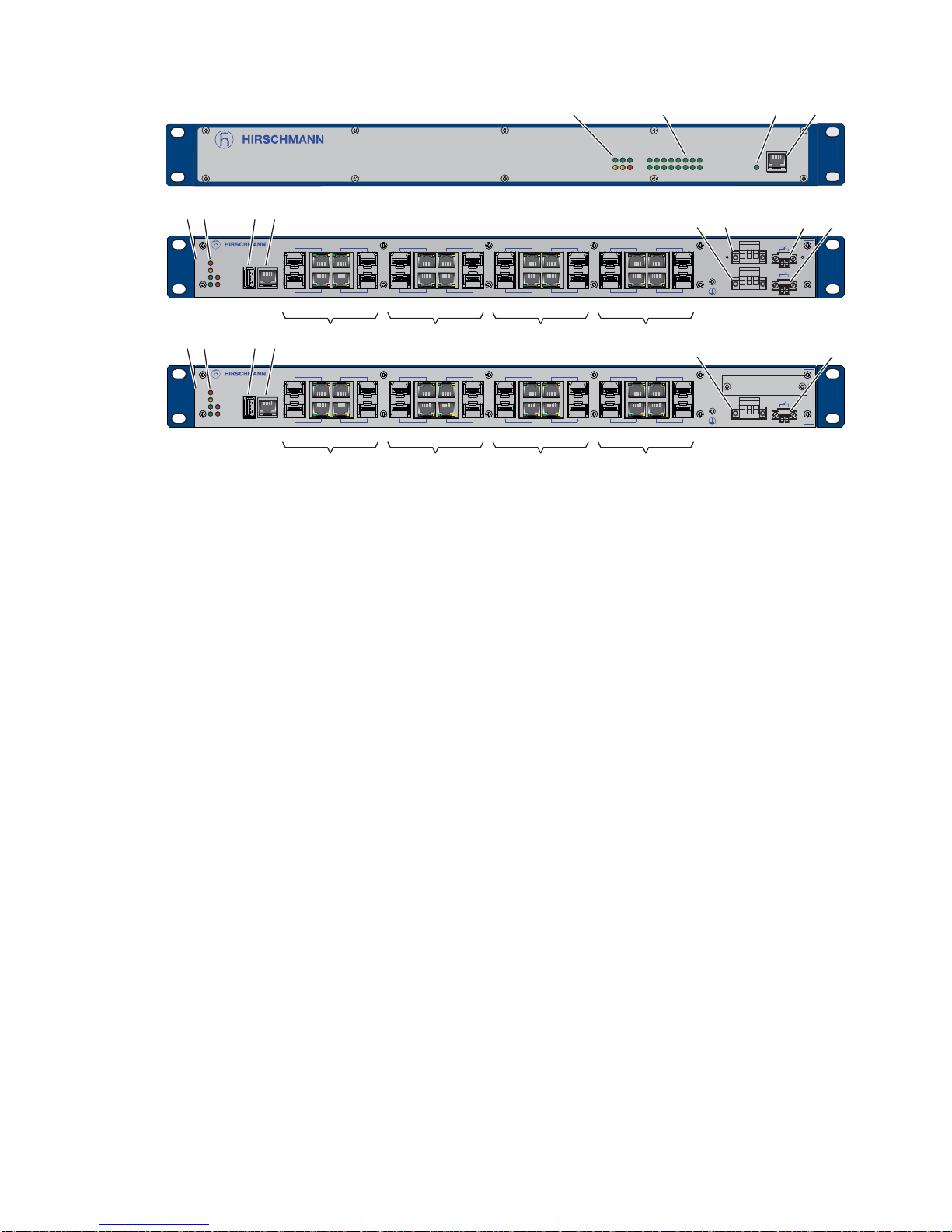

1.3 Description of the device variants

 The MACH 1040 devices are Ruggedized Switches with 16 Gigabit

ETHERNET ports (10/100/1000 Mbit/s, can be connected optically or with
TX). These ports are suitable for the connection of terminal devices or
network segments according to the standards IEEE 802.3
100/1000BASE-FX (SFP slot) and IEEE 802.3 1000BASE-T / 100BASE­TX / 10BASE-T (RJ45 socket). A plugged SFP module switches the TX
port off.

 In the MAR1140... and MAR1142... devices, all the cable outlets are at the

back, i.e. the ports are on the back of the device. They have an additional
Fast Ethernet port on the front of the device that you can use for diagnosis
purposes.

 The MAR1042... and MAR1142... devices support PoE (Power over

Ethernet) in accordance with IEEE 802.3af. The PoE ports are the Gigabit
Ethernet ports 1 to 4.

22 Supply voltage range,

power supply unit 1

L See “General technical data” on page 43.
M

23 Supply voltage range,

power supply unit 2 or
PoE power supply unit

9 Not present
L See “General technical data” on page 43.
M

24 Approvals H CE, UL 508, ISA 12.12.01- Class I, Div. 2, GL,

IEC 61850, IEEE 1613 Substation, EN 50121­4 Railway (along track), NEMA TS2

T CE, UL 508, ISA 12.12.01- Class I, Div. 2, EN

50121-4 railway (along track), NEMA TS2, EN
50155 railway (train)

a

25 Software variant P Layer 2 Professional

R Layer 3 Professional

a. The railway standard EN 50155 is only met if the PoE power is limited to 15 W.

Position Characteristic Ident. Property

Table 1: Combination options for the MACH 1040 device variants

Installation MACH 1040

Release 04 10/2015

17

1.3.1 MAR1040-... with 16 Gigabit ports

Figure 1: 1 - MAR1040 device

2 - LED display elements
3 - USB interface
4 - V.24 connection for external management
5 - Gigabit Ethernet combo ports: 100/1000 Mbit/s fiber optic
SFP slots. Alternative connections: 10/100/1000 Mbit/s tw isted p air, RJ45
connections

Back of device:
6 - P1: Connection for the voltage supply
7 - Relay 1: signal contact
Back of device for device variants with 2 power supply units:
8 - P2: Connection for redundant voltage supply
9 - Relay 2: signal contact

Aufkleber MAC-Adresse

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

V.24USB

P

FAULT

Sb R1

R2

RM

MAR1040

R2R1

P1

P2

Relay

Relay

R2R1

U:24/48VDC I:x.x/x.x A

X

- +

P1

P2

Relay

Relay

13 57 911 1315

2 4 6 8 10 12 14 16

6 7 8 9

6 7

2 3 41

55 5 5

18

Installation MACH 1040

Release 04 10/2015

1.3.2 MAR1042-... with 16 Gigabit ports and PoE

Figure 2: 1 - MAR1042 device

2 - LED display elements
3 - USB interface
4 - V.24 connection for external management
5 - Gigabit Ethernet combo ports with Power over Ethernet (PoE):
100/1000 Mbit/s fiber optic SFP slots. Alternative connections:
10/100/1000 Mbit/s twisted pair, RJ45 connections
6 - Gigabit Ethernet combo ports: 100/1000 Mbit/s fiber optic
SFP slots. Alternative connections: 10/100/1000 Mbit/s twisted pair, RJ45
connections

Back of device:
7 - P1: Connection for the voltage supply
8 - Relay 1: signal contact
9 - P2: Connection for the PoE voltage supply
10 - Relay 2: signal contact

Aufkleber MAC-Adresse

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

V.24USB

P

FAULT

Sb R1

R2

RM

MAR1042

P

R2R1

P1

P2

Relay

Relay

13 57 911 1315

2 4 6 8 10 12 14 16

7

8 9 10

2 3 41

65 6 6

Installation MACH 1040

Release 04 10/2015

19

1.3.3 MAR1040-... with 16 Gigabit ports, ports on back

Figure 3: Back of device:

1 - MAR1140 device
2 - LED display elements
3 - USB interface
4 - V.24 connection for external management
5 - Gigabit Ethernet combo ports: 100/1000 Mbit/s fiber optic
SFP slots. Alternative connections: 10/100/1000 Mbit/s twisted pair , RJ45
connections
6 - P1: Connection for the voltage supply
7 - Relay 1: signal contact
For device variants with 2 power supply units:
8 - P2: Connection for redundant voltage supply
9 - Relay 2: signal contact

Front of device:
10 - LED device status display elements
11 - LED port status display elements
12 – LED service port display element
13 - Service port

Aufkleber MAC-Adresse

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

V.24USB

P

FAULT

Sb R1

R2

RM

MAR1140

P

FAULT

RM Stand by

R1 R2

123456789

10

11

1213141516

ETHERNET Service Port

Aufkleber MAC-Adresse

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

V.24USB

P

FAULT

Sb R1

R2

RM

MAR1140

FAULTFAULT

R1

Relay

R1

Relay

R2

Relay

13 57 911 1315

2 4 6 8 10 12 14 16

13 57 911 1315

2 4 6 8 10 12 14 16

10

11 12 13

6 8 9 7

6 7

2 3 41

55 5 5

2

3 41

55 5 5

P1

P2

P1

20

Installation MACH 1040

Release 04 10/2015

1.3.4 MAR1142-... with 16 Gigabit ports, ports on back and
PoE

Figure 4: Back of device:

1 - MAR1142 device
2 - LED display elements
3 - USB interface
4 - V.24 connection for external management
5 - Gigabit Ethernet combo ports with Power over Ethernet (PoE):
100/1000 Mbit/s fiber optic SFP slots. Alternative connections:
10/100/1000 Mbit/s twisted pair, RJ45 connections
6 - Gigabit Ethernet combo ports: 100/1000 Mbit/s fiber optic
SFP slots. Alternative connections: 10/100/1000 Mbit/s twisted pair, RJ45
connections
7 - P1: Connection for the voltage supply
8 - Relay 1: signal contact
9 - P2: Connection for the PoE voltage supply
10 - Relay 2: signal contact

Front of device:
11 - LED device status display elements
12 - LED port status display elements
13 - LED service port display element
14 - Service port

The device variants of the MACH 1040 with ports on the rear panel
have the following characteristics:

 The display LEDs are on the front of the device. There are 16 LEDs for

displaying the status of the Gigabit Ethernet ports and 6 LEDs for
displaying the device status.

 The supply voltage connection and the ports are on the back of the

device. The device has 16 Gigabit Ethernet ports and an additional Fast
Ethernet port on the front of the device that you can use for diagnosis
purposes.

Aufkleber MAC-Adresse

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

V.24USB

P

FAULT

Sb R1

R2

RM

MAR1140

P

FAULT

RM Stand by

R1 R2

123456789

10

11

1213141516

ETHERNET Service Port

P1

R1

Relay

R2

Relay

P2

13 57 911 1315

2 4 6 8 10 12 14 16

P

11 12 13 14

7 9 10 8

2 3 41

65 6 6

Installation MACH 1040

Release 04 10/2015

21

1.3.5 Support of PoE

The MAR1042/MAR1142 device variants support Power over Ethernet (PoE)
in accordance with IEEE 802.3af.

They allow the connection and remote supply of, for example, IP telephones
(Voice over IP), webcams, sensors, printer servers and WLAN access points
via 10BASE-T/100BASE-TX/1000BASE-T. With PoE, these terminal devices
are powered by the twisted-pair cable.

The MAR1042 and MAR1142 provide four 10BASE-T/100BASE­TX/1000BASE-T ports (RJ45 sockets) for connecting network segments or
PoE terminal devices (PD, Powered Device) for all IEEE802.3af classes up
to a maximum power output of 15.4 W.

The 4 PoE-capable ports are the 4 first ports on the device (ports 1 to 4, see

figure 2 and figure 4). The PoE ports are indicated with the red PoE logo on

the device.
The PoE power is supplied via the wire pairs transmitting the signal (phantom
voltage).
The individual ports are not electrically insulated from each other.
The following conditions are met in accordance with IEEE 802.3af:

 Endpoint PSE
 Alternative A

22

Installation MACH 1040

Release 04 10/2015

1.4 Gigabit combo port

The MACH 1040 device provides 16 combo ports for transmission speeds of
up to 1000 Mbit/s.
You have the option of alternatively connecting a twisted pair cable via a
RJ45 socket or an optical fiber via a SFP transceiver to a combo port.
(see figure 1 to figure 4)
By inserting a SFP transceiver, you deactivate automatically the
corresponding twisted pair interface.

Use only Hirschmann SFP transceivers which are suitable for usage with the
device.

See “Accessories” on page 51.

You find information on pin assigments for making patch cables here:

“Pin assignments” on page 23

1.4.1 10/100/1000 Mbit/s twisted pair port

This port is an RJ45 socket.
The 10/100/1000 Mbit/s twisted pair port offers you the ability to connect
network components according to the IEEE 802.3 10BASE-T/100BASE­TX/1000BASE-T standard.

The MAR1042 and MAR1142 devices also allow:
IEEE 802.3af (Power over Ethernet on data lines).

This port supports:

 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 1000 Mbit/s full duplex
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
 Also for MAR1042 and MAR1142:

Power over Ethernet (PoE) at the first 4 ports of the device
The PoE power is supplied via the wire pairs transmitting the signal

(phantom voltage).
Delivery state: Autonegotiation activated
The socket housing is electrically connected with the front panel.
The pin assignment corresponds to MDI-X.

Installation MACH 1040

Release 04 10/2015

23

1.4.2 100/1000 Mbit/s F/O port

This port is an SFP slot.
The 100/1000 Mbit/s F/O port offers you the ability to connect network
components according to the IEEE 802.3 100BASE-FX/1000BASE­SX/1000BASE-LX standard.
This port supports:

 1000 Mbit/s full duplex
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode

State on delivery:

 100 Mbit/s full duplex when using a Fast Ethernet SFP transceiver
 1000 Mbit/s full duplex when using a Gigabit Ethernet SFP transceiver

1.4.3 Pin assignments

RJ45 Pin 10/100 Mbit/s 1000 Mbit/s PoE

MDI mode

1 TX+ BI_DA+ Positive V

PSE

a

a. Phantom supply

2TX− BI_DA− Positive V

PSE

a

3 RX+ BI_DB+ Negative V

PSE

a

4 — BI_DC+ Positive V

PSE

b

b. Spare pair supply

5— BI_DC− Positive V

PSE

b

6RX− BI_DB− Negative V

PSE

a

7 — BI_DD+ Negative V

PSE

b

8— BI_DD− Negative V

PSE

b

MDI-X mode

1 RX+ BI_DB+ Negative V

PSE

a

2RX− BI_DB− Negative V

PSE

a

3 TX+ BI_DA+ Positive V

PSE

a

4 — BI_DD+ Positive V

PSE

b

5— BI_DD− Positive V

PSE

b

6TX− BI_DA− Positive V

PSE

a

7 — BI_DC+ Negative V

PSE

b

8— BI_DC− Negative V

PSE

b

M12 4-pin (D coded) Pin Data PoE

1 TX+ Positive V

PSE

2 RX+ Negative V

PSE

3TX− Positive V

PSE

4RX− Negative V

PSE

1
2
3
4
5
6
7
8

1

23

4

24

Installation MACH 1040

Release 04 10/2015

1.5 Display elements

After the working voltage is set up, the software starts and initializes itself.
Afterwards, the device performs a self-test. During this process, various
LEDs light up.
The process takes around 15 seconds.

Figure 5: Display elements for MAR1040 and MAR1042

1 - Device status display elements
2 - Port status display elements

M12 8-pin (X-coded) Pin 10/100 Mbit/s 1000 Mbit/s PoE

1 RX+ BI_DB+ Negative V

PSE

2RX− BI_DB− Negative V

PSE

3 TX+ BI_DA+ Positive V

PSE

4TX− BI_DA− Positive V

PSE

5 — BI_DC+ —
6— BI_DC− —
7— BI_DD− —
8 — BI_DD+ —

18

2

36

7

45

Aufkleber MAC-Adresse

1

2

3

4

5

6

7

8

9

10

11

12

V.24USB

P

FAULT

Sb R1

R2

RM

MAR1040

1

22 2 2

Installation MACH 1040

Release 04 10/2015

25

Figure 6: Display elements for MAR1140 and MAR1142

Front of device:
1 - Device status display elements
2 - Port status display elements for 16 Gigabit Ethernet ports
3 - Diagnosis port with display element
Back of device:
4 - Device status display elements
5 - Port status display elements

1.5.1 Device state

These LEDs provide information about conditions which affect the operation
of the whole device.

The following table applies only to device variants with 2 power supply units:

The following table applies only to device variants with one power supply unit:

LED Display Color Activity Meaning

P Supply

voltage

Green Lights up Supply voltages 1 and 2 are on
Yellow Lights up Supply voltage 1 or 2 is on

None The supply voltages 1 and 2 are too low.

LED Display Color Activity Meaning

P Supply

voltage

Green Lights up Supply voltage is on

None Supply voltage is too low

Aufkleber MAC-Adresse

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

V.24USB

P

FAULT

Sb R1

R2

RM

MAR1140

P

FAULT

RM Stand by

R1 R2

123456789

10

11

1213141516

ETHERNET Service Port

P1

P2

R1

Relay

R2

Relay

1 2 3

4

55 5 5

P

FAULT

RM Stand by

R1 R2

FAULT

Sb R1

R2

RM

P

MAR1040, MAR1042, MAR1140, MAR1142MAR1140, MAR1142

26

Installation MACH 1040

Release 04 10/2015

The following table applies to all device variants:

Applies to software releases previous to 06.0.00:

Applies to software release 06.0.00 and higher:

Applies to software releases previous to 06.0.00:

LED Display Color Activity Meaning

Stand­by/Sb

Stand-by
mode

None Stand-by mode not enabled

Green Lights up Standby mode enabled

RM Ring

Manager

None The RM function is deactivated.

Green Lights up The RM function is active.

The redundant port is disabled.

flashing The device detects an incorrect

configuration of the HIPER-Ring (e.g. the
ring is not connected to the ring port).

Yellow Lights up The RM function is active.

The redundant port is enabled.

RM
and
Stand­by/Sb

ACA
memory
operations

Flashing
alternately

Error in the memory operation

flash
synchronously
– 2 x per period

Save a configuration file from the ACA to the
device.

flash
synchronously
– 1 x per period

Saving a configuration file from the device to
the ACA.

LED Display Color Activity Meaning

FAULT Signal contact 1 Red Lights up The signal contact is open - it is

reporting a detected error.

None The signal contact is closed - it is

not reporting any detected errors.

LED Display Color Activity Meaning

FAULT Signal contact 1 Red Lights up The signal contact is open - it is

reporting a detected error.

None The signal contact is closed - it is

not reporting any detected errors.

Duplicate IP
detection

Red flashes 4 times a

period

Reports an IP conflict.

LED Display Color Activity Meaning

R1 Signal contact 1 Yellow Lights up The signal contact is closed in

manual operation.

None The signal contact is open in

manual operation.

R2 Signal contact 2 Yellow Lights up The signal contact is closed in

manual operation.

None The signal contact is open in

manual operation.

Installation MACH 1040

Release 04 10/2015

27

Applies to software release 06.0.00 and higher:

If the manual adjustment is active on the “relay” signal contact, then the error
display is independent of the setting of the signal contact.

1.5.2 Port state

The green and yellow LEDs at the individual port display port-related
information. During the boot phase, these LEDs are used to display the
status of the boot procedure.

LED Display Activity Color Meaning

R1 Signal contact 1 Lights up Green The signal contact is open in non

manual operation.

Yellow The signal contact is open in

manual operation.

None The signal contact is closed.

R2 Signal contact 2 Lights up Green The signal contact is open in non

manual operation.

Yellow The signal contact is open in

manual operation.

None The signal contact is closed.

LS, DA - link status, data
(one green/yellow LED or one green and one yellow LED per port)

Not glowing No valid connection.
Glowing green Valid connection.
Flashing green (1 time a period) Port is switched to stand-by.
Flashing green (3 times a

period)

Port is switched off.

Flashing yellow Receive data / send data.

123456789

10

11

1213141516

ETHERNET Service Port

1

2

3

4

MAR1040, MAR1042, MAR1140, MAR1142 MAR1140, MAR1142

28

Installation MACH 1040

Release 04 10/2015

1.6 Management interfaces

1.6.1 V.24 interface (external management)

The V.24 interface is an RJ11 socket.
At the V.24 connection, a serial interface is provided for the local connection
of an external management station (VT100 terminal or PC with
corresponding terminal emulation). This enables you to set up a connection
to the Command Line Interface (CLI) and to the system monitor.

The socket housing is electrically connected to the front panel of the device.
The V.24 interface is not electrically isolated from the supply voltage.

Figure 7: Pin assignment of the V.24 interface and the DE9 connector

Note: You will find the order number for the terminal cable, which is ordered

separately, in the Technical Data section (see on page 43 “Technical data”).

You will find a description of the V.24 interface in the “User Manual Basic
Configuration” document on the CD/DVD supplied.

1.6.2 USB interface

The USB interface allows you to connect the AutoConfiguration Adapter
ACA21 storage medium. This is used for saving/loading the configuration
data and diagnostic information, and for loading the software.

VT 100 terminal settings

Speed 9600 Baud
Data 8 bit
Stopbit 1 bit
Handshake off
Parity none

Figure Pin Operation

1VCC (VBus)
2 − Data
3 + Data
4 Ground (GND)

Table 2: Pin assignment of the USB interface

1

1

8

5

6

2
3

5

1
2
3
4
5
6

CTS
n.c.
TX
GND
RX
RTS

RJ11

DE9

RJ11

DE9

1

2

4

3

Installation MACH 1040

Release 04 10/2015

29

30

Installation MACH 1040

Release 04 10/2015

1.7 Signal contact

Depending on the MACH 1040 device variant (equipped with one or two
power units), you have either one or two signal contacts.
The signal contact is a potential-free relay contact.
The device allows you to perform remote diagnosis via the signal contact. In
the process, the device signals events such as a line interruption. When an
event occurs, the device opens the relay contact and interrupts the closed
circuit. The management setting specifies which events switch a contact.
You can also use the management to switch the signal contact manually and
thus control external devices.

 You can also use the Management to switch the signal contact manually

and thus control external devices.
The potential-free signal contact (relay contact, closed circuit) reports

through a break in contact:

 The failure of at least one supply voltage.
 The device is not operational.
 The failure of the connection on at least one port.

The report of the link status can be masked by the Management for each

port. In the delivery state, is deactivated.

 Failure of the ring redundancy reserve.
 Errors detected during the self-diagnostic test.
 Incorrect configuration of the HIPER-Ring or ring coupling.
 Permitted temperature range exceeded/not reached.

The following condition is also reported in RM mode:

 Ring redundancy reserve is available. On delivery, there is no ring

redundancy monitoring.

Note: You can use the signal contact functions when the voltage supply is

connected. If there is redundant voltage supply, but this is turned off, there is
a contact interruption at the corresponding signal contact.

Installation MACH 1040

Release 04 10/2015

31

2Installation

The devices have been developed for practical application in a harsh
industrial environment.
On delivery, the device is ready for operation.

Perform the following steps to install and configure the device:

 Checking the package contents
 Installing an SFP transceiver (optional)
 Connecting the power unit connections for supply voltage and signal

contact

 Installing and grounding the device
 Operating the device
 Connecting data cables

2.1 Checking the package contents

 Check whether the package includes all items named in the section

“Scope of delivery” on page 51.

 Check the individual parts for transport damage.

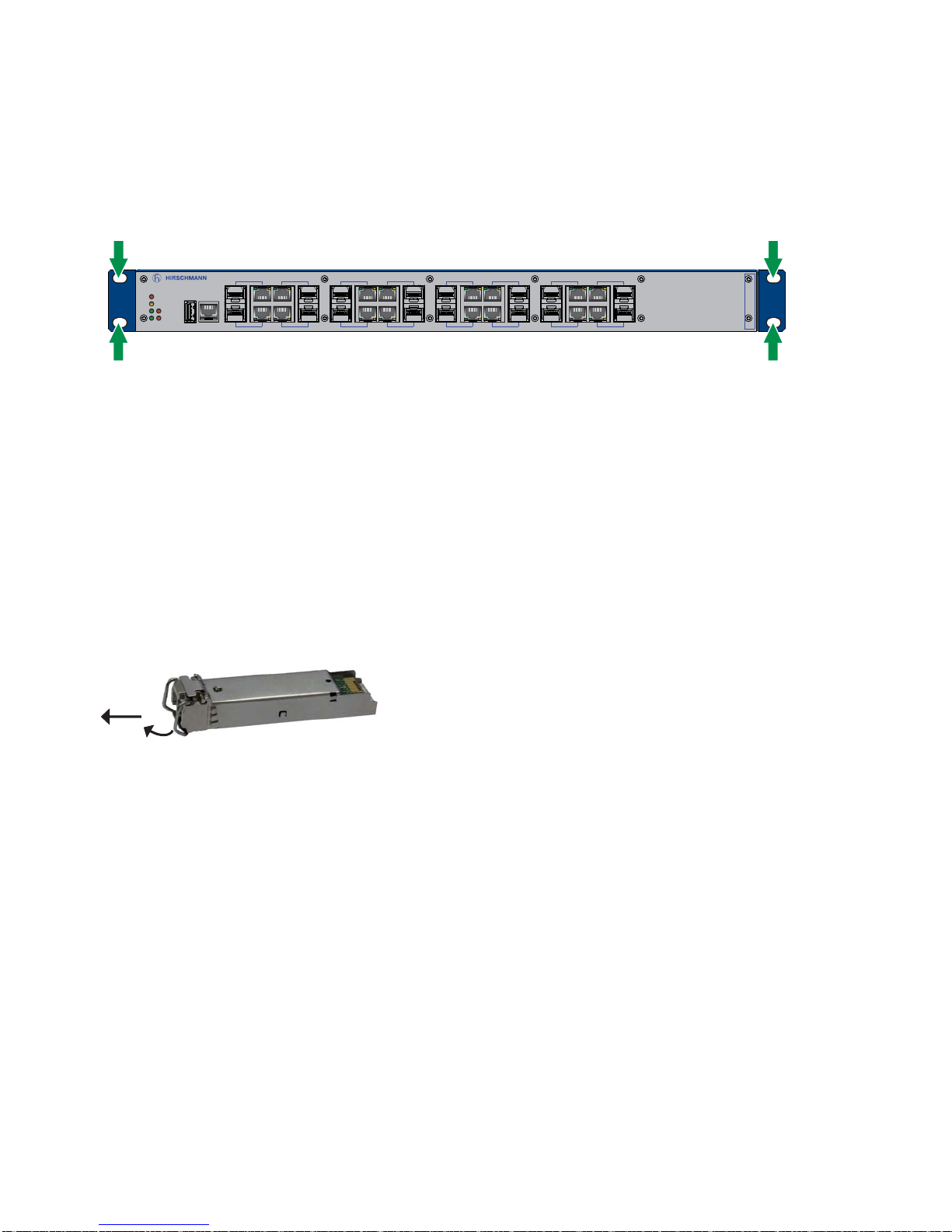

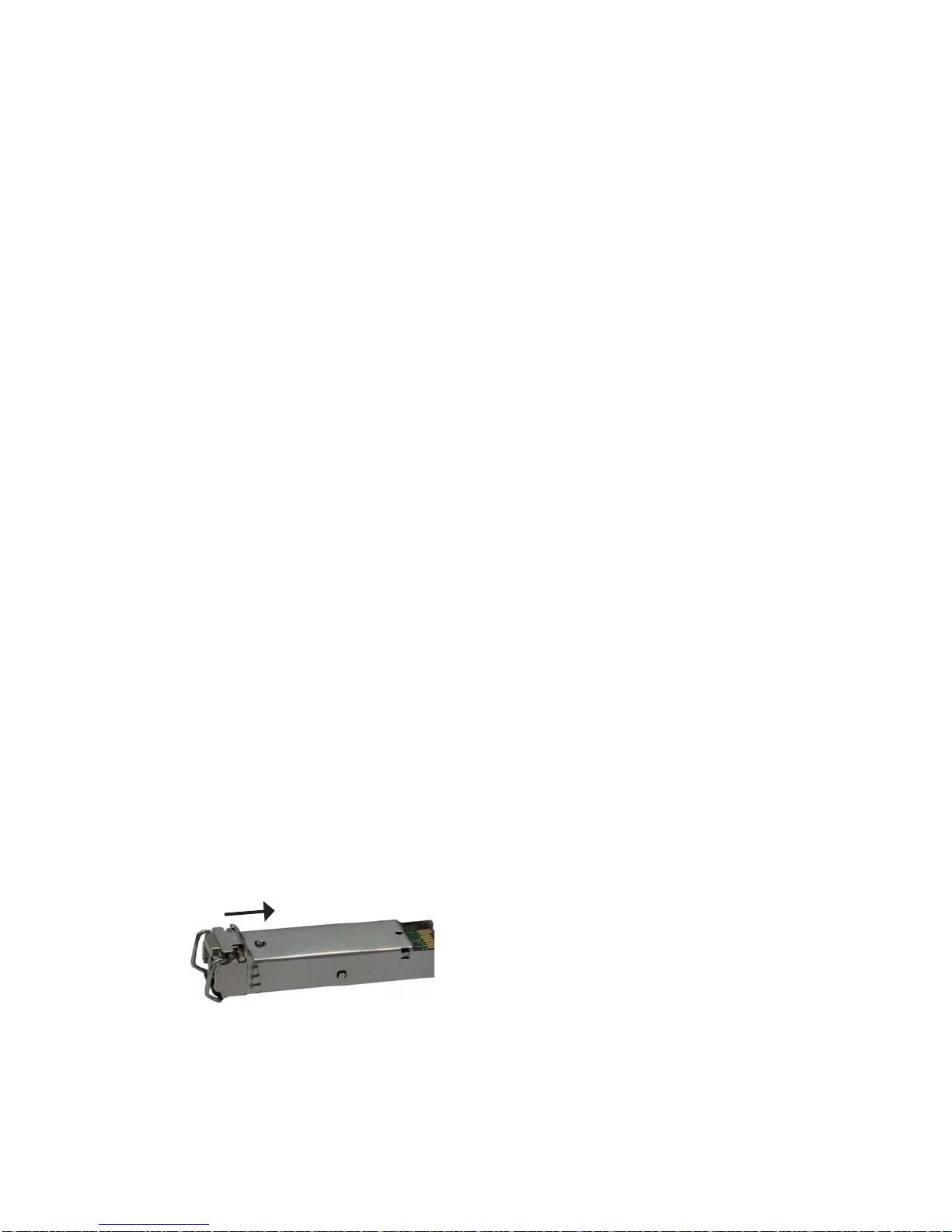

2.2 Installing an SFP transceiver (optional)

Use only Hirschmann SFP transceivers which are suitable for usage with the
device.

See “Accessories” on page 51.

Proceed as follows:

 Remove the protection cap from the SFP transceiver.
 Push the transceiver with the lock closed into the slot until it latches in.

32

Installation MACH 1040

Release 04 10/2015

2.3 Connecting the power unit connections

for supply voltage and signal contact

The supply voltage is electrically isolated from the housing.

The voltage supply is connected via a 3-pin terminal block with screw locking.

The signal contact is connected via a 2-pin terminal block with screw locking
(1 or 2 locks, depending on the device design).

For device variants without PoE: The supply voltage in
MACH1040/MACH1140 device types can be connected redundantly with two
power units. Both inputs are uncoupled.

 MACH 1040 devices without PoE

MACH 1040 device variants without Power over Ethernet (PoE) are,

depending on the device type, equipped with 1 or 2 power supply units of

the following type:

 Type “L”

 Type “M”

See “General technical data” on page 43.

For devices without PoE featuring 2 power supply units, you can connect

the supply voltage redundantly. Both inputs are uncoupled. With a non-

redundant supply of the supply voltage, the device reports the loss of a

supply voltage. You can prevent this message by applying the supply

voltage via both inputs, or by changing the configuration in the

Management.

 MACH 1040 devices with PoE

MACH 1040 device variants with Power over Ethernet (PoE) are

equipped with 2 power supply units.

 Power supply unit 1 is freely selectable from the combination table.

 Power supply unit 2 is a PoE power supply unit.

See “Combination options” on page 15.

Installation MACH 1040

Release 04 10/2015

33

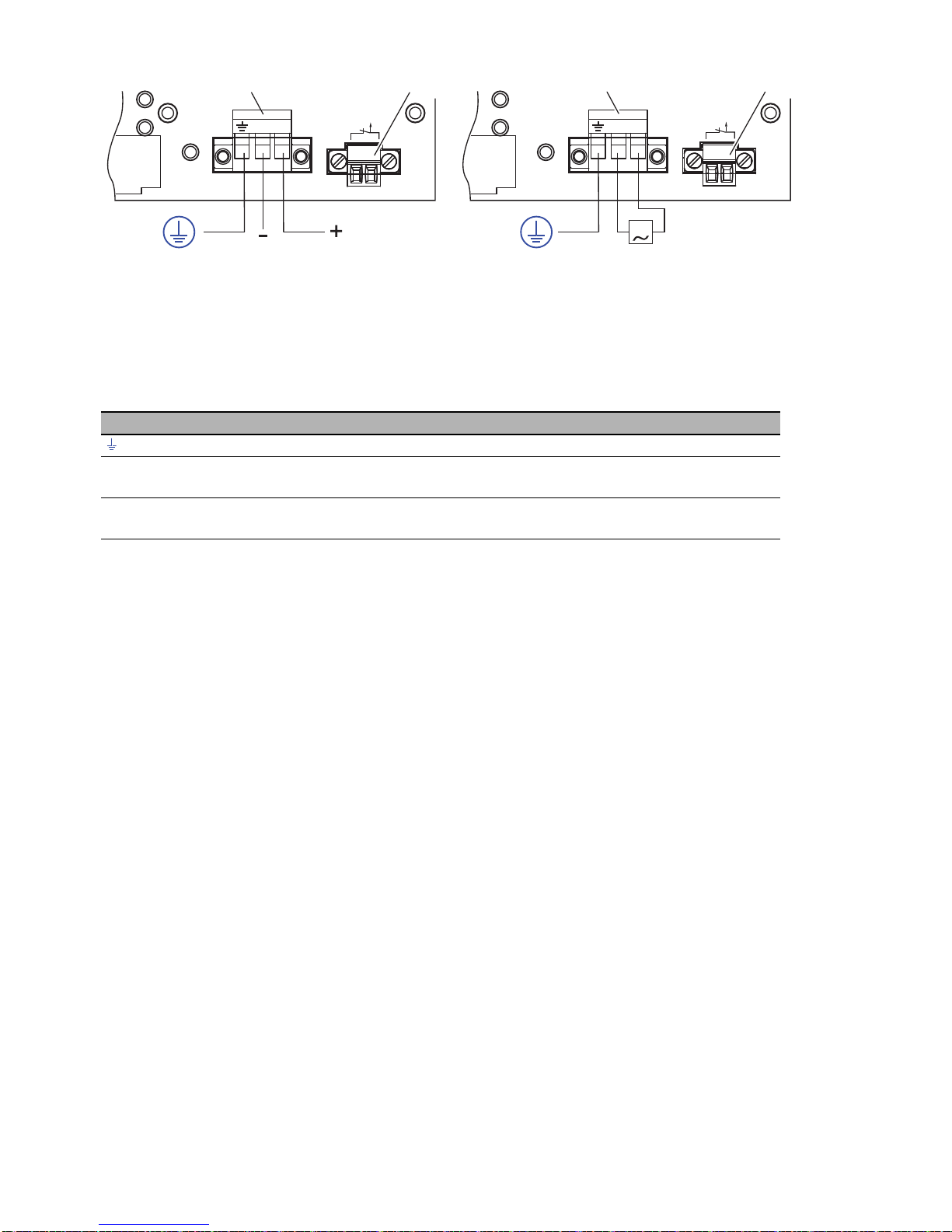

2.3.1 Connecting the supply voltage

Hinweis: Note the permitted voltage ranges for devices with

certification type “T” (EN 50155 railway (train).

See “General technical data” on page 43.

Relevant for North America:
The torque for tightening the supply voltage terminal block on the device is

4.5 lb-in (0.51 Nm).

The terminal blocks for devices with power unit type “M” (type “L”) are coded
to prevent them from being accidently connected to devices with power unit
type “L” (type “M”).

Figure 8: Power supply unit “L”, DC voltage (see on page 43 “General technical

data”)

Connecting
1 - Supply voltage
2 - Signal contact

WARNING

ELECTRIC SHOCK

Connect only a supply voltage that corresponds to the type plate of your
device.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

1 2

Relay

34

Installation MACH 1040

Release 04 10/2015

Figure 9: Power supply unit “M” (see on page 43 “General technical data”):

AC voltage (pictured on right) or DC voltage (pictured on left)
Connecting
1 - Supply voltage
2 - Signal contact

For every supply voltage to be connected, perform the following steps:

 Ensure the required conditions for connecting the supply voltage.

See “Supply voltage” on page 7.

 Remove the power connector from the device.
 Connect the protective conductor according to the pin assignment on the

device with the clamp.
 Connect the wires according to the pin assignment on the device with the

clamps.
 Mount the terminal block on the device using screws.

Connection Type “L” Type “M” VDC Type “M” VAC

, pin 1 Protective conductor Protective conductor Protective conductor

-/N, pin 2 Minus terminal of the

supply voltage

Minus terminal of the
supply voltage

Neutral conductor

+/L, pin 3 Plus terminal of the

supply voltage

Plus terminal of the
supply voltage

Line conductor

Table 3: Pin assignment of terminal block for voltage supply

1 2

Relay

-/N +/L-/N +/L

G

Relay

1 2

Installation MACH 1040

Release 04 10/2015

35

2.3.2 Connecting the signal contact

Relevant for North America:
The torque for tightening the terminal block for the signal contact on the
device is 3 lb-in (0.34 Nm).

Note: Use copper wire with cross-section AWG 20 to AWG 12 (0.5 mm

2

to

3.0 mm

2

) and stripping length12 mm.

For every signal contact to be connected, make sure the following
requirements are met:

 The electrical wires are voltage-free.
 The connected voltage is limited by a current limitation device or a fuse.

Observe the electrical threshold values for the signal contact.

See “General technical data” on page 43.

For every signal contact to be connected, perform the following steps:

 Connect the signal contact wires with the connectors of the terminal block.
 Mount the terminal block on the device using screws.

2.4 Installing and grounding the device

Note: The shielding ground of the connectable twisted pair cables is

connected to the front panel as a conductor.

2.4.1 Mounting in a switch cabinet

Install the device in the 19" switch cabinet using sliding or mounting rails.
This provides a more stable position of your device in environments subject
to vibration.
For more information on sliding/mounting rails and how to install them,
please contact your switch cabinet manufacturer.

WARNING

ELECTRIC SHOCK

Install this device solely in a switch cabinet or in an operating site with
restricted access, to which maintenance staff have exclusive access.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

36

Installation MACH 1040

Release 04 10/2015

The devices are designed to be mounted in a 19" switch cabinet.
 Verify that there is sufficient ventilation. Bauen Sie gegebenfalls einen

Lüfter ein, um ein Überhitzen des Gerätes zu vermeiden.
 Measure the depth of the 19" cabinet so that all the lines to be connected

can be fed in easily.
 Assemble the sliding or mounting rails in the 19" switch cabinet as

specified by the manufacturer.

Figure 10: Assembly in a switch cabinet with sliding/mounting rails

1 - MACH 1040 device
2 - sliding/mounting rail
3 - 19“ switch cabinet

On delivery, two brackets are attached to the sides of the device (see figure
below).

Figure 11: Mounting in the switch cabinet

 Fasten the device by screwing the brackets to the switch cabinet.

Note: When operating the device in an environment with strong vibrations,

you have the option to additionally fasten the device to the switch cabinet
using 2 holding brackets on the back of the device.
You can obtain additional brackets as accessories (see on page 51

“Accessories”).

P

1

LS

DA

2

3

4

5

6

7

8

M
4-8TP-RJ45

L
S

D

A

LS

DA

LS

DA

LS

DA

LS

D
A

LS

DA

LS

D

A

R

1

LS

DA

2

3

4

5

6

7

8

LS

D

A

LS

DA

LS

D

A
LS

DA

LS

D

A
L

S

DA

LS DA

P

1

LS/DA

2

3

4

5

6

7

8

1

4
7

2

5
8

3

6

M4-F
A
ST

8SF

P

P

1

2

3

4

5

6

7

8

1

4
7

2

5
8

3

6

P

P1

P2

P3

P4

RM

RL1

RL2

FAN

RUN

L/D

FDX

1
0
00

AN
T

P
/
F
O

RIN

G

PORT

S
T
BY

LE
D
T
EST

2

1

1

2

3

4

L
ED

MEDIA SLOTS

M4-AIR

SLO
T
.PO

RT

USB

V.24

6

.1

6.2

6.3

6.4

6.5

6.
6

6.7

6.8

S

EL
EC
T

L

ED

MA

CH

4
002 48

+
4G

FAULT

RL

2

LS/DA 6.1

RL

1

LS/D

A

M
4-FAST 8TP

-

RJ4
5

-PoE

M4

-F
A
S

T
8
S

F
P

6.
1

6
.2

6.3

6.4 6.5

6.6

6.
7

6
.
8

2

3

1

Aufkleber MAC-Adresse

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

V.24USB

P

FAULT

Sb R1

R2

RM

MAR1040

Installation MACH 1040

Release 04 10/2015

37

2.4.2 Vertical mounting on the wall

 Use the pre-mounted brackets included in the delivery.
 Additionally attach 2 brackets to the back of the device.

You can obtain additional brackets as accessories (see on page 51

“Accessories”).

 Fasten the device by screwing the brackets to the wall.

2.4.3 Grounding the device

The device is grounded via the separate grounding screw on the back of the
device.

WARNING

FIRE HAZARD

Install the device in a fire protected shell if you are mounting it vertically.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

38

Installation MACH 1040

Release 04 10/2015

2.5 Operating the device

When you connect the supply voltage, you start up the device.

2.6 Connecting data cables

You can connect end devices and other segments to the device ports using
twisted pair cables or optical fibers (F/O).

2.6.1 Twisted Pair ports

Note the following general recommendations for data cable connections in
environments with high electrical interference levels:

 Keep the length of the data cables as short as possible.
 Use optical data cables for the data transmission between the buildings.
 When using copper cables, provide a sufficient separation between the

power supply cables and the data cables. Ideally, install the cables in

separate cable channels.

 Verify that power supply cables and data cables do not run parallel over

longer distances, and that ideally they are installed in separate cable

channels. If reducing the inductive coupling is necessary, verify that the

power supply cables and data cables cross at a 90° angle.

 Use shielded cables (SF/UTP cables as per ISO/IEC 11801:2002).

 Connect the data cables according to your requirements.

See “10/100/1000 Mbit/s twisted pair port” on page 22.

2.6.2 Optical fiber ports

Verify that you connect LH ports only with LH ports, SX ports only with SX
ports, and LX ports only with LX ports.
 Connect the data cables according to your requirements.

See “100/1000 Mbit/s F/O port” on page 23.

Installation MACH 1040

Release 04 10/2015

39

3 Making basic settings

The IP parameters must be entered when the device is installed for the first
time. The device provides the following options for configuring IP addresses:

 Entry via V.24 connection
 Entry with the aid of the HiDiscovery logs on the applications HiDiscovery

or Industrial HiVision

 Configuration via BOOTP
 Configuration via DHCP (Option 82)
 AutoConfiguration Adapter

Further information on the basic settings of the device can be found in the
“Basic Configuration” user manual on the CD/DVD.

 Default settings

 IP address: The device looks for the IP address using DHCP
 Password for management:

Login: user; password: public (read only)
Login: admin; password: private (read and write)

 Parameters that can be set via the management are set to pre-defined

values in accordance with the MIB

 V.24 data rate: 9,600 Baud
 Ring redundancy: disabled
 Ethernet ports: link status is not evaluated (signal contact)
 Optical 100 Mbit/s ports: 100 Mbit/s, full duplex

All other ports: autonegotiation

 Ring manager disabled
 Stand-by coupling: disabled

Port 4 = control port, port 3 = coupling port for red. Ring coupling

40

Installation MACH 1040

Release 04 10/2015

4 Monitoring the ambient air temperature

Operate the device below the specified maximum ambient air temperature
exclusively.

See “General technical data” on page 43.

The ambient air temperature is the temperature of the air at a distance of 2 in
(5 cm) from the device. It depends on the installation conditions of the device,
e.g. the distance from other devices or other objects, and the output of
neighboring devices.

The temperature displayed in the CLI and the GUI is the internal temperature
of the device. It is higher than the ambient air temperature. The maximum
internal temperature of the device named in the technical data is a guideline
that indicates to you that the maximum ambient air temperature has possibly
been exceeded.

Installation MACH 1040

Release 04 10/2015

41

5 Maintenance and service

 When designing this device, Hirschmann largely avoided using high-wear

parts. The parts subject to wear and tear are dimensioned to last longer
than the lifetime of the product when it is operated normally. Operate this
device according to the specifications.

 Relays are subject to natural wear. This wear depends on the frequency

of the switching operations. Check the resistance of the closed relay
contacts and the switching function depending on the frequency of the
switching operations.

 Hirschmann are continually working on improving and developing their

software. Check regularly whether there is an updated version of the
software that provides you with additional benefits. You find information
and software downloads on the Hirschmann product pages on the
Internet (www.hirschmann.com).

 Depending on the degree of pollution in the operating environment, check

at regular intervals that the ventilation slots in the device are not
obstructed.

Note: You will find information about the complaints and returns procedures

on the Internet under

http://www.beldensolutions.com/en/Service/Repairs/index.phtml .

42

Installation MACH 1040

Release 04 10/2015

6 Disassembl y

6.1 Removing the device

Proceed as follows:

 Disconnect the data cables.
 Disable the supply voltage.
 Disconnect the grounding.
 To detach the device from the switch cabinet or the wall, remove the

screws from the brackets on the device.

6.2 Removing an SFP transceiver (optional)

Proceed as follows:

 Pull the SFP transceiver out of the slot by means of the opened lock.
 Close the SFP transceiver with the protective cap.

Aufkleber MAC-Adresse

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

V.24USB

P

FAULT

Sb R1

R2

RM

MAR1040

1

2

Installation MACH 1040

Release 04 10/2015

43

7 Technical data

 General technical data

Dimensions
W × H × D

MAR1... 17.64 × 13.58 × 1.73 inches

(448 × 345 × 44 mm)
(without brackets)

18.23 × 13.58 × 1.73 inches
(463 × 345 × 44 mm)
(with brackets)

Weight MAR1040..., MAR1140... max. 9.3 lb (4.2 kg)

MAR1040..., MAR1140...
Devices with redundant power unit

max. 9.7 lb (4.4 kg)

MAR1042..., MAR1142...
Devices with PoE power unit

max. 10.2 lb (4.6 kg)

Power supply
Type M

Rated voltage range AC 100 V ... 240 V, 50 Hz ... 60 Hz
Voltage range AC incl. maximum

tolerances

90 V ... 265 V, 47 Hz... 63 Hz

Rated voltage range DC 110 V ... 250 V
Voltage range DC incl. maximum

tolerances

77 V... 300 V

Connection type 3-pin terminal block
Power loss buffer > 20 ms at 230 V AC
Back-up fuse Nominal rating: 2.5 A

Characteristic: slow blow

Peak inrush current 14 A

Power supply
Type L

Rated voltage range DC 24 V ...48 V
Voltage range DC incl. maximum

tolerances

18 V ...60 V

Connection type 3-pin terminal block
Power loss buffer > 10 ms at 20.4 V DC
Back-up fuse Nominal rating: 6.3 A

Characteristic: slow blow

Peak inrush current 15 A

Signal contact
(Non-Hazardous
Locations)

Nominal value for AC I

max

=2A at U

max

= 230 V

Nominal value for DC I

max

=2A at U

max

=30V

I

max

= 0.2 A at U

max

= 125 V

I

max

= 0.1 A at U

max

= 250 V

Connection type 2-pin terminal block

Signal contact
(Hazardous
Locations Class 1,
Division 2)

Entity parameters V

max

= 30 V

max

= 90 mA

C

i

= 50 pF

L

i

= 2 μH

See “Use in Hazardous Locations” on
page 9.

Connection type 2-pin terminal block

44

Installation MACH 1040

Release 04 10/2015

Climatic conditions
during operation

Minimum clearance around the
device

Top and bottom sides of device:

1.97 in (5 cm)
Left and right device side:

3.94 in (10 cm)

Ambient air temperature

a

. Standard: +32 °F to +140 °F

(0 °C to +60 °C)

b

Extended −40 °F to +158 °F
(−40 °C to +70 °C )

b

Humidity 5 % ... 95 % (non-condensing)
Air pressure up to 2187 yd (2000 m; 795 hPa)

higher altitudes upon request

Climatic conditions
during storage

Ambient air temperature

a

Standard: −40 °F to +158 °F
(−40 °C to +70 °C )

Extended: −40 °F ... +185 °F
(−40 °C ... +85 °C )

b

Humidity 5 % ... 95 % (non-condensing)
Air pressure up to 2187 yd (2000 m; 795 hPa),

higher altitudes upon request
Pollution degree 2
Protection classes Laser protection

Protection class

Class 1 acc. to EN 60825-1 (2007)

IP30
a. Temperature of the ambient air at a distance of 2 inches (5 cm) from the device

b. If you are using SFP modules without the “EEC” extension, an operating temperature of

+32 °F to +131 °F (0 °C to +55 °C) applies for your device (see on page 51 “Accessories”.)

Installation MACH 1040

Release 04 10/2015

45

 Dimension drawings

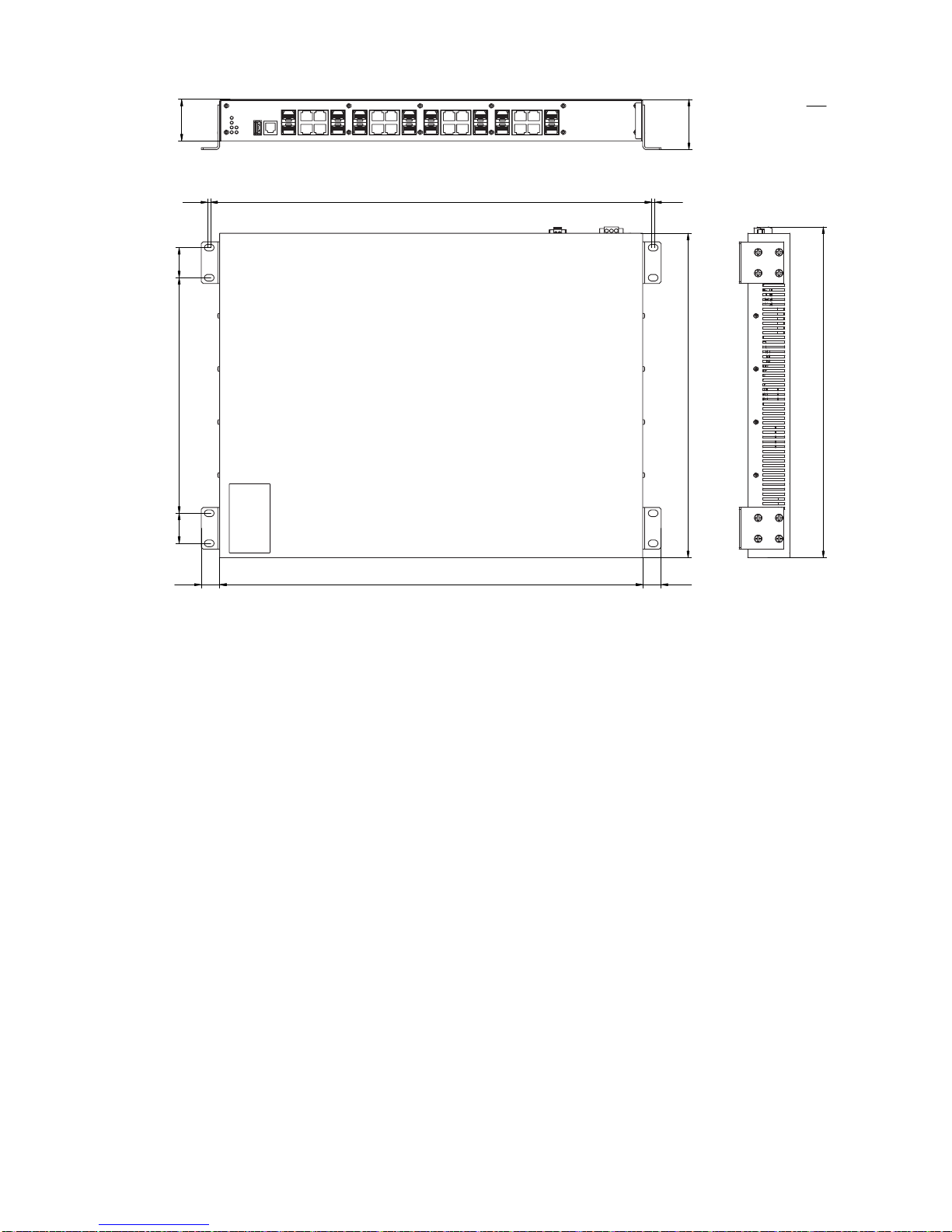

Figure 12: Dimensions for mounting on a flat surface

mm
inch

3,3

0.13

3,3

0.13

462,6

17.38

53

2.09

43,9

1.73

342

13.46

248,25

9.77

31,75

1.25

31,75

1.25

444

17.48

19,3

0.76

19,3

0.76

348,7

13.73

46

Installation MACH 1040

Release 04 10/2015

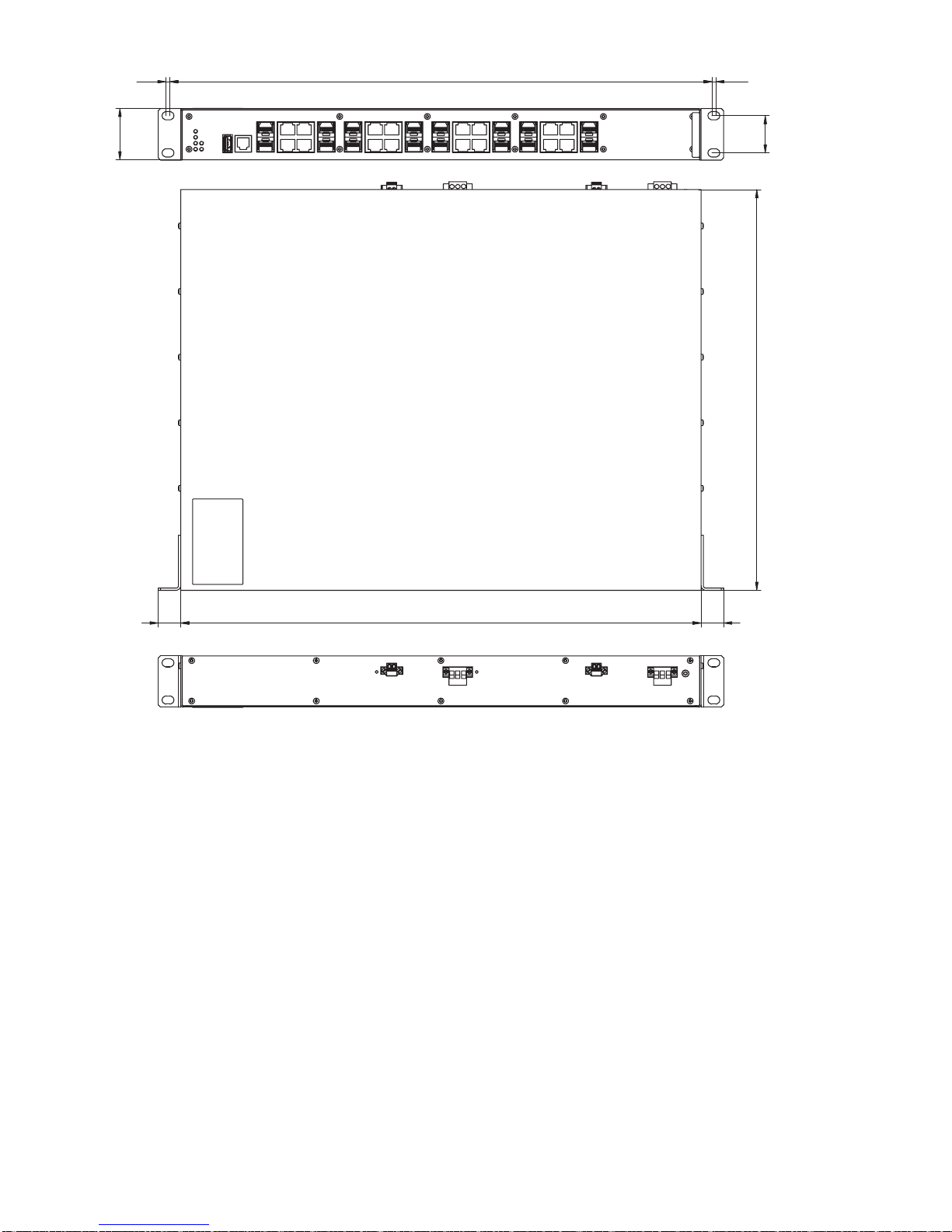

Figure 13: Dimensions for mounting in a switch cabinet

mm
inch

3,3

0.13

3,3

0.13

462,6

17.38

43,9

1.73
31,75

1.25

19,3

0.76

19,3

0.76

444

17.48

342

13.46

Installation MACH 1040

Release 04 10/2015

47

 EMC and immunity

EMC interference
immunity
IEC/EN 61850­3:2002 EMI TYPE
tests, test in comp.
with

Description Test level

IEC/EN 61000-4-2 Electrostatic discharge

Contact discharge ± 8 kV
Air discharge ± 15 kV

IEC/EN 61000-4-3 Electromagnetic field

80 MHz ... 2700 MHz 20 V/m

IEC/EN 61000-4-4 Fast transients (burst)

DC Power Line ± 4 kV
AC Power Line ± 4 kV
Data line ± 4 kV

IEC/EN 61000-4-5 Voltage surges

DC Power Line ± 2 kV line/ground; ± 1 kV line/line
AC Power Line ± 4 kV line/ground; ± 2 kV line/line
Data line ± 4 kV line/ground

IEC/EN 61000-4-6 Conducted disturbances

150 kHz ... 80 MHz 10 V

IEC/EN 61000-4-12 Damped oscillation

DC Power Line ± 2,5 kV line/earth; ± 1 kV line/line
AC Power Line ± 2,5 kV line/earth; ± 1 kV line/line
Data line ± 2,5 kV line/earth; ± 1 kV line/line

IEC 60255-5 dielectric strength

DC Power Line, power unit type „L“ 500 V AC

500 V AC

AC Power Line, power unit type
„M“

2000 V AC
2000 V AC

DC Power Line, power unit type
„M“

2000 V AC

signal contact type „L“ and „M“ 2000 V AC

EMC interference
immunity
IEEE 1613:2009
EMI TYPE tests,
test in comp. with

Description Test level

IEEE C37.90.3 Electrostatic discharge

Contact discharge ± 8 kV
Air discharge ± 15 kV

IEEE C37.90.2 Electromagnetic field

80 MHz ... 1000 MHz 35 V/m (peak)

IEEE C37.90.1 Fast transients (burst)

DC Power Line ± 4 kV
AC Power Line ± 4 kV
Data line ± 4 kV

48

Installation MACH 1040

Release 04 10/2015

IEEE C37.90.1 Damped oscillation

DC Power Line ± 2,5 kV line/earth; ± 1 kV line/line
AC Power Line ± 2,5 kV line/earth; ± 1 kV line/line
Data line ± 2,5 kV line/earth; ± 1 kV line/line

IEEE C37.90 H.V. Impulse

DC Power Line ± 5 kV line/earth
AC Power Line ± 5 kV line/earth

IEEE C37.90 dielectric strength

DC Power Line, power unit type „L“ 500 V AC
AC Power Line, power unit type

„M“

2000 V AC

DC Power Line, power unit type
„M“

2000 V AC

Meldekontakt Typ „L“ und „M“ 2000 V AC

EMC interference emission

EN 55022 Class A
FCC 47 CFR Part 15Class A

German Lloyd Classification + Construction Guidelines VI-7-3 Part 1 Ed.2001

Environment type
tests, test in comp.
with

Description Test level

IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-30

IEC 60068-2-6

IEC 60068-2-27

Cold
Dry heat
Relative humidity

Vibration, test Fc

Shock, test Ea

−40 °F (−40 °C), 16 hours
+185 °F (+85 °C), 16 hours
95 % (non condensing)
131 °F (55 °C), 4 cycles
2 - 9 Hz with 3 mm amplitude
1 g at 9 - 150 Hz

1.5 g at 200 - 500 Hz
15 g at 11 ms

EMC interference
immunity
IEEE 1613:2009
EMI TYPE tests,
test in comp. with

Description Test level

Installation MACH 1040

Release 04 10/2015

49

 Network range

Note: The line lengths specified for the transceivers apply for the

respective fiber data (fiber attenuation and BLP/dispersion).

10/100/1000 Mbit/s twisted pair port

Length of a twisted pair segment max. 100 m (for cat5e cable)

Product
code
M-SFP-...

Wave
length

Fiber System

attenua­tion

Example
for F/O line
length

a

a. including 3 dB system reserve when compliance with the fiber data is observed

Fiber
attenua­tion

BLPb/
dispersion

b. Using the bandwidth length product is inappropriate for expansion calculations.

-SX/LC... MM 850 nm 50/125 µm 0-7.5 dB 0-550 m 3.0 dB/km 400 MHz×km

-SX/LC... MM 850 nm 62.5/125 µm 0-7.5 dB 0-275 m 3.2 dB/km 200 MHz×km

-MX/LC MM 1310 nm 50/125 µm 0-8 dB 2 km

c

c. Distances of up to 3 km reachable, 1000 MHz*km (1300 nm)

1.0 dB/km 500 MHz×km

-MX/LC MM 1310 nm 62.5/125 µm 0-8 dB 1 km 1.0 dB/km 500 MHz×km

-LX/LC... MM 1310 nm

d

d. With F/O adapter compliant with IEEE 802.3-2002 clause 38 (single-mode fiber offset-

launch mode conditioning patch cord)

50/125 µm 0-10.5 dB 0-550 m 1.0 dB/km 800 MHz×km

-LX/LC... MM 1310 nm

c

62.5/125 µm 0-10.5 dB 0-550 m 1.0 dB/km 500 MHz×km

-LX/LC... SM 1310 nm 9/125 µm 0-10.5 dB 0-20 km

e

e. including 2.5 dB system reserve when compliance with the fiber data is observed

0.4 dB/km 3.5 ps/(nm×km)

-LX+/LC... SM 1310 nm 9/125 µm 5-20 dB 14-42 km 0.4 dB/km 3.5 ps/(nm×km)

-LH/LC... LH 1550 nm 9/125 µm 5-22 dB 23-80 km 0.25 dB/km 19 ps/(nm×km)

-LH+/LC LH 1550 nm 9/125 µm 15-30 dB 71-108 km 0.25 dB/km 19 ps/(nm×km)

-LH+/LC LH 1550 nm 9/125 µm 15-30 dB 71-128 km 0.21 dB/km
(typically)

19 ps/(nm×km)

Table 4: Fiber port 1000BASE-FX (SFP fiber optic Gigabit Ethernet Transceiver)

Product
code
M-SFP­BIDI...

Wave
length
TX

Wave
length
RX

Fiber System

attenu­ation

Example
for F/O
line
length

a

a. including 3 dB system reserve when compliance with the fiber data is observed

Fiber
attenua­tion

Dispersion

Type A
LX/LC EEC

SM 1310 nm 1550 nm 9/125 µm 0-11 dB 0-20 km 0.4 dB/km 3.5 ps/(nm×km)

Type B
LX/LC EEC

SM 1550 nm 1310 nm 9/125 µm 0-11 dB 0-20 km 0.25 dB/km 19 ps/(nm×km)

Type A
LH/LC EEC

LH 1490 nm 1590 nm 9/125 µm 5-24 dB 23-80 km 0.25 dB/km 19 ps/(nm×km)

Type B
LH/LC EEC

LH 1590 nm 1490 nm 9/125 µm 5-24 dB 23-80 km 0.25 dB/km 19 ps/(nm×km)

Table 5: F/O port (bidirectional Gigabit Ethernet SFP Transceiver)

50

Installation MACH 1040

Release 04 10/2015

MM = Multimode, SM = Singlemode, LH = Singlemode Longhaul

 Power consumption/power output

Product
code
M-FAST­SFP-...

Wave
length

Fiber System

attenua­tion

Example
for F/O
line
length

a

a. including 3 dB system reserve when compliance with the fiber data is observed

Fiber
attenuation

BLP/
dispersion

-MM/LC... MM 1310 nm 50/125 µm 0-8 dB 0-5 km 1.0 dB/km 800 MHz×km

-MM/LC... MM 1310 nm 62.5/125 µm 0-11 dB 0-4 km 1.0 dB/km 500 MHz×km

-SM/LC... SM 1310 nm 9/125 µm 0-13 dB 0-25 km 0.4 dB/km 3.5 ps/(nm×km)

-SM+/LC... SM 1310 nm 9/125 µm 10-29 dB 25-65 km 0.4 dB/km 3.5 ps/(nm×km)

-LH/LC... SM 1550 nm 9/125 µm 10-29 dB 47-104 km 0.25 dB/km 19 ps/(nm×km)

-LH/LC... SM 1550 nm 9/125 µm 10-29 dB 55-140 km 0.18 dB/km

b

b. with ultra-low-loss optical fiber

18 ps/(nm×km)

Table 6: Fiber port 100BASE-FX (SFP fiber optic Fast Ethernet Transceiver)

Device variants without PoE (MAR1040...,
MAR1140...)

Maximum
power consumption

Maximum
power output

Device (without SFP modules, without TP links) 10 W 34 Btu (IT)/h
additionally for each connected SFP module 1 W 3 Btu (IT)/h
additionally for each TP port with link 0.8 W 3 Btu (IT)/h
Device at full capacity (16 links) 26 W 88 Btu (IT)/h

Device variants with PoE (MAR1042...,
MAR1142...)

Maximum
power consumption

Maximum
power output

Device (without SFP modules, without TP links,
without PDs)

10 W 34 Btu (IT)/h

additionally for each connected SFP module 1 W 3 Btu (IT)/h
additionally for each TP port with link 0.8 W 3 Btu (IT)/h
additionally for each TP port with link when one

Class0-PD (powered device) is connected

19.5 W 12 Btu (IT)/h

Device at full capacity with 4 x Class0-PD (powered
device) connected

100 W 136 Btu (IT)/h

Installation MACH 1040

Release 04 10/2015

51

 Scope of delivery

 Order numbers/product description

Combination options and device names (see table 1).
You can also order the following device variants using their order

numbers:

 Accessories

Note: Please note that products recommended as accessories may have

characteristics that do not fully correspond to those of the corresponding
product. This may limit their possible usage range in the overall system.

Device Scope of delivery

MAR... MAR... device

User Manual Installation
CD/DVD
2 brackets
Connectors for power supply and relay contact

Name Description Order number

MAR1040­4C4C4C4C9999SM9H
PHH

MACH 1040 device with

- 16 x Gigabit Ethernet combo ports

- ports on front of device,
power supply connection on back of device

- standard temperature range

- 1 power unit type M

- Layer2 Professional software

942 004 - 001

Gigabit Ethernet SFP transceiver Order number

M-SFP-SX/LC 943 014-001
M-SFP-SX/LC EEC 943 896-001
M-SFP-MX/LC 942 035-001
M-SFP-LX/LC 943 015-001
M-SFP-LX/LC EEC 943 897-001
M-SFP-LX+/LC 942 023-001
M-SFP-LX+/ LC EEC 942 024-001
M-SFP-LH/LC 943 042-001
M-SFP-LH/LC EEC 943 898-001
M-SFP-LH+/LC 943 049-001

Bidirectional Gigabit Ethernet SFP transceiver Order number

M-SFP-BIDI Type A LX/LC EEC 943 974-001
M-SFP-BIDI Type B LX/LC EEC 943 974-002
M-SFP-BIDI Type A LH/LC EEC 943 975-001
M-SFP-BIDI Type B LH/LC EEC 943 975-002
M-SFP-BIDI Bundle LX/LC EEC (type A + B) 943 974-101
M-SFP-BIDI Bundle LH/LC EEC (type A + B) 943 975-101

52

Installation MACH 1040

Release 04 10/2015

Fast Ethernet SFP transceiver Order number

M-FAST SFP-TX/RJ45 942 098-001
M-FAST SFP-TX/RJ45 EEC 942 098-002
The following operating conditions apply to twisted pair transceivers:

 Usable with:

- HiOS as of software version 03.0.00

- for PRP ports on RSP devices, as of software version 02.0.01

- for PRP ports on EES devices, as of software version 02.0.02

- Classic switch software as of software version 08.0.00

- HiSecOS ab Software-Version 01.2.00

 Longer RSTP switching times and link loss detection times compared to twisted pair ports

provided by the device directly.

 Not applicable for combo ports.
 Not applicable for ports which support only Gigabit Ethernet.
 To set autocrossing manually is currently not possible.

M-FAST SFP-MM/LC 943 865-001
M-FAST SFP-MM/LC EEC 943 945-001
M-FAST SFP-SM/LC 943 866-001
M-FAST SFP-SM/LC EEC 943 946-001
M-FAST SFP-SM+/LC 943 867-001
M-FAST SFP-SM+/LC EEC 943 947-001
M-FAST SFP-LH/LC 943 868-001
M-FAST SFP-LH/LC EEC 943 948-001

Other accessories Order number

AutoConfiguration Adapter ACA 21-USB (EEC) 943 271-003
Power Cord 942 000-001
Terminal cable 943 301-001
3-pin High Voltage Interlock terminal block (50 pcs.) 943 845-008
3-pin Low Voltage Interlock terminal block (50 pcs.) 943 845-011
2-pin terminal block for “Relay” signal contact 943 845-010
Bracket for fastening the housing 943 943-001
Long bracket (+ 50 mm) for fastening the housing

(additional)

943 943-101

Dust protection cap (50 pieces) for RJ 45 sockets 943 936-001
Dust protection cap (25 pieces) for SFP slot 943 942-001
Network management software Industrial HiVision 943 156-xxx

Installation MACH 1040

Release 04 10/2015

53

 Underlying technical standards

The device has an approval based on a specific standard only if the
approval indicator appears on the device casing.
If your device has a shipping approval according to Germanischer Lloyd,
you find the approval mark printed on the device label. You will find out
whether your device has other shipping approvals on the Hirschmann
website under www.hirschmann.com in the product information.

Name

EN 61000-6-2 Electromagnetic compatibility (EMC) – Part 6-2: Generic standards

– Immunity for industrial environments

EN 55022 Information technology equipment – Radio disturbance

characteristics – Limits and methods of measurement

EN 60950-1 Information technology equipment – Safety – Part 1: General

requirements

EN 61131-2 Programmable controllers – Part 2: Equipment requirements and

tests

EN 50121-4 Railway applications - EMC - emitted interference and interference

immunity for signal and telecommunication systems
FCC 47 CFR Part 15 Code of Federal Regulations
Germanischer Lloyd Rules for Classification and Construction VI-7-2 – GL
UL 508 Safety for Industrial Control Equipment
ISA 12.12.01 United States Standard for Safety for Nonincendive Electrical

Equipment for Use in Class I and II, Division 2 and Class III,

Divisions 1 and 2 Hazardous (Classified) Locations
EN 61850-3 Communications networks and systems in stations
IEEE 1613 Standard Environment and Testing Requirements for

Communication Networking Devices in Electric Power Substations
EN 50155 Railway applications - Electronic equipment used on rolling stock

Table 7: List of the technical standards

IEEE 802.1 D Switching, GARP, GMRP, Spanning Tree

Media access control (MAC) bridges (includes IEEE 802.1p Priority
and Dynamic Multicast Filtering, GARP, GMRP)

IEEE 802.1 Q Tagging

Virtual Bridged Local Area Networks (VLAN Tagging, GVRP)
IEEE 802.1 w Rapid Reconfiguration
IEEE 802.3 Ethernet

Table 8: List of IEEE standards

54

Installation MACH 1040

Release 04 10/2015

A Further Support

 Technical Questions

For technical questions, please contact any Hirschmann dealer in your
area or Hirschmann directly.

You will find the addresses of our partners on the Internet at

http://www.hirschmann.com

Contact our support at

https://hirschmann-support.belden.eu.com

You can contact us
in the EMEA region at

 Tel.: [phone]
 E-mail: [e-mail]

in the America region at

 Tel.: [phone]
 E-mail: [e-mail]

in the Asia-Pacific region at

 Tel.: [phone]
 E-mail: [e-mail]

 Hirschmann Competence Center

The Hirschmann Competence Center is ahead of its competitors:

 Consulting incorporates comprehensive technical advice, from system

evaluation through network planning to project planning.

 Training offers you an introduction to the basics, product briefing and

user training with certification.
The current technology and product training courses can be found at

http://www.hicomcenter.com

 Support ranges from the first installation through the standby service

to maintenance concepts.

With the Hirschmann Competence Center, you have decided against
making any compromises. Our client-customized package leaves you
free to choose the service components you want to use.
Internet:

http://www.hicomcenter.com

Installation MACH 1040

Release 04 10/2015

55
