Hirschmann MACH 102-8TP-FR, MACH 102-24TP-FR, MACH 102-8TP-R, MACH 102-8TP-F, MACH 102-24TP-F User Manual

User Manual

MACH 102-8TP-F

MACH 102-24TP-F

MACH 102-8TP + M1-8TP-RJ45 + M1-8MM-SXC

MACH 102-8TP + M1-8SM-SXC + M1-8SFP

Installation
Industrial Ethernet Workgroup Switch

MACH102 Family

Installation MACH102

Release 06 09/2014

Technical support

https://hirschmann-support.belden.eu.com

The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.

© 2014 Hirschmann Automation and Control GmbH

Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use. For devices with embedded software, the end-user license agreement on the
enclosed CD/DVD applies.

The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.

Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.

You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).

Printed in Germany
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]

Installation 039 710-001-06-0914 – 10.9.14

Contents

Safety instructions 4

About this manual 9

Legend 9

1 Description 10

1.1 Description of the device variants 11

1.1.1 MACH102 basic devices 11

1.1.2 MACH102 media modules 15

1.1.3 SFP modules 18

2 Assembly and start-up 20

2.1 Installing the device 20

2.1.1 Unpacking and checking the content of the package 20

2.1.2 Installing media modules 20

2.1.3 Installing the SFP modules 21

2.1.4 “FAULT” signal contact 22

2.1.5 Dimension drawings 23

2.1.6 Installing the device and grounding 24

2.1.7 Supply voltage 27

2.1.8 Operating the device 30

2.1.9 Connecting network cables 31

2.2 Display elements 33

2.3 Basic set-up 35

2.4 Disassembly 37

3 Technical data 39

A Further Support 47

Installation MACH102

Release 06 09/2014

3

Safety instructions

This documentation contains instructions which must be observed to ensure
your own personal safety and to avoid damage to devices and machinery.

 Correct usage

Only use the device for those purposes specified in the catalog and in the
technical description. Only operate the device with external devices and
components that are recommended and permitted by the manufacturer.
The proper and safe operation of this product depends on proper handling
during transport, proper storage, assembly and installation, and conscien­tious operation and maintenance procedures.

 Working voltage

The supply voltage is electrically isolated from the housing.
 Connect solely an working voltage that corresponds to the type plate

of your device.

 Use undamaged parts.
 The device is free of any service components. Internal fuses are trig-

gered solely in the case of a detected fault in the device. In case of
damage or malfunction of the device, turn off the operating voltage and
return the device to the plant for inspection.

 Only switch on the device when the housing is closed.
 Only use connection cables that are permitted for the specified

temperature range.

 Relevant for North America:

Only use copper wire/conductors of class 1, 60/75°C or 75°C.

 Make sure that the disconnecting device is easily accessible so that

the MACH102 device can be disconnected from the mains voltage.
If you disconnect the device from the mains voltage using

- the plug in the socket

- an on/off switch
it must be easily accessible.

Note: When using devices with redundant power supply (MACH 102­8TP-R, MACH 102-8TP-FR, MACH 102-24TP-FR), pull both non-heating
device plugs to disconnect the device from the power supply. When using
PoE modules, also disconnect or remove the PoE voltage.

 Shielding ground

The shielding ground of the connectable twisted pair lines is connected to
the protective conductor connection via the front panel.
 Beware of possible short circuits when connecting a cable section with

conductive shielding braiding.

Installation MACH102

4

Release 06 09/2014

 Housing

Only technicians authorized by the manufacturer are permitted to open
the housing.
The device is grounded via the voltage supply socket.
 Never insert sharp objects (small screwdrivers, wires, etc.) into the

inside of the device.

 Verify that the electrical installation meets locally or nationally appli-

cable safety regulations.

 Keep the ventilation slits free to ensure good air circulation.
 Make sure there is at least 3.94 inches (10 cm) of space in front of the

ventilation slits of the housing.

 Close all empty slots with a covering panel.
 Mount the device horizontally or vertically, either as a desktop device,

in the switch cabinet (see figure 15) or on the wall (see figure 16).

 If you are operating the device in a 19" switch cabinet: install

sliding/mounting rails for supporting the weight of the device.

 Environment

The device may only be operated at the specified ambient temperatures
(temperature of the ambient air at a distance of up to 5 cm from the
device) and at the specified humidity.
 Install the device in a location where the climatic limit values specified

in the technical data are not exceeded.

 The device may only be used in environments with the pollution

degrees not exceeding the values specified in the technical data.

 Qualification requirements for personnel

Qualified personnel as understood in this manual and the warning signs
are characterized by the following points:

 The qualified personnel has received an appropriate training. His

training, knowledge, and experience constitute his qualification. This is
the prerequisite to connect, to ground and to label power circuits,
devices, and systems in accordance with current safety engineering
standards.

 The qualified personnel are aware of the hazards associated with their

tasks.

 The qualified personnel know proper measures against such hazards

to minimize the risk for themselves and for other persons.

 The qualified personnel participate in regular further training.

Only trained service personnel are authorized to plug the
M1-8TP-RJ45 PoE media module into the basic device or remove from the
basic device.

Installation MACH102

Release 06 09/2014

5

 General safety instructions

This device is operated by electricity. You must follow precisely the
prescribed safety requirements for the voltage connections in this docu­ment.

Non-observance of these safety instructions can cause material damage
and/or injuries.

 Only appropriately qualified personnel should work on this device or in

its vicinity. The personnel must be thoroughly familiar with all the warn­ings and maintenance procedures outlined in this operating manual.

 The proper and safe operation of this device depends on proper

handling during transportation, proper storage and assembly, and
conscientious operation and maintenance procedures.

 Never start operation with damaged components.
 Only use the devices in accordance with this manual. In particular,

observe all warnings and safety-related information.

 Any work that may be required on the electrical installation may only

be carried out by personnel trained for this purpose.

 Please note that products recommended as accessories may have

characteristics that do not fully correspond to those of the corre­sponding product. This may limit their possible usage in the overall
system.

Note: LED or LASER components in compliance with IEC 60825-1
(2007):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT

 National and international safety regulations

 Verify that the electrical installation meets local or nationally applicable

safety regulations.

 ESD Guidelines

The media modules are equipped with electrostatically sensitive compo­nents. These can be destroyed, or their life cycles reduced, by the effects
of an electrical field or by a charge equalization if the card is touched.
For this reason, the cards are packaged in a conductive ESD protective
bag on delivery. The packaging can be reused.

Installation MACH102

6

Release 06 09/2014

Make sure you adhere to the following protection measures for electro­statically endangered assemblies:
 Create electrical equipotential bonding between yourself and your

environment, e.g. using a wristband, which you clamp to the basic
device (knurled screw of an interface card). When the power supply
cable is connected, the basic device is grounded via the power supply
connection.

 Only now do you take the card out of the conductive bag.
 Outside the basic device, only store the cards in a conductive ESD

protective bag.
ESD protective field equipment is available for the safe handling of elec­trostatically endangered assemblies.
You can find more information about electrostaticically endangered
assemblies in DIN/IEC 47 (Sec) 1330; February 1994 Edition and DIN EN
100 015.

 CE marking

The labeled devices comply with the regulations contained in the following
European directive(s):

2004/108/EC (EMC)
Directive of the European Parliament and the council for standardizing the
regulations of member states with regard to electromagnetic compati­bility.

2011/65/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.

2006/95/EC
Directive of the European Parliament and the council for standardizing the
regulations of member states with regard to electrical equipment to be
used within specific voltage ranges.

In accordance with the above-named EU directive(s), the EU conformity
declaration will be at the disposal of the relevant authorities at the
following address:

Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]

Installation MACH102

Release 06 09/2014

7

The product can be used in the industrial sector.

 Interference immunity: EN 61000-6-2
 Emitted interference: EN 55022
 Reliability: EN 60950-1

Warning! This is a class A device. This device can cause interference in
living areas, and in this case the operator may be required to take appro­priate measures.

 FCC note:

This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:

 This device may not cause harmful interference, and
 This device must accept any interference received, including interfer-

ence that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radiocommunica­tions. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the
interference at his own expense.

 Recycling note

After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.

Installation MACH102

8

Release 06 09/2014

About this manual

The following manuals are available as PDF files on the CD/DVD supplied:

 Installation user manual
 Basic Configuration user manual
 Redundancy Configuration user manual
 Reference manual for the graphical user interface
 Command Line Interface user manual

The Industrial HiVision Network Management Software provides you with
additional options for smooth configuration and monitoring:

 ActiveX control for SCADA integration
 Auto-topology discovery
 Browser interface
 Client/server structure
 Event handling
 Event log
 Simultaneous configuration of multiple devices
 Graphical user interface with network layout
 SNMP/OPC gateway.

Legend

The symbols used in this manual have the following meanings:

 Listing

 Work step



Subheading

Installation MACH102

Release 06 09/2014

9

1 Description

LS DA

USB

V.24

MACH 1000

2

1

LS DA

3

4

9

10

P

StandByRM

FAULT

R1

R2

5

6

7

8

13

14

11

12

17

18

15

16

21

22

19

20

25

26

23

24

LS DA

LS DA

LS DA

LS DA

The MACH102 devices are managed Workgroup switches with up to 24 Fast
Ethernet ports and 2 Gigabit Ethernet ports. They consist of a basic device
and—depending on the device variant—up to 2 pluggable media modules.
They allow you to construct switched industrial Ethernet networks that
conform to the IEEE 802.3 and 802.3u standards using copper wires or
optical fibers in a bus or ring topology. You have the option of connecting
terminal devices and other infrastructure components via twisted-pair cables,
multi-mode F/O, and single-mode F/O. The twisted-pair ports support auto­crossing, autonegotiation and autopolarity.

The MACH102 devices provide you with a range of switch variants. You can
set up your switch to meet your individual requirements with regard to the
transmission media type, the number of 10/100 Mbit/s ports you want (8, 16
or 24), the redundant voltage supply and the software variant.

The devices are modular network components. They are designed for the
special requirements of industrial automation. They meet the relevant
industry standards, provide very high operational reliability, even under
extreme conditions, and also long-term reliability and flexibility. The devices
work without a fan. If desired, the voltage supply can be redundant

- depending on the device variant. The basic devices are suitable for
mounting on the 19" rack and for wall mounting.

The HIPER-Ring redundancy concept enables you to quickly carry out a
reconfiguration, and also a simple configuration with only one additional
connection. The diagnosis display and the display of the operating parame­ters and the large label areas provide a quick overview.
It can be easily managed via a Web browser, via Telnet, with a management
software product (such as Industrial HiVision), or locally on the switch (V.24
interface).

The devices provide you with a large range of features:

 Redundancy functions

(Rapid Spanning Tree, Redundant Ring Structure, HIPER-Ring, Redun­dant Coupling, Link Aggregation)

 Protection from unauthorized access
 Synchronized system time in the network
 Network load control
 Operation diagnosis

10

Installation MACH102

Release 06 09/2014

 Diagnostics (hardware self-testing)
 Reset
 Priority
 VLAN
 Topology Discovery
 Web-based Interface
 Command Line Interface
 SNMP
 802.1x port authentication
 Real Time Clock

The addition, to the MACH102 family, of the RS20/RS30/RS40 open rail
family switches, the MACH3000 and MACH4000 family of backbone
switches, the BAT wireless transmission system, the EAGLE security
system, and products for the RSR20/RSR30 and MACH1000 substation
areas, provides continuous communication across all levels of the company.

1.1 Description of the device variants

1.1.1 MACH102 basic devices

A basic device contains all the functions of the industrial Workgroup Switch
and up to 24 Fast Ethernet and 2 Gigabit Ethernet interfaces for connection
to the LAN. The MACH 100 devices are managed.

 The Gigabit ETHERNET combo ports (can be connected optically or with

TX) of the basic devices are suitable for the connection of terminal
devices or network segments according to the standards IEEE 802.3
100/1000BASE-FX (SFP slot) and IEEE 802.3 1000BASE-TX/ 100BASE­TX / 10BASE-T (RJ45 socket).
A plugged SFP module switches the TX port off.

 The Fast ETHERNET ports (10/100 Mbit/s) of the basic devices are suit-

able for connecting terminal devices or network segments according to
the standards IEEE 802.3 100BASE-TX / IEEE 802.3 10 BASE-T. These
ports support autonegotiation and autopolarity. The ports are RJ45
sockets. The housings of the RJ45 sockets are electrically connected to
the front plate of the device. The pin assignment is identical to MDI-X.
When the autonegotiation function is enabled, these ports also support
autocrossing.

 Voltage range: 100 - 240 V AC

 Temperature range: 0°C to +50 °C

 Software variant: Professional

Installation MACH102

Release 06 09/2014

11

The devices comply with the specifications of the ISO/IEC standards

LS DA

USB

V.24

MACH 1000

2

1

LS DA

3

4

9

10

P

StandByRM

FAULT

R1

R2

5

6

7

8

13

14

11

12

17

18

15

16

21

22

19

20

25

26

23

24

LS DA

LS DA

LS DA

LS DA

2.5

2.7

2.6

2.8

3.8

3.7

3.5

4.6

4.8

4.5

4.7

2.1

2.2

2.4

3.6

3.1

3.3

3.2

3.4

4.1

4.3

4.2

4.4

2.3

1.1

1.1

1.2

1.2

2

3 4 51

6

7

8

8802-3u 100BASE-TX/-1000BASE-T,
8802-3 100BASE-FX and
8802-3 1000BASE-SX/LX.

The MACH102 basic device comprises all function units such as: switch
function, management function, redundancy function, voltage connection,
management connection, slots for media modules (depending on the device
variant).

 Modular MACH102 basic devices

The MACH102-8TP, and MACH102-8TP-R devices from the Industrial
Ethernet MACH102 family are modular switches. The devices consist of
a basic switch device and—depending on the device variant—pluggable
media modules for additional ports.

Up to 2 pluggable media modules each provide an additional 8 Fast
Ethernet interfaces. They differ as to the media type for connecting
segments.

For the sake of simplicity, the basic switch device with various plugged-in
media modules will be referred to as MACH102 in this document.

The basic devices have the following properties:

 MACH102-8TP, MACH102-8TP-R

 2 Gigabit Ethernet combo ports
 8 Fast Ethernet ports
 You have the option of choosing the media for an additional 8 or

16 ports via the media modules.

 MACH102-8TP-R: The power supply is connected redundantly.

Figure 1: Overview over interfaces, display and operating elements

of the MACH102-8TP, and MACH102-8TP-R
1 - MACH102 device
2- LED display elements
3 - Signal contact

12

Installation MACH102

Release 06 09/2014

4 - USB port
5 - V.24 access for external management
6 - See the following table, column 1
7 - See the following table, column 2
8 - See the following table, column 3

Gigabit Ethernet
GE ports 1 and 2
(Combo ports)

100/1000 Mbit/s F/O, SFP
slots
Alternatively connectable:
10/100/1000 Mbit/s twisted­pair, RJ45 ports

Fast Ethernet
FE ports 1 to 8

8 * twisted-pair TX,
RJ45, 10/100 Mbit/s

Fast Ethernet
FE ports 9 to 24
2 slots for media modules of your choice

8 * twisted-pair TX, RJ45, 10/100 Mbit/s or
8 * twisted-pair TX PoE, RJ45,
10/100 Mbit/s or
8 * Multimode FX DSC 100 Mbit/s or
8 * Singlemode FX DSC 100 Mbit/s or
8 * SFP slot 100 Mbit/s

 Fixed-configured MACH102 basic devices

The MACH102-8TP-F, MACH102-8TP-FR, MACH102-24TP-F, and
MACH102-24TP-FR devices from the Industrial Ethernet MACH102
family are switches with fixed configurations.

The basic devices have the following properties:

 MACH102-8TP-F, MACH102-8TP-FR

 2 Gigabit Ethernet combo ports

 8 Fast Ethernet ports

 MACH102-8TP-FR: The power supply is designed

redundantly.

2 3 4 51

2.3

2.1

LS DA

4

6

2.2

2.4

2.5

2.7

2.8

8

11

10

13

12

15

LS DA

14

17

16

LS DA

18

19

21

20

22

2.6

7

9

7

1.1

V.24

USB

StandByRM

P

R1

FAULT

R2

MACH 1000

1.1

LS DA

1

2

1.2

3

5

1.2

6

Figure 2: Overview over interfaces, display and operating elements

of the MACH102-8TP-F, and MACH102-8TP-FR
1 - MACH102 device
2- LED display elements
3 - Signal contact
4 - USB port
5 - V.24 access for external management
6 - See the following table, column 1
7 - See the following table, column 2

LS DA

23

25

LS DA

24

26

Installation MACH102

Release 06 09/2014

13

Gigabit Ethernet - GE ports 1 and 2 (combo ports) Fast Ethernet - FE ports 1 to 8

LS DA

USB

V.24

MACH 1000

2

1

LS DA

3

4

9

10

P

StandByRM

FAULT

R1

R2

5

6

7

8

13

14

11

12

17

18

15

16

21

22

19

20

25

26

23

24

LS DA

LS DA

LS DA

LS DA

2.5

2.7

2.6

2.8

2.1

2.2

2.4

2.3

1.1

1.1

1.2

1.2

3.5

3.7

3.6

3.8

3.1

3.2

3.4

3.3

4.5

4.7

4.6

4.8

4.1

4.2

4.4

4.3

2 3 4 51

6

7

100/1000 Mbit/s F/O, SFP slots
Alternatively connectable:

8 * twisted-pair TX, RJ45,
10/100 Mbit/s

10/100/1000 Mbit/s twisted-pair, RJ45 ports

 MACH102-24TP-F, MACH102-24TP-FR

 2 Gigabit Ethernet combo ports
 24 Fast Ethernet ports
 MACH102-24TP-FR: The power supply is designed redundantly.

Figure 3: Overview over interfaces, display and operating elements

of the MACH102-24TP-F, and MACH102-24TP-FR
1 - MACH102 device
2- LED display elements
3 - Signal contact
4 - USB port
5 - V.24 access for external management
6 - See the following table, column 1
7 - See the following table, column 2

Gigabit Ethernet
GE ports 1.1 and 1.2 (combo ports)

100/1000 Mbit/s F/O, SFP slots
Alternatively connectable:
10/100/1000 Mbit/s twisted-pair, RJ45 ports

14

Fast Ethernet
FE ports 2.1 to 2.8, 3.1 to 3.8,

4.1 to 4.8

24 * twisted-pair TX, RJ45, 10/100 Mbit/s

Installation MACH102

Release 06 09/2014

1.1.2 MACH102 media modules

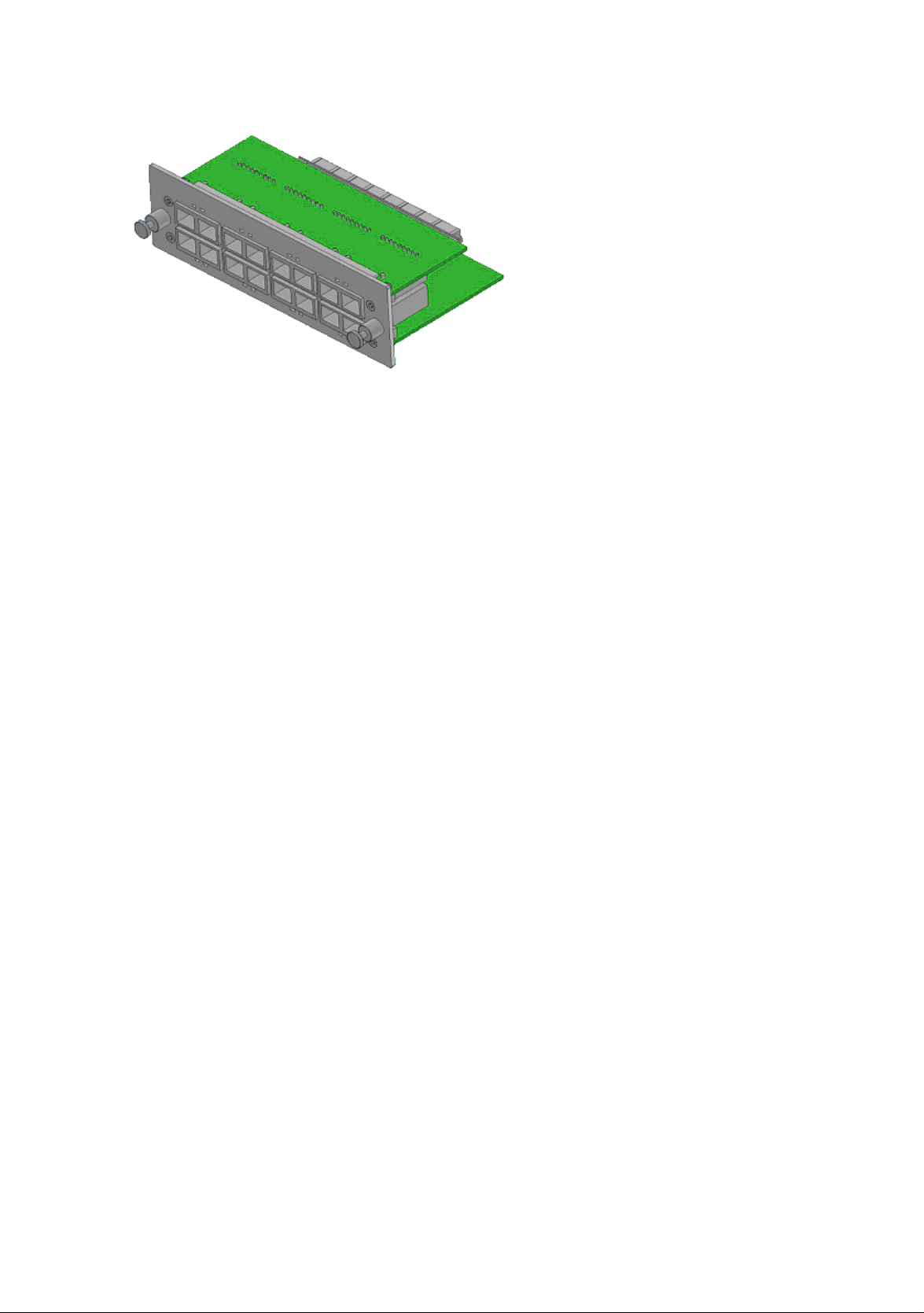

Figure 4: Media module for MACH102, Example: M1-8MM-SC

The MACH102 media modules form the interface from the device to the LAN.

The modules are deployable in the

 MACH102-8TP basic device
 MACH102-8TP-R basic device

The media modules are hot-plug-compatible, which means that you have the
option of replacing the modules with a module of the same kind during oper­ation.

Note: If you are replacing media, e.g. removing a TX media module and plug­ging in an FX media module in its place, the MACH102 performs a warm
start.

The media modules each have 8 Fast ETHERNET interfaces and differ as to
their media type.

The different interfaces of the MACH102 media modules provide you with the
following interface-specific functions:

 Specific functions of TP/TX interface

 Link Control
 Auto Polarity Exchange

Installation MACH102

Release 06 09/2014

15

 Autonegotiation
 Autocrossing (device may be connected with a crossed-over or an un-

crossed cable)

 Specific functions of fiber optic interface

 Link Down monitoring

MACH102 media modules

Module Type

M1-8TP-RJ45 8, RJ45 – – – –
M1-8TP-RJ45 PoE – 8, RJ45 – – –
M1-8MM-SC – – 8, DSC – –
M1-8SM-SC – – – 8, DSC –
M1-8SFP – – – – 8, SFP

TP ports
10/100
Mbit/s

TP ports
10/100
Mbit/s PoE

F/O ports
Multimode
100 Mbit/s

F/O ports
Single­mode
100 Mbit/s

SFP ports
Multimode
Singlemode
Longhaul
100 Mbit/s

Table 1: Media connections per MACH102 media module (number and type)

 Media module M1-8TP-RJ45

The M1-8TP-RJ45 media module has 8 × 10/100 Mbit ports for
connecting terminal devices or network segments according to the stan­dards IEEE 802.3 100BASE-TX / IEEE 802.3 10 BASE-T.
These ports support autonegotiation and autopolarity. The ports are RJ45
sockets. The housings of the RJ45 sockets are electrically connected to
the front plate of the device. The pin assignment is identical to MDI-X.
When the autonegotiation function is enabled, these ports also support
autocrossing.

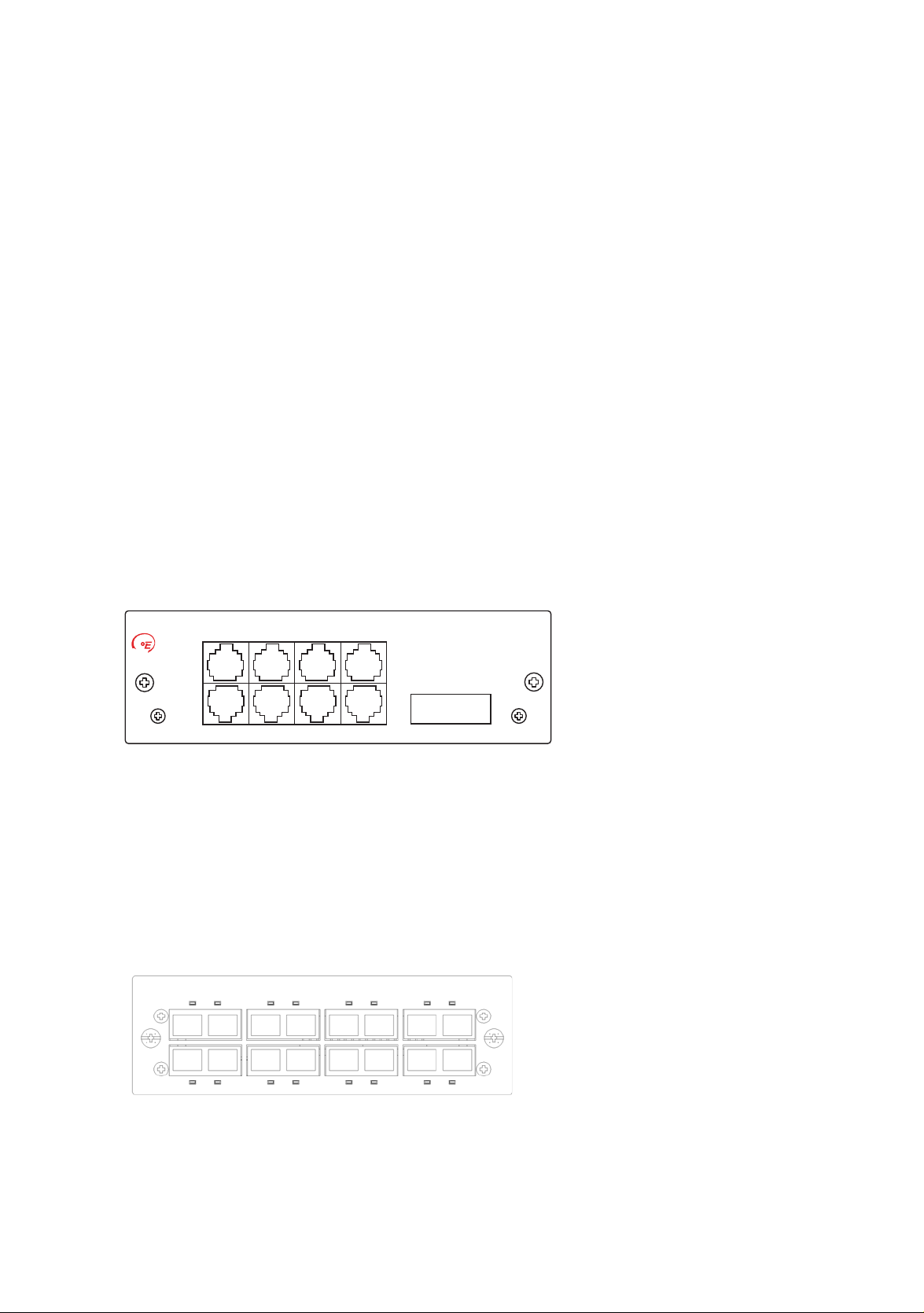

Figure 5: Media module M1-8TP-RJ45

 Media module M1-8TP-RJ45 PoE

The M1-8TP-RJ45 PoE media module supports Power over ETHERNET
(PoE). It has 8 10/100 Mbit/s TP PoE ports.
This port is an RJ45 socket.

Installation MACH102

16

Release 06 09/2014

The 10/100 Mbit/s PoE port allows you to connect network components
as a PoE voltage sink according to the standard IEEE 802.3 10BASE­T/100BASE-TX and IEEE 802.3af.

 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)

They allow the connection and remote supply of, for example, IP tele­phones (Voice over IP), webcams, sensors, printer servers and WLAN
access points via 10BASE-T/100BASE-TX. With PoE, these terminal
devices are powered by the twisted-pair cable.
You can connect PoE terminal devices (PD, Powered Device, type1 or
type2) up to class 0.
The PoE power is supplied via the wire pairs transmitting the signal
(phantom voltage).
The individual ports (joint PoE voltage) are not electrically insulated from
each other.
The following conditions are met in accordance with IEEE 802.3af:

 Endpoint PSE
 Alternative A

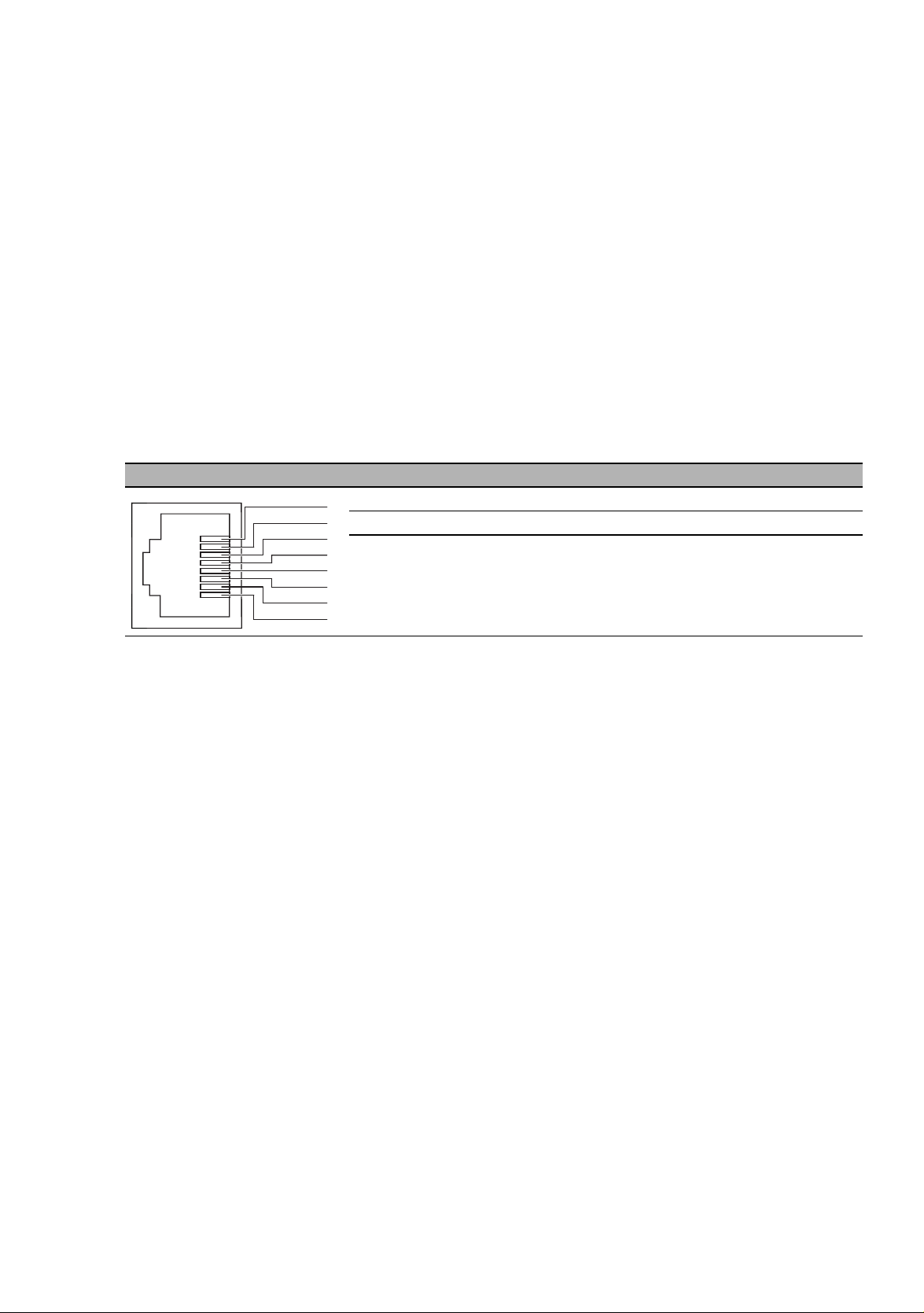

The pin assignment corresponds to MDI-X.

M1-8TP-RJ45 PoE

P

5

3

1

4

2

7

8

6

Disconnect the PoE power supply
before removing the module !

z

Vor Entfernen des Moduls PoE­Spannungsversorgung trennen !

U: 48VDC I: 6A

_

r

+

Figure 6: Media module M1-8TP-RJ45 PoE

 Media module M1-8MM-SC

The M1-8MM-SC media module has 8 FX ports for connecting terminal
devices or network segments in compliance with the IEEE 802.3u
100BASE-FX Multimode standard. The optical ports are configured in 100
Mbit/s Fullduplex (FDX) and support FEFI. They have a DSC design.

Figure 7: Media module M1-8MM-SC

Installation MACH102

Release 06 09/2014

17

 Media module M1-8SM-SC

The M1-8SM-SC media module has 8 FX ports for connecting terminal
devices or network segments in compliance with the IEEE 802.3u
100BASE-FX Singlemode standard. The optical ports are configured in
100 Mbit/s Fullduplex (FDX) and support FEFI. They have a DSC design.

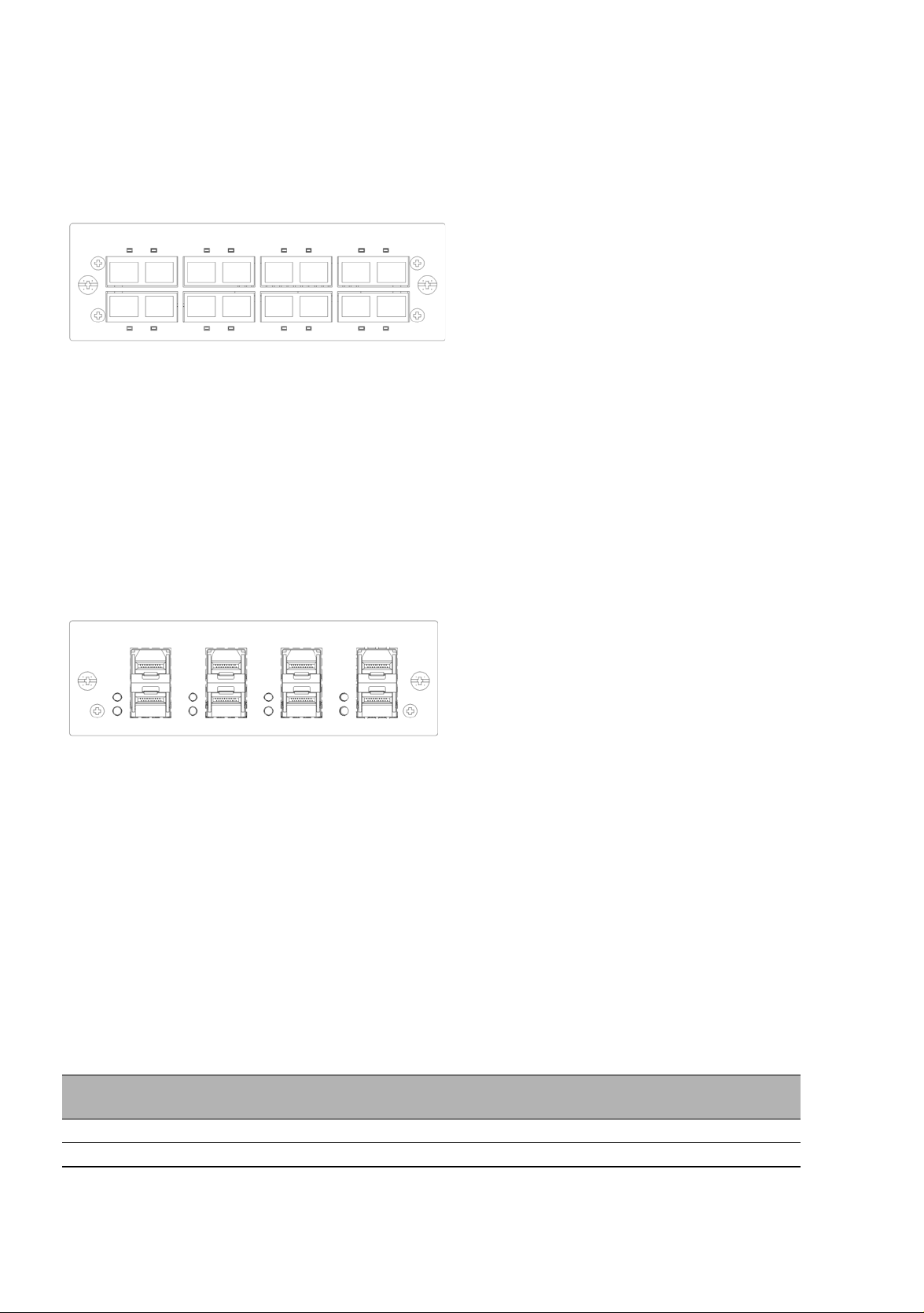

Figure 8: Media module M1-8SM-SC

 Media module M1-8SFP

The M1-8MM-SC media module has 8 FX ports for connecting terminal
devices or network segments in compliance with the IEEE 802.3u
100BASE-FX Multimode/Singlemode/Longhaul standard. The optical
ports are configured in 100 Mbit/s Fullduplex (FDX) and support FEFI.
They are designed as SFP slots for the Hirschmann SFP module types
M-FAST SFP-... 44 “Accessories”.

Figure 9: Media module M1-8SFP

1.1.3 SFP modules

SFP modules are optical transceivers (Fast ETHERNET and Gigabit
ETHERNET SFP modules, see 44 “Accessories”). SFP stands for Small
Form-factor Pluggable and is also frequently referred to as mini-GBIC
(GigaBit Interface Converter).
The SFP modules are plugged into the SFP slots of the MACH102 basic
device to obtain an F/O port. The MACH102 has 2 TP interfaces and 2 slots
for inserting SFP modules (100/1000 Mbit/s).
By inserting the SFP module you deactivate the corresponding TP interface.

Module type Transmission Range Connec-

tion

Fast ETHERNET SFP modules:LC

M-FAST SFP-MM / LC 1310 nm Multimode 4 km LC

Table 2: SFP modules

18

Installation MACH102

Release 06 09/2014

Module type Transmission Range Connec-

tion

M-FAST SFP-SM / LC 1310 nm Singlemode 25 km LC
M-FAST SFP-SM+/ LC 1310 nm Singlemode 25-65 km LC
M-FAST SFP-LH / LC 1550 nm Longhaul 40-104 km LC

Gigabit ETHERNET SFP
modules:

M-SFP-MX/LC 1310 nm Multimode 2 km LC
M-SFP-SX/LC 850 nm Multimode 0.55 km LC
M-SFP-LX/LC 1330 nm Multimode

1330 nm Singlemode
M-SFP-LX+/LC 1310 nm Singlemode 14-42 km LC
M-SFP-LH/LC Longhaul 8-72 km LC
M-SFP-LH+/LC Longhaul + 71-108 km

0.55 km
20 km

71-128 km

a
b

LC

LC
LC

LC

Table 2: SFP modules

a. Relating to a maximum attenuation of 0.25 dB/km.
b. Relating to a typical attenuation of 0.21 dB/km.

Note: Only use Hirschmann SFP transceivers. See “Accessories” on

page 44.

Installation MACH102

Release 06 09/2014

19

2 Assembly and start-up

The devices have been developed for practical application in a harsh indus­trial environment.

On delivery, the device is ready for operation.
The following procedure has been proven to be successful for the assembly
of the device:

 Unpacking and checking
 Installing the media modules
 Installing the SFP modules
 Signal contact
 Installing the device and grounding
 Supply voltage
 Startup
 Connecting the data lines

2.1 Installing the device

2.1.1 Unpacking and checking the content of the package

 Check whether the package includes all items named in section “Scope

of delivery” on page 44.

 Check the individual parts for transport damage.

2.1.2 Installing media modules

On delivery, the device is ready for operation.

The modules can be used in

 MACH 102-8TP basic device
 MACH 102-8TP-R basic device

 See the ESD guidelines (see on page 6 “ESD Guidelines”) and the safety

instructions (see on page 4 “Safety instructions”).

The media modules are hot-plug-compatible, which means that you have the
option of replacing the modules with a module of the same kind during oper­ation.

Note: If you are replacing media, e.g. removing a TX media module and plug­ging in an FX media module in its place, the MACH102 performs a warm
start.

Installation MACH102

20

Release 06 09/2014

1

Fast ETHERNET
fiberoptic SFP module

Gigabit ETHERNET
fiberoptic SFP module

2

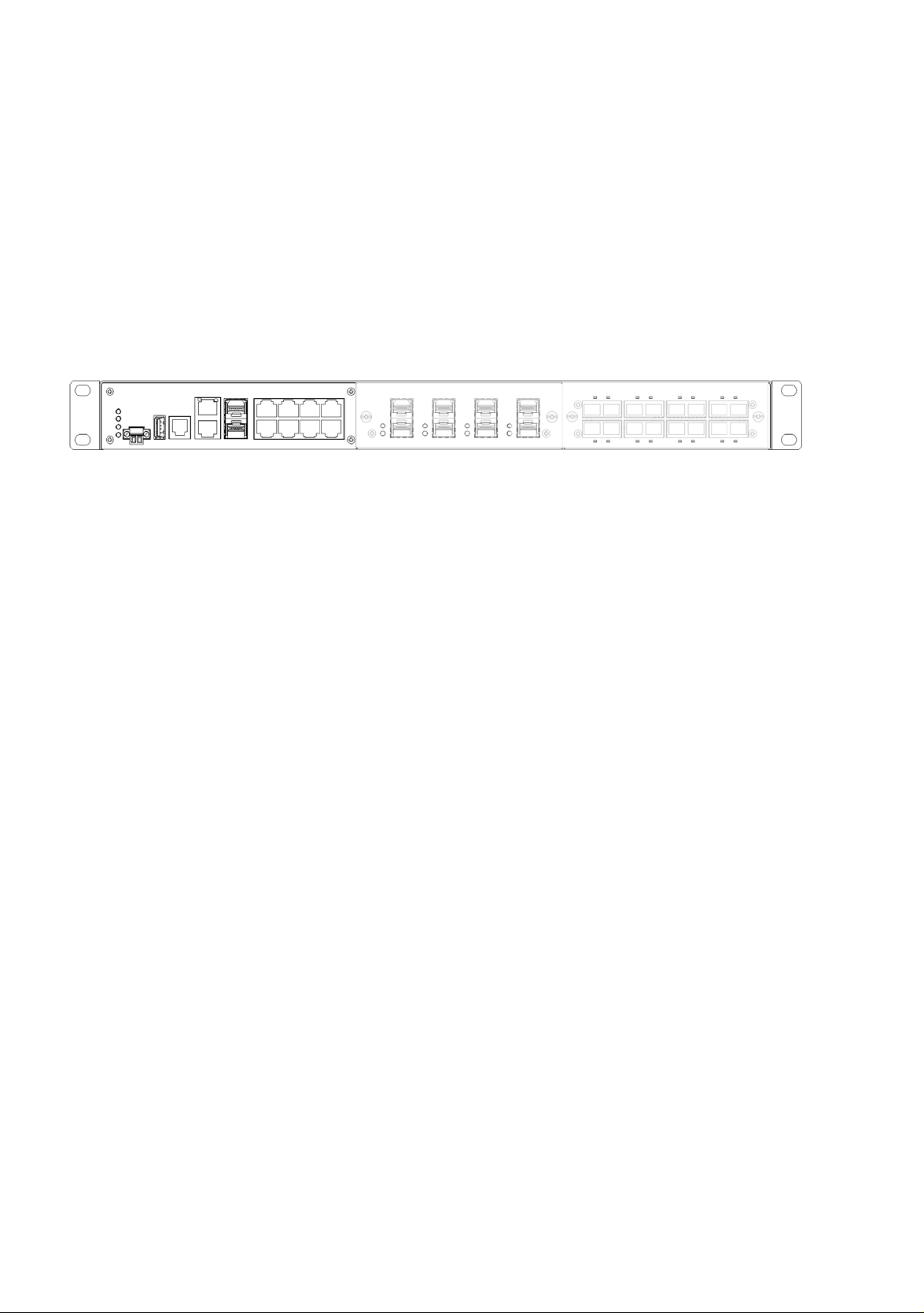

Figure 10: MACH102 device equipped with media modules

1 - media module 1
2 - media module 2

 To attach a media module, first remove the 2 screws on the protective

cover of the media module slot and remove the protective cover.

 Plug the media module into the desired slot.
 Fasten the 2 screws at the corners of the media module.
 Fit the media modules in sequence from left to right.

2.1.3 Installing the SFP modules

Figure 11: MACH102 device, front view

 Before installing an SFP transceiver or XFP transceiver, first remove the

protection cap of the transceiver.

 Push the SFP transceiver or XFP transceiver with the lock closed into the

socket until you hear it latch in.

Note: Only use Hirschmann SFP transceivers. See “Accessories” on

page 44.

Installation MACH102

Release 06 09/2014

1

1 - 2 SFP slots

21

Figure 12: Installing an SFP module

1

2.1.4 “FAULT” signal contact

Figure 13: MACH102 device, front view

1 - Signal contact

The signal contacts are connected via a 2-pin terminal block with screw
locking.

 The signal contact (“FAULT”, for pin assignment of terminal block, see

figure 14) monitors the functioning of the device, thus enabling remote

diagnostics. You can specify the type of function monitoring in the
Management.

 You can also use the Management to switch the signal contact manually

and thus control external devices.

A break in contact is used to report the following conditions via the potential­free signal contact (relay contact, closed circuit):

 The detected inoperability of at least one of the two voltage supplies

(voltage supply 1 or 2 is below the threshold value).

 A continuous detected error in the device (internal supply voltage).
 The detected error of the link status of at least one port. The report of the

link status can be masked by the Management for each port. In the default
state, link status monitoring is deactivated.

 The temperature of the device is outside the range specified in the

threshold values.

 The removal of the ACA.

The following condition is also reported in RM mode:

 Ring redundancy guaranteed. By default, there is no ring redundancy

monitoring

Installation MACH102

22

Release 06 09/2014

 Connecting the terminal block

482,6

231,89

312,5

31,75

43,8

465,9

 Pull the terminal block off the device and connect the signal lines.

FAULT

Figure 14: 2-pin terminal block

Note: Please note the electrical ratings for the signal contact (see on

page 39 “General technical data”).

Note: Relevant for North America:
The tightening torque of the terminal block screws is 3 lb in. (0.34 Nm).

 Mount the terminal block for the signal contact on the front of the

device using the screw locking. Check whether the terminal block is
mounted correctly and screwed on.

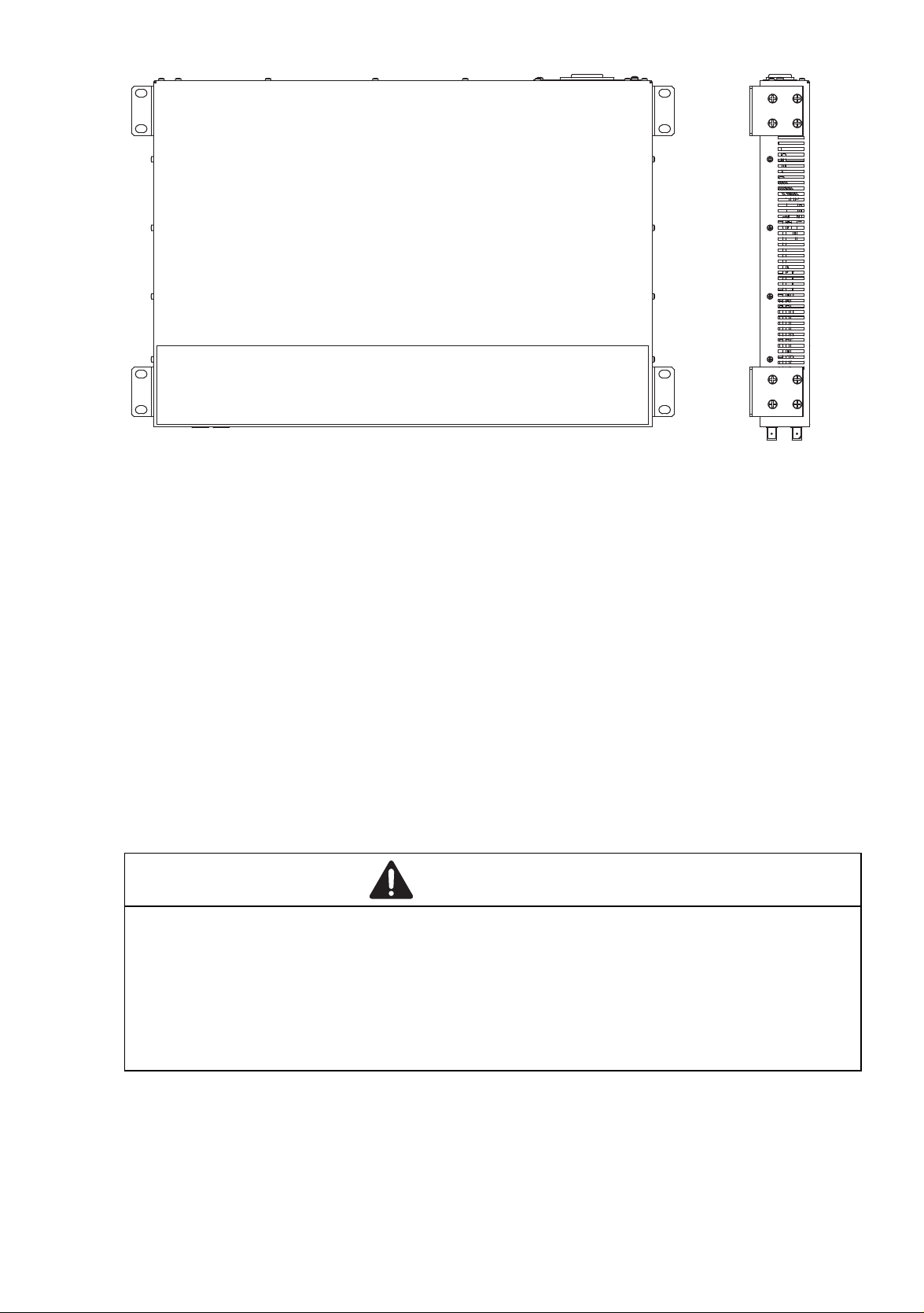

2.1.5 Dimension drawings

Installation MACH102

Release 06 09/2014

23

2.1.6 Installing the device and grounding

The device can be mounted on a flat surface, in a 19" standard switch
cabinet, or on the wall.

Select the assembly location according to the safety guidelines (see on

page 4 “Safety instructions”).

When selecting the assembly location, also make sure the following require­ments are met:

 The installation location should be close to a power outlet.
 Adhere to the climatic threshold values listed in the technical data.
 Keep the ventilation slits free to ensure good air circulation.
 Make sure there is at least 3.94 inches (10 cm) of space in front of the

ventilation slits of the housing.

 The assembly location can be accessed for maintenance and repair work.
 The LED display elements are clearly visible.
 Twisted-pair cables are at a sufficient distance from potential sources of

electrical interference, such as power cables.

 The device has a separate power source with a ground connection. The

power supply can be interrupted by means of a separate isolator or power
switch. We recommend using overvoltage protection for all devices.

Note: The shielding ground of the connectable industrial twisted pair lines is
connected to the front panel as a conductor.

 Mounting on a flat surface

 Install the device in line with the criteria listed in “Installing the device

and grounding” on page 24.

 Mounting in a switch cabinet

Note: Install the device in the 19" switch cabinet using sliding or mounting
rails.
This provides a more stable position of your device in environments
subject to vibration.
For more information on sliding/mounting rails and how to install them,
please contact your switch cabinet manufacturer.

24

Installation MACH102

Release 06 09/2014

The devices are designed to be mounted in a 19" switch cabinet.

P

1

LS

DA

2

3

4

5

6

7

8

M4-8

TP

-R
J4
5

LS

DA

LS

D

A
LS

DA

L
S

DA

L
S

DA

LS

DA

LS

DA

R

1

L
S

D
A

2

3

4

5

6

7

8

LS

DA

LS DA

LS

DA

LS

DA

LS

DA

L
S

D

A

LS DA

P

1

LS
/
DA

2

3

4

5

6

7

8

1

4

7

2

5

8

3

6

M4-FAST 8SFP

P

1

2

3

4

5

6

7

8

1

4

7

2

5

8

3

6

P

P1

P
2

P3

P4

R
M

RL1

RL2

FAN

RUN

L/D

F
DX

1000

AN

T
P/FO

RING
PORT

S
T
B
Y

LED
T
E
ST

2

1

1

2

3

4

LED

M
EDIA

S

L
O
T
S

M4-AIR

S
LOT.PORT

U

SB

V
.2
4

6.1
6
.2

6

.3

6.4
6
.5
6
.
6

6
.7

6.8

S
ELECT

L

E
D

M
A
CH

40

0
2 48+4G

FAULT

RL2

L

S/D
A

6
.1

RL1

L
S
/D

A

M4-FAST 8TP-RJ45-PoE

M4-FAST 8SFP

6.1

6.2

6.3

6
.4 6.5

6.6

6.7

6.8

2

3

1

 Make sure there is sufficient ventilation. If necessary, provide a fan for

the 19" switch cabinet. This will prevent the basic devices from over­heating.

 Measure the depth of the 19" switch cabinet so as to allow the power

supply cables to be fitted at the back and the data cables to be fitted
at the front.

 Install the sliding/mounting rails in the 19" switch cabinet as instructed

by the manufacturer, and make sure the device is resting on both rails.

Figure 15: Assembly in a switch cabinet with sliding/mounting rails

1 - MACH102 device
2 - sliding/mounting rail
3 - 19“ switch cabinet

On delivery, two brackets are attached to the sides of the device (see
figure below).

V.24

USB

StandByRM

P

R1

FAULT

R2

MACH 1000

LS DA

1

2

LS DA

7

4

3

5

6

9

8

11

10

13

12

LS DA

14

16

15

19

LS DA

18

17

21

MACH 100

Figure 16: Mounting the MACH102 in the 19" cabinet

 Fasten the device by screwing the brackets to the switch cabinet.

LS DA

23

20

25

22

LS DA

24

26

Installation MACH102

Release 06 09/2014

25

CAUTION

OVERHEATING OF THE DEVICE

When installing the device, ensure that the ventilation slots are not covered.
Make sure there is at least 10 cm (3.94 in) of space.

Failure to follow these instructions can result in injury or equipment
damage.

Note: When operating the device in an environment with strong vibra-

tions, you have the option to additionally fasten the back of the device to
the switch cabinet using two brackets.
You can obtain additional brackets as accessories (see on page 44

“Accessories”).

 Mounting on the wall

 Use the pre-mounted brackets included in the delivery.

(see figure 17)

 Additionally attach two brackets to the back of the device.

(see figure 17)

You can obtain additional brackets as accessories (see on page 44

“Accessories”).

 Fasten the device by screwing the brackets to the wall.

CAUTION

OVERHEATING OF THE DEVICE

When installing the device, ensure that the ventilation slots are not covered.
Make sure there is at least 10 cm (3.94 in) of space.

Failure to follow these instructions can result in injury or equipment
damage.

26

Installation MACH102

Release 06 09/2014

Figure 17: Vertical mounting on the wall

Note: The shielding ground of the connectable industrial twisted pair lines
is connected to the front panel as a conductor.

 Grounding

The device is grounded via the voltage supply socket (see figure 18) and

(see figure 19).

2.1.7 Supply voltage

The input voltage range of the MACH102 basic devices is designed as
100 V AC ... 240 V AC.
The power supply of the MACH102-8TP-R, MACH102-8TP-FR, and
MACH102-24TP-FR devices is designed redundantly.

WARNING

ELECTRIC SHOCK

Connect solely an working voltage that corresponds to the type plate of your
device.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Installation MACH102

Release 06 09/2014

27

 MACH 102-8TP, MACH 102-8TP-F and MACH 102-24TP-F

21

321

Figure 18: Connections for the MACH 102-8TP, MACH 102-8TP-F and

MACH 102-24TP-F on the back of the device
1 - MACH 102-8TP, MACH 102-8TP-F or MACH 102-24TP-F device
2 - Power supply 100 - 240 V AC

 MACH 102-8TP-R, MACH 102-8TP-FR, MACH 102-24TP-FR

The supply voltage can be connected redundantly. Both inputs are
uncoupled. There is no distributed load. With redundant supply, the stan­dard voltage supply alone supplies the device. The redundant voltage
supply automatially becomes active if the standard voltage supply fails. In
the normal case, the redundant voltage supply works in stand-by mode.
The supply voltage is electrically isolated from the housing.

Figure 19: Connections for the MACH 102-8TP-R, MACH 102-8TP-FR and

MACH 102-24TP-FR on the back of the device
1 - MACH 102-8TP-R, MACH 102-8TP-FR or MACH 102-24TP-FR device
2 - Redundant power supply 100 - 240 V AC
3 - Standard power supply 100 - 240 V AC

Note: With non-redundant supply of the mains voltage, the device reports
a power failure. You can prevent this message by applying the supply
voltage via both inputs, or by changing the configuration in the Manage­ment.

28

Installation MACH102

Release 06 09/2014

 Connecting the PoE supply voltage to the M1-8TP-RJ45 PoE

media module (optional)

WARNING

ELECTRIC SHOCK

Supply solely 48 V DC SELV voltage (PoE) or 54 V DC SELV voltage
(PoE+) to the M1-8TP-RJ45 PoE media module.

For the PoE power supply to the M1-8TP-RJ45 PoE media module, use a
fuse of 5 A—slow-blow characteristic.

Install this device solely in a switch cabinet or in an operating site with
restricted access, to which maintenance staff have exclusive access.

Never insert sharp objects (small screwdrivers, wires, etc.) into the connec­tion terminals for the power lines, and do not touch the terminals!

Non-adherence to these instructions can lead to death, serious
physical injury or material damage.

WARNING

FIRE HAZARD

Disconnect the PoE voltage supply before removing the M1-8TP-RJ45 PoE
media module.

Non-adherence to these instructions can lead to death, serious
physical injury or material damage.

The PoE power is supplied via the wire pairs transmitting the signal
(phantom voltage).
The individual ports (joint PoE voltage) are not electrically insulated from
each other.
The following values apply to the PoE supply voltage of the module:

Rated voltage 48 V DC SELV
Minimum voltage 46 V DC
Maximum voltage 57 V DC

Installation MACH102

Release 06 09/2014

29

To supply the module with PoE voltage you need an external power

3

21

6

54

supply unit.
 Make sure that the external power supply unit you use to provide the

PoE voltage fulfills the following basic prerequisites:

 Insulation requirements according to IEEE 802.3af (insulation

resistance 48 V output to “rest of the world” 2250 V DC for 1 min.).

 Output power < 250 W and sufficient to provide the power for the

connected PDs.

 Current limitation < 5 A or fuse 5 A slow blow.

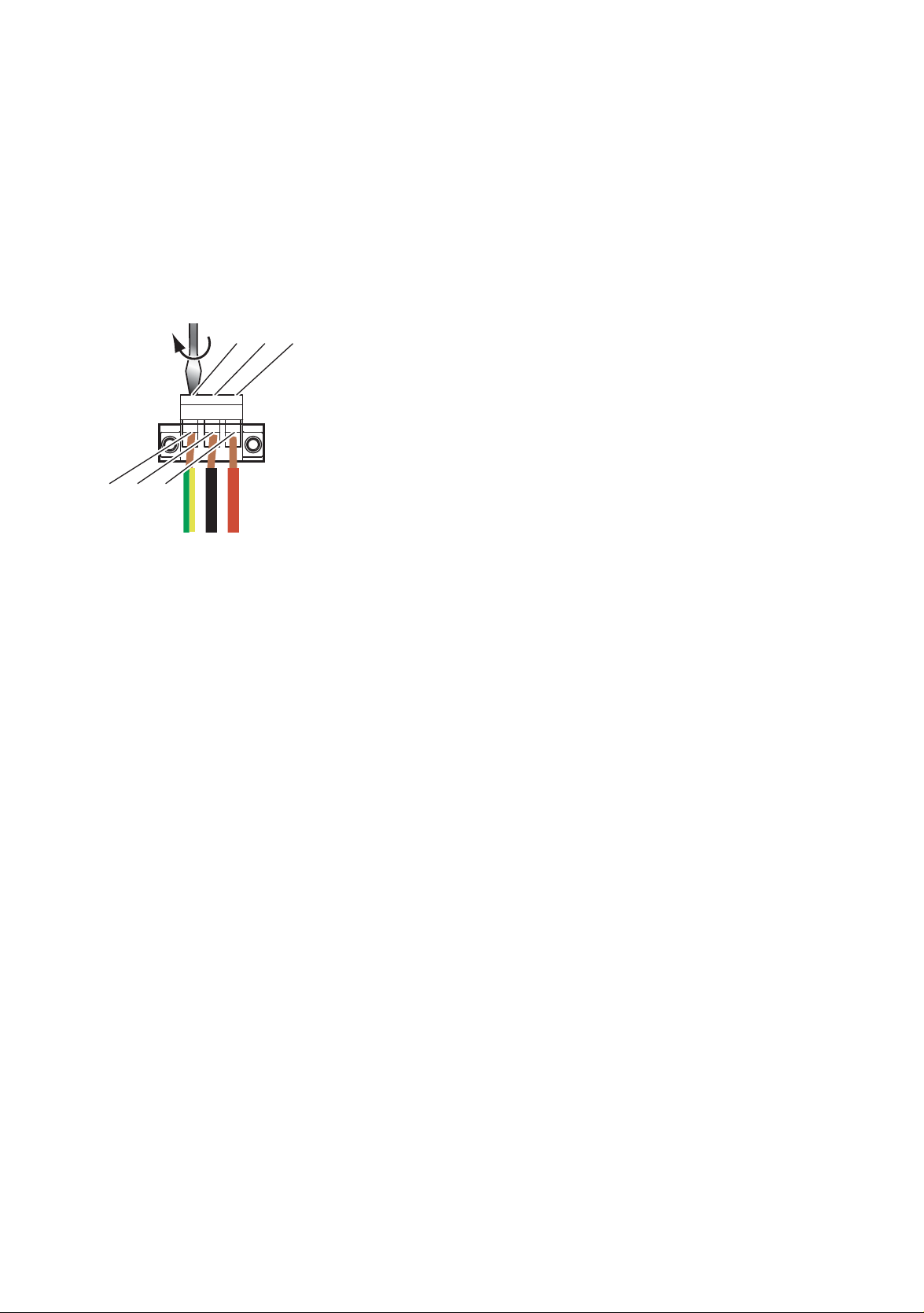

Figure 20: Connecting the supply voltage via the 3-pin terminal block

1 - Fastening screw for functional earth
2 - Fastening screw for supply voltage: ­3 - Fastening screw for supply voltage: +
4 - Connection for functional earth
5 - Connection for supply voltage: ­6 - Connection for supply voltage: +

Note: Relevant for North America:
The tightening torque of the terminal block screws is 3 lb in. (0.34 Nm).

Note: Make sure the following requirements are met:

 Supply line length < 3 m
 Supply line cross section is suitable for 5 A

 Pull the terminal block(s) off the switch and connect the voltage supply

lines as follows:

 First connect the protective conductor to the protective conductor

terminal.

 Connect the PoE voltage to the 3-pin terminal block.

2.1.8 Operating the device

By connecting the voltage supply via the voltage supply socket(s), you start
the operation of the device.

Installation MACH102

30

Release 06 09/2014

2.1.9 Connecting network cables

1
2
3
4
5
6
7
8

 10/100 Mbit/s twisted pair port

This port is an RJ45 socket.
The 10/100 Mbit/s twisted pair port offers you the ability to connect
network components according to the IEEE 802.3 10BASE-T/100BASE­TX standard.
This port supports:

 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode

Delivery state: autonegotiation active.
The socket housing is electrically connected with the front panel.

Figure Pin Operation

1+2 One line pair: receiver path
3+6 One line pair: sender path
4,5,7,8 —

Table 3: Pin assignment of a TP/TX interface in MDI-X mode, RJ45 socket

 10/100 Mbit/s PoE port

This port is an RJ45 socket.
The 10/100 Mbit/s PoE port allows you to connect network components
as a PoE voltage sink according to the standard IEEE 802.3 10BASE­T/100BASE-TX and IEEE 802.3af.
This port supports:

 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
 Power over Ethernet (PoE)

Delivery state: autonegotiation active.
The socket housing is electrically connected with the front panel.
The PoE power is supplied via the wire pairs transmitting the signal
(phantom voltage).
The individual ports (joint PoE voltage) are not electrically insulated from
each other.
The pin assignment corresponds to MDI-X.

Installation MACH102

Release 06 09/2014

31

Pin Function PoE voltage

1
2
3
4
5
6
7
8

8
7

6
5
4
3
2
1

BI_DC­BI_DC+
BI_DA­BI_DD­BI_DD+
BI_DA+
BI_DB­BI_DB+

1 RD+ Receive path Minus terminal
2RD− Receive path Minus terminal
3 TD+ Transmission path Plus terminal
6TD− Transmission path Plus terminal
4,5,7,8 —

Table 4: Pin assignment of the 10/100 Mbit/s PoE port, RJ45 socket, MDI-X mode,

phantom voltage

 10/100/1000 Mbit/s twisted pair port

The 10/100/1000 Mbit/s twisted pair port offers you the ability to connect
network components according to the IEEE 802.3 10BASE-T/100BASE­TX/1000BASE-T standard.
This port supports:

 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 1000 Mbit/s full duplex
 100 Mbit/s half duplex, 100 Mbit/s full duplex,
 10 Mbit/s half duplex, 10 Mbit/s full duplex.

Delivery state: Autonegotiation
The socket housings are electrically connected to the front panel.
The pin assignment corresponds to MDI-X.

Figure 21: Pin assignment of the 1000 Mbit/s twisted pair interface

32

Installation MACH102

Release 06 09/2014

Note: In general, you should adhere to the following recommendations for
data cable connections using copper in environments with high electrical
interference levels:

 Keep the length of the data cables as short as possible - ideally max.

3 m long. You should not use any copper data cables for the data
transmission between buildings.

 Power supply and data cables should not run parallel over longer

distances, and ideally they should be installed in separate cable chan­nels. If reducing the inductive coupling is necessary, verify that the
power supply cables and data cables cross at a 90° angle.

 You may also choose to use shielded cables. Ground the cable

shielding at one point in order to avoid causing a ground loop.

 100 Mbit/s F/O port

This port is a DSC socket, or an SFP slot.
The 100 Mbit/s F/O port offers you the ability to connect network compo­nents according to the IEEE 802.3 100BASE-FX standard.
This port supports:

 Full or half duplex mode

Default setting: Full duplex

Note: Make sure that the LH ports are connected exclusively with LH
ports, SM ports exclusively with SM ports, and MM ports exclusively with
MM ports.

 1000 Mbit/s F/O port

This port is an SFP slot.
The 1000 Mbit/s F/O port offers you the ability to connect network compo­nents according to the IEEE 802.3 1000BASE-SX/1000BASE-LX stan­dard.
This port supports:

 Autonegotiation
 Full duplex mode

Delivery state: autonegotiation active.

Note: Make sure that you connect LH ports exclusively with LH ports, SX
ports exclusively with SX ports, and LX ports exclusively with LX ports.

2.2 Display elements

After the working voltage is set up, the software starts and initializes itself.
Afterwards, the device performs a self-test. During this process, various
LEDs light up.
The process takes around 70 seconds.

Installation MACH102

Release 06 09/2014

33

Figure 22: MACH102 Display elements

1

3

LS DA

USB

V.24

MACH 1000

2

1

LS DA

3

4

9

10

P

StandByRM

FAULT

R1

R2

5

6

7

8

13

14

11

12

17

18

15

16

21

22

19

20

25

26

23

24

LS DA

LS DA

LS DA

LS DA

2 4

1 - Display elements for the device status
2 - Display elements for the port status
3 - Display elements for the port status, media module 1
4 - Display elements for the port status, media module 2

 Device state

These LEDs provide information about conditions which affect the opera­tion of the whole device.

P - Power
(green/yellow LED)

Glowing green MACH 102-8TP, MACH 102-8TP-F, MACH 102-24TP-F:

Supply voltage is on.
MACH 102-8TP-R, MACH 102-8TP-FR, MACH 102-24TP-FR:
Supply voltages 1 and 2 are on.

Glowing yellow MACH 102-8TP-R, MACH 102-8TP-FR, MACH 102-24TP-FR:

Supply voltage 1 or 2 is on.

Not glowing MACH 102-8TP, MACH 102-8TP-F, MACH 102-24TP-F:

Supply voltage is below minimum value.
MACH 102-8TP-R, MACH 102-8TP-FR, MACH 102-24TP-FR:
Supply voltages 1 and 2 are below minimum value.

RM - Ring Manager (green/yellow LED)

Glowing green RM function active, redundant port disabled
Glowing yellow RM function active, redundant port enabled
Not glowing RM function not active
Flashing green Incorrect configuration of the HIPER-Ring (e.g. the ring is not

connected to the ring port).

Sb StandBy - stand-by mode (green LED)

Glowing green Stand-by mode enabled.
Not glowing No stand-by mode.

FAULT - signal contact
(red LED)

Glowing red Signal contact 1 is open, i.e. it is reporting an error.
Not glowing Signal contact 1 is closed, i.e. it is not reporting an error.

RM and Stand-by - display saving processes of the AutoConfiguration Adapter (ACA)

Flashing alternately Error during saving process.
LEDs flash synchronously, two

times a second
LEDs flash synchronously,

once a second

Loading configuration from the ACA.

Saving the configuration in the ACA.

If the manual adjustment is active on the “FAULT” signal contact, then the
detected error display is independent of the setting of the signal contact.

34

Installation MACH102

Release 06 09/2014

 Port state

These LEDs provide port-related information.

LS - data, link status (one green/yellow LED or one green and one yellow LED)

Not glowing No valid connection.
Glowing green Valid connection.
Flashing green (1 time a period) Port is switched to stand-by.
Flashing green (3 times a

period)
Flashing yellow Data reception.

Table 5: Data, link status

Port is switched off.

On the M1-8TP-RJ45 PoE media module, the left LED informs you about
data and link state, as shown in table 5. The right LED informs you about
PoE voltage supply on a port, as shown in table 6:

PoE voltage supply

Not glowing No PoE voltage on the port.
Glowing yellow The port is supplied with PoE voltage.

Table 6: Activity of the right LED on the M1-8TP-RJ45 PoE media module

2.3 Basic set-up

The IP parameters must be entered when the device is installed for the first
time. The device provides 6 options for configuring IP addresses:

 Entry via V.24 connection
 Entry using the HiDiscovery protocol via the application HiDiscovery or

Industrial HiVision

 Configuration via BOOTP
 Configuration via DHCP
 Configuration via DHCP Option 82
 Auto Configuration Adapter

Further information on the basic settings of the device can be found in the
“Basic Configuration” user manual on the CD/DVD.

 Default settings

 IP address: The device looks for the IP address using DHCP
 Management password:

user, password: public (read only)
admin, password: private (read and write)

 V.24 data rate: 9,600 Baud
 Ring redundancy: off

Installation MACH102

Release 06 09/2014

35

 Ethernet ports: link status is not evaluated (signal contact)

1

2

4

3

 Optical 100 Mbit/s ports: 100 Mbit/s full duplex

All other ports: autonegotiation

 Redundancy manager switched off
 Stand-by coupling switched off
 Rapid Spanning Tree: on

 USB interface

The USB socket provides an interface for the local connection of an Auto­Configuration Adapter. It is used for saving/loading the configuration and
for loading the software.

Figure Pin Operation

1VCC (VBus)
2 − Data
3 + Data
4 Ground (GND)

Table 7: Pin assignment of the USB interface

 V.24 interface (external management)

A serial interface is provided on the RJ11 socket (V.24 interface) for the
local connection of an external management station (VT100 terminal or
PC with appropriate terminal emulation) or an AutoConfiguration Adapter
ACA 11. This enables a connection to the Command Line Interface (CLI)
and the system monitor to be made.

VT 100 terminal settings

Speed 9,600 Baud
Data 8 bit
Stopbit 1 bit
Handshake off
Parity none

The socket housing is electrically connected to the front panel of the
device. The V24 interface is not electrically isolated from the supply
voltage.

36

Installation MACH102

Release 06 09/2014

Figure 23: Pin assignment of the V24 interface

Pin 1

Pin 1

Pin 8

Pin 5

Pin 6

RJ11 DB9

2
3

5

1
2
3
4
5
6

CTS
n.c.
TX
GND
RX
RTS

Note: You will find the order number for the terminal cable, which is
ordered separately, in the Technical Data chapter (see on page 39 “Tech-

nical data”).

2.4 Disassembly

 Removing the device

 To detach the device from the switch cabinet or the wall, remove the

screws from the brackets on the device.

V.24

USB

StandByRM

P

R1

FAULT

R2

MACH 1000

LS DA

1

2

LS DA

8

7

4

3

6

5

10

9

12

11

13

LS DA

14

16

15

LS DA

17

19

18

21

LS DA

LS DA

24

23

20

26

25

22

Figure 24: Disassembly

Installation MACH102

Release 06 09/2014

MACH 100

37

 Removing media modules

WARNING

FIRE HAZARD

Disconnect the PoE voltage supply before removing the M1-8TP-RJ45 PoE
media module.

Non-adherence to these instructions can lead to death, serious
physical injury or material damage.

 To remove the media module, first remove the two screws at the

corners of the media module.

 Pull the media module out of the slot.
 Fasten the protective cover to the slot using the two screws.

 Removing the SFP transceivers

 Pull the module out of the socket by means of the opened lock.
 Close the socket with the protective cap.

Figure 25: Deinstalling an SFP transceiver

38

Installation MACH102

Release 06 09/2014

3 Technical data

 General technical data

Dimensions
W × H × D

Weight of devices MACH102-8TP

Weight of
media modules

Power supply
Basic device

Power supply
M1-8TP-RJ45 PoE
(for Type1 PD)

Power supply
M1-8TP-RJ45 PoE
(for Type2 PD)

Overload current
protection at input

Activation current typ. <40 A at 265 V AC and cold start
Signal contact Switching current max. 1 A

Environment Storage temperature

Operating
temperature

Pollution degree 2
Protection classes Laser protection

MACH102-... 17.64 in. × 1.73 in. × 12.21 in. (448 mm × 44 mm

× 310 mm) (without brackets)

7.94 lb (3.60 kg)
MACH102-8TP-R
MACH102-8TP-F
MACH102-8TP-FR
MACH102-24TP-F
MACH102-24TP-FR

M1-8TP-RJ45
M1-8MM-SC
M1-8SM-SC
M1-8SFP
M1-8TP-RJ45 PoE

Nominal voltage AC 100 V ... 240 V
Rated voltage range AC90 V ... 264 V

Rated frequency 50 Hz ... 60 Hz
Rated frequency range 47 Hz ... 63 Hz
Rated current range 0.4 A ... 0.2 A
Rated voltage

Rated current

Rated voltage
Rated current

Switching voltage max. 60 V DC or max. 30 V AC, SELV

(ambient air tempera­ture)
Humidity
Air pressure (in opera­tion)

Level of protection

8.49 lb (3.85 kg)

7.94 lb (3.60 kg)

8.49 lb (3.85 kg)

8.49 lb (3.85 kg)

9.04 lb (4.10 kg)

0.21 kg

0.21 kg

0.18 kg

0.13 kg

0.26 kg

48 V DC, SELV (45 V DC ... 57 V DC)

2.5 A

54 V DC, SELV (51 V DC ... 57 V DC)

2.5 A

Non-replaceable fuse

-20 °C to +85 °C

10% to 95% (non-condensing)
Up to 2000 m (795 hPa), higher altitudes on
request

0 °C to +50 °C

Class 1 according to EN 60825-1 (2001)
IP20

Installation MACH102

Release 06 09/2014

39

 EMC and immunity

EMC interference
immunity

EN 61000-4-2 Electrostatic discharge

Contact discharge
Air discharge

EN 61000-4-3 Electromagnetic field

80 MHz ... 3000 MHz 20 V/m

EN 61000-4-4 Fast transients (burst)

- Power line

- Data line

EN 61000-4-5 Voltage surges

- Power line, line/line:

- Power line, line/earth

- Data line

EN 61000-4-6 Line-conducted interference voltages

150 kHz - 80 MHz 10 V

EN 61000-4-9 Pulse magnetic fields 300 A/m

EMC interference
emission

EN 55022 Class A Yes
FCC 47 CFR Part 15 Class A Yes

6 kV
8 kV

2 kV
4 kV

1 kV
2 kV
4 kV

 Network range

TP port

Length of a twisted pair segment max. 100 m/328 ft (for cat5e cable)

Table 8: TP port 10BASE-T / 100BASE-TX / 1000BASE-T

Note: The line lengths specified for the transceivers apply for the respec­tive fiber data (fiber attenuation and BLP/dispersion).

Product
code
M-FAST­SFP-...

-MM/LC... MM 1310 nm 50/125 µm 0-8 dB 0-5 km 1.0 dB/km 800 MHz×km

-MM/LC... MM 1310 nm 62.5/125 µm 0-11 dB 0-4 km 1.0 dB/km 500 MHz×km

-SM/LC... SM 1310 nm 9/125 µm 0-13 dB 0-25 km 0.4 dB/km 3.5

­SM+/LC...

-LH/LC... SM 1550 nm 9/125 µm 10-29 dB 47-104 km 0.25 dB/km 19 ps/(nm×km)

-LH/LC... SM 1550 nm 9/125 µm 10-29 dB 55-140 km 0.18 dB/km

Wave
length

SM 1310 nm 9/125 µm 10-29 dB 25-65 km 0.4 dB/km 3.5

Fiber System

attenua­tion

Example
for F/O line
length

a

Fiber atten­uation

BLP/
dispersion

ps/(nm×km)

ps/(nm×km)

b

18 ps/(nm×km)

Table 9: Fiber port 100BASE-FX (SFP fiber optic Fast Ethernet Transceiver)

a. including 3 dB system reserve when compliance with the fiber data is observed

Installation MACH102

40

Release 06 09/2014

b. with ultra-low-loss optical fiber

Product
code
M-SFP-...

Wave
length

Fiber System

attenua­tion

Example
for F/O line
length

a

Fiber
attenua­tion

BLPb/
dispersion

-SX/LC... MM 850 nm 50/125 µm 0-7.5 dB 0-550 m 3.0 dB/km 400 MHz×km

-SX/LC... MM 850 nm 62.5/125 µm 0-7.5 dB 0-275 m 3.2 dB/km 200 MHz×km

-MX/LC MM 1310 nm 50/125 µm 0-8 dB 2 km

c

1.0 dB/km 500 MHz×km

-MX/LC MM 1310 nm 62.5/125 µm 0-8 dB 1 km 1.0 dB/km 500 MHz×km

d

-LX/LC... MM 1310 nm

-LX/LC... MM 1310 nm

-LX/LC... SM 1310 nm 9/125 µm 0-10.5 dB 0-20 km

50/125 µm 0-10.5 dB 0-550 m 1.0 dB/km 800 MHz×km

d

62.5/125 µm 0-10.5 dB 0-550 m 1.0 dB/km 500 MHz×km

e

0.4 dB/km 3.5
ps/(nm×km)

-LX+/LC... SM 1310 nm 9/125 µm 5-20 dB 14-42 km 0.4 dB/km 3.5
ps/(nm×km)

-LH/LC... LH 1550 nm 9/125 µm 5-22 dB 23-80 km 0.25 dB/km 19 ps/(nm×km)

-LH+/LC LH 1550 nm 9/125 µm 15-30 dB 71-108 km 0.25 dB/km 19 ps/(nm×km)

-LH+/LC LH 1550 nm 9/125 µm 15-30 dB 71-128 km 0.21 dB/km

19 ps/(nm×km)

(typically)

Table 10: Fiber port 1000BASE-FX (SFP fiber optic Gigabit Ethernet Transceiver)

a. including 3 dB system reserve when compliance with the fiber data is observed
b. The bandwidth length product cannot be used to calculate the expansion.
c. Distances of up to 3 km reachable, 1000 MHz*km (1300 nm)
d. With F/O adapter compliant with IEEE 802.3-2002 clause 38 (single-mode fiber offset-launch

mode conditioning patch cord)

e. including 2.5 dB system reserve when compliance with the fiber data is observed

MM = Multimode, SM = Singlemode, LH = Singlemode Longhaul

 Power consumption/power output, temperature range and

order numbers

MACH102 family Description
Basic devices

MACH102-8TP Basic device MACH102 family with 2 × Gigabit Ethernet combo port, 8 ×

Fast Ethernet TX, 2 sockets for media modules for up to 16 additional
ports

MACH102-8TP-R Basic device MACH102 family with 2 × Gigabit Ethernet combo port, 8 ×

Fast Ethernet TX, 2 sockets for media modules for up to 16 additional
ports and redundant power supply

MACH102-8TP-F Basic device MACH102 family with 2 × Gigabit Ethernet combo port, 8 ×

Fast Ethernet TX

MACH102-8TP-FR Basic device MACH102 family with 2 × Gigabit Ethernet combo port, 8 ×

Fast Ethernet TX, and redundant power supply

MACH102-24TP-F Basic device MACH102 family with 2 × Gigabit Ethernet combo port, 24

× Fast Ethernet TX

MACH102-24TP-FR Basic device MACH102 family with 2 × Gigabit Ethernet combo port, 24

× Fast Ethernet TX, and redundant power supply

Media modules

M1-8TP-RJ45 8 × Fast Ethernet TX RJ45
M1-8TP-RJ45 PoE 8 × Fast Ethernet TX RJ45

Installation MACH102

Release 06 09/2014

41

MACH102 family Description

M1-8MM-SC 8 × Fast Ethernet Multimode, DSC connector
M1-8SM-SC 8 × Fast Ethernet Singlemode, DSC connector
M1-8SFP 8 × Fast Ethernet, SFP slot

MACH102 family
Device/module

Basic devices

MACH102-8TP 12 W 41 Btu (IT)/h +32°F to +122°F

MACH102-8TP-R 13 W 44 Btu (IT)/h +32°F to +122°F

MACH102-8TP-F 12 W 41 Btu (IT)/h +32°F to +122°F

MACH102-8TP-FR 13 W 44 Btu (IT)/h +32°F to +122°F

MACH102-24TP-F 16 W 55 Btu (IT)/h +32°F to +122°F

MACH102-24TP-FR 17 W 58 Btu (IT)/h +32°F to +122°F

Media modules

M1-8TP-RJ45 2 W 7 Btu (IT)/h +32°F to +122°F

M1-8TP-RJ45 PoE

- internal operating voltage

- external PoE voltage

- no PD

- 8 × Class0-PD
M1-8MM-SC 10 W 34 Btu (IT)/h +32°F to +122°F

M1-8SM-SC 10 W 34 Btu (IT)/h +32°F to +122°F

M1-8SFP (incl SFP
modules)

Fast Ethernet
SFP module

M-FAST SFP-MM / LC 0 W 0 Btu (IT)/h +32°F to +122°F

M-FAST SFP-MM / LC EEC 0 W 0 Btu (IT)/h +32°F to +122°F

M-FAST SFP-SM / LC 0 W 0 Btu (IT)/h +32°F to +122°F

M-FAST SFP-SM / LC EEC 0 W 0 Btu (IT)/h +32°F to +122°F

M-FAST SFP-SM+/ LC 0 W 0 Btu (IT)/h +32°F to +122°F

Power
consump
tion

2.2 W

1.2 W
2 W + PDs

11 W 37 Btu (IT)/h +32°F to +122°F

Power output Operating

temperature
ambient air

(0 °C to +50 °C)

(0 °C to +50 °C)

(0 °C to +50 °C)

(0 °C to +50 °C)

(0 °C to +50 °C)

(0 °C to +50 °C)

(0 °C to +50 °C)
+32°F to +122°F

7.6 Btu (IT)/h

4.1 Btu (IT)/h

6.9 Btu (IT)/h

(0 °C to +50 °C)

(0 °C to +50 °C)

(0 °C to +50 °C)

(0 °C to +50 °C)

(0 °C to +60 °C)

(–40 °C to
+70 °C)

(0 °C to +60 °C)

(–40 °C to
+70 °C)

(0 °C to +60 °C)

Order
number

943 969-001

943 969-101

943 969-201

943 969-301

943 969-401

943 969-501

943 970-001

942 028-001

943 970-101

943 970-201

943 970-301

943 865-001

943 945-001

943 866-001

943 946-001

943 867-001

Table 11: Power, temperature and order numbers

42

Installation MACH102

Release 06 09/2014

MACH102 family
Device/module

M-FAST SFP-SM+/ LC EEC 0 W 0 Btu (IT)/h +32°F to +122°F

M-FAST SFP-LH / LC 0 W 0 Btu (IT)/h +32°F to +122°F

Gigabit EthernetSFP
modules

M-SFP-MX / LC 0 W 0 Btu (IT)/h +32°F to +122°F

M-SFP-SX / LC 0 W 0 Btu (IT)/h +32°F to +122°F

M-SFP-SX / LC EEC 0 W 0 Btu (IT)/h +32°F to +122°F

M-SFP-LX / LC 0 W 0 Btu (IT)/h +32°F to +122°F

M-SFP-LX / LC EEC 0 W 0 Btu (IT)/h +32°F to +122°F

M-SFP-LX+ / LC 0 W 0 Btu (IT)/h +32°F to +122°F

M-SFP-LX+/ LC EEC 0 W 0 Btu (IT)/h +32°F to +122°F

M-SFP-LH / LC 0 W 0 Btu (IT)/h +32°F to +122°F

M-SFP-LH / LC EEC 0 W 0 Btu (IT)/h +32°F to +122°F

M-SFP- LH+/ LC 0 W 0 Btu (IT)/h +32°F to +122°F

Power
consump
tion

Power output Operating

temperature
ambient air

(–40 °C to
+70 °C)

(0 °C to +60 °C)

(0 °C to +60 °C)

(0 °C to +60 °C)

(–40 °C to
+70 °C)

(0 °C to +60 °C)

(–40 °C to
+70 °C)

(0 °C to +60 °C)

(–40 °C to
+70 °C)

(0 °C to +60 °C)

(–40 °C to
+70 °C)

(0 °C to +60 °C)

Order
number

943 947-001

943 868-001

942 035-001

943 014-001

943 896-001

943 015-001

943 897-001

942 023-001

942 024-001

943 042-001

943 898-001

943 049-001

Table 11: Power, temperature and order numbers

 Interfaces

Basic devices

MACH102-8TP,
MACH102-8TP-R,
MACH102-8TP-F,
MACH102-8TP-FR,
MACH102-24TP-F or
MACH102-24TP-FR

MACH102-8TP or
MACH102-8TP-R

Installation MACH102

Release 06 09/2014

V.24 port: external management
1 terminal block, 2-pin: each 1 x signal contact, max. 1 A, 24 V
USB: ACA 21-USB

- 2 combo ports (alternatively 100/1000 Mbit/s optical SFP
slot or 1000/100/10 Mbit/s RJ45 socket)

- 8 x 10/100 Mbit/s twisted pair, RJ45 socket

- 2 slots for media modules (M1-8TP-RJ45, M1-8MM­ SC, M1-8SM-SC or M1-8SFP)

43

MACH102-8TP-F or
MACH102-8TP-FR

MACH102-24TP-F or
MACH102-24TP-FR

Media modules

M1-8TP-RJ45 8 x 100 Mbit/s twisted pair, RJ45 socket
M1-8TP-RJ45 PoE 8 x 100 Mbit/s twisted pair PoE, RJ45 socket
M1-8MM-SC 8 x 100 Mbit/s Multimode, duplex SC plug
M1-8SM-SC 8 x 100 Mbit/s Singlemode, duplex SC plug
M1-8SFP 8 x 100 Mbit/s, SFP slot

- 2 combo ports (alternatively 100/1000 Mbit/s optical SFP
slot or 1000/100/10 Mbit/s RJ45 socket)

- 8 x 10/100 Mbit/s twisted pair, RJ45 socket

- 2 combo ports (alternatively 100/1000 Mbit/s optical SFP
slot or 1000/100/10 Mbit/s RJ45 socket)

- 24 x 10/100 Mbit/s twisted pair, RJ45 socket

 Scope of delivery

Device Scope of delivery

MACH102-8TP
MACH102-8TP-R
MACH102-8TP-F
MACH102-8TP-FR
MACH102-24TP-F, or
MACH102-24TP-FR

MACH102 device
Terminal block for signal contact
2 brackets with fastening screws (pre-mounted)
Housing feet, stick-on
Non-heating device cable, Euro model
CD ROM with user manual
Installation user manual

 Accessories

Note: Please note that products recommended as accessories may have
characteristics that do not fully correspond to those of the corresponding
product. This may limit their possible usage range in the overall system.

Name Order number

Fast ETHERNET SFP modules:
M-FAST SFP-MM / LC 943 865-001
M-FAST SFP-MM / LC EEC 943 945-001
M-FAST SFP-SM / LC 943 866-001
M-FAST SFP-SM / LC EEC 943 946-001
M-FAST SFP-SM+/ LC 943 867-001
M-FAST SFP-SM+/ LC EEC 943 947-001
M-FAST SFP-LH / LC 943 868-001
Gigabit ETHERNET SFP modules:
M-SFP-MX / LC 942 035-001
M-SFP-SX/LC 943 014-001
M-SFP-SX / LC EEC 943 896-001
M-SFP-LX/LC 943 015-001
M-SFP-LX / LC EEC 943 897-001
M-SFP-LX+ / LC 942 023-001
M-SFP-LX+ / LC EEC 942 024-001
M-SFP-LH/LC 943 042-001
M-SFP-LH / LC EEC 943 898-001

44

Installation MACH102

Release 06 09/2014

Name Order number

M-SFP-LH+/LC 943 049-001
AutoConfiguration Adapter ACA 21-USB 943 271-002
Terminal cable 943 301-001
2-pin terminal block (50 units) 943 845-010
Bracket for fastening the housing 943 943-001
HiVision Network Management software 943 471-100
Network management software Industrial HiVision 943 156-xxx
Connector ELWIKA 5012 PG7

(5-pin M12 socket for supply voltage and signal contact)
3-pin terminal block low voltage interlock

(50 pieces)

933 175-100

943 845-011

 Underlying norms and standards

Name

EN 61000-6-2 Electromagnetic compatibility (EMC) – Part 6-2: Generic stan-

dards – Immunity for industrial environments

EN 55022 Information technology equipment – Radio disturbance character-

istics – Limits and methods of measurement

EN 60950-1 Information technology equipment – Safety – Part 1: General

requirements
FCC 47 CFR Part 15 Code of Federal Regulations
UL 508 Safety for Industrial Control Equipment
UL 60950-1 Safety for Information Technology Equipment

Table 12: List of norms and standards

RFC 768 UDP RFC 1769 SNTP
RFC 783 TFTP RFC 1907 MIB2
RFC 791 IP RFC 1945 HTTP/1.0
RFC 792 ICMP RFC 2131 DHCP
RFC 793 TCP RFC 2132 DHCP Options
RFC 826 ARP RFC 2236 IGMPv2
RFC 951 BOOTP RFC 2239 MAU-MIB
RFC 1112 IGMPv1 RFC 3411 SNMP Framework
RFC 1157 SNMPv3 RFC 3412 SNMP MDP
RFC 1155 SMIv1 RFC 3413 SNMP Applications
RFC 1213 MIB2 RFC 3414 SNMP USM
RFC 1493 Dot1d RFC 3415 SNMP VACM
RFC 1542 BOOTP Extensions RFC 2613 SMON
RFC 1757 RMON RFC 2674 Dot1p/Q

Table 13: List of RFCs

Installation MACH102

Release 06 09/2014

45

IEEE 802.1 D Switching, GARP, GMRP, Spanning Tree
IEEE 802.1 D-1998 Media access control (MAC) bridges (includes IEEE 802.1p Priority

and Dynamic Multicast Filtering, GARP, GMRP)
IEEE 802.1 Q Tagging
IEEE 802.1 Q-1998 Virtual Bridged Local Area Networks (VLAN Tagging, GVRP)
IEEE 802.1 w.2001 Rapid Reconfiguration
IEEE 802.3-2002 Ethernet
IEEE 802.3af Power over Ethernet

Table 14: Liste der IEEE-Normen

The device has a certification based on a specific standard or de facto
standard solely if the certification indicator appears on the housing.
If your device has a shippingcertification according to Germanischer
Lloyd, the certification mark can be found printed on the device label. You
will find out whether your device has other shipping certifications on the
Hirschmann website under www.hirschmann.com in the product informa­tion.

46

Installation MACH102

Release 06 09/2014

A Further Support

 Technical Questions

For technical questions, please contact any Hirschmann dealer in your
area or Hirschmann directly.

You will find the addresses of our partners on the Internet at

http://www.hirschmann.com

Contact our support at

https://hirschmann-support.belden.eu.com

You can contact us

in the EMEA region at

 Tel.: [phone]
 E-mail: [e-mail]

in the America region at

 Tel.: [phone]
 E-mail: [e-mail]

in the Asia-Pacific region at

 Tel.: [phone]
 E-mail: [e-mail]

 Hirschmann Competence Center

The Hirschmann Competence Center is ahead of its competitors:

 Consulting incorporates comprehensive technical advice, from system

evaluation through network planning to project planning.

 Training offers you an introduction to the basics, product briefing and

user training with certification.
The current technology and product training courses can be found at

http://www.hicomcenter.com

 Support ranges from the first installation through the standby service

to maintenance concepts.

With the Hirschmann Competence Center, you have decided against
making any compromises. Our client-customized package leaves you
free to choose the service components you want to use.
Internet:

http://www.hicomcenter.com

Installation MACH102

Release 06 09/2014

47
