Hirschmann EAGLE30-0402, EAGLE20-0400 User Manual

Installation EAGLE20/30

Release 06 04/2014

Technical support

https://hirschmann-support.belden.eu.com

User Manual

Installation
Industrial Security Router

EAGLE20/30

EAGLE20-0400...EAGLE30-0402...

The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.

© 2014 Hirschmann Automation and Control GmbH

Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use. For devices with embedded software, the end-user license agreement on the
enclosed CD/DVD applies.

The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.

Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.

You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).

Printed in Germany
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]

EAGLE20/30 039 793-001-06-0414 - 14.04.2014

Installation EAGLE20/30

Release 06 04/2014

3

Contents

Safety instructions 5

About this manual 13

Key 14

1 Description 15

1.1 General device description 15

1.2 Device name and product code 16

1.3 Combination options 19

1.4 Device views 20

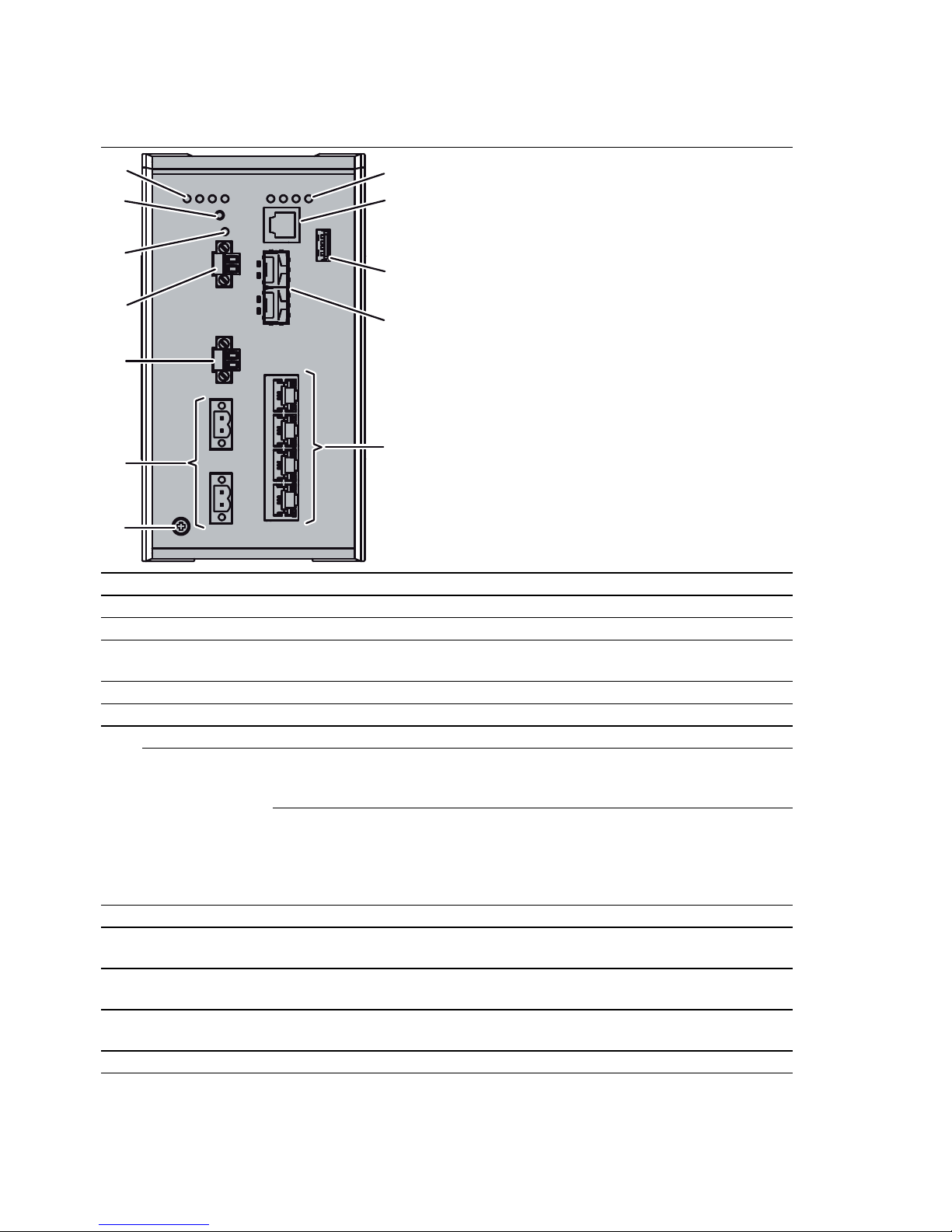

1.4.1 Front view 20

1.4.2 Rear view 21

1.5 Power supply 21

1.5.1 Working voltage with the characteristic value K 21

1.5.2 Working voltage with the characteristic value C 21

1.6 Ethernet ports 22

1.6.1 10/100 Mbit/s twisted pair port 22

1.6.2 100/1000 Mbit/s F/O port (optional) 22

1.6.3 100/1000 Mbit/s twisted pair port (optional) 22

1.7 Display elements 23

1.7.1 Device state 23

1.7.2 Additional status information 25

1.7.3 Input 25

1.7.4 Port state 25

1.8 Management interfaces 25

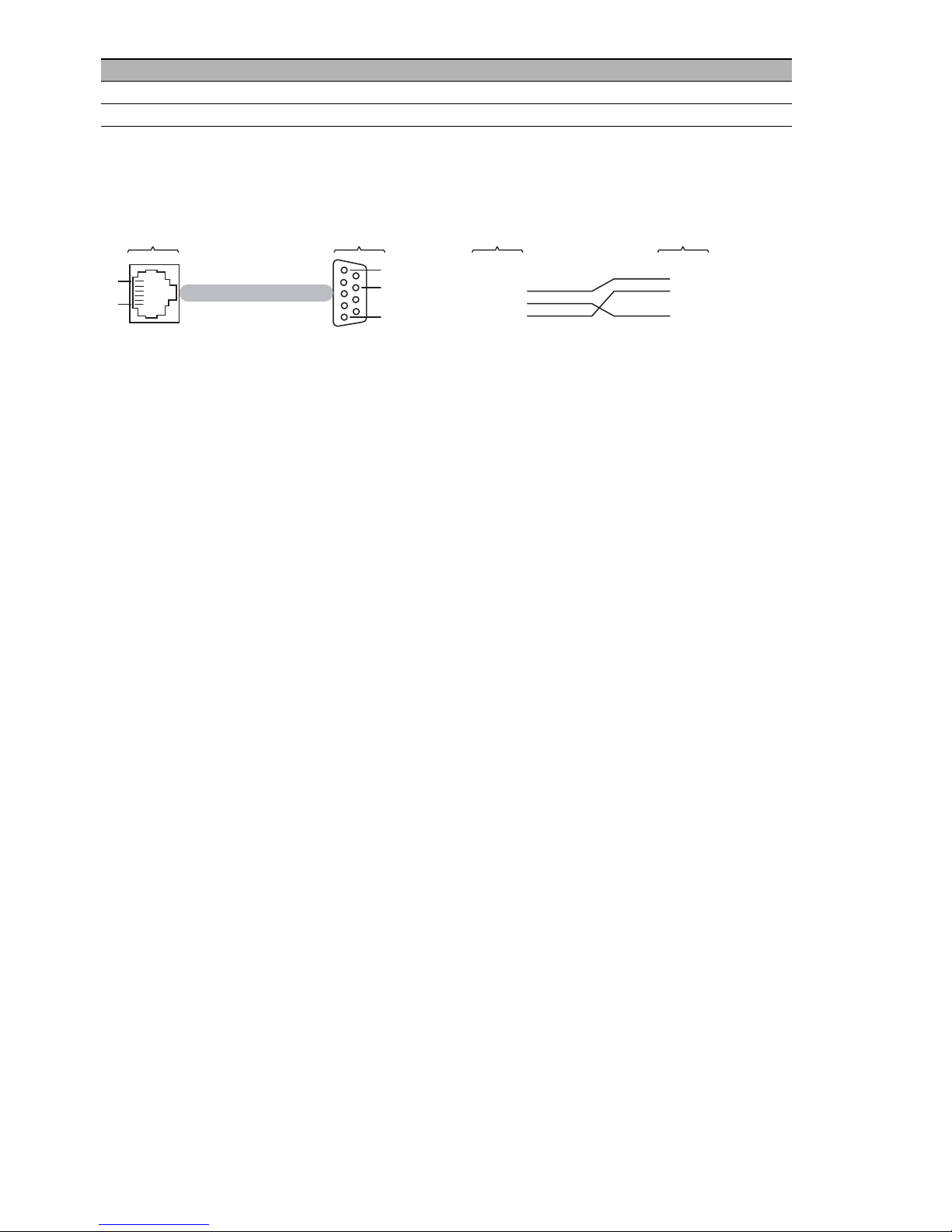

1.8.1 V.24 interface (external management) 25

1.8.2 SD card interface 26

1.8.3 USB interface 26

1.9 Input/output interfaces 27

1.9.1 Signal contact 27

1.9.2 Input 27

2 Installation 28

2.1 Unpacking and checking the content of the package 28

2.2 Installing the SD card (optional) 28

2.3 Installing and grounding the device 29

2.3.1 Installing the device onto the DIN rail 29

2.3.2 Grounding the device 30

4

Installation EAGLE20/30

Release 06 04/2014

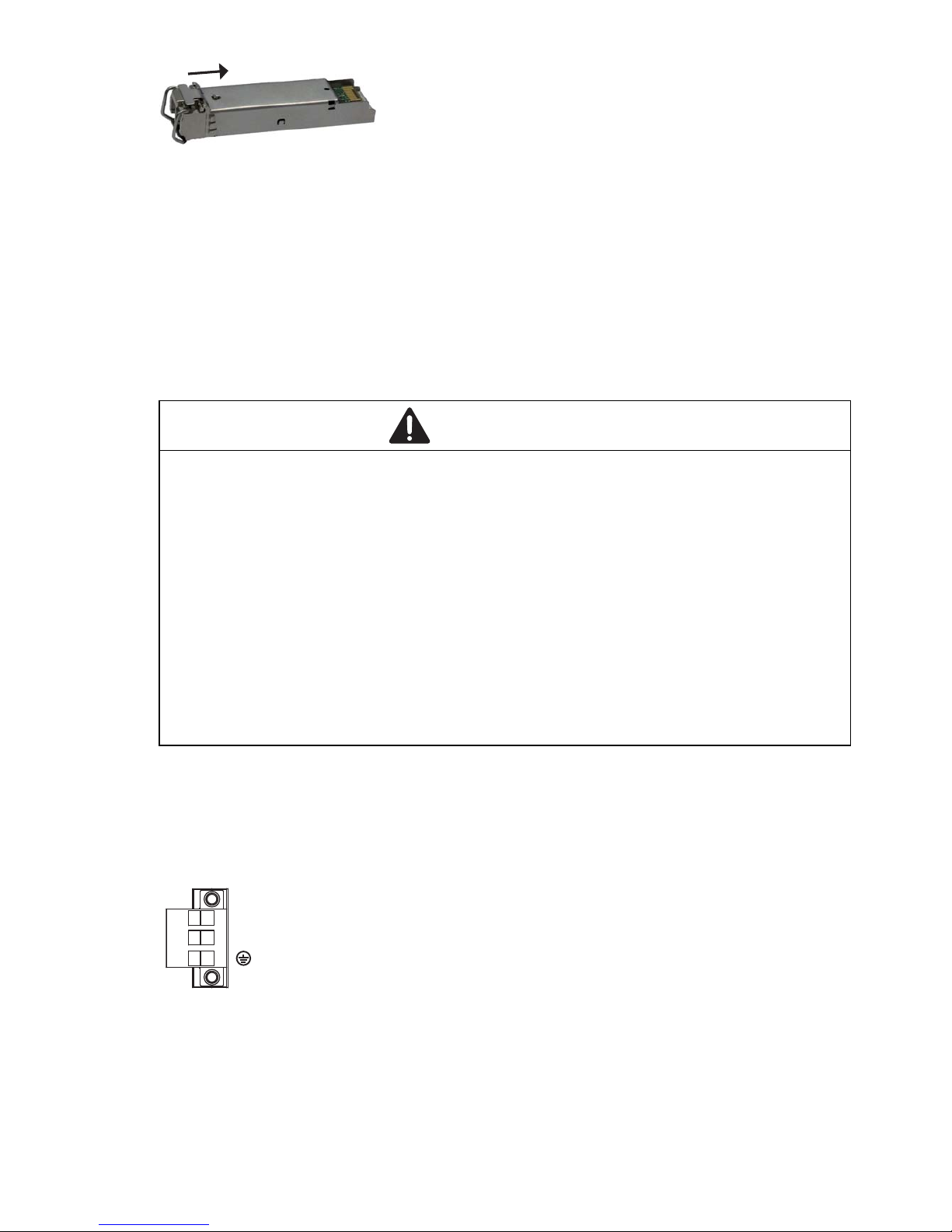

2.4 Installing an SFP transceiver (optional) 30

2.5 Connecting the terminal blocks 31

2.5.1 Working voltage with the characteristic value K 31

2.5.2 Working voltage with the characteristic value C 32

2.5.3 Signal contact 33

2.6 Operating the device 34

2.7 Connecting data cables 34

2.7.1 10/100 Mbit/s twisted pair port 34

2.7.2 100/1000 Mbit/s twisted pair port (optional) 34

2.7.3 100/1000 Mbit/s F/O port 35

2.8 Insert data in label area 35

3 Basic set-up 36

4 Maintenance and service 37

5Disassembly 38

5.1 Removing the device 38

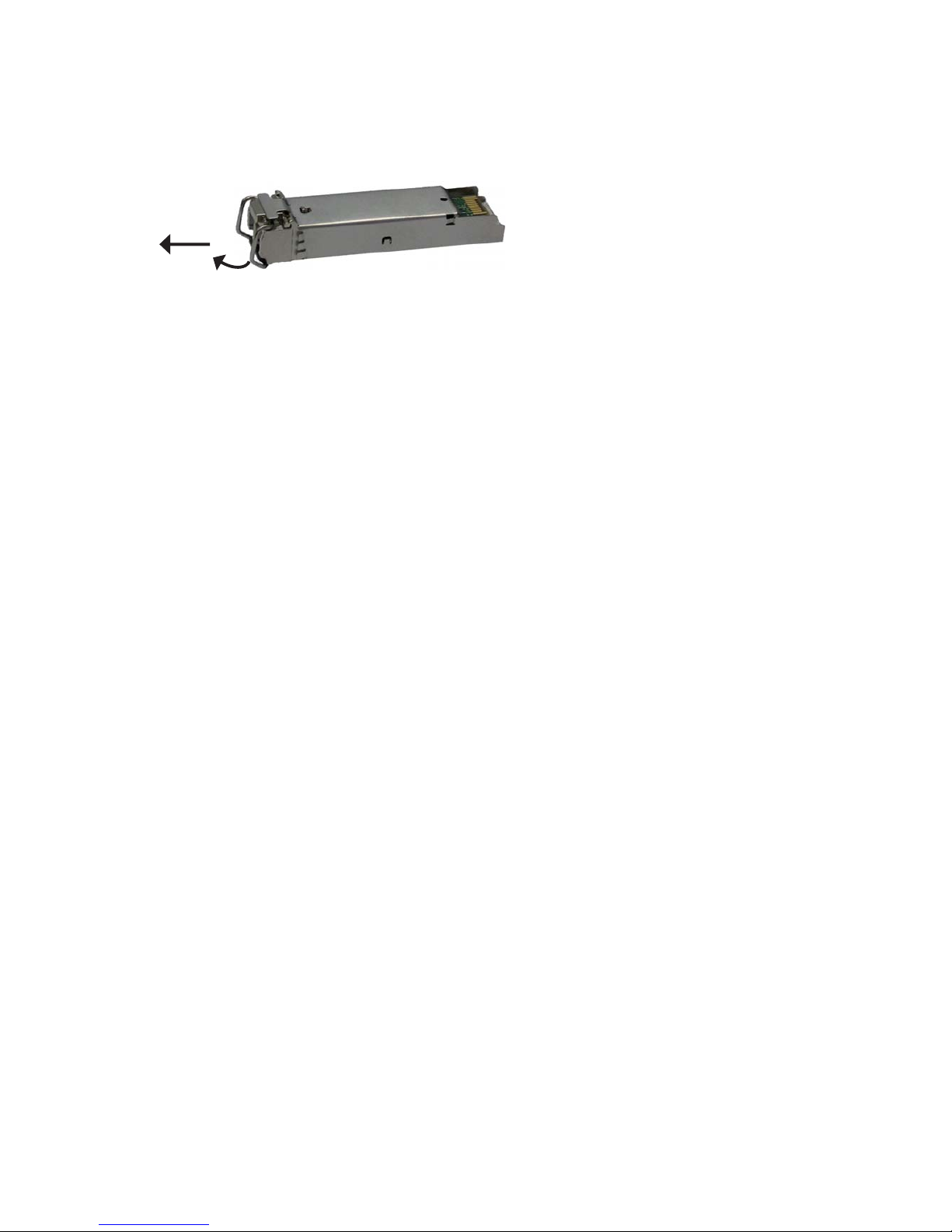

5.2 Removing an SFP transceiver (optional) 39

6 Technical data 40

A Further Support 55

Installation EAGLE20/30

Release 06 04/2014

5

Safety instructions

 General safety instructions

You operate this device with electricity. The proper and safe operation of
this device depends on proper handling during transportation, proper
storage and assembly, and conscientious operation and maintenance
procedures. Improper use of this device is associated with the risk of
personal injury or property damage.
 Read this documentation as well as the safety instructions and

warnings before connecting any cables.

 Never start operation with damaged components.
 The device does not contain any service components. If the device is

not functioning correctly, or if it is damaged, switch off the voltage
supply and return the device to Hirschmann for inspection.

 Qualification requirements for personnel

 Only allow qualified personnel to work on the device.

Qualified personnel have the following characteristics:

 Qualified personnel are properly trained. Training as well as practical

knowledge and experience make up their qualifications. This is the
prerequisite for grounding and labeling circuits, devices, and systems
in accordance with current standards in safety technology.

 Qualified personnel are aware of the dangers that exist in their work.
 Qualified personnel are familiar with appropriate measures against

these hazards in order to reduce the risk for themselves and others.

 Qualified personnel receive training on a regular basis.

 Certified usage

Use the device solely for the application cases described in the
Hirschmann product information, including this manual.
Operate the device solely according to the technical specifications.

See “Technical data” on page 40.

WARNING

UNCONTROLLED MACHINE ACTIONS

To avoid uncontrolled machine actions caused by data loss, configure all
the data transmission devices individually.
Before you start any machine which is controlled via data transmission, be
sure to complete the configuration of all data transmission devices.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

6

Installation EAGLE20/30

Release 06 04/2014

 National and international safety regulations

 Verify that the electrical installation meets local or nationally applicable

safety regulations.

 Grounding the device

Grounding the device is by means of a separate ground connection on the
device.

 Ground the device before connecting any other cables.
 Disconnect the grounding solely after disconnecting all other cables.

The overall shield of a connected shielded twisted-pair cable is connected
to the ground connector on the front panel as a conductor.

 Working voltage

The working voltage is connected to the chassis through protective
elements exclusively.
 Connect solely an working voltage that corresponds to the type plate

of your device.

 Solely for device variants featuring working voltage with the

characteristic value K:
For the working voltage to be connected, make sure the following
requirements are met:

 The supply voltage complies with the description on the data plate

of your device.

 The power supply conforms to overvoltage category I or II.
 The voltage supply has an easily accessible disconnecting device

(e.g. a switch or a plug). This disconnecting device is clearly
identified. So in the case of an emergency, it is clear which
disconnecting device belongs to which line.

 Disconnect device for equipment supplied from IT supply system,

shall disconnect both poles of mains supply.

a

 The electrical wires are voltage-free.
 Supply with DC voltage:

A fuse suitable for DC voltage is located in the plus conductor of the
power supply.
The minus conductor is on ground potential. Otherwise, a fuse is
also located in the minus conductor.
Regarding the properties of this fuse: See “General technical data”

on page 40.

a. IT supply system according to the technical standard UL 60950-1

Installation EAGLE20/30

Release 06 04/2014

7

 Supply with AC voltage:

A fuse is located in the outer conductor of the power supply.
The neutral conductor is on ground potential. Otherwise, a fuse is
also located in the neutral conductor.
Regarding the properties of this fuse: See “General technical data”

on page 40.

 Supply with DC voltage:

The wire diameter of the power supply cable is at least 1 mm²
(North America: AWG16) on the working voltage input.

 The wire diameter of the power supply cable is at least 0.75 mm²

(North America: AWG18) on the working voltage input.

 The cross-section of the protective conductor is the same size as

or bigger than the cross-section of the power supply cables.

 The power supply cables used are permitted for the temperature

range required by the use case.

 Relevant for North America:

The power cords are suitable for ambient air temperatures of at
least 167 °F (75 °C). The power cord wires are made of copper.

Start connecting the electrical wires solely if all the above
requirements are fulfilled.

 For device variants with operating voltage characteristic value C

exclusively.
For the working voltage to be connected, make sure the following
requirements are met:

 Relevant for North America:

The power supply is Class 2 compliant.

 The power supply conforms to overvoltage category I or II.
 The voltage supply has an easily accessible disconnecting device

(e.g. a switch or a plug). This disconnecting device is clearly
identified. So in the case of an emergency, it is clear which
disconnecting device belongs to which line.

 The electrical wires are voltage-free.
 A fuse suitable for DC voltage is located in the plus conductor of the

power supply.
The minus conductor is on ground potential. Otherwise, a fuse is
also located in the minus conductor.
Regarding the properties of this fuse: See “General technical data”

on page 40.

 The wire diameter of the supply voltage at the input is at least 1

mm² (North America AWG16).

 The wire diameter of the supply voltage at the input is at least 1

mm² (North America AWG16).

8

Installation EAGLE20/30

Release 06 04/2014

 The power supply cables used are permitted for the temperature

range required by the use case.

 Relevant for North America:

The power cords are suitable for ambient air temperatures of at
least 167 °F (75 °C). The power cord wires are made of copper.

Start connecting the electrical wires solely if all the above requirements
are fulfilled.
 Internal fuses are triggered solely in the case of a detected error in the

device. In case of damage or malfunction of the device, turn off the
working voltage and return the device to the plant for inspection.

 For power supply connections with protective conductor connection:

First connect the protective conductor before connecting the wires for
the working voltage.

 Only switch on the operating voltage for the device when the following

requirements are fulfilled:

 The housing is closed
 The terminal blocks are wired correctly
 The terminal blocks for the operating supply are connected

 Signal contact

For the signal contact to be connected, make sure the following
requirements are met:

 The signal contact connection wires are voltage-free.
 The connected voltage is limited by a current limitation device or a

fuse.
Observe the electrical threshold values for the signal contact.

See “General technical data” on page 40.

Start connecting the signal contact solely if all the above requirements are
fulfilled.

 Installation site requirements

 Verify that there is at least 4 in (10 cm) of space above and below the

device.

 Verify that there is at least 0.8 in (2 cm) of space on the right and left

sides of the device.

 Install the device in a fire protected enclosure according to EN 60950-

1.

 Solely for device variants featuring working voltage with the

characteristic value K:
Install this device solely in a switch cabinet or in an operating site with
restricted access, to which maintenance staff have exclusive access.

 Operate the device at the specified ambient temperature (temperature

of the ambient air at a distance of 2 inches (5 cm) from the device) and
at the specified relative humidity exclusively.

Installation EAGLE20/30

Release 06 04/2014

9

 When you are selecting the installation location, make sure you

observe the climatic threshold values specified in the technical data.

 Use the device in an environment with a maximum pollution degree

that complies with the specifications in the technical data.

 Housing

Only technicians authorized by the manufacturer are permitted to open
the housing.
 Never insert pointed objects (narrow screwdrivers, wires, etc.) into the

device or into the connection terminals for electric conductors. Do not
touch the connection terminals.

 Keep the ventilation slits free to ensure good air circulation.
 Make sure there is at least 3.94 inches (10 cm) of space in front of the

ventilation slits of the housing.

 Install the device in the vertical position.

 Instructions for Use in Hazardous Locations

SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS A, B, C AND D
HAZARDOUS LOCATIONS, OR NONHAZARDOUS LOCATIONS
ONLY.

WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
EQUIPMENT WHILE THE CIRCUIT IS LIVE OR UNLESS THE AREA IS
KNOWN TO BE FREE OF IGNITABLE CONCENTRATIONS.

WARNING - EXPLOSION HAZARD - SUBSTITUTION OF ANY
COMPONENT MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2.

For USB and Relay: Install per Control Drawing 000172287DNR.

10

Installation EAGLE20/30

Release 06 04/2014

USB connection:
Equipment with non-incendive field wiring parameters.
USB entity parameters:

V

OC

=5.5 V ISC= 1.25 A

C

a

= 10 µF La= 10 µH

For usage with Hirschmann USB devices certified and labelled
according Class I Div 2 hazardous location requirements such
as ACA21-USB EEC, or succeeding types.

Temperature Code: T4
Ambient Temperature rating:
Ta : 0rC to +60rC for “S” temperature types
Ta: -40rC to +70rC for “T” or “E” temperature types
(Refer to the temperature code of the type designation on the
device)

Relay contacts:
Equipment with non-incendive field wiring parameters.
Polarity is not relevant.
The relay terminals are dependent upon the following entity
parameters:

V

i

= 30 V Ii= 90 mA

C

i

= 2 nF Li= 1 µH

Power Supply unit type C: 24 V DC – 48 V DC
Power Supply unit type K: 110 V AC – 230 V AC or

60 V DC – 250 V DC
(Refer to the power supply code of the type designation on the
device)

Explosive Atmosphere

Class I, Division 2
Groups A, B, C, D
Hazardous Location

EAGLE20/30

ZĞůĂLJ

h^

Ordinary Location, Non-Hazardous Area,
non-explosive atmosphere

Rev.: 2 Doc. No.: 000172287DNR Page 1 of 2

Control Drawing for EAGLE20/30 devices according to Class I Division 2 Hazardous Locations

Installation EAGLE20/30

Release 06 04/2014

11

For Use in Hazardous Locations Class I Division 2 Groups A, B ,C ,D:
Only allowed for EAGLE20/30 model No´s. which are individually labelled

“FOR USE IN HAZARDOUS LOCATIONS”

Non-incendive field wiring circuits must be wired in accordance with
the National Electrical Code (NEC), NFPA 70 , article 501.

The earth conductor must be at least the same wire size (mm² or AWG) as the supply
conductors.

WARNING – EXPLOSION HAZARD – SUBSTITUTION OF ANY COMPONENTS MAY
IMPAIR SUITABILITY FOR HAZARDOUS LOCATIONS OR EXPLOSIVE
ATMOSPHERES.

WARNING – EXPLOSION HAZARD – DO NOT DISCONNECT EQUIPMENT UNLESS
POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NON­HAZARDOUS.

Rev.: 2

Doc. No.: 000172287DNR Page 2 of 2

Control Drawing for EAGLE20/30 devices according to Class 1 Division 2 Hazardous Locations

12

Installation EAGLE20/30

Release 06 04/2014

 CE marking

The labeled devices comply with the regulations contained in the following
European directive(s):

In accordance with the above-named EU directive(s), the EU conformity
declaration will be at the disposal of the relevant authorities at the
following address:

Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]
The product can be used in the industrial sector.

 Interference immunity: EN 61000-6-2
 Emitted interference: EN 55022
 Solely for device variants featuring working voltage with the

characteristic value K:
Reliability: EN 60950-1

Warning! This is a class A device. This device can cause interference in
living areas, and in this case the operator may be required to take
appropriate measures.

Note: The assembly guidelines provided in these instructions must be
strictly adhered to in order to observe the EMC threshold values.

 LED or laser components

LED or LASER components according to IEC 60825-1 (2007):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT

Device variant Directive

All variants 2011/65/EU (RoHS)

Directive of the European Parliament and of the Council on the
restriction of the use of certain hazardous substances in
electrical and electronic equipment.

All variants 2004/108/EC (EMC)

Directive of the European Parliament and the council for
standardizing the regulations of member states with regard to
electromagnetic compatibility.

Solely for device variants
featuring working voltage with
the characteristic value K:

2006/95/EC
Directive of the European Parliament and the council for
standardizing the regulations of member states with regard to
electrical equipment to be used within specific voltage ranges.

Installation EAGLE20/30

Release 06 04/2014

13

 FCC note

This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference; (2) this device must accept any interference received,
including interference that may cause undesired operation.
Appropriate testing has established that this device fulfills the
requirements of a class A digital device in line with part 15 of the FCC
regulations.
These requirements are designed to provide sufficient protection against
interference when the device is being used in a business environment.
The device creates and uses high frequencies and can also radiate high
frequencies, and if it is not installed and used in accordance with this
operating manual, it can cause radio transmission interference. The use
of this device in a living area can also cause interference, and in this case
the user is obliged to cover the costs of removing the interference.

 Recycling note

After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.

About this manual

The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.
The following manuals are available as PDF files on the CD/DVD supplied:

 Installation user manual
 Basic Configuration user manual
 Reference manual for the graphical user interface
 Command Line Interface user manual

14

Installation EAGLE20/30

Release 06 04/2014

The Industrial HiVision network management software provides you with
additional options for smooth configuration and monitoring:

 ActiveX control for SCADA integration
 Auto-topology discovery
 Browser interface
 Client/server structure
 Event handling
 Event log
 Simultaneous configuration of multiple devices
 Graphical user interface with network layout
 SNMP/OPC gateway

Key

The symbols used in this manual have the following meanings:

 Listing

 Work step



Subheading

Installation EAGLE20/30

Release 06 04/2014

15

1 Description

1.1 General device description

You can choose from between a wide range of variants. You have the option
to set up your device individually based on different criteria:

 Number of ports
 Transmission speed
 Types of connectors
 Temperature range
 Working voltage range
 Certifications

The EAGLE20/30 devices are designed for the special requirements of
industrial automation. They meet the relevant industry standards, provide
very high operational reliability, even under extreme conditions, and also
long-term reliability and flexibility.

The devices allow you to set up switched and routed industrial Ethernet
networks that conform to the IEEE 802.3 standard.

The devices work without a fan.

The device is mounted by latching in place on a hat rail.

You have the option of choosing various media to connect to the terminal
devices and other network components:

 twisted pair cable
 multimode F/O
 singlemode F/O

There are convenient options for managing the device. Administer your
devices via:

 a Web browser
 SSH
 HiDiscovery (Software for putting the device into operation)
 Network management software (e.g. Industrial HiVision)
 a V.24 interface (locally on the device)

The devices provide you with a large range of functions, which the manuals
for the operating software inform you about. You will find these manuals as
PDF files on the enclosed CD/DVD, or you can download them from the
Internet on the Hirschmann product pages (www.hirschmann.com).
The Hirschmann network components help you ensure continuous
communication across all levels of the company.

16

Installation EAGLE20/30

Release 06 04/2014

1.2 Device name and product code

The device name corresponds to the product code. The product code is
made up of characteristics with defined positions. The characteristic values
stand for specific product properties.

Item Product

characteristic

Character
istic value

Description

1 ... 7 Device EAGLE20 Router without gigabit ports

EAGLE30 Router with gigabit ports
8 (hyphen) –
9 ... 10 Number:

Fast ethernet ports

04 4 × Fast ethernet ports

11 ... 12 Number:

Gigabit ethernet ports

00 0 × Gigabit ethernet ports

02 2 × Gigabit ethernet ports
13 ... 15 Configuration of the

uplink ports

2O6 2 × SFP slot

999 Not present
16 ... 17 Configuration of the

other ports

TT All the other ports are RJ45 sockets for twisted

pairs

18 Cellular phone

interface

9 Not present

19 ... 20 WAN port 99 Not present
21 Temperature range S Standard 0 °C ... +60 °C (+32 °F ...

+140 °F)

T Extended −40 °F ... +158 °F (−40 °C

... +70 °C)

E Extended with

conformal coating

−40 °F ... +158 °F (−40 °C
... +70 °C)

22 Operating voltage C Voltage input

Rated voltage range DC
24 V ... 48 V

K Voltage input

Rated voltage range AC
110 V ... 230 V, 50 Hz ... 60 Hz

Rated voltage range DC
60 V ... 250 V

23 Operating voltage C Voltage input

Rated voltage range DC
24 V ... 48 V

9 Not present
24 ... 25 Certifications Note: You will find detailed information on the certificates

and declarations applying to your device in a separate

overview.

See table 3 on page 18.

Table 1: Device name and product code

Installation EAGLE20/30

Release 06 04/2014

17

Item Product characteristic Description

EAGLE20

1 ... 7 Device Router without gigabit ports

—

8 (hyphen)

04

9 ... 10 Number:

Fast ethernet ports

4 × Fast ethernet ports

00

11 ... 12 Number:

Gigabit ethernet ports

0 × Gigabit ethernet ports

999

13 ... 15 Configuration of the uplink

ports

None

TT

16 ... 17 Configuration of the other

ports

RJ45 socket for 10/100 Mbit/s twisted-pair port

9

18 Cellular phone interface None

99

19 ... 20 WAN port None

S

21 Temperature range Hirschmann standard

C

22 Operating voltage Voltage input

Rated voltage range DC
24 V ... 48 V

C

23 Operating voltage Rated voltage range DC

Voltage input
24 V ... 48 V

Z9

24 ... 25 Certifications Note: You will find detailed information on the

certificates and declarations applying to your
device in a separate overview.

See table 3 on page 18.

Table 2: Sample product code (left column):

18

Installation EAGLE20/30

Release

06

04/2014

Application case Certificates and

declarations

Characteristic value

ab

a. X = approval or self-declaration is present

(x) = approval or self-declaration possible on request

b. The EN60950-1 and UL60950-1 approvals are solely applicable for device variants with operating voltage characteristic value “K” (see

device description item 22).

T9 TY U9 UT UY UX V9 VT VU VY X9 Y9 Z9

Standard applications CE XXXXXXXXXXXXX

UL 508 X XXX XXXXX
EN 60950-1 XXXXXXXXXXXXX
EN 61131-2 XXXXXXXXXXXXX
FCC XXXXXXXXXXXXX
UL 60950-1

Oil and gas applications ATEX Zone 2

ISA 12.12.01 –
Class I, Div. 2

XX

CSA C22.2 No. 213

Substation applications IEC 61850-3 XXXX

IEEE1613 XXXX

Navy applications ABS (x) (x) (x) (x) (x)

BV (x)(x)(x)(x) (x)
DNS (x) (x) (x) (x) (x)
GL XXXX X
KR
LR (x)(x)(x)(x) (x)
RINA

Railway applications EN 50121-4 X X X X

Table 3: Assignment: application cases, certificates and declarations, characteristic values

Installation EAGLE20/30

Release

06

04/2014

19

1.3 Combination options

Item 1 ... 5 6 ... 7 8 9 ... 10 11 ... 12 13 ... 15 16 ... 17 18 19 ... 20 21 22 ... 23 24 ... 25
Charac-

teristic

Product
Name

Data rate
and
hardware
type

­(hyphen)

Number
of 10/100
Mbit/s
ports

Number of
100/1000
Mbit/s
ports

Configur
ation of
uplink
ports

Configur
ation of
other
ports

Cellular
phone
interface

WAN port Temperatur

e range

Operating
voltage

Certifications

Descrip­tion

EAGLE 20 — 04 00 999 TT 9 99 S; T; E CC; K9 Z9; Y9; X9; V9; VY;

VU; VT; U9; UY; UX;
UT; T9; TY; SY

EAGLE 30 — 04 02 2O6 TT 9 99 S; T; E CC; K9 Z9; Y9; X9; V9; VY;

VU; VT; U9; UY; UX;
UT; T9; TY; SY

Table 4: Combination options for the device variants of the EAGLE20/30

20

Installation EAGLE20/30

Release 06 04/2014

1.4 Device views

1.4.1 Front view

1 LED display elements for device status
2 V.24 interface
3 USB interface
4 Optional:2×

SFP slot
5 4 × 10/100 Mbit/s twisted pair ports
6 Grounding screw
7 Working voltage connection

alternatively,
depending on
device variant

2 × Operating voltage

characteristic value:
C

 Rated voltage range DC

24 V ... 48 V

 2-pin terminal block

1 × Operating voltage

characteristic value:
K

 Rated voltage range AC

110 V ... 230 V, 50 Hz ... 60 Hz

 Rated voltage range DC

60 V ... 250 V

 3-pin terminal block

8 Connection for the signal contact
9 Connection for input

(no function in the existing device version)

10 LED display element for input

(no function in the existing device version)

11 Save/Load/Reset button

(no function in the existing device version)

12 LED display elements for additional status information

Table 5: Front view (example EAGLE30-04022O6TT999SCC...)

6

7

8

9

10

11

12

1

2

3

4

5

Installation EAGLE20/30

Release 06 04/2014

21

1.4.2 Rear view

1.5 Power supply

1.5.1 Working voltage with the characteristic value K

A 3-pin terminal block is available to supply the device.

For further information see: “Working voltage with the characteristic value K”

on page 31.

1.5.2 Working voltage with the characteristic value C

For the redundant supply of the device, two 2-pin terminal blocks are
available.

For further information see: “Working voltage with the characteristic value C”

on page 32.

1 Slot for the SD card
2 Knurled screw

1

2

22

Installation EAGLE20/30

Release 06 04/2014

1.6 Ethernet ports

You can connect terminal devices and other segments on the ports of the
device via twisted pair cables or F/O cables.

1.6.1 10/100 Mbit/s twisted pair port

This port is an RJ45 socket.
The 10/100 Mbit/s twisted pair port offers you the ability to connect network
components according to the IEEE 802.3 10BASE-T/100BASE-TX standard.
This port supports:

 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode

Delivery state: autonegotiation active.
The socket housing is electrically connected with the front panel.

1.6.2 100/1000 Mbit/s F/O port (optional)

This port is an SFP slot.
The 100/1000 Mbit/s F/O port offers you the ability to connect network
components according to the IEEE 802.3 100BASE-FX/1000BASE­SX/1000BASE-LX standard.
This port supports:

 Full duplex mode

1.6.3 100/1000 Mbit/s twisted pair port (optional)

Note: Applies solely for EAGLE20/30 devices with HiSecOS from software
version 01.2.00

This port is an SFP slot.
The 100/1000-Mbit/s twisted pair port offers you the possibility to connect
network components according to the IEEE 802.3 100BASE-FX/1000BASE­SX/1000BASE-LX standard.

Pin Function

1 RD+ Receive path
2RD− Receive path
3 TD+ Transmission path
6TD− Transmission path
4,5,7,8 —

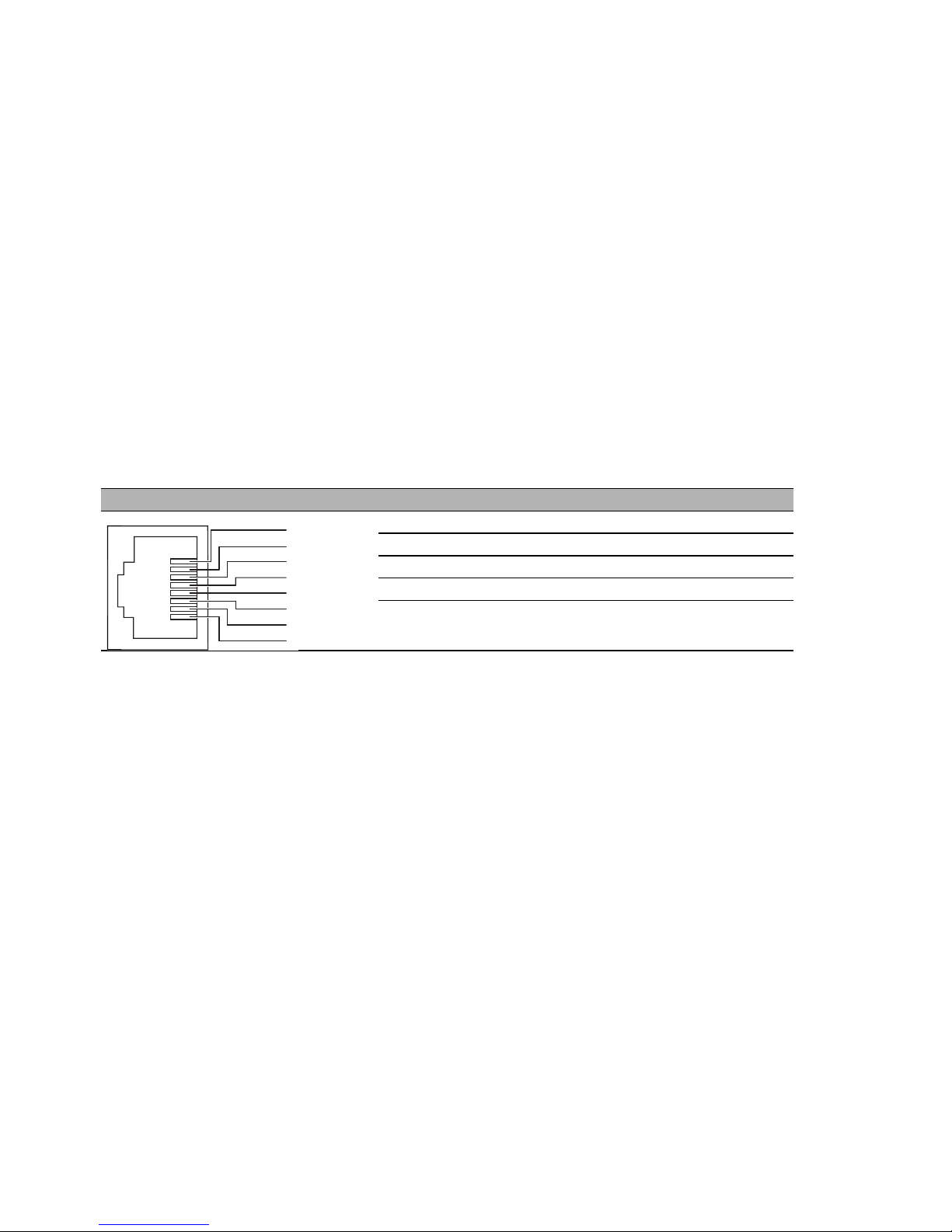

Table 6: Pin assignment of the 10/100 Mbit/ twisted pair port, RJ-45 socket, MDI-X

mode

1
2
3
4
5
6
7
8

Installation EAGLE20/30

Release 06 04/2014

23

This port supports:

 Autonegotiation
 Full duplex mode

1.7 Display elements

After the working voltage is set up, the software starts and initializes itself.
Afterwards, the device performs a self-test. During this process, various
LEDs light up.

1.7.1 Device state

These LEDs provide information about conditions which affect the operation
of the whole device.

Pin Function

1BI_DB+
2BI_DB−
3BI_DA+
4BI_DD+
5BI_DD−
6BI_DA−
7BI_DC+
8BI_DC−

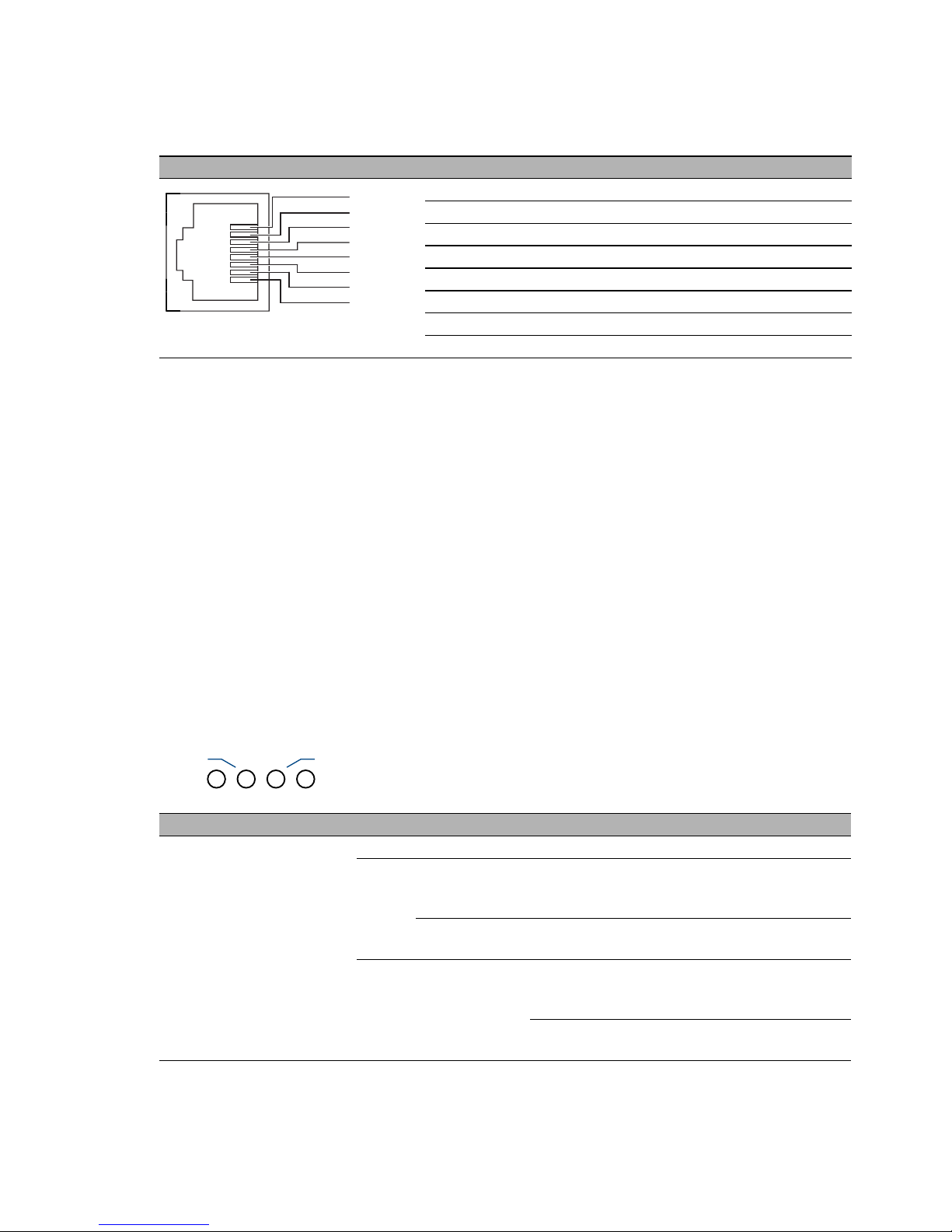

Table 7: Pin assignment of the 10/100/1000 Mbit/s twisted pair port, RJ45 socket,

1000 Mbit/s mode, MDI-X mode

LED Display Color Activity Meaning

Power Working voltage — None Operating voltage is too low

Yellow Lights up Device variants with redundant voltage

supply:
The working voltages 1 or 2 are on.

flashes 4 times
a period

Software update is running. Maintain the
voltage supply.

Green Lights up Device variants with redundant voltage

supply:
The working voltages 1 and 2 are on.

Device variants with simple voltage supply:
Operating voltage is on

1
2
3
4
5
6
7
8

Status

RM

ACA

Power

24

Installation EAGLE20/30

Release 06 04/2014

Status Device Status — None Device starts

Device is not ready for operation

Green Lights up Device is ready for operation.

Characteristics can be configured.

Red Lights up The device reports a detected error.

See “Reference Manual GUI Graphical
User Interface”, Chapter “Device Status”.

Flashes 1 time
a period

The boot parameters used when the device
has been started differ from the boot
parameters saved.

Start the device again.
RM Ring Manager — None (no function in the existing device version)
ACA Storage medium

ACA31
ACA21

— None No ACA connected
Green Lights up The storage medium ACA is inserted.

Flashes 3
times a period

The device writes to/reads from the storage

medium.

Yellow Lights up The storage medium ACA is out of order.

Check the file system format See “SD card

interface” on page 26.

Deactivate the write protection on the

ACA31 by pushing the lock towards the

contacts.

LED Display Color Activity Meaning

Installation EAGLE20/30

Release 06 04/2014

25

1.7.2 Additional status information

1.7.3 Input

1.7.4 Port state

These LEDs display port-related information. During the boot phase, they
indicate the status of the boot process.
The LEDs are directly located on the ports.

1.8 Management interfaces

1.8.1 V.24 interface (external management)

Note: For information about the position on the device see “Front view” on

page 20.

A serial interface is provided on the RJ11 socket (V.24 interface) for the local
connection of an external management station (VT100 terminal or PC with
corresponding terminal emulation). This enables a connection to the
Command Line Interface (CLI) and the system monitor to be made.

LED Display Color Activity Meaning

VPN
RD
S1
S2

(no function in the existing device version)

LED Display Color Activity Meaning

IN (no function in the existing device version)

Display Color Activity Meaning

Link status — None Device detects an invalid or missing link

Green Lights up Device detects a valid link

Flashes 1 time a period Port is switched to stand-by
Flashes 3 times a period Port is switched off

Yellow Flashing Device is transmitting and/or receiving data

VT 100 terminal settings

Speed 9,600 Baud
Data 8 bit
Stopbit 1 bit

VPN

RD

S1

S2

26

Installation EAGLE20/30

Release 06 04/2014

The socket housing is electrically connected to the front panel of the device.
The V.24 interface is electrically insulated from the working voltage.

Figure 1: Pin assignment of the V.24 interface and the DB9 connector

You find the order number for the terminal cable, which is available as
accessory, under “Accessories” on page 50.

1.8.2 SD card interface

Note: For information about the position on the device see “Rear view” on

page 21.

The SD card interface allows you to connect the AutoConfiguration Adapter
ACA31 storage medium. This is used for saving/loading the configuration
data and diagnostic information, and for loading the software.
The ACA31 supports the FAT16 file system format exclusively.

1.8.3 USB interface

Note: For information about the position on the device see “Front view” on

page 20.

The USB socket is an interface for the local connection of an
AutoConfiguration Adapter ACA21-USB. It is used for saving/loading the
configuration data and diagnostic information, and for loading the software.

The USB interface has the following properties:

 Supports the USB master mode
 Supports USB 1.1 (data rate max. 12 MBit/s)
 Connectors: type A
 Supplies current of max. 500 mA
 Voltage not potential-separated
 Supported file system format: FAT16

Handshake off
Parity none

VT 100 terminal settings

1

1

8

5

6

2
3

5

1
2
3
4
5
6

CTS
n.c.
TX
GND
RX
RTS

RJ11

DB9

RJ11

DB9

Installation EAGLE20/30

Release 06 04/2014

27

1.9 Input/output interfaces

1.9.1 Signal contact

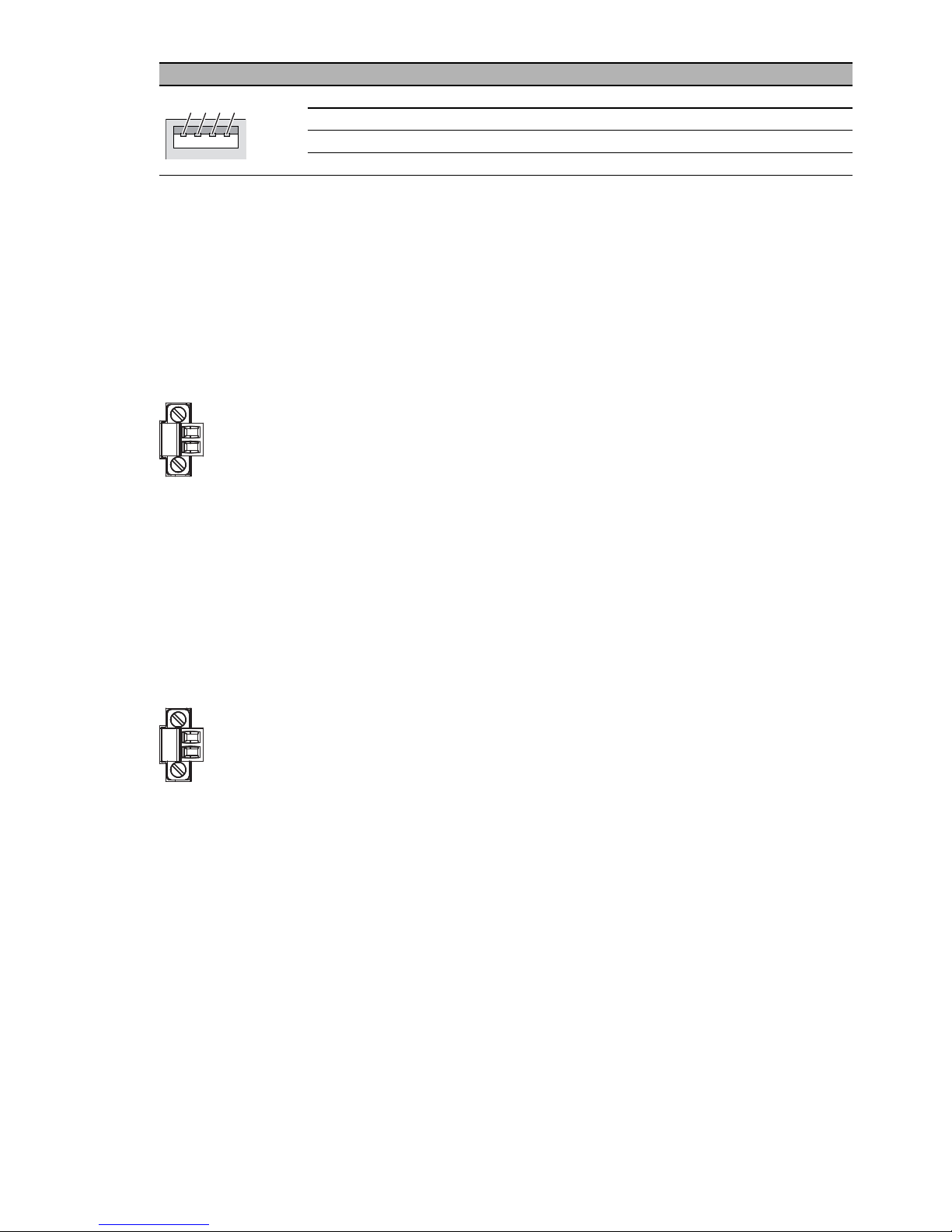

Figure 2: Signal contact: 2-pin terminal block with screw locking

In the state on delivery, the signal contact indicates the device status. It can
be configured using the device management.

1.9.2 Input

(no function in the existing device version)

Figure 3: Input: 2-pin terminal block with screw locking

Figure Pin Operation

1 VCC (VBus)
2 − Data
3 + Data
4 Ground (GND)

Table 8: Pin assignment of the USB interface

1

2

4

3

28

Installation EAGLE20/30

Release 06 04/2014

2 Installation

The devices have been developed for practical application in a harsh
industrial environment.
On delivery, the device is ready for operation.

The following steps should be performed to install and configure a device:

 Unpacking and checking the content of the package
 Installing the SD card (optional)
 Installing and grounding the device
 Installing an SFP transceiver (optional)
 Connecting the terminal blocks
 Operating the device
 Connecting data cables
 Insert data in label area

2.1 Unpacking and checking the content of the

package

 Check whether the package includes all items named in section “Scope

of delivery” on page 49.

 Check the individual parts for transport damage.

2.2 Installing the SD card (optional)

Note: For information about the position on the device see “Rear view” on

page 21.

 Push the SD card into the slot with the serration facing downwards.
 Tighten the thumb screw to fix the SD card.

Installation EAGLE20/30

Release 06 04/2014

29

2.3 Installing and grounding the device

2.3.1 Installing the device onto the DIN rail

Note: Verify that there is at least 4 in (10 cm) of space above and below the
device.

Note: The overall shield of a connected shielded twisted-pair cable is
connected to the ground connector on the front panel as a conductor.

To mount the device onto a horizontally mounted 35 mm DIN rail according
to DIN EN 60715, proceed as follows:

 Slide the upper snap-in guide of the device into the DIN rail.
 Pull down the locking gate using a screwdriver, and press the lower part

of the device against the DIN rail.

 Snap in the device by releasing the locking gate.

WARNING

FIRE HAZARD

Install the device in a fire protected enclosure according to EN 60950-1.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

WARNING

Solely for device variants featuring working voltage with the characteristic
value K:

ELECTRIC SHOCK

Install this device solely in a switch cabinet or in an operating site with
restricted access, to which maintenance staff have exclusive access.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

30

Installation EAGLE20/30

Release 06 04/2014

Figure 4: Mounting on the DIN rail

2.3.2 Grounding the device

The housing is grounded via the separate ground screw on the bottom left of
the front panel.
The device variants with operating voltage characteristic value K have a
protective grounding.
The device variants with operating voltage characteristic value C have a
functional grounding.

 Ground the device via the ground screw.

2.4 Installing an SFP transceiver (optional)

 Before installing an SFP transceiver or XFP transceiver, first remove the

protection cap of the transceiver.

 Push the SFP transceiver or XFP transceiver with the lock closed into the

socket until you hear it latch in.

WARNING

ELECTRIC SHOCK

Ground the device before connecting any other cables.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Installation EAGLE20/30

Release 06 04/2014

31

Figure 5: F/O SFP transceiver

Note: Only use Hirschmann SFP transceivers. See “Accessories” on

page 50.

2.5 Connecting the terminal blocks

Note: The working voltage is connected to the chassis through protective
elements exclusively.

2.5.1 Working voltage with the characteristic value K

Figure 6: Operating voltage characteristic value K: 3-pin terminal block with screw

locking

WARNING

ELECTRIC SHOCK

Never insert sharp objects (small screwdrivers, wires, etc.) into the
connection terminals for the supply voltage, the signal contact or the input,
and do not touch the terminals!

Start connecting the electrical wires solely if all the above requirements are
fulfilled.

See “Working voltage” on page 6.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

N

L

32

Installation EAGLE20/30

Release 06 04/2014

For the operating voltage to be connected, perform the following steps:

 Remove the power connector from the device.
 Connect the protective conductor according to the pin assignment on the

device with the clamp.

 Connect the wires according to the pin assignment on the device with the

clamps.

 Connect the wires according to the pin assignment on the device with the

clamps.

 Fasten the wires connected by tightening the terminal screws.

2.5.2 Working voltage with the characteristic value C

You have the option of supplying the working voltage redundantly, without
load distribution.
Both working voltage inputs are uncoupled.

Figure 7: Operating voltage characteristic value C: 2-pin terminal block with screw

locking

Type of the voltages
that can be
connected

Specification of the working
voltage

Connections

DC voltage Rated voltage range DC

60 V ... 250 V
Voltage range DC incl.
maximum tolerances
48 V ... 320 V

+/L Plus terminal of the working

voltage

−/N Minus terminal of the working
voltage

Protective conductor

AC voltage Rated voltage range AC

110 V ... 230 V, 50 Hz ... 60 Hz
Voltage range AC incl.
maximum tolerances
88 V ... 265 V, 47 Hz ... 63 Hz

+/L Outer conductor

−/N Neutral conductor
Protective conductor

Table 9: Operating voltage characteristic value K: type and specification of the

supply voltage, connections

−

+

Installation EAGLE20/30

Release 06 04/2014

33

For every working voltage to be connected, perform the following steps:

 Remove the power connector from the device.
 Connect the lines for the supply voltage to the + and - terminals.

With non-redundant supply of the mains voltage, the device reports a power
failure. You can avoid this message by changing the configuration in the
management, or, with power supply units of the same type, by feeding the
supply voltage in through both inputs.

2.5.3 Signal contact

For every signal contact to be connected, make sure the following
requirements are met:

 The electrical wires are voltage-free.
 The connected voltage is limited by a current limitation device or a fuse.

Observe the electrical threshold values for the signal contact.

 Connect the signal contact wires with the connectors of the terminal block.

Type of the voltages
that can be
connected

Specification of the working
voltage

Connections

DC voltage Rated voltage range DC

24 V ... 48 V
Voltage range DC incl.
maximum tolerances
18 V ... 60 V

+ Plus terminal of the working

voltage

− Minus terminal of the working
voltage

Table 10: Operating voltage characteristic value C: type and specification of the

supply voltage, connections

34

Installation EAGLE20/30

Release 06 04/2014

2.6 Operating the device

Note: Relevant for North America:
The torque for tightening the working voltage terminal block on the device is

4.5 lb-in (0.51 Nm).
The torque for tightening the signal contact and input terminal block on the
device is 3 lb-in (0.34 Nm).

 Use screws to secure the connecters to the device.
 Enable the working voltage.

2.7 Connecting data cables

2.7.1 10/100 Mbit/s twisted pair port

Note: In general, adhere to the following recommendations for data cable
connections in environments with high electrical interference levels:

 Keep the length of the data cables as short as possible.
 Use optical data cables for the data transmission between the buildings.
 When using copper cables, provide a sufficient gap between the power

supply cables and the data cables, when laid over a long distance. Ideally,
install the cables in separate cable channels.

 Use shielded cables.

 Connect the data cable according to your requirements.

2.7.2 100/1000 Mbit/s twisted pair port (optional)

Note: Applies solely for EAGLE20/30 devices with HiSecOS from software
version 01.2.00

WARNING

ELECTRIC SHOCK

Connect solely an working voltage that corresponds to the type plate of your
device.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Installation EAGLE20/30

Release 06 04/2014

35

Note: In general, adhere to the following recommendations for data cable
connections in environments with high electrical interference levels:

 Keep the length of the data cables as short as possible.
 Use optical data cables for the data transmission between the buildings.
 When using copper cables, provide a sufficient gap between the power

supply cables and the data cables, when laid over a long distance. Ideally,
install the cables in separate cable channels.

 Use shielded cables.

 Connect the data cable according to your requirements.

2.7.3 100/1000 Mbit/s F/O port

Note: Make sure that you connect LH ports exclusively with LH ports, SX
ports exclusively with SX ports, and LX ports exclusively with LX ports.

 Connect the data cable according to your requirements.

2.8 Insert data in label area

The information field for the IP address on the front of the device helps you
identify your device.

36

Installation EAGLE20/30

Release 06 04/2014

3 Basic set-up

Note: Two or more devices configured with the same IP address can cause
unpredictable operation of your network.
Install and maintain a process that assigns a unique IP address to every
device in the network.

The IP parameters must be entered when the device is installed for the first
time. The device provides the following options for configuring IP addresses:

 Entry via V.24 connection
 Entry with the aid of the HiDiscovery logs on the applications HiDiscovery

or Industrial HiVision

 AutoConfiguration Adapter

Further information on the basic settings of the device can be found in the
“Basic Configuration” user manual on the CD/DVD.

 Default settings

 V.24 data rate: 9,600 Baud
 Ethernet ports: link status is not evaluated (signal contact)
 Optical ports: Full duplex

TP ports: Autonegotiation

 Monitoring the ambient air temperature

Operate the device below the specified maximum ambient air
temperature exclusively.

The ambient air temperature is the temperature of the air at a distance of
2 in (5 cm) from the device. It depends on the installation conditions of the
device, e.g. the distance from other devices or other objects, and the
output of neighboring devices.
The temperature displayed in the CLI and the GUI is the internal
temperature of the device. It is up to 68 °F (20 °C) higher than the ambient
temperature. This depends on the configuration of your device.

User name Password (initial setting) right

user public reading right exclusively
admin private reading and writing right

Installation EAGLE20/30

Release 06 04/2014

37

4 Maintenance and service

 When designing this device, Hirschmann largely avoided using wear

parts. The parts subject to wear and tear are dimensioned to last longer
than the lifetime of the product when it is operated normally. Operate this
device according to the specifications (see on page 40 “Technical data”).

 Relays are subject to natural wear. This wear depends on the frequency

of the switching operations. Check the resistance of the closed relay
contacts and the switching function depending on the frequency of the
switching operations.

 Hirschmann are continually working on improving and developing their

software. Check regularly whether there is an updated version of the
software that provides you with additional benefits. You find information
and software downloads on the Hirschmann product pages on the
Internet (www.hirschmann.com).

 Depending on the degree of pollution in the operating environment, check

at regular intervals that the ventilation slots in the device are not
obstructed.

You will find information about the complaints and returns procedures in the
Internet under

http://www.beldensolutions.com/en/Service/Repairs/index.phtml .

38

Installation EAGLE20/30

Release 06 04/2014

5 Disassembly

5.1 Removing the device



Disconnect the data cables.

 Disable the working voltage.
 Disconnect the terminal blocks.
 Disconnect the grounding.
 To remove the device from the DIN rail, press the device downwards and

pull it out from under the DIN rail.

Figure 8: Removal from the DIN rail

WARNING

ELECTRIC SHOCK

Disconnect the grounding solely after disconnecting all other cables.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Installation EAGLE20/30

Release 06 04/2014

39

5.2 Removing an SFP transceiver (optional)

 Pull the SFP transceiver out of the socket by means of the opened lock.
 Close the SFP transceiver with the protective cap.

1

2

40

Installation EAGLE20/30

Release 06 04/2014

6 Technical data

 General technical data

Weight EAGLE..-.........999S.. ca. 1,2 kg

EAGLE..-.........999T..

EAGLE..-.........999E..

ca. 1,5 kg

Power supply
Working voltage
with the
characteristic
value C

 Relevant for North America: Class 2

Nominal voltage DC 24 V ... 48 V

Class 2

Voltage range DC incl.
maximum tolerances

18 V ... 60 V
Class 2

Voltage range DC in
Hazardous Locations (Class I,
Division 2) incl. maximum
tolerances

22 V ... 52 V

Connection type 2-pin terminal block
Power failure bypass > 10 ms at 20.4 V DC
Overload current protection at

input

Non-replaceable fuse

Back-up fuse Nominal rating:

Characteristic:

6.3 A
slow blow

Peak inrush current < 4 A

Power supply
Working voltage
with the
characteristic
value K

Nominal voltage AC 110 V ... 230 V, 50 Hz ... 60 Hz
Voltage range AC 88 V ... 265 V, 47 Hz ... 63 Hz
Voltage range AC in

Hazardous Locations (Class I,
Division 2) incl. maximum
tolerances

99 V ... 253 V

Nominal voltage DC 60 V ... 250 V
Voltage range DC incl.

maximum tolerances

48 V ... 320 V

Voltage range DC in
Hazardous Locations (Class I,
Division 2) incl. maximum
tolerances

54 V ... 275 V

Connection type 3-pin terminal block
Power failure bypass > 10 ms at 98 V AC
Overload current protection at

input

Non-replaceable fuse

Back-up fuse Nominal rating:

Characteristic:

2.5 A
slow blow

Peak inrush current < 3.5 A

Installation EAGLE20/30

Release 06 04/2014

41

Climatic
conditions
during operation

Ambient air temperaturea. Devices with operating temperature

characteristic value S (standard):
0 °C ... +60 °C (+32 °F ... +140 °F)

Devices with operating temperature
characteristic value E and T (extended):

−40 °C ... +70 °C

b,c

Humidity 10 % ... 95 %

(non-condensing)

Air pressure minimum 700 hPa (+9842 ft; +3000 m)

maximum 1060 hPa (−1312 ft; −400 m)

Climatic
conditions
during storage

Ambient air temperature

d

. −40 °F ... +185 °F (−40 °C ... +85 °C)

Humidity 10 % ... 95 %

(non-condensing)

Air pressure minimum 700 hPa (+9842 ft; +3000 m)

maximum 1060 hPa (−1312 ft; −400 m)

“FAULT”
signal contact

Switching current max. 1 A, SELV

Switching voltage max. 60 V DC or max. 30 V AC, SELV
Pollution degree 2
Protection

classes

Laser protection Class 1 in compliance with IEC 60825-1

Degree of protection IP 30

a. Temperature of the ambient air at a distance of 2 inches (5 cm) from the device
b. Only use the SFP transceiver with the extension “EEC”.
c. +85 °C for 16 hours (tested in accordance with IEC 60068-2-2)
d. Temperature of the ambient air at a distance of 2 inches (5 cm) from the device

42

Installation EAGLE20/30

Release 06 04/2014

 Digital input

 Dimension drawings

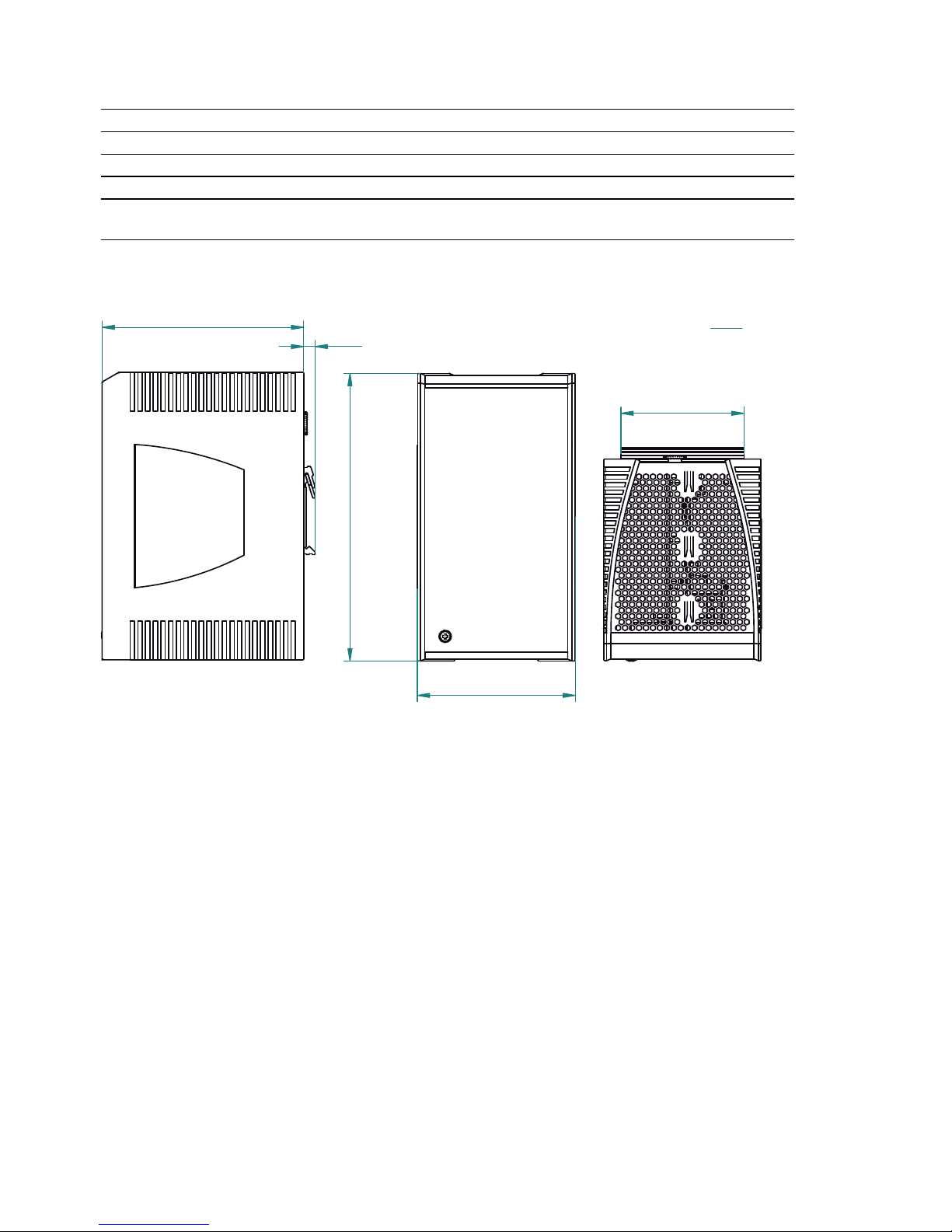

Figure 9: Dimensions of the device variants with operating temperature

characteristic value S. For the characteristic value, cf. “Device name and

product code” on page 16.

Maximum permitted input voltage range −32 V DC … +32 V DC
Input voltage, low level, status "0" −0,3 V DC … +5,0 V DC
Input voltage, high level, status "1" +11 V DC … +30 V DC
Maximum input current at 24 V input voltage 15 mA
Input characteristic according to IEC 61131-2 (current-

consuming)

Type 3

mm
inch

70

2.76

4.52

114,7

6,55

0.26

89,9

3.54

163,6

6.44

Installation EAGLE20/30

Release 06 04/2014

43

Figure 10: Dimensions of device variants with operating temperature characteristic

value E and T. For the characteristic value, cf. “Device name and product

code” on page 16.

mm
inch

98,29

3.87

163,6

6.44

70

2.76

4.52

114,7

6,55

0.26

44

Installation EAGLE20/30

Release

06

04/2014

 EMC and immunity

Note: You will find detailed information on the certificates and declarations applying to your device in a separate
overview.

See table 3 on page 18.

EMC interference
emission

Standard
applications

Navy applications Railway

applications

Substation
applications

Radiated emission

EN 55022 Class A — — Class A
GL Guidelines — EMC 1 — —
FCC 47 CFR Part 15 Class A — — Class A
EN 61000-6-4 Fulfilled — Fulfilled —

Conducted emission

EN 55022 AC and DC supply connections Class A — — Class A
GL Guidelines AC and DC supply connections — EMC 1 — —
FCC 47 CFR Part 15 AC and DC supply connections Class A — — Class A
EN 61000-6-4 AC and DC supply connections Fulfilled — Fulfilled —
EN 55022 Telecommunication connections Class A — — Class A
EN 61000-6-4 Telecommunication connections Fulfilled — Fulfilled —

EMC interference
immunity

Standard
applications

Navy applications Railway

applications

Substation
applications

Electrostatic discharge

EN 61000-4-2
IEEE C37.90.3

Contact discharge ± 4 kV ± 6 kV ± 6 kV ± 8 kV

EN 61000-4-2
IEEE C37.90.3

Air discharge ±8kV ±8kV ±8kV ±15kV

Electromagnetic field

EN 61000-4-3 80 MHz ... 3000 MHz 10 V/m 10 V/m — 10 V/m
EN 61000-4-3 80 MHz ... 2700 MHz — — 20 V/m —

Installation EAGLE20/30

Release

06

04/2014

45

IEEE 1613 80 MHz ... 1000 MHz — — — 35 V/m

Fast transients (burst)

EN 61000-4-4
IEEE C37.90.1

AC/DC supply connection ± 2 kV ± 2 kV ± 2 kV ± 4 kV

EN 61000-4-4
IEEE C37.90.1

Data line ± 4 kV ± 1 kV ± 2 kV ± 4 kV

Voltage surges - DC supply connection

EN 61000-4-5
IEEE 1613

line/ground ± 2kV ± 1kV ± 2kV ± 5kV

EN 61000-4-5 line/line ± 1 kV ± 0.5 kV ± 1 kV ± 1 kV

Voltage surges - AC supply connection

EN 61000-4-5
IEEE 1613

line/ground ± 2kV ± 1kV ± 2kV ± 5kV

EN 61000-4-5 line/line ± 1 kV ± 0.5 kV ± 1 kV ± 2 kV

Voltage surges - data line

EN 61000-4-5 line/ground ± 1 kV — ± 2 kV ± 4 kV

Conducted disturbances

EN 61000-4-6 150 kHz ... 80 MHz 10 V 10 V 10 V 10 V

EMC interference
immunity

Standard
applications

Navy applications Railway

applications

Substation
applications

46

Installation EAGLE20/30

Release

06

04/2014

Damped oscillation - AC/DC supply connection

EN 61000-4-12
IEEE C37.90.1

line/ground — — — 2.5 kV

EN 61000-4-12
IEEE C37.90.1

line/line — — — 1 kV

Damped oscillation - data line

EN 61000-4-12
IEEE C37.90.1

line/ground — — — 2.5 kV

EN 61000-4-12 line/line — — — ± 1 kV

Pulse magnetic fields

EN 61000-4-9 — — 300 A/m —

Stability Standard

applications

Navy applications Railway

applications

Substation
applications

IEC 60068-2-6, test Fc Vibration 5 Hz ... 8.4 Hz with

0.14 in. (3.5 mm)
amplitude

2 Hz ... 13.2 Hz
with

0.04 in. (1 mm)
amplitude

— 2 Hz ... 9 Hz with

0.12 in. (3 mm)
amplitude

8,4 Hz ... 150 Hz
with 0.04 oz (1 g)

13.2 Hz ... 100 Hz
with 0.7 g

9 Hz ... 200 Hz
with 0.04 oz (1 g)

200 Hz ... 500 Hz
with 0.05 oz (1.5 g)

IEC 60068-2-27, Test Ea Shock 0.53 oz (15 g) at

11 ms

— — 0.35 oz (10 g) at

11 ms

EMC interference
immunity

Standard
applications

Navy applications Railway

applications

Substation
applications

Installation EAGLE20/30

Release 06 04/2014

47

 Network range

Note: The line lengths specified for the transceivers apply for the
respective fiber data (fiber attenuation and BLP/dispersion).

MM = Multimode, SM = Singlemode, LH = Singlemode Longhaul

Product
code
M-SFP-...

Wave
length

Fiber System

attenuatio
n

Example
for F/O line
length

a

a. including 3 dB system reserve when compliance with the fiber data is observed

Fiber
attenuatio
n

BLPb/
dispersion

b. The bandwidth length product cannot be used to calculate the expansion.

-SX/LC... MM 850 nm 50/125 µm 0-7.5 dB 0-550 m 3.0 dB/km 400 MHz×km

-SX/LC... MM 850 nm 62.5/125 µm 0-7.5 dB 0-275 m 3.2 dB/km 200 MHz×km

-MX/LC... MM 1310 nm 50/125 µm 0-12 dB 0-1.5 km 1.0 dB/km 500 MHz×km

-MX/LC... MM 1310 nm 62.5/125 µm 0-12 dB 0-500 m 1.0 dB/km 500 MHz×km

-LX/LC... MM 1310 nm

c

c. With F/O adapter compliant with IEEE 802.3-2002 clause 38 (single-mode fiber offset-launch

mode conditioning patch cord)

50/125 µm 0-10.5 dB 0-550 m 1.0 dB/km 800 MHz×km

-LX/LC... MM 1310 nm

d

62.5/125 µm 0-10.5 dB 0-550 m 1.0 dB/km 500 MHz×km

-LX/LC... SM 1310 nm 9/125 µm 0-10.5 dB 0-20 km

d

d. including 2.5 dB system reserve when compliance with the fiber data is observed

0.4 dB/km 3.5
ps/(nm×km)

-LX+/LC... SM 1310 nm 9/125 µm 5-20 dB 14-42 km 0.4 dB/km 3.5
ps/(nm×km)

-LH/LC... LH 1550 nm 9/125 µm 5-22 dB 23-80 km 0.25 dB/km 19 ps/(nm×km)

-LH+/LC LH 1550 nm 9/125 µm 15-30 dB 71-108 km 0.25 dB/km 19 ps/(nm×km)

-LH+/LC LH 1550 nm 9/125 µm 15-30 dB 71-128 km 0.21 dB/km

(typically)

19 ps/(nm×km)

Table 11: Fiber port 1000BASE-FX (SFP fiber optic Gigabit Ethernet Transceiver)

Product
code
M-SFP­BIDI...

Wave
length
TX

Wave
length
RX

Fiber System

attenuat
ion

Example
for F/O
line
length

a

a. including 3 dB system reserve when compliance with the fiber data is observed

Fiber
attenuati
on

Dispersion

Type A
LX/LC
EEC

SM 1310 nm 1550 nm 9/125 µm 0-11 dB 0-20 km 0.4 dB/km 3.5

ps/(nm×km)

Type B
LX/LC
EEC

SM 1550 nm 1310 nm 9/125 µm 0-11 dB 0-20 km 0.25

dB/km

19 ps/(nm×km)

Type A
LH/LC
EEC

LH 1490 nm 1590 nm 9/125 µm 5-24 dB 23-80 km 0.25

dB/km

19 ps/(nm×km)

Type B
LH/LC
EEC

LH 1590 nm 1490 nm 9/125 µm 5-24 dB 23-80 km 0.25

dB/km

19 ps/(nm×km)

Table 12: F/O port (bidirectional Gigabit Ethernet SFP Transceiver)

48

Installation EAGLE20/30

Release 06 04/2014

MM = Multimode, SM = Singlemode, LH = Singlemode Longhaul

MM = Multimode, SM = Singlemode, LH = Singlemode Longhaul

Product
code
M-FAST­SFP-...

Wave
length

Fiber System

attenuatio
n

Example
for F/O line
length

a

a. including 3 dB system reserve when compliance with the fiber data is observed

Fiber
attenuation

BLP/
dispersion

-MM/LC... MM 1310 nm 50/125 µm 0-8 dB 0-5 km 1.0 dB/km 800 MHz×km

-MM/LC... MM 1310 nm 62.5/125 µm 0-11 dB 0-4 km 1.0 dB/km 500 MHz×km

-SM/LC... SM 1310 nm 9/125 µm 0-13 dB 0-25 km 0.4 dB/km 3.5
ps/(nm×km)

-

SM+/LC...

SM 1310 nm 9/125 µm 10-29 dB 25-65 km 0.4 dB/km 3.5

ps/(nm×km)

-LH/LC... SM 1550 nm 9/125 µm 10-29 dB 47-104 km 0.25 dB/km 19 ps/(nm×km)

-LH/LC... SM 1550 nm 9/125 µm 10-29 dB 55-140 km 0.18 dB/km

b

b. with ultra-low-loss optical fiber

18 ps/(nm×km)

Table 13: Fiber port 100BASE-FX (SFP fiber optic Fast Ethernet Transceiver)

10/100/1000 Mbit/s twisted pair port

Length of a twisted pair segment max. 100 m (for cat5e cable)

Installation EAGLE20/30

Release 06 04/2014

49

 Power consumption/power output, order numbers

The order numbers correspond to the product codes of the devices.

See “Device name and product code” on page 16.

 Scope of delivery

Device name Maximum

power
consumption

Power output

EAGLE20-0400... 12 W 41 BTU (IT)/h
EAGLE30-0402... 14 W 48 BTU (IT)/h

Number Article

1× Device
2 × 2-pin terminal block for signal contact and input
1 × 3-pin terminal block for the working voltage

(for device variants featuring working voltage characteristic value K exclusively)

2 × 2-pin terminal block for the working voltage

(for device variants with operating voltage characteristic value C exclusively)
1 × Installation user manual
1 × CD/DVD with manual

50

Installation EAGLE20/30

Release 06 04/2014

 Accessories

Note: Please note that products recommended as accessories may have
characteristics that do not fully correspond to those of the device. This
may limit their possible usage in the overall system.

Name Order number

Terminal cable 943 301-001
AutoConfiguration Adapter ACA 21-USB (EEC) 943 271-003
AutoConfiguration Adapter ACA 31 942 074-001
For device variants with operating voltage characteristic value K:

3-pin terminal block (50 pieces) for supply voltage

943 845-008

For device variants with operating voltage type C:
2-pin terminal block (50 pieces) for supply voltage

943 845-009

2-pin terminal block (50 pcs.) for signal contact and input 943 845-010
Rail Power Supply RPS 30 943 662-003
Rail Power Supply RPS 80 EEC 943 662-080
Rail Power Supply RPS 120 EEC (CC) 943 662-121
Industrial HiVision Network Management Software 943 156-xxx

Gigabit Ethernet SFP transceiver Order number

M-SFP-TX/RJ45 943 977-001
Note the following for the M-SFP-TX/RJ45 transceiver:

 Can be used with:

- HiOS from software version 03.0.00

- Classic Switch Software from software version 04.1.00

- HiSecOS ab Software-Version 01.2.00
Cannot be used with the following devices:

- SPIDER II

- MSP/MSM

- EES

 Twisted-pair ports realized through this transceiver have longer link failure detection times

compared with twisted-pair ports provided by the device directly.

 When using this SFP transceiver, assume a higher switching time for RSTP.
 Not applicable for combo ports.

M-SFP-SX/LC 943 014-001
M-SFP-SX/LC EEC 943 896-001
M-SFP-MX/LC EEC 942 108-001
M-SFP-LX/LC 943 015-001
M-SFP-LX/LC EEC 943 897-001
M-SFP-LX+/LC 942 023-001
M-SFP-LX+/ LC EEC 942 024-001
M-SFP-LH/LC 943 042-001
M-SFP-LH/LC EEC 943 898-001
M-SFP-LH+/LC 943 049-001

Bidirectional Gigabit Ethernet SFP transceiver Order number

M-SFP-BIDI Type A LX/LC EEC 943 974-001
M-SFP-BIDI Type B LX/LC EEC 943 974-002
M-SFP-BIDI Type A LH/LC EEC 943 975-001

Installation EAGLE20/30

Release 06 04/2014

51

M-SFP-BIDI Type B LH/LC EEC 943 975-002
M-SFP-BIDI Bundle LX/LC EEC (type A + B) 943 974-101
M-SFP-BIDI Bundle LH/LC EEC (type A + B) 943 975-101

Fast Ethernet SFP transceiver Order number

M-FAST SFP-TX/RJ45 942 098-001
M-FAST SFP-TX/RJ45 EEC 942 098-002
Note the following for the M-FAST SFP-TX... transceiver:

 Can be used with:

- HiOS from software version 03.0.00

- On the PRP ports of the RSP devices starting with software version 02.0.01

- On the PRP ports of the EES devices starting with software version 02.0.02

- Classic Switch Software from software version 08.0.00

- HiSecOS ab Software-Version 01.2.00

 Twisted-pair ports realized through this transceiver have longer link failure detection times

compared with twisted-pair ports provided by the device directly.

 When using these SFP transceivers, assume a higher switching time for RSTP.
 Not applicable for combo ports.

M-FAST SFP-MM/LC 943 865-001
M-FAST SFP-MM/LC EEC 943 945-001
M-FAST SFP-SM/LC 943 866-001
M-FAST SFP-SM/LC EEC 943 946-001
M-FAST SFP-SM+/LC 943 867-001
M-FAST SFP-SM+/LC EEC 943 947-001
M-FAST SFP-LH/LC 943 868-001
M-FAST SFP-LH/LC EEC 943 948-001

Bidirectional Gigabit Ethernet SFP transceiver Order number

52

Installation EAGLE20/30

Release 06 04/2014

 Underlying technical standards

The device generally fulfills the norms and standards named in their
current versions.
The device has an approval based on a specific standard or de facto
standard solely if the approval indicator appears on the housing.
If your device has a shipping approval according to Germanischer Lloyd,
you find the approval mark printed on the device label. You will find out
whether your device has other shipping approvals on the Hirschmann
website under www.hirschmann.com in the product information.

Designation

EN 61000-6-2 Electromagnetic compatibility (EMC) – Part 6-2: Generic

standards – Immunity for industrial environments

EN 55022 Information technology equipment – Radio disturbance

characteristics – Limits and methods of measurement

EN 61131-2 Programmable controllers – Part 2: Equipment requirements and

tests

EN 60950-1 Information technology equipment – Safety – Part 1: General

requirements
UL 60950-1 Safety for Information Technology Equipment
EN 50121-4 Railway applications – EMC – Emission and immunity of the

signalling and telecommunications apparatus (Rail Trackside)
FCC 47 CFR Part 15 Code of Federal Regulations
Germanischer Lloyd Rules for Classification and Construction VI-7-2 – GL
UL 508 Safety for Industrial Control Equipment
IEC/EN 61850-3 Communication networks and systems in substations – Part 3:

General requirements
ISA 12.12.01 United States Standard for Safety for Nonincendive Electrical

Equipment for Use in Class I and II, Division 2 and Class III,

Divisions 1 and 2 Hazardous (Classified) Locations
NEMA TS 2 Traffic Controller Assemblies with NTCIP Requirements

(environmental requirements)
IEEE 1613 Standard Environment and Testing Requirements for

Communication Networking Devices in Electric Power

Substations
IEEE 802.1AB Station and Media Access Control Connectivity Discovery
IEEE 802.1D MAC Bridges (switching function)
IEEE 802.1Q Virtual LANs (VLANs, MRP, Spanning Tree)
IEEE 802.3 Ethernet

Table 14: List of norms and standards

Installation EAGLE20/30

Release 06 04/2014

53

54

Installation EAGLE20/30

Release 06 04/2014

Installation EAGLE20/30

Release 06 04/2014

55

A Further Support

 Technical Questions

For technical questions, please contact any Hirschmann dealer in your
area or Hirschmann directly.

You will find the addresses of our partners on the Internet at

http://www.hirschmann.com

Contact our support at

https://hirschmann-support.belden.eu.com

You can contact us

in the EMEA region at

 Tel.: [phone]
 E-mail: [e-mail]

in the America region at

 Tel.: [phone]
 E-mail: [e-mail]

in the Asia-Pacific region at

 Tel.: [phone]
 E-mail: [e-mail]

 Hirschmann Competence Center

The Hirschmann Competence Center is ahead of its competitors:

 Consulting incorporates comprehensive technical advice, from system

evaluation through network planning to project planning.

 Training offers you an introduction to the basics, product briefing and

user training with certification.
The current technology and product training courses can be found at

http://www.hicomcenter.com

 Support ranges from the first installation through the standby service

to maintenance concepts.

With the Hirschmann Competence Center, you have decided against
making any compromises. Our client-customized package leaves you
free to choose the service components you want to use.
Internet:

http://www.hicomcenter.com
