Page 1
User Manual
Installation and Operation
Dragon PTN
Dragon PTN Installation and Operation
Release 01 02/2018
Technical support
https://hirschmann-support.belden.com
Page 2
The naming of copyrighted trademarks in this manual, even when not specially indicated, should not
be taken to mean that these names may be considered as free in the sense of the trademark and
tradename protection law and hence that they may be freely used by anyone.
© 2018 Hirschmann Automation and Control GmbH
Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for your
own use.
The performance features described here are binding only if they have been expressly agreed when
the contract was made. This document was produced by Hirschmann Automation and Control GmbH
according to the best of the company's knowledge. Hirschmann reserves the right to change the
contents of this document without prior notice. Hirschmann can give no guarantee in respect of the
correctness or accuracy of the information in this document.
Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.
You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
2 Dragon PTN Installation and Operation
Release 01 02/2018
Page 3
Contents
1. INTRODUCTION ......................................................................................................... 8
1.1 Terms and Conditions ......................................................................... 8
1.2 General ............................................................................................... 8
1.3 Symbol Clarification ............................................................................ 9
1.3.1 Engineer Type Symbols .............................................................................. 9
1.3.2 Informational Symbols ............................................................................... 9
1.4 CE Marking & Directives .................................................................... 10
1.5 Safety Advice .................................................................................... 10
1.5.1 Introduction ............................................................................................. 10
1.5.2 Electrical Advice ....................................................................................... 10
1.5.3 Thermal Advice ........................................................................................ 10
1.5.4 Designated Use ........................................................................................ 11
1.5.5 Cables (Lines) to the Dragon PTN Equipment ......................................... 11
1.5.6 Checking of Safety Facilities .................................................................... 11
1.5.7 Work on the Electrical Systems ............................................................... 11
1.5.8 Ingress of Cleaning Agents....................................................................... 11
1.6 Lifting Advice .................................................................................... 11
1.6.1 Plan the Lift .............................................................................................. 11
1.6.2 Performing the Lift ................................................................................... 11
1.6.3 Setting the Load Down ............................................................................ 11
1.6.4 Team Lifting ............................................................................................. 12
1.7 Administration .................................................................................. 12

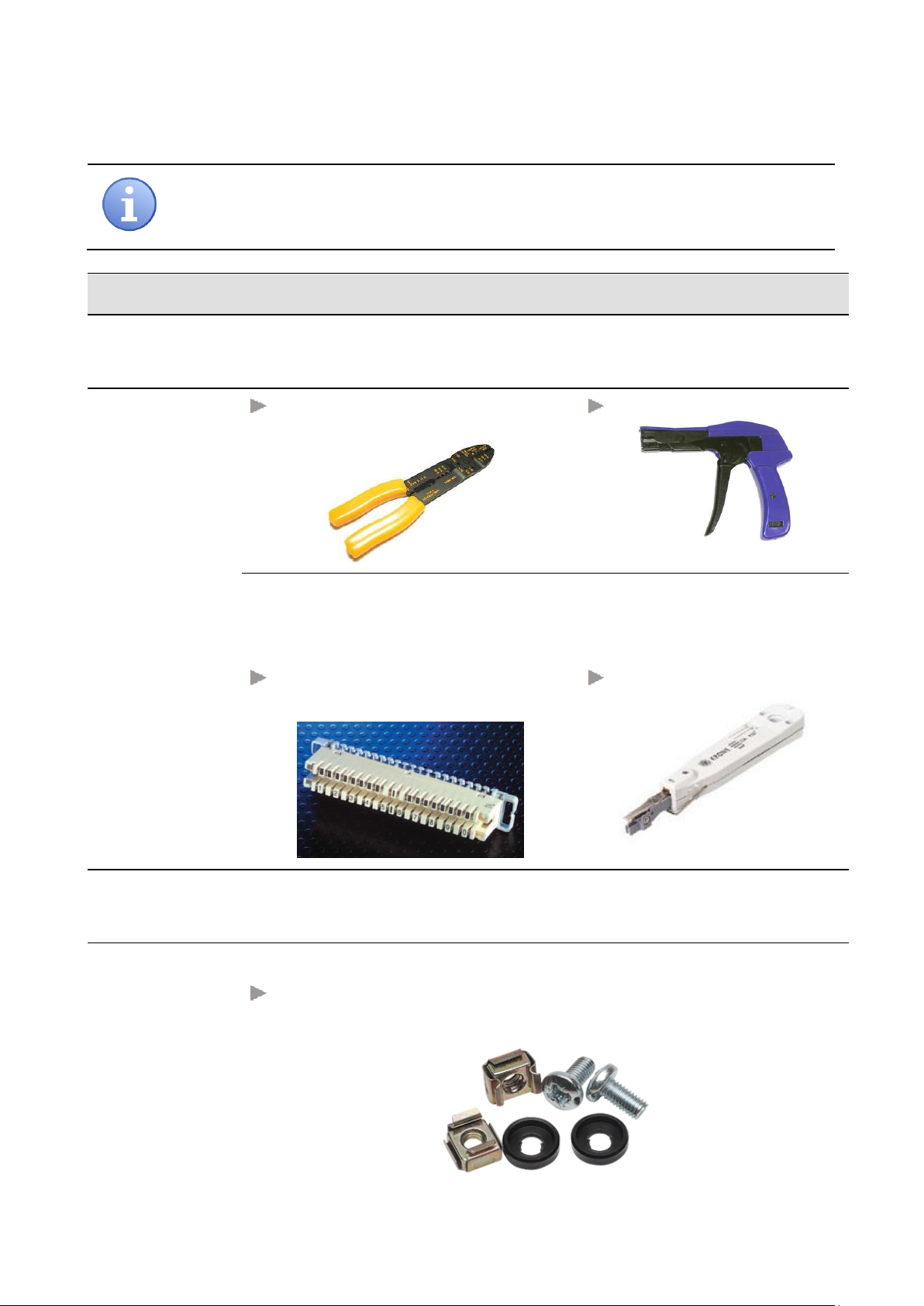

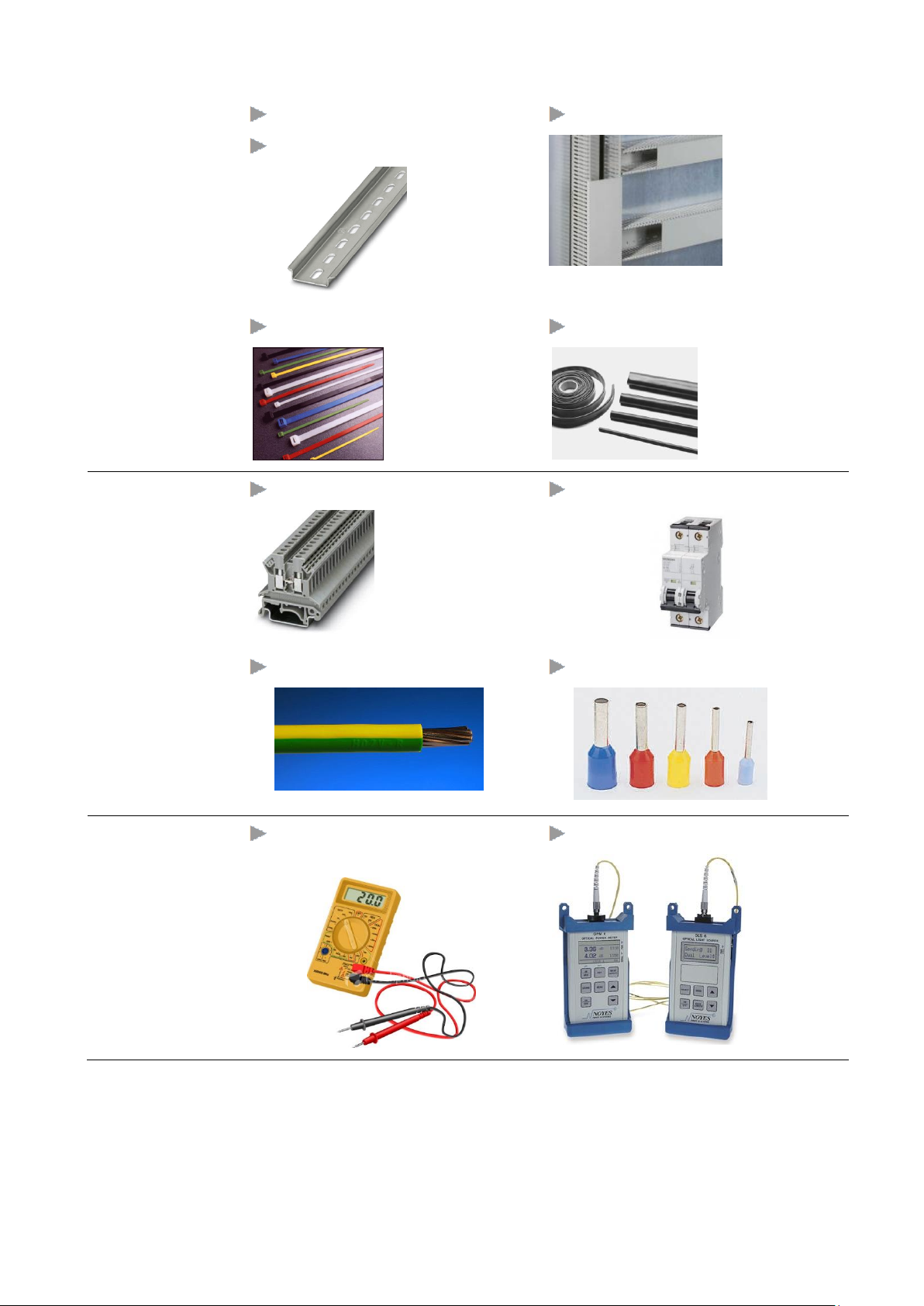

1.8 Tools & Materials .............................................................................. 13
1.9 Prerequisites..................................................................................... 16
1.9.1 Drafting a Site Plan .................................................................................. 16
1.9.2 Installing the Optical Cable ...................................................................... 16
1.9.3 Unpacking and Checking the Supplied Goods ......................................... 16
1.9.4 Preparing the Rack ................................................................................... 16
1.10 Installing / Configuring / Connecting Nodes ....................................... 17

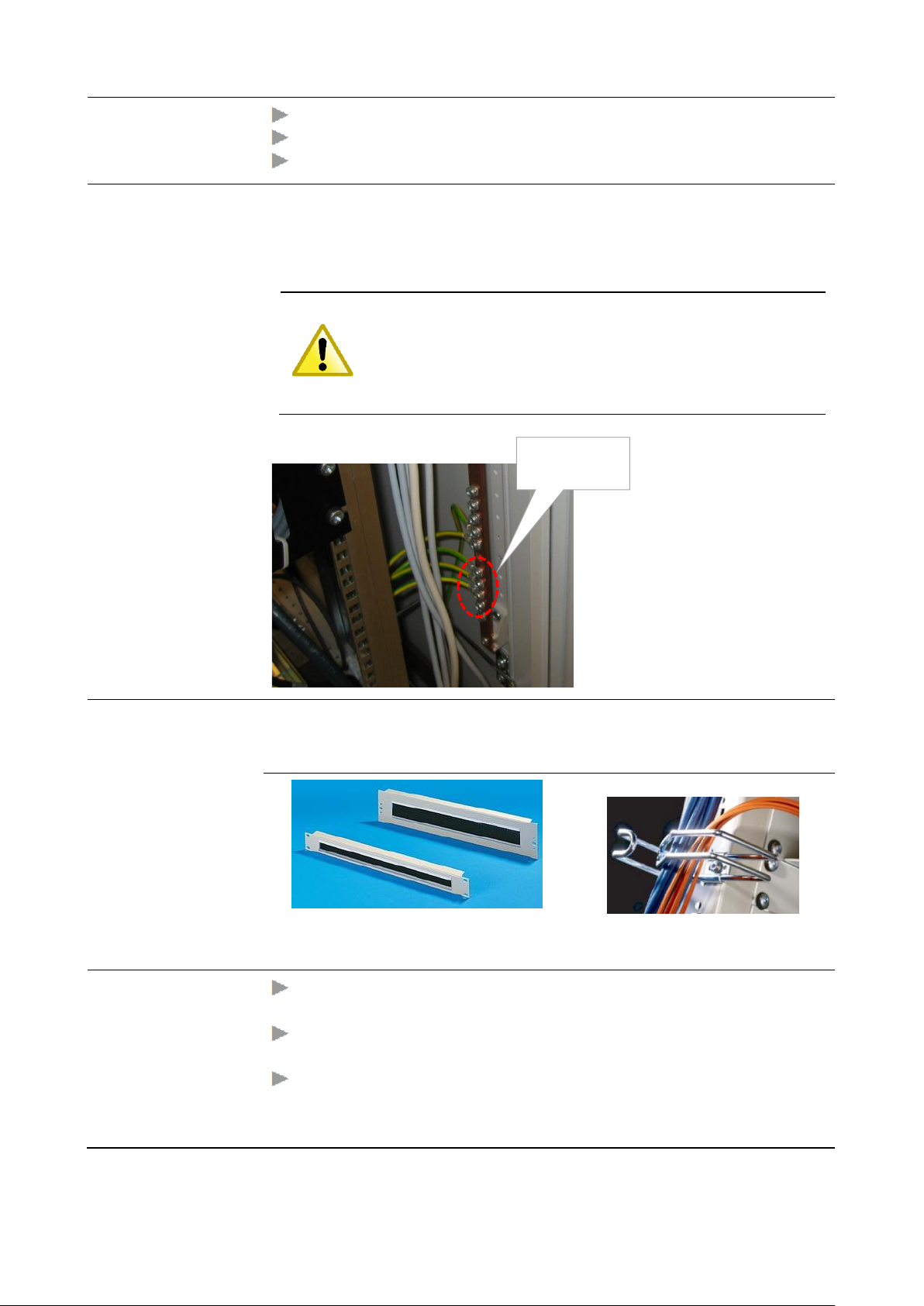

2. RACK PREPARATION ................................................................................................ 19
3. NODES – INSTALLATION FORMS ............................................................................... 23
3.1 General ............................................................................................. 23
3.2 Power ON/OFF a Node or Switch....................................................... 23
3.3 EMC Springs ...................................................................................... 24
3.4 Card Guides inside the Node ............................................................. 24

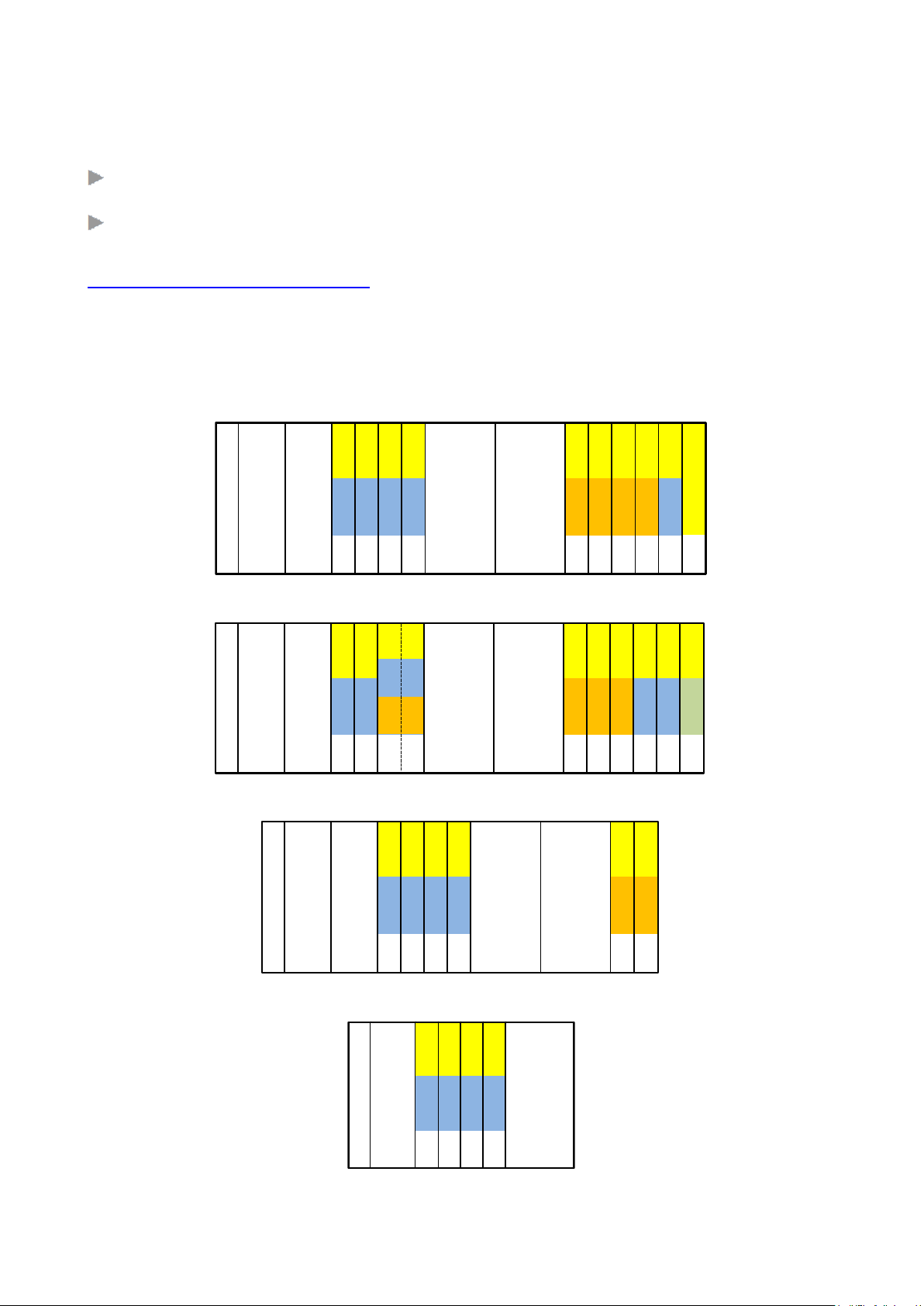

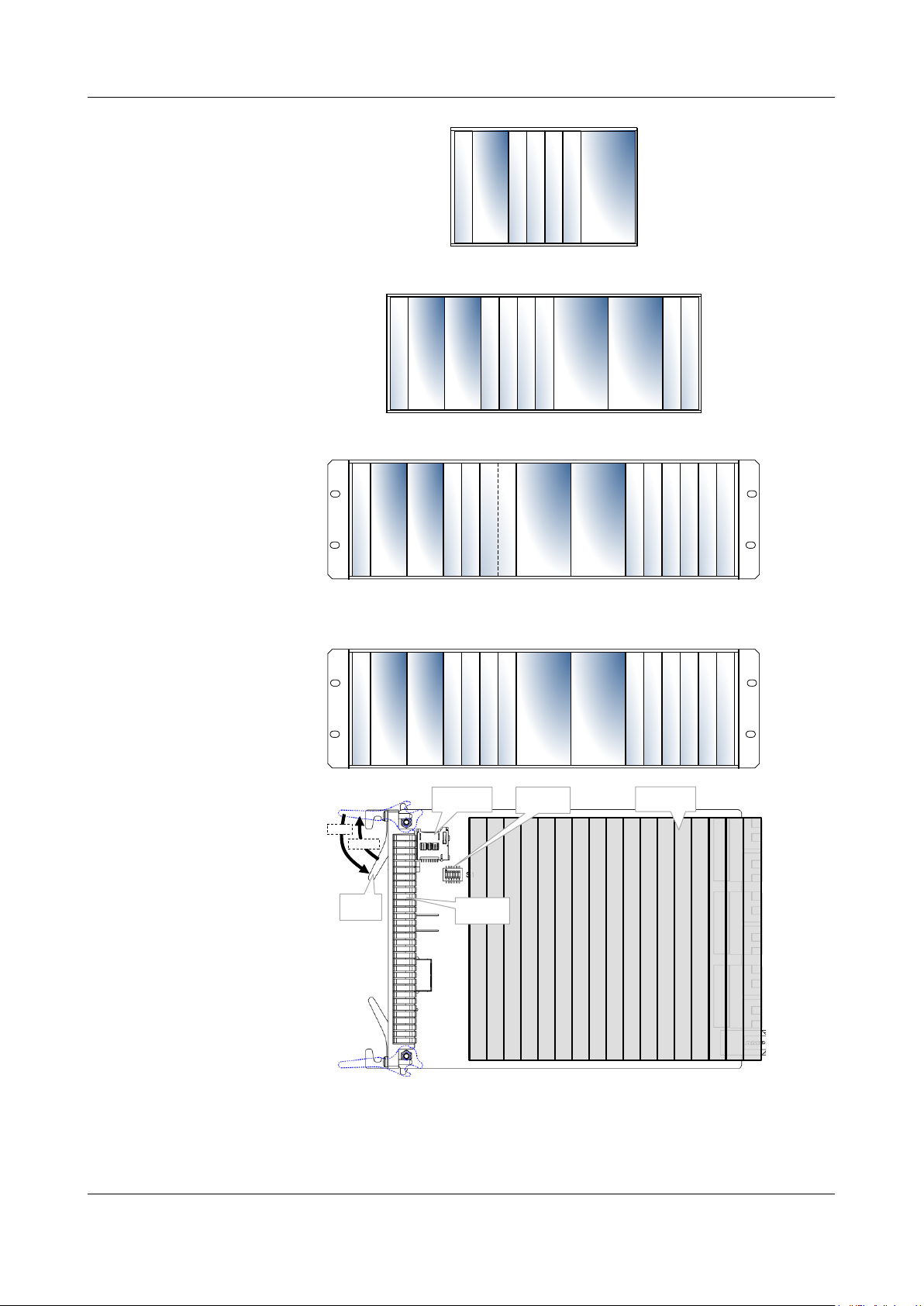

3.5 Node Module Positions ..................................................................... 25
3.6 XT-1104-A Node (942 228-001) .......................................................... 28
3.7 XT-2206-A Node (942 228-002) .......................................................... 34
3.8 XT-2209-A Node (942 228-003) .......................................................... 39
3.9 XT-2210-A Node (942 228-004) .......................................................... 41
4. POWER SUPPLIES – INSTALLATION FORMS ............................................................... 44
4.1 PSU Types for Dragon PTN Nodes ...................................................... 44
4.2 PSU Cables ........................................................................................ 45
Dragon PTN Installation and Operation 3
Release 01 02/2018
Page 4

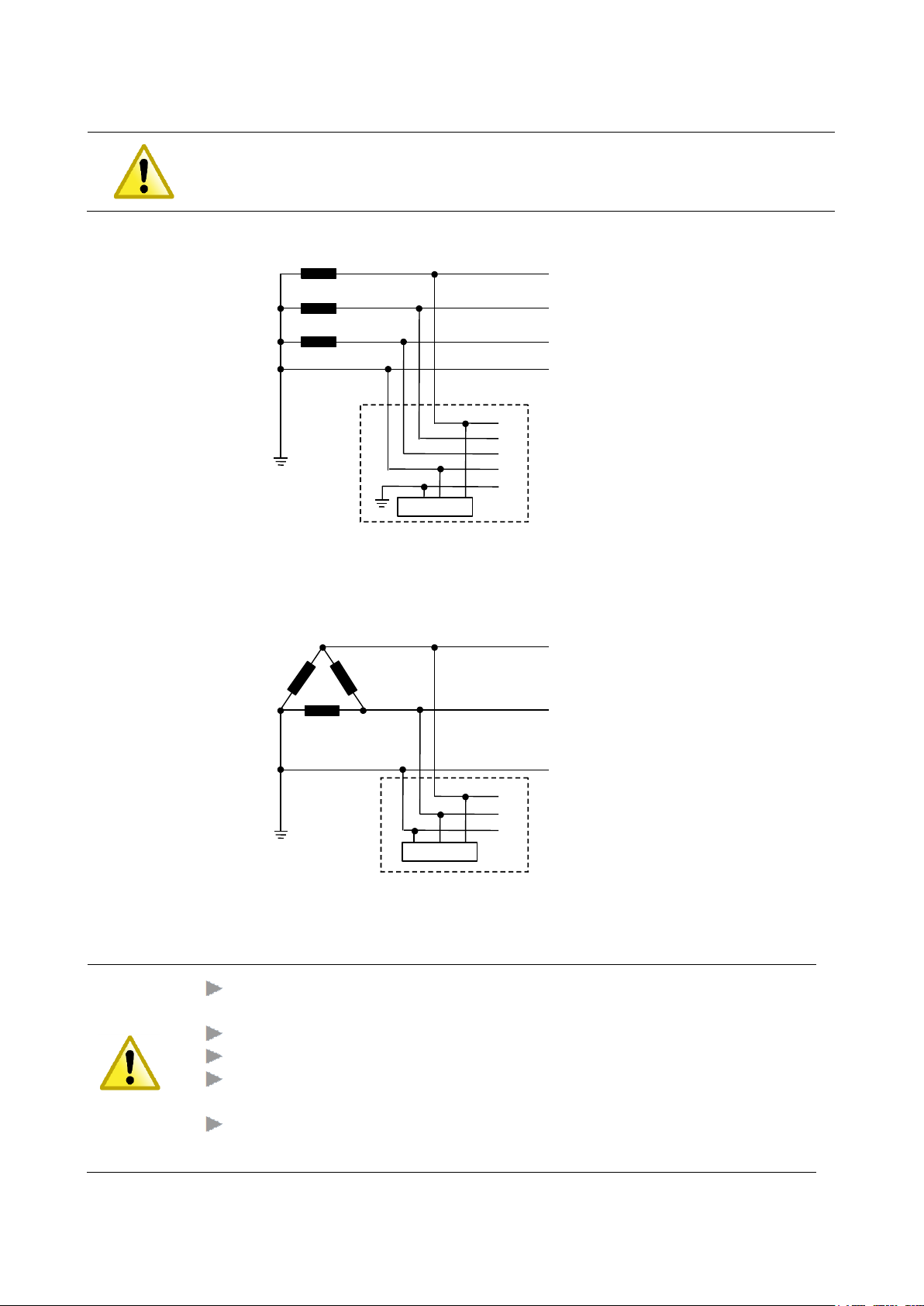

4.3 IT Grounding System ......................................................................... 47
4.4 Safety and Power Distribution .......................................................... 47

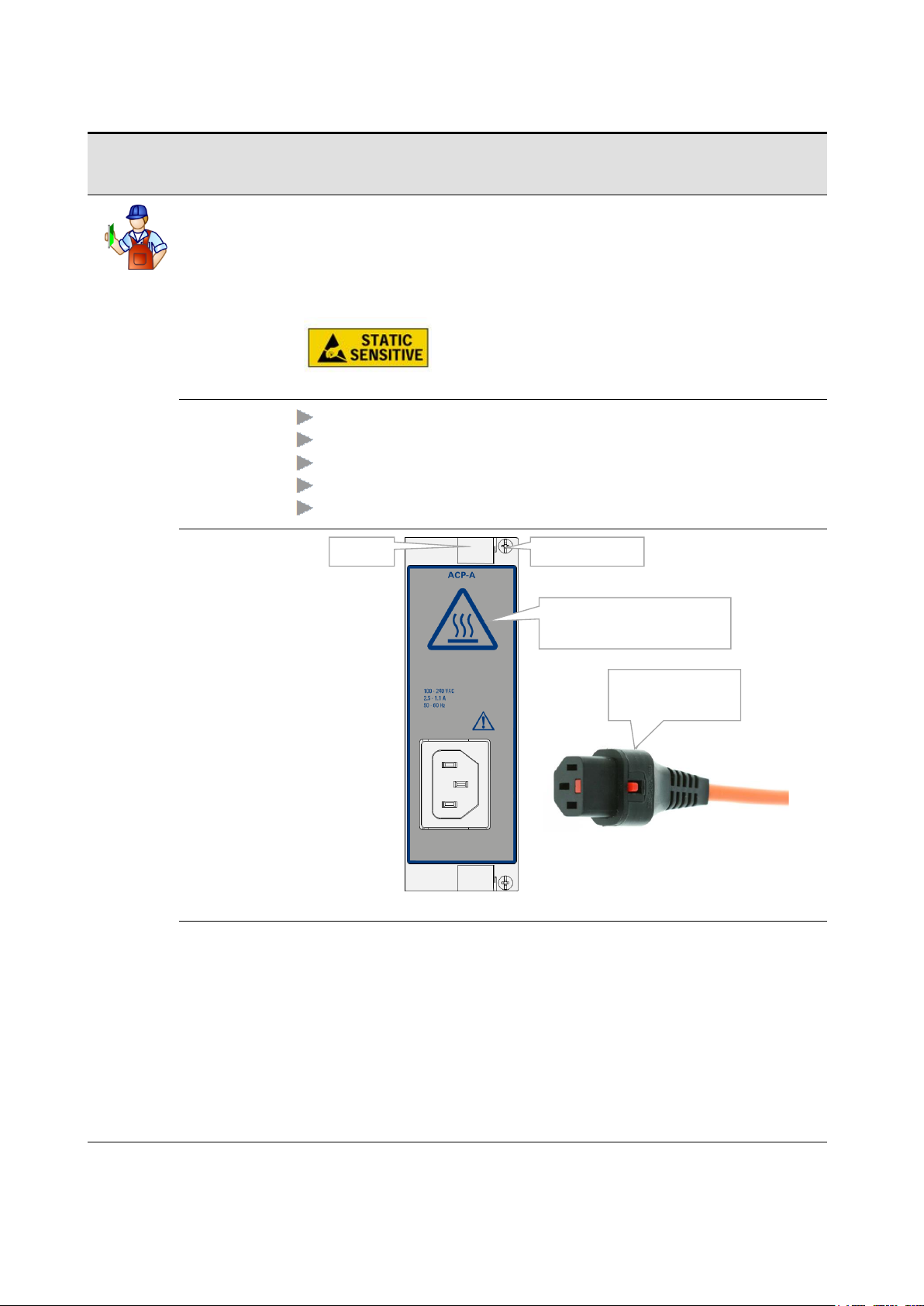

4.5 ACP-A: 100-240 VAC ± 10 % - PSU (942 234-001) ................................ 48

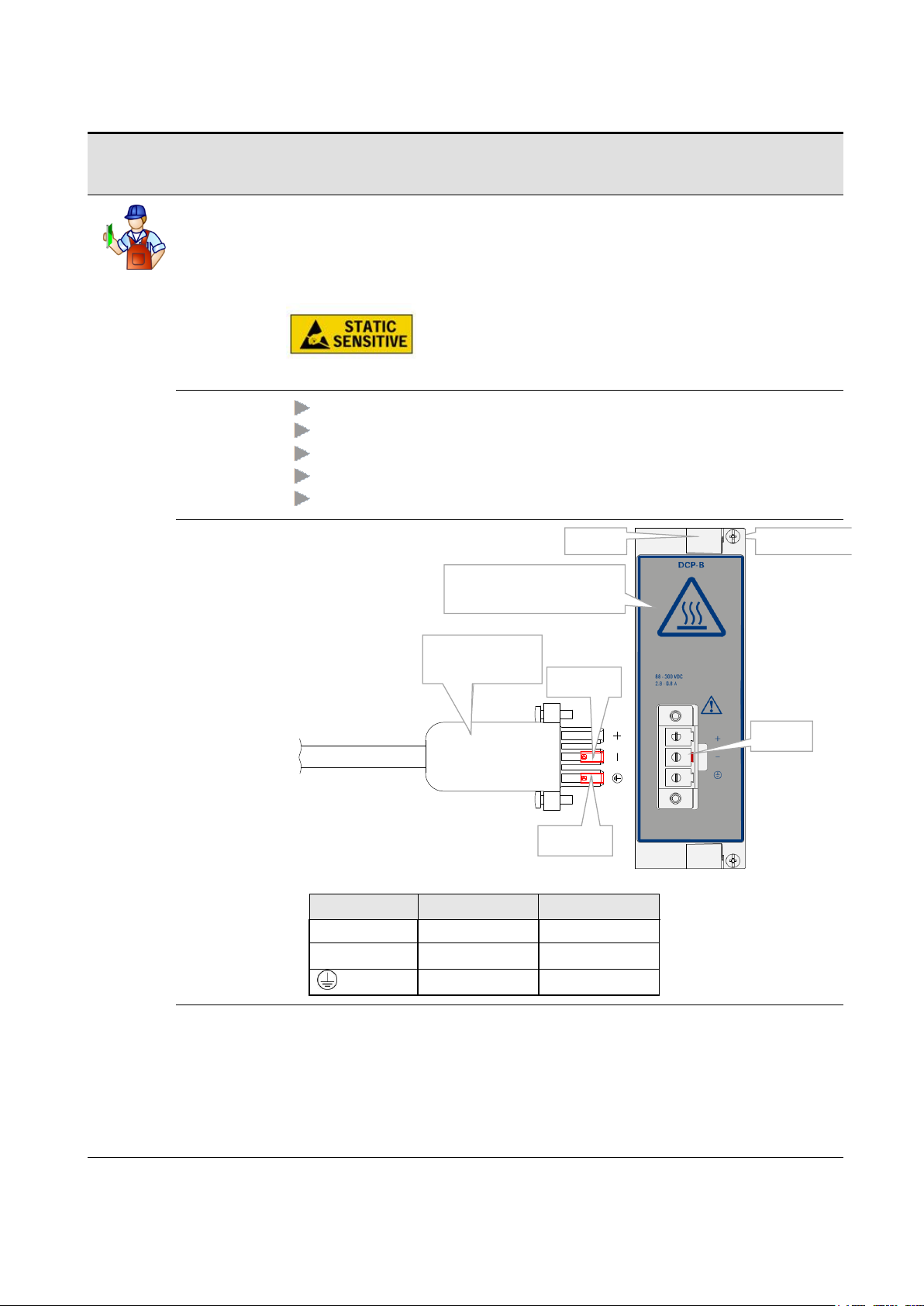

4.6 DCP-A: 18-60 VDC PSU (942 234-002) ................................................ 49

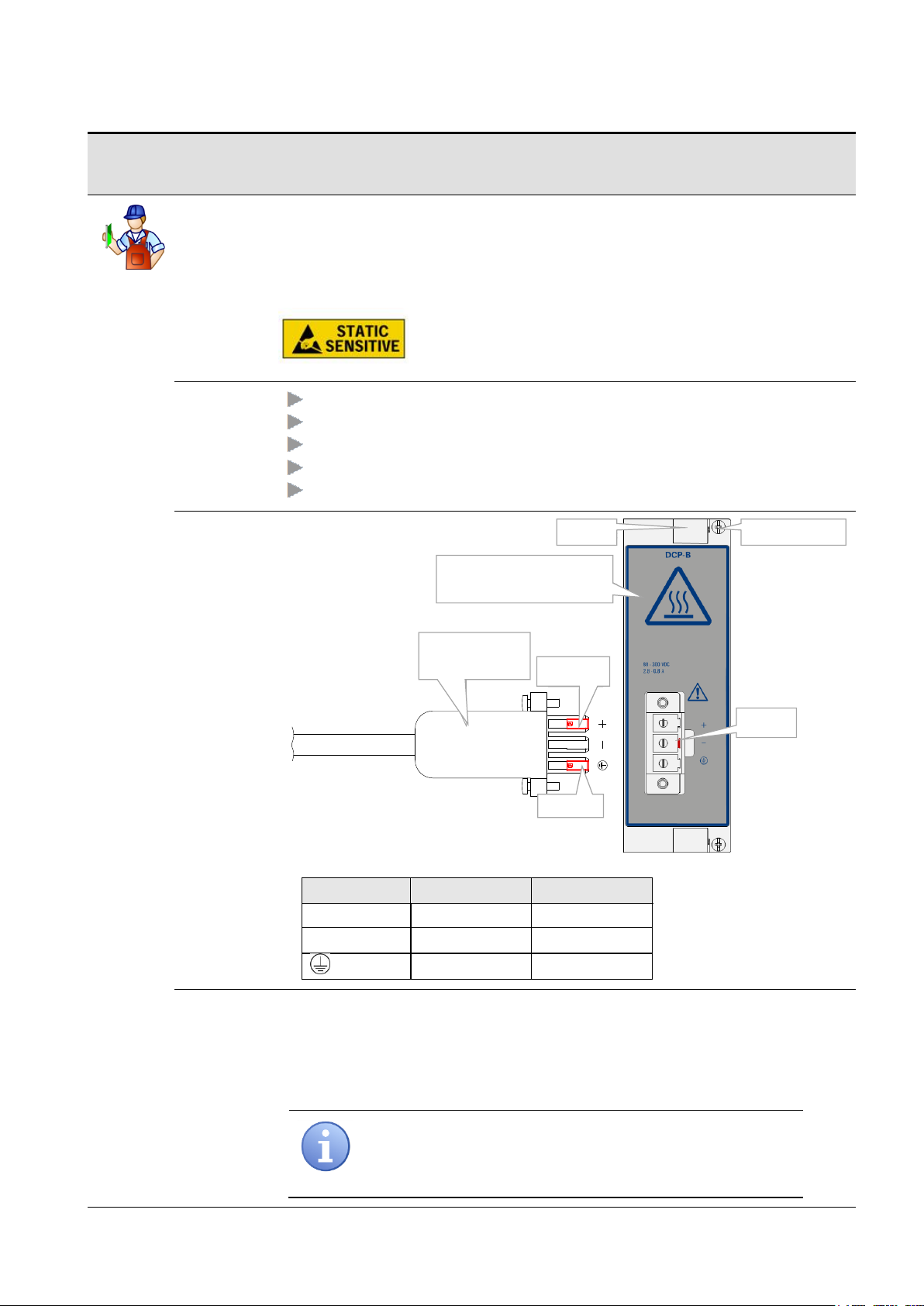

4.7 DCP-B: 88-300 VDC PSU (942 234-003) ............................................... 51
4.8 ACPoE-A DIN Rail PSU/100-240 VAC ± 10 % - 48 VDC DIN RAIL PSU (942 235-
001) .................................................................................................. 53

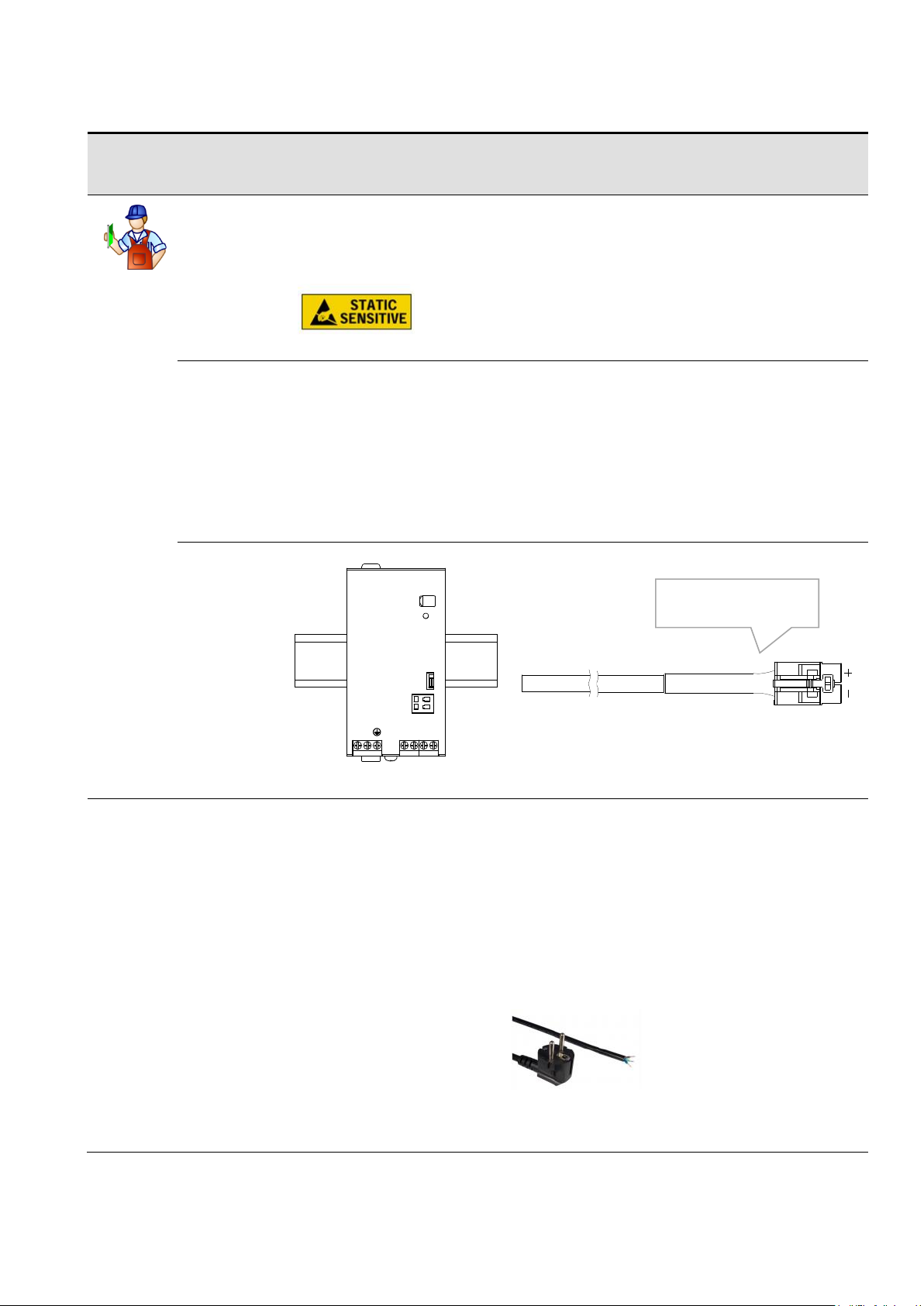

4.9 DCPoE-A DIN Rail PSU/ 33-62 VDC(in) - 56 VDC(out) DIN RAIL PSU (942 235-
002) .................................................................................................. 55
5. NODE SUPPORT MODULES – INSTALLATION FORMS ................................................. 59
5.1 NSM-A (942 229-001), NSM-B (942 229-002) ..................................... 61
6. CENTRAL SWITCHING MODULE – INSTALLATION FORMS ........................................... 67
6.1 General ............................................................................................. 67

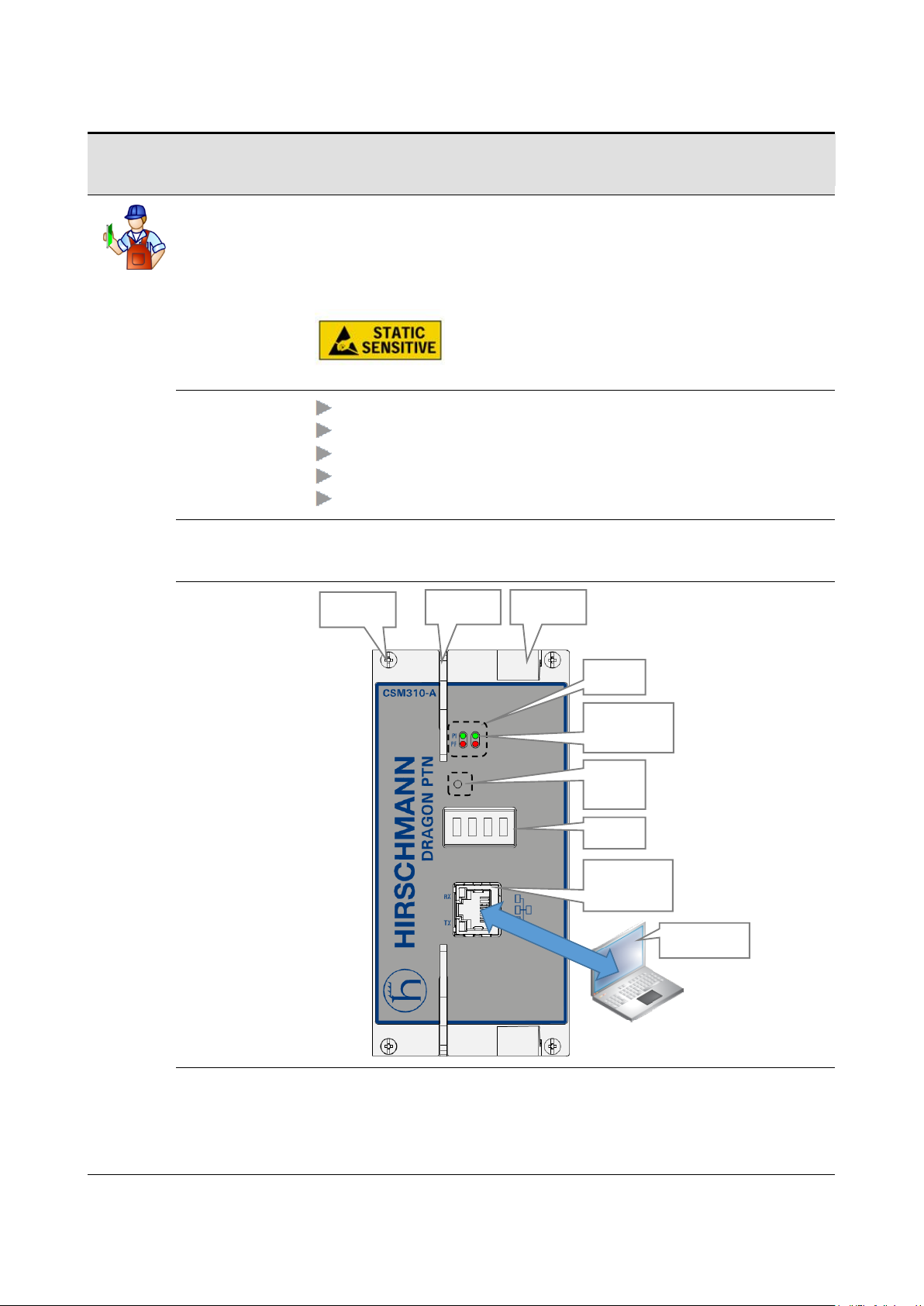

6.2 CSM310-A (942 230-001) ................................................................... 68
7. INTERFACE MODULES – INSTALLATION FORMS ......................................................... 76
7.1 General Recommendations: Optical Connectors, Laser Diodes and Fibers 77

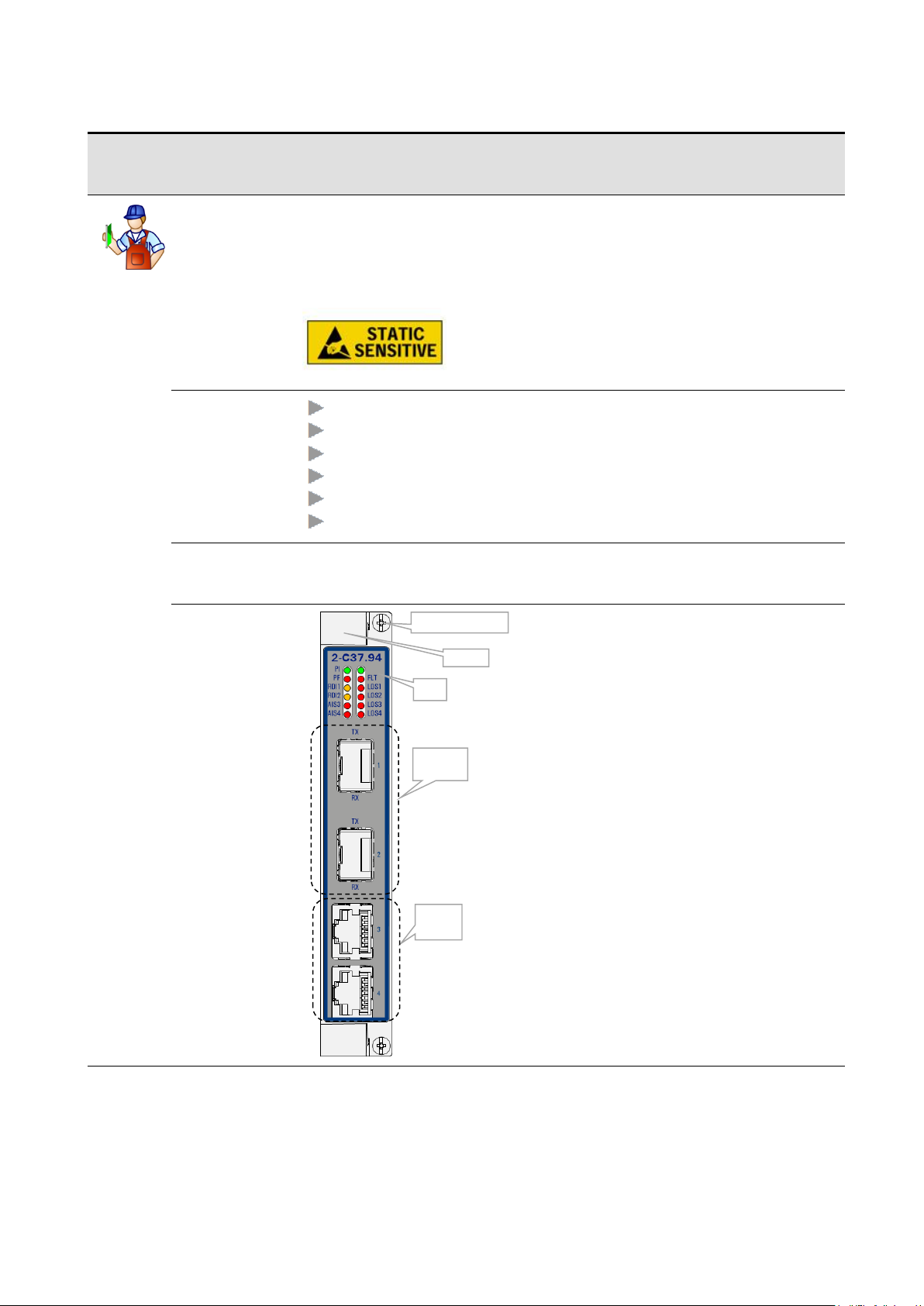

7.2 2-C37.94 (With E1: 942 236-009 / With T1: 942 236-010) ................... 78
7.3 4-DSL-LW (942 236-007) .................................................................... 82

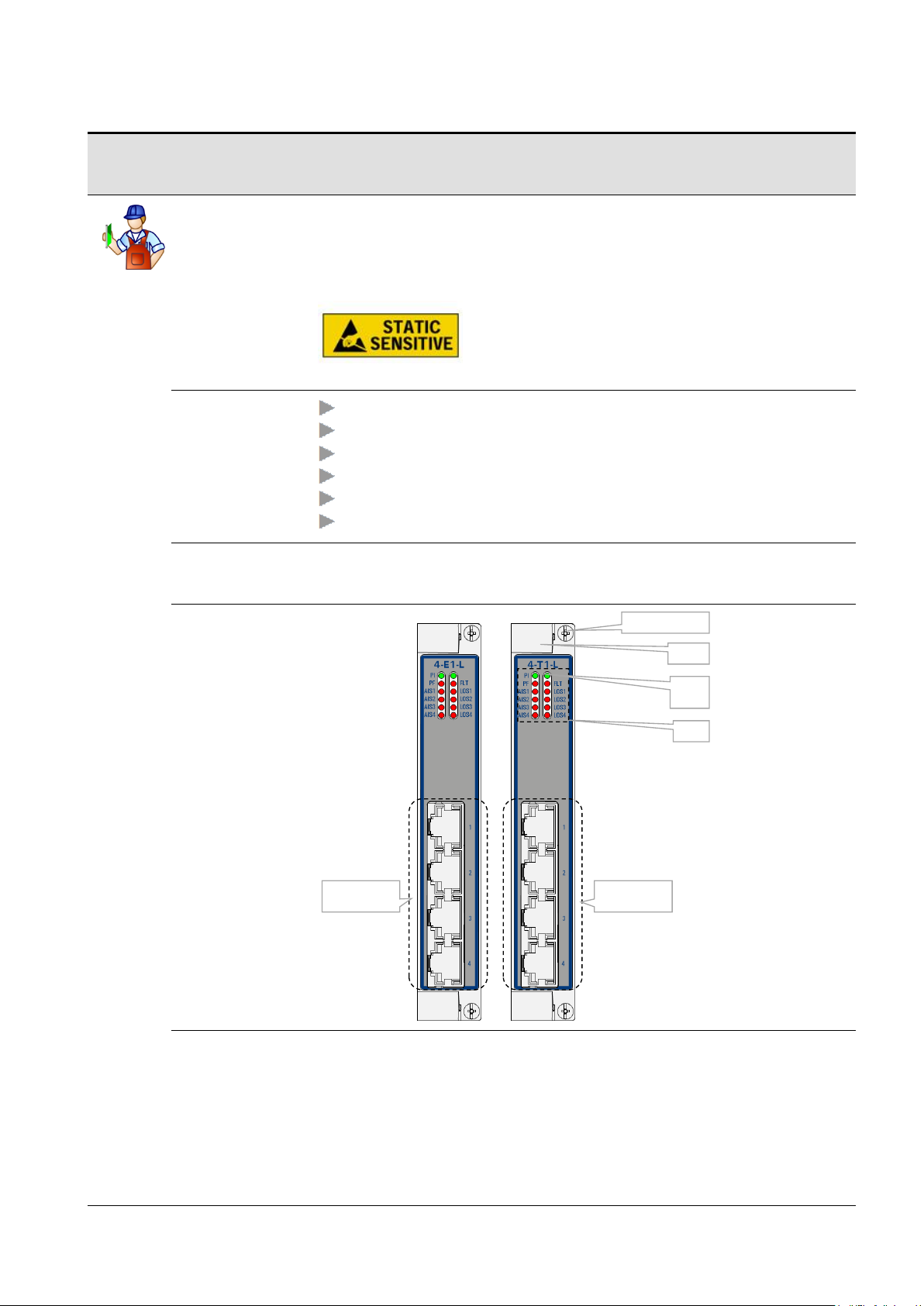

7.4 4-E1-L/4-T1-L (942 236-010/ 942 236-011) ......................................... 87

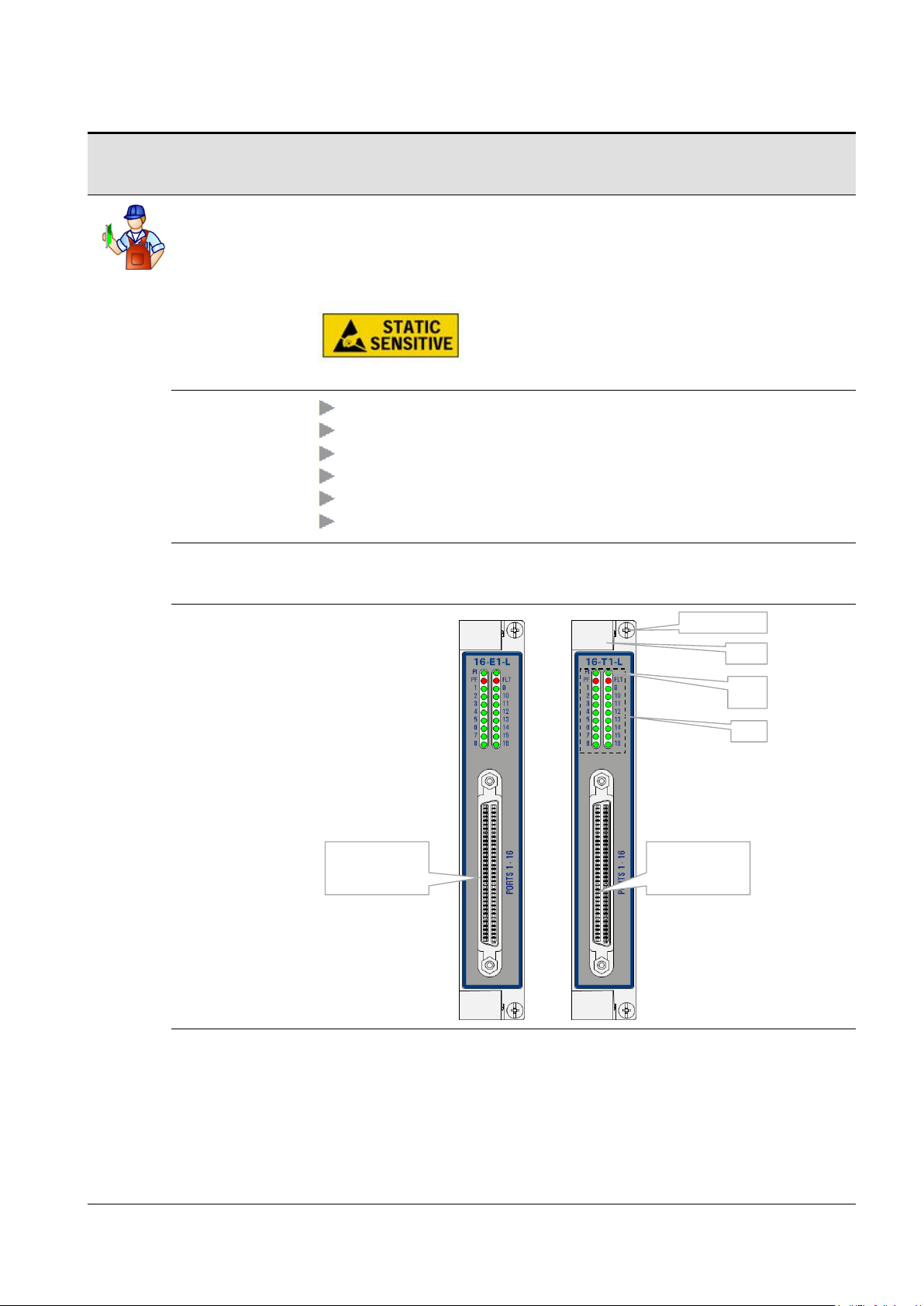

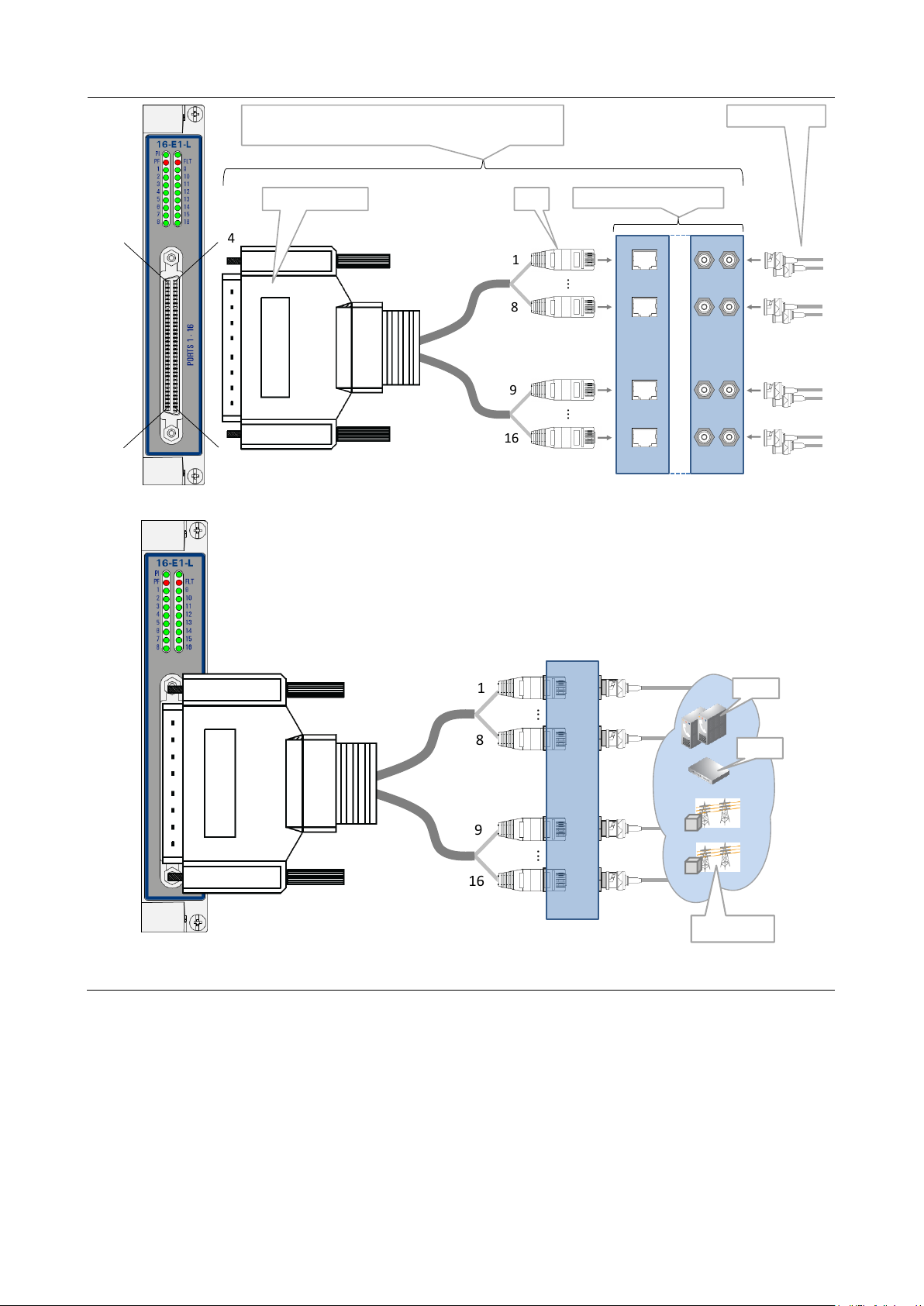

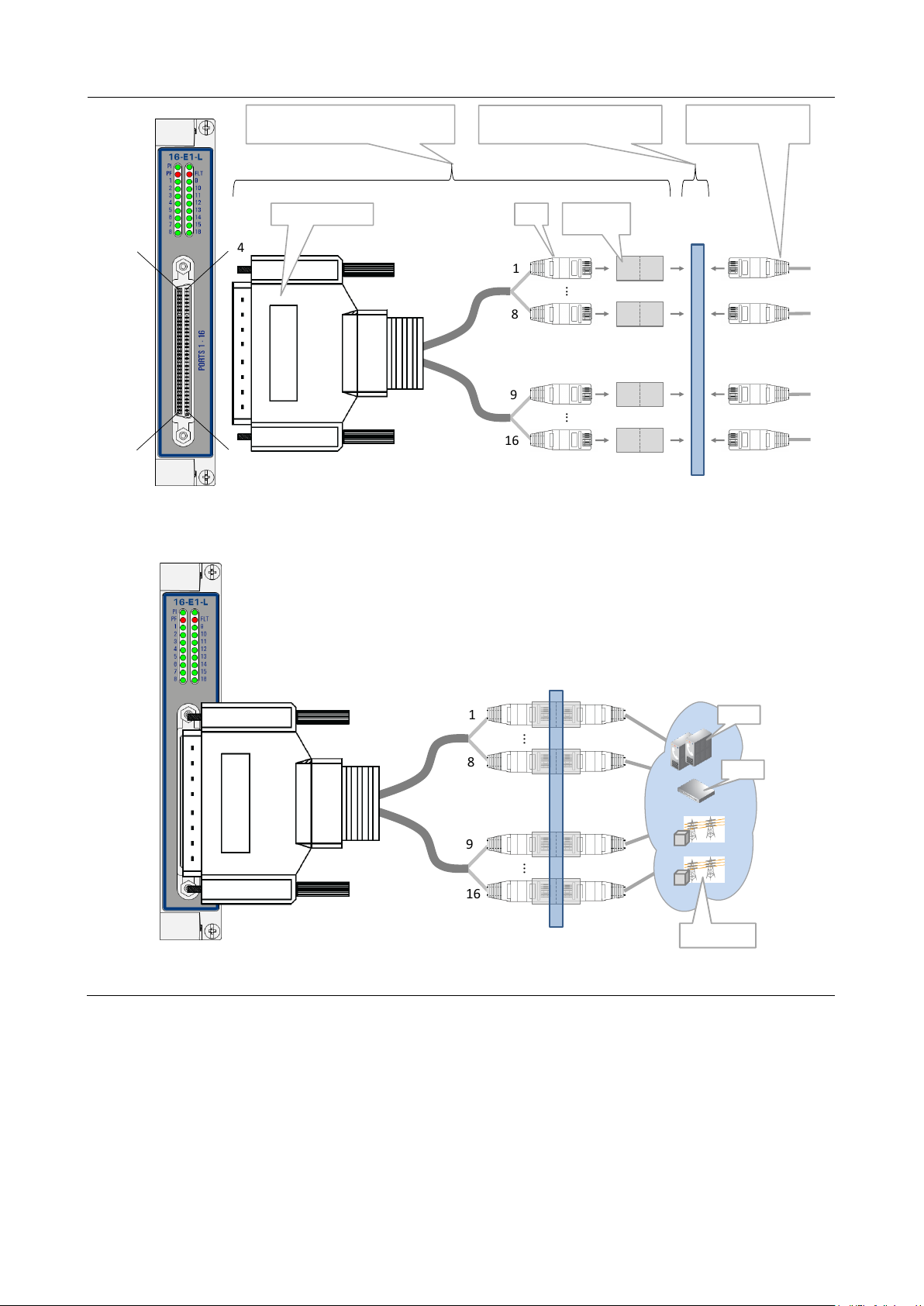

7.5 16-E1-L/16-T1-L (942 236-012/942 236-013) ...................................... 91

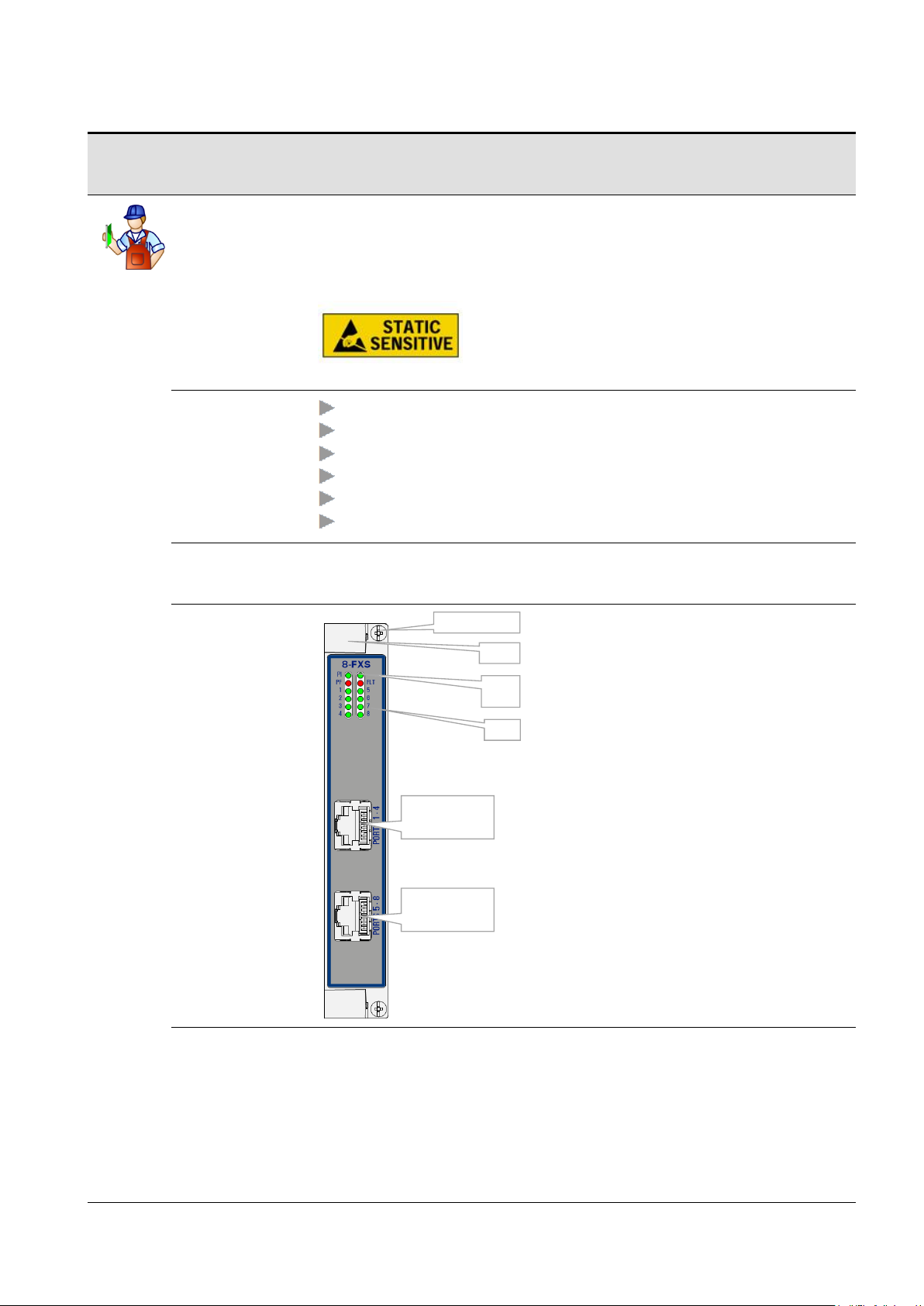

7.6 8-FXS (future support) ....................................................................... 98
7.7 4-GC-LW (942 236-001), 4-GCB-LW (942 236-008) ............................ 103
7.8 7-SERIAL (942 236-014) ................................................................... 107
7.9 1-10G-LW (942 236-004) .................................................................. 121
7.10 4-2/4WEM (future support) ............................................................ 124
7.11 4-CODIR (future support) ................................................................ 127
7.12 4-GO-LW (942 236-002) ................................................................... 130
7.13 2-OLS (with E1: future support / with T1: future support) ................ 133
7.14 9-L3A-L (942 236-005) ..................................................................... 136
7.15 Optical Transceiver/Receiver Modules (SFP, XFP) ............................ 139
8. CABLES .................................................................................................................. 141
8.1 Introduction ................................................................................... 141
8.2 Color Codes .................................................................................... 141
9. ADD NEW NODE TO A LIVE NETWORK .................................................................... 143
9.1 Introduction ................................................................................... 143
9.2 Steps .............................................................................................. 143
10. INSTALLATION FILE ................................................................................................ 145
10.1 Optical Power Measurements ......................................................... 145
11. THIRD-PARTY EQUIPMENT ..................................................................................... 147
4 Dragon PTN Installation and Operation
Release 01 02/2018
Page 5
12. REPAIR .................................................................................................................. 149
13. FINAL INSTALLATION ACTIVITIES ............................................................................ 151
14. PREVENTIVE MAINTENANCE .................................................................................. 153
14.1 Visual Inspection of the Equipment ................................................. 153
14.2 Measure Network Path Delays and Message Loss ............................ 153
14.3 Optical Measurements .................................................................... 153
14.4 Test Node PSU Redundancy and UPS (Uninterruptable Power Supply)153
14.4.1 Test Node PSU Redundancy, Load Sharing ............................................ 153
14.4.2 Test UPS ................................................................................................. 154
14.5 HiProvision ..................................................................................... 154
14.6 Helpdesk......................................................................................... 154
14.7 System Documentation ................................................................... 154
14.8 Repair Stock .................................................................................... 154
14.9 Health Check and System Upgrade .................................................. 154
15. MANUALS REFERENCE LIST ..................................................................................... 156
16. ABBREVIATIONS LIST .............................................................................................. 158
17. GENERAL NODE DATA ............................................................................................ 161
18. ESD RECOMMENDATIONS ...................................................................................... 163
18.1 General ........................................................................................... 163
18.2 Identification and Packaging of ESD Modules .................................. 163
18.2.1 Static Protective Packaging.................................................................... 163
18.3 Handling of ESD Modules ................................................................ 165
18.3.1 General Guidelines and Precautions ..................................................... 165
18.3.2 ESD Guidelines upon Receipt................................................................. 165
18.3.3 Handling ................................................................................................. 165
18.3.4 Protective Guidelines for Workshop Equipment ................................... 166
18.4 Storage of ESD Modules .................................................................. 166
18.5 Transportation of ESD Modules ....................................................... 166
18.6 Handling and Transportation of Racks and Systems ......................... 167
18.7 Summary of Rules to be Obeyed ..................................................... 167
Dragon PTN Installation and Operation 5
Release 01 02/2018
Page 6
Document Revision level
Issue
Modification
Date
01
Creation of document
February 2018
6 Dragon PTN Installation and Operation
Release 01 02/2018
Page 7
Introduction
Dragon PTN Installation and Operation 7
Release 01 02/2018
Page 8
1. INTRODUCTION
For additional support, contact the Hirschmann helpdesk via
https://hirschmann-support.belden.eu.com. Before contacting the Hirschmann
helpdesk, please have following information ready :
A description of your network environment (network design, cabling, …);
A description of the failure;
A description of any action(s) already taken to resolve the problem (e.g.
exchange of HW modules, rebooting the system, …);
HiProvision Version (HiProvision = Dragon PTN Management System);
The issue / revision number of the involved HW modules (and firmware);
The device history (i.e. have you returned the device before, is this problem a
recurring problem….);
Any previous repair reference (ERO, RMA number);
1.1 Terms and Conditions
In no event shall the supplier be liable under this agreement for any indirect, special,
consequential, punitive or incidental damages of any nature whatsoever, nor for any loss of
profits, revenue, use or loss of data, before or after acceptance. In no event shall supplier's total
liability for any cause of action arising under this agreement be higher than the total contract
amount.
1.2 General
This document is valid as of Dragon PTN Release 3.0DR.
This manual contains the procedures required for installing a Dragon PTN network. We
recommend that trained installers with practical experience in installation of telecommunication
equipment will carry out the installation.
There are two major steps in installing the Dragon PTN network:
1. Install the hardware equipment (Installation Engineer, see §1.3).
2. Configure the hardware + software (Service Engineer, see §1.3).
The HiProvision (=Dragon PTN Management System) is a software tool to manage Dragon PTN
networks. It provides all the functions required for configuring, administrating, maintaining and
monitoring the Dragon PTN networks. Refer to the ‘Dragon PTN and HiProvision Operation’
manual DRA-DRM821-&-* with ‘&’ the language code and ‘*’ the issue number supplied with your
system.
8 Dragon PTN Installation and Operation
Release 01 02/2018
Page 9
1.3 Symbol Clarification
Engineer type
Icon
Description
Level 1 =
Installation Engineer,
hardware only
A qualified person who is familiar with safety aspects. This person is
responsible for the proper installation of the Dragon PTN equipment,
according to the given installation forms (forms, see further in this
manual). A ‘Level 2’ engineer does the configuration.
Level 2 =
Service Engineer,
hardware + software
A qualified person, trained by Hirschmann, who is familiar with safety
aspects. This person’s responsibility is to configure all the installed Dragon
PTN hardware and software according to the given installation forms
(forms, see further in this manual) and make the Dragon PTN network
operational.
Duration
Duration:
y min
y hour(s)
Duration indicates the possible amount of time that the Installation
Engineer might need to install/configure the Dragon PTN product.
Depending on the experience of the Installation Engineer, this duration
time could vary.
Symbol
Icon
Description
ESD
CAUTION!
Avoid equipment damage from electrostatic discharge by using an
antistatic wristband.
Temperature
CAUTION!
Some parts of the node can be extremely hot.
Laser
CAUTION!
When optically connecting the node, avoid looking straight into the
optical fiber or optical transmitter.
Attention
Attract the attention on a specific action or handling of the engineer
during installation and/or configuration.
Information
Gives the user additional information about a specific action or
handling.

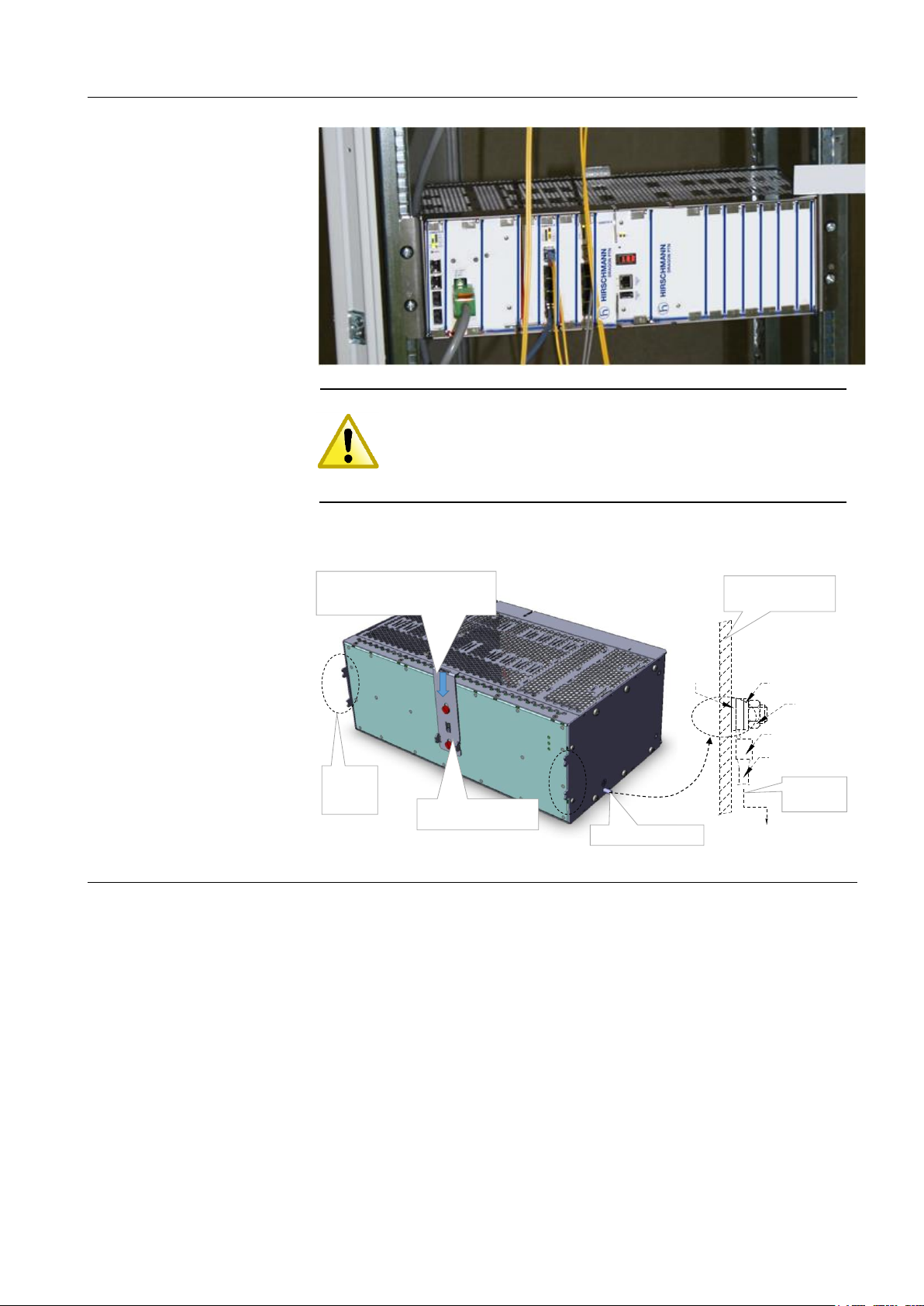

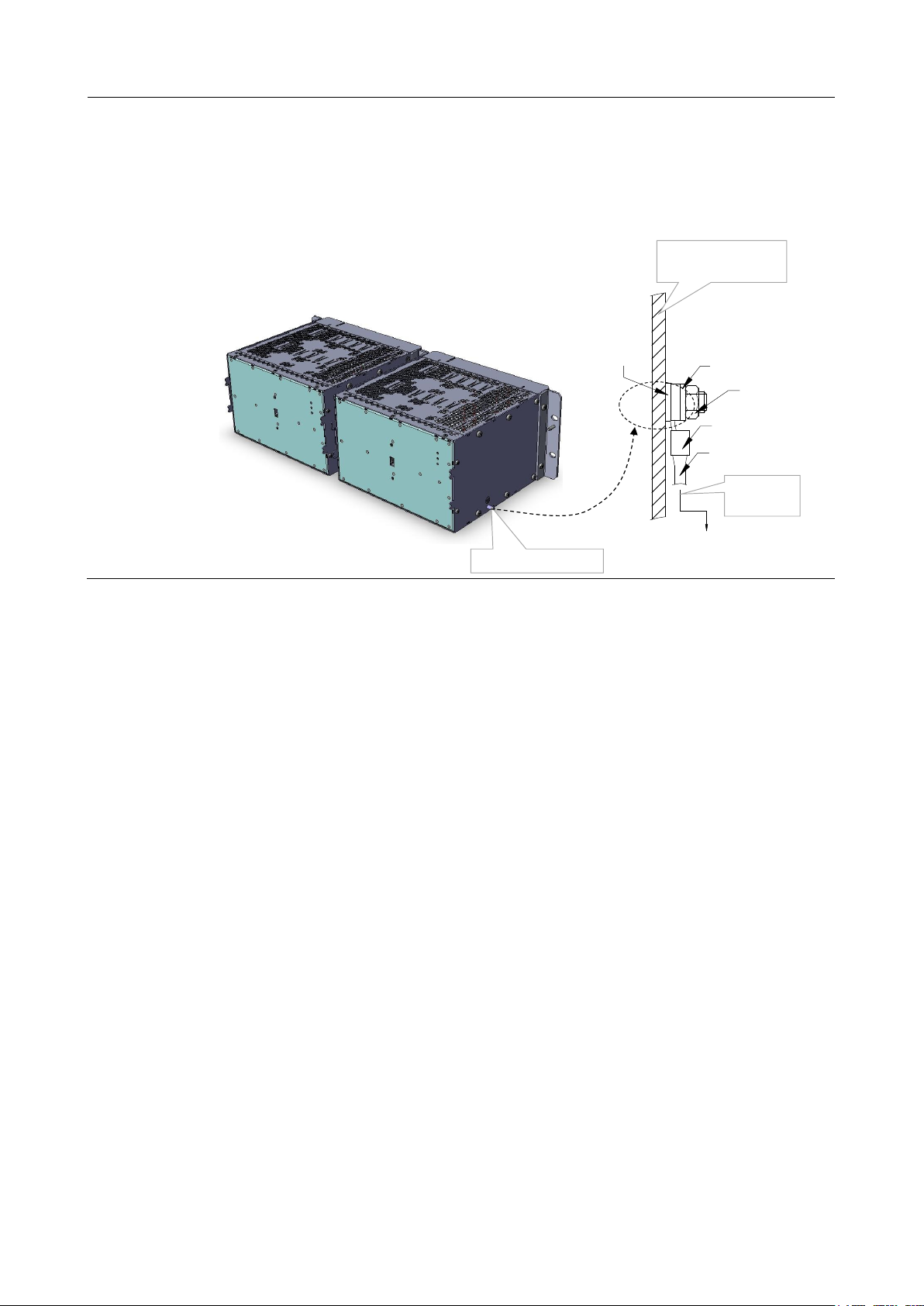

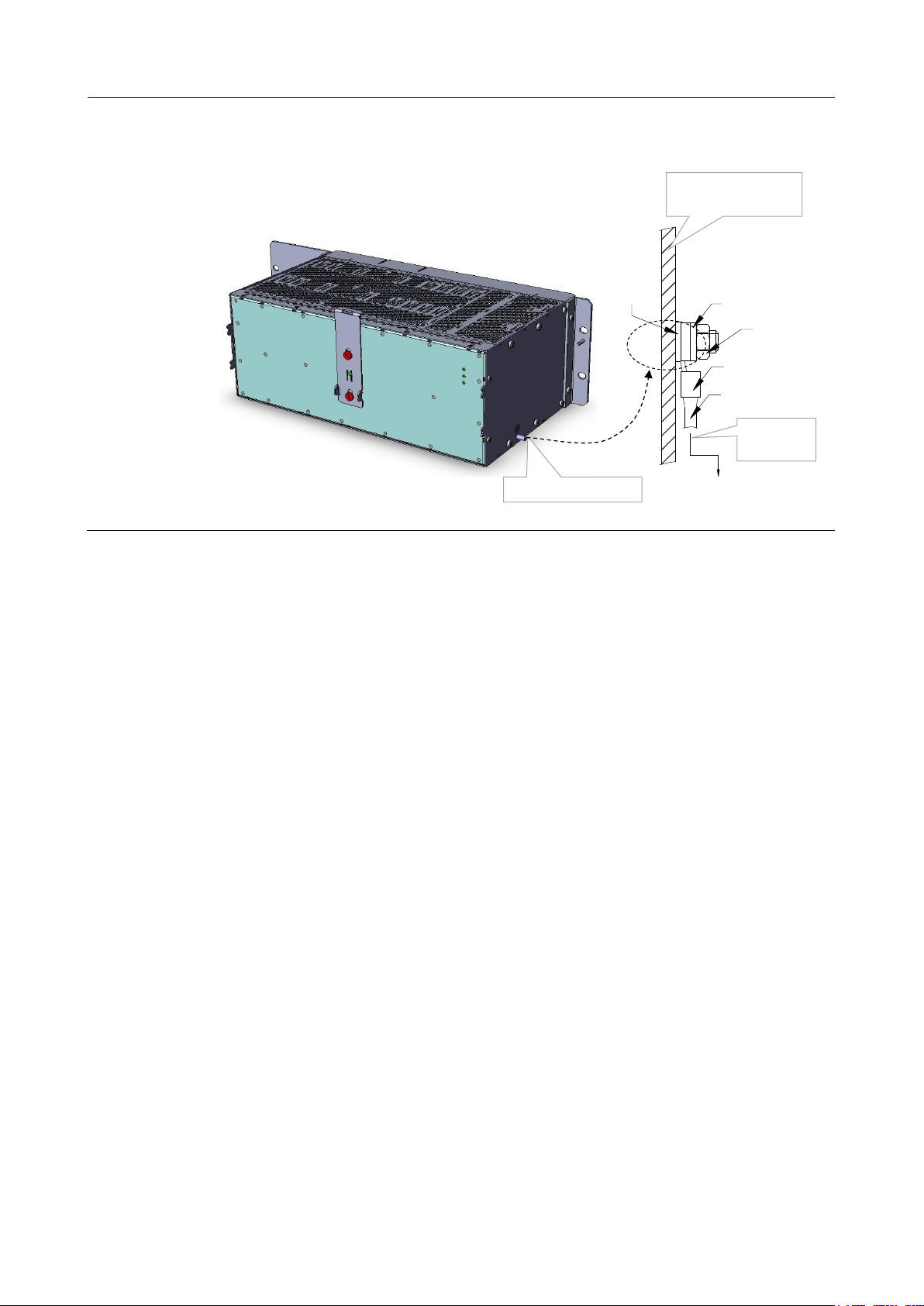

Protective Earth
This symbol is mentioned when installing a node and connecting the
node to the protective earth of a rack.
Compatible
Compatible with the mentioned Node type
Not Compatible
Not compatible with the mentioned Node type
1.3.1 Engineer Type Symbols
We consider two types of engineers:
1.3.2 Informational Symbols
Find below a list of symbols used in this manual:
Dragon PTN Installation and Operation 9
Release 01 02/2018
Page 10
1.4 CE Marking & Directives
All installation instructions in this manual such as the use of shielded cables must be
observed for Dragon PTN to comply with the European Directives quoted. When
Dragon PTN is used as part of a larger communication system, verify whether the
other products are carrying the mandatory CE marking and check whether the system
is composed according to the instructions of the different product suppliers.
Please observe the advice in the paragraphs below in order to prevent risks to life.
§4.1 PSU Types
§4.2 PSU Cables
§4.3 IT Grounding System
§4.4 Safety and Power Distribution
CAUTION: Some parts of the node can be extremely hot. Therefore, it is strongly
advised to use only the front panel handles of the module (NSM, CSM, IFM &
PSU). Do not touch the PCB or any other parts when removing it from the node:
Node Support Module: NSM
Central Switching Module: CSM
Interface Module: IFM
Power Supply Unit: PSU
See the ‘Dragon PTN General Specifications’ manual DRA-DRM810-&-* with ‘&’ the language code
and ‘*’ the issue number supplied with your system.
1.5 Safety Advice
1.5.1 Introduction
The safety advice contained in this section helps to prevent risks to life when operating or working
with the Dragon PTN equipment, as well as damage to the Dragon PTN equipment.
Install the Dragon PTN equipment only in a restricted access location;
1.5.2 Electrical Advice
Different Dragon PTN products or nodes require different PSUs with each PSU its own installation
instruction and electrical safety advice. ATTENTION: Especially read the chapters in the bulleted
list below for electrical safety advice depending on the required products.
1.5.3 Thermal Advice
Due to the fact that the Dragon PTN nodes have no rotating parts for cooling (except for the 9L3A-L IFM), the node and interface modules can be extremely hot in some environments.
10 Dragon PTN Installation and Operation
Release 01 02/2018
Page 11
1.5.4 Designated Use
If you cannot eliminate the manual handling risk and it is not practicable to use
mechanical aids use the correct safe lifting technique to help prevent injury.
Operate or work with the Dragon PTN equipment only within the scope of its designated use.
1.5.5 Cables (Lines) to the Dragon PTN Equipment
Install all the lines to the Dragon PTN rack in such a way that:
Other persons cannot trip over them;
Safe minimum clearances are maintained;
They do not obstruct the operation of the Dragon PTN equipment.
1.5.6 Checking of Safety Facilities
Check all the safety facilities immediately after the installation of the Dragon PTN equipment.
1.5.7 Work on the Electrical Systems
Work on the electrical systems may only performed by suitably qualified personnel.
1.5.8 Ingress of Cleaning Agents
Do not allow cleaning agents to enter into the Dragon PTN rack. The ‘integrated circuits’ of the
Dragon PTN modules are especially at risk.
1.6 Lifting Advice
1.6.1 Plan the Lift
Try to break down the load into smaller parts;
Check the pathway for any obstacles and clear these. Check if any doors need to be opened;
Test the weight of the load by lifting one corner. If it is too heavy or awkward, stop and
request help;
1.6.2 Performing the Lift
Stand with feet shoulder width apart and in a staggered stance;
Move in close to the load;
Bend your knees, keep your head upright and maintain the spine’s natural curves;
Pull the load close to your body;
Secure your grip;
Use a smooth controlled motion to lift the load;
Avoid twisting or turning your body when lifting and be sure to use your feet to change
direction;
1.6.3 Setting the Load Down
Stand with your feet apart and in a staggered stance;
Dragon PTN Installation and Operation 11
Release 01 02/2018
Page 12
Get as close as possible to the area you will place the load;
Remember to ‘keep the load close’ and ‘keep the natural curves of your spine’ to
help prevent injury.
Serial Number
Bend your knees, keep your head upright and maintain the spine’s natural curves;
Keep the load close;
Once the load is where you want it release your grip. Always ensure that the load is secured
before you release your grip;
1.6.4 Team Lifting
Before undertaking a team lift it is important to establish emergency commands should one of
you experience difficulty during the exercise;
If you are lifting a load with team member(s) it is vital to keep communicating with that
person(s) and tell them of any action you are about to take such as lowering or adjusting the
load;
1.7 Administration

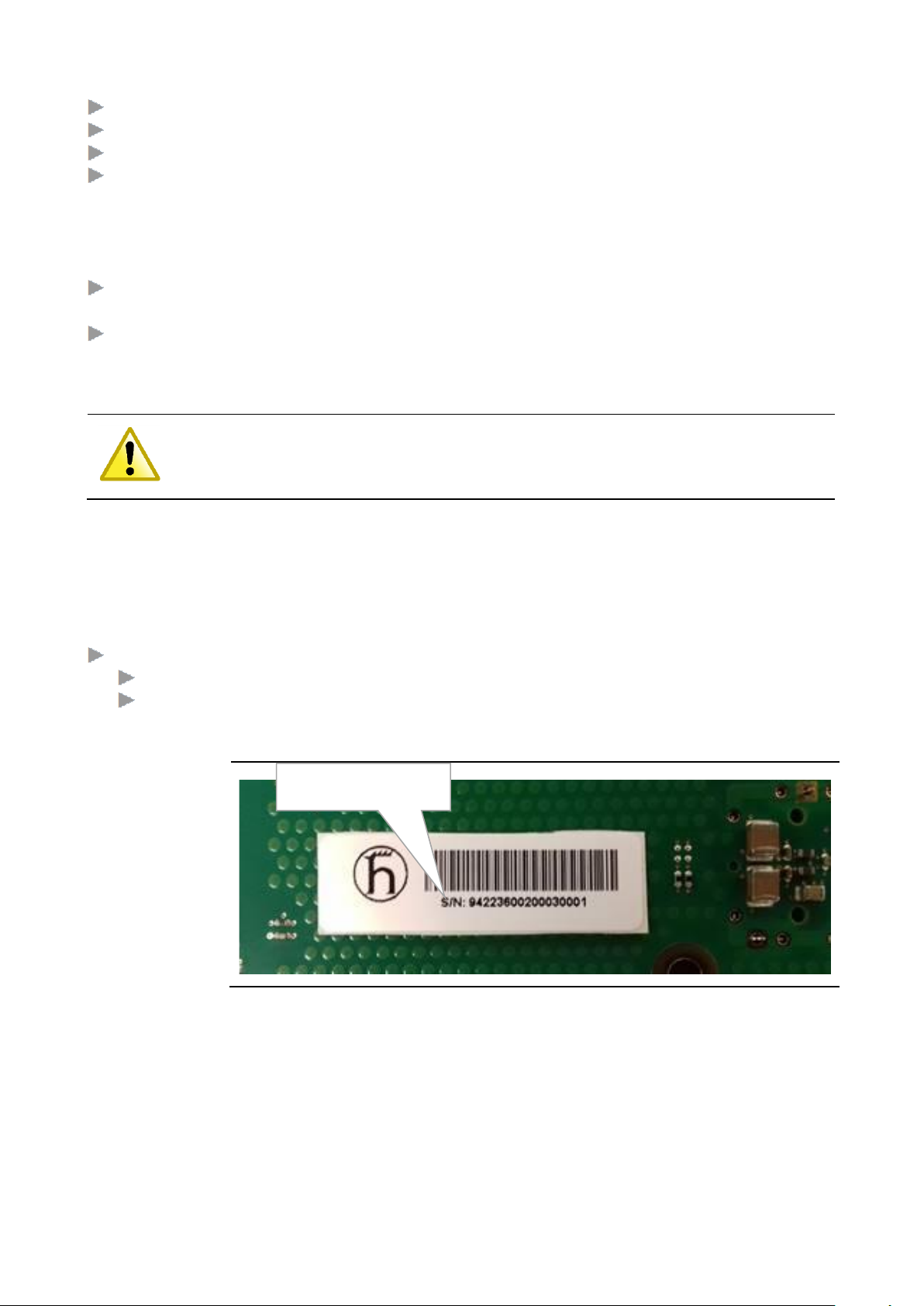

During the installation of a node, PSUs, CSM, NSM or IFM, write down the hardware edition and
serial number of each hardware product. Use the documents in chapter 17 to do this. If necessary,
make additional copies for each node and keep them in an installation file.
Serial Number:
For nodes: on the right-hand side of the node;
For PSUs, CSMs, NSMs and IFMs: on a label placed on the backside of the PCB (=Print
Circuit Board);
12 Dragon PTN Installation and Operation
Release 01 02/2018
Page 13
1.8 Tools & Materials
Upon request, Hirschmann can order the tools and installation equipment in the
table below.
Tool
Description
Screwdriver set
A screwdriver set of flat and crossed heads is required for installing Dragon
PTN equipment.
Cable tools set
Cable cutter, crimping tool for wire
terminal. (All in one tool shown)
Cable clamping tool
When connecting the interface cables to termination blocks, following items
are preferred. The termination block below defines all the detailed interface
cable connectivity (see interface forms).
10 pair termination block
(KRÖNE: ref. n° 6089-1-121-02)
Termination tool
Labels
Foresee industrial labels to identify all installed Dragon PTN equipment and
connected cables. Identification can be done e.g. the IEC 61346-2 norm.
Mounting
equipment
Find below the most common equipment for installing the Dragon PTN.
M6 cage nuts, bolts and plastic cup washers are required for a proper
installation of the node(s) inside a 19 inch rack.
For proper installation of the Dragon PTN equipment, the following tools are required:
Dragon PTN Installation and Operation 13
Release 01 02/2018
Page 14

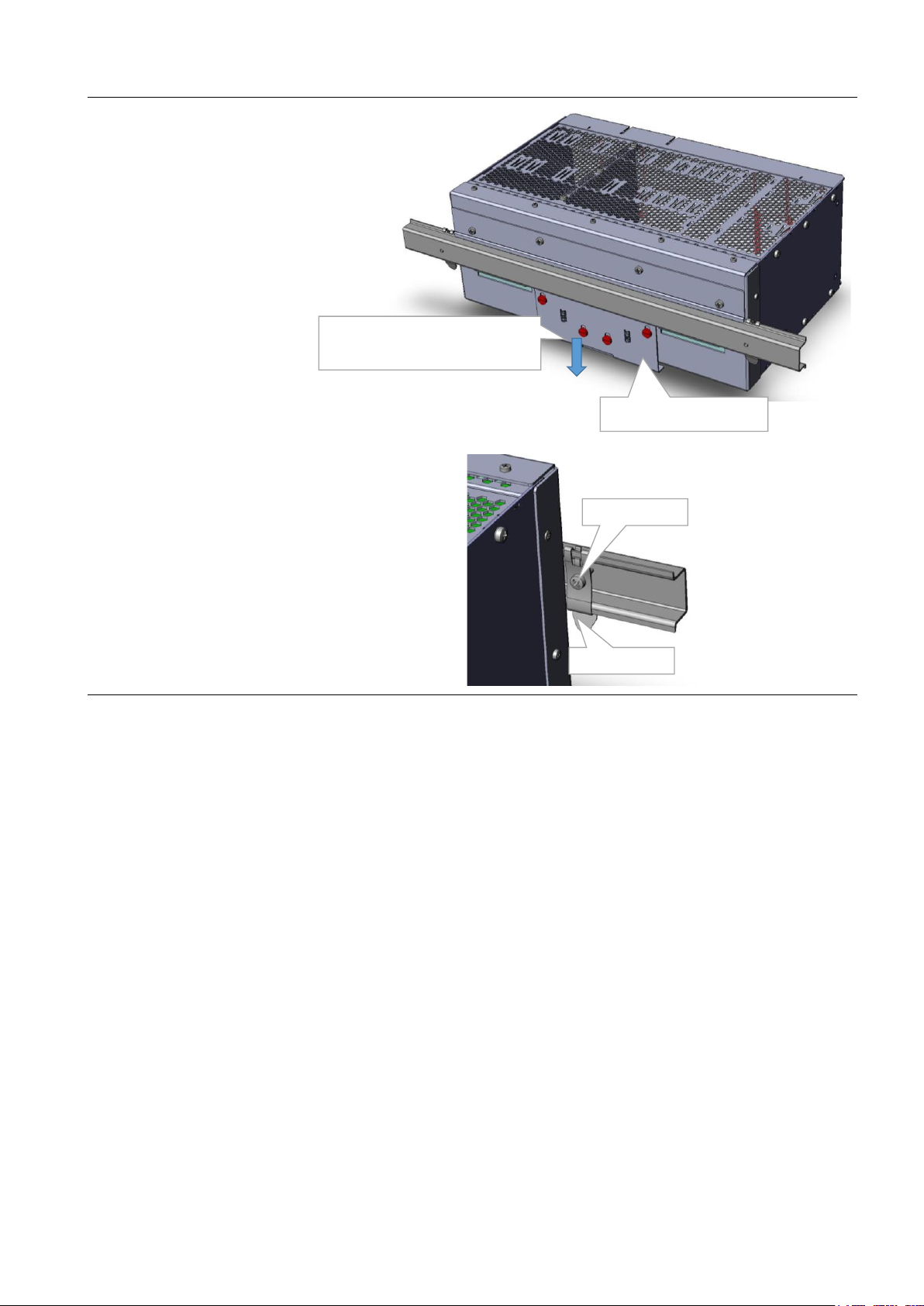

top hat rail EN 50022 – 35 × 7.5
top hat rail EN 50022 – 35 × 15
Cable ducts
Cable ties
Shrink sleeve
Electrical
equipment
Terminal blocks
Circuit breakers (Type C)
Earthing wires 6 mm²
Bootlace ferrules
Measurement
equipment
Tester or multi meter for voltage,
current and resistance measuring
Optical power meter
14 Dragon PTN Installation and Operation
Release 01 02/2018
Page 15
Antistatic
wristband
Always use an antistatic wristband when installing the Dragon PTN
equipment. Attach the antistatic wristband to the blank metal of the rack.
Fiber Cleaning
tool
For detailed cleaning advice, see the instructions that are included in your
cleaning kit.
Dragon PTN Installation and Operation 15
Release 01 02/2018
Page 16
1.9 Prerequisites
Consider some prerequisites for a proper installation of the Dragon PTN equipment and the other
equipment.
1.9.1 Drafting a Site Plan
Hirschmann Automation and Control GmbH offers all the support required for configuring the
nodes as economically as possible while maintaining sufficient flexibility for carrying out future
adjustments easily.
1.9.2 Installing the Optical Cable
Refer to the cable supplier's guidelines for installing the optical cable. Carry out the test
procedures required.
1.9.3 Unpacking and Checking the Supplied Goods
We recommended moving all the equipment for each site to the final location in its original
packaging cases/crates. Unpack all the equipment at this final location.
Follow the steps below:
1. Exercise all possible care while moving the equipment to the specified site Communication
Equipment Room.
2. Unpack only one case/crate at a time. If the outer packaging material is damaged and you
suspect some internal equipment may have been damaged in transit, do not continue with
the unpacking of that item, but obtain advice from your supervisor. Contact Hirschmann
Automation and Control GmbH if any irregularity shows.
3. Check the delivered items against the equipment delivery note.
4. Ensure that no small parts, cables, or any other items are left in the packaging crates.
5. Repeat the above steps until all the equipment has been unpacked.
6. Subject all the unpacked equipment to a careful visual inspection, recording any observed
damage. Report any damage to your supervisor for subsequent communication with
Hirschmann Automation and Control GmbH.
7. Carefully move the unpacked equipment to the required position within the
Communication Equipment Room.
8. Once the unpacking is complete, clear that the room of all packaging material in
accordance with site regulations.
1.9.4 Preparing the Rack
See Chapter 2.
16 Dragon PTN Installation and Operation
Release 01 02/2018
Page 17
1.10 Installing / Configuring / Connecting Nodes
With all installation activities, adopt the ESD recommendations regarding
the handling, transportation and storage of modules (see chapter 18).
The NSM for the XT-2210-A, XT-2209-A, XT-2206-A and XT-1104-A node is
pre-installed (The NSM must be ordered separately).
Read chapter 2 before installing the nodes inside a rack.
For each Dragon PTN hardware product, an installation form further on in this document can be
consulted for a proper installation. On top of each form, the name of the Dragon PTN part and the
Dragon PTN reference number are mentioned.
Example: 4-E1-L (942 236-010) with 4-E1-L = product name and 942 236-010 = reference number
If the nodes have already been configured (= all modules have been plugged into the node
already), follow the steps below:
check the straps/dip switches on the NSM Chapter 5
check the straps/dip switches on the CSM(s) Chapter 6
check the straps/dip switches on the interface module(s) , connect the fiber/node(s) and
connect the interface cable(s) Chapter 7
If the nodes have not been configured yet, follow the steps below:
Install a node (empty) inside a 19" rack Chapter 3
Install a power supply Chapter 4
Install an NSM Chapter 5
Install a CSM Chapter 6
Install an interface module Chapter 7
Install interface cables Chapter 8
Add new node to a live network Chapter 9
Dragon PTN Installation and Operation 17
Release 01 02/2018
Page 18
Rack Preparation
18 Dragon PTN Installation and Operation
Release 01 02/2018
Page 19
2. RACK PREPARATION
Precaution
Description
Accessibility
The front must be easily accessible for carrying out the following tasks:
connecting optical cables;
connecting the PSU(s) cables;
connecting interface modules;
connecting HiProvision (=Dragon PTN Management System);
system supervision (LED indications), tests and diagnostics;
The left side of the XT-1104-A, XT-2206-A, XT-2209-A and XT-2210-A
node must be accessible for carrying out the following tasks:
connecting the grounding cable; (see node forms for more details)
Space
For a proper installation and ventilation of a Dragon PTN node(s),
depending on the type, foresee the necessary space inside the rack.
Provide at least 3 U free space above and below the node for heat
dissipation (1 U = 1 HU = 1 RU = 44.45 mm / 1.75 inches).
Install a 3 U blind panel above and below the Dragon PTN nodes. Stick
the following label (supplied with node) on to the blind panels.
XT-2210-A/XT-2209-A/ XT-2206-A / XT-1104-A Node: Height = 3 U

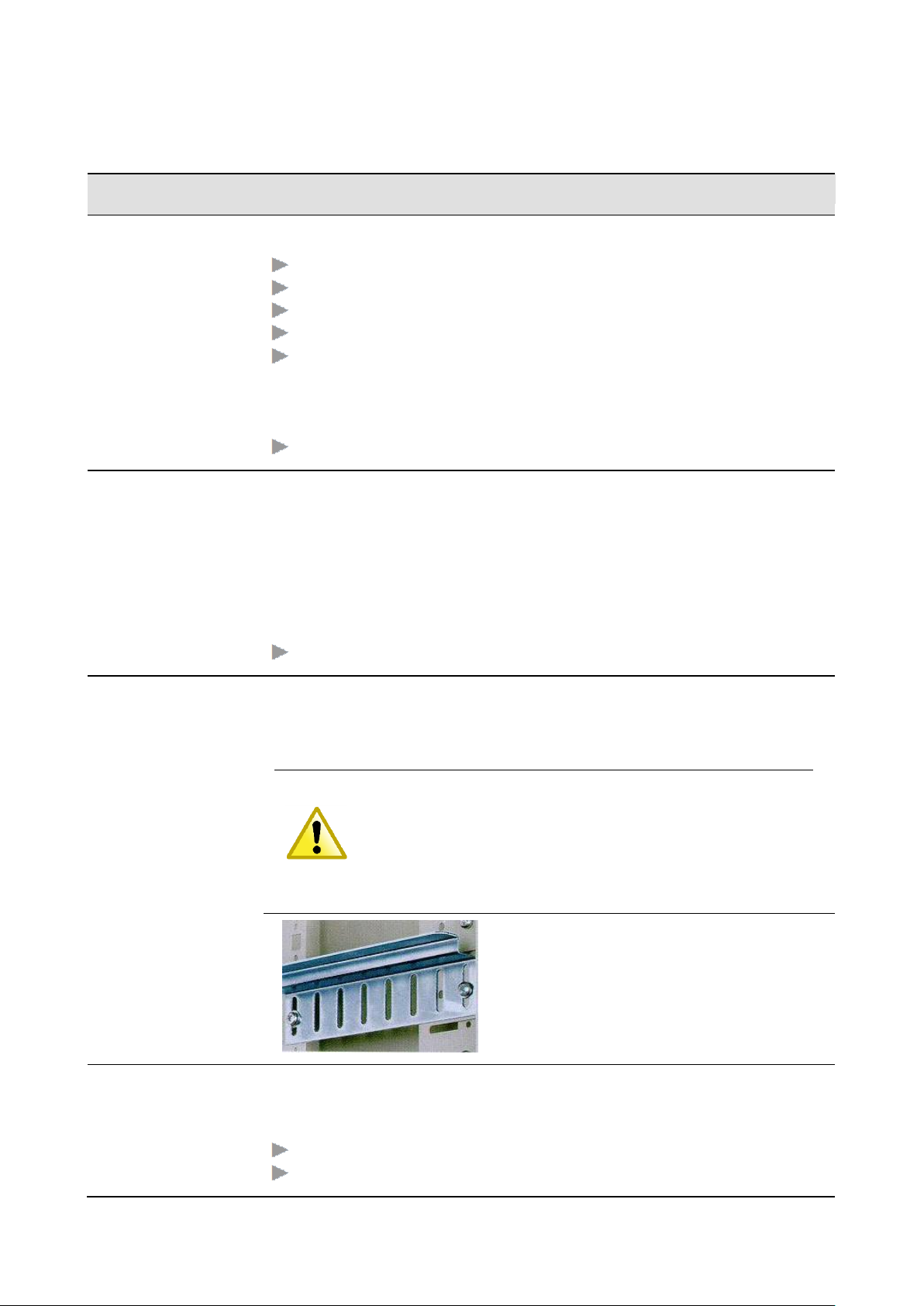

Node Support
Brackets

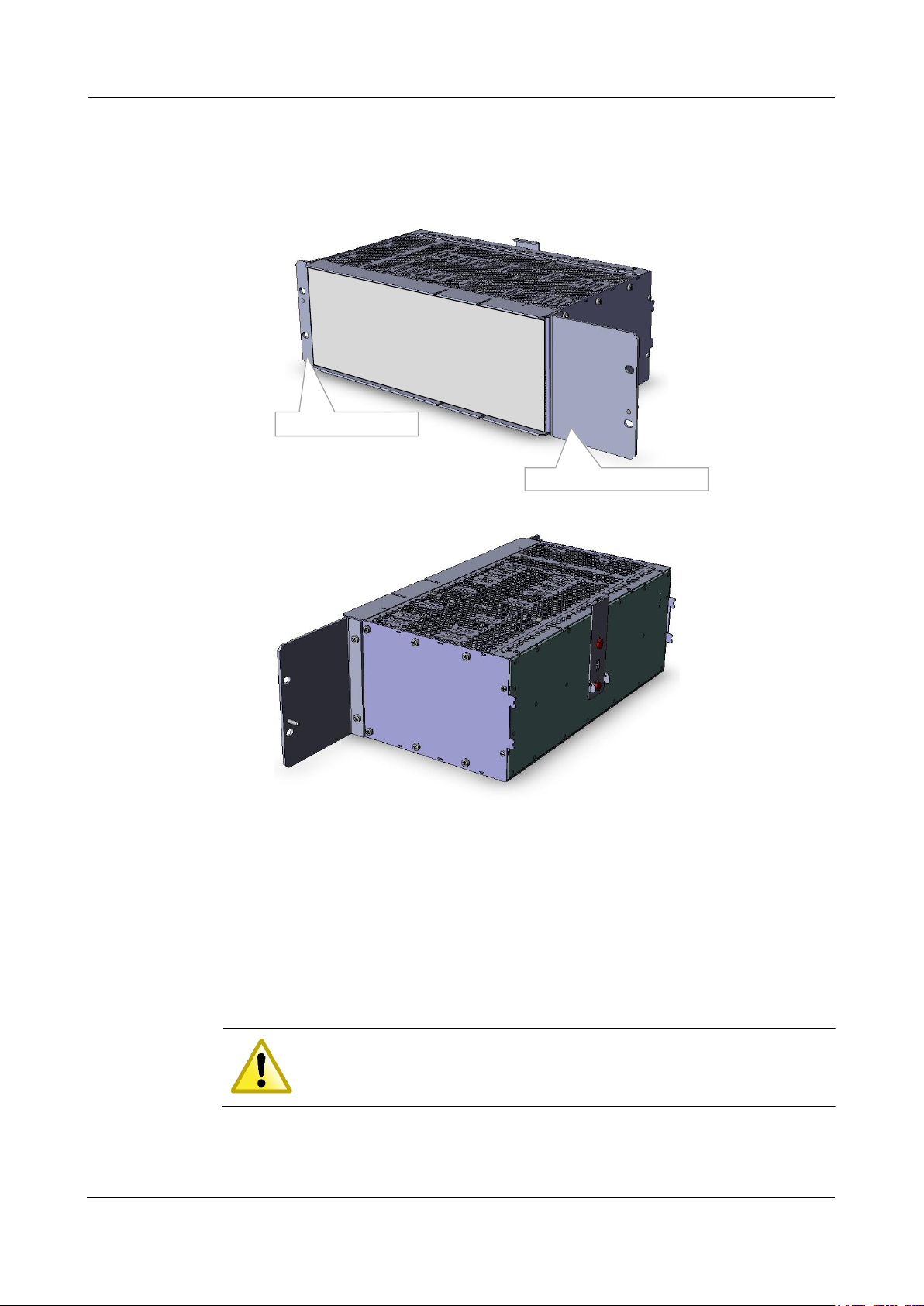

For a proper installation and support of the XT-2210-A/XT-2209-A node
enclosure in a 19” frame, use 2 brackets or guides to support the node
inside the rack (see example pictures).
Install the node support brackets always before you
install the nodes inside the rack. When installing
support brackets other than shown, please keep in mind
that pass through panels can be installed and
interference could occur.
Identification
Be sure to identify all Dragon PTN and non-Dragon PTN equipment after
installation. For a proper and reliable identification, use industrial labels.
Identification can be done e.g. the IEC 61346-2 norm.
Rack
Dragon PTN node(s)
Before installing a node into a 19 inch rack, some precautions must be taken:
Dragon PTN Installation and Operation 19
Release 01 02/2018
Page 20
Cables
Main power
Other equipment
Grounding

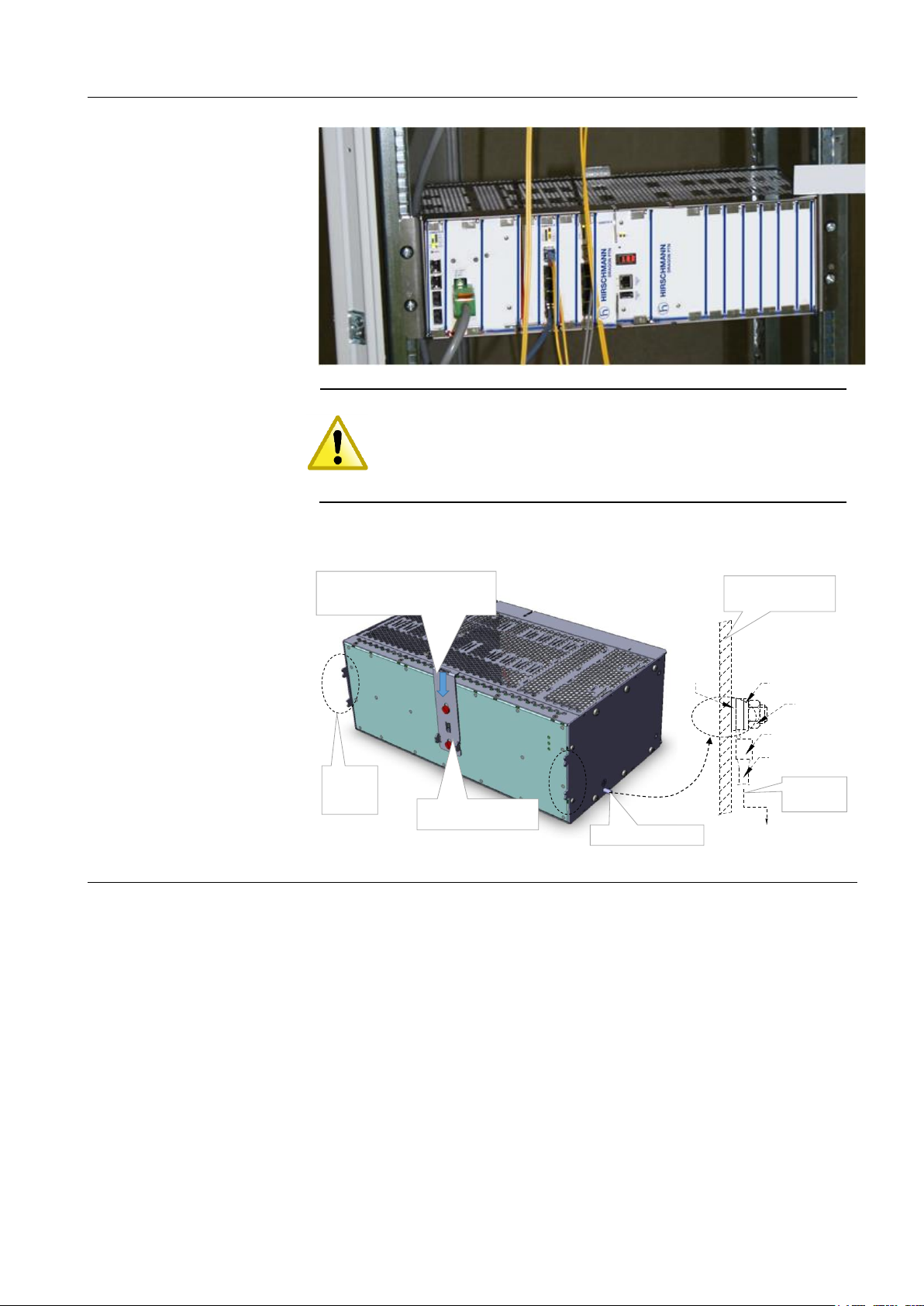

For a proper grounding of the Dragon PTN node enclosure(s), a copper
grounding bar must be installed inside the rack. Be sure to leave the 2
bottom grounding points free for connecting the earthing ground.
Make sure that the integrity of protective earthing
shall be ensured by connecting the Dragon PTN node
enclosure(s) correctly to the grounding bar and
connecting the grounding bar correctly to the ground.
Cable Distribution
For a proper cable(s) guidance throughout the rack, pass through panels
and cable guides are preferred.
Example of a 1 U and 2 U pass
through panel
Example of a cable guide
Power Distribution
Foresee the necessary power and plug-in inside the rack for a proper
functioning of the Dragon PTN equipment;
Socket outlet shall be installed near the equipment and shall be easy
accessible;
Clearly identify the circuit breakers used to secure the nodes against
power disturbance.
Connect node
to grounding
20 Dragon PTN Installation and Operation
Release 01 02/2018
Page 21
Dragon PTN Installation and Operation 21

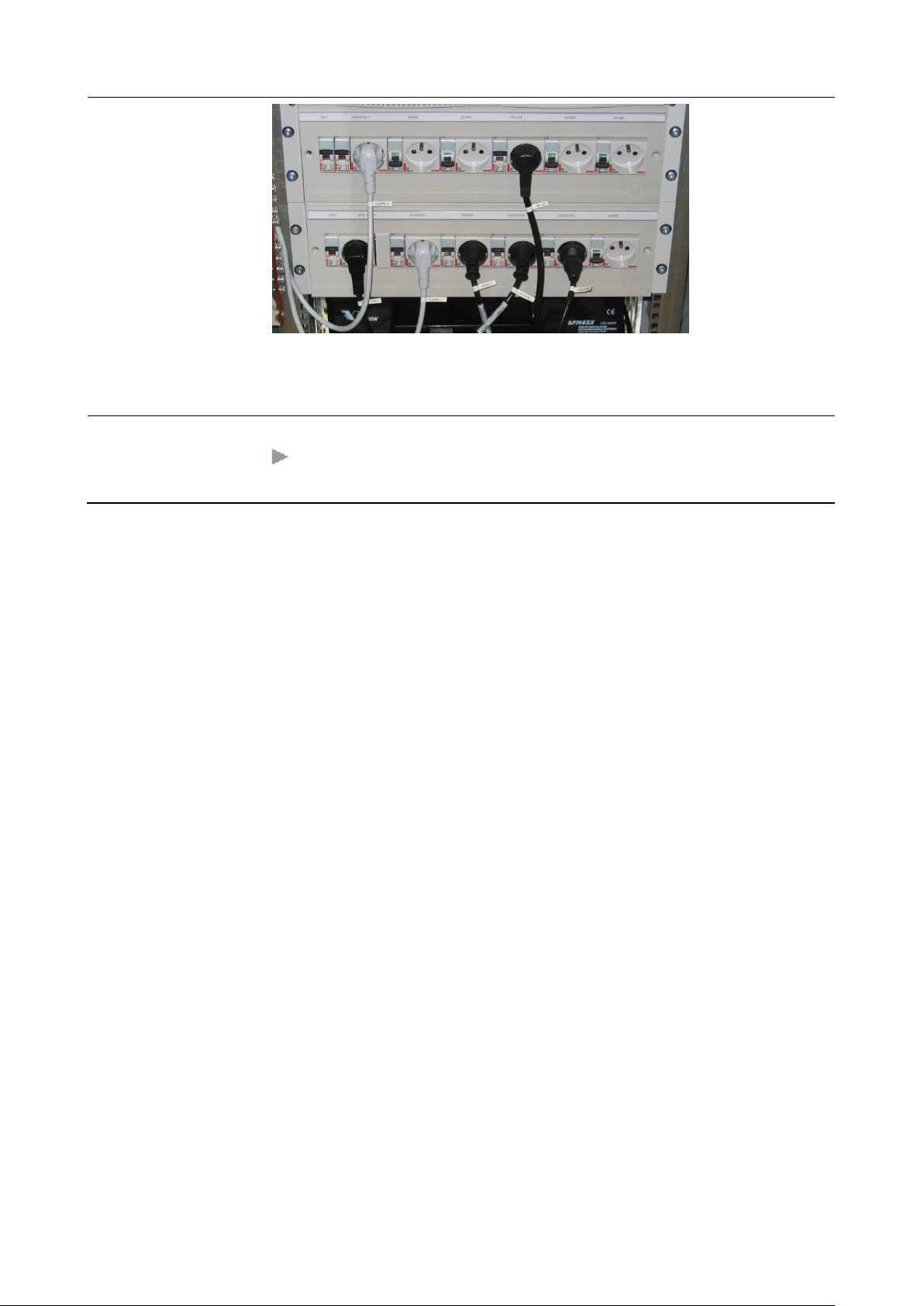

Example of the labeling of a power box with circuit breakers and power
sockets.
Safety
and
Power Distribution
See Chapter 4.4
Release 01 02/2018
Page 22
Nodes – Installation Forms
22 Dragon PTN Installation and Operation
Release 01 02/2018
Page 23
3. NODES – INSTALLATION FORMS
Product
Order Number
Node Type
19" mounting kit for XT-2206-A
942 256-001
XT-2206-A
19" mounting kit for XT-1104-A
942 256-003
XT-1104-A
19" mounting kit for 2x XT-1104-A
942 256-004
XT-1104-A
Heavy duty DIN Rail kit for XT-2206-A
942 256-002
XT-2206-A
Heavy duty DIN Rail kit for XT-1104-A
942 256-005
XT-1104-A
3.1 General
The Dragon PTN portfolio consists of 4 different node types: XT-2210-A, XT-2209-A, XT-2206-A and
XT-1104-A. All nodes are modular and made of stainless steel (EN A2 1.4016). The XT-2210-A and
XT-2209-A nodes are 19” Rack mountable (standard equipped). The XT-1104-A and XT-2206-A are
19” Rack mountable (accessories needed) or DIN Rail mountable (standard equipped). Depending
on the installation needs an extra 19” mounting kit can be ordered.
The XT-1104-A or XT-2206-A node can also be equipped with a heavy duty DIN Rail kit that meets
the standards IEC60255-21-1/2, IEEE1613 and IEC62498-3. This kit can be ordered additionally and
will be pre-assembled at the Hirschmann facility.
See following table for order numbers of 19” mounting kits or Heavy duty DIN Rail kit:
Pictures of all these kits can be found in the node paragraphs further on.
Chassis XT-2210-A and XT-2209-A can be equipped with dual power supplies and dual Central
Switching Modules for redundancy purposes. Chassis XT-1104-A is ultra-compact and can host a
single power supply and one CSM. Node XT-2206-A is similar to node XT-2210-A/XT-2209-A but
offers 6 interface slots instead of 10. All chassis are equipped with an NSM (= Node Support
Module) which hosts common functions like I/O contacts and inputs for power over Ethernet (PoE)
(PoE only on NSM-A).
3.2 Power ON/OFF a Node or Switch
Once the PSUs have been installed later on, the node or switch can be powered ON or OFF.
Power ON the node or switch: connect the PSU cable(s) to the PSU(s) and activate the
necessary circuit breakers;
Power OFF the node or switch: disconnect the PSU cable(s) from the PSU(s);
Dragon PTN Installation and Operation 23
Release 01 02/2018
Page 24

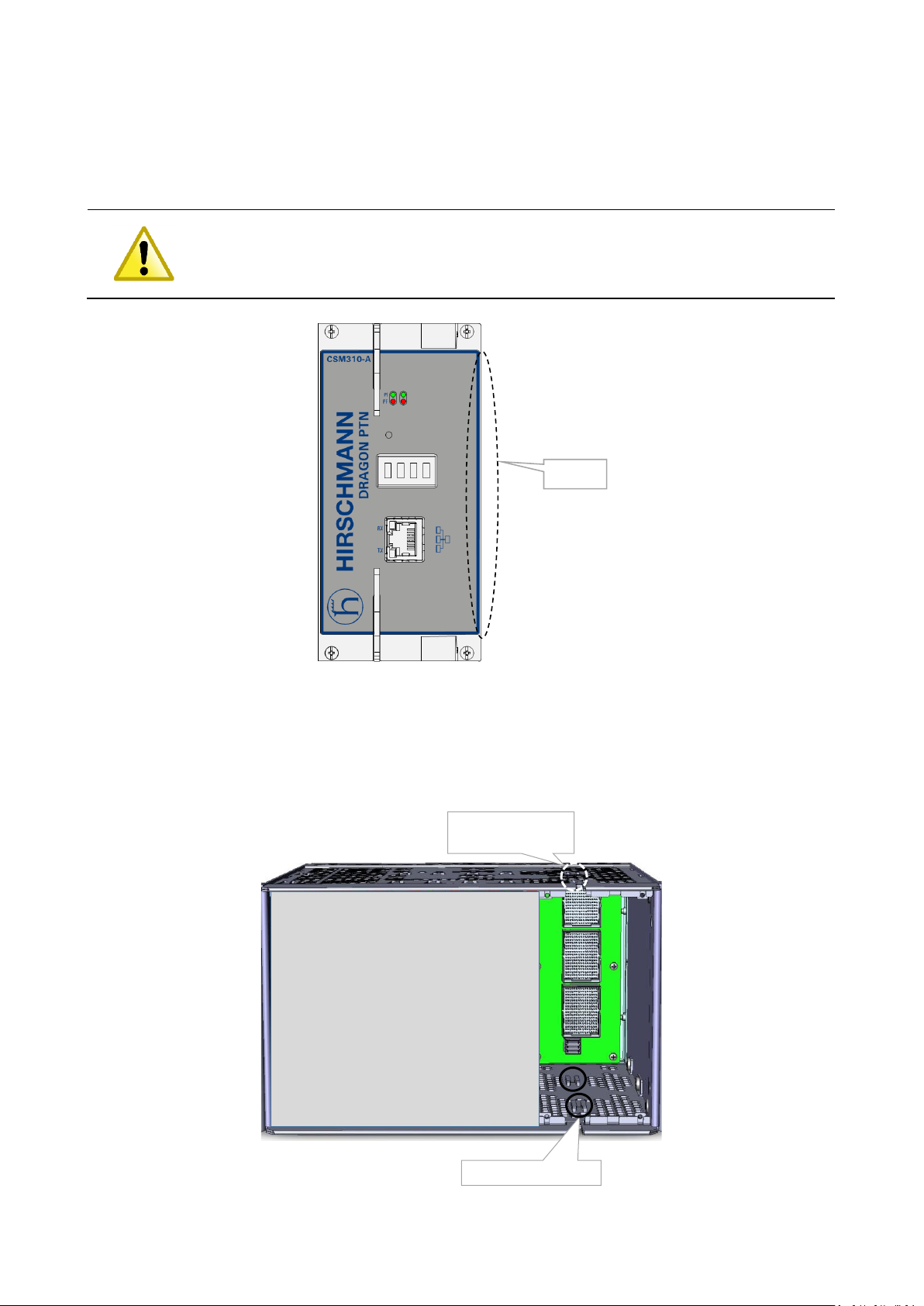

3.3 EMC Springs
Do not touch or bend these springs when unpacking the module, or
inserting/removing it into/from the node. The example figure below shows the
EMC springs on the CSM module.
EMC springs
bottom card guides
top card guides
(not visible here)
All modules that can be plugged into a Dragon PTN node are provided with EMC springs for better
EMC behavior. These springs can be found at the side of the front panel of each module.

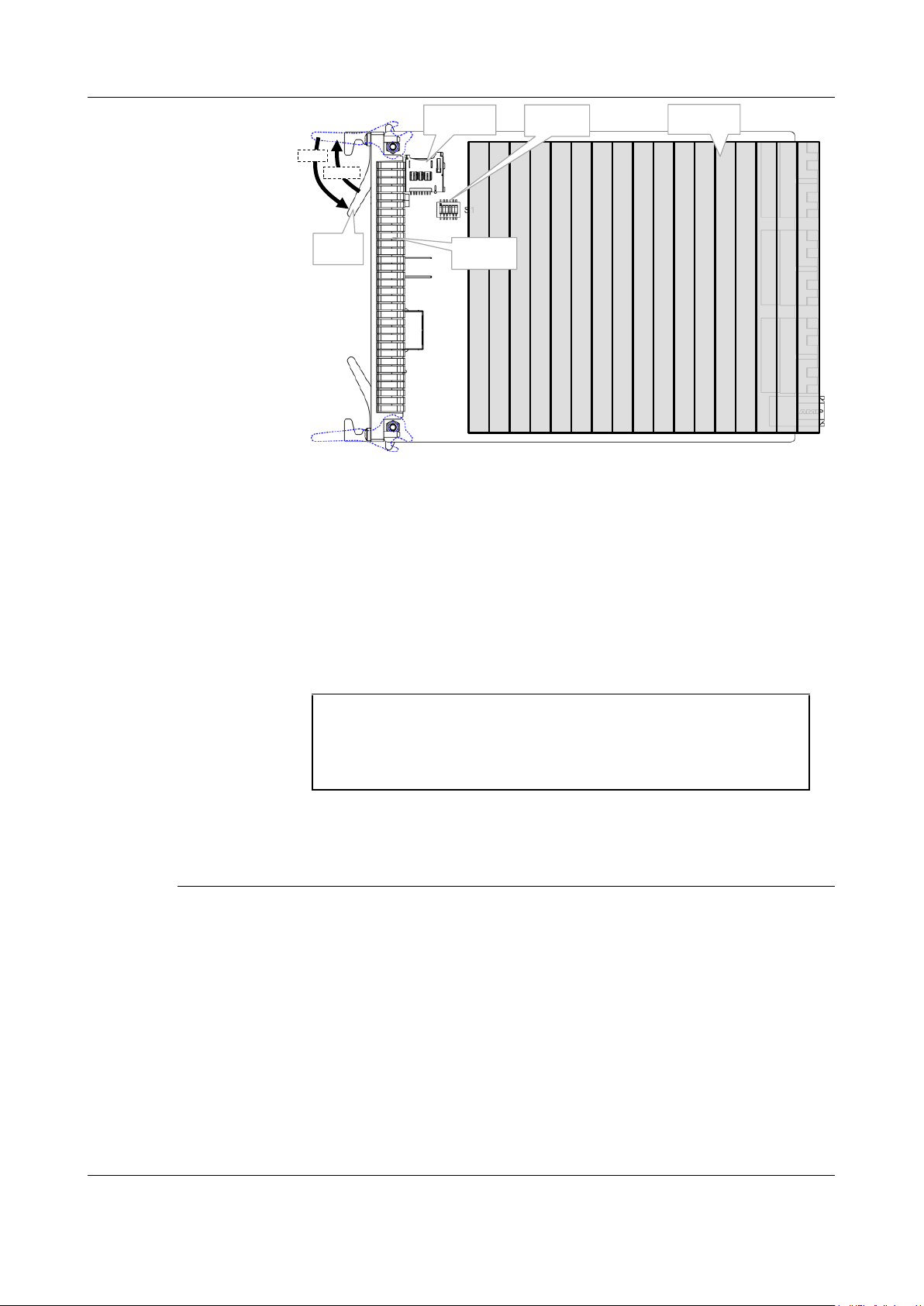

3.4 Card Guides inside the Node
Each module must be inserted later on into the node via sliding it through the correct card guides
that can be found inside the node. Each slot has two top and two bottom card guides. Example:
the figure below shows the CSM card guides.
24 Dragon PTN Installation and Operation
Release 01 02/2018
Page 25
3.5 Node Module Positions
Before connecting the mains voltage and switching on the power, first
connect the GND (Ground) to the housing of the node with a yellow/green
cable of 6 mm².
1 U = 44.45 mm / 1.75 inches
When installing a node outside a rack, the necessary space must be available
for a proper cooling of the node and the installation of fiber optic, interface
cables and the earthing wire to the protective earth (PE).
When installing a Dragon PTN node, there must be at least 3 U free space
below and above the node for ventilation.
CAUTION: Some parts of the node can be extremely hot. Therefore, it is strongly
advised to use only the front panel handles of the module (NSM, CSM, IFM &
PSU), and not touching the PCB or any other parts, when removing it from the
node.

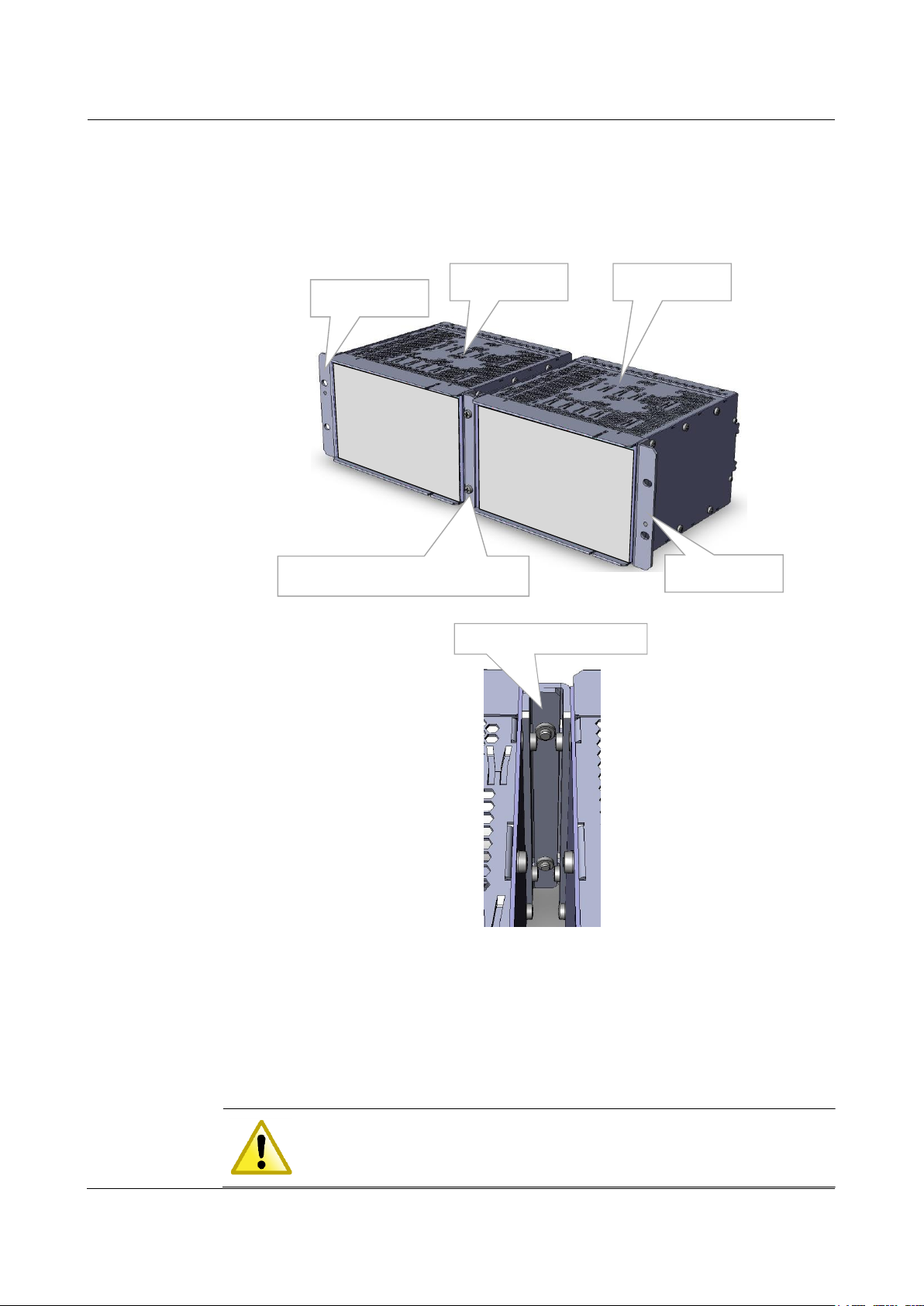

It is also possible to install two XT-1104-A nodes next to each other within
the rack. See also §3.6.
The node is modular meaning that modules can be plugged in. The positions of PSUs, Node
Support Module (NSM), Central Switching Module (CSM) and interface modules (IFM) are shown
in the table below per node type, as they are mentioned on the node backplane. This table also
shows on a per system basis the modules that need to be installed in a node.
Dragon PTN Installation and Operation 25
Release 01 02/2018
Page 26
Node type
Mounting System
Module Position
Module name
XT-1104-A
(3 U)
19” Rack (1 or 2 nodes) Rack via
DIN Rail
NSM
Node Support Module
PSU
Power supply unit 1
IFM-1…IFM-4
Interface module 1…4
CSM
Central Switching Module 1
XT-2206-A
(3 U)
19” Rack or DIN Rail
NSM
Node Support Module
PSU-1
Power supply unit 1
PSU-2
Power supply unit 2
IFM-1…IFM-4
Interface module 1…4
CSM-1
Central Switching Module 1
CSM-2
Central Switching Module 2
IFM-5, IFM-6
Interface module 5 and 6
XT-2209-A
(3 U)
19” Rack or DIN Rail
NSM
Node Support Module
PSU-1
Power supply unit 1
PSU-2
Power supply unit 2
IFM-1…IFM-3
Interface module 1…3
CSM-1
Central Switching Module 1
CSM-2
Central Switching Module 2
IFM-5…IFM-10
Interface module 5…10
XT-2210-A
(3 U)
19” Rack or DIN Rail
NSM
Node Support Module
PSU-1
Power supply unit 1
PSU-2
Power supply unit 2
IFM-1…IFM-4
Interface module 1…4
CSM-1
Central Switching Module 1
CSM-2
Central Switching Module 2
IFM-5…IFM-10
Interface module 5…10
26 Dragon PTN Installation and Operation
Release 01 02/2018
Page 27

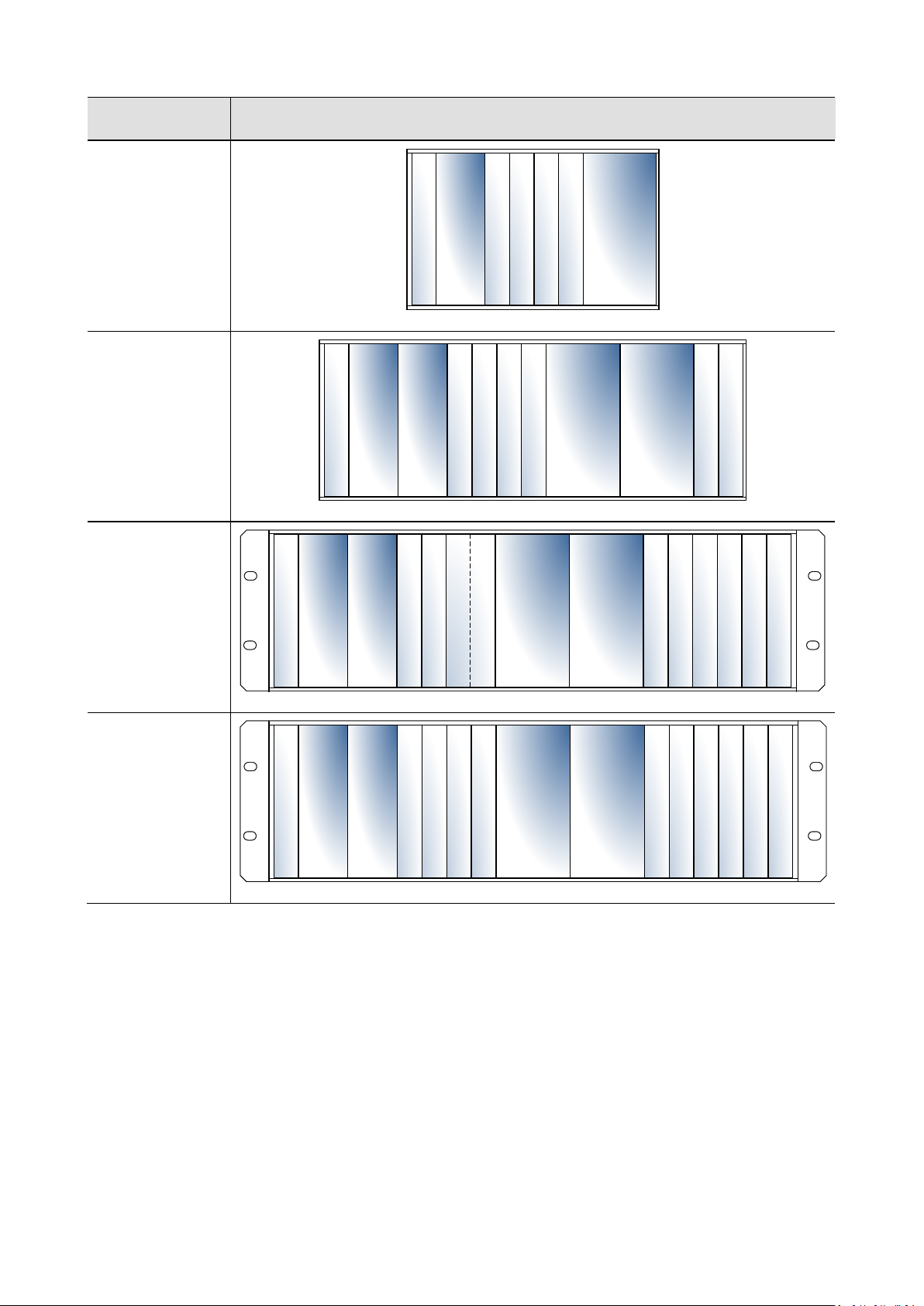

Node Type
Visual Module Position
XT-1104-A
XT-2206-A
XT-2209-A
XT-2210-A
NSM
PSU CSM
IFM-1 IFM-2 IFM-3 IFM-4
NSM PSU-1 PSU-2 CSM-1 CSM-2
IFM-1 IFM-2 IFM-3 IFM-4
IFM-5 IFM-6
NSM PSU-1 PSU-2 CSM-1 CSM-2
IFM-1 IFM-2 IFM-3
IFM-5 IFM-6 IFM-7 IFM-8 IFM-9
IFM-10
NSM PSU-1 PSU-2 CSM-1 CSM-2
IFM-1 IFM-2 IFM-3 IFM-4
IFM-5 IFM-6 IFM-7 IFM-8 IFM-9
IFM-10
Dragon PTN Installation and Operation 27
Release 01 02/2018
Page 28
Engineer
type
Section
Form: Installation of an XT-1104-A Node
Duration:
30 min.
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find a
full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact with
your skin. Connect the alligator clip to the blank metal of the
rack or plug the antistatic wristband into the ESD bonding
point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, screws, cage nuts, cable ties and cable tool set
Antistatic wristband
XT-1104-A node + additional support brackets + earthing wire
6 mm²
Extra documentation can be found in chapter 15
Node
Specifications
Dimensions:
Width 211 mm / 8.31 inches
Height (3 U) 132.5 mm / 5.22 inches
Depth 220 mm / 8.66 inches
Weight:
Approx. 2 kg / 4.4 lb without heavy duty Din Rail kit
Approx. 3 kg / 6.6 lb with heavy duty Din Rail kit
Node
Build up
NSM: position of the Node Support Module
PSU: position of the power supply
IFM-1…IFM-4: position of the interface modules
CSM: position of the Central Switching Module
Rack
Installation on
Wall Mount
DIN Rail

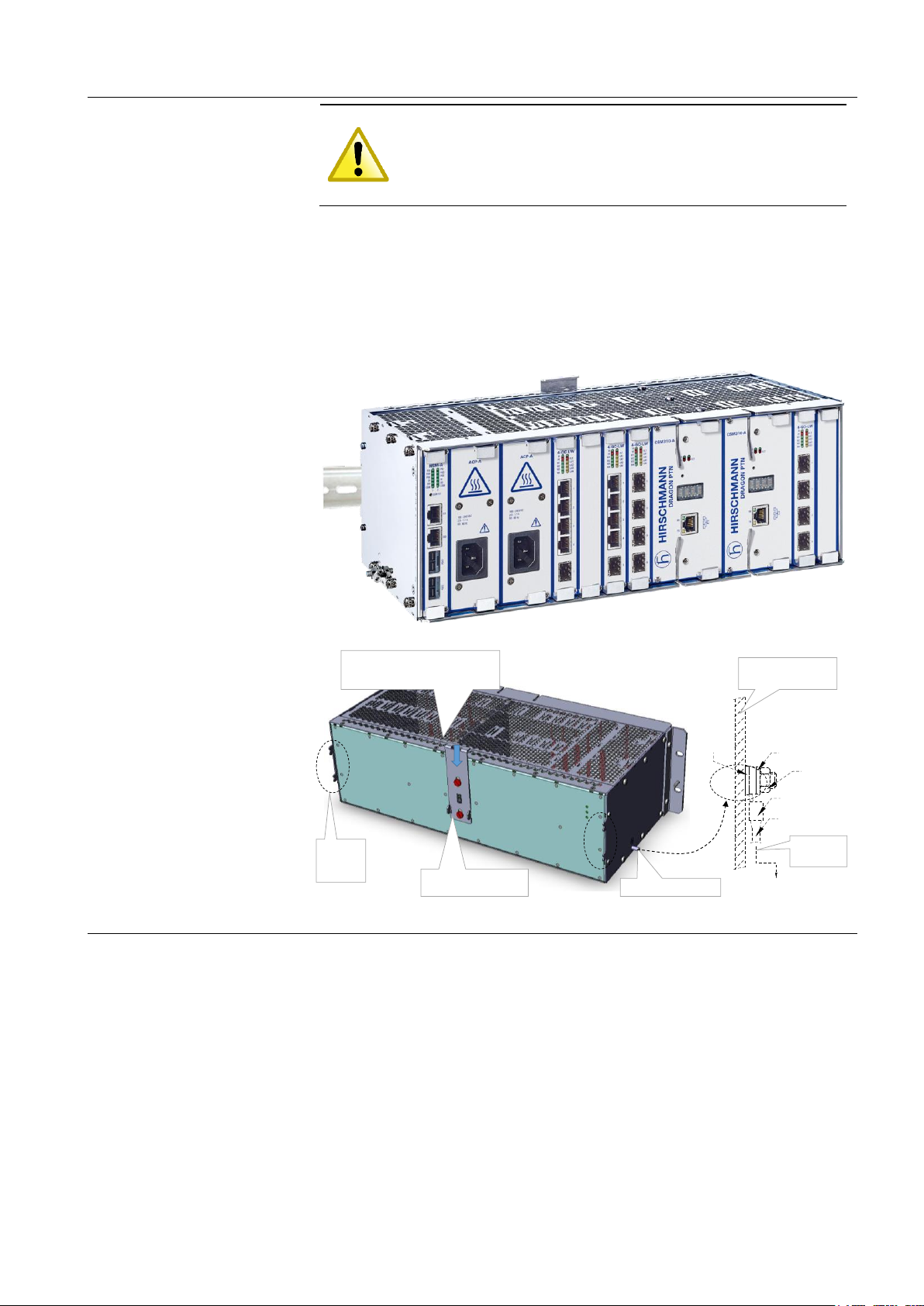

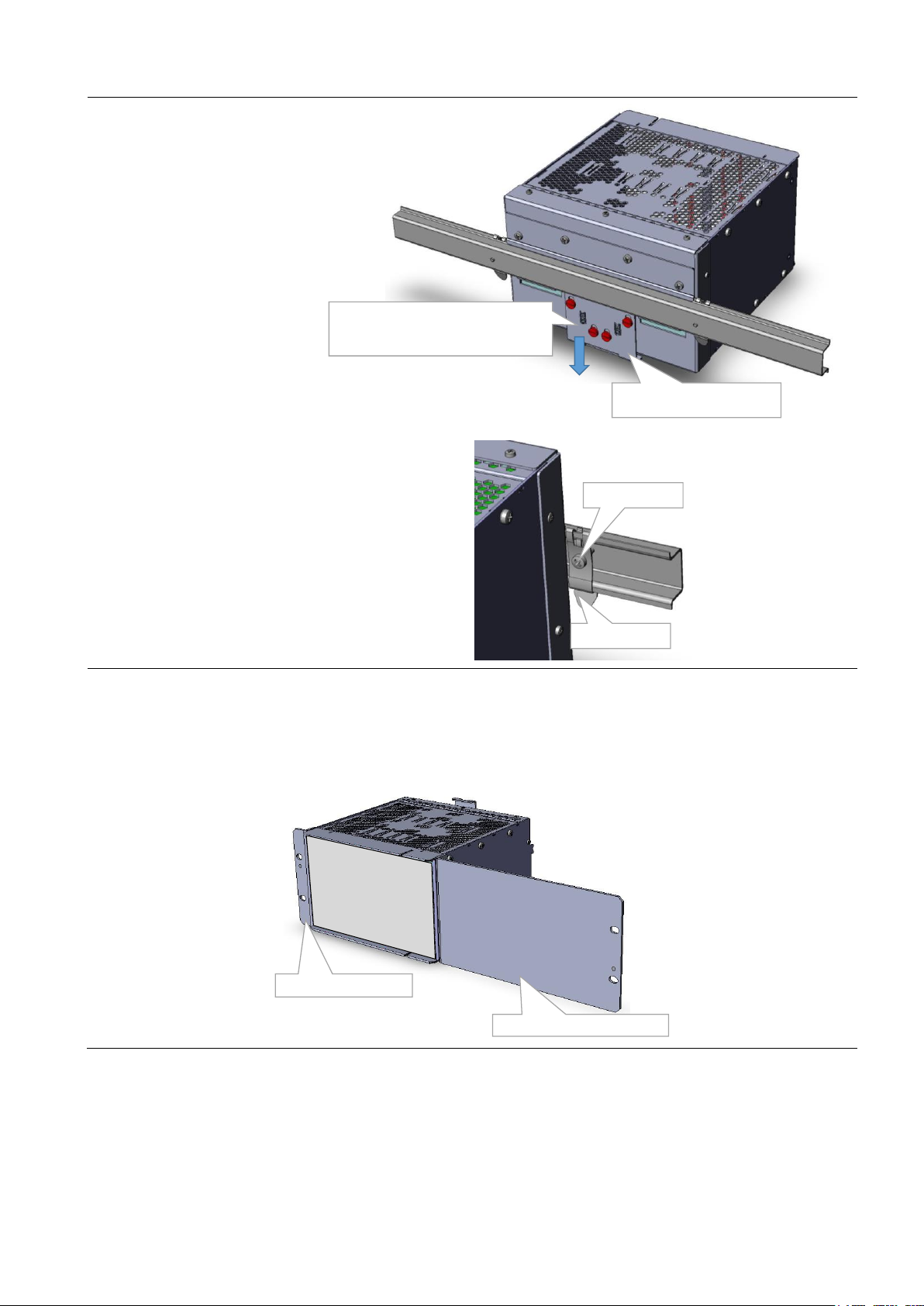

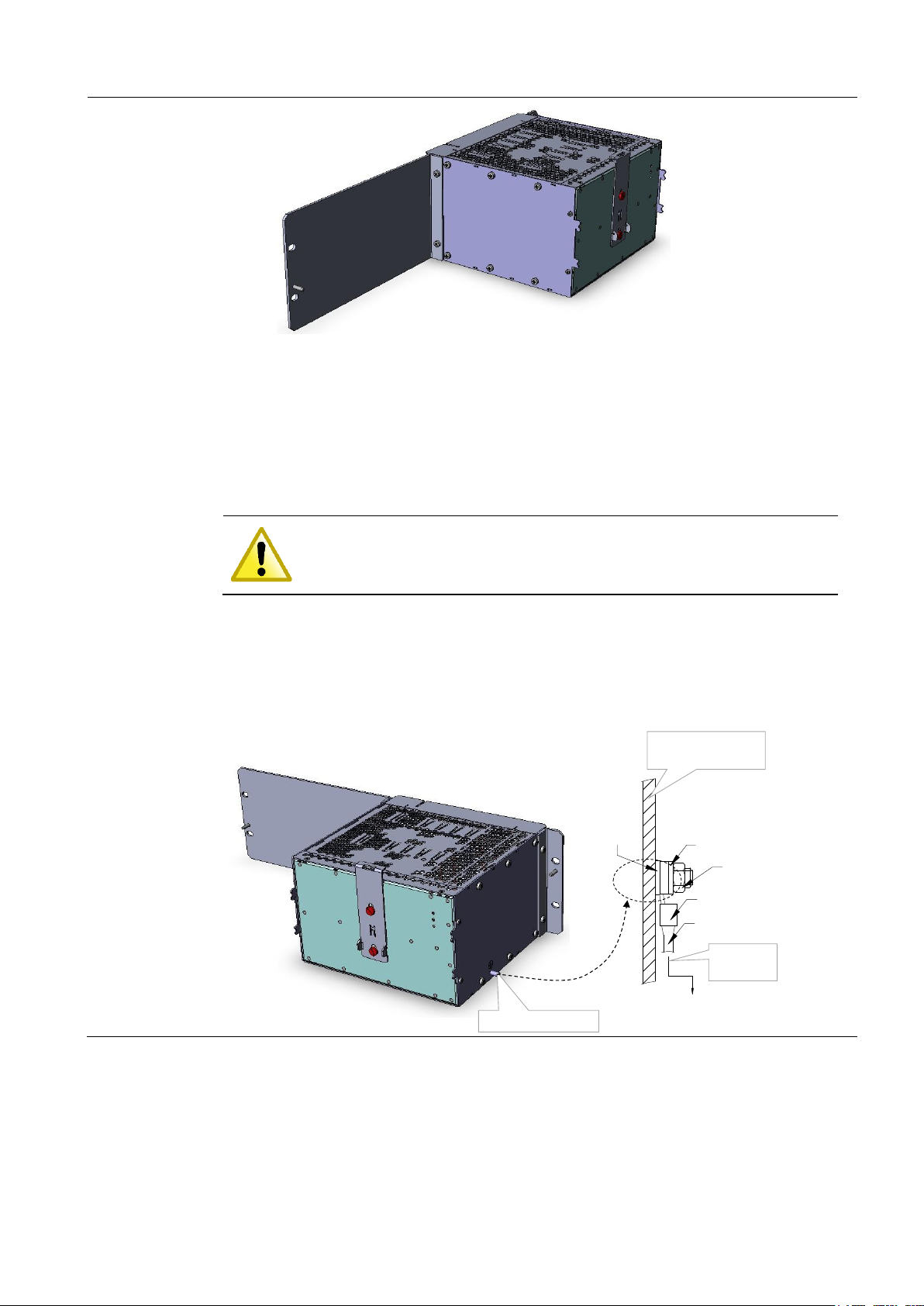

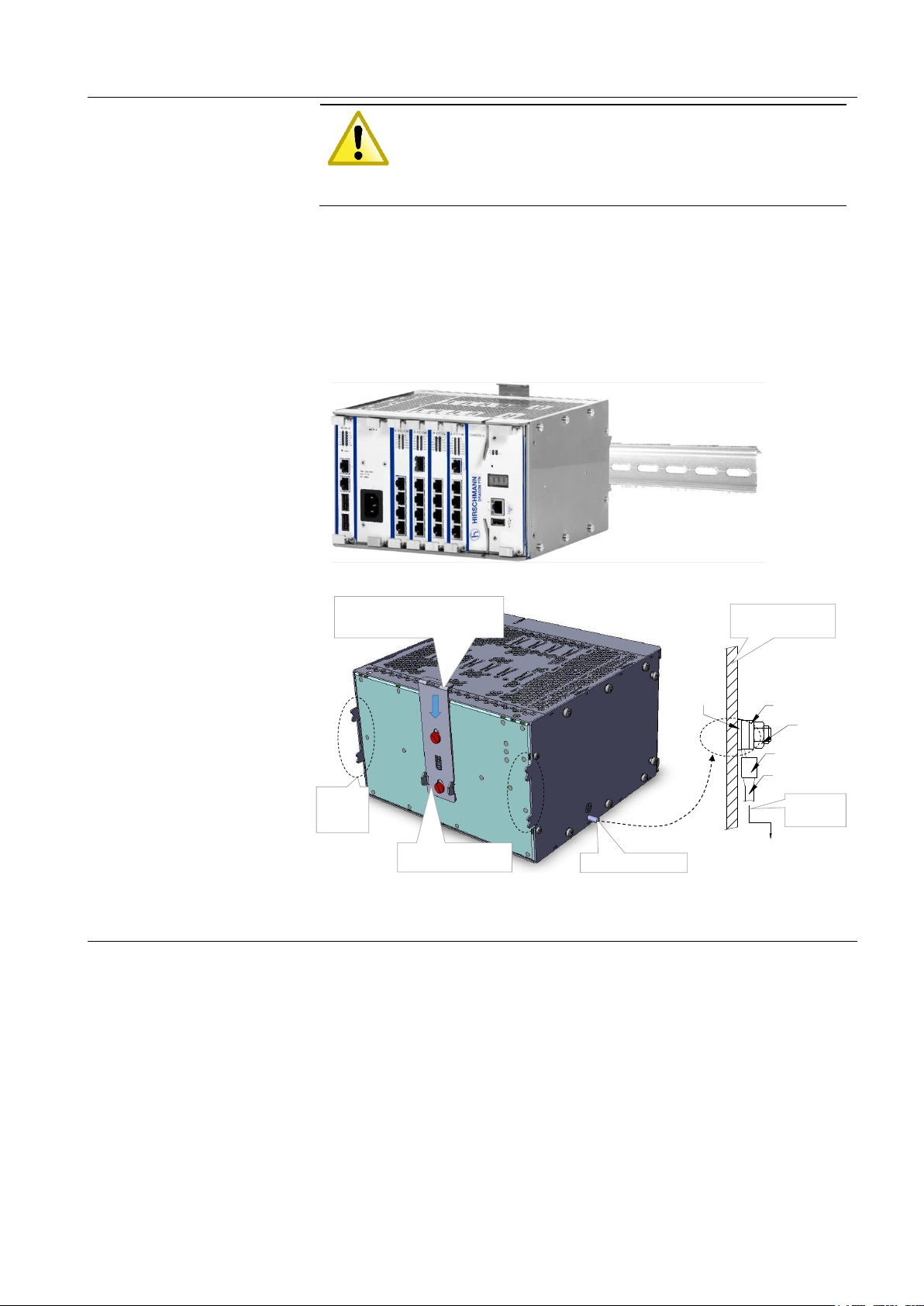

1. Remove the packaging from the new node.
2. Identify where the node has to be installed: inside or outside the
rack. If inside a rack, foresee a DIN RAIL inside the rack to attach
the node with or without heavy duty DIN Rail kit.
3. Insert the node into the rack and attach it to the DIN Rail on the
back wall, check if the node is properly fixed to the DIN rail. With a
normal ‘DIN Rail Kit’, use the bracket (push down and release) on
the back of the node to lock the node properly to the DIN rail. With
a Heavy Duty ‘DIN Rail Kit’, use the bracket (pull down and release)
on the back of the node to lock the node properly to the DIN rail.
Attach the fixation clips, left and right of the node, to the DIN rail
and use the screws to hold the clips in line. See pictures below.
3.6 XT-1104-A Node (942 228-001)
28 Dragon PTN Installation and Operation
Release 01 02/2018
Page 29
Do not install any other equipment directly above/under
the node for ventilation reasons. Above and below the
node, sufficient space (3 U) must be provided to
guarantee a free air flow.
4. Connect an earthing wire (yellow – green) 6 mm² to the cable
socket of the XT-1104-A node, see pictures below. Connect the
other end of the earthing wire to the grounding copper bar of the
rack.
5. Make sure that the front is easily accessible to connect the cables
and supervision later on.
Push down bracket to lock/unlock
node to/from DIN Rail
DIN Rail
Fixation
Points
PE: Protective Earth
To Grounding Bar
Grounding Cable
Cable Socket
Nut
Toothed Lock washer
Lock washer
Detail:
PE: Protective Earth
Eearthing
Wire
normal ‘DIN Rail kit’
Dragon PTN Installation and Operation 29
Release 01 02/2018
Page 30
19” Rack
Installation
of a single
node
1. Remove the packaging from the new node and 19” mounting kit.
2. Assemble the two 19” brackets to the node as shown in the picture below.
Use the supplied screws to fix the brackets to the node. (both brackets can
be assembled either left or right of the node)
Heavy Duty ‘DIN Rail kit’
Pull down bracket to
lock/unlock node to/from DIN Rail
Fixation clip
Fixation Screw
19” Bracket
19” Bracket
30 Dragon PTN Installation and Operation
Release 01 02/2018
Page 31
3. Identify where the node has to be installed inside the rack. Attach 4 cage
nuts on the back of the vertical support rails in line with the node fixing
points.
4. Insert the node into the rack, check if the node rests on the support
brackets (see chapter 2) and use 4 screws to tighten the node to the
vertical support rails.
Do not install any other equipment directly above/under the node
for ventilation reasons. Above and below the node, sufficient space
(3 U) must be provided to guarantee a free air flow.
5. Connect an earthing wire (yellow – green) 6 mm² to the cable socket of the
XT-1104-A node, see picture below. Connect the other end of the earthing
wire to the grounding copper bar of the rack.
6. Make sure that the front is easily accessible to connect the cables and
supervision later on.
PE: Protective Earth
To Grounding Bar
Grounding Cable
Cable Socket
Nut
Toothed Lock washer
Lock washer
Detail:
PE: Protective Earth
Eearthing
Wire
Dragon PTN Installation and Operation 31
Release 01 02/2018
Page 32
19” Rack
Installation
of 2 nodes
1. Remove the packaging from the new nodes and 19” mounting kit.
2. Assemble one 19” bracket on the left-hand side of the 1st node and the
other 19” bracket on the right-hand side of the 2nd node. Assemble and
fix the interconnection brackets between the two nodes. Use the
supplied screws to fix the brackets to the nodes.
3. Identify where the node has to be installed inside the rack. Attach 4 cage
nuts on the back of the vertical support rails in line with the node fixing
points.
4. Insert the node into the rack, check if the node rests on the support
brackets (see chapter 2) and use 4 screws to tighten the node to the
vertical support rails.
Do not install any other equipment directly above/under the node
for ventilation reasons. Above and below the node, sufficient space
(3 U) must be provided to guarantee a free air flow.
19” Bracket
Interconnection brackets
Node1 Node2
19” Bracket
Interconnection brackets
32 Dragon PTN Installation and Operation
Release 01 02/2018
Page 33
5. Connect an earthing wire (yellow – green) 6 mm² to the cable socket of
the left XT-1104-A node, see picture below. Connect the other end of
the earthing wire to the grounding copper bar of the rack.
6. Make sure that the front is easily accessible to connect the cables and
supervision later on.
PE: Protective Earth
To Grounding Bar
Grounding Cable
Cable Socket
Nut
Toothed Lock washer
Lock washer
Detail:
PE: Protective Earth
Eearthing
Wire
Dragon PTN Installation and Operation 33
Release 01 02/2018
Page 34
Engineer
type
Section
Form: Installation of an XT-2206-A Node
Duration:
30 min.
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find a
full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact with
your skin. Connect the alligator clip to the blank metal of
the rack or plug the antistatic wristband into the ESD
bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, screws, cage nuts, cable ties and cable tool set
Antistatic wristband
XT-2206-A node + additional support brackets + earthing wire
6 mm²
Extra documentation can be found in chapter 15
Node
Specifications
Dimensions:
Width 353.5 mm / 13.92 inches
Height (3 U) 132.5 mm / 5.22 inches
Depth 220 mm / 8.66 inches
Weight:
Approx. 3 kg / 6.6 lb without heavy duty Din Rail kit
Approx. 4 kg / 8.8 lb with heavy duty Din Rail kit
Node
Build up
NSM: position of the Node Support Module
PSU-1/PSU-2: position of the power supplies
IFM-1…IFM-6: position of the interface modules
CSM-1/CSM-2: position of the Central Switching Module
Rack
Installation on
Wall Mount
DIN Rail
1. Remove the packaging from the new node.
2. Identify where the node has to be installed: inside or outside the
rack. If inside a rack, foresee a DIN RAIL inside the rack to attach
the node with or without heavy duty DIN Rail kit.
3. Insert the node into the rack and attach it to the DIN Rail on the
back wall, check if the node is properly fixed to the DIN rail. With a
normal ‘DIN Rail Kit’, use the bracket (push down and release) on
the back of the node to lock the node properly to the DIN rail. With
a Heavy Duty ‘DIN Rail Kit’, use the bracket (pull down and release)
on the back of the node to lock the node properly to the DIN rail.
Attach the fixation clips, left and right of the node, to the DIN rail
and use the screws to hold the clips in line. See pictures below.
3.7 XT-2206-A Node (942 228-002)
34 Dragon PTN Installation and Operation
Release 01 02/2018
Page 35
Do not install any other equipment directly above/under
the node for ventilation reasons. Above and below the
node, sufficient space (3 U) must be provided to
guarantee a free air flow.
4. Connect an earthing wire (yellow – green) 6 mm² to the cable
socket of the XT-2206-A node, see pictures below. Connect the
other end of the earthing wire to the grounding copper bar of the
rack.
5. Make sure that the front is easily accessible to connect the cables
and supervision later on.
DIN Rail
Fixation
Points
PE: Protective Earth
To Grounding Bar
Grounding Cable
Cable Socket
Nut
Toothed Lock washer
Lock washer
Detail:
PE: Protective Earth
Eearthing
Wire
Push down bracket to lock/unlock
node to/from DIN Rail
normal ‘DIN Rail kit’
Dragon PTN Installation and Operation 35
Release 01 02/2018
Page 36
Heavy Duty ‘DIN Rail kit’
Pull down bracket to
lock/unlock node to/from DIN Rail
Fixation clip
Fixation Screw
36 Dragon PTN Installation and Operation
Release 01 02/2018
Page 37
19” Rack
Installation
1. Remove the packaging from the new node and 19” installation kit.
Assemble the two 19” brackets to the node as shown in picture below.
Use the supplied screws to fix the brackets to the node. (both brackets
can be assembled either left or right of the node)
2. Use the supplied screws to fix the brackets to the node. (both brackets
can be assembled on both sides of the node)
3. Identify where the node has to be installed inside the rack. Attach 4 cage
nuts on the back of the vertical support rails in line with the node fixing
points.
4. Insert the node into the rack, check if the node rests on the support
brackets (see chapter 2) and use 4 screws to tighten the node to the
vertical support rails.
Do not install any other equipment directly above/under the node
for ventilation reasons. Above and below the node, sufficient space
(3 U) must be provided to guarantee a free air flow.
5. Connect an earthing wire (yellow – green) 6 mm² to the cable socket of
the XT-2206-A node, see picture below. Connect the other end of the
earthing wire to the grounding copper bar of the rack.
19” Bracket
19” Bracket
Dragon PTN Installation and Operation 37
Release 01 02/2018
Page 38
6. Make sure that the front is easily accessible to connect the cables and
supervision later on.
PE: Protective Earth
To Grounding Bar
Grounding Cable
Cable Socket
Nut
Toothed Lock washer
Lock washer
Detail:
PE: Protective Earth
Eearthing
Wire
38 Dragon PTN Installation and Operation
Release 01 02/2018
Page 39
Engineer
type
Section
Form: Installation of an XT-2209-A Node
Duration:
30 min.
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find a
full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact with
your skin. Connect the alligator clip to the blank metal of
the rack or plug the antistatic wristband into the ESD
bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, screws, cage nuts, cable ties and cable tool set
Antistatic wristband
XT-2209-A node + additional support brackets + earthing wire
6 mm²
Extra documentation can be found in chapter 15
Node
Specifications
Dimensions:
Width 482 mm / 18.98 inches
Height (3 U) 132.5 mm / 5.22 inches
Depth 220 mm / 8.66 inches
Weight:
Approx. 3.5 kg / 7.7 lb
Node
Build up
NSM: position of the Node Support Module
PSU-1/PSU-2: position of the power supplies
IFM-1…IFM3 and IFM5…IFM-10: position of the interface modules
CSM-1/CSM-2: position of the Central Switching Module
Rack
Installation
19 inch Rack
1. Remove the packaging from the new node.
2. Identify where the node has to be installed: inside or outside the
rack. If inside a rack, attach 4 cage nuts on the back of the vertical
support rails in line with the node fixing points.
Do not install any other equipment directly above/under
the node for ventilation reasons. Above and below the
node, sufficient space (3 U) must be provided to
guarantee a free air flow.
3. Insert the node into the rack, check if the node rests on the
support brackets (see chapter 2) and use 4 screws to tighten the
node to the vertical support rails.
4. Connect an earthing wire (yellow – green) 6 mm² to the cable
socket of the XT-2209-A node, see pictures below. Connect the
other end of the earthing wire to the grounding copper bar of the
rack.
3.8 XT-2209-A Node (942 228-003)
Dragon PTN Installation and Operation 39
Release 01 02/2018
Page 40
It is possible to install the XT-2209-A on a DIN rail but it
is not recommended due to the substantial weight of the
node.
DIN Rail
Fixation
Points
PE: Protective Earth
To Grounding Bar
Grounding Cable
Cable Socket
Nut
Toothed Lock washer
Lock washer
Detail:
PE: Protective Earth
Eearthing
Wire
Push down bracket to lock/unlock
node to/from DIN Rail
normal ‘DIN Rail kit’
40 Dragon PTN Installation and Operation
Release 01 02/2018
Page 41
Engineer
type
Section
Form: Installation of an XT-2210-A Node
Duration:
30 min.
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find a
full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact with
your skin. Connect the alligator clip to the blank metal of
the rack or plug the antistatic wristband into the ESD
bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, screws, cage nuts, cable ties and cable tool set
Antistatic wristband
XT-2210-A node + additional support brackets + earthing wire
6 mm²
Extra documentation can be found in chapter 15
Node
Specifications
Dimensions:
Width 482 mm / 18.98 inches
Height (3 U) 132.5 mm / 5.22 inches
Depth 220 mm / 8.66 inches
Weight:
Approx. 3.5 kg / 7.7 lb
Node
Build up
NSM: position of the Node Support Module
PSU-1/PSU-2: position of the power supplies
IFM-1…IFM-10: position of the interface modules
CSM-1/CSM-2: position of the Central Switching Module
Rack
Installation
19 inch Rack
1. Remove the packaging from the new node.
2. Identify where the node has to be installed: inside or outside the
rack. If inside a rack, attach 4 cage nuts on the back of the vertical
support rails in line with the node fixing points.
Do not install any other equipment directly above/under
the node for ventilation reasons. Above and below the
node, sufficient space (3 U) must be provided to
guarantee a free air flow.
3. Insert the node into the rack, check if the node rests on the
support brackets (see chapter 2) and use 4 screws to tighten the
node to the vertical support rails.
4. Connect an earthing wire (yellow – green) 6 mm² to the cable
socket of the XT-2210-A node, see pictures below. Connect the
other end of the earthing wire to the grounding copper bar of the
rack.
3.9 XT-2210-A Node (942 228-004)
Dragon PTN Installation and Operation 41
Release 01 02/2018
Page 42
It is possible to install the XT-2210-A on a DIN rail but it
is not recommended due to the substantial weight of the
node.
DIN Rail
Fixation
Points
PE: Protective Earth
To Grounding Bar
Grounding Cable
Cable Socket
Nut
Toothed Lock washer
Lock washer
Detail:
PE: Protective Earth
Eearthing
Wire
Push down bracket to lock/unlock
node to/from DIN Rail
normal ‘DIN Rail kit’
42 Dragon PTN Installation and Operation
Release 01 02/2018
Page 43
Power Supplies – Installation Forms
Dragon PTN Installation and Operation 43
Release 01 02/2018
Page 44
4. POWER SUPPLIES – INSTALLATION FORMS
Product
Order Number
AC PSU (ACP-A): 100-240 VAC ±10 %
942 234-001
DC PSU (DCP-A): 18-60 VDC
942 234-002
DC PSU (DCP-B): 88-300 VDC
942 234-003
ACPoE-A External DIN rail PoE AC/DC PSU
(=AC 100-240VAC Wide-range Input)
942 235-001
DCPoE-A External DIN rail PoE DC/DC PSU (=DC 48VDC Input)
942 235-002
PSU Cover Plate
942 237-002
4.1 PSU Types for Dragon PTN Nodes
The XT-2210-A/XT-2209-A/XT-2206-A node can be equipped with two power supplies. The XT1104-A can only be equipped with one power supply. PSU-1 and/or PSU-2 convert the mains or
battery input voltages to 12 VDC for the operating voltages of the node. The Node Support
Module (=NSM, see chapter 5) has LEDs for input and output voltage indications. A green lit
PSI/PSO LED indicates that input/output voltage is present. The PSUs are redundant, hot
swappable with current sharing.
The XT-2210-A/XT-2209-A/XT-2206-A nodes can operate with one or two power supplies in any of
the positions. Without redundant power supply, cover the empty PSU position with a PSU cover
plate. For corresponding order numbers, see table below.

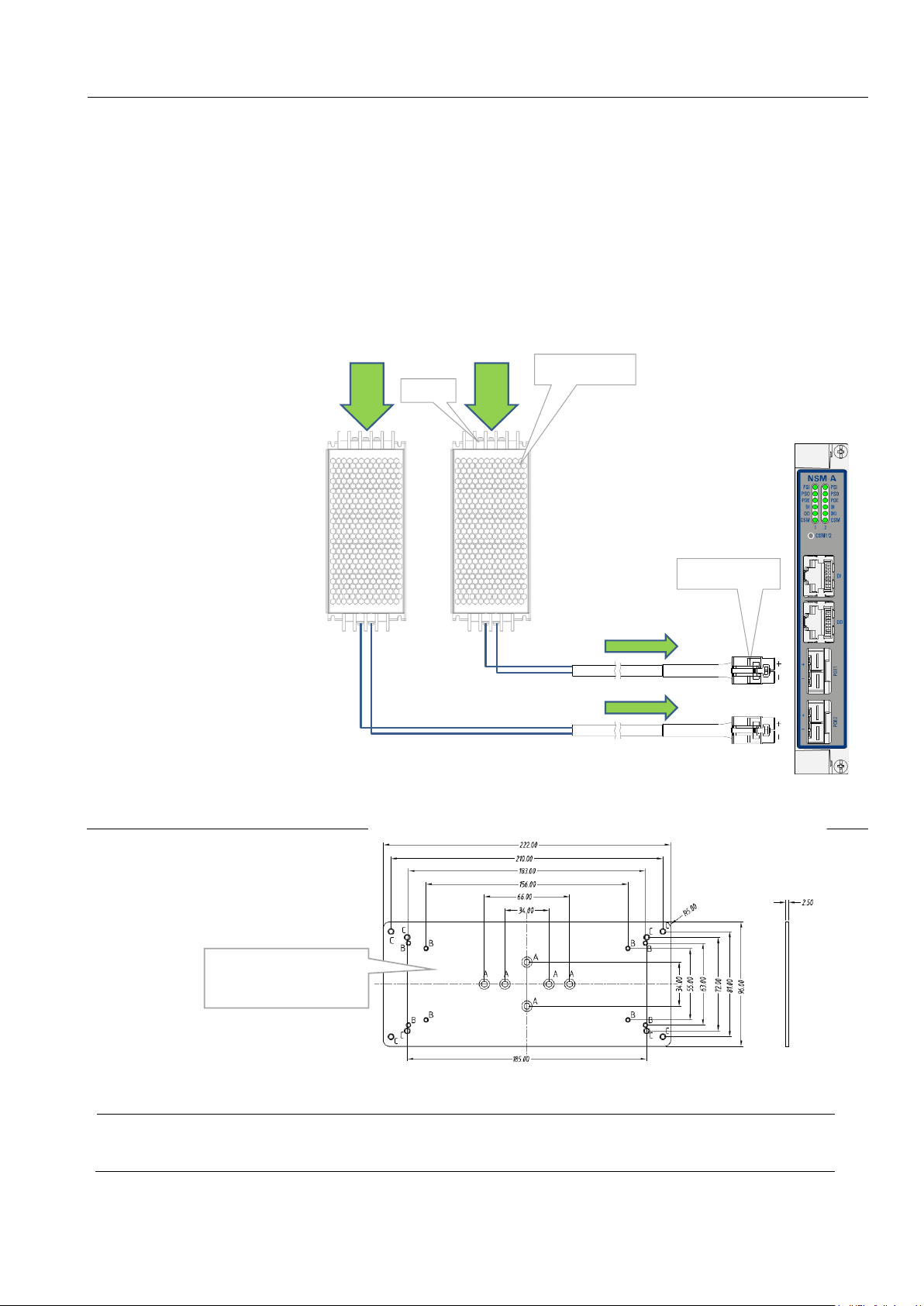

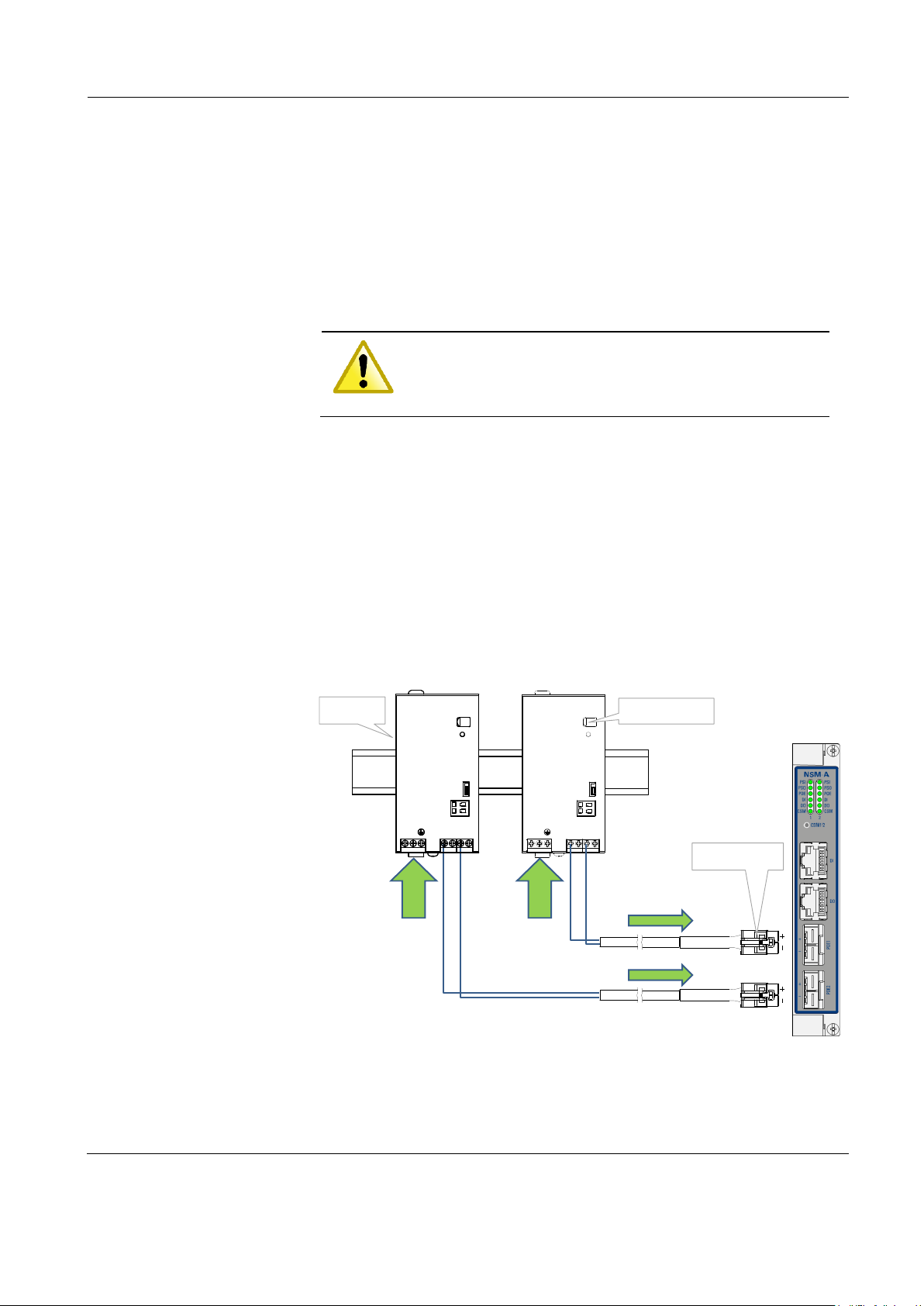

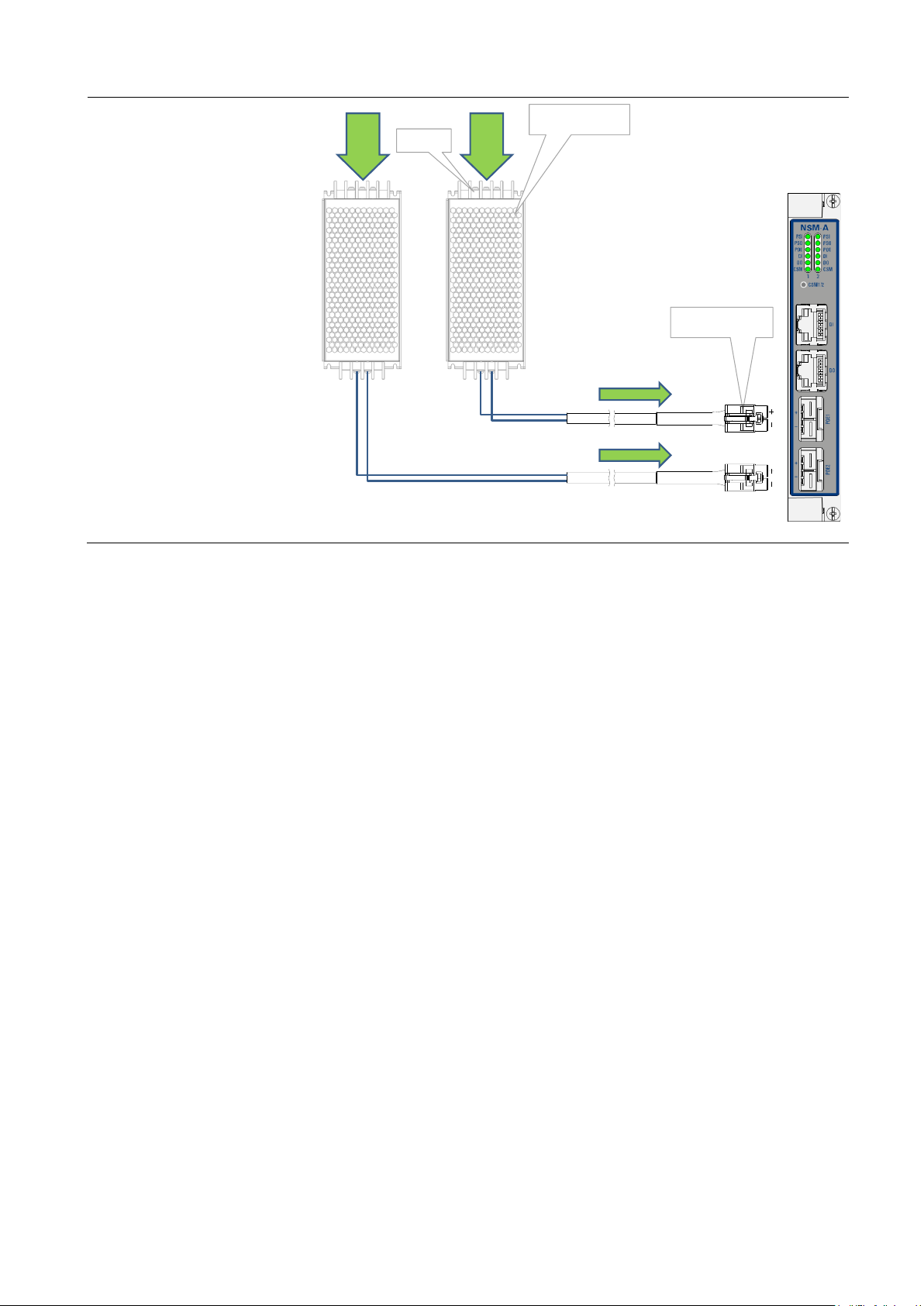

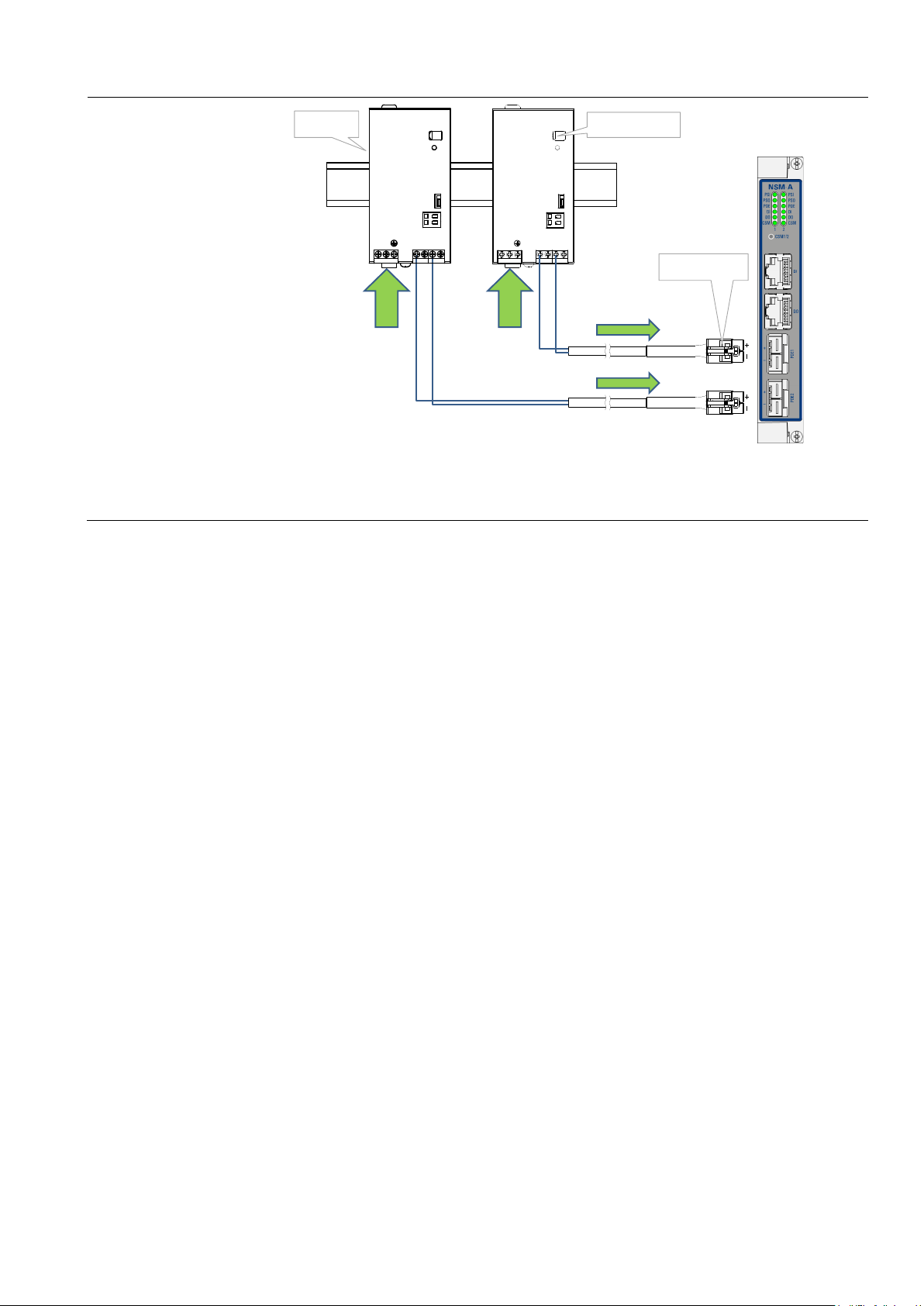

The NSM-A has 2 PoE connectors on the front panel to connect 2 external PoE sources. An
external DIN rail PoE PSU could be used for this purpose. When using the ACPoE-A or DCPoE-A PSU
below, the DC output power is factory set to 56V output voltage. For a connection example of this
PSU to the NSM, see §5.1.
44 Dragon PTN Installation and Operation
Release 01 02/2018
Page 45
4.2 PSU Cables
Product
Order Number
Europe: AC PSU cable with IEC lock (2.5m) for AC PSU 100 to 240 VAC ± 10 %
942 256-100
UK: AC PSU cable with IEC lock (2.5m) for AC PSU 100 to 240 VAC ± 10 %
942 256-101
US: AC PSU cable with IEC lock (2.5m) for AC PSU 100 to 240 VAC ± 10 %
942 256-102

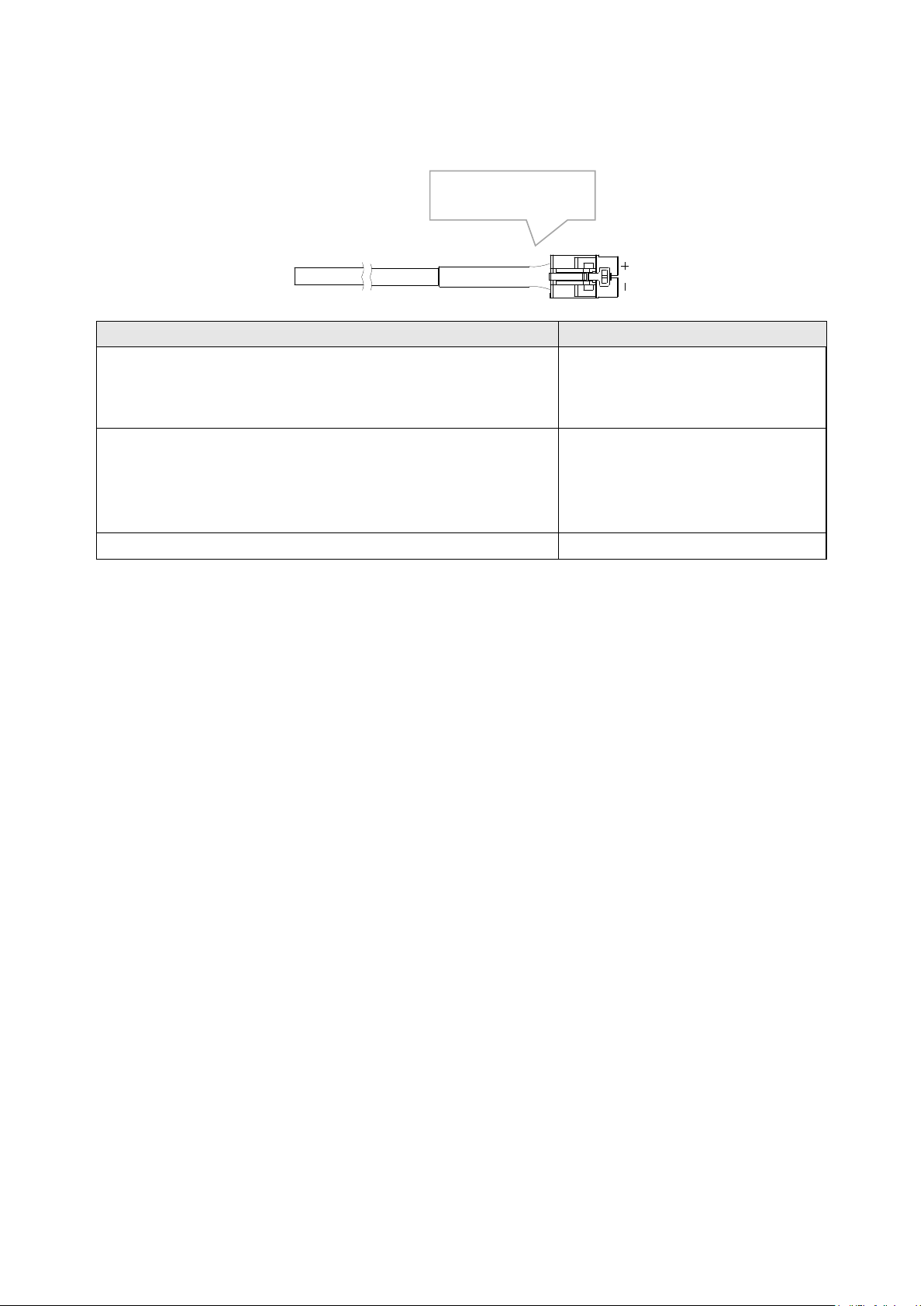

DC PSU 3G x 2.5mm² unshielded cable (3m) with coding keys for DC PSU 18 to 60
VDC
942 256-103
DC PSU 3G x 2.5mm² unshielded cable (3m) with coding keys for DC PSU 88 to
300 VDC
942 256-104
Cable (3m) to connect External DIN rail PoE PSU to the NSM-A
942 256-105

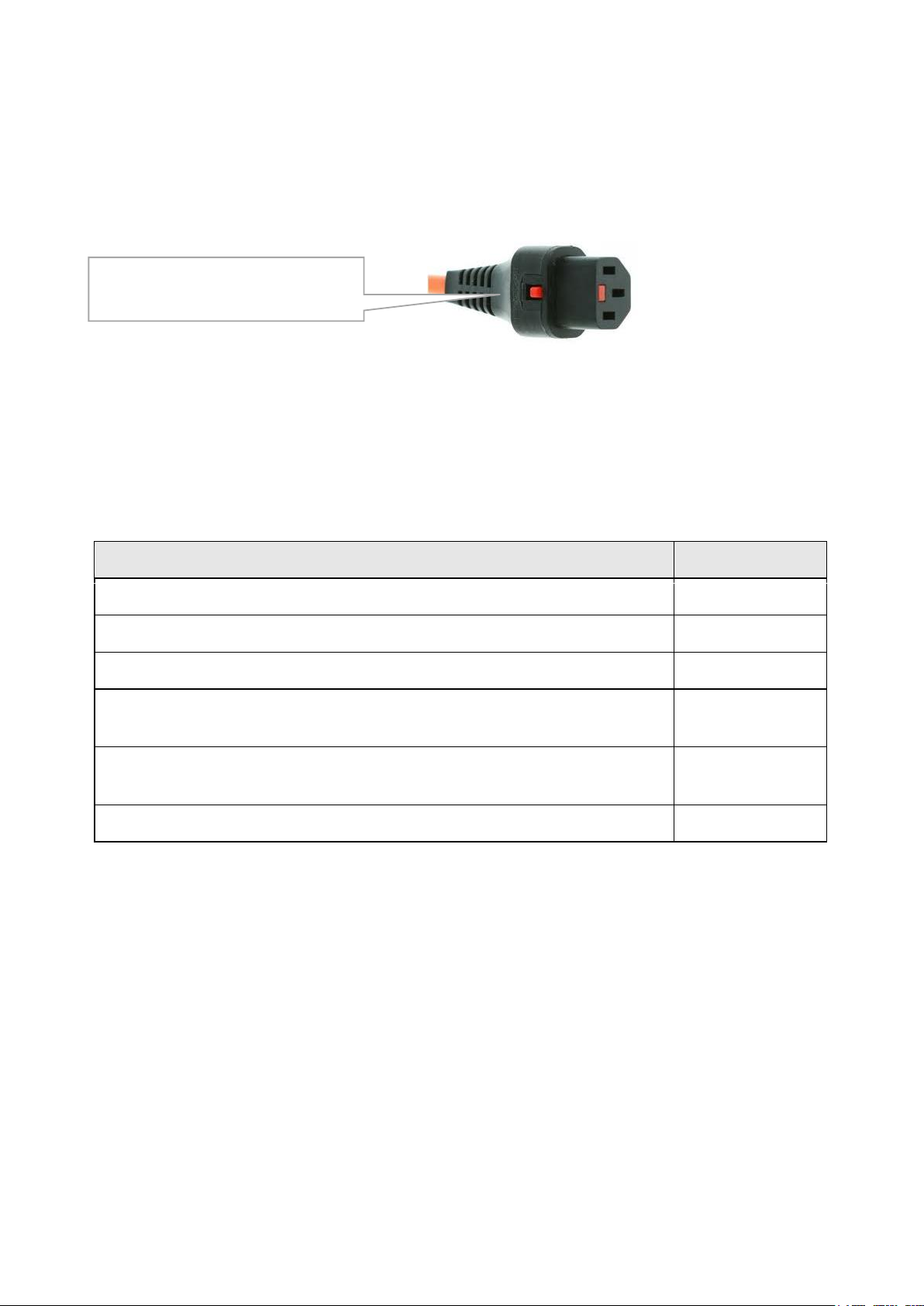

AC PSU power cord
with self-locking mechanism
The power supplies are connected via PSU cables via the node front.
AC PSU Cables: For the 100-240 VAC power supplies, the mains power cord with self-locking must
be plugged in. Make sure that the cable is locked on the connector. See table below for an
overview of the order numbers.
DC PSUs Cables: For the 18-60 VDC and 88-300 VDC PSU, the voltage wires must be connected to
the feed through connectors provided on the PSU front. The DC power supplies/cables have a
coding profile or code keys to prevent that a wrong cable and voltage is plugged into the PSU, see
further on for more information. See table below for an overview of the order numbers.
PoE PSU Cable: Cable needed to connect the external PoE PSU to the NSM-A. See table below for
the order number.
Dragon PTN Installation and Operation 45
Release 01 02/2018
Page 46
CAUTION: DOUBLE POLE / NEUTRAL FUSING
When using redundant PSUs, the node will only become powerless after
disconnecting both PSUs.
After operation of one fuse, parts of the equipment remain energized.
Cover all empty PSU positions with the appropriate cover plate (see above table
for corresponding cover plate). Fix the cover plates of a disassembled node
before powering up the node.
Never apply any excess voltage and always respect the correct polarity for DC
power supplies. Not observing this rule may damage the nodes. With long
distances, check the voltage loss due to copper losses of the power supply cable.
Switch off the power and disconnect the power cable before opening or
removing the PSU.
We advise to protect each PSU and/or power strip with an appropriate circuit
breaker. Depending on the voltage value and type (AC or DC) of the PSU a
corresponding circuit breaker must be chosen. See following table
Input Voltage
Circuit Breaker Value
18VDC
16A for DC current
60VDC
4A for DC current
88VDC
4A for DC current
300VDC
2A for DC current
100VAC
3A or 4A for AC current
220VAC
2A for AC current
Always use the front panel handles to plug in/remove a PSU into/from a node. Do
not touch or bend the EMC spring on the side of the front panel.
CAUTION: Some parts of the node can be extremely hot. Therefore, it is strongly
advised to use only the front panel handles of the module (NSM, CSM, IFM &
PSU), and not touching the PCB or any other parts, when removing it from the
node.
46 Dragon PTN Installation and Operation
Release 01 02/2018
Page 47
4.3 IT Grounding System
A Dragon PTN node can be connected to an IT grounding system (standard
EN60950-1) (see picture below).
L1
L2
L3
N
Distribution
cable
L1
L2
L3 N L1
L2
L3 N PE
Building
boundary
Equipment
Power source
L1
L2
PE
Distribution
cable
L1
L2
PE
Building
boundary
Power source
L1
L2
PE
Equipment
Separate Neutral and Protective Conductors
Earthed Line Conductor
When connecting the Dragon PTN PSU directly to a circuit breaker, be sure
to use bootlace ferrules.
A maximum of 2 PSUs can be connected to one circuit breaker.
Use copper bridges to interconnect the circuit breakers.
Earthing wires that are used as a pass through connected must be at least
2.5 mm².
It is advised to protect the main power with an appropriate earth leakage
circuit breaker.
4.4 Safety and Power Distribution
Dragon PTN Installation and Operation 47
Release 01 02/2018
Page 48
Engineer
type
Section
Form: Installation of an 100-240 VAC PSU
Duration:
15 min.
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find
a full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact
with your skin. Connect the alligator clip to the blank
metal of the rack or plug the antistatic wristband into the
ESD bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, cable ties and cable tool set
Antistatic wristband
100-240 VAC PSU + Power cord with locking mechanism
Extra documentation can be found in chapter 15
Front Panel
and Power
Cable
Installation
1. Take the 100-240 VAC PSU out of the antistatic bag.
2. Slide the PSU in the allocated slot of the node (see
corresponding Node form).
3. VERY IMPORTANT: Tighten the PSU with the two fastening
screws for optimal contact.
4. Connect the power distribution to the PSU via the power cord
and push until the connector is locked.
5. Label the power cord(s).
6. If necessary, the node can be powered on as described in §3.2.
power cable with
locking mechanism
Fastening screw
Fastening screw
CAUTION: Some parts within the
node can be extremely hot
Handle
Power cable with
locking mechanism
4.5 ACP-A: 100-240 VAC ± 10 % - PSU (942 234-001)
48 Dragon PTN Installation and Operation
Release 01 02/2018
Page 49
Engineer
type
Section

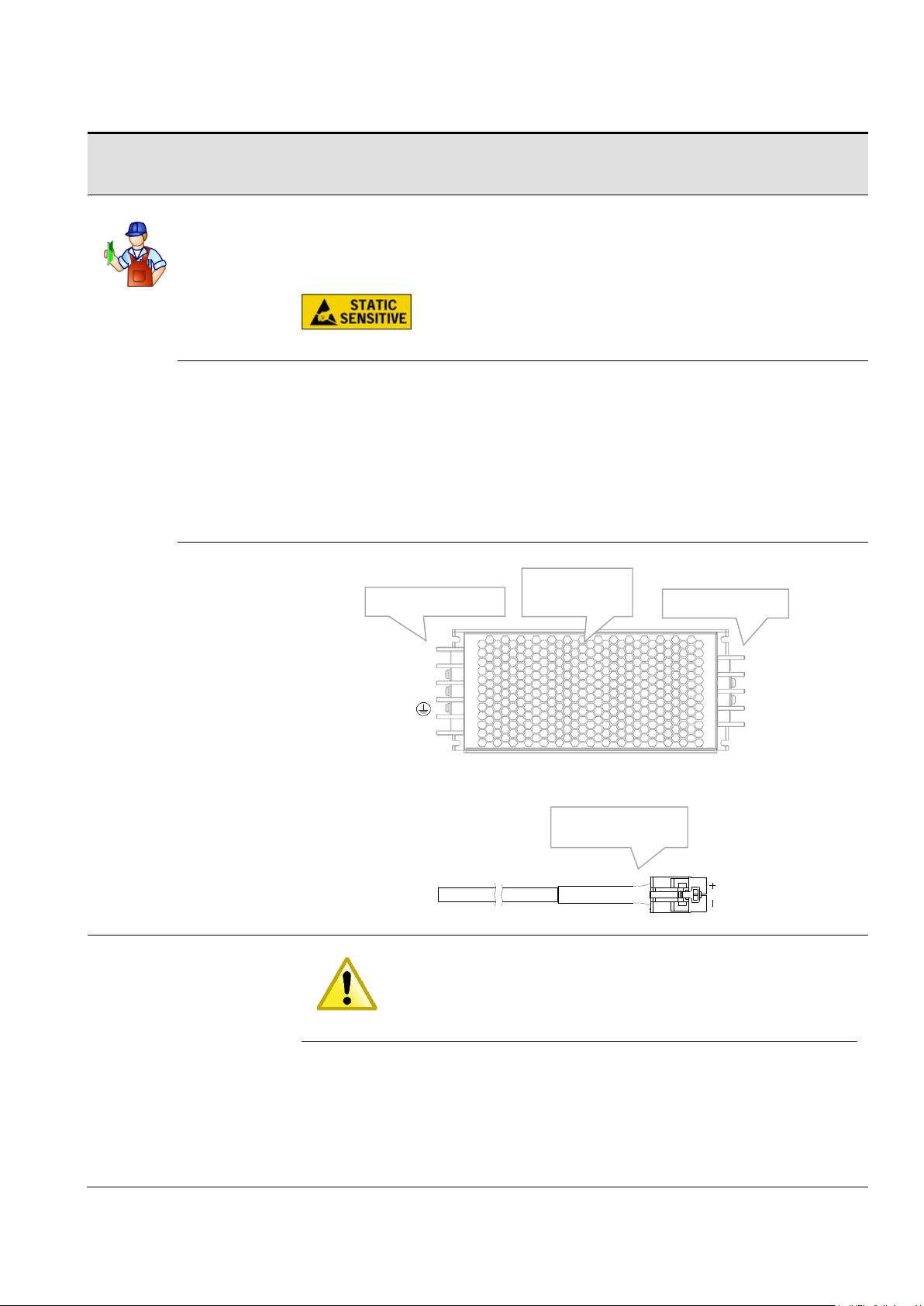

Form: Installation of an 18-60 VDC PSU
Duration:
15 min.
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find a
full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact with
your skin. Connect the alligator clip to the blank metal of the
rack or plug the antistatic wristband into the ESD bonding
point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, cable ties and cable tool set
Antistatic wristband
18-60 VDC PSU + Power cord (if not pre-installed)
Extra documentation can be found in chapter 15
Front Panel
And Power
Cable
Pin
PSU Side
Cable Side
+
Code Key
- Code Key
(PE)
Code Key
Installation
1. Take the 18-60 VDC PSU out of the antistatic bag.
2. Slide the PSU in the allocated slot of the node (see corresponding
Node form).
3. VERY IMPORTANT: Tighten the PSU with the two fastening screws
for optimal contact.
code key
code key
code key
CAUTION: Some parts within the
node can be extremely hot
power cable with
code keys
Fastening screw
Handle
Fastening screw
Power cable with
code keys
Handle
Code key
Code key
Code key
CAUTION: Some parts within the
node can be extremely hot
4.6 DCP-A: 18-60 VDC PSU (942 234-002)
Dragon PTN Installation and Operation 49
Release 01 02/2018
Page 50
The DC power supplies/cables have a coding
profile or code keys to prevent plugging in a wrong
cable and voltage into the PSU.
4. Connect the power distribution via the power cord to the PSU and
tighten the 2 screws for locking the power cord.
5. Label the power cord(s).
6. If necessary, the node can be powered on as described in §3.2.
50 Dragon PTN Installation and Operation
Release 01 02/2018
Page 51
Engineer
type
Section
Form: Installation of an 88-300 VDC PSU
Duration:
15 min.
ESD
With all installation activities, adopt the ESD recommendations regarding
the handling, transportation and storage of modules. Find a full ESD
description in chapter 18.
Always wear an antistatic wristband in direct contact with your
skin. Connect the alligator clip to the blank metal of the rack or
plug the antistatic wristband into the ESD bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, cable ties and cable tool set
Antistatic wristband
88-300 VDC PSU + Power cord (if not pre-installed)
Extra documentation can be found in chapter 15
Front
Panel
And Power
Cable
Pin
PSU Side
Cable Side
+ Code Key
-
Code Key
(PE)
Code Key
Installation
1. Take the 88-300 VDC PSU out of the antistatic bag.
2. Slide the PSU in the allocated slot of the node (see corresponding
Node form).
3. VERY IMPORTANT: Tighten the PSU with the two fastening screws for
optimal contact.
The DC power supplies/cables have a coding
profile or code keys to prevent that a wrong cable
and voltage is plugged into the PSU.
code keycode key
power cable with
code keys
code key
CAUTION: Some parts within the
node can be extremely hot
Fastening screw
Handle
Fastening screw
Power cable with
code keys
Handle
Code key
Code key
Code key
CAUTION: Some parts within the
node can be extremely hot
4.7 DCP-B: 88-300 VDC PSU (942 234-003)
Dragon PTN Installation and Operation 51
Release 01 02/2018
Page 52
4. Connect the power distribution via the power cord to the PSU and
tighten the 2 screws for locking the power cord.
5. Label the power cord(s).
6. If necessary, the node can be powered on as described in §3.2.
52 Dragon PTN Installation and Operation
Release 01 02/2018
Page 53
4.8 ACPoE-A DIN Rail PSU/100-240 VAC ± 10 % - 48 VDC DIN RAIL PSU (942 235-001)
Engineer
type
Section
Form: Installation of an ACPoE-A DIN Rail PSU
Duration:
30 min.
ESD
With all installation activities, the ESD recommendations regarding the
handling, transportation and storage of cards must be adopted. A full ESD
description can be found in chapter 18.
Always wear an antistatic wristband in direct contact with your
skin. Connect the alligator clip to the blank metal of the rack or
plug the antistatic wristband into the ESD bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, cable ties and cable tool set
Antistatic wristband
NSM-A Module in a Dragon PTN node / DCPoE-A DIN Rail PSU + Power
cord (if not pre-installed)
PoE Connector Cable: 942 256-105
Extra documentation can be found in chapter 15
Front Panel
Installation
of PoE PSU
on the
NSM-A
module
1. Take the ACPoE-A DIN Rail PSU out of the antistatic bag.
2. Mount the DIN RAIL inside the rack (if not already done).
3. Clip the PSU onto the DIN RAIL.
4. Label the PSU to identify to which switch it is connected.
5. Limit power cable (2 x 2.5 mm²) length to 3 m for EMC compliancy.
6. Connect the PoE connector cable to the PSU via connecting the open
ends of the cable to the PSU outputs ‘++--‘): respect the polarity.
7. Connect the main power (220 VAC) to the PSU via connecting the open
ends of the standard power cable to the “L”, “N” and GND on the PSU.
8. Plug in the PoE connector cable in the POE1 or POE2 connector on the
NSM-A in the node.
N
L
+ +
- -
DC 48V 10A
DC ok
13
14
Parallel Use
Single Use
DC ok
AC 100-240V
4856V
PoE Connector Cable
(942 256-105)
Dragon PTN Installation and Operation 53
Release 01 02/2018
Page 54
9. If a second PSU is required, repeat steps 1 to 8. DC1 and DC2 support
reverse polarity protection.
10. Label the power cord(s).
56 VDC
100240
VAC
N
L
+ +
- -
DC 48V 10A
DC ok
13
14
Parallel Use
Single Use
DC ok
AC 100-240V
4856V
100-
240
VAC
N
L
+ +
- -
DC 48V 10A
DC ok
13
14
Parallel Use
Single Use
DC ok
AC 100-240V
4856V
ACPoE-A PSU
(942 235-001)
PoE Connector Cable
(942 256-105)
Factory set to 56V
56 VDC
54 Dragon PTN Installation and Operation
Release 01 02/2018
Page 55
4.9 DCPoE-A DIN Rail PSU/ 33-62 VDC(in) - 56 VDC(out) DIN RAIL PSU (942 235-002)
Engineer
type
Section
Form: Installation of an DCPoE-A DIN Rail PSU
Duration:
30 min.
ESD
With all installation activities, the ESD recommendations regarding the
handling, transportation and storage of cards must be adopted. A full ESD
description can be found in chapter 18.
Always wear an antistatic wristband in direct contact with your
skin. Connect the alligator clip to the blank metal of the rack or
plug the antistatic wristband into the ESD bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, cable ties and cable tool set
Antistatic wristband
NSM-A Module in a Dragon PTN node / DCPoE-A DIN Rail PSU + Power
cord (if not pre-installed)
PoE Connector Cable: 942 256-105
Extra documentation can be found in chapter 15
PSU
Front Panel
Installation
for
NSM-A
Always use a grounded appliance outlet to connect the
power supply. Never apply an excess input voltage to the
DC input power ports, and do respect the polarity.
1. Take the DCPoE-A DIN Rail PSU and DIN Rail accessories out of the
antistatic bag.
2. Mount the DIN Rail inside the rack (if not already done).
3. Mount the DIN Rail clip on the back of the standard mounting plate
(222x96x2.5mm) (for high temperature operation, see further).
4. Mount the PSU on the front of the standard mounting plate.
1
2
3
1
2
+
-
-
+
DCPoE-A PSU
(942 235-002)
input: 33-62 VDC
output: 56 VDC
PoE Connector Cable
(942 256-105)
Dragon PTN Installation and Operation 55
Release 01 02/2018
Page 56
5. Clip the PSU onto the DIN Rail.
6. Label the PSU to identify to which Node or NSM-A it is connected.
7. Limit power cable (2 x 2.5 mm²) length to 3 m for EMC compliancy.
8. Connect the PoE connector cable to the PSU via connecting the open
ends of the PSU cable to the PSU outputs: respect the polarity.
9. Connect the DC input power (33-62 VDC) to the PSU inputs via
connecting the open ends of the standard power cable (3 x 2.5 mm²)
to the “+”, “-” and GND on the PSU.
10. Plug in the PoE connector cable in the POE1 or POE2 connector on the
NSM-A in the node.
11. If a second PSU is required, repeat steps 1 to 8.
12. Label the power cord(s).
Standard
Mounting
Plate
Cooling Wall
Plate

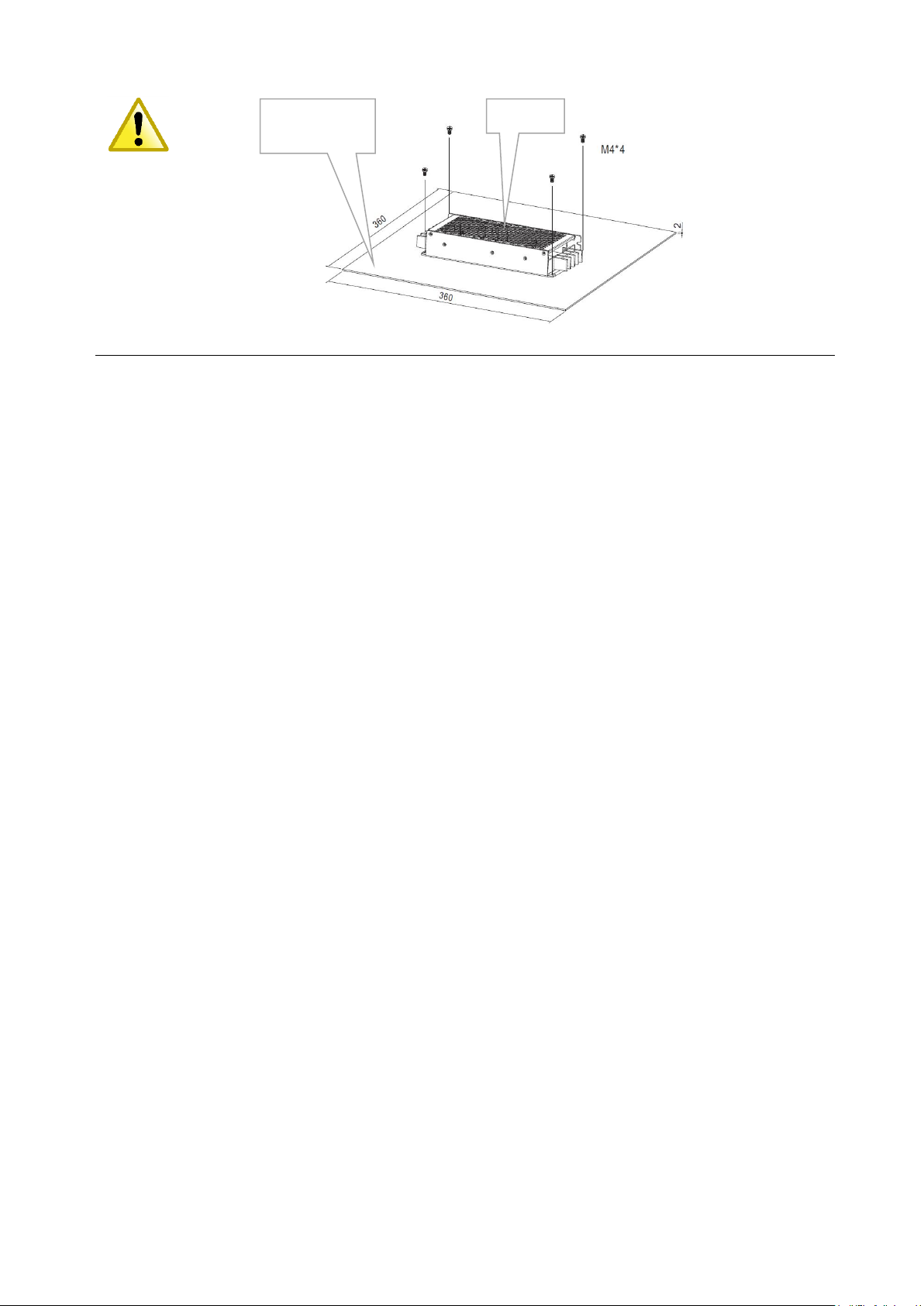

If it is necessary that the DCPoE-A PSU 942 235-002 must operate fully-loaded at 70°C, the PSU
must be directly mounted, without DIN Rail, on an aluminum/metal wall plate for cooling
reasons. The cooling area on the plate must be at least 360x360x2mm. See below.
56 VDC
PoE Connector Cable
(942 256-105)
56 VDC
+ -+ -
2 1 2 1
DCPoE PSU
(942 235-002)
3 2 1
G - +
33-62
VDC
3 2 1
G - +
G = Ground
33-62
VDC
Standard
mounting plate
56 Dragon PTN Installation and Operation
Release 01 02/2018
Page 57
PSU
Cooling
wall plate
Dragon PTN Installation and Operation 57
Release 01 02/2018
Page 58
Node Support Modules - Installation Forms
58 Dragon PTN Installation and Operation
Release 01 02/2018
Page 59
5. NODE SUPPORT MODULES – INSTALLATION FORMS
CAUTION: Some parts of the node can be extremely hot. Therefore, it is strongly advised to use only the
front panel handles of the module (NSM, CSM, IFM & PSU), and not touching the PCB or any other parts,
when removing it from the node.
Always use the front panel handles to plug in/remove an NSM into/from a node. Do
not touch or bend the EMC spring on the side of the front panel.
The NSM is required in every Dragon PTN node and performs following functions via its front
panel:
Status indication of PSU(s) and CSM(s);
Status and connection of Digital I/O (I= Input; O=output);
Status and connection of PoE Power inputs (redundant), only on NSM-A;
Manual switch over from the active to the redundant standby CSM via hidden push button;
The NSM-A has 2 PoE connectors on the front panel to connect 2 external PoE sources or PSUs.
One or two AC/DC (=ACPoE-A) or DC/DC (=DCPoE-A) PSUs, or a mix can be connected to the NSM.
Two connected PSUs will operate redundantly. Power aggregation is not supported. When two
PSUs are connected, always the lowest power of both PSUs will be taken by HiProvision to
calculate the PoE power.
For the configuration in HiProvision, see ‘Power over Ethernet (PoE)’ in the 'Dragon PTN and
HiProvision operation manual', see chapter 15.
Following PSUs can be ordered:
ACPoE-A DIN Rail PSU (942 235-001), see §4.8 for installation form;
DCPoE-A DIN Rail PSU (942 235-002), see §4.9 for installation form;
Dragon PTN Installation and Operation 59
Release 01 02/2018
Page 60
For connecting an external power supply for providing PoE, following cable (942 256-105) is
PSU for PoE
Order numbers
ACPoE-A: External DIN Rail PSU
Input: AC 100-240V (=wide range)
Output: DC 48-54V (factory set 48 V)
942 235-001
DCPoE-A: External DIN Rail PSU (DIN Rail accessories
included)
Input: DC 33 - 62V (=wide range)
Output: DC 56V (factory set)
942 235-002
PoE Cable
942 256-105
PoE Connector Cable
(942 256-105)
required:
60 Dragon PTN Installation and Operation
Release 01 02/2018
Page 61
Engineer
type
Section

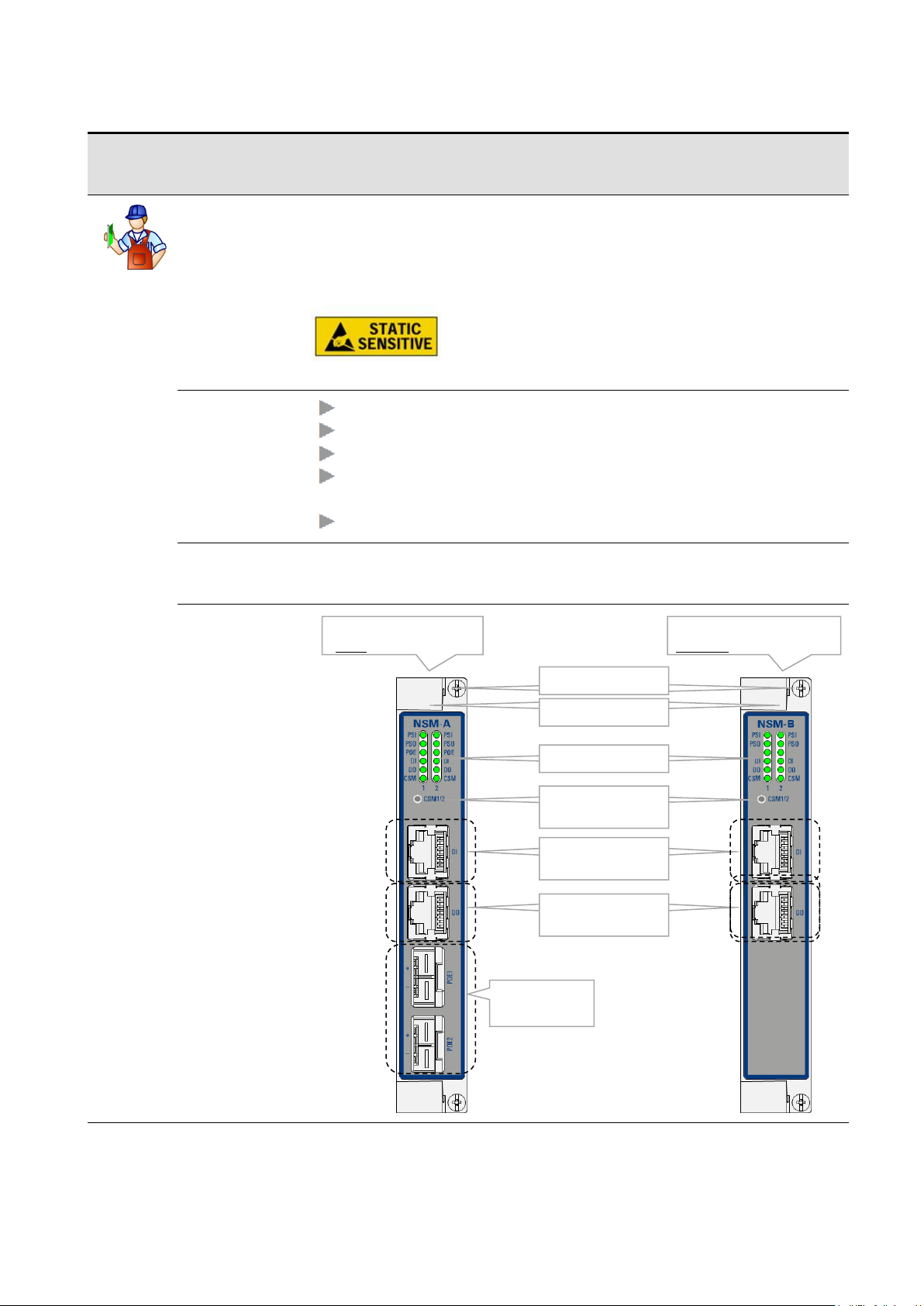

Form: Installation of an NSM-A/NSM-B
Duration:
15 min.
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find
a full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact with
your skin. Connect the alligator clip to the blank metal of
the rack or plug the antistatic wristband into the ESD
bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set
Antistatic wristband
NSM-A/NSM-B and Ethernet and PoE cable(s) if required. (PoE
only on NSM-A)
Extra documentation can be found in chapter 15
Compatibility
XT-1104-A/XT-2206-A/
XT-2209-A/XT-2210-A Node
Weight: approx. 0.17 kg /
0.4 lb
Front Panel
NSM-A
With PoE Connectors
Fastening screw
Handle
NSM-B
Without PoE Connectors
LEDs
Hidden CSM
Switch-over button
Digital input (DI)
ports
Digital input (DO)
ports
PoE external
power input
5.1 NSM-A (942 229-001), NSM-B (942 229-002)
Dragon PTN Installation and Operation 61
Release 01 02/2018
Page 62
Installation
1. Remove the ESD packaging from the NSM, do not touch or
bend the EMC spring on the side of the front panel.
2. Identify the node where the NSM has to be installed. The
NSM must always be installed in the most left position. (see
corresponding node form).
3. Take the NSM with the front panel handles, aim correctly and
slide it through the correct card guides (see chapter §3.2)
into the NSM slot.
4. Push the module as far as possible into the node.
Choosing another slot can damage the NSM
5. Push firmly with your thumbs on the front panel for optimal
backplane contact.
6. Tighten the two fastening screws.
7. If digital input is required, connect Ethernet cables to the DI
connector.
8. If digital output is required, connect Ethernet cables to the
DO connector.
9. (on NSM-A) If PoE is required, connect the PoE external
PSU(s) via 942 256-105 cable(s) to PoE1 and/or PoE2
connector, see figure below.
56 VDC
100240
VAC
N
L
+ +
- -
DC 48V 10A
DC ok
13
14
Parallel Use
Single Use
DC ok
AC 100-240V
4856V
100-
240
VAC
N
L
+ +
- -
DC 48V 10A
DC ok
13
14
Parallel Use
Single Use
DC ok
AC 100-240V
4856V
ACPoE-A PSU
(942 235-001)
PoE Connector Cable
(942 256-105)
Factory set to 56V
56 VDC
62 Dragon PTN Installation and Operation
Release 01 02/2018
Page 63
56 VDC
PoE Connector Cable
(942 256-105)
56 VDC
+ -+ -
2 1 2 1
DCPoE PSU
(942 235-002)
3 2 1
G - +
33-62
VDC
3 2 1
G - +
G = Ground
33-62
VDC
Dragon PTN Installation and Operation 63
Release 01 02/2018
Page 64
Engineer
type
Section
Form: Operation of an NSM-A/NSM-B
Duration:
1 hour
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find a
full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact with
your skin. Connect the alligator clip to the blank metal of the
rack or plug the antistatic wristband into the ESD bonding
point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set
Antistatic wristband
Extra documentation can be found in chapter 15
Operation
1. Un-tighten the screws on the NSM and remove the module from
the node (module = hot-swappable), do not touch or bend the
EMC spring on the side of the front panel.
2. Configure all rotary switches (see section below);
3. Take the NSM with the front panel handles, aim correctly and
slide it through the correct card guides (see chapter §3.2) into the
NSM slot.
4. Push the module as far as possible into the node.
5. Push firmly with your thumbs on the front panel for optimal
backplane contact;
6. Tighten the two fastening screws.
7. Continue installing and configuring the CSM (see CSM form). After
CSM installation, the node number configured on the NSM can be
verified on the CSM display.
Rotary
Switches
1. Take the NSM and set the correct node number on the module
with the rotary switches S3 to S6 (S6 = most significant, see next
page). Valid decimal node numbers range from 0001 to 8999. The
configured node number can be verified on the CSM display.
Node number 9001 on the CSM display means that the
configured node number on the NSM is invalid.
The hardware edition (labeled as CARD_ID) of the
NSM has been factory set with rotary switch S1 and
S2 (=most significant) and MUST NOT BE CHANGED!
A hidden CSM switch-over button (SW1) is available
on the NSM to make a switch-over from the active to
the redundant standby CSM (not applicable on the
XT-1104-A node).
64 Dragon PTN Installation and Operation
Release 01 02/2018
Page 65

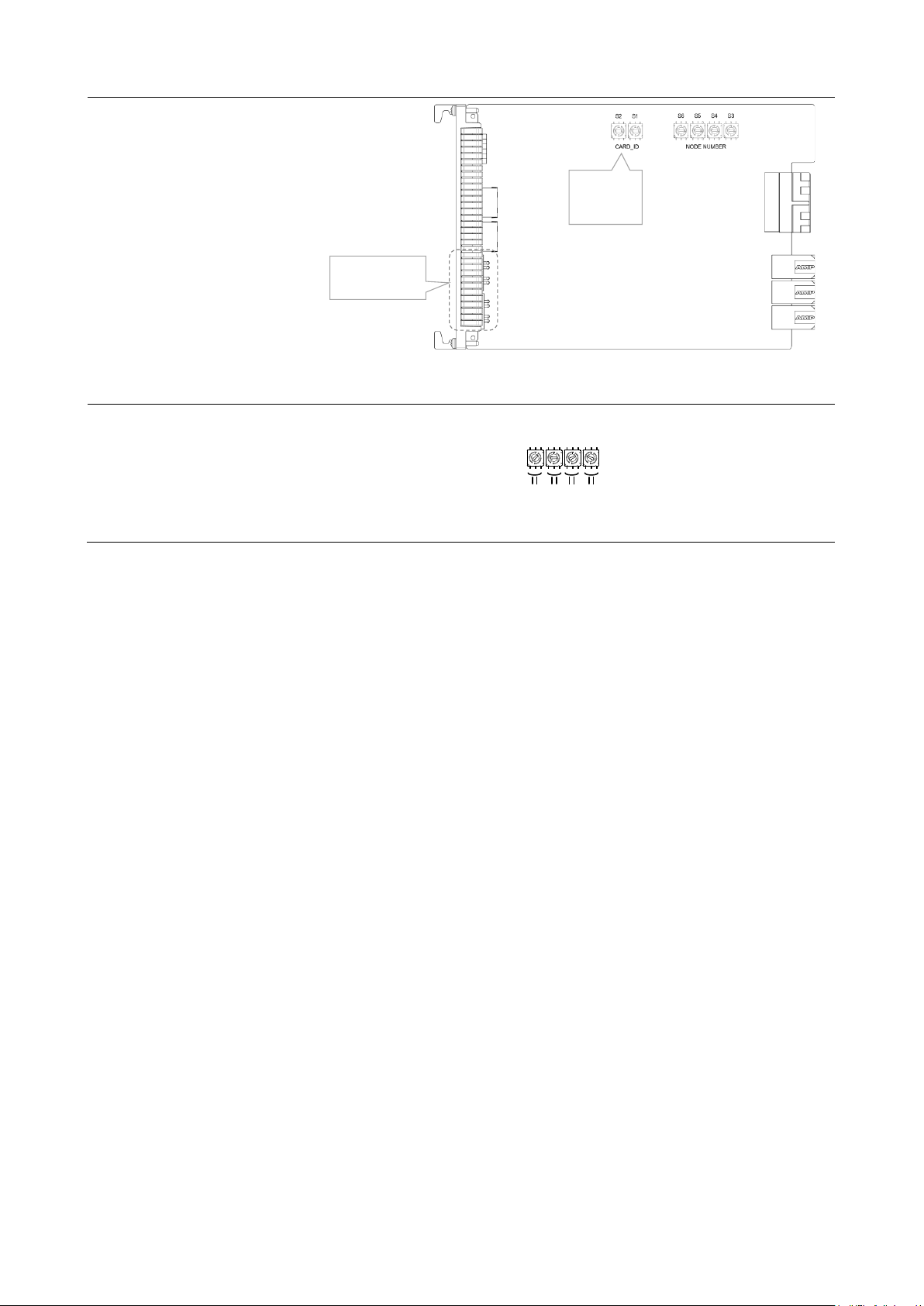

NSM-A Side view
Node Number Example
2. Status info via NSM-A LEDs: See node manual listed in §15 for more information on the NSM
PoE Connectors
only on NSM-A
NSM
Hardware
Edition
S6 S5 S4 S3
Example: Node N° = 219
Dec 0 2 1 9
0
2
1
9
LEDs.
Dragon PTN Installation and Operation 65
Release 01 02/2018
Page 66
Central Switching Module – Installation Forms
66 Dragon PTN Installation and Operation
Release 01 02/2018
Page 67
6. CENTRAL SWITCHING MODULE – INSTALLATION FORMS
CAUTION: Some parts of the node can be extremely hot. Therefore, it is strongly advised to use only the
front panel handles of the module (NSM, CSM, IFM & PSU), and not touching the PCB or any other parts,
when removing it from the node.
Always use the front panel handles to plug in/remove a CSM into/from a node. Do not touch or bend the
EMC spring on the side of the front panel.
CAUTION:
The SD card from a broken CSM can be reused in the new replacing CSM provided that both CSMs have
the same firmware version and are used in the same node!
A used Micro SD Memory card must always be used in the same node! Always use the front panel
handles to plug in/remove a CSM into/from a node.
When installing a redundant CSM, both CSMs must have the same firmware version.
6.1 General
The CSM310-A Central Switching Module (=CSM) is the heart of the Dragon PTN nodes. This
module provides the main processing within the Dragon PTN nodes via an Integrated Ethernet
Multilayer Switch and Traffic Manager on board. All CSMs in the same Dragon PTN network must
have the same firmware installed compatible with the installed HiProvision version.
The XT-2210-A/XT-2209-A/XT-2206-A nodes can be equipped with one or 2 CSMs in any of the
CSM positions. If no redundant CSM is provided, the empty CSM position must be covered with a
cover plate: 942 237-003.
Each CSM is equipped with a Micro SD Memory card (see further on). This memory card has one
purpose: allow the easy replacement of an erroneous CSM in the live network. This memory card
always holds the latest node configuration downloaded via HiProvision.
Follow the steps below to replace an erroneous CSM with a new CSM:
Remove the SD card from the new CSM by pushing down and releasing the SD card;
Remove the erroneous CSM (=hot-swappable) from the powered node;
Remove the SD card from the erroneous CSM and insert it into the new CSM;
Plug in the new CSM into the node. The node will reboot with the new CSM, which already has
the correct node configuration from the SD card. A new load of the node via HiProvision will
not be necessary.
Dragon PTN Installation and Operation 67
Release 01 02/2018
Page 68
Engineer
type
Section
Form: Installation of a CSM310-A
Duration:
30 min.
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules.
Find a full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact
with your skin. Connect the alligator clip to the blank
metal of the rack or plug the antistatic wristband into
the ESD bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set
Antistatic wristband
CSM310-A (includes pre-installed Micro SD memory card)
Extra documentation can be found in chapter 15
Compatibility
XT-1104-A/XT-2206-A/
XT-2209-A/XT-2210-A
Weight: approx. 1 kg / 2.2 lb
Front Panel
Installation
1. Remove the ESD packaging from the CSM, do not touch or bend
the EMC spring on the side of the front panel.
2. Identify the Dragon PTN node where the CSM has to be
installed (see allocated slot below):
Fastening
Screw
Extractor
Handle
Handle
LEDs
CSM
Active/standby
LED
Hidden
Reset
Button
Display
HiProvision
Management
Connector
HiProvision
PC
6.2 CSM310-A (942 230-001)
68 Dragon PTN Installation and Operation
Release 01 02/2018
Page 69
XT-1104-A
XT-2206-A
XT-2209-A
XT-2210-A
3. Set/hold the extractor handles unlocked or horizontal, in line
with the top of the module.
4. Take the CSM with the front panel handles, aim correctly and
slide the module through the two bottom/top card guides (see
NSM
PSU CSM
IFM-1 IFM-2 IFM-3 IFM-4
NSM PSU-1 PSU-2 CSM-1 CSM-2
IFM-1 IFM-2 IFM-3 IFM-4
IFM-5 IFM-6
NSM PSU-1 PSU-2 CSM-1 CSM-2
IFM-1 IFM-2 IFM-3
IFM-5 IFM-6 IFM-7 IFM-8 IFM-9
IFM-10
NSM PSU-1 PSU-2 CSM-1 CSM-2
IFM-1 IFM-2 IFM-3 IFM-4
IFM-5 IFM-6 IFM-7 IFM-8 IFM-9
IFM-10
Micro SD Card
Interface
Heat Sink
Extractor
handle
Hardware
Edition
Hidden Reset
Button
Lock
Unlock
Dragon PTN Installation and Operation 69
Release 01 02/2018
Page 70
chapter §3.2) into the CSM slot. When inserting one CSM into
an XT-2210-A/XT-2209-A/XT-2206-A node, use the ‘CSM-1’ or
‘CSM-2’ slot. When using redundant CSMs, CSMs must be
inserted in both ‘CSM-1/CSM-2’ slots.
5. Push the module as far as possible into the node. Make sure
that the extractor handles can grab into the foreseen
top/bottom holes of the node.
6. Inward push or lock the extractor handles.
7. Push firmly with your thumbs on the front panel for optimal
backplane contact.
8. Tighten the four fastening screws.
Engineer
type
Section
Form: Operation of a non-redundant CSM310-A
Duration:
30 min.
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find a
full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact with
your skin. Connect the alligator clip to the blank metal of the
rack or plug the antistatic wristband into the ESD bonding
point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set
Antistatic wristband
Extra documentation can be found in chapter 15
Operation
1. PREREQUISITE: node number is configured on the NSM and SD
Memory card is plugged into its interface, see below.
2. CSM is hot-swappable, remove the CSM from the node (see the
section below).
3. DO NOT change the hardware edition DIP switch (S1).
4. Make sure that a Micro SD card is plugged in.
5. Insert the CSM into the node (see the section below).
Micro SD Card
Interface
Heat Sink
Extractor
handle
Hardware
Edition
Hidden Reset
Button
Lock
Unlock
70 Dragon PTN Installation and Operation
Release 01 02/2018
Page 71
6. Check if the LED(s) ‘PSI’ and ‘PSO’ on the NSM are lit. If they are
both green the node will start up.
7. The CSM turns into a boot cycle which lasts approximately 5
minutes.
8. After this boot cycle, check if the PI LED is green, the PF and the
FLT LED must not lit. The CSM active LED (or spare LED) must be
green.
9. Write down the node number (for later use) from the CSM
display. This is the node number configured on the NSM.
10. Program the CSM (see section below).
Insert
CSM
1. Set the extractor handles unlocked or horizontal, in line with the
top of the module.
2. Take the CSM with the front panel handles, aim correctly and slide
the module through the two bottom/top card guides (see chapter
§3.2) into the CSM slot.
3. Push the module as far as possible into the node. Make sure that
the extractor handles can grab into the foreseen top/bottom
holes of the node.
4. Inward push or lock the extractor handles.
5. Push firmly with your thumbs on the front panel for optimal
backplane contact.
6. Tighten the four fastening screws.
Remove
CSM
CAUTION: if powered on, the CSM can be extremely hot. Therefore, it is
strongly advised to use only the front panel handles and not touching the
PCB or any other parts, when removing it from the node. The CSM can be
rather heavy as well due to the weight of the heat sink.
1. ATTENTION: if powered on and programmed, the node goes out
of service after performing the steps below.
2. Un-tighten the four fastening screws.
3. Outward push or unlock the extractor handles as far as possible to
unlock the CSM from the node backplane.
4. Take the front panel handles to pull out the CSM, CSM is hot-
swappable, do not touch or bend the EMC spring on the side of
the front panel.
5. Remove the CSM from the node.
Program
CSM
A trained HiProvision administrator must perform the
HiProvision steps below in the control center. A full
description of the steps below can be found in ‘Dragon
PTN and HiProvision Operation’ manual, see chapter 15.
1. Use your cell phone to communicate with the control center and
ask them to program the CSM in HiProvision.
2. In HiProvision, discover the network elements and links in the
Dragon PTN Network.
3. In HiProvision, approve the Dragon PTN Network.
4. In HiProvision, configure all the network elements and links in the
Dragon PTN Installation and Operation 71
Release 01 02/2018
Page 72
database. This could be done automatically via the discover and
approve steps, or it can be done manually.
5. In HiProvision, program tunnels;
6. In HiProvision, program services;
7. Contact the control center to check if the CSM is functioning
properly after having it discovered and programmed in
HiProvision.
Engineer
type
Section

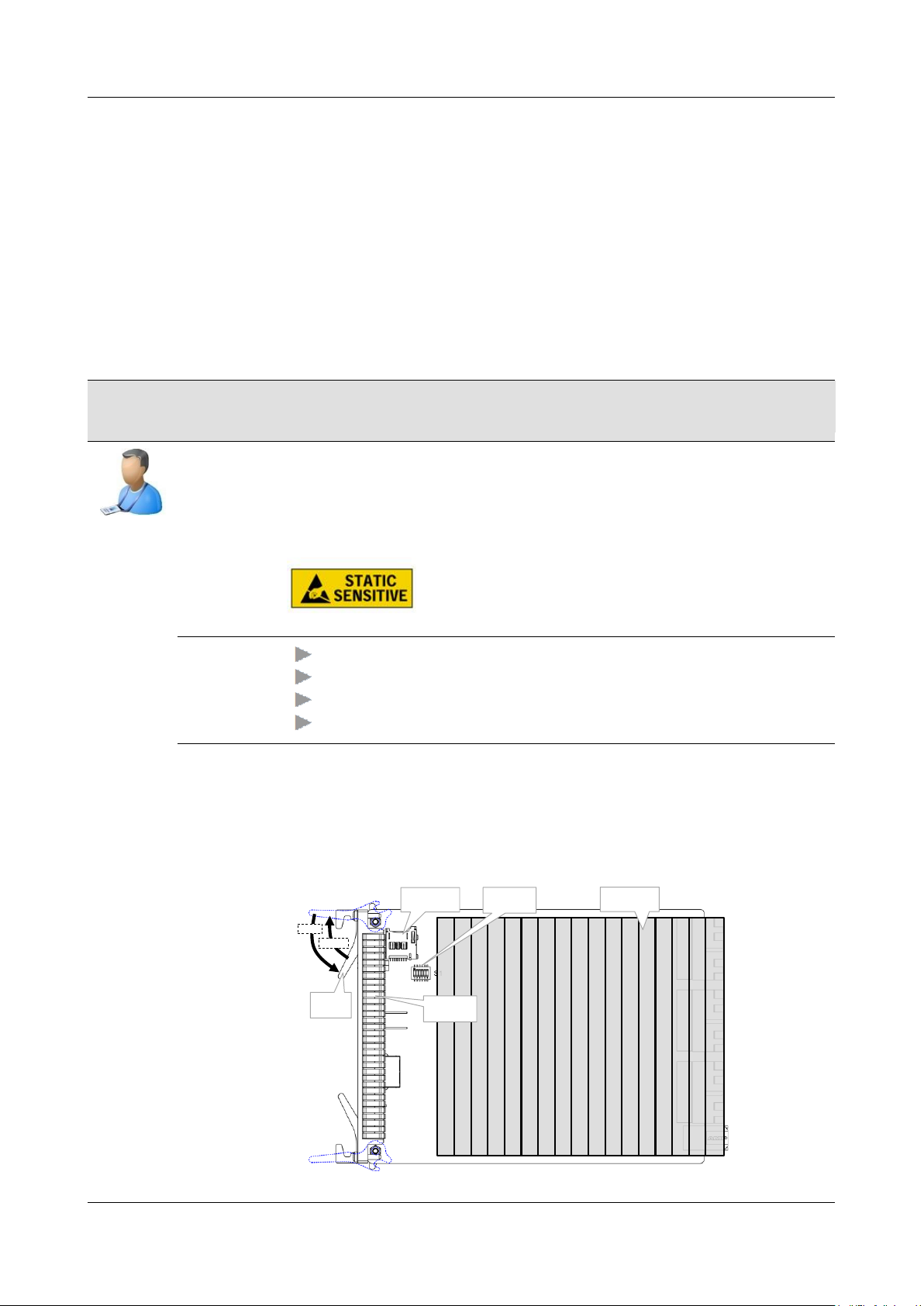

Form: Operation of a redundant CSM310-A (XT-2210-A/XT-2209A/XT2206-A)
Duration:
30 min.
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find a
full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact with
your skin. Connect the alligator clip to the blank metal of the
rack or plug the antistatic wristband into the ESD bonding
point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set
Antistatic wristband
Extra documentation can be found in chapter 15
Operation
1. PREREQUISITES: Node number has been configured on the NSM
and SD Memory card is plugged into its interface, see below.
Both CSMs must have the same firmware version to allow CSM
redundancy.
2. The CSM is hot-swappable, remove the redundant (standby) CSM
from the node (see the section below). (CAUTION: Never pull out
the active CSM).
3. DO NOT change the hardware edition DIP switch (S1).
4. Make sure that a Micro SD card is plugged in.
72 Dragon PTN Installation and Operation
Release 01 02/2018
Page 73
5. Insert the redundant CSM in the node (see the section below).
6. Check if the LED(s) ‘PSI’ and ‘PSO’ on the NSM are lit. If they are
both green the node will start up.
7. The CSM turns into a boot cycle which lasts approximately 5
minutes.
8. After this boot cycle, check if the PI LED is green, the PF and the
FLT LED must not lit. The CSM active LED (or spare LED) must be
dark.
CAUTION: If the spare LED on both redundant CSMs are lit
together, it means that both CSMs are active at the same
time. This is not allowed! Make sure that both CSMs are
plugged in properly.
9. Write down the node number (for later use) from the CSM
display. This is the node number configured on the NSM.
10. Program the CSM (see section below).
Insert
CSM
1. Set/hold the extractor handles unlocked or horizontal, in line with
the top of the module.
2. Take the CSM with the front panel handles, aim correctly and slide
the module through the two bottom/top card guides (see chapter
§3.2) into the CSM slot.
3. Push the module as far as possible into the node. Make sure that
the extractor handles can grab into the foreseen top/bottom
holes of the node.
4. Inward push or lock the extractor handles.
5. Push firmly with your thumbs on the front panel for optimal
backplane contact;
6. Tighten the four fastening screws.
Micro SD Card
Interface
Heat Sink
Extractor
handle
Hardware
Edition
Hidden Reset
Button
Lock
Unlock
Dragon PTN Installation and Operation 73
Release 01 02/2018
Page 74
Remove
CSM
CAUTION: if powered on, the CSM can be extremely hot. Therefore, it is
strongly advised to use only the front panel handles and not touching the
PCB or any other parts, when removing it from the node. The CSM can be
rather heavy as well due to the weight of the heat sink.
1. ATTENTION: if powered on and programmed, the node goes out
of service after performing the steps below.
2. Un-tighten the four fastening screws.
3. Outward push or unlock the extractor handles as far as possible to
unlock the CSM from the node backplane.
4. Take the front panel handles to pull out the CSM, CSM is hotswappable, do not touch or bend the EMC spring on the side of
the front panel.
5. Remove the CSM from the node.
Program
CSM
A trained HiProvision administrator must perform the
HiProvision steps below in the control center. A full
description of the steps below can be found in
‘Dragon PTN and HiProvision Operation’ manual, see
chapter 15.
1. Use your cell phone to communicate with the control center and
ask them to program the CSM in HiProvision.
2. In HiProvision, discover the nodes and links in the Dragon PTN
Network.
3. In HiProvision, approve the Dragon PTN Network.
4. In HiProvision, configure all the network elements and links in the
database. This could be done automatically via the discover and
approve steps, or it can be done manually.
5. In HiProvision, program tunnels;
6. In HiProvision, program services;
7. Contact the control center to check if the CSM is functioning
properly after having it discovered and programmed in
HiProvision.
74 Dragon PTN Installation and Operation
Release 01 02/2018
Page 75
Interface Modules – Installation Forms
Dragon PTN Installation and Operation 75
Release 01 02/2018
Page 76
7. INTERFACE MODULES – INSTALLATION FORMS
1G 1G 1G 1G 1G 1G 1G 1G 1G
4x1G 4x1G 4x1G 4x1G 10G 10G 10G 10G 4x1G
IFM-1
IFM-2
IFM-3
IFM-4
IFM-5
IFM-6
IFM-7
IFM-8
IFM-9
IFM-10
NSM
PSU-1
PSU-2
CSM-1
CSM-2
1G
1G 1G 1G 1G 1G 1G 1G 1G
4x1G 4x1G 4x1G 10G 10G 10G 4x1G 4x1G
IFM-1
IFM-2
IFM-5
IFM-6
IFM-7
IFM-8
IFM-9
IFM-10
NSM
PSU-1
PSU-2
CSM-1
CSM-2
1G
IFM-3
1G
4X1G
10G
3x1G
1G 1G 1G 1G 1G 1G
4x1G 4x1G 4x1G 4x1G 10G 10G
IFM-1
IFM-2
IFM-3
IFM-4
IFM-5
IFM-6
NSM
PSU-1
PSU-2
CSM-1
CSM-2
1G 1G 1G 1G
4x1G 4x1G 4x1G 4x1G
IFM-1
IFM-2
IFM-3
IFM-4
NSM
PSU
CSM
Dragon PTN provides a range of interface modules for diverse applications:
Local Area Networks (LAN), Wide Area Networks (WAN), IP applications (e.g. Gigabit Ethernet,
Fast Ethernet)
Telephony purposes (e.g. SHDSL, E1, T1, C37.94….)
Each Interface Module (=IFM) has its own manual, which can be found on the Portal
https://hiprovision.hirschmann.com via Shortcuts Manuals. See chapter 15 for details.
Dragon PTN nodes provide universal mounting positions for up to ten IFMs. Both low speed (1G)
and high speed (10G) IFMs can be used together in the same node. In which slot the node can be
plugged depends on the speed type (1G or 10G) of the IFM and the node type. See figures below:
XT-2210-A: Node Slot Speeds
XT-2209-A: Node Slot Speeds
XT-2206-A: Node Slot Speeds
XT-1104-A: Node Slot Speeds
76 Dragon PTN Installation and Operation
Release 01 02/2018
Page 77
For the correct programming of the interface modules, see the module documentation and the
Identify all interface cables with labels after installing the Dragon PTN
equipment.
All cables coming from the front of the node must be guided to the side of the
node and not to top or bottom side, this way the natural airflow through the
node is not blocked or disturbed.
Cover all empty interface slots with the corresponding cover plate. (Dummy
panel: 942 237-001)
Always use the front panel handles to plug in/remove an NSM into/from a
node. Do not touch or bend the EMC spring on the side of the front panel.
All interface modules with RJ45 connectors must be connected with CAT5E
Shielded cables except the E1 and T1 cables.
CAUTION: Some parts of the node can be extremely hot. Therefore, it is strongly advised to use only the
front panel handles of the module (NSM, CSM, IFM & PSU), and not touching the PCB or any other parts,
when removing it from the node.
Avoid fiber optical connector contamination!
Always shield the disconnected optical connectors (either on the module or fiber) by means of a plastic
cap. This prevents the optical signal from being disturbed by possible dust and dirt.
Save these dust caps carefully, so they can be put on the transmitter and/or receiver again on both the
module and fiber connector during another power measurement, node removal, etc.
Always clean the front face and the ferrule of the fiber connector before plugging it in into the interface
module - exclusively use a fiber cleaning tool.
Not adopting these rules causes the connector concerned and other optical elements to get dirty and/or
be damaged. It is practically impossible to remove the dirt once it is inside the connector, which may
also cause a loss of several dB.
Avoid contact with Laser Diode Pins! Laser diodes are extremely sensitive to electrostatic discharges.
The slightest over voltage may cause component degradation, or even component destruction.
Therefore, avoid any contact with the laser diode pins and with the switch near this component.
The fastening screws on the modules need to be tightened prior to connecting the installation wiring.
Vice versa, the installation wiring needs to be removed prior to un-tightening the modules.
Do not damage the fibers during installation! Keep the tensile force on the fiber down and respect
sufficient bend radius. Use soft (e.g. Velcro) instead of hard plastic cable binders. Pay attention when
tightening them, not to tight!
‘Dragon PTN and HiProvision Operation’ manual, see chapter 15.
Interface modules can be removed from and inserted into the node while the power is on (hot
swappable). Detailed installation forms with cable information of all common Dragon PTN
interface modules are listed in this chapter.
7.1 General Recommendations: Optical Connectors, Laser Diodes and Fibers
Applicable for the 1G and 10G interface modules.
Dragon PTN Installation and Operation 77
Release 01 02/2018
Page 78
Engineer
type
Section

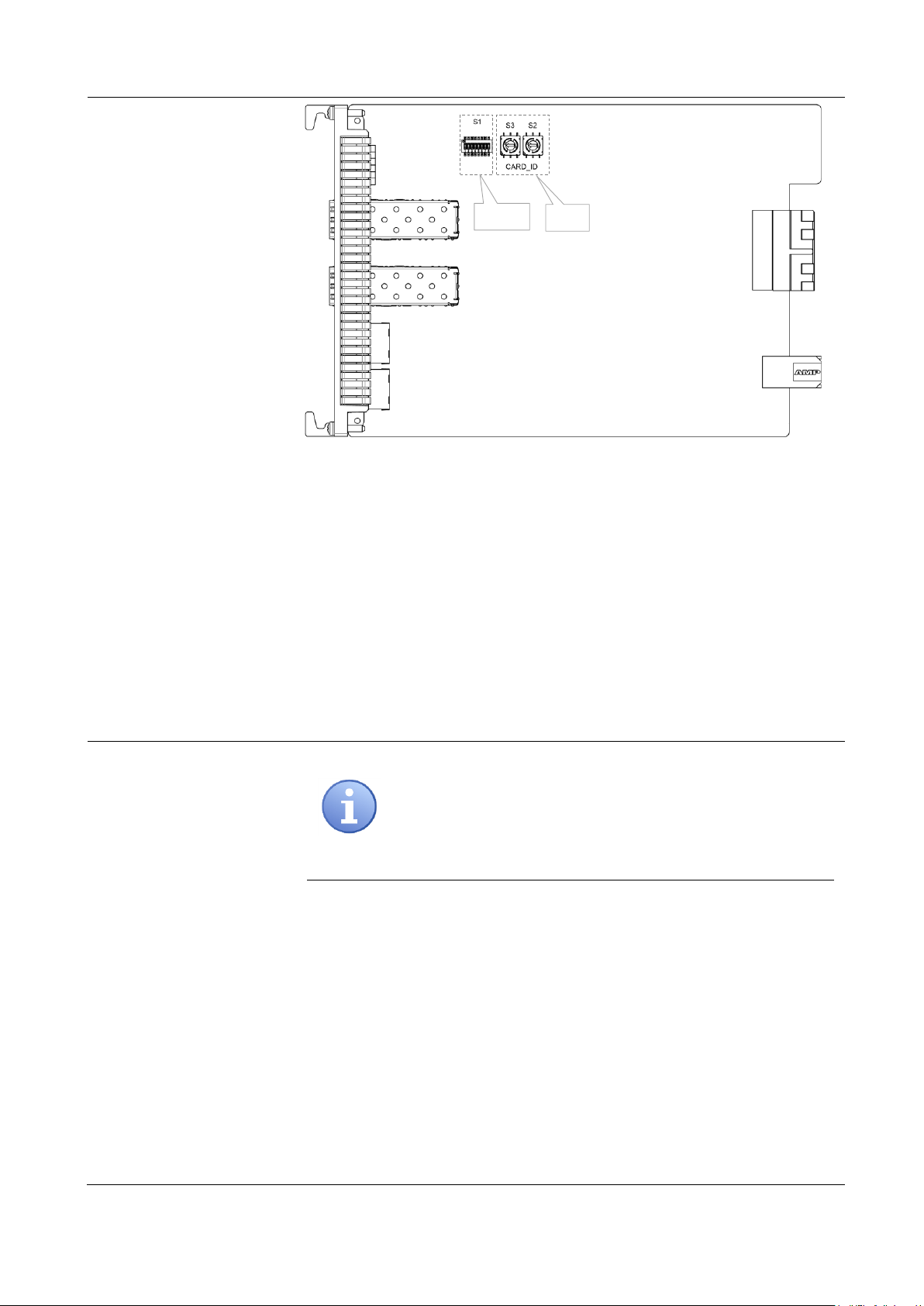

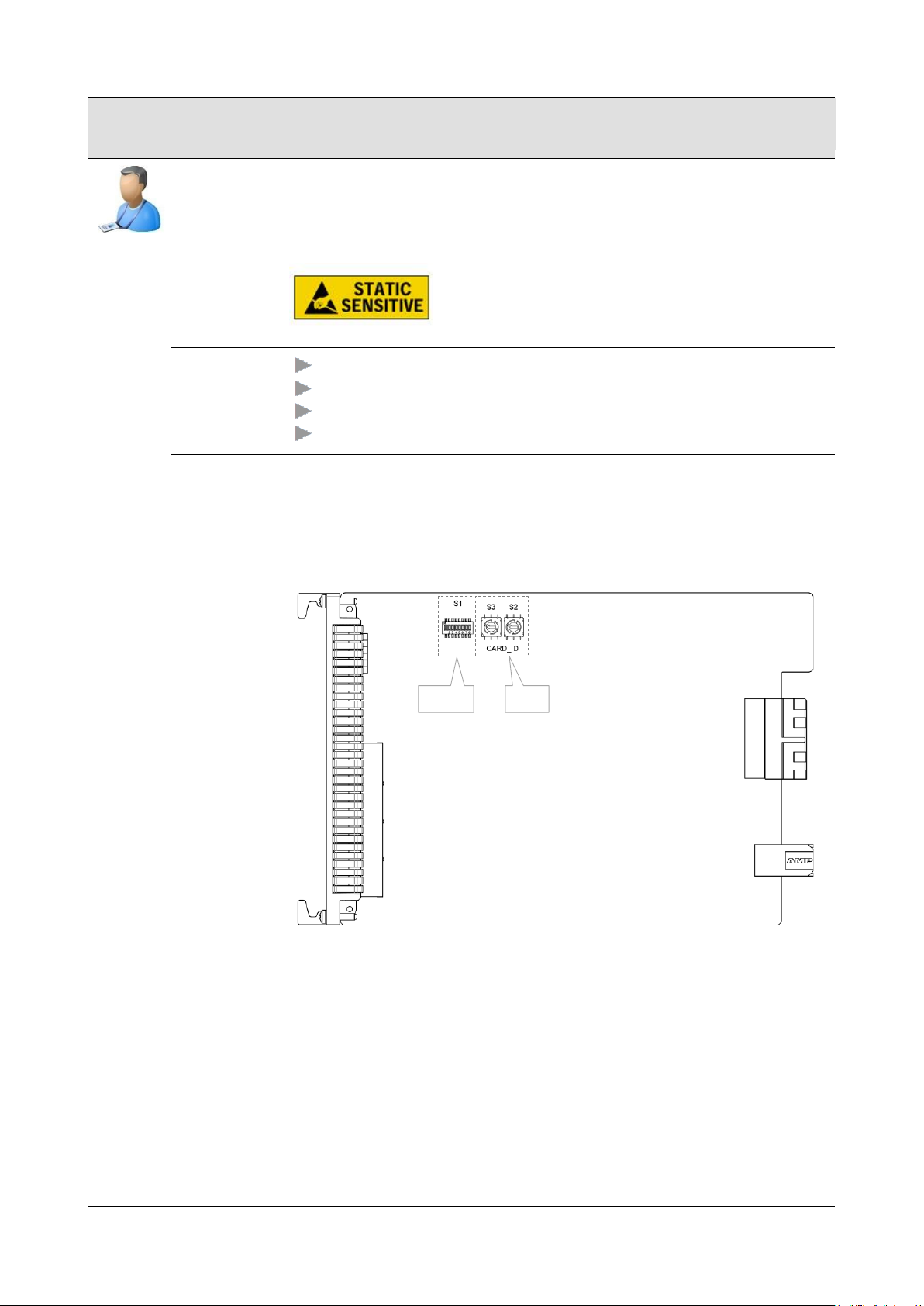

Form: Installation of a 2-C37.94 module
Duration:
1 hour
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find a
full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact with
your skin. Connect the alligator clip to the blank metal of
the rack or plug the antistatic wristband into the ESD
bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, cable ties and cable tool set
Antistatic wristband
2-C37.94 module + SFP modules
Interface cable(s)
Extra documentation can be found in chapter 15
Compatibility
XT-1104-A/XT-2206-A/
XT-2209-A/XT-2210-A
Weight: approx. 0.22 kg
/ 0.5 lb
Front Panel
LEDs
2 E1/T1
Ports
2 C37.94
Ports
Handle
Fastening screw
7.2 2-C37.94 (With E1: 942 236-009 / With T1: 942 236-010)
78 Dragon PTN Installation and Operation
Release 01 02/2018
Page 79
Installation
1. Remove the ESD packaging from the interface module, do not
touch or bend the EMC spring on the side of the front panel.
2. Take the 2-C37.94 module with the front panel handles, aim
correctly and slide it through the correct card guides (see chapter
§3.4) into the allocated slot.
3. Push the module as far as possible into the node.
4. Push firmly with your thumbs on the front panel for optimal
backplane contact.
5. Tighten the two fastening screws.
6. Plug the SFP module in the corresponding position (see §7.15).
7. Plug the interface cable(s) into the corresponding connector(s)
(see next page(s) for pin numbers, signal names and color codes).
Engineer
type
Section
Form: Operation of a 2-C37.94 module
Duration:
10 min.
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find a
full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact with
your skin. Connect the alligator clip to the blank metal of
the rack or plug the antistatic wristband into the ESD
bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, cable ties and cable tool set
Antistatic wristband
Extra documentation can be found in chapter 15
Operation
1. Un-tighten the screws on the 2-C37.94 module and remove the
module from the node (module = hot-swappable), do not touch or
bend the EMC spring on the side of the front panel.
2. The E1/T1 configuration of the 2-C37.94 module is factory set by
the S1 DIP switch and must not be changed. The configuration can
be read out via HiProvision.
Dragon PTN Installation and Operation 79
Release 01 02/2018
Page 80
3. Take the 2-C37.94 module with the front panel handles, aim
correctly and slide it through the correct card guides (see chapter
§3.4) into the allocated slot.
4. Push the module as far as possible into the node.
5. Push firmly with your thumbs on the front panel for optimal
backplane contact.
6. Tighten the two fastening screws.
7. Check whether the links are up via the LEDs, info on the LEDs via
manuals listed in §15.
8. Call the control center to check whether the 2-C37.94 module is
functioning properly after having it programmed in HiProvision.
Program
2-C37.94
Module
A trained HiProvision administrator must perform the
HiProvision steps below in the control center. A full
description of the steps below can be found in
‘Dragon PTN and HiProvision Operation’ manual, see
chapter 15.
1. Use your cell phone to communicate with the control center and
ask them to program the 2-C37.94 in HiProvision.
2. In HiProvision, discover the network elements and links in the
Dragon PTN Network.
3. In HiProvision, approve the Dragon PTN Network.
4. In HiProvision, configure all the network elements and links in the
database. This could be done automatically via the discover and
approve steps, or it can be done manually.
5. In HiProvision, program tunnels;
6. In HiProvision, program services;
7. Contact the control center to check if the 2-C37.94 is functioning
properly after having it discovered and programmed in
HiProvision.

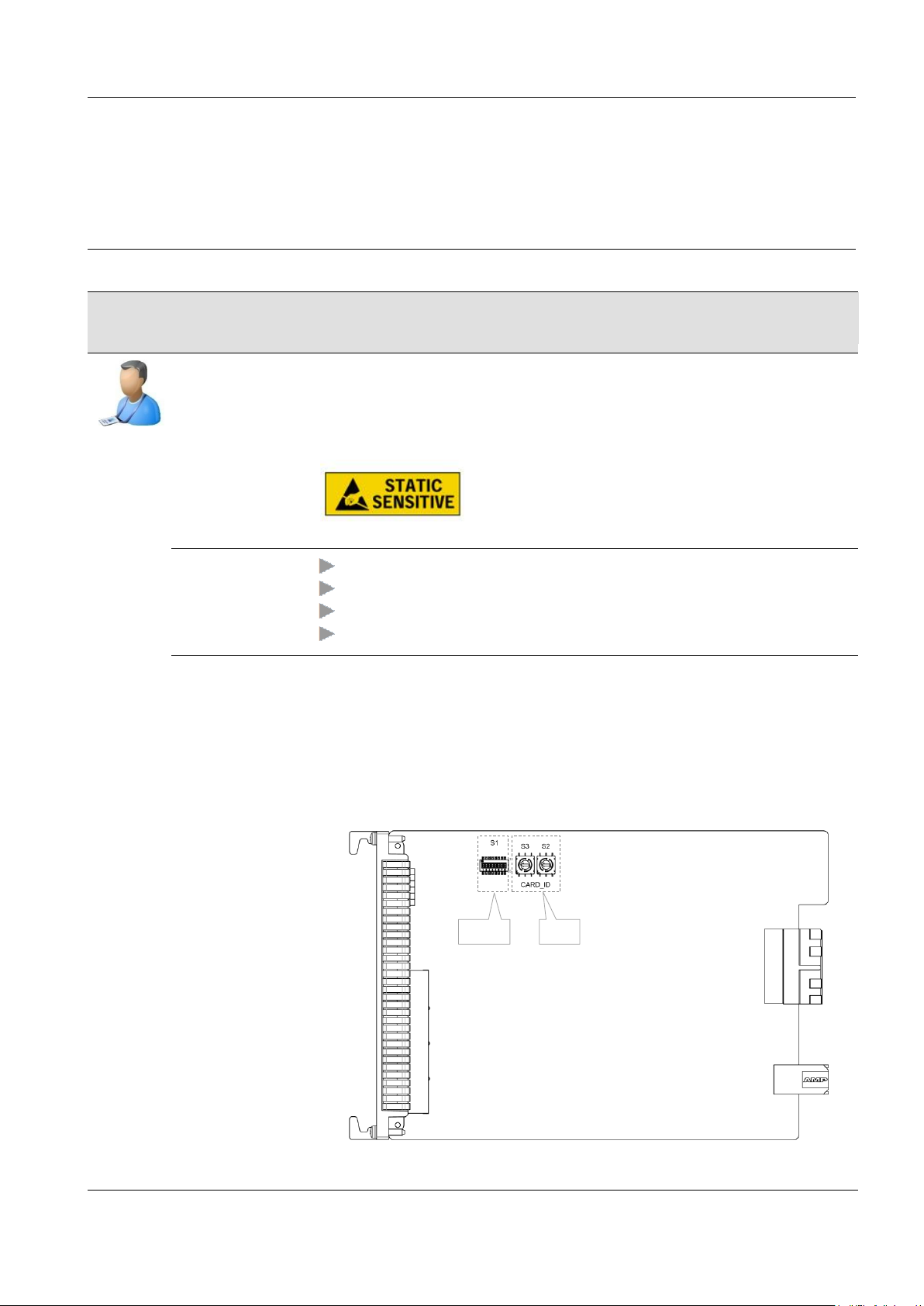

T1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
Hardware
Edition
E1/T1
Configuration
E1
80 Dragon PTN Installation and Operation
Release 01 02/2018
Page 81

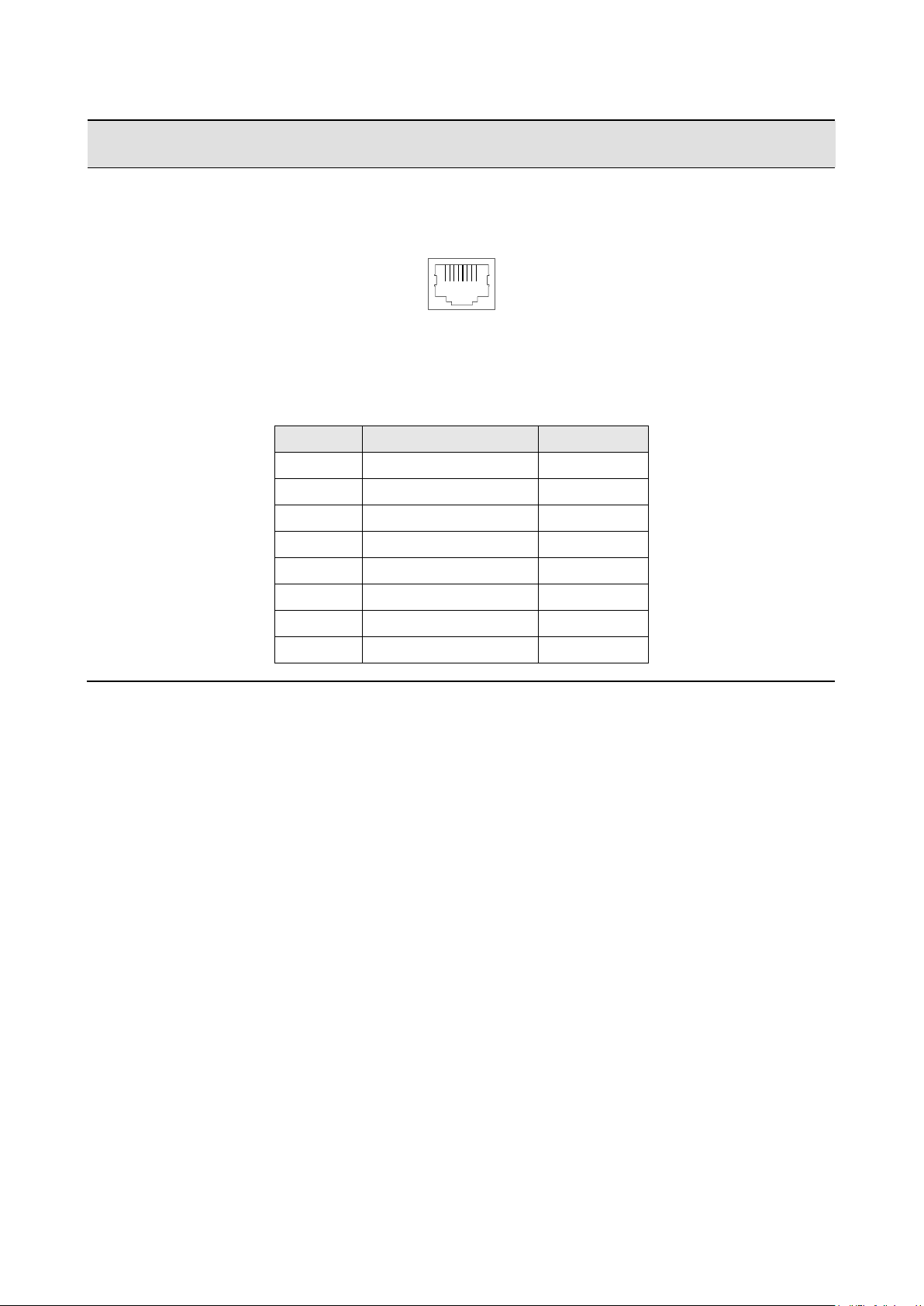

2-C37.94 CABLING
The 2-C37.94 module provides two E1/T1 RJ-45 ports and each port connector has eight pins.
Each port provides one tip/ring pair. See the table and figure below for an overview and
description.
E1 Cable (120 Ω) 942 256-201
T1 Cable (100 Ω) 942 256-200
Color Codes, Pin Numbers, Signal Names
Color
Signal Name
Pin Number
OG
Rx (Receive) RING
1
WH/OG
Rx (Receive) TIP
2
-
Not connected
3
BU
Tx (Transmit) RING
4
WH/BU
Tx (Transmit) TIP
5
-
Not connected
6
-
Not connected
7
-
Not connected
8
1 8
Dragon PTN Installation and Operation 81
Release 01 02/2018
Page 82
Engineer
type
Section
Form: Installation of a 4-DSL-LW module
Duration:
1 hour
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find
a full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact
with your skin. Connect the alligator clip to the blank
metal of the rack or plug the antistatic wristband into
the ESD bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, cable ties and cable tool set
Antistatic wristband
4-DSL-LW module
Interface cable(s)
Extra documentation can be found in chapter 15
Compatibility
XT-1104-A/XT-2206-A/
XT-2209-A/XT-2210-A
Weight: approx. 0.25 kg
/ 0.6 lb
Front Panel
Port 1, 2, 3, 4:
SHDSL port
Handle
LEDs
Fastening screw
7.3 4-DSL-LW (942 236-007)
82 Dragon PTN Installation and Operation
Release 01 02/2018
Page 83
Installation
1. Remove the ESD packaging from the interface module, do not
touch or bend the EMC spring on the side of the front panel.
2. Identify the node and the interface slot where the module has
to be installed, see corresponding node form.
3. Take the 4-DSL-LW module with the front panel handles, aim
correctly and slide it through the correct card guides (see
chapter §3.4) into the allocated slot.
4. Push the module as far as possible into the node.
5. Push firmly with your thumbs on the front panel for optimal
backplane contact.
6. Tighten the two fastening screws.
7. Plug the interface cable(s) into the corresponding connector(s)
(see next page(s) for pin numbers, signal names and color
codes).
Dragon PTN Installation and Operation 83
Release 01 02/2018
Page 84
Engineer
type
Section
Form: Operation of a 4-DSL-LW module
Duration:
10 min.
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find a
full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact with
your skin. Connect the alligator clip to the blank metal of
the rack or plug the antistatic wristband into the ESD
bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, cable ties and cable tool set
Antistatic wristband
Extra documentation can be found in chapter 15
Operation
1. Un-tighten the screws on the 4-DSL-LW module and remove the
module from the node (module = hot-swappable), do not touch or
bend the EMC spring on the side of the front panel
2. Set the ‘Device Mode Configuration’ DIP-switch S1, see section
below for more information.
3. Take the 4-DSL-LW module with the front panel handles, aim
correctly and slide it through the correct card guides (see chapter
§3.4) into the allocated slot.
4. Push the module as far as possible into the node.
5. Push firmly with your thumbs on the front panel for optimal
backplane contact.
6. Tighten the two fastening screws.
7. Check whether the links are up via the LEDs, info on the LEDs via
manuals listed in §15.
8. Call the control center to check whether the 4-DSL-LW module is
functioning properly after having it programmed in HiProvision.
CPE
CSM
SW3
SW4
SW5
SW6
SW7
SW8
CO
SW1
Hardware
Edition
Device Mode
Configuration
84 Dragon PTN Installation and Operation
Release 01 02/2018
Page 85
Program
4-DSL-LW
Module
A trained HiProvision administrator must perform the
HiProvision steps below in the control center. A full
description of the steps below can be found in
‘Dragon PTN and HiProvision Operation’ manual, see
chapter 15.
1. Use your cell phone to communicate with the control center and
ask them to program the 4-DSL-LW in HiProvision.
2. In HiProvision, discover the network elements and links in the
Dragon PTN Network.
3. In HiProvision, approve the Dragon PTN Network.
4. In HiProvision, configure all the network elements and links in the
database. This could be done automatically via the discover and
approve steps, or it can be done manually.
5. In HiProvision, program tunnels;
6. In HiProvision, program services;
7. Contact the control center to check if the 4-DSL-LW is functioning
properly after having it discovered and programmed in
HiProvision.
Device Mode
(CO/CPE)
Configuration
CO = Central Office
CPE = Customer Premises Equipment

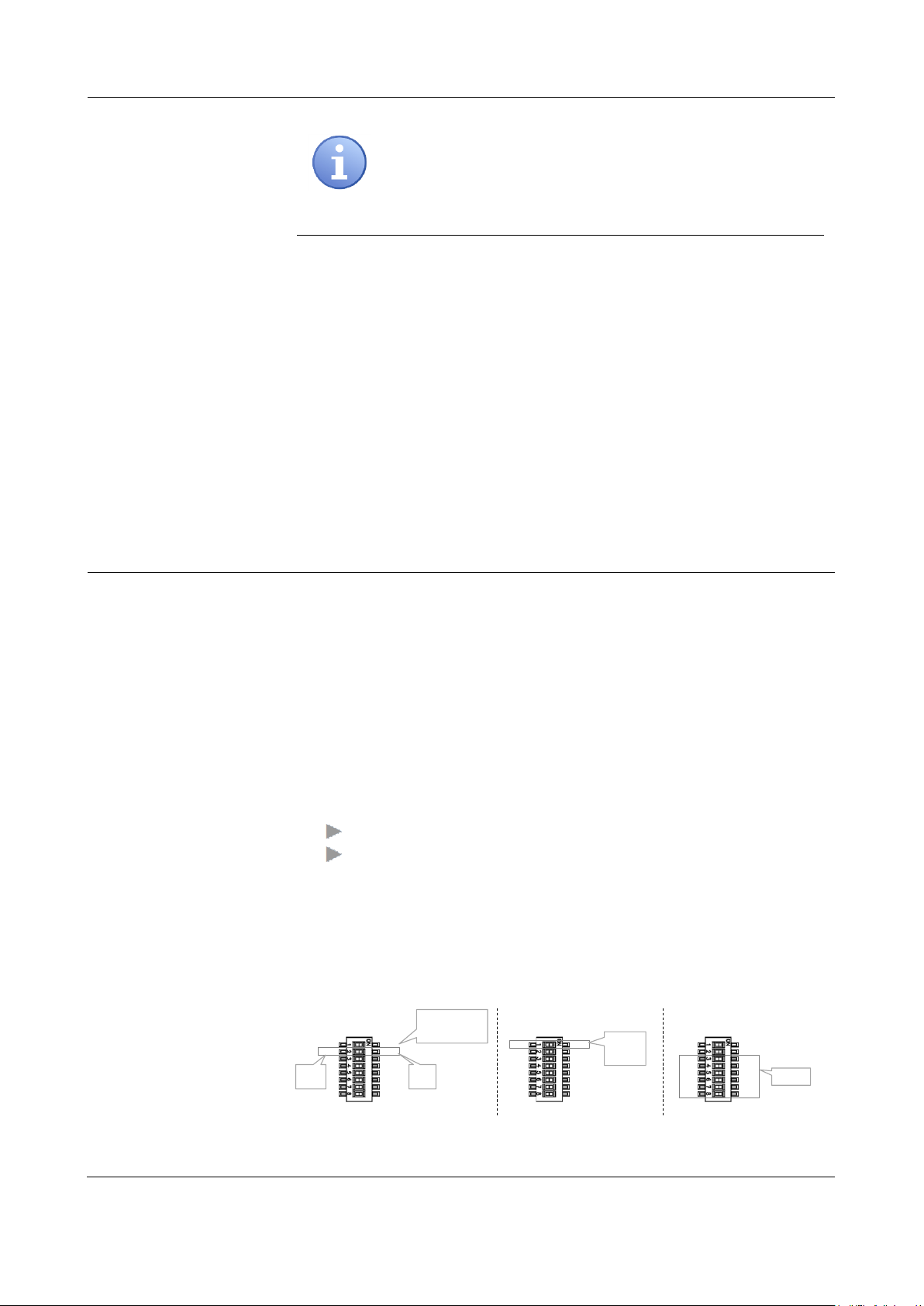

The ‘Device Mode’ (CO or CPE) of the 4-DSL-LW module depends on
the configuration in HiProvision and the S1 DIP switch settings. The
figure below shows this DIP switch into detail.
The ‘Device Mode’ configuration in HiProvision (=Dragon PTN
Management System) will always be the master setting. In
HiProvision, configure the ‘Unit Type’ parameter on IFM level as
follows:
CO: Unit Type = ‘LT Unit’; (LT = Line Termination);
CPE: Unit Type = ‘NT Unit’; (NT = Network Termination);
Only when there is nothing configured in HiProvision for this IFM, the
S1 DIP switch settings come into play. The possible configurations of
this S1 DIP switch are shown in the table below.
NOTE: Other switches on the S1 DIP switch are spare switches.
CPE
CSM
SW3
SW4
SW5
SW6
SW7
SW8
CPE
CSM
SW3
SW4
SW5
SW6
SW7
SW8
CPE
CSM
SW3
SW4
SW5
SW6
SW7
SW8
Spare
Device
Mode
Configuration
Selector
CO
SW1
CO
SW1
CO
SW1
S1
For
LAN
For
WAN
S1 S1
Dragon PTN Installation and Operation 85
Release 01 02/2018
Page 86
Switch:
Configuration
Selector
Switch:
Device
Mode
Description
SW1 (=default)
(for WAN=future)
CO (=default)
The Device Mode will be as configured in HiProvision. If
nothing has been configured yet in HiProvision, the
Device Mode will fall back to the Device Mode switch
setting on the board and start up as CO. As a result, the
SHDSL link can come up spontaneously, if the other
SHDSL link partner is CPE. This behavior is required in
the discovery phase of a new network or node when the
nodes are interconnected via a WAN SHDSL link.
CPE
The Device Mode will be as configured in HiProvision. If
no configuration has been done in HiProvision, the
Device Mode will fall back to the Device Mode switch
setting on the board and start up as CPE. As a result, the
SHDSL link can come up spontaneously, if the other
SHDSL link partner is CO. This behavior is required in the
discovery phase of a new network or node when the
nodes are interconnected via a WAN SHDSL link.
CSM
(for LAN)
CO (=default)
The Device Mode will be as configured in HiProvision
(=CSM is driven by HiProvision). If no configuration has
been done in HiProvision yet, the 4-DSL-LW module will
start up UNCONFIGURED and the LAN SHDSL link will not
come up! The module will not be operational and just
wait for a configuration in HiProvision.
This behavior is required for LAN SHDSL links because
the HiProvision operator only wants the link to come up
in a controlled way.
CPE
4-DSL-LW CABLING
For the Ethernet ports following cables can be used:
10 Base-T: 2-pair UTP/STP Cat. 3, 4, 5e or 6 cable, EIA/TIA-568 100-ohm (100m)
100 Base-TX: 2-pair UTP/STP Cat. 5e or 6 cable, EIA/TIA-568 100-ohm (100m)
The SHDSL RJ-45 connector on the front panel has 8 pins and only the two middle pins (pin 4
and 5) are used. See below for an overview and description.
4-DSL-LW RJ-45 Connector: Pin Assignments
Pin Number
Description
1,2,3
Not Used
4
Data Pair1 Tip (+), including wetting current if configured in HiProvision
5
Data Pair1 Ring (-), including wetting current if configured in HiProvision
6,7,8
Not Used
1 8
86 Dragon PTN Installation and Operation
Release 01 02/2018
Page 87
Engineer
type
Section
Form: Installation of a 4-E1-L/4-T1-L module
Duration:
1 hour
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find a
full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact
with your skin. Connect the alligator clip to the blank
metal of the rack or plug the antistatic wristband into the
ESD bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, cable ties and cable tool set
Antistatic wristband
4-E1-L/4-T1-L module
Interface cable(s)
Extra documentation can be found in chapter 15
Compatibility
XT-1104-A/XT-2206-A/
XT-2209-A/XT-2210-A
Weight: approx. 0.27 kg / 0.6 lb
Front Panel
Installation
1. Remove the ESD packaging from the interface module, do not
touch or bend the EMC spring on the side of the front panel.
2. Identify the node and the interface slot where the module has to
be installed, see corresponding node form.
3. Take the 4-E1-L/4-T1-L module with the front panel handles, aim
correctly and slide it through the correct card guides (see chapter
§3.4) into the allocated slot.
LEDs
Port 1, 2, 3, 4:
T1 ports
Handle
Spare
LED
Fastening screw
Port 1, 2, 3, 4:
E1 ports
7.4 4-E1-L/4-T1-L (942 236-010/ 942 236-011)
Dragon PTN Installation and Operation 87
Release 01 02/2018
Page 88
4. Push the module as far as possible into the node.
5. Push firmly with your thumbs on the front panel for optimal
backplane contact.
6. Tighten the two fastening screws.
7. Plug the interface cable(s) into the corresponding connector(s)
(see next page(s) for pin numbers, signal names and color codes).
Engineer
type
Section
Form: Operation of a 4-E1-L/4-T1-L module
Duration:
10 min.
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find a
full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact
with your skin. Connect the alligator clip to the blank
metal of the rack or plug the antistatic wristband into the
ESD bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, cable ties and cable tool set
Antistatic wristband
Extra documentation can be found in chapter 15
Operation
1. Un-tighten the screws on the 4-E1-L/4-T1-L module and remove
the module from the node (module = hot-swappable), do not
touch or bend the EMC spring on the side of the front panel.
2. The E1/T1 configuration of the 4-E1-L/4-T1-L module is factory set
by the S1 DIP switch and must not be changed. The configuration
can be read out via HiProvision.
T1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
Hardware
Edition
E1/T1
Configuration
E1
88 Dragon PTN Installation and Operation
Release 01 02/2018
Page 89
3. Take the 4-E1-L/4-T1-L module with the front panel handles, aim
correctly and slide it through the correct card guides (see chapter
§3.4) into the allocated slot.
4. Push the module as far as possible into the node.
5. Push firmly with your thumbs on the front panel for optimal
backplane contact.
6. Tighten the two fastening screws.
7. Check whether the links are up via the LEDs, info on the LEDs via
manuals listed in §15.
8. Call the control center to check whether the 4-E1-L/4-T1-L module
is functioning properly after having it programmed in HiProvision.
Program
4-E1-L/4-T1-L
Module
A trained HiProvision administrator must perform the
HiProvision steps below in the control center. A full
description of the steps below can be found in
‘Dragon PTN and HiProvision Operation’ manual, see
chapter 15.
1. Use your cell phone to communicate with the control center and
ask them to program the 4-E1-L/4-T1-L in HiProvision.
2. In HiProvision, discover the network elements and links in the
Dragon PTN Network.
3. In HiProvision, approve the Dragon PTN Network.
4. In HiProvision, configure all the network elements and links in the
database. This could be done automatically via the discover and
approve steps, or it can be done manually.
5. In HiProvision, program tunnels;
6. In HiProvision, program services;
7. Contact the control center to check if the 4-E1-L/4-T1-L is
functioning properly after having it discovered and programmed
in HiProvision.
Dragon PTN Installation and Operation 89
Release 01 02/2018
Page 90
4-E1-L/4-T1-L CABLING
The 4-E1-L/4-T1-L module provides four E1/T1 RJ-45 ports and each port connector has eight
pins. Each port provides one tip/ring pair. See the table and figure below for an overview and
description.
E1 Cable (120 Ω) 942 256-201
T1 Cable (100 Ω) 942 256-200
Color Codes, Pin Numbers, Signal Names
Color
Signal Name
Pin Number
OG
Rx (Receive) RING
1
WH/OG
Rx (Receive) TIP
2
-
Not connected
3
BU
Tx (Transmit) RING
4
WH/BU
Tx (Transmit) TIP
5
-
Not connected
6
-
Not connected
7
-
Not connected
8
1 8
90 Dragon PTN Installation and Operation
Release 01 02/2018
Page 91
Engineer
type
Section
Form: Installation of a 16-E1-L/16-T1-L module
Duration:
1 hour
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find a
full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact
with your skin. Connect the alligator clip to the blank
metal of the rack or plug the antistatic wristband into the
ESD bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, cable ties and cable tool set
Antistatic wristband
16-E1-L/16-T1-L module
Interface cable(s) + RJ45 couplers + Patch panel
Extra documentation can be found in chapter 15
Compatibility
XT-1104-A/XT-2206-A/
XT-2209-A/XT-2210-A
Weight: approx. 0.25 kg / 0.6 lb
Front Panel
Installation
1. Remove the ESD packaging from the interface module, do not
touch or bend the EMC spring on the side of the front panel.
2. Identify the node and the interface slot where the module has to
be installed, see corresponding node form.
3. Take the 16-E1-L/16-T1-L module with the front panel handles,
aim correctly and slide it through the correct card guides (see
chapter §3.4) into the allocated slot.
HPDB68 Connector:
Ports 1...16:
T1 ports
Handle
Spare
LED
Fastening screw
LEDs
HPDB68 Connector:
Ports 1...16:
E1 ports
7.5 16-E1-L/16-T1-L (942 236-012/942 236-013)
Dragon PTN Installation and Operation 91
Release 01 02/2018
Page 92
4. Push the module as far as possible into the node.
5. Push firmly with your thumbs on the front panel for optimal
backplane contact.
6. Tighten the two fastening screws.
7. Plug the interface cable into the corresponding connector (see
next page(s) for pin numbers, signal names and color codes).
8. For the connection of the interface cable with the end devices,
there are several possibilties. See '16-E1-L/16-T1-L Cabling'
section below for more details.
Engineer
type
Section
Form: Operation of a 16-E1-L/16-T1-L module
Duration:
10 min.
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find a
full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact
with your skin. Connect the alligator clip to the blank
metal of the rack or plug the antistatic wristband into the
ESD bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, cable ties and cable tool set
Antistatic wristband
Extra documentation can be found in chapter 15
Operation
9. The 16-E1-L/16-T1-L module does not require any settings, straps
or adjustments prior to the installation.
10. The E1/T1 configuration of 16-E1-L/16-T1-L module is factory set.
The configuration can be read out via HiProvision.
11. Check whether the links are up via the LEDs, info on the LEDs via
manuals listed in §15.
12. Call the control center to check whether the 16-E1-L/16-T1-L
module is functioning properly after having it programmed in
HiProvision.
Program
16-E1-L/16-T1-L
Module
A trained HiProvision administrator must perform the
HiProvision steps below in the control center. A full
description of the steps below can be found in
‘Dragon PTN and HiProvision Operation’ manual, see
chapter 15.
1. Use your cell phone to communicate with the control center and
ask them to program the 16-E1-L/16-T1-L in HiProvision.
2. In HiProvision, discover the network elements and links in the
Dragon PTN Network.
92 Dragon PTN Installation and Operation
Release 01 02/2018
Page 93
3. In HiProvision, approve the Dragon PTN Network.
4. In HiProvision, configure all the network elements and links in the
database. This could be done automatically via the discover and
approve steps, or it can be done manually.
5. In HiProvision, program tunnels;
6. In HiProvision, program services;
7. Contact the control center to check if the 16-E1-L/16-T1-L is
functioning properly after having it discovered and programmed
in HiProvision.

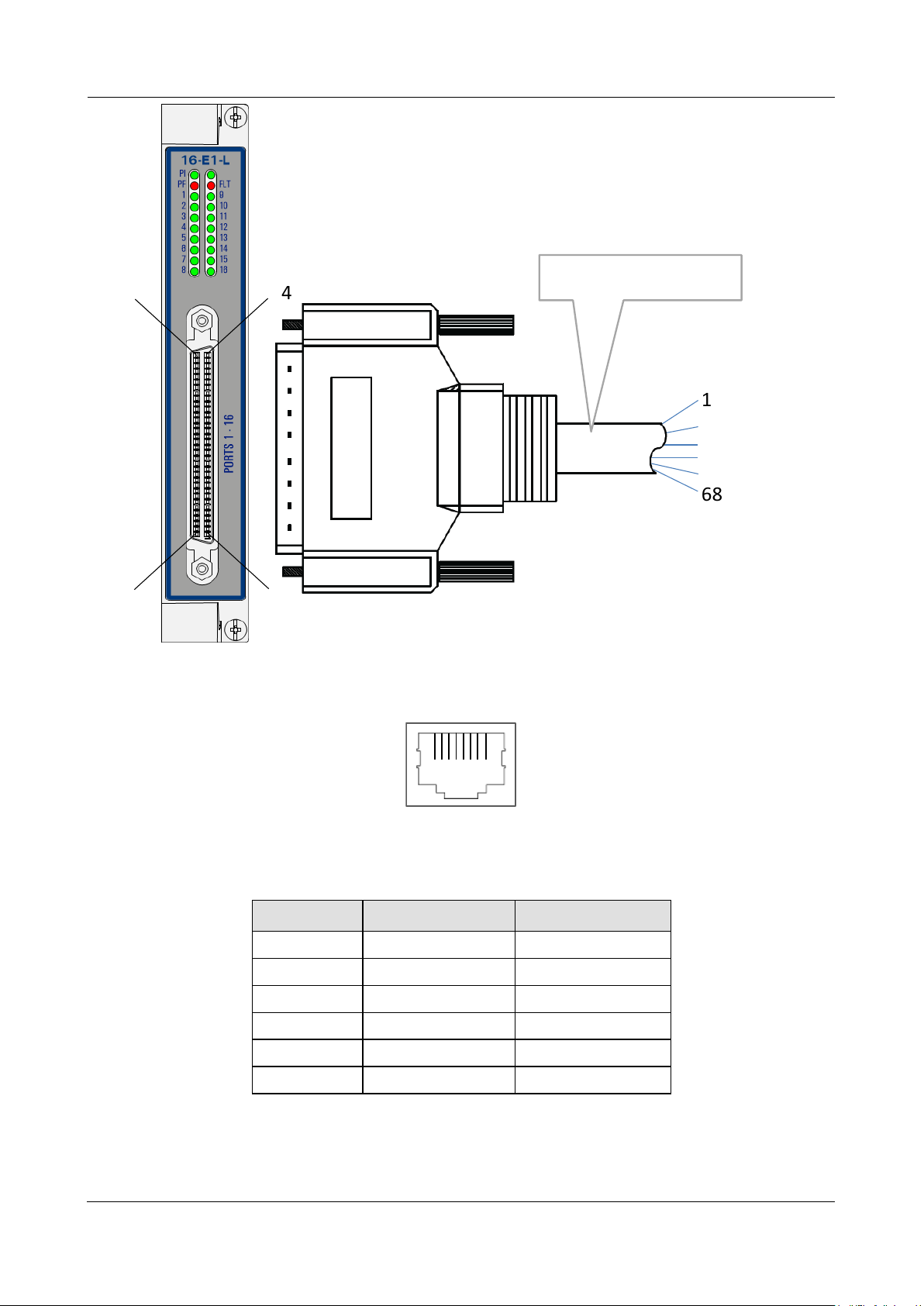

16-E1-L/16-T1-L CABLING

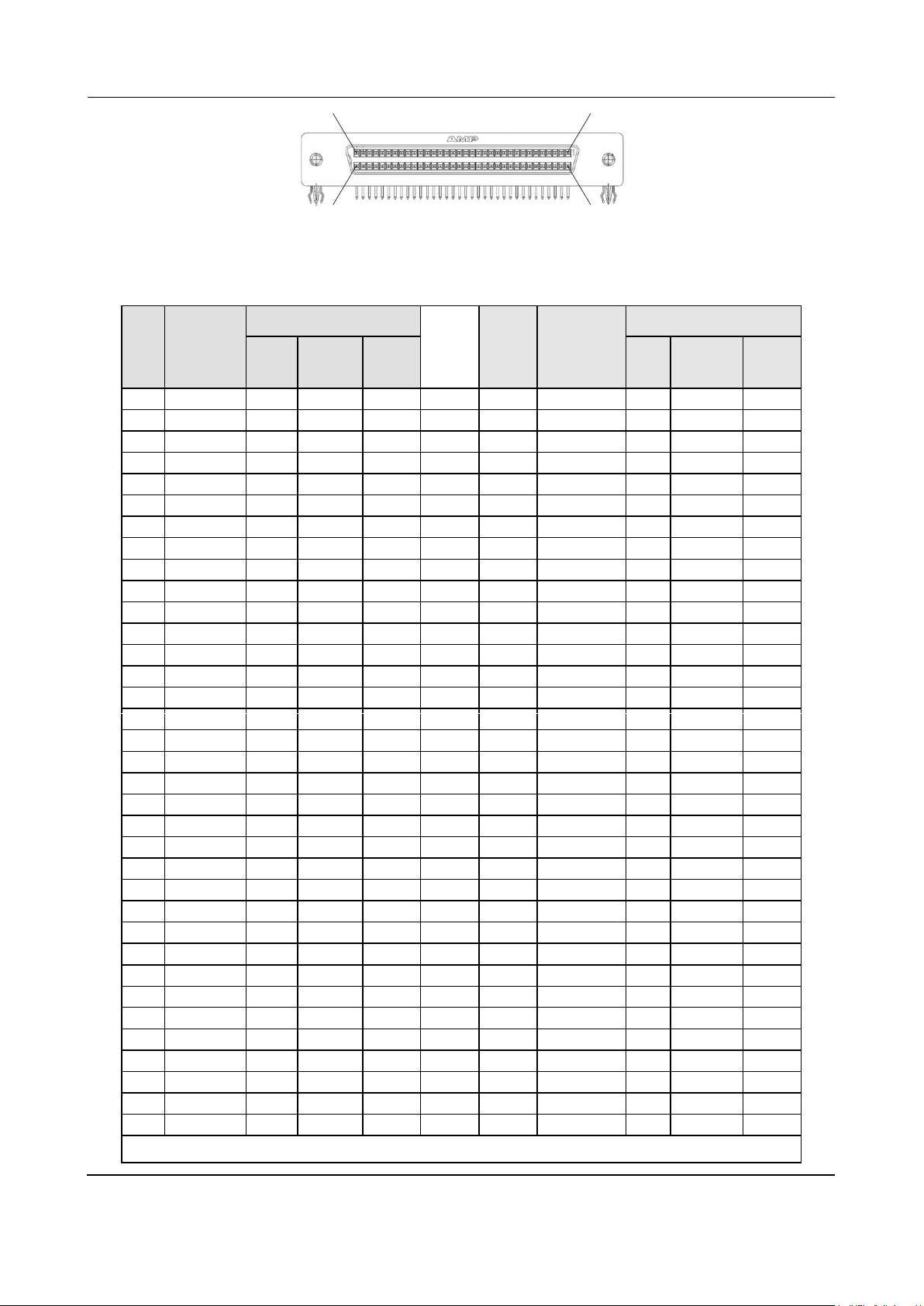

The 16-E1-L/16-T1-L module provides 16 E1/T1 ports via a HPDB68 connector. Each port
provides one tip/ring pair. Connections to this IFM can be made in following ways:
Via a drop cable (2m) HPDB68 to 16 RJ-45 with RJ-45 couplers together with the 24 ports
feedthrough patch panel. Each RJ-45 port connector has eight pins which provides one
tip/ring pair. E1/T1 cables must be used to connect these ports;
Via a drop cable (2m) HPDB68 to 16 RJ-45 with a 16 ports RJ-45 to BNC-coax patch panel.
Each RJ-45 port connector has eight pins which provides one tip/ring pair. Coax cables must
be used to connect these ports;
Via a drop cable (1.5m) HPDB68 to open end which can be wired later on to punch-down
connectors. These punch-down-connectors must be provided by the customer.
See the table and figures below for an overview and description of the different connections,
connectors and pin assignments.
Description
Ordering Number
Drop cable (2m) HPDB68 to 16 RJ-45 with RJ-45 coupler
942 256-203
Patch panel 1 U feedthrough 24 ports (to be used in combo with C30965-A9550-D11)
942 256-204
E1 cable (120 Ω)
942 256-201
T1 cable (100 Ω)
942 256-200
Drop cable (2m) HPDB68 to 16 RJ-45 with 16 ports RJ-45 to BNC-Coax patch panel
942 256-205
Drop cable (1.5m) HPDB68 to open end
942 256-202
Dragon PTN Installation and Operation 93
Release 01 02/2018
Page 94
Drop Cable to RJ-45 Connection Unplugged
Drop Cable to RJ-45 Connection Plugged
1
135
68 34
Drop Cable to 16 RJ-45 + 16 RJ-45 Couplers:
942 256-203
8
9
16
RJ-45
RJ-45 Inline
Coupler
...
...
...
...
E1 Cable RJ-45 (120 Ω)
942 256-201
24 Ports Patch Panel, Feedthrough:
942 256-204
HPDB68 Connector
1
8
9
...
...
...
...
16
router
PBX
teleprotection
94 Dragon PTN Installation and Operation
Release 01 02/2018
Page 95
Drop Cable via RJ-45 to BNC-Coax Connection Unplugged
Drop Cable via RJ-45 to BNC-Coax Connection Plugged
1
135
68 34
8
9
16
Patch panel: RJ-45 BNC
...
...
E1 Coax Cables
HPDB68 Connector RJ-45
...
...
Top
Tx Rx
Tx Rx
Tx Rx
Tx Rx
BottomBottom
...
...
...
...
Drop Cable to 16 RJ-45 + 16 ports RJ-45 to BNC-Coax Patch Panel:
942 256-205
1
1
8
9
16
...
...
Top
x2
x2
x2
x2
...
...
router
PBX
teleprotection
Dragon PTN Installation and Operation 95
Release 01 02/2018
Page 96
Drop Cable (1.5m) HPDB68 to Open End
E1/T1 RJ-45 Cable Connector
E1/T1 RJ-45 Cable Connector: Pin Assignments
Pin Number
Description
Cable Wire Colors
1
Rx (Receive) RING
OG 2 Rx (Receive) TIP
WH/OG
3
Not connected
-
4
Tx (Transmit) RING
BU
5
Tx (Transmit) TIP
WH/BU
6, 7, 8
Not connected
-
1
68
135
68 34
Drop Cable: 942 256-202
1 8
96 Dragon PTN Installation and Operation
Release 01 02/2018
Page 97
HPDB68 Connector
HPDB68 Connector - Drop Cable: Pin Assignments
Pin
No.
Cable
Wire
Color
E1/T1 Port
Pin
No.
Cable Wire
Color
E1/T1 Port
No.
(RJ-45)
Pin No.
Signal
(*)
No.
(RJ-45)
Pin No.
Signal
(*)
1
Black / / /
35
Dark yellow
/ / / 1 Black / / /
35
Dark yellow
/ / / 2 Black / white
/ / / 36
Dark yellow / black
/ / / 3 Light brown
16 2 R_TIP_P16
37
Grey
16 1 R_RING_P16
4
Light brown / red
16 5 T_TIP_P16
38
Grey / black
16 4 T_RING_P16
5
Green
15 2 R_TIP_P15
39
Red
15 1 R_RING_P15
6
Green / black
15 5 T_TIP_P15
40
Red / black
15 4 T_RING_P15
7
Blue
14 2 R_TIP_P14
41
Purple
14 1 R_RING_P14
8
Blue / white
14 5 T_TIP_P14
42
Purple / white
14 4 T_RING_P14
9
Light blue
13 2 R_TIP_P13
43
Pink
13 1 R_RING_P13
10
Light blue / black
13 5 T_TIP_P13
44
Pink / black
13 4 T_RING_P13
11
Brown
12 2 R_TIP_P12
45
White
12 1 R_RING_P12
12
Brown / white
12 5 T_TIP_P12
46
White / black
12 4 T_RING_P12
13
Orange
11 2 R_TIP_P11
47
Light green
11 1 R_RING_P11
14
Orange / black
11 5 T_TIP_P11
48
Light green / black
11 4 T_RING_P11
15
Yellow
10 2 R_TIP_P10
49
Blue / Red
10 1 R_RING_P10
16
Yellow / red
10 5 T_TIP_P10
50
Purple / Red
10 4 T_RING_P10
17
Grey / red
9 2 R_TIP_P9
51
Purple / blue
9 1 R_RING_P9
18
Grey / blue
9 5 T_TIP_P9
52
Purple / green
9 4 T_RING_P9
19
Light green / blue
8 2 R_TIP_P8
53
Light blue / red
8 1 R_RING_P8
20
Green / white
8 5 T_TIP_P8
54
Light blue / blue
8 4 T_RING_P8
21
Light green / red
7 2 R_TIP_P7
55
Pink / red
7 1 R_RING_P7
22
Green / blue
7 5 T_TIP_P7
56
Pink / blue
7 4 T_RING_P7
23
Grey / yellow
6 2 R_TIP_P6
57
Yellow / white
6 1 R_RING_P6
24
Grey / green
6 5 T_TIP_P6
58
Yellow/ black
6 4 T_RING_P6
25
Red / white
5 2 R_TIP_P5
59
Yellow/ blue
5 1 R_RING_P5
26
Red / blue
5 5 T_TIP_P5
60
Yellow/ green
5 4 T_RING_P5
27
White / red
4 2 R_TIP_P4
61
Dark yellow/ red
4 1 R_RING_P4
28
White / blue
4 5 T_TIP_P4
62
Dark yellow/ blue
4 4 T_RING_P4
29
Pink / white
3 2 R_TIP_P3
63
White/ yellow
3 1 R_RING_P3
30
Pink / orange
3 5 T_TIP_P3
64
White / green
3 4 T_RING_P3
31
Light blue / yellow
2 2 R_TIP_P2
65
Light green / yellow
2 1 R_RING_P2
32
Light blue / green
2 5 T_TIP_P2
66
Light green / green
2 4 T_RING_P2
33
Orange / red
1 2 R_TIP_P1
67
Orange / white
1 1 R_RING_P1
34
Orange / green
1 5 T_TIP_P1
68
Grey / white
1 4 T_RING_P1
(*) R = Receive / T = Transmit
1
34
68
35
Dragon PTN Installation and Operation 97
Release 01 02/2018
Page 98
Engineer
type
Section
Form: Installation of a 8-FXS module
Duration:
1 hour
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find a
full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact
with your skin. Connect the alligator clip to the blank
metal of the rack or plug the antistatic wristband into the
ESD bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, cable ties and cable tool set
Antistatic wristband
8-FXS module
Interface cable(s) + RJ11 couplers + Patch panel
Extra documentation can be found in chapter 15
Compatibility
XT-1104-A/XT-2206-A/
XT-2209-A/XT-2210-A
Weight: approx. 0.23 kg / 0.5 lb
Front Panel
Installation
1. Remove the ESD packaging from the interface module, do not
touch or bend the EMC spring on the side of the front panel.
2. Identify the node and the interface slot where the module has to
be installed, see corresponding node form.
3. Take the 8-FXS module with the front panel handles, aim correctly
and slide it through the correct card guides (see chapter §3.4)
into the allocated slot.
Handle
Spare
LED
Fastening screw
LEDs
RJ-45 Connector:
Voice Port [1...4]
RJ-45 Connector:
Voice Port [5...8]
7.6 8-FXS (future support)
98 Dragon PTN Installation and Operation
Release 01 02/2018
Page 99
4. Push the module as far as possible into the node.
5. Push firmly with your thumbs on the front panel for optimal
backplane contact.
6. Tighten the two fastening screws.
7. Plug the interface cable into the corresponding connector (see
next page(s) for pin numbers, signal names and color codes).
8. For the connection of the interface cable with the end devices,
there are several possibilties. See '8-FXS Cabling' section below
for more details.
Engineer
type
Section
Form: Operation of a 8-FXS module
Duration:
10 min.
ESD
With all installation activities, adopt the ESD recommendations
regarding the handling, transportation and storage of modules. Find a
full ESD description in chapter 18.
Always wear an antistatic wristband in direct contact
with your skin. Connect the alligator clip to the blank
metal of the rack or plug the antistatic wristband into the
ESD bonding point.
Installation
Equipment
Key of the rack (if necessary)
Screwdriver set, cable ties and cable tool set
Antistatic wristband
Extra documentation can be found in chapter 15
Operation
1. The 8-FXS module does not require any settings, straps or
adjustments prior to the installation.
2. Check whether the links are up via the LEDs, info on the LEDs via
manuals listed in §15.
3. Call the control center to check whether the 8-FXS module is
functioning properly after having it programmed in HiProvision.
Program
8-FXS
Module
A trained HiProvision administrator must perform the
HiProvision steps below in the control center. A full
description of the steps below can be found in
‘Dragon PTN and HiProvision Operation’ manual, see
chapter 15.
1. Use your cell phone to communicate with the control center and
ask them to program the 8-FXS in HiProvision.
2. In HiProvision, discover the network elements and links in the
Dragon PTN Network.
3. In HiProvision, approve the Dragon PTN Network.
Dragon PTN Installation and Operation 99
Release 01 02/2018
Page 100
4. In HiProvision, configure all the network elements and links in the
database. This could be done automatically via the discover and
approve steps, or it can be done manually.
5. In HiProvision, program tunnels;
6. In HiProvision, program services;
7. Contact the control center to check if the 8-FXS is functioning
properly after having it discovered and programmed in
HiProvision.
8-FXS CABLING
The 8-FXS module provides 8 analog voice ports via 2 RJ-45 connectors, each connector
providing 4 ports. Each port provides one tip/ring pair. Connections to this IFM can be made via
a connection kit that can be plugged as well in a patch panel:
8-FXS Connection Kit (future support) includes:
An RJ-45 drop cable (1.5m) wired out on 4*RJ-11 couplers to connect ports [1..4];
An RJ-45 drop cable (1.5m) wired out on 4*RJ-11 couplers to connect ports [5..8];
Patch panel (order no. 942 256-204):
24 ports feedthrough patch panel. The RJ-45 drop cables from the connection kit can be
plugged into this patch panel.
Analog telephony RJ11 cables must be plugged into the RJ-11 couplers to connect to the
8-FXS ports;
See the table and figures below for an overview and description of the different
connections, connectors and pin assignments.
Description
Ordering Number
8-FXS Connection Kit
future support
Patch panel 1 U feedthrough 24 ports (to be used in combo with the 8-FXS Connection Kit)
942 256-204
100 Dragon PTN Installation and Operation
Release 01 02/2018
