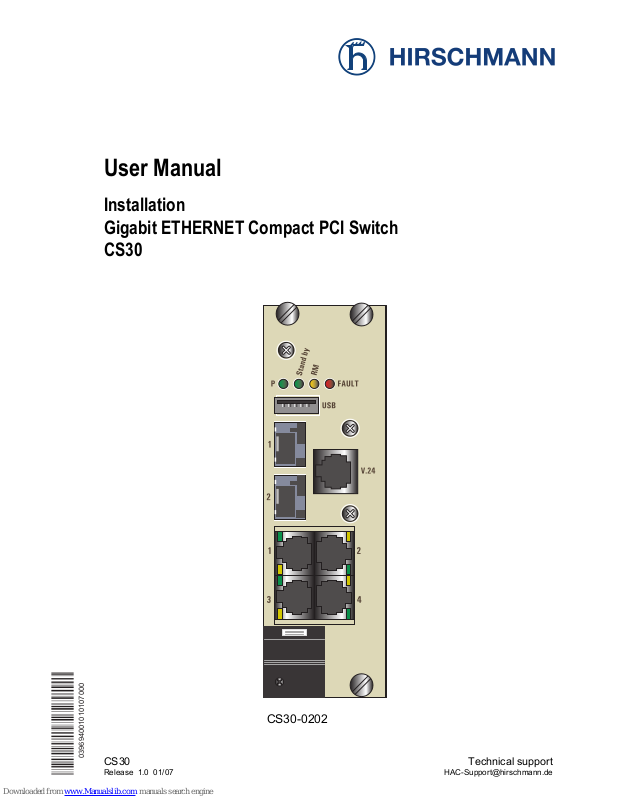

CS30
Release 1.0 01/07
Technical support
HAC-Support@hirschmann.de
039694001010107000
User Manual
Installation
Gigabit ETHERNET Compact PCI Switch
CS30
CS30-0202
The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.
© 2007 Hirschmann Automation and Control GmbH
Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use.
The performance features described here are binding only if they have been expressly
guaranteed in the contract. This publication has been created by Hirschmann Automation and
Control GmbH according to the best of our knowledge. Hirschmann reserves the right to change
the contents of this manual without prior notice. Hirschmann can give no guarantee in respect
of the correctness or accuracy of the details in this publication.
Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.
Printed in Germany (24.1.07)
Hirschmann Automation and Control GmbH
Stuttgarter Straße 45-51
72654 Neckartenzlingen
Tel. +49 1805 141538 039 694-001-01-0107
CS30
Release 1.0 01/07
3
Content
Safety instructions 4
About this manual 8
Legend 8
1 Device description 9
1.1 Funktional range 9
1.2 Ports and media 11
2 Assembly and startup procedure 12
2.1 Device installation 12
2.1.1 Unpacking and checking 12
2.1.2 Adjusting the DIP switch settings 12
2.1.3 Fitting the CS30 interface card into the basic device 13
2.1.4 Starting the device 14
2.1.5 Connecting the data lines 14
2.2 Displays 16
2.3 Carrying out basic settings 17
2.4 Disassembling the CS30 interface card 18
3 Technical data 20
General data 20
EMV and stability 20
Network size 21
Power consumption/power output 21
Scope of delivery 22
Order number 22
Accessories 22
Based specifications and standards 22
4 Further support 25
4
CS30
Release 1.0 01/07
Safety instructions
This manual contains instructions which must be observed to ensure your
own personal safety and to avoid damage to devices and machinery.
U Certified usage
Please observe the following: The device may only be employed for the
purposes described in the catalog and technical description, and only in
conjunction with external devices and components recommended or
approved by Hirschmann. The product can only be operated correctly
and safely if it is transported, stored, installed and assembled properly
and correctly. Furthermore, it must be operated and serviced carefully.
U Shielding ground
The shielding ground of the connectable twisted pairs lines is connected
to the front panel as a conductor.
V Beware of possible short circuits when connecting a cable section
with conductive shielding braiding.
U Housing (basic device)
V Please pay attention to the manufacturer’s description and operating
instructions of the chassis in which the CS30 interface card is to be
installed.
U Environment
The device may only be operated in the listed maximum surrounding air
temperature range at the listed relative air humidity range (non-conden
-
sing).
V The installation location is to be selected so as to ensure compliance
with the climatic limits listed in the Technical Data.
V To be used in a Pollution Degree listed in the Technical Data.
U Qualification requirements for personnel
Qualified personnel as understood in this manual and the warning signs,
are persons who are familiar with the setup, assembly, startup, and ope
ration of this product and are appropriately qualified for their job. This
includes, for example, those persons who have been:
CS30
Release 1.0 01/07
5
D trained or directed or authorized to switch on and off, to ground and to
label power circuits and devices or systems in accordance with current
safety engineering standards;
D trained or directed in the care and use of appropriate safety equipment
in accordance with the current standards of safety engineering;
D trained in providing first aid.
U General Safety Instructions
This device is electrically operated. Adhere strictly to the safety requirements relating to voltages applied to the device as described in the operating instructions!
Failure to observe the information given in the warnings could result in
serious injury and/or major damage.
V Only personnel that have received appropriate training should operate
this device or work in its immediate vicinity. The personnel must be ful
ly familiar with all of the warnings and maintenance measures in these
operating instructions.
V Correct transport, storage, and assembly as well as careful operation
and maintenance are essential in ensuring safe and reliable operation
of this device.
V Only use umdamaged parts!
V These products are only to be used in the manner indicated in this ver-
sion of the manual.
V Any work that may have to be performed on the electrical installation
should be performed by fully qualified technicians only.
Warning!
LED- or LASER components according to IEC 60825-1 (2001):
CLASS 1 LASER PRODUCT.
LIGHT EMITTING DIODE - CLASS 1 LED PRODUCT.
Warning
LED LIGHT
DO NOT STARE INTO THE BEAM OR VIEW DIRECTLY
WITH OPTICAL INSTRUMENTS (e.g. lens, microscope).
Failure to observe this warning within a distance of 100 mm
can endanger your eyes. Light is emitted from the optical connections or
from the ends of the optical fibers that are connected to them. Light Emit
ting Diode CLASS 2M, Wave length 650 nm, Power <2 mW, according to
IEC/CEI 60825-1:2003-10.
6
CS30
Release 1.0 01/07
U National and international safety regulations
V Make sure that the electrical installation meets local or nationally ap-
plicable safety regulations.
U ESD guidelines
The interface card contains components highly sensitive to electrostatic
fields. These components can be easily destroyed or have their lives
shortened by an electrical field or by a discharge caused by touching the
card. For these reasons, the cards are delivered in a conducting ESD
protective bag. This packing can be reused.
Be sure to observe the following precautions for electrostatic sensitive
devices when handling the components:
V Establish electrical potential equality between yourself and your sur-
roundings, e.g. with the aid of a wrist bracelet that you attach to the basic device (via the screw on the front panel of the interface card). The
basic device is grounded via the power connection.
V Only then remove the card from the conducting bag.
V Store the card in its conducting bag whenever it is not in the basic
device.
ESD protective field kits are available for working with electrostatic sensitive devices.
You can find more information about devices vulnerable to electrostatic
fields in DIN EN 61340-5-1 (2001-08) and DIN EN 61340-5-2 (2002-01).
U Note on the CE marking
The devices comply with the regulations contained in the following European directives:
89/336/EEC
Directive of the council for standardizing the regulations of member
states on electromagnetic compatibility (changed by RL 91/263/EEC, 92/
31/EEC and 93/68/EEC).
In accordance with the above-named EU directives, the EU conformity
declaration will be at the disposal of the relevant authorities at the follo
-
wing address:
Hirschmann Automation and Control GmbH
Stuttgarter Straße 45-51
D-72654 Neckartenzlingen
Germany
Phone ++49 7127 14 1480
CS30
Release 1.0 01/07
7
The product can be used in living areas (living area, place of business,
small business) and in industrial areas.
D Interference immunity: EN 61000-6-2:2001
D Emitted interference: EN 55022:1998 + A1 2000 + A2 2003, Class A
Warning!
This is a class A device. This device can cause interference in living
areas, and in this case the operator may be required to take appropriate
measures.
The assembly guidelines provided in these instructions must be strictly
adhered to in order to observe the EMC value limits.
U Recycling note:
After usage, this product must be disposed of properly as electronic
waste in accordance with the current disposal regulations of your county
/ state / country.
8
CS30
Release 1.0 01/07
About this manual
The following manuals are included as PDF files on the enclosed CD ROM:
D User manual „Installation“
D User manual „Basic configuration“
D User manual „Redundancy configuration“
D Reference manual „Web-based Interface“ and
D Reference manual „Command Line Interface“
If you use Network Management Software HiVision you have further
opportunities to:
D have an event logbook.
D configure the „System Location“ and „System Name“.
D configure the network address range and SNMP parameters.
D save the configuration on the Switch.
D simultaneous configuration of several Switches.
D configure the relevant ports to be displayed red if there is no link state.
Legend
The commendations used in this manual have the following meanings:
D
Listing
V
Work step
U
Subheading
CS30
Release 1.0 01/07
9
1 Device description
1.1 Funktional range
The CS30-0202 switch (in short: CS30) supports Fast ETHERNET
100Mbit/s and Gigabit ETHERNET 1000 Mbit/s. It offers you two 10/100/
1000 Mbit/s ETHERNET ports (combo ports: SFP slot or alternatively RJ45
connector) and two 10/100 Mbit/s ETHERNET ports (twisted pair, RJ45 con
-
nector). The switch is contructed for corresponding basic devices with cPCI
backplane as Compact PCI interface card. The interface card is hot swapa
-
ble. It is supplied with power via the backplane of the basic device.
The CS30 devices are designed for the special requirements of industrial
automation. They meet the relevant industry standards, provide very high
operational reliability, even under extreme conditions, and also long-term
reliability and flexibility. The switches are very quickly mounted by inserting
them into the basic device.
The HIPER-Ring redundancy concept enables you to quickly carry out a
reconfiguration, and also a simple configuration with only one additional
connection. The diagnosis display and the display of the operating
parameters and IP address information field provide a quick overview.
It can be easily managed via a Web browser, via Telnet, with a management
software product (such as F) or locally on the switch (V.24 interface).
The CS30 allows you to construct switched industrial ETHERNET networks
that conform to the IEEE 802.3 and 802.3u standards using copper
wires or
optical fibers in a bus or ring topology. You can connect terminal devices and
other infrastructure components via twisted pair cables, multi-mode LWL and
single-mode LWL. The twisted pair ports support autocrossing,
autonegotiation and autopolarity.
The devices provide you with a large range of functions:
D Redundancy functions
(Rapid Spanning Tree, Redundant Ring Structure, HIPER-Ring,
Redundant Coupling, Link Aggregation)
D Protection from unauthorized access
D Synchronized system time in the network
D Network load control
D Function diagnosis
D Diagnostics (hardware self-testing)
D Reset
D Priority
10
CS30
Release 1.0 01/07
D VLAN
D Topology recognition
D Web-based interface
D Command Line Interface - CLI
D SNMP
D 802.1x port authentication
The addition, to the CS30 switches, the RS20/RS30 Open Rail range, the MICE
range of switches, the MACH range of backbone switches, the BAT wireless
transmission system, the EAGLE security system, and products for the LION
control room, provides continuous communication across all levels of the
company.
Further characteristics:
D Temperature range: Extended (-40 °C to +70 °C)
D Certifications / Declarations: CE
D Software variant: Enhanced
The devices comply with the specifications of the standards:
ISO/IEC 8802-3u 100BASE-TX/-1000BASE-T,
ISO/IEC 8802-3 100BASE-FX and
ISO/IEC 8802-3 1000BASE-SX/LX.
CS30
Release 1.0 01/07
11
1.2 Ports and media
Fig. 1: Interfaces and display elements on CS30-0202
For connecting data terminal equipments or further network segments, the
CS30 has the following interfaces:
U Two combo ports (port 1 and 2)
D Fiber optic, 100/1000 Mbit/s ETHERNET, SFP slot
multimode, singlemode or longhaul, depending on the SFP transceiver
being used (see
“Accessories” on page 22).
D Or alternatively: twisted pair 10/100/1000 Mbit/s ETHERNET
RJ45 connector
The SFP slot has the priority if both the SFP and the RJ45 connector
should be used at the same time.
U Two RJ45 ports (port 3 and 4)
Twisted pair, 10/100 Mbit/s ETHERNET
RJ45 connector
The twisted pair ports support autonegotiation and autopolarity.
The housing of the RJ45 socket is electrically connected to the front panel of
the CS30 interface card.
LED display elements
V.24 access
external management
2-pin DIP switch
(on the PCB)
USB interface
Two ports 10/100 Mbit/s
(port 3 and 4)
Twisted pair
RJ45 connectors
Two combo ports
(port 1 and 2):
100/1000 Mbit/s
Fiber optic
SFP slots
Port 1 and 2
alternatively:
10/100/1000 Mbit/s
Twisted pair
RJ45 connectors
12
CS30
Release 1.0 01/07
2 Assembly and startup procedure
The device has been developed for practical application in a harsh industrial
environment. Accordingly, the installation process has been kept simple.
On delivery, the device is ready for operation.
The following procedure is appropriate for assembly:
D Unpacking and checking
D Adjusting the DIP switch settings
D Fitting the CS30 interface card into the basic device
D Starting the device
D Connecting the data lines
2.1 Device installation
2.1.1 Unpacking and checking
V Check whether the package was delivered complete
see “Scope of delivery” on page 22.
V Check the individual parts for transport damage.
2.1.2 Adjusting the DIP switch settings
The 2-pin DIP switch on the PCB of the device offers you the following possibilities:
Fig. 2: 2-pin DIP switch
State of delivery: both DIP switches (RM, Stand by) are in the "OFF" position
V Check whether the switch default settings match your requirements
before starting the device.
RM
switch
Stand by
switch
Ring redundancy
Ring
coupling
Redundancy
Manager
Ring
port
Control
port
Coupling
port
Software
configuration
OFF OFF on off off 1 + 2
ON OFF on off on 1 + 2
OFF ON on on off 1 + 2 3 4
ON ON SW configuration
takes priority over
DIP switch settings
RM
Stand by
ON
CS30
Release 1.0 01/07
13
2.1.3 Fitting the CS30 interface card into the basic device
The interface cards can be inserted into or removed from the basic device
during network operation (hot swappable).
z Observe the ESD guidelines and the safety instructions
(see “ESD guidelines” on page 6 and “Safety instructions” on page 4)
and the manufacturer’s instructions of your basic devices.
V If necessary, remove the blank panel, so as to be able to insert the CS30
interface card into the basic device.
V If necessary, prize the black rocker lever from the locked into the unlocked
position (see figure below, step 1):
V Press the white button being integrated in the lever and
V Simultaneously turn the lever by approx. 45° down
V Push the CS30 interface card into the selected slot as far as it will go on
the upper and lower guide rails (see figure below, step 2).
V Ensure that there is a good connection of the edge connector of the CS30
interface card to the corresponding spring contact strip of the bus board.
V Prize the black rocker lever into the locked position by turning it up by
approx. 45° (see figure below, step 3).
V Tighten the four screws in the front panel of the CS30 interface card down
to the frame of the basic device (see figure below, step 4).
Fig. 3: Fitting the CS30 interface card into the basic device
U Supply voltage
The CS30 interface card is supplied with power via the Compact PCI
backplane of the basic device
U Grounding
The front panel of the CS30 interface card is grounded via the Compact
PCI base unit.
Step 1 Step 2
Step 3
Step 4
14
CS30
Release 1.0 01/07
Note: The shielding ground of the connectable twisted pair lines is connected
to the front panel as a conductor.
2.1.4 Starting the device
V The basic devices can only be connected to a mains power line whose
voltage corresponds to the value shown on the rating plate. Connect the
power cord according to the operating instructions of the basic device.
V Switch the basic device on.
By connecting the supply voltage to the basic device and switching it on, you
start the operation of the inserted CS30 switch.
2.1.5 Connecting the data lines
You can connect terminal devices and other segments at the ports of the
device via twisted pair cables and LWL cables.
U 10/100 Mbit/s twisted pair connection
10/100 Mbit/s ports (R45 socket) enable the connection of terminal
devices or independent network segments in compliance with the IEEE
802.3 100BASE-TX / 10BASE-T standards. These ports support:
D autonegotiation
D autopolarity
D autocrossing (when autonegotiation is switched on)
D 100 Mbit/s half duplex mode, 100 Mbit/s full duplex mode
D 10 Mbit/s half duplex mode, 10 Mbit/s full duplex mode
State on delivery: autonegotiation is activated with exception of the
HIPER-Ring ports: 100 Mbit/s full duplex.
The socket housings are electrically connected to the lower covering.
Pin assignment of the RJ45 socket:
D One line pair: pin 3 and pin 6
D One line pair: pin 1 and pin 2
D Remaining pins: not used.
Fig. 4: Pin assignment of a TP/TX interface in MDI-X mode, RJ45 socket
Pin 8
Pin 7
Pin 6
Pin 5
Pin 4
Pin 3
Pin 2
Pin 1
CS30
Release 1.0 01/07
15
U 10/100/1000 Mbit/s twisted pair connection
1000 Mbit/s twisted pair connection 1000 Mbit/s twisted pair ports (RJ45
sockets) enable the connection of terminal devices or independent net
work segments in compliance with the IEEE 802-3, 2000 Edition
1000BASE-T standard. These ports support:
D autonegotiation
D autopolarity
D autocrossing (when autonegotiation is switched on)
D 1000 Mbit/s full duplex
D 100 Mbit/s half duplex, 100 Mbit/s full duplex,
D 10 Mbit/s half duplex, 10 Mbit/s full duplex.
State on delivery: autonegotiation.
The socket housing is electrically connected to the front panel.
The pin assignment corresponds to MDI-X.
Fig. 5: Pin assignment of a 1000 Mbit/s twisted pair interface
U 100 Mbit/s F/O connection
100 Mbit/s F/O ports (SFP slot) enable the connection of terminal
devices or independent network segments in compliance with the IEEE
802.3 100BASE-FX standard. These ports support:
D full and half duplex mode
State on delivery: full duplex.
Note:
Make sure, that you conncet LH ports only to LH ports, SM ports
only to SM ports and MM ports only to MM ports.
U 1 Gbit/s F/O connection
1 Gbit/s F/O ports (DSC sockets) enable the connection of terminal
devices or independent network segments in compliance with the IEEE
802.3-2000 (ISO/IEC 8802-3:2000) 1000BASE-SX or 1000BASE-LX
standard. These ports support:
D autonegotiation.
Note: Make sure, that you conncet LH ports only to LH ports, SX ports
only to SX ports and LX ports only to LX ports.
V Connect the data lines according to your requirements.
Pin 8
Pin 7
Pin 6
Pin 5
Pin 4
Pin 3
Pin 2
Pin 1
BI_DCBI_DC+
BI_DABI_DDBI_DD+
BI_DA+
BI_DBBI_DB+
16
CS30
Release 1.0 01/07
2.2 Displays
After applying the operating voltage, the software starts and initializes itself.
The device then performs a selftest. Various LEDs light up in the process.
The process lasts approximately 60 seconds.
U Device status
These LED's provide information about conditions which affect the operation of the whole device.
1)
In order to display the error, you configure the setting of the signal contact in the
network management program.
U Port status
The green and yellow LEDs on the specific ports display port-related
information.
During the boot phase, the status of the boot procedure is
displayed with these LEDs
: .
P- Power (green LED) Meaning
lit green supply voltage is on
not lit supply voltage is too low
FAULT – Error
)
Meaning
lit red a fault has occured
1)
not lit no fault has occured
1)
RM - Redundancy Manager
(green/yellow LED)
Meaning
lit green RM function active, redundant port not active
lit yellow RM function active, redundant port active
not lit RM function not active
flashes green Incorrect configuration of HIPER-Ring (e.g. ring not
connected to ring port
Stand by Meaning
lit green Stand by opeartion active
not lit Stand by operation not active
LS (Link status, green LED) Meaning
not lit no valid connection
lit green valid connection
flashes green (1 time per second) port is switched to stand-by
flashes green (3 times per second) port is disabled
LS
1
DA
Device status Port status
CS30
Release 1.0 01/07
17
2.3 Carrying out basic settings
IP addresses must be entered when the device is installed for the first time.
The device provides 6 options for configuring the IP addresses:
D Entry via the V.24 connection.
D Entry by HiDiscovery protocol
D Configuration via BOOTP
D Configuration via DHCP
D Configuration via DHCP Option 82
D The AutoConfiguration Adapter
U State of delivery
D IP address: The device looks for the IP address using DHCP
D Password for management:
user, password: public (read only)
admin, password: private (read and write)
D V.24 data rate: 9.600 baud
D Ring redundancy: on
Ring ports on 100 Mbit/s full duplex or 1000 Mbit/s autonegotiation
D Ethernet ports: Link status is not evaluated (signal contact)
D Optical 100 Mbit/s ports: 100 Mbit/s full duplex
All other ports: autonegotiation
D Redundancy manager switched off (DIP switch RM: OFF)
D Stand-by coupling off (DIP switch Stand-by: OFF)
Port 4 = control port, port 3 = coupling port for red. ring coupling
U USB interface
The USB socket offers an interface for the local connection of an AutoConfiguration Adapter ACA 21-USB. It is a device for saving/loading the
configuration and for loading the software.
DA (Data, yellow LED), Meaning
not lit no data reception at the specific port
flashes yellow data reception at the specific port
Pin number Signal name
1 VCC
2 - Data
3 + Data
4 Ground
18
CS30
Release 1.0 01/07
U V.24 interface (external management)
A serial interface is provided on the RJ11 socket (V.24 interface) for the
local connection of an external management station (VT100 terminal or
PC with appropriate terminal emulation) or an AutoConfiguration Adapter
ACA 11. This makes it possible to establish a connection to the Com
-
mand Line Interface CLI and to the system monitor.
The socket housing is electrically connected to the front cover of the
device.
The V.24 interface is electrically connected to the supply voltage.
Fig. 6: Pin assignment of the V24 interface
Note: You will find the order number for the terminal cable, which is
ordered separately, in the chapter
“Technical data” on page 20.
You will find a detailed description of the configuration in the “Basic
Configuration User Manual” on the CD-ROM.
2.4 Disassembling the CS30 interface card
The interface cards can be inserted into or removed from the basic device
during network operation (hot swappable).
z Observe the ESD guidelines and the safety instructions
(see “ESD guidelines” on page 6 and “Safety instructions” on page 4)
and the manufacturer’s instructions of your basic devices.
VT 100 terminal settings
Speed 9.600 baud
Data 8 bit
Stopbit 1 bit
Handshake off
Parity none
Pin 1
Pin 1
Pin 8
Pin 5
Pin 6
RJ11 DB9
2
3
5
1
2
3
4
5
6
CTS
n.c.
TX
GND
RX
RTS
CS30
Release 1.0 01/07
19
V Unscrew the four screws on the front panel of the CS30 interface card
from the frame of the basic device (see figure below, step 1).
V Prize the black rocker lever from the locked into the unlocked position
(see figure below, step 2):
V Press the white button being integrated in the lever and
V Simultaneously turn the lever by approx. 45° down
V Pull the CS30 interface card out of the housing of the basic device (see
figure below, step 3).
Close the unused slot in the basic device with a blank panel.
Fig. 7: Disassembling the CS30 interface card of the basic device
Step 3
Step 2
Step 1
20
CS30
Release 1.0 01/07
3 Technical data
General data
EMV and stability
Dimensions
W x H x D
CS30-0202 40 mm x 210 mm x 131 mm
Weight CS30-0202 230 g
Voltage supply Operating voltage 5 V DC via the backplane of the
basic device
Overload current
protection at input
non-changeable fuse
Surrounding Storage temperature
(surrounding air)
Humidity
Atmospheric pressure
-40 °C to +85 °C
10% to 95% (non condensing)
up to 2.000 m (795 hPa), higher altitudes on demand
Operating temperature
CS30-0202
M - SFP - ... / ...
M - SFP - ... / ... EEC
M-FAST SFP-.../...
M-FAST SFP-.../... EEC
-40 °C to +70 °C
0 °C to +60 °C
-40 °C to +70 °C
0 °C to +60 °C
-40 °C to +70 °C
Pollution degree 2
Protection types Laser protection
Protection types
Class 1 conforming to EN 60825-1
(2001)
IP 20
EMV interference proof
EN 61000-4-2 Discharge of static electricity
Contact discharge: test level 3
Air discharge: test level 3
4 kV
8 KV
EN 61000-4-3 Electromagnetic fields
Test level 3 (80 - 2000 MHz) 10 V/m
EN 61000-4-4 Fast transients (burst), test level 3, x
- Power line
- Data line
2 kV
1 kV
EN 61000-4-5 Surge voltage
- Power line, line/l ine: test level 2
- Power line, line/earth: test level 3
- Data line: test level 3
0,5 kV
1 kV
1 kV
EN 61000-4-6 Cable-based RF faults, test level 3
10 kHz - 150 kHz
150 kHz - 80 MHz
3 V
10 V
EMV emitted immunity
EN 55022 Class A Yes
Stability
Vibration IEC 60068-2-6 Test FC, testing level in line with
IEC 61131-2
Yes
Shock IEC 60068-2-27 Test Ea, testing level in line with
IEC 61131-2
Yes
CS30
Release 1.0 01/07
21
Network size
MM = multimode
SM = singlemode
LH = singlemode longhaul
1)
with F/O adapter in line with IEEE 802.3-2002 clause 38 (single-mode fiber offset-launch mode
conditioning patch cord)
Power consumption/power output
1)
The power consumption of the SFP tTransceivers is included in this number.
Length of a twisted pair segment
100 m approx. cat5e cable with 1000BASE-TX
Table 1: TP port 10BASE-T / 100BASE-TX / 1000BASE-T
Product
code
M-FAST
SFP-...
Wave
length
Fiber System
attenuation
Example
for F/O
expansion
Fiber data
-MM/LC... MM 1310 nm 50/125 µm 0-11 dB 0-5 km 1,0 dB/km, 800 MHz*km
-MM/LC... MM 1310 nm 62,5/125 µm 0-8 dB 0-4 km 1,0 dB/km, 500 MHz*km
-SM/LC... SM 1310 nm 9/125 µm 0-13 dB 0-25 km 0,4 dB/km; 3,5 ps/(nm*km)
-SM+/LC... SM 1310 nm 9/125 µm 10-29 dB 25-65 km 0,4 dB/km; 3,5 ps/(nm*km)
-LH/LC SM 1550 nm 9/125 µm 10-29 dB 40-104 km 0,25 dB/km; 19 ps/(nm*km)
Table 2: F/O port 100BASE-FX (SFP Fiberoptic Fast ETHERNET Transceiver)
Product
code
M-SFP-...
Wave
length
Fiber System
attenuation
Example
for F/O
expansion
Fiber data
-SX/LC... MM 850 nm 50/125 µm 0-7,5 dB 0-550 m 3,0 dB/km, 400 MHz*km
-LX/LC... MM 1310 nm 1)50/125 µm 0-11 dB 0-550 m 1,0 dB/km, 800 MHz*km
-SX/LC... MM 850 nm 62,5/125 µm 0-7,5 dB 0-275 m 3,2 dB/km, 200 MHz*km
-LX/LC... MM 1310 nm 1)62,5/125 µm 0-11 dB 0-550 m 1,0 dB/km, 500 MHz*km
-LX/LC... SM 1310 nm 9/125 µm 0-11 dB 0-20 km 0,4 dB/km; 3,5 ps/(nm*km)
-LH/LC... LH 1550 nm 9/125 µm 6-22 dB 24-72 km 0,25 dB/km; 19 ps/(nm*km)
-LH+/LC LH 1550 nm 9/125 µm 15-32 dB 60-120 km 0,25 dB/km; 19 ps/(nm*km)
Table 3: F/O port 1000BASE-FX (SFP Fiberoptic Gigabit ETHERNET Transceiver)
Name Power consumption Power output
CS30-0202 6,0 W
1)
20,5 Btu (IT)/h
22
CS30
Release 1.0 01/07
Scope of delivery
Order number
Accessories
Based specifications and standards
Device Scope of delivery
CS30-0202 CS30-0202 device
description and operating instructions
CD-ROM
Product name Order number
CS30-0202 943 941-001
Name Order no.
Manual Basics Industrial ETHERNET and TCP/IP 280 720-834
AutoConfiguration Adapter ACA 11 943 751-001
AutoConfiguration Adapter ACA 21-USB 943 271-001
Terminal access cable 943 301-001
Netzwork management software HiVision 943 471-100
OPC server software HiOPC 943 055-001
Gigabit ETHERNET SFP transceiver:
M - SFP - SX / LC
M - SFP - SX / LC EEC
943 014-001
943 896-001
M - SFP - LX / LC
M - SFP - LX / LC EEC
943 015-001
943 897-001
M - SFP - LH / LC
M - SFP - LH / LC EEC
943 042-001
943 898-001
M - SFP - LH+ / LC 943 049-001
Fast ETHERNET SFP Transceiver:
M-FAST SFP-MM/LC
M-FAST SFP-MM/LC EEC
943 865-001
943 945-001
M-FAST SFP-SM/LC
M-FAST SFP-SM/LC EEC
943 866-001
943 946-001
M-FAST SFP-SM+/LC
M-FAST SFP-SM+/LC EEC
943 867-001
943 947-001
M-FAST SFP-LH/LC 943 868-001
EN 61000-6-2:2001 Generic standards – Immunity for industrial environments
EN 55022:1998 + A1 2000
+ A2-2003
Information technology equipment – Radio disturbance
characteristics
IEC/EN 60950-1:2001 Safety of Information Technology Equipment (ITE)
EN 61131-2:2003 Programmable Controllers
Table 4: List of based specifications and standards
Certified devices are marked with a certification identifier.
CS30
Release 1.0 01/07
23
RFC 768 UDP RFC 1769 SNTP
RFC 783 TFTP RFC 1907 MIB2
RFC 791 IP RFC 1945 HTTP/1.0
RFC 792 ICMP RFC 2131 DHCP
RFC 793 TCP RFC 2132 DHCP-Options
RFC 826 ARP RFC 2236 IGMPv2
RFC 951 BOOTP RFC 2239 MAU-MIB
RFC 1112 IGMPv1 RFC 3411 SNMP Framework
RFC 1157 SNMPv1 RFC 3412 SNMP MPD
RFC 1155 SMIv1 RFC 3413 SNMP Applications
RFC 1213 MIB2 RFC 3414 SNMP USM
RFC 1493 Dot1d RFC 3415 SNMP VACM
RFC 1542 BOOTP-Extensions RFC 2613 SMON
RFC 1757 RMON RFC 2674 Dot1p/Q
Table 5: List of RFCs
IEEE 802.1 D Switching, GARP, GMRP, Spanning Tree
IEEE 802.1 D-1998 Media access control (MAC) bridges (includes IEEE 802.1p Priority
and Dynamic Multicast Filtering, GARP, GMRP)
IEEE 802.1 Q Ta gg in g
IEEE 802.1 Q-1998 Virtual Bridged Local Area Networks (VLAN Tagging, GVRP)
IEEE 802.1 w.2001 Rapid Reconfiguration
IEEE 802.3-2002 Ethernet
Table 6: List of IEEE standards
24
CS30
Release 1.0 01/07
Notes
CS30
Release 1.0 01/07
25
4 Further support
U Technical questions and training courses
In the event of technical queries, please talk to the Hirschmann contract
partner responsible for looking after your account or directly to the
Hirschmann office. You can find the addresses of our contract partners
on the Internet:
http://www.hirschmann-ac.com
Our support line is also at your disposal:
D Tel. +49(1805) 14-1538
D Fax +49(7127) 14-1551
Answers to Frequently Asked Questions can be found on the
Hirschmann internet site www.hirschmann-ac.com/faq
U Hirschmann Competence Center
In the longterm, product excellence alone is not an absolute guarantee of
a successful project implementation. Comprehensive service makes a
difference worldwide. In the current scenario of global competition, the
Hirschmann Competence Center stands head and shoulders above the
competition with its comprehensive spectrum of innovative services:
D Consulting incorporates comprehensive technical advice, from system
evaluation through network planning to project planning.
D Training offers you an introduction to the technological fundamentals,
product briefing and user training with certification.
D Support ranges from commissioning through the standby service to
maintenance concepts.
With the Competence Center, you firmly rule out any compromise: the
client-specific package leaves you free to choose the service compon
ents that you will use.
Internet: http://www.hicomcenter.com
Loading...
