Page 1

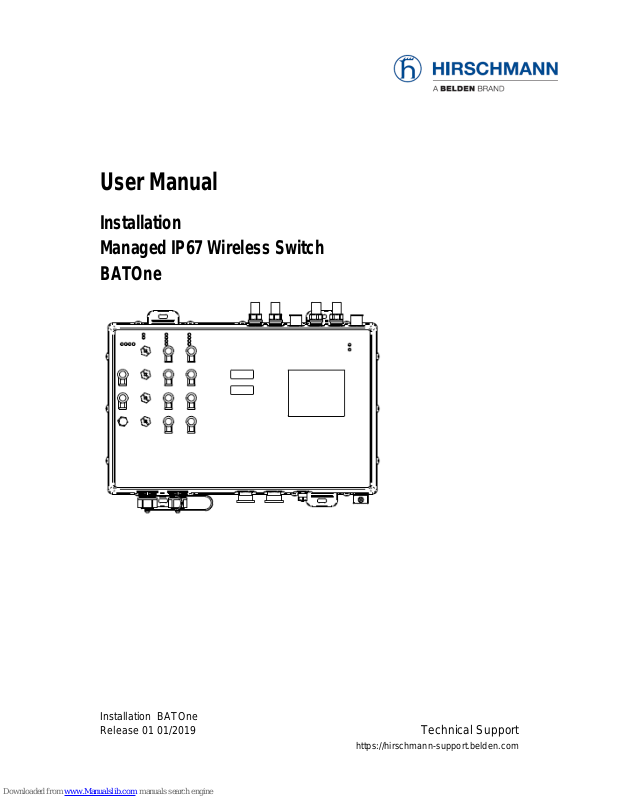

User Manual
Installation Managed IP67 Wireless Switch BATOne
Technical Support
https://hirschmann-support.belden.com
Page 2
The naming of copyrighted trademarks in this manual, even when not specially indicated, should not be taken to mean that these names may be considered as free in the sense of the trademark and tradename protection law and hence that they may be freely used by anyone.
© 2019 Hirschmann Automation and Control GmbH Manuals and software are protected by copyright. All rights reserved. The copying,
reproduction, translation, conversion into any electronic medium or machine scannable form is not permitted, either in whole or in part. An exception is the preparation of a backup copy of the software for your own use.
The performance features described here are binding only if they have been expressly agreed when the contract was made. This document was produced by Hirschmann Automation and Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right to change the contents of this document without prior notice. Hirschmann can give no guarantee in respect of the correctness or accuracy of the information in this document.
Hirschmann can accept no responsibility for damages, resulting from the use of the network components or the associated operating software. In addition, we refer to the conditions of use specified in the license contract.
You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com).
Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Germany Installation BATOne
Installation BATOne 01.01.2019
Page 3
Contents
SAFETY INSTRUCTIONS
6
ABOUT THIS MAN UA L
12
KEY
13
1
DESCRIPTION 14
1.1
General description 14
1.2
Device name and product code 15
1.3
Device view 16
1.4
Power supply 17
1.5
Ethernet ports 17
1.5.1 10/100 Mbit/s twisted pair port 17
1.5.2 1000 Mbit/s F/O port 17
1.5.3 Pin assignments 18
1.6
Connections for antennas 18
1.7
Display elements 18
1.7.1 Device stat e 18
1.7.2 Port status 19
1.8
Management interfaces 20
1.8.1 USB interface 20
1.8.2 V.24 interface (external management) 21
1.9 Signal contact 24
Release 01 01/2019
3
Page 4
2
INSTALLATION 25
2.1
Checking the package contents 25
2.2
Installing and grounding the device 26
2.2.1 Installing the device 26
2.2.2 Grounding the device 26
2.3
Installing the antennas 27
2.4
Connecting the ferrite 28
2.5
Connecting the power supply and signal lines 29
2.5.1 Supply voltage (100 V AC... 240 V AC, 50 Hz / 60 Hz) 30
2.5.2 Signal contact 30
2.6
Operating the device 31
2.7
Connecting data cables 31
2.8
Filling out the inscription label 32
3
MAKING BASIC SETTINGS 33
4
MONITORING THE AMB IENT AIR TEMPERATURE 34
5
CONFIGURING THE TRANSMIT POWER 35
6
MAINTENANCE AND SERVICE 37
7
DISASSEMBLY 38
8
TECHNICAL DATA 39
8.1 General technical data 39
Release 01 01/2019
4
Page 5
8.2
Power consumption/power output 40
8.3

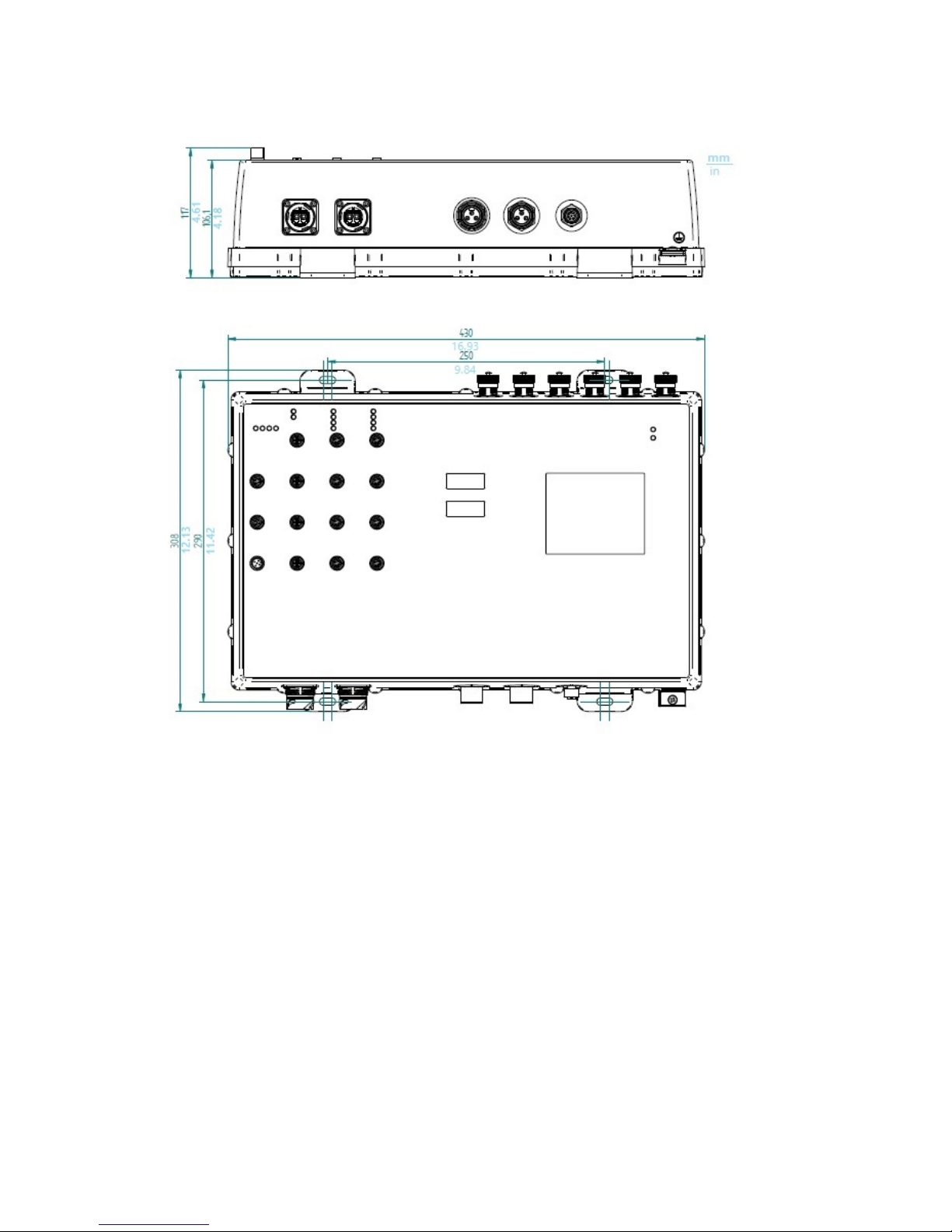

Dimension drawings 41
8.4
Radio technology 42
8.5
Roaming 42
8.6
Receiving sensitivity, transmit power, and data rate of the WLAN
module version EWLAN1 43
8.6.1 IEEE 802.11b 43
8.6.2 IEEE 802.11g 43
8.6.3 IEEE 802.11a 44
8.6.4 IEEE 802.11n 44
8.7
EMC and immunity 46
8.8
Network range 47
9
SCOPE OF DELIVERY, ORDER NUMBERS AND
ACCESSORIES 48
10
UNDERLYING TECHNICAL STANDARDS 50
A FURTHER SUPPORT
51
Release 01 01/2019
5
Page 6
Safety instructions
WARNING
UNCONTROLLED MACHINE ACTIONS
To avoid uncontrolled machine actions caused by data loss, configure all the data transmission devices individually. Before you start any machine
which is controlled via data transmission, be
sure to complete the configuration of all data transmission devices.
Failure to follow these i nstructions can result in death, serious
injury, or equipment damage.
General safety instructions
You operate this device with electricity. Improper usage of the device entails the risk of physical injury or significant property damage. The proper and safe operation of this device depends on proper handling during transportation, proper storage and installation, and careful operation and maintenance procedures. Before connecting any cable, read this document, and the safety
instructions and warnings.
Operate the device with undamaged components exclusively. The device is free of any service components. In case of a damaged or
malfunctioning the device, turn off the supply voltage and return the device to Hirschmann for inspection.
Internal fuses are triggered only in the case of a detected error in the
device. In case of damage or malfunction of the device, turn off the supply voltage and return the device to the plant for inspection.
Qualification requirements for personnel
Only allow qualified personnel to work on the device.
Qualified personnel have the following characteristics:
Qualified personnel are properly trained. Training as well as practical
knowledge and experience make up their qualifications. This is the
Release 01 01/2019
6
Page 7
prerequisite for grounding and labeling circuits, devices, and systems in accordance with current standar ds in safet y techn ol og y.
Qualified personnel are aware of the dangers that exist in their work. Qualified personnel are familiar with appropriate measures against
these hazards in order to reduce the risk for themselves and others.
Qualified personnel receive training on a regular basis.
Installati on site requirements
Install this device in an operating site with restricted access, to which
maintenance staff have exclusive access.
Certified us age
Use the product only for the application cases described in the
Hirschmann product information, including this manual.
Operate the product only according to the technical specifications.
See Technical data on page 39
.
Connect to the product only components suitable for the requirements
of the specific application case.
Requirement s for connecting electrical wires
Before connecting the electrical wires, always verify that the requirements listed are complied with.
All of the following requirements are complied with:
The electrical wires are voltage-free.
The cables used are permitted for the temperature range of the application case.
Table 1: General requirements for connecting electrical wires
Requirement s for connecting data lines
Before connecting the electrical wires, always verify that the requirements listed are complied with.
All of the following requirements are complied with:
The voltage connected complies with the requirements for a safety extra-low voltage
(Environment A - SELV) as per IEC/EN 60950-1.
Table 2: Requirements for connecting data lines
Release 01 01/2019
7
Page 8
WARNING
ELECTRIC SHOCK
Use only Safety Extra Low Voltage circuit.
Failure to follow this ins truc tion can result in death, serious injury,
or equipment damage.
Requirement s for connecting t he signal contact
Before connecting the signal contact, always verify that the requirements listed are complied with.
All of the following requirements are complied with:
The voltage connected complies with the requirements for a safety extra-low voltage
(SELV) as per IEC/EN 60950-1.
The connected voltage is limited by a current limitation device or a fuse.
Observe the electrical threshold values for the signal contact.
See Technical data on page 39.
Table 3: Requirements for connecting the signal contact
Requirement s for connecting t he grounding
Before connecting the grounding, always verify that the requirements listed are complied with.
Device variant
Requirements
All variants
The wire diameter of the ground conductor in the power supply cable is the same size as or bigger than the wire diameter of the power supply cables, however of at least 0.75
mm² (AWG18).
When connecting the provided cable lug, use a professional crimping tool specified for the wire size. Follow the instructions of the crimping tool. The pull out force of the crimped connection is at least 135
N according to the technical standard
IEC 60352-2.
Table 4: Requirements for connecting the ground ing
Requirement s for connecting t he supply v oltage
Before connecting the supply voltage, always verify that the requirements listed are complied with.
Release 01 01/2019
8
Page 9
Device variant
Requirements
All variants
All of the following requirem ents are com plied with:
The supply voltage corresponds to the voltage specified on the
type plate of the device.
The supply voltage conforms to overvoltage category I or II. The supply voltage has an easily accessible disconnecting device
(e. g., a switch or a plug). This disconnecting device is clearly identified. So in the case of an emergency, it is clear which disconnecting device belongs to which power supply -cable.
A fuse is located in the outer conductor of the power supply.
The neutral conductor is on ground potential at both voltage inputs. Otherwise, a fuse is also located in the neutral conductor. Regarding the properties of this fuse:
See Technical data on page 39
.
The power supply cable is suitable for the voltage, the current
and the physical load. The wire diameter is at least
0.75 mm²(North America: AWG18).
Table 5: Requirements for connecting the supply voltage
WARNING
ELECTRIC SHOCK
Use only Safety Extra Low Voltage circuit.
Failure to follow this ins truc tion can result in death, serious injury,
or equipment damage.
Supply volt age
The supply voltage is connected to the device casing through protective elements exclusively.
Shielding gro un d
The overall shield of a connected shielded twisted-pair cable is
connected to the metal housing as a conductor. Beware of possible short circuits when connecting a cable section
with conductive shielding braiding.
Grounding t he device
Grounding the device is by means of a separate ground connection on the device.
Ground the device before connecting any other cables. Disconnect the grounding only after disconnecting all other cables.
Release 01 01/2019
9
Page 10
Use toothed washers to ensure good electrical conductivity at the
connection.
Device casing
Only technicians authorized by the manufacturer are permitted to open the housing. Install the device in the vertical position, with the antenna connections
pointing upwards.
At ambient air temperatures > 140 °F (+60 °C):
The surfaces of the device housing may become hot. Avoid touching the device while it is operating.
To preserve the suitability of your device for IP65/67, proceed as
follows: Remove the provided transport protection caps and the transport
protection screws from the device.
Seal unused sockets and plugs with your desired type of protection
screws which you can order separately.
Lightning protectio n
Refer to the information in the “WLAN Outdoor Guide” on “Lightning
and overvoltage protection”. You can download the manual from the Internet on the Hirschmann product pages (http://www.hirschmann.com
).
Install over voltage protector devices on every outdoor Ethernet cable. Prot ect antennas installed outs id e with lightn in g prot e c tion de vices (for
example lightning conductors).
Take lightning protection measures which mitigate the effects of
lightning strikes.
The installation of the device occurs in accordance with valid standards
(such as VDE 0185 and IEC 62305), and in accordance with the lightning protection procedures recognized and proven for the application and the environment.
National and international saf ety regulations
Verify that the electrical installation meets local or nationally applicable
safety regulations.
When installing antennas, observe the regulations of the country in
which you are operating the WLAN device with regard to the general operating permission and the maximum emission levels.
Install and operate this equipment with a minimum distance of
19.7 inches (50 cm) between the antenna and your body.
Release 01 01/2019
10
Page 11
LED or laser components
LED or LASER components according to IEC 60825-1 (2014): CLASS 1 LASER PRODUCT CLASS 1 LED PRODUCT
Recycling not e
After usage, this device must be disposed of properly as electronic waste, in accordance with the current disposal regulations of your county, state, and country.
Release 01 01/2019
11
Page 12
About this manual
The “Installation” user manual contains a device description, safety instructions, a description of the display, and the other information that you need to install the device. The documentation for your device is made up of the following documents:
General safety instructions Installation user manual
Release 01 01/2019
12
Page 13
Key
The symbols used in this manual have the following meanings:
Listing
Work step
Subheading
Release 01 01/2019
13
Page 14
1 Description
1.1 General description
The BATOne devices are designed for the special requirements of industrial automation. They meet the relevant industry standards, provide very high operational reliabil ity, even under extrem e conditions , and als o long-term reliability and flexibility.
The BATOne are dual-band industrial high-performance wireless LAN access points or clients complying with IEEE 802.11 a/b/ g/h/ n. They provide a high radio output with a bandwidth of up to 450 Mbit/s. The devices support MIMO (Multiple Input Multiple Output) and Multipath. The bandwidth is increased by using the multipath transmission by means of reflections. Each WLAN module has 3 antennas for sending and receiving, to ensure stable network coverage with few shadow areas.
The redundancy concept allows the network to be reconfigured quickly. There are convenient options for managing the device. Administer your
devices via:
Web browser SSH Telnet HiDiscovery (Software for putting the device into operation) Management software (for example LANconfig/LANmonitor) V.24 interface (locally on the device)
The devices comply with the degrees of protection IP65/67. The devices work without a fan.
Release 01 01/2019
14
Page 15
1.2 Device name and product code
The device name corresponds to the product code.
Product Number
Product Code
Description
942244001 BATOne EEC 1 WLAN + ECC + 1 PSU
one Radio, conformal coating, one power supply and extended temperature
SW: HiOS software layer 2 advanced, HiLCOS software
942244002 BATOne EEC DP 1 WLAN + ECC + 2 PSU
one Radio, conformal coating, two power supplies and extended temperature
SW: HiOS software layer 2 advanced, HiLCOS software
942244003 BATOne 1 WLAN + No-ECC + 1 PSU
one Radio, no conformal coating, one power supply and standard temperature
SW: HiOS software layer 2 advanced, HiLCOS software
942244004 BATOne DP 1 WLAN + No-ECC + 2 PSU
one Radio, no conformal coating, two power supplies and standard temperature
SW: HiOS software layer 2 advanced, HiLCOS software
942244005 BATOne EEC DR 2 WLAN + ECC + 1 PSU
two Radios, conformal coating, one power supply and extended temperature
SW: HiOS software layer 2 advanced, HiLCOS software
942244006 BATOne EEC
DRP
2 WLAN + ECC + 2 PSU two Radios, conformal coating, two power supplies and extended temperature
SW: HiOS software layer 2 advanced, HiLCOS software
942244007 BATOne DR 2 WLAN + No-ECC + 1 PSU
two Radios, no conformal coating, one power supply and standard temperature
SW: HiOS software layer 2 advanced, HiLCOS software
942244008 BATOne DRP 2 WLAN + No-ECC + 2 PSU
two Radios, no conformal coating, two power supplies and standard temperature
SW: HiOS software layer 2 advanced, HiLCOS software
Release 01 01/2019
15
Page 16
1.3 Device v iew
Device view using an example: BATOne DRP
Above: front of device
Below: bottom of device
1
Hole for mounting
2
LED display elements for device status
3 LED display elements for port status:
4
Up to 8 ×: Local ports
10/100 Mbit/s twisted pair port
4-pin, “D”-coded M12 socket
5
Power Connector 3-pin, 7/8"
6 Uplink F/O ports 1 and 2
Data rate
1000 Mbit/s F/O port
7
signal contact
5-pin M12 connector
8
5-pin, “A”-coded M12 socket for USB interface
9
4-pin, “A”-coded M12 socket for Switch V.24 i nterf ace
10
WLAN MAC Labels
11
Device Label
12
WLAN LED
13
Ground connection
14
8-pin, “A”-coded M12 socket for Wireless V.24 interface
Release 01 01/2019
16
Page 17
1.4 Power supply
Two 3-pin 7/8" plugs are available for the power supply to the device. For more detail see
Supply voltage on page 30
.
1.5 Ethernet ports
You have the option of choosing various media to connect to the terminal devices and other network components:
Singlemode optical fiber Twisted pair cable
You find information on pin assignments for making patch cables here:
Pin assignments on page 18
.
1.5.1 10/ 100 Mbit/s t wisted pai r port This port is a 4-pin, “D”-coded M12 socket.
The 10/100 Mbit/s twisted pair port allows you to connect network components according to the IEEE 802.3 10BASE-T/100BASE-TX standard. This port supports:
Autonegotiation Autopolarity Autocrossing (if autonegotiation is activated) 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Delivery state: Autone got iat ion acti vat ed The socket housing is electrically connected with the device housing.
1.5.2 1000 Mbi t/ s F/O por t
Figure 1: IP67 plug as per IEC 61076-3-106.
The 1000 Mbit/s F/O port offers you the ability to connect network components according to the IEEE 802.3 1000BASE-LX standard.
Release 01 01/2019
17
Page 18
This port supports:
Full duplex mode
1.5.3 Pi n as signments
M12 4 -pin (“D”-coded)
Pin
Data
1
TX+
2
RX+
3
TX−
4
RX−
1.6 Connections for antennas
The devices have 3 N sockets on each WLAN module. The "Antenna Guide" document provides an overview of the antennas that can be used as well as the suitable antenna acc ess or ies . This document is available for download as a PDF file on the Hirschmann product pages (www.hirschmann.com
).
1.7 Display elements
After the supply voltage is set up, the software starts and initializes itself. Afterwards, the device performs a self-test. During this process, various LEDs light up.
1.7.1 Dev ice state These LEDs provide information about conditions which affect the operation
of the whole device.
Release 01 01/2019
18
Page 19
LED
Display
Color
Activity
Meaning
Power
Supply voltage
—
None
Supply voltage is too low
Yellow
Lights up
Device variants with redundant power
-
supply:
Supply voltage 1 or 2 is on
flashes 4 times a period
Software update is running. Maintain the power -supply.
Green
Lights up
Device variants with redundant power
-
supply:
Supply voltages 1 and 2 are on
Device variants with single power supply: Supply voltage is on
ACA
-ACA21-M12/ACA2 2
-M12 storage
medium (USB interface)
—
None
ACA storage medium not connected
Green
Lights up
ACA storage medium connected
Flashes 3 times a period
Device writes to/reads from the storage medium
Yellow
Lights up
ACA storage medium inoperative
RM
Ring Manager
—
None
No redundancy configured
Green
Lights up
Redundancy exists
Flashes 1 time a period
Device is reporting an incorrect configuration of the RM function
Yellow
Lights up
No redundancy exists
Status
Device Status
—
None
Device is starting and/or is not ready for operation
Green
Lights up
Device is ready for operation. Characteristics can be configured
Red
Lights up
Device is ready for operation. Device has detected at least o
ne error in
the monitoring results
Flashes 1 time a period
The boot parameters used when the device has been started differ from the boot parameters saved. Start the device again.
flashes 4 times a period
Device has detected a multiple IP address
1.7.2 Port status These LEDs provide port-related inf or mation.
Link state
These LEDs are identified with the number of the related port.
Release 01 01/2019
19
Page 20
LED
Display
Color
Activity
Meaning
L/D
Link status
—
None
Device detects an invalid or missing link
Green
Lights up
Device detects a valid link
Flashes 1 time a period
Port is switched to stand-by
Flashes 3 times a period
Port is switched off
Yellow
Lights up
Device detects a data rate that is not supported
Flashing
Device is transmitting and/or receiving data
Flashes 1 time a period
Device detects at least one unauthorized MAC address (Port Security Violation)
WLAN 1, WLAN 2 (green/red LEDs)
WLAN mode
Meaning
Off All
No WLAN network defined or WLAN module deactivated. WLAN module does not send any beacons.
Green
Glowing
Access Point, P2P
At least one WLAN network defined and WLAN module activated. WLAN module sends beacons.
Green
Flashing inversely
Access Point, P2P
Number of flashes = Number of connected WLAN stations and P2P radio lines, then there is a break.
Green
Flashing
Access Point, P2P
DFS scanning or another scan procedure.
Green
Flashing
Client, P2P
Signal strength: The fast er the LED blinks, the better the signal and thus the connection quality.
Red
Flashing
All
Hardware error detected in the WLAN module.
1.8 Management interfaces
1.8.1 USB interface
This interface offers you the ability to connect the storage medium AutoConfiguration Adapter ACA22-M12. This storage medium is used for saving/loading the configuration and diagnostic functions, and for loading the software.
Release 01 01/2019
20
Page 21
This interface is a 5-pin, “A”-coded M12 socket with shielding. Only connect the ACA22-M12 storage medium. You can obtain this as accessory: See Accessories on page 48
.
Pin
Function
1
Uin
5 V
2
N.C.
Not used
3
D-
Data -
4
GND
Ground (0 V)
5
D+
Data +
Table 6: Pin assignment of the USB interface, 5-pin, “A”- coded M12 socket
1.8.2 V.24 interface (external manage m ent) BATOne have 2 V.24 ports. Both are “A”- coded M12 socket.
V.24 connection, a serial interface is provided for the local connection of an external management station (VT100 terminal or PC with corresponding terminal emulation). This enables you to set up a connection to the Command Line Interface (CLI) and to the system monitor. Switch V.24:
VT 100 terminal settings
Speed
9600 Baud
Data
8 bit
Stopbit
1 bit
Handshake
off
Parity
none
The socket housing is electrically connected to the housing of the device.
Figure
Pin Function
1
TX.
Transmit Data
2
RX
Receive Data
3
N.C.
Not used
4
GND
Ground
Table 7: Pin assignment of the V.24 interface (M12 socket)
Release 01 01/2019
21
Page 22
Figure 2: Terminal cable for connecting an external Management Station
The Terminal cable is available as an accessory. You will find a description of the V.24 interface in the “User Manual Basic
Configuration” document. Wireless V.24
Connecting the BATOne device allows you to automate the configuration
of a point-to-point WLAN line by connecting two devices directly via the
wireless V.24 interface. You will find more information here: – User Manual Configuration Guide
This document is available for download as a PDF file on the Hirschmann product pages (www.hirschmann.com
).
The socket housing is electrically connected to the device casing. The V.24 interface is electrically insulated from the supply voltage.
Only use a shielded cable.
Pins of the M12 socket on the device
Pin
Function
Description of functions
1
GND
Ground
2
DTR
Data terminal ready
3
TxD
Transmit data
4
RxD
Receive data
5
DCD
Data carrier detect
6
DSR
Dataset ready
7
RTS
Request to send
8
CTS
Clear to send
Table 8: Pin assignment of the V.24 interface, 8-pin, “A”- coded M12 socket
Release 01 01/2019
22
Page 23
Pins of the M12 socket on the device
Pin assignment for the connection with a cable
Pins of the DB9 plug on the external device
Table 9: Pin assignment for the connection with a cable: 8-pin, “A”- coded M12 plug to DB9 connector
You can order a terminal cable M12, 8-pin, to DB9 as an accessory.
See Accessories on page 48
.
Pins of the M12 socket on the device
Pin assignment for the connection with a cable
Pins of the M12 socket on the device
Table 10: Pin assignment for the connection with a cable: 8-pin, “A”- coded M12 plug to 8-pin, “A”-coded M12 plug (point-to-point WLAN line)
Note: With the point-to-point WLAN line, the following pins are short-circuited at both ends:
2 (DTR) + 6 (DSR) 7 (RTS) + 8 (DSR)
Release 01 01/2019
23
Page 24
1.9 Signal contact
The signal contact is a potential-free relay contact. The device allows you to perform remote diagnosis via the signal contact. In the process, the device signals events such as a line interruption. When an event occurs, the device opens the relay contact and interrupts the closed circuit. The management setting specifies which events switch a contact. You can also use the management to switch the signal contact manually and thus control external devices.
For more detail see
Signal contact on page 30
.
Release 01 01/2019
24
Page 25
2 Installation
The devices have been developed for practical application in a harsh industrial environment. On delivery, the device is ready for operation.
Perform the following steps to install and configure the device:
Checking the package contents Installing and grounding the device Installing the antennas Connecting the ferrite Connecting the power supply and signal lines Operating the device Connecting data cables Filling out the inscription label
2.1 Checkin g the package contents
Proceed as follows:
Check whether the package includes all items named in the section
Scope of delivery on page 48
.
Check the individual parts for transport damage.
Release 01 01/2019
25
Page 26
2.2 Installing and grounding the device
2.2.1 Installing the device
WARNING
ELECTRIC SHOCK
Install this device solely in a switch cabinet or in an operating site with restricted access, to which maintenance staff have exclusive access.
Failure to follow this ins truc tion can result in death, serious injury, or equipment damage.
To protect the exposed uninstalled contacts of the components from dirt, connect the individual system components in a dry and clean working area.
Prepare the drill holes at the installation point. Mount the device on a level surface with four M6 screws. To preserve the suitability of your device for IP65/67, proceed as follows: Remove the provided transport protection caps and the transport
protection screws from the device.
Seal unused sockets and plugs with your desired type of protection
screws which you can order separately.
2.2.2 Grounding the device Grounding the device is b y m eans of a separate ground connection on the
device. The overall shield of a connected shielded twisted-pair cable is conn ec ted to the metal housing as a conductor. The device variants have a connection for protective grounding.
Note: Use toothed washers to ensure good electrical conductivity at the connection.
Ground the device via the provided M4 screw.
Release 01 01/2019
26
Page 27
2.3 Installing the antennas
1
alternatively, depending on
device variant
For device variants with 2 WLAN modules: 3 × N socket for WLAN module 1
For device variants with 1 WLAN module: Not present
1a
Antenna connection 1
1b
Antenna connection 2
1c
Antenna connection 3
2
alternatively, depending on
device variant
For device variants with 2 WLAN modules: 3 × N socket for WLAN module 2
For device variants with 1 WLAN module: 3 × N socket for WLAN module 1
2a
Antenna connection 1
2b
Antenna connection 2
2c
Antenna connection 3
Table 11: Antenna connections
Release 01 01/2019
27
Page 28
If you connect to 2 BATOne devices antennas to 2 WLAN modules, ensure that there is a distance of at least 2 m between the BATOne devices. If you would like to connect several antennas to a WLAN module, align the antennas so that the points of the antennas point away from each other in a star shape.
Install at least one antenna on the WLAN module that you would like to
use.
Insert the terminating resistors available as accessories into the sockets
not being used in order to avoid radio signals from one WLAN module
being received by the other WLAN module.
2.4 Connecting the ferrite
To adhere to EMC conformity, you connect the ferrite supplied to the voltage input via the power supply cable.
Note: To open the ferrite use the key supplied.
Insert the power supply cable through the ferrite 1 time. Position the ferrite as close as possible to the voltage input (max. distance
19.7 inches (50 cm)).
Lock the ferrite.
Release 01 01/2019
28
Page 29
2.5 Connecting the power supply and signal
lines
WARNING
ELECTRIC SHOCK
Before connecting the electrical wires, always ver
ify that the requirements
listed are complied with.
See Requirements for connecting electrical wires on page 7.
Failure to follow this ins truc tion can result in death, serious injury,
or equipment damage.
The supply voltage is electrically isolated from the casing. You have the option of supplying the supply voltage redundantly, without load distribution.
WARNING
ELECTRIC SHOCK
Using external Supply voltage cate
gory III requires external filter to ensure
category II.
See Requirements for connecting the supply voltage on page 8.
Failure to follow this ins truc tion can result in death, serious injury,
or equipment damage.
Release 01 01/2019
29
Page 30
2.5.1 Sup ply voltage (100 V AC ... 240 V AC, 50 Hz / 60 Hz) Two 3-pin 7/8" plugs are available for the power supply to the device.
You find the prescribed tightening torque in
Technical data section on page
39.
The supply voltage is connected to the device casing through protective ele­ments exclusively.
Type and specification of the supply voltage
Connections
Rated voltage range AC 100 V ... 240 V, 50 Hz / 60 Hz
L
Outer conductor
Voltage range AC incl. maximum tolerances 88
V ... 265 V, 47 Hz ... 63 Hz
PE
Protective conductor
N
Neutral conductor
Connect the electrical wires to the socket according to the pin assignment.
2.5.2 Si gnal contact A 5-pin M12 plug is available as a signal contact.
You find the prescribed tightening torque in
Technical data section on page
39.
Depending on the device variant, the signal contact lines are laid in the power supply plug or in a special plug.
Connection assignments
1 — 2
Signal contact
3
—
4
—
5
Signal contact
Release 01 01/2019
30
Page 31
2.6 Operating the device
WARNING
ELECTRIC SHOCK
Before connecting the electrical wires, always
verify that the requirements
listed are complied with.
See Requirements for connecting electrical wires on page 7.
Failure to follow this ins truc tion can result in death, serious injury,
or equipment damage.
By connecting the supply voltage via a connector, you start the operation of the device. Proceed as follows:
Connect the power supply cable. Enable the supply voltage.
2.7 Connecting data cables
Note the following general recommendations for data cable connections in environments with high electrical interference levels:
Keep the length of the data cables as short as possible. Use optical data cables for the data transmission between the buildings. When using copper cables, provide a sufficient separation between the
power supply cables and the data cables. Ideally, install the cables in
separate cable channels.
Verify that power supply cables and data cables do not run parallel over
longer distances, and that ideally they are installed in separate cable
channels. If reducing the inductive coupling is necessary, verify that the
power supply cables and data cables cross at a 90° angle.
Use SF/UTP cables as per ISO/IEC 11801:2002. Connect the data cables according to your requirements.
For more detail see
Ethernet ports on page 19
.
Release 01 01/2019
31
Page 32
2.8 Filling out the inscripti on label
The information field for the IP address helps you identify your device.
Release 01 01/2019
32
Page 33
3 Making basic settings
The IP parameters must be entered when the device is installed for the first time. The device provides the following options for configuring IP addresses:
Entry via V.24 connection Entry via the HiD isc overy protocol in the applications -HiDiscovery Configuration via BOOTP Configuration via DHCP (Option 82) AutoConfiguration Adapter
Default settings
IP address: The device looks for the IP address using DHCP Management password:
user, password: public (read only) admin, password: private (read/write)
Switch V.24 data rate: 9600 Baud Wireless V.24 data rate: 115200 Baud Ethernet ports: link status is not evaluated (signal contact) Optical ports: Full duplex
TP ports: Autonegotiation
RSTP (Rapid Spanning Tree) activated
Release 01 01/2019
33
Page 34
4 Monitoring the ambient air temperature
Operate the device below the specified maximum ambient air temperature exclusively.
See Technical data on page 39
.
The ambient air temperature is the temperature of the air at a distance of 2 in (5 cm) from the device. It depends on the installation conditions of the device, e.g. the distance from other devices or other objects, and the output of neighboring devices.
The temperature displayed in the CLI and the GUI is the internal temperature of the device. It is higher than the ambient air temperature. The maximum internal temperature of the device named in the technical data is a guideline that indicates to you that the maximum ambient air temperature has possibly been exceeded.
If the ambient temperature exceeds the normal operating range of the equipment, additional protective measures are recommended.
Release 01 01/2019
34
Page 35
5 Configuring the transmit power
Note: The operator of a WLAN radio installation must adhere to the applicable transmission threshold values.
Use the graphical user interface or the LANconfig software. You can download the LANconfig software as an ISO image from the Hirschmann product pages (www.hirschmann.com
).
In the graphical user interface, proceed as follows:
In the menu tree, open the Configuration > Wireless LAN >
General dialog.
In the “General” tab, specify in the “General” frame the country in which
you install the device, and click the “Send” button.
In the menu tree, open the Configuration > Wireless LAN >
General > Physical WLAN settings - Radio dialog.
In the “General” tab, click in the “Interface” column the physical WLAN
interface to which you connect the antenna.
Release 01 01/2019
35
Page 36
Subtract the cable and installed overvoltage protector attenuation from the
antenna gain. Enter the calculated value in the “Antenna gain” field.
To save the value, click the “Send” button.
Release 01 01/2019
36
Page 37
6 Maintenance and service
When designing this device, Hirschmann largely avoided using high-wear
parts. The parts subject to wear and tear are dimensioned to last longer
than the lifetime of the product when it is operated normally. Operate this
device according to the specifications.
Relays are subject to natural wear. This wear depends on the frequency
of the switching operations. Check the resistance of the closed relay
contacts and the switching function depending on the frequency of the
switching -operations.
Hirschmann is continually working on improving and developing their
software. Check regularly whether there is an updated version of the
software that provides you with add it ional ben ef its . You find inf ormation
and software downloads on the Hirschmann product pages on the
Internet (www.hirschmann.com
).
Note: You find information on settling complaints on the Internet at
www.beldensolutions.com/en/Service/Reparaturen/index.phtml
.
Release 01 01/2019
37
Page 38
7 Disassembly
WARNING
ELECTRIC SHOCK
Disconnect the grounding only after disconnecting all other cables.
Failure to follow this ins truc tion can result in death, serious injury,
or equipment damage.
Disconnect the data cables . Disable the supply voltage. Disconnect the power supply cables and signal lines. Remove the antennas. Disconnect the grounding.
Release 01 01/2019
38
Page 39
8 Technical data
8.1 General technical data
Dimensions W × H × D
BATOne
See Dimension drawings on page 41.
Weight
approx. 7.5 kg
Mounting Flat surface mounting
Screw type
M6
Power supply Supply voltage
Rated voltage range AC
100 V ... 240 V, 50 Hz / 60 Hz
Voltage range AC incl. maximum tolerances
88 V ... 265 V, 47 Hz ... 63 Hz
Connection type 3-pin, 7/8" connector
Tightening torque
22 lb-in (2.5 Nm)
Power loss buffer
> 10 ms at 93.5 V AC
Overload current protection at input
Non-replaceable fuse
Back-up fuse Nominal rating:
1 A ... 20 A
Characteristic:
slow blow
Peak inrush current
< 3.5 A
Signal contact
Switching current
max. 1 A
Switching voltage
max. 60 V DC max. 30 V AC
Connection type 5-pin M12 connector
Tightening torque
5.3 lb-in (0.6 Nm)
Climatic conditions during operation
Minimum clearance around the device
Top and bottom sides of device: 1.97 in (5
cm)
Left and right sides of device: 1.97
in
(5 cm)
Deratinga: 5
K at the following clearance:
Top and bottom sides of device: 0
in
Left and right device side: 0
in
Ambient air temperature
b
Devices with operating temperature characteristic
(standard):
−40 °F ... +140 °F ( −40 °C ... +60 °C)
Release 01 01/2019
39
Page 40
Devices with operating temperature characteristic
value EEC (extended):
−40 °F ... +158 °F ( −40 °C ... +70 °C)
Maximum inner temperature of device (guideline)
Devices with operating temperature characteristic
(standard):
90 °C
Devices with operating temperature characteristic value
EEC (extended):
95 °C
Humidity
5 % ... 100 % (also in condensing atmospheres)c
Air pressure
minimum 700 hPa (+9842 ft; +3000 m) maximum 1060 hPa ( −1312 ft; −400 m)
Climatic conditions during storage
Ambient air temperatureb
−40 ºF ... +185 ºF (−40 ºC . .. +85 ºC)
Humidity
5 % ... 100 % (also in condensing atmospheres)d
Air pressure
minimum 700 hPa (+9842 ft; +3000 m) maximum 1060 hPa ( −1312 ft; −400 m)
Pollution degree
2
Protection classes Laser protection
Class 1 in compliance with IEC 60825-1
Degree of protection
IP65/67e
a. Reduction of the maximum permitted ambient air temperature under specific conditions b. Temperature of the ambient air at a distance of 2 in (5 cm) from the device c. Remove the provided transport protection caps and the transport protecti on screws from the
device. Seal unused sockets and plugs with your desired type of protection screws which you can order separately.
d. Remove the provided transport protection caps and the transport protection s crews from the
device. Seal unused sockets and plugs with your desired type of protection screws which you can order separately.
e. To preserve the suitability of your device for IP65/67, proceed as follows: Remove all provided
transport protection caps and transport protection screws. Seal unused sockets and plugs with your desired type of protection screws which you can order separately.
8.2 Power consumption/power output
Conditions
Maximum power consump tion
Power output
Equipped with 1 WLAN module
TBD
TBD Btu (IT)/h
Equipped with 2 WLAN modules
23 W
78.5 Btu (IT)/h
Release 01 01/2019
40
Page 41
8.3 Dimension drawings
Release 01 01/2019
41
Page 42
8.4 Radio technology
Antenna connection
For each WLAN module: 3 × N socket
Range
Depending on the antenna used, frequency range and data rate
Encryption
IEEE 802.11i/WPA2 with passphrase or IEEE 802.1x and
hardware-accelerated AES
Closed Network WEP 64
a
WEP 128
b
WEP 152
c
User authentication 802.1x/EAP LEPS WPA1/TKIP
d
For more information, see the HiLCOS data sheet.
Frequency range
Support of 2.4 GHz and 5 GHz: 2412 MHz to 2472 MHz and
5180 MHz to 5825 MHz
Modulation technology
OFDM: BPSK , QPSK, 16-QA M, 64-QAM, 256-QAM
DSSS/CCK
Radio topology
WLAN Access-Point, Bridge-, Router-, Point-to-Point-, Client-, Client-Bridge-Mode
a. With encryptions of the type TKIP and WEP, the device falls back on IEEE 802.11b/g or
IEEE 802.11a.
b. With encryptions of the type TKIP and WEP, the device falls back on IEEE 802.11b/g or
IEEE 802.11a.
c.
With encryptions of the type TKIP and WEP, the device falls back on IEEE 802.11b/g or
IEEE 802.11a.
d.
With encryptions of the type TKIP and WEP, the device falls back on IEEE 802.11b/g or
IEEE 802.11a.
8.5 Roaming
IEEE 802.11F (Inter-Access Point Protocol) IEEE 802.11r (Fast Roaming) PMK caching Pre authentication OKC (Opportunistic key caching)
Release 01 01/2019
42
Page 43
8.6 Receivi ng sensitivity , transmit power, and
data rate of the WLAN m odule version EWLAN1
The values shown in the following tables are the maximum values of the WLAN module version EWLAN1. The values are in no case to be perceived as a guaranteed property of the overall product. For some country profiles, the module reduces data rate and transmit power automatically. The reason for this are national standards.
8.6.1 IEEE 802.11b
IEEE 802. Frequency range 2.412 GHz to 2.472 GHz Data rate Typical transmit power Typical receiving sensitivity
1 Mbit/s 19 dBm −94 dBm 11 Mbit/s 19 dBm −94 dBm
8.6.2 IEEE 802.11g
IEEE 802.11g Frequency range 2.412 GHz to 2.472 GHz Data rate Typical transmit power Typical receiving sensitivity
6 Mbit/s 22 dBm −94 dBm 9 Mbit/s 22 dBm −94 dBm 12 Mbit/s 22 dBm −90 dBm 18 Mbit/s 22 dBm −89 dBm 24 Mbit/s 22 dBm −85 dBm 36 Mbit/s 21 dBm −82 dBm 48 Mbit/s 20 dBm −78 dBm 54 Mbit/s 19 dBm −77 dBm
Release 01 01/2019
43
Page 44
8.6.3 IEEE 802.11a
IEEE 802.11a Bandwidth 5.180 GHz to 5.825 GHz Data rate Typical transmit power Typical receiving sensitivity
6 Mbit/s 16 dBm −93 dBm 9 Mbit/s 16 dBm −93 dBm 12 Mbit/s 16 dBm −93 dBm 18 Mbit/s 16 dBm −91 dBm 24 Mbit/s 16 dBm −88 dBm 36 Mbit/s 15 dBm −84 dBm 48 Mbit/s 13 dBm −80 dBm 54 Mbit/s 12 dBm −79 dBm
8.6.4 IEEE 802.11n
IEEE 802.11n Frequency range 2.412 GHz to 2.472 GHz Coding Typical transmit power Typical receiving sensitivity
MCS 0 18 dBm −87 dBm MCS 1 18 dBm −90 dBm MCS 2 18 dBm −86 dBm MCS 3 18 dBm −82 dBm MCS 4 18 dBm −79 dBm MCS 5 16 dBm −75 dBm MCS 6 16 dBm −73 dBm MCS 7 15 dBm −72 dBm MCS 8 22 dBm −87 dBm MCS 9 21 dBm −90 dBm MCS 10 22 dBm −86 dBm MCS 11 21 dBm −82 dBm MCS 12 16 dBm −79 dBm MCS 13 16 dBm −75 dBm MCS 14 15 dBm −73 dBm MCS 15 15 dBm −72 dBm MCS 16 23 dBm −87 dBm MCS 17 23 dBm −90 dBm MCS 18 23 dBm −86 dBm
Release 01 01/2019
44
Page 45
MCS 19 23 dBm −82 dBm MCS 20 16 dBm −79 dBm MCS 21 17 dBm −75 dBm MCS 22 17 dBm −73 dBm MCS 23 16 dBm −72 dBm
IEEE 802.11n Frequency range 5.180 GHz to 5.825 GHz Coding Typical transmit power Typical receiving sensitivity
MCS 0 17 dBm −92 dBm MCS 1 17 dBm −91 dBm MCS 2 17 dBm −89 dBm MCS 3 17 dBm −84 dBm MCS 4 17 dBm −81 dBm MCS 5 15 dBm −77 dBm MCS 6 14 dBm −75 dBm MCS 7 14 dBm −73 dBm MCS 8 20 dBm −92 dBm MCS 9 20 dBm −91 dBm MCS 10 19 dBm −89 dBm MCS 11 20 dBm −84 dBm MCS 12 18 dBm −81 dBm MCS 13 15 dBm −77 dBm MCS 14 15 dBm −75 dBm MCS 15 14 dBm −73 dBm MCS 16 21 dBm −92 dBm MCS 17 21 dBm −91 dBm MCS 18 21 dBm −89 dBm MCS 19 21 dBm −84 dBm MCS 20 16 dBm −81 dBm MCS 21 15 dBm −77 dBm MCS 22 14 dBm −75 dBm MCS 23 14 dBm −73 dBm
Release 01 01/2019
45
Page 46
8.7 EMC and immunity
Note: You will find detailed information on the certificates and declarations applying to your device in a separate overview.
EMC interference emission
Standard applications
Railway applications (trackside)
Radiated emission
EN 55032
Class A
Class A
EN 61000-6-4
Fulfilled
Fulfilled
Conducted emission
EN 55032
AC supply connection
Class A
Class A
EN 61000-6-4
AC supply connection
Fulfilled
Fulfilled
EN 55032
Telecommunication connections
Class B
Class B
EN 61000-6-4
Telecommunication connections
Fulfilled
Fulfilled
EMC interference
immunity
Standard
applications
Railway
applications
(trackside)
Electrostatic discharge
EN 61000-4-2
Contact discharge
± 4 kV
± 6 kV
EN 61000-4-2
Air discharge
± 8 kV
± 8 kV
Electromagnetic field
EN 61000-4-3
80 MHz ... 6000 MHz
10 V/m
20 V/m
Fast transients (burst)
EN 61000-4-4
AC supply connection
± 2 kV
± 2 kV
EN 61000-4-4
Data line
± 1 kV
± 2 kV
Voltage surges - AC supply connection
EN 61000-4-5
line/ground
± 2 kV
± 2 kV
EN 61000-4-5
line/line
± 1 kV
± 1 kV
Voltage surges - data line
EN 61000-4-5
line/ground
± 1 kV
± 2 kV
Conducted disturbances
EN 61000-4-6
150 kHz ... 80 MHz
10 V
10 V
Power frequency magnetic fields
EN 61000-4-8
— 300 A/m
Release 01 01/2019
46
Page 47
8.8 Network range
The line lengths specified for the transceivers apply for the respective fiber data (fiber attenuation and BLP/dispersion).
Product
code
M-SFP-...
Wave
length
Fiber
System
attenuation
Example for
F/O line
lengtha
Fiber
attenuat
-ion
BLPb/
dispers
-ion
-LX/LC...
SM 1310 nm
9/125 µm
0-9.5 dB
0-17.5 km
0.4 dB/km
3.5 ps/ (nm×km)
Table 12: Fiber port 1000BASE-FX (SFP fiber optic Gigabit Ethernet Transceiver)
a. Including 3 dB system reserve when compliance with the fiber data is observed b. Us i ng the bandwidth lengt h product is inappropriate for expansion calculations.
SM = Singlemode
Network range: 10/100/1000 Mbit/s twisted pair port
Length of a twisted pair segment
max. 328 ft (100 m) (for Cat5e cable)
Table 13: Twisted Pair
Stability
Standard
applications
Railway applications
(in vehicles)
IEC 60068-2-6, test Fc
Vibration
5 Hz ... 8.4 Hz with
0.14 in ( 3.5 mm) amplitude
Operating
5 Hz ... 150 Hz, Broadband noise vertical: 1.0 m/s² (rms)
horizontal: 0.7 m/s² (rms)
8.4 Hz ... 150 Hz
with 1 g
Not operating:
5 Hz ... 150 Hz, Broadband noise vertical: 7.9 m/s² (rms)
horizontal: 5.5 m/s² (rms)
IEC 60068-2-27, test Ea
Shock
15 g, 11 ms
vertical: 30 m/s², 3 0 ms horizontal: 50 m/s², 30 ms
Release 01 01/2019
47
Page 48
9 Scope of delivery, order num bers and
accessories
Scope of delivery
Number
Article
1 ×
General safety instructions
1 ×
Device
1 × or 2 × (depending on the device variant)
7/8" connector, 3-pin
2 ×
premounted
50 Ω terminating resistor for sealing unused
antenna connections (exclusively for device variants with 1 wireless
module)
4 ×
premounted
50 Ω terminating resistor for sealing unused
antenna connections (exclusively for device variants with 2 wireless
modules)
1 × or 2 × premounted
Protection cap (7/8", plastic) for supply voltage connection
1 × per WLAN module premounted
Protection cap (plastic) for N socket
1 × premounted
Protection screw (M12, plastic) for signal contact
10 × Premounted
Protection cap (plastic) for M12 socket
Table 14: List of the scope of delivery
The order num bers correspond to the pr oduct codes of the dev ices. See
“Device name and product code” on page 15.
Release 01 01/2019
48
Page 49
Accessories
Name
Order number
Terminal cable: M12 4pin to sub-D9-pin
943 902-001
Terminal cable: M12 plug, 8-pin on DB9 socket
942 087-001
AutoConfiguration Adapter ACA22-M12 (EEC)
942 125-001
M12 connector - ELWIKA 5012 PG7 -,5-pin, (M12 socket, “A”-coded)
933 175-100
M12 connector - shielded -,5-pin, (M12 socket, “A”-coded)
942 219-001
M12 connector, 4-pin, “D”-coded
934 445-001
7/8" connector, 3-pin
942 086-003
Protection screw for M12 socket, metal, IP65/67 (25 pieces)
942 057-001
Protection screw for M12 socket, plastic, IP65/67 (25 pieces)
942 057-002
Protection screw for M12 plug, metal, IP65/67 (10 pieces)
942 115-001
Connection cable with M12 connector, “D”-coded
934 497-00x
Transition M12 “D”-coded to RJ45
934 498-001
50 Ω terminating resistors for sealing unused antenna connections, N (10 pieces)
942 118-001
Antenna cable BAT-CLB-2 N m-f
943 903-514
BAT-ANT-N-3AGN-IP67 (10 pcs.)
942 110-001
BAT Protector
943 903-373
SFP mounting tool for IP67 socket
942 079-001
Plug casing for IP67 plug acc. to IEC 61076-3-106
Available at
BTR NETCOM GmbH
Table 15: List of the accessories
Release 01 01/2019
49
Page 50
10 Underlying technical standards
Name
EN 55032
Electromagnetic compatibility of multimedia equipment – Emission Requirements
EN 61000-6-2
Electromagnetic compatibility (EMC) – Part 6 -2: Generic standards – Immunity for industrial environments
EN 61000-6-4
Electromagnetic compatibility (EMC) – Part 6 -4: Generic standards – Emission standard for industrial environments
EN 60950-1
Information technology equipment – Safety – Part 1: General requirements
EN 61131-2
Programmable controllers – Part 2: Equipment requirements and tests
EN 50121-4
Railway applications – EMC – Emission and immunity of the signaling and telecommunications apparatus (Rail Trackside)
EN 300 328
Electromagnetic compatibility and radio spectrum matters (E RM) -
bandwidth transfer systems - data transmission equipment operating in
2.4 GHz ISM band and using spread spectrum modulation technology
EN 301 489-1
Electromagnetic compatibility for radio equipment and services
EN 301 489-17
Electromagnetic compatibility (EMC) for radio equipment and services
- specific conditions for 2.4 GHz broadband transmission systems and
5 GHz high-performance RLAN equipment
EN 302 502
Broadband radio access networks (BRAN) – permanently installed broadband data transmission systems with 5.8 GHz band
EN 301 893
Broadband radio access networks (BRAN) – 5 GHz high performance Remote Local Area Network (RLAN)
IEEE 802.1D
MAC Bridges (switching function)
IEEE 802.1Q
Virtual LANs (VLANs, MRP, Spanning Tree)
IEEE 802.1w
Rapid Reconfiguration
IEEE
802.11a/b/g/h/n
WLAN IEEE 802.3
Ethernet
IEEE 802.3af
Power over Ethernet
Table 16: List of the technical standards
The device has an approval based on a specific standard only if the approval indicator appears on the device casing. The device generally fulfills the technical standards named in their current versions.
Release 01 01/2019
50
Page 51
A Further support
Technical questions For technical questions, please contact any Hirschmann dealer in your area
or Hirschmann directly. You find the addresses of our partners on the Internet at
www.hirschmann.com
.
A list of local telephone numbers and email addresses for technical support directly from Hirschmann is available at
https://hirschmann-support.belden.com
This site also includes a free of charge knowledge base and a software download section.
Hirschmann Competence Center The Hirschmann Competence Center is ahead of its competitors on three
counts with its complete range of innovative services:
Consulting incorporates comprehensive technical advice, from system
evaluation through network planning to project planning.
Training offers you an introduction to the basics, product briefing and user
training with certification. You find the training courses on technology and products currently available at http://www.hicomcenter.com
Support ranges from the first installation through the standby service to
maintenance concepts.
With the Hirschmann Competence Center, you decided against making any compromises. Our client-customized package leaves you free to choose the service components you want to use.
Internet:
http://www.hicomcenter.com
Release 01 01/2019
51
Page 52
Release 01 01/2019
52
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
