Hirschmann BAT-F User Manual

Installation BAT-F

Release 06 02/2014

Technical support

https://hirschmann-support.belden.eu.com

User Manual

Installation
Open Dual-Band Industrial Access-Point / Client / Access-

Bridge
OpenBAT-Family: BAT-F

The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.

© Hirschmann Automation and Control GmbH

Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use. For devices with embedded software, the end-user license agreement on the
enclosed CD/DVD applies.

The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.

Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.

You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).

Printed in Germany
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]

BAT-F 039 799-101-06-0214 - 13.02.2014

Installation BAT-F

Release 06 02/2014

3

Contents

Safety instructions 5

About this manual 15

Key 15

1 Description 16

1.1 General description 16

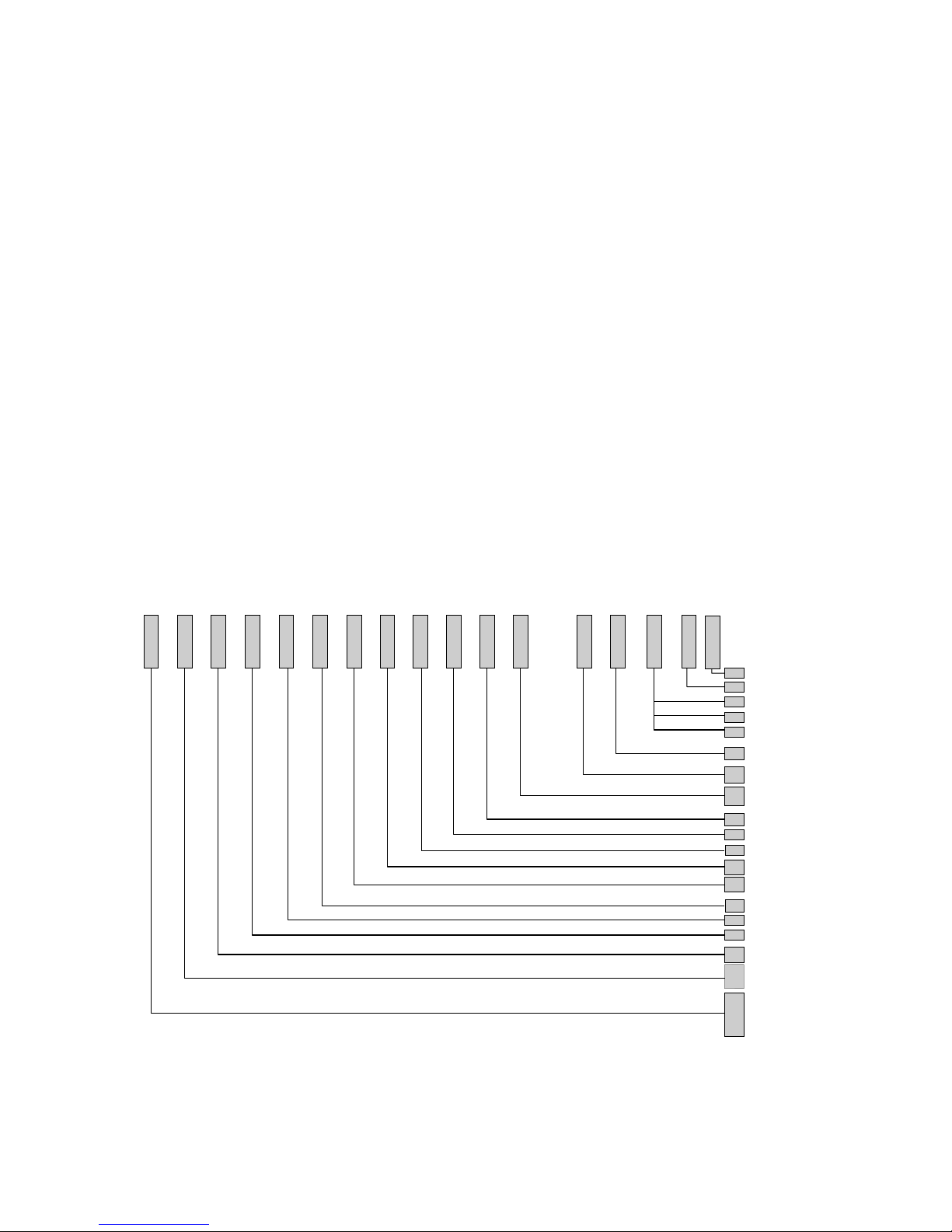

1.2 Device name and product code 17

1.3 Combination options 21

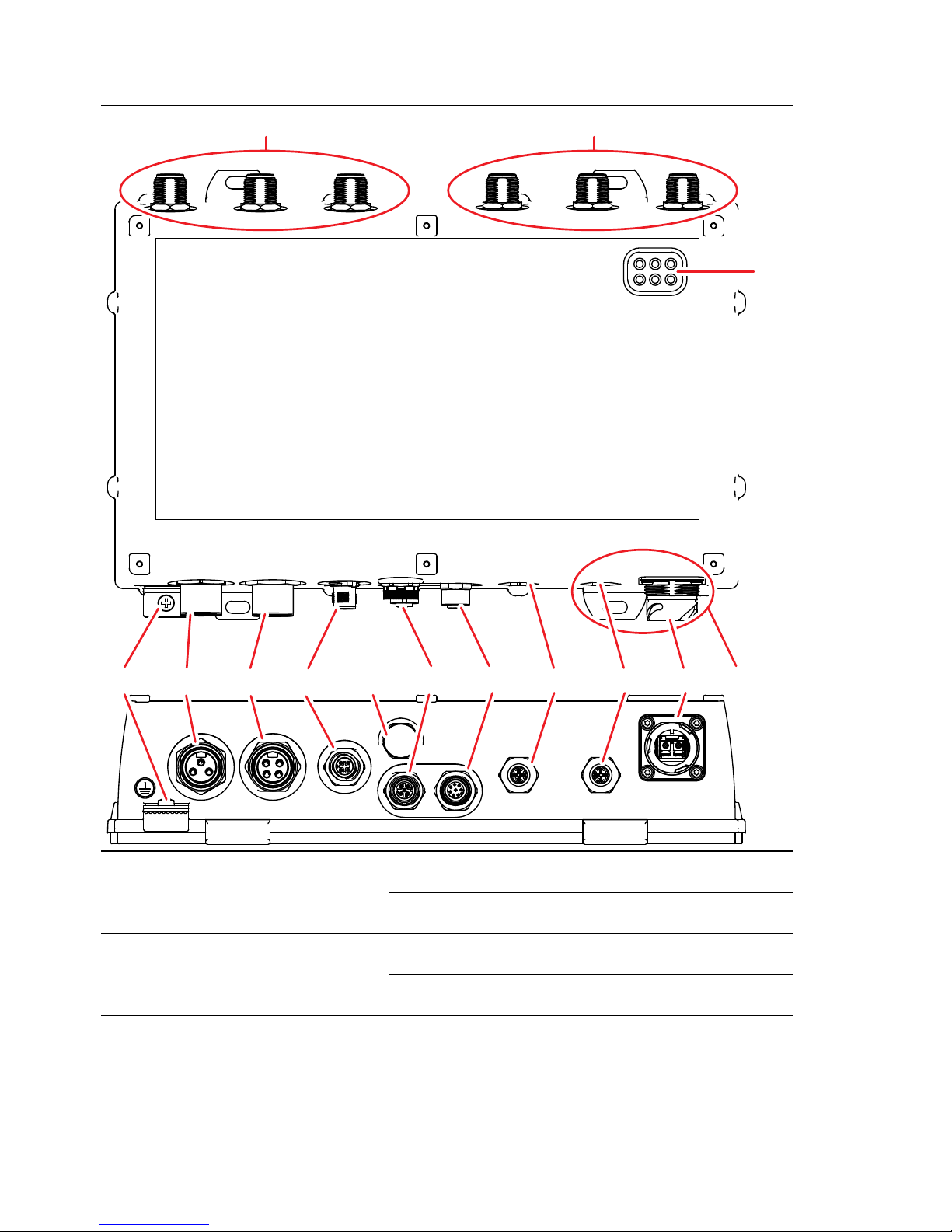

1.4 Device view 22

1.5 Power supply 24

1.5.1 Working voltage with the characteristic value C 24

1.5.2 Working voltage with the characteristic value K 24

1.5.3 Working voltage with the characteristic value P 24

1.5.4 Working voltage with the characteristic value W 24

1.6 Ethernet ports 25

1.6.1 Gigabit combo port 25

1.6.2 10/100/1000 Mbit/s twisted-pair connection (optional) 28

1.7 Connections for antennas 28

1.8 Display elements 29

1.8.1 Meaning of the LEDs 29

1.8.2 Device state 30

1.8.3 Port state 30

1.9 Management interfaces 31

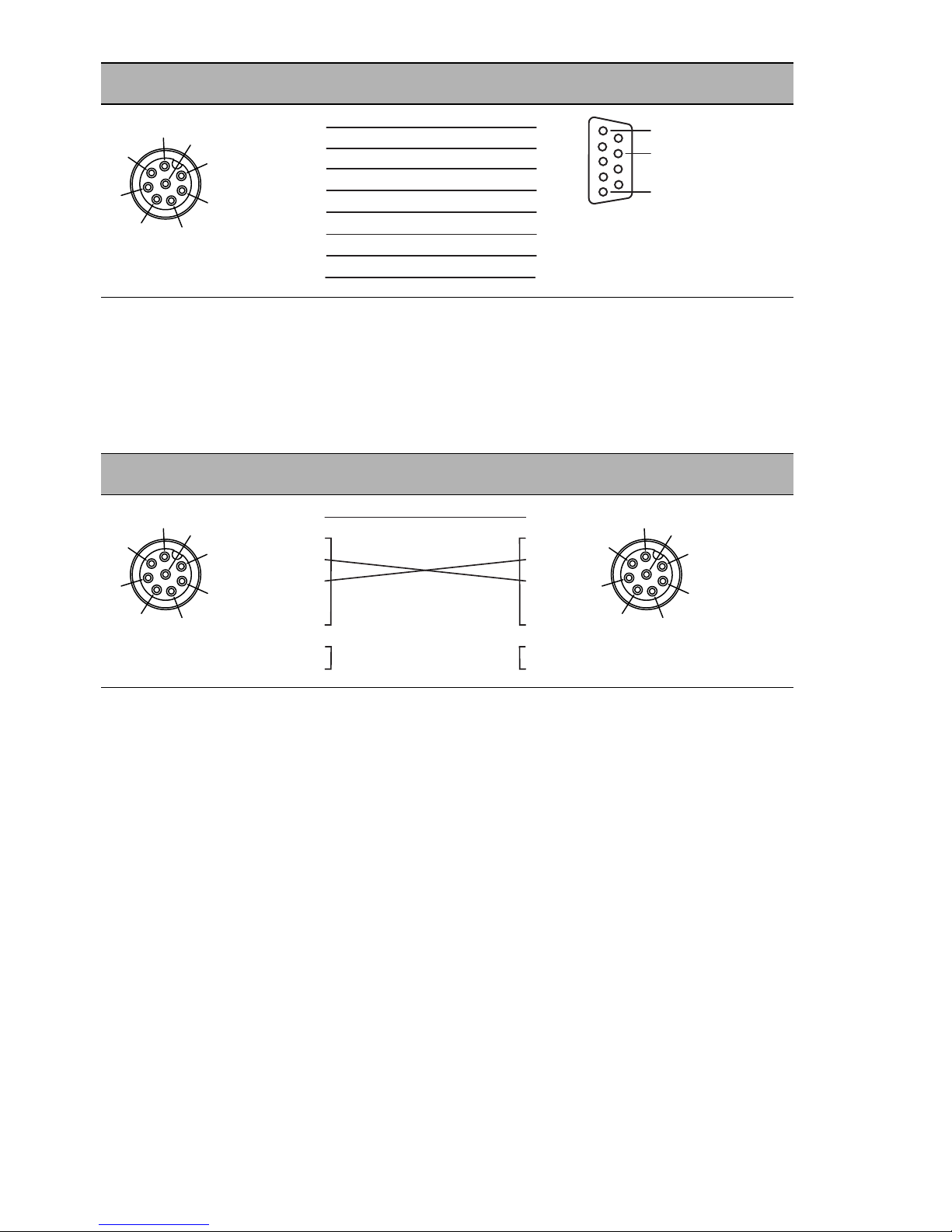

1.9.1 V.24 interface (external management) 31

1.9.2 ACA21-M12 interface 32

1.10 Signal contact 33

1.11 Operation element (reset button) 33

2 Installation 34

2.1 Overview 34

2.2 Unpacking and checking the content of the package 35

2.3 Installing and grounding the device 35

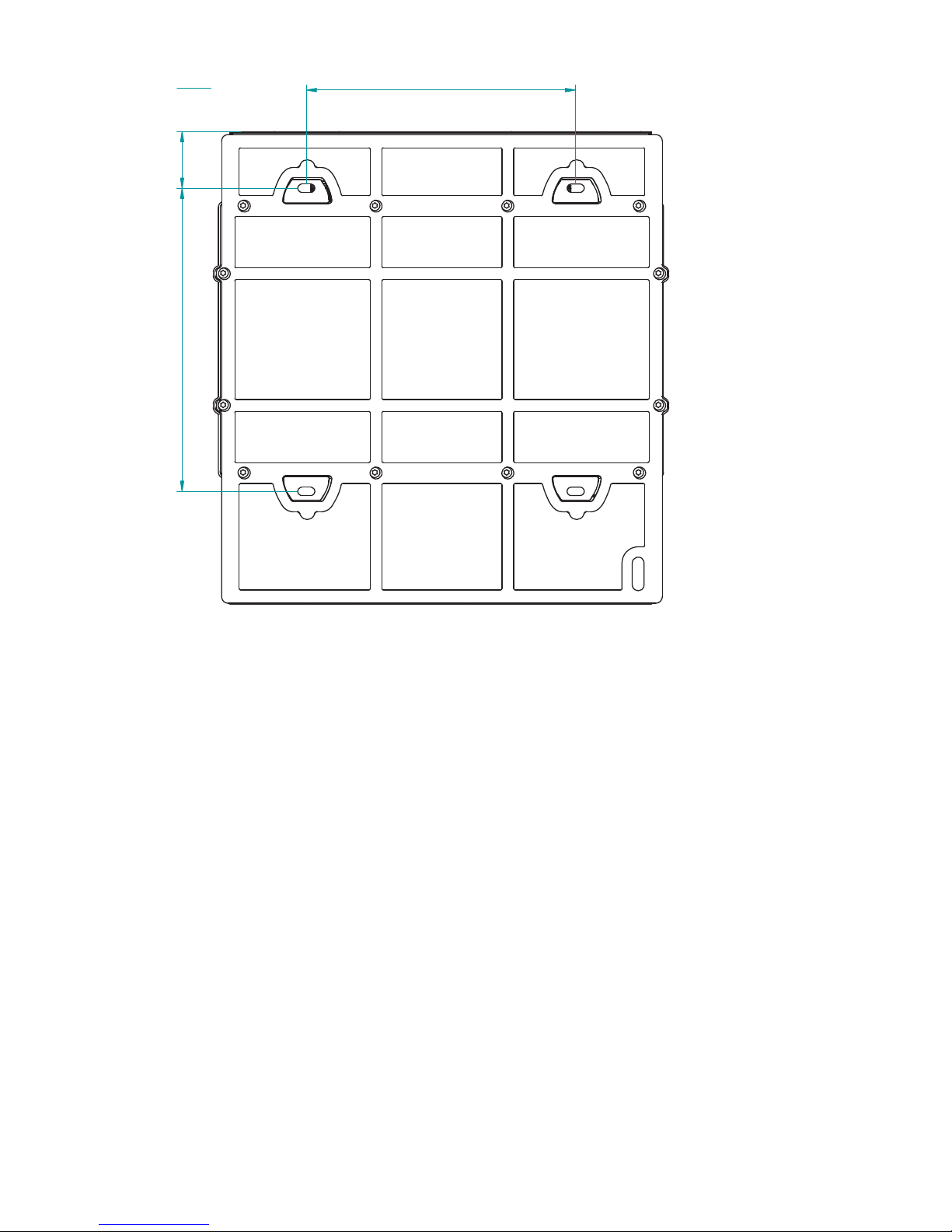

2.3.1 Installing the device onto or on a flat surface 35

2.3.2 Installing the device on a pole 36

2.3.3 Grounding the device 37

4

Installation BAT-F

Release 06 02/2014

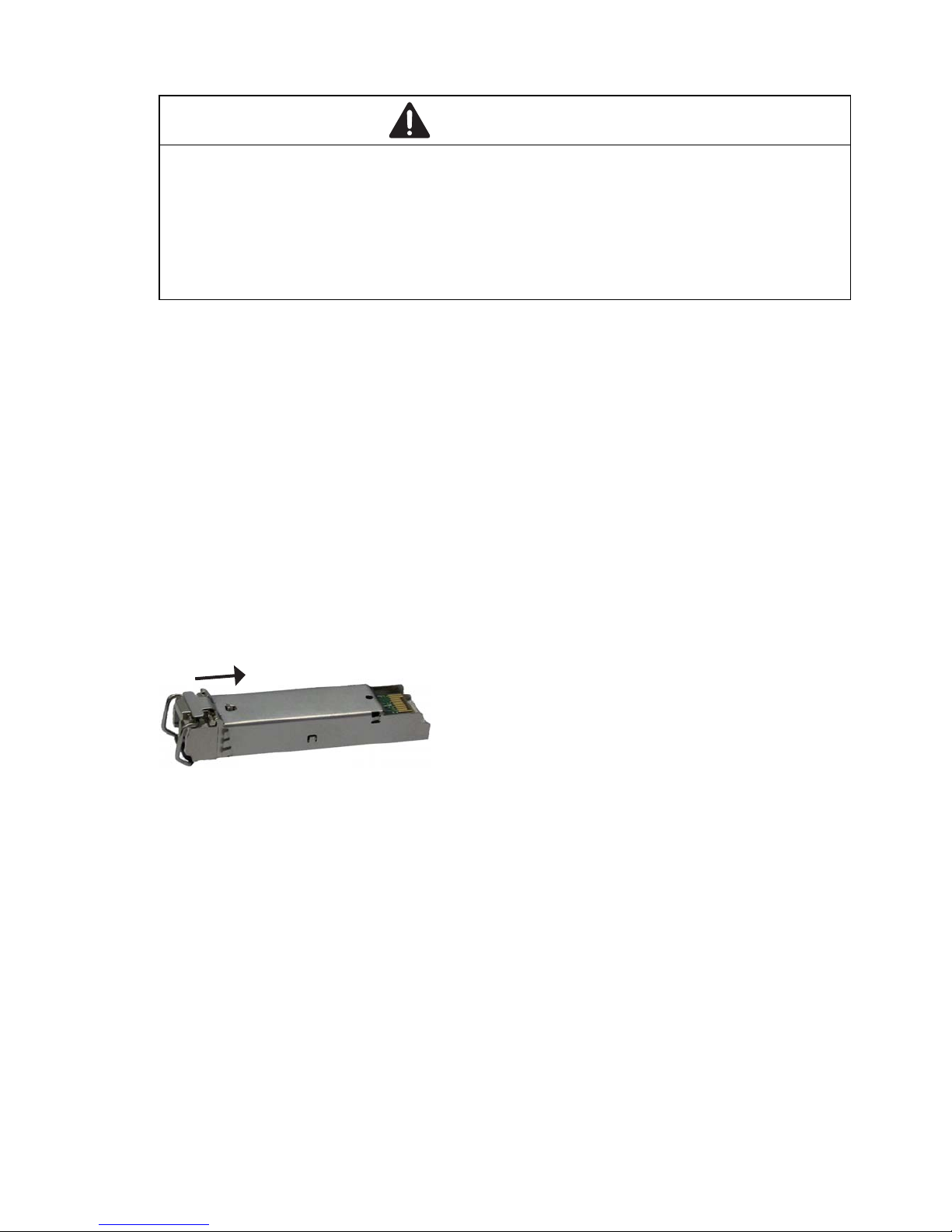

2.4 Installing an SFP transceiver (optional) 37

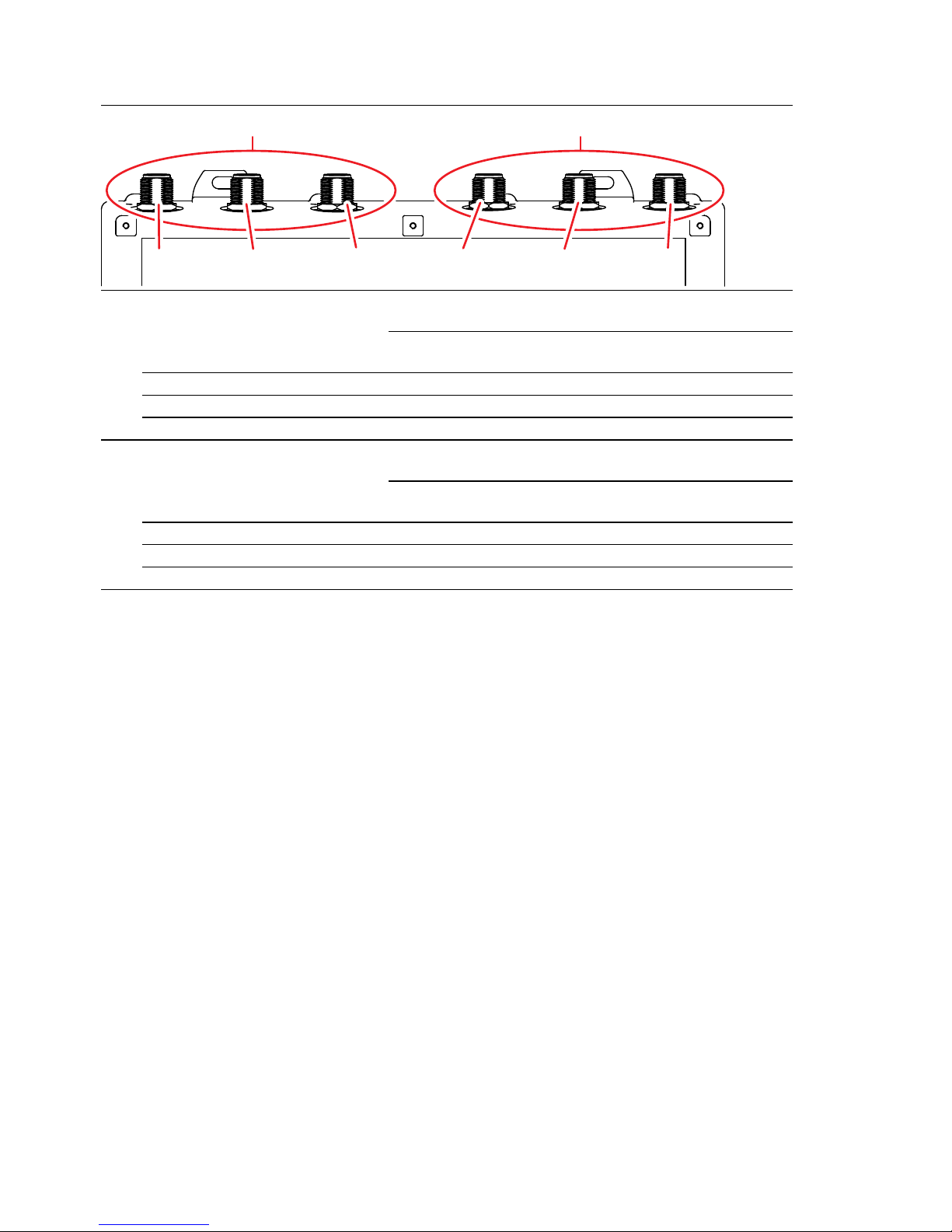

2.5 Installing the antennas 38

2.6 Connecting the power supply and signal lines 39

2.6.1 Working voltage with the characteristic value C 39

2.6.2 Working voltage with the characteristic value K 40

2.6.3 Working voltage with the characteristic value W 41

2.6.4 Signal contact 41

2.7 Operating the device 42

2.7.1 Connecting the power supply through a 7/8"
connector 42

2.7.2 Connecting the power supply through PoE 42

2.8 Connecting data cables 43

2.8.1 Gigabit combo port 43

2.8.2 10/100/1000 Mbit/s twisted-pair connection (optional) 43

3 Configuration 44

3.1 Basic set-up 44

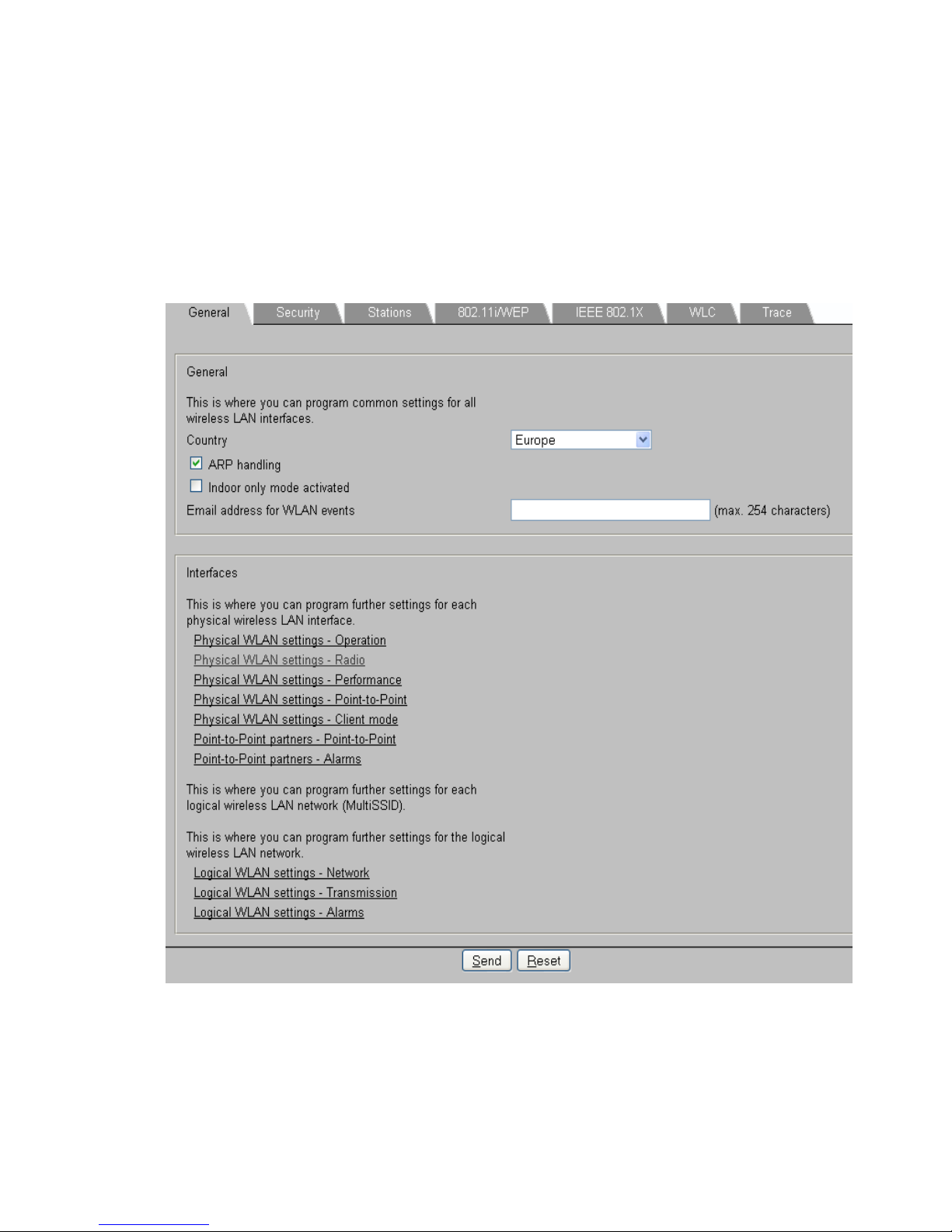

3.2 Configuring antennas 44

4 Operation 47

4.1 Restarting the device (soft reset/reboot) 47

4.2 Resetting the configuration (hard reset) 47

4.3 Loading the configuration 48

5 Maintenance and service 49

6Disassembly 50

6.1 Removing the device 50

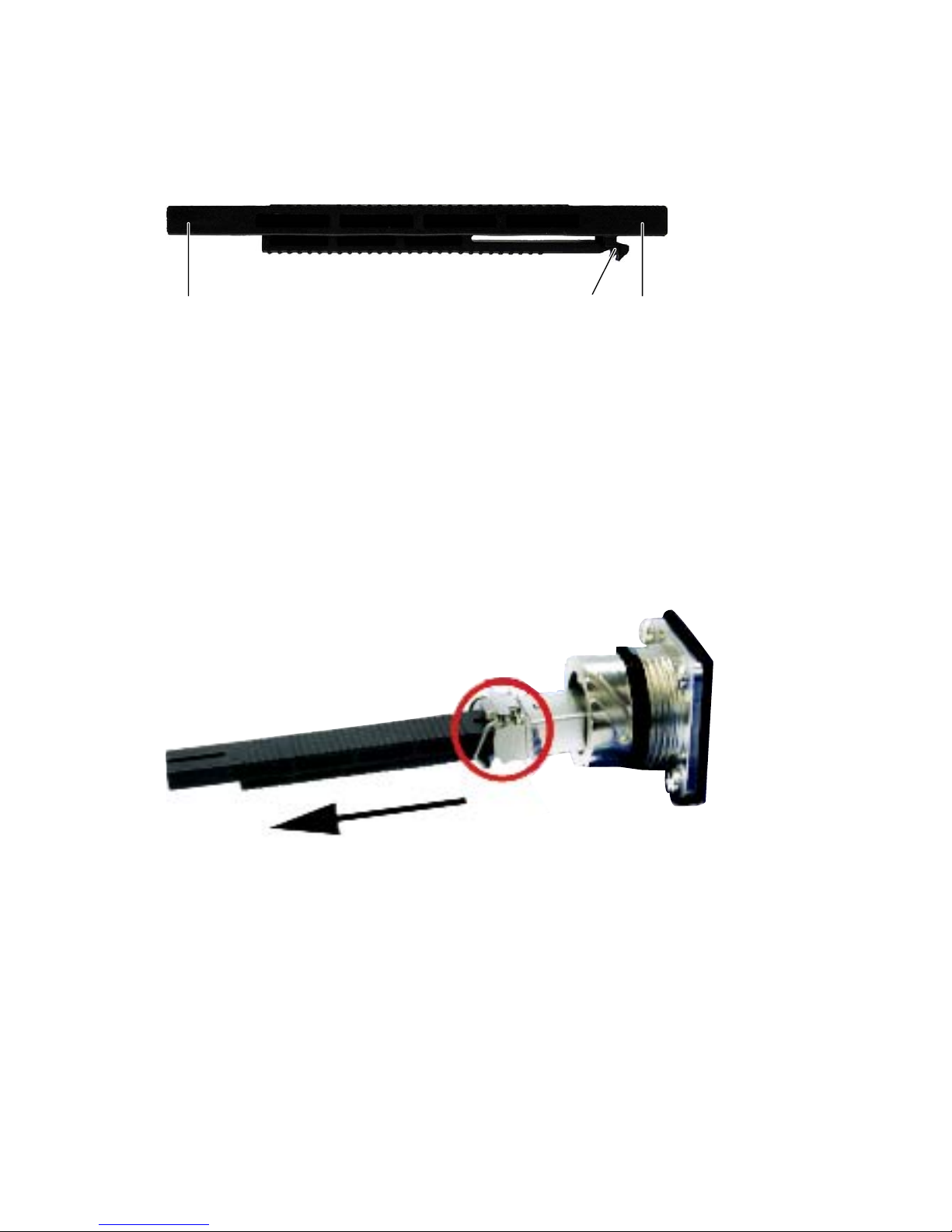

6.2 Removing an SFP transceiver (optional) 51

7 Technical data 52

A Further Support 71

Installation BAT-F

Release 06 02/2014

5

Safety instructions

 General safety instructions

You operate this device with electricity. The proper and safe operation of
this device depends on proper handling during transportation, proper
storage and assembly, and careful operation and maintenance
procedures. Improper usage of the device entails the hazard of physical
injury or significant damage to property.
 Before connecting any cable, read this document, and the safety

instructions and warnings.

 Operate the device with undamaged components exclusively.
 The device is free of any service components. In case of damage or

malfunction of the device, turn off the working voltage and return the
device to Hirschmann for inspection.

 Qualification requirements for personnel

 Allow qualified personnel exclusively to perform any work on the

device.

Qualified personnel are characterized by the following points:

 The qualified personnel are properly trained. Proper training as well as

a practical knowledge and experience constitute the qualification. This
qualification is the requirement to connect, to ground and to label
power circuits, devices, and systems in accordance with current safety
engineering standards.

 The qualified personnel are aware of the hazards associated with his

tasks.

 The qualified personnel know proper measures against such hazards

to minimize the risk for themselves and others.

 The qualified personnel participate in training regularly.

 Intended usage

 Use the product solely for the application cases described in the

Hirschmann product information, including this manual.

 Operate the product solely according to the technical specifications.

See “Technical data” on page 52.

 Connect to the product solely components suitable for the

requirements of the specific application case.

 Grounding the device

Grounding the device is by means of a separate ground connection on the
device.

 Ground the device before connecting any other cables.
 Disconnect the grounding solely after disconnecting all other cables.

6

Installation BAT-F

Release 06 02/2014

The overall shield of a connected shielded twisted-pair cable is connected
to the metal housing as a conductor.

 Working voltage

The working voltage is electrically isolated from the housing.
 Connect solely an working voltage that corresponds to the type plate

of your device.

 Solely for device variants featuring working voltage with the

characteristic value K:

See “Device name and product code” on page 17.

Always before connecting the electrical wires, verify that all of the
following requirements are met:

 The power supply conforms to overvoltage category I or II.
 The voltage supply has an easily accessible disconnecting device

(e.g. a switch or a plug). This disconnecting device is clearly
identified. So in the case of an emergency, it is clear which
disconnecting device belongs to which line.

 The electrical wires are voltage-free.
 Supply with AC voltage:

A fuse is located in the outer conductor of the power supply.
The neutral conductor is on ground potential. Otherwise, a fuse is
also located in the neutral conductor.
Regarding the properties of this fuse: See “General technical data”

on page 52.

 Supply with DC voltage:

A fuse suitable for DC voltage is located in the plus conductor of the
power supply.
The minus conductor is on ground potential. Otherwise, a fuse is
also located in the minus conductor.
Regarding the properties of this fuse: See “General technical data”

on page 52.

 Supply with AC voltage:

The wire diameter of the power supply cable is at least 0.75 mm²
(North America: AWG18) on the working voltage input.

 Supply with DC voltage:

The wire diameter of the power supply cable is at least 1 mm²
(North America: AWG16) on the working voltage input.

 The cross-section of the protective conductor is the same size as

or bigger than the cross-section of the power supply cables.

 The power supply cables used are permitted for the temperature

range required by the use case.

 Relevant for North America:

The power cords are suitable for ambient air temperatures of at
least 167 °F (75 °C). The power cord wires are made of copper.

Installation BAT-F

Release 06 02/2014

7

Start connecting the electrical wires solely if all the above
requirements are fulfilled.

 Solely for device variants featuring working voltage with the

characteristic value C or W:

See “Device name and product code” on page 17.

Always before connecting the electrical wires, verify that all of the
following requirements are met:

 The power supply conforms to overvoltage category I or II.
 The power supply is Class 2 compliant.
 The working voltage inputs are designed for operation with safety

extra-low voltage. Connect solely SELV circuits with voltage
restrictions in line with IEC/EN 60950-1 to the working voltage
connections.

 The voltage supply has an easily accessible disconnecting device

(e.g. a switch or a plug). This disconnecting device is clearly
identified. So in the case of an emergency, it is clear which
disconnecting device belongs to which line.

 The electrical wires are voltage-free.
 A fuse suitable for DC voltage is located in the plus conductor of the

power supply.
The minus conductor is on ground potential. Otherwise, a fuse is
also located in the minus conductor.
Regarding the properties of this fuse: See “General technical data”

on page 52.

 The wire diameter of the power supply cable is at least 1 mm²

(North America: AWG16) on the working voltage input.

 The cross-section of the protective conductor is the same size as

or bigger than the cross-section of the power supply cables.

 The power supply cables used are permitted for the temperature

range required by the use case.

 Relevant for North America:

The power cords are suitable for ambient air temperatures of at
least 167 °F (75 °C). The power cord wires are made of copper.

Start connecting the electrical wires solely if all the above
requirements are fulfilled.

 Use undamaged parts.
 Internal fuses are triggered solely in the case of a detected error in the

device. In case of damage or malfunction of the device, turn off the
working voltage and return the device to the plant for inspection.

8

Installation BAT-F

Release 06 02/2014

 Housing

Only technicians authorized by the manufacturer are permitted to open
the housing.
 Install the device in the vertical position, with the antenna connections

pointing upwards..

 At ambient temperatures > 140 °F (60 °C):

The surfaces of the device housing may become hot. Avoid touching
the device while it is operating.

 Installation site requirements

If all the following requirements are fulfilled, you have the option of
installing the device in the indoor operator access area (characteristic
value A for mounting).

See “Device name and product code” on page 17.

 You supply 24 V DC to 48 V DC SELV voltage to the device.
 You install the device inside a building.
 The surrounding air temperature is ≤ 140 °F (60 °C).
 Applies exclusively for Finland, Norway, and Sweden:

You supply Power over Ethernet (PoE) to the device, with the PoE
data cable laid inside a building exclusively.

 In any case, install this device in a switch cabinet or in an operating

site with restricted access, to which maintenance staff have exclusive
access if 1 of the following requirements is fulfilled:

 You supply 60 V DC to 250 V DC or 110 V AC to 230 V AC to the

device.

 You install the device outside a building.
 The surrounding air temperature is > 140 °F (60 °C).
 Applies exclusively for Finland, Norway, and Sweden:

You supply Power over Ethernet (PoE) to the device, with the PoE
data cable laid outside a building or between buildings.

 Applies to device variants with the characteristic value B and D for

mounting (indoor service access area, and outdoors):

See “Device name and product code” on page 17.

Install this device solely in a switch cabinet or in an operating site with
restricted access, to which maintenance staff have exclusive access.

 Lightning protection

 See the information in the “WLAN Outdoor Guide”, chapter “Lightening

and Surge Voltage Protection”.

 Install over voltage protector devices on every outdoor Ethernet cable.

Installation BAT-F

Release 06 02/2014

9

 Protect antennas installed outside with lightening protection devices

(e.g. lightening conductors).

 Take lightening protection measures which mitigate the effects of

lightning strikes.

 The installation of the device occurs in accordance with valid

standards (such as VDE 0185 and IEC 62305), and in accordance
with the lightening protection procedures recognized and proven for
the application and the environment.

 Operating conditions

 When installing external antennas, adhere to the regulations of the

country in which you are operating the WLAN device.

 Solely connect components to the device which meet the IP degree of

protection requirements for the application case.

 Solely connect components to the device which are suitable for the

ambient air temperature of the application case.

 National and international safety regulations

 Verify that the electrical installation meets local or nationally applicable

safety regulations.

 CE marking

The labeled devices comply with the regulations contained in the following
European directive(s):

2011/65/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.

1999/5/EC (R&TTE)
Directive of the European Parliament and the council for radio
installations and telecommunication systems and for the mutual
recognition of their conformity.
This directive also contains the goals of directive 2004/108/EC of the
European Parliament and the council for standardizing the regulations of
member states relating to electromagnetic compatibility, and directive
2006/95/EC of the European Parliament and the council for standardizing
the regulations of member states relating to electrical equipment to be
used within specific voltage ranges, but without applying the lower voltage
threshold.

This product may be operated in all EU (European Union)

countries under the condition that it has been configured correctly.

10

Installation BAT-F

Release 06 02/2014

In accordance with the above-named EU directive(s), the EU conformity
declaration will be at the disposal of the relevant authorities at the
following address:

Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]

The product can be used in living areas (living area, place of business,
small business) and in industrial areas.

 E marking

The labeled devices comply with the regulations contained in the following
European directive(s):

Rule No. 10 of the Economic Commission for Europe (ECE): Devices with
an approval are labeled with the E type-approval mark.

The optical transceivers M-SFP-SX/LC EEC und M-SFP-LX/LC EEC can
be used (relevant for devices with certificates characteristic value M).
Devices featuring working voltage with the characteristic value C are not
specified for operation during the motor start phase.

 LED or laser components

LED or LASER components according to IEC 60825-1 (2007):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT

 FCC note:

This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:

 This device may not cause harmful interference, and
 This device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio

Installation BAT-F

Release 06 02/2014

11

communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the holder of the
certificate could void the user’s authority to operate this equipment.

Important note:

The following section applies to BAT-F variants with the characteristic
value US (USA/Canada) for country approvals which are labeled as
follows:

Contains Transmitter Module
FCC ID: U99EWLAN1
IC: 4019A-EWLAN1

This equipment complies with FCC and IC RSS-102 radiation exposure
limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance of 19.7 inches (50 cm)
(related to a 9 dBi antenna) between the radiator and your body.

The antenna used for this transmitter must not be co-located with any
other transmitters within a host device, except in accordance with FCC
multi-transmitter product procedures.

This transmitter is restricted to indoor use only within the 5.15-5.25 GHz
band to reduce potential for harmful interference to co-channel mobile
satellite systems.

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.

To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated
power (EIRP) is not more than that permitted for successful
communication.

This device has been designed to operate with the antennas listed below
in point-to-multipoint systems, and having a maximum gain of 9 dBi:

12

Installation BAT-F

Release 06 02/2014

Antennas not included in this list are strictly prohibited for use with this
device. The required antenna impedance is 50 ohms.

Note (1): When using 3 antennas type BAT-ANT-RSMA-2AGN-R, you
must align each antenna in another spatial direction (x-y-z) so that one
antenna is arranged vertically to the device and the other two antennas
are arranged at right angles to each other.

Important note:

The following section applies to BAT-F variants with the characteristic
value US (USA/Canada) for country approvals which are labeled as
follows:

Contains Transmitter Module
FCC ID: U99EWLAN2
IC: 4019A-EWLAN2

This equipment complies with FCC and IC RSS-102 radiation exposure
limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance of 19.7 inches (50 cm)
(related to a 18 dBi antenna) between the radiator and your body.

The antenna used for this transmitter must not be co-located with any
other transmitters within a host device, except in accordance with FCC
multi-transmitter product procedures.

This transmitter is restricted to indoor use only within the 5.15-5.25 GHz
band to reduce potential for harmful interference to co-channel mobile
satellite systems.

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.

To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated
power (EIRP) is not more than that permitted for successful
communication.

This device has been designed to operate with the antennas listed below
having a maximum gain of 18 dBi:

Antennas operating with this device
model:

Permitted band of operation

2.4 GHz band 5.15 GHz ...

5.25 GHz band

5.725 GHz ...

5.825 GHz band

BAT-ANT-RSMA-2AGN-R

(1)

Yes Yes Yes
BAT-ANT-N-3AGN-IP67 Yes Yes Yes
BAT-ANT-N-MiMoDB-5N-IP65 Yes Yes Yes
BAT-ANT-N-MiMo5-9N-IP65 No Yes Yes
BAT-ANT-N-8G-DS-IP65 Yes No No

Installation BAT-F

Release 06 02/2014

13

Antennas not included in this list are strictly prohibited for use with this
device. The required antenna impedance is 50 ohms.

Note (1): When using 3 antennas type BAT-ANT-RSMA-2AGN-R, you
must align each antenna in another spatial direction (x-y-z) so that one
antenna is arranged vertically to the device and the other two antennas
are arranged at right angles to each other.

Connect the BAT-ANT-N-MiMo-18N-IP65 to the WLAN module as
follows:

 Connect the antenna port "Ver" with the WLAN antenna port 1.
 Connect the antenna port "+45°" with the WLAN antenna port 2.
 Connect the antenna port "−45°" with the WLAN antenna port 3.

 Connect the BAT-ANT-N-MiMo-18N-IP65 in this way exclusively.

Other connection combinations are not permitted.

 Japan note

This note applies to BAT-F variants with the characteristic value JP
(Japan) for country approvals which are labeled as follows:

 "Contains MIC ID: 204-310014"
 "5GHz band: この製品は屋内においてのみ使用可能です "

Devices with the characteristic value JP for country approvals are suitable
for usage with the following antennas:

Antennas operating with this device
model:

Permitted band of operation

2.4 GHz band 5.15 GHz ...

5.25 GHz band

5.725 GHz ...

5.825 GHz band

BAT-ANT-RSMA-2AGN-R

(1)

Yes Yes Yes
BAT-ANT-N-3AGN-IP67 Yes Yes Yes
BAT-ANT-N-MiMoDB-5N-IP65 Yes Yes Yes
BAT-ANT-N-MiMo5-9N-IP65 No Yes Yes
BAT-ANT-N-8G-DS-IP65 Yes No No
BAT-ANT-N-MiMo-18N-IP65

(2)

No No Yes

Antennas for operation with this device: Permissible frequency bands

2.4 GHz band 5 GHz band
BAT-ANT-N-3AGN-IP67 Yes Yes
BAT-ANT-RSMA-2AGN-R Yes Yes
BAT-ANT-6ABG-IP65 Yes Yes
BAT-ANT-N-MiMoDB-5N-IP65 Yes Yes
BAT-ANT-N-8G-DS-IP65 Yes No
BAT-ANT-N-9A-DS-IP65 No Yes
BAT-ANT-N-6G-IP65 Yes No
BAT-ANT-N-5A-IP65 No Yes
BAT-ANT-N-MiMo-9N-IP65 No Yes

14

Installation BAT-F

Release 06 02/2014

The usage of antennas missing in this list is prohibited. The 5 GHz band
is restricted to indoor usage.

 Recycling note

After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.

Installation BAT-F

Release 06 02/2014

15

About this manual

The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.
You will find additional documents as PDF files on the enclosed CD/DVD.

The Industrial HiVision Network Management Software provides you with
additional options for smooth configuration and monitoring:

 ActiveX control for SCADA integration
 Auto-topology discovery
 Browser interface
 Client/server structure
 Event handling
 Event log
 Simultaneous configuration of multiple devices
 Graphical user interface with network layout
 SNMP/OPC gateway.

Key

The symbols used in this manual have the following meanings:

 Listing

 Work step



Subheading

16

Installation BAT-F

Release 06 02/2014

1 Description

1.1 General description

The devices allow you to set up WLANs (Wireless Local Area Networks) in a
local network. In contrast to a conventional network connection through
copper cables and fiber optic cables, some of the communication is
performed by means of a radio link.

The devices allow you to install a new LAN or expand an existing LAN.
Thanks to their high level of flexibility, the OpenBAT device is suitable for a
wide range of applications. Anywhere that high bandwidths, stable operation
and network security is required, WLAN with these devices provides the ideal
solution.

The devices are dual-band industrial high-performance wireless LAN access
points or clients complying with IEEE 802.11a/b/g/h and 802.11n. They
provide a high radio output with a bandwidth of up to 450 Mbit/s. The devices
support MIMO (Multiple Input Multiple Output) and Multipath. The bandwidth
is increased by using the multipath transmission by means of reflections.
Each WLAN module has 3 antennas for sending and receiving, to ensure
stable network coverage with few shadow areas.

You can choose from between a wide range of variants. You have the option
to set up your device individually based on different criteria:

 Access point or client
 Number of WLAN modules
 Number of ports
 Working voltage range
 Installation area
 Software options
 Temperature range

The BAT-F devices are designed for the special requirements of industrial
automation. They meet the relevant industry standards, provide very high
operational reliability, even under extreme conditions, and also long-term
reliability and flexibility.

The devices work without a fan.

The devices comply with the degrees of protection IP65/67.

Installation BAT-F

Release 06 02/2014

17

The following installation options are available:

 Installing the device on a flat surface

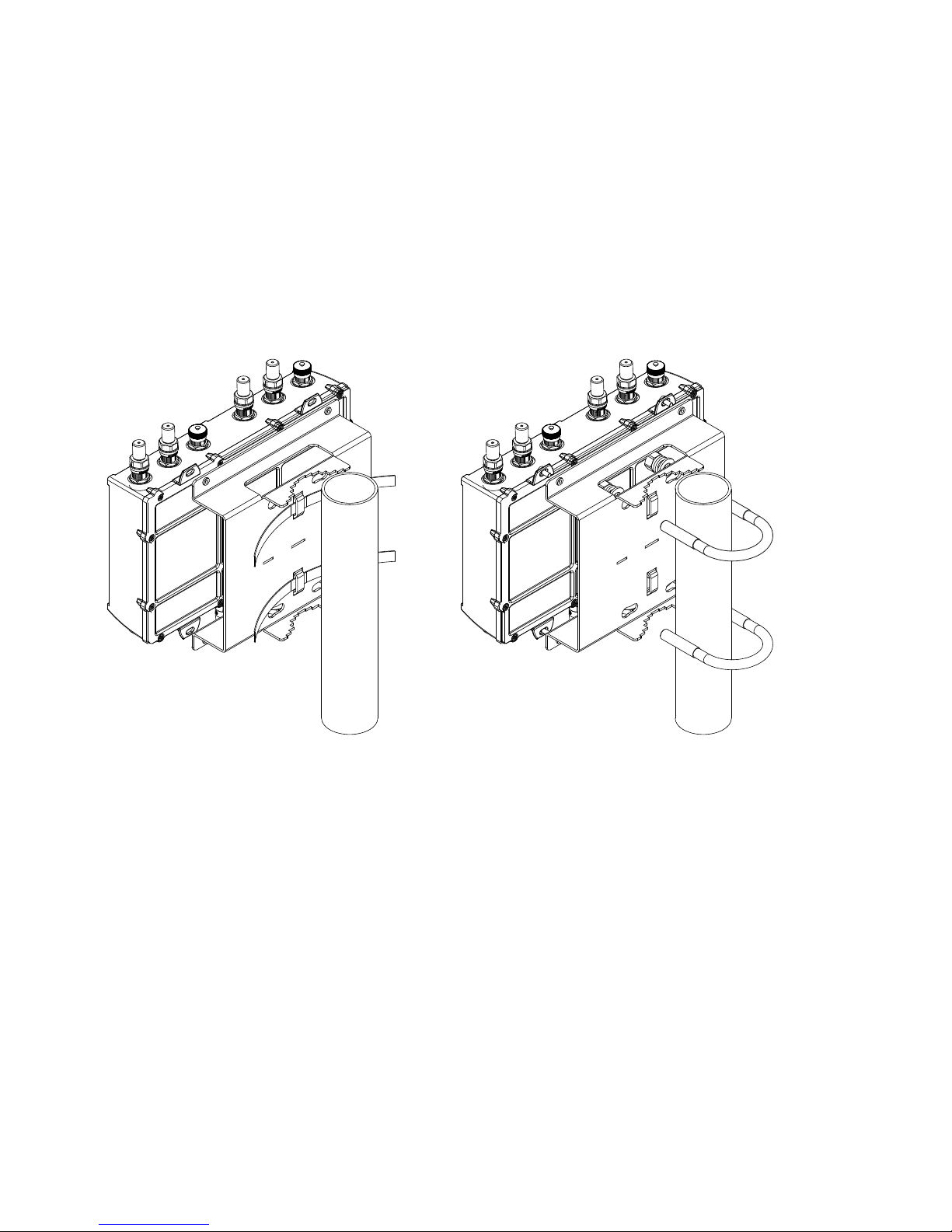

 Mounting on a pole

You have the option of choosing various media to connect to the terminal
devices and other network components:

 twisted pair cable
 multimode F/O
 singlemode F/O

There are convenient options for managing the device. Administer your
devices via:

 a Web browser
 SSH
 Telnet
 HiDiscovery (Software for putting the device into operation)
 management software (e.g. Industrial HiVision, LANconfig/LANmonitor)
 a V.24 interface (locally on the device)

The devices provide you with a large range of functions, which the manuals
for the operating software inform you about. You will find these manuals as
PDF files on the enclosed CD/DVD, or you can download them from the
Internet on the Hirschmann product pages (www.hirschmann.com).
The Hirschmann network components help you ensure continuous
communication across all levels of the company.

1.2 Device name and product code

The device name corresponds to the product code. The product code is
made up of characteristics with defined positions. The characteristic values
stand for specific product properties.

Item Product characteristic Characteri

stic value

Description

1 ... 5 Devices of the OpenBAT

family

BAT-F IP65/67 housing

6 ... 7 Country approvals AU Australia

EU Europe (CE)
JP Japan
SG Singapore

US United States/Canada (FCC/ICC)
8Slot 1 WWLAN module
9Slot 2 WWLAN module

9 Not assembled
10 Slot 3 9 Not assembled

Table 1: Device name and product code

18

Installation BAT-F

Release 06 02/2014

11 Access point or client A Access Point

C Client

12 Working voltage 1 C Power supply solely through a 7/8"

connector
Rated voltage range DC

24 V ... 48 V

K Power supply solely through a 7/8"

connector
Rated voltage range DC

60 V ... 250 V
Rated voltage range AC

110 V ... 230 V, 50 Hz ... 60 Hz
P Power supply solely through PoE
W Power supply through a 7/8" connector or

PoE

Nominal voltage DC

24 V

13 Working voltage 2 C Power supply solely through a 7/8"

connector

Rated voltage range DC

24 V ... 48 V
K Power supply solely through a 7/8"

connector

Rated voltage range DC

60 V ... 250 V

Rated voltage range AC

110 V ... 230 V, 50 Hz ... 60 Hz
W Power supply through a 7/8" connector or

PoE

Nominal voltage DC

24 V
9 Not present

14 Approvals 1 I Substation applications (EN 61850)

K Rail applications (EN 50155)
M Motor vehicles applications (E type

approval indicator, ECE No. 10)
9 No additional approvals

15 Approvals 2 H High-Gain Antenna Version

M Motor vehicles applications (E type

approval indicator, ECE No. 10)
9 No additional approvals

16 Mounting A Indoor operator access area

a

B Indoor service access area

b

Item Product characteristic Characteri

stic value

Description

Table 1: Device name and product code

Installation BAT-F

Release 06 02/2014

19

17 ... 18 Ethernet port 1 O5 Combo port – you can use these ports for

alternative purposes:

 alternatively, depending on device

variant

 Power supply unit characteristic

value C and K:
8-pin, X-coded M12 plug for
10/100/1000 Mbit/s twisted-pair
port

 Power supply unit characteristic

value P and W:
8-pin, X-coded M12 plug for
10/100/1000 Mbit/s PoE PD port

 SFP slot for 1000 Mbit/s F/O port

Design: IP67-V1 connector according
to IEC 61076-3-106, variant 1

19 ... 20 Ethernet port 2 T6 8-pin, X-coded M12 plug for 10/100/1000

Mbit/s twisted-pair port

99 Not present

21 Temperature range E Extended with conformal coating

−40 °F ... +158 °F (−40 °C ... +70 °C)

S Standard

0 °C ... +60 °C (+32 °F ... +140 °F)

T Extended

−40 °F ... +158 °F (−40 °C ... +70 °C)

22 Software option 1 A VPN-5

BVPN-50
C VPN-100

9 Not present
23 Software option 2 9 Not present
24 Software option 3 D Public Spot

9 Not present
25 Configuration Z Equipment package

9 Hirschmann standard
26 Device model H Hirschmann standard

a. Location for which one of the following conditions apply when one operates it correctly:

- The area is accessible without tools.

- The person responsible for the area has provided access for the operator intentionally.

- The operator knows of the access possibilities, regardless of whether they need a tool.

b. Location outside the operator area to which the service personnel has access, even when

the device is switched on.

Item Product characteristic Characteri

stic value

Description

Table 1: Device name and product code

20

Installation BAT-F

Release 06 02/2014

Figure 1: Example of a device name:

BAT-FEUW99AWW99DO5T6E9999H

,WHP




%$7)

:

(8

$

(2























'HYLFHIDPLO\

%$7)

)HDWXUH

&RXQWU\DSSURYDO

(XURSH

6ORW

:/$1PRGXOH

6ORW

HPSW\

6ORW

HPSW\

$FFHVVSRLQWRUFOLHQW

$FFHVVSRLQW

2SHUDWLQJYROWDJH

1RPLQDOYROWDJH'&9

2SHUDWLQJYROWDJH

1RPLQDOYROWDJH'&9

&HUWLILFDWLRQV

QRIXUWKHUFHUWLILFDWLRQV

&HUWLILFDWLRQV

QRIXUWKHUFHUWLILFDWLRQV

,QVWDOODWLRQ

2XWGRRUV



(WKHUQHWSRUW

SLQ;FRGHG0SOXJIRU0ELWVWZLVWHGSDLUSRUW



(WKHUQHWSRUW

&RPERSRUW±\RXFDQXVHWKHVHSRUWVIRUDOWHUQDWLYHSXUSRVHV

SLQ;FRGHG0SOXJIRU0ELWVWZLVWHGSDLUSRUW

6)3VORWIRU0ELWV)2FRQQHFWLRQVXLWDEOHIRU,3

7

7HPSHUDWXUHUDQJH

([WHQGHG±&WR&

::

'

  



6RIWZDUHRSWLRQV

1RWSUHVHQW





+





&RQILJXUDWLRQ+LUVFKPDQQVWDQGDUG

'HYLFHPRGHO+LUVFKPDQQVWDQGDUG

Installation BAT-F

Release

06

02/2014

21

1.3 Combination options

Product characteristic

Model

Country approvals

Slots 1 to 3

Access point or client

Working voltage 1 and 2

Approvals 1:

Approvals 2:

Mounting

Ethernet port 1

Ethernet port 2

Temperature range

Software options 1 to 3

Configuration

Device model

Item 1 ... 5 6 ... 7 8 ... 10 11 12 ... 13 14 15 16 17 ... 18 19 ... 20 21 22 23 24 25 26

Attribute
values

BAT-F AU; EU; JP;

SG; US

W99 A; C WW I; 9 H; 9 A; B O5 T6; 99 E; S; T A; B;

C; 9

9D; 9Z; 9H

BAT-F AU; EU; JP;

SG; US

W99 A; C WW K H; 9 A; B O5 T6; 99 E A; B;

C; 9

9D; 9Z; 9H

BAT-F AU; EU; JP;

SG; US

W99 A; C P9 I; 9 H; 9 A; B O5 T6; 99 E; S; T A; B;

C; 9

9D; 9Z; 9H

BAT-F AU; EU; JP;

SG; US

W99 A; C P9 K H; 9 A; B O5 T6; 99 E A; B;

C; 9

9D; 9Z; 9H

BAT-F AU; EU; JP;

SG; US

WW9; W99 A; C CC I; 9 H; 9 A; B O5 T6; 99 E; S; T A; B;

C; 9

9D; 9Z; 9H

BAT-F AU; EU; JP;

SG; US

WW9; W99 A; C KC; KK I; 9 H; 9 B O5 T6; 99 E; S; T A; B;

C; 9

9D; 9Z; 9H

Table 2: Combination options of the BAT-F device variants

22

Installation BAT-F

Release 06 02/2014

1.4 Device view

1 alternatively, depending on

device variant

For device variants with 2 WLAN modules:
3 × N socket for WLAN module 1

For device variants with 1 WLAN module:
Not present

2 alternatively, depending on

device variant

For device variants with 2 WLAN modules:
3 × N socket for WLAN module 2

For device variants with 1 WLAN module:
3 × N socket for WLAN module 1

3 LED display elements

Table 3: Front view (using the example BAT-FEUWW9ACK99DO5T1SA99)

12

3

12 11 10 9 8 7 6 5 4b 4a 4

Installation BAT-F

Release 06 02/2014

23

4 Ethernet port 1

Combo port – you can use these ports for alternative purposes:
4a SFP slot for 1000 Mbit/s F/O port

Design: IP67-V1 connector according to IEC 61076-3-106, variant 1

4b alternatively, depending on

device variant

Power supply unit characteristic value C and K:
8-pin, X-coded M12 plug for 10/100/1000 Mbit/s
twisted-pair port

Power supply unit characteristic value P and W:
8-pin, X-coded M12 plug for 10/100/1000 Mbit/s PoE
PD port

5 Optional:

Ethernet port 2

8-pin, X-coded M12 plug for 10/100/1000 Mbit/s

twisted-pair port
6 8-pin, A-coded M12 plug for V.24 access

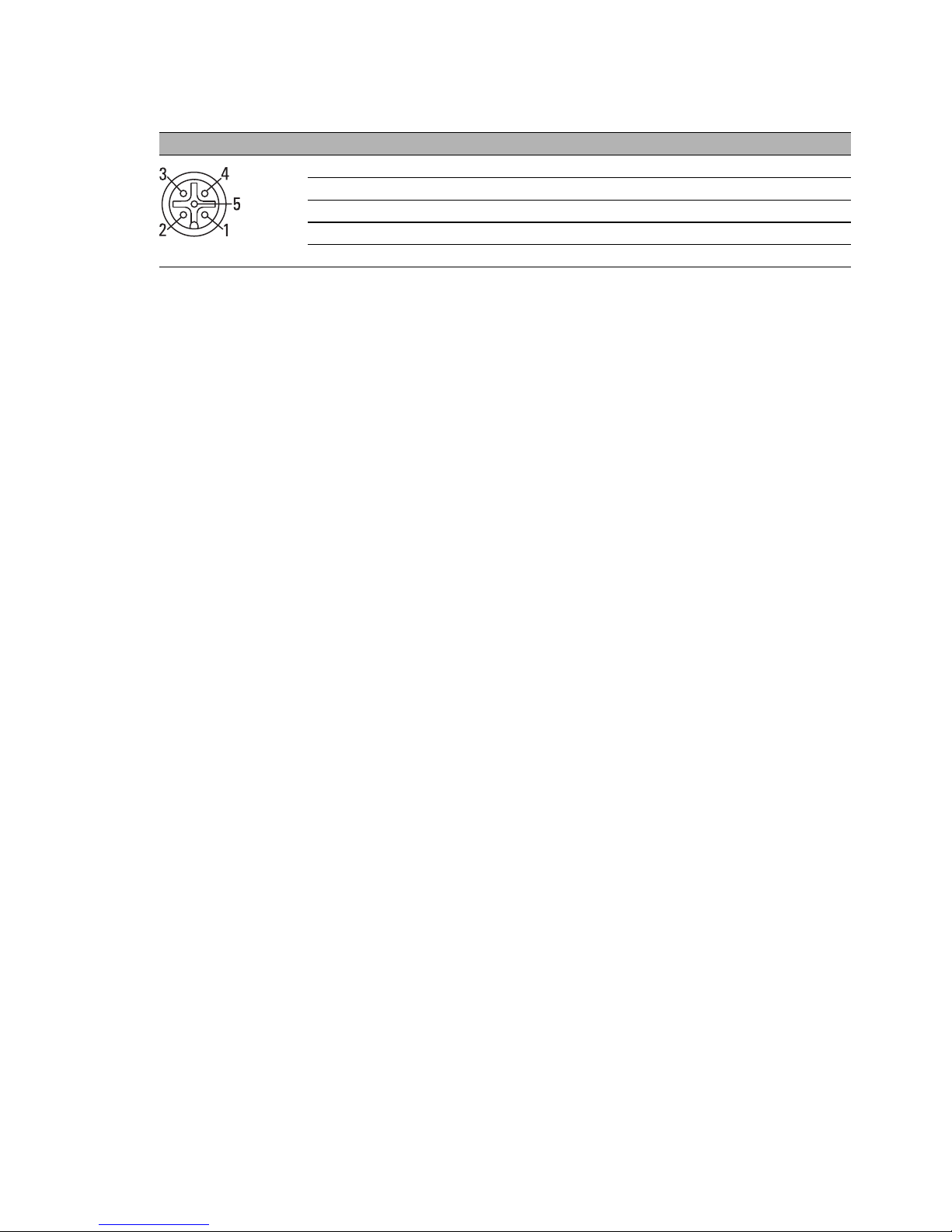

7 5-pin, A-coded M12 plug for ACA21-M12 interface
8 alternatively, depending on

device variant

Installation characteristic value D:

The reset button below a screwable IP67 pressure

compensating cap

Installation characteristic value A and B:

The reset button below a screwable IP67 protective cap
9 Solely for device variants featuring working voltage with the characteristic value C, K

or W:

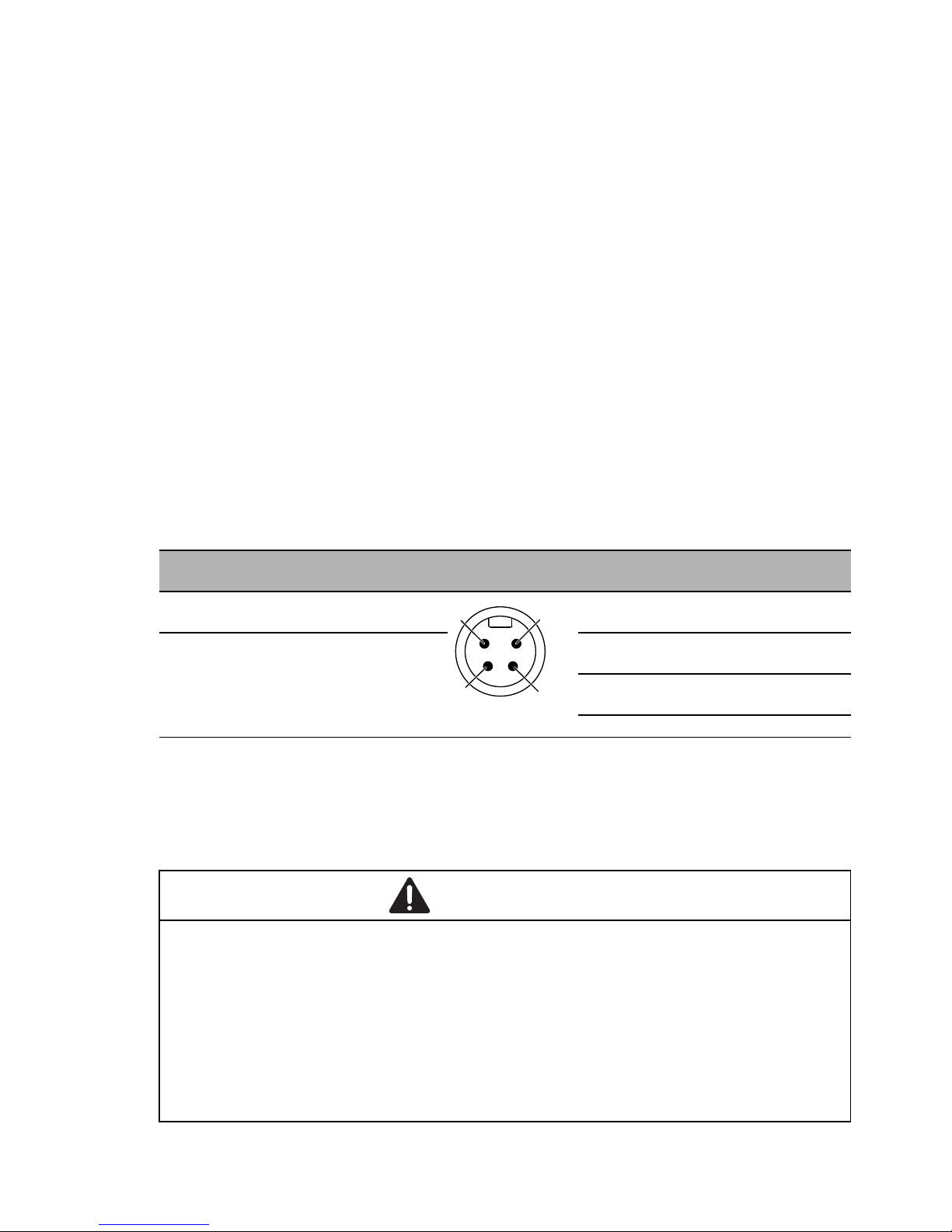

4-pin, A-coded M12 plug for signal contact

10 Power supply connection 1

alternatively, depending on
device variant

Working voltage with the characteristic value C:

4-pin, 7/8" connector

Working voltage with the characteristic value K:

3-pin, 7/8" connector

Working voltage with the characteristic value P:

Not present

Working voltage with the characteristic value W:

4-pin, 7/8" connector
11 Power supply connection 2

alternatively, depending on
device variant

Working voltage with the characteristic value C:

4-pin, 7/8" connector

Working voltage with the characteristic value K:

3-pin, 7/8" connector

Working voltage with the characteristic value P:

Not present

Working voltage with the characteristic value W:

4-pin, 7/8" connector
12 Connection for protective grounding

Table 3: Front view (using the example BAT-FEUWW9ACK99DO5T1SA99)

24

Installation BAT-F

Release 06 02/2014

1.5 Power supply

Solely for device variants featuring working voltage with the characteristic
value C, K or W:
For redundant and failure-resistant power supply, you have the option of
connecting multiple voltage sources in any combination at the same time.
The device selects the used voltage source automatically.
Switching to a redundant voltage source possibly occurs with a short delay.
If the voltage source currently active fails and another voltage source takes
over the supply of voltage to the device, the device reboots if necessary to
activate the redundant power supply.

1.5.1 Working voltage with the characteristic value C

A 4-pin 7/8" connector is available to supply the device.

You will find further information under “Working voltage with the

characteristic value C” on page 39.

1.5.2 Working voltage with the characteristic value K

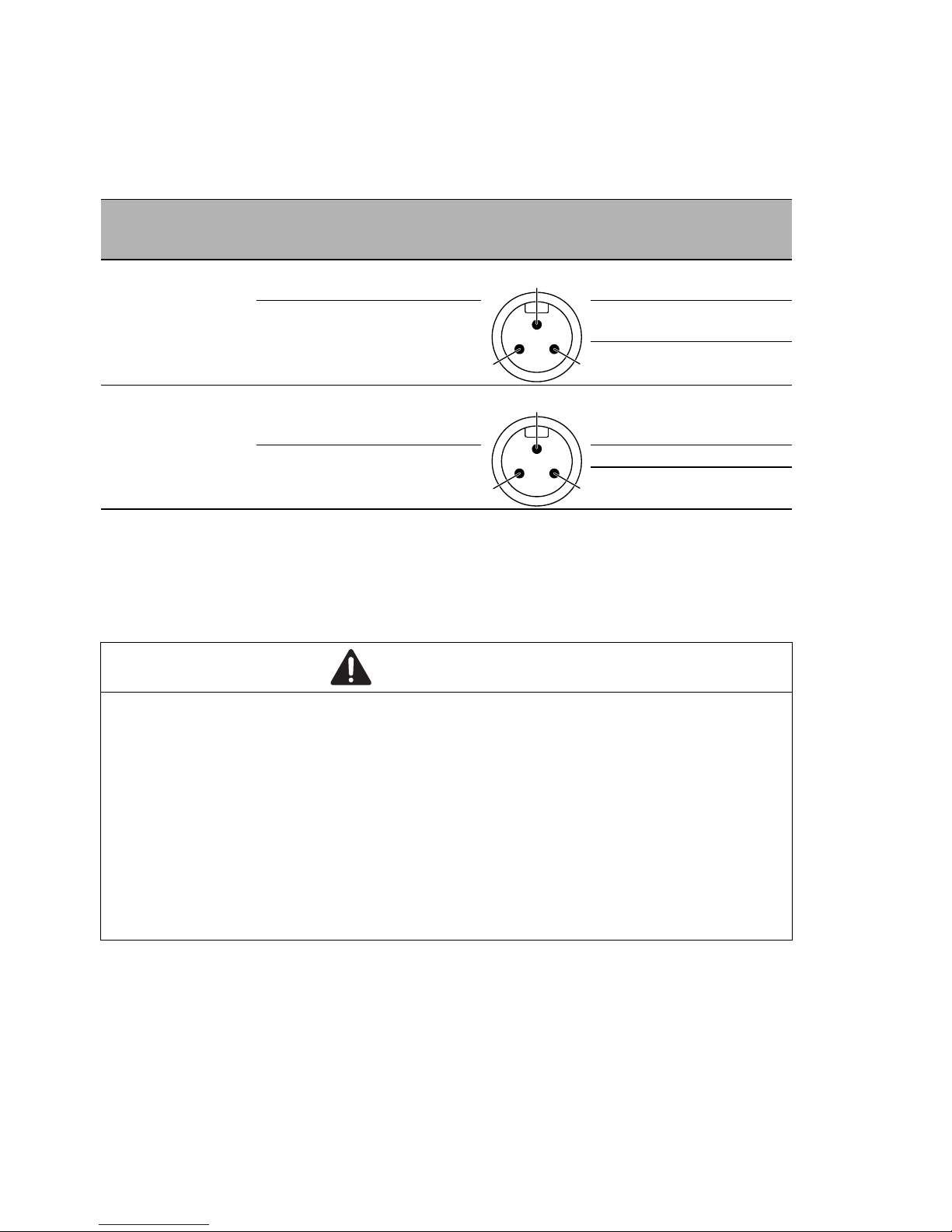

A 3-pin 7/8" connector is available to supply the device.

You will find further information under “Working voltage with the

characteristic value K” on page 40.

1.5.3 Working voltage with the characteristic value P

Your device is a PD (powered device). PSE (power sourcing equipment)
connected via a twisted pair cable on the PoE PD port serves as the PoE
power supply voltage. The PoE power supply means that no separate power
supply is required for your device.

Note: With working voltage with the characteristic value P, the signal contact
is omitted.

You will find further information under “10/100/1000 Mbit/s PoE PD port” on

page 25.

1.5.4 Working voltage with the characteristic value W

You have the following options to supply your device with voltage:

 Power supply through a 7/8" connector

A 4-pin 7/8" connector is available to supply the device.

You will find further information under “Working voltage with the

characteristic value W” on page 41.

Installation BAT-F

Release 06 02/2014

25

 Power supply through PoE

Your device is a PD (powered device). PSE (power sourcing equipment)
connected via a twisted pair cable on the PoE PD port serves as the PoE
power supply voltage. The PoE power supply means that no separate
power supply is required for your device.

You will find further information under “10/100/1000 Mbit/s PoE PD port”

on page 25.

1.6 Ethernet ports

You can connect terminal devices and other segments on the ports of the
device via twisted pair cables or F/O cables.

1.6.1 Gigabit combo port

You have the option to alternatively connect F/O (via SFP transceivers) or
twisted pairs to a combo port.

Note: Plug a connector or SFP module that you want to use for the data
transmission only into the socket of the combo port.

 10/100/1000 Mbit/s PoE PD port

Note: To connect a 8-pin M12 plug with a 4-pin M12 plug, you require a
suitable cable.

Device variants featuring working voltage with the characteristic value P
or W have this port exclusively.
The 10/100/1000 Mbit/s PoE PD port offers you the ability to connect
network components according to the IEEE 802.3 10BASE-T/100BASE­TX/1000BASE-T and IEEE 802.3af/at standard.
This port supports:

 Autocrossing
 Autonegotiation
 Autopolarity
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 1000 Mbit/s full duplex

The socket housing is electrically connected with the device housing.

26

Installation BAT-F

Release 06 02/2014

You will find a representation of the patch cables for operating the device
under “10/100/1000 Mbit/s twisted pair port” on page 26.

 10/100/1000 Mbit/s twisted pair port

Note: To connect a 8-pin M12 plug with a 4-pin M12 plug, you require a
suitable cable.

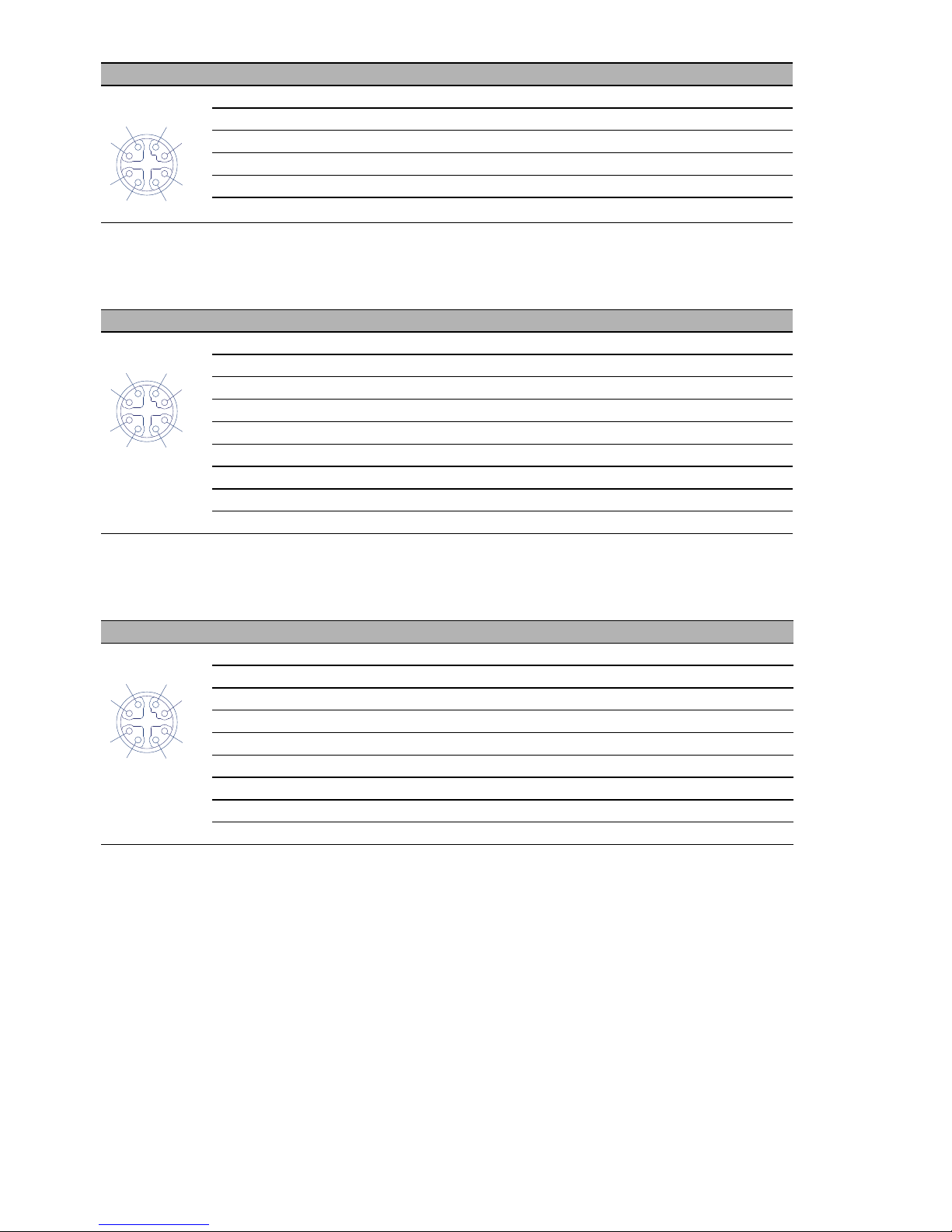

Pin Signal Function PoE PD voltage

1 MDX1+ Receive path x pin
2MDX1− Receive path x pin
3 MDX0+ Transmission path y pin
4MDX0− Transmission path y pin
4,5,7,8 —
Housing: shield

Table 4: Pin assignment of the 10/100 Mbit/s PoE PD port, 8-pin, X-coded M12

plug, phantom voltage

Pin Signal Function PoE PD voltage

1 MDX1+ Receive path —
2MDX1− Receive path —
3 MDX0+ Transmission path —
4MDX0− Transmission path —
5MDX2+— x pin
6MDX2− —x pin
7MDX3− —y pin
8MDX3+— y pin
Housing: shield

Table 5: Pin assignment of the 10/100 Mbit/s PoE PD port, 8-pin, X-coded M12

plug, spare pair supply

Pin Signal Function PoE PD voltage

1 MDX1+ BI_DB+ x pin
2MDX1− BI_DB− x pin
3 MDX0+ BI_DA+ y pin
4MDX0− BI_DA− y pin
5 MDX2+ BI_DC+ x pin
6MDX2− BI_DC− x pin
7MDX3− BI_DD− y pin
8 MDX3+ BI_DD+ y pin
Housing: shield

Table 6: Pin assignment of the 10/100 Mbit/s PoE PD port with Gigabit Ethernet, 8-

pin, X-coded M12 plug

1

45

27

36

8

1

45

27

36

8

1

45

27

36

8

Installation BAT-F

Release 06 02/2014

27

Device variants featuring working voltage with the characteristic value C
or K have this port exclusively.
The 10/100/1000 Mbit/s twisted pair port offers you the ability to connect
network components according to the IEEE 802.3 10BASE-T/100BASE­TX/1000BASE-T standard.
This port supports:

 Autocrossing
 Autonegotiation
 Autopolarity
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 1000 Mbit/s full duplex

The socket housing is electrically connected with the device housing.

Pin Signal 10BASE-T/ 100BASE-TX 1000BASE-T

1 MDX1+ Receive path BI_DB+
2MDX1− Receive path BI_DB−
3 MDX0+ Transmission path BI_DA+
4MDX0− Transmission path BI_DA−
5 MDX2+ — BI_DC+
6MDX2− —BI_DC−
7MDX3− —BI_DD−
8 MDX3+ — BI_DD+
Housing: shield

Table 7: Pin assignment of the 10/100/1000 Mbit/s twisted-pair port, 8-pin, X-

coded M12 plug

Patch cables Wire pairs

M12 4-pin on M12 4-pin, crossed
(MDI to MDI)

1 (TX+) – 2 (RX+)
2 (RX+) – 1 (TX+)
3 (TX−) – 4 (RX−)
4 (RX−) – 3 (TX−)

M12 4-pin on M12 4-pin, 1:1
(MDI to MDI-X via auto-crossing port)

1 (TX+) – 1 (RX+)
2 (RX+) – 2 (TX+)
3 (TX−) – 3 (RX−)
4 (RX−) – 4 (TX−)

M12 4-pin on RJ45, crossed
(MDI to MDI (terminal device))

1 (TX+) – 3 (RX+)
2 (RX+) – 1 (TX+)
3 (TX−) – 6 (RX−)
4 (RX−) – 2 (TX−)

M12 4-pin on RJ45, 1:1
(MDI to MDI-X (Switch))

1 (TX+) – 1 (RX+)
2 (RX+) – 3 (TX+)
3 (TX−) – 2 (RX−)
4 (RX−) – 6 (TX−)

Table 8: Patch cables for operating the device

1

45

27

36

8

28

Installation BAT-F

Release 06 02/2014

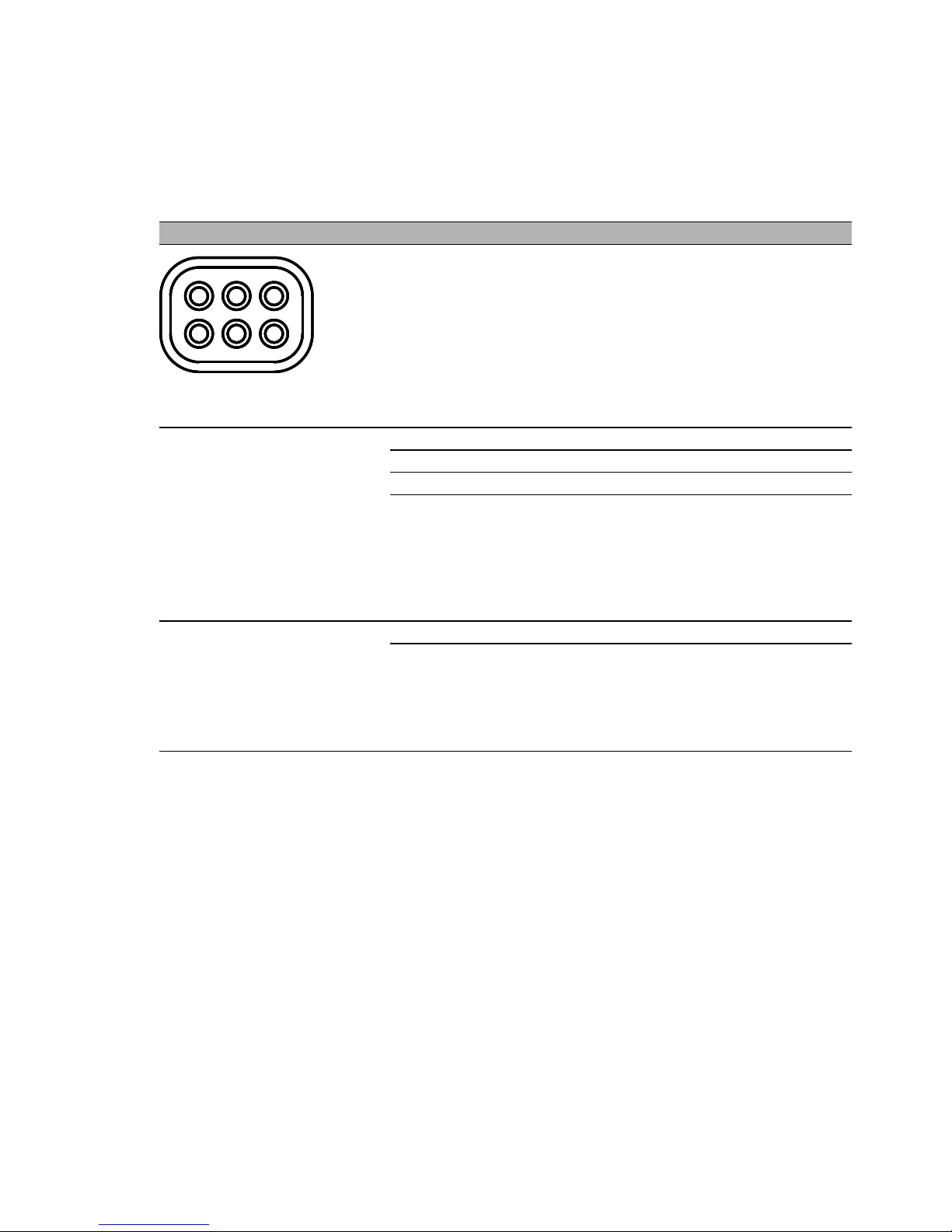

 1000 Mbit/s F/O port

This port is designed as an IP67-V1 connector according to IEC 61076-3­106, variant 1.
The 1000 Mbit/s F/O port offers you the ability to connect network
components according to the IEEE 802.3 1000BASE-SX/1000BASE-LX
standard.
This port supports:

 Full duplex mode

1.6.2 10/100/1000 Mbit/s twisted-pair connection (optional)

See the properties of this port “10/100/1000 Mbit/s twisted pair port” on

page 26.

1.7 Connections for antennas

The devices have 3 N sockets on each WLAN module.
For reliable receive power and transmission power, you require antennas
that pertain to your application case. The Hirschmann BAT-Planner provides
support in selecting suitable antennas. You obtain the BAT planner free of
charge under www.hirschmann.com.
The “Antenna Guide” document provides an overview of the antennas that
can be used as well as the suitable antenna accessories.
You find this document as a PDF file on the enclosed CD/DVD or as a
download on the Hirschmann product pages (www.hirschmann.com).

M12 8-pin on RJ45 1 (BI_DB+) – 1 (BI_DB+)

2 (BI_DB−) – 2 (BI_DB−)
3 (BI_DA+) – 3 (BI_DA+)
4 (BI_DA−) – 6 (BI_DA−)
5 (BI_DC+) – 7 (BI_DC+)
6 (BI_DC−) – 8 (BI_DC−)
7 (BI_DD−) – 5 (BI_DD−)
8 (BI_DD+) – 4 (BI_DD+)

M12 8-pin on M12 8-pin, 1:1 1 (BI_DB+) – 1 (BI_DB+)

2 (BI_DB−) – 2 (BI_DB−)
3 (BI_DA+) – 3 (BI_DA+)
4 (BI_DA−) – 4 (BI_DA−)
5 (BI_DC+) – 5 (BI_DC+)
6 (BI_DC−) – 6 (BI_DC−)
7 (BI_DD−) – 7 (BI_DD−)
8 (BI_DD+) – 8 (BI_DD+)

Patch cables Wire pairs

Table 8: Patch cables for operating the device

Installation BAT-F

Release 06 02/2014

29

1.8 Display elements

After the working voltage is set up, the software starts and initializes itself.
Afterwards, the device performs a self-test. During this process, various
LEDs light up.
These actions take less than 1 minute.

1.8.1 Meaning of the LEDs

The following terms describe the behavior of the LEDs:

 Regular flashing means that the LED is running through the described

statuses in the specified sequence at intervals (e.g. red/green or red/off).

 Brief flashing means that the LED lights up very briefly in the color

specified, then is switched off for a much longer time (about 10x as long).

 Inverse flashing means that the LED is switched off for a brief time and

then lights up for considerably longer (about 10x as long) in the specified
color.

 Flickering means that the LED switches on and off at irregular intervals.
 Running light means the coordinated glowing of several LEDs. This

gives the optical impression that a light source is moving from left to right
and back.

LED display elements for device status and port status

LED display elements for
device status:

P1 Power supply connection 1
P2 Power supply connection 2
WLAN1 WLAN module 1
WLAN2 For device variants with 2 WLAN modules:

WLAN module 2

Note: For device variants with 1 WLAN module, this
LED is unlabeled and solely lights up after the
configuration is reset (hard reset).

LED display elements for port
status:

ETH1 Ethernet port 1
ETH2 Optional:

Ethernet port 2

Note: For device variants without this port, this LED
is unlabeled.

P1

WLAN2P2

WLAN1 ETH1

ETH2

30

Installation BAT-F

Release 06 02/2014

1.8.2 Device state

These LEDs provide information about conditions which affect the operation
of the whole device.

1.8.3 Port state

These LEDs display port-related information.

P1, P2 (green/red LED) Power

off Connection is voltage-free

a

a. If both connections are voltage-free, the power supply is possibly running via an active

Ethernet connection on the PoE port.The port status LEDs directly on the port show you
whether an Ethernet connection is active.

green on continuously Voltage present, device is operational.
red/green flashing (slowly) Charge lock active.

b

b. Which LED displays the corresponding response depends on the configuration of the power

supply connections.P2 always performs signaling if a voltage is solely present on the
connection for working voltage 2.In all other cases, signaling is performed by P1.

red/green flashing (quickly) Unprotected configuration as no password or the default

password is set.

a

red/off flashing (quickly) Hardware error detected.

b

red/green Running light of P1

and P2

A BAT controller WLC with an incompatible protocol is
connected.

green Running light of P1

and P2

Device is searching for a BAT controller WLC.

WLAN 1, WLAN 2
(green/red LEDs)

WLAN connection and WLAN data traffic
of internal WLAN modules

Off No WLAN network defined or WLAN module deactivated. The

WLAN module does not send any beacons.

Green At least one WLAN network defined and WLAN module

activated. The WLAN module sends beacons.

Green flashing inversely Number of flashes = number of connected WLAN stations and

P2P radio lines, then there is a break.
Green flashing DFS scanning or another scan procedure.
Red flashing Hardware error detected in the WLAN module.

ETH1, ETH2
(green/yellow
LED)

Data, link status
Status of the LAN interfaces

Off No network device connected
green on continuously Ethernet connection active
Yellow flickering Data traffic

Installation BAT-F

Release 06 02/2014

31

1.9 Management interfaces

1.9.1 V.24 interface (external management)

This interface is designed as an 8-pin, A-coded M12 plug.
The V.24 user interface is serial and allows you to connect the following
devices directly:

 External management station (VT100 terminal or PC with appropriate

terminal emulation). With this management station, the Command Line
Interface (CLI) is available to you. Furthermore, the system monitor is
available to you at the system start.
You will find more information here:
– See table 10 on page 32.

 BAT-F device. Connecting the BAT-F device allows you to automate the

configuration of a point-to-point WLAN line by connecting two devices
directly via the serial interface.
You will find more information here:
– User Manual Configuration and Administration Guide
– See table 11 on page 32.

The socket housing is electrically connected to the housing of the device. The
V.24 interface is electrically insulated from the working voltage.

Note: Only use a shielded cable.

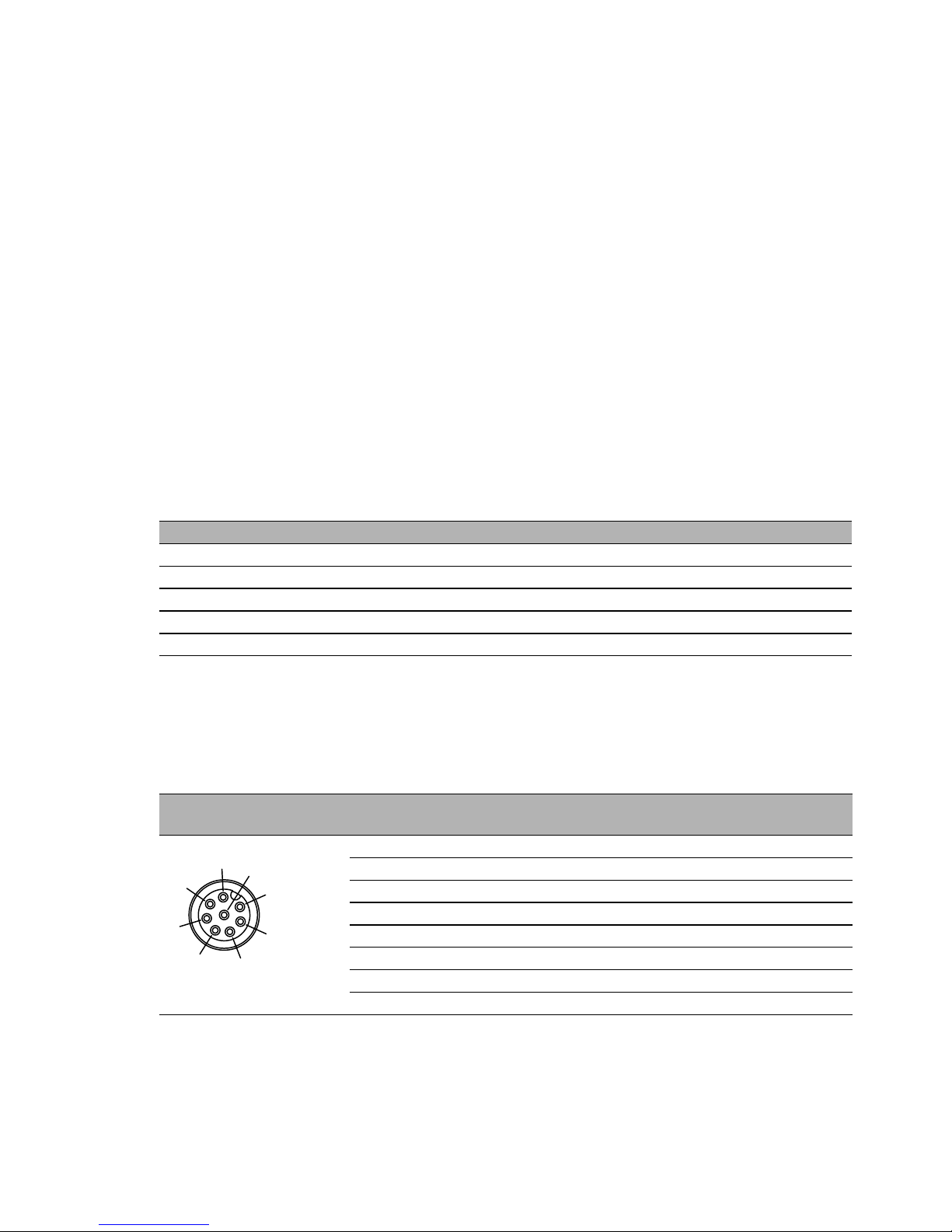

VT 100 terminal settings

Speed 115200 bit/s
Data 8 bit
Stopbit 1 bit
Handshake Hardware
Parity none

Pins of the M12 socket
on the device

Pin Function Description of functions

1 GND Ground
2 DTR Data terminal ready
3 TxD Transmit data
4 RxD Receive data
5 DCD Data carrier detect
6 DSR Dataset ready
7 RTS Request to send
8 CTS Clear to send

Table 9: Pin assignment of the V.24 interface, 8-pin, A-coded M12 socket

8

2

3

4

7

6

1

5

32

Installation BAT-F

Release 06 02/2014

Note: You can order a terminal cable M12, 8-pin, to DB9 as an accessory.

See “Accessories” on page 68.

Note: With the point-to-point WLAN line, the following pins are short-circuited
at both ends:

 2 (DTR) + 6 (DSR)
 7 (RTS) + 8 (DSR)

1.9.2 ACA21-M12 interface

This interface offers you the ability to connect the storage medium
AutoConfiguration AdapterACA21-M12. This storage medium is used for
saving/loading the configuration and diagnostic functions, and for loading the
software.
The ACA21-M12 interface is designed as a 5-pin, A-coded M12 plug with
shielding.

Pins of the M12 socket on
the device

Pin assignment for the connection
with a cable

Pins of the DB9 plug on
the external device

Table 10: Pin assignment for the connection with a cable:

8-pin, A-coded M12 plug to DB9 connector

Pins of the M12 socket on
the device

Pin assignment for the connection
with a cable

Pins of the M12 socket on
the device

Table 11: Pin assignment for the connection with a cable:

8-pin, A-coded M12 plug to 8-pin, A-coded M12 plug (point-to-point
WLAN line)

8

2

3

4

7

6

1

5

1
2
3
4
5
6
7
8

5
4
3
2
1
6
7
8

1

8

5

8

2

3

4

7

6

1

5

1
2
3
4
5
6
7
8

1
2
3
4
5
6
7
8

8

2

3

4

7

6

1

5

Installation BAT-F

Release 06 02/2014

33

Note: The AutoConfiguration adapter ACA11 M12 available for certain
Hirschmann devices is incompatible with BAT-F devices.

1.10 Signal contact

Device variants featuring working voltage with the characteristic value C, K
or W have a signal contact exclusively.
You have the option of setting the signal contact manually using the device
management.

You will find further information under “Signal contact” on page 41.

1.11 Operation element (reset button)

The device has a reset button.

Note: The reset button is located behind a screwable IP67 pressure­equalization element (characteristic value D for installation), or IP67
protective cap (characteristic value A and B for installation). The tightening
torque is 4.42 lb-in to 8.85 lb-in (0.5 Nm to 1.0 Nm).

You will find further information under “Operation” on page 47.

Pin Function

1U

in

5V
2 N.C. Not used
3D-Data ­4 GND Ground (0 V)
5D+Data +

Table 12: Pin assignment of the ACA21-M12 interface, 5-pin, A-coded M12 plug

34

Installation BAT-F

Release 06 02/2014

2 Installation

 Before installing and starting up the device, read the safety instructions.

See “Safety instructions” on page 5.

 To protect the exposed uninstalled contacts of the components from dirt,

connect the individual system components in a dry and clean working
area.

If your device is equipped with an impact protection, proceed as follows when
mounting the components:

 Remove the impact protection.
 Mount the components.
 Mount the impact protection.

The device fulfills the protection class IP65/67 under the following conditions,
exclusively:

 All the connectors and cables connected also fulfill protection class

IP65/67.

 The locking screws seal all unused connections and ports. The locking

screws also fulfill the protection class IP65/67.

2.1 Overview

The devices have been developed for practical application in a harsh
industrial environment.
On delivery, the device is ready for operation.

The following steps should be performed to install and configure a device:

 Unpacking and checking the content of the package
 Installing and grounding the device
 Installing an SFP transceiver (optional)
 Installing the antennas
 Connecting the power supply and signal lines
 Operating the device
 Connecting data cables

Installation BAT-F

Release 06 02/2014

35

2.2 Unpacking and checking the content of the
package

 Check whether the package includes all items named in section “Scope

of delivery” on page 66.

 Check the individual parts for transport damage.

2.3 Installing and grounding the device

2.3.1 Installing the device onto or on a flat surface

You have the option of attaching the device with suitable hardware to a
vertical flat surface.
Requirements for the fastening components:

 The diameter of the fastening components itself is maximum 0.2 in.

(5 mm).

 The head diameter is maximum 0.47 in. (12 mm).
 The diameter of a possibly used washer is maximum 0.47 in. (12 mm).

 Prepare the assembly at the installation site.

See “Dimension drawings” on page 54.

 Install the device with suitable fastening components.
 Seal all unused connections and ports with locking screws (available as

accessories).

See “Accessories” on page 68.

WARNING

ELECTRIC SHOCK

Applies to device variants with the characteristic value B and D for
mounting (indoor service access area, and outdoors):
Install this device solely in a switch cabinet or in an operating site with
restricted access, to which maintenance staff have exclusive access.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

36

Installation BAT-F

Release 06 02/2014

2.3.2 Installing the device on a pole

You have the option of installing the device on a pole, pipe, strut, or on a
similarly stable construction using a pole mounting set.
The pole mounting set you obtain as an accessory.

See “Accessories” on page 68.

 The clamp diameter of the mast clamp included in the pole mounting set

is maximum 2.56 in. (65 mm).

 For larger pole diameters, you have the option of using tightening straps,

which are available in specialized trade.

 maximum width of the tightening strap: 0.63 in. (16 mm)
 maximum thickness of the tightening strap: 0.05 in. (1.3 mm)

Installation BAT-F

Release 06 02/2014

37

2.3.3 Grounding the device

The device is grounded via the separate ground screw.

 Terminate the ground conductor between the fastening plates.
 Make sure the fastening plates cover the insulated part of the ground

conductor completely.

 Tightening the ground screw.

2.4 Installing an SFP transceiver (optional)

 Before attaching an SFP transceiver, first remove the protective cap from

the SFP transceiver.

 Push the SFP transceiver with the lock closed into the socket.

Note: For this device, only use suitable SFP modules from Hirschmann.

See “Accessories” on page 68.

Note: The SFP mounting tool available as an accessory makes it easier for
you to insert the SFP transceivers.

See “Removing an SFP transceiver (optional)” on page 51.

WARNING

ELECTRIC SHOCK

Ground the device before connecting any other cables.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

38

Installation BAT-F

Release 06 02/2014

2.5 Installing the antennas

Note: When installing antennas, observe the regulations of the country in
which you are operating the WLAN device with regard to the general
operating permission and the maximum emission levels.

If you connect to 2 BAT-F devices antennas to 2 WLAN modules, ensure that
there is a distance of at least 2 m between the BAT-F devices.
If you would like to connect several antennas to a WLAN module, align the
antennas so that the points of the antennas point away form each other in a
star shape.
 Install at least one antenna on the WLAN module that you would like to

use.

 Insert the terminators supplied into the unused sockets to avoid radio

signals from one WLAN module being received by the other WLAN
module.

Relevant for use of BAT-ANT-N-MiMo-18N-IP65 with FCC and approval 2,
characteristic value H. The devices are labeled as follows:

 “FCC ID: U99EWLAN2 and IC: 4019A-EWLAN2”

1 alternatively, depending on

device variant

For device variants with 2 WLAN modules:
3 × N socket for WLAN module 1

For device variants with 1 WLAN module:

Not present
1a Antenna connection 1
1b Antenna connection 2
1c Antenna connection 3

2 alternatively, depending on

device variant

For device variants with 2 WLAN modules:

3 × N socket for WLAN module 2

For device variants with 1 WLAN module:

3 × N socket for WLAN module 1
2a Antenna connection 1
2b Antenna connection 2
2c Antenna connection 3

Table 13: Antenna connections

1

1b 1c 2a 2b 2c

1a

2

Installation BAT-F

Release 06 02/2014

39

Connect the BAT-ANT-N-MiMo-18N-IP65 to the WLAN module as follows:

 Connect the antenna port "Ver" with the WLAN antenna port 1.
 Connect the antenna port "+45 °" with the WLAN antenna port 2.
 Connect the antenna port "−45 °" with the WLAN antenna port 3.

 Connect the BAT-ANT-N-MiMo-18N-IP65 in this way exclusively.

2.6 Connecting the power supply and signal
lines

Note: The working voltage is electrically isolated from the housing.

Note: You have the option of supplying the working voltage redundantly,

without load distribution.
Both working voltage inputs are uncoupled.

2.6.1 Working voltage with the characteristic value C

For every working voltage to be connected, perform the following steps:

Type and specification of the
working voltage

Pin assignment on the device

Rated voltage range DC
24 V ... 48 V

1—

Voltage range DC incl. maximum
tolerances
18 V ... 60 V

2 Minus terminal of the working

voltage

3 Plus terminal of the working

voltage

4—

Table 14: Working voltage with the characteristic value°C: Type and specification of

the working voltage, pin assignment on the device

WARNING

ELECTRIC SHOCK

Start connecting the electrical wires solely if all the above requirements are
fulfilled.

See “Working voltage” on page 6.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

3

41

2

40

Installation BAT-F

Release 06 02/2014

 Connect the wires for the working voltage according to the pin assignment

with a suitable socket.

2.6.2 Working voltage with the characteristic value K

For every working voltage to be connected, perform the following steps:

 Connect the wires for the working voltage and the protective ground

according to the pin assignment with a suitable socket.

Type of the
voltages that can
be connected

Specification of the working
voltage

Pin assignment on the device

DC voltage Rated voltage range DC

60 V ... 250 V

1 Protective conductor

Voltage range DC incl.
maximum tolerances
48 V ... 320 V

2 Plus terminal of the

working voltage

3 Minus terminal of the

working voltage

AC voltage Rated voltage range AC

110 V ... 230 V, 50 Hz ...
60 Hz

1 Protective conductor

Voltage range AC incl.
maximum tolerances
88 V ... 265 V, 47 Hz ... 63 Hz

2 Outer conductor
3 Neutral conductor

Table 15: Working voltage with the characteristic value K: Type and specification of

the working voltage, pin assignment on the device

WARNING

ELECTRIC SHOCK

Start connecting the electrical wires solely if all the above requirements are
fulfilled.

See “Working voltage” on page 6.

Install this device solely in a switch cabinet or in an operating site with
restricted access, to which maintenance staff have exclusive access.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

1

23

1

23

Installation BAT-F

Release 06 02/2014

41

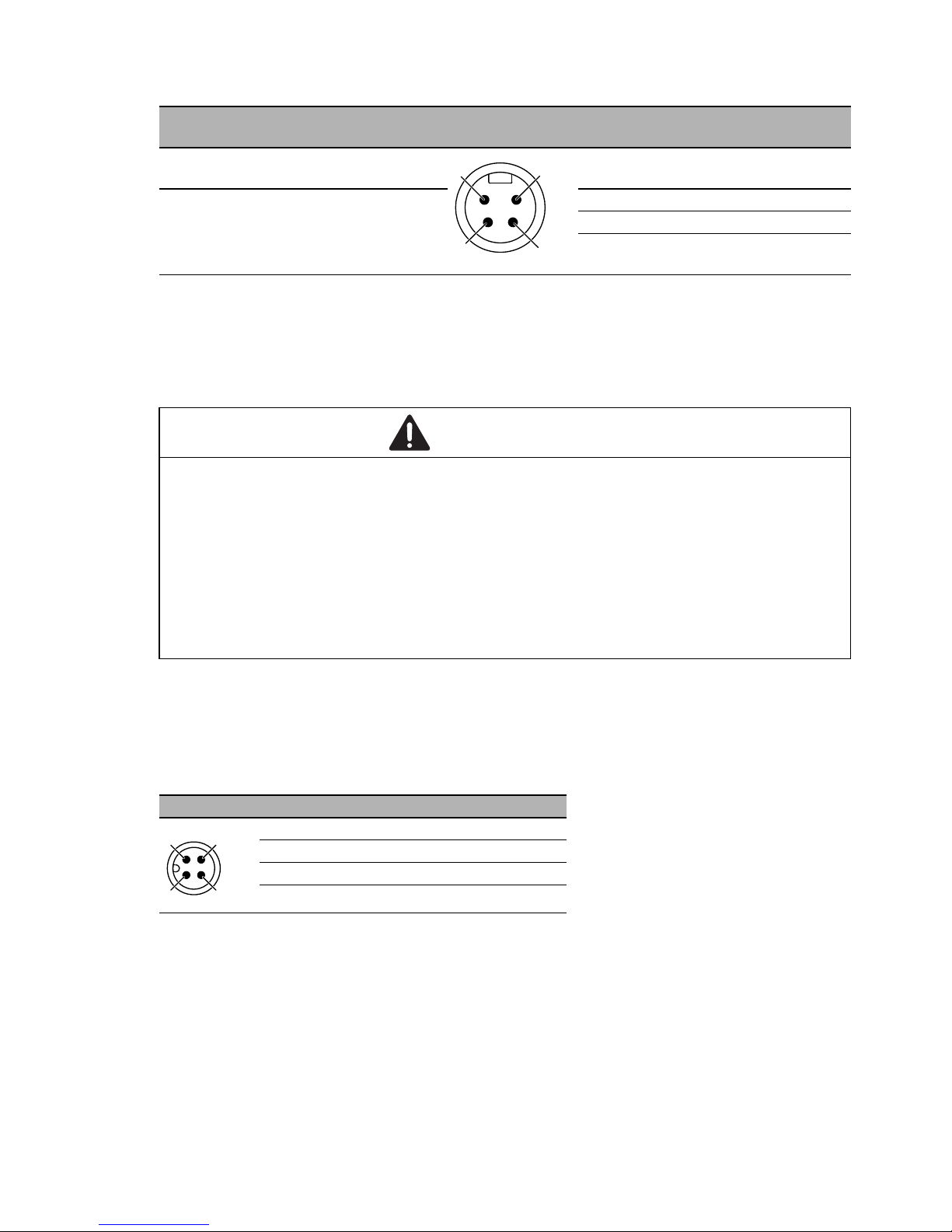

2.6.3 Working voltage with the characteristic value W

For every working voltage to be connected, perform the following steps:

 Connect the wires for the working voltage according to the pin assignment

with a suitable socket.

2.6.4 Signal contact

Device variants featuring working voltage with the characteristic value C, K
or W have a signal contact exclusively.

Type and specification of the
working voltage

Pin assignment on the device

Nominal voltage DC
24 V

1 Minus terminal of the working

voltage

Voltage range DC incl. maximum
tolerances
18 V ... 32 V

2—
3—
4 Plus terminal of the working

voltage

Table 16: Working voltage with the characteristic value W: Type and specification of

the working voltage, pin assignment on the device

WARNING

ELECTRIC SHOCK

Start connecting the electrical wires solely if all the above requirements are
fulfilled.

See “Working voltage” on page 6.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Pin Function

1 Signal contact 2
2 Signal contact 2
3 Signal contact 1
4 Signal contact 1

Table 17: Pin assignment of the signal contact, 4-pin, A-coded M12 plug

3

41

2

1

23

4

42

Installation BAT-F

Release 06 02/2014

For the signal contact to be connected, make sure the following requirements
are met:

 The electrical wires are voltage-free.
 The connected voltage is limited by a current limitation device or a fuse.

 Observe the electrical threshold values for the signal contact.

See “General technical data” on page 52.

 Connect the signal contact lines according to the pin assignment with a

suitable socket.

 Plug the socket into the M12 plug on the device.

2.7 Operating the device

By connecting the working voltage via a 7/8" plug or a twisted-pair cable
(Power over Ethernet), you start the operation of the device.

2.7.1 Connecting the power supply through a 7/8"
connector

 Plug the socket into the 7/8" connector on the device.
 Enable the working voltage.

2.7.2 Connecting the power supply through PoE

Note: In a PoE installation, solely use devices that comply with the 802.3af/at
standard.

Solely for device variants featuring working voltage with the characteristic
value P or W:
By connecting the working voltage via PoE, you start the operation of the
device.

WARNING

ELECTRIC SHOCK

Ground the device before connecting any other cables.
Connect solely an working voltage that corresponds to the type plate of your
device.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Installation BAT-F

Release 06 02/2014

43

2.8 Connecting data cables

2.8.1 Gigabit combo port

Note: Plug a connector or SFP module that you want to use for the data
transmission only into the socket of the combo port.

 10/100/1000 Mbit/s PoE PD port

You will find further information under “10/100/1000 Mbit/s PoE PD port”

on page 25.

 Install the data lines according to your requirements.

 1000 Mbit/s F/O port

You will find further information under “1000 Mbit/s F/O port” on page 28.

Note: Make sure that you connect LH ports exclusively with LH ports, SX
ports exclusively with SX ports, and LX ports exclusively with LX ports.

 Install the data lines according to your requirements.

2.8.2 10/100/1000 Mbit/s twisted-pair connection (optional)

You will find further information under “10/100/1000 Mbit/s twisted-pair

connection (optional)” on page 28.

 Install the data lines according to your requirements.

44

Installation BAT-F

Release 06 02/2014

3 Configuration

The following options are available for configuring the device:

 The wired local network (LAN).
 The wireless network (WLAN). Prerequisite is that the WLAN encryption

(e.g. IEEE 802.11i) is set suitably in a device with a wireless interface and
in the configuration computer.

 The serial V.24 interface.
 The ACA21-M12 interface.

3.1 Basic set-up

You find information on the basic settings of the device and on the state on
delivery in the following documentation on the supplied CD/DVD:

 User Manual Configuration and Administration Guide
 User Manual Operation and Maintenance Guide

3.2 Configuring antennas

Note: When installing antennas, observe the regulations of the country in
which you are operating the WLAN device with regard to the general
operating permission and the maximum emission levels.

WARNING

UNINTENTIONAL OPERATION IN DEVICE

Two or more devices configured with the same IP address can cause
unpredictable operation of your network.
Install and maintain a process that assigns a unique IP address to every
device in the network.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Installation BAT-F

Release 06 02/2014

45

 Transmission power

The operator of a WLAN radio installation must adhere to the applicable
transmission threshold values.

 Use the LANconfig or the Webconfig to start the configuration of the

device. (This software is located on the CD/DVD provided.)

 Go to the settings for Wireless LAN.

 Enter the country in which you are installing the device (see the

following figure):

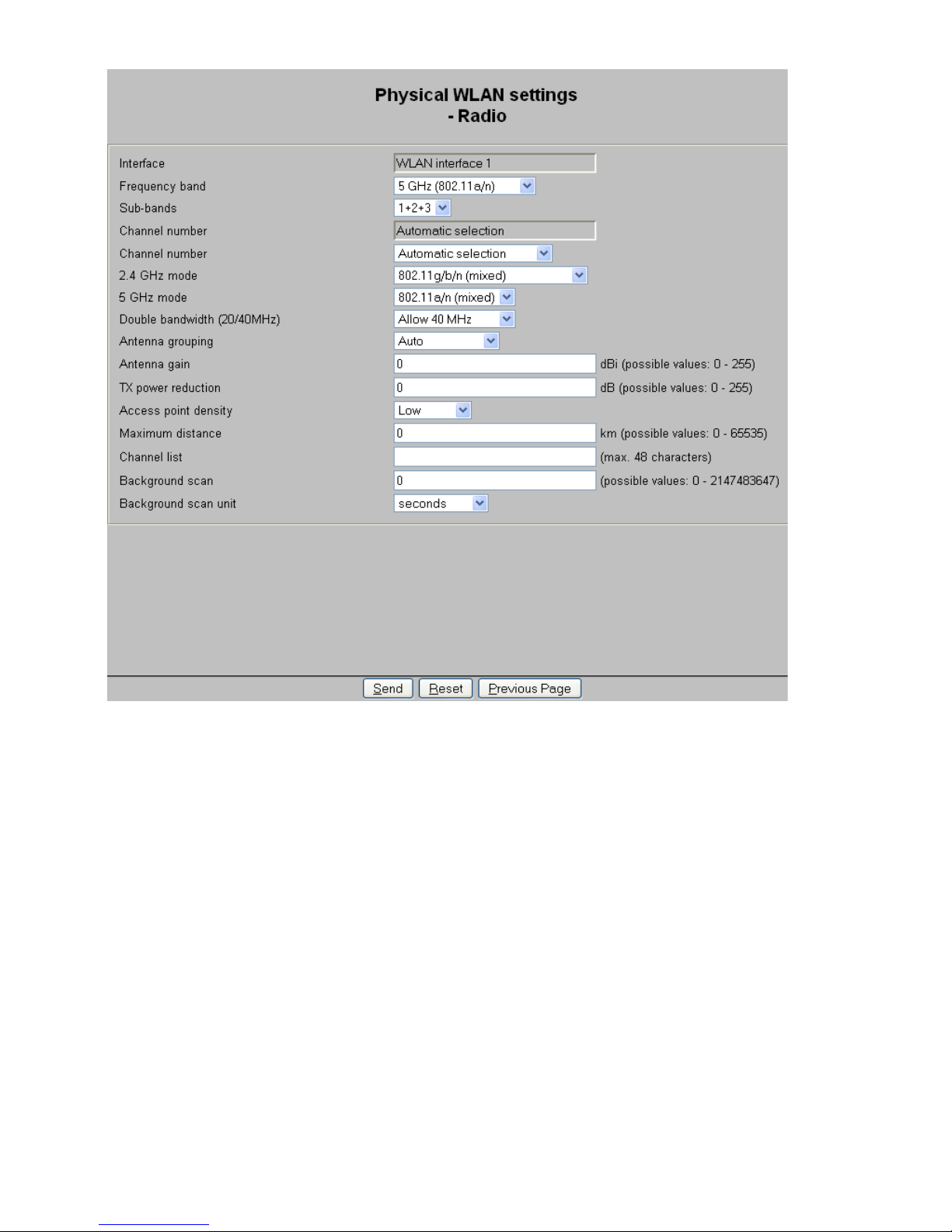

 Open the configuration for the physical interface to which you are

connecting the antenna. On the Radio tab you will find an entry field
for the antenna gain (see the following figure):

46

Installation BAT-F

Release 06 02/2014

 Subtract the cable attenuation and any losses due to over voltage

protector installed devices from the antenna gain, and enter the result
in dB in the antenna gain field.

Installation BAT-F

Release 06 02/2014

47

4Operation

The device has a reset button.
Depending on how long you press the reset button, you have different
functions available.

Figure 2: Functions of the reset button

a – soft reset
b – hard reset
c – load configuration; if the device does not provide a configuration: soft
reset

4.1 Restarting the device (soft reset/reboot)

The soft reset/reboot is used to reset the device to the current configuration.
 Press the reset button for maximum 4 seconds or 11 to 15 seconds.

4.2 Resetting the configuration (hard reset)

The hard reset is used to reset the device to the factory settings. You require
this function, for example, if the connection to the device configuration is
interrupted or if you want to reconfigure the device.

Note: When performing a hard reset, the user settings get lost, and the
device starts with the factory settings based on the firmware that you have
been using. Therefore, if applicable, save the current configuration of the
device before the reset.

 Press the reset button for 6 to 9 seconds. During this process, the LEDs

light up for a long period.

T TTT

B BCD

48

Installation BAT-F

Release 06 02/2014

4.3 Loading the configuration

 To load a configuration saved on the device, press the reset button for at

least 16 seconds.
If the device does not provide a saved configuration, the device restarts (=
soft restart/reboot).

Installation BAT-F

Release 06 02/2014

49

5 Maintenance and service

 When designing this device, Hirschmann largely avoided using wear

parts. The parts subject to wear and tear are dimensioned to last longer
than the lifetime of the product when it is operated normally. Operate this
device according to the specifications (see on page 52 “Technical data”).

 Relays are subject to natural wear. This wear depends on the frequency

of the switching operations. Check the resistance of the closed relay
contacts and the switching function depending on the frequency of the
switching operations.

 Hirschmann continually works on improving and developing the software.

Regularly check whether there is a new version of the software that
provides you with additional benefits. You find software information and
downloads on the Hirschmann product pages (www.hirschmann.com).

Note: You will find information about the complaints and returns procedures
in the Internet under

http://www.beldensolutions.com/en/Service/Repairs/index.phtml .

50

Installation BAT-F

Release 06 02/2014

6 Disassembly

6.1 Removing the device



Disconnect the data cables.

 Disable the working voltage.
 Pull off the power supply lines and signal lines.
 Remove the antennas.
 Disconnect the grounding.

WARNING

ELECTRIC SHOCK

Disconnect the grounding solely after disconnecting all other cables.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Installation BAT-F

Release 06 02/2014

51

6.2 Removing an SFP transceiver (optional)

To disassemble SFP transceivers, you require the SFP mounting tool
available as an accessory .

See “Accessories” on page 68.

Figure 3: SFP mounting tool

1 – mounting side
2 – barbed hooks
3 – disassembly side

 Insert the SFP mounting tool so into the SFP transceiver that the barbed

hooks point to the locking handle of the SFP transceivers.

 Gently press the SFP mounting tool in the direction of the lock so that the

barbed hooks link into the strap.

 Pull the SFP transceiver out of the socket using the mounting tool.

 Close the socket with the protective cap.

132

52

Installation BAT-F

Release 06 02/2014

7 Technical data

 General technical data

Weight Device variants featuring

working voltage with the
characteristic value P9

approx. 2800 g

Device variants featuring
working voltage with the
characteristic value WW

approx. 3000 g

Device variants featuring
working voltage with the
characteristic value CC/KC/KK

approx. 3250 g

Working voltage
with the
characteristic
value C

Power supply solely through a 7/8" connector
Rated voltage range DC 24 V ... 48 V

Class 2

Voltage range DC incl.
maximum tolerances

18 V ... 60 V

Connection type 4-pin, 7/8" connector
Power failure bypass > 10 ms at 20.4 V DC
Overload current protection at

input

Non-replaceable fuse

Back-up fuse Nominal rating:

Characteristic:

Max. 6.3 A
slow blow

Working voltage
with the
characteristic
value K

Power supply solely through a 7/8" connector
Rated voltage range AC 110 V ... 230 V, 50 Hz ... 60 Hz
Voltage range AC incl.

maximum tolerances

88 V ... 265 V, 47 Hz ... 63 Hz

Rated voltage range DC 60 V ... 250 V
Voltage range DC incl.

maximum tolerances

48 V ... 320 V

Connection type 3-pin, 7/8" connector
Power failure bypass > 10 ms at 98 V AC
Overload current protection at

input

Non-replaceable fuse

Back-up fuse for each voltage
input

Nominal rating:
Characteristic:

2.5 A
slow blow

Working voltage
with the
characteristic
value P

Power supply solely through PoE

Installation BAT-F

Release 06 02/2014

53

Working voltage
with the
characteristic
value W

Power supply through a 7/8" connector or PoE
Nominal voltage DC 24 V

Class 2

Voltage range DC incl.
maximum tolerances

18 V ... 32 V

Connection type 4-pin, 7/8" connector
Power failure bypass > 10 ms at 20.4 V DC
Overload current protection at

input

Non-replaceable fuse

Back-up fuse Nominal rating:

Characteristic:

Max. 6.3 A
slow blow

Climatic
conditions
during operation

Ambient air temperature

a

. Devices with operating temperature

characteristic value S (standard):
0 °C ... +60 °C (+32 °F ... +140 °F)

Devices with operating temperature
characteristic value E and T (extended):

−40 °F ... +158 °F (−40 °C ... +70 °C)

b

Humidity 10% ... 95%
Air pressure Up to 2000 m (795 hPa), higher altitudes on

request
maximum 1060 hPa (≈ −1312 ft (−400 m))

Climatic
conditions
during storage

Ambient air temperature

c

. −40 °F ... +185 °F (−40 °C ... +85 °C)

Humidity 10% ... 95%
Air pressure minimum 700 hPa (≈ +9842 ft (+3000 m))

maximum 1060 hPa (≈ −1312 ft (−400 m))

“FAULT”
signal contact

Switching current max. 1 A, SELV
Switching voltage Power supply unit characteristic value C

and K:
max. 60 V DC or max. 30 V AC, SELV

Working voltage with the characteristic
value W:

max. 30 V DC, SELV
Pollution degree 2
Protection

classes

Laser protection Class 1 in compliance with IEC 60825-1
Degree of protection IP65/67

a. Temperature of the ambient air at a distance of 2 inches (5 cm) from the device
b. Only use SFP transceivers with the “EEC” extension.
c. Temperature of the ambient air at a distance of 2 inches (5 cm) from the device

54

Installation BAT-F

Release 06 02/2014

 Dimension drawings

Figure 4: Dimensions of device variants and distance between suspensions.

Figure 5: Dimensions of the device variants with impact protection.

73

184

31 1

207

2

19

mm
in

12.24

7.24

8.15

8.62

2.87

311

322,46

74,37

mm
inch

12.24

2.93

12.70

Installation BAT-F

Release 06 02/2014

55

Figure 6: Distances of the suspension with impact protection.

184

207 38,69

mm

inch

7.24

1.52

8.15

56

Installation BAT-F

Release 06 02/2014

 Radio technology

Antenna connection For each WLAN module: 3 × N socket
Range Up to 12.4 miles (20 km, depending on antenna used, frequency

range and data rate)

Encryption

 IEEE 802.11i/WPA2 with passphrase or IEEE 802.1x and

hardware-accelerated AES/TKIP

 User authentication with IEEE 802.1x/EAP or LEPS
 IEEE-802.1x supplicant in the Client Mode
 AES/TKIP

a

 WEP

b

 Access Control Lists
 WLAN port and protocol filter
 RADIUS client and server
 Integrated firewall with QoS
 Port filter
 Protocol filter
 IDS and DoS protection
 PMK caching and preauthentication for faster roaming with

IEEE 802.1x

a. With encryptions type TKIP and WEP, the device falls back on IEEE 802.11b/g or IEEE

802.11a (depending on frequency).

b. With encryptions type TKIP and WEP, the device falls back on IEEE 802.11b/g or IEEE

802.11a (depending on frequency).

Frequency range Support of 2.4 GHz and 5 GHz: 2400 MHz to 2483.5 MHz (ISM) and

5170 MHz to 5850 MHz

Modulation technology 22M0F7D (DSSS/OFDM) with 2.4 GHz

20M0G7D (OFDM) with 5 GHz

Radio topology Access point device variants:

WLAN access point, bridge, router, point-to-point, client, client­bridge mode, fixed mesh with RSTP

Client device variants:
WLAN client, client-bridge mode

Roaming Seamless handover, IAPP support, IEEE 802.11d support,

background scanning for rogue AP detection and fast roaming

Installation BAT-F

Release 06 02/2014

57

 Receive sensitivity, transmission power and data rate

according to IEEE 802.11a/b/g/n

The values specified in the following tables are the maximum values of
the VLAN module. The values are in no case a guaranteed characteristic
of the overall product. For some country profiles, the module reduces the
data rate and the transmission power automatically. The reason for this
are national standards.

Data rate Typical transmission power Typical receive sensitivity

06 Mbps 16 dBm -93 dBm

09 Mbps 16 dBm -93 dBm

12 Mbps 16 dBm -93 dBm

18 Mbps 16 dBm -91 dBm

24 Mbps 16 dBm -88 dBm

36 Mbps 15 dBm -84 dBm

48 Mbps 13 dBm -80 dBm

54 Mbps 12 dBm -79 dBm

Table 18: Receive sensitivity, transmission power and data rate according to

IEEE 802.11a

Data rate Typical transmission

power

Typical receive sensitivity

1 Mbps 19 dBm -94 dBm

11 Mbps 19 dBm -94 dBm

Table 19: Receive sensitivity, transmission power and data rate according to

IEEE 802.11b

Data rate Typical transmission

power

Typical receive sensitivity

06 Mbps 18 dBm -94 dBm

09 Mbps 18 dBm -94 dBm

12 Mbps 18 dBm -90 dBm

18 Mbps 18 dBm -89 dBm

24 Mbps 18 dBm -85 dBm

36 Mbps 17 dBm -82 dBm

48 Mbps 16 dBm -78 dBm

54 Mbps 15 dBm -77 dBm

Table 20: Receive sensitivity, transmission power and data rate according to

IEEE 802.11g

58

Installation BAT-F

Release 06 02/2014

Data rate Typical transmission power Typical receive sensitivity

MCS0 18 dBm -87 dBm

MCS1 18 dBm -90 dBm

MCS2 18 dBm -86 dBm

MCS3 18 dBm -82 dBm

MCS4 18 dBm -79 dBm

MCS5 16 dBm -75 dBm

MCS6 16 dBm -73 dBm

MCS7 15 dBm -72 dBm

MCS8 22 dBm -87 dBm

MCS9 21 dBm -90 dBm

MCS10 22 dBm -86 dBm

MCS11 21 dBm -82 dBm

MCS12 16 dBm -79 dBm

MCS13 16 dBm -75 dBm

MCS14 15 dBm -73 dBm

MCS15 15 dBm -72 dBm

MCS16 23 dBm -87 dBm

MCS17 23 dBm -90 dBm

MCS18 23 dBm -86 dBm

MCS19 23 dBm -82 dBm

MCS20 16 dBm -79 dBm

MCS21 17 dBm -75 dBm

MCS22 17 dBm -73 dBm

MCS23 16 dBm -72 dBm

Table 21: Receive sensitivity, transmission power and data rate according to

IEEE 802.11n and for the 2.412 GHz – 2.472 GHz bandwidth

Data rate Typical transmission power Typical receive sensitivity

MCS0 17 dBm -92 dBm

MCS1 17 dBm -91 dBm

MCS2 17 dBm -89 dBm

MCS3 17 dBm -84 dBm

Table 22: Receive sensitivity, transmission power and data rate according to

IEEE 802.11n and for the 5.180 GHz – 5.825 GHz bandwidth

Installation BAT-F

Release 06 02/2014

59

MCS4 17 dBm -81 dBm

MCS5 15 dBm -77 dBm

MCS6 14 dBm -75 dBm

MCS7 14 dBm -73 dBm

MCS8 20 dBm -92 dBm

MCS9 20 dBm -91 dBm

MCS10 19 dBm -89 dBm

MCS11 20 dBm -84 dBm

MCS12 18 dBm -81 dBm

MCS13 15 dBm -77 dBm

MCS14 15 dBm -75 dBm

MCS15 14 dBm -73 dBm

MCS16 21 dBm -92 dBm

MCS17 21 dBm -91 dBm

MCS18 21 dBm -89 dBm

MCS19 21 dBm -84 dBm

MCS20 16 dBm -81 dBm

MCS21 15 dBm -77 dBm

MCS22 14 dBm -75 dBm

MCS23 14 dBm -73 dBm

Data rate Typical transmission power Typical receive sensitivity

Table 22: Receive sensitivity, transmission power and data rate according to

IEEE 802.11n and for the 5.180 GHz – 5.825 GHz bandwidth

60

Installation BAT-F

Release 06 02/2014

 Receive sensitivity, transmission power and data rate of

the module version for high-gain antennas (approvals 2,
characteristic value H) according to IEEE 802.11a/b/g/n

The values specified in the following tables are the maximum values of
the VLAN module. The values are in no case a guaranteed characteristic
of the overall product. For some country profiles, the module reduces the
data rate and the transmission power automatically. The reason for this
are national standards.

Data rate Typical transmission power Typical receive sensitivity

06Mbps 10 dBm -93 dBm

09Mbps 10 dBm -93 dBm

12Mbps 10 dBm -93 dBm

18Mbps 10 dBm -91 dBm

24Mbps 10 dBm -88 dBm

36Mbps 9 dBm -84 dBm

48Mbps 7 dBm -80 dBm

54Mbps 6 dBm -79 dBm

Table 23: Receive sensitivity, transmission power and data rate according to

IEEE 802.11a

Data rate Typical transmission

power

Typical receive sensitivity

1Mbps 19 dBm -94 dBm

11Mbps 19 dBm -94 dBm

Table 24: Receive sensitivity, transmission power and data rate according to

IEEE 802.11b

Data rate Typical transmission

power

Typical receive sensitivity

06Mbps 18 dBm -94 dBm

09Mbps 18 dBm -94 dBm

12Mbps 18 dBm -90 dBm

18Mbps 18 dBm -89 dBm

24Mbps 18 dBm -85 dBm

36Mbps 17 dBm -82 dBm

Table 25: Receive sensitivity, transmission power and data rate according to

IEEE 802.11g

Installation BAT-F

Release 06 02/2014

61

48Mbps 16 dBm -78 dBm

54Mbps 15 dBm -77 dBm

Data rate Typical transmission power Typical receive sensitivity

MCS0 18 dBm -87 dBm

MCS1 18 dBm -90 dBm

MCS2 18 dBm -86 dBm

MCS3 18 dBm -82 dBm

MCS4 18 dBm -79 dBm

MCS5 16 dBm -75 dBm

MCS6 16 dBm -73 dBm

MCS7 15 dBm -72 dBm

MCS8 22 dBm -87 dBm

MCS9 21 dBm -90 dBm

MCS10 22 dBm -86 dBm

MCS11 21 dBm -82 dBm

MCS12 16 dBm -79 dBm

MCS13 16 dBm -75 dBm

MCS14 15 dBm -73 dBm

MCS15 15 dBm -72 dBm

MCS16 23 dBm -87 dBm

MCS17 23 dBm -90 dBm

MCS18 23 dBm -86 dBm

MCS19 23 dBm -82 dBm

MCS20 16 dBm -79 dBm

MCS21 17 dBm -75 dBm

MCS22 17 dBm -73 dBm

MCS23 16 dBm -72 dBm

Table 26: Receive sensitivity, transmission power and data rate according to

IEEE 802.11n and for the 2.412 GHz – 2.472 GHz bandwidth

Data rate Typical transmission

power

Typical receive sensitivity

Table 25: Receive sensitivity, transmission power and data rate according to

IEEE 802.11g

62

Installation BAT-F

Release 06 02/2014

Data rate Typical transmission power Typical receive sensitivity

MCS0 11 dBm -92 dBm

MCS1 11 dBm -91 dBm

MCS2 11 dBm -89 dBm

MCS3 11 dBm -84 dBm

MCS4 11 dBm -81 dBm

MCS5 9 dBm -77 dBm

MCS6 8 dBm -75 dBm

MCS7 8 dBm -73 dBm

MCS8 7 dBm -92 dBm

MCS9 7 dBm -91 dBm

MCS10 6 dBm -89 dBm

MCS11 7 dBm -84 dBm

MCS12 5 dBm -81 dBm

MCS13 2 dBm -77 dBm

MCS14 2 dBm -75 dBm

MCS15 1 dBm -73 dBm

MCS16 8 dBm -92 dBm

MCS17 8 dBm -91 dBm

MCS18 8 dBm -89 dBm

MCS19 8 dBm -84 dBm

MCS20 3 dBm -81 dBm

MCS21 2 dBm -77 dBm

MCS22 1 dBm -75 dBm

MCS23 1 dBm -73 dBm

Table 27: Receive sensitivity, transmission power and data rate according to

IEEE 802.11n and for the 5.180 GHz – 5.825 GHz bandwidth

Installation BAT-F

Release 06 02/2014

63

 EMC and immunity

EMC interference
immunity

EN 61000-4-2 Electrostatic discharge

Contact discharge, test level 4 ± 8 kV
Air discharge, test level 4 ± 15 kV

EN 61000-4-3 Electromagnetic field

80 MHz ... 1000 MHz 20 V/m
1400 MHz ... 2700 MHz 10 V/m

EN 61000-4-4 Fast transients (burst), test level 4

DC power line ± 4 kV
AC Power Line ± 4 kV
Data line ± 4 kV

EN 61000-4-5 Voltage surges

DC power line ± 2 kV line/ground; ± 1 kV line/line
AC Power Line ± 4 kV line/ground; ± 2 kV line/line
Data line, shielded ± 4 kV line/ground
Data line, unshielded ± 2 kV line/ground
Data line, unshielded ± 1 kV line/line

EN 61000-4-6 Conducted interference voltages, test level 3

150 kHz ... 80 MHz 10 V

EN 61000-4-9 Pulse magnetic fields 300 A/m

EMC interference
emission

EN 55022 Class B
FCC 47 CFR Part 15 Class A

Stability

Vibration IEC 60068-2-6 Test FC test level according to IEC 61131-2
Shock IEC 60068-2-27 Test Ea test level in accordance with IEC 61131-2,

EN 50155

64

Installation BAT-F

Release 06 02/2014

 Radio standards

EN 300 328 Electromagnetic compatibility and radio spectrum matters (ERM) -

bandwidth transfer systems - data transmission equipment operating in

2.4 GHz ISM band and using spread spectrum modulation technology
EN 301 489-1 Electromagnetic compatibility for radio equipment and services
EN 301 489-17 Electromagnetic compatibility (EMC) for radio equipment and services -

specific conditions for 2.4 GHz broadband transmission systems and 5
GHz high-performance RLAN equipment

EN 302 502 Broadband radio access networks (BRAN) – permanently installed

broadband data transmission systems with 5.8 GHz band

EN 301 893 Broadband radio access networks (BRAN) – 5 GHz high performance

Remote Local Area Network (RLAN)

Installation BAT-F

Release 06 02/2014

65

 Network range

Note: The line lengths specified for the transceivers apply for the
respective fiber data (fiber attenuation and BLP/dispersion).

MM = Multimode, SM = Singlemode, LH = Singlemode Longhaul

Product
code
M-SFP-...

Wave
length

Fiber System

attenuatio
n

Example
for F/O line
length

a

a. including 3 dB system reserve when compliance with the fiber data is observed

Fiber
attenuatio
n

BLPb/
dispersion

b. The bandwidth length product cannot be used to calculate the expansion.

-SX/LC... MM 850 nm 50/125 µm 0-7.5 dB 0-550 m 3.0 dB/km 400 MHz×km

-SX/LC... MM 850 nm 62.5/125 µm 0-7.5 dB 0-275 m 3.2 dB/km 200 MHz×km

-LX/LC... MM 1310 nm

c

c. With F/O adapter compliant with IEEE 802.3-2002 clause 38 (single-mode fiber offset-launch

mode conditioning patch cord)

50/125 µm 0-10.5 dB 0-550 m 1.0 dB/km 800 MHz×km

-LX/LC... MM 1310 nm

d

62.5/125 µm 0-10.5 dB 0-550 m 1.0 dB/km 500 MHz×km

-LX/LC... SM 1310 nm 9/125 µm 0-10.5 dB 0-20 km

d

d. including 2.5 dB system reserve when compliance with the fiber data is observed

0.4 dB/km 3.5
ps/(nm×km)

-LH/LC... LH 1550 nm 9/125 µm 5-22 dB 23-80 km 0.25 dB/km 19 ps/(nm×km)

-LH+/LC LH 1550 nm 9/125 µm 15-30 dB 71-108 km 0.25 dB/km 19 ps/(nm×km)

-LH+/LC LH 1550 nm 9/125 µm 15-30 dB 71-128 km 0.21 dB/km
(typically)

19 ps/(nm×km)

Table 28: Fiber port 1000BASE-FX (SFP fiber optic Gigabit Ethernet Transceiver)

Twisted-pair port

Length of a twisted-pair segment max. 109 yards (100 m) (for cat5e cable)

Table 29: TP-Port 10BASE-T / 100BASE-TX / 1000BASE-T

66

Installation BAT-F

Release 06 02/2014

 Power consumption/power output

 Scope of delivery

Figure 7: List of accessories characteristic value Z

Conditions Maximum

power consumption

Power output

When equipped with 1 WLAN module 12.95 W 44.19 BTU (IT)/h
When equipped with 2 WLAN

modules

17.5 W 59.71 BTU (IT)/h

Number Article

1 × Installation user manual
1 × CD/DVD with manual
1 × Device
1 × Terminal cable: M12 connector, 8-pin on DB9 socket
1 × V1 sealing cap for optical connection
2 × Power supply plug, for cable diameters of 0.24 to 0.32 in. (6 to 8 mm;

model dependent on the characteristic value of the socket)
You find a power supply plug with a larger thread, e.g. for cable
diameters of 0.32 to 0.39 in. (8 to 10 mm), in the table Other
accessories.

See “Accessories” on page 68.

2 × Dust protection cap (synthetic material) for power supply connection
1× or2×

(depending on device
model)

X-coded M12 plug

4× or5×
(depending on device
model)

M12 cap (metal)

1 × per WLAN module Cover cap for N connector
2 × per WLAN module 50-Ω terminators for equipping free antenna connections
3 × per WLAN module 3-dBi dipole dual-band antennas for initial operation

Installation BAT-F

Release 06 02/2014

67

Figure 8: List of accessories characteristic value 9

Number Article

1 × Installation user manual
1 × CD/DVD with manual
1× Device
1 × Power supply plug, for cable diameters of 0.24 to 0.32 in. (6 to 8 mm;

model dependent on the characteristic value of the socket)
You find a power supply plug with a larger thread, e.g. for cable
diameters of 0.32 to 0.39 in. (8 to 10 mm), in the table Other
accessories.

See “Accessories” on page 68.

1 × Dust protection cap (synthetic material) for power supply connection
1 × V1 sealing cap for optical connection
1 × Sealing caps for power supply (metal)
3 × per WLAN module Sealing caps N for antenna
4× or5×

(depending on device
model)

M12 cap (synthetic material)

68

Installation BAT-F

Release 06 02/2014

 Accessories

Note: Please note that products recommended as accessories may have
characteristics that do not fully correspond to those of the device. This
may limit their possible usage in the overall system.

 To sustain the IP65/67 suitability for your device, use the accessories

with IP65/67 properties exclusively.

With the following accessories the device loses its IP65/67 suitability:

 RJ45 adapters
 Terminal cable

For reliable receive power and transmission power, you require antennas
that pertain to your application case. The Hirschmann BAT-Planner
provides support in selecting suitable antennas. You obtain the BAT
planner free of charge under www.hirschmann.com.
The “Antenna Guide” document provides an overview of the antennas
that can be used as well as the suitable antenna accessories.
You find this document as a PDF file on the enclosed CD/DVD or as a
download on the Hirschmann product pages (www.hirschmann.com).

Note: IP67 V1 connector housings according to IEC 61076-3-106
(Variant 1) you will receive from BTR NETCOM GmbH.

Gigabit Ethernet SFP transceiver Order number

M-SFP-SX/LC 943 014-001
M-SFP-SX/LC EEC 943 896-001
M-SFP-LX/LC 943 015-001
M-SFP-LX/LC EEC 943 897-001
M-SFP-LH/LC 943 042-001
M-SFP-LH/LC EEC 943 898-001
M-SFP-LH+/LC 943 049-001

Other accessories Order number

AutoConfiguration Adapter, M12 943 913-001
BAT-ANT-N-3AGN-IP67 (10 pcs.) 942 110-001
EM12S, field-attachable M12 plug for Fast Ethernet data cables 934 445-001
Pole mounting set for OpenBAT device 942 116-001
Network management software Industrial HiVision 943 156-xxx
PoE power supply unit PC150/36V/48V-IP67, working voltage

16.8 V DC ... 64 V DC

943 968-001

PoE power supply unit PC150/72 V/48V-IP67, working voltage

50.4 V DC ... 154 V DC

943 968-101

SFP mounting tool for IP67 socket 942 079-001
7/8″ plug for working voltage with the characteristic value K, for cable

diameters 0.24 to 0.32 in. (6 to 8 mm)

942 086-003

Installation BAT-F

Release 06 02/2014

69

7/8″ plug for working voltage with the characteristic value K, for cable
diameters 0.32 to 0.39 in. (8 to 10 mm)

Available at
Lumberg Automation:
11206

7/8″ plug for working voltage with the characteristic value W and C, for
cable diameters 0.24 to 0.32 in. (6 to 8 mm)

942 086-004

7/8″ plug for working voltage with the characteristic value W and C, for
cable diameters 0.24 to 0.32 in. (8 to 8 mm)

Available at
Lumberg Automation:

11216
Terminal cable: M12 connector, 8-pin on DB9 socket 942 087-001
Locking screw for M12 socket, metal, IP67 (25 pieces) 942 057-001
Locking screw for M12 plug, metal, IP67 (10 pieces) 942 115-001
Locking screw for 7/8“ plug, metal, IP67 (10 pieces) 942 111-001
0986 EMC 102, field-attachable M12 plug for Fast Ethernet data

cables

Available at

Lumberg Automation

71327
0986 EMC 600, field-attachable M12 plug for Gigabit Ethernet data

cables

Available at ICOS

934 637-032
50-Ω terminators for equipping unused antenna connections, N (10

pieces)

942 118-001

Other accessories Order number

70

Installation BAT-F

Release 06 02/2014

 Underlying norms and standards

The device has an approval based on a specific standard or de facto
standard solely if the approval indicator appears on the housing.
If your device has a shipping approval according to Germanischer Lloyd,
you find the approval mark printed on the device label. You will find out
whether your device has other shipping approvals on the Hirschmann
website under www.hirschmann.com in the product information.
The device generally fulfills the norms and standards named in their
current versions.

Name

ECE Nr. 10 E type approval for use in vehicles
EN 45545-1 Railway applications - Fire protection on railway vehicles - Part 1:

General

EN 45545-2 Railway applications - Fire protection on railway vehicles - Part 2:

Requirements for fire behaviour of materials and components.
EN 50155 Railway applications - Electronic equipment used on rolling stock
EN 55022 Information technology equipment – Radio disturbance

characteristics – Limits and methods of measurement
EN 60529 Degrees of protection provided by enclosures – IP code.
EN 60950-1 Information technology equipment – Safety – Part 1: General

requirements
EN 60950-22 Installations of IT equipment – Security – Part 22: Outdoor

equipments
EN 61000-6-2 Electromagnetic compatibility (EMC) – Part 6-2: Generic

standards – Immunity for industrial environments
EN 61131-2 Programmable controllers – Part 2: Equipment requirements and

tests
FCC 47 CFR Part 15 Code of Federal Regulations
IEEE 802.1D MAC Bridges (switching function)
IEEE 802.1Q Virtual LANs (VLANs, MRP, Spanning Tree)
IEEE 802.1w Rapid Reconfiguration
IEEE 802.11a/b/g/h/n WLAN
IEEE 802.3 Ethernet
IEEE 802.3af Power over Ethernet

Table 30: List of norms and standards

Installation BAT-F

Release 06 02/2014

71

A Further Support

 Technical Questions

For technical questions, please contact any Hirschmann dealer in your
area or Hirschmann directly.

You will find the addresses of our partners on the Internet at

http://www.hirschmann.com

Contact our support at

https://hirschmann-support.belden.eu.com

You can contact us

in the EMEA region at

 Tel.: [phone]
 E-mail: [e-mail]

in the America region at

 Tel.: [phone]
 E-mail: [e-mail]

in the Asia-Pacific region at

 Tel.: [phone]
 E-mail: [e-mail]

 Hirschmann Competence Center

The Hirschmann Competence Center is ahead of its competitors:

 Consulting incorporates comprehensive technical advice, from system

evaluation through network planning to project planning.

 Training offers you an introduction to the basics, product briefing and

user training with certification.
The current technology and product training courses can be found at

http://www.hicomcenter.com

 Support ranges from the first installation through the standby service

to maintenance concepts.

With the Hirschmann Competence Center, you have decided against
making any compromises. Our client-customized package leaves you
free to choose the service components you want to use.
Internet:

http://www.hicomcenter.com
