Installation BAT-C2
Release 01 03/2019
Technical support
https://hirschmann-support.belden.com
User Manual
Installation
Industrial Wireless LAN Client
BAT-C2
The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.
© 2019 Hirschmann Automation and Control GmbH
Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use.
The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.
Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.
You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Installation BAT-C2 2019-03-15
Installation BAT-C2
Release 01 03/2019
3
Contents
Safety instructions 5
About this manual 12
Key 13
1 Description 14
1.1 General description 14
1.2 Device views 15
1.3 Power supply 16
1.4 Ethernet port 16
1.4.1 Pin assignments 17
1.5 Connections for antennas 18
1.6 Display elements 18
1.6.1 Meaning of the LEDs 18
1.7 Signal contact 19
1.8 Reset button 19
2 Installation 20
2.1 Checking the package contents 20
2.2 Mounting the device 20
2.3 Installing the antennas 20
2.4 Connecting the power supply and the signal contact lines 21
2.5 Grounding and operating the device 21
2.5.1 Connecting the power supply via a 5-pin M12 plug
(“A”-coded) 21
2.6 Connecting data cables 22
3 Making basic settings 23
4 Maintenance and service 24
5 Disassembly 25
6 Technical data 26
4
Installation BAT-C2
Release 01 03/2019
6.1 General technical data 26
6.2 Dimension drawings 27
6.3 Radio technology 28
6.4 Receiving sensitivity, transmit power and data rate 29
6.4.1 IEEE 802.11b 29
6.4.2 IEEE 802.11g 29
6.4.3 IEEE 802.11a 29
6.4.4 IEEE 802.11n 30
6.4.5 IEEE 802.11ac 31
6.5 EMC and immunity 31
6.6 Network range 32
6.7 Power consumption/power output 32
6.8 Exemplary power consumption values depending on
modulation type and data throughput 33
6.8.1 IEEE 802.11b 33
6.8.2 IEEE 802.11g 33
6.8.3 IEEE 802.11a 34
6.8.4 IEEE 802.11n 34
6.8.5 IEEE 802.11ac 36
7 Scope of delivery, order numbers and
accessories 37
8 Underlying technical standards 38
A Further support 39
Installation BAT-C2
Release 01 03/2019
5
Safety instructions
General safety instructions
You operate this device with electricity. Improper usage of the device
entails the risk of physical injury or significant property damage. The
proper and safe operation of this device depends on proper handling
during transportation, proper storage and installation, and careful
operation and maintenance procedures.
Before connecting any cable, read this document, and the safety
instructions and warnings.
Operate the device with undamaged components exclusively.
The device is free of any service components. In case of a damaged
or malfunctioning device, turn off the supply voltage and return the
device to Hirschmann for inspection.
Certified usage
Use the product only for the application cases described in the
Hirschmann product information, including this manual.
Operate the product only according to the technical specifications.
See “Technical data” on page 26.
Connect to the product only components suitable for the requirements
of the specific application case.
Installation site requirements
When you are selecting the installation location, make sure you
observe the climatic threshold values specified in the technical data.
Operate the device at the specified ambient temperature (temperature
of the ambient air at a distance of 2 in (5 cm) from the device) and at
the specified relative humidity exclusively.
Use the device in an environment with a maximum pollution degree
that complies with the specifications in the technical data.
WARNING
UNCONTROLLED MACHINE ACTIONS
To avoid uncontrolled machine actions caused by data loss, configure all
the data transmission devices individually.
Before you start any machine which is controlled via data transmission, be
sure to complete the configuration of all data transmission devices.
Failure to follow this instruction can result in death, serious injury, or
equipment damage.
6
Installation BAT-C2
Release 01 03/2019
Install the device in a fire enclosure according to EN 60950-1.
For use in UL 60950-1 conditions:
Install the device in a fire enclosure.
Device casing
Only technicians authorized by the manufacturer are permitted to open
the casing.
Never insert sharp objects (narrow screwdrivers, wires, etc.) into the
contacts for electric conductors and do not touch the contacts.
Qualification requirements for personnel
Only allow qualified personnel to work on the device.
Qualified personnel have the following characteristics:
Qualified personnel are properly trained. Training as well as practical
knowledge and experience make up their qualifications. This is the
prerequisite for grounding and labeling circuits, devices, and systems
in accordance with current standards in safety technology.
Qualified personnel are aware of the dangers that exist in their work.
Qualified personnel are familiar with appropriate measures against
these hazards in order to reduce the risk for themselves and others.
Qualified personnel receive training on a regular basis.
National and international safety regulations
Verify that the electrical installation meets local or nationally applicable
safety regulations.
When installing antennas, observe the regulations of the country in
which you are operating the WLAN device with regard to the general
operating permission and the maximum emission levels.
Install and operate this equipment with a minimum distance of 7.9 in
(20 cm) between the antenna and your body.
Grounding the device
The device is grounded via the power supply connection.
Shielding ground
The shielding ground of the connectable twisted pair cable is connected
to the grounding connector as a conductor.
Beware of possible short circuits when connecting a cable section with
conductive shielding braiding.
Installation BAT-C2
Release 01 03/2019
7
Requirements for connecting electrical wires
Before connecting the electrical wires, always verify that the
requirements listed are complied with.
Requirements for connecting the signal contact
Before connecting the signal contact, always verify that the requirements
listed are complied with.
The following requirements apply without restrictions:
The electrical wires are voltage-free.
The cables used are permitted for the temperature range of the application case.
Relevant for North America:
Exclusively use 60/75 °C (140/167 °F) or 75 °C (167 °F) copper (Cu) wire.
Table 1: Requirements for connecting electrical wires
All of the following requirements are complied with:
The voltage connected complies with the requirements for a safety extra-low voltage
(SELV) as per IEC/EN 60950-1.
The connected voltage is limited by a current limitation device or a fuse.
Observe the electrical threshold values for the signal contact.
See “General technical data” on page 26.
Table 2: Requirements for connecting the signal contact
8
Installation BAT-C2
Release 01 03/2019
Requirements for connecting the supply voltage
The supply voltage is connected to the device casing through protective
elements exclusively.
Lightning protection
The installation of the device occurs in accordance with valid
standards (such as VDE 0185 and IEC 62305), and in accordance
with the lightning protection procedures recognized and proven for the
application and the environment.
Refer to the information in the “WLAN Outdoor Guide” on “Lightning
and overvoltage protection”.
The manual is available for download on the Internet: https://
www.doc.hirschmann.com
Protect antennas installed outside with lightning protection devices (for
example lightning conductors).
Take lightning protection measures which mitigate the effects of
lightning strikes.
The following requirements apply without restrictions:
All of the following requirements are complied with:
The supply voltage corresponds to the voltage specified on the type plate of the
device.
The power supply conforms to overvoltage category I or II.
The power supply has an easily accessible disconnecting device (for example a
switch or a plug). This disconnecting device is clearly identified. So in the case of an
emergency, it is clear which disconnecting device belongs to which power supply
cable.
The power supply cable is suitable for the voltage, the current and the physical load.
Hirschmann recommends a wire diameter of 0.5 mm² to 0.75 mm² (AWG20 up to
AWG18).
The cross-section of the ground conductor is the same size as or bigger than the
cross-section of the power supply cables.
The following requirements apply alternatively:
Alternative 1 The power supply complies with the requirements for a limited power
source (LPS) as per EN 60950-1.
Alternative 2 Relevant for North America:
The power supply complies with the requirements according to
NEC Class 2.
Alternative 3 All of the following requirements are complied with:
The power supply complies with the requirements for a safety extra-
low voltage (SELV) as per IEC/EN 60950-1.
A fuse suitable for DC voltage is located in the plus conductor of the
power supply.
The minus conductor is on ground potential. Otherwise, a fuse is also
located in the minus conductor.
Regarding the properties of this fuse:
See “Technical data” on page 26.
Table 3: Requirements for connecting the supply voltage
Installation BAT-C2
Release 01 03/2019
9
CE marking
The labeled devices comply with the regulations contained in the following
European directive(s):
2011/65/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.
2014/53/EU (RED)
Directive of the European Parliament and of the council on the
harmonization of the laws of the Member States relating to the making
available on the market of radio equipment.
In accordance with the above-named EU directive(s), the EU conformity
declaration will be available to the relevant authorities at the following
address:
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
www.hirschmann.com
The product can be used in the industrial sector.
10
Installation BAT-C2
Release 01 03/2019
FCC note (Federal Communication Commission) and IC
note (Industry Canada)
This device complies with part 15 of the FCC rules and with IC-RSS-247
rules.
Operation is subject to the following conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to
radiocommunications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
Changes or modifications not expressly approved by the holder of the
certificate could void the user’s authority to operate this equipment.
Note for the use in the USA and in Canada
The following section applies to BAT-C2 variants with the characteristic
value US (USA/Canada) for country approvals which are labeled as
follows:
Contains Transmitter Module
FCC ID: R68PW2050
IC: 3867A-PW2050
This equipment complies with FCC limits and IC RSS-102 radiation
exposure limits set forth for an uncontrolled environment. Install and
operate this equipment with a minimum distance of 7.9 in (20 cm)
between the radiation source and your body.
The antenna used for this transmitter must not be co-located with any
other transmitters within a host device, except in accordance with FCC
multi-transmitter product procedures.
This transmitter is restricted to indoor use only within the 5150 MHz to
5250 MHz band to reduce potential for harmful interference to cochannel
mobile satellite systems.
The maximum antenna gain permitted for the device in the 5250 MHz to
5350 MHz band and in 5470 MHz to 5725 MHz band shall be such that
the equipment still complies with the EIRP limit.
Installation BAT-C2
Release
01
03/2019
11
The maximum antenna gain permitted for the device in the 5725 MHz to 5850 MHz band shall be such that the
equipment still complies with the EIRP limits specified for point-to-point and non-point-to-point operation as
appropriate.
High-power radars are allocated as primary users (i.e. priority users) of the 5250 MHz to 5350 MHz band and of the
5650 MHz to 5850 MHz band. These high-power radars could cause interference and/or damage to the device.
The FCC approval is valid only in conjunction with the listed antenna or an antenna with comparable characteristics.
If other antennas are used, the approval expires. The responsibility lies with the operator of the system. The required
antenna impedance is 50 .
Recycling note
After usage, this device must be disposed of properly as electronic waste, in accordance with the current disposal
regulations of your county, state, and country.
Antenna(s) for operation with this
device:
Permitted band of operation
2.4 GHz band 5 GHz band
5180 ... 5240 MHz 5260 ... 5320 MHz 5500 ... 5700 MHz
BAT-ANT-RSMA-2AGN-R
a
a. Note: When using 2 antennas type BAT-ANT-RSMA-2AGN-R, you must align each antenna in another spatial direction (x-
y) so that both antennas are arranged at right angles to each other.
Yes Yes Yes Yes
12
Installation BAT-C2
Release 01 03/2019
About this manual
The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.
Documentation mentioned in the “User Manual Installation” that is not
supplied with your device as a printout can be found as PDF files for
downloading on the Internet at: https://www.doc.hirschmann.com
Installation BAT-C2
Release 01 03/2019
13
Key
The symbols used in this manual have the following meanings:
Listing
Work step
Subheading
14
Installation BAT-C2
Release 01 03/2019
1 Description
1.1 General description
The device allows a cost-effective and energy-saving WLAN installation for
applications with limited installation space.
Due to its robust design and compact dimensions, the device is suitable for
use in a variety of stationary and mobile WLAN applications in industrial
environments. Areas of application are, for example, warehouse logistics or
production logistics.
Main device features:
WLAN module complying with IEEE 802.11a/b/g/n/ac
Support of the following frequency ranges: 2.4 GHz and 5 GHz
Convenient device management via Web browser
Encryption functions
Smart roaming for uninterrupted connections during transmission from
one radio cell to another
Proven M12 connection technology for industrial applications
Device complies with degree of protection IP65
Numerous mounting options
Device works without a fan
The device is designed for the special requirements of industrial automation.
The device meets the relevant industry standards, provides very high
operational reliability, even under extreme conditions, and also long-term
reliability and flexibility.
The Hirschmann network components help you ensure continuous
communication across all levels of the company.
The device provides you with a large range of functions, which the “User
Manual Configuration” informs you about.
The manual is available for download on the Internet: https://
www.doc.hirschmann.com
Installation BAT-C2
Release 01 03/2019
15
1.2 Device views

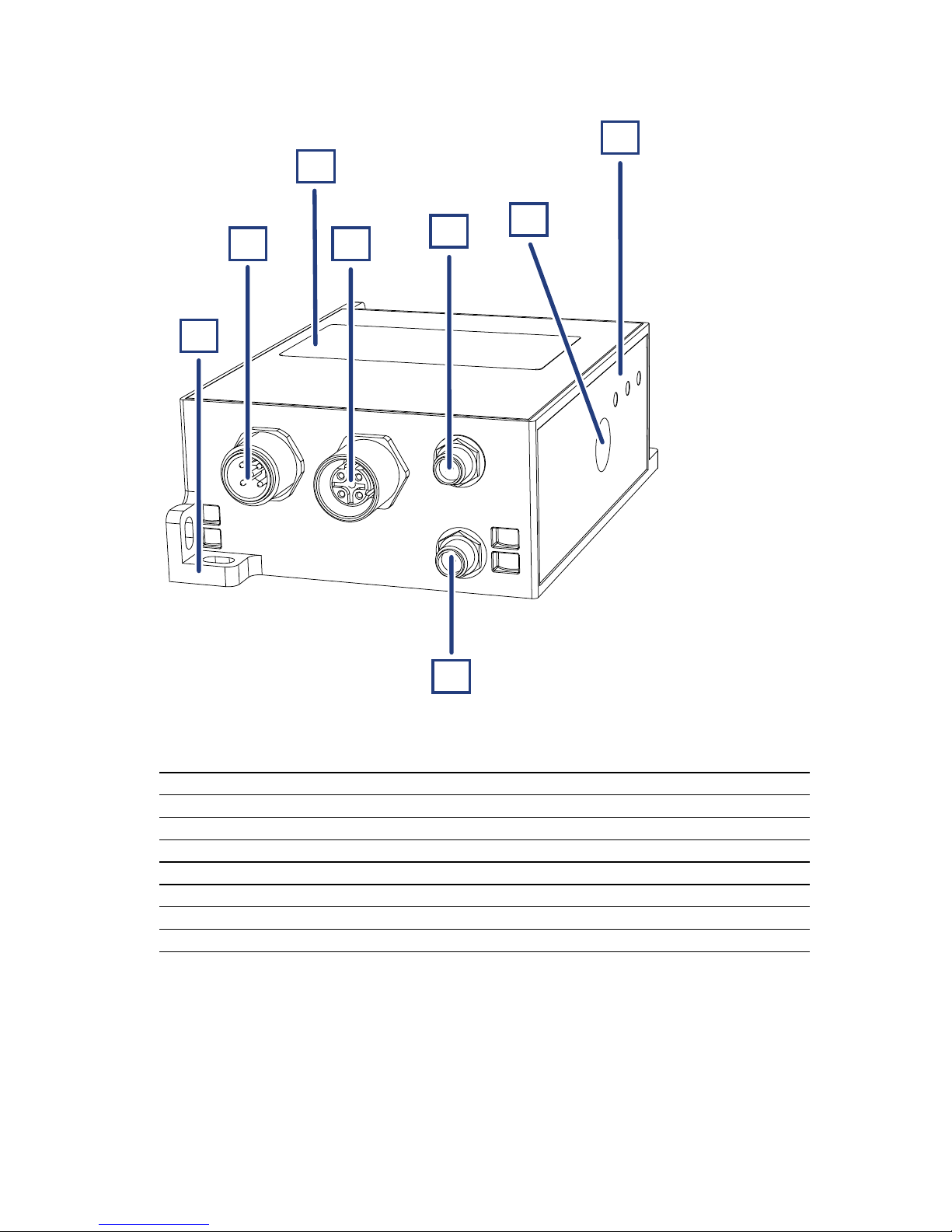

Figure 1: Front, top and side right view of device
1 Mounting flange
2 5-pin, “A”-coded M12 plug for power supply and signal contact
3 Device-specific label
4 4-pin, “D”-coded M12 socket for 10/100 Mbit/s twisted pair connections
5 Antenna connection “Ant1” (Main)
6 Reset button
7 LED display elements
8 Antenna connection “Ant2” (Diversity)
1
2
3
4
8
5
6
7
16
Installation BAT-C2
Release 01 03/2019

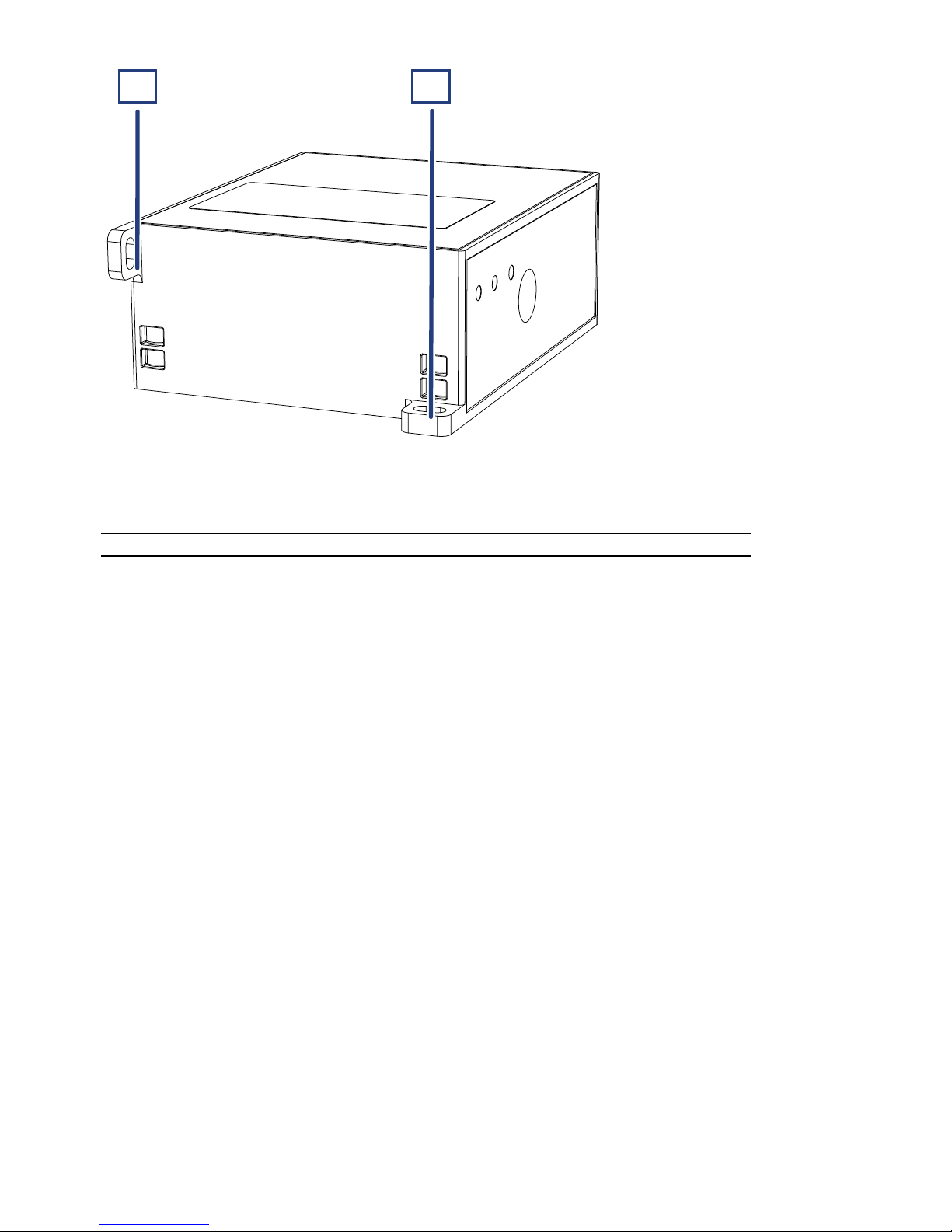

Figure 2: Rear view of device
1.3 Power supply
For the power supply of the device, a 5-pin M12 plug (“A”-coded ) is available.
Further information:
See “Connecting the power supply and the signal contact lines” on page 21.
1.4 Ethernet port
This port is a 4-pin, “D”-coded M12 socket.
The 10/100 Mbit/s twisted pair port allows you to connect network
components according to the IEEE 802.3 10BASE-T/100BASE-TX standard.
This port supports:
Autonegotiation
Autopolarity
Autocrossing (if autonegotiation is activated)
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Delivery state: Autonegotiation activated
The socket housing is electrically connected with the device housing.
1 Mounting flange
2 Mounting flange
21
Installation BAT-C2
Release 01 03/2019
17

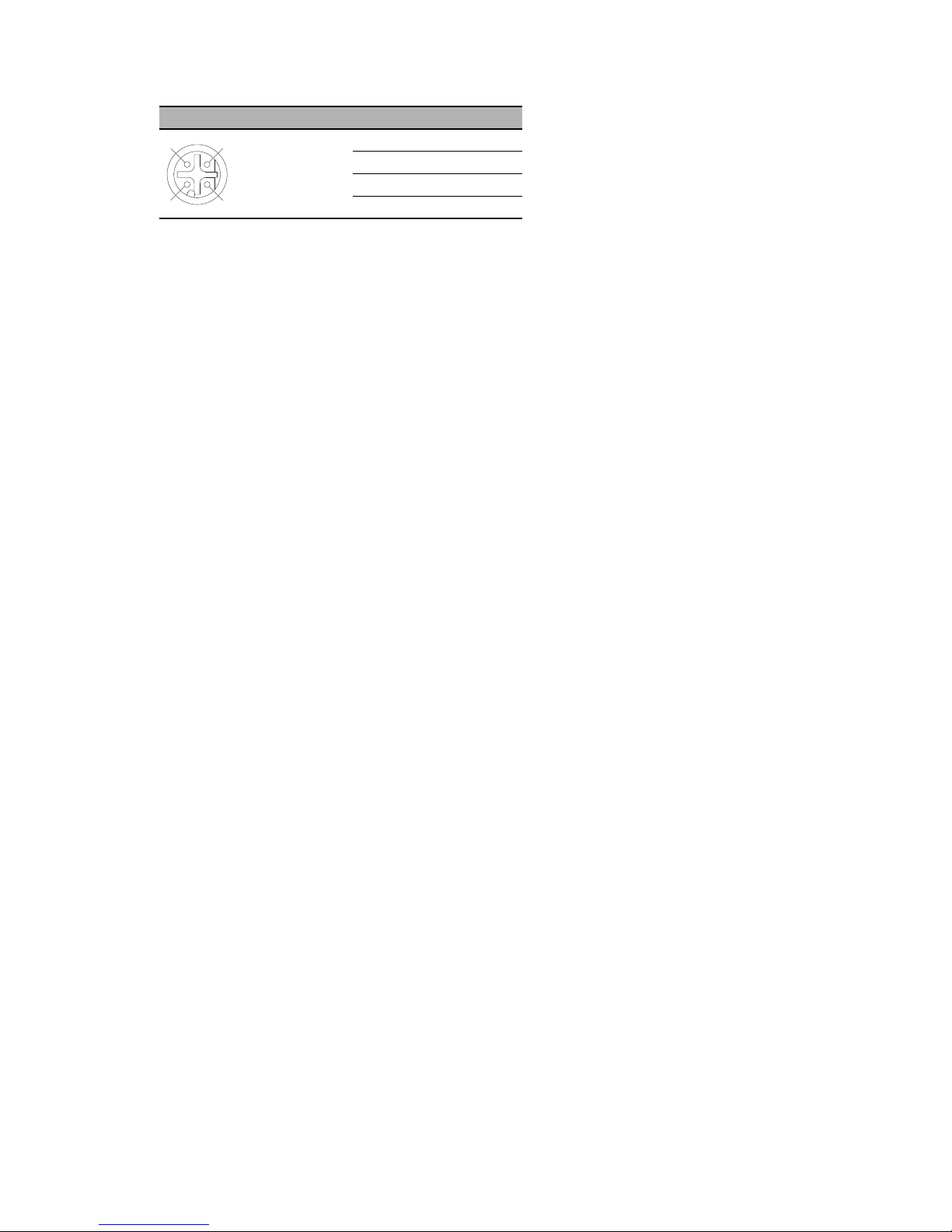

1.4.1 Pin assignments
M12 4-pin (“D”-coded) Pin Data
1TX+
2RX+
3TX
4RX
1
23
4
18
Installation BAT-C2
Release 01 03/2019
1.5 Connections for antennas
For the operation of the device you need antennas.
The device has 2 Reverse SMA connectors (1 × Main, 1 × Diversity) for
connecting external antennas.
1.6 Display elements
After the supply voltage is set up, the Software starts and initializes the
device. Afterwards, the device performs a self-test. During this process,
various LEDs light up.
1.6.1 Meaning of the LEDs
Status
Color
Activity Meaning
orange lights up Voltage present, device is operational.
orange flashes 2× long, 2×
short (repeat)
No Ethernet link
orange flashes 2× long, 3×
short (repeat)
No IP obtained from Ethernet network
orange flashes 3× long, 2×
short (repeat)
No WLAN link
orange flashes 3× long, 3×
short (repeat)
No WLAN link obtained from Ethernet network
ETH
Color
Activity Meaning
orange lights up Ethernet connection active
orange flashing Data traffic
WLAN
Color
Activity Meaning
— off Device is NOT associated with Access Point
orange lights up Device is associated with Access Point on STA interface
orange Short flashing WPS (Wi-Fi® Protected Setup) triggered
orange flashes 3× long, 2×
short, 2 seconds
off (repeat)
WPS (Wi-Fi® Protected Setup) profile error
Status
ETH
WLAN
Installation BAT-C2
Release 01 03/2019
19
1.7 Signal contact
The signal contact is a potential-free relay contact. The signal contact is open
when the device is not connected to a power supply.
The signal contact allows you to control external devices or monitor device
functions.
In the configuration, you specify how the device uses the signal contact.
You find detailed information regarding possible applications and
configuration of the signal contact in the software user documentation. You
find the software user documentation as PDF files on the Internet at: https://
www.doc.hirschmann.com
Further information:
See “General technical data” on page 26.
1.8 Reset button
The device has a reset button.
You will find detailed information regarding the configuration in the “User
Manual Configuration”.
The manual is available for download on the Internet: https://
www.doc.hirschmann.com
orange flashes 3× long, 4×
short, 2 seconds
off (repeat)
WPS (Wi-Fi® Protected Setup) timeout error
WLAN
Color
Activity Meaning
20
Installation BAT-C2
Release 01 03/2019
2 Installation
The devices have been developed for practical application in a harsh
industrial environment.
On delivery, the device is ready for operation.
Perform the following steps to install and configure the device:
Checking the package contents
Mounting the device
Installing the antennas
Connecting the power supply and the signal contact lines
Grounding and operating the device
Connecting data cables
2.1 Checking the package contents
Check whether the package includes all items named in the section
“Scope of delivery” on page 37.
Check the individual parts for transport damage.
2.2 Mounting the device
Mount the device according to your application case using the mounting
flanges:
See “Front, top and side right view of device” on page 15.
See “Rear view of device” on page 16.

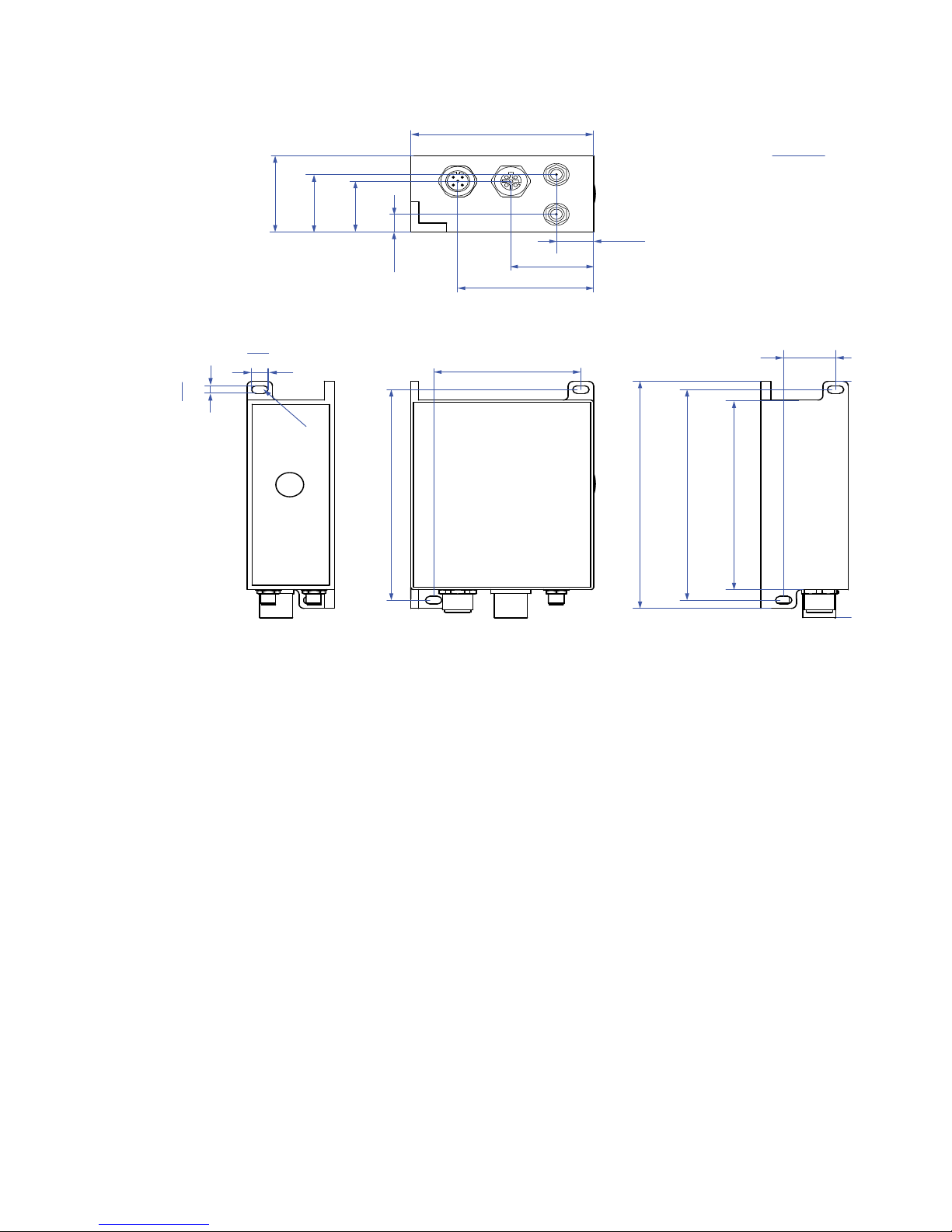

See “Dimension drawings” on page 27.
2.3 Installing the antennas
The devices have 2 Reverse SMA connectors for connecting external
antennas.
Note: When using 2 antennas type BAT-ANT-RSMA-2AGN-R, you must
align each antenna in another spatial direction (x-y) so that both antennas are
arranged at right angles to each other.
Installation BAT-C2
Release 01 03/2019
21
If you mount only 1 antenna, equip the antenna connection “Ant1” (Main).
Equip the unused antenna connection “Ant2” (Diversity) with a terminating
resistor. You can obtain terminating resistors as accessory.
See “Accessories” on page 37.
2.4 Connecting the power supply and the signal
contact lines
For the power supply of the device, a 5-pin M12 plug (“A”-coded ) is available.
You find the prescribed tightening torque in chapter:
See 26 “Technical data”.
The supply voltage is electrically isolated from the casing.
For every supply voltage to be connected, perform the following steps:
Connect the wires for the supply voltage and the signal contact according
to the pin assignment with a suitable socket.
2.5 Grounding and operating the device
The device is grounded via the power supply connection.
By connecting the supply voltage via a connector, you start the operation of
the device.
2.5.1 Connecting the power supply via a 5-pin M12 plug
(“A”-coded)
You find the prescribed tightening torque of the locking screw in chapter:
See “General technical data” on page 26.
Insert the socket into the 5-pin M12 plug on the device.
Enable the supply voltage.
Type and specification of the
supply voltage

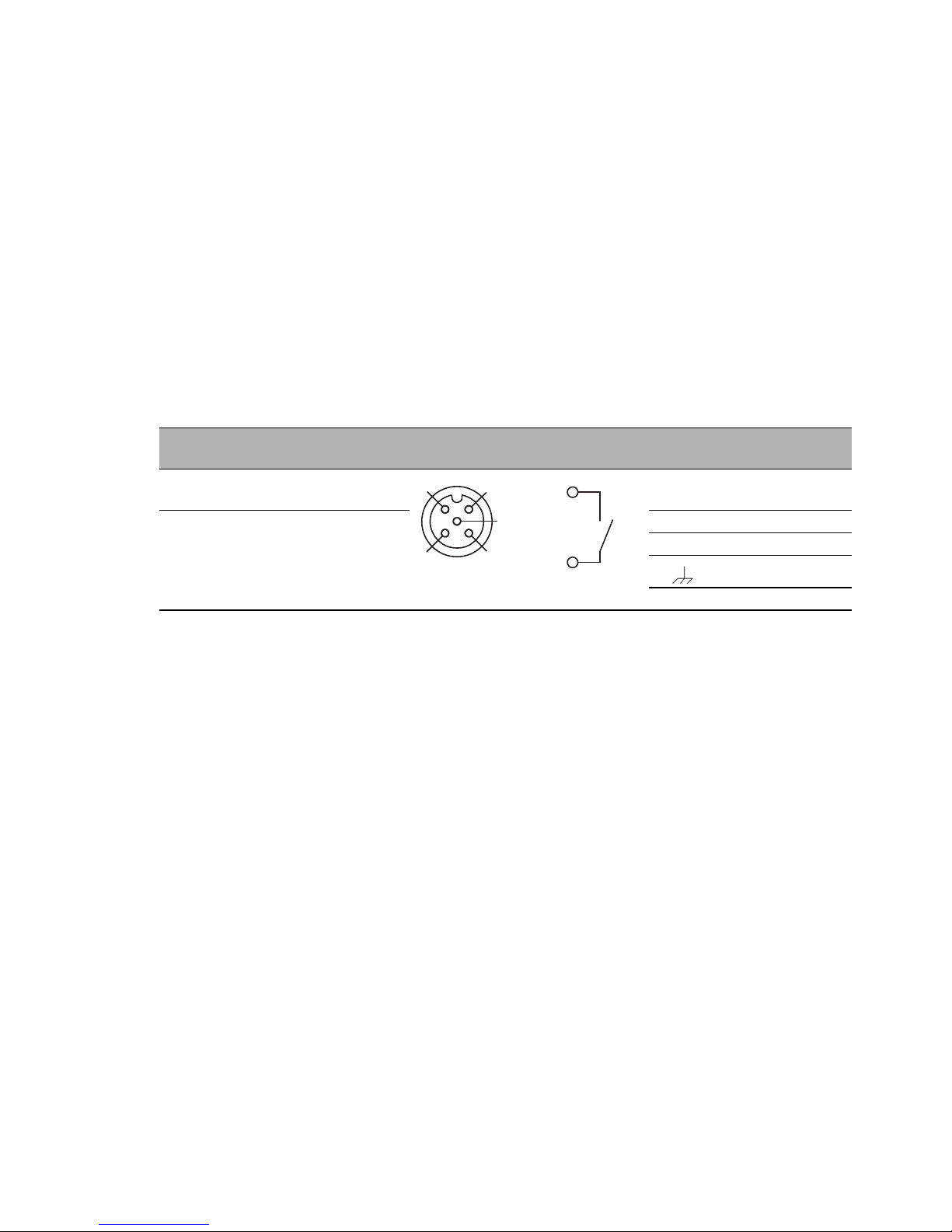

Pin assignment on the device
Rated voltage range
12 V DC ... 24 V DC
1+24V DC
Voltage range incl. maximum
tolerances
9.6 V DC ... 32 V DC
2 Signal contact
30VDC
4 Functional ground
5 Signal contact
Table 4: Type and specification of the supply voltage
1
2
3
4
5
2
5
22
Installation BAT-C2
Release 01 03/2019
2.6 Connecting data cables
Further information:
See “Ethernet port” on page 16.
Connect the data cable according to your requirements.
Installation BAT-C2
Release 01 03/2019
23
3 Making basic settings
Connect the device to the network using the Ethernet port.
Start your Web browser.
Write the IP address of the device in the address field of the Web browser:
https://192.168.1.1
The Web browser sets up the connection to the device and displays the
Login page.
Enter the user name “admin”.
Enter the password “private”.
Click the “Login” button.
The Web browser displays the graphical user interface.
Use the quick setup to do the first settings. Alternatively, skip the quick
setup to do the first settings manually.
You will find detailed information regarding the configuration in the “User
Manual Configuration”.
The manual is available for download on the Internet: https://
www.doc.hirschmann.com
24
Installation BAT-C2
Release 01 03/2019
4 Maintenance and service
When designing this device, Hirschmann largely avoided using high-wear
parts. The parts subject to wear and tear are dimensioned to last longer
than the lifetime of the product when it is operated normally. Operate this
device according to the specifications.
Relays are subject to natural wear. This wear depends on the frequency
of the switching operations. Check the resistance of the closed relay
contacts and the switching function depending on the frequency of the
switching operations.
Hirschmann is continually working on improving and developing their
software. Check regularly whether there is an updated version of the
software that provides you with additional benefits. You find information
and software downloads on the Hirschmann product pages on the
Internet (http://www.hirschmann.com).
Note: You find information on settling complaints on the Internet at http://
www.beldensolutions.com/en/Service/Repairs/index.phtml.
Installation BAT-C2
Release 01 03/2019
25
5Disassembly
Disconnect the data cable.
Disable the supply voltage.
Disconnect the power supply cable.
Remove the antennas.
26
Installation BAT-C2
Release 01 03/2019
6 Technical data
6.1 General technical data
Dimensions
W × H × D
BAT-C2 See “Dimension drawings” on page 27.
Weight 4.41 oz (125 g)
Supply voltage Rated voltage range 12 V DC ... 24 V DC
Voltage range incl. maximum
tolerances
9.6 V DC ... 32 V DC
Connection type M12 connector, 5-pin, (M12 socket, “A”-
coded)
Power loss buffer 10 ms at 24 V DC
Back-up fuse Nominal rating: 1 A
Characteristic: slow blow
Peak inrush current (slow
voltage increase)
340 mA
Current integral I²t 12 V DC: 0.075 A
2
s
24 V DC: 0.276 A
2
s
Signal contact Switching current max. 1 A
Switching voltage max. 60 V DC
max. 30 V AC
Connection type M12 connector, 5-pin, (M12 socket, “A”-
coded)
Tightening
torque
5.3 lb-in (0.6 Nm)
Climatic
conditions during
operation
Ambient air temperature
a
a. Temperature of the ambient air at a distance of 2 in (5 cm) from the device
-40 °F ... +158 °F (-40 °C ... +70 °C)
Maximum inner temperature of
device (guideline)
194 °F (90 °C)
Humidity 1 % ... 95 % (non-condensing)
Air pressure min. 795 hPa (+6562 ft; +2000 m)
max. 1060 hPa (-1312 ft; -400 m)
Climatic
conditions during
storage
Ambient temperature -40 °F ... +185 ºF (40 ºC ... +85 ºC)
Humidity 1 % ... 95 % (non-condensing)
Air pressure min. 795 hPa (+6562 ft; +2000 m)
max. 1060 hPa (-1312 ft; -400 m)
Pollution degree 2
Protection classes Degree of protection IP65
Installation BAT-C2
Release 01 03/2019
27
6.2 Dimension drawings
Figure 3: Dimension drawings
mm
in
34
1.34
95,5
3.76
103
4.06
95,5
3.76
3,5
0.14
6,5
0.26
58,2
2.29
20,5
0.81
72
2.83
26
1.02
23
0.91
8
0.31
53,7
2.11
32,6
1.28
14,7
0.58
86
3.39
R 1,75
R 0.07
Reset
28
Installation BAT-C2
Release 01 03/2019
6.3 Radio technology
Antenna connection 2 × Reverse SMA connector
Range Depending on the antenna used, frequency range and data rate
Security
WEP
WPA
WPA2
802.1x
Protected Management Frames
Encryption: AES, TKIP, CKIP
Quality-of-Service
WMM
WMM-PS (UAPSD)
WMM-SA
Frequency range
Support of 2.4 GHz and 5 GHz: 2412 MHz to 2484 MHz and
4900 MHz to 5845 MHz
Modulation technology
OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
DSSS/CCK
Radio topology WLAN-Access-Point, WLAN-Client, Router-Mode, Host-Bridge,
Network-Bridge, Gateway (NAT)
Installation BAT-C2
Release 01 03/2019
29
6.4 Receiving sensitivity, transmit power and
data rate
The values of the WLAN module shown in the following tables are subject to
a tolerance of ±2 dB. The values are in no case to be perceived as a
guaranteed property of the overall product. For some country profiles, the
module reduces data rate and transmit power automatically. The reason for
this are national standards.
6.4.1 IEEE 802.11b
6.4.2 IEEE 802.11g
6.4.3 IEEE 802.11a
IEEE 802.11b
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 20 MHz
Data rate Transmit power Receiving sensitivity
1 Mbit/s 16 dBm 96 dBm
11 Mbit/s 16 dBm 89 dBm
Table 5: IEEE 802.11b, frequency range 2.412 GHz to 2.472 GHz, bandwidth
20 MHz
IEEE 802.11g
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 20 MHz
Data rate Transmit power Receiving sensitivity
6 Mbit/s 14 dBm 93 dBm
54 Mbit/s 14 dBm 76 dBm
Table 6: IEEE 802.11g, frequency range 2.412 GHz to 2.472 GHz, bandwidth
20 MHz
IEEE 802.11a
Frequeny range 5.180 GHz to 5.825 GHz
Bandwidth 20 MHz
Data rate Transmit power Receiving sensitivity
6 Mbit/s 14 dBm 92 dBm
54 Mbit/s 14 dBm 76 dBm
Table 7: IEEE 802.11a, frequency range 5.180 GHz to 5.825 GHz, bandwidth
20 MHz
30
Installation BAT-C2
Release 01 03/2019
6.4.4 IEEE 802.11n
IEEE 802.11n
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 20 MHz
Coding Transmit power Receiving sensitivity
MCS 0 13 dBm 93 dBm
MCS 7 13 dBm 74 dBm
Table 8: IEEE 802.11n, frequency range 2.412 GHz to 2.472 GHz, bandwidth
20 MHz
IEEE 802.11n
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 40 MHz
Coding Transmit power Receiving sensitivity
MCS 0 13 dBm 93 dBm
MCS 7 13 dBm 74 dBm
Table 9: IEEE 802.11n, frequency range 2.412 GHz to 2.472 GHz, bandwidth
40 MHz
IEEE 802.11n
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 20 MHz
Coding Transmit power Receiving sensitivity
MCS 0 13 dBm 92 dBm
MCS 7 13 dBm 74 dBm
Table 10: IEEE 802.11n, frequency range 5.180 GHz to 5.825 GHz, bandwidth
20 MHz
IEEE 802.11n
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 40 MHz
Coding Transmit power Receiving sensitivity
MCS 0 13 dBm 92 dBm
MCS 7 13 dBm 74 dBm
Table 11: IEEE 802.11n, frequency range 5.180 GHz to 5.825 GHz, bandwidth
40 MHz
Installation BAT-C2
Release 01 03/2019
31
6.4.5 IEEE 802.11ac
6.5 EMC and immunity
IEEE 802.11ac
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 20 MHz
Coding Transmit power Receiving sensitivity
MCS 8 13 dBm 70 dBm
Table 12: IEEE 802.11ac, frequency range 5.180 GHz to 5.825 GHz, bandwidth
20 MHz
IEEE 802.11ac
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 40 MHz
Coding Transmit power Receiving sensitivity
MCS 9 11 dBm 62 dBm
Table 13: IEEE 802.11ac, frequency range 5.180 GHz to 5.825 GHz, bandwidth
40 MHz
IEEE 802.11ac
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 80 MHz
Coding Transmit power Receiving sensitivity
MCS 9 11 dBm 62 dBm
Table 14: IEEE 802.11ac, frequency range 5.180 GHz to 5.825 GHz, bandwidth
80 MHz
EMC interference
immunity
EN 61000-4-2 Electrostatic discharge
Contact discharge 4 kV
Air discharge 8 kV
EN 61000-4-3 Electromagnetic field
80 MHz ... 1000 MHz 20 V/m
1000 MHz ... 3000 MHz 10 V/m
3000 MHz ... 6000 MHz 10 V/m
EN 61000-4-4 Fast transients (burst)
DC power line 2 kV
Data line 1 kV
32
Installation BAT-C2
Release 01 03/2019
6.6 Network range
6.7 Power consumption/power output
EN 61000-4-5 Voltage surges
DC power line 1 kV line/ground; 0.5 kV line/
line
Data line, shielded 1 kV
Data line, unshielded 1 kV
EN 61000-4-6 Conducted disturbances
150 kHz ... 80 MHz 10 V
EMC interference
emission
EN 55032 Class B
Stability
IEC 60068-2-6, test Fc Vibration 5 Hz ... 8.4 Hz with 0.14 in (3.5 mm)
amplitude
8.4 Hz ... 150 Hz with 1 g
IEC 60068-2-27, test Ea Shock 15 g at 11 ms
10/100/1000 Mbit/s twisted pair port
Length of a twisted pair segment max. 328 ft (100 m) (for Cat5e cable)
Table 15: Network range: 10/100/1000 Mbit/s twisted pair port
Power consumption Power output
3.8 W 13 Btu (IT)/h
Table 16: Power consumption/power output
EMC interference
immunity
Installation BAT-C2
Release 01 03/2019
33
6.8 Exemplary power consumption values
depending on modulation type and data
throughput
The following tables show exemplary power consumption values depending
on data rate and data throughput. Data throughput and power consumption
vary depending on your environmental conditions.
TCP power consumption values
In order to determine the TCP power consumption values, an
unidirectional data transfer with static data rate and modulation was set
up from the client (BAT-C2) to the access point using Iperf.
UDP power consumption values
In order to determine the UDP power consumption values, an
unidirectional data transfer with static data rate and modulation and with
fixed data throughput was set up from the client (BAT-C2) to the access
point using Iperf.
6.8.1 IEEE 802.11b
6.8.2 IEEE 802.11g
IEEE 802.11b
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 20 MHz
Data rate Power
consumption
TCP
Data throughput
TCP
Power
consumption
UDP
Data throughput
UDP
5.5 Mbit/s 2.8 W 3.2 Mbit/s 2.8 W 4.2 Mbit/s
2.5 W 2.1 Mbit/s
11 Mbit/s 3 W 5 Mbit/s 3.1 W 6 Mbit/s
2.6W 3Mbit/s
Table 17: IEEE 802.11b, frequency range 2.412 GHz to 2.472 GHz, bandwidth
20 MHz
IEEE 802.11b
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 20 MHz
Data rate Power
consumption
TCP
Data throughput
TCP
Power
consumption
UDP
Data throughput
UDP
6 Mbit/s 3.1 W 4.5 Mbit/s 3.2 W 5 Mbit/s
2.6 W 2.5 Mbit/s
Table 18: IEEE 802.11g, frequency range 2.412 GHz to 2.472 GHz, bandwidth
20 MHz
34
Installation BAT-C2
Release 01 03/2019
6.8.3 IEEE 802.11a
6.8.4 IEEE 802.11n
24 Mbit/s 2.7 W 12 Mbit/s 2.9 W 19 Mbit/s
2.5 W 9.5 Mbit/s
54 Mbit/s 2.5 W 19 Mbit/s 2.8 W 35 Mbit/s
2.4 W 17.5 Mbit/s
IEEE 802.11a
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 20 MHz
Data rate Power
consumption
TCP
Data throughput
TCP
Power
consumption
UDP
Data throughput
UDP
6Mbit/s 3.5W 4Mbit/s 3.6W 5Mbit/s
2.8 W 2.5 Mbit/s
24 Mbit/s 2.9 W 12.5 Mbit/s 3.2 W 19 Mbit/s
2.7 W 9.5 Mbit/s
54 Mbit/s 2.7 W 19 Mbit/s 3.1 W 35 Mbit/s
2.6 W 17.5 Mbit/s
Table 19: IEEE 802.11a, frequency range 5.180 GHz to 5.825 GHz, bandwidth
20 MHz
IEEE 802.11n
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 20 MHz
Data rate Power
consumption
TCP
Data throughput
TCP
Power
consumption
UDP
Data throughput
UDP
MCS0 2.8W 5Mbit/s 3W 6Mbit/s
2.5W 3Mbit/s
MCS 4 2.6 W 19 Mbit/s 3 W 39 Mbit/s
2.6 W 19.5 Mbit/s
Table 20: IEEE 802.11n, frequency range 2.412 GHz to 2.472 GHz, bandwidth
20 MHz
IEEE 802.11b
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 20 MHz
Data rate Power
consumption
TCP
Data throughput
TCP
Power
consumption
UDP
Data throughput
UDP
Table 18: IEEE 802.11g, frequency range 2.412 GHz to 2.472 GHz, bandwidth
20 MHz
Installation BAT-C2
Release 01 03/2019
35
MCS 7 2.5 W 23 Mbit/s 2.9 W 50 Mbit/s
2.6 W 25 Mbit/s
IEEE 802.11n
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 20 MHz
Data rate Power
consumption
TCP
Data throughput
TCP
Power
consumption
UDP
Data throughput
UDP
MCS 0 3.1 W 5 Mbit/s 3.2 W 6.5 Mbit/s
2.7 W 3.2 Mbit/s
MCS 4 2.8 W 19 Mbit/s 3.3 W 38 Mbit/s
2.8 W 19 Mbit/s
MCS 7 2.6 W 23 Mbit/s 3.1 W 46 Mbit/s
2.6 W 23 Mbit/s
Table 21: IEEE 802.11n, frequency range 5.180 GHz to 5.825 GHz, bandwidth
20 MHz
IEEE 802.11n
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 40 MHz
Data rate Power
consumption
TCP
Data throughput
TCP
Power
consumption
UDP
Data throughput
UDP
MCS4 2.7W 24Mbit/s 3W 46Mbit/s
2.6 W 23 Mbit/s
MCS 7 2.6 W 26 Mbit/s 2.7 W 47 Mbit/s
2.5 W 23.5 Mbit/s
Table 22: IEEE 802.11n, frequency range 5.180 GHz to 5.825 GHz, bandwidth
40 MHz
IEEE 802.11n
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 20 MHz
Data rate Power
consumption
TCP
Data throughput
TCP
Power
consumption
UDP
Data throughput
UDP
Table 20: IEEE 802.11n, frequency range 2.412 GHz to 2.472 GHz, bandwidth
20 MHz
36
Installation BAT-C2
Release 01 03/2019
6.8.5 IEEE 802.11ac
IEEE 802.11ac
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 20 MHz
Data rate Power
consumption
TCP
Data throughput
TCP
Power
consumption
UDP
Data throughput
UDP
MCS 7 2.7 W 23 Mbit/s 3 W 45 Mbit/s
2.6 W 22.5 Mbit/s
MCS 9 2.6 W 24 Mbit/s 2.9 W 46 Mbit/s
2.6 W 23 Mbit/s
Table 23: IEEE 802.11ac, frequency range 5.180 GHz to 5.825 GHz, bandwidth
20 MHz
IEEE 802.11ac
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 40 MHz
Data rate Power
consumption
TCP
Data throughput
TCP
Power
consumption
UDP
Data throughput
UDP
MCS 9 2.5 W 26 Mbit/s 2.6 W 47 Mbit/s
2.4 W 23.5 Mbit/s
Table 24: IEEE 802.11ac, frequency range 5.180 GHz to 5.825 GHz, bandwidth
40 MHz
IEEE 802.11ac
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 80 MHz
Data rate Power
consumption
TCP
Data throughput
TCP
Power
consumption
UDP
Data throughput
UDP
MCS 7 2.6 W 27 Mbit/s 2.7 W 50 Mbit/s
2.6 W 25 Mbit/s
MCS 9 2.6 W 27 Mbit/s 2.6 W 50 Mbit/s
2.5 W 25 Mbit/s
Table 25: IEEE 802.11ac, frequency range 5.180 GHz to 5.825 GHz, bandwidth
80 MHz
Installation BAT-C2
Release 01 03/2019
37
7 Scope of delivery, order numbers and
accessories
Scope of delivery
Accessories
Note that products recommended as accessories may have different
characteristics to those of the device, which may limit the application
range of the overall system. For example, if you add an accessory with
IP20 to a device with IP65, the degree of protection of the overall system
is reduced to IP20.
For reliable receive power and transmission power, you require antennas
that pertain to your application case.
Number Article
1× Device
1 × General safety instructions
1 × EU Declaration of Conformity
1 × M12 power supply plug ELKA 5012 PG7
Other accessories Order number
M12 power supply plug ELKA 5012 PG7 933 170-100
BAT-ANT-RSMA-2AGN-R (10 pieces) 942 046-001
50 terminating resistors for sealing unused antenna connections, N
(10 pieces)
942 117-001
38
Installation BAT-C2
Release 01 03/2019
8 Underlying technical standards
The device has an approval based on a specific standard exclusively if the
approval indicator appears on the device casing.
The device generally fulfills the technical standards named in their current
versions.
Name
EN 55032 Electromagnetic compatibility of multimedia equipment –
Emission Requirements
EN 60529 Degrees of protection provided by housing – IP-Code
EN 60950-1 Information technology equipment – Safety – Part 1: General
requirements
EN 61000-6-1 Electromagnetic compatibility (EMC) – Part 6-1: Generic
standards – Immunity for residential, commercial and light-
industrial environments
EN 61131-2 Programmable controllers – Part 2: Equipment requirements and
tests
EN 300 328 Electromagnetic compatibility and radio spectrum matters (ERM)
- bandwidth transfer systems - data transmission equipment
operating in 2.4 GHz ISM band and using spread spectrum
modulation technology
EN 301 893 Broadband radio access networks (BRAN) – 5 GHz high
performance Remote Local Area Network (RLAN)
EN 301 489-1 Electromagnetic compatibility for radio equipment and services
EN 301 489-17 Electromagnetic compatibility (EMC) for radio equipment and
services - specific conditions for 2.4 GHz broadband transmission
systems and 5 GHz high-performance RLAN equipment
FCC 47 CFR Part 15 Code of Federal Regulations
IEEE 802.11a/b/g/n/ac WLAN
IEEE 802.3 Ethernet
UL 60950-1 Information technology equipment – Safety – Part 1: General
requirements
Installation BAT-C2
Release 01 03/2019
39
A Further support
Technical questions
For technical questions, please contact any Hirschmann dealer in your area
or Hirschmann directly.
You find the addresses of our partners on the Internet at http://
www.hirschmann.com.
A list of local telephone numbers and email addresses for technical support
directly from Hirschmann is available at https://
hirschmann-support.belden.com.
This site also includes a free of charge knowledge base and a software
download section.
Hirschmann Competence Center
The Hirschmann Competence Center is ahead of its competitors on three
counts with its complete range of innovative services:
Consulting incorporates comprehensive technical advice, from system
evaluation through network planning to project planning.
Training offers you an introduction to the basics, product briefing and user
training with certification.
You find the training courses on technology and products currently
available at http://www.hicomcenter.com.
Support ranges from the first installation through the standby service to
maintenance concepts.
With the Hirschmann Competence Center, you decided against making any
compromises. Our client-customized package leaves you free to choose the
service components you want to use.
Internet:
http://www.hicomcenter.com
Loading...
