Hirschmann BAT-C User Manual

Technical Support

https://hirschmann-support.belden.eu.com

BAT-C

User Manual

Configuration and Administration
Industrial Wireless LAN Client
BAT-C

BAT-C

Release 02 05/2016

2

The naming of copyrighted trademarks in this manual, even when not specially indicated,
should not be taken to mean that these names may be considered as free in the sense of the
trademark and trade name protection law and hence that they may be freely used by anyone.

© 2016 Hirschmann Automation and Control GmbH
Manuals and software are protected by copyright. All rights reserved. The copying,

reproduction, translation, conversion into any electronic medium or machine scannable form
is not permitted, either in whole or in part. An exception is the preparation of a backup copy
of the software for your own use. For devices with embedded software, the end-user license
agreement on the enclosed CD applies.

The performance features described here are binding only if they have been expressly
agreed when the contract was made. This document was produced by Hirschmann
Automation and Control GmbH according to the best of the company's knowledge.
Hirschmann reserves the right to change the contents of this document without prior notice.
Hirschmann can give no guarantee in respect of the correctness or accuracy of the
information in this document.

Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of
use specified in the license contract.

You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).

Printed in Germany
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]

BAT-C

Release 02 05/2016

3

Contents

About this Manual 5

1 Installation 6

1.1 Power 7

1.2 Ethernet interface 7

1.3 Status indicators 7

2 General Concepts 9

2.1 Configuration Methods 9

2.2 Using the SMART configuration mode 9

2.3 Using the WEB configuration 10

2.4 Reset to factory defaults 13

2.5 Wireless LAN modes 13

2.6 BAT-C modes 13

2.7 WLAN Security 13

2.7.1 Key management 14

3 Supported Use Cases 16

3.1 Two BAT-C’s Connected as an Ethernet Bridge - Ooption 1 16

3.1.1 How to setup this example? 16

3.2 Two BAT-C’s Connected as an Ethernet Bridge - Option 2 18

3.2.1 How to setup this example? 18

3.3 Two BAT-C’s Connected as an Ethernet Bridge - Option 3 19

3.3.1 How to setup this example? 19

3.4 Two BAT-C’s Connected in Client mode - Option 1 19

3.4.1 How to setup this example? 20

3.5 Two BAT-C’s Connected in Client mode - Option 2 21

3.5.1 How to setup this example? 21

3.6 A PC wirelessly connected to a BAT-C - Option 1 23

3.6.1 How to setup this example? 23

3.7 A PC wirelessly connected to a BAT-C - Option 2 25

3.7.1 How to setup this example? 25

3.8 Several Ethernet devices connected in Client mode - Option 1 27

3.8.1 How to setup this example? 27

3.9 Several Ethernet devices connected in Client mode - Option 2 29

3.9.1 How to setup this example? 29

BAT-C

Release 02 05/2016

4

3.10 One or more BAT-C’s connected to a Wired Infrastructure through WLAN 31

3.10.1 How to setup this example? 31

3.11 External WLAN client connected to a BAT-C 33

3.11.1 How to setup this example? 33

3.12 Multi-Client mode 35

3.12.1 How to setup this example? 35

A Further Support 36

BAT-C

Release 02 05/2016

5

About this Manual

■ Abstract

This document is a product guide defining the main use cases for Hirschmann BAT-C
Ethernet Port Adapter (later called BAT-C). Furthermore, this document describes how to
configure the device for specific applications. It also contains general information about the
product.

■ Related Documents

BAT-C User Manual Installation. Is a quick setup guide to aid as a quick reference when
setting up the BAT-C for the simplest out-of-the-box applications.

BAT-C CLI-Reference. Detailed specification/reference for the supported AT commands.

BAT-C

Release 02 05/2016

6

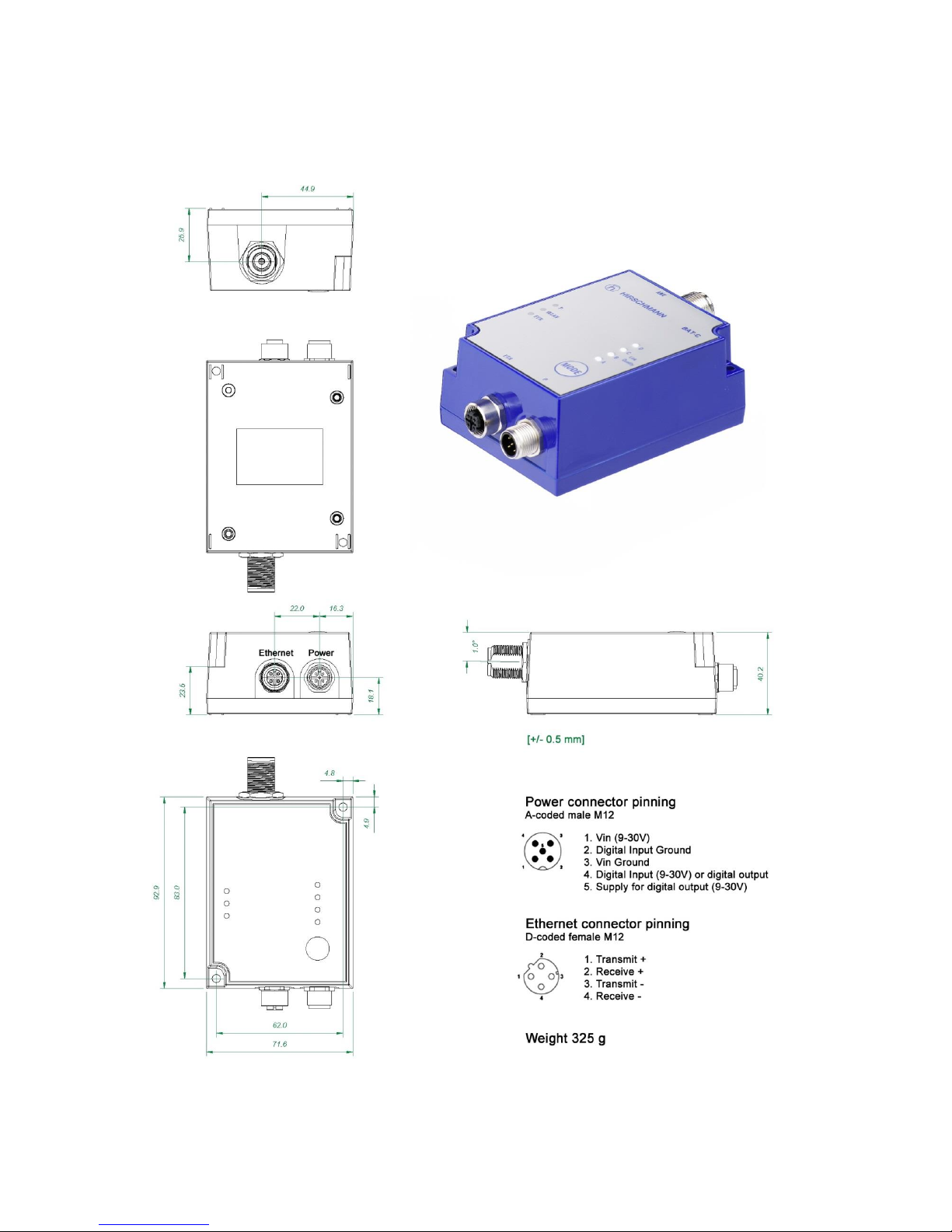

1 Installation

BAT-C

Release 02 05/2016

7

1.1 Power

The table below shows typical current at 24 V.

Operation

Mean (mA)

Max (mA)

Startup

58.8

Idle

58.7

58.8

Idle, Ethernet

69

69.1

Idle + 4xMode LEDs

74.2

74.3

Connecting

63.2

63.9

Connected Data

63.2

64.8

Connected, Data, Ethernet

73.4

75.5

Connected, Data, Ethernet, 4xMode LEDs

78.6

80.7

1.2 Ethernet interface

The Ethernet interface supports 10/100 Mbps with both MDI/MDI-X auto crossover and
polarity correction.

1.3 Status indicators

Description

Color

Status

Meaning

P

Green

On

Supply voltage is present and application is
running

P

Green

Off

Supply voltage is not present, or no application
is running

BAT-C

Release 02 05/2016

8

Description

Color

Status

Meaning

WLAN

Blue/Purple/Red

Blue

A WLAN connection has been established

WLAN

Blue/Purple/Red

Flashing
Blue

WLAN data activity

WLAN

Blue/Purple/Red

Purple

Attempting to establish a connection to another
WLAN device.

WLAN

Blue/Purple/Red

Red

Error

WLAN

Blue/Purple/Red

Off

No WLAN activity

ETH

Yellow

On

Ethernet link is present

ETH

Yellow

Flashing

Ethernet data activity

ETH

Yellow

Off

No Ethernet connection

BAT-C

Release 02 05/2016

9

2 General Concepts

2.1 Configuration Methods

The BAT-C supports four main concepts for setting and configuring the BAT-C:

1. SMART mode. Use the buttons and LEDs on the BAT-C to setup automatically.

2. Web interface. This is a Graphical User Interface with the common settings for the BAT-C.

3. AT commands. Connect to the BAT-C over Ethernet using TCP or directly on Layer 2 and use a
terminal like HyperTerminal to issue AT commands. Everything you can do in the Web interface
and much more is supported using the AT commands. See CLI-Reference for more information.

4. The SNMP protocol. See CLI-Reference for more information.

2.2 Using the SMART configuration mode

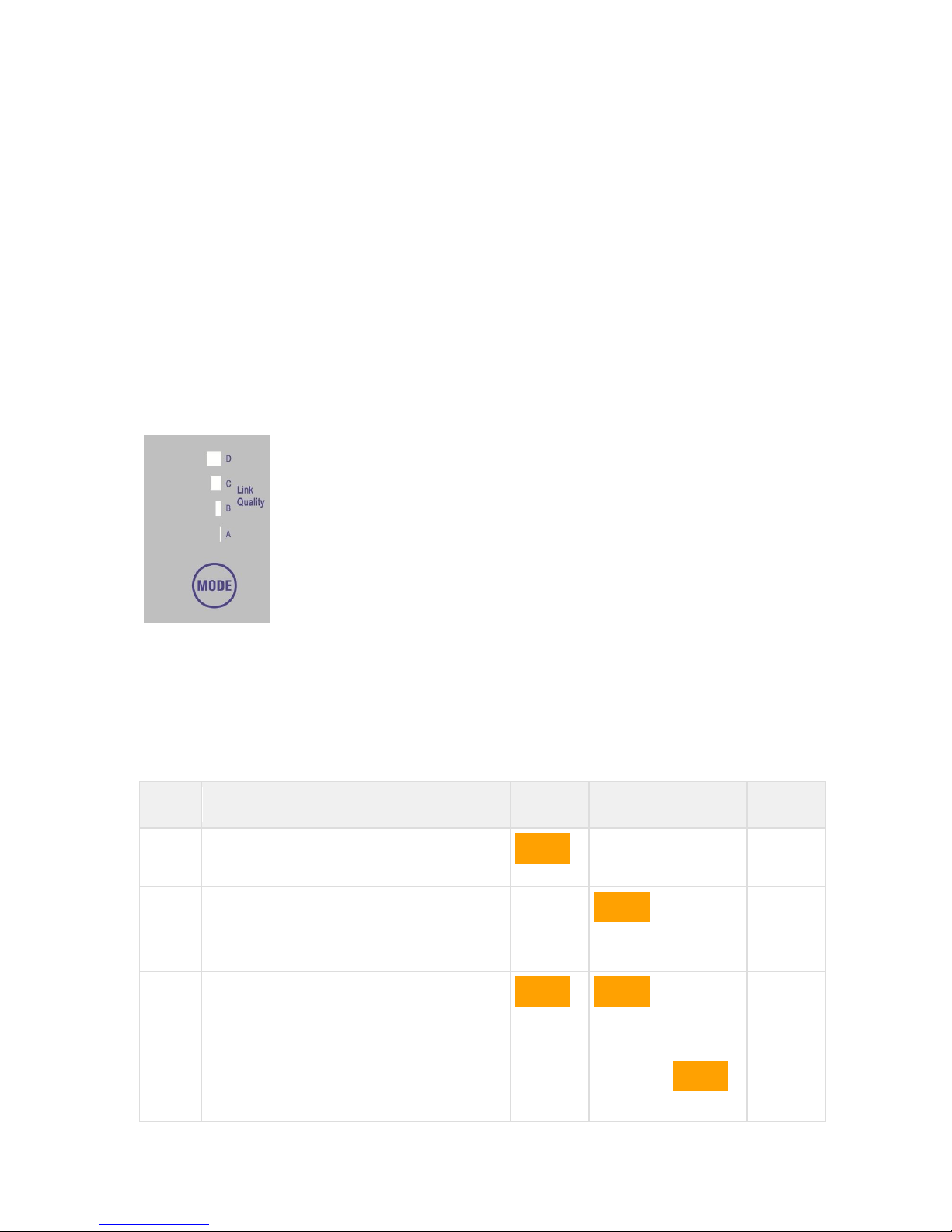

To enter the SMART configuration mode press the mode button within 5 seconds from power
up. The LEDs above the button (marked A, B, C and D) will show which mode is selected.
When you select the preferred mode, confirm it by holding the SMART button for two
seconds. This will cause the LEDs to start flashing during the duration of the operation of the
selected mode.

There are currently 12 different modes:

Mode

Description

LEDs

A

B

C

D

1

Enable DHCP server

A

2

Reset to factory defaults. This
will reset the configuration to
factory defaults

B

3

Reset IP settings to factory
defaults. This will reset the IP
settings to factory defaults

A + B

4

Wait for Automatic
configuration, Ad-Hoc mode

C

BAT-C

Release 02 05/2016

10

Mode

Description

LEDs

A

B

C

D

5

Initiate Automatic configuration,
Ad-Hoc mode

A + C

6

Wait for Automatic
configuration with Profinet
optimizations, Ad-Hoc mode

B + C

7

Initiate Automatic configuration
with Profinet optimizations, Ad­Hoc mode

A + B +
C

8

Wait for Automatic
configuration, Managed mode

D

9

Initiate Automatic configuration,
Managed mode

A + D

10

Initiate Automatic configuration,
Managed mode, wired

B + D

11

Configure Client mode

A + B +
D

12

Initiate Automatic configuration,
Ad-Hoc mode, multipoint

C + D

13

Reserved for future use

A + C +
D

14

Reserved for future use

B + C +
D

15

Reserved for future use

A + B +
C + D

Use the "Enable DHCP server" option to access the BAT-C if the PC is using DHCP without
having to change the PC IP settings. Use this option when directly connecting the PC to the
BAT-C. Enable this mode, and then connect the Ethernet cable to the computer. When a
reboot occurs, the DHCP server disables.

Later we will describe how to use the other different modes for a specific application.

2.3 Using the WEB configuration

By default, the BAT-C is a DHCP Client and Relay that has an IP address: 172.23.56.99,
subnet mask: 255.255.255.0 and default gateway: 172.23.56.99. To access the BAT-C by

BAT-C

Release 02 05/2016

11

the Web based configuration interface the computer must be set up in the same network, i.e.
IP address: 172.23.56.1 and subnet mask: 255.255.255.0.

Open a web browser and enter http://172.23.56.99 in the address bar. Here you will find the
common configuration parameters needed to setup a connection. If the device is set to the
factory default, you will need to login using the password private before configuring the unit.

When the BAT-C receives an IP address from DHCP Server, then use the IP address to
access device.

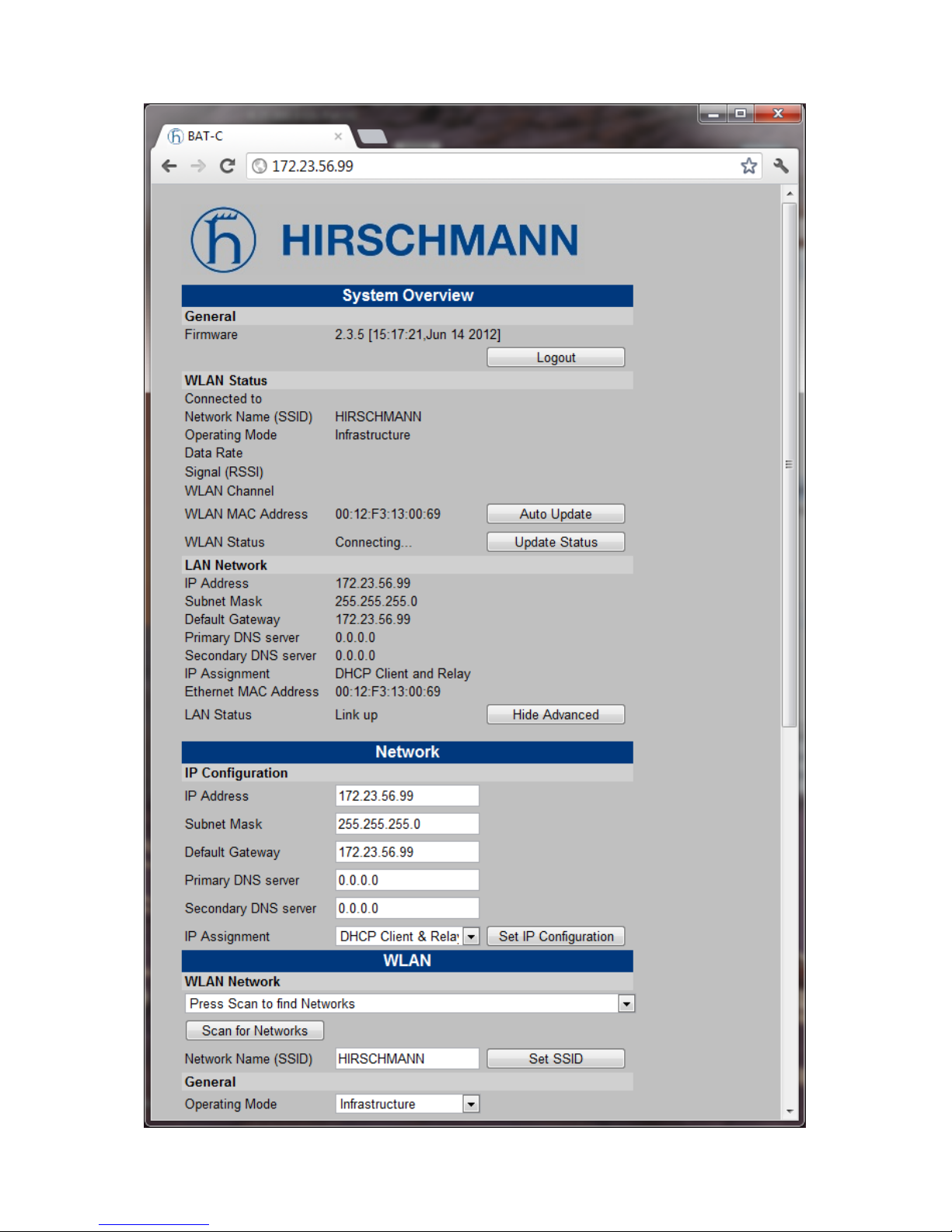

Below is an example of the WEB interface.

BAT-C

Release 02 05/2016

12

BAT-C

Release 02 05/2016

13

2.4 Reset to factory defaults

It is possible to reset to factory settings in 3 different ways.

1. Enter and confirm SMART mode 2.

2. Issue AT&F.

3. Hold the mode button while the BAT-C is starting.

Note: Verify that the Ethernet cable is disconnected and stop any firmware updates.

2.5 Wireless LAN modes

A Wireless LAN network can be set up in two main connection modes:

1. AD-Hoc mode. Used typically, when two WLAN devices are connected to each other without
going through a WLAN Access Point. In Ad-Hoc mode, the 802.11b transmission speeds are
used. This means a maximum of 11 Mbit/s. The WEP encryption method is available.

2. Managed (or Infrastructure mode). Used typically, when connecting a group of devices through
a common WLAN Access Point. In this mode, transmission speeds, up to a maximum of 54 Mbit/s,
are available. This also allows users to select which encryption and authentication methods to
use.

This means applications supporting the Managed mode normally have a higher throughput.

2.6 BAT-C modes

There are three main "BAT-C modes" supported by the BAT-C. Applications descriptions will
refer to these modes later in this document.

1. Ethernet Bridge mode. Two BAT-C’s connected together support this mode. In this mode, the
two BAT-C’s transparently transfer encapsulated UDP packages Ethernet packages. Devices on
both sides of the wireless link are unaware of the wireless connection. For example, an Ethernet
network with several devices connected through an Ethernet switch or hub.

2. Client mode. In this mode, the BAT-C is acting as a wireless extension of the cable connected
Ethernet device. Configure the BAT-C to take over, clone, the MAC address of the connected
device. This means that you connect ONE Ethernet device at a time to each BAT-C.

3. Multi-Client mode. In this mode, the BAT-C is acting as in Client mode but with the addition of
connecting several devices using the IP layer.

The Ethernet Bridge mode will introduce an extra overhead (because of the encapsulation)
and will have a significant lower throughput than Client/Multi-Client mode.

2.7 WLAN Security

The BAT-C supports different authentication and encryption methods. The BAT-C supports
the following authentication methods:

► Open connection
► Shared secret
► WPA and WPA2 Pre-shared key
► LEAP
► PEAP

The BAT-C supports the following encryption methods:

BAT-C

Release 02 05/2016

14

► No encryption
► WEP64 (RC4)
► WEP128 (RC4)
► WPA (TKIP)
► WPA2/IEEE (AES)

The following table shows valid combinations of authentication and encryption methods (x
means valid configuration):

Open connection

Shared secret

WPA/WPA2 PSK

LEAP

PEAP

No encryption

x

WEP 64

x x

x WEP 128

x x

x

TKIP

x (WPA)

x

x

AES/CCMP

x (WPA2)

x

x

Examining the table above you will see that, if you select WPA/WPA2 PSK with TKIP, this is
a WPA connection. If you select, WPA/WPA2 PSK with AES/CCMP, this is a WPA2
connection. Please refer to the table above when selecting your encryption and
authentication methods.

If you wish to use LEAP or PEAP as the authentication algorithm, verify that your access
point supports it. The Open connection and Shared secret authentication methods are
available in ad-hoc mode.

2.7.1 Key management

For WEP64 and WEP128 shared keys can be entered into the four possible slots made
available by the AT*AGFPWI Write Encryption/Authentication Key (with Index) command.
However, for LEAP, PEAP and WPA/WPA2 PSK enter the password or PSK into the key slot
with index 1 (one). This key must also be the one currently to set active by the AT*AGAFP
Active Encryption/Authentication Key command.

In the following list you will find the possible Key lengths:

► WEP64 (40 bit) 5 ASCII or 10 HEX characters
► WEP128 (104 bit) 13 ASCII or 26 HEX characters
► WPA/WPA2 (IEEE 802.11i) between 8 and 63 ASCII characters

If you are using LEAP or PEAP, the username for the Radius server should be entered with
the command “AT*AGUN Username” and the domain with command “AT*AGDN”. For PEAP,
consider certificate management. When receiving the certificate from the Radius server, the
SHA-1 fingerprint is calculated and stored in the BAT-C for future comparisons. Enter the
new fingerprint or clear the old one with the command “AT*AGCFP” when the certificate
changes or you want to use a different Radius server.

If you are using WPA/WPA2 PSK authentication enter either, the pre-shared key, i.e. the
hexadecimal string or the password, in plain text, commonly referred to as “WPA-PSK” and
“WPA-PWD”. If you select to enter a password, rather than a hexadecimal string, the BAT-C

BAT-C

Release 02 05/2016

15

will take a few seconds longer during the next connection after this change, in order to
deduce the real key from the password. While the BAT-C is calculating the real key, it will be
unresponsive.

By default, the device enters the key as an ASCII string. To enter a hexadecimal key,
separate the bytes using a “\” character, i.e. to enter the string "12345" as hexadecimal, type
"\31\32\33\34\35".

BAT-C

Release 02 05/2016

16

3 Supported Use Cases

3.1 Two BAT-C’s Connected as an Ethernet Bridge - Ooption 1

Operation

Ad-Hoc mode

Encryption

WEP

Ove r v i ew:

This example is using two BAT-C’s connected in the Ethernet Bridge mode. This example
supports several Ethernet devices on each side of the BAT-C. The devices bridge the
Ethernet data through an UDP tunnel and use the Ad-Hoc mode.

3.1.1 How to setup this example?

Set this example up by using the SMART button:

1. Power on the first device and enter the SMART configuration mode 4

2. Power on the second device and enter the SMART configuration mode 5

3. Wait for the devices to connect and restart.

4. Now, the first device will have the IP address 172.23.56.99 and the second 172.23.56.100 and the
devices will operate in Ad-Hoc mode.

It might be necessary to configure the setup manually, when the predefined IP addresses are
already in use in your network.

1. Power on the first BAT-C and enter the WEB configuration, see "Using the WEB configuration".

2. Enter the desired IP Address (IP_ADDR1), Netmask and Default Gateway, press "Set IP".

Note: Select an unused IP address to avoid IP conflicts.

3. Select the Operational mode "Ad-Hoc" and select a channel you want to use based on your
regional domain settings, press "Set General".

BAT-C

Release 02 05/2016

17

4. Select the encryption; "None", "WEP64" or "WEP128" are available for use in the Ad-Hoc mode.

5. Select the Authentication; "Open" and "Shared" are available for use in the Ad-Hoc mode.

6. Enter a key to use for the security. The “User Name” can be left blank, press "Set Security".

7. Enter the SSID for your network and press "Set".

8. Power on the second BAT-C and enter the WEB configuration.

9. Enter the desired IP address (IP_ADDR2).

10. Select the Operational mode "Ad-Hoc" and select the same channel as above. Press "Set
General".

11. Repeat steps 4, 5, 6 and 7 above. Using the same values as entered in the previous BAT-C.

Now, the devices will tunnel Ethernet packets between the two Ethernet segments.

BAT-C

Release 02 05/2016

18

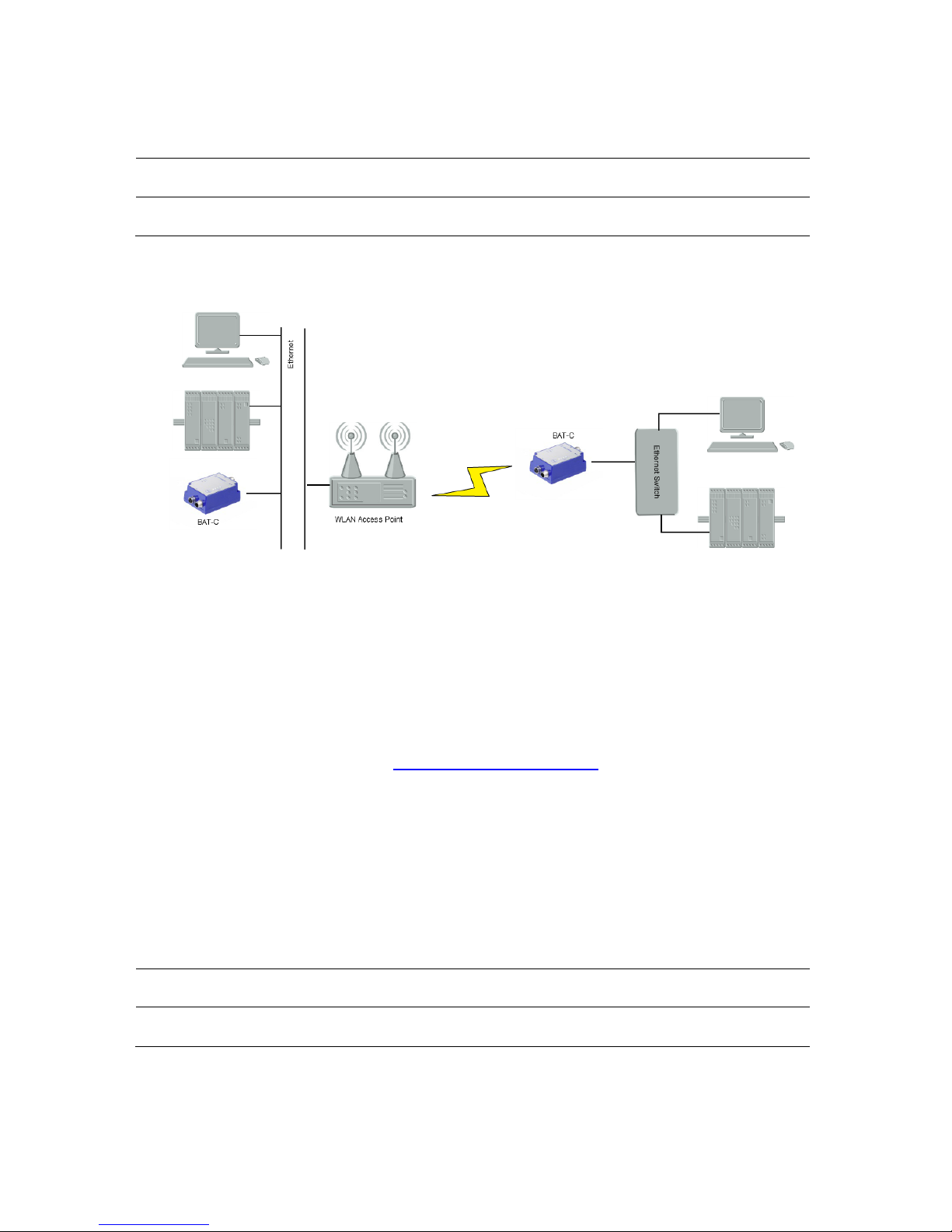

3.2 Two BAT-C’s Connected as an Ethernet Bridge - Option 2

Operation

Infrastructure (Managed) mode

Encryption

WEP/ WPA/ WPA2 (IEEE 802.11i)

Ove r v i ew:

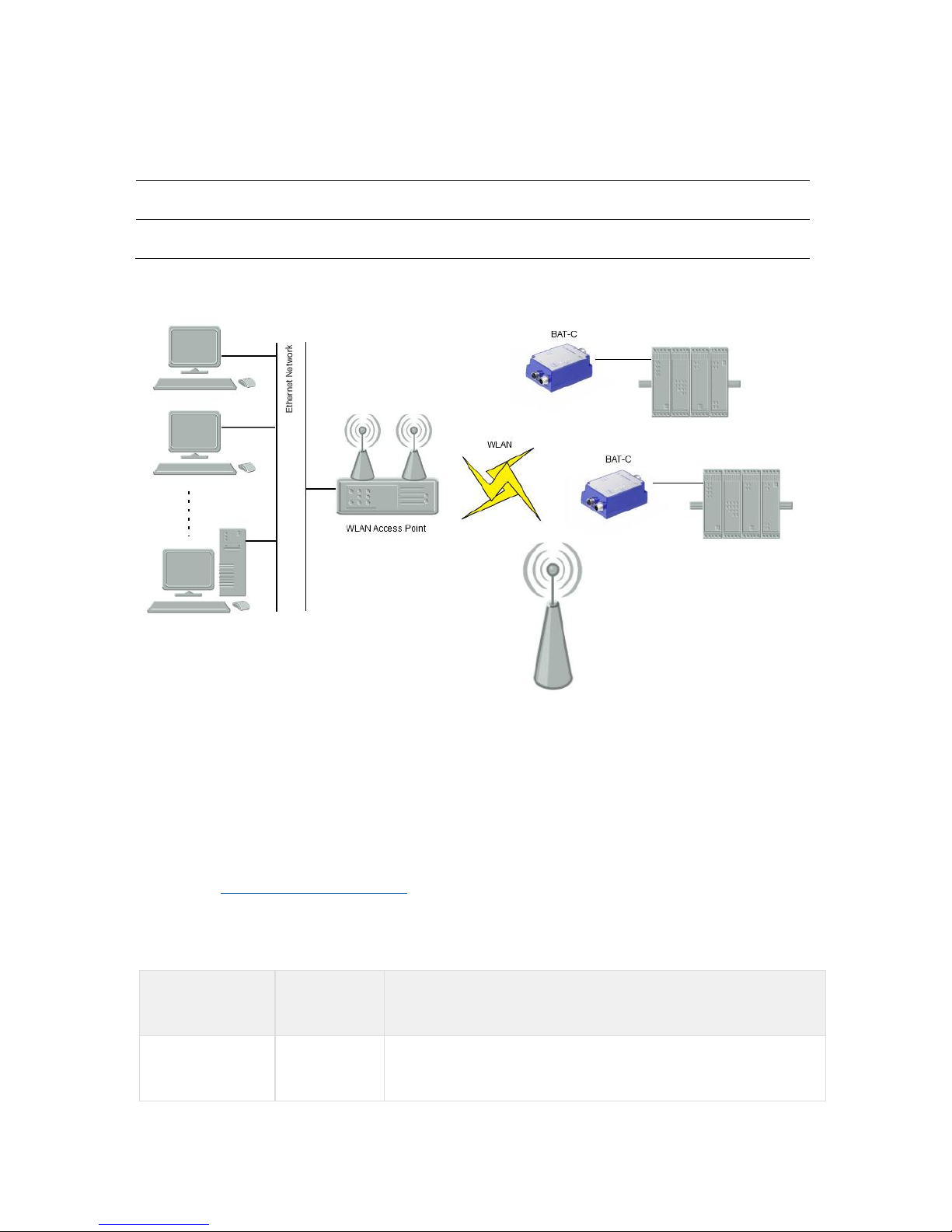

This example is using two BAT-C’s connected in Ethernet Bridge mode. This example
supports several Ethernet devices on each side of the BAT-C. The device bridges Ethernet
data through an UDP tunnel and uses the Managed (Infrastructure) mode.

3.2.1 How to setup this example?

Set this example up by using the SMART button:
To use the Automatic configuration in the Managed mode, configure the SSID and security

parameters (Encryption, Authentication, User Name and Key) manually using the Web
interface or AT commands, unless you want to use the default values. For more information
on the Web interface, see section "Using the WEB configuration".

1. Power on the first device and enter the SMART configuration mode 8

2. Power on the second device and enter the SMART configuration mode 9

3. Wait for the devices to connect and restart.

4. Now, the first device will have the IP address 172.23.56.99 and the second 172.23.56.100 and the
devices will operate in the Managed mode.

BAT-C

Release 02 05/2016

19

3.3 Two BAT-C’s Connected as an Ethernet Bridge - Option 3

Operation

Infrastructure (Managed) mode

Encryption

WEP/ WPA/ WPA2 (IEEE 802.11i)

Ove r v i ew:

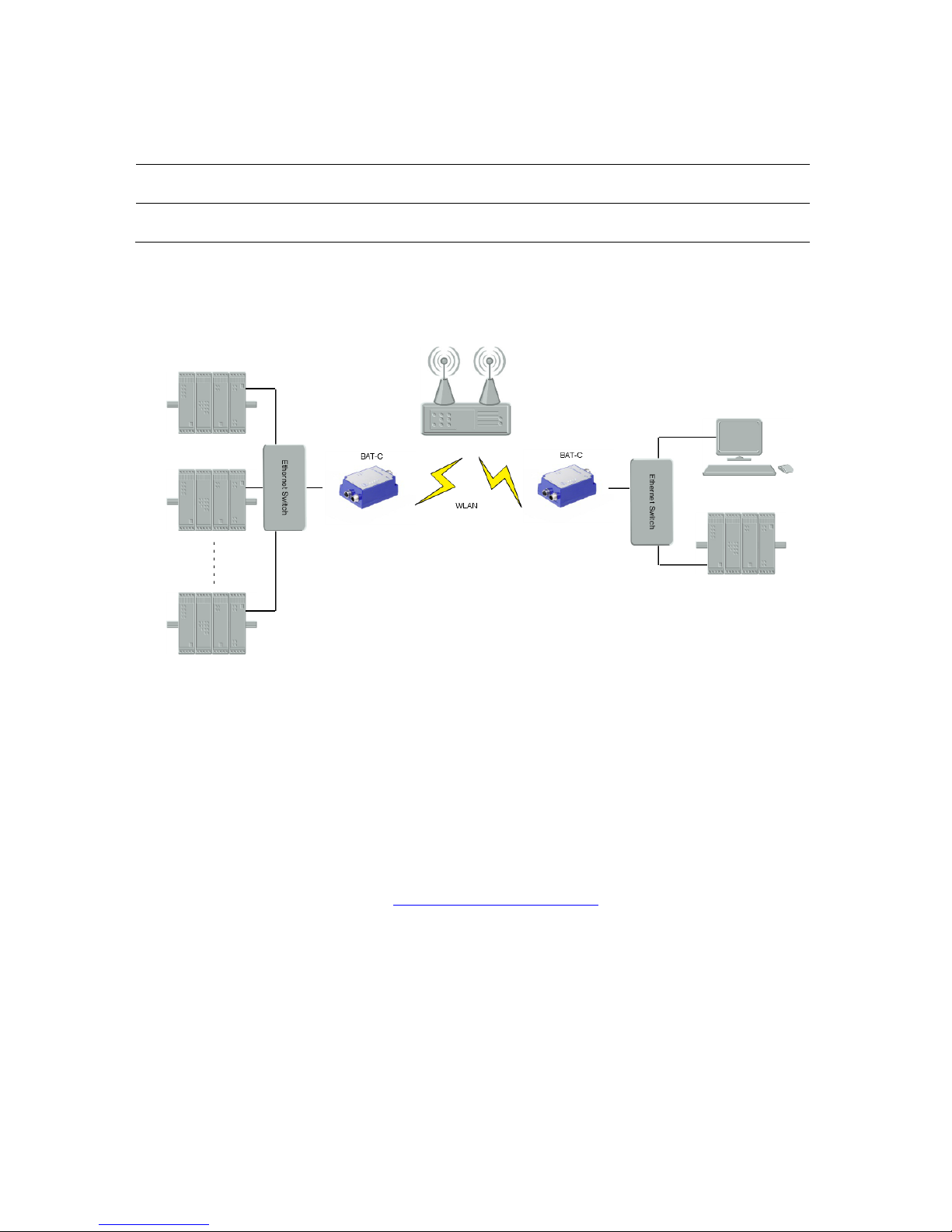

This example is using two BAT-C’s connected in Ethernet Bridge mode. In this example,
connect one of the BAT-C’s to a wired. The Managed (Infrastructure) mode is used.

3.3.1 How to setup this example?

Set this example up by using the SMART button:
To use the Automatic configuration in the Managed mode, configure the SSID and security

parameters (Encryption, Authentication, User Name and Key) manually using the Web
interface or AT commands, unless you want to use the default values. For more information
on the Web interface, see section "Using the WEB configuration".

1. Power on the first device and enter the SMART configuration mode 8

2. Power on the second device (the one on the wired network) and enter the SMART configuration
mode 10

3. Wait for the devices to connect and restart.

4. Now, the first device will have the IP address 172.23.56.99 and the second 172.23.56.100 and the
devices will operate in the Managed mode.

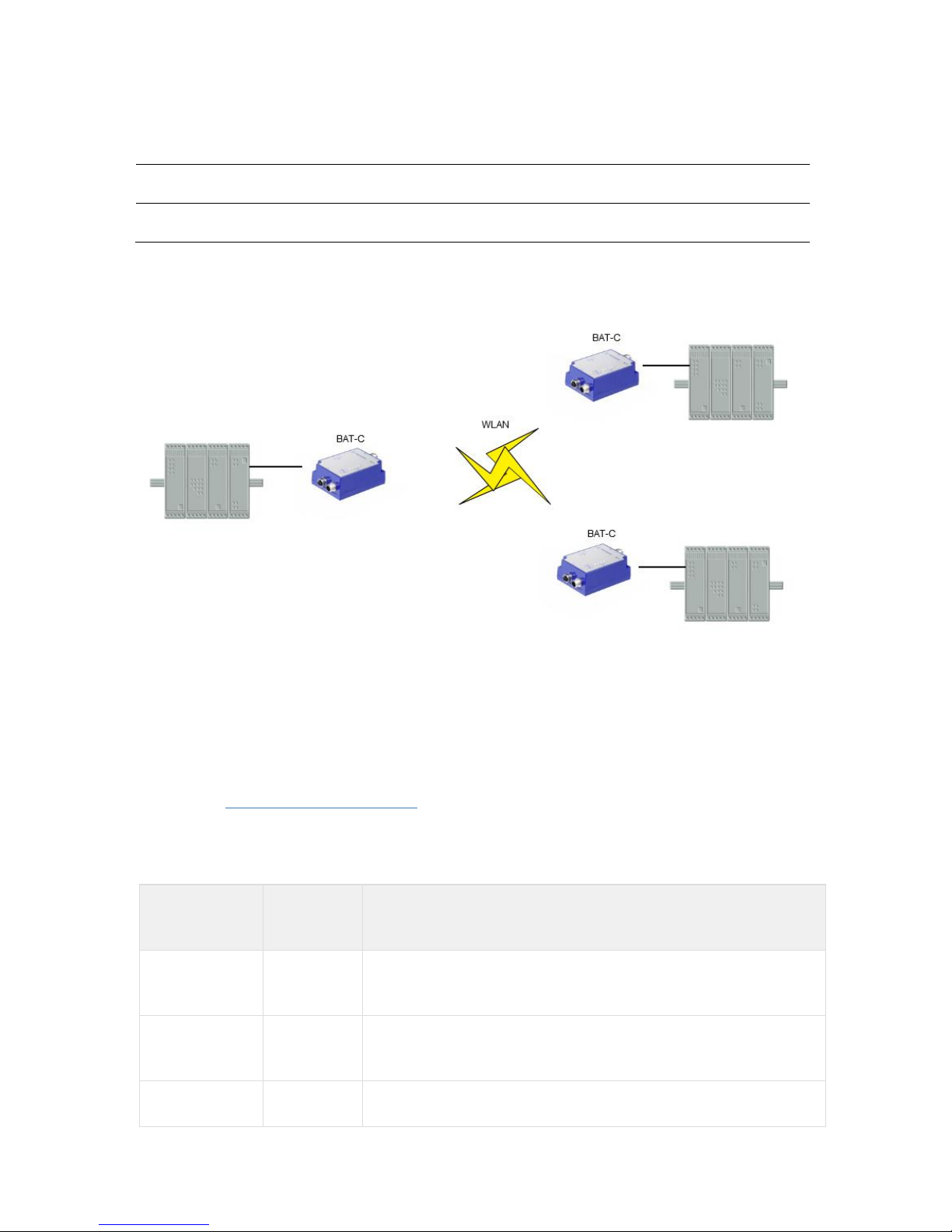

3.4 Two BAT-C’s Connected in Client mode - Option 1

Operation

Ad-Hoc mode

Encryption

WEP

BAT-C

Release 02 05/2016

20

Ove r v i ew:

This example is using two BAT-C’s connected in the Client mode. This example supports
one Ethernet device connected to each BAT-C. This example will have a higher performance
than when using the Ethernet Bridging option. No encapsulation of the Ethernet packages is
required.

3.4.1 How to setup this example?

Set this example up by using the SMART button. This option will support the Ad-Hoc mode:

1. Power on the first device and enter the SMART configuration mode 4

2. Power on the second device and enter the SMART configuration mode 5

3. Wait for the devices to connect and restart.

4. Use the SMART mode 11 of each on the devices to learn the MAC address of the other connected
device (Client mode).

Note: For this mode to operate, it is required that the device spontaneously transmits
Ethernet data on the Ethernet link.

Another option is to use the Web interface, see section "Using the WEB configuration” to set up
the MAC address manually.

BAT-C

Release 02 05/2016

21

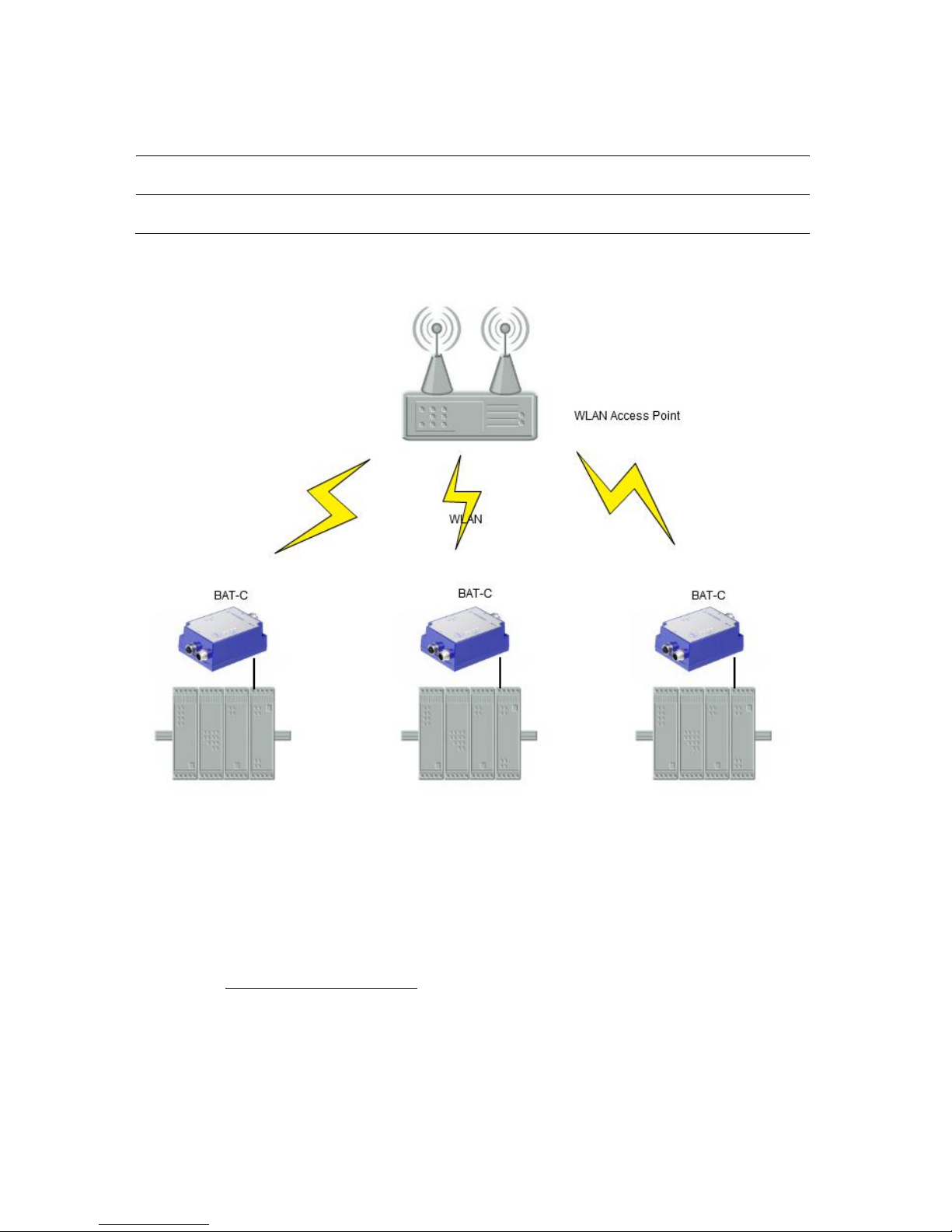

3.5 Two BAT-C’s Connected in Client mode - Option 2

Operation

Infrastructure (Managed) mode

Encryption

WEP/ WPA/ WPA2 (IEEE 802.11i)

Ove r v i ew:

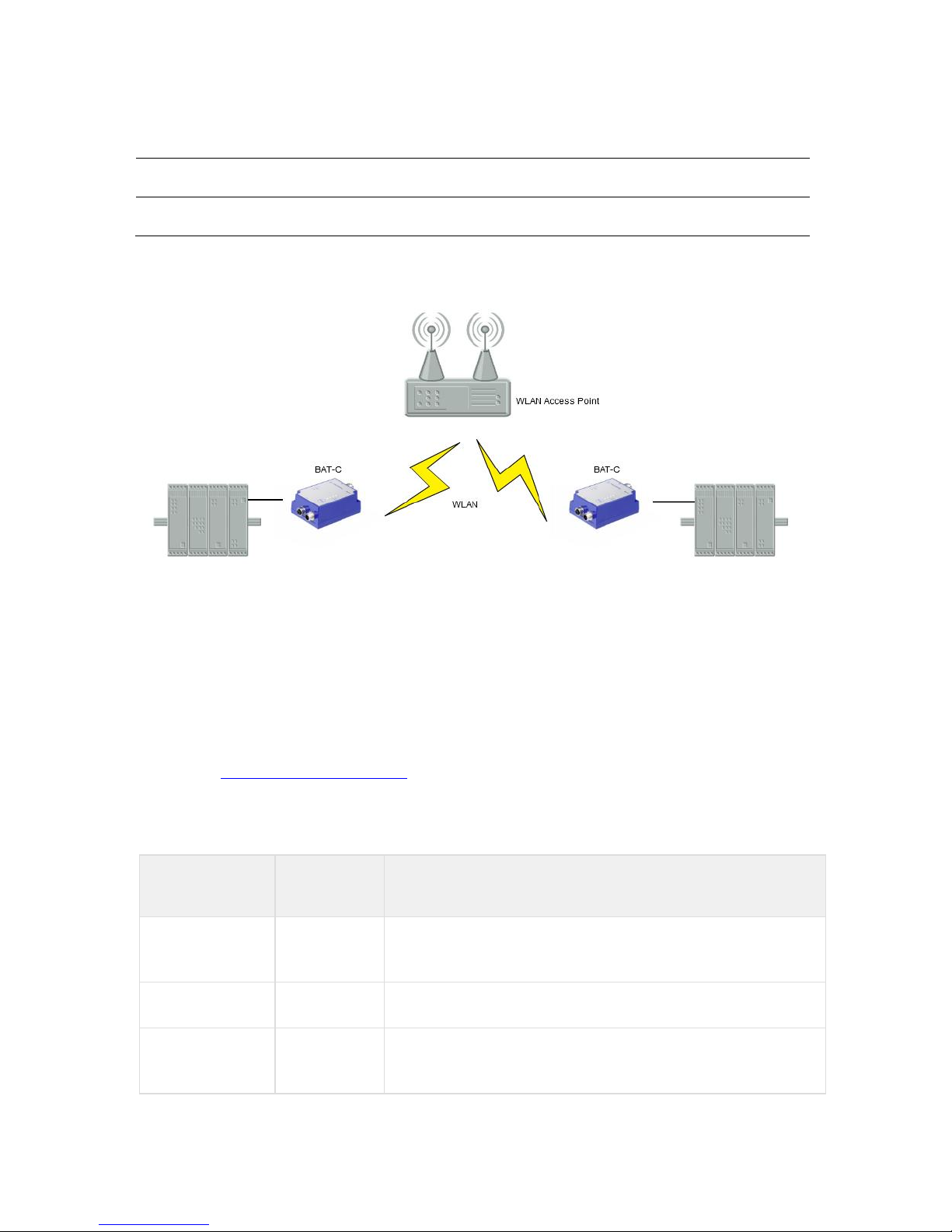

This example is using two BAT-C’s connected in the Client mode. This example supports
one Ethernet device connected to each of the BAT-Cs. Connect the BAT-C to a WLAN
Access Point that allows you to use the Managed (Infrastructure) mode resulting in a higher
performance.

3.5.1 How to setup this example?

Both BAT-C’s operate in the Client mode in this example.

1. Connect a PC to the BAT-C. For more information on how to connect to a BAT-C, see
section Using the WEB configuration.

2. Define the WLAN connection parameters.

The following parameters are required:

Parameter

Required
Value

Comment

Operational
Mode

Managed
WLAN Channel

Select the one used by the Access Point.

WLAN Data
Rate

This is the maximum used data rate.

BAT-C

Release 02 05/2016

22

Encryption

Select the one required by the Access Point.

Authentication

Select the one required by the Access Point.

User Name and
Key

Select the one required by the Access Point.
SSID

Select the SSID of the Access Point.

WLAN Address

Enter the MAC address of the device connected to the BAT-C or
use SMART to assign the MAC address (see next bullet).

Note: As an alternative to entering the MAC address manually, use the SMART mode 11.
For this mode to operate, it is required that the device spontaneously transmits Ethernet data
on the Ethernet link.

BAT-C

Release 02 05/2016

23

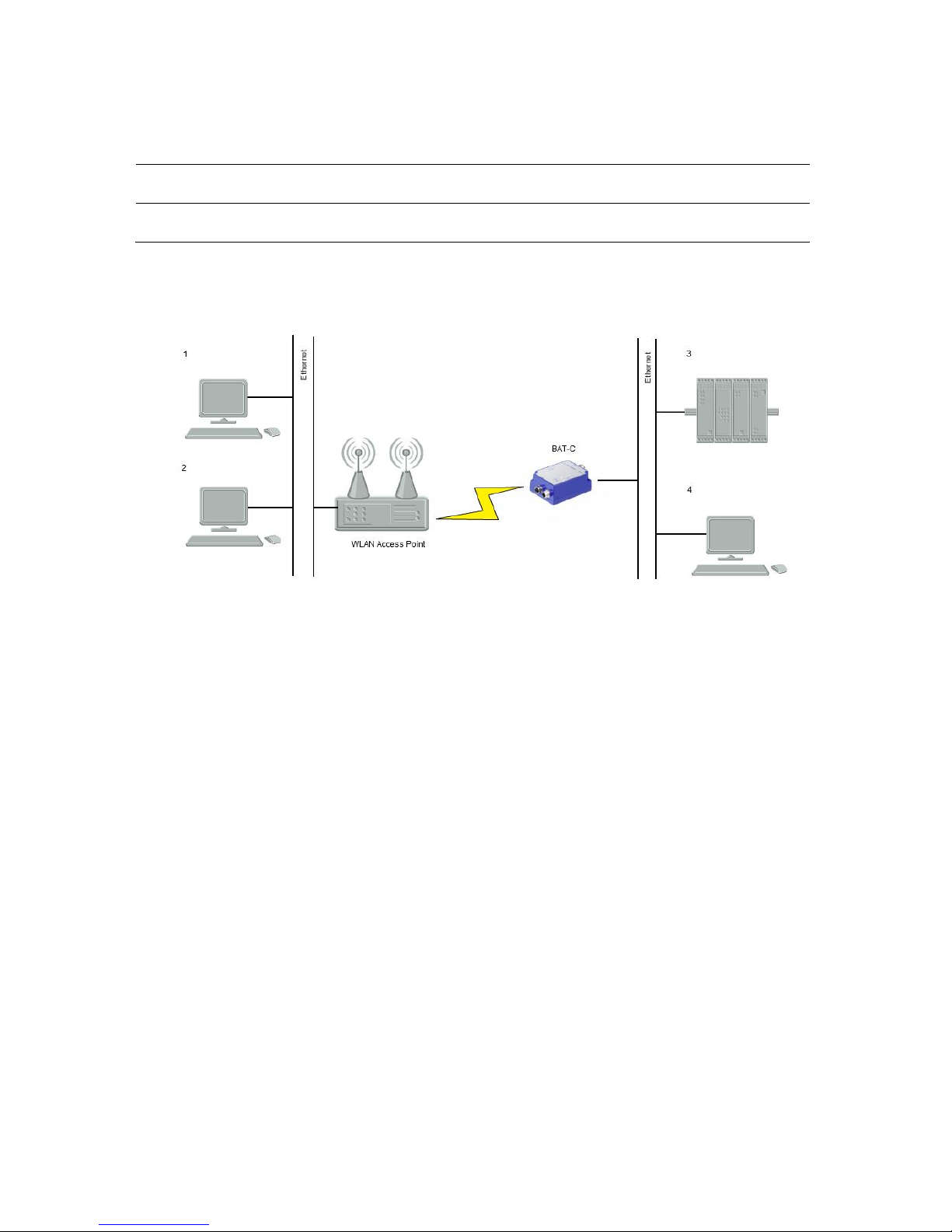

3.6 A PC wirelessly connected to a BAT-C - Option 1

Operation

Ad-Hoc mode

Encryption

WEP

Ove r v i ew:

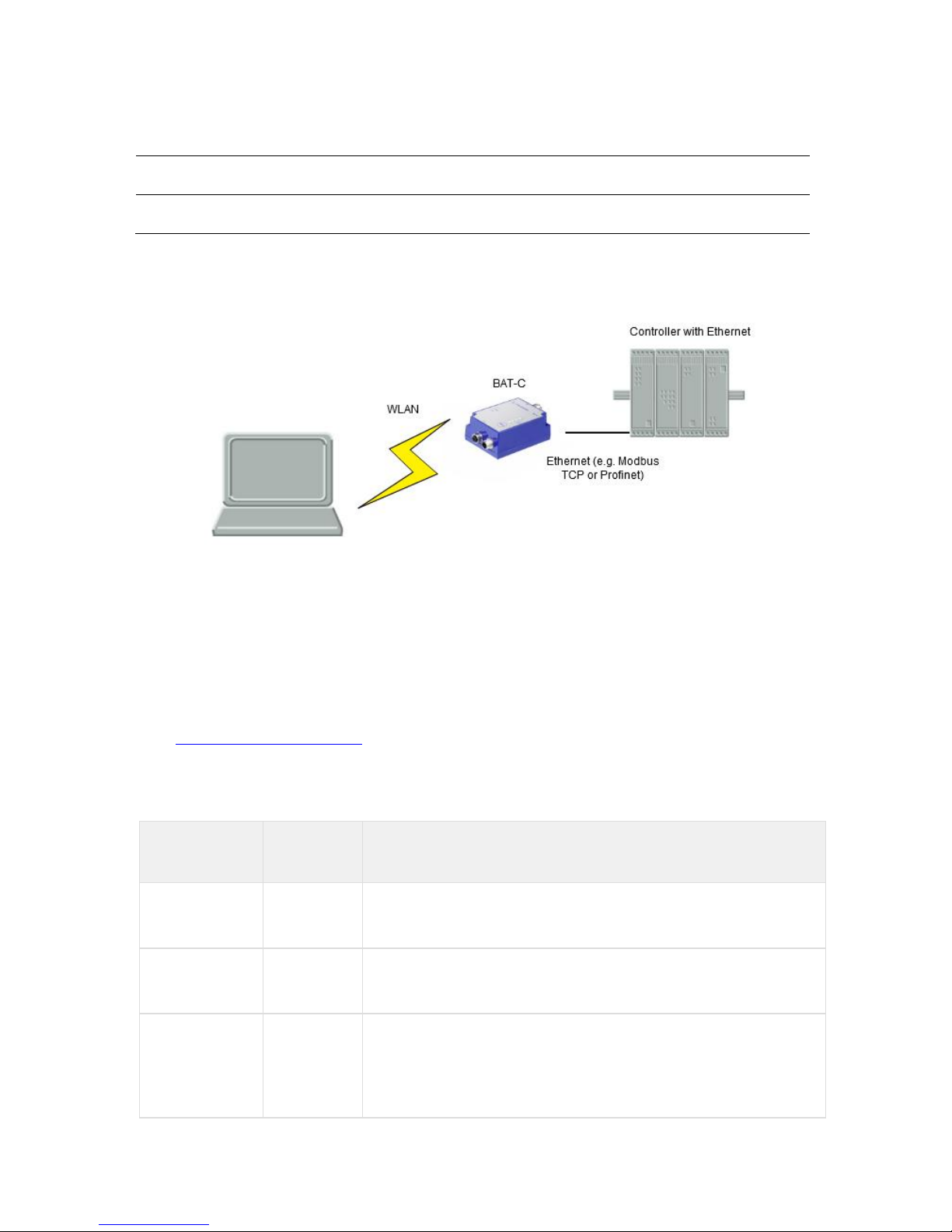

In this SMART mode 11, connect ONE Ethernet device to the BAT-C. Use the PC to access
the Ethernet device using an Ethernet-based protocol, i.e. a built-in Web interface or using
an Ethernet-based communication protocol, i.e. Modbus/TCP.

3.6.1 How to setup this example?

The BAT-C is operating in the Client mode in this example.

1. Connect a PC to the BAT-C. For more information about connecting to the BAT-C, see section
"Using the WEB configuration".

2. Define the WLAN connection parameters.

The following parameters are required:

Parameter

Required
Value

Comment

Operational
Mode

Ad-Hoc

Use this mode for this example.

WLAN
Channel

Select an available WLAN channel.

WLAN Data
Rate

This option is set to the maximum data rate per default. This option
is using the Ad-Hoc mode that supports up to 11 Mbit/s. If you
attempt set the data rate higher, it will revert back to the default
value of 11 Mbit/s.

BAT-C

Release 02 05/2016

24

Parameter

Required
Value

Comment

Encryption

WEP

The Ad-Hoc mode supports WEP encryption.

Authentication

Open

Key Select an available WEP key.

SSID

Select an available SSID. This is the ID shown to the PC when
searching for the WEP.

WLAN
Address

Enter the MAC address of the device connected to the BAT-C or
use SMART to assign the MAC address (see next bullet).

Note: As an alternative to entering the MAC address manually, use SMART mode 11. For
this mode to operate, it is required that the device sends spontaneous Ethernet data on the
Ethernet link.

How to setup the PC is dependent on the Wireless LAN solution supported for the PC. Use
the WLAN GUI to search for an Ad-Hoc network with the same SSID as the one set for the
BAT-C. Select WEP as encryption and select the same WEP key that you entered during the
BAT-C configuration.

BAT-C

Release 02 05/2016

25

3.7 A PC wirelessly connected to a BAT-C - Option 2

Operation

Infrastructure (Managed) mode

Encryption

WEP/ WPA/ WPA2 (IEEE 802.11i)

Ove r v i ew:

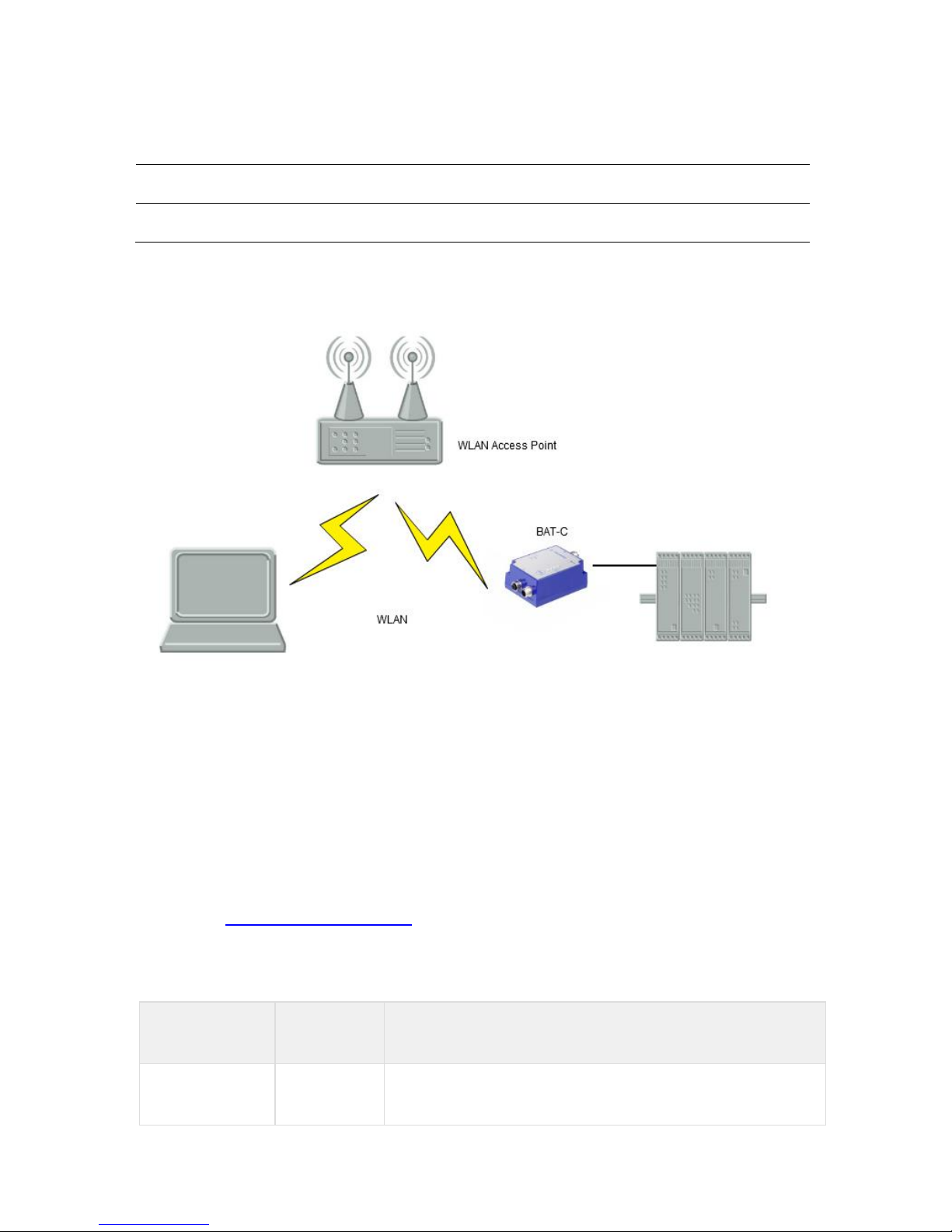

In this example, connect one Ethernet device to the BAT-C. Use the PC to access the
Ethernet device using an Ethernet-based protocol i.e. a built-in Web interface or using an
Ethernet-based communication protocol i.e. Modbus/TCP. In this case, connect the BAT-C
and the PC to each other via a WLAN Access Point that allows you to use the Managed
(Infrastructure) mode, which results in a higher performance.

3.7.1 How to setup this example?

The BAT-C must operate in the Client mode in this example.

1. Connect a PC to the BAT-C. For more information on how to connect to a BAT-C, see
section “Using the WEB configuration”.

2. Define the WLAN connection parameters.

The following parameters are required:

Parameter

Required
Value

Comment

Operational
Mode

Managed

BAT-C

Release 02 05/2016

26

WLAN Channel

Select the one used by the Access Point.

WLAN Data
Rate

This is the maximum used data rate.
Encryption

Select the one required by the Access Point.

Authentication

Select the one required by the Access Point.

User Name and
Key

Select the one required by the Access Point.
SSID

Select the SSID of the Access Point.

WLAN Address

Enter the MAC address of the device connected to the BAT-C or
use SMART to assign the MAC address (see next bullet).

Note: As an alternative to entering the MAC address manually, use the SMART mode 11.
For this mode to operate, it is required that the device sends spontaneous Ethernet data on
the Ethernet link.

How to setup the PC is dependent on the Wireless LAN solution supported for the PC. Use
the WLAN GUI to search for the Managed (Infrastructure) network with the same SSID as
the access point. Select the same security parameters as defined for the access point.

BAT-C

Release 02 05/2016

27

3.8 Several Ethernet devices connected in Client mode - Option 1

Operation

Ad-Hoc mode

Encryption

WEP

Ove r v i ew:

Connect three or more BAT-C’s in an Ad-Hoc network. This example requires the Client
mode.

3.8.1 How to setup this example?

The BAT-C’s must operate in the Client mode in this example.

1. Connect a PC to each of the BAT-Cs. For more information on how to connect to a BAT-C, see
section “Using the WEB configuration”.

2. Define the WLAN connection parameters.

The following parameters are required:

Parameter

Required
Value

Comment

Operational
Mode

Ad-Hoc

Use this mode for this example.

WLAN
Channel

Select an available WLAN channel. Select the same channel for the
BAT-Cs.

WLAN Data

This option is set to the maximum data rate per default. This option

BAT-C

Release 02 05/2016

28

Parameter

Required
Value

Comment

Rate

is using the Ad-Hoc mode that supports up to 11 Mbit/s. If you
attempt set the data rate higher, it will revert back to the default
value of 11 Mbit/s.

Encryption

WEP

The Ad-Hoc mode supports WEP encryption.

Authentication

Open

Key Select an available WEP key.

SSID

Select an available SSID. Use the same SSID on every BAT-C.

WLAN
Address

Enter the MAC address of the device connected to the BAT-C or
use SMART to assign the MAC address (see next bullet).

Note: As an alternative to entering the MAC address manually, use the SMART mode 11.
For this mode to operate, it is required that the device sends spontaneous Ethernet data on
the Ethernet link.

BAT-C

Release 02 05/2016

29

3.9 Several Ethernet devices connected in Client mode - Option 2

Operation

Infrastructure (Managed) mode

Encryption

WEP/ WPA/ WPA2 (IEEE 802.11i)

Ove r v i ew:

Three or more BAT-C’s connected through a WLAN Access Point. This example requires the
Client mode. In this case, connect the BAT-C’s to each other via a WLAN Access Point that
allows you to use the Managed (Infrastructure) mode that results in a higher performance.

3.9.1 How to setup this example?

Both BAT-C’s are operating in Client Wireless mode in this example.

1. Connect a PC to each of the BAT-Cs. For more information on how to connect to a BAT-C, see
section “Using the WEB configuration“.

2. Define the WLAN connection parameters.

The following parameters are required:

BAT-C

Release 02 05/2016

30

Parameter

Required
Value

Comment

Operational
Mode

Managed
WLAN Channel

Select the one used by the Access Point.

WLAN Data
Rate

This is the maximum used data rate.
Encryption

Select the one required by the Access Point.

Authentication

Select the one required by the Access Point.

User Name and
Key

Select the one required by the Access Point.
SSID

Select the SSID of the Access Point.

WLAN Address

Enter the MAC address of the device connected to the BAT-C or
use SMART to assign the MAC address (see next bullet).

Note: As an alternative to entering the MAC address manually, use the SMART mode 11.
For this mode to operate, it is required that the device sends spontaneous Ethernet data on
the Ethernet link.

BAT-C

Release 02 05/2016

31

3.10 One or more BAT-C’s connected to a Wired Infrastructure through

WLAN

Operation

Infrastructure (Managed) mode

Encryption

WEP/ WPA/ WPA2 (IEEE 802.11i)

Ove r v i ew:

In this example, Use the BAT-C’s to connect to a wired Ethernet infrastructure using a
standard WLAN access point. You can connect other WLAN devices to the same access
point assuming they share the same networking parameters as the BAT-Cs.

3.10.1 How to setup this example?

The BAT-C’s are operating in Client mode in this example.

1. Connect a PC to the BAT-C. For more information on how to connect to a BAT-C, see
section Using the WEB configuration .

2. Define the WLAN connection parameters.

The following parameters are required:

Parameter

Required
Value

Comment

Operational
Mode

Managed

BAT-C

Release 02 05/2016

32

Parameter

Required
Value

Comment

WLAN Channel

Select the one used by the Access Point.

WLAN Data
Rate

This is the maximum used data rate.
Encryption

Select the one required by the Access Point.

Authentication

Select the one required by the Access Point.

User Name and
Key

Select the one required by the Access Point.
SSID

Select the SSID of the Access Point.

WLAN Address

Enter the MAC address of the device connected to the BAT-C or
use SMART to assign the MAC address (see next bullet).

Note: As an alternative to entering the MAC address manually, use the SMART mode 11.
For this mode to operate, it is required that the device sends spontaneous Ethernet data on
the Ethernet link.

BAT-C

Release 02 05/2016

33

3.11 External WLAN client connected to a BAT-C

Operation

Ad-Hoc mode

Encryption

WEP

Ove r v i ew:

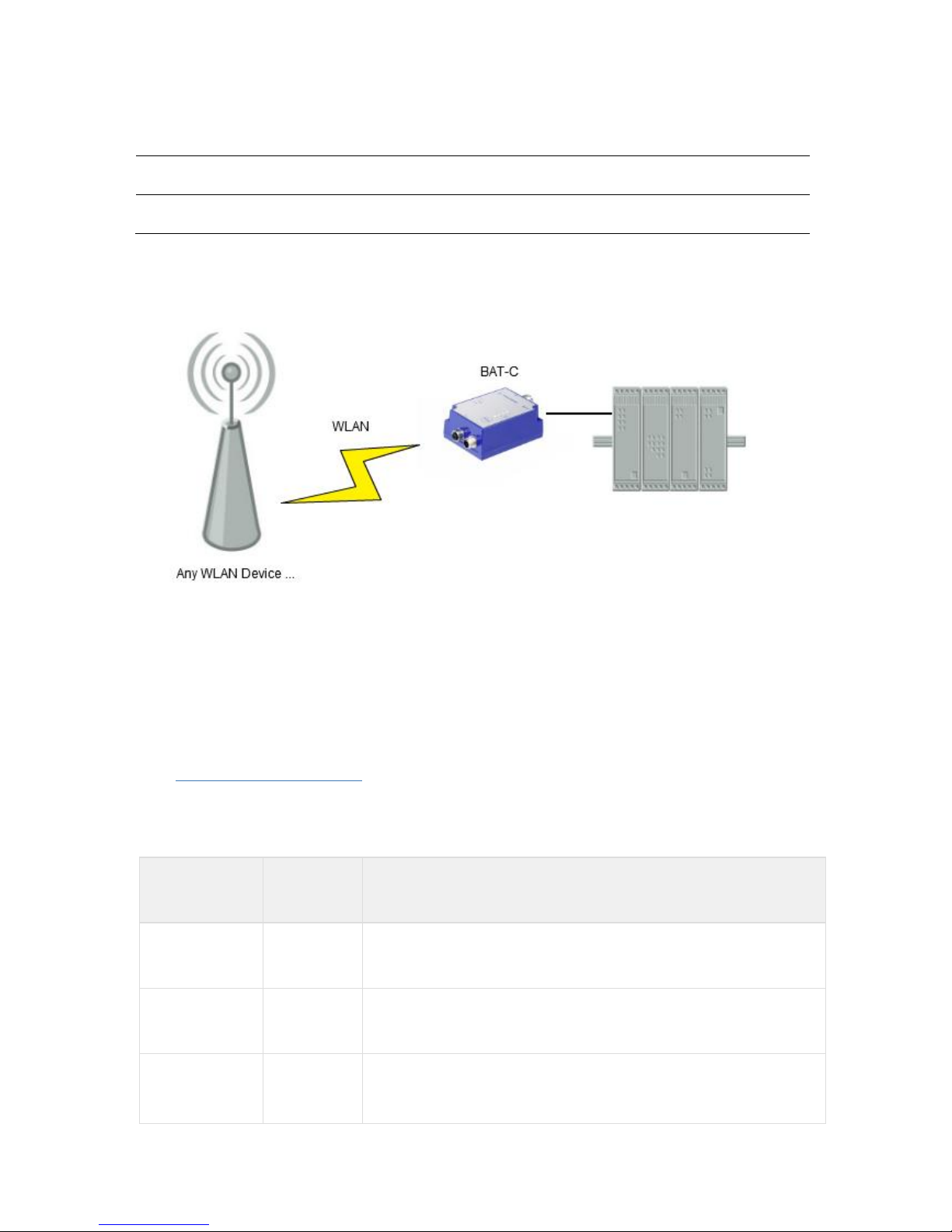

In this example, connect a WLAN client to a BAT-C. Then connect the BAT-C to an Ethernet
device.

3.11.1 How to setup this example?

The BAT-C’s are operating in the Client mode in this example.

1. Connect a PC to the BAT-C. For more information on how to connect to the BAT-C, see section
"Using the WEB configuration".

2. Define the WLAN connection parameters.

The following parameters are required:

Parameter

Required
Value

Comment

Operational
Mode

Ad-Hoc

This example supports the Ad-Hoc mode.

WLAN
Channel

Select the same channel as the external device.

WLAN Data
Rate

This option is set to the maximum data rate per default. This option
is using the Ad-Hoc mode that supports up to 11 Mbit/s. If you
attempt set the data rate higher, it will revert back to the default

BAT-C

Release 02 05/2016

34

value of 11 Mbit/s.

Encryption

WEP

The Ad-Hoc mode supports WEP encryption.

Authentication

Open

Key Select the same WEP key as the external device.

SSID

Select the same SSID as the external device.

WLAN
Address

Enter the MAC address of the device connected to the BAT-C or
use SMART to assign the MAC address (see next bullet).

Note: As an alternative to entering the MAC address manually, use the SMART mode 11.
For this mode to operate, it is required that the device sends spontaneous Ethernet data on
the Ethernet link.

The external device must be configured to support Ad-Hoc mode and with the same WEP
key and SSID as the BAT-C.

BAT-C

Release 02 05/2016

35

3.12 Multi-Client mode

Operation

Multi-Client mode mode

Encryption

WEP/ WPA/ WPA2 (IEEE 802.11i)

Ove r v i ew:

The Multi-Client mode is used when there is a need to have several devices, 3 and 4 in
figure above, behind the BAT-C that communicate with 1 and/or 2. The restriction is that one
device at a time can use Layer-2 communication while the others need to use the IP layer.

When configuring the BAT-C in the Client mode and there is no link on the Ethernet port, it
will use a temporary Multi-Client mode instead. Once there is an Ethernet link, the BAT-C will
revert to the Client mode.

If devices want to use DHCP over the BAT-C connection while in the Multi-Client mode. The
built-in DHCP relay can be switched on using “AT*ANDHCP” and the Web-Interface. Verify
that the device forwards packets correctly.

3.12.1 How to setup this example?

The Multi-Client mode is configured using “AT*ACEW” and the Web-Interface if no Layer-2
communication is required. The MAC-address for AT*ACEW can be set to the Ethernet
MAC-address.

BAT-C

Release 02 05/2016

36

A Further Support

■ Technical Questions

For technical questions, please contact any Hirschmann dealer in your area or Hirschmann
directly.

You will find the addresses of our partners on the Internet at

http://www.hirschmann.com

Contact our support at

https://hirschmann-support.belden.eu.com

You can contact us in the EMEA region at

► Tel.: [phone]
► E-mail: [e-mail]

in the America region at

► Tel.: [phone]
► E-mail: [e-mail]

in the Asia-Pacific region at

► Tel.: [phone]
► E-mail: [e-mail]

■ Hirschmann Competence Center

The Hirschmann Competence Center is ahead of its competitors:

► Consulting incorporates comprehensive technical advice, from system evaluation through

network planning to project planning.

► Training offers you an introduction to the basics, product briefing, and user training with

certification.

► The current training courses to technology and products can be found at

http://www.hicomcenter.com

► Support ranges from the first installation through the standby service to maintenance

concepts.

With the Hirschmann Competence Center, you have decided against making any
compromises. Our client-customized package leaves you free to select the service
components you want to use.
Internet: http://www.hicomcenter.com
