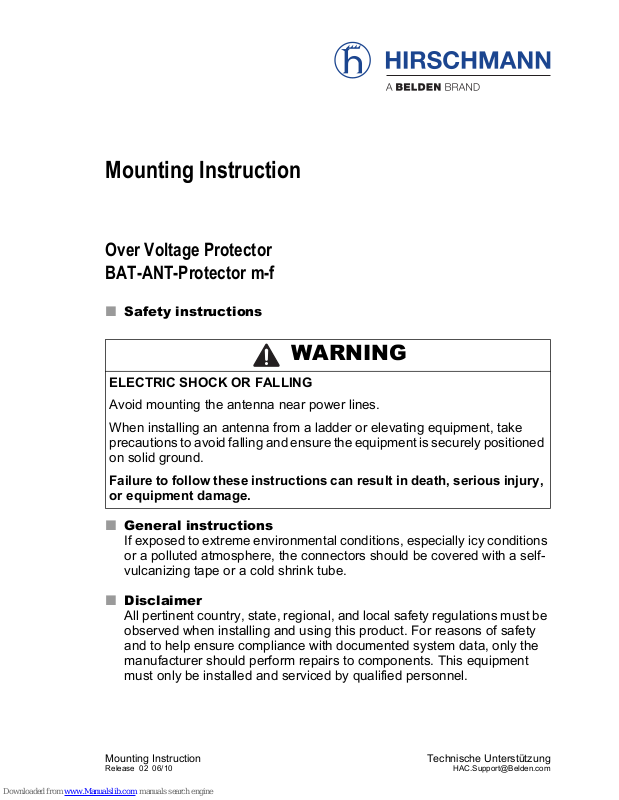

Over Voltage Protector BAT-ANT-Protector m-f
Safety instructions
General instructions
If exposed to extreme environmental conditions, especially icy conditions or a polluted atmosphere, the connectors should be covered with a self­vulcanizing tape or a cold shrink tube.
Disclaimer
All pertinent country, state, regional, and local safety regulations must be observed when installing and using this product. For reasons of safety and to help ensure compliance with documented system data, only the manufacturer should perform repairs to components. This equipment must only be installed and serviced by qualified personnel.
WARNING
ELECTRIC SHOCK OR FALLING
Avoid mounting the antenna near power lines. When installing an antenna from a ladder or elevating equipment, take
precautions to avoid falling and ensure the equipment is securely positioned on solid ground.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
2
Mounting Instruction
Release 02 06/10
Device description
The BAT-ANT-Protector m-f is recommended for protecting the interior electronics of ConneXium WiFi Devices with outdoor antennas. Despite outer over voltage protection measures, partial discharges can still cause over voltages that can damage ConneXium WiFi Devices. The BAT-ANT-Protector m-f should be mounted as close as possible to the ConneXium WiFi Device.
BAT-ANT-Protector m-f connectors
The BAT-ANT-Protector m-f provides two connectors, one for connecting to the access point and one for connecting to the antenna (see fig. 1).

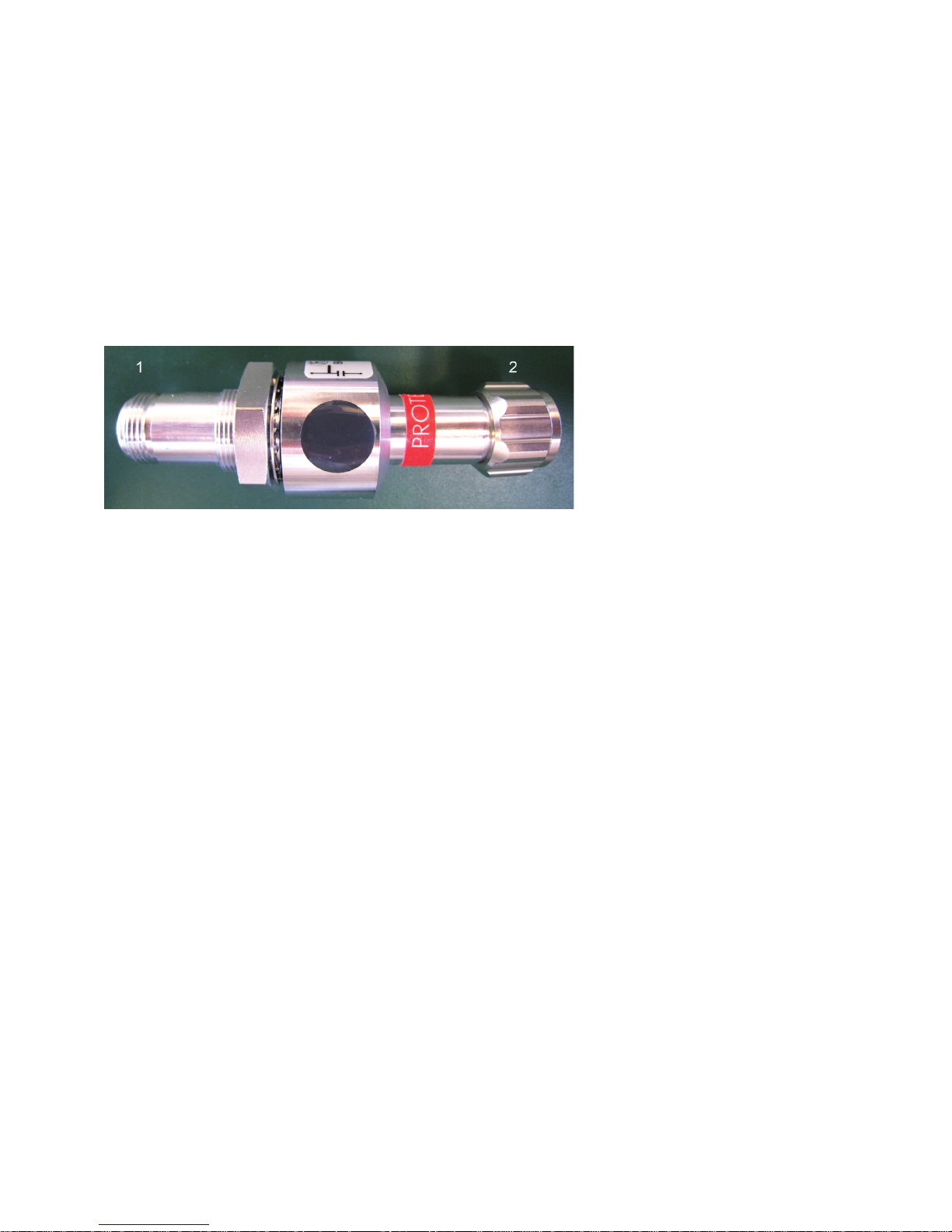

Figure 1: BAT-ANT-Protector m-f connectors
1 - N connector for connection to the antenna (unprotected area) 2 - N socket for connection to the access point (protected end marked in red)
Connecting to the access point
To connect the BAT-ANT-Protector m-f to the access point proceed as follows: Connect one end of the adapter cable supplied with the antenna to the
N socket of the BAT-ANT-Protector m-f.
Connect the other end of the adapter cable to the antenna output of
the access point.
Note: Depending on the type, you can connect the BAT-ANT-Protector m-f directly to the antenna output of the access point. In this case you do not need an adapter cable.
Note: When mounting a ConneXium WiFi Device outdoors, ensure that the screw connections are waterproof, for instance by the use of teflon tape or self-vulcanizing tape.
Mounting Instruction
Release 02 06/10
3
Connecting to the antenna
To connect the BAT-ANT-Protector m-f to the antenna proceed as follows: Connect one end of the antenna cable to the N connector of the BAT-
ANT-Protector m-f.
Connect the other end of the antenna cable to the antenna input.
Note: Depending on the connector type, you may require an adapter or an adapter cable.
Important: When connecting the antenna, ensure that all connections to the antenna are water-resistant screw connectors. If necessary, use for instance teflon tape or self-vulcanizing tape.
Grounding the BAT-ANT-Protector m-f
Ground the BAT-ANT-Protector m-f appropriately according to all national, state and local regulations to ensure that any overvoltages can be conducted away from the device to the building‘s earthing system. Fix a cable lug with a nut to the protected side of the overvoltage
adapter (see fig. 2).
Figure 2: Grounding the TCSWABP
