Hirschmann BAT867-R User Manual

Installation BAT867-R

Release 06 08/2018

Technical support

https://hirschmann-support.belden.com

User Manual

Installation
Industrial Access-Point / Client / Access-Bridge

BAT867-R

The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.

© 2018 Hirschmann Automation and Control GmbH

Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use.

The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.

Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.

You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).

Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany

Installation BAT867-R 22.08.2018

Installation BAT867-R

Release 06 08/2018

3

Contents

Safety instructions 5

About this manual 14

Key 15

1 Description 16

1.1 General description 16

1.2 Device name and product code 17

1.3 Device view 18

1.4 Power supply 18

1.5 10/100/1000 Mbit/s twisted pair port 19

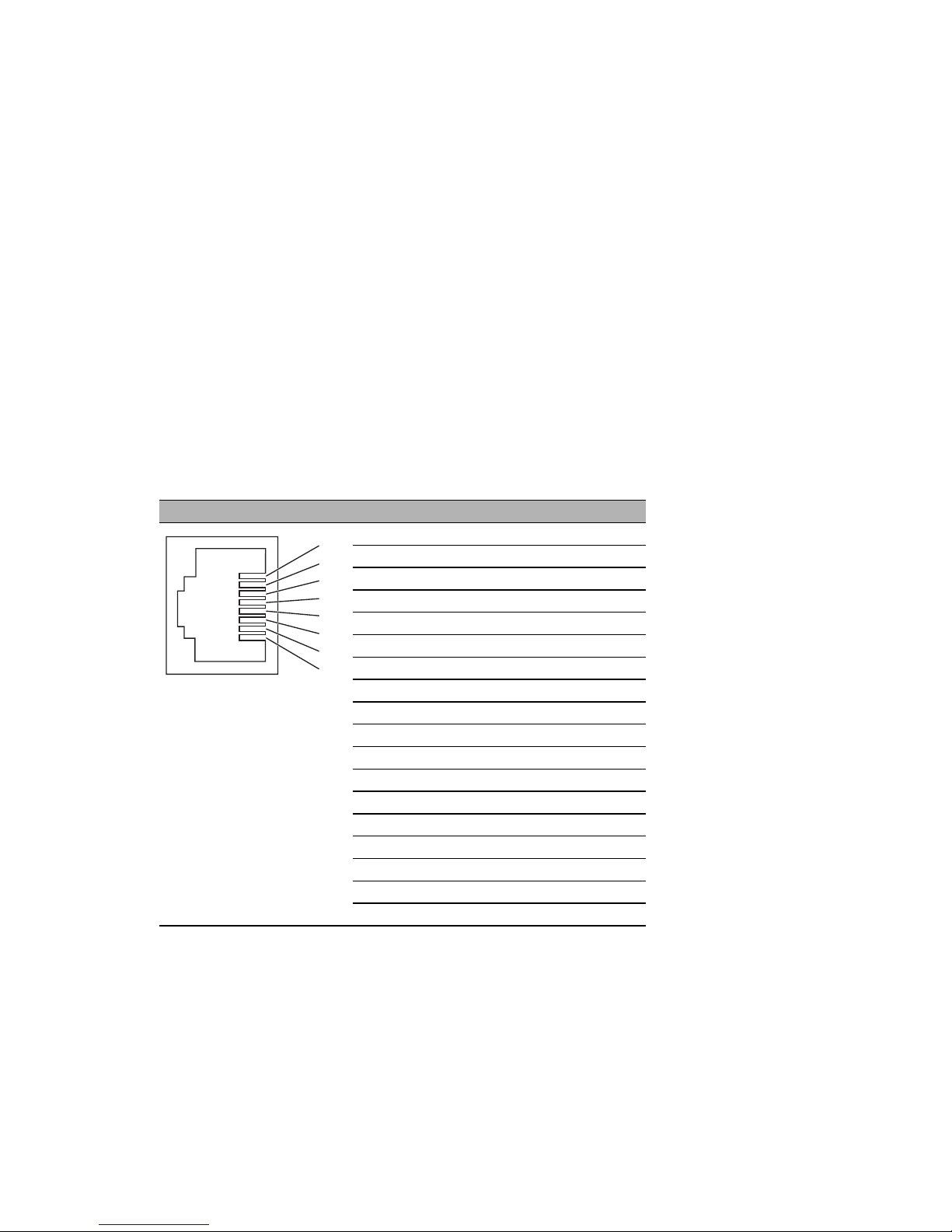

1.5.1 Pin assignments 19

1.6 Connections for antennas 20

1.7 Display elements 20

1.7.1 Device state 20

1.8 Reset button 21

2 Installation 22

2.1 Checking the package contents 22

2.2 Installing and grounding the device 22

2.2.1 Installing the device onto the DIN rail 22

2.2.2 Grounding the device 23

2.3 Installing the antennas 24

2.4 Connecting the terminal blocks 24

2.5 Operating the device 25

2.5.1 Connecting the power supply through a terminal
block 26

2.6 Connecting data cables 26

2.6.1 10/100/1000 Mbit/s twisted pair port 26

3 Making basic settings 27

4 Obtain compliance for operation in the European

Union 28

4

Installation BAT867-R

Release 06 08/2018

5 Configuring the transmit power 31

6 Maintenance and service 33

7Disassembly 34

7.1 Removing the device 34

8 Technical data 35

8.1 General technical data 35

8.2 Dimension drawings 36

8.3 Radio technology 37

8.4 Roaming 37

8.5 Receiving sensitivity, transmit power and data rate 38

8.5.1 IEEE 802.11b 38

8.5.2 IEEE 802.11g 38

8.5.3 IEEE 802.11a 39

8.5.4 IEEE 802.11n 39

8.5.5 IEEE 802.11ac 41

8.6 EMC and immunity 42

8.7 Network range 43

8.8 Power consumption/power output 43

9 Scope of delivery, order numbers and

accessories 44

10 Underlying technical standards 46

A Further support 47

Installation BAT867-R

Release 06 08/2018

5

Safety instructions

 General safety instructions

You operate this device with electricity. Improper usage of the device
entails the risk of physical injury or significant property damage. The
proper and safe operation of this device depends on proper handling
during transportation, proper storage and installation, and careful
operation and maintenance procedures.
 Before connecting any cable, read this document, and the safety

instructions and warnings.

 Operate the device with undamaged components exclusively.
 The device is free of any service components. In case of a damaged

or malfunctioning device, turn off the supply voltage and return the
device to Hirschmann for inspection.

 Certified usage

 Use the product only for the application cases described in the

Hirschmann product information, including this manual.

 Operate the product only according to the technical specifications.

See “Technical data” on page 35.

 Connect to the product only components suitable for the requirements

of the specific application case.

 Installation site requirements

Restricted access location:

 The location is outside the operator access area.
 The location is accessible to the service personnel even when the

device is switched on.

WARNING

UNCONTROLLED MACHINE ACTIONS

To avoid uncontrolled machine actions caused by data loss, configure all
the data transmission devices individually.
Before you start any machine which is controlled via data transmission, be
sure to complete the configuration of all data transmission devices.

Failure to follow this instruction can result in death, serious injury, or
equipment damage.

6

Installation BAT867-R

Release 06 08/2018

Indoor operator access area:

 The location is accessible without tools.
 The person responsible for the area has provided access for the

operator intentionally.

 The operator knows of the access possibilities, regardless of whether

they need a tool.

 Relevant for Europe:

 Supply only 24 V DC to the device and use a fuse.

Regarding the properties of this fuse: See “General technical data”

on page 35.

 For use in UL 60950-1 conditions:

Install the device in a fire enclosure.

 Device casing

Only technicians authorized by the manufacturer are permitted to open
the casing.
 Never insert pointed objects (narrow screwdrivers, wires, etc.) into the

device or into the connection terminals for electric conductors. Do not
touch the connection terminals.

 Keep the ventilation slits free to ensure good air circulation.

See “General technical data” on page 35.

 Mount the device in the vertical position.

 Qualification requirements for personnel

 Only allow qualified personnel to work on the device.

Qualified personnel have the following characteristics:

 Qualified personnel are properly trained. Training as well as practical

knowledge and experience make up their qualifications. This is the
prerequisite for grounding and labeling circuits, devices, and systems
in accordance with current standards in safety technology.

 Qualified personnel are aware of the dangers that exist in their work.
 Qualified personnel are familiar with appropriate measures against

these hazards in order to reduce the risk for themselves and others.

 Qualified personnel receive training on a regular basis.

 National and international safety regulations

 Verify that the electrical installation meets local or nationally applicable

safety regulations.

 When installing antennas, observe the regulations of the country in

which you are operating the WLAN device with regard to the general
operating permission and the maximum emission levels.

 Install and operate this equipment with a minimum distance of

19.7 inches (50 cm) between the antenna and your body.

Installation BAT867-R

Release 06 08/2018

7

 Grounding the device

For the functional earth (FE), there is a separate functional earth screw on
top of the device. The functional earth is electrically connected to the
circuit ground and the metal housing of the device.

 Shielding ground

The overall shield of a connected shielded twisted pair cable is connected
to the grounding connector on the front panel as a conductor.
 Beware of possible short circuits when connecting a cable section with

conductive shielding braiding.

 Requirements for connecting electrical wires

Before connecting the electrical wires, always verify that the
requirements listed are complied with.

The following requirements apply without restrictions:

 The electrical wires are voltage-free.
 The cables used are permitted for the temperature range of the application case.
 The voltage connected complies with the requirements for a safety extra-low voltage

(SELV) as per IEC/EN 60950-1.

 Relevant for North America:

Exclusively use 60/75 °C (140/167 °F) or 75 °C (167 °F) copper (Cu) wire.

Table 1: Requirements for connecting electrical wires

8

Installation BAT867-R

Release 06 08/2018

 Requirements for connecting the supply voltage

The supply voltage is connected to the device casing through protective
elements exclusively.

 Lightning protection

 The installation of the device occurs in accordance with valid

standards (such as VDE 0185 and IEC 62305), and in accordance
with the lightning protection procedures recognized and proven for the
application and the environment.

 Refer to the information in the “WLAN Outdoor Guide” on “Lightning

and overvoltage protection”.
You can download the manual from the Internet on the Hirschmann
product pages (www.hirschmann.com).

 Protect antennas installed outside with lightning protection devices (for

example lightning conductors).

 Take lightning protection measures which mitigate the effects of

lightning strikes.

The following requirements apply without restrictions:
All of the following requirements are complied with:

 The supply voltage corresponds to the voltage specified on the type plate of the

device.

 The power supply conforms to overvoltage category I or II.
 The power supply has an easily accessible disconnecting device (for example a

switch or a plug). This disconnecting device is clearly identified. So in the case of an
emergency, it is clear which disconnecting device belongs to which power supply
cable.

 The power supply cable is suitable for the voltage, the current and the physical load.

Hirschmann recommends a wire diameter of 0.5 mm² to 0.75 mm² (AWG20 up to
AWG18).

 The cross-section of the ground conductor is the same size as or bigger than the

cross-section of the power supply cables.

The following requirements apply alternatively:

Alternative 1 The power supply complies with the requirements for a limited power

source (LPS) as per EN 60950-1.

Alternative 2 Relevant for North America:

The power supply complies with the requirements according to
NEC Class 2.

Alternative 3 All of the following requirements are complied with:

 The power supply complies with the requirements for a safety extra-

low voltage (SELV) as per IEC/EN 60950-1.

 A fuse suitable for DC voltage is located in the plus conductor of the

power supply.
The minus conductor is on ground potential. Otherwise, a fuse is also
located in the minus conductor.
Regarding the properties of this fuse:

See “Technical data” on page 35.

Table 2: Requirements for connecting the supply voltage

Installation BAT867-R

Release 06 08/2018

9

 CE marking

The labeled devices comply with the regulations contained in the following
European directive(s):

2011/65/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.

2014/53/EU (RED)
Directive of the European Parliament and of the council on the
harmonization of the laws of the Member States relating to the making
available on the market of radio equipment.

This product may be operated in all EU (European Union)

countries under the condition that it has been configured correctly.

In accordance with the above-named EU directive(s), the EU conformity
declaration will be available to the relevant authorities at the following
address:

Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany

The product can be used in living areas (living area, place of business,
small business) and in industrial areas.

 Interference immunity: EN 61000-6-1
 Emitted interference: EN 55032
 Reliability: EN 60950-1

You find more information on technical standards here:

“Underlying technical standards” on page 46

Note: The assembly guidelines provided in these instructions must be
strictly adhered to in order to observe the EMC threshold values.

10

Installation BAT867-R

Release 06 08/2018

Notes for countries with the following country codes:

 The RED compliance requires compliant operation of the device in the

5 GHz band channels. Compliant operation of the device is achieved
by an unchangeable determination of the country setting. To obtain
RED compliance, perform the work steps described in chapter “Obtain

compliance for operation in the European Union” on page 28.

AT

BE

BG

CH

CY

CZ

DE

DK

EE

EL

ES

FI

FR

HR

HU

IE

IT

LI

LT

LU

LV

MT

NL

NO

PL

PT

RO

RS

SE

SI

SK

TR

UK

Installation BAT867-R

Release 06 08/2018

11

Notes for Germany (DE), Ireland (IE), and the United Kingdom (UK):

Operation in the 5.8 GHz band at a radiated power (EIRP) >25 mW is
subject to meeting the following conditions:

 Germany (DE)

Frequency range: 5725 MHz to 5875 MHz
Condition: The usage of this band is restricted to commercial public
telecommunication services. Registration at the Federal Network
Agency is required.
Name and website of the competent authority:
Bundesnetzagentur

www.bundesnetzagentur.de

 Ireland (IE)

Frequency range: 5725 MHz to 5875 MHz
Condition: Registration of operational base stations
Name and website of the competent authority:
Commission for Communications Regulation

www.comreg.ie

 United Kingdom (UK):

Frequency range: 5725 MHz to 5850 MHz
Condition: Light-licensing regime
Name and website of the competent authority:
Ofcom

www.ofcom.org.uk

DE

IE

UK

12

Installation BAT867-R

Release 06 08/2018

 FCC note:

This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:

 This device may not cause harmful interference, and
 This device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

 Reposition the receiver antenna or change the angle of the receiver

antenna.

 Increase the separation between the device and the receiver.
 Connect the device to a different power supply from that to which the

receiver is connected.
 Consult a specialist retailer or an electronic systems engineer for help.
Changes or modifications not expressly approved by the holder of the
certificate could void the user’s authority to operate this equipment.

Note for the use in the USA and in Canada

The following section applies to BAT867-R variants with the characteristic
value US (USA/Canada) for country approvals which are labeled as
follows:

Contains Transmitter Module
FCC ID: TK4WLE600VX
IC: 7849A-WLE600VX

This equipment complies with FCC and IC RSS-102 radiation exposure
limits set forth for an uncontrolled environment. Install and operate this
equipment with a minimum distance of 19.7 in (50 cm) (related to a 9 dBi
antenna) between the radiation source and your body.

The antenna used for this transmitter must not be co-located with any
other transmitters within a host device, except in accordance with FCC
multi-transmitter product procedures.

Installation BAT867-R

Release

06

08/2018

13

This transmitter is restricted to indoor use only within the 5.15 to 5.25 GHz band to reduce potential for harmful
interference to co-channel mobile satellite systems.

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (EIRP) is not more than that permitted for successful communication.

The FCC approval is valid only in conjunction with the listed antennas. If other antennas are used, the approval
expires. The responsibility lies with the operator of the system. The required antenna impedance is 50 .

 Recycling note

After usage, this device must be disposed of properly as electronic waste, in accordance with the current disposal
regulations of your county, state, and country.

Antennas operating with this device
model:

Permitted band of operation

2.4 GHz band 5 GHz band
5180 ... 5240 MHz 5260 ... 5320 MHz 5500 ... 5720 MHz 5745 ... 5825 MHz

BAT-ANT-RSMA-2AGN-R

a

a. Note: When using 2 antennas type BAT-ANT-RSMA-2AGN-R, you must align each antenna in another spatial direction (x-y) so that both antennas

are arranged at right angles to each other.

Yes Yes Yes Yes Yes

BAT-ANT-N-MiMoDB-5N-IP65 Yes Yes Yes Yes Yes

14

Installation BAT867-R

Release 06 08/2018

About this manual

The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.

Installation BAT867-R

Release 06 08/2018

15

Key

The symbols used in this manual have the following meanings:

 Listing

 Work step



Subheading

16

Installation BAT867-R

Release 06 08/2018

1 Description

1.1 General description

The devices allow you to set up WLANs (Wireless Local Area Networks) in a
local network. In contrast to a conventional network connection through
copper cables and fiber optic cables, some of the communication is
performed by means of a radio link.

The devices allow you to install a new LAN or expand an existing LAN.
Thanks to their high level of flexibility, the BAT867-R device is suitable for a
wide range of applications. Anywhere that high bandwidths, stable operation
and network security is required, WLAN with these devices provides the ideal
solution.

The devices are dual-band industrial high-performance wireless LAN access
points or clients complying with IEEE 802.11a/b/g/n/ac. They provide a high
radio output with a bandwidth of up to 867 Mbit/s. The devices support MIMO
(Multiple Input Multiple Output) and Multipath. The bandwidth is increased by
using the multipath transmission by means of reflections. 2 antennas for
sending and receiving help ensure stable network coverage with few shadow
areas.

The BAT867-R devices are designed for the special requirements of
industrial automation. They meet the relevant industry standards, provide
very high operational reliability, even under extreme conditions, and also
long-term reliability and flexibility.
The devices work without a fan.

The following installation options are available:

 Mounting on the DIN rail

There are convenient options for managing the device. Manage your devices
via:

 Web browser
 SSH
 Telnet
 HiDiscovery (software for putting the device into operation)
 Management software (for example Industrial HiVision, LANconfig/

LANmonitor)

Installation BAT867-R

Release 06 08/2018

17

The devices provide you with a large range of functions, which the manuals
for the operating software inform you about. You can download these
manuals as PDF files from the Internet on the Hirschmann product pages
(www.hirschmann.com).
The Hirschmann network components help you ensure continuous
communication across all levels of the company.

1.2 Device name and product code

The device name corresponds to the product code. The product code is
made up of characteristics with defined positions. The characteristic values
stand for specific product properties.

Item Characteristic Character

istic value

Description

1 ... 8 Product BAT867-R IP40 housing
9 ... 10 Country approvals

Example:
Singapore

XX

Example:
SG

You can determine the current country
approvals using the configurator (www.e-

catalog.beldensolutions.com).

11 Slot 1 W WLAN module
12 Slot 2 9 Not assembled
13 Slot 3 9 Not assembled
14 Access point or client A Access Point

CClient

15 Supply voltage 1 U Rated voltage

24 V DC
16 Supply voltage 2 9 Not assembled
17 Approvals 1 9 No additional approvals
18 Approvals 2 9 No additional approvals
19 Mounting A Standard
20 ... 21 Ethernet port 1 T1 RJ45 socket for 10/100/1000 Mbit/s

Twisted Pair connections
22 ... 23 Optional:

Ethernet port 2 or interface

99 Not assembled

24 Temperature range L +14 °F ... +140 °F (10 °C ... +60 °C)
25 Software option 1 9 Not present
26 Software option 2 9 Not present
27 Software option 3 9 Not present
28 Configuration Z Accessory package

9 Not present

29 Device model H Hirschmann standard

Table 3: Device name and product code

18

Installation BAT867-R

Release 06 08/2018

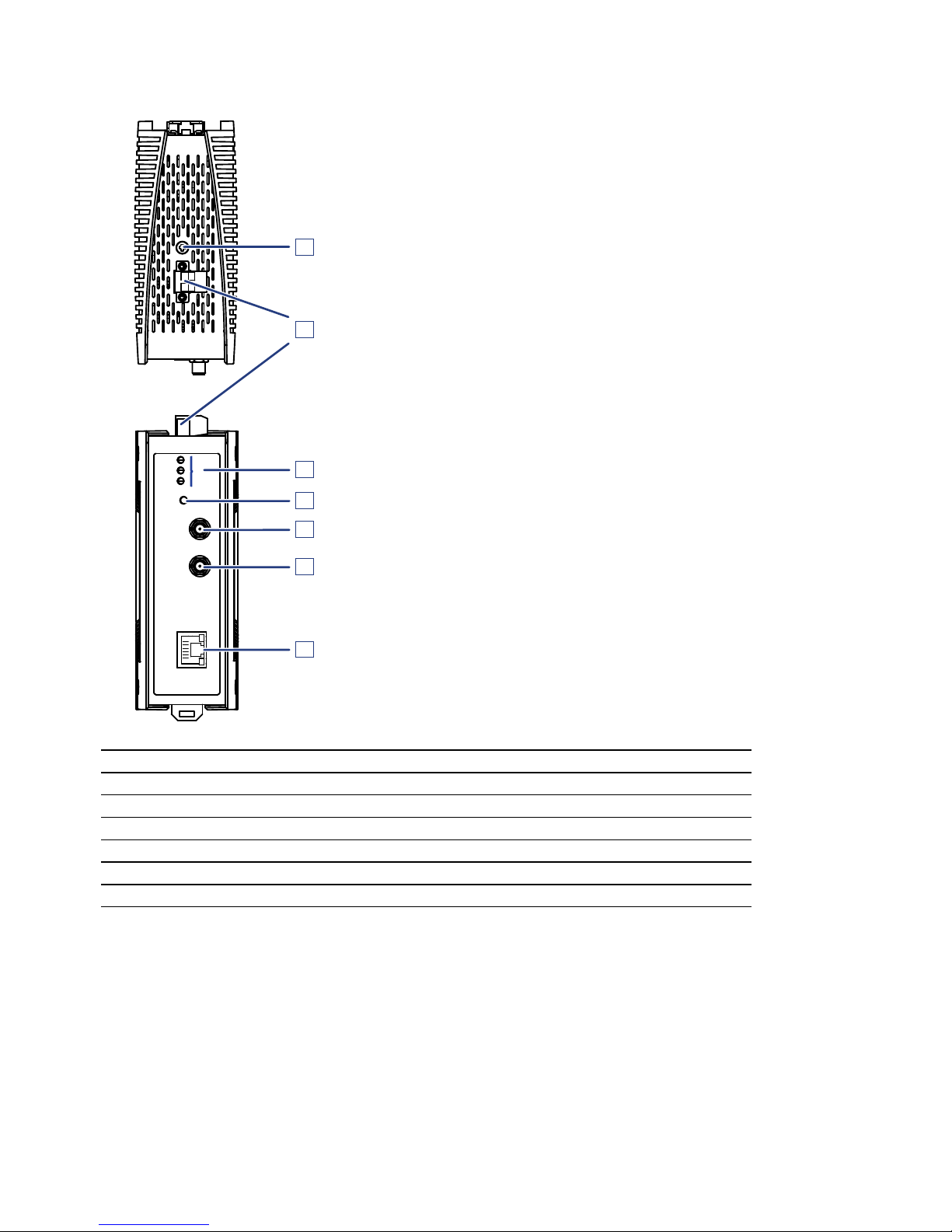

1.3 Device view

1.4 Power supply

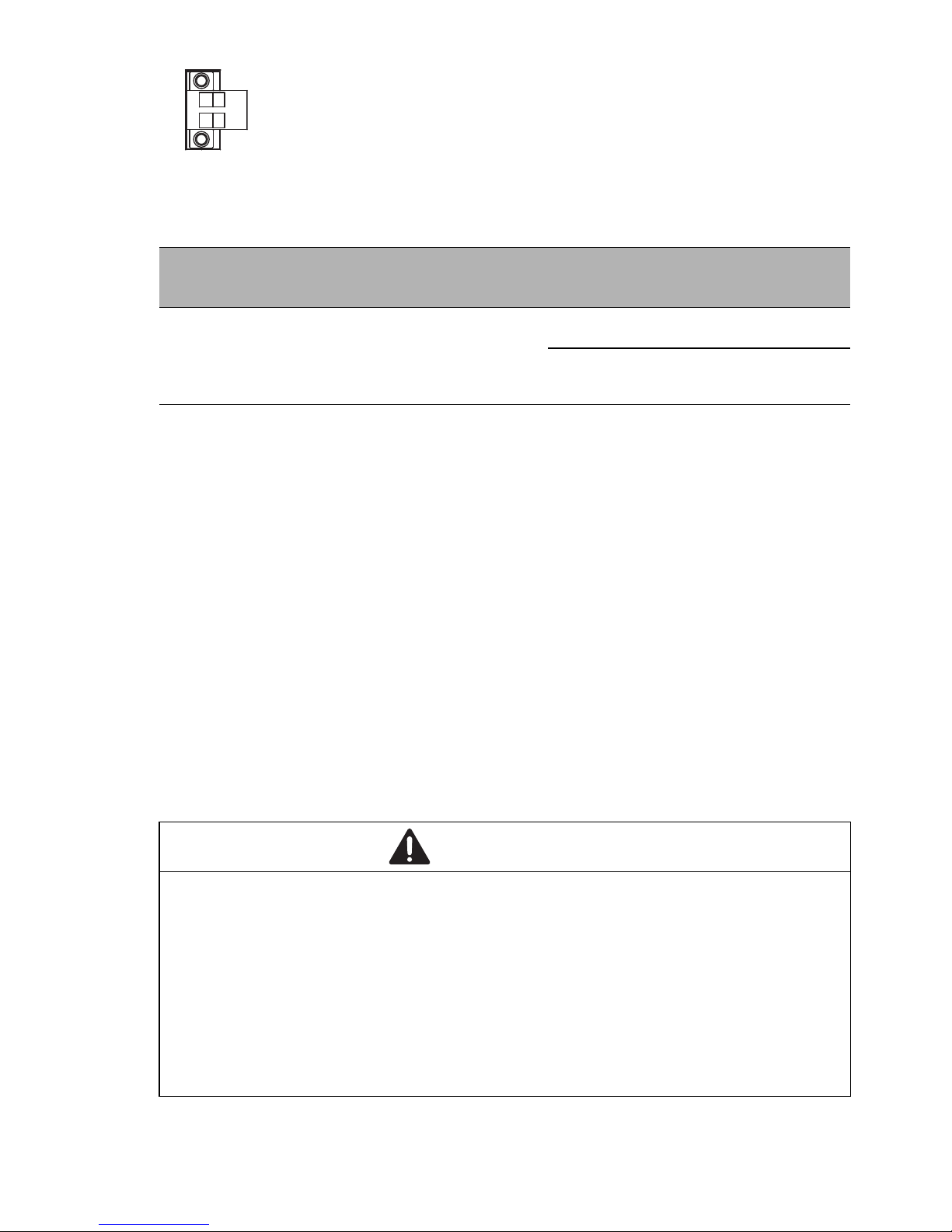

A 2-pin terminal block is available to supply the device with power.
Further information:

See “Connecting the terminal blocks” on page 24.

1 Functional earth screw
2 2-pin terminal block for the supply voltage
3 LED display elements
4 Reset button
5 Antenna connection 1
6 Antenna connection 2
7 RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections

2

5

6

7

3

4

1

Installation BAT867-R

Release 06 08/2018

19

1.5 10/100/1000 Mbit/s twisted pair port

This port is an RJ45 socket.
The 10/100/1000 Mbit/s twisted pair port allows you to connect network
components according to the IEEE 802.3 10BASE-T/100BASE-TX/
1000BASE-T standard.
This port supports:

 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 1000 Mbit/s full duplex
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode

Delivery state: Autonegotiation activated
The port casing is electrically connected to the front panel.
The pin assignment corresponds to MDI-X.

1.5.1 Pin assignments

RJ45 Pin 10/100 Mbit/s 1000 Mbit/s

MDI mode

1 TX+ BI_DA+
2TX BI_DA
3 RX+ BI_DB+
4— BI_DC+
5— BI_DC
6RX BI_DB
7— BI_DD+
8— BI_DD

MDI-X mode

1 RX+ BI_DB+
2RX BI_DB
3 TX+ BI_DA+
4— BI_DD+
5— BI_DD
6TX BI_DA
7— BI_DC+
8— BI_DC

1
2
3
4
5
6
7
8

20

Installation BAT867-R

Release 06 08/2018

1.6 Connections for antennas

You require antennas for operating the devices.
The devices have 2 Reverse SMA connectors for connecting external
antennas.
The "Antenna Guide" document provides an overview of the antennas that
can be used as well as the suitable antenna accessories.
This document is available for download as a PDF file on the Hirschmann
product pages (www.hirschmann.com).

1.7 Display elements

After the supply voltage is set up, the software starts and initializes itself.
Afterwards, the device performs a self-test. During this process, various
LEDs light up.

1.7.1 Device state

These LEDs provide information about conditions which affect the operation
of the whole device.

P
Color

Activity Meaning

green lights up LED lights up after the configuration
red flashing Device has detected at least one hardware error.
green/red Short flashing No password or the default password is set

LS/DA
Color

Activity Meaning

— off No network device connected
green lights up Ethernet connection active
yellow flashing Data traffic

WLAN
Color

Activity Meaning

—off  No WLAN network specified

 WLAN module deactivated
 WLAN module does not send any beacons

green lights up

 At least one WLAN network defined
 WLAN module activated

P

LS/DA

WLAN

Installation BAT867-R

Release 06 08/2018

21

1.7.2 Port status

These LEDs provide port-related information.

1.8 Reset button

The device has a reset button.
You will find more information in the “User Manual Configuration Guide”, in
the chapter “Using the Boot Configurations”.

green inverse flashing Number of flashes corresponds to number of connected

WLAN stations and P2P radio lines.

green flashing  DFS scanning or another scan procedure

 Display of signal strength in client or P2P

re
d

flashing Device has detected at least one hardware error.

LS/DA
Color

Activity Meaning

— off No network device connected
green lights up Ethernet connection active
yellow flashing Data traffic

WLAN
Color

Activity Meaning

DA

LS

22

Installation BAT867-R

Release 06 08/2018

2 Installation

The devices have been developed for practical application in a harsh
industrial environment.
On delivery, the device is ready for operation.

Perform the following steps to install and configure the device:

 Checking the package contents
 Installing and grounding the device
 Installing the antennas
 Connecting the terminal blocks
 Operating the device
 Connecting data cables
 Making basic settings
 Configuring the transmit power

2.1 Checking the package contents

 Check whether the package includes all items named in the section

“Scope of delivery” on page 44.

 Check the individual parts for transport damage.

2.2 Installing and grounding the device

2.2.1 Installing the device onto the DIN rail

Verify that the device maintains the minimum clearing in order to meet the
climatic conditions:

 Top and bottom sides of device: 1.97 in (5 cm)
 Left and right device side: 0.79 in (2 cm)

Installation BAT867-R

Release 06 08/2018

23

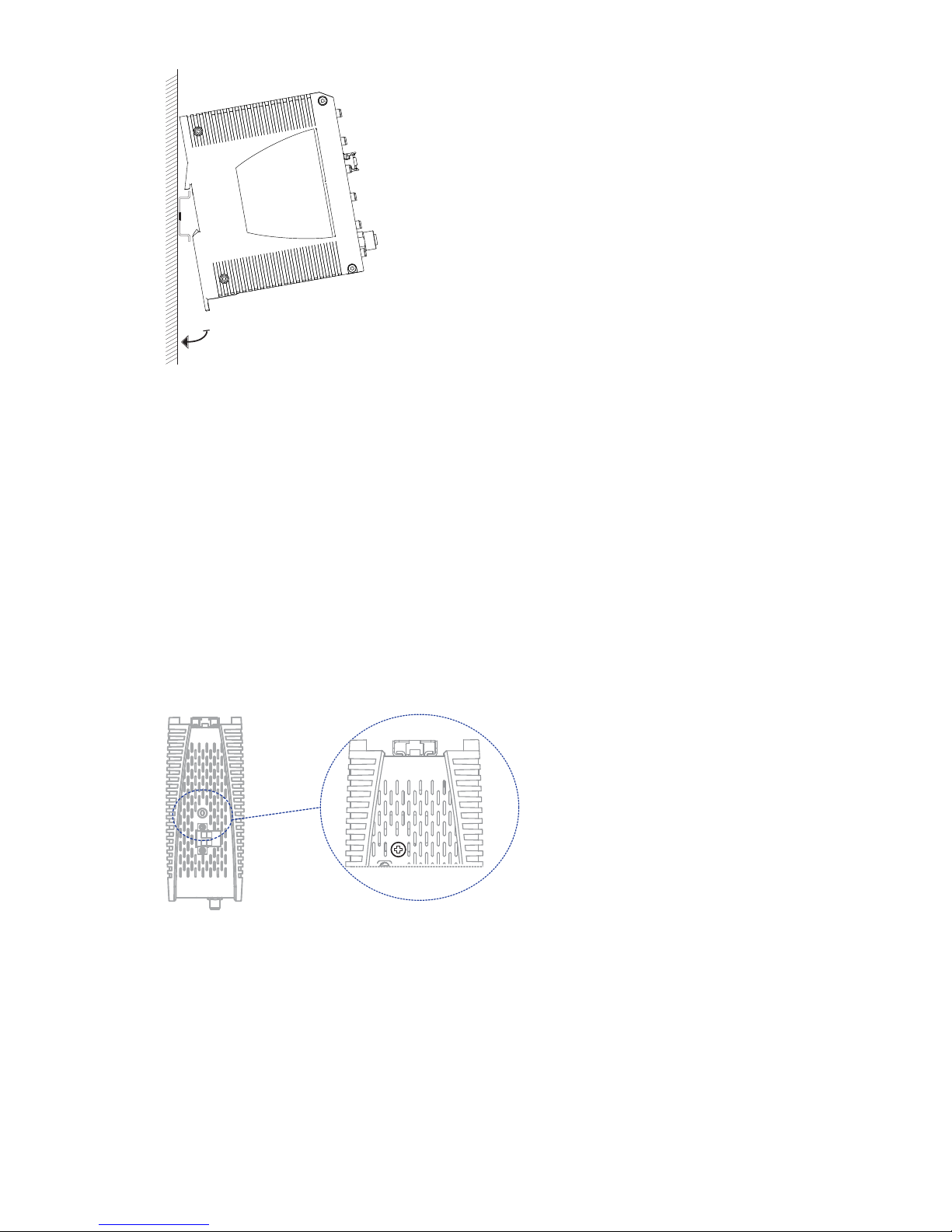

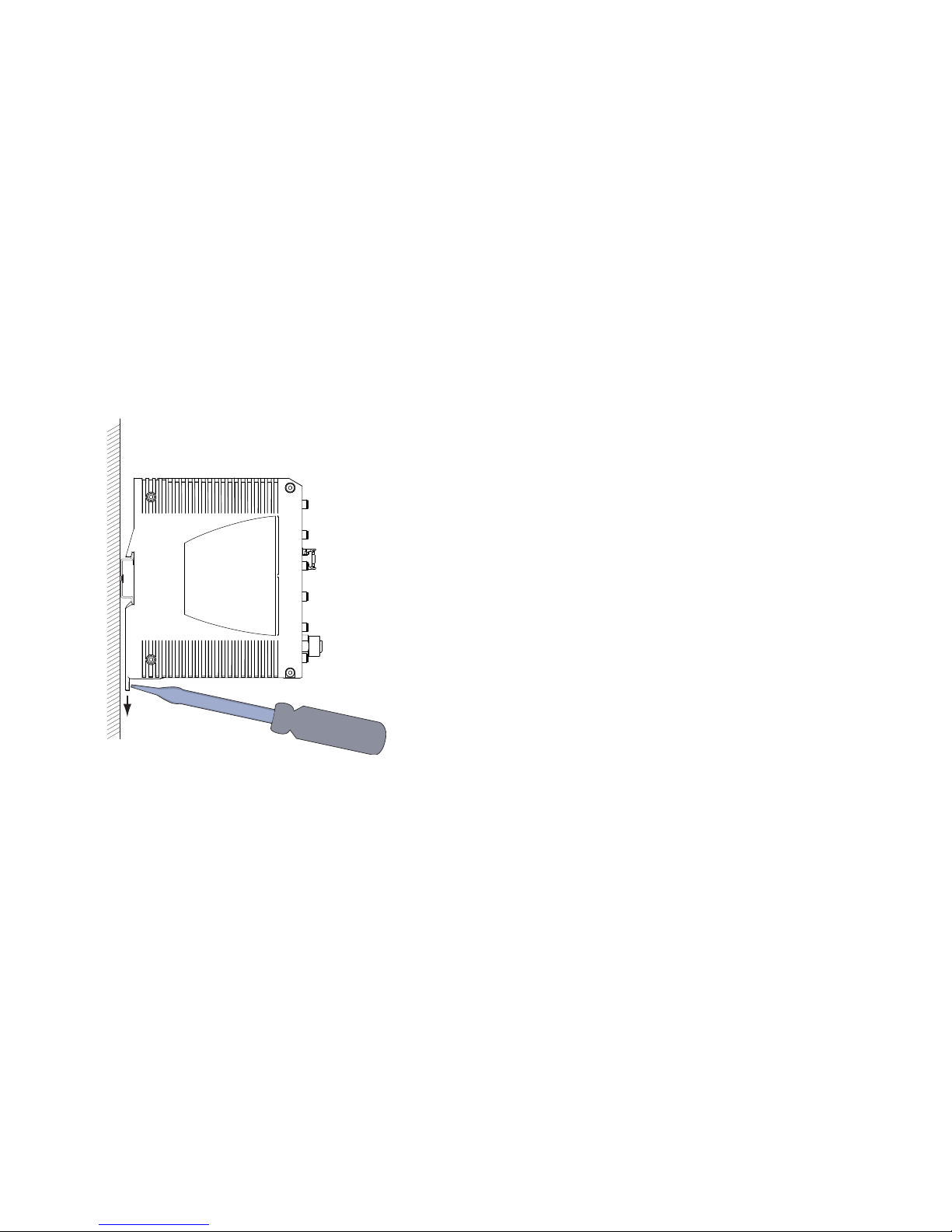

To mount the device onto a horizontally mounted 35 mm DIN rail according
to DIN EN 60715, proceed as follows:

 Slide the upper snap-in guide of the device into the DIN rail.
 Pull the rail lock slide down using a screwdriver, and press the lower part

of the device against the DIN rail.

 Snap in the device by releasing the rail lock slide.

2.2.2 Grounding the device

Prerequisite:

 Use a wire diameter for the functional earth conductor that is no smaller

than the diameter of the supply voltage connection, however of at least

0.5 mm² (AWG20).

Proceed as follows:
 Ground the device via the functional earth screw.

The functional earth screw is located on the topside as shown in the
illustration.

24

Installation BAT867-R

Release 06 08/2018

2.3 Installing the antennas

The devices have 2 Reverse SMA connectors for connecting external
antennas.

Note: When using 2 antennas type BAT-ANT-RSMA-2AGN-R, you must
align each antenna in another spatial direction (x-y) so that both antennas are
arranged at right angles to each other.

When mounting only 1 antenna, insert a terminating resistor into the unused
socket. You can obtain terminating resistors as accessory.

See “Accessories” on page 44.

Note: Device variants with the configuration characteristic value Z contain a
pre-mounted terminating resistor SMA to ANT2 for RSMA ANT connectors.

You will find information on setting the transmit power in chapter “Configuring

the transmit power” on page 31.

2.4 Connecting the terminal blocks

Note: The supply voltage is connected to the device casing through
protective elements exclusively.

WARNING

ELECTRIC SHOCK

Before connecting the electrical wires, always verify that the requirements
listed are complied with.

See “Requirements for connecting electrical wires” on page 7.
See “Requirements for connecting the supply voltage” on page 8.

Never insert sharp objects (small screwdrivers, wires, etc.) into the
connection terminals for electric conductors, and do not touch the terminals.

Failure to follow this instruction can result in death, serious injury, or
equipment damage.

Installation BAT867-R

Release 06 08/2018

25

Figure 1: Supply voltage with characteristic value U: 2-pin terminal block with screw

lock

Proceed as follows:
 Verify the required conditions for connecting the voltage supply.

See “Requirements for connecting electrical wires” on page 7.
See “Requirements for connecting the supply voltage” on page 8.

 Remove the terminal connector from the device.
 Connect the protective conductor with the clamp.
 Connect the wires according to the pin assignment on the device with the

clamps.

2.5 Operating the device

Type of the voltages
that can be
connected

Specification of the supply
voltage

Pin assignment on the device

DC voltage Rated voltage range

24 V DC
Voltage range incl. maximum
tolerances
18 V DC ... 32 V DC

 Minus terminal of the supply

voltage

+ Plus terminal of the supply voltage

Table 4: Supply voltage with characteristic value U: type and specification of the

supply voltage, pin assignment on the device

WARNING

ELECTRIC SHOCK

Before connecting the electrical wires, always verify that the requirements
listed are complied with.

See “Requirements for connecting electrical wires” on page 7.
See “Requirements for connecting the supply voltage” on page 8.

Failure to follow this instruction can result in death, serious injury, or
equipment damage.

−
+

26

Installation BAT867-R

Release 06 08/2018

By connecting the supply voltage via the terminal block, you start the
operation of the device.

2.5.1 Connecting the power supply through a terminal
block

Relevant for North America:
The torque for tightening the supply voltage terminal block on the device is

4.5 lb-in (0.51 Nm).

 Mount the terminal block on the device using screws.
 Enable the supply voltage.

2.6 Connecting data cables

2.6.1 10/100/1000 Mbit/s twisted pair port

Further information:

See “10/100/1000 Mbit/s twisted pair port” on page 19.

 Connect the data cables according to your requirements.

Installation BAT867-R

Release 06 08/2018

27

3 Making basic settings

The IP parameters must be entered when the device is installed for the first
time. The device provides the following options for configuring IP addresses:

 Entry via the HiDiscovery protocol in the applications HiDiscovery or

Industrial HiVision

 Configuration via BOOTP

You will find more information in the “User Manual Configuration Guide”.
This document is available for download as a PDF file on the Hirschmann
product pages (www.hirschmann.com).

28

Installation BAT867-R

Release 06 08/2018

4 Obtain compliance for operation in the

European Union

For operation in the European Union, the device must comply with the Radio
Equipment Directive (RED) 2014/53/EU. The RED compliance requires
compliant operation of the device in the 5 GHz band channels. Compliant
operation of the device is achieved by an unchangeable determination of the
country setting.

Make the country setting unchangeable using the Command Line Interface
(CLI), the graphical user interface or the LANconfig software. You can
download the LANconfig software as an ISO image from the Hirschmann
product pages (www.hirschmann.com).

Perform the following work steps:

 Command Line Interface (CLI)

 To access the possible country settings, execute the following

command:

set Setup/WLAN/Country ?

Note: The country setting “Europe” is valid for all European countries.
Specific country settings such as “France” or “Germany” include
additional country specific channels in comparison to the “Europe”
country setting.
The device ignores specific country settings and uses the country
setting “Europe” until the RED compliance has been obtained.

 Select the desired country setting with the following command:

set Setup/WLAN/Country [Country]

Example:
set Setup/WLAN/Country France

 Execute the following command:

> REDcompliance

Installation BAT867-R

Release 06 08/2018

29

Note: To check the country setting and correct it, type no. Then check
the country setting with the following command: ls Setup/WLAN/
Country.

 To obtain RED compliance, type yes. This makes the country setting

unchangeable. Subsequently, the device restarts.

 Graphical user interface

 Open the Configuration > Wireless LAN > General dialog and select

the desired country setting.

Note: The country setting “Europe” is valid for all European countries.
Specific country settings such as “France” or “Germany” include
additional country specific channels in comparison to the “Europe”
country setting.
The device ignores specific country settings and uses the country
setting “Europe” until the RED compliance has been obtained.

 To confirm your choice, click the “Send” button.

 Open the Extras > RED compliance dialog.

Note: To check the country setting and correct it, open the
Configuration > Wireless LAN > General dialog.

 To obtain RED compliance, click the “Confirm RED compliance”

button. This makes the country setting unchangeable. Subsequently,
the device restarts.

 LANconfig

 In the LANconfig device overview, highlight the row containing the

desired device.

 In the menu bar, select Device > Configure.

 Open the Configuration > Wireless LAN > General dialog and select

the desired country setting.

Note: The country setting “Europe” is valid for all European countries.
Specific country settings such as “France” or “Germany” include
additional country specific channels in comparison to the “Europe”
country setting.
The device ignores specific country settings and uses the country
setting “Europe” until the RED compliance has been obtained.

30

Installation BAT867-R

Release 06 08/2018

 To confirm your choice, click the “OK” button.

 In the LANconfig device overview, highlight the row containing the

desired device.

 In the menu bar, select Device > RED compliance.

Note: To check the country setting and correct it, click the “No” button.
Then open the Configuration > Wireless LAN > General dialog.

 To obtain RED compliance, click the “Yes” button. This makes the

country setting unchangeable. Subsequently, the device restarts.

Installation BAT867-R

Release 06 08/2018

31

5 Configuring the transmit power

Note: The operator of a WLAN radio installation must adhere to the
applicable transmission threshold values.

Use the graphical user interface or the LANconfig software. You can
download the LANconfig software as an ISO image from the Hirschmann
product pages (www.hirschmann.com).

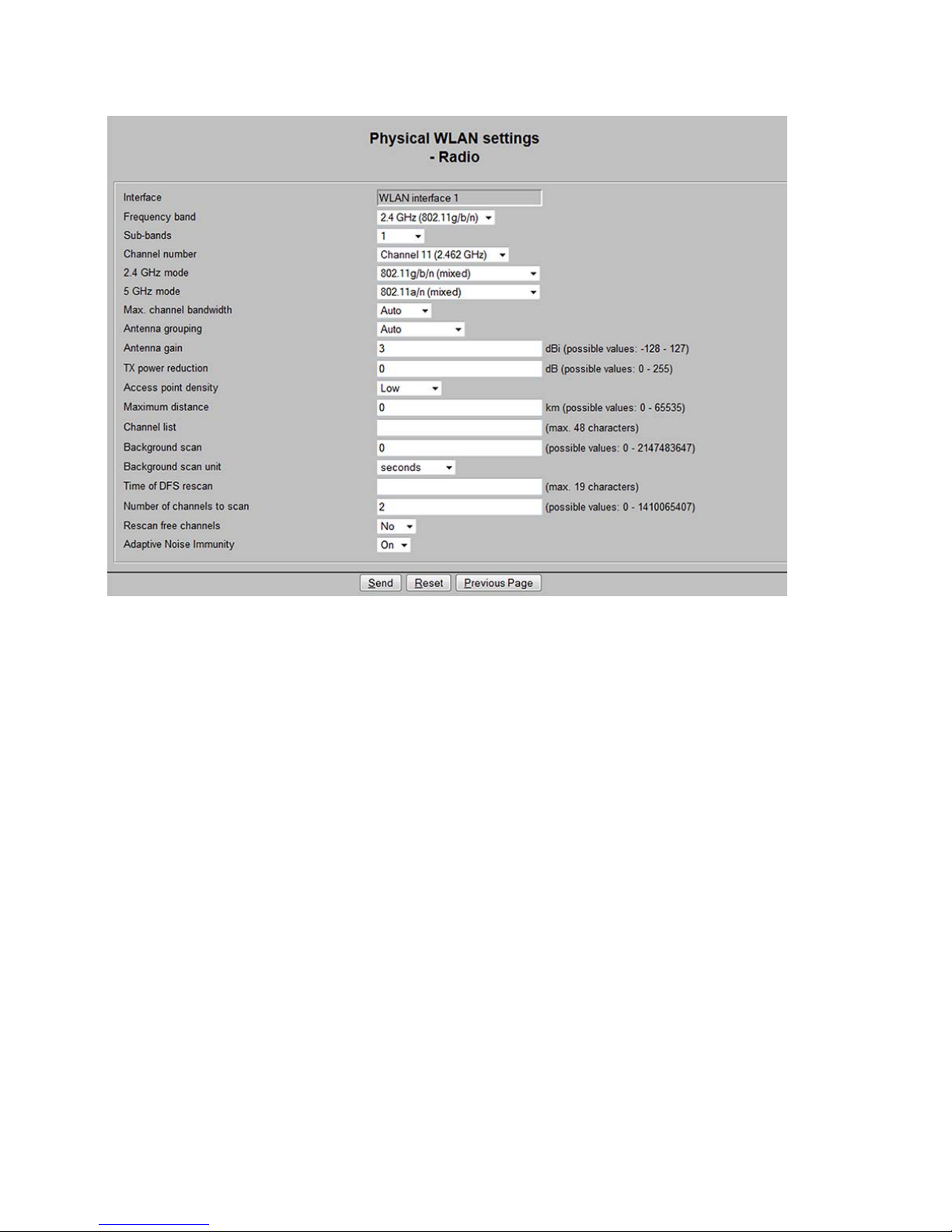

In the graphical user interface, proceed as follows:
 In the menu tree, open the Configuration > Wireless LAN > General

dialog.

 In the “General” tab, specify in the “General” frame the country in which

you install the device, and click the “Send” button.

Note: For devices that are operated in the European Union perform
thework steps described in chapter “Obtain compliance for operation in

the European Union” on page 28.

 In the menu tree, open the Configuration > Wireless LAN > General >

Physical WLAN settings - Radio dialog.

 In the “General” tab, click in the “Interface” column the physical WLAN

interface to which you connect the antenna.

32

Installation BAT867-R

Release 06 08/2018

 Subtract the cable and installed overvoltage protector attenuation from

the antenna gain. Enter the calculated value in the “Antenna gain” field.

 To save the value, click the “Send” button.

Installation BAT867-R

Release 06 08/2018

33

6 Maintenance and service

 When designing this device, Hirschmann largely avoided using high-wear

parts. The parts subject to wear and tear are dimensioned to last longer
than the lifetime of the product when it is operated normally. Operate this
device according to the specifications.

 Hirschmann is continually working on improving and developing their

software. Check regularly whether there is an updated version of the
software that provides you with additional benefits. You find information
and software downloads on the Hirschmann product pages on the
Internet (http://www.hirschmann.com).

 Depending on the degree of pollution in the operating environment, check

at regular intervals that the ventilation slots in the device are not
obstructed.

Note: You find information on settling complaints on the Internet at http://

www.beldensolutions.com/en/Service/Repairs/index.phtml.

34

Installation BAT867-R

Release 06 08/2018

7 Disassembly

7.1 Removing the device

 Disconnect the data cables.
 Disable the supply voltage.
 Remove the terminal connector from the device.
 Remove the antennas.
 Disconnect the grounding.
 Insert a screwdriver horizontally below the housing into the locking gate.
 Pull the locking gate down without tilting the screwdriver.
 Lift the bottom of the device away from the DIN rail.

Installation BAT867-R

Release 06 08/2018

35

8 Technical data

8.1 General technical data

Dimensions
W × H × D

BAT867-R See “Dimension drawings” on page 36.

Weight 0.92 oz (520 g)
Supply voltage Rated voltage 24 V DC

Voltage range incl. maximum
tolerances

18 V DC ... 32 V DC

Connection type 2-pin terminal block
Power loss buffer 10 ms at 24 V DC
Overload current protection at

input

Non-replaceable fuse

Back-up fuse Nominal rating: 3.5 A

Characteristic: slow blow

Peak inrush current (slow
voltage increase)

850 mA

Current integral I²t 0.373 A

2

s

Climatic
conditions during
operation

Minimum clearance around the
device

Top and bottom sides of device: 1.97 in
(5 cm)
Left and right device side: 0.79 in (2 cm)

Ambient air temperature

a

a. Temperature of the ambient air at a distance of 2 in (5 cm) from the device

+14 °F ... +140 °F (10 °C ... +60 °C)

Maximum inner temperature of
device (guideline)

194 °F (90 °C)

Humidity 10 % ... 95 % (non-condensing)
Air pressure min. 700 hPa (+9842 ft; +3000 m)

max. 1060 hPa (1312 ft; 400 m)

Climatic
conditions during
storage

Ambient air temperature

a

40 °F ... +158 °F (40 °C ... +70 °C)

Humidity 10 % ... 95 % (non-condensing)
Air pressure min. 700 hPa (+9842 ft; +3000 m)

max. 1060 hPa (1312 ft; 400 m)

Pollution degree 2
Protection classes Degree of protection IP40

b

b. for DIN rail mounting

36

Installation BAT867-R

Release 06 08/2018

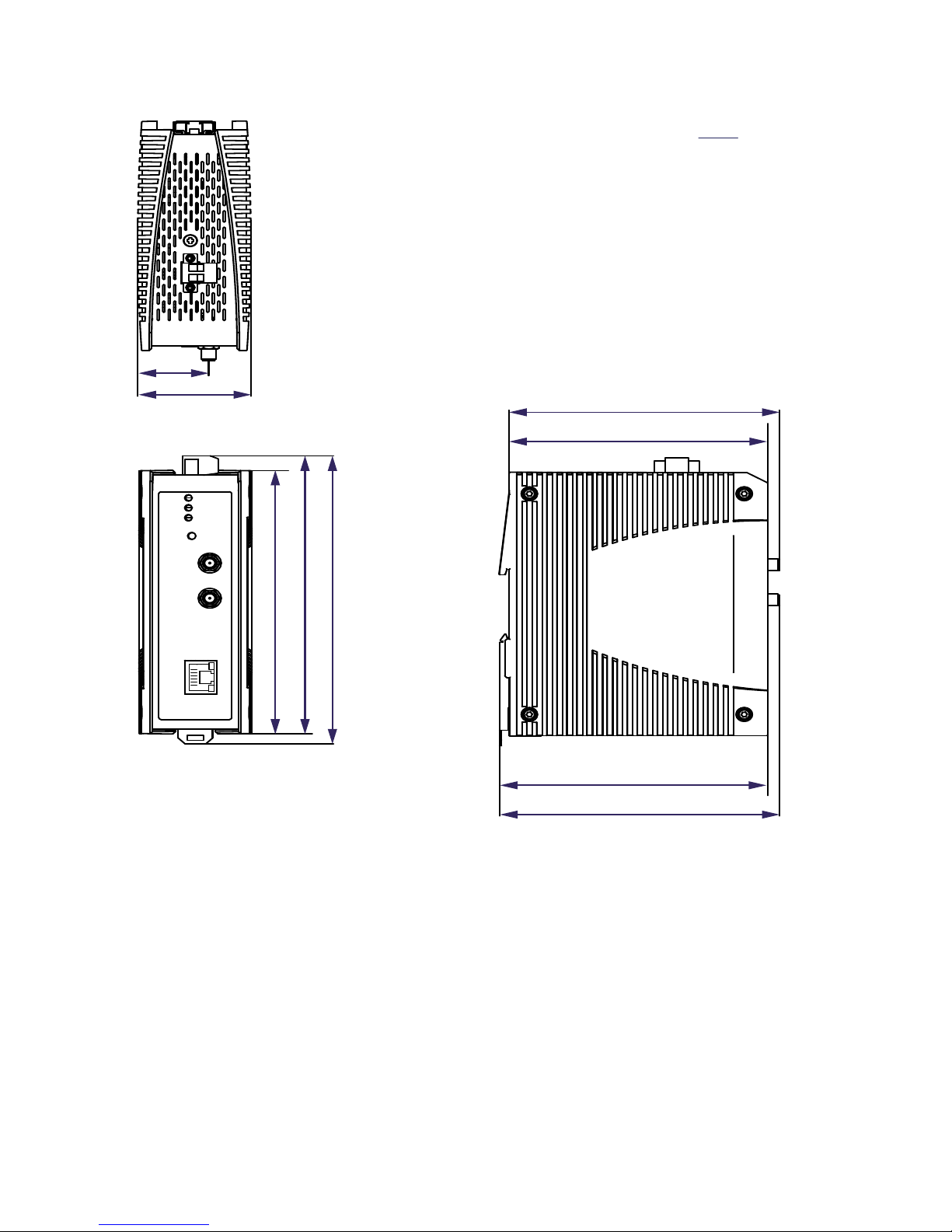

8.2 Dimension drawings

147,5

5.81

142,4

5.61

134,8

5.31

122,5

4.82

117,3

4.62

118,2

4.65

113,1

4.45

mm
inch

49,4

1.94

31

1.22

Installation BAT867-R

Release 06 08/2018

37

8.3 Radio technology

8.4 Roaming

 IEEE 802.11F (Inter-Access Point Protocol)
 IEEE 802.11r (Fast Roaming)
 PMK caching
 Pre authentification
 OKC (Opportunistic key caching)

Antenna connection 2 × Reverse SMA connector
Range Depending on the antenna used, frequency range and data rate
Encryption

 IEEE 802.11i/WPA2 with passphrase or IEEE 802.1x and

hardware-accelerated AES

 Closed Network
 WEP 64
 WEP 128
 WEP 152
 User authentication
 802.1x/EAP
 LEPS
 WPA1/TKIP
 For more information, see the HiLCOS data sheet.

Frequency range

 Support of 2.4 GHz and 5 GHz: 2412 MHz to 2472 MHz and

5180 MHz to 5825 MHz

Modulation technology

 OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
 DSSS/CCK

Radio topology WLAN Access-Point, Bridge-, Router-, Point-to-Point-, Client-, Client-

Bridge-Mode

38

Installation BAT867-R

Release 06 08/2018

8.5 Receiving sensitivity, transmit power and
data rate

The values of the WLAN module shown in the following tables are subject to
a tolerance of ±2 dB. If you use only 1 antenna, the transmit power is reduced
by 3 dB. The values are in no case to be perceived as a guaranteed property
of the overall product. For some country profiles, the module reduces data
rate and transmit power automatically. The reason for this are national
standards.

8.5.1 IEEE 802.11b

8.5.2 IEEE 802.11g

IEEE 802.11b
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 20 MHz

Data rate Transmit power Receiving sensitivity

1Mbit/s 23dBm 95 dBm

2Mbit/s 23dBm 94 dBm

5.5 Mbit/s 23 dBm 92 dBm

11 Mbit/s 23 dBm 90 dBm

Table 5: IEEE 802.11b, frequency range 2.412 GHz to 2.472 GHz, bandwidth

20 MHz

IEEE 802.11g
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 20 MHz

Data rate Transmit power Receiving sensitivity

6Mbit/s 24dBm 94 dBm

9Mbit/s 24dBm 93 dBm

12 Mbit/s 24 dBm 92 dBm

18 Mbit/s 24 dBm 90 dBm

24 Mbit/s 24 dBm 88 dBm

36 Mbit/s 23 dBm 85 dBm

48 Mbit/s 22 dBm 81 dBm

54 Mbit/s 21 dBm 80 dBm

Table 6: IEEE 802.11g, frequency range 2.412 GHz to 2.472 GHz, bandwidth

20 MHz

Installation BAT867-R

Release 06 08/2018

39

8.5.3 IEEE 802.11a

8.5.4 IEEE 802.11n

IEEE 802.11a
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 20 MHz

Data rate Transmit power Receiving sensitivity

6 Mbit/s 23 dBm 94 dBm

9 Mbit/s 23 dBm 94 dBm

12 Mbit/s 23 dBm 92 dBm

18 Mbit/s 23 dBm 90 dBm

24 Mbit/s 23 dBm 86 dBm

36 Mbit/s 21 dBm 84 dBm

48 Mbit/s 19 dBm 81 dBm

54 Mbit/s 18 dBm 80 dBm

Table 7: IEEE 802.11a, frequency range 5.180 GHz to 5.825 GHz, bandwidth

20 MHz

IEEE 802.11n
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 20 MHz

Coding Transmit power Receiving sensitivity

MCS 0 / 8 24 dBm 93 dBm

MCS 1 / 9 24 dBm 91 dBm

MCS 2 / 10 24 dBm 89 dBm

MCS 3 / 11 23 dBm 84 dBm

MCS 4 / 12 23 dBm 83 dBm

MCS 5 / 13 23 dBm 78 dBm

MCS 6 / 14 21 dBm 78 dBm

MCS 7 / 15 19 dBm 76 dBm

Table 8: IEEE 802.11n, frequency range 2.412 GHz to 2.472 GHz, bandwidth

20 MHz

IEEE 802.11n
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 40 MHz

Coding Transmit power Receiving sensitivity

MCS 0 / 8 23 dBm 92 dBm

MCS 1 / 9 23 dBm 88 dBm

Table 9: IEEE 802.11n, frequency range 2.412 GHz to 2.472 GHz, bandwidth

40 MHz

40

Installation BAT867-R

Release 06 08/2018

MCS 2 / 10 23 dBm 85 dBm

MCS 3 / 11 22 dBm 82 dBm

MCS 4 / 12 22 dBm 79 dBm

MCS 5 / 13 22 dBm 75 dBm

MCS 6 / 14 21 dBm 75 dBm

MCS 7 / 15 19 dBm 73 dBm

IEEE 802.11n
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 20 MHz

Coding Transmit power Receiving sensitivity

MCS 0 / 8 22 dBm 93 dBm

MCS 1 / 9 22 dBm 90 dBm

MCS 2 / 10 22 dBm 87 dBm

MCS 3 / 11 21 dBm 83 dBm

MCS 4 / 12 21 dBm 80 dBm

MCS 5 / 13 20 dBm 77 dBm

MCS 6 / 14 19 dBm 74 dBm

MCS 7 / 15 17 dBm 73 dBm

Table 10: IEEE 802.11n, frequency range 5.180 GHz to 5.825 GHz, bandwidth

20 MHz

IEEE 802.11n
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 40 MHz

Coding Transmit power Receiving sensitivity

MCS 0 / 8 21 dBm 90 dBm

MCS 1 / 9 21 dBm 88 dBm

MCS 2 / 10 21 dBm 85 dBm

MCS 3 / 11 20 dBm 82 dBm

MCS 4 / 12 20 dBm 79 dBm

Table 11: IEEE 802.11n, frequency range 5.180 GHz to 5.825 GHz, bandwidth

40 MHz

IEEE 802.11n
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 40 MHz

Coding Transmit power Receiving sensitivity

Table 9: IEEE 802.11n, frequency range 2.412 GHz to 2.472 GHz, bandwidth

40 MHz

Installation BAT867-R

Release 06 08/2018

41

8.5.5 IEEE 802.11ac

MCS 5 / 13 19 dBm 75 dBm

MCS 6 / 14 18 dBm 73 dBm

MCS 7 / 15 17 dBm 73 dBm

IEEE 802.11ac
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 20 MHz

Coding Transmit power Receiving sensitivity

MCS 0 22 dBm 93 dBm

MCS 1 22 dBm 90 dBm

MCS 2 22 dBm 87 dBm

MCS 3 21 dBm 83 dBm

MCS 4 21 dBm 80 dBm

MCS 5 20 dBm 77 dBm

MCS 6 19 dBm 74 dBm

MCS 7 17 dBm 73 dBm

MCS 8 16 dBm 71 dBm

Table 12: IEEE 802.11ac, frequency range 5.180 GHz to 5.825 GHz, bandwidth

20 MHz

IEEE 802.11ac
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 40 MHz

Coding Transmit power Receiving sensitivity

MCS 0 21 dBm 90 dBm

MCS 1 21 dBm 88 dBm

MCS 2 21 dBm 85 dBm

MCS 3 20 dBm 82 dBm

MCS 4 20 dBm 79 dBm

Table 13: IEEE 802.11ac, frequency range 5.180 GHz to 5.825 GHz, bandwidth

40 MHz

IEEE 802.11n
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 40 MHz

Coding Transmit power Receiving sensitivity

Table 11: IEEE 802.11n, frequency range 5.180 GHz to 5.825 GHz, bandwidth

40 MHz

42

Installation BAT867-R

Release 06 08/2018

8.6 EMC and immunity

MCS 5 19 dBm 75 dBm

MCS 6 18 dBm 73 dBm

MCS 7 17 dBm 73 dBm

MCS 8 16 dBm 69 dBm

MCS 9 16 dBm 66 dBm

IEEE 802.11ac
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 80 MHz

Coding Transmit power Receiving sensitivity

MCS 0 21 dBm 88 dBm

MCS 1 21 dBm 86 dBm

MCS 2 21 dBm 84 dBm

MCS 3 20 dBm 81 dBm

MCS 4 20 dBm 77 dBm

MCS 5 19 dBm 74 dBm

MCS 6 18 dBm 73 dBm

MCS 7 17 dBm 70 dBm

MCS 8 16 dBm 67 dBm

MCS 9 16 dBm 65 dBm

Table 14: IEEE 802.11ac, frequency range 5.180 GHz to 5.825 GHz, bandwidth

80 MHz

EMC interference
immunity

EN 61000-4-2 Electrostatic discharge

Contact discharge ±4 kV
Air discharge ±8 kV

IEEE 802.11ac
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 40 MHz

Coding Transmit power Receiving sensitivity

Table 13: IEEE 802.11ac, frequency range 5.180 GHz to 5.825 GHz, bandwidth

40 MHz

Installation BAT867-R

Release 06 08/2018

43

8.7 Network range

8.8 Power consumption/power output

EN 61000-4-3 Electromagnetic field

80 MHz ... 1000 MHz 10 V/m
1400 MHz ... 2700 MHz 10 V/m

EN 61000-4-4 Fast transients (burst)

DC power line ±2 kV
Data line ±4 kV

EN 61000-4-5 Voltage surges

DC power line ±1 kV line/ground; ±0.5 kV

line/line
Data line, shielded ±1 kV line/ground
Data line, unshielded ±1 kV

EN 61000-4-6 Conducted disturbances

150 kHz ... 80 MHz 10 V

EMC interference
emission

EN 55032 Class B

Stability

IEC 60068-2-6, test Fc Vibration 5 Hz ... 8.4 Hz with 0.14 in. (3.5 mm)

amplitude

8.4 Hz ... 150 Hz with 1 g

IEC 60068-2-27, test Ea Shock 15 g at 11 ms

10/100/1000 Mbit/s twisted pair port

Length of a twisted pair segment max. 328 ft (100 m) (for Cat5e cable)

Table 15: Network range: 10/100/1000 Mbit/s twisted pair port

Power consumption Power output

9 W 31.0 Btu (IT)/h

Table 16: Power consumption/power output

EMC interference
immunity

44

Installation BAT867-R

Release 06 08/2018

9 Scope of delivery, order numbers and

accessories

 Scope of delivery

Figure 2: Scope of delivery for device variants featuring Configuration with the

characteristic value 9

Figure 3: Scope of delivery for device variants featuring Configuration with the

characteristic value Z

 Accessories

Note that products recommended as accessories may have different
characteristics to those of the device, which may limit the application
range of the overall system. For example, if you add an accessory with
IP20 to a device with IP65, the degree of protection of the overall system
is reduced to IP20.

For reliable receive power and transmission power, you require antennas
that pertain to your application case.
The "Antenna Guide" document provides an overview of the antennas
that can be used as well as the suitable antenna accessories.
This document is available for download as a PDF file on the Hirschmann
product pages (www.hirschmann.com).

Number Article

1 × Device
1 × General safety instructions
1 × EU Declaration of Conformity
1×

1×
premounted

2-pin terminal block for the supply voltage

Number Article

1 × Device
1 × General safety instructions
1 × EU Declaration of Conformity
1×

premounted

2-pin terminal block for the supply voltage

1×
premounted

Terminating resistor SMA to ANT2 for RSMA ANT connectors

2×
included

Antenna type BAT-ANT-RSMA-2AGN-R for RSMA ANT connectors

Other accessories Order number

2-pin terminal block (50 pieces) for supply voltage 943 845-009
BAT-ANT-RSMA-2AGN-R (10 pieces) 942 046-001

Installation BAT867-R

Release 06 08/2018

45

50  terminating resistors for sealing unused antenna connections, N
(10 pieces)

942 117-001

Other accessories Order number

46

Installation BAT867-R

Release 06 08/2018

10 Underlying technical standards

The device has an approval based on a specific standard only if the approval
indicator appears on the device casing.
The device generally fulfills the technical standards named in their current
versions.

Name

EN 50121-4 Railway applications – EMC – Emission and immunity of the

signaling and telecommunications apparatus (Rail Trackside)

EN 55032 Electromagnetic compatibility of multimedia equipment –

Emission Requirements
EN 60529 Degrees of protection provided by housing – IP-Code
EN 60950-1 Information technology equipment – Safety – Part 1: General

requirements
EN 61000-6-1 Electromagnetic compatibility (EMC) – Part 6-1: Generic

standards – Immunity for residential, commercial and light-

industrial environments
EN 61131-2 Programmable controllers – Part 2: Equipment requirements and

tests
EN 300 328 Electromagnetic compatibility and radio spectrum matters (ERM)

- bandwidth transfer systems - data transmission equipment

operating in 2.4 GHz ISM band and using spread spectrum

modulation technology
EN 301 893 Broadband radio access networks (BRAN) – 5 GHz high

performance Remote Local Area Network (RLAN)
EN 301 489-1 Electromagnetic compatibility for radio equipment and services
EN 301 489-17 Electromagnetic compatibility (EMC) for radio equipment and

services - specific conditions for 2.4 GHz broadband transmission

systems and 5 GHz high-performance RLAN equipment
EN 302 502 Broadband radio access networks (BRAN) – permanently

installed broadband data transmission systems with 5.8 GHz band
FCC 47 CFR Part 15 Code of Federal Regulations
IEEE 802.1D MAC Bridges (switching function)
IEEE 802.1Q Virtual LANs (VLANs, MRP, Spanning Tree)
IEEE 802.11a/b/g/n/ac WLAN
IEEE 802.3 Ethernet
UL 60950-1 Information technology equipment – Safety – Part 1: General

requirements

Installation BAT867-R

Release 06 08/2018

47

A Further support

Technical questions

For technical questions, please contact any Hirschmann dealer in your area
or Hirschmann directly.

You find the addresses of our partners on the Internet at http://

www.hirschmann.com.

A list of local telephone numbers and email addresses for technical support
directly from Hirschmann is available at https://

hirschmann-support.belden.com.

This site also includes a free of charge knowledge base and a software
download section.

Hirschmann Competence Center

The Hirschmann Competence Center is ahead of its competitors on three
counts with its complete range of innovative services:

 Consulting incorporates comprehensive technical advice, from system

evaluation through network planning to project planning.

 Training offers you an introduction to the basics, product briefing and user

training with certification.
You find the training courses on technology and products currently
available at http://www.hicomcenter.com.

 Support ranges from the first installation through the standby service to

maintenance concepts.

With the Hirschmann Competence Center, you decided against making any
compromises. Our client-customized package leaves you free to choose the
service components you want to use.

Internet:

http://www.hicomcenter.com
