Hirschmann BAT450-F User Manual

Installation BAT450-F

Release 03 08/2016

Technical support

https://hirschmann-support.belden.eu.com

User Manual

Installation
Industrial Access Point / Client / Access Bridge

BAT450-F

The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.

© 2016 Hirschmann Automation and Control GmbH

Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use.

The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.

Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.

You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).

Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]

Installation BAT450-F

Installation BAT450-F

Release 03 08/2016

3

Contents

Safety instructions 5

About this manual 13

1 Description 14

1.1 General device description 14

1.2 Device name and product code 14

1.3 Device views 16

1.4 Power supply 17

1.5 Ethernet ports 17

1.5.1 10/100/1000 Mbit/s PoE port 17

1.5.2 10/100/1000 Mbit/s twisted pair port 18

1.5.3 Pin assignments 18

1.6 Display elements 18

1.6.1 Device state 18

1.7 Management interfaces 19

1.7.1 V.24 interface (external management) 19

1.7.2 Reset button 21

2 Installation 22

2.1 Checking the package contents 22

2.2 Installing and grounding the device 23

2.2.1 Installing the device onto or on a flat surface 23

2.2.2 Installing the device on a pole 24

2.2.3 Grounding the device 25

2.3 Installing the antennas 25

2.4 Connecting the power supply 25

2.5 Operating the device 26

2.5.1 Connect the power supply 26

2.5.2 Defining IP parameters 27

2.5.3 Defining WLAN basic settings 27

2.5.4 Configuring the transmit power 27

4

Installation BAT450-F

Release 03 08/2016

3 Monitoring the ambient air temperature 30

4 Maintenance and service 31

5Disassembly 32

6 Technical data 33

A Further Support 45

Installation BAT450-F

Release 03 08/2016

5

Safety instructions

 General safety instructions

You operate this device with electricity. Improper usage of the device
entails the risk of physical injury or significant property damage. The
proper and safe operation of this device depends on proper handling
during transportation, proper storage and installation, and careful
operation and maintenance procedures.
 Before connecting any cable, read this document, and the safety

instructions and warnings.

 Operate the device with undamaged components exclusively.
 The device is free of any service components. In case of a damaged

or malfunctioning the device, turn off the supply voltage and return the
device to Hirschmann for inspection.

 Certified usage

 Use the product only for the application cases described in the

Hirschmann product information, including this manual.

 Operate the product only according to the technical specifications.

See “Technical data” on page 33.

 Connect to the product only components suitable for the requirements

of the specific application case.

 Installation site requirements

 During the installation, make sure that you adhere to the regulations of

the country in which you are operating the WLAN device.

 In ambient temperatures under -10 °C, use cabling designed for

minimum temperatures.

WARNING

UNCONTROLLED MACHINE ACTIONS

To avoid uncontrolled machine actions caused by data loss, configure all
the data transmission devices individually.
Before you start any machine which is controlled via data transmission, be
sure to complete the configuration of all data transmission devices.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

6

Installation BAT450-F

Release 03 08/2016

 Device casing

Only technicians authorized by the manufacturer are permitted to open
the casing.
 Never insert pointed objects (narrow screwdrivers, wires, etc.) into the

device or into the connection terminals for electric conductors. Do not
touch the connection terminals.

 Install the device in the vertical position, with the antenna connections

pointing upwards..

 At ambient temperatures > 140 °F (60 °C):

The surfaces of the device housing may become hot. Avoid touching
the device while it is operating.

 Qualification requirements for personnel

 Only allow qualified personnel to work on the device.

Qualified personnel have the following characteristics:

 Qualified personnel are properly trained. Training as well as practical

knowledge and experience make up their qualifications. This is the
prerequisite for grounding and labeling circuits, devices, and systems
in accordance with current standards in safety technology.

 Qualified personnel are aware of the dangers that exist in their work.
 Qualified personnel are familiar with appropriate measures against

these hazards in order to reduce the risk for themselves and others.

 Qualified personnel receive training on a regular basis.

 National and international safety regulations

 Verify that the electrical installation meets local or nationally applicable

safety regulations.

 Grounding the device

Grounding the device is by means of a separate ground connection on the
device.

 Ground the device before connecting any other cables.
 Disconnect the grounding only after disconnecting all other cables.

The overall shield of a connected shielded twisted-pair cable is connected
to the metal housing as a conductor.

 Requirements for connecting electrical wires

 Before connecting the electrical wires, always verify that the

requirements listed are complied with.

General requirements for connecting electrical wires
The following requirements apply without restrictions:

 The electrical wires are voltage-free.
 The cables used are permitted for the temperature range of the application case.
 Relevant for North America:

The power cords are suitable for ambient air temperatures of at least 167 °F (75 °C). The
power cord wires are made of copper.

Installation BAT450-F

Release 03 08/2016

7

 Lightning protection

 The installation of the device occurs in accordance with valid

standards (such as VDE 0185 and IEC 62305), and in accordance
with the lightening protection procedures recognized and proven for
the application and the environment.

 Refer to the information in the “WLAN Outdoor Guide” on “lightening

and overvoltage protector”.

 Protect antennas installed outside with lightening protection devices

(e.g. lightening conductors).

 Take lightening protection measures which mitigate the effects of

lightning strikes.

Requirements for connecting the supply voltage
The following requirements apply without restrictions:
All of the following requirements are complied with:

 The supply voltage corresponds to the voltage specified on the type plate of the device.
 The power supply conforms to overvoltage category I or II.
 The power supply has an easily accessible disconnecting device (e.g., a switch or a plug).

This disconnecting device is clearly identified. So in the case of an emergency, it is clear
which disconnecting device belongs to which power supply cable.

 The power supply cable is suitable for the voltage, the current and the physical load.

Hirschmann recommends a wire diameter of at least 0.75 mm² (AWG18).

The following requirements apply alternatively:

Alternative 1 The power supply complies with the requirements for a limited power source

(LPS) as per EN 60950-1.

Alternative 2 Relevant for North America:

The power supply complies with the requirements as per NEC Class 2

Alternative 3 All of the following requirements are complied with:

 The power supply complies with the requirements for a safety extra-low

voltage (SELV) as per IEC/EN 60950-1.

 A fuse is located in the plus conductor of the power supply.

The minus conductor is on ground potential. Otherwise, a fuse is also
located in the minus conductor.
Regarding the properties of this fuse: See “General technical data” on

page 33.

8

Installation BAT450-F

Release 03 08/2016

 CE marking

The labeled devices comply with the regulations contained in the following
European directive(s):

2011/65/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.

1999/5/EC (R&TTE)
Directive of the European Parliament and the council for radio
installations and telecommunication systems and for the mutual
recognition of their conformity.

This product may be operated in all EU (European Union)

countries under the condition that it has been configured correctly.

In accordance with the above-named EU directive(s), the EU conformity
declaration will be available to the relevant authorities at the following
address:

Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]

The device can be used in the industrial sector.

 Interference immunity: EN 61000-6-2
 Emitted interference: EN 55022
 Reliability: EN 60950-1

You find more information on technical standards here:

“Technical data” on page 33

The assembly guidelines provided in these instructions must be strictly
adhered to in order to observe the EMC threshold values.

Warning! This is a class A device. This device can cause interference in

living areas, and in this case the operator may be required to take
appropriate measures.

 LED or laser components

LED or LASER components according to IEC 60825-1 (2014):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT

Installation BAT450-F

Release 03 08/2016

9

 E marking

The labeled devices comply with the regulations contained in the following
European directive(s):

Rule No. 10 of the Economic Commission for Europe (ECE): Devices with
an approval are labeled with the E type-approval mark.
Devices are not specified for operation during the motor start phase.

 FCC note:

This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:

 This device may not cause harmful interference, and
 This device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

 Reposition the receiver antenna or change the angle of the receiver

antenna.

 Increase the separation between the device and the receiver.
 Connect the device to a different outlet on a different power supply

cable from that to which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the holder of the
certificate could void the user’s authority to operate this equipment.

10

Installation BAT450-F

Release 03 08/2016

Note for the use in the USA and in Canada

The following section applies to device variants with characteristic
value US (USA/Canada) for country approvals, which are labeled as
follows:

Contains Transmitter Module
FCC ID: U99EWLAN1
IC: 4019A-EWLAN1

This equipment complies with FCC and IC RSS-102 radiation exposure
limits set forth for an uncontrolled environment. Install and operate this
equipment with a minimum distance of 19.7 inches (50 cm) (related to a
9 dBi antenna) between the radiator and your body.

The antenna used for this transmitter must not be co-located with any
other transmitters within a host device, except in accordance with FCC
multi-transmitter product procedures.

This transmitter is restricted to indoor use only within the 5.15-5.25 GHz
band to reduce potential for harmful interference to co-channel mobile
satellite systems.

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.

To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated
power (EIRP) is not more than that permitted for successful
communication.

This device has been designed to operate with the antennas listed below
in point-to-multipoint systems, and having a maximum gain of 9 dBi:

The use of antennas missing in this list is strictly prohibited. The required
antenna impedance is 50 ohms.

Antennas operating with this device
model:

Permitted band of operation

2.4 GHz band 5.15 GHz ...

5.25 GHz band

5.725 GHz ...

5.825 GHz band

BAT-ANT-RSMA-2AGN-R

(1)

Yes Yes Yes
BAT-ANT-N-3AGN-IP67 Yes Yes Yes
BAT-ANT-N-MiMoDB-5N-IP65 Yes Yes Yes
BAT-ANT-N-MiMo5-9N-IP65 No Yes Yes
BAT-ANT-N-8G-DS-IP65 Yes No No

Installation BAT450-F

Release 03 08/2016

11

Note (1): When using 3 antennas type BAT-ANT-RSMA-2AGN-R, you
must align each antenna in another spatial direction (x-y-z) so that one
antenna is arranged vertically to the device and the other two antennas
are arranged at right angles to each other.

Note for the use in the USA and in Canada

The following section applies to device variants with characteristic
value US (USA/Canada) for country approvals, which are labeled as
follows:

Contains Transmitter Module
FCC ID: U99EWLAN2
IC: 4019A-EWLAN2

This equipment complies with FCC and IC RSS-102 radiation exposure
limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance of 19.7 inches (50 cm)
(related to a 18 dBi antenna) between the radiator and your body.

The antenna used for this transmitter must not be co-located with any
other transmitters within a host device, except in accordance with FCC
multi-transmitter product procedures.

This transmitter is restricted to indoor use only within the 5.15-5.25 GHz
band to reduce potential for harmful interference to co-channel mobile
satellite systems.

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.

To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated
power (EIRP) is not more than that permitted for successful
communication.

This device has been designed to operate with the antennas listed below
having a maximum gain of 18 dBi:

Antennas operating with this device
model:

Permitted band of operation

2.4 GHz band 5.15 GHz ...

5.25 GHz band

5.725 GHz ...

5.825 GHz band

BAT-ANT-RSMA-2AGN-R

(1)

Yes Yes Yes
BAT-ANT-N-3AGN-IP67 Yes Yes Yes
BAT-ANT-N-MiMoDB-5N-IP65 Yes Yes Yes
BAT-ANT-N-MiMo5-9N-IP65 No Yes Yes
BAT-ANT-N-8G-DS-IP65 Yes No No
BAT-ANT-N-MiMo-18N-IP65

(2)

No No Yes

12

Installation BAT450-F

Release 03 08/2016

The use of antennas missing in this list is strictly prohibited. The required
antenna impedance is 50 ohms.

Note (1): When using 3 antennas type BAT-ANT-RSMA-2AGN-R, you
must align each antenna in another spatial direction (x-y-z) so that one
antenna is arranged vertically to the device and the other two antennas
are arranged at right angles to each other.

Note (2): Connect the BAT-ANT-N-MiMo-18N-IP65 antenna to the WLAN
module as follows:

 Connect the antenna port "Ver" with the WLAN antenna port 1.
 Connect the antenna port "+45°" with the WLAN antenna port 2.
 Connect the antenna port "+45°" with the WLAN antenna port 3.

 Connect the BAT-ANT-N-MiMo-18N-IP65 in this way exclusively.

Differing connection configurations are illegal.

 Recycling note

After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.

Installation BAT450-F

Release 03 08/2016

13

About this manual

The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.

Documentation mentioned in the “User Manual Installation” that is not
supplied with your device as a printout can be found as PDF files for
downloading on the Internet on the Hirschmann product pages
(www.hirschmann.com).

Legend

The symbols used in this manual have the following meanings:

 Listing

 Work step



Subheading

14

Installation BAT450-F

Release 03 08/2016

1 Description

1.1 General device description

The devices are wireless LAN access points or clients complying with
IEEE 802.11a/b/g/h/n. They provide a high radio output with a bandwidth of
up to 450 Mbit/s. The devices support MIMO (Multiple Input Multiple Output)
and Multipath. The bandwidth is increased by using the multipath
transmission by means of reflections.
You have numerous options of combining the device characteristics. You can
determine the possible combinations using the configurator which is
available in the Belden E-Catalog (www.e-catalog.beldensolutions.com) on
the web page of the device.

There are convenient options for managing the device. Administer your
devices via:

 a Web browser
 SSH
 Telnet
 HiDiscovery (Software for putting the device into operation)
 management software (e.g. Industrial HiVision, LANconfig/LANmonitor)
 a V.24 interface (locally on the device)

The devices work without a fan.
The devices comply with the degrees of protection IP65/67.

1.2 Device name and product code

The device name corresponds to the product code. The product code is
made up of characteristics with defined positions. The characteristic values
stand for specific product properties.

Item Characteristic Character

istic value

Description

1 ... 8 Product BAT450-F IP65/67 housing
9 ... 10 Country approvals AU Australia

EU Europe (CE)
UA United Arab Emirates
US United States/Canada (FCC/IC)

11 Slot 1 W WLAN module

Table 1: Device name and product code

Installation BAT450-F

Release 03 08/2016

15

12 Slot 2 W WLAN module

9 Not assembled
13 Slot 3 9 Not assembled
14 Access point or client A Access Point

CClient
15 Supply voltage 1 W Nominal voltage DC

24 V
16 Supply voltage 2 9 Not assembled
17 Approvals 1 K Rail applications (EN 50155)

9 No additional approvals

18 Approvals 2 H WLAN module version for high-gain

antennas

9 No additional approvals
19 Mounting A Standard
20 ... 21 Ethernet port 1 T6 8-pin, X-coded M12 plug for 10/100/1000

Mbit/s PoE port

22 ... 23 Optional:

Ethernet port 2 or interface

T6 8-pin, X-coded M12 plug for 10/100/1000

Mbit/s twisted-pair port

T7

 8-pin, X-coded M12 plug for

10/100/1000 Mbit/s twisted-pair port

 V.24/ACA11

V4 V.24/ACA11

99 Not assembled
24 Temperature range E Extended with conformal coating

−40 °F ... +158 °F (−40 °C ... +70 °C)

T Extended

−40 °F ... +158 °F (−40 °C ... +70 °C)

25 Software option 1 A VPN-5

BVPN-50

CVPN-100

9 Not present
26 Software option 2 9 Not present
27 Software option 3 D Public Spot

PPRP

AAutoWDS

9 Not present
28 Configuration Z Accessory package

9 Not present
29 Device model H Hirschmann standard

Item Characteristic Character

istic value

Description

Table 1: Device name and product code

16

Installation BAT450-F

Release 03 08/2016

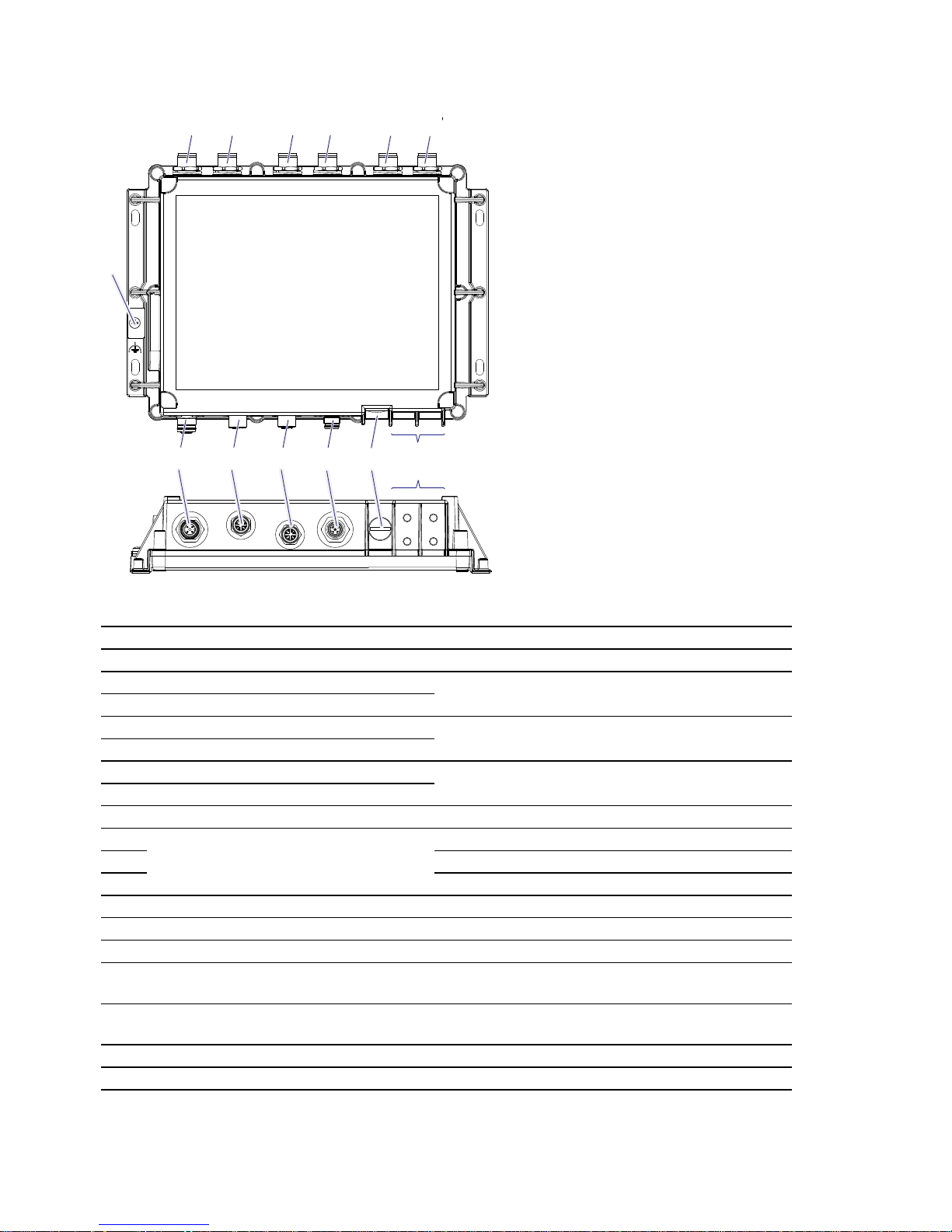

1.3 Device views

BAT450-F
Device variants with 2 × WLAN module
1 WLAN 2 2 × Antenna connection
2WLAN1
3 WLAN 2 2 × Antenna connection
4WLAN1
5 WLAN 2 2 × Antenna connection
6WLAN1
Device variants with 1 × WLAN module
2 WLAN 1 1 × Antenna connection
4 1 × Antenna connection
6 1 × Antenna connection
7 LED display elements
8 The reset button below a screwable IP67 protective cap
9 Supply voltage connection via 5-pin, A-coded M12 plug
10 Ethernet port 1 8-pin, X-coded M12 plug for 10/100/1000 Mbit/s

PoE port

11 Optional:

Ethernet port 2

8-pin, X-coded M12 plug for 10/100/1000 Mbit/s

twisted-pair port
12 V.24/ACA11 4-pin, A-coded M12 socket
13 Connection for functional ground

1

3245

6

879

1011

12

13

Installation BAT450-F

Release 03 08/2016

17

1.4 Power supply

You have the following options to supply your device with voltage:

 Power supply via an 8-pin, X-coded M12 socket for PoE port

Your device is a PD (powered device). PSE (power sourcing equipment)
connected via a twisted pair cable on the PoE PD port serves as the PoE
power supply voltage. The PoE power supply means that no separate
power supply is required for your device.

 Power supply via a 5-pin, A-coded M12 plug

For the power supply of the device, a 5-pin, A-coded M12 plug is
available.

When both power sources are connected, there is a redundant power supply
primarily via PoE.

1.5 Ethernet ports

You have the ability to connect end devices or other segments to the ports of
the device via twisted-pair cables.
You find information on pin assigments for making patch cables here:

“Pin assignments” on page 18

1.5.1 10/100/1000 Mbit/s PoE port

This port is an 8-pin, X-coded M12 socket.
The 10/100/1000 Mbit/s PoE port allows you to connect network components
as a PoE power source according to standards IEEE 802.3 10BASE­T/100BASE-TX/1000BASE-T and IEEE 802.3af.
This port supports:

 Autocrossing (if autonegotiation is activated)
 Autonegotiation
 Autopolarity
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 1000 Mbit/s full duplex
 Power over Ethernet

The socket housing is electrically connected with the device housing.
Delivery state: Autonegotiation activated
The PoE power is supplied via the wire pairs transmitting the signal (phantom
voltage).

18

Installation BAT450-F

Release 03 08/2016

1.5.2 10/100/1000 Mbit/s twisted pair port

This port is an 8-pin, X-coded M12 socket.
The 10/100/1000 Mbit/s twisted pair port offers you the ability to connect
network components according to the IEEE 802.3 10BASE-T/100BASE­TX/1000BASE-T standard.
This port supports:

 Autocrossing (if autonegotiation is activated)
 Autonegotiation
 Autopolarity
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 1000 Mbit/s full duplex

Delivery state: Autonegotiation activated
The socket housing is electrically connected with the device housing.

1.5.3 Pin assignments

1.6 Display elements

After the working voltage is set up, the software starts and initializes itself.
Afterwards, the device performs a self-test. During this process, various
LEDs light up.

1.6.1 Device state

These LEDs provide information about conditions which affect the operation
of the whole device.

M12 8-pin (X
coded)

Pin 10/100 Mbit/s 1000 Mbit/s PoE

(applies to twisted pair port) (applies to PoE port)

1 RX+ BI_DB+ Negative V

PSE

2RX− BI_DB− Negative V

PSE

3 TX+ BI_DA+ Positive V

PSE

4TX− BI_DA− Positive V

PSE

5 — BI_DC+ Negative V

PSE

6— BI_DC− Negative V

PSE

7— BI_DD− Positive V

PSE

8 — BI_DD+ Positive V

PSE

18

2

36

7

45

Installation BAT450-F

Release 03 08/2016

19

1.6.2 LS/DA

These LEDs display port-related information. During the boot phase, they
indicate the status of the boot process.

1.7 Management interfaces

1.7.1 V.24 interface (external management)

This interface is a 4-pin, A-coded M12 socket.

Power
Color Activity Meaning

Green Lights up LED lights up after the configuration
Red flashing Device has detected at least one hardware error.
green/red Short flashing No password or the default password is set
green/red Long flashing Charge lock active

WLAN 1, WLAN 2
Color Activity Meaning

—off

 No WLAN network specified
 WLAN module deactivated
 WLAN module does not send any beacons

Green flashing

 At least one WLAN network defined
 WLAN module activated

Green Inverse flashing Number of flashes corresponds to number of connected

WLAN stations and P2P radio lines.

Green flashing

 DFS scanning or another scan procedure
 Display of signal strength in client or P2P

Red flashing Device has detected at least one hardware error.

LS/DA
Color Activity Meaning

— off No network device connected
Green Lights up 1 Ethernet connection active
green/yellowflashing Device is transmitting and/or receiving data

Yellow Lights up 2 Ethernet connections active

Power

WLAN 1

WLAN 2

LS/DA

20

Installation BAT450-F

Release 03 08/2016

This interface is serial and enables the local connection of an external
management station (VT100 terminal or PC with corresponding terminal
emulation). This enables you to set up a connection to the Command Line
Interface CLI and to the System Monitor.

The socket housing is electrically connected to the housing of the device.
The V.24 interface is not electrically isolated from the supply voltage.

You can use the V.24 interface to connect the AutoConfiguration Adapter
ACA11 storage medium.
The AutoConfiguration Adapter ACA21-M12 storage medium is incompatible
with BAT450-F.

VT 100 terminal settings

Speed 9600 Baud
Data 8 bit
Stopbit 1 bit
Handshake off
Parity none

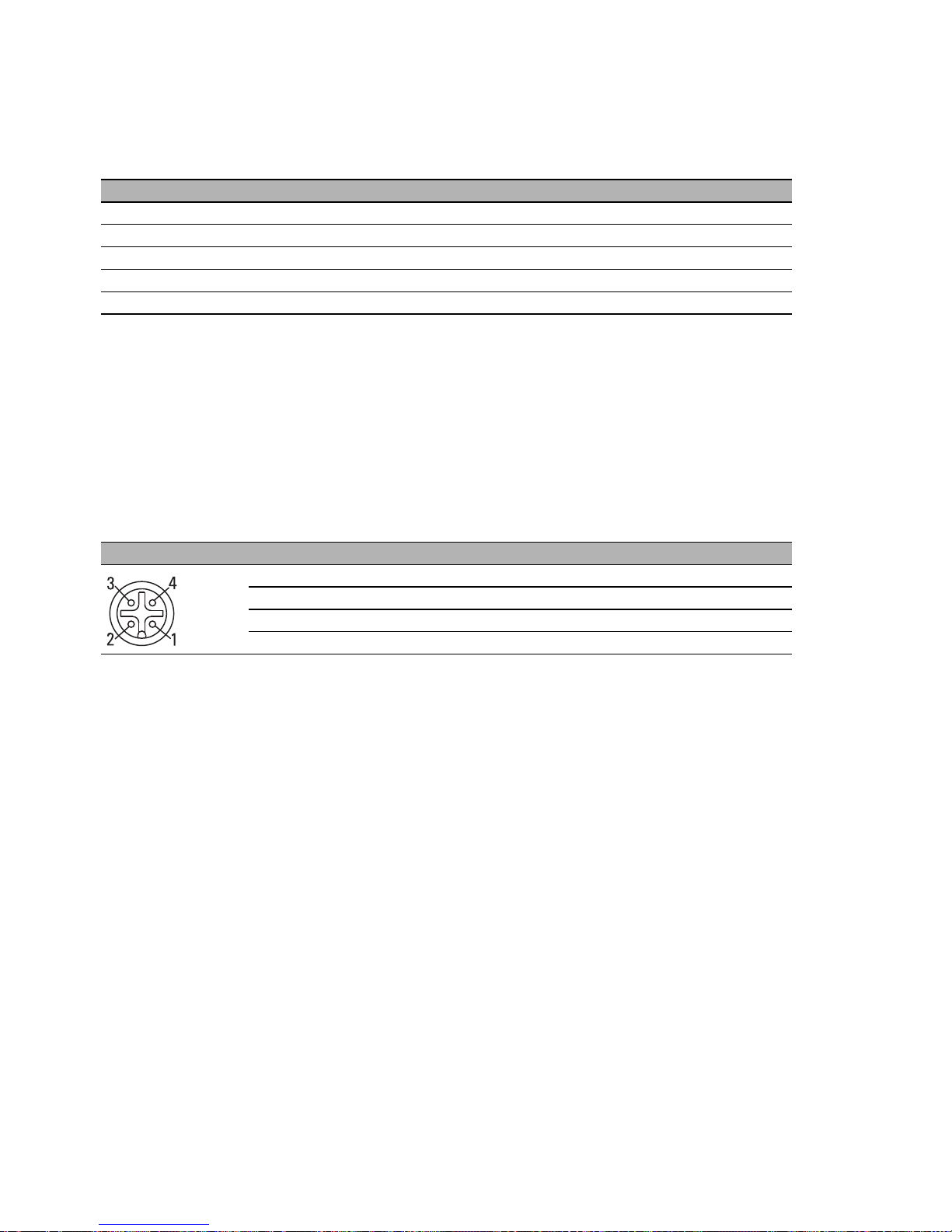

Figure Pin Function

1 TX Transmit Data
2 RX Receive Data
3 N.C. Not used
4 GND Ground

Table 2: Pin assignment of the V.24 interface (M12 socket)

Installation BAT450-F

Release 03 08/2016

21

1.7.2 Reset button

The device has a reset button. The reset button is located behind a
screwable IP67 protection cap.
The tightening torque is 4.42 lb-in to 8.85 lb-in (0.5 Nm to 1.0 Nm).

Prerequisite: Keep the working area dry and clean when you are carrying

out a reset.
After pressing the reset button, replace the protection cap. Degrees of
protection IP65/67 are only achieved when the protection cap is closed.

When you press and hold the reset button, you perform the following actions:

 1 to 4 seconds

You reset the device to the current configuration.

 6 to 9 seconds

You reset the device to the delivery settings.
During this process the user settings are lost. Therefore, before resetting
you must save the current configuration on an external medium.

 at least 16 seconds

You have the option of loading a customer-specific configuration saved on
the device as an alternative to the default configuration.

You will find more information in the “Configuration Guidelines User Manual”,
in the chapter “Using the Boot Configurations”.

22

Installation BAT450-F

Release 03 08/2016

2 Installation

On delivery, the device is ready for operation.
To protect the exposed uninstalled contacts of the components from dirt,
connect the individual system components in a dry and clean working area.
The device fulfills the protection class IP65/67 under the following conditions,
exclusively:

 All the connectors and cables connected also fulfill protection class

IP65/67.

 All the unused connections and ports are closed the appropriate

protection caps or protection screws.

 All protection screws comply with the degrees of protection IP65/67.

Perform the following steps to install and configure the device:

 Checking the package contents
 Installing and grounding the device
 Installing the antennas
 Connecting the power supply
 Operating the device

2.1 Checking the package contents

 Check whether the package includes all items named in the section

“Scope of delivery” on page 42.

 Check the individual parts for transport damage.

Installation BAT450-F

Release 03 08/2016

23

2.2 Installing and grounding the device

2.2.1 Installing the device onto or on a flat surface

You have the option of attaching the device with suitable hardware to a
vertical flat surface.

 The diameter of the mounting hardware is maximum 0.20 in. (5 mm).
 The head diameter is maximum 0.47 in. (12 mm).
 The diameter of a flat washer used is maximum 0.48 in. (12 mm).

Proceed as follows:
 Prepare the assembly at the installation site.

See “Dimension drawings” on page 34.

 Install the device with suitable fastening components.
 Seal all unused connections and ports with protection screws.

24

Installation BAT450-F

Release 03 08/2016

2.2.2 Installing the device on a pole

The devices are suitable for pole mounting with the additional BAT450-F pole
mounting set (see on page 43 “Accessories”).

The BAT450-F pole mounting set with enclosed U-bolts is designed for the
following pole diameter range:

 1.46 in ... 2.56 in (37 mm ... 65 mm)

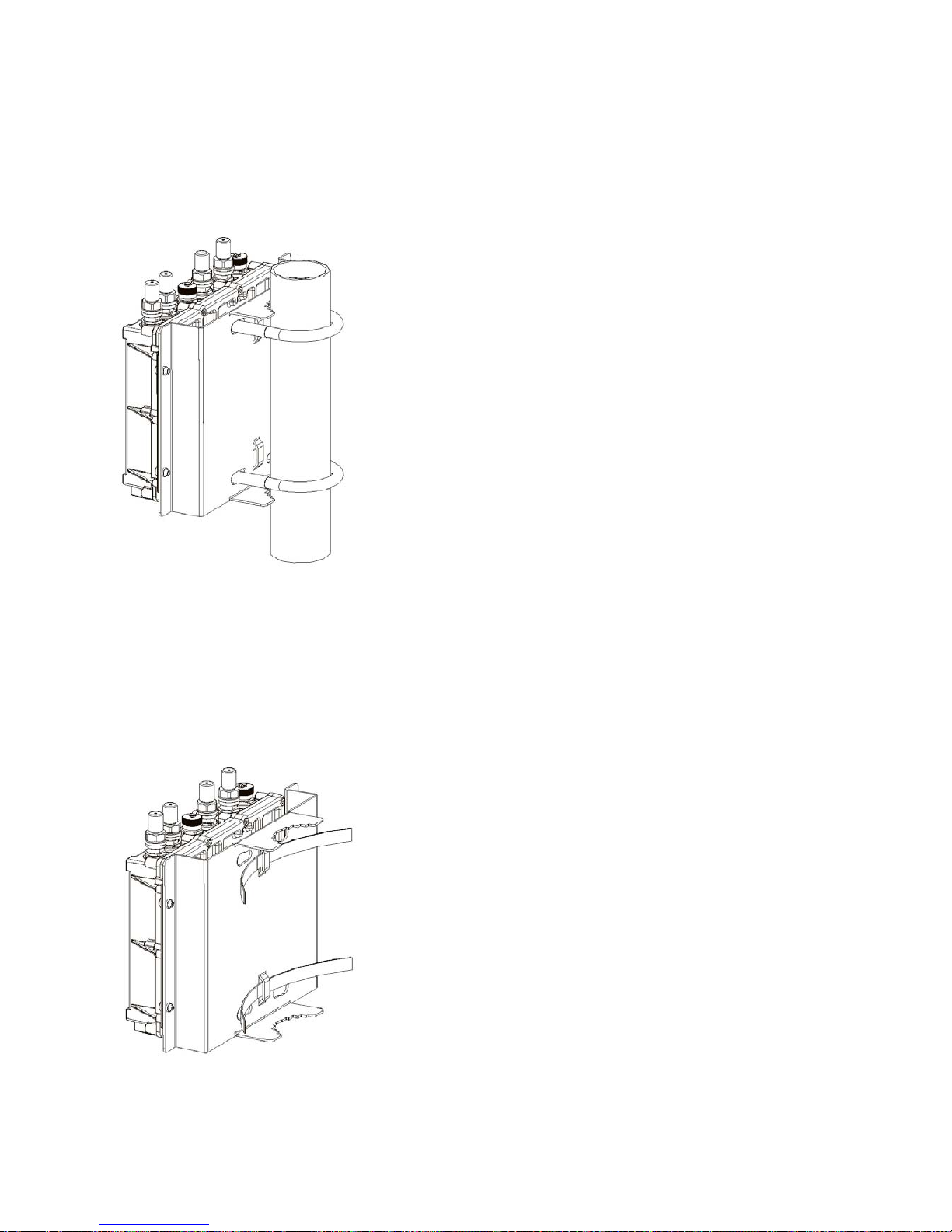

Figure 1: BAT450-F pole mounting set with enclosed U-bolts

Tightening straps, available from a specialist dealer, enable you to clamp a
larger mast diameter.

 maximum width of the tightening strap: 0.63 in (16 mm)
 maximum thickness of the tightening strap: 0.05 in (1.3 mm)

Figure 2: BAT450-F pole mounting set with tightening straps

Installation BAT450-F

Release 03 08/2016

25

2.2.3 Grounding the device

The device is grounded via the separate ground screw.

 Terminate the ground conductor between the fastening plates.
 Make sure the fastening plates cover the insulated part of the ground

conductor completely.

 Tighten the grounding screw with a tightening torque of

3 Nm ± 0.5 Nm (26.55 lb-in ± 4.43 lb-in).

2.3 Installing the antennas

The device has connections for external antennas. These connections are N
sockets.
On delivery, the connections are sealed with protection caps.

Proceed as follows:
 Unscrew the protection caps from the connections to which you want to

connect external antennas.

 Install at least one antenna on the WLAN module that you would like to

use.

 Use the terminators supplied to close the sockets not being used in order

to avoid radio signals from one WLAN module being received by the other
WLAN module.

 You will find information on setting the transmit power in chapter

“Configuring the transmit power” on page 27

2.4 Connecting the power supply

WARNING

ELECTRIC SHOCK

Never insert pointed objects (narrow screwdrivers, wires, etc.) into the
device or into the connection terminals for electric conductors. Do not touch
the connection terminals.

Start connecting the electrical wires only if all the above safety

requirements are fulfilled.

See “Requirements for connecting electrical wires” on page 6.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

26

Installation BAT450-F

Release 03 08/2016

The supply voltage is electrically isolated from the housing.

For every supply voltage to be connected, perform the following steps:

 Connect the wires for the supply voltage according to the pin assignment

with a suitable socket.

2.5 Operating the device

Perform the following steps to start up the device:

 Connect the power supply
 Defining IP parameters
 Defining WLAN basic settings
 Configuring the transmit power

2.5.1 Connect the power supply

You start up the device by connecting the power supply via the 8-pin, X­coded M12 socket for PoE port or via a 5-pin, A-coded M12 socket.

 Only connect the device to a PoE network indoors.
 Only run data links indoors (IEEE 802.3 area A).

 8-pin, X-coded M12 plug for PoE port

 Connect the data cables according to your requirements.

 5-pin M12 plug, A-encoded

 Connect the data cables according to your requirements.
 Plug the socket into the M12 plug on the device.
 Enable the supply voltage.

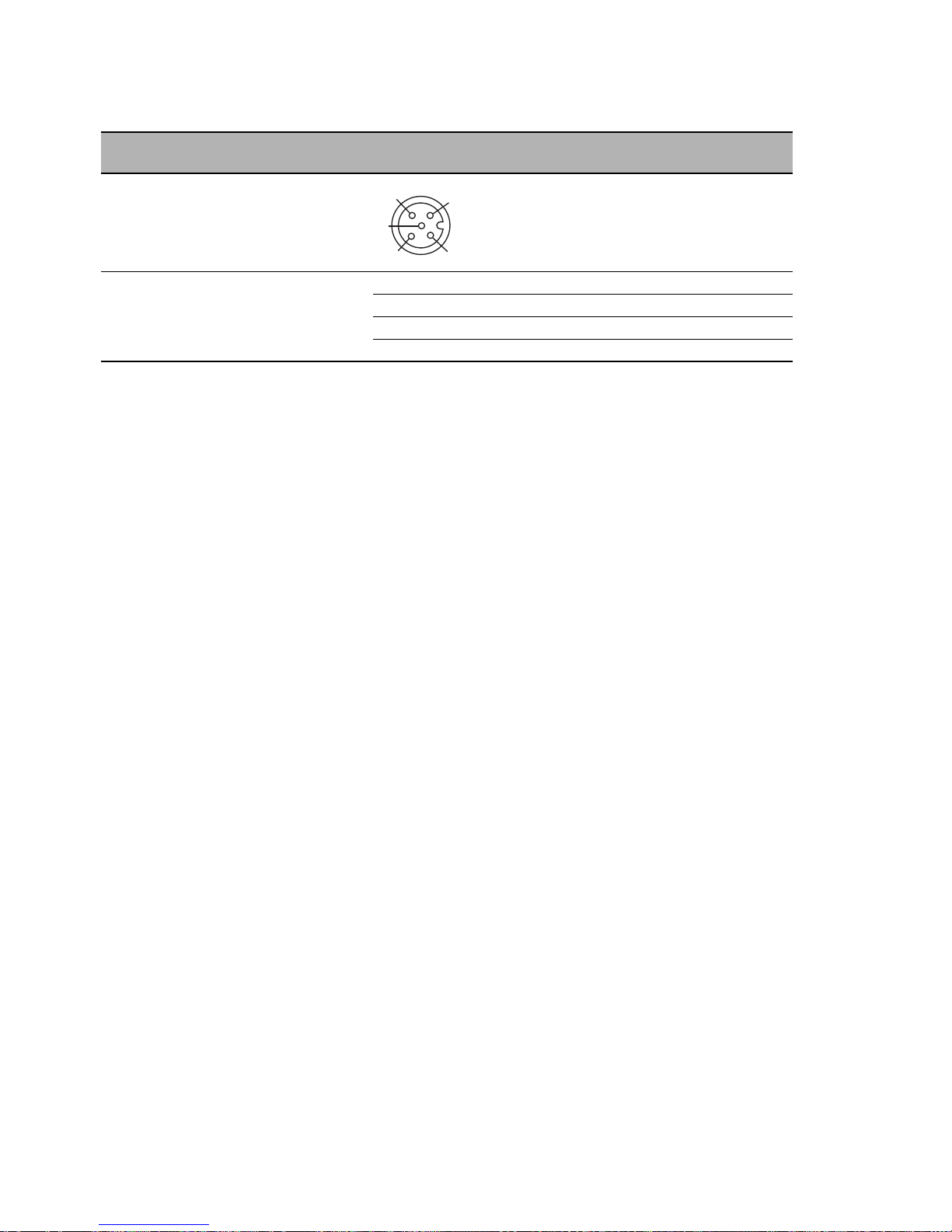

Type and specification of the
supply voltage

Pin assignment on the device

Nominal voltage DC
24 V

1+24V DC

Voltage range DC incl. maximum
tolerances

16.8 V ... 32 V

20V
30V
4N.C.
5N.C.

Table 3: Type and specification of the supply voltage

4

3

2

1

5

Installation BAT450-F

Release 03 08/2016

27

2.5.2 Defining IP parameters

The IP parameters must be entered when the device is installed for the first
time. The device offers the following options for assigning the IP parameters:

 via DHCP (Option 82)
 via BOOTP
 via the HiDiscovery or Industrial HiVision application
 via the V.24 interface
 via the AutoConfiguration Adapter

2.5.3 Defining WLAN basic settings

You have the following options to define the WLAN basic settings:

 via the wired local network (LAN)
 via the wireless network (WLAN), if the WLAN encryption (e.g. WPA2) is

set accordingly in a device with a wireless interface and in the
configuration computer.

 via the V.24 interface

2.5.4 Configuring the transmit power

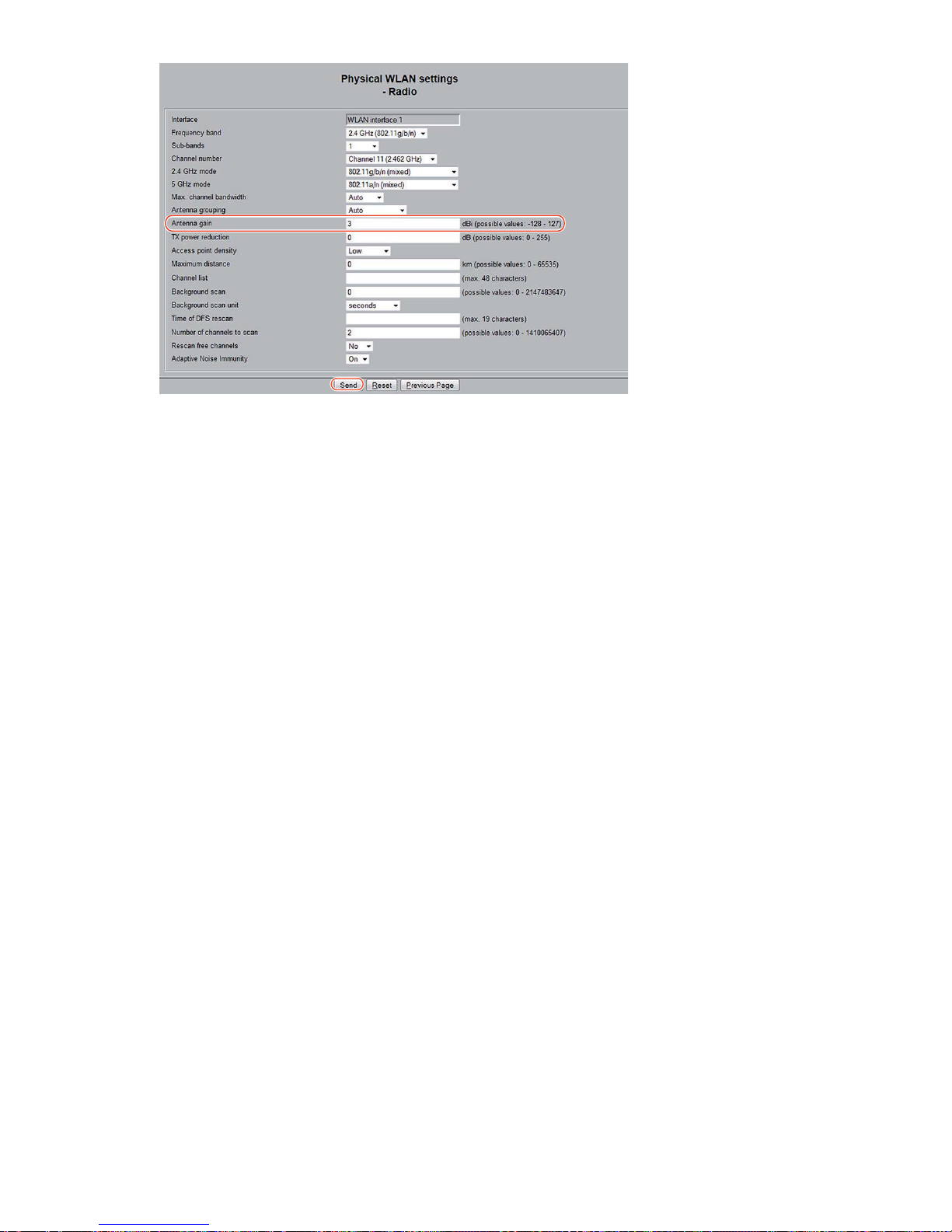

You have the option to set the transmit power using LANconfig or (error in
org) Webconfig.

 Use LANconfig or Webconfig to start the configuration of the device.

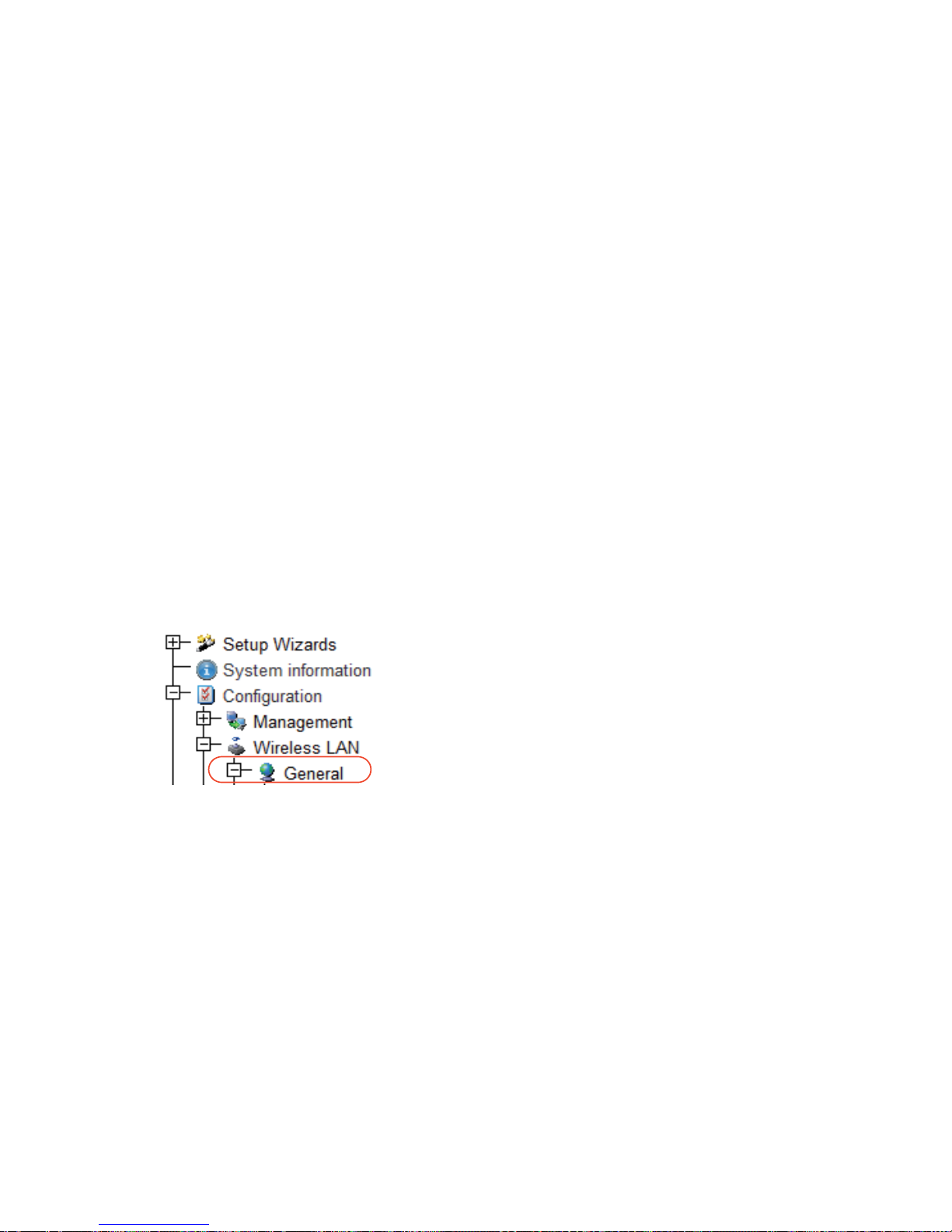

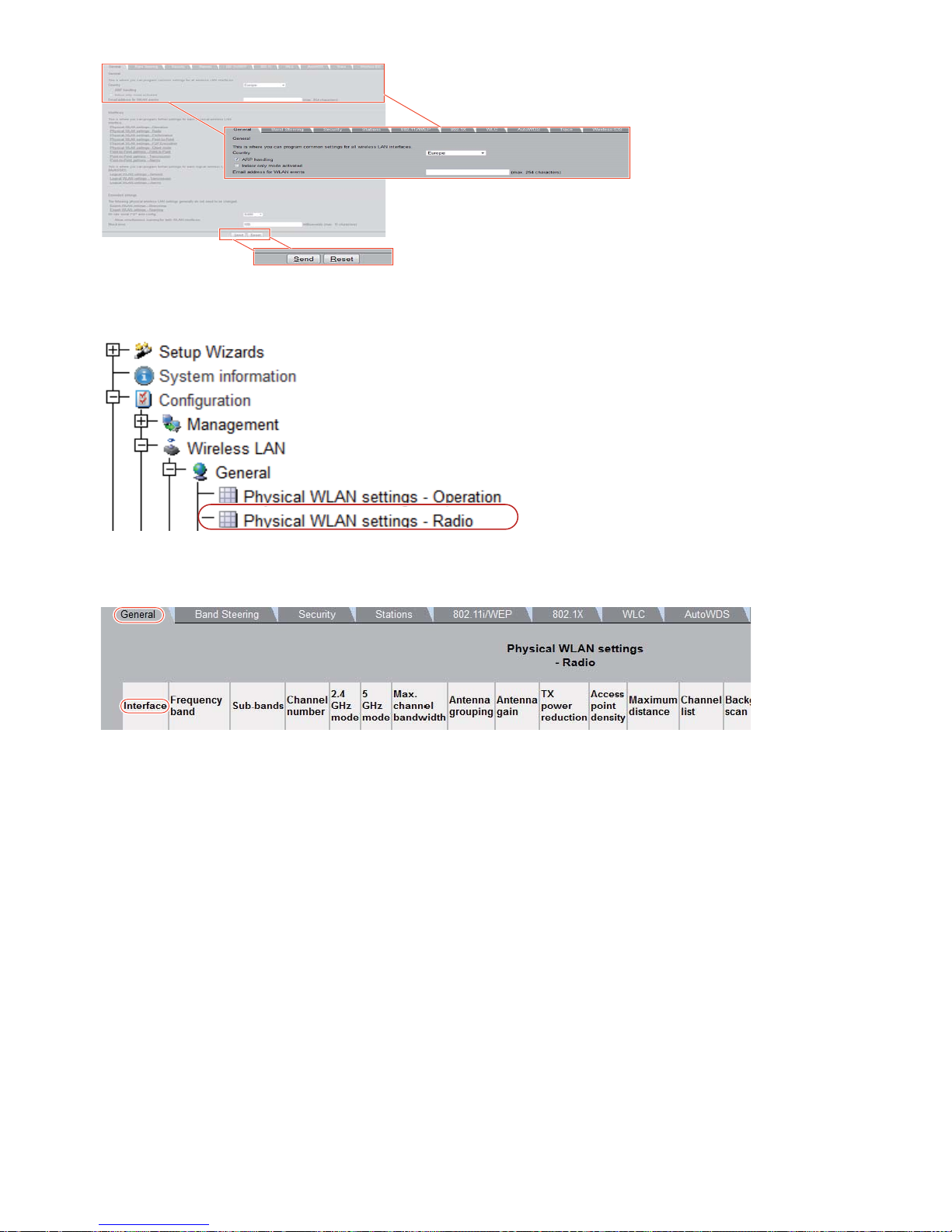

 In the menu tree, open the Configuration > Wireless LAN > General

dialog.

 In the “General” tab, specify in the “General” frame the country in which

you are installing the device.
If you are using an E-certified device in a vehicle and are driving the
vehicle within the EU, set the country profile for Germany. This country
profile is identical to all the country profiles for EU.

 Click the “Set” button.

28

Installation BAT450-F

Release 03 08/2016

 In the menu tree, open the Configuration > Wireless LAN > General >

Physical WLAN settings - Radio dialog.

 In the “General” tab, click in the “Interface” column the physical WLAN

interface to which you connect the antenna.

 Subtract the cable and installed overvoltage protector attenuation from

the antenna gain. Enter the calculated value in the “Antenna gain” field.

 Click the “Set” button to save the value.

Installation BAT450-F

Release 03 08/2016

29

30

Installation BAT450-F

Release 03 08/2016

3 Monitoring the ambient air temperature

Operate the device below the specified maximum ambient air temperature
exclusively.

See “General technical data” on page 33.

The ambient air temperature is the temperature of the air at a distance of 2 in
(5 cm) from the device. It depends on the installation conditions of the device,
e.g. the distance from other devices or other objects, and the output of
neighboring devices.

The temperature displayed in the CLI and the GUI is the internal temperature
of the device. It is higher than the ambient air temperature. The maximum
internal temperature of the device named in the technical data is a guideline
that indicates to you that the maximum ambient air temperature has possibly
been exceeded.

Installation BAT450-F

Release 03 08/2016

31

4 Maintenance and service

 When designing this device, Hirschmann largely avoided using high-wear

parts. The parts subject to wear and tear are dimensioned to last longer
than the lifetime of the product when it is operated normally. Operate this
device according to the specifications.

 Hirschmann is continually working on improving and developing their

software. Check regularly whether there is an updated version of the
software that provides you with additional benefits. You find information
and software downloads on the Hirschmann product pages on the
Internet (www.hirschmann.com).

Note: You will find information about the complaints and returns procedures

on the Internet under

http://www.beldensolutions.com/en/Service/Repairs/index.phtml.

32

Installation BAT450-F

Release 03 08/2016

5 Disassembly

 Disconnect the data cables.
 Disable the supply voltage.
 Disconnect the power supply cable.
 Remove the antennas.
 Disconnect the grounding.

Installation BAT450-F

Release 03 08/2016

33

6 Technical data

 General technical data

Dimensions
W × H × D

BAT450-F See “Dimension drawings” on page 34.

Weight ≥ 2.0 kg

(depending on the device variant)

Supply voltage Power supply via an 8-pin, X-coded M12 socket for PoE port or a 5-pin, A-

coded M12 plug
Nominal voltage DC 24 V
Voltage range DC incl.

maximum tolerances

16.8 V ... 32 V

Connection type M12 plug
Power loss buffer 10 ms at 19.2 V DC
Overload current protection at

input

Non-replaceable fuse

Back-up fuse Nominal rating: 3.5 A

Characteristic: slow blow

Peak inrush current 14 A

Climatic
conditions during
operation

Ambient air temperature

a

a. Temperature of the ambient air at a distance of 2 inches (5 cm) from the device

−40 °F ... +158 °F (−40 °C ... +70 °C)

Humidity 10 % ... 95 %
Air pressure minimum 700 hPa (+9842 ft; +3000 m)

maximum 1060 hPa (−1312 ft; −400 m)

Climatic
conditions during
storage

Minimum clearance around the
device

Top and bottom device side: 3.94 in (10 cm)
Left and right device side: 0.79 in (2 cm)

Ambient air temperature

a

−40 °F ... +185 °F (−40 °C ... +85 °C)

Humidity 10 % ... 95 %
Air pressure minimum 700 hPa (+9842 ft; +3000 m)

maximum 1060 hPa (−1312 ft; −400 m)

Pollution degree 2
Protection classes Laser protection Class 1 in compliance with IEC 60825-1

Degree of protection IP65/67

34

Installation BAT450-F

Release 03 08/2016

 Dimension drawings

 Radio technology

Antenna connection For each WLAN module: 3 × N socket
Range Up to 20 km with external antennas (depending on antenna used,

frequency range and data rate)

Security function

 IEEE 802.11i/WPA2 with passphrase or IEEE 802.1x and

hardware-accelerated AES

 User authentication with IEEE 802.1x/EAP or LEPS
 IEEE-802.1x supplicant in the Client Mode
 WPA1/TKIP
 WEP
 Access Control Lists
 WLAN port and protocol filter
 RADIUS client and server
 Integrated firewall with QoS
 Port filter
 Protocol filter
 IDS and DoS protection
 PMK caching and pre-authentication for faster roaming with

IEEE 802.1x

Frequency range

 Support of 2.4 GHz and 5 GHz: 2400 MHz to 2483.5 MHz (ISM)

and 5170 MHz to 5850 MHz

Modulation technology

 22M 0F7D (DSSS/OFDM) at 2.4 GHz
 5 MHz (ISM) and 5170-5850 MHz

108

150

5.9

4.2

185

7.3

202

7.9

249

9.8

261

10.2

56

2.2

230

9.0

mm
inch

Installation BAT450-F

Release 03 08/2016

35

 Receive sensitivity, transmission power and data rate

according to IEEE 802.11a/b/g/n

The values shown in the following tables show maximum values of the
WLAN module version for high-gain antennas. The values are in no case
to be perceived as a guaranteed property of the overall product. In some
country profiles, the module automatically reduces the data rate and
transmit power downward. This is due to national standards.

Radio topology Access point device variants:

WLAN access point, bridge, router, point-to-point, client, client-bridge
mode, AutoWDS, fixed mesh with RSTP

Client device variants:
WLAN client, client-bridge mode

Roaming Seamless handover, IAPP support, IEEE 802.11d support, background

scanning for rogue AP detection and fast roaming

IEEE 802.11a/b/g/n
Data rate Typical transmit power Typical receive sensitivity

6 Mbps 16 dBm −93 dBm

9 Mbps 16 dBm −93 dBm

12 Mbps 16 dBm −93 dBm

18 Mbps 16 dBm −91 dBm

24 Mbps 16 dBm −88 dBm

36 Mbps 15 dBm −84 dBm

48 Mbps 13 dBm −80 dBm

54 Mbps 12 dBm −79 dBm

IEEE 802.11b
Data rate Typical transmit power Typical receive sensitivity

1Mbps 19dBm −94 dBm

11 Mbps 19 dBm −94 dBm

IEEE 802.11g
Data rate Typical transmit power Typical receive sensitivity

6 Mbps 22 dBm −94 dBm

9 Mbps 22 dBm −94 dBm

12 Mbps 22 dBm −90 dBm

18 Mbps 22 dBm −89 dBm

24 Mbps 22 dBm −85 dBm

36 Mbps 21 dBm −82 dBm

48 Mbps 20 dBm −78 dBm

54 Mbps 19 dBm −77 dBm

36

Installation BAT450-F

Release 03 08/2016

IEEE 80211n
Bandwidth 2.412 GHz to 2.472

Coding Typical transmit power Typical receive sensitivity

MCS0 18 dBm −87 dBm

MCS1 18 dBm −90 dBm

MCS2 18 dBm −86 dBm

MCS3 18 dBm −82 dBm

MCS4 18 dBm −79 dBm

MCS5 16 dBm −75 dBm

MCS6 16 dBm −73 dBm

MCS7 15 dBm −72 dBm

MCS8 22 dBm −87 dBm

MCS9 21 dBm −90 dBm

MCS10 22 dBm −86 dBm

MCS11 21 dBm −82 dBm

MCS12 16 dBm −79 dBm

MCS13 16 dBm −75 dBm

MCS14 15 dBm −73 dBm

MCS15 15 dBm −72 dBm

MCS16 23 dBm −87 dBm

MCS17 23 dBm −90 dBm

MCS18 23 dBm −86 dBm

MCS19 23 dBm −82 dBm

MCS20 16 dBm −79 dBm

MCS21 17 dBm −75 dBm

MCS22 17 dBm −73 dBm

MCS23 16 dBm −72 dBm

IEEE 802.11n
Bandwidth 5.180 GHz to 5.825 GHz

Coding Typical transmit power Typical receive sensitivity

MCS0 17 dBm −92 dBm

MCS1 17 dBm −91 dBm

MCS2 17 dBm −89 dBm

MCS3 17 dBm −84 dBm

MCS4 17 dBm −81 dBm

MCS5 15 dBm −77 dBm

Installation BAT450-F

Release 03 08/2016

37

 Receiver sensitivity, transmit power, and data rate of the

WLAN module version for high-gain antennas (approvals 2,
characteristic value H) according to IEEE 802.11a/b/g/n

The values shown in the following tables show maximum values of the
WLAN module version for high-gain antennas. The values are in no case
to be perceived as a guaranteed property of the overall product. In some
country profiles, the module automatically reduces the data rate and
transmit power downward. This is due to national standards.

MCS6 14 dBm −75 dBm

MCS7 14 dBm −73 dBm

MCS8 20 dBm −92 dBm

MCS9 20 dBm −91 dBm

MCS10 19 dBm −89 dBm

MCS11 20 dBm −84 dBm

MCS12 18 dBm −81 dBm

MCS13 15 dBm −77 dBm

MCS14 15 dBm −75 dBm

MCS15 14 dBm −73 dBm

MCS16 21 dBm −92 dBm

MCS17 21 dBm −91 dBm

MCS18 21 dBm −89 dBm

MCS19 21 dBm −84 dBm

MCS20 16 dBm −81 dBm

MCS21 15 dBm −77 dBm

MCS22 14 dBm −75 dBm

MCS23 14 dBm −73 dBm

IEEE 802.11a
Data rate Typical transmit power Typical receive sensitivity

6Mbps 10 dBm -93 dBm

9Mbps 10 dBm -93 dBm

12Mbps 10 dBm -93 dBm

18Mbps 10 dBm -91 dBm

24Mbps 10 dBm -88 dBm

IEEE 802.11n
Bandwidth 5.180 GHz to 5.825 GHz

Coding Typical transmit power Typical receive sensitivity

38

Installation BAT450-F

Release 03 08/2016

36Mbps 9 dBm -84 dBm

48Mbps 7 dBm -80 dBm

54Mbps 6 dBm -79 dBm

IEEE 802.11b
Data rate Typical transmit power Typical receive sensitivity

1Mbps 19 dBm -94 dBm

11Mbps 19 dBm -94 dBm

IEEE 802.11g
Data rate Typical transmit power Typical receive sensitivity

6Mbps 22 dBm -94 dBm

9Mbps 22 dBm -94 dBm

12Mbps 22 dBm -90 dBm

18Mbps 22 dBm -89 dBm

24Mbps 22 dBm -85 dBm

36Mbps 21 dBm -82 dBm

48Mbps 20 dBm -78 dBm

54Mbps 19 dBm -77 dBm

IEEE 802.11n
Bandwidth 2.412 GHz to 2.472 GHz

Coding Typical transmit power Typical receive sensitivity

MCS0 18 dBm -87 dBm

MCS1 18 dBm -90 dBm

MCS2 18 dBm -86 dBm

MCS3 18 dBm -82 dBm

MCS4 18 dBm -79 dBm

MCS5 16 dBm -75 dBm

MCS6 16 dBm -73 dBm

MCS7 15 dBm -72 dBm

MCS8 22 dBm -87 dBm

MCS9 21 dBm -90 dBm

MCS10 22 dBm -86 dBm

MCS11 21 dBm -82 dBm

MCS12 16 dBm -79 dBm

IEEE 802.11a
Data rate Typical transmit power Typical receive sensitivity

Installation BAT450-F

Release 03 08/2016

39

MCS13 16 dBm -75 dBm

MCS14 15 dBm -73 dBm

MCS15 15 dBm -72 dBm

MCS16 23 dBm -87 dBm

MCS17 23 dBm -90 dBm

MCS18 23 dBm -86 dBm

MCS19 23 dBm -82 dBm

MCS20 16 dBm -79 dBm

MCS21 17 dBm -75 dBm

MCS22 17 dBm -73 dBm

MCS23 16 dBm -72 dBm

IEEE 802.11n
Bandwidth 5.180 GHz to 5.825 GHz

Coding Typical transmit power Typical receive sensitivity

MCS0 11 dBm -92 dBm

MCS1 11 dBm -91 dBm

MCS2 11 dBm -89 dBm

MCS3 11 dBm -84 dBm

MCS4 11 dBm -81 dBm

MCS5 9 dBm -77 dBm

MCS6 8 dBm -75 dBm

MCS7 8 dBm -73 dBm

MCS8 7 dBm -92 dBm

MCS9 7 dBm -91 dBm

MCS10 6 dBm -89 dBm

MCS11 7 dBm -84 dBm

MCS12 5 dBm -81 dBm

MCS13 2 dBm -77 dBm

MCS14 2 dBm -75 dBm

MCS15 1 dBm -73 dBm

MCS16 8 dBm -92 dBm

MCS17 8 dBm -91 dBm

IEEE 802.11n
Bandwidth 2.412 GHz to 2.472 GHz

Coding Typical transmit power Typical receive sensitivity

40

Installation BAT450-F

Release 03 08/2016

 EMC

MCS18 8 dBm -89 dBm

MCS19 8 dBm -84 dBm

MCS20 3 dBm -81 dBm

MCS21 2 dBm -77 dBm

MCS22 1 dBm -75 dBm

MCS23 1 dBm -73 dBm

EMC interference
immunity

EN 61000-4-2 Electrostatic discharge

Contact discharge, test level 3 6 kV
Air discharge, test level 3 8 kV

EN 61000-4-3 Electromagnetic field

80 MHz ... 2000 MHz 20 V/m
2000 MHz ... 2700 MHz 20 V/m

EN 61000-4-4 Fast transients (burst), test level 4

Power line 2 kV
Data line 4 kV

EN 61000-4-5 Voltage surges

Power line line/line 1 kV
Power line line/ground 2 kV
Data line: test level 3 2 kV

EN 61000-4-6 Conducted interference voltages, test level 3

150 kHz ... 80 MHz 10 V

EMC interference
emission

EN 55022 Class B
FCC 47 CFR Part 15 Class B

Stability

Vibration IEC 60068-2-6 Test FC test level according to IEC 61131-2
Shock IEC 60068-2-27 Test Ea test level in accordance with IEC 61131-2,

EN 50155

IEEE 802.11n
Bandwidth 5.180 GHz to 5.825 GHz

Coding Typical transmit power Typical receive sensitivity

Installation BAT450-F

Release 03 08/2016

41

 Stability

 Radio standards

 Network range

 Power consumption/power output

Stability

Vibration IEC 60068-2-6 Test FC test level according to IEC 61131-2

IEC 60068-2-64 test level in accordance with EN 50155

Shock IEC 60068-2-27 Test Ea test level in accordance with IEC 61131-2,

EN 50155

EN 300 328 Electromagnetic compatibility and radio spectrum matters (ERM) -

bandwidth transfer systems - data transmission equipment operating in

2.4 GHz ISM band and using spread spectrum modulation technology

EN 301 893 Broadband radio access networks (BRAN) – 5 GHz high performance

Remote Local Area Network (RLAN)
EN 301 489-1 Electromagnetic compatibility for radio equipment and services
EN 301 489-17 Electromagnetic compatibility (EMC) for radio equipment and services -

specific conditions for 2.4 GHz broadband transmission systems and 5

GHz high-performance RLAN equipment
EN 302 502 Broadband radio access networks (BRAN) – permanently installed

broadband data transmission systems with 5.8 GHz band

10/100/1000 Mbit/s twisted pair port

Length of a twisted pair segment max. 100 m (for cat5e cable)

Device Power consumption Power output

BAT450-F 1 × WLAN module 9.95 W 33.35

2 × WLAN module 12.95 W 44.19

42

Installation BAT450-F

Release

03

08/2016

 Scope of delivery

Number Article 1 × WLAN modul e 2 × WLAN module

1 × Device xx
1 × General safety instructions x x
1 ×, 2 × or 3 ×

premounted

Protection cap (M12, plastic) for Ethernet port 1, Ethernet port 2 or V.24 interface x x

1×
premounted

Protection cap (M12, plastic) for supply voltage connection x x

3 ×
premounted

Protection cap (7/8", plastic) for N socket x

6 ×
premounted

Protection cap (7/8", plastic) for N socket x

3 ×
Included

BAT-ANT-N-3AGN-IP67 for N socket x

6 ×
Included

BAT-ANT-N-3AGN-IP67 for N socket x

2×
Included

50 Ω terminators for closing free antenna connections x

4×
Included

50 Ω terminators for closing free antenna connections x

1× or2×
Included

X-coded M12 plug for Ethernet port 1 and /or Ethernet port 2 x x

1×
Included

M12 power supply plug ELKA 5012 PG7 x x

0× or 1×
Included

Terminal Cable: M12 plug, 4-Pin, A-coded
Applies to device variants with V.24 interface

xx

Installation BAT450-F

Release 03 08/2016

43

 Accessories

Note: Products recommended as accessories may have characteristics

that do not fully correspond to those of the corresponding product. This
may limit their possible usage in the overall system.

 Underlying technical standards

Designation Order number

BAT-ANT-N-3AGN-IP67 for N socket
(10 pieces)

942-110-001

50 Ω terminators for closing free antenna connections
(10 pieces)

942-118-001

BAT450-F pole
mounting set

For fastening the devices to pole for the following
pole diameter range:

1.46 in ... 2.56 in (37 mm ... 65 mm)

943 966-001

Name

ECE Nr. 10 E type approval for use in vehicles
FCC 47 CFR Part 15 Code of Federal Regulations
EN 45545-2 Railway applications - Fire protection on railway vehicles - Part 2:

Requirements for fire behavior of materials and components.

EN 50121-4 Railway applications – EMC – Emission and immunity of the

signaling and telecommunications apparatus (Rail Trackside)
EN 50155 Railway applications - Electronic equipment used on rolling stock
EN 55022 Information technology equipment – Radio disturbance

characteristics – Limits and methods of measurement
IEC/EN 60079-15 Explosive atmospheres – Part 15: Equipment protection by type of

protection “n”
EN 60950-1 Information technology equipment – Safety – Part 1: General

requirements
EN 60950-22 Installations of IT equipment – Security – Part 22: Outdoor

equipments
EN 61000-6-2 Electromagnetic compatibility (EMC) – Part 6-2: Generic

standards – Immunity for industrial environments
EN 61131-2 Programmable controllers – Part 2: Equipment requirements and

tests
IEEE 802.3af Power over Ethernet
IEEE 802.1 D Switching, GARP, GMRP, Spanning Tree
IEEE 802.1 D Media access control (MAC) bridges (includes IEEE 802.1p

Priority and Dynamic Multicast Filtering, GARP, GMRP)
IEEE 802.1Q Virtual LANs (VLANs, MRP, Spanning Tree)
IEEE 802.1 Q Virtual Bridged Local Area Networks (VLAN Tagging, GVRP)
IEEE 802.1w Rapid Reconfiguration
IEEE 802.3 Ethernet

Table 4: List of norms and standards.

Certified devices are marked with a certification indicator.

44

Installation BAT450-F

Release 03 08/2016

The device has an approval based on a specific standard only if the
approval indicator appears on the device casing.
If your device has a shipping approval according to Germanischer Lloyd,
you find the approval mark printed on the device label. You will find out
whether your device has other shipping approvals on the Hirschmann
website under www.hirschmann.com in the product information.

IEEE 802.11a/b/g/h/i/n WLAN
UL 60950-1 Information technology equipment – Safety – Part 1: General

requirements

Name

Table 4: List of norms and standards.

Certified devices are marked with a certification indicator.

Installation BAT450-F

Release 03 08/2016

45

A Further Support

 Technical Questions

For technical questions, please contact any Hirschmann dealer in your
area or Hirschmann directly.
You will find the addresses of our partners on the Internet at

http://www.hirschmann.com.

A list of local telephone numbers and email addresses for technical
support directly from Hirschmann is available at

https://hirschmann-support.belden.eu.com.

This site also includes a free of charge knowledge base and a software
download section.

 Hirschmann Competence Center

The Hirschmann Competence Center is ahead of its competitors:

 Consulting incorporates comprehensive technical advice, from system

evaluation through network planning to project planning.

 Training offers you an introduction to the basics, product briefing and

user training with certification.
The current technology and product training courses can be found at

http://www.hicomcenter.com

 Support ranges from the first installation through the standby service

to maintenance concepts.

With the Hirschmann Competence Center, you have decided against
making any compromises. Our client-customized package leaves you
free to choose the service components you want to use.
Internet:

http://www.hicomcenter.com
