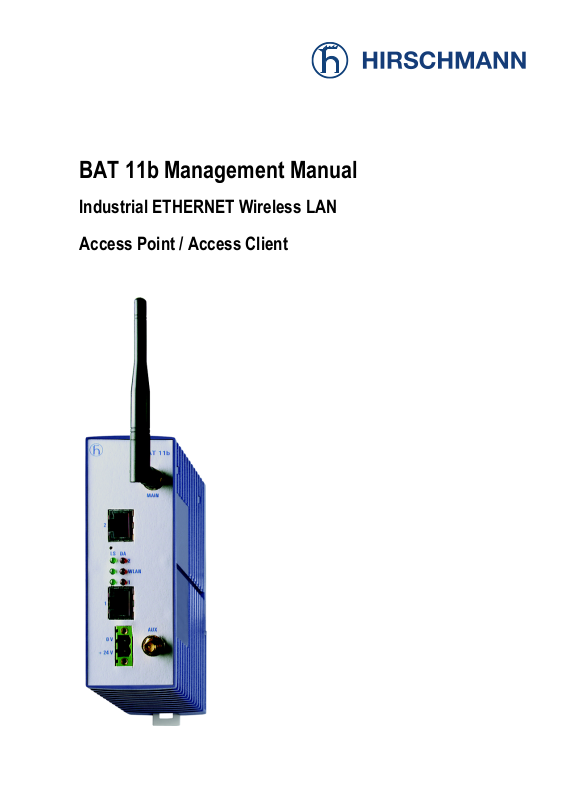

Industrial ETHERNET Wireless LAN
Access Point / Access Client
Page 2
Page 3
BAT 11b Management Manual
Industrial ETHERNET Wireless LAN
Access Point / Access Client
Page 4
The naming of copyrighted trademarks in this manual, even when not specially indicated, should not be taken to mean that these names may be considered as free in the sense of the trademark and tradename protection law and hence that they may be freely used by anyone.
© 2004 Hirschmann Electronics GmbH & Co. KG
Manuals and software are protected by copyright. All rights reserved. The copying, reproduction, translation, conversion into any electronic medium or machine scannable form is not permitted, either in whole or in part. An exception is the preparation of a backup copy of the software for your own use.
The performance features described here are binding only if they have been expressly guaran­teed in the contract. This publication has been created by Hirschmann Electronics GmbH & Co. KG according to the best of our knowledge. Hirschmann reserves the right to change the con­tents of this manual without prior notice. Hirschmann can give no guarantee in respect of the correctness or accuracy of the details in this publication.
Hirschmann can accept no responsibility for damages, resulting from the use of the network components or the associated operating software. In addition, we refer to the conditions of use specified in the license contract.
Printed in Germany
Hirschmann Electronics GmbH & Co. KG Automation and Network Solutions Stuttgarter Straße 45-51 72654 Neckartenzlingen Tel. +49 1805 141538 -01-0104
Page 5

Hirschmann worldwide

U Germany
Hirschmann Electronics GmbH & Co. KG Automation and Network Solutions Stuttgarter Straße 45-51 D-72654 Neckartenzlingen Tel. ++49-7127-14-1480 Fax ++49-7127-14-1502 email: ans-hi-line@hirschmann.de Internet: www.hirschmann.de
U Switzerland
Hirschmann Electronics GmbH & Co. KG, Neckartenzlingen Niederlassung Uster Seestr. 16 CH-8610 Uster Tel. ++41-1905-8282 Fax ++41-1905-8289 email: ans_ch@hirschmann.ch
U France
Hirschmann Electronics S.A.S. 2, rue des Charpentiers F-95330 Domont Tel. ++33-1-39350100 Fax ++33-1-39350102 email: ans@hirschmann.fr
BAT 11b
Release 1.0 03/04
2-5
Page 6
U Great Britain
Hirschmann Electronics Ltd. 4303 Waterside Centre Solihull Parkway Birmingham Business Park Birmingham West Midlands B37 7YN Tel. ++44-121 329 5000 Fax ++44-121 329 5001 email: enquiry@hirschmann.co.uk
U Netherlands
Hirschmann Electronics B.V. Pampuslaan 170 NL-1382 JS Weesp Tel. ++31-294-462591 Fax ++31-294-462554 email: ans@hirschmann.nl
U Spain
Hirschmann Electronics S.A. Calle Traspaderne, 29 Barrio del Aeropuerto Edificio Barajas I, 2a Planta E-28042 Madrid Tel. ++34-1-7461730 Fax ++34-1-7461735 email: hes@hirschmann.es
U Hungary
Hirschmann Electronics Kft. Rokolya u. 1-13 H-1131 Budapest Tel. ++36-1-3494199 Fax ++36-1-3298453 email: hirschmann.budapest@axelero.hu
2-6
BAT 11b
Release 1.0 03/04
Page 7
U USA
Hirschmann Electronics Inc. 20440 Century Boulevard, Suite 150 Germantown, MD 20874 Tel. ++1-240-686 2300 Fax ++1-240-686 3589 email: ans@hirschmann-usa.com
U Singapore
Hirschmann Electronics Pte. Ltd. 2 International Business Park #11-02/03 Tower One The Strategy Singapore 609930 Tel: ++65 6316 7797 Fax:++65 6316 7977 email: hirschmann.svi@pacific.net.sg
U China
Hirschmann Electronics Pte Ltd Shanghai Office Room 828, Summit Centre, 1088 West Yan An Road Shanghai 200052 P. R . C h i n a Tel: ++86-21 6207 6637 Fax: ++86-21 6207 6837 Mobile: ++86-1370 185 7382 E-Mail: hirschmann@sh163.net
For all other countries please dial Tel. +49-7127-14-16 20 Contact address see Hirschmann Germany.
BAT 11b
Release 1.0 03/04
2-7
Page 8
2-8
BAT 11b
Release 1.0 03/04
Page 9

Hirschmann Competence

In the longterm, product excellence alone is not an absolute guarantee of a successful project implementation. Comprehensive service makes a differ ence worldwide. In the current scenario of global competition, the Hir­schmann Competence Center stands head and shoulders above the competition with its comprehensive spectrum of innovative services:
D Consulting incorporates comprehensive technical advice, from system
evaluation through network planning to project planning.
D Training offers you an introduction to the technological fundamentals,
product briefing and user training with certification.
D Support ranges from commissioning through the standby service to main-
tenance concepts.
With the Competence Center, you firmly rule out any compromise: the client­specific package leaves you free to choose the service components that you will use.
-
Internet: http://www.hicomcenter.com
BAT 11b
Release 1.0 03/04
2-9
Page 10
2-10
BAT 11b
Release 1.0 03/04
Page 11

Safety instructions

U Supply voltage
The devices are designed for operation with a safety extra-low voltage. They may only be connected to the supply voltage connections and to the signal contact with PELV circuits or alternatively SELV circuits with the voltage restrictions in accordance with IEC/EN 60950. The supply voltage is electrically isolated from the housing.
V Never start operation with damaged components! V Relevant for North America:
The subject unit is to be suppplied by a Class 2 power source complying with the requirements of the National Electrical Code, table 11(b). If power is redundant supplied (two individual power sources) the power sources together should comply with the requirements of the National Electrical Code, table 11 (b).
V Relevant for North America:
Use 60/75°C or 75°C copper(CU)wire only.
U Shielding ground
The shielding ground of the connectable twisted pair lines is connected to the front panel as a conductor. V Beware of possible short circuits when connecting a cable section with
conductive shielding braiding.
BAT 11b
Release 1.0 03/04
2-11
Page 12
U Housing
Only technicians authorized by Hirschmann are permitted to open the housing. The device is grounded via the separated ground screw. It is located on the bottom left of the front panel. V Make sure that the electrical installation meets local or nationally
applicable safety regulations.
V The ventilation slits must not be covered to ensure free air circulation. V The distance to the ventilation slots of the housing has to be a
minimum of 10 cm.
V Never insert pointed objects (thin screwdrivers, wires, etc.) into the
inside of the subrack! Failure to observe this point may result in injuries caused by electric shocks.
V The housing has to be mounted in upright position. V If installed in a living area or office environment, the device must be
operated exclusively in switch cabinets with fire protection characteristics according to EN 60950.
U Environment
The device may only be operated in the listed maximum surrounding air temperature range at the listed relative air humidity range (non­condensing). V The installation location is to be selected so as to ensure compliance
with the climatic limits listed in the Technical Data.
V To be used in a Pollution Degree 2 environment only.
U Qualification requirements for personnel
Qualified personnel as understood in this manual and the warning signs, are persons who are familiar with the setup, assembly, startup, and operation of this product and are appropriately qualified for their job. This includes, for example, those persons who have been:
D trained or directed or authorized to switch on and off, to ground and to
label power circuits and devices or systems in accordance with current safety engineering standards;
D trained or directed in the care and use of appropriate safety equipment
in accordance with
the current standards of safety engineering;
D trained in providing first aid.
2-12
BAT 11b
Release 1.0 03/04
Page 13
U General Safety Instructions
This device is electrically operated. Adhere strictly to the safety requirements relating to voltages applied to the device as described in the operating instructions!
Failure to observe the information given in the warnings could result in serious injury and/or major damage. V Only personnel that have received appropriate training should operate
this device or work in its immediate vicinity. The personnel must be fully familiar with all of the warnings and maintenance measures in these operating instructions.
V Correct transport, storage, and assembly as well as careful operation
and maintenance are essential in ensuring safe and reliable operation of this device.
V These products are only to be used in the manner indicated in this
version of the manual.
V Any work that may have to be performed on the electrical installation
should be performed by fully qualified technicians only.
Warning!
LED- or LASER components according to IEC 60825-1 (2001): CLASS 1 LASER PRODUCT. LIGHT EMITTING DIODE - CLASS 1 LED PRODUCT.
U National and international safety regulations
V Make sure that the electrical installation meets local or nationally
applicable safety regulations.
BAT 11b
Release 1.0 03/04
2-13
Page 14
U Note on the CE marking
The devices comply with the regulations contained in the following European directives:
89/336/EEC Directive of the council for standardizing the regulations of member states on electromagnetic compatibility (changed by RL 91/263/EEC, 92/ 31/EEC and 93/68/EEC). In accordance with the above-named EU directives, the EU conformity declaration will be at the disposal of the relevant authorities at the following address:
Hirschmann Electronics GmbH & Co. KG Automation and Network Solutions Stuttgarter Straße 45-51 D-72654 Neckartenzlingen Germany Phone ++49 7127 14 1480
The product can be used in living areas (living area, place of business, small business) and in industrial areas.
D Interference immunity: EN 61000-6-2:2001 D Emitted interference: EN 55022:1998 + A1 2000 Class A
Warning!
This is a class A device. This device can cause interference in living areas, and in this case the operator may be required to take appropriate measures. The assembly guidelines provided in these instructions must be strictly adhered to in order to observe the EMC value limits.
2-14
BAT 11b
Release 1.0 03/04
Page 15
U FCC note:
Appropriate testing has established that this device fulfills the requirements of a class A digital device in line with part 15 of the FCC regulations. These requirements are designed to provide sufficient protection against interference where the device is being used in a business environment. The device creates and uses high frequencies and can radiate same, and if it is not installed and used in accordance with this operating manual, it can cause radio transmission interference. The use of this device in a living area can also cause interference, and in this case the user is obliged to cover the costs of removing the interference.
U Recycling note:
After usage, this product must be disposed of properly as electronic waste in accordance with the current disposal regulations of your county / state / country.
BAT 11b
Release 1.0 03/04
2-15
Page 16
2-16
BAT 11b
Release 1.0 03/04
Page 17
Table of Contents
Preface 19 Knowledge Prerequisites 20 Manual Conventions 21 Important Text Passages 21 Hirschmann Service 22 The BAT 11b Wireless Ethernet Product Package 22 Hardware Description 25
BAT 11b— LEDs 25 BAT 11b—Rear View and Ports 26 The Power Supply 27
Commissioning 28
Selecting an Appropriate Location 28 Screwing on the External Standard Antenna 28 Connection to the Ethernet 29 Connection to the Power Supply 29
After the Successful Commissioning 30
Operation of the BAT 11b as Access Point 31 Operation of the BAT 11b as Access Client 31
The Basic Configuration 37 The Main Parameters 39
Changing the Password 39 Setting the Network Name 39 Selecting the Frequency 40 Activating the Encryption 40
The Hirschmann BAT Discovery 41 The User Interface of the BAT Discovery 43
The Main Window 44 The Menu 44 The Tool Bar 44 The Status Bar 44
BAT 11b
Release 1.0 03/04
The Functions of the BAT Discovery 45
Searching for Available BAT 11b 45
17
Page 18
Editing Entries Manually 47 The Basic Configuration 49 How to Set up a Web Connection 50 How to Upgrade the Firmware 51 How to Reset the BAT 11b to the Factory Defaults 55 How to Restart the BAT 11b 55 How to Exit the BAT Discovery 55
The User Interface of the BAT 11b in the AP Mode 57
How to Start the User Interface 57 Status 59 Configuration: Statistics 62 Configuration: LAN Interface 67 Configuration: Wireless Interface 70 Configuration: Security 75 Configuration: ACL 79 Configuration: Administration 80
The User Interface of the BAT 11b in the AC Mode 83
How to Start the User Interface 83 Status 85 Scan 88 Bridge 89 Statistics 90 Configuration: LAN Interface 96 Configuration: Wireless Interface 98 Configuration: Security 103 Configuration: Administration 106
Annex 109
How to Configure the TCP/IP Protocol 111 Glossary 114 Frequencies and Channels 120 Specifications 121 How to Reset the Password 122
18 BAT 11b
Release 1.0 03/04
Page 19

Preface

Introduction

With the products of the BAT 11b family, Hirschmann offers a complete range of infrastructure solutions to enable wireless communications between a variety of mobile devices as well as entire networks. Utilizing the latest wire­less LAN technology, the BAT 11b platform has been specif­ically designed to match the performance requirements of the most demanding professional applications.
Whether deployed as an extension of the existing wired infrastructure or to form an independent wireless network, BAT 11b meets the ever-increasing communication needs of your corporate workforce.
Introduction

New Flexibility

Flexibility and mobility have become crucial factors in today's business environment, stipulating the need to pro­vide highly efficient and ubiquitous access to data. A wire­less infrastructure, as provided by Hirschmann with the BAT 11b product family, serves to offer new opportunities to the most diverse target groups.
Your decision to build a wireless infrastructure with the Hirschmann BAT 11b will result in many benefits beyond the mere use of a wireless network. Now, you are much more flexible. Within the wireless infrastructure provided by Hirschmann, end devices are able to access the network at any given site, the network can grow with the demands made and according to the requirements of the users, and even bridging to other networks is possible. Without com­plicated installation and the hassle of wiring. At any loca­tion you choose. Right where and when you need it.
BAT 11b
Release 1.0 03/04
19
Page 20

Objectives

Objectives
Simply send your data along the most efficient route—directly over the air. The Hirschmann BAT 11b product family provides the ideal set of options for all of your demands. The versatility of the BAT 11b family offers you the freedom and investment protection you'd expect from a cutting-edge wireless infra­structure solution.
With the BAT 11b family, Hirschmann offers solutions appro­priate for each and every wireless user.

Knowledge Prerequisites

It is assumed that the reader possesses or is in the process of acquiring the following knowledge:
Basic knowledge of the setup of networks,
Knowledge of the basic networking terms and concepts, such as server, client, and IP address,
20 BAT 11b
Release 1.0 03/04
Page 21
Basic understanding of Microsoft Windows operating sys-

Manual Conventions

This manual uses the following text styles for the purpose of guiding through the instructions:
References to other manuals, chapters, or sections are
tems.
represented in blue
(in the online help screen and the PDF
version of the manual) and are underlined Example:
See Manual Conventions
.
Objectives
.
Menus, folders, functions, hardware labels, switch set­tings, system messages, etc. are represented in italic.
Example: Push the switch to the off position.
Menus, functions, and subfunctions are separated from each other by the “>” character.
Example: Select File > Open...
Keys you need to press simultaneously are indicated by a “+” character preceding the second key.
Example: Press Alt+A.

Important Text Passages

Important text passages are marked with symbols in the mar­gin, which have the following meanings:
Vorsicht:
Release 1.0 03/04
21BAT 11b
Page 22
Objectives
Contains information which has to be observed in order to avoid damaging the hardware or software.
Hinweis: Contains important general or additional information on a
specific topic. Voraussetzung: Advises you of any prerequisites which have to be fulfilled to
perform the subsequent steps.

Hirschmann Service

Do you have any questions on our products or do you require specific information on BAT 11b?
You can contact us, as follows:
•Internet: www.hicomcenter.com
E-Mail (Service): ans-support@nt.hirschmann.de

The BAT 11b Wireless Ethernet Product Package

The following components should be contained in your BAT 11b product package:
BAT 11b Wireless Ethernet
external standard antenna (to be screwed on),
quick start flyer,
installation CD-ROM, Note: If your BAT 11b product package does not meet your demands,
please contact our Hirschmann Service (see Section Hir-
schmann Service).
22 BAT 11b
Release 1.0 03/04
Page 23
Objectives

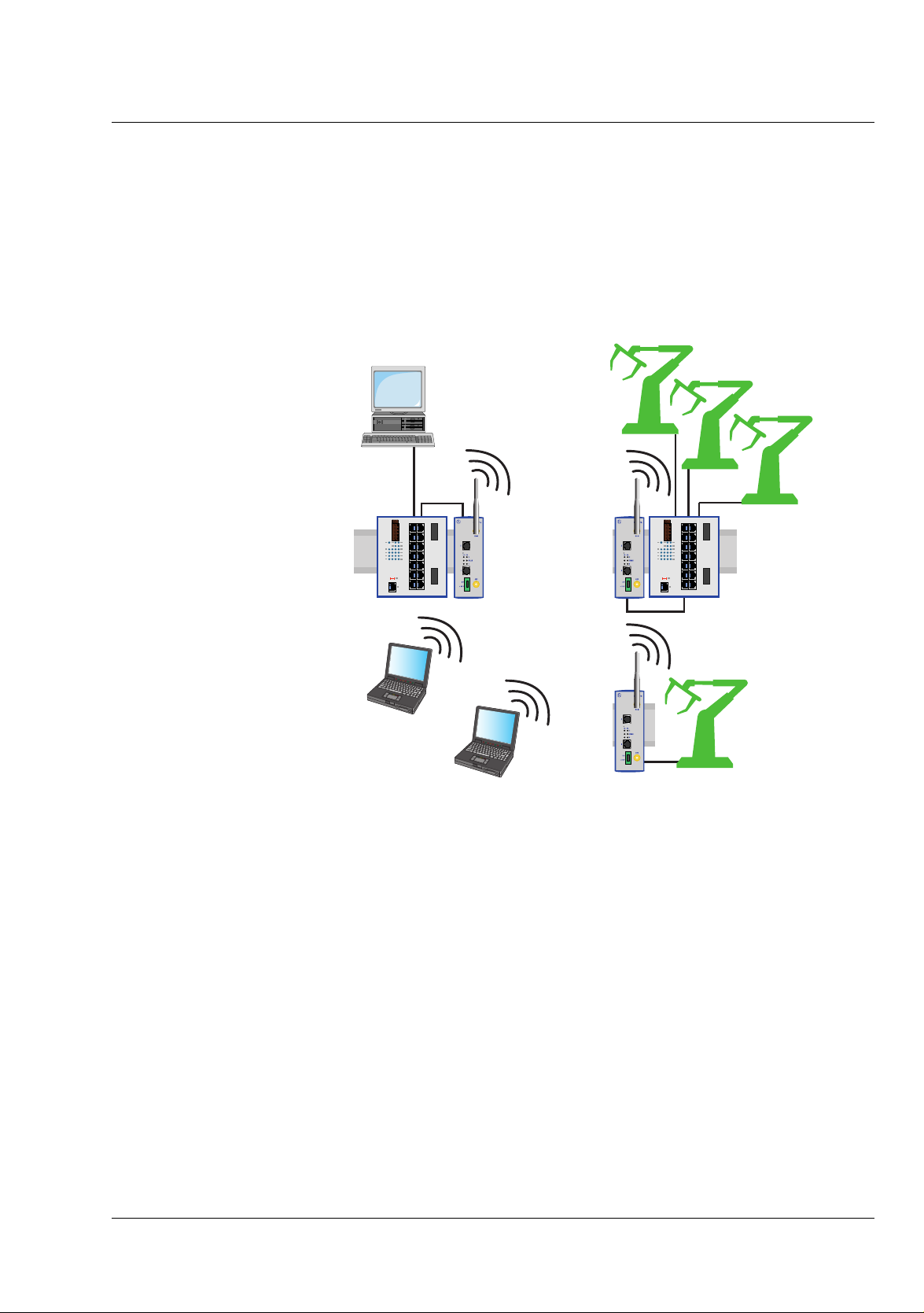

You can find a description of the standard components of the BAT 11b product package in the Section Hardware Description
.
Release 1.0 03/04
23BAT 11b
Page 24
Objectives
24 BAT 11b
Release 1.0 03/04
Page 25
1

Hardware Description

This section contains photographs and figures of the indi­vidual components of the BAT 11b product package, as well as further information on the parts in question.
BAT 11b— LEDs

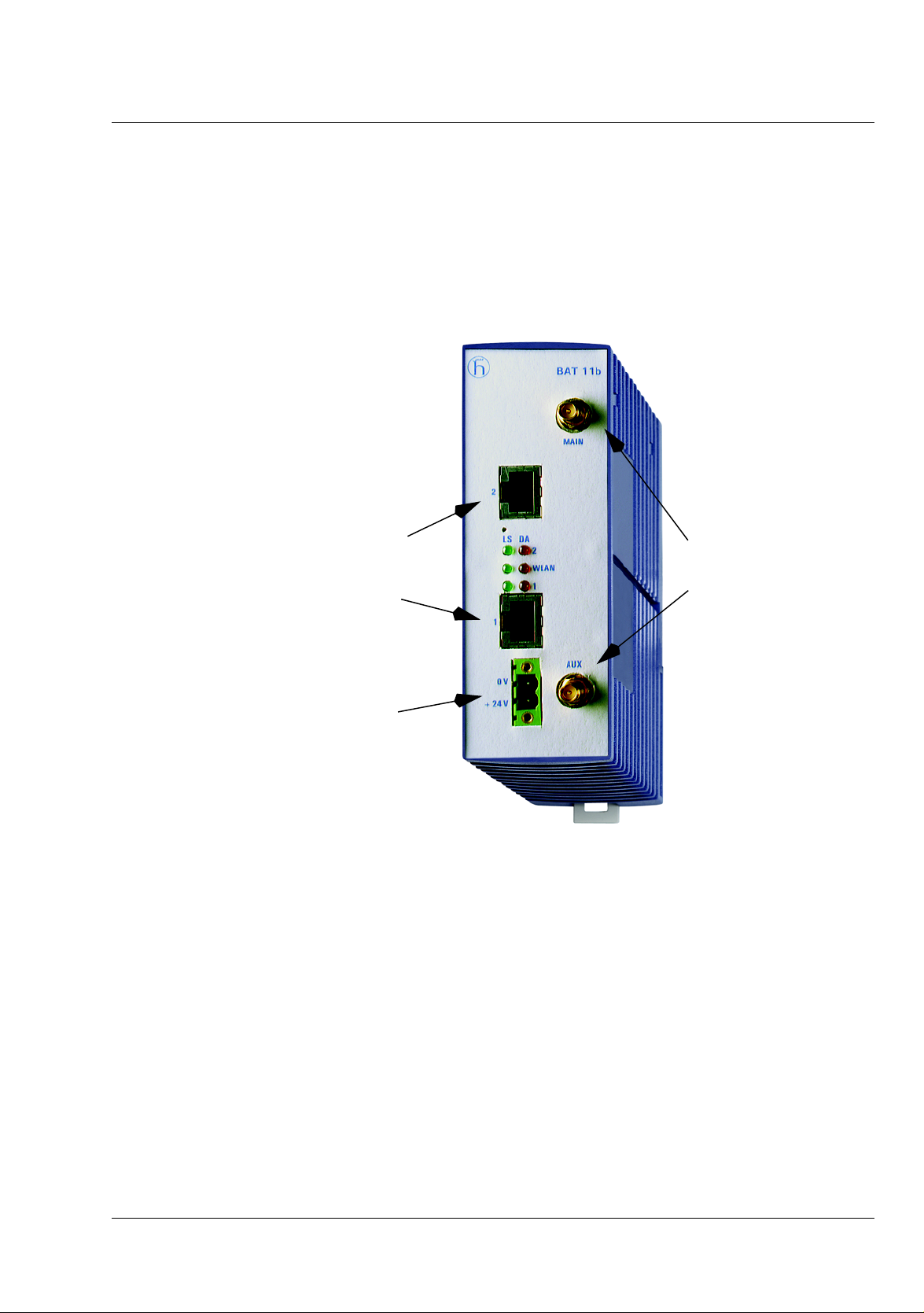

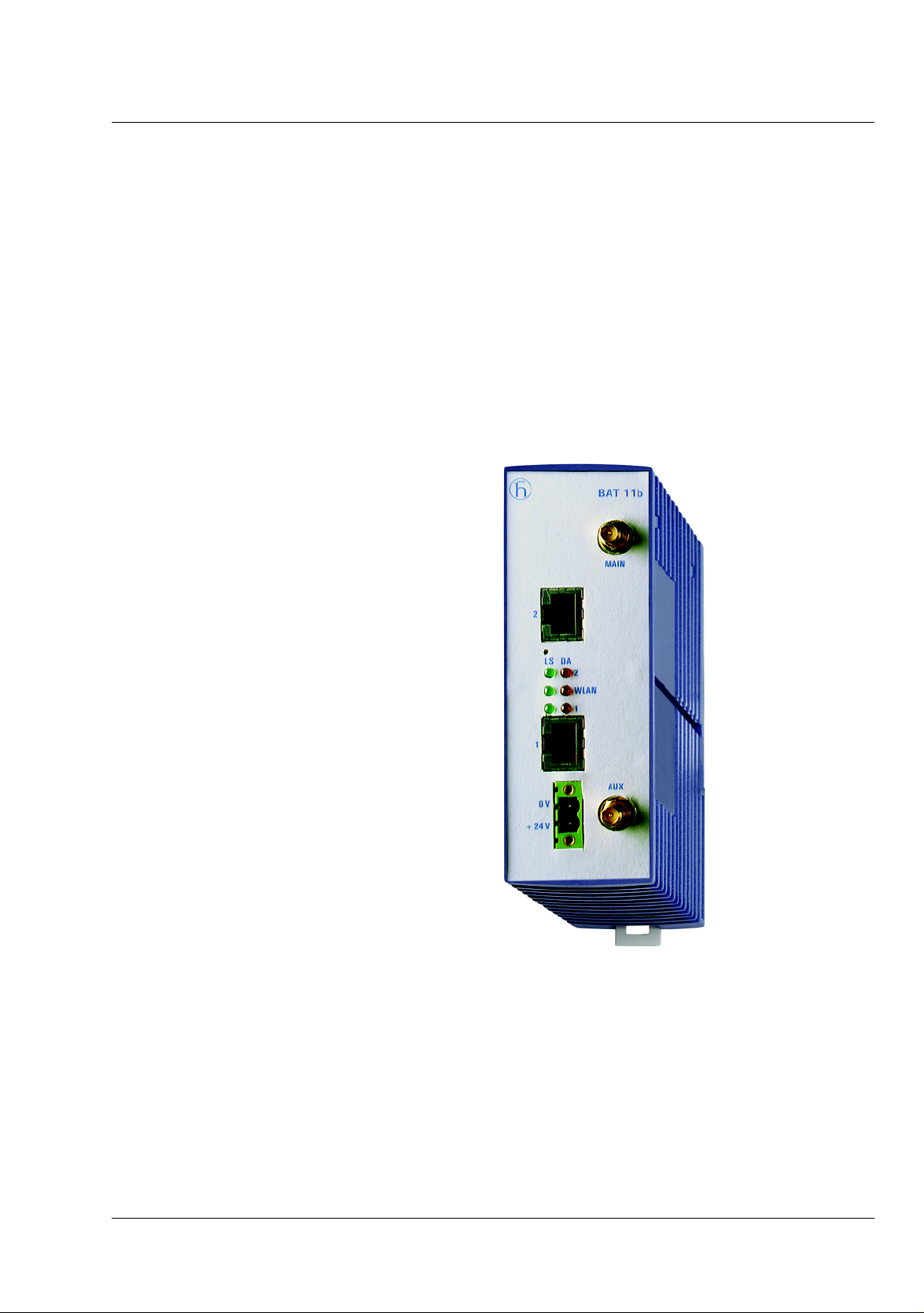

Front view on the BAT 11b Wireless Ethernet:
Hardware Description
BAT 11b
Release 1.0 03/04
25
Page 26
BAT 11b—Rear View and Ports
The front side of the BAT 11b accommodates the LED window which displays the operational states. It indicates the states of the media Port 1, WLAN, and Port 2. The LEDs may shine red, green, or orange.
LED Symbol Meaning
Ethernet jack 1, Port 1 LS 1 DA 1
LS WAN
DA WAN
Green: Port 1 is connected to the LAN.
Orange: This LED displays the quantity of data
transmitted via Port 1. It blinks shortly if few
data is being transferred; with a high data
stream, it shines permanently in orange.
Radio
Green: Flashes irregularly in AC operation if not
registered at the AP. As soon as the AC is
registered at the AP, the LED shines
permanently. In AP operation, the green LED
shines permanently.
Orange: This LED displays the quantity of
wireless data. It blinks shortly if few data is
being transferred; with a high data stream, it
shines permanently in orange.
Ethernet jack 2, Port 2 LS 2 DA 2
Green: Port 2 is connected to the LAN.
Orange: This LED displays the quantity of data
transmitted via Port 2. It blinks shortly if few
data is being transferred; with a high data
stream, it shines permanently in orange.
BAT 11b—Rear View and Ports
The front side of the BAT 11b accommodates the jack for the power supply and two RJ45 jacks for the Ethernet connection.
26 BAT 11b
Release 1.0 03/04
Page 27

The Power Supply

The BAT 11b can be equipped with various antenna systems. A standard antenna is contained in the scope of delivery. Optionally, a variety of external antennas can be mounted. The BAT 11b is for mounting on a top hat rail.
The Power Supply
The devices are designed for operation with a safety extra-low voltage. They may only be connected to the supply voltage connections and to the signal contact with PELV circuits or alternatively SELV circuits with the voltage restrictions in accordance with IEC/EN 60950. The power supplies RPS 30, RPS 60 und RPS 120 from Hirschmann meet these requirements.
Ports for connection Ethernet (RJ-45)
Jack for power supply
R-SMA jack Antenna
Release 1.0 03/04
27BAT 11b
Page 28

Commissioning

Commissioning
The following section describes how to commission the BAT 11b. This procedure is performed in several steps:
1. Select the appropriate location where to mount the BAT 11b.
2. Screw on the external standard antennas.
3. Connect the BAT 11b to the Ethernet. Select either port 1 or port 2. The second port serves to cascade several devices. Note: Never connect both Ethernet jacks simulta­neously to the same network. If you want to use the optional Power-over-Ethernet (PoE) supply, you have to connect the Ethernet cable with the PoE feeding to the port 1 jack.
4. Connection to the power supply

Selecting an Appropriate Location

Select an appropriate location where you want to mount the device. If possible, the antenna should not be covered by metal parts and should be freely visible. BAT 11bs should be mounted in the center of the planned wireless cell. Usually, the quality of the radio transmission increases the higher the antenna is mounted. BAT 11b antennas and clients should always be mounted parallel to each other and vertically to the ground. In exceptional cases, it can be advantageous to mount them horizontally, e.g. if the transmission is performed through a ceiling or floor to another story.

Screwing on the External Standard Antenna

To set up a radio link via the BAT 11b, you can use the external standard antenna shipped with the device.
28 BAT 11b
Release 1.0 03/04
Page 29
1. Screw the standard antenna onto the connector designed for this purpose. Adjust the antenna to the desired position.
2. If you wish to use an antenna with a TNC plug of the Hirschmann product portfolio, use the adapter from the RSMA plug to the TNC jack (optionally available) as adapter.

Connection to the Ethernet

1. Insert one end of the RJ45 patch cable into the port 1 or port 2 of the BAT 11b. Do only use an Ethernet port to connect or configure the device.
Connection to the Ethernet
Note: Standard patch cables 1:1 or cross-over cables (RJ45-
RJ45) are designed symmetrically. It is therefore not possible to confuse the cable ends.
If you use the BAT 11b Wireless Ethernet as an access point at a switch, you require a 1:1 patch cable. If you want to connect it as a client to a computer with Ether­net interface or if you wish to cascade two BAT 11b Wire­less Ethernets with each other, you need a cross-over cable.
2. Insert the other end into a free Ethernet port.

Connection to the Power Supply

1. When the supply voltage is connected via the 2-pin ter­minal, start up the BAT 11b.
Release 1.0 03/04
2. Lock the terminal block with the side locking screws.
3. The middle status LED indicates whether the BAT 11b is properly connected to the power supply.
29BAT 11b
Page 30

After the Successful Commissioning

After the Successful Commissioning
After connecting the BAT 11b to the mains power supply and setting up a connection to your Ethernet, it is ready for use. A BAT 11b Wireless Ethernet can be operated either in access point mode (BAT 11b-AP) or in access client mode (BAT 11b-AC). In the state as delivered, it works as access point and can be operated as access client by means of a firmware upload. Also refer to Section How to Upgrade the Firmware
Prerequisite: If you are using a PC with an radio client, you can immediately
access your Ethernet via the BAT 11b, since the communica­tions parameters match in this configuration.
on Page 2–51.
Note: To adapt the radio client to already existing configurations of
wireless networks, specific settings of the communications parameters are required.
Prerequisite: To be able to configure these settings, you have to start the
configuration via a browser. To do this, an IP address has to be assigned to the BAT 11b via the Hirschmann BAT Discovery (see Section The Basic Configuration
).
30 BAT 11b
Release 1.0 03/04
Page 31

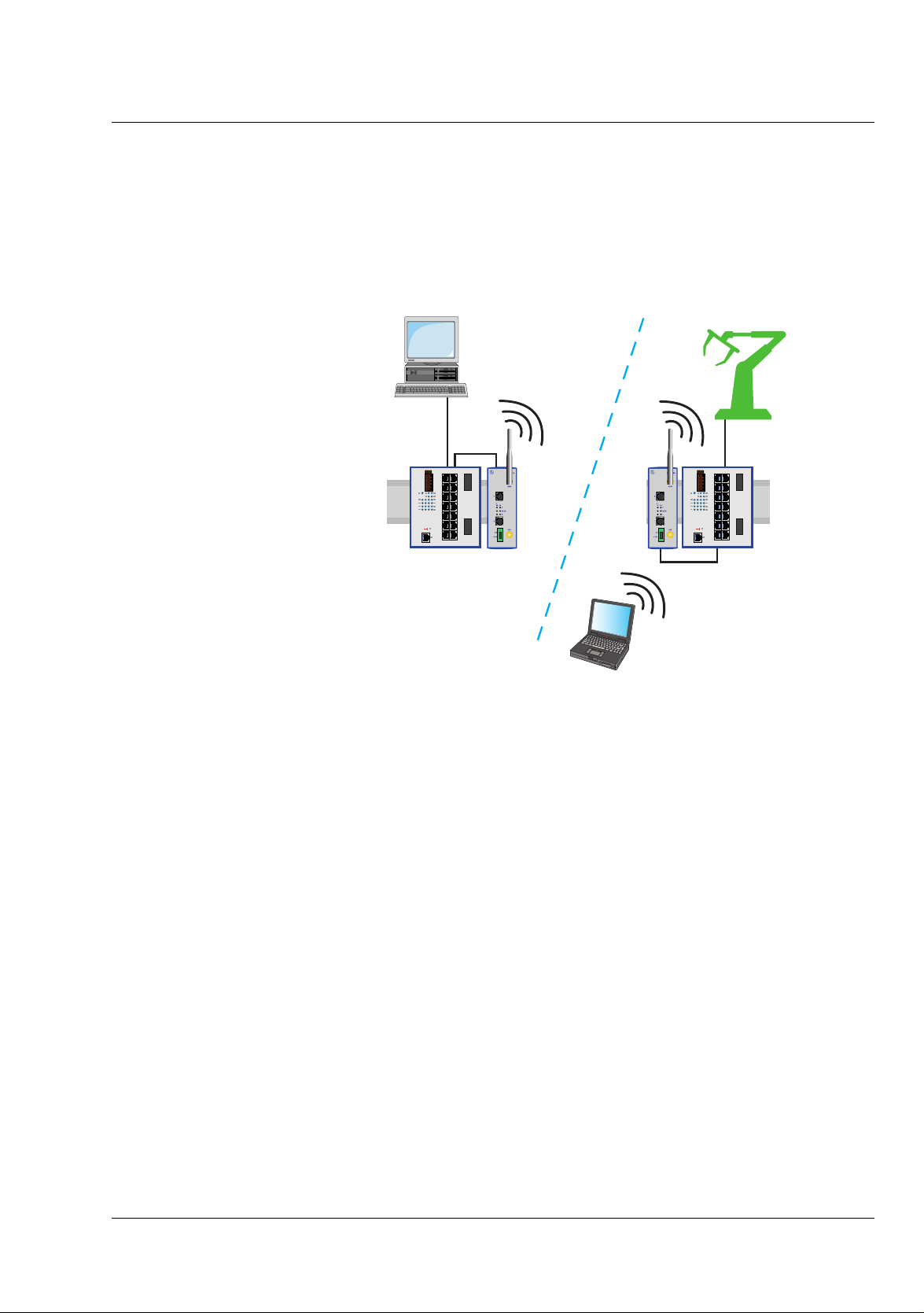

Operation of the BAT 11b as Access Point

Operation of the BAT 11b as Access Point
In this example, the left BAT 11b works as an access point, the right BAT 11b as an access client. All clients in LAN 2 are con­nected to the BAT 11b-AP in LAN 1.
AP AC

Operation of the BAT 11b as Access Client

The BAT 11b can be operated as access client either in the infrastructure mode or in the ad-hoc mode. In ad-hoc opera­tion, it has to be ensured that all BAT 11b-ACs are installed within the reach of the wireless network. As a rule, the ad-hoc operation is usually not recommended, since transmission interferences may occur more easily. In the infrastructure mode, all clients have to be located within the wireless net­work of the BAT 11b-AP. Here, it is not necessary that they are able to receive each other, since the access point controls the complete communication.
LAN 2LAN 1
Release 1.0 03/04
31BAT 11b
Page 32

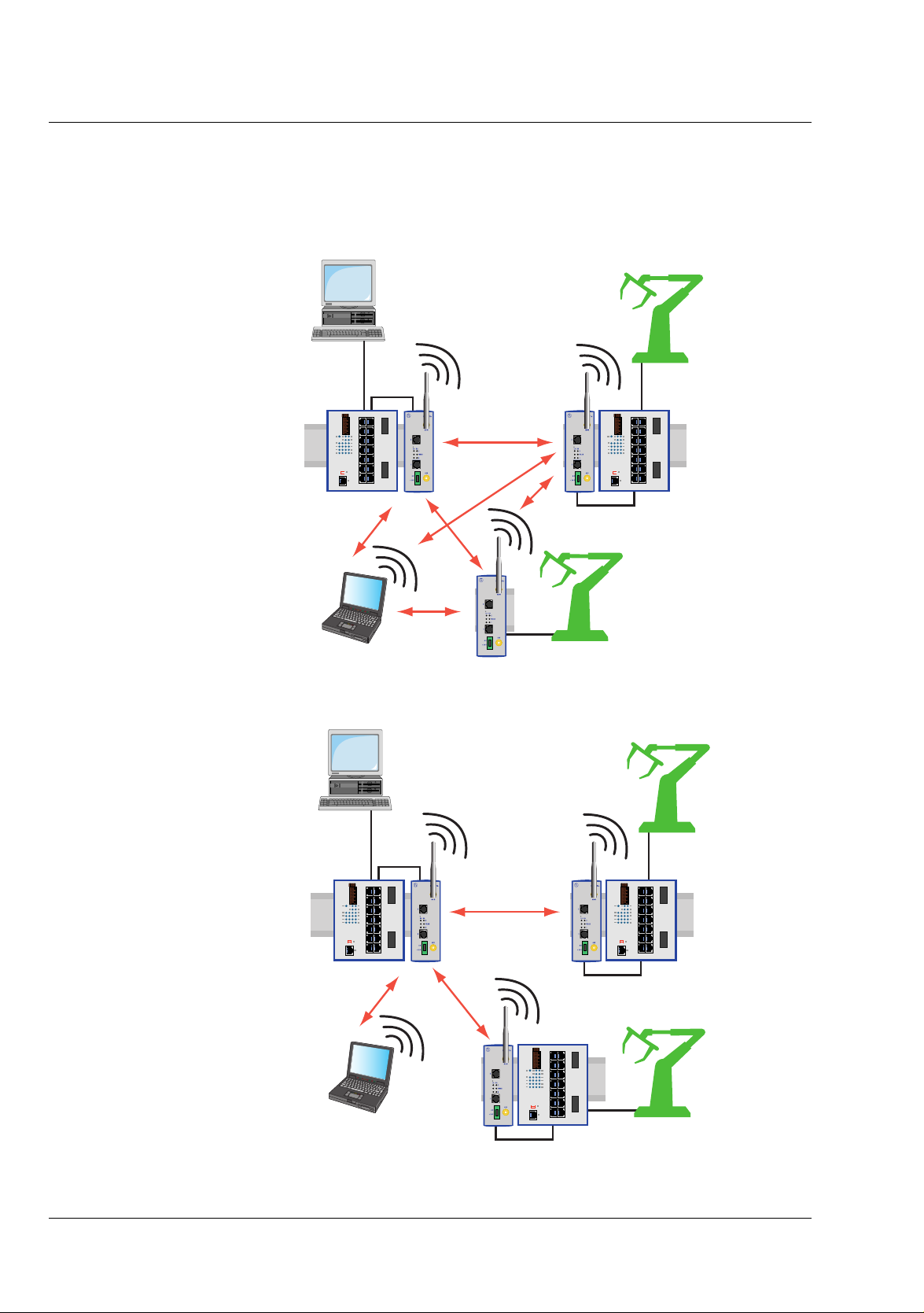

Operation of the BAT 11b as Access Client
Figure: Ad-hoc operation, all clients communicate directly with each other.
AC AC
AC
Figure: Operation in infrastructure mode, all clients communi­cate via an access point.
AP AC
AC
32 BAT 11b
Release 1.0 03/04
Page 33
Operation of the BAT 11b as Access Client

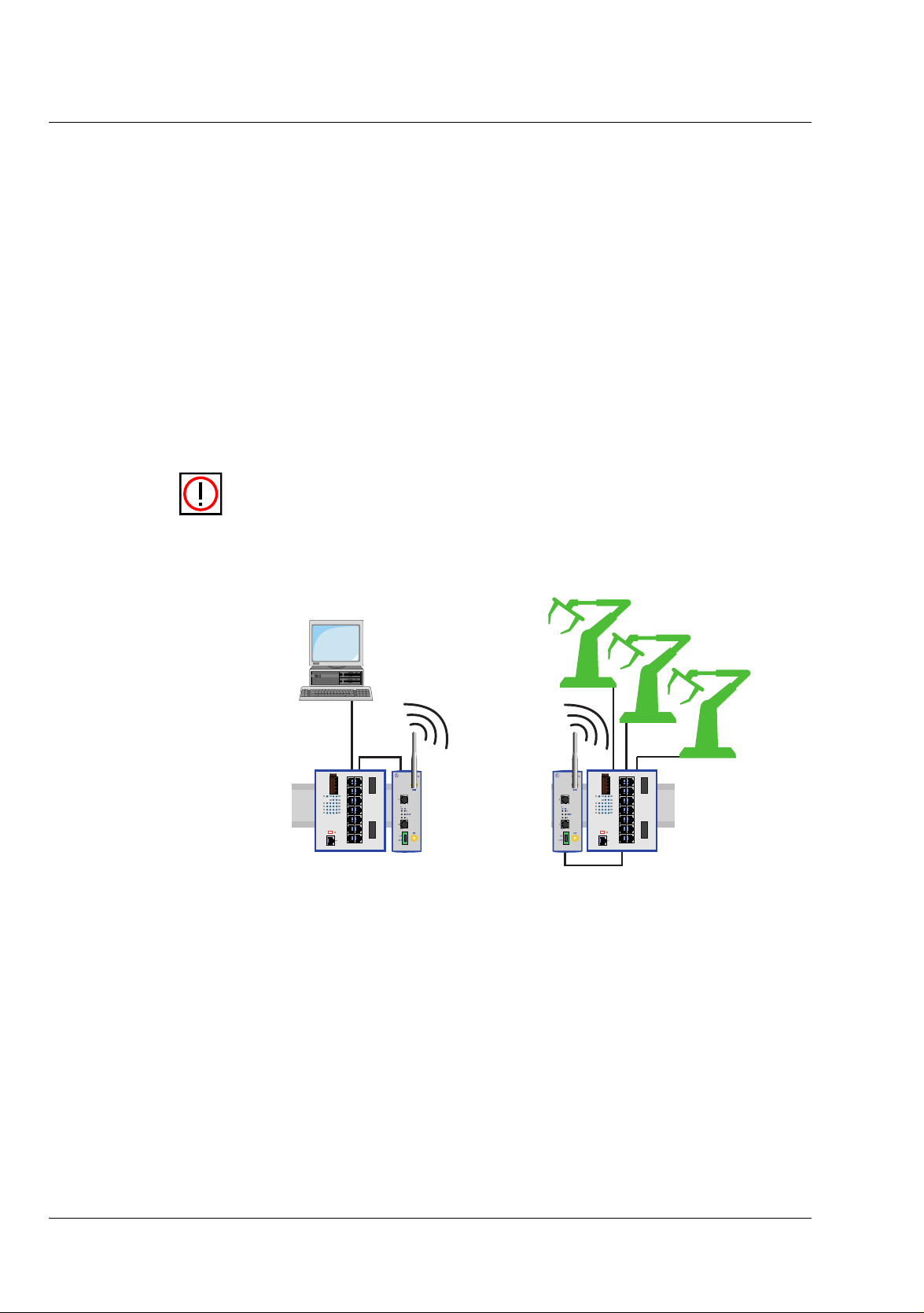

Operation as Single-Access Client
In this case, only a single computer is directly connected to the BAT 11b-AC via a cross-over Ethernet cable. In the network, the BAT 11b-AC is reached via the MAC address of the con­nected client. In this mode, all protocols can be transferred transparently.
Example 1:
Example 2:
AC
AP AC
AC
AP
AC
AC
AC
Release 1.0 03/04
33BAT 11b
Page 34
Operation of the BAT 11b as Access Client
Operation of the BAT 11b as Multi-Access Client
This operation is possible in the infrastructure or ad-hoc (peer-to-peer) mode. Several computers are connected to the BAT 11b-AC via a switch. In this case, NAT (Network Address Translation) is applied so that all computers can be reached via the MAC address of the BAT 11b-AC. Therefore, only the IP protocol can be transferred transparently. If protocols other than IP have to be transferred, each client has to be operated at a single-access client, since NAT is only possible for IP for multi-access clients.
Note: If the connected computers are to be configured via DHCP, the DHCP server has to reply to their request with a broadcast.
Example:
AP AC
AC
34 BAT 11b
Release 1.0 03/04
Page 35
Operation of the BAT 11b as Access Client

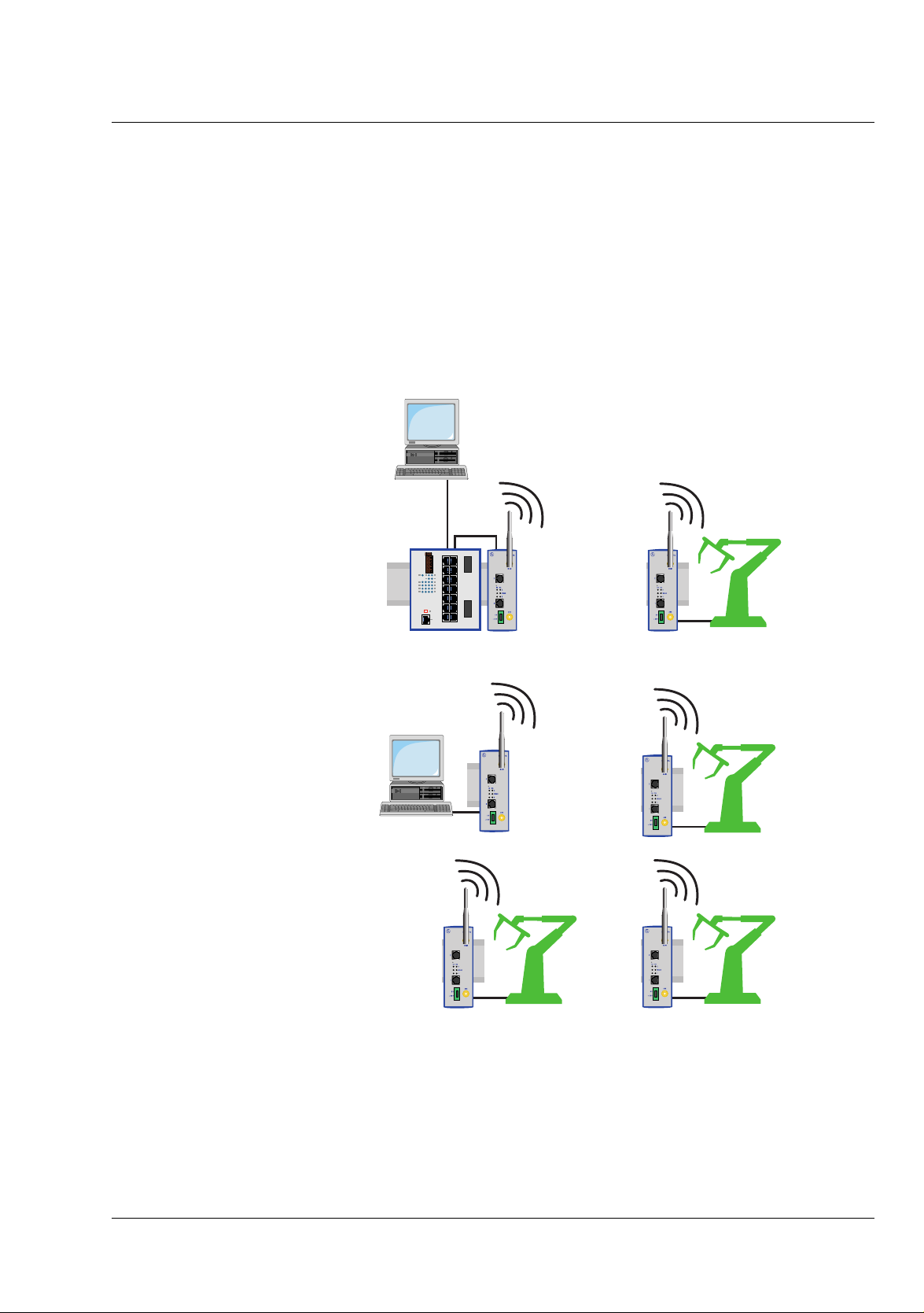

Mixed Scenario
In this scenario, one BAT 11b works as AP, the other BAT 11bs as single AC and multi-AC. In addition, two notebooks are logged on to the AP.
Example 1:
AP AC
AC
Release 1.0 03/04
35BAT 11b
Page 36
Operation of the BAT 11b as Access Client

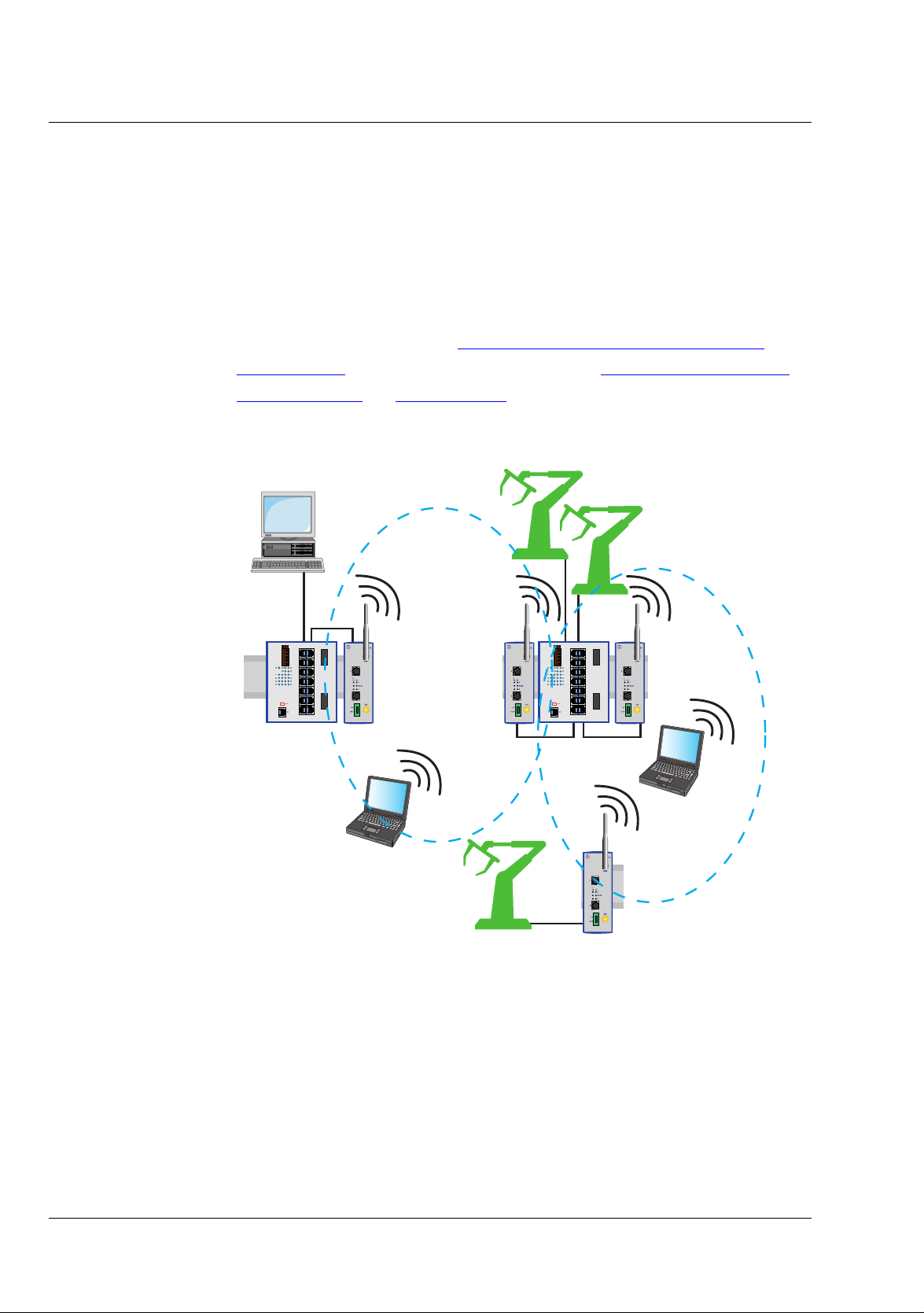

Extension of the Range
If you wish to connect remote areas and require a wireless cell there, as well, you can also operate a BAT 11b-AP at a BAT 11b­AC. In this case, it has to be ensured that the second wireless cell is operated on another channel, if possible. Also refer to the AP mode in Section Configuration: Wireless Interface
Page 3–70
, to the AC mode in Section Configuration: Wire-
less Interface on Page 4–98.
Example 2:
on
WLAN 1 Kanal 1
AP APAC
WLAN 2 Kanal 11
AC
36 BAT 11b
Release 1.0 03/04
Page 37

The Basic Configuration

This chapter describes which steps have to be performed in order to assign an IP address to your BAT 11b via the Hirschmann BAT Discovery.
To configure an IP address for your BAT 11b, carry out the fol­lowing steps:
Prerequisite: The PC which you use to configure the IP address for your BAT
11b has to be connected to the same network as the BAT 11b to be configured.
1. Insert the supplied CD into the drive of the correspond­ing computer.
The Basic Configuration
2. Carry out the instructions of the CD wizard and install the BAT Discovery.
3. Start the Hirschmann BAT Discovery from the Start > Programs > Hirschmann > BAT Discovery menu.

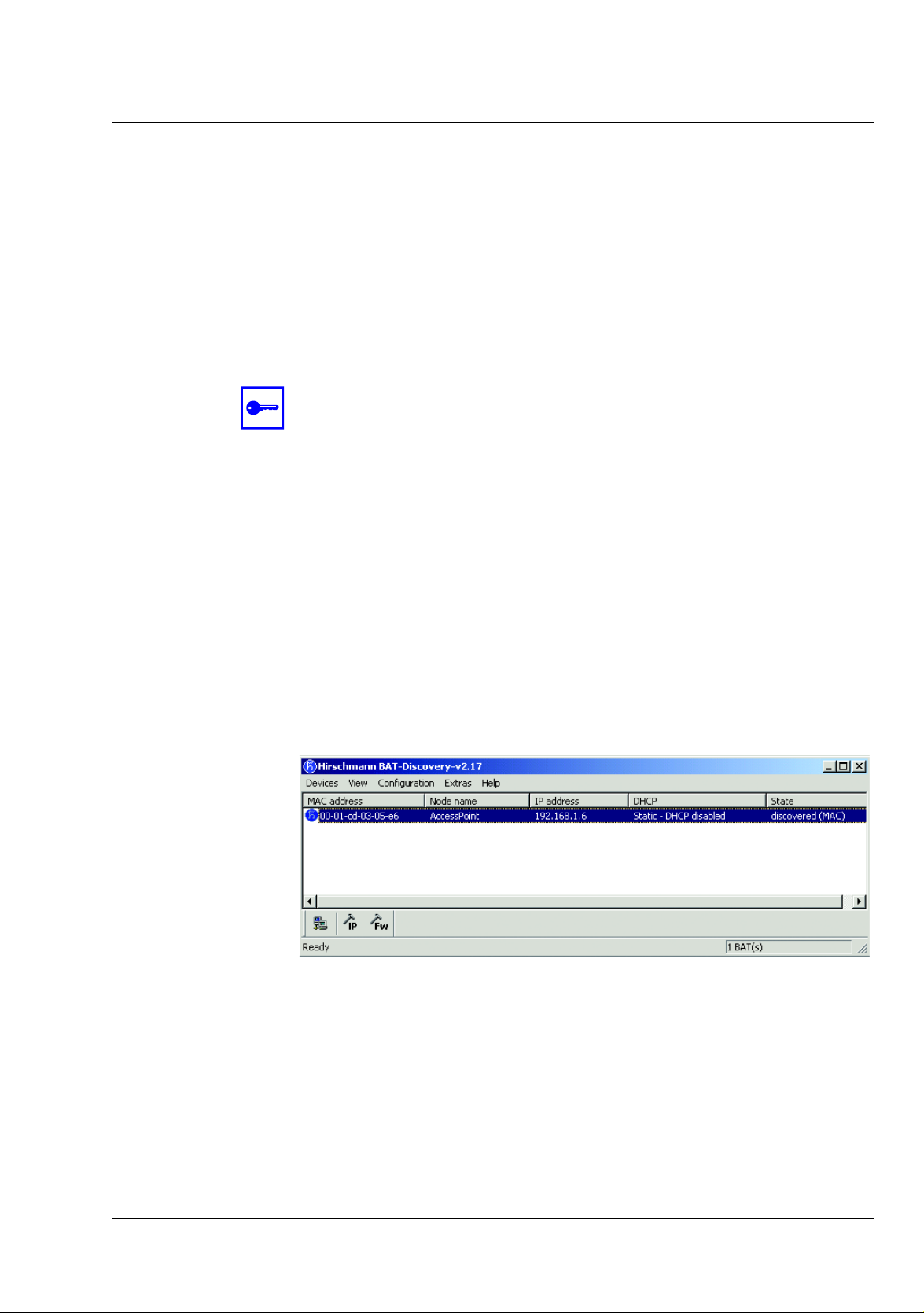

The following dialog box is displayed:
The Hirschmann BAT Discovery identifies the BAT 11bs installed in your network.
Release 1.0 03/04
One or several BAT 11bs were found in the network.
4. Double-click the MAC address of the BAT 11b to be configured in the list.
37BAT 11b
Page 38
The Basic Configuration
You can find the MAC address at the side of the device on a label which contains the main device specifica­tions.
These comprise: the MAC address of the Ethernet inter­face, the item number, and the device type.

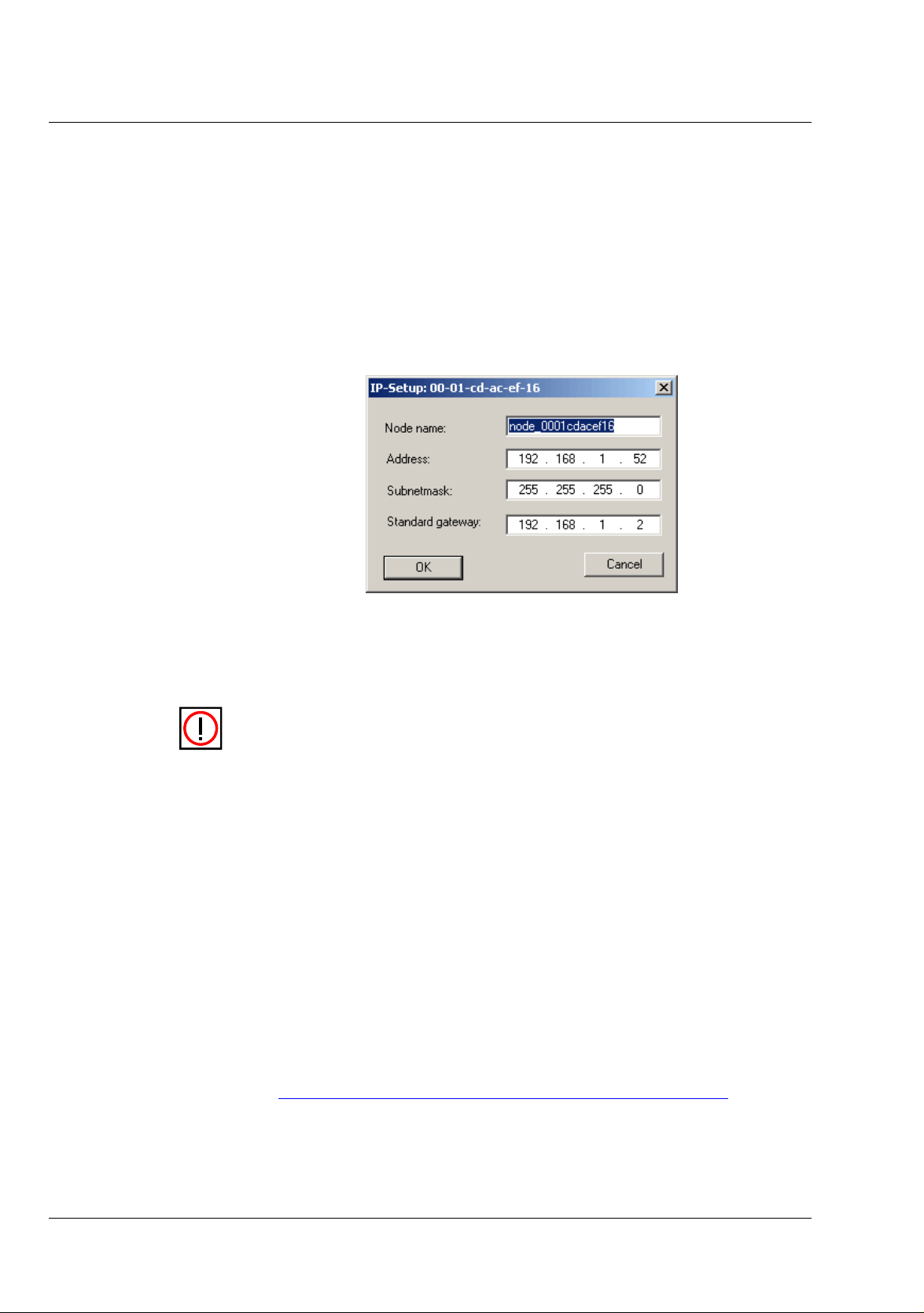

The following dialog box is displayed:
5. Enter the network parameters (Node name, Address, Subnetmask, and Standard gateway) and confirm them with OK.
Note: The parameter Node name may consist of 32 characters, as a
maximum. When entering the parameter Node name, only the letters
from “a” to “z”, “A” to “Z”, the digits “0” to “9”, the hyphen “­”, and the dot “.” must be used to avoid errors caused if other systems interpret the parameter Node name. The first charac­ter has to be a letter, the last character must not be a dot “.” or a hyphen “-”. A single character is not permitted as a name.
Your BAT 11b can now be reached with its IP address over the Ethernet via a web browser and can be configured (see Sec­tion The User Interface of the BAT 11b in the AP Mode
).
38 BAT 11b
Release 1.0 03/04
Page 39

The Main Parameters

The following chapter introduces the main parameters of the BAT 11b configuration and briefly illustrates them. That way, you will gain an insight into the configuration options of the BAT 11b.

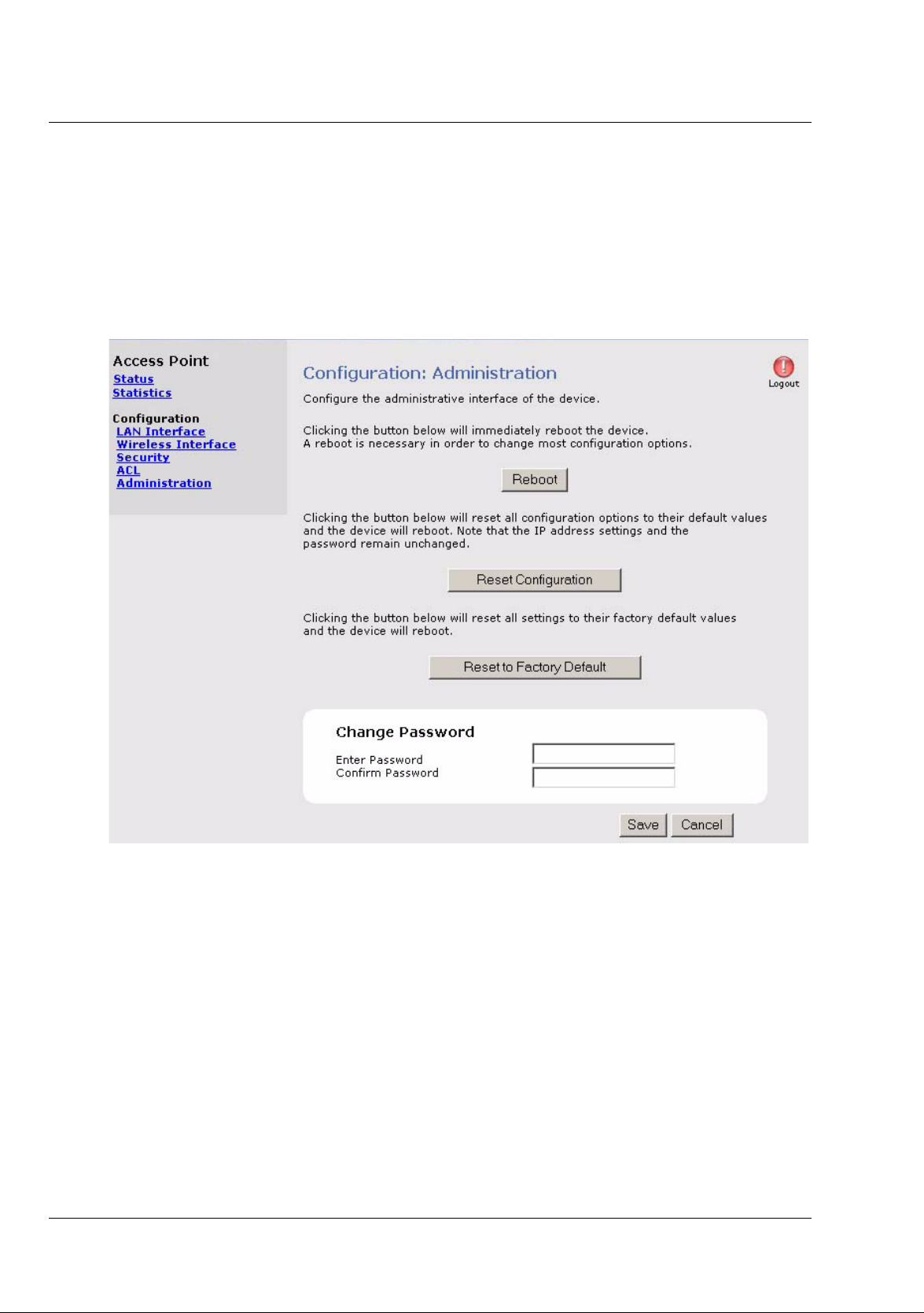

Changing the Password

To prevent unauthorized access, you should change the pass­word as soon as possible. You can find a detailed description of the AP mode in Section Configuration: Administration
Page 3–80 istration on Page 4–106.
The Main Parameters
on
, of the AC mode in Section Configuration: Admin-

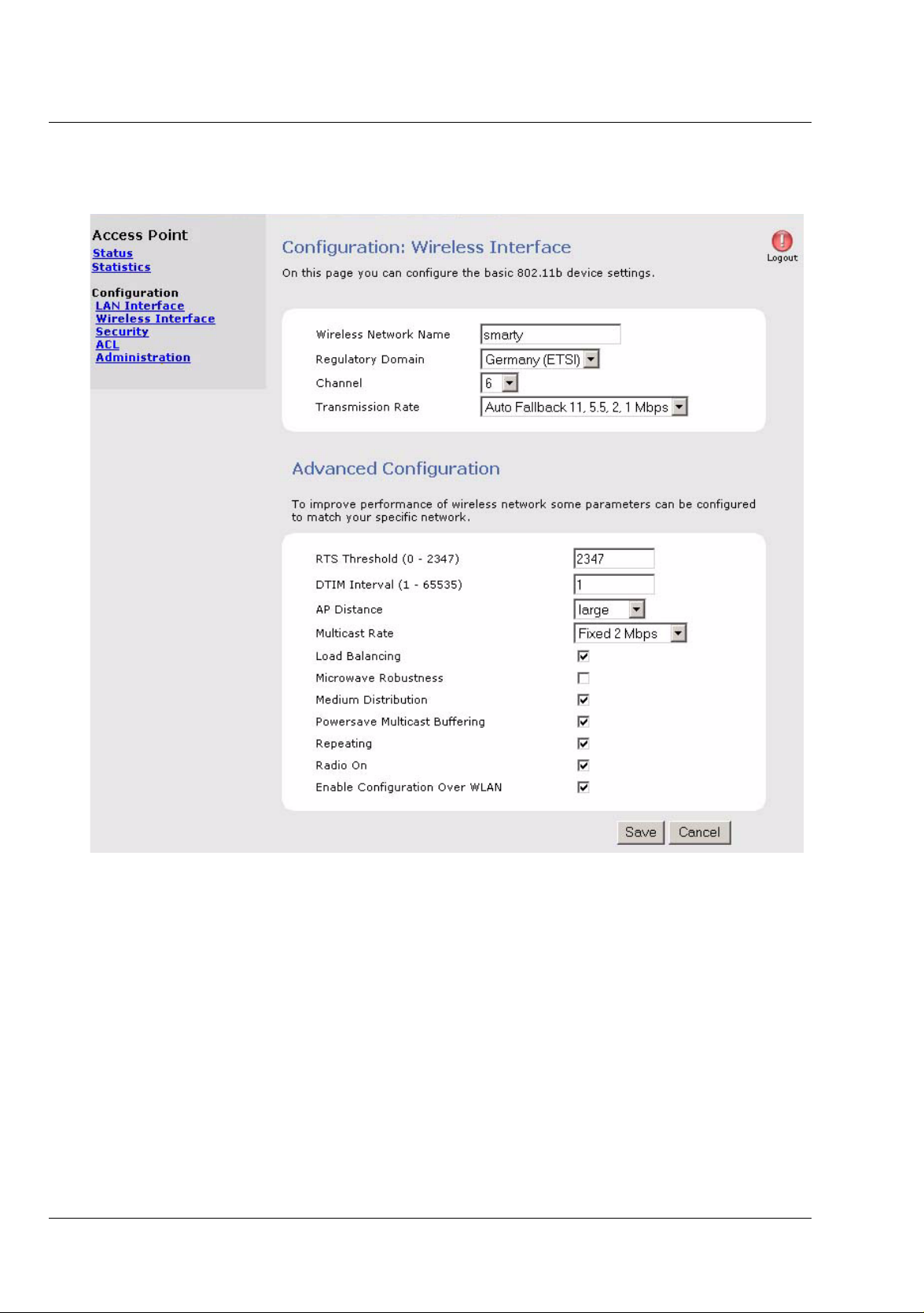

Setting the Network Name

In contrast to LANs which have been configured via Ethernet, a wireless LAN does not provide cabling to permit a permanent connection between server and clients. This is why malfunc­tions or access violations can occur in directly adjacent wire­less networks.
In order to prevent this, there is a parameter comparable to a domain name in each wireless network which clearly identi­fies the network. Only clients where the network configuration matches that of the BAT 11b can communicate in this WLAN. For more information on the AP mode, refer to Section Config-
uration: Wireless Interface on Page 3–70, on the AC mode to
Section Configuration: Wireless Interface
on Page 4–98.
Release 1.0 03/04
39BAT 11b
Page 40

Selecting the Frequency

Selecting the Frequency
Although wireless networks can be logically separated by set­ting the Network Name, they can still physically interfere with each other if they are operated on the same radio channel or on channels which are close together.
Consequently, if you operate two or more wireless networks within short distance, it is advisable to assign different chan­nels to the networks. Since a network also allocates a part of its adjacent channels, these channels should be at least 4 channels apart from each other. For more information on the AP mode, refer to Section Configuration: Wireless Interface
Page 3–70 less Interface on Page 4–98.
on
, on the AC mode to Section Configuration: Wire-

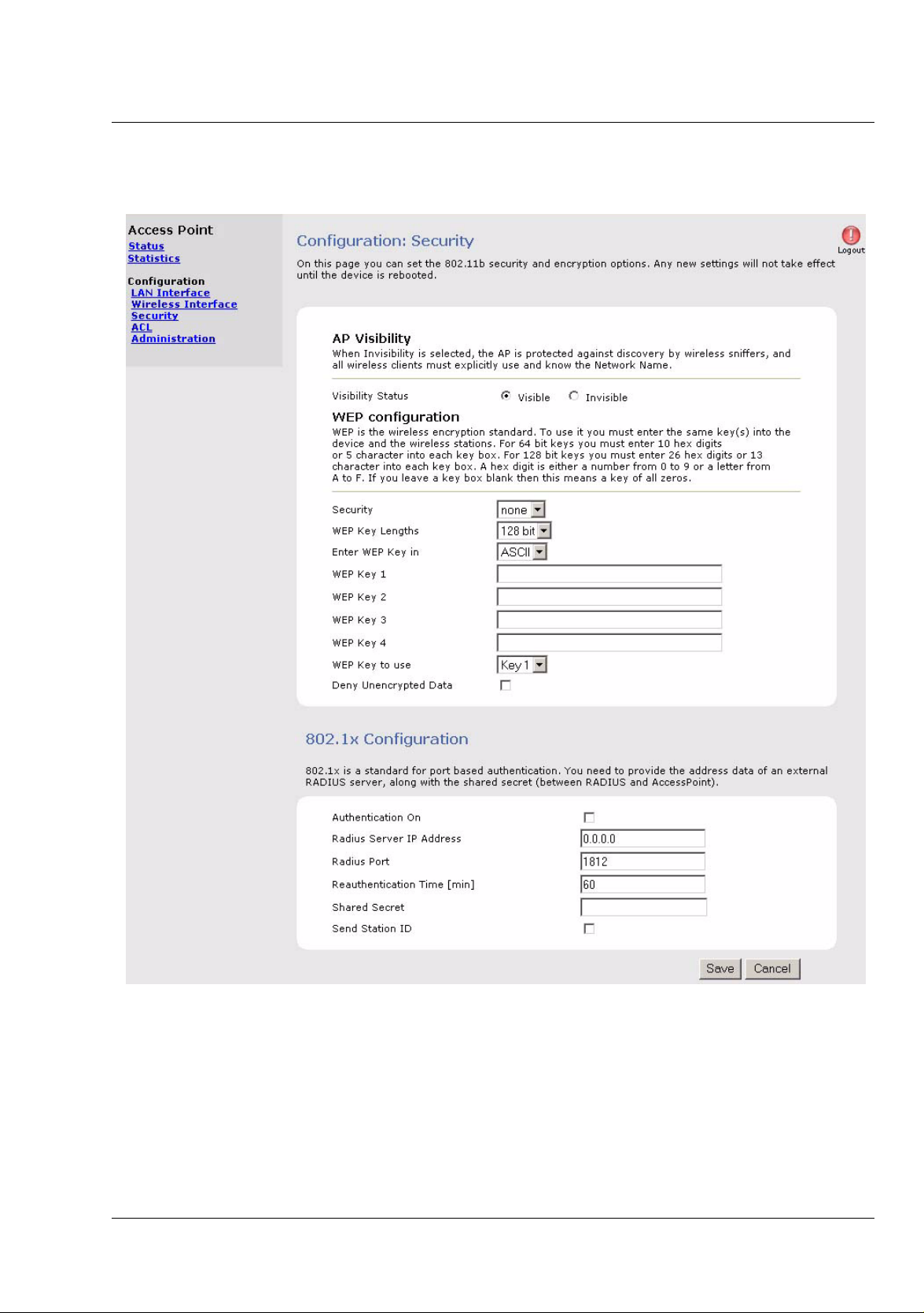

Activating the Encryption

To prevent the data transmitted via radio technology from being eavesdropped easily, you should activate the encryp­tion. In the process, the same key will be entered at all sta­tions or clients of a wireless network. Basically, there are two key lengths: 64 bits (corresponds to a 40-bit-effective key) and 128 bits (corresponds to a 104-bit-effective key). If all cli­ents used support 128-bit encryption, you should activate it. For detailed information, refer to the AP mode in Section Con-
figuration: Security on Page 3–75, to the AC mode in Section Configuration: Wireless Interface
on Page 4–98.
40 BAT 11b
Release 1.0 03/04
Page 41
2

The Hirschmann BAT Discovery

This chapter describes additional configuration options for the Hirschmann BAT Discovery, which go beyond the basic configuration (see Section The Basic Configuration
Page 1–37
The basic configuration comprises the following settings:
•Entering the name
Entering the IP address
Entering the netmask
Entering the standard gateway
Further configurations which can be performed via the Hir­schmann BAT Discovery are:
).
The Hirschmann BAT Discovery
on
•Setting up a Telnet connection
•Setting up a Web connection

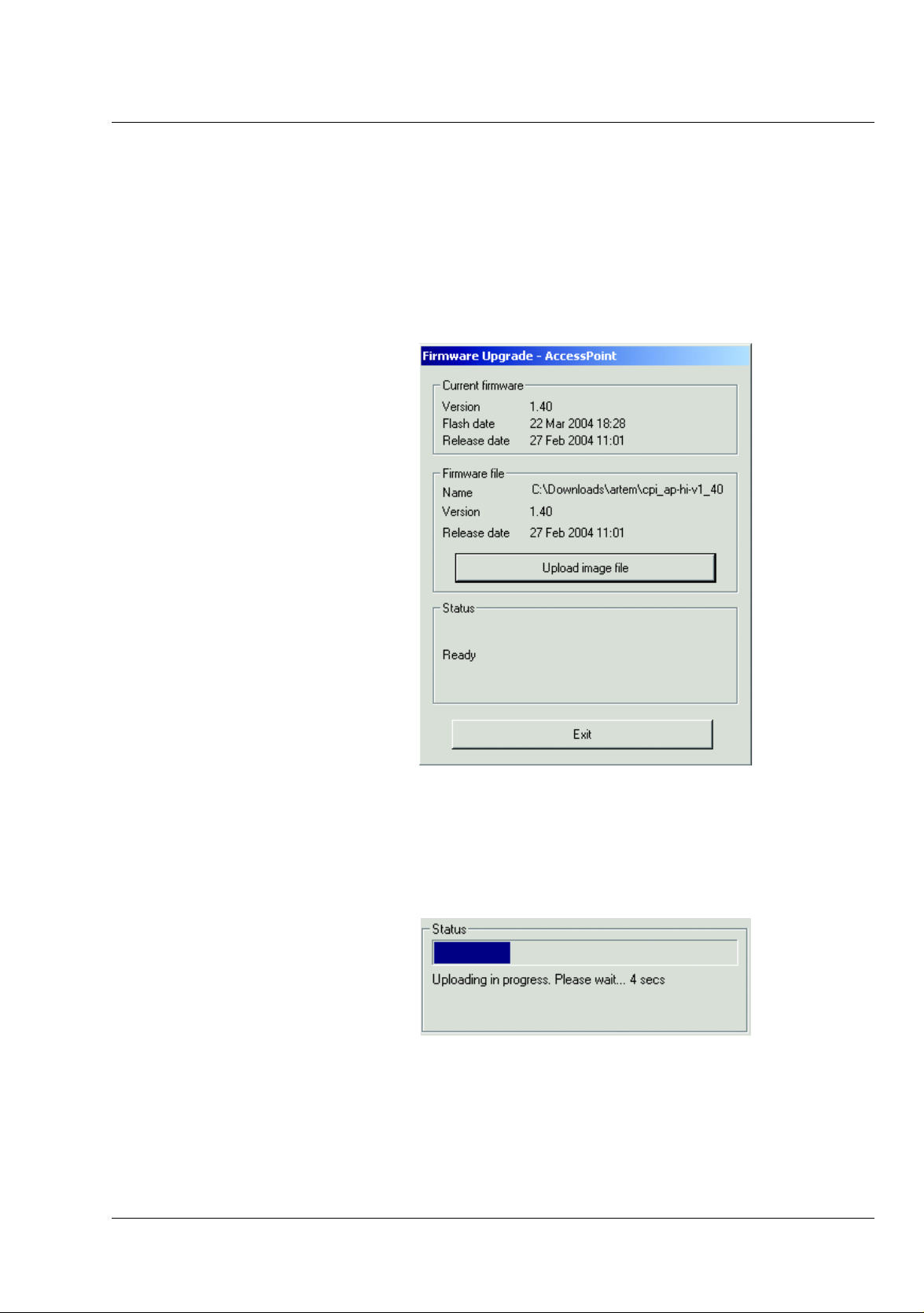

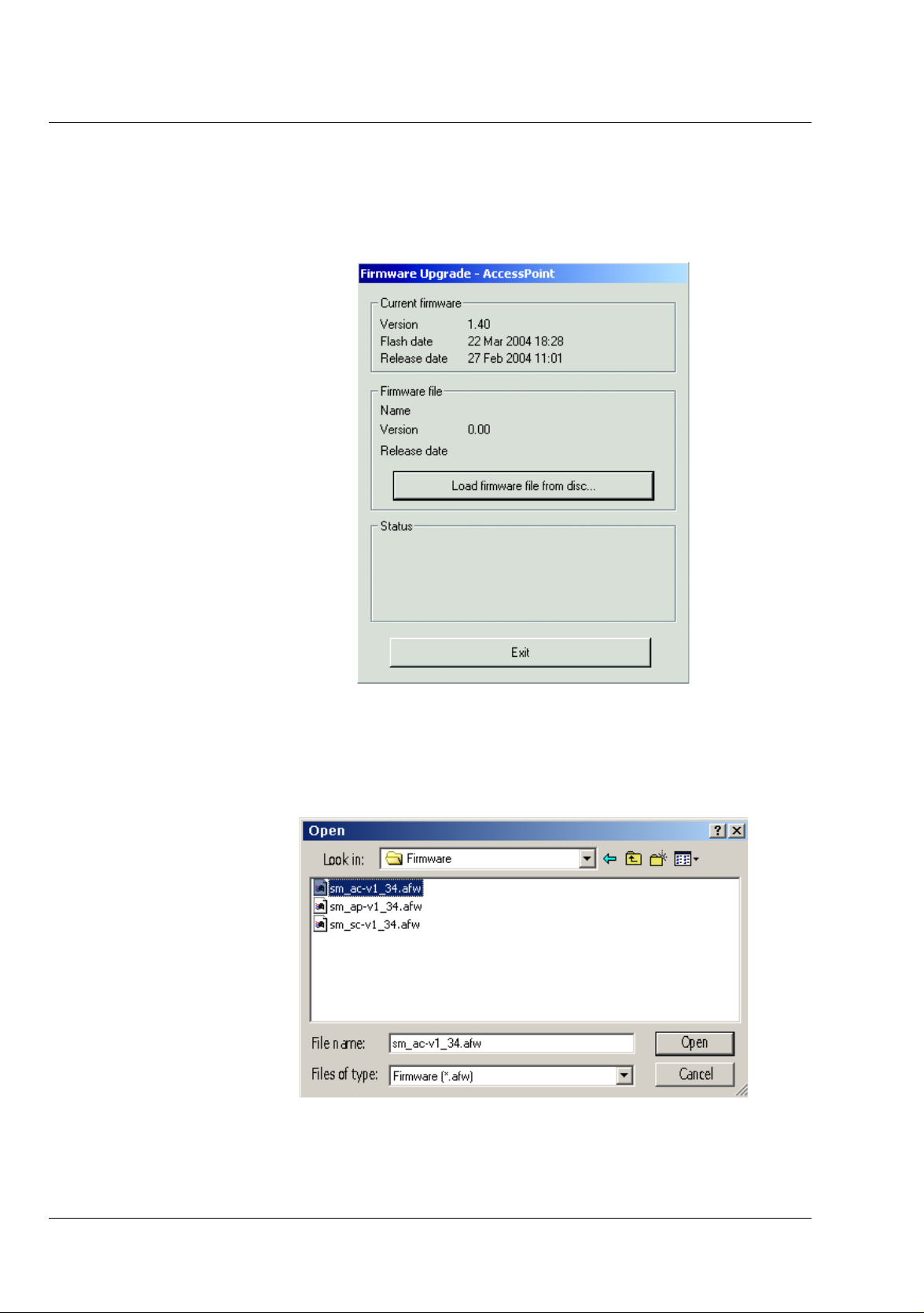

Firmware upgrading
Restart (restarting the BAT 11b)
Resetting to the BAT 11b factory default settings
Prerequisite: The PC with a Windows operating system, which you use to
configure your BAT 11b, has to be connected to the same network as the BAT 11b to be configured.
BAT 11b
Release 1.0 03/04
41
Page 42
The Hirschmann BAT Discovery

Working with the BAT Discovery

The computer has to be provided with a working and sensi­bly configured TCP/IP stack.
If the router does not forward multicasts, the search func­tion is limited to the subnetwork of the PC where the BAT Discovery is installed.
The BAT 11b can only be configured via a password. For safety reasons, it is recommended to change the preset
passwords as soon as possible.
If your computer is provided with various network inter­faces, you can configure a special multicast interface in the Hirschmann BAT Discovery with which you can search for the BAT 11b (see How to Determine a Multicast Interface
Page 2–42
on
).

How to Determine a Multicast Interface

If the PC on which the BAT Discovery is installed is provided with various network interfaces, you can use this function to determine via which interface BAT 11b are searched.

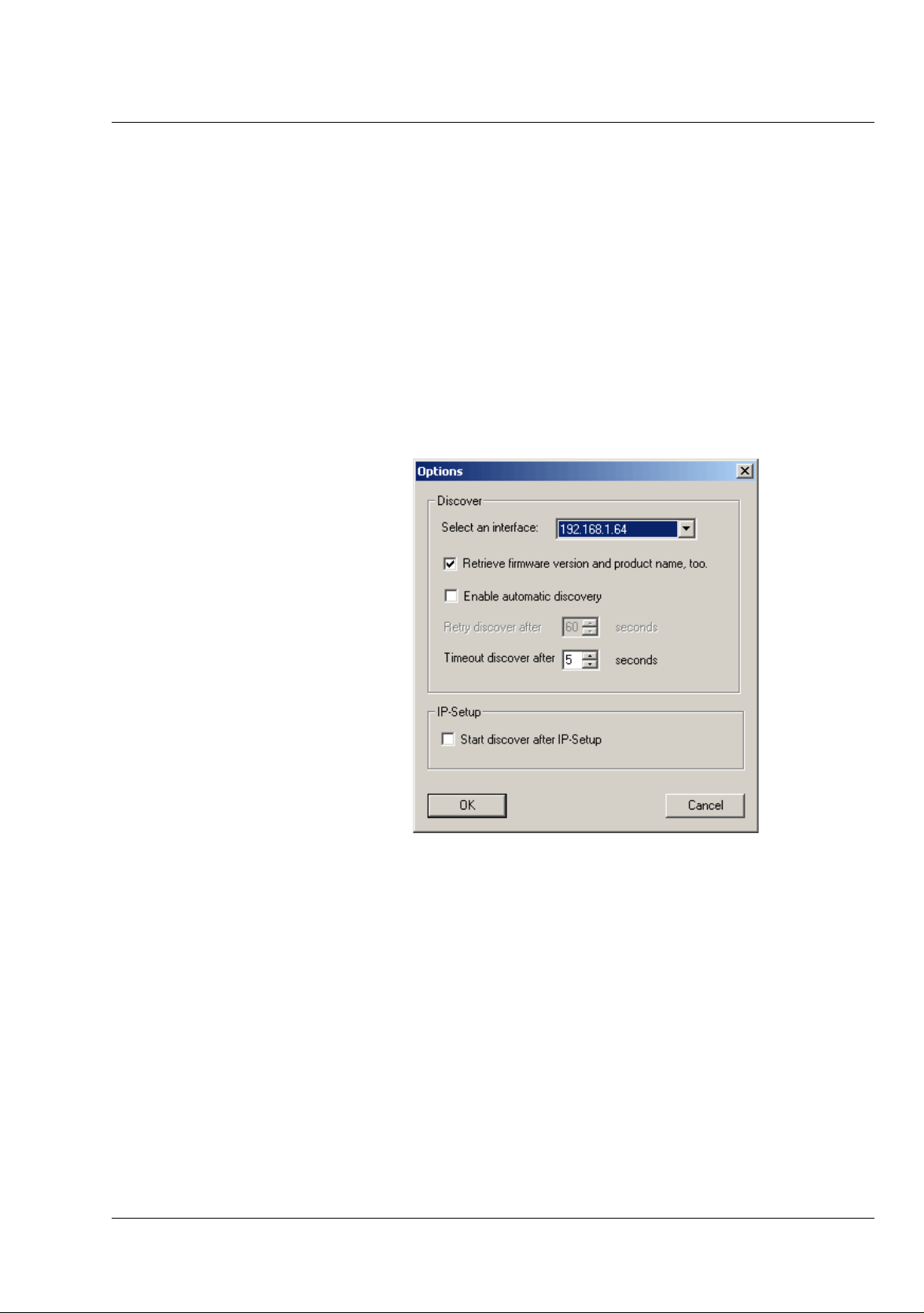

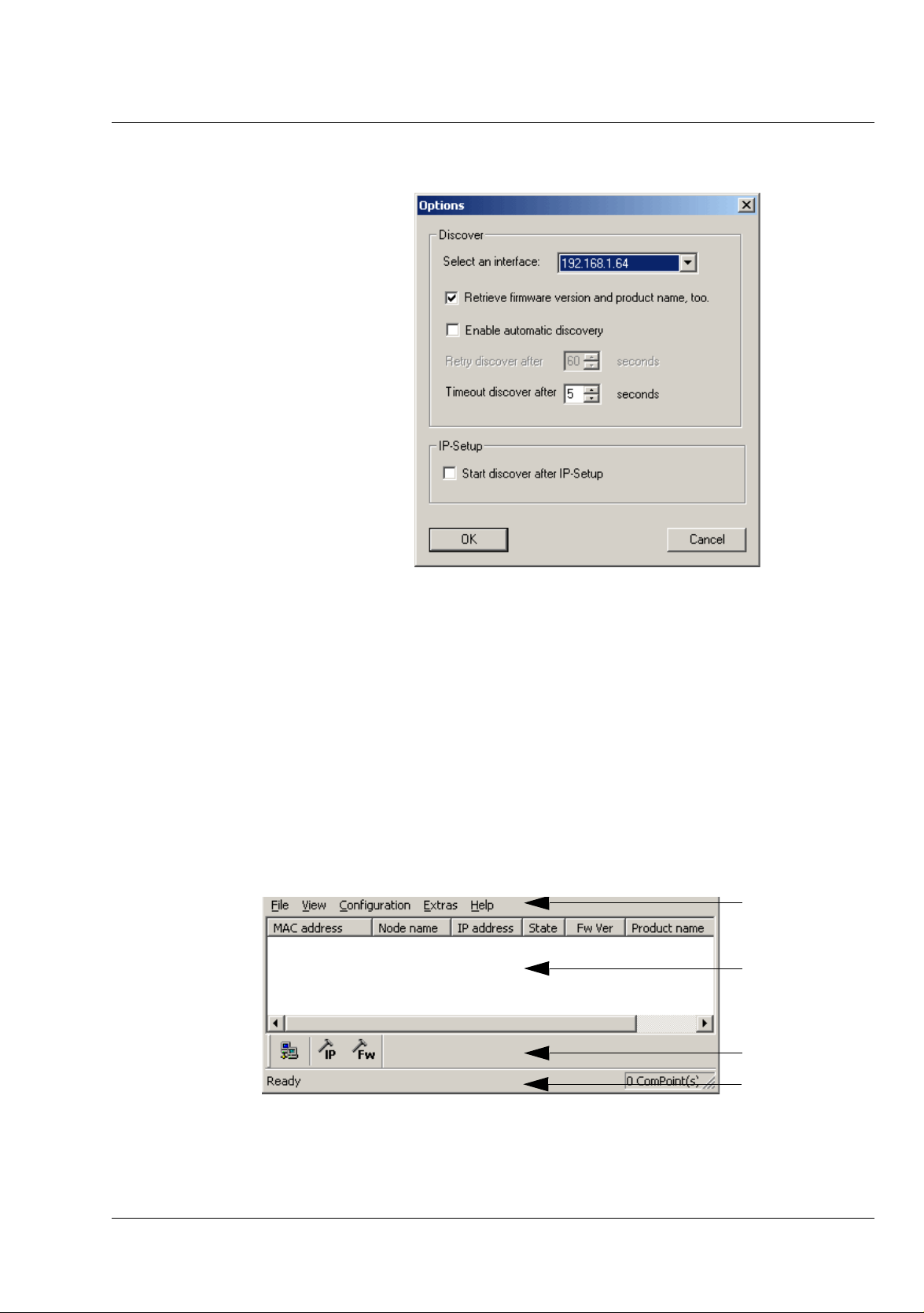

1. To select a multicast interface manually, go to Extras >
Options. The following dialog box is displayed:
42 BAT 11b
Release 1.0 03/04
Page 43

The User Interface of the BAT Discovery

M
2. Select the IP address of the NIC which you want to use as a multicast interface and confirm by pressing OK.
If the multicast interface 0.0.0.0 is defined, the search is performed via all network interfaces of the PC.
The User Interface of the BAT Discovery
The user interface of the BAT Discovery consists of four com­ponents which will be explained in the following:
enu
Main window
Tool bar
Status bar
Release 1.0 03/04
43BAT 11b
Page 44

The Main Window

The Main Window

The Menu

If the BAT Discovery is started the main window is empty at first. It is designed like a table and is divided into the columns MAC address, Node name, IP address, and State. According to the configuration, it also contains the columns FwVer and Pro- duct name. As soon as BAT 11b have been searched for and identified in the network, the corresponding data on the respective device will appear in these columns.
The menu is located at the upper margin of the BAT Discovery and contains the menu items File, View, Configuration, Extras, and Help with up to 9 items each. The numerous functions which can be activated via this menu will be discussed in detail later on in this chapter.

The Tool Bar

The Status Bar

The tool bar is located directly below the main window and provides fast access to Discovery, IP-Setup, and Load firm- ware, the three main functions of the BAT Discovery. These three functions, which can also be selected via the menu, will be illustrated in detail in the following.
1. Select View > Tool Bar to show or hide the tool bar.
The status bar at the lower margin of the window displays the current status of the BAT Discovery, as well as a short descrip­tion of the menu item above which the mouse pointer is cur­rently located. The window shows the number of BAT 11b found and the progress of the search. The latter applies only to menu items which were called via a function, e.g. Discovery.
44 BAT 11b
Release 1.0 03/04
Page 45

The Functions of the BAT Discovery

1. Select View > Status Bar to show or hide the status bar.
The Functions of the BAT Discovery

Searching for Available BAT 11b

The search options can be set via the Extras> Options menu item.
Release 1.0 03/04
In the main menu, you can display information on the product name and the device version if you check the corresponding box.
If you want to enable automatic discovery, check the corre­sponding box. In the drop-down list below, you can select val­ues from 10 to 60 seconds. After the expiration of this time interval, the BAT Discovery is automatically restarted.
You can abort the discovery process after a determined time interval. In small networks with only a few BAT 11b, for instance, you can reduce this time span to 3 seconds. The maximum value is 10 seconds.
45BAT 11b
Page 46
Searching for Available BAT 11b
After performing all settings, click OK to take over these set­tings.
The Discovery function can be activated both via File > Disco- very or directly via the Discovery button in the tool bar.

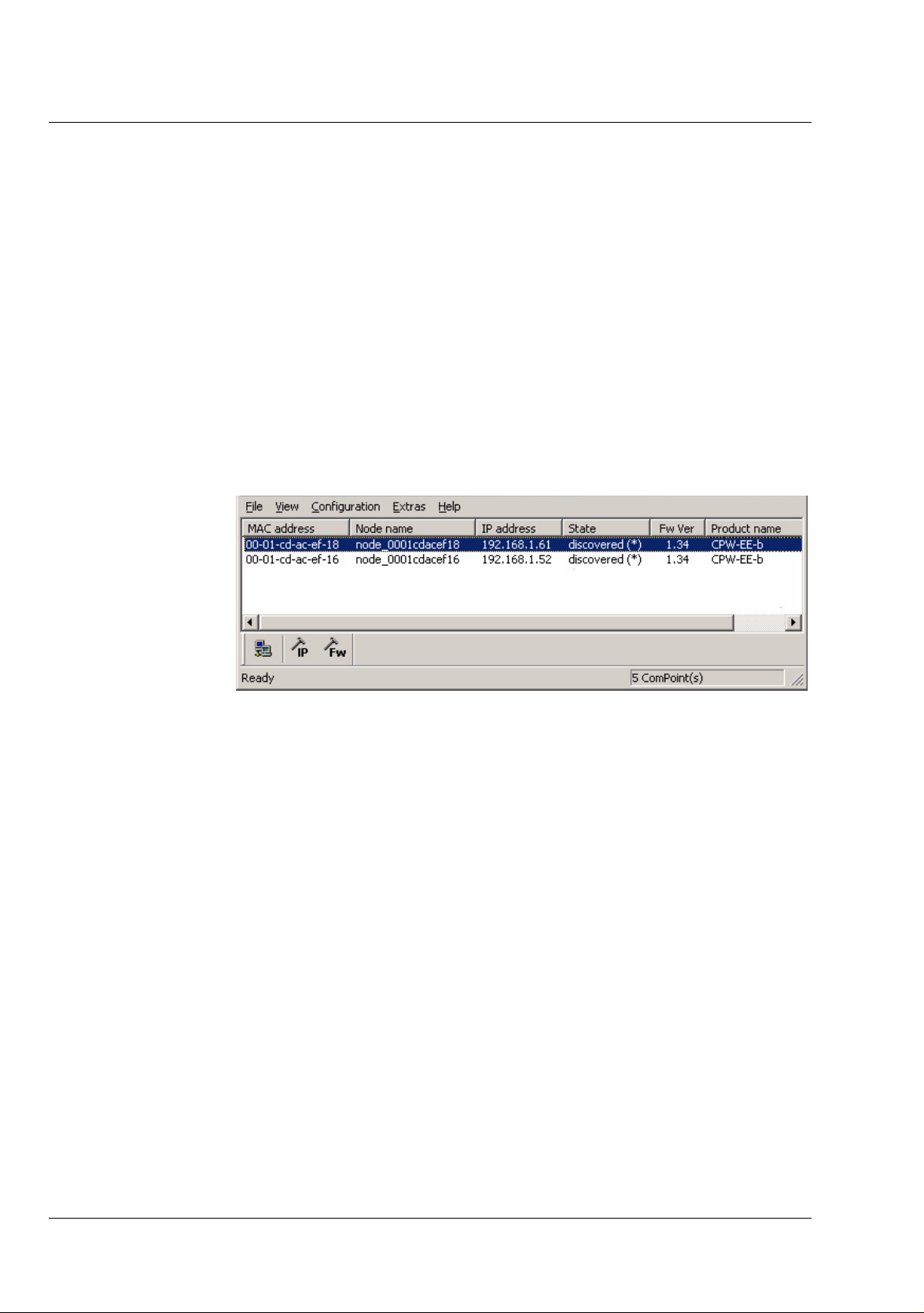

The BAT Discovery will then automatically identify those BAT 11b which have been installed in the network and display them in the main window together with the corresponding parameters (MAC address, Node name, IP address). According to the setting of the options, the firmware version (Fw Ver) and the product name (Product name) will also be displayed.
In the State column, the following entries are possible:
discovered: discovered by the BAT Discovery
not found: BAT 11b was not found in new search. The subsequent brackets may contain the following additional
information:
(MAC): Means that a BAT 11b was found via the BAT Discov­ery protocol, but is not reachable via IP. For instance, this will happen if the BAT 11b still has the default setting
0.0.0.0 or an invalid IP configuration.
(IP): Means that the device is not reachable via the BAT Dis­covery protocol, but can be addressed via IP. This will mostly happen if the IP configuration of the BAT 11b does not correspond to the current subnetwork, e.g. because a BAT 11b has been entered manually.
46 BAT 11b
Release 1.0 03/04
Page 47
(*): Means that the device was found via the BAT Discovery protocol and is reachable via IP.
[Time] (only if not found): Specifies the period of time passed since the last successful search process. This time specification is only updated when a search process is car­ried out either manually or automatically, according to the individual settings.

Editing Entries Manually

Under File > Edit, you can choose between the functions Add BAT 11b, Delete BAT 11b, and Delete all BAT 11b.
Editing Entries Manually

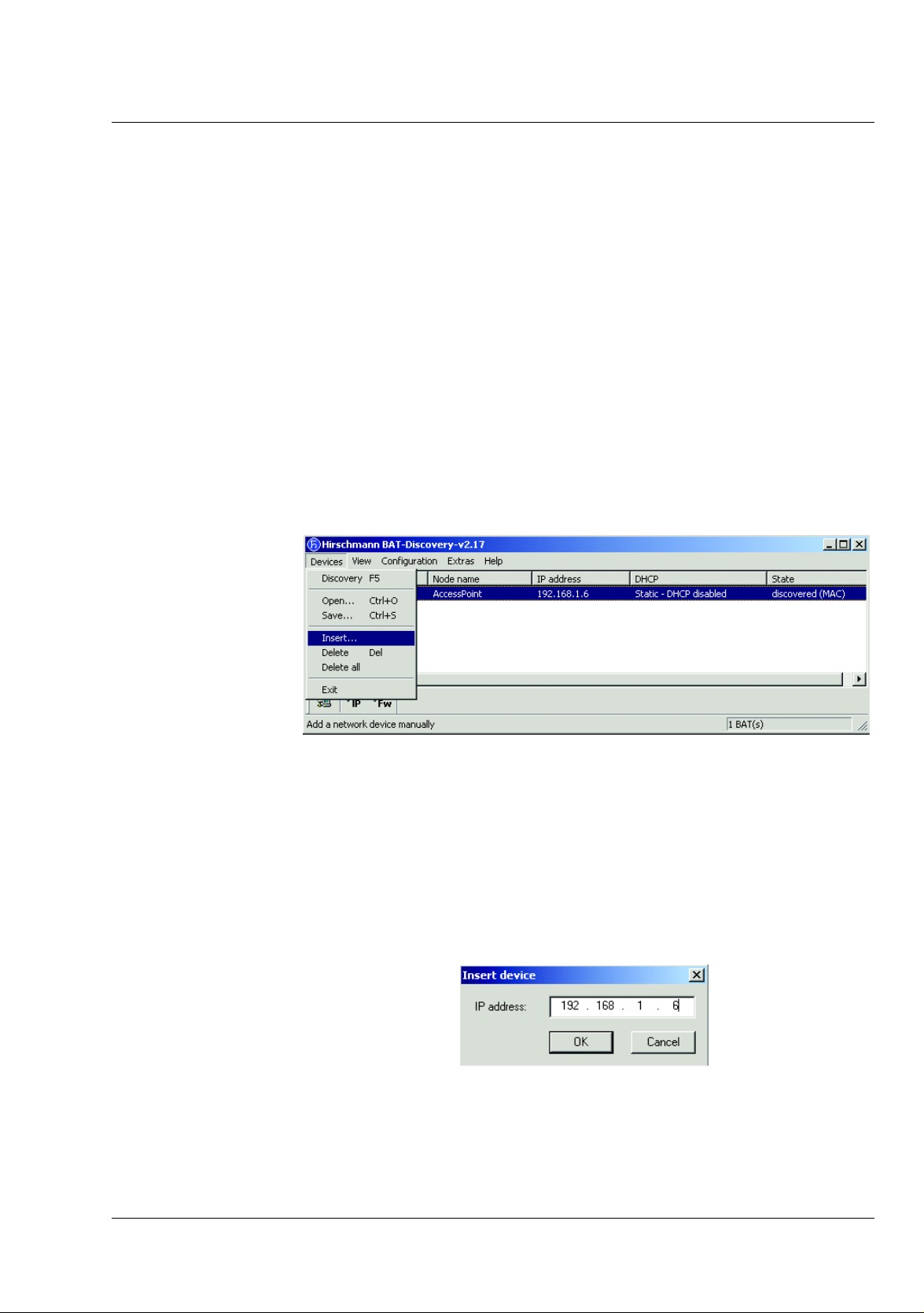

How to Add a BAT 11b Manually

1. Select File > Edit > Add BAT 11b.
A dialog box is opened in which you can enter the IP address of the BAT 11b to be added.
Release 1.0 03/04
47BAT 11b
Page 48

How to Delete BAT 11b Entries

2. Confirm the entry by clicking the OK button. The manu­ally added BAT 11b will now appear in the list displayed in the main window.
How to Delete BAT 11b Entries
Manually added BAT 11b and all BAT 11b marked as not found can be deleted from the list.
1. Select the MAC address of the entry to be deleted.
2. Select File > Edit > Delete BAT 11b. Alternatively, you can also press the “Del” button on your keyboard.
Hinweis: Entries (discovered state) which have been created automati-
cally by the Discovery function cannot be deleted in this way.

How to Delete all BAT 11b Entries of the “not found” State

Select File > Edit > Delete all BAT 11bs to simultaneously delete all entries marked as not found from the list in the main win­dow.

How to Save and Load the Configuration

The BAT Discovery, version 2.08 and higher, additionally offers you the option to save the configuration of the device and to load it on demand. Please note that this function works in a trouble-free way with firmware version 3.10 and higher. Select Configuration > Save config or Configuration > Load con­fig in the BAT Discovery menu.
Note: Passwords and IP settings which you have already assigned
will not be considered in this process.
48 BAT 11b
Release 1.0 03/04
Page 49

The Basic Configuration

1. To configure a BAT 11b, select the corresponding entry in the main window.

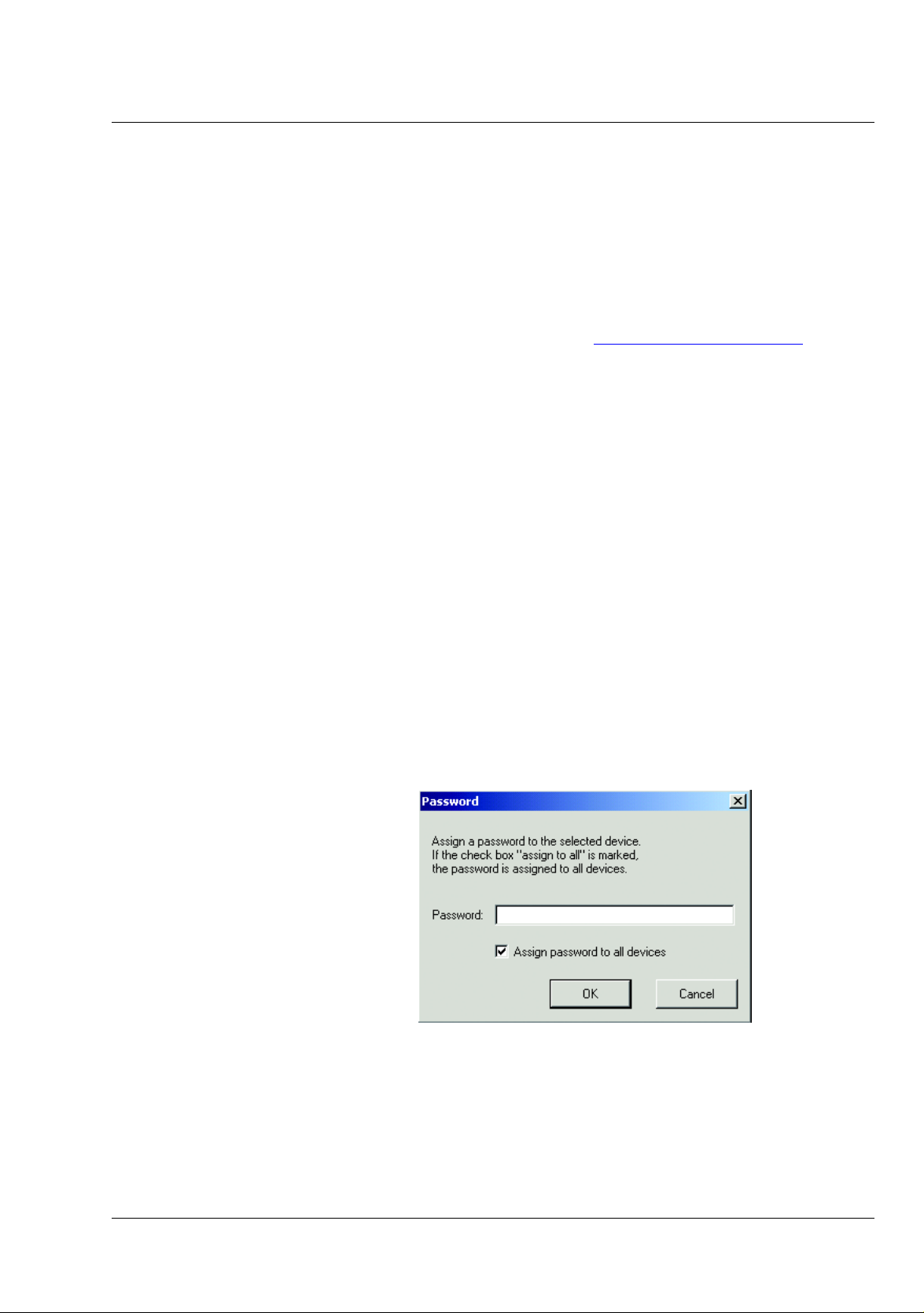

2. To be able to use all functions, enter the password for the BAT 11b (see Section Entering the Password
3. Select Configuration > IP-Setup or click the IP-Setup... button in the tool bar.

Entering the Password

The password is required to use the following functions of the BAT Discovery:
The Basic Configuration
).
Load firmware
How to Restart the BAT 11b
•Factory default
•IP-Setup To enter the password, proceed as follows:
1. Select the BAT 11b in the list and select Extras > Pass- word.
Release 1.0 03/04
2. Enter the password for the BAT 11b. The factory-set password for the administrator user
level is admin. If the Assign to all BAT 11b option is checked, the pass-
49BAT 11b
Page 50

How to Set up a Web Connection

word is assigned to all other BAT 11b, as well. If the BAT Discovery is exited, the password has to be reentered when restarting the BAT Discovery.
You can change the password via the BAT 11b user interface. For the BAT 11b in the AP mode, refer to Section Configuration:
Administration on Page 3–80, for the BAT 11b in the AC mode,
see Section Configuration: Administration
How to Set up a Web Connection
1. In the main window, select the BAT 11b which you want to access via the Web (browser-based interface) and select Configuration > Advanced > Web. Alternatively, you can select the Web function with the right mouse button.
on Page 4–106.

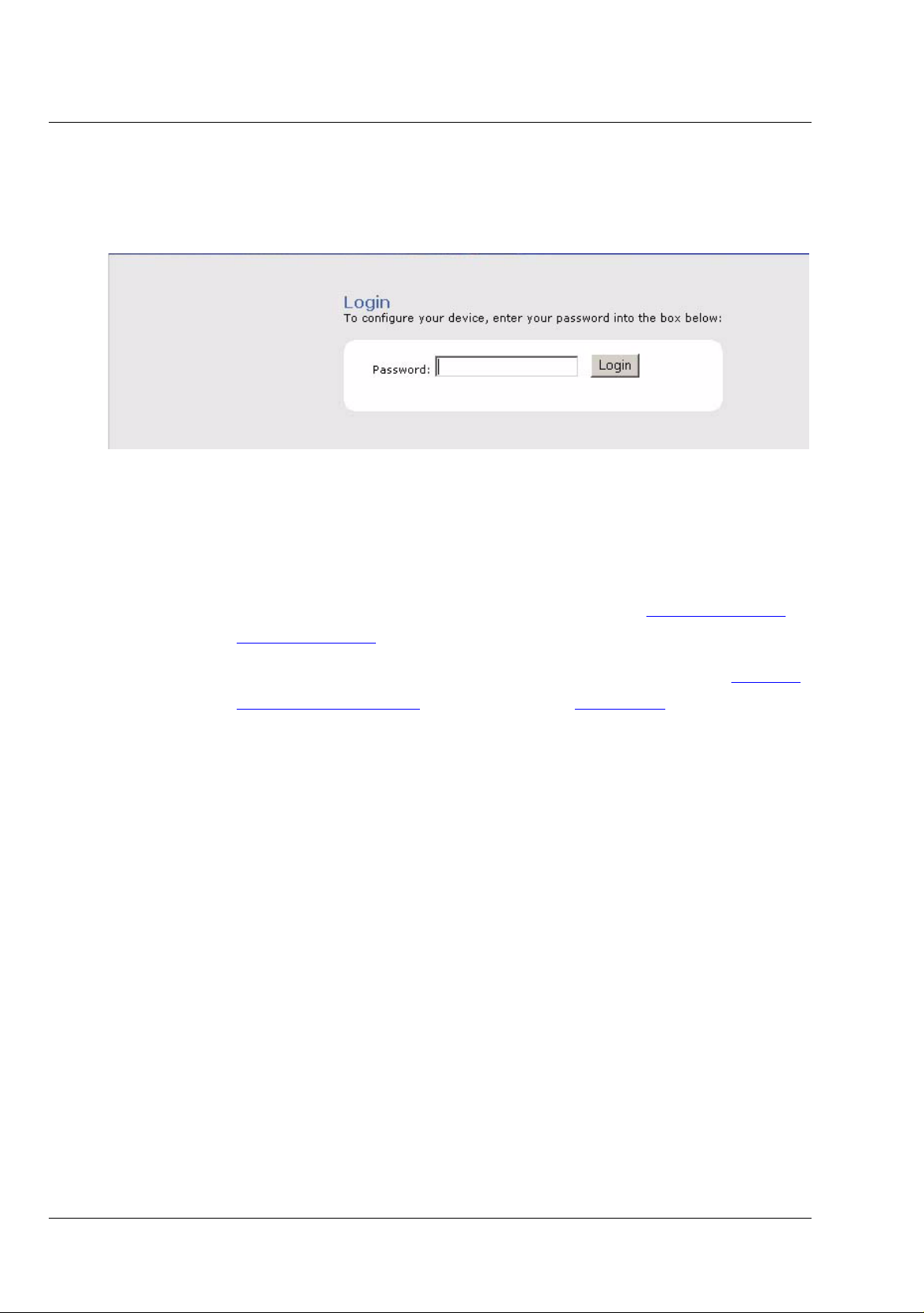

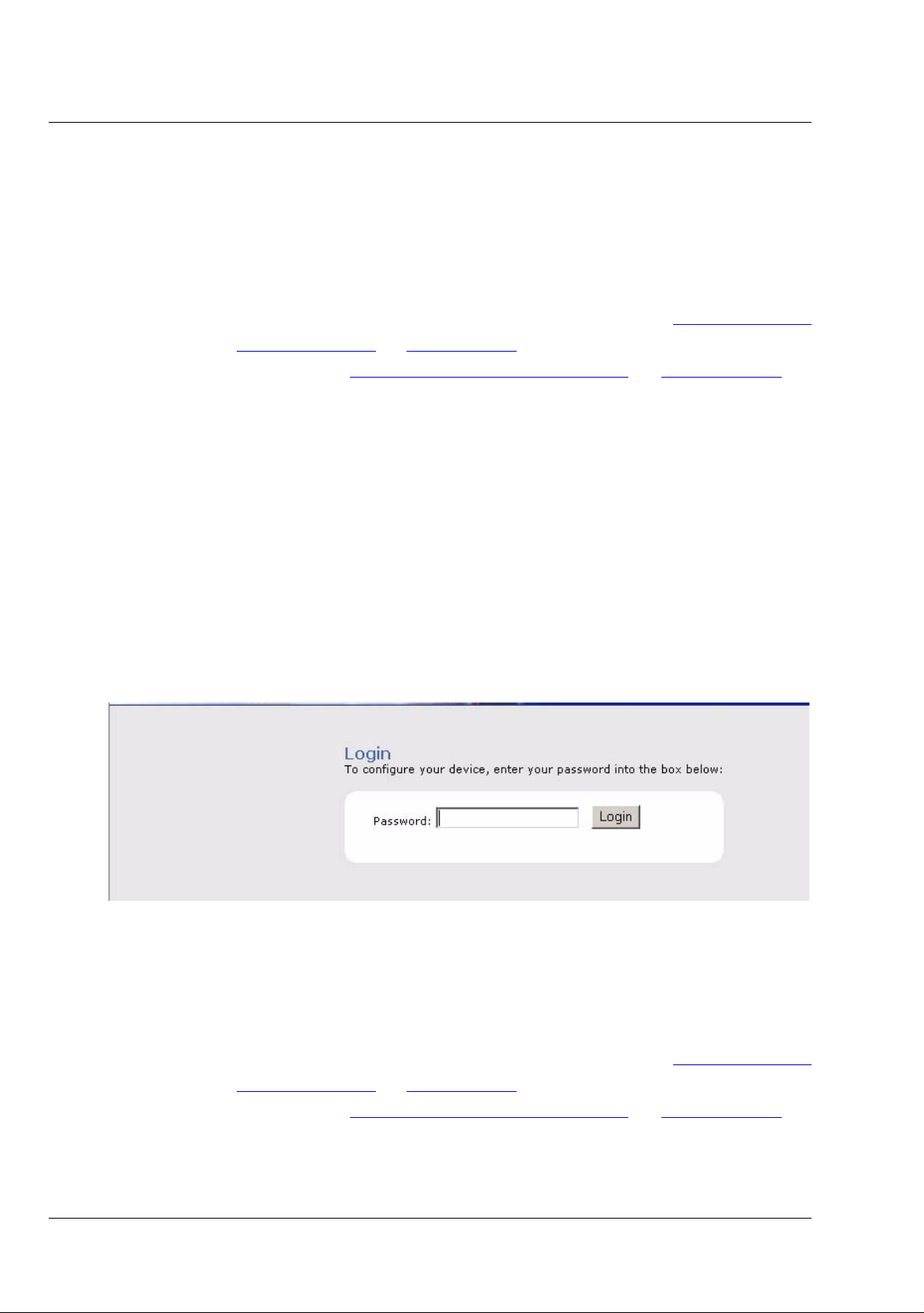

2. A browser window is opened. The following dialog box appears:
3. Enter the Password and click the Login button. The fac­tory-set password is: admin.
You can change the password via the BAT 11b user interface. For the BAT 11b in the AP mode, refer to Section Configuration:
Administration on Page 3–80, for the BAT 11b in the AC mode,
see Section Configuration: Administration
on Page 4–106.
50 BAT 11b
Release 1.0 03/04
Page 51
If you have forgotten your password, refer to Section How to
Reset the Password in the Annex on Page 122.

How to Upgrade the Firmware

Caution! During the BAT 11b upgrade, you must neither turn off the BAT 11b nor interrupt the data connection. Otherwise, the BAT 11b software will be damaged. You will then have to return the BAT 11b to the manufacturer.
1. Before upgrading, make sure that the new firmware version (files ending with *.afw) is available on your hard disk or on another data carrier.
How to Upgrade the Firmware
2. Under Extras > Password, enter the password of the admin user level if this has not been done yet. Other­wise, an update will not be possible.
3. In the main window of the BAT Discovery, select the BAT 11b which you want to upgrade and select Configura- tion > Load firmware... Alternatively, you can right-click the Load firmware option or activate the Firmware func­tion from the tool bar.
Release 1.0 03/04
51BAT 11b
Page 52
How to Upgrade the Firmware
4. In the new dialog box, activate the Load firmware file from disc... button.
5. Select the file which contains the new Firmware. In our example this is sm_sc-v1_34.afw, the lower file in the window.
52 BAT 11b
Release 1.0 03/04
Page 53
How to Upgrade the Firmware
6. Confirm by clicking the Open button. The path for the firmware in the control box under Firm-
ware file is automatically updated, and the BAT Discov­ery checks whether an upgrade is possible and makes sense.
Release 1.0 03/04
7. Boot the firmware upgrade by clicking the Load firm­ware file button. Under Status, a progress bar and the
current process are displayed.
53BAT 11b
Page 54
How to Upgrade the Firmware

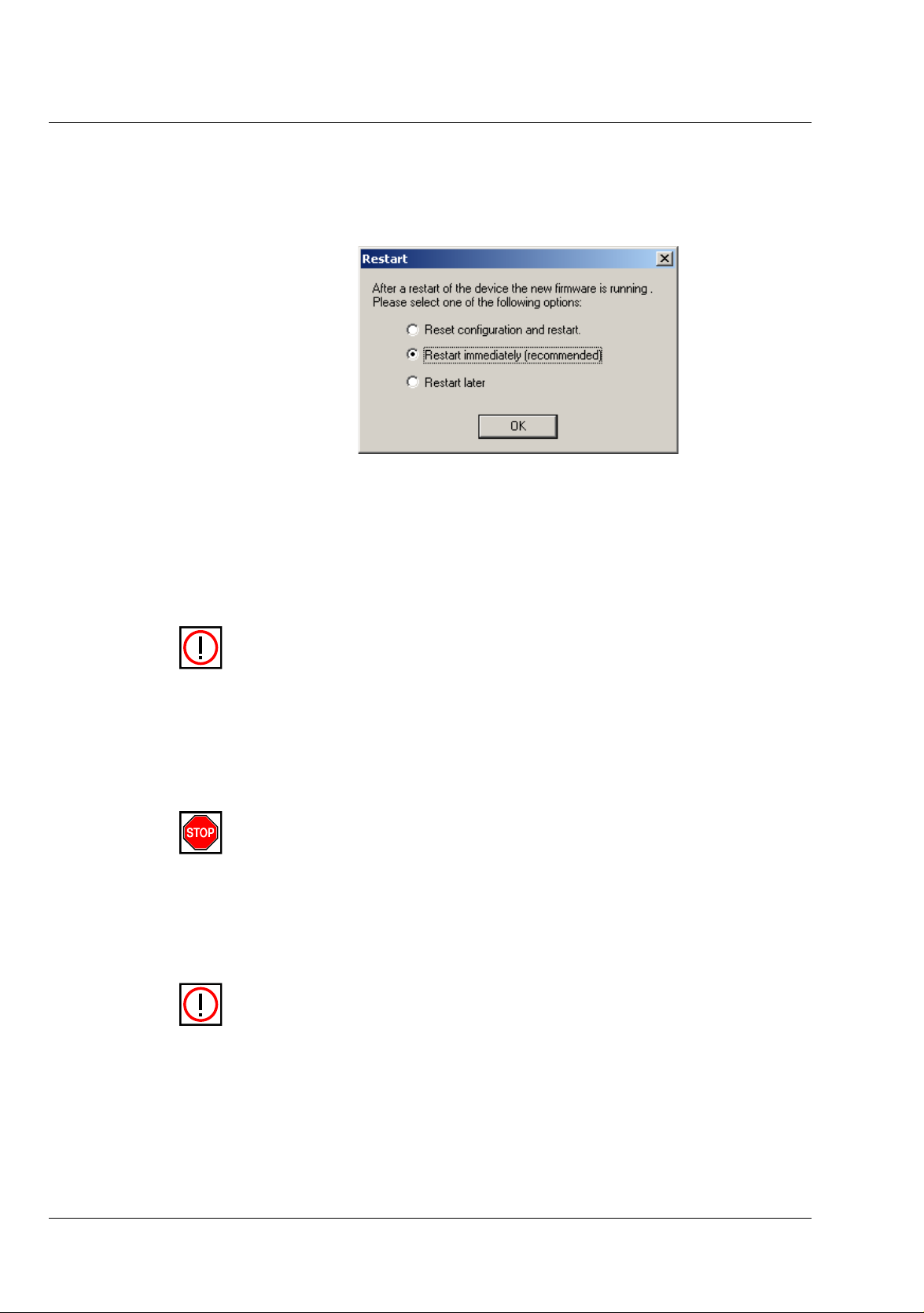

8. As soon as the firmware upgrade has been finished successfully, the following dialog box appears:
You can choose between a simple restart of the BAT 11b, a restart with a simultaneous reset of the configu­ration to the factory defaults, or a restart at a later point of time.
Hinweis: The BAT Discovery has already selected the option you
require. If the Restart immediately (recommended) option is activated, you can also check the Reset confi- guration and restart. option to reset the BAT 11b to the factory settings.
Caution! If the BAT Discovery proposes the Reset configuration
and restart. option, you must never select the Restart immediately (recommended) option.
9. To restart the BAT 11b, confirm by clicking OK.
Hinweis: The restart of the BAT 11b (takes about 20 seconds) is not dis-
played on your computer screen. With the help of the LEDs of your BAT 11b, however, you can check the radio activity, the radio status, and the Ethernet activity.
54 BAT 11b
Release 1.0 03/04
Page 55

How to Reset the BAT 11b to the Factory Defaults

10. Finally, check the functionality of the BAT 11b via the BAT Discovery, e.g. by searching for BAT 11b installed in the network.
How to Reset the BAT 11b to the Factory Defaults
1. To cancel configurations made and to reset the BAT 11b to the factory defaults, select Configuration > Factory default.
A reset will be performed automatically.
Note: The complete configuration of the BAT 11b will be reset to the
factory default settings. Only the password will be main­tained.

How to Restart the BAT 11b

1. Select Configuration > Restart to restart the BAT 11b.

How to Exit the BAT Discovery

1. Select File > Exit to exit the BAT Discovery.
Release 1.0 03/04
55BAT 11b
Page 56
How to Exit the BAT Discovery
56 BAT 11b
Release 1.0 03/04
Page 57

The User Interface of the BAT 11b in the AP Mode

The User Interface of the BAT 11b in the AP Mode
This chapter describes the structure of the Web-based user interface and explains how to start it. The browser inter­face is dependent on the browser used, not on the operat­ing system. (Internet Explorer, Netscape, Opera, etc.). In the below example, the Internet Explorer was used for the purpose of configuration.

How to Start the User Interface

You have 2 options to start the Web interface:
Starting directly via the browser
Starting via the Configuration menu in the BAT Discov- ery
Option 1—Starting via the Browser
1. Start the browser which you normally use, e.g.
Microsoft Internet Explorer.
2. Enter the following into the address line:
http://<IP address of the BAT 11b> e.g.: http://192.168.1.51
Option 2—Starting via the BAT Discovery
1. In the main window of the BAT Discovery, select the
BAT 11b which you want to access via the Web (Web­based interface) and select the Configuration > Advanced > Web menu or use the right mouse button and select the Web menu in the pop-up list.
BAT 11b
Release 1.0 03/04
57
Page 58
How to Start the User Interface

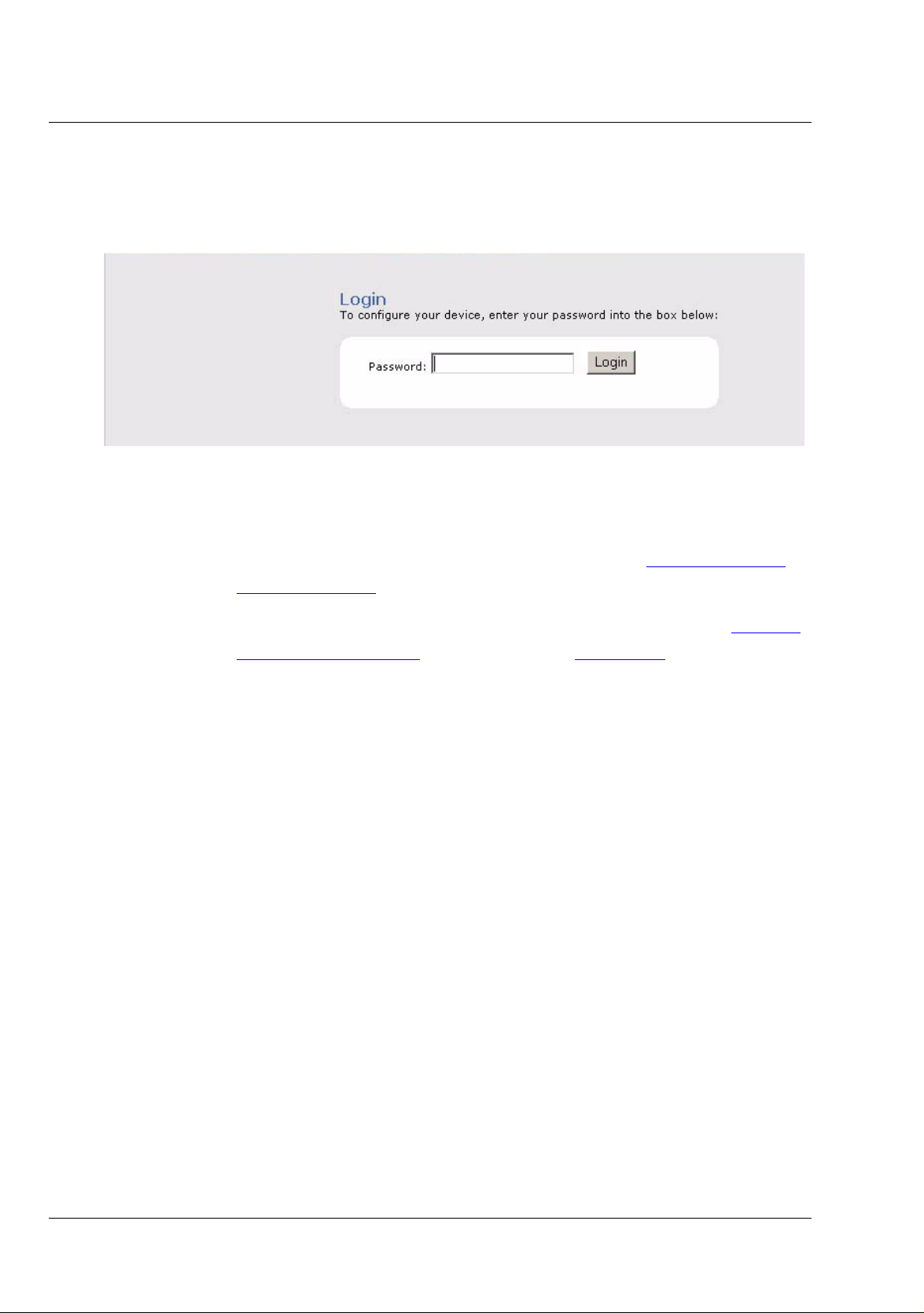

In the browser window, you are requested to enter the admin­istrator password:
Enter the Password and click the Login button. The factory-set password is: admin.
You should change the password under the Configuration:
Administration menu item.
If you have forgotten your password, refer to Section How to
Reset the Password in the Annex on Page 122.
58 BAT 11b
Release 1.0 03/04
Page 59

Status

Status

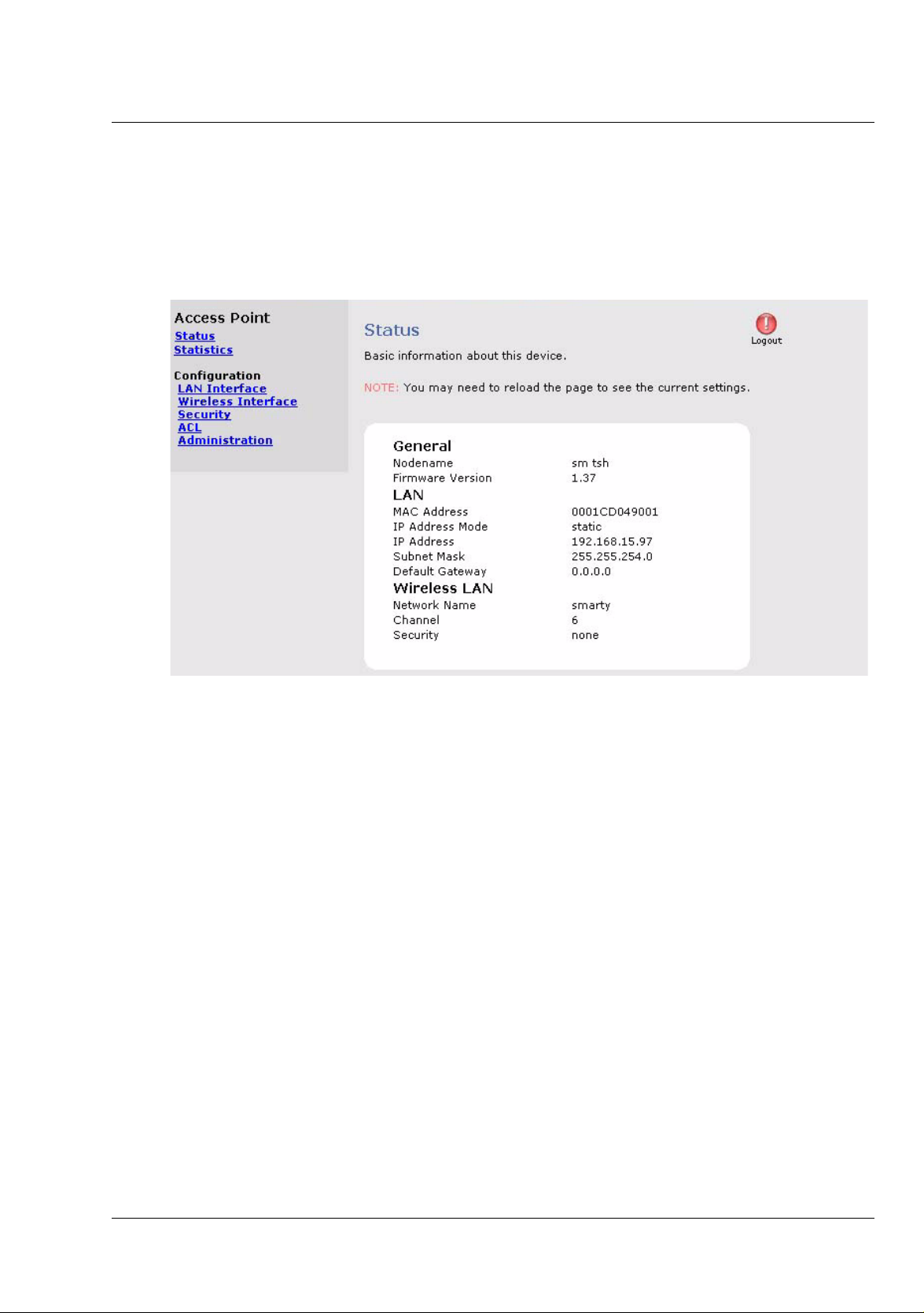

After a successful log-on, a status window is displayed which presents all vital data at one glance:
In the navigation bar to the left, you can select and go to vari­ous configuration processes.
If you click the log-out button, the browser session will be ter­minated and you will have to log on once again when starting the browser.
If you click the help button, you will open an online help.

General

Nodename: This is the name of the BAT 11b Workgroup, as it is also displayed in the BAT Discovery. It serves to localize the devices and can be assigned almost freely. In the state as delivered, the node name consists of “node_” and the MAC address of the BAT 11b.
Firmware Version: It shows the firmware status currently installed on the BAT 11b. Firmware upgrades should only be made if problems occur with the currently used firmware or if a newer firmware version with
Release 1.0 03/04
59BAT 11b
Page 60
Status
desired new features is available. A firmware upgrade can be made under How to Upgrade the Firmware
on Page 2–51.
LAN
MAC Address: This is the hardware address of the BAT 11b Workgroup.
IP Address Mode: DHCP or Static IP address: Specifies whether the IP address was determined statically or assigned by a DHCP server.
•IP Address The IP address is the unambiguous IP address of the BAT 11b Workgroup.
•Subnet mask The subnet mask, which is also referred to as IP mask or netmask, masks the IP address section in your network.
Default Gateway Shows the IP address of your default gateway.
Wireless LAN
•Network name The network name serves to logically assign clients, which is also referred to as SSID. Only clients with the same network name are granted access.
Channel In this field, the active channel is specified which is shared by all devices connected to this BAT 11b Wireless Ethernet. According to the country code, up to 13 channels are available. As the factory setting, channel 6 is preconfigured.
•Security: Specifies whether WEP encryption has been activated in the BAT 11b Wireless Ethernet.
Associated Clients
Wireless clients (notebooks, desktop PCs, PDAs, etc.) can log on to the BAT 11b Wireless Ethernet. The list of the logged-on clients specifies the MAC addresses of the clients. The right column
60 BAT 11b
Release 1.0 03/04
Page 61
Status
indicates the authentication status of each client according to IEEE802.1x.
Release 1.0 03/04
61BAT 11b
Page 62

Configuration: Statistics

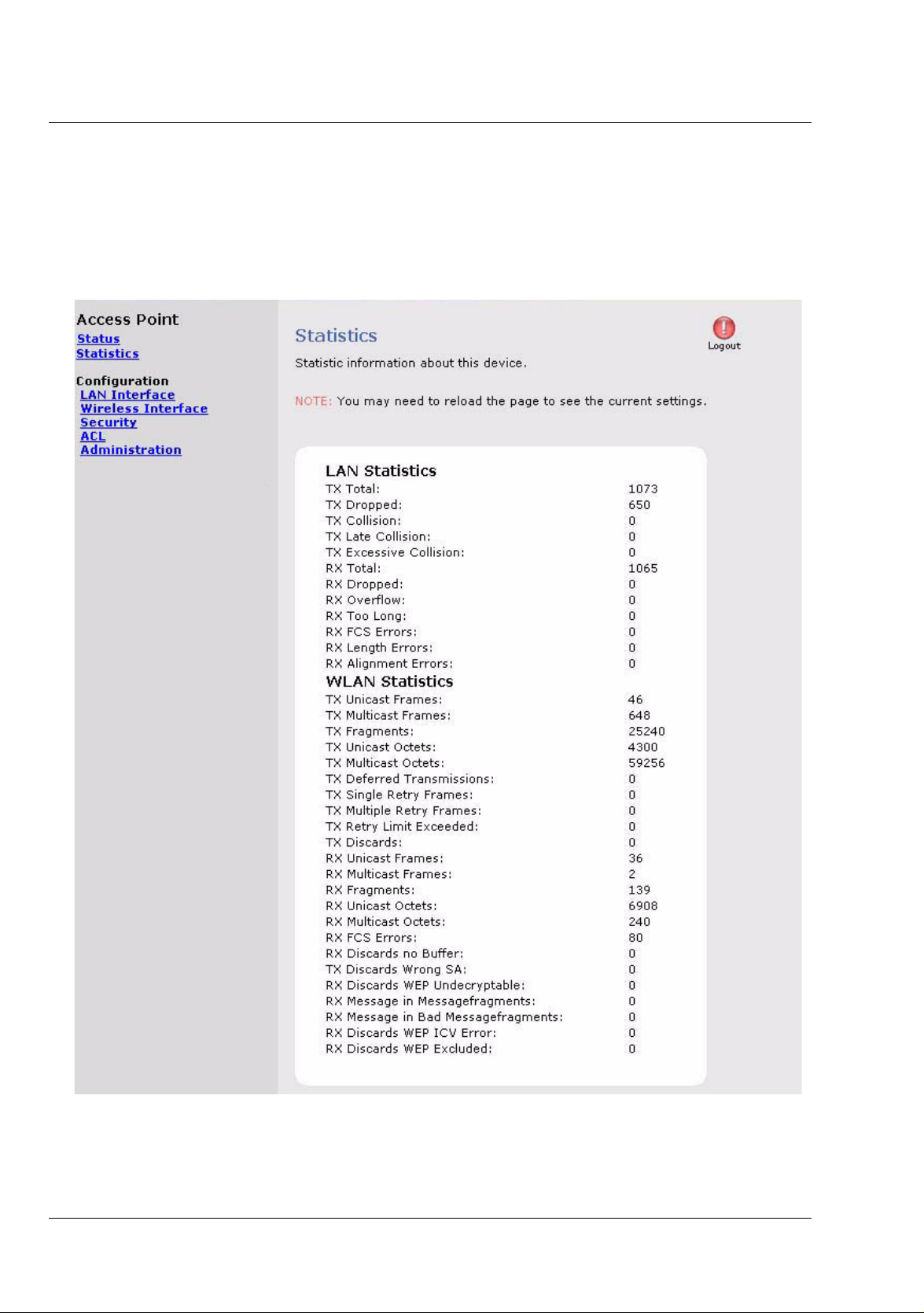

Configuration: Statistics
The access point provides a large range of statistic informa­tion, which will be described in detail in the following.
62 BAT 11b
Release 1.0 03/04
Page 63
Configuration: Statistics
LAN Statistics:
TX Total Total number of packets sent successfully.
TX Dropped Total number of dropped packets; refers to the packets to be sent.
•TX Collision Total number of packets which were dropped due to collisions on the medium; refers to the packets to be sent.
TX Late Collision A late collision indicates that another system attempted to transmit after your machine (the one displaying the message) has transmitted at least the first 60 bytes of its frame (packet) Since the amount of time it takes to send 60 bytes (50.2 microseconds) is long enough for round trip propagation delay on even the largest network, a correctly configured network will never allow this transmission condition. Something related to the network topology is causing a problem. A late collision invariably indicates that one or more packets were lost by the Ethernet. They will almost always be retransmitted by the “higher network layers,” but only after a delay.
TX Excessive Collision Total number of packets where collisions occurred repeatedly.
TX Total Total number of packets received successfully.
RX Dropped Total number of dropped packets; refers to the packets to be received.
•RX Overflow Total number of packets which were dropped due to insufficient buffer; refers to the packets to be received.
RX Too Long Total number of packets whose length exceeds the standard Ethernet packet length (> 1518 bytes).
Release 1.0 03/04
63BAT 11b
Page 64
Configuration: Statistics
RX FCS Errors
RX Length Errors
•RX Alignment Errors
WLAN Statistics
TX Unicast Frames
Total number of packets received with FCS (Frame Check Sequence) errors.
Total number of packets whose length does not correspond to the length specified in the Ethernet packet length field.
Counter is currently not used.
The total number of frames, of which the Destination Address is a unicast MAC address, transmitted successfully. This implies having received an acknowledgment to all associated frames.
TX Multicast Frames The total number of frames, of which the Destination Address is a multicast MAC address (including the broadcast MAC address), transmitted successfully. When operating as a station in an wireless cell, and these frames are directed to the AP, this implies having received an acknowledgment to all associated frames.
•TX Fragments The total number of frames of type Data or Management delivered successfully; i.e. directed frames transmitted and being ACKed, as well as non-directed frames transmitted.
TX Unicast Octets The total number of octets transmitted successfully as part of successfully transmitted unicast frames. These octets include MAC Header and Frame Body of all associated fragments.
TX Multicast Octets The total number of octets transmitted successfully as part of successfully transmitted multicast (incl. broadcast) frames. These octets include MAC Header and Frame Body of all associated fragments.
TX Deferred Transmissions Number of frames for which (one of) the (fragment) transmission attempt(s) was one or more times deferred to avoid a collision.
64 BAT 11b
Release 1.0 03/04
Page 65
Configuration: Statistics
•TX Single Retry Frames The number of frames successfully transmitted after one (and only one) retransmission (on the total of all associated fragments).
TX Multiple Retry Frames The number of frames successfully transmitted after more than one retransmission (on the total of all associated fragments).
TX Retry Limit Exceeded Number of times a frames is not transmitted successfully because the retry limit (either the ShortRetryLimit or the LongRetryLimit) is reached, due to no acknowledgment or CTS received.
•TX Discards The number of transmit requests that were discarded to free up buffer space.
• Transmit queued too long on one of the transmit queues, due to many retries and defers, or otherwise not being able to transmit (e.g. scanning).
• Transmit queued too long on the Power-Save queue (Station in IBSS: destination station does not respond to ATIM (Announcement Traffic Indication Message); AP: station does not poll or wake up in time).
RX Unicast Frames The total number of frames, with a unicast MAC address as the Destination Address, received successfully.
RX Multicast Frames The total number of frames, with a multicast MAC address (including the broadcast MAC address) as the Destination Address, received successfully.
•RX Fragments The total number of frames of type Data or Management received successfully.
RX Unicast Octets The total number of octets received successfully as part of unicast frames. These octets include MAC Header and Frame Body of all associated fragments.
Release 1.0 03/04
65BAT 11b
Page 66
Configuration: Statistics
RX Multicast Octets
RX FCS Errors
RX Discards no Buffer
TX Discards Wrong SA
The total number of octets received successfully as part of multicast (incl. broadcast) frames. These octets include MAC Header and Frame Body of all associated fragments.
Number of frames, considered to be destined for this station (Address1 matches), received with an FCS (Frame Check Sequence) error. This does not include “things” received with an incorrect CRC in the PLCP) header. These are not considered frames.
The number of received frames that were discarded because of lack of buffer space.
The number of transmit requests that were discarded because of wrong Source Address (Source Address not equal to OwnMACAddress). This only applies to stations.
RX Discards WEP Undecryptable The number of received frames, with the WEP subfield in the Frame Control field set to one, that were discarded because it should not have been encrypted or due to the receiving station not implementing the privacy option.
RX Message in Messagefragments The total number of frames of type Data or Management received successfully, while there was another good reception going on above the carrier detect threshold.
RX Message in Bad Messagefragments The total number of frames of type Data or Management received successfully, while there was another reception going on above the carrier detect threshold but with bad or incomplete PLCP Preamble and Header.
RX Discards WEP ICV Error The number of received frames, with the WEP subfield in the Frame Control field set to one, that were discarded because the value in the ICV field of the received frame does not match the ICV value that is calculated for the contents of the received MPDU.
66 BAT 11b
Release 1.0 03/04
Page 67
Rx Discards - WEP Excluded The number of received frames, with the WEP subfield in the Frame Control field set to zero, that were discarded because encryption is required.

Configuration: LAN Interface

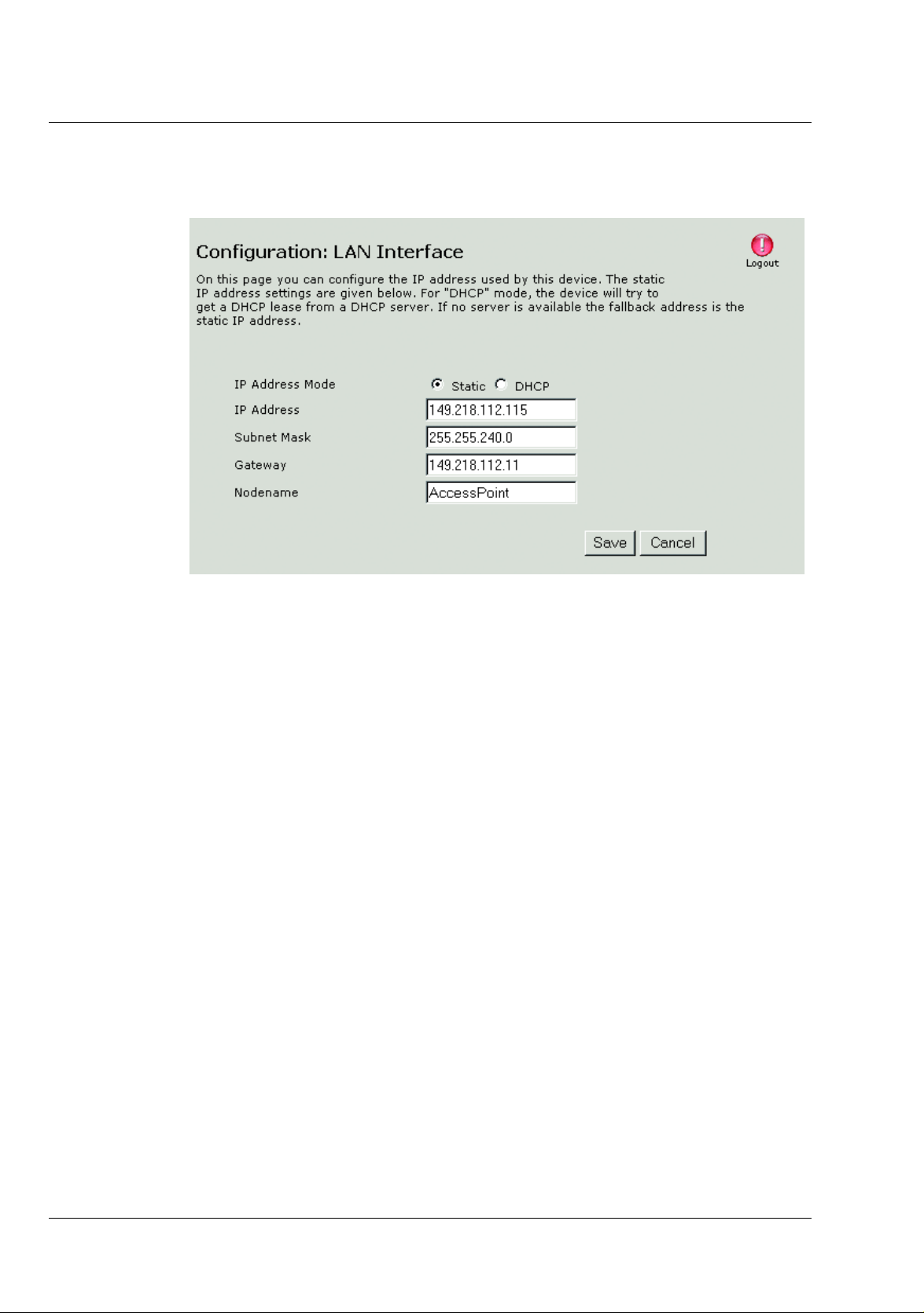

Configuration: LAN Interface

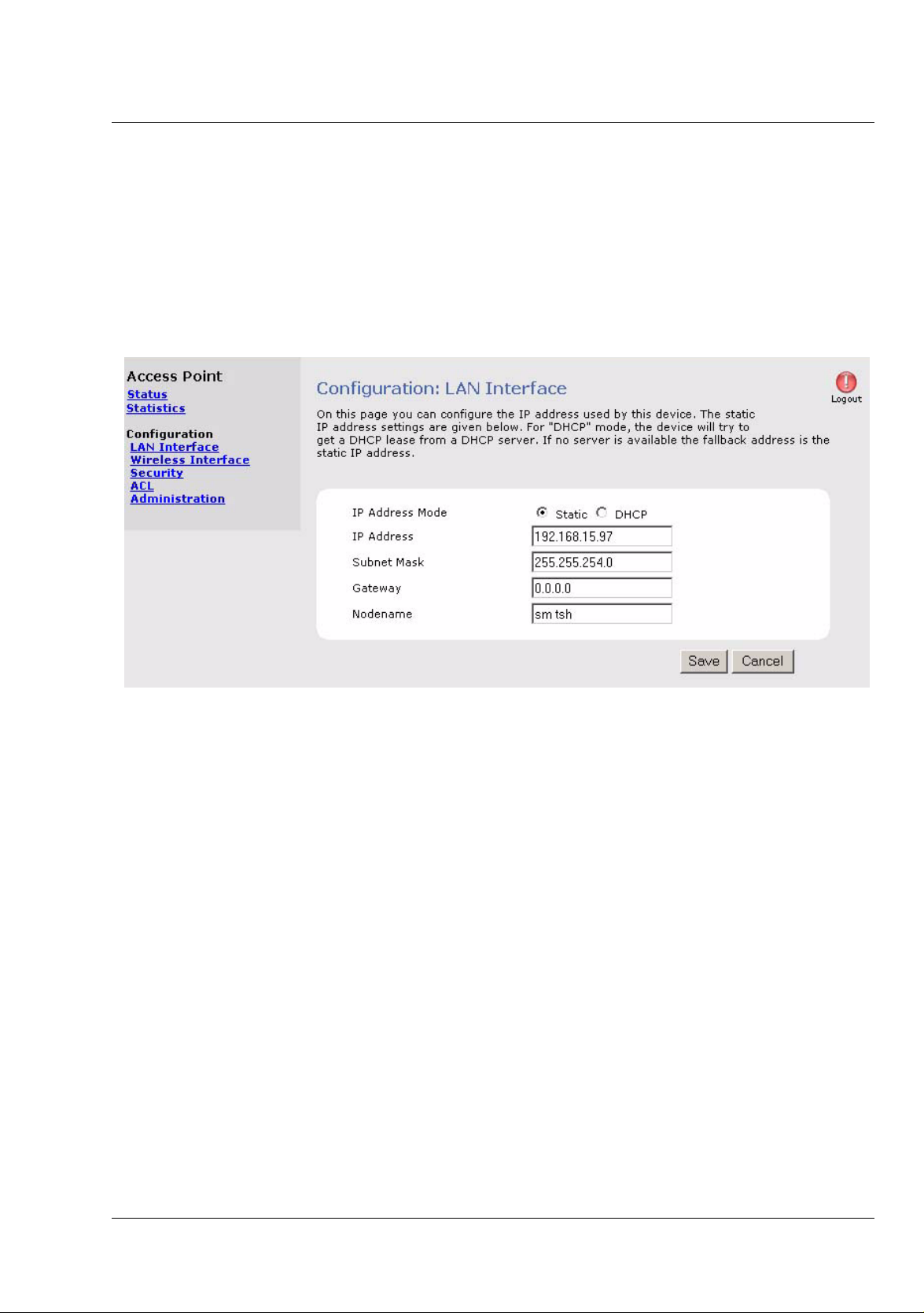

Here, you can configure the LAN parameters of the BAT 11b Wireless Ethernet.
IP Address Mode Check the DHCP option to have the IP settings automatically assigned to the BAT 11b Wireless Ethernet by the available DHCP server. To configure the settings statically, check the Static option and enter the values manually. If no DHCP server is found in the network, the BAT 11b Wireless Ethernet will take over the statically set values.
•IP Address Enter an unambiguous IP address of your network. This address may be 192.168.1.15, for instance, if the network concerned is a private network. In this case, you do not require a commercially available address from your Internet provider.
Release 1.0 03/04
67BAT 11b
Page 68
Configuration: LAN Interface
•Subnet Mask The subnet mask has to be identical with the one of your Ethernet network. By default, you can enter 255.255.255.0.
Gateway Specifies the IP address of the default gateway. As a rule, this a router or a PC with Internet access.
•Nodename Name of the BAT 11b Wireless Ethernet. Serves for easy identification via the Hirschmann BAT Discovery. In the state as delivered, the node name consists of “node_” and the MAC address of the BAT 11b.

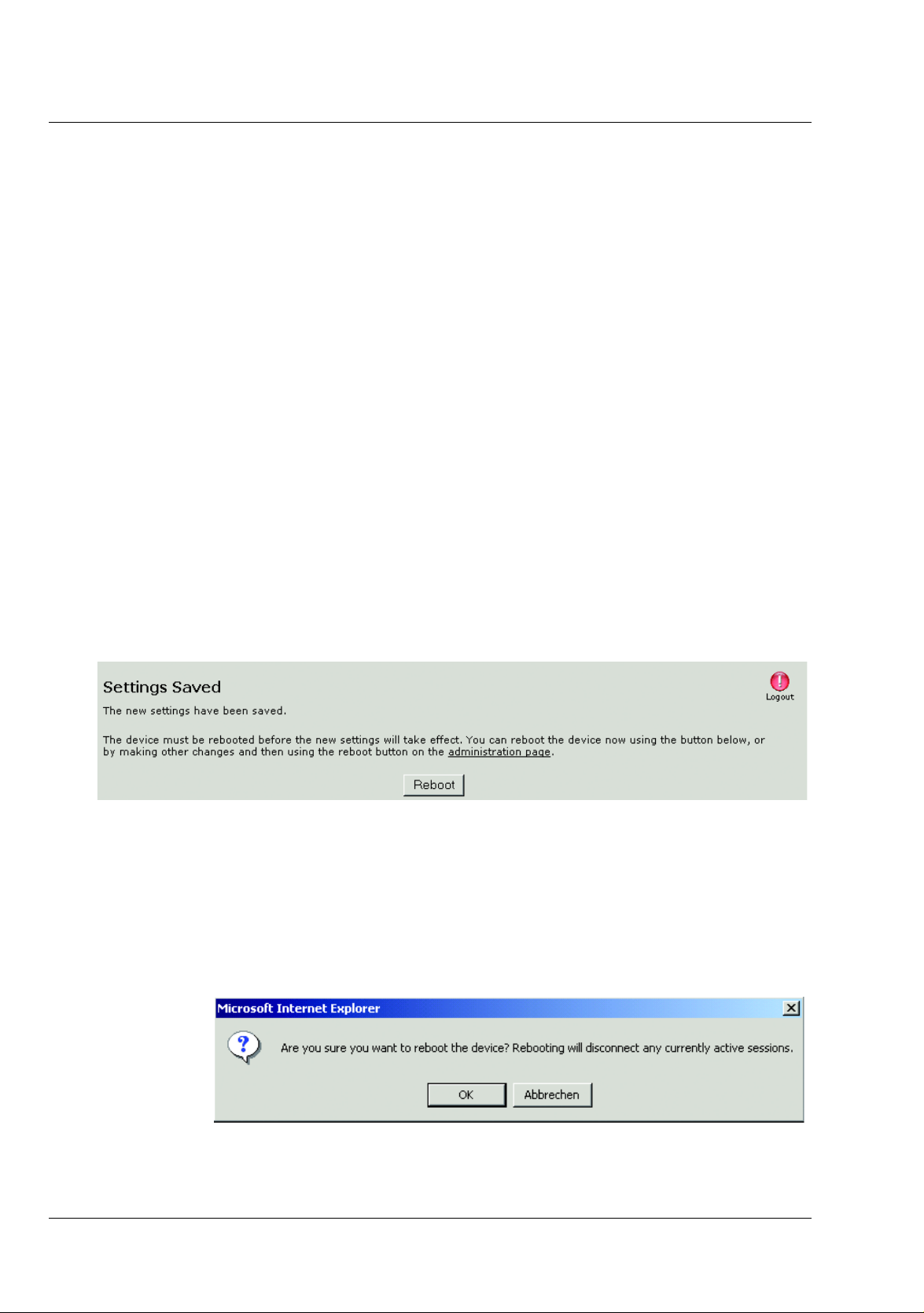

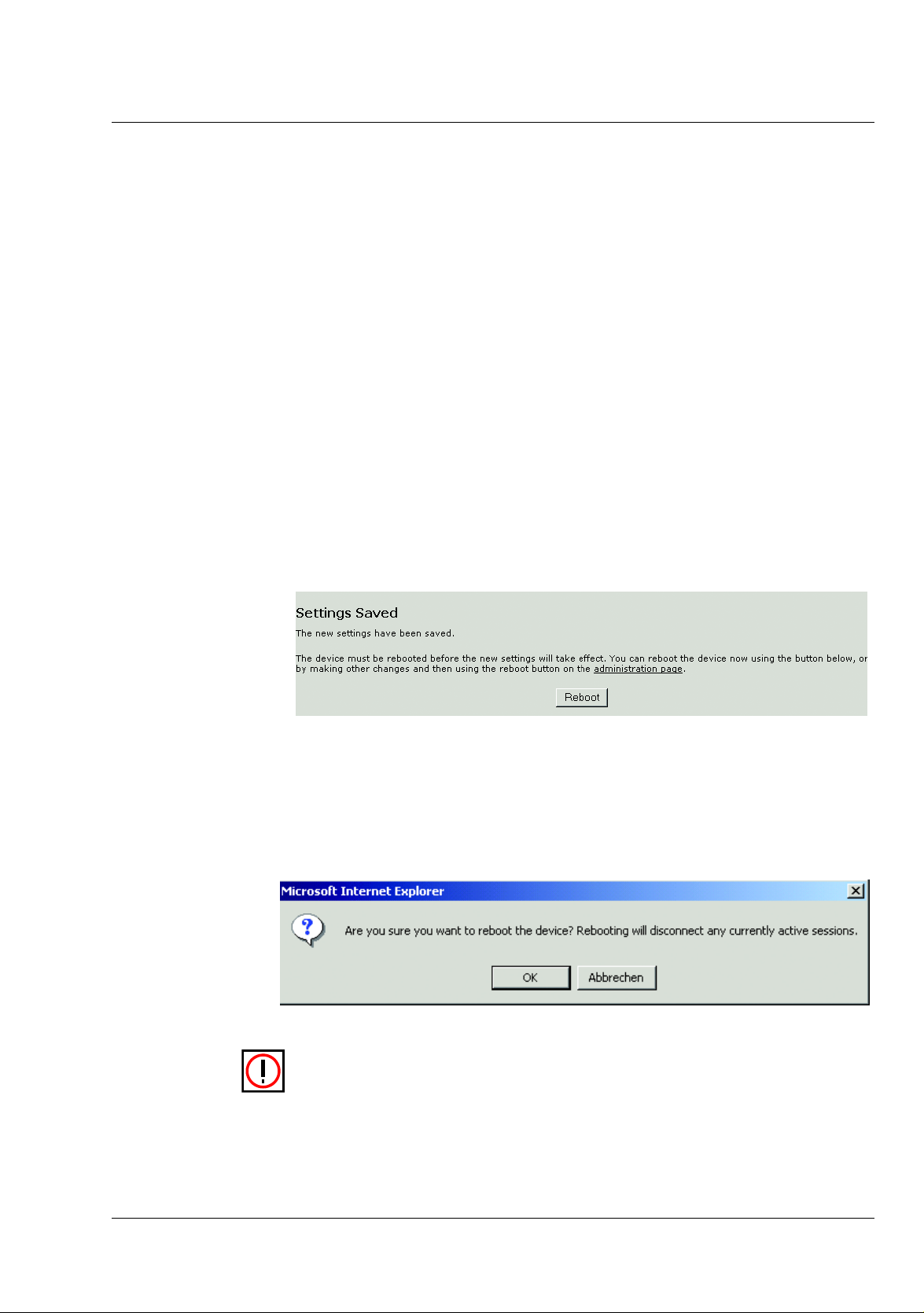

If you want to take over the settings made, confirm this by clicking Save. Otherwise, you can discard the changes by clicking Cancel. To take over the changes and activate them, the BAT 11b Wireless Ethernet has to be rebooted.
You are requested to do this via the following message:
Confirm this message by clicking Reboot. You are requested once again to terminate all existing connections and browser sessions via a reboot. The reboot process takes a few seconds; subsequently, the BAT 11b Wireless Ethernet will be ready for operation again.
Confirm with OK. You will then have to log on again.
68 BAT 11b
Release 1.0 03/04
Page 69
Configuration: LAN Interface
Hinweis: The restart of the BAT 11b (takes about 20 seconds) is not
displayed on your computer screen. With the help of the LEDs of your BAT 11b, however, you can check the radio activity, the radio status, and the Ethernet activity.
Finally, check the functionality of the BAT 11b, for instance by searching for BAT 11bs installed in the network via the BAT Discovery.
Release 1.0 03/04
69BAT 11b
Page 70

Configuration: Wireless Interface

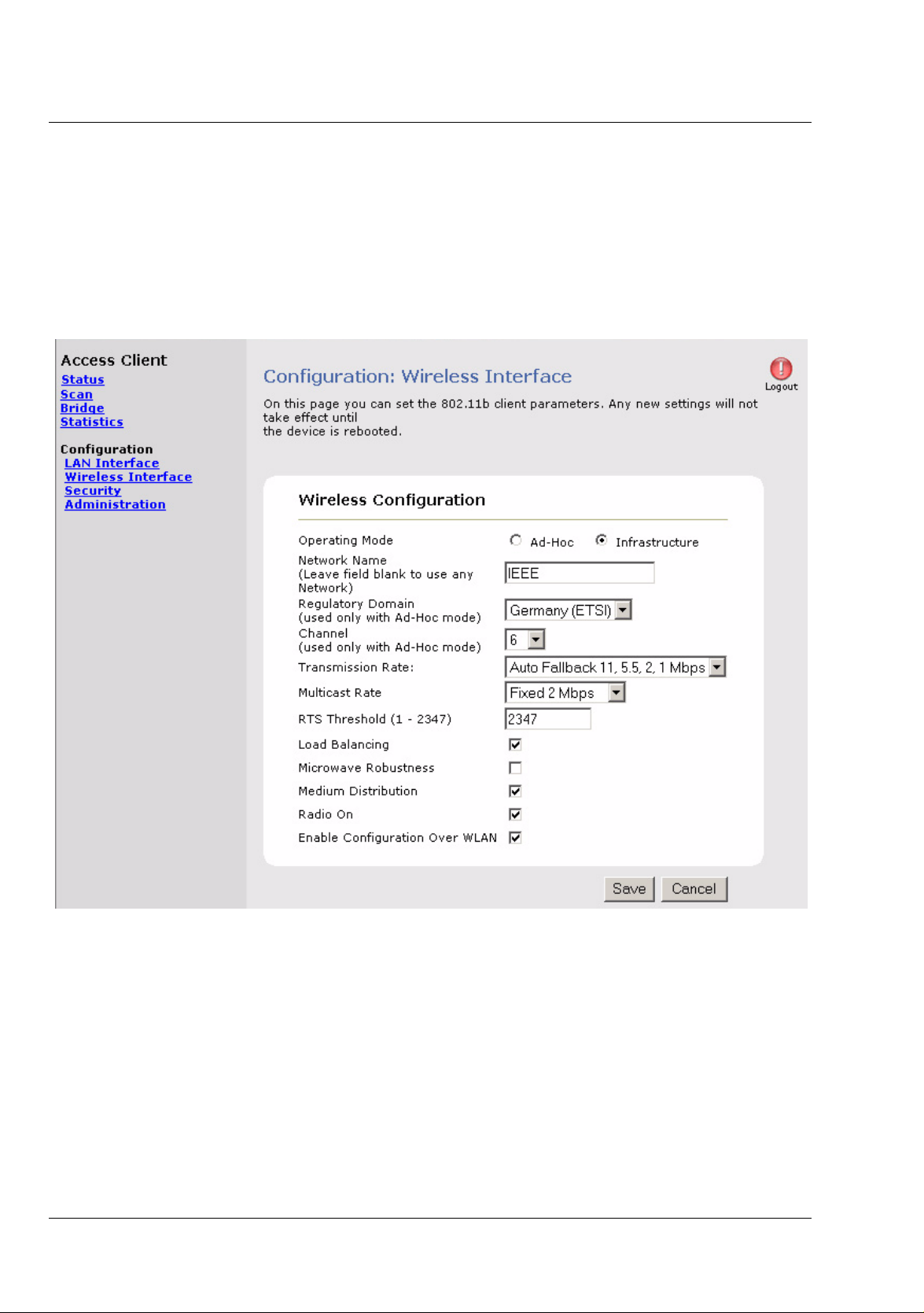

Configuration: Wireless Interface
Here, you can configure the LAN parameters of the BAT 11b Wireless Ethernet.
Wireless Network Name The network name (also called SSID) is an unambiguous network name which has to be identical for all subscribers of the same wireless network. Capital and lower case writing are distinguished. As a maximum, the network name consists of 32 alphanumerical characters. Make sure that all subscribers of the wireless network use the same network name.
70 BAT 11b
Release 1.0 03/04
Page 71
Configuration: Wireless Interface
•Regulatory Domain For the operation of the access client, country-specific regulations referring to the selectable channels have to be observed. Specify the country or region where the device is to be operated.
•Channel Select a channel from the list of the available channels. Clients log on to the channel of the access point if they support this channel according to their country-specific settings. The factory­set value is channel 6. If you wish to use channels 12 and 13, please make sure beforehand that the corresponding clients do support these channels and that the correct regulatory domain has been selected. As a rule, this applies to products which can also be operated in the USA, since there only channels 1 to 11 are admitted. Note: The number of the available channels is not identical for all devices. You should therefore also refer to the technical documentation for your product. As a rule, channels 1 to 11 are mostly available.
Transmission Rate The transmission rate should be adapted to your wireless network. As a rule, this is done automatically. Under certain circumstances, however, it is necessary to do this according to the procedure described below. The range of a wireless network decreases with higher data rates and increases with lower data rates.
Auto fallback 11, 5.5, 2, 1 Mbps
— Automatic fallback according to the quality of the connection, starting with 11 Mbps, going down to 5.5 Mbps, 2 Mbps, and 1 Mbps. This is the most frequently used setting.
Auto fallback 5.5, 2, 1 Mbps
— Automatic fallback according to the quality of the connection, starting with 5.5 Mbps, going down to 2 Mbps and 1 Mbps.
Auto fallback 2, 1 Mbps
— Automatic fallback according to the quality of the connection, starting with 2 Mbps, going down to 1 Mbps.
Release 1.0 03/04
71BAT 11b
Page 72
Configuration: Wireless Interface
Fixed 1 Mbps
— Sets the data rate to 1 Mbps. This setting can be used to optimize the range for lower data rates.
Fixed 2 Mbps
— Sets the data rate to 2 Mbps.
Fixed 5.5 Mbps
— Sets the data rate to 5.5 Mbps.
Fixed 11 Mbps
— Sets the data rate to 11 Mbps. This setting makes sense only if all wireless clients are operated at a short distance and reach optimum quality of connection.
If you want to take over the settings made, confirm this by clicking Save. Otherwise, you can discard the changes by clicking Cancel. To take over the changes and activate them, the BAT 11b Wireless Ethernet has to be rebooted.
Advanced Configuration
RTS Threshold RTS means Request To Send and is the threshold value from which on the access point will send an RTS signal into the wireless cell. For this value, the default setting 2347 should be used. You should use slightly minor values only if an irregular data flow is observed. The smaller the value, the more bandwidth will be lost for RTS signals. As a result, the data rate of the wireless cell will decrease.
DTIM Interval This value specifies the interval for the Delivery Traffic Indication Message (DTIM). The DTIM field is a countdown field which informs the clients via the window on the next broadcast or multicast transmission. If the clients are operated in the power­saving mode, they will wake up in time and will receive the data. The default value is 1. The value can be configured from 1 to
65535.
72 BAT 11b
Release 1.0 03/04
Page 73
Configuration: Wireless Interface
•AP Distance The AP distance is the size of the wireless cell and the number of the clients contained. This value serves to optimize the roaming behavior of the clients. The value can be set from 1 to 5. The default value is 1. Higher values indicate a higher access point density. 1: Large: Only one access point within reach 2: Medium 3: Small: Some access points within reach 4: Mini 5: Micro: Many access points within reach
Multicast Rate The multicast rate, i.e. the data rate at which multicast packets are sent, should be configured in such a way that the multicasts can be received by all subscribers located in the wireless cell. The data rate for multicasts is set to a fixed value and therefore depends on the properties of the wireless cell and its clients. In the case of very small cells with clients whose radios support at least 11 Mbps, it can be set to cells or cells with older clients which support merely 1 or 2 Mbps, a slower rate of
Fixed 1 Mbps or Fixed 2 Mbps is recommended.
The default value is Fixed 2 Mbps.
Fixed 11 Mbps. In the case of large
•Load Balancing This setting refers to wireless networks with several access points. Per default, load balancing is active. In this case, the beacons of the access point transmit information on the logged­on clients and the cell utilization of the access point in regular intervals. A client can compare this information to the load balancing information of other access points within reach and decide independently whether roaming to a weaker access point with less data traffic makes sense.
Microwave Robustness In environments with strong interferences caused by other devices using the 2.4 GHz band, the data rate may be affected. Although the activation of microwave robustness reduces the net throughput in an interference-free environment, it may increase the throughput in an environment with strong interferences, since the packets are fragmented. This means that the packets are split into small fragments which can be transmitted more
Release 1.0 03/04
73BAT 11b
Page 74
Configuration: Wireless Interface
quickly. Consequently, the probability of a collision or interference during the transmission decreases.
•Medium Distribution If Medium Distribution is activated, the values AP Distance, Microwave Robustness, and RTS Threshold are transmitted along with the beacons of the access point. Per default, Medium Distribution is activated. This feature is supported by all Hirschmann 11 Mbps products and by Agere cards .
Powersave Multicast Buffering If you are using clients with activated power-saving mode, check this box. Multicasts are then buffered and sent in dependence on the SDTIM interval.
•Repeating Permits direct communication between wireless clients logged on to the same BAT 11b. If the repeating is deactivated, the wireless clients logged on to this BAT 11b will not be able to exchange data among each other. This feature can be used to achieve a higher degree of security if no client of the wireless cell is to have direct contact to other clients in the same wireless cell.
•Radio on This feature makes it possible to disable the wireless cell of the BAT 11b deliberately. It can still be addressed via the Ethernet interface.
Enable Configuration Over WLAN The configuration of the BAT 11b over the WLAN interface can be disabled, for instance in order to increase security against misuse. In this case, communication and, consequently, configuration via web browser and BAT Discovery are only possible over cable.
74 BAT 11b
Release 1.0 03/04
Page 75

Configuration: Security

Configuration: Security
Release 1.0 03/04
Parameters like visibility of the BAT 11b, authentication, and encryption are set here. These settings are used for security reasons in terms of tracking, eavesdropping, and intrusion of unauthorized clients.
75BAT 11b
Page 76
Configuration: Security
You should set the AP visibility to Invisible and set the WEP to 128 bits, provided that all clients operated in the wireless net­work can work with these settings. A RADIUS server offers additional protection.
AP Visibility
Visibility Status The visibility status is also referred to as SSID broadcast. Visible means that the BAT 11b Wireless Ethernet sends its network name in regular intervals. On the one hand, this makes it easier for new clients to find the network via the scan function, on the other hand, attacks can be carried out more easily. If you do not require this function by all means, switch over to Invisible and, thus, “hide” your network.
Note: If you are using Site Survey, e.g. Netstumbler or the
Windows XP Zero Configuration Utility, the BAT 11b Wireless Ethernet will not be identified if you have switched the AP visibility to Invisible.
WEP Configuration
WEP is an encryption standard for wireless LANs. You should activate WEP to increase the safety of your network against eavesdropping.
Security You can choose between none and WEP. If you activate WEP, identical WEP keys have to be entered at the access point and the connected stations.
•WEP Key Lengths Select 64 or 128 bits from the pull-down menu, according to the encryption procedure supported by your clients. If all clients support 128-bit WEP, you should use 128 bits.
Enter WEP key in Use the pull-down menu to configure which entry mode you prefer. You can choose between HEX (hexadecimal entry, characters “0” to “9” and “A” to “F”) and ASCII (all ASCII characters on your keyboard).
76 BAT 11b
Release 1.0 03/04
Page 77
Configuration: Security
•WEP Key 1-4 In the input fields WEP key 1 to WEP key 4, you can enter 4 different WEP keys.
WEP key to use The WEP key to use pull-down menu serves to configure the key (1-4) used by default for sending.
Deny unencrypted data With this option, you can determine whether the BAT 11b Wireless Ethernet should also accept unencrypted packets sent from clients. Do only activate this function if you are using clients which do not support encryption.
•Authentication Open: All clients can log on to the BAT 11b Wireless Ethernet, independent of the fact whether they transfer data in encrypted or unencrypted mode. Shared key: Only clients with activated WEP encryption can log on to the BAT 11b Wireless Ethernet.
Please note that all subscribers of the same wireless network have to use the same keys.
If you want to take over the settings made, confirm this by clicking Save. Otherwise, you can discard the changes by clicking Cancel. To take over the changes and activate them, the BAT 11b Wireless Ethernet has to be rebooted.
802.1x Configuration
Authentication On Check the checkbox in order to activate authentication according to IEEE802.1x.
Radius Server IP Address Enter the IP address of the RADIUS server to be used.
•Radius Port If you do not wish to use another port than 1812 for your RADIUS server, you can change it here.
Release 1.0 03/04
Reauthentication Time [min] The authentication of each client is periodically checked for validity. The default value is 60 minutes and can be adapted. Very
77BAT 11b
Page 78
Configuration: Security
•Shared Secret
•Send Station ID
short periods may cause a higher load on your network, very long periods may delay the reaction to RADIUS account changes.
In order to communicate with the RADIUS server, the BAT 11b requires the shared secret, i.e. a password which also has to be entered at the RADIUS server.
The optional attribute 31 “Calling Station ID” can be transferred via the Radius protocol. If you check this checkbox, the BAT 11b forwards the MAC address of the client to the Radius server.
78 BAT 11b
Release 1.0 03/04
Page 79

Configuration: ACL

Configuration: ACL
Release 1.0 03/04

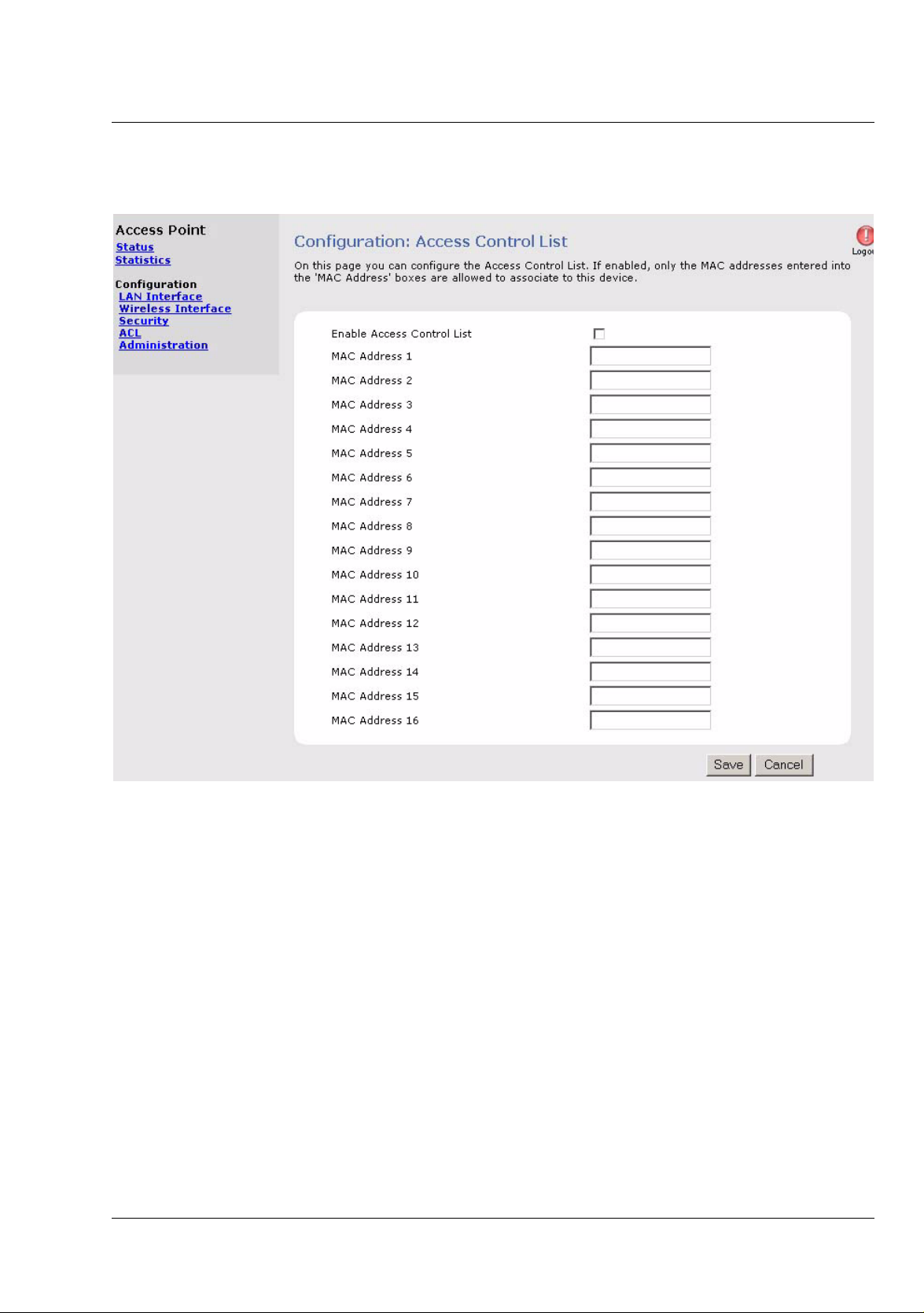

Here, the access to the wireless network can be limited to spe­cific, known clients. The settings are used to prevent active data traffic from or to undesired or unknown clients.
Enable Access Control List Activate this function to grant access to the BAT 11b Wireless Ethernet only to the wireless clients given in the list. All other clients will not be able to communicate with the BAT 11b Wireless Ethernet.
MAC Address 1 to 16 Here, you should enter the individual MAC addresses of the clients. The entries must have a length of 12 characters and have to be hexadecimal. 0001CDACEF00
79BAT 11b
Page 80

Configuration: Administration

If you want to take over the settings made, confirm this by clicking Save. Otherwise, you can discard the changes by clicking Cancel.
Configuration: Administration
The Administration section contains the following subsec­tions:
•Reboot Here, you can reboot the BAT 11b. This is required, for instance, after many changes in the configuration to activate the changes.
80 BAT 11b
Release 1.0 03/04
Page 81
Configuration: Administration
Reset Configuration Resetting the configuration makes sense if you do not wish to reset all configuration data to factory default state. Note: If you use the Reset Configuration option, the following parameters will not be reset: password, IP settings, and node name.
Reset to Factory Default Resets all BAT 11b Wireless Ethernet configuration data to the factory default state.
Change Password
For security reasons, it is recommended to change the preset passwords as soon as possible.
Enter the new password subsequently two times into the cor­responding input fields and confirm your entries by clicking the Save button.
The new password will become valid upon the next log-on attempt.
Caution: If you forget the password, it will be lost. This is because pass­words cannot be reset to the factory defaults via Reset Confi- guration. If you have forgotten your password, refer to Section
How to Reset the Password
in the Annex on Page 122.
Release 1.0 03/04
81BAT 11b
Page 82
Configuration: Administration
82 BAT 11b
Release 1.0 03/04
Page 83

The User Interface of the BAT 11b in the AC Mode

The User Interface of the BAT 11b in the AC Mode
This chapter describes the structure of the Web-based user interface and explains how to start it. The browser inter­face is dependent on the browser used, not on the operat­ing system. (Internet Explorer, Netscape, Opera, etc.). In the below example, the Internet Explorer was used for the purpose of configuration.

How to Start the User Interface

You have 2 options to start the Web interface:
Starting directly via the browser
Starting via the Configuration menu in the BAT Discov-
ery
Option 1—Starting via the Browser
1. Start the browser which you normally use, e.g. Microsoft Internet Explorer.
2. Enter the following into the address line: http://<IP address of the BAT 11b> e.g.: http://192.168.1.51
Option 2—Starting via the BAT Discovery
1. In the main window of the BAT Discovery, select the BAT 11b which you want to access via the Web (Web­based interface) and select the Configuration > Advanced > Web menu or use the right mouse button and select the Web menu in the pop-up list.
BAT 11b
Release 1.0 03/04
83
Page 84
How to Start the User Interface
In the browser window, you are requested to enter the admin­istrator password:
Enter the Password and click the Login button. The factory-set password is: admin.
You should change the password under the Configuration:
Administration menu item.
If you have forgotten your password, refer to Section How to
Reset the Password in the Annex on Page 122.
84 BAT 11b
Release 1.0 03/04
Page 85

Status

Status

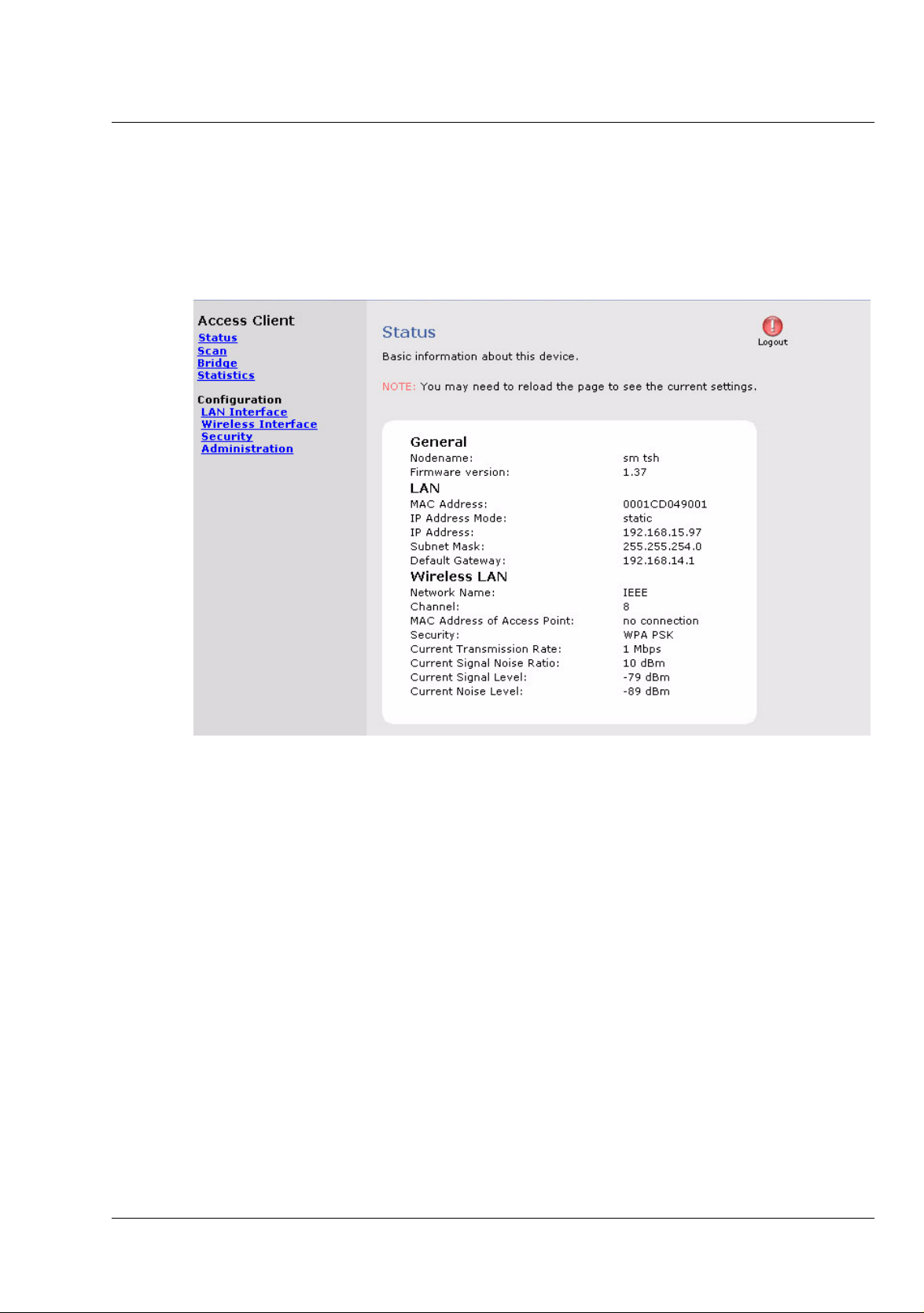

After a successful log-on, a status window is displayed which presents all vital data at one glance:
In the navigation bar to the left, you can select and go to vari­ous configuration processes.
If you click the log-out button, the browser session will be ter­minated and you will have to log on once again when starting the browser.

If you click the help button, you will open an online help.

General
•Nodename: This is the name of the BAT 11b, as it is also displayed in the BAT 11b Manager. It serves to localize the devices and can be assigned almost freely. In the state as delivered, the node name consists of “node_” and the MAC address of the BAT 11b.
Release 1.0 03/04
85BAT 11b
Page 86
Status
•Firmware Version: It shows the firmware status currently installed on the BAT 11b. Firmware upgrades should only be made if problems occur with the currently used firmware or if a newer firmware version with desired new features is available. A firmware upgrade can be made under How to Upgrade the
Firmware on Page 2–51.
LAN
MAC Address: This is the hardware address of the BAT 11b Wireless Ethernet.
IP Address Mode: DHCP or Static IP address: Specifies whether the IP address was determined statically or assigned by a DHCP server.
IP Address: The IP address is the unambiguous IP address of the BAT 11b Wireless Ethernet.
•Subnet Mask: The subnet mask, which is also referred to as IP mask or netmask, masks the IP address section in your network.
•Default Gateway: Shows the IP address of your default gateway.
Wireless LAN
Network Name: The network name serves to logically assign clients, which is also referred to as SSID. Only clients with the same network name are granted access. In AC operation, no network name is factory set. The AC will therefore try to log on to an available access point, irrespective of its network name. This setting is also called “ANY”.
86 BAT 11b
Release 1.0 03/04
Page 87
•Channel: Specifies the active channel of the access point where the BAT 11b Wireless Ethernet AC is operated. This setting is adopted from the access point in question.
MAC Address of AccessPoint: Displays the MAC address of the access point to which the client is logged on.
Security: Specifies whether WEP encryption or WPA has been activated in the BAT 11b Wireless Ethernet.
Current Transmission Rate: Shows the current transmission rate to the access point. The following values can be displayed: 1, 2, 5.5, 11 Mbps.
Status
Current Signal Noise Ratio: The value of the signal noise ratio indicates the difference between signal and noise.
Current Signal Level: Displays the signal level of the signal received by the access point. This value is specified in dBm. The higher this value, the better the received signal level. Values above –82 dBm usually suffice for a transmission rate of 11 Mbps. Below –94 dBm, no communication is possible.
Current Noise Level: The noise level specifies the strength of the interfering signals caused by other sending devices in the 2.4 GHz band, such as Bluetooth devices, garage door openers, or video transmission systems. If values above -95 dBm are displayed here, you should try to shift to other channels.
Release 1.0 03/04
87BAT 11b
Page 88

Scan

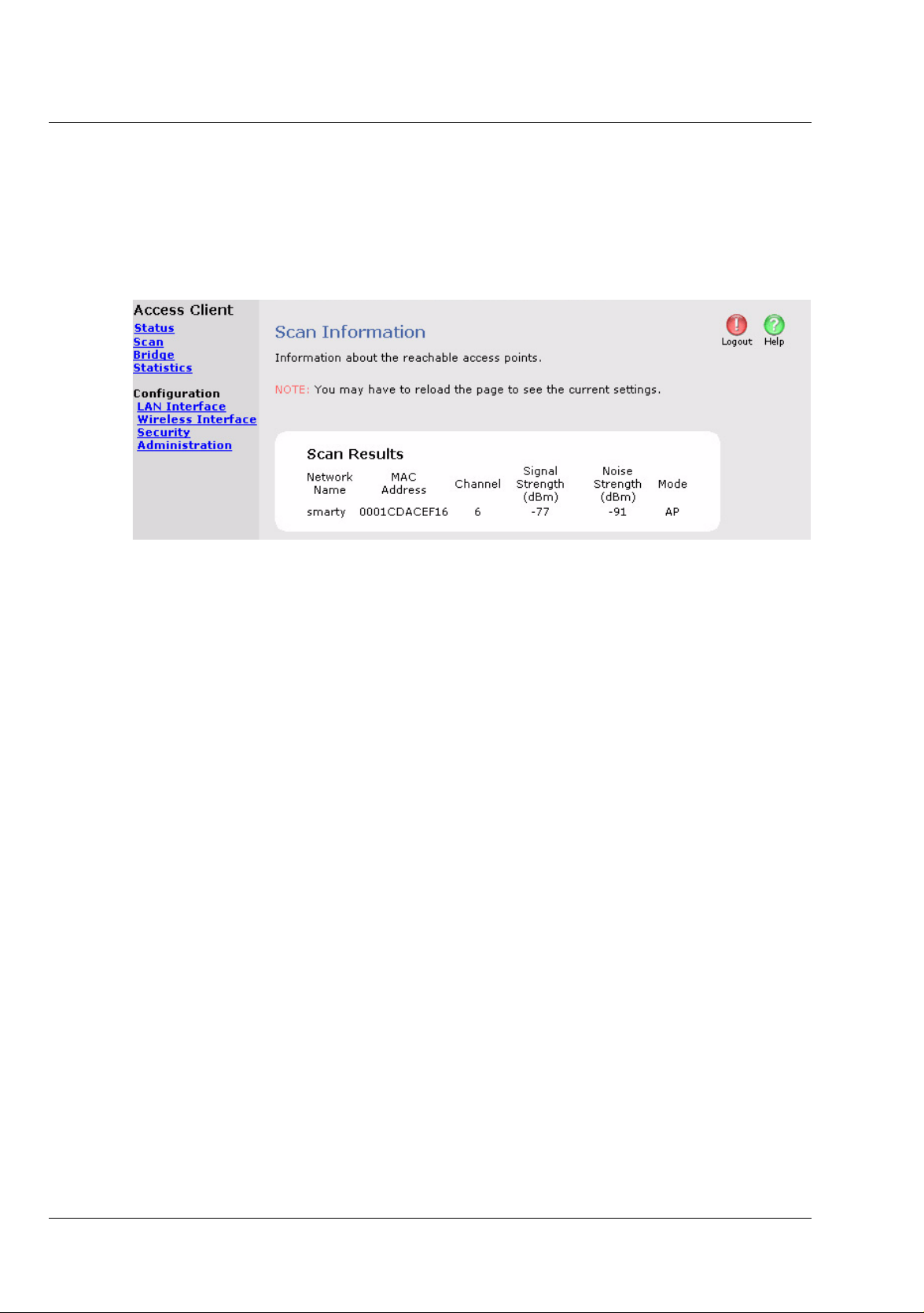

Scan
This function serves to display other access points within reach:
The scan function helps the user to search the environment for wireless networks. It displays all received access points. Here, the network name, MAC address, channel, signal strength, noise strength, and the operating mode are displayed.
88 BAT 11b
Release 1.0 03/04
Page 89

Bridge

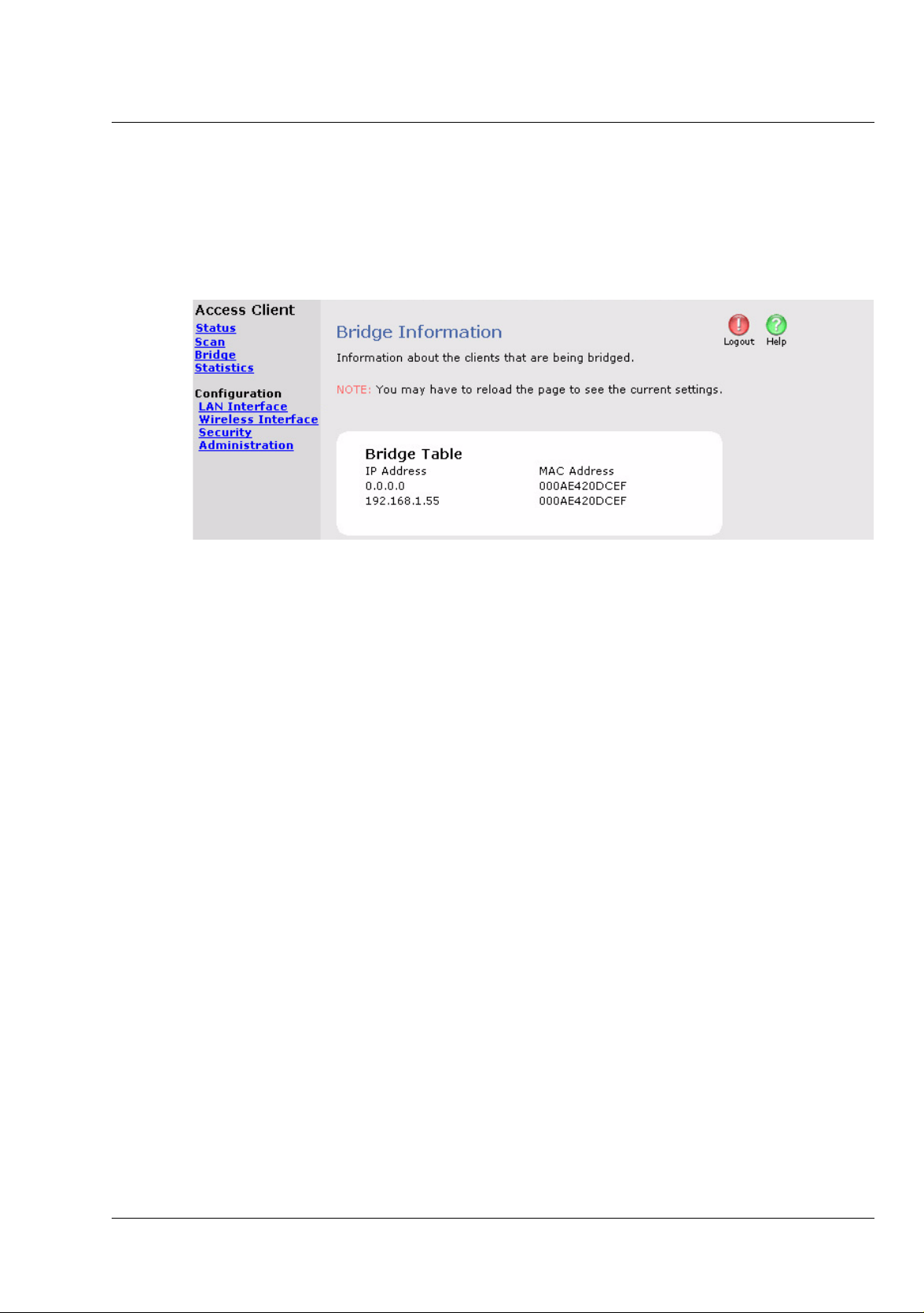

Bridge
This table displays the stations connected to the BAT 11b Wire­less Ethernet AC.
Bridge Table
IP Address IP addresses of the connected devices
MAC Address Corresponding MAC addresses of the connected devices
Release 1.0 03/04
89BAT 11b
Page 90

Statistics

Statistics
The access client provides a large range of statistic informa­tion, which will be described in detail in the following.
90 BAT 11b
Release 1.0 03/04
Page 91
Statistics
LAN Statistics:
•TX Total Total number of packets sent successfully.
TX Dropped Total number of dropped packets; refers to the packets to be sent.
TX Collision Total number of packets which were dropped due to collisions on the medium; refers to the packets to be sent.
TX Late Collision A late collision indicates that another system attempted to transmit after your machine (the one displaying the message) has transmitted at least the first 60 bytes of its frame (packet) Since the amount of time it takes to send 60 bytes (50.2 microseconds) is long enough for round trip propagation delay on even the largest network, a correctly configured network will never allow this transmission condition. Something related to the network topology is causing a problem. A late collision invariably indicates that one or more packets were lost by the Ethernet. They will almost always be retransmitted by the “higher network layers,” but only after a delay.
Release 1.0 03/04
TX Excessive Collision Total number of packets where collisions occurred repeatedly.
•TX Total Total number of packets received successfully.
•RX Dropped Total number of dropped packets; refers to the packets to be received.
•RX Overflow Total number of packets which were dropped due to insufficient buffer; refers to the packets to be received.
91BAT 11b
Page 92
Statistics
•RX Too Long Total number of packets whose length exceeds the standard Ethernet packet length (> 1518 bytes).
RX FCS Errors Total number of packets received with FCS (Frame Check Sequence) errors.
RX Length Errors Total number of packets whose length does not correspond to the length specified in the Ethernet packet length field.
RX Alignment Errors Counter is currently not used.
WLAN Statistics
•TX Unicast Frames The total number of frames, of which the Destination Address is a unicast MAC address, transmitted successfully. This implies having received an acknowledgment to all associated frames.
TX Multicast Frames The total number of frames, of which the Destination Address is a multicast MAC address (including the broadcast MAC address), transmitted successfully. When operating as a station in an wireless cell, and these frames are directed to the AP, this implies having received an acknowledgment to all associated frames.
•TX Fragments The total number of frames of type Data or Management delivered successfully; i.e. directed frames transmitted and being ACKed, as well as non-directed frames transmitted.
TX Unicast Octets The total number of octets transmitted successfully as part of successfully transmitted unicast frames. These octets
92 BAT 11b
Release 1.0 03/04
Page 93
Statistics
include MAC Header and Frame Body of all associated fragments.
TX Multicast Octets The total number of octets transmitted successfully as part of successfully transmitted multicast (incl. broadcast) frames. These octets include MAC Header and Frame Body of all associated fragments.
TX Deferred Transmissions Number of frames for which (one of) the (fragment) transmission attempt(s) was one or more times deferred to avoid a collision.
•TX Single Retry Frames The number of frames successfully transmitted after one (and only one) retransmission (on the total of all associated fragments).
TX Multiple Retry Frames The number of frames successfully transmitted after more than one retransmission (on the total of all associated fragments).
TX Retry Limit Exceeded Number of times a frames is not transmitted successfully because the retry limit (either the ShortRetryLimit or the LongRetryLimit) is reached, due to no acknowledgment or CTS received.
•TX Discards The number of transmit requests that were discarded to free up buffer space.
• Transmit queued too long on one of the transmit queues, due to many retries and defers, or otherwise not being able to transmit (e.g. scanning).
• Transmit queued too long on the Power-Save queue (Station in IBSS: destination station does not respond to ATIM (Announcement Traffic Indication Message); AP: station does not poll or wake up in time).
Release 1.0 03/04
93BAT 11b
Page 94
Statistics
RX Unicast Frames The total number of frames, with a unicast MAC address as the Destination Address, received successfully.
RX Multicast Frames The total number of frames, with a multicast MAC address (including the broadcast MAC address) as the Destination Address, received successfully.
•RX Fragments The total number of frames of type Data or Management received successfully.
RX Unicast Octets The total number of octets received successfully as part of unicast frames. These octets include MAC Header and Frame Body of all associated fragments.
RX Multicast Octets The total number of octets received successfully as part of multicast (incl. broadcast) frames. These octets include MAC Header and Frame Body of all associated fragments.
RX FCS Errors Number of frames, considered to be destined for this station (Address1 matches), received with an FCS (Frame Check Sequence) error. This does not include “things” received with an incorrect CRC in the PLCP) header. These are not considered frames.
RX Discards no Buffer The number of received frames that were discarded because of lack of buffer space.
•TX Discards Wrong SA The number of transmit requests that were discarded because of wrong Source Address (Source Address not equal to OwnMACAddress). This only applies to stations.
RX Discards WEP Undecryptable The number of received frames, with the WEP subfield in
94 BAT 11b
Release 1.0 03/04
Page 95
Statistics
the Frame Control field set to one, that were discarded because it should not have been encrypted or due to the receiving station not implementing the privacy option.
RX Message in Messagefragments The total number of frames of type Data or Management received successfully, while there was another good reception going on above the carrier detect threshold.
RX Message in Bad Messagefragments The total number of frames of type Data or Management received successfully, while there was another reception going on above the carrier detect threshold but with bad or incomplete PLCP Preamble and Header.
RX Discards WEP ICV Error The number of received frames, with the WEP subfield in the Frame Control field set to one, that were discarded because the value in the ICV field of the received frame does not match the ICV value that is calculated for the contents of the received MPDU.
Rx Discards - WEP Excluded The number of received frames, with the WEP subfield in the Frame Control field set to zero, that were discarded because encryption is required.
Release 1.0 03/04
95BAT 11b
Page 96

Configuration: LAN Interface

Configuration: LAN Interface
Here, you can configure the LAN parameters of the BAT 11b Wireless Ethernet.
IP Address Mode Check the DHCP option to have the IP settings automatically assigned to the BAT 11b Wireless Ethernet by the available DHCP server. To configure the settings statically, check the Static option and enter the values manually. If no DHCP server is found in the network, the BAT 11b Wireless Ethernet will take over the statically set values.
•IP Address Enter an unambiguous IP address of your network. This address may be 192.168.1.15, for instance, if the network concerned is a private network. In this case, you do not require a commercially available address from your Internet provider.
•Subnet Mask The subnet mask has to be identical with the one of your Ethernet network. By default, you can enter 255.255.255.0.
96 BAT 11b
Release 1.0 03/04
Page 97
Configuration: LAN Interface
Gateway Specifies the IP address of the default gateway. As a rule, this a router or a PC with Internet access.
•Nodename Name of the BAT 11b Wireless Ethernet AC. Serves for easy identification via the Hirschmann BAT Discovery. In the state as delivered, the node name consists of “node_” and the MAC address of the BAT 11b.
If you want to take over the settings made, confirm this by clicking Save. Otherwise, you can discard the changes by clicking Cancel. To take over the changes and activate them, the BAT 11b Wireless Ethernet has to be rebooted.
You are requested to do this via the following message:
Confirm this message by clicking Reboot. You are requested once again to terminate all existing connections and browser sessions via a reboot. The reboot process takes a few sec­onds; subsequently, the BAT 11b Wireless Ethernet will be ready for operation again.
Confirm with OK. You will then have to log on again. Hinweis:
The restart of the BAT 11b (takes about 10 seconds) is not dis­played on your computer screen. With the help of the LEDs of your BAT 11b, however, you can check the radio activity, the radio status, and the Ethernet activity.
Release 1.0 03/04
97BAT 11b
Page 98

Configuration: Wireless Interface

Finally, check the functionality of the BAT 11b, for instance by searching for BAT 11b installed in the network via the BAT Dis­covery.
Configuration: Wireless Interface
Wireless Configuration
Here, you can configure the WLAN parameters of the BAT 11b Wireless Ethernet.
•Operating Mode As operating mode of the BAT 11b Wireless Ethernet AC, you can select either the ad-hoc or the infrastructure mode. The currently set operating mode is displayed here.
98 BAT 11b
Release 1.0 03/04
Page 99
Configuration: Wireless Interface
•Network Name The network name (also called SSID) is an unambiguous network name which has to be identical for all subscribers of the same wireless network. Capital and lower case writing are distinguished. As a maximum, the network name consists of 32 alphanumerical characters. Make sure that all subscribers of the wireless network use the same network name. In AC operation, no network name is factory set. The AC will therefore try to log on to an available access point, irrespective of its network name. This setting is also called “ANY”.
Regulatory Domain This setting is only relevant if the BAT 11b-AC is to be operated in ad-hoc mode. For the operation of the access client, country-specific regulations referring to the selectable channels have to be observed. Specify the country or region where the device is to be operated.
•Channel This setting is only relevant if the BAT 11b-AC is to be operated in ad-hoc mode. In this case, select the channel used by the ad-hoc network from the list of available channels. If required, set the other subscribers of the ad­hoc network to the same channel. If you wish to use channels 12 and 13, please make sure beforehand that the corresponding clients do support these channels and that the correct regulatory domain has been selected. As a rule, this applies to products which can also be operated in the USA, since there only channels 1 to 11 are admitted (e.g. our USB adapter). Note: The number of the available channels is not identical for all devices. You should therefore also refer to the technical documentation for your product. As a rule, channels 1 to 11 are mostly available.
•Transmission Rate The transmission rate should be adapted to your wireless network. As a rule, this is done automatically. Under
Release 1.0 03/04
99BAT 11b
Page 100
Configuration: Wireless Interface
certain circumstances, however, it is necessary to do this according to the procedure described below. The range of a wireless network decreases with higher data rates and increases with lower data rates.
Auto fallback 11, 5.5, 2, 1 Mbps
— Automatic fallback according to the quality of the connection, starting with 11 Mbps, going down to 5.5 Mbps, 2 Mbps, and 1 Mbps. This is the most frequently used setting.
Auto fallback 5.5, 2, 1 Mbps
— Automatic fallback according to the quality of the connection, starting with 5.5 Mbps, going down to 2 Mbps and 1 Mbps.
Auto fallback 2, 1 Mbps
— Automatic fallback according to the quality of the connection, starting with 2 Mbps, going down to 1 Mbps.
Fixed 1 Mbps
— Sets the data rate to 1 Mbps. This setting can be used to optimize the range for lower data rates.
Fixed 2 Mbps
— Sets the data rate to 2 Mbps.
Fixed 5.5 Mbps
— Sets the data rate to 5.5 Mbps.
Fixed 11 Mbps
— Sets the data rate to 11 Mbps. This setting makes sense only if all wireless clients are operated at a short distance and reach optimum quality of connection.
Multicast Rate This setting is only relevant if the BAT 11b-AC is to be operated in ad-hoc mode. The multicast rate, i.e. the data
100 BAT 11b
Release 1.0 03/04
