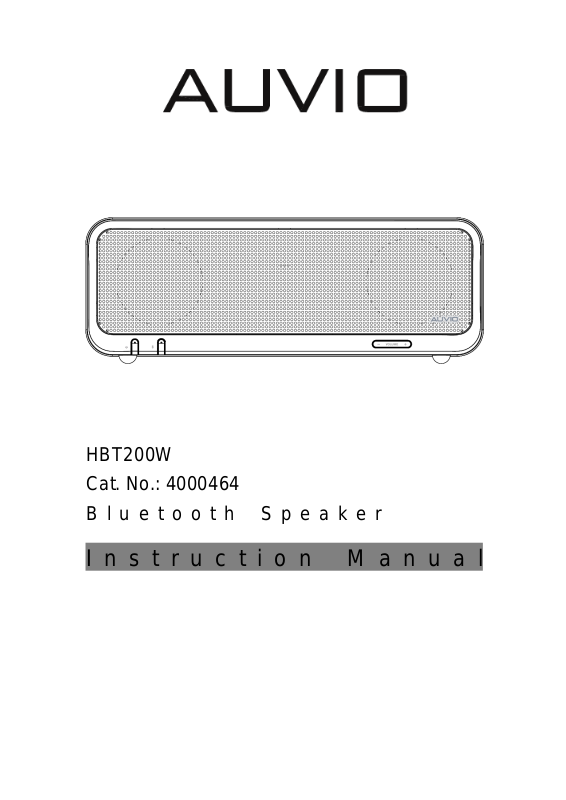

HBT200W
Cat. No.: 4000464
Bluetooth Speaker
Instruction Manual
Safety Information
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of electrical shock, fire, etc.:
1. Read these instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth. For stubborn stains, use
a soft cloth dampened with a weak solution of mild
detergent and water. Dry the apparatus
immediately afterwards with a clean cloth. Do not
use abrasive clothes, thinners, alcohol, or other
chemical solvents, because they may damage the
finish or remove the panel lettering.
7.Do not block any ventilation openings. The
ventilation shall not be impeded by covering the
ventilation openings with items, such as
newspapers, table clothes, curtains, etc.
The lightning flash with arrowhead symbol
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
8.Do not install near any heat source such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. the appliance should be connected to power supply
only of the type described in the operating
instructions or as marked on the appliance
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus. If the power cord is damaged, it
must be repaired by a qualified repairer.
11. Only use attachments/accessories specified by
the manufacturer.
12. Use only with the cart, stand, tripod, bracket or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
15. The apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, shall be placed on the apparatus.
16. The mains plug or an appliance coupler is used as
the disconnect device, the disconnect device shall
remain readily operable.
17. Please read Rating Labels at the back of the unit
for power input and other safety information.
Contents
Safety Information..............................................................................................................................2
Contents..............................................................................................................................................
Introduction.........................................................................................................................................
Package content...........................................................................................................................4
Front V iew...................................................................................................................................
Back V iew...................................................................................................................................
Bluetooth Mode ..................................................................................................................................
Turning on...................................................................................................................................
Pairing with Bluetooth devices...................................................................................................7
Aux in Mode.......................................................................................................................................
Troubleshooting ..................................................................................................................................
Technical information.......................................................................................................................10
Statements.........................................................................................................................................
10
3
4
5
6
7
7
8
9
Introduction
Thank you for purchasing the Bluetooth Speaker. Enjoy music wirelessly from your smart phone,
tablet, laptop, or other Bluetooth enabled device anywhere you choose.
Package content
What you can find inside of your package:
Main unit
AC/DC
Adapter
Instruction
manual
Front View
Control All mode
Button
Press to turn on speaker.
Press again to switch speaker into standby mode.
Button
Press and hold to disconnect Bluetooth connection.
Press to adjust volume level.
Button
Illuminate in Red light indicates speaker is in standby mode.
Indicator
Red light off indicates speaker is turned on.
Flash 2s in Red light and then off indicates speaker is in Aux
mode.
Flash in Red and Blue light means speaker is pairing with a
Bluetooth device or connecting with a paired Bluetooth device.
Indicator
Flash once for 3s in Blue light indicates speaker is connected
with a Bluetooth device.
Back View
Items Remark:
Power cord socket: Connect to DC adaptor.
AUX IN socket: It is for connecting the audio cable.
USB charging port
Output a 5V voltage for charging your personal devices such as your smart
phone.
Bluetooth Mode
Turning on
1. Before using your new Bluetooth Speaker the first time, you should connect adapter to
your speaker.
2. Press
pairing with a Bluetooth device or connecting to a paired Bluetooth device.
Button to switch on. The Indicator flashing fast in Blue light and waiting for
Pairing with Bluetooth devices
Pairing occurs when two Bluetooth devices communicate with each other and establish a
connection. A record of information about this connection is then stored in the memory of each
device. Once you pair a device with the Speaker, you should not have to p air it again.
To begin pairing with a Bluetooth device
1. Turn on your Bluetooth device.
2. Activate your Bluetooth device and select the search mode.
3. Press
4. From the Bluetooth device list, select the device “HBT2000W”.
5. If your device asks for a password, enter digits 0000 (four zeros) and press OK. Some
devices also ask you to accept the connection.
Your Bluetooth device indicates when pairing is complete. The Speaker indicates pairing is
Button on Speaker to enabl e pairing.
complete when the
Indicator flash slow in Blue light.
To pair additional devices
Note: when you have paired Speaker with a Bluetooth device and want to use another
device instead, please disable the Bluetooth function of your previous Bluetooth device.
Follow “To begin pairing with a Bluetooth device” steps 1-5.
Aux in Mode
You can use another audio device with your Speaker. This requires using an audio cable with a
3.5mm plug on one end to connect with the Aux input on the Speaker system.
1. Plug the 3.5mm audio cable from the audio device into the Aux connector on the back of
the Speaker.
2. Your Speaker will automatically shift to Aux in mode. The
light and then off.
3. To gain optimal volume levels, adjusting the output volume level on both the source device
and the Speaker itself are recommended.
Indicator will flash 2s in Red
Troubleshooting
Problem What to do
Speaker will not
turn on
Paired Bluetooth
device will not
connect
Speaker
indicates a
connection, but
is not playing
music
Cannot pair the
Speaker with my
Bluetooth device
No audio from a
Bluetooth device
No audio from
the AUX source
Make sure your system is connected to a working mains outlet.
If your device requires a passkey, make sure the one you entered was
correct.
Turn the Speaker off and back on.
Remove the Speaker from the pairing list on your Bluetooth device
pairing list. Then pair the device and the Speaker again.
Turn off or disable Bluetooth on all other paired devices nearby and
reconnect the device you want to hear.
Turn the Speaker off and back on.
Make sure your Bluetooth device is discoverable.
Your Bluetooth device may be out of range – try moving it closer to the
Speaker.
Make sure your Bluetooth device supports the transfer of audio.
Move your Bluetooth device and/or Speaker away from other devices
that generate electromagnetic interference.
If possible, turn off all other nearby Bluetooth devices or disable their
Bluetooth functionality.
Turn the Speaker off and back on.
Make sure your Speaker is not muted, and the volume is up.
Make sure your Bluetooth device is playing audio, and the volume is
up.
Your Bluetooth device may be out of range – try moving it closer to the
Speaker.
Turn the Speaker off and back on.
Make sure your connected device is on and playing.
Make sure your Speaker is in Aux in mode.
Make sure the 3.5mm plug is fully inserted into the Speaker.
Technical information
Power supply rating
Input: 100-240VAC, 50/60Hz
Output: 18VDC, 2A Max
Output power
10Wrms x 2
Dimensions
H x W x D: 330mm x 135mm x115mm
Statements
FCC RF Radiation Exposure Statement
Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the unit
at leas
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any RADIO or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user
authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
t 20cm from nearby persons.”
