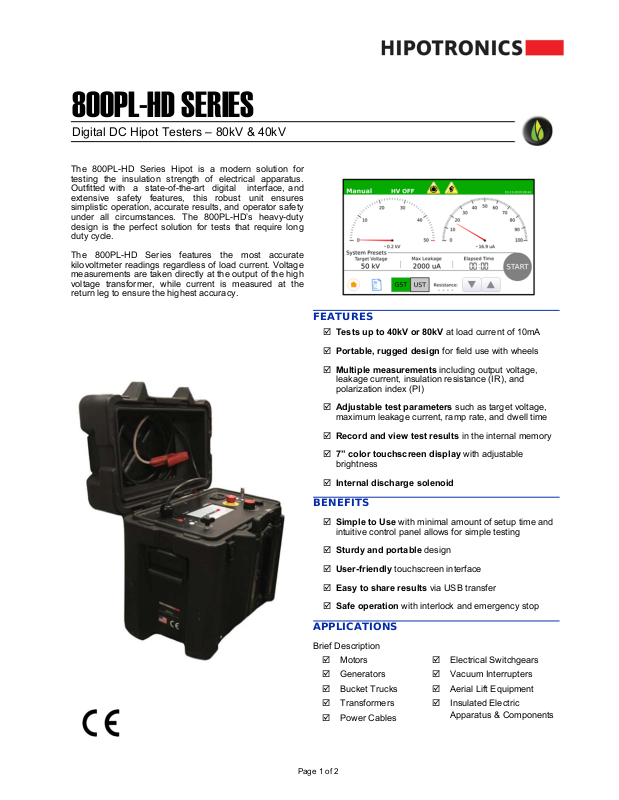

800PL-HD SERIES
Digital DC Hipot Testers – 80kV & 40kV
The 800PL-HD Series Hipot is a modern solution for
testing the insulation strength of electrical apparatus.
Outfitted with a state-of-the-art digital interface, and
extensive safety features, this robust unit ensures
simplistic operation, accurate results, and operator safety
under all circumstances. The 800PL-HD’s heavy-duty
design is the perfect solution for tests that require long
duty cycle.
The 800PL-HD Series features the most accurate
kilovoltmeter readings regardless of load current. Voltage
measurements are taken directly at the output of the high
voltage transformer, while current is measured at the
return leg to ensure the highest accuracy.
FEATURES
Tests up to 40kV or 80kV at load current of 10mA
Portable, rugged design for field use with wheels
Multiple measurements including output voltage,
leakage current, insulation resistance (IR), and
polarization index (PI)
Adjustable test parameters such as target voltage,
maximum leakage current, ramp rate, and dwell time
Record and view test results in the internal memory
7” color touchscreen display with adjustable
brightness
Internal discharge solenoid
BENEFITS
Simple to Use with minimal amount of setup time and
intuitive control panel allows for simple testing
Sturdy and portable design
User-friendly touchscreen interface
Easy to share results via USB transfer
Safe operation with interlock and emergency stop
APPLICATIONS
Brief Description
Motors Electrical Switchgears
Generators Vacuum Interrupters
Bucket Trucks Aerial Lift Equipment
Transformers Insulated Electric
Power Cables
Apparatus & Components
Page 1 of 2
V
V
y
V
TECHNICAL SPECIFICATIONS
Model #
System
Output
oltage 0.4 –40kV 0.4 – 80kV
Current 10mA
Polarity Negative Output, Positive Ground
oltage & Current
Measurement Accurac
840PL-HD 880PL-HD
± 1.5% of Reading ± 0.2% F.S.
oltage Resolution 100V
Current Resolution 0.1A
Insulation Resistance
Measurement Range
IR Accuracy
10kΩ – 40GΩ
1% of scale
IR Resolution 10k
Input 90-264VAC, 45-65Hz, 900VA
Duty Cycle 1 hour ON / 1 hour OFF
Dimensions
(W x D x H)
Weight
Net 20in x 14in x20in (50cm x 35cm x 51 cm)
Shipping 24in x 19in x 23in (61cm x 48cm x 58cm)
Net 78lbs (36kg)
Shipping 91lbs (42kg)
Emergency Stop Interlock Hand-switch (optional)
Safety Features
Visual Warning Indicators External Warning Lamp (optional)
External Interlock Interlock Foot Pedal (optional)
Audible Warning Indicator
Display 7” TFT , 800 x 480, Color Touch Screen
Interfaces USB 2.0 for Memory Stick
Output Data Format CSV
Calibration Interval 1 year recommended
Languages English, Spanish, Portuguese, French, German, Mandarin
ECCN: 3A992.A HTS: 9030.39.0100
Electronic Components High Voltage Components
Temperature Humidity (r.h. non-condensing) Temperature Humidity (r.h. non-condensing)
Operation -10°C … +50°C 5 … 95% -10°C … +50°C 5 … 90%
Storage -20°C … +70°C 5 … 95% -20°C … +55°C 5 … 90%
SCOPE OF SUPPLY STANDARD OPTIONS
25ft HV output cable with clamp HHDA13-280 – 120kV rated grounding stick
25ft HV return cable with clamp HH-HS-DI – Hand operated interlock switch
25ft HV ground with clamp HH-FS-DI – Foot operated interlock switch
6ft input power cord HH-WARN-DI – Safety Strobe light with magnetic base
Manual and calibration certificate EXT-WARN-1 – One-year extended warranty
Hipotronics, Inc. 1650 Route 22. Brewster, NY 10509. United States
tel: + 1 845 279 9245 | fax: + 1 845 279 2467 | email: sales@hipotronics.com
Hipotronics has a policy of continuous product improvement. We therefore reserve the right to change design and specification without notice.
Page 2 of 2
