Communication Command Instruction Manual

RM3544-01

RM3545 RM3545-01 RM3545-02

RESISTANCE METER

 This manual explains the communication commands for Models RM3544 / RM3545

Resistance Meter.

 Please refer to the instruction manual for Models RM3544 / RM3545 for details regarding

command settings.

 Although all reasonable care has been taken in the production of this manual, should you

find any points which are unclear or in error, please contact your local distributor or the HIOKI International Sales & Marketing Division at os-com@hioki.co.jp.

 In the interest of product development, the contents of this manual may be subject to

revision without notice.

 Microsoft, MS, MS-DOS, and Windows, are registered trademarks or trademarks of

Microsoft Corporation in the U.S.A. and other countries.

 All other names are registered trademarks or trademarks of their respective companies.

July 2016 RM3544A986-03

1 Introduction ................................................................................................................................................ 1

Message Format ....................................................................................................................................... 1

Output Queue and Input Buffer ................................................................................................................ 5

Status Byte Register ................................................................................................................................. 6

Event Registers ........................................................................................................................................ 8

Initialization Items ................................................................................................................................... 11

Command Execution Ti me ..................................................................................................................... 12

Errors During Communications .............................................................................................................. 12

2 Message List ........................................................................................................................................... 13

3 Message Reference ................................................................................................................................ 21

Message Reference Interpretation ......................................................................................................... 21

Standard Commands .............................................................................................................................. 22

(1) System Data Command .............................................................................................................. 22

*IDN

(2) Internal Operation Command ...................................................................................................... 22

*RST *TST

(3) Synchronization Commands........................................................................................................ 23

*OPC *WAI

(4) Status and Event Control Commands ......................................................................................... 23

*CLS *ESE *ESR *SRE *STB *TRG

Device-Specific Commands .................................................................................................................... 25

(1) Event Status Register .................................................................................................................. 25

:ESE0 :ESR0 :ESE1 :ESR1

(2) Reading Measured Values .......................................................................................................... 26

ETCh

:F :FETCh:TEMPerature :READ :MEASure:RESistance :MEASure:RESistance:LP :MEASure:TEMPerature :ABORt

(3) Zero Adjustment ........................................................................................................................... 31

:ADJust :ADJust:CLEar :ADJust:STATe :ADJust:ENABle

(4) Measurement Speed ................................................................................................................... 32

:SAMPle:RATE

(5) Averaging Function ...................................................................................................................... 33

:CALCulate:AVERage:STATe :CALCulate:AVERage:COUNt

(6) Comparator .................................................................................................................................. 33

:CALCulate:LIMit:STATe :CALCulate:LIMit:BEEPer :CALCulate:LIMit:MODE :CALCulate:LIMit:UPPer :CALCulate:LIMit:LOWer :CALCulate:LIMit:REFerence :CALCulate:LIMit:PERCent

:CALCulate:LIMit:RESult :CALCulate:LIMit:JUDGe:CONDition :CALCulate:LIMit:JUDGe :CALCulate:LIMit:JUDGe:TOTal

(7) BIN Function RM3545 ................................................................................................................. 36

:CALCulate:BIN:STATe :CALCulate:BIN:ENABle :CALCulate:BIN:MODE :CALCulate:BIN:UPPer :CALCulate:BIN:LOWer :CALCulate:BIN:REFerence :CALCulate:BIN:PERCent :CALCulate:BIN:RESult

(8) Statistical Functions RM3545 ...................................................................................................... 38

:CALCulate:STATistics:STATe :CALCulate:STATistics:CLEar :CALCulate:STATistics:NUMBer? :CALCulate:STATistics:MEAN? :CALCulate:STATistics:MAXimum? :CALCulate:STATistics:MINimum? :CALCulate:STATistics:LIMit? :CALCulate:STATistics:BIN? :CALCulate:STATistics:DEViation? :CALCulate:STATistics:CP?

(9) Scaling ......................................................................................................................................... 39

:CALCulate:SCALing:STATe :CALCulate:SCALing:PARameterA :CALCulate:SCALing:PARameterB :CALCulate:SCALing:UNIT

(10) Temperature Conversion (∆t) RM3545 ....................................................................................... 40

:CALCulate:TCONversion:DELTa:STATe :CALCulate:TCONversion:DELTa:PARameter

(11) Temperature Correction (TC) ...................................................................................................... 41

:CALCulate:TCORrect:STATe :CALCulate:TCORrect:PARameter

(12) LCD Settings ................................................................................................................................ 42

:DISPlay:CONTrast :DISPlay:BACKlight

(13) Memory Functions RM3545 ........................................................................................................ 42

:MEMory:STATe :MEMory:CLEar :MEMory:COUNt :MEMory:DATA

(14) Hold .............................................................................................................................................. 43

[:SENSe:]HOLD:AUTO [:SENSe:]HOLD:STATe [:SENSe:]HOLD:OFF

(15) Multiplexer Settings RM3545

..................................................................................................... 44

[:SENSe:]WIRE [:SENSe:]SCAN:MODE [:SENSe:]SCAN:STATe [:SENSe:]SCAN:RESet [:SENSe:]SCAN:FAIL:STOP [:SENSe:]SCAN:DATA [:SENSe:]CH [:SENSe:]CH [:SENSe:]CH:STATe [:SENSe:]CH：AVAirable [:SENSe:]INSTrument [:SENSe:]TERMinal

(16) Multiplexer Channel Reset RM3545

.......................................................................................... 47

[:SENSe:]CHReset

(17) Low-Power Resistance Measurement RM3545 ......................................................................... 48

[:SENSe:]RESistance:LP:STATe

(18) Measurement Range ................................................................................................................... 48

[:SENSe:]RESistance:RANGe [:SENSe:]RESistance:RANGe:AUTO [:SENSe:]RESistance:LP:RANGe

(19) 100MΩ Range High Precision Function RM3545

..................................................................... 49

[:SENSe:]RESistance:PRECision

(20) Switching Measurement Current RM3545 .................................................................................. 49

[:SENSe:]RESistance:CURRent

(21) Offset Voltage Correction Function (OVC) RM3545 ................................................................... 50

[:SENSe:]RESistance:OVC

(22) Contact Improver RM3545 ....................................................................................................... ... 50

[:SENSe:]RESistance:CIMProve¥l 4 ¥ n .................................................................................. 50

(23) Current Error Mode ...................................................................................................................... 50

[:SENSe:]RESistance:ERRor:CURRentcheck

(24) Contact Check RM3545 .............................................................................................................. 51

[:SENSe:]RESistance:CONTactcheck [:SENSe:]RESistance:LP:CONTactcheck

(25) Setting Number of Digits .............................................................................................................. 52

[:SENSe:]RESistance:DIGits

(26) Temperature Measurement (Analog Input) RM3545 .................................................................. 52

[:SENSe:]TEMPerature:SENSor [:SENSe:]TEMPerature:PARameter

(27) Triggering ..................................................................................................................................... 53

:INITiate:CONTinuous :INITiate[:IMMediate] :TRIGger:SOURce :TRIGger:EDGE

(28) Delay RM3545 ............................................................................................................................. 57

:TRIGger:DELay :TRIGger:DELay:AUTO

(29) Self-Calibration RM3545 ............................................................................................................. 57

:SYSTem:CALibration :SYSTem:CALibration:AUTO

(30) Saving and Reading Measurement Conditions ........................................................................... 58

:SYSTem:PANel:SAVE/:LOAD :SYSTem:PANel:NAME :SYSTem:PANel:CLEar

(31) Key-Lock ...................................................................................................................................... 59

:SYSTem:KLOCk

(32) Line Frequency ............................................................................................................................ 59

:SYSTem:LFRequency

(33) Clock RM3545 ............................................................................................................................. 60

:SYSTem:DATE :SYSTem:TIME

(34) Key Beeper .................................................................................................................................. 60

:SYSTem:BEEPer:STATe

(35) Communications Settings ............................................................................................................ 61

:SYSTem:LOCal :SYSTem:DATAout :SYSTem:HEADer :SYSTem:TERMinator

(36) System Reset .............................................................................................................................. 62

:SYSTem:RESet

(37) EXT I/O ........................................................................................................................................ 62

:IO:MODE? :IO:INPut? :IO:OUTPut :IO:FILTer:STATe

:IO:FILTer:TIME :IO:JUDGe:MODE :IO:EOM:MODE :IO:EOM:PULSe

(38) Multiplexer Unit RM3545

:UNIT:IDN :UNIT:SCOunt :UNIT:TEST

4 Multiplexer Commands ............................................................................................................................ 65

Multiplexer Settings ................................................................................................................................ 65

Multiplexer Measurement .................................................................................................................... 66

5 Data Exporting Methods .......................................................................................................................... 69

6 Sample Programs .................................................................................................................................... 72

Using Visual Basic 5.0 or 6.0 .................................................................................................................. 72

RS-232C/USB Communications (Using Microsoft Visual Basic Professional MSComm) .................. 72

GP-IB Communications (Using National Instruments GP-IB Board) .................................................. 77

Using Visual Basic2010 .......................................................................................................................... 82

7 Device Compliance Statement [GP-IB] ................................................................................................... 89

............................................................................................................ 64



1 Introduction

In this publication, items relevant only to the RM3544-01 are indicated as RM3544, and items relevant only to the RM3545, RM3545-01, and RM3545-02 are indicated as RM3545. Also, the RM354-01, RM3545, RM3545-01, and RM3545-02 are indicated as “the instrument.”

If the commun ica tio n mo ni tor in g func ti on is us ed at th e ti me o f pro g ram c re at io n, com man ds an d r es po ns es will be conveniently displayed on the measurement screen. For information on the communication monitoring function, see the instruction manual of the instruments.

Various messages are supported for controlling the instrument through the interfaces. Messages can be either program messages, sent from the controller such as PC to the instrument, or response messages, sent from the instrument to the controller.

Message types are further categorized as follows.

Messages

Controller

Program Messages

Response Messages

Program Messages

Instrument

Command Messages

Query Messages

Response Message

When issuing commands that contain data, make sure that the data is provided in the specified format.

Message Format

 Program Messages

Program messages can be either Command Messages or Query Messages.

(1) Command Messages

Instructions to control the instrument, such as to change settings or reset

Example: (instruction to set the measurement range)

RESISTANCE:RANGE 100E3

Header portion

Space Data portion

Query Messages

(2)

Requests for responses relating to results of operation or measurement, or the state of instrument settin gs Example: (request for the current measurement range)

RESISTANCE:RANGE?

Header portion Question mark

See: “Headers (p.2)”, “Separators (p.3)”, “Data Formats (p.4)”



 Response Messages

When a query message is received, its syntax is checked and a response message is generated. The

:SYSTem:HEADer

Header ON Header OFF

command determines whether headers are prefixed to response messages.

:SENSE:RESISTANCE:RANGE 100.000E+03

100.000E+03

(The current resistance measurement range is 100kΩ)

At power-on, Header OFF is selected. If an error occurs when a query message is received, no response message is generated for that query. Some query message has no header, such as

:FETCH?

and

:CALCulate:LIMit:RESult?

 Command Syntax

Command names are chosen to mnemonically represent their function, and can be abbreviated. The full command name is called the “long for m”, and the abbreviated name is called the “short form”. The command references in this manual indicate the short form in upper-case letters, extended to the long form in lower case letters, although the commands are not case-sensitive in actual usage.

ADJUST? ADJ ADJU AD

Response messages generated by the instrument are in long form and in upper case letters.

Headers



Headers must always be prefixed to program messages.

(1) Command Program Headers

There are three types of commands: Simple, Compound and Standard.

• Headers for Simple Commands

This header type is a sequence of letters and digits

:ESE0

• Headers for Compound Commands

These headers consist of multiple simple command type headers separated by colons “:”

:SAMPle:RATE

• Headers for Standard Commands

This header type begins with an asterisk “*”, indicating that it is a standard command defined by IEEE 488.2.

RST

(2) Query Program Header

These commands are used to interrogate the instrument about the results of operations, measured values and the current states of instrument settings.

As shown by the following examples, a query is formed by appending a question mark header.

:FETCh? :CALCulate:LIMit:REFerence?

OK (long form) OK (short form) Error Error

“

”

after a program

Characters within square brackets [ ] may be omitted.

[:SENSe:]RESistance:RANGe :SENSe:RESistance:RANGe

RESistance:RANGe

Either form is valid



 Message Terminators

This instrument recognizes the following message terminators (delimiters):

[RS-232C/USB]

•

CR+LF

[GP-IB]

•

Depending on the instrument's interface settings, the following can be selected as the terminator for response messages. For information on settings, see “Delimiter Setting” (p. 61).

LF CR+LF EOI LF with EOI

[RS-232C/USB]

•

CR+LF

[GP-IB]

•

LF with EOI (default setting) CR+LF with EOI

 Separators

(1) Message Unit Separator

Multiple messages can be written in one line by separating them with semicolons “;”

:SYSTEM:LFREQUENCY 60;*IDN?

• When messages are combined in this way and if one command contains an error, all subsequent messages up to the next terminator will be ignored.

• A query error occurs if a query command is combined with an immediately followed semicolon and subsequent command.

(2) Header Separator

In a message consisting of both a header and data, the header is separated from the data by a space “ ” (ASCII code 20H).

:SYSTEM:HEADER OFF

Data Separator

(3)

In a message containing multiple data items, com mas ar e re quired to separate the data items fro m o ne an othe r.

:CALCulate:LIMit:BEEPer IN,1,0



 Data Formats

The instrument uses character data, decimal numeric data and character string data depending on the command.

Character Data

(1)

Character data always begins with an alphabetic chara cter, a nd subs eque nt chara cter s ma y be either alphabetic or numeric. Character data is not case-sensitive, although response messages from the instrument are only upper case. When the command data portion contains <1/0/ON/OFF>, the operation will be similar to when 0 is OFF and 1 is ON.

:SYSTEM:HEAD ER OFF

Decimal Numeric Data

(2)

Three formats are used for numeric data, identified as NR1, NR2 and NR3. Numeric values may be signed or unsigned. Unsigned numeric values are handled as positive values. Values exceeding the precision handled by the instrument are rounded to the nearest valid digit.

NR1 Integer data (e.g.: +12, -23, 34)

•

NR2 Fixed-point data (e.g.: +1.23, -23.45, 3.456)

•

NR3 Floating-point exponential representation data (e.g.: +1.0E-2, -2.3E+4)

•

The term “NRf format” includes all three of the above numeric decimal formats. The instrument accepts NRf format data. The format of response data is specified for each command, and the data is sent in that format.

Note: A “+” sign is returned as a space (ASCII code 20H).

:ESE0 106

:FETCH? +106.5710E+03

(3) Character string data

• Character string data is enclosed by quotation marks.

• This type of data consists of 8-bit ASCII characters.

• Characters that cannot be handled by the instrument are replaced by a space.

• As for quotation marks, the sender uses double quotes ( ") on ly, w hile the re ceiver r eceiv es both d ouble qu otes and single quotes (').

:SYSTem:PANel:NAME “PANEL_01”

[GP-IB]

The instrument does not fully support IEEE 488.2. As much as possible, please use the data formats shown in the Reference section. Also, be careful to avoid constructing single commands line that could overflow the input buffer or output queue.

(A “+” sign is returned as a space (ASCII code 20H).



 Compound Command Header Omission

When several commands having a common header are combined to form a compound command (e.g.,

:CALCulate:LIMit:REFerence

together in sequence, the common portion (here, occurrence. This common portion is c alle d the “current path” (analog ous to the path concept i n c omp ute r fil e s torag e), and until it is cleared, the interpretation of subsequent commands presumes that they share the same com mon portion.

and

:CALCulate:LIMit:PERCent

:CALCulate:LIMit:

) can be omitted after its initial

) if they are written

This usage of the current path is shown in the following example:

Full expression

:CALCulate:LIMit:REFerence 1.0E+3;:CALCulate:LIMit:PERCent 1.0

Compacted expression

:CALCulate:LIMit:REFerence 1.0E+3;PERCent 1.0

This portion becomes the current path, and can be omitted from the messages immediately following.

The current path is cleared when the power is turned on, when reset by key input, by a colon “:” at the start of a command, and when a message terminator is detected. Standard command messa ges can b e ex ecuted r egar dless o f the current path. T hey hav e no effe ct upon t he curren t path.

A colon “:” is not required at the start of the header of a Simple or Compound command. However, to avoid confusion with abbreviated forms and operating mistakes, we recommend always placing a colon at the start of a header.

Output Queue and Input Buffer

Output Queue



Response messages are stored in the output queue until read by the controller. The output queue is also cleared in the following circumstances:

• Power on

• Device clear [GP-IB]

• Query Error

The output queue capacity of the instrument is 64 bytes. If response messages overflow the buffer, a query error is generated and the output queue is cleared. Also, with GP-IB, if a new message is received while data remains in the output queue, the output queue is cleared and a query error is generated.

Input Buffer



The input buffer capacity of the instrument is 256 bytes. If 256 bytes are allowed to accumulate in this buffer so that it becomes full, the USB and GP-IB interface bus enters the waiting state until space is cleared in the buffer. The RS-232C

Note: Ensure that the no command ever exceeds 256 bytes.

interface will not accept data beyond 256 bytes.



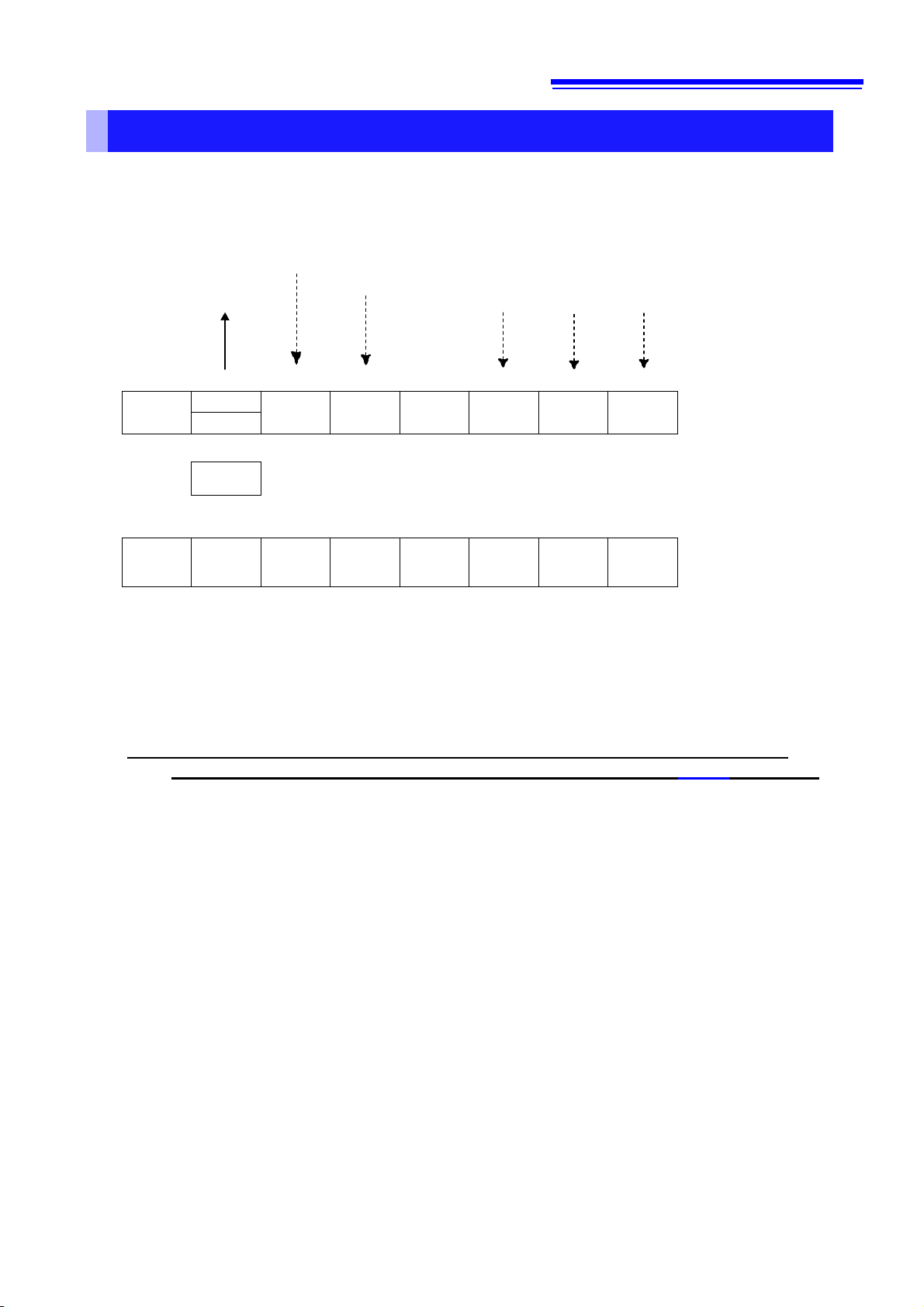

Status Byte Register

[GP-IB]

This instrument implements the status model defined by IEEE 488.2 with regard to the serial poll function using the service request line. The term “event” refers to any occurrence that generates a service request.

Standard Event Register Description Service Request Output Queue data information SRQ occurrence Each of these bits corresponds to a specific event register

bit

SRQ MSS

↑

Logical

sum

bit

unused

bit

unused 0

bit5 bit4 bit3 bit2 bi

ESB MAV unused unused ESB1 ESB0

↓

←

& & & & & &

↑

bit5 bit4 bit3 bit2 bi

↓

↑

ESB MAV unused unused ESB1 ESB0

Overview of Service Request Occurrence

The Status Byte Register contains information about the event regi sters and the output q ueue. Requi red items ar e selected from this information by masking with the Service Request Enable Register. When any bit s elected b y the mask is set, bit 6 (MSS; the Master Summary Status) of the Status Byte Register is also se t, which generates an SRQ (Service Request) message and dispatches a service request.

Note: SRQ (Service Request) is a GP-IB function only. However, STB (Status Byte

[RS-232C/USB]

RS-232C/USB does not provide a function for issuing service requests. Still, SRER setup and STB reading are available.

bit

↓

↑

↓

↑

↓

↑

bit

Status Byte Register (STB)

↓

↑

Service Request Enable Register (SRER)



 Status Byte Register (STB)

During serial polling, the contents of the 8-bit Status Byte Register are sent from the instrument to the controller. When any Status Byte Register bit enabled by the Service Request Enable Register has switched from 0 to 1, the MSS bit becomes 1. Consequently, the SRQ bit is set to 1, and a service request is dispatched.

The SRQ bit is always synchronous with service requests, and is read and simultaneously cleared during serial polling. Although the MSS bit is only read by an

*CLS

command.

*STB?

query, it is not cleared until a clear event is initiated by the

Bit

unused

SRQ Set to 1 when a service request is dispatched.

MSS This is the logical sum of the other bits of the Status Byte Register.

ESB

MAV

ESB1

ESB0

Standard Event Status (logical sum) bit This is logical sum of the Standard Event Status Register.

Message available Indicates that a message is present in the output queue .

unused

unused Event Status (logical sum) bit 1

This is the logical sum of Event Status Register 1. Event Status (logical sum) bit 0

This is the logical sum of Event Status Register 0.

Service Request Enable Register (SRER)



This register masks the Status Byte Register. Setting a bit of this register to 1 enables the corresponding bit of the Status Byte Register to be used.

User Request

Command error (The command to the

message terminator

Execution Error

Not used by this instrument

Query Error (the output queue

is cleared)



Event Registers

 Standard Event Status Register (SESR)

The Standard Event Status Register is an 8-bit register. If any bit in the Standard Event Status Register is set to 1 (after masking by the Standard Event Status Enable Register), bit 5 (ESB) of the Status Byte Register is set to 1.

See: “Standard Event Status Register (SESR) and Standard Event Status Enable Register (SESER)” (

The Standard Event Status Register is cleared in the following situations:

CLS

• When a

•

When an event register query

• When the instrument is powered on

comm and is ex ecuted

Bit

PON

Bit

URQ

(

ESR?

)

is executed

Power-On Flag

Set to 1 when the power is turned on, or upon recovery from an outage.

unused

p.9

)

Bit

CME

EXE

(unused)

DDE

QYE

is ignored.)

This bit is set to 1 when a received command contains a syntactic or semantic error:

•

This bit is set to 1 when a received command cannot be executed for some reason.

•

performed

Device-Dependent Error

This bit is set to 1 when a command cannot be executed due to some reason other than a command error, a query error or an execution error.

This bit is set to 1 when a query error is detected by the output queue control.

• When an attempt has been made to read an empty output

• When the data overflows the output queue

•

Program header error Incorrect number of data parameters Invalid parameter format Received a command not supported by the instrument

The specified data value is outside of the set range The specified setting data cannot be set Execution is prevented by some other operation being

queue (GP-IB only) When data in the output queue has been lost

When the next command is re ceived w hile t here is d ata in th e output queue

Bit

RQC

(unused)

OPC

Request Control

Operation Complete

This bit is set to 1 in response to an “

•

messages up to the “

It indicates the completion of operations of all

*OPC

” command

*OPC

” command.



Standard Event Status Enable Register (SESER)



Setting any bit of the Standard Event Status Enable Register to 1 enables access to the corresponding bit of the Standard Event Status Register.

Standard Event Status Register (SESR) and Standard Event Status Enable Register (SESER)

Status Byte Register (STB)

bit

bit5

bit4

SRQ MSS

ESB MAV

bit

PON URQ CME EXE DDE QYE RQC OPC

Standard Event Status Register (SESR)

bit5 bit4 bit3 bit2 bi

bit

Logical sum

←

↓

& & & & & & & &

↑

bit

↓

↑

bit

↓

↑

bit5 bit4 bit3 bit2 bi

↓

↑

↓

↑

↓

↑

↓

↑

bit

PON URQ CME EXE DDE QYE RQC OPC

Standard Event Status Enable Reg ister (SES ER)

Device-Specific Event Status Registers (ESR0 and ESR1)



This instrument provides two Event Status Registers for controlling events. Each event register is an 8-bit register. With RM3545 Event Status Register 1, only RM3545 is valid.

When any bit in one of these Event Status Registers enabled by its corresponding Event Status Enable Register is set to 1, the following happens:

• For Event Status Register 0, bit 0 (ESB0) of the Status Byte Register (STB) is set to 1.

• For Event Status Register 1, bit 1 (ESB1) of the Status Byte Register (STB) is set to 1.

Event Status Registers 0 and 1 are cleared in the following situations:

• When a *

• When an Event Status Register query (

• When the instrument is powered on

CLS

command is executed

:ESR0?

:ESR1?

) is executed

↓

↑



Event Status Register 0 (ESR0)

Bit Bit Bit Bit Bit Bit Bit Bit

7 6 5 4 3 2 1 0

OutBIN OvrRng ERR Hi IN Lo INDEX EOM

Out of BIN RM3545 Out-of-Range Measurement Fault High Comparator Result IN Comparator Result Low Comparator Result End of Reading End of Measurement

Event Status Register 1 (ESR1) RM3545

Bit

Bit Bit Bit Bit Bit Bit

Bit

6 5 4 3 2 1

NO UNIT SW.ERR CURR CONTACT

TERM.A CONTACT

TERM.B

Unused Unused Unused Multiplexer Unit Not Inserted, Terminal Setting Error Multiplexer Relay Hot Switching Prevention Function Fault Current Monitor Fault Contact Check – A side Fault

Contact Check – B side Fault

Event Status Registers 0 (ESR0) and 1 (ESR1), and Event Status Enable Registers 0 (ESER0) and 1 (ESER1)

Status Byte Register (STB)

bit

bit1

ESB1 ESB0

Logical

sum

bit0

Event Status Register 0 (ESR0)

bit

bit5 bit4 bit3 bit2 bi

Out BIN

↓

Logical

sum

↑

bit

Out BIN

bit

- - -

↓

& & & & & & & &

↑

bit

- - -

Ovr Rng

bit

Ovr Rng

ERR

↓

& & & & & & &

↑

↓

↑

bit5 bit4 bit3 bit2 bi

ERR

Event Status Enable Register 0 (ESER0)

Event Status Register 1 (ESR1)

bit

bit5 bit4 bit3 bit2 bi

↓

↑

bit

↓

↑

bit5 bit4 bit3 bit2 bi

Event Status Enable Register 1 (ESER1)

HI IN Lo

↓

↑

↓

↑

HI IN Lo

UNIT

↓

↑

UNIT

SW.

ERR

SW.

ERR

CURR

↓

↑

CURR

INDEX

↓

↑

↓

↑

↓

↑

INDEX

CONC ACT A

↓

↑

CONC ACT A

CONC ACT B

bit

EOM

↓

↑

bit

EOM

bit

↓

↑

bit







Read

Write

Status Byte Register Service Request Enable Register

Standard Event Status Register Standard Event Status Enable Register Event Status Register 0 Event Status Enable Register 0 Event Status Register 1 Event Status Enable Register 1

GP-IB Commands



The following commands can be used for performing interface functions.

Command Description

GTL LLO DCL SDC

GET

Initialization Items

Go To Local Local Lock Out Device CLear Selected

Device Clear Group Execute

Trigger

*STB? -

*SRE? *SRE *ESR? -

*ESE? *ESE :ESR0? :ESE0? :ESE0 :ESR1? :ESE1? :ESE1

Cancels the Remote state and enters the Local state. Disables all keys, including the Local key. Clears the input buffer and the output queue.

Clears the input buffer and the output queue. When an external trigger (trigger source <EXTERNAL>) occurs,

processes one sample.

Initialization Method

Item

GP-IB Address RS-232C setting (baud rate) Device-specific functions (range,

etc.) Output Queue Input buffer Status Byte Register Event registers Enable register Current path Headers on/off OFF Response message terminat or

(GP-IB) Response message separ ator

*1. Only the MAV bit (bit 4) is cleared. *2. All bits except the MAV bit are cleared.

*3. Except the PON bit (bit 7).

Device Clear

(GP-IB only)

- -



*1 *2



- -

Power-on

*3

LF+EOI



Key Reset

9600



OFF

LF+EOI

Command

*RST

- - -



- -

- - -

OFF

- - -

; ; ; - -

*CLS

Command



Factory

Default

9600



OFF

LF+EOI

;

*RST

:RESistance:RANGe

:SAMPle:RATE

[:SENSe:]CH

:ADJust?

:FETCh?

:READ?

:SYSTem:CALibration

TST?

:UNIT:TEST?



Command Execution Time

Command execution time indicates the time for analyzing and processing long form commands. However, the command execution time for commands with data is the time described according to the data format specified in the <data portion>, and for query commands it is the time when the header is ON.

• Display delays may occur depending on the frequency of communication processes and process contents.

• All commands except

• In communications with the controller, time must be added for data transmission. USB and GP-IB transfer time depends on the controller. The RS-232C transfer time, with start bit 1, data length 8, no parity, and stop bit 1, has a total of 10-bit. When the transfer speed (baud rate) setting is N bps, the general result will be as follows:

Transfer time T [1 character/sec] = Baud rate N [bps]/10 [bits] Since a measurement value is 11 characters, a 1 data transfer time will be 11/T. (Example) For 9600 bps, 11/(9600/10) = Approx. 11 ms

Wait until measurements stabilize after a change before using a setting command.

•

TRG

Command

and

:INIT

are processed sequentially.

Execution time (except communication time)

RM3544 RM3545

:SYSTem:PANel:LOAD

Commands other than those above

*1 If there is a counter-electromotive force, such as a transformer, the switching takes longer due to the hot

switching prevention function for the relay. The hot switching prevention function is canceled when the counter-electromotive force is lost or a maximum 1 second + delay set value elapses.

*2 Manual range, for one channel

700 ms or less 1.5s or less 300 ms or less 100 ms or less 200 ms or less 30 ms or less

50 ms or less *1

5 ms or less

Panel 1 to 30:100 ms or less Panel 31 to 38:200 ms or less

400ms or less

1 s or less

3s or less

500 ms or less

600 ms or less *2

Measurement time + 15 ms or less

10 ms or less

Errors During Communications

An error occurs when messages are executed in the following cases:

• Command Error

When message syntax (spellin g) is inval id When the data format in a command or query is invalid

• Query Error

When the response message exceeds 64 bytes

• Execution Error

When invalid character or numeric data is present

ssage

Data Formats

Corresponding

√

2 Message List

[ ]: Omissible

Standard Commands

*CLS *ESE 0 to 255 *ESE? 0 to 255 *ESR? 0 to 255

*IDN?

*OPC *OPC? (1) Queries execution completion.

*RST Initializes the device. *SRE 0 to 255

*SRE? (0 to 255) *STB? (0 to 255)

*TRG Executes one sampling. *TST? (0 to 3) *WAI Wait for operations to finish.

Event Registers

:ESE0 0 to 255

:ESE0? (0 to 255)

:ESR0? (0 to 255) :ESE1 0 to 255 :ESE1? (0 to 255) :ESR1? (0 to 255)

Reading Measured Values

:FETCh?

:FETCh:TEMPerature?

[ ]: Omissible

( ): Response data

(<Manufacturer name>,<Model name>,<Serial number>,<Software version>)

RM3544:[<LIMit>] (<Measurement value> [,<HI/IN/LO/OFF/ERR> ]) RM3545:[<LIMit/JUDG e/LIMJdge>,<Channel number>](Measured value>,[<HI/IN/LO/OFF /ERR][<PASS/FAIL/OF F/ERR>]

(<Temperature measurement value>)

Description

Clears the event registers and the Status Byte Register. Sets the Standard Event Status Enable Register. Queries the Standard Event Status Enable Register. Queries the Standard Event Status Register.

Queries the Device ID.

Requests an SRQ after execution completion.

Sets the Service Request Enable Register. Queries the Service Request Enable Register. Queries the Status Byte Register.

Initiates a self-test and queries the result.

Sets the Event Status Enable Register 0. Queries the Event Status Enable Register 0. Queries the Event Status Register 0. Sets the Event Status Enable Register 1. Queries the Event Status Enable Register 1. Queries the Event Status Register 1.

Reads the most recent measurement.

• When data has been omitted: Reads the measurement value only.

• When data has been set to LIMit: Reads the measurement value and comparator result.

• When data has been set to JUDGe: Reads the measured value and PASS/FAIL result.• When data has been set to LIMJdge: Reads the measured value, and comparator and PASS/FAIL results. Reads the temperature measurement value.



RM3544 RM3545

Model

√ √

√

√ √

√

√ √ √ √

√

channel

√

ssage

Data Formats

Corresponding

√



[ ]: Omissible

:READ?

:MEASure:RESistance?

:MEASure:RESistance:LP?

:MEASure:TEMPerature?

:ABORt

Zero Adjustment

:ADJust? (0/1) Executes zero adjustment. :ADJust:CLEar Clears zero adjustment.

:ADJust:STATe?

:ADJust:ENABle

:ADJust:ENABle?

Measurement Speed

:SAMPle:RATE

:SAMPle:RATE?

Averaging Functions

:CALCulate:AVERage:STATe 1/0/ON/OFF :CALCulate:AVERage:STATe? (ON/OFF)

:CALCulate:AVERage:COUNt 2 to 100 Sets the average count. :CALCulate:AVERage:COUNt? (2 to 100) Queries the average count.

Comparator

:CALCulate:LIMit:STATe 1/0/ON/OFF :CALCulate:LIMit:STATe? (ON/OFF)

:CALCulate:LIMit:BEEPer

:CALCulate:LIMit:BEEPer? RM3544:<HI/IN/LO>(< Queries the beep sound.

[ ]: Omissible

( ): Response data

RM3544:(<Measureme nt value>) RM3545:<NDATa/JUD Ge> For scanning OFF/STEP:(< Measured value>) For AUTO scanning:([< Measured value>,<Measured value>,…<Measured value>][<PASS/FAIL/O FF/ERR>]) [<Expected measurement value>](measurement value) [<Expected measurement value>](measurement value) (<Temperature measurement value>)

(ON/OFF)

1/0/ON/OFF

(ON/OFF)

RM3544:FAST/MEDiu m/SLOW RM3545:FAST/MEDiu m/SLOW1/SLOW2 RM3544:(FAST/MEDI UM/SLOW) RM3545:(FAST/MEDI UM/SLOW1/SLOW2)

RM3544:<HI/IN/LO>,< 0 to 3 (Type)>,<0 to 5 (Count)> RM3545:<HI/IN/LO/PA SS/FAIL>,<0 to 3 (Type)>,<0 to 5 (Count)>

Description

Waits for trigger and reads the measured value. RM3545: Responds with the total judgment or PASS/FAIL result only if NDATa is included in the data formats. Adds and responds with the total judgment if JUDGe is included in the data formats.

Presets to the specified resistance measurement range; then measures.

Presets to the specified Low-Power Resistance measurement range; then measures. Reads the temperature measurement value. :READ /Scan measurement / Scan zero adjustment is aborted (forcibly terminated).

Queries the zero adjustment execution state. Sets the scan zero adjustment execution (execution error for [:SENSe:]CH FRONT). Queries the scan zero adjustment execution (execution error for [:SENSe:]CH FRONT).

Sets the measurement speed.

Queries the measurement speed.

Sets the averaging function execution. Queries the averaging function execution.

Sets the comparator operating state. Queries the comparator operating state.

Sets the beep sound.

RM3544 RM3545

√

√ √

√

√ √

√

Model

√

channel

√ √

√

√ √

√

ssage

Data Formats

Corresponding

√



[ ]: Omissible

:CALCulate:LIMit:MODE ABSolute/REFerence Sets the judgment mode. :CALCulate:LIMit:MODE? :CALCulate:LIMit:UPPer <Upper threshold> Sets the upper threshold.

:CALCulate:LIMit:UPPer? (<Upper threshold>) Queries the upper threshold. :CALCulate:LIMit:LOWer <Lower threshold> Sets the lower threshold. :CALCulate:LIMit:LOWer? (<Lower threshold>) Queries the lower threshold.

:CALCulate:LIMit:REFerence

:CALCulate:LIMit:REFerence?

:CALCulate:LIMit:PERCent <Range (%)> Sets the judgment range. :CALCulate:LIMit:PERCent? (<Range (%)>) Queries the judgment range.

:CALCulate:LIMit:RESult? :CALCulate:LIMit:JUDGe:CONDition

:CALCulate:LIMit:JUDGe:CONDition?

:CALCulate:LIMit:JUDGe?

:CALCulate:LIMit:JUDGe:TOTal?

BIN Functions

:CALCulate:BIN:STATe 1/0/ON/OFF :CALCulate:BIN:STATe? (ON/OFF)

:CALCulate:BIN:ENABle <Mask pattern> Sets the mask pattern. :CALCulate:BIN:ENABle? (<Mask pattern>) Queries the mask pattern.

:CALCulate:BIN:MODE :CALCulate:BIN:MODE? :CALCulate:BIN:UPPer :CALCulate:BIN:UPPer? :CALCulate:BIN:LOWer :CALCulate:BIN:LOWer? :CALCulate:BIN:REFerence :CALCulate:BIN:REFerence? :CALCulate:BIN:PERCent :CALCulate:BIN:PERCent?

:CALCulate:BIN:RESult? 0 to 1023 Queries the comparator result.

[ ]: Omissible

( ): Response data

HI/IN/LO>,<0 to 3 (Type)>,<0 to 5 (Count)>) RM3545:<HI/IN/LO/PA SS/FAIL>(<HI/IN/LO>, <0 to 3 (Type)>,<0 to 5 (Count)>)

(ABSOLUTE/REFERE NCE)

(<Reference resistance>)

[<Channel number>] (HI/IN/LO/OFF/ERR) OFF/IN/HI/LO/HILO/AL L

(OFF/IN/HI/LO/HILO/ ALL)

[<Channel number>] (PASS/FAIL/OFF/ERR )

(PASS/FAIL/OFF/ERR)

<BINNo.>,<ABSolute/ REFerence> <BINNo.>(<ABSOLUT E/REFERENCE>) <BINNo.>,<Upper threshold> <BINNo.>(<Upper threshold>) <BINNo.>,<Lower threshold> <BINNo.>(<Lower threshold>) <BINNo.>,<Reference resistance> <BINNo.>(<Reference resistance>) <BINNo.>,<Range (%)> <BINNo.>(<Range (%)>)

Description

Queries the judgment mode.

Sets the reference resistance. (Channel 1 can be set for commands other than ([:SENSe:]CH FRONT.) Queries the reference resistance. (Response may be Channel1 for commands other than [:SENSe:] CH FRONT.)

Queries the comparator result. Sets the PASS judgment

conditions. Queries the PASS judgment

conditions.

Queries the PASS/FAIL result. Queries the total judgment

result.

Sets the measurement execution. Queries the BIN measurement execution.

Sets the judgment mode. Queries the judgment mode. Sets the upper threshold. Queries the upper threshold. Sets the lower threshold. Queries the lower threshold. Sets the reference resistance.

Queries the reference resistance.

Sets the judgment range. Queries the judgment range.

RM3544 RM3545

√ √ √

√

√ √

√

Model

√

channel

√ √ √

√

√ √

√

ssage

Data Formats

Corresponding

√



[ ]: Omissible

Statistical Functions

:CALCulate:STATistics:STATe 1/0/ON/OFF :CALCulate:STATistics:STATe? (ON/OFF) :CALCulate:STATistics:CLEar

:CALCulate:STATistics:NUMBer? :CALCulate:STATistics:MEAN? (<Mean>) Queries the mean value.

:CALCulate:STATistics:MAXimum? :CALCulate:STATistics:MINimum?

:CALCulate:STATistics:LIMit?

:CALCulate:STATistics:BIN?

:CALCulate:STATistics:DEViation? (<σn>,<σn-1>) Queries the standard deviation. :CALCulate:STATistics:CP? (<Cp>,<Cpk>)

Scaling

:CALCulate:SCALing:STATe 1/0/ON/OFF :CALCulate:SCALing:STATe? (ON/OFF) :CALCulate:SCALing:PARameterA :CALCulate:SCALing:PARameterA?

:CALCulate:SCALing:PARameterB

:CALCulate:SCALing:PARameterB?

:CALCulate:SCALing:UNIT <OFF/OHM/Any unit> Sets the scaling unit. :CALCulate:SCALing:UNIT? (OFF/OHM/Any unit) Queries the scaling unit.

Temperature Conversion (∆t)

:CALCulate:TCONversion:DELTa:STATe 1/0/ON/OFF :CALCulate:TCONversion:DELTa:STATe? (ON/OFF)

:CALCulate:TCONversion:DELTa:PARam eter

:CALCulate:TCONversion:DELTa:PARam eter?

Temperature Correction (TC)

:CALCulate:TCORrect:STATe 1/0/ON/OFF :CALCulate:TCORrect:STATe? (ON/OFF)

:CALCulate:TCORrect:PARameter <Reference Sets the temperature correction

[ ]: Omissible

( ): Response data

Clear Statistical Calculation Result (<Total data count>,<Valid data count>)

(<Maximum value>,<Data no.>) (<Minimum value>,<Data no.>) (<Hi count>,<IN count>,<Lo count>,<Measurement fault count> (<BIN0 count>,...,<BIN9 count>,<OUT count>,<Measurement fault count>)

<0.2000E-3 to

2.0000E+3> (0.2000E-3 to

2.0000E+3) RM3544:<0.0000E-9 to ±1.0000E+9> RM3545:<0.0000E-9 to ±9.0000E+9> RM3544: (0.0000E-9 to ±1.0000E+9) RM3545: (0.0000E-9 to ±9.0000E+9)

<Initial resistance>,<Initial temperature>,<Consta nt> (<Initial resistance>,<Initial temperature>,<Consta nt>)

Description

Sets the statistical calculation function execution. Queries the statistical calculation function execution.

Queries the data count.

Queries the maximum value. Queries the minimum value.

Queries the comparator results.

Queries the BIN result.

Queries the process capability indices.

Sets the scaling function execution. Queries the scaling function execution.

Sets the scaling gain. Queries the scaling gain.

Sets the scaling offset.

Queries the scaling offset.

Sets the temperature conversion execution. Queries the temperature conversion execution.

Sets the temperature conversion constant.

Queries the temperature conversion constant.

Sets the temperature correction execution. Queries the temperature correction execution.

Model

RM3544 RM3545

√

√ √

√

√ √

√

channel

√

√ √

√

√ √

ssage

Data Formats

Corresponding

√



[ ]: Omissible

:CALCulate:TCORrect:PARameter?

LCD Settings

:DISPlay:CONTrast <0 to 100> Sets the contrast. :DISPlay:CONTrast? (0 to 100) Queries the contrast. :DISPlay:BACKlight <0 to 100> Sets the backlight brightness.

:DISPlay:BACKlight? (0 to 100)

Memory Function

:MEMory:STATe 1/0/ON/OFF Sets the memory mode. :MEMory:STATe? (ON/OFF) Queries the memory mode. :MEMory:CLEar Clears the memory data.

:MEMory:COUNt? (0 to 50)

:MEMory:DATA?

Hold

[:SENSe:]HOLD:AUTO 1/0/ON/OFF Sets the auto hold execution. [:SENSe:]HOLD:AUTO? (ON/OFF) Queries the auto hold executio n. √ [:SENSe:]HOLD:STATe? (ON/OFF) Queries the hold state. [:SENSe:]HOLD:OFF Cancels hold.

Multiplexer Settings

[:SENSe:]WIRE [:SENSe:]WIRE? [:SENSe:]SCAN:MODE [:SENSe:]SCAN:MODE?

[:SENSe:]SCAN:STATe? [:SENSe:]SCAN:RESet

[:SENSe:]SCAN:FAIL:STOP [:SENSe:]SCAN:FAIL:STOP?

[:SENSe:]SCAN:DATA?

[:SENSe:]FRONtcheck? [:SENSe:]CH [:SENSe:]CH?

[:SENSe:]CH:STATe

[:SENSe:]CH:STATe?

[:SENSe:]CH:AVAilable?

[:SENSe:]INSTrument

[:SENSe:]INSTrument?

[:SENSe:]TERMinal

[ ]: Omissible

( ): Response data

temperature>,<Temper ature coefficient> (<Reference temperature>,<Temper ature coefficient>)

4/2/W4/W2 Sets the measurement method. (W4/W2) Queries the measurement method. OFF/AUTO/STEP Sets the scanning function. (OFF/AUTO/STEP) Queries the scanning function.

(1/0)

1/0/ON/OFF Sets the scan fail stop. (ON/OFF) Queries the scan fail stop. <Measured

value>,<Measured value> …,<Measured value>

(1/0)

FRONt/0/<Channel number> (FRONT/<Channel number>)

<1/0/ON/OFF>,[<Channel number>]

[<Channel number>] (ON/OFF)

(Number of channels)

INTernal/EXTernal

(INTERNAL/EXTERNAL)

Description

constant.

Queries the temperature correction constant.

Queries the backlight brightness.

Queries the number of measurements stored in memory.

Reads the measurements stored in memory.

RM3544 RM3545

Queries the scanning execution state. Initializes the scan channel and measured value or judgment value.

Reads the scanned measured data in a batch.

Queries the front measurement terminal connection.

Sets the channel switching. Queries the channel switching.

Sets the channel for the multiplexer to be used (execution error when the front measurement terminal is used). Queries the channel for the multiplexer to be used (execution error when the front measurement terminal is used). Queries the number of channels for the multiplexer to be used. Sets the use of external equipment (execution error when the front measurement terminal is used). Queries the use of external equipment (execution error when the front measurement terminal is used). Sets the allocation of terminals for the multiplexer (the current flows from terminal B to terminal A, execution error when the front

Model

√

√ √ √

√

√ √

channel

√

√ √ √ √

√

√ √

√

ssage

Data Formats

Corresponding

100MΩ Range High Precision Function

Offset Voltage Correction Function (OVC)



[ ]: Omissible

[:SENSe:]TERMinal?

Multiplexer Channel Reset

[:SENSe:]CHReset

Low-Power Resistance Measurement

[:SENSe:]RESistance:LP:STATe 1/0/ON/OFF [:SENSe:]RESistance:LP:STATe? (ON/OFF)

Measurement Range

[:SENSe:]RESistance:RANGe

[:SENSe:]RESistance:RANGe?

[:SENSe:]RESistance:RANGe:AUTO 1/0/ON/OFF [:SENSe:]RESistance:RANGe:AUTO? (ON/OFF) [:SENSe:]RESistance:LP:RANGe 0 to 1000E+0

[:SENSe:]RESistance:LP:RANGe?

[:SENSe:]RESistance:PRECision [:SENSe:]RESistance:PRECision?

Switching Measurement Current

[:SENSe:]RESistance:CURRent [:SENSe:]RESistance:CURRent? (HIGH/LOW)

[:SENSe:]RESistance:OVC [:SENSe:]RESistance:OVC? (ON/OFF)

Contact Improver

[:SENSe:]RESistance:CIMProve [:SENSe:]RESistance:CIMProve? (ON/OFF) Queries the Contact Improver.

Current Error Mode

[:SENSe:]RESistance:ERRor:CURRentch eck

[:SENSe:]RESistance:ERRor:CURRentch eck?

Contact Check

[:SENSe:]RESistance:CONTactcheck [:SENSe:]RESistance:CONTactcheck? (ON/OFF) [:SENSe:]RESistance:LP:CONTactcheck ON/OFF/1/0

[:SENSe:]RESistance:LP:CONTactcheck? (ON/OFF)

Setting Number of Digits

[ ]: Omissible

( ): Response data

(<Unit number>,<A terminal number>,<B terminal number>)

RM3544:0 to 3.5E+6 RM3545:0 to 1200E+6 RM3544:(30.000E-3 to

3.0000E+6) RM3545:(10.00000E-3 to 1000.0000E+6)

(1000.00E-3 to

1000.00E+0)

1/0/ON/OFF (ON/OFF)

HIGH/LOW Sets the measurement current.

1/0/ON/OFF

ON/OFF/1/0 Sets the Contact Improver.

ERRor/OVER Sets the current error mode.

(ERRor/OVER) Queries the current error mode.

ON/OFF/1/0

Description

measurement terminal is used). Queries the allocation of terminals for the multiplexer (the current flows from terminal B to terminal A, execution error when the front measurement terminal is used).

Resets the multiplexer channel settings including the measurement conditions.

Sets the Low-Power Resistance measurement. Queries the Low-Power Resistance measurement.

Sets the resistance measurement range.

Queries the resistance measurement range.

Sets the resistance measurement AUTO range. Queries the resistance measurement AUTO range. Sets the Low-Power Resistance measurement range. Queries the Low-Power Resistance measurement range.

Sets the 100MΩ range high precision function. Queries the 100MΩ high precision function.

Queries the measurement current.

Sets the offset voltage correction function execution. Queries the offset voltage correction function execution.

Sets the resistance measurement contact check. Queries the resistance measurement contact check. Sets the Low-Power Resistance measurement contact check. Queries the Low-Power Resistance measurement contact check.

Model

RM3544 RM3545

√

√ √

√

√ √

√

√ √

√

√ √ √

√

√ √

√

channel

√

ssage

Data Formats

Corresponding

Temperature Measurement (Analog Input)

√

Saving and Reading Measurement Conditions

√



[ ]: Omissible

[:SENSe:]RESistance:DIGits [:SENSe:]RESistance:DIGits?

[:SENSe:]TEMPerature:SENSor [:SENSe:]TEMPerature:SENSor?

[:SENSe:]TEMPerature:PARameter <V1>,<T1>,<V2>,<T2> [:SENSe:]TEMPerature:PARameter?

Trigger

:INITiate:CONTinuous :INITiate:CONTinuous? (ON/OFF)

:INITiate[:IMMediate] Initiates the trigger wait state. :TRIGger:SOURce IMMediate/EXTernal Sets the trigger source.

:TRIGger:SOURce? :TRIGger:EDGE 1/0/ON/OFF :TRIGger:EDGE? (ON/OFF)

Delay

:TRIGger:DELay :TRIGger:DELay? (0 to 9.999) Queries the delay time. :TRIGger:DELay:AUTO 1/0/ON/OFF Sets the preset delay. :TRIGger:DELay:AUTO? (ON/OFF) Queries the preset delay.

Self-Calibration

:SYSTem:CALibration :SYSTem:CALibration:AUTO 1/0/ON/OFF

:SYSTem:CALibration:AUTO?

:SYSTem:PANel:SAVE :SYSTem:PANel:LOAD

:SYSTem:PANel:NAME :SYSTem:PANel:NAME?

:SYSTem:PANel:CLEar <TableNo> Clears the panel.

Key-Lock

:SYSTem:KLOCk :SYSTem:KLOCk? (ON/MENU/OFF) Queries the key-lock.

Line Frequency

:SYSTem:LFRequency :SYSTem:LFRequency? (AUTO/50/60) Queries the AC line frequency.

Clock

:SYSTem:DATE :SYSTem:DATE? :SYSTem:TIME

:SYSTem:TIME?

Key Beeper

[ ]: Omissible

( ): Response data

RM3544:4/5 RM3545:5/6/7 RM3544:(4/5) RM3545:(5/6/7)

THERmistor/ANALog Sets the temperature sensor. (THERMISTOR/ANAL

OG)

(<V1>,<T1>,<V2>,<T2 >)

1/0/ON/OFF

(IMMEDIATE/EXTERN AL)

<Delay time> Sets the delay time.

(ON/OFF)

<TableNo> Saves the panel. <TableNo>,<Zero

adjustment load=1/0/ON/OFF> <TableNo>,<Panel name> <TableNo> (<Panel name>)

1/0/ON/OFF Sets the key-lock.

AUTO/50/60 Sets the AC line frequency.

<Year>,<Month>,<Day > (<Year>,<Month>,<Da y>) <Hour>,<Minute>,<Sec ond> (<Hour>,<Minute>,<Se cond>)

Description

RM3544 RM3545

Sets the measurement value's number of digits. Queries the measurement value's number of digits.

Queries the temperature sensor. Sets the analog input scaling

constants. Queries the analog input scaling constants.

Sets the continuous measurement. Queries the continuous measurement.

Queries the trigger source. Sets the trigger logic (ON

edge/OFF edge). Queries the trigger logic (ON edge/OFF edge).

Model

√ √

√

√ √

√

√ √

√

Executes self-calibration. Sets the automatic

self-calibration. Queries the automatic self-calibration.

Reads the panel.

Sets the panel name. Obtains the panel name.

√ √

√

√ √

√

√ √ √

√

Sets the system date. Queries the system date. Sets the system time.

Queries the system time.

channel

√ √ √

ssage

Data Formats

Corresponding

√

Multiplexer Unit



[ ]: Omissible

:SYSTem:BEEPer:STATe :SYSTem:BEEPer:STATe? (ON/OFF) Queries the key beeper.

Communications Settings

:SYSTem:LOCal :SYSTem:DATAout 1/0/ON/OFF

:SYSTem:DATAout? (ON/OFF) :SYSTem:HEADer 1/0/ON/OFF Sets the header presence.

:SYSTem:HEADer? (ON/OFF) Queries the header presence. :SYSTem:TERMinator 0/1 Sets the command delimiter. :SYSTem:TERMinator? (0/1) Queries the command delimiter.

System Reset

:SYSTem:RESet

EXT I/O

:IO:MODE? :IO:INPut? (0 to 3) Executes the external I/O input. :IO:OUTPut 0 to 7

:IO:FILTer:STATe 1/0/ON/OFF :IO:FILTer:STATe? (ON/OFF) :IO:FILTer:TIME <0.050 to 0.500> :IO:FILTer:TIME? (0.050 to 0.500) :IO:JUDGe:MODE JUDGe/BCD :IO:JUDGe:MODE? (JUDGE/BCD)

:IO:EOM:MODE <HOLD/PULSe> Sets the EOM output mode. :IO:EOM:MODE? (<HOLD/PULSE>) Queries the EOM output mode. :IO:EOM:PULSe <Pulse width> Sets the EOM pulse width. :IO:EOM:PULSe? (0.001 to 0.100) Queries the EOM pulse width.

:UNIT:IDN?

:UNIT:SCOunt?

:UNIT:TEST?

[ ]: Omissible

( ): Response data

1/0/ON/OFF Sets the key beeper.

(NPN/PNP)

<Unit number> (<Model name>,<Serial number>) <Unit number> (<Relay count>) <Unit number> (0 to 8>)

Description

Enables the local control state. Sets the

measurement-synchronized data output. Queries the measurement-synchronized data output.

Executes reset, including the saved data on measurement conditions.

Queries the NPN/PNP switch status.

Executes the external I/O output. Sets the TRIG/PRINT signal filter function execution. Queries the TRIG/PRINT signal filter function execution. Sets the TRIG/PRINT signal filter time. Queries the TRIG/PRINT signal filter time. Selects the judgment mode/BCD mode. Queries the judgment mode/BCD mode.

Queries the unit.

Queries the relay usage count.

Queries the unit test and result.

Model

RM3544 RM3545

√ √ √

√ √

√

√ √

√

√ √

√

√ √

√ √ √

channel

√

√ √

√

Syntax

ESE

ESE?

<0 to 255 (NR1)>

Description

The initial value (at power

on) is 0.

Example

*ESE 36

3 Message Reference

Message Reference Interpretation

Shows the command description.

Shows the message syntax. Explains the command data or response message. Describes the message.

Shows an example of an actual command application. (Normally described with HEADER OFF [except the HEADER command itself].)

Read/Write the Standard Event Status Enable Register (SESER)

< >: Indicates the contents (character or numeric parameters) of

the data portion of a message. Character parameters are returned as all capital letters.

Numeric Parameters:

•

NRf Number format may be any of NR1, NR2 and NR3

•

NR1 NR2

•

NR3

•

Command Query

Response Command The SESER mask is set to the numerical value 0 to 255.

Query The contents of the SESER, as set by the *ESE

Integer data (e.g.: +12, -23, 34) Fixed-point data (e.g.: +1.23, -23.45, 3.456) Floating-point exponential representation data (e.g.: +1.0E-2, -2.3E+4)

<0 to 255 (NR1)>

command, are returned as an NR1 value (0 to 255).

128 64 32 16

bit

7 bit

6 bit

5 bit

PON URQ CME EXE DDE QYE RQC OPC

8 4 2

4 bit

3 bit

2 bit

1 bit 0

(Sets bits 5 and 2 of SESER)

Command, Query

Controller

Response

Instrument

Query Device ID (Identification Code)

Syntax

*IDN?

Example

Note

Initialize Device

Synta

*RST

Description

Note

Execute Self

Test and Query Result

Syntax

*TST

Description

Example

Note

Standard Commands

(1) System Data Command

Query Response

*IDN? HIOKI,RM3545,123456789,V1.00

The Device ID is HIOKI RM3545, 123456789, software version 1.00. The <Model name> will be RM3544-01 for the RM3544-01, RM3545-01 for the RM3545-01, and RM3545-02 for the RM3545-02.

The response message has no header.

(2) Internal Operation Command

Command

The communications state is not initialized. RM3545 An execution error occurs during scanning.

Resets the instrument to its initial state.

Query Response

Perform the instrument self-test and return the result as NR1 value 0 to 15. Returns zero when no error occurs.

*TST?

A memory error occurred. Correct measurement may not be possible. Obtain repair before further use.

RM3545 An execution error occurs during scanning.

<0 to 15 (NR1)>

128 64 32 16 8 4 2

bit

7 bit

unused unused unused unused

6 bit

5 bit

4 bit

Blown FUSE

3 bit

memory

2 bit

CPU

RAM

1 bit 0

CPU

ROM

Set OPC bit of SES

R when Finished with All Pending Operations

Syntax

OPC

Description

Respond with ASCII “1” when Finished wi

th All Pending Operations

Syntax

*OPC?

Description

Wait for Pending Commands to Finish

Syntax

WAI

Description

Clear Event Register, Status Byte Register (Except Output Queue)

Syntax

CLS

Description

Note

Read/Write Standard Event Status Enable Register (SESER)

Syntax

ESE

ESE?

Description

Example

(3) Synchronization Commands

Command

Sets OPC bit 0 of the Standard Ev ent Stat us Register (SESR) when all command s prior to

*OPC

have finished processing.

Query Response

Responds with ASCII “1” when all commands prior to

Command

The instrument waits until all prior commands finish before executing any subsequent commands.

(4) Status and Event Control Commands

Command

Clears the event status registers. The Status Byte Register bits corresponding to the event status registers are also cleared. (

[RS-232C/USB] [GP-IB] The output queue, various enable registers and MAV bit 4 of the

The output queue is unaffected.

Status Byte Register are unaffected.

OPC

have finished processing.

SESR, ESR0, ESR1

)

Command Query Response

Command The SESER mask is set to the numeric al valu e 0 to 25 5. The i nitial v alue (a t

Query

*ESE 36

(Sets bits 5 and 2 of SESER)

<0 to 255(NR1

power-on) is 0. The contents of the SESER, as set by the an NR1 value (0 to 255).

<0 to 255(NR1)>

command, are returned as

*ESE

128 64 32 16 8 4 2 bit

7 bit

6 bit

5 bit

4 bit

3 bit

2 bit

1 bit 0

PONURQCME EXE DDE QYE RQ

C OPC

Read and Clear Standard Event Status Register (SESR)

Syntax

ESR?

Description

Example

Write and Read Standard Event Status Enable Register (SRER)

Syntax

SRE

SRE?

Description

Example

Query Response

Returns the contents of the SESR as an NR1 value from 0 to 255, then clears register contents. The response message has no header.

[RS-232C/USB]

128 64 32 16 8 4 2

bit

7 bit

PON

[GP-IB]

128 64 32 16 8 4 2

bit

7 bit

<0 to 255 (NR1

6 bit

unused

CME EXE DDE QYE

6 bit

5 bit

4 bit

3 bit

2 bit

unused

2 bit

1 bit 0

OPC

1 bit 0

PON URQ CME EXE DDE QYE RQC OPC

ESR?

Bit 5 of the SESR has been set to 1.

Command Query Response

Command The SRER mask is set to the numerical value 0 to 255.

Query

<0 to 255 (NR1

Although NRf numerical values are accepted, values to the right of the decimal are rounded to the nearest integer. Bit 6 and unused bit s 2, 3 an d 7 are ignored. The dat a i s initialized to zero at power-on. The contents of the SRER, as set by the as an NR1 value (0 to 255). Bit 6 and unused bits 2, 3 a nd 7 a lway s return as zero.

<0 to 255 (NR1)>

*SRE

command, are returned

128 64 32 16 8 4 2 bit

7 bit

6 bit

5 bit

4 bit

3 bit

2 bit

1 bit 0

unused

0 ESB

SRE 33

Set SRER bits 0 and 5 to 1.

SRE?

SRER bits 0 and 5 have been set to 1.

MAV

unused unused

ESE1 ESE0

Read Status Byte and MSS Bit

Syntax

STB?

Description

Example

Request a Sample

Syntax

Description

Example

Set and Query Device

Specific Event Status Enable Register ESER0

Syntax

:ESE0

:ESE0?

Description

Note

Query Response

The contents of the STB are returned as an NR1 value (0 to 255). The response message has no header.

128 64 32 16 8 4 2 bit

unused

*STB? 16

STB bit 4 has been set to 1.

Command

Performs one measurement when external triggering (trigger source <EXTERNAL>) is enabled. When Statistical Calculation is ON, imports calculation data. When the memory function is enabled, the measured value is stored.

It may be necessary to insert wait processing after panel load or range selection. Wait time depends on Measurement target.

:TRIG:SOUR

Device-Specific Commands

7 bit

MSS

<0 to 255 (NR1)>

6 bit

TRG

EXT;*TRG

5 bit

ESB MAV

4 bit

3 bit

unused unused

2 bit

ESE1 ESE0

1 bit 0

RM3545

(1) Event Status Register

Command Query Response

Command Sets the mask pattern in Event Status Enable Register 0 (ESER0) for the

Data initializes to zero at power-on. OvrRng and ERR can not be Changed by

<0 to 255 (NR1

Event Status Register.

128 64 32 16 8 4 2 bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

OutBIN OvrRng

ERR

RES:ERR:CURR OVER

o INDEX EOM

Read Devi

ce-Specific Event Status Register ESR0

Syntax

:ESR0?

Note

Set and Query Device

Specific Event Status Enable Register ESER1

Syntax

:ESE1

:ESE1?

Description

Read Device

Specific Event Status Registers ESR1

Syntax

:ESR1?

Note

Query Response

Executing

Command Query Response

Command Sets the mask pattern in Event Status Enable Register 1 (ESER1) for the

Data initializes to zero at power-on.

Query Response

Executing ESR1? clears the contents of ESR1.

(2) Reading Measured Values

Measurement Value Formats

・

Resistance (absolute value display: unit Ω)

RM3544

Measurement

Range

30mΩ 3

00m

Ω

300 3kΩ 30kΩ 300kΩ 3MΩ

Ω

± □□ . □□□ E-03 ±

□□□ . □□

± □.

□□□□

± □□. ±

□□□. □□

± □.

□□□□

± □□. ±

□□□. □□

± □.

□□□□

Measured Value

E-03

E+00

□□□

E+00 E+00 E+03

□□□

E+03 E+03 E+06

<0 to 255 (NR1

ESR0?

clears the contents of ESR0.

<0 to 255 (NR1

Event Status Register.

128 64 32 16 8 4 2 bit

7 bit

unused unused unused

<0 to 255 (NR1

±10.000E+19 ±10.000E+29 ±100.00E+18 ±100.00E+28 ±1.0000E+20 ±1.0000E+30 ±10.000E+19 ±10.000E+29 ±100.00E+18 ±100.00E+28 ±1.0000E+20 ±1.0000E+30 ±10.000E+19 ±10.000E+29 ±100.00E+18 ±100.00E+28 ±1.0000E+20 ±1.0000E+30

6 bit

±OvrRng

5 bit

4 bit

NO UNITSW.ERR

Measurement Fault

3 bit

CURR

2 bit

CONTACT

1 bit 0

CONTACT

1000m

. □□ E-03±

1000.

00E+17

1000.

00E+27

Measured Value

±OvrR

ng Measurement Fault

Measured Value

±OvrR

ng Measurement Fault

Measured Value

±OvrR

ng Measurement Fault

Temperature conversion display

Measured Value

±OvrR

ng Measurement Fault

Read Most Recent Measurement

Syntax

:FETCh?

Description

RM3545

OFF

Low-Power

Measurement

Range

10mΩ 100mΩ 10 10 100 1000 10kΩ 100kΩ 10 10MΩ 100MΩ 10

10 100 1

00m

Ω

00k

00M

Ω

000

Ω

Measured Value

± □□ . □□□□□ E-03 ±10.00000E+19 ±10.00000E+29 ±

□□□ .

□□□□ E-03 ±100.0000E+18 ±100.0000E+28

□□□□ .

± □□ . □□□□□ ± ± ± □□ . □□□□□ ± ± ± □□ . □□□□□ ± ±

± □□ . □□□□ ± ±

□□□ E-03 ±1000.000E+17 ±1000.000E+27

E+00

□□□ .

□□□□

E+00

□□□□ .

□□□

E+00 E+03

□□□ .

□□□□

E+03

□□□□ .

□□□

E+03 E+06

□□□ .

□□□□ E+06 ±100.0000E+18 ±100.0000E+28

□□□□ .

□□□

E+06

□□□□

E+00

□□□ .

□□□

E+00

□□□□ . □□ E+00

±OvrRng

±10.00000E+19 ±10.00000E+29 ±100.0000E+18 ±100.0000E+28 ±1000.000E+17 ±1000.000E+27 ±10.00000E+19 ±10.00000E+29 ±100.0000E+18 ±100.0000E+28 ±1000.000E+17 ±1000.000E+27 ±10.00000E+19 ±10.00000E+29

±1000.000E+17 ±1000.000E+27

±10.0000E+19 ±10.0000E+29 ±100.000E+18 ±100.000E+28 ±1000.00E+17 ±1000.00E+27

Measurement Fault

Note: • The decimal point position and exponent part will change according to the scaling

gain.

For information on scaling, see the instrument's instruction manual.

• When the displayed number of digits has changed, the undisplayed digits will become 0. The number of characters in the measurement value format will not change.

• Resistance (relative value display: unit %)

RM3544

RM3545

□□□ . □□

□□□ .

E+00

□□□ E+00

±100.00E+18

±100.000E+18 ±100.000E+28

±100.00E+28

• Temperature /

Z2001 temperature sensor

Analog output thermometer

Temperature conversion

± □□ . □ E+00 ±10.0E+19

display (unit °C)

□□□ . □

E+00 ±100.0E+18 ±100.0E+28

±10.0E+29

Note: For posit ive measured values, a space (ASCII 20H) represents the sign.

Time to receive measured values is different for the :FETCh? and :READ? commands.

See: Data Exporting Methods (p.69), Triggering (p.53)

Also see “4 Multiplexer Commands (p.65)” for the multiplexer unit.

Query

:FETCh?

[<Channel number>]

[LIMit] RM3544

[<LIMit / JUDGe / LIMJUdge>,]

RM3545

<Channel number> = 1 to 42

Response

RM3544

<Measurement value> [, <HI/IN/LO/OFF/ERR>]

RM3545

<Measurement value> [, <HI/IN/LO/OFF/ERR>][, <PASS/FAIL/OFF/ERR>] See: “Measurement Value Formats” (p.26)

Reads the most recent measurement. No trigger occurs.

Example

Note

Read Temperature Measurement Value

Syntax

:FETCh:TEMPerature?

Description

Example

Measure (Await Triggers and Read Measu

rements)

Syntax

:READ?

RM3544

See: Data Exporting Methods (p.69), Triggering (p.53)

Data and response are as follows.

data Response omitted LIMit JUDGe

LIMJdge

RM3545 By assigning a channel number to the data, the value of the channel number is read. If a measurement has not been performed, the value for a measurement fault is returned. The channel number is not returned. If the channel number is omitted, the measured value of the current channel is read.

(RM3544 examples)

:FETC?

102.50E-03

:FETC? LIM

102.50E-03, HI

(RM3545 examples)

:FETC?

1023.579E-03

:FETC? LIM

1023.579E-03, IN

(Examples when the RM3545-02 multiplexer is used)

:FETC?

1023.579E-03

:FETC? LIMJ

1023.579E-03,IN,PASS

FETC? 10

1023.579E-00

:FETC? LIMJ,10

1023.579E-03,IN,PASS

RM3545

…

Reads the measurement value only. Reads the measurement value and compara tor resul t .

…

Reads the measurement value and PASS/FAIL result. Reads the measurement value, comparator result and PASS/FAIL result.

... Obtains the m e as ur ed value of the cur re nt c h an n el.

… Obtains the current measured value and judgment.

Obtains the measured value of Channel 10.

Obtains the measured value of Channel 10 and judgment.

If a measurement has not been performed, the value for a measurement fault is returned.

RM3545

In the following cases, an execution error occurs.

• When the front terminal is used or the scanning function is OFF, JUDGe or LIMJdge is selected as the data.

• When the front terminal is used, a channel number is specified for the data.

• During auto scanning

Query Response

Reads the last (most recent) temperature measurement value. Performs the same operation as

:FETC:TEMP?

25.1E+00

Query

Response

<Measurement value> See: “Measurement Value Formats” (p.26)

:MEASure:TEMPerature?

:READ?

RM3545

The response varies depending on the scanning function or command

[<NDATa / JUDGe>]

RM3544 RM3545

Description

When the scanning function is set to AUTO or STEP, the Trigger Wait State is entered and

Note

data portion.

OFF

AUTO

STEP

See: “Measured Value Formats” (p.26)

Data and response are as follows.

Scanning

function

Data

None

Omitted

NDATa

JUDGe

None

Reads the measured value only.

Reads only the measured values of all channels.

Reads the total judgment only.

Reads the measured values and total judgment results of all channels.

Reads only the measured value of the current channel.

Response

Switches from the Idle State to the Trigger Wait State, then reads the next measured value. With the auto range enabled, the most suitable range is selected before measurement.

See: “5 Data Exporting Methods” (p.69)

Trigger Source Operation I

MMediate

EXTernal

Triggers and reads the measured value. Triggers by TRIG signal input, and continuously reads the

measured values.

RM3545

scanning begins after a trigger is detected.

The following operations are performed according to the scanning function

Scanning function Operation AUTO

STEP

All channels are measured when a trigger is received. After all the channels are measured, a response is returned.

The measured values at the time of scanning completion are separated by commas (“,”) and returned. Only the data with

[:SENSe:]STATe ON is returned. The number of data items is the

same as the channel count that can be obtained using a

[:SENSe:]CH:AVAilable? query.

performed, the value for a measurement fault is returned.

One channel is measured w hen a t rigg er is received. A response is returned after one channe l is me a s ured .

If a measurement has not been

• Automatically switches to :INITiate:CONTinuous OFF when this message is received.

• The next command does not execute until measurement is finished. However, *TRG and :ABORt are received.

• If a trigger is input with the *TRG command, an external trigger (trigger source <EXTERNAL>) is enabled and a com mand is se nt. With GP-IB, after the co mmand is sent and then after allowing a wait time corresponding to the sampling time, specify the talker.

• With an external trigger (trigger source <EXTERNAL>), the measurement value's response will be doubled when the data output function is ON. When using, switch the data output function OFF.

• It may be necessary to insert wait processing after panel load or range selection. Wait time depends on Measurement target.

• RM3545 An execution error occurs during auto scanning.

Preset to Value Appropriate for Expected Measurement Value, and Measure

Syntax

Description

Example

Note

Preset to Value Appropriate for Expected Measurement Value, and Measure

Syntax

Description

Resistance RM3545

Query

Response

:MEASure:RESistance?

<Expected measurement value> = 0 to 1200E+06

See: “Measurement Value Formats” (p.26)

When expected measurement values are input, the instrument will be set to an optimum range that enables provided numerical data to be measured. When omitted, it enters the auto range.

The MEASURE command operates as follows:

. Disables continuous measurement of the trigger system.

Enables the internal

2. Switches

3. Moves to the

4. Executes one-time

6. Reads the measurement value.

The MEASURE command executes the following commands internally:

RES:LP: S TAT O F F RES:RANG

(If the

:INIT:CONT OFF :TRIG:SOUR IMM :READ?

Low-Power Resistance measurement to OFF.

<Expected measurement value> is not present, then

trigger (trigger source <IMMEDIATE>).

specified range.

trigger.

RANG:AUT O ON

:MEAS:RES?

150.1124E+03

• When the scaling function is being used, set the <expected value> to the value that existed prior to scaling (value in the range being used).

• If a transformer, coil, or other sample is induc tiv e, mea sur ement data may be returned before values have stabilized in auto range. In this case, either specify the range and measure, or utilize the delay function.

•

An execution error occurs when the auto range is turned ON if the comparator function

and BIN measurement function are ON.

• When the scanning function is set to STEP or AUTO, an execution error occurs.

)

Low-Power Resistance

Query

Response

:MEASure:RESistance:LP?

value>

<Expected measurement value> = 0 to1200E+03

See: “Measurement Value Formats” (p.26)

When expected measurement values are input, the instrument will be set to an optimum range that enables provided numerical data to be measured. When omitted, it enters the auto range.

The MEASURE command operates as follows:

. Disables continuous measurement of the

Enables internal

2. Switches

3. Moves to the

4. Executes one-time

6. Reads the measurement value.

The MEASURE command executes the following commands internally:

RES:LP: S TAT O N

Low-Power Resistance measurement to ON.

trigger (trigger source <IMMEDIATE>).

specified range.

trigger.

trigger system.

<Expected measurement

Example

Note

Read Temperature Measurement Value

Syntax

:MEASure:TEMPerature?

Description

Example

Abort Measurement

yntax

:ABORt

Description

Example

Note

Execute Zero Adjustment

Syntax

:ADJust?

Description

RES:LP:RANG

(If the

<Expected measurement value> is not present, then :

:INIT:CONT OFF :TRIG:SOUR IMM :READ?

RANG:LP:AUTO ON

)

:MEAS:RES:LP?

104.140E+00

• When the scaling function is being used, set the <expected value> to the value that

existed prior to scaling (value in the range being used).

• If a transformer, coil, or other sample is inductive, measurement data may be returned before values have stabilized in auto range. At such time, either specify the range and measure, or utilize the delay function.

•

An execution error occurs when the auto range is turned ON if the comparator function

and BIN measurement function are ON.

• When the scanning function is set to STEP or AUTO, an execution error occurs.

Query Response

See: “Measurement Value Formats” (p.26)

Reads the last (most recent) temperature measurement value. Performs the same operation as

:MEAS:TEMP?

25.1E+00

:FETCh:TEMPerature?

Query

Executes :READ ermination).

:READ? :ABOR

Executes an abort.

An abort ca nn o t b e executed as t h e instrument wa its until all pr ior comm ands finish if th e q u ery is sent af t er a WAI command.

(3) Zero Adjustment

RM3545 An execution error occurs during scanning.

Query Response

0 = Indicates zero adjustment succeeded. 1 = Indicates that zero adjustment has failed. For information on zero adjustment, see

the instrument instruction manual.

RM3545 Executes scan zero adjustment (performs zero adjustment for the channels with :ADJust:ENABle ON) if the scanning function of the multiplexer is set to STEP or AUTO. Zero adjustment is performed only for the current channel if the scanning function is OFF. Scan zero adjustment can be aborted using :ABORt.

/Scan measurement/Scan zero adjustment is abort (forced

<0/

Clear Zero Adjustment

Syntax

:ADJust:CLEar

Description

Example

Note

Query Zero Adjustment Execution State

RM3545

Syntax

:ADJus

t:STATe?

Example

Set and Query Scan Zero Adjustment Execution

RM3545

Syntax

:ADJust:ENABle

:ADJust:ENABle?

Example

Set and Query Measurement Speed

Syntax

:SAMPle:RATE

:SAMPle:RATE?

Example

Command

Clears any zero-adjustment offset.

ADJ:CLE

RM3545 When the multiplexer is used, zero adjustment for the current channel is canceled.

Query Response

CH 10

:ADJ:STAT?

Command Query Response

CH 10

:ADJ:ENAB ON

:ADJ:ENAB?

(4) Measurement Speed

RM3545 An execution error occurs during scanning.

Command

Query Response

:SAMP:RATE MED

:SAMP:RATE?

MEDIUM

<1/0/ON/OFF>

RM3544 <Measurement speed>=FAST/MEDium/SLO W

SLOW1/SLOW2 are handled the same as with SLOW.

RM3545 <Measurement speed>=FAST/MEDium/SLOW1 /SLOW2

SLOW is handled the same as with SLOW2.

RM3544 <Measurement speed>=FAST/MEDium/SLOW RM3545 <Measurement speed>=FAST/MEDium/SLO W1 /SLO W2

Execute and Query Averaging Function

Syntax

:CALCulate:AVERage:STATe

:CA

LCulate:AVERage:STATe?

Example

Set and Query Average Count

Syntax

:CALCulate:AVERage:COUNt

:CALCulate:AVERage:COUNt?

Example

Execute and Query Comparator

Syntax

:CALCulate:LIMit:STATe

:CALCulate:LIMit:STATe?

Example

Note

Set and Query Beeper

Syntax

:CALCulate:LIMit:BEEPer

:CALCulate:LIMit:BEEPer?

Example

Note

(5) Averaging Function

RM3545 An execution error occurs during scanning.

Command Query Response

:CALC:AVER:STAT ON

:CALC:AVER:STAT?

<1/0/ON/OFF>

Command Query Response

< Count > = 2 ～ 100 (NR1)

:CALC:AVER:COUN 10

:CALC:AVER:COUN?

< Count >

(6) Comparator

• When making comparator settings by commands, the measurement range is not automatically selected.

Command Query Response

:CALC:LIM:STAT ON

:CALC:LIM:STAT?

When the comparator is executed, the auto range , the temperature conversion function and BIN function enter the OFF state. RM3545 An execution error occurs during scanning.

Command Query Response

<Condition> = RM3544 HI/ IN /LO RM3545 HI/ IN /LO /PASS/ FAIL <Type> = 0: Buzzer OFF, 1 to 3: Type 1 to 3 <Count> = 0: Continuous, 1 to 5: Count [times]

:CALC:LIM:BEEP IN,1,0

:CALC:LIM:BEEP? IN

IN,1,0

RM3545 An execution error occurs during scanning.

<1/0/ON/OFF>

Set and Query Judgment Mode

Syntax

:CALCulate:LIMit:MODE

:CALCulate:LIMit:MODE?

Example

Note

Set and Query ABS Mode Upper Comparator Threshold Values

Syntax

:CALCulate:LIMit:UPPer

:CALCulate:LIMit:UPPer?

Example

Note

Set and Query ABS Mode Lower Comparator Threshold Values

Syntax

:CALCulate:LIMit:LOWer

:CALCulate:LIMit:LOWer?

Example

Note

Set and Query REF% Mode Reference Resistance

Syntax

:CALCulate:LIMit:REFerence

:CALCulate:LIMit:REFerence?

Example

Note

Set and Query REF% Mode

Judgment Range

Command Query Response

<ABSOLUTE> = Upper threshold/Lower threshold comparison <REFERENCE> =

:CALC:LIM: MODE ABS

:CALC:LIM:MODE?

ABSOLUTE

RM3545 An execution error occurs during scanning.

Command Query Response

RM3544 <Upper threshold (Ω)> = 0 to 1E+9 (NRf) RM3545 <Upper threshold (Ω)> = 0 to 9E+9 (NRf) Will be resistance (Ω) rather than dgt (count).

:CALC:LIM:UPP

The upper threshold is 1.0Ω (regardless of range).

The value will be 0 when the upper threshold is less than 1E-9. RM3545 An execution error occurs during scanning.

Reference percentage/tolerance co mpar ison

1.0

Command Query Response

RM3544 <Lower threshold (Ω)> = 0 to 1E+9 (NRf) RM3545 <Lower threshold (Ω)> = 0 to 9E+9 (NRf) Will be resistance (Ω) rather than dgt (count).

:CALC:LIM:LOW

The lower threshold is 0.9Ω (regardless of range).

The value will be 0 when the lower threshold is less than 1E-9. RM3545 An execution error occurs during scanning.

0.9

Command Query Response

RM3544 <Reference Resistance (Ω)> = 1E-9 to 1E+9 (NRf) RM3545 <Reference Resistance (Ω)> = 1E-9 to 9E+9 (NRf) Will be resistance (Ω) rather than dgt (count).

RM3545 Channel 1 can be set as a reference value when the

multiplexer is used.

:CALC:LIM:REF 1.2E+3

The reference resistance is 1.2kΩ (regardless of range).

When the reference resistance is less than 1E-9, an execution error occurs. RM3545 An execution error occurs during scanning.

Syntax

:CALCulate:LIMit:PERCent

:CALCulate:LIMit:PERCent?

Example

Note

Query Judgment Result

Syntax

:CALCulate:LIMit:RESult?

Description

Example

Set and Query PASS Judgment

Condition

RM3545

Syntax

:CALCulate:LIMit:JUDGe:CONDition

:CALCulate:LIMit:JUDGe:CONDition?

Example

Note

Command Query Response

RM3544 <Range (%)> = 0 to 99 .99 (NR2) RM3545 <Range (%)> = 0 to 99.999 (NR2)

:CALC:LIM:PERC 1.5

RM3545 An execution error occurs during scanning.

Query

:CALCulate:LIMit:RESult?

<Channel number> = 1 to 42

Response

[<Channel number>]

RM3544 RM3545

RM3545

The comparator result of the channel number is read by assigning a channel number to the data. If a measurement has not been performed, ERR is returned. The channel number is not returned. If the channel number is omitted, the comparator result of the current channel is read.

:CALC:LIM:RES?

:CALC:LIM:RES? 10 …

... Obtains the comparator result of the current channel

Obtains the comparator result of Channel 10

Command Query Response

<Condition> = OFF/IN/HI/LO/HILO/ALL

:CALC:LIM:JUDG:COND IN

:CALC:LIM:JUDG:COND?

An execution error occurs during scanning.

Query PASS/FAIL Result

RM3545

Syntax

:CALCulate:LIMit:JUDGe?

Response

Description

Example

Note

Query Total Judgment Result

RM3545

Syntax

:CALCulate:LIMit:JUDGe:TOTal?

Response

Example

Note

Execute

and Query BIN Measurement

Syntax

:CALCulate:BIN:STATe

:CALCulate:BIN:STATe?

Example

Note

Set Mask Pattern

Syntax

:CALCulate:BIN:ENABle

:CALCulate:BIN:ENABle?

Example

Query

<Channel number> = 1 to 42

The PASS/FAIL result of the channel number is read by assigning a channel number to the data. If a measurement has not been performed, OFF is returned. The channel number is not returned. If the channel number is omitted, the comparator result of the current channel is read.

:CALC:LIM:JUDG?

PASS

:CALC:LIM:JUDG? 10

FAIL

When the front terminal is used or the scanning function is OFF, an execution error occurs.

Query

:CALC:LIM:JUDG:TOT?

PASS

When the front terminal is used or the scanning function is OFF, an execution error

An execution error occurs during scanning.

If a measurement has not been performed, OFF is returned.

(7) BIN Function RM3545

RM3545 An execution error occurs during scanning.

[<Channel number>]

... Obtains the PASS/FAIL result of the current channel

…Obtains the PASS/FAIL result of Channel 10

occurs.

Command Query Response

:CALC:BIN:STAT ON

:CALC:BIN:STAT?

When the BIN function is executed, the comparator function, auto range, and

temperature conversion function all switch to OFF. In addition, the front terminal is used as a measurement terminal.

<1/0/ON/OFF>

Command Query Response

:CALC:BIN:ENAB 15

BIN0 to BIN3 can be used.

<Mask pattern> = 0 to 1023 (decimal number) “1” will be the BIN number bit used to execute the BIN measurement.

512 256 128 64 32 16 8 4 2 1 bit9 bit8 bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0

BIN9 BIN8 BIN7 BIN6 BIN5 BIN4 BIN3 BIN2 BIN1 BIN0

Set and Query Judgment Mode

Syntax

:CALCulate:BIN:MODE

:CALCulate:BIN:MODE?

Example

Set and Query ABS Mode Upper Co

mparator Threshold Values

Syntax

:CALCulate:BIN:UPPer

:CALCulate:BIN:UPPer?

Example

Note

Set and Query ABS Mode Lower Comparator Threshold Values

Syntax

:CALCulate:BIN:LOWer

:CALCulate:BIN:LOWer?

Example

Note

Set and Query REF% Mode Reference Resis

tance

Syntax

:CALCulat e:BIN :RE Fer en ce

:CALCulate:BIN:REFerence?

Example

Note

Set and Query REF% Mode

Judgment Range

Syntax

:CALCulate:BIN:PERCent

:CALCulate:BIN:PERCent?

Example

Command Query Response

<BIN No.> = 0 to 9 <ABSOLUTE> = Upper threshold/Lower threshold comparison <REFERENCE> = Reference percentage/tolerance comparison

:CALC:BIN:MODE 0,ABS

:CALC:BIN:MODE? 0

ABSOLUTE

Command Query Response

<Upper threshold ( Will be resistance (

:CALC:BIN:UPPer 0 ,

The upper threshold is 1.0Ω (regardless of range).

The value will be 0 when the upper threshold is less than 1E-9.

Ω

)> = 0 to 9E+9 (NRf)

Ω

) rather than dgt (count).

1.0

Command Query Response

<Lower threshold ( Will be resistance (

:CALC:BIN:LOW 0 ,

The lower threshold is 0.9Ω (regardless of range).

The value will be 0 when the lower threshold is less than 1E-9.

Ω

)> = 0 to 9E+9 (NRf)

Ω

) rather than dgt (count).

0.9

Command Query Response

<BIN No.> = 0 to 9 <Reference Resistance ( Will be resistance (

:CALC:BIN:REF 0 , 1.2E+3

The reference resistance is 1.2kΩ (regardless of range).

When the reference resistance is less than 1E-9, a command error occurs.

Ω

)> = 1E-9 to 9E+9 (NRf)

Ω

) rather than dgt (count).

Command Query Response

<BIN No.> = 0 to 9 <Range (%)> = 0 to 99.999 (NR2)

:CALC:BIN:PERC 0 , 1.5

Query Judgment Result

Syntax

:CALCulate:BIN:RESult?

Example

Execute Statistical Calculation

Syntax

:CALCulate:STATistics:STATe

:CALCulate:STATistics:STATe?

Example

Clear Statistical Calculation Results

Syntax

:CALCulate:STATistics:

LEar

Query Data Count

Syntax

:CALCulate:STATistics:NUMBer?

Example

Query Mean Value

Syntax

:CALCulate:STATistics:MEAN?

Example

Query Response

:CALC:BIN:RES?

128

BIN7 is PASS.

<NR1>

<NR1> = 0 to 1024 “1” will be the BIN number bit for the PASS with BIN measurement.

bit10

bit9 bit8 bit7 bit6 bit5

BIN9 BIN8 BIN7 BIN6 BIN5

bit4 bit3 bit2 bit1 bit0

BIN4 BIN3 BIN2 BIN1 BIN0

(8) Statistical Functions RM3545

• A data sample can be taken by the following three methods:

1. Press the [ENTER] key.

2. Input the TRIG signal from EXT I/O.

3. Send a

•

The

•

When the valid data c ount is 0,

• Even if the calculation results are cleared, the statistical calculation function does not switch to OFF

• The upper threshold of Cp and CpK is 99.99. If Cp or CpK exceeds 99.99, the value 99.99 is returned.

An execution error occurs during scanning.

*TRG

command.

CALCulate:STATistics:STATe

command does not clear calculation results.

returns 0.

n-1

Command Query Response

:CALC:STAT:STAT ON

:CALC:STAT:STAT?

When the statistical calculation function is executed, the temperature conversion function switches to OFF. In addition, the front terminal is used as a measurement terminal.

<1/0/ON/OFF>

Command

Query Response

Data count = 0 to 30000

:CALC:STAT:NUMB? 23456,23449

Query Response

:CALC:STAT:MEAN?

11.4859E+03

Query Maximum Value

Syntax

:CALCulate:STATistics:MAXimum?

Example

Query Minimum Value

Syntax

:CALCulate:STATistics:

INimum

Example

Query Comparator Results

Syntax

:CALCulate:STATistics:LIMit?

Example

Query BIN Result

Syntax

:CALCulate:STATistics:BIN?

Example

Query Standard Deviation

Syntax

:CALCulate:STATistics:DEV

iation?

Example

Query Process Capability Indices

Syntax

:CALCulate:STATistics:CP?

Example

Execute and Query Scaling Function

Syntax

:CALCulate:SCALing:STATe

:CALCulate:SCALing:STATe?

Example

Query Response

:CALC:STAT:MAX?

12.4859E+03,1124

Query Response

:CALC:STAT:MIN?

10.4859E+03,1125

Query Response

:CALC:STAT:BIN?

1516,9310,737,16,5

Query Response

:CALC:STAT:BIN?

1516,9310,10,10,10,10,10,10,10,100,737,16

Query Response

:CALC:STAT:DEV?

0.0159E-3,0.0161E-3

Query Response

CALC:STAT:CP?

0.86,0.14

(9) Scaling

An execution error occurs during scanning.

<σn (NR3)>,<σn-1

(NR3)>

<Cp(NR2)>,<CpK(NR2)>

Command Query Response

:CALC:SCAL:STAT ON

:CALC:SCAL:STAT?

<1/0/ON/OFF>

Set and Query Scaling Correction Coefficient

Syntax

:CALCulate:SCALing:PARameterA

:CALCulate:SCALing:PARameterA?

Example

Set and Query Scaling Offset

Syntax

:CALCulate:SCALing:PARameterB

:CALCulate:SCALing:PARameterB?

Example

Note

Set and Query Scaling Unit

Syntax

:CALCulate:SCALing:UNIT

:CALCulate:SCALing:UNIT?

Example

Execute and Query Temperature Conversion (∆t)

Syntax

:CALCulate:TCONversion:DELTa:STATe

:CALCulate:TCONversion:DELTa:STATe?

Example

Note

Command Query Response

<Correction coefficient> = 0.2000E-03 to 1.9999E+03

:CALC:SCAL:PARA 2E+00

:CALC:SCAL:PARA?

0.2000E+00

Command Query Response

RM3544 RM3545

:CALC:SCAL:PARB 1E+03

:CALC:SCAL:PARB?

1.0000E+03

When the offset is less than +/-1E-9, “0” will result.

<Offset> = -1.0000E+09〜1.0000E+09 <Offset> = -1.0000E+09〜9.0000E+09

Command Query Response

<Unit> = OFF(no unit)/OHM( characters) For information on character string data, see Data Formats. (p.4)

:CALC:SCAL:UNIT “m” :CALC:SCAL:UNIT? “m”

<Unit>

(10) T emperature Conversion (∆t) RM3545

An execution error occurs during scanning.

<Unit>

Ω

)/Any unit (any unit is character string data:maximum 3

Command Query Response

:CALC:TCON:DELT:STAT ON :CALC:TCON:DELT:STAT ON? ON

When the temperature conversion function is executed, the comparator function, temperature correction function, BIN function, and statistical calculation function switch to OFF.

<1/0/ON/OFF>

Set and Query Temperature Conversion (

∆t)

Syntax

:CALCulate:TCONversion:DELTa:PARameter

:CALCulate:TCONversion:DELTa:PARameter?

Example

Note

Execute and Query Temperature Correction (TC)

Syntax

:CALCulate:TCORrect:STATe

:CALCulate:TCORrect:STATe?

Example

Note

Set and Query Temperature Correction (TC)

Syntax

:CALCulate:TCORrect:PARameter

:CALCulate:TCORrect:PARameter?

Example

Note

Command

Query Response

:CALC:TCON:DELT:PAR 100,20,235 :CALC:TCON:DELT:PAR?

100.000E+0,20.0E+0,235.0

The initial resistance i s in unit s of [Ω], while the initial temper a ture and co nstant s are i n units of [°C].

(11) Temperature Correction (TC)

An execution error occurs during scanning.

Command Query Response

:CALC:TCOR:STAT ON :CALC:TCOR:STAT? ON

RM3545 When the temperature correction function is executed, the temperature

conversion function switches t o OFF.

resistance>,<Initial temperature>,<Constant>

= 0 to 9000.000E+6 (NR3)

= -10.0 to 99.9 (NR3)

= -999.9 to 999.9 (NR2)

<1/0/ON/OFF>

<Initial

Command

Query Response

<Reference temperature> = -10.0 to 99.9 (NR3)[°C] RM3544

<Temperature coefficient> = -9999 to 9999 (NR1)[ppm/°C]

RM3545

<Temperature coefficient> = -99999 to 99999 (NR1)[ppm/°C]

:CALC:TCOR:PAR 20,393 0 :CALC:TCOR:PAR?

70.0,4500

The reference temperature is in units of [°C], while the temperature coefficient is in units of [ppm/°C].

Set and Query Contrast

Syntax

:DISPlay:CONTrast

:DISPlay:CONTrast?

Example

Set and Query Backlight

Syntax

:DISPlay:BAC Klight

:DIS

Play:BACKlight?

Example

Set and Query Memory Functions

Syntax

:MEMory:STATe

:MEMory:STATe?

Note

Example

Clear Memory Data

Syntax

:MEMory:CLEar

Example

Query Memory Data Count

Syntax

:MEMory:COUNt?

Example

(12) LCD Settings

An execution error occurs during scanning.

Command Query Response

:DISP:CONT 80 :DISP:CONT? 80

<0 to 100>

Command Query Response

:DISP:BACK 50 :DISP:BACK? 50

<0 to 100>

(13) Memory Functions RM3545

You can save and load up to 50 measurement data entries. This function cannot be used when a multiplexer is used. An execution error occurs. This is enabled only with a remote command. Measurement values are entered in memory through the [ENTER] key, TRIG signal, and

*TRG

command.

Command Query Response

Changing the memory mode setting erases the stored data.

:MEM:STAT ON :MEM:STAT? ON

<1/0/ON/OFF>

Command

:MEM:CLE

Query Response

:MEM:COUN? 3

<Memory data count> = 0 to 50 (NR

Read Memory Data

Syntax

:MEMory:DATA?

Description

Note

Execute and Query Auto Hold

Syntax

[:SENSe:]HOLD:AUTO

[:SENSe:]HOLD:AUTO?

Example

Note

Query Auto Hold State

Syntax

[:SENSe:]HOLD:STATe?

Description

Example

Cancel Hold

Syntax

[:SENSe:]HOLD:OFF

Description

Example

Query Response

Measured values transferred from memory are separated by commas (“,”). The number of stored measurement values to be exported can be acquired by the

:MEMory:COUNt?

See: “Measurement Value Formats” (p.26)

When fifty (50) measurement values have been entered into memory, no additional measurement values can be stored until the memory content is cleared.

(14) Hold

RM3545 An execution error occurs during scanning.

Command Query Response

HOLD:AUTO ON HOLD:AUTO? ON

When auto hold is executed, (trigger source <IMMEDIATE>) are enabled.

<Measurement value (NR3)>,<Measurement value (NR3)>,...,

query.

<1/0/ON/OFF >

:INITIA TE :CONTINUOU S ON

and internal trigger

Query Response

Queries the current hold state. <ON> = HOLD indicator on the screen turns on, and hold is executed. <OFF> = HOLD indicator on the screen turns off, and hold is not executed.

HOLD:STAT? ON

Command

Cancels the hold state. (HOLD indicator on the screen turns off.)

HOLD:OFF

Set and Query Measurement Method

Syntax

[:SENSe:]WIRE

[:SENSe:]WIRE?

Example

Note

Set and

Query Scanning Function

Syntax

[:SENSe:]SCAN:MODE

Example

Note

Query Scanning Execution State

Syntax

[:SENSe:]SCAN:STATe?

Description

Example

(15) Multiplexer Settings RM3545

• Also see “4 Multiplexer Commands (p.65)” for the multiplexer unit.

Command Query Response

<4/W4> = 4-line type <2/W2> = 2-line type

WIRE W4 WIRE? W4

When the meas u rem ent met ho d is s witc he d, th e mul tipl e xer ch an n el res et is activated. Th e mul ti pl exe r se tti n gs inclu di ng th e meas ur em en t c ondi t io ns are r ese t. Make sure to determine the measurement method before measuring each channel.

An execution error occurs during scanning.

<4/2/W4/W2>

<W4/W2>

Command Query Response

SCAN:MODE:AUTO SCAN:MODE? AUTO

An execution error occurs during scanning.

Query Response

Responds with whether scanning is being executed or not. 0 is returned when the scanning function is OFF or scanning is paused. 1 is returned during auto scanning or step scanning. 2 is returned during the scanning and the measuring.

(During step scanning) SCAN:STAT? 1 *TRG SCAN:STAT? 1 *TRG SCAN:STAT? 0

< 2/1/0 >

Initialize Scan Channel and Measured Value or

Judgment Val

Syntax

[:SENSe:]SCAN:RESet

Description

Set and

Query Scan Fail Stop

Syntax

[:SENSe:]SCAN:FAIL:STOP

[:SENSe:]SCAN:FAIL:STOP?

Example

Note

Read Scanned Measurement Data in a Batch

Syntax

[:SENSe:]SCAN:DATA?

Description

The number of data items is the same

Example

Note

Query

Connected to The Front Mesurement Terminal

Syntax

[:SENSe:]FRONtcheck?

Description

test lead may be connected to the front terminal, make sure to check that the response is

Example

Note

Command

Returns the scan channel to the initial channel. Also, the measured value and judgment value are cleared and the instrument is set to the non-measurement state.

Command Query Response

:SCAN:FAIL:STOP ON :SCAN:FAIL:STOP? ON

An execution error occurs during scanning.

<1/0/ON/OFF>

Query Response

The measured values at the time of scanning completion are separated by commas (“,”). Only the data with [:SENSe:]STATe ON is returned. as the channel count that can be obtained using a [:SENSe:]CH:AVAirable? query. measurement has not been performed, the value for a measurement fault is returned.

CH:AVA? 3 SCAN:DATA?

1023.579E-00,1000.0 00E-03, 100.0000E-03

An execution error occurs during scanning.

If a

Query Response

<0> = A test lead is not connected to the front measurement terminal. <1> = A test lead is connected to the front measurement terminal.

If a test lead is connected to the front terminal, the data cannot be displayed properly when a measurement is performed using a multiplexer. When there is a possibility that a

< 1/0>

Check the front measurement terminal.

FRON? 0

Measurement

READ?

1020.000E-03, 100.000E-03, 100.000E-03

An execution error occurs during scanning.

Set and Query Channel Switching

Syntax

[:SENSe:]CH

[:SENSe:]CH?

Description

easurement conditions, measurement, and comparator result of each channel need

Example

Note

sure to check that the response to

Set and Query Multiplexer Channel

Syntax

[:SENSe:]CH:STATe

[:SENSe:]CH:STATe?

Example

Note

Query Multiplexer Channel Count

yntax

[:SENSe:]CH:AVAilable?

Description

Example

Note

Multiplexer channel pin assig

nment setting and query

Command Query Response

<FRONt><0> = The front terminal is used as a measurement terminal. <Channel number> = 1 to 42 (NR1) (The measurement terminal is used as a multiplexer.)

Sets the switching of the multiplexer channel and queries the current channel. The m to be set and obtained after the channel is switched.

See: “4 Multiplexer Commands (p.65)”.

The front terminal is used.

CH FRON CH? FRONT

Check the front measurement terminal.

FRON? 0

Use a multiplexer and switch the channel to 10.

CH 10 CH? 10

When the channel is not set to the front terminal, the statistical calculation function and memory function switch to OFF. If a test lead is connected to the front terminal, the data cannot be displayed properly when a measurement is performed using a multiplexer. When there is a possibility that a test lead may be connected to the front terminal, make the [:SENSe:]FRONtcheck? command is 0. An execution error occurs during scanning.

Command Query Response

<Channel number> = 1 to 42 (NR1)

CH:STAT ON,1 0 CH:STAT? 10 ON

An execution error occurs during scanning.

<1/0/ON/OFF>[,<Channel number>]

[<Channel number>]

Query Response

Only the number of the channels with [:SENSe:]CH:STATe ON is returned.

CH:AVA? 20

An execution error occurs during scanning.

Syntax

[:SENSe:]INSTrument

[:SENSe:]INSTrument?

Example

Note

Set and Query Allocation of Multiplexer Channel Terminals

Syntax

[SENSe:]TERMinal

[:SENSe:]TERMinal?

Example

Note

Set and Query Measurement Method

Syntax

[:SENSe:]CHR

eset

Description

Initializes the multiplexer channel settings including the measurement conditions.

Note

Command Query Response

<INTernal> = Measurement using RM3545 <EXTernal> = Measurement using external equipment (multiplexer EX terminal is used .)

CH 10 INST INT INST? INT

When the front terminal is used, an execution error occurs. An execution error occurs during scanning.

Command

Query Response

<Unit number> = 1/2 <Terminal A number> 1 to 10 (NR1) for 4-line type, 1 to 21 (NR1) for 2-line type <Terminal B number> 1 to 10 (NR1) for 4-line type, 1 to 21 (NR1) for 2-line type

CH 10 TERM 1,1,2 TERM? 1,1,2

When the front terminal is used, an execution error occurs. The measurement current flows from term inal B to terminal A. An execution error occurs during scanning.

number>

(16) Multiplexer Channel Reset RM3545

An execution error occurs during scanning.

<Unit number>,<A terminal number>,<B terminal

Command

An execution error occurs when the front terminal is used as a measurement terminal or during scanning.

Set and Query Low

Power Resistance Measurement

Syntax

[:SENSe:]RESistance:LP:STATe

[:SENSe:]RESistance:LP:STATe?

Exa

mple

Set and Query Resistance Measurement Range

Syntax

[:SENSe:]RESistance:RANGe

[:SENSe:]RESistance:

ANGe?

Description

Example

Note

(17) Low-Power Resistance Measurement RM3545

An execution error occurs during scanning.

Command Query Response

RES:LP:STAT ON

Selects the Low-Power Resistance measurement.

RES:LP:STAT? OFF

The Resistance measurement has been selec ted.

(18) Measurement Range

An execution error occurs during scanning.

Command Query Response

Command

Enter the expected measurement value. The instrument is set to the most suitable range for measuring the given numerical value data. When the scaling function is being used, set the <Expected measurement value> to the value that existed prior to scaling (value in range being used). When a range is set, the auto-range function will be automatically turned off.

Query

The setting will be that of Low-Power OFF. For the Low-Power ON setting, use:

[:SENSe:]RESistance:LP:RANGe [:SENSe:]RESistance:LP:RANGe?

RES:RANG 95

RM3544 Sets the Resistance measurement to the 300Ω range. RM3545 Sets the Resistance measurement to the 100Ω range.

RM3545 When the multiplexer measurement method is the 2-line type, the

measurement range is not set to 10Ω or less.

RM3544

RM3545

Queries the measurement range setting.

0 to 3.5E+06

30.000E-3/ 300.00E-3/ 3.0000E+0/ 30.000E+0/

300.00E+0/ 3.0000E+3/ 30.000E+3/ 300.00E+3/

3.0000E+6

0 to 1200E+06

10.00000E-3/100.0000E-3/1000.000E-3/

10.00000E+0/100.0000E+0/1000.000E+0/

10.00000E+3/100.0000E+3/1000.000E+3/

10.00000E+6/100.0000E+6/1000.000E+6

<1/0/ON/OFF>

Set and Query Resi

stance Measurement Auto Range

Syntax

[:SENSe:]RESistance:RANGe:AUTO

[:SENSe:]RESistance:RANGe:AUTO?

Description

Example

Note

Set and Query Low

Power Resistance Measurement Range RM3545

Syntax

[:SENSe:]RESistance:L P:RANGe

[:SENSe:]RESistance:LP:

ANGe?

Description

Example

Set and Query 100MΩ Range High Precision Function

RM3545

Syntax

[:SENSe:]RESistance:PRECision

[:SENSe:]RESistance:PRECision?

Description

Example

Command Query Response

The auto range setting will be the same for Low-Power OFF/ON.

RES:RANG:AUTO OFF RES:RANG:AUTO? OFF

An execution error occurs when the auto range is turned ON if the comparator function and BIN measurement function are ON.

Command

value>

Query Response

<Expected measurement value> = <Measurement Range (NR3)> =

Command

Query

Queries the measurement range setting.

The setting will be that of Low-Power ON. For the Low-Power OFF setting, use:

[:SENSe:]RESistance:RANGe [:SENSe:]RESistance:RANGe?

RES:LP:RANG?

1000.00E+00

Low-Power Resistance measurement has been set to the 1000mΩ range.

(19) 100MΩ Range High Precision Function RM3545

An execution error occurs during scanning.

<1/0/ON/OFF>

<Expected measurement

0 to 1200E+00

1000.00E-03/10.0000E+00/100.000E+00/

1000.00E+00

Command Query Response

The 100MΩ range becomes the high precision mode. The 1000MΩ range cannot b e used when the high preci sio n fu ncti on is ON.

:RES:PREC ON :RES:PREC? ON

(20) Switching Measurement Current RM3545

<1/0/ON/OFF>

Syntax

[:SENSe:]RESistance:CURRent

[:SENSe:]RESistance:CURRent?

Description

Example

Set and Query Offset Voltage Correction Function (OVC)

Syntax

[:SENSe:]RESistance:OVC

[:SENSe:]RESistance:OVC?

Example

Note

Set and Query Contact Improver Operating Mode

Syntax

[:SENSe:]RESi

stance:CIMProve

[:SENSe:]RESistance:CIMProve?

Example

Note

Set and Query Current Error Mode

An execution error occurs during scanning.

Set and Query Measurement Current RM3545

Command Query Response

The measurement current will be as shown in the table below.

Range 100mΩ 1 A 100 mA

1000m 10Ω 10 mA 1 mA 100Ω 10 mA 1 mA

:RES:CURR HIGH :RES:CURR? HIGH

<HIGH/

LOW

Measurement Current HIGH LOW

Ω 100 mA 10 mA

(21) Offset Voltage Correction Function (OVC) RM3545

An execution error occurs during scanning.

<HIGH/

LOW>

Command Query Response

RES:OVC ON RES:OVC? ON

When Low-Power is ON, the query response will definitely be ON.

(22) Contact Improver RM3545

An execution error occurs during scanning.

Command Query Response

RES:CIMP ON RES:CIMP? ON

When Low-Power is ON, the query response will definitely be OFF.

(23) Current Error Mode

An execution error occurs during scanning.

<1/0/ON/OFF>

Syntax

Command

[:SENSe:]RESistance:ERRor:CURRentcheck

[:SENSe:]RESistance:ERRor:CURRentcheck?

Example

Set and Query Resistance

Measurement Contact Check

Syntax

[:SENSe:]RESistance:CONTactcheck

[:SENSe:]RESistance:CONTactcheck?

Description

Example

Note

Set and Query Low

Power Resistance Measurement Contact Check

Syntax

[:SENSe:]RESistance:LP:CONTactcheck

[:SENSe:]RESistance:LP:CONTactcheck?

Descriptio

Example

Query Response

<ERROR> = Current error <OVER> = Out-of-range

RES:ERR:CURR ERR RES:ERR:CURR? ERROR

(24) Contact Check RM3545

An execution error occurs during scanning. Contact check errors can be checked using the event status

Command Query Response

The setting will be that of Low-Power OFF. For the Low-Power ON setting, use:

<1/0/ON/OFF>

[:SENSe:]RESistance:LP:CONTactcheck [:SENSe:]RESistance:LP:CONTactcheck?

RES:CONT ON RES:CONT? ON

Contact check cannot be ON when the multiplexer measure ment met hod is the 2-li ne type. An execution error occurs.

Command Query Response

The setting will be that of Low-Power ON. For the Low-Power OFF setting, use:

<1/0/ON/OFF>

[:SENSe:]RESistance:CONTactcheck [:SENSe:]RESistance:CONTactcheck?

RES:LP:CONT ON RES:LP:CONT? ON

Set and Query Measurement Value

’

s Number of Digits

Syntax

[:SENSe:]RESistance:DIGits

[:SENSe:]RESistance:DIGits?

Example

Note

Select Temperature Sensor

Syntax

[:SENSe:]TEMPerature:SENSor

[:SENSe:]TEMPerature:SENSor?

Example

Set Analog Input Parameters

Syntax

[:SENSe:]TEMPerature:PARameter

[:SENSe:]TEMPerature:PARameter?

Example

(25) Setting Number of Digits

RM3544

An execution error occurs during scanning.

Command Query Response

RM3544 <Number of digits>

RM3545 <Number of digits>

:RES:DIG 5 :RES:DIG? 5

When Low-Power is ON, six (6) digits w ill actua lly be d isplay ed ev en when the n umber of digits is set to seven (7).

= 4/5 = 5/6/7

(26) T emperature Measurement (Analog Input) RM3545

An execution error occurs during scanning.

Command Query Response

<THERMISTOR> = Z2001 temperature sensor is used as the temperature sensor. <ANALOG> = Analog output thermometer is used as the temperature sensor.

TEMP:SENS ANAL TEMP:SENS? ANALOG

Command

Query Response

<V1> = 0 to 2.00 (NR2) ...................... Reference voltage 1 [V]

<T1> = -99.9 to 999.9 (NR2) .............. Reference temperature 1 [°C]

<V2> = 0 to 2.00 (NR2) ...................... Reference voltage 2 [V]

<T2> = -99.9 to 999.9 (NR2) .............. Reference temperature 2 [°C]

TEMP:PAR 0,-10,2,100 TEMP:PAR?

0.00,0.00,1.00,100.0

0°C is displayed with 0 V, and 100°C is displayed with 1 V.

:INITIATE

:READ?

:INITIA TE

:READ?

(27) T riggering

Relationship between Trigger Source and Continuous Measurement Operation

Operation depends on the continuous measurement setting ( trigger source setting (

See: “4 Data Exporting Methods” (p.69)

Also see

“

4 Multiplexer Commands (p.65)” for the multiplexer unit.

:TRIGGER:SOURCE

) (p.56) as follows.

:INITIATE:CONTINUOUS

) (p.56) and the

• RM3544 and RM3545 When the front measurement terminal is used or the scanning function is set to OFF

(

:SENSE:SCAN:MODE OFF)

Measurement Flow

Continuous Measurement Command-Specific Settings

:INITIATE:CONTINUOUS ON :INITIATE:CONTINUOUS OFF

Trigger Source

Free-Run state. Measurement continue s automatically.

Trigger Delay Measurement

Calculation

Measured Value Output

:TRIGGER:SOURCE IMM

Trigger by TRIG signal, [ENTER] key or

*TRG

command. After measurement, enters the trigger wait state.

Trigger by command.

Idle State

:INITIATE:IMMEDIATE or :READ?

Trigger Delay

Measurement

Calculation

Measured Val ue Output

Issue to wait for trigger.

Trigger by TRIG signal.

(or

)

) command

Trigger Wait State

TRIG signal, [ENRER] key, *TRG

Trigger Delay Measurement

:TRIGGER:SOURCE EXT

Calculation

Measured Val ue Output

Idle Stat e

:INITIATE:IMMEDIATE or :READ?

Trigger Wait State

TRIG signal

Trigger Delay

Measurement

Calculation

Measured Value Output

• RM3545 When the scanning function is set to AUTO (

Measurement flow



Continuous Measurement Command-Specific Settings

:SENSE:SCAN:MODE AUTO)



:INITIATE:CONTINUOUS ON

:TRIGGER:SOURCE IMM

:INITIATE:CONTINUOUS OFF

Triggered by :INITIATE (or :READ?) command.

Idle State

:INITIATE:IMMEDIATE or :READ?

Trigger Wait State

TRIG signal

Channel 1 measurement

Channel 2 measurement

・・・

Channel n measurement

Trigger Source Command-Spe

cific Settings



Triggered by TRIG signal, [ENTER] key, or *TRG command. After measurement, enters the Trigger Wait State.

:TRIGGER:SOURCE EXT

Issue :INITIATE (or :READ?) command to enter the Trigger Wait State. Triggered by TRIG signal.

Idle State

:INITIATE:IMMEDIATE or :READ?

Trigger Wait State

TRIG signal

Channel 1 measurement

Channel 2 measurement

・・・

Channel n measurement

• RM3545 When the scanning function is set to STEP (

Measurement flow



Continuous Measurement Command-Specific Settings

:SENSE:SCAN:MODE STEP)



Trigger Source

Command-Spe

cific Settings



:INITIATE:CONTINUOUS ON

:TRIGGER:SOURCE IMM

Triggered by TRIG signal, [ENTER] key, or *TRG command. After measurement, enters the Trigger Wait State.

TRIG signal, [ENTER] key, or *TRG

Trigger Wait State

:INITIATE:CONTINUOUS OFF

Triggered by :INITIATE (or :READ?) command.

Issue :INITIATE (or :READ?) command to enter the Trigger Wait State. Triggered by TRIG signal.

Trigger Wait State

:INITIATE:IMMEDIATE or :READ?

Trigger Wait State

TRIG signal

Channel switching

Measurement

:TRIGGER:SOURCE EXT

Channel switching

Measurement

The

:INITIATE:CONTINUOU S OFF

If this has been set to OFF, when operation is returned to the Local state or power is turned off, the

:INITIATE:CONTINUOUS ON

See “Return to Local Control” (p.61) or Exporting measured values: “Data Exporting Methods” (

is can only be set by Remote command.

state occurs when power is turned back on.

p.69)

Set and Query Continuous Measurement

Syntax

:INITiate:CONTinuous

:INITiate:CONTinuous?

Description

Example

Note

Set Trigger Wait

Syntax

:INITiate[:IMMediate]

Description

Example

Enable Trigger Wait. Trigger immediately upon :TRIG:SOUR

Note

Set and Query Trigger Source

Syntax

:TRIGger:SOURce

:TRIGger:SOURce?

Example

Note

Command Query Response

<ON> = Continuous Measurement Enabled <OFF> =

• Continuous Measurement Enabled: After measurement, enters the Trigger Wait State. When there is an internal trigger (trigger source <IMMEDIATE>), the next trigger is promptly generated and enters a free run state.

•

Continuous Measurement Disabled: After measurement, enters the Idle State instead of the Trigger Wait State.

•

Triggering is ignored in the Idle State. Executing :INITiate[:IMMediate] enables the Trigger Wait State.

•

Continuous measurement is enabled upon exiting from the Remote State.

:INIT:CONT OFF :INIT:CONT? ON

Continuous Measurement Disabled

<1/0/ON/OFF>

RM3545 An execution error occurs during scanning.

Command

Switches triggering from the Idle State to the Trigger Wait State.

Disable continuous measurement, and read one value for each trigger event. Sending

:TRIG:SOUR IMM ............

:INIT:CONT OFF ..............

:INIT ........................................

Trigger immediately when entering Trigger Wait State. Disables continuous measurement.

IMM.

• When this message is received, automatically switches

:INITIATE:CONTINUOUS OFF

• When there is an internal trigger (trigger source <IMMEDIATE>), triggering promptly occurs and enters the idle state.

• When there is an external trigger (trigger source <EXTERNAL>), the external trigger wait state is entered. When a trigger is received, a single measurement is performed and enters the idle state.

Command Query Response

<IMMEDIATE> = <EXTERNAL> =

:TRIG:SOUR IMM :TRIG:SOUR? IMMEDIATE

RM3545 An execution error occurs during scanning.

MMEDIATE/EXTERNAL>

Internal triggerin g

External triggering

Set and Q

uery Trigger Signal Logic

Syntax

:TRIGger:EDGE

:TRIGger:EDGE?

Example

Note

Set and Query Delay

Syntax

:TRIGger:DELay

:TRIGger:DELay?

Example

Note

Set and Que ry Delay De

fault

Syntax

:TRIGger:DELay:AUTO

:TRIGger:DELay:AUTO?

Setting

Example

Execute Self

Calibration

Syntax

:SYSTem:CALibration

Note

Command Query Response

<ON> = ON edge (OFF→ON) <OFF> = OFF edge (ON

:TRIG:EDGE :TRIG:EDGE? ON

RM3545 An execution error occurs during scanning.

(28) Delay RM3545

An execution error occurs during scanning.

Command Query Response

<Delay time> = 0 to 9.999 (NR2) [sec]

:TRIG:DEL 0.01 :TRIG:DEL?

0.010

When the delay is at the default setting ( values are invalid (disabled). When setting the delay, be sure to turn the default setting OFF.

<1/0/ON/OFF>

→

OFF)

:TRIGger:DELay:AUTO ON

), setting

Command Query Response

When the auto delay (preset setting) is set to ON, the delay will be the value specified internally. When set to OFF, the set delay value (

:TRIG:DEL:AUTO ON :TRIG:DEL:AUTO? ON

(29) Self-Calibration RM3545

An execution error occurs during scanning.

Command

If this command is received while measuring, self-calibration executes after the measurement is finished.

<1/0/ON/OFF>

:TRIGger:DELay

<delay time>) will govern.

Execute and Set Self

Calibration

Syntax

:SYSTem:CALibration:AUTO

:SYSTem:CALibration:AUTO?

Example

Note

Save and Read Measurement Conditions

Syntax

Example

Note

Set and Query Panel Name

Syntax

:SYSTem:PANel:NAME

:SYSTem:PANel:NAME?

Example

Command Query Response

<ON> = AUTO Self-Calibration selected <OFF> = MANUAL Self-Calibration selected

:SYST:CAL:AUTO OFF :SYST:CAL:AUTO? OFF

Even when AUTO Self-Calibration is selected, Self-Calibration can be manually performed at any time by sending the

(30) Saving and Reading Measurement Conditions

RM3545 An execution error occurs during scanning.

Command

:SYSTem:PANel:SAVE :SYSTem:PANel:LOAD

RM3544 <Table No> = 1 to 10 RM3545 <Table No> = 1 to 30 When the front terminal is used as a

<Zero adjustment load> = 1/0/ON/OFF <ON> = Zero adjustment value is also read during panel loading. <OFF> = Zero adjustment is not read during panel loading.

:SYST:PAN:SAVE 10 :SYST:PAN:LOAD 5,OFF

When the measurement conditions for the Table No. have already been saved

:SYSTem:PANel:SAVE

and overwritten. When the Table No. that does not have the measurement conditions is specified

:SYSTem: PANel:LOAD

and RM3545 When the front terminal is used as a measurement terminal, the measurement conditions cannot be saved to 31 to 38. When the multiplexer is used, the measurement conditions cannot be saved to 1 to 30. When a test lead is connected to the front measur emen t terminal, ca nnot be rea d to 31 to 38.An ex ecuti o n error occurs in either case.

<1/0/ON/OFF>

:SYSTem:CALibration

measur ement terminal.)/

31 to 38 (When the multiplexer is used as a measurement terminal.)

is executed, the measurement conditions will be

is executed., an execution error will occur.

command.

Command

Query Response

RM3544 <Table No> = 1 to 10 RM3545 <Table No> = 1 to 38 For information on character string data, see Data Formats. (p.4)

:SYST:PAN:NAME 1,“ P AN EL_ 1 ” :SYST:PAN:NAME? 1 1,“PANEL_1”

<Table No>,<Panel name (character

string data: maximum 10 characters)>

Clear Panel

Syntax

Example

Set and Query Key

Lock State

Syntax

:SYSTem:KLOCk

:SYSTem:KLOCk?

Description

Example

Set and Query Li

ne Frequency

Syntax

:SYSTem:LFRequency

:SYSTem:LFRequency?

Example

Command

RM3544 <Table No> = 1 to 10

RM3545 <Table No> = 1 to 38

:SYST:PAN:CLE 10

(31) Key-Lock

RM3545 An execution error occurs during scanning.

Command Query Response

Switches to FULL key-lock state. (Prohibits all setting changes by key operation.) MENU is returned during MENU key-lock state. the scanning and the measuring.

:SYST:KLOC ON :SYST:KLOCK? ON

(32) Line Frequency

RM3545 An execution error occurs during scanning.

:SYSTem:PANel:CLEar

<1/0/ON/OFF>

Command Query Response

:SYST:LFR 50 :SYST:LFR? 50

Set and Query

System Date

Syntax

:SYSTem:DATE

:SYSTem:DATE?

Description

Example

Note

Set and Query System Time

Syntax

:SYSTem:TIME

:SYSTem:TIME?

Description

Example

Note

Attempting to set an out

-of-

range numerical value retur

ns an execution

existent time (such as 09,06,71) returns an

Set and Query Key Beeper

Syntax

:SYSTem:

BEEPer:STATe

:SYSTem:BEEPer:STATe?

Example

(33) Clock RM3545

An execution error occurs during scanning.

Command Query Response

<Year> = 00 to 99 <Month> = 01 to 12 <Day> = 01 to 31

Sets and queries the date of the real-time system clock.

:SYST:DATE 13,01,10

Sets the date to January 10, 2013.

:SYST:DATE? 13,12,10

The date is December 10, 2013.

Attempting to set an out-of-range numerical value returns an execution error. Attempting to set a non-existent date (such as 13,06,31) returns an execution error.

Command Query Response

<Hour> = 00 to 23 <Minute> = 00 to 59 <Second> = 00 to 59

Sets the time of the real-time system clock.

:SYST:TIME 08,25,00

Sets the time to 8:25 and 00 seconds.

:SYST:TIME? 23,09,53

The time is 23:09 and 53 seconds.

error. Attempting to set a nonexecution error.

(34) Key Beeper

RM3545 An execution error occurs during scanning.

Command Query Response

:SYST:BEEP:STAT ON :SYST:BEEP:STAT? ON

<1/0/ON/OFF>

(35) Communications Settings

Return to Local Control

ntax

:SYSTem:LOCal

Description

Example

Set and Query Measurement

Synchronized Data Output

[RS-232C/USB]

Syntax

:SYSTem:DATAout

:SYSTem:DATAout?

Description

Note

Set and Query Header Presence

Syntax

:SYSTem:HEADer

:SYSTem:HEADer?

Example

Note

RST

Set Delimiter [GP

IB]

Syntax

:SYSTem:TERMinator

:SYSTem:TERMinator?

Example

Note

RM3545 An execution error occurs during scanning.

Command

Disables communications remote control and re-enables local control. The panel keys are re-enabled.

:SYST:LOC

Command Query Response

<ON> = With an external trigger ( trig ge r source <EXTERNAL>), measureme nt v al ues

<OFF> =

This command is not applicable to the GP-IB Interface.

are automatically sent when trigger measurements are completed. When there is an internal trigger (trigger source <IMMEDIATE>), measurement values are automatically sent when the [ENTER] key is pressed and TRIG signal have been input. Measured values are not automatically sent.

<1/0/ON/OFF>

Command Query Response

:SYST:HEAD ON :SYST:HEAD? :SYSTEM:HEADER ON :SYST:HEAD OFF :SYST:HEAD? OFF

When turning the power on or after the header).

<1/0/ON/OFF>

command, this is initialized to OFF (no

Command Query Response

<0> = LF+EOI <1> = CR, LF+EOI

:SYST:TERM 1 :SYST:TERM? 0

<0/1>

• At power-on, this is set to 0 (LF+EOI).

•

The RS-232C/USB delimiter is fixed as CR+LF.

<0/1>

Execute System Reset

Syntax

:SYSTem:RESet

Description

Query NPN/PNP Switch Status

Syntax

:IO:MODE?

Example

External I/O Input

Syntax

:IO:INPut?

Description

Note

External I/O Output

Syntax

Description

(36) System Reset

RM3545 An execution error occurs during scanning.

Command

Initializes all except communications and clock settings. After initialization, panel data, too, is initialized.

(37) EXT I/O

RM3545 An execution error occurs during scanning.

Query Response

:IO:MODE? NPN

Query Response

Reads the ON edge of TRIG of the EXT I/O and the PRINT terminal, and then clears them. (If the trigger si gnal ed ge ha s the O FF edge setting, th e TRIG terminal rea ds the OFF edge.) When the edge is detected, the bits are set. When reading is performed through this query, it is cleared to 0. Also, input by key is also detected in the same manner as signals.

Pin No.

See the instrument instruction manual regarding external control (EXT I/O) as well.

While the filter setting of the input signal is ON, the edge after the set filter time will be read.

0 to 3 (NR1)

bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0

- - - - - - PRINT TRIG

- - - - - - 26 1

Command

:IO:OUTPut

When the judgment output mode is selected with the EXT I/O output mode, any 3-bit data can be output from the EXT I/O terminal.

Pin No.

See the instrument instruction manual regarding external control (EXT I/O) as well.

bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0

- - - - - OUT2 OUT1 OUT0

- - - - - 19 37 18

Execute and Query

TRIG/PRINT Signal's Filter Function

Syntax

:IO:FILTer:STATe

:IO:FILTer:STATe?

Example

Set and Query TRIG/PRINT Signal's Filter Time

Syntax

:IO:FILTer:TIME

:IO:FILTer:TIME?

Example

Set and Query Judgment Mode/BCD Mode

Syntax

:IO:JUDGe:MODE

:IO:JUDGe:MODE?

Example

Set and Query EOM Output Method

Syntax

:IO:EOM:MODE

:IO:EOM:MODE?

Example

Set and Query EOM Pulse Width

Syntax

:IO:EOM:PULSe

:IO:EOM:PULSe?

Example

Command Query Response

:IO:FILT:STAT ON :IO:FILT:STAT? ON

<1/0/ON/OFF>

Command Query Response

<Filter time> = 0.05 to 0.50 (NR2) [sec]

:IO:FILT:TIME 0.1 :IO:FILT:TIME?

0.10

Command Query Response

<JUDGE> = Judgment mode <BCD> = BCD mode

:IO:JUDG: MO DE BCD :IO:JUDG:MODE? BCD

Command Query Response

<HOLD> = Holds the EOM signal until measurement starts by the next trigger signal. <PULSE> = Sets EOM=OFF according to the specified pulse width.

:IO:EOM:MODE PULS :IO:EOM:MODE? PULSE

Command Query

Response

<Pulse width> = 0.001 to 0.100 (NR2) (seconds)

:IO:EOM:PULS 0 .005 :IO:EOM:PULS?

0.005

Pulse width

Query Unit

Syntax

:UNIT:IDN?

Example

Query Multiplexer Unit

Test Execution and Result

Syntax

:UNIT:TEST?

Description

Example

Note

Query Relay Usage Count

Synt

:UNIT:SCOunt?

Description

Responds with the count of the relay with the highest usage count of all the relays for each

Example

(38) Multiplexer Unit RM3545

• Also see 4 Multiplexer Commands (p.65)” for the multiplexer unit.

An execution error occurs during scanning.

Query

Response

<Unit number> = 1/2

If the unit is not inserted: <Model name> = NONE

:UNIT:IDN ? 1 Z3003,123456789

Query

Response

<Unit number> = 1/2

unit.

-1 is returned if the unit is not inserted and an execution error occurs.

:UNIT:SCO ? 1 10000

Query

<Unit number> = 1/2

Response

Performs a multiplexer test and responds with the result in NR1 number (0 to 4). 0 is returned if there is no error. UNIT ERR(1)

Multiplexer short circuit resistance check error

FRONT ERR(2)

When a test lead is connected to the front measurement terminal. Remove the test lead and execute the test again. Blown FUSE (4) The fuse on the back of the instrument for measurement terminal protection has been blown. Replace the fuse and execute the test again. NO UNIT(8)

For information on unit test, see the instrument instruction manual.

<0 to 8 (NR1)>

128

bit7 bit6 bit5 bit7 bit3 bit2

Unused Unused Unused Unused

The unit is not inserted. Insert the unit and execute the test again.

64 32 16 8 4 2 1

bit1 bit0

Blown

UNIT

FUSE

FRONT

ERR

UNIT

ERR

:UNIT:TE ST ? 1 0

RM3545 An execution error occurs during scanning.

4 Multiplexer Commands

Multiplexer Settings

There are two types of multiplexer commands, commands for individual channels and those common to all channels. The commands for individual channels are applied to the current channel. When specifying a channel, it is necessary to switch the channel in advance. Check Message List to see the type of each command.

For example, [:SENSe:]RESistance:RANGe is a command for individ ual channels and

[:SENSe:]RESistance:DIGits is a command common to all channels. An example of command

communication is show n below .

CH? 5 RES:RANG? 1 RES:DIG? 7 CH 3 RES:RANG 10 RES:DIG 6

The current channel number is 5.

The resistance range of Channel 5 is 1Ω.

The number of digits is 7 and this is common to all channe ls. Switches the channel number to 3. Switches the resistance range of Channel 3 to 10Ω. The number of digits is 6 and this is common to all channe ls.

The state after command execution is as follows.

• Current channel: 3

• Stat e of each channel

Channel

3 10Ω range 5 1Ω range

Example A1: Setting all channels in a batch

CH:STAT ON,1 CH:STAT ON,2 CH:STAT ON,3 CH 1 TERM 1,1,2 RES:RANG 10E-03 :CALC:LIM:STAT ON :CALC:LIM:UPP 10E-03 :CALC:LIM:LOW 1E-03 :CALC:LIM:JUDG:COND IN CH 2 TERM 1,3,4 RES:RANG 10E-03 :CALC:LIM:STAT ON :CALC:LIM:UPP 8E-03 :CALC:LIM:LOW 3E-03 :CALC:LIM:JUDG:COND IN

Measurement

range

Number

of digits

Channel 1 is used. Channel 2 is used. Channel 3 is used. Channel 1 settings Measures between Unit 1 TERM 1 and TERM 2. Sets the range. Sets the comparator.

Channel 2 settings Measures between Unit 1 TERM 3 and TERM 4 Sets the range. Sets the comparator.

Example A2: Performing a measurement while switching the terminal

:INIT:CONT ON :TRIG:SOUR IMM SCAN:MODE OFF CH:STAT ON,1 CH 1 TERM 1,1,2 :FETC?

10.00000E+00 TERM 1,3,4 :FETC?

20.00000E+00 TERM 1,5,6 :FETC?

30.00000E+00

Continuous measurement ON Internal trigger Scan OFF Channel 1 is used. Channel 1 settings Measures between Unit 1 TERM 1 and TERM 2.

Measures between Unit 1 TERM 3 and TERM 4.

Measures between Unit 1 TERM 5 and TERM 6.

Multiplexer Measurement

Using a multiplexer, a measurement can be performed in various ways when the scanning function, trigger source, and continuous measurement are combined.

See: Trigger (p.53), “4 Data Exporting Methods” (p.69)

(1) Performing a measurement while the channel is switched by a command without using the scanning

function

Example B1-1 Activating the trigger using a command with continuous measurement OFF

SCAN:MODE OFF :TRIG:SOUR IMM

:INIT:CONT OFF CH:STAT ON,1 CH:STAT ON,2 CH 1 :READ?

1020.000E-03 CH 2 :READ?

100.000E-03

Scan OFF Internal trigger

Continuous measurement OFF Selects the channel to be used.

Switches the channel. Reads the measured value.

(2) Executing scanning using a command Example B2-1 When the scanning function is set to AUTO (SCAN: MODE AUTO )

SCAN:MODE:AUTO :TRIG:SOUR IMM CH:STAT ON,1 CH:STAT ON,2 :READ?

1020.000E-03, 100.000E-03 :CALC:LIM:RES? 1

:CALC:LIM:RES? 2

:CALC:LIM:JUDG? 1

FAIL

:CALC:LIM:JUDG? 2

PASS

:CALC:LIM:JUDG:TOT?

FAIL

:READ? NDAT

FAIL

Scanning function: AUTO Internal trigger (continuous measurement OFF) Selects the channel to be used.

Executes scanning (all channels measured). Reads the measured values of all channels

Obtains the comparator result of each channel.

Obtains the PASS/FAIL result of each channel.

Obtains the total judgment result.

Executes scanning (all channels measured). Reads the total judgment result.

:READ? JUDG

1020.000E-03, 100.000E-03,FAIL

Executes scanning (all channels measured). Reads the measured values of all channels and

total judgment result.

Example B2-2 When the scanning function is set to STEP (SCAN:MODE STEP)

SCAN:MODE STEP :TRIG:SOUR IMM CH:STAT ON,1 CH:STAT ON,2 :READ?

1020.000E-03 :CALC:LIM:RES? HI :CALC:LIM: JU DG ? FAIL :READ?

100.000E-03 :CALC:LIM:RES?

:CALC:LIM:JUDG?

PASS

:CALC:LIM:JUDG:TOT?

Scanning function: STEP Internal trigger (continuous measurement OFF) Selects the channel to be used.

Measures Channel 1 and read s the measured value.

Reads the comparator result of Channel 1.

Reads the PASS/FAIL result of Channel 1.

Measures Channel 2 and read s the measured value.

Reads the comparator result of Channel 2.

Reads the PASS/FAIL result of Channel 2.

Obtains the total judgment result.

FAIL

SCAN:RES

Clears the measured value and switches to Channel

(3) Executing scanning using an external trigger Example B3-1 When the scanning function is set to AUTO (SCAN:MODE AUTO)

SCAN:MODE:AUTO :TRIG:SOUR EXT CH:STAT ON,1

CH:STAT ON,2 :READ?

(External trigger input)

1020.000E-03, 100.000E-03

SCAN:MODE AUTO :TRIG:SOUR EXT

:INIT:CONT ON CH:STAT ON,1 CH:STAT ON,2 CH:STAT ON,3

(External trigger input)

:FETC? 1

1020.000E-03 :FETC? LI M , 2

100.000E-03,HI :FETC? JUDG ,3

100.000E-03,PASS :SCAN:DATA?

1020.000E-03, 100.000E-03, 100.000E-03

Scanning function: AUTO External trigger Selects the channel to be used.

Waits for a trigger (continuous measurement OFF).

Reads the measured values of all channels

Scanning function: AUTO External trigger

Continuous measurement ON Selects the channel to be used.

Executes scanning. Reads the measured values and judgment values of all channels

Reads the measured values of all channels

Example B3-2 When the scanning function is set to STEP (

SCAN:MODE STEP :TRIG:SOUR IMM CH:STAT ON,1 CH:STAT ON,2 :READ?

(External trigger input)

1020.000E-03 :READ?

(External trigger input)

100.000E-03 SCAN:RES

Scanning function: STEP Internal trigger (continuous measurement OFF) Selects the channel to be used.

Measures Channel 1.

Reads the measured value of Channel 2. Measures Channel 2.

Reads the measured value of Channel 2. Clears the measured value and switches to Channel 1.

SCAN:MODE STEP :TRIG:SOUR EXT :INIT:CONT ON CH:STAT ON,1 CH:STAT ON,2

Scanning function: STEP External trigger Continuous measurement ON Selects the channel to be used.

CH:STAT ON,3 (External trigger input)

:FETC?

1020.000E-03 (External trigger input)

:FETC? LI M

100.000E-03,HI (External trigger input)

:FETC? JUDG

100.000E-03,PASS SCAN:RES

Measures Channel 1. Reads the measured value of Channel 1.

Measures Channel 2. Reads the measured value and comparator result of

Channel 2. Measures Channel 3.

Reads the measured value and PASS/FAIL result of Channel 3.

Clears the measured value and switches to Channel 1.

SCAN:MODE STEP :TRIG:SOUR EXT :INIT:CONT ON CH:STAT ON,1 CH:STAT ON,2

Scanning function: STEP External trigger Continuous measurement ON Selects the channel to be used.

CH:STAT ON,3

(External trigger input) (External trigger input) (External trigger input)

:FETC? 1

1020.000E-03 :FETC? LI M , 2

100.000E-03,HI :FETC? JUDG ,3

100.000E-03,PASS :SCAN:DATA?

1020.000E-03, 100.000E-03, 100.000E-03 SCAN:RES

Measures Channel 1. Measures Channel 2. Measures Channel 3.

Reads the measured values and judgment values of all channels

Reads the measured values of all channels

Clears the measured value and switches to Channel 1.

SCAN:MODE STEP)

5 Data Exporting Methods

Basic Data Exporting Methods

Flexible data exporting is available depending on the application.

Export Free-Run Data

Default Setting

:TRIGger:SOURce IMMediate

Exporting

Imports the most recent measurement.

Export by Controller (PC, PLC) Triggering

Default Setting

:TRIGger:SOURce IMMediate

Exporting A trigger occurs, and a measurement is performed and the result is transferred.

Note

Export by Pressing [ENTER] Key or Applying TRIG Signal

Default Setting

:TRIGge r: SOURce EXT

Exporting When triggered by the [ENTER] Key or TRIG signal, a measurement is performed and

Note

:INITiate:CONTinuous ON

(continuous measurement enable)

(internal triggering)

:FETCh?

RM3545 When the scanning function is set to AUTO or STEP, free-run data cannot be

exported.

:INITiate:CONTinuous OFF

(continuous measurement disable)

(internal triggering)

:READ?

RM3545 When the scanning function is set to AUTO or STEP, scanning begins

when :READ? is received (a trigger is not required separately).

When :READ? is sent,

:INITiate:CONTinuous OFF

(continuous measurement disable)

(external triggering)

automatically occurs.

:READ?

the result is transferred.

When :READ? is sent,

:INITiate:CONTinuous OFF

automatically occurs.

value

Returns the last measured value to

the PC

value

Internal Trigger

External Trigger

State

Returns the measured value after

Using the :FETCh? Command during Continuous Measurement with Internal Triggering

Measurement

Processing

Measured Value

Update

Command

Processing

Response

Measuring

Measuring Measurement

Measuring Measuring

Measurement

Measuring

Measurement

This is the simplest meth od for exporting measured v alues. It is ideal when measurement (tact) time is n ot l imited, and when external synchronization is not needed. After connecting to the measurement target, wait for twice the measurement time before exporting the measured value.

Using the :READ? Command while Continuous Measurement is Disabled

Measurement

Processing

Measured Value

Update

Command

Processing

Measuring Measuring

Measurement

Idle State

Measurement

Start Single Measurement

Measurement

value

Response

Measurement

Processing

Measured Value

Update

Command

Processing

Response

Measuring

Idle State

Measurement

Trigger Wait

Start Single Measurement

TRIG Signal Applied

Measuring

single measurement to the PC

Measurement

single measurement to the PC

Use this method to measure (and export) synchronously with the controller (PC, PLC) or external trigger signal. Measurement time can be minimized.

Response

RM3545 Using the :FETCh? Command when the Scanning Function is Set to AUTO or STEP

When the scanning function is set to AUTO or STEP, the measured value of any channel is obtained with the :FETCh? command after scanning.

Measurement

Measured Value

Command Processing

RM3545 Using the SCAN:DATA? Command when the Scanning Function is Set to AUTO or STEP

When the scanning function is set to AUTO or STEP, the measured values of all channels are obtained with the SCAN:DATA? command after scanning.

Measurement

Measured Value

Command Processing

Response

Scan measurement

Channel 1

measurement value

:FETCh? 1 :FETCh? 2

Returns the

measured value of

channel 1 to the PC

Channel 2

measurement value

Returns the

measured value of

channel 2 to the PC

Channel 3

measurement value

:FETCh? 3

Returns the

measured value of

channel 3 to the PC

Scan measurement

Channel 1

measurement value

SCAN:DATA?

Channel 2

measurement value

Returns the measured values

of all channels to the PC

Channel 3

measurement value

6 Sample Programs

These programs can be created using Visual Basic 5.0, 6.0 or Visual Basic 2010. Visual Basic is a registered trademark of Microsoft Corporation.

Using Visual Basic 5.0 or 6.0

These sample programs are created with M icros oft Visu al Basic 5.0 and 6.0.

The following are used for communication:

For RS-232C/USB communication: MSComm from Visual Basic Professional For GP-IB communication: National Instruments GP-IB Board, Driver and Module for Visual Basic

During communications, the terminator setting is supposed to be as follows: RS-232C/USB: CR+LF GP-IB: LF

RS-232C/USB Communications

 Simple Resistance Measurement

Imports measured values 10 times, and saves measurements in a text file.

Private Sub MeasureSubRS()

Dim recvstr As String 'Receiving character string Dim i As Integer

MSComm1.CommPort = 1 'COM1 (Check a communication port) MSComm1.Settings = "9600,n, 8,1" 'Set a co mmu nication port (not required w ith USB) MSComm1.PortOpen = True 'Open a port Open App.Path & "¥data.csv" For Output As #1 'Open a text file for saving

MSComm1.Output = ":TRIG:SOUR IMM" & vbCrLf 'Select an internal triggering MSComm1.Output = ":INIT:CONT ON" & vbCrLf 'Continuous measurement ON For i = 1 To 10

MSComm1.Output = ":FETCH?" & vbCrLf recvstr = "" While Right(recvstr, 1) <> Chr(10)

recvstr = recvstr + MSComm1.Input

DoEvents Wend recvstr = Left(recvstr, Len(recvstr) - 2) 'Delete the terminator (CR+LF) Print #1, Str(i) & "," & recvstr 'Write to the file

Close #1 MSComm1.PortOpen = False

End Sub

(Using Microsoft Visual Basic Professional MSComm)

'Send “:FETCH?” to import the most recent measurement 'From here on, continue receiving until an LF code occurs

 Measure Resistance by PC Key

Measures and imports by key input on the PC, and saves measurements in a text file.

Private Sub MeasureReadSubRS()

Dim recvstr As String 'Receiving character string Dim i As Integer

MSComm1.CommPort = 1 'COM1 (Check a communication port) MSComm1.Settings = "9600,n,8,1" 'Set a communication port (not required with USB) MSComm1.PortOpen = True 'Open a port Open App.Path & "¥data.csv" For Output As #1 'Open a text file for saving

MSComm1.Output = ":TRIG:SOUR IMM" & vbCrLf 'Select internal triggering MSComm1.Output = ":INIT:CONT OFF" & vbCrLf 'Continuous measurement OFF For i = 1 To 10

'Wait for PC key input 'Create a key input check routine to set InputKey() = True when a key is pressed Do While 1

If InputKey() = True Then Exit Do

DoEvents Loop 'After confirming key input, measure once, and read the measured value MSComm1.Output = ":READ?" & vbCrLf

recvstr = "" While Right(recvstr, 1) <> Chr(10)

recvstr = recvstr + MSComm1.Input

DoEvents Wend recvstr = Left(recvstr, Len(recvstr) - 2) 'Delete the terminator (CR+LF) Print #1, Str(i) & "," & recvstr 'Write to the file

Close #1 MSComm1.PortOpen = False

End Sub

'Send “:READ?” to measure and import the measurement 'From here on, continue receiving until an LF code occu rs

 External Trigger Measurement 1

Measures and imports according to external triggering ([ENTER] key or TRIG signal input), or by PC key input, and saves measurements in a text file.

Private Sub MeasureTrigSubRS()

Dim recvstr As String 'Receiving character string Dim i As Integer

MSComm1.CommPort = 1 'COM1 (Check a communication port) MSComm1.Settings = "9600,n,8,1" 'Set a communication port (not required with USB) MSComm1.PortOpen = True 'Open a port Open App.Path & "¥data.csv" For Output As #1 'Open a text file for saving

MSComm1.Output = ":TRIG:SOUR EXT" & vbCrLf 'Select external triggering MSComm1.Output = ":INIT:CONT OFF" & vbCrLf 'Continuous measurement OFF For i = 1 To 10

MSComm1.Output = ":READ?" & vbCrLf recvstr = "" While Right(recvstr, 1) <> Chr(10)

recvstr = recvstr + MSComm1.Input

DoEvents

'To execute trigger measurement when a PC key is pressed,

'Create a key input check routine to set InputKey() = True when a key is pressed

If InputKey() = True Then

MSComm1.Output = "*TRG" & vbCrLf

End If Wend recvstr = Left(recvstr, Len(recvstr) - 2) 'Delete the terminator (CR+LF) Print #1, Str(i) & "," & recvstr 'Write to the file

Close #1 MSComm1.PortOpen = False

End Sub

'Send “:READ?” to measure and import the measurement 'From here on, continue receiving until an LF code occu rs

'When key input occurs, send “TRG” to trigger measurement

 External Trigger Measurement 2

Measures and imports according to external triggering ([ENTER] key or TRIG signal input), and saves measurements in a text file. (The instrument imports the most recent measurement by trigger input timing with the continuous measurement state.)

Private Sub MeasureTrig2SubRS()

Dim recvstr As String 'Receiving character string Dim i As Integer

MSComm1.CommPort = 1 'COM1 (Check a communication port) MSComm1.Settings = "9600,n,8,1" 'Set a communication port (not required with USB) MSComm1.PortOpen = True 'Open a port Open App.Path & "¥data.csv" For Output As #1 'Open a text file for saving

MSComm1.Output = ":TRIG:SOUR IMM" & vbCrLf 'Select internal triggering MSComm1.Output = ":INIT:CONT ON" & vbCrLf 'Continuous measurement ON

'Clear confirmation of External I/O TRIG input MSComm1.Output = ":IO:INP?" & vbCrLf recvstr = "" While Right(recvstr, 1) <> Chr(10)

recvstr = recvstr + MSComm1.Input DoEvents

Wend

For i = 1 To 10

'Wait for External I/O TRIG input Do While 1

MSComm1.Output = ":IO:INP?" & vbCrLf

recvstr = ""

While Right(recvstr, 1) <> Chr(10)

recvstr = recvstr + MSComm1.Input

DoEvents Wend If Left(recvstr, 1) = "1" Then Exit Do DoEvents

Loop MSComm1.Output = ":FETCH?" & vbCrLf

recvstr = "" While Right(recvstr, 1) <> Chr(10)

recvstr = recvstr + MSComm1.Input DoEvents

Wend recvstr = Left(recvstr, Len(recvstr) - 2) 'Delete the terminator (CR+LF) Print #1, Str(i) & "," & recvstr 'Write to the file

Close #1 MSComm1.PortOpen = False

End Sub

'Send “:FETCH?” to import the most recent measurement 'From here on, continue receiving until an LF code occurs

 Set Measurement Conditions

Sets up the measurement setting state.

'Measurement Setting Configuration 'Configures instrument settings for measurement 'Range: 1Ω 'Sampling: FAST 'Trigger: External trigger 'Comparator enabled, ABS mode, upper threshold 1Ω, lower threshold 0.5Ω, beep upon Hi or Lo Private Sub SettingsSubRS()

MSComm1.CommPort = 1 'COM1 (Check a communication port) MSComm1.Settings = "9600,n,8,1" ' MSComm1.PortOpen = True 'Open a port

MSComm1.Output = ":RES:RANG 1E+0" & vbCrLf 'Select 1000m MSComm1.Output = ":SAMP:RATE FAST" & vbCrLf 'Select FAST sampling MSComm1.Output = ":TRIG:SOUR EXT" & vbCrLf 'Select external triggering MSComm1.Output = ":INIT:CONT ON" & vbCrLf 'Continuous measurement ON MSComm1.Output = ":CALC:LIM:MODE ABS" & vbCrLf 'Comparator ABS mode MSComm1.Output = ":CALC:LIM:BEEP IN,0,0" & vbCrLf 'IN buzzer OFF MSComm1.Output = ":CALC:LIM:BEEP HI,1,0" & vbCrLf 'Hi buzzer type 1 continuous MSComm1.Output = ":CALC:LIM:BEEP LO,1,0" & vbCrLf 'Lo buzzer type 1 continuous MSComm1.Output = ":CALC:LIM:UPP 1E+0" & vbCrLf 'Upper threshold 1 MSComm1.Output = ":CALC:LIM:LOW 0.5E+0" & vbCrLf 'Lower threshold 0.5 MSComm1.Output = ":CALC:LIM:STAT ON" & vbCrLf 'Comparator ON

MSComm1.PortOpen = False

End Sub

Set a communication port (not required with USB)

Ω

range

Ω

GP-IB Communications

(Using National Instruments GP-IB Board)

 Simple Resistance Measurement

Imports measured values 10 times, and saves measurements in a text file.

Private Sub MeasureSub()

Dim buffer As String * 20 'Receiving buffer Dim recvstr As String 'Receiving character string Dim pad As Integer 'Controller Address Dim gpibad As Integer 'Device Address Dim timeout As Integer 'Timeout period Dim ud As Integer 'State (unused) Dim i As Integer

pad = 0 'Board Address 0 gpibad = 1 'Instrument Address 1 timeout = T10s 'Timeout about 10s

Call ibfind("gpib0", 0) 'Initialize GP-IB Call ibdev(pad, gpibad, 0, timeout, 1, 0, ud) Call SendIFC(pad) Open App.Path & "¥data.csv" For Output As #1 'Open a text file for saving

Call Send(pad, gpibad, ":TRIG:SOUR IMM", NLend) 'Select internal triggering Call Send(pad, gpibad, ":INIT:CONT ON", NLend) 'Continuous measurement ON For i = 1 To 10

Call Send(pad, gpi bad, ":FETCH ?", NLend) Call Receive(pad, gpibad, buffer, STOPend) 'Receive recvstr = Left(buffer, InStr(1, buffer, Chr(10)) - 1) Print #1, Str(i) & "," & recvstr 'Write to the file

Close #1

Call ibonl(pad, 0) End Sub

'Send “:FETCH?” to import the most recent mea sur ement

 Measure Resistance by PC Key

Measures and imports by key input on the PC, and saves measurements in a text file.

Private Sub MeasureReadSub()

pad = 0 'Board Address 0 gpibad = 1 'Instrument Address 1 timeout = T10s 'Timeout about 10s Call ibfind("gpib0", 0) 'Initialize GP-IB Call ibdev(pad, gpibad, 0, timeout, 1, 0, ud) Call SendIFC(pad) Open App.Path & "¥data.csv" For Output As #1 'Open a text file for saving

Call Send(pad, gpibad, ":TRIG:SOUR IMM", NLend) 'Select internal triggering Call Send(pad, gpibad, ":INIT:CONT OFF", NLend) 'Continuous measurement OFF For i = 1 To 10

'Wait for PC key input 'Create a key input check routine to set InputKey() = True when a key is pressed Do While 1

If InputKey() = True Then Exit Do

DoEvents

Loop 'After confirming key input, measure once, and read the measured value Call Send(pad, gpibad, ":READ?", NLend) Call Receive(pad, gpibad, buffer, STOPend) 'Receive recvstr = Left(buffer, InStr(1, buffer, Chr(10)) - 1)

Print #1, Str(i) & "," & recvstr 'Write to the file

Close #1 Call ibonl(pad, 0)

End Sub

'Send “:READ?” to measure and import the measurement

 External Trigger Measurement 1

Measures and imports according to external triggering ([ENTER] key or TRIG signal input), and saves measurements in a text file.

Private Sub MeasureTrigSub()

pad = 0 'Board Address 0 gpibad = 1 'Instrument Address 1 timeout = T100s

Call ibfind("gpib0", 0) 'Initialize GP-IB Call ibdev(pad, gpibad, 0, timeout, 1, 0, ud) Call SendIFC(pad) Open App.Path & "¥data.csv" For Output As #1 'Open a text file for saving

Call Send(pad, gpibad, ":TRIG:SOUR EXT", NLend) 'Select external triggering Call Send(pad, gpibad, ":INIT:CONT OFF", NLend) 'Continuous measurement OFF For i = 1 To 10

Call Send(pad, gpibad, ":READ?", NLend) Call Receive(pad, gpibad, buffer, STOPend) 'Receive recvstr = Left(buffer, InStr(1, buffer, Chr(10)) - 1) Print #1, Str(i) & "," & recvstr 'Write to the file

Close #1 Call ibonl(pad, 0)

End Sub

'Timeout 100s (because of external trigger wait state)

'Send “:READ?” to measure and import the measurement

 External Trigger Measurement 2

Imports according to external triggering ([ENTER] key or TRIG signal input), and saves measurements in a text file. (The instrument imports the most recent measurement by trigger input timing with the continuous measurement state.)

Private Sub MeasureTrig2Sub()

pad = 0 'Board Address 0 gpibad = 1 'Instrument Address 1 timeout = T100s

Call ibfind("gpib0", 0) 'Initialize GP-IB Call ibdev(pad, gpibad, 0, timeout, 1, 0, ud) Call SendIFC(pad) Open App.Path & "¥data.csv" For Output As #1 'Open a text file for saving

Call Send(pad, gpibad, ":TRIG:SOUR IMM", NLend) 'Select internal triggering Call Send(pad, gpibad, ":INIT:CONT ON", NLend) 'Continuous measurement ON

'Clear confirmation of External I/O TRIG input Call Send(pad, gpibad, ":IO:INP?", NLend) Call Receive(pad, gpibad, buffer, STOPend) recvstr = Left(buffer, InStr(1, buffer, Chr(10)) - 1) For i = 1 To 10

'Wait for External I/O TRIG input Do While 1

Call Send(pad, gpibad, ":IO:INP?", NLend)

Call Receive(pad, gpibad, buffer, STOPend)

If Left(buffer, 1) = "1" Then Exit Do

DoEvents

Loop

Close #1 Call ibonl(pad, 0)

End Sub

'Timeout 100s (because of external trigger wait state)

'Send “:FETCH?” to import the most recent mea sur ement

 Set Measurement Conditions

Sets up the measurement setting state.

'Measurement Setting Configuration 'Configures instrument settings for measurement 'Range: 1Ω 'Sampling: FAST 'Triggering: External trigger 'Comparator enabled, ABS mode, upper threshold 1Ω, lower threshold 0.5Ω, beep upon Hi or Lo Private Sub SettingsSub()

Dim pad As Integer 'Controller Address Dim gpibad As Integer 'Device Address Dim timeout As Integer 'Timeout period Dim ud As Integer 'State (unused)

pad = 0 'Board Address 0 gpibad = 1 'Instrument Address 1 timeout = T10s 'Timeout about 10s

Call ibfind("gpib0", 0) 'Initialize GP-IB Call ibdev(pad, gpibad, 0, timeout, 1, 0, ud) Call SendIFC(pad)

Call Send(pad, gpibad, ":RES:RANG 1E+0", NLend) 'Select 1000mΩ range Call Send(pad, gpibad, ":SAMP:RATE FAST ", NLend) 'Select FAST sampling Call Send(pad, gpibad, ":TRIG:SOUR EXT", NLend) 'Select external triggering Call Send(pad, gpibad, ":INIT:CONT ON", NLend) 'Continuous measurement ON Call Send(pad, gpibad, ":CALC:LIM:MODE ABS", NLend) 'Comparator ABS mode Call Send(pad, gpibad, ":CALC:LIM:BEEP IN,0,0", NLend) 'IN buzzer OFF Call Send(pad, gpibad, ":CALC:LIM:BEEP HI,1,0", NLend) 'Hi buzzer type 1 continuous Call Send(pad, gpibad, ":CALC:LIM:BEEP LO,1,0", NLend) 'Lo buzzer type 1 continuous Call Send(pad, gpibad, ":CALC:LIM:UPP 1E+0", NLend) 'Upper threshold 1 Call Send(pad, gpibad, ":CALC:LIM:LOW 0.5E+0", NLend) 'Lower threshold 0.5 Call Send(pad, gpibad, ":CALC:LIM:STAT ON", NLend) 'Comparator ON

Call ibonl(pad, 0)

End Sub

Ω

Using Visual Basic2010

This section describes an example of how to use the Windows development language Visual Basic2010 Express Edition to operate the IM3570 unit from a PC via RS-232C/USB, incorporate measurement values, and save measurement values to a file.

Visual Basic2010 is referred to as VB2010 hereafter.

Note: Depending on the environment of the PC and VB2010, the procedure may differ slightly from the one

described here. For a detailed explanation on how to use VB2010, refer to the instruction manual or Help of VB2010.

1. Create a new project.

1. Startup VB2010.

2. Select [File] - [New Project].

3. Select [Windows Forms Application] from the templates.

4. Click [OK].

2. Place a button.

1. Click [Button] from [Common Controls] of [Toolbox].

2. Dr ag and drop the button onto the form layout screen.

3. Change [Text] to “Start Measurement” from the Properties window.

4. The [Start Measurement] is placed on the form.

3. Place a serial communication component.

1. Click [SerialPort] from [Components] of [Toolbox].

2. Dr ag and drop the [SerialPort] component onto the form layout screen.

3. Change [PortName] to the port name to use for communication from the properties window.

Check the port to use for communication beforehand.

4. Describe the code.

1. Double- click the placed button to display the code editor.

2. Enter the sample program into the code editor.

3. Select [Save All] from the [File] menu.

4. Confirm the save location and then click [Save].

Shown below is a sample program which uses VB2010 to enact RS-232C/USB communication, set the instrument measurement conditions, read measurement results and then save them to file. The sample program will be written in the following manner.

Description of creation procedure Button created to begin measurement Button created to close application

When the [Begin Measurement] button is pressed, the instrument performs 10 measurements and writes the measurement values to a “data.csv” file. When the [Close] button is pressed, the program closes. The following program is written entirely in [Form1] code.

Imports System Imports System.IO Imports System.IO.Ports Public Class Form1 'Perform process when Button1 is pressed

Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.E ventArgs) Handles Button1.Click

Dim recvstr As String Dim i As Integer

Try

Button1.Enabled = False 'Disable buttons during communication Button2.Enabled = False Dim sp As New SerialPort("COM1", 9600, Parity.None, 8, StopBits.One) 'Communication port

setting

sp.NewLine = vbCrLf 'Terminator setting sp.ReadTimeout = 2000 '2 seconds time out sp.Open() 'Open a port SendSetting(sp) 'Instrument settings FileOpen(1, "data.csv", OpenMode.Output) 'Create text file to be saved

For i = 1 To 10

sp.WriteLine(":FETCH?") 'Begin measurement and read measurement

results command

recvstr = sp.ReadLine() 'Read measurement results

WriteLine(1, recvstr) 'Write to file Next i FileClose(1) 'Close file sp.Close() 'Close port Button1.Enabled = True Button2.Enabled = True

Catch ex As Exception

MessageBox.Show(ex.Message, "Error", MessageBoxButtons.OK, MessageBoxIcon.Error)

End Try

End Sub 'Set measurement conditions

Private Sub SendSetting(ByVal sp As SerialPort)

Try

sp.WriteLine(":TRIG:SOUR IMM") 'Select internal triggering sp.WriteLine(":INIT:CONT ON") 'Continuous measurement ON

Catch ex As Exception

MessageBox.Show(ex.Message, "Error", MessageBoxButtons.OK, MessageBoxIcon.Error)

End Try

End Sub 'Close program when Button2 is pressed

Private Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.E ventArgs) Handles Button2.Click

Me.Dispose() End Sub End Class

Description in sample program Button1 Button2

.............................

.....................................................

...................................................

..................................

.........................................................

........

(a)

(b) (c) (d)

(e)

(f)

(a) During communication the [Begin Measurement] and [Close] buttons cannot be pressed. (b) Matches the instrument communication conditions and the computer usage conditions. The port to be used on the computer: 1 Transmission speed: 9600 bps Parity: none Data length: 8-bit Stop bit: 1-bit (not required with USB) (c) Sets CR + LF as the terminator indicating the end of the sending and receiving character string. (d) Sets the reading operation time to 2 seconds. (e) Opens the “data.csv” file. However, if a file with this name already exists, the previous “data.csv” will be

deleted and a new file created.

(f) Sends the command to the instrument to perform one measurement and return that measurement result to

the computer.

7 Device Compliance S tatement [GP-IB]

“Information on compliance to standards” based on the IEEE 488.2 standard

Item

1. IEEE 488.1 interface functions See: “GP-IB Specifications (Interface Functions)

2. Operation with a device address other th an 0 through 30 A setting outside the 0 to 30 range cannot be made.

3. Timing of changed device address recognition A change of address is recognized immediately after

4. Device settings at power on The status information is cleared, and all other items

5. List of message exchange options

Description

(RM3545-01 only)”

changing.

are preserved. However, the header on/off setting, and response message separator and terminator are all initialized.

•

Input buffer capacity and operation

See: “Input Buffer” (p.5)

Queries to which multiple response message units are returned

:FETCh? :READ? :CALCulate:LIMit:BEEPer? :CALCulate:STATistics:NUMBer? :CALCulate:STATistics:MAXimum? :CALCulate:STATistics:MINimum? :CALCulate:STATistics:LIMit? :CALCulate:STATistics:BIN? :CALCulate:STATistics:DEViation? :CALCulate:STATistics:CP? :CALCulate:TCONversion:DELTa:PARameter? :CALCulate:TCORrect:PARameter? :MEMory:DATA? [:SENSe:]SCAN:DATA? [:SENSe:]TERMinal? [:SENSe:]TEMPerature:PARameter? :UNIT:IDN? :SYSTem:DATE? :SYSTem:TIME?

•

Queries producing responses when syntax checking

is performed:

All queries produce responses when syntax

checking is performed.

•

Whether any queries produce responses when read:

There are no queries which produce response

messages when they are read in by the controller.

•

Whether any commands are coupled:

There are no relevant commands.

(Instrument instruction manual)

Item

Description

6. Summary of functional elements for use when constructing device specific commands, and whether compound commands or program headers can be used

7. Buffer capacity limitations for block data Block data is not used.

8. Summary of program data elements used in expressions, and deepest nesting level allowable in sub-expressions, including sy ntax restrictions imposed by the device

9. Response syntax for queries See: Message Reference (p.21)

10. Transmission congestion relating to device-to-device

messages which do not conform to the general principles for basic response messages

The followings can be used:

•

Program message

•

Program message terminator

•

Program message unit

•

Program message unit separator

•

Command message unit

•

Query message unit

•

Command program header

•

Query program header

•

Program data

•

Character program data

•

Decimal program data

•

Character string program data

•

Compound commands and program headers

Sub-expressions are not used. Character data, decimal data and chara cter s tring program data are th e only program data elements used.

There are no device to device messages.

11. Response capacity for block data Block data does not appear in responses.

12. Summary of standard commands and queries used See: Message List (p.13)

13. Device state after a calibration query has been

completed without any problem

14. Existence/nonexistence of “*DDT” command The “*DDT” command is not used.

15. Existence/nonexistence of macro command Macros are not used.

16. For queries related to identifi c ation , explanation of the

response to the “*IDN?” query

17. Capacity of the user data storage area reserved for

when the “*PUD” command and the “*PUD?” query are being executed

18. Resources when the “*RDT” command and the

“*RDT?” query are being used

19. Conditions which are influenced when “*RST”,

“*LRN?”, “*RCL”, and “*SAV” are used

20. Scope of the self-testing executed as a result of the

“*TST?” query

21. Additional organization of the status data used in a

device status report

The “*CAL?” query is not used.

See: Standard Commands (p.22)

The “*PUD” command and the “*PUD?” query are not used. Further, there is no user data storage area.

The “*RDT” command and the “*RDT?” query are not used. Further, there is no user data storage area.

“*LRN?”, “*RCL”, and “*SAV” are not used. The “*RST” command returns the instrument to its initial state.

See: Standard Commands (p.22), Initialization Items

(p.11)

See: Standard Commands (p.22)

See: Event Registers (p.8)

22. Whether commands are overlap or sequential type All the commands are sequential commands.

23.Criterion relating to the functions required at the instant

that the termination message is produced, as a response to each command

Termination occurs when the command has been parsed. The :READ? query finishes when the measurement data is received.

Hioki RM3544-01, RM3545, RM3545-01, RM3545-02 Communication Command Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

1 Introduction

Message Format

Output Queue and Input Buffer

Status Byte Register

Event Registers

Initialization Items

Command Execution Time

Errors During Communications

2 Message List

3 Message Reference

Message Reference Interpretation

Standard Commands

(1) System Data Command

(2) Internal Operation Command

(3) Synchronization Commands

(4) Status and Event Control Commands

Device-Specific Commands

(1) Event Status Register

(2) Reading Measured Values

(3) Zero Adjustment

(4) Measurement Speed

(5) Averaging Function

(6) Comparator

(7) BIN Function RM3545

(8) Statistical Functions RM3545

(9) Scaling

(11) Temperature Correction (TC)

(12) LCD Settings

(13) Memory Functions RM3545

(14) Hold

(15) Multiplexer Settings RM3545

(16) Multiplexer Channel Reset RM3545

(17) Low-Power Resistance Measurement RM3545

(18) Measurement Range

(19) 100MΩ Range High Precision Function RM3545

(20) Switching Measurement Current RM3545

(21) Offset Voltage Correction Function (OVC) RM3545

(22) Contact Improver RM3545

(23) Current Error Mode

(24) Contact Check RM3545

(25) Setting Number of Digits

(26) T emperature Measurement (Analog Input) RM3545

(27) T riggering

(28) Delay RM3545

(29) Self-Calibration RM3545

(30) Saving and Reading Measurement Conditions

(31) Key-Lock

(32) Line Frequency

(33) Clock RM3545

(34) Key Beeper

(35) Communications Settings

(36) System Reset

(37) EXT I/O

(38) Multiplexer Unit RM3545

4 Multiplexer Commands

5 Data Exporting Methods

6 Sample Programs

Using Visual Basic 5.0 or 6.0

Using Visual Basic2010

7 Device Compliance S tatement [GP-IB]
