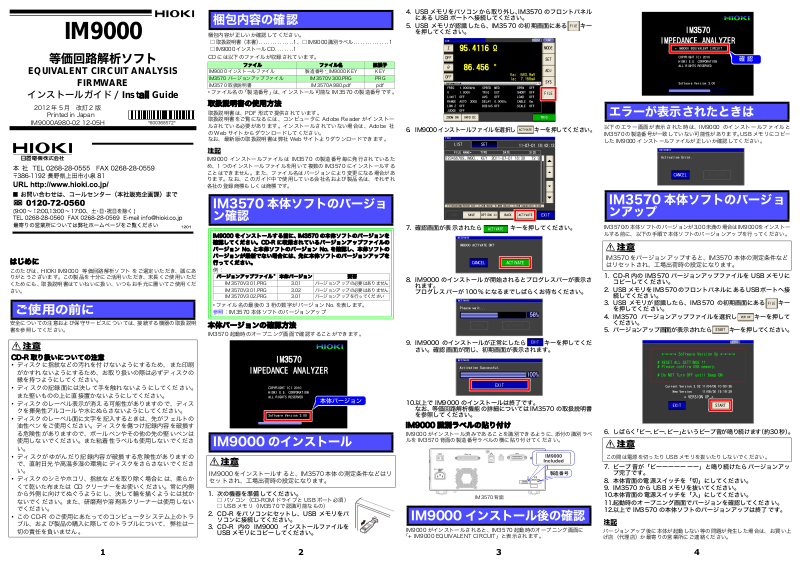

Hioki IM9000 Install Guide

IM9000
等価回路解析ソフト
EQUIVALENT CIRCUIT ANALYSIS
FIRMWARE
インストールガイド / Install Guide
2012 年 5 月 改訂 2 版
 Printed in Japan
IM9000A980-02 12-05H
梱包内容の確認
例:
バージョンアップファイル*本体バージョン 要否
IM3570V301.PRG 3.01
バージョンアップの必要はありません
IM3570V301.PRG 3.02
バージョンアップの必要はありません
IM3570V302.PRG 3.01
バージョンアップを行ってください
本体バージョン
製造番号
IM3570 背面
確 認
□ 取扱説明書(本書). . . . . . . . . . . . . . . 1、□ IM9000 識別ラベル. . . . . . . . . . . . . . . 1
□ IM9000 インストール CD. . . . . . . . 1
CD には以下のファイルが収録されています。
IM9000 インストールファイル 製造番号
ファイル ファイル名 拡張子
IM3570 バージョンアップファイル IM3570V300.PRG PRG IM3570 取扱説明書 IM3570A980.pdf pdf
* ファイル名の「製造番号」は、インストール可能な IM3570 の製造番号です。
取扱説明書の使用方法
取扱説明書は、PDF 形式で提供されています。 取扱説明書をご覧になるには、コンピュータに Adobe Reader がインストー ルされている必要があります。インストールされていない場合は、Adobe 社 の Web サイトからダウンロードしてください。 なお、最新版の取扱説明書は弊社 Web サイトよりダウンロードできます。
IM9000 インストールファイルは IM3570 の製造番号毎に発行されているた め、1 つのインストールファイルを用いて複数の IM3570 にインストールする ことはできません。また、ファイル名はバージョンにより変更になる場合があ ります。なお、このガイド中で使用している会社名および製品名は、それぞれ 各社の登録商標もしくは商標です。
*
_IM9000.KEY KEY
4. USB メモリをパソコンから取り外し、IM3570 のフロントパネル にある USB ポートへ接続してください。
5. USB メモリが認識したら、IM3570 の初期画面にある キー を押してください。
6. IM9000 インストールファイルを選択し キーを押してください。
エラーが表示されたときは
以下 のエラー画 面 が表示され た 時は、IM9000 の イ ンストールフ ァイルと IM3570 の製造番号が一致していない可能性があります。USB メモリにコピー した IM9000 インストールファイルが正しいか確認してください。
はじめに
このたびは、HIOKI IM9000 等価回路解析ソフト をご選定いただき、誠にあ りがとうございます。この製品を十分にご活用いただき、末長くご使用いただ くためにも、取扱説明書はていねいに扱い、いつもお手元に置いてご使用くだ さい。
ご使用の前に
安全についての注意および保守サービスについては、接続する機器の取扱説明 書を参照してください。
CD-R 取り扱いについての注意
ディスクに指紋などの汚れを付けないようにするため、また印刷
がかすれないようにするため、お取り扱いの際は必ずディスクの 縁を持つようにしてください。
ディスクの記録面には決して手を触れないようにしてください。
また堅いものの上に直接置かないようにしてください。
ディスクのレーベル表示が消える可能性がありますので、ディス
クを揮発性アルコールや水にぬらさないようにしてください。
ディスクのレーベル面に文字を記入するときは、先がフェルトの
油性ペンをご使用ください。ディスクを傷つけ記録内容を破損す る危険性がありますので、ボールペンやその他の先の堅いペンは 使用しないでください。また粘着性ラベルも使用しないでくださ い。
ディスクがゆがんだり記録内容が破損する危険性がありますの
で、直射日光や高温多湿の環境にディスクをさらさないでくださ い。
ディスクのシミやホコリ、指紋などを取り除く場合には、柔らか
くて乾いた布または CD クリーナーをお使いください。常に内側 から外側に向けてぬぐうようにし、決して輪を描くようには拭か ないでください。また、研磨剤や溶剤系クリーナーは使用しない でください。
この CD-R のご使用にあたってのコンピュータシステム上のトラ
ブル、および製品の購入に際してのトラブルについて、弊社は一 切の責任を負いません。
1234
IM3570 本体ソフトのバージョ ン確認
IM9000 をインストールする前に、IM3570 の本体ソフトのバージョンを 確認してください。CD-R に収録されているバージョンアップファイルの バージョン No. と本体ソフトのバージョン No. を確認し、本体ソフトの バージョンが最新でない場合には、先に本体ソフトのバージョンアップを 行ってください。
* ファイル名の最後の 3 桁の数字がバージョン No. を表します。
参照:IM3570 本体ソフトのバージョンアップ
本体バージョンの確認方法
IM3570 起動時のオープニング画面で確認することができます。
IM9000 のインストール
IM9000 をインストールすると、IM3570 本体の測定条件などはリ セットされ、工場出荷時の設定になります。
1. 次の機器を準備してください。
□ パソコン(CD-ROM ドライブと USB ポート必須) □ USB メモリ(IM3570 で認識可能なもの)
2. CD-R をパソコンにセットし、USB メモリをパ ソコンに接続してください。
3. CD-R 内の IM9000 インストールファイルを USB メモリにコピーしてください。
7. 確認画面が表示されたら キーを押してください。
8. IM9000 のインストールが開始されるとプログレスバーが表示さ れます。 プログレスバーが 100% になるまでしばらくお待ちください。
9. IM9000 のインストールが正常にしたら キーを押してくだ さい。確認画面が閉じ、初期画面が表示されます。
10.以上で IM9000 のインストールは終了です。 なお、等価回路解析機能の詳細については IM3570 の取扱説明書 を参照してください。
IM9000 識別ラベルの貼り付け
IM9000 がインストール済みであることを識別できるように、添付の識別ラベ ルを IM3570 背面の製造番号ラベルの横に貼り付けてください。
IM9000 インストール後の確認
IM9000 がインストールされると、IM3570 起動時のオープニング画面に
「+ IM9000 EQUIVALENT CIRCUIT」と表示されます。
IM3570 本体ソフトのバージョ ンアップ
IM3570の本体ソフトのバージョンが3.00未満の場合はIM9000をインストー ルする前に、以下の手順で本体ソフトのバージョンアップを行ってください。
IM3570 をバージョンアップすると、IM3570 本体の測定条件など はリセットされ、工場出荷時の設定になります。
1. CD-R 内の IM3570 バージョンアップファイルを USB メモリに コピーしてください。
2. USB メモリを IM3570のフロントパネルにある USB ポートへ接 続してください。
3. USB メモリが認識したら、IM3570 の初期画面にある キー を押してください。
4. IM3570 バージョンアップファイルを選択し キーを押して ください。
5. バージョンアップ画面が表示されたら キーを押してください。
6. しばらく「ピー、ピー、ピー」というビープ音が鳴り続けます(約30 秒)。
この間は電源を切ったり USB メモリを抜いたりしないでください。
7. ビープ音が「ピーーーーーーー」と鳴り続けたらバージョンアッ プ完了です。
8. 本体背面の電源スイッチを「切」にしてください。
9. IM3570 から USB メモリを抜いてください。
10.本体背面の電源スイッチを「入」にしてください。
11.起動時のオープニング画面でバージョンを確認してください。
12.以上で IM3570 の本体ソフトのバージョンアップは終了です。
バージョンアップ後に本体が起動しない等の問題が発生した場合は、お買い上 げ店(代理店)か最寄りの営業所にご連絡ください。
Using the instruction manual
IM9000
EQUIV ALENT CIRCUIT ANALYSIS
FIRMWARE
Install Guide
May 2012 Revi sed edition 2 Printed i n Japan
IM9000A980-02 12-05H
Example:
Upgrade file* Instrument ver si on Needs to be upgraded?
IM3570V301.PRG 3.01 No IM3570V301.PRG 3.02 No IM3570V302.PRG 3.01 Yes
Instrument ve rsion
Model IM3570 rear panel
Serial No.
Verify
The instruction manual for the IM9000 is provided as a PDF file. To view this file, you must hav e Adobe Reader inst alled on your computer . If you have not i nstal led this so ftware , please downloa d it from Adobe’ s website. The most recent version of the instruction manual can be downloaded from HIOKI's webs ite.
Since the IM9000 installation file is issued for a single IM3570 serial number, a single installation file cannot be used to install the software on multiple IM3570s. The filename may change to reflect the version number . Product names appearing herein are tra dem ark s o r r egi ste red trademarks of the various companies.
Checking the IM3570's sof tware version
Before installing the IM9000 software, check the version of the IM3570's software. Check the version number of the upgrade file on the CD-R disc and the version number of the instru­ment's software. If the instrument's software is not up to date, it should be upgraded first.
6.Select the IM9000 installation file and touch the button.
If an error message is displayed
If the following error m essa ge is display ed, the se rial nu mber a ssociat ­ed with the IM9000 installation file may not match the IM3570's serial number. Check whether the IM9000 installation file copied to the USB memory is correct.
Introduction
Thank you for purchasing the HIOKI Model IM9000 EQUIVALENT CIR­CUIT ANAL YSIS. To obtain maximum performance from the instrument, please read this manual first, and keep it handy for future reference.
Before Use
For more information about safety precautions and maintenance ser­vice, refer to the instruction manual.
CD Handling Precautions
• Always hold the disc by the edges , so a s no t to m ake fin ger ­prints on the disc or scratch the printing.
• Never touch the recorded side o f the disc. Do not pl ace the disc directly on anything hard.
• Do not wet the disc with v olatile alcoh ol or water, as there is a possibility of the label printing disappearing.
• To write on the disc label surface, use a spirit-based felt pen. Do not use a ball-point pen or hard-tipped pen, because there is a danger of scratching the surface and corrupting the data. Do not use adhesive labels.
• Do not expose the disc directly to the sun's rays, or keep it in conditions of high temperature or humidity, as there is a dan­ger of warping, with consequent loss of data.
• To remove dirt, dust, or fingerprints from the disc, wipe with a dry cloth, or use a CD cleaner. Always wipe from the inside to the outside, and do no wipe with c ircular mov ements. Never use abrasives or solvent cleaners.
• Hioki shall not be held liable for any problems with a computer system that arises from the use of this CD, or for any problem related to the purchase of a Hioki product.
Confirming Package Contents
Confirm that these contents are provided.
Instruction Manual . . . . . . . . . .1 , IM9000 identification label. . . . . .1
IM9000 installation CD . . . . . . . 1
The CD includes the following files:
IM9000 installation file Serial No. IM3570 upgrade file IM3570V300.PRG PRG IM3570 Instruction Manual IM3570A981.pdf pdf
*The serial number in the filename is the serial number of the IM3570 on which
the software can be installed.
File File name Extension
1234
*
_IM9000.KEY KEY
*The last three characters of the filename indicate the version number.
See: Upgrading the IM3570 software
Checking the instrument's version
You can check the version number on the opening screen that is dis­played when the IM3570 is powered on.
Installing the IM9000
When the IM9000 software is installed, the IM35 70 measur e­ment conditions and other settings will be reset to their values at the time the instrument was shipped.
1.You will need the following:
Computer (with a CD-ROM and USB port) USB memory
(capable of being recognized by the IM3570)
2.Insert the CD-R disc into the computer and connect the USB memory to the computer.
3.Copy the IM9000 installation file from the CD-R disc to the USB memory.
4.Remove the USB memory from the computer and insert it into the USB port on the IM3570's front panel.
5.When the USB memory is recognized by the instrument, touch the button on the IM3570's initial screen.
7.When the confirmation screen is displayed, touch the button.
8.A progress bar will be displayed once the IM900 0 software
installation begins. Wait for the progress bar to reach 100%.
9.Once the IM90 00 software installa tion is compl ete, touch the
button. The confirm ation s c reen wi ll c lose, and the i ni -
tial screen will be displayed.
10.This complete s the IM9000 software installation. For mor e
information about the equivalent circuit analysis function, see the IM3570 instruction manual.
Affixing the IM9000 identification label
Affix the attach ed identification label next to the serial num ber label on the back of the IM3570 so that you can easily recognize that the IM9000 software has bee n installed on the instrument.
Verifying that the IM90 00 has be en installed
Verifying that the IM9000 has been installed Once the IM9000 sof tware has been ins talled, "+I M9000 EQUIV ALENT CIRCUIT" will be shown on the opening screen when the IM3570 is powered on.
Upgrading the IM3570 software
If the IM3570 software version is lower than 3.00 , upgrade the IM3570 soft­ware with the following procedure before inst alling the IM9000 sof tware.
When the IM3570 is upgraded, its measurement conditions and other settings wil l be reset to thei r values at the ti me the instrument was shipped.
1.Copy the IM3570 upgrade file from the CD-R disc to the USB memory.
2.Insert the USB m emory into the USB port on the IM3570's front panel.
3.When the USB memory is recognized by the instrument, touch the FILE button on the IM3570's initial screen.
4.Select the IM3570 upgrade file and touch the button.
5.When the upgrade screen is displayed, touch the button.
6.You will hear a series of beeps (for about 30 seconds).
Do not turn off the instrument or remove the USB memory while the upgrade is in progress.
7.When the beeps change to a continuous tone, the upgrade is complete.
8.Turn off the power switch on the back of the instrument.
9.Remove the USB memory from the IM3570.
10.Turn on the power switch on the back of the instrument.
11.Check the version number on the opening screen when the instrument is powered on.
12.This completes the upgrade of the IM3570 software.
If the instrument will not power on after the upgrade or exhibits another problem, contact your HIOKI distributor.
