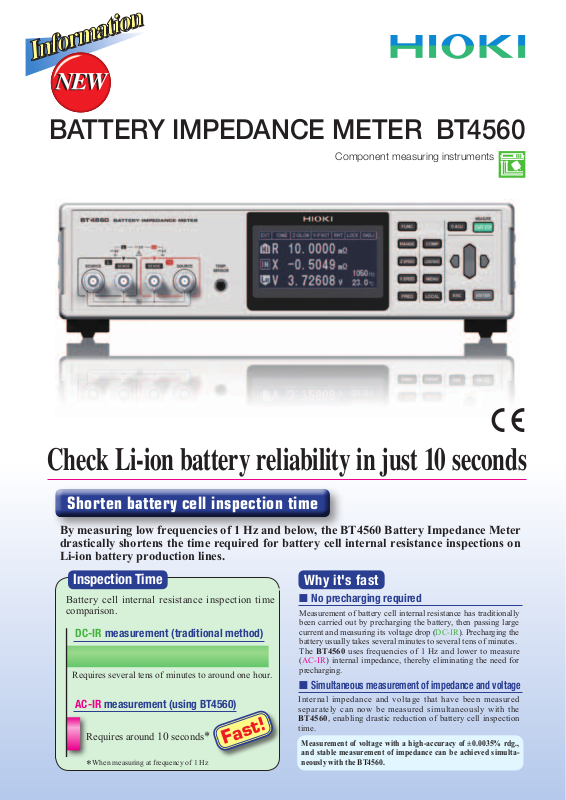

BATTERY IMPEDANCE METER

Component measuring instruments

BT4560

Check Li-ion battery reliability in just 10 seconds

Shorten battery cell inspection time

By measuring low frequencies of 1 Hz and below, the BT4560 Battery Impedance Meter
drastically shortens the time required for battery cell internal resistance inspections on
Li-ion battery production lines.

Inspection Time

Battery cell internal resistance inspection time
comparison.

DC-IR measurement (traditional method)

Requires several tens of minutes to around one hour.

AC-IR measurement (using BT4560)

Requires around 10 seconds*

When measuring at frequency of 1 Hz

*

Fast!

Why it's fast

n No precharging required

Measurement of battery cell internal resistance has traditionally
been carried out by precharging the battery, then passing large
current and measuring its voltage drop (DC-IR). Precharging the
battery usually takes several minutes to several tens of minutes.
The BT4560 uses frequencies of 1 Hz and lower to measure
(AC-IR) internal impedance, thereby eliminating the need for
precharging.

Simultaneous measurement of impedance and voltage

n

Internal impedance and voltage that have been measured
separately can now be measured simultaneously with the
BT4560, enabling drastic reduction of battery cell inspection
time.

Measurement of voltage with a high-accuracy of ±0.0035% rdg.,
and stable measurement of impedance can be achieved simulta­neously with the BT4560.

Correlation between DC-IR and AC-IR Measurement overview

DC-IR measurement AC-IR measurement

Method whereby a DC load is
put through the battery, and the
resistance is calculated from the
voltage variation that occurs.
Because a large current is passed,
a large load is imposed on the
battery.

E0

Load current

Battery voltage

Response deriving from fast reaction

When the correlation between DC-IR and AC-IR measure­ment values is investigated using multiple Li-ion batteries ...

Method whereby an AC signal is
applied to the battery to measure
its impedance. Because it uses a
relatively small current, it does
not damage the battery.

X

0

Rsol Rsol+Rct

T

Response deriving from slow reaction

R

A B C D E F

1 kHz 1 Hz

Cole-Cole plots created using bundled

1

software

X

High-frequency region Low-frequency region

Measurement condi­tions, frequencies f1

and f2, are determined

f2

f1

from the Cole-Cole
plots.

R

Using the frequencies determined in step 1, measure-

2

ment is carried out in production line inspections

Use the panel save/load function to save up to
126 sets of measurement conditions (frequencies)

in the meter.

Two types of probes matching different battery types

available (optional, special order up to 4 m in length)

CLIP TYPE PROBE

L2002

PIN TYPE PROBE

L2003

AC-IR

DC-IR DC-IR

A strong correlation between DC-IR and low-

frequency AC-IR measurement values is found.

AC-IR

For laminated type
batteries

For line-embedded appli­cations and other various
types of batteries

BT4560 Brief specifications

Impedance measurement Basic specifications

Measurement parameters

Measurement frequency

Minimum resolution

Measurement ranges
and accuracy

Battery voltage measurement

Voltage measurement ranges

Voltage measurement accuracy

Z, θ, R, X

0.1 H z to 1050 Hz

0.1 μΩ

3.0000 mΩ / ±0.5 % rdg. ±10 dgt.

10.0000 mΩ / ±0.5 % rdg. ±30 dgt.

100.000 mΩ / ±0.5 % rdg. ±30 dgt.

5.00000 V(Single range, resolution:10 μV)

±0.0035 % rdg. ±5 dgt.

Functions

Inputtable voltage

Operating temperature range

Power supply

Interfaces

Dimensions and mass

Accessories

Temperature measurement

Measurement range

Resolution

Accuracy

HEADQUARTERS

81 Koizumi, U eda, Nagano, 386-1192, Japan
TEL [phone] FAX [phone]
http://www.hioki.com / E-mail: [e-mail]

HIOKI USA CORPORATION

TEL [phone] FAX [phone]
http://www.hiokiusa.com / E-mail: [e-mail]

All in format ion correct as of Oct. 09, 2014. All speci cation s are subje ct to change without n otice. info_ BT4560E2-410B Pri nted in Jap an

−10.0 °C to 60.0 °C

0.1 °C

±0.5 °C(10.0 °C to 40.0 °C)
±1.0 °C(−10.0 °C to 9.9 °C, 40.1 °C to 60.0 °C)

Note: Comp any name s and Product names app earing i n this cata log are trademar ks or regi stered trade marks o f variou s compan ies.

HIOKI ( Shanghai) SALES & TR ADING CO., LTD.

TEL [phone] FAX [phone]

http://ww w.hioki.cn / E-mail: [e-mail]

HIOKI INDIA PRIVATE LIMITED

TEL [phone] FA X [phone]

E-mail: hioki @hioki.in

HIOKI SINGAPORE PTE. LTD.

TEL [phone] FAX [phone]
E-mail: info-sg @hioki.com.sg

HIOKI KOREA CO., LTD.

TEL [phone] FAX + 82-42-9 36-1284
E-mail: [e-mail]

Battery Impedance Meter BT4560

…………………………………………………

Options : CLIP TYPE PROBE L2002, PIN TYPE PROBE L2003,
Temperature Sensor, RS-232C Cable

DISTRIBUTED BY

Contact check, Comparator,

Panel save/load (Up to 126 condition sets)

Max. 5 V

0 °C to 40 °C

AC100 V to 240 V, 50/60 Hz

(Switchable between PNP and NPN output)

EXT I/O
USB, RS-232C

330 W × 80 H × 293 D mm, 3.7 kg

Power cord , Inst ruction manual, USB cable,

CD-ROM (Bundled soft ware, USB driver),

Zero adjustment board
