FT3405
FT3406
TACHO HiTESTER
Instruction Manual
May 2019 Revised edition 5
FT3405A981-05 19-05H
EN
i
Contents
Contents
Introduction ................................................................1
Verifying Package Contents ......................................1
Safety Information .....................................................2
Operating Precautions ...............................................5
Chapter 1 Overview 9
1.1 Product Overview........................................9
1.2 Features ......................................................9

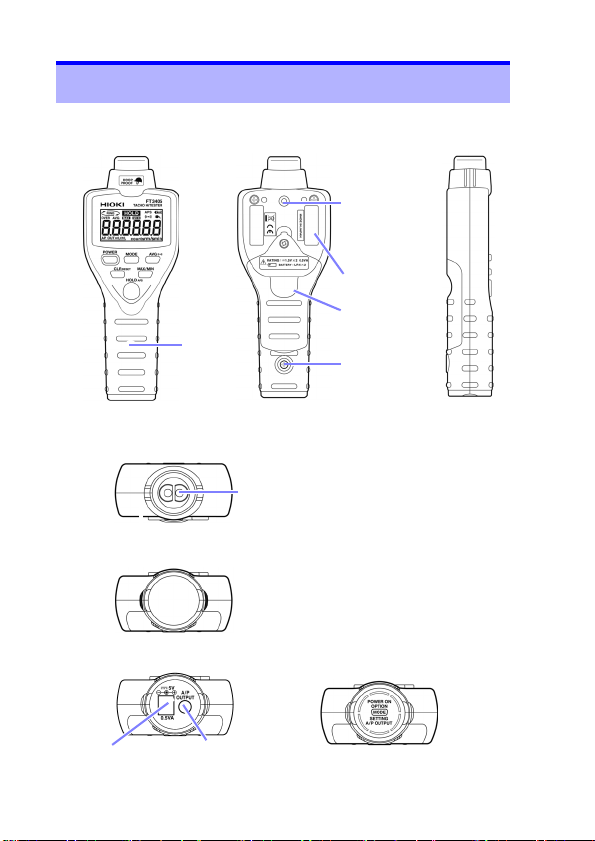

1.3 Names and Functions of Part....................10
Chapter 2 Preparing for Measurement 17
Installing or Replacing the Batteries .....17
Connecting the AC Adapter (Option)
(FT3406 only)........................................ 19
Connecting the Contact Adapter
(Option).................................................20
Connecting the Instrument to a Tripod... 20
Connecting the Analog Output Cable
(FT3406 only)........................................ 21
Connecting the Pulse Output Cable
(FT3406 only)........................................ 24
Chapter 3 Measurement Procedures 27
Pre-Operation Inspection...................... 27
3.1 Turning the Power On and Off ..................28
3.2 Selecting Measurement Functions ............ 29
3.3 Measurement ............................................30
FT3405A981-05
Contents
ii
3.4 Precautions in Measurement of
High-Rotation Objects ............................... 31
Chapter 4 Instrument Functionality 33
Measured Value Hold........................... 33
Measured Value Overrun Display......... 33
Averaging Function .............................. 33
Maximum/Minimum Value Display ....... 34
Rotation Detection Display Function .... 34
Configuring the Buzzer......................... 35
Display Backlight.................................. 35
Auto Power Save (APS) Function ........ 35
Resetting the System ........................... 36
Battery Warning
(Remaining Battery Life Detection)....... 36
Chapter 5 Specifications 37
Function specifications ............................................ 37
Accuracy (Not applicable to count measurement) .. 42
General specifications ............................................. 43
Chapter 6 Maintenance and Service 45
6.1 Cleaning.................................................... 45
6.2 Consumables ............................................ 45
6.3 Discarding the Instrument ......................... 45
6.4 Troubleshooting ........................................ 46
1
Introduction
Confirm that these contents are provided.
L9094 Output Cord
(FT3406 only)
FT3405 or FT3406
LR6alkaline battery×2
Instruction manual
(This document)
9211 Reflective Tape
C0202 Carrying
Case
Thank you for purchasing the HIOKI Model FT3405, FT3406
TACHO HiTESTER. To obtain maximum performance from the
instrument, please read this manual first, and keep it handy for
future reference.
The “instrument” in this manual means FT3405 and FT3406.
Refer to " Options" (p.14) for details.
Verifying Package Contents
• When you receive the instrument, inspect it carefully to ensure
that no damage occurred during shipping. In particular, check
the accessories, panel switches, and connectors. If damage is
evident, or if it fails to operate according to the specifications,
contact your dealer or Hioki representative.
•
Use the original packing materials when transporting
the instrument, if possible.
ment, be sure to remove the Contact Adapter, Contact Tip,
Peripheral Ring, Output Cord and AC Adapter before shipping.
1
2
3
4
5
6
To avoid damage to the instru-
7
8
9
10
索引
2
Safety Information
This instrument is designed to comply with IEC 61010
Safety Standards, and has been thoroughly tested for safety
prior to shipment. However, mishandling during use could
result in injury or death, as well as damage to the instru
ment. However, using the instrument in a way not described
in this manual may negate the provided safety features. Be
certain that you understand the instructions and precautions in the manual before use. We disclaim any responsibility for accidents or injuries not resulting directly from
instrument defects.
Safety Symbols
This manual contains information and warnings essential for
safe operation of the instrument and for maintaining it in safe
operating condition. Before using it, be sure to carefully read the
following safety precautions.
In the manual, the symbol indicates particularly
important information that the user should read before using the instrument.
The symbol printed on the instrument indicates
that the user should refer to a corresponding topic in
the manual (marked with the
ing the relevant function.
Indicates DC (Direct Current).
Indicates AC (Alternating Current).
symbol) before us-
-
Symbols for Various Standards
Indicates that the product conforms to regulations set
out by the EU Directive.
Indicates the Waste Electrical and Electronic Equipment Directive (WEEE Directive) in EU member states.
3
The following symbols in this manual indicate the relative importance of cautions and warnings.
Indicates that incorrect operation presents
an extreme hazard that could result in se
rious injury or death to the user.
Indicates that incorrect operation presents
a significant hazard that could result in
serious injury or death to the user.
Indicates that incorrect operation presents
a possibility of injury to the user or damage
to the instrument.
Indicates advisory items related to performance or correct operation of the instru-
ment.
Other Symbols
(p. )
The screen of this instrument displays characters in the following manner.
Indicates the location of reference information.
Indicates that descriptive information is pro-
*
vided below.
-
1
2
3
4
5
6
7
8
9
10
索引
4
Accuracy
We define measurement tolerances in terms of f.s. (full scale),
rdg. (reading) and dgt. (digit) values, with the following meanings:
f.s.
(maximum display
value or scale length)
rdg.
(reading or displayed
value)
dgt.
(resolution)
The maximum displayable value or scale
length. This is usually the name of the
currently selected range.
The value currently being measured and
indicated on the measuring instrument.
The smallest displayable unit on a digital
measuring instrument, i.e., the input value that causes the digital display to show
a “1” as the least-significant digit.
5
Operating Precautions
Follow these precautions to ensure safe operation and to obtain
the full benefits of the various functions.
Before use
Before using the instrument the first time, verify that it operates
normally to ensure that no damage occurred during storage or
shipping. If you find any damage, contact your dealer or Hioki
representative.
1
2
3
4
Before using the instrument, make sure that the insulation on
the cable is undamaged and that no bare conductors are
improperly exposed. Using the instrument in such conditions
could cause an electric shock, so contact your dealer or Hioki
representative for repair.
Setting up the instrument
• Although this instrument is dust resistant, it is not completely
dust- or waterproof. To prevent possible damage, avoid using
in dusty or wet environments.
• The protection rating for the enclosure of this device (based on
EN60529) is *IP50.
*
IP50:
This indicates the degree of protection provided by the enclosure of the device against use in hazardous locations, entry of
solid foreign objects, and the ingress of water.
5: Protected against access to hazardous parts with wire mea-
suring 1.0 mm in diameter. Dust-proof type (The penetration
of dust cannot be prevented completely, but quantities of dust
that may hinder the stated operation of equipment or safety
cannot penetrate the enclosure.
0: The equipment inside the enclosure is not protected against
the harmful effects of water.
5
6
7
8
9
10
索引
6
Instrument Installation
To avoid damage to the instruments and potentially lifethreatening hazards, observe the following precautions.
• Use only the specified/supplied Model Z1004 AC Adapter.
AC adapter input voltage range is 100 to 240 VAC (with
±10% stability) at 50/60 Hz. To avoid electrical hazards
and damage to the instrument, do not apply voltage out
side of this range.
• Before turning the instrument on, make sure the supply
voltage matches that indicated on the AC adapter. Connection to an improper supply voltage may damage the
instrument or AC adapter and present an electrical hazard.
• If the protective functions of the instrument are damaged, either
remove it from service or mark it clearly so that others do not
use it inadvertently.
• To avoid damage to the instrument, protect it from physical
shock when transporting and handling. Be especially careful
to avoid physical shock from dropping.
• To avoid breaking the cables, do not bend or pull them.
• For safety reasons, when taking measurements, only use the
L9094 Output Cord provided with the instrument (FT3406
only).
-
7
Storage temperature and humidity:
-10°C to 50°C (14 to 122°F), 80%RH or less (non-condensating)
Accuracy guarantee for temperature and humidity:
23°C±5°C (73°F±9°F), 80%RH or less (non-condensating)
Avoid the following locations that could cause an accident or damage to
the instrument.
Exposed to direct
sunlight
Exposed to high
temperature
Exposed to water,
oil, other chemi
cals, or solvents
Exposed to high
humidity or con
densation
Subject to vibration
-
-
In the presence of corrosive or explosive
gases
Exposed to strong
electromagnetic fields
Near electromagnetic
radiators
Near induction heating
systems
(e.g., high-frequency
induction heating sys
tems and IH cooking
utensils)
1
2
3
4
5
6
-
7
Measurement Precautions
Rotational speed measurement
Always wear protective eyewear as debris from the rotating
object may cause injury.
• Depending on the material of the object to be
measured or method of touching the contact tip,
the measurement error may occur.
• Avoid scratching or dirtying the two lenses inside
the detector window.
8
9
10
索引
8
Using the Contact Adapter
• Always use the screw to tighten the contact adapter to
the main body. If it becomes loose, the instrument may
vibrate or be dislocated and become a hazard.
• Be careful when measuring with the contact adapter
because rotation and vibration of the instrument can pro
duce erratic results with either high or low rotation speeds.
Hold the main body firmly against the rotator. Do not place
the instrument on a tripod when making measurements.
• When using the contact adapter for measuring, the
instrument is subject to vibration, so measurements
should be made only below 19,999 r/min or 333 r/s.
• When using the Contact Adapter, do not mount the instrument on a tripod.
Handling contact tips
• Verify that the contact tip has been inserted sufficiently
into the adapter axis before beginning measurement. Fail
ure to insert the contact tip sufficiently into the adapter
axis may cause it to separate from the axis, contact the
rotating object, and fly off in the vicinity of the object.
• If the contact tip is able to come into contact with the
rotating object, exercise caution when winding it onto the
object.
• Do not allow rubber contact tips to come into contact with
hot measurement targets. Doing so may cause the con
tact tip to melt.
-
-
-
Analog Output Terminals and Pulse Output Terminals
To avoid electrical hazards and damage to the instrument,
do not apply voltage exceeding the rated maximum to the
Analog Output Terminals and Pulse Output Terminals.
9
Chapter 1 Overview
Overview Chapter 1
1.1 Product Overview
This portable, contactless tachometer uses reflected visiblespectrum light to measure the speed of a rotating object to which
reflective tape has been affixed. It can also be used as a contact-type tachometer by attaching the Z5003 Contact Adapter.
1
2
3
1.2 Features
Contactless measurement for long detection range
The instrument’s ability to detect speed from up to 50 cm distance allows its use in situations where it would be hazardous to approach the
object being measured.
Easy-grip design
Easy-to-grip design and light weight make the instrument easy to handle.
LCD with a wide field of vie
The FT3405/3406 features a transmissive FSTN liquid crystal display
(LCD), ensuring its readout is easy to read.
Maximum/minimum value hold
Maximum and minimum values are updated continuously so you can
verify variations in rotational speed.
Dust-proof design
The FT3405/3406’s enclosure delivers IP 50-grade protection, allowing it to be used with confidence and peace of mind in environments
characterized by debris (dust, sand, grit, etc.) thrown off by the rotat
ing object.
Drop Proof
The FT3405/3406 can withstand being dropped from a height of 1 m,
making it less likely the unit will be damaged.
Analog Output/ Pulse Output (FT3406 only)
The FT3406 can be used in trend management applications by connecting it to a recorder.
4
5
6
7
8
9
10
-
索引
Chapter 1 Overview
10
Front
Base
Rear
Side
AC adapter
connector
Analog/pulse
output port
Model FT3405
Battery
Cover
Tripod
screw hole
Grip
Model FT3406
Projection surface
Model FT3406
(shown with cap)
Red light projection/
detection window
Z5003 Contact Adapter
Hole for fixing screw
Serial No.*
*: The serial number consists of 9 digits. The
first two (from the left) indicate the year of
manufacture, and the next two indicate the
month of manufacture. Required for production control. Do not peel off the label.
1.3 Names and Functions of Part
11
Chapter 1 Overview
3
1
2
5
6
4
1
2
3
4
POWER POWER key
1
MODE MODE key
2
AVG AVERAGE key
3
CLR CLEAR key
4
MAX/MIN MAX/MIN key
5
HOLD HOLD key
6
Turns the instrument on and off.
Switches the measurement mode (units).
Switches the sampling time (gate time).
Disabled during count measurement.
Clears the current, maximum, minimum, and
count values.
Displays the maximum and minimum values.
Disabled during count measurement.
Starts and stops updating of measured values.
When reflected light is detected, a buzzer sounds
and an LED lamp built into the key flashes.
5
6
7
8
9
10
索引
Chapter 1 Overview
12
[FT3405 display] [FT3406 display]
(FT3406 only)
LCD Display
Display Function Notes
Lights up when the buzzer is
enabled.
Lights up when the Auto Power Save function is enabled.
Displays remaining battery
life.
Turns on when the AC adapter is connected.
Lights up when the hold function is active.
Lights up when the Contact
Adapter is connected.
Lights up during circumferential speed measurement.
Displays the maximum value
obtained since the last time
the instrument was reset.
Displays the minimum value
obtained since the instrument
was last reset.
Lights up when the averaging
function is enabled.
Displays values.
At rotation detection, key
operation
Turns off when the AC
adapter is connected.
Four stages; measurement
is stopped when only the
outline of the battery re
mains.
Turns off when the AC
adapter is connected.
Turns off when no power is
being supplied from the AC
adapter.
-
Indicates that the range has
been exceeded.
Flashes when the range is
exceeded.
13
Chapter 1 Overview
(FT3406 only)
71
186
38
Unit: mm
Indicates the unit of measurement for rpm measurement,
circumferential speed mea
surement, and period measurement.
Indicates the unit of measurement for count measurement.
Selects pulse output or analog output. When analog output is selected, you can select
from ×10, ×1, ×0.1, and
×0.01.
-
Five options:
r/s, r/min, m/s, m/min, ms
Five options:
Pout, Aout×10, Aout×1,
Aout×0.1, Aout×0.01
1
2
3
External Dimensions
4
5
6
7
8
9
10
索引
Loading...
