9261

TEST FIXTURE

Instruction Manual

October 2003 Revised edition 1　Printed in Japan

9261A980-01 03-10H

Introduction

Thank you for purchasing the HIOKI "9261 TEST FIX­TURE." To obtain maximum performance from the prod­uct, please read this manual first, and keep it handy for
future reference.

HEAD OFFICE

81 Koizumi, Ueda, Nagano 386-1192, Japan
TEL [phone] / FAX [phone]
E-mail: [e-mail] URL http://www.hioki.co.jp/

HIOKI USA CORPORATION

6 Corporate Drive, Cranbury, NJ 08512, USA
TEL [phone] / FAX [phone]

Measurement frequency
range

Maximum apply voltage ±40 VDC
Residual resistance

Short-circuited 5 mΩ max. (at 100 kHz)
Floating capacitance

between terminals

Cable type

Cable length Approx. 1 m
Mass Approx. 650 g (22.9 oz.)
Operating temperature

and humidity range

Storage temperature and
humidity range

Operating environment Indoors, altitude up to 2000 m

Please check a HIOKI catalog for instruments to which this
product can be connected.

DC to 5 MHz

0.4 pF max. (at 100 kHz)

1.5C-2V or equivalent

0 to 40°C (32 to 104
80%RH or less
(with no condensation)

-10°C to 55°C (14 to 131
80%RH or less
(with no condensation)

(6562-ft.)

°F)

×

,

4

°F)

,

Overview

This HIOKI 9261 TEST FIXTURE can be connected to the
measurement terminals (UNKNOWN) of the HIOKI LCR
HiTESTERs and C HiTESTERs, and used for general
parts testing.

Inspection and Maintenance

This manual contains information and warnings essential
for safe operation of the product and for maintaining it in
safe operating condition. Before using the product, be
sure to carefully read the following safety notes.

Mishandling this product during use could result in
injury or death, as well as damage to the product.
Be certain that you understand the instructions and
precautions in the manual before use. We disclaim
any responsibility for accidents or injuries not
resulting directly from product defects.

Safety Symbol

In the manual, the symbol indicates particu­larly important information that the user should
read before using the product.

The following symbols in this manual indicate the relative
importance of cautions and warnings.

Indicates that incorrect operation presents a sig­nificant hazard that could result in serious injury or
death to the user.

Indicates that incorrect operation presents a pos­sibility of injury to the user or damage to the prod­uct.

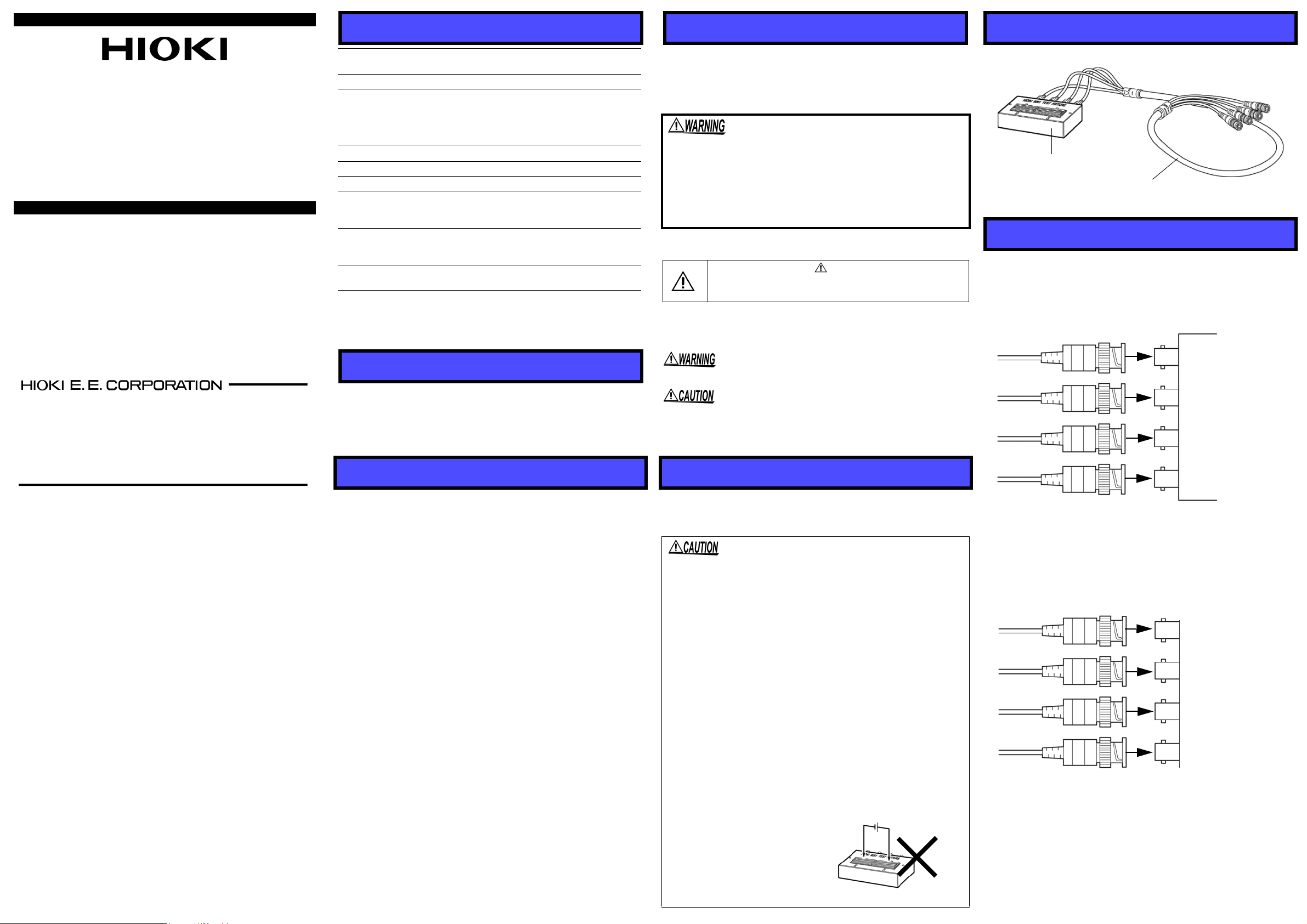

Usage Notes

ll

Body of
Test fixture

bbbb

Connection cable

Connection

Connecting the connection cable to the body of
test fixture

Connect the red plugs to the two terminals on the “Hi” side,
and the black plugs to the two terminals on the “Lo” side.

Red

Red

Black

Hi

Lo

9261 TEST FIXTURE

Initial Inspection

When you receive the product, inspect it carefully to en­sure that no damage occurred during shipping. If damage
is evident, or if it fails to operate according to the specifi­cations, contact your dealer or HIOKI representative.

Preliminary Checks

Before using the product the first time, verify that it oper­ates normally to ensure that the no damage occurred dur­ing storage or shipping. If you find any damage, contact
your dealer or Hioki representative.

Maintenance and Service

• To clean the product, wipe it gently with a soft cloth
moistened with water or mild detergent. Never use sol­vents such as benzene, alcohol, acetone, ether,
ketones, thinners or gasoline, as they can deform and
discolor the case.

• If the product seems to be malfunctioning, contact your
dealer or Hioki representative. When sending the prod­uct for repair, pack the product carefully so that it will not
be damaged during shipment, and include a detailed
written description of the problem. Hioki cannot be
responsible for damage that occurs during shipment.

Follow these precautions to ensure safe operation and to
obtain the full benefits of the various functions.

• Do not store or use the product where it could be ex­posed to direct sunlight, high temperature or humidity,
or condensation. Under such conditions, the product
may be damaged and insulation may deteriorate so
that it no longer meets specifications.

• Do not use the product where it may be exposed to cor­rosive or combustible gases. The product may be dam­aged.

• To avoid damage to the product, protect it from vibra­tion or shock during transport and handling, and be es­pecially careful to avoid dropping.

• This product is not designed to be entirely water- or
dust-proof. To avoid damage, do not use it in a wet or
dusty environment.

• If the fixture has gotten seriously wet, oily, or dusty,
stop using it and send it for service at an approved
HIOKI service facility.

Please refer to the instruction manual for the instrument

•

to which this product is connected for how to use the in­strument and apply

• Do not apply a DC voltage directly to the 9261 TEST
FIXTURE. Also, before connecting a capacitor, make
sure it is discharged.

direct current voltage.

Black

Connecting the connection cable to the LCR HiT­ESTER / C HiTESTER.

Connect the other end of the connection cable to the LCR
Hi TESTER / C HiTESTER UNKNOWN terminals as
shown at below.

Red

UNKOWN terminal

H CUR

Red

H POT

Black

H POT

Black

H

CUR
