Instruction Manual
3505
3506
C HiTESTER
February 2013 Revised edition 6 3505A981-06 13-02H
Contents
Introduction.................................................................................1
Verifying Package Contents.......................................................1
Safety Information......................................................................2
i
Contents
1
2

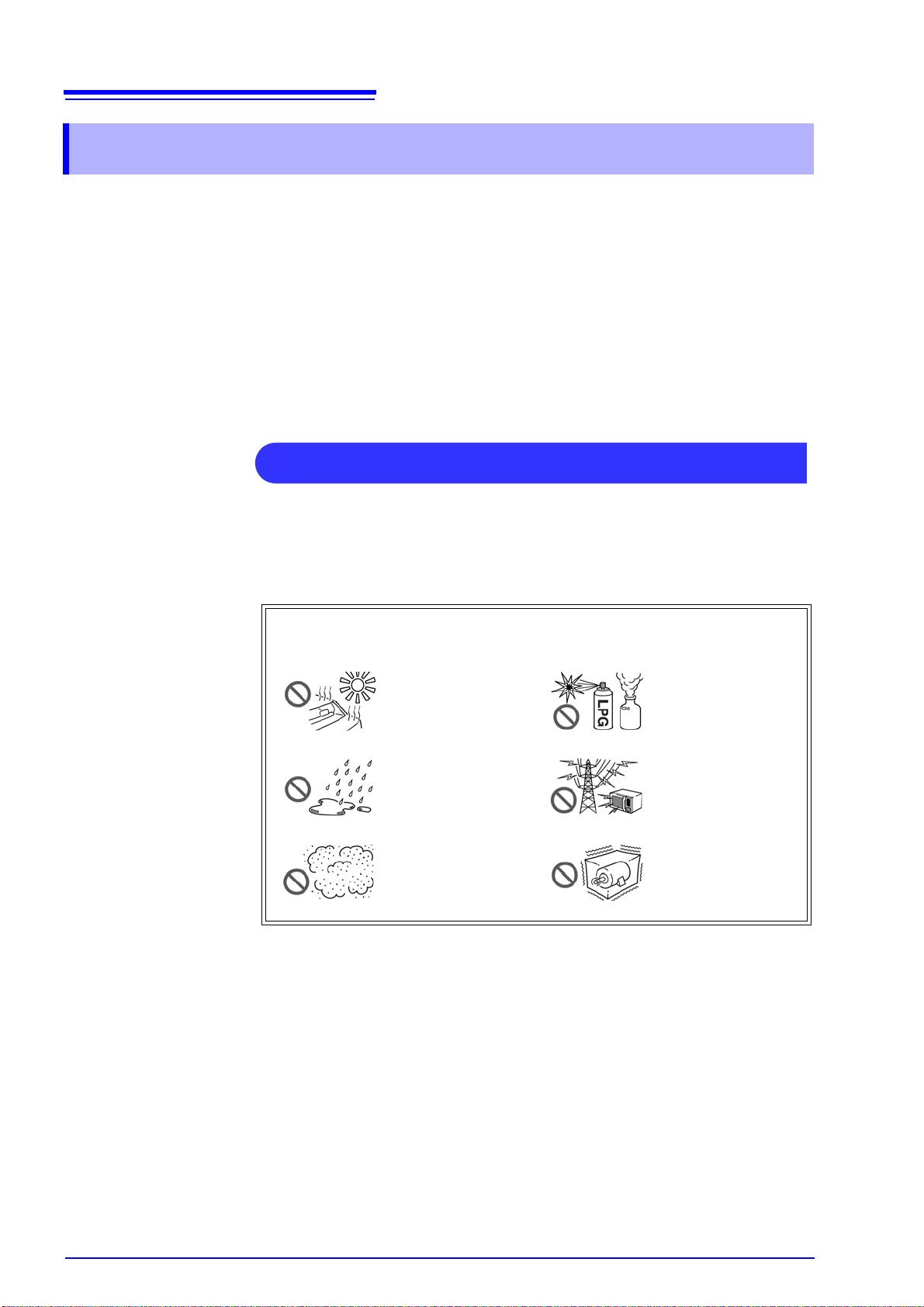

Operating Precautions................................................................4
Chapter 1
Overview___________________________________ 7
1.1 Product Overview .........................................................7
1.2 Features .......................................................................7
1.3 Entire Workflow ............................................................9

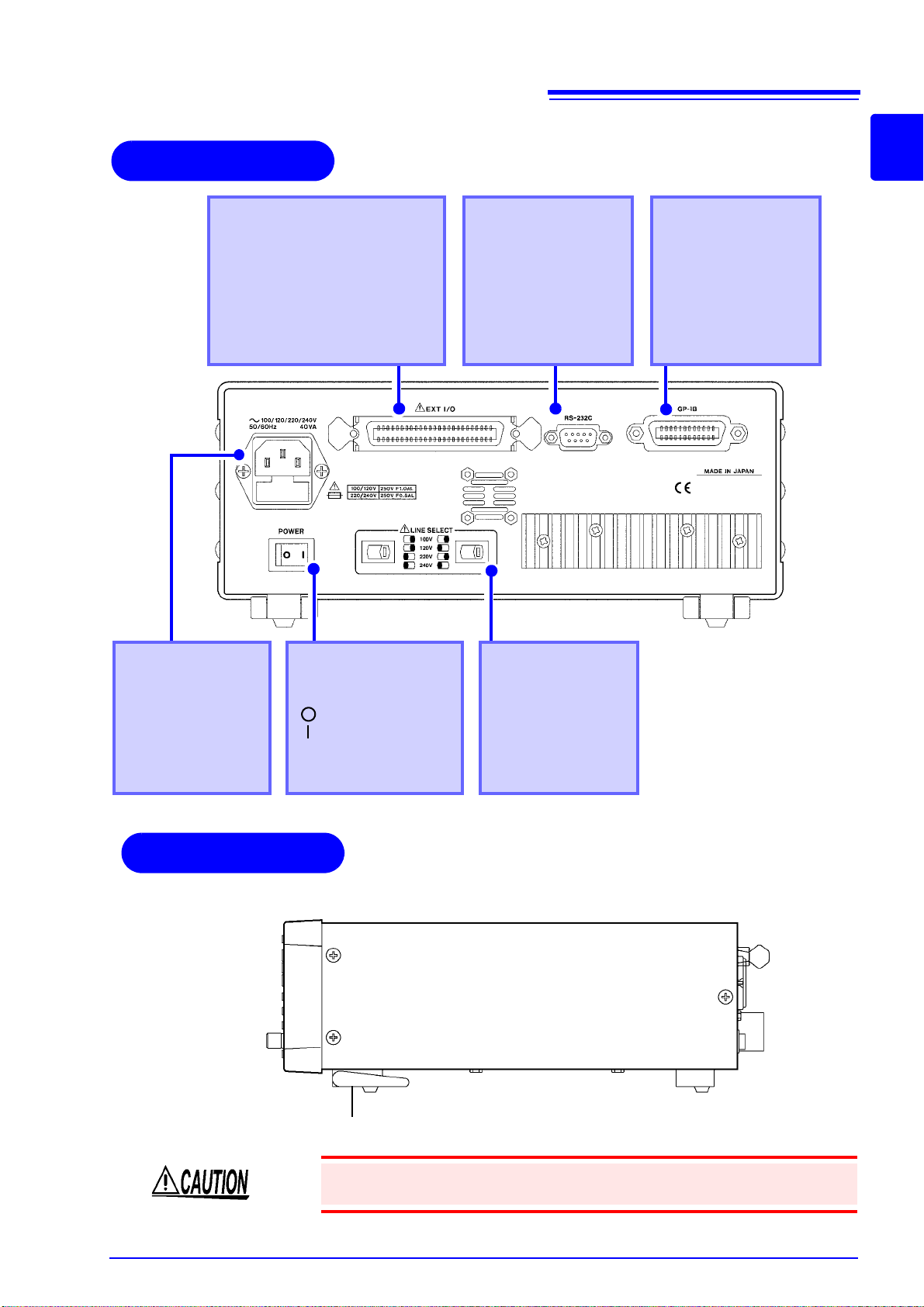

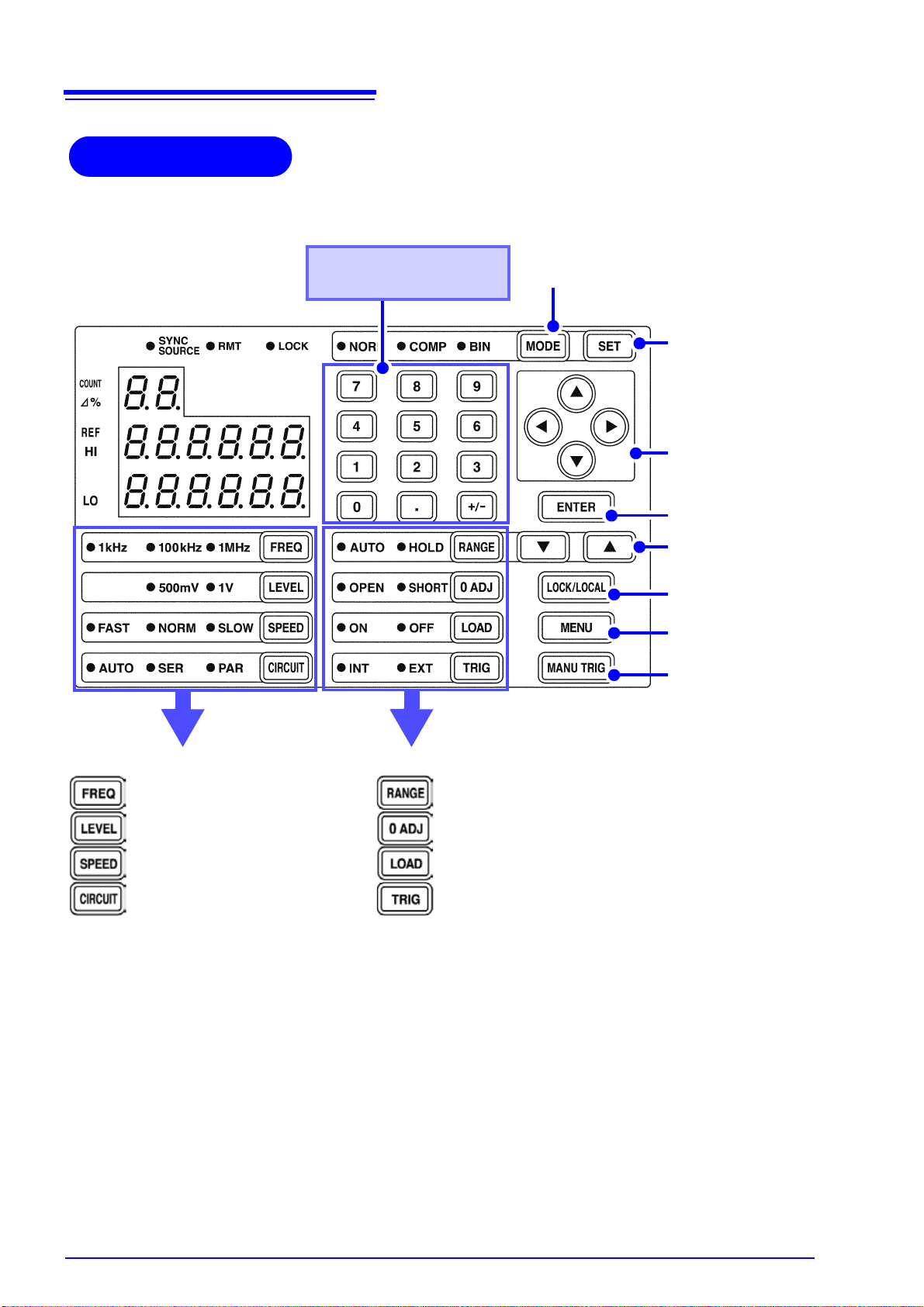

1.4 Names and Functions of Parts ...................................11
Chapter 2
Measurement Preparations___________________ 17
2.1 Preparation Flowchart ................................................17
2.2 Checking the Power Voltage...................................... 18

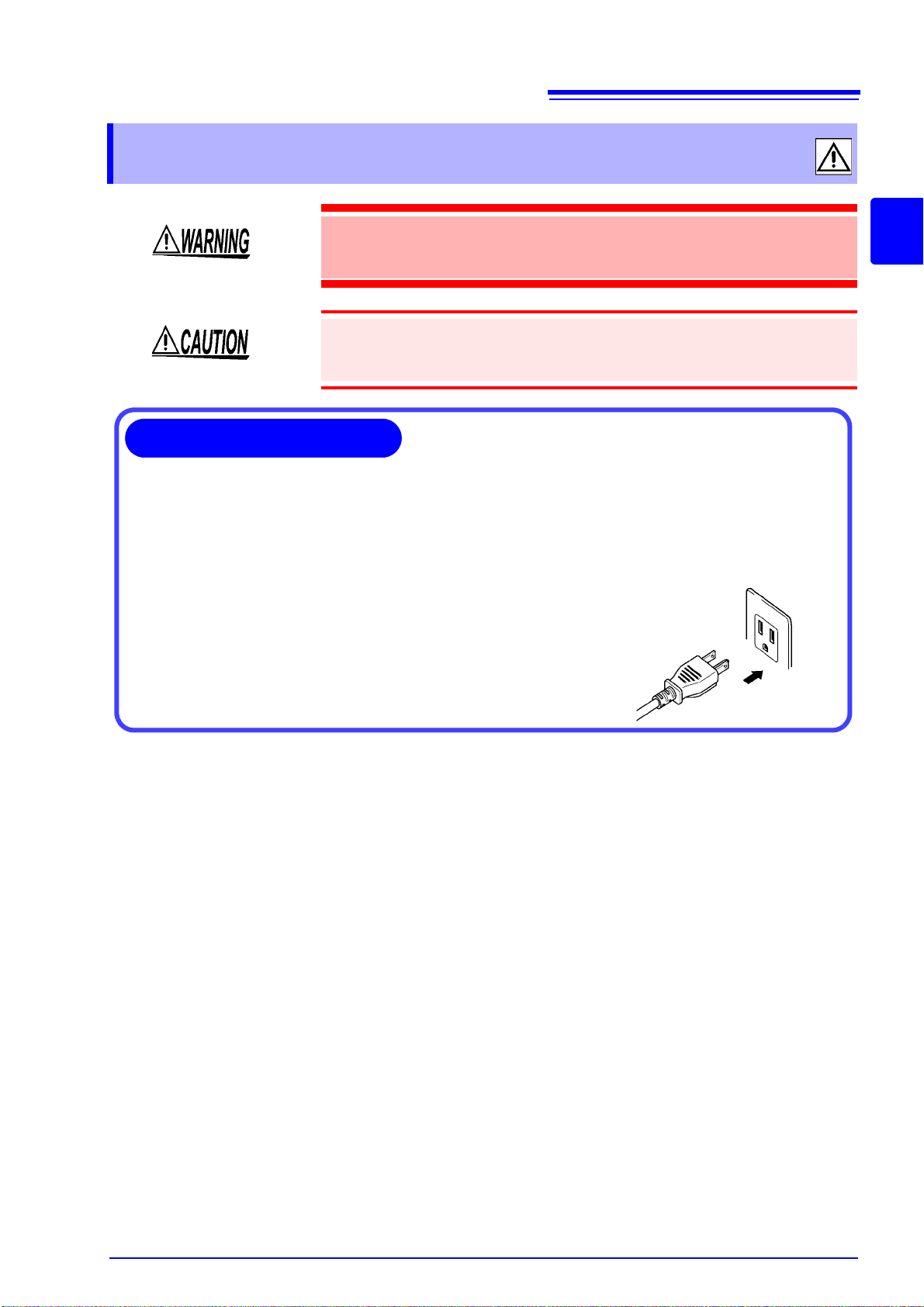

2.3 Connecting the Power Cord....................................... 19

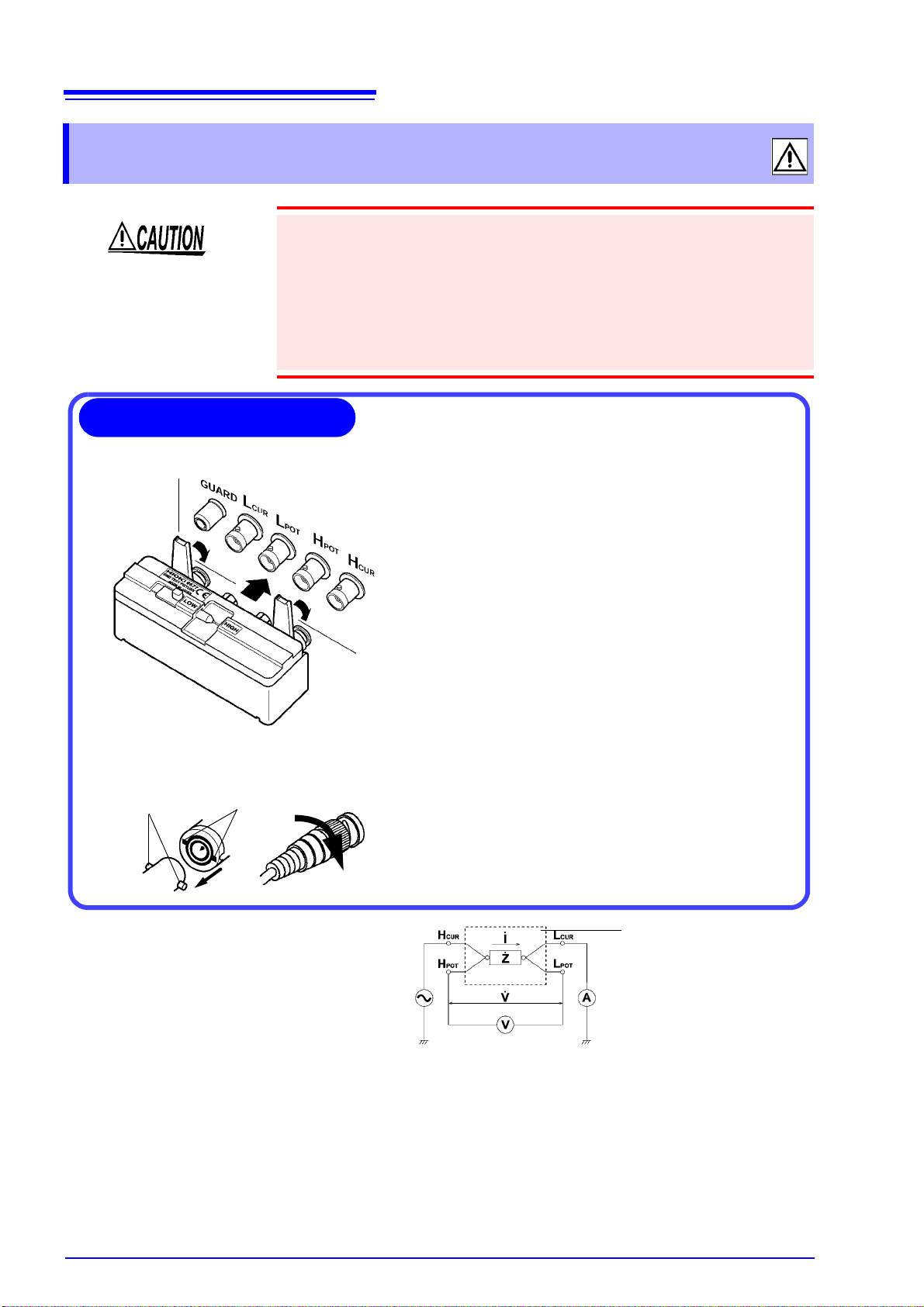

2.4 Connecting the Probes and Fixtures.......................... 20
3

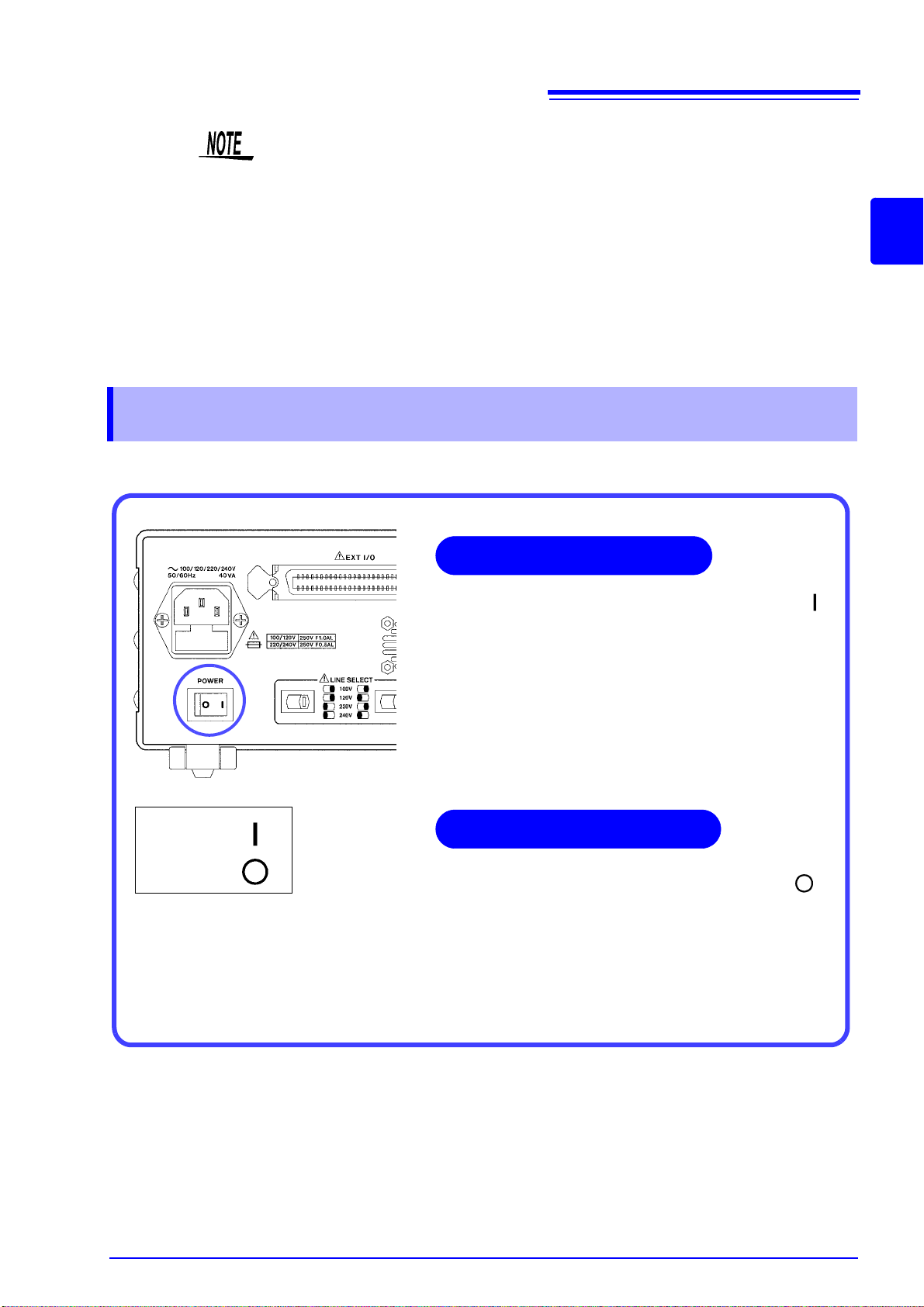

2.5 Turning the Power On and Off ...................................21
Chapter 3
Setting the Measurement Conditions __________ 23
3.1 Pre-Operation Inspection ...........................................23
3.2 Measurement Example ..............................................24
3.3 Setting the Measurement Conditions .........................26
3.3.1 Setting the Display Parameter .......................................26
3.3.2 Measurement Mode ......................................................27
3.3.3 Measurement Frequency ..............................................27
3.3.4 Measurement Signal Level ............................................28
3.3.5 Measurement Speed .....................................................28
3.3.6 Equivalent Circuit Mode ................................................29
3.3.7 Measurement Range .....................................................31
3.3.8 Trigger Signal ................................................................36
ii
Contents
Chapter 4
Compensate for errors_______________________37
4.1 Open Circuit Compensation and Short Circuit
Compensation ........................................................... 37
4.2 Load Compensation .................................................. 45
4.3 Offset Compensation ................................................. 51
4.4 Self Calibration .......................................................... 55
4.5 Set the Cable Length ................................................. 58
Chapter 5
Judging measurement results ________________59
5.1 Comparator Function ................................................. 59
5.2 BIN Measurement Function ....................................... 74
Chapter 6
Application Functions _______________________91
6.1 Setting the Average Function .................................... 91
6.2 Trigger Delay Setting ................................................. 93
6.3 Using the Contact Check Function ............................ 95
6.3.1 Setting the Low C Reject Function ...............................96
6.3.2 Measurement Level Monitoring Function Settings ........98
6.4 Current Detection Circuit Monitoring Function ......... 100
6.5 Applied Voltage Value Monitoring Function ............. 100
6.6 Using the Frequency Shift Function ........................ 101
6.7 Setting the Display ON/ OFF ................................... 102
6.8 Trigger Synchronous Output Function ..................... 103
6.9 Disable Key Control (Keylock Function) .................. 104
6.10 Save the Measurement Conditions
(Panel Save Function) ............................................. 105
6.11 Load the Measurement Conditions
(Panel Load Function) ............................................. 106
6.12 Setting Beep Tones ................................................. 110
6.12.1 Setting the Beep Tone for Judgment Results of
Comparator and BIN ...................................................110
6.12.2 Setting the Beep Tone for Key Operations .................112
6.13 Switching the displayed item (SUB display) ............ 113
6.14 Performing a System Reset ..................................... 114
6.15 Printing Function ......................................................115
6.15.1 Preparation Prior to Connecting the Printer ................115
6.15.2 Connection Procedure ................................................118
6.15.3 Printing ........................................................................119
Chapter 7
EXT I/O __________________________________ 121
7.1 About the EXT I/O Connector .................................. 121
7.2 Circuit Configuration and Connections of the EXT I/O
Connector .................................................................123
iii
Contents
7.3 About Input and Output Signals ...............................124
7.4 About Measurement Times ......................................127
Chapter 8
Controlling the Unit from a PC _______________ 129
8.1 Outline and Features ................................................129
8.2 Specifications ...........................................................130
8.2.1 RS-232C Specifications ..............................................130
8.2.2 GP-IB Specifications ...................................................131
8.3 Connection and Setting Procedures ........................132
8.3.1 Connecting the RS-232C Cable / GP-IB Cable ...........132
8.3.2 Setting the Interface Communication Conditions ........134
8.4 Remote Function ......................................................137
8.5 Communication Procedure .......................................137
8.6 Things to Know before Beginning Communication ..138
8.6.1 About Message Formats .............................................138
8.6.2 About the Output Queue and Input Buffer ...................143
8.6.3 About the Status Byte Register ...................................144
8.6.4 About Event Registers ................................................146
4
5
6
7
8
9
10
8.7 Message List ............................................................151
8.7.1 Common Commands ..................................................151
8.7.2 Unique Commands ......................................................152
8.8 Ability to Use Commands by State ...........................165
8.8.1 Common Commands ..................................................165
8.8.2 Unique Commands ......................................................165
8.9 Message Reference .................................................171
8.9.1 Common Commands ..................................................172
8.9.2 Unique Commands ......................................................177
8.9.3 Response Format of Queries for Returning Values ....244
8.10 Initialized Items ........................................................246
11
Appendix
Index
iv
Contents
8.11 Creating Programs .................................................. 247
8.11.1 Creation Procedure .....................................................247
8.11.2 Sample Programs .......................................................249
8.12 Troubleshooting the Interface .................................. 251
8.13 Device Document Requirements ............................ 253
Chapter 9
Specifications_____________________________257
9.1 Basic Specifications ................................................. 257
9.2 Accuracy .................................................................. 261
9.3 Measurement Parameters and Arithmetic
Expressions ............................................................. 264
Chapter 10
Maintenance and Service ___________________267
10.1 Inspection, Repair, and Cleaning ............................ 267
10.2 Replacing the Power Fuse ...................................... 269
10.3 Discarding the Unit .................................................. 270
Appendix ______________________________ A1
Appendix 1 Countermeasures Against Incorporation of
External Noise.................................................A1
Appendix 1.1 Countermeasures Against Incorporation of Noise
from the Power Line .....................................................A1
Appendix 1.2 Countermeasures Against Incorporation of Noise
from the Input Line (Types of Probe) ...........................A2
Appendix 2 Measurement of High Impedance ComponentsA3
Appendix 3 Measurement of In-circuit Components...........A4
Appendix 3.1 Measurement Using Guarding Technique ...................A4
Appendix 3.2 Synchronous Measurement .........................................A5
Appendix 4 Mounting the Unit in a Rack ............................A6
Appendix 5 External View...................................................A8
Appendix 6 Options............................................................A9
Appendix 7 Initial Settings Table......................................A11
Index _________________________________Index 1
Introduction
Thank you for purchasing the HIOKI “Model 3505/ 3506 C HiTester.” To obtain
maximum performance from the unit, please read this manual first, and keep it
handy for future reference.
Verifying Package Contents
When you receive the unit, inspect it carefully to ensure that no damage
occurred during shipping. In particular, check the acc essories, panel switches,
and connectors. If damage is evident, or if it fails to operate according to the
specifications, contact your dealer or Hioki representative.
1
Introduction
This unit 3505, 3506 C HiTester
Accessories • Instruction Manual. ................................................. ............................1
• Power cord......................................................................................... 1
• Spare fuse for power supply (according to voltage specification)......1
Shipping precautions
Use the original packing materials when transporting th e unit, if possible.
Options
See Appendix 6 "Options" (p. A9)
100 V, 120 V setting : 250 V F 1.0 AL 20 mm x 5 mm dia
220 V, 240 V setting : 250 V F 0.5 AL 20 mm x 5 mm dia
Probes, fixture are not supplied with the unit as standard equipment. You
should order them separately, according to requirements.
2
Safety Information
Safety Information
This instrument is designed to comply with IEC 61010 Safety Standards,
and has been thoroughly tested for safety prior to shipment. However,
mishandling during use could result in injury or death, as well as da mage
to the instrument. Using the instrument in a way not described in this
manual may negate the provided safety features. Be certain that you
understand the instructions and precautions in the manual before use.
We disclaim any responsibility for accidents or injuries not resulting
directly from instrument defects.
This manual contains information and warnings essential for safe operation of
the unit and for maintaining it in safe operating condition. Before using it, be sure
to carefully read the following safety precautions.

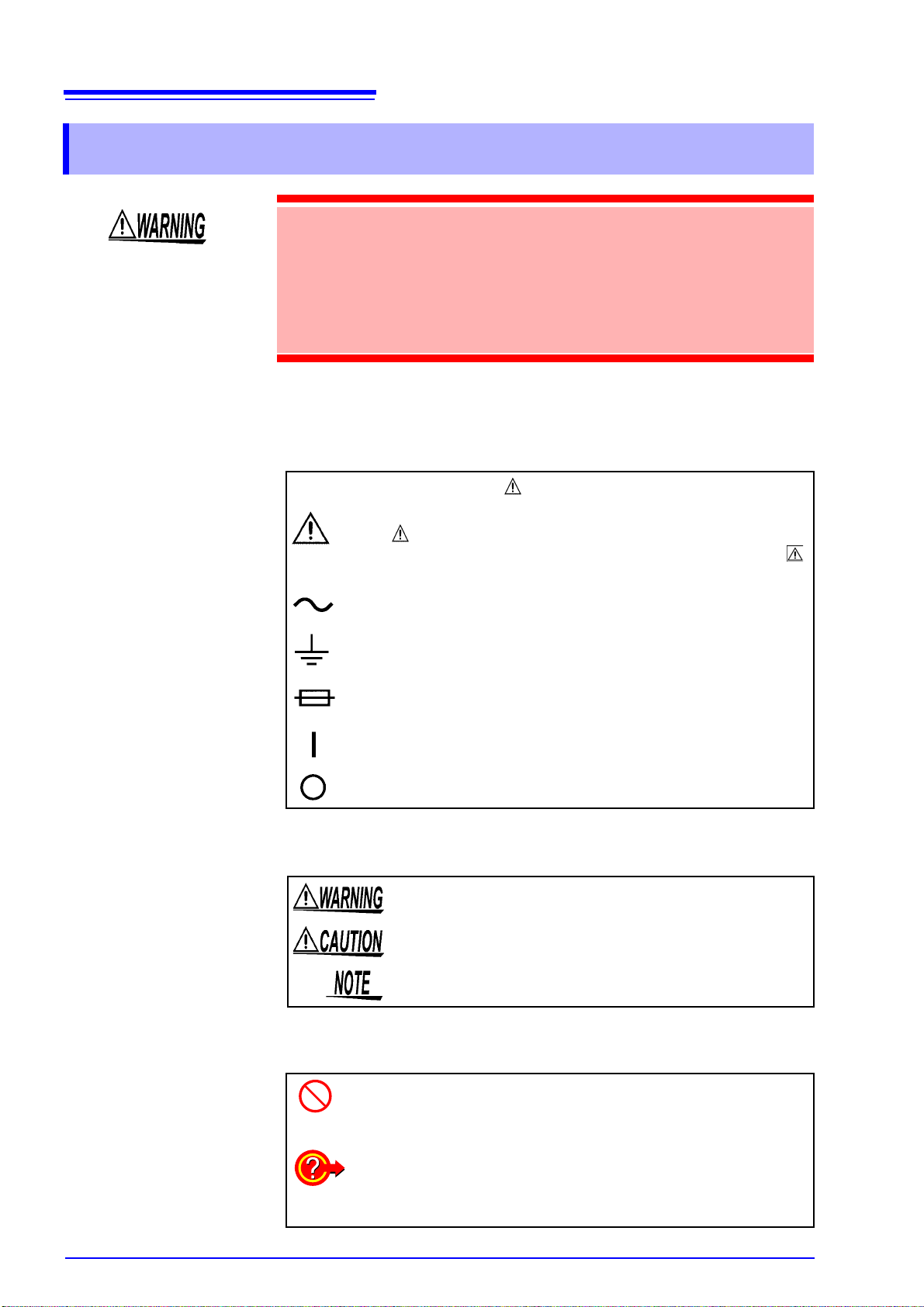

Safety Symbols
In the manual, the symbol indicates particularly important
information that the user should read before using the unit.
The symbol printed on the unit indicates that the user should
refer to a corresponding topic in the manual (marked with the
symbol) before using the relevant function.
Other Symbols
Indicates AC (Alternating Current).
Indicates a grounding terminal.
Indicates a fuse.
Indicates the ON side of the power switch.
Indicates the OFF side of the power switch.
The following symbols in this manual indicate the relative importance of cautions
and warnings.
Indicates that incorrect operation presents a significant hazard that could result in serious injury or death to the user.
Indicates that incorrect operation presents a possibility of
injury to the user or damage to the unit.
Indicates advisory items related to performance or correct
operation of the unit.
Indicates a prohibited action.
See Indicates the location of reference information.
Indicates quick references for operation and remedies for
troubleshooting.
*
Indicates that descriptive information is provided below.
Measurement Categories
To ensure safe operation of measurement instruments, IEC 61010 establishes
safety standards for various electrical environments, categorized as CAT II to
CAT IV, and called measurement categories. These are defined as follows.
CAT II: Primary electrical circuits in equipment connected to an AC
CAT III: Primary electrical circuits of heavy equipment (fixed installa-
CAT IV: The circuit from the service drop to the service entrance, and
Using a measurement product in an environment designated with a higher-numbered category than that for which the product is rated could result in a severe
accident, and must be carefully avoided.
Use of a measurement instrument that is not CA T-rated in CAT II to CAT IV measurement applications could result in a severe accident, and must be carefully
avoided.
3
Safety Information
electrical outlet by a power cord (portable tools, household
appliances, etc.)
CAT II covers directly measuring electrical outlet receptacles.
tions) connected directly to the distribution panel, and feeders
from the distribution panel to outlets.
to the power meter and primary overcurrent protection device
(distribution panel).
Accuracy
We define measurement tolerances in terms of rdg. (reading) and dgt. (digit) values,
with the following meanings:
rdg.
(reading or displayed value)
dgt. (resolution) The smallest displayable unit on a digital
The value currently being measur ed and
indicated on the measuring instrument.
measuring instrument, i.e., the input
value that causes the digital display to
show a "1" as the least-significant digit.
4
Unit Installation
Operating Precautions
Operating Precautions
Follow these precautions to ensure safe operation and to obtain the full benefits
of the various functions.
Preliminary Checks
• Before using the unit the first time, verify that it operates normally to ensure
that the no damage occurred during storage or shipping. If you find any damage, contact your dealer or Hioki representative.
• Before usin g the uni t, make sure that the insulation on the probes and cable s
is undamaged and that no bare conductors are improperly exposed. Using the
unit in such conditions could cause an electric shock, so contact your dealer
or Hioki representative for replacements.
Operating Temperature and Humidity: 0 to 40°C, 80%RH or less, no condensation
Storage Temperature and Humidity: -10 to 55°C, 80%RH or less, no condensation
Accuracy-guaranteed temperature and humidity ranges: 23
Avoid the following locations that could cause an accident or damage
to the unit.
Exposed to direct sunlight
Exposed to high temperature
Exposed to liquids
Exposed to high humidity or condensation
Exposed to high levels of particulate dust
±5°C, 80%RH
In the presence of corrosive or explosive
gases
Exposed to strong
electromagnetic fields
Near electromagnetic
radiators
Subject to vibration

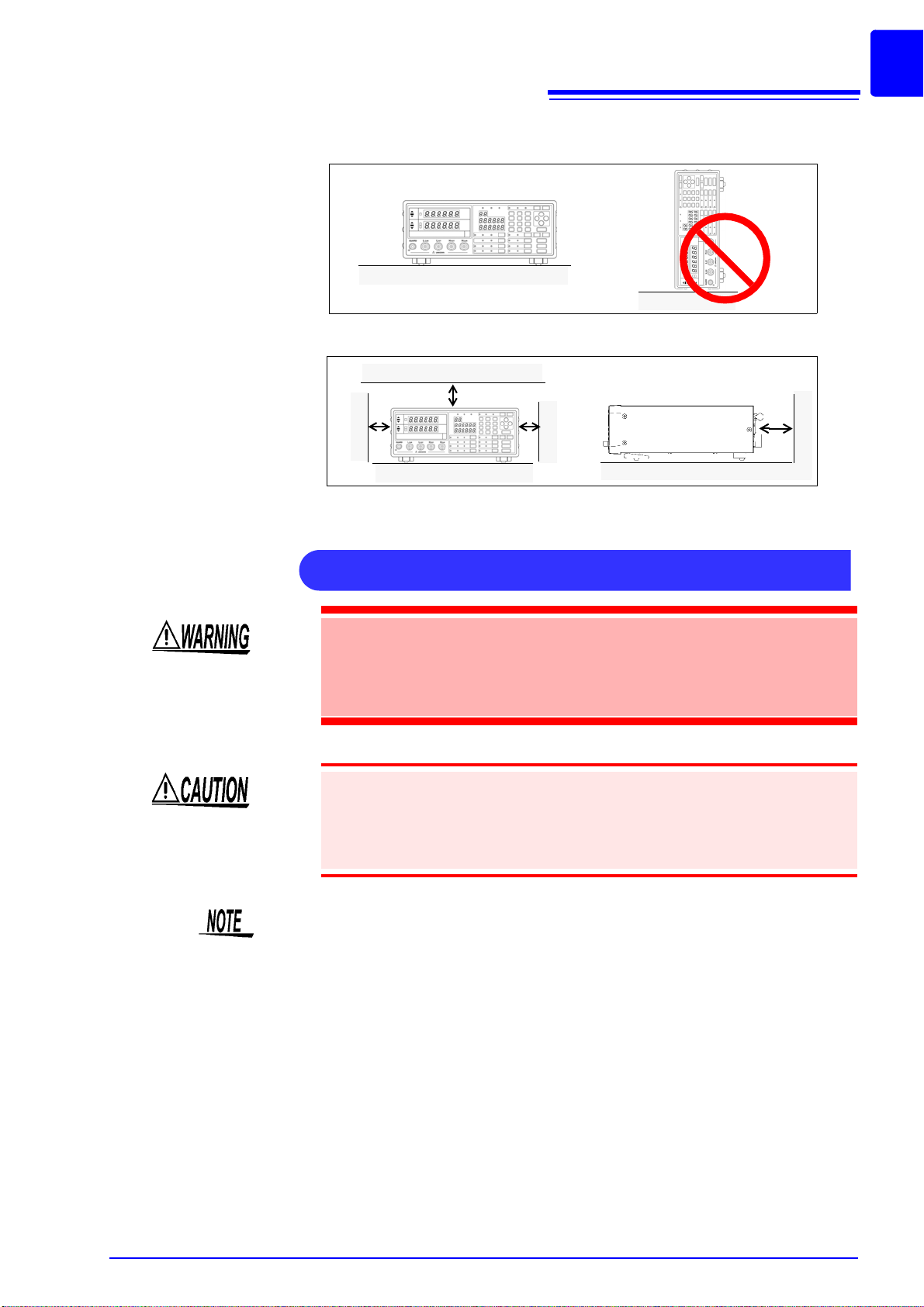

Installing
OK
10 cm or more
5 cm or more
Handling this device
5
Operating Precautions
• Do not install the unit with any side except th e bo tto m facin g down .
• Vents must not be obstructed.
• Do not allow the instrument to get wet, and do not take measurements
with wet hands. This may cause an electric shock.
• Never modify the unit. Only Hioki service engineers should disassemble or repair the unit. Failure to observe these precautions may result
in fire, electric shock, or injury.
• If anything unusual happens during operation of the unit, turn off the
power switch immediately and contact any HIOKI service facility for
help, advice and service.
• To avoid damage to the unit, protect it from physical shock when tran sporting
and handling. Be especially careful to avoid physical shock from dropping.
This instrument may cause interference if used in residential areas. Such use
must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts.
6
Before connection and powering on
Operating Precautions
• Before turning the unit on, make sure the supply voltage matches that
indicated on the its power connector. Connection to an improper supply voltage may damage the unit and pres ent an electrical hazard.
• The power supply voltage for this unit is switchable. To avoid electrical
accidents, check that the voltage selector is set correctly for the supply
voltage you are using.
Setting Procedure for the Power Voltage : 2.2 "Checking the Power Voltage" (p.
See
18)
• To avoid electrical accidents and to maintain the safety specifications
of this unit, connect the power cord provided only to a 3-contact (twoconductor + ground) outlet.
Connection Procedure : 2.3 "Connecting the Power Cord" (p. 19)
See
• To avoid shock and short circuits, turn off all power before connecting
probes.
About the guarantee
You should be aware that HIOKI cannot accept any responsibility directly or indirectly if the unit has been incorporated in some other system, or if it is resold to a
third party.
Check the connections carefully in order to avoid any chance of setting
up a short-circuit etc.
1.1 Product Overview
Overview Chapter 1
1.1 Product Overview
The HIOKI Model 3505, 3506 C HiTesters are capacitance meters employing 1
kHz and 100 kHz (only for 3505) and 1 MHz frequencies to measure large-value
multilayer ceramic capacitors with consta nt volt age at hi gh speed and hig h accuracy. Primary applications include pass-fail judgment and ranking of capacitors
on tape machines and sorters.
1.2 Features
7
1
Capacitance-specific units
These capacitance meters use 1 kHz, 100 kHz (only for 3505) and 1 MHz measurement frequencies.
High-speed measurement
The 3505,3506 are capable of high-speed measurement: 2 ms at FAST.
Bin sorting function (p. 74)
1
Capacitors are easily ranked according to C (Capacitance*
ues into as many as 13 classifications.
) measurement val-
Comparator function (p. 59)
Makes pass-fail judgment of co mpone nts based on C measurement value and D
2
(dissipation factor*
), or on Q (quality factor*3) measurement value.
LED display
Provides superior visibility.
Equipped with standard data transfer interfaces (p. 129)
9
The 3505,3506 offers external I/O for sequencing, a standard RS-232C interface, and a standard GP-IB interface.
Measurement value memory (p. 232)
Up to 1000 measurement values can be stored in memory.
*1. Capability to store electric charge.
*2. An indicator of capacitor losses.
*3. An indicator of capacitor purity.
8
1.2 Features
Trigger-synchronous measurement capability (p. 103)
The measurement signal can be input to the sample in sync with a trigger.
Frequency shift function (p. 101)
When using multiple devices, decreases measurement value fluctuation due to
interference by shifting the measuring frequency of each device.
Contact check function (p. 95)
Checks for bad contacts using the Low C r eject functio n and measurement level
monitoring function.
9
1.3 Entire Workflow
1.3 Entire Workflow
Measurement
Preparations
Pre-Operation
Inspection

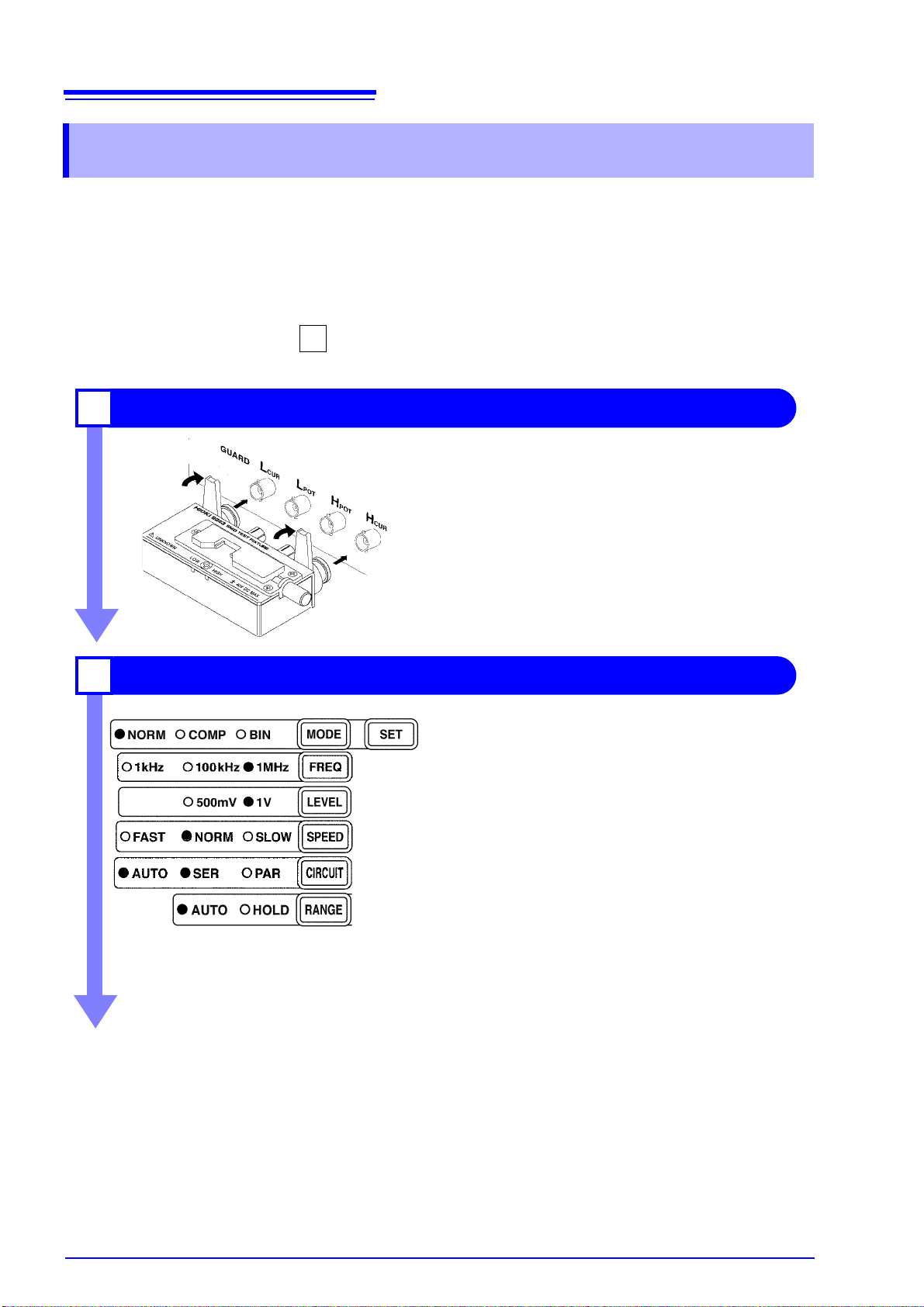

Basic Measurement See 3.2 "Measurement Example" (p. 24)
End of Measurement 6. Disconnect the sample and turn the power off.
See Chapter 2 "Measurement Prepar at i on s" (p. 17 )
1. Check the power voltage.
2. Connect the power cord.
3. Connect the probes or fixture (option) to the measurement terminals.
4. Turn the power on.
5. Connect the sample.
See 3.1 "Pre-Operation Inspection" (p. 23)
Be sure to perform pre-operation inspection prior to measurement.
1. Prepare the unit, fixture, and sample.
2. Connect the fixture to the measurement terminals.
3. Set the measurement conditions.
4. Connect the sample to the fixture.
5. Check the measurement results.
1
9
10
1.3 Entire Workflow
Application Functions
Function Description
Open and Short circuit
compensation
Load compensation Allows interchangeability between measuring instruments
Offset compensation Allows interchangeability between measuring instruments
Cable length compensation
Self calibration Reduces measurement value drift.
Comparator measurement
function
BIN measurement function Set variations of the upper limit and lower limit values and
Average function Reduces fluctuation of the measurement value by perform-
Trigger delay Provides a reliable measurement value even when taking a
Eliminates measurement errors due to residual impedance.
by measuring a known sample.
by subtracting the set value from the measurement value.
Compensates for error caused by extending the measure-
ment cable.
Set the upper limit and lower limit values and judge wh ether
samples pass or fail.
rank samples accordingly.
ing an averaging process of the measurement values.
measurement immediately after connecting to a sample.
Reference
Section
(p. 37)
(p. 45)
(p. 51)
(p. 58)
(p. 55)
(p. 59)
(p. 74)
(p. 91)
(p. 93)
Contact check function Discerns whether or not the contact pin and sample are
connected.
Current detection circuit
monitoring function
Applied voltage monitoring
function
Frequency shift Reduce the differences in measurement values caused by
Display
Trigger synchronous output
function
Key lock function Disable key operations. (p. 104)
Communication function Control the unit from a PC. (p. 129)
Panel save function Save measurement conditions. (p. 105)
Panel load function Load saved measurement conditions (p. 106)
Beep tone
System reset
Monitors whether or not current outside the allowed range
is being produced.
Monitors whether or not voltage outside the allowed r ange
is being produced.
interference when using multiple 3505,3506 units for measurement.
Turns the LED display ON/ OFF.
Apply the measurement signal only during me asurement to
reduce the generation of heat in the sample and decrease
electrode wear.
Turns ON/ OFF the beep tone for judgm ent results and key
operations.
Resets device settings.
(p. 95)
(p. 100)
(p. 100)
(p. 101)
(p. 102)
(p. 103)
(p. 110)
(p. 114)
Printing function Print measurement values. (p. 115)
Application Measurement
• Countermeasures Against Incorporation of External Noise
• Measurement of high impedance components
• Measureme nt of comp on en ts in circuit ne tw or ks
Appendix 1 "Countermeasures Against Incorporation of External Noise" (p. A1)
See
Appendix 2 "Measurement of High Impedance Components" (p. A3)
See
Appendix 3 "Measurement of In-circuit Components" (p. A4)
See
11
Front
MAIN Display
Displays the measurement
values of C and D ( or Q).
Displays the MENU items.
Comparator Evaluation
Result Display
Displays evaluation results in
Comparator Mode.
See
5.1 "Comparator Function"
(p. 59)
Setting Condition
Display
Displays current measurement conditions, presettings, and other information.
SUB Display
Displays the limit values of
BIN and comparator.
BIN Judgment Result
Display
Displays judgment results in
BIN mode.
See
5.2 "BIN Measurement
Function" (p. 74)

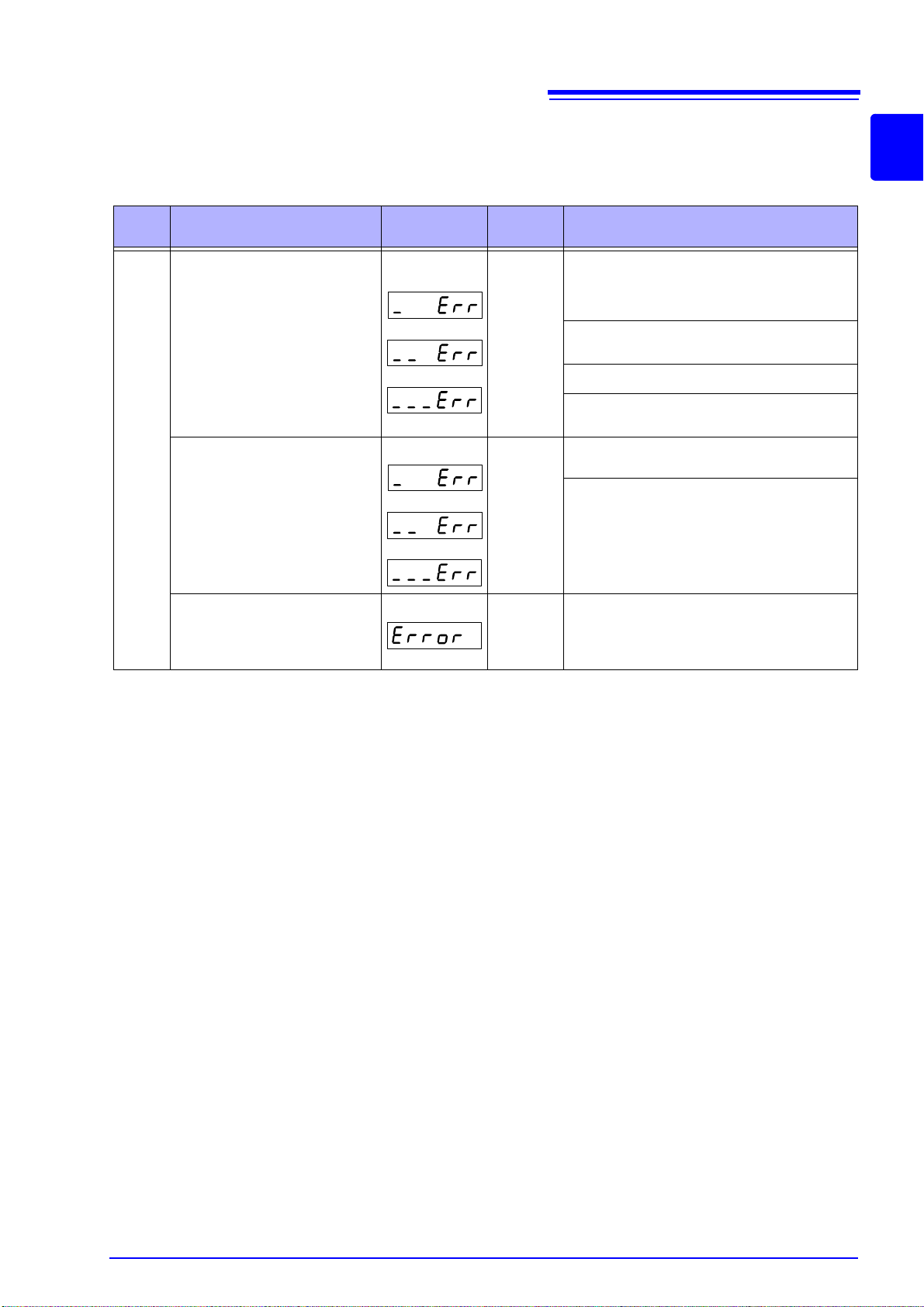

Error Display
Displays Low C reject and measured sine wave abnormality errors.
See
6.3.1 "Setting the Low C Reject
Function" (p. 96)
See 6.3.2 "Measurement Level Moni-
toring Function Settings" (p. 98)
Measurement Terminals
There are five measurement terminals:
H
CUR
The test signal is supplied to this terminal.
H
POT
Detected voltage high terminal
L
POT
Detected voltage low terminal
L
CUR
Measurement current detected terminal
GUARD Guard terminal
See
2.4 "Connecting the Probes and Fixtures" (p. 20)
Operating Panel
Use to set measurement
conditions and to make
other settings.
(p. 12)
1.4 Names and Functions of Parts
1.4 Names and Functions of Parts
1
9
12
Operating Panel
Measurement frequency setting *2
(p. 27)
Measurement signal level setting
(p. 28)
Measurement speed setting
(p. 28)
Equivalent circuit mode
(p. 29)
Measurement range setting
(p. 31)
Open short circuit compensation
(p. 37)
Load compensation setting
(p. 45)
Trigger signal mode setting
(p. 36)
Keypad *1
Used to enter numeric values.
Measurement mode
setting (p. 26)
Comparator measurement function (p. 59)
BIN measurement
function (p. 74)
Manual trigger
(p. 36)
Menu
(p. 14)
Lock/ Local
(p. 104)
Measurement range
setting
(p. 31)
Enter
Arrow keys
Used to change settings
and move to menu items
or digits.
1.4 Names and Functions of Parts
*1 : A decimal point key is only effective when measuring the C offset compensation value.
*2 : 100 kHz measurement frequency display is only valid on the 3505.
13
Back
Power Switch
Turns the power on and
off.
: Turns the power off.
: Turns the power on.
See 2.5 "Turning the
Power On and Off"
(p. 21)
Voltage
Selectors
Changes the
power voltage.
See 2.2 "Checking
the Power Voltage" (p. 18)
Power Inlet
Connect the supplied
power cord.
See 2.3 "Connecting
the Power Cord"
(p. 19)
RS-232C
Connector
Connect an RS-232C
cable.
See Chapter 8 "Control-
ling the Unit from a
PC" (p. 129)
EXT I/O Connector
Inputs external trigger signals and
outputs comparator result signals
and other signals. Supports connection to a PLC (Programmable
Logic Controller).
See 7.1 "About the EXT I/O Con-
nector" (p. 121)
GP-IB
Connector
Connect a GP-IB cable.
See Chapter 8 "Control-
ling the Unit from a
PC" (p. 129)
Stand
Side
Right side
1.4 Names and Functions of Parts
1
9
Do not apply heavy downward pressure with the stand extended. The stand
could be damaged.
14
“LoAd_A(C/h)”
(p. 106)
“dELAY”
(p. 93)
“Lo C“
(p. 96)
“bEEP_K “
(p. 112)
“SAVE”
(p. 105)
“Frq.SFt”
(p. 101)
“LEV.ChK“
(p. 98)
“dISP”
(p. 102)
“Ld_tYP“
(p. 106)
“SYnC”
(p. 103)
“JudGE”
(p. 60)
“CAbLE”
(p. 58)
“AVErAG“
(p. 91)
“oFFSEt“
(p. 51)
“bEEP_J”
(p. 110)
Return to Panel Load Function.
(MAIN display area)
Panel Load
Function
Panel Save
Function
Load
Conditions
Average
Function
Trigger Delay
Frequency shift
Function
Trigger Synchro-
nous Function
Offset
Compensation
Low C Reject
Function
Level Check
Function
Judgment Mode
Beep Tone for
Judgment Results
Display
Cable length
Beep Tone for
Key Operations
“Sub.PAr“
(p. 26)
Second
Parameter
Returns to previous screen.
“IF”
(p. 134)
Communication
Conditions
“CALIb”
(p. 55)
Self Calibration
1.4 Names and Functions of Parts
Menu display organization
Displays menu screen
MAIN display area ERROR display
At 1 kHz
At 100 kHz
At 1 MHz
At 1 kHz
At 100 kHz
At 1 MHz
When the 3505/ 3506 detects a measurement abnormality, an error message is
displayed in the MAIN display area. When a measurement error occurs, the
device's condition is displayed in order of priority rank in the MAIN display area.
15
1.4 Names and Functions of Parts
1
Priority
rank
－
Error content
OPEN compensation error
Displayed when the OPEN
compensation value is less than
1 k.
SHORT compensation error
Displayed when the SHORT
compensation value is more
than 1 k
LOAD compensation error
Displayed when the LOAD compensation value is outside of
range.
MAIN display EXT.I/O Solution
Put the measurement terminals in an open
state. (Short circuit the H
H
terminal, and the L
POT
L
terminal.)
POT
－
－
－
Use the shielding process as a countermeasure against external noise.
Connect the 3505/ 3506 to ground.
Check to see if the measurement cable is bro-
ken.
Short the measurement terminals.
Check to see if the measurement cable is broken.
Perform compensation again after setting to
the appropriate range.
terminal to the
CUR
terminal to the
CUR
9
16
Low
High
1.4 Names and Functions of Parts
Priority
rank
Error content
Sampling error
Displayed when the A/D conversion is not carried out normally.
Timeout
Displayed when measurement
does not commence following
trigger input.
Current detection
abnormality
Displayed when the measured
current is outside the present
range.
Applied voltage
abnormality
Displayed when the voltage between the measurement terminals is lower than the measured
voltage.
MAIN display EXT.I/O Solution
ERR
output,
HI
judgment,
OUT
judgment
ERR
output,
HI
judgment,
OUT
judgment
HI
judgment,
OUT
judgment
ERR
output,
HI
judgment,
OUT
judgment
It is possible that the device is being affected
by incoming noise.
The 3505/ 3506 is broken.
Submit it for repairs.
It is possible that the device is being affected
by incoming noise.
The 3505/ 3506 is broken.
Submit it for repairs.
The measurement range may be set too low.
Set the range to the appropriate setting and
measure again.
The object being measured may have a
SHORT circuit. Measure again to see if the
object being measured is normal.
The H
connected. Check the connection between
the measurement sample and the terminals.
There may be a high contact resistance between the H
object being measured.
POT
and H
CUR
terminals may be dis-
CUR
and L
CUR
terminals and the
Low C Connector error
Displayed when the measured
value is abnormally lower than
the measurement range.
Abnormal level detected
Displayed when the inspection
level abnormality monitor value
fluctuates.
When an error display occurs, the comparator and BIN measurement judgment
results will be HI and OUTOF-BINS.
Normal measurement value
ERR
output,
Standard
judgment
ERR
output,
HI
judgment,
OUT
judgment
The measurement terminals may not be connected to the object being measured.
Check the contact between the object being
measured and the measurement terminals.
Chattering may have occurred.
Check the connection between the measurement sample and the terminals.
It is possible that the device is being affected
by incoming noise.
Use the shielding process as a countermeasure against external noise.
Measurement
1
Check the power voltage.
See 2.2 "Checking the Power Voltage" (p. 18)
2
Connect the power cord.
See 2.3 "Connecting the Power Cord" (p. 19)
3
Connect the probes or fixture
(option) to the measurement
terminals.
See 2.4 "Connecting the Probes and Fixtures" (p. 20)
4
Turn the power on.
See 2.5 "Turning the Power On and Off" (p. 21)
5
Connect the sample.
Unit Settings and Measurement
Chapter 3 "Setting the Measurement Conditions" (p. 23)
Chapter 6 "Application Functions" (p. 91)
Appendix 1 "Countermeasures Against Incorporation of
External Noise" (p. A1)
Appendix 2 "Measurement of High Impedance Component s"
(p. A3)
Appendix 3 "Measurement of In-circuit Components" (p. A4)
Back
Front
2
3
5
(Example)
Model 9677 (Option)
4
1
17
2.1 Preparation Flowchart
Preparations Chapter 2
Be sure to read "Follow these precautions to ensure safe operation and to
obtain the full benefits of the vario us functions." ( p. 4) pr ior to se tting u p the unit.
2.1 Preparation Flowchart
2
18
Back
In the diagram, the voltage
value is 100 V because
both the left and right voltage selectors are set to the
right side.
Voltage selectors
2.2 Checking the Power Voltage
2.2 Checking the Power Voltage
• Before turning the unit on, make sure the supply voltage matches that
indicated on the its power connector. Connection to an improper supply voltage may damage the unit and pres ent an electrical hazard.
• The power of the unit can be changed with the voltage selectors. To
avoid an electric accident, use the unit with the voltage selectors set to
a voltage value that matches the voltage to be used.
• Make sure the power is off when you change the voltage with the voltage selectors. Changing the power voltage when the power is on may
result in damage to the unit or an electric accident.
• The maximum rated power is 40 VA.
• Replace the fuse only with one of the specified characteristics and voltage and current ratings. Using a non-specified fuse or shorting the
fuse holder may cause a life-threatening hazard.
Fuse type: 100 V 120 V setting: 250 V F1.0AL 20 mm x 5 mm dia
220 V 240 V setting: 250 V F0.5AL 20 mm x 5 mm dia
10.2 "Replacing the Power Fuse" (p. 269)
See
The power voltage specification of the unit is set as specified when the unit was
ordered.
You can select from 100 V, 120 V, 220 V, and 240 V .
You can determine which voltage is set by checking the positions of the voltage
selectors.
Refer to the diagram between the voltage selectors.
Voltage
100 V
120 V
220 V
240 V
Example:
Position of Left Voltage
Selector
(Right side) (Right side)
(Right side) (Left side)
(Left side) (Right side)
(Left side) (Left side)
Position of Right V olt age
Selector
2.3 Connecting the Power Cord
1. Make sure the power switch of the unit is off.
2. Make sure the power voltage matches and connect the power
cord to the power inlet with voltage selectors on the rear of the
unit.
3. Insert the plug into the power outlet.
Connection Procedure
2.3 Connecting the Power Cord
19
To avoid electrical accidents and to maintain the safety specifications of
this unit, connect the power cord provided only to a 3-contact (two-conductor + ground) outlet.
• To avoid damaging the power cord, grasp the plug, not the cord, when
unplugging it from the power outlet.
• Turn off the power before disconnecting the power cord.
2
20
Position upwards the side of the device with the
model number imprinted on it, plug directly into the
measurement terminals and use the right-left levers
to lock the connections.
The measurement terminal for this device is the following four terminal configuration.
H
CUR
terminal Terminal for applying measurement
signals
H
POT
terminal Voltage detection HIGH terminal
L
POT
terminal Voltage detection LOW terminal
L
CUR
terminal Measurement current detection ter-
minal
GUARD terminal Connect this terminal to the case
Example: Connecting a Model 9677 Test Fixture (Option)
Lock
Align the grooves of the BNC connector with the
connector guides of the connector of the unit and
then insert the connector and ro tate it clockwise
until it locks into position.
To disconnect the connector, rotate it counterclockwise until it unlocks and then remove it.
Connector guides of the
Model 3505/ 3506 measurement terminal
Measurement cables
BNC Connector Grooves
Example: Connecting the measurement cables
21
Measurement
Terminal
Connection Procedure
Fixture
Measurement Terminal
Configuration
2.4 Connecting the Probes and Fixtures
2.4 Connecting the Probes and Fixtures
• Do not apply a voltage to the measurement terminals. Doing so may damage
the unit.
• When disconnecting the BNC connector, be sure to release the lock before
pulling off the connector. Forcibly pulling the connector without releasing the
lock, or pulling on the cable, can damage the connector.
• To avoid breaking the probes, do not bend or pull them.
• Avoid stepping on or pinching cables, which could damage the cable insulation.
For details such as the connection procedure for a fixture, refer to the corresponding instruction manual.
2.5 Turning the Power On and Off
Set the power switch on the rear of the unit to ON ( ).
All LEDs on the front panel light up.
The measurement conditions at startup are the same as
the last time the power was turned off.
After turning the power on, wait 60 minutes for the unit to
warm up before beginning measurement.
Power ON
Power OFF
Turning the power On
Turning the power Off
Set the power switch on the rear of the unit to OFF ( ).
The measurement conditions are saved when the power is
turned off.
Even if there is a power failure or other problem with the
power, the unit will be in the measurement mode prior to
the power failure after it recovers.
• Use Hioki fixtures (option), etc.
Appendix 6 "Options" (p. A9)
See
• This device is adjusted for 1.5D-2V coaxial cable use. Using other cable
types may cause an increase in measurement errors.
• If all four terminals are disconnected, a meaningless number may be displayed on the unit.
• As this device has a four terminal configuration, always connect all 4 terminals’ shields in the vicinity of the sample. If you do not make a connection to
the 4 terminals’ shields in the vicinity of the sample, there is the possibility of
the measurement error becoming greater.
2.5 Turning the Power On and Off
21
2
22
2.5 Turning the Power On and Off
23
3.1 Pre-Operation Inspection
Setting the
Measurement
Conditions Chapter 3
3.1 Pre-Operation Inspection
To ensure safe use of the unit, be sure to check the following inspection
items prior to performing measurements.
3
Items Countermeasure Reference
Inspect the unit, probe,
and fixture.
(Are there any damaged
parts?)
Inspect the power cord
and connection cord.
(Is the covering cracked or is
any metal exposed?)
Check the power supply
voltage setting.
(Does the setting of the voltage selector on the rear of
the unit match the power
supply voltage to be used?)
When the power is turned
on, does the fan spin and do
the “3505/ 3506 ” and version number indications appear on the MAIN display
area?
If there is damage:
Unit and fixture: Submit them for repairs.
Probe: Replace it with a new one.
Do not use a damaged cord because doing so
may result in electric shock. (Replace the cord
with a new one.)
Use of the unit outside the specified power supply voltage range may result in the unit being
damaged or an electrical fault. Set the voltage
selector in accordance with the power supply
voltage to be used.
If the fan does not spin or the “3505/ 3506 ” and
version number indications are not displayed,
the unit may be malfunctioning. Submit it for repairs.
Setting the Voltage Selector:
2.2 "Checking the Power Voltage" (p. 18)
9
Are the measurement values
indicated on the unit normal
when measuring known
samples such as standard
capacitors?
If the measurement values are abnormal, check/
perform the following.
• Are the measurement conditions set appropriately?
• Perform open circuit and short circuit compensation again.
• Turn load compensation off.
If the measurement values are still abnormal after you have checked/performed the above, the
unit, probe, or fixture may be malfunctioning.
Unit and fixture: Submit them for repairs.
Probe: Replace it with a new one.
3.3 "Setting the Measurement Conditions"
(p. 26)
Chapter 4 "Compensate for errors" (p. 37)
24
2
Connect the 9263 SMD Test Fixture (Option).
1
Connect the 9263 SMD Test Fixture to the
measurement terminal.
For the connection method, refer to the instruction manual supplied with the fixture.
Set the measurement conditions.
2
Using the keys on the operating panel, set the measurement conditions as shown at left.
Make other settings as necessary.
4.1 "Open Circuit Compensation and Short Circuit
Compensation" (p. 37)
4.2 "Load Compensation" (p. 45)
4.3 "Offset Compensation" (p. 51)
4.4 "Self Calibration" (p. 55)
4.5 "Set the Cable Length" (p. 58)
3.3.8 "Trigger Signal" (p. 36)
6.1 "Setting the Average Function" (p. 91)
6.2 "Trigger Delay Setting" (p. 93)
The open circuit compensation and short circuit compensation and self calibration settings improve measurement accuracy .
Display parameter .. ... ....... ... ... ... .... ... ... .. D (p. 26)
MODE
Measurement mode........ NORM (p. 27)
FREQ
Frequency...... .... ... ... ... .... .1 MHz (p. 27)
LEVEL
Measurement signal level.....1 V (p. 28)
SPEED
Measurement speed....... NORM (p. 28)
CIRCUIT
Equivalent-circuit mode .. AUTO (p. 29)
RANGE
Measurement range......... AUTO (p. 31)
3.2 Measurement Example
3.2 Measurement Example
Example The 9263 SMD Test F ixture is used for the measurement of multi-
layer ceramic capacitors.:
Necessary tools • Model 3505/ 3506
• Model 9263 SMD Test Fixture
• Sample to be me as ur ed : Mu ltila ye r cer ami c capacitor
Measurement
See .
Conditions
Loading...
