Bulbs: 60W CAND. Replacement Parts: CRYSTALS: R43358CRY-A, R43358CRY-B, R43358CRY-D
ASSEMBLY INSTRUCTIONS
This fixture comes completely assembled.
xANADU
FR43351

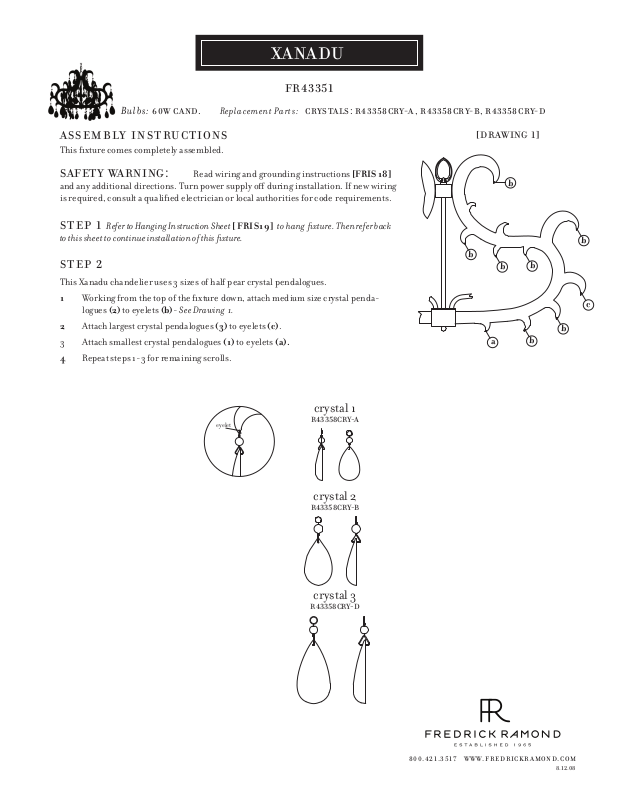

[DRAWING 1]
SAFETY WARNING: Read wiring and grounding instructions [FRIS 18]
and any additional directions. Turn power supply off during installation. If new wiring
is required, consult a qualified electrician or local authorities for code requirements.
STEP 1 Refer to Hanging Instruction Sheet [FRIS19] to hang fixture. Then refer back
to this sheet to continue installation of this fixture.
STEP 2
This Xanadu chandelier uses 3 sizes of half pear crystal pendalogues.
1 Working from the top of the fixture down, attach medium size crystal penda-
logues (2) to eyelets (b)
2 Attach largest crystal pendalogues (3) to eyelets (c).
3
4 Repeat steps 1-3 for remaining scrolls.
Attach smallest crystal pendalogues (1) to eyelets (a).
- See Drawing 1.
eyelet
crystal 1
R43358CRY-A
b
b
b
b
b
c
b
a
b
crystal 2
R43358CRY-B
crystal 3
R43358CRY-D
800.421.3517 WWW.FREDRICKRAMOND.COM
