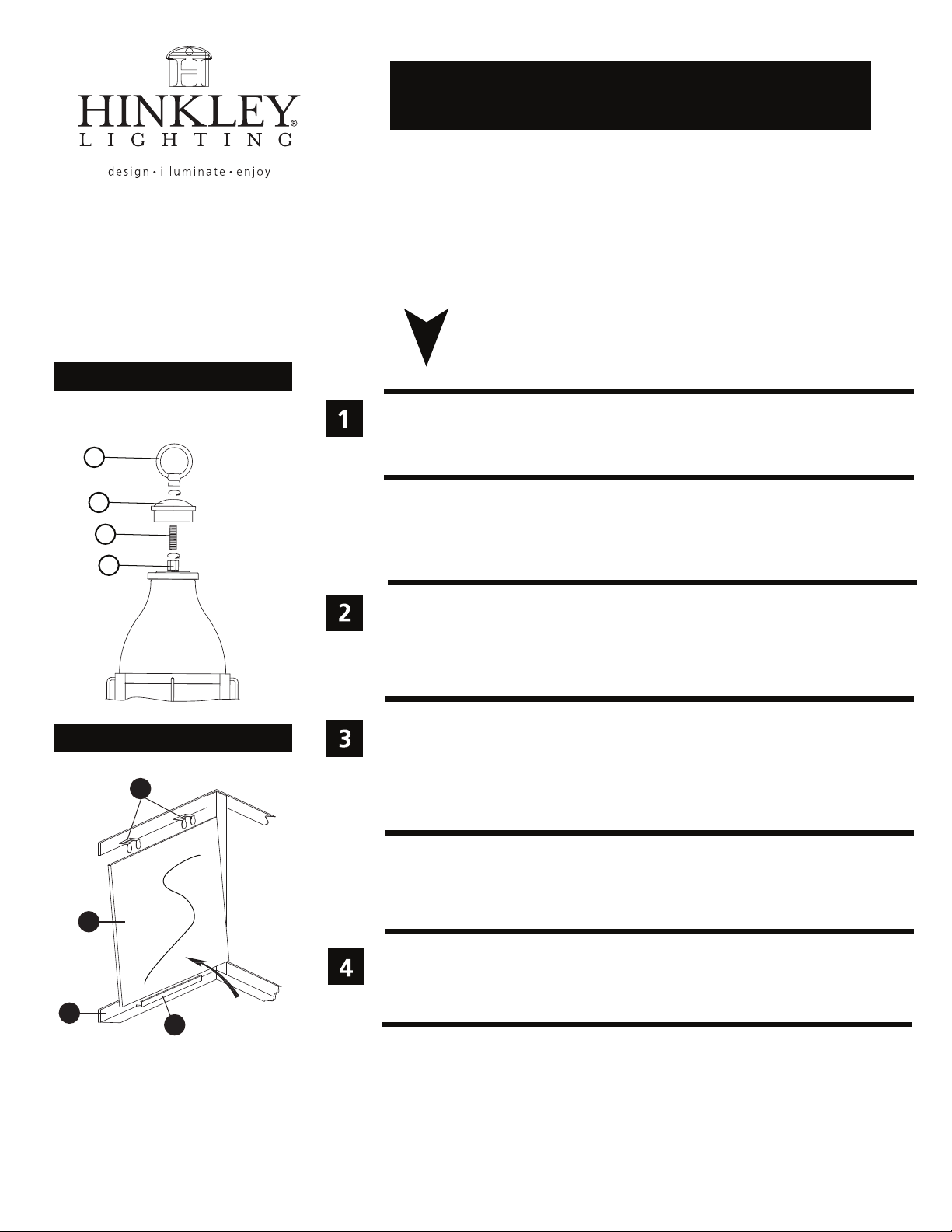

Drawing 1 - Fixture Assembly
D
assembly instructions
2042
Item No. 2042
start here
1. Find a clear area in which you can work.
2. Unpack xture and glass from carton.
3. Carefully review instructions prior to assembly.
C
A
B
Drawing 2 - Glass Installation
4
2
1
3
*** The construction of this xture will be accomplished by rst assembling the
the main body of the xture, making all necessary electrical connections, and then
hanging the xture from the ceiling.
1. To assembly main body of xture slip threaded stem (A) along wire and thread into coupler (B)
located on the top of the xture - see Drawing 1.
2. Slip cap (C) along wire on over threaded stem (A).
3. Slip loop (D) along wire and thread onto end of threaded stem (A) and tighten to secure top
assembly.
4. Fixture is ready for the installation of the glass.
1. To install glass panels (2), slip them up through the open bottom of the cage (1). The center
stem that is attached to the socket cluster assembly (not shown) is on a swivel and can be moved
to aid in installing the glass - see Drawing 2.
2. Slip bottom of glass panels (2) into channel (3) in bottom of cage (1) tip top of panel into
position, and bend over clips (4) to secure glass in cage. Repeat procedure for remaining panels of
glass.
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Make electrical connections from supply wire to xture lead wires. Refer to instruction sheet (I.S.
18) and follow all instructions to make all necessary wiring connections.
Then refer to the hanging instruction sheet (I.S. 19) provided to complete installation of this
xture.
