Warning:
This appliance is not intended for use by persons (including children)
whose physical, sensory or mental capabilities may be different or
reduced, or who lack experience or knowledge, unless such persons
receive supervision or training to operate the appliance by a person
responsible for their safety.
Consult a qualified electrician or service agent if the grounding
instructions are not completely understood, or if doubt exists as to
whether the appliance is properly grounded.
If the power supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similar qualified person in order to
avoid hazard.
Children should be supervised to ensure that they do not play with the
appliance.

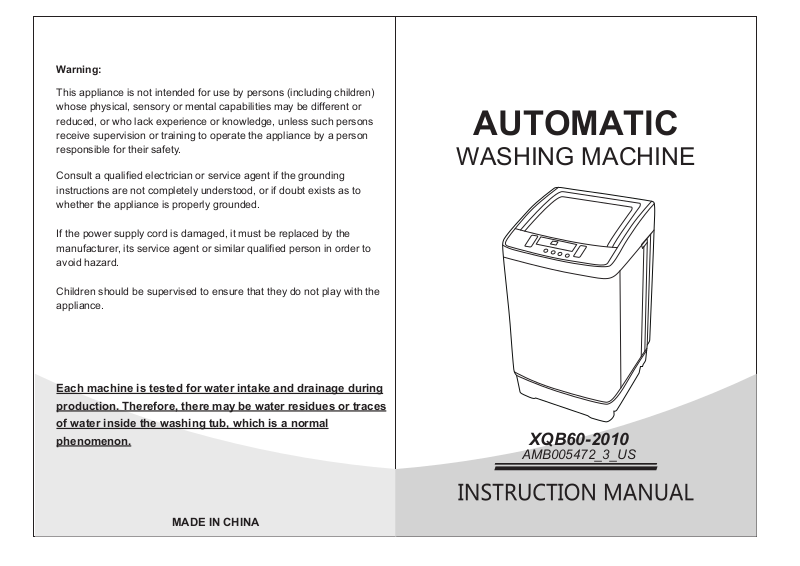

AUTOMATIC
WASHING MACHINE
Each machine is tested for water intake and drainage during
production. Therefore, there may be water residues or traces
of water inside the washing tub, which is a normal
phenomenon. XQB60-2010
AMB005472_3_US
MADE IN CHINA
Page 2
Read Before Use
Install guide
Parts and Bom
Notice
Installation
Further Adjustments
Usage guide
Pre-wash
Programming and features
Wash and Spin
Post-wash
Please pay attention to
safety instructions
This product belongs to class I appliance, please pay attention
to electricity safety when using!
SAFETY REQUIREMENTS
Ensure that servicing is done by factory authorized service
personnel, to minimize product damage or safety issues.
GROUNDING INSTRUCTIONS
This appliance must be grounded. Grounding reduces the risk of
electrical shock by providing an escape wire for the electrical
current.
This appliance has a cord that has a grounding wire with a 3
-prong plug. The power cord must be plugged into an outlet that
is properly grounded.
If the outlet is a 2-prong wall outlet, it must be replaced with a
properly grounded 3-prong wall outlet. The serial rating plate
indicates the voltage and frequency the appliance is designed
for.
Page 3

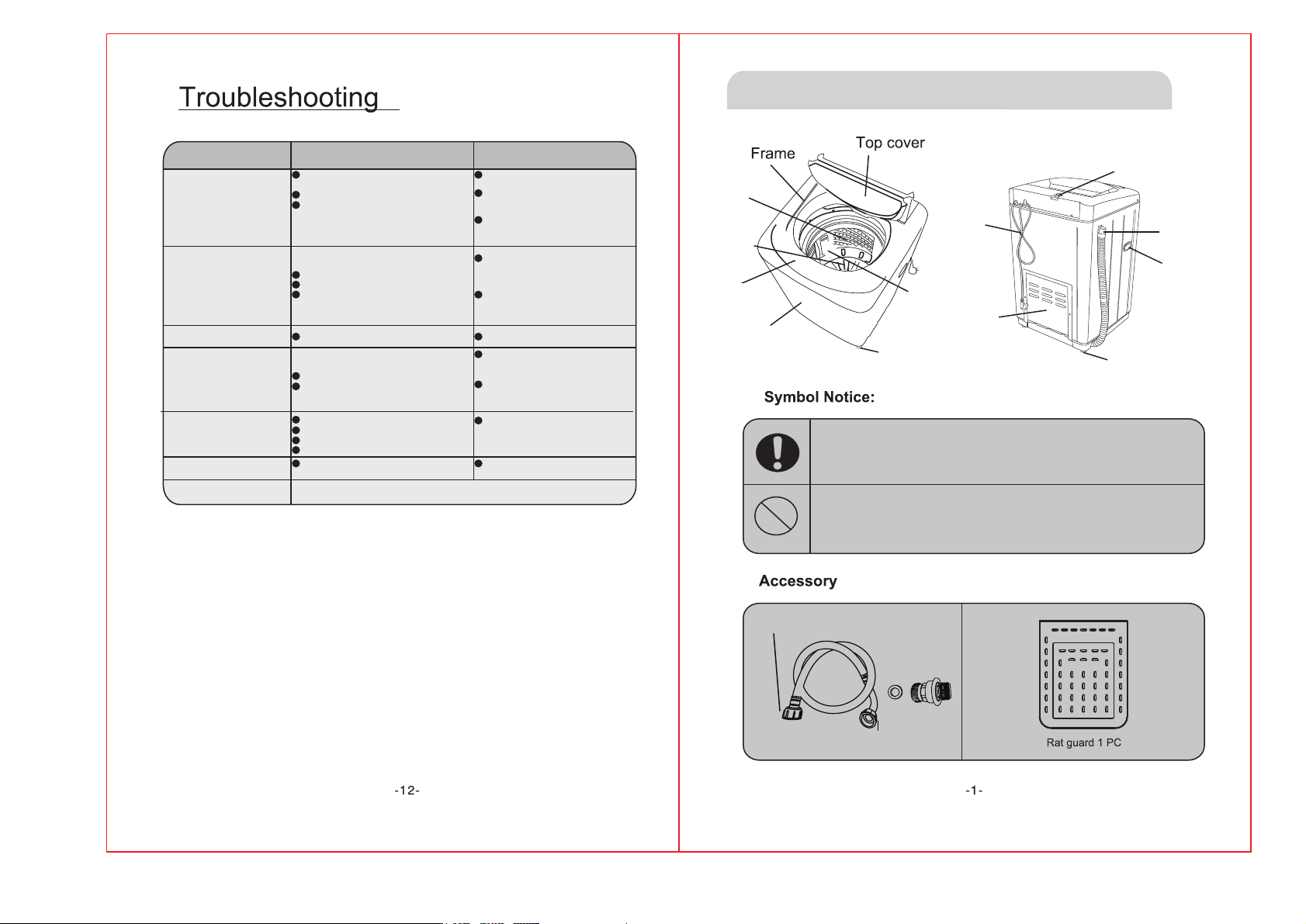

Parts and Bom Read Before Use
Error Digital Display
Information
E1 – Water Inlet Fault
E2 – Drainage Fault
E3- Top Cover Fault
E4 – Spin Fault
E5 – Water Level Fault
E6 – Child Protection
Remarks
Error Reason How to fix
Incoming water has taken over 20 minutes to
reach water level.
The Inlet Valve is blocked or obstructed.
The Water supply is cut off or the stopcock is
open.
Water drainage has taken over 5 minutes.
Drain valve blocked, damaged or faulty.
Drain pipe is damaged.
The cover is open during use.
Clothes are not level or balanced.
The machine is standing at an incline.
Water level sensor fault.
Water Leakage.
Harness contact is loose.
Airway tube is loose.
Machine is Child locked but the cover has been
opened.
If unsolved the problem after use above methods, please contact maintenance dept and processional
maintenance personnel, customer can not assemble or disassemble.
Check the reason for low water pressure, open
and close the cover 1 time to restart operation.
Remove the blockage from the inlet valve,
once done open and close the cover 1 time to
restart operation.
Turn on the water supply or stopcock , once
done open and close the cover 1 time to
restart operation.
Reposition the drain pipe for a more
smooth water drainage, once done open
and close the cover 1 time to restart
operation.
Remove the blockage from the drain
valve, once done open and close the
cover 1 time to restart operation.
Close the cover.
Reposition the clothes in the tub so they
are balanced and level and close the
cover.
Place the washing machine on a level
surface, once done please open and
close the cover.
Unplug the machine, wait 10 seconds
and replug the machine. If issue
continues set water level to normal and
restart the machine.
Ensure that your child is a safe distance
from the machine and close the cover.
Inner case
Impeller
Operation board
Body
Water input valve
Power cord
Filter
Back cover
Adjust nut
Fixed nut
All operation with this Mark must operate
strictly as instruction requirements, or it may
cause machine damage or endanger users' life.
All behavior with this Mark must absolutely
prohibited. or it may cause machine damage or
endanger users' life.
Drain pipe
Handle
Connect this side to the
water pipe
Connect this side to the water
inlet valve (machine)
O ring

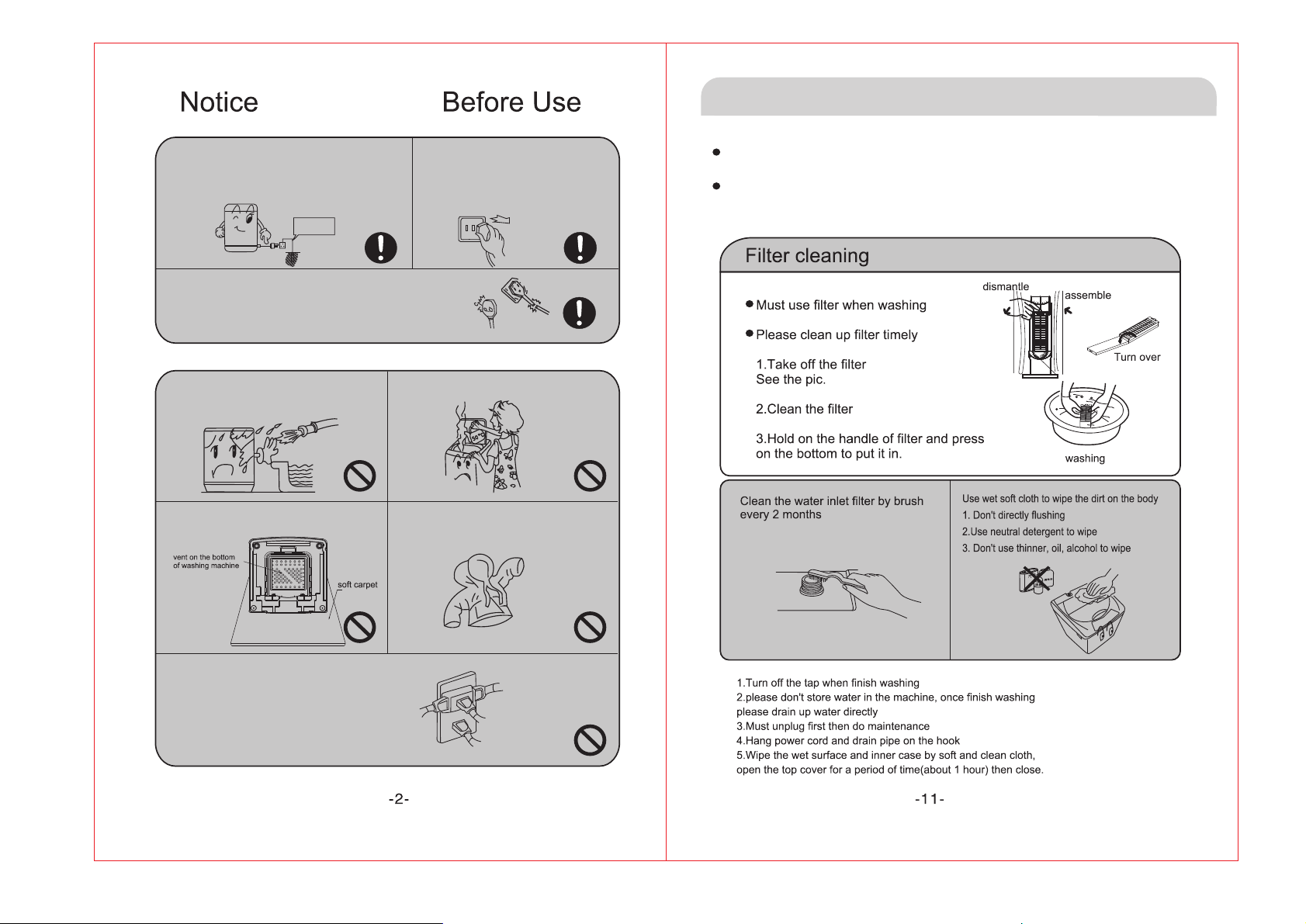

Page 4
Read
Post-wash Usage guide
Please connect power plug of the machine
to the designed electrical 110V socket
separately. Do not attach to adapters.
Grounding
Do not obstruct the power cord, damaged the power cord, put any items
on top of the power cord or bend the cord to improper angles.
When the power cord or power plug is damaged, it must be repaired by
specialist maintenance. Tampering with the cable will void all guarantees.
Don’t place the machine in the bathroom or other
damp place, and do not put the wet clothes on the
operation board. This may let water into the PCB
board which may cause an electrical fire.
Please ensure that the vents at the bottom of the
machine are well ventilated. Take care especially
when placing machine on the carpet.
When the machine is in normal use, please
keep the machine plugged in. During a power
outages or if the machine is not being
intended for use, it should be unplugged and
the water tap turned off. Please don't unplug
or plug the machine with wet hands.
Do not use water at a temperature of more
than 122℉.
Don't wash raincoats or waterproof clothing, such
as a bicycle covers etc. This will cause such items
to be damaged.
Each month please clean the Impeller filter to ensure the best performance.
During clean up, please unplug the power plug from the socket
Don't share a socket with other appliances.
If the power plug is damaged or the socket is loose, please
do not use and have it repaired by a professional.
Page 5

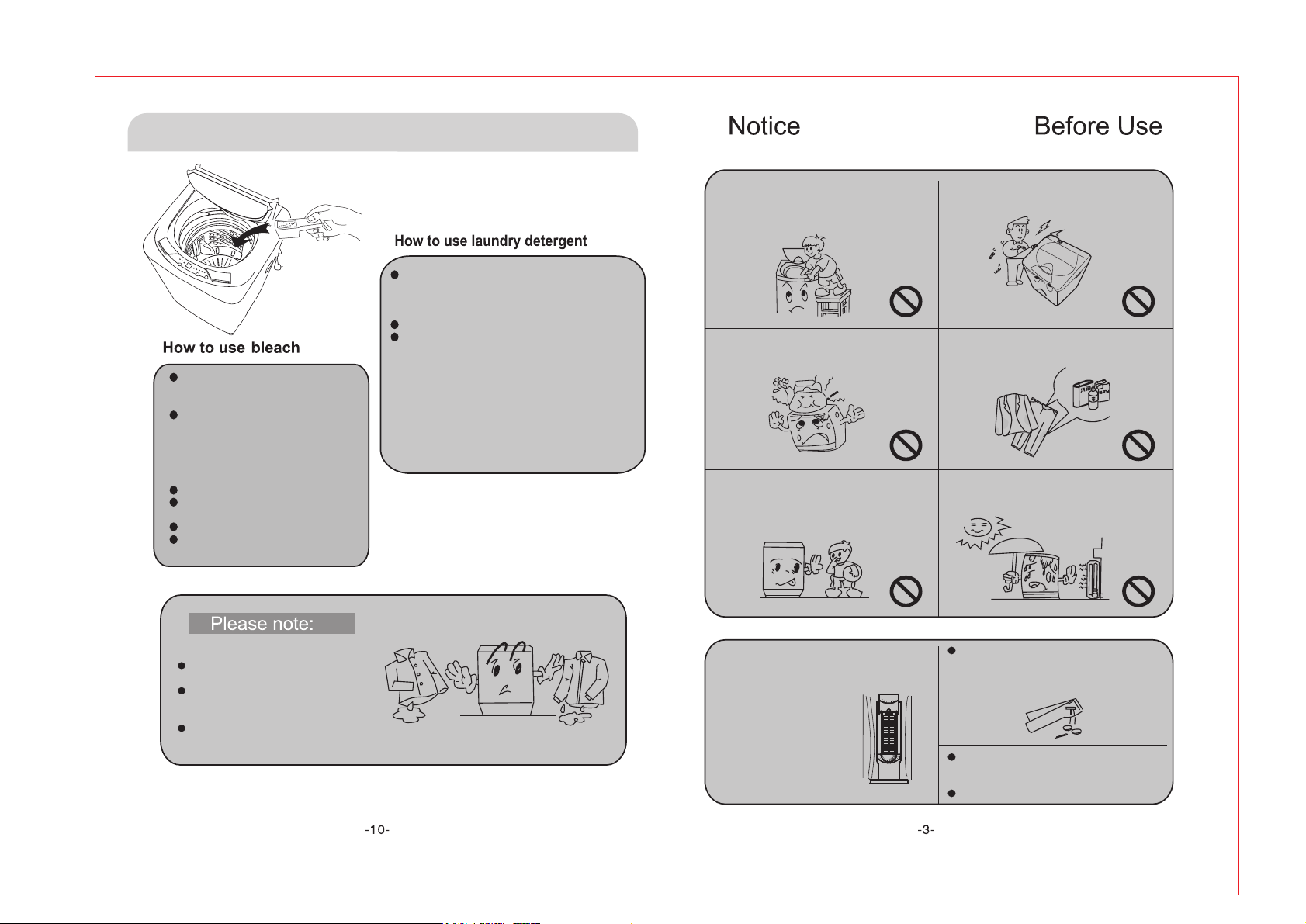

Wash and Spin Usage guide
Read
Once the water has reached the water level, put the
right amount of washing bleach into the container;
slowly pour the powder into the tub.
Clothes with colour or patterns are easy to rub off, it
should be avoided also to use bleach. Please ensure
you wash whites, with whites only and colours with
other colours. Do not mix (if you don't want your
whites to no longer be whites. However if you do we
suggest you use red for a nice light pink).
Bleach should not direct contact with the washing.
Use of bleach method and usage according to bleach
instruction.
Powder type bleach should be melted before using.
Please note that it is not advisable to use bleach in
washing clothes due to potential skin irritations etc.
Once the water has reached the water level, put the right amount of
detergent into the container; slowly pour the powder into the tub.
Allow at least 30 seconds to ensure an even dissolve or use the soak
function for best results.
Put in washings and select suitable water level.
Clothes with colour or patterns are easy to rub off, please read the
label before you wash your clothes. Please ensure that you wash
whites, with whites only and colours with other colours. Do not mix (if
you don't want your whites to no longer be whites! However if you do
we suggest you use red for a nice light pink.).
Use laundry detergent in moderation
We recommend that you do not use a high foaming detergent, as it
will no doubt make a mess and in extremely high dosages may even
enter the control panel and destroy the appliance.
Laundry detergent dosage should refer to the detergent instructions.
When washing machine is on working,
don’t put hands into the inner case. And
don’t let child climb upon the washing
machine.
Don’t place any hot or heavy objects (such
as a pot of hot water) on the washing
machine.
Do not Leave Children without supervision.
Certain disabilities, illnesses, persons on
medication that can cause dizziness or
hallucinations as a side effect, or the
intoxicated may not use this.
Do not dismantle, repair and rebuild the
machine on your own!
Don't wash clothes that with volatile
substances (thinner, gasoline, etc.).
Do not put under direct sunlight; do not put
the appliance close to a heating heat source,
etc.
There is a period of time to start spin
dry even if there is no water in the tub.
Clothing with colours may easily rub
off and must be washed separately
from other clothes.
If the water is below the minimum water
level the impeller will not turn.
Filter must be intact and installed correctly.
Before washing or spinning laundry, please
check that all foreign matters are out of the
pockets or not wrapped in blankets (such
as coins, keys, headphones, batteries,
sand, hairpins etc).
Before Laundry, Please check whether the
tap open or not and water pipe connect or
not.
Suggest use low foam detergent.
Page 6

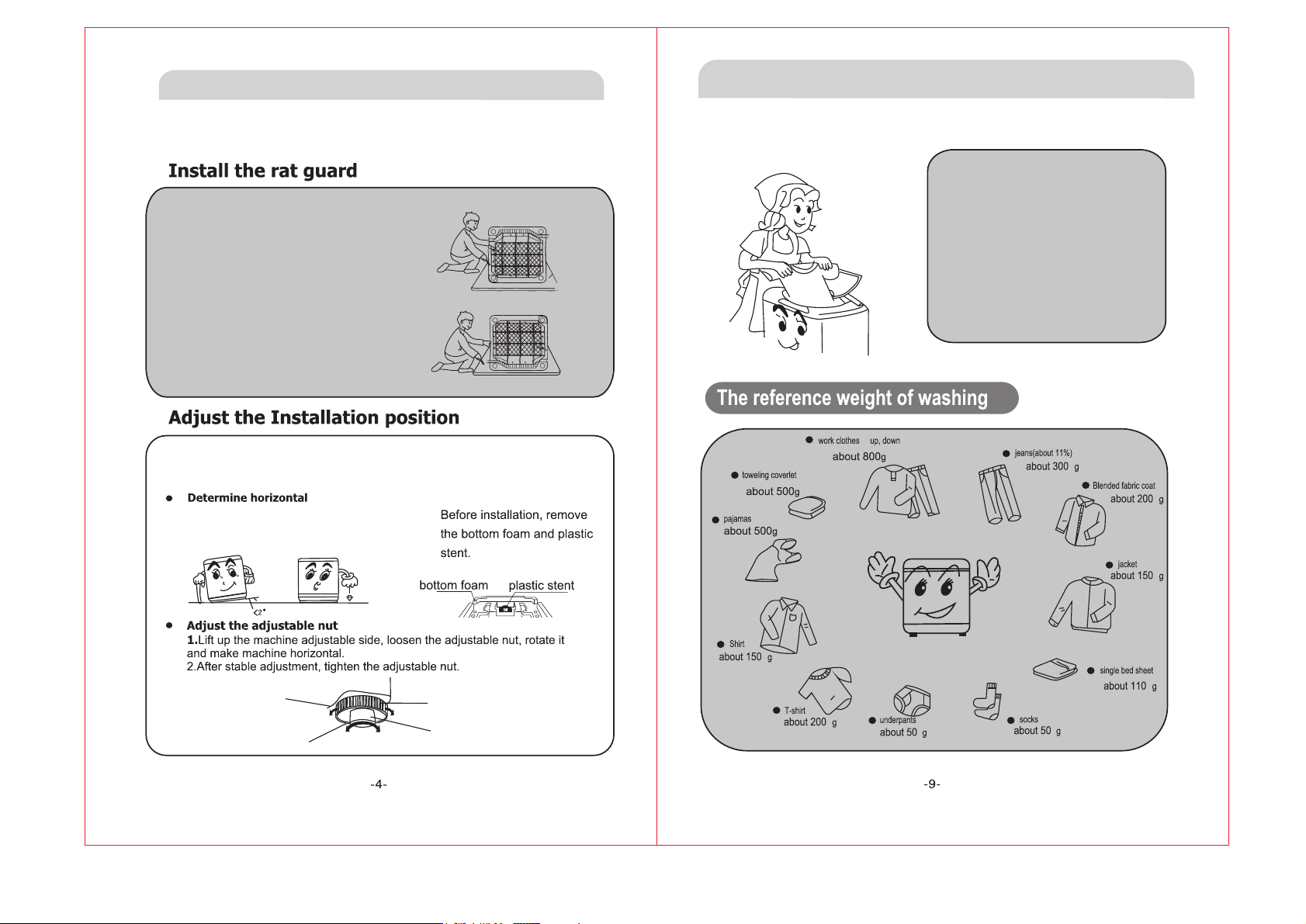

Installation Read Before Use
Please install and adjust the washing machine according to the requirement of the
specifications, this is very important for your safety and correctly use the washing
machine.
1. Install in front way
Opened the package, put the washing machine back down
gently on soft surface (such as terry cloth, carpet), Insert the
rat guard from front to back and you can hear a crack click
when it installed in place.Then gently lift it up like the
Picture.
2. Install in back way
Opened the package, put the washing machine back down
gently on soft surface (such as terry cloth, carpet), Insert
the rat guard from back to front and you can hear a crack
click when it installed in place.Then gently lift it up like
the Picture.
Please leave ,more than 20 mm between washing machine and the wall, maximum
slope Angle is 2 ° on bearing surface. Ground tilt or uneven may cause washing
machine running unstable or stop in midway, please use the following method to
adjust:
Use a bubble level tool or a free bubble level mobile
phone app to confirm whether the washing machine
is horizontal. If you do not have access to either place
a straw or needle on the machine and see if it rolls.
Programming and features Usage guide
*The washing capacity means the maximum
weight of washing or spinning for a wash.
*The thickness of the fabric, size or kinds, will
affect the actual washing capacity.
*Do not select high water level when fabric
weight is below 1.0kg
* Please select the high water level when you
believe it is suitable. It will not clean clothes
better if you use a high water level for a small
amount of clothes so please try and save
water.
loosen
high
low
adjustable nut
tighten
adjustable feet
Page 7

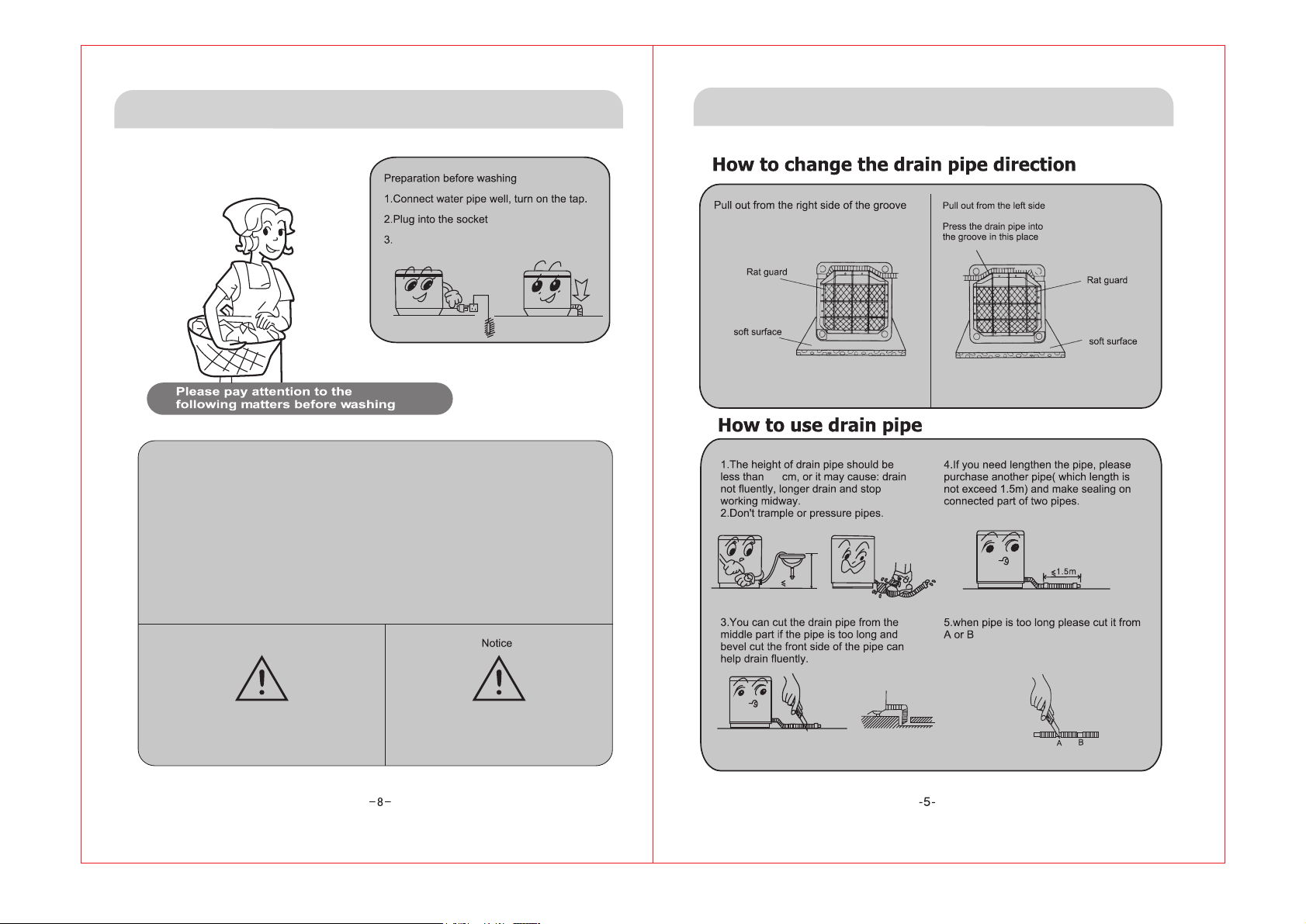

Pre-wash Usage guide
Put down the drain pipe and put it on the
floor or in the bathtub.
a. Ensure no item in the clothes pocket (such as screw, coin etc.)
b. Turn clothes over to wash, so that chip or line does not adhere to the surface of clothes
during washing.
c. When do fine cleaning, like Women's underwear, thin nylon and polyester materials, please
put it into washing bag.
d. Tight loose belt in clothing and pull on the zipper.
e. To get rid of the mud and sand on clothing before washing.
f. clothes that easy to float on, please put it in the bottom, in addition, when floating, please
stop and press it into the washing liquid.
g. Please separate thick clothes and thin clothes in washing.
h. Inappropriate to wash down jacket and not bibulous clothing, if needed, please select the
low water level and do single washing.
e. It is forbidden to wash fur blankets and electric blanket.
Spin drying can lead to shrinkage and
deformation of the wool fabric.
Installation Read Before Use
50
50cm
1. Please don't us the spin function on wool.
2. It is forbidden to spin dry down jacket and other
light weight but bulky clothing to avoid danger.
Please check the washing label of your clothes
item before you wash.
It is forbidden to wash fur blankets
and electric blanket.
Page 8

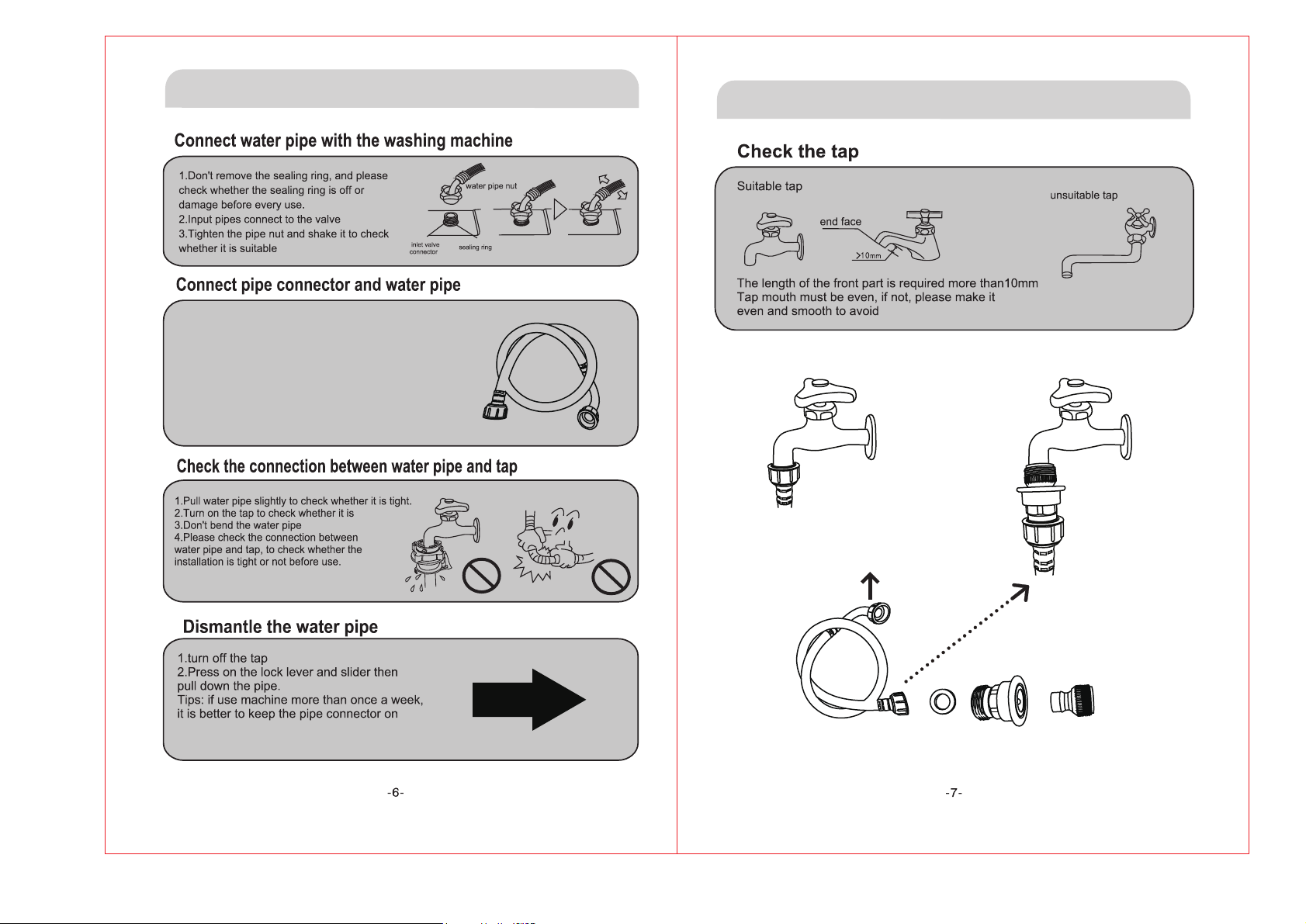

Further adjustments Read Before Use
The default standard connector of our product is a
conventional faucet in the United States; if it cannot
be used, please purchase suitable accessories to
complete the assembly of the product.
leaking.
Further adjustments Read Before Use
leakage.
Connect way-A Connect way-B
Connect to the machine
O ring part X part Y
Loading...
