Page 1
Giving you Productivity
Saw Bench
Owners Manual
•
HBS50
•
HBS100H
•
HBS100B
•
HBS120H
•
HBS120B
•
HBS160—PTO
•
HBS180
1800 888 114
Page 2
HIMAC BENCH SAW
OPERATING INSTRUCTIONS
SECTION 1
Before attempting to operate saw, please check the following:
• All guards are in place and secure.
• Machine is on level ground.
• Blade is in good condition.
• Blade securing nut is tight.
• Belts are not worn or cracked.
• Check the fuel and oil of engine.
• Check all nuts and bolts to make sure they are tight.
• Inflate tyres to correct tyre pressure (20psi)
SECTION 2
Procedure for starting manual start engines.
• Make sure bench is in open position.
• Turn on kill switch and fuel.
• Turn choke on and give ¼ throttle.
• Lift motor plate to release tension on belts-use brackets.
• Pull start cord to start engine.
• When engine is running, turn off choke.
• Slowly lower engine so belts tighten and turn shaft.
• Increase revs on engine.
• Do not exceed 1000rpms shaft speed.
Page 3
SECTION 3
While operating saw, observe the following procedures:
• Always wear safety glasses.
• Always wear ear protection.
• Always wear protective clothing.
• Always cut straight logs.
• Always push bench with one hand on handle and the other on log.
• Keep both hands on left hand side of the blade at all times.
• Keep hands at least 200mm away from blade.
• Do not touch any moving parts while machine is operating.
• Do not leave machine running unattended.
• Do not allow logs to pile higher than ¾ of the wheel height.
• Always keep operating area clear.
• Do not allow an untrained or unskilled person to operate.
• If severe vibrations occur, shut machine down and do not operate.
• Do not cut logs that are shorter than 300mm.
• Do not cut logs that are smaller than 2” (50mm) diameter.
• Do not move machine while it is operating.
• Do not cut steel objects such as nails, bolts or wire left on timber.
SECTION 4
When shutting down engine:
• Slow engine down to idle before turning off kill switch.
• Secure the table in the closed position before transporting.
• Keep machine covered when not in use.
SECTION 5
General:
• Grease bearings annually only using 1-2 pumps.
• Table is adjusted to open position by using the chain lengths behind table.
• Table is best situated approximately 25mm (1”) in front of blade.
YOUR SAFETY IS OUR PRIORITY
Page 4
PTO DRIVE MACHINES
Please note: PTO shaft must be disconnected before raising
machine or damage could result to the shaft and/or gearbox.

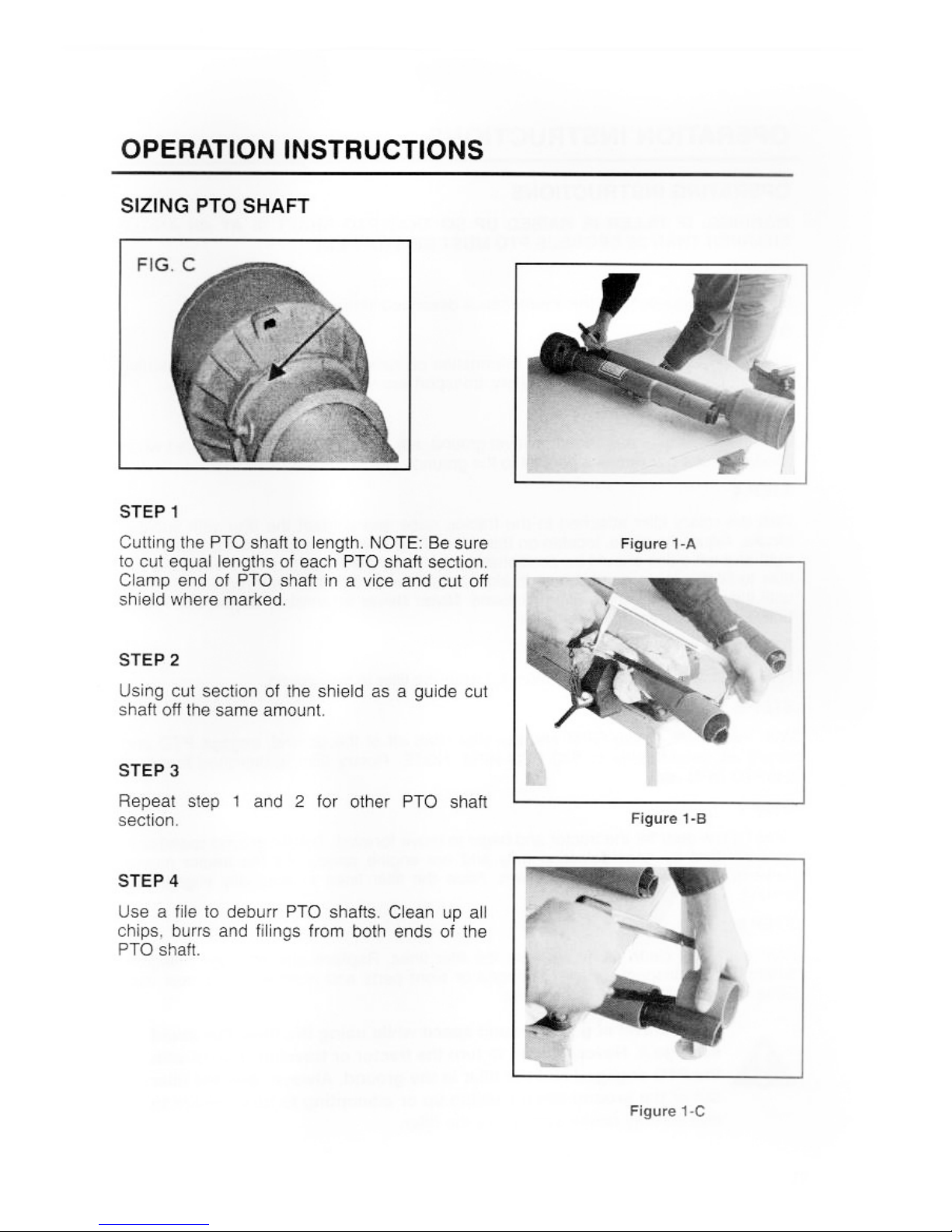

Once sawbench is coupled to three point linkage you may need to adjust
shaft length. This must be measured and cut with machine lowered to
working position.
Make sure that there is no less than 100mm of shaft overlapping each other
when it is connected to PTO.
Remember to attach safety chain from cover to frame.
PTO speed to machine should be 475 rpm.
(‘L’ box is 1-1.91 ratio. Blade should run at 900 rpm)
Page 5
Page 6
HIMAC INDUSTRIES
HBS 50, 100, 140, 160 & KOB Firewood Docking Saws
RISK ASSESSMENT
HAZARD
DANGERS YOU
MAY
BE EXPOSED TO
LEVELOF
DANGER
POSSIBILITY
OF
PERSONEL
INJURY
CONSEQUENCES IF
INJURY OCCURS
MEASURES IN PLACE TO CONTROL OR AVOID
HAZARD
OPERATIING
THE
MACHINE
Exposed and
moving blade can cut
fingers and hands
MEDIUM
MEDIUM
Possibility of
Bruising,
Laceration,
Squashing,
Amputation or
Fingers and hand.
Appropriate Personal Protective Equipment (PPE) to be
worn.
Under no circumstances should the operator climb onto
the machine with the engine running. Stop the engine
before attempting cleaning, maintenance or adjustment.
Clear and definitive Safety Hazard signs.
Machine is simple and uncomplicated to operate.
Blade control is clearly and appropriately identified.
Emergency stop control is clearly and appropriately
identified.
All other controls are clearly and appropriately identified.
The speed of travel of blade is relatively slow for distance
traveled.
Controls are positioned so that they can only be under the
control of the operator(i.e. no one else can interfere).
Machine is appropriately guarded to protect operators and
bystanders.
Flying objects
from blade
MEDIUM
MEDIUM
Possibility of dust in
Eyes and face.
Appropriate PPE to be worn. (Glasses)
Operator training and associated safety issues have been
well addressed by administrative control in the operators
manual.
Machine is appropriately guarded to protect operators and
bystanders.
Falling blocks from
trough
MEDIUM
MEDIUM
Possibility of bruising, laceration to
fingers, hands or arms of operators.
Appropriate PPE to be worn (Gloves)
Clear and definitive Safety Hazard signs.
Responsibility for the safety of operator lies with the
operator’s understanding of training procedures,
administrative controls and attention diligence to work
practices.
Page 7
FATIGUE
from
overwork
MEDIUM
MEDIUM
Possibility of
severe
bruising,
laceration,
squashing or
amputation of
fingers, hands or
arms of operator.
Appropriate PPE to be worn (Gloves)
Do not continue to operate if fatigues.
Operator training and associated safety issues have been well addressed by administrative control in the operator’s
manual.
Associated
body
strains
VERY
LOW
VERY
LOW
Remote
possibility of
body strain,
soreness in arms
or back.
Machine is simple and uncomplicated to operate.
Operators
getting
splinters in
hand
LOW
LOW
Minor
possibility of
splinter stuck in
hands or fingers.
Appropriate PPE to be worn (Gloves)
Tripping
over blocks
in work
area
LOW
LOW
Minor
possibility of
bruises, sprains
or fractures.
Operator to keep work are free from obstacles i.e. practice good house-keeping. See operator’s manual.
SUMMARY
Due to the arduous nature of this job risk to the operator from the rotating blade and associated blocks of timber, We recommend that the operator has read and understood training
procedures, because the full responsibility for the safety of the operator lies with their understanding of the administrative controls (correct training and operation procedures) and their
attention and diligence to their work practices.
ENGINE
Noise
Hot exhaust
Exhaust
Fumes
Rotating
parts
Refueling
hot engine
LOW
VERY
LOW
VERY
LOW
NONE
LOW
LOW
VERY
LOW
VERY
LOW
NONE
LOW
Hearing Loss
Burns to body
parts
Nausea/fainting
Burns to hands
or body parts
Appropriate PPE to be worn.
Hearing protection stickers fitted to the machine.
Engine meets emission standards
Operator not working in vicinity of exhaust
Use in open air. Exhaust faces away from operator.
All rotating parts covered prevent any contact with body parts.
Wait until engine cools down before refueling. Avoid spilling fuel. Read engine manual
.
Engine manual supplied with machine explains engine operating procedures and associated hazards more concisely.
SUMMARY
Engine poses no obvious risk to operator or bystanders.
HYDRAULICS
(if part of
machine)
Contact
with highpressure oil
from burst
hose.
LOW
LOW
Operator’s
clothes and
exposed skin in
contact with oil.
Appropriate PPE to be worn (hearing & eye protection,boots,gloves,protective clothing)
All new hydraulic components are used in the manufacture of Super Rex Firewood Processors.
All hydraulic hoses are double wire rated. The Firewood Processor system operates at max 2500psi therefore giving
plenty of margin for safety.
All hoses are routed to eliminate any rubbing or kinking type damage.
Page 8
Burns from contact
with oil
Rotating Parts
VERY
LOW
NONE
VERY
LOW
NONE
The individual relief valves on all machines are set at the factory and the
system is tested for leaks at peak pressure.
It is the nature of this machine that the oil will not heat up enough to burn if
contact is made with it.
All rotating parts are enclosed preventing any contact with body parts.
SUMMARY
Hydraulic system poses no obvious risk to operator or bystanders
TOWING
MANOUVERING
(Work site only)
VERY
LOW
VERY
LOW
Use suitable tow vehicle
Always use wheel chocks supplied with machine
Large wheels fitted for safe towing and easy maneuvering
SUMMARY
Towing or maneuvering the machine poses no obvious risk to operator, bystanders or other site users if guidelines in manual are followed.
MAINTENANCE
NONE
NONE
It is recommended in the manual that the engine is stopped before any
maintenance is performed.
Read and understand engine and operators manual before performing
maintenance on the engine and machine.
Operator training and associated safety issues have been well addressed by
administrative control in the operator’s manual.
SUMMARY
Maintenance procedures pose no obvious threat to operator or bystanders. The machine is designed to be very simple to maintain with a minimum of
tools and expertise required
CONSTRUCTION
VERY
LOW
VERY
LOW
The machine is reliable, well engineered and constructed and poses no risk to
the operator from it being, breaking or becoming unused.
All new materials and components are used in the construction.
A quality control checklist is done for each machine before it leaves the
factory.
SUMMARY
Construction poses no obvious risks to operator or bystanders
ELEVATOR
(if part of machine)
Rotating belt can
create jam points for
fingers.
Elevator winch failing
or chain breaking and
elevator falling to
ground.
MEDIUM
LOW
MEDIUM
MEDIUM
Entanglement
Causing
bruising,
lacerations,
squashing,
amputation
of fingers or
hand.
Fractures,
broken bones
serious injury
or death.
It is highly impractical to guard the underneath of the elevator where the belt is
exposed. We recommend in the manual that you keep yourself and others well
clear from the elevator at all times.
Elevator control stoop lever is clearly and suitably signed and located
conveniently beside the operator.
We recommend in the manual that you keep yourself and others well clear
from the elevator at all times.
SUMMARY
Elevator poses minimal risks to operator and bystanders. We recommend that operator has read and understood training procedures. If the elevator is
in the operating position or you are moving it, keep yourself and well clear especially from underneath the elevator.
Page 9
WARRANTY
HIMAC INDUSTRIES warrants the original purchaser that this product shall be free of
defects in materials and workmanship under normal use and service for the period of 12
months from date of dispatch.
The purchaser’s use of the product must conform to the instructions given in this manual.
The warranty will be voided if the product is damaged by accident, or unreasonable use
negligence, improper service or other cause not arising out of defects in materials or
workmanship.
HIMAC will not be responsible for any damages or injury to persons or property resulting
from any attempt by the purchaser or by an unauthorized person to repair, adjust or otherwise
tamper with the product or its controls or components.
Excluded from this warranty are all the components not manufactured by HIMAC.
These items are covered only by standard warranties of the manufacturers of those items.
The exclusive remedy to the purchaser in the event that the product does not meet its express
warranty shall be the repair or the replacement of the product at the option of HIMAC without
charge to the purchaser when the product is returned to
HIMAC INDUSTRIES or designated location advised by HIMAC.
HIMAC shall not be responsible for any incidental or consequential damages if this product is
defective or does not conform to any expressed or implied warranty.
NO ONE IS AUTHORISED TO ALTER OR TAMPER WITH THIS MACHINE
WITHOUT THE WRITTEN PERMISSION FROM THE MANUFACTURER.
MODEL CODE OF MACHINE…………………………............
FRAME NUMBER……………………………………………….
MOTOR TYPE……………………….SERIAL #............................................
DESPATCH DATE………………………………….
Loading...
