HD IR Waterproof Fixed Network Camera

(With Integrated Bracket)

User’s Manual

Version 4.0.0

Welcome

Thank you for purchasing our network camera!

This user’s manual is designed to be a reference tool for your system.

Please read the following safeguard and warnings carefully before you use this series product!

Please keep this user’s manual well for future reference!

Important Safeguards and Warnings

1᧪᧪Electrical safety

All installation and operation here should conform to your local electrical safety codes.

The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited

power source is rated 12V DC or 24V AC in the IEC60950-1. (Refer to general introduction) Please

note: Do not connect two power supplying sources to the device at the same time; it may result

in device damage!

We assume no liability or responsibility for all the fires or electrical shock caused by improper handling

or installation.

We are not liable for any problems caused by unauthorized modification or attempted repair.

2᧪Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

3᧪Installation

Do not apply power to the camera before completing installation.

Please install the proper power cut-off device during the installation connection.

Always follow the instruction guide the manufacturer recommended.

4᧪Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

5᧪Environment

This series network camera should be installed in a cool, dry place away from direct sunlight,

inflammable, explosive substances and etc.

Please keep it away from the electromagnetic radiation object and environment.

Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.

Otherwise it may result in CCD (CMOS) optical component damage.

Please keep the sound ventilation.

Do not allow the water and other liquid falling into the camera.

Thunder-proof device is recommended to be adopted to better prevent thunder.

The grounding studs of the product are recommended to be grounded to further enhance the reliability

of the camera.

6. Daily Maintenance

Please shut down the device and then unplug the power cable before you begin daily maintenance

work.

iii

Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens

surface.

Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to

dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the

device.

Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.

Dome enclosure is the optical component, do not touch the enclosure when you are installing the

device or clean the enclosure when you are doing maintenance work. Please use professional optical

clean method to clean the enclosure. Improper enclosure clean method (such as use cloth) may result

in poor IR effect of camera with IR function.

7. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included.

Contact your local retailer ASAP if something is broken in your package.

Accessory Name

Amount

Network Camera

Unit

Quick Start Guide

Installation Accessories Bag

12V to 24V Conversion Cable

(For AC 24V series product only)

1 CD 1

Table of Contents

1 General Introduction ...................................................................................................... 1

1.1 Overview ........................................................................................................... 1

1.2 Features ............................................................................................................ 1

1.3 Specifications .................................................................................................... 2

1.3.1 Performance ............................................................................................... 2

1.3.2 Factory Default Setup ................................................................................. 4

2 Structure ...................................................................................................................... 11

2.1 Multiple-function Combination Cable............................................................... 11

2.2 Framework and Dimension ............................................................................. 12

2.3 Bidirectional talk .............................................................................................. 13

2.3.1 Device-end to PC-end............................................................................... 13

2.3.2 PC-end to the Device-end ......................................................................... 13

2.4 Alarm Setup .................................................................................................... 14

3 Installation ................................................................................................................... 16

3.1 Device Installation ........................................................................................... 16

3.2 Micro SD Card Installation .............................................................................. 17

3.3 Lens Adjustment ............................................................................................. 19

3.4 Bracket Adjustment ......................................................................................... 19

3.5 OSD Buttons (For Motorized Zoom Lens Series Product Only) ...................... 21

4 Quick Configuration Tool ............................................................................................. 23

4.1 Overview ......................................................................................................... 23

4.2 Operation ........................................................................................................ 23

5 Web Operation ............................................................................................................ 25

5.1 Network Connection ........................................................................................ 25

5.2 Login and Main Interface ................................................................................. 25

6 FAQ ............................................................................................................................. 28

7 Appendix Toxic or Hazardous Materials or Elements .................................................. 29

1 General Introduction

1.1 Overview

This series network camera integrates the traditional camera and network video technology. It adopts

audio and video data collection, transmission together. It can connect to the network directly without

any auxiliary device.

This series network camera product uses standard H.264 video compression technology and G.711a

audio compression technology, which maximally guarantee the audio and video quality.

It supports the IR night vision function. In the night environments, the device can use the IR light to

highlight the object which is suitable for the surveillance function in the low illumination environments.

The built-in protection enclosure and waterproof design conforms to the IP 66 level. It has the sound

waterproof function suitable for use in the outdoor environments.

It supports real-time monitor and listening at the same time. It supports analog video output and dual-

way bidirectional talk.

It can be used alone or used in a network area. When it is used lonely, you can connect it to the

network and then use a network client-end. Due to its multiple functions and various uses, this series

network camera is widely used in many environments such office, bank, road monitor and etc.

1.2 Features

User

Management

z Different user rights for each group, one user belongs to one group.

z The user right shall not exceed the group right.

Storage

Function

z Support central server backup function in accordance with your configuration and

setup in alarm or schedule setting

Support record via Web and the recorded file are storage in the client-end PC.

z Support built-in Micro SD card. z Do not support local Micro SD card hot swap storage function. Support short-

time

storage when encounter disconnection.

z Support network storage function such as FTP.

Alarm

Function

z Real-time respond to external on-off alarm input, and video detect as user pre-

defined activation setup and generate corresponding message in screen and audio prompt(allow user to pre-record audio file)

z Real-time video detect: motion detect, camera masking.

Network

Monitor

z Network camera supports one-channel audio/video data transmit to network

terminal and then decode. Delay is within 270ms (network bandwidth support needed)

z Max supports 20 connections. z Adopt the following audio and video transmission protocol: HTTP

, TCP, UDP,

MULTICAST, RTP/RTCP, RTSP and etc.

z Support web access.

Network

Management

z Realize network camera configuration and management via Ethernet.

Support device management via web or client-end.

Power

z External power adapter DC12V/AC 24V. You can select according to your actual

environments. Please note system can not support these two types of power

supplying at the same time.

Assistant

Function

z Log function z Support system resource information and running status real-time display.

z Day/Night mode auto switch. z Built-in IR light. Support IR night vision. z Support picture parameter setup such as electronic shutter and gain setup. z

Backlight compensation: screen auto split to realize backlight compensation to adjust the bright.

z Support video watermark function to av

oid vicious video modification.

z The enclosure conforms to the IP 66 protection. Has the waterproof function.

1.3 Specifications

1.3.1 Performance

Please refer to the following sheet for network camera performance specification.

Model Parameter

HFW3300C

HFW3200C

HFW3100C

HFW3101C

System

Main Processor

TI Davinci high performance DSP

Embedded LINUX

System Resources

Support real-time network, local record, and remote operation at the same time.

User Interface

Remote operation interface such as WEB, DSS, PSS

System Status

Micro SD card status, bit stream statistics, log, and software version.

Video Parameter

Image Sensor

1/2.8-inch CMOS

1/2.9-inch CMOS

1/3.0-inch CMOS

Pixel

2080(H)*1553(V )

1920(H)*1080(V)

Day/Night Mode

Support day/night mode switch and IR-CUT at the same time. (The lens has built-in IR-CUT mechanical component.).

Auto Aperture

Enable

Gain Control

Fixed/Auto

White Balance

Manual/Auto

BLC

Off/BLC/WDR (1-100 adjustable)/HLC(anti-flicker is outdoor and is valid only when exposure mode is auto with range 1-100)

Exposure Mode

Manual/Auto PAL: It ranges from 1/3 to 1/10000 NTSC: It ranges from 1/4 to 1/10000

Video Compression Standard

H.264/ H.264H/H.264B/MJPEG

Video Frame Rate

PAL: Main stream (3M@15fps,108 0P@25fps,SXG A@25fps,1.3M @25fps,720P@ 25fps,D1@25fps ) Extra stream (D1@25fps, CIF@25fps)

PAL: Main stream (1080P@25fps, SXGA@25fps,1. 3M@25fps,720P @25fps,D1@25f ps) Extra stream (D1@25fps,CIF @25fps)

PAL: Main stream (1.3M@25fps, 720P@25fps,

D1@25fps) Extra stream (D1@25fps, CIF@25fps)

NTSC˖ Main

stream

(3M@15fps ,108 0P@30fps, SXGA@30fps,

1.3M@30fps,

NTSC˖ Main stream (1080P@30fps, SXGA@30fps,

1.3M@30fps,

720P@30fps,

NTSC˖ Main stream˖ (1.3M@30fps, 720P@30fps,

704*480@30fps) Extra stream (704*480@30fps,352*240@30fps)

720P@30fps, 704*480@30fps ) Extra

stream

(704*480@30fp s,352*240@30fp s)

704*480@30fps ) Extra stream (704*480@30fp s,352*240@30fp s)

Video Bit Rate

H.264: 56Kbps-8192Kbps. H.264H 16Kbps-8192Kbps H.264B 56Kbps-8192Kbps MJPEG is adjustable and bit rate is adjustable. Support customized setup.

Video Flip

Support mirror. Support flip function.

Snapshot

Max 1f/s snapshot. File extension name is JPEG.

Privacy Mask

Supports max 4 privacy mask zones

Video Setup

Support parameter setup such as bright, contrast.

Video Information

Channel title, time title, motion detect, camera masking. Lens

Manual zoom 3.3-12 mm@F1.4

Lens Interface

Φ14 interface. Lens is the default accessories

Audio

Audio Input

1-channel. RCA

Audio Output

1-channel. RCA

Bidirectional Talk Input

Reuse the first audio input channel

Audio Bit Rate

16kbps 16BIT

Audio Compression Standard

G.711A

/G.711Mu/PCM

Video

Motion Detect

396 (18*22) detection zones; sensitivity level ranges from 0 to 100; area threshold ranges from 0 to 100. Activation event: video storage, image snapshot, log, email function and etc.

Alarm Input

2-channel inputˈ1-channel output

Record and

Backup

Record Priority

Manual>External alarm >Video detect>Schedule

Local Storage

Support Micro SD card storage

Storage Management

Support display local storage status

Network

Wire Network

1-channel wire Ethernet port, 10/100 Base-T Ethernet

Network Protocol

Standard HTTP, TCP/IP, ARP, IGMP, ICMP, RTSP, RTP,UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour, SNMP.

Remote Operation

Monitor, system setup, file download, log information, maintenance , upgrade and etc.

AUX

Interface

Video Output

1-channel analog video outputˈBNC port.

Restore Default Setup

Reset button

Power

Support AC24V/DC12V power. (Can not support these two modes at the same time.)

Gene

ral

Para

mete

Power Consumption

8W MAX (10W MAX when ICR switch)

Working

-10ć~+60ć

Temperature

Working Humidify

10%~90% Dimensions(mm)

φ104*306.7

Weight

1250g(Excluding box)

Installation

Bracket is included in the accessories bag.

IR Distance

20~30m

Protection Level

IP66

1.3.2 Factory Default Setup

Please refer to the following sheet for factory default setup information.

Setup

Item Default Setup

HFW3300C

HFW3200C

HFW3100C

HFW3101C

Camera

Conditions

Config File

Normal

Brightness

Contrast

Saturation

Sharpness

Anti-flicker

Outdoor

Exposure Mode

Auto

Scene Mode

Auto

Day/night Mode

Auto

BLC Off

Mirror

Off

Flip

Off

Profile Management

Normal

Video Video bit stream

Main Stream

Bit stream type

General

Encode mode

H.264 Resolution

1080P(1920*1080)

1.3M˄1280*960˅

Frame Rate(FPS)

PAL:25 NTSC:30

Bit Rate Type

CBR

Recommen ded Bit

3584

-8192 Kb/S

1536

-8192Kb/s

Bit Rate

8192

6144

I Frame

Watermark

Enable

Watermark character

DigitalCCTV

Sub Stream

Enable

Bit stream

General

Setup

Item Default Setup

HFW3300C

HFW3200C

HFW3100C

HFW3101C

type

Encode mode

H.264

Resolution

PAL:CIF(352*288) NTSC:CIF(352*240)

Frame Rate(FPS)

PAL:25 NTSC:30

Bit Rate Type

CBR

Recommen ded Bit

192

-1024Kb/S

Bit Rate

512

I Frame

Snapshot

Snapshot Type

General

Image Size

1080P(1920*1080)

720P(1280*720)

Quality

Better

Bit Rate

Main stream

Interval

Video Overlay

Privacy Mask

Disable

Channel Title

Enable

Time Title

Enable

Path

Snapshot Path

\PictureDownload

Record Path

C:\RecordDownload

Audio

Main Stream Enable

Enable

Encode Mode

G.711A

Sub Stream Enable

Disable

Encode Mode

G.711A

Network

TCP/IP

Host Name

IPC

Ethernet Card

Wire(Default) Mode

Static

Mac Address

Device MAC address when it is shipped out of the factory IP Version

IPV4

IP Address

192.168.1.108

Subnet Mask

255.255.255.0 Default

192.168.1.1

Setup

Item Default Setup

HFW3300C

HFW3200C

HFW3100C

HFW3101C

Gateway

Preferred DNS

8.8.8.8

Alternate DNS

8.8.8.8

Enable ARP/Ping set device IP address service

Enable

Connection

Max Connection

10 TCP Port

37777

UDP Port

37778

HTTP Port

RTSP Port

554

HTTPs On

Disable

HTTPs Port

443

PPPoE

Enable

Disable

Username

none

Password

N/A

DDNS

Server Type

DisableˈCN99 DDNS

Server Address

www.3322.org

Domain Name

none Username

none

Password

****

Update Period

10 minutes

IP Filter

Trusted sites

Disable

SMTP(Email)

SMTP Server

none Port

Anonymity

Disable

User Name

anonymity

Password

****

Sender

none Authenticati

N/A

Setup

Item Default Setup

HFW3300C

HFW3200C

HFW3100C

HFW3101C

on (Encryption mode)

Title (Subject)

IPC Message Attachment

Enable

Mail Receiver

N/A Interval

0 Second

Email Test

Disableˈinterval=60 seconds

UPnP

Enable UPnP

Disable

SNMP

SNMP Port

161

Read Community

public

Write Community

private

Trap Address

N/A Trap Port

162

SNMP v1

Disable

SNMP v2

Disable

SNMP v3

Disable

Bonjour Enable

Enable

Server Name

“SN”. It depends on the device.

Multica st

Main Stream

Enable

Multicast Address

239.255.42.42 Port

36666

Extra Stream

Enable

Disable

Multicast Address

239.255.42.42 Port

36667

IEEE802

Enable

Disable

Authenticati on

PEAP Username

None

Password

****

QoS

Real-time Monitor

0 Command

Setup

Item Default Setup

HFW3300C

HFW3200C

HFW3100C

HFW3101C

Event

Video detect

Motion Detect

Enable

Disable

Anti-dither

5 seconds

Sensitivity

Record Channel

Enable

Record Delay

10 seconds Relay out

Enable

Alarm Delay

10 seconds

Send Email

Disable

Snapshot

Disable

Video Masking

Enable

Disable

Record Channel

Enable

Record Delay

10 seconds Relay out

Enable

Record Delay

10 seconds Send Email

Disable

Snapshot

Disable

Alarm

Alarm Activation

Enable

Disable

Relay in

Alarm 1

Anti-dither

0 seconds

Sensor Type

Record Channel

Enable

Record Delay

10 seconds Relay out

Enable

Alarm Delay

10 seconds

Send Email

Disable

Snapshot

Disable

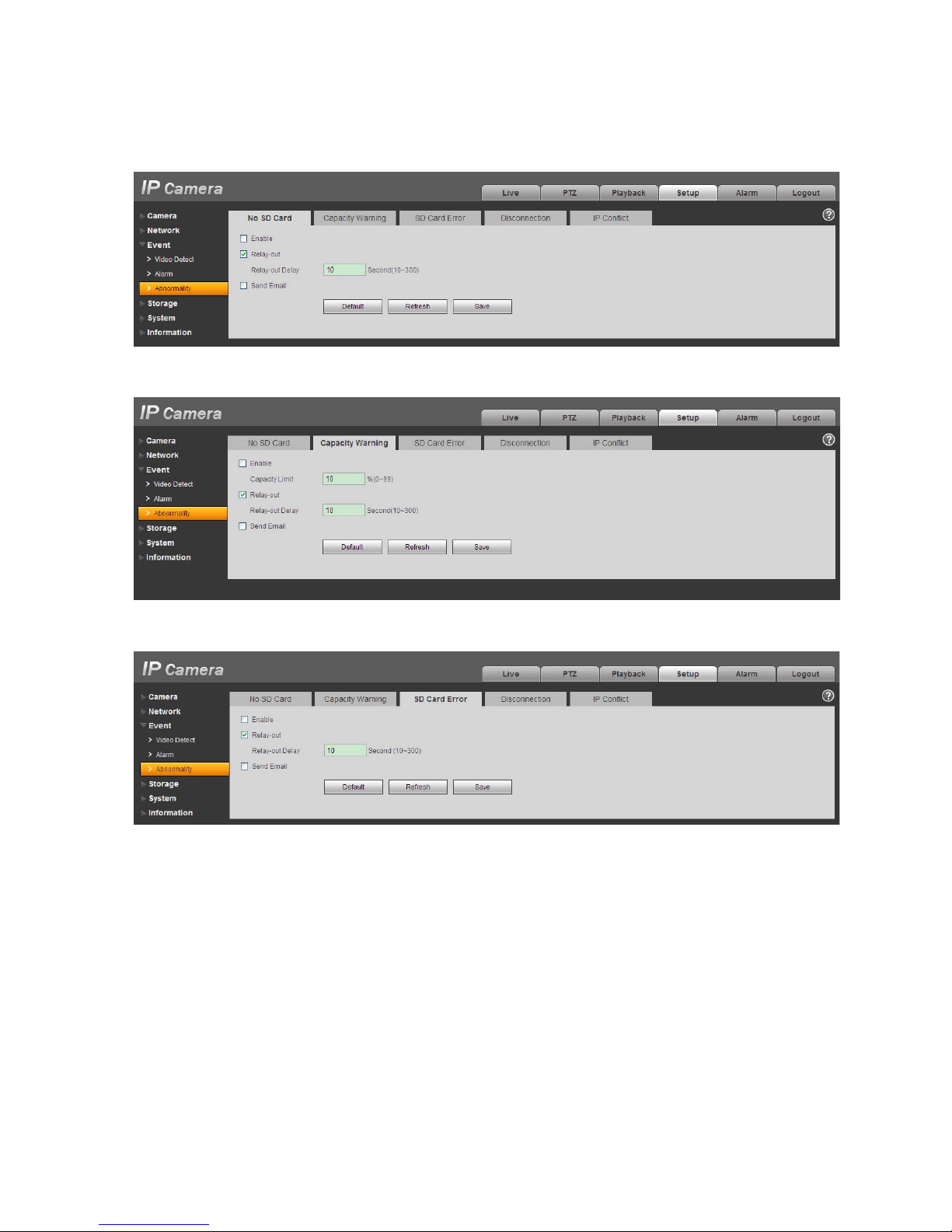

Abnormi

No SD Card

Enable

Disable

Relay out

Enable

Relay out Delay

10 seconds

Send email

Disable

Capacity Warning

Enable

Disable

Capacity Limit

10%

Relay out

Enable

Setup

Item Default Setup

HFW3300C

HFW3200C

HFW3100C

HFW3101C

Relay out Delay

seconds

Send Email

Disable

SD Card Error

Enable

Disable

Relay out

Enable

Relay out Delay

seconds

Send email

Disable

Disconnectio n

Enable

Disable

Record

Enable

Record Delay

seconds

Relay out

Enable

Relay out Delay

seconds

IP Conflict

Enable

Disable

Record

Enable

Record Delay

seconds

Relay out

Enable

Relay out Delay

seconds

Storage

Schedule

Holiday

Schedule Record

Disable Snapshot

Disable

Storage

FTP

Enable FTP

Disable

Server Address

N/A Port

Username

anonymity

Password

N/A

Remote path

Emergency (Local)

Disable

Record Control

Pack Duration

8 minutes Pre-record

5 seconds

Disk Full

Overwrite

Record Mode

Auto

Syst

Gen

eral

Local Host Device No

Device factory SN

Language

English

Setup

Item Default Setup

HFW3300C

HFW3200C

HFW3100C

HFW3101C

Video Standard

PAL

Date and time

Date Format

-M-D

Time Format

24H Time Zone

GMT+08:00

System Time

Sync DST

Disable

DST Type

Date

Start Time

00:00:00 of Jan.1st

End Time

00:00:00 of Jan.2nd

NTP

Disable

NTP Server

clock.isc.org

Port

123

Update Period

10 minutes

Account

Anonymous Login

Disable

Auto Maintenance Auto Reboot

Enable, Tuesday 02:00

Auto Delete Old Files

Disable

2 Structure

2.1 Multiple-function Combination Cable

You can refer to the following figure for multiple-function combination cable information. See Figure

2-1

Figure 2-1 Multiple-function combination cable

Please refer to the following sheet for detailed information.

Port Name

Function

Connection

Note

DC 12V/AC

24V

Power input port

Power port. Input DC 12V/AC 24V (Please use the provided conversion cable)

Reset

Reset port

Hardware reset function. Press it for 3 to 5 seconds; system hardware can restore default setup.

I/O I/O port

Connect to I/O port.

LAN Network port

Ethernet port

Connect to standard Ethernet cable.

AUDIO IN

Audio input port

RCA

Input audio signal. It can receive the analog audio signal from the pickup.

AUDIO OUT

Audio output port

RCA

Output audio signal to the devices such as the sound box.

VIDEO OUT

Video output port

BNC

Output analog video signal. It can connect to the TV monitor to view the vid

eo.

Please refer to the follow sheet for detailed I/O port information.

Port Name

SN Name

Note

I/O Port

ALARM_COM

Alarm output public port.

ALARM_NO

Alarm output port. It is to output the alarm signal to the alarm device.

NO: normal open al

arm output port.

It works with the ALARM_COM port.

ALARM_IN1

Alarm input port 1. It is to receive the on-off signal from the external alarm source.

ALARM_IN2

Alarm input port 2. It is to receive the on-off signal from the external alarm source.

GND

Ground port

2.2 Framework and Dimension

Please note all frame and dimension illustrations provided in this chapter are for reference only,

and actual product may vary.

Please refer to Figure 2-2 or Figure 2-3 for dimension information according to the actual product. The

unit is mm. Please also see Figure 2-4.

Figure 2-2 Dimension illustration 1

Figure 2-3 Dimension illustration 2

Figure 2-4 Dimension illustration 3

2.3 Bidirectional talk

2.3.1 Device-end to PC-end Device Connection

Please connect the speaker or the MIC to the audio input port of the device. Then connect the

earphone to the audio output port of the PC.

You can see the button becomes orange after you enabled the audio talk function.

Click Audio button again to stop the bidirectional talk function.

Listening Operation

At the device end, speak via the speaker or the pickup, and then you can get the audio from the

earphone or sound box at the pc-end.

2.3.2 PC-end to the Device-end Device Connection

Connect the speaker or the MIC to the audio input port of the PC and then connect the earphone to

the audio output port of the device.

You can see the button becomes orange after you enabled the audio talk function.

Click Audio button again to stop the bidirectional talk function.

Please note the listening operation is null during the bidirectional talk process.

Listening Operation

At the PC-end, speak via the speaker or the pickup, and then you can get the audio from the earphone

or sound box at the device-end.

2.4 Alarm Setup

The alarm interface is shown as in Figure 2-5. Please follow the steps listed below for local alarm input

and output connection.

1) Connect the alarm input device to the alarm input port (No.3 pin or No.4 pin) of the I/O cable.

2) Connect the alarm output device to the alarm output port (No.2 pin) and alarm output public port

(No.1 pin). The alarm output port supports NO (normal open) alarm device only.

3) Open the Web, go to the Figure 2-5. Please set the alarm input 01 port for the first channel of the

I/O cable (No.3 pin). The alarm input 02 is for the 2

channel of I/O cable (No.4 pin). Then you can

select the corresponding type (NO/NC.)

4) Set the WEB alarm output. The alarm output 01 is for the alarm output port of the device. It is the

No.2 pin of the I/O cable.

Figure 2-5 Alarm

Please refer to the following figure for alarm input information. See Figure 2-6.

Alarm input: When the input signal is idle or grounded, the device can collect the different statuses of

the alarm input port. When the input signal is connected to the 5V or is idle, the device collects the

logic “1”. When the input signal is grounded, the device collects the logic “0”.

Figure 2-6 Alarm input

Please refer to the following figure for alarm output information. See Figure 2-7.

Port ALARM_COM and Port ALARM_NO composes an on-off button to provide the alarm output.

If the type is NO, this button is normal open. The button becomes on when there is an alarm output.

If the type is NC, this button is normal off. The button becomes off when there is an alarm output.

Figure 2-7 Alarm output

3 Installation

Please note all frame and dimension illustrations provided in this chapter are for reference only,

and actual product may vary.

3.1 Device Installation

Please refer to Figure 3-1 or Figure 3-2 for installation information according to the actual product.

Please follow the steps listed below to install the device.

z Please draw the installation holes in the installation surface and then mark three expansion

bolts holes in the surface. Insert three bolts in the hole and secure firmly.

z Please line up the installation holes of the bottom of the pendant mount bracket to the

installation holes in the surface. Then insert the three bolts to the holes of the bottom of the

bracket. Finally fasten the device on the installation surface.

Figure 3-1 Device installation 1

Figure 3-2 Device installation 2

3.2 Micro SD Card Installation

Use the inner hex wrench from the installation accessories bag to remove the four inner hex screws

from the rear cover. Please refer to Figure 3-3 or Figure 3-4 to find the Micro SD card slot position

according to the actual product. Insert the Micro SD card and the fix the four screws of the rear cover.

Important

z Please make sure the cable connection between the power board and the main board is firm.

Otherwise, it may result in device malfunction.

z The rear cover of the device adopts the waterproof design. Please secure four screws firmly after

you complete the Micro SD card installation.

Figure 3-3 Micro SD card installation 1

Figure 3-4 Micro SD card installation 2

3.3 Lens Adjustment

Turn counter clockwise to remove the lens cover, now you can see the iris front and rear control rod.

The front control rod is to focus and the rear control rod is to zoom. See Figure 3-5. Please turn

clockwise to fix the lens cover back firmly.

Important

z Please remove the sunshield first and remove the lens cover if you can not unfasten the lens

cover.

z The lens cover has the waterproof function. Please make sure it is secure after you complete the

lens adjustment.

z The motorized zoom lens series product has the default motorized zoom lens. You do not need to

adjust manually.

Figure 3-5 Lens adjustment

3.4 Bracket Adjustment

You can use an inner hex screw to control the bracket. Please use the inner hex wrench from the

installation accessories bag to unfasten the screw. Please refer to Figure 3-6 or Figure 3-7 according

to the actual product. The horizontal angle of the rear cover can rotate 360°, the tilt angle can rotate

90° and the chassis can rotate 360°.

Please use the inner hex wrench to firmly secure the inner hex screw after you complete the setup.

Important

z Please make sure the M4 inner hex screw or M4 inner hex flat tight screws are firm, otherwise it

may result in chassis vibration and the camera cannot fix to a specified angle.

Figure 3-6 Bracket adjustment 1

Figure 3-7 Bracket adjustment 2

3.5 OSD Buttons

Please refer to the following contents for detailed information. See Figure 3-8 and Figure 3-9.

z Top button: Focus zoom in

z Bottom button: Focus zoon out.

z Left button: Far.

z Right button: Near.

z Middle button: Auto focus. It is to get clear video.

Figure 3-8 OSD button 1

Figure 3-9 OSD button 2

4 Quick Configuration Tool

4.1 Overview

Quick configuration tool can search current IP address, modify IP address. At the same time, you can

use it to upgrade the device.

Please note the tool only applies to the IP addresses in the same segment.

4.2 Operation

Double click the “ConfigTools.exe” icon, you can see an interface is shown as in Figure 4-1.

In the device list interface, you can view device IP address, port number, subnet mask, default

gateway, MAC address and etc.

Figure 4-1 Search interface

Select one IP address and then right click mouse, you can see an interface is shown as in Figure 4-2.

Select the “Open Device Web” item; you can go to the corresponding web login interface.

Figure 4-2 Search interface 2

If you want to modify the device IP address without logging in the device web interface, you can go to

the configuration tool main interface to set.

In the configuration tool search interface (Figure 4-1), please select a device IP address and then

double click it to open the login interface. Or you can select an IP address and then click the Login

button to go to the login interface. See Figure 4-3.

In Figure 4-3, you can view device IP address, user name, password and port. Please modify the

corresponding information to login.

Please note the port information here shall be identical with the port value you set in TCP port in Web

Network interface. Otherwise, you cannot login the device.

If you are using device background upgrade port 3800 to login, other setups are all invalid.

Figure 4-3 Login prompt

After you logged in, the configuration tool main interface is shown as below. See Figure 4-4.

Figure 4-4 Main interface

For detailed information and operation instruction of the quick configuration tool, please refer

to the Quick Configuration Tool User’s Manual included in the resources CD.

5 Web Operation

This series network camera products support the Web access and management via PC.

Web includes several modules: Monitor channel preview, system configuration, alarm and etc.

5.1 Network Connection

Please follow the steps listed below for network connection.

z Make sure the network camera has connected to the network properly.

z Please set the IP address, subnet mask and gateway of the PC and the network camera

respectively. Network camera default IP address is 192.168.1.108. Subnet mask is 255.255.255.0.

Gateway is 192.168.1.1

z Use order ping ***.***.***.***(* network camera address) to check connection is OK or not.

5.2 Login and Main Interface

Open IE and input network camera address in the address bar. See Figure 5- 1.

Figure 5- 1 IP address

The login interface is shown as below. See Figure 5- 2.

Please input your user name and password.

Default factory name is admin and password is admin.

Note: For security reasons, please modify your password after you first login.

Input your IP

address here

Figure 5- 2 Web login

If it is your first time to log in, system pops up warning information to ask you whether install web plug-

in or not after you logged in for one minute. For detailed plug-in installation, please refer to the Web

Operation Manual included in the resource CD.

After you logged in, you can see the main window. See Figure 5- 3.

Figure 5- 3 Web monitoring window

Please refer to the Web Operation Manual included in the resource CD for detailed operation

instruction.

6 FAQ

Bug

I can not boot up the device.

Please click RESET button for at least five seconds to rest

ore

factory default setup.

Micro SD card write times

Do not set the Micro SD card as the storage media to storage the schedule record file. It may damage the

Micro SD card duration.

I can not use the disk as the storage media.

When disk information is

shown as hibernation or capacity is 0,

please format it first

(Via Web).

I can not upgrade the device via network.

hen network upgrade operation failed, y

ou can use port 3800 to

continue upgrade.

Recommended Micro

SD card

brand

Kingston 4GB

, Kingston 1GB, Kingston 16GB, Transcend 16GB

SanDisk

1G, SanDisk 4G

Usually we recommend the 4GB (or higher) high speed card in case the slow speed results in data loss.

Audio function

Please use active device for the audio monitor input, otherwise there is no

audio in the client-end.

To guarantee setup update

After you modified the important setup, please reboot the device via the software to make sure the setup has been updated to the storage medium.

Power adapter

The general power adapter can work ranging from 0ć to 40 ć.The device

may result in unstable power supply when the temperature

exceeds the working temperature

Please replace an industry-level power adapter if you are using in the harsh environments.

I can not fix the bracket firmly.

Please use the S3 inner hex wrench to secure the rear bracket firmly. Please use your hands to test the camera is firm or not after the installation.

7 Appendix Toxic or Hazardous Materials or Elements

Component

Name

Toxic or Hazardous Materials or Elements

Pb Hg Cd Cr

PBB

PBDE

Circuit Board

Component

○ ○ ○ ○ ○ ○

Case

○

○ ○ ○ ○ ○

Wire and Cable

○ ○ ○ ○ ○ ○

Packing

Components

○ ○ ○ ○ ○ ○

Accessories

○ ○ ○ ○ ○

○

O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the

parts is below the relevant threshold of the SJ/T11363-2006 standard.

X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous

materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard. During the

environmental-friendly use period (EFUP) period, the toxic or hazardous substance or elements

contained in products will not leak or mutate so that the use of these (substances or elements) will not

result in any severe environmental pollution, any bodily injury or damage to any assets. The consumer

is not authorized to process such kind of substances or elements, please return to the corresponding

local authorities to process according to your local government statutes.

Note

z This user’s manual is for reference only. Slight difference may be found in user interface.

z All the designs and software here are subject to change without prior written notice.

z All trademarks and registered trademarks are the properties of their respective owners.

z If there is any uncertainty or controversy, please refer to the final explanation of us.

z Please visit our website for more information.

THC20IP

BROWSER

MANUAL

Network Camera Web3.0 Operation Manual

Version 4.0.0

Table of Contents

1 Network Connection ...................................................................................................... 1

2 Main Interface Introduction ............................................................................................ 2

2.1 Log in ................................................................................................................ 2

2.2 Live Interface .................................................................................................... 6

2.3 Encode Setup ................................................................................................... 6

2.4 System Menu .................................................................................................... 7

2.5 Video Window Function Option ......................................................................... 7

2.6 Video Window Setup ......................................................................................... 8

2.6.1 Image control .............................................................................................. 8

2.6.2 Hide Image Control ..................................................................................... 9

2.6.3 Original size ................................................................................................ 9

2.6.4 Full screen .................................................................................................. 9

2.6.5 Width and height ratio ................................................................................. 9

2.6.6 Fluency Adjustment .................................................................................. 10

3 PTZ Control ................................................................................................................. 11

4 Playback ...................................................................................................................... 14

4.1 Playback Interface .......................................................................................... 14

4.2 Function of Play .............................................................................................. 14

4.3 Date ................................................................................................................ 15

4.4 File List ........................................................................................................... 15

4.5 Progress Bar ................................................................................................... 17

5 Setup ........................................................................................................................... 18

5.1 Camera ........................................................................................................... 18

5.1.1 Conditions ................................................................................................. 18

5.1.2 Video ........................................................................................................ 22

5.1.3 Audio ........................................................................................................ 28

5.2 Network ........................................................................................................... 28

5.2.1 TCP/IP ...................................................................................................... 28

5.2.2 Connection ............................................................................................... 30

5.2.3 PPPoE ...................................................................................................... 32

5.2.4 DDNS ....................................................................................................... 32

5.2.5 IP filter ...................................................................................................... 34

5.2.6 SMTP ˄e-mail) ........................................................................................ 35

5.2.7 UPnP ........................................................................................................ 37

5.2.8 SNMP ....................................................................................................... 38

5.2.9 Bonjour ..................................................................................................... 40

5.2.10 Multicast ................................................................................................... 41

5.2.11 WIFI .......................................................................................................... 42

5.2.12 IEEE802 ................................................................................................... 44

5.2.13 QoS .......................................................................................................... 45

5.2.14 3G ............................................................................................................. 46

5.2.14.1 Dial-up ................................................................................................ 47

5.2.14.2 Mobile Phone ..................................................................................... 48

5.3 Event ............................................................................................................... 49

5.3.1 Video detect .............................................................................................. 49

5.3.2 Alarm ........................................................................................................ 54

5.3.3 Abnormity ................................................................................................. 55

5.4 Storage ........................................................................................................... 58

5.4.1 Record Schedule and Snapshot Schedule ............................................... 58

5.4.2 Destination ................................................................................................ 59

5.4.3 Record control .......................................................................................... 60

5.5 System ............................................................................................................ 61

5.5.1 General ..................................................................................................... 61

5.5.2 Account ..................................................................................................... 63

5.5.3 PTZ ........................................................................................................... 67

5.5.4 Default ...................................................................................................... 68

5.5.5 Import/Export ............................................................................................ 69

5.5.6 Auto Maintenance ..................................................................................... 69

5.5.7 Upgrade .................................................................................................... 70

5.6 Information ...................................................................................................... 70

5.6.1 Version ..................................................................................................... 70

5.6.2 Log ............................................................................................................ 71

5.6.3 Online User ............................................................................................... 72

6 Alarm ........................................................................................................................... 73

7 Log out ........................................................................................................................ 74

iii

Important The following functions are for reference only. Some series products may not support all the functions listed below.

1 Network Connection

These series network camera products support the Web access and management via PC.

Web includes several modules: monitor channel preview, PTZ control, system configuration, alarm and

etc.

Please follow the steps listed below for network connection.

z Make sure the network camera has connected to the network properly.

z Network camera IP address and PC IP address shall be in the same network segment. If there is

router, please set the corresponding gateway and subnet mask.

z Use order ping ***.***.***.***(* network camera address) to check connection is OK or not.

2 Main Interface Introduction

2.1 Log in

Open IE and input network camera address in the address bar.

For example, if your camera IP is 192.168.1.108, then please input http:// 192.168.1.108 in IE address

bar. See Figure 2-1.

Figure 2-1

The login interface is shown as below. See Figure 2-2.

Please input your user name and password.

Default factory name is admin and password is admin.

Note: For security reasons, please modify your password after you first login.

Input your IP

address here

Figure 2-2

If it is your first time to login in, you may see the interface shown as in Figure 2-3.

Figure 2-3

Click on “Please click here to download and install the plug-in”. The system pops up warning information

to ask you whether run or save this plug-in. See Figure 2-4.

Figure 2-4

You must either run or save the file to local and install it. Follow the following steps. See Figure 2-5 and

Figure 2-6.

Figure 2-5

Figure 2-6

When plug-in installation completes, the installation page closes automatically. The web-end will

refresh automatically, and then you can view video captured by the camera.

2.2 Live Interface

After you logged in, you can see the live monitor window. See Figure 2-7

Figure 2-7

There are four sections:

z Section 1: Encode setup bar

z Section 2: System menu

z Section 3: Window function option bar

z Section 4: Window adjust bar

2.3 Encode Setup

The encode setup interface is shown as in Figure 2-8.

2 3 1

Figure 2-8

Please refer to the following sheet for detailed information.

Parameter

Function

Main stream

In normal network width environment, main stream can record audio/video file and realize network monitor. You can set the main stream resolution if your device supports.

Sub (Extra) stream

If network width is not sufficient, you can use sub stream to realize network monitor.

rotocol

You can select stream media protocol from the dropdown list. There are three options: TCP/UDP/Multicast

2.4 System Menu

System menu is shown as in Figure 2-9.

Please refer to chapter 2.2 Live, chapter 3 PTZ, chapter 4 Playback, chapter 5 Setup, chapter 6 Alarm,

chapter 7 Log out for detailed information.

Figure 2-9

2.5 Video Window Function Option

The interface is shown as below. See Figure 2-10

Figure 2-10

Please refer to the following sheet for detailed information.

Parameter

Function

Alarm on/off

To control alarm output as:

z Red: means alarm output.

z Grey: means alarm ends.

Digital zoom

z When the video is in the original status, click it you can

select any zone to zoom in. In the non-original status, you can drag the zoom-in zone in specified range. Right click mouse to restore previous status.

z Click it; you can use the middle button of the mouse to

zoom in/out the video size.

1 2 3 4 5 6 7 8 9

Snapshot

You can snapshoot important video by clicking on this button. All images are memorized in system folder:

\ picture

download (default). You can go to

Setup->Camera->Video->Path

to modify the

local record save path.

Triple snap

Click it, system can snap at 1f/s. All images are memorized in system storage folder.

Record

For manual record.

All records are memorized in Setup-

>Camera

->Video->Path.

Easy focus

Click it, you can see there are two parameters on the preview video

˖AF Peak and AF Max.

AF Peak: It is to display the video definition during the focus process.

AF Max: It is the most suitable value for the video definition.

The close the AF Peak and AF Max is, the better the focus effect is.

Audio output

Turn on or off audio when you are monitoring. 8

Bidirectional talk

Click it to begin audio talk.

You can go to Setup->Camera-

>Audio

to set bidirectional talk mode.

Help

Click it to open help file.

2.6 Video Window Setup

The interface is shown as in Figure 2-11.

Figure 2-11

2.6.1 Image control

Click it to open picture setup interface. See Figure 2-12. This interface is on the top right pane.

1 2 3 4 5

Figure 2-12

Please refer to the following sheet for detailed information.

Parameter

Function

Video setup

It is to adjust monitor video brightness.

Note: z All

the operations here apply

to WEB end only.

z Please go to Setup-

>Camera->Conditions to adjust corresponding items.

It is to adjust monitor video contrastness.

It is to adjust monitor video hue

It is to adjust monitor video saturation

Reset

Restore brightness, contrastness saturation and hue to system default setup.

2.6.2 Hide Image Control

Click this button to display/hide image control interface.

2.6.3 Original size

Click this button to go to original size. It is to display the actual size of the video stream. It depends on

the resolution of the bit stream.

2.6.4 Full screen

Click it to go to full-screen mode. Double click the mouse or click the Esc button to exit the full screen.

2.6.5 Width and height ratio

Click it to restore original ratio or suitable window.

2.6.6 Fluency Adjustment

There are three levels of fluency for you to select. The default is real-time with minimum delay. You may

select fluent mode in case connection is slow.

3 PTZ Control

Please note only IPC-HFxxxx series product support PTZ function.

Before PTZ operation, please make sure you have properly set PTZ protocol. (Please go to Setup-

>System->PTZ to set.).

Here you can view direction keys, speed, zoom, focus, iris, preset, tour, pan, scan, pattern, aux close,

and PTZ setup button. See Figure 3-1.

z PTZ direction: PTZ supports eight directions: left/right/up/down/upper left/upper right/bottom

left/bottom right.

z Speed: It controls rotation speed. The step 8 speed is faster than step 1. Default value is 5.

Figure 3-1

PTZ setting interface is shown as in Figure 3-2.

Here you can set scan, preset, tour, pattern, assistant function and light and wiper.

Figure 3-2

Please refer to the following sheet for PTZ setup information.

Parameter

Function

Scan

z Click Setup button, you can set scan left and right limit.

z Move the camera to you desired location and then click left limit

button. Then move the camera again and then click right limit button to set a right limit.

Preset

z Input the preset value and then click Preset button, the camera

turns to the corresponding position of the preset.

Click the Set preset button, you can set a preset. Use direction keys to move the camera to your desired location and then input

preset value. Click add button, you have set one preset.

z The preset value ranges from 1 to 255. (It may vary due to

different protocols.)

Tour

z Click the Setup button, you can begin set tour. z Input tour value and then click the Set button. The tour value

ranges from 1 to 255. (It may vary due to different protocols.)

z Input preset value in the column. Click Add preset button, you

have added one preset in the tour.

Note:

Repeat the above procedures you can add more presets in one tour. Or you can click delete preset button to remove one preset from the tour.

Pattern

You can input pattern value and then click start button to begin PTZ movement. Please go back to

Figure 3-1 to implement camera operation. Then you can click stop button in Figure 3-2. Now you have set one pattern.

Parameter

Function

Assistant

Please input the corresponding aux value here. You can select one

option and then click AUX on or AUX off

button.

Light and wiper

You can turn on or turn off the light/wiper.

4 Playback

4.1 Playback Interface

The playback interface is shown as in Figure 4- 1.

Figure 4- 1

There are four sections:

z Section 1: Function of play

z Section 2: Date

z Section 3: File list

z Section 4: Progress bar

4.2 Function of Play

The function of play is shown as in Figure 4- 2.

3 4 1

Figure 4- 2

1. Play: Play or pause video.

2. Stop: Stop video.

3. Play by frame: Skip to next frame.

4. Slow play: Slow down the video.

5. Quick play: Speed up the video.

6. Silent: Switch off/on sound.

7. Volume: Adjust volume of the video.

Note: You must pause video before skipping to next frame.

4.3 Date

There are various colors in calendar:

z Green: means currently selected date.

z Yellow: means current date has record file.

z Blue: means current date has record file which is/are selected.

Only file types selected will be displayed in progress bar and list.

4.4 File List

The file list is shown as in Figure 4- 3.

Figure 4- 3

Click on

to enter file list. Double click on record file in the list and this file will be played. You can

view file size, start and end time.

Record type has four catagories:

z Green means general record.

z Yellow means motion detection record.

z Red means alarm record.

z Blue means manual record.

Search: You can search record files within selected time interval.

Download: Click on this button, you can download file to PC.

Back: Click on this button, you will go back to calendar page.

4.5 Progress Bar

z means video in past 24 hours.

means video in past 2 hours.

means video in past 1 hour.

means video in past 30 min.

5 Setup

5.1 Camera

5.1.1 Conditions

Here you can view device property information. Slight differences may be found due to different network

camera series. The setups become valid immediately after you set. See Figure 5-1.

Figure 5-1

Please refer to the following sheet for detailed information.

Parameter

Function

Config File

You may select

general, day and night mode.

Bright

ness

It is to adjust monitor window bright. You can adjust this value if the video is too dark or too bright. The larger the number, the bright the video is. When you input the value

here, the bright section and the dark section of the video will be adjusted accordingly. Please note the video may become hazy if the value is too high.

The value ranges from 0 to 100. The recommended value ranges from 40 to 60.

The default value is 50.

Contrast

It is to adjust monitor window contrast. The larger the number, the

higher the contrast is. You can use this function when the

whole

video bright is OK but the contrast is not proper. Please

note the video may become

hazy if the value is too low. If this value is too high, the dark section may lack brightness while the bright section may over exposure .

The value ranges from 0 to 100. The recommended value ranges from 40 to 60. The default value is 50.

Saturation

It is to adjust monitor window saturation. The larger the number, the strong the color is. This value has no effect on the general brightness of the whole video. The video color may become too strong if the value is too high. For the grey part of the video, the distortion may occur if the white balance is not accurate. Please note the video may not be attractive if the value is too low.

The value ranges from 0 to 100. The recommended value ranges from 40 to 60.

The default value is 50.

Sharpness

The value here is to adjust the edge of the video. The larger the value

is, the

clear the edge is and vice versa. Please note there

is noise if the value here is too high.

The value ranges from 0 to 100. The recommended value ranges from 40 to 60.

The default value is 50.

Anti

-flicker

z Outdoor: In this mode, you can switch exposure mode to

get the effect under the corresponding exposure mode.

50Hz: When the current is 50Hz, system can auto adjust the exposure according to the environment brightness in case there is any strip.

z 60Hz: When the

current is 60Hz, system can auto adjust the exposure according to the environment brightness in case there is any strip.

Exposure Mode

Auto

The video whole brightness can automatically change within the proper exposure range according to the different

environments. The higher the gain max value is, the lower the noise is.

Low noise

The video whole brightness can automatically

change within the proper exposure range

according to the different environments. The

higher the gain max value is, the lower

the

noise is.

For the same environments, the noise of the

low noise mode shall be smaller than the noise of the auto mode.

Low motion blur

z The video whole brightness can automatically

change within the proper exposure range according to the different e

nvironments. The lower the exposure max value is, the week the tail is.

For the same environments, the noise of the low motion blur mode shall be smaller than that of the auto mode.

Manual

It is to display manual exposure value.

Auto Iris

Before the setup, please make sure you have installed the auto iris.

You can check the box before ON to enable this function. The auto iris may change if the light becomes different.

When you disable this function, the iris is at the max. System does not add the a

uto iris function in the exposure control.

This function is on by default.

Scene Mode

It is to set the white balance mode. It has effect on the general hue of the video. This function is on by default.

You can select the different scene mode such as auto, sunny, cloudy, home, office, night, disable and etc to adjust the video to the best quality.

z Auto: The auto white balance is on. System can auto

compensate the color temperature to make sure the vide color is proper.

z Sunny: The threshold of the whit

e balance is in the sunny

mode.

z Night: The threshold of the white balance is in the night

mode.

Customized: You can set the gain of the red/blue channel. The value reneges from 0 to 100.

Day&Night

It is to set device color and the B/W mode switch. When config file is

general, the default is auto. When config file is day, the default is color. When config file is night, the default is black & white.

z Color: Device outputs the color video.

z Auto: Device auto select to output the color or the B/W

video a

ccording to the device feature (The general bright of

the video or there is IR light or not.)

z B/W: The device outputs the black and white video.

Backlight Mode

BLC

The device auto exposure

s according to the

environments situation so that the darkest area of the video is cleared

WDR

For the WDR scene, this function can lower the high bright section and enhance the brightness of the low bright section. So that you can view these two sections clearly at the same time.

The value ranges from 1 to 100. When you switch the camera from no

-WDR mode to the WDR mode, system may lose several seconds record video.

HLC

After you enabled HLC function, the device can lower the brightness of the brightest section according to the HLC control level. It can reduce the area of the halo and lower the brightness of the whole video.

The value ranges from 0 to 100. The default value is 50 when HLC is on.

HLC is enabled only when anti-flicker is outdoor and exposure mode is auto.

Off

It is to disable the BLC function. Please note this function is disabled by default.

Full-screen test Click the

button on the video window, you can begin full-

screen test.

Flip It is to switch video up and bottom limit.

This function is disabled by default.

The video resolution shall be 720P or below if you want to flip 90°.

Mirror

It is to switch video left and right limit.

This function is disabled by default.

Cancel

It is to cancel the operation in current interface

and restore

previously saved operation.

Default

It is to set de

vice default setup.

The profile management interface is shown as in Figure 5-2.

Figure 5-2

Profile management has three modes: general, full time and schedule. If you select general, the video

will be configured as general. If you select full time, you must select either day or night, and the video

will be configured accordingly. If you select schedule, you can decide detained time interval.

Important

z The setup becomes immediately after you set.

z IPC-3110 series product does not support the low noise mode, low motion blur, defend flicker mode,

digital WDR, HLC, flip, mirror and etc functions.

z You can see WDR option only if your camera supports WDR function. System does not support

long-time exposure or low noise mode.

5.1.2 Video

5.1.2.1 Video bit stream

The video bit stream interface is shown as below. See Figure 5-3.

Figure 5-3

Please refer to the following sheet for detailed information.

Parameter

Function

Main stream

Bit stream type

It includes general stream, motion stream and alarm stream. You can select different encode frame rates form different recorded events.

System supports active control frame function (ACF). It allows you to record in different frame rates.

For example, you can use high frame rate to record important events, record scheduled event in lower frame rate and it allows you to set different frame rates for motion detection record and alarm record.

Encode mode

There are three options: H.264 (main profile standard), H.264H (high profile

standard), H.264B (baseline

standard)encode and MJPG encode.

z H.264 ˖Main Profile encode mode. z H.264H : High Profile encode mode. z H.264B ˖Baseline Profile encode mode z MJPEG ˖

In this encode mode, the video needs larger bit stream to guarantee the video definition. You can use the max bit stream value in the recommend bit to get the better video output effect.

Parameter

Function

Resolution

There are multiple resolutions. You can select from the dropdown list.

For each resolution, the recommended bit stream value is different.

Important

You can not set a resolution higher than 720P (not including 720P) when the flip function is in process.

Frame Rate

PAL: 1

25f/sˈNTSC: 130f/s..

The frame rate may vary due to different resolutions.

Bit Rate Type

There are two options: VBR and CBR. Please note, you can set video quality in VBR mode.

Reference Bit Stream

Reference bit rate value according to the resolution and frame rate you have set.

Bit Rate

z In VBR, the bit rate here is the max value. In CBR,

it is a fixed value.

z See reference bit stream for recommended value.

I Frame

Here you can set the P frame amount between two I frames. The value ranges from 1 to 150. Default value is 50.

Recommended value is frame rate *2.

Watermark

This function allows you to verify the video is tampered or not. Here you can select watermark bit stream, watermark mode and watermark character. Default character is DigitalCCT

V. The max length is 85-digit.

The character

can only include number, character and underline.

Sub stream

Enable

Please check the box here to enable extra stream function. This function is enabled by default.

Bit stream type

General bit stream.

Parameter

Function

Encode mode

There are three options: H.264(main profile standard, H.264H (high profile standard),

H.264B(baseline standard)encode and MJPG encode. z The H.264, H.264H

and H.264B both are H264 bit stream. H.264 is the Main Profile encode and the H.264B is the Baseline Profile encode mode. H.264B is for Blackberry cell phone to realize the monitor. You need to enable the sub stream function in your camera and set the resolution as CIF. Then you can monitor via the Blackberry cell phone.

z MJPEG: In this enco

de mode, the video needs to large bit stream to guarantee the video definition. You can use the max bit stream value in the recommend bit to get the better video output effect.

Resolution

There are multiple resolutions. You can select from the dropdown

list.

For each resolution, the recommended bit stream value is different.

Frame Rate

PAL: 1

25f/sˈNTSC: 130f/s..

The frame rate may vary due to different resolutions.

Bit Rate Type

There are two options: VBR and CBR. Please note, you can set video quality in VBR mode.

Recommended Bit

Recommended bit rate value according to the resolution and frame rate you have set.

Bit Rate

z In CBR, the bit rate here is the max value. In

dynamic video, system needs to low frame rate or video quality to guarantee the value.

z The value is null in VBR mode.

z Please refer to recommend bit rate for the detailed

information.

I Frame

Here you can set the P frame amount between two I frames. The value ranges from 1 to 150. Default value is 50.

Recommended v

alue is frame rate *2.

5.1.2.2 Snapshot

The snapshot interface is shown as in Figure 5-4.

Figure 5-4

Please refer to the following sheet for detailed information.

Para

meter

Function

Snapshot type

There are two modes: general (schedule) and Event (activation).

Image size

It is the same with the resolution of the main stream.

Quality

It is to set the image quality. There are six levels.

Snapshot bit stream

It is to set snapshot bit rate as main or sub.

Interval

It is to set snapshot frequency. The value ranges from 1s to 7s.

5.1.2.3 Video Overlay

The video overlay interface is shown as in Figure 5-5.

Figure 5-5

Please refer to the following sheet for detailed information.

Parameter

Function

rivacy mask

z Here you can privacy mask the specified video in the

monitor video.

z System max supports 4 privacy mask zones.

Time Title

z You can enable this function so that system overlays time

information in video window.

z You can use the mouse to drag the time tile position.

Channel Title

z You can enable this function so that system overlays

channel information in video window.

z You can use the mouse to drag the channel tile position.

5.1.2.4 Path

The storage path interface is shown as in Figure 5-6.

Here you can set snap image saved path (

in the preview interface) and the record storage path

(

in the preview interface).The default setup is C:\PictureDownload and C:\RecordDownload.

Please click the Save button to save current setup.

Figure 5-6

5.1.3 Audio

Please note IPC-HDB3xxxC series product does not support audio function.

The audio interface is shown as below. See Figure 5-7.

Figure 5-7

Please refer to the following sheet for detailed information.

Parameter

Function

Audio enable

Main stream: Recorded file only contains video by default. You need to check the audio box here to enable audio function.

Sub (

Extra) stream: Recorded file only contains video by

default. You need to check the audio box here to enable audio function.

Encode mode

The encode mode of the main stream and extra stream include PCM

, G.711A and G.711Mu.

The setup here is for audio encode mode and the bidirectional talk encode both.

5.2 Network

5.2.1 TCP/IP

The TCP/IP interface is shown as in Figure 5-8.

Figure 5-8

Please refer to the following sheet for detailed information.

Parameter

Function

Host N

ame

It is to set current host device name. It max supports 32-digit character.

Ethernet Card

Please select the Ethernet port. It is for the wire LAN by default.

Please note for the

-W series product, it has the wireless

network card, and you

can modify the default Ethernet port

setup

ease note the device needs

to reboot to activate the new

setup once you modify the default setup.

Mode

There are two modes: static mode and the DHCP mode.

z The IP/submask/gateway are null when you select the

DHCP mode to auto search the IP.

z If you select the static mode, you need to set the

IP/submask/gateway manually.

z If you select the DHCP mode, you can view the

IP/submask/gateway from the DHCP.

If you switch from the DHCP mode to the static mode, you need to reset the IP parameters.

z Besides, IP/subm

ask/gateway and DHCP are read-only

when the PPPoE dial is OK.

Mac Address

It is to display hose Mac

address.

IP V

ersion

It is to select IP version. IPV4 or IP

V6.

You can access the IP address of these two version.

IP A

ddress

Please use the keyboard to input the corresponding number to modify the IP address and then set the corresponding subnet mask and the default gateway.

Preferred DNS

DNS IP address.

Alternate DNS

Alternate DNS IP address.

Enable ARP/Ping set device IP address service.

You can use ARP/Ping command to modify or set the device IP address if you know the device MAC address.

Before the operation, please make sure the network camera and the PC in the same LAN. This function is on by default.

You can refer to the

steps listed below.

Step 1: Get an IP address. Set the network camera and the PC in the same LAN.

Step 2: Get the physical address from the label of the network camera

Step 3: Go to the Run interface and then input the following commands.

arp –s <IP Address> <MAC>

ping –l 480 –t <IP Address>

Such as˖arp -s 192.168.0.125 11-40-8c-18-10-11

ping -l 480 -t 192.168.0.125

Step 4: Reboot the device.

Step 5: You can see the setup is OK if you can see there are

output information such as “Reply from 192.168.0.125 …” from

the command output lines. Now you can close the command line.

Step 6: Open the browse and then input http://<IP addres>. Click the Enter button, you can access now.

5.2.2 Connection

The connection interface is shown as in Figure 5-9.

Figure 5-9

Please refer to the following sheet for detailed information.

Parameter

Function

Max connection

It is the max Web connection for the same device.

The value r

anges from 1

to 20. The max connection amount is 20.

TCP port

The default value is 37777. You can input the actual port number if necessary.

UDP port

The default value is 37778. You can input the actual port number if necessary.

HTTP port

The defaul

t value is 8

0. You can input the actual port number if necessary.

RTSP port

The default value is 554. Rtsp stream query format is:

Main stream: rtsp://username:password@ip:port/cam/realmonitor?channel=1&subtype=0

Sub stream: rtsp://username:password@ip:port/cam/realmonitor?channel=1&subtype=1

You need to input the following four items manually.

username/password/IP and port.

The IP is device IP and the port default value is 554. You can leave it in blank if it is the default value.

Follow standard RTP protocol and when encode mode is MJPEG, the max resolution only supports 2040*2040.

HTTPs Enable

The default value is 443.

5.2.3 PPPoE

The PPPoE interface is shown as in Figure 5-10.

Input the PPPoE user name and password you get from the IPS (internet service provider) and enable PPPoE function. Please save current setup and then reboot the device to get the setup activated.

Device connects to the internet via PPPoE after reboot. You can get the IP address in the WAN from

the IP address column. When PPPoE is on, please disable UPnP to avoid influence on dial-up.

Please note, you need to go to the IP address item to via the device current device information.

You can access the client-end via this address.

Figure 5-10

5.2.4 DDNS

The DDNS interface is shown as in Figure 5-11.

The DDNS is to set to connect the various servers so that you can access the system via the server.

Please go to the corresponding service website to apply a domain name and then access the system

via the domain. It works even your IP address has changed. When the device connects to WLAN, you

should disable UPnP.

Figure 5-11

Please refer to the following sheet for detailed information.

Parameter

Function

Server Type

You can select DDNS protocol from the dropdown list and then enable DDNS function. The

QUICK

DDNS protocol means you

use your self

-defined priv

ate protocol to realize DDNS function.

Server Address

DDNS server IP address

Domain Name

Your self

-defined domain name.

Username

The user name you input to log in the server.

Password

The password you input to log in the server.

Update period

z Device sends out alive signal to the server regularly.

z You can set interval value between the device and DDNS

server here.

The DDNS interface is shown as in Figure 5-12.

Figure 5-12

Parameter

Function

erver Type

You can select DDNS protocol from the dropdown list and then enable DDNS function. The

QUICK DDNS means you use your self-

defined private protocol to

realize DDNS function.

Server Address

DDNS server IP address

. Under QUICK DDNS the default server address is

www.quickddns.com

Mode

The default is auto, and you can select manual.

Domain Name

Auto and self

-defined domain names are both MAC

address.quickddns.com. You can self

-define prefix.

Test It is to test domain name. It is available only under manual mode.

Username

The user name you input to log in the server. Optional.

5.2.5 IP filter

The IP filter interface is shown as in Figure 5-13.

You can enable IP filter function so that some specified IP/MAC user can access the network camera.

You can add IP address or IP address section.

If you do not check the box here, it means there is on access limit.

Here you can add IP address and MAC address. You must add these address before enabling the

trusted sites.

Please note: You must set MAC address in the same network segment.

Figure 5-13

5.2.6 SMTP ˄

e-mail)

The SMTP interface is shown as in Figure 5-14.

Figure 5-14

Please refer to the following sheet for detailed information.

Parameter

Function

SMTP Server

Input server address and then enable this function. Port

Default value is 25. You can modify it if necessary.

Anonymity

For the server supports the anonymity function. You can auto login anonymously. You do not need to input the user name, password

and the sender information.

User Name

The user name of the sender email account. Password

The password of sender email account. Sender

Sender email address.

Authentication (Encryption mode

)

You can select SSL or none.

Title (

Subject)

Input email subject here.

Attachment

System can send out the email of the snapshot picture once you check the box here.

Mail receiver

Input receiver email address here. Max three addresses.

Parameter

Function

Interval

The send interval ranges from 0 to 3600 seconds. 0 means ther

e is no interval. Please note system will not send out the email immediately when the alarm occurs. When the alarm, motion detection or the abnormity event activates the email, system sends out the email according to the interval you specified here. This function is very useful when there are too many emails activated by the abnormity events, which may result in heavy load for the email server.

Health mail enable

Please check the box here to enable this function.

Update period (interval

)

This function allows the system to send out the test email to check the connection is OK or not. Please check the box to enable this function and then set the corresponding interval. System can send out the email regularly as you set here.

Email test

The system will automatically sent out a email once to test the connection is OK or not .Before the email test, please save the email setup information.

5.2.7 UPnP

It allows you to establish the mapping relationship between the LAN and the public network.

Here you can also add, modify or remove UPnP item. For UPnP on different routers, you must disable

UPnP function. See Figure 5-15.

In the Windows OS, From Start->Control Panel->Add or remove programs. Click the “Add/Remove

Windows Components” and then select the “Network Services” from the Windows Components Wizard.

Click the Details button and then check the “Internet Gateway Device Discovery and Control client” and

“UPnP User Interface”. Please click OK to begin installation.

Enable UPnP from the Web. If your UPnP is enabled in the Windows OS, the network camera can auto

detect it via the “My Network Places”

Figure 5-15

5.2.8 SNMP

The SNMP interface is shown as in Figure 5-16.

The SNMP allows the communication between the network management work station software and the

proxy of the managed device. Please install the software such as MG MibBrowser 8.0c software or

establish the SNMP service before you use this function. You need to reboot the device to activate the

new setup.

Figure 5-16

Please refer to the following sheet for detailed information.

Parameter

Function

SNMP

port

The listening port of the proxy program of the device. It is a UDP port not a TCP port. The value ranges from 1 to 65535. The default value is 161

Read community

It is a string. It is a command between the manage process and the proxy process. It defined the authentication, access control and the management relationship between one proxy and one group of the managers. Please make sure the device and the proxy are the same. T

he read community will read all the objects the SNMP

supported in the specified name. The default setup is public.

Write community

make sure the device and the proxy are the same. The read community will read/write/access all the objects the SNMP supported in the specified name. The default setup is write.

Trap

address

The destination address of the Trap information from the proxy

program of the device.

Parameter

Function

Trap port

The destination port of the Trap information from the proxy program of the device. It is for the gateway device and the client

-end PC in the LAN to exchange the information. It is a

non

-protocol connection port. It has no effect on the network applications. It is a UDP port not TCP port. The value ranges from 1 to 165535. The default value is 162.

SNMP version

z SNMP V1: system only processes the information of V1.

z SNMP V2:

system only processes the information of V2.

z SNMP V3:

you can set user name and password. There is account security verification when the server wants to connect to the device. At the same time, the v1 and V2 is null and cannot select.

Username readonly

Only when SNMP version is SNMP v3, you shall config this parameter. The default is public.

Authentication

Only when SNMP version is SNMP v3, you shall config this parameter. You can select either MD5 or SHA. The default is MD5.

Authentication password

Only when SNMP version is SNMP v3, you shall config this parameter. Password requires min of 8 characters.

Encryption

Only when SNMP version is SNMP v3, you shall config this parameter.

The default is CBC-DES.

Encryption password

Only when SNMP version is SNMP v3, you shall config this parameter.

Password requires min of 8 characters.

Username read/write

Only when SNMP version is SNMP v3, you shall config this parameter. The default is private.

Authentication

Only when SNMP version is SNMP v3, you shall config this parameter. You can select either MD5 or SHA. The default is MD5.

Authentication password

Only when SNMP version is SNMP v3, you shall config this parameter. Password requires min of 8 characters.

Encryption

Only when SNMP version is SNMP v3, you shall config this parameter. The de

fault is CBC-DES.

Encryption password

Only when SNMP version is SNMP v3, you shall config this parameter. Password requires min of 8 characters.

5.2.9 Bonjour

The Bonjour interface is shown as below. See Figure 5-17.

Bonjour is based on the multicast DNS service from the Apple. The Bonjour device can automatically

broadcast its service information and listen to the service information from other device.

You can use the browse of the Bonjour service in the same LAN to search the network camera device

and then access if you do not know the network camera information such as IP address.

You can view the server name when the network camera is detected by the Bonjour. Please note the

safari browse support this function. Click the “Display All Bookmarks: and open the Bonjour, system can

auto detect the network camera of the Bonjour function in the LAN.

Figure 5-17

5.2.10 Multicast

The multicast interface is shown as in Figure 5-18.

Multicast is a transmission mode of data packet. When there is multiple-host to receive the same data

packet, multiple-cast is the best option to reduce the broad width and the CPU load. The source host

can just send out one data to transit. This function also depends on the relationship of the group

member and group of the outer.

Here you can set multicast address and port. You also need to go to Live interface to set the protocol as

Multicast.

Figure 5-18

Please refer to the following sheet for detailed information.

5.2.11 WIFI

Please note this function is for the device of WIFI module.

The WIFI interface is shown as in Figure 5-19.

Parameter

Function

Enable

Select to enable multicast function. Main stream and sub stream cannot be used at the same time.

Multicast address

Main/sub stream multicast address is

239.255.42.42 and its range is

224.0.0.0

239.255.255.255.

Port

Multicast port. Main stream is 3

6666, sub stream is 36667

and the range is

1025

65534.

Figure 5-19

Please check the box to enable WIFI function and then click the Search SSID button. Now you can view

all the wireless network information in the following list. Double click a name to connect to it. Click on

add wireless ID, and add designated ID in dialog box. Please make sure that you can find the just

added ID in list, otherwise you cannot use this ID.

See Figure 5-20.

Figure 5-20

5.2.12 IEEE802

IEEE802.1X works standing for local and metropolitan area networks and port based network access

control protocol. It supports manual operation of the client to choose means of authenticating by which

to control it to access to the Local Area Networks or not. It supports the ability to authenticate, to

calculate fee, to ensure security and to maintain requirements. See Figure 5-21.

Figure 5-21

Please refer to the following sheet for detailed information.

Parameter

Function

Authentication

PEAP (protected EAP protocol).

Username

It needs the username to login, which is a

uthenticated by the

server.

Password

Please input password here.

5.2.13 QoS

The QoS interface is shown as below. See Figure 5-22.

Qos (Quality of Service) is network security mechanism. It is a technology to fix the network delay and

jam problem and etc. For the network service, the quality of service includes the transmission bandwidth,

delay, the packet loss and etc. We can guarantee the transmission bandwidth, lower the delay, reduce

the loss of the data packet and anti-dither to enhance the quality.

We can set the DSCP (Differentiated Services Code Point) of the IP to distinguish the data packet so

that the router or the hub can provide different services for various data packets. It can select the

different queues according to the priority of the packets and select the bandwidth of the each queue. It

can also discard at the different ratio when the broad bandwidth is jam.

Figure 5-22

Please refer to the following sheet for detailed information.

Parameter

Function

Real

-time

monitor

The value ranges from 0 to 63. The router or the switcher can provide different service for various data packets.

Command

The value ranges from 0 to 63. The router or the switcher can provide different service for various data packets.

Enable wireless QoS

Check it to enable QoS.

5.2.14 3G

Note: This function is only for series with 3G module.

The 3G interface is shown as in Figure 5-23.

Figure 5-23

5.2.14.1 Dial-up

The dial-up interface is shown as in Figure 5-24.

Figure 5-24

Please refer to the following sheet for detailed information.

Parameter

Function

Wireless connection

type

The def

ault is auto and it supports dial-up, sms and

incoming call.

Enable

Check to enable 3G module.

Authentication

This function depends on your local 3G provider.

Dial

-up

This function depends on your local 3G provider.

Username

This function depends on y

our local 3G provider.

Password

This function depends on your local 3G provider.

Auto

period

It is period for device to receive 3G signal every 30s other than scheduled period. The default is 30s.

Interval

You can set dial

-up interval. You also can dia

l if you enable

dial

-up/sms. The dial-up/sms and dial-

up interval is related.

address

It displays received IP when 3G dial

-up succeeds.

5.2.14.2 Mobile Phone

The mobile phone interface is shown as in Figure 5-25.

Figure 5-25

Please refer to the following sheet for detailed information.

Parameter

Function

SMS sending

In event management, check corresponding sms, so when

there is event, a sms will be sent to mobile phone in corresponding receiving list.

To use this function, you shall

check sms enable in event management interface.

SMS enable

Mobile phone numbers in the list can enable/disable dial-up function and reboot device by sending sms to SIM card in the device.

Tel Activation

Mobile phone numbers in the list can call the SIM card in the device to enable/disable dial

-up function.

5.3 Event

5.3.1 Video detect

5.3.1.1 Motion Detect

The motion detect interface is shown as in Figure 5-26.

Figure 5-26

Please refer to the following sheet for detailed information.

Parameter

Function

Enable

You need to check the box to enable motion detection function.

Working Period

Here you can set arm/disarm period. Click on set button to open period setup menu.

Anti-dither

System only memorizes one event during the anti-dither period. The value ranges from 0s to 100s.

Area

Here you can set motion detection region and its sensitivity and area. The default covers all regions. You must click on save before enabling your setup.

Record

When record is enabled, you can trigger motion detection to activate record.

Record Delay

System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s.

Relay out

Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occurs.

Alarm Delay

System can delay the alarm output for specified time after alarm ended. The value ranges from 10s to 300s.

Parameter

Function

Send Email

If you enabled this function, System can send out email to alert yo when alarm occurs and ends.

PTZ

z Here you can set PTZ movement when alarm occurs. Such

as go to preset x when there is an alarm.

z The event type includes: preset, tour and pattern.

Snapshot

You need to check the box here so that system can backup motio detection snapshot file.

See Figure 5-27.

Figure 5-27

See Figure 5-28.

Figure 5-28

Please refer to the following sheet for detailed information.

Parameter

Function

Sensitivity

It is sensitivity of brightness as motion detection is more possible to be trigger with high sensitivity. You can set up to four areas. The range is 0~100. The recommenced value is 30~70. The default is 50.

Area threshold

It is to check target object area related to detection area. The lower the area threshold, the easier to trigger motion detection. Yo

u can set up to four areas. The range is 0~100. The

recommenced value is 10~50.

Remove all

Clear all areas.

Delete

Delete selected area.

5.3.1.2 Video Masking

The video masking interface is shown as in Figure 5-29 and Figure 5-30.

Figure 5-29

Figure 5-30

Please refer to the following sheet for detailed information.

Parameter

Function

Enable

You need to check the

box to enable this function.

Working period

z Video masking function becomes activated in the specified

periods.

z There are six periods in one day. Please draw a circle to

enable corresponding period.

z Select date. If you do not select, current setup applies to

today only. You can select all week column to apply to the whole week.

z Click OK button, system goes back to motion detection

interface, please click save button to exit.

Record

After record is enabled, video masking can activate video.

Record delay

System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s.

Relay out

Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occu

rs.

Alarm delay

System can delay the alarm output for specified time after alarm ended. The value ranges from 10s to 300s.

Parameter

Function

Send Email

If you enabled this function, System can send out email to alert you when alarm occurs.

PTZ

z Here you can set PTZ movement when alarm occurs. Such

as go to preset x when there is an alarm.

z The event type includes: preset, tour and pattern.

Snapshot

After snapshot is enabled and alarm happens, the system will automatically snapshot and alarm.

5.3.2 Alarm

Please note IPC-HDB3xxxC series product does not support this function.

5.3.2.1 Alarm activation

The alarm activation interface is shown as in Figure 5-31.

Figure 5-31

Please refer to the following sheet for detailed information.

Parameter

Function

Enable

You need to check the box to enable

this function.

Alarm input

The default is alarm 1 and for some devices may be alarm 2.

Parameter

Function

Working period

z This function becomes activated in the specified periods. z There are six periods in one day. Please draw a circle to

enable corresponding period.

z Select date. If you do not select, current setup applies to

today only. You can select all week column to apply to the whole week.

z Click OK button, system goes back to motion detection

interface; please click save button to exit.

Anti

-dither

System only memorizes one event during the anti-dither period. The value ranges from 0s to 100

Sensor type

There are two options: NO/NC.

Record

System auto activates motion detection channel to record once alarm occurs (working with motion detection function).

Record Delay

System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s.

Relay out

z There is 1-channel alarm output. z Corresponding to motion detection alarm output port. z

Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occurs.

Alarm delay

System can delay the alarm output for specified time after alarm ended. The value ranges from 10s to 300s.

Send Email

If you enabled this function, System can send out email to alert you when alarm occurs and ends.

PTZ

z Here you can set PTZ movement when alarm occurs. Such

as go to preset x when there is an alarm.

z The event type includes: preset, tour and pattern.

Snapshot

After you enabled snapshot, the system will automatically snapshot if alarm occurs.

5.3.3 Abnormity

It includes five statuses: No SD card, capacity warning, SD card error, and disconnection and IP conflict.

There are two interfaces for you reference. See Figure 5-32 through Figure 5-36.

Figure 5-32

Figure 5-33

Figure 5-34

Figure 5-35

Figure 5-36

Please refer to the following sheet for detailed information.

Parameter

Function

Event Type

z The abnormal events include: no disk, no space, disk error, net

error, offline, IP conflict.

Threshold: You can set the minimum percentage value here. The device can alarm when capacity is not sufficient.

z You need to draw a circle to enable this function.

Record

System auto activates channel to record once alarm occurs (For offline type only. See

Figure 5-36. ).

You need to check the box to enable this function.

Record delay

System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s.

Relay Out

The corresponding alarm output channel when alarm occurs. You need to

check the box to enable this function.

Relay out delay

The alarm output can delay for the specified time after alarm stops. The value ranges from 10s to 300s.

Parameter

Function

Send email

If you enable this function, system can send out email to alarm the specified use

This function is invalid when network is offline or IP conflict occurs.

5.4 Storage

5.4.1 Record Schedule and Snapshot Schedule

In these two interfaces, you can add or remove the schedule record/snapshot setup. See Figure 5-37

and Figure 5-38.

There are three record modes: general (auto), motion detect and alarm. There are six periods in one

day. Please make sure you have enabled the corresponding record mode in the Setup->Storage-

>Conditions.

You can view the current time period setup from the color bar.

z Green color stands for the general record/snapshot.

z Yellow color stands for the motion detect record/snapshot..

z Red color stands for the alarm record/snapshot.

Figure 5-37

Figure 5-38

You can set specified dates as holiday. When snapshot of holiday is enabled, the selected dates will be

snapshot/recorded according to holiday setup.

5.4.2 Destination

The destination interface is shown as in Figure 5-39.

It is to set the storage mode of the network camera record file or snapshot pictures. There are two

options: local/FTP. You can only select one mode. System can save according to the event types. It is

corresponding to the three modes (general/motion/alarm)in the Schedule interface. Please check the

box to enable the save functions.

Figure 5-39

Please refer to the following sheet for detailed information.

Parameter

Function

Event Type

It includes: general,

motion detect and alarm.

Parameter

Function

Local

It saved in the

Micro SD card.

FTP

It saved in the FTP server.

The local interface is shown as in Figure 5-40. Here you can view local Micro SD card or disk

information. You can also operate the read-only, write-only, hot swap and format operation.

Figure 5-40

The FTP interface is shown as in Figure 5-41. You need to check the box to enable the FTP function.

When network disconnect occurred or there is malfunction. Emergency storage can save the

record/snapshot picture to the local Micro SD card.

Figure 5-41

5.4.3 Record control

The record control interface is shown as in Figure 5-42.

Hiltron THC20IP, HFW3300C, HFW3200C, HFW3100C, HFW3101C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
